Morphological and linear viscoelastic properties of chitosan and multiwalled carbon nanotube nanocomposites.
J. R. González-Martínez1, R. Gámez-Corrales2, F. Barffuson-Dominguez2, G.T. Paredes-Quijada3
1J.R. González-Martínez, Departamento de Investigación en Física, Universidad de Sonora, Apdo. Postal 1626, 83000 Hermosillo, Sonora, México.
2R. Gámez-Corrales, Professor, Departamento de Física, Universidad de Sonora, Apdo. Postal 1626, 83000, Hermosillo, Sonora, México. E-mail: rogelio.gamez@unison.mx.
2F. Barffuson-Dominguez, Departamento de Física, Universidad de Sonora, Apdo. Postal 1626, 83000, Hermosillo, Sonora, México.
3G.T Paredes-Quijada, Departamento de Ciencias Químico-Biológicas, Universidad de Sonora, Hermosillo, Sonora, México.
Abstract –
Thepresentstudyinvestigatesthemorphologicalandlinear rheological properties of chitosan and multi-walled carbon nanotubes (MWCNT) nanocomposites. A correlation is identifiedbetweenthemorphologicalpropertiesofthenano aggregates inducedbyMWCNTsandtheiroscillatorylinear rheology. The morphological properties were evaluated by atomic force microscopy. The linear rheological measurements were carried out as a function of the temperature range of 15 – 45QC in aqueous solutions and are presented herein. Atomic force microscopy (AFM) was employed to ascertain the presence and extent of hierarchicalself-assembledaggregated.
Key Words: Chitosan,MWCNT,nanoparticles,hierarchical structures,rheology,AFM.
1. INTRODUCTION
Theutilizationofnaturalpolymersinindustrialprocesses has increased significantly. This increase is driven by a need to develop environmentally friendly products. Chitosan, a polysaccharide composed of poly[β-(1-4)-2amino-2-deoxy-D-glucopyranose] (see Figure 1), has emergedasaprominentagentinthisfield[1].Itispresent in low concentrations in native chitin and is produced in varyingdegreesofdeacetylation. Additionally,chitosanis present in certain fungal species [2], albeit in quantities lowerthanchitin.Thedeacetylationofchitin,acomponent ofthe exoskeletonofcrustaceanssuchasshrimp,leadsto the health engineering are notable, attributable to its antimicrobial, biocompatible, and biodegradable properties [3][4][5]. Studies have demonstrated that chitosancanpromotewoundhealing[3].Inotherfieldsof application, the removal of heavy metals from aqueous solutions has been demonstrated [6–8] . Conversely, the capacity of these natural materials to inhibit microbial growthsuggeststheirpotentialuseasbiodegradablefood packaging [9]. Given its innocuous nature, using chitin to combat fungi and bacteria has emerged as a viable
strategy [10]. The data demonstrate the viability of the chains in terms of their size and the degree of their acetylation [11]. Given the inherent variability of these biopolymers, it is necessary to employ both molecular weight and average degree of deacetylation values for thesebiopolymers.Thedegreeofdeacetylationisapivotal parameter in quantifying the relative concentration of amino groups within the polymer. A polymer containing lessthan40%acetylgroupscanbedesignatedaschitosan or with a degree of deacetylation of 60%. Chitosan is a biocompatible, non-toxic, biodegradable polymer with film-forming and antimicrobial properties, rendering it a material with plenty of applications. One such application isextendingtheshelflifeoffreshfoodproducts,including vegetablesandmeats,duetotheirhighactivity.

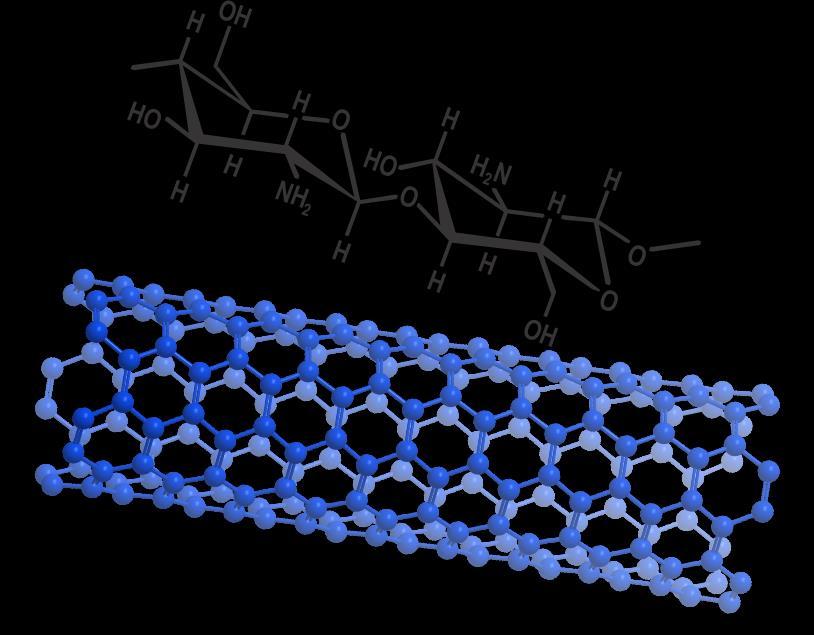

Figure1Schematicmolecularstructureofchitosanand carbonnanotube.
Carbonnanotubesareaclassofnanomaterialcomposedof a sheet of benzene rings rolled on their axis[12] . These nanotubes can be rolled into one, two, or multiple layers, which impart distinct physicochemical properties,
International Research Journal of Engineering and Technology (IRJET) e-ISSN:2395-0056
Volume: 12 Issue: 04 | Apr 2025 www.irjet.net p-ISSN:2395-0072
regardlessofthenumberoflayersortheorientationofthe benzene rings within the sheet of carbon atoms. These nanotubesareformedbycurved,closedhexagonalcarbon networks (Figure 1), consisting of nanometric carbon cylinders that exhibit fascinating properties that have attracted considerable interest from researchers in numerous technological applications [12]. These nanotubes exhibit a lightweight, hollow, and porous structure, along with high mechanical resistance, rendering them suitable for the structural reinforcement of materials. Their tensile strength and elasticity are noteworthy[13].
Most applications in which chitosan and CNTs are used require a material with excellent viscoelastic properties and control of its structure at the nanometric and micrometric scale [14][15][16]. The combination of these two materials results in nanocomposites with improved properties. The mechanical properties of the nanocomposites, such as Young's modulus, tensile strength, and elongation, are significantly improved by adding MWCNTs[17] . Pure chitosan multilayer films exhibited substantially lower tensile strength and elongation than pure chitosan solid films. However, the relative improvement in mechanical properties of the porous MWCNT/chitosan multilayer nanocomposites was higher, especially in elongation, which showed a twofold improvement in deformation [18]. The strain rate sensitivity of the films was also investigated, and it was observedthattheviscoelasticbehaviorofthemultilayered and foamed pure chitosan could become more pronounced with increasing strain rate [19]. On the other hand,theinteractionbetweenthechitosanpolymerchains and the surface-modified MWCNTs could dampen the viscoelastic properties. In addition to the mechanical properties [16], it was found that these materials are not cytotoxic to osteoblasts, suggesting that they may hold promise for tissue engineering applications [20]. The potential of MWCNT-reinforced chitosan nanocomposites as multifunctional materials with enhanced properties. Their ability to improve mechanical, thermal, and biological properties makes them promising candidates forvariousapplications,includingtissueengineering [21], drugdelivery[22],andbiomedicaldevices[23]
This study comprehensively examines the linear oscillatory rheology of chitosan and the material's morphology in the presence of multi-walled carbon nanotubes(MWCNTs).Atomicforcemicroscopyfacilitates thecharacterizationofmorphology.
2. EXPERIMENTAL DETAILS
2.1 Sample preparations
The study used three molecular weights of chitosan (low, medium,andhigh,70-190kDa,190-310kDa,and310-390 kDa,respectively)andMWCNT.ThechitosanandMWCNT
powderswereobtainedfromSigma-Aldrichandemployed withoutpriorpurification.Thesolventmixturecomprised a solution of ultrapure water (with an electrical conductivityofatleast18.2MΩ/cm)andaceticacid(pHof 4.5).
2.2 Atomic Force Microscopy
A drop was placed on a metal grid and allowed to dry before being observed in an atomic force microscope (AFM) JEOL JSPM-4210. All the AFM measurements were performedinatappingmodewithafrequencyof325kHz, andaconstantforceof40Nwithatipof8nm.
2.3 Rheological measurements
The linear rheological properties were determined in a controlled strain mode utilizing an Anton Paar MCR 300 rheometer with a cone-plate geometry (cone angle 0.98° and 50.0 mm of diameter). The Temperature was maintainedusingcontrolconductedusingaPeltiersystem (TEK150P-C), and a humidification chamber was employed to prevent alterations in sample composition resulting from solvent evaporation during the measurements. All measurements were conducted within afrequencyrangeof0.1and100rad/s.
3. RESULTS AND DISCUSSION
3.1 Atomic Force Microscopy

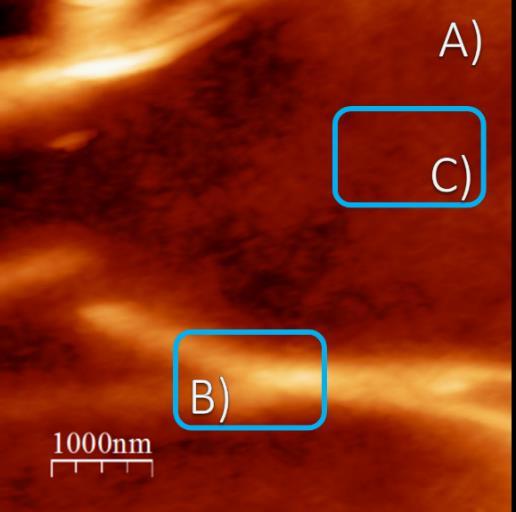

Figure 2 shows the morphology of low molecular weight chitosan as observed through atomic force microscopy (AFM) at room temperature. The dissolution process employs a solvent mixture comprising acetic acid and water (66%) to facilitate the dissolution of low molecular weightchitosan.

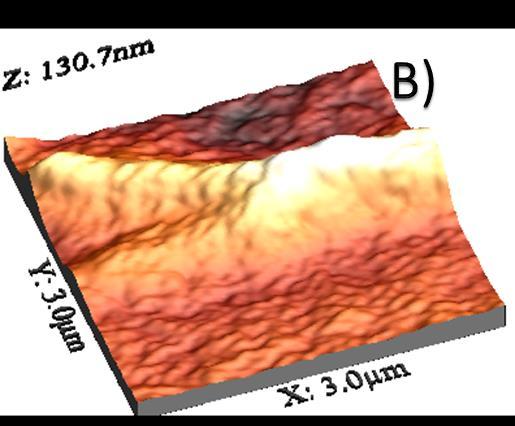

Figure 2B shows filiform hierarchical aggregates of a smallersizethanthoseobservedinthehighandmediummolecular-weight chitosan solution systems. The aggregates have a diameter of 2.0mm, which is approximately one order of magnitude smaller than that observed in previous samples (no images included). Furthermore, the length exceeds 3.0 mm. In contrast, the radius of chitosan nanoparticles is 50nm, as illustrated in the background of Figure 2C. It should be noted that the positionofthecarbon nanotubesis notdiscerniblein this image. Furthermore,itis feasibleto differentiate between the aggregates. The aggregates were observed to form zones or regions larger than 4.0 mm, comprising aggregates smaller than the abovementioned, with a diameter of approximately 0.6 mm for the medium and high molecular weight. These observations indicate that the aggregates coexist as components of a physical gel, whichwillbepresentedingreaterdetailinthesubsequent subsection on linear oscillatory rheology. In light of the observations mentioned earlier, we postulate that the
International Research Journal of Engineering and Technology (IRJET) e-ISSN:2395-0056
Volume: 12 Issue: 04 | Apr 2025 www.irjet.net p-ISSN:2395-0072
interaction between these aggregates is the underlying causeoftheobservedincreaseinsystemviscosity(seethe rheologicalmeasurementssubsection).

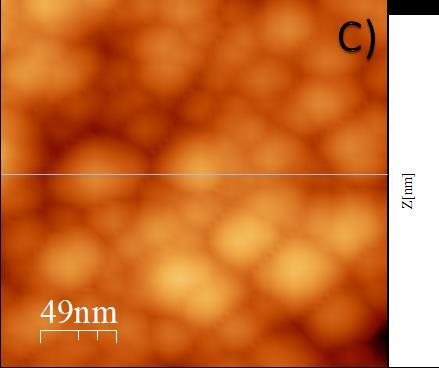

Figure2showsanAFMimageofMWCNTandchitosanof lowmolecularweightatroomtemperature.
3.2 Rheological measurements
All viscoelasticity measurements were conducted in the linear stress versus strain regime using a rheometer that applies a strain at a constant, controlled temperature, under standard practice. This is the regime in which Hooke'slawisanappliance.Thetemperaturewasapplied from 15 to 40°C. It was observed that the viscoelastic behavior of the systems composed of medium molecular weight chitosan dissolved in a mixture of acetic acid and waterexhibiteddistinctcharacteristicscomparedtothose observed in high molecular weight chitosan solutions. All rheological measurements were conducted with the percentage of MWCNT held constant. It should be noted that all temperature measurements were performed at identical values, precisely 15, 20, 25, 30, 35, and 40 degrees Celsius. The linear viscoelastic behaviors observed in this system are considerably complex as showninFigure3.Inthissystem,aviscoelasticbehavioris observed that can be governed by two distinct regimes, eachwiththesamenumberofunderlyingphysicalorigins. At low frequencies (below 1 rad/s, approximately), the rheological behavior is characterized by an elastic modulus greater than the viscous modulus. In contrast, there is an increasing behavior above the values of 1 rad/s, where the viscous modulus is greater than the elasticone.Thetwomoduliexhibitanearlyparallelslope, withthevalue oftheslope slightlyhigher thanthatofthe viscous modulus. The two zones are associated with the transition regime, while the zone corresponding to high frequencies is associated with the breathing regime. However, work was avoided above that temperature, and even measurements at 40°C were conducted rapidly to controltheevaporationofthesolvent.Thisallowedforthe concentrationandviscoelasticpropertiesofthesystem to remainconsistent.
Figure 4 shows the viscoelastic behavior of chitosan and MWCNT samples with a high molecular weight at a temperature of 15°C. As can be observed, all linear oscillatory rheological measurements were conducted within a frequency range of 0.1 to 100 rad/s. In all measurements,a viscous modulus greaterthantheelastic modulus was observed, indicating that the system exhibited viscoelastic behavior rather than viscous elastic behavior. At frequencies exceeding 100 rad/s, the two moduliwouldintersect,whichcanbeattributedtothefact that the relaxation times are less than 0.01 seconds. In contrast,thegradientsofG'andG''areanalogoustothose oftheMaxwellmodel,thoughnotpreciselyequal to2and 1, respectively . Upon thermalization of the system to a temperature of 40°C, a tendency for the module values to bealmostparallelwithaslopelessthan1isobserved.
International Research Journal of Engineering and Technology (IRJET) e-ISSN:2395-0056
Volume: 12 Issue: 04 | Apr 2025 www.irjet.net p-ISSN:2395-0072

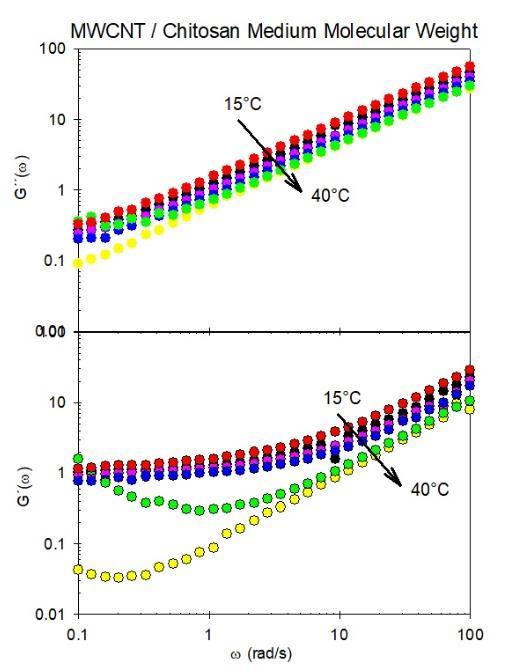

Figure3Loss(G´´)andstorage(G´)characteristicsof chitosanofmediummolecularweightasafunctionofthe angularfrequencyandcontrolledtemperature(15°C40°C).

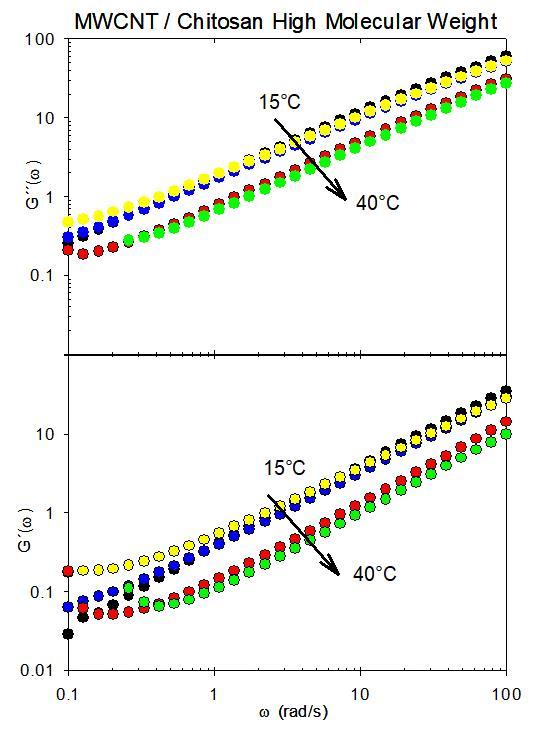

Figure4showstheloss(G´´)andstorage(G´) characteristicsofhigh-molecular-weightchitosanasa functionoftheangularfrequencyandcontrolled temperature(15°C-40°C).
The viscoelastic behaviors of the systems composed of mediummolecularweightchitosandissolvedina mixture of acetic acid and water exhibit distinctive characteristics compared to those observed in high molecular weight chitosan solutions. The linear viscoelastic behaviors observed in this novel system are considerably more complex than those illustrated in Figure 3. In this novel system, a viscoelastic behavior is observed that can be governed by two distinct regimes, each with the same numberofunderlyingphysicalorigins.Atlowfrequencies (below 1 rad/s, approximately), the rheological behavior is distinguished by an elastic modulus greater than the viscous modulus. In contrast, there is an increasing behavior above the value of 1 rad/s, whereby the viscous modulus is greater than the elastic one. The two moduli exhibit a nearly parallel slope slightly with an elastic modulus higher than the viscous modulus. The two zones are associated with the transition regime, while the high frequencieszonecorrespondstothebreathingregime.
Figures 3 and 4 demonstrate that the data points representing the module values at various temperatures exhibit a near-perfect collapse on a master curve. This suggests that the viscoelastic behavior observed in the systemhasasingleunderlyingphysicalcause,manifesting inthedistinctviscoelasticregimespreviouslydescribed.
4 CONCLUSIONS
In conclusion, this study examined the morphology of chitosan nano aggregates induced by MWCNT nanotubes and their correlation with their linear oscillatory rheological properties. Atomic force microscopy (AFM) imagesdemonstratedthatthesystemcomprisingchitosan andmulti-walledcarbonnanotubes(MWCNTs)resultedin spherical chitosan nanoparticles, which the MWCNTs induced.Theaggregatediameterwasdeterminedtobe50 nm.Furthermore, the formation ofhierarchical structures comprising spherical aggregates was observed to reach lengths of several microns. The main results of the linear oscillatory rheological measurements indicated that the systemexhibitedthecharacteristicsofatransientphysical gel, with a temperature dependence. An Arrhenius-like dependence is observed, which involves an activation energy in the different MWCNT-chitosan complexes. This dependence is indicative of associativity, whereby the formation of aggregates is primarily attributed to the associative interaction of the chitosan-carbon nanotube self-assemblycomposites.
