Ch A NGING T O R EFLECT T h E T IMES
Pulp & Paper Canada’s Mill Directory is an annual snapshot of pulp, paper and board production facilities in Canada. We make every effort to list all producers and their various manufacturing sites, whether the sites are currently producing or not. To improve clarity this year, we have added information regarding the mill’s status for those that were not operational at press time. The status info, which appears in yellow type, indicates if a facility is indefinitely or permanently closed.
You won’t find personnel listed for closed facilities, but we continue to list the equipment, if, to the best of our knowledge, the equipment is still on site.
In some cases, this directory acts as a record of changes in the industry. For mills that have closed permanently, the mill is listed under its last operating name or the name of
Pulp & Paper Canada
invites you to advise us of any changes in your mill listing.
Please forward all information to directory10@pulpandpapercanada.com
Published by the Pulp & Paper Canada Magazine Group, a division of Business Information Group, Limited Partnership.
All rights reserved. The contents of this publication may not be reproduced in part or in whole without the consent of the copyright owner.
its last industry-related owner, for two years following the closure. For example, the former UPM Miramichi facilites are still listed under that name, although they were sold and shut down during the course of this year.
I believe these procedures best reflect our changing industry.
We will make corrections to the Mill Directory throughout the year, so please advise us immediately of any changes to your mill listing.
Please send updates to: directory10@pulpandpapercanada.com
PULP, PAPER AND BOARD PRODUCERS PRESENtED ALPhABEtiCALLy
AbitibibowAter inc.
Head office
Mailing Address: CP 69 succ St-Jacques
Montréal QC H3C 2R5
Address: 1155 Metcalfe St bureau 800 Montréal QC H3B 5H2
Tel: 514 875-2160, Fax: 514 394-2394
Website: www.abitibibowater.com
History:
On January 29, 2007, Abitibi-Consolidated Inc. and Bowater Incorporated announced the execution of a definitive agreement to combine in an all-stock merger of equals. On October 29, 2007, the two companies announced the completion of the transaction. The new company, AbitibiBowater Inc., produces a wide range of newsprint and commercial printing papers, maket pulp and wood products. It is the eighth largest publicity traded pulp and paper manufacturer in the world. Marketing its products in more than 80 countries, the company is also among the world's largest recyclers of newspapers and magazines, and has more third-party certified sustainable forest land than any other company in the world. The company's shares trade under the stock symbol ABH on both the New York Stock Exchange and the Toronto Stock Exchange.
Board: David J. Paterson
Personnel
Pres/CEO: David J Paterson
Exec VP/CFO: William G Harvey
Sr VP Wood Prod: Yves Laflamme
Exec VP Ops/Sales: Pierre Rougeau
Exec VP-Hum Res/Sup Chain: Alain Grandmont
Sr VP/Corp Affairs/Chief Legal Officier: Jacques P Vachon
Other Equipment: 1 300 ton bale storage, 1 electric lift truck, 1 bale feeding conveyor system, sparger car clay unloading system with storage tank, retention aid system, colour system (3 colours)
Production & Finishing
Paper Machines: 2 Beloit fourdrinier 240" width 224.5" trim 2,300-2,800 ft/min with Top Flyte top wire unit. Dominion Engineering fourdrinier 330" width 304" trim 3,800 ft/min with Bel Form top wire unit.
Dryers: drums, 40 and 42 - 72" dia. 51 - 60" dia
Calenders: 1x4 rolls Black Clawson; 1x4 Dominion; 2x4 rolls Voith
Transportation: Lake and ocean shiplines; CNR to Matane and ferry to Baie Comeau Brokers: Peace Bridge Brokers, 33 Walnut Street, Fort Erie, ON L2A 1S7. Tel.: 905-871-6500
Thickeners: 2 Thune presses SP70SL and 2 Andritz Twin wire, 2 m wide
Screens: 7 Hooper PSV 2,400; 4 CIR 110 in rejects, 1 Voith model 30, 2 Voith model 20 Cleaners: 2-stage main Hymac; 4-stage rejects Hymac
Deckers: 2 Hedemora - 5 m. dia. 22 discs, 2 Voith model 20
Heat Recuperation System: Rosenblad
Stock Preparation
Broke: 5 deckers
Screens: 3 pressure, 1 500 t/d
Production & Finishing Plant
Paper Machines: P.M. #1 & #2: 2 Dominion Engineering 240", 3,300 ft/min (installed 1937), 2 SEW headboxes, 2 Black Clawson Top Flyte formers, 2 SEW Bi-Nip Nipco presses. P.M. #3: 2 Dominion Engineering 47 dryers 60" dia. with 2 uniruns, 1 HHS Valmet former (240" trim/3,600 ft/min), Twinver press section with two cc rolls. P.M. #4: 1 Dominion Engineering 58 dryer 60" dia. with 3 uniruns, 1 Bel-Baie III horizontal (360" trim 3,300 ft/min), Twinver press section with two cc rolls, 1 Beloit 40 dryer 72" dia. with two uniruns.
Winders: 4 Dominion Engineering rebuilt in 1997 (shaftless HTRC)
Paper Machines: 1 fourdrinier converted to Top Flyte installed 1924 - 235" w. 219" trim 2,250 ft/min - Measurex system 2002; 1 fourdrinier converted to Top Flyte, installed 1928 - 236" w. 220" trim 2,000 ft/minMeasurex system 2002. 1 Papriformer
rebuilt 1972 - 240" w. 220" trim 3,400 ft/ min - Measurex MX open; 1 Papriformer rebuilt 1982 - 24" w. 220" trim 3,000 ft/minMeasurex system 2002
Power Plant/Water & Waste
Fuel: Bunker 1,200 bbl/d, Natural gas
Power Boilers: 4 oil or gas, 160,000 lb/h; 1 steam generator, 2 electrical boilers, 52 MW each
Steam Generated: 350,000 lb/h
Electricity Consumption: 2 million kWh/d
Electricity: 100%
Water Consumption: 13 million gal/d
Source: River 100%
clermont Division
mill
Address: 100 rue de la Donohue Clermont
QC G4A 1A7
Tel: 418 439-5300, Fax: 418 439-5370
Personnel
Mill Mgr: Christian Gélinas
Prod Supt: M Leroux
Supt-Steam Plant: M Filion
Purch Supt: J Pelletier
Pers/Indl Rel Mgr: S Canuel
Controller: Marie-Josée Dubeau
Tech Dir: R Leroux
Dir-Purchased Wood: L Arseneault
Mtce Supt: R Bouchard
IT: M Lafrance
Cont Quality Improvement: M Leroux
Paper Machine: A Carignan
Mech Supt: Claude Levesque
Engrg Supt: N Parent
Envirn Coord: Stephane Boukatea
Finishing/Ship Supt: Gilbert Falardeau
Total Employees: 360
ISO Quality Registration: 9002-1995; 14001-1998
Transportation: C.N.R.; water transportation via gov't wharf at Pointe au Pic, QC; highway
Production Capacity
Paper Newsprint: 353,000 t/y (970 t/d)
Equipment
Chip Screen: 1 Rader triple 80 t/h
Wood Chips Rail Cars
Capacity: 12.5 t/h ever head digger
Chip Surge Bin: 50 t
Chip Screen: 1 Rader triple 30 t/h
Wood Chips Trucks
Chip Truck Dumper: Capacity 4 trucks/h
Loader: 1 Caterpillar 988b
Chip Storage: 3,000 t
TMP Plant
Chip Bin: 50 t, 6m x 7.9m x 13.3m
Chip Washer: 2 lines Hymac
Surge Bin: 4
Primary Refiners: 4 Sunds RGP7OCD, motor GE 1,800 rpm, 18,000 hp
Secondary Refiners: 4 Sunds RGP70CD, motor GE 1,800 rpm, 18,000 hp
Built in 1926, the mill was started up in 1928 by Lake St. John Power and Paper Co., sold to St. Lawrence Corporation in 1952, sold to Domtar Inc. in 1961, sold to Alliance Forest Products in 1994 and bought by Bowater in 2001 and combined with the AbitibiBowater group in 2007.
Calender Stack: 1 5 roll stack with 2 tripass (24") roll; 1 (24") steam roll, 1 controlled Crown Queen roll, 1 controlled crown swimming roll in King position
Paper Machines: 1 Dominion Engineering 326" width 304" trim 3,000 ft/min with Beloit Belformer; 1 Walmsley with Black Clawson Top Flyte, 226" width 212" trim 2,100 ft/min; 1 Beloit with Black Clawson Top Flyte former 226" width, 212" trim 1,900
Calenders: 4
Winders: 1 Dominion Engineering, 1 Beloit, 1 Black Clawson
Finishing Plant
Roll Wrapper: 1 86" Lambs-Gray Harbor semi-automatic
Paper Machine #6: Wamsley fourdrinier (1923), 60,000 t/y, 5.6 m trim, 628 mpm, Measurex process control, Reel: CanMec (1999)
Paper Machine #7: Valmet fourdrinier (rebuild 1987), Valmet MB Former (1996), Valmet pick-up, 120,000 t/y, trim at 5.6 m., speed at 1070 mpm, Valmet process control, remoisturizing system by VIB (1999), Reel: Voith (1999).
Process Control System: Measurex and Fisher Delta V controls
mAcKenzie Division
Steam Plant
Head office
Mailing Address: PO Box 250 Address: FFI Rd Mackenzie BC V0J 2C0 Tel: 250 997-3201, Fax: 250 997-5133 Website: www.abitibibowater.com
Boilers: 4-- Foster Wheeler, 2 drum water tube V-22-35W, 1 -- SA-24-163, 1 -- AC5150 each operate at 400 psig rated at 150 000 pph. Natural gas main fuel, #2 fuel oil is standby fuel, all have superheaters and air heaters
Boiler Feed Pumps: 1-- 350 hp IngersollRand; 1 -- 700 hp Bingham
Status: AbitibiBowater announced the indefinite idling of the MacKenzie mill in November, 2007
1919 - Great Lakes Paper Co. Ltd.; 1936 - The Great Lakes Paper Co. Ltd.; 1979 - Great Lakes Forest Products Ltd.; 1988Canadian Pacific Forest Products Ltd.; 1994Avenor Inc.; 1998 - Bowater Pulp and Paper Canada Inc.; 2002 - Bowater Canadian Forest Products Inc; 2007- AbitibiBowater.
Personnel
Gen Mgr: Doug Murray
Gen Mgr-Forestry/Fibre Res Ont-Maritimes: Roger Barber
Site Optimization Mgr: Rick McMullen
Prod Mgr Kraft Pulp/Utilities: Michael Smart Mfg Serv Mgr: Peter Giardetti Hum Res Mgr: Bob Altree
Purch/Store Mgr: Norma Morrison News Mill Prod Mgr: Clark Johnson Pulp & Paper Control: Toni Biniaris
ISO Quality Registration: 9001; 14001
Transportation: CNR, CPR Sales Agents & Brokers: Kraft Pulp Sales: 5420 North Service Rd., Burlington, ON L7L 5C7. Tel.: 905-332-4616. Fax: 905-3321866. Newsprint Sales: 55 East Camperdown Way, P.O. Box 1028, Greenville, SC 29602. Tel: 864-282-9252. Fax: 864-282-9563.
Other: Since 1989, investments of approx. $500 million (US$325 million) have been spent for a new paper machine, a deinking plant, a thermomechanical pulp plant, a secondary effluent treatment system and a chip handling system; Old newspapers and magazines are used to produce recycled-content newsprint. The pulp mill at Thunder Bay is a large, modern mill with two pulp dryers; all pulp produced at Thunder Bay is elemental chlorine free.
Production Capacity
Hardwood and Softwood Pulp: 500,000 t/y
Newsprint: 515,000 t/y (567,700 short tons); recycled 450 t/d
Equipment
Fibre Handling
Groundwood: 8 foot roundwood unloading
(consumption: 700 m3/d)
TMP: Consumption: 2500 m3/d
Stacker: 1 Consilium-Bulk Babcock & single reclaim screw
Site Preparation Equipment: Dump trucks. Graders. Crawler tractors. Backhoes.
Head office
Mailing Address: PO Box 1150 Liverpool NS B0T 1K0
Address: 3691 Hwy 3 Brooklyn (Queens) NS B0J 1H0
Tel: 902 354-3411, Fax: 902 354-2271
Website: www.abitibibowater.com
History:
During August 1928, Mersey Paper Company Limited was incorporated and construction of a newsprint mill commenced. Commercial production began on November 27, 1929. In May, 1956, the Bowater Corp. of North America Ltd. incorporated Scotian Paper Co. Ltd. to acquire the assets of the old Mersey Paper Co. Ltd. In June, 1956, the name was changed back to Mersey Paper Co. Ltd. and in 1959 it was changed to Bowater Mersey Paper Co. Ltd. Application was made in September to Provincial Secretary to change the name to Bowater Mersey Paper Company Ltd. with effect on October 17, 1975 (application granted). In 1963, The Washington Post Company, Washington, D.C., purchased 49% of the common stock from Bowater Corp. of North America, now called Bowater Incorporated. Bowater Mersey amalgamated with Newsprint Shipping Services Ltd. on January 1, 1994.
Personnel
Chairman: D J Paterson
VP/Resident Mgr: B E Nunn
Controller: K J Barrett
Pres: M Girard
VP/Treas: W G Harvey
Admv Asst: Karen Talbot
Parent Company: 51% owned by Bowater
Canadian Ltd.: 49% owned by The Washington Post Co Sales Office: Abitibi Bowater Inc., Catawaba, SC. and Montreal, QC
Capitalization: Authorized and issue
3,000,000 ($15,000,000)
Wood Source: Purchases through vendors' contacts Nova Scotia and from approximately 580,000 acres owned by the company
Directors: M. Cohen, B. Jones, D.J. Paterson, B.E. Nunn, C. Keeler
mill
Address: PO Box 1150 Liverpool NS B0T 1K0
Tel: 902 354-3411, Fax: 902 354-2271
Personnel
Ops Mgr: W H Stewart
Mtce/Engrg Mgr: H B Minard
Asst Supt-Pulping Utilities: R S Purdue
Order Fulfillment Mgr: K A Nickerson
Mgr-Bus Optimization: B K Dulude
Mech Supt: N K Boland
EEI Supt: V R Harlow
H&S Coord: D E Oliver
Engrg&Serv Supt: R J Pitre
Controller: K J Barrett
Purch Mgr: C C Smith
Hum Res Mgr: R G Anthony
Admv Asst: Karen Talbot
Total Employees: 298
ISO Quality Registration: 9001-2000
Production Capacity
Newsprint: Official rated capacity 250 000 t/y or 692 t/d
Equipment
Wood Plant
Chip Unloader: Truck up-ender (BID) for emptying chip trucks
Chip Handling: Purchased chips - Belt delivery system
Gen. Mgr, Wood Products, Atlantic Region: H.P Pedersen
Production Mgr-Woodlands: R.W Oxenham
Total Employees (sawmill): 108
ADitYA birlA grouP
Head office
Address: Aditya Birla Centre, 1st Floor C Wing, S.K. Ahire Marg. Worli Mumbai, India 400 030
Tel: +91 22 6652 5000, Fax: +91 22 6652 5741
Website: www.adityabirla.com
History:
A US $24 billion corporation with a market cap of US $31.5 billion, the Abitya Birla Group operates in 20 countries: India, Thailand, Laos, Indonesia, Philippines, Egypt, China, Canada, Australia, USA, UK, Germany, Hungary, Brazil, Italy, France, Luxembourg, Switzerland, Malaysia and Korea. Products: aluminum, copper, cement, carbon black, textiles, fertilizers, chemicals, sponge iron, mining, fatty alcohol, fatty acids insulators, software, BPO, finance and insurance, telecom, retail.
Parent Company: The Aditya Birla Group. Transportation:Railroad (CN); Highway
Production Capacity
Pulp: Bleached dissolving pulp, 360 t/d
Equipment
Wood Plant
Chip Unloader:1 Rader 50' truck dumper
Chip Handling:Rader Pneumatic, 180 t/h
Chip Screening:Acrowood system
Bi-Sulphite Pulping Plant
Digesters:7 batch, 8640 ft3 each (5); 10,000 ft3 (2)
Knotters: 2 Ingersoll-Rand HiQ knotters
Washers: 2 Beloit two-stage pressure
Primary Screens: 4 centrisorters
Secondary Screens: 1 centrisorter
Tertiary Screen: 1 centrisorter
Bleachery
Process Stages: E-D-Ep-H
First Extraction Stage: 12' I.D. x 110' H - 120 min retention time
Washer: 1 Ingersoll-Rand Coru-Dek 11'6" x 14'
Dioxide: Pre-retention tube 5' I.D. x 48' H. 3 min. retention. Tower 14'I.D x 57' H., carbon steel (C.S.) tiled lined - 27 min. retention time.
Washer: 1 Ingersoll-Rand Coru-Dek 11'6" x 14'
2nd Stage: Extraction tower 15' I.D x 62' H -
C.S. tiled lined, 120 min. retention time.
Washer: 1 Ingersoll-Rand Coru-Dek 11'6" x 14'
3rd Stage: Hypochlorite: pre retention tube - 7' I.D. x 70' , 31 min. retention time, tower 19' I.D. x 65' H - C.S. tiled lined - 180 min. retention time.
Washer: 1 Ingersoll-Rand Coru-Dek 11'6" x 14'
Bleached Stock Cleaning
Cleaners: 192 Celleco Cleanpac 350 - 4-stage system plus reject control unit; 160 Celleco Cleanpac 270 - 4 stage system
Thickeners: 2 vacuum filters - 9'6" x 18'
Bleached Pulp Storage: 1 - 350-t tank - 24' I.D x 87' H
Production & Finishing Plant
Fourdriniers: 2 Dominion, each with 133" wires, suction couch, 3 plain presses and 48 - 60" x 130" face dryers
Cutter Layboys: 2 Lamb-Grays Harbor
Baling Press: 1 Baldwin, 835-t
Wire Tying Machines: Oval strapping Scale: Toledo
Steam Plant
Recovery: MgO& SO 2
Evaporators: Aqua Chem - vapour compression spray film type - 8 effects. Four-body system with each body split longitudinally to make eight effects
Recovery Boiler: B & W Boiler, 2-drum water-cooled recovery units with refractory line primary furnace. Designed to burn with 652 t/d of dry solids from spent magnesium base liquor at 57% solids content and produce 2,586 t/d of steam at 8600 KPA and 510°C
Precipitator: 1 Flakt electrostatic precipitator
Absorption Tower: Flakt with cooling stage & 4 absorption stages, plus fortification tower
Sulphur Burner: Celleco pressurized furnace type - 30 t/d capacity
Foster Wheeler: 1 2 drum unit designed to burn 15.5 bone dry tons/hr. of hog fuel at 56% moisture content and produce 1,635 t/d of steam at 8600 kPa and 515°C
Source of Power
Turbine Generator
Asea: ASEA radial flow type - single extraction back pressure unit with capacity of 20,000 kVA
Av nAcKAwic
Head office
Address: 103 Pinder Rd Nackawic NB E6G 1W4
Tel: 506 575-3314, Fax: 506 575-3300
History:
The company was formed in January, 1967 and was owned by Parsons and Whittemore, Inc. The mill started production in May 1970. September 2004, the mill declared bank-
ruptcy and closed. April 2005, the mill was acquired by Tembec and Aditya Birla. The official reopening took place June 15, 2006.
Personnel
Exec Sec: Pat Bourgoin
Mtce/Engrg Mgr: John Bartlett
Prod Mgr: Steve Frechette
Procurement Mgr: Stephane Laflamme
Tech Dir: Sudhir Lamba
Hum Res Mgr: Gordon Jennings
Purch/Logistics Mgr: Ravi Ghate
VP/COO: Frank Slater
Fin Controller: Krishna Khaitan
Chief Pwr Eng: Cail McCray
Parent Company: 75% Aditya Birla Group; 25% Tembec
Sales Agents/Brokers: Tembec International Sales Corp., 70 York Street, Suite 1120, Toronto, ON, M5J 1S9, Tel: 416-864 0217, Fax: 416-864 1979, E-mail: joey.ducharme@ tembec.com; Tembec International B.V., Suite 2008, Capital Mansion No. 6, Xin Yuan Nan Road, Chao Yang District, Beijing 100004, China. Tel: 86 10 8486 3711. Fax: 86 10 8486 5008. E-mail: tiean.huang@ tembecbj.com. Tembec International B.V., CP268/OLS, 1274 Signy, Switzerland. Tel: 41 22 994 8822. Fax: 41 22 994 8828. Production Capacity: 800 t/d
Construction of the $1.3 billion facility began in May, 1991. In September, 1993, what is now the largest single-line kraft pulp mill in North America began operations.
Personnel
Chem Recovery Utlities Bus Unit Ldr: Dave Fehr
H&S Bus Unit Ldr: Barry Greenfield Wood Rm Bus Unit Ldr: Tim Whiteley Enviro Specialist: Shaun McNamara
Tech Bus Unit Ldr: Stephen Sulz
Pres/COO: Al Ward
Exec VP/Sr Advisor to the Pres: Bob Demcoe
VP-Fin/Controller/CFO: Dale Bencharsky
VP Pulp: Daryl Nichol
VP-Hum Res: Derek Getty
VP-Woodlands: Bob Nichol
Finishing Bus Unit Ldr: Jeff Dechaine
CEO/Chm: Sam Terao
Fibreline Bus Unit Ldr: Randy Reimer ISO Quality Registration: 9001; 14001; 17025
Ownership: 70% Mitsubishi Corporation, 30% Oji Paper Co., Ltd.
Marketing: Alpac Pulp Sales Inc., Suite 300, 1199 West Hastings Street., Vancouver, BC, Canada, V6E 3T5. Tel.: 604-669-4111. Fax: 604-682-7441. Regional sales office in Tokyo, Japan.
Other Certification: Forest Stewardship Council (FSC), Gold Level Progressive Aboriginal Relations (PAR)
Production Capacity: 582,000 ADMt t/y hardwood; 82,000 ADMt t/y softwood.
Atlantic Packaging Company was formed in 1946. All outstanding shares are owned by I. Granovsky (Chairman). The company, which began as a paper bag manufacturer, began extruding polyethylene film in 1958, in 1959 began manufacturing corrugated cartons and in 1960 entered the field of gummed tape. In 1968 it started production of paper following installation of a paper mill; 1983: installed tissue mill; 1990: installed 2nd tissue mill and newsprint mill.
The company decided to close its No. 1 pulp mill in the second quarter of 2005. On September 20, 2006, the reopening of the mill was announced. Buchanan Forest Products purchased the mill from Neenah Paper.
Recovery Boilers: 2 2.5 Mlbs black liquor solids each, C-E
Precipitators: 2 SF Products; Electrostatic 3 Gas Scrubbers: 1 SF Products
Lime Dust Scrubbers: 2 38,000/95,000 alfm, Air Pollution Ind., Joy Manufacturing
Dissolving Tank Stack: 1 Joy Manufacturing
Power Plant
Power Boilers: 2 425,000 lb/h. B&W total Steam Generated: 1.1 Mlb/h
Fuel Used Per Year: Bark 120,000 odt/y; Electricity 367,000 MWh; Oil 12.0 mig
Power Purchased: 26 MW/h
Water Consumption: 28 M USgal/d
Water Source: Lake Superior
Source of Power
Ontario Hydro + 20 MW Dresser/Rand generator
Effluent/Pollution Control
Primary Clarifiers: 2 Eimco, 150' Dreg Filters: 1
Sludge Disposal: Hog fuel to PoBo Sludge Presses: 1
A.S.B.: 64 Acre Multi-Celled Aerators: 38 Aquajet, 2,670 hp
Head office
Address: 7979 Vantage Way Delta BC
V4G 1A6
Tel: 604 946-0677, Fax: 604 946-3516
Website: www.bkitech.com
History:
In 1986, Merfin commenced converting tissue and toweling for the commercial market. In September 1989, the first air-laid machine commenced production. In October, 1994 the converting subsidiary was moved to North Carolina, USA. In May, 1995 the second airlaid line commenced production. In April, 1996 construction began on the third air-laid line in Cork, Ireland. In 1997, the company was purchased by Buckeye Technologies of Memphis, TN.
Status: The LaSalle Paper Mill was closed at the end of 2007. The Plant is still operational
History:
The company originally incorporated as Building Products Limited on December 5, 1925, manufactured only roofing products and was formed by the amalgamation of two companies, one of which was in existence since 1905. Since 2003, Building Products of Canada Corp. is a privately held company.
Products: Asphalt shingles, roll roofing, asphalt felts and sheating, chipboards, coatings & cements, wood fibre boards, decorative tiles, building paper.
eDmonton PlAnt
mill
Mailing Address: PO Box 576 Stn Main
Address: 3703 101 Ave NE Edmonton AB T5J 2K8
Tel: 780 466-1135, Fax: 780 465-1181
Website: www.bpcan.com
Personnel
Plant Mgr: R Tintinaglia
Paper Mtce/Tech Mgr: J Dhatt
Total Employees: 172
Transportation: Edmonton, C.P.R
Paper Sales Center: PO Box 576m 3703101 Avenue, Edmonton, AB T5J 2K8. 780-466-1135. Fax: 780-465-1181
Output For Sale: 30,000 t/y paper (not converted)
Production Capacity
Paper: 130 t/d roofing felts, chipboard
Pont
rouge PlAnt
mill
Address: 420 rue Dupont Pont-Rouge QC G3H 1S2
Tel: 418 873-2521, Fax: 418 873-2340
Personnel
Qual Cont/Res/Dev Mgr: A Proulx
VP-Mfg: Simon Pierre Fortin
Mtce Mgr: A Savard
Project Mgr: A Huard
Total Employees: 150
Transportation: Road access only
Output for Sale: 67,000 t/y of woodfibre products
Production Capacity
Paper: 28 999 t/y of roofing felt, 50% of which is made from recycled paper plus 67,000 t/y of woodfibre boards and tiles
cAnADiAn Forest ProDucts ltD.
tAYlor PulP
mill
Address: PO Box 330 Taylor BC V0C 2K0
Tel: 250 789-9300, Fax: 250 789-3089
History:
Started by consortium of British Columbia sawmill owners - Fibreco Export in 1988. 1999 purchased by shareholders Slocan Forest Products. Slocan was acquired by Canfor in November 2003.
Personnel
Mill Mgr: A Eisler
Div Controller: K Salmon
Prod Mgr: H Bulmer
Mtce Mgr: D Allam
Purch Mgr: Dan Hogg
Tech Mgr: D Guilov
Transportation: Railway 100% with 95% travelling off-shore via coastal ports
Source of Power: Self-generated and steam turbines on major drives
Power Plant
Type of Fuel Used: Bark (275,000 odt); Gas (250, 000 GJ); Oil (1,000 m3)
Source of Power: Self-generated and BC Hydro
Cogeneration System: Mitsubishi condensing, extracting turbine and generator at 60MW
Effluent/Pollution Control
Clarifier: 1 primary clarifier, 180' diameter x 10'-20' deep
Dregs Filter: 1 Dorr-Oliver dregs pre-coat filter 6' dia.meter x 6' long
Sludge Treatment: Common with Intercontinental mill
Sludge Disposal: See Intercontinental mill
Aerators: 1 24-hour aeration basin, design flow 14,000,000 USgal/d; 5 stationary Simcar #8 aerators, 50 hp each; 9 Ashbrooke-I floating surface mechanical aerators, 60 hp each; 1 aeration lagoon, common with Intercontinental mill
Process Control Control Systems: Foxboro I/A - Kraft mill, bleach plant, paper machine, steam & recovery
reseArcH & DeveloPment
centre
Address: 3800 Wesbrook Mall Vancouver
BC V6S 2L9
Tel: 604 228-6710, Fax: 604 228-6723
Personnel
Res/Dev Mgr Pulp & Paper: Paul Watson
Dir-Planning: Steve Henley
Research Techn: Ranbir Heer
Research Techn: Wendy Tsai
Techn II: Patricia McBeath
Technologist I: Alice Obermajer
Head office
Address: 50 North Star Rd Quesnel BC
V2J 5P6
Tel: 250 992-0200
History:
A 50-50 partnership was formed in December 1969 between Weldwood of Canada Limited and Daishowa-Marubeni International Ltd. to build and operate a 934 t/d bleached kraft pulp mill at Quesnel, BC. Weldwood was purchased by West Fraser Mills Ltd. at the end of 2004. www.daishowa.com; www.westfrasertimber.com
Personnel
VP: I Aoki
Pres: T Seraphim
Parent Companies: West Fraser Mills Ltd. and Daishowa-Marubeni International Ltd
Sales Office: Vancouver, B.C
Executive Committee: T. Seraphim, I. Aoki, R. Maksymetz, Y. Amakusa
1 Beloit 6 m fourdrinier and press section; Black Clawson double felted 1st and 3rd presses; 1 Ross pulp dryer; 1 Lamb-Grays Harbor overlapping cutter layboy and finishing line; 2 Dominion 907 t bale presses
Recovery
1 Eimco process recausticizing system; 1 cooler equipped Smidth kiln 3.5 m x 91.4 m; 1 Unitech 5 effect evaporator system with concentrator; 1 B & W (Gotaverken Retrofit) recovery furnace; 1 950,000 kg black liquor solids/d
Source of Power
1 Foster Wheeler hog burning power boiler with 218, 000 kg/h steam; 1 Toshiba 101,000 MJ turbo generator; 1 Zurn 114,000 kg/h package boiler; B.C. Hydro 101,000 MJ tie line.
Founded in 1964, Cacades produces, converts and markets packaging and tissue products composed mainly of recycled fibres. Cascades employs nearly 13,000 men and women in more than 100 modern, versatile operating units in North America and Europe. Cascades' management philosophy, its 45 years of experience in recycling, and its continued efforts in research and development are strengths which enable the company to create new products for its customers. The Cascades shares trade on the Toronto Stock Exchange under the ticker symbol CAS
The mill was first built in 1962, then shut down in November 1991. Cascades Inc., through its subsidiary Industries Paperboard International, started it up again in 1997 under the name FjordCell Inc. Transportation: Highway Production: 82 000 t/y NBSK pulp
Equipment
Pulping
Digester: Kamyr continuous, 1962, 10, 000 ft3
Washer: 3 Sherbrooke drum brown stock, 1962, 8' x 16'
Decker: 1 Sherbrooke drum brown stock, 1962, 8' x 12'
Paperboard Machine: 1 Manchester Multiformer, 172" trim
Formers & Screens: 7
First Press Section: Suction drum, suction transfer, plain press roll
Main Press Section: Suction second press, blind drilled third press
Can Dryers: 85 - 60" dia
Calender Stacks: 2
Coating Section: Jagenberg air knife coater, flex rod coater, backside coater. Reel
Finishing Plant
Rewinder: GL&V
Fuel: Gas or oil
Power Boilers: No. 1 B&W water tube 130 Mlb/h, 450 psi; No. 2 Stirling water tube 10 Mlb/h, 100 psi. standby boiler
Source of Power
Purchased: 550 volts, 60 Hz, 3 phase, 12,000
KVA
Fuel: Natural gas and #2 light fuel oil
cAscADes
Fine PAPers grouP inc.
Head office
Address: 2 rue Rolland Saint-Jérôme QC J7Z 5S1
Tel: 450 569-3951, Fax: 450 569-3933
Website: www.cascades.com
History:
Rolland Inc., whose cororate roose go back to 1882, is one of the most important contributors in the manufacturing and distribution of fine papers in Canada. Member of the Cascades family since 1992, the Fine Papers Group is now a leader in the recycled paper and security markets.
Personnel
Commun Advisor: Julie Loyer
Chairman: Alain Lemaire
VP-Sls/Mktg: Normand Lecours
Dir: Bernard Lemaire
Dir: Laurent Lemaire
Dir: Mario Plourde
VP-Ops: Daniel Parrot
Total Employees: 500
ISO Quality Registration: 9002
Parent Company: Cascades Inc.
Mills: Saint Jérôme, QC; Breakeyville, QC
Converting Operations: Cascades Fine Papers Group Inc., Converting Center, 980 Boul. de l'Industrie, Saint Jérôme, QC J7Z 5V9.
R & D Headquarters: Kingsey Falls, QC
Sales Offices: 2 Rolland Avenue, Saint Jérôme, QC J7Z 5S1; 525 Abilene Drive, Mississauga, ON L5T 2H7
Engineering Headquarters: Rolland Division - Saint Jérôme , QC
Products: High-quality uncoated fine papers and security papers from cotton, chemical and recycled pulp grades for commercial printing, business papers, envelopes and specialty papers
Operating Subsidiaries: Cascades Fine Papers Group Inc.- Rolland Division, Cascades Fine Papers Group - Breakey Fibres Division Retained earnings December 31, 1999: $260 million
D'Ésencrage Cascades Inc. was formed in 1984. In June 1984 the company purchased an idle pulp mill from John Breakey Inc. From June 1984 to October 1985 a
new warehouse was built and equipment was installed to convert waste newspaper and magazines into de-inked market pulp. In March 1988 additional equipment was installed and completed in July 1988 to produce a wood-free market pulp. Cascades Fine Papers Group Inc., Fibres Breakey Division is the name of the mill since March 2002.
Personnel
Pres/CEO: M Plourde
VP-Ops: G Levesque
Mill Mgr: R Laramée
Admv Dir: M Ste-Marie
Sec: R F Hall
Qual Cont Mgr: M J Ruel
Controller: P Blouin
Prod Mgr: A Caron
Waste Procurement: R Roy
Total Employees: 50
ISO Quality Registration: 9002-1996; 9001-2000
Parent Company: Cascades Inc.
Sales agents: Etcan International Inc., 772 Sherbrooke W. Room 200, Montreal, QC H3A 1G1.
Products: Pulp for P & W grades
Process: chlorine free certified
Transportation: Highway
Production Capacity
Deinked recycled kraft pulp: 150 adt/d
Equipment
Recycling Plant
Pulper: 1 Beloit-HC, 4,000 kg
Detrasher: 1 Beloit-Belpurge, 6,000 kg
Rotating Screen: Finck
Fine Screen: 2 Beloit primary fine screens, 1 secondary screen, 1 tertiary screen
Products: 100 different products including printing, business and converting papers. More specifically, the product line consists of recycled papers, security papers used for lottery tickets, bond certificates and bank notes, sulphite and cotton content bonds, writing, text and cover papers, reprographic papers, business and computer form bonds, envelope, greeting cards and specialty papers

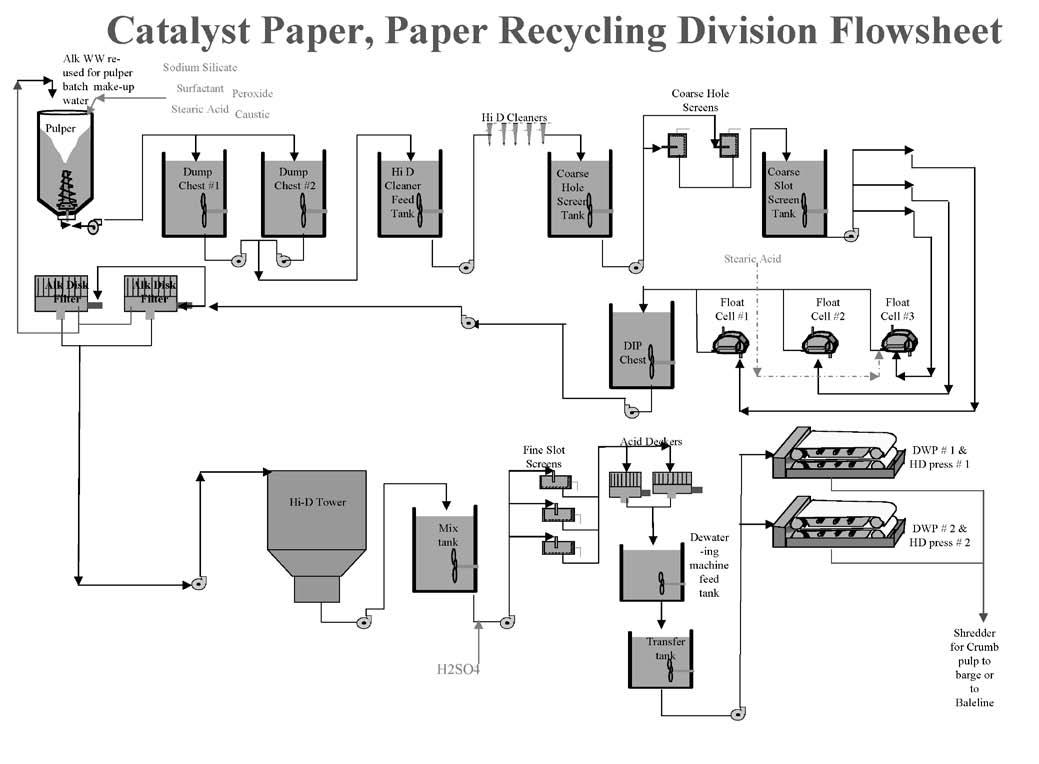

NorskeCanada officially changed its name to Catalyst Paper Corporation as of October 1, 2005.
Personnel
VP-Ops: Brian Johnston
Chairman: Michel Desbiens
Pres/CEO: Richard Garneau
VP-Corp Rel/Social Resp: Lyn Brown
VP-Fin/CFO: David Smales
VP-Sup Chain: Robert H Lindstrom
Corp Controller/Treas: Peter M Staiger
VP/Gen Couns: Valerie Seager

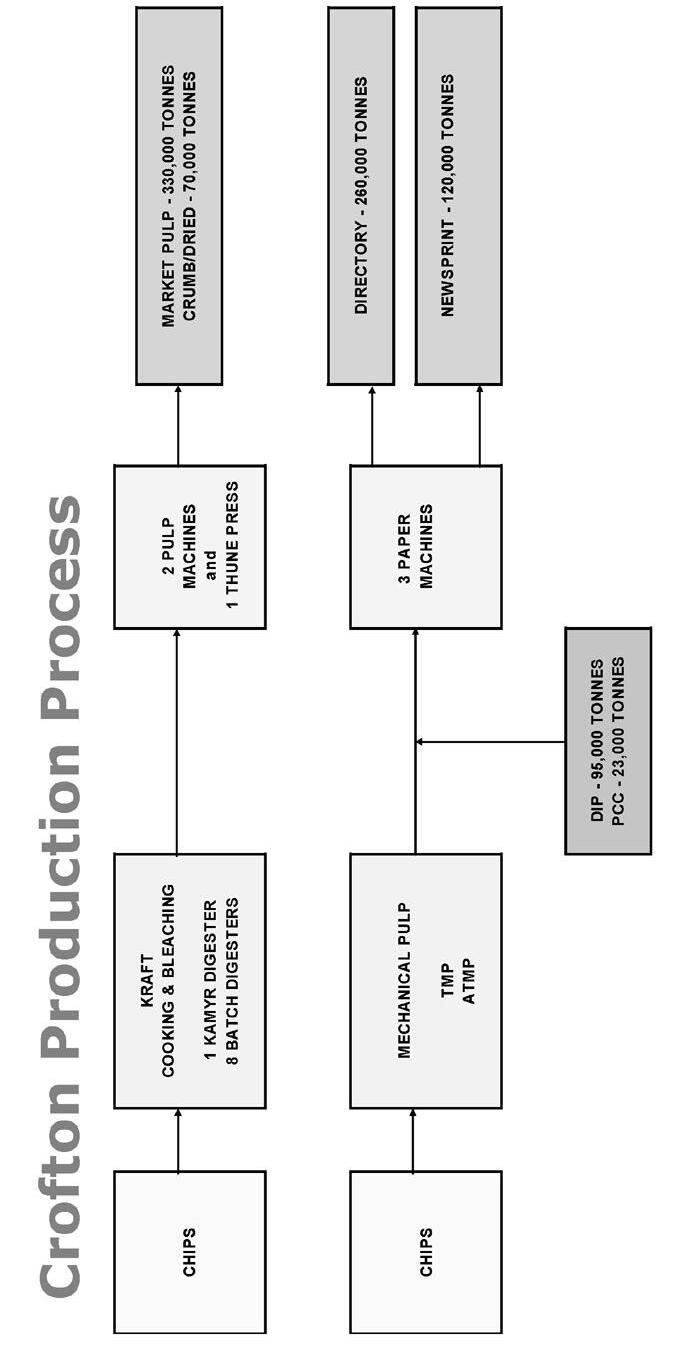

Divisions: Crofton, BC (Crofton Division); Campbell River, BC (Elk Falls Division); Port Alberni, BC (Port Alberni Division); Powell River, BC (Powell River Division); Coquitlam, BC (Paper Recycling Division); Snowflake, Arizona.
Production Capacity
Newsprint: 953,000 t/y
Specialties: 1,100,000 t/y
Pulp and Containerboard: 403,000 t/y
Alberni sPeciAlties Division
mill
Address: 4000 Stamp Ave Port Alberni BC
V9Y 5J7
Tel: 250 723-2161, Fax: 250 724-7498
Status: Permanent closure of the groundwood facility - December 2006 and the #3 paper machine - March 2006.
Status: On October 15, 2001, NorskeCanada permanently closed the kraft pulp operations at the mill.
Personnel
Sr Advisor-Hum Res: Rob Moonen
Gen Mgr: Stew Gibson
Mgr-Utilities/Fibre/Ship: Ed Antolovich
Mgr-Mtce: Chris Leach
Mgr-Paper Ops: James Gordon
Mgr-Tech Serv: Jeremy Mercer
Exec Asst: Karen Thom
Mgr-Enviro: Sarah Barkowski
Total Employees: 625
ISO Quality Registration: 9001
Paper: Newsprint & news grade, 1 310 t/d Transportation: Served by water, Highway 101 and air, deep-sea berths and airport; rail service via Vancouver; Maverick coach bus lines; Powell Air, telephone; telegraph and bank facilities; express Canadian National, Canadian Pacific, air or bus.
feedwater by mixed bed demineralizers and condensate polishers. (Data based on 1993 averages)
Primary Treatment: 1 91 m. diameter Dorr Oliver primary clarifier, 1 dregs filter, bleach and brown stock spill recovery systems with AER-O-FLO rotary drainer, various effluent screens.
Formerly Interlake Paper Inc. Sold to Cellu Tissue Holdings in 1998.
Personnel
Mill Mgr: Steve Michalko Dir-Mfg: Bert De Cal
Production
Macnine-glazed, machine-finished and filter papers, plus tissue and towelling
Equipment
MF/wet crepe/Through air dried tissue
Head office
Mailing Address: PO Box 419
Address: 48 Prince Hantsport NS B0P 1P0
Tel: 902 684-1368, Fax: 902 684-9703
History:
Incorporated in 1933 as a wholly-owned subsidiary of Minas Basin, Pulp & Power Co. Ltd., Hantsport, NS.
Board: E. Bishop, Dobrucki, J. Hennigar, J. Jodrey, J. Jodrey, J. Jodrey, F. Mulhall, U. Porter
Personnel
Chairman/CEO: B J Jodrey
Pres: R J Millar
VP-Ops: M T Burns
VP-Sls/Distrib: Brad Dennes
VP-Fin: Michael Green
VP-Hum Res: B H Lawrence
Plant Mgr: Jeff Knapp
Purch Mgr: D E Rockwell
Distrib Mgr: J L Ferguson
Parent Company: Minas Group Limited, privately owned
Sales offices: 30 Iron St, Rexdale, ON; 48 Prince St., Hantsport, NS; 19878 - 57A Avenue, Langley, BC
Plants: Hantsport, NS: Rexdale, ON; Langley, BC.
Production Capacity: 15,000 t/y rough finish moulded; 7,500 t/y smooth finish moulded Recycled pulp production: 55 t/d, moulded pulp products, 75 to 100% used in finished product
mill
Mailing Address: PO Box 419
Address: 48 Prince St Hantsport NS B0P 1P0 Tel: 902 684-3231, Fax: 902 684-9703
Personnel
Plant Mgr: Jeff R Knapp
Mgr-Qual/Process Cont: Mike W Levy
Mtce Mgr: Mike R Gallant
Products: Molded pulp products including paper plates, trays for prepackaged meat, fish and produce, egg cartons and trays, berry boxes. Products range from 75% to 100% recycled pulp (55 t/d), the only exceptions being Royal Chinet, Improved Savaday and Ovenwove II plates which are made from 100% virgin pulp.
Equipment
Pulpers: 4 - 1 Solvo, 2 Hi-Lo, 1 Black Clawson-Kennedy; capacities, 227 kg, 454 kg, 907 kg, 907 kg
Refiners: 1 Sprout Waldron, 40 t/d
Moulding Machines: Keyes design, 55 t/d
Screen: 1 Beloit S24A, 150 t/d
Cleaner: 1 Kriers P15H, 150 t/d
Source of Power & Steam: Minas Basin Pulp & Power Co. Ltd/Nova Scotia Power Power Purchased: 39,127,472 kWh
Water Consumption: 1,092,764 m3
Effluent/Pollution Control
Screens: 1 Aeroflow (rotary)
Recycling Plant
Detrasher: 1 Kadant, Black ClawsonScavenger 1
DAisHowA-mArubeni internAtionAl ltD
PeAce river PulP Division
Head office
Address: Bag 4400 Peace River AB T8S 1V7
Tel: 780 624-7000, Fax: 780 624-7329
Website: www.dmi.ca
Personnel
Exec Asst: Kerry Nichol
Pres: Yasu Amakusa
VP: Matt Iizuka
Mill Mgr: Tim Lanteigne
Environ Sr Advisor: Tom Tarpey
Hum Res Sr Advisor: Rob LaFontaine
Controller/Corp Advisor: Jim McIwain
Central Mtce Advisor: Brian Weston
Matl Mgmt/Advisor: Dwayne Buchholtz
Forest Res Bus Unit Ldr: Joerg Goetsch
Tech Serv Sr Advisor: Ned Lorinez
Pulp Prod Bus Unit Ldr: Mike Tookey
Pwr/Recov Bus Unit Ldr: Bill Downing
Bus Serv Unit Sr Advisor: Shawn Elliott
ISO Quality Registration: 14001-2004
Parent company: Daishowa-Marubeni
International Ltd.
Head Office: Suite 700 - 510 Burrard Street, Vancouver, BC V6C 3A8. Phone: 604-6844326, Fax: 604-684-0547
Aerators: 6, Mass Transfer System, submerged jet aerators; 6 air laterals (5 in operation), 12 vertical pumps (10 in operation)
Head office
Address: 395 boul de Maisonneuve O Montréal QC H3A 1L6
Tel: 514 848-5555, Fax: 514 848-6506
Website: www.domtar.com
History:
Domtar was incorporated in 1929 as Dominion Tar & Chemical Company Limited, but the organization's roots go back a further quarter of century to 1903 as a British company and the construction of a coal tar distillation plant at Sydney, Nova Scotia. In 1961, a complex multiple-merger involving Dominion Tar, fine paper manufacturer Howard Smith Paper, newsprint maker St. Lawrence Corporation Limited and packaging specialist Hinde & Dauch Ltd. resulted in the formation of one of Canada's first conglomerates. Domtar's name was officially adopted in 1965. Initiatives which helped shape today's dynamic, globally-oriented Domtar included construction during the late 1980s of the world-scale business and printing paper mill at Windsor, Québec. In July 1998, Domtar Inc. acquired from George Weston Ltd. E. B. Eddy the specialty paper company. In July 2000, Ris Paper, the third largest independent paper merchant in the United States. In August 2001, four mills in the United States from Georgia-Pacific Corporation. In August 2006, Domtar signed a definitive agreement to combine with Weyerhaeuser's fine paper business and related assets. The transaction closed on March 7, 2007.
Board: Bingleman, Gignac, Levitt, MacKay, Moore, Onustock, Steacy, Stivers, Strobel, Tan, Turcotte, John D. Williams
Personnel
Sr VP-Sls/Mktg: R Thomas
Pres/CEO: John D Williams
DomtAr corP.
VP-Law/Corp Affairs: Zyg Jablonski
Sr VP-Southern Reg Mills: R Brear
Sr VP/CFO: D Buron
Sr VP-Hum Res: M Dagenais
Sr VP-Northern Reg Mills: G Dinel
Sr VP-P&P Mfg: M Edwards
Sr VP-Distrib: J Lenhoff
Sr VP-Corp Dev: P Loulou
Sr VP-Spec Mills/Converting Ops: B
Nicholson
Sr VP-Forest Prdcts: J F Mérette
Commun Advisor: Lyla Radmanovich
Information:Domtar Corporation (NYSE/ TSX: UFS) is the largest integrated producer of uncoated freesheet paper in North America and the second largest in the world based on production capacity, and is also a manufacturer of papergrade, fluff and specialty pulp. The company designs, manufactures, markets and distributes a wide range of business, commercial printing, publishing as well as converting and specialty papers including recognized brands such as Cougar®, Lynx®Opaque, Husky® Offset, First Choice®and Domta Earth Choice®Office Paper, part of a family of environmentally and socially responsible papers. Domtar owns and operates Domtar Distribution Group, an extensive network of strategically located paper distribution facilities. Domtar also produces lumber and other specialty and industrial wood products. The company employs nearly 10,500 people.
Specialty Mills: Espanola (ON), Johnsonburg (PA), Rothschild (WI), Port Edwards/ Nekoosa, Port Huron (MI).
Converting Centers: Brownsville (TN), Cerritos (CA), Dallas/Fort Worth (TX), DuBois (PA), Griffin (GA), Indianapolis (IN),Langhorne (PA), Mira Loma (CA), Owensboro (KY), Ridgefields (TN), Rock Hill (SC), Tatum (SC), Washington Court House (OH), Addison (IL).
Sawmills: Big River (SK), Ear Falls (ON), Gogama (ON), Matagami (QC), Nairn Centre (ON), Ste-Marie (QC), Sulivan (QC), Timmins (ON), Val d'Or (QC).
Segments: Papers 81%; Distribution 15%; Wood 4%; (Sales percentages per sector2008)
Products: Business Papers: Uncoated Freesheet (UFS) - Copy, Premium Imaging. Commercial Printing Papers: UFS - Offset, Envelope, Forms Bond, Opaques, Text and Cover, Trade Book; Coated Groundwood (CGW) - No. 5
Effluent System: Primary & secondary process water treatment
KAmlooPs mill
mill
Address: 2005 Mission Flats Rd Kamloops
BC V2C 1A9
Tel: 250 434-6000, Fax: 250 434-8877
Website: www.domtar.com
History:
The mill site covers 240 acres beside the Thompson River. The mill produced its first unbleached pulp on November 20, 1995 and it first bleaching process gegan February 3, 1966. Major expansion to 1250 admt/d including 330 t/d of bleached sawdust market pulp, completed in August 1972. Fibre line upgrade in 1994 including Kamyr digester and GL&V 0~2 delig increased `B‡ Mill capacity to 1000 admt/d. New sawdust digesters in 2004 increased sawdust to 340+t/d. Ownership changed in March 2007 from Weyerhaeuser Company Limited to Domtar Pulp & Paper Products Inc.
Personnel
Fibre Mgr: Mel Johnson
Exec Asst: Wilana Collins
VP/Mill Mgr: Eric Ashby
Site Ops Mgr: Mike Gregson
Pwr/Recov Mgr: Greg Drinkwater
Mtce Mgr: Tracy Rankel
Fin Mgr: Bryan Swanton
Env Mgr: Kristin Dangelmaier
Hum Res Mgr: Julie Rachynski
Engrg Mgr: Bill Adams
Cust Serv Mgr: David Lloyd
Purch Mgr: Joe Hoolley
Sfty Mgr: Bob Patterson
ISO Quality Registration: 9000-2008
ISO Environmental Registration: 14001-2001
Parent Company: Domtar, Montréal, QC, Canada
Sales Offices: Domtar, Fort Mill, SC, USA
Products: Fully bleached softwood chip pulp and sawdust pulp
Mailing Address: PO Box 1720 Prince Albert SK S6V 5T3 Tel: 306 953-1780, Fax: 306 922-1371
Personnel
Harvest Systems & Ops: M Young
Strat Supp Coord: J Doucette
Ops Mgr: B Chambers
Total Employees: 52
SFM Registration: CAN/CSA Z809-1996 (2003)
sAsKAtcHewAn Prince Albert PulP
mill
Mailing Address: PO Box 3001 Stn Main Address: Hwy 55 Prince Albert SK S6V 5T5
Website: www.domtar.com
Status: Indifinite closure since 2006.
History:
Pulp mill built in 1966 and acquired by Weyerhaeuser Canada Ltd. in 1986. The fine paper mill was added in 1988 and the sheeting facilities in 1990-91. The company announced the indefinite closure of its pulp and paper mill as of October 4, 2005. The mill became part of Domtar Corporation as of March 2007. Domtar's management has determined that the Prince Albert pulp and paper mill is no longer a strategic fit for the company and the Prince Albert facility will not be reopened by the company.
Broke Pulpers: 3 Black-Clawson, couch, 3rd press, dry end
Consistency Regulator: Foxboro
Screens: 1 Selectifier
Cleaners: Celleco
Production & Finishing Plant
Fourdrinier: 1 Black-Clawson 6,000 mm
Pulp Dryer: SF Flakt
Cutter Layboy: 1 Lamb-Grays Harbor
Baling Presses: 2 Dominion
Wire Tying Machines: 3 Ovalstrapping, round wire
Scales: 3 Toledo
Steam Plant
Boiler: 1 Babcock & Wilcox 2-drum Stirling, design pressure 4 250 kPa, steam generated, 4 350 t/d; 2 Babcock & Wilcox type FMD package, water tube, gas or oil-fired boilers. Each has a capacity of 1 653 t/d at 4 250 kPa
Source of Power
Turbo-generators: 2
Purchased Electricity: Sask. Power Corporation
Calender: Valmet-Dominion 2-roll stack Winder: Wartsila model KL-1000V
Warehousing: 1 Interlake automated storage and retrieval system (AS/RS) including a high density rack supported warehouse. 1 integrated conveyor transport system
Power Plant/Water & Waste Data
Steam Generated: 600 psig at 750°F, 600,000 lb/h
Cogeneration Unit: 1 Hitachi, 28 MW Water Treatment Plant: Degrémont superpulsator & green leaf filters
Aeration Lagoon: Subsurface aerators and mechanical aerators. Diffuser into the St-François river. Andritz sludge press
Cooling Towers: 3 Marley
Flotation Cells: 4 Poseidon, 80 m3
eurocAn PulP & PAPer co.
Head office
Mailing Address: PO Box 1400
Address: Eurocan Way Kitimat BC V8C 2H1 Tel: 250 632-6111, Fax: 250 639-3486
Website: www.westfrasertimber.ca
History:
The company was incorporated in May 1965. Construction of an integrated complex commenced in May 1968. A 800 t/d unbleached kraft and paper mill was completed in October 1970. The latest expansion in 1989, which included the addition of a chemimechanical pulp mill, raised capacity to 1100 t/d. In 1993 the Company became totally owned by West Fraser Mills Ltd. and operates as a division thereof.
Status: To be permanently closed as of Jan. 31, 2010.
Personnel
Mtce/Engrg Mgr: W Muzylowski
Fin/Purch Mgr: John Malo
Empl Rel Mgr: D Petersen
Ops Grp Leader: D Stein
Wood Supply Mgr: R Levac
Cust Serv Mgr: M Martins
Paper Mill Mgr: M Rekedal
Paper Mill/Mtce Supt: D Doucette
Pulp Mill Supt: T McWhannel
Pulp Mill/Mtce Supt: C Howe
Steam/Recov Chief Eng: D Lacey
Steam/Recov Mtce Supt: R McKenna
Sys Grp Supt: R Pasacreta
Envirn Coord: J Patric
Traffic Srv/Fibre Supp Ops Coord: C Sears
VP-P&P Sls West Fraser: T Seraphim
Sr Sls Mgr: B Mitchell
Sls Mgr: S Morovik
GM-Eurocan Sls: L Kravski
Gen Mgr: D Claire
Parent Company: West Fraser Mills Ltd
Transportation: Company's own ocean barge terminal and deep-sea wharf at Kitimat, B.C., C.N.R
Wood Source: Fibre from West Fraser sawmills account for 90% of needs, balance from local area sawmills
Selling Agents: Enso-Gutzeit Oy, Helsinki, Finland, for kraft linerboard in Europe. Independent and own sales agents handle balance
Sales Office
Address: Suite 501 - 858 Beatty Street, Vancouver, BC V6B 1C1. Tel: 604-895-2700, Fax: 604-685-2441
Equipment
Chip & Sawdust Handing
Chip Rail Car Unloading Stations: 2
Truck Unloading Stations: 2
Chip Piles: 4 (1 month inventory)
Sawdust Pile: 1
Chip Thickness Screening
Chip Silos: 1 kraft, 1 CMP
Chip Screen: Pneumatic chip & sawdust conveying
Pulp Mill
Batch Digesters: 8 200 m3 each
M&D Digester: 1 45 m3
Blowline Refiner: 1 M&D
Hot Stock Refiner: 7
Washers: 3 3-stage, 4-stage & chemi washer (belt)
Deshive Refiners: 2
Rejects Refiners: 2
Screening Lines: 3 top and base stock, sawdust stock
Pulp mill built in 1966 and acquired by Weyerhaeuser Canada Ltd. In 1986. The fine paper mill was added in 1988 and the sheeting facilities in 1990-91. The company announced the indefinite closure of its pulp and paper mill asof October 4, 2005.
Formed in 1913 by the Beaver Wood Fibre Co. Ltd. Later became subsidiary of CertainTeed Products Corp., then Bestwall Corp. and finally, Georgia-Pacific Corp.
Personnel
Office Mgr: Sandy Guarasci
Plant/ON Mfg Mgr: Gerry Finlayson
Purch Agt: Mary Anne Tomic
Total Employees: 120
Parent Company: Georgia-Pacific Corp
Sales Office: Thorold, ON
Head office
Address: 1245 Montmorency Blvd Québec
QC G1J 5L6
Tel: 418 522-8262, Fax: 418 648-2725
Website: www.simkinsindustries.com
Personnel
Chm: L Simkins
Pres: R Hermus
Controller: S Paradis
Tech Serv Supt: D Dumont
Gen Mgr/VP-Prod: C Jean
Total Employees: 90
Owners & Directors: L. Simkins
Equipment
Stock Preparation Plant
Washers: 2 Oliver vacuum
Pulpers: 1 Pulpmaster, 1 Shartle, 2,500 lb
Refiners: 7 400 hp
Cleaners: 3 Bauer
Saveall: 1 300 Gph
Production & Finishing Plant
Fourdriniers: 1 Osborne, 3.2m trim, with suction couch, first press and electric drive
Super Calenders: 1 3.0m Eck
Rewinders: 3 Cameron, 1 Black Clawson
Recycling Plant
Pulper: 1 Black Clawson, 2,500 lb
Deflaker: 1 Black Clawson
Source of Power
Purchased electricity
HArtmAnn cAnADA inc. mill
Mailing Address: PO Box 1328 Stn Main
Address: 58 Frank St Brantford ON N3T 5T6
Tel: 519 756-8500, Fax: 519 756-8196
Website: www.hartmann.dk
glAssine cAnADA inc.
Digester: 1Kamyr hydraulic 2-vessel digester
Personnel
Mgr-Env/External Affairs: A Strang
Prod Dir: Gerry Lavis
Pulp Washing: Hi-heat diffusion washing in the digester, 2-stage diffusion washer, Kamyr
Controller: D Thompson
Knotters: 1Ahlstrom primary and secondary
Tech Mgr: John Chappell
Sls Mgr: Ron Sauve
Dir-Fin: Ed Enverga
Indl Rel Mgr: Rob McKenzie
Hum Res Mgr: G Johnston
Pwr/Recov Supt: S Casey
Paper Mill Supt: G Clarke
TMP Supt: G Collins
Total Employees: 194
Screens: 4primary pressure with slots, 1 secondary pressure, 1 tertiary pressure, 2 vibratory quarternary, Celleco cleaners on tertiary accepts
Bleaching System: ECF sequence: DoEoD1 , Do upflow tower. Eo and D1 upflow tube downflow tower. IR drum washers
Screens and Deckers: 8 6 primary, 2 secondary Ingersoll-Rand Hi-Q 212D pressure screens; 1 tertiary Ingersoll-Rand Hi-Q 210D pressure screen; 1 Bauer magna-cleaner; 1 quaternary Ingersoll-Rand Hi-Q 108°C pressure screen; 1 Haug drainer; 1 decker, 4.1m x 11.6m; O2 supplied by off-site Canadian Liquid Air gas plant.
Bleach Plant
Process Stages: O/D/Eop/DN/D
Washers: 5 Ingersoll-Rand, 3.5m x 6.1m; 3 LaValley fiberglass 3.5m x 6.1m
Towers: 1 upflow chlorination 590 m3, 23 min retention time; 2 upflow/downflow O2 caustic extraction 214 m3, 42 min. retention time each; 2 upflow downflow CIO2 520 m3, 1.5 h retention time each; 1 upflow/downflow CIO 2 1790 m3, 2.8 h retention time
The Company was incorporated in May 1965. Construction of an integrated complex commenced in May 1968. A 800 t/d unbleached kraft and paper mill was completed in October 1970. The latest expansion in 1989 which included the addition of a chemi-mechanical pulp mill raised capacity to 1100 t/d. In 1993 the Company became totally owned by West Fraser Mills Ltd. and operates as a division thereof.
Parent Company: West Fraser Mills Ltd Transportation: Company's own ocean barge terminal and deep-sea wharf at Kitimat, B.C., C.N.R
Wood Source: Fibre from West Fraser Sawmills account for 90% of needs, balance from local area sawmills
Dryers: 6 dryer sections, 1, 2 & 3 single with 72 in. dia. upper dryer cylinders and 48 in. dia. lower "Uno-roll" cylinders. Remaining sections 4, 5 & 6 double felted with 72 in. dia. dryers. Total of 51 dryers
Breaker Stack: Between 5th & 6th dryer groups, Valmet Sym-Roll plus Thermo-Roll Calender Stack: 6 roll with 3 Valmet SymRolls plus 3 hot water heated Thermo-Rolls. Devron Cal-Coil caliper profiling equipment
Mailing Address: PO Box 1900 Stn Main Address: 435 Bayside Dr Saint John NB E2L 4K9
Tel: 506 633-3333, Fax: 506 642-1688
Website: www.jdirving.com
History:
The company commenced newsprint production on one machine in 1965. Second machine started production in March 1971. The company was acquired by Irving Pulp & Paper Limited in July 1981. Specialty paper production commenced in 1991.
Paper Machines: #1PM Beloit (1965) 8788 mm, 1130 m/min., Metso Sympress B, Twinline calender, winbelt winder. #2 PM Beloit (1971) 8788, 1160 m/min., Metso 6 roll optiload on-line calender, winbelt winder. Both machines have GE a/c innovation drives, Metso MB formers, Sym Flo head boxes.
Finishing Plant
Roll Wrapper: 1 Valmet Hotpack Scale: 1 Robert Morse & 1 Lamb-Mastrom Finish Line Control: Majiq roll handling system
Effluent Treatment
Clarifier: 1 45.7 m Dorr-Oliver Long Pre-screen: 1 91.44 cm Jeffrey Sludge Press: FKC Screw Press
Aerators: 22-acres ASB with fine bubble aeration
Blowers: 3
Source of Power & Steam: New Brunswick Electric Commission supplemented by company steam plant, 1 Combustion Engineering type VU 40 boiler, 1 Rentech boiler.
Process Control
Distributed control systems: Honeywell TDC 3000 - entire plant.
Personnel
VP-Pulp & Paper Ops: Mark Mosher
Plant Eng: Al Hubbard
Tech Mgr: Cindy Milbury
Envirn Coord: D Muir
Site Mgr: Anthony Birotto
Prod Mgr: Don Mott
Mtce Mgr: Barry Phillips
Hum Res Mgr: Peter Milne
ISO Quality Registration: 9001-1996; 14001
Market Pulp: 335,000 admt/y, 950 admt/d fully bleached kraft from softwood and hardwood (maple and birch)
Transportation: CNR, NB Southern. sidings, Saint John harbour is ice-free for year-round shipments
Cutter Layboy: 3 Lamb-Grays Harbour model L continuous pulp cutter; cuts 156" nominal width web into 5 31" x 28" long sheets; also precision for 3 52" x 55 long
Presses: 2 Dominion Engineering; 1 1000 t capacity; 1 600 t capacity
The mill was first constructed in 1893. Through the years, the mill has evolved from a 15 t/d of unbleached sulphite pulp operation to its present day modern 990 t/d bleached kraft pulp. Kraft process was originally introduced as a separate line in 1960. A complete conversion to this process occurred in 1977. In 1996, the mill completed a large modernization and environmental improvement project with the start-up of new brown stock washing and screening, oxygen delignification, additional evaporator and concentrator capacity, and condensate segregation and stripping. In 1998, the mill added reverse osmosis treatment on evaporator clean condensates, and upgraded to two stage oxygen delignification. In 2000, the mill added a moving bed bioreactor on bleach plant filtrates, and upgraded one of the turbogenerators. In 2004, a new green liquor clarifier was commissioned.
Liquor Recovery Plant (Kraft)
Recausticizing: 1 Dorr-Oliver green liquor clarifier, 50' dia. x 50', single trays; 2 DorrOliver white liquor clarifiers 40' dia. x 24'; 1, lime mud washer, 65' dia x 32', 1 GLV
Founded in 1904, Kruger Inc. is a major producer of publication papers, tissue, lumber and other wood products, corrugated cartons from recycled fibers, green and renewable energy and wines and spirits. The company is also a leader in paper and paperboard recycling in North America. Kruger operates facilities in Quebec, Ontario, Alberta, British Columbia, Newfoundland and Labrador, in The United States and the United Kingdom and has 10,000 employees.
Pulp and Paper Limited, (NL). Tissue: Crabtree, Sherbrooke, Gatineau (QC), Calgary (AB), New Westminster (BC), and United Kingdom. Krupack Packaging: Paperboard: Montréal (QC); Packaging: LaSalle (QC) and Brampton (ON)
Sales Offices
Newsprint/Groundwood Specialties/LWC/ SNC/Kraft/Directory: 3285 ch Bedford , Montréal, QC, H3S 1G5; 4788 Deer Run, NW, Kennesaw, GA, 30152;101 Merrit 7, 2nd Floor, Norwalk, CT, 06851; 520 Treyburn View, Alpharetta, GA, 30004; 40 Shuman Blvd. Suite 160, Naperville, IL, 60563; 6 Sunflower Lane, Londonderry, NH, 03053; 107 Country Club Dr, Rochester, NY, 14618; 13268 Williamsburg Ave NW, Uniontown, OH, 44685;10 Pedigree Crt, Brampton, ON, L6T 5T8; 110 Block House Road, Greenville, SC, 29615; 6301 Timberwolf Trail, Birmingham, AL, 35242; 7 Ten Coat Lane, Shelton, CT, 06484; 2002 West Chicago Ave., PMB 122, Chicago, IL, 60622; 2322 Poplar Rd, Baltimore, MD, 21221; 700 Widewater Rd, Stafford, VA, 22554; 2452 Two Rod Rd, E Aurora, NY, 14052-9666; 807 West Clinton St, Elmira, NY, 14905; 220 chemin Windsor, Brompton, QC, J0B 1H0; Glencaum, Grenagh, County Cork, Ireland. Kruger Products - 800 Chomedey Blvd., Tower C, Suite 510, Laval, QC, H7V 3Y4; 1900 Minnesota Crt, Suite 200, Mississauga, ON, L5N 5R5; 1625 - 5th Av, New Westminster, BC, V3M 1Z7; 656748th St SE, Bay 40, Calgary, AB, T2C 3J7; 277 Pleasant St, Suite 104, Dartmouth, NS, B2Y 4B7; 400 Mahannah Ave., Memphis, TN 38107; Kruger Tissue (Manufacturing) Limited - Waterside, Disley, Stockport, Cheshire, England, SK 12 2HW; Kruger Tissue (Industrial) Limited - Pennygroes, Caernarfon, Gwynedd, England LL54 6DB. Business Units & Subsidiaries: Publication Papers: Brompton, Trois-Rivières, Wayagamack (QC); Corner Brook Pulp and Paper Limited, Corner Brook(NL); Tissue: Crabtree, Sherbrooke, Gatineau (QC); Calgary (AB); New Westminster (BC); KTG USA (TN); United Kingdom; Krupack Packaging: Paperboard Mill: Montreal (QC); Packaging plants: LaSalle (Montreal) (QC) and Brampton (ON); Recycling: Paper Recovery and Sorting Centers: Montreal and Sherbrooke (QC); partnership, Kruger Recycling Inc., Albany (NY). Sawmills: (manufacturers of lumber and other wood products): Kruger Inc., Scierie Parent,
Washers: Holder Pamac 2 units, 2.5 m dia. 8 m long
Dewatering Screws: Andritz
Paper Mill
Fourdriniers: 1 152" trim 46 x 48" dryers. PF Former Dominion Papriformer: 1 158" trim 42 x 60" dryers, Dominion calender and winder Bel Baie II: 1 158" trim 44 x 60" dryers
Refiner Lines: 3 4,500 hp (4SIB); 3 x 14,000 hp (mainlines)
Twin Flow Refiners: 4 Andritz
Paper Mill
Paper Machines: 2 "C" formers 150 in.
Belformer: 1 150"
Bel Baie II: 1 300"
Top Flyte: 1 150"
Periformer: 1 150"
Papriformer: 1 242"
Coaters: 1 Black Clawson, 1 Jagenberg - Offmachine
Supercalenders: 7 2 Beloit, 5 Kleinewefers
Hydrogen Peroxide Plant: 1 DuPont, 180 t/d
Wrapping Machine: 1 Valmet, Robotic 2,000 rolls per day
Steam Plant
Oil & Gas-fired Boilers: 3 630,000 lb/h total
Bark & Oil: 125,000 lb/h
Electric Boilers: 2 280, 000 lb/h
Effluent Clarifier: 1 Beloit 150' dia
Fresh Water Clarifier: 1 Graver 150' dia.
Effluent Control
Clarifiers: 1 primary, 2 secondary
Spill Basin: 1
Sludge Presses: 2 Andritz
Aerators: 2 aeration basins
Sludge Disposal: Landfill, incineration
Kruger ProDucts limiteD
Head office
Mailing Address: PO Box 1500 Mississauga ON L5M 6A3
Address: 200-1900 Minnesota Crt
Mississauga ON L5N 5R5
Tel: 905 812-6900, Fax: 905 812-6910
Website: www.krugerproducts.ca
History:
Founded as Westminster Paper Co. in 1922, affiliated with Scott Paper Co. USA in 1954, purchased Crabtree Mills in 1957, added PM No. 3 at Crabtree in 1959, changed name to Scott Paper Ltd. in 1964, added No. PM 4 at Crabtree in 1971, purchased Lennoxville in 1978, added PM No. 4 at New Westminster in 1984, added PM No. 6 in Crabtree in 2004. Scott Paper Ltd was purchased by Kruger Inc. in 1997.
Consolidated Bathurst Inc. sold mill to Stone Container. Stone-Consolidated merged with Abitibi-Price to become Abitibi Consolidated Inc. Abitibi Consolidated Inc. sold to Kruger Wayagamack Inc. Kruger Wayagamack Inc. is owned by Kruger Inc. (51%) and a division of La Société Générale de Financement du Québec. Major upgrades completed in November 2004.
Personnel
VP-Prod-Trois-Rivières/Wayagamack: D Archambault
Gen Mgr: P Dallaire
Mgr-Engrg/Svs: G Lupien
Mgr-Tech Svs: N Houde
Hum Res Mgr: M Gélinas
GW Supt: D Archambault
Div Controller: J Y Lessard
Prod Mgr-Pulp: C Tremblay
Prod Mgr-Paper: Y Gauthier
Orders/Logistics: M Boutin
Environ Supvr: D Bélanger
Materials Supt: Y Gosselin
Chief-Fire/Emerg Brigade: S Desaulniers
Coord-Prevention/Training: J-M Gilbert
Div Dr: R Gauthier
IT Mgr: D Gagnon
Transportation: C.P.R., C.N.R., Port connections - Montreal, Quebec and New York.
Mailing Address: PO Box MP Address: 1 Mill Rd Marathon ON P0T 2E0
History:
Built in 1945 as Marathon Paper Company. Became part of American Can. Bought by James River in 1983, and most recently acquired by a joint venture between Kruger Inc. and Tembec Inc. (January 31, 2000).
Status Indefinitely closed as of March 2009
ISO Quality Registration: 14001-2003; 90011996
Parent company: A Kruger/Tembec Company Transportation: CPR / Highway
Mailing Address: PO Box 9100 Meadow Lake SK S9X 1V7
Tel: 306 236-2444, Fax: 306 236-4880
Website: www.sinarmasgroup.com
History:
The start-up of the Meadow Lake BCTMP mill in 1992 marked a world's first - the successful implementation of zero-liquideffluent-discharge operation at a market pulp mill.
Personnel
Mill Mgr: E Roste
Fin Mgr: A Klassen
Mtce/Engrg Mgr: D Chisholm
Prod Mgr: S Imray
ISO Quality Registration: 9001; 14001
Owner: Sinar Mas Group, Indonesia Transportation: Railroad, Highway
Source of Power: purchased from Saskatchewan Power
Effluent/Pollution Control
Clarifiers: 2 10,000 L/min each Krofta
Screens: 2 10,000 L/min each Bird Escher
Wyss
Settling Ponds: 2 4m800 m3 each
Sludge Disposal: Incineration
Sludge Presses: 1 Phoenix model PPX-2.5N
Aerators: 18 Aire -02
Vincent Press: 1 model VP-16
millAr western Forest ProDucts ltD.
Head office
Address: 16640 111 Ave NW Edmonton AB T5M 2S5
Tel: 780 486-8200, Fax: 780 486-8282
Website: www.millarwestern.com
Personnel
Chairman: J B Millar
Pres/CEO: H M Millar
Exec VP/COO: C Armstrong
VP/CEO: K Edgson
Sr VP: C Cotton
Sr VP-Pulp: R Reis
Sr VP-Wood Prod: J Costantino
VP-Hum Res: D Keir
Parent Company: Millar Western Industries Ltd.
Operating Subsidiaries & Principal Divisions: Whitecourt Pulp, a division of Millar Western Forest Products Ltd.
Ownership: Private Sales Offices: Edmonton, AB
Sales Agents: Celtec Corporation - Japan; Central National (UK) Limited - United Kingdom; Ekman & Co. Inc. - South America; Elof Hansson Pulp Inc. - Indonesia; Gusco Handel G. Schurfeld & Co.Northern Europe; Larsen and Danglade - France; Lee Brothers - Korea; Central National Italia;; Central National Espanola.A - Spain; TAK International Ltd. - China; Beauflex International Corp - Taiwan; IFP Corporation/Paxwell Internacional - Mexico; Fibrosource - India
Annual Production Capacity: 300,000 admt/y of BCTMP
Main Process Control System: 2 - 1 Bailey, 1 Measurex
Paper/Board Finishing Plant
Winder: 2 - 1 Jagenberg (shutdown), 1 Ellington
Rewinder: 1 Jagenberg
Unwind Stand: 1 - Genik
Main Process Control System: Measurex
Power Plant
Power Boiler: 3 - 2 Foster Wheeler, 1 Dominion Bridge
Steam Generated: 360,000 lb/y
Type of Fuel Used: Oil 2 20,000 gal Bunker "C"
Power Purchased: 27,000,000 kW/h
Water Consumption: 18,000,000 L/d
Water Source: River
Effluent Pollution Control
Clarifier: 3 - 2 Poseidon PPM, 1 Poseidon
Saturn
Screen: 3 Various
Main Process Control System: Bailey
HArmAc PAciFic PulP oPerAtions
Head office
Address: 1000 Wave Pl Nanaimo BC V9X 1J2
Tel: 250 722-3211, Fax: 250 722-4310
Website: www.harmacpacific.com
History:
In February 1994, MacMillan Bloedel Ltd announced its intention to divest itself of its pulp manufacturing and marketing organizations. To facilitate this, Harmac Pacific Inc was formed. In January 1998, Pope and Talbot acquired 53% of the company's outstanding common shares. In January 2000, Pope & Talbot increased its holdings to 60% of the company's oustanding common shares. In January 2001, Pope & Talbot acquired the remaining outstanding shares and Harmac Pacific Inc. became Harmac Pulp Operations, a division of Pope and Talbot Ltd. The mill shut down in May 2008 after Pope & Talbot went bankrupt. In August 2008, Nanaimo Forest Products purchased the mill. About 200 Harmac workers returned to work.
ISO Quality Registration: 9001-1996; 140002000
Wood Source: 100% purchased
Transportation: One deep sea dock, rail barge to CNR, CPR & GN
Mailing Address: PO Box 1000 CDO Prince Prince Rupert BC V8J 3S2
History:
On April 30, 2002, Skeena Cellulose Inc. was acquired by NWBC Timber and Pulp Ltd. The pulp mill has been shut down since July 2001. Sold to Sun Wave Forest Products in 2006. City of Prince Rupert claimed possession of mill in 2009 for unpaid taxes.
Status: Indefinite closure - July 2001
newPAge Port HAwKesburY corP.
Head office
Mailing Address: PO Box 9500
Address: 120 Pulp Mill Rd Point Tupper Port Hawkesbury NS B9A 1A1
Tel: 902 625-2460, Fax: 902 625-1105
Website: www.newpagecorp.com
History:
The Port Hawkesbury Mill and the other mills of Stora Enso North America became part of NewPage Corporation in December, 2007).
A sulphite market pulp mill was built in 1962 and closed in 1998. A newsprint machine was added in 1971. In 1998 the world's widest and fastest paper machine making supercalendered (SC-A+) paper started production. In the fall of 2004 a thermomechanical pulp plant (TMP3 line) was commissioned. After a 10 month shutdown, the mill resumed production in October 2006. The Port Hawkesbury Mill and the other mills of Stora Enso North America became part of NewPage Corporation in December, 2007). NewPage Corporation has 7,800 employees in North America, of which 570 are located at the Port Hawkesbury Mill in Nova Scotiathe only Canadian operation.
Board: Tor Suther
Personnel
Pres/Gen Mgr: Tor Suther
VP-Woodlands: R Waycott
Paper Prod Mgr: David Procter
Total Employees: 570
Corporate Head Office - NewPage Corporation
8540 Gander Creek Dr, Miamisburg, OH 45342
Division Office: Port Hawkesbury Mill, Nova Scotia
Wood Source: Northeastern Nova Scotia
woods
Mailing Address: PO Box 9500 Port Hawkesbury NS B9A 1A1
Tel: 902 625-6277, Fax: 902 625-2388
Website: www.newpagecorp.com
Personnel
VP-Woodlands Ops: Russ Waycott
Reg Mgr: Bruce Chisholm
Reg Mgr: Derek Geldhart
Forest Res Mgr: Kari Easthouse
Equipment
Feller Bunchers: 5 (contractor)
Processors: 81 (contractor)
Harvesters: 32 (contractor)
Forwarders: 35
Excavators: 8 (contractor)
Graders: 4 (contractor)
Trucks: 56 (contract)
mill
Mailing Address: PO Box 9500
Address: 120 Mill Rd Point Tupper Port Hawkesbury NS B9A 1A1
Tel: 902 625-2460, Fax: 902 625-1105
Personnel
Pres/Gen Mgr: Tor Suther
VP-Woodlands: Russ Waycott
Hum Res Mgr: Peter Waugh
Comm Mgr: Patricia Dietz
Info Serv Mgr: Mike O'Leary
Mgr-H&S, Enviro: K Mitchell
Mgr-TMP/Clay/Kraft: Mark Frith
Mgr-Paper Prod: David Procter
Env/Tech Serv Mgr: Derrick Cameron
Serv Mgr: Jeff Campbell
Materials Mgr: Donald MacCuspic
Mgr-Utilities/Energy Dev: Seldon MacKenzie
ISO Quality Registration: 9001-1996; 140001998; 18001-2007
Paper Machine: 5 Formers, Manchester MF 1000, 182" width, 165" trim with VR press, S 150 ft/min; Black Clawson blind-drilled press; Valmet SymBelt press
Size Press: 1
Can Dryers: 55, BCK, 450 t/d
Calender Stack: 1 BCK
VIB Water Spray System: 1
Moisture & Basis Weight Control System: 1
Cranes: 1 semi-gantry 15-ton cap.; 1 Dresser 20 ton cap
Hoist: 1 overhead 25-ton cap
Elevator: 1 lowerator
Power Plant/Water & Waste Data
Fuel Used: steam contract from local incinerator
Power Boilers: 1 water tube 150,000 lb/h. 200 ps - stand by
Steam Generated: none (used to be 110,000 lb/h - stand by)
Water Consumption: 400,000 USgal/d Source: Municipal 100%
Effluent System
Effluent Treatment Plant: ASR, primary and secondary flotation cells - stand by
Fourdrinier: 208" wire Inglis, (kraft pulp) 1st press, bottom suction press roll & felted top roll, 2nd press bottom blind drilled roll & self skinning top roll and felted top roll; 3rd press, bottom grooved rolls and self skinning top roll
Pulp Dryer: 23-pass SF Flakt 'L' type with Flakt booster dryer 6-pass
Cutter Layboy: Lamb-Grays Harbor
Baling Press: 1000-ton Dominion, 1000-ton Hepburn
Wire Tying Machines: 2 model 9000 R-O
Ovalmatic
Bale Unitizer: Ovalmatic model 9000R-O type C
Scale: Toledo, model 2191, capacity 5000 lb with printer
Steam Shower: Devron-Hercules D6A/17-F
Steam Plant
Power Boiler: 1 Babcock & Wilcox 900 psig steam gen. cap. 500,000 lb/h on oil; 400,000 lb/h on oil & bark; 300,000 lb/h on bark only
Bark Burning System: Miller Hofft boiler distribution bin 50-ton capacity 40-min storage time. Live bottom 24-screw bin hydraulically driven with 6 Falk hydraulic units. Bark fed into boiler via 6 CE mechanical bark distributors
Source of Power
Turbogenerator: 28,000 kW, 13,800 volt
Worthington
Electricity: Standby power from Nova Scotia Power Commission system through 15/10/25 MVA., 69/13.8 kv transformer
Effluent Treatment
ASB System with a settling basin, an emergency spill pond and an aerated basin with 1600 hp of aeration
History: After having filed for bankruptcy in October 2006 in order to restructure itself financially, the company reopened in June 2007 and was acquired by St. Mary's.
Personnel
Mtce/Engrg Mgr: T Black
Woodlands Mgr: D Iacovino
Pres: Gord Acton
Corp Controller: R Battisti
Dir-Hum Res: C Yrjola
Mgr Info Sys: B Egglesfield
Total Employees: 400
quesnel
st. mArY's PAPer corP.
Paper Corporation.
Ownership: St. Mary's Paper Corporation
Sales Agent & Broker: St. Mary's Sales Company, 1 Westbrook Corporate Centre, Suite 820, Westchester, IL 60154-5714. John V. Carr & Son, 1600 W. Lafayette, Detroit, MI 48216
Transportation: CPR, ACR, CNR (Indirectly). Wisconsin Central RR
Production Paper: 660 t/d supercalendered groundwood printing & specialty papers
Power: purchased from Great Lakes Power Water Source: St. Marys River Cogeneration System: Steam Host (45,000:155,000 lb/h) for Lake Superior Power - Natural gas fired jet engine
Effluent Treatment: Eimco primary clarifier and activated sludge secondary treatment, Eimco belt thickener, Reitz V press Process Control: Measurex open DCS (steam plant, effluent treatment)
Water Source: Matane River Water Consumption: 800 USgal/pm
Effluent/Pollution Control - Closed System
Clarifier: 1 60 ft diam.
Screen: 1 bar screen
PontiAc mill
mill
Address: 211 Hwy 301 Portage-du-Fort QC J0X 2T0
History:
The Portage-du-Fort mill was permanently closed in 2008.
Consolidated Paper Ltd. From 1965 - 1967; Consolidated Bathurst Inc. from 1967 - 1989; Stone Consolidated Corp. from 1989 - 1993. Stone-Consolidated split into two groups as of December 17th, 1993. Pontiac Division became part of Stone Container (Canada) Inc./Emballages Stone (Canada) Inc. The company became part of Smurfit-Stone Inc. in 1998.
Total Employees: 216
ISO Quality Registration: 9001-2003; 14001-2003
Sales Agent: Smurfit-Stone International, 150 North Michigan Ave., Chicago, IL 606017568
Wood Source: Company limits in Ontario and Quebec in Upper Ottawa Valley area. Wood purchased from Crown and free-hold land in same area. Purchased sawmill chips Transportation: CNR; Quebec Hwy, 148 ISO Quality Registration: 9001 (Since 1993), 14001 (since 2003); FSC Certified (since 2006)
Company started in Brantford in 1933 and is a wholly owned subsidiary of Sonoco Products Co., Hartsville, SC. In 1945 purchased G & M Tubing, Granby, QC. In 1952 it expanded manufacturing tubing in Brantford and in 1961 purchased Industrial Steel & Fibre, Terrebonne, QC. The Terrebonne paper mill was completed in 1963 and a new plant built in Scarborough, ON. In 1965 a new building was added in Brantford, and a plant opened in Vancouver to manufacture spiral tubes. In 1969, size of
the building in Scarborough was doubled. A second board mill was completed at Brantford, July 1973. New plants were opened in Moncton, NB in 1977 and in Kingston, ON in 1981. In 1983 purchased Federal Packaging and Partitions Co., Ajax, ON. In 1986 opened new plant Quebec City and Nanaimo, BC. 1988 new plant in Thunder Bay, ON and 1989 Edmonton AB. In 1990 a new plant was opened in Chicoutimi, QC. In 1991 a new partitions plant was opened in Laval, QC. Also in 1991, Newfont Corporation was acquired, including Alberta Paper Cores Limited in Whitecourt, AB, Baywood Paper Limited in Barrie, ON and Newfont Limited in Stephenville, NF. Sonoco Ltd. established a plant at Port Mellon, BC in 1990. It supplies cores to Howe Sound Pulp and Paper Limited. Joint ownership in 1991 with Coretech which included the 7 newly added converting operations. Acquired full ownership of these 7 plants in 1998.
Sales Offices: Brantford, ON; Granby, QC; New Westminster, BC; Moncton, NB Converting Operations: Brantford, Kingston, Granby, Cap de la Madelaine, Hull, QC; Mississauga, ON; Nanaimo & New Westminster, BC; Moncton & Saint John, NB; Edmonton & Whitecourt, AB.
Mills: Brantford, ON, Montréal, QC; Trent Valley, ON
Production Capacity
Board: 180 t/d paperboard, tubes, cores, spools, partitions, fibre forms for concrete columns and voids. Made from 100% recycled fibre
Strathcona Paper Company was the operating division of Roman Corporation Limited. The mill was purchased by Roman in 1974 and prior to that had been privately owned since its creation in 1873. Strathcona Paper LP operates under CanAmPac ULP. The mill was sold in 2006 to Forrest Resources LLC.
Electricity: Frequency phase: 60, 3. Installed hp, 13,000
Water Treatment
Daily Usage: 0.5 million gal/d.
Source: Napanee River
Effluent Treatment
Primary & secondary activated sludge treatment
Process Control
DCS: Metso DNA System (stock preparation and paper machine)
tecHnocell inc.
Head office
Address: 3075 rue Bernier Drummondville
QC J2C 6Y4
Tel: 819 475-0066, Fax: 819 475-2440
Website: www.felix-schoeller.com
History:
November 1989 - mill construction of CDM. November 1990 - Converting units start-up (1 impregnator & EBC line). July 1991 - paper machine start-up. January 1994 - addition of 1 impregnator. February 1997 - addition of 2 impregnators. December 1999 - sale of printing unit to IP. March 2000 - Strategic alliance agreement between Kunz & Technocell Dekor. May 2001 - Joint venture between CDM & Felix-Schoeller Canada (excluding converting units). December 2001, FelixSchoeller became the owner of Technocell Inc., Drummondville.
Personnel
Pres/CEO: Richard Paterson Jones
VP-Sls/Mktg: Thomas Scheck
Qual Mgr: Mario Paquin
Dir-Logistics/Purch: Eric Langlois
VP-Ops: Martin Ostermayer
Dir-Mtce/Eng: André Bellefleur
Mtce Eng: André Poirier
Mtce Eng: Sylvain Schmitt
Dir-Ops/Process Technology: François Aubertin
Eng: Frédéric Jean
Total Employees: 134
Owner: Felix Schoeller
Production: Decorative paper for laminating industries (furniture, flooring application, kitchen cabinet, bathroom cabinet, etc.)
Sales Agent: Technocell Dekor USA, 179 County Route 2A, Pulaski, New York, NY, USA 13142, J. Kisela - Sales Manager. Tel. 315-298 8888
Equipment
Pulping Line: 2 Voith
Paper Machine: Reinhard
Head Box: Voith
Wire Section: Reinhard 3.4m (width)
Fourdrinier
Pick-up Press: Suction Dryers: 48 (3 sections)
Yankee Dryer: 1 (5m dia)
Size Press: Vertical, with air float dryer + infra red dryer
Heat Recovery/dryer Hood: L + E
Soft Calender: Kusters 2 tandem soft nip
Winder: Jagenberg
Process Control: ABB - MOD 300 DCS; AccuRay, sensors/control; Profilmatic profile control, VIB (moisture control)
Address: 1 Government Rd Kapuskasing ON P5N 2Y2
Tel: 705 337-1311, Fax: 705 337-9708
Website: www.tembec.com
Status
Partial closed as of October 2007
Personnel
Gen Mgr-Woodlands: D R Goss
VP-Mktg: J P Bradette
Mgr-Env Ops: K Bernard
Hum Res Mgr: N Leybourne
Gen Mgr-Sawmill Ops: M Gagne
Gen Mgr Kapuskasing: A Ouimette
Prod Mgr: B Miller
Total Employees: 700
ISO Quality Registration: 14001
Ownership: Tembec Inc., 100%
Sales Office: 405 The West Mall, Suite 800, Etobicoke, ON, M9C 5J1. Tel.: 416-775-2801, Fax: 416-621-4303. US & Canada: 1-800-565 3021
Directors: Norman M. Betts, James E. Brumm, Luc Rossignol, James Lopez, James Continenza, James Chapman, Lorie Waisberg, Francis Scricco, David Stewart
Sales Agents & Brokers: Tembec Chemical Group, Alcohol Division: Wayne D. Maybury, Marketing Manager, 4090 Cornwall St., St. Hubert, QC (Canada) J3Y 2S5, Tel.: 450-676-8020, Fax: 450-6768141, E-mail: wmaybury@istar.ca. Chemical Group, Lignin Division: David L. Oldroyd, Ph.D., Marketing Manager, Tel.: 905-8464201. Fax: 905-866-7229. E-mail: david.oldroyd@sympatico.ca
Transportation: RaiLink; Hwy. 63 & 101, sea port connections
Production: 18 M L/y industrial alcohol; 100,000 t/y lignosulphonates
cHetwYnD oPerAtions
Head office
Mailing Address: PO Box 900
Address: 4181 Chetwynd Pulp Mill Rd
Chetwynd BC V0C 1J0
Tel: 250 788-4592, Fax: 250 788-7845
History:
Built by Louisiana-Pacific, Millar Western took over the management of this mill in 1999. On October 17, 2001, Louisiana-Pacific decided to indefinitely close its hardwood bleached-chemi-thermomechanical pulp (BCTMP) mill in Chetwynd, BC. Tembec Inc. purchased the mill as of October 8, 2002.
Personnel
Mill Mgr: W Clement
Tech Supt: A Lozier
Fibre Procurement Supt: D Braybrook
Cust Serv Supt: M Tremblay
Purch/Stores Supt: S Crawford
Mtce Supt: A Scalet
Hum Res Supt: Curtis Jeffrey
Production capacity
Aspen BCTMP: 220,400 adt/y
Equipment
Woodroom
Chipper: 1 96" Nicholson
Debarker: 27" Nicholson
Chip Screen: Acrowood
Pulping
Refiners: 5 64" Hymac, 2 Conflos
Screens: 3 Bird, 1 Centri Sorter
Cleaners: Celleco
Thickener: Celleco
Presses: 7 Thune; 2 Hymac twin wire & 2 secondary
Pulp Dryers: 2 Flakt
DCS: Valmet
Finishing: Cranston
Power Plant
Boiler: McBurney 150,000 lb/h
Electrical: Siemens
Effluent: MVR Evaporation
HigH YielD PulP Divisiontemcell - témiscAming
Mailing Address: PO Box 3000
Address: 33 Kipawa Rd Témiscaming QC
J0Z 3R0
Tel: 819 627-3321, Fax: 819
Website: www.tembec.com
Personnel
Tech Supt: Steve Raymond
Supt-Cust Serv: Dan Gaudet
Exec VP/Pres-Pulp Group: Yvon Pelletier
VP: Bernard Guimont
Mgr-Mill Ops: Sue Nakanishi
ISO Quality Registration: 14001-1996
Sales Office: Toronto, ON
Equipment
No 1 Line
Woodyard: chip storage for 6,000 units of soft and hardwood. Rader pneumatic system and fines screens. Hooper reclaimers
Impregnation: Enso chip bins. Sunds impregnators and chip washing
Transportation: RaiLink; Hwy. 63 & 101; sea port connections
sPeciAltY cellulosetémiscAming
mill
Mailing Address: PO Box 3000
Address: 33 Kipawa Rd Témiscaming QC
J0Z 3R0
Tel: 819 627-3321, Fax: 819 627-4617
Website: www.tembec.com
History:
The Kipawa mill was built under the direction of C.B. Thorne, by the Riordon Company, started up in 1920, acquired by CIP in 1925, and shut down in May 1972. In 1973 it was acquired by Tembec Forest Products Inc., the result of co-operative efforts of Temiscaming residents, executives and employees, and the Quebec and Canadian governments. Production recommenced on October 1, 1973.
Personnel
Exec VP/Pres-Pulp Group: Yvon Pelletier
Mgr-Cust Supply Serv: Mark Giguère
Prod Mgr: Mario Gamelin
Tech Mgr: Jim Hay
ISO Quality Registration: 9001-1996; 140012000
Sales Office: Toronto, ON Research & Development HQ: Témiscaming, QC
Transportation: RaiLink; Hwy. 63 & 101; sea port connections
Production Capacity
Pulp: 165,000 t/y of dissolving & specialty rolls and bale pulps
Equipment
Wood Plant
Chip Storage Capacity: 1 50,000 t
Chip Consumption: 1 200 t/d
Chip Unloaders: 2 Rader
Chip Handling: 2 Rader (blowers)
Pulping Plant
Digesters: 11 batch, 5.1m dia. x 16.8m high, 264m3 each ammonia-base cooking
Accumulator: Hot acid
Presses: 2 Hymac Thune presses, 350 t each Knotters: 1 primary, Valmet K8 10mm holes;
The Pine Falls mill started making newsprint in 1927. In 1994 the management and employees bought the mill from AbitibiPrice, and in 1998 it was sold to Tembec Inc.
Over $80 million was spent in environmental and technological upgrading from 1994-1998. A $125 million TMP plant started up in March 2001.
Personnel
Gen Mgr FRM-Pine Falls: A McCuaig
Div Forester: V Keenan
Ops Forester: J F Fraser
Silviculture Forester: D Philippot
Ops Mgr: R Durocher
Mgr-Commun/Aboriginal Rel: R Yatkowski
Ops Foreman: G Cure
GIS/Inventory Forester: S Day
Admv Asst: L Cyr
Total Employees: 20
Parent Company: 100% Tembec
Transportation: CEMR Rail/CN Rail, Highway
Equipment
Haul Trucks: Contracted out
Pine FAlls Division
mill
Mailing Address: PO Box 10
Address: Hwy 11 & Mill Rd Pine Falls MB
R0E 1M0
Tel: 204 367-5200, Fax: 204 367-8351
Personnel
PM 2 Supt: B Nault
Tech Supt: J Anderson
PM 1Supt: I Earle
Finishing/Shipping Supt: I Cyr
Gen Mgr: D Boyer
Utility Serv Supt: D Hanson
Mech Supt: G Dugard
E/I Supt: L McKay
Paper Mill Supt: J Stevenson
Cust Serv Mgr: K Sharpe
TMP Supervisor: B Davidson
Purch Supt: C Brunet
Hum Res Supt: J Habing
Total Employees: 330
ISO Quality Registration: 9003-1993; 14000-2001
Production
Newsprint: Official rated capacity: 178,000 t/y
Chip Handling
Chip Dumper: Rader 90 ton
Chip Screens: Acrowood with ADS
Elevators: 2 Continental Conveyor
Chip Silos: 2 @ 10,000 m3 each - spruce and pine separate
TMP Plant
Capacity: Design 525 t/d - Operating at 480 t/d
APS Bins: 2 SHW
Refiner Line: Single line Metso CD82's Refiner Motors: 26 Mw ABB on Pri, Sec & Rej.
Heat Recovery: Ahlstrom 65 t/h
Pulp Thickening: Kvaerner Disc Filter 16' dia. x 19 disc and Metso twin roll press
Type of Fuel Used: 140,000 bdt/y bark; 7 x 500,000 GJ/y of gas; 28 MW/y of electricity
Source of power: BC Hydro
Water consumption: 39 cubic meter/adt
Water source: Skookumchuk
Main process control system: ABB
Cogeneration system: Siemens, 45 MW
Effluent/Pollution Control
Clarifier: 1 colour clarifier
Dregs filter: 1 Eimco
Settling pond: 1
Sludge disposal: Batch
Aerators: 35 1,800 hp total
Process Control
DCS: Bailey, all areas
tolKo inDustries ltD.
tolKo mAnitobA KrAFt PAPers
Head office
Address: PO Box 39 Stn Main Vernon BC
V1T 6M1
Tel: 250 545-4411, Fax: 250 545-5133
Website: www.tolko.com
History:
In the mid 1960s an agreement was reached between the Manitoba Development Fund and four companies to construct and operate an integrated forest complex at The Pas, Manitoba. In January 1971, the complex was placed under receivership management by the government and began operation early in that year. On October 1, 1973, a Crown company, Manitoba Forestry Resources Ltd., was created. On October 1, 1984, the name of the corporation was changed to Manfor Ltd. In May 1989, Manfor Ltd. was sold and became Repap Manitoba. In 1997, Tolko purchased the mill.
Status: Temporarily closed as of February 1st 2009
Wood source 8,517,386 ha. timber limit in Northern Manitoba managed and harvested by the Woodlands Division
Annual allowable cut: 1,675,389 m3
Sawmill Address: PO Box 5200, The Pas, Manitoba. R9A 1S1. Tel.: 204-623 8644, Fax: 204-623 3914
Lumber Production capacity: 170 million board feet on 2 shift basis, 170 million board feet on 2 shift basis annually of random length dimensional.
PAPer mill
Address: 345 Curtis Rd Miramichi NB E1V 3R7
Status: As of August 2007, the paper mill was permanently closed. Sold to Umoe Solar in 2009. To be converted to production of solar panels.
west FrAser timber co. ltD.
Head office
Address: 501-858 Beatty St Vancouver BC V6B 1C1
Tel: 604 895-2700, Fax: 604 681-6061
Website: www.westfraser.com
History:
West Fraser originated in 1955 as a lumber planning business in Quesnel, B.C. From 1955 to 1979 the business expanded in Western Canada through the acquisition of sawmills and related harvesting rights. In 1979 the company established Quesnel River Pulp as a joint venture, which became wholly-owned in 2002. In the following decade it acquired Eurocan Pulp & Paper located in Kitimat, B.C. and in the mid-1990's the company acquired Slave Lake Pulp in northern Alberta. In 2004, through the acquisition of Weldwood of Canada Ltd., West Fraser acquired Hinton Pulp in Alberta and a 50% joint venture interest in Cariboo Pulp & Paper in Quesnel, B.C.
Personnel
Chairman/Pres/CEO: Hank Ketcham
Exec VP-Fin/CFO: Gerry Miller
Hinton PulP
mill
Address: 760 Switzer Dr Hinton AB T7V 1V7
Tel: 780 865-2251, Fax: 780 865-8538
Personnel
Supt-Wood Rm: D Jeffrey
Controller: G Power
Mtce Supt: R Hallam
DCS/Instr Supt: D Pors
Cust Serv Supt: J Boese
OH&S Supt: T Goldrup
IS Mgr: L Shone
Gen Mgr: B Grantham
Pwr/Recov Mgr: J Wilson
Mtce Mgr: G Sitar
grounDwooD mill
Address: 160 Nelson St Miramichi NB E1V 6A7
Status: The groundwood mill shut down in 2007. Sold to Umoe Solar AS of Norway in 2009.
KrAFt PulP mill
Mailing Address: PO Box 5040
Address: 345 Curtis Rd Miramichi NB E1V 3R7
Status: UPM announced the permanent closure of the kraft pulp mill on January 31, 2005. Sold to Umoe Solar in 2009.
Env Supt: G Start
Total Employees: 342
ISO Quality Registration: 9001-2008; 140002004
Production Capacity
Pulp: 1100 t/d
Equipment
Pulp Mill
Digester: 2 vessel Kamyr hydraulic for MCC
cooking
Blow Tanks: 250 adt
Knotters: 2 Ingersoll-Rand Hi-Q primary,
2 Jonsson secondary
Washers: 4 stages of brownstock, 2-stages of Ingersoll-Rand vacuum filters, 2-stages
Sunds wash press
Screens: 3 stage brownstock screening, Ingersoll-Rand model 212D centrisorters
Oxygen Delignification: Sunds MC system
Brownstock Storage: 450 adt
Bleach Plant: DEop (DnD), 3-stages of washing
CIO2 Plant: 25 t/d R-8 Albright & Wilson
Bleached Storage: 300 adt
Bleached Cleaning: 2 systems, 5-stage Noss
AM 80 centrifugal cleaners
Pulp Machines: 1 Black-Clawson fourdrinier and press section, Flakt dryer 160" dry trim
Recovery Boilers: 2 2.4 and 2.7 Mlb dry solid
CE low odour
Evaporators: 2 1 - Envirotech 6-effect plus 2 concentrators; 1 - HPD 5-effect falling film plus crystalizer
Lime Kiln: Ahlstrom 12' 6" dia. x 374'
Recausticizing: Eimco, green liquor reactor clarifiers, pressure filters for white liquor clarification and mud washing
Steam Plant
Power Generation: Self sufficient, 20 and 30 MW 600/180/80 turbogenerators General Electric.
Power Boilers: 2 Foster Wheeler gas boilers, 1 CE hog fuel boiler - converted recovery boiler
Source: Athabasca River, Arctic Ocean watershed, Eimco reactor clarifier, softening, mixed bed filtration, supplies town with chlorinated and fluoridated drinking water.
Water Supply
Primary Treatment: 200' clarifier
Secondary Treatment: 6.5 day ASAB with 2475 hp floating aerators, also treats town sewage
Electricity Consumption: 2.2 M kWh/d, 100% purchased
Water Consumption: 3.1 Mgal/d, source 99% river, 1% city
Effluent Control
Primary Clarifier: 1 Eimco, 90' dia.
Secondary Clarifier: 1 Eimco, 108' dia.
Activated Sludge Basin: 3,975,000 USgal. Capacity
Emergency Basin: 1,000,000 USgal. Capacity
Sludge Screw Presses: 50 t/d
Sludge Belt Press: 50 t/d
mAsson mill
Head office
Address: 2 ch de Montréal O Gatineau QC
J8M 2E1
Tel: 819 986-4300, Fax: 819 986-4326
Website: www.papierswhitebirch.com
History:
In 1930, the James Maclaren Company built a mill in Masson which commenced operations as a two-machine newsprint mill producing 160,000 tonnes of newsprint annually. The mill used an on-site bisulphite process and received its groundwood pulp by pipeline from a mill 6 km up the Lievre River. In 1985, the mill replaced the two original Fourdrinier machines with a twinwire Beloit Bel-Baie III machine. In 1988, Masson completed a Phase II modernization, which increased the mill's capacity by 30,000 t/y. In 1991, a recycle pulping facility was added to produce newsprint containing up to 20% recycled content. During 1994-1995 an activated sludge secondary treatment facility was installed. In 1997 Nexfor decided that newsprint did not fit into its long term plans and announced that the mill was for sale. In December 1998 an investment group purchased the mill with the intent of modernizing it and renamed it Papier Masson Ltée (PML). In March 1999, the board of directors approved a $150 million modernization project that included the installation of the world's largest single line two-stage TMP plant. The TMP plant started up in July 2000 and groundwood and bisulphite pulp mills were ex-serviced. Today the mill produces approximately 231,000 t/y of high quality newsprint for its customers using 100% TMP. White Birch Paper acquired Papier Masson Ltée in 2006.
Personnel
Gen Mgr: Carol Tremblay
Fibre Proc Mgr: J-C Houde
Newsprint Sls: W Raby
Technology Mgr: J Bigelow
Pulping Mgr: S Bussiere
Engrg Supt: W Dick
Mtce Supt: A Dubois
Purch Supvr: G Carbonneau
Hum Res Mgr: H Morissette
Logistics/Cust Serv Supt: B Bowman
Serv Mgr: J Gagné
Sec/Dir-Hum Res: Patry Manon
Papermaking Mgr: Joël Gagné
Stores Supvr: Claude Croisetière
Controller: Michel Massé
Env Eng: Charles Poitras
ISO Quality Registration: 9002
Transportation: Truck access by Highway 50 and 148 with four lane connections in Canada and the US. Mill owns its own rail spur, connected to a Canadian Pacific line
Chip stacker: 1 with two storage piles complete with individual systems - Continental
Chip screening: 1 Acrowood for oversize and fines
APS bins: Rader
Chip washer: 1 Metso
Impregnator/plug screw feeder: Metso
Primary refiner: 1 CD-82
Secondary refiner: 1 CD-82
Reject refiner: CD-82
Refiner motors: 3 X 32 MW GE Canada
industrial system
Heat recovery unit: 1 Andritz-Ahlstrom
Reject press: 2 X Kvaerner-Hymac SP-70-SL
screw press
Screens: Valmet TAP-340, 2 primary, 1 sec-
ondary, 2 reject
Sidehill screens: GL&V
Disc Filter: 1 Kvaerner
MC pump: Ahlstrom
Brightening: Purchased liquid hydrosulphite injected at MC pump prior to high density
Pumps: ITT Goulds
Motors: Toshiba
Controls: Foxboro I/A DCS, Allen Bradley PLC-5
Paper Machine
Cleaning: 5 stage Albia cleaners
Screening: Black-Clawson Primary and secondary screens with 0.062 holes; tertiary vibrating screen
Stock preparation: 4 x 30' Black Clawson pulpers; 2 Beloit Jones filters and 2 Dorr
Oliver disc filters; pH control; retention control; red and blue dye addition system
Deculator: Clark & Vicario
Headbox: Beloit Converflo (8,890mm pond width)
Forming: Twin-wire Bel-Baie III
Press section: Beloit Tri-Vent press section with ceramic roll
Drying: 32 cans (72") divided into 4 mechanical sections and 6 steam sections; first two sections are Belrun, other sections conventionally felted
Calendering: 4 roll Versa - nip calender
Reel: XHLR reel with 31,2 in. diameter rubber covered spools
On-line profile control: ABB system; closed loop for basis weight, caliper (Calcoil 2000), moisture (Devron steambox at the suction press) and colour control
Process Control: Foxboro I/A DCS, Ulma defect detector, Valmet Paper Lab, Allen Bradley PLC-5
Pumps: Gould
Motors: G.E.
Winder: Beloit Super-L, Beltronic automatic slitter positioning system, HTRC control
Finishing & Shipping
Finishing system: 1 Lambs Gray
Production capacity: 1 200 rolls/d
Control system: Traq Manager by
Wrapmation
Transportation: Truck and rail
Steam Plant
Boilers: 2 CEVHU (60 tonnes/h), 4 Kaelin
electrode type (20 tonnes/h)
Fuel: Bunker C or natural gas
Accumulator: Ruth (30 minute capacity)
Process control: Bailey INF90 DCS, Allen Bradley PLC-5
Source of Power
Installation: 2 x 120 KV lines from Maclaren Energy
Mill Fresh Water
Pumps: 3 lift pumps, 6,000 USgal/min
Screens: 3 Adams filter - 0.030"
Fire protection: 2 electric pumps,, 3,000 USgal/min
Source: Lièvre River
Water consumption: 33,000m3/d
Effluent System
System: Activated sludge
Primary clarifier: Degremont 160 ft/ dia.
Secondary clarifier: 2 Berlie, 36m dia.
Blowers: 3 Hoffman, 900 HP, 3,600 rpm
Aeration system: Mass Transfer System
Cooling tower: Marley
Sludge Press: 2.5m Ashbrook
Sludge Silo: 213 m3
Process control: Foxboro I/A DCS, Allen Bradley PLC-5
British Columbia Forest Products Ltd., (a joint venture of Argus Corp., Scott Paper and Mead Corporation) acquired 66% control of Alexandra Forest Industries in 1963. AFI had been in initial development of its tenure in the Mackenzie Timber Supply Area and the first sawmill was constructed and began operation in July 1966. BCFP acquired total ownership of AFI in January 1967 and in November 1969 announced plans to construct a 450 t/d market kraft pulp mill and a stud mill on the same site. The stud mill, now dismantled, began operation in September 1971 and the pulp mill in December 1972. A third sawmill started up in 1974. A second cooking and brown stock line for sawdust was added in late 1996. BCFP was acquired by New Zealand-based Fletcher Challenge Limited in 1987 and in September 1988 BCFP was consolidated with Crown Forest Industries Limited, another FCL-controlled company, to form Fletcher Challenge Canada Limited. In 1996, FCCL restructured to create separate subsidiaries for pulp (FCC Pulp Operations) and southern solid wood operations (TimberWest Forest Corporation), distinctly separate from the core paper business. TWFC was subsequently divested and it, in turn, acquired the Mackenzie woodlands and lumber operations, TimberNorth, in January 1996 and then sold it to Slocan Norske Skog in June 1997. Controlling interest in FCCL was acquired by Norske Skog in October 2000; Norske Skog in turn, sold Mackenzie Pulp Operations to Pope & Talbot Ltd. in June 2001. The mill shut down in 2008 after Pope & Talbot went bankrupt. In September
2008, Worthington Properties of Edmonton purchased the mill. It was not restarted. The B.C. government took over maintenance of the mill in early 2009.
ISO Quality Registration: 9001-1991; 140011999
Production Capacity: 235,000 adt/y of NBSK, 125,000 Adt/yr of long fibre and 110,000 adt/y of short fibre.
Equipment
Woodhandling & Preparation
Long Fibre Handling: Direct transfer conveying system from Canfor Mackenzie sawmills; truck dumper system.
Storage Capacity: 50,000 bd units/d (60 days)
Chip Screening: Acrowood scalping screen; 3-stage Consilium Bulk; Rader; Retec/Liwell; 3 parallel Link Belt vibratory units, standby
Short Fibre Handling: Truck dumper system
Storage Capacity: 10,000 bd units (12-15 days). Acrowood scalping screen.
Power Boiler: 1 Combustion Engineering single-drum, Type MU-X; fires gas, hog and oil, 40,000 lb/h, 625 psig, 750° F Turbo-generator: 1 Westinghouse-Mitsubishi 21 MVA
Purchased Power Capacity: 1 Westinghouse 30 MVA transformer, normal load 6-8 MW Water Supply: 15,000,000 gal/d, 1 coagulation and sedimentation system, 1 Cochrane demineralizer system for boiler feedwater
Continuous Digester: 1 Kamyr single-vessel hydraulic 500 t/d, 17.5' x 215' high, complete with #5 chip meter, 100 ADt blow tank and all standard auxiliaries
Knotters: Noss 1 Radiscreen K 1250 primary and 1 Raditrim 630 secondary; 2 Bird PK-4
primary and 2 Bird JS-24 secondary on standby.
Brownstock Washers: 4-h wash zone in digester, 1 Kamyr 900 Adt/d 7' x 66' high upflow pressure diffuser; (1988 vintage), 1 Kamyr 20' 6-ring 1-stage atmospheric diffuser; (original), 1 Impco 13.5' x 24.0' long washer (1978), 1 Bird 200 ST centrifilter
Brown Stock Screening: 2 pri., 1 sec, 1 swing all Hooper PSV-2600; 1 tert, 1 quat both Hooper PSV-2200, 1 quint Bird JS-24, 1 Impco 13.5' x 20.0' long decker. Hi-D: 1 500 Adt
Short Fibre Cooking & Brown Stock
Continuous Digester: 1 Andritz Bauer M&D digester, 318 ADt/d, 100" x 90' long, including chip bin, discharger, metering screw, rotary valve and outlet surge tube and 50 ADt blow
Brownstock Washers: 1 Ahlstrom 4.0m x 4.0m long DD
Brownstock Screening: 1 Impco model 212H coarse screen, 3-stage Impco slotted screens; 212H, 212H, 208H, 1 Impco corudek IV 11.5 x13.0 ' long decker. Hi-D: 1 200 ADt.
DO-ODED Bleach Plant
Steam Mixers: 1 Komax before O-O, 4 Canron original peg-type
Chemical Mixers: 1 Komax on T-10, 4 Ahlmix, 2 on O-O, 1 on T-30, 1 on T-50
Stock Pumps: 6 Ahlstrom MC pumps, 1 after each washer, 1 within O-O Towers: 1 upflow T-10, double J-tube T-20, single J-tube T-30, downflow T-40, single J-tube T-50; Canron circulators on downflow towers.
Washers: 2 Impco 13.5' x 20.0' long W-15 & 25, 3 LaValley 11.5' x 20.0' long W-35, 45 & CIO2 Generator: 1 Sterling Erco R-8, 30 t/d
Hi-D: 1 250 ADt long fibre, 1 300 ADt short fibre, 1 100 ADt transition
Chip Handling: Conveyor belt system 600 t/h to the storage piles; 2 Megatech chip truck dumpers; 1 Rader V screen Model RR 19120; 2 Acrowood fines diamond roll
