CATALOGO POLSINELLI 2025 EN - VINO

Harvest

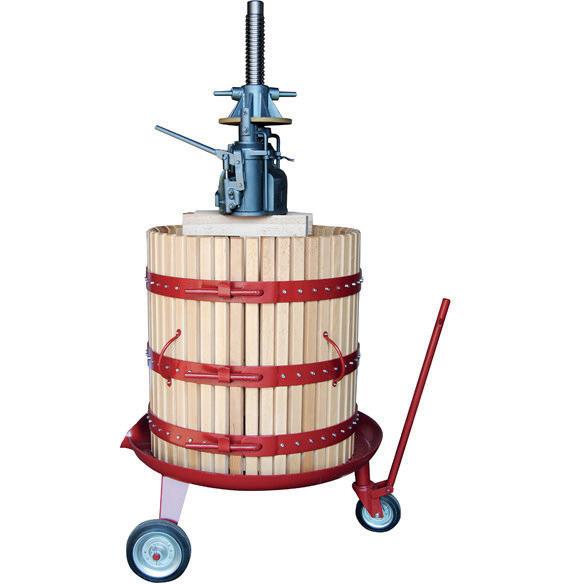

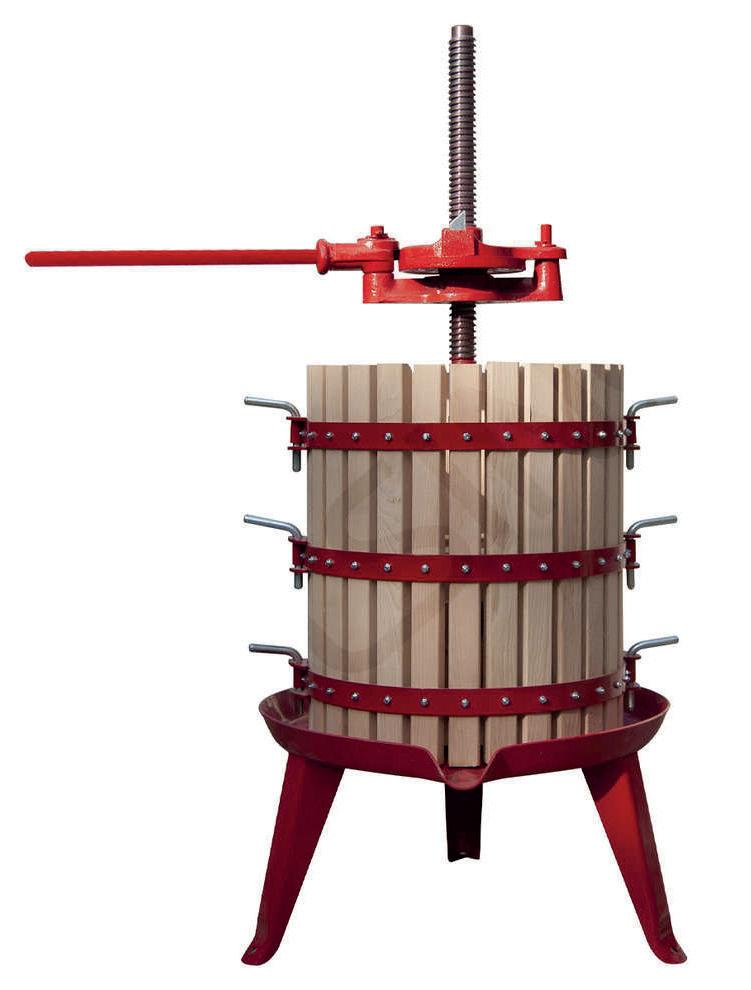

Ratchet wine press

The ratchet wine press is a tool designed for extracting must from grape pomace. Designed and manufactured by Polsinelli with high-quality materials, it meets the production needs of both wineries and wine passionates. It consists of a ratchet mechanism and a wooden cage placed on a basin and supported by a sturdy metal tripod.

Double-speed ratchet mechanism starting from model 40 and up. By positioning the pawls in the external slots, less effort will be required to operate the lever.

Wooden cage. Made of steamed beech wood, complete with enamelled steel hoops and fixing pins.

Reinforced collection basin, made of enamelled steel coated with epoxy paints.

Pressure gauge, an essential accessory for monitoring the jack’s pressure during the pomace pressing phases.

Hydraulic operation with glycerin oil.

The Hydraulic Press 80 is equipped with wheels, making it easy to transport.

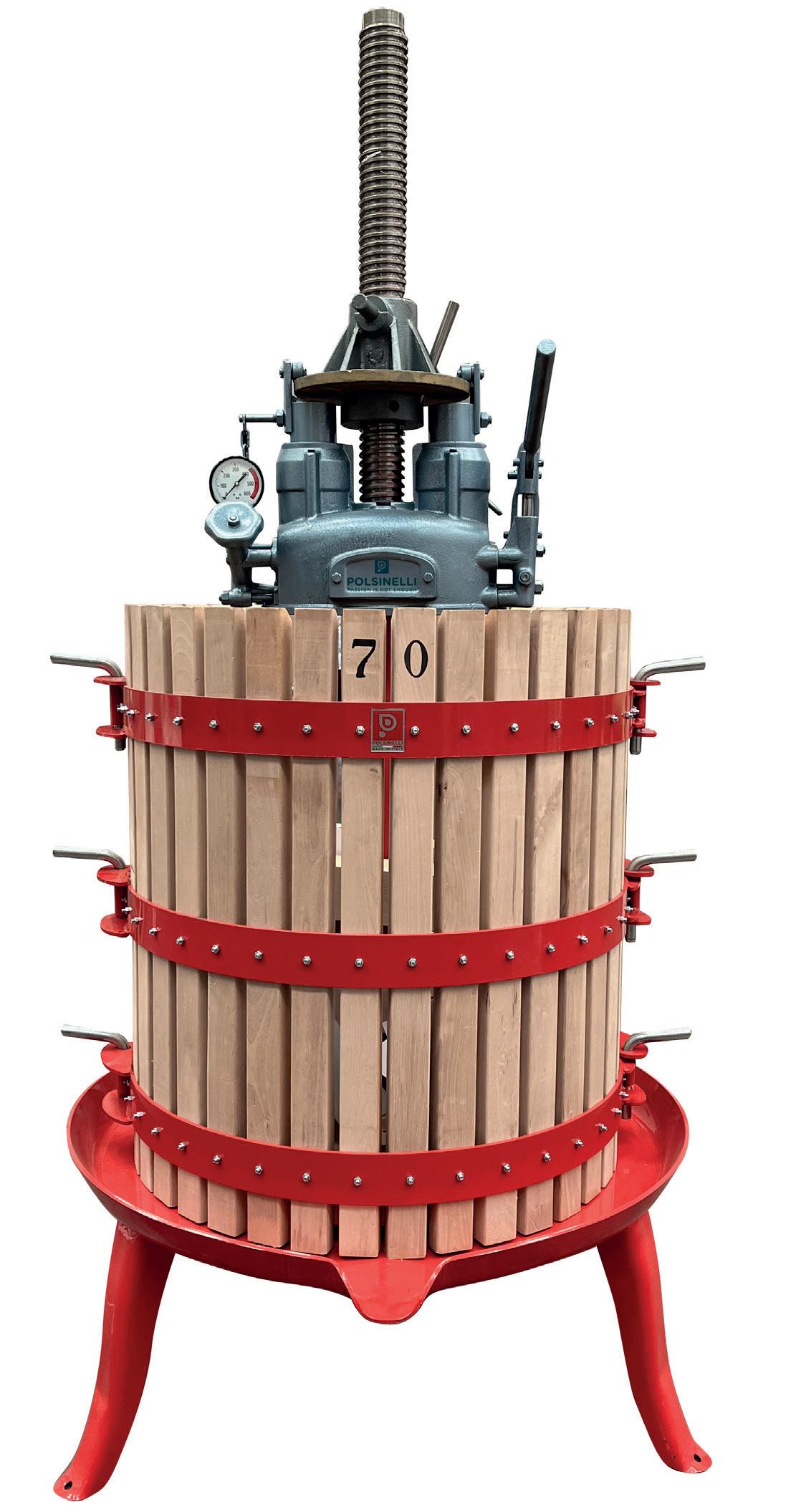

Harvest Hydraulic Press

The hydraulic press is a professional product used for extracting must from grape pomace. Designed by Polsinelli to support professionals and hobbyists in the winemaking industry. Cast iron hydraulic jack with pressure gauge, capable of exerting pressure up to 400 atmospheres on the pomace with minimal effort.

Harvest

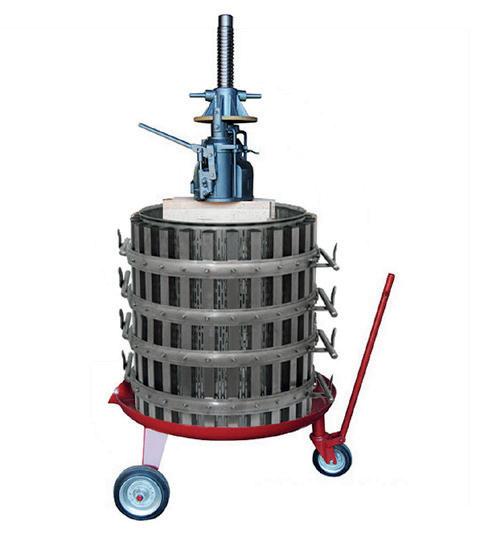

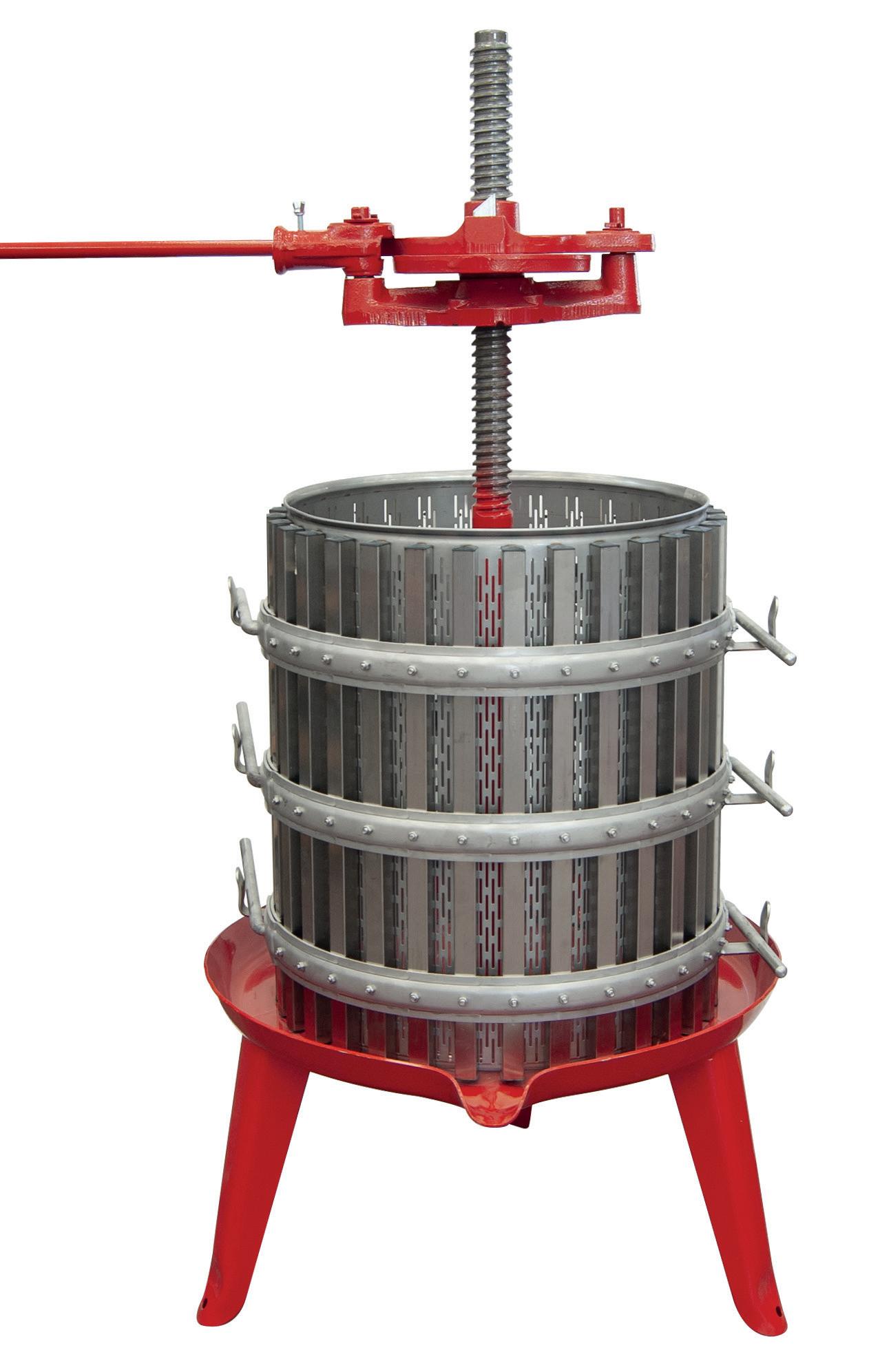

Lever Press with Stainless Steel Cage

The ratchet press is a tool designed for extracting must from grape pomace. Designed and manufactured by Polsinelli with high-quality materials, it meets the production needs of both wineries and wine passionates. It consists of a ratchet mechanism and a stainless steel cage placed on a basin and supported by a sturdy metal tripod.

Double-speed ratchet mechanism starting from model 40 and up. By positioning the pawls in the external slots, less effort will be required to operate the lever.

Cage entirely made of AISI 304 stainless steel, complete with hoops and fixing pins.

Reinforced collection basin, made of enamelled steel coated with epoxy paints.

for durability.

Pressure gauge, an essential accessory for monitoring the jack’s pressure during the pomace pressing phases.

Hydraulic operation with glycerin oil.

The Hydraulic Press 80 is equipped with wheels, making it easy to transport.

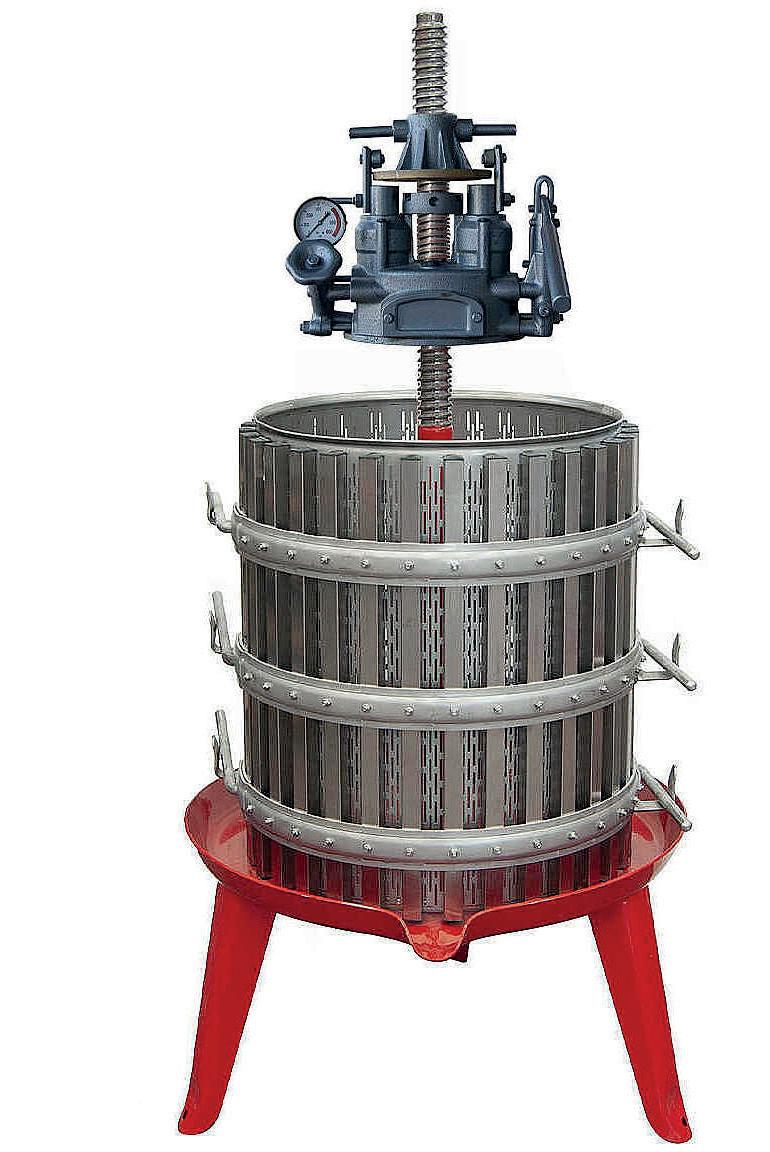

Hydraulic Press with Stainless Steel Cage

The hydraulic press is a professional product used for extracting must from grape pomace. Designed by Polsinelli to support professionals and passionates in the winemaking industry. Cast iron hydraulic jack with pressure gauge, capable of exerting pressure up to 400 atmospheres on the pomace with minimal effort.

SPARE PARTS FOR PRESSES

Wooden cage

TOR0079

TOR0080

TOR0081

TOR0082

TOR0083

TOR0084

TOR0085

TOR0086 TOR0087

TOR0088 TOR0089 TOR0090

Cage 15

Cage 20

Cage 25

Cage 30

Cage 35

Cage 40

Cage 45

Cage 50

Cage 55

Cage 60

Cage 70

Cage 80

Stainless steel Cage

TOR0316

TOR0298

TOR0317

TOR0323

TOR0324

Ø 15 x 22h

Ø 20 x 31h

Ø 25 x 36h

Ø 30 x 41h

Ø 35 x 46h

Ø 40 x 55h Ø 45 x 60h

Ø 50 x 64h

Ø 55 x 70h

Ø 60 x 74h

Ø 70 x 83h

Ø 80 x 95h

Stainless steel Cage 40

Stainless steel Cage 50

Stainless steel Cage 60

Stainless steel Cage 70

Stainless steel Cage 80

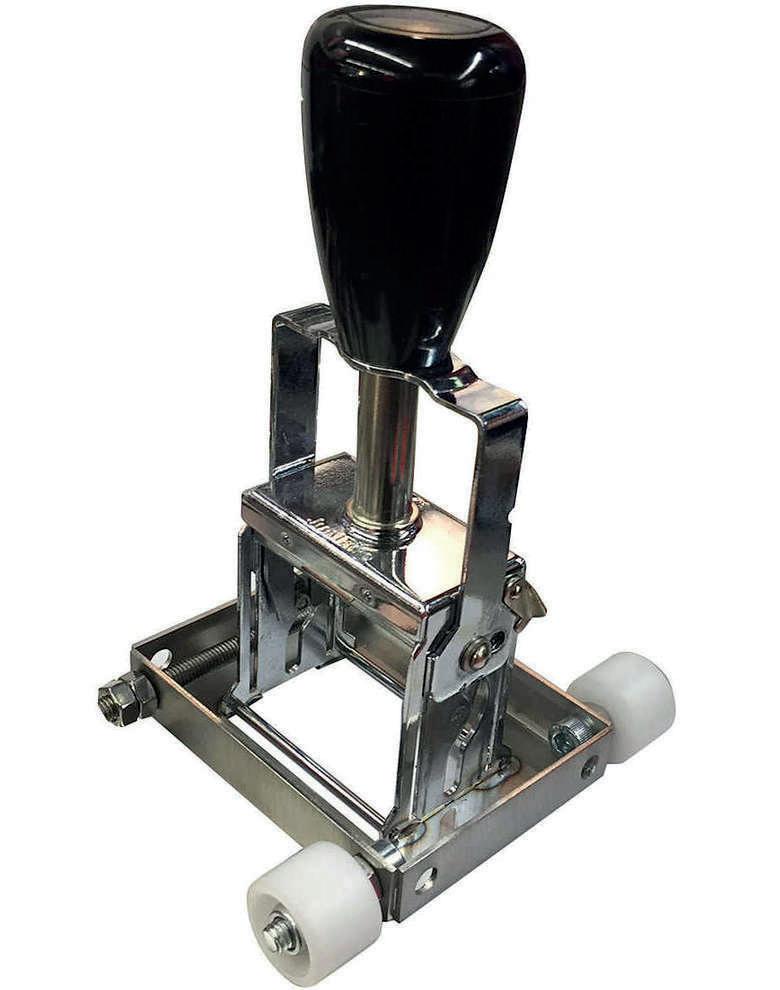

Ratchet movement for Press Polsinelli

TOR0150

TOR0151

TOR0152

TOR0153

TOR0154

TOR0155

TOR0156

TOR0157

TOR0158

Ratchet movement 15

Ratchet movement 20/25

Ratchet movement 30/35

Ratchet movement 40

Ratchet movement 45

Ratchet movement 50

Ratchet movement 55

Ratchet movement 60

Ratchet movement 70

Hydraulic jack

TOR0132

TOR0133

TOR0134

TOR0135

Hydraulic jack type 5

Hydraulic jack type 6

Hydraulic jack type 7

Hydraulic jack type 8

Ø 40 x 55h Ø 50 x 64h Ø 60 x 74h Ø 70 x 83h Ø 80 x 95h 2,65 4,90 6,65 11,00 14,30 20,00 25,60 32,00 44,00 50,00 69,50 112,00 1,80 5,10 8,40 12,10 14,40 18,00 25,00 35,00 52,00 42,50 50,00 55,00 88,00 30,00 42,00 60,00 88,00

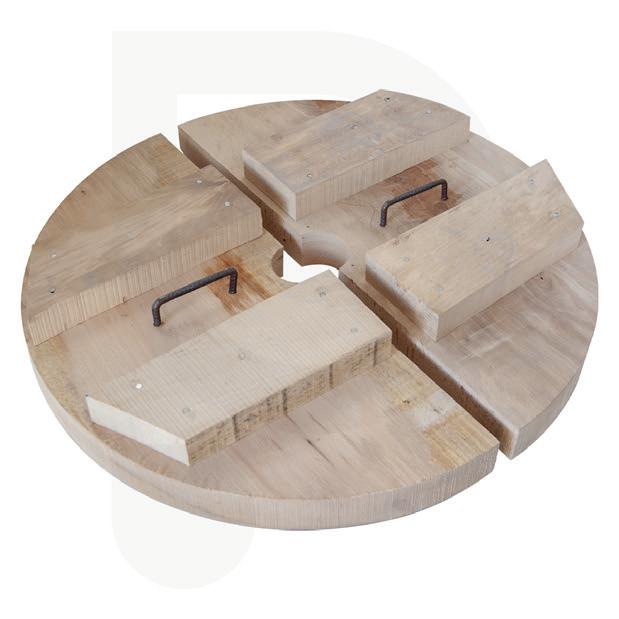

Semi-circles

TOR0136

TOR0137 TOR0138

TOR0139 TOR0140 TOR0141 TOR0142

TOR0143

TOR0144

TOR0145 TOR0146

TOR0147

Semi-circles 15

Semi-circles 20

Semi-circles 25

Semi-circles 30

Semi-circles 35

Semi-circles 40

Semi-circles 45

Semi-circles 50

Semi-circles 55

Semi-circles 60

Semi-circles 70

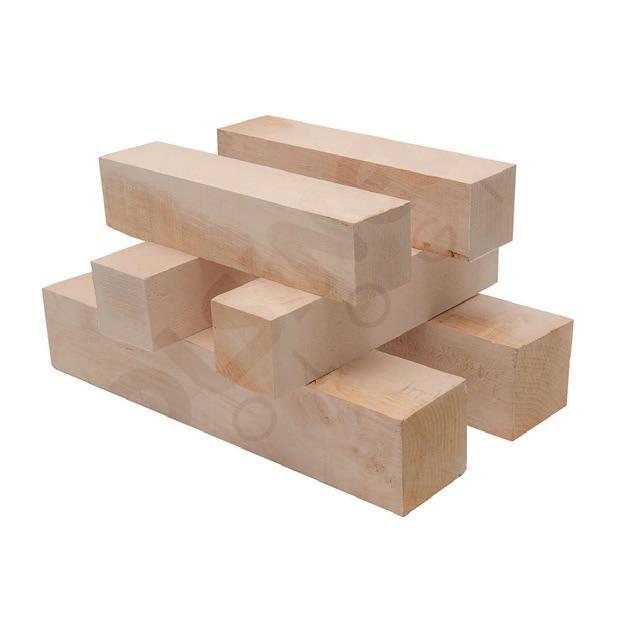

Wooden pieces

TOR0174

TOR0175

TOR0176

TOR0177

TOR0178

TOR0179

TOR0180

TOR0181

TOR0182

TOR0183

TOR0184

TOR0185

SPARE

50x50x80 pcs. 2

50x50x120 pcs. 4

50x50x170 pcs. 4

60x60x210 pcs. 6

70x70x250 pcs. 6

80x80x320 pcs. 6

80x80x320 pcs. 6

80x80x380 pcs. 2 - 80x80x320 pcs. 4

90x90x430 pcs. 2 - 80x80x380 pcs. 4

100x100x460 pcs. 2 - 80x80x380 pcs. 4

100x100x500 pcs. 2 - 90x90x430 pcs. 4

100x100x600 pcs. 2 - 90x90x430 pcs. 4 0,60 1,20 1,70 2,70 3,50 5,50 6,00 7,00 8,00 10,00 16,00 23,00 0,25 0,90 1,20 2,85 2,90 6,40 7,00 9,00 11,00 12,00 18,00 19,00

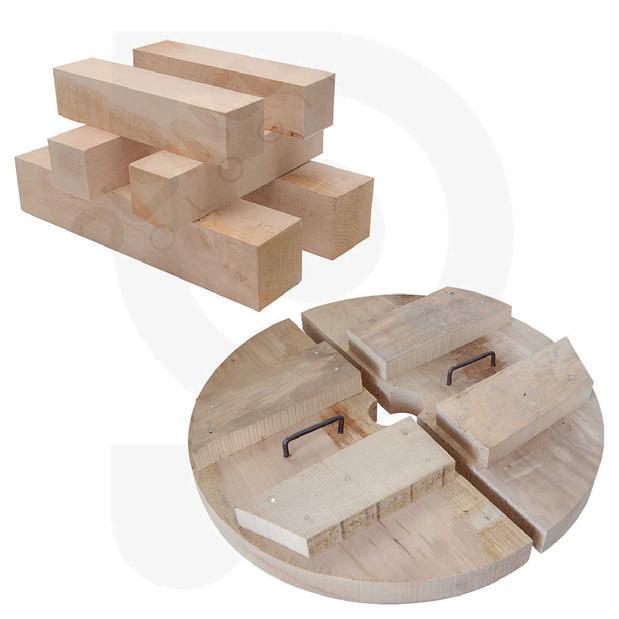

Semi-circle and wooden pieces kit

TOR0304

TOR0305

TOR0306

TOR0307

TOR0308

TOR0309

TOR0310

TOR0311

TOR0312

TOR0313

TOR0314

TOR0315

Semi-circles 80 For Press 15 For Press 20 For Press 25 For Press 30 For Press 35 For Press 40 For Press 45 For Press 50 For Press 55 For Press 60 For Press 70 For Press 80 For Press 15 For Press 20 For Press 25 For Press 30 For Press 35 For Press 40 For Press 45 For Press 50 For Press 55 For Press 60 For Press 70 For Press 80

Pawls

TOR0206

TOR0207

TOR0208

TOR0209

Pawls 15x4 (2 pieces)

Pawls 20x6 (2 pieces)

Pawls 25x8 (2 pieces)

Pawls 30x10 (2 pieces)

Press of 15

Press of 20/25

Press of 30/50

Press of 55/70

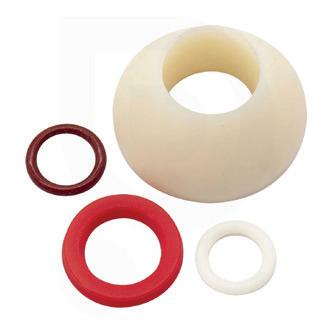

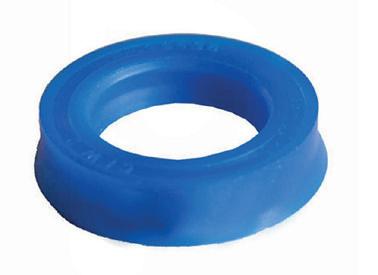

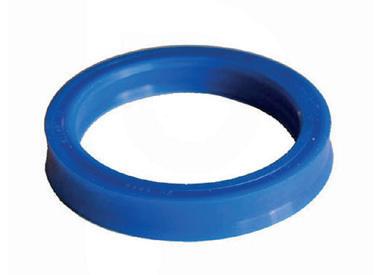

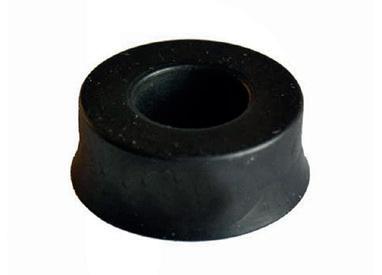

Seals and collars for hydraulic jacks

TOR0038

TOR0040

TOR0039

TOR0034

TOR0035

TOR0036

TOR0037

TOR0025

TOR0030

TOR0026

TOR0031

TOR0027

TOR0032

TOR0028

TOR0033

Rubber pump sealing

Polyurethane pump sealing

Leather pump sealing

Polyurethane sealing 50

Polyurethane sealing 60

Polyurethane sealing 70

Polyurethane sealing 80

Leather sealing 50

Leather sealing 54

Leather sealing 60

Leather sealing 64

Leather sealing 70

Leather sealing 74 Leather sealing 80 Leather sealing 84

Closing pin

TOR0293

TOR0294

TOR0295

TOR0296

Closing pin Ø 8

Closing pin Ø 14

Closing pin Ø 16

Closing pin Ø 18

Upp.23/Low.24 mm Ø Upp.29/Low.31 mm For piston mm 50 For piston mm 60 For piston mm 70 For piston mm 80 For piston mm 50 For piston mm 54 For piston mm 60 For piston mm 64 For piston mm 70 For piston mm 74 For piston mm 80 For piston mm 84 0,04 0,05 0,10 0,40 0,046 0,212 0,316 0,437 0,014 0,014 0,014 0,014 0,016 0,018 0,02 0,026 0,028 0,026 0,029 0,03 0,03 0,035 0,040 15/20/25/30 35/40/45/50 55/60 70

Upp.30/Low.31 mm

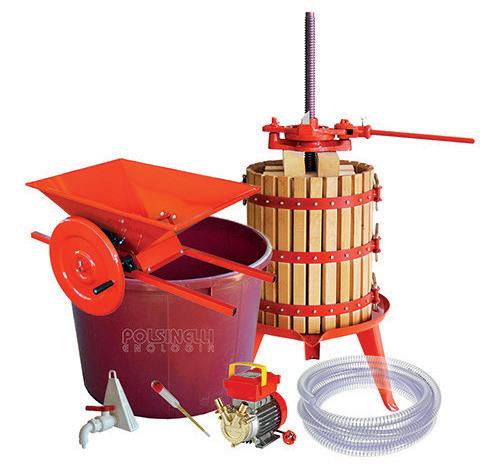

Complete Equipment for Setting Up Your Winery and Producing Wine. The wine kits come complete with an electric pump, hoses, a hydrometer or refractometer, and large containers with taps.

Harvest PRESS

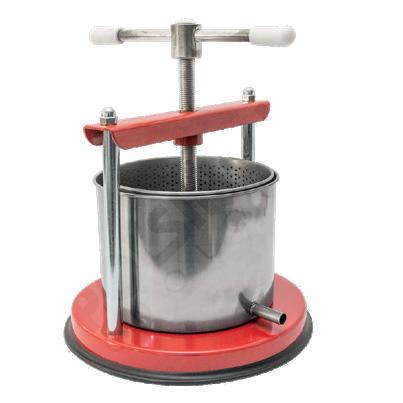

Press

MLP0015

MLP0016

MLP0017

MLP0004

MLP0005 Small size red press

Medium size red press

Big size red press

Medium size press ALU20

Large size press ALU25

Farm Series All-Purpose Presses

MLP0006

MLP0007

MLP0008

MLP0021

MLP0022

MLP0023

Farm 15

Farm 20

Farm 25

Farm 15 cage inox

Farm 20 cage inox

Farm 25 cage inox

Pneumatic Presses and Hydraulic Presses

The pneumatic fruit press is ideal for cold pressing grapes, various fruits, and some vegetables, enabling you to easily and quickly produce wine, juices, cider, and more.

Pneumatic Press 20 L

Press 40 L

Press 20L

Press 40L

The fabric filter allows liquid to flow out without the risk of clogging the perforated stainless steel cage.

The included bag prevents splashes during processing.

Rubber membrane, max pressure 3 bar.

Alfa and Beta Models

Machines designed with the latest technical and construction standards, using carefully selected materials. This kind of machine is produced either with a removable or rotating collection basin, depending on the model, to facilitate loading operations and cage removal. The electric models are equipped with a single-phase motor and come with a cage made of evaporated beechwood or stainless steel AISI 304. They operate hydraulically.

Stainless steel Swivel

Stainless steel Swivel

Wooden - rotating

Wooden - rotating

Wooden - Removable

Wooden - Removable

Wooden - Removable

Stainless steel - rotating

X 64 h

X 74 h 70 X 86 h

80 X 95 h

Stainless steel - rotating

Stainless steel - Removable

Stainless steel - Removable

Stainless steel - Removable

220V

220V

220V

220V

Electric 220V

Electric 220V

Electric 220V

Electric 220V

Electric 220V

Electric 220V

Harvest CRUSHERS

Manual and Motorized Crushers

The frame is made of sturdy sheet metal coated with food-grade epoxy powder. Models Tipo B and Tipo C can be operated manually without requiring electricity. Must extraction is achieved through grooved aluminum rollers. Easy to move and position over the must collection tub.

Model Tipo D has been specifically designed for easily processing various loads of grapes, featuring a motorized system powered by 220V electricity. Its comfortable hopper (85 x 62 x 33 cm) can accommodate an entire crate of grapes. Thanks to its support stretcher, it can be easily transported or placed over a container.

PDP0028

PDP0030

PDP0033

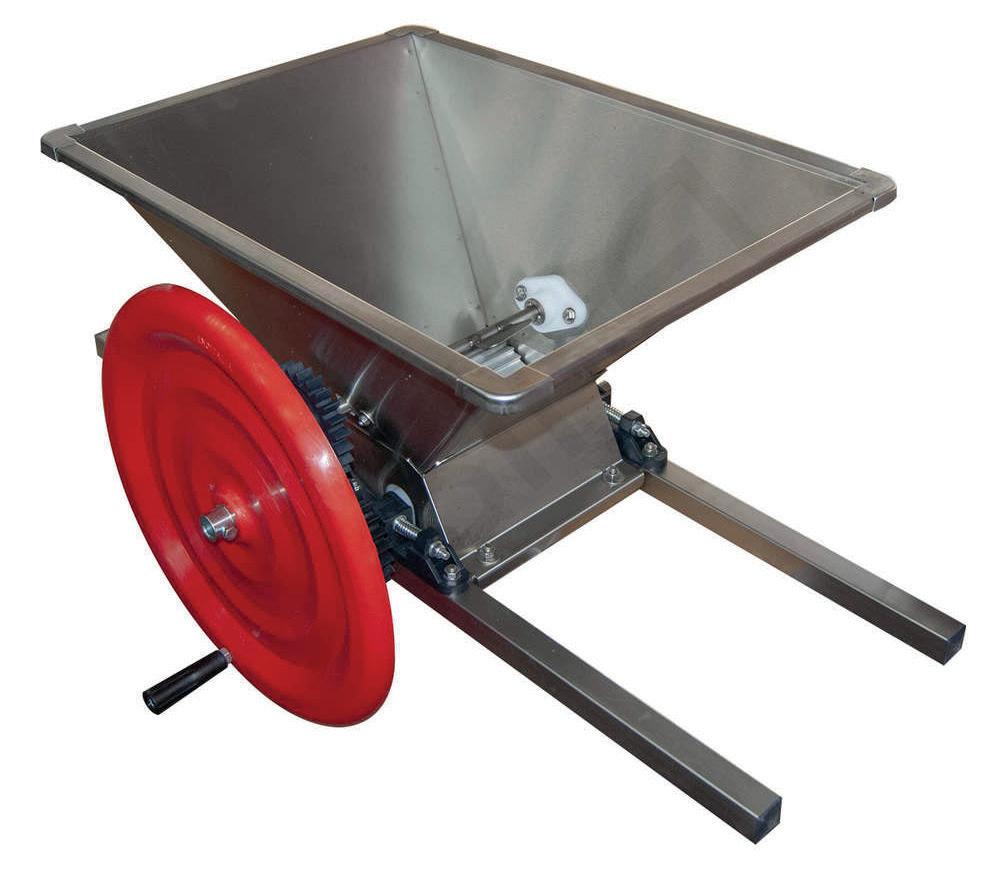

Stainless Steel Manual and Motorized Crushers

The frame is made of food-grade stainless steel AISI 304. Models Tipo B and Tipo C operated manually without electricity. Must extraction is achieved through grooved aluminum rollers. Easy to move and position over the must collection vat.

Model Tipo D Inox has been specifically designed for easily processing various loads of grapes, featuring a motorized system powered by 220V electricity. Its comfortable hopper (85 x 56 x 33 h centimetres) can accommodate an entire crate of grapes. Thanks to its support stretcher, it can be easily transported or placed over a container.

Fibreno Series - Manual and Motorized

The Fibreno crushers-destemmers speed up the destemming and must extraction processes, meeting the needs of winemaking professionals. Coated with food-grade epoxy powders, they optimally preserve the organoleptic properties of the grapes, ensuring the highest quality must.

2.000 to 5000 kg/hour

All Fibreno series crushers destemmers come with a removable grid.

50 Model:

Allows the crusher-destemmer to be opened for cleaning the internal chamber and grid of any cycle residues. The pump body is made of stainless steel.

Fibreno Stainless Steel Series

The Fibreno series of destemmer-crushers accelerates the operations of destemming and extracting must from grapes, meeting the needs of professionals in the winemaking sector. Made of AISI 304 stainless steel, they optimally preserve the organoleptic characteristics of the grapes, ensuring the highest quality must.

Fibreno 20 inox

Hourly production 2.000 kg

Power supply 220V

Fibreno 25/30 electric with pump

Hourly production 2.500/3000 kg Power supply 220V

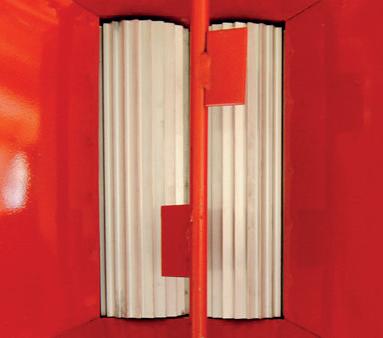

Rollers and feeding screw Grid Inox and beater paddles

Fibreno 50 inox - openable

Hourly production 5.000 kg Power supply 220V/380V

Gamma Series

The Gamma electric destemmer-crusher is a professional-grade product designed to optimize winemaking production. With its high hourly capacity, it meets the needs of both small and large companies in the wine industry.

Hopper interior with stainless steel auger

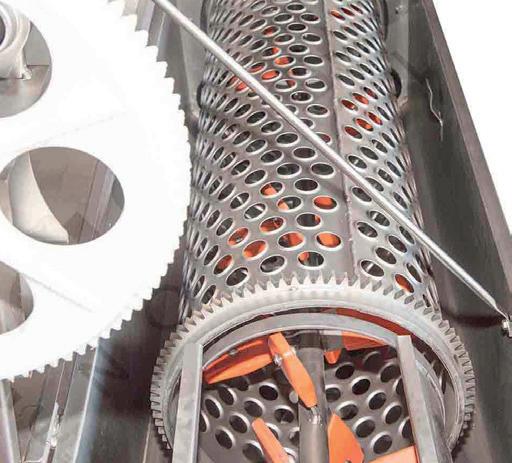

Destemming shaft with rubber-coated paddles.

PDP0036

PDP0004

PDP0001

production Kg 2000-4000 Kg 4000-5000 Kg 7000-12000

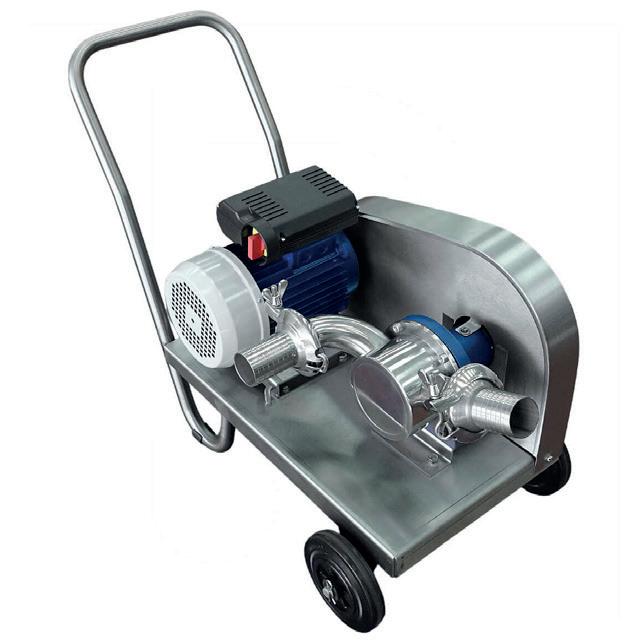

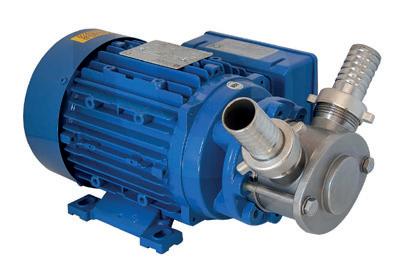

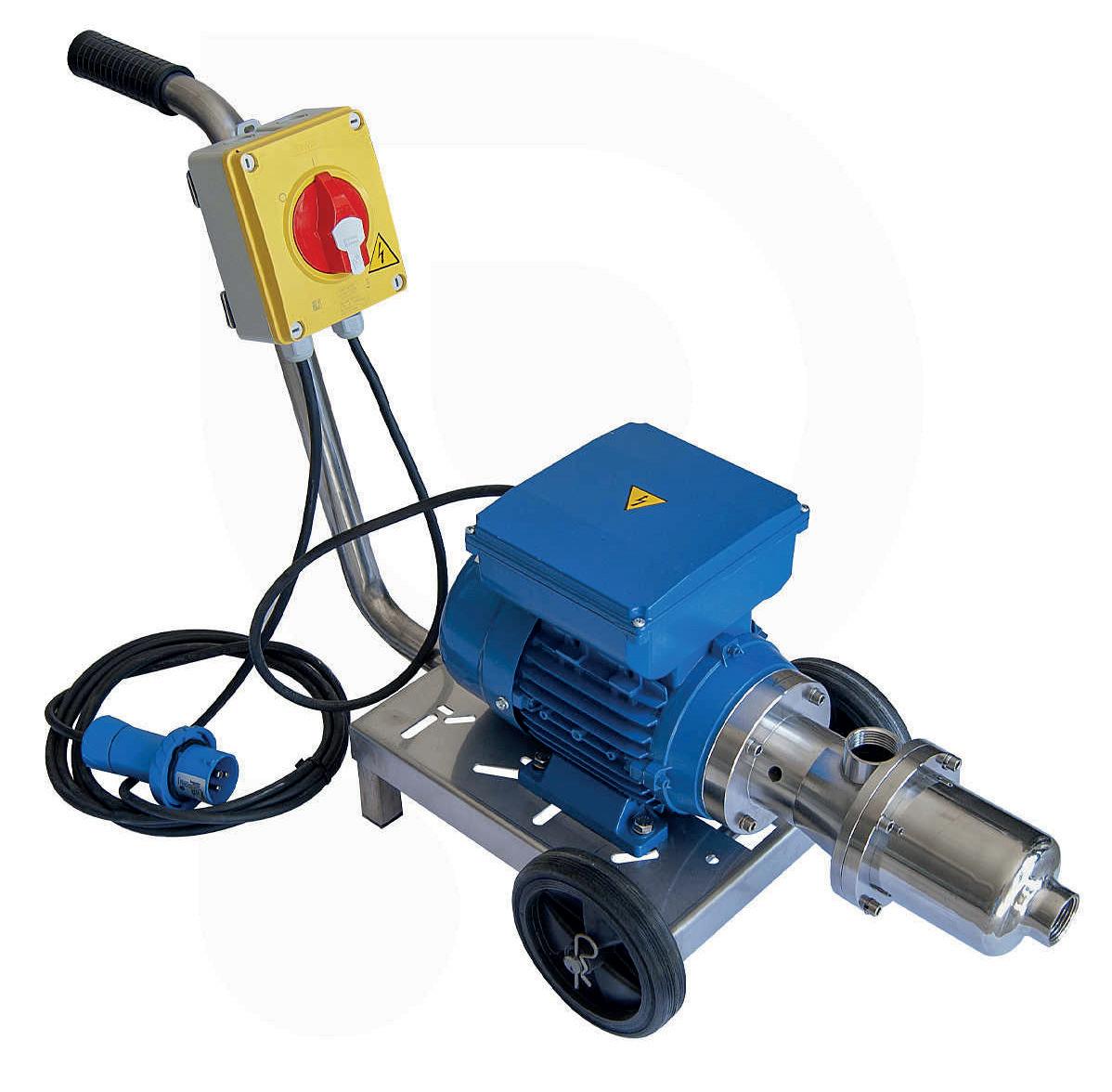

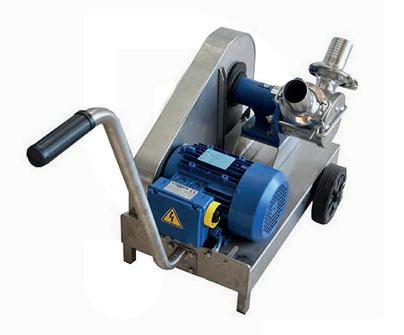

Elliptical Piston Electric Pump

300-550 RPM 350-650

The elliptical piston electric pump for wine is a high-quality professional tool for transferring grapes and pomace. Unlike traditional centrifugal systems, this machine’s compression-based transfer process avoids crushing the grapes and pomace as they pass through the internal conduits.

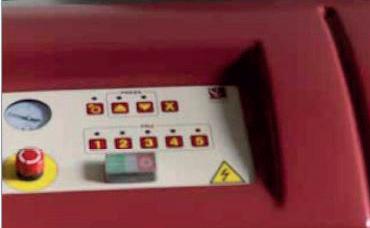

Program setting board.

Removable must collection tank.

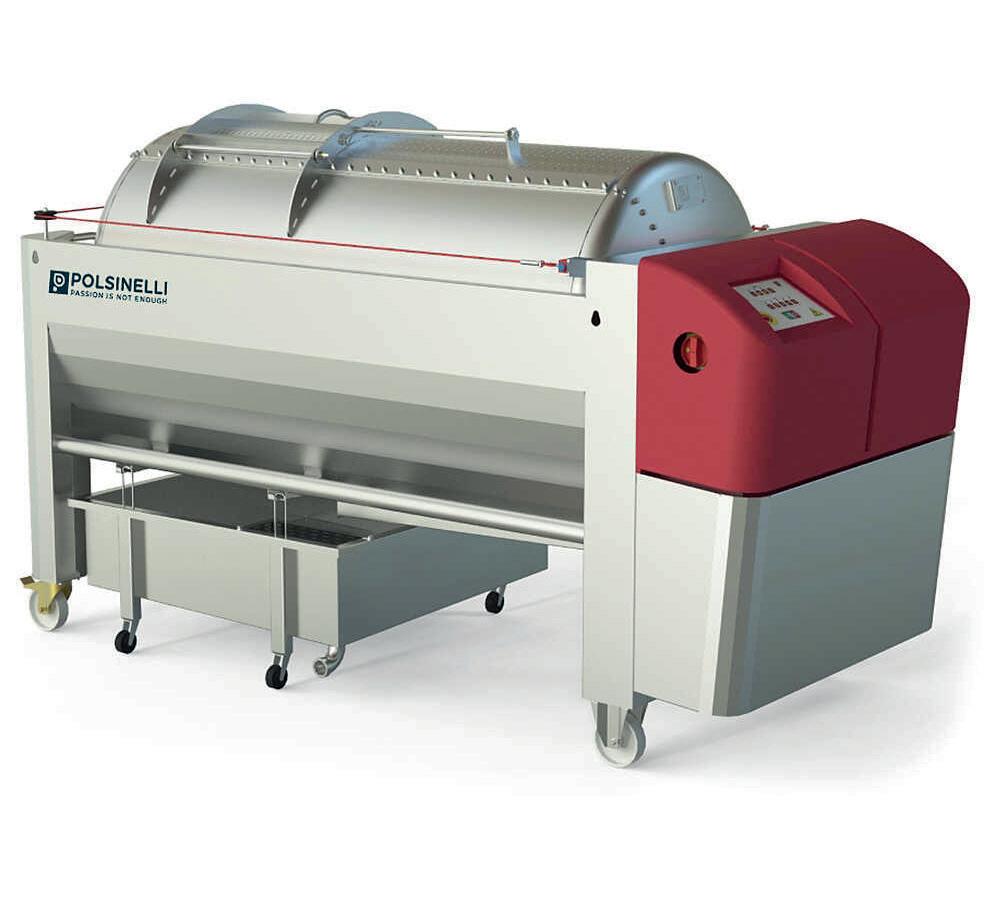

Pneus Series

Closed-drum pressing system with internal drainage channels. Ideal for producing high-quality wines, these machines achieve particularly gentle pressing through an air-driven membrane, ensuring the superior quality of both must and wine. Power supply: 400V / 50Hz.

Grape capacity in kg

whole 400-650/pressed 1000-1500/fermented 1500-2500

whole 600-975/pressed 1650-2252/fermented 2250-3750 whole 800-1200/pressed 1650-4000/fermented 3500-5500

Elevator belt with food-grade PVC belt, 300 mm wide, suitable for transporting whole grapes, destemmed grapes and fermented pomace, built entirely in AISI 304 stainless steel with height-adjustable frame on wheels. Complete with loading hopper, liquid recovery tank and electrical panel.

AISI 304 stainless steel frame on wheels

Food grade PVC moving pavement

Loading hopper complete with liquid recovery tray

Electrical panel with standard voltage 400V / 3kW / 50Hz with electronic speed variator

NE 300 elevator belt

Harvest

POLYETHYLENE TUBS

Tubs for Grape Marc

Tubs made of high-density polyethylene (HDPE CAS 2002-88-4) for food use, very sturdy and resistant, suitable for supporting crushers and destemmers with frame. Available in wine-red or white colour, they are particularly recommended for wine fermentation. White tubs are made of neutral low-density polyethylene (LDPE, food-grade plastic).

CXP0048

CXP0040

CXP0041

CXP0042

CXP0043

CXP0044

CXP0045

CXP0047

CXP0049

CXP0071

CXP0097

CXP0098

CXP0099

Wine marc tub 80 L

Wine marc tub 100 L

Wine marc tub 150 L

Wine marc tub 210 L

Wine marc tub 285 L

Wine marc tub 350 L

Wine marc tub 500 L

Wine marc tub 750 L

Wine

Wine

500 L

CXP0032

CXP0033

CXP0034

RIP0013

SIP0014

SIP0461

SIP0458

SIP0451

Lid 350/500

Lid 750

Lid 1000

Tap with filter

Stainless steel plunger

Stainless steel plunger

Perforated cylinder h 45

Perforated cylinder h 90

with handles - Ø 65 x 32h cm with handles - Ø 75 x 33h cm

Ø 88x 32h cm

Ø 80x 55h cm

Ø 83 x 57h cm

Ø 96 x 73h cm

Ø 102 x 82h cm

Ø 122 x 82h cm

Ø 140 x 90h cm with handles - Ø 65 x 32h cm

Ø 85 x 55h cm

Ø 96 x 73h cm

Ø 104 x 82h cm

ACCESSORIES

Ø 107 cm

Ø 122 cm

Ø 140 cm filettatura 1”

h 150 cm; Ø 28,5 cm

h 70 cm; Ø 20,5 cm

h 45 cm; Ø 9,5 cm

h 90 cm; Ø 9,5 cm

White tubs made of neutral low-density polyethylene (LDPE) food-grade plastic.

Color

Red-purple

Red-purple

Red-purple

Red-purple

Red-purple

Red-purple

Red-purple

Red-purple

Red-purple

White

White

White

White

Red-purple

Red-purple

Red-purple White Inox Inox Inox Inox 2,70 3,70

STAINLESS STEEL TUBS

Tub 100/150/200 L

A high-quality accessory essential for winemakers. Ideal for storing grapes after harvest and for crushing and pressing phases, the tub is made of AISI 304 stainless steel (18/10 food-grade). The model with a filter is equipped with a convenient fastening hook.

Harvest

CONICAL TUBS

10° Conical Stainless Steel Tubs

The stainless steel tub with a conical bottom is ideal for wine primary fermentation. Fully made of AISI 304 stainless steel, it is equipped with two stainless steel DIN32 ball valves to facilitate emptying and cleaning operations: one for total drainage located at the bottom and one for partial drainage positioned on the cylinder.

SKU

SIP0471

SIP0472

SIP0473

SIP0474

SIP0490

SIP0491

SIP0492

SIP0493

SIP0494

SIP0495

SIP0477

SIP0478

SIP0479

SIP0480

Tub 300 L

Tub 500 L

Tub 1000 L

Tub 1500 L

Tub 300 L Circular Door

Tub 500 L Circular Door

Tub 1000 L Circular Door

Tub 1500 L Circular Door

Tub 1000 L Rectangular door

Tub 1500 L Rectangular door

Maceration tub 300 L

Maceration tub 500 L

Maceration tub 1000 L

Maceration tub 1500 L

Ø 930 x 900h

Ø 1025 x 1025h

Ø 1270 x 1150h

Ø 1400 x 1400h

Ø 930 x 900h

Ø 1025 x 1025h

Ø 1270 x 1150h

Ø 1400 x 1400h

Ø 1270 x 1150h

Ø 1400 x 1400h

Ø 930 x 900h

Ø 1025 x 1025h

Ø 1270 x 1150h

Ø 1400 x 1400h

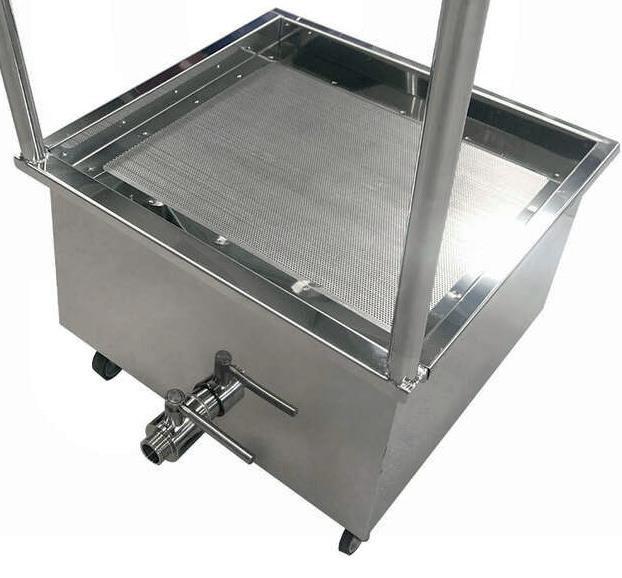

Stainless Steel Drainer

Made of AISI 304 stainless steel, this tool is designed to easily separate wine from grape seeds during racking operations. Robust and capable of ensuring impeccable hygiene, the stainless steel separator is perfect for maintaining product purity at every stage of the process. Available in two capacities: 50 liters or 113 liters. The device is equipped with a removable filtering grid and a 1” M DN25 stainless steel AISI 304 ball valve, ensuring a controlled and uninterrupted flow. The separator’s mobility is simplified thanks to a stainless steel handle for transport and four wheels, two of which are swivel and equipped with brakes.

Harvest

STAINLESS STEEL TANKS WITH WHEELS

Conical 10° Stainless Steel Tanks with Wheels

This type of tank is highly versatile and can also be used as a tub, making it an ideal accessory for the primary fermentation of food products requiring oxygenation. Entirely made of AISI 304 stainless steel (18/10 food grade), the tank is equipped with a lid with a knob, stainless steel legs, and wheels to facilitate movement even when fully loaded.

740 x 980h

740 x 1180h Ø 740 x 1430h

Ø 820 x 1430h

Ø 950 x 1430h

Ø 1170 x 1430h

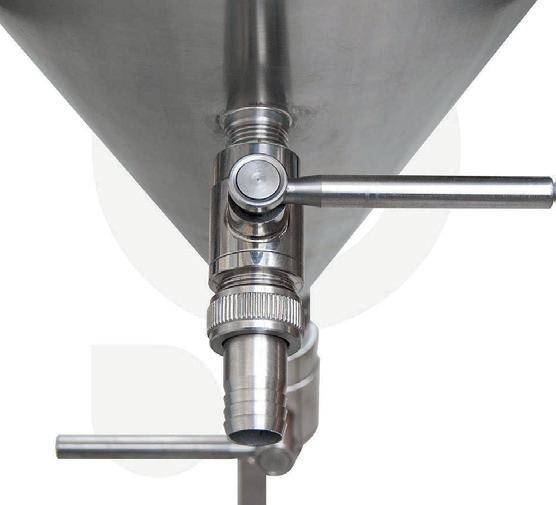

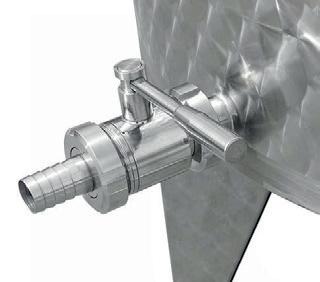

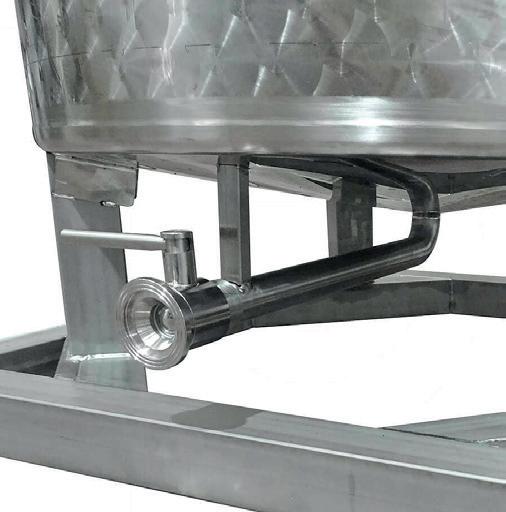

10° conical bottom with complete discharge, equipped with a 1” stainless steel ball valve x ENO30

150 mm diameter swivel wheels with brake

Cylinder dimensions (mm)

int. Ø 720 x 530h

int. Ø 720 x 750h

int. Ø 720 x 1000h

int. Ø 800 x 1000h

int. Ø 930 x 1000h

int. Ø 1150 x 1000h

SIP0315

SIP0215

SIP0219

SIP0210

SIP0211

SIP0212

SIP0213

SIP0449

SIP0214

SIP0216

SIP0217

SIP0218

SIP0221

Storage

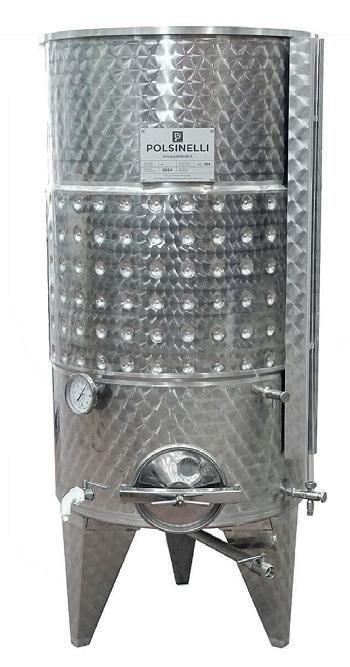

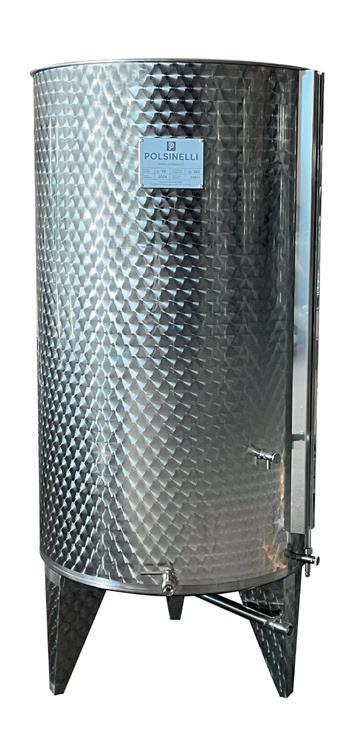

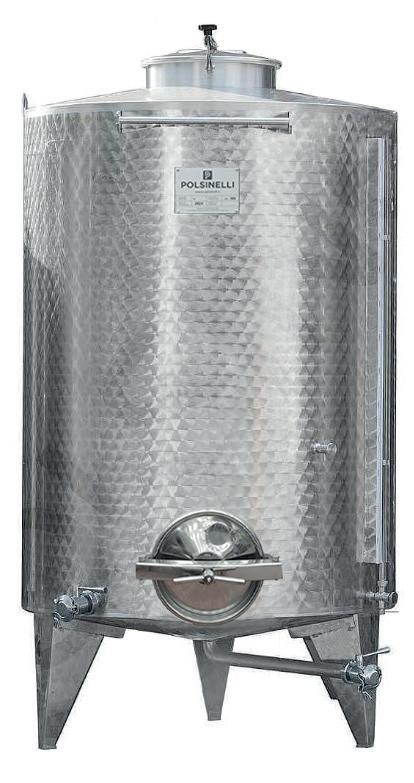

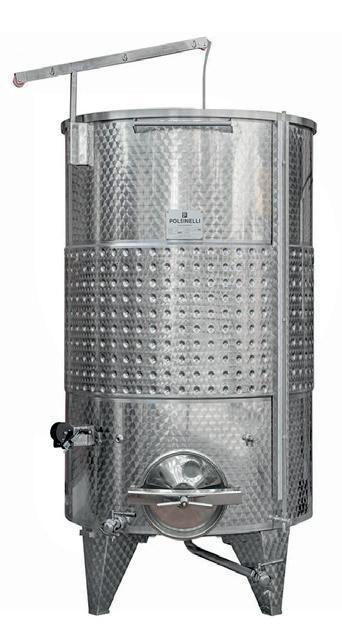

FLAT BOTTOM STAINLESS STEEL TANKS

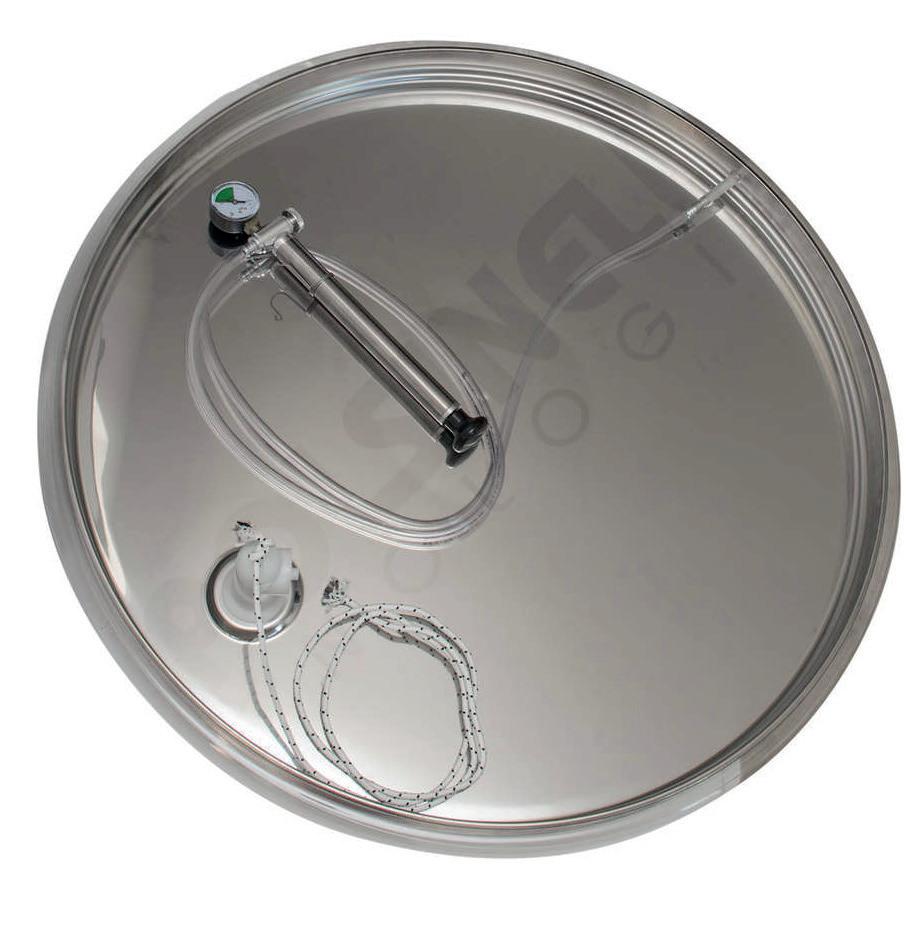

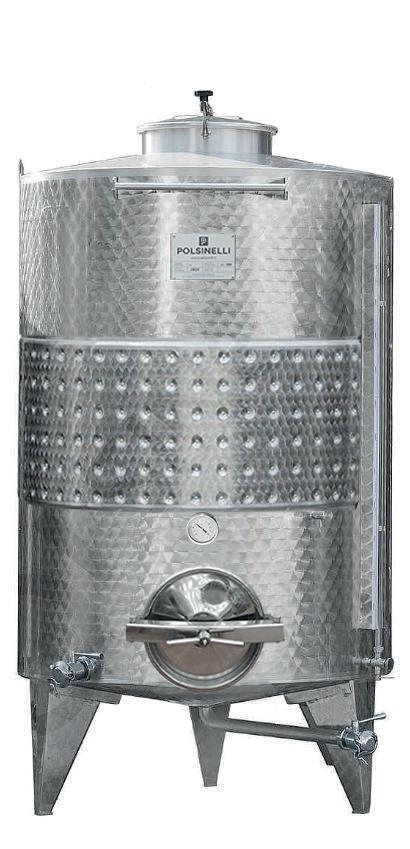

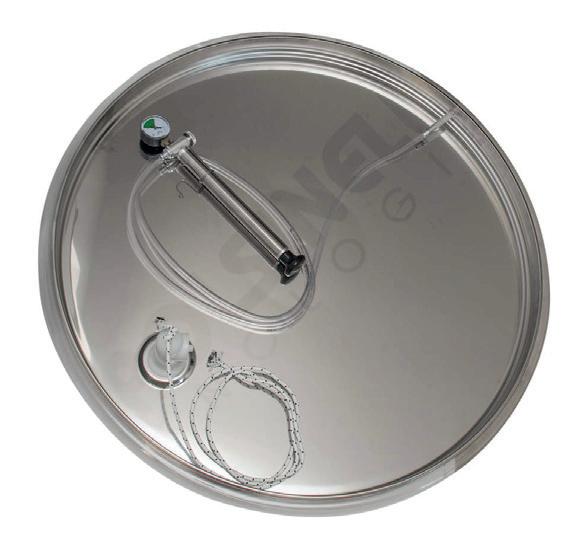

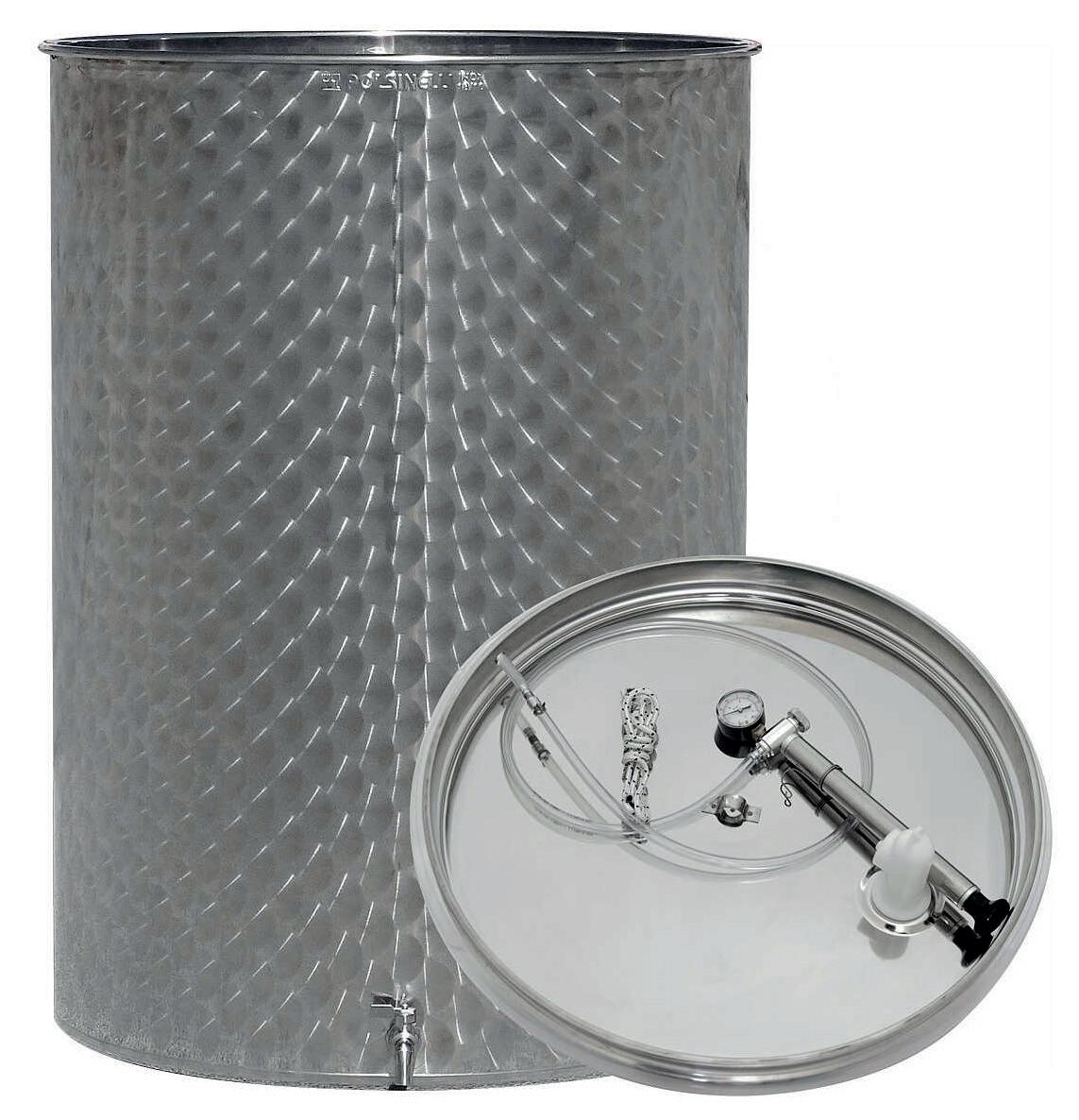

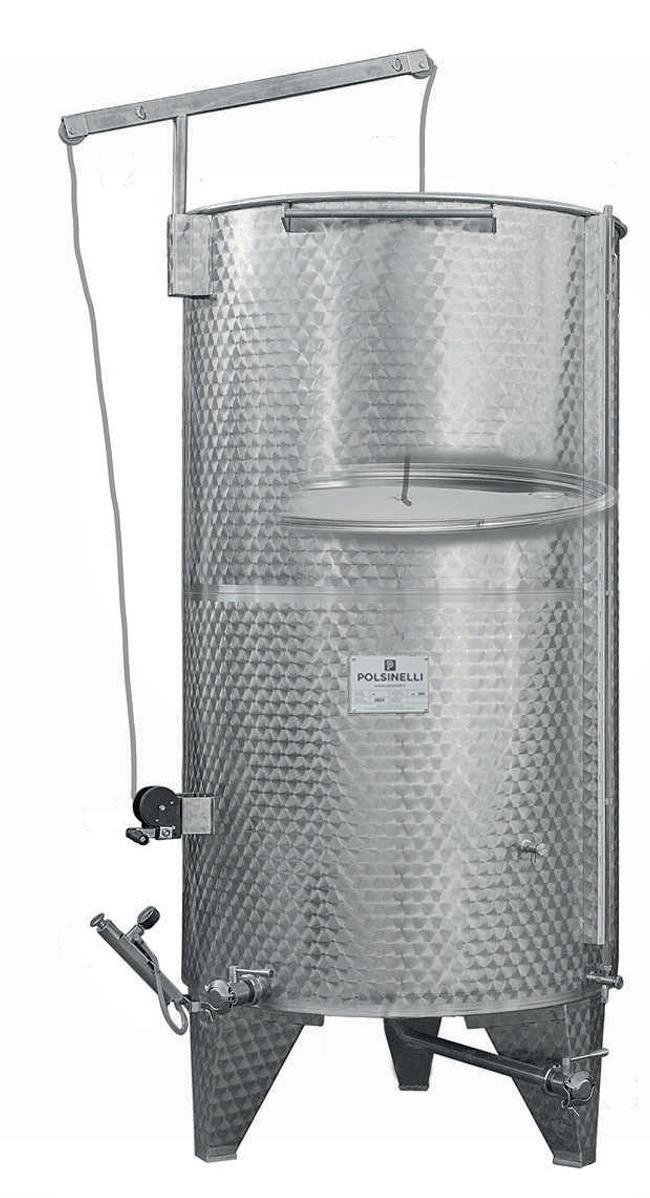

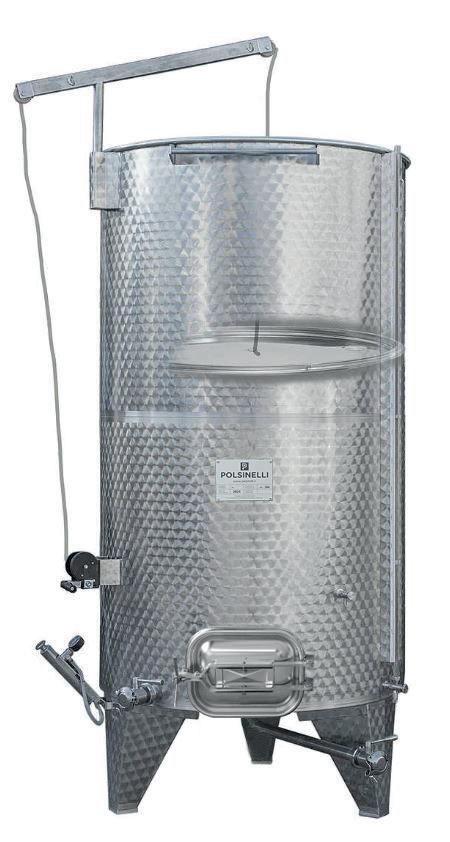

Oil Floating lid

The wine tank with an oil floating lid, made of AISI 304 stainless steel, preserves the characteristics of the product it contains. The rounded, welded bottom simplifies cleaning operations. It includes an oil floating lid to be used with vaseline oil, an odorless and tasteless liquid that floats and prevents the air coming into contact with the wine. The standard equipment includes an air float, dust proof lid with a knob, a brass tap for capacities up to 200 liters, and a stainless steel tap for tanks of 300 liters or more

Stainless steel wine tank with oil floating lid 35 L

Stainless steel wine tank with oil floating lid 50 L

Stainless steel wine tank with oil floating lid 75 L

Stainless steel wine tank with oil floating lid 100 L

Stainless steel wine tank with oil floating lid 150 L

Stainless steel wine tank with oil floating lid 200 L

Stainless steel wine tank with oil floating lid 300 L

Stainless steel wine tank with oil floating lid 380 L

Stainless steel wine tank with oil floating lid 400 L

Stainless steel wine tank with oil floating lid 500 L

Stainless steel wine tank with oil floating lid 600 L

Stainless steel wine tank with oil floating lid 700 L

Stainless steel wine tank with oil floating lid 1000 L

Ø 370 X 385h

Ø 370 X 495h

Ø 370 X 745h

Ø 455 X 680h

Ø 530 X 705h

Ø 530 X 980h

Ø 630 X 990h

Ø 630 X 1240h

Ø 710 X 1045h

Ø 780 X 1100h

Ø 780 X 1240h

Ø 850 X 1240h Ø 1020 X 1240h

Storage

FLAT BOTTOM STAINLESS STEEL TANK

Air floating lid

The wine tank with an air floating lid is ideal for storing wine and food-grade liquids. It is made of AISI 304 stainless steel with a mirror polished interior finish and a embossed-pattern finished exterior. The rounded, welded bottom facilitates cleaning. The tank comes complete with an air float and accessories.

an air

SKU

SIP0298

SIP0202

SIP0206

SIP0197

SIP0198

SIP0199

SIP0200

SIP0450

SIP0201

SIP0203

SIP0204

SIP0205

SIP0208

Stainless steel wine tank with air floating lid 35 L

Stainless steel wine tank with air floating lid 50 L

Stainless steel wine tank with air floating lid 75 L

Stainless steel wine tank with air floating lid 100 L

Stainless steel wine tank with air floating lid 150 L

Stainless steel wine tank with air floating lid 200 L

Stainless steel wine tank with air floating lid 300 L

Stainless steel wine tank with air floating lid 380 L

Stainless steel wine tank with air floating lid 400 L

Stainless steel wine tank with air floating lid 500 L

Stainless steel wine tank with air floating lid 600 L Stainless steel wine tank with air floating lid 700 L

Stainless steel wine tank with air floating lid 1000 L

Ø 370 X 385h

Ø 370 X 495h

Ø 370 X 745h

Ø 455 X 680h

Ø 530 X 705h

Ø 530 X 980h

Ø 630 X 990h

Ø 630 X 1240h

Ø 710 X 1045h

Ø 780 X 1100h

Ø 780 X 1240h

Ø 850 X 1240h

Ø 1020 X 1240h

ACCESSORIES FOR FLAT BOTTOM STAINLESS STEEL TANKS

Stainlees Steel Pedestal

The AISI 304 stainless steel tripod is designed to ensure maximum stability and durability, making it the ideal solution for supporting tanks of various sizes and capacities. Made using high-precision laser cutting technology, it provides a robust and secure structure capable of withstanding extreme environmental conditions, such as humidity and corrosion, thanks to the excellent properties of stainless steel. The tripod’s carefully optimized design ensures not only uniform weight distribution of the tank but also quick assembly and easy installation.

Steel Pedestal 25 L Stainlees Steel Pedestal 35/50/75 L

Stainlees Steel Pedestal 100 L

Stainlees Steel Pedestal 150/200 L

Stainlees Steel Pedestal 300 L

Stainlees Steel Pedestal 400 L

Stainlees Steel Pedestal 500 L

Stainlees Steel Pedestal 700 L

Stainlees Steel Pedestal 1000 L

Storage

ACCESSORIES FOR FLAT BOTTOM STAINLESS STEEL TANKS

Air floating lid kit

Oil floating lid

Dust cover

Complete with air chamber, stainless steel pump, rope, air hose and relief valve.

SKU Description Ø mm

SIR0224

SIR0225

SIR0226

SIR0227

SIR0228

SIR0229

SIR0230

SIR0231

Air floating lid kit - tank 35/50/75 L

Air floating lid kit - tank 100 L

Air floating lid kit - tank 150/200 L

Air floating lid kit - tank 300 L

Air floating lid kit - tank 400 L

Air floating lid kit - tank 500/600 L

Air floating lid kit - tank 700 L

Air floating lid kit - tank 1000 L

SKU

SIR0194

SIR0195

SIR0196

SIR0197

SIR0198

SIR0306

SIR0200

SIR0201

Description

Oil floating lid - tank 35/50/75 L

Oil floating lid - tank 100 L

Oil floating lid - tank 150/200 L

Oil floating lid - tank 300 L

Oil floating lid - tank 400 L

Oil floating lid - tank 500/600 L

Oil floating lid - tank 700 L

Oil floating lid - tank 1000 L

SKU Description

SIR0070

SIR0071

SIR0072

SIR0073 SIR0074

SIR0075

SIR0076

SIR0069

Dust cover - tank 35/50/75 L

Dust cover - tank 100 L

Dust cover - tank 150/200 L

Dust cover - tank 300 L

Dust cover - tank 400 L Dust cover - tank 500 L Dust cover - tank 700 L Dust cover - tank 1000 L

Ø mm Weight (Kg)

Complete with knob

Ø mm Weight (Kg)

SIR0037

Description

SIR0039 SIR0006 Air chamber - tank 35/50/75 L Air chamber - tank 100 L Air chamber - tank 150/200 L Air chamber - tank 300 L Air chamber - tank 400 L Air chamber - tank 500/600 L Air chamber - tank 700 L

ACCESSORIES FOR FLAT BOTTOM STAINLESS STEEL TANKS

Air chamber

SKU Description For tanks

RIP0035

RIP0025

RIP0016

RIP0021

RIP0028

RIP0036

RIP0026

RIP0017

RIP0022

RIP0029

RIP0033

RIP0024

RIP0020

RIP0027

Chrome-plated brass tap 1/2”

Stainless steel tap 1/2”

Stainless steel lever tap 1/2”

Stainless steel screw tap 1/2”

Stainless steel tap for wine/oil 1/2”

Chrome-plated brass tap 3/4”

Stainless steel tap 3/4”

Stainless steel lever tap 3/4”

Tap inox a screw 3/4”

Stainless steel tap for wine/oil 3/4”

Chrome-plated brass tap 1”

Stainless steel tap 1”

Stainless steel screw tap 1”

Stainless steel tap for wine/oil 1” up to 200 L up to 200 L up to 200 L up to 200 L up to 200 L from 300 to 500 L from 300 to 500 L from 300 to 500 L from 300 to 500 L from 300 to 500 L from 600 to 1000 L from 600 to 1000 L from 600 to 1000 L from 600 to 1000 L

SKU Description

SIR0295

SIR0263

SIR0264

EPP0155

0,5 0,30 0,42

Taps

Spare parts

for Air Float Kit 40 mm

Cristallo 8 x 12

PCP0228 Relief valve 1” 1/4 Pump for Air Float Kit 30 mm

10° CONICAL BOTTOM STAINLESS STEEL TANKS

300 L air floating lid

The 300 L stainless steel tank with air floating lid and a 10° conical bottom is the ideal solution for fermenting, maturing and storing wine. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with: 3 stainless steel legs, an air float kit, a sample tap, partial and total discharge with 1” stainless steel ball valves for Eno30 fittings.

Complete with: Level indicator with stainless steel protection.

Complete with: Level indicator with stainless steel protection. Circular manhole Ø 300 mm.

Complete with: Level indicator with stainless steel protection. Cooling jacket h 500 mm. Thermometer and additional thermowell.

Complete with: Level indicator with stainless steel protection. Manhole Ø 300 mm. Cooling jacket h 500 mm. Thermometer and additional thermowell.

Complete with: Level indicator with stainless steel protection.

300 L Storage Tank

The 300 L stainless steel tank with a Ø 400 mm upper manhole and a 10° conical bottom is the ideal solution for wine storage. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with: 3 stainless steel legs, an upper manhole with a relief valve, a sample tap, partial and total discharge with 1” stainless steel ball valves for Eno30 fittings. Upon request, the tanks can be equipped with a nitrogen system setup.

Complete with: Circular manhole Ø 300 mm.

Complete with: Level indicator with stainless steel protection. Cooling jacket h 500 mm. Thermometer and additional thermowell.

Complete with: Level indicator with stainless steel protection. Manhole Ø 300 mm. Cooling jacket h 500 mm. Thermometer and additional thermowell.

Storage

500 L air floating lid

The 500 L stainless steel tank with air floating lid and a 10° conical bottom is the ideal solution for fermenting, maturing and storing wine. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with: 3 stainless steel legs, an air float kit, a sample tap, partial and total discharge with 1” stainless steel ball valves for Eno30 fittings.

Complete with: Level indicator with stainless steel protection.

Complete with: Level indicator with stainless steel protection. Circular manhole Ø 300 mm.

Complete with: Level indicator with stainless steel protection. Cooling jacket h 500 mm. Thermometer and additional thermowell.

Complete with: Level indicator with stainless steel protection. Manhole Ø 300 mm. Cooling jacket h 500 mm. Thermometer and additional thermowell.

500

500

500

500 L

Complete

500 L Storage Tank

The 500 L stainless steel tank with a Ø 400 mm upper manhole and a 10° conical bottom is the ideal solution for wine storage. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with: 3 stainless steel legs, an upper manhole with a relief valve, a sample tap, partial and total discharge with 1” stainless steel ball valves for Eno30 fittings. Upon request, the tanks can be equipped with a nitrogen system setup.

Complete with: Level indicator with stainless steel protection. Circular manhole Ø 300 mm.

Complete with: Level indicator with stainless steel protection. Cooling jacket h 500 mm. Thermometer and additional thermowell.

Complete with: Level indicator with stainless steel protection. Manhole Ø 300 mm. Cooling jacket h 500 mm. Thermometer and additional thermowell.

SIP0391

SIP0392

SIP0524

SIP0523 500 L Storage

500 L Storage L

500 L Storage ML

500 L Storage L Ref.

500 L Storage ML Ref.

Storage

1000 L air floating lid

The 1000 L stainless steel tank with air floating lid and a 10° conical bottom is the ideal solution for fermenting, maturing and storing wine. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with: 3 stainless steel legs, an air float kit, a sample tap, partial and total discharge with 1” stainless steel ball valves for Eno30 fittings.

Complete with: Level indicator with stainless steel protection.

Complete with: Level indicator with stainless steel protection. Circular

Ø 300 mm.

Complete with: Level indicator with stainless steel protection. Cooling jacket h 500 mm. Thermometer and additional thermowell.

Complete with: Level indicator with stainless steel protection. Manhole Ø 300 mm. Cooling jacket h 500 mm. Thermometer and additional thermowell.

1000 L Storage Tank

The 1000 L stainless steel tank with a Ø 400 mm upper manhole and a 10° conical bottom is the ideal solution for wine storage. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with: 3 stainless steel legs, an upper manhole with a relief valve, a sample tap, partial and total discharge with 1” stainless steel ball valves for Eno30 fittings. Upon request, the tanks can be equipped with a nitrogen system setup.

Complete with: Level indicator with stainless steel protection. Circular manhole Ø 300 mm.

Complete with: Level indicator with stainless steel protection. Cooling jacket h 500 mm. Thermometer and additional thermowell.

Complete with: Level indicator with stainless steel protection. Manhole Ø 300 mm. Cooling jacket h 500 mm. Thermometer and additional thermowell.

SIP0083

SIP0086

SIP0093

SIP0087 1000 L Storage

1000 L Storage L

1000 L Storage ML

1000 L Storage L Ref.

1000 L Storage ML Ref. Ø 930 x 2200h Ø 930 x 2200h Ø 930 x 2200h Ø 930 x 2200h Ø 930 x 2200h

1500 L air floating lid

The 1500 L stainless steel tank with an air float and a 10° conical bottom is the ideal solution for fermenting, maturing, and storing wine. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with a ladder rest, level indicator, 3 stainless steel legs with adjustable feet, an air float kit with a lifting arm and winch, a sample tap, partial and total discharge with stainless steel ball valves DIN40 x GA50.

Complete with: Manhole Ø 300.

Complete with: Manhole Ø 400.

Complete with: rectangular manhole.

Complete with: Manhole Ø 300 Cooling jacket h 750.

1500 L Storage Tank

The 1500 L stainless steel tank with a Ø 400 mm upper manhole and a 10° conical bottom is the ideal solution for wine storage. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with a ladder rest, level indicator, 3 stainless steel legs with adjustable feet, an upper manhole with a relief valve, a sample tap, partial and total discharge with stainless steel ball valves DIN40 x GA50. Upon request, the tanks can be equipped with a nitrogen system setup.

Complete with: Manhole Ø 300.

Complete with: Manhole Ø 400.

Complete with: Manhole Ø 300 Cooling jacket h750.

Complete with: Manhole Ø 400 Cooling jacket h 500.

2000 L air floating lid

The 2000 L stainless steel tank with an air float and a 10° conical bottom is the ideal solution for fermenting, maturing, and storing wine. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with a ladder rest, level indicator, 3 stainless steel legs with adjustable feet, an air float kit with a lifting arm and winch, a sample tap, partial and total discharge with stainless steel ball valves DIN40 x GA50.

Complete with: Manhole Ø 300.

Complete with: Manhole Ø 400.

Complete with: Cooling jacket h750.

Complete with: Manhole Ø 400 Cooling jacket h 750.

2200h

Storage 2000

2000 L Storage Tank

The 2000 L stainless steel tank with a Ø 400 mm upper manhole and a 10° conical bottom is the ideal solution for wine storage. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with a ladder rest, level indicator, 3 stainless steel legs with adjustable feet, an upper manhole with a relief valve, a sample tap, partial and total discharge with stainless steel ball valves DIN40 x GA50. Upon request, the tanks can be equipped with a nitrogen system setup.

Complete with: Manhole Ø 300.

Complete with: Manhole Ø 400.

Complete with: rectangular manhole 310x420.

Complete with: Manhole Ø 400 Cooling jacket h 750.

SIP0068 2000 L Storage

2000 L Storage M300

2000 L Storage M400

2000 L Storage MRect.

2000 L Storage M400 Ref. 750

1150 x 2800h

1150 x 2800h

x 2800h

1150 x 2800h

1150 x 2800h

Storage

2500 L air floating lid

The 2500 L stainless steel tank with an air float and a 10° conical bottom is the ideal solution for fermenting, maturing, and storing wine. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with a ladder rest, level indicator, 3 stainless steel legs with adjustable feet, an air float kit with a lifting arm and winch, a sample tap, partial and total discharge with stainless steel ball valves DIN40 x GA50.

Complete with: Manhole Ø 400.

Complete with: rectangular manhole 310 x 420.

Complete with: Oval manhole 320x455.

Complete with: Manhole Ø 400 Cooling jacket h 750.

2500 L air floating lid

2500 L air floating lid P400

SIP0540 SIP0543

2500 L air fl. lid MRect. 310x420

2500 L air fl. lid MOval 320x455

SIP0117

2500 L

Storage 2500

2500 L Storage Tank

The 2500 L stainless steel tank with a Ø 400 mm upper manhole and a 10° conical bottom is the ideal solution for wine storage. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with a ladder rest, level indicator, 3 stainless steel legs with adjustable feet, an upper manhole with a relief valve, a sample tap, partial and total discharge with stainless steel ball valves DIN40 x GA50. Upon request, the tanks can be equipped with a nitrogen system setup.

Complete with: Manhole Ø 400.

Complete with: rectangular manhole 310x420.

Complete with: Oval manhole 320x455.

Complete with: Manhole Ø 400 Cooling jacket h 750.

SIP0069 SIP0541

SIP0544

SIP0545

SIP0240 2500 L Storage

2500 L Storage M400

2500 L Storage MRect. 310x420

2500 L Storage MOval 320x455

2500 L storage M400 Ref. 750

1270 x 2800h

1270 x 2800h

1270 x 2800h

1270 x 2800h

1270 x 2800h

3000 L air floating lid

The 3000 L stainless steel tank with an air float and a 10° conical bottom is the ideal solution for fermenting, maturing, and storing wine. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with a ladder rest, level indicator, 3 stainless steel legs with adjustable feet, an air float kit with a lifting arm and winch, a sample tap, partial and total discharge with stainless steel ball valves DIN40 x GA50.

Complete with: Manhole Ø 400.

Complete with: rectangular manhole 310 x 420.

Complete with: Oval manhole 320x455.

Complete with: Manhole Ø 400 Cooling jacket h 750.

Storage 3000

3000 L Storage Tank

The 3000 L stainless steel tank with a Ø 400 mm upper manhole and a 10° conical bottom is the ideal solution for wine storage. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product.

All tanks are equipped with a ladder rest, level indicator, 3 stainless steel legs with adjustable feet, an upper manhole with a relief valve, a sample tap, partial and total discharge with stainless steel ball valves DIN40 x GA50. Upon request, the tanks can be equipped with a nitrogen system setup.

Complete with: Manhole Ø 400.

Complete with: rectangular manhole 310x420.

Complete with: Oval manhole 320x455.

Complete with: Manhole Ø 400 Cooling jacket h 750.

SIP0241

3000 L Storage MRect. 310x420

3000 L Storage MOval 320x455

Storage

5000 L air floating lid

The 5000 L stainless steel tank with an air float and a 10° conical bottom is the ideal solution for fermenting, maturing, and storing wine. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product. All tanks are equipped with a ladder rest, level indicator, 3 stainless steel legs with adjustable feet, an air float kit with a lifting arm and winch, a sample tap, partial and total discharge with stainless steel ball valves DIN40 x GA50.

Complete with: Manhole Ø 400.

Complete with: rectangular manhole 310 x 420.

Complete with: Oval manhole 320x455.

Complete with: Manhole Ø 400 Cooling jacket h 750.

5000 L air floating lid M400

5000 L air flo. lid MRect. 310x420

5000 L air float. lid MOval 320x455

5000 L air float. lid M400 Ref.750

5000 L Storage Tank

The 5000 L stainless steel tank with a Ø 400 mm upper manhole and a 10° conical bottom is the ideal solution for wine storage. Made of AISI 304 stainless steel, it preserves the organoleptic qualities of the product.

All tanks are equipped with a ladder rest, level indicator, 3 stainless steel legs with adjustable feet, an upper manhole with a relief valve, a sample tap, partial and total discharge with stainless steel ball valves DIN40 x GA50. Upon request, the tanks can be equipped with a nitrogen system setup.

Complete with: Manhole Ø 400.

Complete with: rectangular manhole 310x420.

Complete with: Oval manhole 320x455.

Complete with: Manhole Ø 400 Cooling jacket h 750.

L Storage M400

5000 L Storage MRect. 310x420

5000 L Storage MOval 320x455

5000 L Storage M400 Ref. 750

ACCESSORIES FOR CONICAL BOTTOM STAINLESS STEEL TANKS

Air

floating

lid kit

Valve

Spare parts

RIR0003

RIP0063

RIP0071

RIP0105

RIP0106

RIP0393

RIP0145

RIP0116

SIR0227

SIR0228

SIR0252

SIR0240

SIR0246

SIR0112

SIR0119

Air floating lid kit - tank 300 L

Air floating lid kit - tank 500 L

Air floating lid kit - tank 1000 L

Air floating lid kit - tank 1500/2000 L

Air floating lid kit - tank 2500 L

Air floating lid kit - tank 3000 L

Air floating lid - tank 5000 L

Taste wine 3/8”

Stainless steel ball valve DN20 1”M x ENO30

Stainless steel ball valve DN25 1”M x GA40

Chrome-plated brass valve 1” x ENO30

Chrome-plated brass valve 1”1/2 x ENO40

Stainless steel valve DIN40 M c/g x GA40

Stainless steel valve DIN40 M c/g x GA50

Stainless steel valve DIN40 M c/g x CLAMP1” 1/2

Relief valve 1” 1/4

Relief valve 1” 1/2

Pump for Air Float Kit

Hose Cristallo 8 x 12

Vaselin oil 1 L

Seal for manhole Ø 300

Seal for manhole Ø 400

Seal for rectangular manhole Ø 310x420

Seal for rectangular manhole 420x530

Seal for oval manhole 305x440

Double-acting plastic vent valve

SIP0463

SIP0464

SIP0465

10° CONICAL BOTTOM STAINLESS STEEL TANKS

Palletizable Conical Tanks

The palletizable stainless steel tank is a professional grade product designed to facilitate transportation and positioning operations. The stainless steel base of this storage tank, featuring a 10° conical bottom, allows handling with pallet jack or forklift. Upon request, it can be equipped with manhole, level indicator, sample tap and partial discharge.

Stainless steel 10° conical bottom palletizable 300 L tank

Stainless steel 10° conical bottom palletizable 500 L tank

Stainless steel 10° conical bottom palletizable 1000 L tank

690 x 690 x 1150h

850 x 850 x 1550h 1200 x 1200 x 1550h

Storage

60° CONICAL BOTTOM STAINLESS STEEL TANKS

Stainless Steel Tank with 60° Conical Bottom and Air Floating Lid.

This tank is suitable for must fermentation and wine storage. It is equipped with an air floating lid and two stainless steel ball valves: one 1” valve for total discharge and another 1/2” valve elevated from the bottom. The 60° conical bottom facilitates the extraction of sediment, ensuring excellent liquid decantation. The integrated support provides exceptional stability.

SIP0356

SIP0408

SIP0357

SIP0399

SIP0358

SIP0359

SIP0398

Conical trunk 60° with air floating lid 50 L

Conical trunk 60° with air floating lid 75 L

Conical trunk 60° with air floating lid 100 L

Conical trunk 60° with air floating lid 150 L

Conical trunk 60° with air floating lid 200 L

Conical trunk 60° with air floating lid 300 L

Conical trunk 60° with air floating lid 500 L

Ø 370 x 416h

Ø 420 x 450h

Ø 420 x 625h

Ø 510 x 600h

Ø 510 x 850h

Ø 620 x 850h Ø 720 x 1000h

Dimensions (mm)

500 x 500 x 1136h

550 x 550 x 1210h

550 x 550 x 1385h

650 x 650 x 1610h

650 x 650 x 1700h

650 x 650 x 1800h

740 x 740 x 1980h

Accessories and Spare parts

60° CONICAL BOTTOM STAINLESS STEEL TANKS

Refrigeration kit

Complete with a 20/10 mm thick stainless steel flange with an airlock, stainless steel immersion cooling plate, knob and stainless steel elbows with 1/2” M + PG20 connections.

SKU Description Ø Flange

ABP0449

Refrigeration kit - tank con. 60° 50 L

ABP0430

Refrigeration kit - tank con. 60° 75 L

ABP0440

Refrigeration kit - tank con. 60° 100 L

ABP0431

Refrigeration kit - tank con. 60° 150 L

ABP0441

Refrigeration kit - tank con. 60° 200 L

ABP0432

Refrigeration kit - tank con. 60° 300 L 388 mm

SKU Description

SIR0224

SIR0343

SIR0247

SIR0227

SIR0228 Air floating lid kit - tank 50 L

floating lid kit - tank 75/100 L

floating lid kit - tank 150/200 L

floating lid kit - tank 300 L

floating lid kit - tank 500 L

Plate (mm)

270x380h

270x380h

370x600h

370x600h

370x800h

370x800h

Air floating lid kit

(mm)

Air chamber

Complete with air floating lid, air chamber, stainless steel pump with pressure gauge, recovery rope, clamps, hose and relief valve. SKU Description

SIR0030

SIR0031

SIR0033

SIR0035

SIR0037 Air chamber - tank 50 L

chamber - tank 75/100 L

chamber - tank 150/200 L

chamber - tank 300 L

- tank 500 L

SKU Description

SIR0295

SIR0263

EPP0155 RIP0410

RIP0411

RIR0192 Relief valve 1” 1/4 Pump for Air Float Kit

Hose Cristallo 8 x 12

Stainless steel ball valve DN15 1/2” F x 3/4” M.

Stainless steel ball valve DN20 1” F x 3/4” M.

Stainless steel hose barb with nut 3/4” F x PG20

(mm)

Spare parts

Accessories

STAINLESS STEEL FILLING GUN AND STAINLESS STEEL DRIP TRAY

Stainless steel filling gun

The stainless steel filling gun with tap is a practical tool designed to facilitate the bottling of food-grade liquids. The stainless steel gun does not alter the quality characteristics of the products. The sizes of filling gun are 34 x 20 cm and weight is 1 kg. It is equipped with a hose connection and a spout tube with 20 mm diameter. A model with a digital or automatic flow meter is available, allowing users to monitor the liquid quantity and simplify transfer operations thanks to direct visualization on the display. Additionally, the stainless steel components of the filling gun’s tap ensure easy assembly, while the ergonomic design allows easy handling.

Stainless steel drip tray

The stainless steel drip tray with a 2-slot gun holder is an essential support for filling glass or PET bottles and containers. It is equipped with a removable drip tray grid, housing for 2 filling guns (not included) and adjustable feet.

Features

Ø hose barb 20 mm - Ø Pouring tube 20 mm Ø hose barb 20 mm - Ø Pouring tube 20 mm Place for 2 filling guns with adjustable feet

CHILLERS

Refrigeration Chillers

High-efficiency chillers with excellent cooling performance, ideal for completing wine production systems. Through a series of valves, they can be easily connected to a control panel and tanks equipped with cooling jackets or immersion plates. Once operational, they are capable of maintaining the liquid at the desired temperature. They are composed of various elements: a compressor, fans, a tank for the water/glycol solution, and an electric pump for liquid circulation.

Stabilization

Refrigeration

Immersion cooling plates

The immersion cooling plate is designed for temperature control during fermentation and has to be connected to refrigeration systems. Made of AISI 304 stainless steel, the double-channel stamped stainless steel plates are installed vertically inside the tanks and are equipped with 1/2” threads for the inlet and outlet of the refrigerant liquid. The efficiency of the plates also depends on the actual performance of the refrigeration unit and the supply system.

IPP0120

IPP0121

IPP0130

IPP0132

IPP0134

IPP0135

IPP0136

IPP0137

IPP0139

IPP0140

IPP0142

IPP0143

Stainless steel plate 270 x 600

Stainless steel plate 270 x 800

Stainless steel plate 370 x 600

Stainless steel plate 370 x 800

Stainless steel plate 370 x 1000

Stainless steel plate 370 x 1200

Stainless steel plate 370 x 1400

Stainless steel plate 370 x 1600

Stainless steel plate370 x 1800

Stainless steel plate 370 x 2000

Stainless steel plate370 x 2500

Stainless steel plate 370 x 3000

Polypropylene conditioning thermal bands

Available for tanks from 600 liters to 50,000 liters. Each cooling jacket can be connected to adjacent ones either in series or in parallel. It can operate with hot water (+50-60 °C) or cold water (-10 °C) using flexible and mobile conditioning systems.

Thermal band 500

Thermal band 600

Thermal band 720

Thermal band 800

Thermal band 950

Thermal band 1100

Thermal band 1200

Thermal band 1270

Thermal band 1430

Thermal band 1580

Thermal band 1750

SKU Description

IPP0426

IPP0181

IPP0182

IPP0183

IPP0180

Electrical panel 2P

Electrical panel 4P

Electrical panel 5P

Electrical panel 8P

Electrical panel 12P

Refrigeration

ELECTRICAL PANELS AND MOTORIZED BALL VALVE

Electrical panel

An essential component for fermentation control in the winery, a must-have for quality wine production. The electrical control panel has to be connected to the refrigeration system and allows you to set the correct temperature for each individual tank. Intuitive and easy to use, thanks to its displays, it offers two operating modes: automatic and manual. The panel is equipped with a number of probes equal to the number of positions.

Motorized ball valve 24V

Equipped with a servo control, the motorized valve features 3/4” GAS 2-way connections and operates on 24V AC (24V alternating current power supply - 50/60 Hz).

PT100 probe - 3 wires

Model SN200009 allows temperature control from 0°C to 600°C when paired with a control panel. Equipped with a 3-meter glass-fiber cable.

Wooden barrels

3 Stelle series

The oak barrels “3 Stelle” are wooden containers with capacities ranging from 500 ml to 50 liters, designed for the storage and aging of wine and spirits. These traditional products have been revived by wineries and producers who have rediscovered the beneficial properties of wood and its impact on the final flavour of the beverage.

For this reason, the selection of wood and attention to construction are central to the production of oak barrels. The semi-finished components are shaped and smoothed to achieve a uniform surface. The staves are tapered to better fit the cylindrical shape of the barrel, while pre-toasting and toasting processes are carried out to give the components their final form.

The barrels are equipped with a tap, which can be positioned horizontally to ensure protection of the liquid from light and properly insulation allowing it to fully develop its organoleptic characteristics.

Barrel and barrique

The 50 L barrel and the 225 L barrique are ideal for storing wine and spirits, thanks to the wood tannins’ ability to impart their characteristic aroma and colour to your product.

Regenerated barrel 20 L

Regenerated barrel 30 L

Regenerated barrel 60 L

Regenerated barrel 100 L

Wooden barrels

REGENERATED - OAK

Regenerate - inside/outside

These barrels are regenerated both externally and internally with oxygenation and tannin enrichment. Tannins, which are extracted from grape skins during fermentation, are also present in the wood, allowing the wine to acquire their aromas during its time in barrels or barriques. Another key function of tannins is their preservative property. They act as antibacterial agents, protecting the wine and ensuring its longevity. Barrels of 225 L and larger are equipped with a hatch to facilitate cleaning operations.

Regenerated barrique 225 L w/manhole

Regenerated barrel 300 L w/manhole

Regenerated

Wooden barrels CHESTNUT

Made of chestnut wood

Chestnut barrels are traditional containers used for wine aging. This type of wood, recently rediscovered for barrel and barrique production, is less colourful than oak, extremely rich in tannins, and capable of imparting more mineral and less spicy aromas to many types of wine.

Chestnut barrels are made from new wood and then undergo a handcrafted internal process with paraffin which may result in slight differences from the indicated dimensions.

BLP0010 BLP0012

BLP0013

BLP0014

BLP0015

BLP0019

BLP0020

BLP0021

Chestnut barrel 20 L

Chestnut barrel 30 L

Chestnut barrel 50 L

Chestnut barrel 100 L

Chestnut barrel 200 L with manhole

Chestnut barrel 300 L with manhole

Chestnut barrel 400 L with manhole

Chestnut barrel 500 L with manhole

paraffined paraffined paraffined paraffined paraffined paraffined paraffined paraffined

Stirring rod for lees/batonnage

SKU Description

Rack system for barrels

Wooden barrels ACCESSORIES

Rack system for barrels

The barrique rack system is essential for organizing your winery. The hot-dip galvanized steel structure is designed to be stackable, supporting up to three rows of barrels (1+2). Storage, handling, and maintenance of the barrels become simple and efficient.

Materials

Galvanized steel

Stirring rod for lees/batonnage

Silicone expansion stopper

Silicone cap with air vent

Silicone cap stopper no. 8

Silicone cap stopper no. 9

Silicone cap stopper no. 10

Silicone cap stopper no. 11

Silicone cap stopper no. 12

Silicone cap stopper no. 13

TXP0148

TXP0150

Silicone cap stopper no. 14

Silicone cap stopper no. 18

Stainless steel

Food grade silicone

Food grade silicone

Food grade silicone

Food grade silicone

Food grade silicone

Food grade silicone

Food grade silicone

Food grade silicone

Food grade silicone

Food grade silicone

Ø inf. 48 x Ø upp. 60 x 65h

Ø inf. 48 x Ø upp. 60 x 65h

Ø inf. 27 x Ø upp. 36 x 38h

Ø inf. 31 x Ø upp. 40 x 38h

Ø inf. 33 x Ø upp. 45 x 46h

Ø inf. 36 x Ø upp. 47 x 50h

Ø inf. 40 x Ø upp. 52 x 53h

Ø inf. 48 x Ø upp. 60 x 60h

Ø inf. 52 x Ø upp. 62 x 70h

Ø inf. 73 x Ø upp. 85 x 70h

Electric pumps

Self-priming bisense Electric pump

The BE-M series electric pumps are a practical accessory for the precise and fast transfer of wine and food-grade liquids. The transport system consists of a 220V motor connected to an internal star-shaped bronze impeller. The suction system enables the pump to perform excellently even in the presence of flow interruptions, allowing liquid to be transferred in both directions.

220V

Self-priming bisense Electric pump

The Novax series electric pumps are a practical accessory for the precise and fast transfer of wine and food-grade liquids at temperatures up to 35°C. The transport system features a 220V motor connected to a star-shaped bronze impeller. The suction system ensures excellent pump performance even in the presence of flow interruptions, allowing liquid to be transferred in both directions.

220V - 50 Hz

220V - 50 Hz

220V - 50 Hz

ENOS Electric pumps

Electric pump self-priming bisense

The Enos series electric pumps are a practical and professional tool for transferring wine and food-grade liquids. The pump frame is made of robust AISI 304 stainless steel, ideal for working with liquids due to its exceptional resistance to humidity and corrosion. The suction system ensures excellent performance, even in the presence of flow interruptions, allowing liquid to be transferred in both directions.

Electric pumps

Flexible impeller

Electric pump with a stainless steel body and flexible impeller, ideal for transferring food-grade liquids, delicate fluids, viscous substances, and liquids containing suspended particles. Recommended for use in the oenological, oil, chemical, cosmetic, and pharmaceutical industries. The star-shaped CR impeller can draw liquids from a depth of up to 6 meters. The transfer is continuous and free of pulsations, preserving the organoleptic properties of the product. Self-priming and reversible (operates in both rotation directions, allowing excess liquid to flow back without manual intervention and facilitating the emptying of hoses at the end of the transfer).

Key operating features and benefits. The flexible impeller blades deform to draw the liquid into the pump, transferring it continuously to the outlet (discharge).

This principle combines gentle pumping with high self-priming capacity.

x PG40

GAROLLA 40 x PG40

GAROLLA 60 X PG 60

GAROLLA 60 X PG 60

Electric pumps

Flexible impeller

Flexi self-priming electric pump in AISI 304 stainless steel with neoprene impeller. A professional tool capable of transferring food-grade liquids such as wine, oil, and beer at temperatures not exceeding 35°C. The pump can also be used in the agricultural, nautical, and gardening sectors, thanks to its ability to handle a partial presence of solid material during transfer.

Electric pumps

Stainless steel internal rotor

Electric pump with body and rotor in AISI 304 stainless steel, equipped with a cart and handle, the ideal solution to allow mobility in the cellar. Recommended for oenological applications, it is suitable for transferring wine, wine must, and food-grade liquids, even at high temperatures. The stainless steel rotor does not affect the organoleptic properties of the transported product, fully complying with the food-grade standards of D.M. 21/03/73. Models equipped with a flow

Electric pumps

PERISTALTIC

Wide versatility in product transfer (depending on the model): must, still or sparkling wine, whole or destemmed grapes. The peristaltic pumps, available in various models, are capable of adapting to every need. Constructed entirely of AISI 304 stainless steel, they feature one or two rotors with rollers mounted on bearings and are equipped with a radio control kit, electric control panel with reverse function, electronic speed variator, expansion tank, and a self-supporting trolley made of AISI 304 stainless steel. The peristaltic pumps have a flow rate ranging from 10 to 700 hl/h and are available with or without a hopper.

Power supply: Three-phase 400V

Complete of:

• AISI 304 stainless steel trolley with wheels equipped with locking device

• Pump body in AISI 304 stainless steel

• Rotor with two rollers mounted on adjustable pressure bearings

• Peristaltic hose in food grade rubber with TCA-TBA and FDA certification

• Double expansion tank

• Electrical panel with reverse voltage 400V / 3HP / 50HZ

• Electronic speed variator (inverter)

• Control wire and reverse gear system (10 MT.)

• Options included: Radio control kit

Accessories and spare parts for electric pumps

EPR0049

EPR0044

EPR0052

EPR0167

EPR0043

EPR0037

EPR0038

EPR0039

EPR0040

EPP0229

EPP0002

EPP0313

EPP0004

Impeller EPDM for EP Mini

Impeller EPDM for EP Midex

Impeller EPDM for EP Minor

Impeller EPDM for EP Major Impeller EPDM for EP Maxi

Impeller NEOPRENE for Flexi 30

Impeller NEOPRENE for Flexi 40

Impeller NEOPRENE for Flexi 50

Impeller NEOPRENE for Flexi 60/70

Stainless steel Mini trolley

Stainless steel Midi trolley

Stainless steel Maxi trolley

Enamelled trolley

Baby

The Baby wine filter consists of an electric pump and a filtering system with moplen plates, between which filtering sheets are inserted. The pressed-layer system ensures excellent levels of purification while preserving the organoleptic properties of the wine. This makes it particularly appreciated for both domestic and professional filtering, such as in small to medium-sized wineries.

Baby inox

In the Baby stainless steel wine filter, the moplen plates come into contact with stainless steel plates. This system ensures excellent levels of beverage purification without altering the fundamental characteristics of the transferred liquid. It is particularly appreciated for domestic filtering but is also highly valued in professional settings, such as small to medium-sized wineries.

Filtration

PAD FILTERING MACHINE 20X20

The Jolly filters can process from 100 to 5000 liters per hour. Specifically designed to meet the needs of small to medium-sized companies, they are made of stainless steel, ensuring practicality and safety. Depending on the type of filtering sheets used, they can clarify, polish, and sterilize white and red wines, sparkling wines, vinegars, and more. The 20 x 20 cm support plates are made of food-grade plastic or, on demand, NORIL, which is sterilizable at 120°C. The machine is mounted on an AISI 304 stainless steel cart with 4 wheels, making it easy to move. Inlet/outlet hose barbs: Ø 20 mm.

PAD FILTERING MACHINE 40X40

The Eur 40 plate filter with 40x40 cm plates is a professional machine designed for perfect polishing and sterilization of wines, sparkling wines, and low-alcohol liquors. Designed to operate with 40x40 cm filtering sheets of varying filtration grades (e.g., from CKP V0 to V24 depending on specific requirements), it is ideal for meeting all production needs. With a working capacity of up to 4000 liters per hour, it ensures excellent levels of purification and clarification while preserving all the product’s organoleptic properties. The filter is equipped with 40x40 cm Moplen plates, inlet and outlet adjustment valves, and a sight glass for monitoring the product flow. The presence of air purge valves and the option for sample extraction make the filtration process even more precise and controllable. The Eur 40 plate filter is built with high-quality stainless steel, ensuring maximum durability and reducing maintenance needs, requiring only regular cleaning.

The constant research dedicated to the CKP Series has enabled structural modifications to refine certain technical features of the sheets while maintaining their high-quality standards. The use of new premium-grade cellulose and significant improvements to the structure of the inlet side—always marked “CKP” - ensure higher performance levels. Available in packs of 25 or 100 pieces. SKU

MFC0014.25

MFC0026.25

MFC0029.25

MFC0016.25

MFC0018.25

MFC0020.25

MFC0022.25

MFC0024.25

20x20 CKP V0

20x20 CKP V4

20x20 CKP V8

20x20 CKP V12

20x20 CKP V16

20x20 CKP V18

20x20 CKP V20

790 g/m² - 18µ 1024 g/m² - 15µ 1050 g/m² - 12µ

20x20 CKP V24 washable medium-clarifying clarifying medium polishing polishing

1140 g/m² - 8µ

1260 g/m² - 2µ

1290 g/m² - 1µ

1320 g/m² - 0,7µ 1370 g/m² - 0,5µ

Filter sheets 20 x 20

Typology product

Typology product for young wines for young wines for young wines for polishing red wines for polishing white wines for polishing white wines for wines to be stabilized for wines to be stabilized MFC0039.25

40x40 CKP V0

40x40 CKP V4

40x40 CKP V8

40x40CKP V12

40x40CKP V16

MFC0045.25

MFC0047.25

MFC0049.25

40x40 CKP V18

40x40 CKP V20

Features

790 g/m² - 18µ

40x40 CKP V24 washable medium-clarifying clarifying medium polishing polishing

1024 g/m² - 15µ

1050 g/m² - 12µ

1140 g/m² - 8µ

1260 g/m² - 2µ

1290 g/m² - 1µ

1320 g/m² - 0,7µ

1370 g/m² - 0,5µ

for young wines for young wines for young wines for polishing red wines for polishing white wines for polishing white wines for wines to be stabilized for wines to be stabilized

Filtration

HOUSING

Housing 10” 30” and 30” with 3 cartridges

The Housing filter is a tool used in the pre-bottling phase to perform complete cleaning, sterilization, and cold polishing of wine or other food-grade liquids. The structure includes a 30” stainless steel AISI 316 housing, ensuring maximum hygiene and effective removal of cells, yeasts, and bacteria while minimizing potential alterations to the final product. The Housing filter membranes feature pore sizes ranging from 0.1 to 10 µm and have a working capacity of up to 1000 L/h. It is equipped with a D (DOE) connection and can be used independently or integrated into filling machines or other equipment.

Filtration

FILTER CARTRIDGE

Cartridges for Housing

Stainless steel cartridge holder for storing 30” cartridge

connection

connection

type 7 connection

30” type 7 connection

30” type 7 connection

30” type 7 connection

30” type 7 connection

30” type 7 connection

30” type 7 connection

Cartridge suitable for filtration with the Housing filter. These cartridges allow you to clean, cold sterilize, or polish wine and other food products. The 10” cartridges are equipped with a DOE (D) connection to fit 10” Housing filters, while the 30” cartridges come with a “7” connection for use with 30” Housing filters. Both types are washable, sanitizable, and reusable. Their lifespan is very long as they are made from premium-grade polypropylene. Additionally, the 30” cartridge with 0.45 µm pore size and “7” connection is also available in Polyethersulfone (PES). SKU Description

Material

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Membrane

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Polypropylene

Stainless steel

Filling machines

Filling machine with 3 siphons and moplen tray

The 3-spout wine bottling machine is an essential device for quickly and automatically filling containers. The food-grade moplen tray is equipped with a filling level adjustment system and a mechanism to support the bottles. Operation: Position the container with the liquid to be transferred above the bottling machine, allowing the liquid to flow naturally into the tray. The tray fills to the required level, closing the inlet tube before proceeding with the filling process. Next, extract the liquid from the hole at the tip of the filling spouts (only for the first bottle), then insert the bottles into the three spouts and begin bottling.

Stainless steel filling machine with 3 and 5 siphons

The 3- and 5-spout stainless steel fillers are entirely made of AISI 304 stainless steel (18/10 food-grade), and come with a safety float. Essential in the cellar, they are easy to use and provide fast filling, ideal for wineries producing up to 20 hl/year. How to use them: When the wine fills the upper tank, use the provided pump to draw liquid from the stainless steel siphon tubes (only for the first bottle). From that moment, the machine is ready to operate simply insert the bottles, which will be filled automatically.

Stainless steel 5 siphons

steel 3 siphons

Filling machines ENOLMATIC

Enolmatic is the only bottling machine with professional features and performance, designed in a compact size and extremely easy to use. The Enolmatic bottler is an ideal tool for producers who need a functional, compact, and professional-grade accessory for bottling wine.

Despite its small size, it ensures high performance, with a working rate of 250 bottles per hour. The container from which the liquid is drawn can be positioned up to 4 meters below the Enolmatic. Compatible with glass and rigid plastic bottles, it also allows adjustment of the filling level. Its vacuum operation ensures continuous and natural liquid transfer, preserving the taste and organoleptic properties of the product.

Spare parts and accessories

RMR0031

RMR0015

RMR0186 MFP0064

Enolmatic Jar

Enolmatic clamp

Jar lid

Stainless steel spout

P15

Tandem

Filling machines

Ideal for wine producers, the Enolmaster filler is a semi-automatic professional tool designed for companies and privates. Engineered to handle liquids with alcohol content up to 20%, it is suitable for filling glass bottles and flasks with a neck diameter of 16 to 28 mm. The structure, entirely made of stainless steel, ensures stability and durability, while also making cleaning easier. Equipped with a vacuum suction system, the product is bottled naturally by the vacuum created inside the bottle, preserving its organoleptic properties and allowing adjustment of the filling level.

Spouts version

2 Spouts version

Enolmaster Pyrex. Equipped with a specific container for liquids with an alcohol content exceeding 20%. For liqueurs, it is recommended to use the oil-bath filter.

RMP0032

RMP0057

RMP0031

4 spouts

2 spouts

Spare parts and accessories

RMR0092

RMR0094

MFP0063

RMR0015

RMR0161

RMR0145

RMR0108

Enolmaster Pyrex 4 spouts Plastic Jar Plastic cylinder for jar

Tandem Professional Filter

Filling

Stainless steel 4-nozzle filler

The Cad 4 bottling machine is suitable for bottling wine and spirits up to 40°, it is the ideal tool for hobbyists and companies operating in the oenology sector. The filler is provided with a stainless steel structure and wheels for easy movement in the cellar. On demand, Polsinelli can equip the Cad 4 food-grade bottling machine with an EPM20 low-speed electric pump and a filter cartridge for microfiltration of white wines. Additionally, the following options are available: A model with a safety float to monitor overfill levels. A model with an electric float that automatically controls the activation and deactivation of the electric pump.

Filling machines

Stainless steel 4-nozzle filler

The Comby 6 is a high quality machine, ideal for bottling fine wines that require special care during this stage of production. Entirely made of AISI 304 stainless steel, it is equipped with wheels to facilitate movement in the cellar. It can bottle up to 600 liters per hour. On demand, Polsinelli can equip the filler with a 10” Housing filter. This model includes a safety sensor to monitor overfill levels, which automatically controls the activation and deactivation of the electric pump.

Filling machines

ISO Series

Isobaric fillers designed for bottling bottles of all formats. Made entirely of AISI 304 stainless steel, crafted from a single laser-cut plate, and equipped with automatic bottle lifting via a pneumatic piston.

Quick-change bottle formats allow seamless processing of bottles of various shapes and sizes, minimizing production time. Suitable for filling food-grade liquids containing CO2 such as wine, beer, cider, etc., while minimizing issues caused by foam and oxidation.

The ISO series models, featuring a new design, are tailored to meet the needs of producers with automatic systems and high hourly capacities, offering a versatile solution for producing small batches of bottles in both small and large formats. Thanks to their ease of use and extremely short setup times, these machines are the ideal solution for this type of work.

Filling machines

Monoblock Compact 7.1

The Compact 7.1 filler is an electro-pneumatic isobaric machine for filling carbonated products in a pressurized tank, with both the inlet and outlet on the same side, making it operable by a single person. The innovative ultra-fast valve performs several programmable cycles: pre-evacuation, isobaric filling under a veil, and pulsed degassing. Additionally, the machine is equipped with all the necessary accessories including conveyor, return unit, and a foam applicator to reduce oxygen pickup. The Compact 7.1 is fitted with mirror-polished AISI 304 stainless steel safety guards with BA finish, in compliance with CE standards. It features large hermetically sealed glass doors that allow for easy inspection and internal cleaning. The few non-stainless steel components are treated with epoxy coating.

Accessories included:

• Capping turret built in IES version

• Electric height adjustment for the filler.

• Device with 7 dummy bottles for automatic valve opening.

• Optional upgrade to glass safety guards instead of Lexan

• Rinsing showerhead for container washing after foaming and capping.

AUTOMATIC FILLER CAPPER

Monoblock PRO 6

The Pro 6 wine filler is a professional monoblockk machine capable of bottling 1,000 bottles per hour and capping them with corks. Made of stainless steel, it comes with 6 filling spouts, 6 clamps, a quick bayonet connection, an inverted valve body to ensure smooth liquid flow, and an opening system to facilitate cleaning and drying. The spout design optimizes performance, even with foamy wines. The Pro 6 wine filler is designed for quick and easy cleaning, with minimal maintenance required. The inclusion of self-lubricating plastic materials allows for dry operation as well.

Capping machines

CORK STOPPER

Manual lever capping machines are suitable for capping bottles with corks or synthetic stoppers. Their operation involves placing the bottle on the raised base, then inserting the stopper into the designated space. Through lever pressure, the capper hermetically seals the bottle without compromising the organoleptic properties of the product inside. All models are equipped with a cap insertion level adjustment system.

Mini TF68 Mondial

Magnum Zeus

x 670 x 1130h

x 700 x 1400h

Capping machines

CORK, SYNTHETIC CROWN CAP Starcap

The Starcap pneumatic capping machine is a professional device designed to simplify and speed up the bottle capping process. The machine operates pneumatically for cork, synthetic, and agglomerated stoppers up to 24 x 45 mm, as well as for crown caps measuring 26 and 29 mm and plastic caps. Corks are manually placed into the cone of the pneumatic capping machine. By pressing the activation buttons, the stoppers are inserted into the bottle using a compression system.

Capping machines

SEMI-AUTOMATIC CORK STOPPERS

P450 with trolley

The P450 semi-automatic corking machine is a professional product designed to simplify and optimize the bottle capping process. Made of AISI 304 stainless steel, this model ensures excellent chemical stability and optimal preservation of the organoleptic qualities of processed food-grade liquids. It features stainless steel blocks and operates via a 220V power connection, or 380V on demand. It is compatible with cork, agglomerated, and synthetic stoppers, perfectly meeting the needs of wine industry professionals. A version with nitrogen injection is also available. Capping time: 1.8 seconds.

Bench top capping machines

FOR CROWN CAPS

The Eco crown capping machine is the perfect tool for domestic use.

The Wheel capping machine applies the crown cap through a simple rotation of the knob.

The Circe capping machine is a professional model made of enamel-coated steel, while the Ulisse capping machine is crafted from stainless steel. All models are equipped with 26 mm and 29 mm capping heads.

Eco Wheel Circe Ulisse

Pneumatic capping machines

For crown cap

The Mirko and Mirko Inox pneumatic capping machines for 26 mm and 29 mm crown caps make sealing glass bottles simple and efficient. With a working speed of 400 glass bottles per hour, they are perfect for small and medium-sized companies as well as passionates. The dimensions are 300 x 300 x 600 mm, and the weight is 15 kg. These capping machines are provided with a quick height adjustment system and with a fitting for an 8 mm hose (compressor hose not included). The Mirko pneumatic capping machines are equipped with a lever-operated pneumatic valve system, manual feeding with compressed air, and a working pressure of 5 bar.

Labeling Machines STAINLESS

STEEL MANUAL

Perfect for small companies and privates who need to bottle independently, using a compact, cost-effective machine with high productivity, the labeling machine ETI 05 is suitable for cylindrical bottles with a diameter between 45 and 120 millimeters and a height between 50 and 450 millimeters. The manual operation does not require electricity. A model with a batch stamper is also available.

Labeling Machines

STAINLESS STEEL

ETI 09

The ETI 09, available at Polsinelli’s store, is a tabletop single-station labeling machine ideal for those seeking a compact, efficient, and functional solution. Designed for applying self-adhesive labels to cylindrical bottles and jars with precise and professional results, this machine works with both glass and plastic containers, as long as they can withstand the minimal pressure applied by the upper rubber sponge roller, which exerts negligible force.

The ETI 09 semi-automatic labeling machine allows the application of both the label and the back label in a single cycle if they are alternately arranged on the same roll. Its structure is entirely made of stainless steel, offering a solid and reliable design that complies with CE safety standards. Operation is managed via a control panel with a microprocessor electronic board, simplifying configuration and usage.

This ETI 09 labeling machine operates in semi-automatic mode via pedal control and requires the operator to load the container to be labeled and unload the already labeled one. Its compact dimensions and ease of use make it particularly suitable for small artisanal or business productions, ensuring efficiency and practicality at every stage of work.

Ready to use

Labeling Machines

The ETI 10 semi-automatic labeling machine is a tabletop product capable of applying adhesive labels in various formats. It can handle not only cylindrical bottles but also jars and other containers made of synthetic materials. The ETI 10 can apply both labels and back labels from the same roll during a single cycle. Made of stainless steel, it is provided with a knurled quick-release roller for feeding the silicon-coated paper. The integrated PLC allows the ETI 10 to support numerous application variations with the addition of appropriate options. The built-in digital display enables quick selection of work parameters and displays useful information for operating the machine. The model with a thermal transfer marker is equipped with an electropneumatic system (3 bar, 50 liters) and includes two rows of brass characters with 13 characters each. The character height is 5 mm, and the total print area is 12x30 mm. The machine complies with CE safety standards.

Ready to use

Label height adjustment

Distance adjustment

Labeling Machines

ETI PRO PVC

The ETI PRO labeling machine for round bottles is designed to apply self-adhesive labels and back labels from the same roll or separate rolls, as well as neck bands. The ETI PRO PVC model also allows for the application of PVC capsules. Both versions can support hot stamping, a process that uses foil deposition to achieve vibrant and sharp color quality. A safety system detects the presence of a cap, ensuring maximum efficiency at all times.

The bottling kits by Polsinelli are designed to simplify the production and bottling of wine, beer, oil, and food-grade liquids, using the best technology for hobbyists and companies. These bottling kits include three essential elements: a filler, a capper, and a labeling machine, assisting users in the different stages of bottling. Available versions: 200, 400, 600, or 1000 bottles per hour.

Kit 200 pieces/h

pieces/h

Heat shrinkers

Heat shrinker

The capping machine is a professional tool designed to assist small companies or hobbyists in sealing bottles intended for beverages and food products such as wine, oil, beer, vinegar, liqueurs, and more. The device applies a secure closure system to containers using heat-shrink PVC capsules.

Hand Pvc Capsule Heat Shrinker

Pvc capsule blow-dryer heat shrinker

Hand Pvc Capsule Heat Shrinker

Pvc capsule blow-dryer heat shrinker

Pvc capsule stainless steel table-top heat shrinker

Pvc capsule enamelled table-top heat shrinker

Pvc capsule stainless steel table-top heat shrinker

Pvc capsule enamelled table-top heat shrinker

Spare parts for heat shrinker

Resistor for Hand Pvc Capsule Heat Shrinker

Resistor for Pvc capsule blow-dryer heat shrinker

Resistor for capsule sealer table-top

Pneumatic capsulation machine for polylaminate capsules

The capsule sealing machine is a useful and practical tool for those who need to quickly apply capsules to the necks of sparkling wine bottles. The device is powered by compressed air and can seal containers ranging from 0.75 L up to 1.5 L, applying sleeves with a maximum length of 150 mm. The pneumatic capsule sealer offers high productivity, allowing up to 500 bottles per hour to be sealed through a simple two-step process consisting of pre-smoothing and final smoothing.

Compressed air From 0,75 to 1,5 L 150 mm Max 500 bot./h

Sparkling wine

Freezer for bottle necks

The 40-bottle neck freezer in AISI 304 stainless steel, thanks to the use of glycol at a temperature of –25°C/-28°C, enables the freezing of bottle necks during the disgorging phase of sparkling wines and champagne. This process removes all impurities deposited in the cap, ensuring a perfectly clear final product. The compressor starts automatically based on the temperature of the glycol-water mixture, as detected by the electronic thermostat via a probe placed in the mixture’s storage tank. The forced circulation of the glycol is ensured by two stirrers located inside the refrigeration monoblock. The Freon R452A gas and glycol circuits are equipped with electrical and mechanical safety systems. The 40-bottle neck freezer, featuring a 70 L internal tank, is fitted with four swivel wheels for easy movement.

Mechanical equipment:

• 1 round tank with manually rotating plate in AISI 34 stainless steel insulated in expanded polyurethane.

• 1 plate made of polyethylene with conical necks machined directly from solid.

• 2 stirrers placed on the plate

• 1 semi-hermetic piston compressor, with R 452A gas compression.

• 1 dehydrating filter to eliminate any traces of humidity present in the circuit.

• 1 ventilated condenser to dispose of the calories generated by the compressor.

• 1 serpentine evaporator for cooling the refrigerant solution to a temperature of -25°C.

• 1 pressure switch for high and low pressure circuit control.

• 1 electric panel according to CE standards with digital thermostat for setting and reading the glycol temperature.

• 4 wheels for moving.

IPP0025

Steel freezer for bottle necks

Number of seats Production

Built in fir wood, the pupitre have a solid structure able to support the weight of the bottles, the feet are created with Steel COR-TEN, a low - alloyed steel, with a look similar to rust. Our Pupitre can be used for the aging of sparkling wines and champagne, but also as a piece of furniture. In a restaurant or shop they are excellent for displaying and storing bottles in a completely original way. Studied for a perfect remuage, the pupitre allow the possibility to position the bottles in various inclinations. While the quality of the wood guarantees stability and solidity.

SKU SKU Description Description

ACP0226

ACP0150

ACP0149

18 bottles pupitre

36 bottles pupitre 120 bottles pupitre
