1 FUNDAMENTAL ASSET

Industrial Development of White Bay

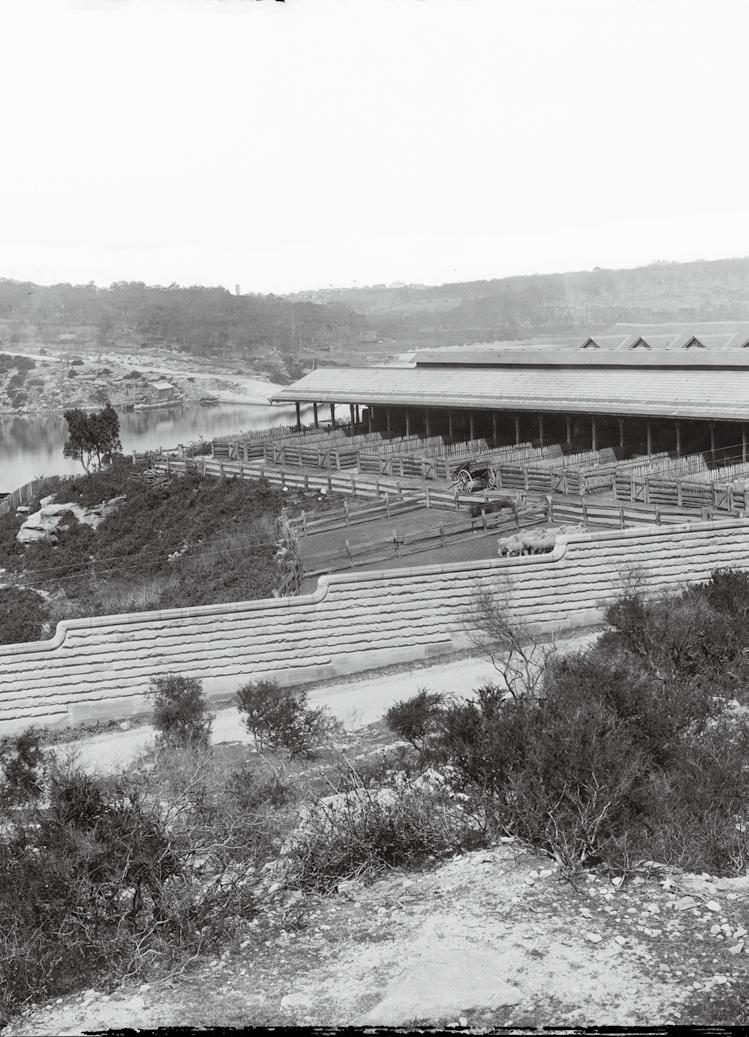

Glebe Island Abattoirs 1870

Source: https://drive.google.com/drive/folders/1bh6RHwfA5WMOoyjWk_9_ VesYgMil9C0t?fbclid=IwAR11brMS_ffpFSr1TsLm86lmF6vjTTwuW69jIDeytAyxzLiNiqvYK6 a8hNk

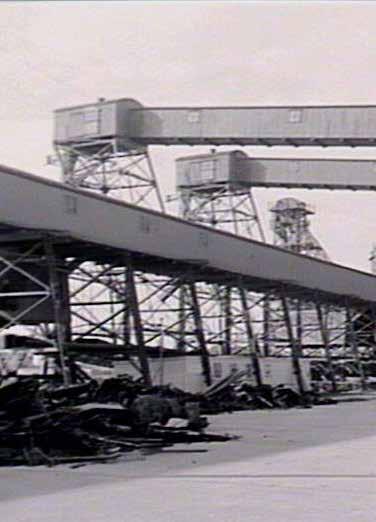

Graln Elevators Glebe Island 1954

Source: https://drive.google.com/drive/folders/1bh6RHwfA5WMOoyjWk_9_ VesYgMil9C0t?fbclid=IwAR11brMS_ffpFSr1TsLm86lmF6vjTTwuW69jIDeytAyxzLiNiqvYK6 a8hNk

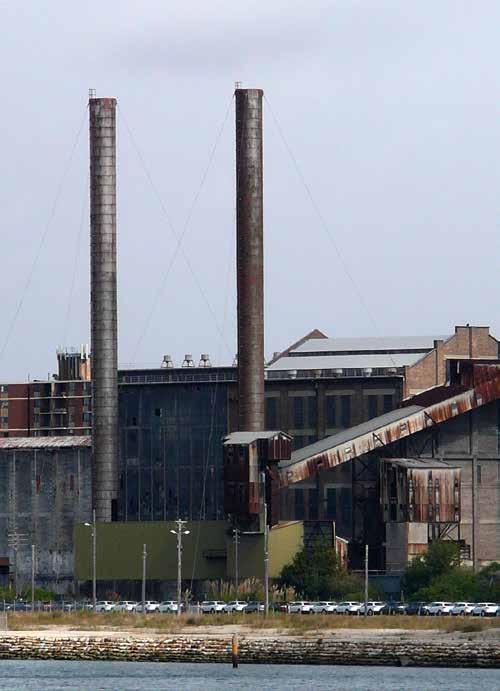

White Bay Power Station today

Source: https://en.wikipedia.org/wiki/White_Bay_Power_Station

LAND RECLAMATION HISTORY (1788-1854)

Low Level Contamination at 1800

Urbanisation as at 1860

Reclamation as at 1854

Catchment Boundary

Sandy Sediment

Ashfield Shale

Hawkesbury Sandstone

Thick Indigenous Woodland

Urban Housing

Contaminated Water Runoff

Clear Water Runoff

Coastal Wetland/ Estuarine Wetland

LAND RECLAMATION HISTORY (1854-1889)

Moderate Contamination at 1880

Urbanisation as at 1860

Reclamation as at 1859

Catchment Boundary at 1889

Sandy Sediment

Ashfield Shale

Hawkesbury Sandstone

Indigenous Woodland

Urban Housing

Contaminated Water Runoff

Clear Water Runoff

LAND RECLAMATION HISTORY (1889-1922)

High Contamination

Urbanisation as at 1917

Reclamation as at 1922

Catchment Boundary at 1922

Sandy Sediment

Ashfield Shale

Hawkesbury Sandstone

Indigenous Woodland

Urban Housing

Contaminated Water Runoff

Clear Water Runoff

LAND RECLAMATION HISTORY (1922-2002)

Low Stormwater Contamination

High Stormwater Contamination

Urbanisation

Reclamation

Catchment Boundary at 2002

Sandy Sediment

Ashfield Shale

Hawkesbury Sandstone

Indigenous Woodland

Urban Housing

Contaminated Water Runoff

Clear Water Runoff

Decreasing Water Quality of White Bay

Glebe Island Abattoirs 1870

Source: https://drive.google.com/drive/folders/1bh6RHwfA5WMOoyjWk_9_ VesYgMil9C0t?fbclid=IwAR11brMS_ffpFSr1TsLm86lmF6vjTTwuW69jIDeytAyxzLiNiqvYK6 a8hNk

Graln Elevators Glebe Island 1954

Source: https://drive.google.com/drive/folders/1bh6RHwfA5WMOoyjWk_9_ VesYgMil9C0t?fbclid=IwAR11brMS_ffpFSr1TsLm86lmF6vjTTwuW69jIDeytAyxzLiNiqvYK6 a8hNk

White Bay Power Station today

Source: https://en.wikipedia.org/wiki/White_Bay_Power_Station

DETAILED SECTION

REASON FOR WATER POLLUTION

Stormwater

Backfill Components: - Garbage - Industrial Waste

- Sediments removed from floor of the adjacent estuary

- Heavy Metals

- TPC/VOCs - Asbestos - Zinc - Phenolics - Ammonia

- Degreasers - PCBs

Intertidal Area

Tide out - Bring Contaminant into the Sea

Backfilling Material

Tide in - Meet with Landfill Material

Compressed Intertidal Area with fewer ecological effects

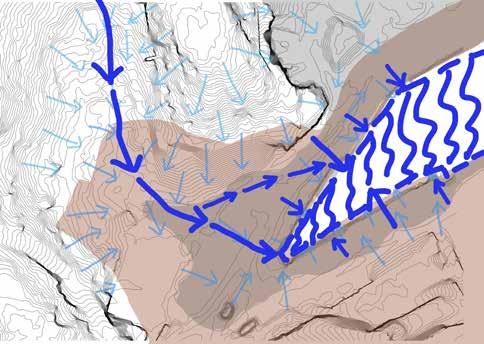

RUNOFF CONDITION

REASON FOR WATER POLLUTION NOW

Water Quality impacted by Industrial construction period

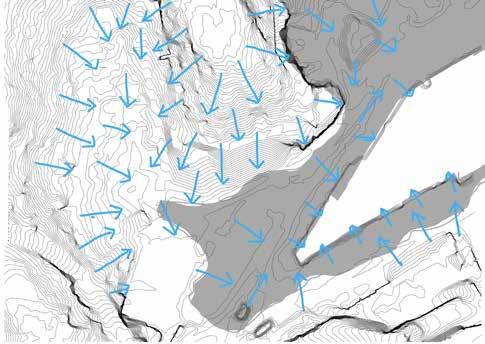

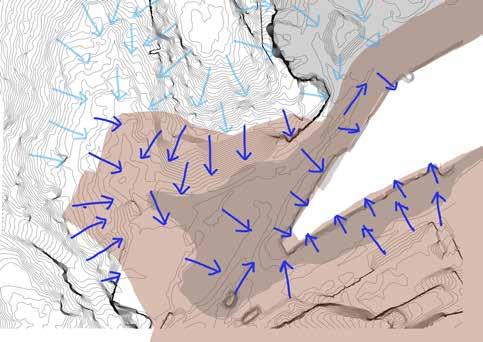

Stormwater Runoff/Overland Flow Path

Residential Stormwater runs off towards White Bay

Stormwater infiltrates contaminated & Rclaimed soil

Polluted stormwater released to Harbour Sea

Water through pipes or direct runoffs

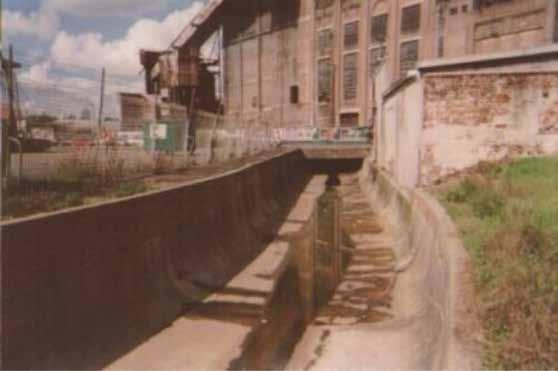

WATER INFRASTRUCTURE REASON FOR WATER POLLUTION

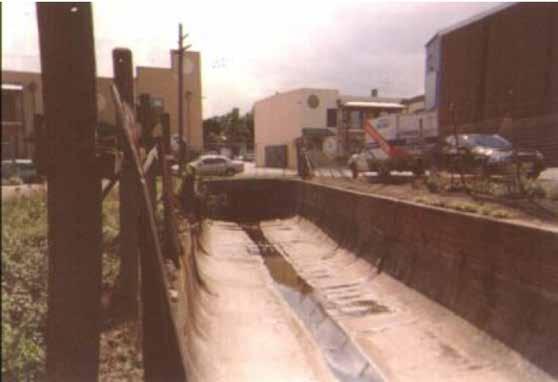

BEATTIE ST SWC No.15

PRODUCED BY AN AUTODESK STUDENT VERSION

PRODUCED BY AN AUTODESK STUDENT VERSION

PRODUCED BY AN AUTODESK STUDENT VERSION

HYBRID QUESTION

Glebe Island Abattoirs 1870

Source: https://drive.google.com/drive/folders/1bh6RHwfA5WMOoyjWk_9_ VesYgMil9C0t?fbclid=IwAR11brMS_ffpFSr1TsLm86lmF6vjTTwuW69jIDeytAyxzLiNiqvYK6 a8hNk

Graln Elevators Glebe Island 1954

Source: https://drive.google.com/drive/folders/1bh6RHwfA5WMOoyjWk_9_ VesYgMil9C0t?fbclid=IwAR11brMS_ffpFSr1TsLm86lmF6vjTTwuW69jIDeytAyxzLiNiqvYK6 a8hNk

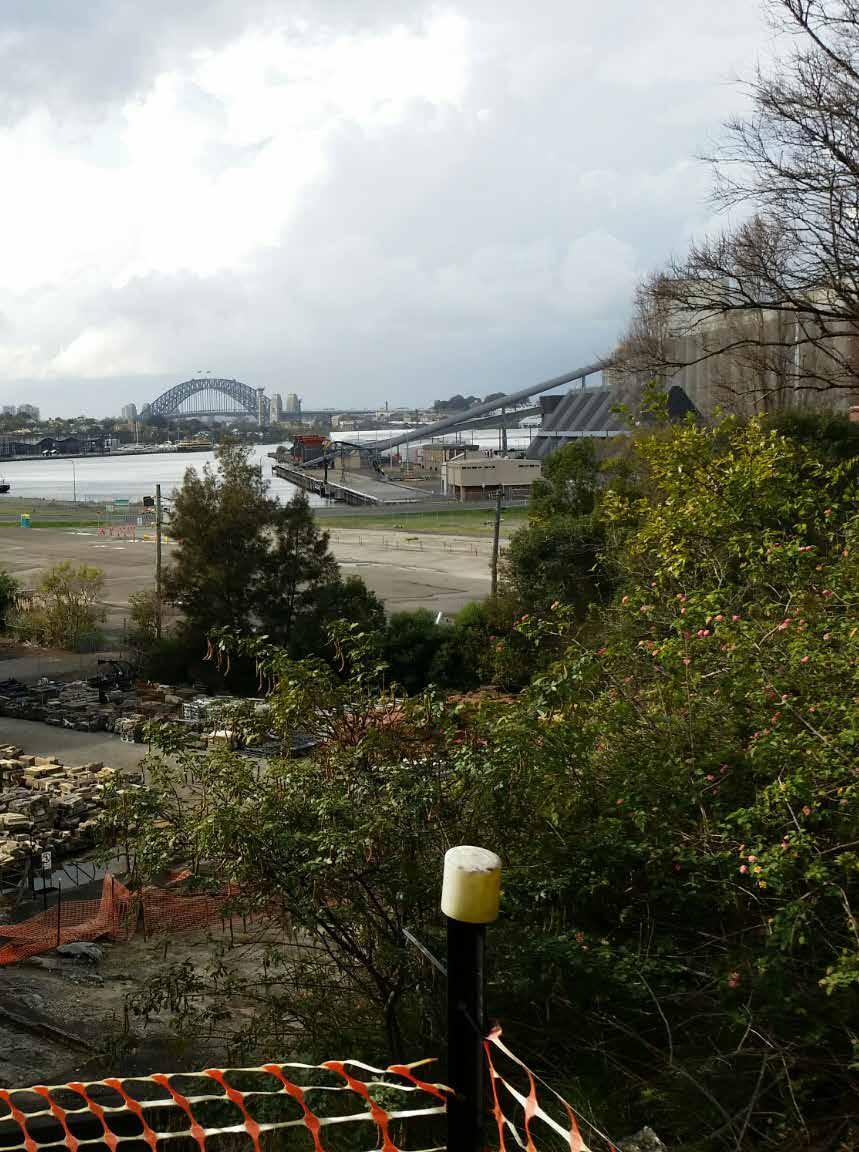

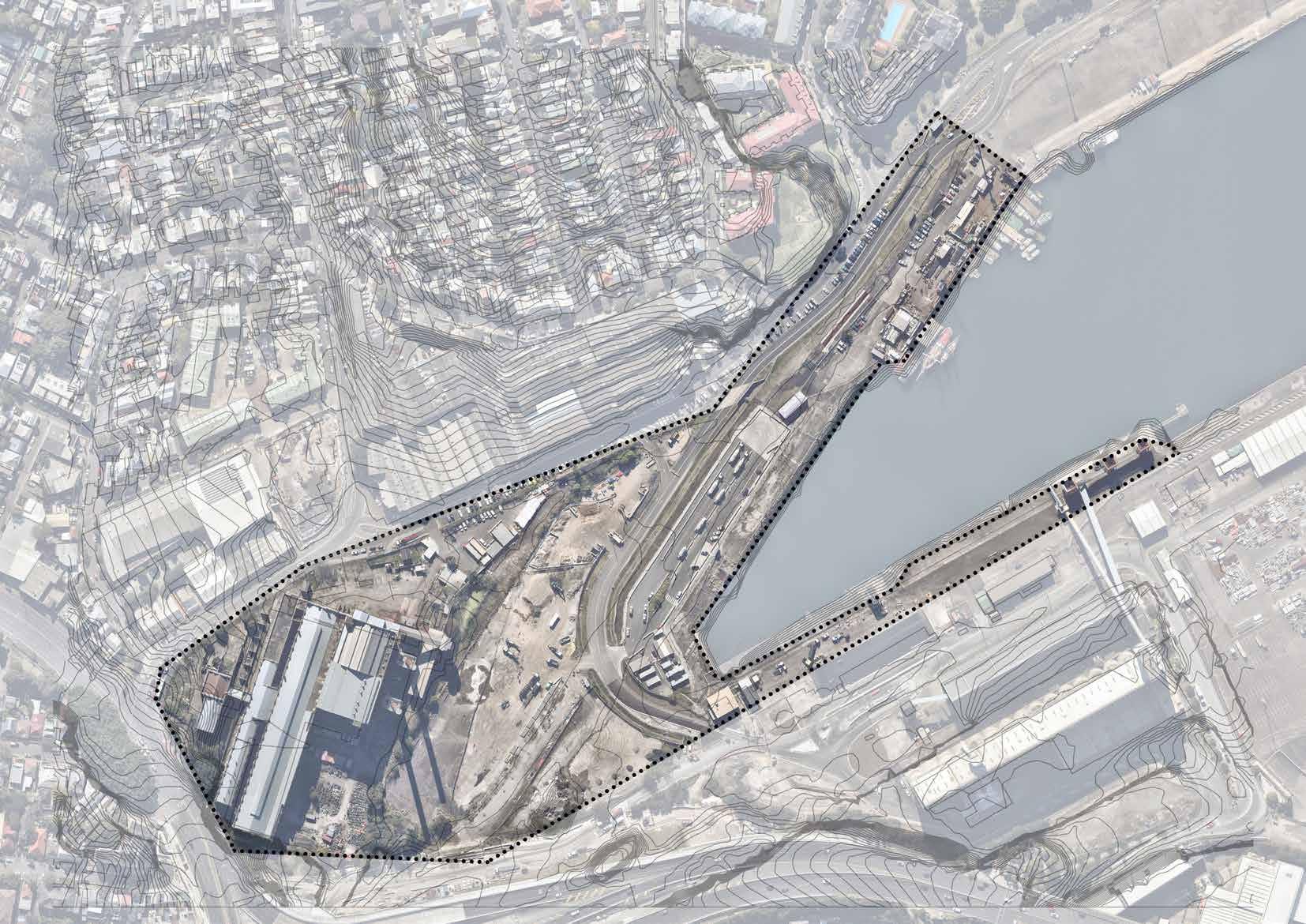

Areas around WBPS

ECOLOGICAL SUCCESSION

THE NATURAL POWER OF ECOLOGY, GIVEN BY TIME

'Ecological succession provides diversity & depth to a biotic community. Without it, life can not grow or progress.'

--Bauholz, 2018

Northern Foreshore

ON-SITE SUCCESSION

Hybrid Question

How can successional planting groups help White Bay improve the local water quality, and develop as a resilient urban waterfront to attracting and supporting a range of local ecologies and a new community?

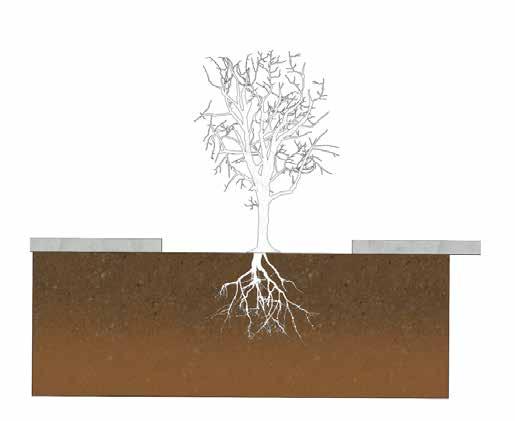

CONCERN FOR FUTURE TREE PERFORMANCE

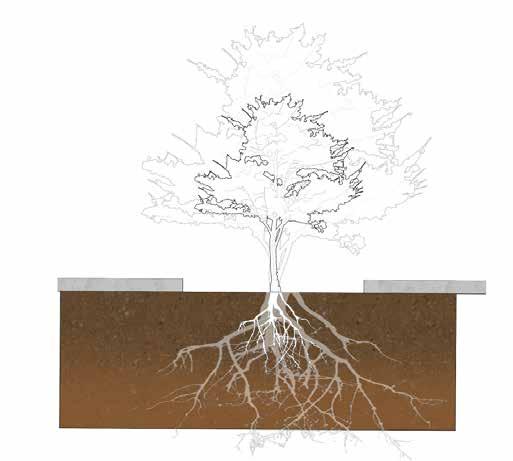

Before planting WAIT!

ARE THE TREES GOING TO GROW AS WE EXPECTED?

Due to the current toxic soil condition...

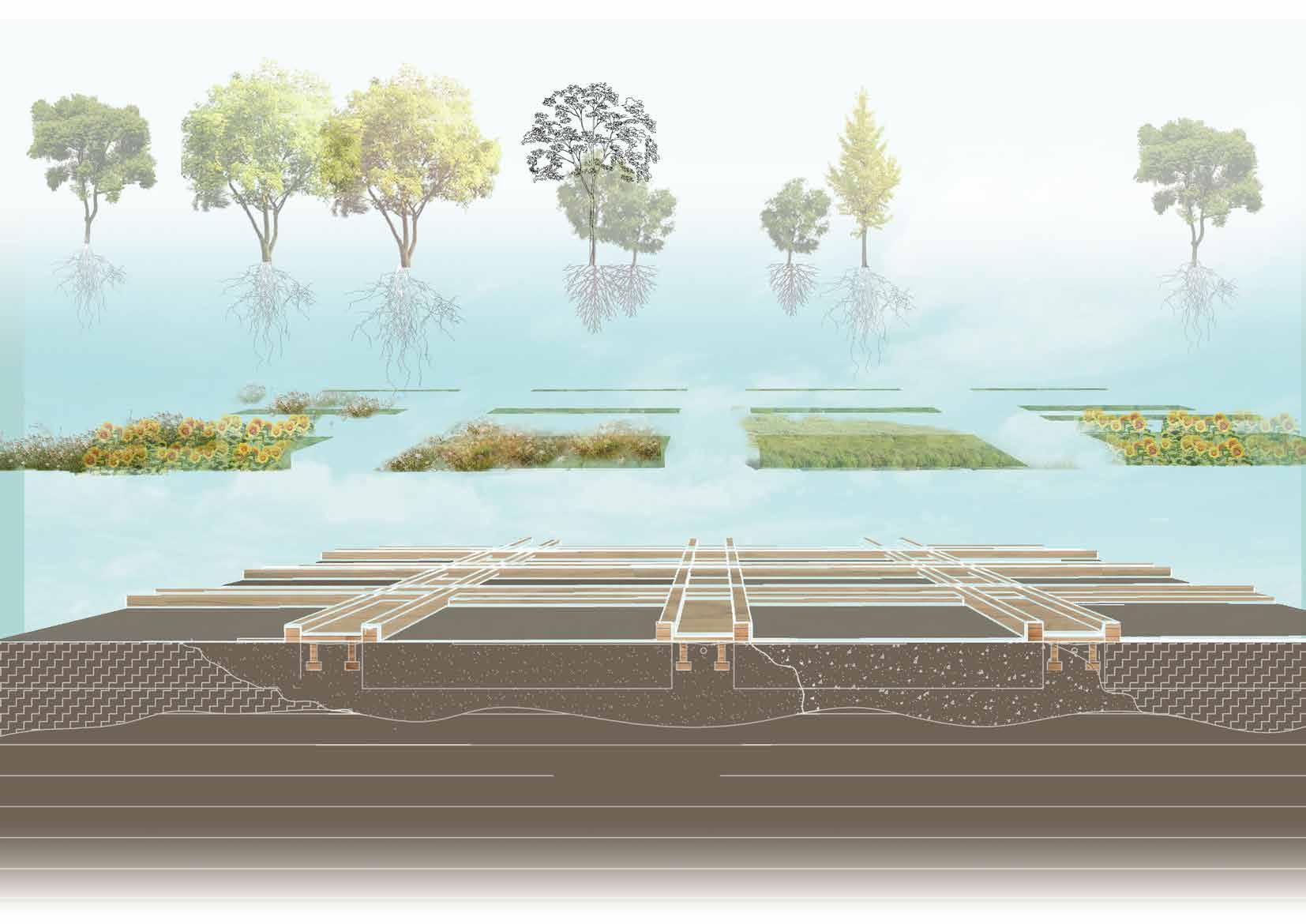

SUCCESSION GROUPS

Seperate the planting as different groups to play different functions at each stage and areas

Curly Dock

Weathered DDO, PCBS

Marigold Arsenic, Nickel

PHYTOREMEDIATION

PLANTINGS

LOCAL SUCCESSION/ ABORIGINAL PLANTS

ORIGINAL INTERTIDAL GROUPS

PERFORMANCE/ HARVESTING PLANTS

SUCCESSION GROUPS

How do they function and help with each other?

TO TREAT SOIL

PHYTOREMEDIATION PLANTINGS

ORIGINAL INTERTIDAL GROUPS

TO STABALIZE

LOCAL SUCCESSION/ ABORIGINAL PLANTS

PERFORMANCE/ HARVESTING PLANTS

TO PERFORM

TO TREAT WATER

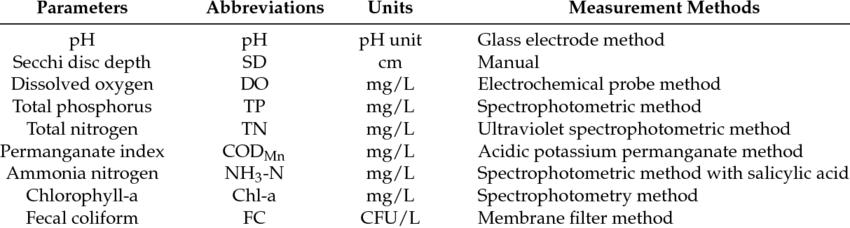

HOW CAN WE MEASURE THE QUALITY OF WATER?

Something I was stucked on after assignment 2...

A HUMAN-ORIENTED APPROACH?

Measurement of water quality decided by people's feeling?

HOW CAN WE MEASURE THE QUALITY OF WATER?

Something I was stucked on after assignment 2...

A PURELLY SCIENTIFIC APPROACH?

Measurement of water quality decided by a machine that most people don't understand?

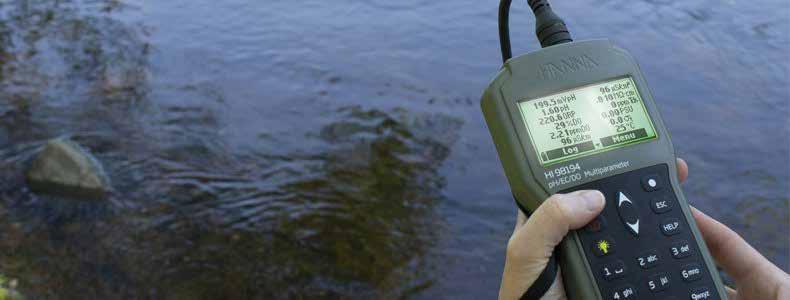

Image: https://blog.hannainst.com/guide-to-environmental-water-quality-testing

IS THERE ANY METHOD THAT IS EASY TO UNDERSTAND AND RELIABLE?

Invite OYSTER

as our WATER QUALITY INDICATOR SPECIES

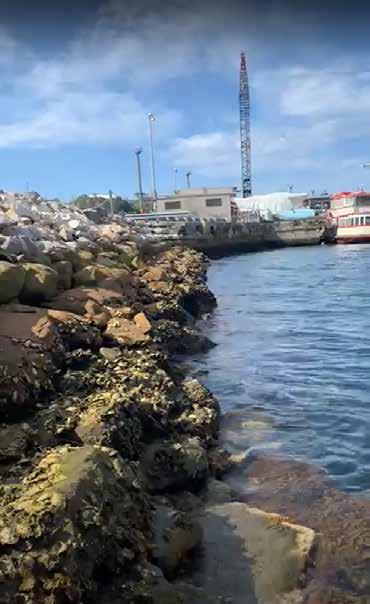

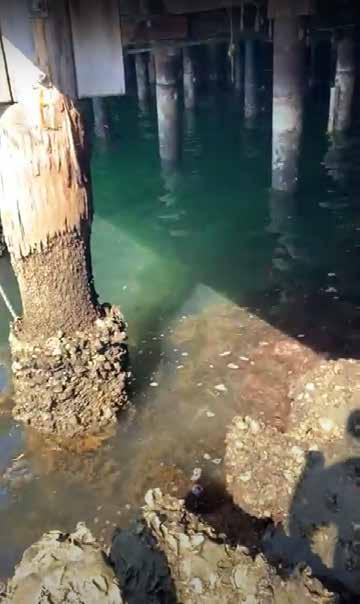

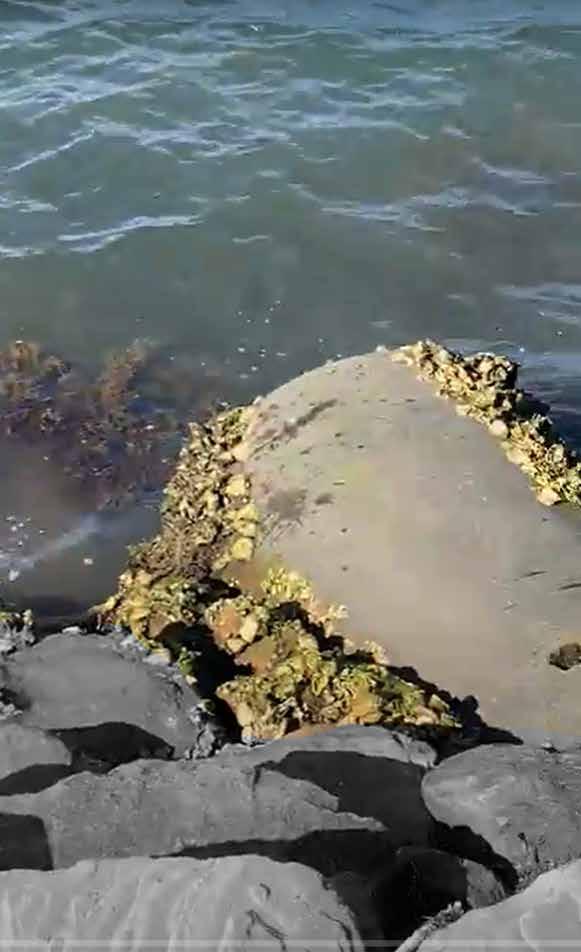

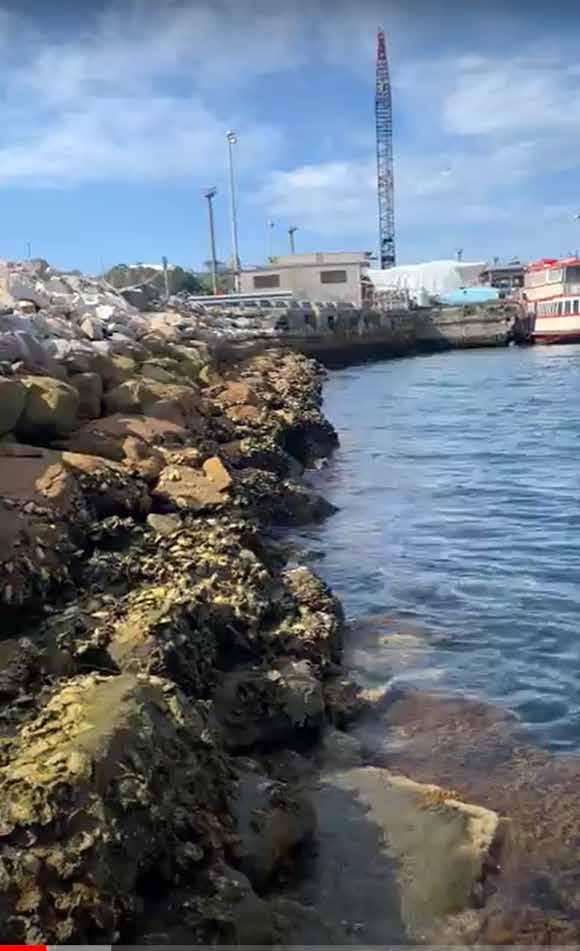

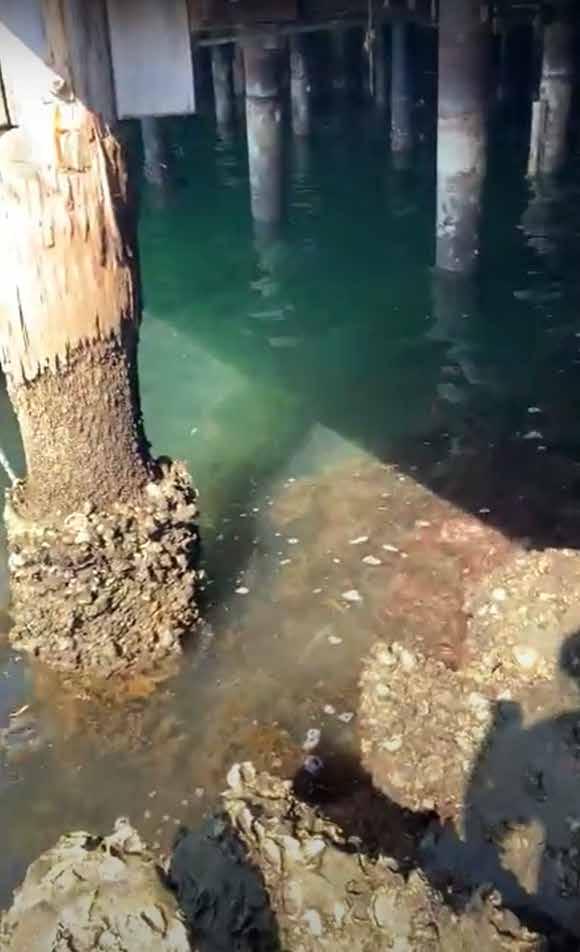

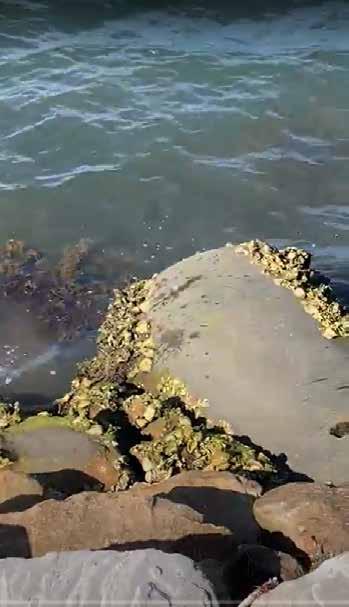

In-situ: Dying Oysters covered by Algae

OYSTER ALGAE

Current: Oyster Groups are dominated by Algae

Current: Algae Dominated 20% Oyster Recovery Alge extinct, Oyster grow 70% Oyster Recovery Survive for itself 100% Oyster Recovery Start to clean water

150% Oyster Recovery Become habitat for other marine species WATER QUALITY IMPROVEMENT

ABIDING EVENTS

ABIDING EVENTS

PHYTOREMEDIATION

COMMUNITY

ENGAGEMENT

CONSTRUCTION

SEA LEVEL RISE 0.5M

SEA LEVEL RISE 1M

FLOODING

SUCCESSION PLANT

PHYTOREMEDIATION

LOCAL SUCCESSION

PERFORMANCE

ORIGINAL GROUPS

2 DESIGN PROCESS AND PLANNING

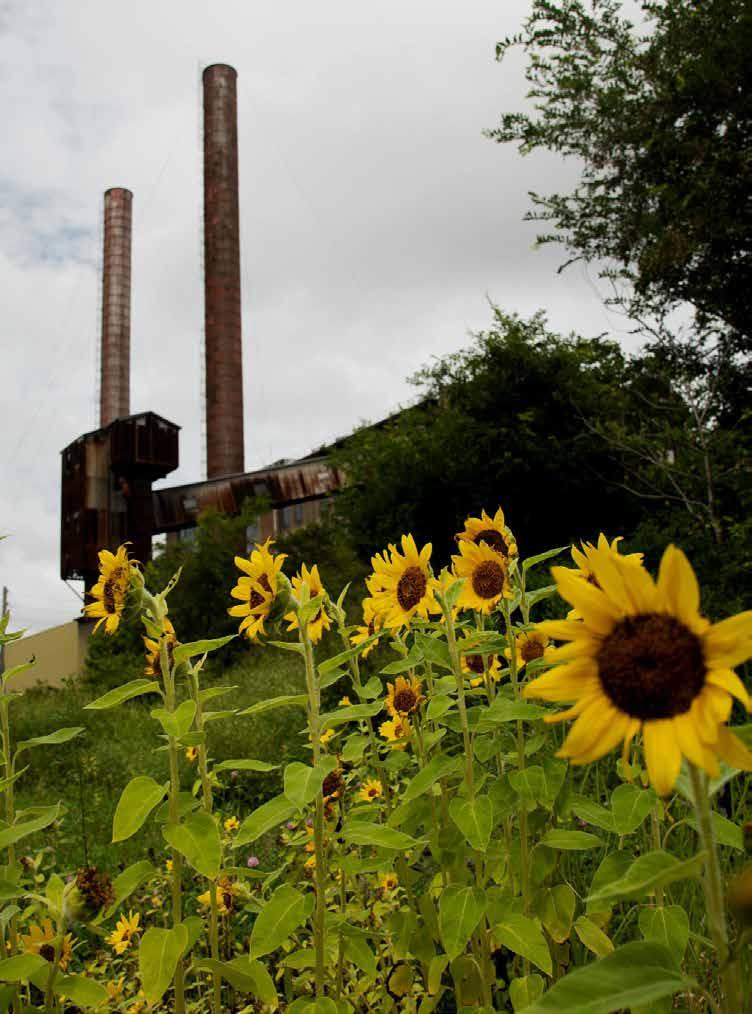

PHASE 1: REMEDIATE

How can we improve water quality from its pollution origin - the reclaimed land? How can plants be used to treat the contaminated reclaimed land?

Image: https://powerplantsphytoremediation.com/

ABIDING EVENTS

PHYTOREMEDIATION

COMMUNITY

ENGAGEMENT

CONSTRUCTION

SEA LEVEL RISE 0.5M

SEA LEVEL RISE 1M

FLOODING

SUCCESSION PLANT

PHYTOREMEDIATION

LOCAL SUCCESSION

PERFORMANCE

ORIGINAL GROUPS

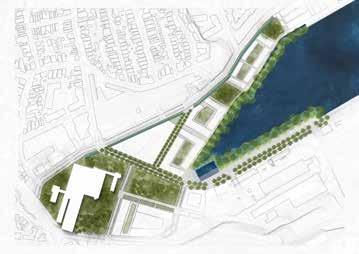

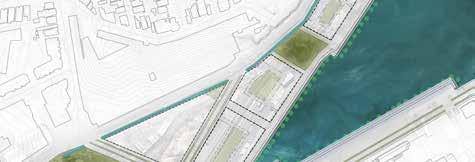

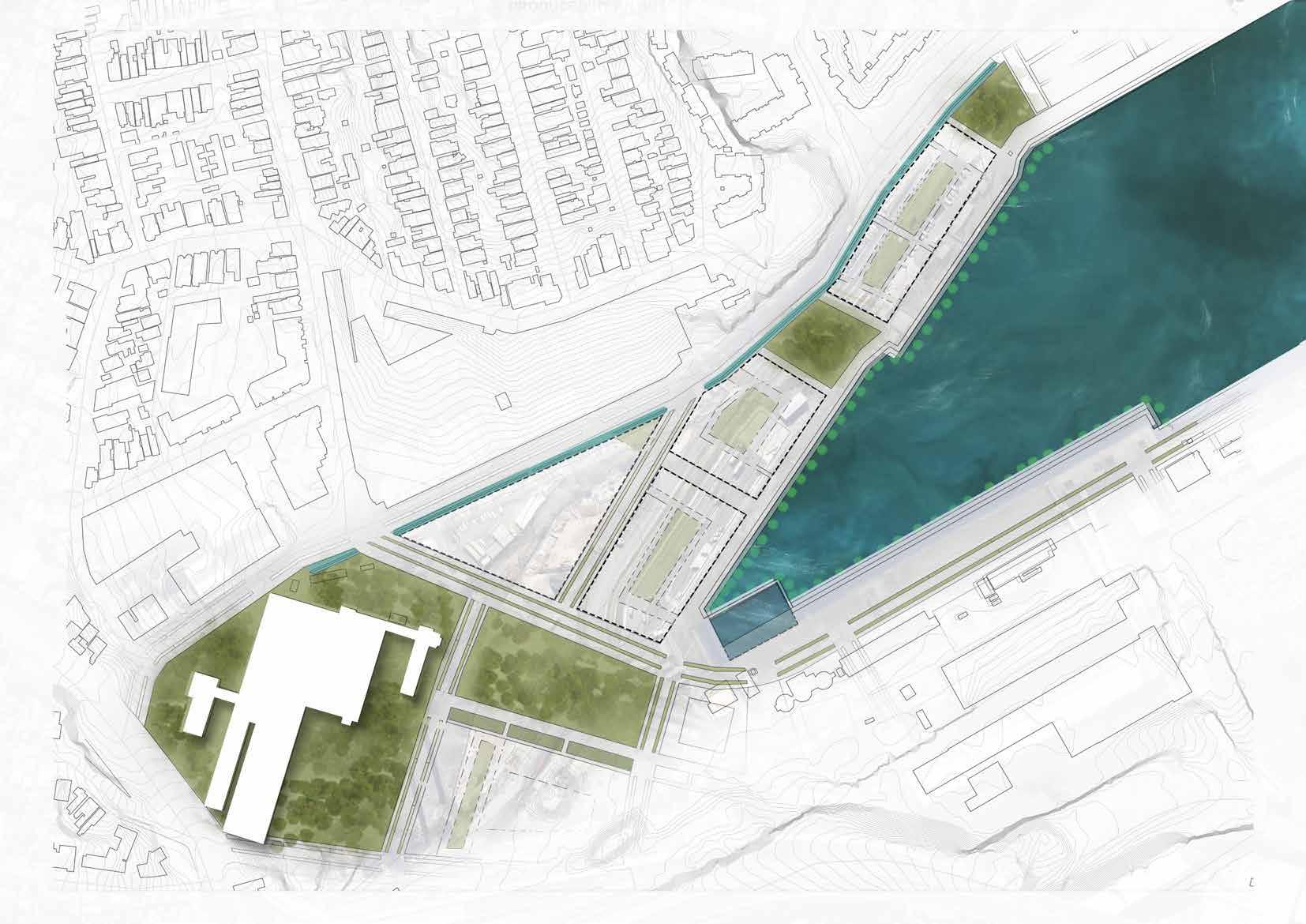

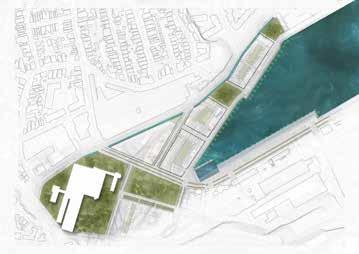

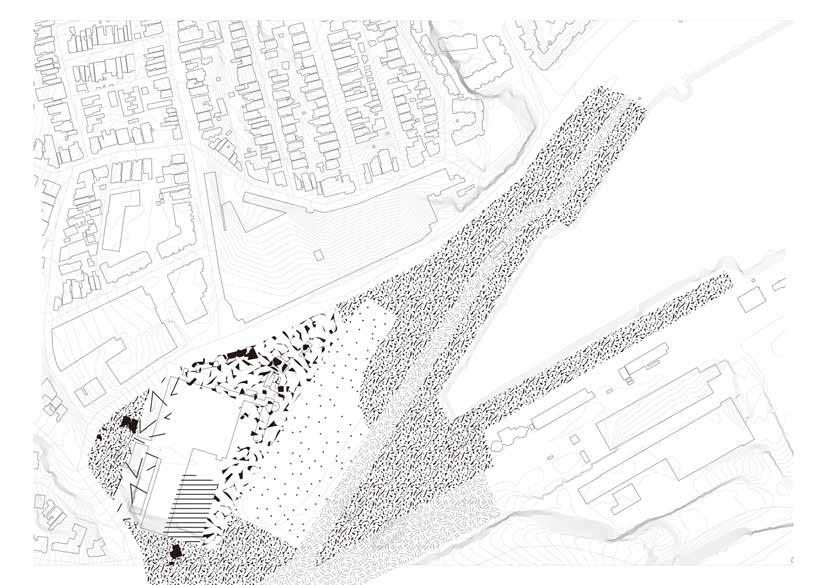

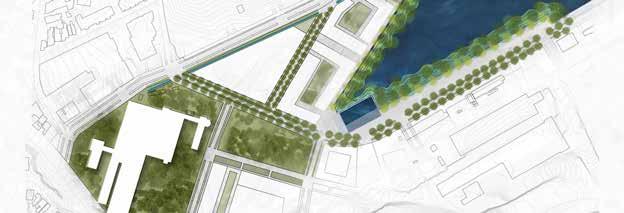

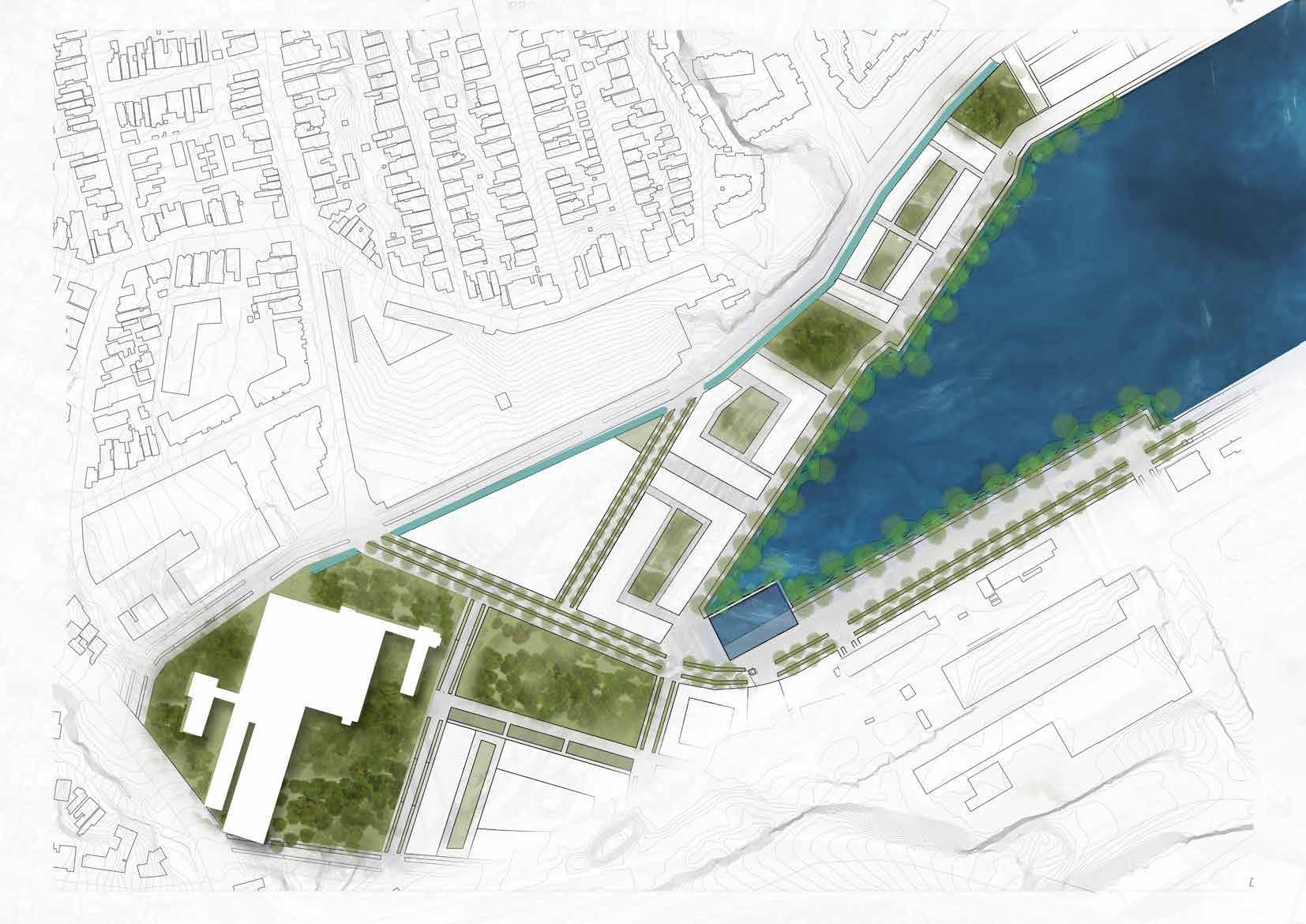

Phase 1: Masterplan

SOIL

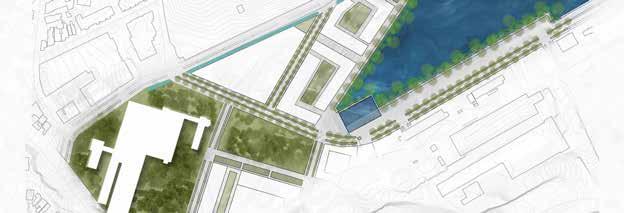

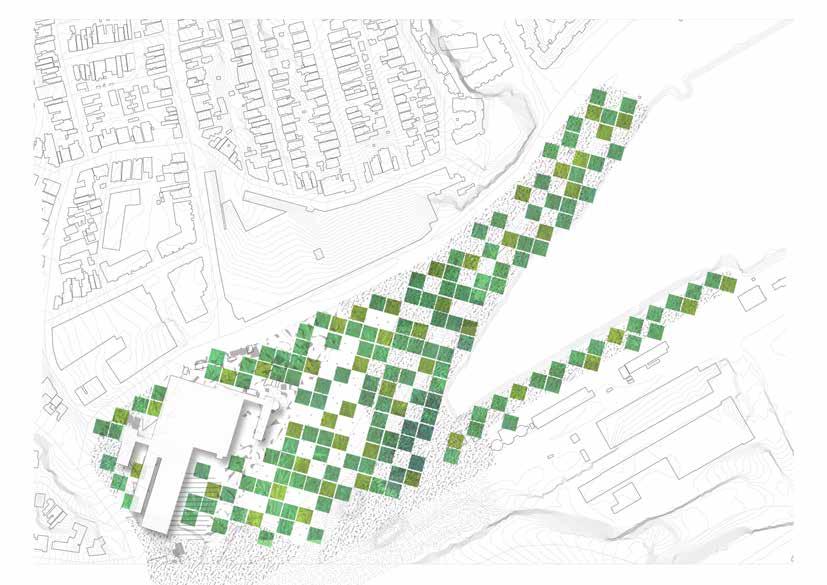

CONTAMINATION COMPARISON MASTERPLAN

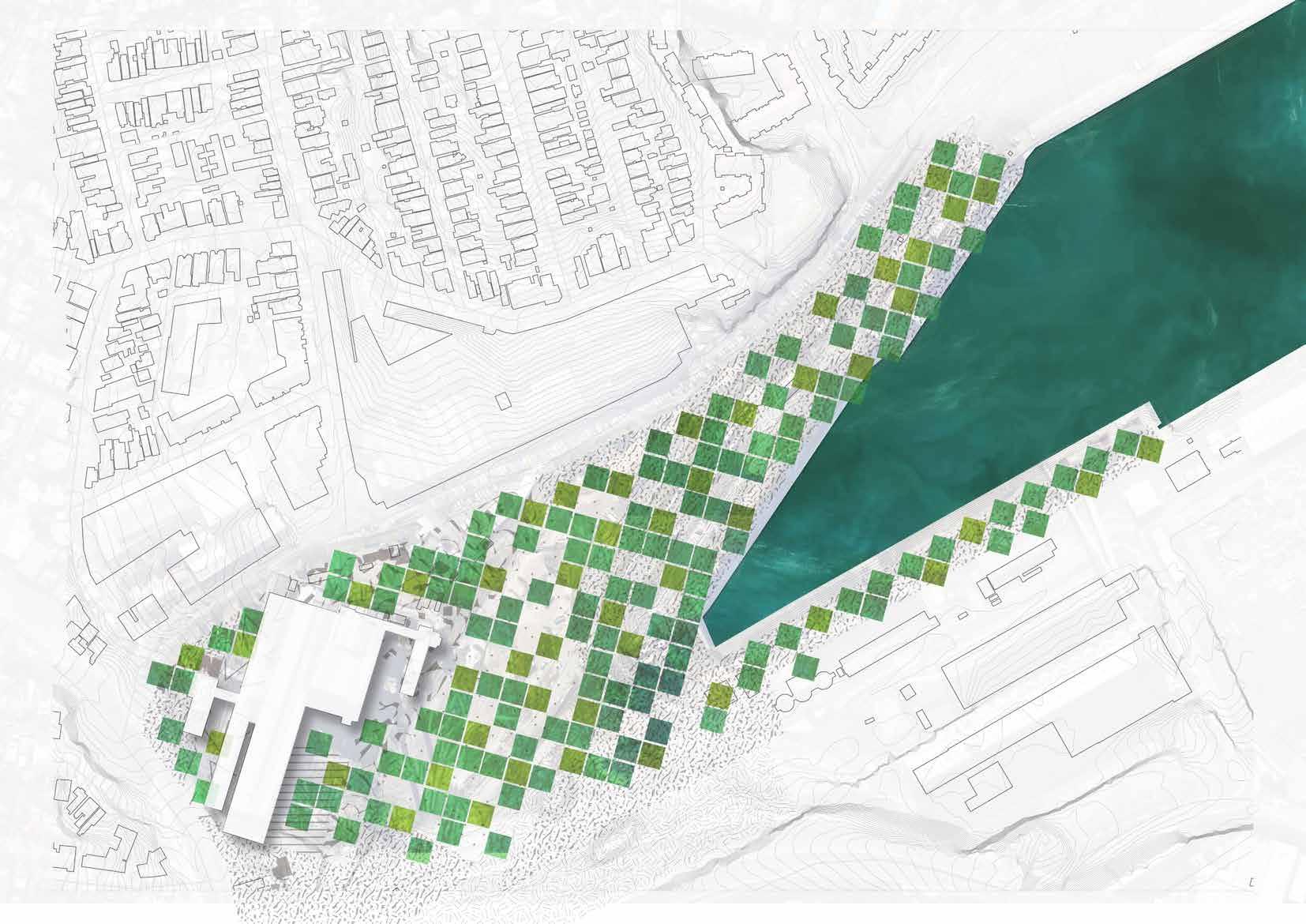

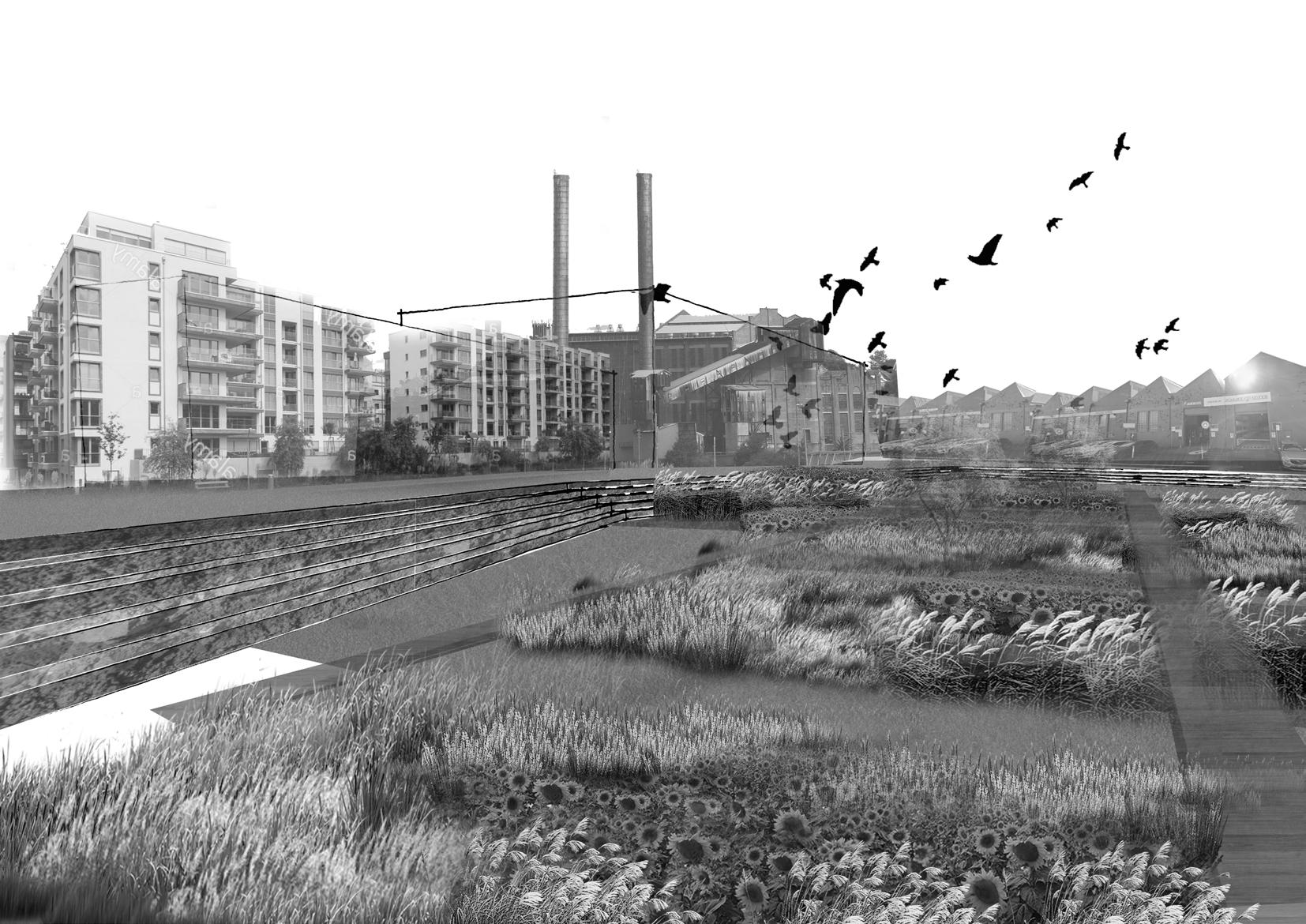

Phyto-Patches are customized to local soil composition and toxin

Heavy metals, PCBs/dioxins, TPH/VOCs, PAHs, OCPs, herbicides, asbestos, ASS and ground gases

Heavy metals, TPH/VOCs, PAHs, OCPs, herbicides, PCBs, asbestos, ASS and ground gases

Heavy metals, TPH/VOCs, PAHs, phenolics, nitrates, ammonia OCPs, herbicides and asbestos

Heavy metals, TPH, PAHs and PCBs/dioxins

Heavy metals, TPH, PAHs and PCBs/dioxins, TPH/VOCs, herbicides and ground gases

Heavy metals, TPH, PCBs, OCPs and VOC

System 1.1: Remediating Soil Patches - M

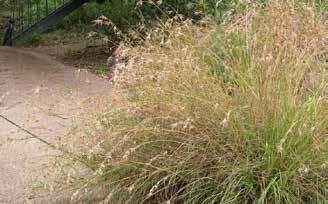

System 1.1: Remediating Soil Patches Planting Palette - M

SUCCESSION PLANT

PHYTOREMEDIATION Heavy metals

PHASE 1

Pesticides

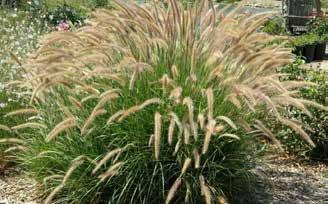

Trifolum pratense

Reference: https://powerplantsphytoremediation.com/powerplants-garden-01-1

Phytoremediation Plants for BTEX Dominated Soil

Phytoremediation Plants for Heavy Metal Dominated Soil TO REMEDIATE TO REMEDIATE TO REMEDIATE TO STABILIZE

BTEX LOCAL SUCCESSION

Meadow + Local Succession Plants

Phytoremediation Plants for Pesticides Dominated Soil

COLLECT STORMWATER RUNOFF

Oh! This patch is 25% remediated. Still time waiting for it to be fully recovered.

SOIL CLEANING PERCENTAGE REFERENCE SPECTRUM

Where are we now?

Oh! This plant looks so special! Let me adjust the light to have a closer look at it!

PHASE 2: REBUILD

Rebuild White Bay for Future Development

How can White Bay be reurbanized in a way that addresses the pressure of increasing number of residents and visitors after the metro station will be built？

How can New residents and visitors be involved in the construction process in order to build up a sense of community before moving in?

Image: https://drive.google.com/drive/folders/1equp3j8P3DIWaoVgYin2yaoG7YorTegD?fbclid=IwAR11brMS_ffpFSr1TsLm86lmF6vjTT wuW69jIDeytAyxzLiNiqvYK6a8hNk

ABIDING EVENTS

ABIDING EVENTS

PHYTOREMEDIATION

COMMUNITY

ENGAGEMENT

CONSTRUCTION

SEA LEVEL RISE 0.5M

SEA LEVEL RISE 1M

FLOODING

SUCCESSION PLANT

PHYTOREMEDIATION

PHYTOREMEDIATION

LOCAL SUCCESSION

PERFORMANCE

PERFORMANCE

ORIGINAL GROUPS

ORIGINAL GROUPS

PLANT REMOVE AND REUSE STRATEGY

RECYLCE THE WOOD FOR URBAN REBUILD

REMOVE THE PHYTO-PLANTS AS BIOMASS ENERGY

LEAVE THE REMEDIATED SOIL - MICROORGANISM

DEAD SOIL - LIVE SOIL

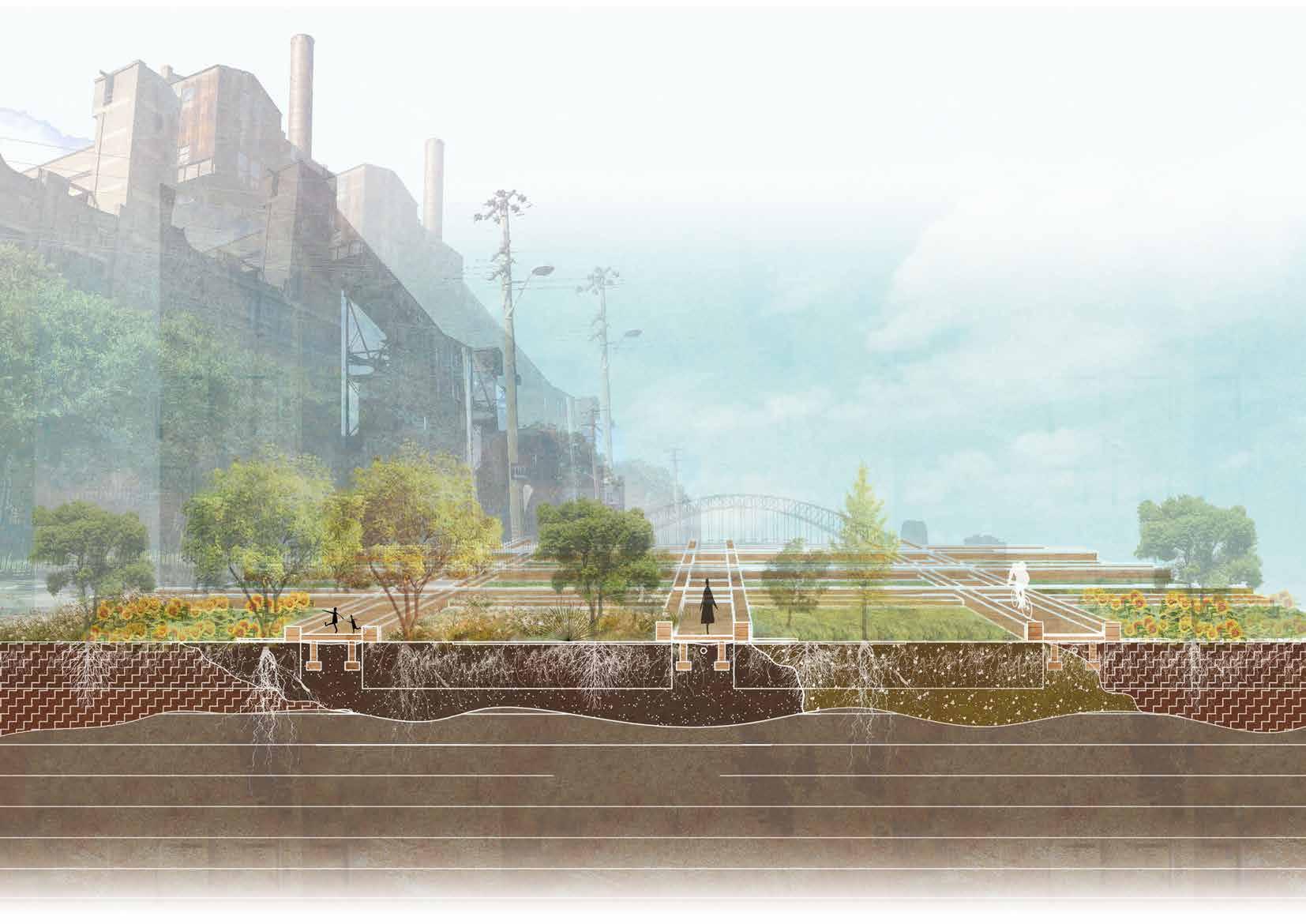

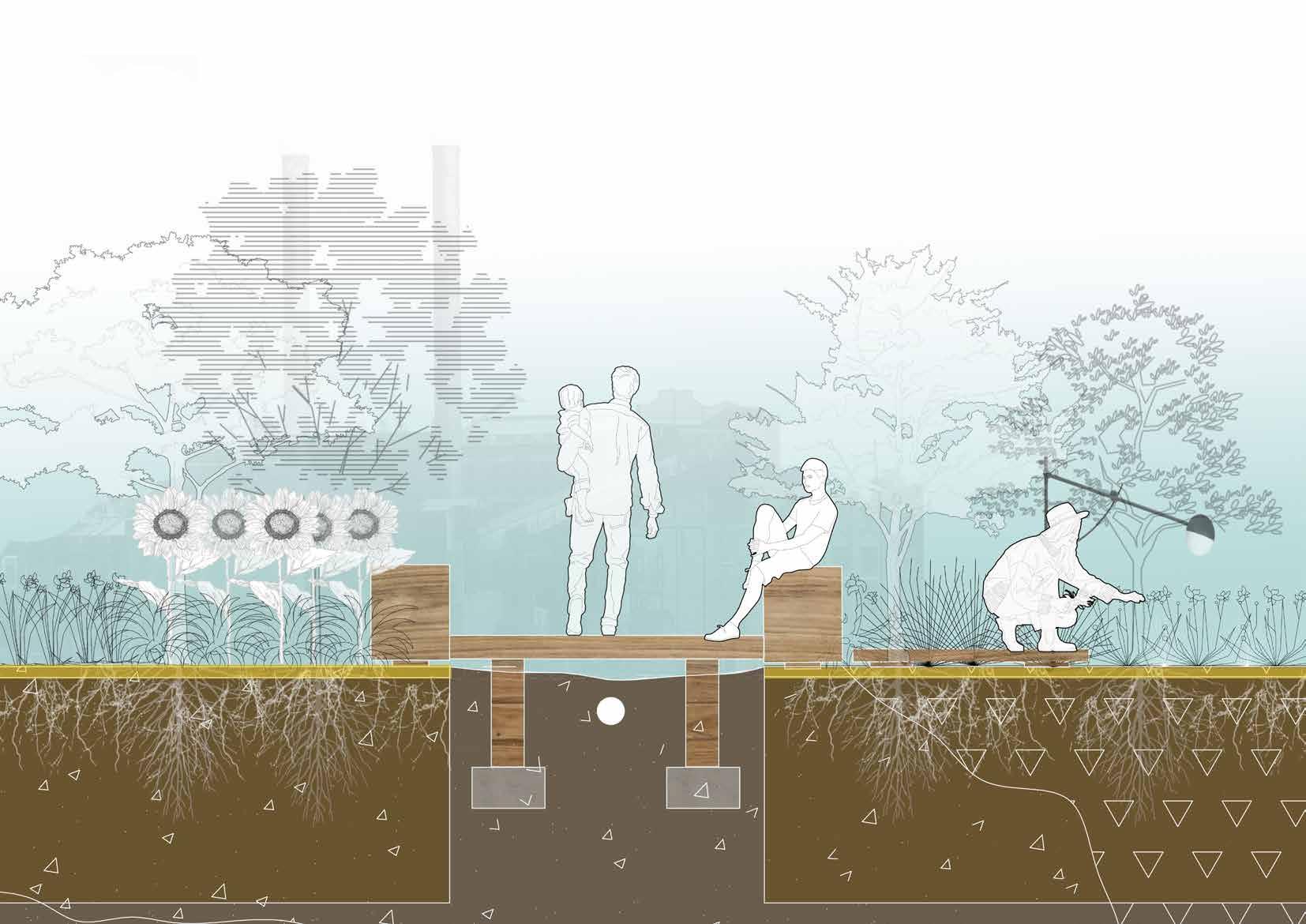

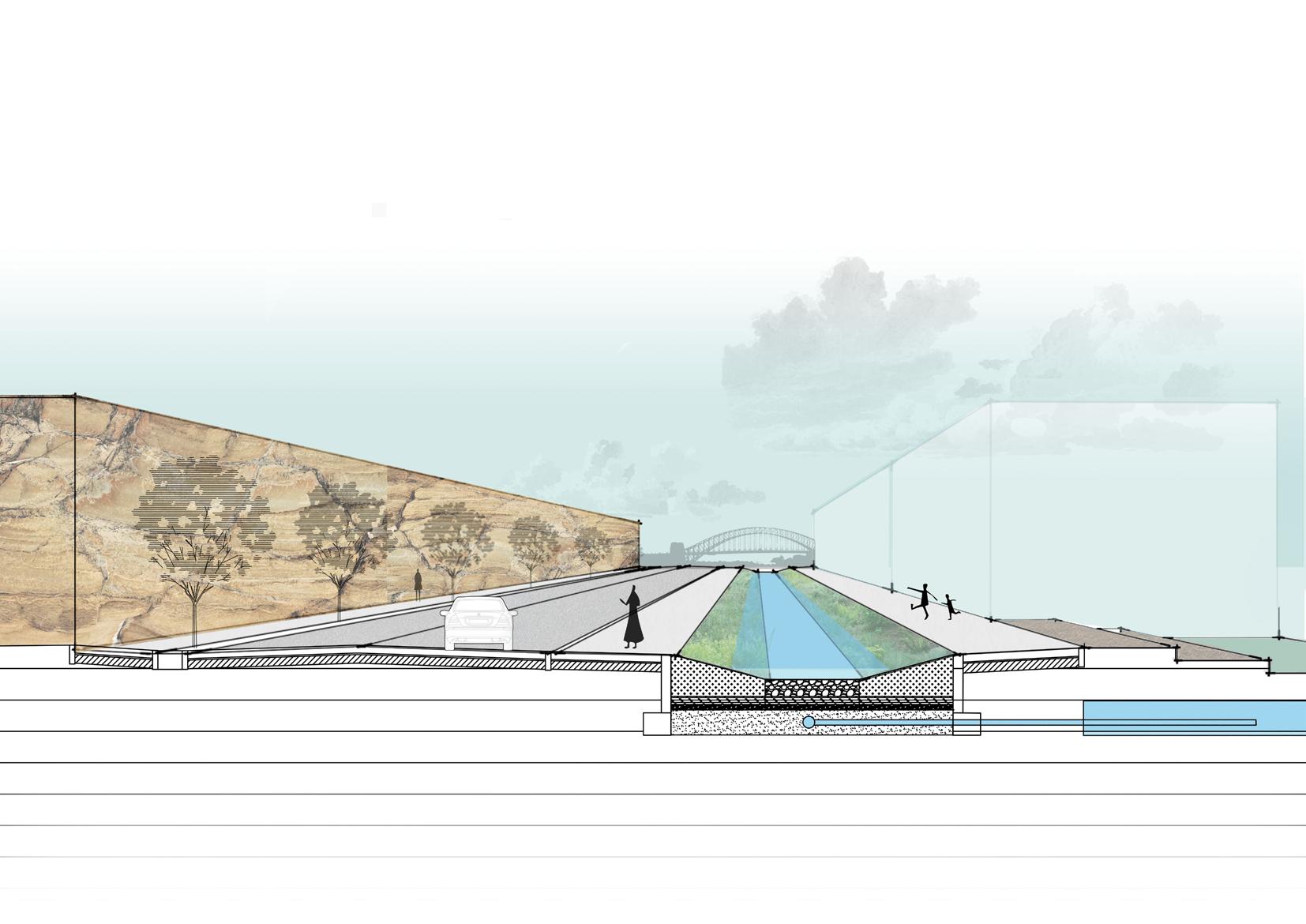

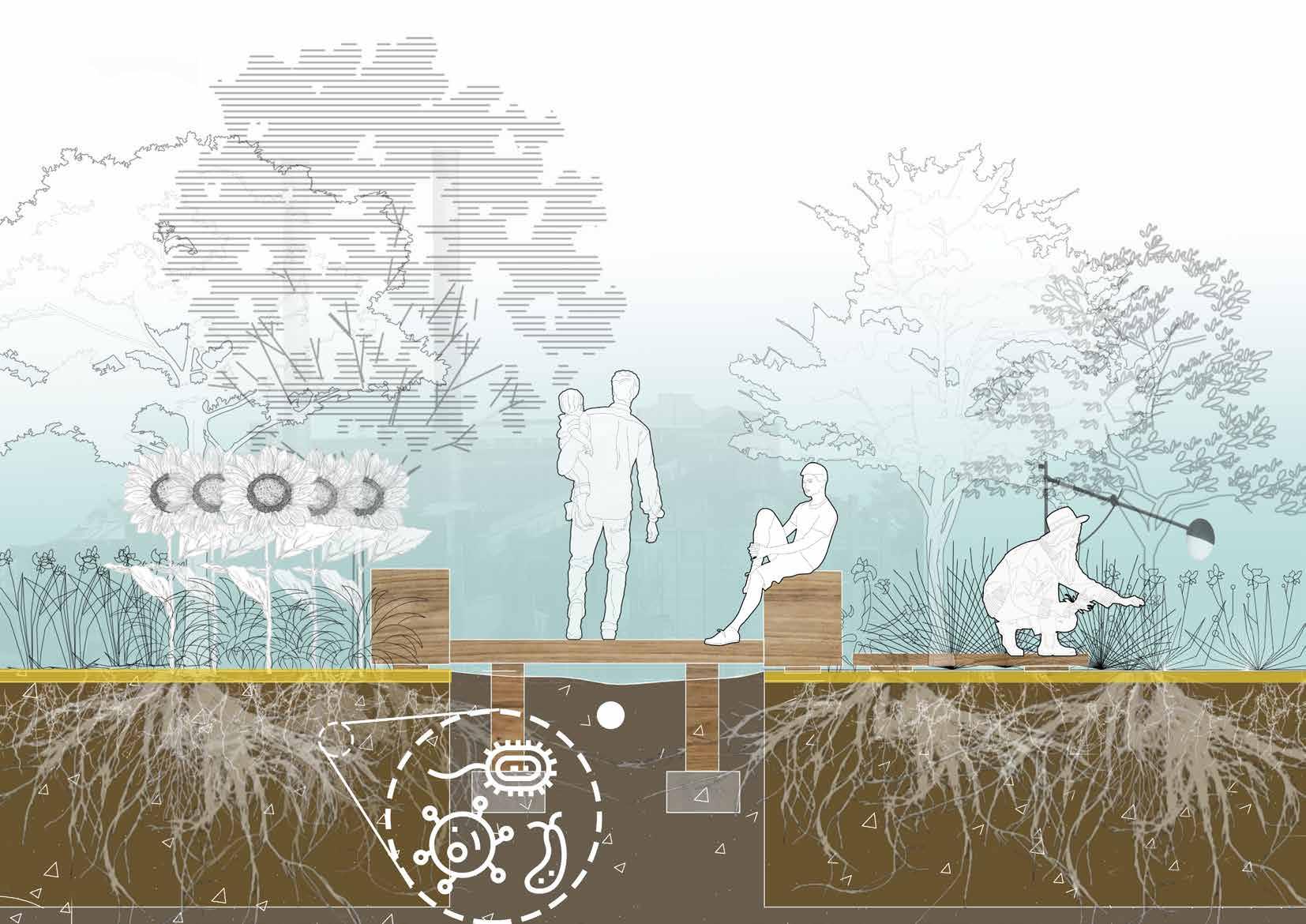

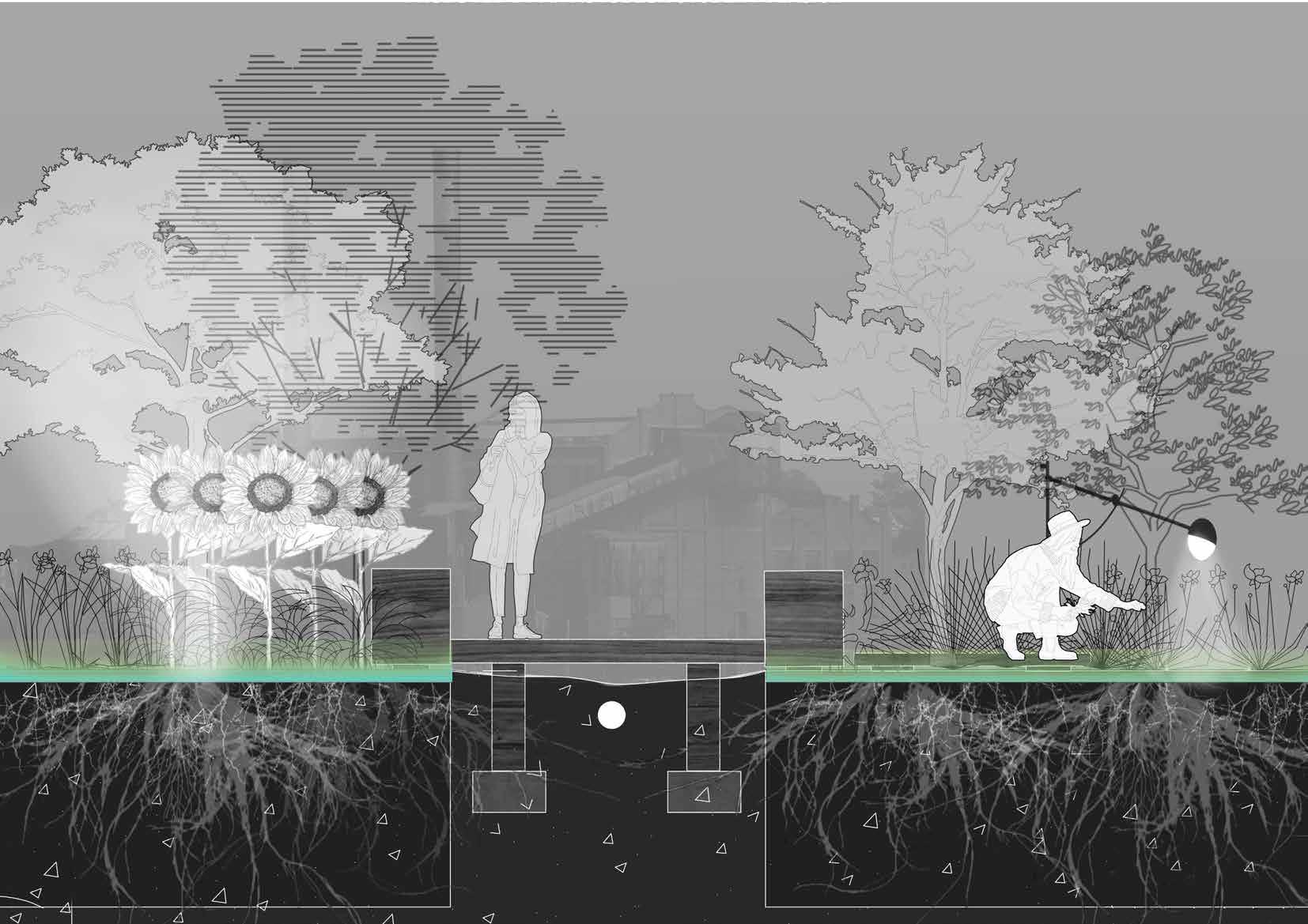

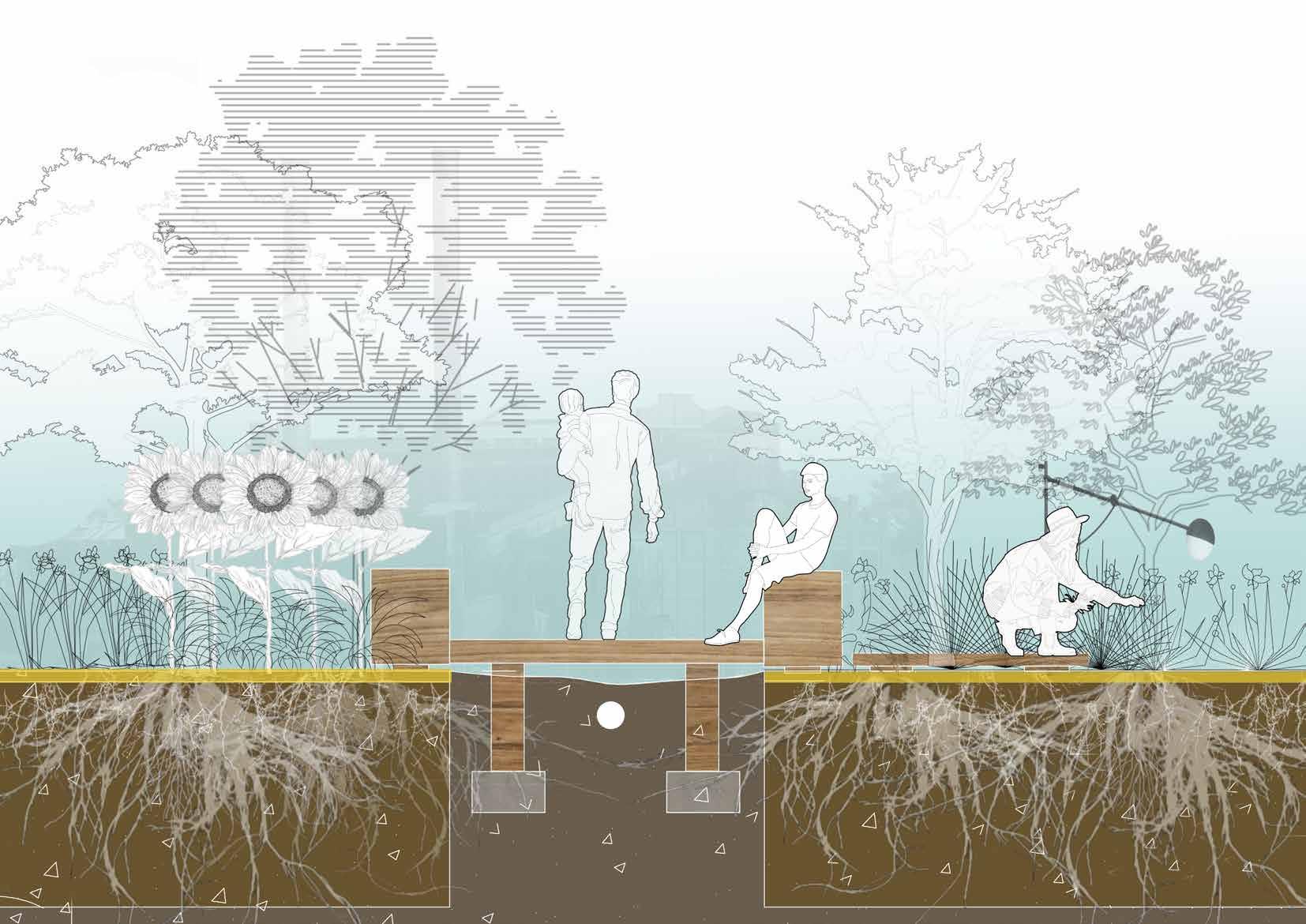

COMMUNITY GARDEN SECTION + PLANTING PALETTE

HANDBOOK

PERFORMANCE

Exotic Tree

Indigenous Tree

PHASE 2

Indigenous Shrub

Indigenous Groundcover

Community Garden plays a drainage function

Key Plan

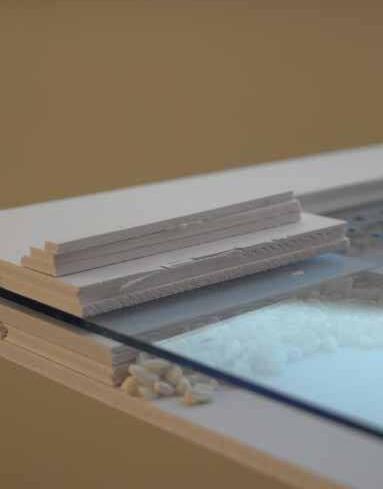

SANDSTONE CLIFF BUILDING IN CONSTRUCTION

PERFORMANCE TREE

PERMEABLE SURFACE

LOCAL INTERTIDAL SPECIES

COMMUNITY GARDEN

Key Plan

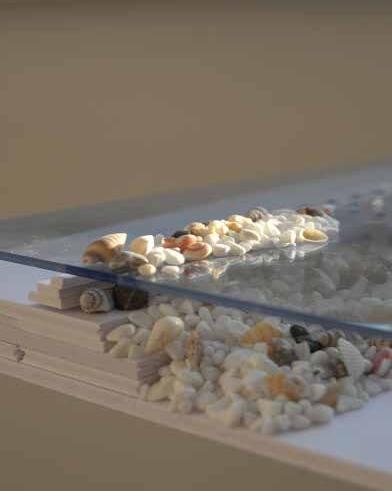

EDGE CONDITION - BUILD UP MANGROVES

POROUS PAVING

ELEVATED WATER EDGE TO WITHSTAND FUTURE FLOODING

ORIGINAL SHORELINE

ORIGINAL INTERTIDAL GROUPS

COMMUNITY GARDEN + URBAN RUNOFF

MADE UP OF RECYCLED CONCRETE AND WOOD

PHASE 3: REGENERATE

ReGeneration of White Bay's Living Habitat

How can local habitat of White Bay be regenerated in order to turning it from a dead zone into a living habitat?

How can these regenerated habitat play a role in improving local water quality?

ABIDING EVENTS

ABIDING EVENTS

PHYTOREMEDIATION

COMMUNITY

ENGAGEMENT

CONSTRUCTION

SEA LEVEL RISE 0.5M

SEA LEVEL RISE 1M

FLOODING

SUCCESSION PLANT

PHYTOREMEDIATION

PHYTOREMEDIATION

LOCAL SUCCESSION

PERFORMANCE

PERFORMANCE

ORIGINAL GROUPS

ORIGINAL GROUPS

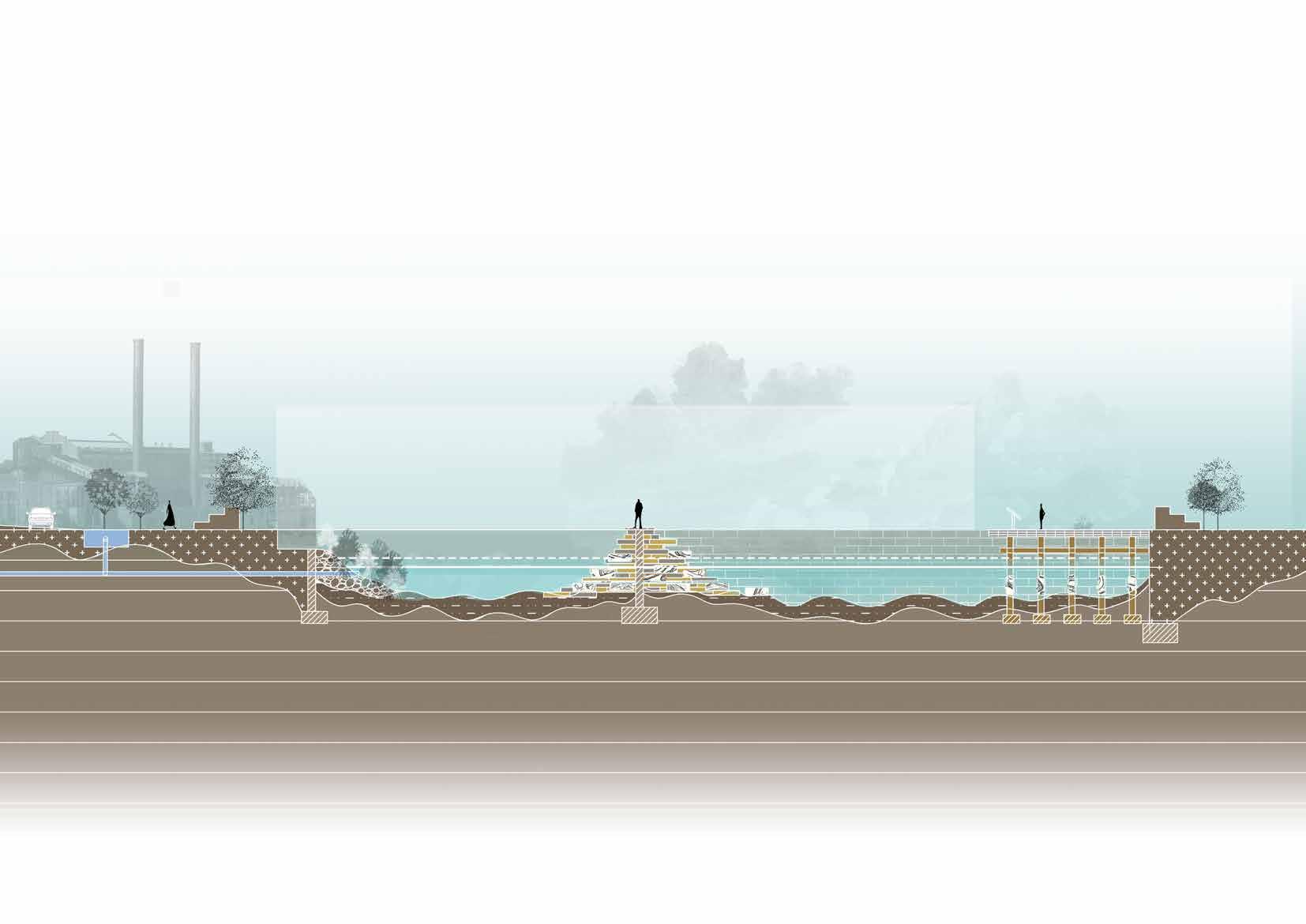

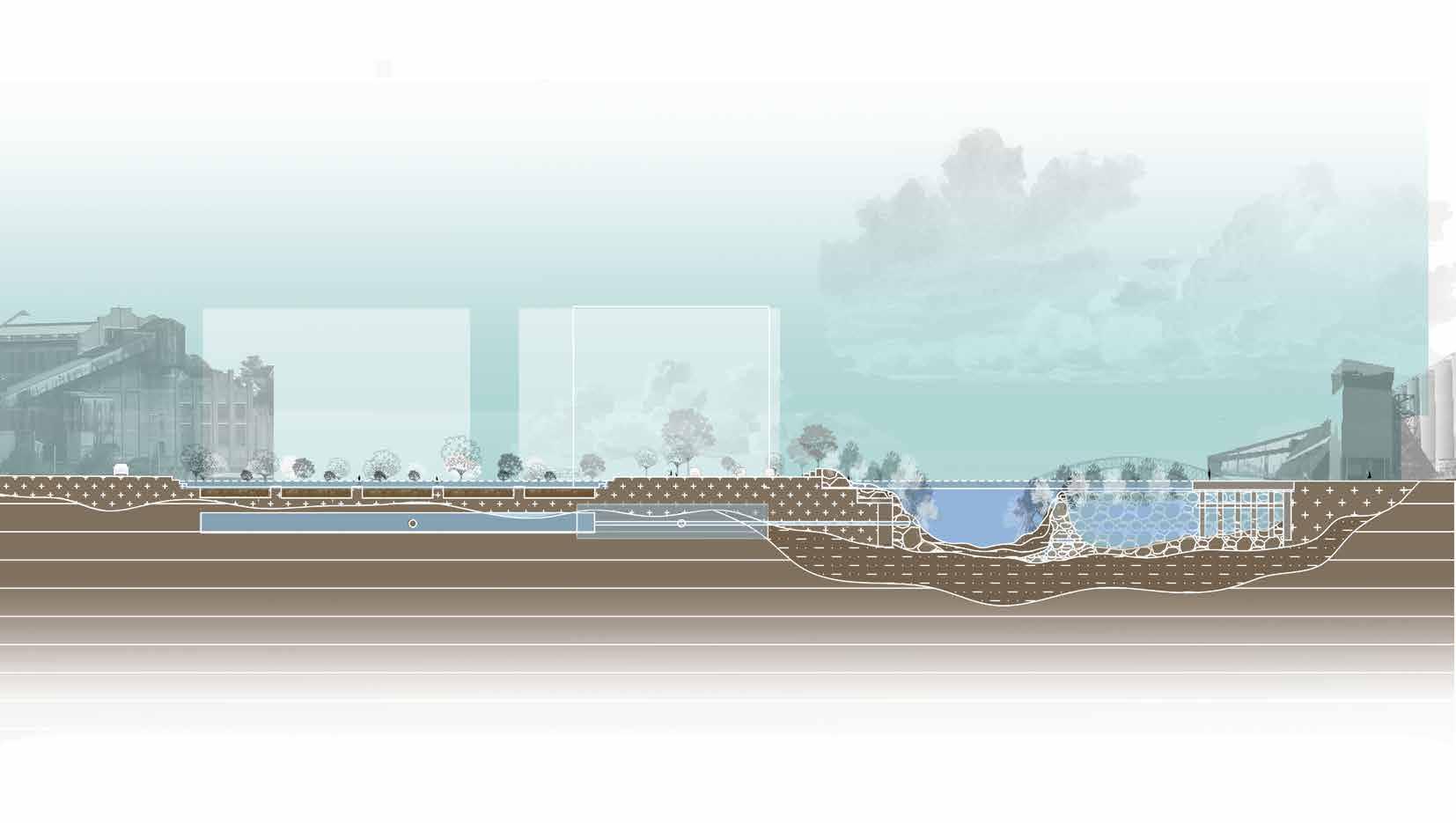

System 3.0: Long Section - L

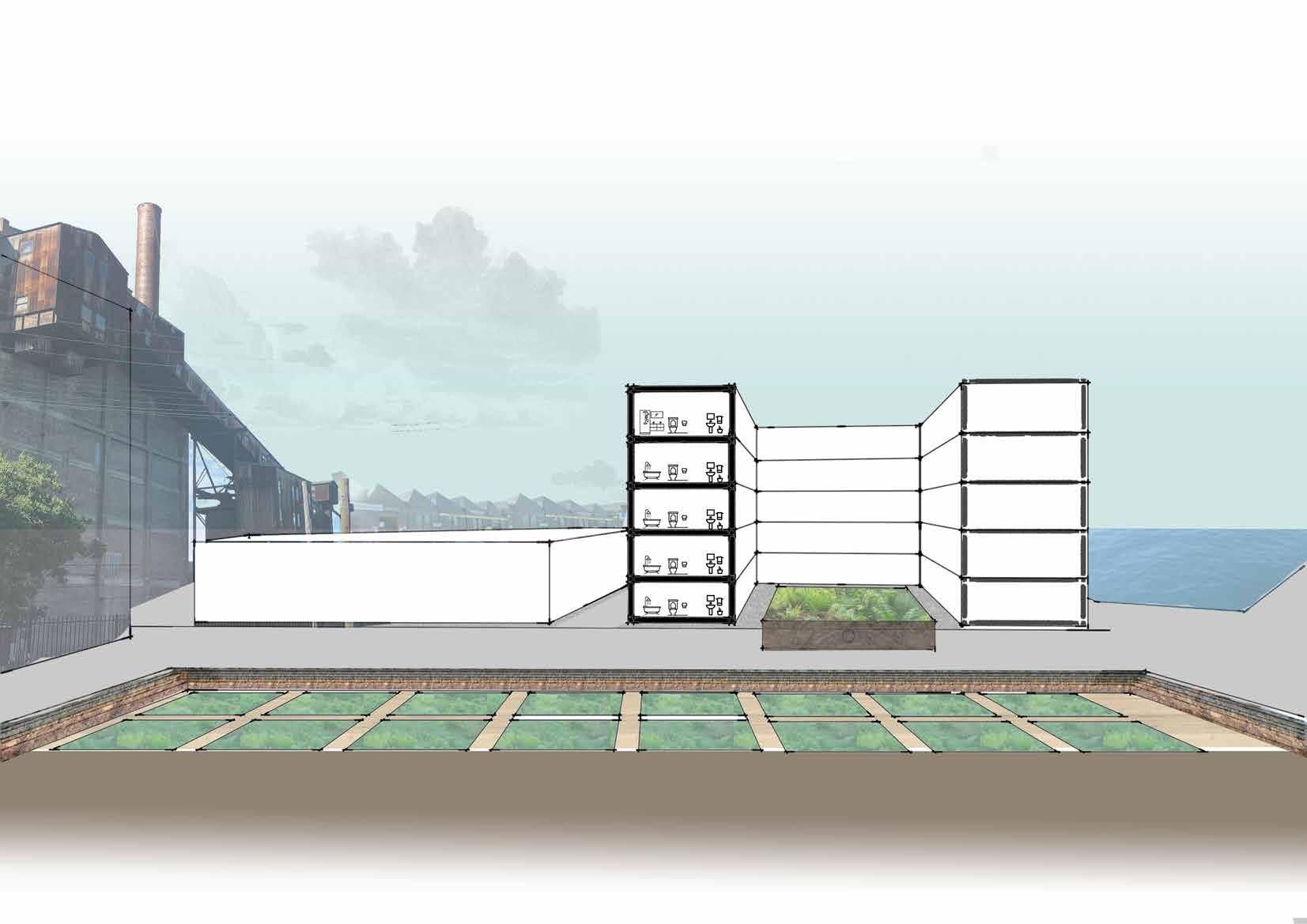

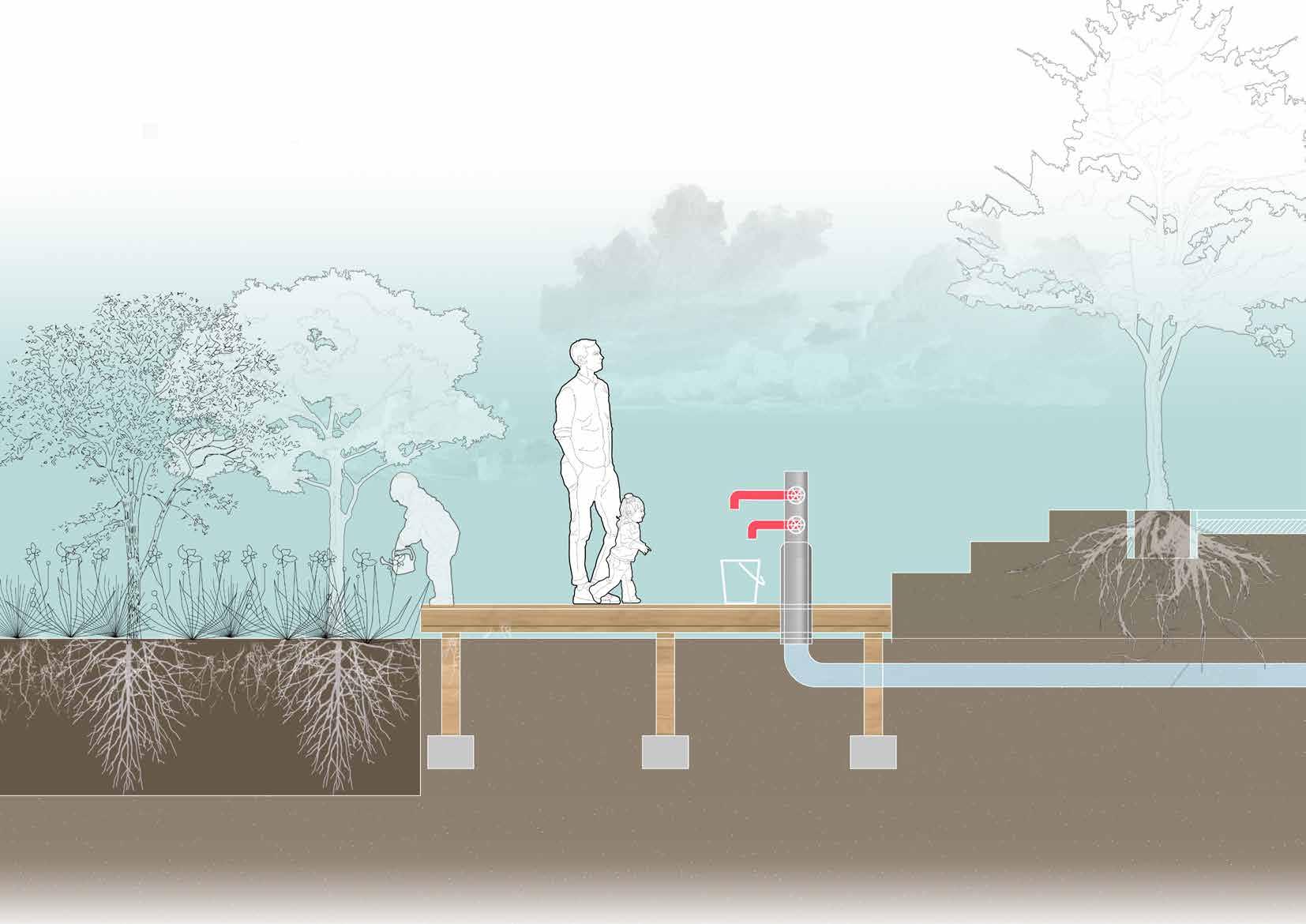

Phase 3.1.1: Watering Spot - S

Yes, honey. This is the water flushed from our bathroom. After totally purified, it can be used to water our garden ！

Oh! The water is from our home!

ON-SITE INDUSTRIAL WATER FEATURE

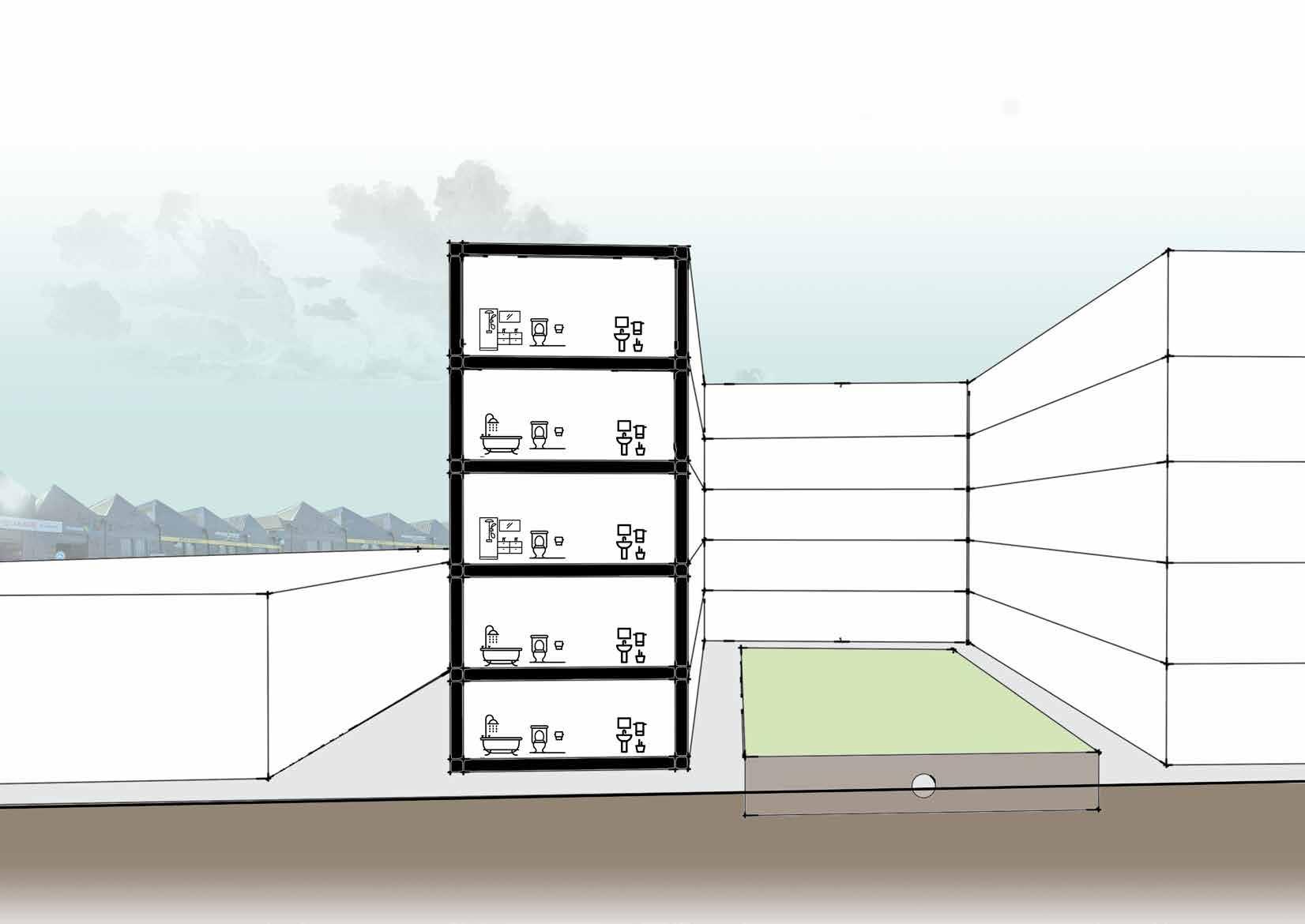

RECYCLED WATER RESOURCE FROM RESIDENTIAL GREY WATER

RECYCLED WATER RESOURCE FROM RESIDENTIAL GREY WATER

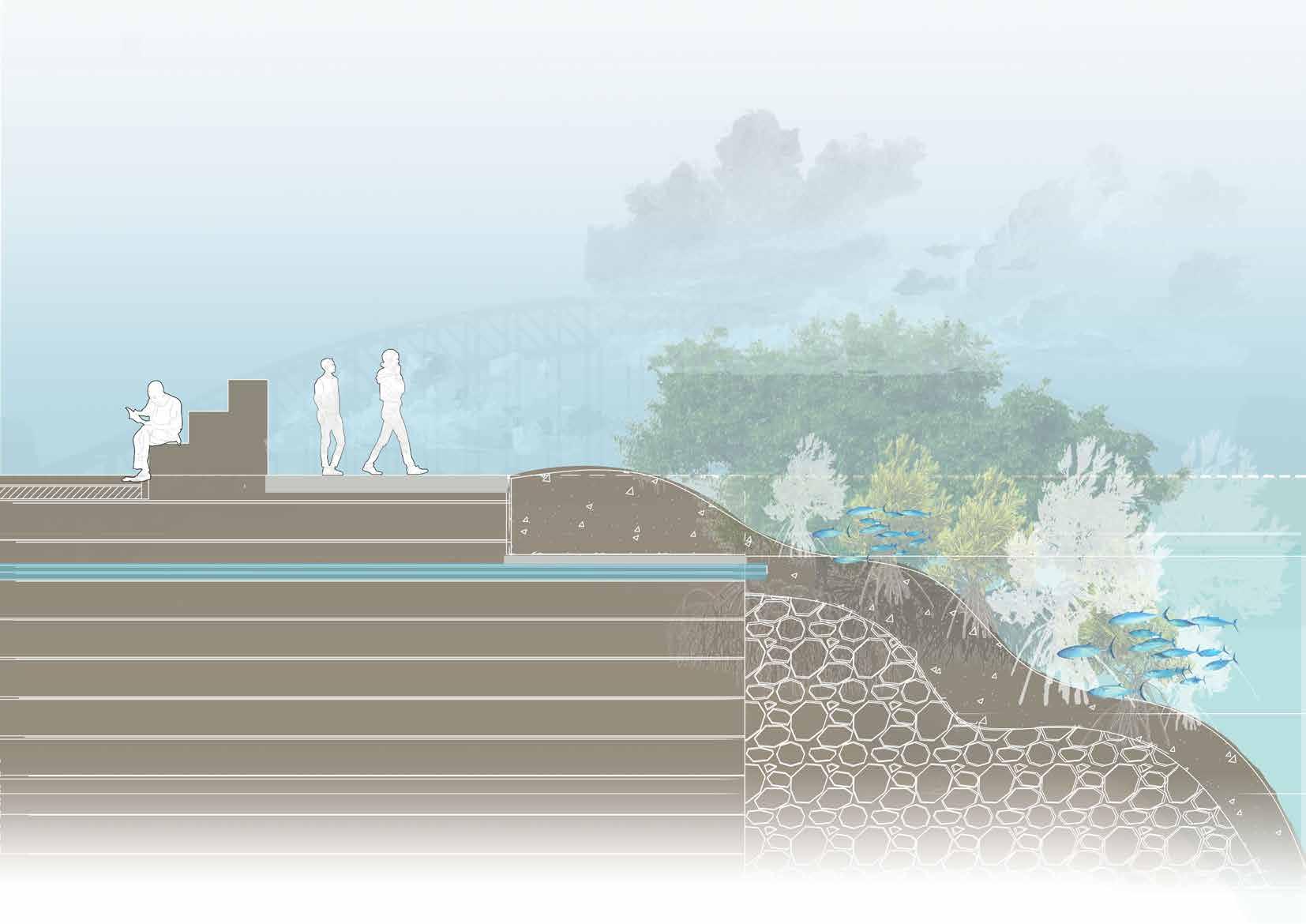

System 3.2: EDGE CONDITION - MANGROVE GROWTH

Mangrove start to play its function & Regenerate Habitat for other species

ELEVATED WATER EDGE TO WITHSTAND FUTURE FLOODING

FILTERED SOFT SAND AND MUD SEDIMENT FROM SEA WAVE

COMMUNITY GARDEN + URBAN RUNOFF

ORIGINAL INTERTIDAL GROUPS

HABITAT FROM SUCCESSION

INTERTIDAL SPECIES

MANGROVE COMMUNITY

GRAVEL FROM RECYCLED CONCRETE AND WOOD

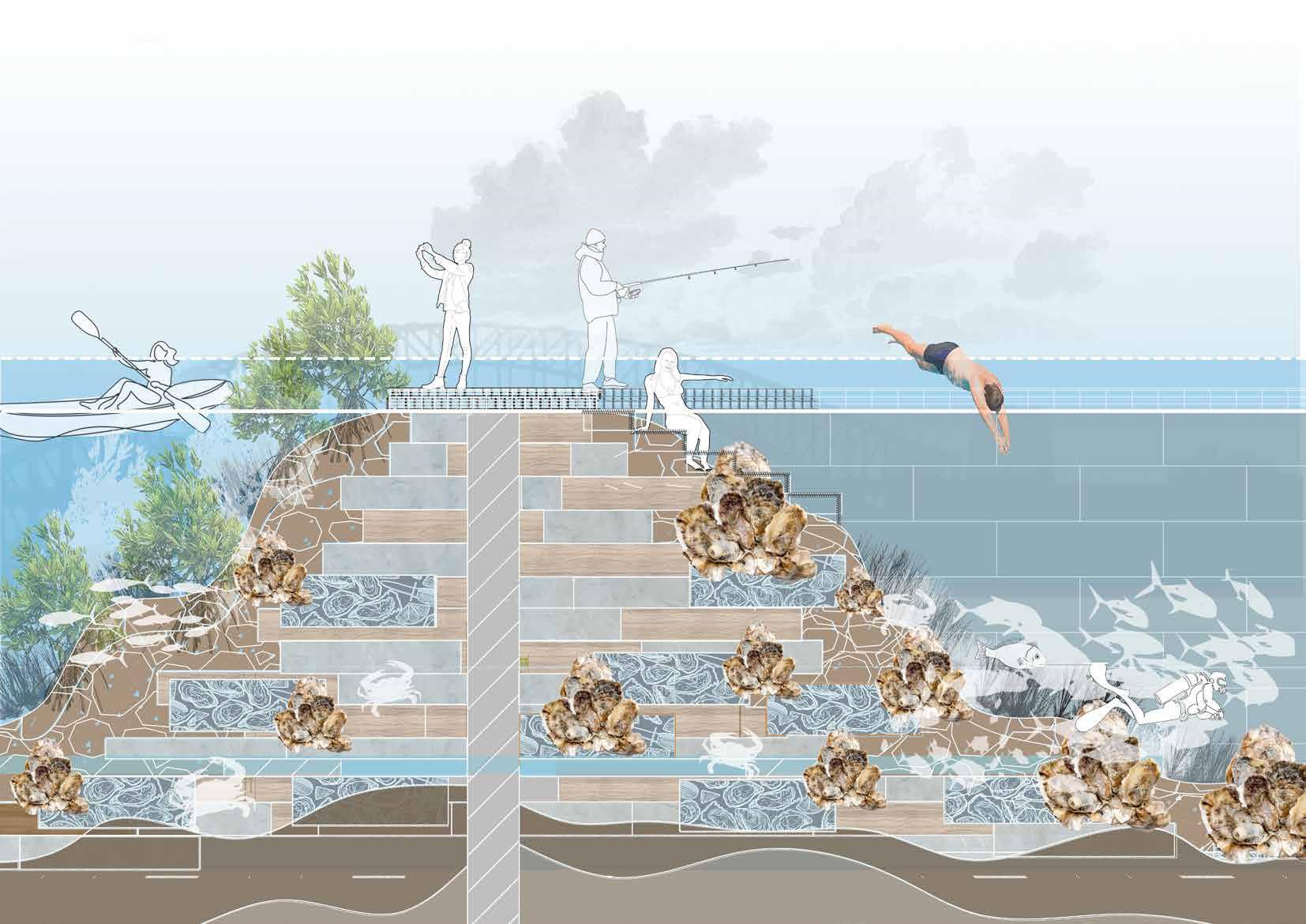

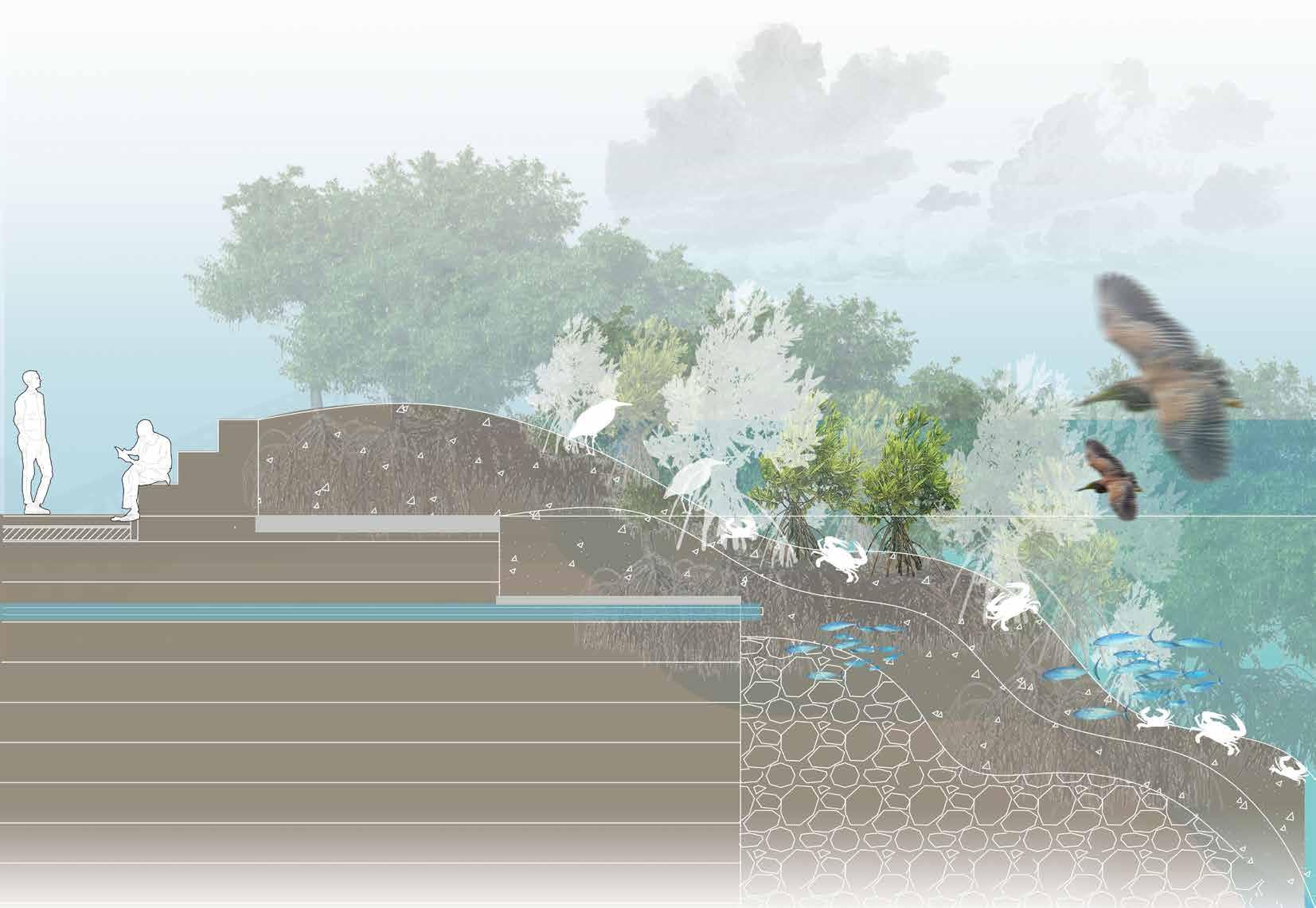

System 3.2.1 EDGE CONDITION - CLIMAX MANGROVE

Mangrove start to play its function & Regenerate Habitat for intertidal and onland species

ORIGINAL INTERTIDAL GROUPS HABITAT FROM SUCCESSION

ELEVATED WATER EDGE TO WITHSTAND FUTURE FLOODING

INTERTIDAL SPECIES

ONLAND SPECIES

COMMUNITY GARDEN + URBAN RUNOFF

MANGROVE COMMUNITY

ABIDING EVENTS

ABIDING EVENTS

PHYTOREMEDIATION

COMMUNITY

ENGAGEMENT

CONSTRUCTION

SEA LEVEL RISE 0.5M

SEA LEVEL RISE 1M

FLOODING

SUCCESSION PLANT

PHYTOREMEDIATION

PHYTOREMEDIATION

LOCAL SUCCESSION

PERFORMANCE

PERFORMANCE

ORIGINAL GROUPS

ORIGINAL GROUPS

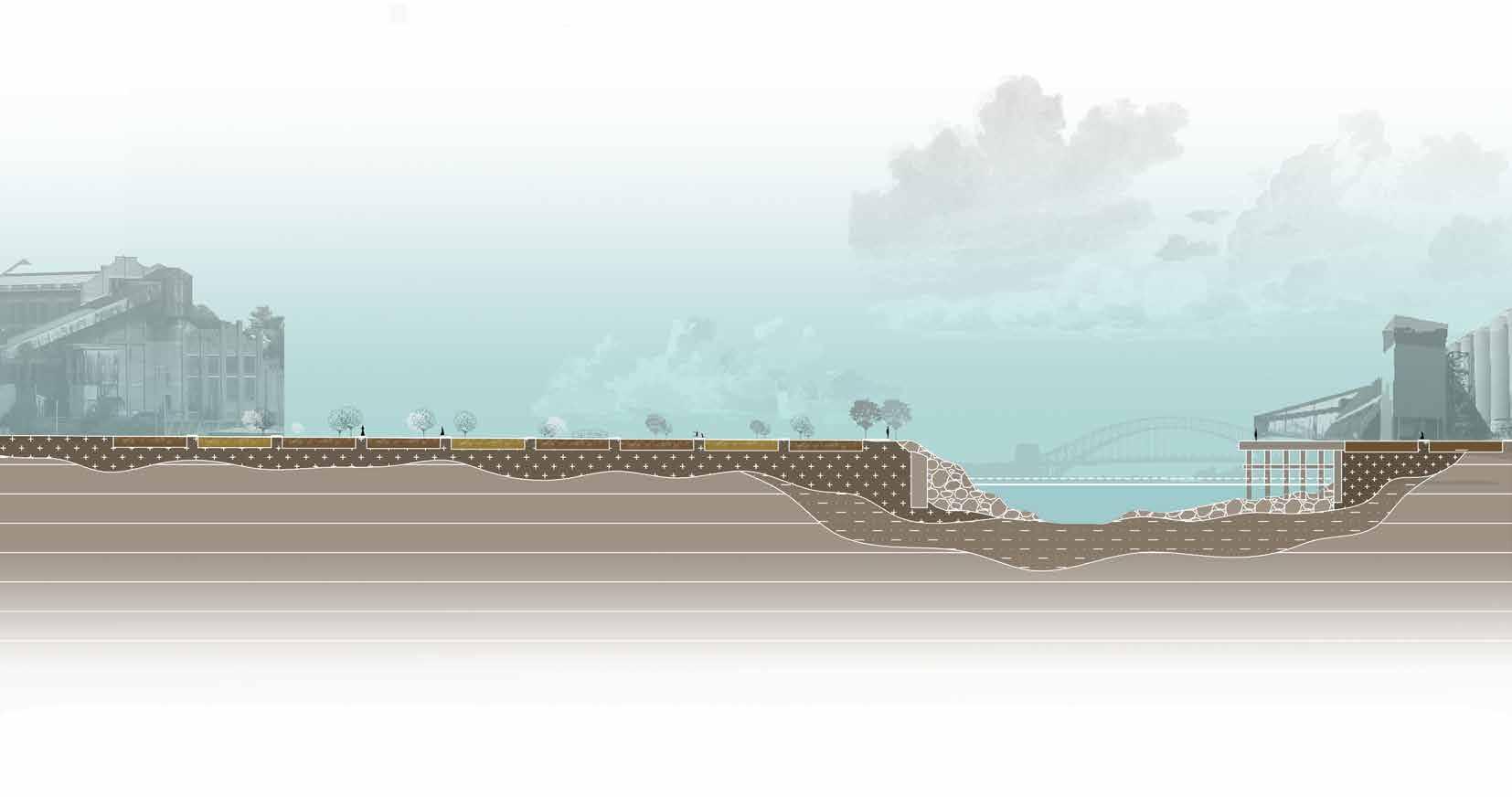

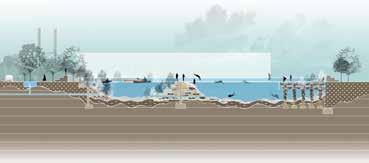

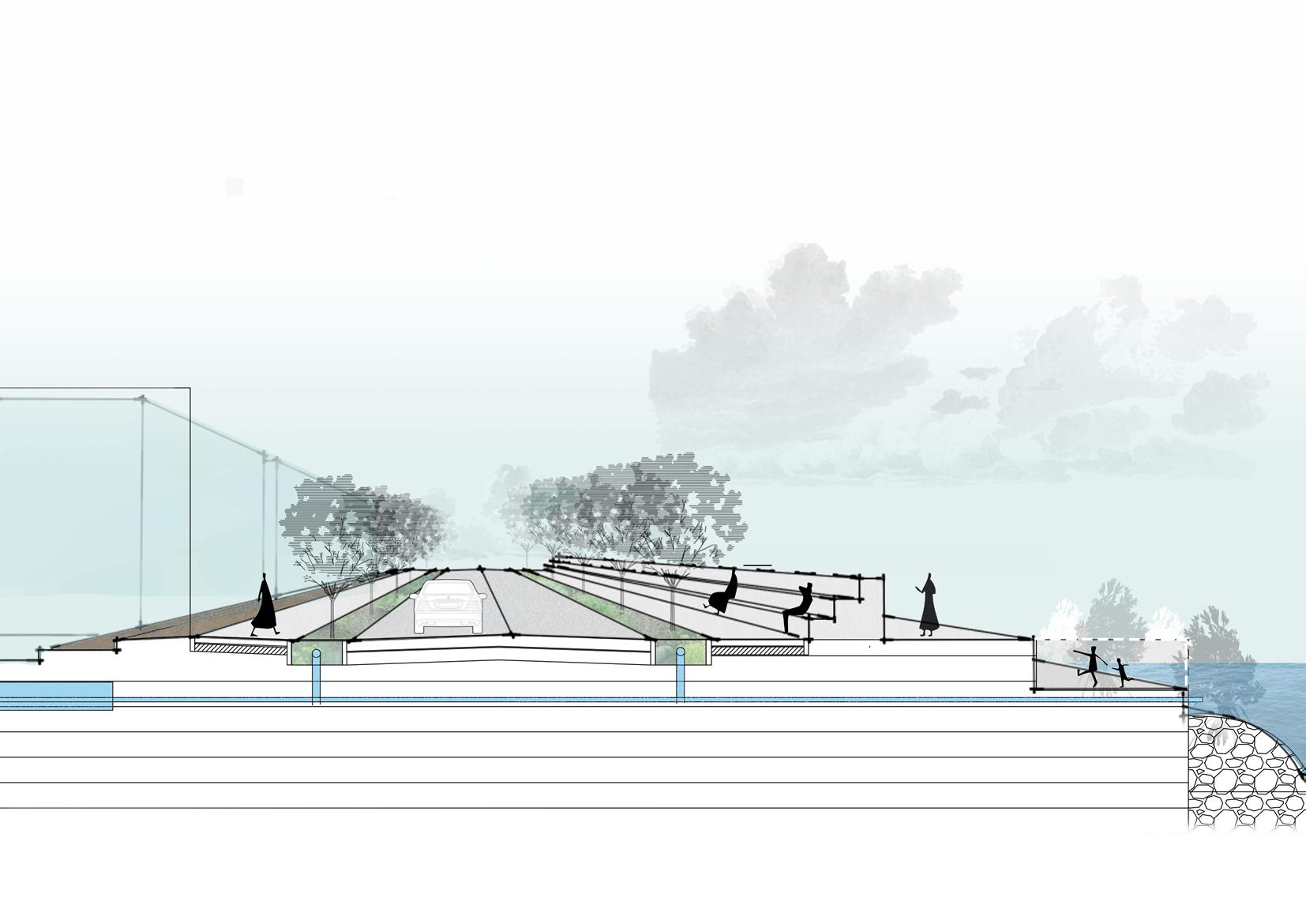

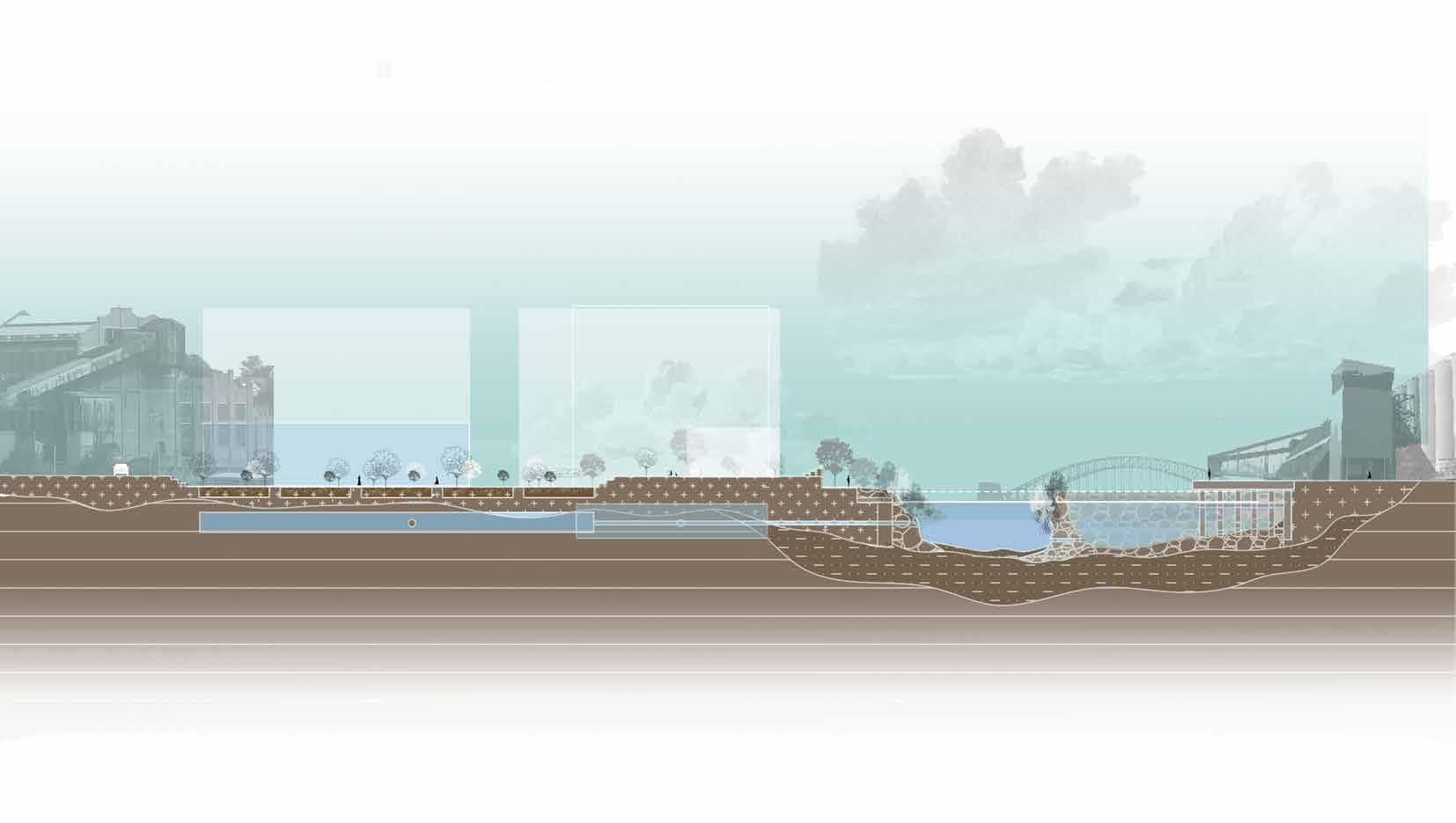

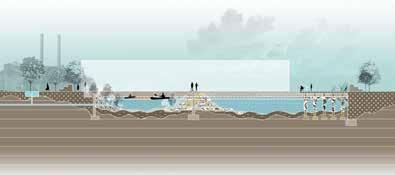

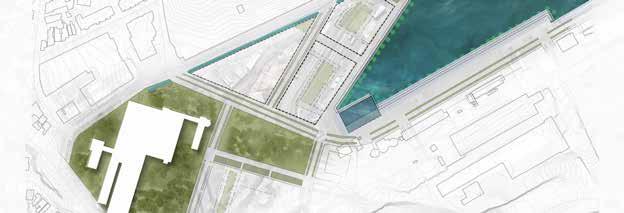

Phase 4: Long Section

Stand Point

3 LANDSCAPE PERFROMANCE EXAMINATION

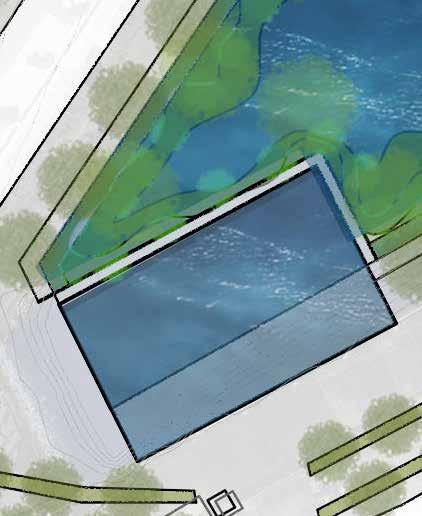

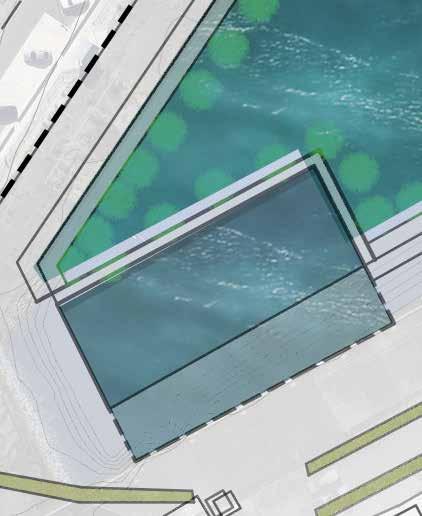

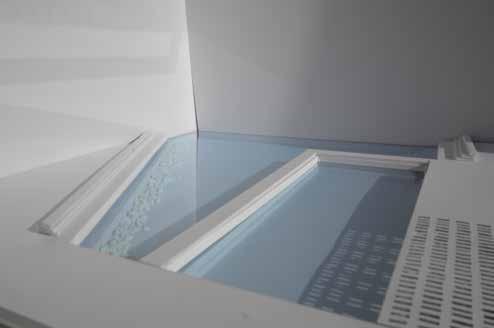

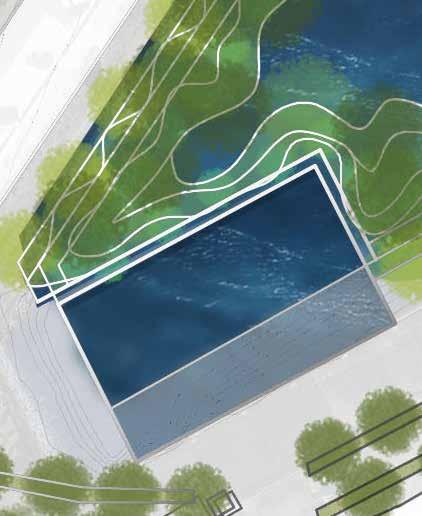

Swimming Pool Detailed Plan

Limited Water Treatment + Sediment from urban Runoff

Recommand Water Activites

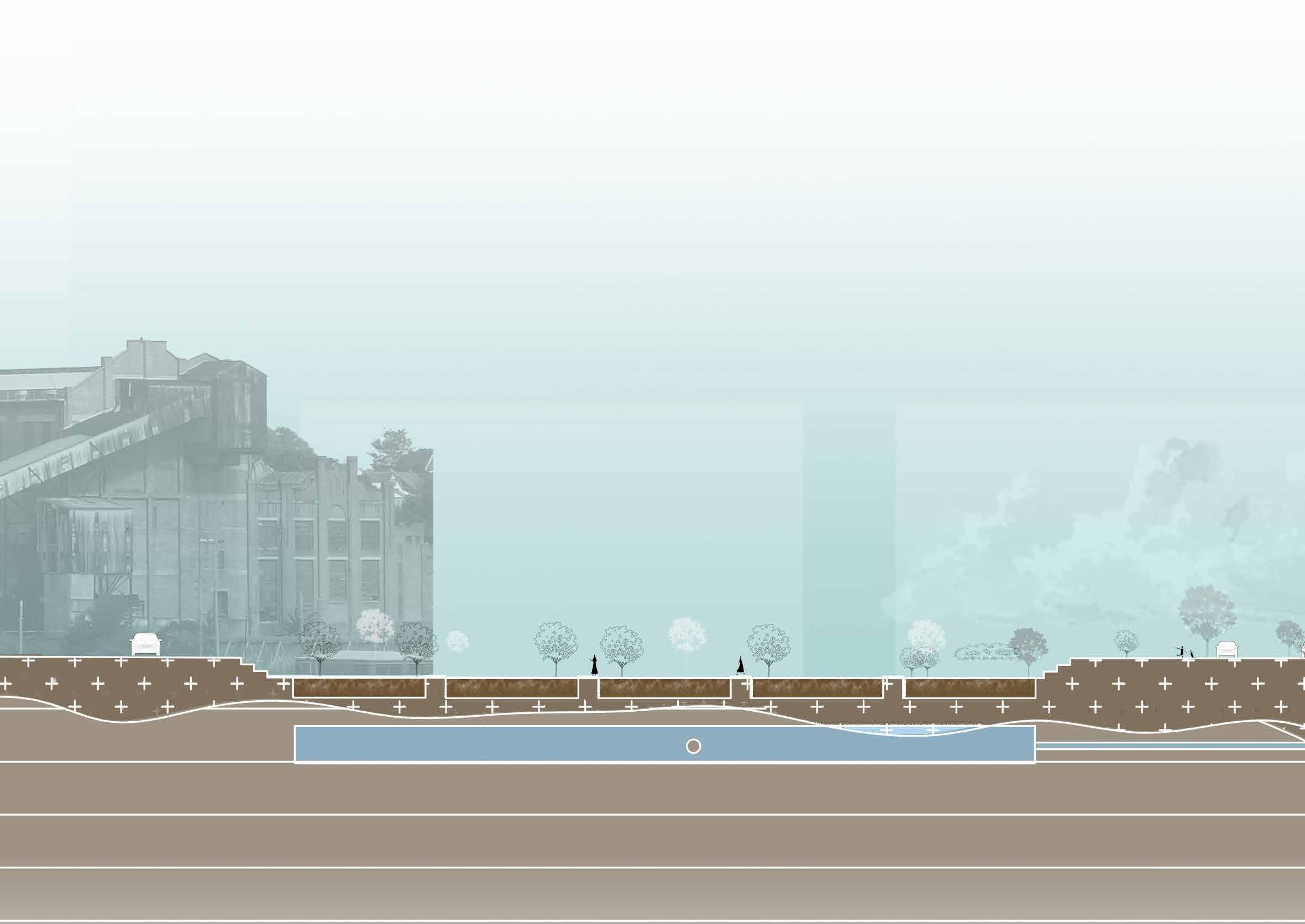

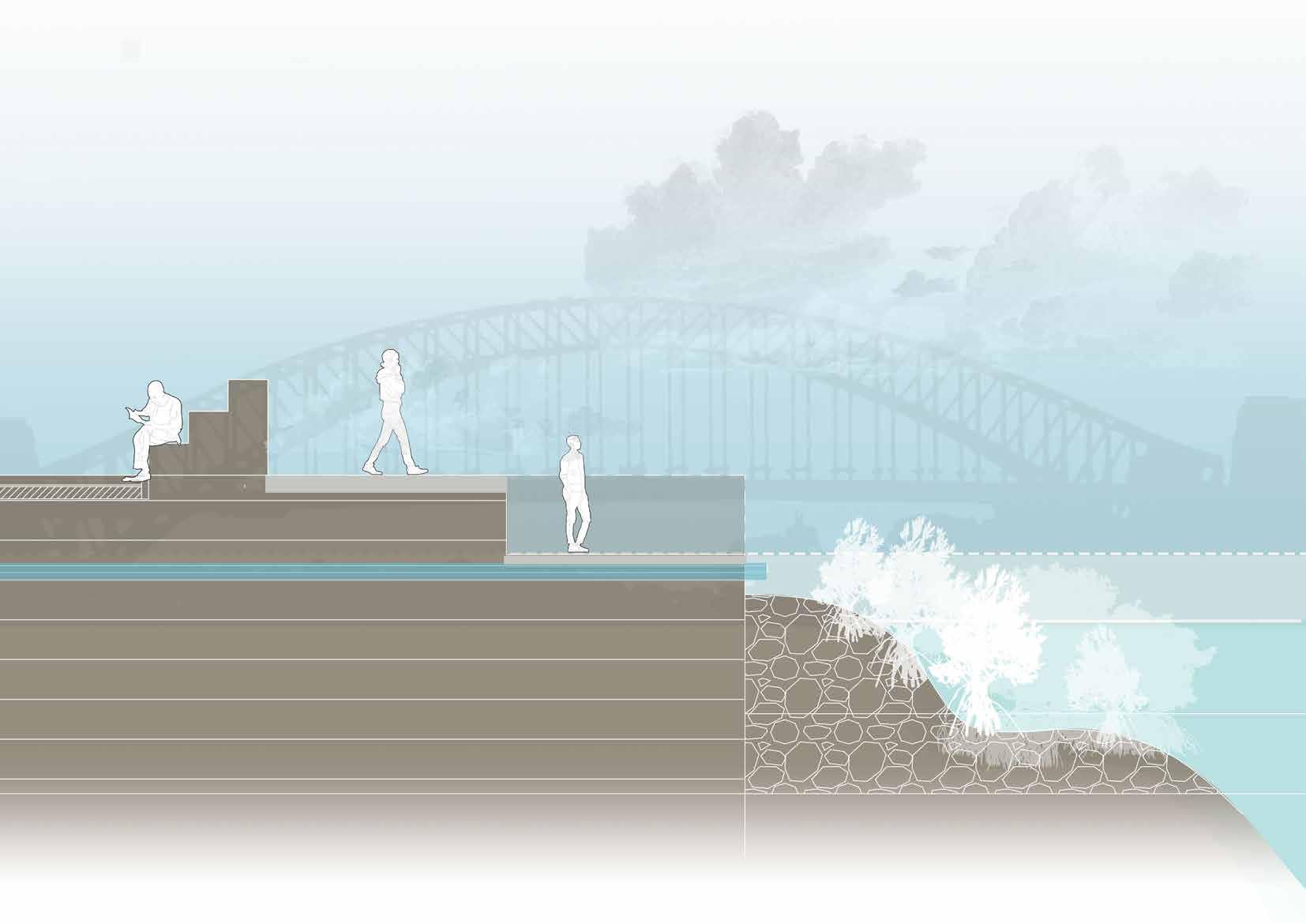

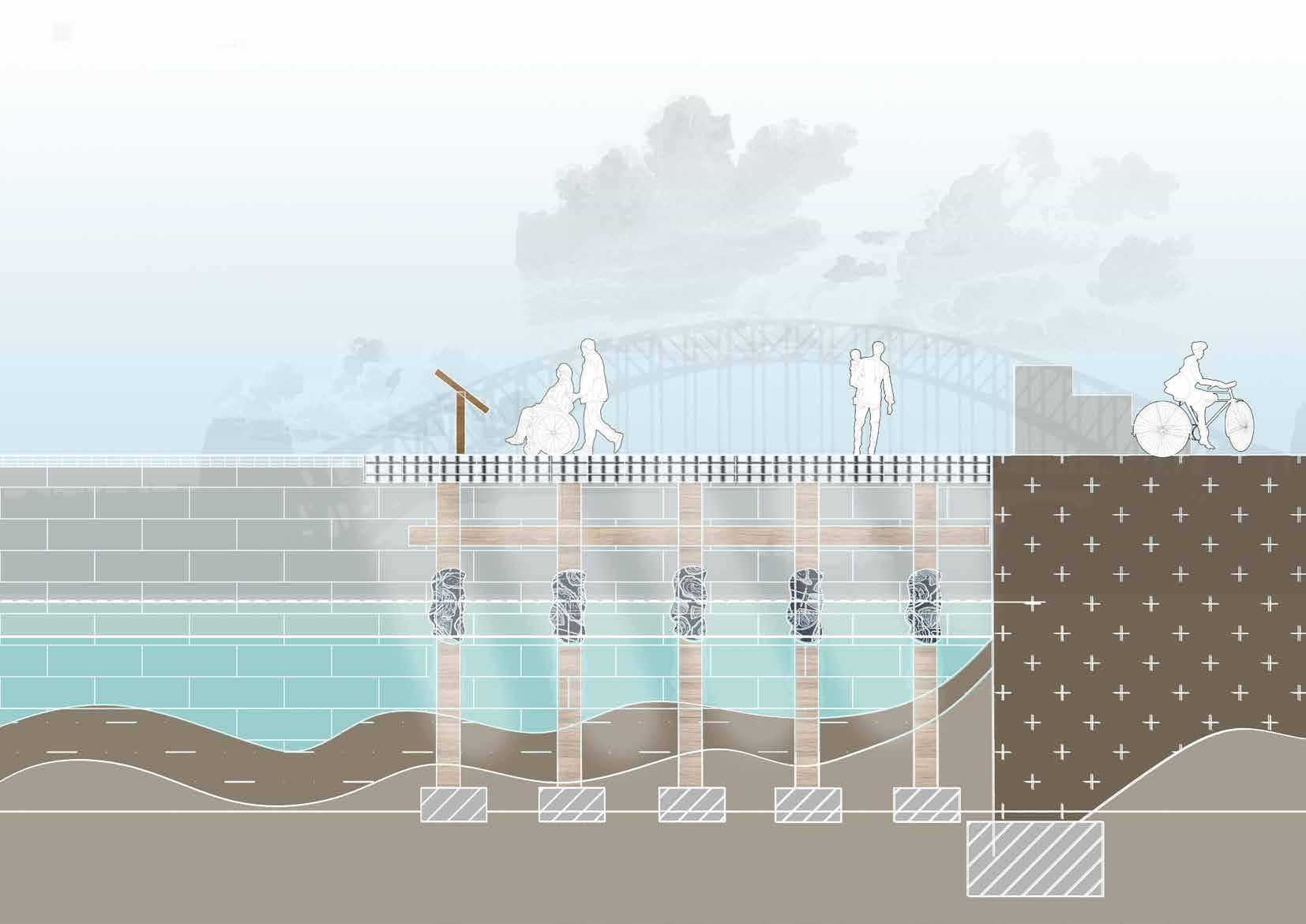

DETAILED EDGE SECTION FROM PHASE 2

Provide Nutrient

Stabilize Structure

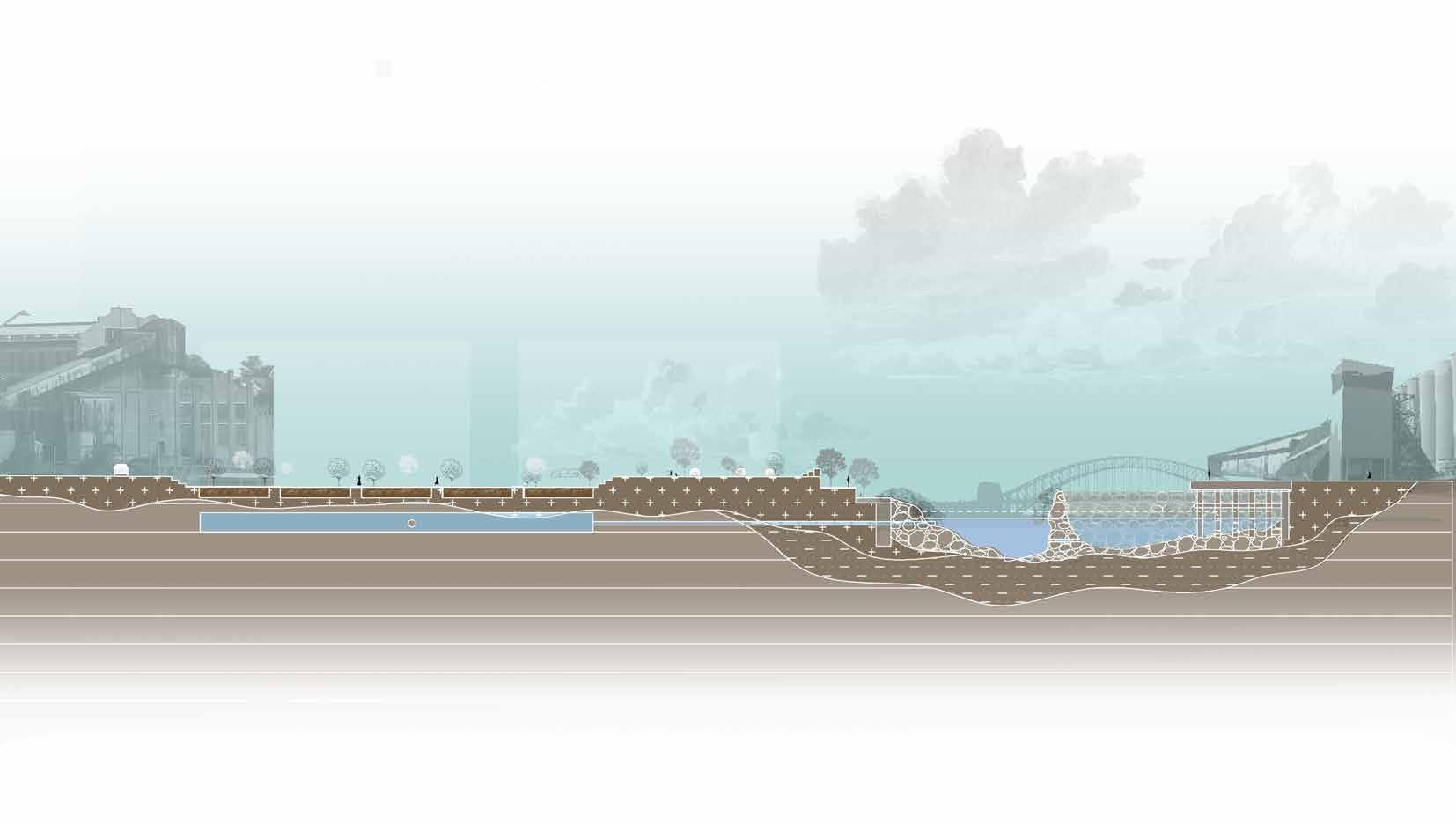

Section from Phase 3

Complete Water Treatment + Ecology start to play its function

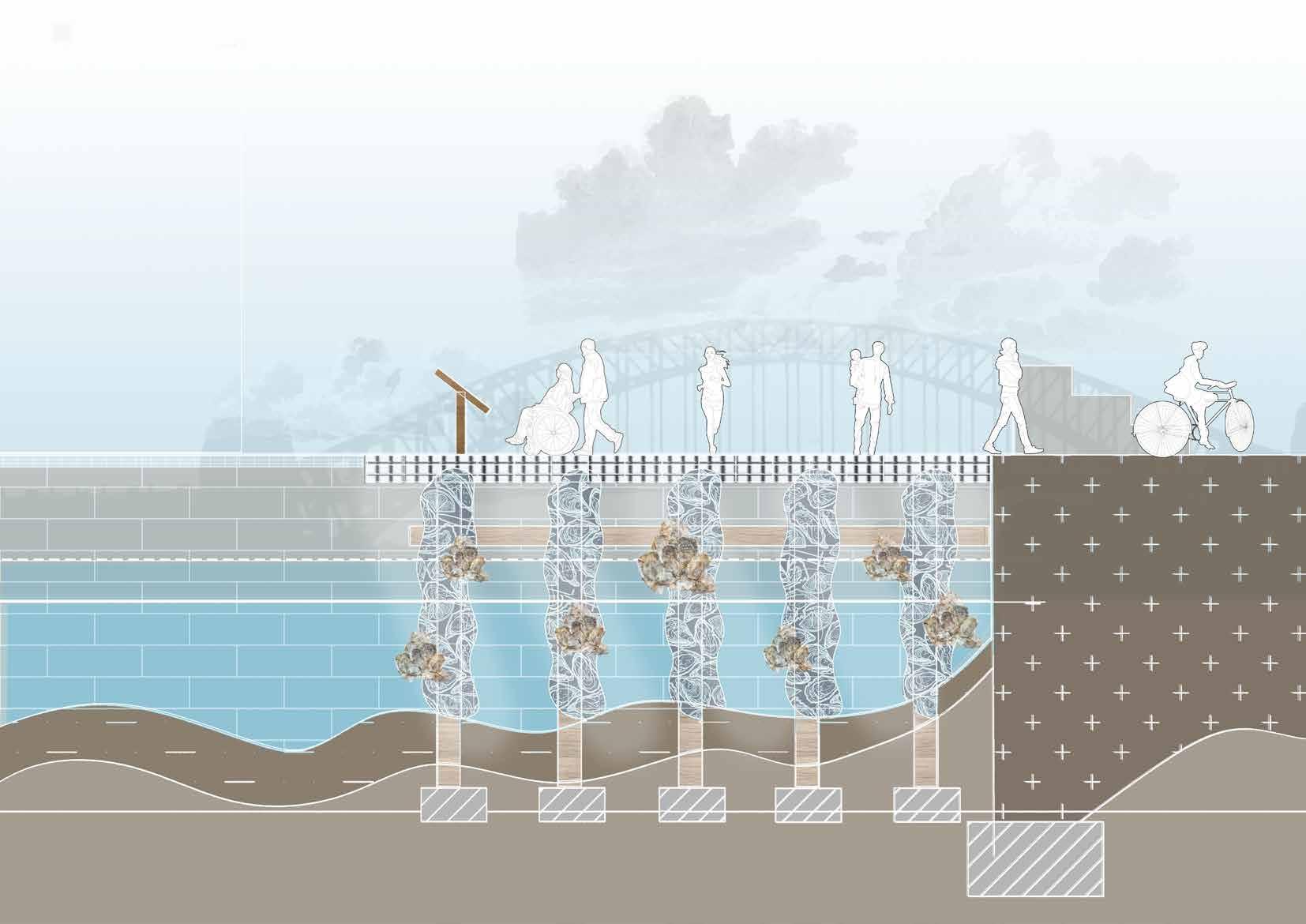

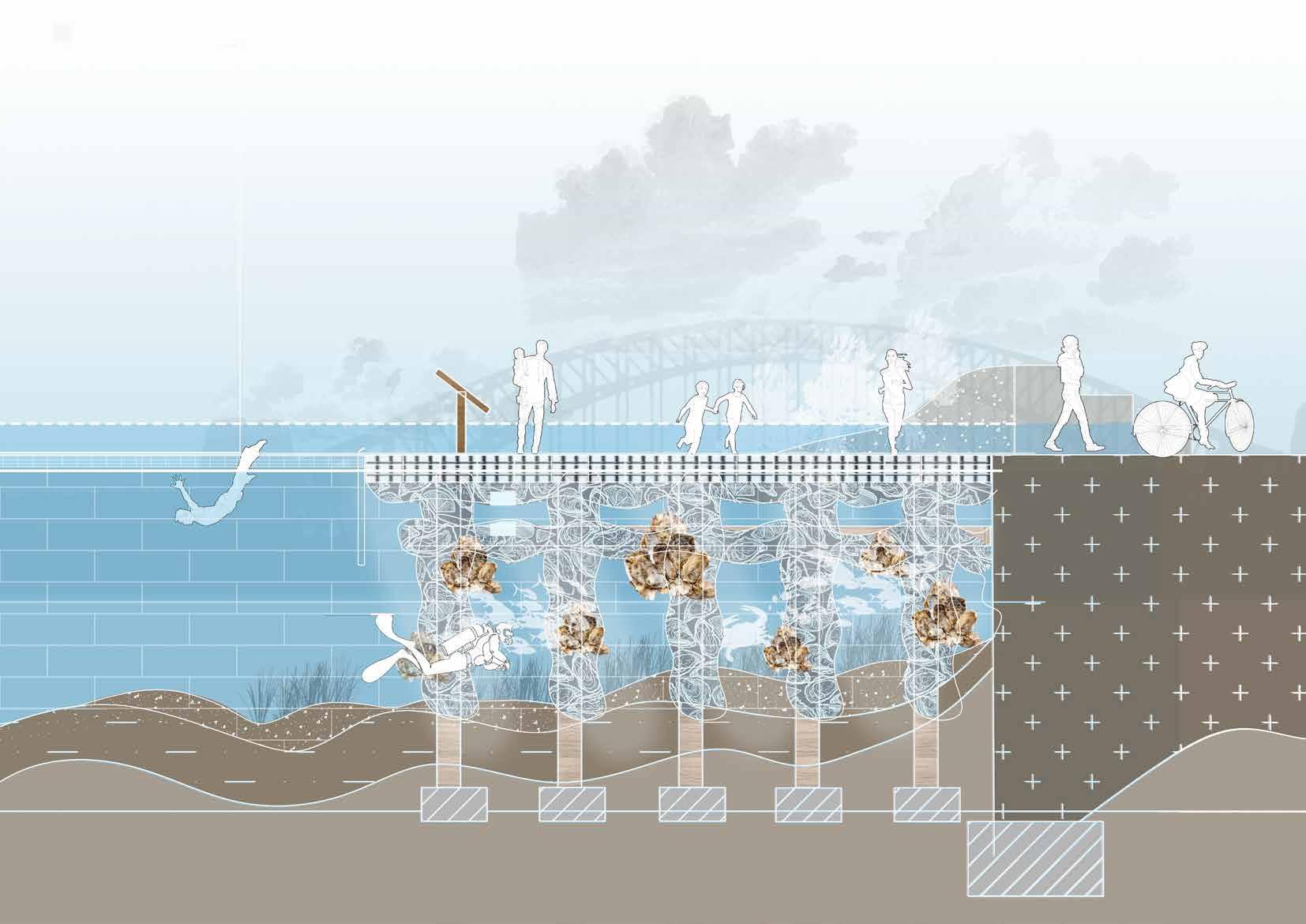

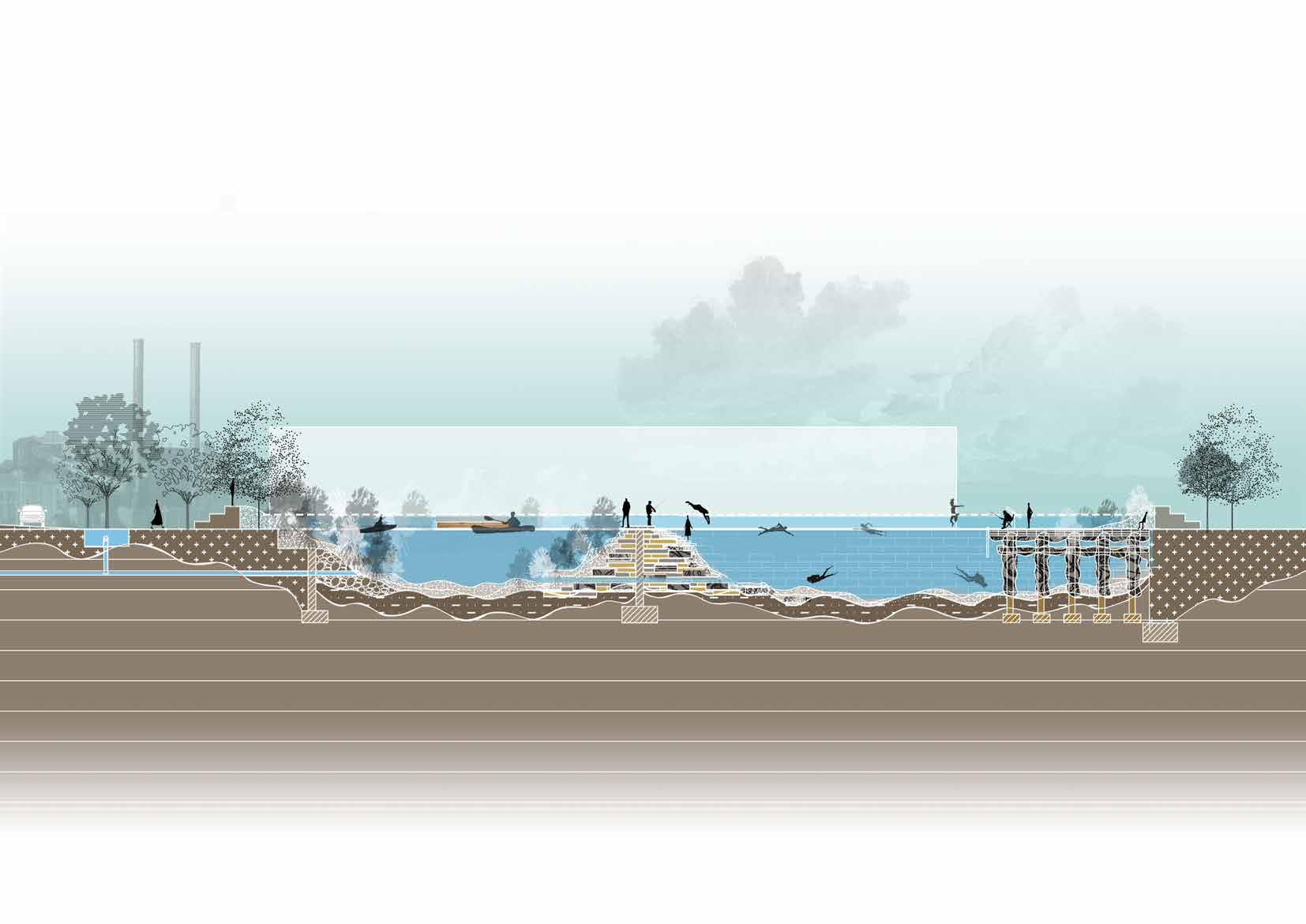

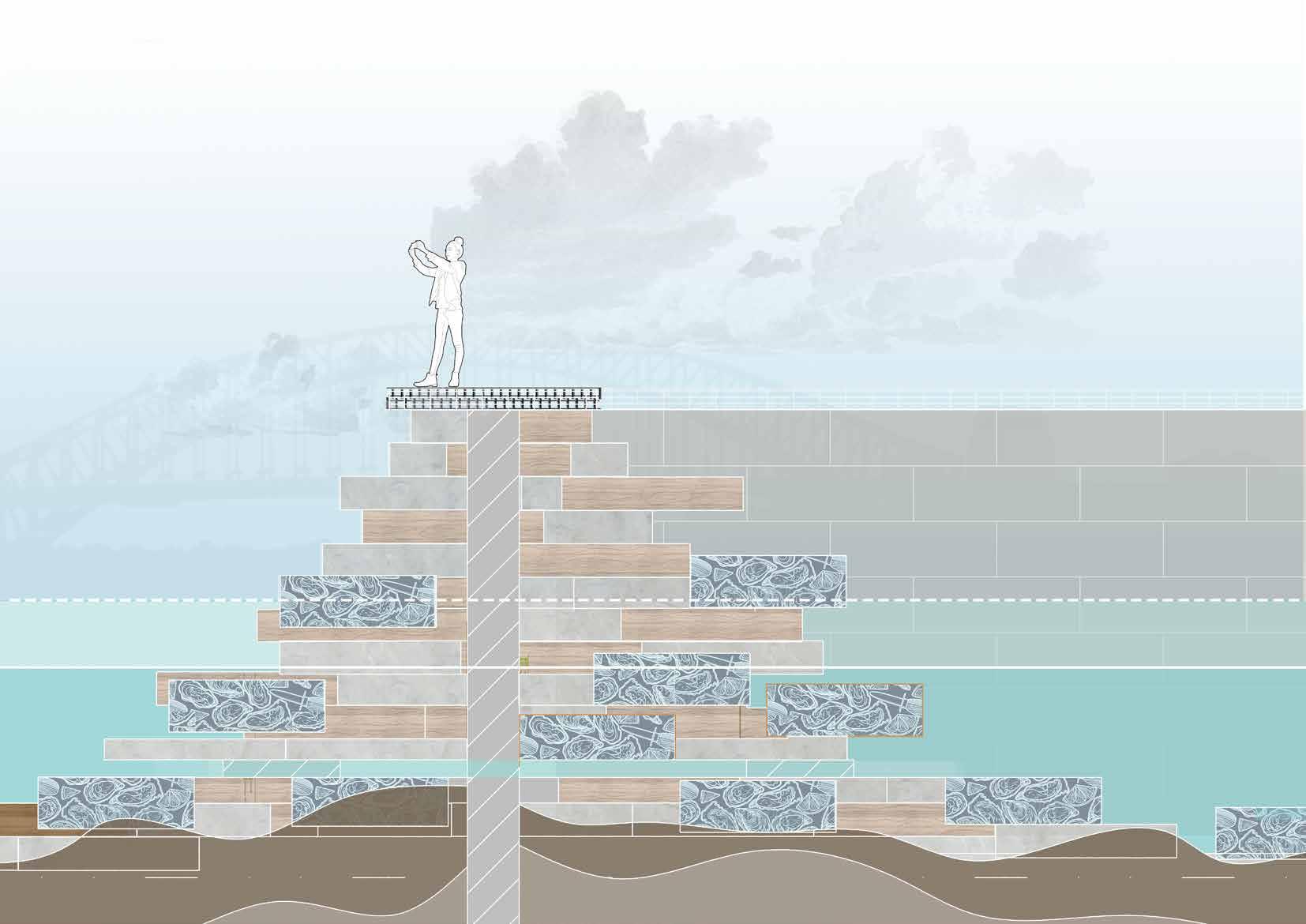

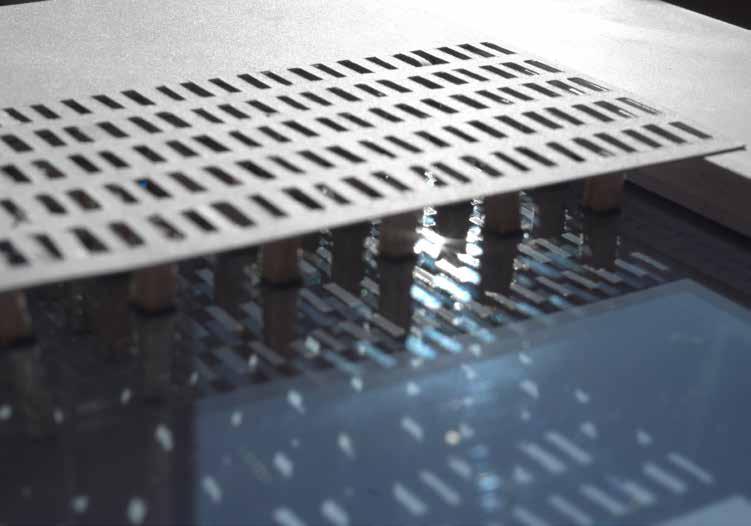

DETAILED DECK SECTION FROM PHASE 3

Recommand Water Activites

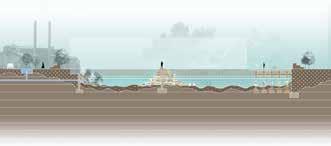

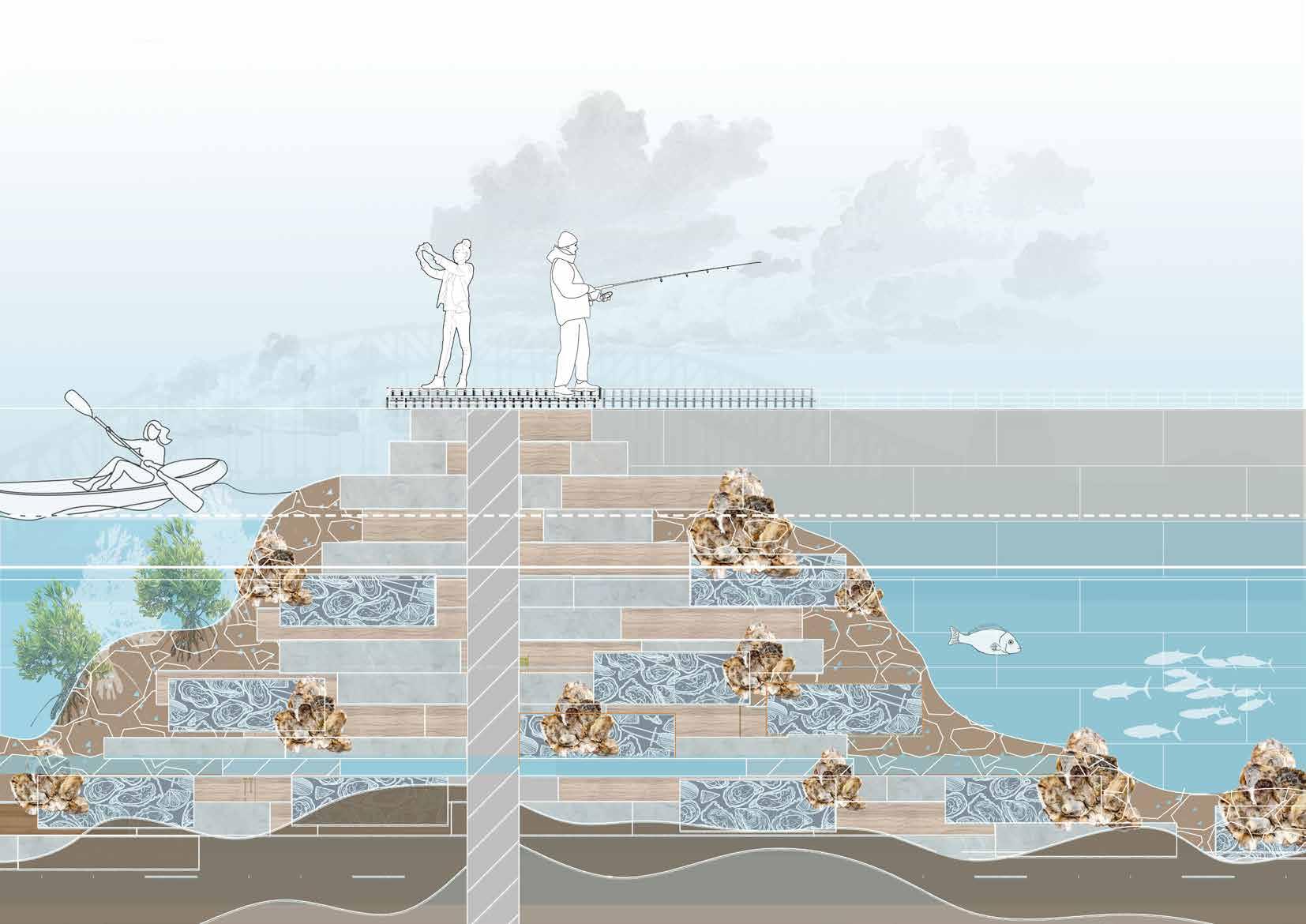

Section from Stage 4

Complete Water Treatment + Ecology in its climax condition

Key Plan

Recommand Water Activites

Phase 2 Phase 3

Phase 4

Phase 2

Phase 4

4 CONCLUSION

ABIDING EVENTS

PHYTOREMEDIATION

COMMUNITY

ENGAGEMENT

CONSTRUCTION

SEA LEVEL RISE 0.5M

SEA LEVEL RISE 1M

FLOODING

SUCCESSION PLANT

PHYTOREMEDIATION

LOCAL SUCCESSION

PERFORMANCE

ORIGINAL GROUPS

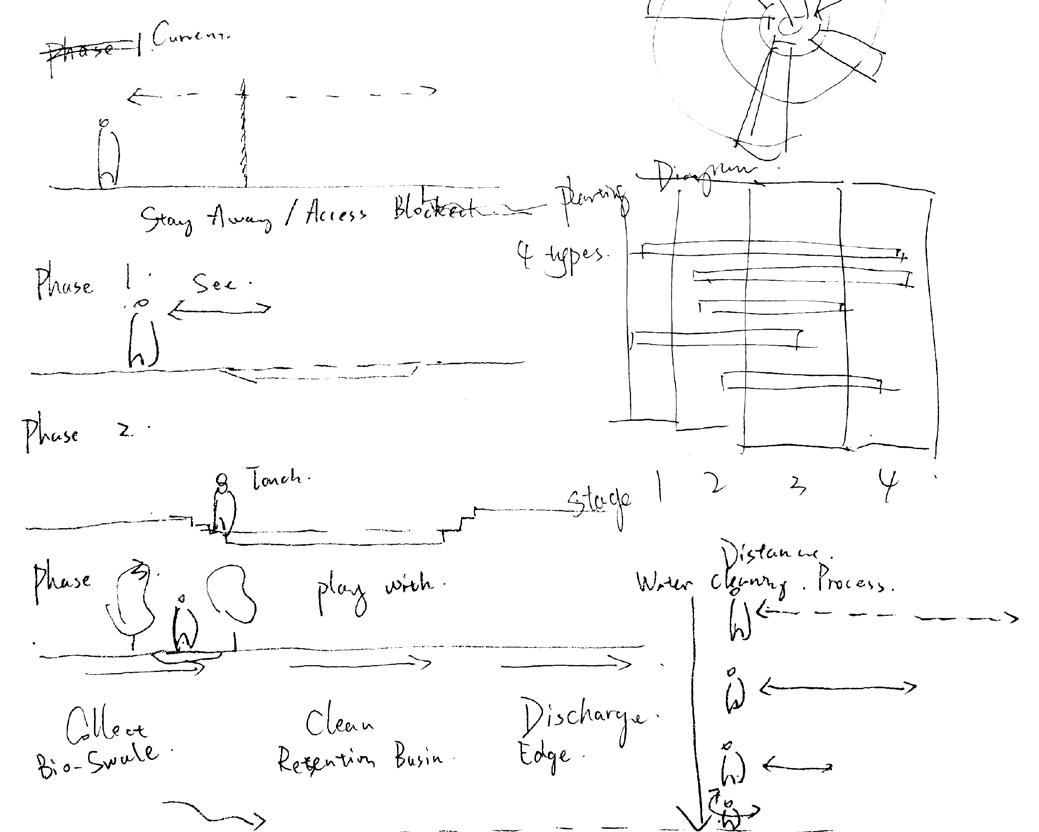

HUMAN WATER ACTIVITIES

FIRST RECREATIONAL SWIMMING/DIVING

FIRST RECREATIONAL KAYAKING/FISHING

FIRST RECREATIONAL WATERFRONT WALK
