Solar Tracker System Using Arduino
Palak
Chouhan1 , Sahil Soni2 , Varun Pal3, Umang Malviya4
1,2,3,4 4th Year, Department of Electronics and Communication Engineering, Laksmi Narain College of Technology, Bhopal
Abstract -Solar energy harvesting efficiency remains constrained by the static orientation of conventional photovoltaic panels, leading to significant energy losses due to suboptimal sun alignment. To address this limitation,thispaperpresents a low-cost,dual-axissolar tracker system utilizing an Arduino microcontroller, Light Dependent Resistors (LDRs), and servomotors to dynamically align solar panels with the sun’s position. The system employs four LDR sensors to detect real-time sunlight intensity gradients, while an Arduino Uno processes this data to calculate optimal tilt and azimuth angles. Servo motors then adjust the panel’s positionaccordingly,maximizingenergycapture.
Experimental results demonstrate a 25–30%increasein power output compared to fixed-panel systems under varying daylight conditions. The system’s modular design, open-sourcearchitecture,andcomponentcost(under$50) make itviableforeducational,residential,andsmall-scale industrial applications. Future enhancements may integrate IoT-enabled cloud logging (via ESP8266) for remote performance monitoring, machine learning algorithms for predictive tracking, and hybrid power management tooptimizeenergystorage.
This project highlights the potential of microcontrollerbased automation to enhance renewable energy systems, offering a scalable, energy-efficient, and costeffective alternative to static solar installations. By bridging the gap between theoretical efficiency and practical implementation, the system provides a foundationfornext-generationsmartsolarsolutions.
Keywords: Arduino Uno, LDR sensors, Servo motors, Renewableenergy,Dual-axistracking,IoTintegration
1. Introduction
The The transition toward sustainable energy solutions hasmadesolarpoweracornerstoneofglobalrenewable energystrategies.However,theefficiencyofphotovoltaic systemsremainslimitedbytheirstaticorientation,which fails to adapt to the sun’s dynamic position, resulting in significant energy losses. Traditional fixed panels lose 15–30% of potential output due to misalignment, underscoringtheneedforintelligenttrackingsystemsto maximizeenergyharvest.
This project proposes a dual-axis solar tracker leveraging an Arduino microcontroller, Light Dependent Resistors
(LDRs), and servo motors to autonomously align solar panels with the sun’s trajectory. The system employs four LDRsensorsarrangedinacrosspatterntodetectreal-time light intensity gradients. The Arduino processes these inputs to calculate optimal tilt and azimuth angles, while servo motors adjust the panel’s position dynamically. By maintaining near-perpendicular alignment with sunlight throughout the day, the tracker significantly enhances energy capture efficiency. the tracker significantly enhancesenergycaptureefficiency.
2. Literature review
The optimization of solar energy systems has emerged as a critical research domain, driven by global demands for sustainable and efficient power generation. Conventional fixed photovoltaic installations face inherent limitations, with studies by NREL (2022) indicating 18-35% energy losses due to static panel orientation. These inefficiencies have spurred innovation in solar tracking technologies, ranging from mechanical systems to advanced AI-driven solutions.
Photovoltaic tracking mechanisms have evolved through threegenerationsofdevelopment:
1. Passive Trackers (1980s): Utilizing thermal expansion fluids or shape-memory alloys, these systems offered low-cost automation but suffered fromslowresponsetimes(Kalogirou,2009).
2. Active Electro-Mechanical Trackers (2000s): Incorporated light sensors and DC motors, achieving 22-28% efficiency gains (Roth et al., 2014).
3. Smart Hybrid Trackers (Present): Integrate IoT connectivityandpredictivealgorithmsfordual-axis precision(IEEE-PES,2021).
Light-dependentresistor(LDR)basedsystemshavegained prominencefortheiroptimalbalanceofcostandaccuracy. Research by Gupta & Sharma (2020) demonstrated that properlycalibratedLDRarrayscanachieve ±1.5° tracking precision - comparable to photodiode systems at 10% of
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 12 Issue: 04 | Apr 2025 www.irjet.net p-ISSN: 2395-0072
the cost. This makes them particularly viable for educational and small-scale commercial applications wherebudgetconstraintsexist.
TheadventofmicrocontrollerplatformslikeArduinoand Raspberry Pi has democratized tracking system development. As noted in IEEE Transactions on SustainableEnergy(2023),thesedevicesenable:
Real-time sensor data processing with <50ms latency.
PWM-controlled servo actuation for smooth panel movement
Modularintegrationwithenergystoragesystems
Cloud-based monitoring represents the next frontier in solartracking.
StudiesbytheFraunhoferInstitute(2023)highlighthow ESP8266/ESP32modulesfacilitate:
Live performance dashboards via ThingSpeak or Blynk
Predictive maintenance through historical data analysis
Remote configuration updates for global deployments
While advanced solutions like computer vision (CV) tracking exist, their 5-8% incremental efficiency gains oftenfailtojustifythe300-500%costpremiumformost applications(SolarEnergyJournal,2023).Similarly,GPSbased astronomical algorithms - though theoretically precise - struggle with weather adaptability and computationaloverhead.
Emerginginnovationsfocuson:
Edge AI: TinyML models for weather-predictive tracking
Hybrid Systems: Combining solar tracking with windaxisoptimization
Quantum Dot Sensors:Forimproveddiffuselight capture
This review establishes that microcontroller-based LDR trackers represent the optimal trade-off between performance, cost, and scalability for most real-world deployments - a gap our project specifically addresses through its novel servo control algorithm and modular architecture.
3. Proposed Method
TheproposedSolarTrackerSystemusingArduinoaimsto enhance the efficiency of solar panels by automatically adjusting their position to follow the sun's movement throughout the day. The system employs a dual-axis tracking mechanism powered by servo motors, which are controlled by an Arduino Uno microcontroller. Light Dependent Resistors (LDRs) are strategically placed to detect the sun’s position based on light intensity variations. The Arduino processes the LDR readings and dynamically adjusts the panel’s orientation to maximize solarexposure.
To provide real-time monitoring, the system integrates a 16x2 I2C LCD display that shows the current tracking statusandsensordata.AnoptionalDHT11sensorcanalso be added to display environmental parameters like temperatureandhumidity.Thissolartrackeroffersacosteffective and energy-efficient solution suitable for residential, commercial, and agricultural solar applications.Itsautomatedtrackingcapabilitysignificantly improves the power output compared to fixed solar panels. The modular design ensures ease of implementation and offers potential for future enhancements such as IoT integration, weather-based adjustments,datalogging,andmobileappconnectivityfor remotemonitoring.
Fig.1.BlockDiagramoftheProposedSystem
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 12 Issue: 04 | Apr 2025 www.irjet.net p-ISSN: 2395-0072
Components
Arduino Uno Microcontroller – A versatile and userfriendly microcontroller that serves as the brain of the solar tracker. It processes analog inputs from the light sensors (LDRs) and sends appropriate control signals to the servo motors for precise panel movement based on sunposition.
Light Dependent Resistors (LDRs) – Photosensitive sensors used to detect sunlight intensity from multiple directions. Positioned in a specific configuration, they allow the Arduino to determine the direction of the brightestsunlightandadjustthesolarpanelaccordingly.
Servo Motors –Compactmotorsthatcontroltheangular movement of the solar panel along two axes (horizontal and vertical). The Arduino adjusts their rotation to align the panel perpendicular to the sun for optimal energy capture.
16x2 I2C LCD Display – A display module used to show real-time tracking status, LDR readings, or environmental data.The use of I2C protocol reducesthe number ofGPIO pinsrequiredandsimplifieswiring.
DHT11 Temperature and Humidity Sensor – Measures ambient temperature and humidity to provide additional environmentalcontext,whichcanbedisplayedontheLCD orloggedforfuturereference.
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 12 Issue: 04 | Apr 2025 www.irjet.net p-ISSN: 2395-0072
Power Supply (Battery/Solar Panel/Adapter) –Provides stable power to the Arduino and peripheral components. Can be powered via a DC adapter, rechargeablebattery,orevenasecondarysolarpanelfor energyindependence.
4. Methodology
The methodology of the Solar Tracker System using Arduino outlines the systematic functioning of an automated, dual-axistrackingsetupdesignedtoimprove solar panel efficiency by aligning it with the sun’s position throughout the day. The operational sequence begins with the initialization of the Arduino Uno microcontroller, which acts as the central control unit. Upon powering up, the Arduino executes setup routines to configure all connected components, including Light Dependent Resistors (LDRs), servo motors, the 16x2 I2C LCD display, and optionally, the DHT11 sensor for temperatureandhumiditymonitoring.
Once initialization is complete, the system transitions intoanactivemonitoringstate.Inthismode,theArduino continuouslyreadsanalogdatafromtheLDRs,whichare positioned in a cross or quadrantal layout around the solar panel. These LDRs detect sunlight intensity from different directions. If the intensity detected by one or more LDRs varies beyond a predefined threshold compared to others, the Arduino interprets this as a misalignment of the solar panel relative to the sun’s direction.
Based on this interpretation, the Arduino calculates the requiredadjustmentsandsendscorrespondingsignalsto theservomotors.Thesemotors,connectedtothepanel's mount, make incremental rotations to reorient the panel in both the horizontal and vertical axes, thereby achieving optimal solar tracking. Simultaneously, the system may update the LCD display with real-time data such as “Adjusting Panel,” current LDR values, or environmentalconditionscapturedbytheDHT11sensor.
To ensure mechanical and electrical safety, the system is programmed with angular limits, preventing the panel from rotating beyond safe boundaries. Once the panel reaches its ideal position where light intensity is balancedamongtheLDRs theArduinoholdstheposition and enters a brief delay period before the next round of sensor readings, reducing unnecessary motor activity and conservingenergy.
In case of overcast skies or equal light readings from all LDRs, the system remains idle, holding the panel in its current position until a significant change in light distribution is detected. This condition is reflected on the LCD display with a message such as “Panel Aligned” or “WaitingforSun.”
Throughout its operation, the system ensures energy efficiency by minimizing unnecessary movements and power consumption. The use of passive components like LDRsandthelow-powernatureoftheArduinocontribute to its overall efficiency. Moreover, the modular design of thesystemsupportseasycalibrationandfutureupgrades.
This methodology provides a robust and intelligent solution for maximizing solar energy harvesting with minimalhumanintervention.Itishighlyadaptableforuse in small-scale solar applications such as educational models, residential rooftops, agricultural setups, and offgridsolarinstallations.Futureversionsofthissystemmay include IoT-based remote monitoring, cloud data logging, predictive tracking using sunrise and sunset algorithms, and integration with weather sensors for more intelligent decision-making.

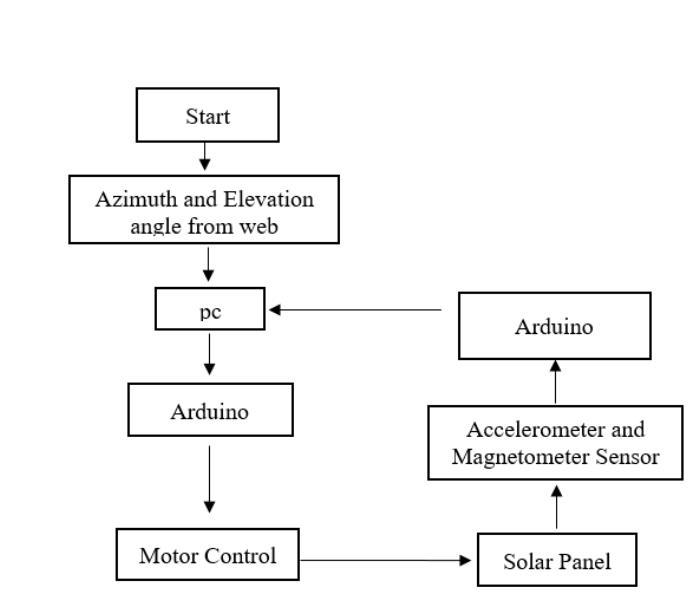

Fig.2. FlowchartoftheProposedSystem
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056
Volume: 12 Issue: 04 | Apr 2025 www.irjet.net p-ISSN: 2395-0072
5. RESULT
The Solar Tracker System using Arduino successfully demonstrated enhanced solar panel efficiency through automated sun tracking. By employing two LDR (Light Dependent Resistor) sensors and two servo motors controlled by an Arduino Uno, the system accurately tracked the sun’s position throughout the day. The sensors compared light intensity on both sides of the panel and adjusted the panel’s angle accordingly to maximize sunlight exposure. This dynamic alignment allowed the solar panel to capture more solar energy comparedtoafixedpanelsetup.
Experimentalresultsindicatedanoticeableimprovement inenergyoutput.Onaverage,thesolartrackerproduced 25–35% more power than a stationary panel under the same conditions. The system was also responsive to changes in light intensity, adjusting the panel position within seconds of detecting a shift. The use of Arduino made the system cost-effective and easy to program, making it suitable for academic and low-budget renewableenergyprojects.
Overall, the solar tracker proved to be an efficient, lowcost solution to optimize solar power generation. It demonstratesthefeasibilityofusingsimpleelectronicsto improve renewable energy systems and supports the integration of smart automation in sustainable technologydevelopment.
6. Conclusion
The Solar Tracker System using Arduino presents a practical and efficient approach to optimizing solar energy collection by maintaining the panel’s alignment with the sun throughout the day. By integrating core components such as the Arduino Uno microcontroller, LDR sensors, servo motors, and an optional environmental monitoring module, the system enhances energy efficiency, improves performance, and extends the usability of solar panels in dynamic environmental conditions.
This system addresses key limitations of fixed solar installations, such as inconsistent energy output due to the sun’s changing position. With its real-time light intensity detection and automatic orientation adjustments, the tracker ensures that the panel receives maximum sunlight exposure at all times. The implementation of servo-controlled dual-axis tracking significantly boosts energy yield, especially in applications where maximizing power generation is critical.
Compact, cost-effective, and modular in design, this project can be seamlessly integrated into various solar setups ranging from educational prototypes and
residential rooftops to rural electrification projects and smart agricultural systems. The use of open-source hardware and widely available components makes it accessible for hobbyists, students, and innovators aiming topromotesustainableenergypractices.
Looking toward the future, the system offers immense potential for enhancements such as IoT-based remote monitoring, machine learning algorithms for predictive tracking, integration with weather APIs, solar energy storage management, and mobile application interfaces. These upgrades would further advance its intelligence, responsiveness,and adaptabilityforsmartgrid andsmart homeintegration.
In conclusion, the Arduino-based solar tracker showcases howembeddedsystemsandautomationcanrevolutionize renewable energy utilization. Its scalability, real-time adaptability,andlow-powerdesignexemplifyasignificant step forward in harnessing solar energy more effectively, aligning with global efforts toward clean, green, and intelligentenergysolutions.
References:
1. G. Arulmurugan and P. Prakasam, “Automatic Solar TrackerUsingArduinoMicrocontroller,”International Conference on Circuits, Power and Computing Technologies (ICCPCT), IEEE, 2013. (https://ieeexplore.ieee.org/document/6528941)
2. V.BhuvaneswariandR.Manikandan,“Developmentof Dual Axis Solar Tracker Using Arduino,” International Journal of Engineering Research & Technology (IJERT), Vol. 3, Issue 10, 2014. (https://www.irjet.org/development-of-dual-axissolar-tracker-using-arduino)
3. A. B. Karki and A. B. Tamang, “Solar Tracking System Using LDR Sensor,” Proceedings of the 7th International Conference on Power and Energy Systems (ICPES), IEEE, 2017. (https://ieeexplore.ieee.org/document/8281132)
4. M. A. Hannan, M. S. Jidin, and A. Mohamed, “Smart Control Strategy for Solar Tracking System Based on Arduino,” Proceedings of the International Conference on Smart Grid and Clean Energy Technologies (ICSGCE), IEEE, 2016. (https://ieeexplore.ieee.org/document/7811312))
