OPER ATOR’S MA NUAL
TD5010
TD5020
TD5030
TD5040
TD5050 Tractors
TD5010
TD5020
TD5030
TD5040
TD5050 Tractors OPERATOR’S MANUAL
1st
Electro-magnetic Interference (EMC)
This tractor complies with the European Regulations on electro-magnetic emissions. However, interference may arise as a result of add-on equipment which may not necessarily meet the required standards. As such interference can result in serious malfunction of the unit and/or create unsafe situations, you must observe the following:
• Ensure that each piece of non-New Holland equipment fitted to the tractor bears the CE mark.
• The maximum power of emission equipment (radio, telephones, etc.) must not exceed the limits imposed by the national authorities of the country where you use the tractor
• The electro-magnetic field generated by the add-on system should not exceed 24 V/m at any time and at any location in the proximity of electronic components.
Failure to comply with these rules will render the New Holland warranty null and void.
On page III is provided copy of the “EC“ Declaration of Conformity (EC Declaration of Conformity acc to 2006/42/EC).
The EC Declaration of Conformity is the manufacturer’s declaration about equipment compliance to relevant EU provisions.
Please keep the original document in a safe place. Local authorities may require you to show this document in order to assure compliance of your equipment.
Translation of this declaration in your own country language is provided on the original document
For your better and easier understanding of the document you will find original text reproduced hereafter together with some notes
Clause of EN
2006/42/EC
Annex II
1.A.1
1.A.2

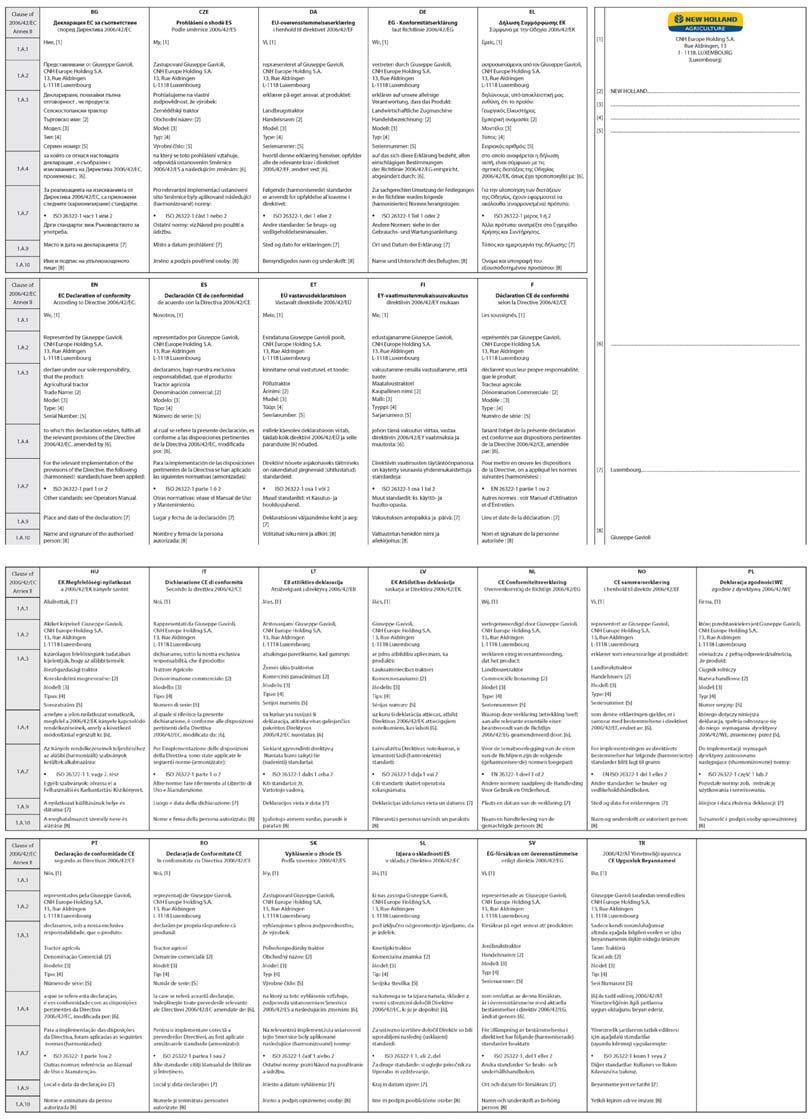

EC Declaration of Conformity According to Directives 2006/42/EC
We, [1]
Represented by Giuseppe Gavioli, CNH Europe Holding S.A. 13, Rue Aldringen L–1118 Luxembourg
1.A.3 declare under our sole responsibility, that the product:
Agricultural tractor Trade Name: [2]
Model: [3]
Type: [4]
Serial Number: [5]
1.A.4
1.A.7
1.A.9
1.A.10
to which this declaration relates, fulfills all the relevant provisions of Directives 2006/42/EC amended by: [6]
For the relevant implementation of the provisions of the Directives, the following (harmonised) standards have been applied:
• ISO 26322–1 part 1 or 2
• Other standards: see Operator’s Manual
Place and date of the declaration: [7]
Name and signature of the authorised person: [8]
HEALTH AND SAFETY RELATED STANDARDS APPLIED TO YOUR TRACTOR
• FOPS level on your tractor cab is certified according to OECD Code 10
• HVAC (Heating, Ventilation Air Conditioning ) CAB is certified Category 1 according to EN 15695–1
• HV (Heating, ventilation) cab is certified Category 1 according to EN 15695–1
• NOISE EMISSION LEVELS are rated according to 77/311/EEC.
• VIBRATION LEVELS are rated according to 78/764/EEC.
• ROPS PROTECTION is certified according to EN 15694.
NOTE: See safety section 1 in this Manual for further explanation and details on above mentioned standards and specific terminology.
ABBREVIATIONS
or STRESS (FORCE PER AREA)
VOLUME PER TIME (includes DISCHARGE and FLOW RATE)
SOUND
SECTION 1
INTRODUCTION AND SAFETY MEASURES
TO THE OWNER
GENERAL
This Manual has been prepared to assist you in the correct procedure for running–in, driving and operating and for the maintenance of your new tractor. Read this Manual carefully. Your tractor is intended for use in normal and customary agricultural applications.
If at any time you require advice concerning your tractor, do not hesitate to contact your New Holland dealer. He has factory trained personnel, genuine manufacturers’ parts and the necessary equipment to carry out all your service requirements.
Your tractor has been designed and built to give maximum performance, economy and ease of operation under a wide variety of operating conditions. Prior to delivery, the tractor was carefully inspected, both at the factory and by your dealer to ensure that it reaches you in optimum condition. To maintain this condition and ensure trouble–free operation, it is important that the routine services, as specified in Section 4 of this Manual, are carried out at the recommended intervals.
CLEANING THE TRACTOR
Your tractor is a state-of-the-art machine with user friendly controls. This should be borne in mind when cleaning the tractor, particularly if using a high pressure washer. Even though every precaution has been taken to safeguard electrical components and connections, the pressure generated by some of these machines is such that complete protection against water ingress cannot be guaranteed.
When using a high pressure washer, do not stand too close to the tractor and avoid directing the jet at electronic components, electrical connections, breathers, seals, filler caps, etc. Never direct a cold water jet at a hot engine or exhaust.
SAFETY
Pages 1–7 to 1–14 inclusive list the precautions to be observed to ensure your safety and the safety of others. Read the safety precautions and follow the advice offered before operating the tractor.
FIRST 50 HOUR SERVICE
In Section 9, at the back of this Manual, you will find the 50–hour service reports.
After you have operated the tractor for 50 hours, take your tractor, together with this Manual, to your dealer. He will then perform the factory recommended 50–hour service and complete the service report sheets (pages 9–1 and 9–3). The first sheet (page 9–1) is the dealer’s copy and should be removed by the dealer after the service has been carried out. The second sheet (page 9–3) is your copy of the service performed. Ensure that you and the dealer sign both copies.
SERVICE PARTS
It should be pointed out that genuine parts have been examined and approved by the Company. The installation and/or use of ‘non-genuine’ products could have negative effects upon the design characteristics of your tractor and thereby affect it’s safety. The Company is not liable for any damage caused by the use of ‘non–genuine’ parts and accessories. Only genuine replacement parts should be used. The use of non-genuine parts may invalidate legal approvals associated with this product.
It is prohibited to carry out any modifications to the tractor unless specifically authorised, in writing, by the After Sales Service department of the Company.
WARRANTY
Your tractor is warranted according to legal rights in your country and the contractual agreement with the selling dealer. No warranty shall, however, apply if the tractor has not been used, adjusted and maintained according to the instructions given in the Operator’s Manual.
SECTION 1 –
ABOUT THIS MANUAL
This Manual gives information for use of this tractor, as intended and under the conditions foreseen by the manufacturer during normal operation and routine service and maintenance.
• Normal operation means the use of the tractor for the purpose intended by the manufacturer by an operator familiar with the tractor and the mounted or towed equipment and complying with the information for operation and safe practices, as specified by the manufacturer in this Manual and by the signs on the tractor and the equipment.
• Normal operation includes the preparation and storage of the tractor, swinging components into work position and vice versa, adding or removing ballast and picking up and setting off attachments.
• Normal operation includes the adjustment and setting of the tractor and equipment, for the specific condition of the field and/or the crop
• Routine service and maintenance means activities that must be done daily by an operator familiar with the tractor characteristics and complying with the information for routine service and safe practices, as specified by the manufacturer in this Manual and by signs on the tractor, in order to maintain its proper function. Routine service includes activities such as fueling, cleaning, washing, topping up fluid levels, greasing, replacing of consumable articles such as lamp bulbs
• This Manual is not giving all the information related to periodical service, converting and repairs to be carried out by professional service personnel. For some of the latter activities, there may be a need for appropriate facilities, technical skills and tools which are not supplied with the tractor, please refer to your dealer or authorised workshop
• Periodical service means activities that must be done at defined intervals by trained personnel familiar with the tractor characteristics and which are complying with the information for periodical service and safe practices, as partly specified by the manufacturer in this Manual and in other Company literature, in order to maintain the expected life time of the tractor
• Converting means activities that must be done by professional service personnel familiar with the tractor characteristics and complying with the information for converting, as partly specified by the manufacturer in this Manual, in assembly instructions or in other Company literature, in order to fit the tractor to a specific configuration
• Repair means activities that must be done by professional service personnel only familiar with the tractor characteristics and complying with the information for repair, as specified by the manufacturer in the dealer’s workshop Manual, in order to restore the proper function of the tractor after a failure or degradation of performance
TRACTOR IDENTIFICATION PLATES
Serial numbers identify the tractor and its main components. The identification data must be supplied by the dealer for requests for spare parts or service operations. Identification data is of fundamental importance in the event of theft of the tractor. The location of the various identification data is shown below.
Product Identification Number Plate
Frame identification data plate.
Tractor frame number identification data plate (stamped on the axle support )
SECTION 1 – INTRODUCTION AND SAFETY MEASURES
Product Identification Number Plate
The Product Identification Number plate provides important information on tractor and towed equipment weight combinations. This plate can be found on the right––hand side of the cab exterior trim panel, below the rear window.
The figures shown are the maximum permissible vehicle and towing weights and should not be exceeded, to do so may affect the safe operation of the tractor. See Drawbars and Towing Attachments in Section 7.
Product Identification Number Plate (inside the cab).
Cab identification data plate.
SECTION 1 –
Engine identification data plate (stamped on engine body).
Tractor frame number
identification data plate (stamped on the axle support)
ECOLOGY AND THE ENVIRONMENT
Soil, air and water are vital factors of agriculture and life in general. Where legislation does not yet rule the treatment of some of the substances which are required by advanced technology, common sense should govern the use and disposal of products of a chemical and petrochemical nature.
The following are recommendations which may be of assistance:
• Become acquainted with and ensure that you understand the relative legislation applicable to your country.
• Ask your suppliers of lubricants, oils, fuels, anti–freeze, detergents, etc. for information on the effects of these products on humans and the environment and for instructions concerning their use, storage and disposal. In many cases, local agricultural consultants will be able to provide assistance.
HELPFUL HINTS
1.Avoid filling tanks using unsuitable containers or inappropriate pressurised fuel delivery systems which may cause considerable spillage.
2.In general, avoid skin contact with all fuels, oils, acids, solvents, etc. Most of them contain substances which can be harmful to your health.
3.Modern oils contain additives. Do not burn contaminated fuels and/or waste oils in ordinary heating systems.
4.Avoid spillage when transferring used engine cooling liquids, engine and transmission lubricants, hydraulic oils, brake fluids, etc. Never mix used brake oil with fuel oil, or fuel oil with lubricants. Store safely until suitable disposal can be arranged according to national legislation or local regulations.
5.Modern anti––freeze liquids and solutions, e.g. anti–freeze and other additives,must be replaced every two years. They must not be left to be absorbed into the ground, but must be collected and disposed of in a suitable manner.
6.Do not open the air-conditioning system yourself. It contains gases which should not be released into the atmosphere. Your dealer or air conditioning specialist has a special extractor for this purpose and will have to recharge the system anyway.
7.Repair any leaks or defects in the engine cooling or hydraulic system immediately.
8.Do not increase the pressure in a pressurised circuit as this may lead to the components exploding.
9.Protect hoses during welding as penetrating weld splatter may burn a hole or weaken them, causing the loss of oils, coolant, etc.
10.Do not adjust the setting of the fuel delivery system as this will alter the emission of exhaust fumes.
NOTE: The engines installed on the tractors comply with anti–pollution legislation.
SAFETY MESSAGES USED IN THIS MANUAL
This warning symbol points out important messages concerning your safety.
Read the following safety regulations carefully and follow the recommendations in order to avoid potential hazards and safeguard your health and safety.
In this manual the symbol is accompanied by the following keywords:
DANGER
Indicates an immediate hazardous sitaution, that, if not avoided, will result in death or serious injury.
WARNING
Indicates a potential hazardous situation that, if not avoided, could result in serious injury.
CAUTION
Indicates a potentila hazardous situation that, if not avoided, may result in minor injury or mavhine damage.This can also be used to alert against unsafe practices.
Failure to observe the instructions preceded by the aforementioned key words may result in severe or fatal injury to the persons involved.
Furthermore, this manual also contains instructions preceded by the terms NOTE and IMPORTANT, with the following relevance in relation to machine protection:
IMPORTANT: This is used to higlight important information for machine usage or specific procedures to prevent minor machine damages.
NOTE: This is used to identify and present supplementariy informations.
IMPORTANT WARNINGS
The machine is designed and produced exclusively for agricultural use.
All other use will be considered to be contrary to the use specified by NEW HOLLAND, who cannot be held liable for damage to property or the machine, or for personal injuries which may result.
Persons who risk improper use will therefore assume the responsibility for any consequences arising from such use.
Compliance with the instructions for use, maintenance and repairs described in this manual, are the essential preconditions for the use specified by NEW HOLLAND.
The machine must only be used, serviced or repaired by personnel trained in the relevant working methods and safety regulations and who have been authorised to work on the machine.
The user must also observe the rules concerning general safety and accident prevention, including the Highway Code when driving on public highways.
Any arbitrary modifications made to this machine will release NEW HOLLAND from any liability resulting from damage or injury.
NEW HOLLAND and all its distribution organisations, inclusive of, but not restricted to, national, regional or local distributors, cannot be held liable for damage resulting from the malfunction of parts and/or components not approved by NEW HOLLAND.
Under no circumstances will a guarantee be issued for products made or sold by NEW HOLLAND that are damaged as a result of the malfunction of parts and/or components not approved by NEW HOLLAND.
Suggest:
If the above button click is invalid.
Please download this document first, and then click the above link to download the complete manual.
Thank you so much for reading
WORKING SAFELY
THE TRACTOR
1.Read this Manual carefully before starting, using, carrying out maintenance, refuelling or performing any other type of operation on the tractor. Lack of operating knowledge can lead to accidents.
2.The time spent reading this Manual will allow you to get to know your tractor, thereby saving time and effort. This will also help prevent accidents from taking place.
3.Only allow properly trained and qualified persons to operate the tractor.
4.Enter and leave the tractor using the steps and handles provided. Keep these fittings free ofmud and debris.
5.Read all the safety decals on the machine and follow the instructions thereon before starting, operating, refuelling or carrying out maintenance on the machine. Promptly replace any decals that are damaged, lost or illegible. Clean the decals if they are covered by mud or debris.
6.Remember that the tractor is exclusively designed for agricultural use. Any other use will require prior authorisation from NEW HOLLAND.
7.Never carry passengers, not even inside the cab, unless the machine is fitted with an approved extra seat. There is no safe place for extra passengers otherwise.
8.Before moving the tractor, always check that the area is free of persons or obstacles.
9.Keep children away from the tractor and farm machinery at all times.
10.Do not modify or alter or permit anyone else to modify or alter the tractor or any of its components or any tractor function without first consulting your dealer.
11.Before starting the engine, check that all covers and guards are correctly in position (roll bar, bonnet side panels, power take––off guard, front axle transmission shaft cover, etc.).
