FORM DEVELOPMENT

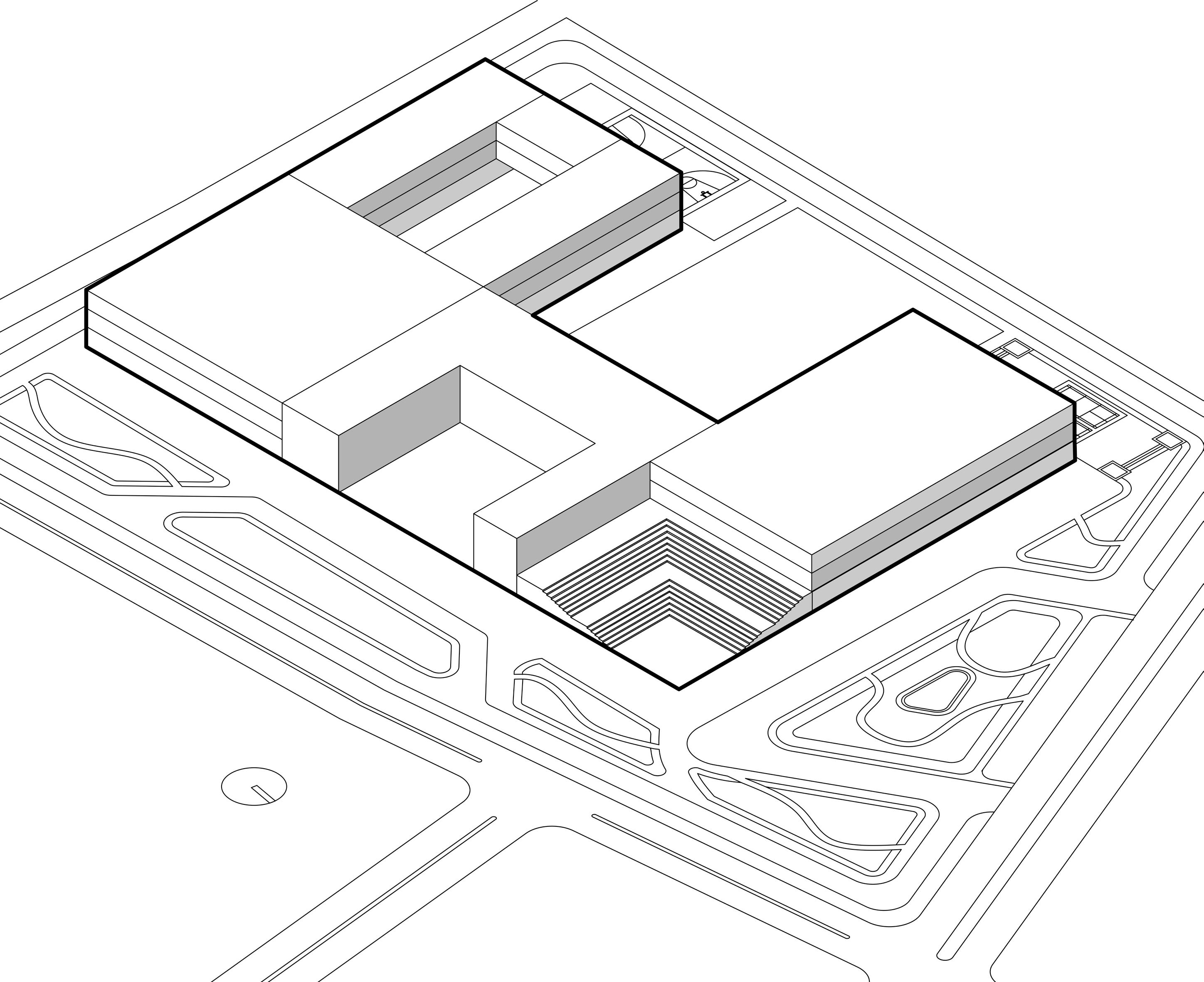

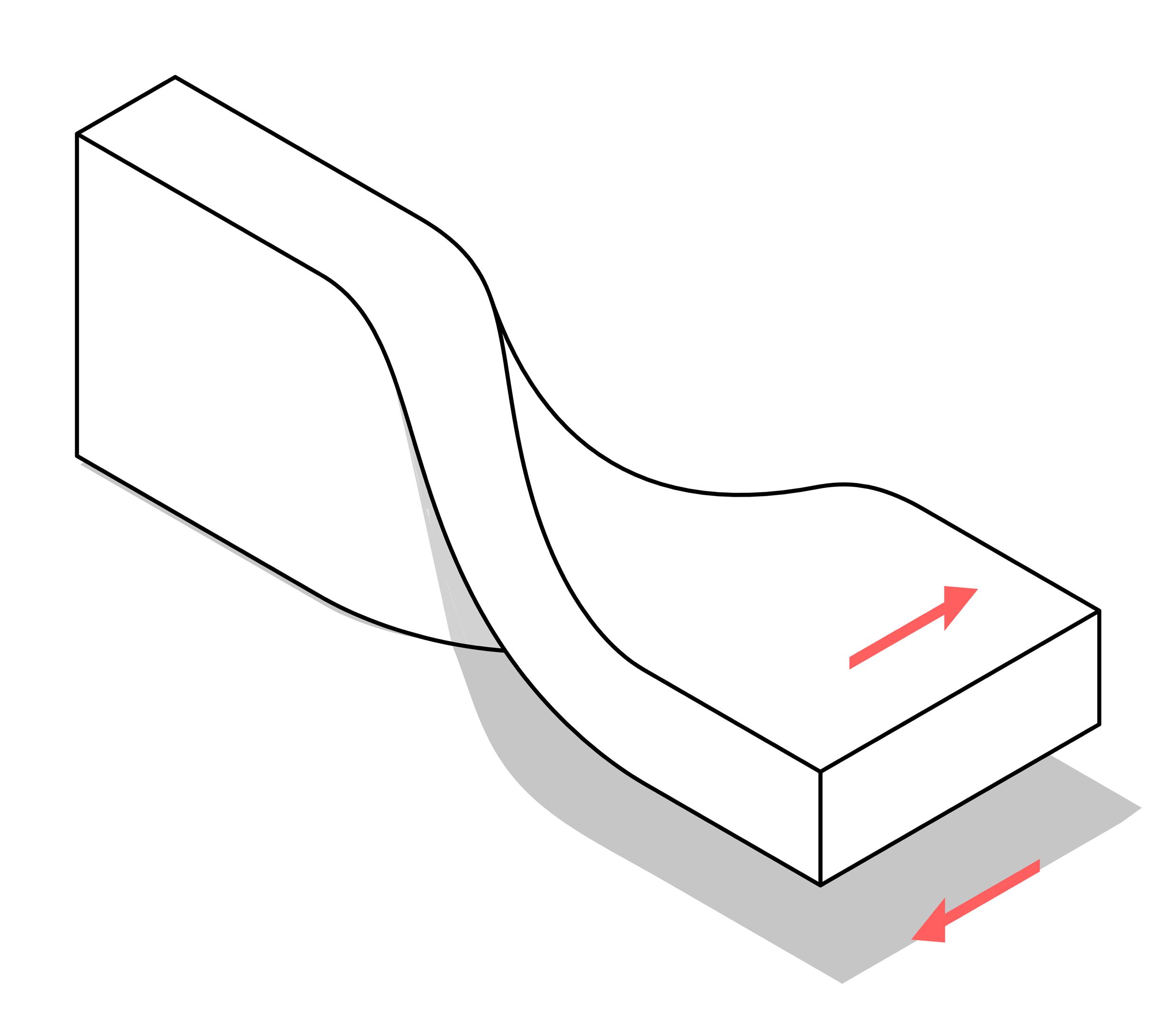

The main block is twisted to aproach a form according to which the further development progressed accordingly

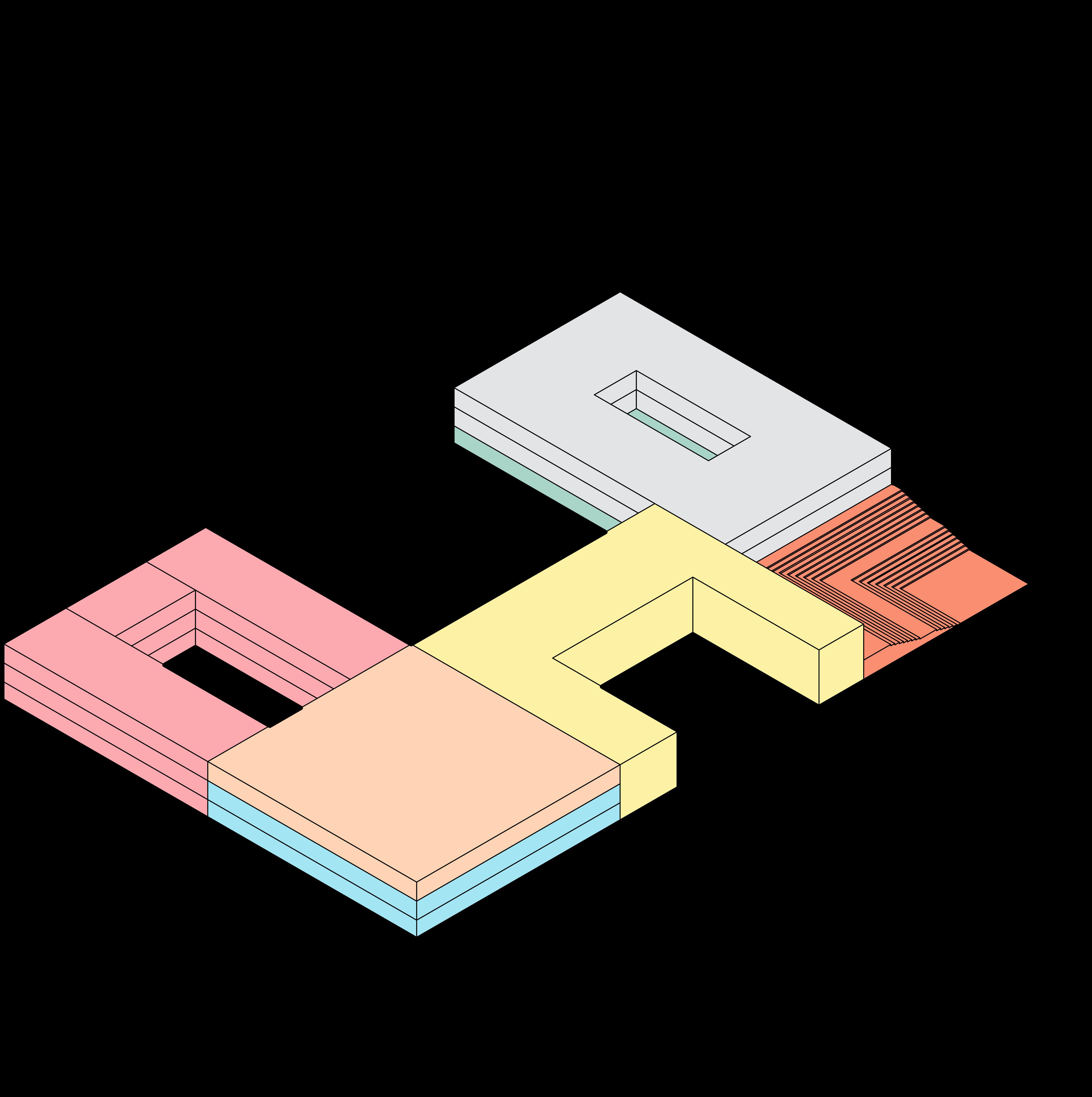

The segregration of spaces is done in such a manner that semi-public, public and exclusive areas are intermittent

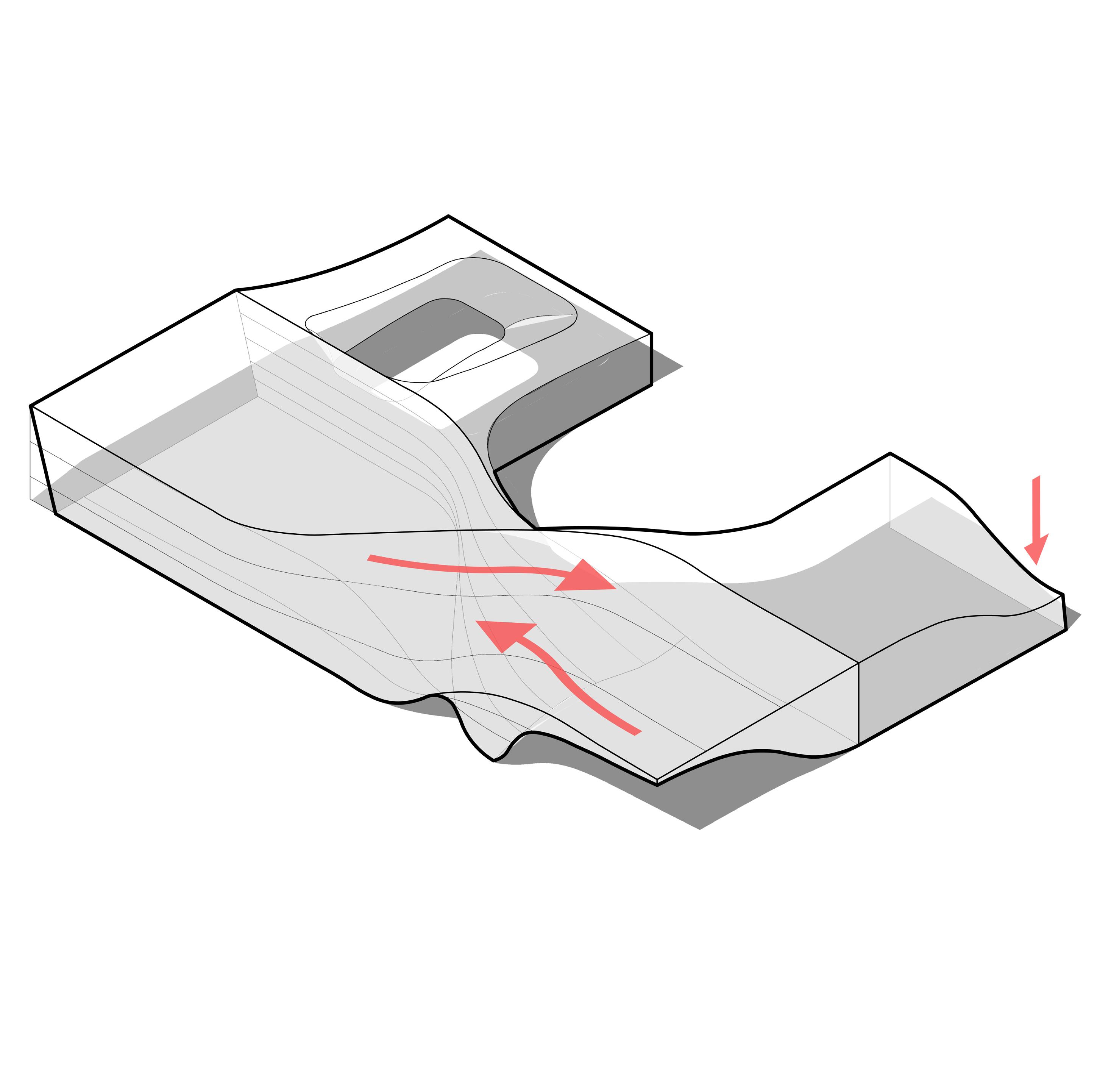

Concept of twisting was used for the facade. The walls and the roofs are integrated

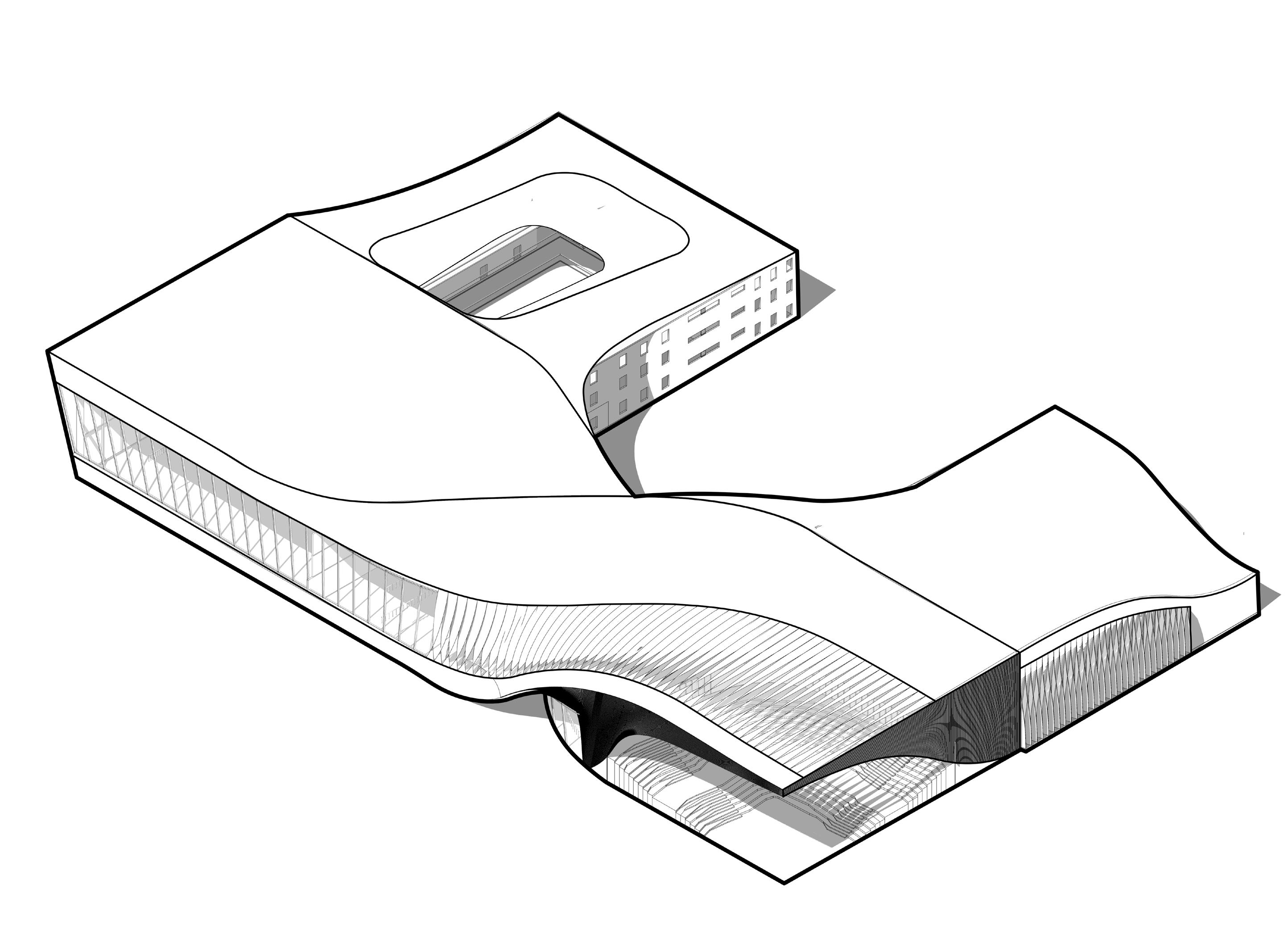

Facade details were added which include wooden fins over curtain walls and louvered detailing

COURTYARD ROOF FOR THE STUDIO WING CREATES THE BEST AMBIENCE

WOODEN PANEL WORK ON CURTAIN WALL MAKES THE FRONT FACADE

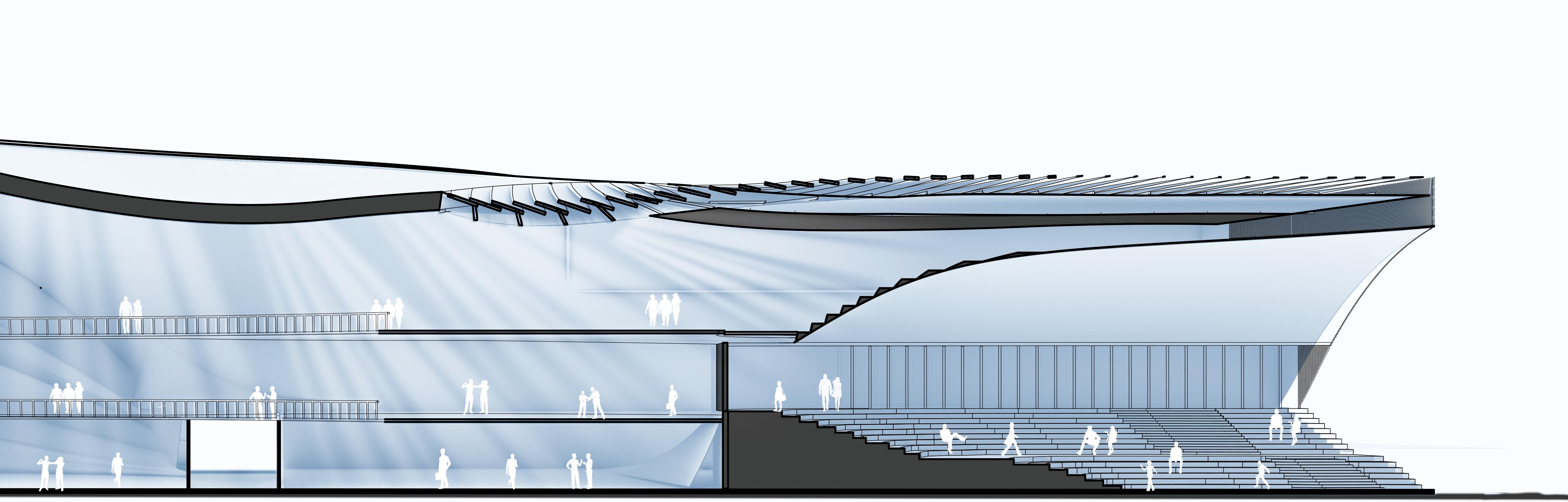

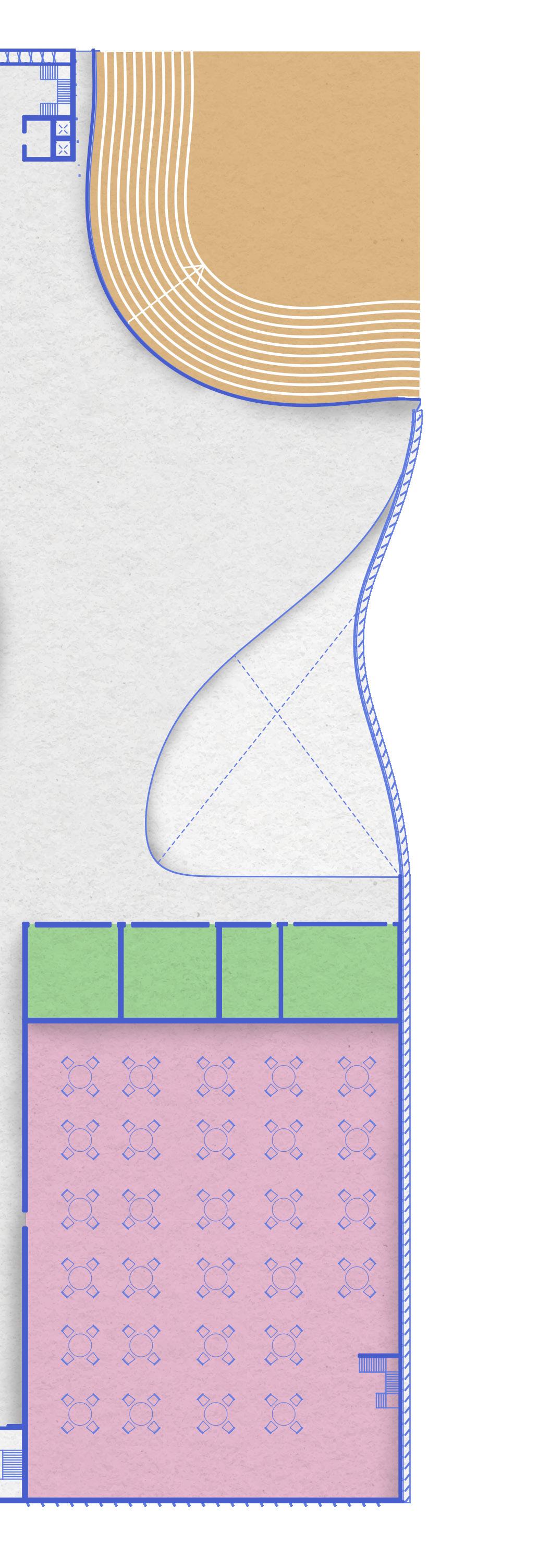

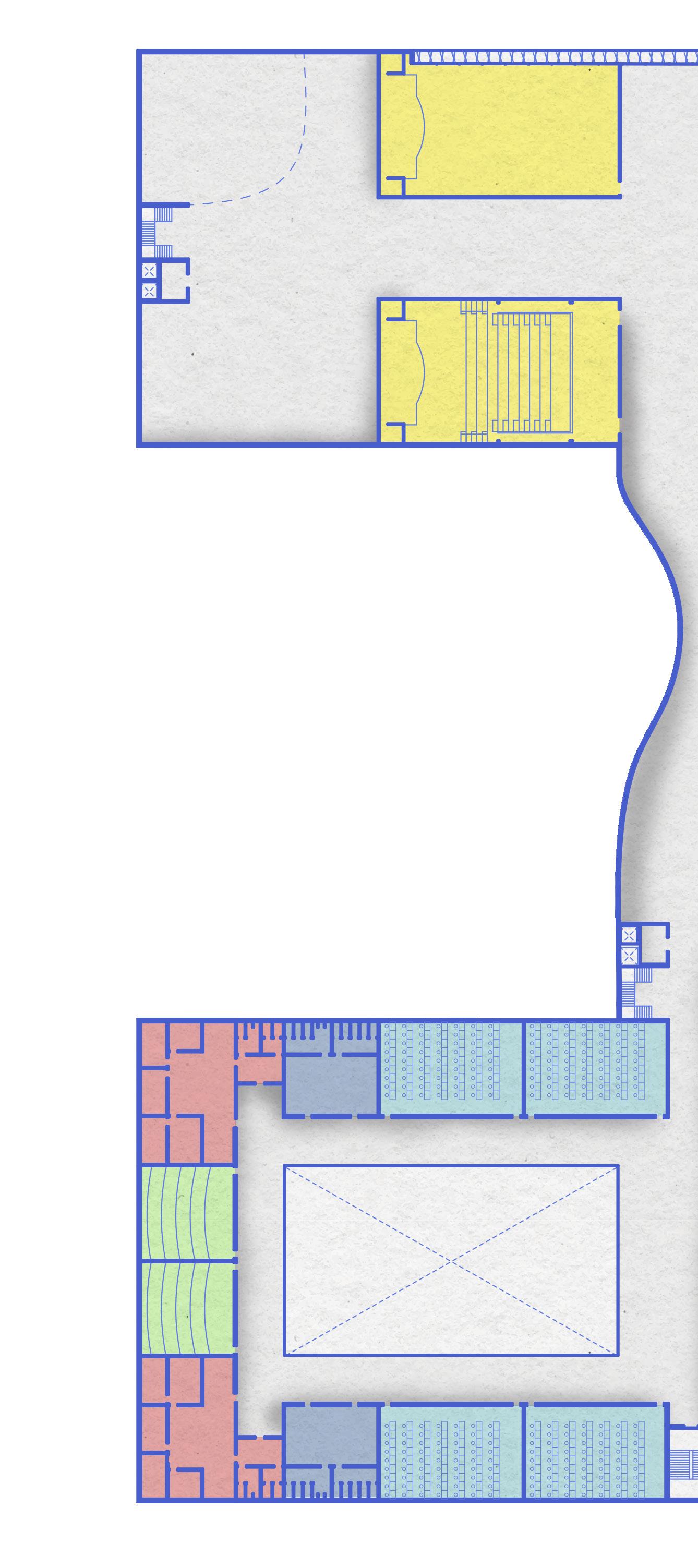

2ND FLOOR HAVING LIBRARY, AUDITORIUM, MULTIPURPOSE HALL

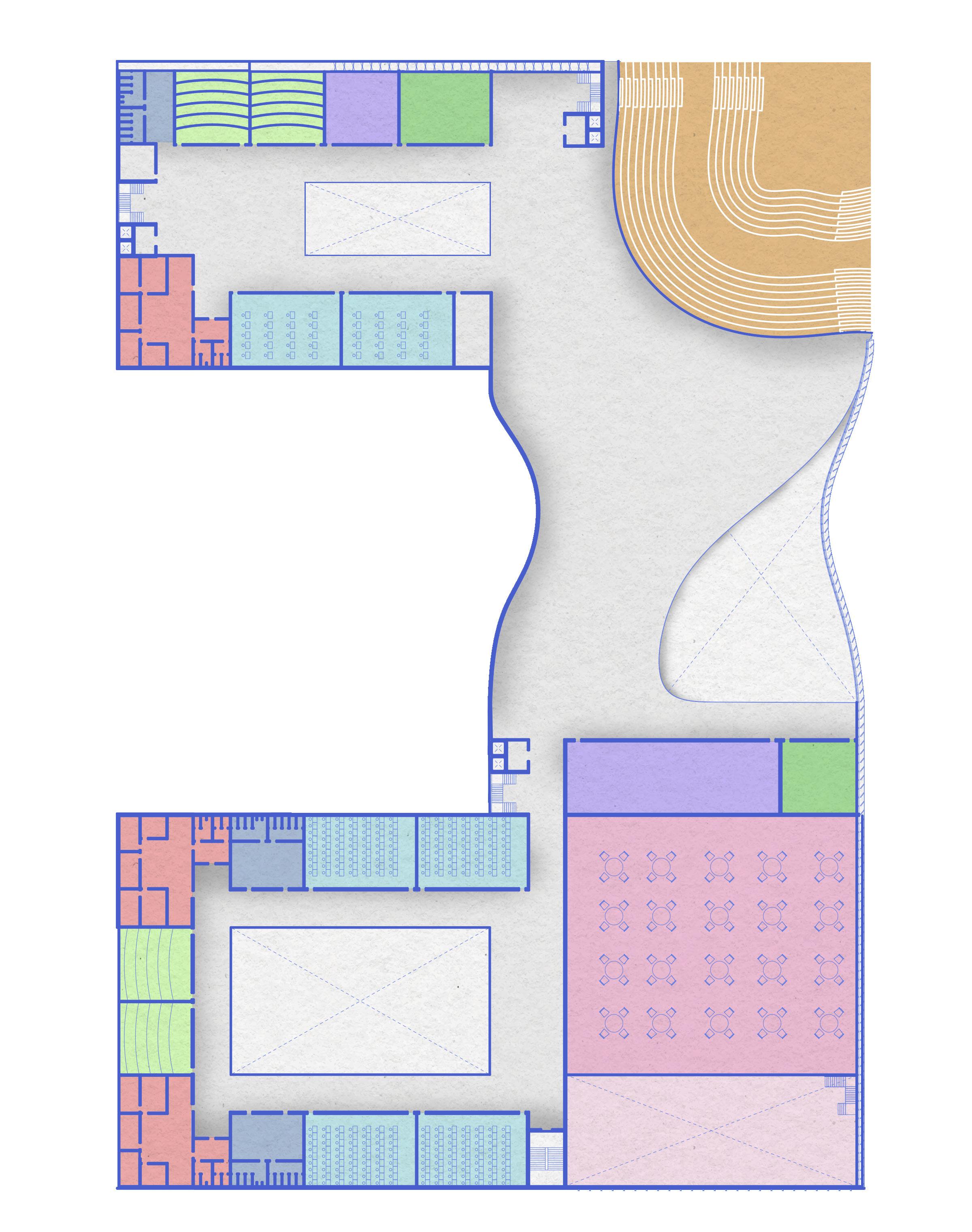

1ST FLOOR HAVING POST GRAD, UNDERGRAD STUDIOS AND CAFETERIA

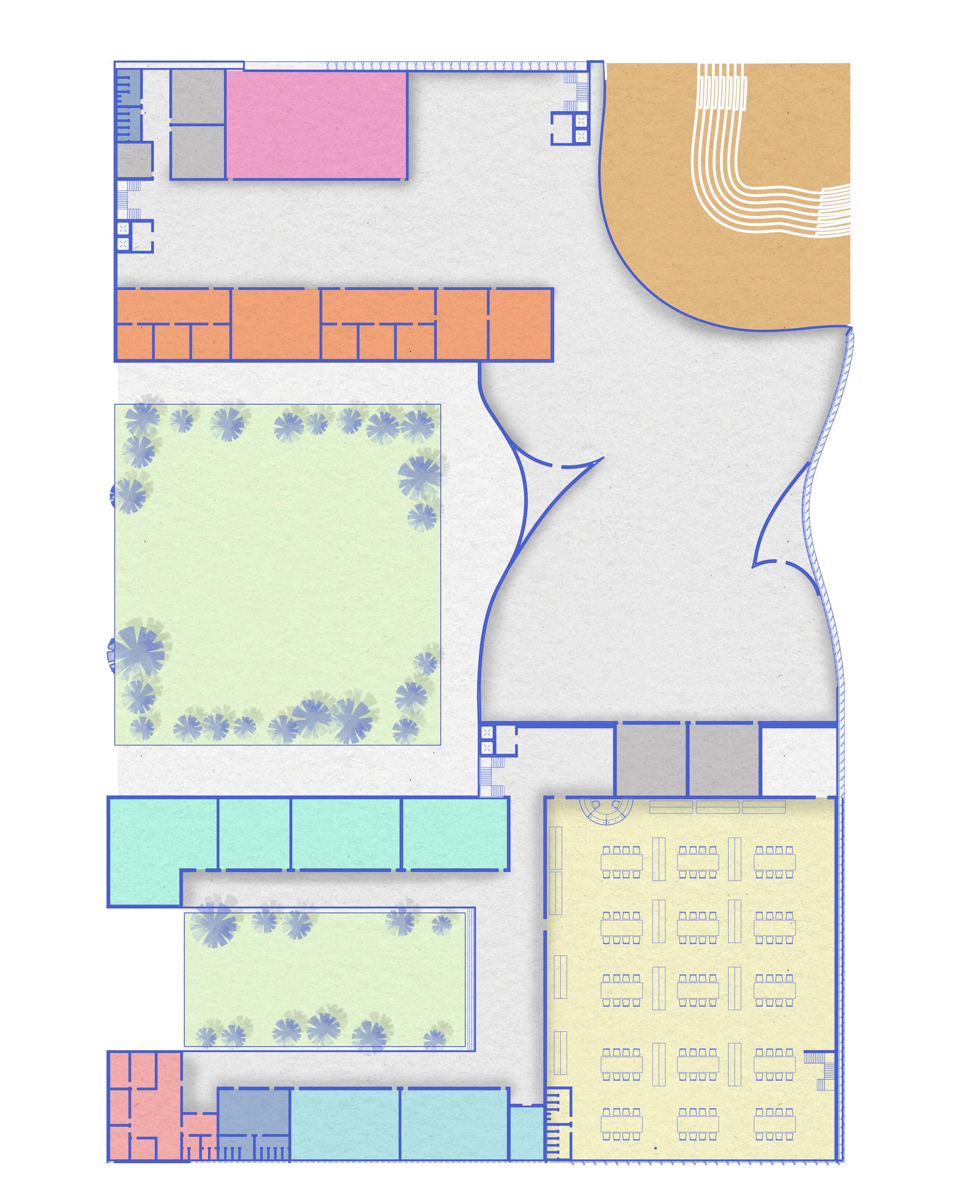

GROUND FLOOR HAS ALL THE WORKSHOP ROOMS, ADMINISTRATION

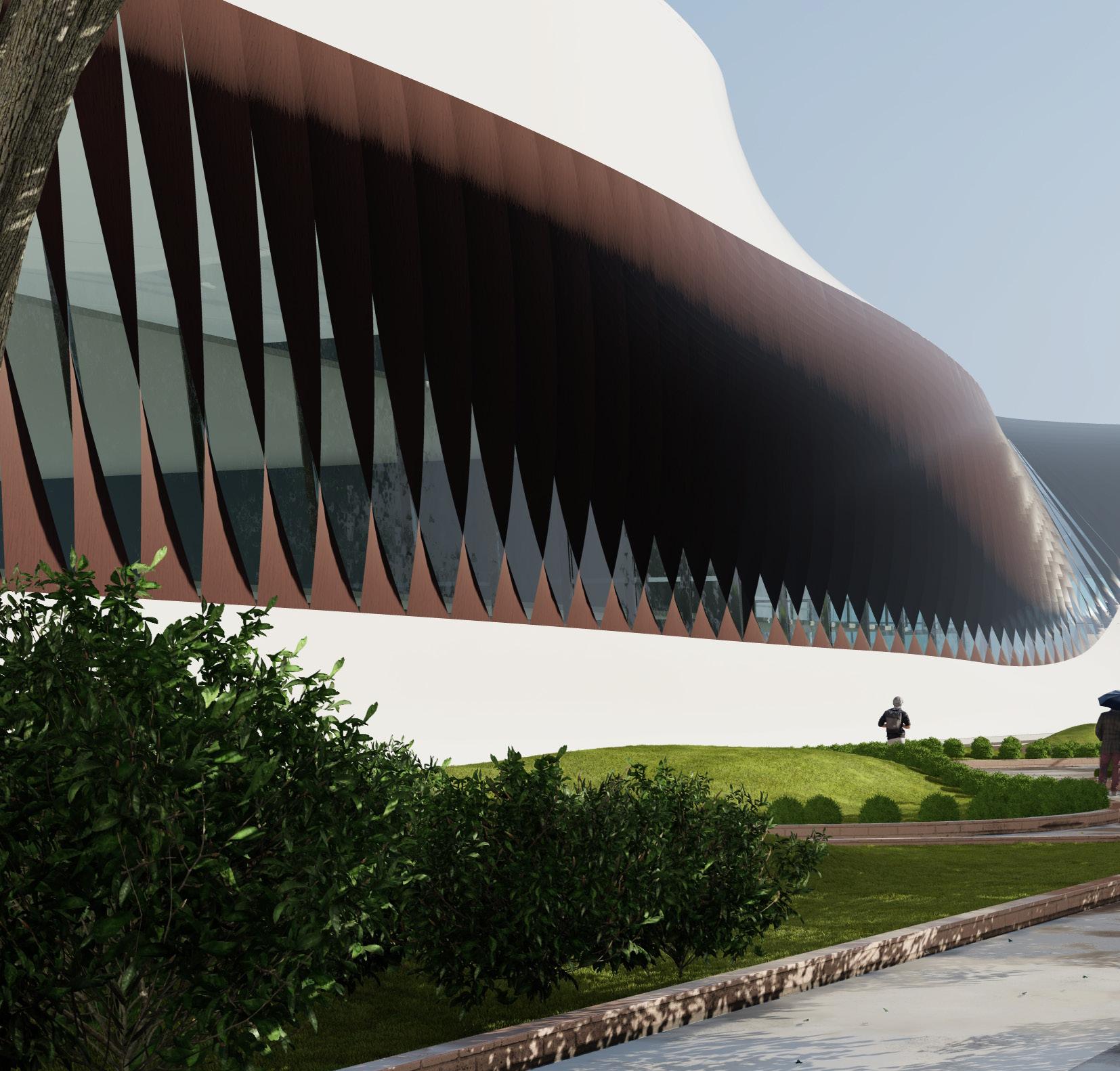

SIDE WALLS ALSO HAVE WOODEN FINS ON CURTAIN WALL

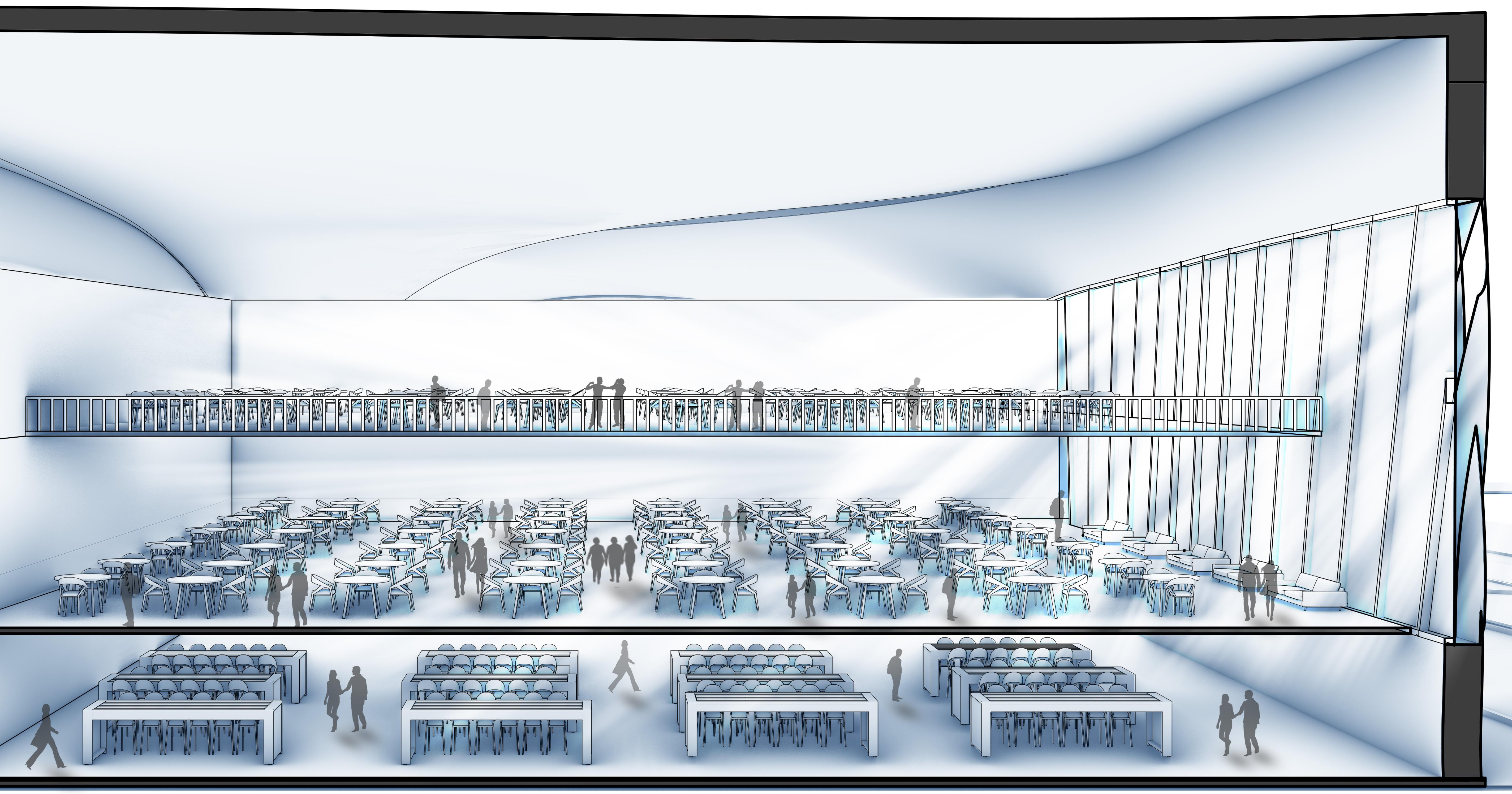

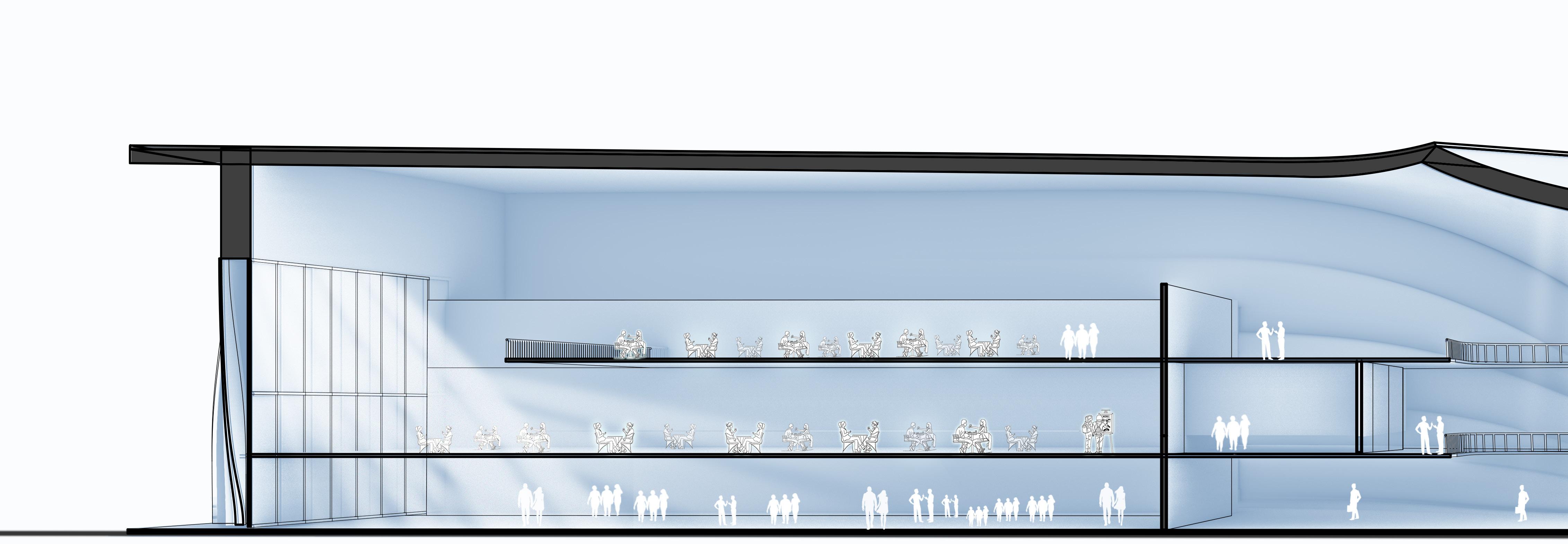

SECTION SHOWING CAFETERIA & LIBRARY

Norman Foster )

NO. 03
