Dometic products for business customers
KNOW MORE. SELL MORE.
Welcome to the Dometic dealer collection
Knowledge. Insights. Support. The Dometic B2B catalog is all of this and more. Designed to serve you as a handy sales tool and source of inspiration, it includes the best-selling Dometic products for recreational vehicles, passenger cars, trucks and vans. Well-proven classics and smart innovations – all designed to bring freedom and ease to everyone on the go. No matter if they are travelling for pleasure or for business.
Go on a journey of discovery, and find out what our new B2B collection holds in store for you and your customers!
Dometic Dealer Catalogue 2026
WHAT’S NEW THIS YEAR?
A new series of roof air conditioners – smarter, quieter, and more energy-efficient. Europe’s first and only absorption refrigerators with climate class T. A powerful lithium battery for reliable offgrid applications. An exclusive collection of top-hung and sliding windows – and an innovative coating to maintain their beauty for years and years to come …

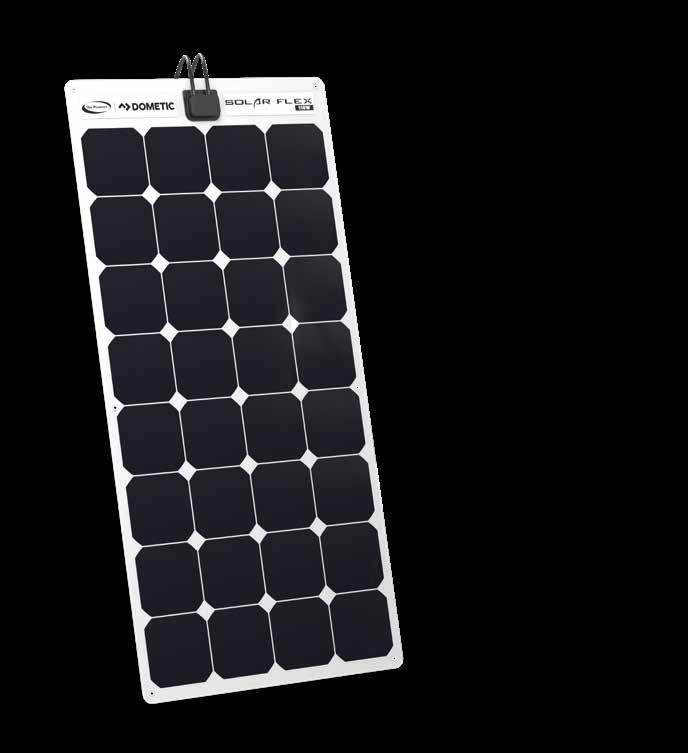

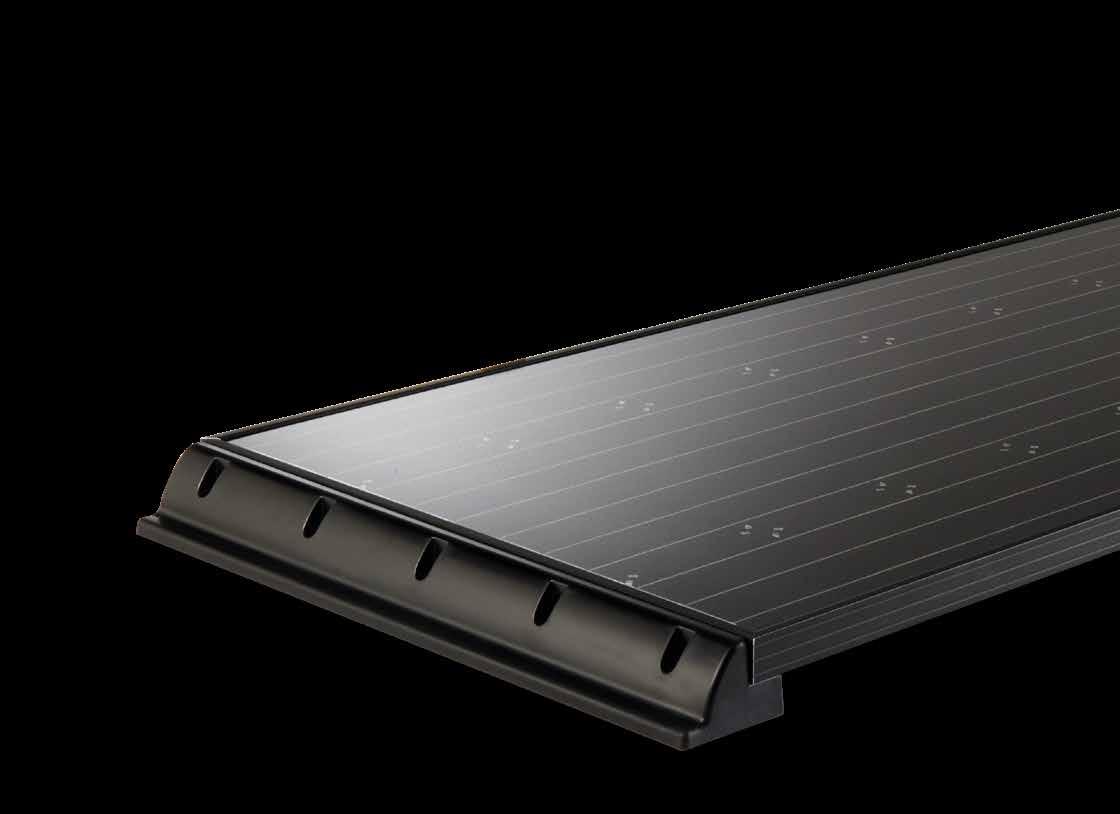

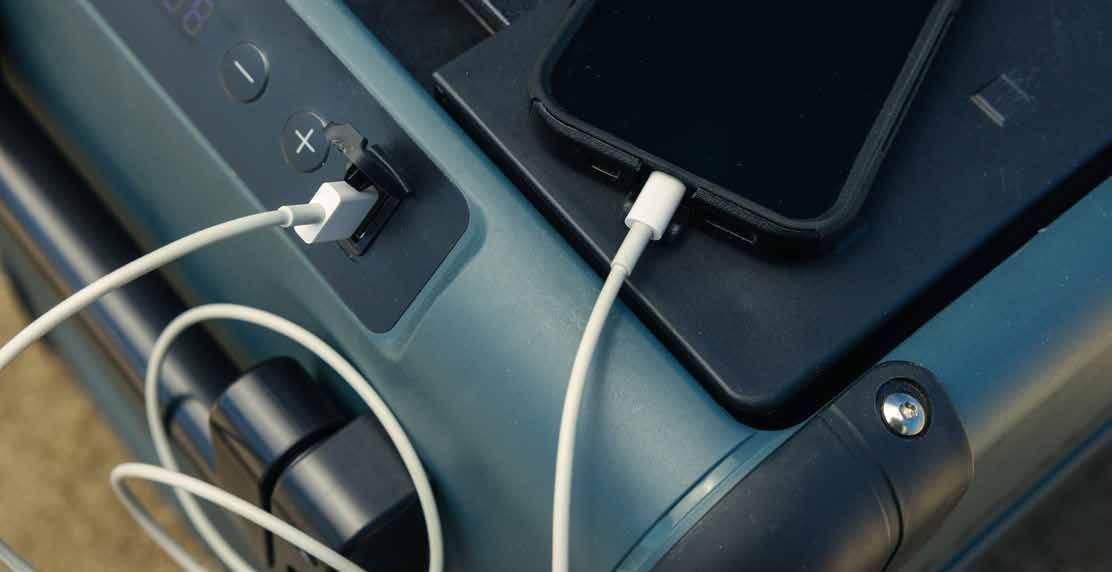

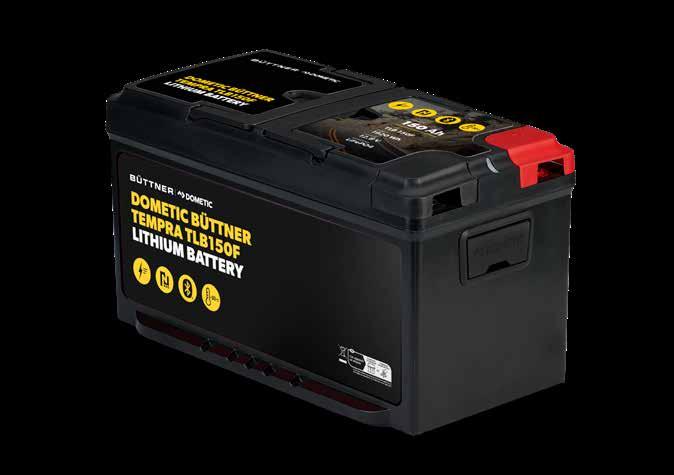

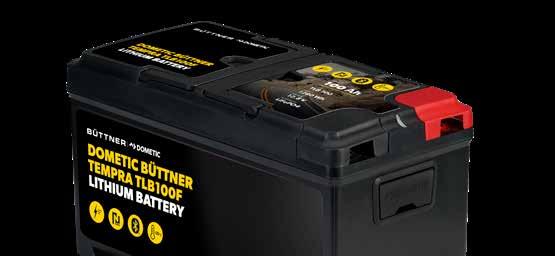

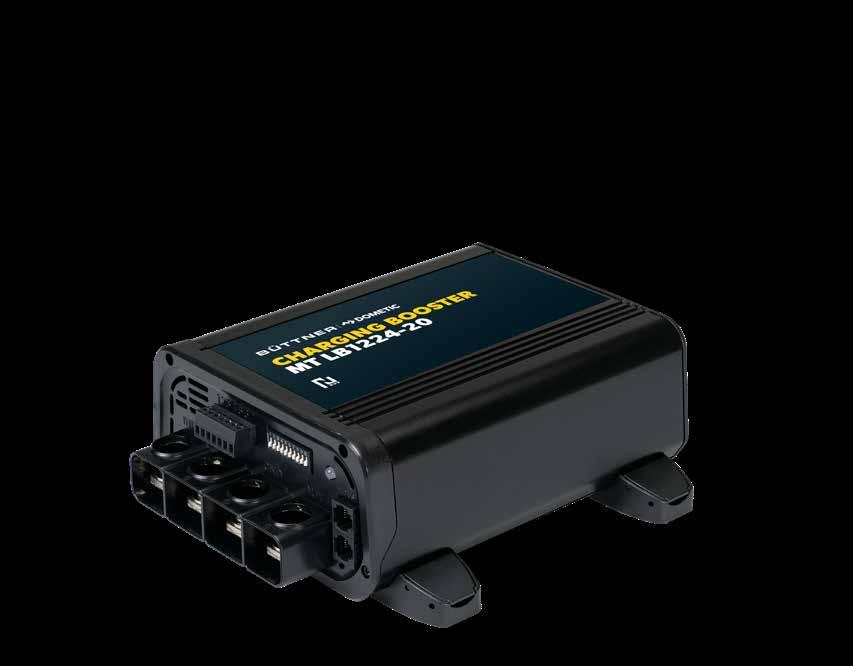

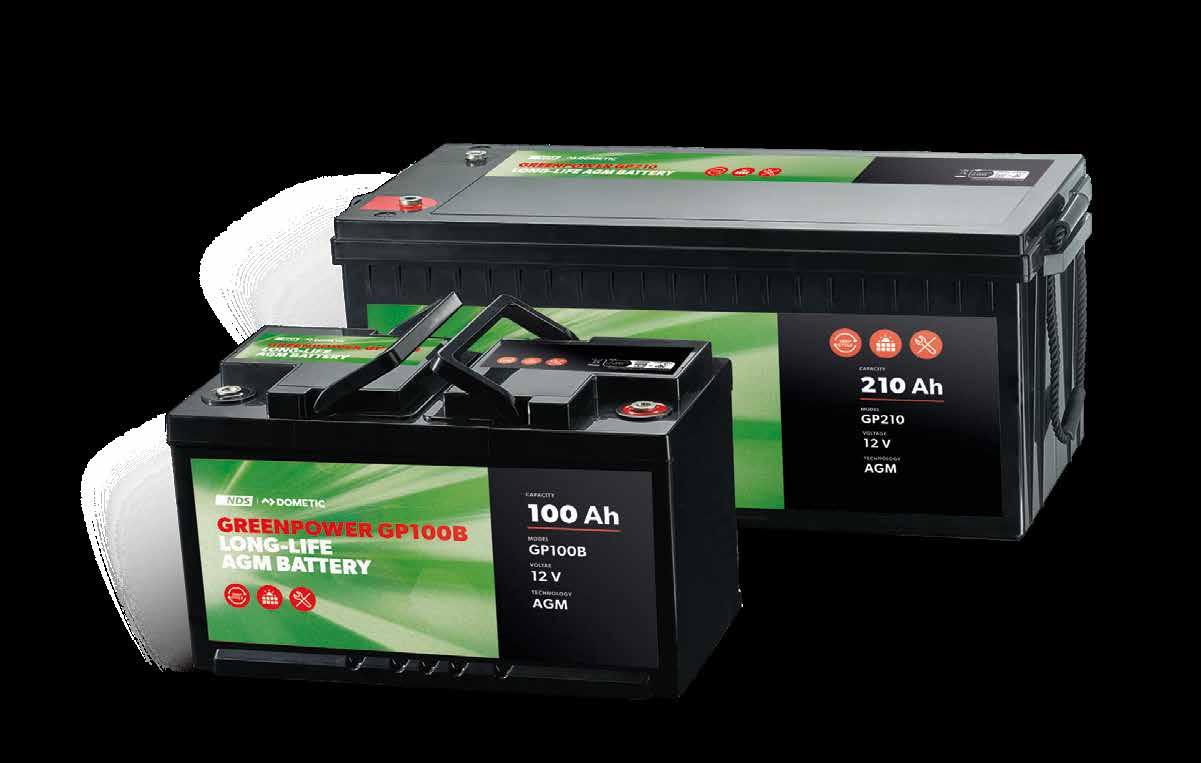

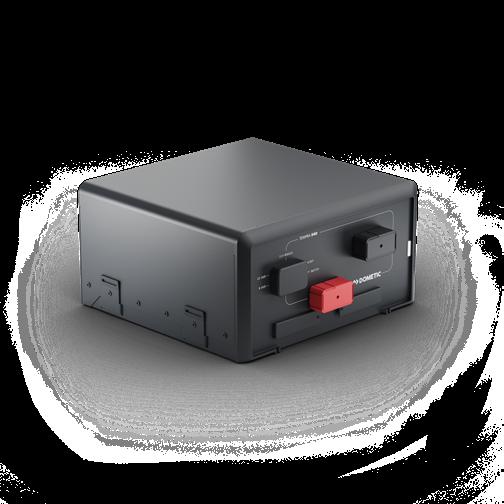

Also worth a closer look: our mobile power supply solutions, and the smart connectivity options they provide. Be among the first to know, and the first to sell. We are here to support your success.
CLIMATE CONTROL

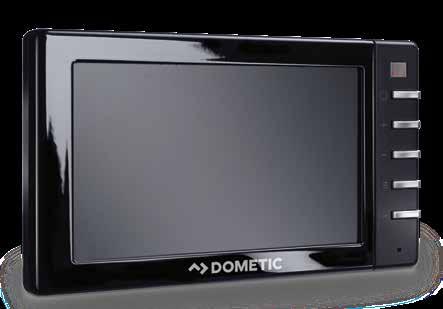

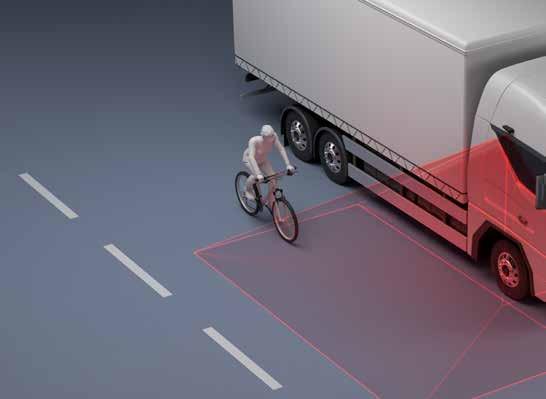

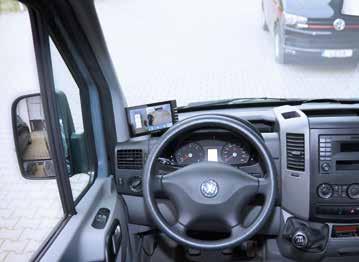

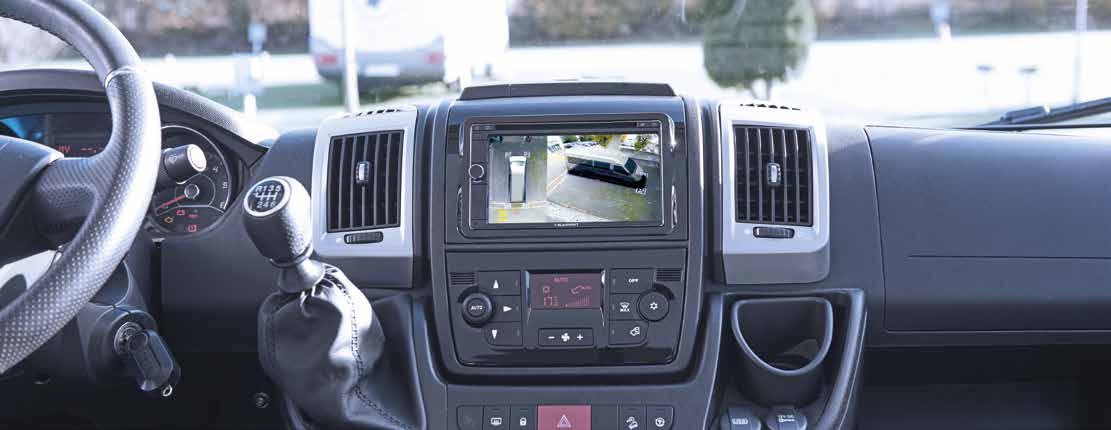

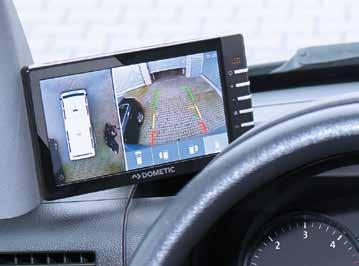

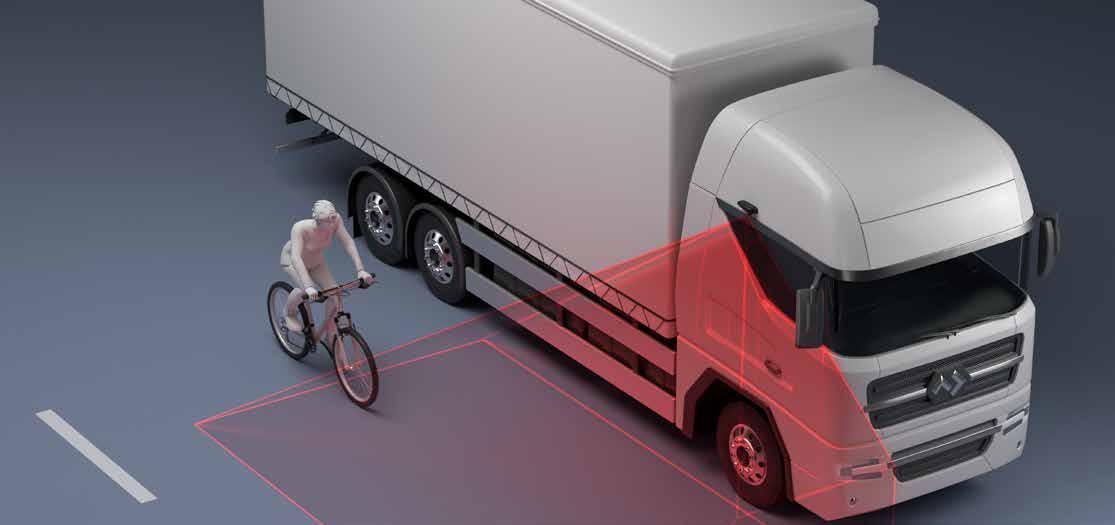

DRIVING SUPPORT

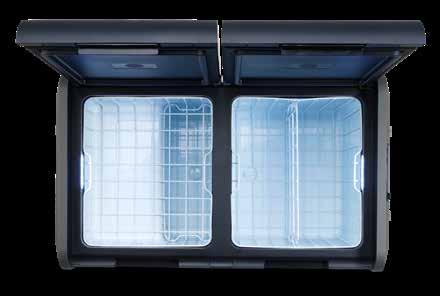

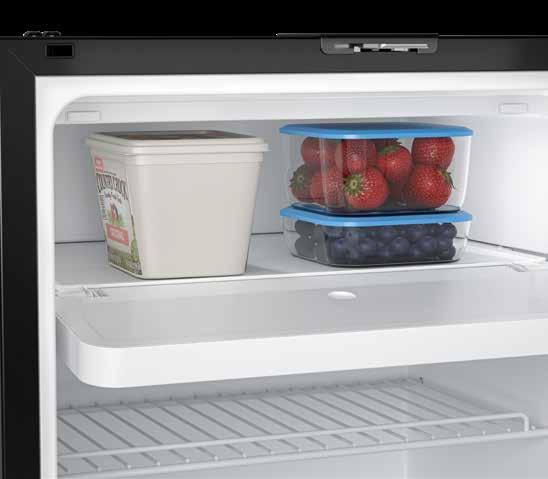

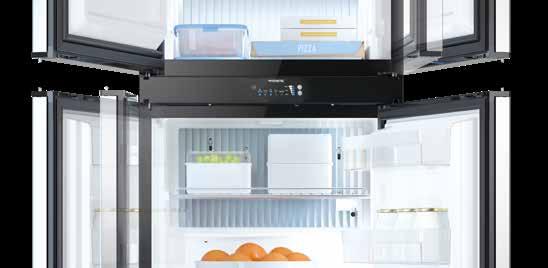

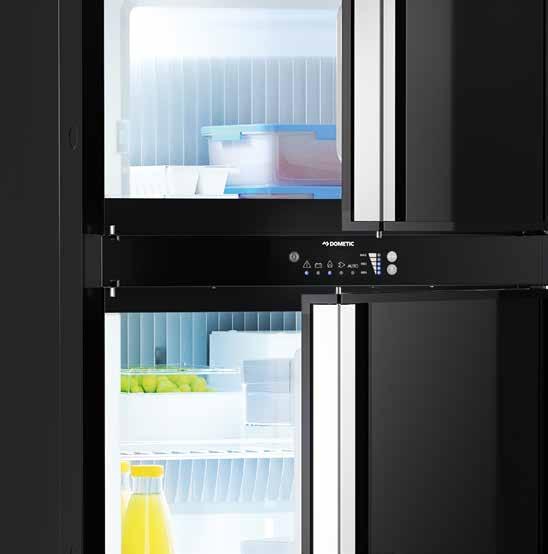

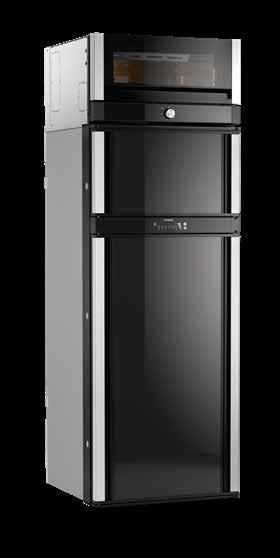

REFRIGERATION

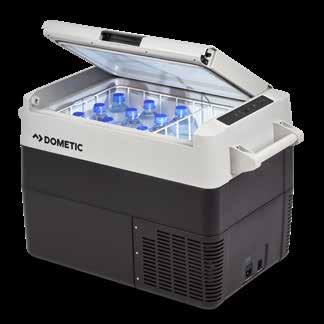

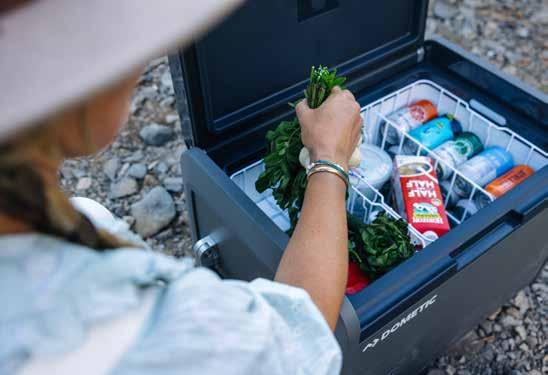

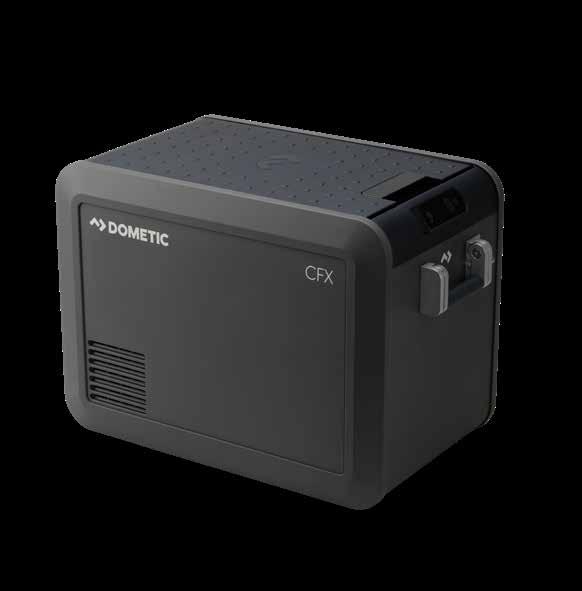

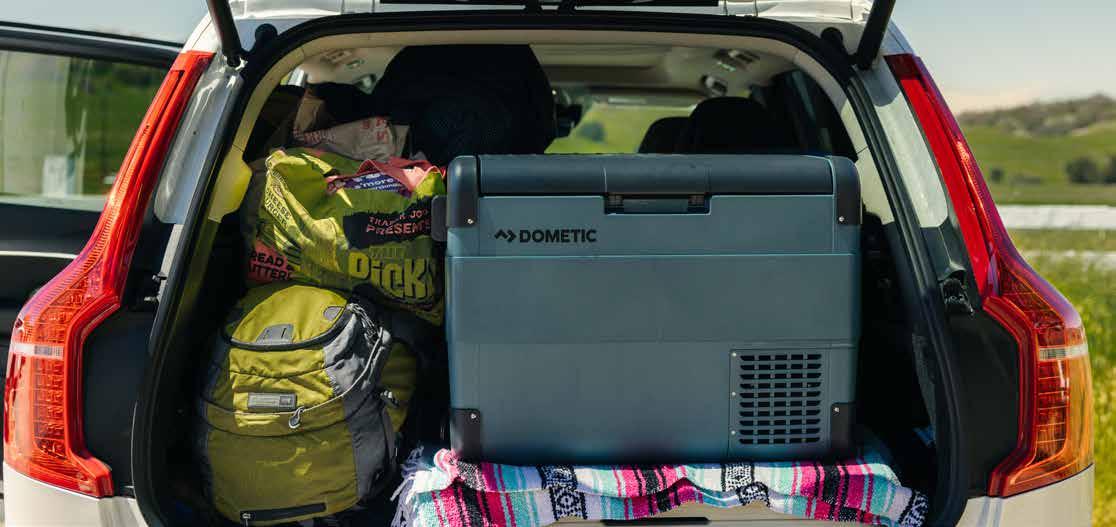

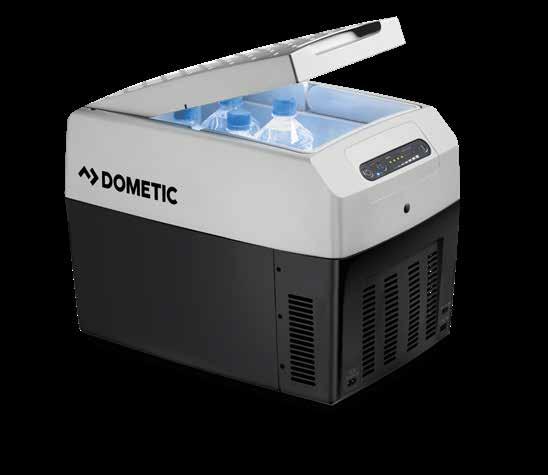

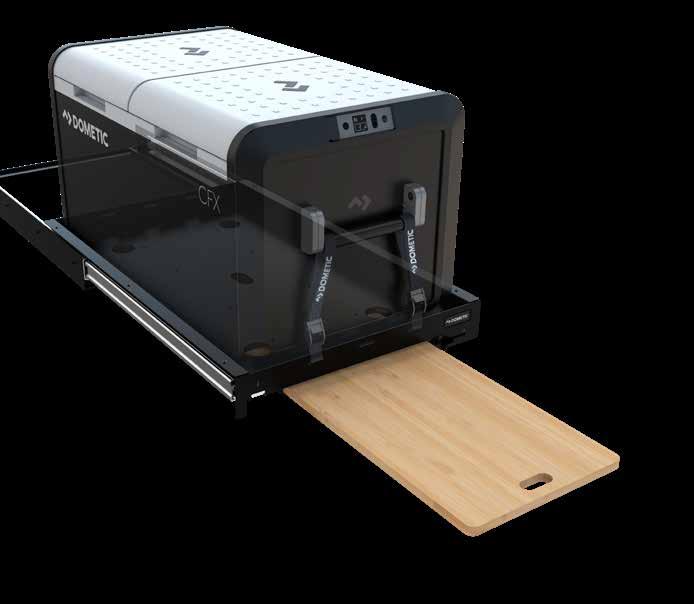

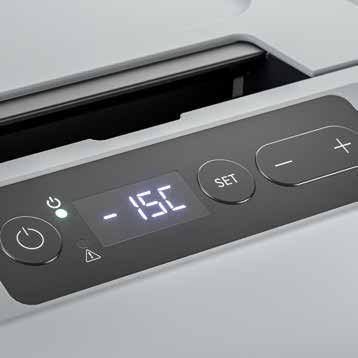

COOLERS

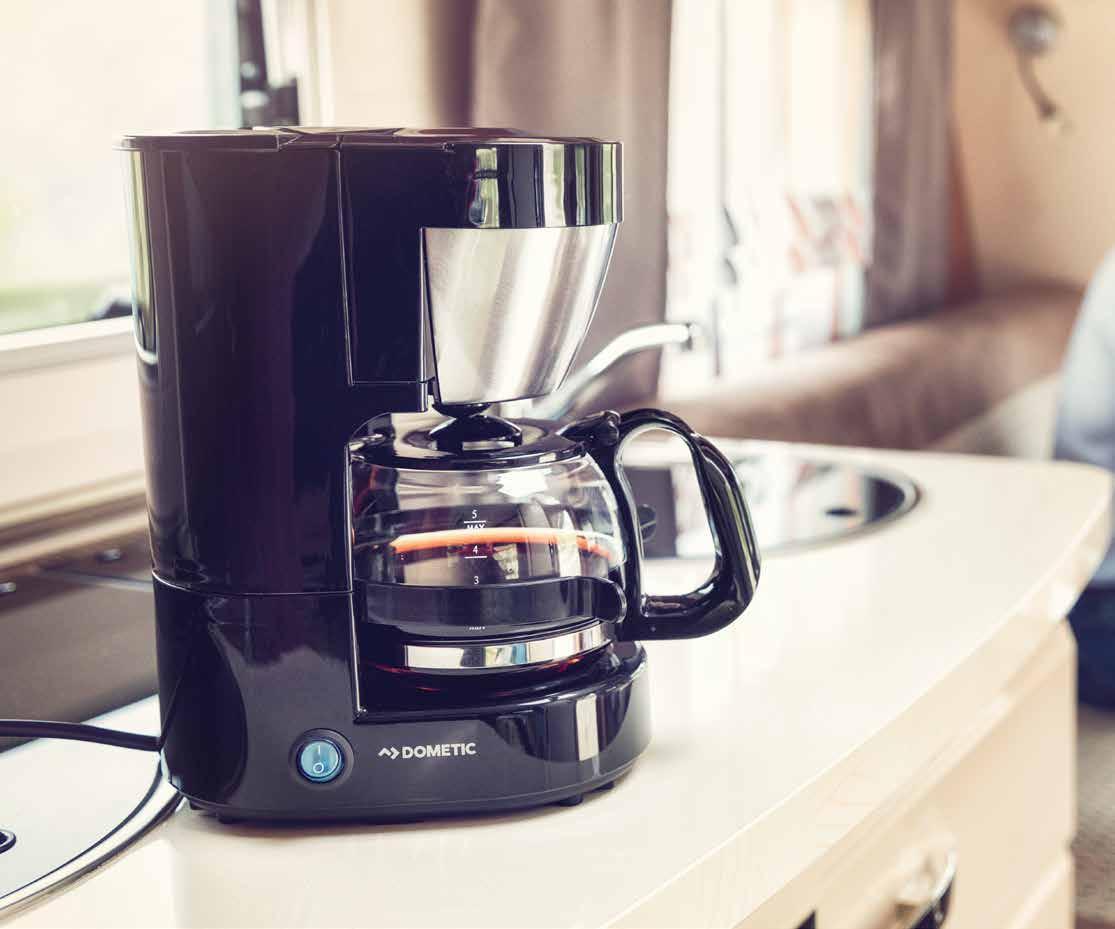

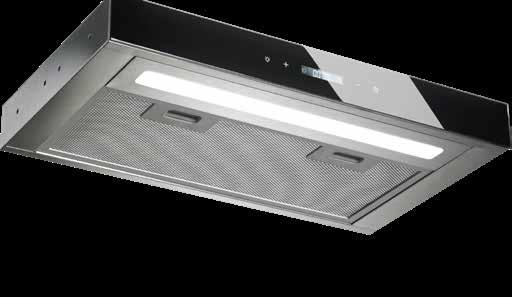

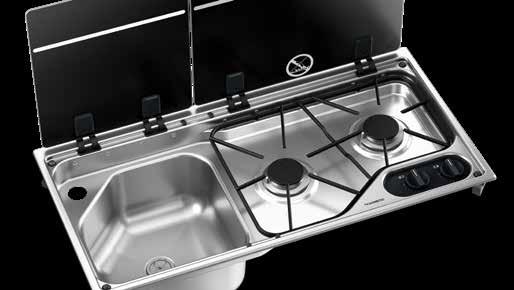

COOKING

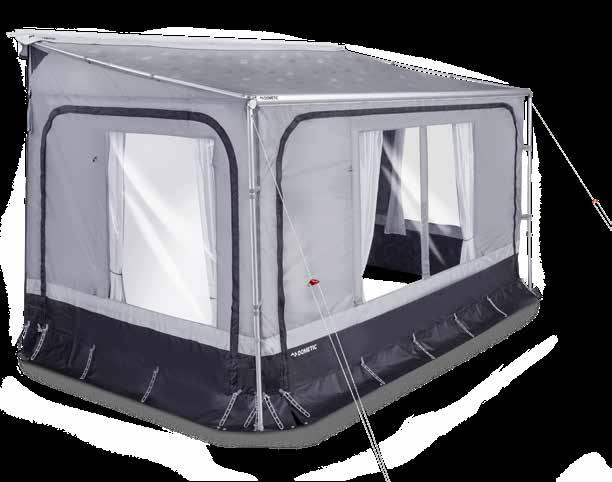

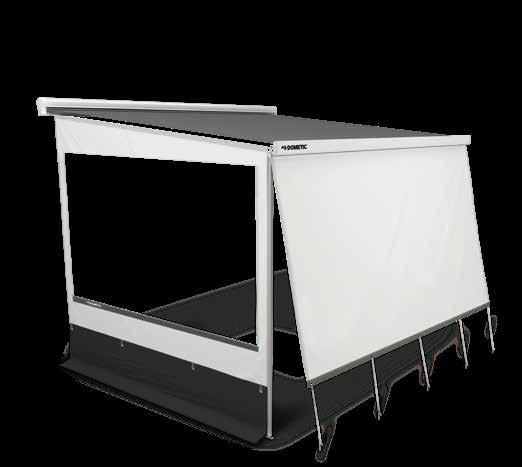

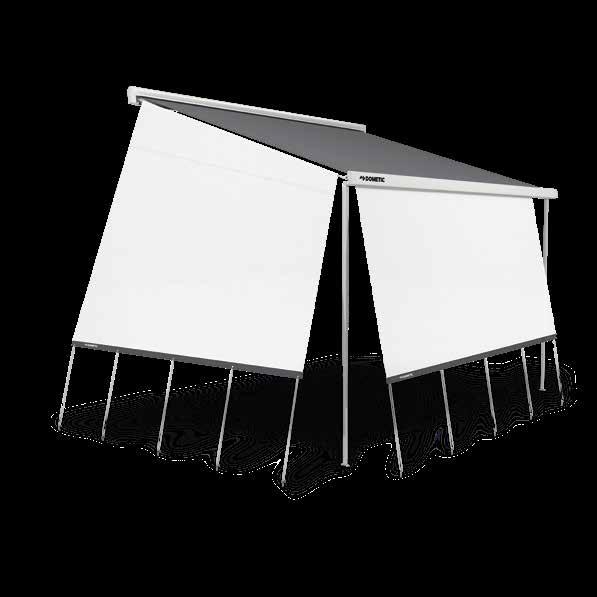

AWNINGS

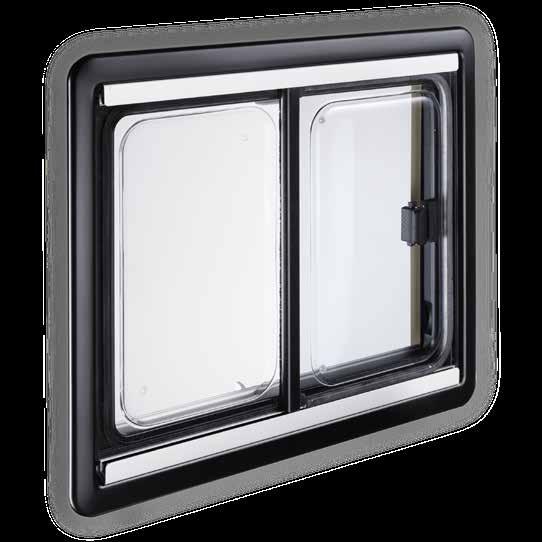

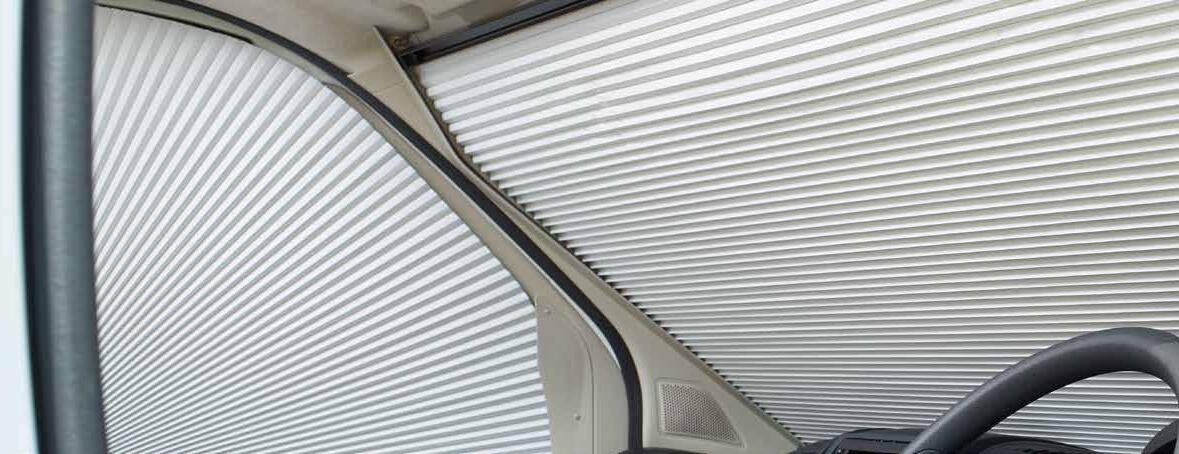

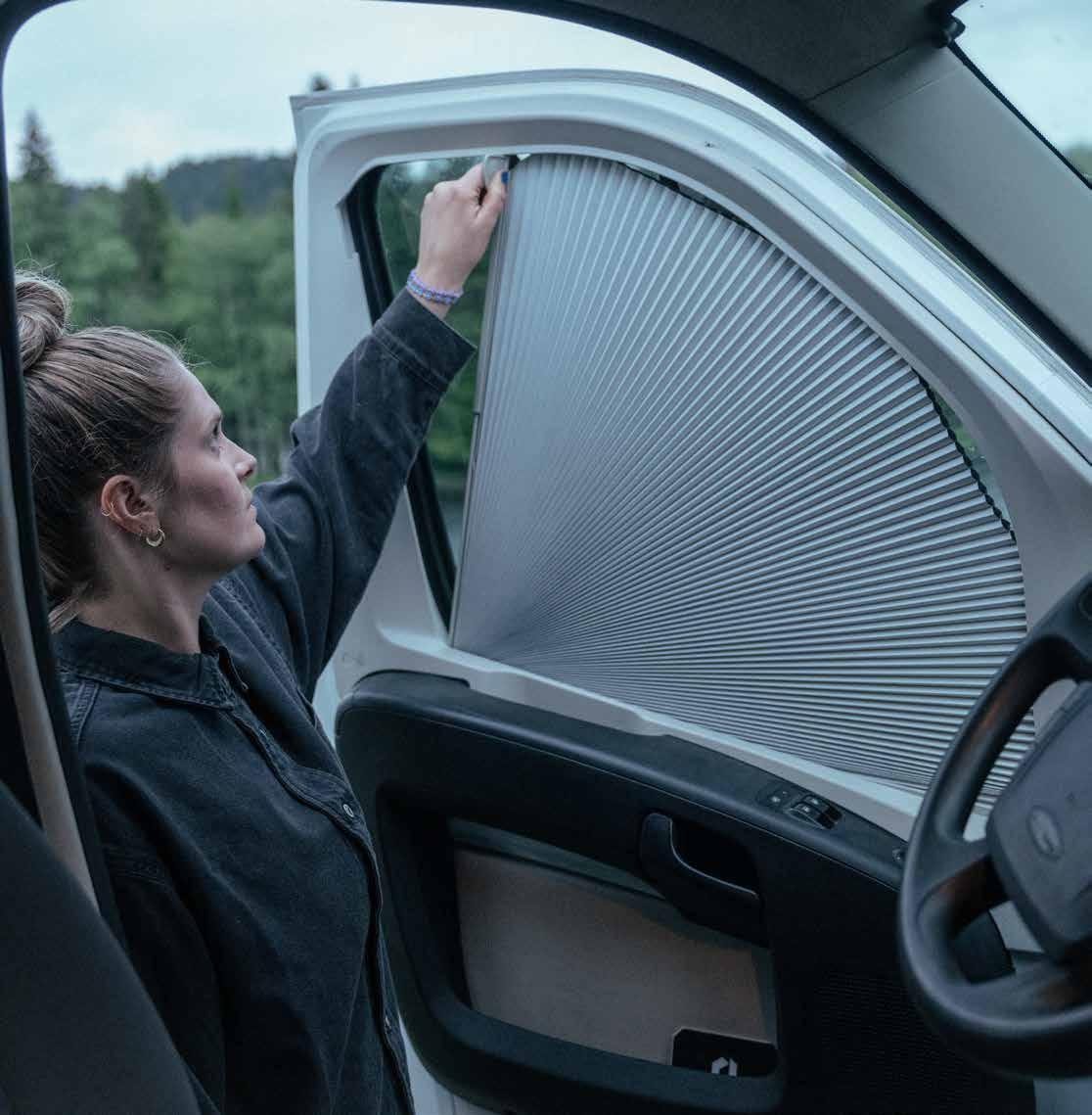

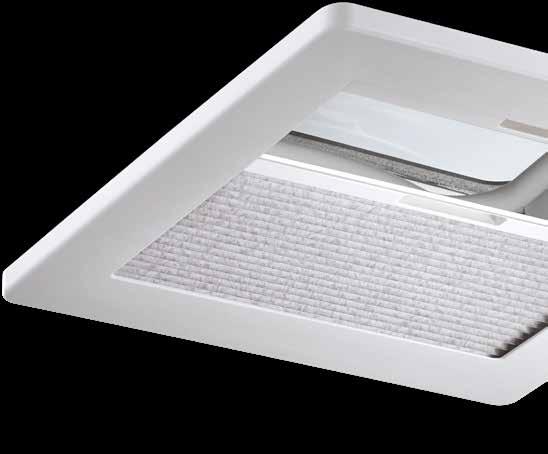

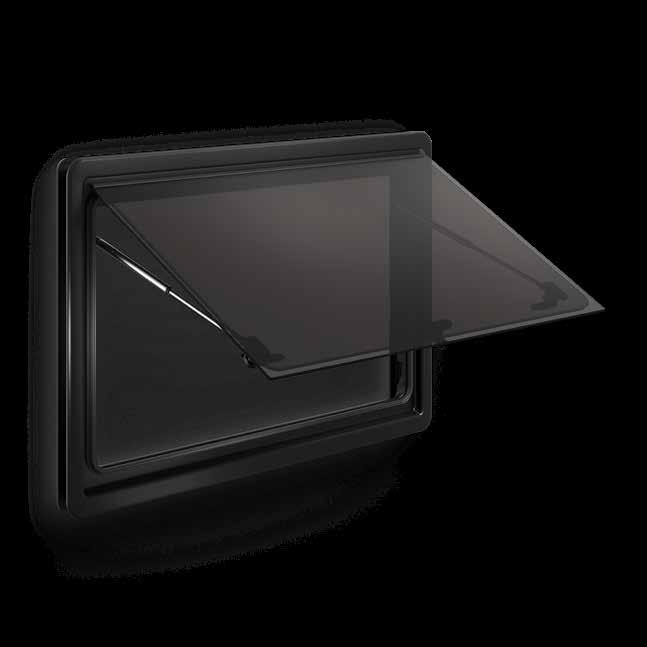

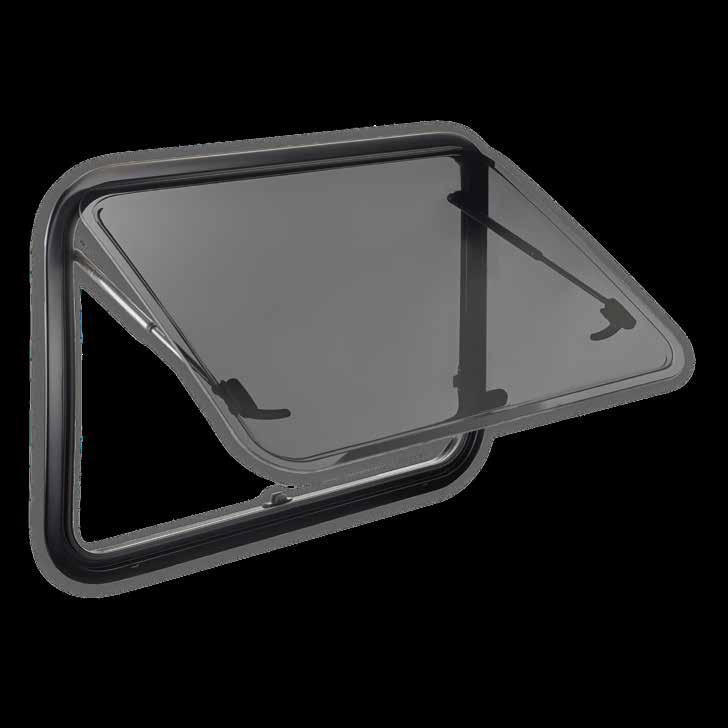

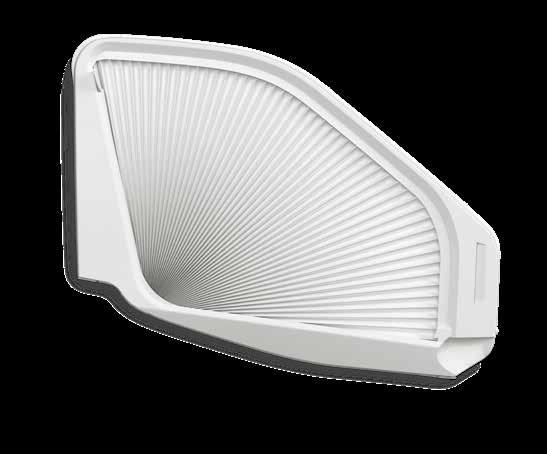

WINDOWS

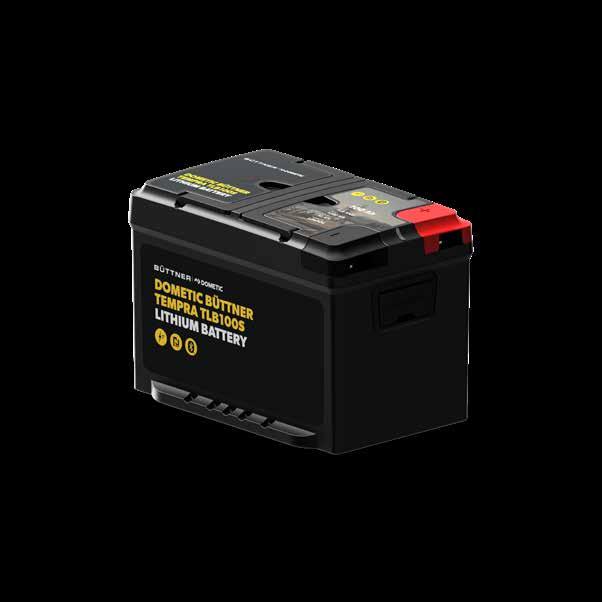

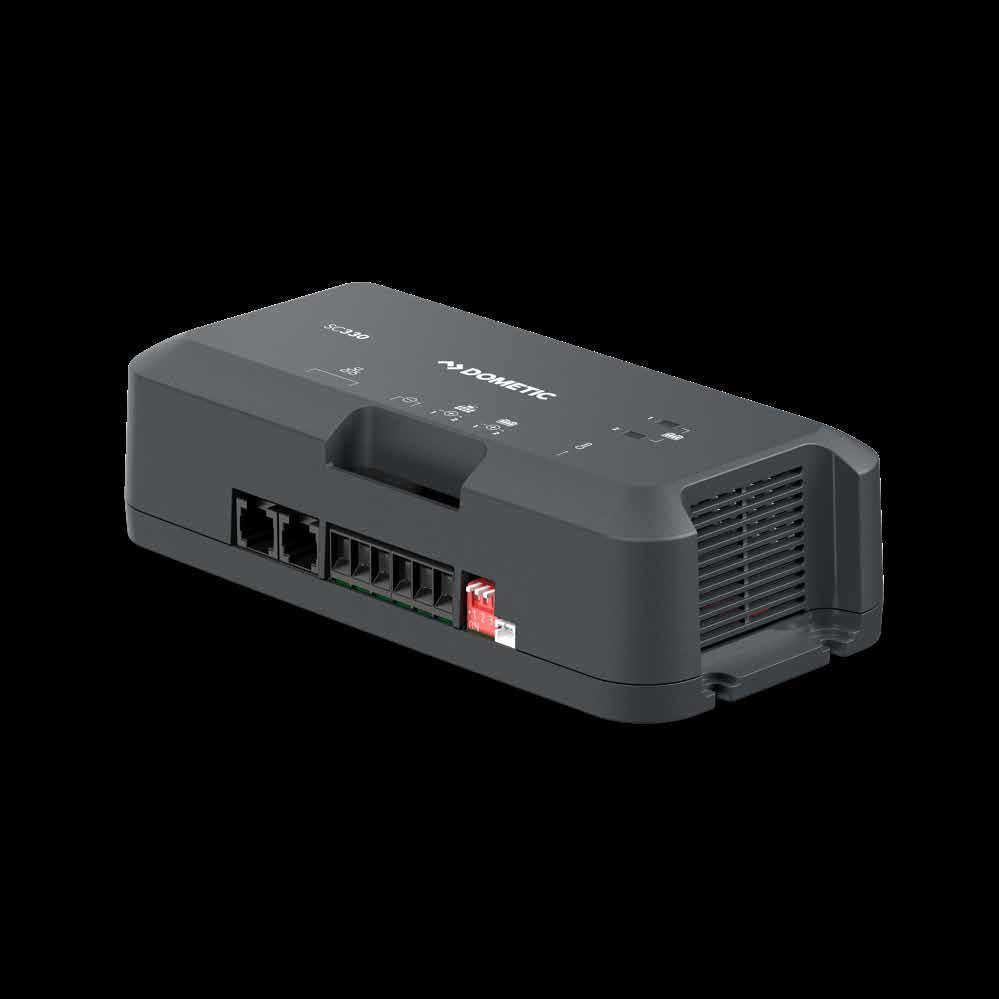

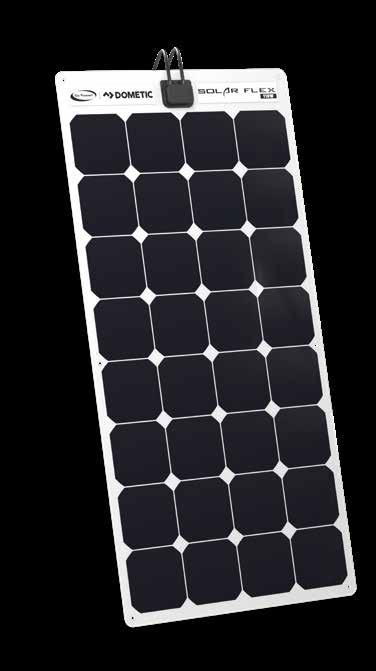

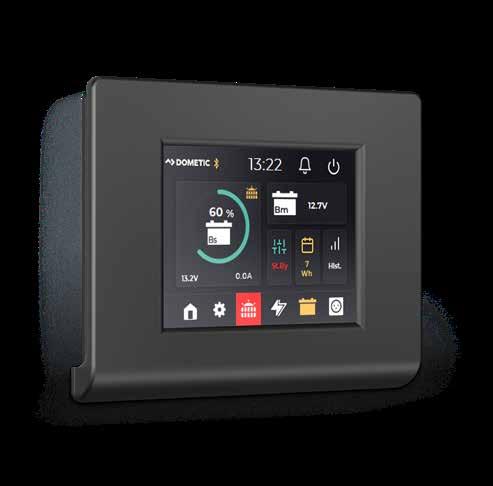

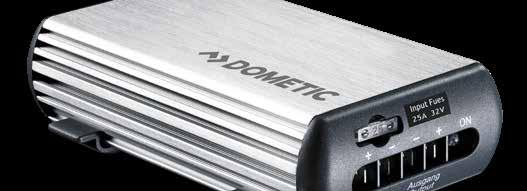

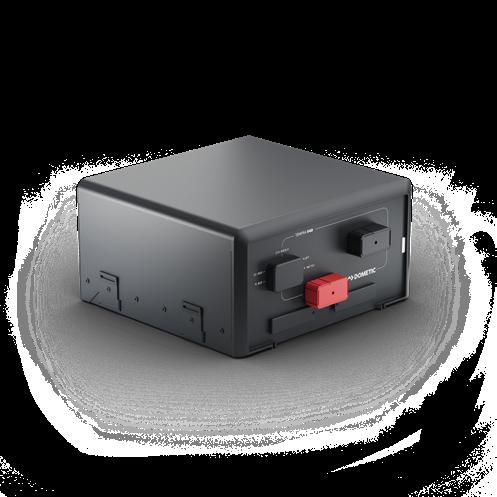

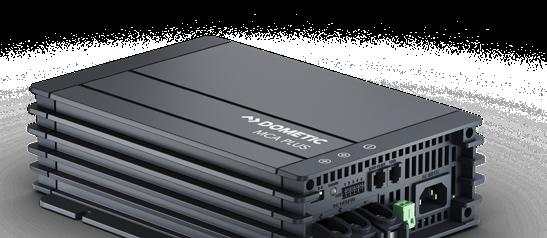

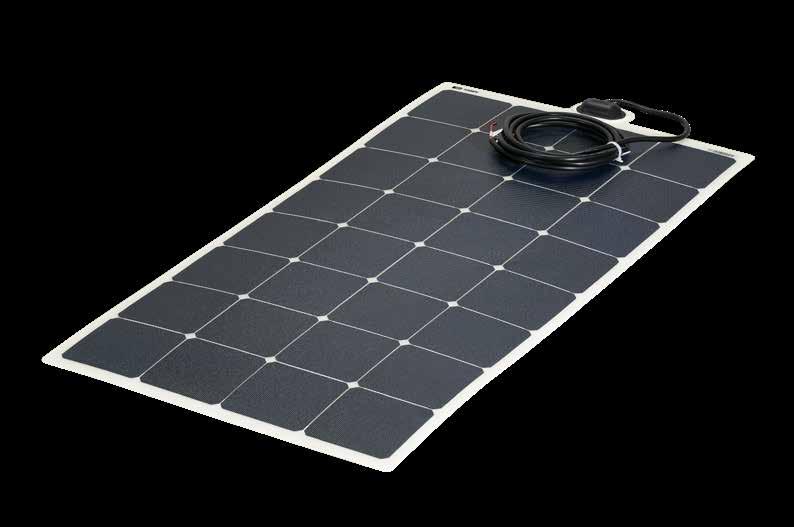

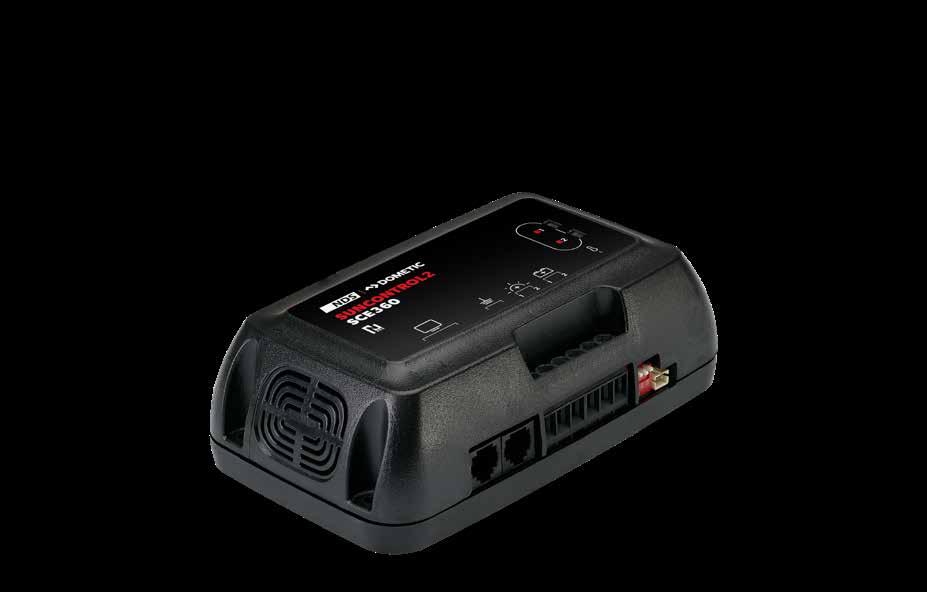

POWER & CONTROL

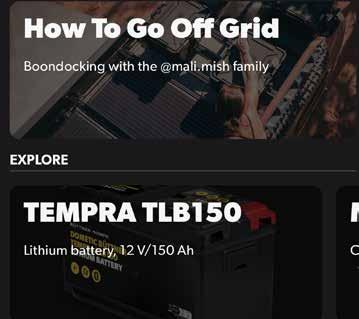

DOMETIC ON THE INTERNET
Here you will find the complete Dometic program range with detailed information on all our products. There are also interesting facts about our company and links for downloading all the catalogues.
CLIMATE CONTROL
PERFECT CLIMATE FOR ALL KIND OF VEHICLES
TRUCK PARKING COOLERS
Extra strong cooling performance or extra long running time with surprisingly low energy consumption: CoolAir RTX roof air conditioners let drivers stay cool for longer. They fit almost every truck cabin. Where they don’t, we recommend our well proven CoolAir split system.
Page 8 - 11

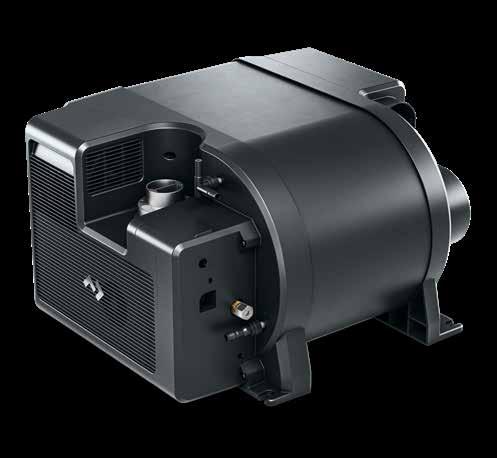

GAS/ELECTRIC HEATER
Compact gas/electric heaters with two separate heating chambers, one for cabin air and one for warm water. After an active day in the great outdoors, come back to a warm and comfortable cabin with enough hot water for you and your friends to take a shower.
Page 26 - 27
RV AIR CONDITIONERS
Rooftop and under-bench air conditioners from Dometic not only keep cool, they also reduce humidity. The range provides models for vehicles of all sizes. It also includes roof air conditioners integrating a window.
Page 12 - 25

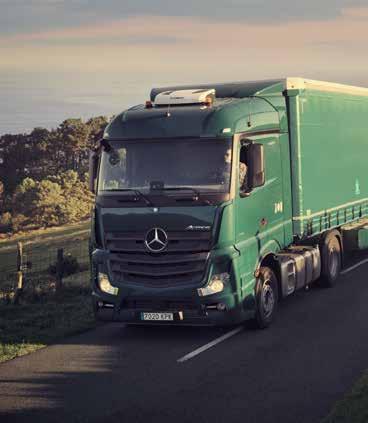

TRUCK PARKING COOLERS
LET DRIVERS STAY COOL FOR LONGER
CoolAir compressor parking coolers have been around for over ten years to improve working conditions, safety and cost efficiency in the European utility vehicle industry. The range includes rooftop air
conditioners for all performance requirements as well as a split system for truck cabins that cannot accommodate a roof-mounted unit.
Self-contained parking coolers for installation on the cabin roof
This rooftop parking cooler is designed for day trips and inner-city distribution services. It gives drivers a pleasant climate during shorter stops and waiting periods.
Highly efficient truck parking cooler with third generation CoolAir technology. Ideal for longer trips in moderate climates.
This power pack cools down even larger cabins in no time at all. Tested and approved in Australia. Perfect for everyone resting at daytime or going to hot regions.
What do you do if there’s no way to install a roof parking cooler, because the cabin is too tall or already fitted with a roof-mounted structure, or the roof slope is too high? For cases like these we have designed the SPX 1200 split parking cooler.
COOLAIR RTX 1000
COOLAIR RTX 2000
Split parking cooler For tricky installation conditions
COOLAIR SPX 1200
COOLAIR RT 780

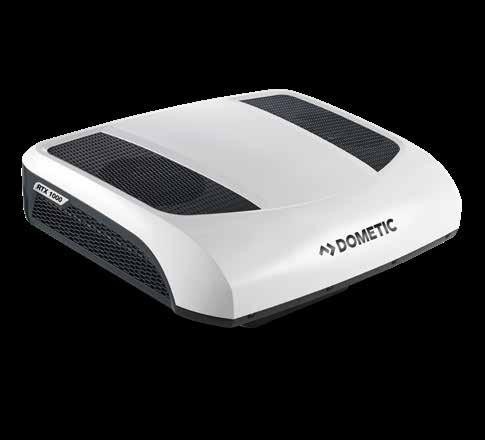

Dometic CoolAir RTX 1000 / RTX 2000
COOLAIR RTX 1000
COOLAIR RTX 2000
Voltage 24 V DC or 12 V DC 24 V DC or 12 V DC
Current consumption 5 – 25 A 5 – 29 A
Cooling capacity acc. to ISO 5151 1200 W 2000 W
Contains fluorinated greenhouse gases.
Hermetically sealed equipment
System
R 134a / 0.35 kg
CO2-Equivalent = 0.500 t
R 134a / 0.85 kg
CO2-Equivalent = 1.144 t
Self-contained and battery operated truck parking cooler to be installed in the existing roof hatch. Hermetically sealed and maintenance free refrigerant circuit with inverter compressor. Adjustable low-voltage cut-out.
Dimensions (W x H x D) 645 x 860 x 308 mm (height on roof: 169 mm – without gasket)
Weight approx. 23kg approx. 32 kg
Colour / Material
Quality features
Top cover: ASA/PC, white, Base: ASA/PC, anthracite
• Up to 12 h running time
• Very quiet running
• Turbo cooling operating mode for quick cooling
• All A/C components integrated into roof unit
• ADR compliant
• High cooling capacity: 1200 W
• Highly efficient: only 8 A power consumption in Eco mode
Test marks Compliant with ECE regulations (e-Mark)
• Up to 6 h running time
• Very quiet running
• Turbo cooling operating mode for quick cooling
• All A/C components integrated into roof unit
• ADR compliant
• High cooling capacity: 2000 W
• Highly efficient: only 9.5 A power consumption in Eco mode
Scope of delivery Parking cooler, remote control, operating manual
Product
Dometic CoolAir RTX 1000 24 V 9600010207
Dometic CoolAir RTX 2000 24 V 9600010208
Dometic CoolAir RTX 1000 12V 9620001309
Dometic CoolAir RTX 2000 12V 9620001310 / Accessories 24 V (optional)

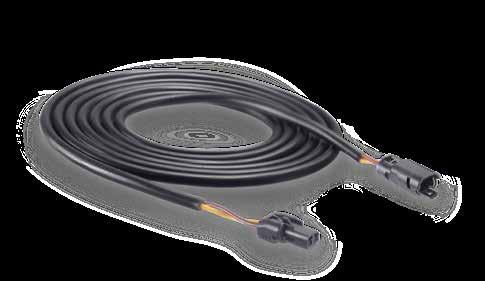

Battery connection cable, 6 mm², 11 m long, for vehicles with power management 9100300108
Set for electrical circuit protection when the 11 m cable is used 9100300110 / Accessories 12 V (required)
Uni-Kit
9620005397 / Accessories (required) Vehicle-specific installation kits RTX 1000 / RTX 2000 (covering frames, seals, fixing materials, connection cable, installation instructions)
DAF XF 106, SC 9100300078
MB Atego 1, 3 9100300081
MAN TG2 beige short 9100300128
MAN TG2 grey 9100300133
MAN TG2 beige 9100300134
MAN TG3 beige 9600049613
Renault T+C , H1 9100300135
Renault T+C, H2, High-sleeper Cab 4 9100300136
MB Actros/Antos/Arocs (SFTP) 1,5 9100300137
DAF XF 106 SSC 9100300138
Iveco Stralis Hi-Way 6 9100300140
Iveco Stralis HI-STREET, HI-ROAD 6 9100300141
Universal 1 (screw fastening) 9100300151
Universal 2 (bracket fastening) 9100300152
SCANIA Highline/Topline 2 9100300154
SCANIA NG 2017 9100300156
Ford F-MAX 9620005394 / Accessories 12 V (required)
Universal 3 (RTX 12V) 9620001663
Voltage 24 V DC
V
Current consumption 12 – 22 A 12 – 22 A
Cooling capacity acc. to ISO 5151
W
R 134a / 0.2 kg
W Contains fluorinated greenhouse gases. Hermetically sealed equipment
= 0.286 t
System
R 134a / 0.2 kg
= 0.286 t
Self-contained and battery operated truck parking cooler to be installed in the existing roof hatch. Hermetically sealed and maintenance free refrigerant circuit with rotary compressor. Adjustable low-voltage cut-out.
Dimensions (W x H x D) 830 x 284 x 629 (building height 160 mm)
Weight approx. 22 kg
Colour / Material
Quality features
Test marks
Upper shell white
approx. 22 kg
Upper shell white
• Single unit design means quick fit and low maintenance - no need to even fill up with refrigerant
• Flexible air flow through four individually adjustable nozzles
• Settings conveniently managed by remote control
• Outstanding air cooling and dehumidification
• UV resistant cover shell can be spray-painted to match external bodywork
• Can be used while driving in addition to factory-fitted air conditioner
Compliant with ECE regulations (e-Mark)
Scope of delivery Parking cooler, remote control, operating manual
Product Ref. No.
Dometic CoolAir RT 780, 0° compressor tilt
9105306291
Dometic CoolAir RT 780, 12° compressor tilt 9105306292
/ Accessories (optional)
Battery connection cable, 6 mm², 11 m long, for direct battery connection 9100300027 / Accessories (required)
Vehicle-specific installation kits (covering frames, seals, fixing materials, connection cable, installation instructions)
DAF XF105, XF106, SC 9100300029
DAF XF105, XF106, SSC 9100300030
IVECO HI-STREET, HI-ROAD 3 (Only RT 780 12° Compressor Tilt) 9100300064
IVECO HI-WAY 3 (Only RT 780 12° Compressor Tilt) 9100300065
MAN TG2³ 9100300031
MB Actros –2011 1, 3 9100300032
MB Actros SFTP/ Antos /Arocs (SFTP)3 (except Compact Space) 9100300057
MB Atego/Axor3 9100300033
Renault T+C, H1 9100300066
Renault T+C, H2 (exc. High Sleeper Cab) 9100300067
Renault Magnum 9100300034
Renault Premium 9100300035
Scania Topline2 / Highline 9100300036
Volvo (FH3) L2H2 9100300043
Volvo (FH3) L2H3 9100300037
Universal 1 (screw mounting) 9100300038
Universal 2 (bracket mounting) 9100300039
Ford F-MAX 9620005396
1 For electrical roof hatch only, for mechanical roof hatch use Universal 1
2 For mechanical roof hatches you require 2 original Scania holders (Scania no. 1533737)
3 Incl. battery connection cable 11 m and mounting material
Please note the applicable preconditions for installation (at dometic.com) and the specifications of the vehicle manufacturer

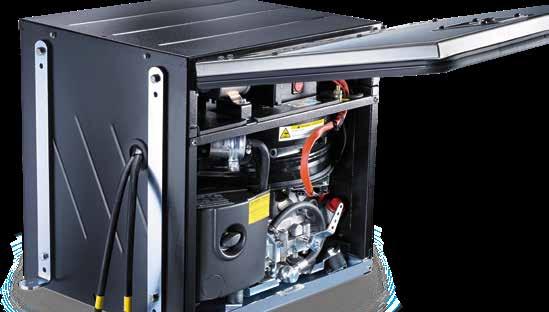

Dometic CoolAir SPX 1200T / 1200C / 1200I
Split parking coolers
Ref. No.
COOLAIR SPX 1200C
Compressor unit
9600011574
COOLAIR SPX 1200T
Roof evaporator unit
9600049687
Voltage 24 V DC (SPX1200C + SPX1200T)
Current consumption
5–25 A (SPX1200C + SPX1200T)
Cooling capacity acc. to ISO 5151 1200 W (SPX1200C + SPX1200T)
Contains fluorinated greenhouse gases. Hermetically sealed equipment.
System
Dimensions (W x H x D)
R134a/0.27 kg
CO2-Equivalent = 0.172 t
Rotary compressor for mobile use, soft-start electronics, adjustable low-voltage protection for vehicle battery
367 x 573 x 162 mm
R134a/0.1 kg
CO2-Equivalent = 0.100 t
Three blower levels and automatic mode
778 x 577 x 182 mm
Height on roof: 57 mm without gasket
Weight approx. 13 kg approx. 21 kg
Colour white exterior cover white, inside anthracite
Quality features
Test marks
Scope of delivery
UV-resistant upper shell
Compliant with ECE regulations (e-Mark)
UV-resistant upper shell, can be spray- painted, control panel with digital status readout, remote control, five individually adjustable nozzles
Compliant with ECE regulations (e-Mark)
Compressor unit, installation fittings, installation instructions Roof evaporator unit, remote control, operating manual / Accessories (optional)
Battery connection cable, 8 mm², 11 m long, for vehicles with power management
9100300027
Vehicle-specific installation kits for SPX 1200T (required)
Vehicle Ref. No.
DAF XF 106, SC 9100300078
MB Atego 9100300081
MAN TG2 grey 1 9100300133
MAN TG2 beige 9100300134
MAN TG3 beige 9600049614
Renault T+C , H1 9100300135
Renault T+C, H2, High-sleeper Cab 9100300136
MB Actros/Antos/Arocs (SFTP) 1, 2, 5 9100300137
DAF XF 106 SSC 9100300138
Iveco Stralis Hi-Way 9100300140
Iveco Stralis HI-STREET, HI-ROAD 9100300141
Universal 1 (screw fastening) 9100300151
Universal 2 (bracket fastening) 9100300152
SCANIA Highline/Topline 9100300154
SCANIA NG 2017 9100300156
Ford F-MAX 9620005394
All installation kits are designed for current vehicle models. More models on request. Please check “Preconditions for installation” document for further installation information. Scope of delivery: cover frame, seals, installation fittings, 4 m connection cable, installation instructions.
Vehicle-specific fastening frames for SPX 1200C (required)
Vehicle Ref. No.
DAF 95/105 Space/Superspace 9100300046
MAN TGL/TGM/TGS slim driver cab 9100300049
MAN TG2 TGX wide driver cab 9100300050
MAN TG3 TGX wide driver cab 9600049612
SCANIA Highline/Topline 3 9100300054
MB Actros (SFTP) 9100300060
Renault T+C 9100300071
Volvo FH4 4 9100300072
Iveco Hi-Way Stralis, Hi-Way Euro 6 9100300075
SCANIA NG 2017 9100300155
Ford F-MAX 9620005405
1 MAN and MB kits with 11 m connection cable and matching installation material
2 Only for electrical roof hatch (for mechanical roof hatch use Universal 1)
3 For mechanical roof hatch you will additionally require 2 original Scania brackets (Scania item number 1533737) for installation.
4 For cabs up to model year 2014
5 Not for CompactSpace roof versions
RV AIR CONDITIONERS
PERFECT CLIMATE FOR MOTORHOMES, CARAVANS AND PANEL VANS
INSTALLATION ON THE ROOF OR IN A STORAGE COMPARTMENT?
Recreational vehicles offer two places where the installation of an air conditioner makes sense from a technical and practical point of view: on the roof or in the storage compartment. The Dometic range provides well-engineered solutions for all installation conditions.
Roof air conditioners use the physical principle that cold air sinks. The cold air streams can be directed into the vehicle’s living area in an energy-saving manner and without performance loss.
Roof air conditioners typically replace the roof window. For those who don’t want to sacrifice the roof light, we recommend our FreshLight model, which integrates a window.
Under-bench air conditioners are fitted in the storage compartment –ideal for applications where installation on the roof is out of the question. The air is distributed through air outlets, which can be placed in the room as required to get a tailor-made climate control solution.
OVERVIEW* OF AIR CONDITIONERS BY VEHICLE TYPE AND LENGTHS
VEHICLES

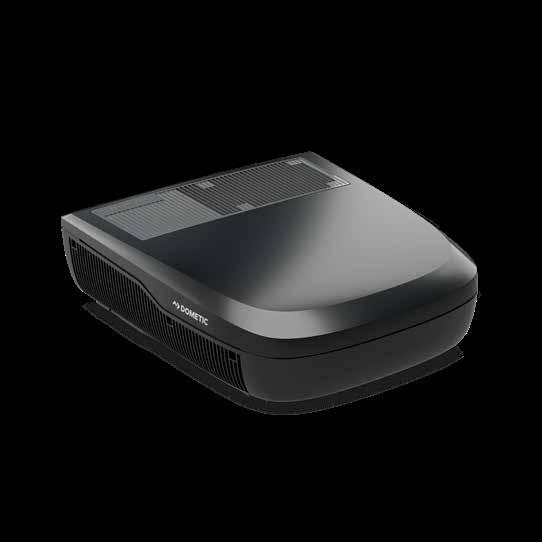

NEW DOMETIC FRESHJET FJZ
Experience the future of air conditioning in motorhomes. The Dometic FJZ series of roof air conditioners has been developed to meet the highest demands – smarter, quieter, more comfortable, and more environmentally friendly than ever before. Made from recycled plastic and equipped with our most powerful compressor yet, it offers impressive performance while consuming little energy. Equipped with exclusive features, it cools, heats, and purifies the air in your recreational vehicle efficiently and almost silently.
• Superior cooling performance – the interior is cooled in record time
• Quieter than other roof air conditioners on the market
• Excellent energy efficiency – lower power consumption
• Wi-Fi connectivity for controlling the air conditioner from anywhere.
• Adaptive Power Mode (patent pending) for reliable operation at campsites with low power supply – no more tripped fuses.
Top-class performance
Cools your camper in record time – and with impressively low energy consumption.
• SmartECO climate control intelligently manages battery consumption and adjusts the air conditioning output to the charge level.
• Improved sustainability thanks to recycled plastics.
• CleanAir air purification system effectively reduces bacteria and odors.
• Roof unit with integrated rubber seal—no installation frame required.
for restful sleep
The advanced Sleep Mode ensures particularly quiet operation with a constant compressor frequency.

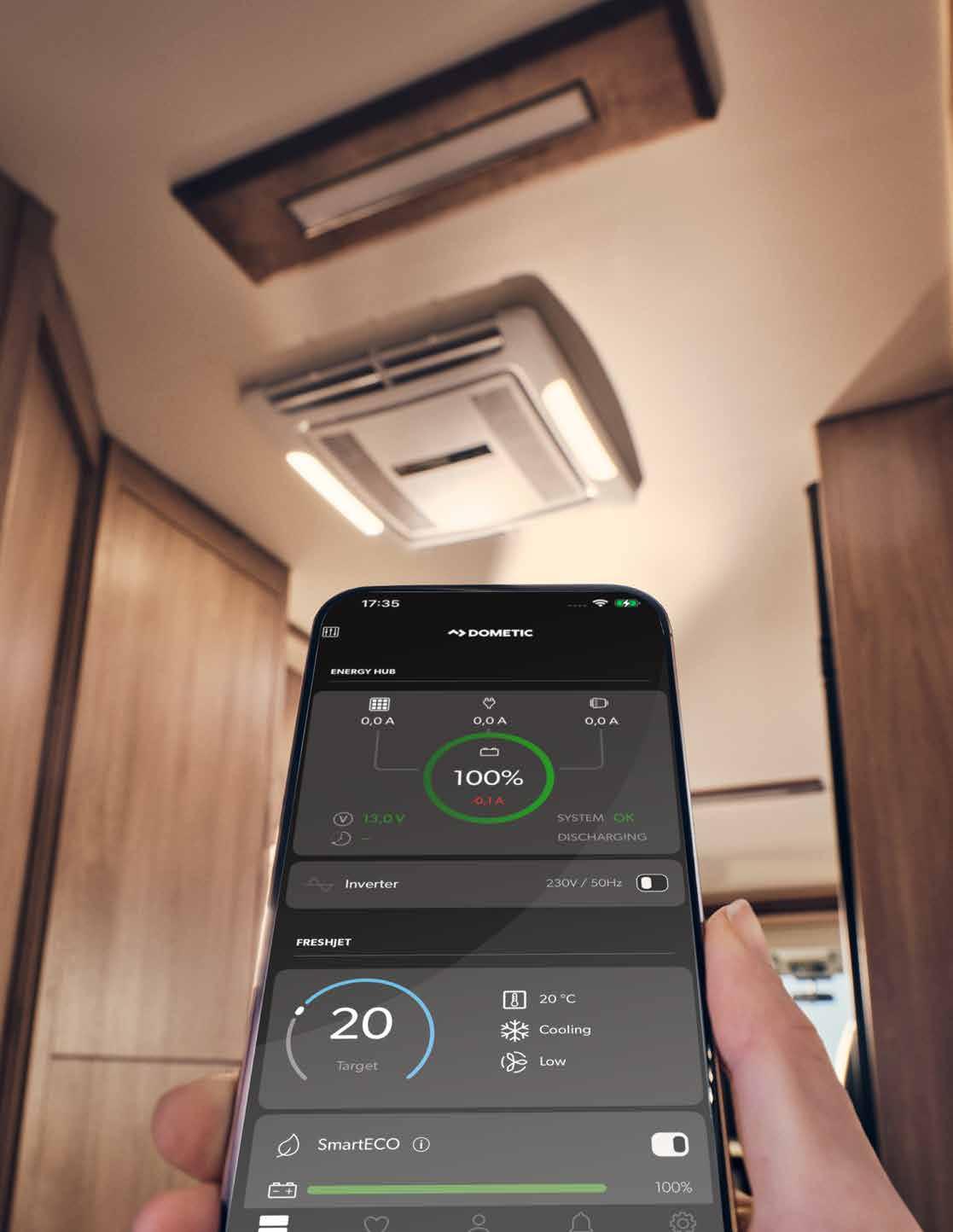

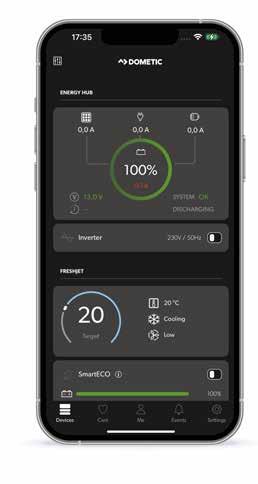

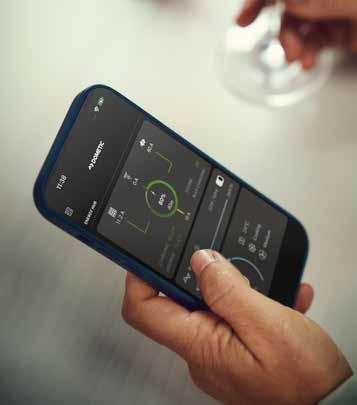

Wi-Fi connectivity
Control and monitor your climate easily from anywhere.
Whisper quiet –
SMART CLIMATE CONTROL WITH THE DOMETIC POWER
Adaptive Power Mode
The Adaptive Power Mode is a smart feature integrated in our new FJZ7-series roof air conditioners. It ensures reliable air conditioner operation on campsites (or other mains hookups) with low fuse protection. As the name suggests, the maximum power draw of the A/C system can be adapted the situation at hand. Simply set the power level the air conditioner should not exceed via the Dometic Power App.
Off-grid air conditioning with SmartECO
Many customers want to be able to use their roof air conditioner not only on a mains hook-up, but also in places where mains power is out of reach. The premium air conditioners in the Dometic FreshJet FJZ7 are a perfect choice for off-grid applications. Featuring the new SmartECO function, they make economical use of the available battery resources.
How does SmartECO work?

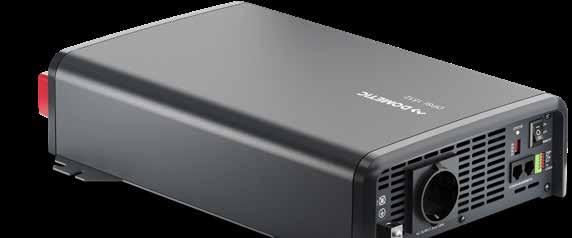

Connected to the vehicle battery via an inverter (e.g. our DPSI 1812iTS comfort model), the FJZ7 air conditioner permanently checks the battery state and adapts the air conditioning performance accordingly. Depending on the battery charge, it reduces the cooling power, changes to fan mode, or turns off completely – and on again as soon as the battery charge has achieved a level above 60 percent.
CONNECTION PROCEDURE
Step 1: Onboard the FJZ7 air conditioner
Step 3: Confirm to link the two devices together in the app
Step 2:
Dometic FreshJet FJZ4 1500M
Roof air conditioner, 1500 W, manual controls Best for vehicle length
capacity
Quality Features
• Quickly cools the vehicle interior and dehumidifies the air.
• Pleasantly quiet operation for a comfortable rest and a good night‘s sleep.
• Outstanding energy efficiency – reduced power consumption.
• Reliable start-up of the air conditioning system, even on campsites with low fuse protection.
• Improved sustainability through recycled plastics
• Roof unit with integrated rubber seal – no mounting frame required / Air distribution box
Number of air vents 2 (front / rear) Air flow 341 m³/h
Number of blower speeds 3 (3 cooling and 3 ventilation) Remote control no Weight 4.2 kg
Test marks E-approved to EMC / automotive directive
Product
Ref. No.
Dometic FreshJet FJZ4 1500M, white 9630000065
Dometic FreshJet FJZ4 1500M, black 9630000069
Dometic FreshJet FJZ ADBM
Air distributor box, manual control
9630000057 / Optional extras
Adapter frame for the FreshJet models in roof openings which exceed the standard opening size of 400 x 400 mm
9103500476
Dometic FreshJet FJZ4 1700
Roof air conditioner, 1700 W, electronic controls
for vehicle length
Quality Features
• Quickly cools the vehicle interior and dehumidifies the air.
• Pleasantly quiet operation for a comfortable rest and a good night‘s sleep.
• Outstanding energy efficiency – reduced power consumption.
• Reliable start-up of the air conditioning system, even on campsites with low fuse protection.
• Wi-Fi connectivity for controlling the air conditioning system from anywhere. Rapid heating at the touch of a button
• Improved sustainability through recycled plastics
• Roof unit with integrated rubber seal – no mounting frame required / Air distribution box
Number of air vents 2 (front/rear)
Air flow 318 m³/h
Number of blower speeds 4
Test marks E-approved to EMC / automotive directive
Product
Dometic FreshJet FJZ4 1700, white 9630000054
Dometic FreshJet FJZ4 1700, black 9630000058

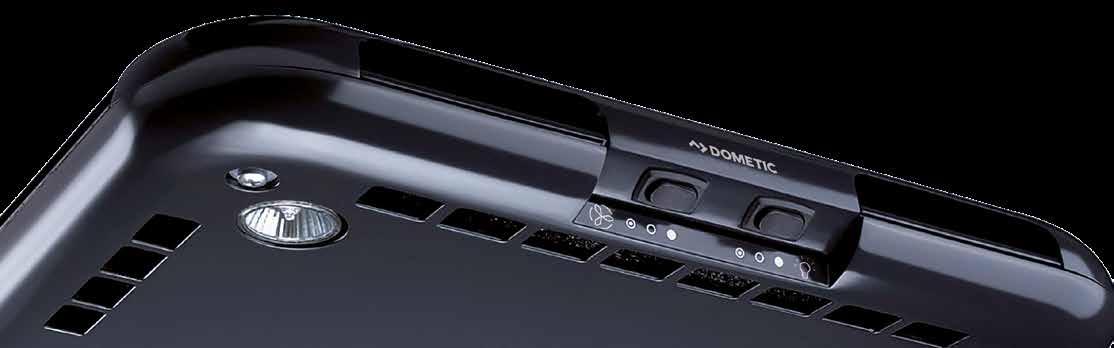

Dometic FreshJet FJZ ADBD
Air distributor box, electronic control panel, LED lighting 9630000066 / Optional extras
Adapter frame for the FreshJet models in roof openings which exceed the standard opening size of 400 x 400 mm
9103500476
Dometic FreshJet FJZ4 2200
Roof air conditioner, 2200 W, electronic controls
(W x H x D)
Quality Features
• Quickly cools the vehicle interior and dehumidifies the air.
• Pleasantly quiet operation for a comfortable rest and a good night‘s sleep.
• Outstanding energy efficiency – reduced power consumption.
• Reliable start-up of the air conditioning system, even on campsites with low fuse protection.
• Wi-Fi connectivity for controlling the air conditioning system from anywhere. Rapid heating at the touch of a button
• Improved sustainability through recycled plastics
• Roof unit with integrated rubber seal – no mounting frame required / Air distribution box
Number of air vents 2 (front/rear)
Number of blower speeds 4
Test marks E-approved to EMC / automotive directive
Product
Dometic FreshJet FJZ4 2200, white 9630000061
Dometic FreshJet FJZ4 2200, black 9630000052
Dometic FreshJet FJZ ADBD
Air distributor box, electronic control panel, LED lighting 9630000066 / Optional extras
Adapter frame for the FreshJet models in roof openings which exceed the standard opening size of 400 x 400 mm
9103500476
Dometic FreshJet FJZ7 2200
Roof air conditioner, 2200 W, electronic inverter compressor Best for vehicle length
(W x H x D)
opening (W x D)
thickness
Quality Features
7 m
x 400 mm
• Superior cooling performance – the interior is cooled down in record time.
• Quieter than other roof air conditioners on the market.
• Excellent energy efficiency – lower power consumption.
• Wi-Fi connectivity for controlling the air conditioner from anywhere.
• Adaptive Power Mode (patent pending) for reliable operation at campsites with low power supply – no more tripped fuses.
• SmartECO climate control intelligently manages battery consumption and adjusts the air conditioner‘s performance to the charge level.
• Improved sustainability through recycled plastics
• CleanAir air purification system effectively reduces bacteria and odors
• Roof unit with integrated rubber seal – no mounting frame requiredTranslated / Air distribution box
Number of air vents 2 (front/rear) Air flow
Number of blower speeds 4
Test marks
E-approved to EMC / automotive directive
Product Ref. No.
Dometic FreshJet FJZ7 2200, white 9630000068
Dometic FreshJet FJZ7 2200, black 9630000053
Dometic FreshJet FJZ ADBD
Air distribution box, electronic control panel, LED lighting 9630000066 / Optional extras
Adapter frame for the FreshJet models in roof openings which exceed the standard opening size of 400 x 400 mm 9103500476
Dometic FreshJet FJZ7 2600
Roof air conditioner, 2600 W, electronic inverter compressor Best for vehicle length
(W x H x D)
W
x
x 518 mm Roof opening (W x D)
thickness
Weight 30 kg
x 400 mm
• Superior cooling performance – the interior is cooled down in record time.
• Quieter than other roof air conditioners on the market.
• Excellent energy efficiency – lower power consumption.
• Wi-Fi connectivity for controlling the air conditioner from anywhere.
Quality Features
• Adaptive Power Mode (patent pending) for reliable operation at campsites with low power supply – no more tripped fuses.
• SmartECO climate control intelligently manages battery consumption and adjusts the air conditioner‘s performance to the charge level.
• Improved sustainability through recycled plastics
• CleanAir air purification system effectively reduces bacteria and odors
• Roof unit with integrated rubber seal – no mounting frame requiredTranslated / Air distribution box
Number of air vents 2 (front/rear)
Air flow 350 m³/h
Number of blower speeds 4
Test marks
E-approved to EMC / automotive directive
Product Ref. No.
Dometic FreshJet FJZ7 2600, white 9630000059
Dometic FreshJet FJZ7 2600, black 9630000063
Dometic FreshJet FJZ ADBD Air distribution box, electronic control panel, LED lighting 9630000066 / Optional extras
Adapter frame for the FreshJet models in roof openings which exceed the standard opening size of 400 x 400 mm
9103500476
Dometic FreshJet FJZ7 3000
Roof air conditioner, 3000 W, electronic inverter compressor
for vehicle length
(W x H x D)
(W x D)
Quality Features
• Superior cooling performance – the interior is cooled down in record time.
• Quieter than other roof air conditioners on the market.
• Excellent energy efficiency – lower power consumption.
• Wi-Fi connectivity for controlling the air conditioner from anywhere.
• Adaptive Power Mode (patent pending) for reliable operation at campsites with low power supply – no more tripped fuses.
• SmartECO climate control intelligently manages battery consumption and adjusts the air conditioner‘s performance to the charge level.
• Improved sustainability through recycled plastics
• CleanAir air purification system effectively reduces bacteria and odors
• Roof unit with integrated rubber seal – no mounting frame requiredTranslated / Air distribution box
Number of air vents 2 (front/rear)
Test marks
E-approved to EMC / automotive directive
Product Ref. No.
Dometic FreshJet FJZ7 3000, white 9630000072
Dometic FreshJet FJZ7 3000, black 9630000062
Dometic FreshJet FJZ ADBD Air distribution box, electronic control panel, LED lighting 9630000066
Dometic FreshJet FJZ7 3500
Roof air conditioner, 3500 W, electronic inverter compressor
(W x H x D)
Quality Features
• Superior cooling performance – the interior is cooled down in record time.
• Quieter than other roof air conditioners on the market.
• Excellent energy efficiency – lower power consumption.
• Wi-Fi connectivity for controlling the air conditioner from anywhere.
• Adaptive Power Mode (patent pending) for reliable operation at campsites with low power supply – no more tripped fuses.
• SmartECO climate control intelligently manages battery consumption and adjusts the air conditioner‘s performance to the charge level.
• Improved sustainability through recycled plastics
• CleanAir air purification system effectively reduces bacteria and odors
• Roof unit with integrated rubber seal – no mounting frame requiredTranslated / Air distribution box
Number of air vents 2 (front/rear) Air flow
m³/h Number of blower speeds
Test marks E-approved to EMC / automotive directive
Product Ref. No.
Dometic FreshJet FJZ7 3500, white 9630000051
Dometic FreshJet FJZ7 3500, black 9630000071
Dometic FreshJet FJZ ADBD Air distribution box, electronic control panel, LED lighting 9630000066
CUSTOM FIT FOR YOUR VAN

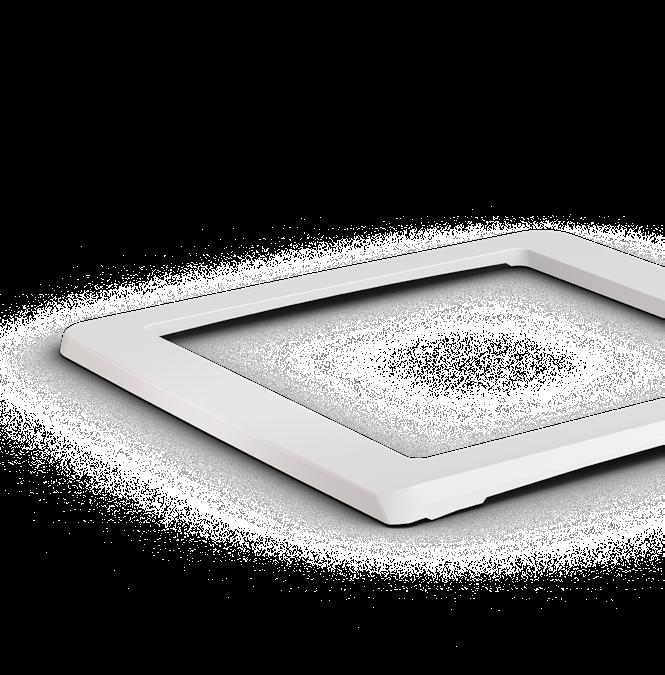

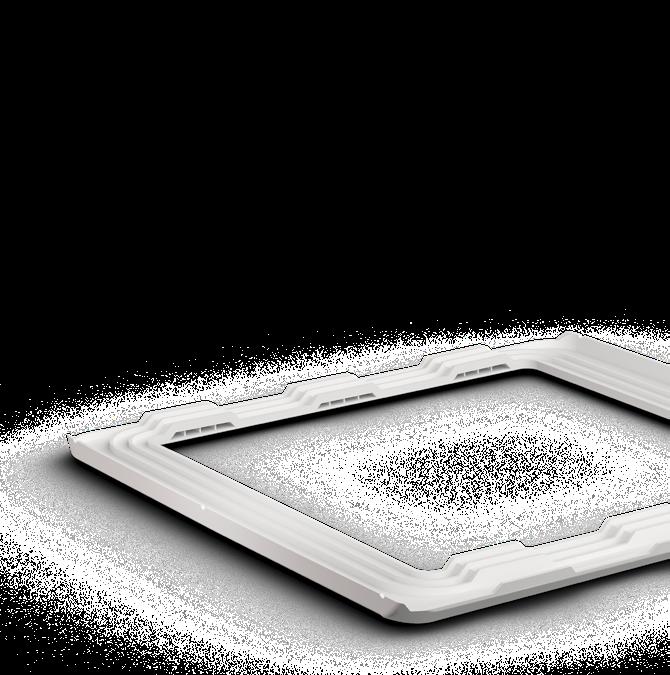

Dometic adapter frames
• Easy installation using the existing roof cut-out (400 x 400 mm)
• Perfect finish – like with an original product installed in the factory
• Universal use – fits Mini-Heki, FanTastic Breathe 3100, FreshJet FJZ4 1500/1700/2000 and FreshJet FJZ7 2200/2600
• Custom frames available for Fiat Ducato III, Ford Transit and Mercedes
No matter if you have a Mini-Heki roof light, a FanTastic Breathe 3100 roof vent or a FreshJet FJZ roof air conditioner – the new adapter frames from Dometic fit all three roof-mount products. Our product designers have created vehicle-specific frames for the three currently most popular campervans: Fiat Ducato III, Ford Transit (from year 2014) and Mercedes Sprinter (from year 2016). Simply pick the frame to match your van! For FJZ roof air conditioners, you will additionally require the matching ledge.
Adapter frames for panel vans
Dometic FreshLight 2200
Roof air conditioner with window for vehicles up to 7 m, 2050 W
for vehicle length
(Maximum heating capacity heat pump capacity)
Quality Features
• Temperature and blower speed can be conveniently set by remote control
• Control panel with integrated, dimmable LED lights
• Individual air flow regulation with automatic blower control
• Energy-efficient cooling mode and heat pump system for heating mode
• Roof window with active ventilation system and single-pleated darkening screen / Air distribution box
Number of air vents 2 (front / rear)
Air vent functions Continuous air flow regulation for all vents
Number of blower speeds 4
Remote control yes
Test marks E-approved to EMC / automotive directive
Product Ref. No.
Dometic FreshLight 2200 9102900165 / Optional extras
Protective cover 9103500237
* Specification based on a cooling or heating capacity tested in accordance with the ISO 5151 standard under realistic conditions instead of a theoretical maximum capacity.
Quality Features
• The under-bench position means the vehicle‘s height is unaffected
• Better temperature regulation due to new room temperature probe
• Reduced weight compared to roof-mounted air conditioning systems with the same cooling capacity
• Cooling capacity according to ISO 5151: 2000 W / 6824 BTU/h
• Heating capacity according to ISO 5151: up to 2500 W / 8530 BTU/h
• Minimal noise disruption from operation and air distribution
• Adaptable air distribution system concentrated either in one area or in different rooms
• Soft-start for reliable start-up at campsites with low electrical protection
• Convenient activation of all functions by remote contro
/ Air distribution box
Number of air vents 3 air outlets
Number of blower speeds 3
Remote control yes
Test marks E-approved to EMC / automotive directive
Product
Required accessories for individual air distribution (FreshWell FWX4)
GAS/ELECTRIC HEATER FOR CABIN AIR AND HOT WATER
A pleasantly warm vehicle interior and plenty of hot water for showering and washing up – that’s exactly what Dometic TwinBoost combination heaters offer. And they do so at impressive speed. The gas/electric hybrid models (6000H and 8000H) bring water up to temperature in record time: 10 minutes for showering, less than 4 minutes for washing up. All TwinBoost combination heaters have
separate heating circuits for interior air and water. This unique design offers two advantages over systems from other manufacturers: First, you can produce hot water in the summer without heating up the vehicle interior. Second, the water is heated directly – much faster and more efficiently.
heater for cabin air and hot water
Features
• 2-in-1 unit: heats up the cabin air and the 10 l hot water tank
• Intuitive control with many programming options via the smart control panel
• Independent air and water heating – save energy by only heating air and water when needed
• Cabin vent mode – ventilation possible without operating air heater
• Save your favorite settings for quick setup
• Flawless integrated design
3-in-1
panel, operating and installation manuals
3-in-1 safety system
Integrating a frost-, drain- and over-pressure valve Smart chimney cover design Repels water away from the wall Intuitive
COOL CONVENIENCE
Refrigerators for mobile use
Looking for a refrigerator that fits in the kitchenette of a motorhome, truck or van? Choose from the most comprehensive range currently available. It includes noiseless absorption refrigerators running on gas or electricity as well as compressor powered appliances for high-performance cooling and deep-freezing regardless of ambient temperatures. We also offer practical pull-out fridges and spacesaving top loaders for confined installation conditions.
Dometic refrigerators are as well equipped as their domestic counterparts. If something’s missing, check our accessories.
PLATZ Dometic Kühlschränke
ABSORPTION REFRIGERATORS
Dometic absorption refrigerators are completely silent. Moreover, they allow maximum independence in terms of energy supply, running on mains or battery power and on gas as well. Their quality features provide homelike convenience.
Page 30 - 39
COMPRESSOR REFRIGERATORS
Compressor refrigerators provide powerful cooling and deep-freezing, even at extreme ambient temperatures. They consume little energy and are ideal for solar operation. Available in many sizes, including practical drawer fridges and customized cooling solutions.
Page 40 - 55
BUILT-IN ABSORPTION REFRIGERATORS
Amazing choice of models, sizes and configurations
Do you want to integrate a noiseless absorption fridge into the kitchenette of a motorhome, truck or van? The popular 10-series gives you an amazing choice. Premium refrigerators with doublehinged doors opening either left and right. Competitively priced

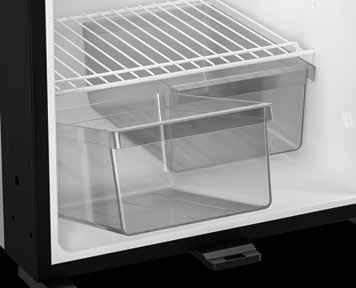

VG-fresh crisper
With adjustable partitions, adjustable humidity and a lid that serves as an extra storage shelf
One-sided door hinge (reversible left/right)
Door can be opened from one side – left or right, depending on where the hinge is fitted (G models)
Versatile interior
Smart storage solutions for everything – even for wine bottles
Double-hinged door with two full-height aluminium handles
Convenient opening from both sides, at any height and from every angle (P models)
entry-level models with a single door hinge that can be fitted left or right, depending on the installation conditions. Tall and slim campervan fridges, compact under-the-counter fridges, extra-deep model versions – it’s all there.
LED control panel
Intuitive control of cooling temperature, energy source and comfort features. (except RM 10.5T)
LED light bar
For uniform, energy-saving illumination of the refrigerator compartment
Take your choice:
Opening from both sides or just one 10-series P models with double-hinged door give you a unique benefit: they can be opened from either side, without the need to change the hinge. On the more favorably priced G models, the hinge is mounted on one side – left or right, as it suits you best. The door hinge is reversible, so you can easily swap sides anytime. Both model versions come with a two-point locking system that keeps the door firmly in place in all situations.
Absorption refrigerator, 93 l, TFT display, double-hinged door
Temperature range
Climate class
Refrigerator +7 °C, freezer compartment up to –12 °C at ambient temperatures up to 32 °C
Refrigerant R717 ammonia
Insulation PU foam all around
Ignition system AES
Material
Cabinet: Coated sheet steel
Door panel: Plastic
Colour Black
Dimensions (W x H x D) 523 x 821 x 548 mm
Weight
Quality Features
Test marks
CEE AC adapter for Dometic
28.0 kg with freezer compartment
• Double-hinged door – opens left and right without the need to change the hinge

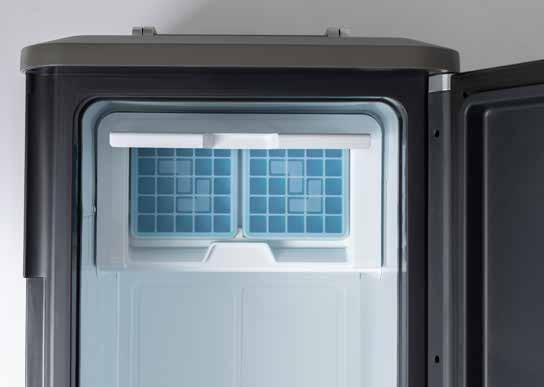

• Patented removable freezer compartment (opens to the bottom)
• Ease of use with intuitive TFT color display
• Elegant aluminum door handles extend over the complete fridge height
• Flexible interior storage with two small crispers
• Noiseless absorption cooling on 12 V, 230 V or gas
Certified to European Gas Appliance Directive 90/396/EEC, e-certified (Automotive EMC Directive)
Dometic RMS 10.5P / 10.5 G / 10.5XP
Absorption refrigerators
Material
Quality Features
Test marks
Coated sheet steel / door, panel: plastic
• Double-hinged door – opens left and right without the need to change the hinge (RMS 10.5P/RMS 10.5XT)
• Removable freezer compartment (opens to the bottom)
• Smart use of space: under counter model with wheel arch cut-out
• Elegant aluminum door handles extend over the complete fridge height
• Easy to use with intuitive LED display
• Flexible interior storage with two small crispers
• Noiseless absorption cooling on 12 V, 230 V or gas
Certified to European Gas Appliance Directive 90/396/EEC, e-certified (Automotive EMC Directive)
MORE CHOICE: PREMIUM OR NICE PRICE
10-series premium models (P) feature a double-hinged door. Thanks to this patented solution they can be opened from both sides, without the need to change the hinge. On the more favorably priced entry-level models (G), the hinge is mounted on just one side - left or right, as required. The door hinge is reversible, so you can easily swap sides later on. Both model versions come with a two-point locking system that keeps the door firmly in place in all situations.
Dometic RML 10.4P / 10.4G
Absorption refrigerator, 133 l
Temperature range
Refrigerator +7 °C, freezer compartment up to –12 °C at ambient temperatures up to 32 °C (equivalent to climate class SN )
Climate class SN
Refrigerant
Insulation
R717 ammonia
PU foam all around Ignition system AES
Material
Cabinet: Coated sheet steel
Door panel: Plastic
Colour Black
Dimensions (W x H x D)
Weight
Quality Features
Test marks
Dometic RML 10.4P
Dometic RML 10.4G
/ Optional extras
CEE AC adapter for Dometic refrigerators with WAGO connector
230/240 V JST plug
230/240 V MNL plug
422 x 1293 x 543 mm
35.5 kg with freezer compartment
• Double-hinged door – opens left and right without the need to change the
• hinge (RML 10.4P)
• Removable freezer compartment with double-hinged door
• Best-in-class cooling performance thanks to new cooling unit
• Elegant aluminum door handles extend over complete fridge height
• Intuitive control via LED display
• VG Fresh crisper with adjustable humidity – keeps fruit and vegetable fresh for longer
• Flat door with customizable decor panel (variable thickness 1.2 mm – 3 mm)
Certified to European Gas Appliance Directive 90/396/EEC, e-certified (Automotive EMC Directive)
9620018669
9620018660
9600015437
9600015439
9600015440
9600015438
RML
RML
TROPICAL-RATED PREMIUM FRIDGES AND ENTRY-LEVEL ALTERNATIVES
Our two premium models – RMD 10.5P and RMD 10.5XP – are the first and only absorption refrigerators on the market to meet the requirements of climate class T. Designed to thrive in high ambient temperatures these fridges keep your food fresh even at tropical outside temperatures up to +43 °C. This puts the two tropical-rated
Dometic RMD 10.5P / 10.5G / 10.5XP
Absorption refrigerators, LED display
RMD models at eye level with high-end compressor refrigerators. Tip: The external dimensions of the tropical-rated RMD premium models are identical to those of the previous series. The performance upgrade can be done in no time at all. Simply swap them out!
Refrigerant R717 ammonia
Insulation PU foam all around
Ignition system
Material Cabinet: Coated sheet steel / door, panel: plastic
Colour
Quality Features
Test marks
Product
Dometic RMD 10.5P
/ Optional extras
CEE AC adapter for Dometic refrigerators with WAGO connector
230/240 V JST plug
230/240 V MNL plug
• Double-hinged door – opens left and right without the need to change the hinge (RMD 10.5P/RMD10.5XP)
• Best-in-class cooling performance – tested and proven in the Australian outback
• Two separate doors for fridge and freezer
• Ease of use with intuitive LED soft-touch controls recessed into the door
• Elegant aluminum door handles extending over the complete fridge height
• Two-point locking mechanism on either side for increased safety
• Flat door with customizable decor panel and variable thickness (1.2 mm – 3 mm)
Certified to European Gas Appliance Directive 90/396/EEC, e-certified (Automotive EMC Directive)
9620023873
9620023874
9600015437
9600015439
9600015440
9600015438
RMD
Dometic RMDT 10.5(X)P
Absorption refrigerators with integrated oven, LED display
Insulation
Ignition system Automatic Energy Selection (AES)
Material
Housing: steel sheet coated/ flame resitant according to EN
clause 22.117 door, panel: plastic
Colour Black
Quality features
• Double-hinged door – opens left and right without the need to change the hinge
• Best-in-class cooling performance – tested and proven in the Australian outback
• Standard depth cabinet with two separate doors for refrigerator and freezer
• Easy to use with intuitive LED panel
• Elegant aluminium door handles over the entire height of the refrigerator
• Two-point locking system ensures greater safety on both sides
• Flat door with adjustable decorative panel and variable thickness (1.2 mm – 3 mm)
• Industry-leading non-flammable solution with a non significant weight increase
Test marks European gas consumption according to Regulation 90/396/EEC, E-certified (EMC/motor vehicle directives)
Quality features
• Easy cleaning due to hidden burner elements and smooth surfaces
• 25 l capacity in the size of a conventional 20 l oven
• Elegant appearance matches the new Dometic 10-series refrigerators
• Easy maintenance and service – oven door can be completely removed
• No installation restrictions with internal or external ventilation possible
• Convenient operation with intuitive control
• Easy cleaning due to hidden burner elements and smooth surfaces
• 25 l capacity in the size of a conventional 20 l oven
• Grill works with closed door – safer, faster, cleaner and gas-saving
• Elegant appearance matches the new Dometic 10-series refrigerators
• Easy maintenance and service – oven door can be completely removed
• No installation restrictions with internal or external ventilation possible
• Convenient operation – one control for oven and grill
ACCESSORIES FOR ABSORPTION REFRIGERATORS
Dometic upgrade kits
Upgrade kits for 10-series refrigerators NAME
Dometic RC 10.4S 70-UKIT
Dometic RC 10.4S 90-UKIT
Dometic RM(S)/RCS 10.5S-UKIT
Dometic RMS/RCS 10.5XS-UKIT
Dometic RMD/RCD 10.5S-UKIT
Upgrade kit for Dometic RC 10.4S 70 fridge variant to gain all preferable features of the Dometic RML 10.4T 70 1
Upgrade kit for Dometic RC 10.4S 90 fridge variant to gain all preferable features of the Dometic RC 10.4T 90 1 dual hinged door, 1 door rack, 1 fridge shelve
Upgrade kit for RM 10.5S, RMS 10.5S and RCS 10.5S fridge variant to gain all preferable features of the Dometic RM 10.5T, RMS 10.5T and RCS 10.5T 1 dual hinged door, 1 door rack, 1 fridge shelve
Upgrade kit for RMS 10.5XS and RCS 10.5XS fridge variant to gain all preferable features of the Dometic RMS 10.5XT and RCS 10.5XT
1 dual hinged door, 1 door rack, 1 fridge shelve
Upgrade kit for the RMD 10.5S and RCD 10.5S fridge variant to gain all preferable features of the RMD 10.5X and RCD 10.5T fridge range
2 dual hinged doors, 1 door rack, 1 fridge shelve, 1 veggie fresh lid
Dometic RMD/RCD 10.5XS-UKIT
Upgrade kit for the RMD 10.5XS and RCD 10.5XS fridge variant to gain all preferable features of the RMD 10.5X and RCD10.5XT fridge range
2 dual hinged doors, 1 door rack, 1 fridge shelve, 1 veggie fresh lid
9600028479
Dometic RML 10.4S-UKIT
Dometic RCL 10.4ES-UKIT
Upgrade kit for Dometic RML 10.4S refrigerator and Dometic RCL 10.4S fridge variant to gain all preferable features of the Dometic RML 10.4 and RCL 10.4 fridge range
Upgrade kit for Dometic RCL 10.4ES refrigerators
1 dual hinged door, 1 door rack, 1 fridge shelve, 1 veggie fresh lid
9600028181
9600028421
9620009236
1 dual hinged door, 1 door rack, 1 fridge shelve, 1 veggie fresh lid
9600050037
Dometic RML10.4-RPLKIT
RML 94xx replacement kit for installation of RML 10.4 refrigerators
If there's already an RML 94xx-series fridge installed in the vehicle, this replacement kit allows you to mount an RML 10.4-series refrigerator into existing cut-out. Decor bars and a flexible gas connection hose are included to ensure a seamless integration.
Ref. No. 9620009283
Dometic RMD10.5-RCK
Shelf for RMD 10.5 freezer compartment
Well-organized storage: an additional shelf will optimize the use of the space in the freezer compartment of a 10-series fridge.
Ref. No. 9620009197
Dometic REF-ADAPT
Power adapter for 10-series absorption refrigerators
10-series absorption refrigerators come standard with a WAGO plug for connection to 230/240 V AC. If required it can be adapted to the following plug systems:
230/240 V CEE plug / Ref. No. 9600015437
230/240 V UK plug / Ref. No. 9620013146
230/240 V JST plug / Ref. No. 9620009203
230/240 V MNL plug / Ref. No. 9600015440
Dometic REF-FGC
Flexible gas connection pipe for 10 series absorption refrigerators
Ref. No. 9620009201
Dometic REF-STOKIT
Storage kit for refrigerators
• Space-saving food storage with stackable trays in two heights
• Tray holders keep the stacks securely in place during the journey
• Ice cube tray with sliding lid for easy removal of the required amount
• Designed for 10-series and also suitable for other refrigerators
Ref. No. 9620009277
Winter covers
• Winter covers are available for both single and double door fridges
• Replace your cover at the start of the cold winter season
• Covers help to maintain a high cooling performance in cold weather
Dometic WA 120/130
Winter cover set for LS 100 and LS 200, white Ref. No. 9620009215
Dometic WA 120/130
Winter cover set for for LS 100 and LS 200, black Ref. No. 9500001460
Dometic EWS 300
Winter cover set for LS 300, white Ref. No. 9620009209
Ventilation grills
The two ventilation grills LS 100 and LS 200 have been designed for under-counter refrigerators of the RM, RMS and RMV series. The LS 100 model is only required for installations with a separate exhaust duct. Otherwise, you can use the LS 200, which is suitable for ventilation at the top and at the bottom of the fridge.
The LS 300 is a perfect fit for the large refrigerators in the RMD and RMDT series, while the LS 230 is the matching ventilation grill for the slim RML refrigerators. All ventilation grills are paintable.
LS 100, top, RM(V)5xxx, RM(S)8xxx
Ref.-No. white 9500000958
Ref.-No. black 9620009242
LS 200, bottom, RM(V)5xxx, RM(S)8xxx
Ref.-No. white 9620009291
Ref.-No. black 9500001458
LS 300 RMD(T)8xxx, RML855x, RMD(T)10.5 Ref.-No. white 9620009255
Dometic LS-R500
Roof ventilation for 8- and 4-series refrigerators
Extra ventilation of the 8- and 4-series refrigerators. Use in combination with LS 200 or LS 300 ventilation grill.
• Optional extra ventilation for the 8- and 4-series refrigerators
• Combine with LS 200 or LS 300 ventilation grills
• Recommended when using an awning cover
Ref. No. 9105900020
Dometic AR-VKIT
Ventilation kit for absorption refrigerators
Optional ventilation extra for optimal performance of 4-series and 8-series refrigerators. Thermostat-controlled, extremely easy to install.
• The ventilation set is very easy to install
• It ensures optimum ventilation of your fridge for best cooling performance
• This kit is particularly recommended for high ambient temperatures or intense sunlight
Ref. No. 9620009252
Dometic REF-FANKIT
Ventilation kit for 10-series absorption refrigerators
• The ventilation set is very easy to install
• It ensures optimum ventilation of your fridge for best cooling performance
• This kit is particularly recommended for high ambient temperatures or intense sunlight
• Is included as standard with the T-Class RMD10.5
Ref. No. 9620009199
Dometic AR-EGG
Egg shelf for absorption refrigerators
For safe storage of up to six eggs. Suitable for all Dometic refrigerators.
Ref. No. 9620009198
Dometic AR-BI
Battery ignition for absorption refrigerators
This battery ignition is suitable for retrofitting on all piezo refrigerators with plastic dashboard holders.
Ref. No. 9620009243
COOL EFFICIENCY
Dometic compressor refrigerators
Powerful cooling performance even at extreme ambient temperatures, combined with superior energy efficiency and a well organized interior – this is what you can expect from every compressor refrigerator made by Dometic. Our comprehensive range for recreational and commercial vehicles includes models in various
Built-in fridges
10 series and NRX series
• Premium models with double-hinged door (also with extra-deep cabinet or as under-thecounter model)
• Slim tower fridge – 1.5 m tall, climate class T
• Frameless door refrigerators with removable freezer – wide choice of model versions
designs and sizes: from left/right opening premium refrigerators and frameless door models with removable freezer to practical drawer fridges and space-saving top loaders. We also offer a tall slim tower fridge with tropical-rated cooling performance.
What are you looking for?
One that will nicely integrate into your kitchenette? A space-saving solution for your campervan? Or an extra-large fridge with a spacious freezer compartment to keep family and friends happy throughout the journey?
Pull-out fridges
NRX series andCoolmatic CD series
• Convenient slide-out access to the travel provisions
• Models with removable freezer compartment
• Compact drawer fridges turning unused storage space into a cooling compartment
Top loader fridges
CoolMatic CB series
• Space saving, compact design is ideal for small spaces
• Suitable for solar power
• Superb cooling performance
Dometic RC 10.4T 90M
Compressor refrigerator, 90 l, TFT display, double-hinged door
10.4T 90M
Connections 12 V DC
Climate class T
Current consumption at 12 V 1.39 Ah/h at +25 °C ambient temperature, at +5 °C interior temperature
Refrigerant
Insulation
System
Material
Colour
R600a, Refrigerant quantity: 20 g, CO2 equivalent: 0.000102 t, Global warming potential (GWP): 3
PU foam all around
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection
Cabinet: coated sheet steel + plastic / door, panel: plastic
Cabinet and door frame: black, Door panel: black glossy finish (door decor changeable)
Weight 21 kg
• Double-hinged door – opens left and right without the need to change the hinge
• Patented removable freezer compartment (opens to the bottom)
• TFT control panel and/or compressor unit can be installed separately
• Reliable cooling and deep-freezing – even at extreme ambient temperatures up to 43 °C
Quality Features
• Elegant aluminum door handles extend over the complete fridge height
• Ease of use with intuitive TFT color display and turn/push button
• Pleasantly quiet operation in night mode, fast cool-down with boost function
Test marks TÜV/GS, e-certified (Automotive EMC Directive)
Compressor refrigerators, TFT display, double-hinged door
Current consumption at 12 V 1.39 Ah/h at +25 °C ambient temperature, at +5 °C interior temperature 1.39 Ah/h at +25 °C ambient temperature, at +5 °C interior temperature
Refrigerant
R600a, Refrigerant quantity: 16 g, CO2 equivalent: 0.000102 t, Global warming potential (GWP): 3
Insulation PU foam all around
System
Material
R600a, Refrigerant quantity: 20 g, CO2 equivalent: 0.000102 t, Global warming potential (GWP): 3
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection
Cabinet: coated sheet steel + plastic / door, panel: plastic
Colour Cabinet and door frame: black, Door panel: black glossy finish (door decor changeable)
Weight 19.5 kg 21.5 kg
• Double-hinged door – opens left and right without the need to change the hinge
• Patented removable freezer compartment (opens to the bottom)
• Ease of use with intuitive TFT color display and turn/push button
Quality Features
• Reliable cooling and deep-freezing – even at extreme ambient temperatures up to 43 °C
• Elegant aluminum door handles extend over the complete fridge height
• Internal ventilation system – no further ventilation grills required
• Pleasantly quiet operation in night mode, fast cool-down with boost function
Test marks TÜV/GS, e-certified (Automotive EMC Directive)
Dometic RCS 10.5T / 10.5XT
Compressor refrigerators, TFT display, double-hinged door, under counter models
Current consumption at 12 V 1.46 Ah/h at +25 °C ambient temperature, at +5 °C interior temperature 1.48 Ah/h at +25 °C ambient temperature, at +5 °C interior temperature
Refrigerant
Insulation
System
Material
Colour
R600a, Refrigerant quantity: 24 g, CO2 equivalent: 0.000072t, Global warming potential (GWP): 3
PU foam all around
R600a, Refrigerant quantity: 23 g, CO2 equivalent: 0.000072t, Global warming potential (GWP): 3
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection
Cabinet: coated sheet steel + plastic / door, panel: plastic
Cabinet and door frame: black / door panel: black glossy finish (door decor changeable)
Dimensions (W x H x D) 528 x 821 x 548 mm 523 x 821 x 610 mm
Weight 24.5 kg 25 kg
• Double-hinged door – opens left and right without the need to change the hinge
• Patented removable freezer compartment (opens to the bottom)
• Smart use of space: under counter model with wheel arch cut-out
• Elegant aluminum door handles extend over the complete fridge height
Quality Features
• Easy to use with intuitive TFT color display and turn/push button
• Flexible interior storage with two small crispers
• Reliable compressor cooling and deep-freezing – ST Class (up to 38 °C ambient temperature)
Test marks TÜV/GS, e-certified (Automotive EMC Directive)
RC S 10.5(X)(S)(T)
Dometic RCL 10.4EP / EG
Compressor refrigerator, 151 l, TFT display, double-hinged or right-hinged door
Dometic RCL 10.4EP
Dometic RCL 10.4EG
Gross
Net
Net
Connections
Climate class T
Current consumption at 12 V 1.87 Ah/h at +25 °C ambient temperature, at +5 °C interior temperature
Refrigerant
R600a, Refrigerant quantity: 31 g, CO2 equivalent: 1.2 kg, Global warming potential (GWP): 3
Insulation PU foam all around
System
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection
Material Cabinet: coated sheet steel + plastic / door, panel: plastic
Colour Cabinet and door frame: black / door panel: black glossy finish (door decor changeable)
Dimensions (W x H x D)
Weight 31 kg
x 1293 x 595 mm
• Double-hinged door – opens left and right without the need to change the hinge
• Patented removable freezer compartment with double-hinged door
• VG Fresh crisper with adjustable humidity – keeps fruit and vegetables fresh for longer
• Elegant aluminum door handles extend over the complete fridge height
Quality Features
• Intuitive control with TFT color display and turn/push button
• Flat door with customizable decor panel (variable thickness 1.2 mm – 3 mm)
• Reliable cooling and deep-freezing at outside temperatures up to +43 °C (climate class T)
Test marks TÜV/GS, e-certified (Automotive EMC Directive)
AMPLE SPACE FOR COOLING
Slim tower compressor refrigerator
1500 mm tall, the RCT 10.4G slim tower is a perfect solution when it comes to creating more space for cooling. Tropical-rated cooling technology (climate class T) and a highly effective insulation make it the best compressor refrigerator in its size class – the one with the best cooling performance, the largest capacity, the quietest operation, and the lowest energy consumption. Ready for connection to 12/24 V.
Dometic RCT 10.4G
Compressor refrigerator, 153 l, right- or left-hinged door
Climate class T
Fit for the tropics
The RCT 10.4G meets the standards of climate class T (tropical-rated) – the highest performance class for RV refrigerators. Fitted with a highly effective insulation, it guarantees stable cooling and deepfreezing at outside temperatures up to +43°C. This makes it a reliable travel mate – not only in tropical or desert regions.
V DC
Current consumption at 12 V 1.46 Ah/h at +25 °C ambient temperature, at +5 °C interior temperature
Refrigerant
Insulation
System
Material
Colour
R600a, Refrigerant quantity: 25 g, CO2 equivalent: 0,000102 t, Global warming potential (GWP): 3
PU foam all around
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection
Cabinet: coated sheet steel + plastic / door, panel: plastic
Cabinet and door frame: black / door panel: black matt finish (door decor changeable)
Dimensions (W x H x D) 418 x 1500 x 569 mm
Weight 32 kg
• Quality Feature1500 mm tall slim tower model – allows you to use the full vehicle height for cooling
• Reliable cooling and deep-freezing at outside temperatures up to +43 °C (climate class T)
• Best-in-class cooling performance and energy efficiency at a competitive price
Quality Features
Test marks
• Freezer compartment can be removed to make more room for refrigerated items
• Touch control panel with LED light bar nicely integrated inside the cabinet
• Full-height door handle neatly integrated for easy access from every angle
• Robust latch keeps the refrigerator door firmly closed in every situation
• Two crispers for storing fruits and vegetables at the optimal temperature
TÜV/GS, e-certified (Automotive EMC Directive)
Dometic RCD 10.5ET / 10.5XET
Compressor refrigerator, TFT display, 2 double-hinged doors
Current consumption at 12 V 2.42 Ah/h at +25 °C ambient temperature, at +5 °C interior temperature 2.61 Ah/h at +25 °C ambient temperature, at +5 °C interior temperature
Refrigerant
R600, Refrigerant quantity: 34 g, CO2 equivalent: 0.000102 t, Global warming potential (GWP): 3
Insulation PU foam all around
System
Material
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection
Cabinet: coated sheet steel + plastic / door, panel: plastic
Colour Cabinet and door frame: black / door panel: black glossy finish (door decor changeable)
Dimensions (W x H x D) 523 x 1282 x 550 mm 523 x 1282 x 605 mm
Weight 38 kg 39.5 kg
• Patented double-hinged doors – open left and right without the need to change the hinge
• Separate doors for the fridge and freezer
• VG Fresh crisper with adjustable humidity – keeps fruit and vegetables fresh for longer
Quality Features
• Elegant aluminum door handles extend over the complete fridge height
• Internal ventilation system – no further ventilation grills required for installation
• Easy to use controls with intuitive TFT color display and turn/push button
• Reliable compressor cooling and deep-freezing – ST Class (up to 38 °C ambient temperature)
Test marks TÜV/GS, e-certified (Automotive EMC Directive)
Dometic NRX 90V
Compressor refrigerator, 92 l
Gross capacity
Net capacity main compartment
Net capacitiy freezer compartment 92 l 70.6 l 8,4 l
Connections 12/24 V DC
Climate class T
Current consumption at 12 V 1.39 Ah/h at +25 °C ambient temperature, at +5 °C interior temperature
Refrigerant
Insulation
System
Material
Colour
R600a, Refrigerant quantity: 20 g, CO2 equivalent: 0. 000102 t, Global warming potential (GWP): 3
PU foam all around
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection
Cabinet: coated sheet steel + plastic / door, panel: plastic
Cabinet and door frame: black, Door panel: black glossy finish (door decor changeable)
Weight 21.5 kg
• 3-in-1 solution: fridge, freezer or both at the same time
• Energy-efficient compressor technology – 0.4 kWh/24h compared to 2.5 kWh/24 h with same size absorption refrigerators
• Easy installation without cut-outs, ventilation grills and gas installations
Quality Features
• Frameless door with dark silver front panel and full-width handle
• Reversible door hinge – can be fitted left or right as required
• Dual function locks can also act as vents for your fridge
• Standard or flush-mount installation frame available as accessory
Test marks TÜV/GS, e-certified (Automotive EMC Directive)
FRIDGE, FREEZER OR BOTH COMBINED
Dometic NRX compressor refrigerators
Are you looking for an energy-efficient cooling solution that easily adapts to your needs? Dometic NRX refrigerators can be used as a fridge, freezer or both at the same time. You can even use the full capacity of the appliance for storing deep-frozen food between –9 °C to –12 °C. The powerful high-end compressor gives you a choice of three operating modes to be set on the illuminated touch control panel neatly integrated inside the cabinet: Eco for maximum energy efficiency, Boost for a quick cool-down, Silent for a peaceful night’s sleep. The elegant frameless door opens to a well equipped interior: removable freezer compartment, two shelves, two crispers, plus a bottle holder and an upper shelf in the inner door.
The freezer compartment can easily be removed to make room for more fridge storage
Flush-mounted inside the cabinet, with nicely integrated LED light bar
• 3-in-1 cooling solution: fridge, freezer or both at the same time
• Energy-efficient high-end compressor with 3 operating modes (Eco/Boost/Silent)
• Frameless door with stainless steel or dark silver front panel and full-width handle
• Beveled rear side for maximal utilization of space on board
• Reversible door hinge – can be fitted left or right as required
• Dual function locks can also act as vents for your fridge
• Standard or flush-mount installation frame available as accessory
Two crispers
For storing fruits and vegetables at the optimal temperature
Neatly integrated for easy access to from every angle
Full-width door handle
Removable freezer compartment
Touch control panel
NRX C series: with dark silver front panel
NRX S series: with stainless steel front panle
Dometic CoolMatic NRX 35C / 35S / 50C / 50S / 50R
Compressor refrigerators, 12 / 24 V DC
NRX 35C
Total volume Freezer storage volume 32 l 4.4 l
Connections 12 / 24 V DC
Average power consumption 12.92 W (16 °C at 32 °C ambient temperature)
Current consumption at 12 V 0.2760 Ah/h at +25 °C ambient temperature, at +4 °C interior temperature
NRX 35S
Refrigerant R134a, Refrigerant quantity: 26 g, CO2 equivalent: 0.037 t, Global warming potential (GWP): 1430
Insulation PU foam all around
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection, mechanical, continuously variable thermostat
Body: with metal frame
Plastic interior/door frame: plastic, Fittings: white coated steel (cabinet shelves)
Cabinet: silver metal outer case
Door frame: black
Door panel: charcoal
16 kg
Body: with metal frame
Interior: stainless steel 304 (cabinet shelves), plastic (freezer compartment, crispers, door shelves), fittings: SUS304 for cabinet shelves
Door: stainless steel (SUS316)
Cabinet: silver metal outer case
Door frame: black
Door panel: stainless steel
Test marks SGS/CS, e-certified (Automotive EMC Directive)
NRX 50C / 50S / 50R
Total volume Freezer storage volume 44 l 4.4 l
Average power consumption 12.92 W (16 °C at 32 °C ambient temperature)
Refrigerant R134a, Refrigerant quantity: 30 g, CO2 equivalent: 0.043 t, Global warming potential (GWP): 1430
Current consumption at 12 V 0.2760 Ah/h at +25 °C ambient temperature, at +4 °C interior temperature 17.5 kg
Further technical data as for NRX 35C/NRX 35S. NRX 50R has no decor panel
Product Ref. No.
Dometic CoolMatic NRX 35C 9620001484
Dometic CoolMatic NRX 35S 9600051672
Dometic CoolMatic NRX 50C 9620001481
Dometic CoolMatic NRX 50S 9600051673
Dometic CoolMatic NRX 50R (without decor panel) 9630002033 / Optional extras
Dometic DPS-R 135, Mains adapter for refrigerators, 135W 9620013449
Universal flush-mount frame for NRX 35C/50C 9620012874
Universal flush-mount frame for NRX 35S/50S 9620012877
NRX
Dometic CoolMatic NRX 60C / 60S / 80C / 80S
Compressor refrigerators, 12 / 24 V DC
NRX 60S/60S
Total volume Freezer storage volume 55 l 6.1 l
Connections 12 / 24 V DC
Average power consumption 13.99 W (16°C at 32°C ambient temperature)
Current consumption at 12 V 1.08 Ah/h at +25 °C ambient temperature, 1.66 Ah/h at +32 °C ambient temperature, both at +4 °C interior temperature
Refrigerant R134a, Refrigerant quantity: 30 g, CO2 equivalent: 0.043 t, Global warming potential (GWP): 1430
Insulation
System
Material
NRX 80C/80S
Colour
PU foam all around
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection, mechanical, continuously variable thermostat
Body: with metal frame
Plastic interior/door frame: plastic, Fittings: white coated steel (cabinet shelves)
Cabinet: silver metal outer case
Door frame: black
Door panel: charcoal
Weight 17 kg
Body: with metal frame
Interior: stainless steel 304 (cabinet shelves), plastic (freezer compartment, crispers, door shelves), fittings: SUS304 for cabinet shelves
Door: stainless steel (SUS316)
Cabinet: silver metal outer case
Door frame: black
Door panel: stainless steel
Test marks SGS/CS, e-certified (Automotive EMC Directive) NRX 80C
80S Total volume
Average power consumption 12 / 24 V DC
Current consumption at 12 V 15.15 W (16 °C at 32 °C ambient temperature)
Refrigerant
1.15 Ah/h at +25 °C ambient temperature, 1.77 Ah/h at +32 °C ambient temperature, both at +4 °C interior temperature
Current consumption at 12 V R134a, Refrigerant quantity: 32 g, CO2 equivalent: 0.046 t, Global warming potential (GWP): 1430
Weight 20 kg
Further technical data as for NRX 35C/NRX 35S
Product
Dometic CoolMatic NRX 60C 9620001486
Dometic CoolMatic NRX 60S 9600051674
Dometic CoolMatic NRX 80C 9620001483
Dometic CoolMatic NRX 80S 9600051675 / Optional extras
Dometic DPS-R 135, Mains adapter for refrigerators, 135W 9620013449
Universal flush-mount frame for NRX 60C 9620012875
Universal flush-mount frame for NRX 60S 9620012881
Universal flush-mount frame for NRX 80C 9620012880
Universal flush-mount frame for NRX 80S 9620012882
Dometic CoolMatic NRX / 115C / 115S / 130C / 130S
Compressor refrigerators, 12 / 24 V DC
Total volume
Freezer storage volume 75 l 6.6 l
115C
Connections 12 / 24 V DC
Average power consumption 15.15 W (16 °C at 32 °C ambient temperature)
Current consumption at 12 V 1.15 Ah/h at +25 °C ambient temperature, 1.77 Ah/h at +32 °C ambient temperature, both at +4 °C interior temperature
Refrigerant
Insulation
System
Material
115S NRX 115C / 115S NRX 130C / 130S
Colour
Weight
R134a, Refrigerant quantity: 32 g, CO2 equivalent: 0.046 t, Global warming potential (GWP): 1430
PU foam all around
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection, mechanical, continuously variable thermostat
Body: with metal frame
Plastic interior/door frame: plastic, Fittings: white coated steel (cabinet shelves), plastic (freezer compartment, crispers, door shelves)
Cabinet: silver metal outer case
Door frame: black
Door panel: charcoal
20 kg
Body: with metal frame
Interior: stainless steel 304 (cabinet shelves), plastic (freezer compartment, crispers, door shelves), fittings: stainless steel
Door: stainless steel (SUS316)
Cabinet: silver metal outer case
Door frame: black
Door panel: stainless steel
Test marks SGS/CS, e-certified (Automotive EMC Directive) NRX 130C NRX130S Total
Refrigerant
R134a, Refrigerant quantity: 40 g, CO2 equivalent: 0.057 t, Global warming potential (GWP): 1430
Current consumption at 12 V 1.67 Ah/h at +25 °C ambient temperature, 2.43 Ah/h at +32 °C ambient temperature, both at +4 °C interior temperature
Weight 27 kg
Further technical data as for NRX 80C /80S
Product
Dometic CoolMatic NRX 115C 9620001485
Dometic CoolMatic NRX 115S 9600051676
Dometic CoolMatic NRX 130C 9620001482
Dometic CoolMatic NRX 130S 9600051677 / Optional extras
Dometic DPS-R 135, Mains adapter for refrigerators, 135W 9620013449
Universal flush-mount frame for NRX 115C 9620012879
Universal flush-mount frame for NRX 115S 9620012878
Universal flush-mount frame for NRX 130C 9620012883
Universal flush-mount frame for NRX 130S 9620012876
Dometic NRXD 50C/50S
Pull-out compressor refrigerator
/ NRXD 60C/60S
Connections
V DC Temperature
Insulation
System
Refrigerant
Material
Colour
Quality features
Test marks
Product
Dometic CoolMatic NRXD 50C
Dometic CoolMatic NRXD 50S
Dometic CoolMatic NRXD 60C
Dometic CoolMatic NRXD 60S
/ Optional extras
Standard installation frame NRXD 50C
Standard installation frame NRXD 50S
to –12 °C
PU foam all around
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection, mechanical, continuously variable thermostat
R134a, Refrigerant quantity: 38 g, CO2 equivalent: 0.054 t, Global warming potential (GWP): 1430
Body: with coated metal frame
Plastic interior/door frame: plastic, Fittings: stainless steel
Cabinet: silver metal outer case
Door panel: matt-silver (brushed stainless steel appearance)
Body: with coated metal frame
Interior: plastic, fittings: stainless steel
Door: stainless steel (AISI316)
Cabinet: silver metal outer case
Door panel: Stainless steel (AISI316)
• Use as a fridge-freezer combination or, thanks to the easy-to-remove freezer compartment, as a freezer or fridge only with even more storage capacity
• Standard or flush-mount installation frame available as accessory
• Convenient slide-out access to refreshments
• Premium self-closing door slides
• Frameless door with full-width door handle
• Energy-efficient, variable-speed compressor with 3 operating modes (Eco/ Performance/Silent)
• Flush-mounted control panel inside the cabinet, with nicely integrated LED light bar
• Modular interior with adjustable partitions and versatile storage tray
• Secure door lock including winter position to allow air ventilation and prevent mold build-up
TÜV/GS, e-certified (Automotive EMC Directive)
9620017635
9620017634
9620017636
9620017633
9105306405
9105305676
9105306410
Flush-mount installation frame NRXD 50C
Flush-mount installation frame NRXD 50S
Standard installation frame NRXD 60C
Standard installation frame NRXD 60S
Flush-mount installation frame NRXD 60C
Flush-mount installation frame NRXD 60S
9105305671
9105306406
9105305677
9105306411
9105305672
Dometic CoolMatic CB 36 / CB 40
Built-in compressor cooler, 12 / 24 V DC
Connections 12 / 24 V DC
Temperature range +10 to –12 °C
Average power consumption 45 W
Current consumption at 12 V
Refrigerant
0.56 Ah/h at +20 °C ambient temperature, 0.94 Ah/h at +32 °C ambient temperature, both at +5 °C interior temperature
0.64 Ah/h at +20 °C ambient temperature, 1.01 Ah/h at +32 °C ambient temperature, both at +5 °C interior temperature
R134a, Refrigerant quantity: 60 g, CO2 equivalent: 0.086 t, Global warming potential (GWP): 1430
Insulation PU foam all around
System
Fully hermetic compressor with integrated control electronics, electronic thermostat, low voltage protection / electronic fuse, automatic reverse pole protection
Material Outside: zinc coated sheet steel, inside: white coated steel, base: shock-resistant plastic
Colour
Body: grey, decor panel: pale grey
Weight 17 kg 19 kg
Test marks TÜV/GS, e-certified (Automotive EMC Directive)
Product
Dometic CoolMatic CD 20 / CD 20W / CD 20S / CD 30 / CD 30W / CD 30S
Compressor drawer fridge, 12 /
24
V DC
CD 20 / CD 20W / CD 20S
Storage volume 20 l
Connections 12 / 24 V DC
Average power consumption 40 W
Current consumption at 12 V 0.67 Ah/h at +20 °C ambient temperature, 1.33 Ah/h at +32 °C ambient temperature, both at +5 °C interior temperature
Refrigerant
R134a, Refrigerant quantity: 38 g, CO2 equivalent: 0.054 t, Global warming potential (GWP): 1430
Insulation PU foam all around
System
Material
Colour
Quality features
Fully hermetic compressor with integrated control electronics, electronic thermostat, low voltage protection / electronic fuse, automatic reverse pole protection
Sturdy metal housing, drawer of injection-moulded parts
CD 20: black
CD 20W: black, front white
CD 20S: black, stainless steel
Convenient access with easy-pull drawers running on ball bearing slides, temperature regulation with continuously variable thermostat, unlocking and opening with a single movement, safe locking mechanism. A smart solution in confined spaces: the cooling unit can be fitted to the side of the cooler (left/right), or up to 1.5 metres away.
Weight 16.1 kg
Test marks e-certified (Automotive EMC Directive)
CD 30 / CD 30W / CD 30S
Storage volume 30 l
Refrigerant
Colour
R134a, Refrigerant quantity: 42 g, CO2 equivalent: 0.060 t, Global warming potential (GWP): 1430
CD 30: black
CD 30W: black, front white
CD 30S: black, stainless steel
Weight 18 kg
Further technical data as for CD 20 / CD 20W / CD 20S
Product
Dometic CoolMatic CD 20 9620000721
Dometic CoolMatic CD 20W 9620000724
Dometic CoolMatic CD 20S 9620000723
Dometic CoolMatic CD 30 9620000726
Dometic CoolMatic CD 30W 9620000727
Dometic CoolMatic CD 30S 9620000725 / Optional extras
Mains adapter EPS 100, 230 V > 24 V 9600000440
Stainless steel installation frame 9105303901
Contents, specifications and availability are
ACCESSORIES FOR COMPRESSOR REFRIGERATORS
Dometic RMD10.5-RCK
Shelf for RMD 10.5 freezer compartment
Well-organized storage: an additional shelf will optimize the use of the space in the freezer compartment of a 10-series fridge.
Ref. No. 9620009197
Dometic REF-STOKIT
Storage kit for refrigerators
• Space-saving food storage with stackable trays in two heights
• Tray holders keep the stacks securely in place during the journey
• Ice cube tray with sliding lid for easy removal of the required amount
• Designed for 10-series and also suitable for other refrigerators
Ref. No. 9620009277
Dometic AR-EGG
Egg shelf for refrigerators
For safe storage of up to six eggs. Suitable for all Dometic refrigerators
Ref. No. 9620009198
THE DOMETIC KITCHEN COLLECTION
Treasure trove for creative vehicle designers
Designing a functional kitchen in the confined spaces of a recreational or utility vehicle takes creative ideas and the “hardware” to match. From now on you can spare the effort of screening the market for suitable products. All you need to realise your kitchen concepts is here, in the Dometic range – from hobs, ovens and sinks to
cooker hoods, coffee makers and microwave ovens. And in various different sizes, shapes and design options. Our new Cooking Vision products are based on a modular design platform, which enables the harmonious combination of induction cooktops, hobs and sinks.
HOBS & SINKS
Do you want to equip a mobile kitchen? Dometic gives you a wide choice of options: hobs, sinks and space-saving combinations. Some models come with a heat-resistant glass lid that extends the worktop space when closed.
Page 58 - 67
KITCHEN ACCESSORIES
Taps and siphons for Dometic sinks, and a practical device for indicating the fill level of gas bottles – you’ll find it all in our accessory collection.
Page 69
COFFEE MAKERS
Freshly brewed coffee at all times: Mobile coffee makers for one or five cups – handy and safe to use, and absolutely roadworthy.
Page 72 - 73
OVENS
Three popular oven models cover the most frequent customer demands: compact or spacious, with or without grill. All with electric ingnition and panoramic glass door.
Page 68
COOKER HOODS
Fresh air in the vehicle: Dometic cooker hoods quickly remove cooking fumes. They do their job just as well as a domestic cooker hood – with integrated lights, easy controls and a washable grease filter.
Page 70 - 71
MICROWAVE OVENS
Fast and convenient cooking on the go: 17-litre microwave ovens with 3 or 5 cooking levels plus defrosting function. Rugged design, easy cleaning, interior light.
Page 74 - 75
COOKING VISION
Discover the benefits of a modular approach
A consistently modular approach that allows the seamless and aesthetically pleasing integration of gas and induction cooktops, sinks and combinations in RV kitchenettes – this is what the Dometic Cooking Vision is all about. We are pleased to introduce our new
model generation, which comes with innovative features like softclose hinges and complies with latest safety standards for domestic cooking appliances.
INDUCTION COOKTOPS
Featuring the modular Cooking Vision design, our induction cooktops can easily coupled with other Cooking Vision products, or replace a gas cooktop to support gasless applications.
• Tested robustness against vibration
• Electrically dimensioned to respect current 10 A limitations at campsites and in RVs
• Easily replace stainless-steel gas cooktops of the same size
GAS COOKTOPS
Modern design, in line with latest kitchen market trends, and a modular approach that allows harmonious product combination.
• Soft-close hinges
• Gas cut-off device integrated in the hinge
• New Dometic burners, the best in their class
SINKS
Cooking Vision sinks blend in nicely with all Cooking Vision induction and gas cooktop models.
• Available with or without lid
• Easy to clean
• Model versions: square, rectangular, round
COMBINATIONS
Our interpretation of latest kitchen trends. Easy to integrate and a perfect fit for panel vans.
• Soft-close hinges
• Gas cut-off device integrated in the hinge
• New Dometic burners, the best in their class
Dometic CVI1350/ CVI1525
Induction hobs
Dometic
Quality features
CVC1700 / CVC1700G
2-burners combination
Quality Feature
• Cooktop with state-of-the-art induction technology
• Convenient regulation of the cooking heat in 9 steps
• Vibration resistance tested according to RV-specific standards
• Designed to respect 10A /2300 W limitations at campsites and in recreational vehicles
• For extra-fast heat-up with automatic over-boost cut-off
POPULAR CLASSICS
Special sizes and useful accessories
Do you need a special size or shape of a hob, sink or combination?
Chances are you will find it among our “classics”. The collection also includes matching taps and siphons and a practical tool to check the
fill level of gas bottles. And, not forgetting, a range of cooker hoods and vents to move cooking fumes out and fresh air in.
Dometic MO 7103 / MO 7123
3-burners
Dometic MO 9722R / MO 9722L
2-burner
Dometic HBG 2335
2-burner hob with glass lid
Dimensions
Quality features
Dometic HBG 2335, 2-burner hob EN30-1-1:2021 Compliant (gas shut-off and soft-close hinges implemented)
Dometic PI9003/PI9023
3-burners cooktop with glass lid
Dometic KSK2007R
Quality Feature
3-burners cooktop with glass lid "2024 manufacturing edition" (no gas shut off and soft close)
Quality Feature
Dometic KSK2007R, 12 V ignition
safety glass lid, enamelled burner caps
Dometic SNG 6420 / VA 7306
VA910
VA930
Dometic OVN 0250 / OVG 0250
gas oven, 25 l capacity
Quality features
• Easy cleaning due to hidden burner elements and smooth surfaces
• 25 l capacity in the size of a conventional 20 l oven
• Elegant appearance matches the new Dometic 10-series refrigerators
• Easy maintenance and service – oven door can be completely removed
• No installation restrictions with internal or external ventilation possible
• Convenient operation with intuitive control
• Easy cleaning due to hidden burner elements and smooth surfaces
• 25 l capacity in the size of a conventional 20 l oven
• Grill works with closed door – safer, faster, cleaner and gas-saving
• Elegant appearance matches the new Dometic 10-series refrigerators
• Easy maintenance and service – oven door can be completely removed
• No installation restrictions with internal or external ventilation possible
• Convenient operation – one control for oven and grill
Product Ref. No
Dometic OVN 0250 9103303725
Dometic OVG 0250 with grill 9103303728
ACCESSORIES FOR MOBILE KITCHENS
Dometic
Indicator for identifying the fill level of all standard propane and butane gas bottles
• Reliable level measurements using ultrasound
• Easy to use
• Suitable for all steel and aluminium gas bottles with a
of
350 mm (with the exception of self refilling bottles)
• Optimal accessory also for gas BBQ's owners
COOKER HOODS
•
•
•
•
•
COFFEE MAKERS AND MICROWAVE OVENS
Must haves for the mobile kitchen
What would a mobile kitchen be, without such handy helpers like a coffee machine or a microwave oven? The Dometic cooking range includes well-proven gadgets for every demand: coffee makers for one or five cups and two robust microwave ovens with features that can well compare to a modern household microwave oven.
All devices are specially designed for mobile use. They come with the right connection, and with accessories for safe and secure installation in the vehicle.
Quality features
Swing filter can be turned for easier use, integrated transport securing device for glass pot, hotplate with thermostat, fixing kit for wall or desk mounting
24 V microwave oven
Voltage 24 V DC
Capacity
Power consumption
Colour
Dimensions (W x H x D)
Weight
Quality features
Test marks
W (microwave) / 960 W (battery)
x 279 x 335 mm
9,8 kg
• User-friendly microwave with intuitive design
• 3 different cooking levels (175 / 270 / 500 W), defrost function
• Memory button for often used settings
• Easy to clean, integrated ceramic plate, no moving parts
• Robust design for the road and with convenient features
• Safety function: warning beeps for 180 sec. when door is opened and after cooking
• LED illuminated cavity
• Includes two fixing brackets
E-approved (Automotive EMC Directive)
Scope of delivery Microwave oven, universal fixing kit
Product
Dometic MWO 24
Plug-n-play with 24 V power supply connector
User-friendly controls with large, easy-to-read digits and display symbols
Added convenience LED interior light lets you see how your food is doing
230 V microwave oven
Quality features
• User-friendly microwave with five cooking levels
• Defrosting function
• Integrated, easy-to-clean ceramic plate
• Approved by leading RV manufacturers
• Illuminated to easily check on the microwave's contents
• Locking system to prevent unwanted opening
• LED display and cooking end signal
Test marks Intertek GS, NCC approved
Scope of delivery Microwave
User-friendly large, easy-to-read digits and display symbols
Integrated ceramic plate easy to clean, no moving parts
Added convenience interior light to see the cooking progress of your food
EXPERTS IN LIGHT AND AIR
Dometic windows, roof windows and roller blinds
When it comes to creating perfect ventilation and light conditions, Dometic products are the obvious choice. 70% of all European recreational vehicles use window systems which are made at the Krautheim factory in Southern Germany. The continuous feedback from OEMs, vehicle designers and motorhome enthusiasts results in innovative solutions that set industry standards on an international scale.
Dometic provides a huge choice of windows and rooflights –complemented by perfectly matching fly screens and roller blind systems. The windows collection is complemented by roof ventilation systems, custom blinds for popular panel vans and practical accessories. High-grade materials and solid workmanship guarantee maximum functionality, convenient handling and a long service life.
ROOF VENTS
“FanTastic” solutions for better air quality. Roof ventilation system with heat recovery and air purifier. Roof vents in standard sizes for easy integration – fully automatic or with manual fan speed control
Page 78 - 81
WINDOWS & ROOFLIGHTS
Quality from the market leader: perfect workmanship, easy handling. Best-in-class thermal insulation.
Page 82 - 95
BLIND SYSTEMS & FLY SCREENS
Effective protection, easy handling. Tailor-made solutions for windows and roof windows in all standard sizes.
Page 96 - 102
ACCESSORIES & SERVICE HATCHES
Rainwater drainage with integrated LED strip light for Fiat Ducato sliding doors. Safety net for protecting children on board. Beautiful design from weatherproof plastic material. Easy to fit without screws, horizontal or vertical installation.
Page 103 - 107
ROOF VENTS
FANTASTIC AIR QUALITY
Fresh air isn’t a luxury – it’s the new standard with Dometic roof vents. Treat your customers to a new level of comfort on the road!
The Dometic FanTastic Breathe 3100 rooftop ventilation system automatically recycles and purifies the air. Efficient heat recovery technology saves energy and keeps the temperature inside the vehicle on a constant level. A quiet, efficient complement to the air conditioning and heating.
Dometic FanTastic Vents move fresh air in and stale air out in a matter of minutes. They work with the roof window slightly open to create a pleasant, draught-free air flow. The high-performance rotary fan is firmly integrated in the roof window and can be adjusted as required. Fully automatic or manually, depending on the model.
VENTILATION SYSTEM WITH HEAT RECOVERY TECHNOLOGY
Dometic FanTastic Breathe 3100 ensures your customers will always breathe fresh and clean air. Regardless of whether they are cooking, showering, relaxing with pets, or sleeping. The rooftop ventilator quickly achieves a proper air exchange. And automatically purifies the air at the same time. Advanced bipolar ionization technology reliably reduces dust particles, bacteria and viruses. It also
Dometic FanTastic Breathe 3100
Ventilation system with heat recovery technology
minimizes the risk of mold build-up and odors. The rooftop ventilator works with all windows and doors closed. Efficient heat recovery technology ensures a stable cabin temperature, which means less energy is needed for air conditioning and heating.
• Effective air exchange even when all windows and doors are closed
• Patented heat recovery system reduces energy consumption
• Integrated air purifier system reduces dust particles, mold and odors
• Smart sensor control system monitors and improves the air quality inside the vehicle
• Ventilation during storage periods prevents mold build-up and unpleasant smells
• Easy to install – fits standard roof 400 x 400 mm cut-outs
• CI-Bus and app control available
Roof vent with white dome incl. remote control, 471 x 471 mm
Features
Roof vent with white dome, 400 x 400 mm
Features
• Manual speed fan with 14 settings •
WINDOWS & ROOF WINDOWS
FRESH AIR AND NATURAL LIGHT IN THE VEHICLE
There are many different ways to let fresh air and natural light into the vehicle. You can use one of our popular lift-and-tilt roof windows (Hekis), or opt for a top-hung or sliding window.
* Requires additional assembly kit Operating Lever Lever Positions
Quality Features
• Model available with inner fly screen (can be adjusted separately) and optional darkening
• Model available with or without forced ventilation
• Maximum opening angle: 50°
• Double acrylic glazing, tinted on the outside
• Lockable vent position
• For roof thickness of 23–42 mm
Product Ref. No.
Roof window with flyscreen, forced ventilation 9104117434
Roof window with flyscreen, without forced ventilation 9104117435
Roof window with blinds and flyscreen, forced ventilation 9104117679
Roof window with blinds and flyscreen, without forced ventilation 9104117680 / Optional extras
Adapter frame for roof thicknesses of 43–60 mm 9104118059
Adapter frame for Fiat Ducato 9104116108
Assembly kit 23 – 25 mm 9104118048
Assembly kit 26 – 27 mm 9104118049
Assembly kit 28 – 29 mm 9104118050
Assembly kit 30 – 31 mm 9104118051
Assembly kit 32 – 33 mm 9104118052
Dometic Mini Heki FL 400 x 400
* Requires shortening of the screw bosses
Quality Features
• Opens to three positions: fully open, half-open, and bad-weather position
• Dome with double acrylic glazing
• Special shaped glass dome is aerodynamic
• Handle-operated
• Without or without forced ventilation
• 400 x 400 mm
Roof window with forced ventilation, roof thickness
Roof window with forced ventilation, roof thickness 43–60 mm 9620008612 Roof window without forced ventilation, roof thickness
Roof window without forced ventilation, roof thickness 43–60 mm 9620008618 / Optional extras
Spoiler 9104100260
Adapter frame for Roof windows bigger than 400 x 400 mm 9103500476
Adapter frame for Fiat Ducato 250, 400 x 400 mm 9104114007
* Requires shortening of the screw bosses Operating Handles Positions
* Requires additional assembly kit Operating Lever Crank
Dometic Midi Heki FL,
Roof window with lever, with forced
Dometic Midi Heki FL,
Roof window with crank, with forced ventilation, white, 700 x 500 mm
Dometic Midi Heki FL,
Roof window with lever, without forced ventilation, white,
Dometic Midi Heki FL,
Roof window with crank, without forced ventilation, white, 700 x 500 mm
Dometic Midi Heki FL,
Roof window with lever, with forced ventilation, grey, 700 x 500 mm
Dometic Midi Heki FL,
Roof window with crank, with forced ventilation, grey, 700 x 500 mm
Dometic Midi Heki FL,
9620008623
9620008688
9620008631
9620008690
9620008629
9620008692
Roof window with lever, without forced ventilation, grey, 700 x 500 mm 9620008632
Dometic Midi Heki FL,
Roof window with crank, without forced ventilation, grey, 700 x 500 mm 9620008695 / Optional extras
Adapter frame Fiat Ducato 9104116106 (front)
Adapter frame Fiat Ducato 9104116107 (rear)
Spoiler 800 mm 9104100236
Assembly kit 25 – 29 mm 9104100261
Assembly kit 35 – 42 mm 9104100263
Assembly kit 43 – 52 mm 9104100264
Assembly kit 53 – 60 mm 9104100265
Operating
Max. opening angle
PMMA glazing
Darkening
Fly screen
Frame material
blind system
blind system
Frame colour RAL 9001
Standard roof thickness 25 – 32 mm (ready to use)
Possible roof thickness 33 – 60 mm (Requires additional assembly kit)
Installation dimensions = External space requirement
Quality Features
• Gas pressure springs for easy opening
• Separately adjustable darkening and fly screens
• Forced ventilation
• Double acrylic glazing
/ Optional extras
Inner frame with integrated lights and roller blind as upgrade (same as for Heki 2 de Luxe)
Assembly kit 53 – 60 mm 9104100248
Heki 2 de Luxe 960 x 655
Operating Lever
Positions 3
Max. opening angle 55°
12-volt lights 4 x 5 W
PMMA glazing Double
Darkening Duette
Fly screen Roller blind system
Frame material ASA
Frame colour RAL 9001
Standard roof thickness 25 – 32 mm (ready to use)
Possible roof thickness 33 – 60 mm (Requires additional assembly kit)
Installation dimensions = External space requirement 1080 x 790 mm
Aperture size 960 x 655 mm
Weight 11.0 kg
Quality Features
• Gas pressure springs springs
• Double-pleated Duette honeycomb roller blind and fly screen
• Forced ventilation
• Double acrylic glazing
• Integrated lighting
Product Ref. No.
Dometic Heki 2 de Luxe 9104100240 / Optional extras Spoiler 800 mm 9104100236 Spoiler 1,100 mm 9104100237
Assembly kit 32 – 39 mm 9104100245
Assembly kit 39 – 46 mm 9104100246
Assembly kit 46 – 53 mm 9104100247
Assembly kit 53 – 60 mm 9104100248
Dometic Heki 3plus 960 x 655
Operating Crank
Positions variable
Max. opening angle 70°
PMMA glazing Double
Darkening Duette
Fly screen Single-pleated
Frame material ASA
Frame colour RAL 9001
Standard roof thickness 25 – 32 mm (ready to use)
Possible roof thickness 33 – 60 mm (Requires additional assembly kit)
Installation dimensions = External space requirement 1080 x 790 mm
Aperture
Quality Features
• Double-pleated Duette honeycomb blind
• Pleated, black gauze fly screen • Double acrylic glazing
Assembly kit 32 – 39 mm 9104100245
Assembly kit 39 – 46 mm 9104100246
Assembly kit 46 – 53 mm 9104100247
Assembly kit 53 – 60 mm 9104100248
DOMETIC S4
Dometic S4 framed window made of polyurethane with fully integrated roller blind and fly screen for motorhomes, panel vans and caravans
The unique Dometic polyurethane frame windows have been tried and tested millions of times and are suitable for all vehicle categories, including panel vans with a radius of up to 5000 mm. The extremely torsion-resistant frame has by far the best insulating properties of all available window materials for recreational vehicles. Furthermore, these frames are extremely UV and weather resistant. The pre-assembled blackout blinds and fly screens - each with one-handed operation - contribute to a particularly quick and easy installation time. All visible surfaces are coated with 2K paint, outside in black RAL9005 and inside cream white RAL9001. The double-glazed window surfaces made of bubble-free, gray-tinted acrylic glass can be continuously and self-lockingly fixed in any position using telescopic stainless steel stays. In the closed position, the window pane surface lies flush in the frame and, in combination with the security locks, offers increased protection against burglary. The blackout roller blinds are aluminum-coated on the back and
offer excellent thermal protection. The S4 windows are suitable for all vehicle walls with a wall thickness of 1 – 53 mm (ready to use for 26mm, adjustable for all other wall-thicknesses). Wall cutout radius 12 mm. Both the outer frame and the inner frame can be painted over if necessary.
• Extremely torsion-resistant and excellently insulating frame
• Weather and UV resistant
• Double-glazed bubble-free acrylic pane, infinitely adjustable
• Increased burglary protection
• Particularly easy and quick to install thanks to complete integration of the roller blinds, no wall drilling required
• Widest range of sizes available
• E7 test mark
• Suitable for vehicles up to 160 km/h
Dometic S4 Windows
Top-hung and sliding windows
Quality Features
• Double acrylic glazing and polyurethane frame for excellent insulation
• Built-in aluminium-coated darkening blind
• Practical fly screen keeps insects out
• Quick and easy installation
• Friction hinges allow opening to any position (top-hung version)
500
Sliding window
Hinged winddow
DOMETIC S7P - R5000
The Dometic S7P frame windows, which are slightly curved on the outside and lie extremely flat, are ideal for panel vans. Powdercoated aluminum profiles ensure lighter weight, excellent thermal insulation and a first-class surface finish. The unique combination of the thermally separated outer frame and the integrated rainwater drain makes this window system ideal for use in all climatic conditions.
High-quality double-insulated acrylic glazing, darkly tinted in privacy black and free of inclusions and air bubbles.
• Multiple locking protects against intruders, exhibitor with automatic locking, telescopic. Ventilation stand integrated
• Quick installation using mounting brackets specially developed for this system for almost all wall thicknesses from 22 mm to a maximum of 44 mm
• Excellent insulation thanks to thermally separated aluminum profiles of the outer frame.
• Outer frame with integrated rainwater drainage prevents standing water in the outer frame
• Concealed integrated pressure compensation valves
• Opening angle up to 81°, locks with child safety locks, ventilation stand integrated
• Suitable for vehicle wall curvature radius of 5000 mm, wall cutout corner radius 75 mm
• Outer frame with 5.2 mm extremely flat structure, outer pane integrated flat
For wall thicknesses from 22-43 mm
Approved for vehicles up to 160 km/h
Made in Germany
The aluminium framed top hung window for all vans
Dometic S7P windows
A perfect match for panel vans with curved outlines: S7P windows look great with their slightly curved radius of 5000 mm, flush-fitting pane and dark-tinted double acrylic glazing. The lightweight, powder-coated aluminium frame ensures excellent insulation and a perfect finish.
Dometic CarPlissee FL
The single pleated darkening screen and the fly screen can be clipped together and adjusted with one hand to any position. Curvature radius of 5000 mm. For wall thickness 26 – 27 mm
Accessories – Fixing kit for S7P window
The fixing kits matching the various window sizes are indispensable installation accessories for S7P aluminium windows; they make installation very easy. Mounting brackets and screws for the existing wall thickness are included.
– 33 9104116099
– 35 9104116100
– 37 9104116101 38 – 39 9104116102
40 – 41 9104116103 42 – 43 9104116104
DOMETIC PUR-WIN S10
STYLISH & DURABLE
Polyurethan
frame windows
Want to upgrade your camper with a stylish side window? The new PUR-Win S10 series from Dometic sets new standards in design, stability, and durability. Double acrylic glazing with black-tinted panes that are flush with the outer frame. Highly stable polyurethane frame with a 15-year weather protection guarantee. Integrated sun and insect protection. Enjoy the new look and the upgraded features! For over 40 years, Dometic has been the world’s only manufacturer of PUR windows for recreational vehicles – over 7 million times. The innovative material combines lightweight construction, thermal insulation, and extreme weather resistance. The bolted PUR inner and outer frames also improve wall reinforcement.
• Exclusive design with black-tinted acrylic glass panes that are flush with the frame
• 15-year weatherproof guarantee: polyurethane frame resists rain, sun, and frost
• Double acrylic glazing and polyurethane frame for excellent insulation and noise reduction
• Suitable for motorhomes, caravans, and campervans with flat and curved vehicle walls
• Integrated, aluminum-coated blackout blind and fly screen –infinitely adjustable
• Steel-reinforced PUR frame for maximum stability and safety on the road
• Stepless stays allow opening in any position up to an angle of 80° (hinged window)
• Two color options: exterior surfaces in black, interior frame and blind in black or white
• For wall thicknesses from 1 to 53 mm (ready to install for 26 mm, adaptable for all other wall thicknesses)
• Available in many sizes, as a hinged window or sliding window
Inner Frame in Black or White
BLIND SYSTEMS AND FLY SCREENS
Dometic DB1R
Darkening roller blind with fly screen
Quality features
• New design – blends in harmoniously with modern vehicle models
• Preassembled to fit RV windows
• Black-out blind and fly screen can be adjusted separately
• Fly screen can be fitted top or bottom
• Maximum field of vision due to slim profiles
• No visible screws
• Tool-free tensioning of blind and fly screen
Dometic Rastrollo 3000
•
• Black-out blind and fly screen which can be adjusted separately
• Designed to be fitted above the window, making it ideal for windows without frames
DARKENING SYSTEMS
ENHANCE PRIVACY AND COMFORT
Are you looking for a snug-fitting, easy-to-install retrofit darkening system for a campervan cabin? Our B2B collection includes custom solutions for the most popular Ford Transit and Fiat Ducato models. Aluminum-coated roller blind for the windscreen. Double-pleated blinds for the side windows. Treat your customers to a new level of privacy, sun protection and thermal insulation. Installation is fast and easy. Much faster and easier than with other systems available in the market. And with pleasing results. The retrofits look like an original solution integrated in the factory.
Windscreen darkening blind for Ford Transit Custom V710
Operating manual
Positions 4
Frame material PA6, Aluminium
Frame colour Light Urban Grey
Quality Features
• Adjustable bottom-up to 4 positions: open, privacy, closed and maximum darkening
• Hard-wearing fabric and injection-molded guide rails for a long service life
• Vehicle specific color shades and finish
• Aluminum-coated fabric helps to maintain a pleasant temperature in the vehicle
• Installs twice as fast as comparable blinds – no need to disassemble any components (A-pillar covers)
• Fits all Ford Transit Custom V710 models available since September 2024, with or without central rear mirror, left- and right-hand drives
• Product is not suitable for vehicles with folding beds, parcel shelves, head-up displays or optionally installed A-pillar airbags
Side darkening blinds for Ford Transit Custom V710
Operating manual
Positions open/close
Frame material PA6
Frame colour Black Onyx
Quality Features
• Effective darkening: 100 % light-tight material
• Looks like an original: Colors and finish perfectly match the vehicle
• Double-pleated honeycomb material effectively keeps heat and cold out
• Easy to adjust: Ergonomic handle and comfort close function
• Extremely light weight – less than 3 kg per darkening blind
• Hassle-free installation: Simply attach the frame holding the blind – no need to dismantle any components
• Fits all Ford Transit Custom V710 models available since September 2024, with or without central rear mirror, left- and right-hand drives
Dometic
Windscreen darkening blind for Ford Transit (V363 facelift models from July 2019 onwards)
Operating manual
Positions variable
Frame material PA6, Aluminium
Frame colour RAL7044, RAL9005
Quality Features
• Robust and durable roller blind material
• Bottom-up operation allows privacy with a view outside
• Optimized thermal insulation by using aluminum-coated fabric
• Convenient handling – can be set to 3 defined positions (open, privacy, closed)
• Hassle-free installation – no need to disassemble, rework or scrap any door components (unlike with other systems)
Side darkening blinds for Ford Transit (V363 facelift models from July 2019 onwards)
Operating manual
Positions open/close
Frame material PA6
Frame colour RAL7044
Quality Features
• Double-pleated honeycomb material for optimized insulation and maximum robustness
• Effective darkening thanks to 100 % light-tight material
• Easy and comfortable handling with comfort close function
• Hassle-free installation – no need to disassemble any door components
• Extremely lightweight construction
• Perfect finish – looks like an integrated solution
• Optimized clearance for visibility of the little passenger mirror
Windscreen darkening blind for Fiat Ducato 250/290
Operating manual
Positions variable
Frame material PA6, Aluminium
Frame colour RAL7044, RAL9005
Quality Features
• Double-pleated honeycomb material for optimized insulation and maximum robustness
• Simple, comfortable, stepless handling ensures privacy protection
• Effective darkening thanks to 100 % light-tight material
• Specially developed for vehicles with central rear mirror
• Perfect finish – looks like an integrated solution
• Not suitable for vehicles with folding beds, parcel shelves, head-up displays or optionally installed A-pillar airbags
• Suitable for vehicles with rain or camera sensor boxes
for
Side darkening blinds for Fiat Ducato 290 (from August 2021) and for Peugeot Boxer, Citroën Jumper, Opel Movano (from August 2024)
Operating manual
Positions open/close
Frame material PA6
Frame colour RAL7044
Quality Features
• Double-pleated honeycomb material for optimized insulation and maximum robustness
• Effective darkening thanks to 100 % light-tight material
• Easy and comfortable handling with comfort close function
• Hassle-free installation – no need to disassemble any door components
• Extremely lightweight construction – about 1 kg less per side than with competitor products
• Perfect finish – looks like an integrated solution
• Optimized clearance for visibility of the little passenger mirror
Custom-fit
Peugeot Boxer, Citroën Jumper, new Opel Movano and Fiat Ducato (old and new) without rear-view mirror
Dometic FP 300
Darkening system with windscreen blind for Fiat Ducato 250/290
Operating manual
Positions variable
Frame material PA6, Aluminium
Frame colour RAL7044, RAL9005
Quality Features
• Double-pleated honeycomb material for maximum insulation against heat and cold
• Bottom-to-top operation – optimal privacy protection
• Ultra-fast installation – no need to dismantle existing components!
• Slim upper blind
• Can be set to any position to let light into the vehicle or darken the cabin completely
• Specially developed for vehicles without inside mirror and without side airbag
• Also suitable for vehicles with a rain sensor box
Product Ref. No.
Dometic FP 300 with front screen for Fiat Ducato 250/290 9104121168
Custom-fit for Fiat Ducato models X250 and X290 as well as the same design Peugeot Boxer and Citroën Jumper models. Not suitable for vehicles with rear-view mirror or side airbag
Darkening system with side screens for Fiat Ducato 250/290 (up to July 2021) and for Peugeot Boxer, Citroën Jumper, Opel Movano (up to July 2024)
Operating manual
Positions open/close
Frame material PA6
Frame colour RAL7044
Quality Features
• Double-pleated honeycomb material for maximum insulation against heat and cold
• Effective darkening thanks to 100% light-tight material
• Custom-fit for Fiat Ducato models X250/ X290 and similar design Peugeot Boxer and Citroën Jumper models
• Hassle-free installation – no need to disassemble any door components
Product Ref. No.
Dometic SP 300 9104122616
Custom-fit for Fiat Ducato models X250 and X290 as well as the same design Peugeot Boxer and Citroën Jumper models
Dometic Flytec FT200
Door fly screen for for Fiat Ducato 250/290
Operating Manual
Frame material Aluminium
Frame colour RAL7044
Weight 5.5 kg
• Custom-fit for Fiat Ducato models X250 and X290 as well as the same design Peugeot Boxer and Citroën Jumper models.
Quality Features
• Reliably keeps out all types of insects
• Convenient on-hand operation
• Quick to install
Scope of delivery Safty net with manual in box
Description
Quality Features
This safety net stops children from falling out of bed and prevents injuries. It attaches to the slatted base with four screws while two straps connect to the ceiling. It can be conveniently dismantled in a matter of seconds.
• Easy to operate
• Ensure there‘s no harm even if someone falls out of bed
• Meets the standards of the automobile industry, for heights of up to 900 mm
Dometic Safety Net, 1800 x 580 9104100231
Dometic Safety Net, 1800 x 900 9104100232
RAIN GUTTER WITH COB LED LIGHT
Anyone who has ever opened the sliding door in the rain will be familiar with the phenomenon of the ‘automatic shower’. That’s why Dometic has developed a sturdy retrofit rain gutter made of powder-coated aluminium in black. It drains the rainwater to the side and is also equipped with an innovative COB LED light
Dometic RainTec RT 200
strip. Instead of individually visible LEDs, the gutter now lights up evenly. The light is switched and continuously dimmed using the remote control. Supplied as a set complete with remote control and mounting material for guttering.
SERVICE HATCHES
Dometic SK 4
Dometic SK 5
LASTING BEAUTY FOR DOMETIC WINDOWS
These cleaners are specially formulated for Dometic windows and rooflights. Suitable for both outer and inner surfaces, they offer easy and streak-free cleaning. The special composition does not
Dometic Acrylic glass cleaner
Dometic Acrylic glass ceramic coating
cause micro cracks in the long term. Guaranteed by Dometic and confirmed in laboratory tests.
MAXIMUM INDEPENDENCE, MINIMAL DOWNTIME
You create the conditions that ensure your customers will never run out of power on board and on site. The Dometic Mobile Power Supply portfolio is here to support you with innovative products and connectivity solutions. Our proprietary N-BUS system and the Dometic Power App enable new, smart ways to manage power resources and comfort appliances with ease. Dometic solar panels and complete systems give your customers a new level of independence on the go. You can choose from various product lines with different benefits. When it comes to providing a 230-volt source, you can rely on our sine wave inverters, or use our well-proven generators.
ELECTRONIC ACCESSORIES FOR MOBILE POWER SUPPLY SOLAR
Solar panels and complete solar systems for independent power supply. Wide choice of product lines for recreational and utility vehicles.
Page 116 - 153
On the following pages you can also find electronic accessories for a well-working DC network. Regardless of whether you are looking for a reasonably priced voltage converter to run a 12-volt appliance on 24 volts, or a high-quality device for stabilizing the supply voltage – whatever you need is here. Elegant lighting solutions add the finishing touch to our Mobile Power Supply range.
INVERTERS
230-V AC from 12 or 24-V battery power. Inverters with pure sine wave voltage. Lightweight and compact or with very high peak output power for consumers with high start-up currents.
Page 154 - 162
BATTERY CHARGING
From compact automatic chargers to charging boosters and DC charging converters – choose the best charging technology for your customers’ applications.
Page 163 - 165
BATTERIES
More power now! Top-notch lithium ion batteries. Highperformance AGM batteries. Versatile power banks. Smart battery management and connectivity solutions.
Page 172 - 185
ELECTRONIC ACCESSORIES FOR COOLERS AND REFRIGERATORS
Simple upgrades for older-make fridges and cooling boxes: With the matching adapter you can run 12-volt devices from a 24-volt battery or from a mains supply.
Page 194 - 195
CHARGING & VOLTAGE CONVERTERS
Compact voltage converter for operating 12-volt devices in 24-volt circuits. Charging converter for reliable charging of the supply batteries while driving.
Page 166 - 171
GENERATORS
230 volts AC on standby – Dometic generators ensure a power supply in places without a mains.
Page 186 - 191
LIGHTS
Elegant lighting solutions with energy-saving LED technology. Recessed and surface-mounted spots, low-profile LED modules, smart power supply.
Page 196 - 199
EVERYTHING CONNECTED BY N-BUS
Connect and control all devices easily
Dometic TD283
Touchscreen display
Solar module
A wide selection for every need, from 75 to 420 Wp
Dometic SC480
Solar charge controller, up to 480 W, Bluetooth/NBUS
Dometic Büttner
MT LB80
DC-DC charging booster
N-BUS is the plug&play network for easy connection of all on-board electronic devices.
N-BUS was developed with the purpose to create a practical and functional network between energy management devices, after careful studies and meticulous design. Dometic N-BUS (CI-BUS compatible) is a substantial technological upgrade that enables all devices in the Dometic network to communicate with each other via standard data cable.
This type of connection allows for a continuous exchange of information between devices of different kinds connected together
Dometic DPSI 1812iTS
Comfort sine wave inverter, 1800 W, with transfer switch
MCAPLUS 1225
IU0U battery charger, 25 A, 12 V
Dometic
TEMPRA TLB 540F
Lithium battery, 540 Ah, 12 V
(battery, DC-DC, solar regulator, etc..) and makes the on-board energy system more efficient and safer, but above all, as with the most advanced home automation, the interconnection makes it possible to manage all devices in the network from a single controller.
Until now, several devices or applications were needed to manage various elements of the system. Now, with Dometic controllers, everything is easy: a display or the Dometic Power app (if there is at least one N-BUS and Bluetooth® device in the network) is enough to control the entire on-board energy system.
ONE DISPLAY FOR ALL DEVICES
Thanks to the cross-device N-BUS network, it is no longer necessary to buy a separate control display for each device or disconnect the Bluetooth® app to switch between devices. You have two options for controlling your devices: either with the TD283 multifunction display, which has a wired connection for all devices with N-BUS protocol, or with the Dometic Power app for iOS and Android smartphones, provided at least one device in the N-BUS network is equipped with Bluetooth®.
Dometic TD283
Multifunctional N-BUS display
• Manage all N-BUS devices from a single display
• For ultimate comfort and convenience
• Energy parameter monitoring for all N-BUS devices (e.g. battery, solar panel, charging booster)
• Monitor the consumption of your comfort devices in real time
• Can be used to activate or deactivate N-BUS devices
• Also works with the new Dometic mobile app (provided there’s a Bluetooth device in the N-BUS network)
• Suitable for trucks, vans, motorhomes and boats
• Dimensions: 79 × 100 × 12 mm
• Weight: 70 g
Ref. no. 9620013272
N-BUS CONNECTION CABLE
The connection cable for N-BUS systems allows Dometic energy devices to be connected together in the same network:
MANAGE POWER WITH EASE
Dometic Power App
Take control of the vehicle’s energy system with the Dometic Power App. Monitor and manage devices effortlessly, keep track of energy consumption habits and adjust them to make the most of the available power resources, onboard new devices with ease … The Dometic Power App lets your customers enjoy their travels with confidence, always knowing that they’ve got the power to do so.
• Visualize power: See real-time energy usage and status of the power products at a glance
• Easy configuration: Customize settings and configure the power system effortlessly through the app
• Usage insights: Learn about energy consumption habits and optimize for better efficiency
• Monitor and manage: Track what’s using energy and adjust to extend the power supply
• Support: Access help and troubleshooting tips whenever required
• Stress-free travel: Manage power resources with confidence
• Easy upgrading: Onboard new Dometic devices into the app for convenient control and smart functionalities
• Stay up-to-date: Get inspiration from other adventurers and discover new products
• Climate control: Control the FreshJet FJX or FJZ air conditioner or FanTastic Breathe from the same app
SMART CLIMATE CONTROL
With the Dometic power app
NEW! Adaptive Power Mode
The Adaptive Power Mode is a smart feature integrated in our new FJZ7-series roof air conditioners. It ensures reliable air conditioner operation on campsites (or other mains hookups) with low fuse protection. As the name suggests, the maximum power draw of the A/C system can be adapted the situation at hand. Simply set the power level the air conditioner should not exceed via the Dometic Power App.
NEW! Off-grid air conditioning with SmartECO
More and more customers want to be able to use their roof air conditioner off-grid. This is where the premium air conditioners in the new FreshJet FJZ7 series provide a new level of independence with the SmartECO function. Read more on this on p. 112/113.
NEW! Wi-Fi Connectivity
Thanks to its integrated Wi-Fi connection, the air conditioning system enables convenient and location-independent control of the motorhome’s interior climate. Users can also monitor the TEMPRA battery’s charge level at any time. This ensures maximum comfort and reliable management of all key functions—no matter where you are.
Devices screen: manage energy and air conditioning
App settings screen: choose your preferred measuring units and privacy settings
Control the network and manage device settings
Everything under control: monitor inputs and outputs
FJZ7 roof air conditioners see page 14
Battery screen: keep track of your battery power at a glance
You screen: get inspiration and discover new products
OFF-GRID AIR CONDITIONING WITH SMARTECO
Many customers want to be able to use their roof air conditioner not only on a mains hook-up, but also in places where mains power is out of reach. The premium air conditioners in the Dometic FreshJet FJZ7 are a perfect choice for off-grid applications. Featuring the new SmartECO function, they make economical use of the available battery resources.
How does SmartECO work?
Connected to the vehicle battery via an inverter (e.g. our DPSI 1812iTS comfort model), the FJZ7 air conditioner permanently checks the battery state and adapts the air conditioning performance accordingly. Depending on the battery charge, it reduces the cooling power, changes to fan mode, or turns off completely – and on again as soon as the battery charge level is sufficient.
CONNECTION PROCEDURE
Bluethooth Connection
System requirements
To benefit from the SmartECO function, you need a vehicle grid that is partly or completely equipped with Dometic electronics. The minimal requirement is a Dometic TEMPRA lithium battery. For offgrid air conditioning, we recommend a battery capacity of 300 Ah or larger – the TLB 540 is an excellent choice.
Step 3: Confirm to link the two devices together in the app
Step 2:
SYSTEM REQUIREMENT
DOMETIC TEMPRA WITH MIN. 300 AH
Our recommendation:
Dometic TEMPRA TLB 540F
SOLAR MODULES & COMPLETE SYSTEMS
DOMETIC BÜTTNER SOLAR SYSTEMS
5 product lines with different benefits
BLACK LINE
Best value for money
• 72 high-performance monocrystalline solar cells – twice as many than conventional modules
• Achieves a solar good yield even in difficult weather conditions, or when partly shaded.
POWER BLACK LINE
Best solar yield per surface
• 80 high-performance monocrystalline cells
• Delivers 25% more Wp than a BLACK LINE module of the same size
• Works in diffused light or when the module is partly shaded
• Achieves the highest power values in each climate zone, in the smallest space
• Two panels in one: 2 x 40 highperformance solar cells
FLAT LIGHT
Best choice in case of height and weight restrictions
• Extremely flat and light – high-quality solar module for panel vans, high roofs and other applications where height and weight restrictions must be adhered to
• Due to a special, flexible connection between the cells the modules achieve top ratings in flexibility and durability
NEW! LIGHT & FLAT
Entry-level solar module –ideal for rental vehicles
• Ultra-flat and ultra-light – ideal for camping buses, panel vans, high roofs, and pop-up roofs
• Low-cost entry-level model – also available as a complete kit for rental vehicles
• Solar panel is firmly bonded to the vehicle roof (anti-theft)
CDS POWER LINE
Best performance in partial shade
• Highest daily performance of all solar modules in partial shade
• Each of the 44 cells has its own diode When some of the cells are shaded the unshaded cells will continue to produce energy
When far from a power source, a great way to keep the appliances on board running longer without draining the batteries is with a solar panel. Dometic offers a wide choice of well- engineered quality products for every demand and for every size of vehicle. From high-performance solar modules to installation-friendly complete systems –solar power solutions by Dometic give your
customers a new level of independence and help minimize costly downtimes caused by battery failure.
Scan the QR code and check out the Dometic Solar configurator
DOMETIC NDS SOLAR SYSTEMS
Value for money
BLACKSOLAR
Solar power all black
• Provide a better solar yield in half-light conditions
• High-quality monocrystalline solar cells with innovative PERC technology generate more power in less space
• Integrated mounting brackets
SOLENERGY
Silver solar panels
• Aluminum frame with built-in mounting brackets
• High-quality monocrystalline cells protected by a high-transmittance glass surface
• Special bypass diodes for minimal power loss in partial shade
SOLARFLEXEVO
Flexible solar panels
• Ideal for panel vans: easily adapts to curved vehicle roofs
• Monocrystalline cells are enclosed in a multi-layer structure – immune from micro-cracks.
• Good energy efficiency at high ambient temperatures and when partly shaded
LIGHTSOLAR
Lightweight, robust, ultra-flat
• Designed for applications with weight and height restrictions
• Flat, multi-layer structure is weatherproof, resistant to corrosion and even walkable.
• Ideal for pop-up roofs: connection cable is hidden at the back of the panel
DOMETIC GO POWER
Solar panels for trucks
• Dometic Go Power solar panels keep your customers’ trucks on the road moving freight reliably and efficiently.
• Minimised downtimes.
• Less fuel consumption.
• Less harmful emissions.
• Longer battery life.
BLACK LINE
Dometic Büttner BLACK LINE panels deliver optimum energy yield in all weather conditions. This is because they have twice as many solar cells as usual – 72 instead of just 36. That means your customers actually get two panels in one. And in excellent quality, too. Whether storm, hail or temperature fluctuations – a BLACK LINE solar panel is always reliable. Also available as a complete solar system including installation accessories.
• Two panels in one: 2 x 36 high-performance solar cells
• Optimal energy yield in all weather conditions thanks to multicell technology
• Highest reliability – even in the event of storms, hailstorms, and extreme temperature fluctuations
• Ideal for upgrading an existing single-module BLACK LINE solar system of the same capacity
• Special front glazing for optimal energy yield in unfavorable light conditions
• Mechanical strength at wind speeds up to 225 km/h [139.8 mph]
• Absolute fatigue strength – suitable for extreme applications (e.g., expeditions)
• Waterproof junction box – no moisture penetrates even at high speeds
Dometic Büttner BLACK LINE
Complete solar systems
POWER BLACK LINE
Absolute peak performance, even in adverse conditions! POWER BLACK LINE solar modules achieve a new level of performance through an innovative glass surface combined with 80 highperformance solar cells – 8 more than in the BLACK LINE series. Due to a special wiring system, the 8 extra cells create optimal conditions for an MPPT solar charge controller. With this control technology, POWER BLACK LINE solar modules achieve the highest power values in each climate zone, in the smallest space.
• Two panels in one: 2 x 40 high-performance solar cells
• Optimal energy yield in all weather conditions thanks to multicell technology
• 8 extra cells provide additional voltage and a higher output power with the MPTT solar charger
• Up to 25% more Wp output than a high-quality multi-cell BLACK LINE panel of the same dimensions
• Less sensitive to partial shade: Even if half of the module is shaded, the remaining half will still provide half of the total performance
• Special front glazing for maximum solar yield in unfavourable light conditions
• Water-proof junction box – no moisture penetrates even at high speeds
Dometic Büttner POWER BLACK LINE
Complete solar systems
BASIC EQUIPMENT FOR A SELF-SUFFICIENT GRID
Do you want to make an RV fit for self-sufficient camping? Then our Autarky Kits are an excellent choice. Six different kits are available to cover all typical demands: campervans, mid-sized and large motor homes, spring-to-fall or all-year-round travel season.
Based on the high-end 80-cell technology of our Power Black Line solar panels, the ready-to-install solar kits give your customers maximum independence. Each kit comes complete with one or two solar panel(s), a solar charge controller and our convenient multifunctional touch-screen display. The “larger” ones additionally include a DC/DC charging booster for high-speed battery charging while travelling.
Dometic Büttner Power Black Line Autarky Kits
Complete solar systems
/ Scope of delivery
Expertentip
Simple upgrading
All Autarky Kits are fully compatible with the Dometic N-BUS system. That means you can easily add other N-BUS-ready devices, such as a TEMPRA TLB lithium battery. Or a DPSI-series sine wave inverter for running 230 V devices.
AUTARKY KIT 1
Complete solar system
Dometic Büttner MT130
Power Black Line (1 x 130 Wp) and multifunctional display Dometic TD283
Optimal for panel vans, travel time spring to autumn
AUTARKY KIT PERFORMANCE 2
Complete solar system
Dometic Büttner MT300
/ Scope of delivery
Expertentip
Power Black Line (2 x 300 Wp), multifunctional display Dometic TD283 and Büttner Dometic charging booster MTLB 40
Ideal for medium-sized motorhomes, travel time all year round
AUTARKY KIT 2
Complete solar system
Dometic Büttner MT260
Power Black Line (2 x 130 Wp) and multifunctional display Dometic TD283
Optimal for medium-sized motorhomes, travel time spring to autumn
AUTARKY KIT POWER 1
Complete solar system
Dometic Büttner MT200
Power Black Line (1 x 200 Wp), multifunctional display
Dometic TD283 and Büttner
Dometic charging booster MTLB 40
Optimal for large motorhomes, travel time spring to autumn
AUTARKY KIT PERFORMANCE 1
Complete solar system
Dometic Büttner MT150
Power Black Line (1 x 150 Wp), multifunctional display
Dometic TD283 and Büttner
Dometic charging booster MTLB 40
Optimal for medium-sized motorhomes, travel time spring to autumn
AUTARKY KIT POWER 2
Complete solar system
Dometic Büttner MT200
Power Black Line (1 x 200 Wp), multifunctional display
Dometic TD283 and Büttner
Dometic charging booster MTLB 40
Ideal for large motorhomes, travel time all year round
Product Ref. No.
Autarky Kit 1 9620017791
Autarky Kit 2 9620017792
Autarky Kit Performance 1 9620017793
Autarky Kit Performance 2 9620017794
Autarky Kit Power 1 9620017795
Autarky Kit Power 2 9620017796
HOW MUCH POWER DO YOU NEED?
How much power you need depends entirely on your usage behaviour and your requirements.
Calculation of daily consumption Example power consumption Runtime
V = 3.75 A x 1.5 h = 5.6 Ah Light 16 W
Rule of thumb
The solar power (Wp) results when you multiply the calculated consumption in Ah by a factor of 3. Example: If a consumption of 37 Ah was determined according to the above table, our recommendation (37 x 3) would be a solar system with 110 Wp, or a second solar module with the same output for the seasons with limited sunshine duration.
With solar power & battery capacity
Calculation of solar power
Solar power is calculated:
Daily consumption (Ah) x 12.6 V : 4 = .......Wp. This is the solar power (Wp) that, in our experience, you would need to build up to compensate for the daily consumption in the period between spring and autumn.
The ratio of solar power to battery capacity should be approx. 1:1. This applies to conventional AGM or gel batteries as well as modern lithium batteries. Example: For a solar requirement of 200 Wp, you need at least 200 Ah battery capacity. When calculating, you should always bear in mind the connected devices - especially if an inverter is used, as the battery must be able to provide high currents. The Dometic Büttner TEMPRA TLB150 provides sufficient power to operate powerful consumers.
Which solar energy system for which use?
Solar energy systems
CDS POWER LINE
The CDS POWER LINE features a novel wiring technology, which makes it much less sensitive to partial shading than most other solar panels available in the market. Each of the 44 cells has its own diode, so it can still generate energy when the neighboring cells are in shade. A big advantage if the solar system has to share the space on the roof with a luggage rack or a satellite system. To bring out all the benefits of the CDS POWER LINE, an MPPT solar charge controller is required. With our CDS complete systems, this modern control technology is included as standard.
• Always ready to perform, even with partial shading due to luggage racks, satellite system, roof box, or open skylight
• Highest reliability – even in the event of storms, hailstorms, and extreme temperature fluctuations
• Ideal for upgrading an existing single-module CDS POWER LINE solar system of the same capacity
• Special front glazing for optimal energy yield in unfavorable light conditions
• Mechanical strength at wind speeds up to 225 km/h [139.8 mph]
• Absolute fatigue strength – suitable for extreme applications (e.g., expeditions)
• Waterproof junction box – no moisture penetrates even at high speeds
Dometic Büttner CDS POWER LINE
Complete solar systems
/ Scope of delivery
/ Single solar modules
MT 130CDS, Solar module, 130 W, shade-resistant
MT 210CDS, Solar module, 210 W, shade-resistant
FLAT LIGHT
The FLAT LIGHT series is ideal for use on panel vans or high roofs, where the installation height must be as low as possible. The solar panel is glued directly onto the roof of the vehicle – no back ventilation needed. Powerful solar cells and optimal heat dissipation guarantee a solid performance even in hot climates. The self-cleaning surface coating keeps dust and dirt away for a maximum solar yield. Due to a special connection between the cells, FLAT LIGHT modules achieve top ratings in flexibility and durability. When installed on a flat surface, they are fully walkable. And they can also be installed on slightly curved roofs without any problems.
• Ultra-flat and ultra-light – ideal for camping buses, panel vans, high roofs, and pop-up roofs
• Solar panels are directly glued to the vehicle roof – flat, theftproof and even walkable
• Ideal for upgrading an existing single-module FLAT LIGHT solar system of the same capacity
• Also suitable for slightly curved roof surfaces (longitudinal bending radius 3 cm)
• Excellent daily performance even at high ambient temperatures thanks to an aluminum layer that ensures optimal temperature distribution, eliminating the need for ventilation
• Highly transparent, self-cleaning top layer – maximum solar yield, minimal cleaning effort
• Solar panel fully walkable on flat surface
• Lightweight construction, durability, and optimal heat distribution
• Reinforced with aluminum sandwich support plate, resulting in an optimal ratio of low module weight and high stability while maintaining (semi-)flexibility
Dometic Büttner FLAT LIGHT
Complete solar systems
/ Scope of delivery Ultra-flat solar module/s with crystalline cell technology, new solar controller SC, roof duct, interior/exterior cable kit, cable kit for vehicles with EBL, mounting material, assembly instruction manual Product
/ Single solar modules
MT 120FL, Solar module, 120 W, ultra-flat
MT 150FL, Solar module, 150 W, ultra-flat
MT 170FLQ, Solar module, 170 W, ultra-flat
/ Accessory
Dometic Büttner MT KS00026, Adhesive set for FLAT LIGHT solar modules
Lightweight and stable
FLAT LIGHT solar modules are reinforced by an aluminum sandwich carrier plate. This gives an optimal combination of light weight, excellent stability and semi flexibility. ETFE
ENCAPSULANT
ALUMINIUM SANDWICH PLATE
ENCAPSULANT
SOLARCELL-MATRIX
ENCAPSULANT
ETFE
LIGHT & FLAT
This ultra-slim, ultra-light 130-watt solar module of the Light & Flat series is ideal for use on panel vans, micro vans or high roofs, where the installation height must be as low as possible. The solar panel is glued directly onto the roof of the vehicle. Powerful solar cells guarantee solid solar performance even in hot vacation destinations. Also available as a complete system.
• Ultra-flat and ultra-light – ideal for camping buses, panel vans, high roofs, and pop-up roofs
• Low-cost entry-level model – also available as a complete kit for rental vehicles
• Solar panels are firmly bonded to the vehicle roof (anti-theft)
• Ideal for upgrading an existing single-module Light & Flat solar system of the same capacity
• Excellent daily performance even at high outside temperatures
• Self-cleaning, highly transparent top layer protects against extreme weather conditions
• Solar panel fully walkable on flat surface
Dometic Light & Flat 130
Suitable for LiFePO4 batteries
Performs the most modern charging curves, even for LiFePO4 batteries
30% more solar yield
More energy from your solar panel with MPPT technology (Maximum Power Point Track)
SC330 and SC480 are the latest and most innovative charge controllers for solar modules from Dometic. Designed for a maximum power rating of 330 or 480 W, they integrate separate inputs for two solar panels as well as two battery outputs. Stateof-the-art MPPT technology (Maximum Power Point Track) allows you to get up to 30% more energy from your solar panels. With the N-BUS plug & play network, you can manage the solar controller and all other N-BUS devices via a single display or the new Dometic mobile app.
Dual-input functionality
2 separate inputs, also for different solar panels
• Performs the most modern charging curves, even for LiFePO4 batteries
• More energy from your solar panel with MPPT technology (Maximum Power Point Track)
• Selector for lithium LiFePO4, AGM, gel and wet batteries
• OPTICHARGE algorithm enables charging according to battery needs with its 6-stage charging curves
• 2 separate charging outputs (consumer Battery & Starter Battery
Separate inputs for two solar panels
Start with one solar panel and retrofit a second one later. The Dometic solar controller manages everything with ease, even if there are two different solar panels on the roof of the vehicle.
WHAT DOES MPPT MEAN?
This is the algorithm that allows to always exploit the “Maximum power point track” TIPS
MPPT is the algorithm that allows you to always exploit the “Maximum Power Point Track” supplied by the panel. A charge regulator with MPPT technology (e.g. the Dometic SC330 charge controller) can achieve up to 30 % more efficiency than a conventional controller with PWM technology. An MPPT regulator is ideal where space is limited because in less space you get more energy!
SOLAR ACCESSORIES
Dometic Büttner MT 12100
Bead filler set
• Simple adhesive fastening with Sikaflex (included with every complete system)
• Optimal adhesion due to sandblasted, pretreated surface
• 2 aluminum plates per set – for larger solar panels you need more
Ref no: 9620000143
Accessories for installation
Roof feed-through housing 1 outlet / Ref. no.9620000207
Roof bushing housing 2 outlets / Ref. no.9620000267
Cable gland 3-7mm / Ref. no.9620000192
Cable gland 6-12 mm / Ref. no.9620000172
Cable gland 10-14 mm / Ref. no.9620000156
Blind plug for Cable gland used on solar module / Ref. no. 9620003981
Dometic Büttner KS00225
Adhesive set for solar modules
• Complete set including: cleaner, primer, adhesive, instructions and stainless steel screws
• Safe and easy to use – even for DIYers
• TÜV-tested and approved for use on vehicle roofs
For 2 solar modules /Ref. no. 9620000146
Glue set for FLAT LIGHT solar modules / Ref. no. 9620003978
Dometic Büttner MT VP
2 x connector fixing bracket
• Universal bracket – suitable for almost all solar panels with aluminum frame
• Simple adhesive mounting – no unnecessary drill holes in the vehicle roof
• Extremely weather-resistant material (PUR)
• For connecting multiple solar panels or stabilizing larger individual panels
• Optimum ventilation of the solar panel
• TÜV-tested quality, Made in Germany
• Can be subsequently painted in the desired color
Ref no: 9620000308
Dometic Büttner MT EP
4 x corner fixing bracket
• Universal bracket – suitable for almost all solar panels with aluminum frame
• Simple adhesive mounting – no unnecessary drill holes in the vehicle roof
• Extremely weather-resistant material (PUR)
• Optimum ventilation of the solar panel
• Lightweight – only 1.2 kg [2.6 lbs] per corner set
• TÜV-tested quality, Made in Germany
• Can be subsequently painted in the desired color
Ref no: 9620000201
Dometic TD283
Multifunctional N-BUS display
• For ultimate comfort and convenience
• Manage all N-BUS devices from a single display
• Energy parameter monitoring for all N-BUS devices (e.g. charging state of battery, solar panel, DC-DC charger)
• Monitor the consumption of your comfort devices in real time
• Can be used to activate or deactivate N-BUS devices
• Also works with the new Dometic mobile app (provided there’s a Bluetooth device in the N-BUS network)
• Suitable for vans, trucks, motorhomes and boats
Ref no: 9620013272
Dometic Büttner spoiler profiles
Spoiler profil sets
• Adapt optimally to the aerodynamics of vehicle roofs
• Without drilling, the adhesive set (9620000146) allows these light and weather-resistant PUR brackets to be installed on standard painted surfaces or FRP substrates
• Solar modules are screwed onto the aluminum frame with stainless steel screws
• Optimal ventilation is guaranteed
• Can be painted
2 x 330 mm / Ref no: 9620000286
2 x 450 mm / Ref no: 9620000244
2 x 530 mm / Ref no: 9620000149
2 x 600 mm/ Ref no: 9620000216
2 x 660 mm / Ref no: 9620000179
BLACKSOLAR
Black solar panels
Frame, structure, cells, strings all completely black: the BLACKSOLAR panels capture a greater amount of solar energy. In half-light conditions, such as sunrise and sunset, they generate more electricity than standard solar modules.
High efficiency monocrystalline cells and excellent raw materials make BLACKSOLAR a cutting-edge panel in the photovoltaic sector, reaching an efficiency of 19.0%.
Total black Built-in brackets
Integrated bracket
Aluminum brackets integrated into the panel, with aerodynamic frame and plastic side covers make the panel sturdy, safe, easy and quick to install.
Front grid
N+ Emitter
P.Type
Local AL-BSF
Passivation layer
Dielettric Laser openings Al back contact
PERC cells
Passivated Emitter and Rear Cell: a new technology to increase the conversion efficiency by adding a dielectric passivation layer on the rear of the cell.
Up to 6 m cable length
Each panel is equipped with an up to 6 meters long bipolar connection cable, with an external protection sheath resistant to any climatic condition.
SOLENERGY
Silver solar panels
SOLENERGY solar panels combine modern construction technologies in the photovoltaic sector with a complete setup and easy installation. The mounting bracket integrated into the panel guarantees superior steadiness and sturdiness, allowing the panel to be kept at the correct distance from the vehicle body, thus facilitating ventilation and avoiding any leakage.
Integrated bracket
Aluminum brackets integrated into the panel, with aerodynamic frame and plastic side covers make the panel sturdy, safe, easy and quick to install.
Each module is made with high pure monocrystalline silicon cells, protected by a Tedlar sheet and textured tempered glass characterized by: high transparency, low iron content and antireflective coating that increases the efficiency up to 18.5%, all enclosed in two sheets of EVA (Ethylene Vinyl Acetate). Special bypass diodes protect the cells from over-voltage and minimize the loss of power due to possible shading phenomena.
Structure
Aluminum frame, high transmittance glass: 91.5%
Low-resistance connection strips: <69.31MΩ EVA transmittance: <30% (290-380MN).
Up to 6 m cable length
Each panel is equipped with an up to 6 meters long bipolar connection cable, with an external protection sheath resistant to any climatic condition.
Monocrystalline cells Easy installation
Built-in brackets
SOLARFLEXEVO
Ultra-lightweight
Flexible solar panels
High efficency monocrystalline cells
Adapts to nonlinear surfaces thanks to a high degree of flexibility, provides maximum performance with the minimum possible footprint: all this is SOLARFLEXEVO. SOLARFLEXEVO is the ideal choice for panel vans, providing an optimal yield. To ensure the best results in the smallest possible space, the SOLARFLEXEVO range is built with quality cells featuring an energy efficiency of 20%.
Energy has never been so FLEXIBLE
Monocrystalline cells
The photovoltaic cells of the SOLARFLEXEVO panel are designed for maximum performance in small spaces. The evolution of pure monocrystalline silicon in the smallest possible space and with maximum efficiency.
flexibility
• Monocrystalline cells
• Encapsulated with 9 layers
• Immune from micro-cracks
• Efficiency: 20%
• Excellent efficiency at high temperatures
• Low power loss in case of shading
Structure
Built with 7 layers, including the ETFE surface, the best surface in terms of efficiency and durability.
Junction box
Each panel is equipped with a special Junction Box: location of the 3- meter bipolar connection cable with external protective sheath resistant to all weather conditions.
Scope of delivery of the kit SOLARFLEXEVO solar module with integrated spoiler, SCE320 solar controller and roof feed-through, cable set, small parts, installation instructions
LIGHTSOLAR
Lightweight solar panels
5% flexibility
Thin, light and robust
LIGHTSOLAR is the “Glass & Frameless” solar panels range designed for applications where weight, thickness and resistance are fundamental characteristics. The cells, with an efficiency of 18.75%, are embedded in an exclusive multi-layer structure: the upper layer is a plastic polymer called ETFE, highly resistant to corrosion and weathering, so that it can be defined as selfrepairing. The surface of the panel, always exposed to scratches or other accidental shocks, is able to self-model, returning to the initial shape ideal for capturing sunlight.
Hidden connection available, ideal for top hop roof
The lower layer of the structure consists of an PCB sheet to contain and dissipate as much as possible the heat generated by the cells and to give the panel so much strength that it is even walkable (with suitable and soft footwear).
Structure
7 layers, including the ETFE surface, the best surface in terms of efficiency and durability, and a PCB sheet improving the heat dissipation and hardness.
Junction box
The aerodynamic box contains the 3-meter connection cable and the bypass diodes to reduce shading.
Back junction box
Scope of delivery of the kit LIGHTSOLAR solar module with integrated spoiler, SCE320 solar controller and roof feed-through, cable set, small parts, installation instructions
A completely flat surface, thanks to the use of a new connection method called the Back Junction Box, and laminated diodes included in the structure of the panel itself. The connection cable, located at the back, removes the Junction Box from the exposed surface of the panel. The round box, only 30 mm in diameter, tightens the cable, making the connection firm and secure. This version is ideal for pop-up roofs, minimising clutter and eliminating cable tangles as well as unsightly and complex cable glands.
SUNCONTROL2
Also suitable for LiFePO4 batteries
MPPT regulator with N-BUS
+30% more from your solar panels with MPPT technology
Dometic NDS SUNCONTROL2 solar charge controllers feature separate inputs for two solar panels.
The MPPT technology, allows you to maximise the energy from any type of solar panel (12 V nominal), performing the most modern charging curves, even for LiFePO4 batteries.
The special Opticharge algorithm developed by our Software Team optimises charging according to the battery needs and extends its life.
SUNCONTROL2 Main features:
• Selector for Lithium LiFePO4, AGM, gel and wet
• 6-stage charging curves with Opticharge algorithm
• N-Bus communication protocol, CI-Bus compatible
• Display Bus TD283 and Dometic app connection
• Starter battery charge
• Separate inputs for two solar panels
Starter battery charging line output
SUNCONTROL2 solar regulators are equipped with the new N-BUS communication protocol, compatible with CI-Bus: now you can monitor, control and update all on-board devices from a single controller.
SUNCONTROL2 is available in two different versions: SCE 320 for up to 320 W total, and SCE 360 supporting up to 360 W total. Both models are available in a Bluetooth® version (SCE 320B or SCE 360B), which allows the use of the Dometic app.
• Desulfation option
• Temperature sensors (optional)
• Display Bus TD283 (optional)
• Bluetooth® version (for App Control)
DOMETIC CONTROLLERS
The multifunctional display TD283 and the Dometic app are the controllers that allow you to manage the entire Dometic energy system.
The new generation of Dometic energy devices equipped with N-BUS, such as SunControl2 and Suncontrol, can be controlled and managed via the TD283 display, or via the Dometic app (with SunControl2 in Bluetooth® version).
With the controller it is possible to monitor the status and technical parameters of all devices and the on-board energy situation. It is also possible to change the settings of each device, and if a device with Bluetooth® Master is present in the N-BUS network, it is also possible to update the firmware of all connected devices.
SOLAR SYSTEMS FOR TRUCKS
There are many good reasons why it pays to invest in a mobile power supply solution based on renewable solar energy. Continuous battery recharging from a solar panel eliminates dead batteries in almost any application. Moreoright it gives batteries a longer life
Solar systems cut operating costs by reducing fuel consumption and CO 2 emissions
The combustion of one liter of Diesel fuel produces about 2.65 kg of carbon dioxide. Let’s assume a truck driver would idle the engine for two hours per day to save on battery power. And now let’s see how this affects the vehicle owner’s
Two hours idling per day means …
3.40 € extra cost per day (based on a Diesel price of 1.60 € / liter)
20.40 € extra cost per week (based on 6 working days)
979.20 € extra cost per year for a total of 576 l of Diesel (based on 48 working weeks)
576 l of Diesel burnt translates to 1.526.4 kg of CO2 emitted to the atmosphere. For a single truck. Imagine this being done on a fleet of 200 vehicles. Or several thousands.
With a solar panel on the roof, there’s no need to idle the engine anymore. The battery bank is charged with free energy from the sun, while driving and when parked. HOW A GO POWER! SYSTEM CAN
and prevents costly service calls due to battery failure. Fast return on investment is another benefit for vehicle owners and fleet operators. Chances are that a solar system pays off with a single service call avoided.
MINIMIZE DOWNTIME
Say goodbye to dead batteries and power related service call. Keep your trucks on the road moving freight reliably and efficiently.
Reduce fuel consumption and CO2 emissions
Cut down your operating costs by harnessing the power of the sun. Solar panels produce usable power free of charge anytime the sun is out.
Impressive return on investment
Get more from your money! Go Power! solar customers report a 6 to 12 month return on their investment. Some of them achieved ROI after avoiding a single service call.
Extend battery life
Add years of life of your batteries by topping them up with solar energy. Save costs by replacing batteries after years, not months.
Charging while driving or parked
Solar systems increase battery run time, because they charge while driving or parked. Customers report an additional 3 hours of run time with 330 watts of solar power installed.
Solar systems cut operating costs by letting your batteries last longer
Example: Solar added to old batteries on lift gates
The diagram shows how a Go Power! solar solution resulted in a radical improvement in the mobile power resources.
• Non-solar batteries spend 20% of their life in a lowvoltage state, which continuously causes battery decay.
• Go Power! solution dropped that number to only 4% on an already damaged battery.
• Go Power! solution put the battery back into a healthy state of charge.
Battery percentage breakdown
SOLAR PANELS
A BETTER ALTERNATIVE FOR BATTERY CHARGING
Lift gates, pallet jacks and other peripheral equipment can quickly run off the battery bank of a truck. Discharged batteries, in turn, lead to costly downtimes and expensive service calls. Dometic Go Power! solar systems provide a better alternative to recharge the batteries of trucks, vans and construction machinery. No need to invest in a generator, and no need to keep the engine idling. Moreover, battery charging with solar power can extend the battery life from months to years.
Our highly efficient solar panels are designed to meet the tough demands of the commercial vehicle industry. Perfectly matching solar controllers optimize the charging process to prevent overcharging and give batteries a longer life. We also supply perfectly coordinated harnessing and practical accessories for fast and hassle-free installation
How a solar energy system works
In principle, a solar energy system consists of one or more solar modules on the roof and a control system fitted in the vehicle interior. When exposed to light, the solar energy system then emits 12 or 24 V direct current via the controller. This DC current is taken up by the onboard battery until the controller detects that the battery charging is complete and then cuts off the connection. The solar controller ensures that the battery charging is always optimal. It prevents overcharging and ensures that no current can flow back to the solar modules during dark phases. In other words, a solar energy system basically functions like a conventional battery charger. The difference is that it does not require a mains connection, so the batteries can be charged while driving and when parked.
Here are the key benefits:
• Battery recharging with solar power minimizes costly downtimes and service calls
• No more jump starting after periods of inactivity
• Extended battery life protects your investment
• Reduced fuel consumption for generators and idling
• Complete solutions with perfectly coordinated components (solar panel, solar charge controller, harnessing, installation accessories)
Anatomy of a Go Power! solar system
Solar module – located somewhere on the top of the vehicle
Solar charge controller – stops the flow of power when the batteries are completely charged
Harnessing – gets the power from the solar module to the batteries
Batteries – holding the power from the solar system
Inverters – generating 230 VAC from battery voltage
THE DOMETIC GO POWER! SOLUTION
CUSTOMIZED FROM PROFESSIONAL COMPONENTS
Dometic Go Power! solar solutions consist of professional components specially designed for harsh industrial applications. Ultra-thin, ultra-light, flexible solar modules on the roof team up with the matching solar charge controller, which makes sure that the battery is optimally charged. Regardless of how much solar
power you need, and no matter if you have a 12 or 24 V grid – we can configure a highly efficient solar system to meet your individual requirements. IP68 compliant, fully sealed cabinets (resistant to shock, vibration, dust and water ingress) and the use of water-proof plug connectors make your solutions fit for the rigors of mobile use.
Our complete plug-and-play solution reliably supplies your vehicle with renewable solar power. A sustainable investment that pays back for your business, and protects our climate at the same time.
Solar panel Charge controller Batteries
HOW MUCH POWER DO YOU NEED?
How much power you need depends on the vehicle and the equipment on board. Here is an example to give you an idea of how to calculate the demand:
Go Power! installation example for a truck
Comfort devices on board
Microwave oven: 1.200 W for 6 min. = 120 Wh + 10 % = 132 Wh
Coffee machine: 1.000 W 2 x for 5 min = 166.66 Wh + 10 % = 183 Wh
TV set: 40 W for 5 hours = 200 Wh + 10 % = 220 Wh 486.66 Wh + 10 % = 535 Wh
Our recommendation: 220 Wp set, sufficient even in half-light conditions (fall/winter)
Power demand: 486.6 Wh
Solar: 220 Wp x 4 = 880 Wh / day
Power demand for typical commercial applicatons
• Inner city delivery (100 W)
• Lift gate / tail lift (200 to 300 W)
• Refrigeration (30 to 50 W)
• Electric pallet jack (300 to 600 W)a
• Telematics (10 to 50 W)
• Heating, ventilation, air conditioning (300 W)
• DC appliances powered from the battery (10 to 5000 W)
DOMETIC GO POWER! INSTALLATION EXAMPLES
Here we would like to present six configuration examples for different cabs. Let our engineers’ solutions inspire you! We will be happy to help you find the best possible solar panel arrangement for your application.
Application example 220 Wp (1 x 110Wp and 2 x 55Wp) / daily output 880Wp
Support for the starter battery, which is also used as a supply battery for comfort products during longer downtimes (over public holidays and weekends). With a Tageesrtarge kvonn 880Wp, most consumers in the driver’s cab can be compensated and the starter battery remains ready for use.
Application example 2: 165Wp (1 55Wp and 1 x 110 Wp) / daily output 660 Wp
Support for the starter battery, which is also used as a supply battery for comfort products during normal downtimes. With a daily output of 660 Wp, most consumers in the driver’s cab can be compensated and the starter battery remains ready for use.
1 9620013484 Solar controller 100V/30A
1 9620013485
Battery connection cable for solar controller
1 9620013481 Solar module Flex 110Wp
1 9620013480 Solar module Flex 55Wp
1 9620013487 Main cable set 12.20 m
2 9620013489 Verbindungskabel 0.90 m
1 9620013489
Verbindungskabel 0.90 m
Application example 3: 55 Wp / daily yield 220 Wp
Equalisation of standby loads such as telemetry devices and maintenance of the starter battery’s srtability
1 9620013482 Solar controller 50V/12A
1 9620013483 Battery connection cable for solar controller
1 9620013480 Solar module Flex 55Wp
1 9620013487 Main cable set 12.20 m
Application example 4: 110 Wp (2 x 55 Wp) / daily reading 440 Wp
Balancing of standby consumers such as telemetry devices and small consumers and maintaining the starting capability of the starter battery.
1 9620013482 Solar controller 50V/12A
1 9620013483 Battery connection cable for solar controller
2 9620013480 Solar module Flex 55Wp
1 9620013487 Main cable set 12.20 m
2 9620013488 Verbindungskabel 1.80 m
Application example 5: 220 Wp / daily output 880 Wp
Compensation of the power consumption of a tail lift. Reduction of the failure of the auxiliary batteries in trailers.
1 9620013484 Solar controller 100V/30A
1 9620013485 Battery connection cable for solar controller
2 9620013481 Solar module Flex 110Wp
1 9620013486 Main cable set 6.10 m
Installation example 6: 1 x 55 Wp / daily output 220 Wp
Maintaining charge of the starter battery of the cooling unit and balancing the power consumption of the 12 V telemetry
1 9620013484 Solar controller 100V/30A
1 9620013485
Battery connection cable for solar controller
1 9620013480 Solar module Flex 55 Wp
1 9620013486 Main cable set 6.10 m
SOLAR PANELS
FOR BATTERY CHARGING IN TRUCKS
Dometic Go Power! FLEX
Avoid costly downtime by recharging the batteries of work vehicles with solar energy! This flexible solar panel produces more power per square foot than any other flat panel on the market.
Lightweight and ultra-thin at a mere 3 mm, it bends up to 30° and thus neatly contours to truck cabins, trailer bodies or curved van roofs. The panel is self-adhesive for ease of installation.
Highly efficient monocrystalline solar cells for maximum solar yield per Curves up to 30° and neatly contours to truck cabins, trailer bodies or
Self-adhesive panel is simply attached to the surface
Ultra-light weight – up to 82% lighter than other solar modules
Aerodynamic design reduces fuel costs and emissions
Durable and maintenance-free – 5 years limited power output warranty
Industry-standard MC4 quick-connect cables (work in series or in
Dometic Go Power! FLEX
FLEX Solar Modules
CHARGING TECHNOLOGY
If you want to charge batteries with solar power, the output voltage of the modules must be adjusted by suitable charging technology. There are various systems available in the market, e.g. simple PWM charge controllers and more complex ones using MPPT technology (Multiple Power Point Tracking). In simple words, the MPPT controller determines the power curve of the modules and adjusts the voltage and current to the maximum of this power curve. Efficiency is paramount in mobile applications, so we use MPPT technology exclusively. Temperature control and specially adapted charging characteristics for different types of batteries are a matter of course for us. With a Dometic solution, you can be sure that you are using the right technology for your application.
Battery charging under control
Our high-performance solar charge controllers are designed for harsh industrial environments. They ensure optimal battery charging and maximum yield from all types of solar systems. Robust, fully-sealed housings (IP68) resist vibration as well as dust and water ingress.
Ref. no.
9620013484
9620013482
Description Solar charge controller, 100V/30A, MPPT Solar charge controller, 50V/12A, MPPT
Nominal system voltage 12/24 V (automatic detection) 24/36/48 V (automatic detection) Maximum charge current 30 A
Battery type
Features
acid (gel, AGM, liquid
• Fully-sealed housing (IP68) – shock-resistant, vibrationresistant, water- and dust-proof
• Up to 98% power conversion efficiency with MPPT technology (Maximum Power Point Tracking) Works with 12 or 24 V batteries
• Easy to install with water-proof MC4 solar connectors and Delphi battery connectors
• Optimal charging extends the battery life from months to years
• Compatible with all battery types, including lithium-ion batteries
• 5-year warranty
• Plug & play - ready for connection
• Fully-sealed housing (IP68) – shock-resistant, vibrationresistant, water- and dust-proof
• Up to 98% power conversion efficiency with MPPT technology (Maximum Power Point Tracking) Works with 24, 36 or 48 V batteries
• Easy to install with water-proof MC4 solar connectors and Delphi battery connectors
• Optimal charging extends the battery life from months to years
• Compatible with all battery types, including lithium-ion batteries
• 5-year warranty
• Plug & play - ready for connection
Dometic Go Power! Accessory
5cm x 450 cm / 9620013490 10 cm x 300 cm / 9620013491
Description
Features
Features
Multi-purpose adhesive tape
• Simply secure the cables in place with adhesive tape
• No visible cables and a tight seal all around the panel
Battery wiring harness for Dometic Go Power! MPPT 100-30
• Easy to install connection between the solar controller and the battery
• Withstands the harshest industrial environments
• Designed to fit the Dometic Go Power! MPPT 100-30 solar charge controller
Battery wiring harness for Dometic Go Power! BOOST 50-12
• Easy to install connection between the solar controller and the battery
• Withstands the harshest industrial environments
• Designed to fit the Dometic Go Power! BOOST 50-12 solar charge controller
EBC-M2F / 9620015803
/ 9620015804
• Interlocking connectors for easy parallel wiring of solar panels
• Compatible with all Go Power! Solar Flex and Rigid panels
• Ensures safe parallel or serial-parallel connection of PVmodules
• Prevents reverse current flow in shaded panels for optimal efficiency
• Compatible with all Go Power! Solar kits, easy to install
• Protects cable connections, eliminates leaks for system longevity
• Ensures tidy wire configuration,flexibility in rooftop installation
• Run wires close to the battery for efficient charging, minimal loss
• Compatible with industry-standard solar connector cables (SC)
Extension cable for solar modules Solar wire harness with orange sheathing
• Simply connect several solar modules in series
• Industry-standard MC4 quick connectors facilitate installation
• Complies with the ECR R100.2 directive for approval of electric road vehicles
• Mandatory for solar installations on electric vehicles when voltages exceed 60VDC or 30VAC
• Orange sheathing alerts workshop staff of potential dangers
• Industry-standard MC4 quick connectors facilitate installation
• Fits Dometic Go Power! FLEX solar panels
MC4-F - female / 9620015807 MC4-M - male / 9620015808
• MULTILAM technology for enduring stability and minimal loss
• Supports cross-sections up to 10 mm2 for diverse applications
• Protection classes (IP66 and IP68) for guaranteed maximum tightness
SINE WAVE INVERTERS
PURE SINE WAVE VOLTAGE FOR 230-VOLT DEVICES
Our new sine wave inverter range covers all performance categories from 200 to 3000 watts, 12 and 24 volts. Featuring a consistent, compact design with a low installation height, the inverters take up less space on board than most competitor models. The flawless sine wave output voltage satisfies all 230 V devices, even sensitive high-
SinePower DPSI series, 200 – 2000 W, 12/24 V
DPSI sine wave inverters provide reliable solutions for most 230 V devices up to 2000 W. From electric toothbrushes, smart phone and camera batteries right through to e-bike chargers, toasters and espresso machines – everything is supplied with a clean sine wave voltage. Devices from 600 W are equipped with N-BUS and CI-BUS connectivity.
tech equipment. Smart N-BUS- and CI-BUS connectivity enables convenient operation from a central wall display (Dometic TD283). It also works fine with the Dometic Power App – provided there is at least one Bluetooth®-ready device in the network (TEMPRA battery or TD283 display in combination with a Dometic solar controller).
SinePower DPSI TS series with transfer switch, 600 – 3000 W, 12/24 V
Dometic SinePower DPSI TS inverters offer the additional benefit of an integrated transfer switching system for economical use of battery power. These models automatically change to an external AC power source – and back to inverter mode when mains power is no longer available. There’s no need to switch the inverter on and off manually.
• Pure sine wave output voltage protects valuable equipment
• Low-profile housing takes up less space than other inverters available in the market
• Compatible with N-BUS and CI-BUS for convenient installation and ease of use
• Inverter can be managed from a wall display or by remote control
• Accurate, real-time consumption check with Dometic TD283 display
• Works with the Dometic Power App – provided there is at least one Bluetooth®-ready device in the network (TEMPRA battery or TD283 display in combination with a Dometic solar controller).
SinePower DPSI 1800iTS comfort model with transfer switch, 1800 W, 12/24 V
The intelligent transfer switch on our SinePower DPSI iTS comfort inverter is recommendable for sensitive high-tech equipment. Such devices require an uninterrupted power supply and a smooth switchover between inverter and mains power. With our DPSI-iTS model the inverter voltage is synchronized to match the mains voltage, and the switchover takes place in a fraction of a few milli seconds. Another unique benefit is the energy-saving smart standby mode.
• Lower self-consumption than other inverters available in the market
• DPSI TS models: transfer switch automatically changes to mains power as soon as it is applied
• DPSI iTS comfort model: transfer switch with voltage synchronization and smart standby mode
• DPSI RCD models: with integrated, all- current-sensitive residual current device (transfer switch is not included but can be retrofitted)
SinePower DPSI RCD series with integrated residual current device, 1500/2000 W, 12/24 V
Vehicle outfitters are familiar with the situation: The more loads you connect to an inverter, the higher the risk of dangerous situations. Electric shock. Fire. Damage to sensitive equipment. All of this can be avoided with a residual current device. Dometic SinePower DPSI RCD inverters come standard with this effective safety guard. The series includes four high-performance inverters, two for 12 V, two for 24 V applications.
Dometic SinePower
Sine wave inverters
Dometic Büttner MT NU
Mains switchover for sine wave inverters
Features
state output yes
• Comfort upgrade – for all sine wave inverters without mains changeover
• Automatic switching between inverter and mains power supply
• Priority circuit for 230 V mains power protects the onboard batteries
• Input mains power (230 V mains)
• Input to inverter (230 V)
• Output to interior sockets (230 V)
• NU 3600: Additional 230-V output – e.g. for charging e-bikes while driving Product
MT NU 3600
NU 2300
Dometic SinePower DPSI
Sine wave inverters
Test
Test mark e-certified (Automotive EMC Directive)
Type of protection equivalent to IP 21
Dometic SinePower DPSI 612 9620017417
Dometic SinePower DPSI 624 9620017418
Dometic SinePower DPSI 1012 9620017419
Dometic SinePower DPSI 1024 9620017420
Dometic SinePower DPSI 1512 9620017421
Dometic SinePower DPSI 1524 9620017422
Dometic SinePower DPSI 2012 9620017423
Dometic SinePower DPSI 2024 9620017424 / Optional extras
DC connection cable (for DPSI 612/624/1012/1024) 9600000268
DC connection cable DPSI 1512, 12 V 9102700003
DC connection cable DPSI 2012, 12 V 9600000269
DC connection cable DPSI 1524/2024, 24 V 9600000268
Dometic SinePower DPSI TS
Sine wave inverters with transfer switch
Priority circuit
Product
Dometic SinePower DPSI 612TS 9620017425
Dometic SinePower DPSI 1012TS 9620017426
Dometic SinePower DPSI 1512TS 9620017427
Dometic SinePower DPSI 1524TS 9620017428
/ Optional extras
DC connection cable (for DPSI 1312T / DPSI 1324T)
9600000268
DC connection cable (for DPSI 1812T, 12 V) 9102700003
DC connection cable (for DPSI 2312T, 12 V) 9600000269
DC connection cable (for DPSI 3512T, 12 V) on request
DC connection cable (for DPSI 1824T/2324T/3524T, 24 V) 9600000268
Dometic TD283, multifunctional N-BUS display 9620013272
Dometic SinePower DPSI TS
Sine wave inverters with transfer switch
DC connection cable (for DPSI 2312T, 12 V)
9600000269
DC connection cable (for DPSI 3512T, 12 V) on request
DC connection cable (for DPSI 1824T/2324T/3524T, 24 V) 9600000268
Dometic TD283, multifunctional N-BUS display 9620013272
Dometic SinePower DPSI RCD
Sine wave inverters with all-current sensitive RCD
Multifunctional N-BUS display available as an optional accessory Input
Priority circuit
Remote control in scope of delivery
Priority circuit Integrated mains priority circuit with voltage synchronisation
Test mark e-certified (Automotive EMC Directive)
Type of protection equivalent to IP 21
Product
Dometic SinePower DPSI 1512RCD 9620017435
Dometic SinePower DPSI 1524RCD 9620017436
Dometic SinePower DPSI 2012RCD 9620017437
Dometic SinePower DPSI 2024RCD 9620017438 / Optional extras
DC connection cable (for DPSI 1312T / DPSI 1324T)
9600000268
DC connection cable (for DPSI 1812T, 12 V) 9102700003
DC connection cable (for DPSI 2312T, 12 V) 9600000269
DC connection cable (for DPSI 3512T, 12 V) on request
DC connection cable (for DPSI 1824T/2324T/3524T, 24 V) 9600000268
Dometic TD283, multifunctional N-BUS display 9620013272
Dometic SinePower DPSI iTS
Comfort sine wave inverter with transfer switch
Dometic SinePower DSP-RC
Remote control for DSP-T and DPSI iTS inverters
• Practical remote control for the most important functions: ON, OFF and standby
• Easy operation at the touch of a button
• Control of the charger via remote control
Ref. no. 9600002564
Dometic SinePower DSP-EM
Monitoring and control device for DSP-T and DPSI iTS inverters and MCA chargers
• Versatile device for monitoring and controlling your DSP-T, DPSI iTS inverter and your MCA charger
• Can be combined with a battery sensor to record all relevant battery data
Ref. no. 9620013272
Dometic TD283
Multifunctional N-BUS display
• Practical and user-friendly
• Control all N-BUS devices via a single display
• Monitoring of the energy parameters of all N-BUS devices (e.g. charge status of battery, solar module, DC charger, etc.)
Ref. no. 9620013272
Dometic SinePower DSP-T
/
DC connection cable (for DSP 2312T, 12 V)
9600000269
DC connection cable (for DSP 3512T, 12 V) on request
DC connection cable (for DSP 1824T/2324T/3524T, 24 V)
9600000268
Standard remote control DSP-RCT 9600002564
Convenience remote control DSP-EM 9600002565
INVERTER/CHARGER COMBOS
Sine wave inverters with integrated battery charger
Are you planning a vehicle conversion? Then our ICC inverter/charger combos can be an excellent choice. Especially so, if you want to create a high-performance energy supply system that overcomes the typical restrictions on parking spaces with limited circuit protection. ICC inverter/charger combos combine a 1600 or 3000 W sine wave inverter with a high-capacity automatic charger (60 or 120 Ah). As soon as the vehicle is connected to an external power supply,
the charger comes on to recharge the on-board batteries. The sine wave inverter automatically switches over to mains supply. Thanks to the integrated PowerBoost function, it is possible to run the air conditioner without tripping the circuit protection. And coffee can be made while using the hairdryer at the same time. The input power is reduced to a safe level (3 A/6 A/16 A), and the lacking power is drawn from the on-board battery for as long as necessary.
Dometic Büttner MT ICC
Inverters with charger
Features
Product
• Sine wave inverter plus automatic charger
• Integrated mains changeover – switches automatically to mains power as soon as it is available
• PowerBoost function briefly recovers reinforcement from the onboard battery
• Control unit for installation in the interior (remote control)
• Compact combination of two devices – saves space onboard
• Silent night mode programmable
• High operational safety – overload and overheating protection
MT ICC 1600 SI-N/60 A 9620000343
MT ICC 3000 SI-N/120 A 9620000175 /Accessory
Dometic Büttner MT ICC InfoControl, inverter control panel with charger 9620000283
Universal cable set for MT ICC3000SI-N (ICC1600 supplied with 1.5m battery power cables) 9620000251
High-load fuse kit for MT ICC 1600 SI-N/60 A
9620000166
High-load fuse kit for MT ICC 3000 SI-N/120 A 9620000212
MT
BATTERY CHARGING
SMART TECHNOLOGY MAKES THE MOST OF PRECIOUS BATTERY POWER
The Dometic range provides state-of-the-art charging technology for maximum availability of mobile battery power. You can choose from various product series to create the optimum charging solution for the application at hand.
• Dometic PerfectCharge MCAPLUS and MCA automatic chargers: for simultaneous charging of up to three batteries
• Dometic Büttner MT LB charging boosters: for ultra-fast charging of lithium batteries or high-capacity traditional systems
• Dometic PerfectPower DCC charging converters: for reliable charging during the drive – even in vehicles with energy-saving smart alternator
BATTERY CHARGERS FOR 12 AND 24 VOLTS
Simultaneous charging of up to three batteries
Compact design, light weight, wide input voltage range for worldwide use, simultaneous charging of up to three batteries –this is what all Dometic MCA battery chargers have in common. They provide optimal charging characteristics for modern LiFePO4 batteries as well as for conventional lead acid batteries (AGM, LiFePo4, gel or wet). A unique feature of the new MCAPLUS series is the N-BUS connectivity, which allows easy integration into the vehicle grid and convenient operation via our multifunctional touch-screen display TD283 or a smart phone. MCA-series chargers can optionally be equipped with a remote control.
Dometic PerfectCharge MCAPLUS 1225 / 1250 / 1280
IU0U battery chargers, suitable for LiFePO4 and lead-acid batteries thanks to selectable charging curves
Dometic PerfectCharge MCA 1215 / 1235 / 2415 / 2425 /2440
IU0U battery chargers, suitable for LiFePO4 and lead-acid batteries thanks to selectable charging curves
MCA 2415
MCA 2440
MCA 2425
NEW GENERATION DC-DC BOOSTERS
Up to 80 A charging power also with smart alternator (EURO6)
Dometic Büttner MT LB
Charging curves suitable for all battery technologies
The DC-DC boosters of the Dometic Büttner MT LB series are powerful travel chargers that are also highly efficient with smart alternator (Euro 6) vehicles.
High charging currents (up to 80 A) make the MT LB charging boosters ideal for fast charging of lithium batteries or high capacity traditional systems. Buck Booster technology (step-down and stepup converter) stabilizes the charge. Ideal for all batteries where fast and correct charging is important: LiFePO4, AGM, gel, or wet.
All MT LB models feature the intelligent OPTICHARGE system, which increases the performance and yield of consumer batteries by selecting the optimal charging curve for each battery
Up to 8 charging steps with Opticharge algorithm
technology. MT LB series DC-DC boosters offer a unique: equipped with an AUX connection, they can also be installed in vehicles with existing charging systems. When the vehicle is in motion, the AUX relay shifts all the loads connected in the control unit to the engine battery, thus bypassing the existing parallel charging connection, so the consumer battery will be recharged directly, at maximum performance.
As well as power, safety is also important. MT LB protection systems prevent the alternator from overloading and the engine battery from running out of power.
• Up to 80 A power
• Selectable charging power (for higher performance models)
• Up to 8 charging steps with Opticharge algorithm
• Buck Booster (step-down and step-up converter) technology for super stable charging
• Aux bypass for direct connection of extra loads to the alternator
• N-Bus communication protocol
• Optional Bus display
• Specific charging curve for batteries: lithium LiFePO4, AGM, gel, wet
• Alternator and starter battery always safe from overload, unexpected stress and under voltage
Dometic Büttner MT LB Models
LB 12/24-20
DC CHARGING CONVERTERS
FOR RELIABLE CHARGING WHILE DRIVING
From now on your customers will never again end up with an empty battery when arriving at their destination. Our new generation DC buck-boost charging converters (step-down and step up converters) ensure that the leisure battery is optimally charged during the drive
at all times. Highly recommendable for modern EURO 6 vehicles with smart alternators and also for vehicles where the cable cross section is too small to supply the connected devices.
Dometic PerfectPower DCC
DC charging converters
VOLTAGE CONVERTERS
FOR RUNNING 12-VOLT DEVICES ON 24-VOLT BATTERIES
Inexpensive, ultra-compact voltage converters in switch-mode design for operation of 12 volt appliances in 24 volt circuits: Our entry-level converters (Dometic PerfectPower DCDC 06 to DCDC 24) are often absolutely fine for running a 12 volt appliance on a 24 volt battery.
For more demanding applications, such as computers, monitors, or measuring instruments you will require a high-quality charging converter (DCC 2412-20 or DCDC 2412-40).
BATTERIES
TEMPRA
150 Ah in a standard L5 housing (TLB150/150F)
Operational even at low temperatures
TEMPRA is a new-generation, top-notch LiFePO4 battery, designed and manufactured entirely in Italy.
The TEMPRA TLB 150 has the best power-to-weight ratio on the market thanks to the new high-density power cells, a concentration of power in reduced space! Where before there were 100 Ah, now there are 150 Ah: 50% more autonomy for mobile applications. Up to 150 Ah capacity in the size of a standard L5 box (fits under the Fiat Ducato seat).
Featuring a new battery management system that allows optimal charging TEMPRA batteries can be connected to any charger, even
Everything under control with TD283 display and Dometic app
those designed for lead-acid batteries. The charge management, realized by the integrated DC-DC converter and Smart Balance function of the BMS ensure that the battery cells are always efficient and perform over time.
The heated versions (F models) are ready for use in extreme temperatures, down to a maximum of -30°C. These batteries can be used in all weather conditions.
The N-BUS system makes the TEMPRA battery an integral part of the Dometic energy ecosystem that can be controlled via the multifunctional TD283 display and the Dometic app.
Top-notch lithium battery
50% more capacity, same size (TLB 150)
Innovative high-density power cells, the best weight-to-power ratio in the category
Operational even at low temperatures down to -30°C with the heated version
Everything under control with TD283 display and Dometic app
Dometic Büttner TEMPRA TLB
Lithium battery, 12 V
Compatible with any charger and charging source
Smart BMS for optimal battery management in any situation
Features
• Compatible with any battery charger—even ones not designed for LiFePO4 batteries
• The TLB120/120F and TLB150/150F models come in a compact L5 cabinet to fit under a Fiat Ducato seat
• NEW: The TEMPRA TLB100S/100FS comes in a small L3 housing that fits under the seat in medium-sized campervans like the Ford Transit Connect
• 50 % more capacity than other L5-size batteries (TLB150/150F only)
• Delivers up to 4 hours of air-con runtime and up to 50 % longer service life than a standard lithium battery
• Comprehensive monitoring keeps both battery and user safe and informed
• Up to 70 % lighter than a lead-acid battery of equal capacity
• Chemistry and built-in electronics make it completely maintenance-free
• TLB100F, TLB100SF, TLB120F, TLB150F rated for operation down to –30 °C
• Controllable via the multifunctional N-BUS display Dometic TD283 (optional) or the Dometic Power App
• Backed by a 5-year warranty
540 AMPS UNDER THE SEAT
Enjoy coffee at the touch of a button. Dry your hair. Cook with electricity. And quickly cool down the cabin before you go to sleep. Amenities like these are no longer reserved to the campsite. With a TEMPRA TLB 540 – combined with a DPSI inverter – all of this also works without a mains hook-up. The new lithium power pack delivers 300 amps power on a continuous basis, and a cool 500 amps peak. Despite its impressive performance it offers a typical TEMPRA benefit – it fits under a Fiat Ducato seat.
Dometic TLB 540 / TLB 540F
Lithium battery, 12 V
Features
• 540 Ah battery capacity – up to 300 A continuous power, up to 400 A peak power (for about 15 minutes)
• Dimensions (L x W x H, mm): 366 x 345 x 190 – fits under the seat in a Fiat Ducato
• Optimized Battery Management System for maximum efficiency and operating safety
• Compatible with any battery charger—even ones not designed for LiFePO4 batteries
• Advanced connectivity: CI-BUS, N-BUS, Bluetooth
• All important parameters in view – via a central display or the Dometic smartphone app
• Easy and practical cable management
• Up to 8 batteries can be connected in parallel
• Heated TLB 540F rated for operation down to –30 °C
Product
N-BUS, Bluetooth
Fits under the seat in a Fiat Ducato
GREENPOWER
High-performance AGM consumer battery
40% more autonomy than with a conventional battery
4 – 7 years battery life, up to1200 cycles
Continuous research and development paved the way for the introduction of GREENPOWER, an innovative AGM (absorbent glass mat) battery designed for demanding vehicle applications. The unique valve-regulated lead-acid battery offers three key benefits: Extra-long life up to 7 years. Slow discharge. No maintenance required.
Maintenance-free battery, can be placed in any position
GREENPOWER is built with special high-density lead-calcium alloy plates, which raise charge retention for a low self-discharge (Fig.1) and a high number of cycles (Fig.2). The electrolyte liquid is absorbed by its special glass mat separators, which prevent any leaks and allow to place batteries in any position and/or inclination, keeping constant efficiency. The reinforced grids of the separators ensure a higher resistance against vibrations.
Charge retention
The GREENPOWER VRLA (Valve regulated lead-acid) system is able to recombine the gasses generated during charge and discharge, making GREENPOWER a totally hermetic and safe battery, free of any kind of maintenance. The ABS cabinet is flame-retardant (UL 94VO), the rust-proof terminals resist corrosion and the cover includes the VRLA safety pressure valves.
Life cycles
Battery life can be affected by several factors.
• The depth of discharge: Avoid discharging the battery beyond the maximum 11 V!
• The duration of discharge: Do not leave the battery discharged after use!
• The charging method: Provide the best and most appropriate level of charge!
GREENPOWER batteries can be charged by an alternator, an electronic charger or a solar panel complying with the recommended parameters.
Fig. 1
Fig. 2
Fig.
Available models and technical features
Without exhalations and acid leakage
Free of maintenance
DO NOT OPEN
Inclinations MAX 90°
TECHNICAL SPECIFICATIONS
Stated capacity at 25°C / 3°C
Operating range from -25°C / 55°C
Lead/Calcium alloy Glass matt separators ABS Case (UL 94-HB)
Compliance with the regulations IEC, JIS, EN
Classified as NON HAZARDOUS
BATTERY ACCESSORIES
SMALL PRODUCTS, GREAT EFFECT
With multi-display and remaining time indicator
Dometic Büttner MT iQ BasicPro
Battery computer with Hall sensor
• Display of battery capacity (%/Ah), battery current (A), battery voltage (V)
• Illuminated multimedia display with residual run display (at the touch of a button)
• Easy to install – existing battery cable is routed through the sensor
• Hall Sensor with Control Line – Magnetic Field Current Measurement
• Start screen can be freely selected – display of the most important data
• Mounting as a mounting or surface mounting device possible (surface mounting enclosure is supplied)
• 5 m extension cable available as an accessory
• For 12 V / 24 V batteries up to 200 A
Ref no: 9620000287
Dometic Büttner MT 5000iQ
Battery computer
• Display of battery capacity (%/Ah), battery current (A), battery voltage (V)
• Illuminated LCD display with graphic display of the remaining time (side bar)
• Automatic switching off and on of loads depending on battery capacity
• 100 A measuring shunt – sufficient for most standard applications
• 200 A measuring shunt – also for inverter applications up to 2000 W
• 400 A measuring shunt – also for inverter operation and high-wattage users
• Start screen can be freely selected
• Temperature display (with min/max function)
• Surface mounting enclosure and 5-meter extension cable available as accessories
100-A shunt / Ref no: 9620000129
200-A shunt / Ref no: 9620000218
400-A shunt / Ref no: 9620000303
Dometic TD283
Multifunctional N-BUS display
• For ultimate comfort and convenience
• Manage all N-BUS devices from a single display
• Energy parameter monitoring for all N-BUS devices (e.g. charging state of battery, solar panel, DC-DC charger)
• Monitor the consumption of your comfort devices in real time
• Can be used to activate or deactivate N-BUS devices
• Also works with the new Dometic mobile app (provided there’s a Bluetooth device in the N-BUS network)
• Suitable for vans, trucks, motorhomes and boats
Ref no: 9620013272
Dometic Büttner MT 03066
Standby Charger Pro, LiFePO4 compatible
• Standby charger protects the starter battery from deep discharge by standby users
• Excess charging current (e.g. from the solar panel) is fed into the starter battery.
• Suitable for all onboard batteries – also for modern LiFePO4 vehicle batteries
• Ideal for self-sufficient energy supply or when the vehicle is not being used for a long time
Ref no: 9620000345
POWER SWITCH
Automatic battery switch
POWER SWITCH is an automatic switch which allows managing two consumer batteries separately. Since electric consumption in passenger and commercials vehicles increases, you need greater quantities of energy available.
A second consumer battery can meet this need, as it ensures a broader range although it cannot be connected in parallel in case they are not ”twins” (which means identical in terms of technology, amperage, brand and production lot).
• Automatic management of two batteries, also of different technology and capacity
• Automatic (below 11 V) or manual battery switch-off
• Up to 2000 W management both input and output
• Remote control provided
BATTERY SAVER
Automatic battery switch-off
BATTERY SAVER is an automatic battery switch-off which constantly monitors the battery voltage, disconnecting the battery from any device in case it goes below the critical 11 V threshold.
The device thus protects the battery against any efficiency loss or fatal damage due to deep discharges. It also has a “Manual” mode button which allows disconnecting all the devices at any moment.
Therefore, a manual restart is possible or automatic reset through a charging source (e.g.: alternator, 230 V charger or solar panel).
• Automatic (below 11 V) or manual battery switch-off
• Up to 1200 W management both input and output
• Operation indicator
• Automatic battery switch back on (when a charging source is available)
SMART CHARGER
Universal AC-DC battery chargers
SMARTCHARGER is a series of battery chargers, equipped with advanced micro controller technology to meet the daily needs. According to the model, the devices perform up to 9 charging steps. Steps include the diagnosis, to check whether the battery is able to accept and maintain the charge, the desulfation which helps maintain the plates clean from sulfate and extend the life of batteries, the maintenance (last generation) that keeps the battery to the 95-100% of the capacity, supplying the current when the battery starts to discharge, in order to not “stress” it during long periods of charge. (Example: Maintenance of a seasonal vehicle battery during the winter).
• Suitable also for LiFePO4 batteries
• New OPTICHARGE firmware
• Selectable charging curves
• Up to 9 charging steps
• IP65 protection
POWER BANK JUMP STARTER
A power bank that will jump start the vehicle as well! This compact appliance integrates a host of useful features – including two USB ports to charge digital devices, a wireless charging pad for the smart phone, a 12 V DC outlet for the cooling box, and two jump starter cables.. The super-bright LED light comes in very handy in emergency situations, e.g. in power outages or when car trouble occurs at night.
The Dometic PJS1000 has enough power to provide starting aid for gasoline engines up to 6.0 L, or diesels up to 4.0 L. Its integrated lithium battery delivers 1000 amps peak – enough for 30 boost starts on a single charge.
Dometic PJS1000
Power bank jump starter, 1000 A peak current
Easy and safe jump start
With hook-up safe alarm and digital display for the charging status
Wireless charging pad
For convenient recharging of smart phones on the go or at home
Practical extra features
Ultra-bright LED light and two USB ports for charging digital devices
POWER BANK AND FLASHLIGHT ALL IN ONE
The Dometic PLB15 integrates a highly efficient 15Ah lithium iron phosphate battery that can provide up to 192Wh at 12V, making it a reliable source of power for portable electronic devices, such as cool boxes, laptops, cellphones, cameras and much more. Its lightweight, compact, and ergonomic design makes it an ideal power source for mobile use. This versatile power bank is equipped with 3 different
Dometic PLB15
Power bank with lithium iron phosphate battery and flashlight, 15Ah
Product
Dometic PLB15
Dual-function flashlight
Use the flashlight mode for enhanced illumination in the dark or as ambient lighting
outputs: 12V, USB-C and USB-A, allowing your customers to charge multiple devices at the same time. Additionally, they can charge the PLB15 using different charging options, including wall charging with the USB-C input, car charging, and even solar charging via the DC coaxial input.
LED lights show charge status
The PLB15 features 5 LED indicators to monitor the battery‘s charge level
Charge all your devices
Charge your devices via 3 different outputs: 12V, USB-C, or USB-A
DOMETIC GENERATORS
VOLTS – ANYTIME, ANYWHERE
Dometic generators ensure a reliable power supply wherever mains power is unavailable. This makes them indispensible for many commercial applications. High performance, modest fuel consumption and excellent product quality are the features you can expect to find in every Dometic generator. The range includes models from 2000 to 4500 watts, fuelled with petrol or Diesel.
Benefits
• Highly compact design
• High continuous output
• Suitable as a power source for Dometic air conditioners
• Remote control included
• TEC models: Auto start function for automatic battery recharging
• Petrol fuelled TEC models: variable speed, economical fuel consumption, low-noise operation
• VARIABLE SPEED
• T model and Diesel fuelled models: constant speed
CONSTANT SPEED
Dometic TEC 29
2.6 kW generator for 230 volts AC, fuelled by petrol
TEC 29
Output voltage 230 V AC ±1 % (continuous) / pure sine wave
Total distortion factor 1 %
Frequency 50 Hz ±1 %
Max. starting current 33 A
Continuous output 2.600 W Peak power 2.900 W
Engine output 4.0 (5.5) kW (PS)
Operating mode / fuel Normal unleaded ROZ 91 petrol
Power consumption max. 1.2 l/h
Sound level at 7 metres 54 – 59 dBA
Guaranteed sound level 86 dBA
Dimensions (W x H x D) 480 x 290 x 385 mm
Width with suspension 580 mm
Housing finish Stainless steel
Weight 44 kg
Auto-start function yes
12-volt output for battery charging yes
Quality features
Automatic low-oil cut-off, electrical starter, short circuit protection, soundproofed operation via external control panel, alarm functions, variable generator speed Test marks E13
Product Ref. No.
Dometic TEC 29 9102900299 / Optional extras
Plastic petrol tank with lock cap and fuel reserve float, 15 litres
9102900009
Plastic petrol tank with supports and feed-mouth incorporated, 15 litres 9102900010
20-litre stainless steel tank 9102900011
Hose set 9102900003
Flexible metal hose 25 mm, 2 m 9102900137
Flexible metal hose 25 mm, 5 m 9102900138
Dometic / TEC 40D
3.6 kW generator for 230 volts AC, fuelled by diesel
Output voltage
distortion factor
V AC ±1 % (continuous) / pure sine wave
Operating mode / fuel Diesel
Power consumption
Sound level at 7 metres 64 dBA
Guaranteed sound level 89 dBA
Dimensions (W x H x D) 765 x 457 x 467 mm
Width with suspension 765 mm
Housing finish Stainless steel Weight
Auto-start function yes
12-volt output for battery charging yes
Quality features Automatic low-oil cut-off, electrical starter, short circuit protection, soundproofed operation via external control panel, alarm functions
Test marks E13
Product
Dometic TEC 40D 9102900295 / Optional extras
Plastic petrol tank with lock cap and fuel reserve float, 15 litres 9102900009
Plastic petrol tank with supports and feed-mouth incorporated, 15 litres 9102900010
20-litre stainless steel tank 9102900011 Hose set 9102900003
Flexible metal hose 25 mm, 2 m 9102900137
Flexible metal hose 25 mm, 5 m 9102900138
TEC 40D
Dometic T 2500H
2.0 kW generator for 230 volts AC, fuelled by petrol
Output voltage 230 V AC ±10 % (continuous) / pure sine wave Total distortion factor 5 %
Operating mode / fuel Normal unleaded ROZ 91 petrol
Power consumption max. 1.2 l/h
Sound level at 7 metres 60 dBA
Guaranteed sound level 86 dBA
Dimensions (W x H x D) 530 x 290 x 385 mm
Width with suspension 640 mm
Housing finish Stainless steel
Weight 50 kg
12-volt output for battery charging yes, with optional charging regulator
Quality features Automatic low-oil cut-off, electrical starter, short circuit protection, soundproofed operation via external control panel
Test marks E3
T 2500H
Dometic T 4000H
3.5 kW generator for 230 volts AC, fuelled by petrol
Output voltage
Operating
Sound
Width with suspension
Housing finish Powder coating Weight
Auto-start function no 12-volt output for battery charging Option AG 111
• Provides 230 V AC in remote locations where mains power is unavailable
• High performance – 3500 W continuous output
• Convenient 12 V output for battery charging
Quality features
• Remote control included
• Stainless steel housing dampens operating sound
T 4000H
Dometic T 5500H
4.5 kW generator for 230 volts AC, fuelled by petrol
5500H
Output voltage 230 V AC ±10 % (continuous) / pure sine wave Total distortion factor 5 %
Operating mode / fuel Normal unleaded ROZ 91 petrol
Power consumption
Sound level at 7 metres 70 dBA
Guaranteed sound level 94 dBA
Dimensions (W x H x D)
Width with suspension 538 mm
Housing finish Powder coating Weight 132 kg
Auto-start function no 12-volt output for battery charging Option AG 111
• Provides 230 V AC in remote locations where mains power is unavailable
• High performance – 4500 W continuous output
• Convenient 12 V output for battery charging
Quality features
• Remote control included
• Stainless steel housing dampens operating sound
• Large 15 l fuel tank for up to 5 h operation
Test marks E24
Product
Dometic T 5500H
/ Optional extras
Plastic petrol tank with lock cap and fuel reserve float, 15 litres 9102900009
Plastic petrol tank with supports and feed-mouth incorporated, 15 litres 9102900010
20-litre stainless steel tank 9102900011
Hose set 9102900003
Flexible metal hose 25 mm, 2 m 9102900137
Flexible metal hose 25 mm, 5 m 9102900138
T 5500H
INSTALLATION ACCESSORIES
BCB Kabelsatz
Art.-Nr. 962000273
EBL Kabelsatz
Art.-Nr. 9620000196
N-BUS-Verbindungskabel
0,3 m – BC00M / Art.-Nr. 9620016910
3 m – BC 03M / Art.-Nr. 9620008275
6 m – BC 06M / Art.-Nr. 9620008462
10 m – BC 10M / Art.-Nr. 9620008182
Dometic Büttner MT PRO7
Plus-minus power distributor with mass distribution
• 6 fuse circuits, max. 30 A each
• LED lights indicate failures due to overload or short circuit
• High-quality components – suitable for all climates
• Modular system for the assembly of individual distribution systems
Ref no: 9620000339
Dometic Büttner MT PRO6
Power distributor
This compact power distributor features 6 positive outputs (max 30 A each) and a central input, supporting a total load of 100 A. It includes LED failure indicators, a protective cover, and two spare fuse slots. Units can be interconnected for larger systems; fuses are not included.
Ref no: 9620000203
Dometic Büttner MT HS 500
Hochlastrelais 12 V/ 500 A mit USGFunktion
The MT HS 500 is a high-performance relay for continuous currents up to 500 A (1000 A peak), functioning as a main switch or undervoltage protection. Its magnetic locking technology ensures near-zero power consumption (0.0001 A). Unlike standard alternatives, it offers high-precision switching and superior build quality.
Ref no: 9620000233
Dometic Büttner MT HS 500
Hochlastsicherungshalter 12 V / 24 V
This stable high-load fuse (12V/24V) protects large consumers like inverters or bow thrusters and is ideal for securing battery charging cables. Typically installed in the main positive line, it limits damage during major short circuits. The holder features M8 threads, includes screws and rubber covers, and can be surface-mounted for secure fastening. The fuse is not included in the delivery.
Ref no: 9620000284
HIGH-CURRENT DISTRIBUTION SYSTEM
The high-current distribution system lets you implement a customized, compact power-distribution and protection solution even for very high loads. It can be combined with our 500 A high-current relay (MT HS 500) to create a reliable, space-saving and—above all—easily managed distribution and control setup. Each component is crafted to the highest quality standards and meets the most demanding requirements.
High-current distributor
Can be used as a standalone unit or combined in the high-current distribution set. Busbar with five M8 threaded studs. Cover included.
Ref. No.: 9620004011
High-current connector
Bridge connector for linking individual elements. Supplied: 2 × high-current connectors.
Ref. No.: 9620004021
High-current single-pole busbar
Usable as a standalone component or combined in the high-current distribution set. Insulated single poles with 5 × M8 threaded studs. Cover included.
Ref. No.: 9620003862
Fuses, type FS, pack of
High-Current Distribution Fuse Holder
Professional-grade fuse holder. Usable standalone or as part of the High-Current Distribution Set. Can be directly connected to the MT HS 500 via the High-Current Connector (MT HS 507). Terminals on both ends via M8 threaded studs. Cover included. Supplied without fuse.
Ref. No.: 9620003962
Ref. No.: 9620000241
High-load fuses
High-load fuse for insertion into the high-load fuse holder. The following fuses are available
80 A / Ref no. 9620000315
100 A / Ref no. 9620000193
125 A / Ref no. 9620000288
150 A / Ref no. 9620000306
Fuse holder FS 3* for three blade fuses
Ref. No.: 9620000253
High-current fuse for high-current distribution ANL high-current fuse, 425 A / 48 V Ref. No.: 9620003862
Fuse holder FS 1* for three blade fuses
Ref. No.: 9620000240
Fuse holder ME* (12 V / 24 V) for ME-type fuses; M6 terminals both ends
Single version
Ref. No.: 9620000148
Double version
Ref. No.: 9620000295
ELECTRONIC ACCESSORIES
Accessories for coolers and refrigerators – cooling without compromise
No need to accept any restrictions in the use of a cooling box, even if it’s a simple or older make. CoolPower accessories provide plenty of flexibility. They can be used to run a 12-volt device from a 24-volt
battery or from a mains supply. It’s also possible to connect a clever device to prevent excessive battery drainage.
Dometic
CoolPower DPS 80
24 V appliances to 110-240 V mains, 81 W
Rated
Operating
Weight
Energy class Class IV
AC input connector
DC output connector
Quality features
Product
Dometic CoolPower DPS-R 135
Mains adapter for refrigerators, 135W
Rated
2-Pin AC socket
Cigarette U-Plug
• Connects 24 V DC cooling boxes or other appliances to the mains power socket
• Integrated cigarette lighter socket for 24 V appliances
• Compact and slim design
Input current 5 A
Input DC voltage 12/24 V
Rated
Rated
Peak
Constant
Operating
Dimension
Weight
Energy class
AC input connector
2-Pin AC socket (EU plug) DC output connector 2 wires (+) / (-)
Quality features
Product
Dometic
• Adapts to all Dometic 12/24 DC refrigeration products (up to 135W)
• Easily install your adapter to any Dometic 12/24V DC refrigerator
• With dimensions of just 110x11x32cm, this adapter is compact and concealable
LED LIGHTS FROM DOMETIC
ELEGANT AND ENERGY-SAVING
In close cooperation with leading vehicle manufacturers we have created attractive lighting solutions for demanding mobile applications. Most of them are based on state-of-the-art LED technology, which saves up to 90 % energy compared to conventional halogen lamps and gives a much longer battery running time in offmains operation.
The Dometic lighting range includes recessed spotlights for neat integration in ceilings and walls, surface-mounted spots that can be
turned and swivelled to the optimal angle, and a collection of lowprofile LED modules in different shapes and sizes. From working lamps and cabinet lighting to access lights and attractive ambient lighting – our light designers have thought of everything.
This catalogue presents a small selection of our products for retrofitting. Pick what suits your idea of a perfectly illuminated vehicle, and get in touch if you want more inspiration.
powdercoated RAL9005 Voltage 12 V DC
Power Input 7 W Energy consumption in 1000 h 7 kWh
flux 1.450 lm
Light Colour Warm white (3000 K)
LED technology COB LED
Dimensions
Ducato: 1500 x16x32 mm
Sprinter: 1525x16x32 mm
Transit: 1530x16x32 mm
Crafter: 1628x16x32 mm
Quality Features • Combined campervan rain gutter with integrated COB LED light • Set with remote control FFB8
Dometic RT200 Fiat Ducato/ Citroën Jumper/Peugeot Boxer (> 2006)
Set illuminated rain gutter with RC and Dimmer, black version
Dometic RT200 Mercedes Sprinter (> 2018)
Set illuminated rain gutter with RC and Dimmer, black version
Dometic RT200 Ford Transit (> 06/2019)
Set illuminated rain gutter with RC and Dimmer, black version
Dometic RT200 VW Crafter II (>2017)
Set illuminated rain gutter with RC and Dimmer, black version
Remote control for LED lights and SMD flexi-strips
Description Radio remote control with dimmer function for extended control over LED lights and SMD flexi-strip, which gives you the possibility to have the right illumination in or outside of your vehicle. Voltage 12 / 24 V DC
Load Current 8 A
x 56 x 34
Convenient operation with hand transmitter
Features
Dimmer function for LED lamps and SMD flexi-strips
Terminal sockets for easy installation
DRIVING SUPPORT
Reversing video systems for many applications
Driving support for truck, van and RV drivers – we have put together a complete range of smart solutions for safe and relaxed manoeuvring. Watchful cameras and high-resolution monitors with advanced AHD technology give drivers full control of what is happening around their vehicles.
BLIND SPOT ASSISTANT SYSTEM
Blind Spot Assistant System for trucks with intelligent object detection feature. Only moving objects are indicated. The driver gets a visual and acoustic sign at a critical situation to avoid heavy accidents with cyclists and pedestrians.
Page 202 - 203
Safety requirements differ depending on the type of vehicle and the way it is used. Dometic PerfectView cameras and monitors can be flexibly combined to suit specific demands.
CAMERAS
Professional cameras for combination with a Dometic monitor of your choice, or with an existing monitor. Smart special solutions: all-around view system, turn assistant camera, bike rack camera and more.
Page 204 - 218
MONITORS
Monitors with 5", 7" or 9" screens – all with advanced digital LCD technology for high-contrast images day and night. Ready for connection of up to four cameras for complex safety solutions.
Page 220 - 223
GENERAL SAFETY REGULATIONS (GSR2)
Get informed about GSR2 and find out how Dometic can help business clients to comply with the new regulations.
Page 230 - 231
ADAPTERS AND ACCESSORIES
Easy system configuration: A wide choice of adapters, control boxes and other smart accessories helps you create customized safety solutions for all types of vehicles.
Page 224 - 229
MAKE YOUR TURN ASSISTANT VISIBLE
The further improved CAM1000 (BSV71000) is a perfect complement to non-visual turning assistance systems such as RADAR-based solutions. It provides an image + active information that a non-imaging system cannot help with.
SAFER DRIVING WITHOUT FALSE ALARMS
CAM1000 detects cyclists and pedestrians, marks them and displays them on a monitor in real time. The video image is an important source of information. Only moving objects are displayed. The
installation effort has been reduced to a minimum. This represents a very useful addition to the vehicle manufacturer's non-imaging driver assistance system.
• 3-in-1 solution: detection of moving objects, video image of the related area, active warning (visual/acoustic)
• System warns only in case of relevant dangers, i.e. pedestrians or cyclists moving in the blind spot area
• Quick and easy installation – all components integrated in a single housing
• Simply connects to the power supply
• Universal solution fits most heavy goods vehicles and most commonly used monitors
• Automatic day/night mode with infrared LED to guarantee great image quality
Active indication (visual/acoustic)
Video image of the related area
Dometic PerfectView BVS71000
Turn assistant system with camera and 7" heavy-duty AHD monitor
/ CAMERA Colour camera CAM1000/ BSC01
Dimensions (W x H x D) 209 x 75 x 58 mm
Operating voltage 12 to 32 V DC
Power consumption < 14 W with LED
Picture sensor 1/3.2" CMOS
Resolution 1.000.000 pixels
Picture angle d/h/v 180° / 160° / 90°
Light sensitivity
< 0.1 Lux, 0 Lux with LED
Operating temperature –30°C to +80°C
Vibration resistance 10 g
Weight 600 g
Type of protection IP69k
Test mark E-certificate ECE R10, RED, ISO 16750
• Active detection of moving objects
• Video image of the related area
Quality features
• Active indication (visual/ accoustic)
• Simple installation of one device only
• Indication of relevant objects only (moving) – very few failure indication
Scope of delivery Camera, system cable, manual / MONITOR 7" colour LCD monitor M 75LX AHD
Dimensions (W x H x D) 190 x 110 x 26 mm (including holder)
Diagonal screen dimension 7"/178 mm (visible picture), 16:9
Operating voltage 11 to 30 V DC
Power input 8 W
Resolution 600,000 pixels
Video standard PAL/NTSC auto
Operating temperature –20 to +70 °C
Vibration resistance 6 g
Weight 400 g
Brightness up to 600 cd/m²
Dimmer automatic via LDR
Camera inputs
3 + 1 with signal recognition (trailer detection)
Mirrored picture function can be set
Test mark ECE R10, ISO 16750
Quality features
Switches on automatically or manually, automatic day/night switching, normal or mirrored picture function, picture settings can be saved for each camera, loudspeaker, LED background illumination, LX version with adjustable distance marks
Scope of delivery system Monitor, camera, 5 m system cable, installation fittings for all components, LX version with additional sun shield
CAMERAS
EXTRA EYES FOR BETTER VISION
Dometic CAM1000
Camera for turn assistant system
Dimensions (W x H x D)
209 x 75 x 58 mm
Operating voltage 12 to 32 V DC
Power consumption
< 14 W with LED
Picture sensor 1/3.2" CMOS
Resolution 1.000.000 pixels
Picture angle d/h/v 180° / 160° / 90°
Light sensitivity
< 0.1 Lux, 0 Lux with LED
Operating temperature –30°C to +80°C
Vibration resistance
Weight
g
g
Type of protection IP69k
Test mark E-certificate
Quality features
ECE R10, RED, ISO 16750
• Active detection of moving objects
• Video image of the related area
• Active indication (visual/ accoustic)
• Simplified connection, only 4 cables (power supply + 2 control cables)
• Optimized universal mounting
• Waterproof screw connectors with a diameter of just 10 mm
• Indication of relevant objects only (moving) – very few failure indication
SAFETY ASSISTANT ON BOARD
Many panel vans just don’t have a suitable mounting surface for a camera on the rear or side. This is where the Dometic provides a smart alternative: a tiny cylinder camera enclosed in a compact housing to be fastened on the top edge of the vehicle’s rear or side. The 150°
The CAM29 and 29S with their factory preset mirrored picture function are ideal as a rear-view camera, because they give drivers the familiar rear mirror view. CAM29 is designed for integration into the vehicles body just by pushing into the fitting drilling.
Dometic PerfectView CAM29/ CAM29S
Color cylinder camera
picture function
wide-angle lens can be vertically aligned as required for the best possible view. Its high sensitivity to light and electronic brightness adjustment ensure sharp images that are easily visible.
CAM29S is enclosed in a compact housing that can be easily fastened on the vehicle rear with limited space.
0.5 Lux, 0 Lux with LED
Our cameras and monitors have passed a TÜV-certified test, officially confirming full compliance with all GSR2 installation and operational requirements.
CAM29 CAM29S
CAM29
CAM29S
FULL 360° ALL-AROUND VIEW
"Bird-View-Systems" have become a widely recognized technology, and the benefits of the four cameras installed for displaying the 360° view around a vehicle are self-evident. The CAM360AHDHD features a high-resolution AHD system with 3D display that enhances the accuracy of distance judgment by providing a realistic view, allowing users to virtually move the camera around the vehicle for precise observation of even the smallest details. Various settings offer a range of individual functions, including the popular rear mirror mode, video recording, and pedestrian detection with active alerts in overlapping areas. The system also includes a guidance tool for easy configuration. Please note that the camera cable is sold separately depending on the application.
Reverse and maneuver safely with 3D object display and AHD resolution
• Reverse and manoeuvre safely with 3D object display and AHD resolution
• Advanced setting options to adapt functions individually
• Install using the guidance tool without requiring any additional devices
• Experience maximum resolution and clear night vision operation
• Enjoy peace of mind while navigating, knowing you can access recordings
Advanced setting options to adapt functions individually
Install using the guidance tool without requiring any additional devices
Dometic PerfectView CAM360AHDHD
All-around view system with four cameras
Dimensions (W x H x D)
50 x 33 x 27 mm
Picture sensor 1/3" CMOS
Resolution 1.000.000 pixels
Picture angle d/h/v 180°
Light sensitivity < 0.1 Lux
Video standard PAL AHD/ NTSC switchable
Operating temperature –20 °C to +75 °C
Colour
Vibration resistance
Brightness adjustment electronic
Type of protection IP69k
Test mark UN ECE R10, ISO 16750 (in parts)
Quality features
Around view monitoring system with four cameras to create a 360° observation area around a vehicle. The system is equipped with a RCA connector (A/V) to fit to devices with an A/V Input.
Minimum mounting height for UN ECE R158 100 cm
The set is delivered without camera cables. A cable set needs to be ordered separately!
Product
Dometic PerfectView CAM360AHDHD
Accessories
Dometic CAM360 CS-HD, cable set for CAM360AHDHD
Standard cable set consisting of 1 x 5 m (front), 2 x 10 m (left/right), 1 x 20 m (rear) cable to make guiding through the vehicle as simple as possible. Equipped with small M8 watertight (IP67) screw type connectors perfectly adapted to the cam application.
Dometic CAM360 CP-HD, calibration pattern for CAM 360
• At just 100 cm x 100 cm, these calibration pads are simple to set up
• Easily place each pad as the pattern does not need to be facing a certain way
• Calibrate this system in less than 30 minutes
Silver color camera housing - set of 4 pcs.
Our cameras and monitors have passed a TÜV-certified test, officially confirming full compliance with all GSR2 installation and operational requirements.
DUAL-VISION CAMERA PREPARED FOR EASY UPGRADING
Close-range view while reversing, far-range view while driving – the dual function of the CAM 440 supports both. You can even switch between the two viewing modes without shifting gears, so you can always see what matters in the situation. To benefit from this
extended functionality, you require the CAM 440CS control switch (to be ordered separately). Our tip: Simply connect a second camera (CAM 440E) to monitor critical areas on the rear, side or inside of your vehicle.
View and control at hand
Dometic PerfectView CAM440
Dual-vision camera for system upgrading
Dimensions (W x H x D)
Operating voltage
480 x 420 x 420 mm
10-32V
Picture sensor 1/2.9 inch
Resolution
Picture angle d/h/v
TÜV TESTED
monitor
AHD or CVBS with most none Dometic displays
Light sensitivity
Operating temperature
AHD ≥700LW/ph
CVBS ≥ 300LW/ph
Rear View
AHD mode: D:172±5°H:157±5°V:105±5°
CVBS mode: D:172±5°H:157±5°V:105±5°
Far view
AHD mode: D:105±5°H:95±5°V:58±5°
CVBS mode: D:98±5°H:85±5°V:55±5°
0.5 Lux
-30 °C to +70 °C
Vibration resistance 10g
Weight
Mirrored picture function
Type of protection
Minimum mounting height for UN
PerfectView CAM440 basic set
PerfectView CAM44E
Dometic PerfectView CAM 440CS, control switch for dual-vision camera
Our cameras and monitors have passed a TÜV-certified test, officially confirming full compliance with all GSR2 installation and operational requirements.
9620006604
9620006605
9620013722
Far view approx. 50°
Manual switching of rear/ far view (zoom) + switching between CAM1 and CAM2
Rear view approx. 90°
The modular design of the Dometic PerfectView CAM 440 allows several upgrading options.
Upgrade 1: CAM 440CS control switch
Using the CAM 440CS control switch (sold separately) you can conveniently switch between close and far view of the area behind the vehicle. Or between two cameras, if you have retrofitted a second camera.
Upgrade 2: Second camera CAM 440E
The CAM 440 basic set is prepared for plug & play installation of a second camera (CAM 440E), which can be placed, for example, on the lower rear to observe areas hidden under a tail lift or bike rack. The add-on camera can also be installed on the side to serve as a turn assistant, or for monitoring work tools on commercial vehicles.
HEAVY-DUTY CHAMPION
With its robust, dust- and waterproof, aluminum housing with integrated heating and separate LEDs for glare-free night vision –the Dometic PerfectView CAM 55 is perfectly equipped for tough conditions. The camera's integrated microphone picks up any sound and, together with the 120° diagonal Picture angle d/h/v, they offer
Dometic PerfectView CAM 55 / CAM 55NAV
Heavy-duty color camera, 120° diagonal Dimensions (W
Mirrored picture function
convenient safety while driving. Featuring an input voltage range of 10–32 V, this compact camera connects to any on-board electrical system. Set up is easy, with no need for an additional control box. A matching adapter links the CAM 55 to the original multimedia display in the truck cabin or the ISO bus terminal of agricultural vehicles.
1 Lux, 0 Lux with LED
of protection IP 69K
Test mark E-certificate ECE R10, ISO 16750 Minimum mounting height for UN ECE R158
Dometic PerfectView CAM 55
Dometic PerfectView CAM 55NAV 9600000558
Robust housing
Robust aluminium housing with stainless steel mounting bracket
TESTED
Our cameras and monitors have passed a TÜV-certified test, officially confirming full compliance with all GSR2 installation and operational requirements.
Optimised mounting base For a safe seal and optimal protection
Separately placed LEDs For glare-free vision at night
COMPACT WITH IMPRESSIVELY HIGH PICTURE SHARPNESS
The Dometic PerfectView CAM 80 AHD is the smallest shutter camera on the market – ideal for installation in high-up or difficult-to-access places. In combination with an AHD monitor this camera provides a far superior image quality compared to non-high definition systems. Despite its compact dimensions, it gives you an extra-large Picture angle d/h/v of 125°. Active infrared LED support makes for optimal
night vision. The camera lens is protected against dust and stone chips by an automatic motor-operated cover. The robust housing integrates a microphone and a temperature controlled heater. While a mirrored picture function can be used to give drivers a familiar rear-mirror view. Please note: you need to have an AHD compatible monitor to use the CAM 80 AHD.
Dometic PerfectView CAM80AHD
Small color shutter AHD camera, 125° diagonal
Mirrored picture function can be set
Type of protection IP 69K
Test mark E-certificate E-certificate, ISO 16750
Minimum mounting height for UN ECE R158 300 cm Product
Dometic PerfectView CAM80AHD
Note: To use the CAM 80 AHD, you need an AHD-capable monitor 9600012923
Dometic PerfectView CAM80CM 9600000049
Dometic PerfectView CAM80CM, without connection cable 9600001346
Dometic PerfectView CAM80NTSC 9600000198
Our cameras and monitors have passed a TÜV-certified test, officially confirming full compliance with all GSR2 installation and operational requirements.
FOR EXTREME CONDITIONS
Designed for extreme conditions: the Dometic PerfectView CAM 60ADR is dust- and waterproof according to IP 69K and equipped with many heavy-duty details. This makes it a perfect choice for construction machinery, municipal vehicles and other "tough guys".
The 120° wide-angle lens delivers excellent image quality in all weather and light conditions. LED support guarantees high-contrast images even at night. Certified according to all relevant ISO standards and ADR-compliant for use in hazardous goods transport.
Dometic PerfectView CAM60ADR
Heavy-duty camera, ADR approved, 120° diagonal
ADR approved
Dimensions (W x H x D) 80 x 75 x 62 mm (including holder)
Operating voltage 11 to 16 V DC
Picture sensor 1/3" CCD
Resolution
pixels
Picture angle d/h/v 120° / 108° / 92° Light sensitivity < 0.1 Lux, 0 Lux with LED
°C to +65 °C
Mirrored picture function can be set
Type of protection IP 69K
Test mark
Scope of delivery
ECE R10, ADR; shock proof 50g
Note: System cable not included in the scope of delivery. Please order an ADR or standard extension cable according to your requirements.
Minimum mounting height for UN ECE R158 350 cm
Product
Dometic PerfectView CAM60ADR 9600000057
Depending on the application, standard or ADR-compliant cables are available. You can find them on the pages for accessories for tractors and trailers
Our cameras and monitors have passed a TÜV-certified test, officially confirming full compliance with all GSR2 installation and operational requirements.
INFORMED FOR SAFER DRIVING
The Dometic PerfectView CAM 45 makes changing lanes and reversing a large vehicle safer and easier. The compact color camera provides drivers with a 120˚ diagonal viewing angle, while an integrated microphone allows them to hear behind the vehicle too. Choose from normal or mirrored picture views. A temperature-
controlled heater ensures great performance, even in cold weather, while separate infrared-LEDs provide optimal night vision. The camera's cables are almost invisible and it's easy to install into your vehicle's existing multimedia display. Recommended for use on any leisure vehicle.
Dometic PerfectView CAM45 / CAM45NAV / CAM45W / CAM45WNAV
Small color camera
CAM45/ CAM45NAV
CAM45W/ CAM45WNAV
Dimensions (W x H x D)
78 x 60 x 50 mm
Operating voltage 11 to 16 V DC Picture sensor 7/4 "CCD
Resolution 250,000 pixels
Picture angle d/h/v 120° / 80° / 65°
Light sensitivity < 1 Lux, 0 Lux with LED
Operating temperature –20 to +70 °C
Vibration resistance 10 g
Weight 200 g
Mirrored picture function can be set
Type of protection IP 69K
Test mark ECE R10, ISO 16750
Minimum mounting height for UN ECE R158 yes
Product Ref. No.
Dometic PerfectView CAM45 9600000523
Dometic PerfectView CAM45NAV 9600000525
Dometic PerfectView CAM45W 9600000524
Dometic PerfectView CAM45WNAV 9600000526
Dometic PerfectView CAM45 without connection cable
TESTED 9600008841
Our cameras and monitors have passed a TÜV-certified test, officially confirming full compliance with all GSR2 installation and operational requirements.
CLEAR VIEW AND CONFIDENT DRIVING WITH AHD QUALITY
The PerfectView CAM35 2.0 with enhanced night vision, selectable AHD/CVBS video formats, is a cutting-edge camera solution designed exclusively for the FIAT Ducato X250 and X290, ensuring a secure, drill-free installation. Its vehicle-specific design and siliconesealed housing prevent moisture, while the customizable color seamlessly integrates with your vehicle's aesthetic. The compact brake light console features a 150° wide-angle lens for flawless closeup visibility in reverse. With reduced complexity and a 2-in-1 adapter for most monitors, this advanced rear view camera guarantees safety and convenience on the road.
CAM35 2.0 TWIN with wide-angle lens for reversing and narrow-angle lens for optimal long-range vision, incl. working light
Dometic PerfectView CAM35 2.0
Brake light console camera
CAM35 2.0 REAR with wide-angle lens for reversing
CAM35 2.0 TWIN with wide-angle lens for reversing and narrow-angle lens for optimal long-range vision
CAM35 2.0 REAR with wide-angle lens for reversing and built-in workinglight
Working light can be easy retro fitted
TESTED
is
Our cameras and monitors have passed a TÜV-certified test, officially confirming full compliance with all GSR2 installation and operational requirements.
COMPACT AND FLEXIBLE IN APPLICATION
Dometic PerfectView CAM 301 is a compact, heavy-duty ball camera that comes with a very flexible mount for accurate alignment. This makes it ideal for many applications on trucks and other commercial
vehicles. The sturdy aluminum housing is waterproof and noncorroding. Infrared LEDs support the wide-angle lens to give excellent image quality day and night.
Dometic PerfectView CAM301 / CAM301X Ball camera
Dometic PerfectView CAM301, with 20
Dometic PerfectView CAM301, without connection cable
Dometic PerfectView CAM301X, with 5 m connection cable
Our cameras and monitors have passed a TÜV-certified test, officially confirming full compliance with all GSR2 installation and operational requirements.
SMALL SIZE –WIDE EYE
The Dometic PerfectView CAM 80CM is the smallest shutter camera in the market – ideal for installation in high-up or difficult-to-access areas. Despite its compact dimensions, it gives you an extra-large Picture angle 120° diagonal. Active infrared LED support makes
for optimal night vision. The camera lens is protected against dust and stone chips by an automatic motor-operated cover. The robust housing integrates a microphone and a temperature controlled heater.
Dometic PerfectView CAM80CM / CAM80NAV / CAM80NTSC
Small color shutter camera, 145° diagonal Dimensions (W x H x D)
x 68 x 54 mm (including holder) Operating voltage
to 16 V DC
Mirrored picture function
Type of protection
Test mark E-certificate
Minimum mounting height for UN ECE R158
A PRACTICAL VIEW
Are you looking for an extra-compact camera? Then the Dometic PerfectView CAM 18 is just what you need. It can be easily aligned as required and is ideal for use as a rear-view or side camera. The 140° wide-angle lens with LED support gives excellent image quality in
all light conditions. The CAM 18 has an integrated microphone, so you can also hear what's happening behind or next to the vehicle. Its sturdy aluminum housing is dust- and waterproof according to protection class IP 69K.
Dometic PerfectView CAM18 / CAM18W / CAM18NAV / CAM18WNAV
Color ball camera, 140° diagonal
Dimensions (W x H x D)
x 58 x 44 mm (including holder)
Picture angle d/h/v
Mirrored picture function
be set Type of protection
Test mark ECE R10
Minimum mounting height for UN ECE R158
Product
cm
Dometic PerfectView CAM18 9600000053
Dometic PerfectView CAM18W 9600000201
Dometic PerfectView CAM18NAV 9600000054
Dometic PerfectView CAM18WNAV 9600000104
Dometic PerfectView CAM18 without connection cable 9102000110
TÜV TESTED
Our cameras and monitors have passed a TÜV-certified test, officially confirming full compliance with all GSR2 installation and operational requirements.
CAM18
CAM18W
MONITORS
Super-flat monitors with brilliant image quality
Flat, compact and easy to adjust: a PerfectView monitor is the ideal teammate for a reversing camera. You can easily connect more cameras – up to four, depending on the model. The range includes monitors with 5", 7" or 9" screens, all with advanced digital LCD technology to give high-contrast images day and night. Some models are designed and certified for professional use.
Dometic PerfectView M 55L AHD / M 75L AHD
Digital 5" or 7" LCD monitor with AHD technology
pixels, supporting AHD feature
auto
Camera inputs
Mirrored picture function can be set can be
Test mark ECE R10, ISO 16750
Quality features
All cameras can be combined with all monitors
auto
R10, ISO 16750
Switches on automatically or manually, automatic day/night switching, normal or mirrored picture function, picture settings can be saved for each camera, loudspeaker, LED background illumination
Product Ref. No.
Dometic PerfectView M 55L AHD 9600012882
Dometic PerfectView M 75L AHD 9600012898
(only 7" monitor)
Dometic PerfectView M 55LX AHD / M 75LX AHD
Heavy-duty 5" or 7" LCD monitor with AHD technology
Mirrored picture function can be set can be set
Test mark
Quality features
ECE R10, ISO 16750
ECE R10, ISO 16750
Incl. adjustable distance marks and detachable sun shield, switches on automatically or manually, automatic day/night switching, normal or mirrored picture function, picture settings can be saved for each camera, loudspeaker, LED background illumination
Ref. No.
Dometic PerfectView M 55LX AHD 9600012883
Dometic PerfectView M 75LX AHD 9600012899 (only 7" monitor)
TESTED
Our cameras and monitors have passed a TÜV-certified test, officially confirming full compliance with all GSR2 installation and operational requirements.
Adjustable distance marks
Mirrored
Test mark ECE R10, IP 69K
Quality features Switches on automatically or manually, automatic day/night switching, normal or mirrored picture function, picture settings can be saved for each camera, loudspeaker, LED background illumination Product
Dometic
Test
Quality features
• Digital LCD technology with LED backlighting
• Automatic dimming function enhances comfort and convenience
• Four camera inputs, of which three cameras can be activated by external signals
• Image settings can be saved separately for each camera input
• Optional mirror function gives you a familiar rear mirror view Product Ref. No. Dometic
Dometic PerfectView M9LQAHD
Large 9" heavy-duty monitor with AHD technology, integrated Quad-splitter and touchscreen
Dimensions (W x H x D) 234 x 158 x 40 mm
Diagonal screen dimension 9"/ 227 mm
Operating voltage 12/24 V Power input 15 W Resolution
Video standard AHD + PAL/NTSC Auto
Operating temperature –20 to +70 °C
Vibration resistance
cd/m²
Dimmer automatic
Camera inputs 4
Camera switching integrated quad module
Function control Sensor buttons + touch screen
Adjustable distance marks sensor buttons / touch screen
Screen settings Duo, triple, aso.: zoom on /out
Test mark ECE R10, IP 40
Quality features
• Quad splitter for simultaneous display of 4 camera images
• Mirrored picture function can be set for each camera
• Possibility to switch between the connected video sources
• Automatic scan function that allows different camera modes to be displayed one after the other at set intervals
• Various camera modes can be activated automatically using control signals
• Operation via touchscreen or the buttons on the device itself
• Image can be enlarged or reduced using the zoom function on the touchscreen
• For reversing cameras, the monitor displays customizable parking lines, which can also be completely hidden if required
Our cameras and monitors have passed a TÜV-certified test, officially confirming full compliance with all GSR2 installation and operational requirements.
Brackets and adapters
• Fastened to the ceiling with two screws for a safe and secure hold
• Perfect ergonomics – aluminum arm tilts and swivels for the best viewing angle
• High-quality aluminum construction is lightweight, sturdy and durable
• For connecting Dometic PerfectView rear-view cameras to non-Dometic multimedia displays and navigation systems with RCA input
• Universal adaptor with nearly no restrictions
• Compatible with Dometic PerfectView camera models except Shutter cameras
ADAPTATION AND SYSTEM EXTENSION
Do you want to extend a reversing video system to include a rear-view camera for the trailer? Or fit a tractor-trailer with a camera-monitor system? On the following pages you will find everything you need
for installation: system and extension cables, plug connections and heavy-duty cable sets. Perfectly coordinated, plug-in components make installation easy and flexible.
Dometic PerfectView AMP50
Control box to connect cameras to devices with RCA video input
Quality features
• Enhance your multimedia display with rear view functionality
• Perfect for retrofitting a rear view camera
• Automatic operation with reverse gear trigger input and video trigger output
Product Ref. No.
AMP50
9620006639
Dometic PerfectView Switch 200VTO
Control box with 2 camera inputs for OEM monitors
Quality features Upgrades your multimedia display, easy to retrofit a rear view camera, automatic detects when a trailer camera has been installed, multiple connection options – two camera inputs, video and audio output (Cinch and RCA), automatic operation with reverse gear trigger input and video trigger output, external switch for manual switch-over between the cameras, adjustable switch time between video signal and trigger output
Product Ref. No.
SWITCH 200VTO 9600000110
Dometic PerfectView SWITCH 300
Control box to connect up to three cameras to a single monitor
Quality features
Dometic PerfectView VS400N
Video splitter to connect up to four cameras to a single monitor
Quality features
Dometic PerfectView VT 150DIG
Radio-based video signal transmitter for reversing camera systems
Quality features
• Up to three cameras on one monitor output for easy system upgrading
• Manual or automatic activation – the reversing camera via reverse gear, the sidemounted cameras via the indicator
• Suitable for 12 V and 24 V vehicle electrics
• Up to four camera images simultanously on a single monitor
• Various screen split settings selectable
• Switch for manual selection included
• Wireless video and audio signal transmission over distances up to 120 m (line of sight)
• No need to lay cables across the vehicle
• Extremely stable signal transmission – superior to conventional radio links
• Waterproof – can be fitted on the outside of the vehicle
• Fast response – reception delay under 200 ms
• Excellent image quality – frame rate up to 30 /s
• Simultaneous operation of up to six radio links
Product Ref. No. VS400N
EASY SYSTEM CONFIGURATION
Modern trucks mostly come with a factory-fitted a monitor. That means you can easily retrofit a rearview camera for safer reversing, or a blind spot camera on the side. Our RVS configurator makes it easy for you to order the matching cameras, cables and adapters for the vehicle you have. Here you can download the PDF file:
Adapters for connecting a Dometic PerfectView camera to the original multi-media display
preparation
/ 0P2D1 / 0P2D2 / 0P2D3
No. 9600029590
No. 9600029514
MAN TOPLINE 2 MMT Without video preparation 351LZ
RVMAN1
Ref. No. 9600000230
MERCEDES BENZ ACTROS 4 / ANTOS / AROCS J2D / J1C MULTIMEDIASYSTEM With video preparation J9P
RVMB2 Actros 4
Ref. No. 9600000231
VOLVO TRAILER CAMERA ONLY With video preparation sid high with BUPMON
RVVO2
Ref. No. 9600000239
VOLVO FH5 (FH4 B) GENERATION With analog video preparation mca-a
RVVO4
Ref. No. 9600051330
RVVO3
Ref. No. 9600051329
MERCEDES BENZ ACTROS 5 With video preparation J9P
RVMB2 Actros 5
Ref. No. 9600026635
RVMB1 Actros 5
Ref. No. 9600026634
IVECO S-WAY Infotainment & navigation extra EU
DAF TNR
RVIV3 + RVIV2
Ref. No. 9600051328 + 9600049541
RVIV1 + RVIV2
Ref. No. 9600032022 + 9600049541
IVECO IVECONNECT Multimediasystem
RVMAN1
Ref. No. 9600000230
RVDAF3
Ref. No. 9620009520
SCANIA INFOTAINMENT PREMIUM With video preparation AUS4
RVMAN16R
Ref. No. 9600000606
RVMAN16W
Ref. No. 9600000607
RVSC17I
Ref. No. 9600003782
DAF MULTIMEDIASYSTEM
SCANIA PREMIUM RADIO
RVMB2
Ref. No. 9600000231
RVMAN1
Ref. No. 9600000230
SCANIA ORIGNALMONITOR ORLACO
RVSC2
Ref. No. 9600000232
ACCESSORIES FOR TRACTORS AND TRAILERS
Heavy duty cables
Dometic cable sets and extension cables
Dometic system and extension cables
GENERAL SAFETY REGULATIONS (GSR2)
GSR2, the second phase of the EU’s General Safety Regulation No. 2019/2144, has introduced a whole set of safety standards for commercial vehicles aimed at further reducing the number of serious accidents on European roads. As of July 2024, safety equipment like pedestrian and cyclist warning systems, reversing assistants
WHAT’S MANDATORY?
Under the General Safety Regulation, the following safety features are mandatory for new vehicle registrations (phase 2 as of July 2024):
• Moving Off Information System (MOIS) – sub-directive ECE R159
• Blind Spot Information System (BSIS) – sub-directive ECE R151
• Intelligent Speed Assist (ISA)
and blind spot information systems are mandatory not only for the approval of new types of vehicles, but for all new vehicles to be registered. As a specialist supplier of camera-based driver assistance systems, we will be pleased to support you in creating a matching solution for your GSR2 projects.
• Driver Drowsiness & Alertness Warning (DDAW) – Regulation (EU) 2021/1341
• Tire Pressure Monitoring System (TPMS)
• Reversing Information System (REIS) – sub-directive ECE R158
WHAT DOES DOMETIC OFFER?
Camera-based driver assistance systems
1 Reversing assistance: Camera-monitor system according to ECE R158 Dometic solution: A variety of camera-monitor combinations
2 Turning assistance: Sensor based system according to ECE R151 Dometic solution: Camera in addition to pre-equipped radar sensor (e.g. BVS71000)
3 Moving off information system: Sensor based system according to ECE R159 Dometic solution: Front camera picture in addition to pre-equipped non-visual system (e.g. CAM29SX)
Dometic PerfectView video technology can help builders to comply with GSR2. Here is an overview of
Dometic cameras are GSR2-ready!
This means they fully comply with GSR2 requirements. To simplify the type approval process, Dometic has obtained TÜV certification for each camera/monitor combination. All relevant data is provided to the responsible TÜV specialist, significantly accelerating the type approval process.
TÜV TESTED
Our tip: our GSR2-ready cameras can easily replace an original camera that wouldn't perfectly fit a special application created by the body builder. Some camera models qualify as a useful add-on to pre-installed radar-based turn assistance or moving off systems. When looking for a suitable camera model, just watch out for the GSR2 label, or check our GSR2 compliance matrix.
GSR2 compliance matrix
We have checked the following cameras and monitors for conformity with GSR2. The table below shows you which model can be considered for which applications.
We have tested different installation positions and documented the conditions required for type approval according to R158. Let us know if you want to know more about this.
x Camera/monitor fully complies with GSR2 = GSR2-ready x* Camera is a meaningful add-on to factory-installed GSR2 devices
SAFETY AND COMFORT ACCESSORIES
Designed for quick and easy retrofitting
Our popular “retrofit classics” ensure that no drivers have to go without such amenities like a parking aid or seat heating. Wherever these useful accessories are not integrated as standard, our comfort and safety range provides a matching product to fill the gap. The collection includes clever solutions for every type of vehicle – trucks, vans as well as passenger cars.
Our solutions for enhanced safety and comfort behind the wheel are appreciated by fleet operators and drivers alike. Well engineered and favorably priced, they have been specifically designed for retrofitting, so they can be installed with ease.
PARKING AIDS FOR CARS & VANS
Reliable parking assistance systems support drivers of cars, light commercial vehicles and vans when maneuvering with precision. With extra-small sensors for neat installation.
Page 236 - 238
PARKING AIDS FOR TRUCKS AND LARGER VEHICLES
Well proven parking aid systems for rear and side with four or six sensors for safer, easier maneuvering.
Page 239
ACCESSORIES FOR PARKING AIDS
Several installation accessories for any application.
Page 240 - 241
SEAT HEATING
Luxury-class seating comfort. Neatly integrated, like an original fitting. Available for the driver and passenger seat.
Page 242 - 243
MAGIC WATCH
For cars, light trucks, vans
The matching parking aid for every customer and for every vehicle!
The classical solution Popular retrofits
A total of five MagicWatch rear systems cover almost all imaginable applications and requirements. Suitable for cars, vans and light trucks. From budget to premium. With Digital Signal Memory or the option to shift the stop line.
The front solution To complete existing systems
Three MagicWatch front systems are what we offer to all who want to protect themselves in the forward direction. Ideal to complete an already existing rear system.
PARKING AIDS
FRONT SYSTEM
REAR SYSTEM
Our tip!
In rare cases, it may be that vehicles with no usable reverse signal can have the signal picked up from the reversing lights. This may be the case with vehicles with LED taillights. In these vehicles the signal has to be tapped elsewhere (e.g. at the fuse box), or provided by means of a CAN-bus adapter (CBI).
Dometic MagicWatch MWE 9104
/ MWE 9104F
Warning function
Activation via
• Acoustic
Visual (optional) via LED display with distance indication
• Acoustic • Visual (optional) via LED display with distance indication
Quality features
• Parking aid comes on automatically when reverse gear is engaged
• Four hard-wired ultrasonic sensors for utmost reliability and precision
• Tiny built-in sensors, can be painted in the matching color
• Additional visual distance indication for enhanced comfort and safety
• Radio mutes down when the parking aid is activated
• Ready for connection to 12 V or 24 V grids
• Can be used with 4, 3 or 2 sensors, depending on the vehicle width
• Front parking aid can be disabled in a traffic jam
• The stop-zone distance can be set further away from the vehicle if necessary for precision and ease of use
• Easily deactivate sensors during van operation (e.g. caravans and horseboxes)
• Parking aid is enabled automatically via the speed signal
• Four hard-wired ultrasonic sensors for utmost reliability and precision
• Tiny built-in sensors, can be painted in the matching color
• Additional visual distance indication for enhanced comfort and safety
• Radio mutes down when the parking aid is activated
• Ready for connection to 12 V or 24 V grids
• Can be used with 4, 3 or 2 sensors, depending on the vehicle width Product
Dometic MagicWatch MWE 9104
Dometic MagicWatch MWE 9104F 9620008773
/ Optional extras
LED display 9600000367
5 m extension cable for display 9101500053
13 m extension cable for display 9620023661 ON / OFF switch (for MWE 9104F only) 9600000433
1.5 m extension cable for sensors 9600000434
Rubber sensor holder 9101500071
Metal substructure sensor holder 9101500078
Gasket with silicon ring, for metal bumper 9101500015
Quality features
• The system is automatically activated when the vehicle is in reverse gear
• Entry-level-price model and value for money
• Can even be used on vehicles with tow-bars
• The built-in sensors are paintable for a perfect and almost invisible finish
• The four ultrasonic sensors measure distance
• Suitable for vehicles with a power supply of 12 volts and 24 volts
• A handy radio mute control
• Suitable for vehicles with tow-bar
• No display
Dometic MagicWatch MWE 820
• The system includes a stylish LED display for visual as well as aural aid
• The system is automatically activated when the vehicle is in reverse gear
• Entry-level model that is value for money
• Can even be used on vehicles with tow-bars
• The built-in sensors are paintable for a perfect and almost invisible finish
• Suitable for vehicles with a power supply of 12 volts and 24 volts
• A handy radio mute control silences the radio to concentrate on manoeuvres
• Suitable for vehicles with tow-bar
• No need to switch on as system operates via the speedometer
• An ideal additon to an existing rear parking aid for all-round protection
• The built-in sensors can be painted for a perfectly neat and discreet finish
• Specially designed for installation into the front bumper
• Measures distance with four ultra-sonic sensors
• Has an acoustic warning function and the option of a visual display is extra
• Suitable for all vehicles with 12- to 24 v power supply
9600000353
Dometic MagicWatch MWE 860 9600000354
Dometic MagicWatch MWE 890 9600000355 / Optional extras
5 m extension cable for display 9101500053
LED display (for MWE 890 only) 9600000365 ON / OFF switch (for MWE 890 only) 9600000433
Dometic MagicWatch MWE 7106
/ MWE 7106F
Digital parking aid for cars and vans, six sensors MWE 7106
Operating voltage
Warning function
• Acoustic
• Visual (optional) via LED display
• Acoustic
• Visual (optional) via LED display
Activation via Speed signal optional switch Speed signal optional switch
Sensors Can be installed with 2,3,4 or 6 sensors Can be installed with 2,3,4 or 6 sensors
Visible
Cut-out for sensor
Quality features
• Ideal for additional security of the side area of a vehicle or for wide vehicles in general
• The Parameter Programming System (PPS) allows each sensor sensitivity, range and stop zone to be adjusted separately
• Suitable for vehicles with a tow-bar due to the extra-large detection range of up to 3 m
• The six digital sensors match the spec of an original factory parking aid
• The system activates automaically via reverse gear
• Includes a high-quality membrane loudspeaker
• Has a useful diagnostic function
• Radio mute control
• Ideal for additional security of the side area of a vehicle or for wide vehicles in general
• The Parameter Programming System (PPS) allows each sensor sensitivity, range and stop zone to be adjusted, separately
• The detection range of the sensors is up to 1.2 m
• The six digital sensors match the spec of an original factory parking aid
• The system activates automaically via reverse gear
• Includes a high-quality membrane loudspeaker
• Has a useful diagnostic function
• Radio mute control
Product Ref. No.
Dometic MagicWatch MWE 7106 9600000360
Dometic MagicWatch MWE 7106F 9600000361 / Optional extras
LED display (for MWE 7106 only)
9600000367
5 m extension cable for display 9101500053 13m extension cable for display 9620023661 ON / OFF switch (for MWE 7106F only) 9600000433
1.5 m extension cable for sensors 9600000434
MWE 7106
MWE 7106F
MWE 6004
MWE 7106 / MWE 7106F
MWE 7106 / MWE 7106F
Dometic MagicWatch MWE 7006
Rear and side parking aid for tall and wide vehicles, six sensors
Operating voltage 12 and 24 V DC
Stop zone
Measuring range approx. 10 – 30 cm approx. 10 – 300 cm
Warning function
• Acoustic Activation via Reverse gear
Quality features
• This system is ideal for extra-tall or extra-wide vehicles and motorhomes
• The sensors are highly compact at 18 mm and make neat and perfect installation easy
• The six sensors warn against tree branches, low entrances and bridges with an acoustic warning function
• There are three mounting options to ensure ultimate protection
• The sensitivity of the sensors can be set in three steps
• Operation is possible with tow-bar in place
• Manual switching between two stop zones (e.g. bike rack folded in or folded out)
• Suitable for vehicles with tow-bar
• Radio mute control
• Parameter Programming System (PPS)
• Option to shift the stop line
MagicWatch MWE 6004
Rear parking aid for trucks, four sensors
Operating voltage 12 and 24 V DC Stop zone
• Acoustic
Visual
• Sensors have a 3 m detection range
• Backlit, LCD display ensures a clear image for the driver
• Warning buzzer alerts the driver to obstacles
Quality features
• Sensitivity of sensors is adjustable
• Compact control unit saves space
• Parameter Programming System (PPS)
• Option to shift the stop line
ACCESSORIES FOR PARKING AIDS
Dometic MagicWatch MWE-PT
Punching tool for parking aid sensors of the 7- and 9-series
• For a quick and professional finish with safe and neat edges
• Two sizes are avaialble in (Ø 18 mm and Ø 22 mm) to fit the 7-, 8- and 9-series of parking aid sensors
• These tools are available to buy individually or in a set complete with holders
Ø 18 mm / Ref. No. 9600000430
Ø 22 mm / Ref. No. 9600000431
Dometic MagicWatch MWE-SH
Metal substructure sensor holder
Ref. No. 9101500078
Dometic MagicWatch MWE-XCABL
Extension cable for MWE 7006 and MWE 7106/F, 1.5 m
• Extension cable for your parking aid
• Available as an optional accessory
• Accessory designed for the Dometic MagicWatch MWE 7006
Ref. No. 9600000434
Dometic MagicWatch MWE-SH
Gasket with silicon ring for metal bumper. Set of 4 pieces
Ref. No. 9101500015
Dometic MagicWatch MWE-SH
Rubber sensor holder for surface mounting
• Ensures sensor is held securely in position
• Robust rubber construction can withstand tough conditions
• For Dometic MagicWatch parking aids
Ref. No. 9101500071
Dometic MagicWatch MWE-DISPL
LED display for visual distance indication for Dometic MagicWatch parking aids – mandatory for all GSR2 compliant installations
• For those who want a visual warning system in addition to the acoustic one
LED Display for MWE 7006 / MWE 7106/F and MWE 9104/F / Ref. No. 9600000367
LED Display for MWE 9004 and 9008 / Ref. No. 9600000366
LED Display for MWE 890 / Ref. No. 9600000365
Dometic MagicWatch MWE-SW
On and Off switch
• For when you need some extra help
• Only for front parking aids
• External Switch
On and Off switch for MWE 9104F / MWE 7106F / Ref. No. 9101500066
On and Off switch for MWE 890 / Ref. No. 9600000433
Dometic MagicComfort MSH 601
Insert seat heater for driver and/or front passenger seat
Operating voltage 12 V
Dometic MagicComfort MSH 300
Carbon insert seat heater for driver and/or front passenger seat
Operating voltage 12 V
Carbon insert seat heater for driver and/or front passenger seat
Operating voltage 12 V
MOBILE COOLING BY DOMETIC
Expertise you can build on
Several decades of development work have resulted in a product range that brings out the best of modern cooling technologies. Powerful compressor cooling and lightweight, cost-efficient thermoelectric solutions ensure reliable performance across a wide range of applications.
The Dometic range offers a multitude of options for creating high-performance cooling solutions in confined spaces – backed by the expertise of the market leader. Choose from a portfolio that has earned the trust of consumers, stockists, vehicle outfitters, and automotive manufacturers worldwide.
COMPRESSOR COOLERS
Compressor coolers provide excellent cooling performance, even at extreme ambient temperatures and with minimal power consumption.
Page 246 - 260
THERMOELECTRIC COOLERS
Thermoelectric coolers provide active cooling up to 27 °C below the ambient temperature (depending on the model). Lightweight and easy to transport, they can be used for refrigeration as well as for keeping food warm.
Page 261 - 263
DOMETIC CFX5 COMPRESSOR COOLERS
Expertise, experience, and innovation for perfect cooling solutions
Outdoor adventures like never before – with the Dometic CFX5. Look forward to reliably fresh food and cold drinks at all times thanks to Dometic's market-leading VMSO3.5 compressor cooling technology with speed control. The optimized software guarantees first-class cooling performance and outstanding energy efficiency. The CFX5 features sturdy and lightweight protective frames that protect the cooler and make it ideal for use in rough terrain. Sturdy, springloaded aluminum handles make it easy to lift and transport. Set the cooling temperature of the CFX5 on the TFT display or download the Dometic app and move around freely.
• Control your cooler, track energy consumption and monitor temperature with the cooler’s Mobile Cooling smartphone app; be alerted when lid is left over, monitor history, and connect multiple devices at once
• Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air
• Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic portable batteries and solar panels
• 3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries
• Internal details include a removable wire divider and an interior light
• 3 years warranty
Dometic CFX5 55 / 55IM
Mobile compressor cooler, 55 l
Insulation
System Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection, electronic thermostat
Refrigerant R600a
Material Cabinet: PP, Lid:PP
Protection class Color display IP64
Test marks TÜV/GS, E-certified (Automotive EMC Directive)
Scope of delivery 1 cooler, 1 manual, 1 connection cable for 12/24 V connection, 2 connection cables for 100 - 240 V connection, removable wire baskets
Product
Dometic CFX5 75DZ / 95DZ
Performance Dual-Zone Compressor Cooler
Insulation
System
Protection class Color display IP64
Test marks TÜV/GS, E-certified (Automotive EMC Directive)
Scope of delivery 1 cooler, 1 manual, 1 connection cable for 12/24 V connection, 2 connection cables for 100 - 240 V connection, removable wire baskets
Product
Dometic CFX5 75DZ
Dometic CFX5 95DZ
/Accessory Protective Cover CFX5 75DZ
Protective Cover CFX5 95DZ 9620012807
Dual zone cooling and a capacity that lets you get nomadic for a while – or go all out with campsite dinners.
DOMETIC CFX2
COMPRESSOR COOLERS
Cool companions on the go
CFX2 series compressor coolers allow travellers to bring more of the food and drinks they love, wherever they go. Covering a temperature range from +20 °C to –22 °C, they provide reliable storage for chilled drinks and frozen meat alike. The robust design is built for tough outdoor use. Featuring a smartphone app to control the interior
temperature, ergonomic foldable handles for carrying, and a digital display, the powered coolers are perfect for weekend trips or longer outings. Available in four sizes, from 28 to 57 l.
Dometic CFX2 28
Mobile compressor cooler, 28 l
Total Volume
28 l
Provides space for 7 x 1.5 l bottles
Connections
42 x 0.33 l cans
12 / 24 V DC, 100 – 240 V AC
Temperature range +20 °C to –22 °C
Power input
Insulation
System
Refrigerant
Quality Features
Material
42 W
PU foam all around
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection, electronic thermostat
R600a
• The temperature can be set between +20 °C and –22 °C
• Powerful and energy-efficient compressor with variable motor speed
• Connects to 12/24 V DC as well as to 100 – 240 V AC
• Durable design with reinforced corners, stainless steel hinges & robust removable lid
• Digital display for convenient temperature setting with display dim function and USB port
• Conveniently control your cooler from your smartphone
• Ergonomic foldable handles
• Protects the vehicle battery from excessive discharging
• Divided interior featuring removable basket for optimal organization
Cabinet: PP, Lid:PP
Weight 13.5 kg
Test marks
TÜV/GS, E-certified (Automotive EMC Directive)
Scope of delivery 1 cooler, 1 manual, 1 connection cable for 12/24 V connection, 2 connection cables for 100 - 240 V connection, removable wire baskets
Product
Mobile compressor cooler, 37 l
Total Volume
37 l
Provides space for 4 x 1.5 l bottles 48 x 0.33 l cans
Connections
Temperature range
Power input
Insulation
System
12 / 24 V DC, 100 – 240 V AC
+20 °C to –22 °C
43 W
PU foam all around
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection, electronic thermostat
Refrigerant R600a
• The temperature can be set between +20 °C and –22 °C
• Powerful and energy-efficient compressor with variable motor speed
• Connects to 12/24 V DC as well as to 100 – 240 V AC
• Durable design with reinforced corners, stainless steel hinges & robust removable lid
Quality Features
• Digital display for convenient temperature setting with display dim function and USB port
• Conveniently control your cooler from your smartphone
• Ergonomic foldable handles
• Protects the vehicle battery from excessive discharging
• Divided interior featuring removable basket for optimal organization
Material Cabinet: PP, Lid:PP
Weight 15.8 kg
Test marks
TÜV/GS, E-certified (Automotive EMC Directive)
Scope of delivery 1 cooler, 1 manual, 1 connection cable for 12/24 V connection, 2 connection cables for 100 - 240 V connection, removable wire baskets
Product Ref. No.
Dometic
Dometic CFX2 45
Mobile compressor cooler, 45 l
Total Volume 45 l
Provides space for 8 x 1.5 l bottles 56 x 0.33 l cans
Connections 12 / 24 V DC, 100 – 240 V AC
Temperature range +20 °C to –22 °C
Power input 41 W
Insulation
System
Refrigerant
Quality Features
Material
PU foam all around
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection, electronic thermostat
R600a
• The temperature can be set between +20 °C and –22 °C
• Powerful and energy-efficient compressor with variable motor speed
• Connects to 12/24 V DC as well as to 100 – 240 V AC
• Durable design with reinforced corners, stainless steel hinges & robust removable lid
• Digital display for convenient temperature setting with display dim function and USB port
• Conveniently control your cooler from your smartphone
• Ergonomic foldable handles
• Protects the vehicle battery from excessive discharging
• Divided interior featuring removable basket for optimal organization
Cabinet: PP, Lid:PP
Weight 16.8 kg
Test marks TÜV/GS, E-certified (Automotive EMC Directive)
Scope of delivery 1 cooler, 1 manual, 1 connection cable for 12/24 V connection, 2 connection cables for 100 - 240 V connection, removable wire baskets
Product
Dometic CFX2 45
Dometic CFX2 57
Mobile compressor cooler, 57 l
Total Volume 57 l
Provides space for 12 x 1.5 l bottles 68 x 0.33 l cans
Connections 12 / 24 V DC, 100 – 240 V AC
Temperature range +20 °C to –22 °C Power input
Insulation
System
PU foam all around
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection, electronic thermostat
Refrigerant R600a
• The temperature can be set between +20 °C and –22 °C
• Powerful and energy-efficient compressor with variable motor speed
• Connects to 12/24 V DC as well as to 100 – 240 V AC
• Durable design with reinforced corners, stainless steel hinges & robust removable lid
Quality Features
• Digital display for convenient temperature setting with display dim function and USB port
• Conveniently control your cooler from your smartphone
• Ergonomic foldable handles
• Protects the vehicle battery from excessive discharging
• Divided interior featuring removable basket for optimal organization
Material Cabinet: PP, Lid:PP
Weight 18.5 kg
Test marks TÜV/GS, E-certified (Automotive EMC Directive)
Scope of delivery 1 cooler, 1 manual, 1 connection cable for 12/24 V connection, 2 connection cables for 100 - 240 V connection, removable wire baskets
Product Ref. No.
DOMETIC CFF COMPRESSOR COOLERS
Dometic CFF series compressor coolers provide energy-efficient cooling, even in high outside temperatures up to +32 °C. Their wellengineered interior makes the most of the available storage capacity. Compact outside dimensions and sturdy handles ensure convenient carrying.
Models available range from a 13-liter compact box to a 70-liter chest cooler with two separate temperature zones for simultaneous cooling and deep-freezing. The two medium-sized models, CFF 35 and CFF 45, offer the unique benefit of a double-sided opening lid, which allows access from either side.
Quality Features
• Energy efficient design provides fast and excellent cooling, even in extremely
• Robust, lightweight and compact design ensures convenient portability
• Flexible cup holder can be removed to access a small storage compartment
• Integrated guide elements for easy fixation inside a vehicle with straps or safety belts
• Comes with a shoulder strap and recessed grips for carrying convenience
Test marks SGS/GS, E-certified (Automotive EMC Directive)
compressor cooler, 19 l
Insulation PU foam all around
Fully hermetic compressor with integrated control electronics, low-voltage protection / electronic fuse, automatic reverse pole protection, electronic thermostat Refrigerant R600a
Quality Features
• Energy efficient design provides fast and excellent cooling, even in extremely high outside temperatures
• Robust, lightweight and compact design ensures excellent portability
• Removable lid with easy opening latch for convenient cleaning
• Digital temperature display for convenient setting
Quality Features
• Energy efficient design provides fast and excellent cooling, even in extremely high outside temperatures
• Robust, lightweight and compact design ensures excellent portability
• Removable lid with easy opening latch for convenient cleaning
• Digital temperature display for convenient setting
Refrigerant
•
• Double sided opening lid
• Compact design ensures excellent portability
Dometic CFF 45
Insulation
Quality Features
• Energy efficient design provides fast and excellent cooling, even in extremely high outside temperatures
• Double sided opening lid
• Compact design ensures excellent portability
PP + ABS, Lid: PP
Test marks
Temperature
Quality Features
Material
Test marks
• Dual storage compartments allow independently variable temperature control
• Generous insulation and effective temperature distribution for excellent cooling performance and energy efficiency
• Robust construction for outdoor use
• 3-stage dynamic battery protection system prevents dead car battery or allows deep draw on dual batteries
Metal + PP, Lid: PP
SGS/GS, E-certified (Automotive EMC Directive)
Scope of delivery 1 cooler, 1 connection cable for 12/24 V DC
POWERFUL COOLING, VERSATILE USE
System
Fully hermetic compressor with integrated control electronics, low voltage protection / electronic fuse, automatic reverse pole protection, electronic thermostat
Refrigerant R134a: 38 g, CO2 equivalent: 0.054 t, Global warming potential (GWP): 1430
Quality Features
Material
Detachable lid, vertical space for standing 1.5-litre bottles, integrated handles for more ergonomic carrying, integrated guide elements for easy fixation in a vehicle with straps or safety belts
PP, Lid: PE
Test marks TÜV/GS, E-certified (Automotive EMC Directive)
Product Ref. No.
Dometic CK2 45 Hybrid
Mobile hybrid cooler, 43 l, 12 V DC/230 V AC
Total Volume 43 l
Provides space for 12 x 1.5 l bottles 65 x 0.33 l cans
Connections 230 V AC (compressor) / 12 V DC (thermoelectrics)
Temperature range AC: +10 °C to –15 °C DC: cooling up to 20 °C below ambient temperature
Power input DC: 48 W
Current
Insulation
PU-foam
System Thermoelectrics + 230-V compressor, electronic thermostat in compressor mode
Refrigerant R600a
• Powerful compressor cooling on 230 V AC plus thermoelectric cooling on a 12 V battery
• Tall enough to store 1.5 or 2 l bottles upright
• The temperature can be set between +10°C and –15°C (compressor mode)
• Robust, ergonomic drop-down handles on the sides
Quality Features
• Easy to open with one hand
• Tough and robust steel-coated cabinet
• Easy access to the provisions
• Cables wind up nicely at the back of the cool box when transported or not in use
• Digital display for convenient setting and monitoring of the cooling temperature
Material Cabinet: coated sheet steel, top and base: plastic
Weight 18.8 kg
Test marks TÜV/GS, E-certified (Automotive EMC Directive)
Product
ACCESSORIES FOR COMPRESSOR COOLERS
Dometic DPS 80
Mains adapter, connects 24 V appliances to 110–240 V mains, 81 W
• Connects 24 V DC cooling boxes or other appliances to the mains power socket
• Integrated cigarette lighter socket for 24 V appliances
• Compact and slim design
Ref. No. 9620013447
Dometic SLD Slide out
• Slide-out utility board for food preparation or interim storage
• Front panel includes integrated bottle opener
• Latch engages when slide is closed or fully extended for secure travelling and gradient parking
• Finished in a durable weather- resistant black powder coating
• Full extension load rating of 90kg (SLD55U and SLD3545U) or 113kg (SLD75U)
• Mounting hardware and four Dometic mounting straps included
SLD3545U / Slide out for CFX2 37; CFX2 45; CFF35; CFF45 / Ref. No. 9620012454
SLD55U / Slide out for CFX2 57 / Ref. No. 9620012455
SLD75U / Slide out for CFF70DZ / Ref. No. 9620012456
Dometic CoolBox Stand
Foldable stand for larger electric coolers and ice boxes
• No need to strain your back – place your cool box at a comfortable height
• The sturdiest stand within its category: load capacity up to 80 kg
• With a light weight of 2 kg and full collapsibility, transport is easy!
Ref. No. 9600000689
Dometic Quick Fixing Kit
Vehicle fixing kit
• Quick release mechanism for easy removal of cooler
• Easily place your cooler in a secure position
• No extra tools required
QFK25 for CFX5 25; CFF18; CFX3 25, CFX 28
Ref. No. 9600000166
QFK3545 for CFX5 35; CFX5 45; CFX3 35; CFX3 45
Ref. No. 9600029599
TROPICOOL TCX
The popular high-tech appliances in the TropiCool TCX series are the most powerful thermoelectric coolers in the Dometic range. They achieve an impressive cooling performance up to 27 °C below the ambient temperature (TCX 07: 25 °C). If desired, they will also keep food warm. Activating the heating function supplies temperatures of up to +65 °C.
The larger TropiCool TCX models come with some useful technical extras: soft-touch controls with a digital display, intelligent powersave circuit, and an active battery protection system that prevents excessive discharging of the vehicle battery.
Quality Features
Convenient 12 or 24 V DC and 230 V AC cooler, active battery protection prevents deep discharge of the vehicle battery, very efficient TC special electronics with intelligent power-save circuit, reverse polarity protection for hassle-free electrical connections, priority circuit for mains operation, wear-resistant fan for dynamic interior ventilation
SUN PROTECTION AND MORE
AWNINGS FOR MOTORHOMES, CARAVANS AND PANEL VANS
WALL MOUNTED AWNINGS
The PerfectWall series gives you a wide choice of wall awnings to suit vehicles of all sizes. For manual crank operation or with a 12-volt electric motor. There’s also a range of easy-to-install bag awnings.
Page 268 - 269
AWNING SOLUTIONS FOR PANEL VANS
Tailor-made awning solutions for all commonly used panel vans. Simply use the table to find the matching awning and adapter for your vehicle!
Page 272 - 280
ROOF MOUNTED AWNINGS
Here again, you can choose from a huge range. PerfectRoof roof awnings come in many sizes and configurations. You will find models for manual crank operation or with a 12-volt electric motor.
Page 270 - 271
AWNING ACCESSORIES
Besides matching adapters for all common vehicle models, our accessory range includes smart solutions for sun, rain and privacy protection, LED lighting and more. You can also add front walls, side walls or complete tents to create an extra room in front of the vehicle.
Page 281 - 285
THE PERFECT AWNING FOR EVERY TYPE OF VEHICLE
All important features at a glance
Support legs (integrated in the front rail)
* Special CampRoom for Ducato vehicles available
Manual or with a motor
Our manual awnings are operated with a crank, which is included in the delivery kit. PW 1500 and PR 2500 come standard with a 12 V motor operated by remote control.
Remote control
All electric awnings come standard with a remote control for convenient operation at the touch of a button.
New patented easy lock flipper
Secures the support legs in place – no accidental unlocking possible
Aluminum housing
All Dometic awnings are designed with a durable and compact aluminum case that seamlessly blend in with any RV design.
Aluminium end caps
The end caps on the models PW 1500 Electric and PR 2500 are made of 100 % aluminium. This means the Dometic awning is more resistant against shock and impact.
Awning adapters
Vehicle walls and roofs are, among other things, design elements. That means they can have different shapes. With a comprehensive range of adapters Dometic ensures that the vehicle and the awning are perfectly coordinated, so you will get impeccable installation results.
Accessories
Telescopic crank
Our accessory range gives you a whole world of possibilities. For example, you can add side walls for additional protection, or complete awning tents to get an extra room in front of your vehicle.
Fabric
Our awnings are made from a high-quality PVC material. UV-resistant, rot-proof and washable, it has all it takes for a long life expectancy. The awning is made from one whole piece of fabric, so there are no seams.
The telescopic crank is included for all manual awnings. It can be easily adjusted to the vehicle height for ergonomic handling, or retracted for space-saving storage.
Housing colours
The Dometic awnings are available in two housing colours.
White
Anthracite
Horizon Grey
Dometic Rev Zip Roll Out Awning
Bag awning for caravans and motorhomes
Description Simply slide this bag awning into the existing tent rail of your caravan or motorhome. No drilling or bolts needed! Once fitted, it can be rolled out in a few minutes – and packed away again just as quickly.
Quality Features
• Quick and simple installation without drilling – simply slides into the tent rail of the caravan or motorhome
• Set-up and take-down in a matter of minutes – legs and roof rafters fold out of front rail
• High-quality, durable awning fabric – 500 g/m² weatherproof and colourfast with anti-scratch coating
• Extra strong, adjustable aluminium frame
• Frees up interior storage space as the awning stays connected on the outside
4.50
Quality Features
• Easy, ergonomic setup with patented slide-out support legs
• Safe handling – the EasyLock Flipper system secures the support legs
• Space-saving storage of the tension rafter in the leadrail
• Newly designed awning housing without visible screws
• High quality, one-piece awning fabric – no welding seam
• Telescopic crank
• Wide choice of awning adapters for different types of campervans
3.00
Quality Features
• Easily set up by just one person
• One of the lightest awnings for large vehicles
• Support legs with patented Easy Lock Flipper to secure the awning
• Heavy duty UV-protected reinforced vinyl
• Strong, one-piece awning cloth: no welding seams
• Telescopic crank
2.60
Description
Quality Features
PERFECTWALL PW 1500 12 V AWNING
4.00
4.50
6.00
This robust electric wall awning is ideally suited for large vehicles. It comes standard with a 12 V motor operated by remote control. The patented automatic front rail allows it to slide in and out smoothly.
• Aluminium end caps, resistant to shock and impact
• Patented locks on both sides of the front rail – for perfect closing
• High-quality awning fabric made of one piece – no welding seam
• Support legs with patented Easy Lock Flipper
Description
Quality Features
Small and compact: the perfect roof mount awning for panel vans and small caravans.
• Lightweight and compact dimensions – flattest roof awning in the market
• Ideal for panel vans and small caravans
• Plastic end caps
• High-quality awning fabric made of one piece – no welding seam
• Support legs with patented Easy Lock Flipper
3.50
3.75
4.00 2.50
Description For vehicles of 4.50 m and over, this is one of the most compact awning solutions you‘ll find. It comes standard with a 12 V motor operated by remote control. With a patented locking system, it is lightweight yet incredibly robust and durable.
Quality Features
• Aluminium end caps, resistant to shock and impact
• High-quality awning fabric made of one piece – no welding seam
• Support legs with patented Easy Lock Flipper
4.50
5.00
5.50
AWNING SOLUTIONS FOR PANEL VANS
VEHICLE SPECIFIC AWNING ADAPTERS
Morelo
Roller
Frankia
Frankia
Frankia
Frankia
Frankia
009
009
009
010
010
010
010
010
4
4.5
3
3.5
5.5
Dometic LED profile
Dometic PW-SJ
Sealing
Dometic PR-FS
Description Sealing joint for the Dometic PerfectWall awnings. Available in a variety of lengths and widths, this rubber sealing ensures the water-tight attachment of your awning to your RV.
Awning foam strip kit for PR 2000 and PR 2500
Description The Dometic PR-FS foam strip prevents leakage by closing the space between the vehicle and the roof awning. It is designed for the Dometic PerfectRoof PR 2000 or PR 2500.
Ref. No. Dometic PR Foam Tape, 2 x 1.5M, height 10 mm 9103104391 Dometic PR Foam Tape, 2 x 1.5M, height 20 mm 9103104207
Dometic PR Foam Tape, 2 x 1.5M, height 40 mm 9600049440
AN EXTRA ROOM IN FRONT OF THE VEHICLE
How you create additional “living space“
Dometic Camp Room Awning tent
All windows come standard with mosquito screens, roll-up PVC windows (outside) and curtains (inside).
The lock of the clamping profile must be turned only a quarter of a turn.
The roll-up door is always fitted on the right hand side. Two doors (left and right) are standard for lengths > 4.50 m.
The mast profiles are fitted with rubber seals to to prevent scratching and to make the area entirely waterproof. The height can easily be adjusted.
An additional triangle is included with the Ducato version for even better protection.
The side panel is secured to the support legs with Velcro straps and then connected with the front panel.
You can cover the lower side of the vehicle with a standard supplied skirt (keder rail is not included in the set).
The cross brace adds stability to the tent.
DOMETIC REVO ZIP PRIVACY ROOM
More than just shade
Dometic Revo Zip awnings can be fitted with a privacy room in a matter of minutes to provide comfortable accommodation away from the elements. The side walls simply zip to the awning roof and can be attached to the vehicle by using the Limpet™ Fix System or upright poles. The front wall slides into the prepared channel on
• Side walls simply zip to the Revo roof
• Front wall slides into channel on the Revo front rail and zips to the side walls
• Side walls can be attached to the vehicle side using the Limpet™ Fix System or by using rear upright poles
• Height of side walls can be varied to suit different height vehicles with a rail height of between 240 -270 cm
• Complete with curtains on easy-slide track
• Zip-out side and front panels
• Side doors with mesh panels behind
the awning’s front rail and zips to the side walls. The Dometic Revo Zip Privacy Room comes complete with curtains and side doors with mesh panels behind. Suitable for vehicles with a rail height of between 240 and 270 cm.
ADDITIONAL PRIVACY AND WEATHER PROTECTION
RainProtect
RainProtect is made from a Grey, water- and windproof PVC material. The front and the side panels are available in different sizes. The front panel is nontransparent, the side panels (suitable for use left or right) have a panoramic window. They extend down to the ground to provide optimal protection against moisture.
Dometic RainProtect Front
Made from long-lasting opaque fabric, this windproof and waterproof PVC panel provides extra protection against the elements.
features •
Dometic RainProtect de Luxe Side
Panoramic window protects against rain and wind down to the ground. Can be used left or right.
9103103959
9103103960
9103103961
9103103962
SunProtect
SunProtect is a transparent screen fabric that lets the light through and keeps the heat out. It is available as a front panel or side panel. The front panel has an extension of 1.40 metres and can be supplied for various awning widths. The side panel can be fitted either to the right or left of the awning. There’s a matching SunProtect for all Dometic awnings.
Dometic SunProtect Front
Let the light in but keep the heat out with this breathable and translucent awning attachment. Available in a variety of sizes.
Quality features
• A translucent sun screen to keep you cool and protect you from the sun
• Comes in a large range of widths, ranging from 2.60 m to 6 m, to suit most models
• Consists of a light-permeable screen fabric that admits light but blocks heat
9103103943
9103103944
9103103945
9103103946
9103103947
9103103948 6.00 1.40 9103103949
Dometic SunProtect Side
Let the light in but keep the heat out with this breathable and translucent awning attachment. Available in a variety of sizes.
• A translucent sun screen to keep you cool and protect you from the sun
Quality features
• For awning extensions of 2.50 m and heights from 2.0 to 3.2 m
• Consists of a light-permeable screen fabric that admits light but blocks heat
9103103950
9103103951
9103103952
9103103953
DOMETIC SANITATION SYSTEMS
Space-saving. Practical. Easy to install.
Dometic has been on board with renowned OEMs and vehicle outfitters for many years with its innovative sanitation systems. We also offer space-saving, easy-to-install solutions for retrofitting. Our cassette toilets adapt to the most tricky bathroom layout thanks to their 90° revolving seat. This makes them ideal for a variety of mobile applications. From motorhomes, caravans and campervans to mobile offices and horse trailers with living quarters. High-quality, durable materials set new standards in terms of comfort and hygiene.
Practical accessories add the finishing touch to our sanitation range. Sanitation tabs for the waste holding tank, special cleaners for acrylic glass windows, vacuum cleaning system ... it’s all there.
TOILETS
Cassette toilets with 90° revolving seat and scratch-resistant ceramic inlay. 30% lighter than an all-ceramic toilet.
Page 288 - 289
VACUUM CLEANER
Compact central vacuum cleaning system for space-saving permanent integration. Ample power. Extracts dirt from every nook and cranny.
Page 290
CLEANING ACCESSORIES
Practical tab cleaners for the waste holding tank. Precisely predosed, no mess, no excess! Acrylic glass cleaner for windows and rooflights.
Page 291 - 293
CASSETTE TOILETS
STYLISH. SPACE-SAVING. EASY-TO-CLEAN.
Do you want to replace an older CT 4000 model? In many cases it’s smarter to replace the worn parts only. Our renew kit provides a
Cramped space? Difficult bathroom design? Then a cassette toilet from the CT 4000 series is the ideal solution: the seat can be rotated 90° in both directions so that you can make optimum use of the available space. The cassette toilets with scratch-resistant ceramic coating are just as elegant and easy to clean as Volker ceramic toilets. But they are 30 % lighter. Two model variants are available, with or
Dometic CTS 4110
Cassette toilet with ceramic inlay
without an integrated flush water tank. Do you want to replace an older CT 4000 toilet? It is often sufficient to replace only the worn parts. Our replacement set is a clean, hygienic and cost-effective solution.
Quality features The scratch-resistant ceramic inlay that stays that way. It is 30% lighter than purely ceramic toilets. The optimised vacuum breaker increases flushing power. An anatomically respectful design. Seat adjustable by up to 90° in both directions to accommodate space. Simple and accessible control panel.
Service Hatch,
Quality features The scratch-resistant ceramic inlay is also easy to clean.It is 30% lighter than purely ceramic toilets. The optimised vacuum breaker increases flushing power. An anatomically respectful design. Seat adjustable by up to 90° in both directions to accommodate space. Simple and accessible control panel. Integrated flush tank (7 l)
Revitalise Dometic CT 4000 series toilets with this easy to change replacement set.
• Easy to change replacements for all vital parts of Dometic CT 4000 toilets
• Provides a clean, hygienic toilet and peace of mind
• Low-cost solution for customers wishing to avoid buying a new toilet
VACUUM CLEANER SYSTEM
Cleaning can be a pleasure with the right tools at hand. Take our compact vacuum cleaner system, for instance. The 12 m hose reaches every corner of the vehicle. The two ports can be integrated in available cavities to save space and facilitate handling. With a power
rating of 1100 watts, the Dometic CV 1004 extracts tough dirt from every nook and cranny with ease. A must-have accessory that lets your customers enjoy their journey in nice and neat surroundings.
Compact dimensions allow integration into available cavities, saving valuable space. Powerful enough to extract tough dirt from every nook and cranny. Automatic on and off upon hose engagement or disengagement saves space, too. Long hose (12 m) and two ports ensure no dirt or dust can escape your reach. Compact vacuum unit dimensions conserve space
TOILET TANK CARE
Pre-dosed tabs for convenient handling – no mess, no excess
Standard sanitation fluids add unnecessary weight onboard, and it’s easy to spill or use too much. Our highly effective sanitation tabs are much lighter than a bottle and take up minimal storage space. No spills, no mess, no overdosing: The hands stay clean and the optimum amount of cleaner ends up in the tank every time.
Sanitation additive for waste holding tanks, 20 tabs
Quality features
Sanitation additive for waste holding tanks, 16 tabs
Quality features
Highly-effective tab cleaners for the waste holding tank break down waste into liquid and prevent unpleasant odours – available in a blue or green version.
• Clean handling – no spills, no mess
• The dose is pre-measured – preventing overdose and waste
• Resealable doypack containing 20 tabs for space-saving storage
• New scent
• Fast breakdown of waste prevents unpleasant odors
• Ready to use tabs in a soluble film
• Lighter in weight and less cumbersome than liquids
• An environmentally friendly toilet tab that doesn‘t cost the earth
• The dose is pre-measured – preventing overdose and waste
• Clean handling – no spills, no mess
• Resealable doypack containing 16 tabs for space-saving storage
• Fast breakdown of waste prevents unpleasant odors
• Ready to use tabs in a soluble film
• Lighter in weight and less cumbersome than liquids
ACRYLIC GLASS CLEANER
Lasting beauty for Dometic windows
This acrylic glass cleaner is specially formulated for Dometic windows and rooflights. Suitable for both outer and inner surfaces, it offers easy and streak-free cleaning. The special composition does not
Dometic Acrylic glass cleaner
Acrylic glass cleaner
cause micro cracks in the long term. Guaranteed by Dometic and confirmed in laboratory tests.
• Best cleaner for Dometic windows and suitable for all kind of other acrylic windows and surfaces
• Prevents micro-cracks
• No static build-up and dust
• Practical spray bottle with 500ml content
• Designed specifically for best results on acrylic glazing
Quality features
• Removes minor scratches and clouding
• Prevents static build-up and dust accumulation without using a solvent
AUSTRALIA
Dometic Australia Pty. Ltd.
1 John Duncan Court
Varsity Lakes QLD 4227
Tel +61 7 55076000
Fax +61 7 55076001 Mail sales@dometic.com.au
AUSTRIA & CZECH REPUBLIC
Dometic Austria GmbH
Am Belvedere 8
1100 Wien
Tel +43 2236 90 80 70
Fax +43 2236 90 80 70 60 Mail info@dometic.at
DENMARK
Dometic Denmark A/S Nordensvej 15, Taulov DK-7000 Fredericia Tel +45 75585966 Mail info@dometic.dk
FINLAND
Dometic Finland OY
Valimotie 15 A 1
FIN-00380 Helsinki
Tel +358 20 7413220 Mail myynti@dometic.fi
FRANCE
Dometic SAS
6 Avenue du Poteau, Batiment B1
F-60300 Chamant
Tel +33 3 44633500
Mail info@dometic.fr
GERMANY
Dometic Germany GmbH
Hollefeldstraße 63
D-48282 Emsdetten
Tel +49 (0) 2572 879-0 Mail kontakt@dometic.de
HONG KONG
Dometic Asia Co., Limited Unit 1202-07, Level 12, Tower 1, Grand Century Place, 193 Prince Edward Road West, Mongkok, Kowloon, Hong Kong
Tel +852 2456 5199 Fax +852 2466 5553 Mail info.ap@dometic.com
HUNGARY
Dometic Zrt.
Gizella ut 42-44. 1143 Budapest
Tel +36 1 468 4400
Fax +36 1 468 4401
Mail budapest@dometic.hu
ITALY
Dometic Italy S.r.l.
Via Virgilio 3
I-47122 Forli (FC)
Tel +39 0543 754901
Fax +39 0543 754983
Mail vendite@dometic.it
JAPAN
Dometic KK
Maekawa-Shibaura, Bldg. 2 2-13-9 Shibaura Minato-ku
Tokyo 108-0023
Tel +81 3 5445 3333
Fax +81 3 5445 3339
Mail info@dometic.jp
MEXICO
Dometic Mx, S. de R. L. de C. V.
Circuito Médicos No. 6 Local 1
Colonia Ciudad Satélite
CP 53100 Naucalpan de Juárez
Estado de México
Tel +5255 5374 4106
Fax +52 55 5393 4683
Mail info@dometic.com.mx
NETHERLANDS & BELGIUM
Dometic Benelux B.V. Innovatiepark 12 NL-4906 AA Oosterhout
Tel NL +31 76 5029000
Tel BE +32 (0) 23598040
Mail sales@dometic.nl sales@dometic.be
NEW ZEALAND
Dometic New Zealand Ltd.
PO Box 12011
Penrose 1642, Auckland
Tel +64 9 622 1490
Fax +64 9 622 1573
Mail customerservices@dometic.co.nz
NORWAY
Dometic Norway AS Elveveien 30B
N - 3262 Larvik
Tel +47 33 42 84 50 Mail info@dometic.no
POLAND
Dometic Poland Sp. z o.o UL. Polueczki 35 (Amsterdam building) PL 02-822 Warsaw Tel +48 22 414 32 00 Mail info@dometic.pl
PORTUGAL
Dometic Spain, S.L. Branch Office Portugal Rot. de São Gonçalo nº 1– Esc. 12 2775-399 Carcavelos
Tel +351 219 244 173
Mail info@dometic.pt
SINGAPORE
Dometic Pte Ltd 18 Boon Lay Way 06-141, Trade Hub 21 609966 Singapore
Tel +65 6795 3177
Fax +65 6862 6620 Mail dometic@dometic.com.sg
SLOVAKIA
Dometic Slovakia s.r.o. Sales Office Bratislava Nádražná 34/A 900 28 Ivanka pri Dunaji Tel +421 2 45 529 680 Fax +421 2 45 529 680 Mail bratislava@dometic.com
SOUTH AFRICA
Dometic (Pty) Ltd. Aramex Building 2 Avalon Road, West Lake View Ext 11, Modderforntein P.O Box 2562
2008 Bedfordview, South Africa Tel +27 873 530 381/2/3/4 Mail info@dometic.co.za
SPAIN
Dometic Spain, S.L. Avda. Sierra del Guadarrama, 16 E-28691 Villanueva de la Cañada
Madrid
Tel +34 91 833 60 89
Mail info@dometic.es
SWEDEN
Dometic Scandinavia AB
Gustaf Melins Gata 7
SE-421 31 Västra Frölunda
Tel +46 31 7341100
Mail info@dometic.se
SWITZERLAND
Dometic Switzerland AG
Chriesbaumstrasse 6 CH-8604 Volketswil Tel +41 44 8187171
Mail info@dometic.ch
UNITED ARAB EMIRATES
Dometic Middle East FZCO P.O. Box 17860
S-D 6, Jebel Ali Freezone
Dubai
Tel +971 4 883 3858
Fax +971 4 883 3868
Mail info@dometic.ae
UNITED KINGDOM
Dometic UK Ltd.
Dometic House, The Brewery, Blandford St. Mary
Dorset DT11 9LS
Tel +44 344 626 0133
Fax +44 344 626 0143
Mail sales@dometic.co.uk
USA
Dometic RV Division 5155 Verdant Drive
Elkhart, Indiana 46516, USA
Tel +1 574-264-2131
We distribute our products in around 100 markets. Please ask for your contact point if not listed here, or check our website dometic.com
