I Yogesh Thombare, a fourth year Architecture student from Aayojan School of Architecture and Design, Pune. Applynig as an Intern.

My inclination lies in Revit Modelling,Software Rendering, Concept development, Revit Cost estimation ,Model making, Illustrations and I’m curious to learn How BIM workflow is implemented in actual Construction project.

EDUCATION

2020 - Present

Aayojan School of architecture,Pune

2023 - Present

S.W. Systems

Master Diploma course in BIM using Revit Techniques

2018-2020

Pemraj Sarda collage, Ahmednagar

2009-2018

Residential High School,Ahmednagar

WORK EXPERIENCE

Intern architect at Studio Thread 101, pune

Time Duration 3 months

(May 2023- July 2023)

Architect Rutuja kendurkar Responsibilities

i) Conducted on-site work and site visits

ii) Engaged in the design process

iii) Produced 3D models and renderings

SKILL SET

Autodesk Certified BIM Expert, Architectural vidualisation,3D modeling, Sketching, Concept Development,Design Documentation, Management,Working Drawings

SOFTWARE

BIM

Revit - Architecture

Structure

MEP

BIM 360 docs

BIM 360 Collaborator

pro

BIM 360 Model

Collaboration

Navisworks

GRAPHICS

Adobe Photoshop

Adobe Indesign

Adobe illustrator

RENDEING

Twinmotion

V-Ray for sketchup

MODELLING

Lumion Trimble Sketchup

Autocad 3d

DRAFTING

Autodesk Autocad

SUSTAINABILITY

EDGE Building App

COMPETITION & WORKSHOP

GRAPHISOFT | Archicad Design Challenge

ANDC 2023-24 | NASA india

REVIRESCO Refurbishing Unlively Spaces

ANDC 2022-23 | NASA india | Shortlisted

OAN 2021-23 | NASA india

GHATH

H E L L O,

WORKER HOUSING BUNGALOW DESIGN WORKING DRAWINGS COMPETITIONS GENERAL HOSPITAL REVIT BIM CAMPUS DESIGN WORK EXPERIENCE MISCELLANEOUS 01 03 05 07 02 04 06 08 03

INDUSTRIAL HOUSING PUNE,MAHARASHTRA

Academic

Softwares -

Residential - industrial

Addressing Affordable Housing Needs: Providing accessible and affordable housing options for workers, students, and local residents, thereby contributing to inclusive development in the region.

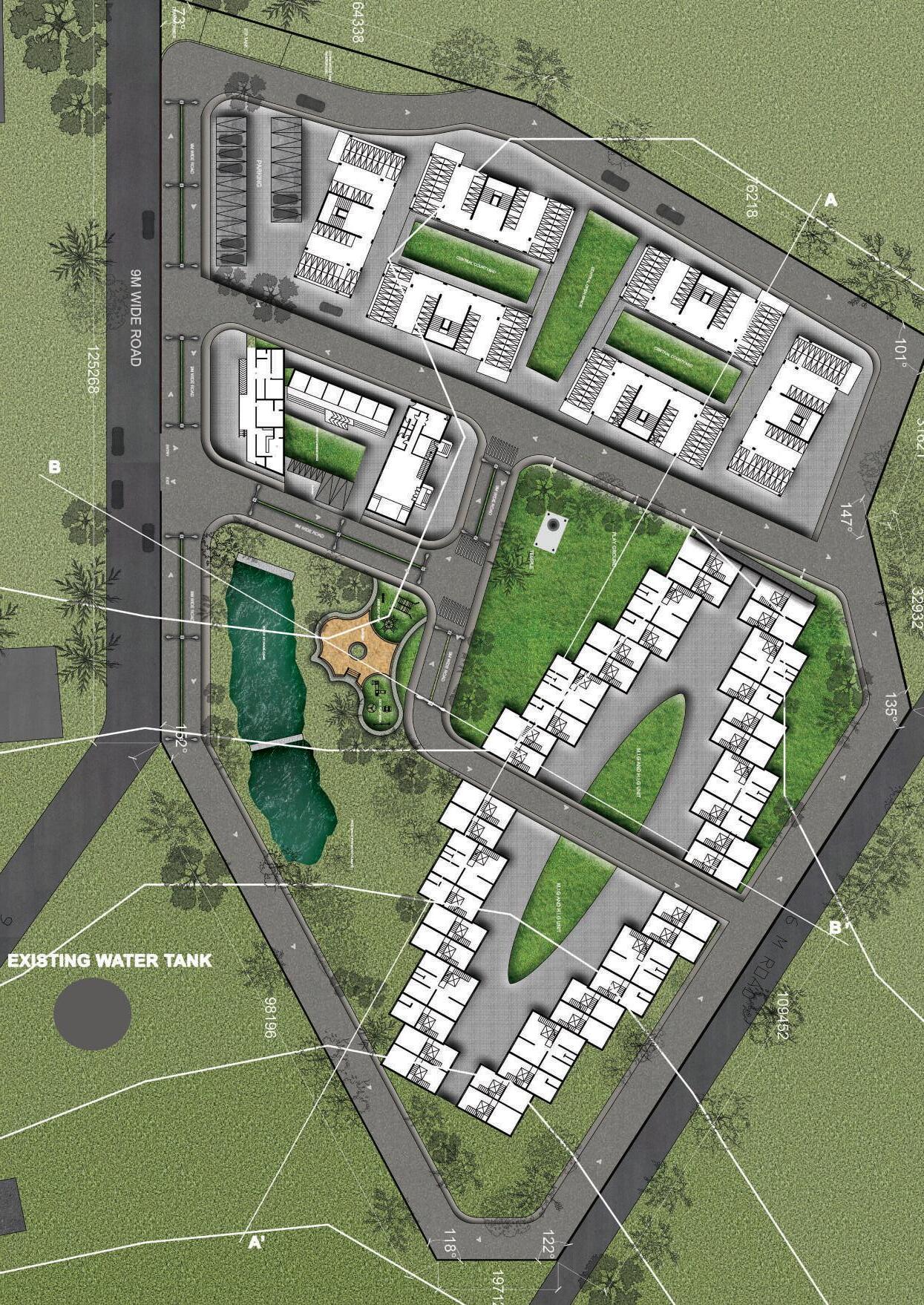

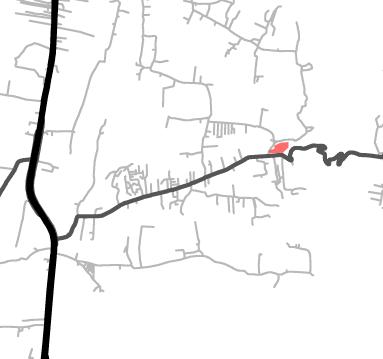

This project aims to housing complex within the area of 4.5 acres in Kasurdi MIDC, India. Featuring 200-250 homes managed cooperatively by nearby workers, it offers affordable housing for students and locals. Emphasizing eco-friendly design, it reimagines traditional styles like the ‘Chawl’ while providing vital facilities and communal spaces for social interactions. Situated near Khed-Shivapur, the site’s gentle slope, scenic views, and proximity to a seasonal stream offer an ideal setting for this innovative housing initiative.

YearTypeAimAutocad 2D, Archicad, Twinmotion, Sketchup, Photoshop Sem VII 2023-24

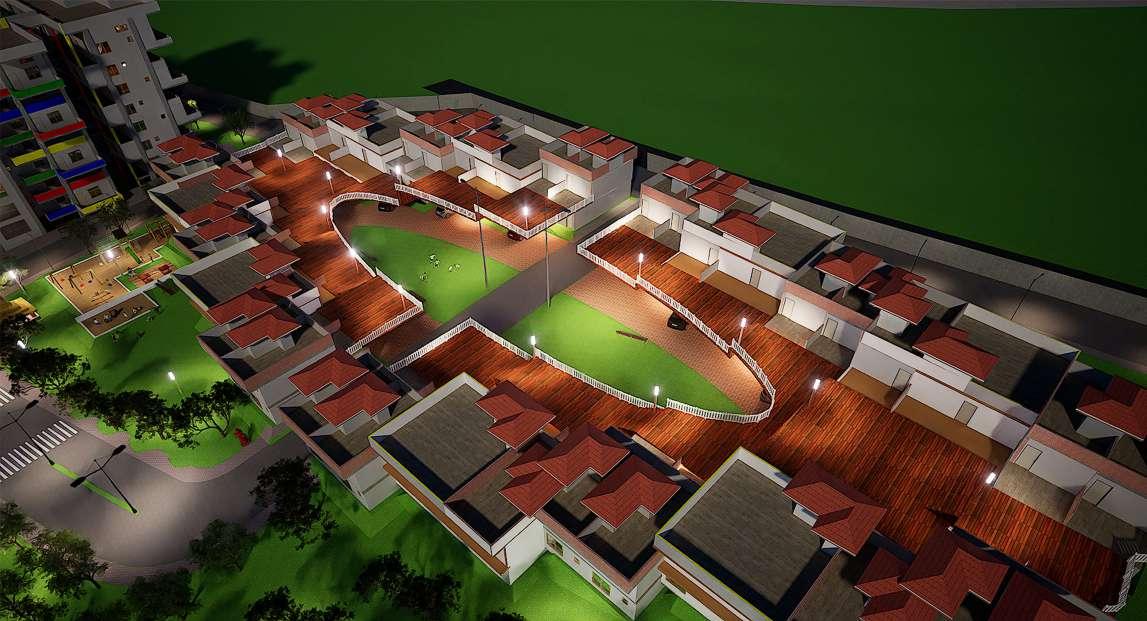

WALKTHROUGH

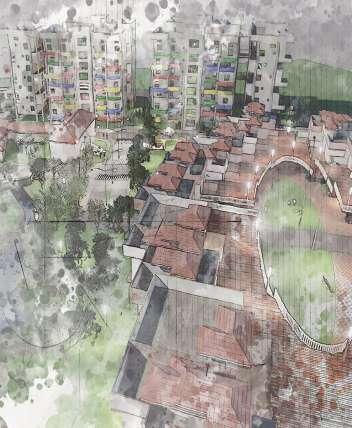

VISION FOR THE PROJECT

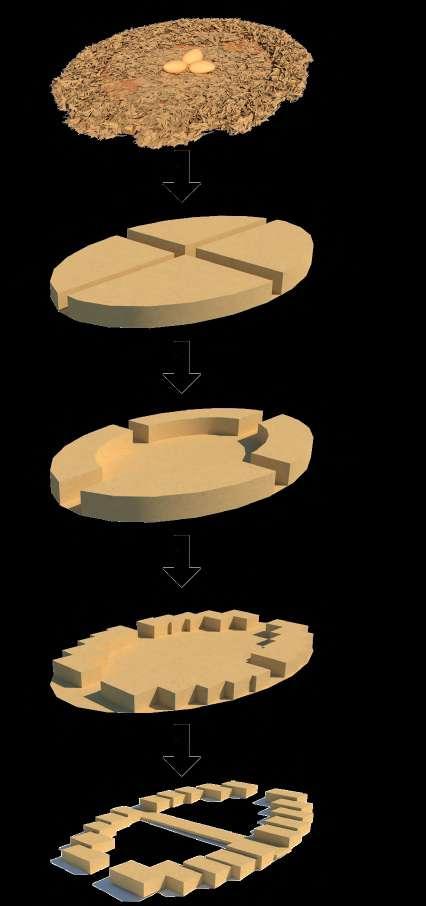

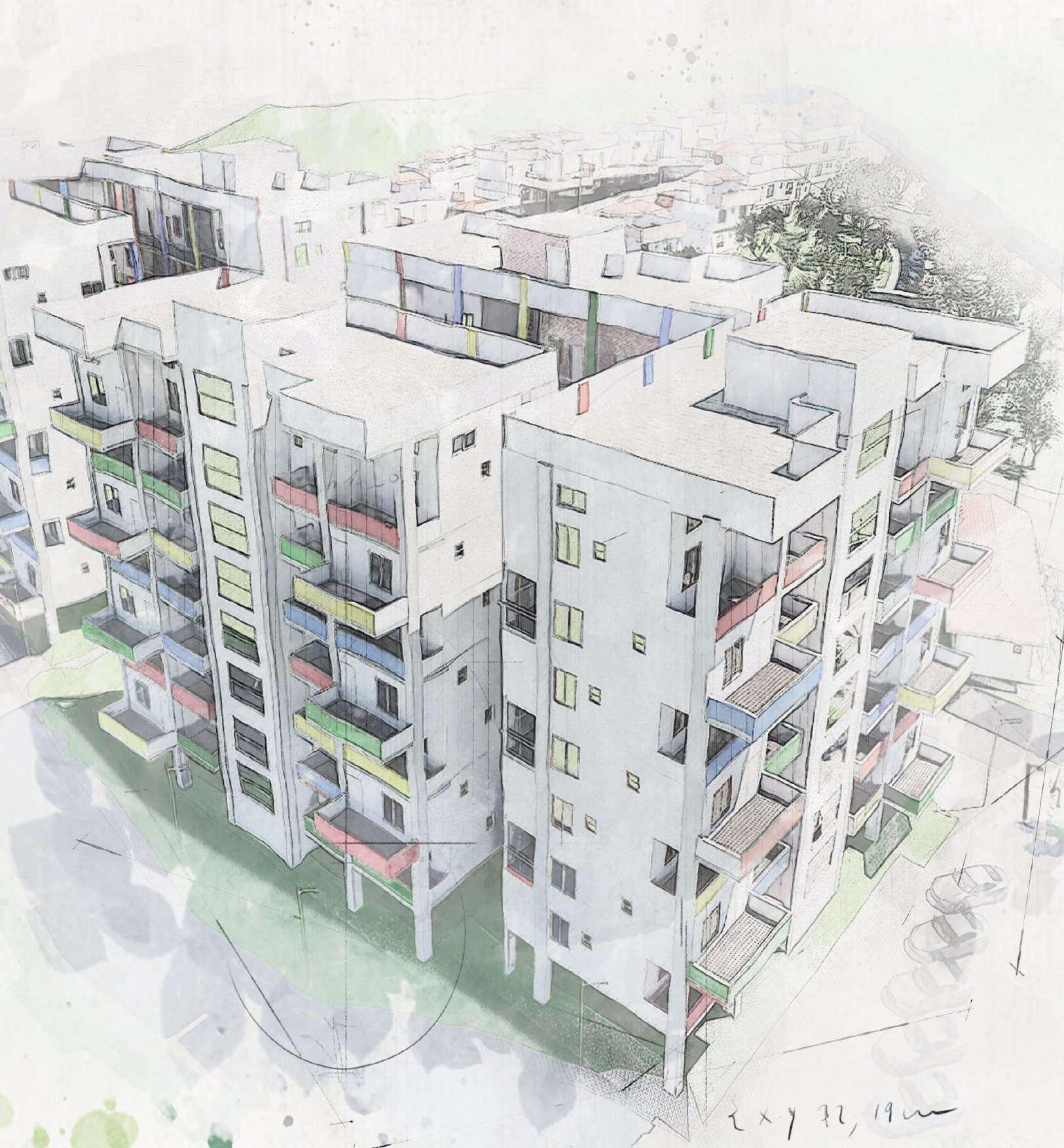

In this project I intend to create a community housing that redefines the chawl typology with incremental housing, creating essential amenities, focusing on built and unbuilt spaces with incorporating green spaces etc. It is going to be a low-rise high-density housing project in an industrial area for the employees of surrounding factories. Taking inspiration from a tree, the roots of the trees are considered as parking, branches as pathways, and the housing units as birds’ nest which will help to get good visual connections. The origin of the form of the cluster is from the nest of a bird which is oval. Central landscape at ground level and pathways with bridges on upper level will connect terrace gardens. Natural ventilation will a priority to create a healthy and comfortable living environment for all seasons.

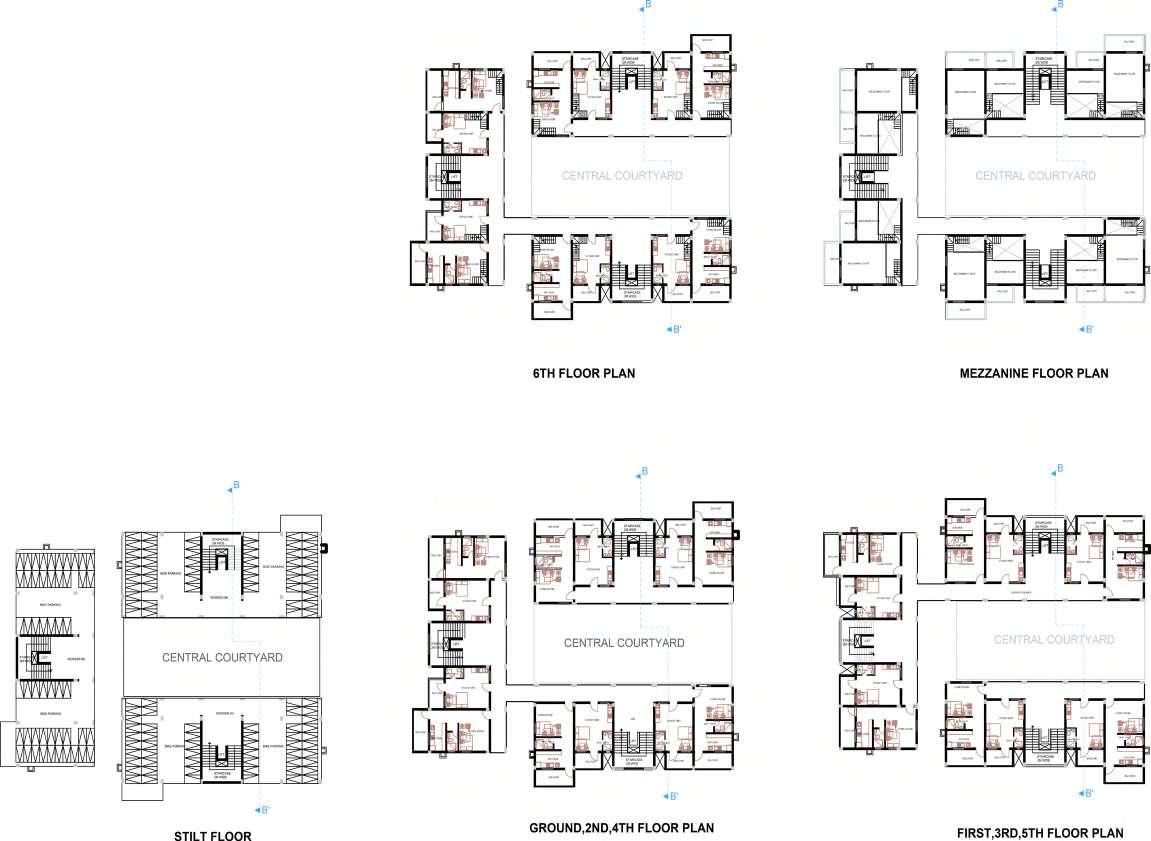

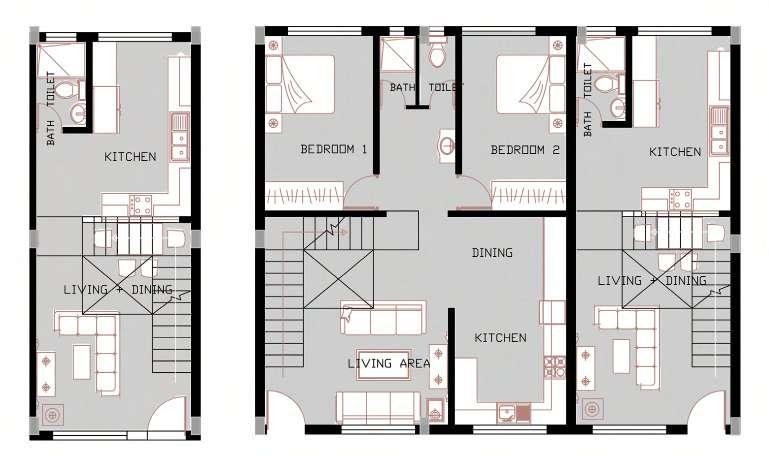

FIRST FLOOR PLANS

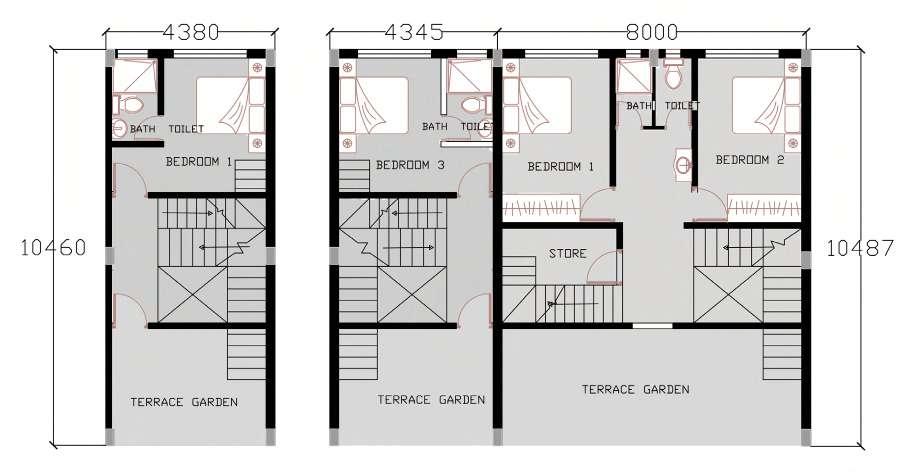

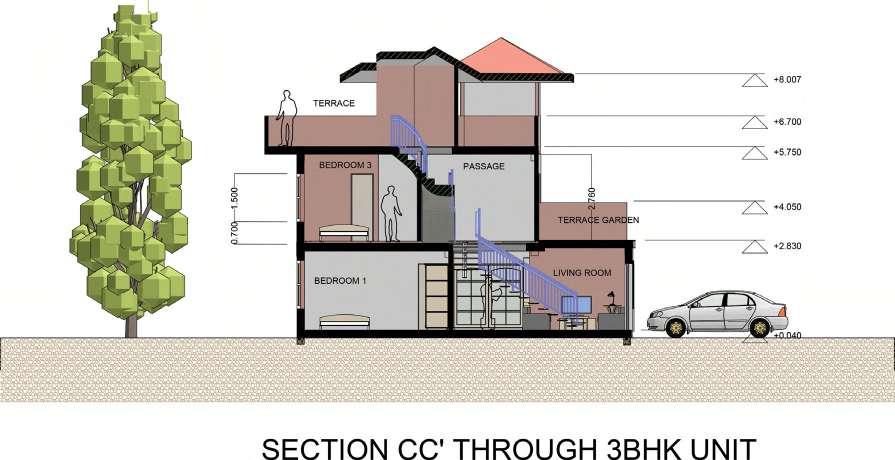

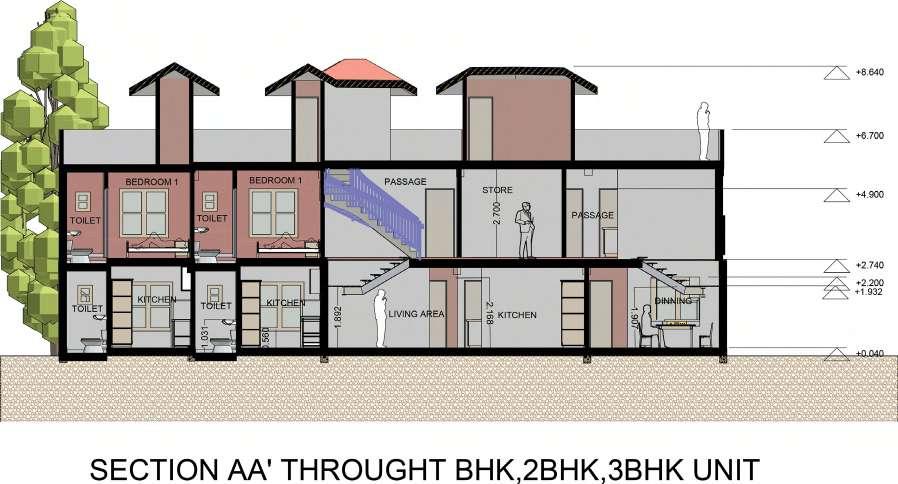

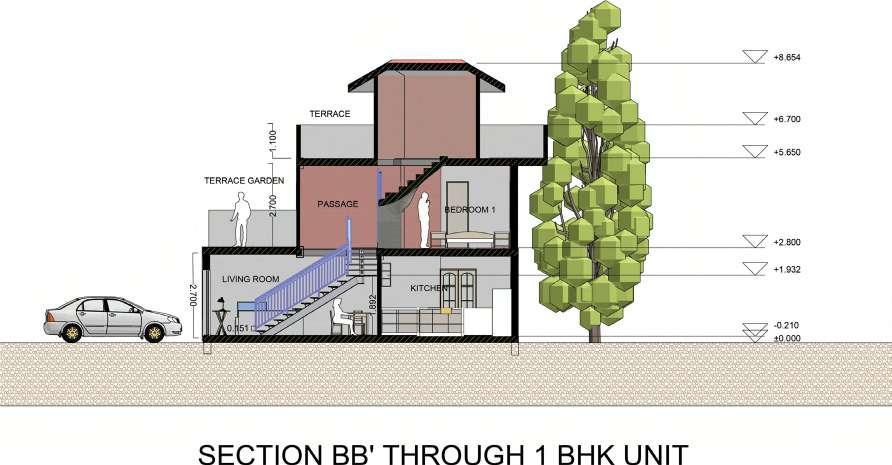

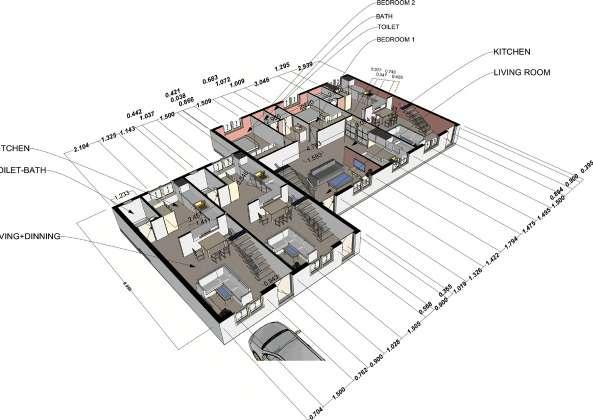

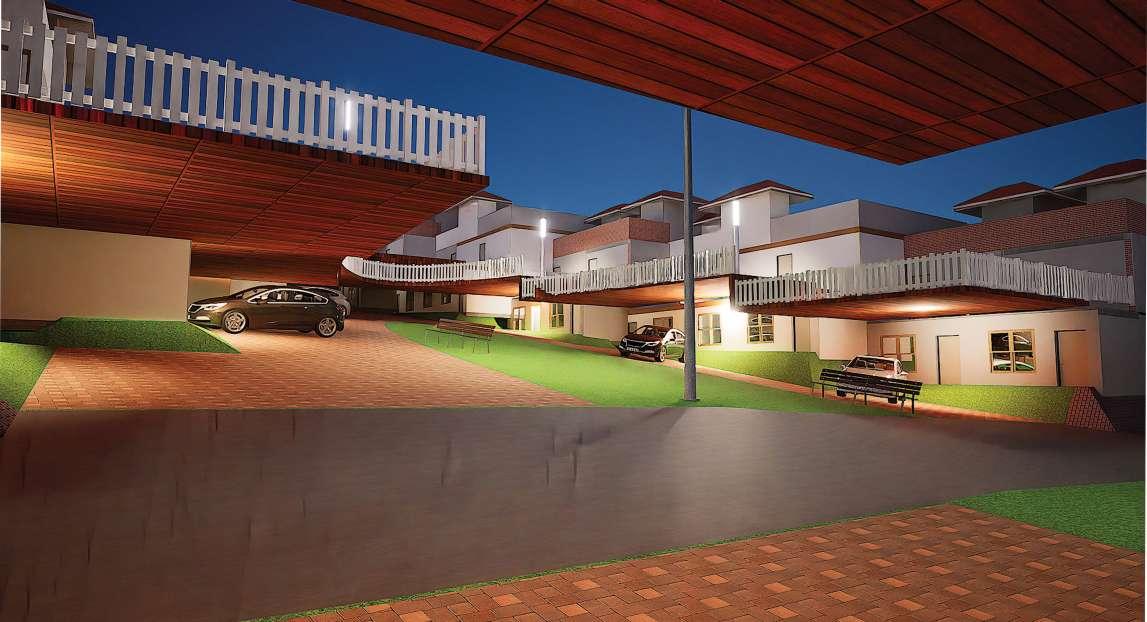

2BHK AND 3BHK UNITS ARE STACKED AND BHK UNITS ARE ARE ARRANGED IN A STAGERED MANNED AND TERACE GARDEBS ARE CREATED ABOVE THE LIVING AREA WHICH ARE CONNECTED TO THE PASSAGES ABOVE THE GROUND LEVEL AND STRUCTURES ARE PLACED ALONG THE SLOPE WHICH WILL HELP IN LESS CUT AND FILL

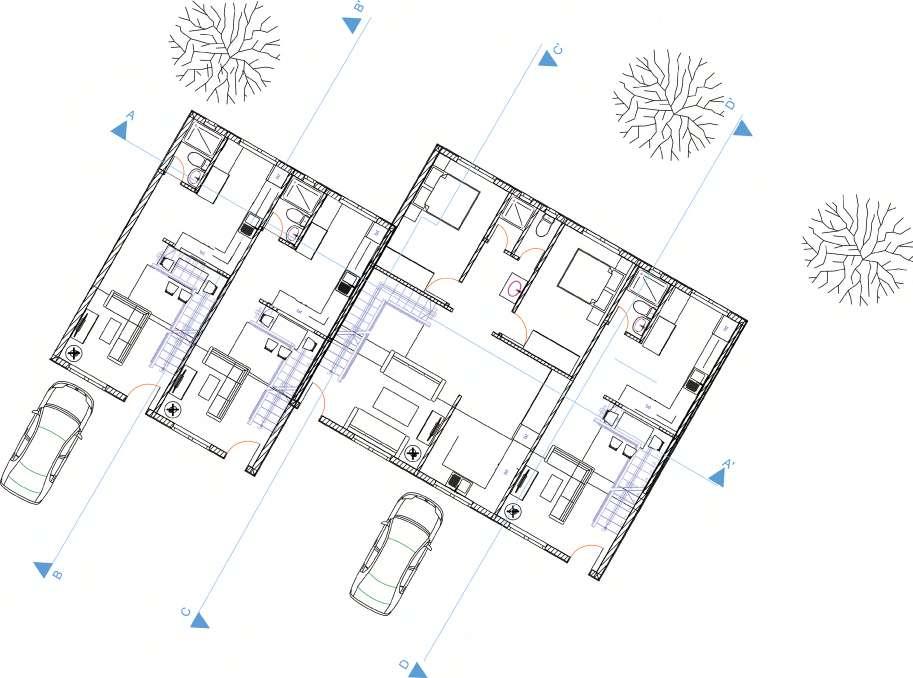

GROUND FLOOR PLAN

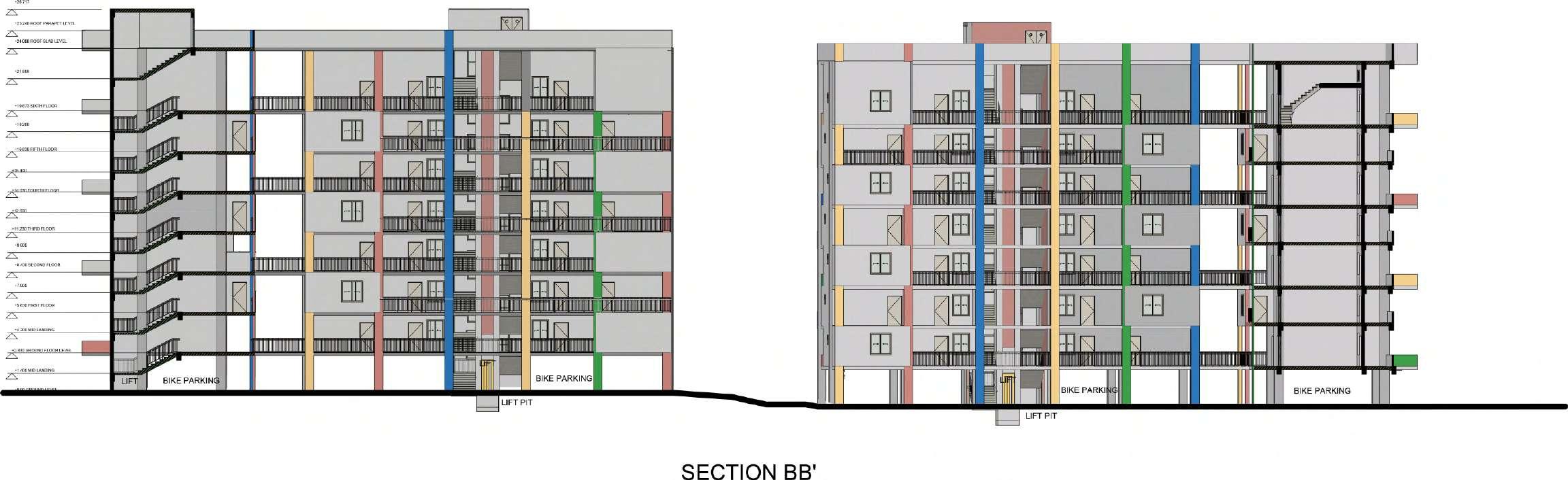

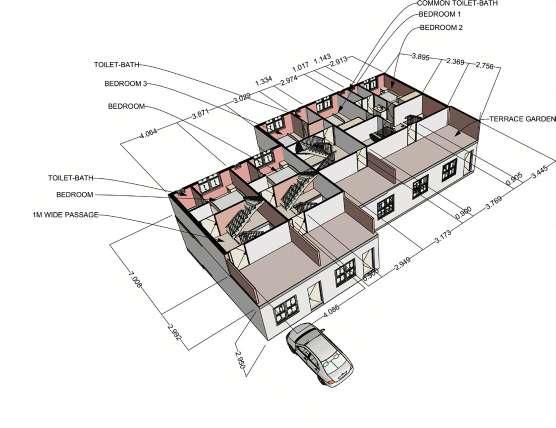

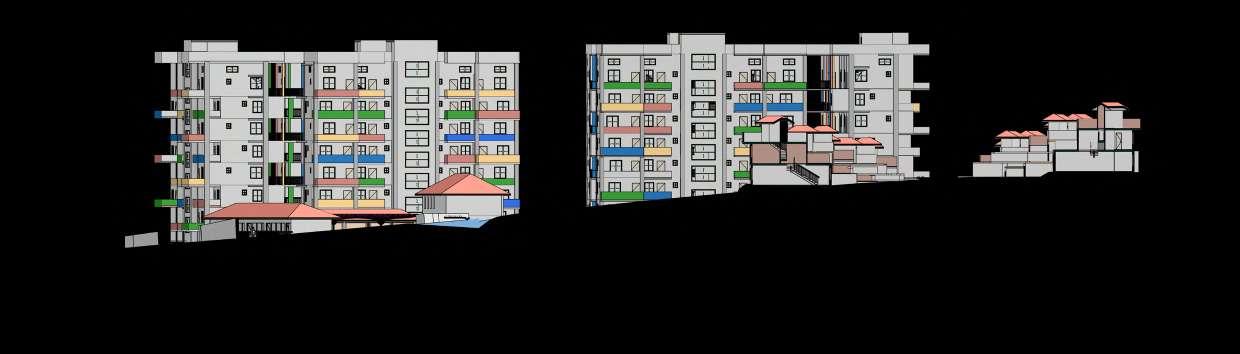

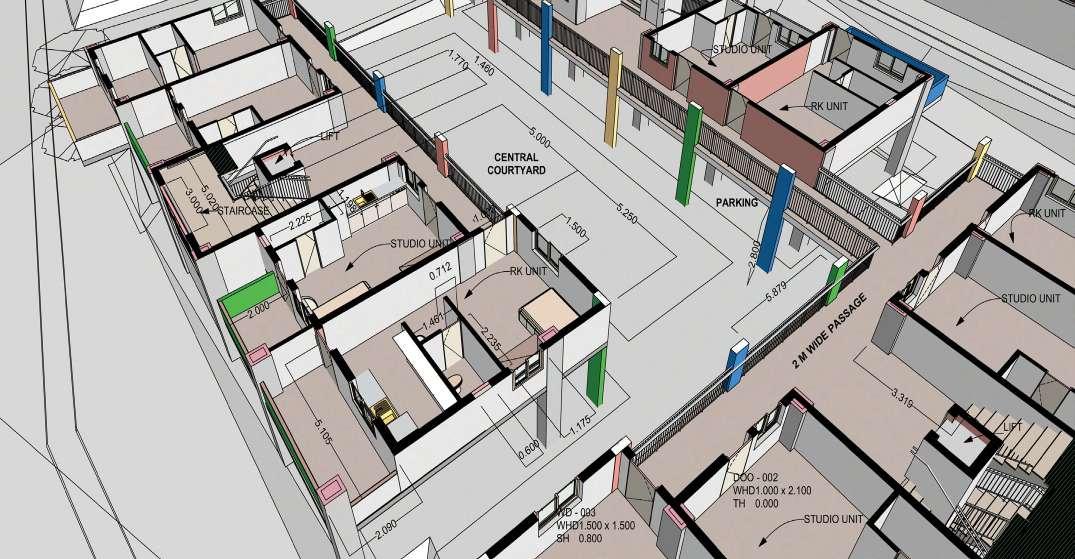

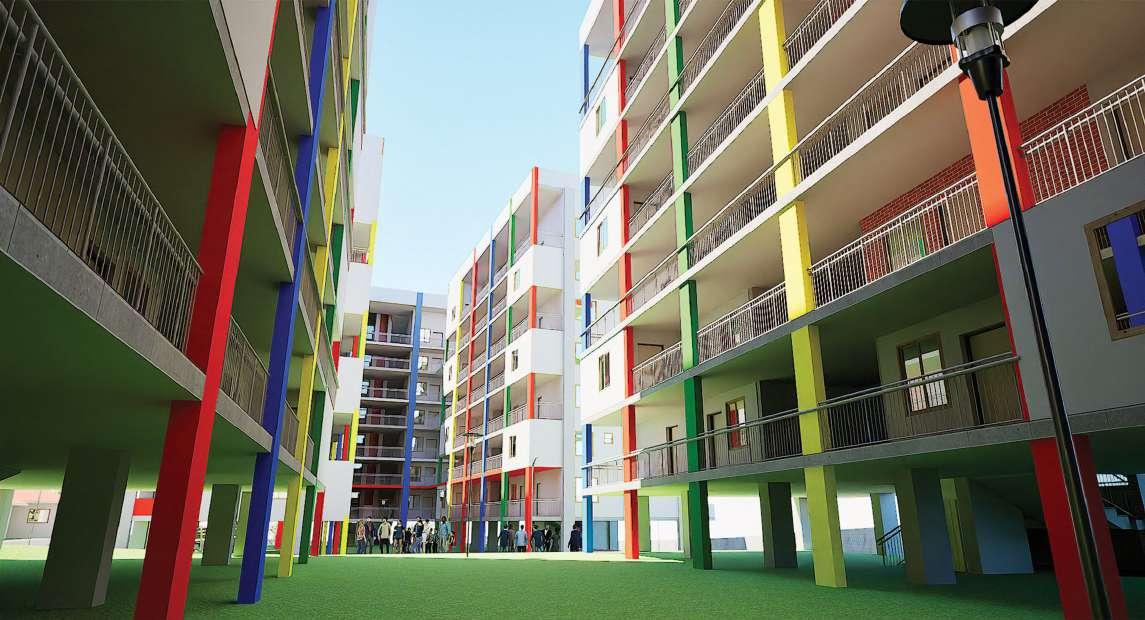

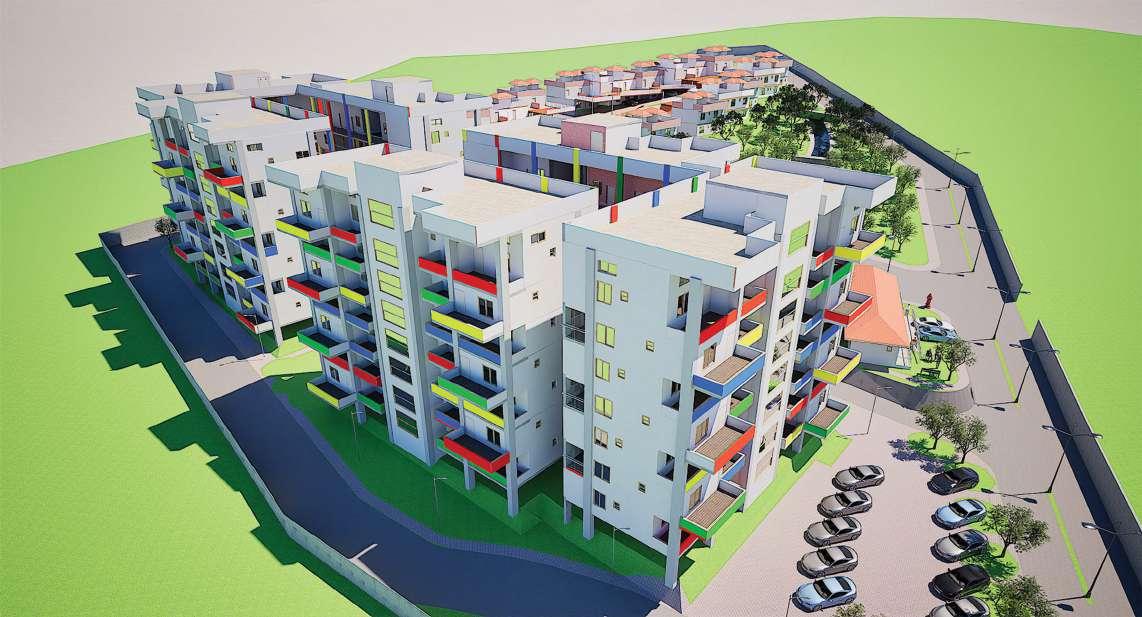

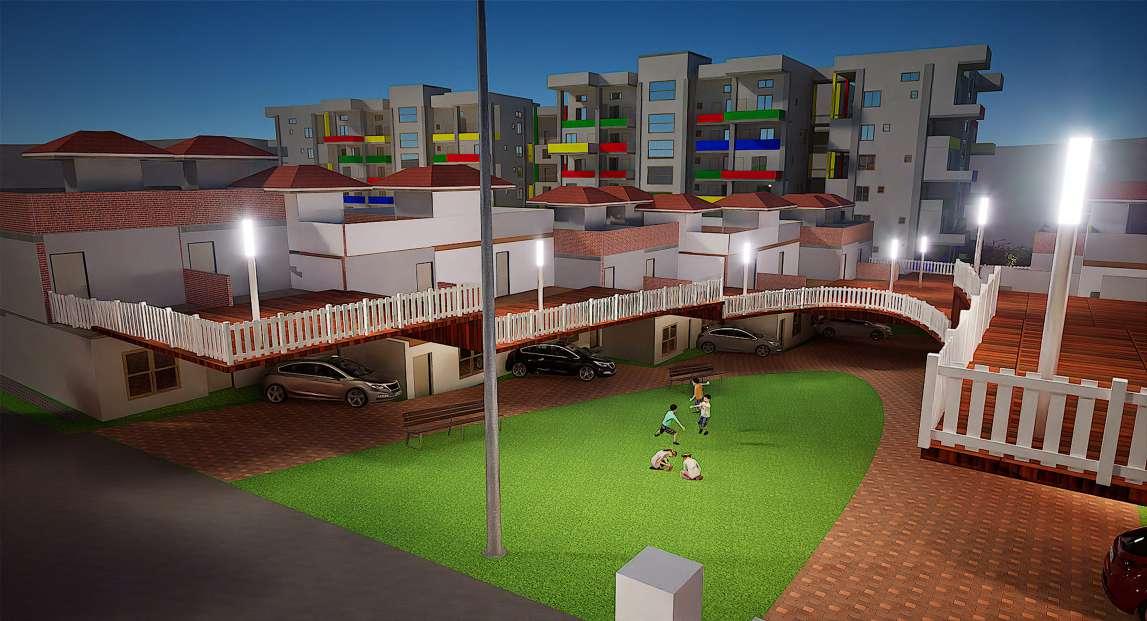

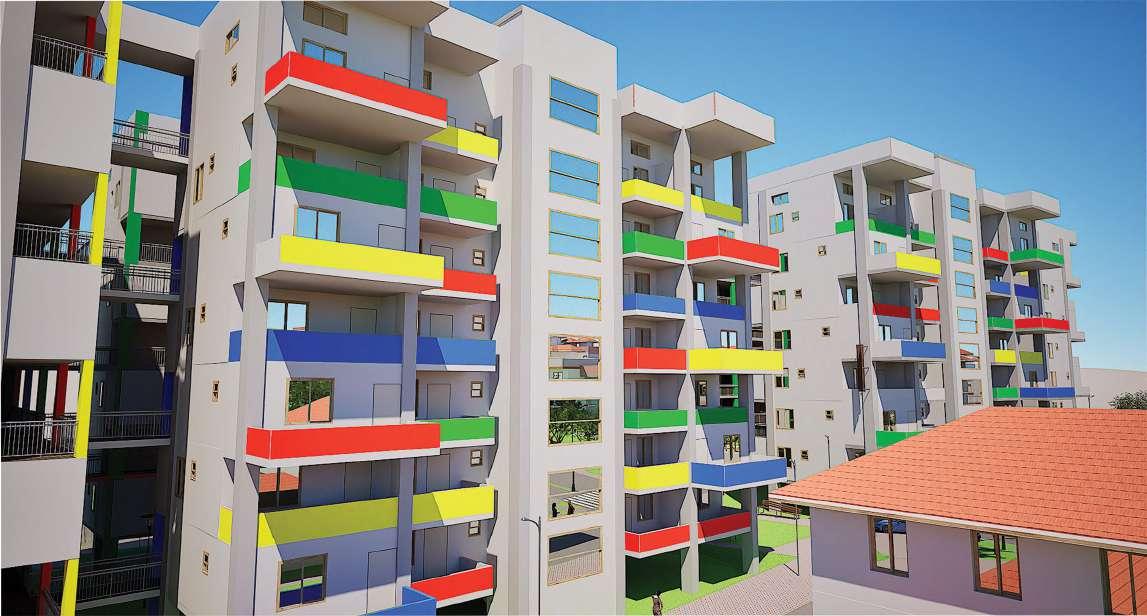

The worker housing complex consists of 168 units, evenly split between RK and studio units. All top-floor units feature mezzanine floors for added space. The linear layout minimizes passage areas. Entrances face inward towards a central courtyard, fostering community interaction. Staggered unit placement enhances the facade and provides effective sun shading. Exterior facades are painted in varied colors for a distinct appearance reminiscent of ‘The Habitat’.

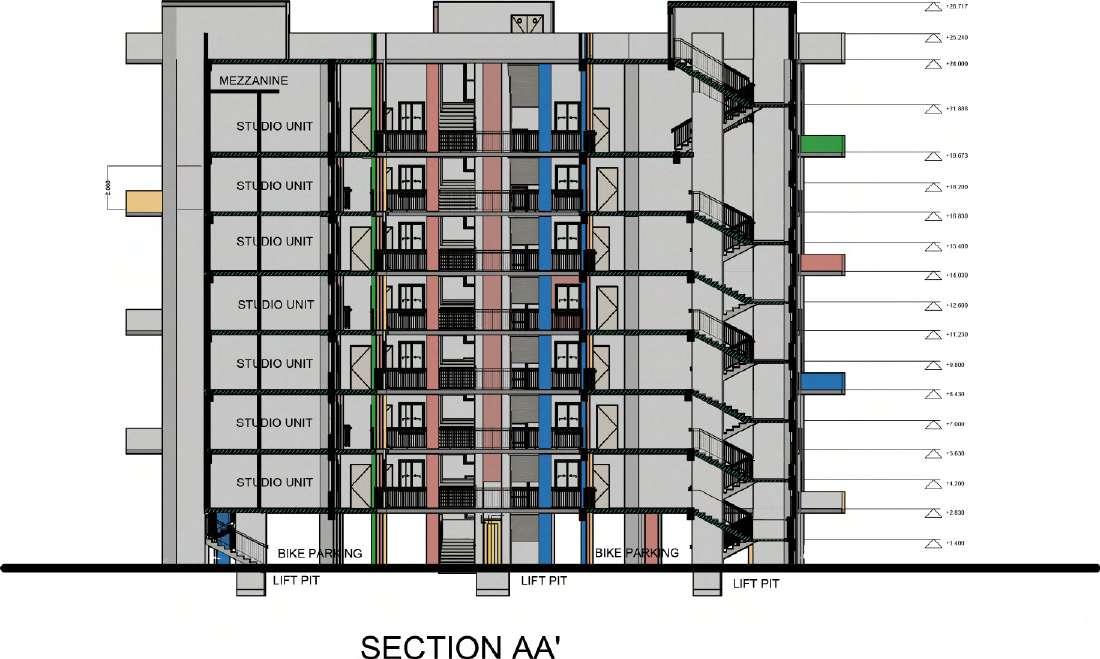

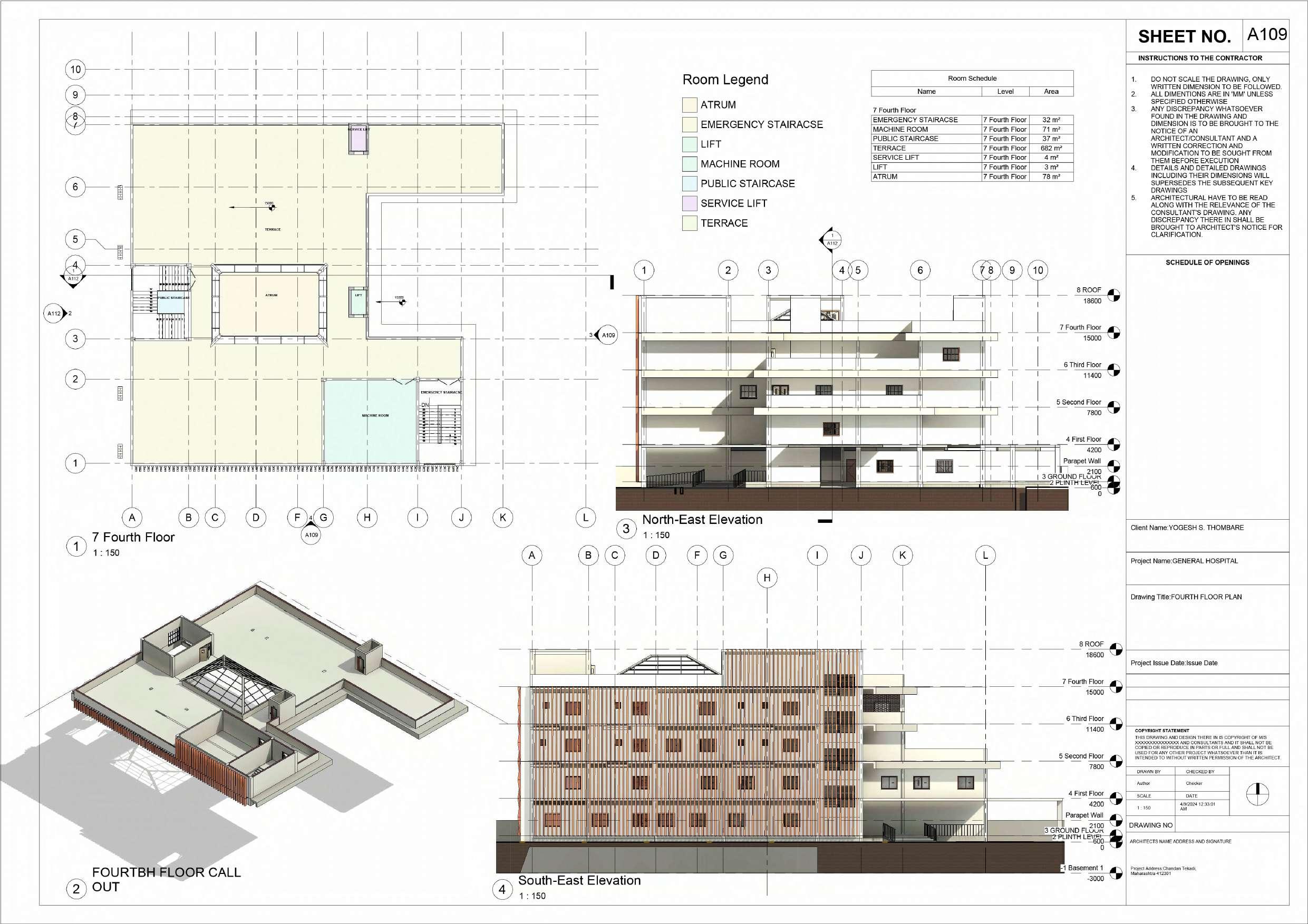

GENERAL HOSPITAL SASWAD,MAHARASHTRA

Academic

We aim to construct a 50-bed General Hospital near Chandan Tekdi along the Pune-Saswad Diveghat highway, blending seamlessly with the local area and embracing technological advancements in healthcare.

The Saswad municipal corporation plans to build a General Hospital to serve a large population. Located near Chandan Tekdi along the Pune-Saswad Diveghat highway, the 50-bed facility will offer outpatient, diagnostic, surgical, and 24-hour patient care services. The design prioritizes integration with the local context and adaptability to evolving medical technologies, making optimal use of the 4044 sq. m. site.

TypeAimAutodesk Autocad 2D,Sketchup,V-ray,Photoshop,REVIT Architecture Sem V 2022-23 Healthcare

YearSoftwares

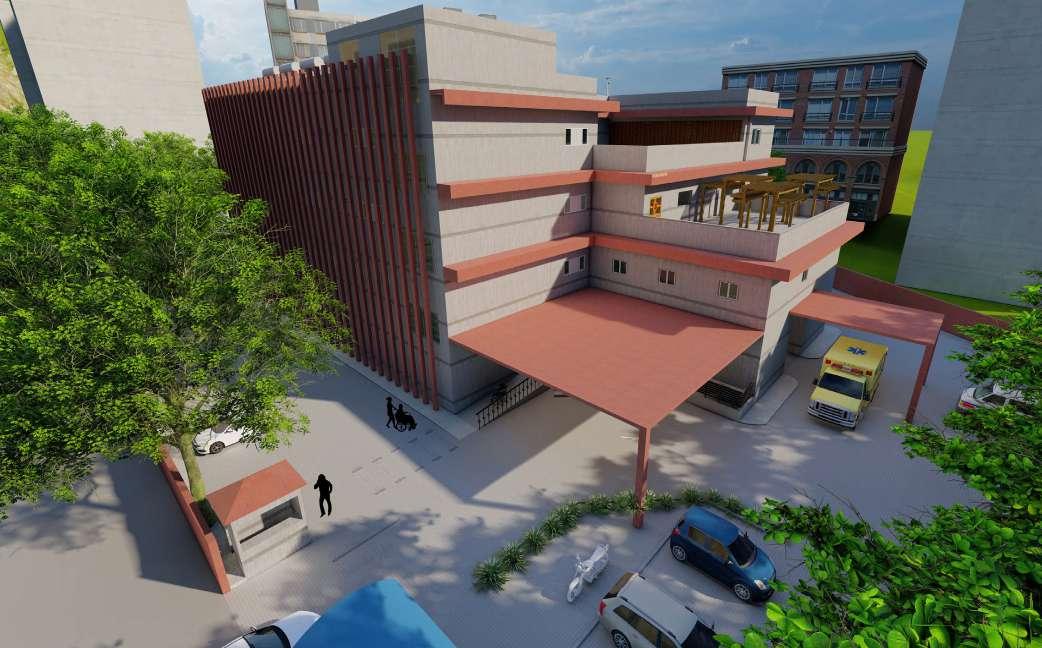

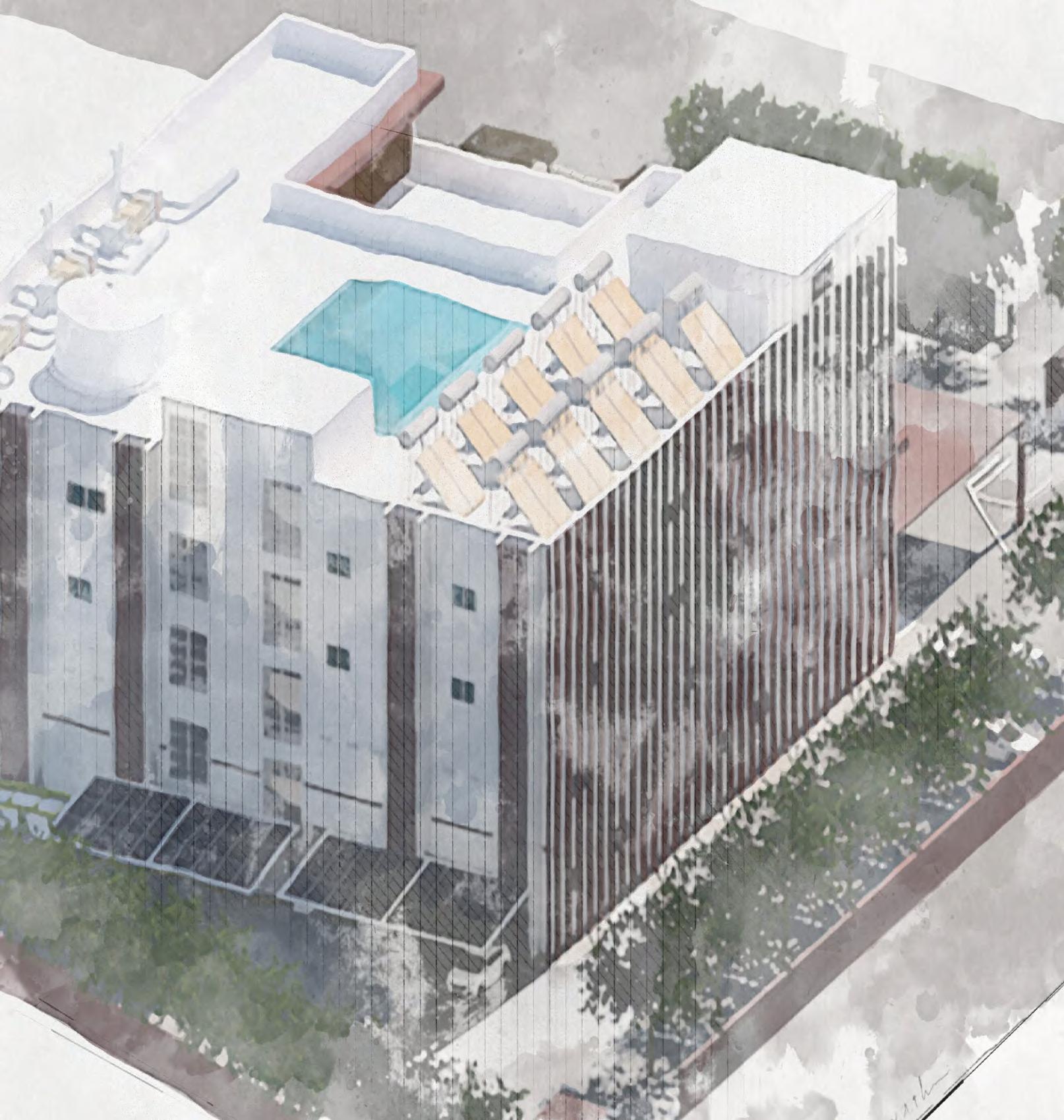

WALKTHROUGH

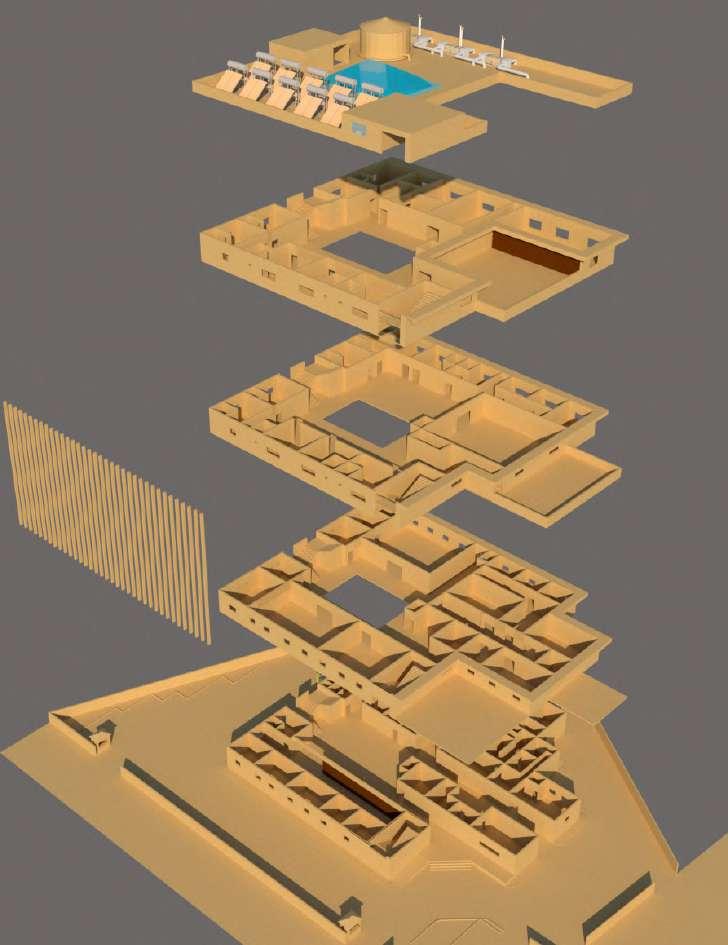

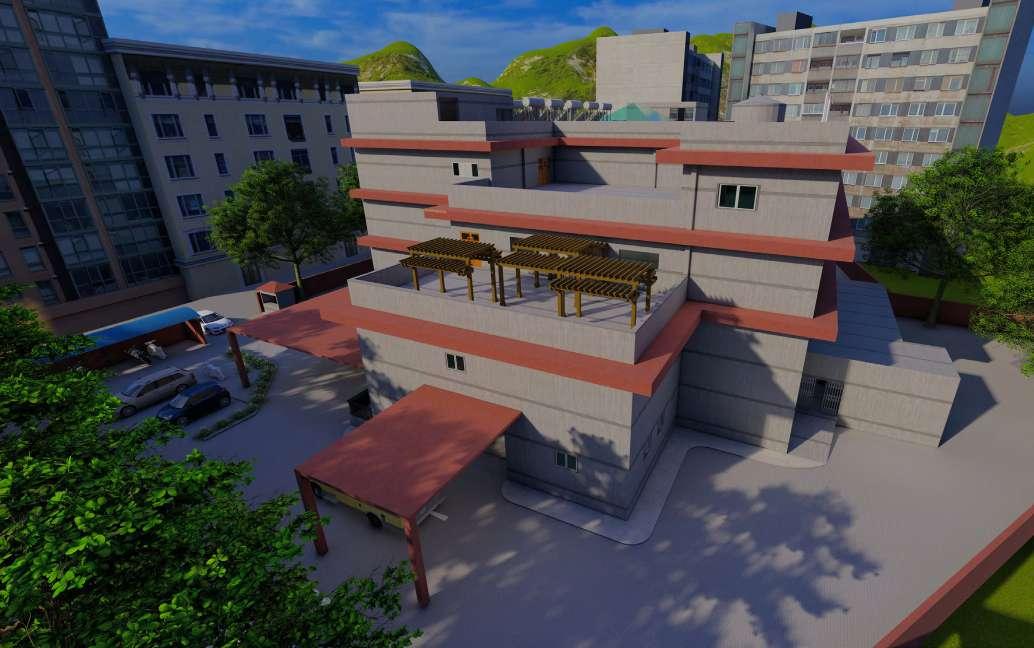

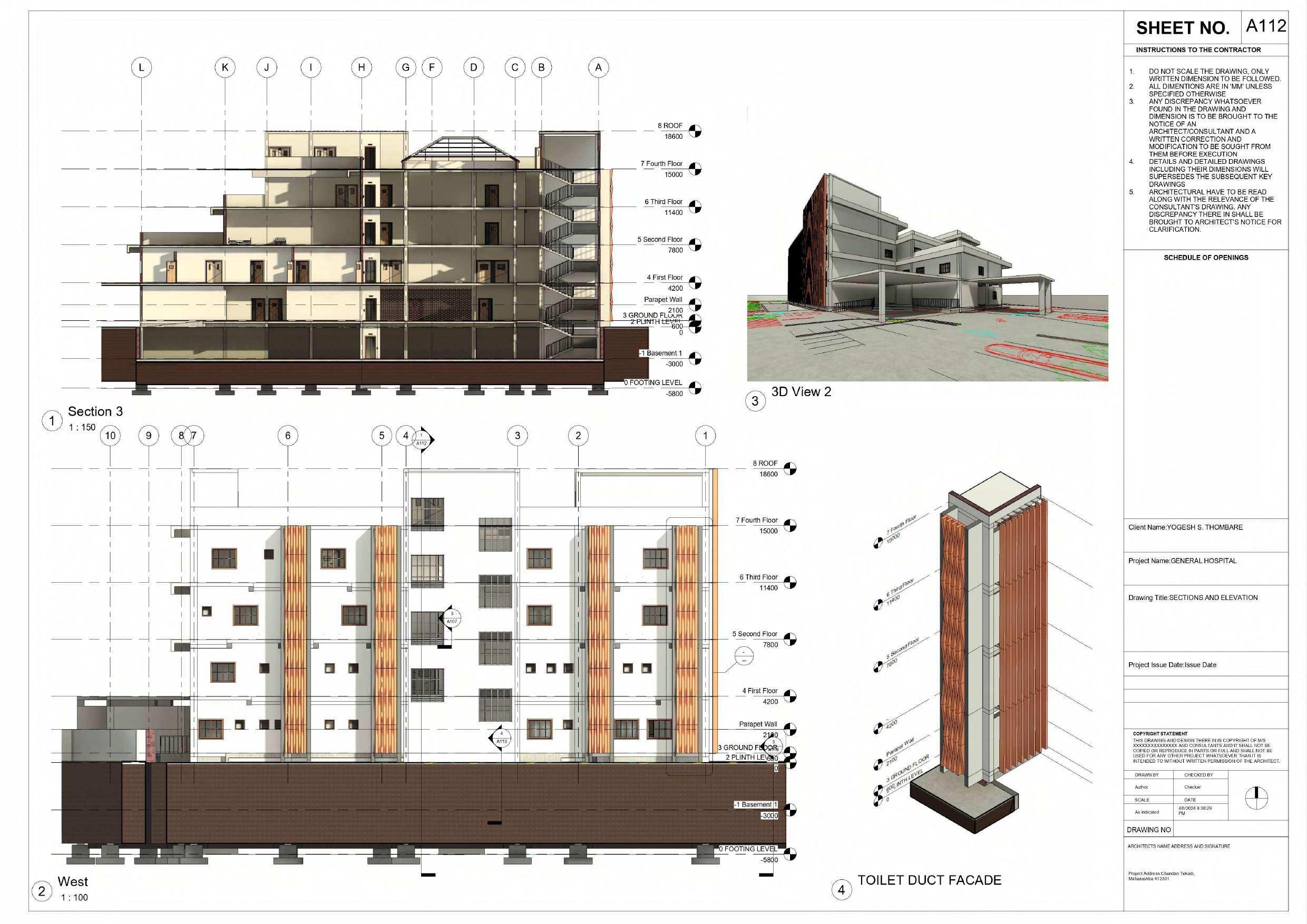

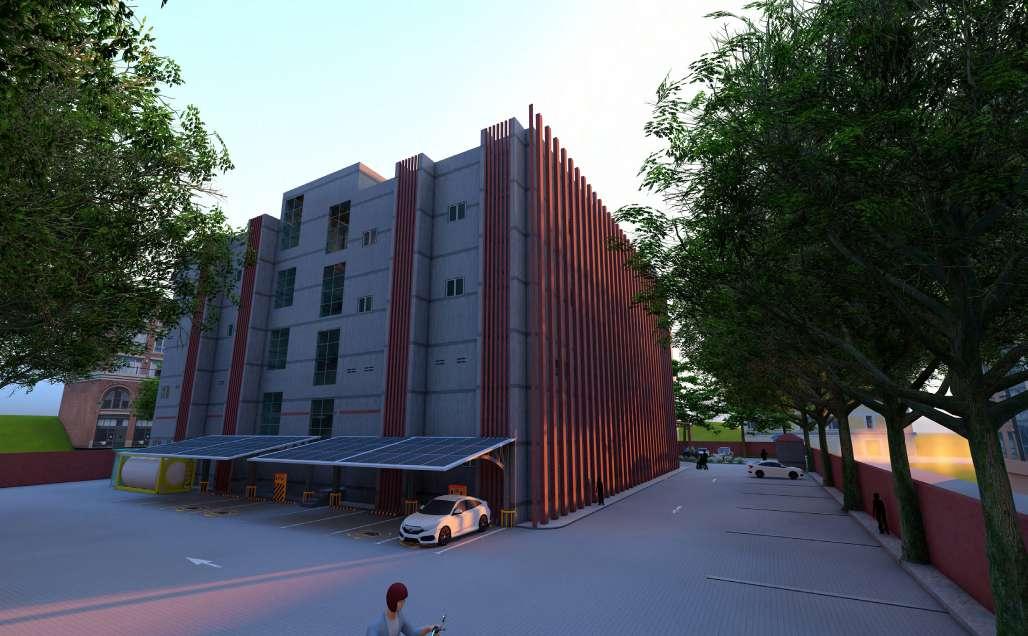

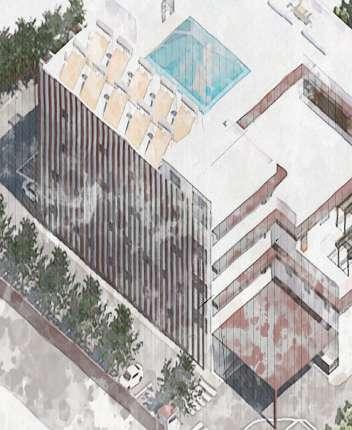

General hospital in Saswad,Maharashtra, embodies sustainability and patient-centric design. Utilizing passive strategies like jali walls, central courtyards, and vertical fins, optimize natural ventilation, light, and shading. Trees and greenery offer further comfort and aesthetics, while pergolas and terrace gardens enhance efficiency. This holistic approach fosters healing, prioritizing patient well-being, staff comfort, and environmental sustainability.

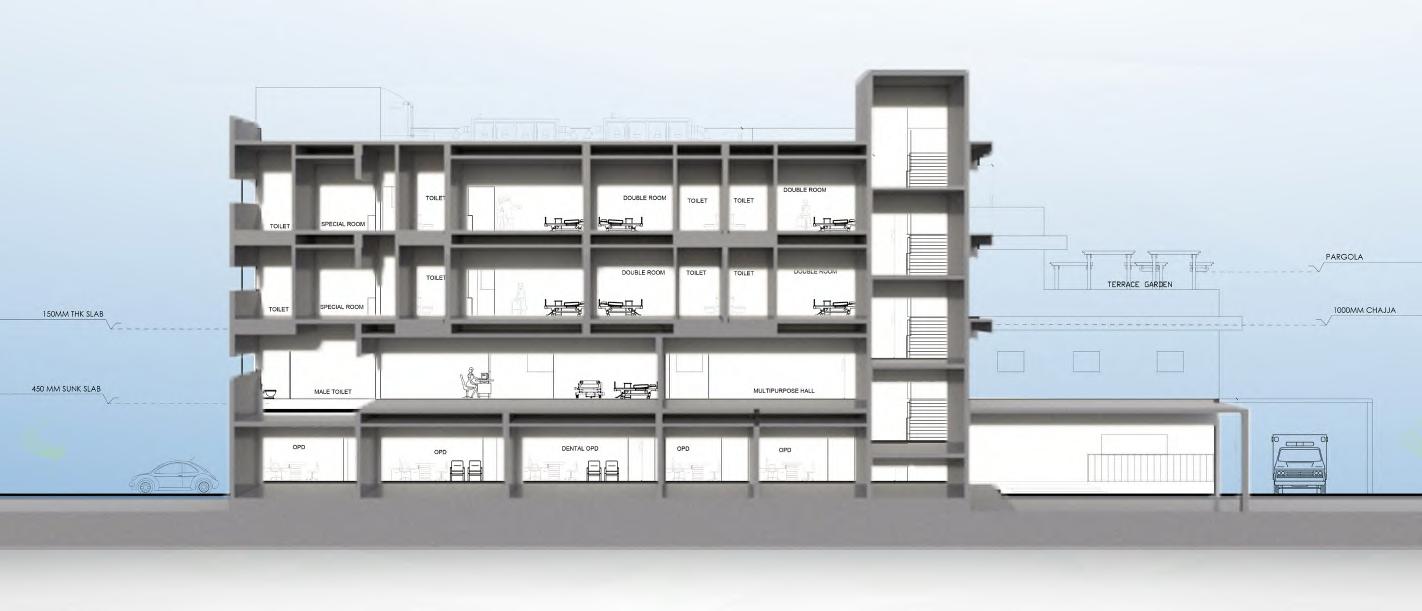

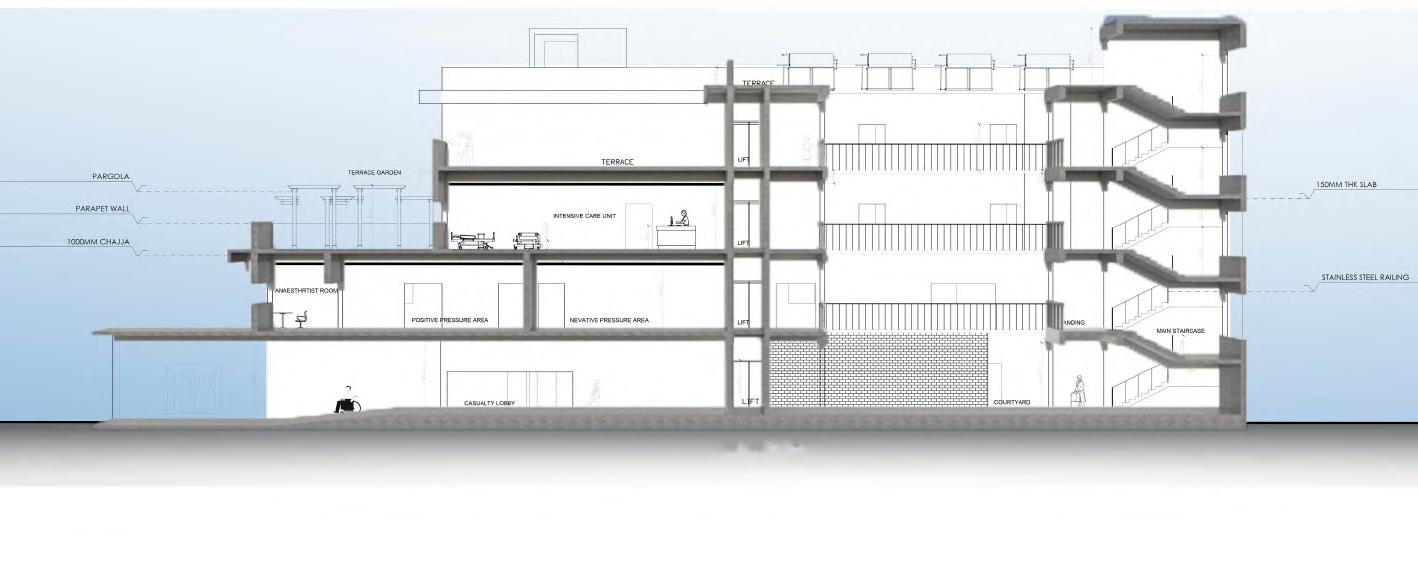

A A’ B’ B 11

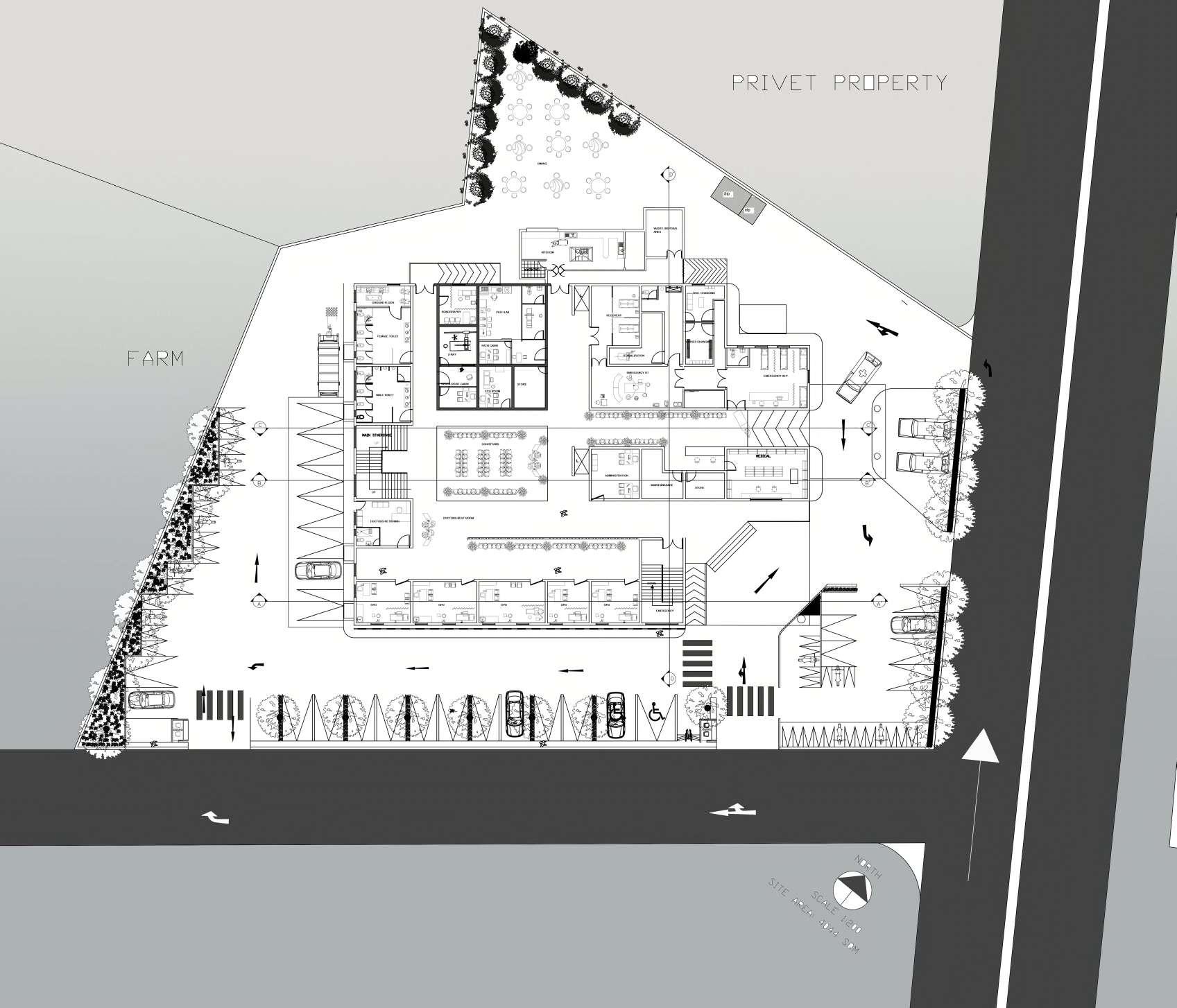

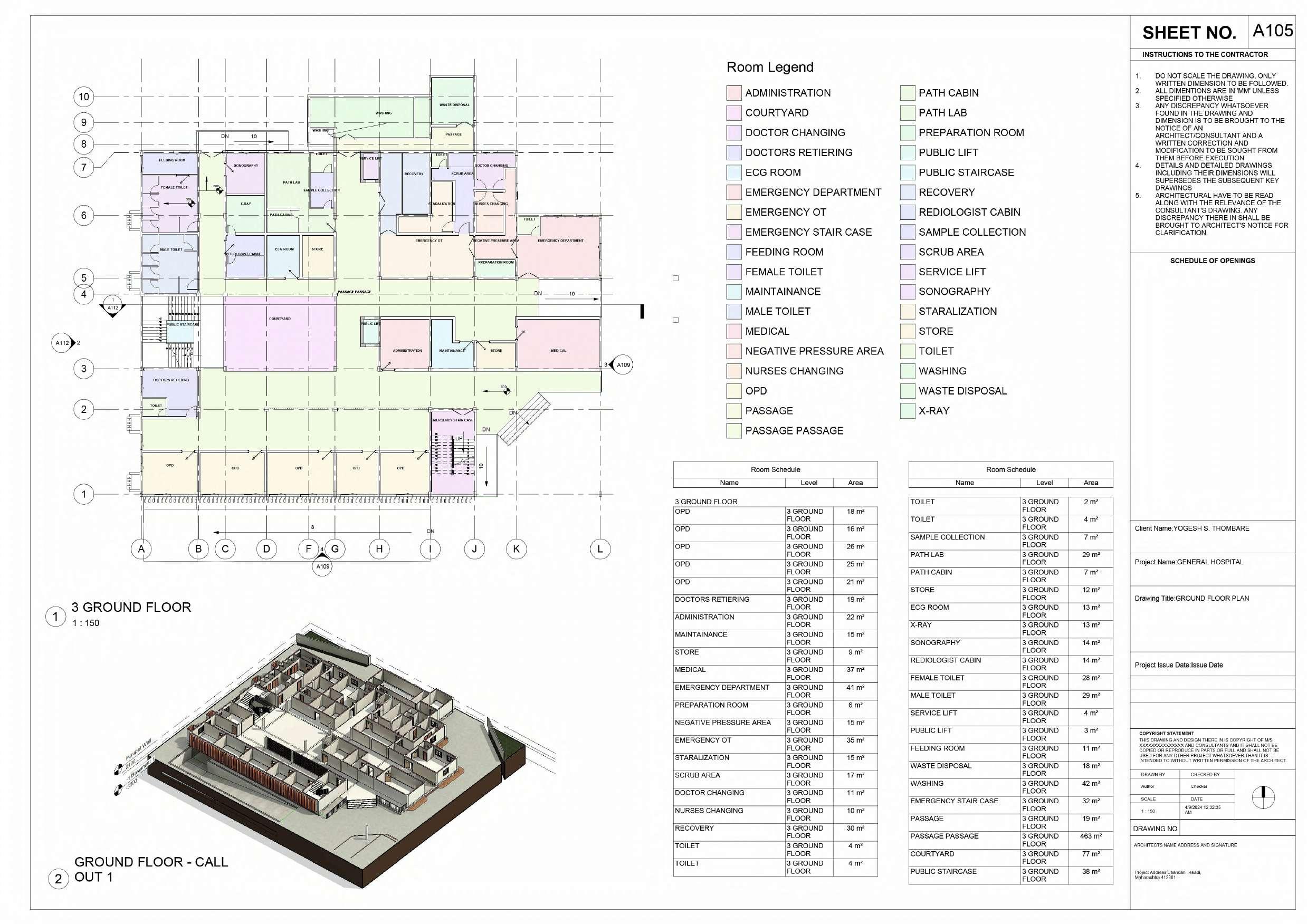

GROUND FLOOR PLAN

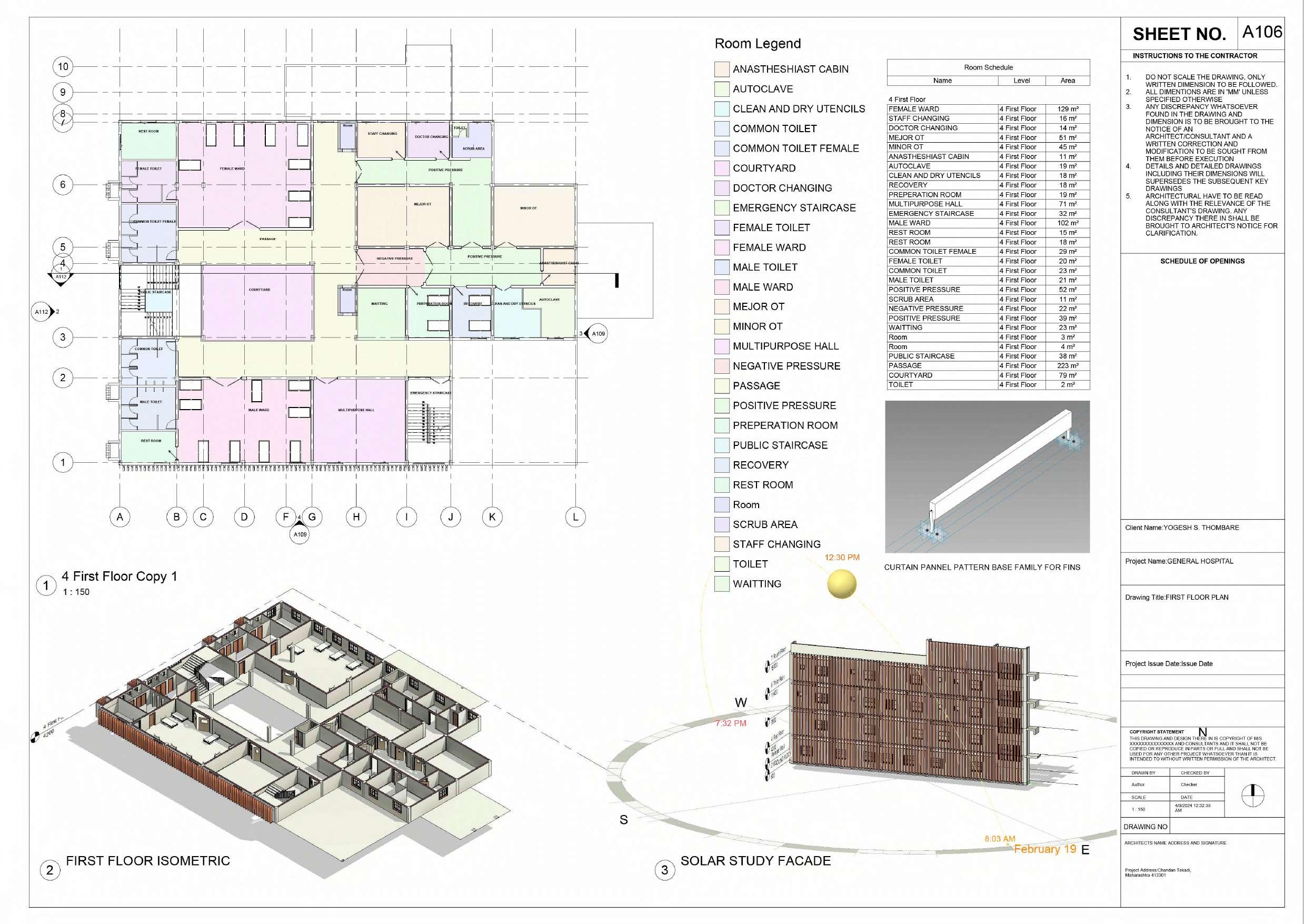

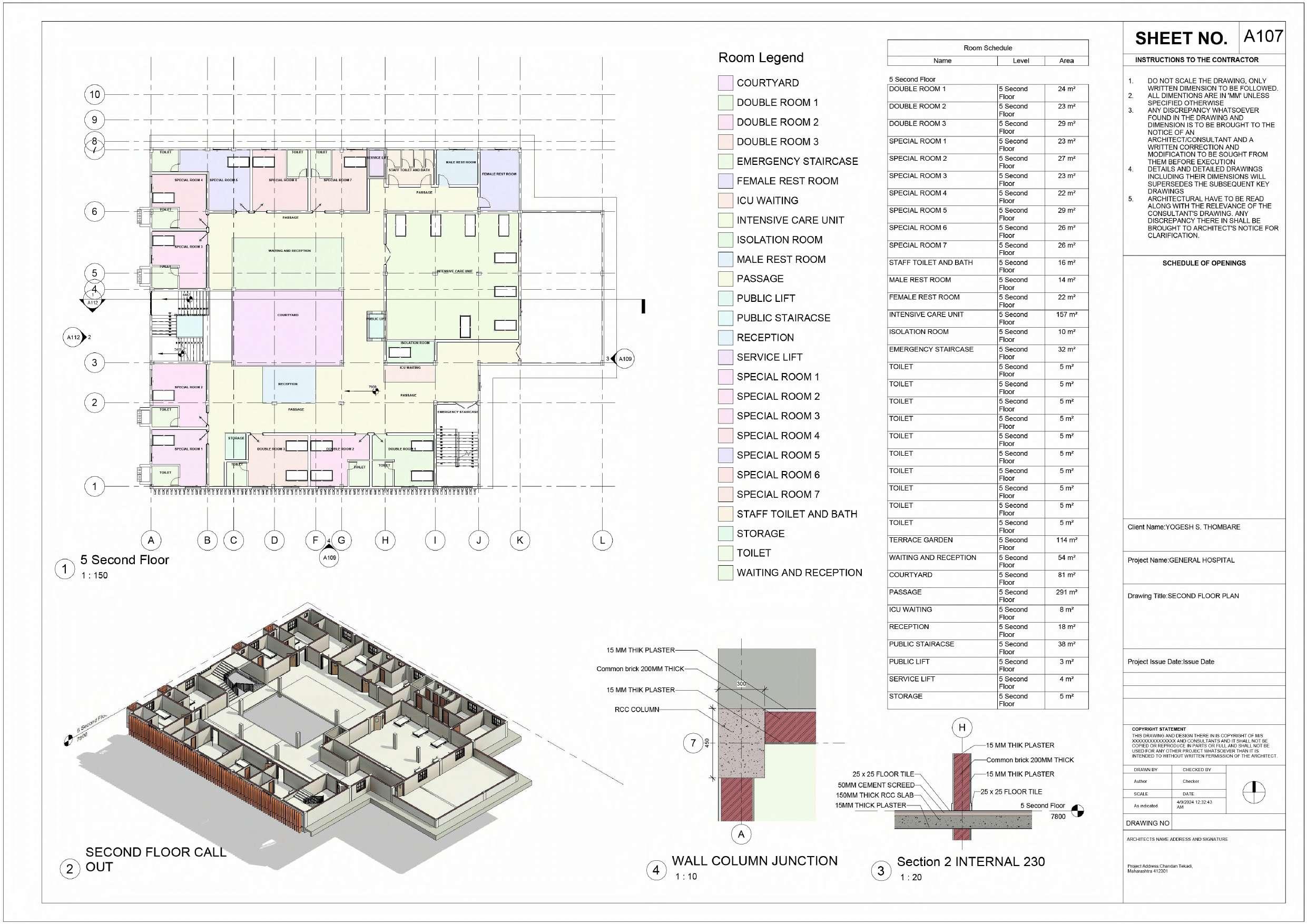

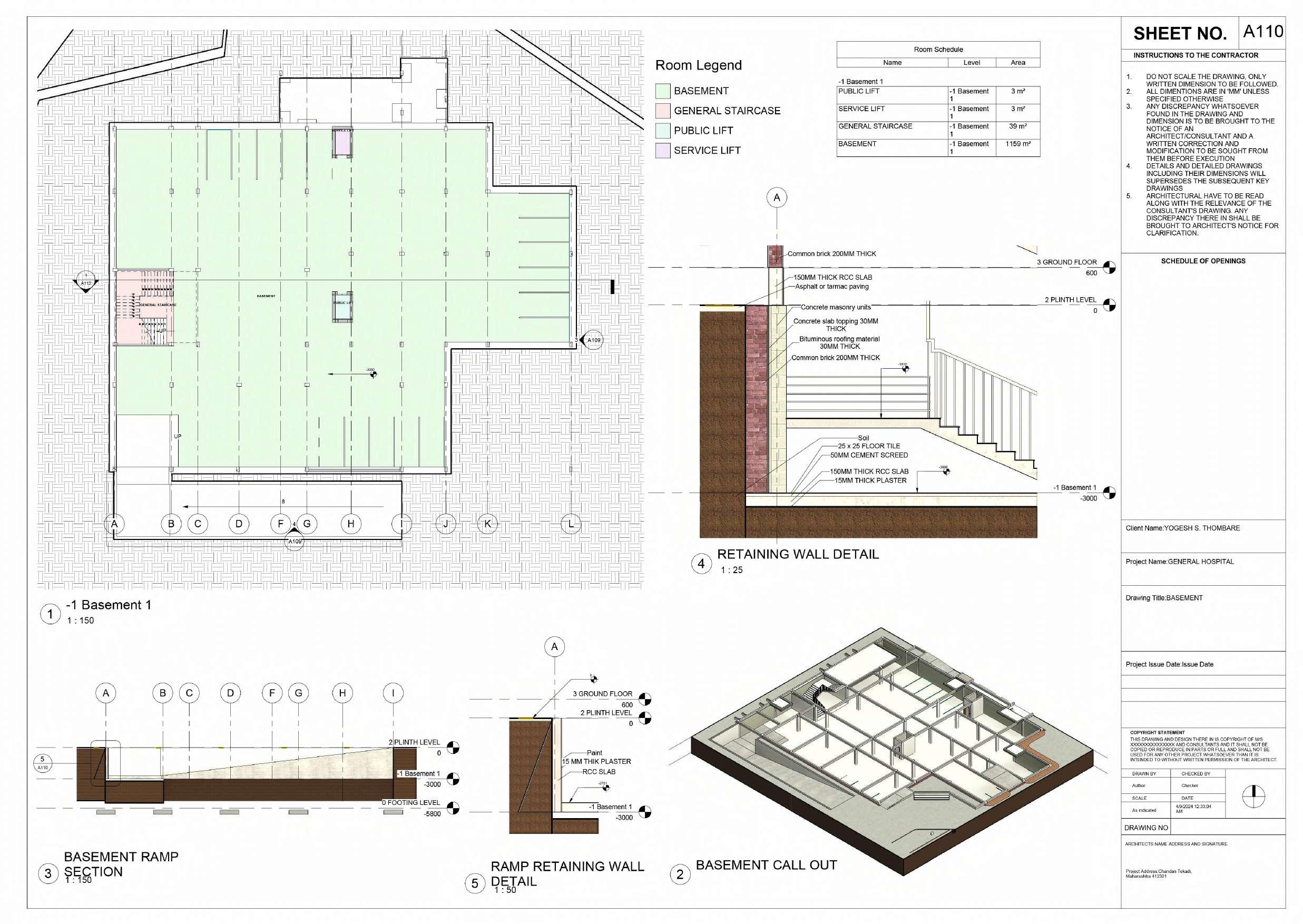

COMMON TOILET FEMALE FEMALE TOILET COURTYARD MAIN STAIRCASE STAFF CHANGING DOC CHANGING SCRUB AREA MEJOR OT MINOR OT RECOVERY CLEAN AND DRY UTENCILS AUTOCLAVE MULTIPURPOSE HALL MALE WARD COMMON TOILET MALE ANASTHESHIAST EMERGENCY LOCKERS PREPERATION ROOM MALE TOILET LOCKERS LOCKERS POSITIVE PRESSURE NEVATIVE PRESSURE POSITIVE PRESSURE FEMALE WARD SLIPPER RACK COURTYARD MAIN STAIRACSE DOUBLE ROOM SPECIAL ROOM SUPPORT STAFF CONFERENCE ROOM TERACE BILLING SPECIAL ROOM DOUBLE ROOM DOUBLE ROOM DIRECTOR CABIN STORE EMERGENCY COMMON TOILET DRY CLEANING AREA STORAGE DETERGENT 15 IRONING REPAIR CLOTHES REPAIR CLOTHES 13 COURTYARD MAIN STAIRCASE ICU SPECIAL ROOM SPECIAL ROOM SPECIAL ROOM SPECIAL ROOM SPECIAL ROOM SPECIAL ROOM SPECIAL ROOM DOUBLE ROOM DOUBLE ROOM EMERGENCY DOUBLE ROOM FIRST FLOOR PLAN SECOND FLOOR PLAN THIRD FLOOR PLAN 12

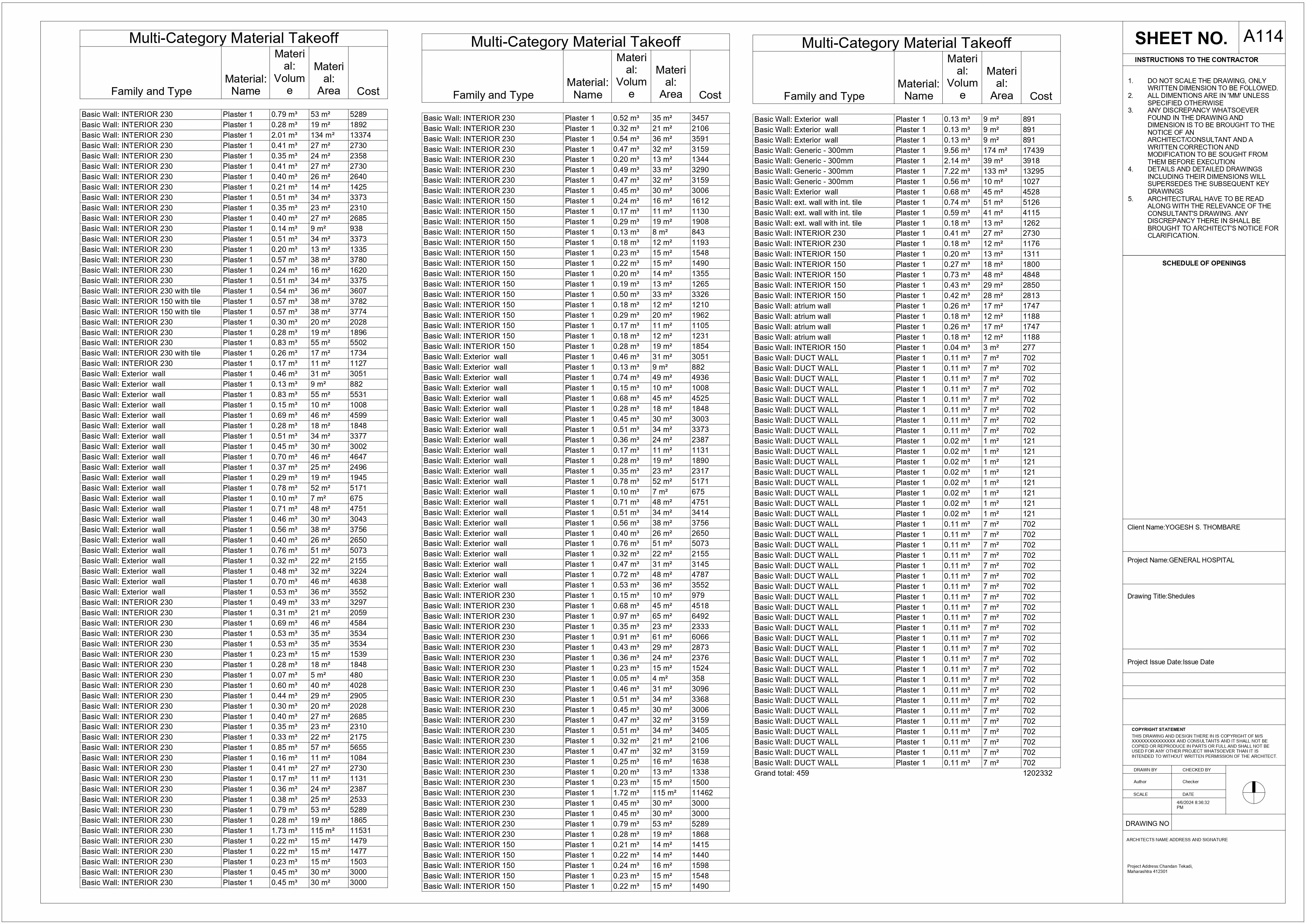

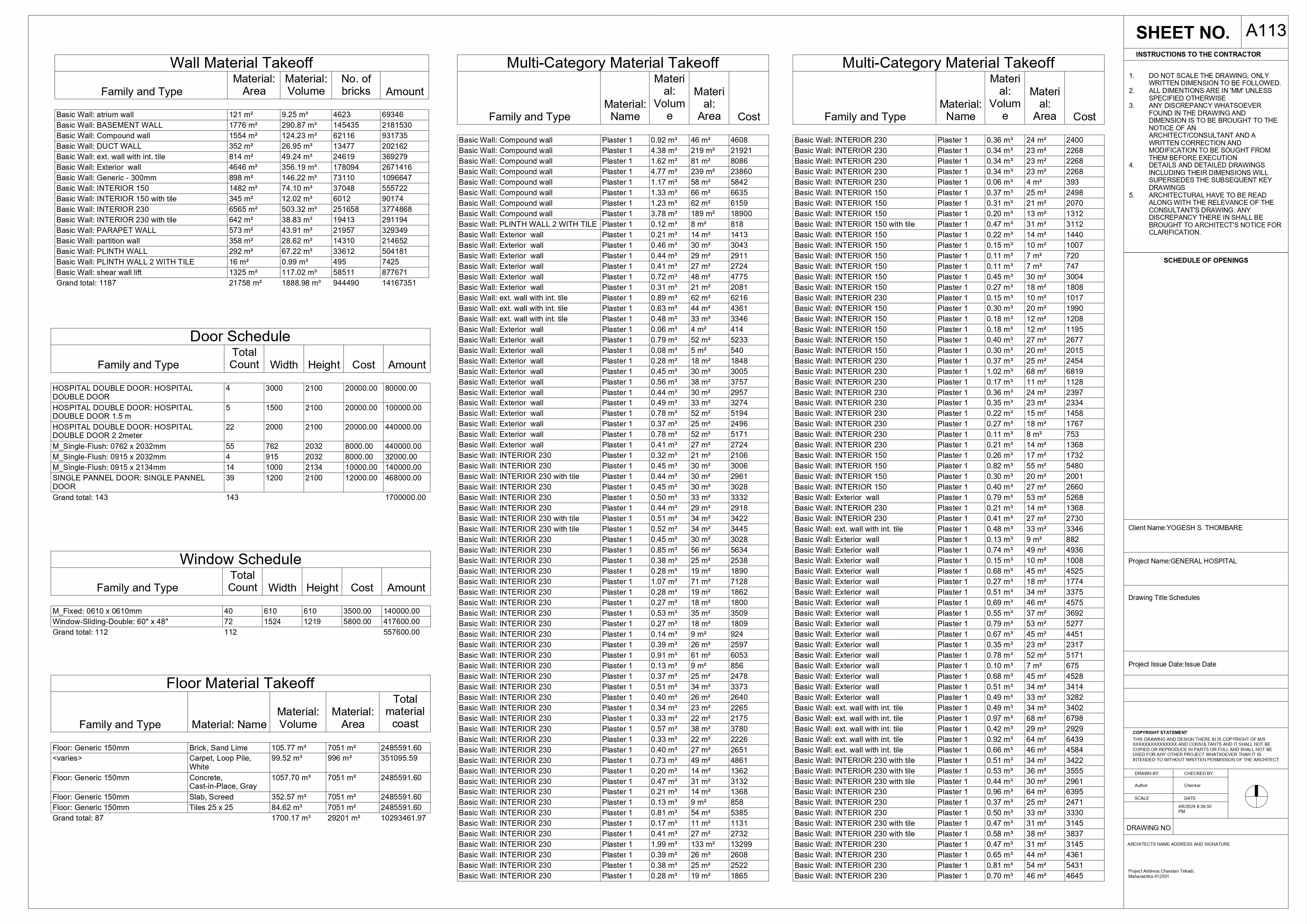

THIRD FLOOR PLAN

BUNGALOW DESIGN

JODHPUR,RAJASTHAN

Academic Year -

Softwares -

Sem III 2021-22

Type -

Residential

AimAutodesk Autocad 2D-3D,Sketchup,V-ray,Photoshop

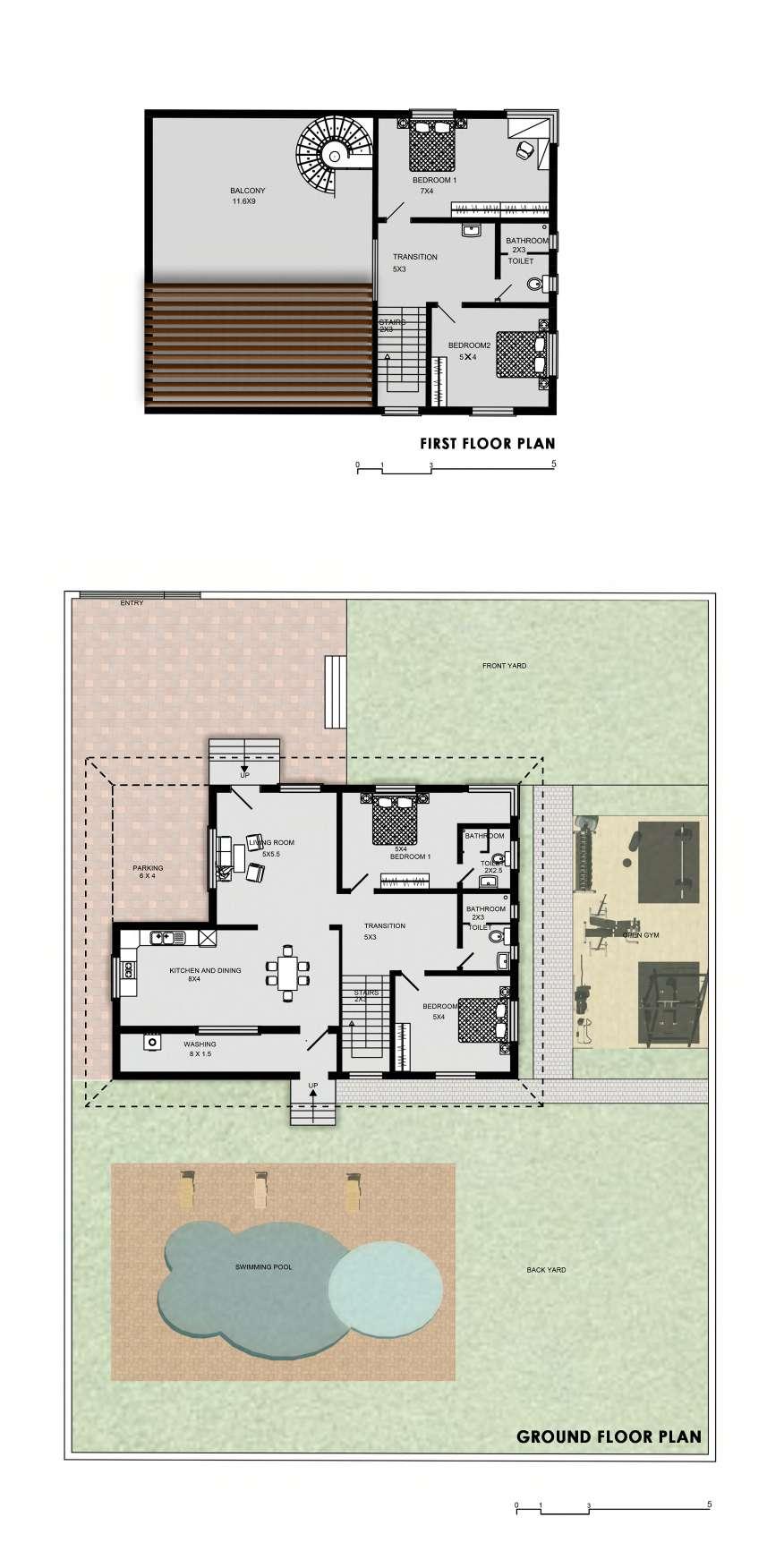

To create a harmonious living space tailored to accommodate the diverse interests and lifestyles of a family residing in Jodhpur district, Rajasthan.

Designing a bungalow in 900 sqm atea in Jodhpur district, Rajasthan, catering to diverse interests: fitness, cooking, music, literature, and knitting. Spaces include a gym, kitchen, study, entertainment area, and a cozy corner for storytelling. Reflecting the family's varied passions, the design harmonizes functionality with comfort, fostering an enriching lifestyle experience.

24 WALKTHROUGH

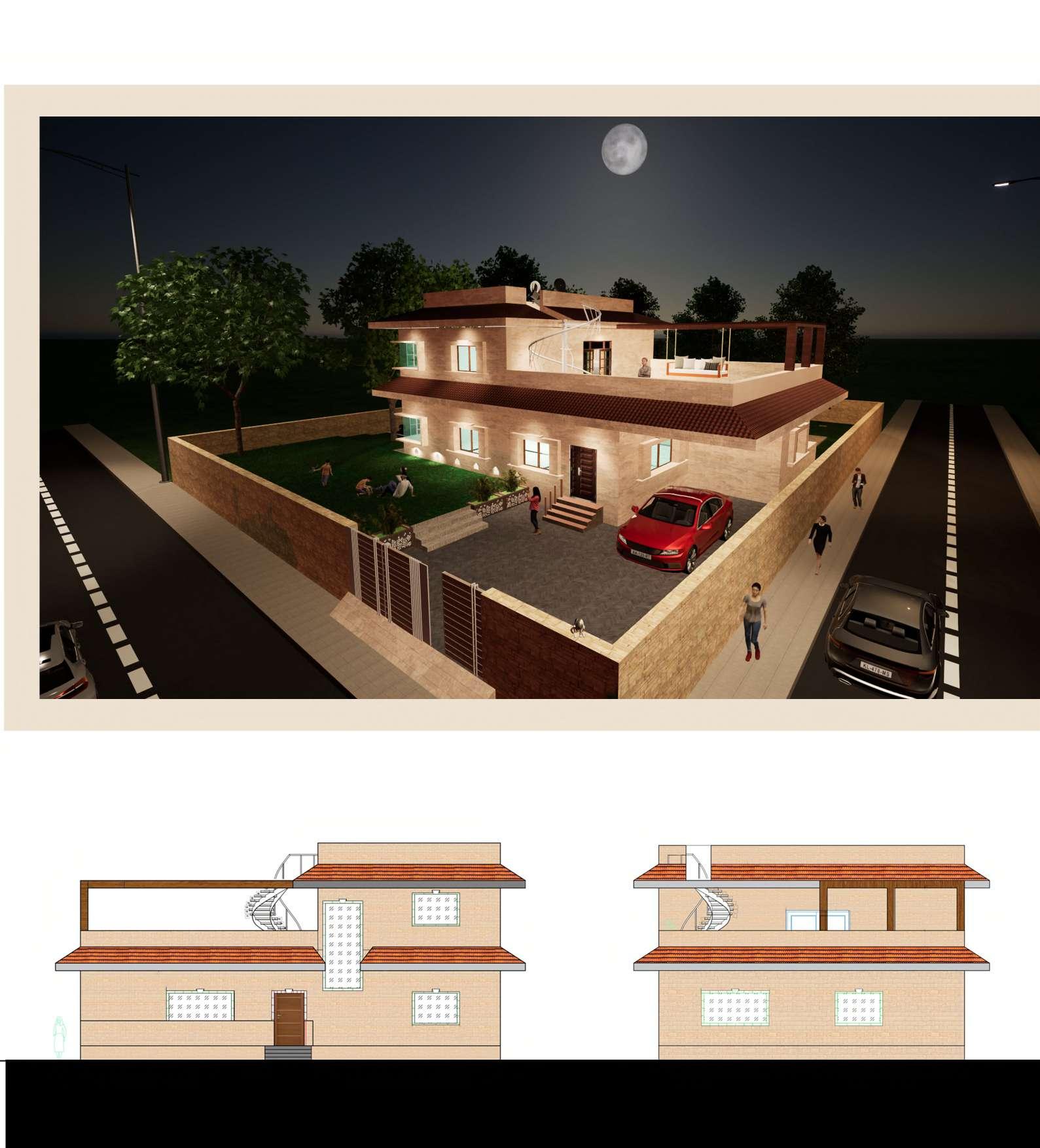

s South Side Elevation West Side Elevation A A’ B B’ C C’ 25

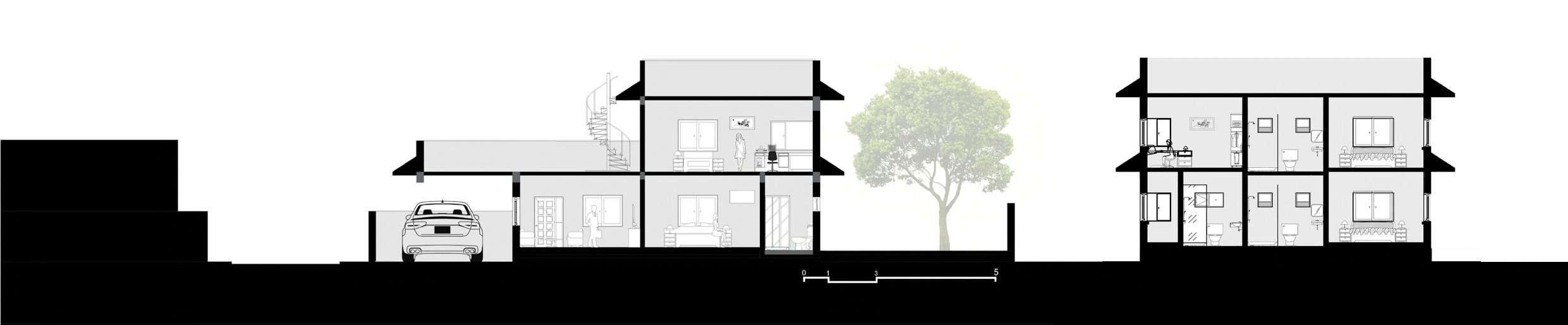

NORTH WIDE ELEVATION FORM DEVELOPMENT SECTION BB’ 26 F O R M D E V E L O P M E N T

SECTION AA’ SECTION CC’ 27

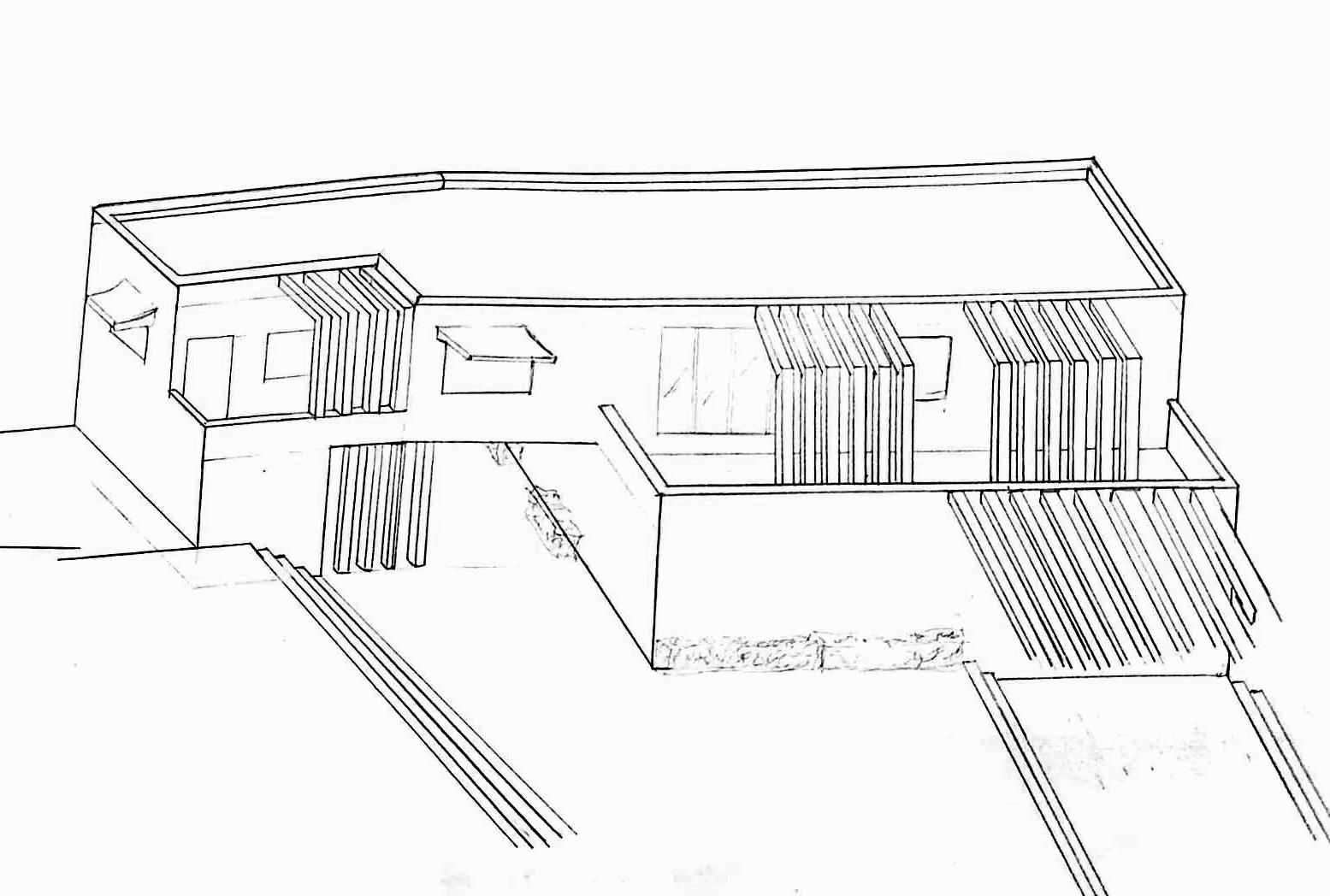

CAMPUS DESIGN

BAVDHAN, PUNE

Academic Year -

Drawing type -

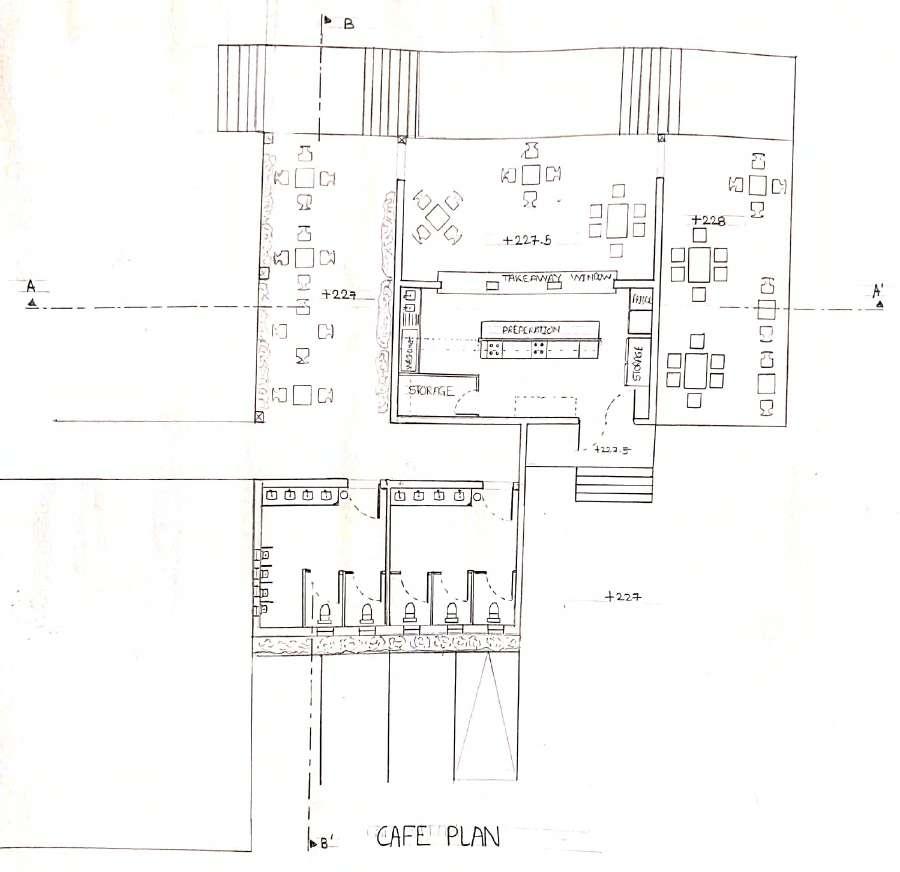

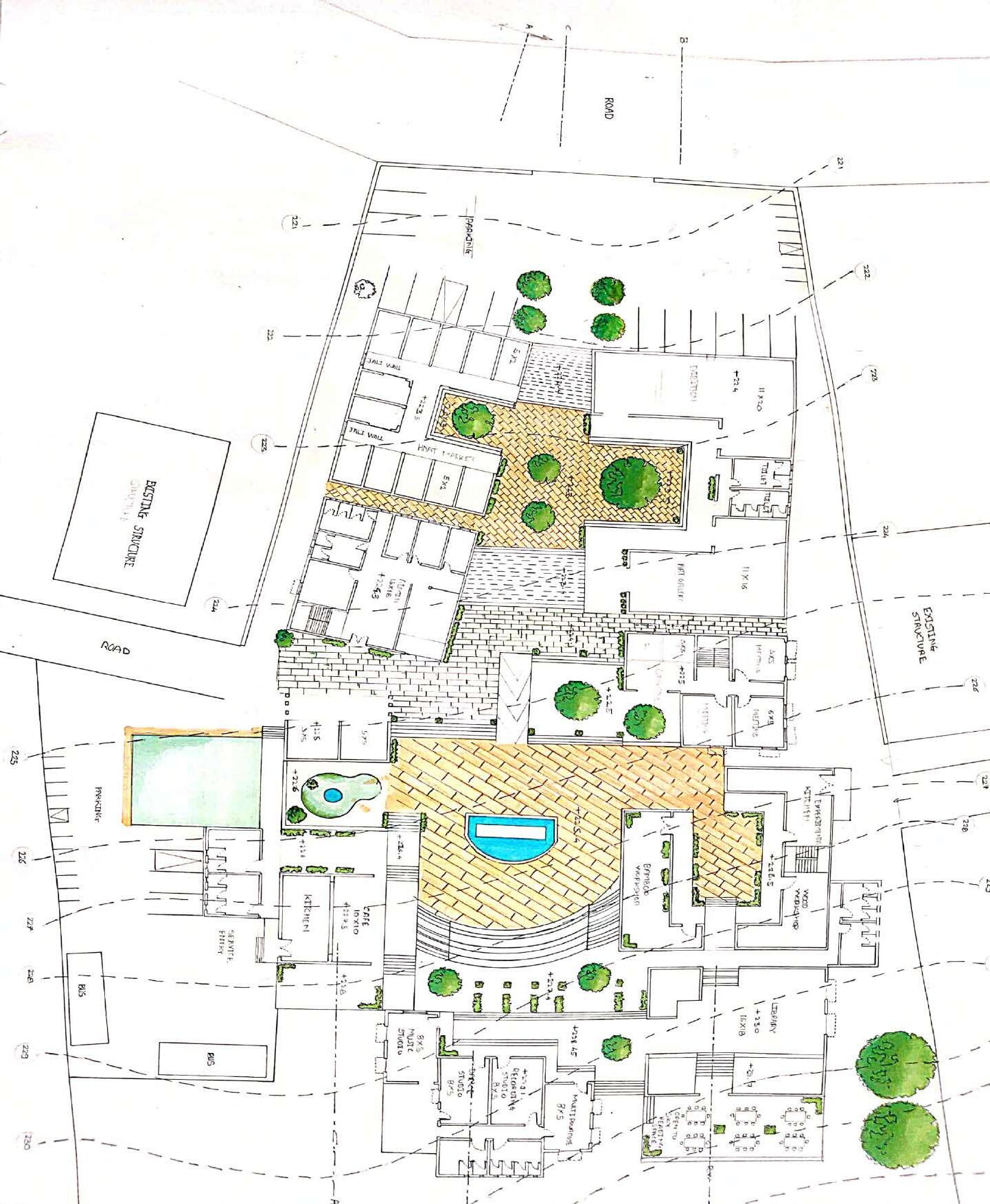

TypeAimHand drafting Sem V 2021-22

Community Development

Establish an Entrepreneur Facilitation Center in Bavdhan, Pune, to support startups through mentorship, infrastructure, funding, and community engagement.

The Pune Municipal Corporation plans to establish an Entrepreneur Facilitation Center in Bavdhan, fostering innovation and supporting startups. This state-of-the-art campus will offer infrastructure and mentoring across various sectors, facilitating collaboration among entrepreneurs. It will provide funding, incentives, and connections to industry experts and academia while engaging the community and ensuring sustainability through public access and participation.

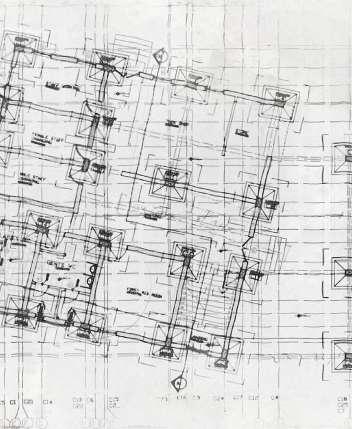

1. REV. A B C D E F 1 2 3 4 5 6 7 8 15 16 17 18 19 20 21 22 9 10 11 12 14 13 23 24 LEVEL-S LEVEL-S LEVEL-S LEVEL-S LEVEL-S LEVEL-S LEVEL-S 15 16 17 18 19 20 21 22 14 13 23 24 MURUM FILLING 150 MM THK R.C.C. SLAB 75 MM THK WATERPROOFING 230 MM THK. BRICK WALL 150 MM THK R.C.C. SLAB 150 MM THK R.C.C. SLAB TIMBER DOOR RCC CHAJJA G.L. MURUM FILLING G.L. 75 MM THK WATERPROOFING 150 MM THK R.C.C. SLAB 150 MM THK R.C.C. SLAB 150 MM THK R.C.C. SLAB 12mm MM tile drop A B C D E F 1. DO NOT REV. NO A B C D E F REC. ROOM MID PASSAGE WAITING TUCK SHOP FIRST AID ROOM MAINTAINANACE ROOM MANAGER'S CABIN DIRECTORS CABIN FEMALE TOILET MALE TOILET FEMALE TOILET MALE TOILET M.S.SQUARE BALUSTRADE WELDED TO M.S.PLATE CEMENT PLASTER PLAIN CONCRETE FINISH ON SOFFIT 230 MM THK. BRICK WALL 25 MM THK. EXTERNAL PLASTER 150 150 MM THK. R.C.C. SLAB 75 MM THK. CHEMICAL WATERPROOFING DRIP MOULDS 150 MM THK. P.C.C. COPING WITH INWARD SLOPE MURUM FILLING 150 MM THK R.C.C. SLAB 75 MM THK WATERPROOFING 230 MM THK. BRICK WALL 150 MM THK R.C.C. SLAB 150 MM THK R.C.C. SLAB TIMBER DOOR RCC CHAJJA G.L. A B C D E F 1. DO NOT SCALE THE DRAWING, ONLY WRITTEN REC. ROOM MID PASSAGE WAITING TUCK SHOP WELDED TO M.S.PLATE CEMENT PLASTER PLAIN CONCRETE FINISH ON SOFFIT 230 MM THK. BRICK WALL 25 MM THK. EXTERNAL PLASTER 150 150 MM THK. R.C.C. SLAB 75 MM THK. CHEMICAL WATERPROOFING DRIP MOULDS 150 MM THK. P.C.C. COPING WITH INWARD SLOPE

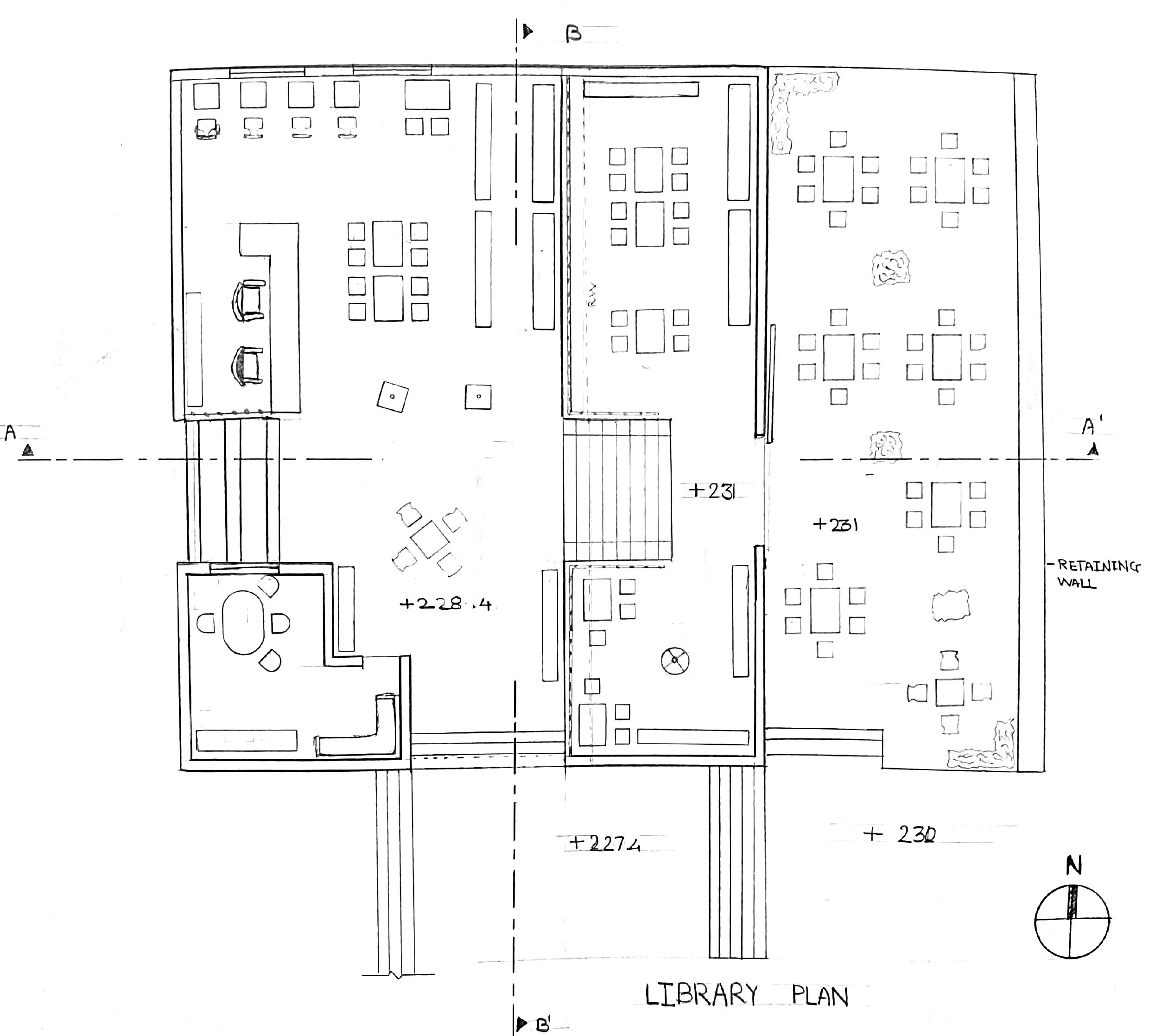

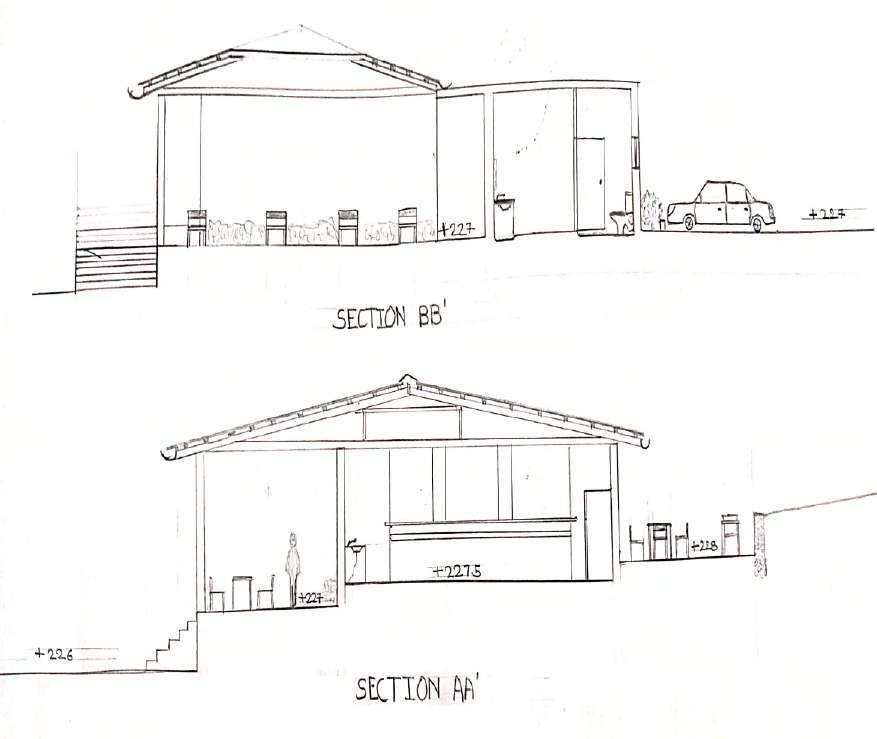

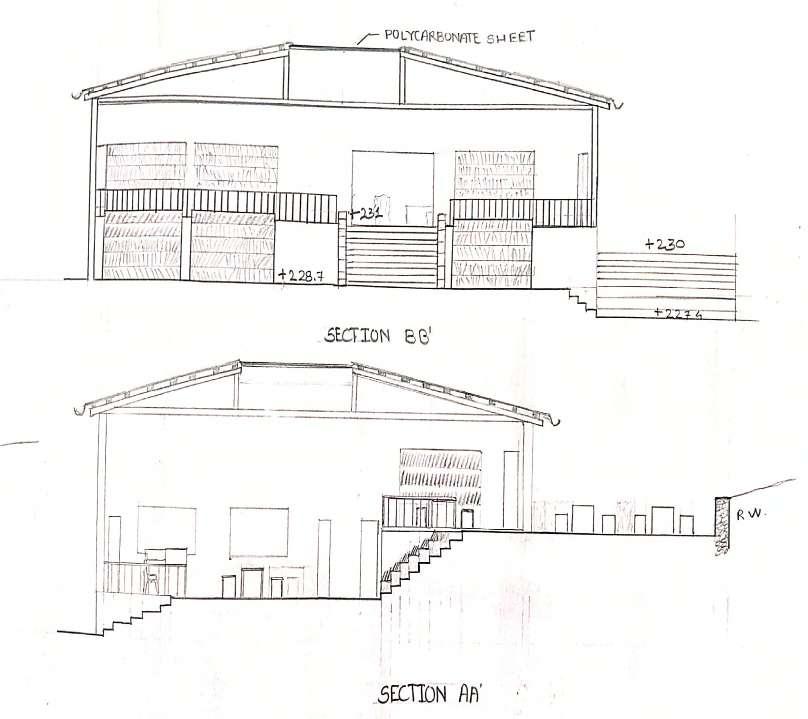

GROUND FLOOR PLAN SECTION AA’ SECTION BB’ 30

WORKING DRAWING

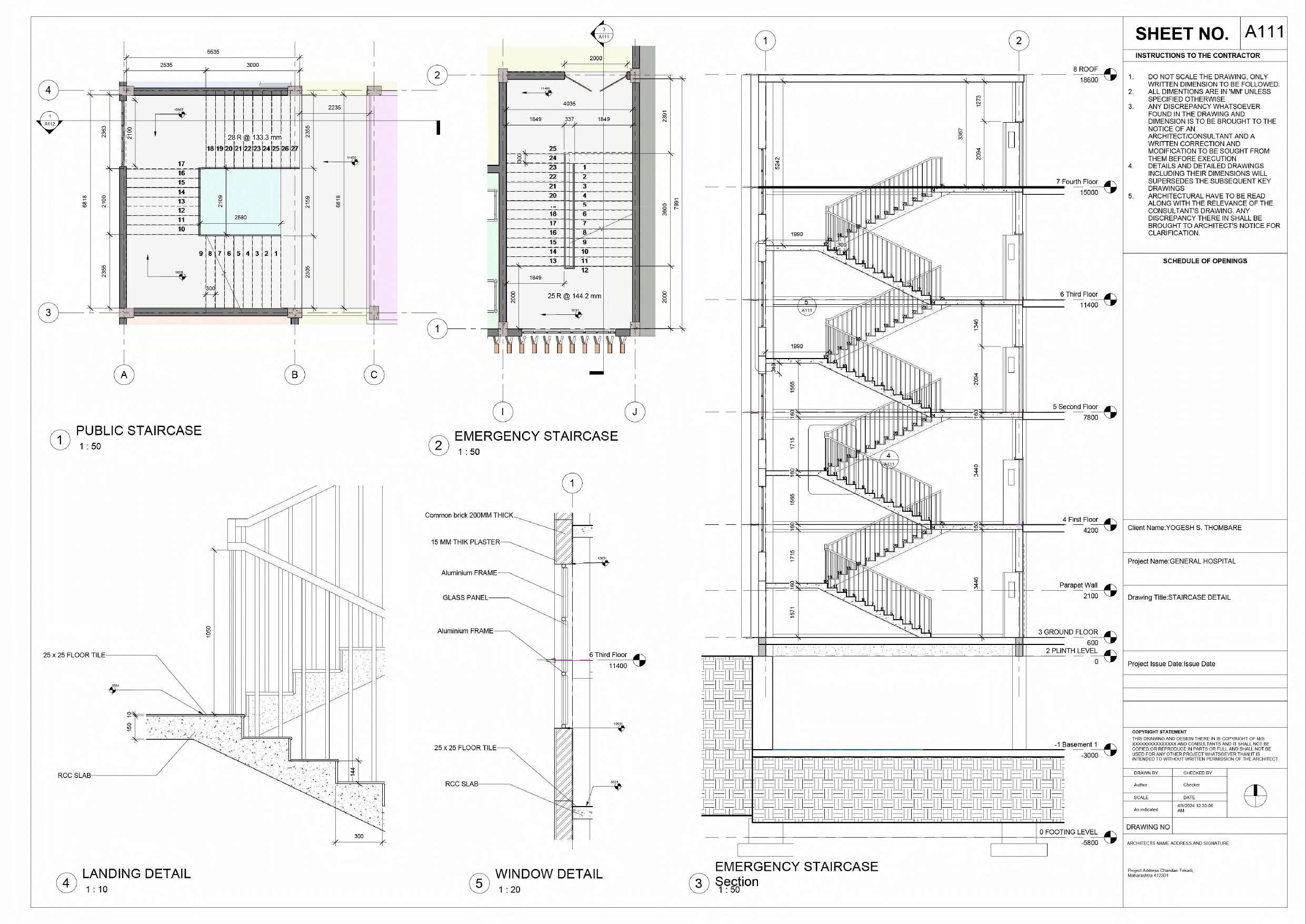

A B C D E F 1. DO NOT SCALE REV. NO A B C D E F FILLING R.C.C. SLAB R.C.C. SLAB MURUM FILLING 75 MM THK WATERPROOFING 150 MM THK R.C.C. SLAB 150 MM THK R.C.C. SLAB 150 MM THK R.C.C. SLAB 12mm MM tile drop D E F 1. DO NOT SCALE THE DRAWING, ONLY WRITTEN REV. NO MANAGER'S CABIN DIRECTORS CABIN M.S. M.S.SQUARE BALUSTRADE WELDED TO M.S.PLATE CEMENT PLASTER PLAIN CONCRETE FINISH ON SOFFIT 230 MM THK. BRICK WALL 25 MM THK. EXTERNAL PLASTER 150 150 MM THK. R.C.C. SLAB 75 MM THK. CHEMICAL WATERPROOFING DRIP MOULDS 150 MM THK. P.C.C. COPING WITH INWARD SLOPE B C D E F 1. DO NOT SCALE REV. NO A B C D E F GROUND FLOOR PLAN GROUND FLOOR PLAN CENTRE LINE AND FOUNDATION PLAN COPING DETAIL STAIRCASE DETAIL 31

NAHNI TRAP 100MM DIA A B C D E F A B C D E F WASTE WATER PIPE 75MM DIA GULLY TRAP 110MM X 110MM SOIL PIPE 100MM DIA INSPECTION CHAMBERS 600MM X 900MM 25MM THK MARBLE COUNTER-TOP KOHLER CIRCULAR OVERMOUNT WASHBASIN 300 X 300 MM CERAMIC TILES 15 MM THK. PLASTER 230 MM THK. BRICK WALL MS LID 110MM THK BRICK WALL SLOPE WWP TOWARDS INSPECTION CHAMBER 75 MM THK PCC MS LID SLOPE FROM GULLY TRAP 110 MM THK BRK WALL 75 MM THK PCC BED A' A TOILET PLAN NAHNI TRAP 100MM DIA REV. NO A B C D E F WASTE WATER PIPE 75MM DIA GULLY TRAP 110MM X 110MM SOIL PIPE 100MM DIA INSPECTION CHAMBERS 600MM X 900MM 25MM THK MARBLE COUNTER-TOP KOHLER CIRCULAR OVERMOUNT WASHBASIN 300 X 300 MM CERAMIC TILES 15 MM THK. PLASTER 230 MM THK. BRICK WALL MS LID 110MM THK BRICK WALL SLOPE WWP TOWARDS INSPECTION CHAMBER 75 MM THK PCC MS LID SLOPE FROM GULLY TRAP 110 MM THK BRK WALL 75 MM THK PCC BED A' A TOILET PLAN A B C D E F 1. DO NOT SCALE THE DRAWING, ONLY WRITTEN REV. NO A B C D E F G.L. TOILET SECTION A-A' SCALE 1:20 FEMALE TOILET MALE TOILET FEMALE TOILET MALE TOILET 32

1. DO NOT SCALE THE DRAWING, ONLY WRITTEN REV. NO CHAMBER

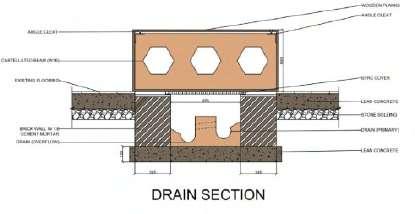

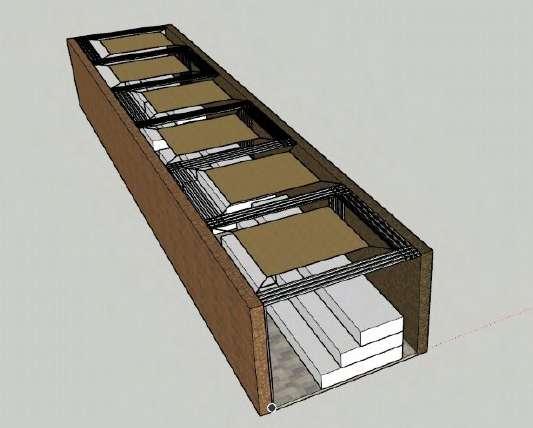

ADVANCE BUILDING CONSTRUCTION AND SERVICES 33

ABCS

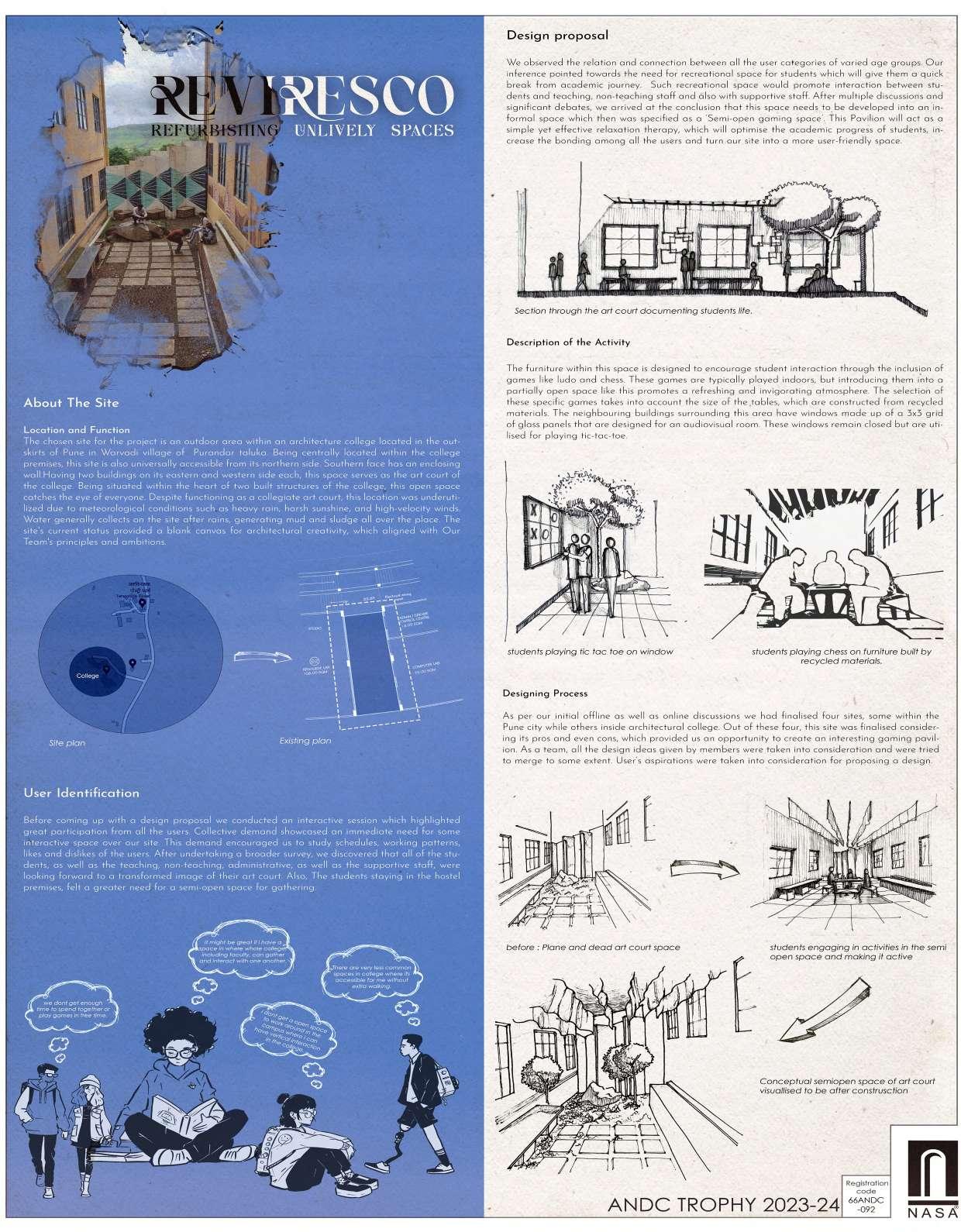

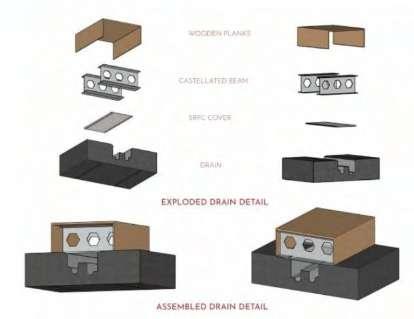

REVIRESCO KHEDSHIVAPUR, PUNE

Academic

To revolutionize architecture by integrating repurposed materials, fostering sustainability awareness for a greener future.

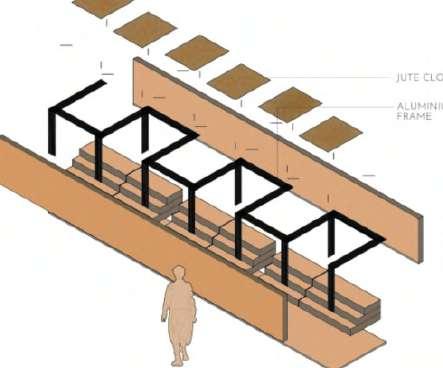

Embarking on an innovative architectural project, we aim to integrate reused materials into a revolutionary structure, emphasizing sustainability, resourcefulness, and creative design. Through a robust public awareness campaign, we aim to ignite enthusiasm in sustainable architecture, emphasizing utility, effectiveness, and aesthetic appeal. Our goal is to promote recognition for eco-friendly construction practices, fostering public involvement and responsibility towards a sustainable future.

Year -

Autocad,

VIII 2023-24

SoftwaresType

Aim

Sketchup,Photoshop Sem

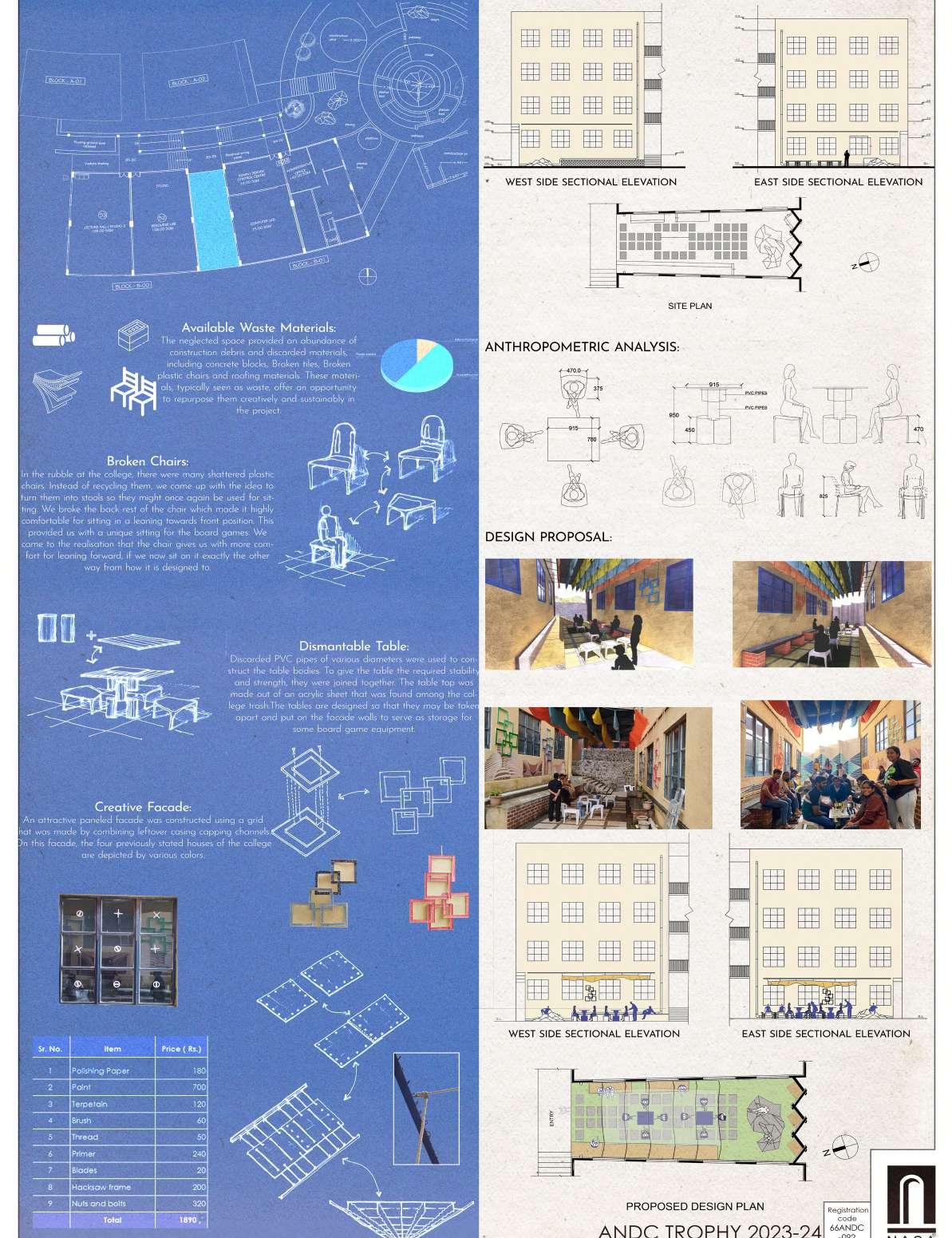

66th ANDC TROPHY 2023-24

ARCHITECTURAL COMPETITIONS

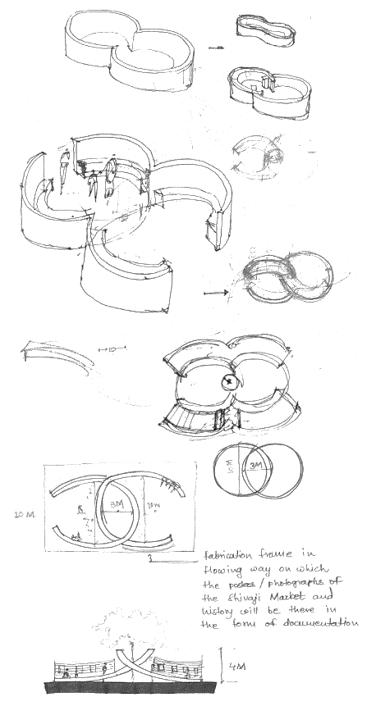

ENVISION

SHIVAJI MARKET, PUNE

Academic

Year -

Softwares -

Autocad, Sketchup,Photoshop

Revitalize urban spaces with timeless architectural interventions, bridging past, present, and future while honoring community heritage and identity.

Focusing on significant community zones, this assignment emphasizes the importance of time as a reference frame. It seeks to address places lost in time or to development, requiring tailored solutions integrated into local contexts. Recognizing the fine line between necessity and encroachment, the solution must transcend time, addressing current deficiencies while anticipating future needs. This involves identifying intervention zones, selecting appropriate materials, techniques, and knowledge systems in a holistic approach.

TypeAim -

ANDC TROPHY

Sem V 2022-23 65th

2023-24

Pune epitomizes Marathi culture, emphasizing education, art, music, and theater, while also boasting a vibrant nightlife scene. The Pune Cantonment Board (PCB), gearing up to celebrate its 200 years, houses the Headquarters, Southern Command, the country’s largest military command center. Established in 1817, the cantonment area reflects Pune’s cosmopolitan essence through impressive growth and development.

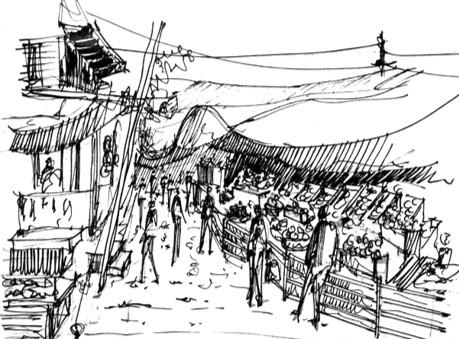

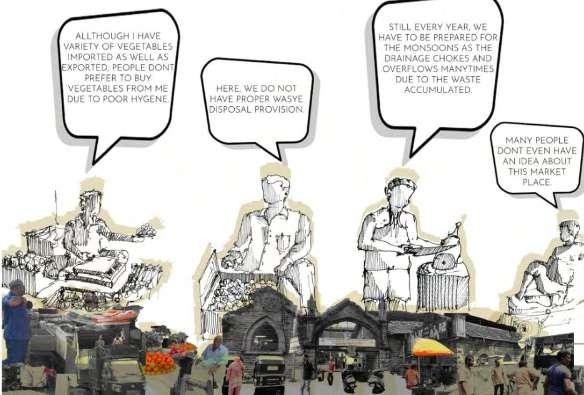

ACTIVITY MAPPING

Similar to any typical marketplace, the bustling activity at Shivaji market commences bright and early around 6:00 AM. Vendors promptly occupy their designated spots and tidy up their areas in preparation for the day’s business. Initially, there’s a flurry of activity as fruits, vegetables, and meat are unloaded and loaded onto the main street, inevitably causing some congestion. Subsequently, vendors transport their goods to their stalls and arrange them on display. Fruit vendors typically position themselves around the market’s edges, where makeshift coverings shield their wares from the elements. With no fixed stall boundaries, the number of stalls expands in tandem with the quantity of goods for sale. Regrettably, this growth encroaches upon the passage space, hindering smooth circulation.

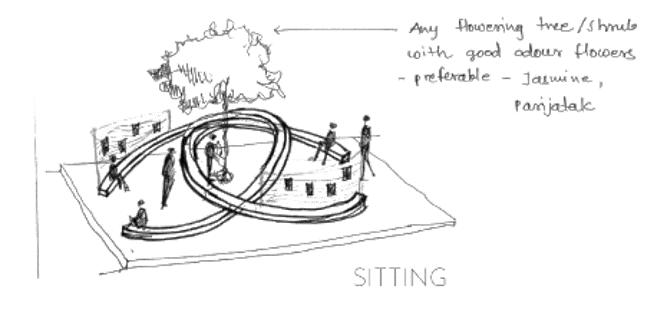

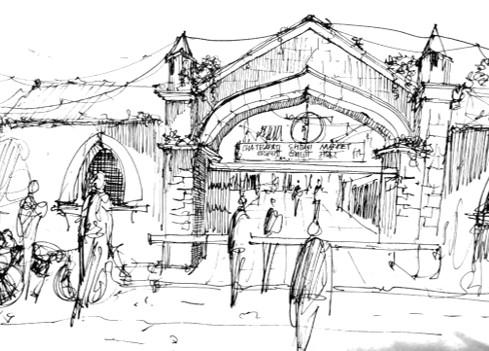

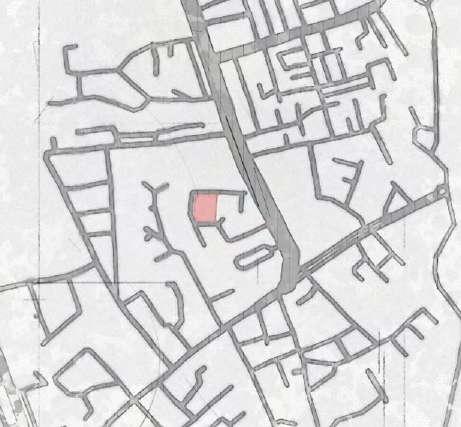

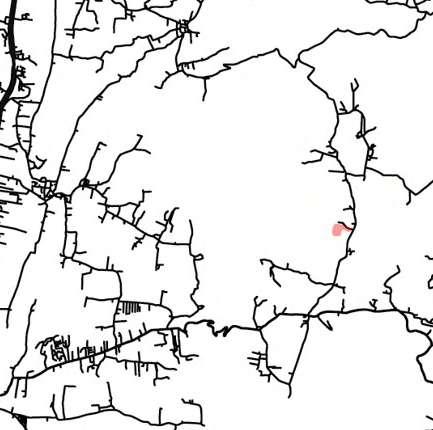

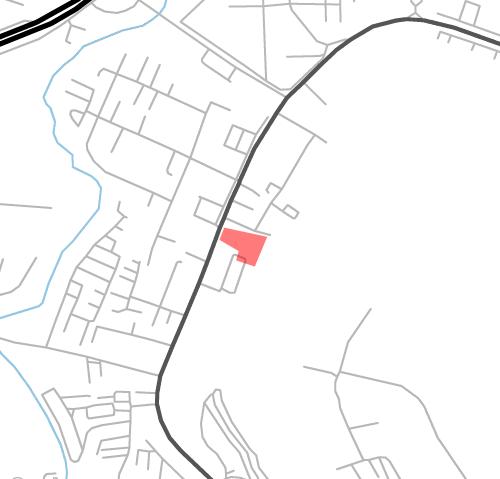

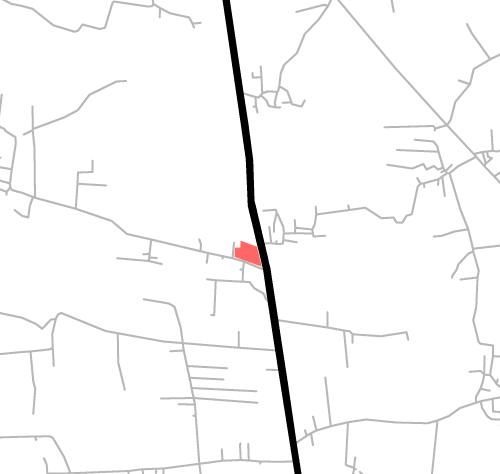

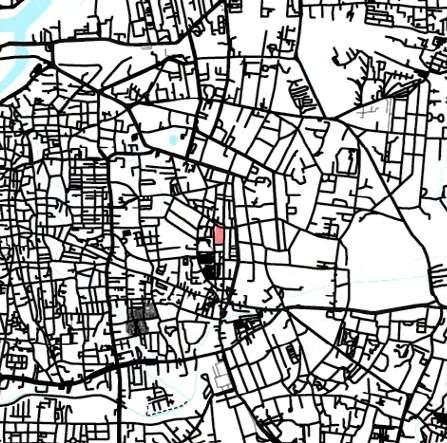

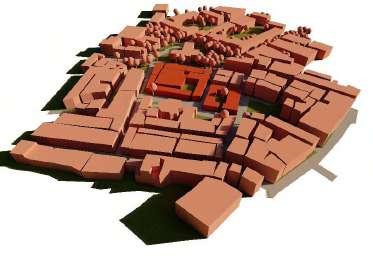

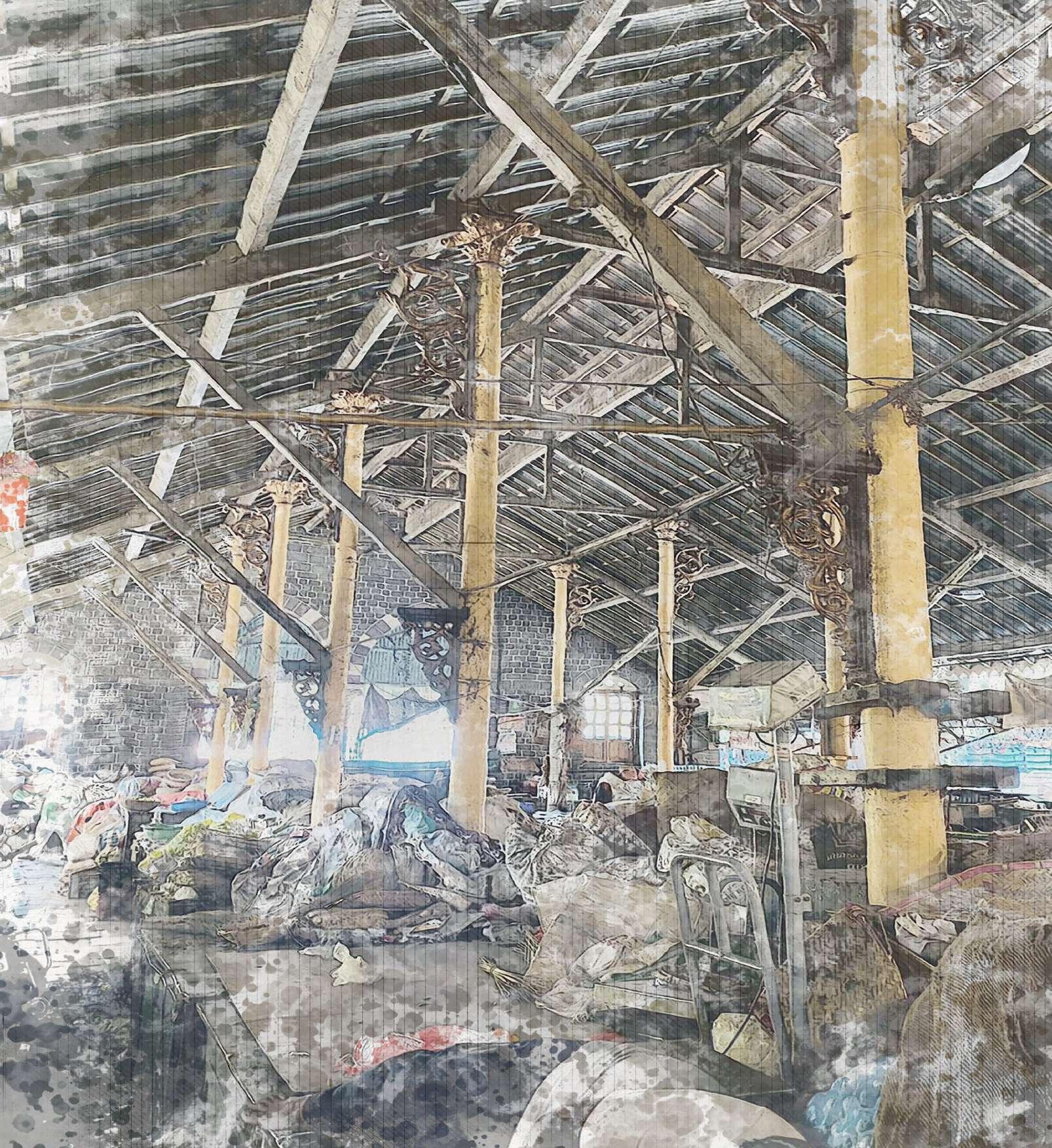

SELECTION OF SITE

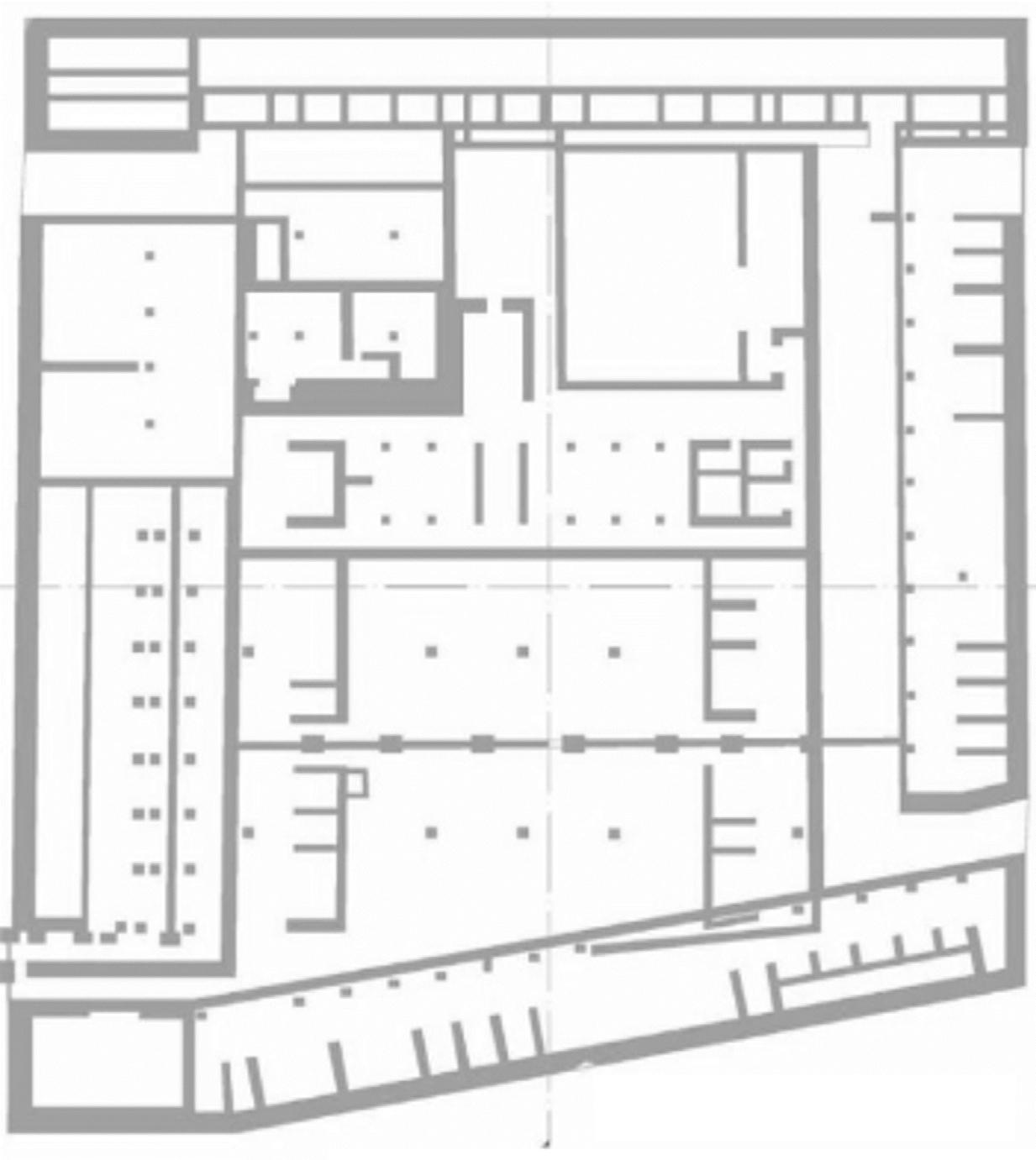

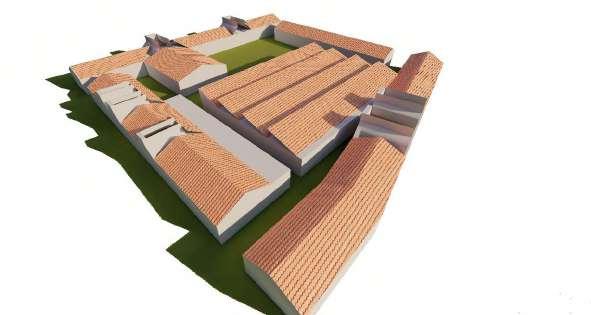

EXISTING PLAN

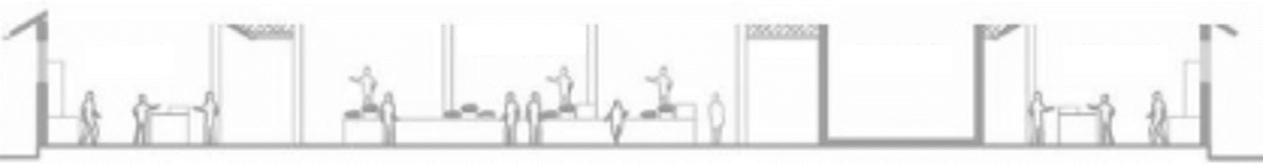

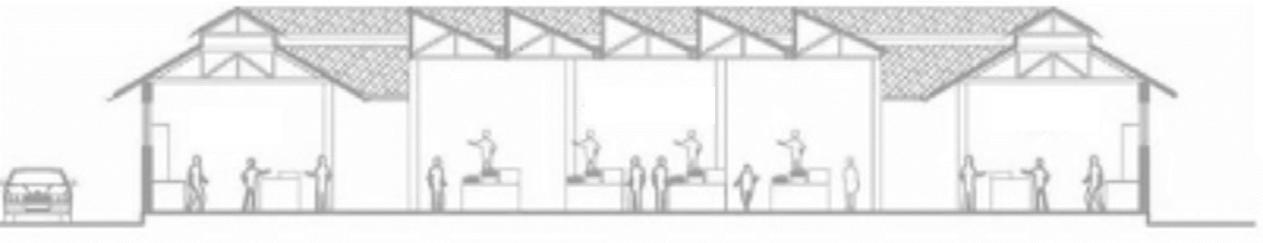

SECTION 1

SECTION 2

WORK EXPERIENCE

Architect -

Rutuja Kendurkar

Firm -

Thread 101

Project type-

Project Location -

Villa Karjat, Raigad District

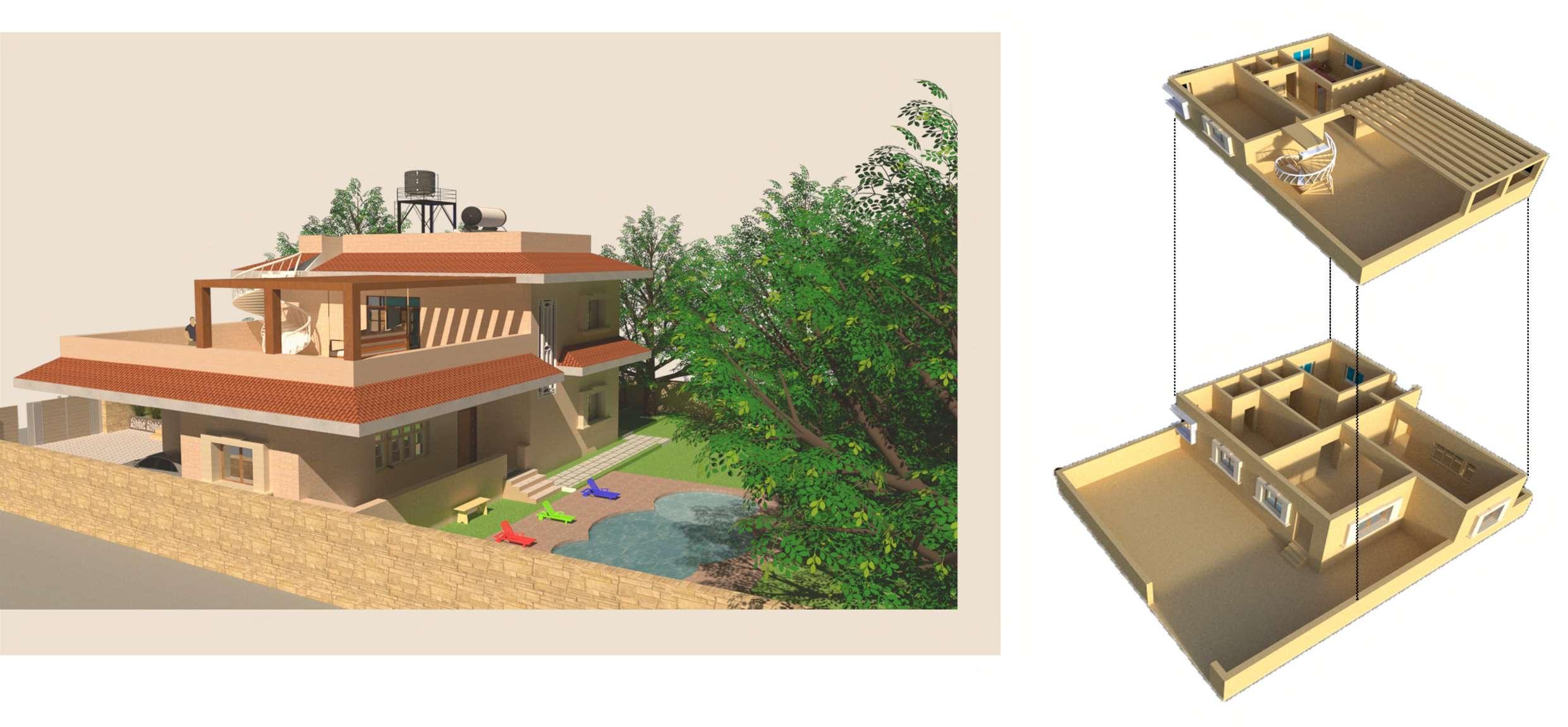

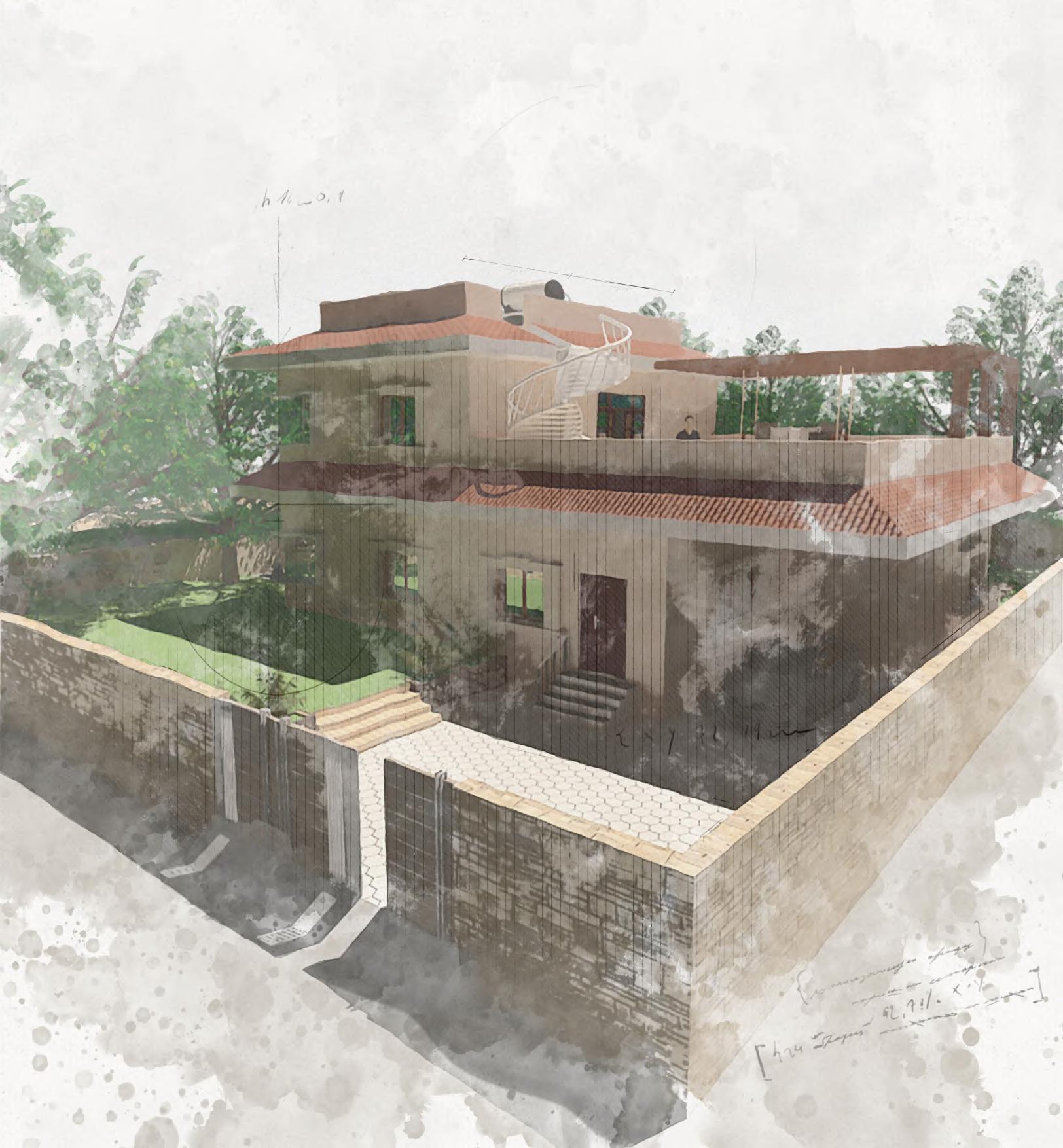

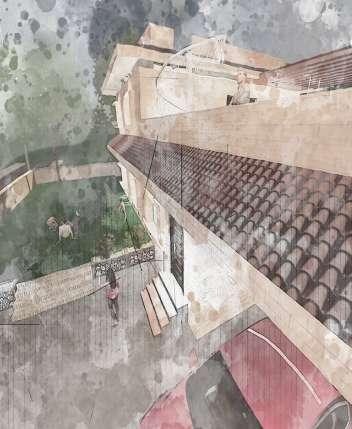

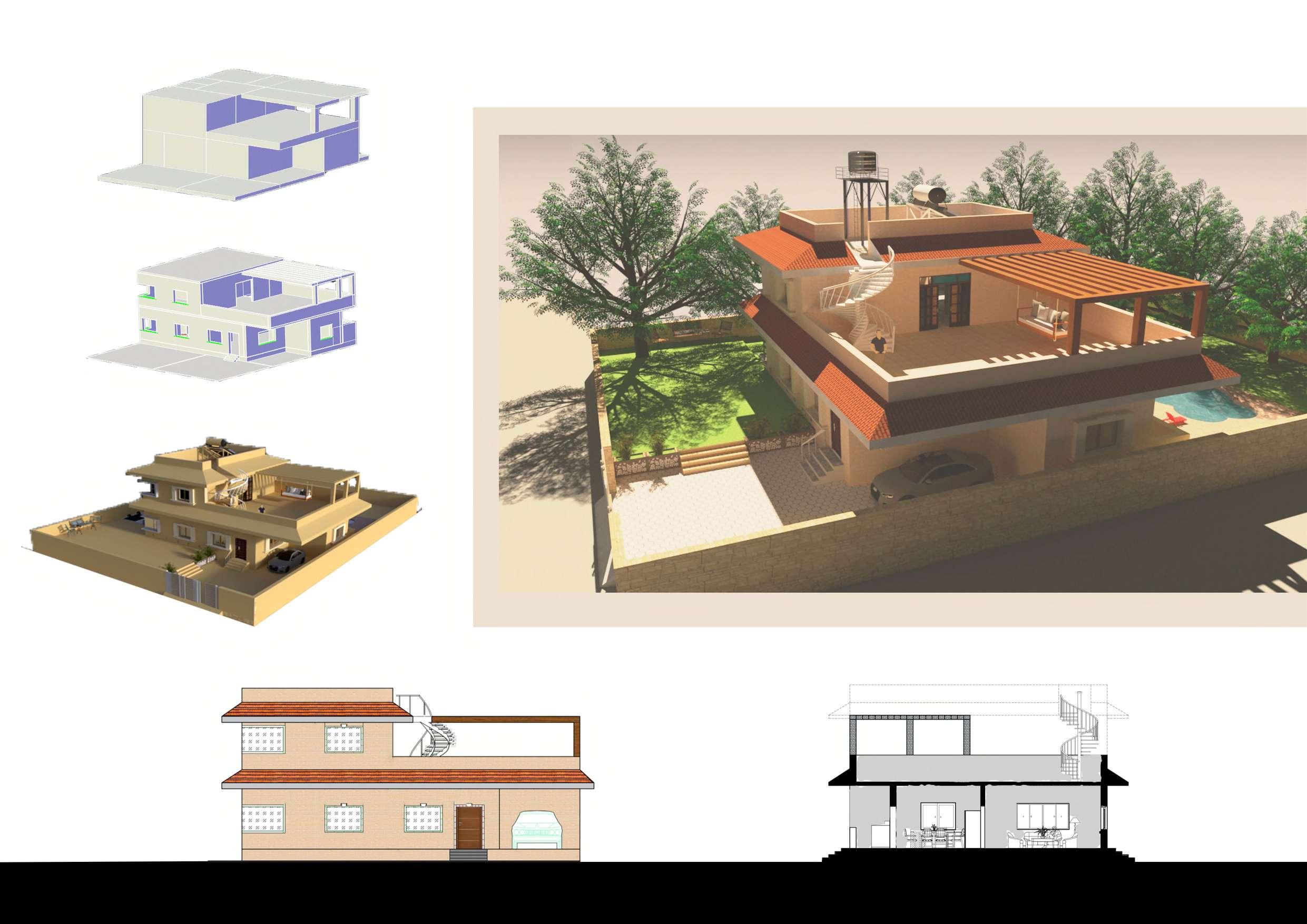

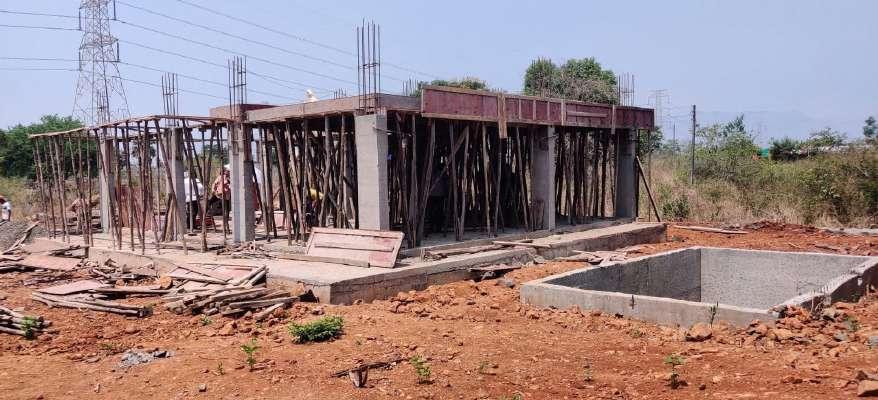

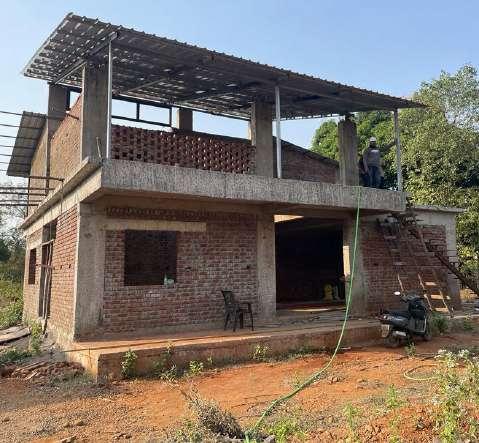

Observations of the ongoing construction process of three villas located in Karjat, with a particular emphasis on the valuable learning experience derived from employing the filler slab technique and efficiently handling double-height spaces.

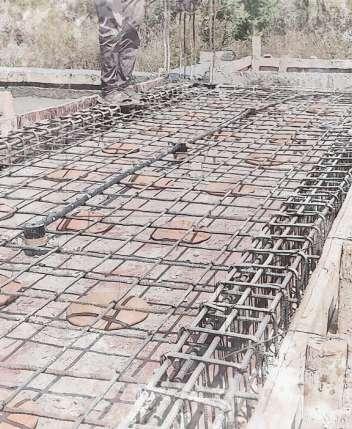

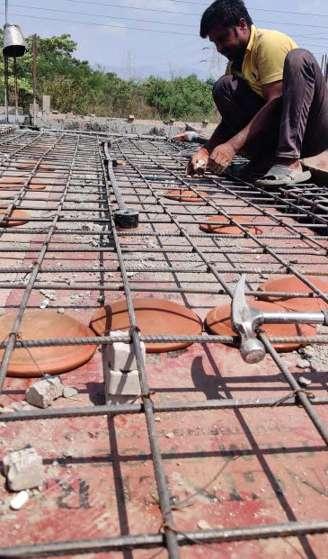

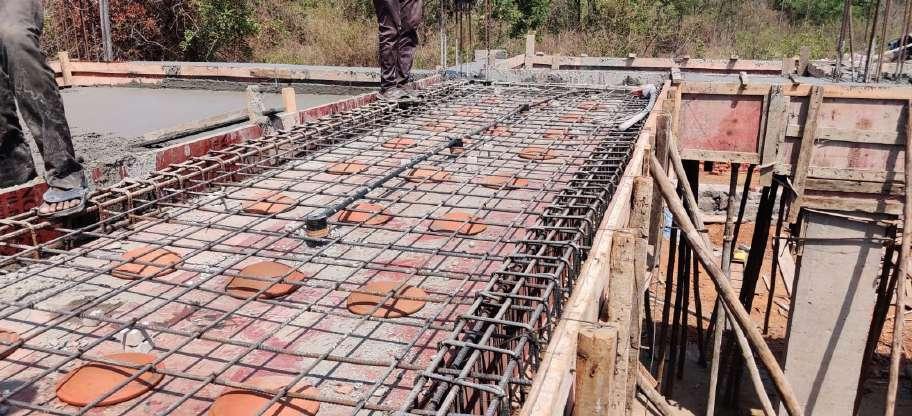

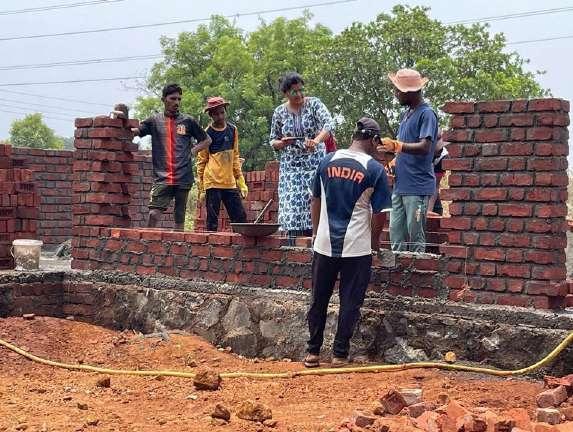

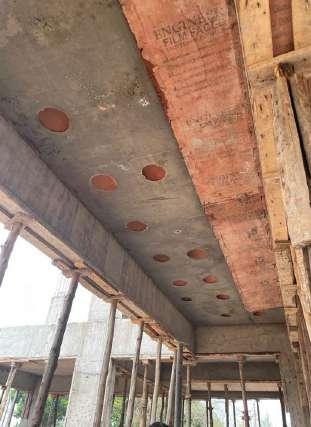

During my architectural internship, I had the invaluable opportunity to immerse myself in the practical aspects of construction techniques. One of the highlights of my internship experience was the site visit where I delved into the intricate process of making filler slabs. This visit not only broadened my understanding of sustainable construction practices but also provided hands-on experience in implementing innovative solutions within architectural design.

Over three months, we’ve made big progress, especially in carefully planning and doing detailed drawings and 3D rendering for the villas. This meant going to the site often, marking things there, and working closely with builders and workers, which was a new and enjoyable experience. Talking well and working together with the owner were also really important during this time.
