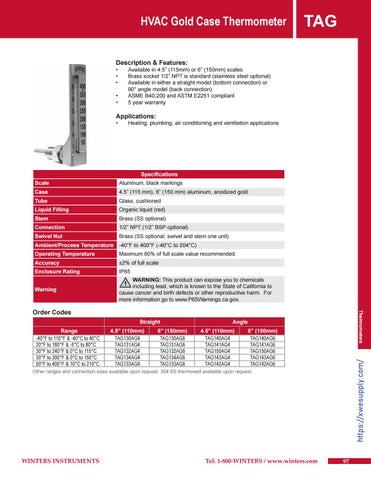

HVAC Gold Case Thermometer
TAG
Description & Features: • • • • •
Available in 4.5” (115mm) or 6” (150mm) scales Brass socket 1/2” NPT is standard (stainless steel optional) Available in either a straight model (bottom connection) or 90° angle model (back connection) ASME B40.200 and ASTM E2251 compliant 5 year warranty
Applications: •
Heating, plumbing, air conditioning and ventilation applications
Specifications Scale
Aluminum, black markings
Case
4.5” (115 mm), 6” (150 mm) aluminum, anodized gold
Tube
Glass, cushioned
Liquid Filling
Organic liquid (red)
Stem
Brass (SS optional)
Connection
1/2” NPT (1/2” BSP optional)
Swivel Nut
Brass (SS optional; swivel and stem one unit)
Ambient/Process Temperature
-40°F to 400°F (-40°C to 204°C)
Operating Temperature
Maximum 80% of full scale value recommended
Accuracy
±2% of full scale
Enclosure Rating
IP65
Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Range -40°F to 110°F & -40°C to 40°C 20°F to 180°F & -5°C to 80°C 30°F to 240°F & 0°C to 115°C 30°F to 300°F & 0°C to 150°C 50°F to 400°F & 10°C to 210°C
4.5” (110mm) TAG130AG4 TAG131AG4 TAG132AG4 TAG134AG4 TAG133AG4
6” (150mm) TAG130AG6 TAG131AG6 TAG132AG6 TAG134AG6 TAG133AG6
Angle 4.5” (110mm) TAG140AG4 TAG141AG4 TAG150AG4 TAG143AG4 TAG142AG4
6” (150mm) TAG140AG6 TAG141AG6 TAG150AG6 TAG143AG6 TAG142AG6
https://xwesupply.com/
Straight
Thermometers
Order Codes
Other ranges and connection sizes available upon request. 304 SS thermowell available upon request.
