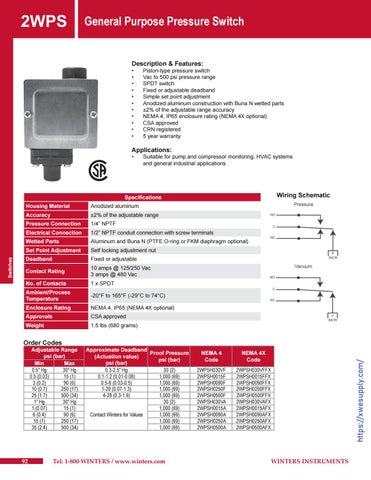

2WPS
General Purpose Pressure Switch
Description & Features: • • • • • • • • • • •
Piston-type pressure switch Vac to 500 psi pressure range SPDT switch Fixed or adjustable deadband Simple set point adjustment Anodized aluminum construction with Buna N wetted parts ±2% of the adjustable range accuracy NEMA 4, IP65 enclosure rating (NEMA 4X optional) CSA approved CRN registered 5 year warranty
Applications: •
Suitable for pump and compressor monitoring, HVAC systems and general industrial applications
Wiring Schematic
Housing Material
Anodized aluminum
Accuracy
±2% of the adjustable range
Pressure Connection
1/4” NPTF
Electrical Connection
1/2” NPTF conduit connection with screw terminals
Wetted Parts
Aluminum and Buna N (PTFE O-ring or FKM diaphragm optional)
Set Point Adjustment
Self locking adjustment nut
Deadband
Fixed or adjustable
Contact Rating
10 amps @ 125/250 Vac 3 amps @ 480 Vac
No. of Contacts
1 x SPDT
Ambient/Process Temperature
-20°F to 165°F (-29°C to 74°C)
Enclosure Rating
NEMA 4, IP65 (NEMA 4X optional)
Approvals
CSA approved
Weight
1.5 lbs (680 grams)
Order Codes Adjustable Range psi (bar) Min Max 0.5" Hg 30" Hg 0.5 (0.03) 15 (1) 3 (0.2) 90 (6) 10 (0.7) 250 (17) 25 (1.7) 500 (34) 30” Hg 1” Hg 1 (0.07) 15 (1) 6 (0.4) 90 (6) 15 (1) 250 (17) 35 (2.4) 500 (34)
92
Approximate Deadband Proof Pressure (Actuation value) psi (bar) psi (bar) 0.3-2.5" Hg 30 (2) 0.1-1.2 (0.01-0.08) 1,000 (69) 0.5-8 (0.03-0.5) 1,000 (69) 1-20 (0.07-1.3) 1,000 (69) 4-28 (0.3-1.9) 1,000 (69) 30 (2) 1,000 (69) 1,000 (69) Contact Winters for Values 1,000 (69) 1,000 (69)
Tel: 1-800-WINTERS / www.winters.com
NEMA 4 Code
NEMA 4X Code
2WPSH030VF 2WPSH0015F 2WPSH0090F 2WPSH0250F 2WPSH0500F 2WPSH030VA 2WPSH0015A 2WPSH0090A 2WPSH0250A 2WPSH0500A
2WPSH030VFFX 2WPSH0015FFX 2WPSH0090FFX 2WPSH0250FFX 2WPSH0500FFX 2WPSH030VAFX 2WPSH0015AFX 2WPSH0090AFX 2WPSH0250AFX 2WPSH0500AFX
https://xwesupply.com/
Switches
Specifications
WINTERS INSTRUMENTS
