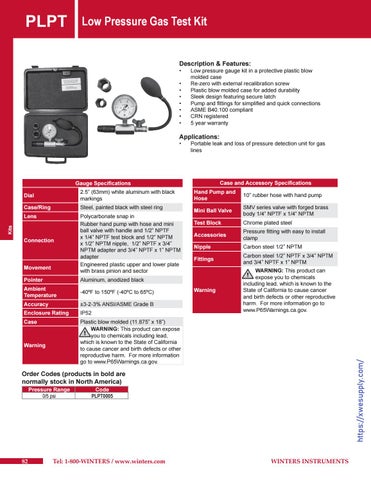

PLPT
Low Pressure Gas Test Kit
Description & Features: • • • • • • • •
Low pressure gauge kit in a protective plastic blow molded case Re-zero with external recalibration screw Plastic blow molded case for added durability Sleek design featuring secure latch Pump and fittings for simplified and quick connections ASME B40.100 compliant CRN registered 5 year warranty
Applications: Portable leak and loss of pressure detection unit for gas lines
Case and Accessory Specifications
Gauge Specifications
Case/Ring
Steel, painted black with steel ring
Lens
Polycarbonate snap in Rubber hand pump with hose and mini ball valve with handle and 1/2” NPTF x 1/4” NPTF test block and 1/2” NPTM x 1/2” NPTM nipple, 1/2” NPTF x 3/4” NPTM adapter and 3/4” NPTF x 1” NPTM adapter Engineered plastic upper and lower plate with brass pinion and sector
Kits
Dial
2.5” (63mm) white aluminum with black markings
Connection
Movement Pointer
Aluminum, anodized black
Ambient Temperature
-40ºF to 150ºF (-40ºC to 65ºC)
Accuracy
±3-2-3% ANSI/ASME Grade B
Enclosure Rating
IP52
Case
Plastic blow molded (11.875” x 18”) WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warning
Hand Pump and Hose
10” rubber hose with hand pump
Mini Ball Valve
SMV series valve with forged brass body 1/4” NPTF x 1/4” NPTM
Test Block
Chrome plated steel
Accessories
Pressure fitting with easy to install clamp
Nipple
Carbon steel 1/2” NPTM
Fittings
Carbon steel 1/2” NPTF x 3/4” NPTM and 3/4” NPTF x 1” NPTM
Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
https://xwesupply.com/
•
Order Codes (products in bold are normally stock in North America) Pressure Range 0/5 psi
82
Code PLPT0005
Tel: 1-800-WINTERS / www.winters.com
WINTERS INSTRUMENTS
