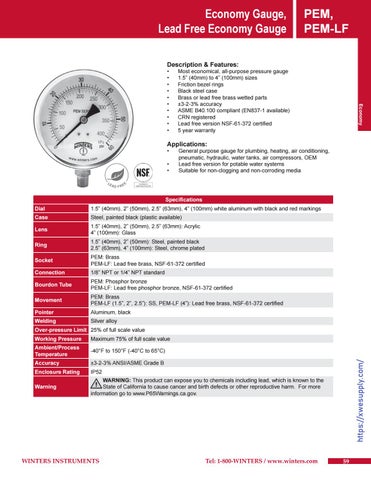

Economy Gauge, Lead Free Economy Gauge
PEM, PEM-LF
Description & Features: Most economical, all-purpose pressure gauge 1.5” (40mm) to 4” (100mm) sizes Friction bezel rings Black steel case Brass or lead free brass wetted parts ±3-2-3% accuracy ASME B40.100 compliant (EN837-1 available) CRN registered Lead free version NSF-61-372 certified 5 year warranty
Economy
• • • • • • • • • •
Applications: • • •
General purpose gauge for plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors, OEM Lead free version for potable water systems Suitable for non-clogging and non-corroding media
Specifications Dial
1.5” (40mm), 2” (50mm), 2.5” (63mm), 4” (100mm) white aluminum with black and red markings
Case
Steel, painted black (plastic available)
Lens
1.5” (40mm), 2” (50mm), 2.5” (63mm): Acrylic 4” (100mm): Glass
Ring
1.5” (40mm), 2” (50mm): Steel, painted black 2.5” (63mm), 4” (100mm): Steel, chrome plated
Socket
PEM: Brass PEM-LF: Lead free brass, NSF-61-372 certified
Connection
1/8” NPT or 1/4” NPT standard
Bourdon Tube
PEM: Phosphor bronze PEM-LF: Lead free phosphor bronze, NSF-61-372 certified
Movement
PEM: Brass PEM-LF (1.5”, 2”, 2.5”): SS, PEM-LF (4”): Lead free brass, NSF-61-372 certified
Pointer
Aluminum, black
Welding
Silver alloy
Working Pressure
Maximum 75% of full scale value
Ambient/Process Temperature
-40°F to 150°F (-40°C to 65°C)
Accuracy
±3-2-3% ANSI/ASME Grade B
Enclosure Rating
IP52
Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WINTERS INSTRUMENTS
Tel: 1-800-WINTERS / www.winters.com
https://xwesupply.com/
Over-pressure Limit 25% of full scale value
