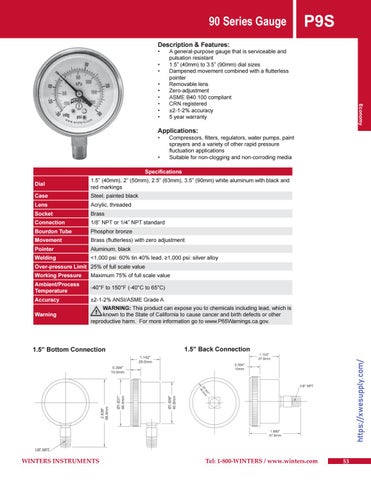

90 Series Gauge
P9S
Description & Features: • • •
Economy
• • • • • •
A general-purpose gauge that is serviceable and pulsation resistant 1.5” (40mm) to 3.5” (90mm) dial sizes Dampened movement combined with a flutterless pointer Removable lens Zero-adjustment ASME B40.100 compliant CRN registered ±2-1-2% accuracy 5 year warranty
Applications: • •
Compressors, filters, regulators, water pumps, paint sprayers and a variety of other rapid pressure fluctuation applications Suitable for non-clogging and non-corroding media
Specifications Dial
1.5” (40mm), 2” (50mm), 2.5” (63mm), 3.5” (90mm) white aluminum with black and red markings
Case
Steel, painted black
Lens
Acrylic, threaded
Socket
Brass
Connection
1/8” NPT or 1/4” NPT standard
Bourdon Tube
Phosphor bronze
Movement
Brass (flutterless) with zero adjustment
Pointer
Aluminum, black
Welding
<1,000 psi: 60% tin 40% lead, ≥1,000 psi: silver alloy
Over-pressure Limit 25% of full scale value Working Pressure
Maximum 75% of full scale value
Ambient/Process Temperature
-40°F to 150°F (-40°C to 65°C)
Accuracy
±2-1-2% ANSI/ASME Grade A
Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
1.5” Back Connection
https://xwesupply.com/
1.5” Bottom Connection
WINTERS INSTRUMENTS
Tel: 1-800-WINTERS / www.winters.com
