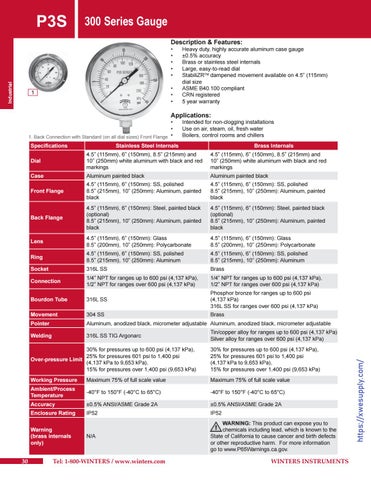

P3S
300 Series Gauge Description & Features:
Industrial
• • • • • • • •
1
Heavy duty, highly accurate aluminum case gauge ±0.5% accuracy Brass or stainless steel internals Large, easy-to-read dial StabiliZRTM dampened movement available on 4.5” (115mm) dial size ASME B40.100 compliant CRN registered 5 year warranty
Applications:
Specifications
Stainless Steel Internals
Brass Internals
Dial
4.5” (115mm), 6” (150mm), 8.5” (215mm) and 10” (250mm) white aluminum with black and red markings
4.5” (115mm), 6” (150mm), 8.5” (215mm) and 10” (250mm) white aluminum with black and red markings
Case
Aluminum painted black
Aluminum painted black
Front Flange
4.5” (115mm), 6” (150mm): SS, polished 8.5” (215mm), 10” (250mm): Aluminum, painted black
4.5” (115mm), 6” (150mm): SS, polished 8.5” (215mm), 10” (250mm): Aluminum, painted black
Back Flange
4.5” (115mm), 6” (150mm): Steel, painted black (optional) 8.5” (215mm), 10” (250mm): Aluminum, painted black
4.5” (115mm), 6” (150mm): Steel, painted black (optional) 8.5” (215mm), 10” (250mm): Aluminum, painted black
Lens
4.5” (115mm), 6” (150mm): Glass 8.5” (200mm), 10” (250mm): Polycarbonate
4.5” (115mm), 6” (150mm): Glass 8.5” (200mm), 10” (250mm): Polycarbonate
Ring
4.5” (115mm), 6” (150mm): SS, polished 8.5” (215mm), 10” (250mm): Aluminum
4.5” (115mm), 6” (150mm): SS, polished 8.5” (215mm), 10” (250mm): Aluminum
Socket
316L SS
Brass
Connection
1/4” NPT for ranges up to 600 psi (4,137 kPa), 1/2” NPT for ranges over 600 psi (4,137 kPa)
1/4” NPT for ranges up to 600 psi (4,137 kPa), 1/2” NPT for ranges over 600 psi (4,137 kPa)
Bourdon Tube
316L SS
Phosphor bronze for ranges up to 600 psi (4,137 kPa) 316L SS for ranges over 600 psi (4,137 kPa)
Movement
304 SS
Brass
Pointer
Aluminum, anodized black, micrometer adjustable Aluminum, anodized black, micrometer adjustable
Welding
316L SS TIG Argonarc
Tin/copper alloy for ranges up to 600 psi (4,137 kPa) Silver alloy for ranges over 600 psi (4,137 kPa)
30% for pressures up to 600 psi (4,137 kPa), 25% for pressures 601 psi to 1,400 psi Over-pressure Limit (4,137 kPa to 9,653 kPa), 15% for pressures over 1,400 psi (9,653 kPa)
30% for pressures up to 600 psi (4,137 kPa), 25% for pressures 601 psi to 1,400 psi (4,137 kPa to 9,653 kPa), 15% for pressures over 1,400 psi (9,653 kPa)
Working Pressure
Maximum 75% of full scale value
Maximum 75% of full scale value
Ambient/Process Temperature
-40°F to 150°F (-40°C to 65°C)
-40°F to 150°F (-40°C to 65°C)
Accuracy
±0.5% ANSI/ASME Grade 2A
±0.5% ANSI/ASME Grade 2A
Enclosure Rating
IP52
IP52
N/A
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warning (brass internals only)
30
Intended for non-clogging installations Use on air, steam, oil, fresh water Boilers, control rooms and chillers
Tel: 1-800-WINTERS / www.winters.com
WINTERS INSTRUMENTS
https://xwesupply.com/
• • • 1. Back Connection with Standard (on all dial sizes) Front Flange
