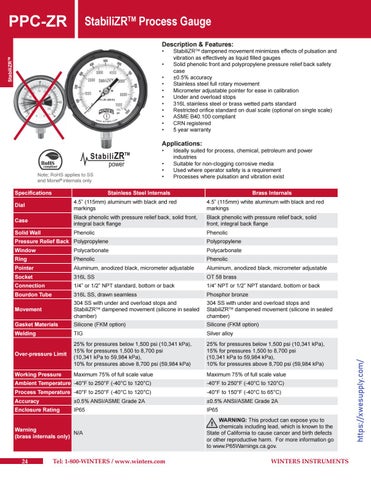

PPC-ZR
StabiliZRTM Process Gauge Description & Features:
StabiliZRTM
• • • • • • • • • • •
StabiliZRTM dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges Solid phenolic front and polypropylene pressure relief back safety case ±0.5% accuracy Stainless steel full rotary movement Micrometer adjustable pointer for ease in calibration Under and overload stops 316L stainless steel or brass wetted parts standard Restricted orifice standard on dual scale (optional on single scale) ASME B40.100 compliant CRN registered 5 year warranty
Applications: • • •
Note; RoHS applies to SS and Monel® internals only
Specifications
Ideally suited for process, chemical, petroleum and power industries Suitable for non-clogging corrosive media Used where operator safety is a requirement Processes where pulsation and vibration exist
Stainless Steel Internals
Brass Internals
Dial
4.5” (115mm) aluminum with black and red markings
4.5” (115mm) white aluminum with black and red markings
Case
Black phenolic with pressure relief back, solid front, integral back flange
Black phenolic with pressure relief back, solid front, integral back flange
Solid Wall
Phenolic
Phenolic
Pressure Relief Back Polypropylene
Polypropylene
Window
Polycarbonate
Polycarbonate
Ring
Phenolic
Phenolic
Pointer
Aluminum, anodized black, micrometer adjustable
Aluminum, anodized black, micrometer adjustable
Socket
316L SS
OT 58 brass
Connection
1/4” or 1/2” NPT standard, bottom or back
1/4” NPT or 1/2” NPT standard, bottom or back
Bourdon Tube
316L SS, drawn seamless
Phosphor bronze
Movement
304 SS with under and overload stops and StabiliZRTM dampened movement (silicone in sealed chamber)
304 SS with under and overload stops and StabiliZRTM dampened movement (silicone in sealed chamber)
Gasket Materials
Silicone (FKM option)
Silicone (FKM option)
Welding
TIG
Silver alloy
Over-pressure Limit
25% for pressures below 1,500 psi (10,341 kPa), 15% for pressures 1,500 to 8,700 psi (10,341 kPa to 59,984 kPa), 10% for pressures above 8,700 psi (59,984 kPa)
25% for pressures below 1,500 psi (10,341 kPa), 15% for pressures 1,500 to 8,700 psi (10,341 kPa to 59,984 kPa), 10% for pressures above 8,700 psi (59,984 kPa)
Working Pressure
Maximum 75% of full scale value
Maximum 75% of full scale value
Ambient Temperature -40°F to 250°F (-40°C to 120°C)
-40°F to 250°F (-40°C to 120°C)
Process Temperature -40°F to 250°F (-40°C to 120°C)
-40°F to 150°F (-40°C to 65°C)
Accuracy
±0.5% ANSI/ASME Grade 2A
±0.5% ANSI/ASME Grade 2A
Enclosure Rating
IP65
IP65
Warning N/A (brass internals only)
