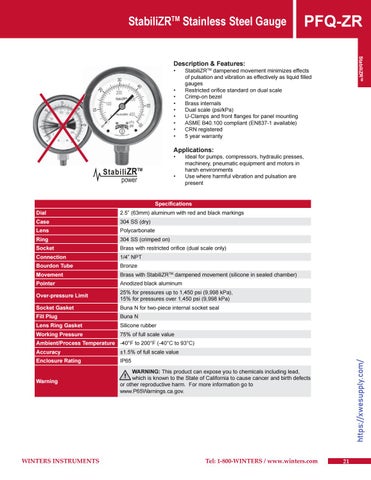

StabiliZRTM Stainless Steel Gauge
PFQ-ZR StabiliZRTM
Description & Features: • • • • • • • • •
StabiliZRTM dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges Restricted orifice standard on dual scale Crimp-on bezel Brass internals Dual scale (psi/kPa) U-Clamps and front flanges for panel mounting ASME B40.100 compliant (EN837-1 available) CRN registered 5 year warranty
Applications: • •
Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments Use where harmful vibration and pulsation are present
Specifications Dial
2.5” (63mm) aluminum with red and black markings
Case
304 SS (dry)
Lens
Polycarbonate
Ring
304 SS (crimped on)
Socket
Brass with restricted orifice (dual scale only)
Connection
1/4” NPT
Bourdon Tube
Bronze
Movement
Brass with StabiliZRTM dampened movement (silicone in sealed chamber)
Pointer
Anodized black aluminum
Over-pressure Limit
25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa)
Socket Gasket
Buna N for two-piece internal socket seal
Fill Plug
Buna N
Lens Ring Gasket
Silicone rubber
Working Pressure
75% of full scale value
Accuracy
±1.5% of full scale value
Enclosure Rating
IP65
Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WINTERS INSTRUMENTS
Tel: 1-800-WINTERS / www.winters.com
https://xwesupply.com/
Ambient/Process Temperature -40°F to 200°F (-40°C to 93°C)
