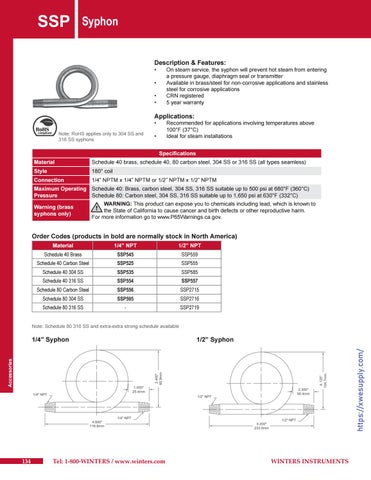

SSP
Syphon
Description & Features: •
On steam service, the syphon will prevent hot steam from entering a pressure gauge, diaphragm seal or transmitter Available in brass/steel for non-corrosive applications and stainless steel for corrosive applications CRN registered 5 year warranty
• • •
Applications: • Note: RoHS applies only to 304 SS and 316 SS syphons
Recommended for applications involving temperatures above 100°F (37°C) Ideal for steam installations
•
Specifications Material
Schedule 40 brass, schedule 40, 80 carbon steel, 304 SS or 316 SS (all types seamless)
Style
180° coil
Connection
1/4” NPTM x 1/4” NPTM or 1/2” NPTM x 1/2” NPTM
Maximum Operating Schedule 40: Brass, carbon steel, 304 SS, 316 SS suitable up to 500 psi at 680°F (360°C) Pressure Schedule 80: Carbon steel, 304 SS, 316 SS suitable up to 1,650 psi at 630°F (332°C) Warning (brass syphons only)
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Order Codes (products in bold are normally stock in North America) Material
1/4” NPT
1/2” NPT
Schedule 40 Brass
SSP545
SSP559
Schedule 40 Carbon Steel
SSP525
SSP555
Schedule 40 304 SS
SSP535
SSP585
Schedule 40 316 SS
SSP554
SSP557
Schedule 80 Carbon Steel
SSP556
SSP2715
Schedule 80 304 SS
SSP595
SSP2716
Schedule 80 316 SS
-
SSP2719
Note: Schedule 80 316 SS and extra-extra strong schedule available
1/2” Syphon
Accessories
https://xwesupply.com/
1/4” Syphon
134
