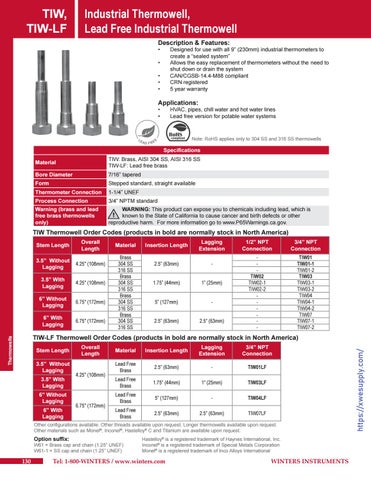

TIW, TIW-LF
Industrial Thermowell, Lead Free Industrial Thermowell Description & Features: •
Designed for use with all 9” (230mm) industrial thermometers to create a “sealed system” Allows the easy replacement of thermometers without the need to shut down or drain the system CAN/CGSB-14.4-M88 compliant CRN registered 5 year warranty
• • • •
Applications: • •
HVAC, pipes, chill water and hot water lines Lead free version for potable water systems
Note: RoHS applies only to 304 SS and 316 SS thermowells
Specifications Material
TIW: Brass, AISI 304 SS, AISI 316 SS TIW-LF: Lead free brass
Bore Diameter
7/16” tapered
Form
Stepped standard, straight available
Thermometer Connection
1-1/4” UNEF
Process Connection
3/4” NPTM standard
Warning (brass and lead free brass thermowells only)
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
TIW Thermowell Order Codes (products in bold are normally stock in North America) Stem Length
Overall Length
3.5” Without Lagging
4.25" (108mm)
3.5” With Lagging
4.25" (108mm)
6” Without Lagging
6.75" (172mm)
6” With Lagging
6.75" (172mm)
Material Brass 304 SS 316 SS Brass 304 SS 316 SS Brass 304 SS 316 SS Brass 304 SS 316 SS
Insertion Length
Lagging Extension
2.5” (63mm)
-
1.75” (44mm)
1” (25mm)
5” (127mm)
-
2.5” (63mm)
2.5” (63mm)
1/2” NPT Connection
3/4” NPT Connection
TIW02 TIW02-1 TIW02-2 -
TIW01 TIW01-1 TIW01-2 TIW03 TIW03-1 TIW03-2 TIW04 TIW04-1 TIW04-2 TIW07 TIW07-1 TIW07-2
Stem Length 3.5” Without Lagging 3.5” With Lagging 6” Without Lagging 6” With Lagging
Overall Length
4.25" (108mm)
6.75" (172mm)
Material
Insertion Length
Lagging Extension
3/4” NPT Connection
Lead Free Brass
2.5” (63mm)
-
TIW01LF
Lead Free Brass
1.75” (44mm)
1” (25mm)
TIW03LF
Lead Free Brass
5” (127mm)
-
TIW04LF
Lead Free Brass
2.5” (63mm)
2.5” (63mm)
TIW07LF
Other configurations available. Other threads available upon request. Longer thermowells available upon request. Other materials such as Monel®, Inconel®, Hastelloy® C and Titanium are available upon request.
Option suffix: W61 = Brass cap and chain (1.25“ UNEF) W61-1 = SS cap and chain (1.25” UNEF)
130
Hastelloy® is a registered trademark of Haynes International, Inc. Inconel® is a registered trademark of Special Metals Corporation Monel® is a registered trademark of Inco Alloys International
