Page 115

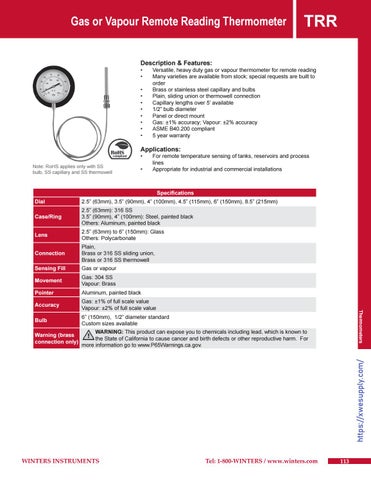

Gas or Vapour Remote Reading Thermometer

TRR

Description & Features: • • • • • • • • • •

Versatile, heavy duty gas or vapour thermometer for remote reading Many varieties are available from stock; special requests are built to order Brass or stainless steel capillary and bulbs Plain, sliding union or thermowell connection Capillary lengths over 5’ available 1/2” bulb diameter Panel or direct mount Gas: ±1% accuracy; Vapour: ±2% accuracy ASME B40.200 compliant 5 year warranty

Applications: • Note: RoHS applies only with SS bulb, SS capillary and SS thermowell

For remote temperature sensing of tanks, reservoirs and process lines Appropriate for industrial and commercial installations

Specifications

Case/Ring

2.5” (63mm): 316 SS 3.5” (90mm), 4” (100mm): Steel, painted black Others: Aluminum, painted black

Lens

2.5” (63mm) to 6” (150mm): Glass Others: Polycarbonate

Connection

Plain, Brass or 316 SS sliding union, Brass or 316 SS thermowell

Sensing Fill

Gas or vapour

Movement

Gas: 304 SS Vapour: Brass

Pointer

Aluminum, painted black

Accuracy

Gas: ±1% of full scale value Vapour: ±2% of full scale value

Bulb

6” (150mm), 1/2” diameter standard Custom sizes available

Warning (brass connection only)

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

https://xwesupply.com/

2.5” (63mm), 3.5” (90mm), 4” (100mm), 4.5” (115mm), 6” (150mm), 8.5” (215mm)

Thermometers

Dial

WINTERS INSTRUMENTS

Tel: 1-800-WINTERS / www.winters.com

113
