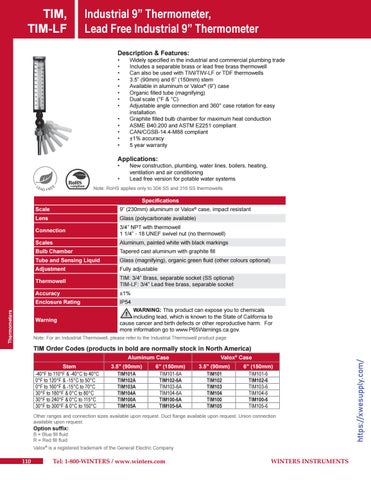

TIM, TIM-LF
Industrial 9” Thermometer, Lead Free Industrial 9” Thermometer Description & Features: • • • • • • • • • • • • •
Widely specified in the industrial and commercial plumbing trade Includes a separable brass or lead free brass thermowell Can also be used with TIW/TIW-LF or TDF thermowells 3.5” (90mm) and 6” (150mm) stem Available in aluminum or Valox® (9”) case Organic filled tube (magnifying) Dual scale (°F & °C) Adjustable angle connection and 360° case rotation for easy installation Graphite filled bulb chamber for maximum heat conduction ASME B40.200 and ASTM E2251 compliant CAN/CGSB-14.4-M88 compliant ±1% accuracy 5 year warranty
Applications: • •
New construction, plumbing, water lines, boilers, heating, ventilation and air conditioning Lead free version for potable water systems
Note: RoHS applies only to 304 SS and 316 SS thermowells
Thermometers
Specifications Scale
9” (230mm) aluminum or Valox® case, impact resistant
Lens
Glass (polycarbonate available)
Connection
3/4” NPT with thermowell 1 1/4” - 18 UNEF swivel nut (no thermowell)
Scales
Aluminum, painted white with black markings
Bulb Chamber
Tapered cast aluminum with graphite fill
Tube and Sensing Liquid
Glass (magnifying), organic green fluid (other colours optional)
Adjustment
Fully adjustable
Thermowell
TIM: 3/4” Brass, separable socket (SS optional) TIM-LF: 3/4” Lead free brass, separable socket
Accuracy
±1%
Enclosure Rating
IP54
Warning
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Note: For an Industrial Thermowell, please refer to the Industrial Thermowell product page
Aluminum Case Stem -40°F to 110°F & -40°C to 40°C 0°F to 120°F & -15°C to 50°C 0°F to 160°F & -15°C to 70°C 30°F to 180°F & 0°C to 80°C 30°F to 240°F & 0°C to 115°C 30°F to 300°F & 0°C to 150°C
3.5” (90mm) TIM101A TIM102A TIM103A TIM104A TIM100A TIM105A
6” (150mm) TIM101-6A TIM102-6A TIM103-6A TIM104-6A TIM100-6A TIM105-6A
Valox® Case 3.5” (90mm) TIM101 TIM102 TIM103 TIM104 TIM100 TIM105
6” (150mm) TIM101-6 TIM102-6 TIM103-6 TIM104-6 TIM100-6 TIM105-6
Other ranges and connection sizes available upon request. Duct flange available upon request. Union connection available upon request.
Option suffix: B = Blue fill fluid R = Red fill fluid Valox® is a registered trademark of the General Electric Company
