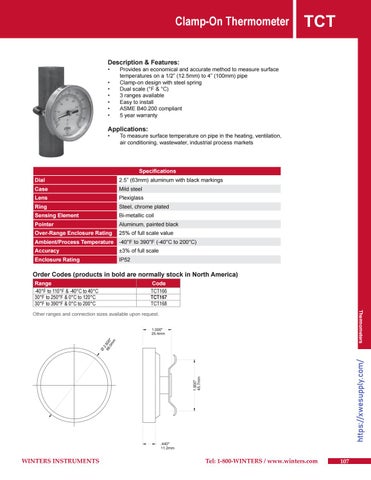

Clamp-On Thermometer
TCT
Description & Features: • • • • • • •
Provides an economical and accurate method to measure surface temperatures on a 1/2” (12.5mm) to 4” (100mm) pipe Clamp-on design with steel spring Dual scale (°F & °C) 3 ranges available Easy to install ASME B40.200 compliant 5 year warranty
Applications: •
To measure surface temperature on pipe in the heating, ventilation, air conditioning, wastewater, industrial process markets
Specifications Dial
2.5” (63mm) aluminum with black markings
Case
Mild steel
Lens
Plexiglass
Ring
Steel, chrome plated
Sensing Element
Bi-metallic coil
Pointer
Aluminum, painted black
Over-Range Enclosure Rating
25% of full scale value
Ambient/Process Temperature
-40°F to 390°F (-40°C to 200°C)
Accuracy
±3% of full scale
Enclosure Rating
IP52
Order Codes (products in bold are normally stock in North America) Range -40°F to 110°F & -40°C to 40°C 30°F to 250°F & 0°C to 120°C 30°F to 390°F & 0°C to 200°C
Code TCT166 TCT167 TCT168 Thermometers
https://xwesupply.com/
Other ranges and connection sizes available upon request.
WINTERS INSTRUMENTS
Tel: 1-800-WINTERS / www.winters.com
107
