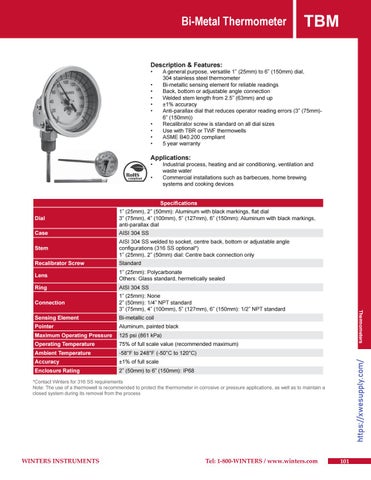

Bi-Metal Thermometer
TBM
Description & Features: •
A general purpose, versatile 1” (25mm) to 6” (150mm) dial, 304 stainless steel thermometer Bi-metallic sensing element for reliable readings Back, bottom or adjustable angle connection Welded stem length from 2.5” (63mm) and up ±1% accuracy Anti-parallax dial that reduces operator reading errors (3” (75mm)6” (150mm)) Recalibrator screw is standard on all dial sizes Use with TBR or TWF thermowells ASME B40.200 compliant 5 year warranty
• • • • • • • • •
Applications: •
Industrial process, heating and air conditioning, ventilation and waste water Commercial installations such as barbecues, home brewing systems and cooking devices
•
Specifications
Case
AISI 304 SS
Stem
AISI 304 SS welded to socket, centre back, bottom or adjustable angle configurations (316 SS optional*) 1” (25mm), 2” (50mm) dial: Centre back connection only
Recalibrator Screw
Standard
Lens
1” (25mm): Polycarbonate Others: Glass standard, hermetically sealed
Ring
AISI 304 SS
Connection
1” (25mm): None 2” (50mm): 1/4” NPT standard 3” (75mm), 4” (100mm), 5” (127mm), 6” (150mm): 1/2” NPT standard
Sensing Element
Bi-metallic coil
Pointer
Aluminum, painted black
Maximum Operating Pressure
125 psi (861 kPa)
Operating Temperature
75% of full scale value (recommended maximum)
Ambient Temperature
-58°F to 248°F (-50°C to 120°C)
Accuracy
±1% of full scale
Enclosure Rating
2” (50mm) to 6” (150mm): IP68
https://xwesupply.com/
1” (25mm), 2” (50mm): Aluminum with black markings, flat dial 3” (75mm), 4” (100mm), 5” (127mm), 6” (150mm): Aluminum with black markings, anti-parallax dial
Thermometers
Dial
*Contact Winters for 316 SS requirements Note: The use of a thermowell is recommended to protect the thermometer in corrosive or pressure applications, as well as to maintain a closed system during its removal from the process
WINTERS INSTRUMENTS
Tel: 1-800-WINTERS / www.winters.com
101
