WELCOME TO PHYSICAL FLOORING

WE ENHANCE SPACES WHERE BODIES ARE IN MOTION. WORLD RENOWNED, TRUSTED PRODUCTS.

EXCELLENT-RATED CUSTOMER SERVICE.

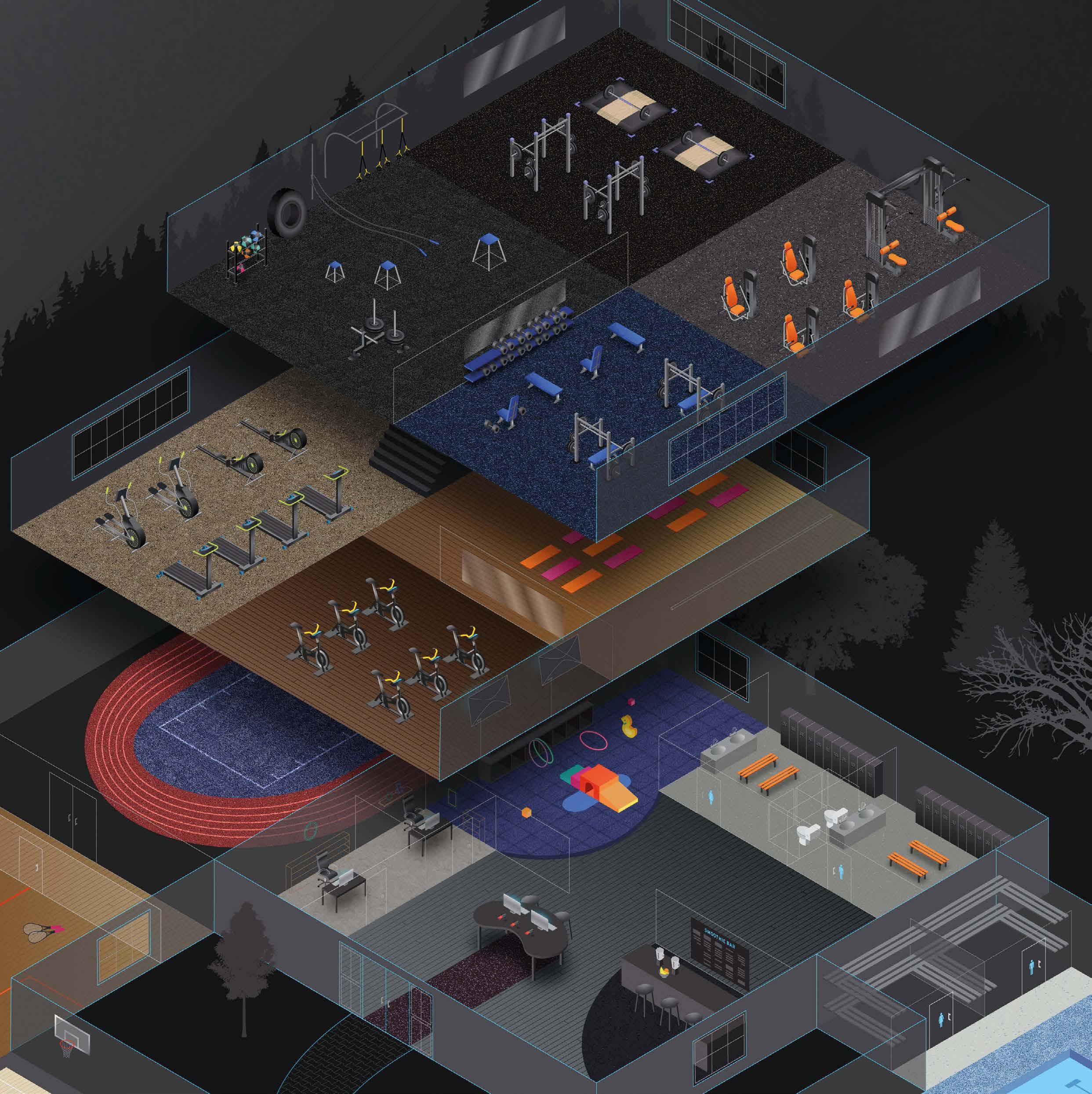

AREAS OF USAGE

OLYMPIC LIFTING

SELECTORISED STRENGTH

FUNCTIONAL TRAINING

FREE WEIGHTS

GROUP DANCE / YOGA

CARDIO

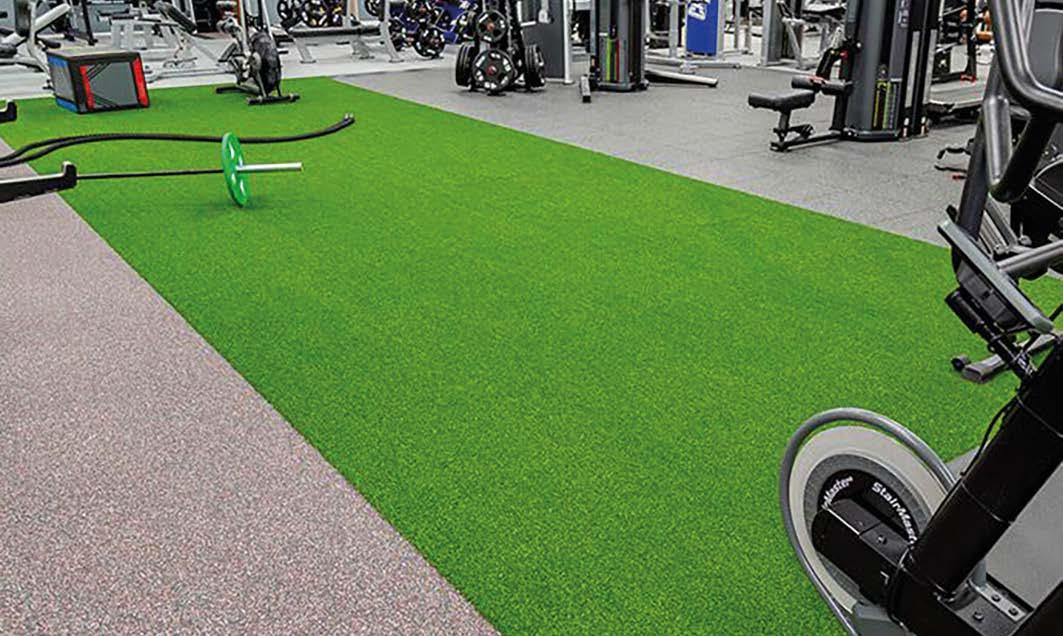

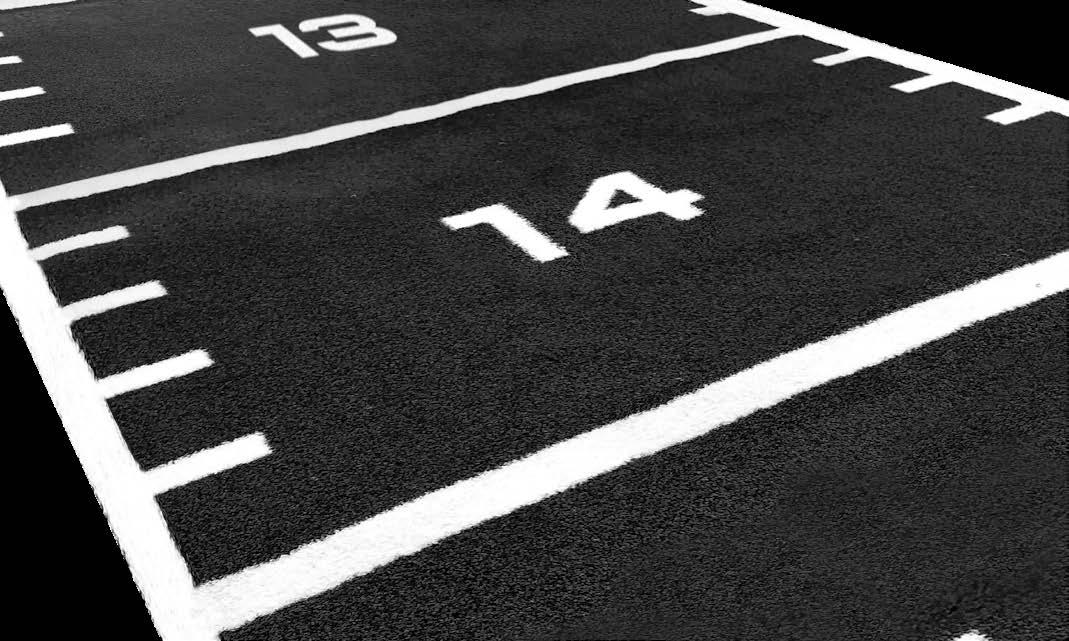

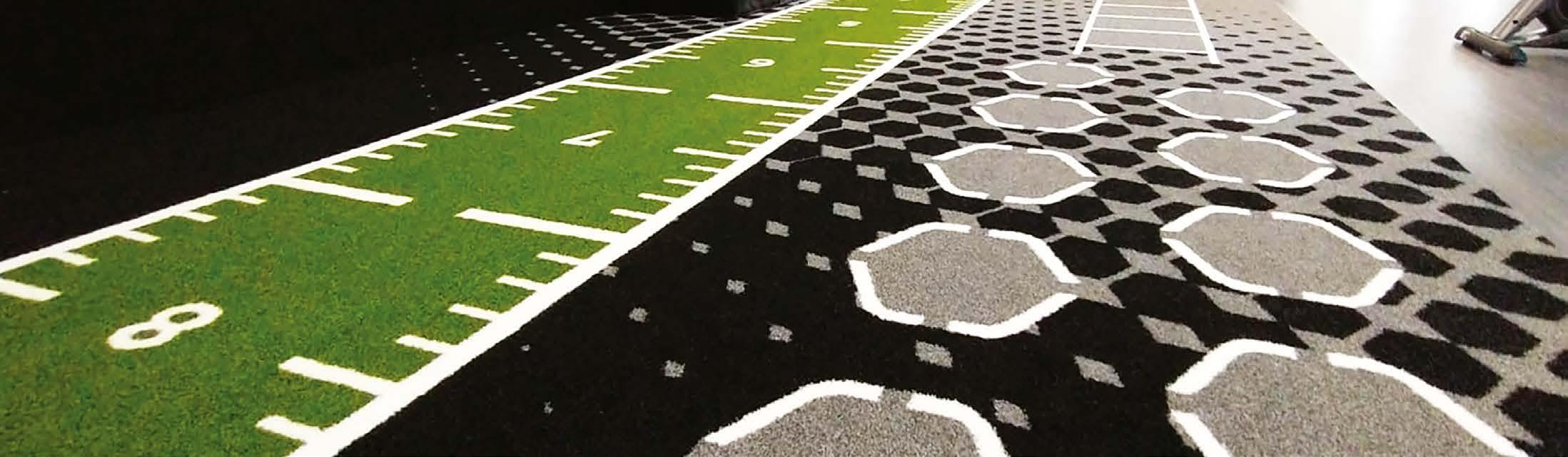

TURF TRACKS

SPIN / REFORMER STUDIO

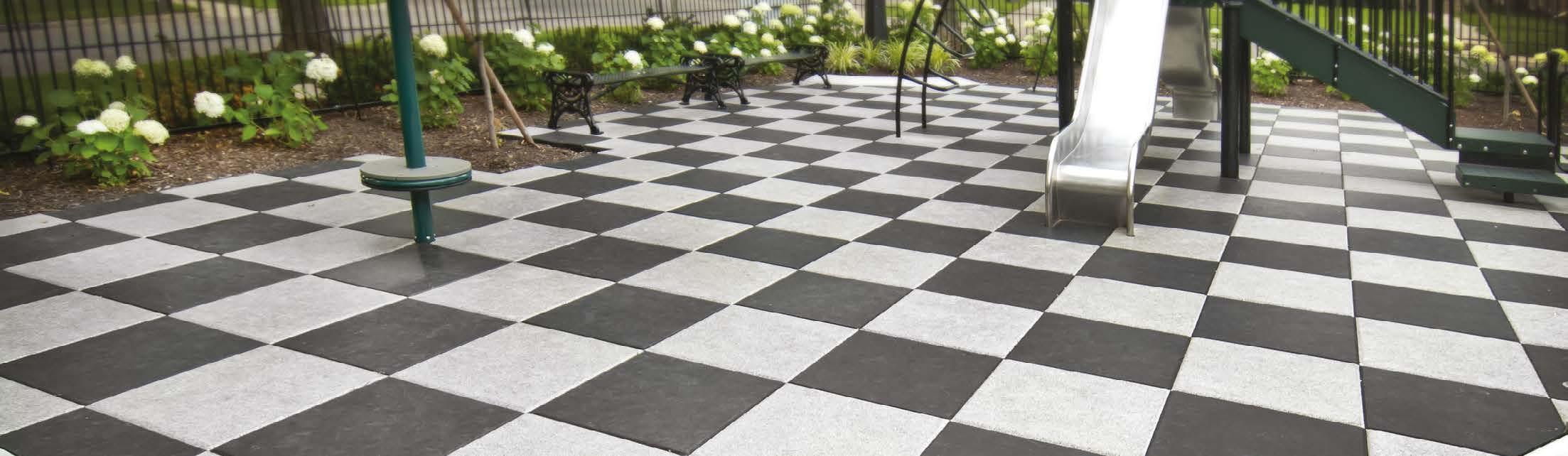

PLAYZONES

CHANGING ROOMS

OFFICES

RETAIL & HOSPITALITY

ENTRANCES & WALKWAYS

SUSTAINABILITY

IMPACT & ACOUSTICS

ENVIRONMENTALLY PREFERABLE PRODUCTS

The products we supply are not just sustainable for the environment, but also for the health and well-being of all those that come in contact with them.

From harvesting the benefits of wood without harming trees to repurposing rubber into high-performance athletic flooring, creating surfaces that provide exceptional safety, ergonomics, and acoustic benefits.

Through energy-efficient processes and technology, using minimal water, little to no heat, no smokestacks, and reusing the scrap, bringing flooring surfaces full circle when it comes to upcycling. All of this results in a cleaner, high-quality reclaimed rubber flooring surface that’s virtually free from off-gassing and odours.

Upcycling is the process of taking a material at the end of its life and converting it into something better instead of throwing it away. A tyre’s main functions are to support a vehicle’s weight, provide traction, and absorb shock. When we transform tyres into surfacing, we are able to harness those attributes and elevate them so that our surfaces provide MORE. More safety, more ergonomics, and more acoustics for the people interacting with our surfaces every day.

MANAGING IMPACT ENERGY REDUCES NOISE

A falling object, like a foot or weight, has energy. When the object hits the floor, that kinetic energy gets distributed to many places: back to the object (bounce), into the room (impact sound), to the room below (impact sound), to the floor (heat). Our surfaces are all about managing where that energy goes. As it relates to acoustics, our flooring helps manage the impact sound in the room where the object hits and in adjacent rooms, including the rooms below.

Specially engineered surfaces can significantly reduce noise caused by impacts—anything from children jumping on a floor above to a dropped dumbbell.

The range of products we supply provide solutions that significantly reduce transmitted impact noise while also providing the safety and ergonomic performance necessary for a wide range of uses.

ECORE ATHLETIC ATHLETIC

SURFACES DESIGNED TO GO THE DISTANCE

Ecore Athletic’s high-performance rubber flooring fits into a variety of spaces—from weight rooms and tracks to courts and recovery areas.

Engineered for fitness, sports, play, and recovery, our surfaces are durable, safe, and visually adaptable to any design. No matter the application, you’ll find flooring solutions that meet your needs and elevate every environment.

Ecore’s state-of-the-art equipment produces the cleanest, most consistent, and highest quality rubber materials available in the market. Our sustainable surfaces are the right combination of safety, durability, ergonomic and acoustic performance athletes need to achieve greatness.

Ecore’s itsTRU® Technology is a patented process that allows them to create custom combinations of VCR—the “muscle” that keeps bodies in motion—and the surface layer that matches your aesthetic and athletic goals.

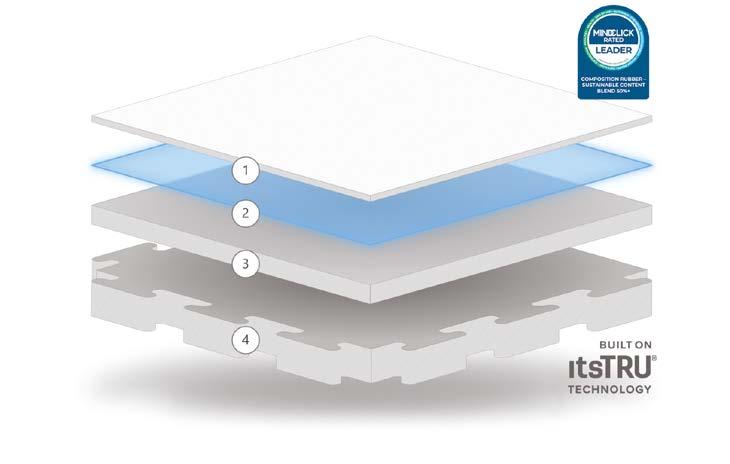

ITSTRU® TECHNOLOGY

THE FUSION OF DESIGN AND PERFORMANCE.

itsTRU® Technology is the process of taking Vulcanised Composition Rubber (VCR) and fusion bonding it to a variety of other surface materials with heat and pressure. This process creates an NRG Factor, where the base layer or “muscle” works to absorb force while giving energy back to the body. itsTRU® Technology provides countless design aesthetics, with the performance and durability athletes need.

ITSTRU® TECHNOLOGY

CREATING THE MUSCLE

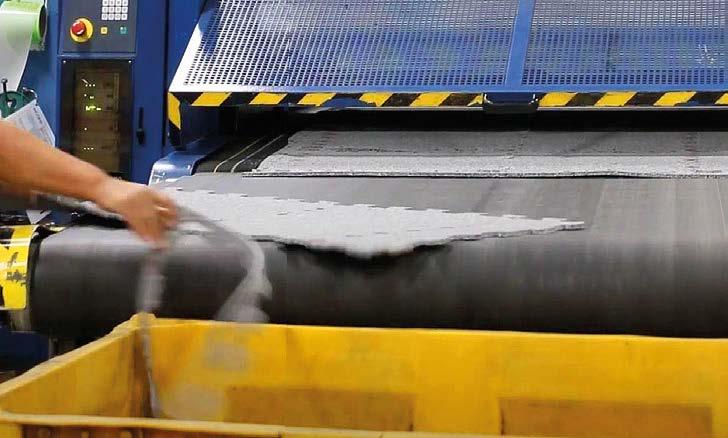

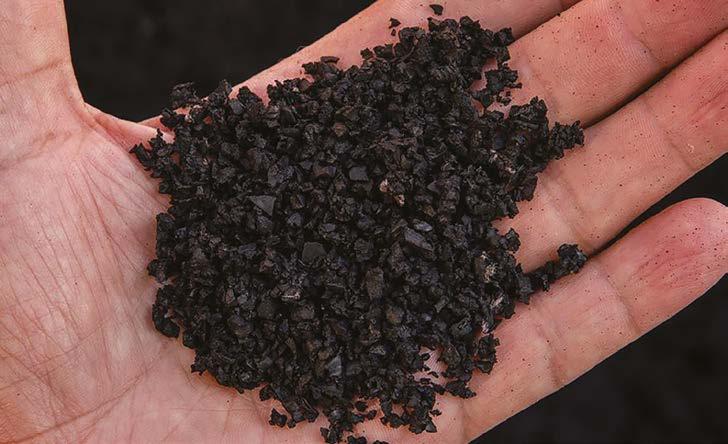

Material is collected, sorted, and ground into pellets or small particles for uniformity, then screened to remove contaminants from commercial tyre rubber. It’s blended precisely with binders to surpass customer specifications. Finally, pressure is applied, creating our VCR “muscle”.

UTILISING ITSTRU® TECHNOLOGY

Utilising our patented itsTRU® Technology, our VCR “muscle” is then factory fusion bonded to another surface layer material by way of heat and pressure creating the ideal performance flooring solution.

ENDLESS DESIGN AND PERFORMANCE

With itsTRU® Technology, we’ve unlocked the capability to combine our “muscle” to an expanding array of surfaces, creating turf products, vinyl creations, and whatever the next big flooring trend may be. itsTRU® Technology ensures that our products remain at the forefront of innovation, catering to evolving market demands and pioneering new standards in performance flooring.

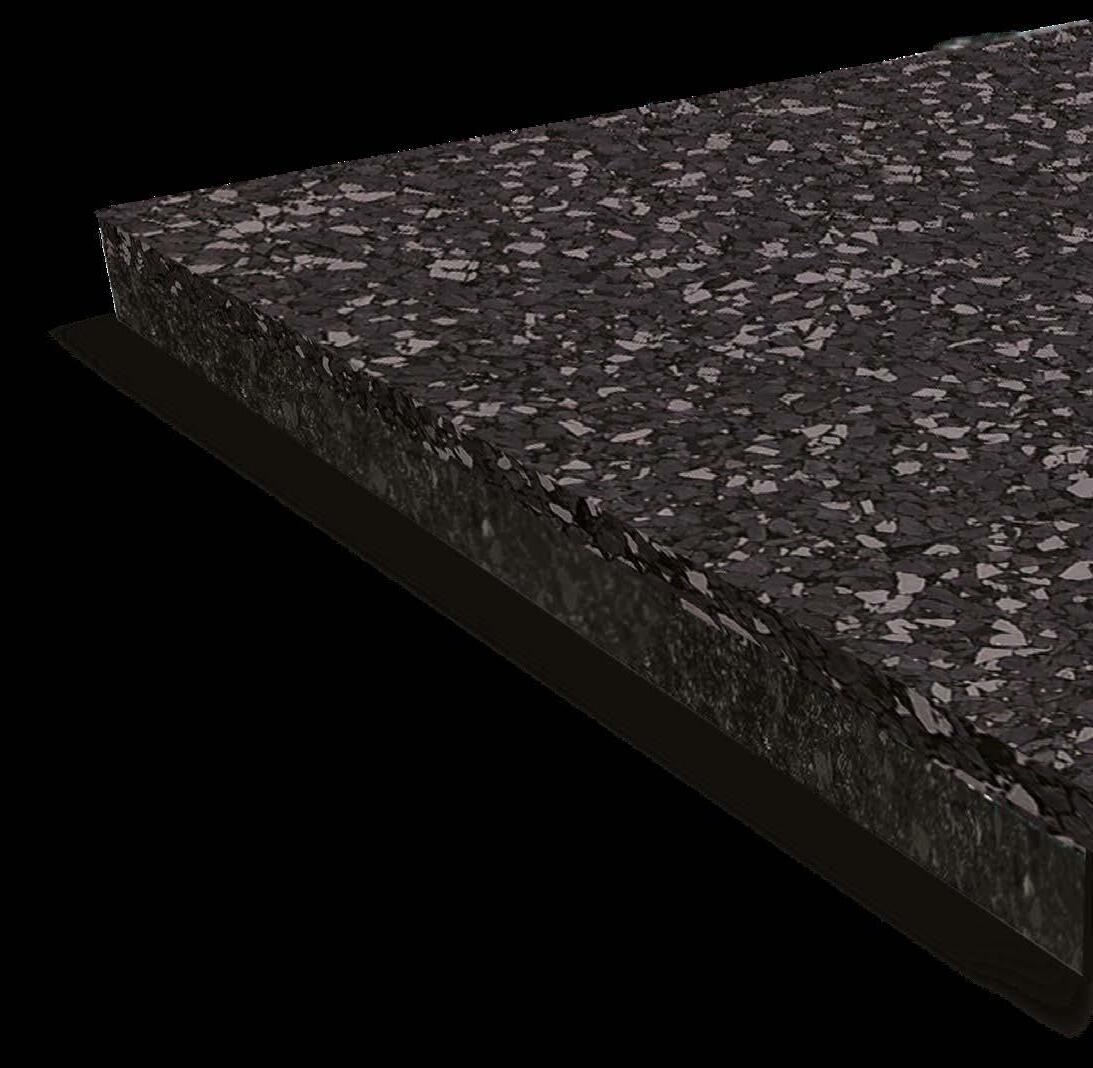

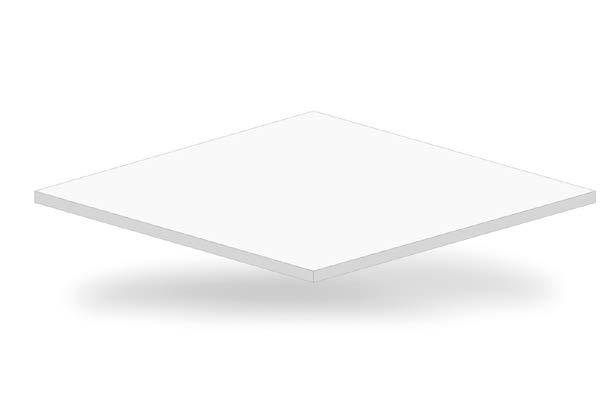

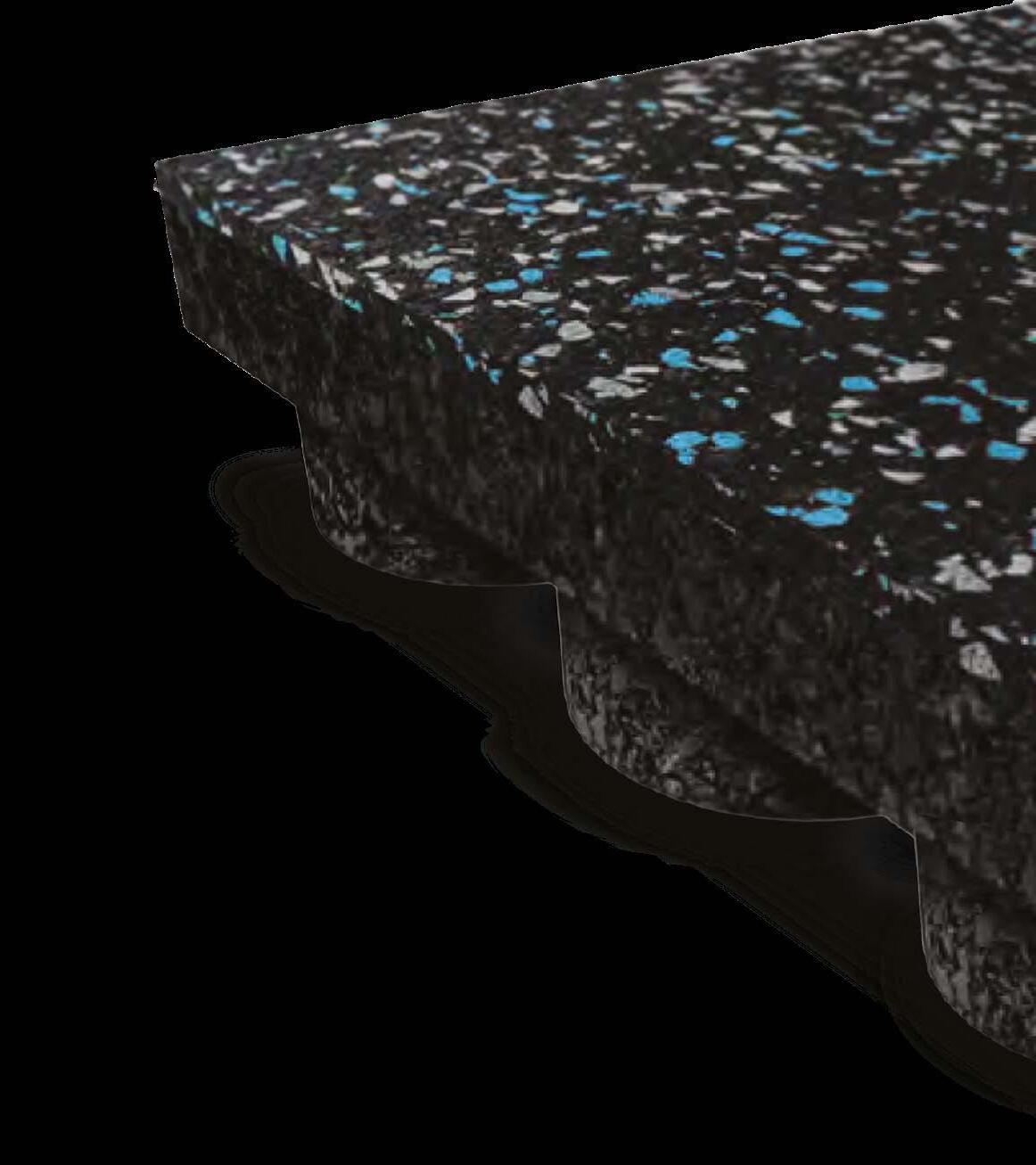

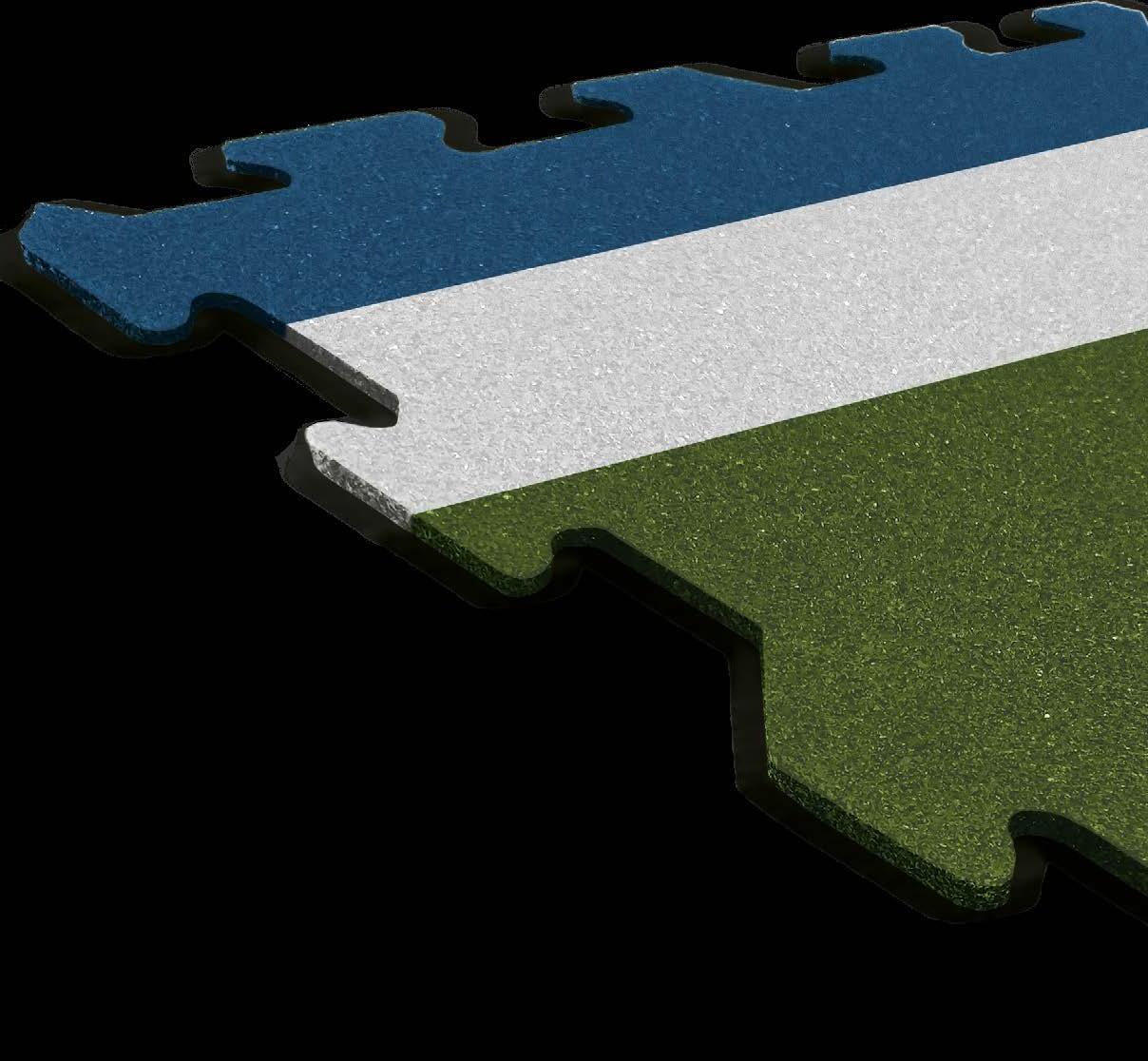

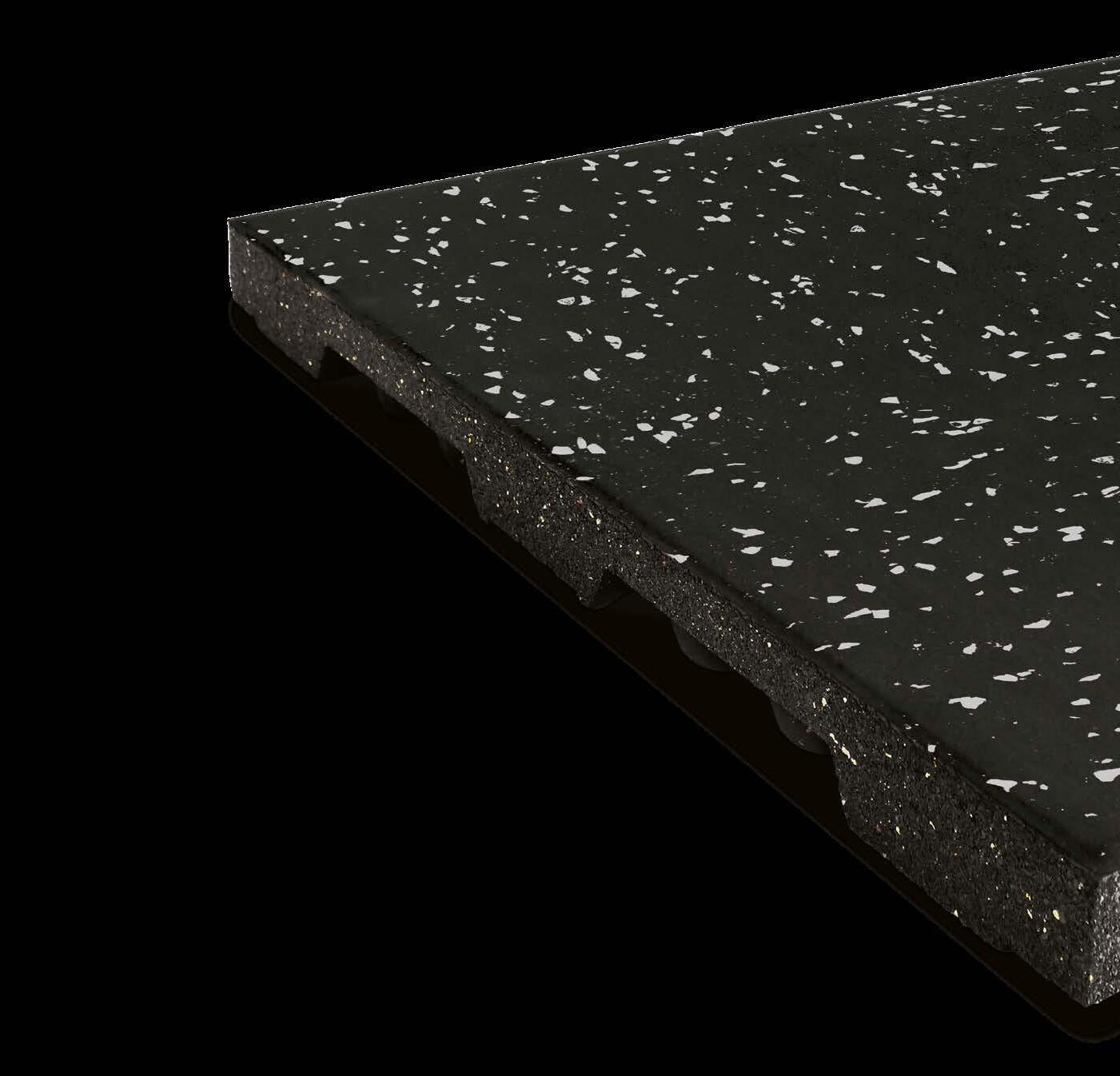

PERFORMANCE ULTRATILE

This premium composition rubber flooring provides unrivaled comfort, safety, and noise control.

• Sound and shock absorbent

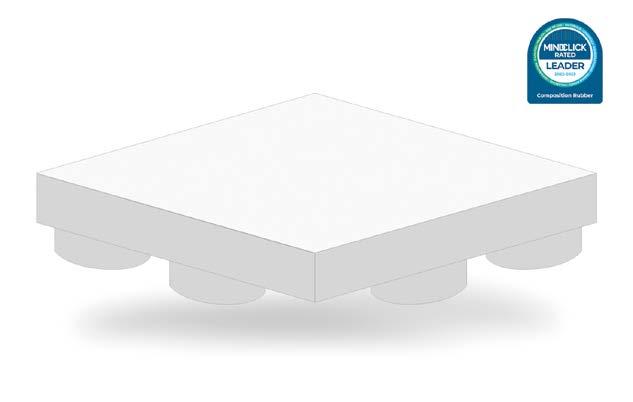

• Easy installation with Quad Blok installation system

• Slip–resistant, wet or dry

• Extremely durable

• Custom colour and logo options

Dimensions –

L 610mm x W 610mm x H 25mm (Tile)

L 1220mm x W 102mm x H 25mm (Reducer)

Installation available

Warranty – 5 years

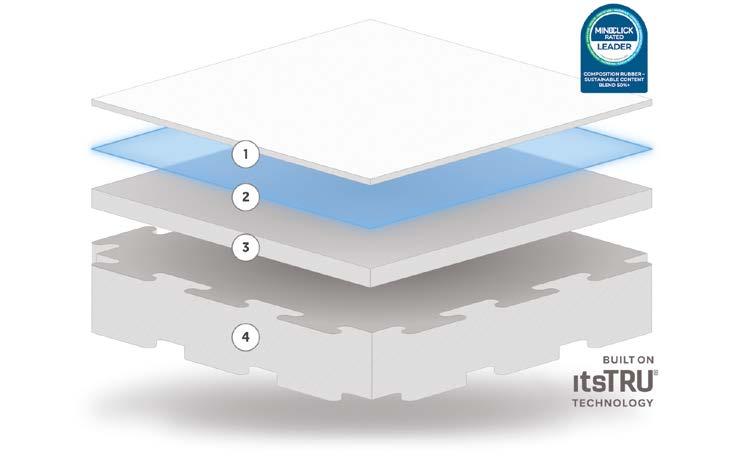

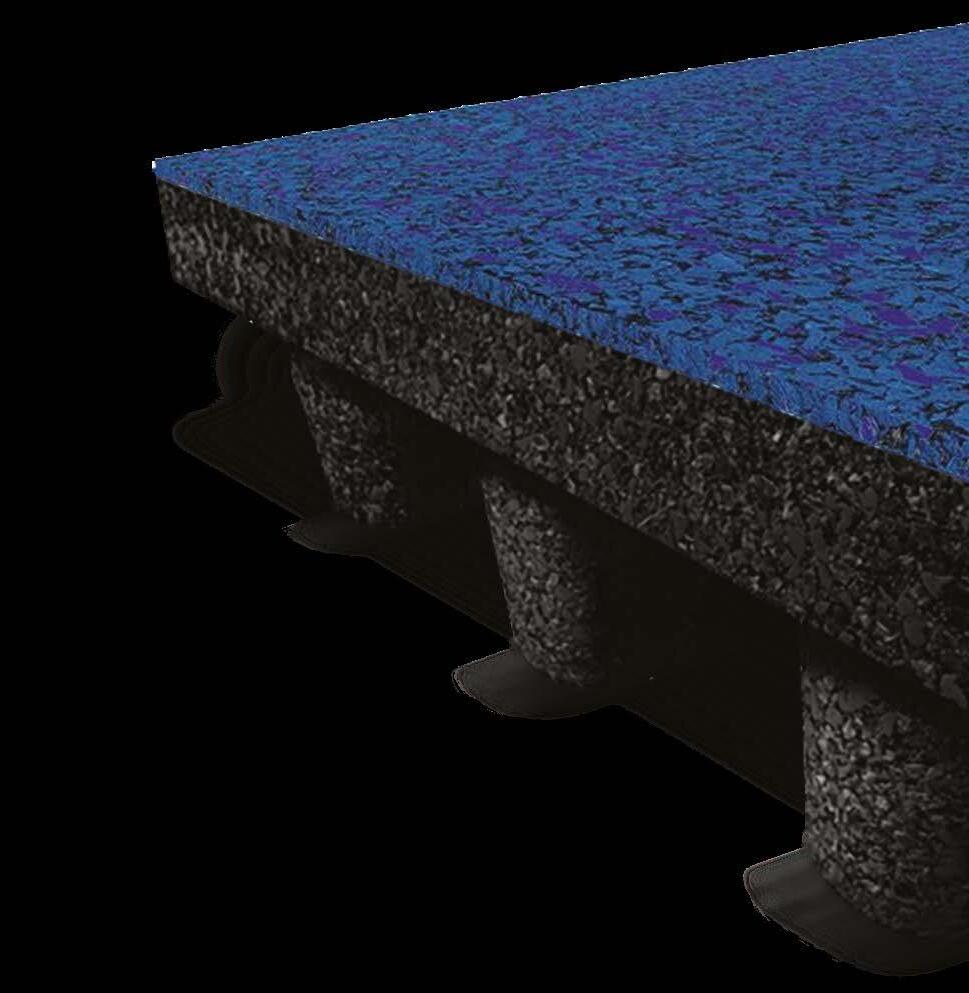

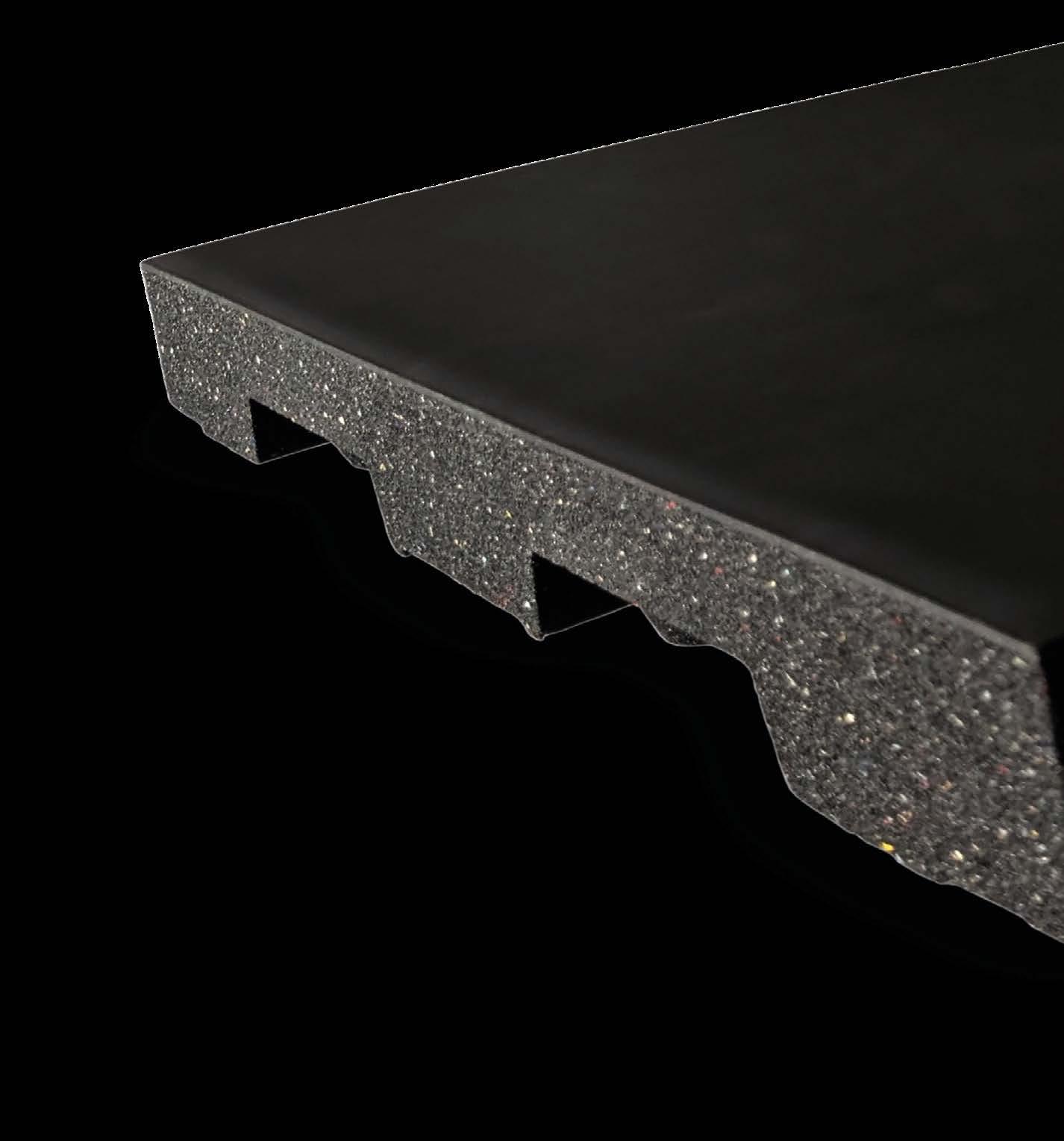

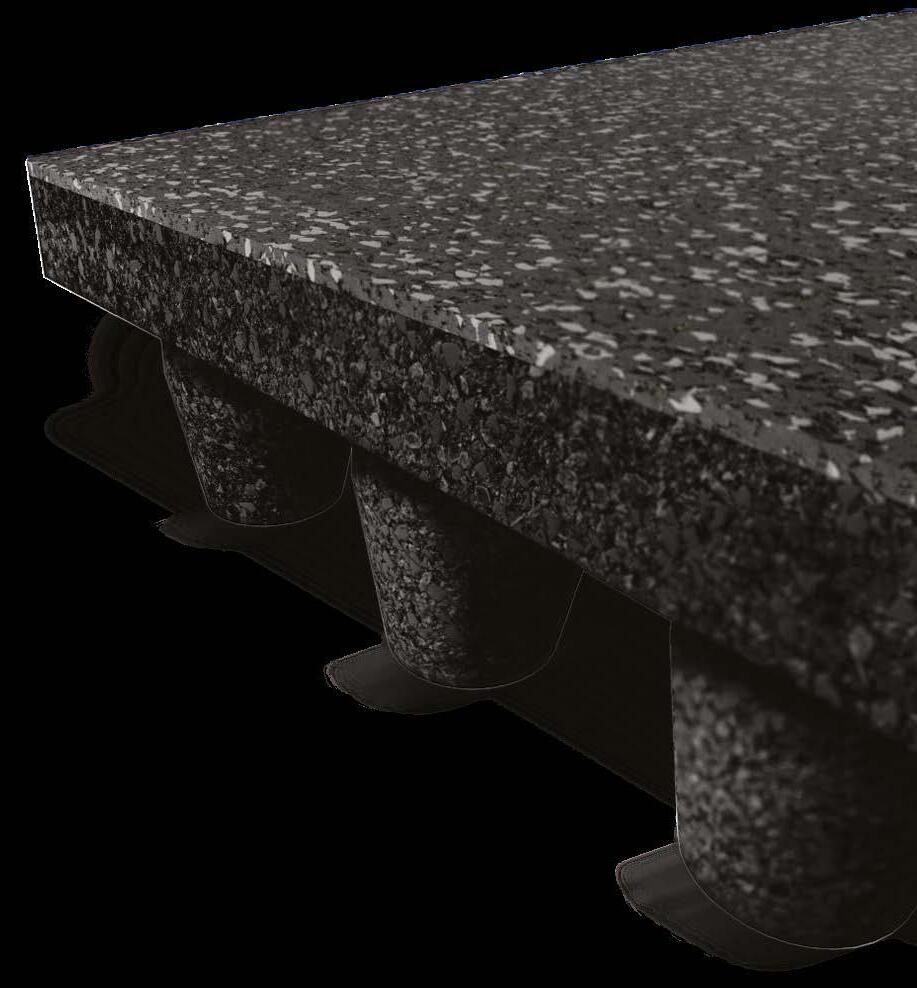

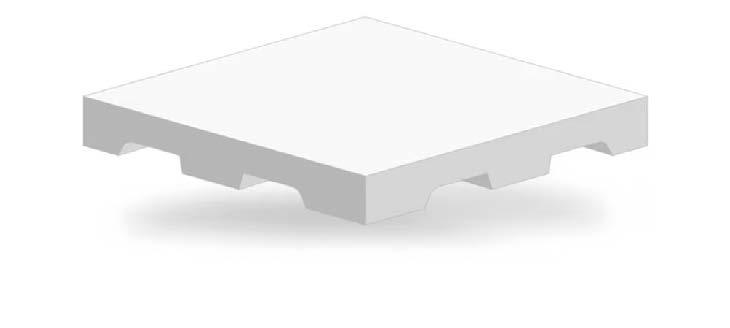

PERFORMANCE DBTILE

For areas where advanced shock absorption and soundproofing are required. Performance dBTile mitigates the shock and sound resulting from dropped weights by absorbing all aspects of impact, making it the perfect solution for areas where an acoustic solution is needed.

• Patented “ultra” high-density wear layer

• Slip-resistant

• Easy Installation with Quad Blok system

• Custom colour and logo options available

Dimensions –

W 610mm x L 610mm x H 64mm (Tile)

W 203mm x L 1220mm x H 64mm (Reducer)

W 203mm x L 1220mm x H 64mm (ADA Reducer)

Installation available

Warranty – 5 years

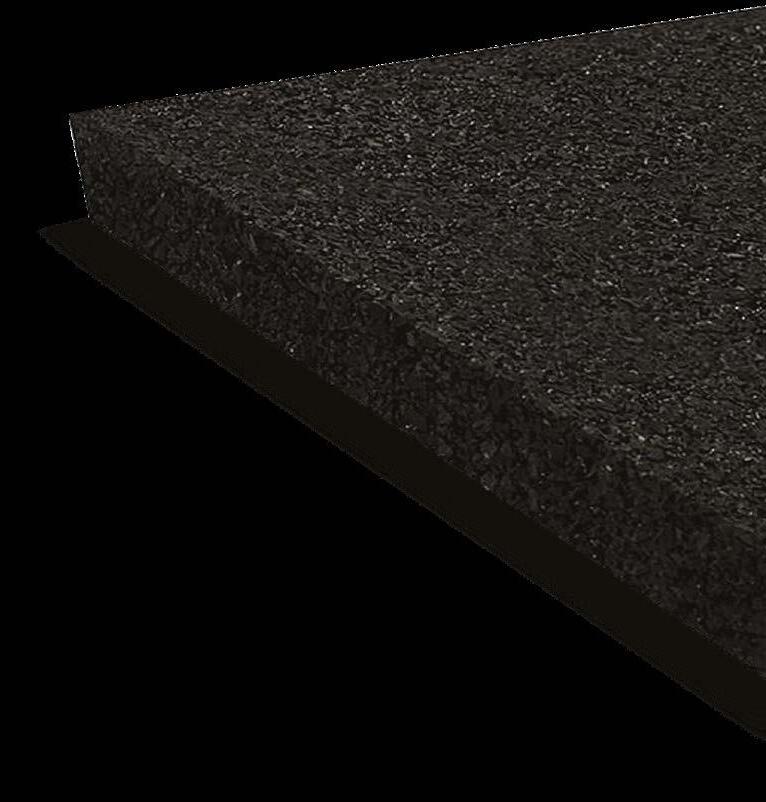

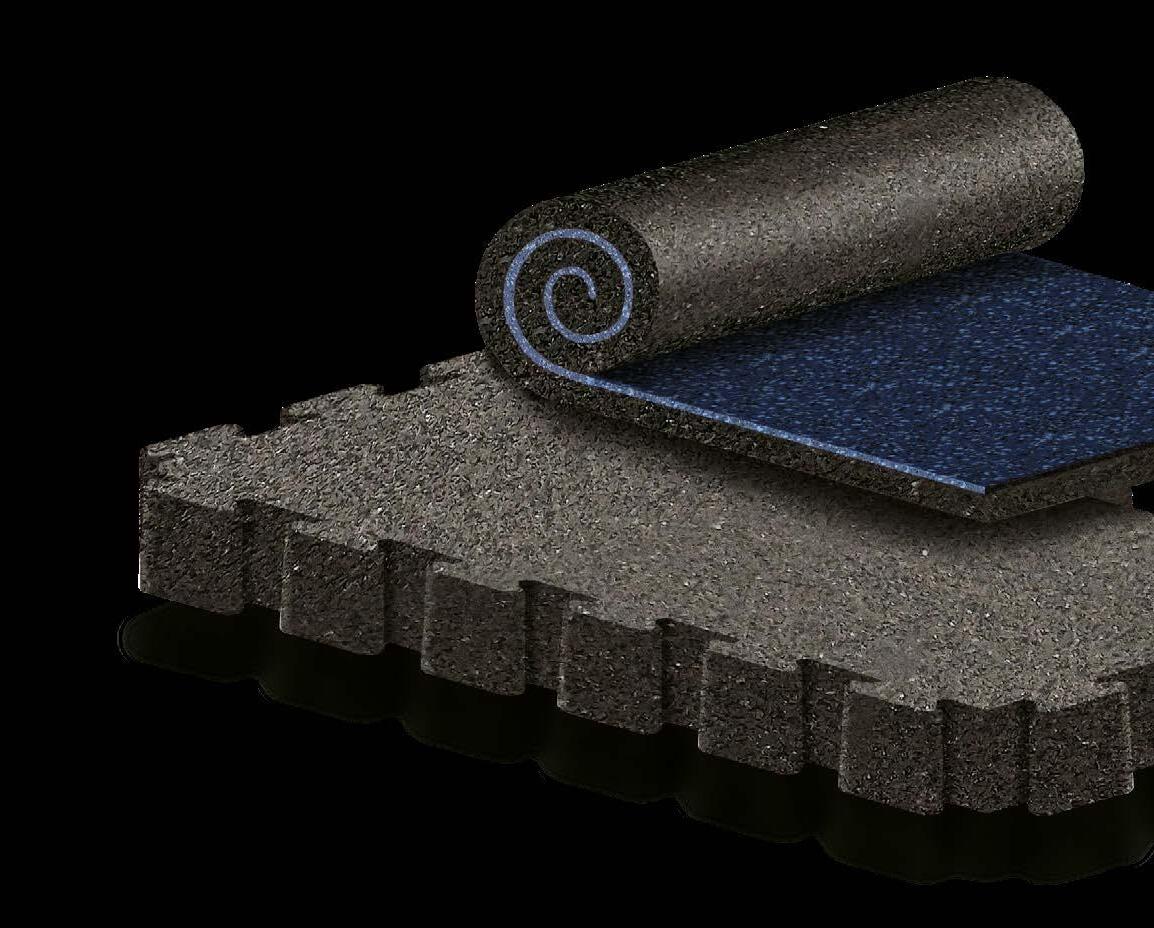

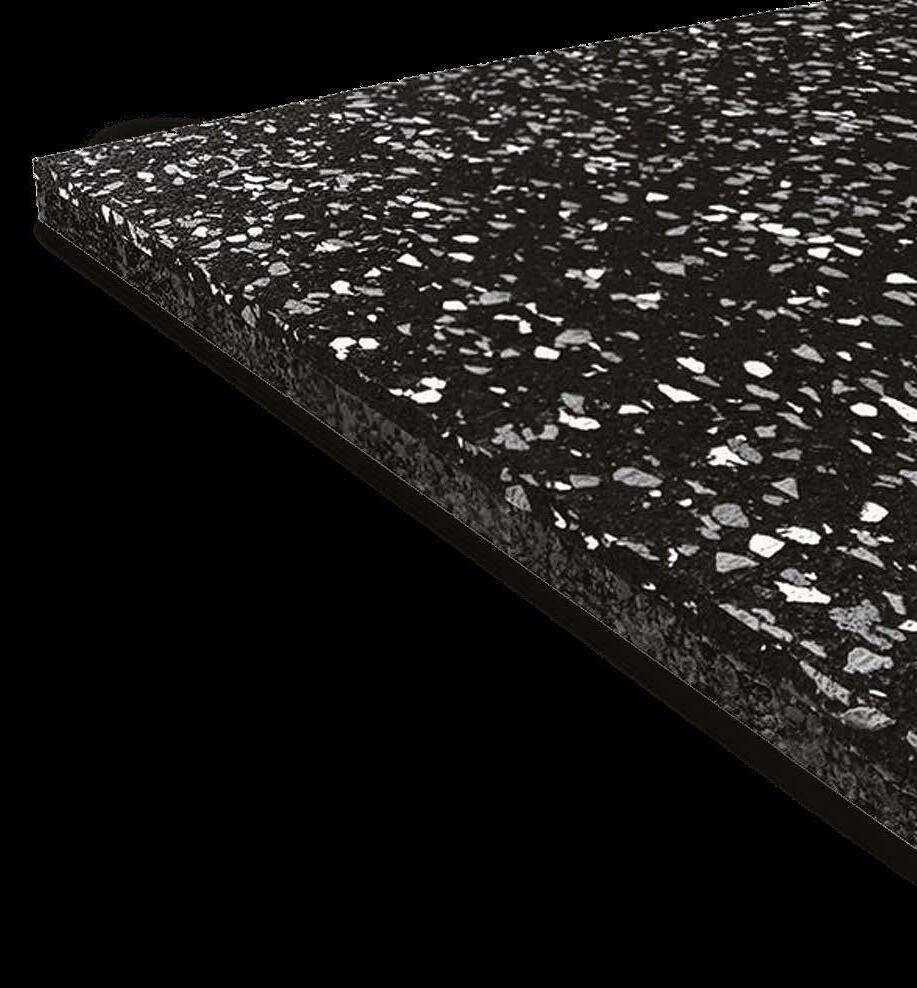

FIT COLLECTION

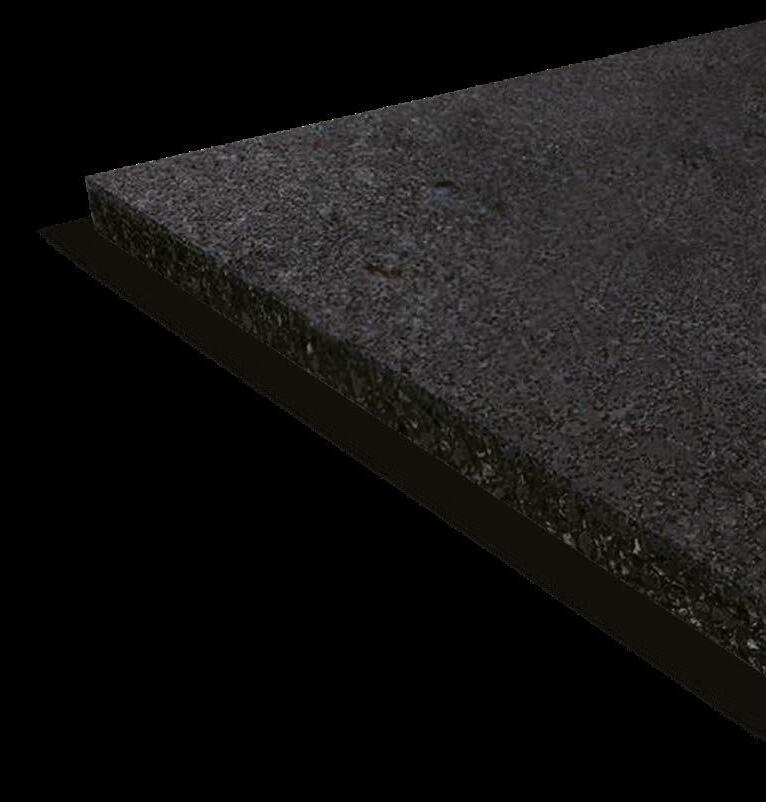

The Fit Collection is the “original” recycled composition rubber fitness floor. This durable surface sets the standard for performance, quality, and affordability. A top choice for fit–minded people and athletes that stands up to consistent daily pounding.

• Shock absorbent

• Durable

• Affordable

• Easily maintained

Dimensions – W 1220mm (Roll), L 610mm x W 610mm (Tile)

Installation available

Warranty – 5 years

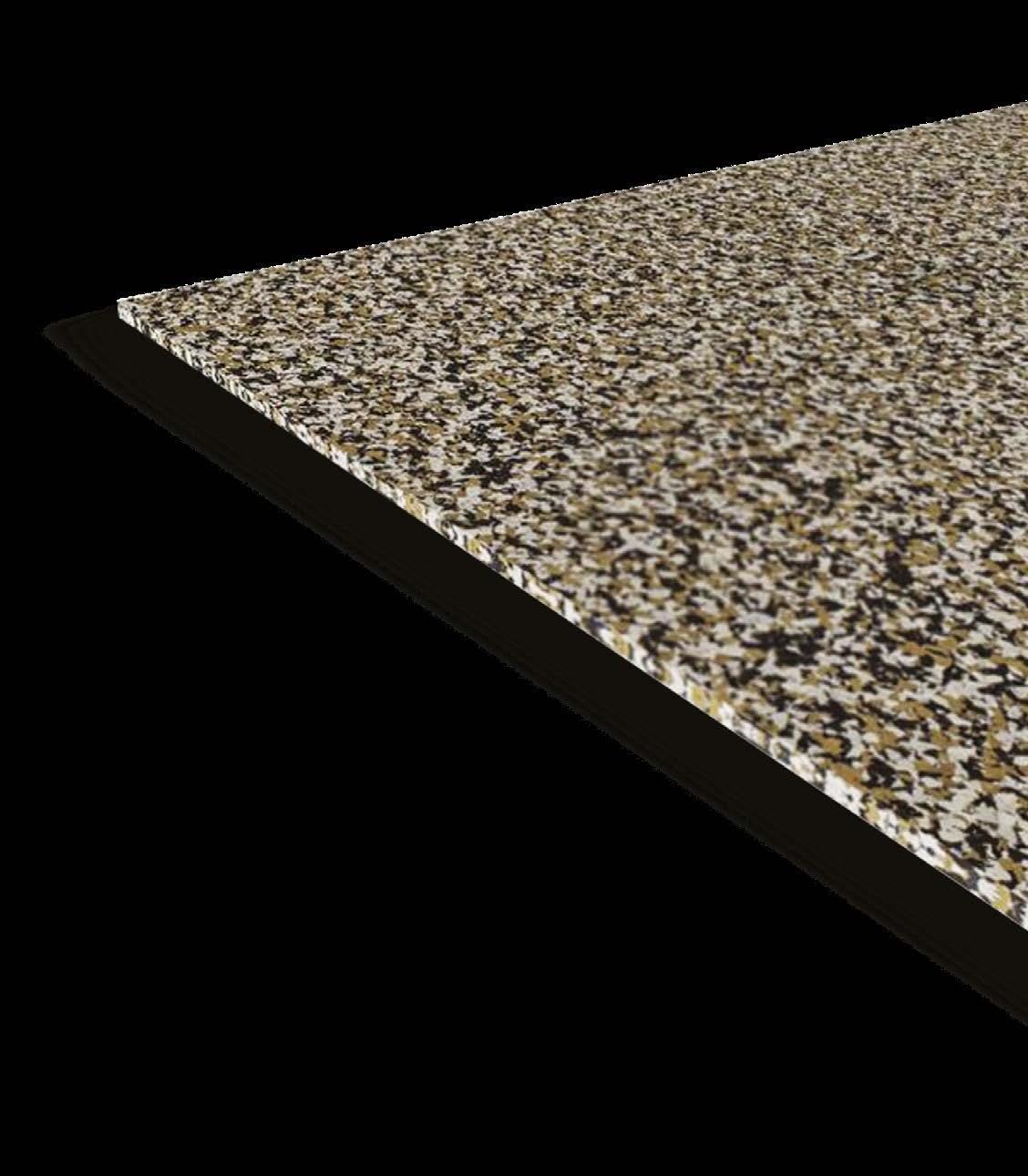

EVR6X 6mm Rubber On The Roll (Specify colour)

EVR8X 8mm Rubber On The Roll (Specify colour)

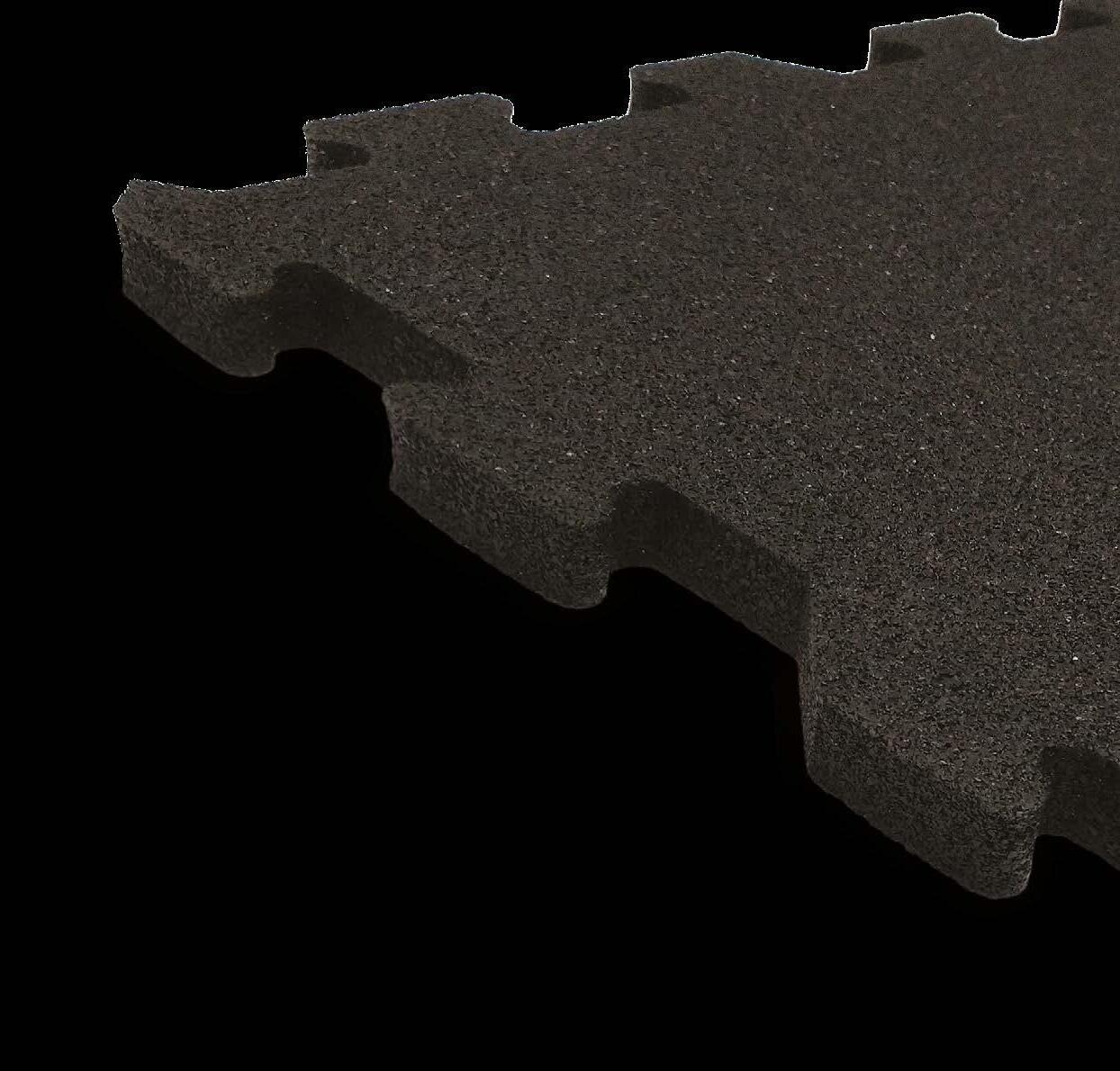

EVT8X 8mm Rubber Interlocking Tile (Specify colour)

6mm (0.24”) x 48” (1.22m)*

8mm (0.31”) x 48” (1.22m)

9mm (0.35”) x 48” (1.22m)*

Interlocking Tile - 8mm (0.31”) x 23” (0.58m) x 23” (0.58m)

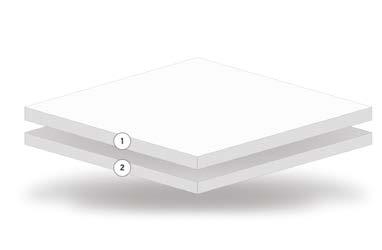

1 - Surface Layer

6, 8, or 9mm Vulcanised Composition Rubber

Total Product Thickness: 6, 8 or 9mm

PERFORMANCE MOTIVATE / MOTIVATE PLUS

Engineered for light strength and conditioning, Performance Motivate offers more than just durability. Experience a harmonious synergy of force reduction and energy restitution, ensuring every move you make is supported and optimised.

• Made with reclaimed rubber materials

• Durable

• Fully Recyclable at End of Life

• Returns Energy to User

• Significantly reduces impact force

• Easy to maintain and sanitise

Dimensions – W 1220mm (Roll width) x H 7.5mm or 10.5mm

Installation available

Warranty – 5 years

PC7.5X Motivate

PC10.5PX

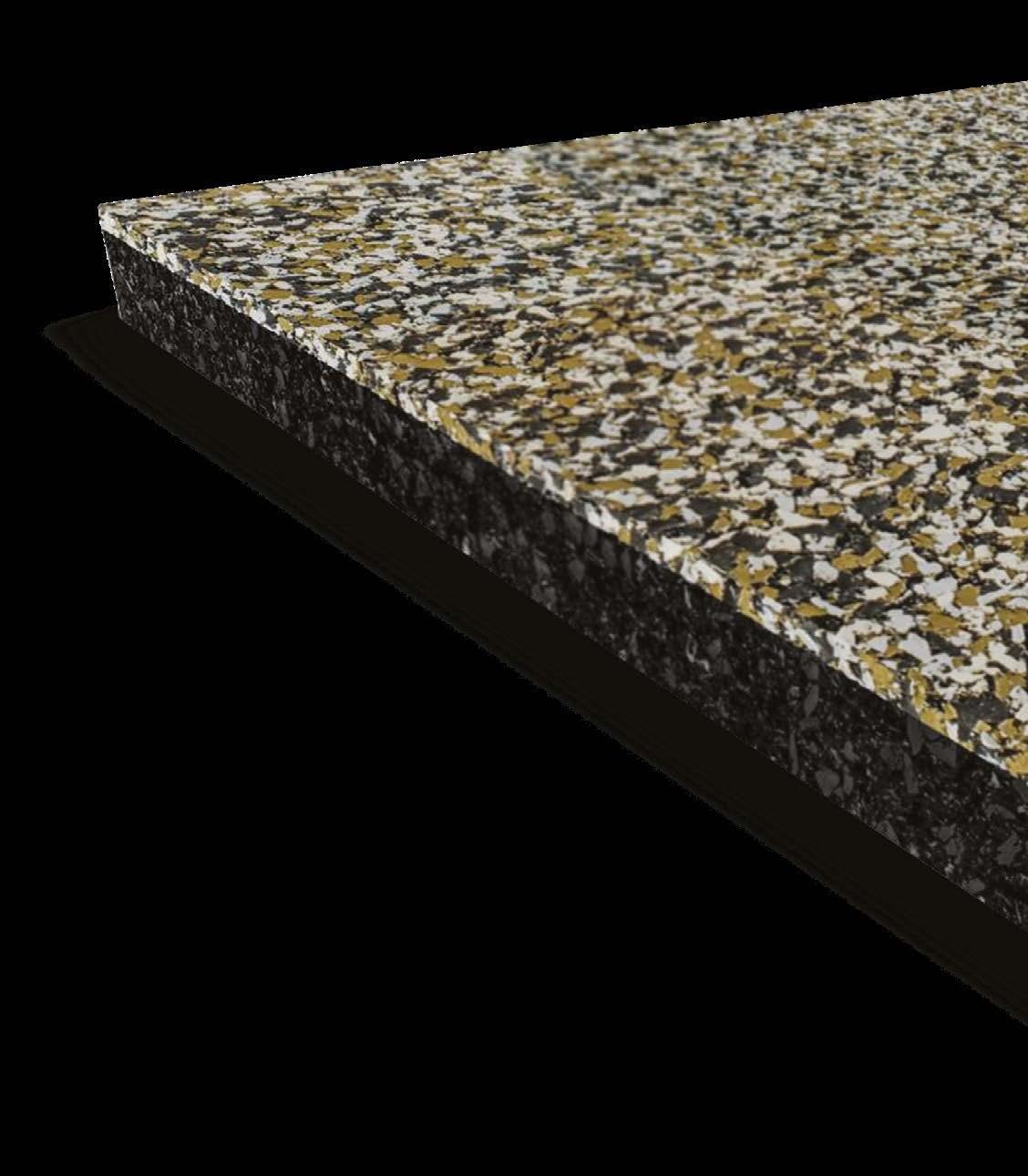

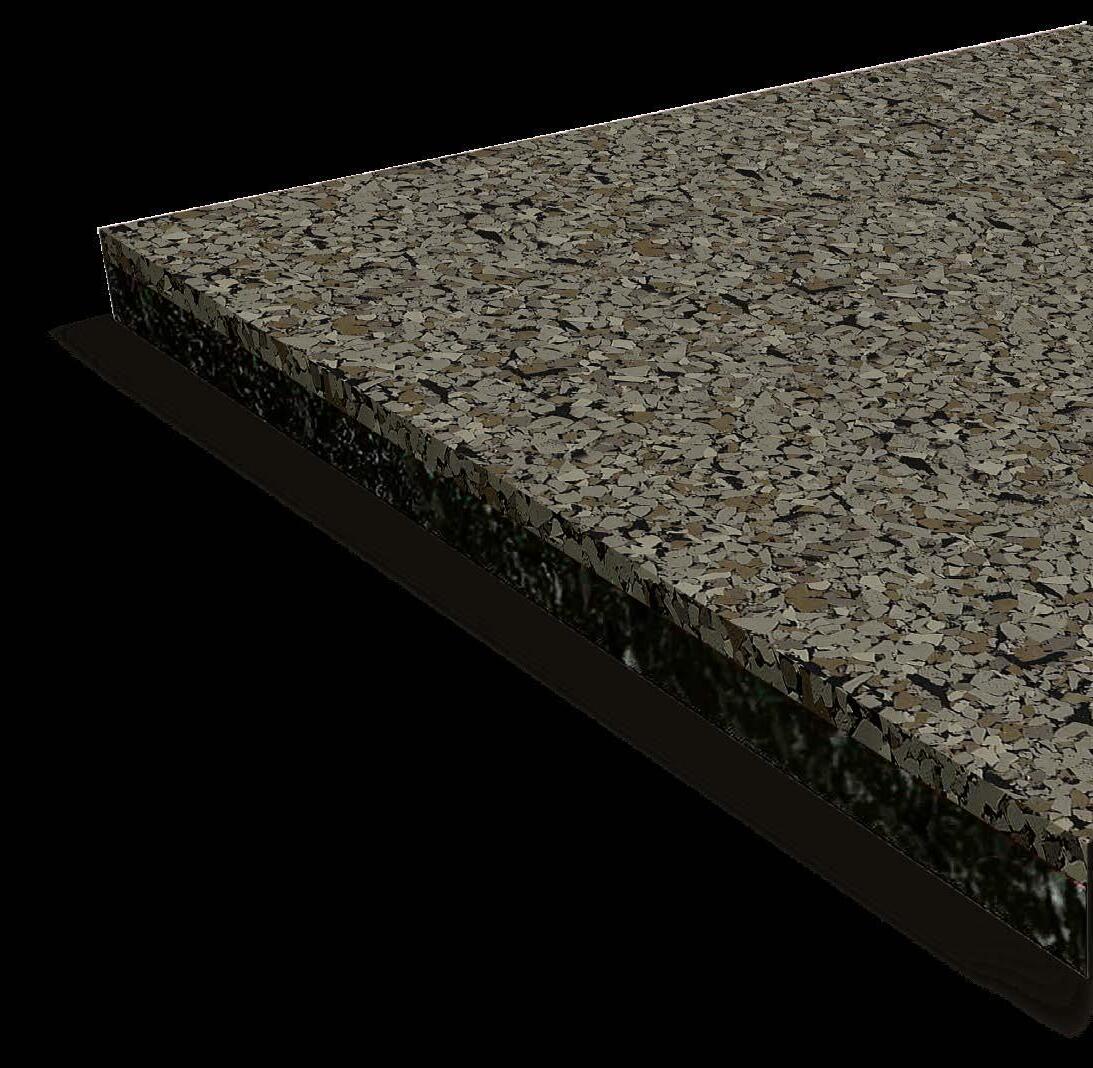

PERFORMANCE BEAST

Designed for heavy strength training, this 10.5mm surface features an 8mm dense base layer that maximises energy restitution. This dual layered surface is engineered to enhance durability in applications dominated by free weight training.

• 2.5mm wear layer fusion-bonded to an 8mm dense VCR shockpad layer

• Sound and shock absorbent

• Fade resistant / wears well

• Slip resistant wet or dry

• Custom colour and logo options

Dimensions – W 1220mm (Roll width) x H 10.5mm

Installation available

Warranty – 5 years

PC10.5X (Specify colour)

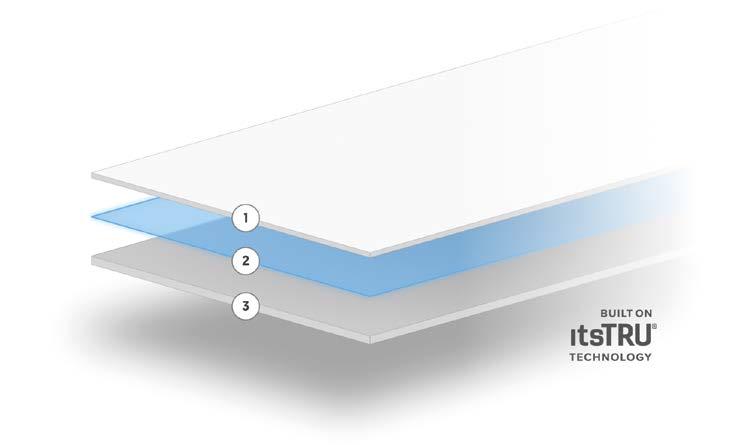

2 - itsTRU Fusion Bond Proprietary itsTRU® technology fusion-bonds the VCR layers

3 - Base Layer 8mm Vulcanised Composition Rubber base layer

PERFORMANCE BEAST PLUS

At 14.5mm, Performance Beast Plus is an advanced, dense flooring solution easily paired with Performance Rally.

• Easy to maintain and sanitise

• Made with reclaimed rubber materials

• High coefficient of friction in wet and dry areas

• Lower In-Room Impact Sound

• Inlaid Logos/Designs Available

• Significantly Reduces Impact Force

• Can withstand heavy weight impacts

• Durable

• Fully Recyclable at End of Life

Dimensions – W 1220mm (Roll width) x H 14.5mm

Installation available

Warranty – 5 years

PC14.5BPX (Specify colour)

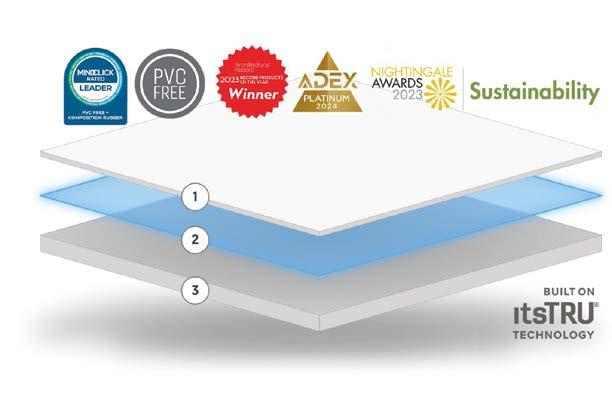

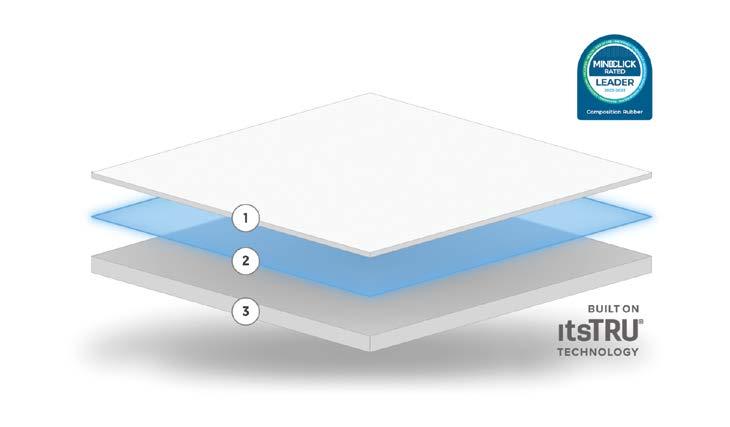

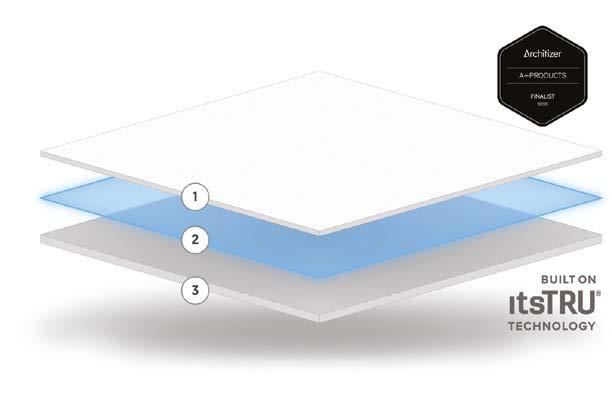

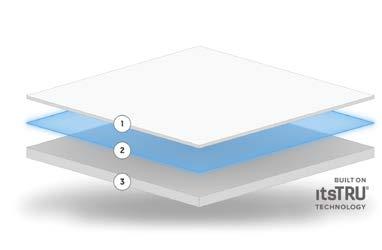

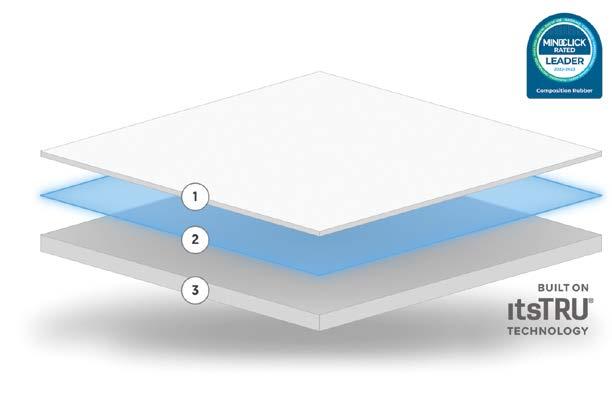

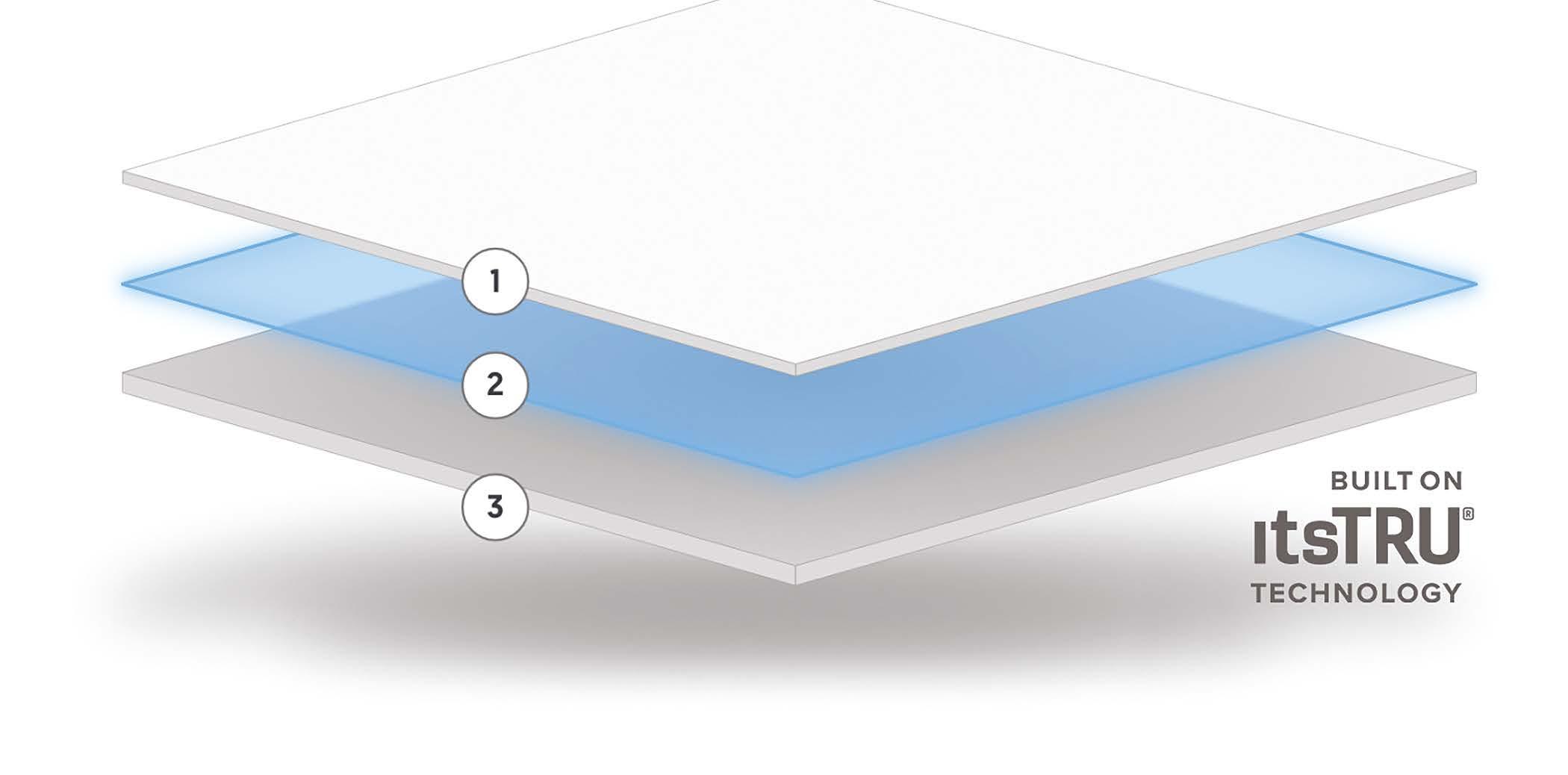

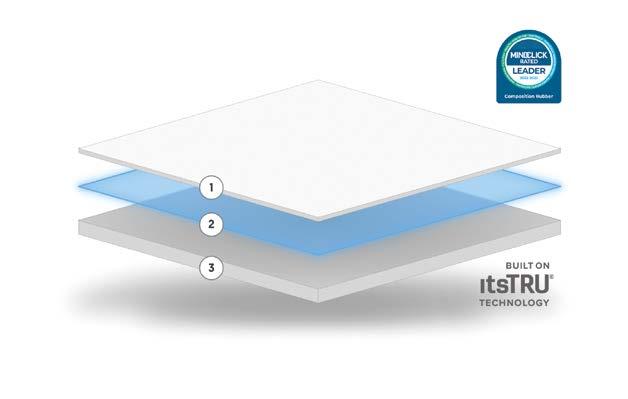

1 - Surface Layer

2.5mm Vulcanised Composition Rubber surface layer

2 - itsTRU Fusion Bond

Proprietary itsTRU® technology fusion-bonds the VCR layers

3 - Base Layer

12mm Vulcanised Composition Rubber base layer

Product Thickness:

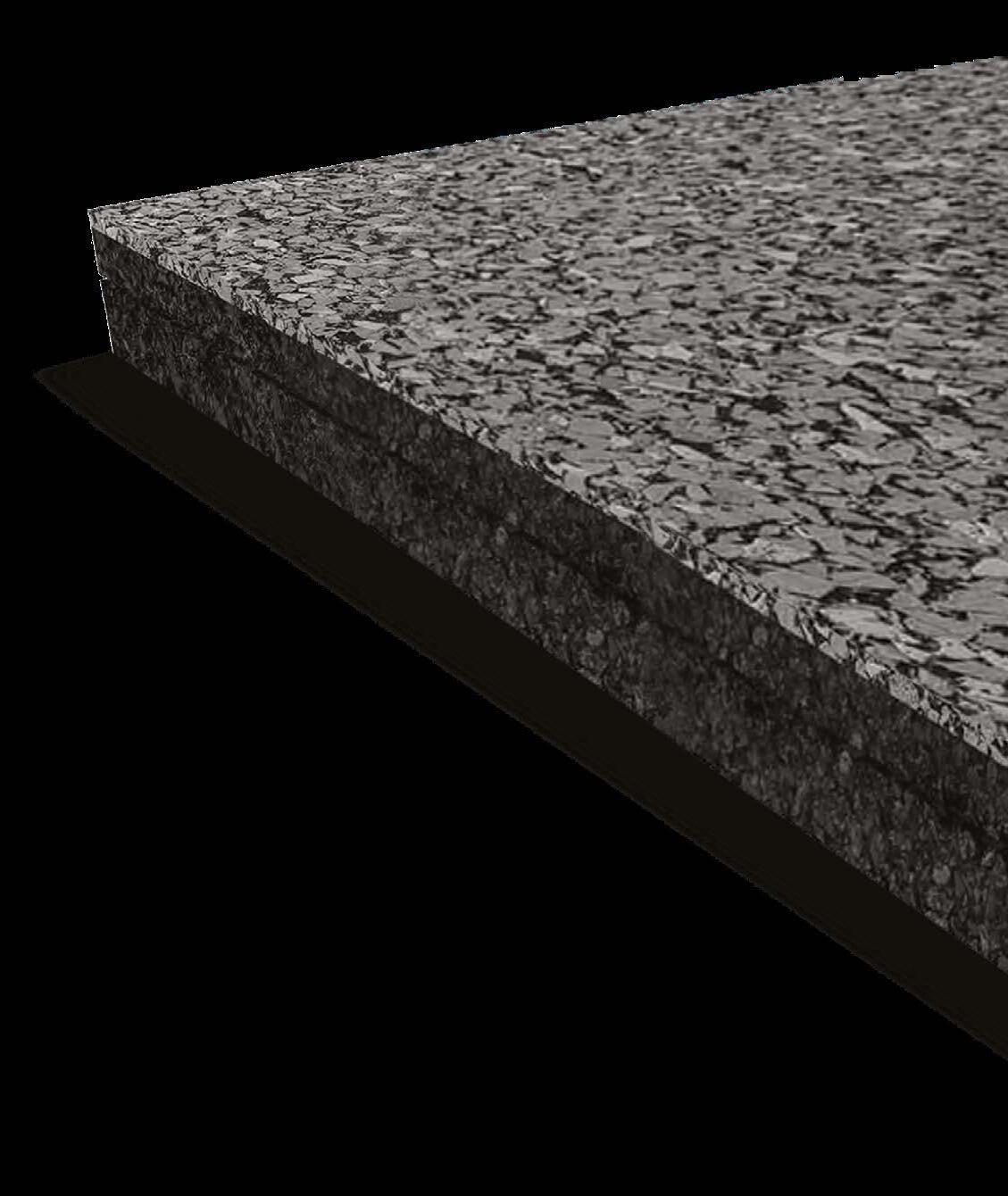

PERFORMANCE RALLY

This 14.5mm multi-functional dual layered surface provides great impact absorption and joint protection during circuit training and free-weight training.

• 2.5mm wear layer fusion-bonded to a 12mm VCR shockpad layer

• Available in roll or tile form

• Fade resistant / wears well

• Slip-resistant wet or dry

• Custom colour and logo options

Dimensions – W 1220mm x H 14.5mm (Roll)

L 580mm x W 580mm x H 14.5mm (Tile)

Installation available

Warranty

– 5 years

PC14.5X Roll (Specify colour)

PC14.5TX Tiles (Specify colour)

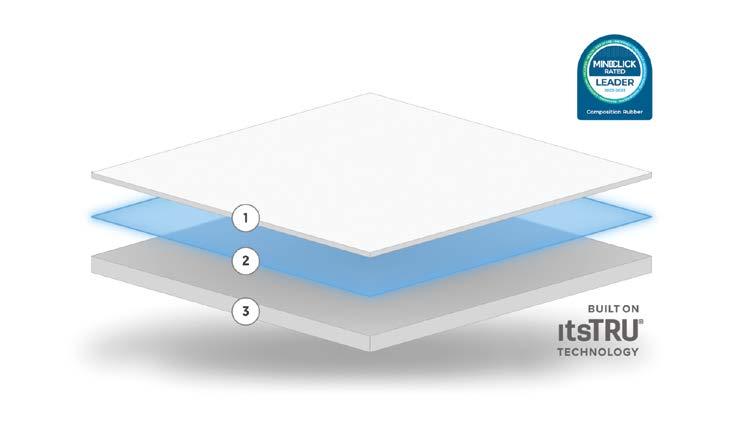

1 - Surface Layer

2.5mm Vulcanised Composition Rubber surface layer

2 - itsTRU Fusion Bond

Proprietary itsTRU® technology fusion-bonds the VCR layers

3 - Base Layer

12mm Vulcanised Composition Rubber base layer

MOXIE MOTIVATE PLUS

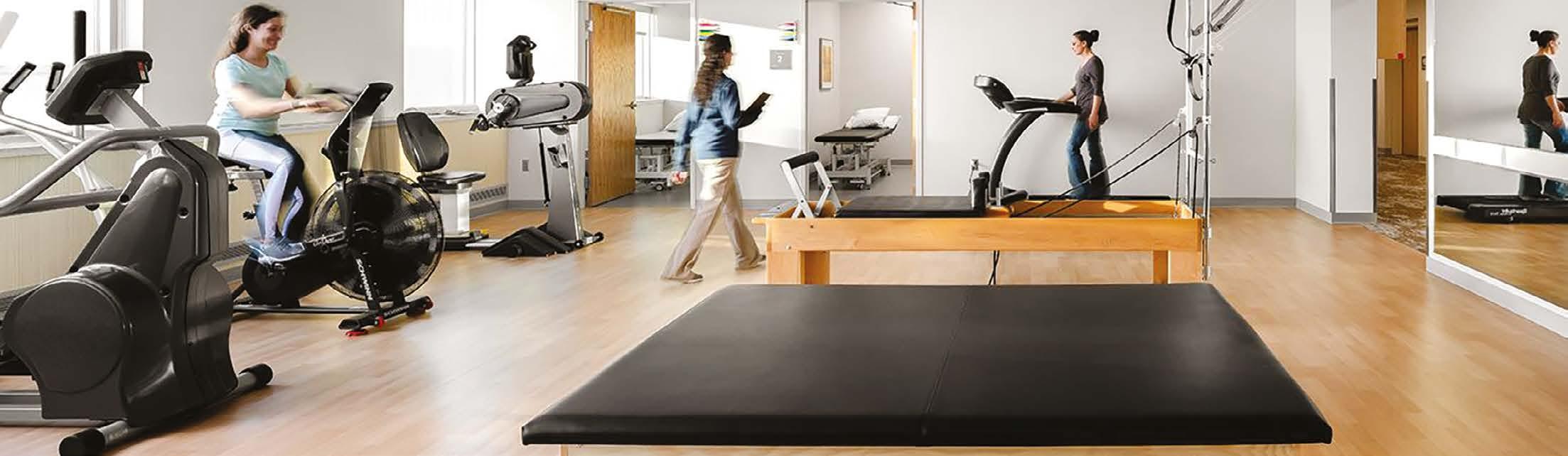

Ideal for functional training and therapy/rehab training spaces, Moxie Motivate Plus provides ultimate comfort underfoot and under body contact points. This surface provides an ideal balance of force reduction and energy restitution that reduces significant stress and strain on lower extremities while still providing ergonomic support and energy back to the user.

• Easy to maintain and sanitise

• Made with reclaimed rubber materials

• Resistant to scuffs and marks

• Returns energy to user

• Significantly reduces impact force

• Provides comfort underfoot

Dimensions – W 1220mm (Roll width) x H 10.5mm

Installation available

Warranty – 10 years

MOXM10.5X (Specify colour)

MOXIE BEAST

Just like the name suggests, Moxie Beast provides ultimate durability and shock absorption because of its extremely dense, fusionbonded base layer and calendered rubber surface layer. Ideal for selectorised strength and heavy free-weight areas, Moxie Beast provides a non-porous surfacing solution that can handle weight drop and heavy fitness equipment.

• Made with reclaimed rubber materials

• Resistant to scuffs and marks

• Significantly reduces impact force

• Can withstand heavy weight impacts

• Durable

• Reduces structure borne noise

• Reduces impact noise

Dimensions – W 1220mm x H 10.5mm

Installation available

Warranty – 10 years

MOXB10.5X (Specify colour)

PERFORMANCE MONSTER

This triple layered surface combines the durability and firm footing desired in strength training with the ergonomic demands of aggressive functional training. Perfect to supporting the elite athlete by providing the ultimate support for daily workouts and flexibility in design.

• 2.5mm wear layer fusion-bonded to an 8mm dense VCR shockpad layer, installed on a further 12mm VCR shockpad layer

• Sound and impact absorbent

• Fade resistant / wears well

• Slip-resistant wet or dry

• Custom colour and logo options

Dimensions – W 1220mm x H 22.5mm (Roll)

Installation available

Warranty – 5 years

PC22.5X (Specify colour)

PERFORMANCE MODZILLA SYSTEM (25.5MM & 42.5MM)

This triple durometer system exceeds expectations when used for selectorised strength, free weights, functional training, and Olympic-style lifting.

• Lower In-Room Impact Sound

• Inlaid Logos/Designs Available

• Returns Energy to User

• Significantly Reduces Impact Force

• Can withstand heavy weight impact

• Durable

• Fully Recyclable at End of Life

• Reduces Heavy Weight Impact Noise

Installation available

Warranty – 5 years MOD15

25 LF (7.62m)

1 - Surface Layer

2.5mm Vulcanised Composition Rubber surface layer

2 - itsTRU Fusion Bond

Proprietary itsTRU® technology fusion-bonds the VCR layers

3 - Base Layer

8mm Vulcanised Composition Rubber base layer

Modzilla ShockPad tiles - 15mm (0.47”) or 32mm (1.26”) x 24” (.61m) x 48” (1.22m) 4 - Modzilla ShockPad Layer 15mm or 32mm interlocking Modzilla ShockPad tiles

Total Product Thickness: 25.5mm or 42.5mm

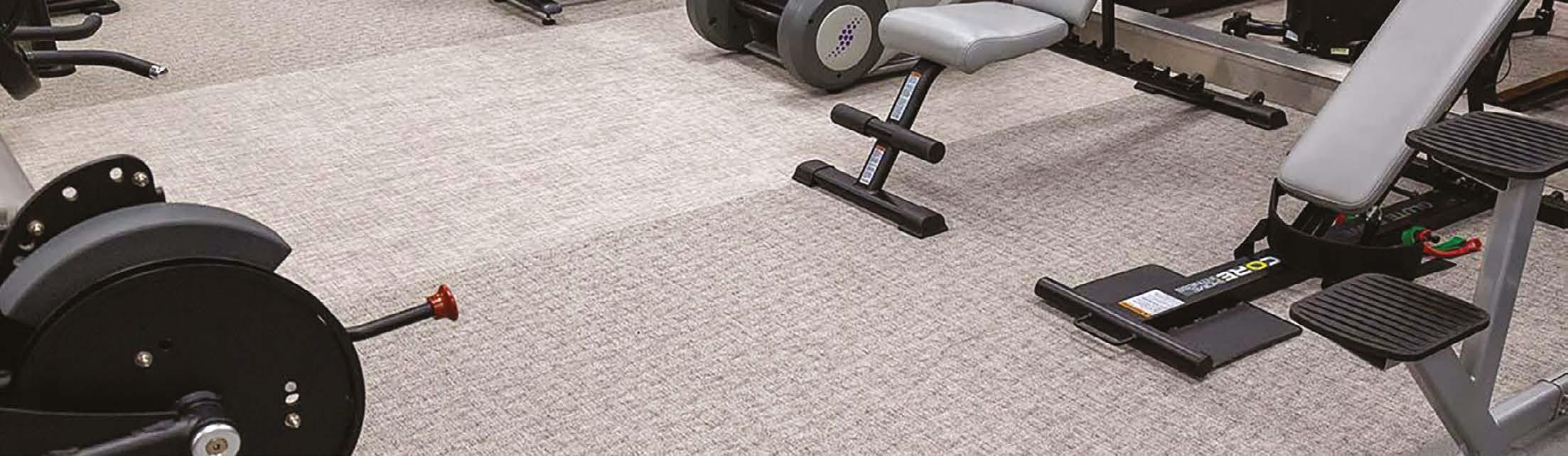

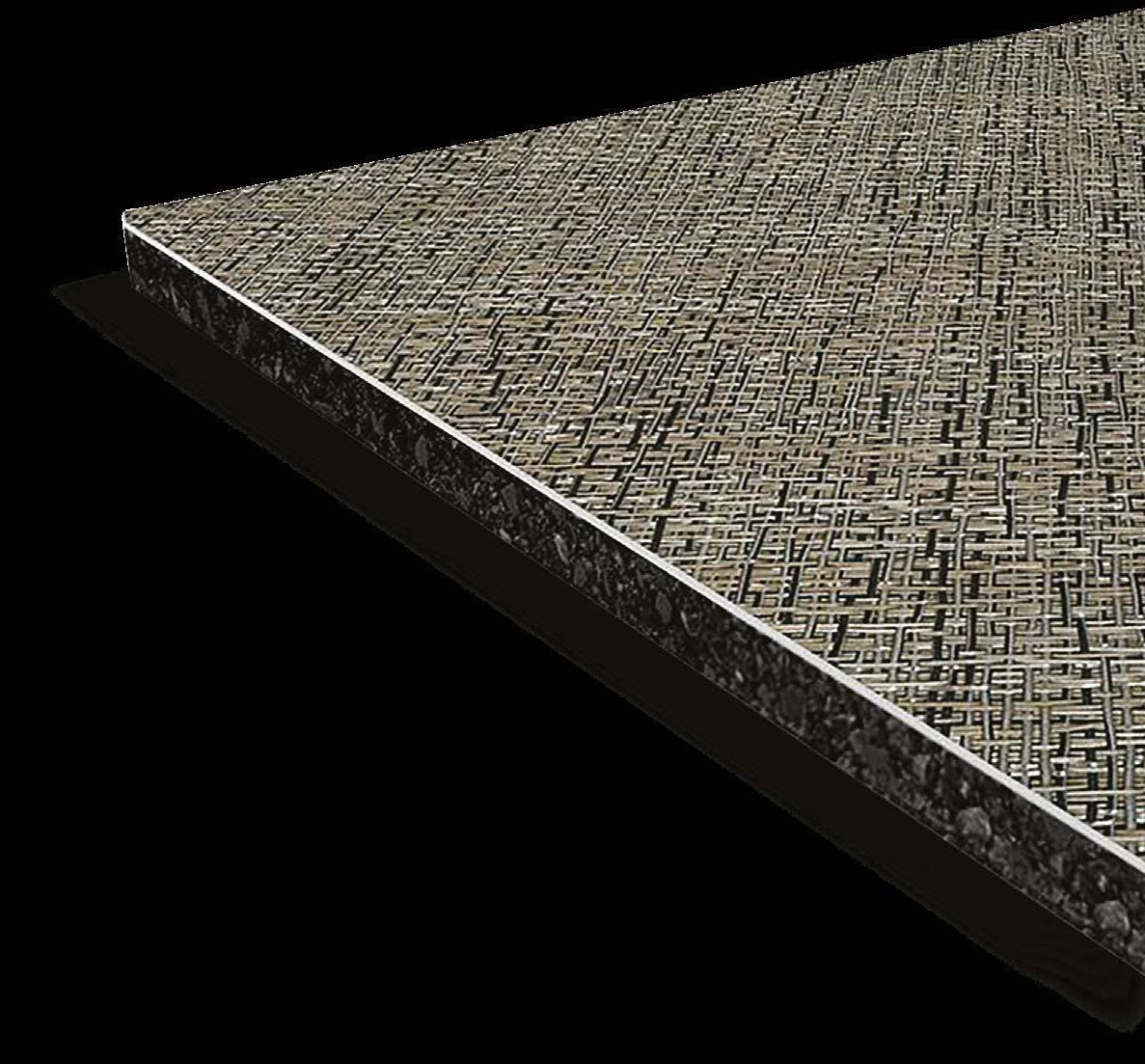

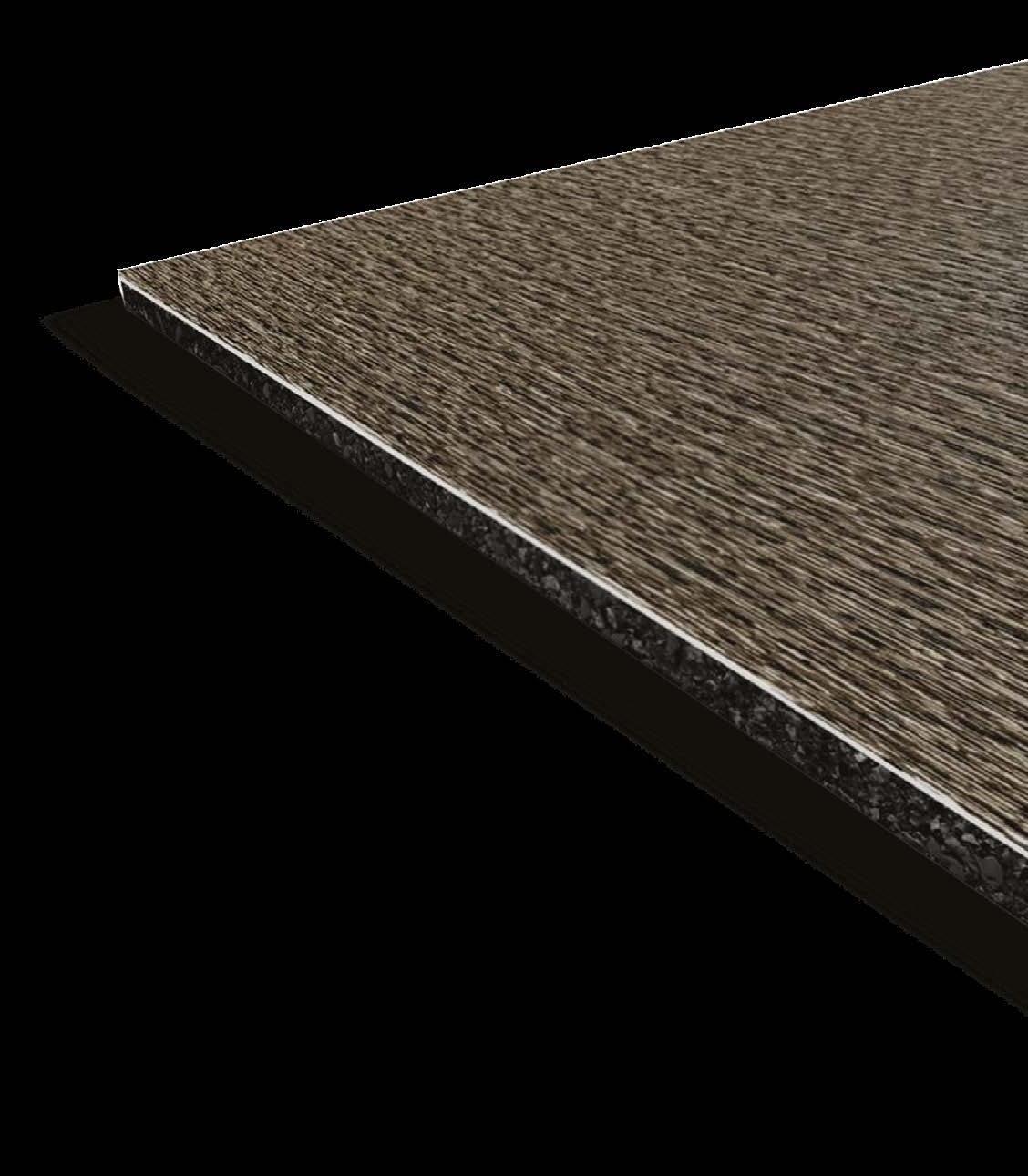

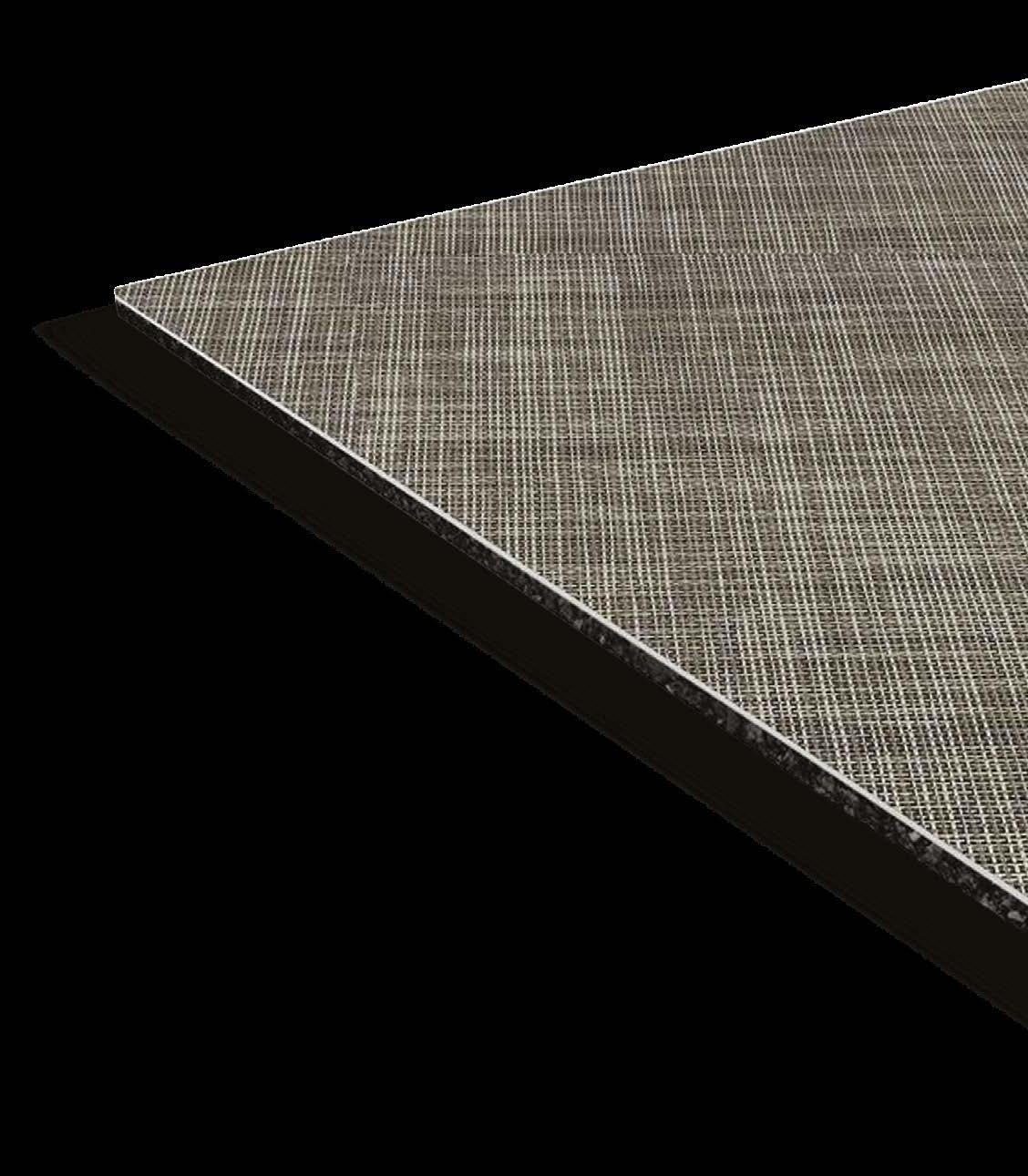

EBB & FLOW MOTIVATE

Ebb and Flow provide premium visuals for fitness & mind body environments while providing safety, ergonomic, and acoustic benefits. Built on itsTRU™ technology, Ebb & Flow Motivate feature two intricate woven vinyl wear layers fusion bonded to vulcanised composition rubber.

• Ebb and Flow Motivate combines a 5mm Motivate base layer with a 1mm Woven

Vinyl surface layer

• Benefits of a gym floor with a visually softer surface

• The Ebb series features a structured woven pattern that is available in 6 colours

• The Flow series features a complex woven pattern that creates an organic visual that is available in 6 colours

Dimensions - W 1830mm x H 6mm

Installation available

Warranty – 5 years

EFMX (Specify colour)

1 - Surface Layer

1mm Woven Vinyl surface layer

2 - itsTRU Fusion Bond

Proprietary itsTRU® technology fusion-bonds the surface layer to the VCR base layer

3 - Base Layer

5mm Vulcanised Composition

Rubber Motivate base layer

Total Product Thickness: 6mm

BOUNCE 2 MOTIVATE CLASS I

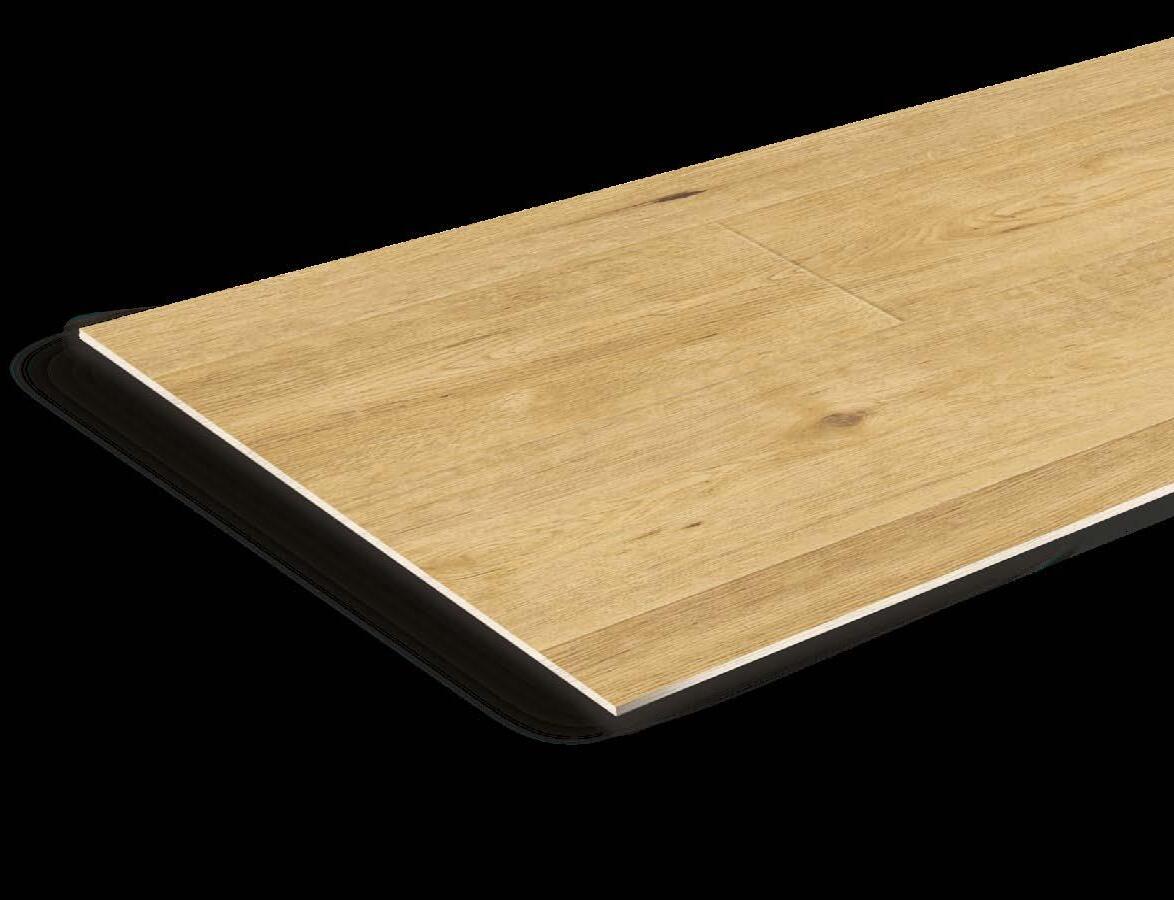

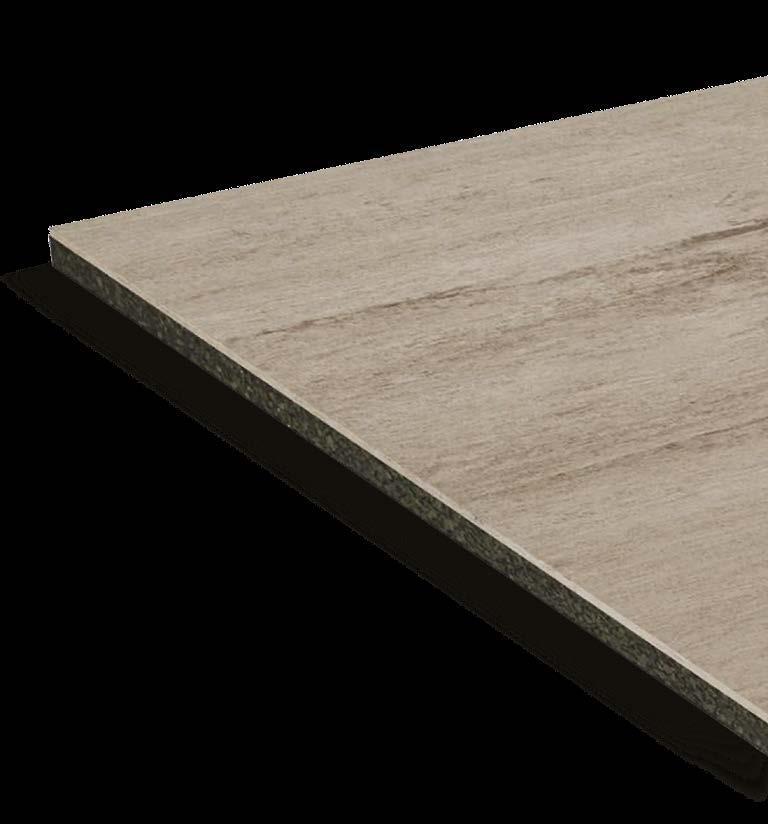

Bounce 2 Motivate Class I has the appearance of real wood, but is far more easy-tomaintain, economical, and durable, making it ideal for basketball courts, group fitness, functional training, and more.

With superior energy restitution, Bounce 2 Motivate Class I offers next generation results for residual indentation recovery and rolling loads, while returning energy to the athlete.

• Made with reclaimed rubber materials

• Easy to maintain and sanitise

• Hygienic because of heat-welded installation

• Ideal friction for athletic deceleration

Dimensions – W 1830mm (Roll)

Installation available

Warranty – 10 years

B27X (Specify colour)

1 - Surface Layer

2mm Heterogeneous Vinyl surface layer

2 - itsTRU Fusion Bond

Proprietary itsTRU® technology fusion-bonds the surface layer to the VCR base layer

3 - Base Layer

5mm Vulcanised Composition Rubber Motivate base layer

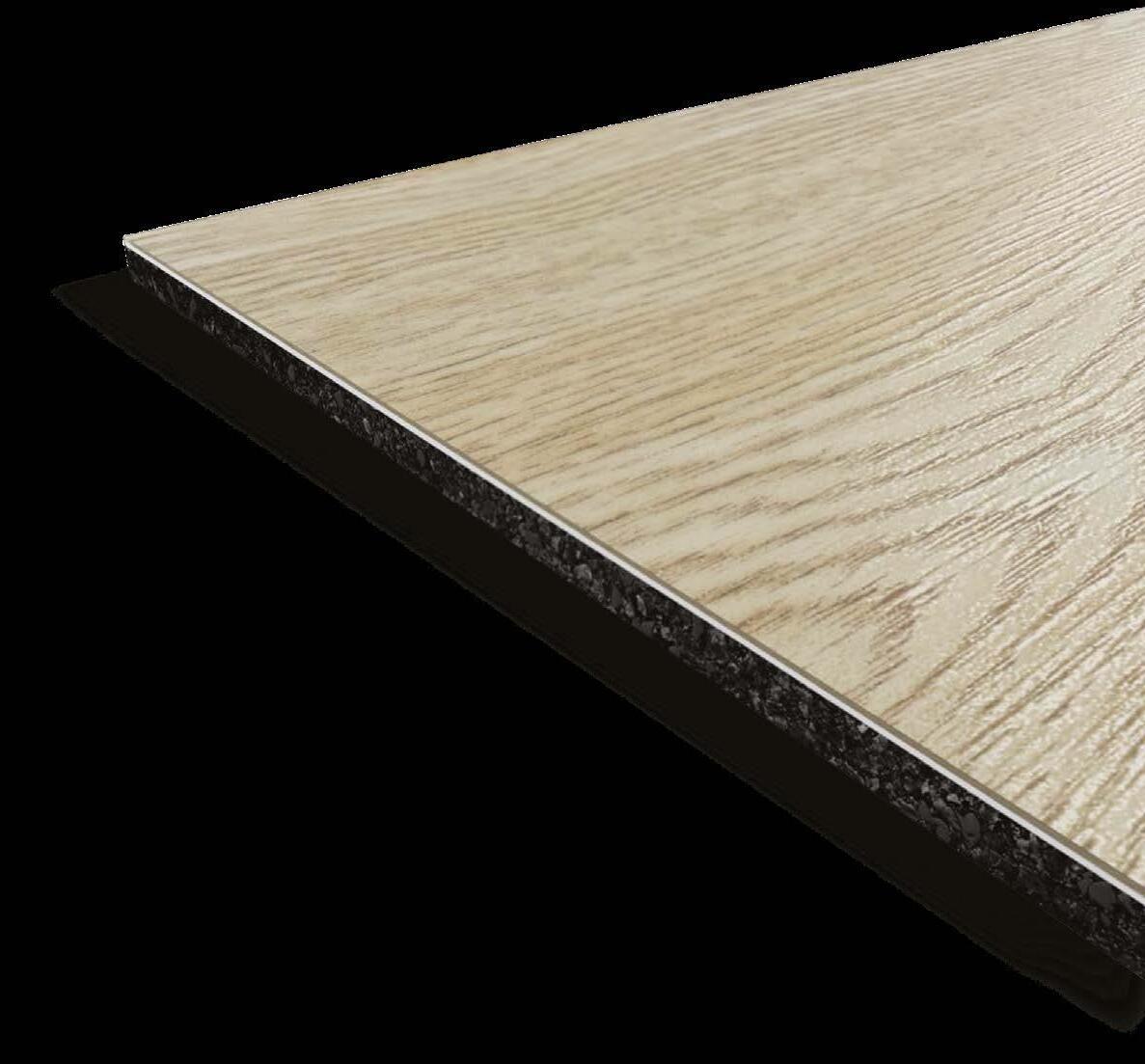

BALANCED MOTIVATE CLASS I

Balanced Motivate Class I features an on-trend wood visual 2mm vinyl surface layer with varying board widths fusion bonded to a 5mm Motivate VCR base layer. These wood visuals are intended for fitness and health and wellbeing applications. Balanced Motivate Class I offers not only a stunning wood visual, but the performance qualities of a top performance surface.

• 5mm Motivate base layer with a 2mm sheet vinyl surface layer

• Hygienic heat weld installation

• Quiet underfoot

• Low maintenance due to protective layer

Dimensions - W 1780mm x H 7mm

Installation available

Warranty – 10 years

BAL7X (Specify colour)

1 - Surface Layer

2mm Heterogeneous Vinyl surface layer

2 - itsTRU Fusion Bond

Proprietary itsTRU® technology fusion-bonds the surface layer to the VCR base layer

3 - Base Layer

5mm Vulcanised Composition Rubber Motivate base layer

Product Thickness: 7mm

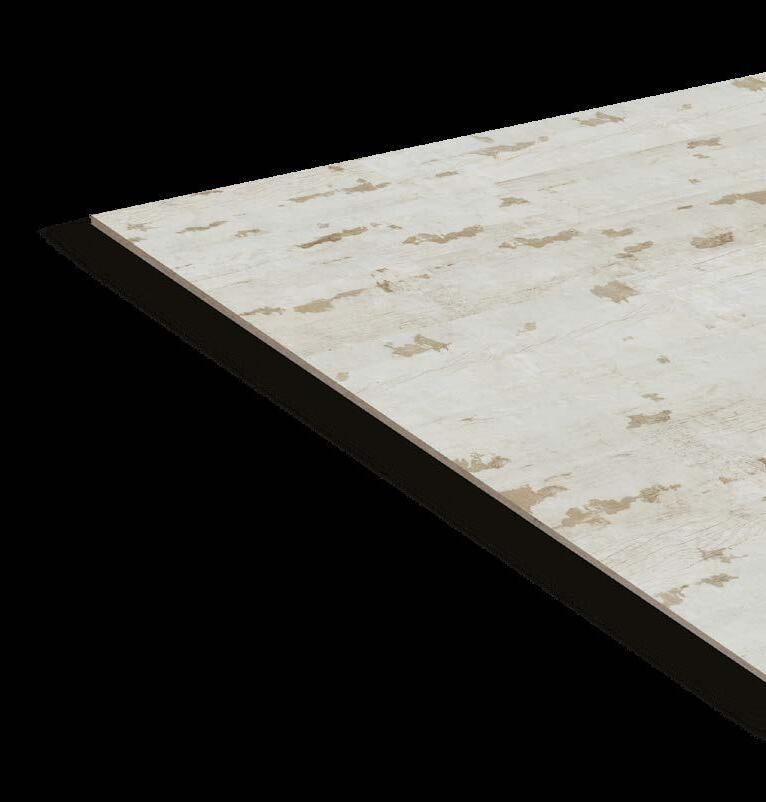

RESTORATIVE MOTIVATE CLASS I

Restorative Motivate Class I features a 2mm vinyl surface layer fusion bonded to a 5mm Motivate base layer. The Restorative surface layer visuals is a non-directional heathered tweed pattern designed for therapy, rehab, clinical, and senior living type environments.

Restorative Motivate Class I features an energising visual and provides exceptional performance characteristics for a plethora of spaces. From a lab or clinic, to a group exercise or therapy/rehab room Restorative Motivate Class I can provide the performance you deserve.

• Made with reclaimed rubber materials

• Ideal friction for athletic deceleration

• Returns Energy to User

• Provides comfort underfoot

Dimensions – W 1780mm x H 7mm (Roll)

Installation available

Warranty – 5 years

RES7X (Specify colour)

Proprietary itsTRU® technology fusion-bonds the surface layer to the VCR base layer

3 - Base Layer

5mm Vulcanised Composition Rubber base layer

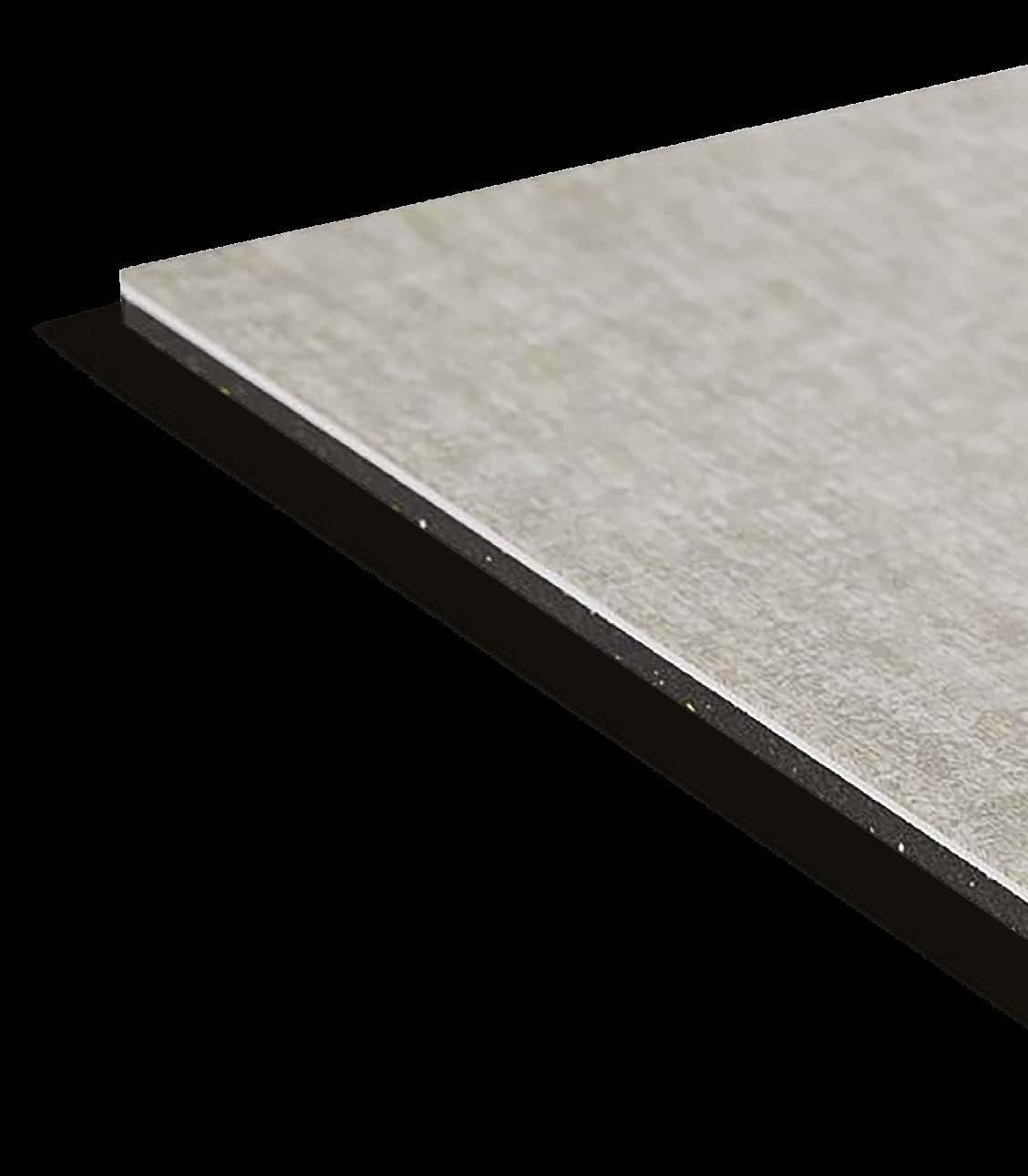

SERENITY MOTIVATE CLASS I

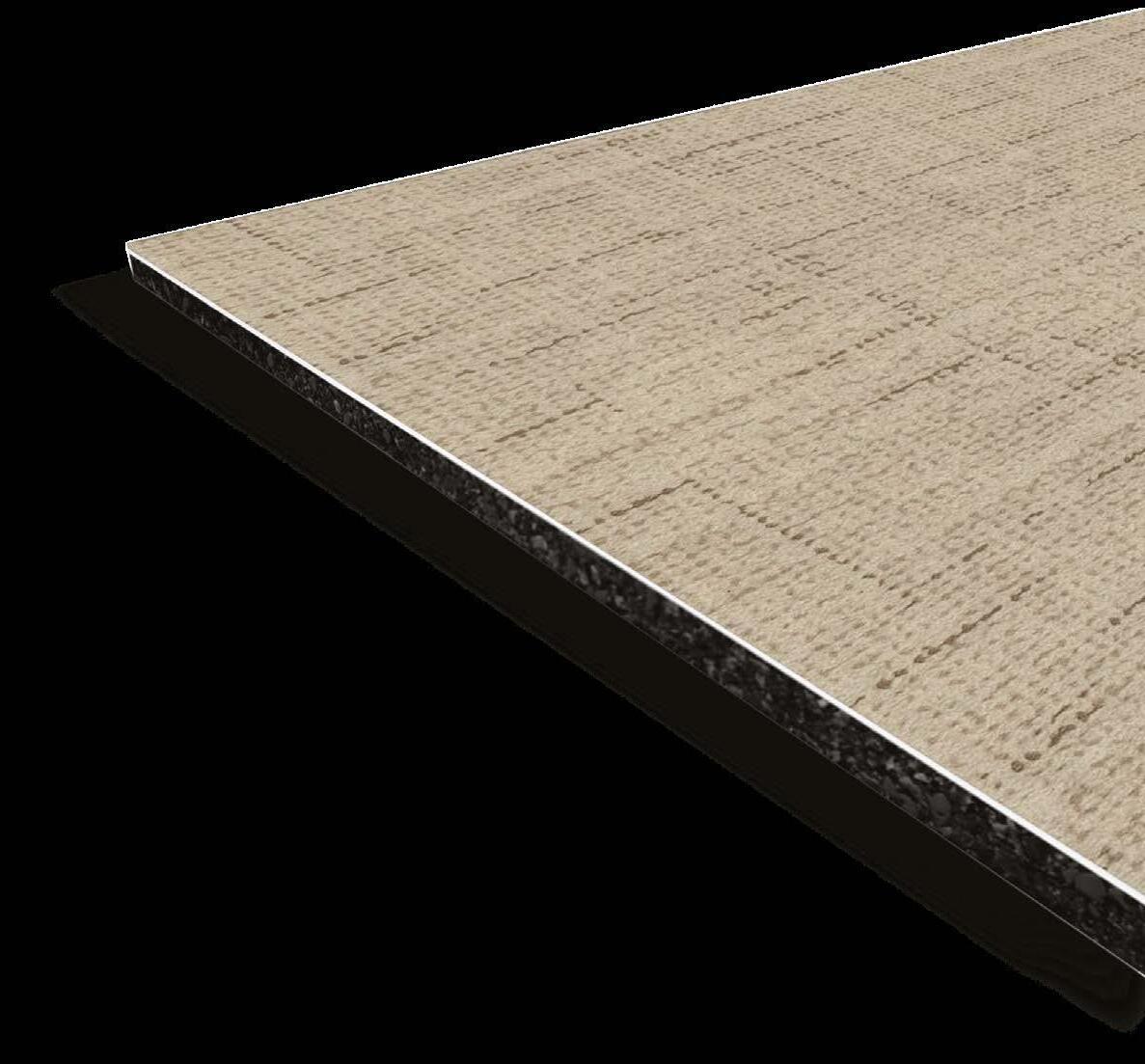

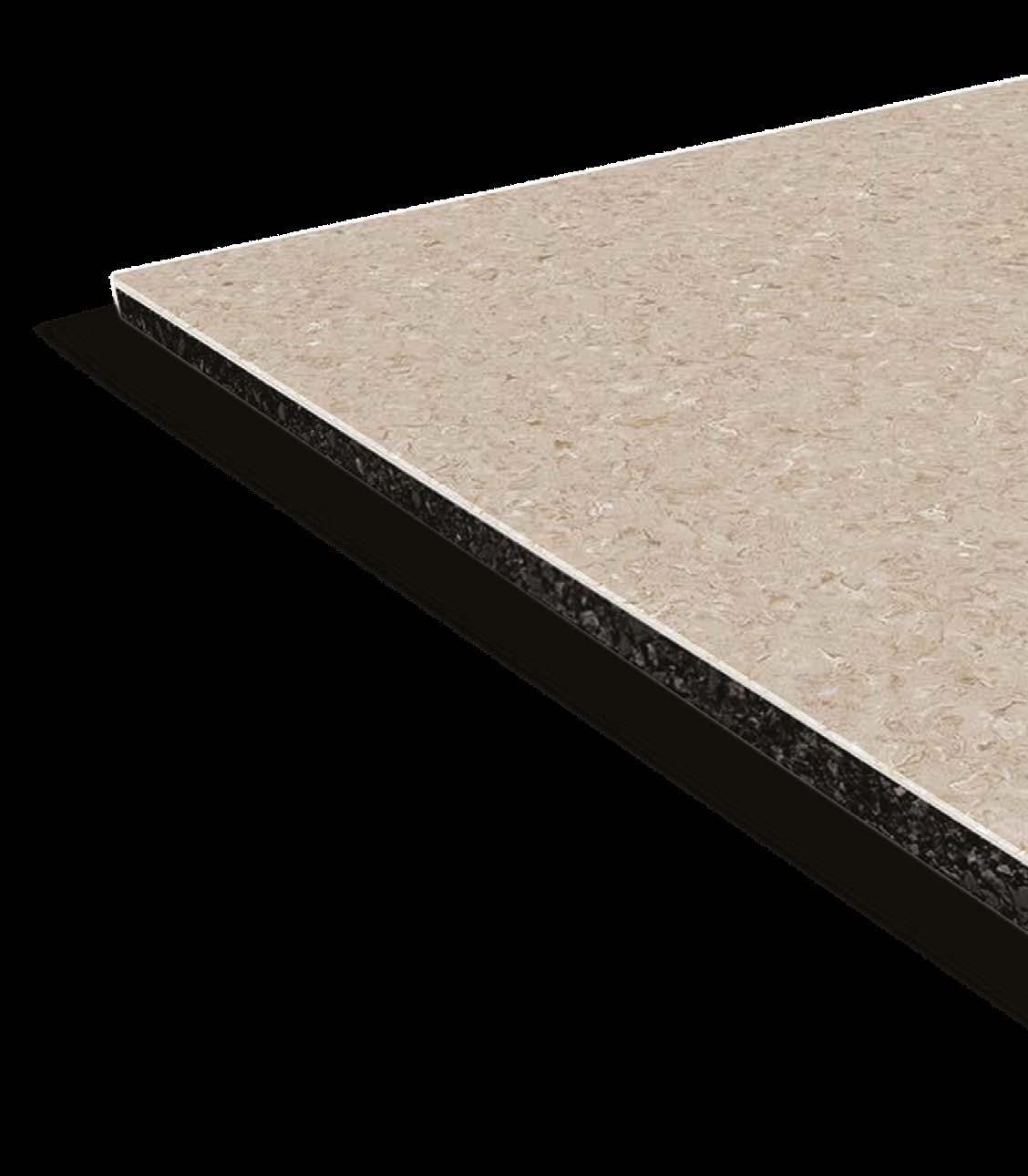

Serenity Motivate Class I features a 2mm linen visual surface layer fusion bonded to a 5mm Motivate base layer. The Serenity surface layer visual is non-directional, and like the name suggests, is intended to create calm environments designed for therapy, rehab, clinical, and senior living type environments. From a lab or clinic, to a group exercise or therapy/rehab room, Serenity Motivate Class I offers exceptional acoustical, ergonomic and safety benefits to support bodies in motion.

• 5mm Motivate base layer with a 2mm sheet vinyl surface layer

• Hygienic heat weld installation

• Quiet underfoot

• Low maintenance due to protective layer

Dimensions - W 1780mm x H 7mm

Installation available

Warranty – 10 years

SER7X (Specify colour)

Proprietary itsTRU® technology fusion-bonds the surface layer to the VCR base layer

3 - Base Layer

5mm Vulcanised Composition Rubber base layer

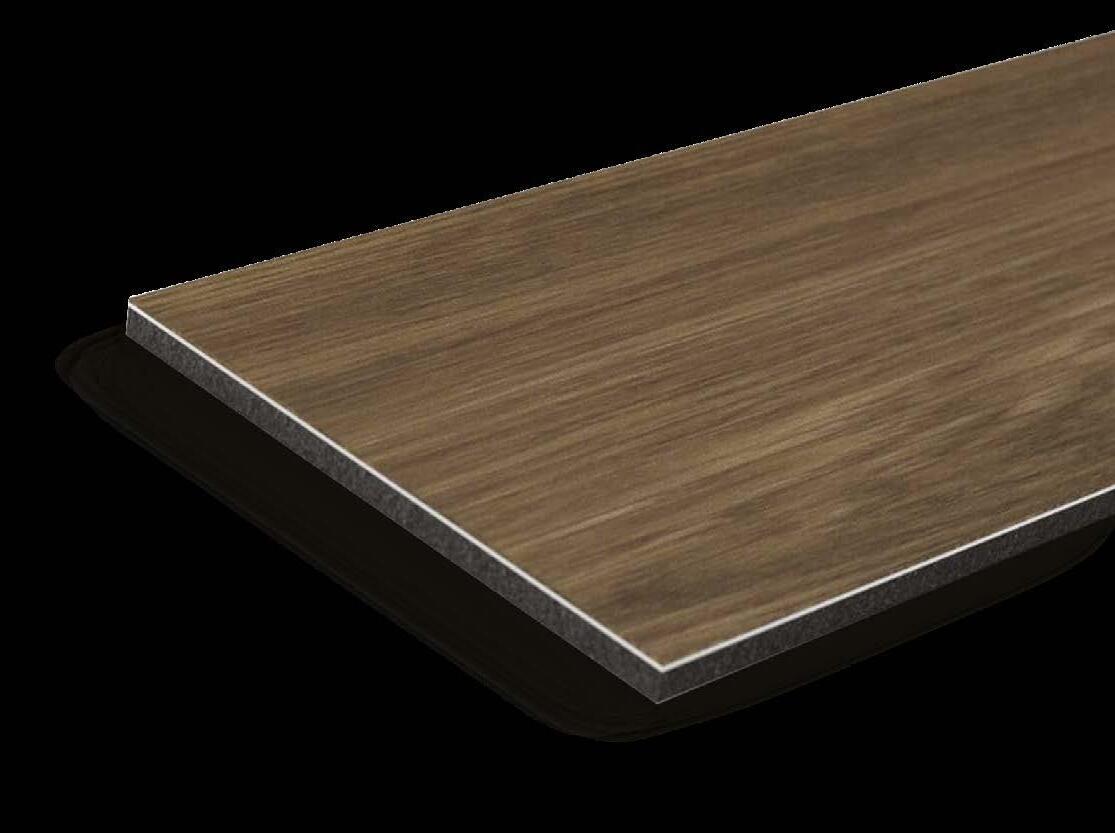

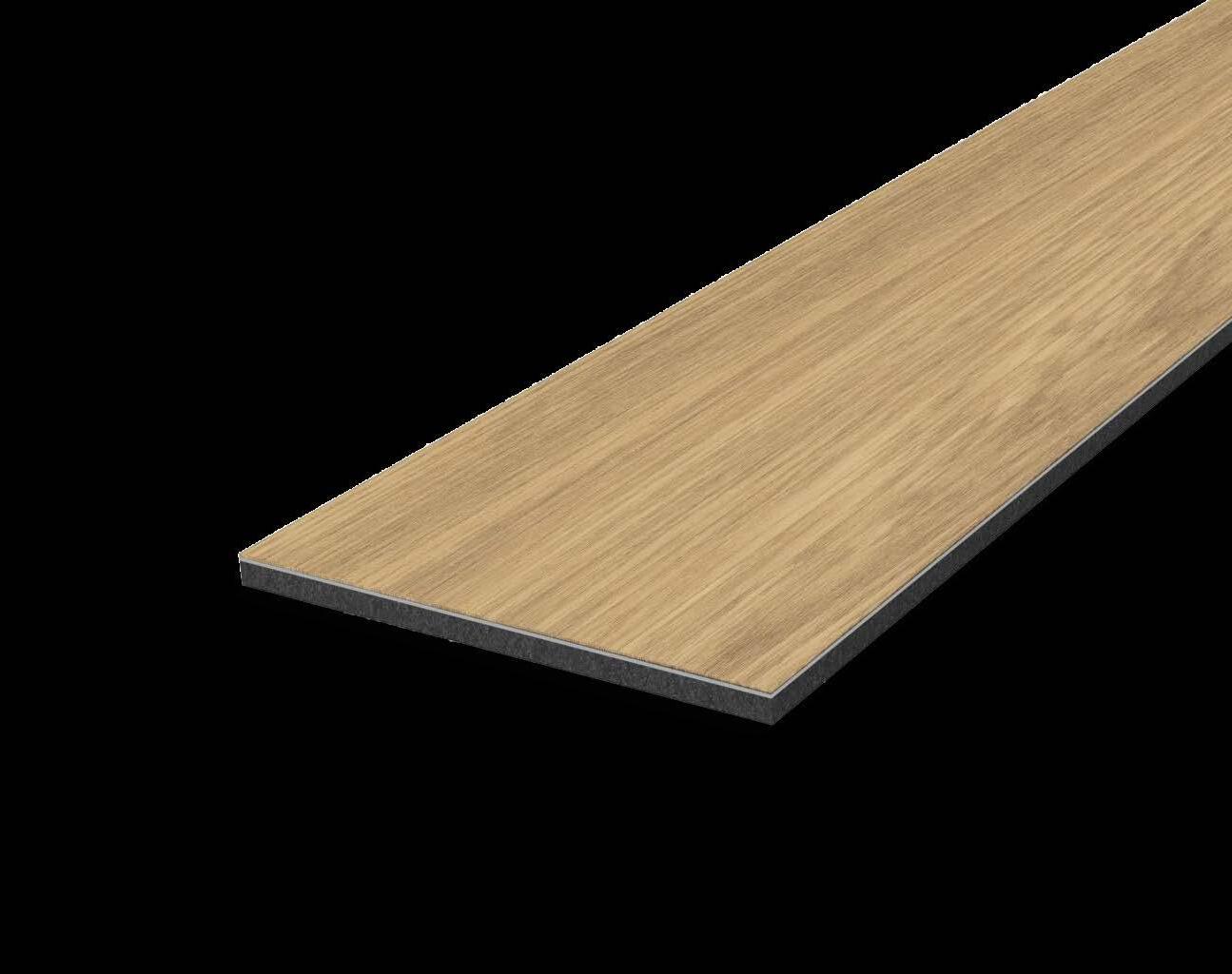

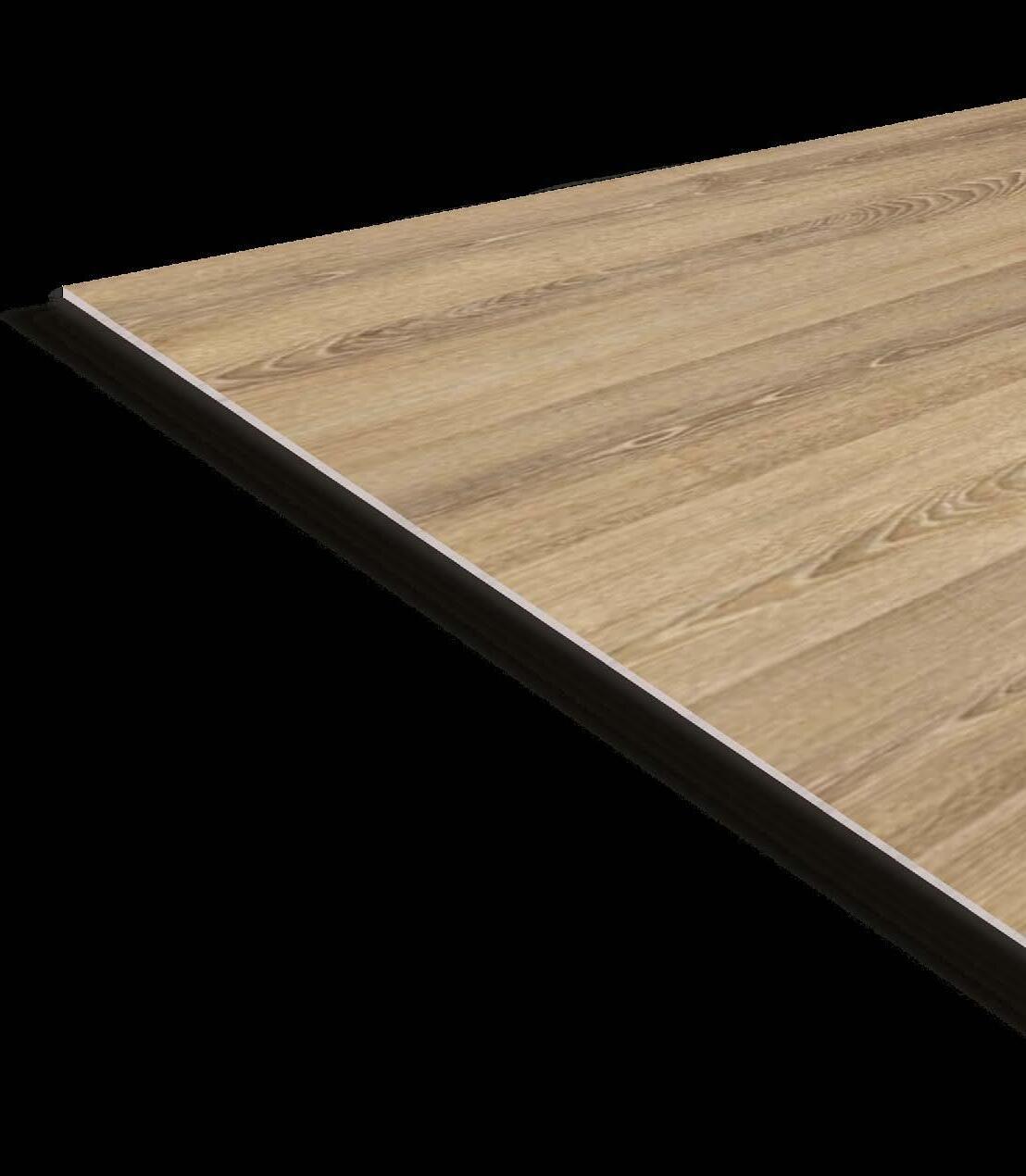

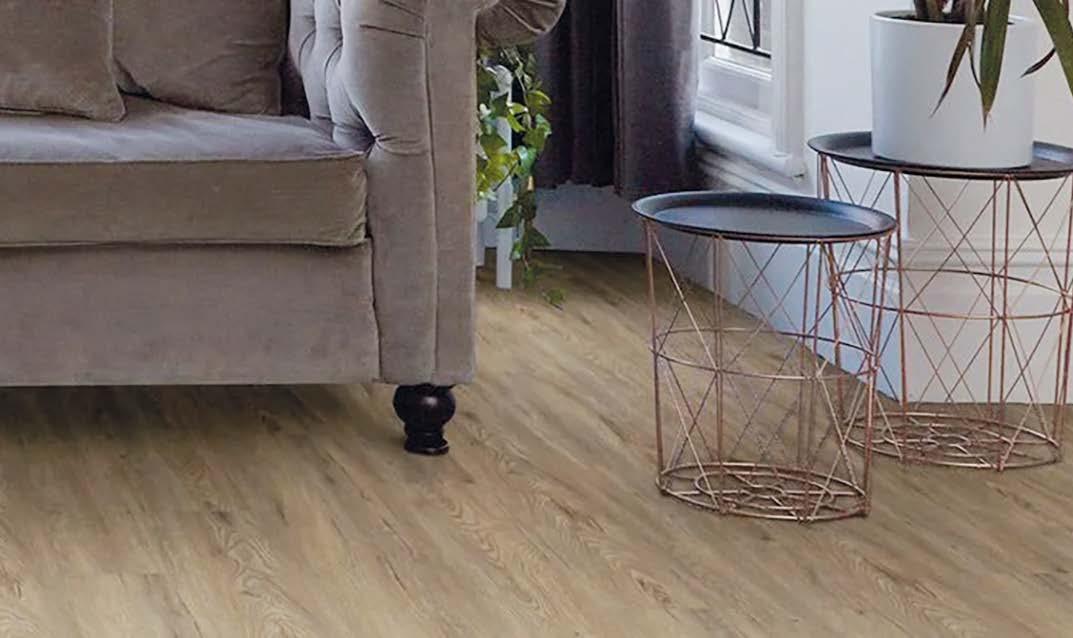

HERITAGE MOTIVATE

A revolutionary addition to Ecore’s product offering, Heritage Motivate is Ecore’s first Performance Vinyl Tile (PVT) product. PVT simply performs better; it’s safer, quieter, and more ergonomic than traditional LVT products. The perfect combination of elegance and performance with realistic wood visuals with the same, great Ecore performance you expect, but in plank format.

• Exceptional ergonomic, safety, and acoustical benefits in plank form

• It’s everything LVT is, with 5mm of VCR that provides unparalleled performance

• 5mm Motivate base layer with a 2mm sheet vinyl surface layer

• 10 realistic wood visual surface layers with colour and grain variation within and between planks

Dimensions – L 1220mm x W 1590mm x H 7mm (12 planks / 2.32sqm per carton)

Installation available

Warranty – 10 years

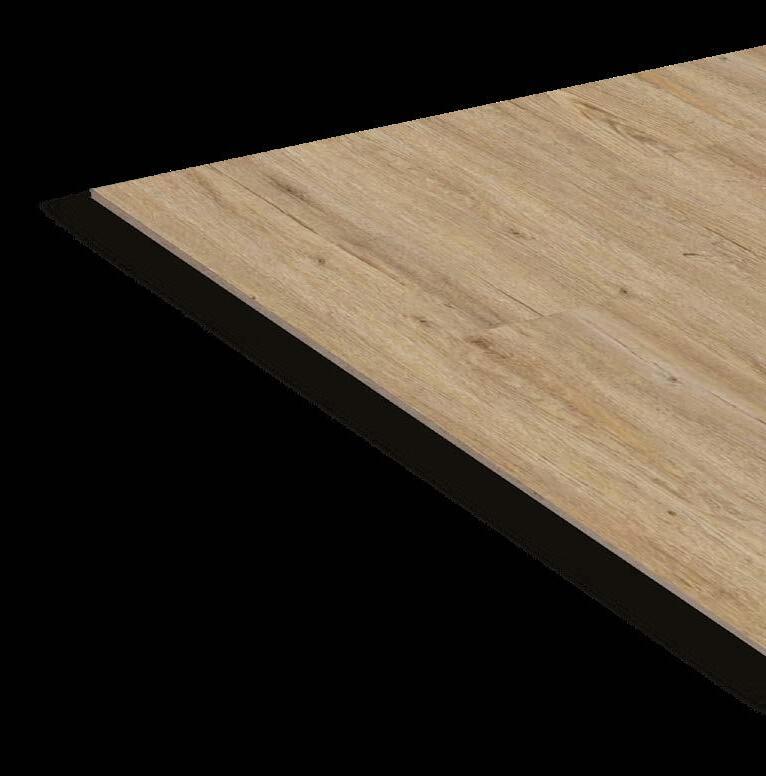

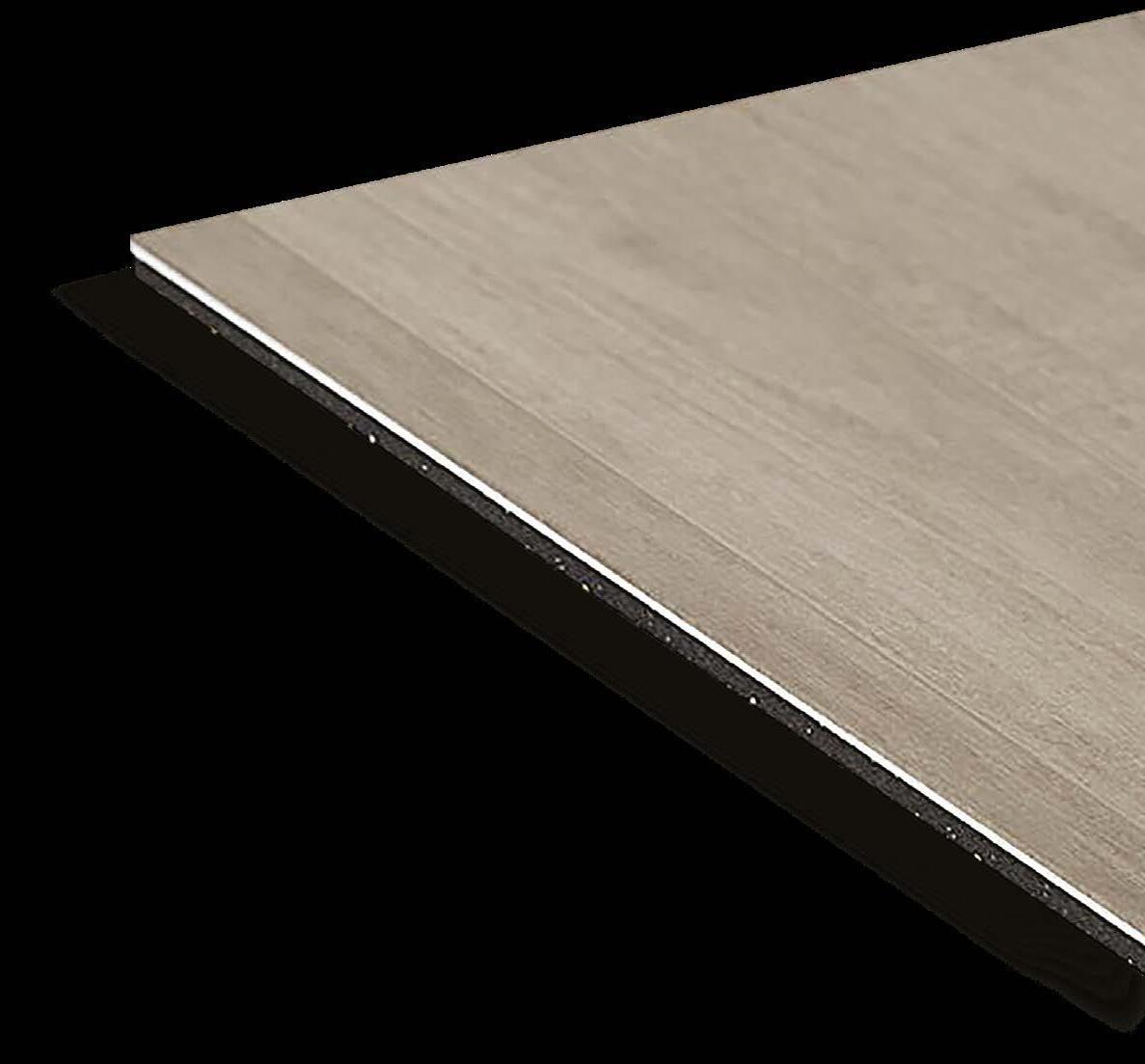

HM7X (Specify colour)

Plank - 7mm (0.28”) x 6.25” (15.88cm) x 48” (1.22m) 2.083 SF/plank OR

7mm (0.28”) x 6” (15.24cm) x 48” (1.22m) 2 SF/plank

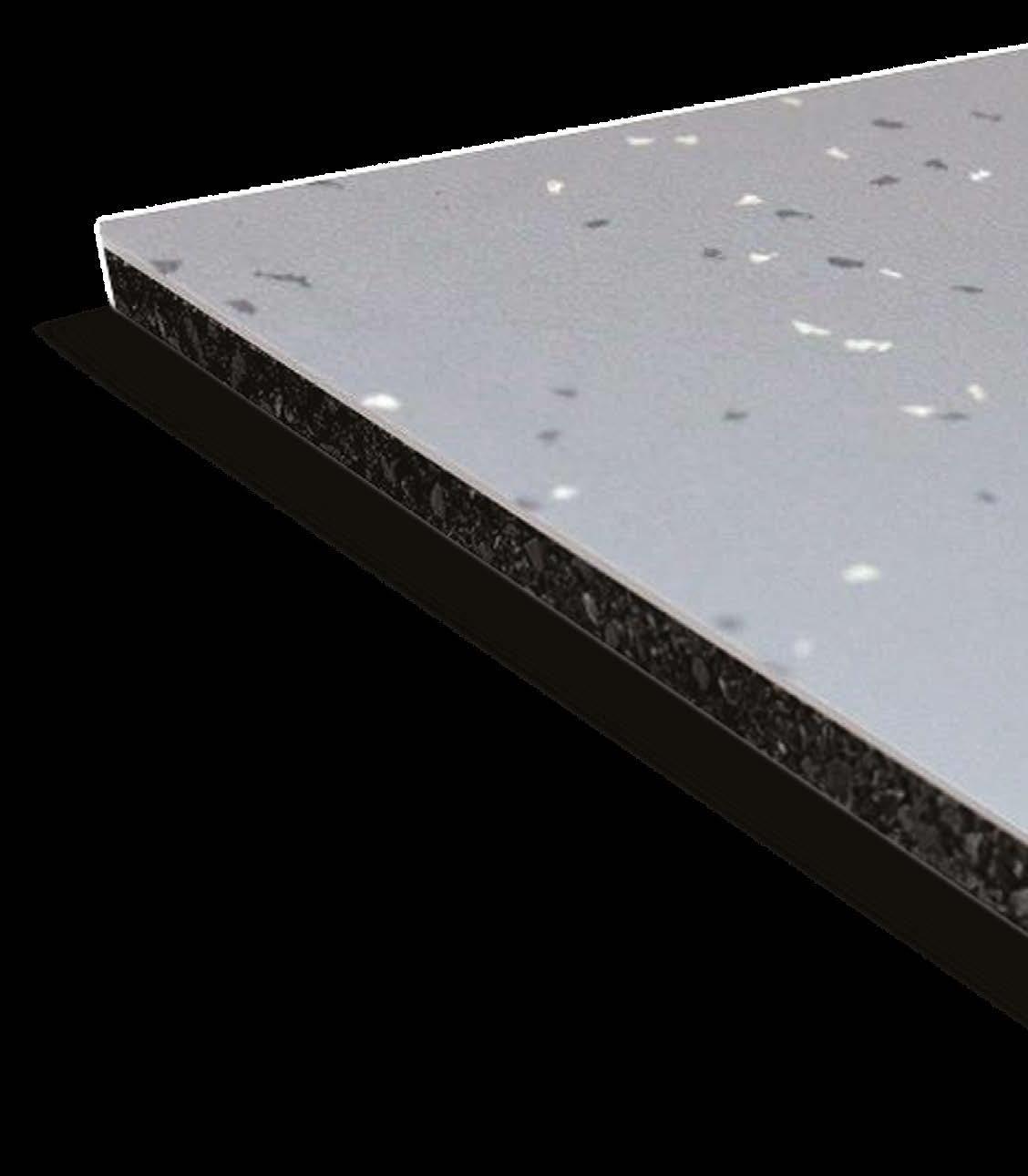

1 - Surface Layer

2mm Heterogeneous Vinyl surface layer

2 - itsTRU Fusion Bond

Proprietary itsTRU® technology fusion-bonds the surface layer to the VCR base layer

3 - Base Layer

5mm Vulcanised Composition Rubber Motivate base layer

Total Product Thickness: 7mm

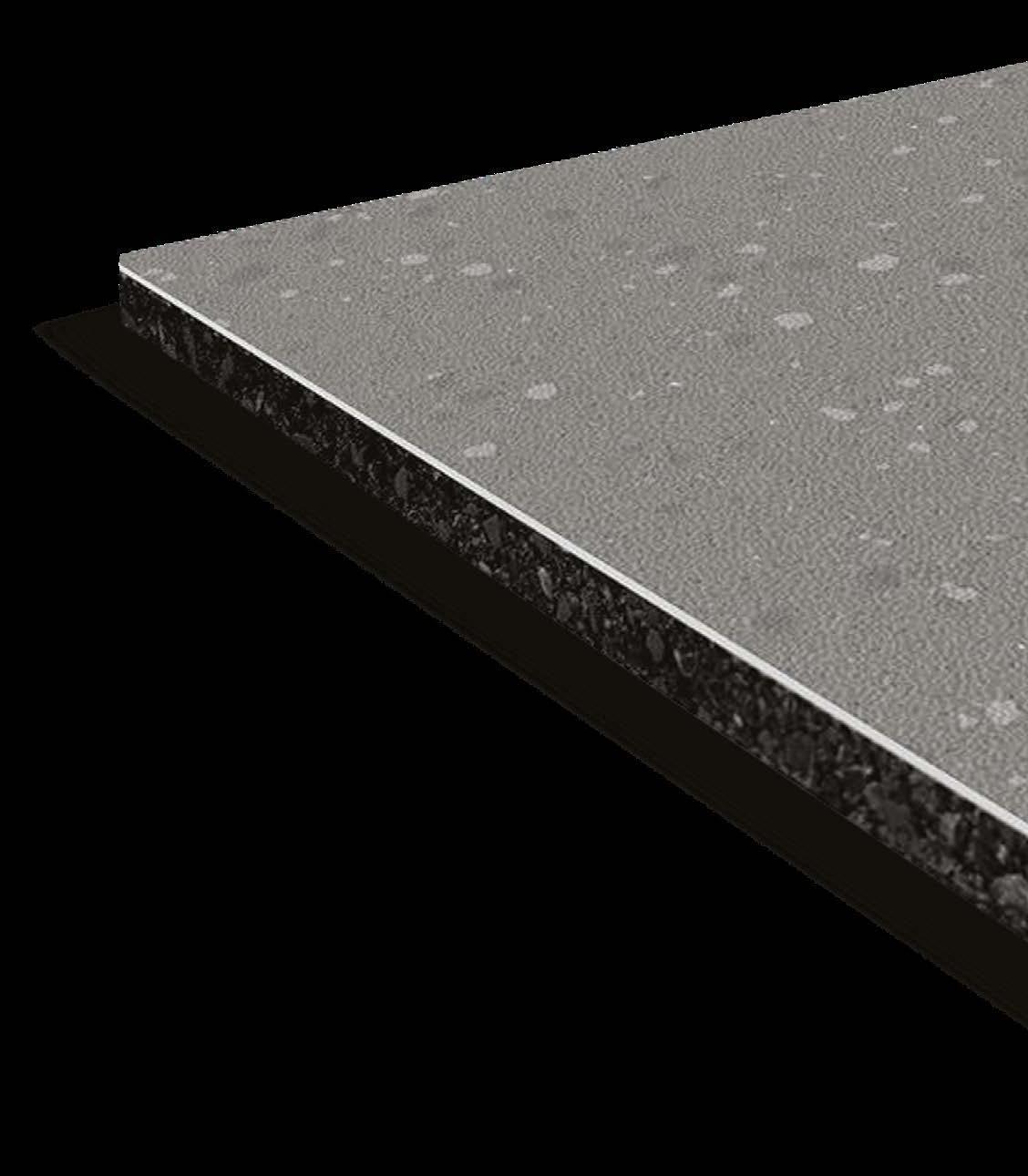

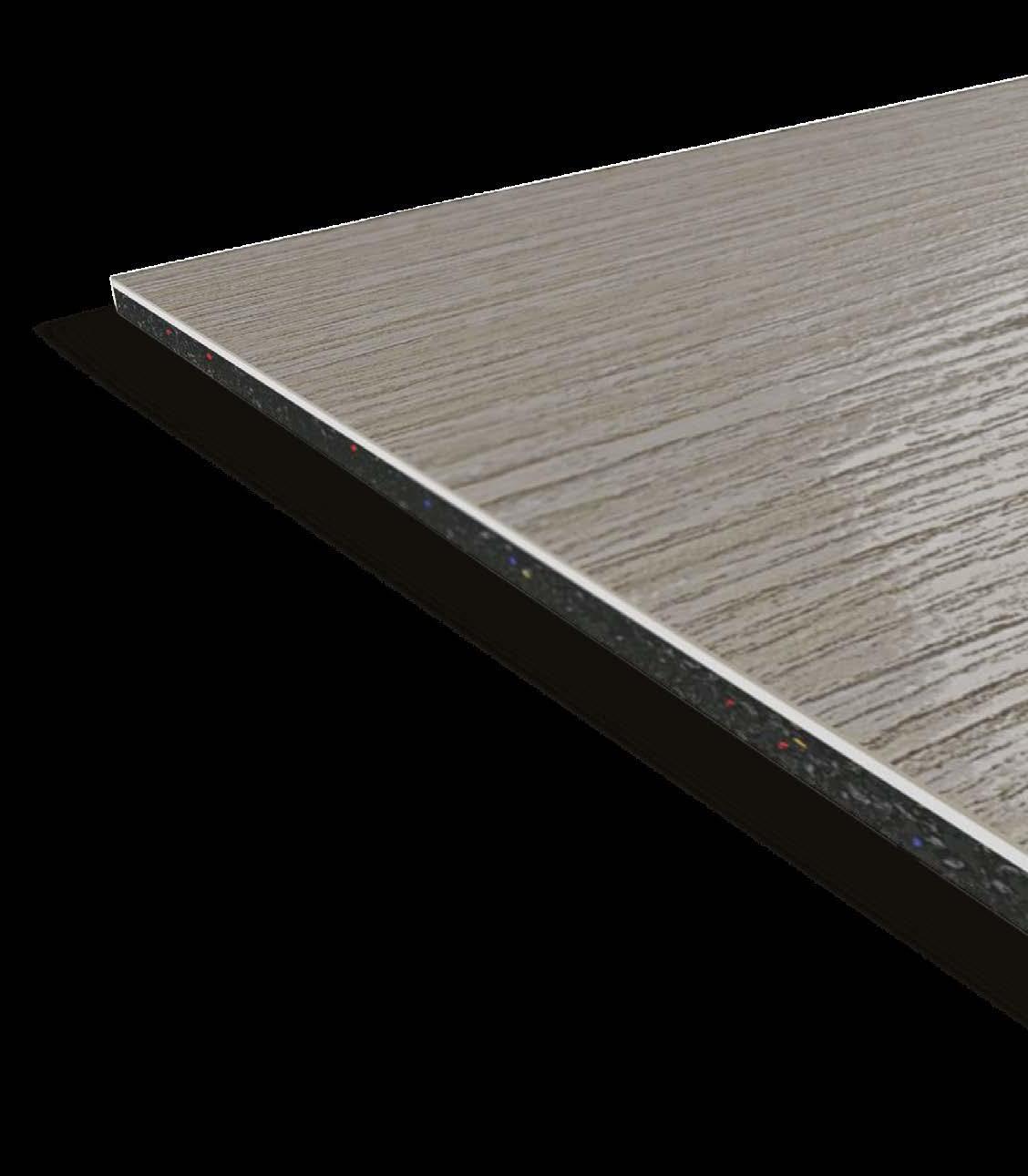

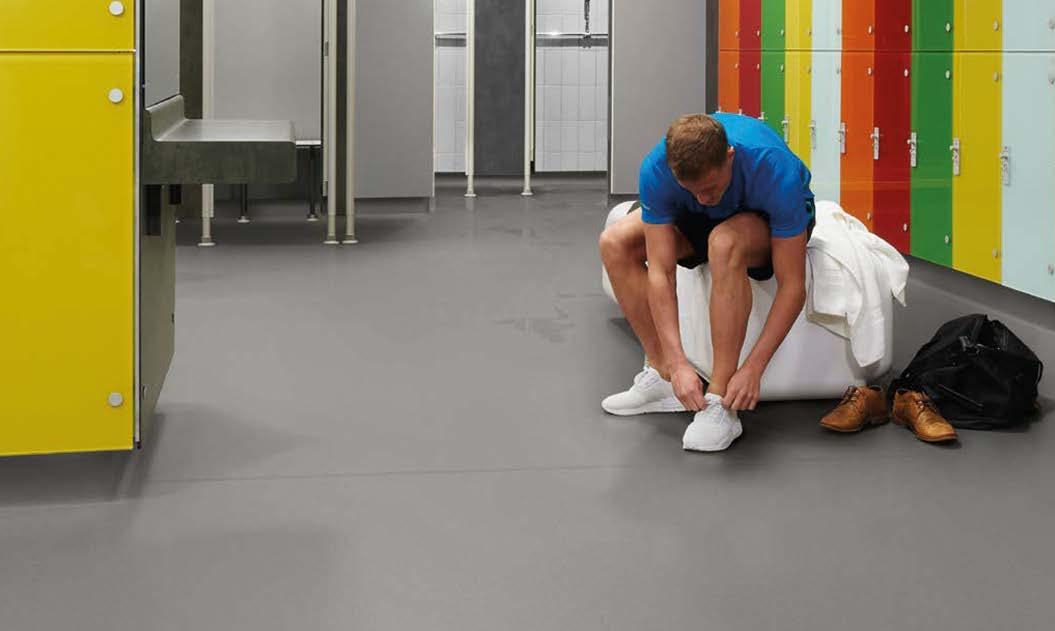

INTEGRITY MOTIVATE

Engineered for comfort and safety, Integrity Motivate is ergonomic and quiet underfoot, creating a comfortable space to work.

This two-layered PVC-free surface is specifically manufactured to reduce the severity of fall-related injuries while mitigating liability.

• Made with recycled rubber materials

• Easy to maintain and sanitise

• Features a factory applied PUR system

• Hygienic because of heat-welded installation

Dimensions – W 1470mm x H 7mm (Roll)

Installation available

Warranty – 5 years

INT7X

2 - itsTRU Fusion Bond

Proprietary itsTRU® technology fusion-bonds the layers

3 - Base Layer

5mm Vulcanised Composition

Rubber base layer

Total Product Thickness: 7mm

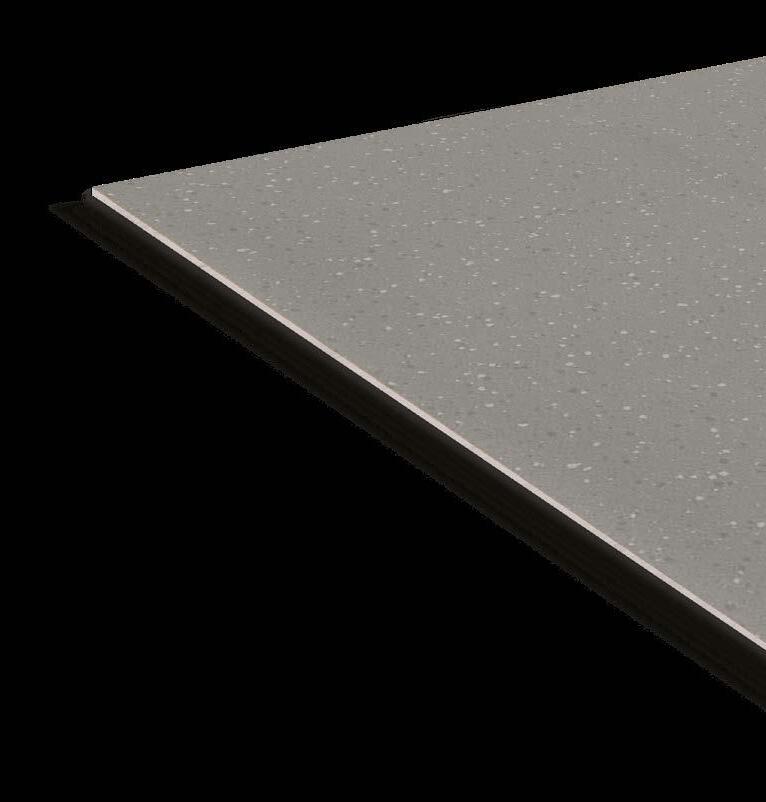

HYDRO GRIP MOTIVATE

HydroGrip Motivate features a superior slip-resistant surface layer fusion bonded to a vulcanised composition rubber base layer.

Offering ergonomic support and comfort underfoot, HydroGrip is an easy-to-maintain surface ideal for wet areas, locker rooms, and bathrooms where safety is a top priority. By harnessing the attributes of VCR, we’ve designed innovative surfaces that make people’s lives better.

• Made with reclaimed rubber materials

• Hygienic because of heat-welded installation

• High coefficient of friction in wet and dry areas

• Provides comfort underfoot

• Easy to maintain and sanitise

• Resistant to scuffs and marks

Dimensions - W 1830mm x H 7mm

Installation available

Warranty – 10 years

HGM7X (Specify colour)

Proprietary itsTRU® technology fusion-bonds the surface layer to the VCR base layer

3 - Base Layer

5mm Vulcanised Composition Rubber base layer

BALLER MOTIVATE CLASS I

Baller Motivate Class I is designed specifically for courts and multi-purpose rooms. The wood visuals are designed to replicate traditional wood courts and can be combined with the Baller solid colours to create court accents and borders. Play your hardest knowing that Baller Motivate Class I will return energy back to the user as well as reduce impact and structure borne noise.

• 5mm Motivate base layer with a 2mm sheet vinyl surface layer

• Baller Motivate Class I passes the ASTM F2772 Sports Floor standard

• Peace of mind that you’re playing on a surface that is proven and safe

• Easy to clean with protective layer

• Provides consistent playability

Dimensions - W 1780mm x H 7mm

Installation available

Warranty – 10 years

MB7X (Specify colour)

Roll - 7mm (.28”) x 70” (1.78m) x 30 LF (9.14m)

1 - Surface Layer - 2mm

2 - itsTRU® Fusion Bond

3 - Base Layer - 5mm

BALLER RALLY CLASS II

Enhanced Performance with Baller Rally Class II. Specifically designed for playing courts for a variety of indoor sports and features a 2mm vinyl surface layer factory fusion bonded through itsTRU VCR base layer to create a Class II court. The wood visuals are designed to replicate traditional wood courts and can be combined with the Baller solid colours to create court accents and borders.

• 12mm Rally base layer with a 2mm sheet vinyl surface layer

• Baller Rally Class II passes the ASTM F2772 Sports Floor standard

• Easy to clean with protective layer

• Provides consistent playability

Dimensions - W 1780mm x H 14mm

Installation available

Warranty – 10 years

MB14X (Specify colour)

Roll - 14mm (.28”) x 70” (1.78m) x 30 LF (9.14m)

1 - Surface Layer - 2mm

2 - itsTRU® Fusion Bond

3 - Base Layer - 12mm

Product Thickness: 14mm

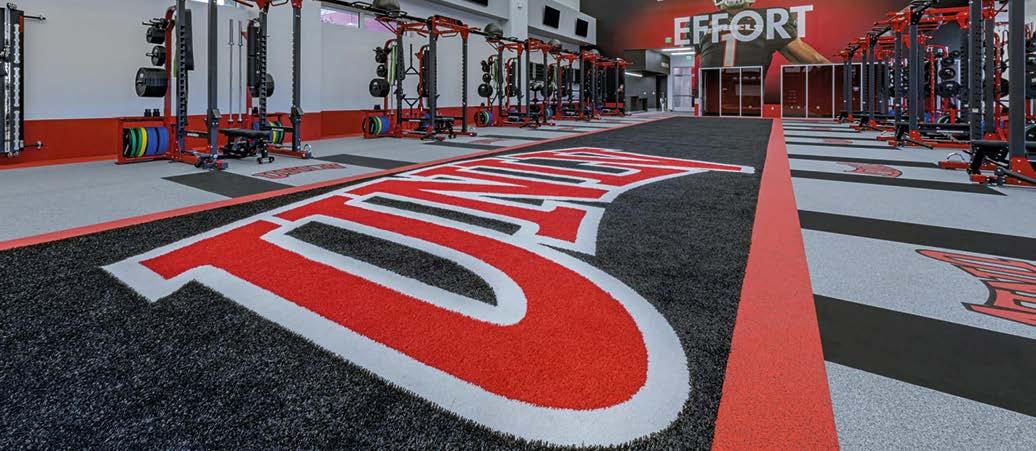

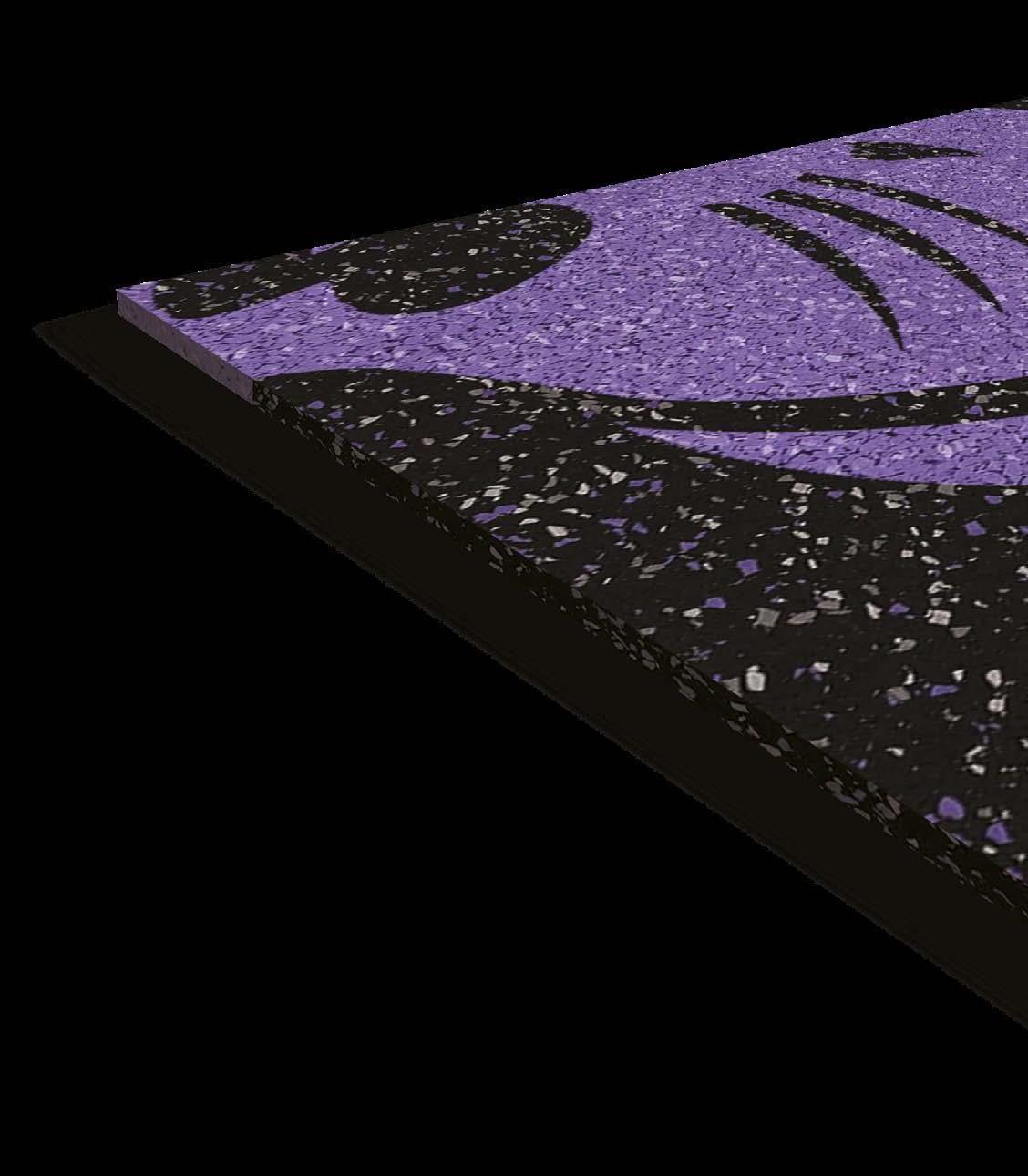

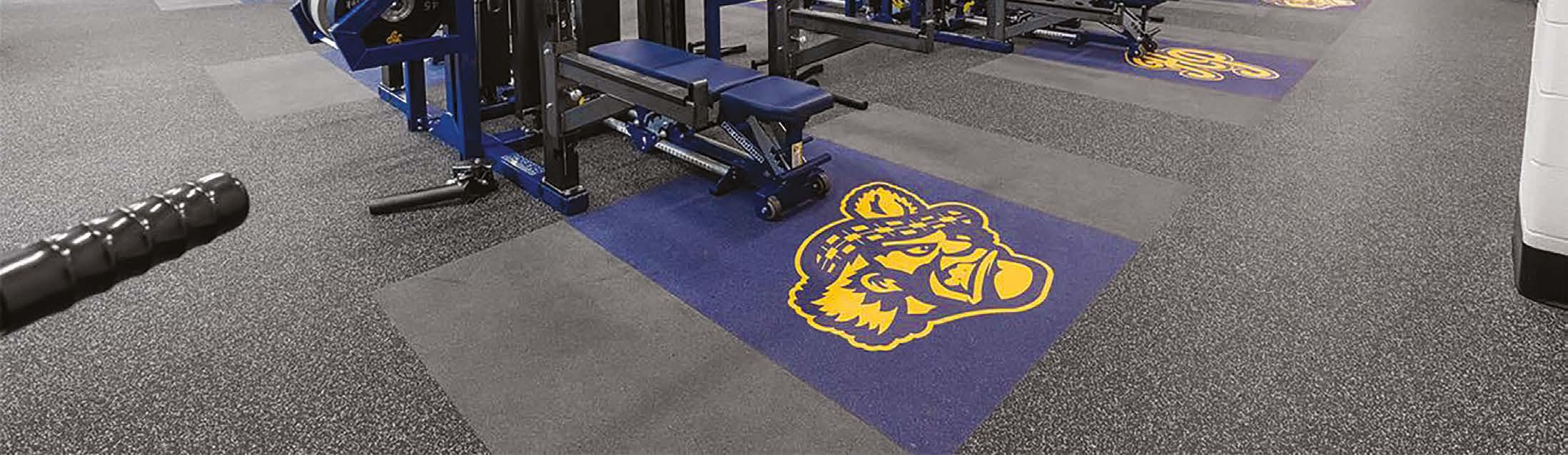

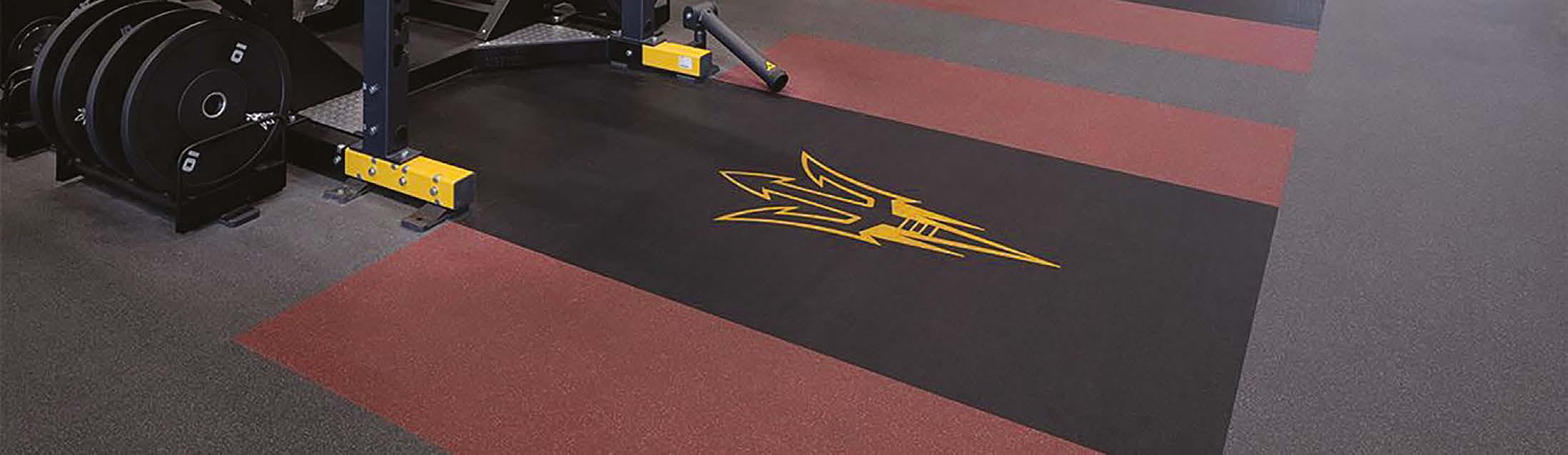

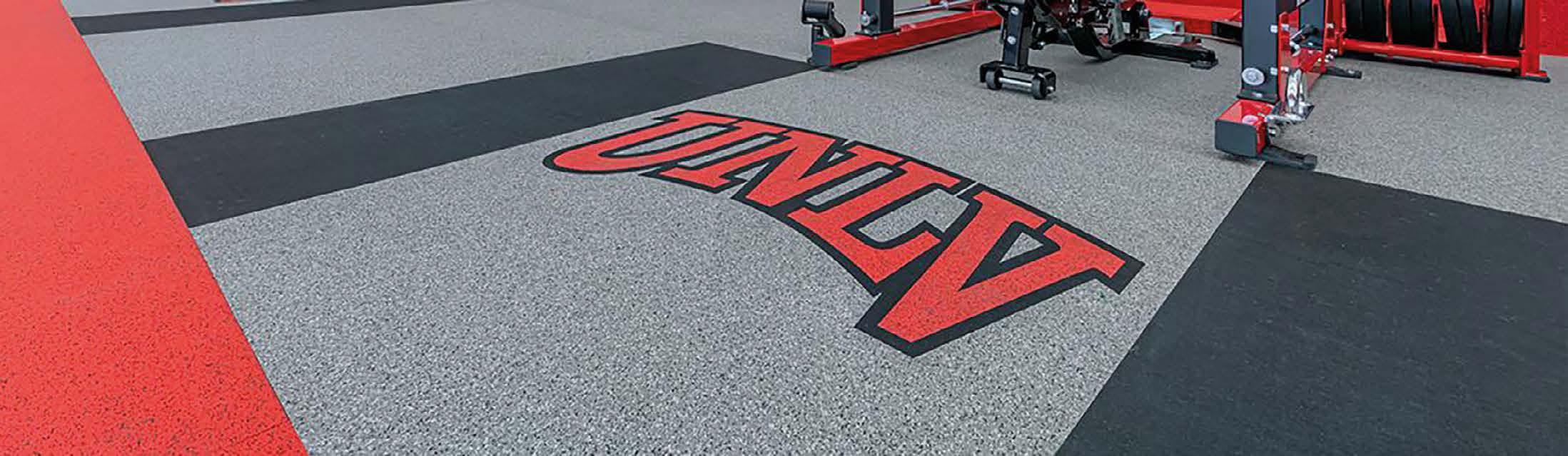

INLAID RUBBER LOGOS

Add sophisticated design to your facility with freeform shapes, Ecore can make it happen with their custom logos program. Your design ambitions don’t have to come second to production capabilities — custom colour options and superior pattern abilities can make achieving your design a reality.

Ecore offers more than 35 standard EPDM colours! These colours are created through Ecore’s ColorMill®. Ecore is unique, because it is one of a few flooring manufacturers to develop its own EPDM products at its facility in Lancaster, USA. The exclusive ColorMill® process ensures your design will feature the most vivid colors and exhibit a smooth, even finish

Installation available

Warranty – 5 years

LOGO101 (Specify colours)

MODZILLA SHOCKPAD

Available in both 15mm and 32mm vulcanised composition rubber interlocking tiles, Modzilla ShockPad provides the ultimate amount of shock absorption. Modzilla ShockPad interlocking tiles do not need to be adhered to the substrate, allowing you to create a floating floor system that is easy to install. These interlocking tiles are designed to be installed on-site underneath either Basic Fit, Performance Beast or Performance Beast Plus.

• Reduces force from impacts

• Does not need to be bonded to the sub-floor

• Use 32mm for Performance Beast & Beast Plus

• Use 15mm for use with Basic Fit

Dimensions – L 1220mm x W 610mm x H 15mm or 32mm

Installation available

Warranty – 5 years

MOD15 15mm Modzilla Shockpad Tile

MOD32 32mm Modzilla Shockpad Tile

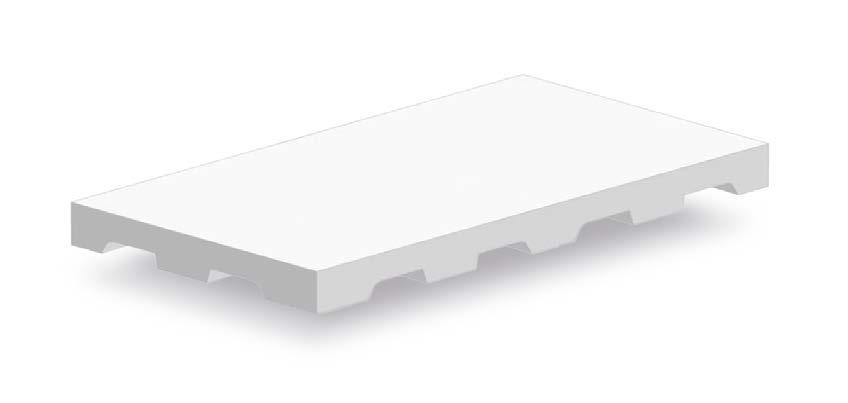

Interlocking Tiles

Mod32: 32mm x 24” x 48”

Interlocking Tiles

1 - Floating Interlocking Tile

ShockPad 15mm or 32mm Field United

ShockPad

IMPACT ZONES

Ecore’s Impact Zones are the black “drop areas” in an Inlaid Lifting Station, and provide a smooth transition to Beast Plus and Rally with no need for field lamination. Impact Zones are a solid product that can withstand repeated impacts.

Dimensions – W 1220mm

Installation available

IM14.5BLK

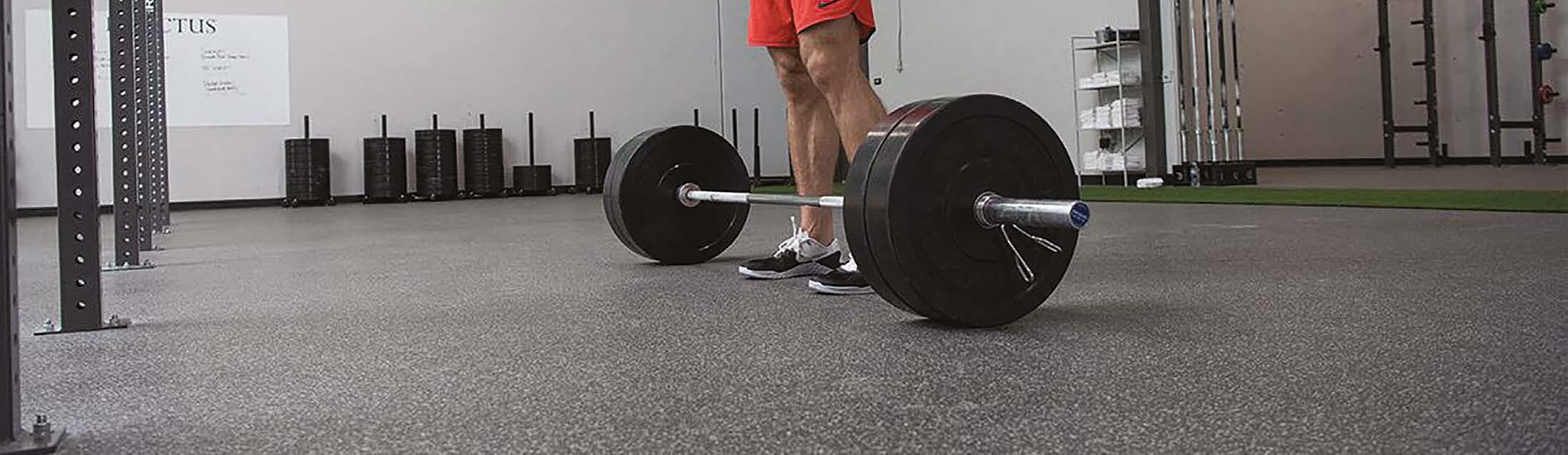

MONSTER SHOCKPAD

Recycled rubber underlayment that helps protect athletes against injuries, such as concussions, damage to ankles and knees, shin splints, and lower back pain.

• Available in 8mm, 10mm, 12mm, 15mm, 20mm and 25mm thickness

• Increases impact absorption in extreme weight lifting environments

Dimensions – W 1220mm (Roll)

Installation available Warranty – 5 years

SPF8 8mm

SPF10 10mm

SPF12 12mm

SPF15 15mm

SPF20 20mm

SPF25 25mm

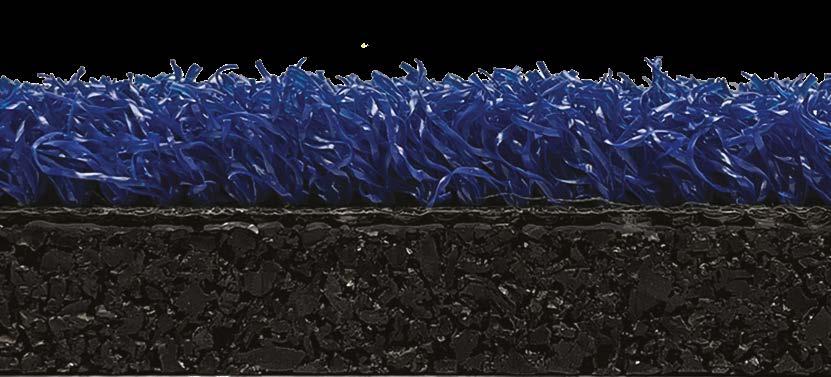

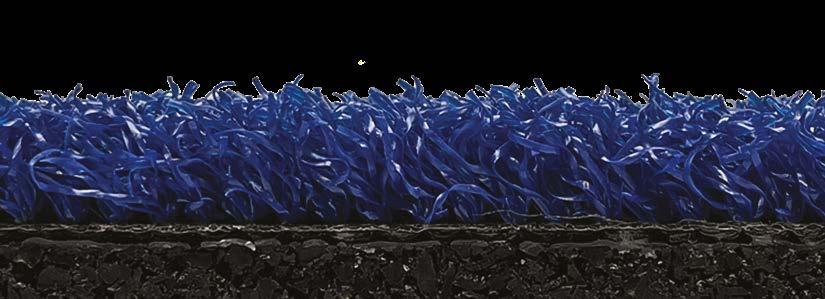

RAGETURF MOTIVATE

RageTurf Motivate features a dense, textured polyethylene surface layer, making it ideal for footwork drills and sled work.

While too abrasive to fall or dive on, this consistent and tight surface can handle moderate weight impact in functional training settings.

• No infill needed

• Acoustics and durable turf solution

Dimensions – L 10670mm x W 1830mm x H 17mm

Installation available

Warranty – 5 years

RT17X RageTurf Motivate Roll (specify colour)

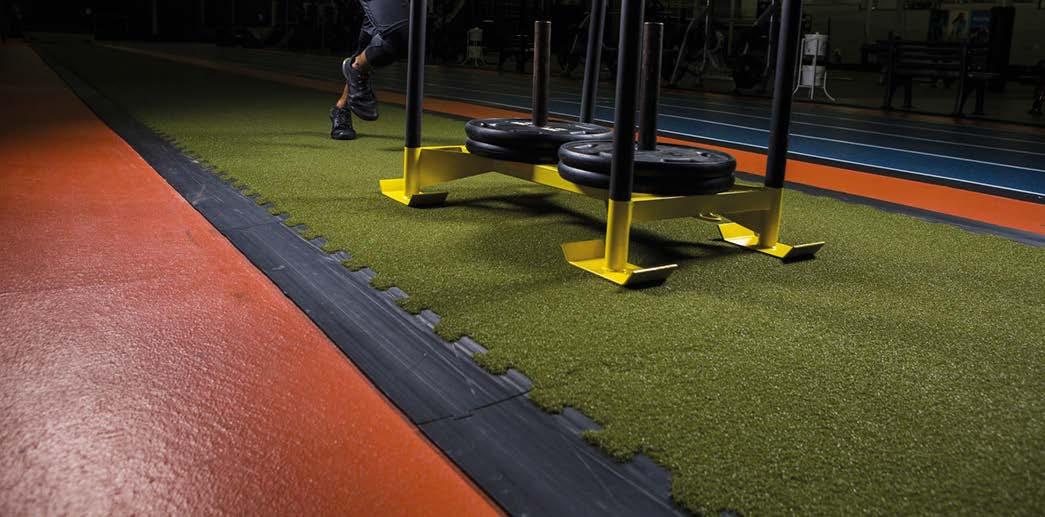

RAGETURF RALLY

With a 12mm VCR base layer, RageTurf Rally can handle the impact of moderate weight, making it ideal for functional training applications.

• No infill needed

• Acoustics and durable turf solution

• Interlocking Rally tiles available to create portable turf areas.

Dimensions –

L 7620mm x W 1830mm x H 24mm (Rally Roll)

L 1170mm x W 580mm x H 24mm (Rally Tile)

Installation available Warranty – 5 years

RT24X RageTurf Rally Roll (specify colour)

RT24TX RageTurf Rally Tile (specify colour)

Roll - 24mm (0.94”) x 72” (1.83m) x 25 LF (7.62m)

Roll - 17mm (0.67”) x 72” (1.83m) x 35 LF (10.67m)

1 - Surface Layer - 12mm

2 - itsTRU® Fusion Bond

3 - Base Layer - 5mm

Total Product Thickness: 17mm

Tile - 24mm (0.94”) x 23” (.58m) x 46” (1.17m)

1 - Surface Layer - 12mm

2 - itsTRU® Fusion Bond

3 - Base Layer - 12mm

Total Product Thickness: 24mm

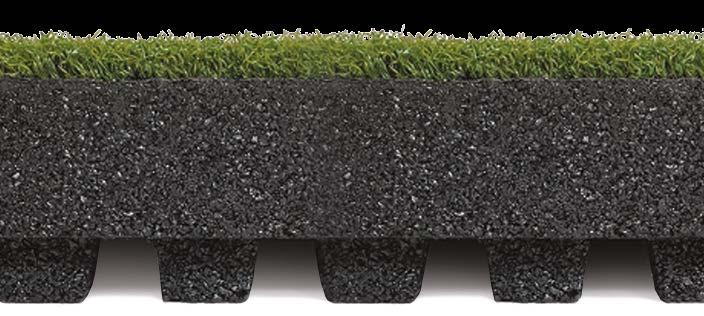

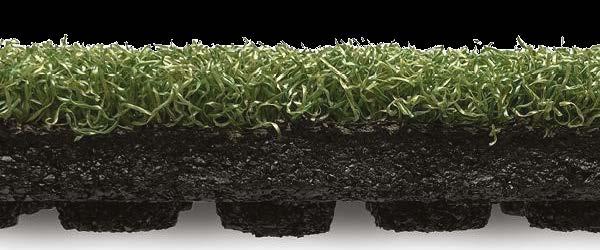

RAGETURF ULTRATILE

While too abrasive to fall or dive on, RageTurf UltraTile’s dense polyethylene turf surface layer makes it ideal for footwork drills. Use with Performance UltraTile for added shock and sound absorption.

• Easy installation with Quad Blok installation system

• Durable and sustainable surface

• Available in Green, perfect for outdoor applications

• Best in class impact and sound absorption in turf form

Dimensions – L 610mm x W 610mm x H 37mm

Installation available

Warranty – 5 years

RTUT1X RageTurf UltraTile

Tile - 37mm x 24”

1 - Surface Layer - 12mm Pile Height

Polyethylene Turf surface layer

2 - Base Layer - 1” Vulcanised

Composition Rubber moulded base layer

Total Product Thickness: 37mm

RAGETURF DBTILE

RageTurf dBTile mitigates the shock and sound resulting from foot steps and from weights being dropped onto its surface, making it the best option for areas where the highest level of sound absorption is required.

• Durable and sustainable surface

• Best in class impact and sound absorption in turf form

Dimensions – L 610mm x W 610mm x H 76mm

Installation available Warranty – 5 years

RTDBTX RageTurf dBTile

Tile - 76mm x 24” (0.61m) x 24” (0.61m)

1 - Surface Layer - 12mm Pile Height

Polyethylene Turf

2 - Base Layer - 2.5” moulded Vulcanised

Composition Rubber base layer

Total Product Thickness: 76mm

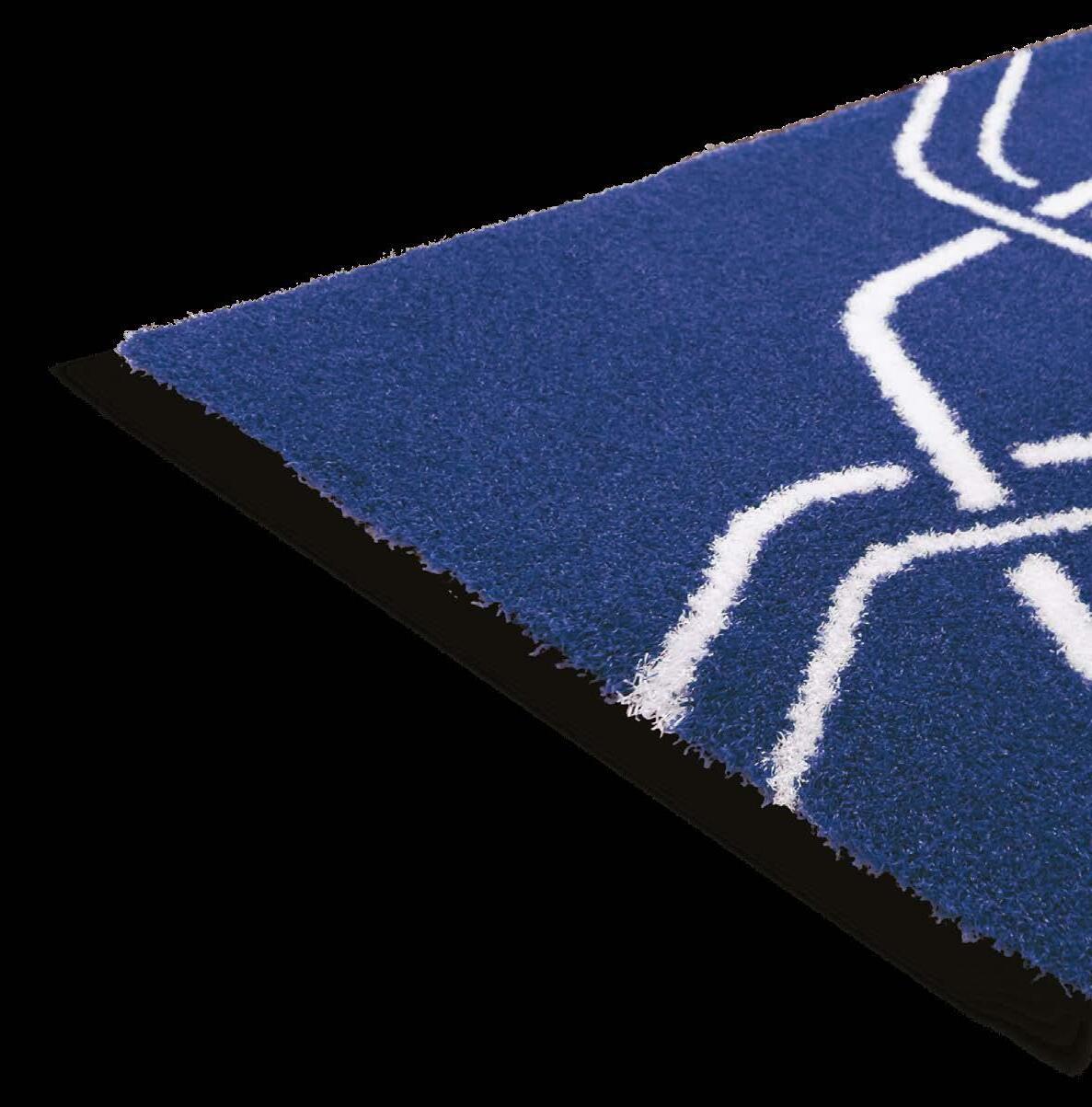

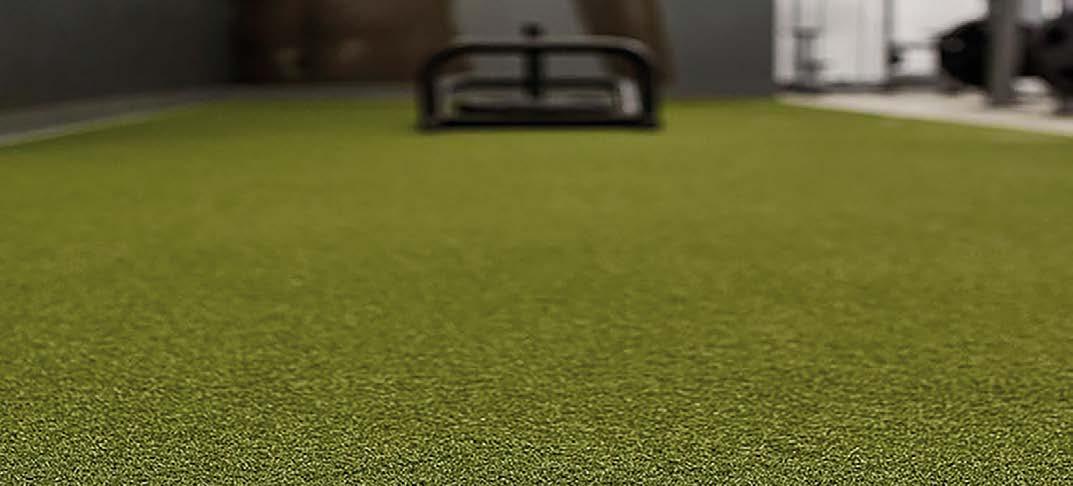

FLEXTURF MOTIVATE

Dubbed the perfect indoor training turf, FlexTurf Motivate features a thatch support system, eliminating the need for infill.

FlexTurf Motivate provides comfort underfoot and helps eliminate the negative stress and strain of repeated impacts, making it ideal for highintensity and functional training indoor spaces.

• Made with reclaimed rubber materials

• Lower In-Room Impact Sound

• Significantly Reduces Impact Force

• Provides comfort underfoot

• Infill Free

• Custom line markings and logos available

Dimensions – L 10670mm x W 1830mm x H 20mm

Installation available

Warranty – 5 years

FT20X

Roll - 20mm (0.78”) x 72” (1.83m) x 35 LF (10.67m)

1 - Surface Layer - 15mm

2 - itsTRU® Fusion Bond

3 - Base Layer - 5mm

Total Product Thickness: 20mm

FLEXTURF MONSTER

FlexTurf Monster consists of a polyethylene turf surface field united to either a 10mm or 15mm vulcanised composition rubber ShockPad. FlexTurf Monster can be customised with lines and logos.

FlexTurf Monster creates the ultimate safe and ergonomic training surface for both indoor or outdoor use.

• Inlaid Logos/Designs Available

• Can withstand light weight impacts

• Suitable for outdoor use

• Custom line markings and logos available

Dimensions – W 4570mm x H 25mm or 30mm

Installation available

Warranty – 5 years

FT25X

Roll - 15mm (.59”) x 15’ (4.57m) x Custom Length

1 - Surface Layer - 110mm (.39”) x 48” (1.22m) x 25 LF (7.62m) 15mm (.59”) x 48” (1.22m) x 15 LF (4.57m)

2 - Monster ShockPad Layer

- 10mm or 15mm Field United Vulcanised Composition Rubber ShockPad

Total Product Thickness: 25 or 30mm

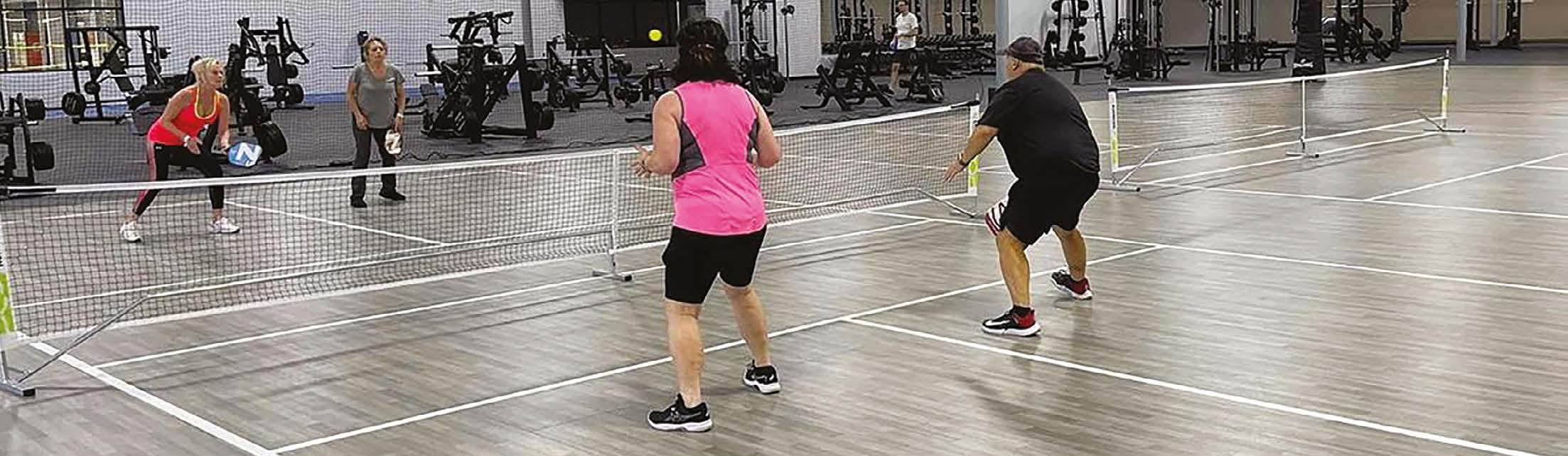

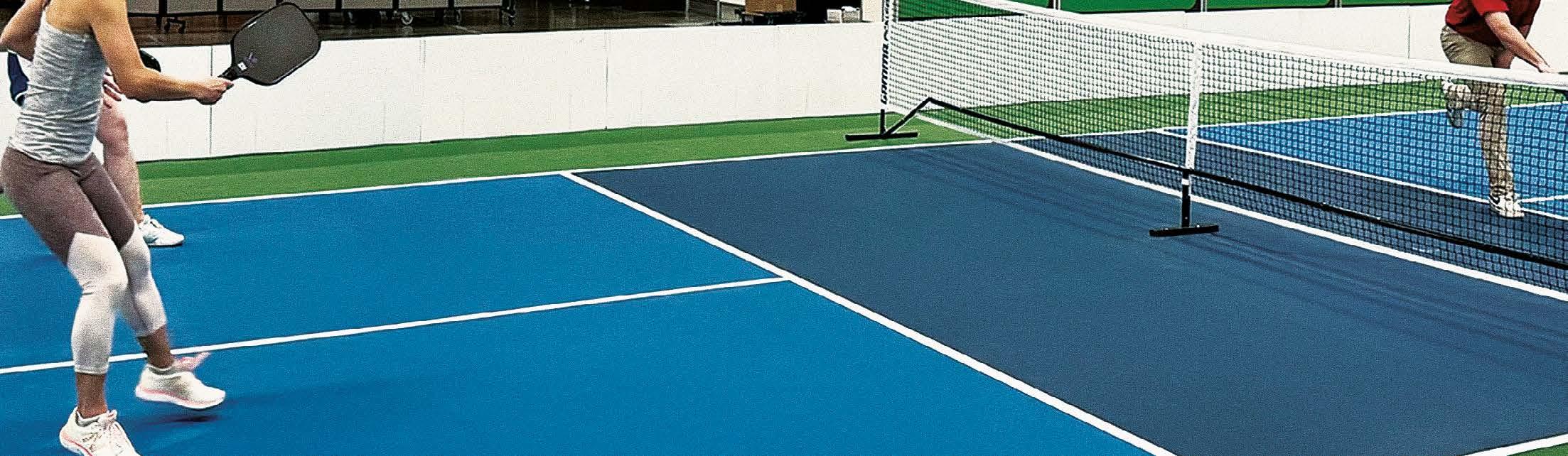

MODCOURT PICKLE

Engineered with a vulcanised composition rubber backing, MODcourt Pickle ensures a safer, quieter, and more ergonomic court, optimising the athlete’s experience. With this innovative design, you will not only play longer and better, but also enjoy enhanced safety and comfort on the court.

• Easy to maintain and sanitise

• Durable

• DIY Friendly

• Returns Energy to User

• Ideal friction for athletic deceleration

Dimensions – L 610mm x W 610mm x H 64mm

Installation available

MODCX

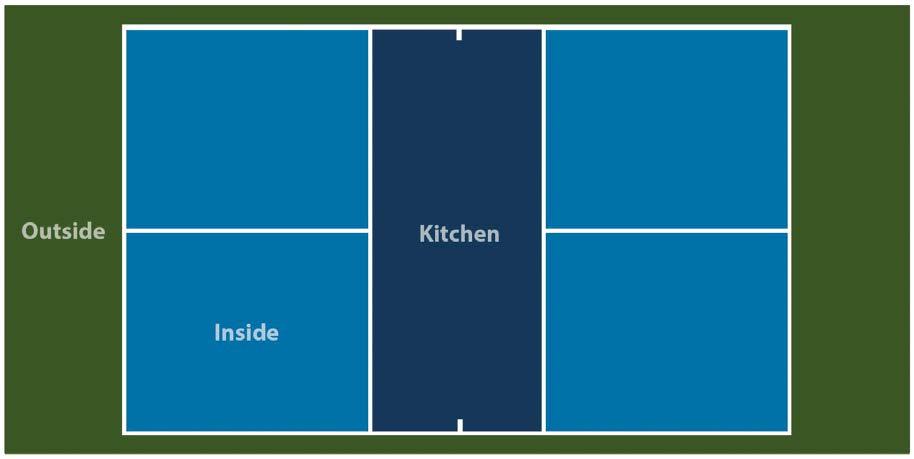

Mini Court - Playing Court: 10’ x 22’

Whole System: 15’ x 30’

1 - Surface Layer - Water Acrylic Surface

2 - Base Layer - 8mm Vulcanised

Composition Rubber base layer

Total Product Thickness: 8mm

PAVESAFE BIG E TILE

Made from Vulcanised Composition Rubber (VCR), PaveSafe Big E Tiles are ideal for extreme strength training and can handle extreme abuse. Available in 30mm and 44.5mm these dense tiles are portable and allow you to create temporary and mobile outdoor spaces for heavy weight drops. Big E Tiles are exceptionally durable and provide superior coefficient of friction in both wet and dry environments.

• Excellent shock absorption and protection

• Slip-resistant when wet

• Low cost and environmentally friendly

• Temporary, replaceable and portable

Dimensions – L610mm x W610mm x H 30mm or 44mm

Installation available

Warranty – 5 years

BIGE

43mm (1.69”) x 24” (0.61m) x 24” (0.61m)

1 - Surface Layer

Vulcanised Composition Rubber tile

PLAY GUARD TILES

Give your outdoor training space a vivid transformation! Ecore’s PlayGuard Tiles are manufactured with its TRU™ technology that moulds a dense 2.5mm vulcanised composition rubber (VCR) and EPDM surface layer to a footed VCR base. Used in combination, as single-colour accents or fully inlaid custom designs, PlayGuard creates bright and engaging atmospheres. This collection’s vivid patterns transform outdoor spaces into lively, durable attractions.

• Cushions the impact of a fall to reduce the risk of serious injury

• Bold & energetic colour ranges from Carnival Ultra

• Earth-hue tones available from soft pigmented tiles

• Design your own surface using inlaid custom designs

• Meets the ASTM F1292-17A standard specification for impact attenuation for falls

Dimensions – L 610mm x W 610mm x H 64mm

Installation available

Warranty – 10 years

PLAYGX (specify colour)

PLAYPIGX Pigmented Colours

Tile -

x

1 - Surface Layer 2.5” Vulcanised Composition Rubber moulded tile Total Product Thickness: 64mm

ECO SURFACES

SURFACES BACKED BY INNOVATIVE TECHNOLOGY

It’s easy to imagine what we want a product to do: absorb noise, reduce impact, keep us on our feet longer. Figuring out what materials to use, how to combine them, and how to make them work to our advantage requires perseverance and innovation. ECOsurfaces products use three powerful technologies that are better for people, performance, and the planet.

ECOsurfaces provides a variety of premium flooring products developed and manufactured to meet the extreme challenges experienced in commercial environments, including healthcare, senior living, hospitality, public spaces, multi-family, retail, corporate and education facilities.

itsTRU® Technology is a proprietary, zero-waste upcycling process that improves the performance of their flooring—and the lives of everyone who uses it—while minimising impact on the planet.

ECOMAX FOR FITNESS

ECOmax for Fitness is a square, beveled tile with a patented footed system. The 1-inch moulded tile is designed specifically for use in weight rooms. ECOmax for Fitness provides enhanced acoustic performance by dampening the transmission of noise. It also offers superior drainage, continuous underfoot comfort, and tested slip resistance to prevent falls and injuries.

• Will withstand repeated heavy weight impact

• Made with reclaimed rubber materials

• Significantly reduces impact force

• Returns energy to user

Dimensions – L 610mm x W 610mm x H 25.4mm

Installation available

Warranty – 5 years

ECOT1X

ECODB

ECOdB is a 2.5-inch moulded tile that mitigates shock and sound resulting from weight drops.

• Durable

• Made with reclaimed rubber materials

• Inlaid Logos/Designs available

• Returns energy to users

• Significantly reduces impact force

• High friction coefficient in wet and dry areas

• Reduces Heavy Weight Impact Noise

Dimensions – L 610mm x W 610mm x H 64mm

Installation available

Warranty – 5 years

ECODBX

1 - Surface Layer

2.5” Vulcanised Composition Rubber moulded tile

Total Product Thickness: 64mm

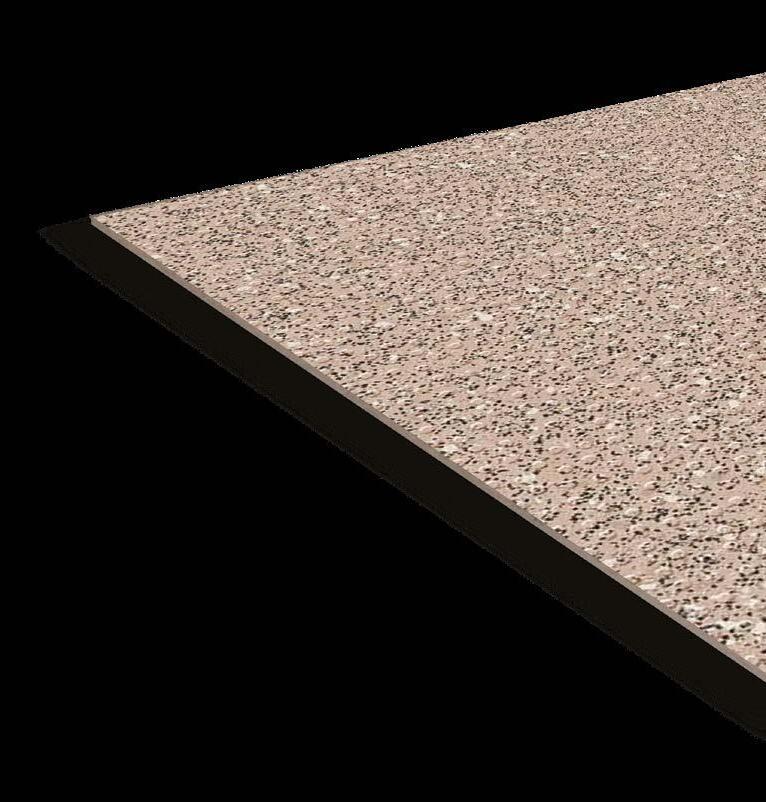

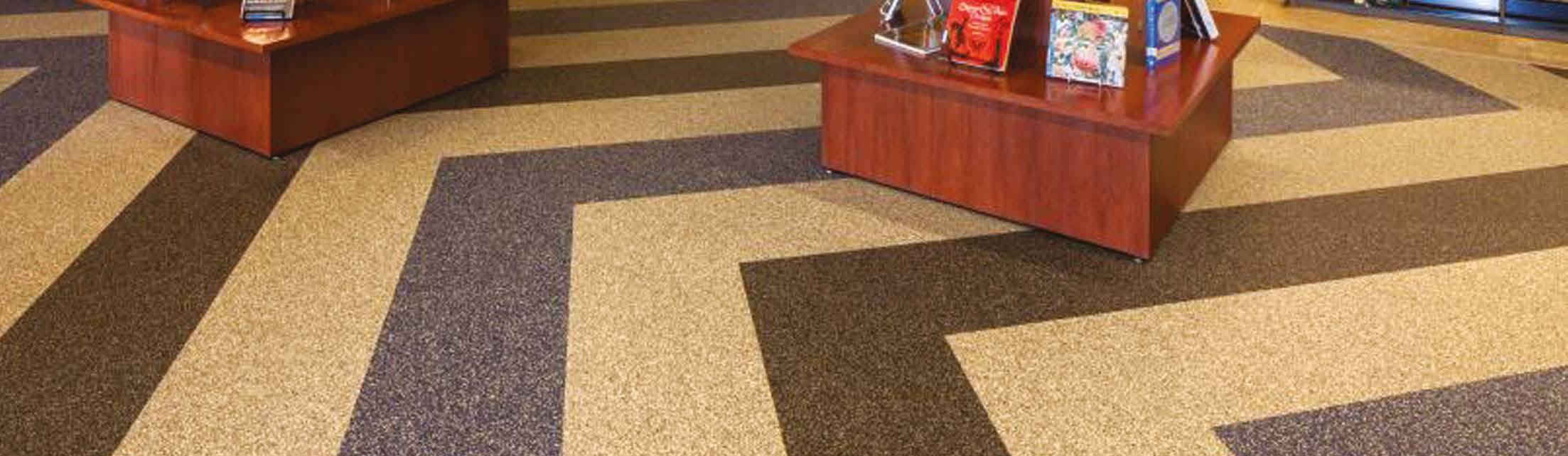

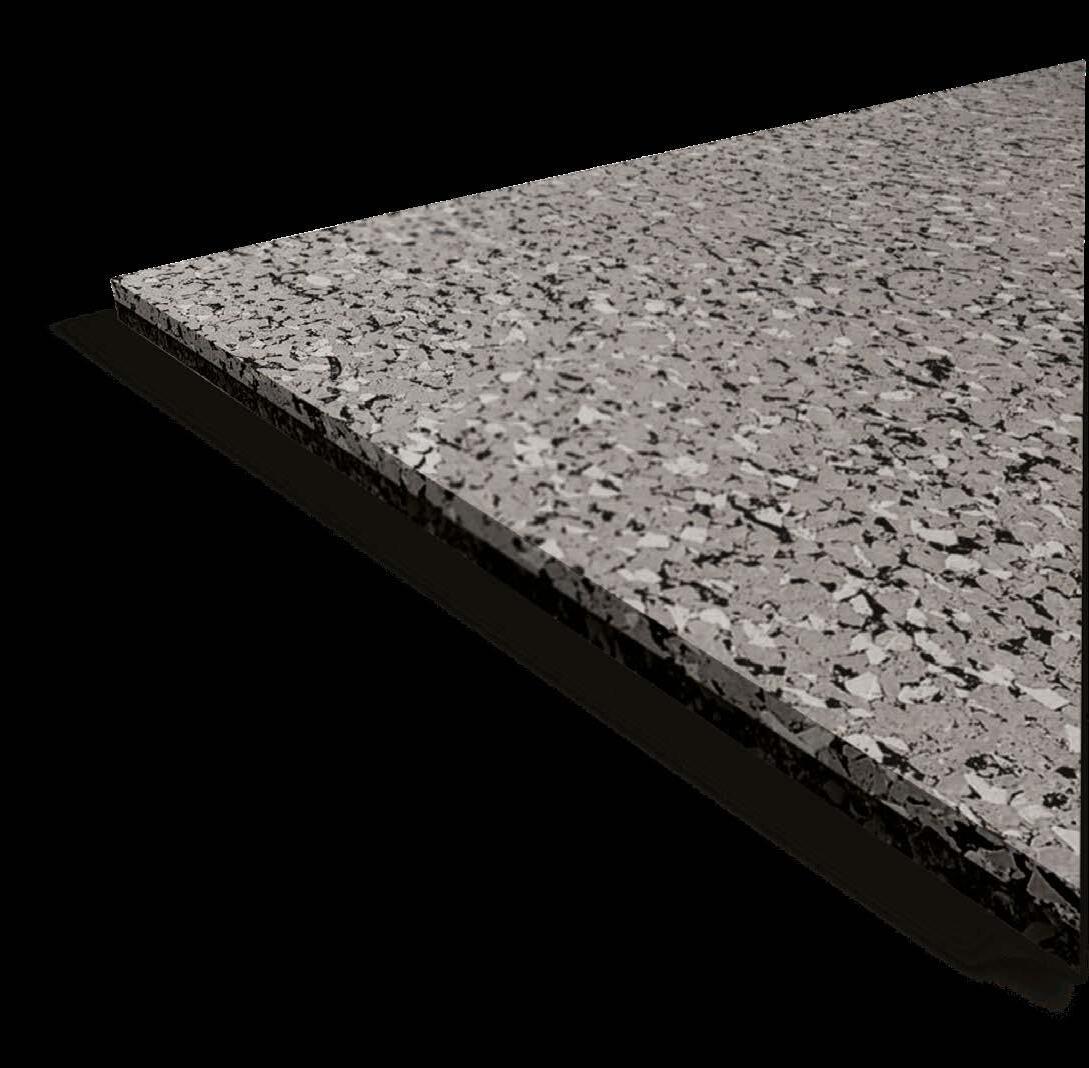

ECOSURFACES CLASSIC

ECOsurfaces Classic is a distinctive vulcanised composition rubber surface. Available in 3.2mm-thick rolls and tiles, it has beauty and brains! It’s also durable and easy to maintain. ECOsurfaces has been a staple in the commercial flooring market for more than 30 years.

• Durable

• Made with reclaimed rubber materials

Dimensions – L15240mm x W1220mm x H 3.2mm (Roll)

L610mm x W610mm x H 3.2mm (Tile)

Installation available

Warranty – 5 years

ECO3.2X

ECONIGHTS

ECOnights is the perfect surface for corporate guests and hospitality fitness centres. Its nominal 3/8-inch thickness makes it a durable solution for high-impact spaces.

• Durable

• Made with reclaimed rubber materials

• Returns energy to user

• Reduces Impact Noise

Dimensions – L 7620mm x W 1220mm x H 8mm (Roll)

L 580mm x W 580mm x H 8mm (Tile)

Installation available

Warranty – 5 years

ECON8X

Roll - 8mm (0.31”) x 48” (1.22m) x 25 LF (7.62m) Tile - 8mm (0.31”) x 23” (0.58m) x 23” (0.58)

1 - Surface Layer 8mm Vulcanised Composition Rubber

Total Product Thickness: 8mm

ECOFIT

ECOfit is designed for bodies in motion. This 8.2mm vulcanised composition rubber engineered floor provides enhanced performance while mitigating fatigue and the risk of injury. Utilising patented itsTRU® technology, a standard ECOsurfaces 3.2mm surface layer is fusion bonded to a 5mm composition rubber base layer.

• Made with reclaimed rubber materials

• Durable

• Returns Energy to User

• Inlaid Logos/Designs Available

• Provides Comfort Underfoot

Dimensions – W 1220mm x H 8.2mm

Installation available

Warranty – 5 years

ECO8.2X

Roll - 48” (1.22m) x 25 LF (7.62m)

1 - Surface Layer

3.2mm Vulcanised Composition Rubber Surface Layer

2 - itsTRU® Fusion Bond

Proprietary itsTRU® technology fusion-bonds the VCR layers

3 - Base Layer

5mm Vulcanised Composition Rubber base layer

Total Product Thickness: 8.2mm

ECOfit Plus offers a prescription for comfort. Whether in a traditional health and fitness application or an active work environment, it provides enhanced performance while mitigating fatigue. The key is the dynamic energy return, which forces the user to stay off their heels and on the balls of their feet. ECOfit Plus is composed of vulcanised composition rubber and uses patented itsTRU® technology to fusion-bond a 3.2mm surface layer to a 12mm base layer. It’s available in both glue-down rolls and adhesive-free, interlocking tiles.

• Will withstand moderate weight impacts

• Made with reclaimed rubber materials

• Returns energy to user

• Provides comfort underfoot

Dimensions – L 7620mm x W 1220mm x H 15.2mm (Roll)

L 580mm x W580mm x H 15.2mm (Tile)

Installation available

Warranty – 5 years

2 - itsTRU Fusion Bond

Proprietary itsTRU® technology fusion-bonds the VCR layers

3 - Base Layer

12mm Vulcanised Composition Rubber base layer

Total Product Thickness: 15.2mm

ECOFIT XTREME

Designed for heavy strength training, this 11.2mm surface features an 8mm dense base layer that maximises energy restitution. This dual layered surface is engineered to enhance durability in applications dominated by free weight training.

• 3.2mm wear layer fusion-bonded to an 8mm dense VCR shockpad layer

• Sound and shock absorbent

• Fade resistant / wears well

• Slip resistant wet or dry

• Custom colour and logo options

Dimensions – W 1220mm (Roll width) x H 11.2mm

Installation available

Warranty – 5 years

ECO11.2X

3.2mm Rubber surface layer

2 - itsTRU® Fusion Bond Proprietary itsTRU® technology fusion-bonds the VCR layers

3 - Base Layer 8mm Vulcanised Composition Rubber base layer

DESERT & RIVER

Desert & River feature a 1mm woven vinyl surface layer fusion bonded to a 3mm vulcanised composition rubber base layer. Desert & River’s woven vinyl texture creates a warm, welcoming effect while also providing the ergonomic, safety and acoustic performance benefits.

• Made with reclaimed rubber materials

• Durable

• Resistant to scuffs and marks

• Provides comfort underfoot

• Reduces structure borne noise

Dimensions – W 1830mm x H 4mm (Roll)

Installation available

Warranty – 5 years

DRM7X

Proprietary itsTRU® technology fusion-bonds the surface layer to the VCR base layer

3 - Base Layer

3mm Vulcanised Composition Rubber base layer

Total Product Thickness: 4mm

FOREST RX

Forest Rx features high-quality wood visuals in a variety of patterns. The surface is comprised of a 5mm vulcanised composition rubber base layer fusion-bonded to a heterogeneous vinyl. This combination, made possible by patented itsTRU creates a surface that reduces the risk of injury associated with falls and offers sound control and comfort.

From a medical/acute Care facility, to a Yoga studio, Forest Rx offers exceptional acoustic, safety and ergonomic benefits no matter the application.

• Easy to maintain and sanitise

• Lower in-room impact sound

• Hygienic because of heat-welded installation

Dimensions - L 9140mm x W 1830mm x H 7mm

Installation available

Warranty – 5 years

FOR7X

1 - Surface Layer

2mm Heterogeneous Vinyl surface layer

2 - itsTRU® Fusion Bond

Proprietary itsTRU® technology fusion-bonds the two layers

3 - Base Layer

5mm Vulcanised Composition Rubber base layer

Total Product Thickness: 7mm

COSMOS RX

Cosmos Rx features subtle highlights, which add depth and movement based on the light in the room. Available in 6-foot rolls, it features a 5mm vulcanised composition rubber base layer fusion-bonded to a modern, heterogeneous vinyl sheet. This combination, made possible by patented itsTRU® technology, creates a surface that reduces the risk of injury from falls and offers sound control and comfort underfoot.

• Easy to maintain and sanitise

• Lower in-room impact sound

• Hygienic because of heat-welded installation

• Returns energy to user

• Provides Comfort Underfoot

Dimensions – L 9140mm x W 1830mm x H 7mm

Installation available

Warranty – 5 years

COS7X

2 - itsTRU® Fusion Bond

Proprietary itsTRU® technology fusion-bonds the two layers

3 - Base Layer

5mm Vulcanised Composition Rubber base layer

INFINITY RX

Infinity Rx features harmonious shades that blend together to create a softer, more organic appearance. Available in 6-foot rolls, this product features a 5mm vulcanised composition rubber base layer fusion-bonded to a modern, heterogeneous vinyl sheet. Powered by patented itsTRU® technology, this combination creates a surface that reduces the risk of injury from falls and offers sound control and comfort underfoot.

• Easy to maintain and sanitise

• Lower in-room impact sound

• Hygienic because of heat-welded installation

• Returns energy to user

• Provides Comfort Underfoot

Dimensions – L 9140mm x W 1830mm x H 7mm

Installation available

Warranty – 5 years

INF7X

2 - itsTRU® Fusion Bond

Proprietary itsTRU® technology fusion-bonds the two layers

3 - Base Layer

5mm Vulcanised Composition Rubber base layer

Total Product Thickness: 7mm

CROSSINGS RX

Crossings Rx features a textile-inspired pattern available in a palette of soothing colors. This surface is composed of a 5mm vulcanised composition rubber base layer fusion-bonded to a contemporary heterogeneous vinyl sheet using patented itsTRU® technology. Crossings Rx offers a seamless, easy-to-maintain surface that can lessen the risk of injuries from falls while delivering superior sound control and comfort underfoot.

• Easy to maintain and sanitise

• Lower in-room impact sound

• Hygienic because of heat-welded installation

• Returns energy to user

• Provides Comfort Underfoot

Dimensions – L 9140mm x W 1830mm x H 7mm

Installation available

Warranty – 5 years

CRO7X

1 - Surface Layer

2mm Heterogeneous Vinyl surface layer

2 - itsTRU® Fusion Bond

Proprietary itsTRU® technology fusion-bonds the two layers

3 - Base Layer

5mm Vulcanised Composition Rubber base layer

STRAIT RX

Strait Rx features a modern finish paired with ergonomic qualities for comfort underfoot. Featuring patented itsTRU® technology, it’s composed of a 5mm vulcanised composition rubber base layer fusion-bonded to a contemporary, heterogeneous vinyl sheet. This creates a surface that reduces the risk of injury from falls while offering sound control.

• Easy to maintain and sanitise

• Lower in-room impact sound

• Hygienic because of heat-welded installation

• Returns energy to user

• Provides Comfort Underfoot

Dimensions – L 9140mm x W 1830mm x H 7mm

Installation available

Warranty – 5 years

STR7X

2 - itsTRU® Fusion Bond

Proprietary itsTRU® technology fusion-bonds the two layers

3 - Base Layer

5mm Vulcanised Composition

Rubber base layer

Total Product Thickness: 7mm

Nada Rx features a 2mm PVC-free resilient surface layer factory fusion bonded to a 5mm vulcanised composition rubber (VCR) base layer. Designed for commercial spaces where safety, acoustic performance, ergonomic support, comfort under foot, and hygienic conditions are key, Nada Rx with heat-welded seams is easy-to-maintain, stain resistant, and performs in heavy traffic and load areas.

Nada Rx’s surface layer is made with Enomer®, an innovative flooring material free from PVC, plasticisers, phthalates, halogens, chlorines, and heavy metals. It’s designed for easy maintenance, heavy traffic, and cleanliness while adding depth and beauty to any space. Ideal for medical care, therapy and education spaces or any place where infection control and sanitisation are top priority.

• PVC-Free

• Resistant to bacteria and fungi growth

• Extreme resistance to stains, scratches, and dirt

Dimensions – L 9140mm x W 1450mm x H 7mm

Installation available

Warranty – 5 years

NAD7X

Proprietary itsTRU® technology fusion-bonds the surface layer to the VCR base layer

3 - Base Layer

5mm Vulcanised Composition Rubber base layer

Total Product Thickness: 7mm

ASSURGRIP RX

With AssurGrip Rx, you can enjoy a reliable, easy-to-maintain solution that prioritises both functionality and aesthetic appeal. AssurGrip Rx features a superior slip-resistant surface layer fusion bonded to a vulcanised composition rubber base layer, making it the ideal surface for bathrooms, lockerrooms, and other wet areas.

• Made with reclaimed rubber materials

• Hygienic because of heat-welded installation

• High coefficient of friction in wet and dry areas

• Provides comfort underfoot

• Easy to maintain and sanitise

• Resistant to scuffs and marks

Dimensions – L 9140mm x W 1830mm x H 7mm

Installation available

Warranty – 5 years

ASS7X

2 - itsTRU® Fusion Bond

Proprietary itsTRU® technology fusion-bonds the two layers

3 - Base Layer

5mm Vulcanised Composition Rubber base layer

VALERA RXT

Valera RXT is the first performance surface plank designed for commercial spaces. Featuring a durable 2mm vinyl layer fused to a 3mm vulcanised rubber base, it delivers enhanced safety, ergonomic, and acoustics compared to standard LVT products. The realistic wood plank design adds both style and functionality to any space.

• Easy to maintain and sanitise

• Made with reclaimed rubber material

• Durable

• DIY Friendly

• Reduces structure borne noise

Dimensions – L 1220mm x W 152.4mm x H 5mm

Installation available

Warranty – 5 years

VRXT5X

2mm Heterogeneous Vinyl surface layer

2 - itsTRU® Fusion Bond

Proprietary itsTRU® technology fusion-bonds the VCR base layer

3 - Base Layer

3mm Vulcanised Composition Rubber base layer

Total Product Thickness: 5mm

TURFGRASS TRANSFORMING SPACES

Turfgrass are an innovative, European manufacturer with a lot of experience in designing, producing and distributing artificial grass all over the world.

We work together with them, using the most advanced materials and production methods to ensure that you receive a premium quality product at an affordable price.

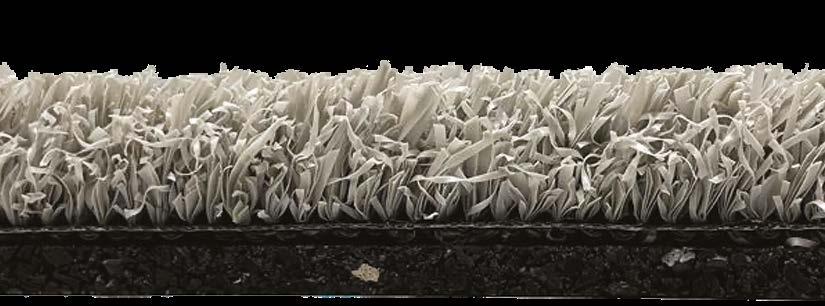

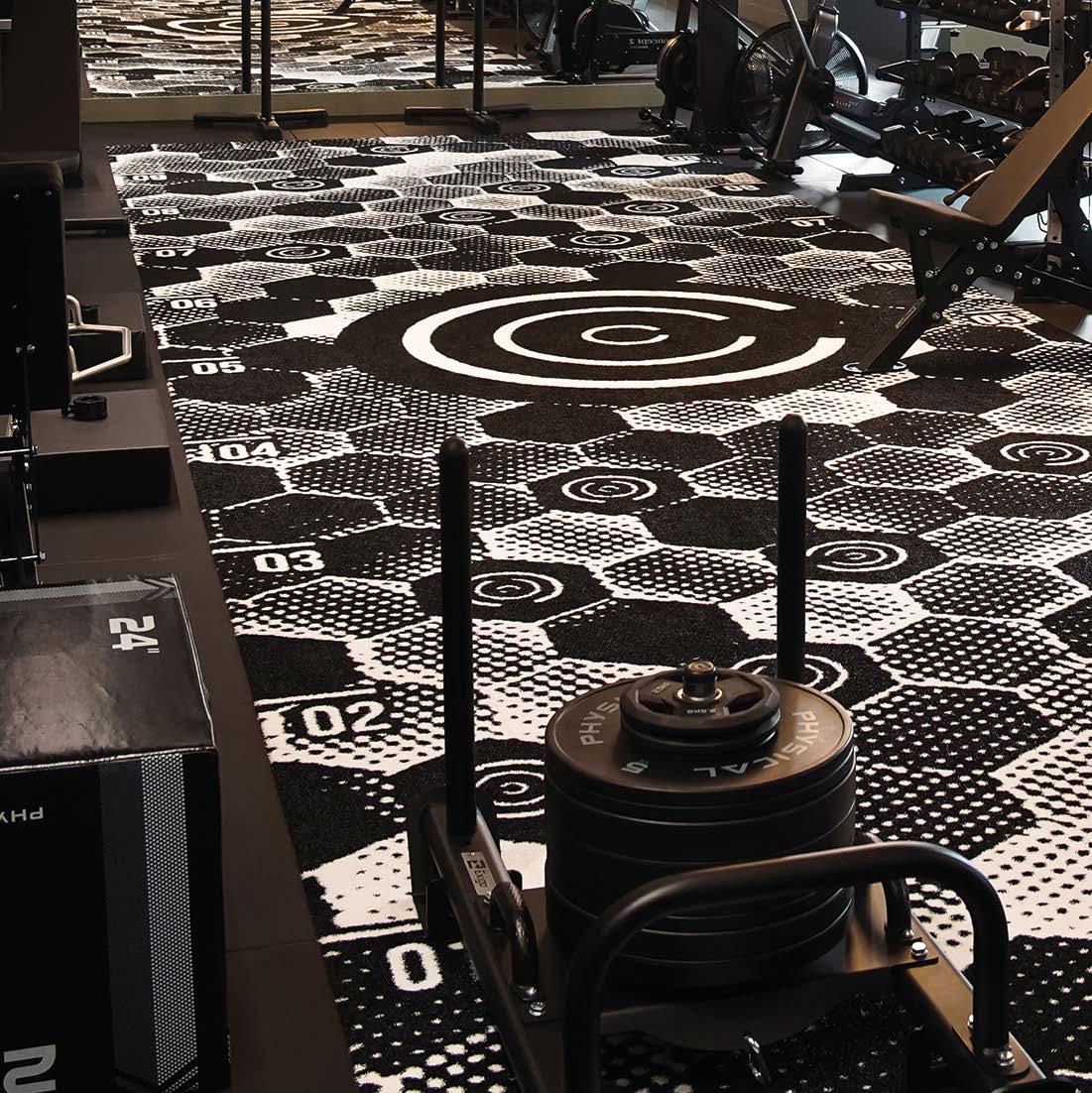

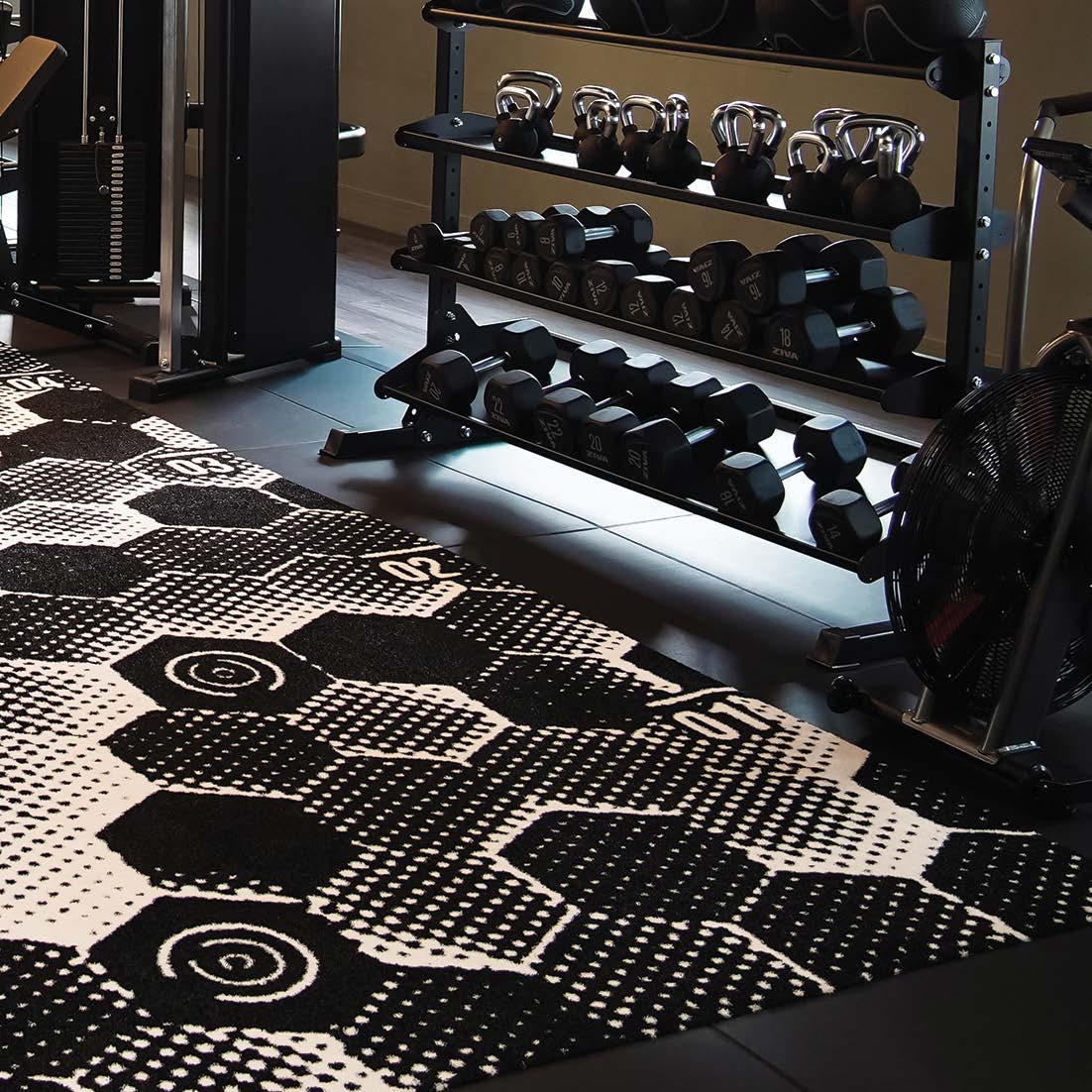

CUSTOM TURF

Made using a unique tufting technology, allowing you to combine colours to create specific designs and logos.

• Choose up to 6 colour designs from a 19 colour pallette

• Tufted pile height of 15mm+–

• 81,900 blade stiches per square metre with a blade gauge of 1/7”

• Available on either 2m or 4m wide rolls

Dimensions – W 2000mm or 4000mm x H 15mm

Weight – 2.95kg per sqm

Design and Installation available Warranty – 5 years

CGRASS2 Custom Turf – up to 2 simple colour designs

CGRASS3 Custom Turf – up to 3 simple colour designs

CGRASS2+ Custom Turf – 2 or more colour design including a vivid colour

DESIGN EXAMPLES

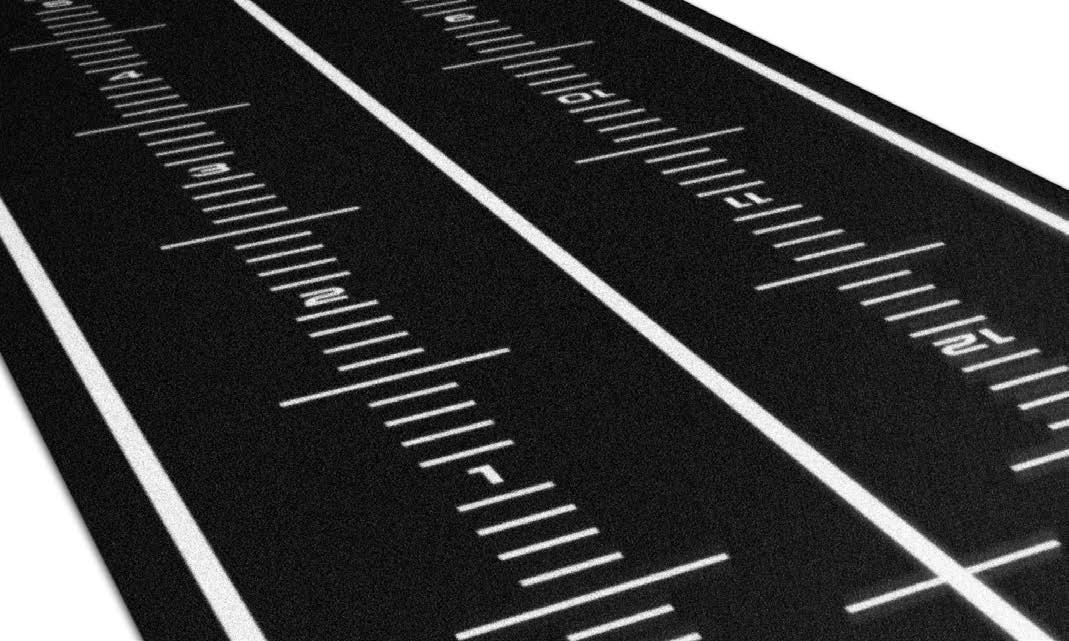

TURF TRACKS

Turf Tracks are available for quick delivery and installation. Markings are stitched on the loom forming a single piece turf track that can simply be rolled out and installed.

• 10m or 15m turf tracks designed to be cut without interrupting the markings

• Available in 1.5m or 1m wide rolls in 2 colours

• Check website for latest stock and track size availability

• Tufted pile height 15mm +–

• 81,900 blade stitches per square metre with a blade gauge of 1/7”

Dimensions – W 1000mm or 1500mm x L 15000mm x H 15mm*

Weight – 67kg (1500mm wide track), 45kg (1000mm wide track)

Installation available

Warranty – 5 years

SPT1G 1m wide Turf Track – Green/White Lines

SPT1.5G 1.5m wide Turf Track – Green/White Lines

SPT1K 1m wide Turf Track – Black/White Lines

SPT1.5K 1.5m wide Turf Track – Black/White Lines

COMPETITION TRACKS

Competition Turf Tracks are specifically designed for sled pulls and pushes around usable length of 12.5m. The end zones have been designed for users and stand in and to push into to make sure the competition distances can be achieved. Stitched using Custom Grass ensuring a durable density and pile height, while the surface provides excellent traction. This enhances safety during Hyrox style training and fast-paced competition movements. Markings are stitched into the turf forming a single piece track that can simply be rolled out and installed.

• 15m long turf track with 12.5m of markings in 2 lanes with end zones

• 4 lane design available. Please inquire.

• Tufted pile height 15mm +–

• 81,900 blade stitches per square metre with a blade gauge of 1/7”

Dimensions – W 2000mm x L 15000mm x H 15mm

Installation available

Warranty – 5 years

SPT2HYR

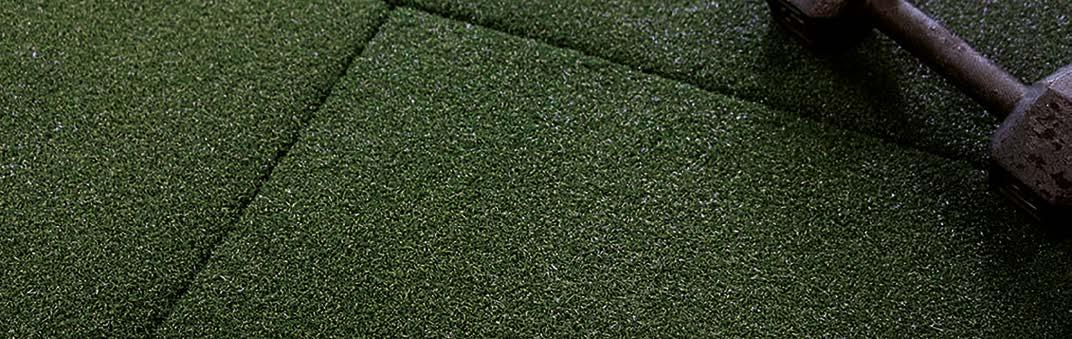

PREMIUM ASTROTURF

Zone your gym space by introducing Premium Astroturf, a simple, fully commercial surface, that is incredibly durable and hard-wearing. Combine this turf with a ShockPad underlayer to create a comfortable and versatile flooring area for functional training, sled push or pull, or any other types of aggressive HIIT based training. When you need a high density pile from your astro to allow for a good glide on sled work, Premium AstroTurf provides the perfect platform. As a commercial product, this astro has a reinforced backing with a fleece layer to give the turf a softer feel that is more natural. The 84,000 blade stitches that you get per metre also come with a blade gauge of 3/16”. This all ensures the longevity of the tufted grass. This astro turf can also be glued directly to concrete.

• Premium quality Astro turf

• 100% Polypropylene

• Tufted and curled pile height 12mm

• 84,000 blade stiches per square metre

• Blade gauge of 3/16”

• Choose from 2m or 4m wide rolls by 25m length

Dimensions – W 2000mm or 4000mm x L 25000mm x H 12mm

Installation available

Warranty – 1 year

PASTR

POLYFLOR

BASED NEAR MANCHESTER, ENGLAND, POLYFLOR IS A MAJOR MANUFACTURER OF COMMERCIAL FLOOR COVERINGS, OPERATING SUCCESSFULLY THROUGHOUT THE WORLD.

Polyflor is constantly striving to improve processes and products to reflect the changing demands of the marketplace. They have invested ca. £34 million in plant and equipment over the last decade, enhancing and expanding their product portfolio to provide added value for its customers.

The foundation of Polyflor’s success is their customer focus, and they work closely with contractors, specifiers, and end users to understand their requirements and provide the ideal flooring solution for any installation. Polyflor has dedicated personnel within its salesforce, technical department, and design team to provide comprehensive customer support. The company has developed an extensive network of agents, distributors, and wholly-owned subsidiaries throughout all markets, to ensure excellent product and sample availability.

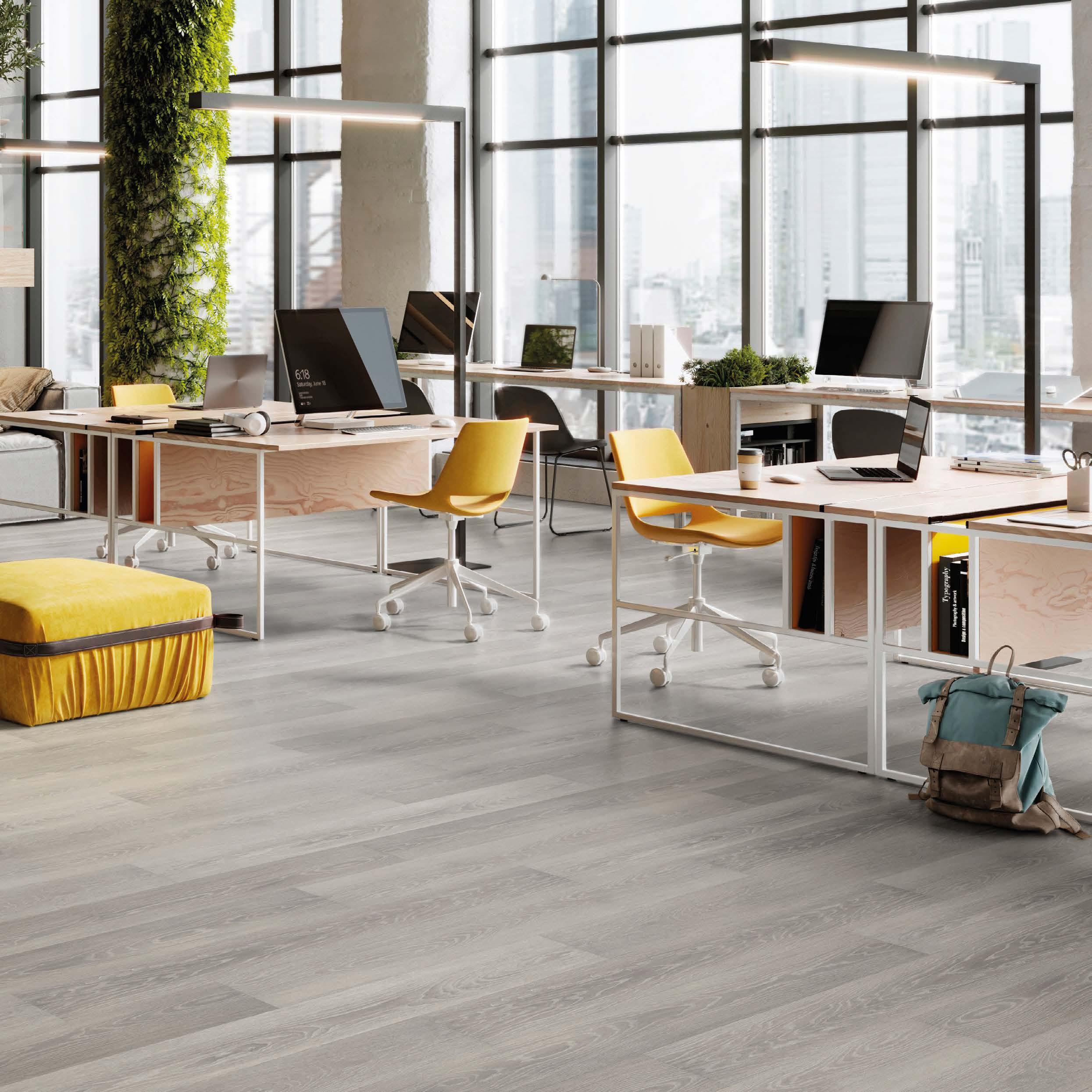

EXPONA COMMERCIAL LVT

Design-led luxury vinyl plank and tile floors which are available in multiple size formats. Incorporating a variety of realistic surface textures, the collections authentically capture the latest trends in wood, stone and abstract materials. Suitable for use in studios, cardio areas, cafés and walkways as well as residential applications.

• Expona tiles feature a 0.55mm polyurethane reinforcement (PUR) to assist and reduce ongoing maintenance costs

• Contains up to 40% recycled material

• 60 wood effect colours and over 30 stone and abstract colours to choose from

• R10 slip resistance rating

Dimensions – H 2.5mm x Tile size varies

Installation available

Warranty – 10 years

EXLVTX (Specify colour)

SELECTED COLOUR RANGE (80 FINISHES AVAILABLE)

EXPONA FLOW

The Expona Flow collection encompasses beautifully replicated wood planks, and striking abstract effects in a practical and durable 2mm vinyl sheet format. Available in 50 shades, the collection has been specifically developed for very heavy commercial installations including studio, healthcare, office and retail sectors.

• Featuring a 0.7mm polyurethane reinforcement (PUR) for improved cleaning and maintenance

• Provides a continuous, impervious and hygienic flooring solution which can be confidently cleaned

• R10 slip resistance rating

• 100% recyclable and achieves BRE A+ certification

Dimensions – L 20000mm x W 2000mm x H 2mm

(Cut rolls are available please enquire)

Installation available

Warranty – 10 years

EXROLX (Specify colour)

SELECTED COLOUR RANGE (50 FINISHES AVAILABLE)

EXPONA SIMPLAY

• Wood, stone & abstract designs

• Loose lay planks & tiles in multiple sizes

• Can be installed over existing floor coverings

• Non-skid honeycomb backing

• Can be laid alongside carpet tiles

• Heavy commercial applications & residential

• Available in 35 different designs

Plank sizes - W 177.8mm x L 1219.2mm

- W 185mm x L 1505mm

Tile sizes - W 304.8mm x L 609.6mm

- W 914.4mm x L 914.4mm

- W 177.8mm x L 1219.2mm

- W 600mm x L 600mm

Installation available

Warranty – 10 years

SIMPX

EXPONA RIGID LOC

• Authentically replicated wood plank designs

• Interlocking 5Gi planks for quick installation

• 19dB acoustic performance

• Can be laid over existing subfloors

• Suitable for heavy commercial interiors

Dimensions – W 177.35mm x L 1212.4mm & W 196.4mm x L 1212.4mm

Installation available

Warranty – 10 years

EXRLOCX

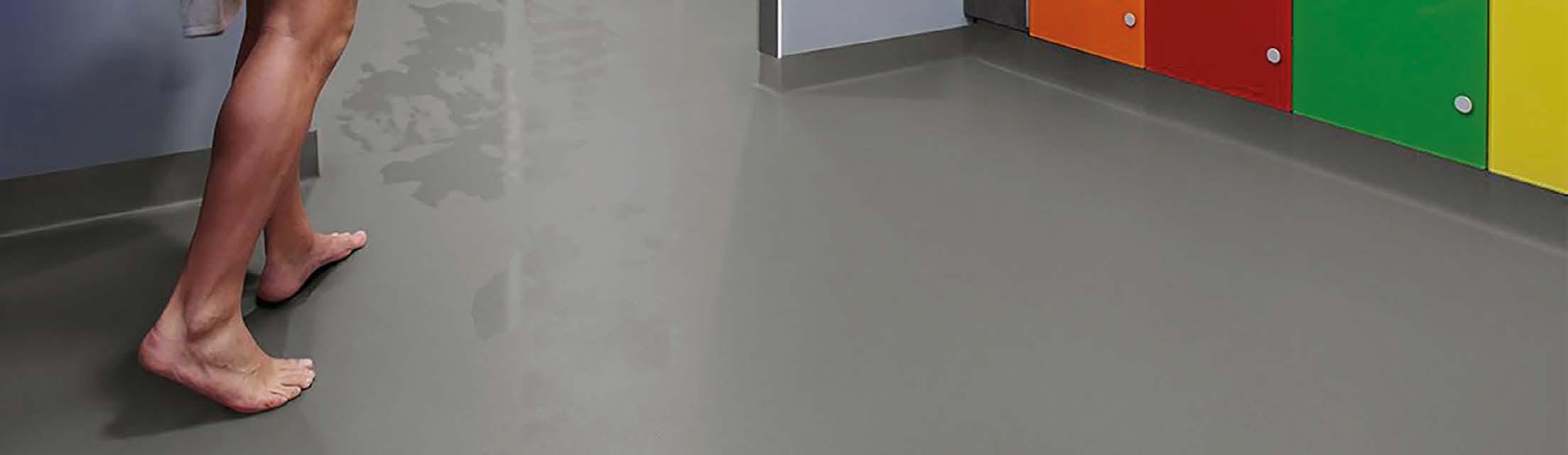

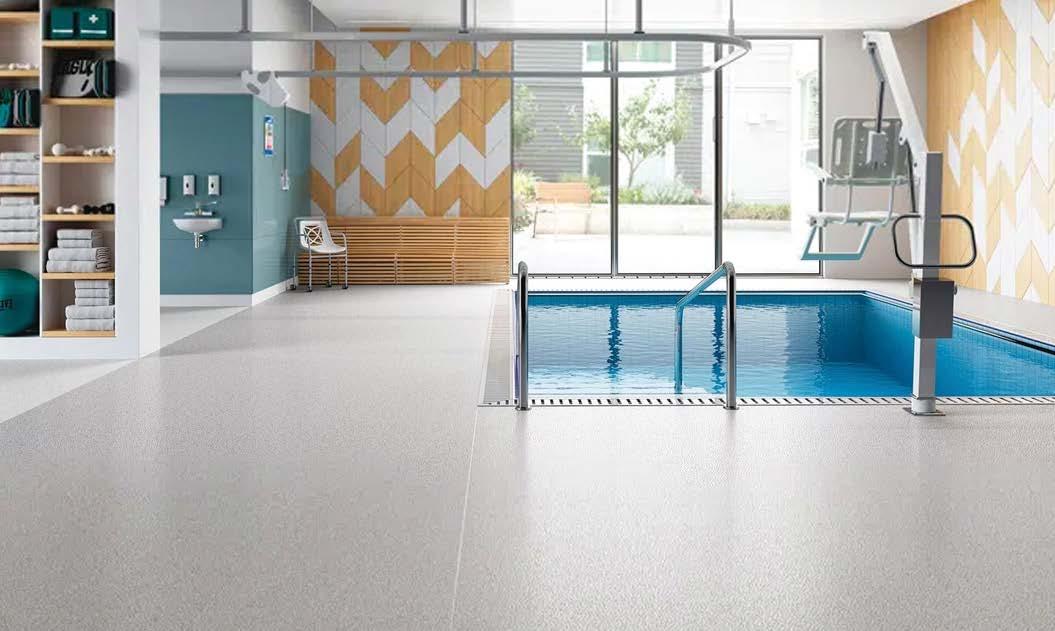

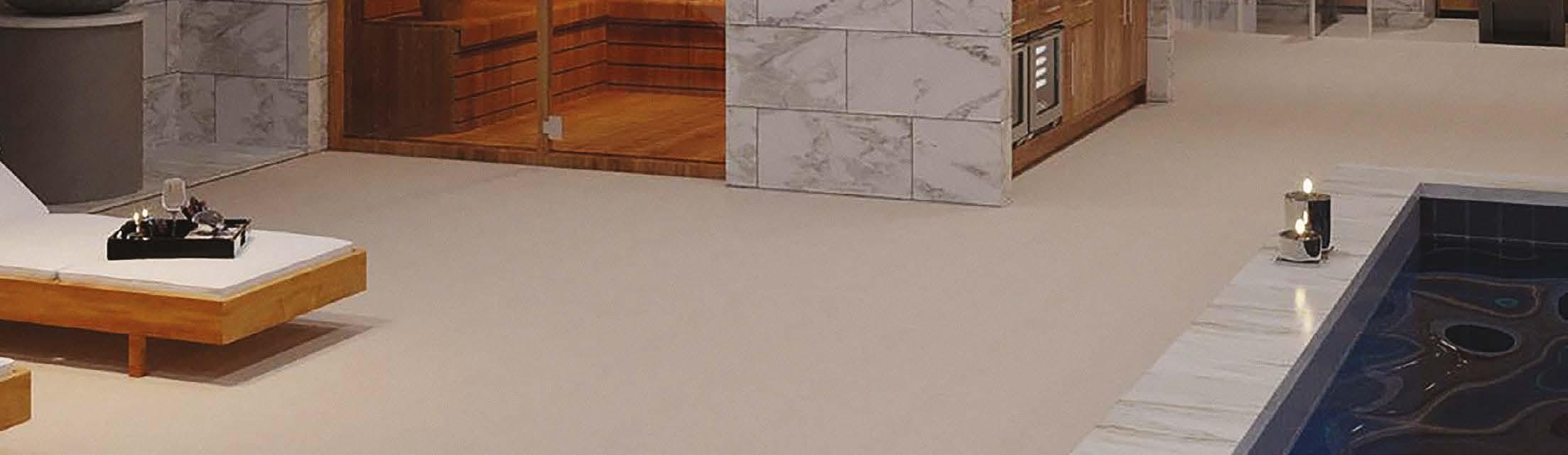

POLYSAFE HYDRO

• Pimple emboss safety flooring for barefoot & shod use

• Sustainable slip resisitance, 36+ Pendulum Test (slider 96)

• Thermally welded seams for an impervious finish

• Ideally suited for continually wet areas walk-in showers & hydrotherapy areas

Dimensions – W 2000mm x H 2mm x L 20000mm

Installation available

Warranty – 10 years

PSSX (Specify colour)

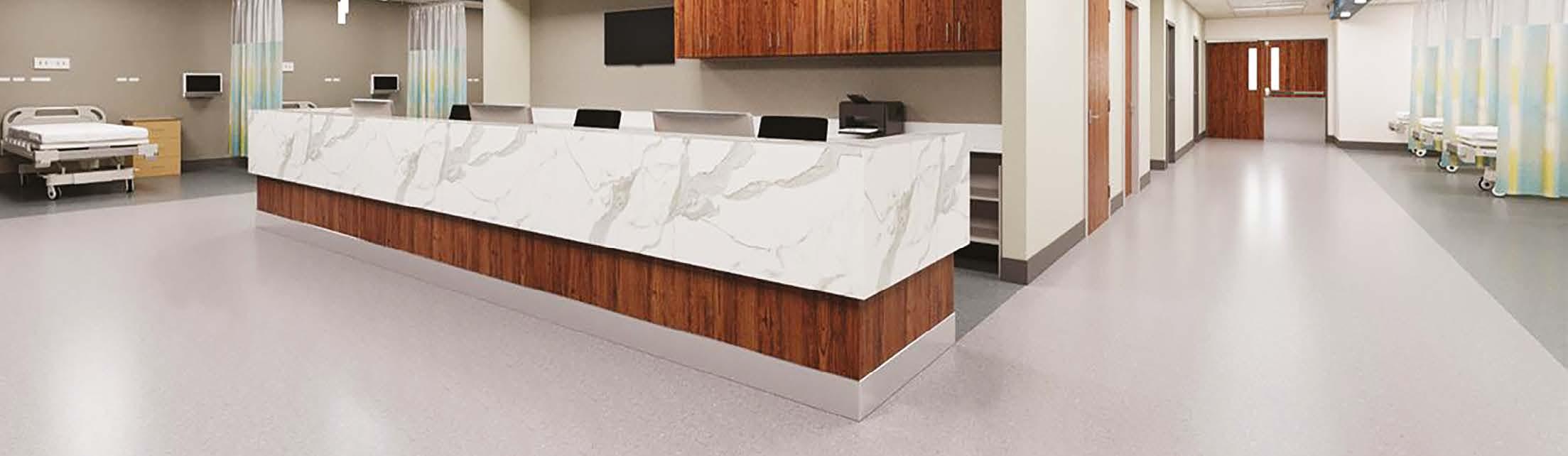

POLYSAFE QUATTRO

Polysafe Quattro has been specifically designed to provide a high degree of slip resistance whether wearing footwear or being barefoot in continually wet areas where additional contaminants such as shampoo and shower gels may be present.

Available in 12 aqueous and subtle colours, of which 6 are chipped and 6 are unchipped.

This stud-free safety flooring range offers superior comfort underfoot whilst maintaining high performance and safety.

Dimensions – W 2000mm x H 2mm x L 20000mm

Installation available Warranty – 10 years

PSQX (Specify colour)

PHYSICAL

OUR HIGH-PERFORMANCE FLOORING IS PERFECTLY SUITED TO THE RIGOROUS DEMANDS OF GYMS AND STUDIOS.

From acoustic solutions to impact absorbers, our range of commercial gym flooring optimises member experience and safety across every training zone.

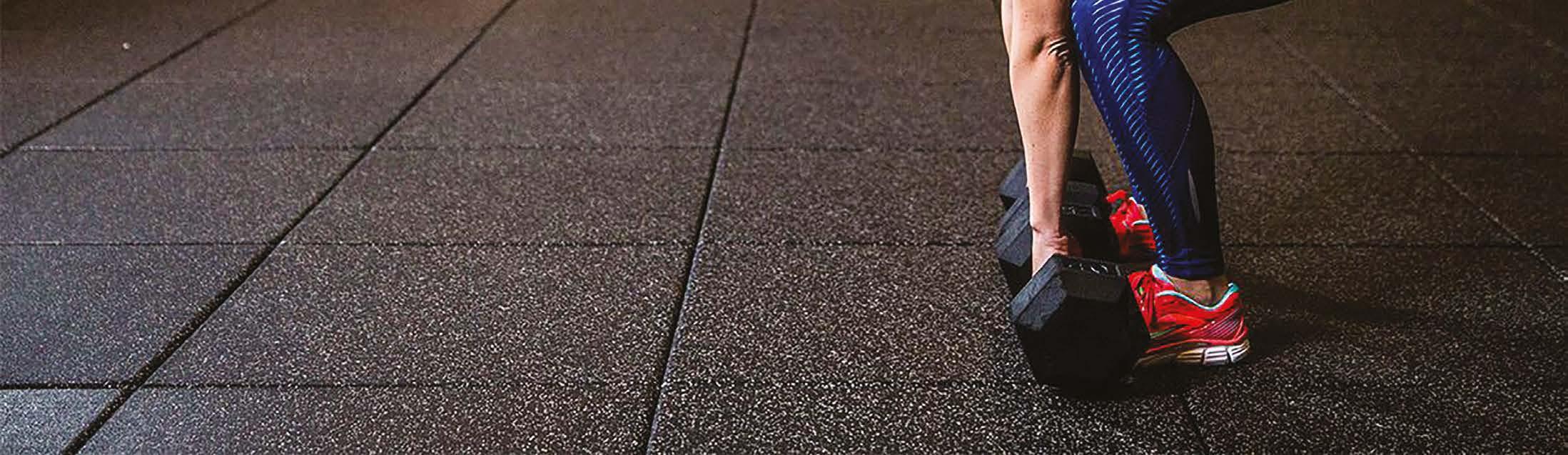

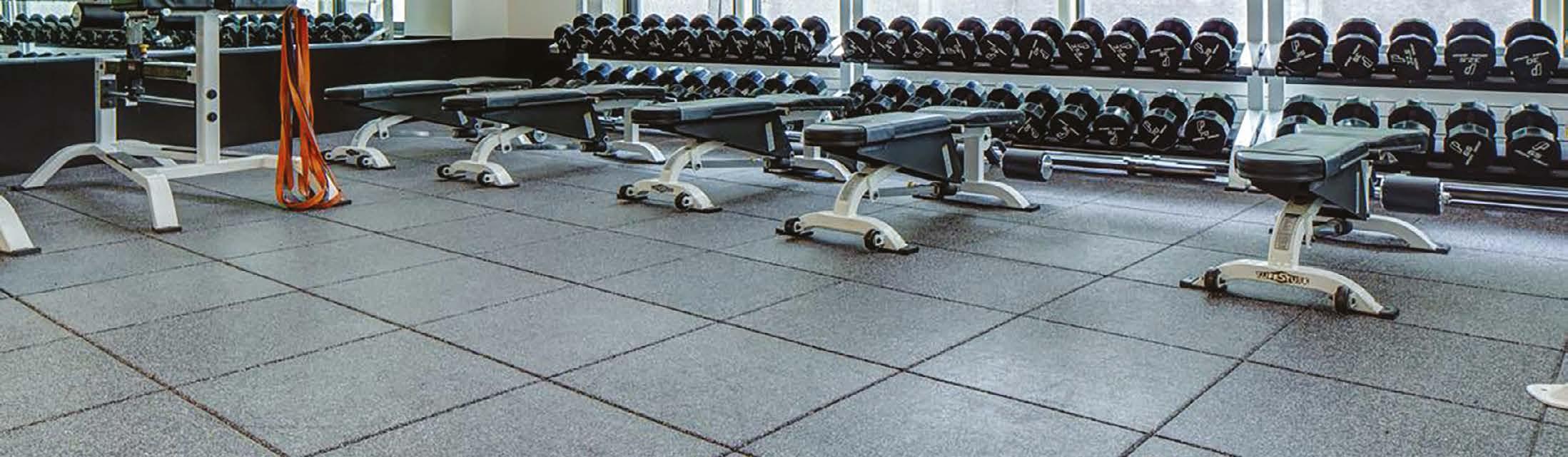

FREE WEIGHT TILES

A versatile dual-layered free-weight tile designed for impact absorption and ease of fitting. Available with a smooth 2mm impact layer bonded to either a 23mm or 38mm recycled rubber base layer.

• Tiles measure 1000mm x 500mm x 25mm / 40mm

• Easy to use tile joining clips (included) reduce tile movement and aid installation

• Dimpled under surface aids sound absorption and reduces overall weight

• Tile density – 1200kg/m3

• Surface friction coefficient (UK) 0.930

• Tolerance Length / Width +-1.5%

• Clegg Test (3ft drop) - 141 Gmax (g)

• Black tile reducers & corners available

Dimensions – L 1000mm x W 500mm x H 25mm/40mm (Tile)

Installation available Warranty – 5 years

DT40 Tile p/sqm 1m x 0.5m x 40mm

DT40GY Tile p/sqm 1m x 0.5m x 25mm

ACOUSTIC FREE WEIGHT TILES

An acoustic dual-layered free-weight tile designed for impact absorption and ease of fitting. Available with a smooth 2mm EPDM impact layer bonded to a 68mm recycled rubber base layer.

• Tiles measure 500mm x 500mm x 70mm

• Easy to use tile joining clips (included) reduce tile movement and aid installation

• Dimpled under surface aids sound absorption and reduces overall weight

• Tile density – 1200kg/m3

• Surface friction coefficient (UK) 0.930

• Tolerance Length / Width +-1.5%

• Clegg Test (3ft drop) - 141 Gmax (g)

• Impact Sound Improvement Rating (ISO 10140-3) - 30dB

• Black tile reducers available

Dimensions – L 500mm x W 500mm x H 70mm (Tile) Installation available

Weight – 23.5kg (per tile) / 53kg (per sqm)

Warranty – 5 years

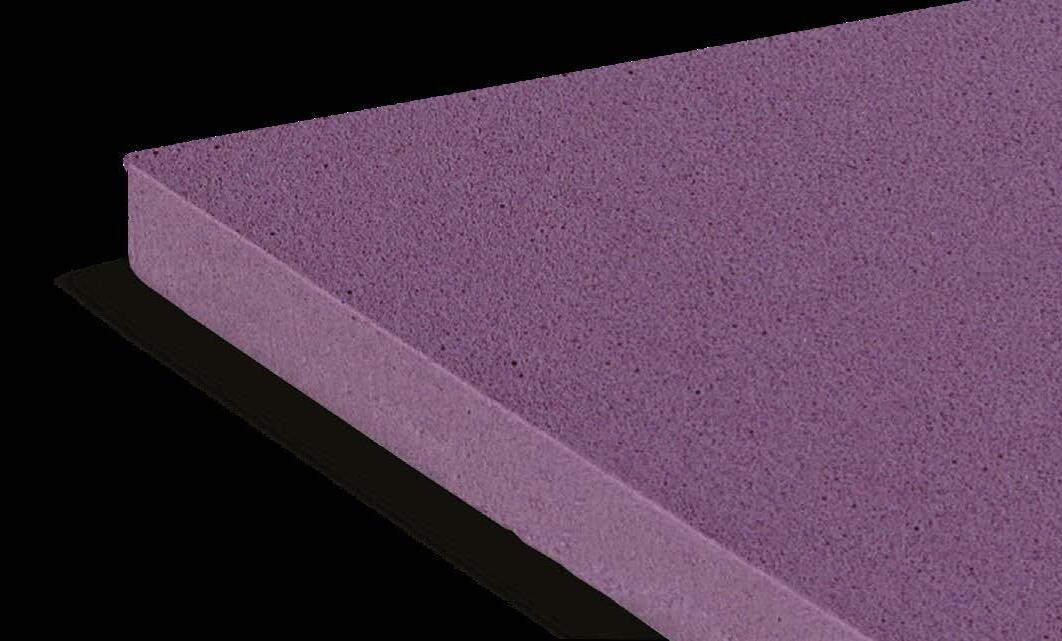

REGUFOAM® VIBRATION SERIES

REGUPOL® 40/80

The products of the REGUFOAM vibration range are characterized by their outstanding durability. Successfully completed projects and expert opinions clearly document the quality of these materials.

A mixed–cell polyurethane foam designed specifically for vibration and structure–borne sound isolation. Offers outstanding internal damping and low frequency isolation at minimal deflection and comes in a standard thickness of 25mm (1”). Can be installed in multiple layers to achieve a greater total thickness.

Routinely outperforms the minimum specifications and sound isolation requirements for many projects.

Dimensions – D 25mm (special thicknesses on request), L 5000mm (special lengths available), W 1500 mm

REGF190 Regufoam Vibration Series – 190

REGF220 Regufoam Vibration Series – 220

REGF270 Regufoam Vibration Series – 270

A PUR Foam specifically designed as an intermediary layer for laminated floors to aid with the isolation of noise and vibration in free-weight areas. Commonly used as an underlayer of a dual-laminated system in conjunction with rolled rubber.

• Advanced Noise and Vibration Isolation: REGUPOL® 40/80 Flooring is engineered to excel in isolating noise and vibration, ensuring a quieter and more comfortable gym environment.

• Perfect for High-Intensity Zones: Whether you have a high-performance gym or a heavy free-weight area, our flooring is tailored to meet the rigorous demands of these spaces effectively.

• Compatible with Dual-Laminated Systems: Commonly used as an underlayer in dual-laminated systems alongside rolled rubber, our flooring seamlessly integrates into your setup.

• Sheet Format: Available in convenient sheet format, it’s easy to install and customise to fit your gym’s layout.

Dimensions – L 2000mm x W 1000mm x H 40mm

Installation available

REG4080

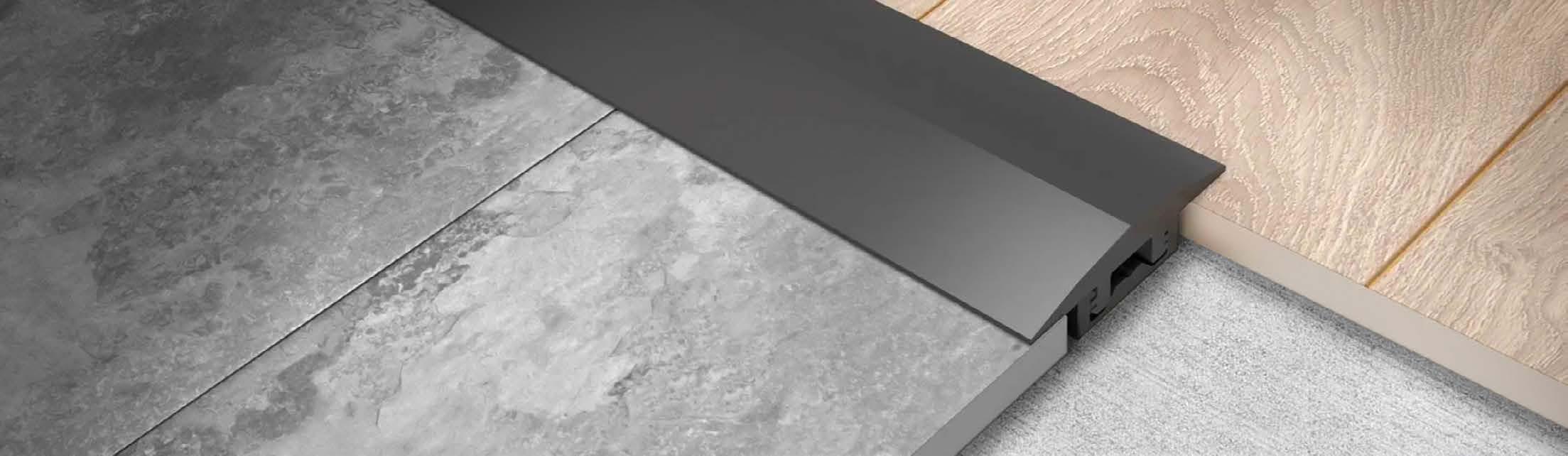

CLIP TOP FLOORING TRIMS

Our Clip Top profiles have been designed for a simple installation between different flooring heights. With versatile height adjustment and pre-drilled bases, these durable Clip Top trims are quick and easy to install and can also be curved on-site to suit. By varying the height of the screw-in-base with a flexible PVC ramp, you can adjoin carpet tiles to LVT, LVT to rubber, and rubber to tiles.

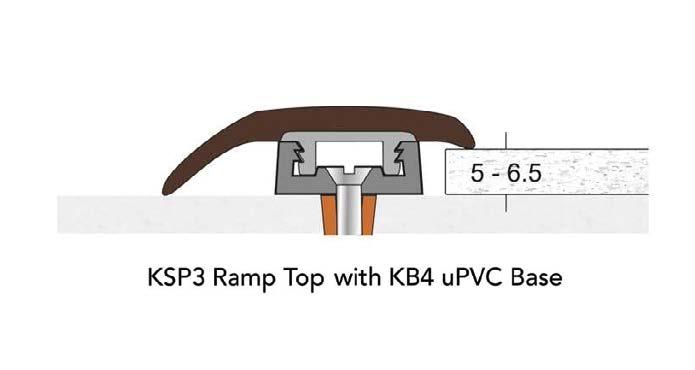

KSP3 RAMP

A lower profile ramp designed to span from flooring heights 5-6mm down to 0-1mm when used with a KB4 base. Typical use would be to span between carpet tiles and polished floor.

TRM6TO0 5-6mm down to 0-1mm (KB4 base + KSP3 Ramp) - L 2.7m

When spanning between 8-9mm down to 2-3mm use the KSP3 ramp with a KB1 base. Typical use for this combination would be to span between 8mm Basic Fit or Eco Fit rolled rubber to Luxury Vinyl Tiles.

TRM8TO2 8-9mm down to 2-3mm (KB1 base + KSP3 Ramp) - L 2.7m

KSP6 RAMP

A versatile ramp which spans between most of the material heights offered by Physical. When spanning between 9-12mm to 2-5mm use this combination. Typically use when going from Performance Beast or EcoFit Xtreme down to LVT, Carpet or Valera RXT planks.

TRM10TO2 9-12mm down to 2-5mm (KB1 base + KSP6 Ramp) - L 2.7m

When spanning from Performance Rally or Eco Fit Plus down to Basic Fit or Performance Motivate use

TRM16TO8 13-16mm down to 6-9mm (KB2 base + KSP6 Ramp) - L 2.7m

When ramping down from 25mm Free weight Tiles or Performance Ultratiles to Performance Rally or Eco Fit Plus use

TRM24TO15 22-24mm down to 15mm (KB3 base + KSP6 Ramp) - L 2.7m

KSP7 RAMP

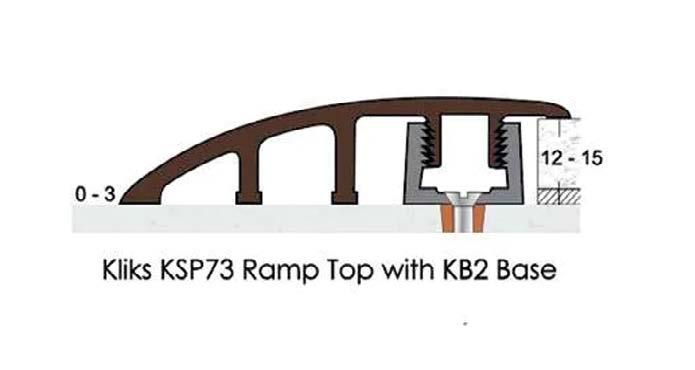

When large height differences need to be adjoined the KSP73 ramp can be used. Use this ramp when joining from 12-16mm down to 0-3mm. A typical use would be from Performance Rally or EcoFit Plus down to Luxury Vinyl Tiles.

TRM16TO2 12-16mm down to 0-3mm (KB2 base + KSP73 Ramp) - L 2.7m

When ramping from 25mm tiles to rolled rubber use this combination. Typical uses would be from 25mm Free-weight Tiles or Performance Ultratiles down to Basic Fit, Performance Motivate or EcoFit.

TRM24TO8 18-24mm down to 7-9mm (KB3 Base + KSP73 Ramp) - L 2.7m

ECORE E - CLEANER

Designed for use with all Ecore surfacing products, E-Cleaner is a highly concentrated low foam floor cleaner, effective for all routine cleaning jobs.

• Initial Cleaning Coverage Rate: 10 oz / gal of water (2,000 SF / gal of E-Cleaner)

• Routine Cleaning Coverage Rate: 3 oz / gal of water (6,000 SF / gal of E-Cleaner)

• Almost neutral pH

• No streaking or foaming when used through automatic scrubbing machine

• Will not attack, damage or dull any floor finish or wax

• Quickly and easily lifts soil from all washable surfaces

• Dries film free

ECLEAN

ALTROFIX™ 19 PLUS 6KG FLOORING ADHESIVE

Designed for use with all ECOsurfaces Vulcanised Composition Rubber (VCR) flooring products, E-Strip removes multiple layers of finish and revitalises our VCR flooring while performing a deep clean. E-Strip will also remove most conventional metal cross-linked floor polishes.

• Coverage Rate: Heavy Soil Removal = 16 to 32 oz / gal of water (500 - 1,000 SF / gal)

• Environmentally preferred; No MEA, 2-BE, APE, Caustic, EDTA

• Fragrance, amonia, and phosphate free

• No neutralisation needed prior to applications

• VOC compliant, readily biodegradable and and no hazardous ingredients

ESTRIP

AltroFix 19 Plus is a solvent and water-free, twopart polyurethane adhesive that is not affected, once it has cured, by spillages of water and most other liquids. AltroFix 19 Plus is supplied in 6kg unit in the correct quantities for mixing. Both A and B parts are held within the container.

AltroFix 19 Plus can be used on dry, dustfree subfloors such as sand/cement, flooring grade asphalt, granolite, plywood, chipboard, hardboard, metal and epoxy surfaces, dampproof membranes and power float concrete. It is important that the subfloor is as smooth as possible, any undulation may cause pockets of adhesive to form bubbles in the floor covering.

• Available in 6 kg tubs

• Coverage 6 kg size: 24 – 28 m²

• Solvent-free polyurethane

• Beige in colour AF19P

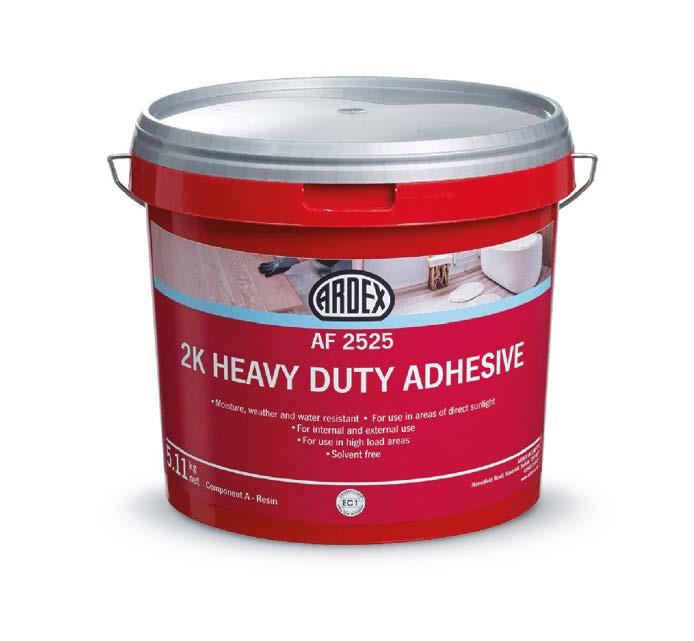

ARDEX AF 2525 HEAVY DUTY ADHESIVE

Ardex AF 2525 is ideal for installing all types of vinyl, rubber, dense non-absorbent backed floorcoverings, some timber floorcoverings, and exterior floorcoverings such as artificial grass. It can be can be used with all Ardex Latex and Water-Based Levelling and Smoothing Compounds in both commercial and domestic internal and external locations.

• Moisture, weather and water resistant

• Suitable for internal and external use

• High temperature resistance, for use in areas of direct sunlight e.g. conservatories

• Very high bond strength, for use in high load areas

• Easy to mix and apply

AF2525

UZIN KE 49 High Temperature is a strong adhesive, specially designed for luxury vinyl tiles and sheet vinyl. The hybrid application enables it to be used either as a pressure sensitive adhesive or as a high temperature adhesive in areas where coverings are exposed to high temperatures. It also minimises the shrinkage of the coverings. Can be used on warm water underfloor heating systems. Can be applied to dry smoothing compounds and feathered plywood.

• Suitable for securing luxury vinyl tiles (LVT) and sheet vinyl

• 14kg tub covers 45sqm

UZKE49

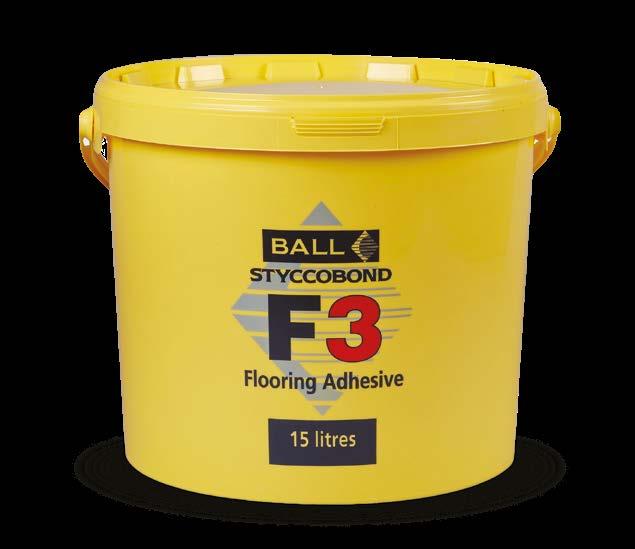

F-BALL STYCCOBOND F3 ADHESIVE

STYCCOBOND F3 is a water based rubber / resin flooring adhesive that has excellent wet grab with an early build-up of strength. It is protected against bio-degradation and is suitable for use over normal underfloor heating installations. Can be applied to dry smoothing compounds, sand / cement screeds, plywood, flooring grade chipboard and hardboard.

• Suitable for securing Rolled Rubber, Astro Turf and Fibre Bonded Carpet Tiles

• 5lt tub covers approx. 15sqm

• 15lt tub covers approx. 45sqm

FB35 F3 5lt tub

FB315 F3 15lt tub

INSTALLATION GUIDE

Flooring looks best when laid on a beautifully smooth subfloor, which is only achieved with the right preparation work. Our expert fitters follow a thorough approach with strict guidelines to ensure our customers’ every requirement is met.

1) SITE SURVEY

Our team of flooring experts will survey your site to determine the type of flooring best suited to your business and the activities taking place. Measurements will be taken, and the sub–floor will be checked.

5) LAYING A SUITABLE BASE

Screed applied or plywood fixed to the subfloor to create a base layer that’s primed for bonding. This ensures a dent, split or damage–free base that will maximise the life of the new floor

2) TECHNICAL DRAWINGS

Using state–of–the–art software we will translate your dream into precise measurements and material maps so that you can visualise your space. Precise drawings minimise waste and give our installation teams the fitting plans they need when on–site.

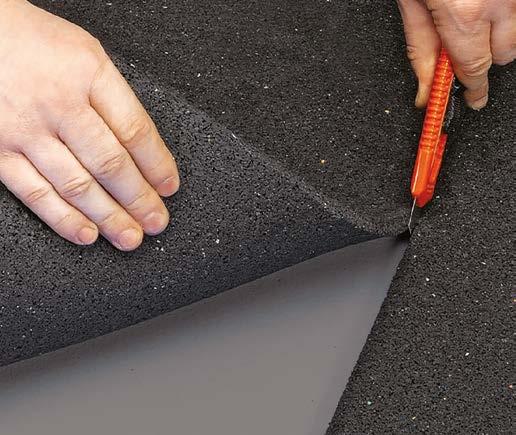

6) TRIMMING TO SIZE

The top layer is left in the room to acclimatise for 48 hours before cutting to allow for natural expansion or contraction.

3) UPLIFT EXISTING FLOOR

Stripping back the existing floor is necessary to reveal the original subfloor and allow for close inspection.

4) SUBFLOOR QUALITY CHECKS

Checking for damage and damp. Repairs carried out, damp–proof membrane applied where necessary and made even. Subfloor left free of dust, grease, wax, paint and any other dirt, stains or contaminants, ready for step 5.

7) BONDING TOP LAYER TO BASE LAYER

With the use of commercial gym–flooring adhesive, the top layer is bonded to the primed base layer. Special adhesive properties provide excellent strength and flex to ensure an enduring bond that won’t break or crack under the stresses of commercial gym environments. Excess adhesive is removed using appropriate cleaning materials.

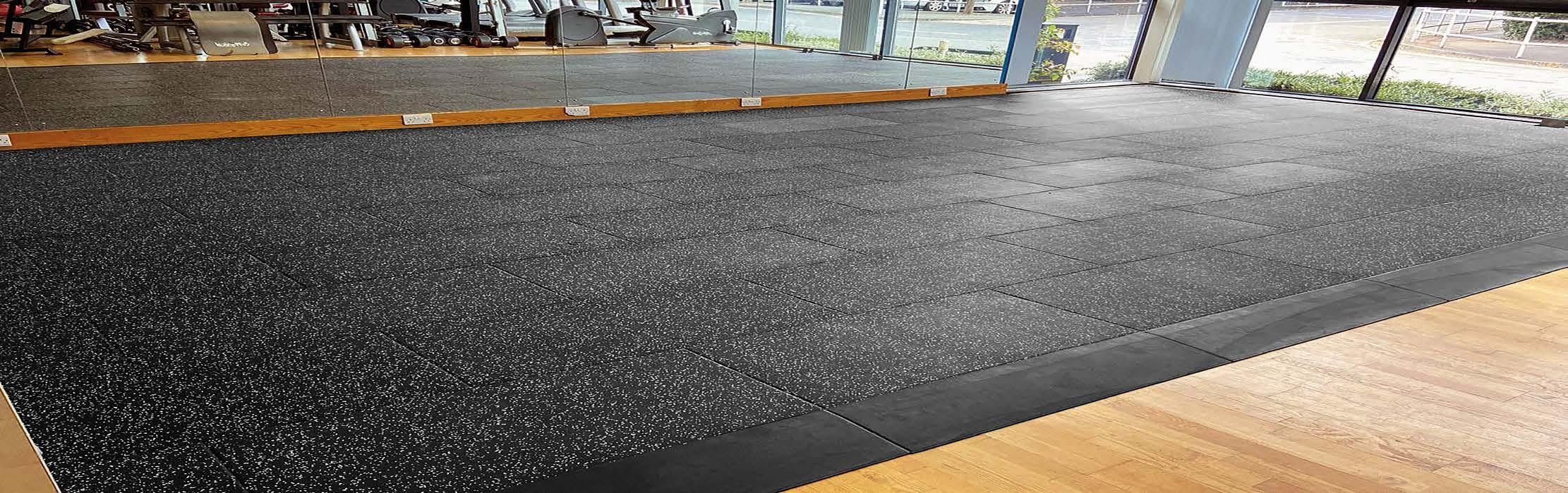

FREE WEIGHT TILES INSTALLATION

PREPARATION

Subfloor Requirements

1) Hardness: No sand accumulation, loose dirt or cracking whilst prepping.

2) Flatness: Flatness should be measured with a 2-3 meter spirit level and a feeler gauge. It will be up to standard if the gap is below 2MM.

3) Cleanliness: Subfloor should be free of debris, paint and dust.

Note: Rough subfloors to be smoothed with self-levelling compound after they get cleaned up.

INSTALLATION REQUIREMENTS

1) Locate the centre of the room, and mark two perpendicular chalk lines through the centre point to the outer walls.

Tip: Adjust the centre point to balance the tiles side-to-side and not end up with small cuts of tile against the walls.

2) Anchor Row: Begin the installation from the centre of the room and work 2 rows of tiles along the chalk lines towards the walls. Remember to use all the fitting clips provided in every position. You will need 10 clips per 2 tiles.

METHOD 1: BRICK INSTALLATION (RECOMMENDED)

METHOD 2: CROSS SHAPED

Materials on-site

It is very important to allow the tiles to acclimatise for a minimum of 24 hours at room temperature (at least 16 degrees Celsius) after packaging is opened on site. The expansion and contraction of rubber can be considerable, so it is important that tiles are laid at a temperature that is as close to the final room temperature as possible. Inspect all materials for visual defects before beginning the installation.

METHOD 1: BRICK INSTALLATION (RECOMMENDED)

Tip: With a cross-shaped installation ensure the installation process pays close attention to marked lines. Small gaps at the centre of the area can become larger as additional tiles are laid around the room. Brick installation can help avoid gaps by pulling the tiles in closer together.

3) Compression Fit: Once you’ve ensured the 2 anchor rows are completely straight, measure the final perimeter tile gaps on either end and add 5mm to your cut line making the tile bigger than the gap. Locate the tile corners on the fitting clips and bend the outside edge of the tile into position against the wall, then using a mallet to compression fit the perimeter tile into place. The 5mm that was overcut on the perimeter tile will be absorbed by the tiles within the anchor rows and compress them into place.

Tip: Remember not to kneel or stand on the perimeter tile or the connecting tile when compression fitting as your body weight will stop the compression being taken by the tiles within the room.

4) Fill the room: Locate the centre point on the anchor rows and lay your first tile. From the centre point, lay additional tiles towards the walls leaving the perimeter tile free for cutting later. Always lay a full row (other than perimeter tile) before moving onto the next row, again fitting outwards from the centre.

Tip: When adding tiles to the row, position the new tile into place making sure the 2 outside corners which connect to the existing tile are located on the fitting clips first. Then use a mallet to lock the 2 outside corners in place, before hitting the inside fitting clips into place. This process holds the new tile in place and spreads the compression from the 2 anchor rows.

METHOD 1: BRICK INSTALLATION (RECOMMENDED)

METHOD 2: CROSS SHAPED

5) Perimeter Tiles: When fitting the final perimeter tiles against a wall, measure the gap to the wall and add 5mm. Cut the perimeter tile including the extra 5mm, locate the inside corners of the tile onto the fitting clips, bend the outside edge of the tile into position against the wall, then using a mallet to compression fit the perimeter tile into place. Repeat this process for all perimeter tiles.

SAMPLES & ORDERING

HOW TO ORDER

Call

+44 (0) 1494 769 222

Email sales@physicalcompany.co.uk

Visit www.physicalcompany.co.uk

Post Please send all written purchase orders to our office address.

HOW TO MAKE PAYMENT

Card VISA Credit / Debit Card, MasterCard, AMEX & VISA Electron are accepted. Diners Club not accepted.

Cash For on–site purchases only.

BACS Transfers may be made once an official quotation along with our bank details have been sent to you.

Credit Account Please contact our customer service team for further details.

PRICES

Seperately available is a price list in Pound Sterling, current on the day of mailing. All prices exclude post and packaging. All quotations and pro–forma invoices are valid for 30 days, unless otherwise stated.

CLICK & COLLECT

Our click & collect service is available during regular office hours. Orders should be placed in advance and collection slots arranged with our Customer Service team.

TERMS & CONDITIONS

For the full list of terms and conditions, including guarantees, product descriptions, damaged goods and returns, please visit our website www.physicalcompany.co.uk

LOCATION / HOW TO FIND US

Physical

The Works Wycombe Road Stokenchurch Buckinghamshire HP14 3RR

OFFICE

OPENING HOURS

Monday – Friday 9:00 am – 5:30pm

TERMS & CONDITIONS

PAYMENT – Full payment is required with each order – unless there is an existing pre-approved credit account with an official purchase order.

Payment can be made by the following methods:

Credit / Debit Card: VISA Credit / Debit Card, MasterCard, VISA Electron & AMEX are accepted. Diners Club not accepted.

Orders will be subject to an address security check.

Cash: on–site purchases only.

BACS: after a written quotation has been provided and bank details supplied. All bank fees and charges are the customer’s responsibility. Charges incurred by Physical will result in non–delivery until any outstanding monies have been paid. Please telephone for more details.

For details on gaining approved credit account status, please contact our customer services team. Orders must be accompanied by an official purchase order and are payable within 30 days from date of invoice.

PRICES – Our price list is in Pound Sterling, current on the day of supply. All quotations and pro–forma invoices are valid for 30 days. Prices exclude postage and packaging. Trade / Distributor prices (including delivery costs) exclude VAT. In the event that a Product is listed or quoted at an incorrect price due to an error, we will notify you within 14 days of the correct price by e–mail or telephone.

OWNERSHIP OF GOODS – All goods delivered by Physical will remain Physical’s property until all debts owed to Physical by the customer, including any existing balances, are settled.

PRODUCT DESCRIPTIONS – Colours and packaging may vary and manufacturing tolerances will apply. Physical reserves the right to change product specification without notice.

DELIVERY – We aim to dispatch orders the following working day after the order has been approved. Stock permitting, standard

delivery should be three-five working days from date of dispatch (UK Mainland only). Please contact us if the order has not been received within this time period. Items may be dispatched separately. World–wide delivery is available (excluding USA & Canada) – costs are on a per–order basis.

Delivery is to the door. If you request that the delivery be made inside the premises, and the delivery person agrees, then it is at your own risk and claims for damages will not be entertained. If you specify a location where the delivery can be left unsigned for, this is done so at your own risk. Claims for loss or damages will not be entertained.

Delivery charges are outlined on the back page of the price list and at the checkout stage on our website. Please call for more details. 24hour / Pre 10am / Saturday delivery services may be requested at an additional cost, however, are not guaranteed. Customers are welcome to organise personal couriers at their own risk & cost. Any claims for late delivery will not be entertained. Orders over 100kg will be palletised and will only be delivered at the kerbside nearest your property. Installation services are available at an additional cost, please phone for further details. Items that are out of stock will be dispatched as soon as they become available. All customers will be notified of any such delays.

MISSING, DAMAGED AND INCORRECT GOODS

– On receipt of delivery, count the number of parcels and sign accordingly. If a parcel is damaged, it should be refused or signed for as DAMAGED. Claims will not be considered where the incorrect number of parcels is signed for, or damaged parcels are not itemised on the delivery docket. All orders will be sent with an itemised invoice / delivery note. Check the contents of your parcel against this.

TERMS & CONDITIONS

RETURNS & REFUNDS

– We operate a returns policy for 14 days after the original delivery. We cannot accept any returned goods unless you have contacted our Customer Service team and obtained a mandatory Returns Form along with a Returns Number. Failure to include a completed Returns Form with returned goods may delay the process.

We will only issue refunds if the goods are in new & unused condition – with original labels and packaging intact. Returns made at the customer’s request will be at the expense of the customer and will be subject to a re–stocking fee of 10%.

Goods originally dispatched with ”free delivery” and then returned for refund will have the cost of the original dispatch deducted from any credit due to the customer.

Refunds cannot be issued against customised products, i.e. items printed with your logo.

Physical aims to process all refunds / credits within one week from receipt of an authorised return.

WARRANTY & LIABILITIES

– All materials are covered by the manufacturer’s specific warranty and these are valid against manufacturing defects only. Claims arising from wear and tear or misuse will not be entertained. Warranties will not apply to any materials which have been altered by customers or third parties. The start date of warranty will be the date of receipt of the original goods. The warranty start date is not extended by replacements issued.

Ecore warranties are on a pro-rated schedule from 100% in the first 5 years lowering to 20% in year 10 (for products with a 10 year warranty), and from 100% in year 1 lowering to 20% in year 5 (for products with a 5 year warranty).

Warranty covers product only and does not include shipping, installation or any other costs relating to loss of earnings etc.

If a product is deemed faulty, Physical will, where possible, repair or replace any item(s). Physical shall not be liable for any costs in excess of the original purchase price.

Please refer to the Physical website for full Terms and Conditions and Data Protection information www.physicalcompany.co.uk

© 2025 - Physical
