OVERVIEW

WSBSPORT provides a comprehensive suite of fields & services designed to assist developers in crafting their projects from a mere idea to a successful opening day and beyond.

Our expertise spans all phases of facility development, ensuring that every project we undertake is not only feasible but also flourishes under favorable conditions. Our mission is to deliver projects that are not just achievable but are of high quality, sustainable, and generate profitability both in the short and long term.

WSBSPORT has been working on the all-around development of sports and soccer facilities in the U S for more than 15 years

Making intelligent decisions in this field requires a deep understanding of the industry and a planning approach rooted in evidence and expertise.

WSBSPORT is the ideal partner for developers who wants to turn their 5-a-side facility concept into reality.

WHYWSBSPORT?

WSBSPORT is the only company in the 5-a-side soccer market with sufficient experience to provide the manufacturing and installation of the fields as well as professional advice and ongoing support for clients wishing to open a 5-a-side soccer facility

WSBSPORT IN THE US

15+

Years of experience in sport facilities

100+

Complexes that have benefited from the advice of WSBSPORT

300+

Complexes equipped by WSBSPORT

Jean-Damien Ladeuil, Owner of SOFIVE Soccer Centers

WHYTHEWSBSPORTFIELDS?

WSBSPORT pioneered the 5-a-side soccer field creation, leading the US market through years of experience to develop unmatched standards Our products stand out, from structural components to detailed aspects, ensuring peak performance, safety, and longevity.

STRENGTH

Our pitches are extremely durable, designed to support continuous impacts from players and balls over time The pitch is full of precautions, such as the elastic cable around the goals that cushions the ball, which greatly increases the durability of its components

EXPERIENCE

Our fields were born together with 5-a-side soccer years ago and therefore represent the definitive playing experience for this sport. The best players, football clubs and franchises choose and have chosen us for official tournaments, because we guarantee through our expertise

SAFETY

Safety during sport is essential For this reason, our fields are designed to minimize the edges, inside and outside the field, and have a system of mechanical connections designed to have ZERO screws and bolts inside the playing surface

Although our product is regulated and specific, WSBSPORT is also known and appreciated for its high level of customization Every possible request is listened to and turned into reality, even the most extravagant ideas are always fulfilled

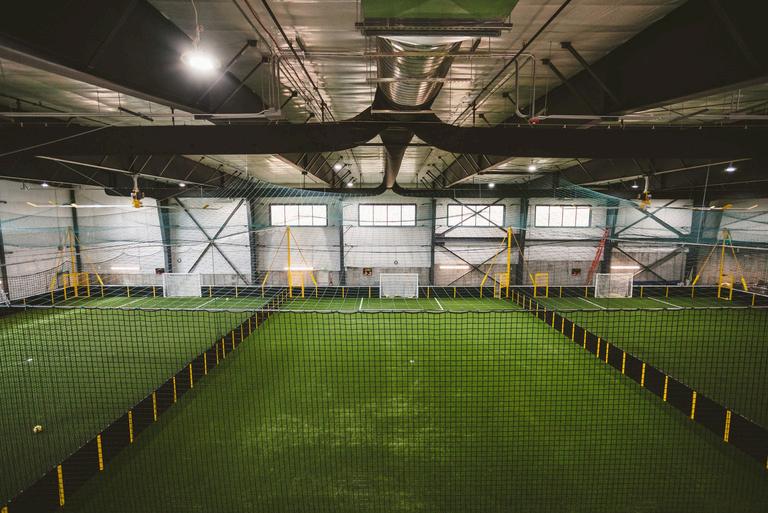

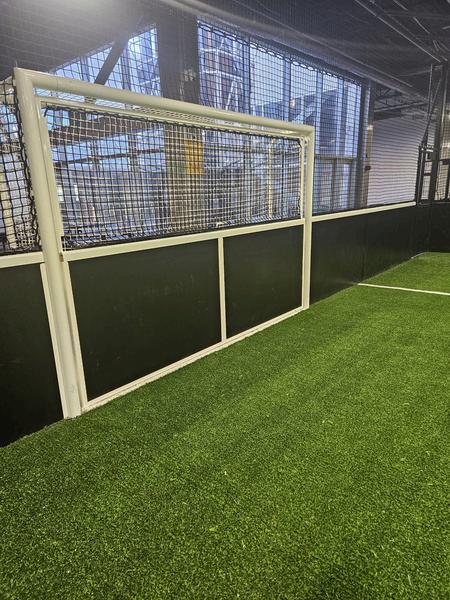

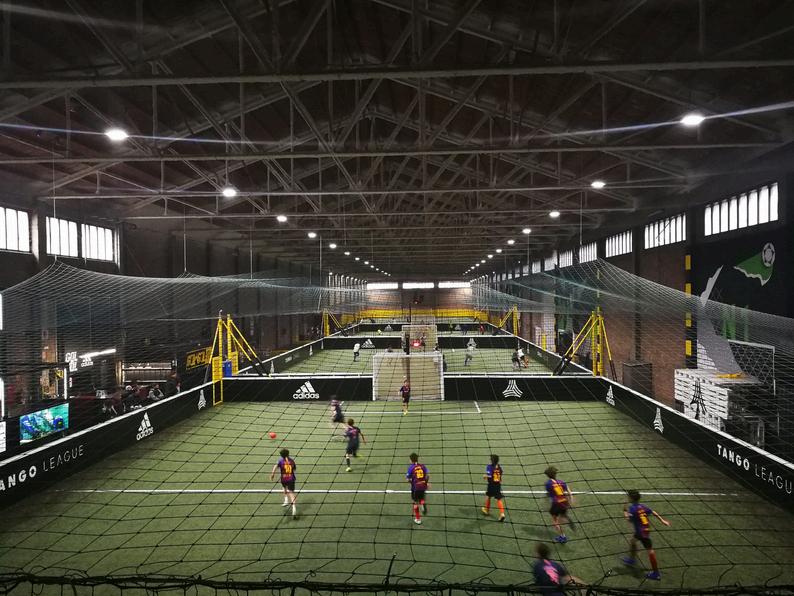

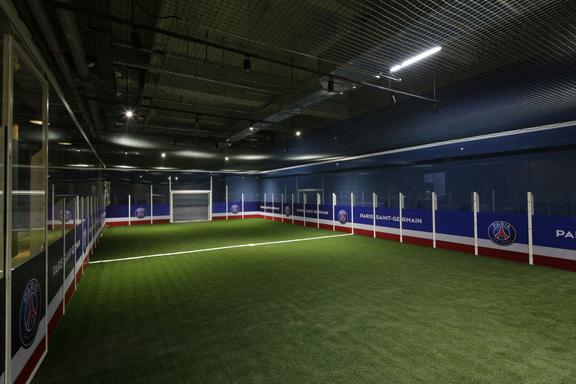

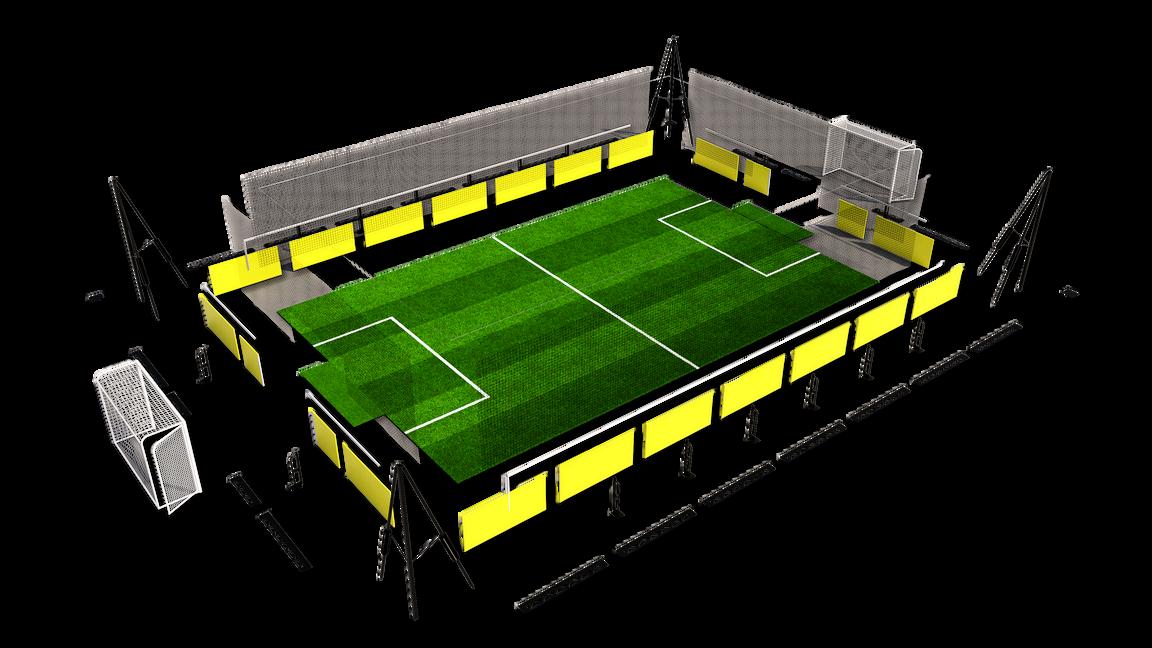

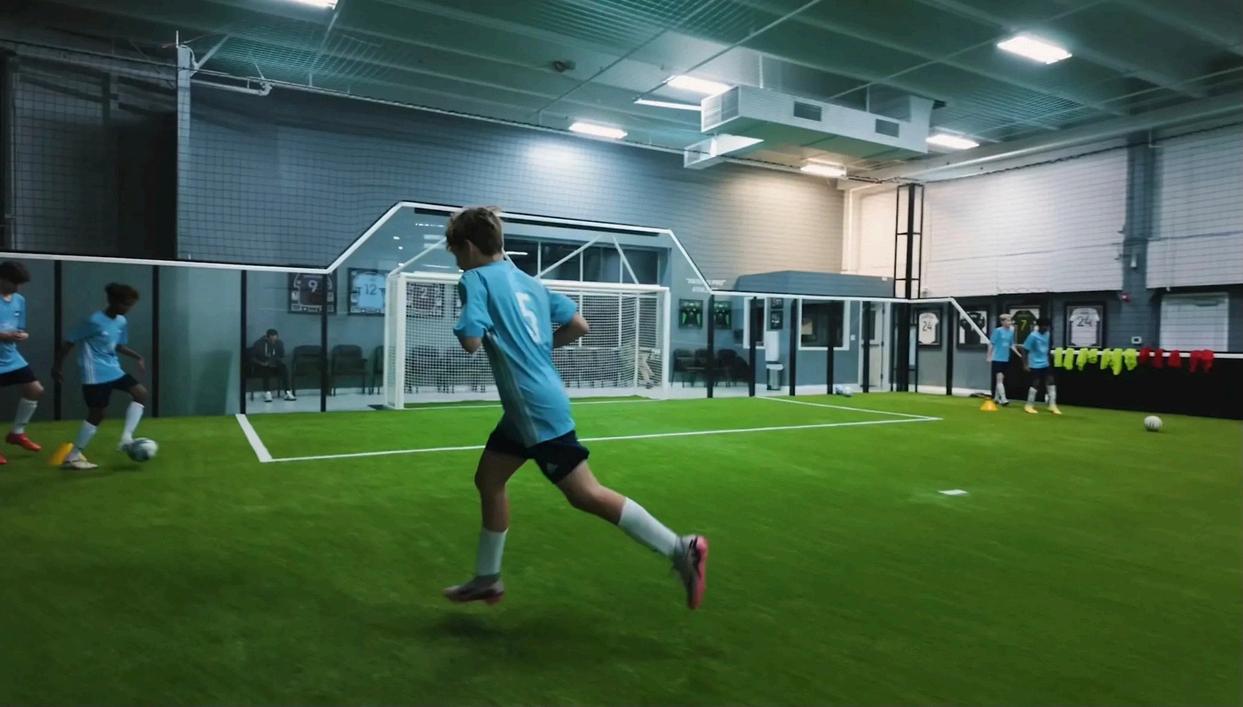

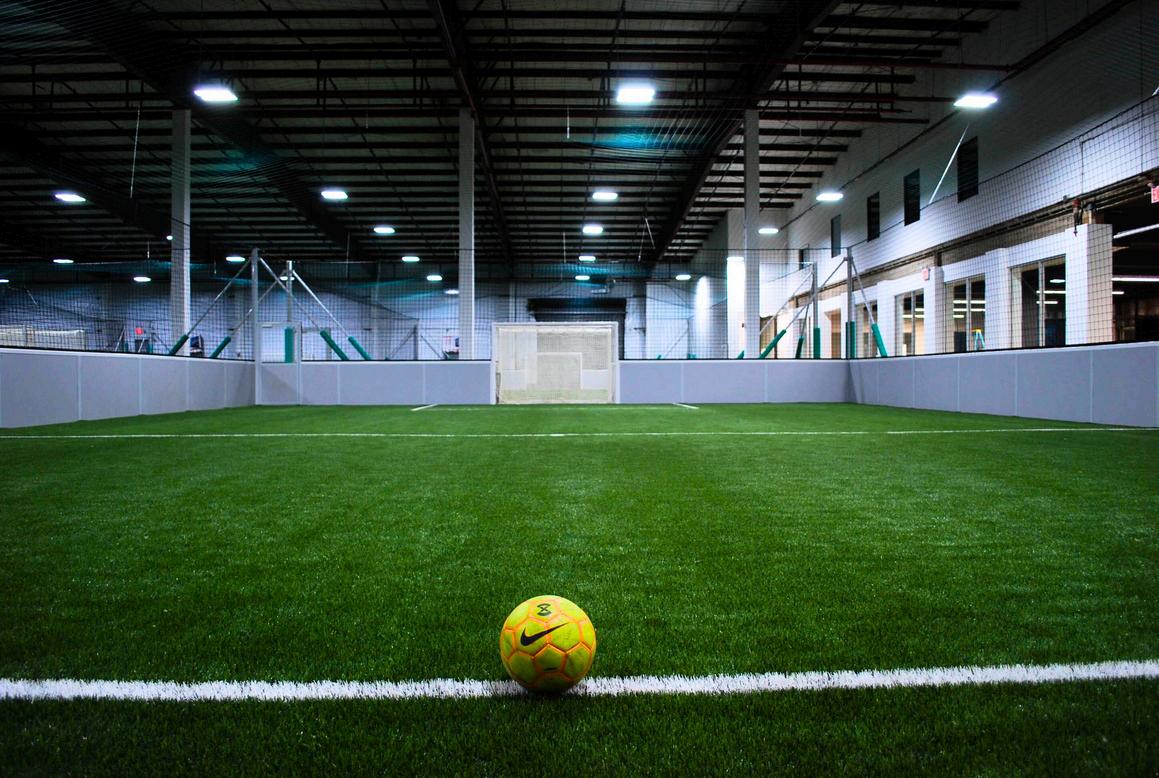

INDOORFIELD

THE ORIGINAL 5-A-SIDE SOCCER FIELD

Our model is designed for use in any indoor facility

The indoor model is the original one that started the history of 5-a-side soccer, the first of its kind, updated every year thanks to years of experience.

Made with MDF panels for perfect rebound and unmatched aesthetics, it meets all the performance and safety requirements needed to play at its very best

Technical Info

Variable height according to the space in which it is to be installed, from a minimum of 13' to a maximum of 19'-8".

High quality MDF panels.

Lights and nettings installed on the roof of the building.

Flame-retardant nylon nets.

INDOORFIELDOPTIONS

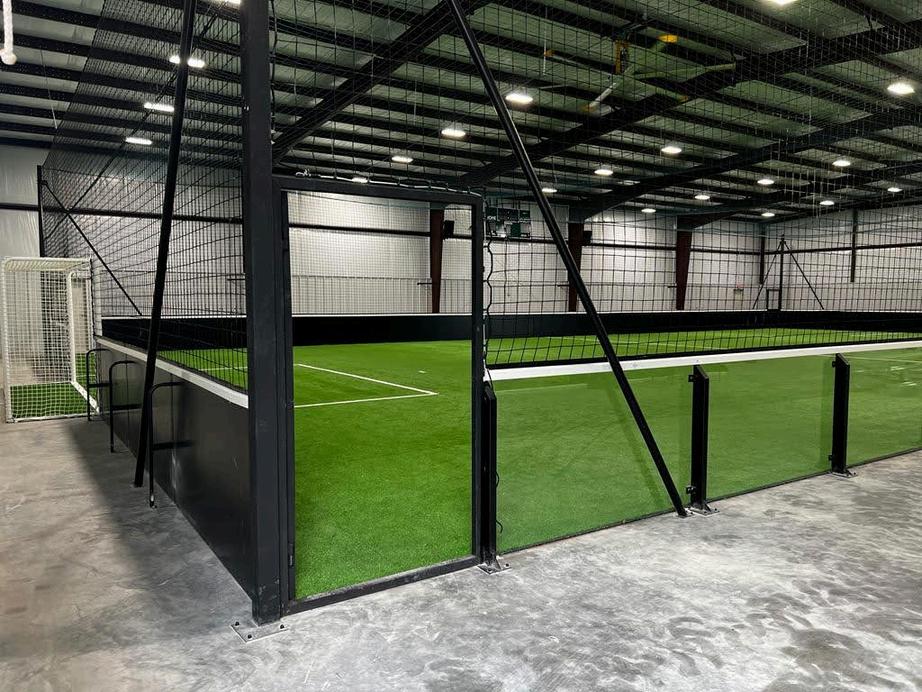

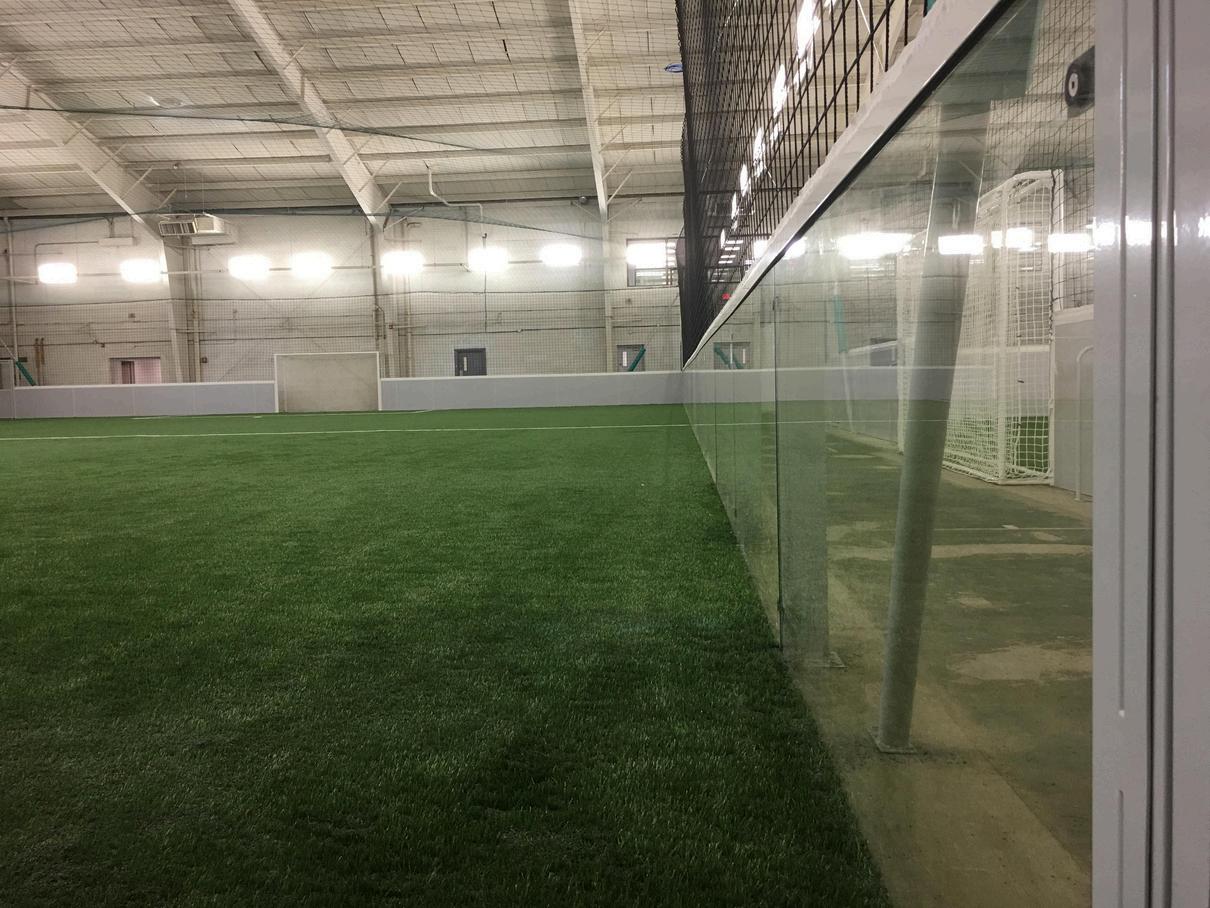

Glass Walls

Upgrade your system with one or more tempered glass walls for an unparalleled visual experience

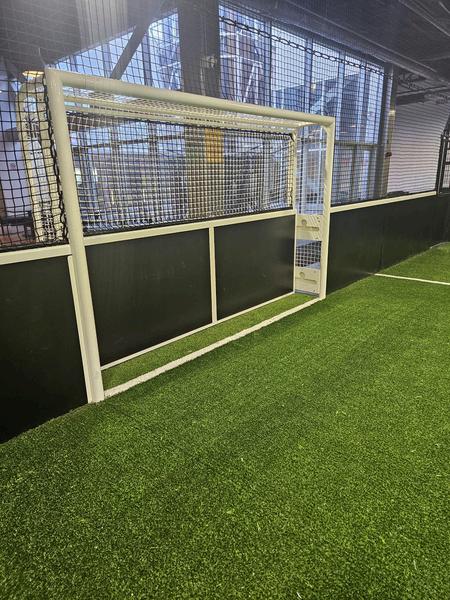

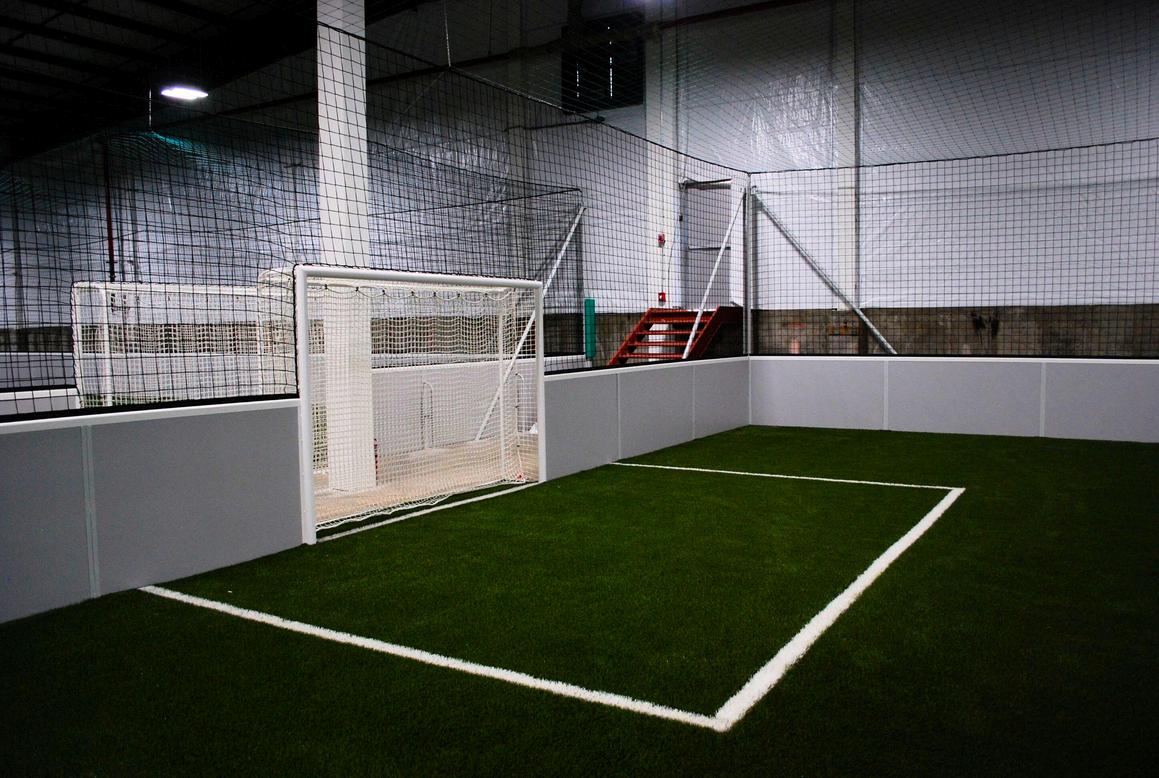

The Old Fashioned

Our classic and original style of indoor field with matte boardings.

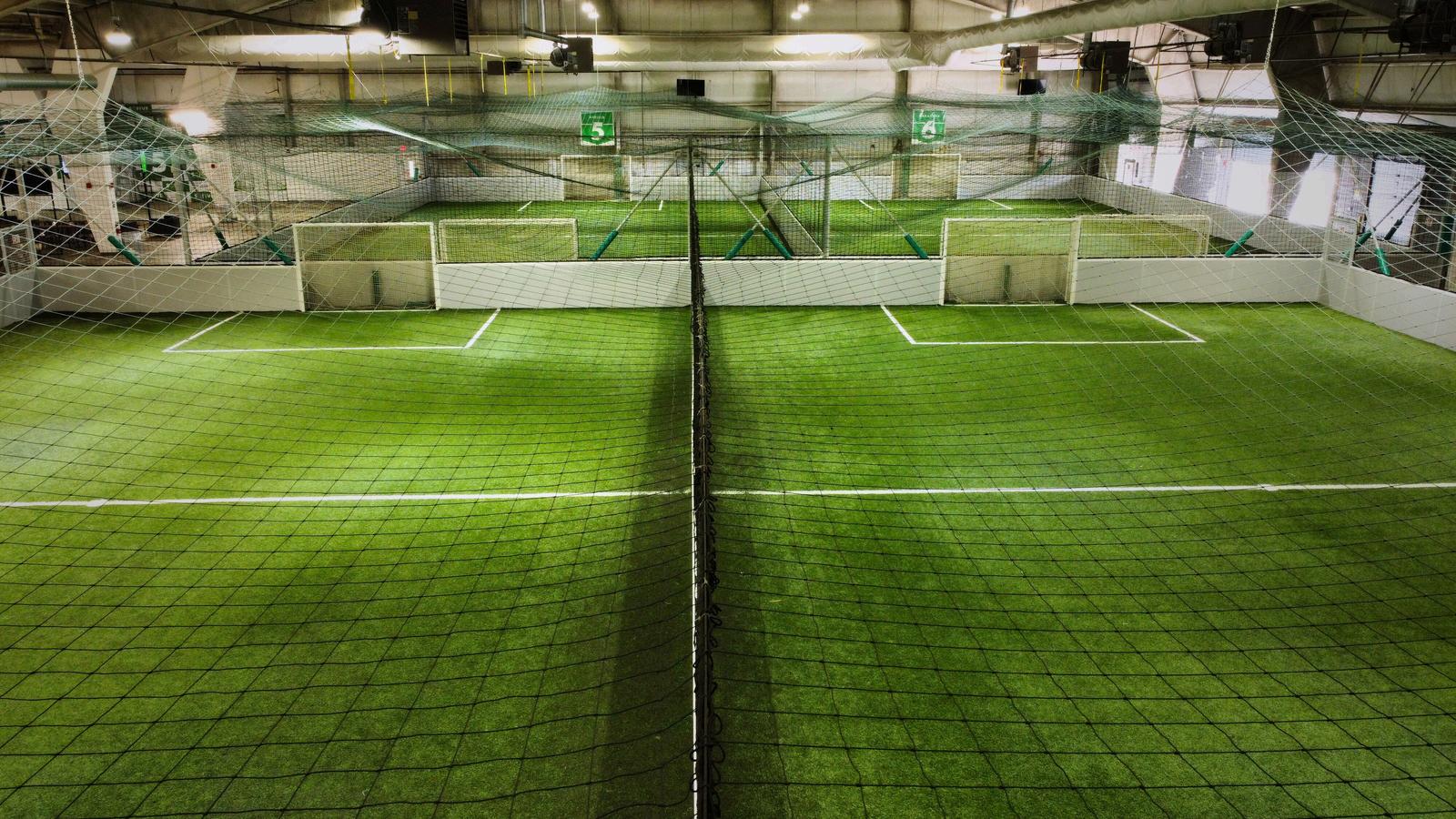

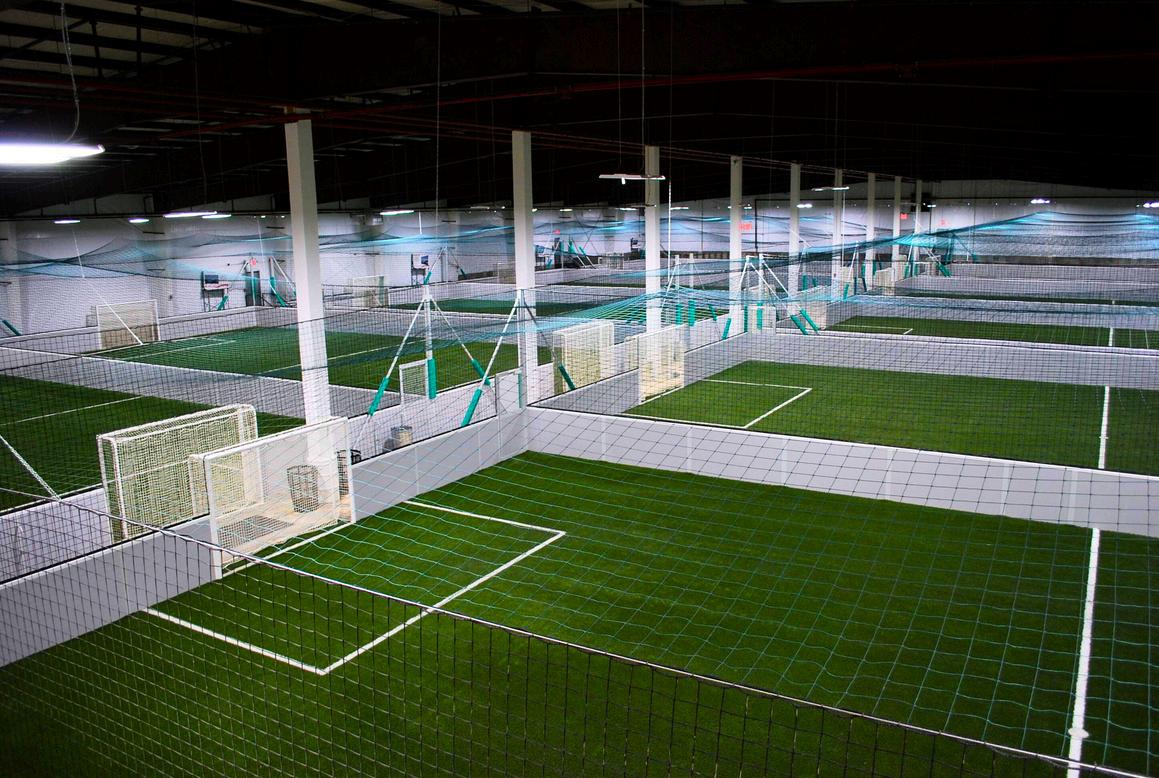

Side by Side

Optimize the available space by integrating multiple indoor fields through the use of shared boardings.

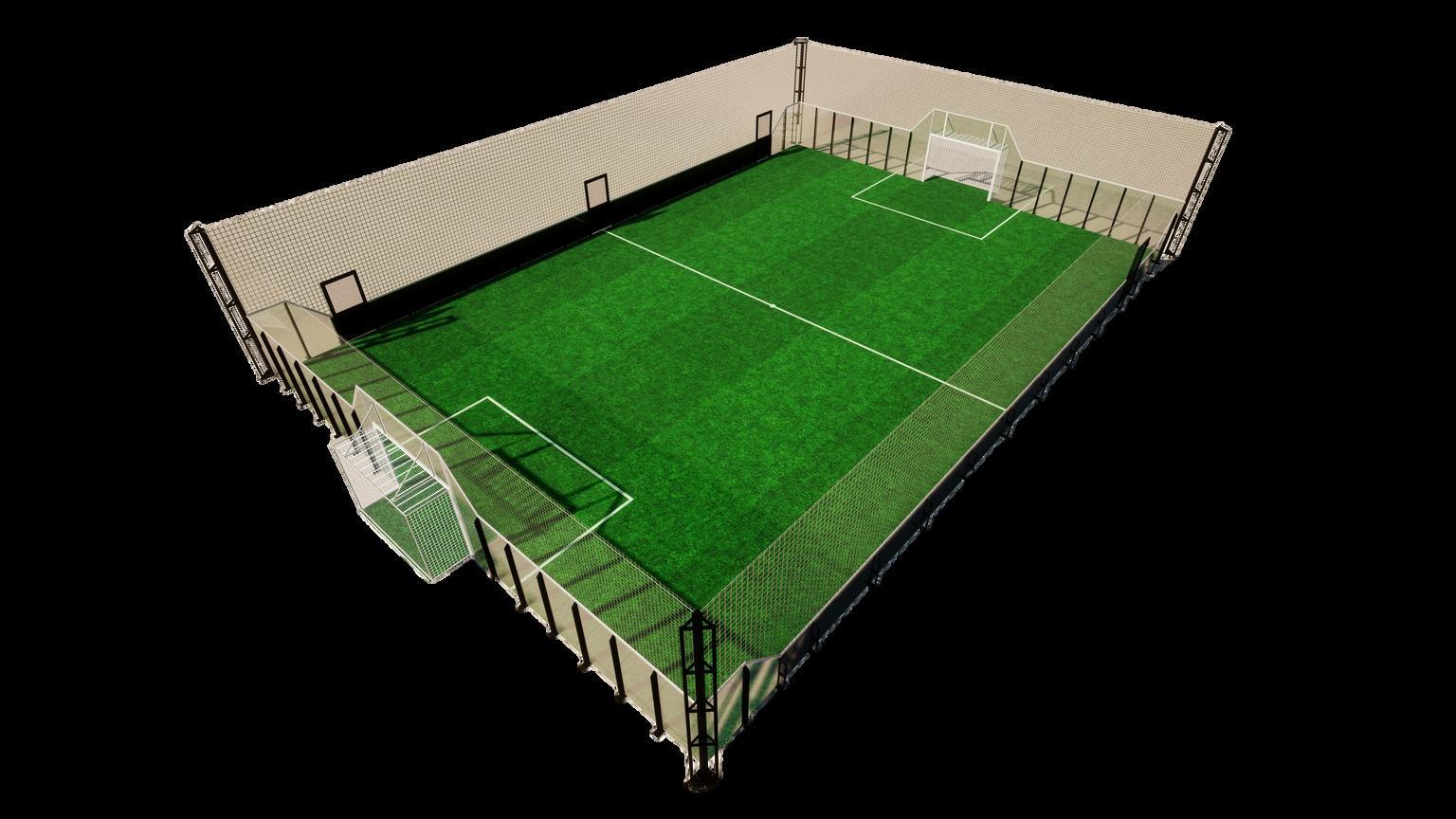

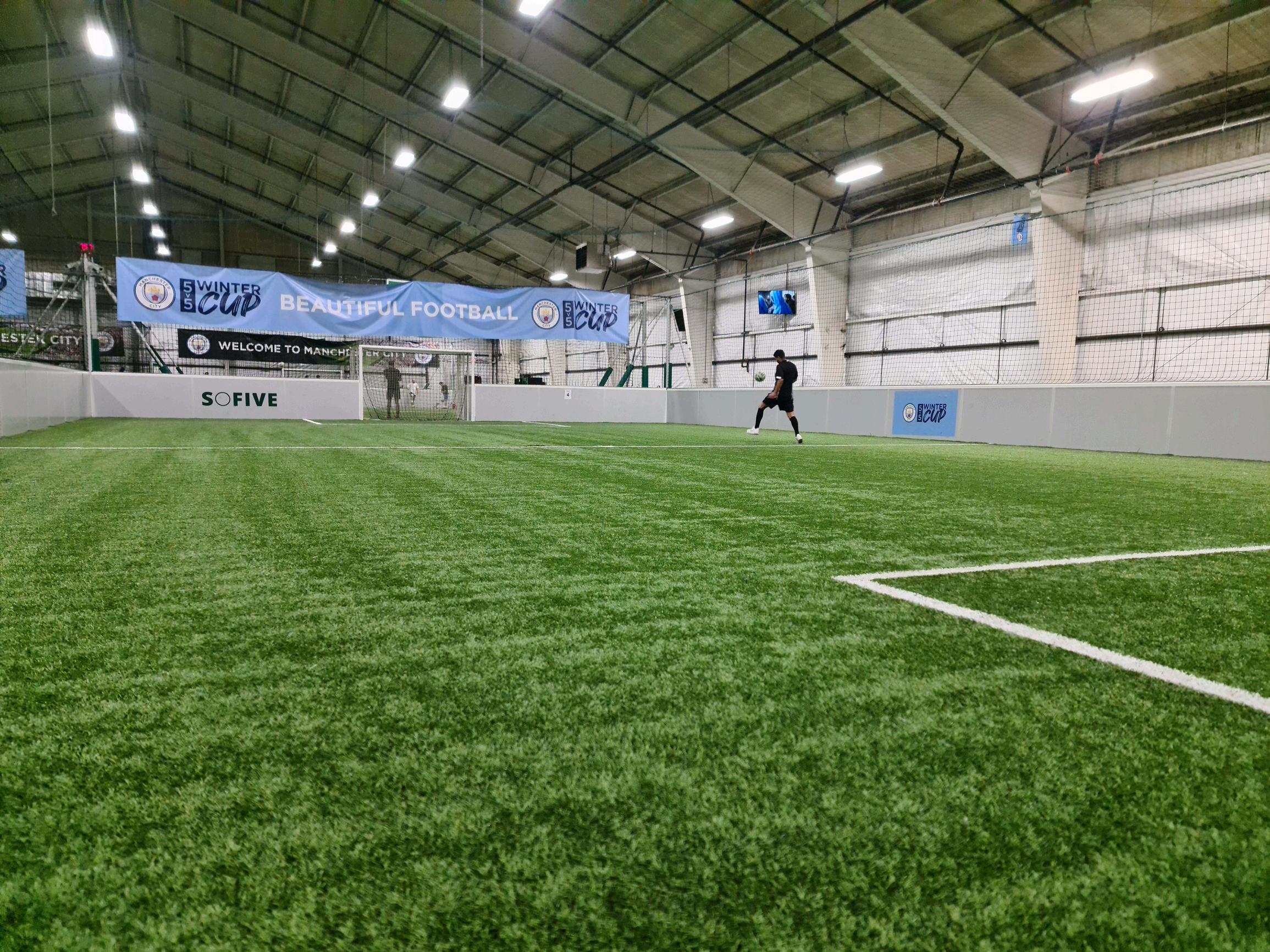

INDOORSOCCERSTYLEFIELD

INDOOR SOCCER IN 5 A SIDE SIZE

Our latest innovation brings an authentic indoor soccer experience to your facility.

Designed to amplify the speed and intensity of play, this version features extended walls on the short side that wrap around the goals, adding extra bounce space.

This unique design keeps the ball in play at all times, enhancing the dynamics and player engagement, all within the dimensions of 5-a-side

Technical Info

Variable height according to the space in which it is to be installed, from a minimum of 13' to a maximum of 19'-8".

High quality MDF panels and 12mm tempered glass.

Lights and nettings installed on the roof of the building.

Flame-retardant nylon nets.

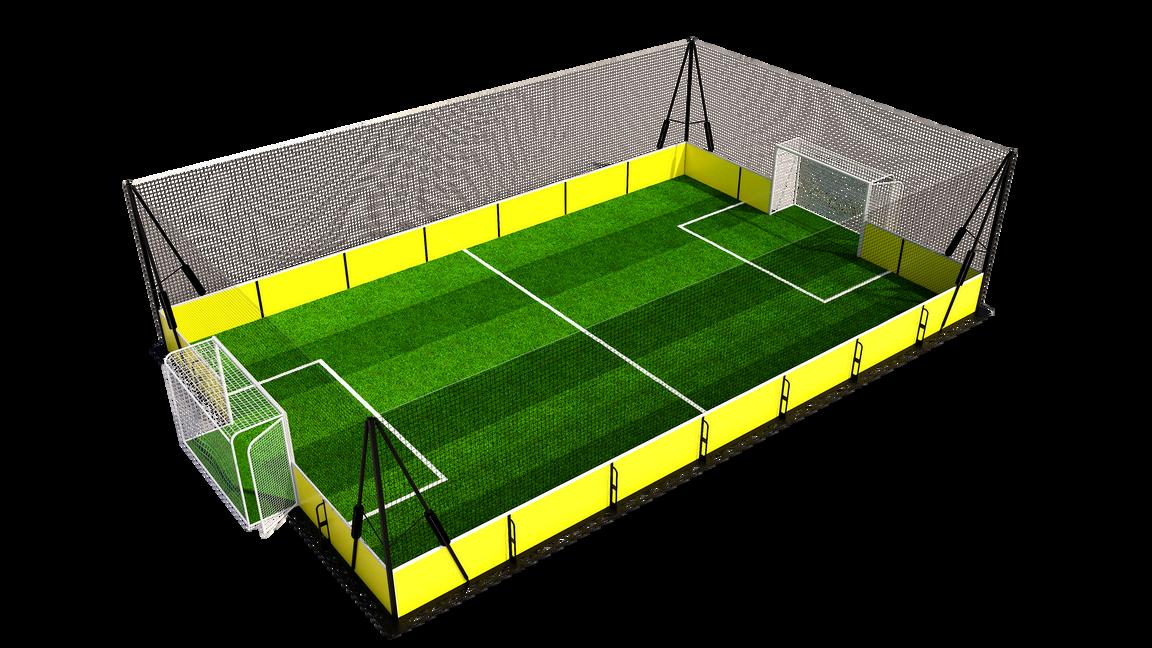

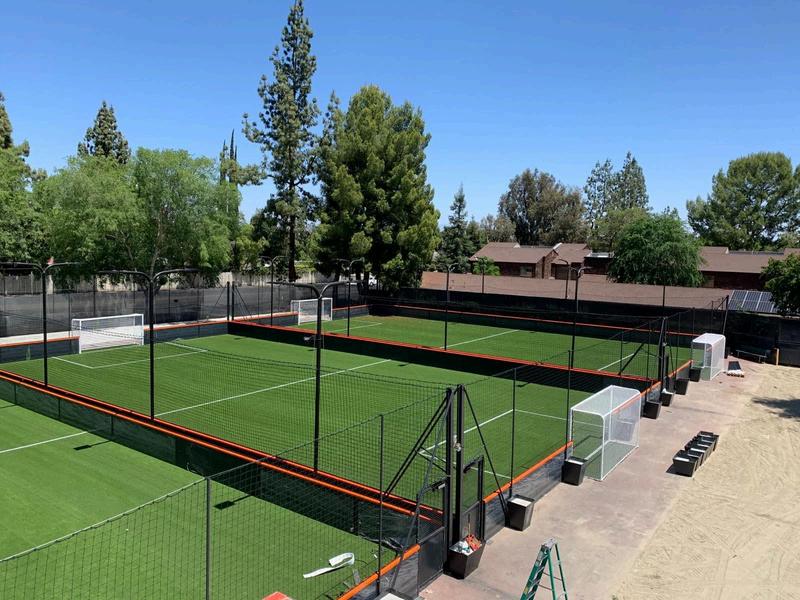

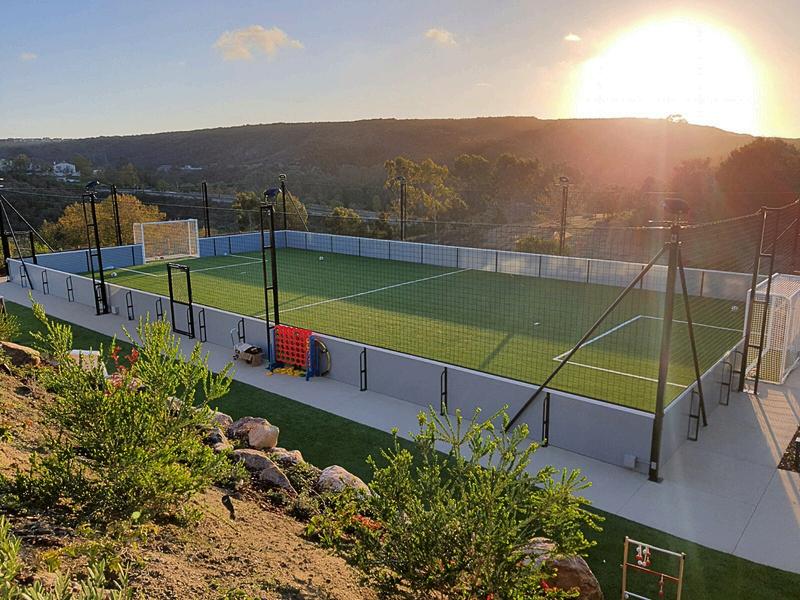

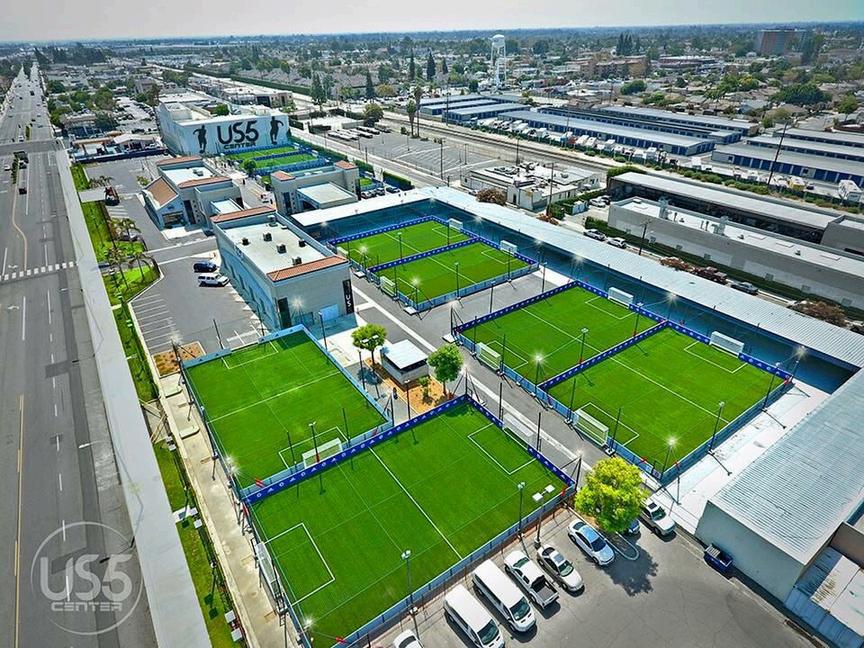

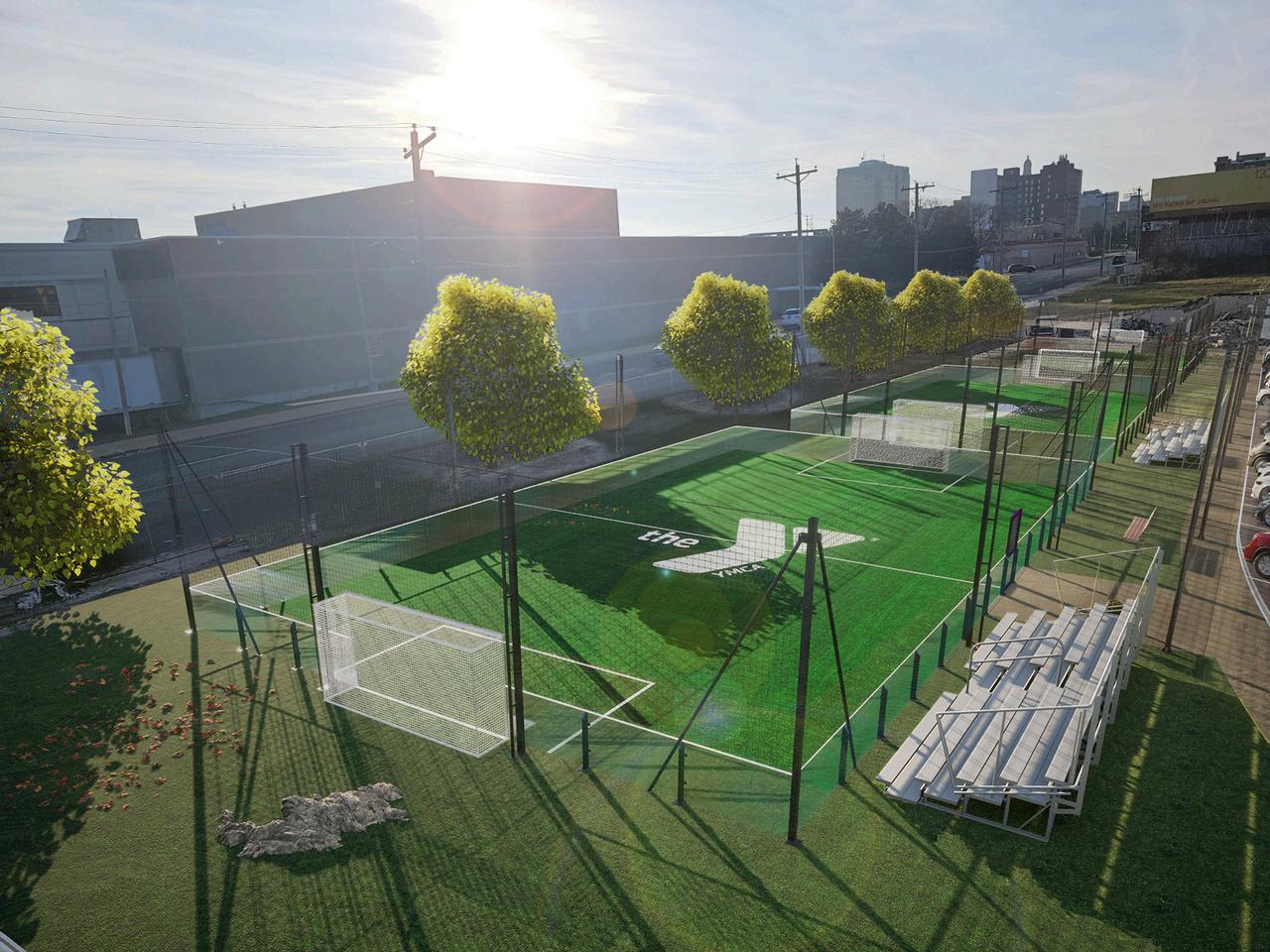

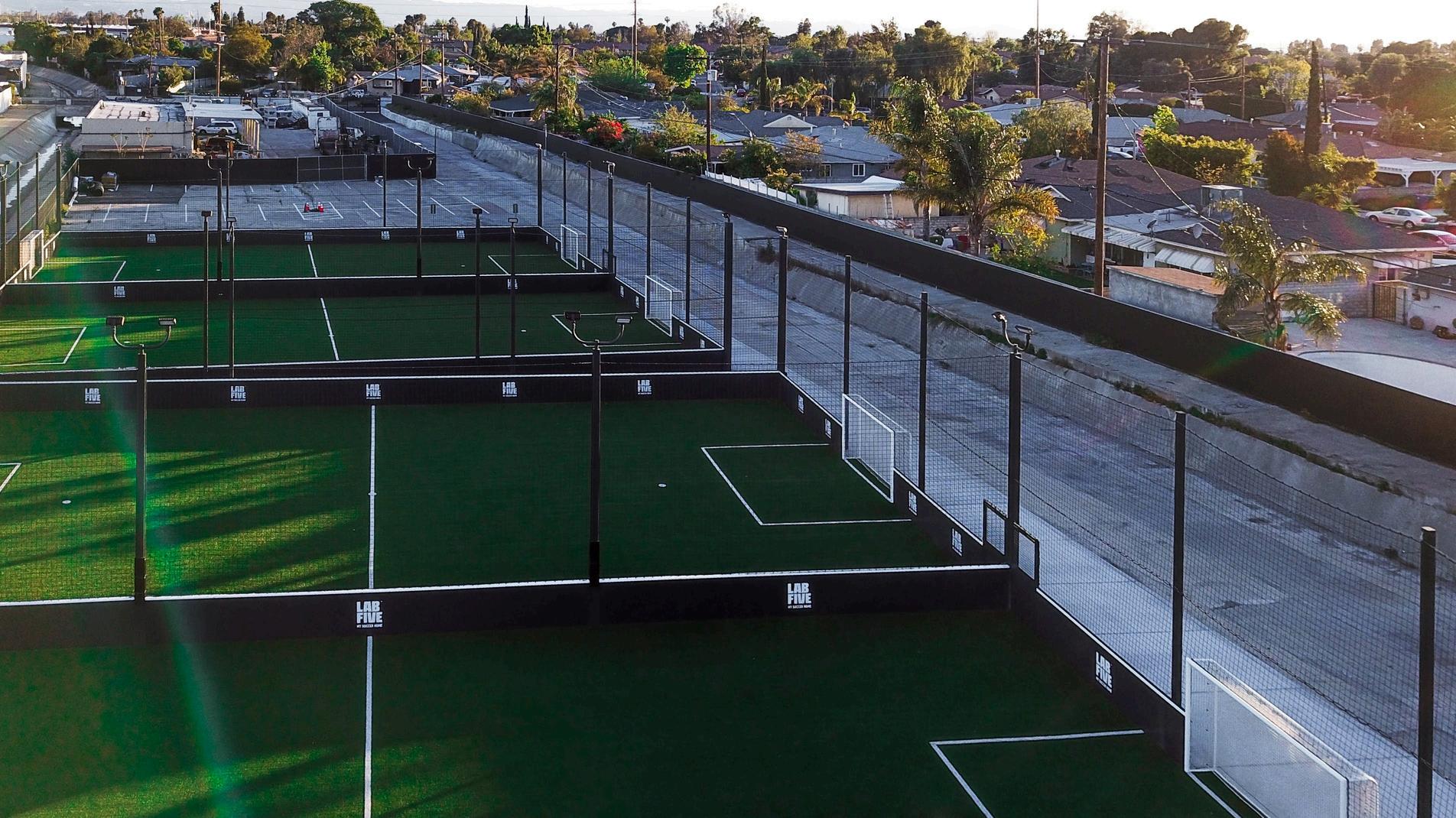

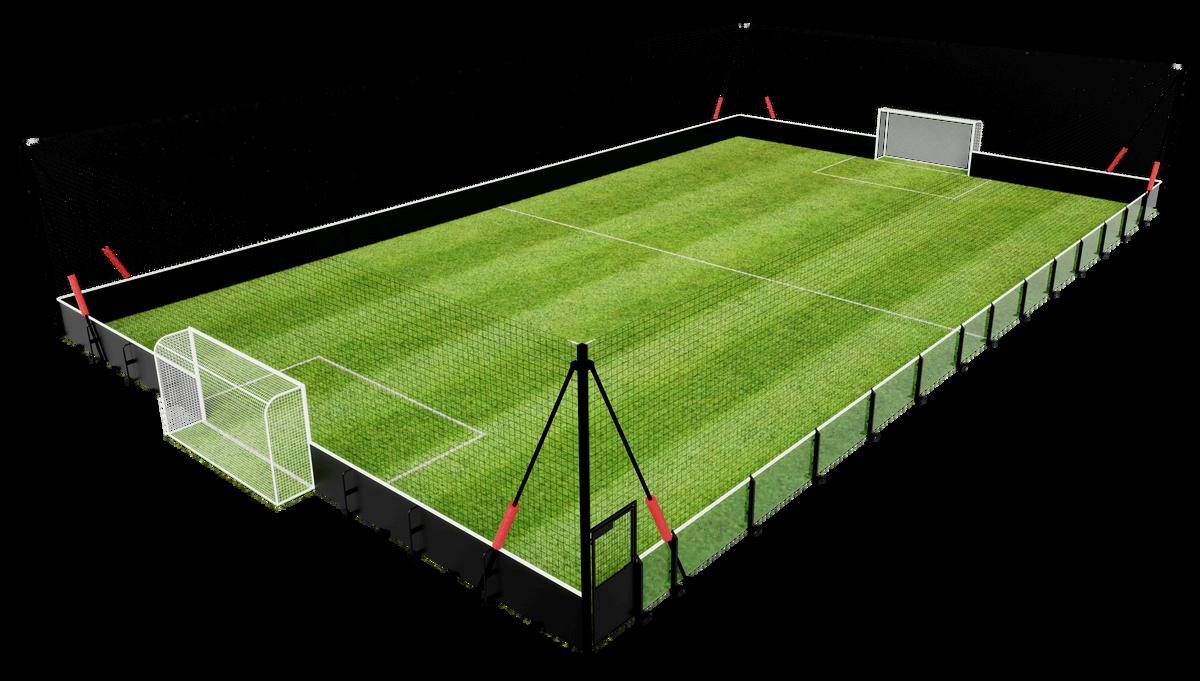

OUTOORFIELD

THE

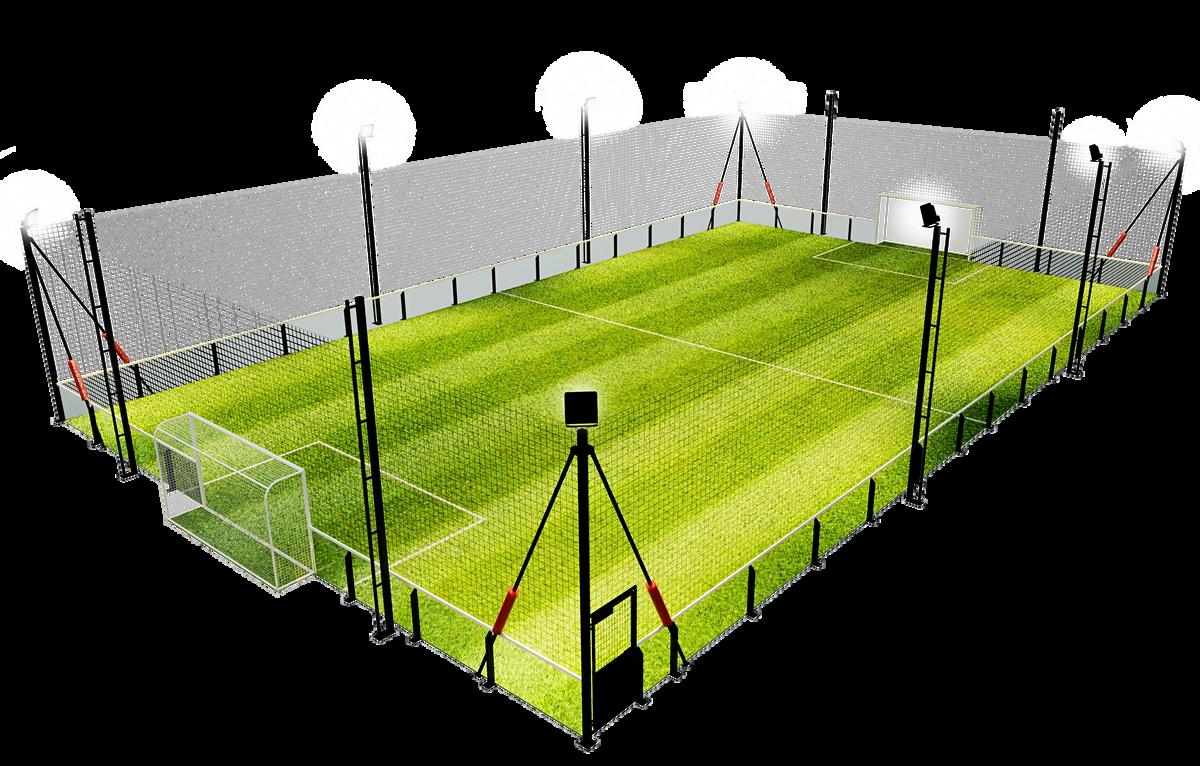

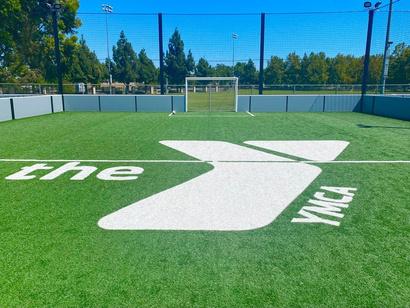

5-A-SIDE FIELD FOR SUNNY DAYS

Specifically designed for openair use.

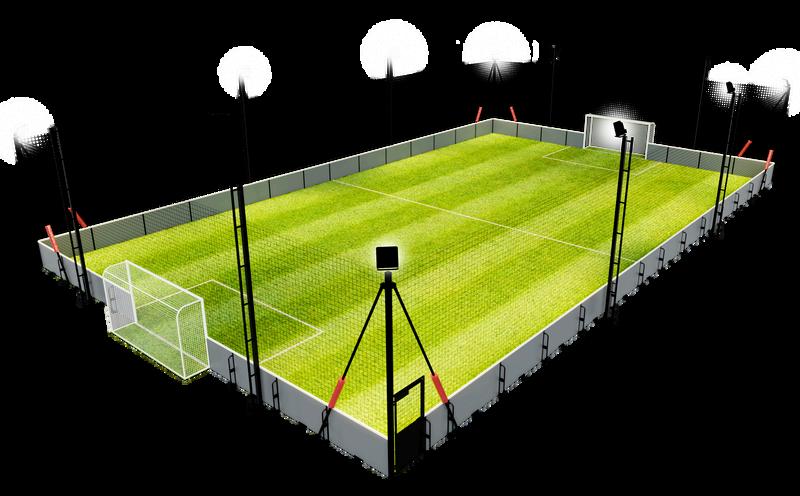

Our outdoor 5-a-side field is 100% hot-dip galvanized and features only stainless-steel hardware to be installed in the most extreme environments, even next to the sea.

Lighting and tensioning of nets are provided by additional external poles specific to the size of the field.

Techincal Infos

Tempered glass or sandwich panels for the boardings.

Nets treated against UV rays.

100% stainless steel hardware.

Corner posts height: 16'-4".

External posts height: 19'-8".

OUTDOORFIELDOPTIONS

Glass Walls

Upgrade your system with one or more tempered glass walls for an unparalleled visual experience.

Standard

Our standard version of outdoor field with matte boardings.

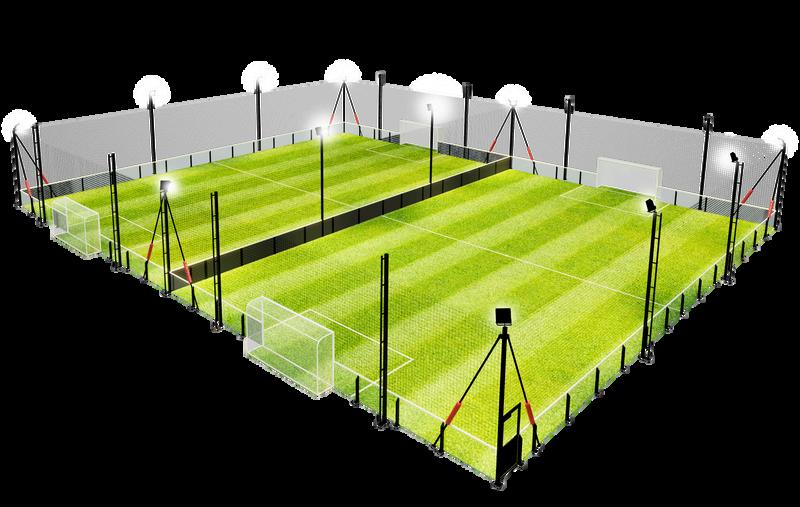

Side by Side

Optimize the available space by integrating multiple outdoor fields through the use of shared boardings.

THE

5-A-SIDE

SOCCER

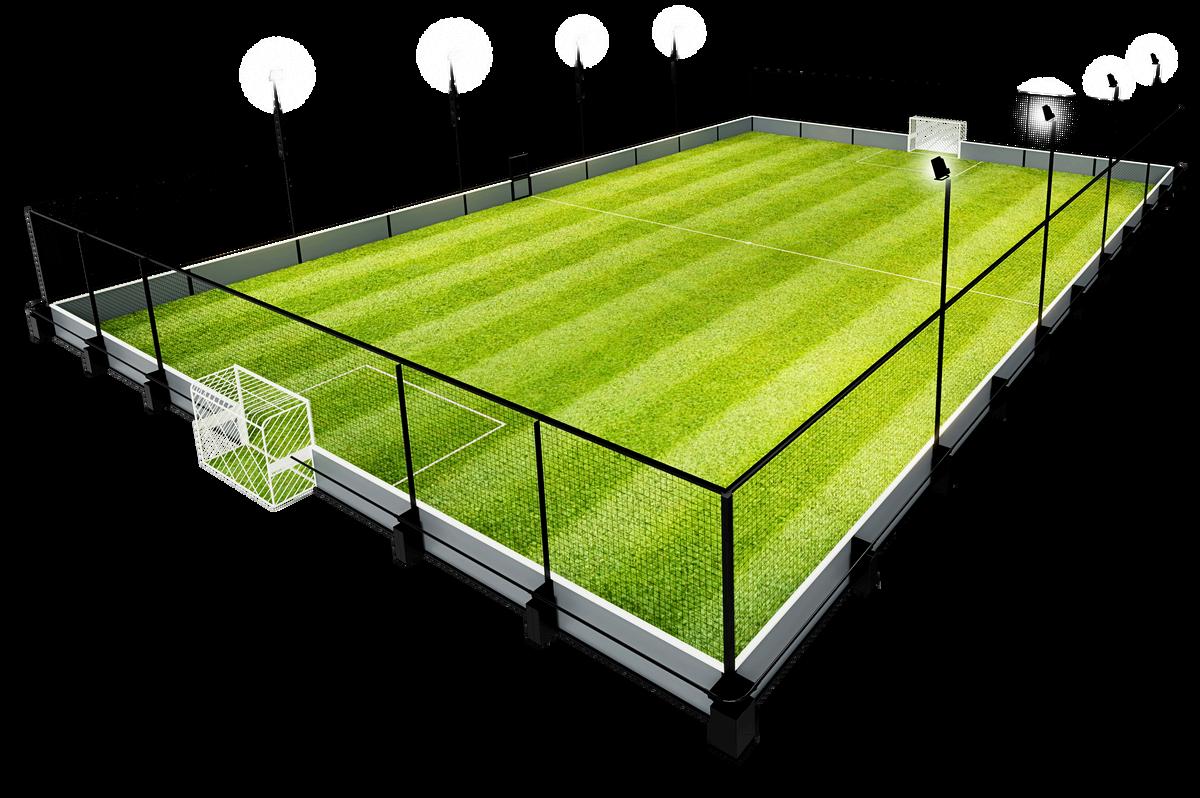

FIELD THAT DOESN’T NEED CONCRETE FREE-STANDINGFIELD

This model was born to exist where it would not be possible.

Designed for permanent applications where construction is not allowed and where there is no possibility of having concrete foundations to install structures.

The system is completely selfsupporting and can be installed on any surface as long as it is sufficiently flat.

Technical Info

Self-supporting structure.

Corner posts height: 13'.

Roof net avaiable up to a height of 14'-5".

Boardings in tempered glass or 4" thick sandwich panels.

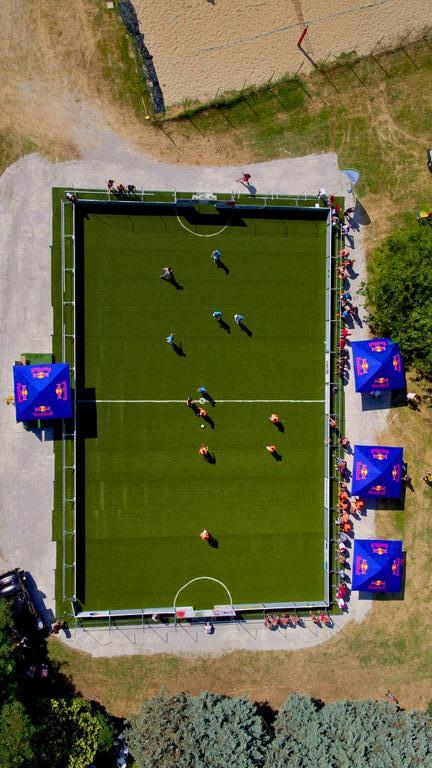

THE 5-A-SIDE FIELD THAT FOLLOWS YOU EVERYWHERE

This model was created to meet the ever-increasing need of coaches and event organizers who need to set up a 5-a-side field in a very short time and move it to a new location a few days later It requires no invasive work for set up, ensuring it can be aasambled even without a concrete base, maintaining integrity and safety without compromise, which makes this model very versatile.

Technical Info

Light and strong fiber glass panels.

Interlocking synthetic turf tiles.

Corner posts height: 13'.

No roof-net.

EXTRAS

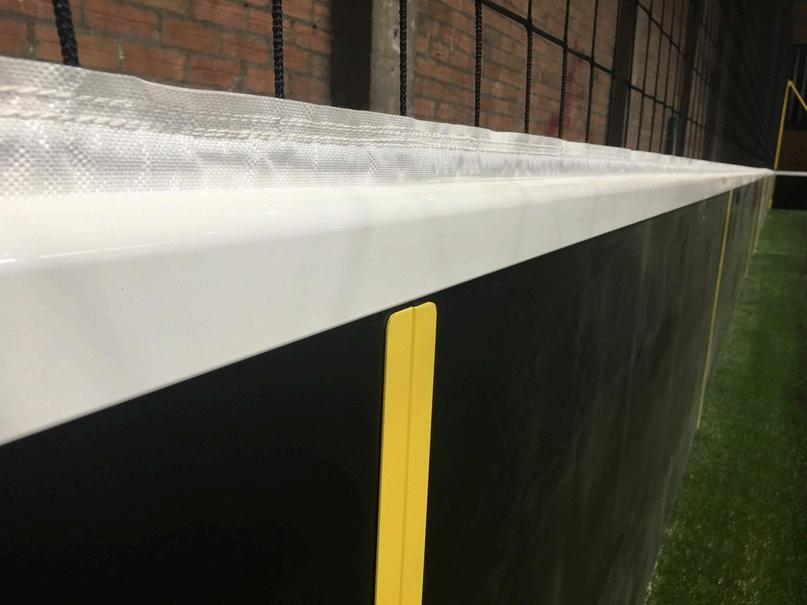

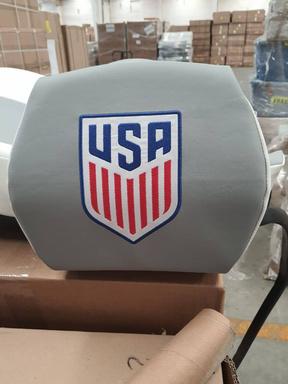

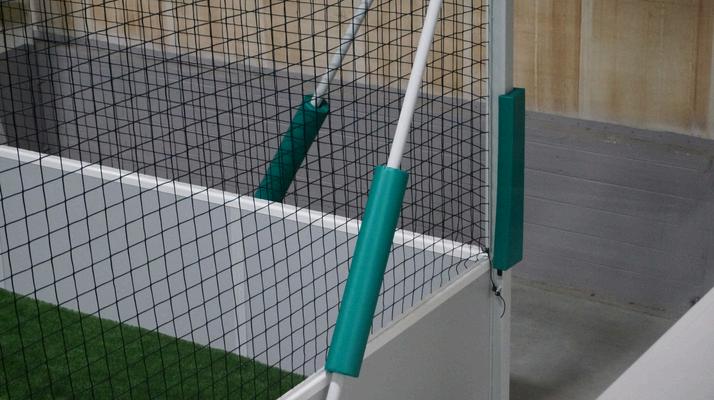

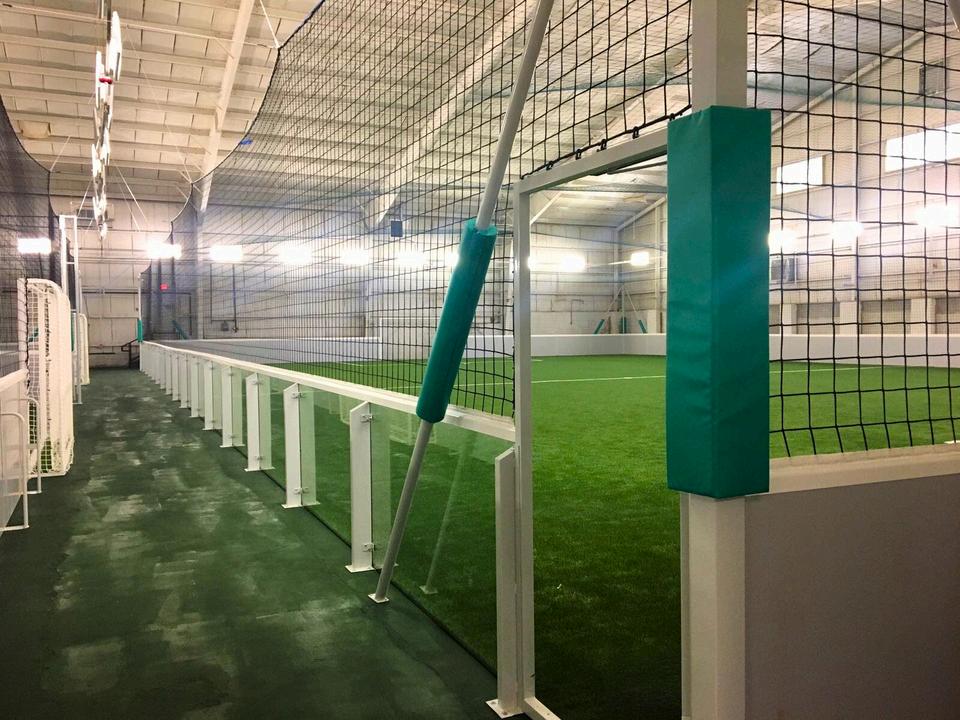

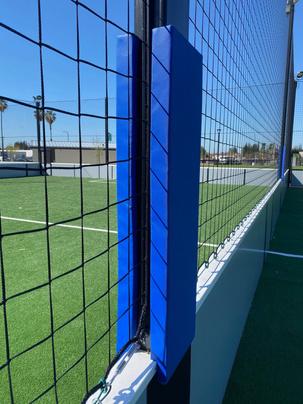

Protections paddings

The diagonal braces of the corner posts of the fields can be protected with specific paddings, widely customizable in color & logos, to make your field unique and in line with your brand.

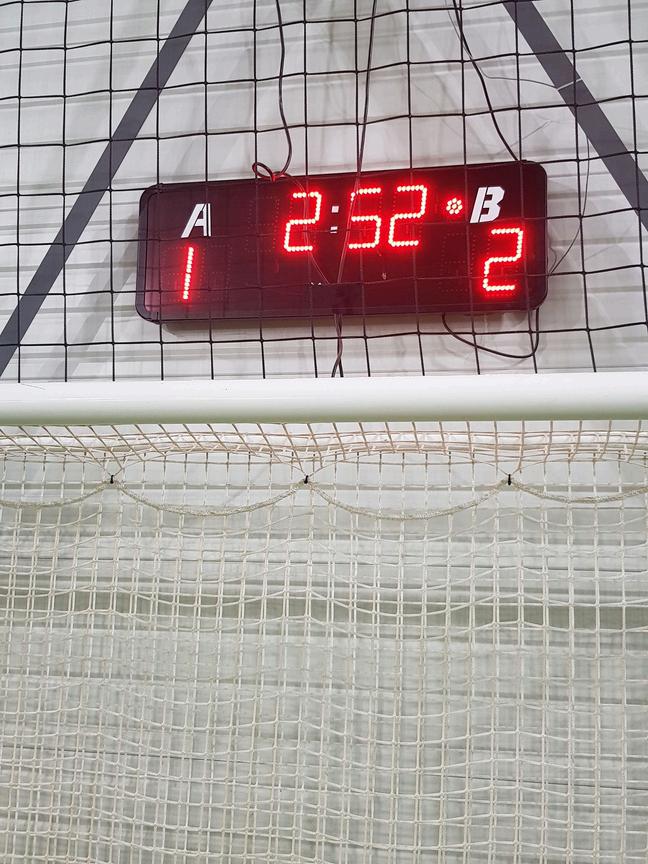

Scoreboards

WSBSPORT offers remotecontrollable electronic scoreboards for both indoor and outdoor use.

Benches

The fields can also be equipped with player benches, customizable in every detail, making your 5-a-side field truly yours

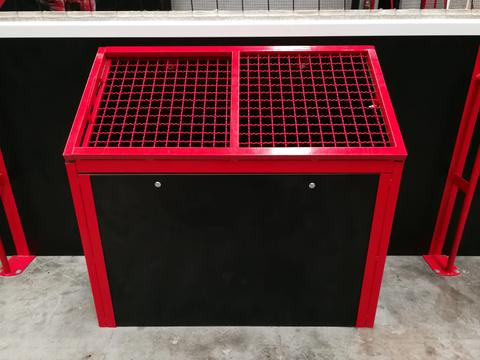

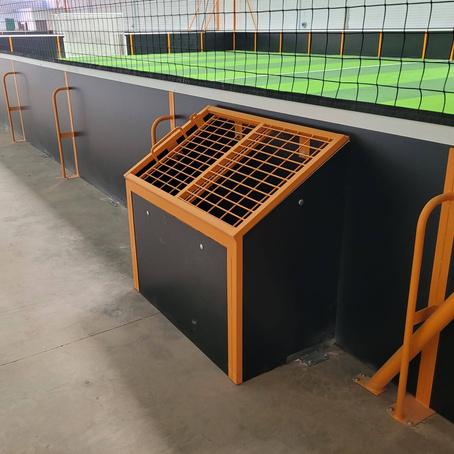

Bag Holder

Players often change on the field and for this reason they really appreciate our comfortable and safe bag holders, attachable at the entrance of the field.

EXTRAS

Removable wall systems

Sometimes the space available is really tight, and in those cases, the solution we propose to our customers is our removable wall system Thanks to this solution, a 150'x90' field can be transformed, for example, into 3 individual 90'x50' fields in just 20 min!

The walls are made of lightweight panels inserted inside steel supports that are also easily removable The goals, on the other hand, are equipped with panels that, through a trolley system, can be pushed in or out depending on the configuration chosen.

Lacrosse nets

Want to use your 5-a-side fields to play Lacrosse as well? Specify that when you order, and your fields will be fully equipped with 2"x 2" mesh highstrength nettings

Shock-absorbing n

Do you want to prevent the ball swell the goal net from hitting passersby outside the field? Sho absorbing nets are the ideal solu installed inside the goal, it will re the power of the ball and also ex the durability of the goal nets.

TURF&FLOORINGOPTIONS

ADAPT YOUR 5-A-SIDE FIELD TO YOUR SPECIFIC NEEDS

Our fields offer different types of turf or resin or PVC solutions to allow you to tailor your chosen field to your specific needs but most importantly ensure longevity and performance.

5-a-side is not comparable to other soccer-related sports, and WSBSPORT has realized this after years of experience on the market

The 5-a-side field is a compact surface design where 10 players continuously play in a fast-paced setting without interruption. This implies that it was necessary to design a synthetic turf specifically for this activity that was durable and low maintenance

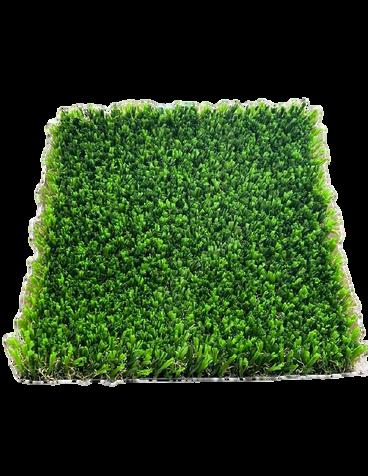

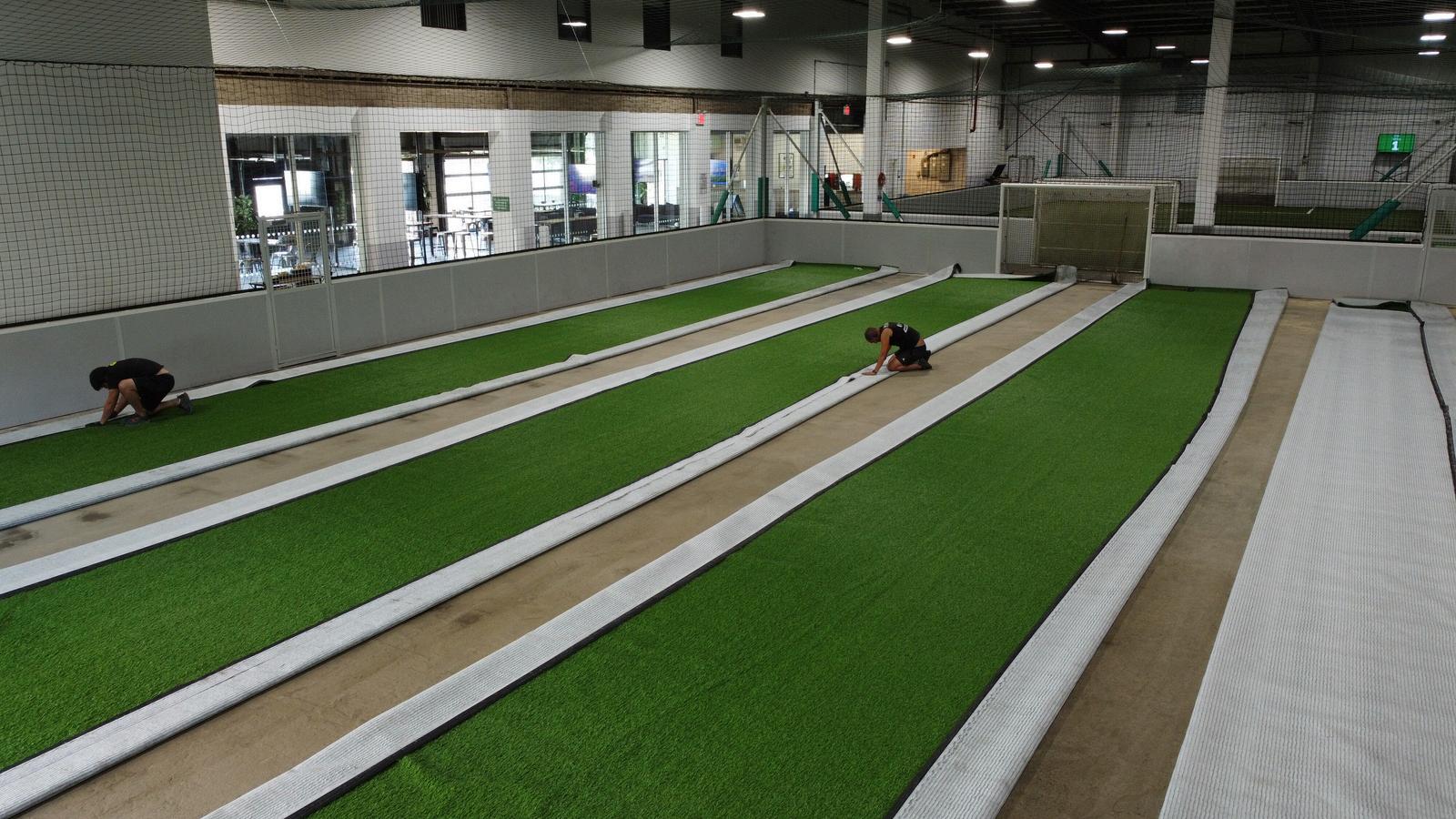

WSBSPORT for its fields proposes an 11/8" thick high-density no-infill turf laid on a 5/8" thick professional shock pad for high durability and maximum player comfort and safety.

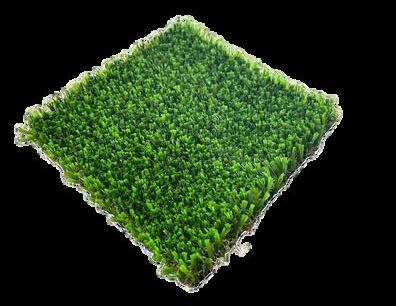

TURFOPTIONS

Xtreme Turf is found in over 2,000 installations in over 90 countries. The system is installed over a suitable substrate by designs and specifications recommended by Act Global.

FILM TYPE

PILE WEIGHT

DENIER

PRIMARY BACKING WEIGHT

SECONDARY BACKING WEIGHT

TOTAL WEIGHT

PILE HEIGHT

TUFTING GAUGE

PRIMARY BACKING

SECONDARY BACKING WIDTH

PERFORATION

SHOCK PAD INFILL

*These are typical specifications, subject to standard manufacturing tolerances and customer options

FLOORINGOPTIONS

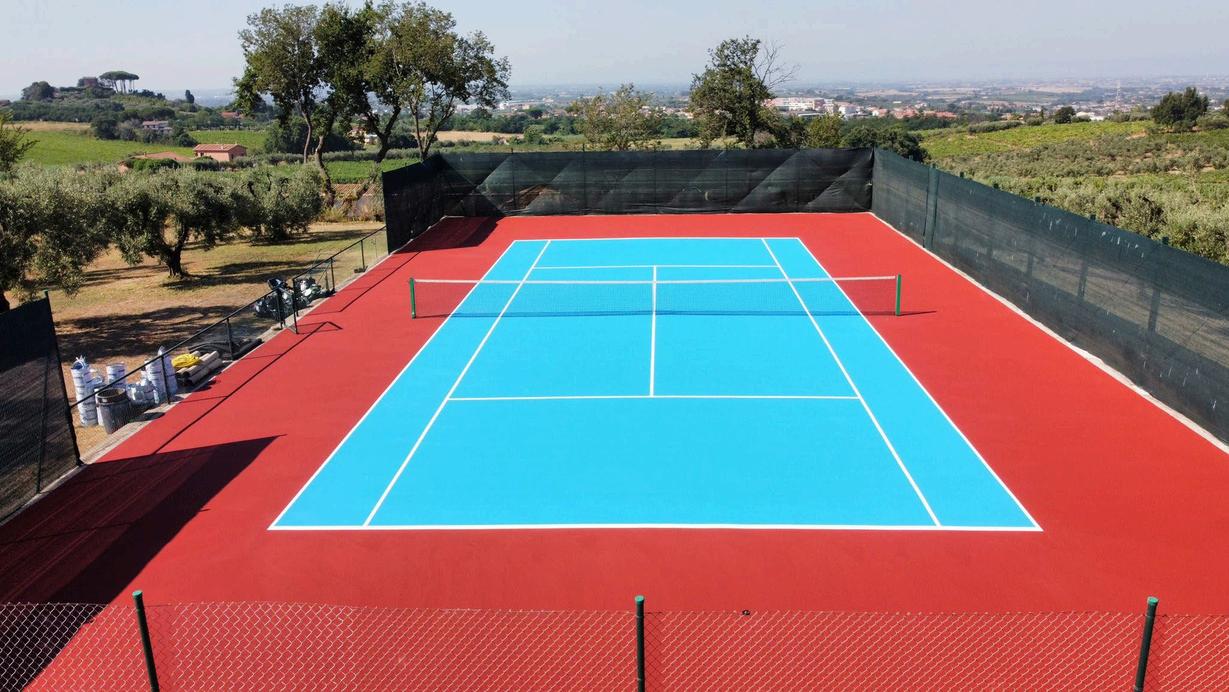

RESIN FLOORING

Multi-layered acrylic resin-based system for professional indoor and outdoor sports fields.

We use a ready-mixed basecoat with selected quartz sand for the preparation of substrates, which optimizes consumption rates in the following layers. This is ideal for leveling off small hollows, if present on the surfaces

CONSISTENCY thick liquid

SOLIDS CONTENT: approx 80% BULK DENSITY approx 1 55 g/cm³

DAMP ABRASION (DIN 53778) > 10,000 cycles

BREAKING LOAD (DIN 53504) AFTER 7 DAYS AT +23°C: > 0 50 N/mm²

ELONGATION AT BREAK (DIN 53504) AFTER 7 DAYS AT +23°C: > 46%

CHANGE IN COLOUR AFTER 1,000 HOURS EXPOSURE TO A WEATHEROMETER (ACCORDING TO ASTM G 155 CYCLE 1), WHITE:

WATER-VAPOUR TRANSMISSION RESISTANCE (EN ISO 7783/2): 400 µ

RESISTANCE TO WATER VAPOUR FOR 0 5 MM DRY THICKNESS S (EN ISO

FLOORINGOPTIONS

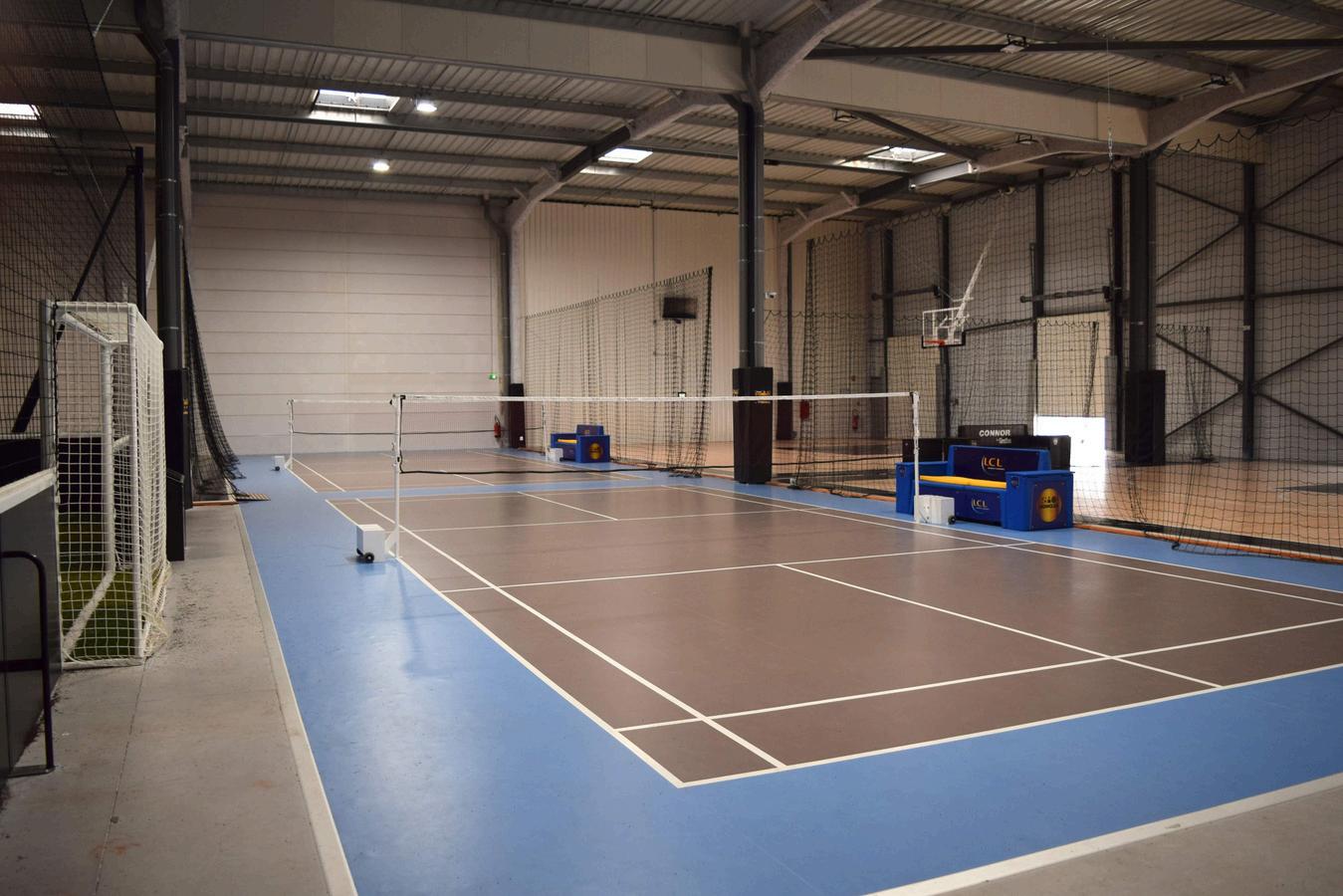

PVC VINYL FLOORING

Suitable for indoor use only and exclusively, PVC is perfect for racquet sports where a sufficiently hard surface is needed for optimal rebound, but at the same time its high density ensures a level of comfort that makes it extremely high-performing even for basketball, volleyball or badminton where the need to throw on the ground is constant.

VERTICAL DEFORMATION

TRANSMITTED

FLOORINGOPTIONS

MULTISPORT SURFACE

Give space to imagination and be open to combined solutions to make the most of your field.

Multisport surfaces with various options to use your field in different ways and for different groups of sports enthusiasts.

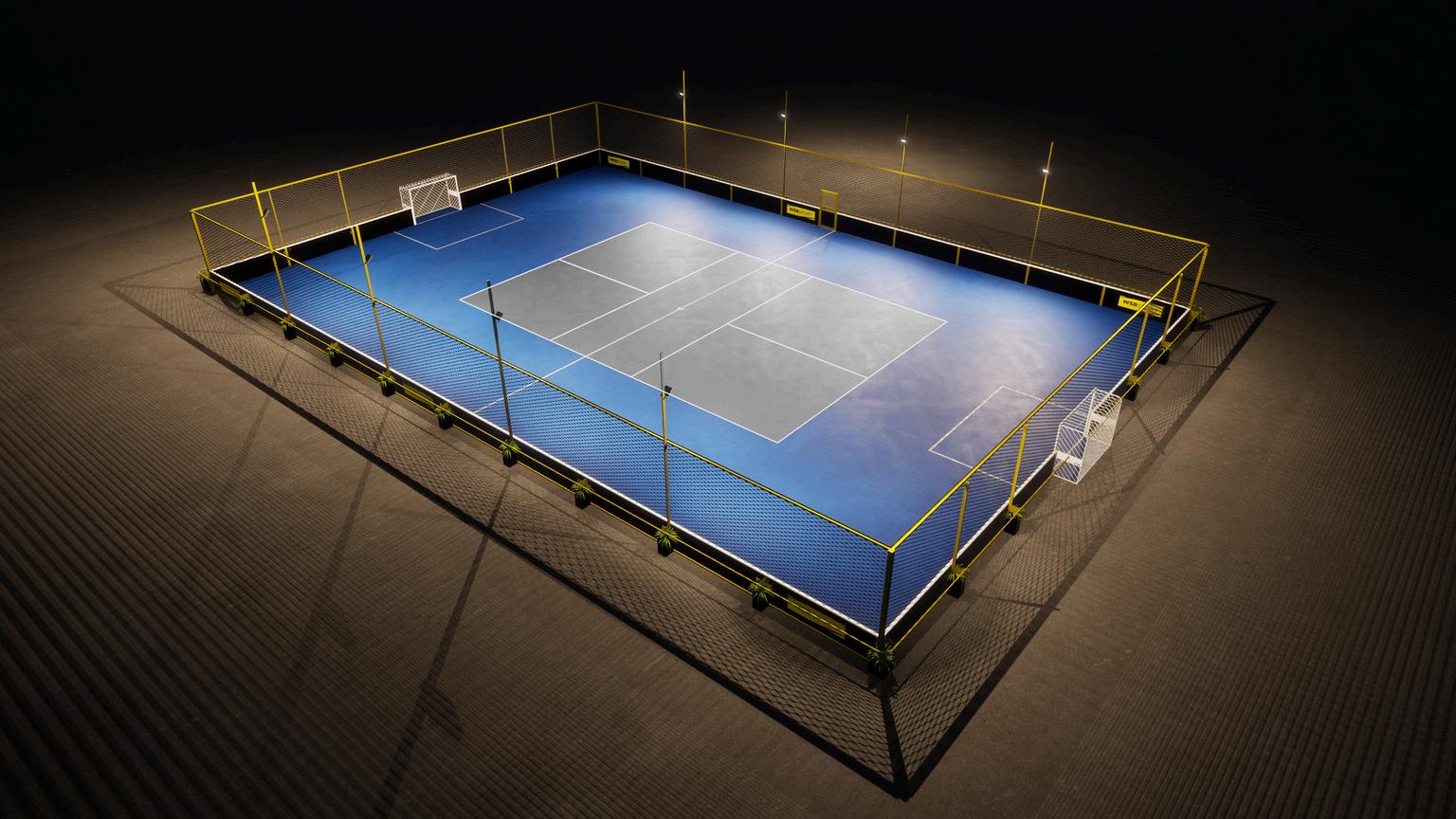

Resin flooring can be created (as in this example) for use in both 5-a-side soccer and pickleball making your field multipurpose and expanding the spectrum of use of a single field.

SPECIFICATIONS

Multi-layered acrylic resin-based system for professional indoor and outdoor sports fields.

5-a-side Soccer + Pickleball configuration

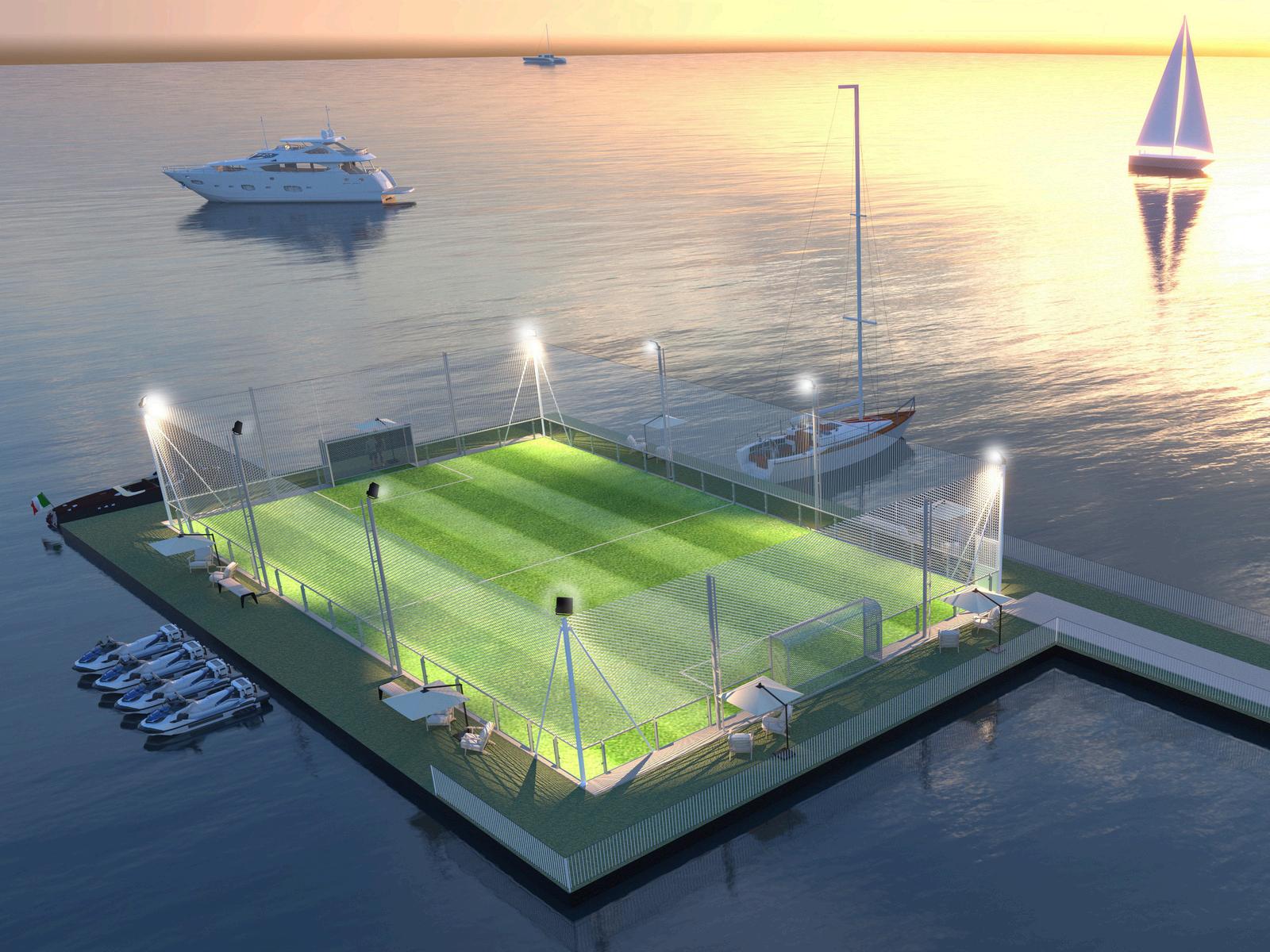

FLOATINGSOCCER

THE NEW FRONTIER OF 5-A-SIDE SOCCER

WSBSPORT and FLOATING PADEL OY have teamed up to design and build cutting-edge facilities specifically made for waterfront sports concepts: marinas, yacht clubs, private clubs, and residential complexes on the water.

Through a floating platform, it is possible to install soccer fields and maximize the opportunity to offer sports, increase the value of the location, and create social interaction.

Platforms can also be developed to accommodate additional structures such as bars, lounges, and locker rooms in addition to the field.

COMPONENTS

LIGHTS

The lighting project for a soccer field must be undertaken by experienced professionals, following the regulations and lighting requirements demanded by the competent authorities

Through our partnership with Led Projects, the N°1 expert in sport lighting, we focus on correctly illuminating not only the entire playing area, but also all areas of the field.

With this, we achieve maximum levels of visual comfort for both spectators, players and referees, and that all of them can see the ball and its movements in detail and clarity.

With the lighting systems designed together with LedProjects, your field will always be perfectly enlightened with the best balance between homogeneity and intensity

LIGHTOPTIONS PARAMETERS

Series Model

Light Source

Luminous Ratio

Total Power

Efficiency

Luminous Flux

Luminous Ratio Efficiency

DRIVER OPTIONS

(CRI)

COLOR TEMPERATURE

Light distribution Input

voltage

Frequency

Power Factor(PF)

Harmonic Distortion(THD)

Temperature Storage

Temperature/Humidity

Temperature Working

Temperature Materials

Estimated Life

Weight

Packed Weight

Dimensions (cm)

Packing dimensions (cm)

Sosen Meanwell Inventronics

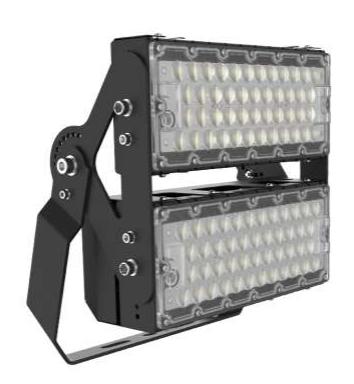

Proyectores Pistas Multideporte

LED-PRO-FOT-240W-AEX

Serie

Optional XLG; Dim 1-10v; Dali Optional EUM; Dim 1-10v; Dali

Cool White: 5000ºk (Standard) Optional

6000ºk Neutral White: Optional 4000ºk

Warm White: Optional 2700ºk; 3000K

Asymmetrical

Optional SPD 10kv;

LIGHTOPTIONS PARAMETERS

Series Model

Light Source

Luminous Ratio

Total Power

Efficiency

Luminous Flux

Luminous Ratio Efficiency

DRIVER OPTIONS

(CRI)

COLOR TEMPERATURE

Light distribution Input

voltage

Frequency

Power Factor(PF)

Harmonic Distortion(THD)

Temperature Storage

Temperature/Humidity

Temperature Working

Temperature Materials

Estimated Life

Weight

Packed Weight

Dimensions (cm)

Packing dimensions (cm)

Sosen Meanwell Inventronics

Proyectores Pistas Multideporte

LED-PRO-FOT-240W-AEX

Serie

Optional XLG; Dim 1-10v; Dali Optional EUM; Dim 1-10v; Dali

Cool White: 5000ºk (Standard) Optional

6000ºk Neutral White: Optional 4000ºk

Warm White: Optional 2700ºk; 3000K

Asymmetrical

Optional SPD 10kv;

THEWSBSPORTSOLUTION

INPUT

At WSBSPORT, we offer personalized support, expert guidance, and coaching to help validate and develop your 5-aside facility project.

Our team of industry-leading advisors provides a wealth of resources, including analytical tools, forecasting methods, and business planning models to quickly turn your ideas into reality.

Key components of our service include market and feasibility studies, financial forecasting, and brand development, all aimed at enhancing your understanding of the project's potential.

These insights are crucial for securing funding and offering clear projections of your project's viability and profitability
