Your source for electrification solutions.

Explore our Wesco-To-Go catalogue, which showcases a curated selection of BURNDY® products tailored to support both your daily requirements and specialized project needs. These items are readily available across Canada, with inventory maintained at all our locations.

While this catalogue presents a select range of BURNDY® products, Wesco offers the entire BURNDY® portfolio. Should you require any products not featured here in this catalogue, please do not hesitate to contact our knowledgeable sales team for assistance.

Our dedicated Customer Service team is expertly trained to provide prompt and effective responses to all your inquiries, ensuring you receive outstanding service.

FOR MORE INFORMATION

Wesco.ca

Products in stock or can be filled - products are readily available through Wesco and serviced through Hubbell Canada in Pickering

PAGES 4-14

COMPRESSION

BURNDY offers top-quality compression products for reliable electrical connections, ensuring safety and efficiency across various applications.

PAGES 15-20

BURNDY® mechanical products deliver durable, high-performance solutions for secure and easy mechanical connections in diverse environments.

BURNDY® tools are engineered for precision and durability, providing professionals with the necessary equipment for efficient electrical installations.

Click the icons on this page for instant access to all your essential digital resources, streamlining your online experience efficiently.

COMPRESSION

HYGROUND SYSTEM PRODUCTS

BURNDY® Part # Description

YGHC2C2

YGHC26C2

YGHC26C26

Compression Grounding C-TAP Connector, 6 AWG Sol/Str, 1/4" Run, #6 AWG Sol/Str Tap

Compression Grounding C-TAP Connector, 1-2/0 AWG Str, 3/8" Rod Run, #6 AWG Sol-#2 AWG Str Tap

Compression Grounding C-TAP Connector, #1-2/0 AWG Str, 3/8" Rod Run, #1-2/0 AWG Str Tap

YGHC29C26 Copper Compression C Connector, 3/0 AWG(Str) - 250 kcmil, 1/2” or 5/8” Rod (Run) & 6 AWG(Sol) - 2/0 AWG(Str) (Tap)

YGHC29C29 Copper Compression C Connector, 3/0 AWG(Str) - 250 kcmil, 1/2” or 5/8” Rod (Run) & 3/0 AWG(Str) - 250 kcmil (Tap)

YGHP34C26 Figure 6 Compression Grounding Connector, 250-500 kcmil, 5/8"- 3/4" Rod, 5/8"-3/4" Rebar Run, 1/0 Str-2/0 Str Tap

YGHR26C34 Copper Compression Connector, 2 AWG(Str)-2/0 AWG(Str), 3/4” Ground Rod

YGHR29C34 Copper Compression Connector, 4/0 AWG(Str)-250 kcmil, 3/4” Ground Rod

YGLR29C34 Copper Compression Connector, Ground Rod to Grid, 2 AWG (Str) to 250 kcmil, 3/4” Ground Rod

GSTUD38HY

GSTUD34HY

PENE8

PENA138

Structural Steel Grounding Connector; Accommodates: #3 AWG; 3/8” Rod; Copper Coated; Nickel Plated

Structural Steel Grounding Connector; Accommodates: 4/0 AWG; 3/4” Rod; Copper Coated; Nickel Plated

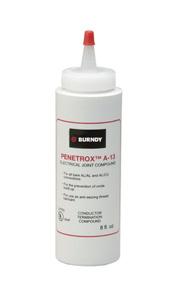

Oxide Inhibiting Electrical Joint Compound, 8 OZ, For Cu-Cu, Cu Conduit Threads & Grounding Applications

Oxide Inhibiting Electrical Joint Compound, 8 OZ, For Al-Al, Al-Cu & Al Conduit Threads / Insulated Cable

COPPER SPLICES - SHORT

BURNDY® Part # Description

YSL8C #8 AWG Cu, Standard Barrel

YSL6C #6 AWG Cu, Standard Barrel

YSL4C #4 AWG Cu, Standard Barrel

YSL2C #2 AWG Cu, Standard Barrel

YSL1C #1 AWG Cu, Standard Barrel

YSL25 1/0 AWG Cu, Standard Barrel

YSL26 2/0 AWG Cu, Standard Barrel

YSL27 3/0 AWG Cu, Standard Barrel

YSL28 4/0 AWG Cu, Standard Barrel

YSL29 250 kcmil Cu, Standard Barrel

SP16

SP14

SP10

Vinyl Splice For 22 - 16 AWG (Sold in Packs of 40)

Vinyl Splice For 16 - 14 AWG (Sold in Packs of 50)

Vinyl Splice For 12 - 10 AWG (Sold in Packs of 100)

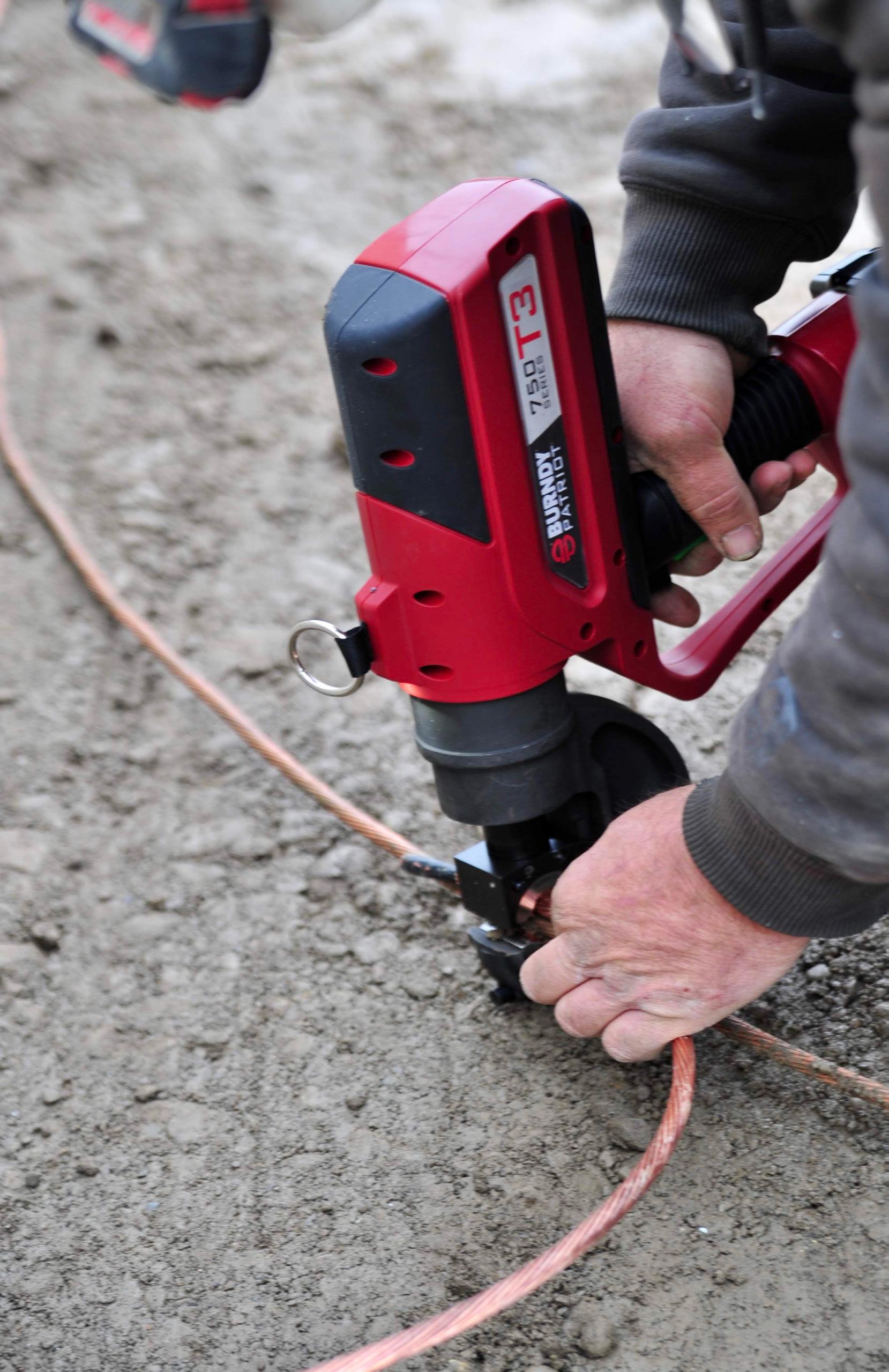

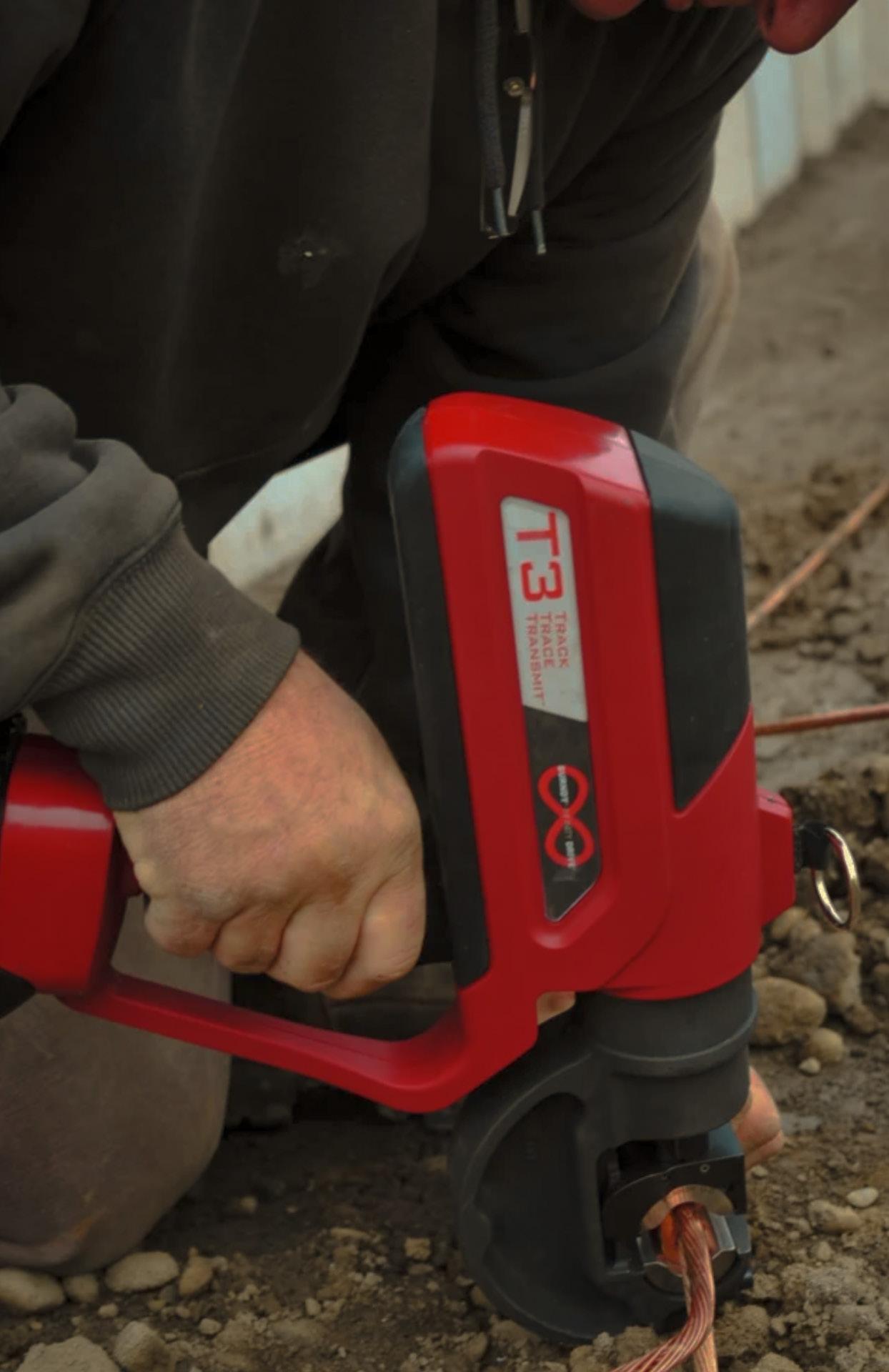

TRACK crimp locations with onboard GPS - BURNDY Exclusive!

TRACE individual crimps with comments, photos, and output force validation.

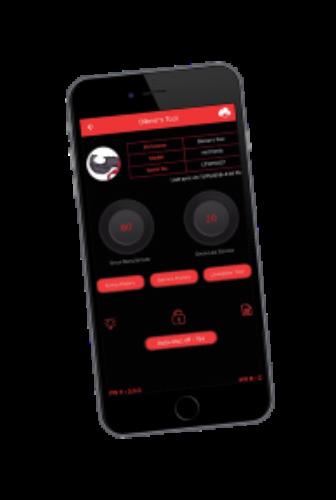

TRANSMIT via Bluetooth® technology and sync to the cloud.

COMPRESSION

COPPER SPLICES - LONG

BURNDY® Part # Description

YS8C #8 AWG Cu, Long Barrel

YS6C #6 AWG Cu, Long Barrel

YS5C #5 AWG Cu, Long Barrel

YS4C #4 AWG Cu, Long Barrel

YS2C #2 AWG Cu, Long Barrel

YS1C #1 AWG Cu, Long Barrel

YS25 1/0 AWG Cu, Long Barrel

YS26 2/0 AWG Cu, Long Barrel

YS27 3/0 AWG Cu, Long Barrel

YS28 4/0 AWG Cu, Long Barrel

YS29

250 kcmil Cu, Long Barrel

YS30 300 kcmil Cu, Long Barrel

YS31 350 kcmil Cu, Long Barrel

YS32 400 kcmil Cu, Long Barrel

YS33 450 kcmil Cu, Long Barrel

YS34 500 kcmil Cu, Long Barrel

ALUMINUM SPLICES - LONG

BURNDY® Part # Description

YS6CA1 #6 AWG AL, AL9CU

YS4CA1 #4 AWG AL, AL9CU

YS2CA1 #2 AWG AL, AL9CU

YS1CA1 #1 AWG AL, AL9CU

YS25A1 1/0 AWG AL, AL9CU

YS26A1 2/0 AWG AL, AL9CU

YS27A1 3/0 AWG AL, AL9CU

YS28A1 4/0 AWG AL, AL9CU

YS29A1 250 kcmil AWG AL, AL9CU

YS30A1 300 kcmil AWG AL, AL9CU

YS31A1 350 kcmil AWG AL, AL9CU

YS32A1 400 kcmil AWG AL, AL9CU

YS34A1 500 kcmil AWG AL, AL9CU

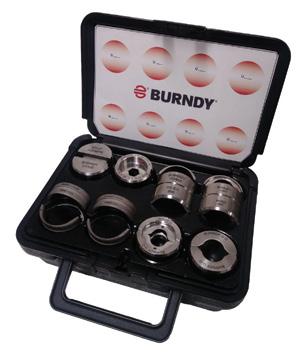

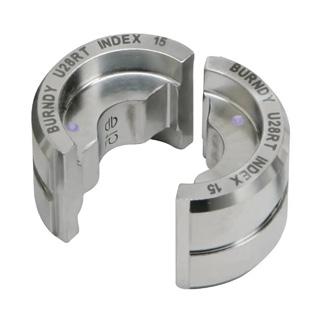

THE BURNDY ® ENGINEERED SYSTEM

Connecting Power to Your World

The BURNDY® Engineered System of coordinating dies, connectors and tools provides a safe, easy and inspectable CSA Certified connection backed by a 5 year warranty

COMPRESSION

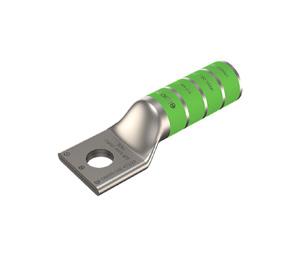

COPPER LUGS - STANDARD BARREL, 1 HOLE W/ INSPECTION WINDOW

BURNDY® Part # Description

YAL8CT14 #8 AWG Cu, 1/4” Stud, 49 index, Red, Electro-Tin Plated

YAL8CT38 #8 AWG Cu, 3/8” Stud, 49 index, Red, Electro-Tin Plated

YAL8CT516 #8 AWG Cu, 5/16” Stud, 49 index, Red, Electro-Tin Plated

YAL6CT14 #6 AWG Cu, 1/4” Stud, 7 index, Blue, Electro-Tin Plated

YAL6CT38 #6 AWG Cu, 3/8” Stud, 7 index, Blue, Electro-Tin Plated

YAL4CT14 #4 AWG Cu, 1/4” Stud, 8 index, Grey, Electro-Tin Plated

YAL4CT38 #4 AWG Cu, 3/8” Stud, 8 index, Grey, Electro-Tin Plated

YAL2CT38 #2 AWG Cu, 3/8" Stud, 10 index, Brown, Electro-Tin Plated

YAL2CT12 #2 AWG Cu, 1/2” Stud, 10 index, Brown, Electro-Tin Plated

YAL1CT38 #1 AWG Cu, 3/8” Stud, 11 index, Green, Electro-Tin Plated

YAL25T38 1/0 AWG Cu, 3/8” Stud, 12 index, Pink, Electro-Tin Plated

YAL25T12 1/0 AWG Cu, 1/2” Stud, 12 index, Pink, Electro-Tin Plated

YAL26T38 2/0 AWG Cu, 3/8" Stud, 13 index, Black, Electro-Tin Plated

YAL26T12 2/0 AWG Cu, 1/2" Stud, 13 index, Black, Electro-Tin Plated

YAL27T38 3/0 AWG Cu, 3/8" Stud, 14 index, Orange, Electro-Tin Plated

YAL27T12 3/0 AWG Cu, 1/2" Stud, 14 index, Orange, Electro-Tin Plated

YAL28T38 4/0 AWG Cu, 3/8" Stud, 15 index, Purple, Electro-Tin Plated

YAL28T12 4/0 AWG Cu, 1/2" Stud, 15 index, Purple, Electro-Tin Plated

YA31L 350 kcmil Cu, 1/2" Stud, 18 index, Red, Electro-Tin Plated

COPPER LUGS – LONG BARREL, 1 HOLE NO INSPECTION WINDOW

BURNDY® Part # Description

YA6C #6 AWG Cu, 1/4" Stud, Long Barrel

YA4C #4 AWG Cu, 1/4" Stud, Long Barrel

YA2C #2 AWG Cu, 5/16 Stud, Long Barrel

YA25 1/0 AWG, Cu, 5/16 Stud, Long Barrel

YA26 2/0 AWG, Cu, 3/8" Stud, Long Barrel

YA27 3/0 AWG, Cu, 1/2"  Stud, Long Barrel

YA28 4/0 AWG, Cu, 1/2"  Stud, Long Barrel

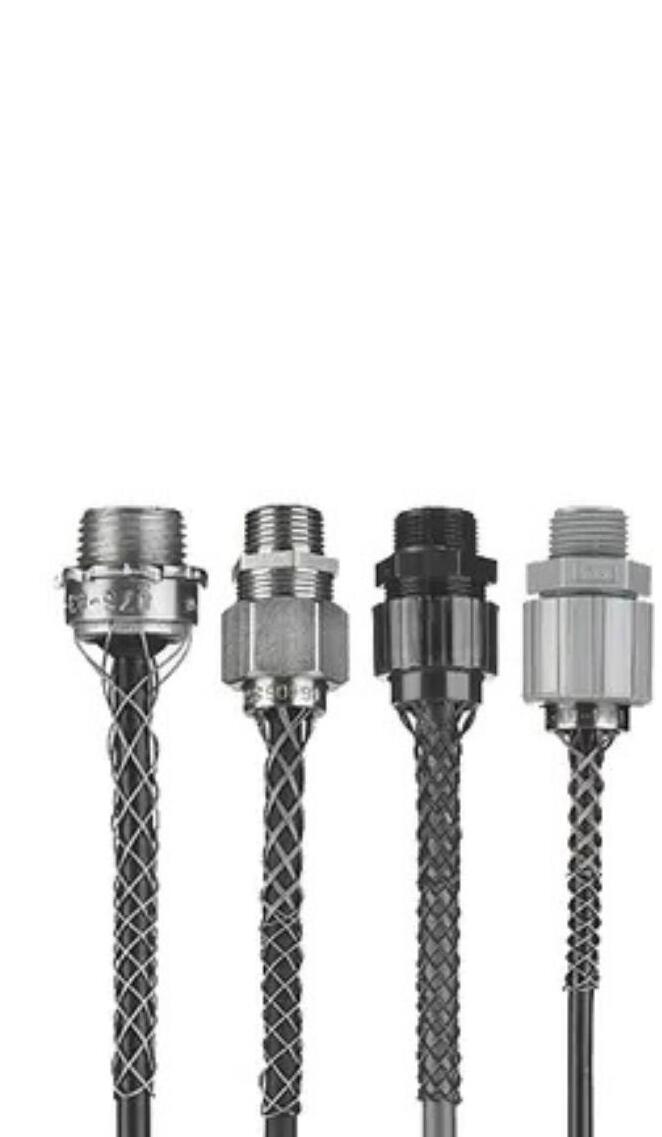

DON’T STRAIN, JUST GRIP: SUPPORTING YOU WITH KELLEMS GRIPS!

SCAN TO LEARN MORE

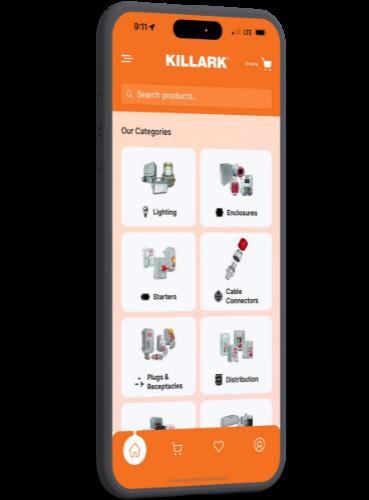

Killark-To-Go from Hubbell Canada

Dive into the vast world of Harsh & Hazardous electrical products with our new Killark-To-Go app and discover a user-friendly design that makes finding exactly what you need easier than ever. Customize your searches with specific part numbers, browse our products by category and start shopping with ease!

SCAN TO LEARN MORE

COMPRESSION

COPPER LUGS – LONG BARREL, 1 HOLE NO INSPECTION WINDOW

BURNDY® Part # Description

YA29

YA30

YA31

YA32

YA34N

YA34

YA36

250 kcmil Cu, 1/2" Stud, Long Barrel

300 kcmil Cu, 1/2 Stud, Long Barrel

350 kcmil Cu, 1/2 Stud, Long Barrel

400 kcmil Cu, 5/8" Stud, Long Barrel

500 kcmil Cu, 1/2"  Stud, Long Barrel

500 kcmil Cu, 5/8” Stud, Long Barrel

600 kcmil Cu, 5/8” Stud, Long Barrel

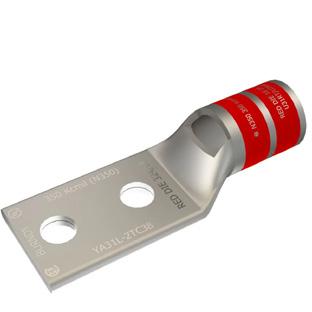

COPPER LUGS - 2 HOLE

BURNDY® Part # Description

YA8C2TC14 #8 AWG Cu, 1/4" Stud, 5/8" Spacing, Long Barrel

YA6C2N #6 AWG Cu, 1/2" Stud, 1-3/4" Spacing, Long Barrel

YA4CL2TC38 #4 AWG Cu,  3/8" Stud, 1" Spacing, Standard Barrel, Inspection Window

YA4C2N #4 AWG Cu, 1/2" Stud, 1-3/4" Spacing, Long Barrel

YA2CL2TC38 #2 AWG Cu, 3/8 Stud, 1” Spacing, Standard Barrel

YA2C2NTC38 #2 AWG Cu, 3/4" Stud, 1-3/4" Spacing, Long Barrel

YA2C2N #2 AWG Cu, 1/2 Stud, 1-3/4” Spacing, Long Barrel

YA252N 1/0 AWG Cu, 1/2 Stud, 1-3/4” Spacing, Long Barrel

YA262LN 2/0 AWG Cu, 1/2" Stud, 1-3/4" Spacing, Standard Barrel, Inspection Window

YA262N 2/0 AWG Cu, 1/2" studs, 1-3/4" Spacing, Long Barrel

YA272N 3/0 AWG Cu, 1/2 Stud, 1-3/4” Spacing, Long Barrel

YA282LN 4/0 AWG Cu, 1/2 Stud, 1-3/4” Spacing, Standard Barrel, Inspection Window

YA282N 4/0 AWG Cu, 1/2"  Stud, 1-3/4” Spacing, Long Barrel

YA292N 250 kcmil Cu, 1/2" Stud, 1-3/4" Spacing, Long Barrel

YA302N 300 kcmil Cu, 1/2"  Stud, 1-3/4” Spacing, Long Barrel

YA312N 350 kcmil Cu, 1/2" Stud, 1-3/4” Spacing, Long Barrel

YA342N 500 kcmil Cu, 1/2" Stud, 1-3/4 Spacing, Long Barrel

YA362N 600 kcmil Cu, 1/2" Stud, 1-3/4” Spacing, Long Barrel

YA392N 750 kcmil Cu, 1/2" Stud, 1-3/4" Spacing, Long Barrel

YA312NFXB 262 DLO, 1/2" Stud, 1-3/4" Spacing, Long Barrel

YA382NFXB 535 DLO, 1/2" Stud, 1-3/4" Spacing, Long Barrel

ALUMINUM LUGS - 1 HOLE

BURNDY® Part # Description

YA4CA6 #4 AWG AL, 3/8" Stud, AL9CU

YA2CA3 #2 AWG AL, 3/8" Stud, AL9CU

YA25A9 1/0 AWG AL, 1/2" Stud, AL9CU

COMPRESSSION

ALUMINUM LUGS - 1 HOLE

BURNDY® Part # Description

YA26A1 2/0 AWG AL, 1/2" Stud, AL9CU

YA27A1 3/0 AWG AL, 3/8" Stud, AL9CU

YA27A3 3/0 AWG AL, 1/2" Stud, AL9CU

YA28A1 4/0 AWG AL, 3/8" Stud, AL9CU

YA28A3 4/0 AWG AL, 1/2" Stud, AL9CU

YA29A1

YA30A1

YA31A1

YA34A7

YA39A3

250 kcmil AL, 1/2" Stud

300 kcmil AL, 1/2" Stud, AL9CU

350 kcmil AL, 1/2" Stud, AL9CU

500 kcmil AL, 1/2" Stud, AL9CU

750 kcmil AL, 5/8" Stud, AL9CU

ALUMINUM LUGS - 2 HOLE

BURNDY® Part # Description

YA25A7

YA26A3

1/0 AWG AL, 1/2" Stud 1-3/4" Spacing, AL9CU

2/0 AWG AL, 1/2" Stud 1-3/4" Spacing, AL9CU

YA27A5 3/0 AWG AL, 1/2" Stud 1-3/4" Spacing, AL9CU

YA28A5 4/0 AWG AL, 1/2" Stud 1-3/4" Spacing, AL9CU

YA29A3

YA30A3

YA31A3

YA32A3

YA34A3

YA36A3

YA39A5

250 kcmil AL, 1/2" Stud 1-3/4" Spacing, AL9CU

300 kcmil AL, 1/2" Stud 1-3/4" Spacing, AL9CU

350 kcmil AL, 1/2" Stud 1-3/4" Spacing, AL9CU

400 kcmil AL, 1/2" Stud, 1-3/4" Spacing, AL9CU

500 kcmil AL, 1/2 Stud, 1-3/4" Spacing, AL9CU

600 kcmil AL, 1/2" Stud, 1-3/4" Spacing, AL9CU

750 kcmil AL, 1/2" Stud, 1-3/4" Spacing, AL9CU

OVERHEAD BARE CONNECTORS; ALUMINUM H-TAP

BURNDY® Part # Description

YHO1 RUN: 0.162” – 0.328” / TAP: 0.162” – 0.328”

YHO2 RUN: 0.260” – 0.419” / TAP: 0.162” – 0.332”

YHD3 RUN: 0.398” – 0.470” / TAP: 0.162” – 0.332”

YHD4 RUN: 0.336” – 0.470” / TAP: 0.336” – 0.477”

YHD5 RUN: 0.475” – 0.563” / TAP: 0.162” – 0.332”

YHD6 RUN: 0.461” – 0.563” / TAP: 0.336” – 0.447”

YHD7 RUN: 0.461” – 0.563” / TAP: 0.461” – 0.563”

BURNDY® TAKE OFF SERVICES

At Hubbell Canada, we provide technical services that you can rely on. From data centers to control rooms and long cable runs, our BURNDY® Take Off Team can arm you with part number level detail for Bill Of Material preparation.

COMPRESSION

OFFSET PIN ADAPTER

BURNDY® Part # Description

AYPO2/0 2/0 Compression Pin Adapter, 2/0 AWG, .33" Pin Dia

AYPO3/0 3/0 Compression Pin Adapter, 4/0 AWG, .42" Pin Dia

AYPO4/0 4/0 Compression Pin Adapter, 350 kcmil, .57" Pin Dia

AYPO250 250 Compression Pin Adapter, 3/0 AWG, .37" Pin Dia

AYPO300 300 Compression Pin Adapter, 250 kcmil, .47" Pin Dia

AYPO350 350 Compression Pin Adapter, 300 kcmil, .53" Pin Dia

AYPO500 500 Compression Pin Adapter, 500 kcmil, .68 Pin Dia

AYPO750 750 Compression Pin Adapter, 700/750 kcmil, .81" Pin Dia

HYDENT - SMALL COMPRESSION; FORK & RING TERMINALS

BURNDY® Part # Description

QP14F25X03D

QP10F25X03D

TP166

TP148

TP146

TP1010

TP108

Vinyl Female Quick Disconnect For 16 - 14 AWG (Sold in Packs of 100)

Vinyl Female Quick Disconnect For 12 - 10 AWG (Sold in Packs of 50)

Vinyl Ring Terminal For 22 - 16 AWG (Sold in Packs of 100)

Vinyl Ring Terminal For 16 - 14 AWG (Sold in Packs of 100)

Vinyl Ring Terminal For 16 - 14 AWG (Sold in Packs of 100)

Vinyl Ring Terminal For 12 - 10 AWG (Sold in Packs of 50)

Vinyl Ring Terminal For 12 - 10 AWG (Sold in Packs of 50)

MECHANICAL

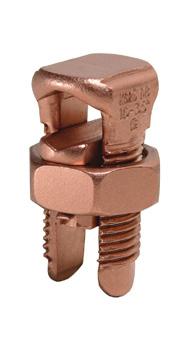

SPLIT BOLTS FOR COPPER CONDUCTORS

BURNDY® Part # Description

KS17

KS20

KS22

KS23

KS25

KS26

KS27

KS28

KS29

KS31

KS34

KS39

Split Bolt Connector, Run/Tap: #8 AWG Str-#6 AWG Sol

Split Bolt Connector, Run/Tap: #8 AWG Str-#4 AWG Sol

Split Bolt Connector, Run/Tap: #6 AWG Str-#2 AWG Sol

Split Bolt Connector, Run/Tap: #6 AWG Str-#2 AWG Str

Split Bolt Connector, Run/Tap: #4 AWG-1/0 AWG Str

Split Bolt Connector, Run/Tap: #2 AWG-2/0 AWG Str

Split Bolt Connector, Run/Tap: #1 AWG-3/0 AWG Str

Split Bolt Connector, Run/Tap: #1-4/0 AWG

Split Bolt Connector, Run/Tap: #1 AWG Str-250 kcmil

Split Bolt Connector, Run/Tap: 1/0 AWG Str-350 kcmil

Split Bolt Connector, Run/Tap: 2/0 AWG Str-500 kcmil

Split Bolt Connector, Run/Tap: 4/0 AWG Str-750 kcmil

UNIVERSAL SPLIT BOLTS FOR COPPER OR ALUMINUM (TIN PLATED)

BURNDY® Part # Description

KSU17

Run/Tap: Cu/Al #12- #6 AWG

KSU20 Run/Tap: Cu/Al #10- #4 AWG

KSU22 Run/Tap: Cu/Al #10- #2 AWG

KSU23 Run/Tap: Cu/Al #8- #2 AWG

KSU25 Run: Cu/Al #2- 1/0 AWG, Tap: #10- 1/0

KSU26 Run: Cu/Al #2- 2/0 AWG, Tap: #8- 2/0

KSU27 Run: Cu/Al #1- 3/0 AWG, Tap: #8- 3/0

KSU28 Run/Tap: Cu/Al #1- 4/0 AWG

KSU29 Run: Cu/Al #1- 250 kcmil, Tap: #8- 250 kcmil

KSU31 Run: Cu/Al 1/0- 350kcmil, Tap: #4- 350 kcmil

KSU34 Run: Cu/Al 400- 500 kcmil, Tap: #2- 500 kcmil

MECHANICAL

SERVIT POST CONNECTOR

BURNDY® Part # Description

KC23

KC23B1

KC26

KC26B1

KC28

K2C23

KCKF23

KCKF28

Mechanical SERVIT POST™ Connector; Cable to Flat, 8-2 AWG (Str) / 10-1 AWG (Sol), 3/8” Stud

Mechanical Grounding Connector, Cable to Flat, 8-2 AWG (Str) / 10-1 AWG (Sol)

Mechanical Grounding Connector, Cable to Flat, 2-2/0 AWG (Str) / 2-3/0 AWG (Sol), 1/2” Stud;

Mechanical Grounding Connector, Cable to Flat, 2-2/0 AWG (Str) / 2-3/0 AWG (Sol), 1/2” Stud

Mechanical Grounding Connector, Cable to Flat, 1-4/0 AWG, 5/8” Stud

Mechanical Grounding Connector, Cable to Flat, 8-2 AWG (Str) / 10-1 AWG (Sol), 3/8” Stud

Mechanical Bulkhead Ground Connector Kit; Accommodates: #8 - #2 AWG Stranded, #10 - #1 AWG Solid Copper

Mechanical Bulkhead Ground Connector Kit; Accommodates: #1 - 4/0 AWG Stranded, #1 - 4/0 AWG Solid Copper

GROUNDING U-BOLTS

BURNDY® Part # Description

GAR1426

GAR1429

GAR6426

GAR6429

Cable to Rod or Pipe, 4 AWG (Sol.) - 2/0 AWG (Str.), #7 - #8 Rebar, 7/8” to 1 “ Rod, 1/2” - 3/4” Pipe

Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 1/2”-3/4” Pipe, 7/8”-1” Rod, #7-#8 Rebar

Cable to Rod or Pipe, 4 AWG (Sol)-2/0 AWG (Str), 3/8” Pipe, 5/8”-3/4” Rod, #5-#6 Rebar

Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 3/8” Pipe, 5/8”-3/4” Rod, #5-#6 Rebar

GAR396925BU Conductor to Pipe, #8 - 1/0 AWG; 2-1/2” Pipe; Rated for Direct Burial

GAR3902BU Conductor to Pipe, 4-4/0 AWG, 1/2”-1” Pipe, Rated for Direct Burial

GAR3903BU

GAR3904BU

GAR3905BU

Conductor to Pipe, 4-4/0 AWG, 1-1/4”-2” Pipe, Rated for Direct Burial

Conductor to Pipe, 4-4/0 AWG, 2-1/2”-3-1/2” Pipe, Rated for Direct Burial

Conductor to Water Pipe, 4-4/0 AWG, 4” – 5” Pipe, Rated for Direct Burial

CROSS REFERENCE TOOL

Easily find replacements for competitor parts.

SCAN TO LEARN MORE

MECHANICAL

UNIVERSAL MECHANICAL LUGS (RATED FOR COPPER & ALUMINUM)

BURNDY® Part # Description

KA6U

KA2U

KA25U

Single Conductor, #14 - #6, 1/4" Stud

Single Conductor, #14 - #2, 1/4" Stud

Single Conductor, #14 - 1/0 AWG Str, 1/4" Stud

KA26U Single Conductor, #6 - 2/0, 1/4" Stud

KA29U

Single Conductor, #6 - 250 kcmil, 5/16" Stud

KA31U Single Conductor, #6 - 350 kcmil, 3/8" Stud

KA36U Single Conductor, #2 -600 kcmil, 3/8" Stud

KA40U Single Conductor, 300 - 800 kcmil, 1/2" Stud

K2A26U 2 Conductor, #14-2/0 AWG, 1/4" Stud

K2A29U 2 Conductor, #6 AWG Str-250 kcmil, 3/8" Stud

K2A31U

2 Conductor, #6 AWG Str-350 kcmil, 1/2" Stud

K2A36U 2 Conductor, #2 AWG Str-600 kcmil, 1/2" Stud

K11A34U2 2 Conductor, 4/0 – 500 kcmil, ¼” Stud, 0.69” Spacing

MECHANICAL LUGS - OFFSET TONGUE

BURNDY® Part # Description

KLU25

KLU35

KLU70

KLU125

KLU225

KLU300

KLU400

Copper Terminal, Offset Tongue, 1 Hole, 14-10 AWG (Sol), #6 Stud, 1 Screw

Offset Tongue Copper Lug Connector, #14 AWG Sol-6 AWG Str, #10 Stud, 1 Screw

Mechanical Offset Tongue, #8 Sol-#2 AWG Str, 1-Hole, 1/4" Stud, 1 Screw

Copper Terminal, Offset Tongue, 1 Hole, 2-1/0 AWG (Str), 1/4" Stud, 1 Screw

Copper Terminal, Offset Tongue, 1 Hole, 2-4/0 AWG (Str), 5/16" Stud, 1 Screw

Copper Terminal, Offset Tongue, 1-Hole, 1/0 AWG Str-350 kcmil, 3/8" Stud, 1 Screw

Copper Terminal, Offset Tongue, 1 Hole, 1/0 AWG (Str)-500 kcmil, 3/8" Stud, 1 Screw

UNITAP INSULATED TERMINALS

BURNDY® Part # Description

BISR2

BISR1/0

BISR250

BISR500

BIT4

BIT2/0

BIT250

BIBS2/03

Aluminum In-Line Splice, 14-2 AWG

Aluminum In-Line Splice, 14-1/0 AWG

Aluminum In-Line Splice, 10 AWG-250 kcmil

Aluminum In-Line Splice, 6 AWG-500 kcmil

Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 14-4 AWG, Al/Cu Rated

Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 14-2/0 AWG, Al/Cu Rated

Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 10 AWG-250 kcmil, Al/Cu Rated

Aluminum Multiple Tap Connector, Clear Insulated, 3 Port, 1 Sided Entry, 14-2/0 AWG, Al/Cu Rated

CABLE TO BAR

BURNDY® Part # Description

GB4C

GB26

GB29

GBM4C

GBM26

GBM29

GC2626

GC2929

GCM26

Mechanical Grounding Connector, Cable to 1/4” Thick Bar, 8 AWG (Sol)- 4 AWG (Str), 3/8” Stud1-1/4 IN Width

Mechanical Grounding Connector, Cable to 1/4” Thick Bar, 4 AWG (Sol)-2/0 AWG (Str), 3/8” Stud

Mechanical Grounding Connector, Cable to 1/4” Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2” Stud

Mechanical Grounding Connector, Cable to 1/4” Thick Bar, 8 AWG (Sol)- 4 AWG (Str), 3/8” Stud

Mechanical Grounding Connector, Cable to 1/4” Thick Bar, 4 AWG (Sol)-2/0 AWG (Str), 3/8” Stud

Mechanical Grounding Connector, Cable to 1/4” Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2” Stud

Mechanical Grounding Connector, 2 Cables to 1/4” Thick Bar, 4 AWG (Sol)-2/0 AWG (Str), 3/8” Stud

Mechanical Grounding Connector, 2 Cables to 1/4” Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2” Stud, 1/2” Stud

Mechanical Grounding Connector, 2 Cables to 1/4” Thick Bar, 4 AWG (Sol)-2/0 AWG (Str), 3/8” Stud

CABLE TRAY GROUND

BURNDY® Part # Description

GC2626CT

GC2929CT

BGBL4

BGBL1/0

BGBL250

Cast Copper Alloy Mechanical Grounding Cable Tray Clamp, #2 Sol-2/0 Str. Al/Cu Rated, 3/8” Stud, Galvanized Steel Hardware, Tin-plated Connector

Cast Copper Alloy Mechanical Grounding Cable Tray Clamp, 2/0 Str-250 kcmil Al/Cu Rated, 3/8” Stud, Galvanized Steel Hardware, Tin-plated Connector

Aluminum Lay-in Lug, 4-14 AWG, 1/4" Stud, Tin Plated

Aluminum Lay-in Lug, 1/0-14 AWG, 3/8" Stud, Tin Plated

Aluminum Lay-in Lug, 250 kcmil-#6, 7/16" Stud, Tin Plated

MECHANICAL

DIRECT BURIAL SPLICE KITS

BURNDY® Part # Description

UGSKIT8

UGSKIT2

UGSKIT250

BUSBAR

Direct Burial Splice Kit, 14-8 AWG, w/ Heavy Wall Heat Shrink Sleeve

Watertight Underground Splice Kit, 8-2 AWG, w/ Two Heavy Wall Heat Shrink Sleeves, Al/Cu Rated

Watertight Underground Splice Kit, 1 AWG-250 kcmil, w/ Two Heavy Wall Heat Shrink Sleeves, Al/Cu Rated

BURNDY® Part # Description

BBB14210A Bare Copper Busbar, 1/4"x2"x10", 16 Holes

BBB14412E Bare Copper Busbar, 1/4"x4"x 12" Long, 18 Holes

BBB14412F Bare Copper Busbar, 1/4"x4"x 12" Long, 12 Holes

WATER PIPE GROUNDING

BURNDY® Part # Description

C5 Bronze Ground Clamp, 10-2 AWG, 1/2”-1” Water Pipe

CZ11 Grounding Clamp, Cable to Water Pipe, 10 - 2 AWG, 1/2” - 1” Water Pipe, W/ zinc plated screws

MECHANICAL PRESSURE BAR LUG

BURNDY® Part # Description

KPA8C Pressure Bar Style Copper Lug, 1-Hole, 14 AWG Sol-8 AWG

KPA4C Mechanical Pressure Bar Style Copper Lug, 1-Hole, #14 AWG

KPA25 Pressure Bar Style Copper Lug, #4-1/0 AWG

KPA28 Pressure Bar Style Copper Lug, 1/0-4/0 AWG

BRAID

BURNDY® Part # Description

BD12 12 inch Flexible Copper Braid

GROUND ROD CLAMP

BURNDY® Part # Description

GRC3426 Mechanical Ground Rod Clamp, #8 – 2/0 Cable to 5/8 or 3/4” Ground Rod

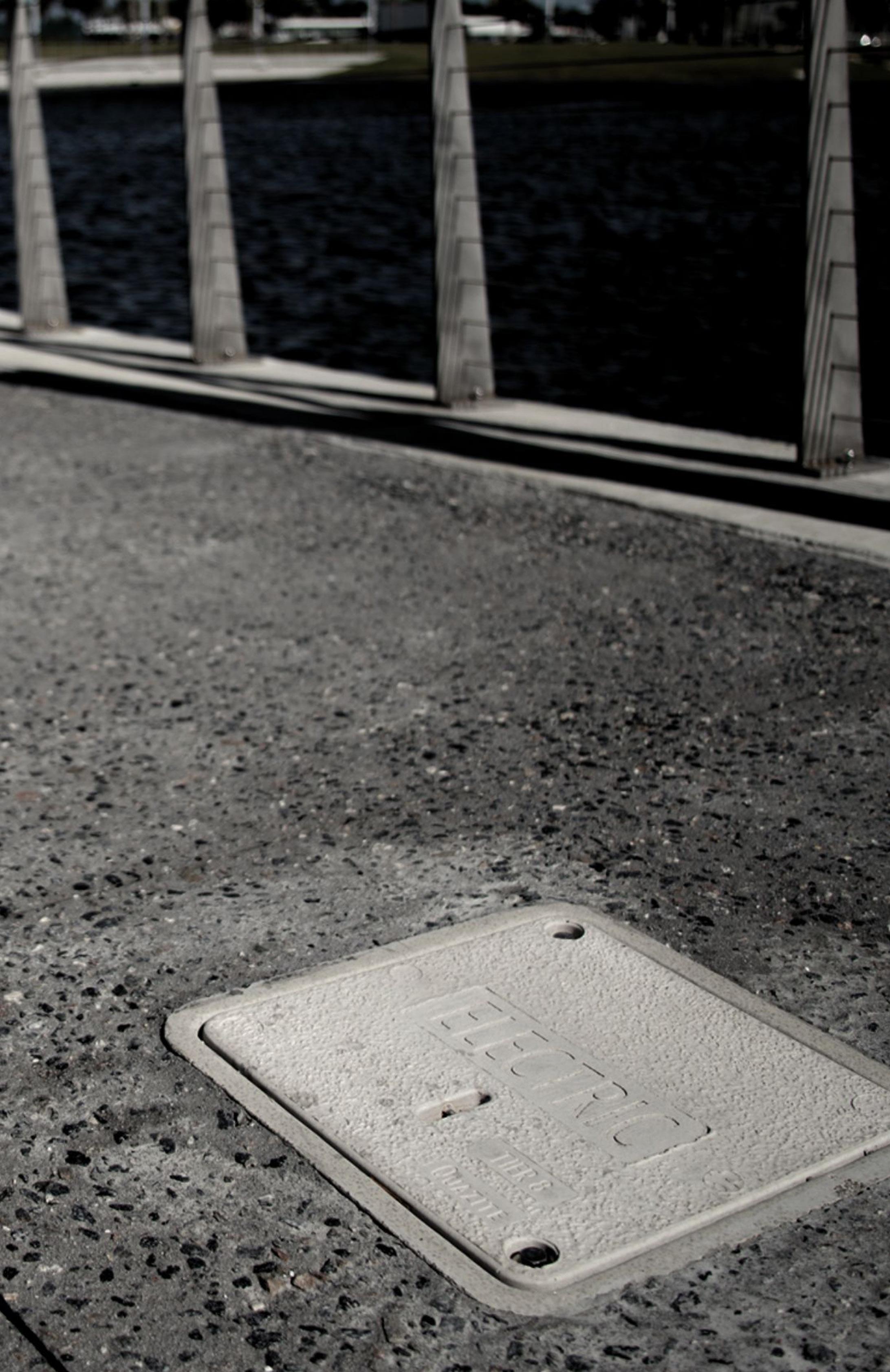

Leading the way underground

Quazite, Quazite FRP and PenCell enclosures are built for quality and performance.

SCAN TO LEARN MORE

TOOLS

BURNDY® Part # Description

PAT750T3U03A2

PAT444ST3U03A2

PAT46T3SU03A2

PUADP-1

PATMD6LW

Y750HSXT

Y1MRTC

PAT81K2U03A2

UDIEKITCU

UDIEKITAL

UDIEKITHYGRD

UC

UO

U997

U26RT

U28RT

U34RT

PATRIOT® T3 Technology 12-Ton Battery Crimper, C-Head

PATRIOT® T3 Technology 11-Ton Dieless Battery Crimper, C-Head, Uncovered, (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Hard Case

PATRIOT® T3 Technology 15-Ton Battery Crimper, C-Head

Stainless Steel U Die Adapter for use with 15-Ton

PATRIOT® IN-LINE® 6-Ton Scissor Action, BG/D3 Crimp Jaw, (2) 3.0Ah 18V Li-ion Batteries, 120V-AC Charger, Utility Bag

12-Ton C-Head Crimper, Self Contained Hydraulic, Uses U Dies, #14 AWG-750 kcmil Copper, #8 AWG-750 kcmil Aluminum, #4 AWG-556.5 kcmil ACSR

Rotating Die, Full Cycle Ratchet Hand Crimper for #8 AWG

PATRIOT® 4-POINT® 6-Ton Dieless Latch Head Battery Crimper, Guides, (2) 3.0Ah 18V Li-ion Batteries, 120V-AC Charger, Hard Case

Stainless Steel U-Die Kit for Copper Connectors #6 AWG-750 kcmil (15 Sets). Colour coded for crimping YA and YS types of connectors

Stainless Steel U Die Kit for Aluminum Connectors #6 AWG-750 kcmil (15 Sets). Colour coded for crimping YA-A and YS-A types of connectors

Stainless Steel U Die kit with 7 Dies to install HYGROUND® grounding connectors and U2CABT for pre-crimping ground rods

Stainless Steel Circular Butting Twin U Die, Brown, Index C

Stainless Steel Circular Butting Twin U Die, Green, Index O

Stainless Steel Radial Non-Butting Twin U Die, Orange, Index 997

Stainless Steel Circular Butting Twin U Die, 2/0 Str CU, Black Index 13

Stainless Steel Circular Butting Twin U Die, 4/0 Str CU, Purple, Index 15

Stainless Steel Circular Butting Twin U Die, 500 kcmil, Brown, Index 20

PAT750T3U03A2

Y750HSXT

UDIEKITHYGRD

MORE DIGITAL RESOURCES

Wesco is your BURNDY® solution provider. If you don’t see what you are looking for in this catalogue - ask, we can get it for you.
