Wesco Industrial Playbook 2025

Strategic Partnerships. Proven Solutions. Operational Excellence.

Wesco’s 2025 Industrial Playbook showcases top-tier products from our Canadian supplier network, featuring high-performance power generation, storage and distribution equipment, electrical supplies, networking infrastructure, wire and cable, automation and controls, lighting, and safety solutions.

Designed to enhance operational efficiency and profitability, the playbook supports industrial customers with tailored supply chain and materials management strategies. Our solutions aim to reduce total cost of ownership, improve productivity, and promote just-in-time inventory practices to minimize downtime and optimize working capital.

Industrial companies face constant pressure to streamline their supply chains. As your partner, Wesco’s experts analyze your sourcing and inventory practices to uncover cost-saving opportunities and implement impactful solutions.

We are powering progress. As digitalization accelerates, Wesco continues to evolve, delivering customized service programs that strengthen operational resiliency. Count on us to solve your most critical challenges, today and into the future.

Wesco Is Strategically Partnered With the World’s Top Brands. More Brands. More Products.

Wesco Industrial Playbook 2025

How To Use This Guide

Welcome to the Wesco Industrial Playbook 2025, your resource for industrial solutions, products, and service expertise across Canada. This guide is designed for quick navigation and effective decision-making.

Industrial Playbook

1. Explore With 3D Environment Spreads

Fibre Optic Cable

MIC

Each industry section (mining, water and wastewater, oil and gas, discrete manufacturing) begins with a 3D facility layout. Numbered callouts link to legends that describe each area or application, helping you understand operational needs. (pages 8–9, 24–25, 42–43, 60–61)

2. Dive Deeper With Supplier Solution Pages

®: The most commonly deployed indoor fibre optic cable; used in riser and plenum spaces for building backbones.

FREEDM®: Indoor/Outdoor fibre optic cable; no need for a transition splice when entering the building.

Industrial LSZH™ and Tray-Rated: Ideal for tunnels, mines, and industrial spaces. Higher impactand crush-resistance, withstands extreme temperature. Low-smoke, zero-halogen (LSZH) jacketing.

After the 3D spreads, supplier pages detail products, services, and innovations from leading brands. Use industry icons and area numbers to match solutions to environments and applications. Technical details like model numbers and specifications help you compare options.

Mining and Petrochemical, Tray Rated: Durable LSZH cable for harsh environments—ideal for mining, petrochemical, tunnel, and intrabuilding backbones. Supports aerial, duct, and direct-buried installs.

Chemically resistant, mechanically tough, and rated for extreme temperatures. Mine and Safety Health Administration (MSHA) approved, MSHA 30 CRF Pt 7-K.

®: Outdoor loose tube cables with gel-free water-blocking, available in armoured and dielectric versions. FastAccess® technology for quicker prep. Ideal for duct, aerial, and direct-buried installations.

Description

MIC Tight-Buffered and Loose Tube 2-144 Fibres, (0°C to +70°C), (FT4 or FT6)

FREEDM Tight-Buffered and Loose Tube 2-288 Fibres, (-40°C

Fibre Optic Connectivity and Hardware

Closet Connector Housing (CCH): Modular rack-mount housing. Compatible with CCH adapter panels and pigtailed cassettes; includes slide-out trays, strain-relief, and labeling features.

Environmental Distribution Centre (EDC): Composite or stainless-steel material. Accepts CCH adapter panels, splice trays or cassettes. Padlockable.

Industrial Connector Housing (ICH): Accepts CCH adapter panels, splice trays or cassettes.

Single Panel Housing (SPH): Compact wall-mount for low-fibre-count deployments. Supports one CCH panel; includes strain-relief and labeling. Available with preloaded pigtails. Stackable.

Pigtailed Splice Cassette: Preloaded and pre-routed. No separate splice trays needed. LC, SC, or ST.

UniCam®: Mechanical field-installable connectors (LC, SC, ST®) with 0.2 dB typical insertion loss.

FuseLite®: Fusion splice-on connectors offering higher performance and splice verification. Compatible with all major splicers.

3. Wesco Quick Selection Guide Pages

These pages offer a more thorough list of products and services. Cross-reference industry icons and area numbers to find solutions tailored to your needs. (pages 76–83)

4. Navigate With the Table of Contents

The table of contents lets you jump directly to any section, environment, application area or supplier. The supplier index provides quick access to offerings from specific brands. (page 3)

5. Maximize Value With Service and Solution Highlights

Look for callouts on Wesco’s value-added services, including inventory management, engineering support, and turnkey solutions. These are designed to reduce costs, improve uptime, and optimize your supply chain.

Tip: Start with the 3D spread for your industry, use the legend to identify your area of interest, then consult the supplier pages for details. For more options, visit the Quick Selection Guide pages or contact your local sales representative.

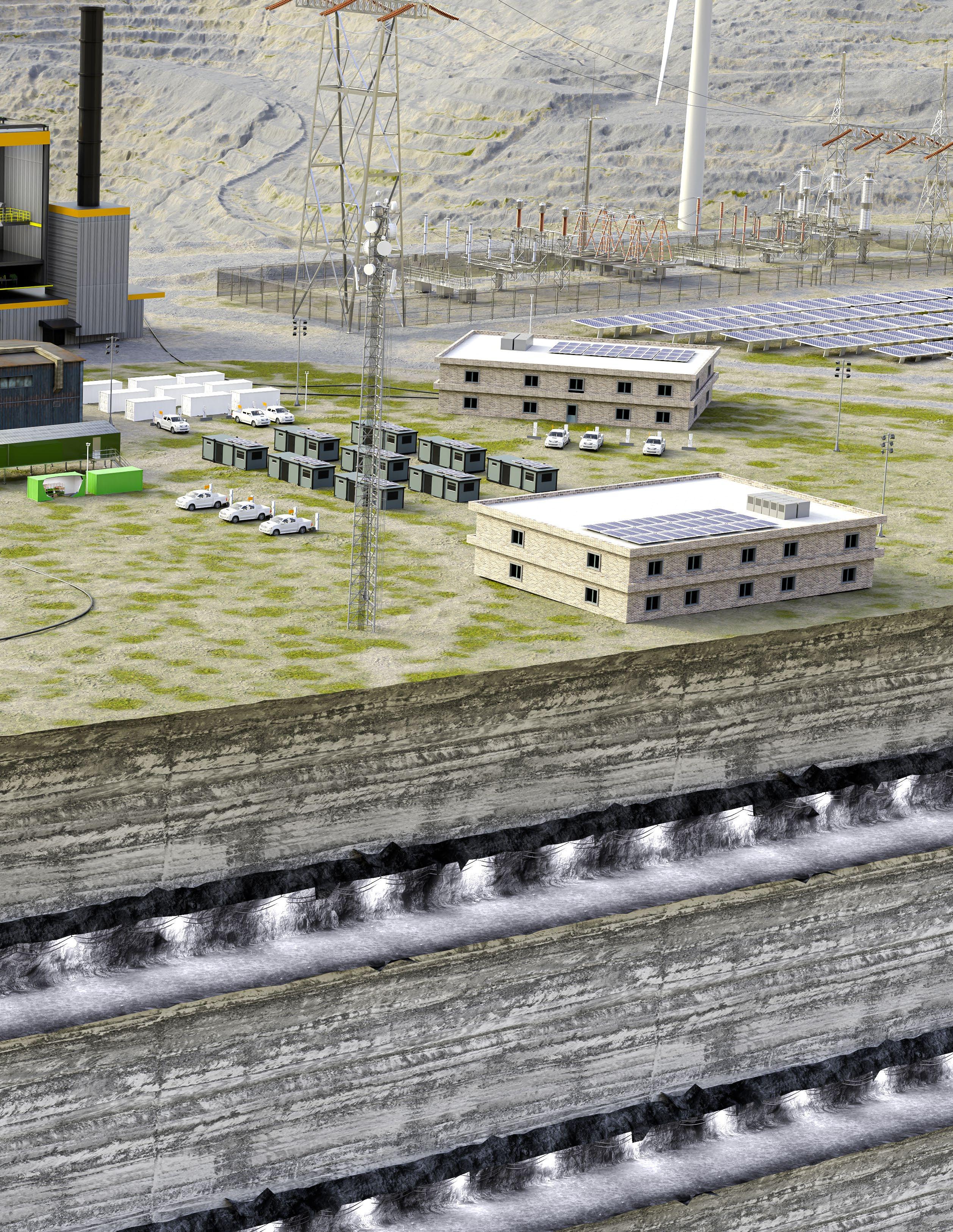

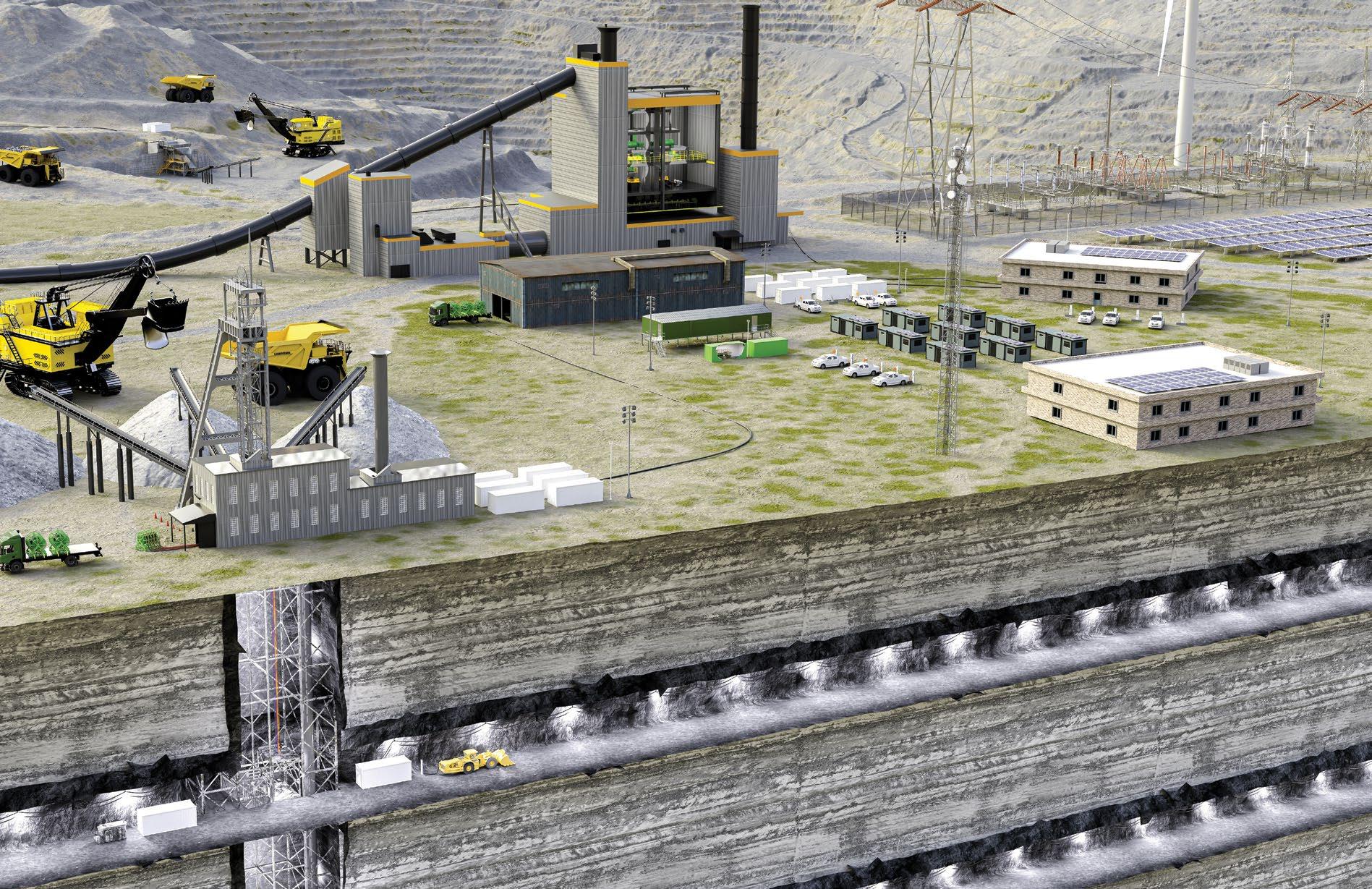

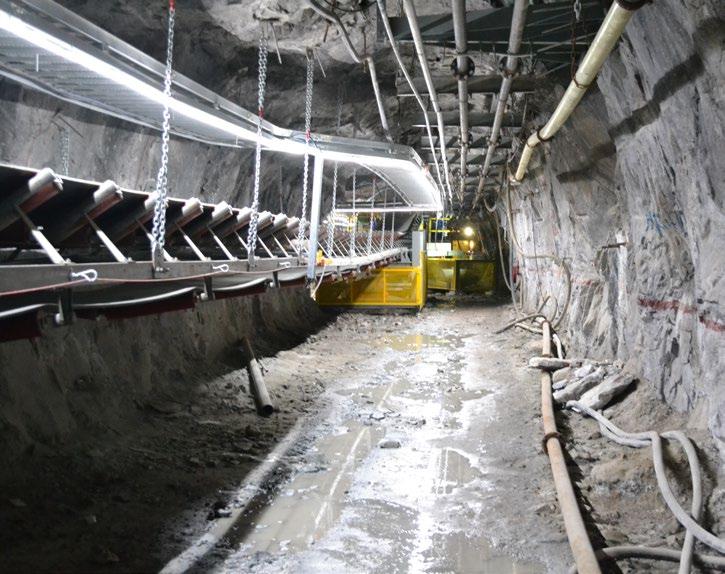

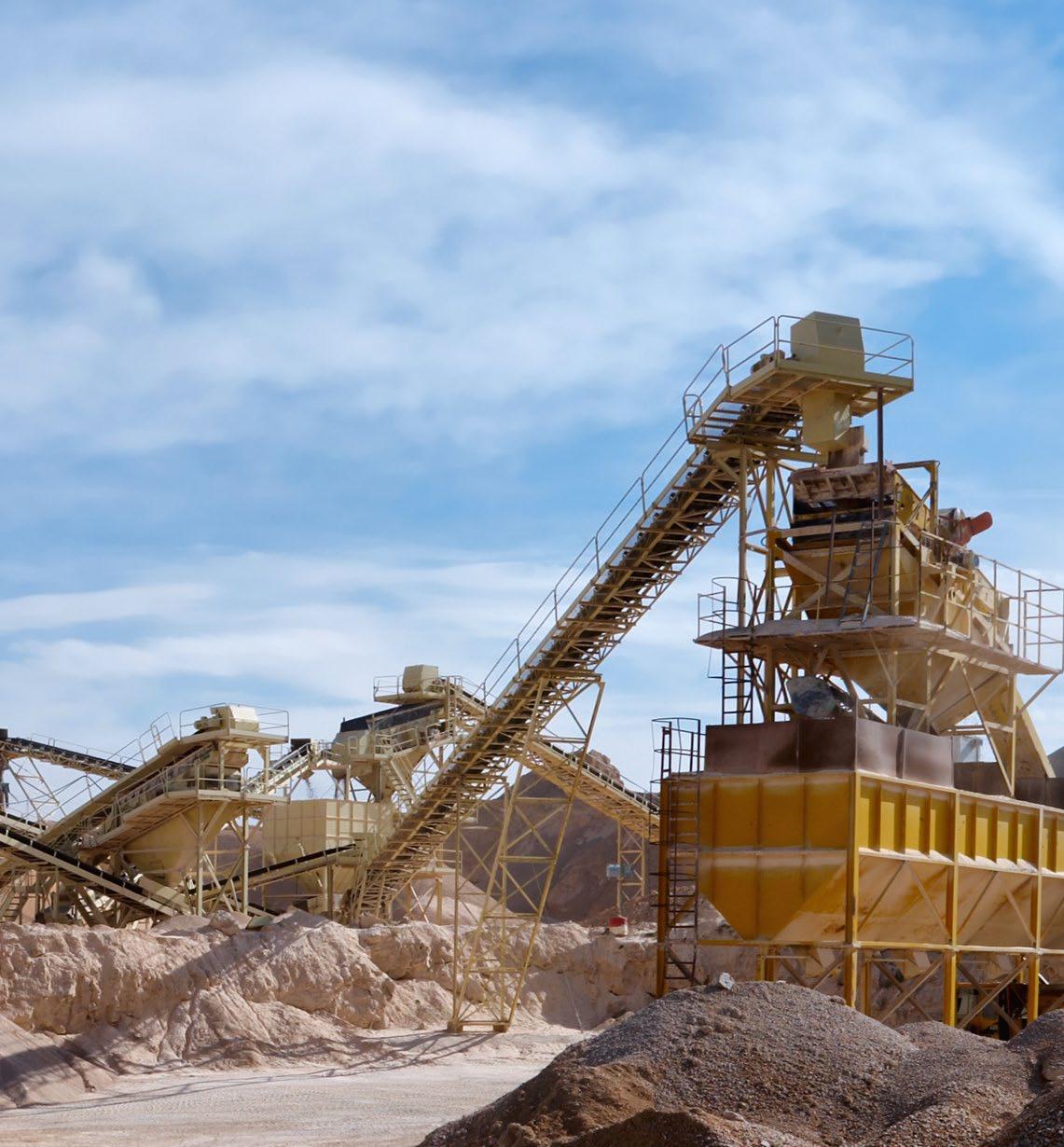

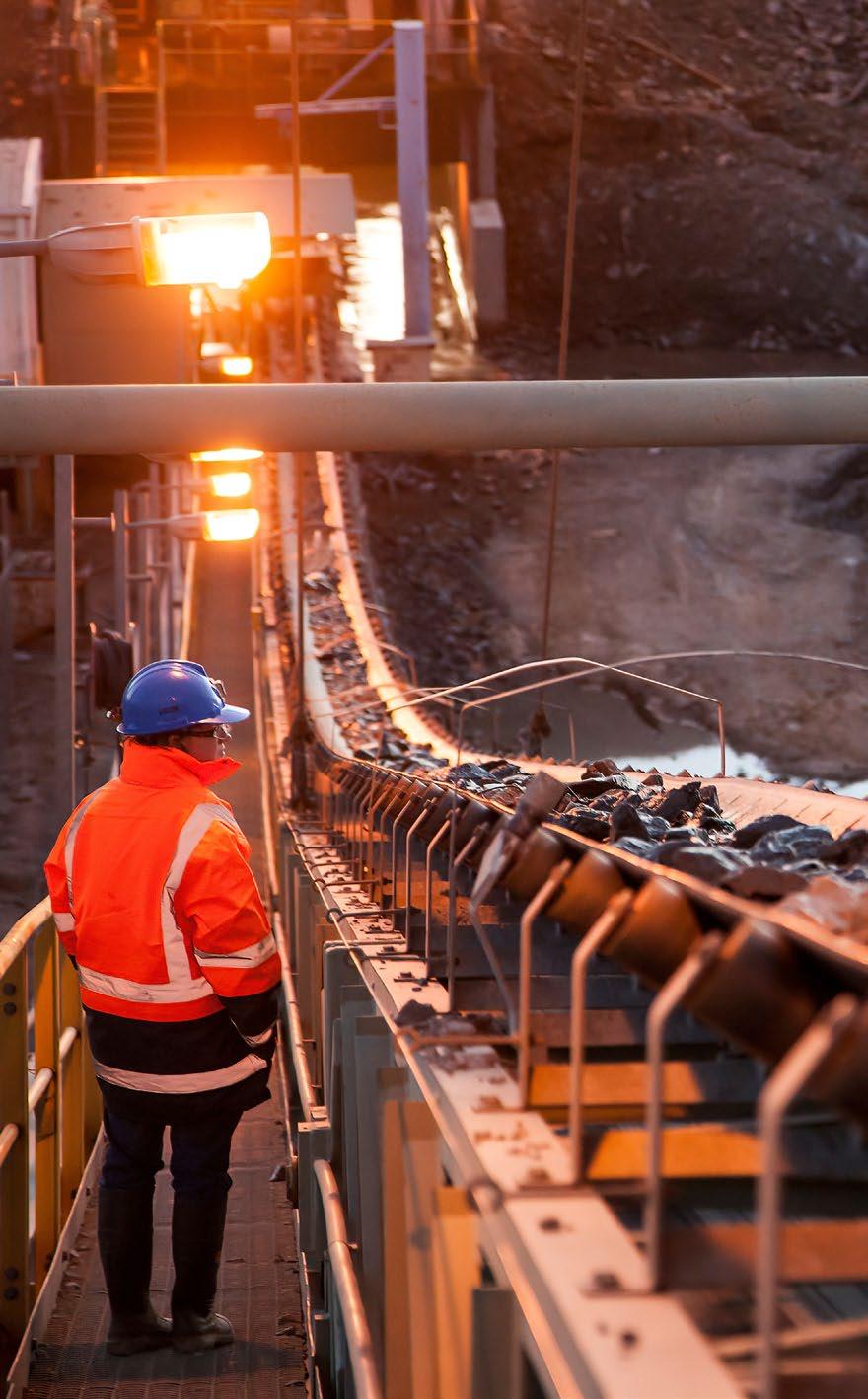

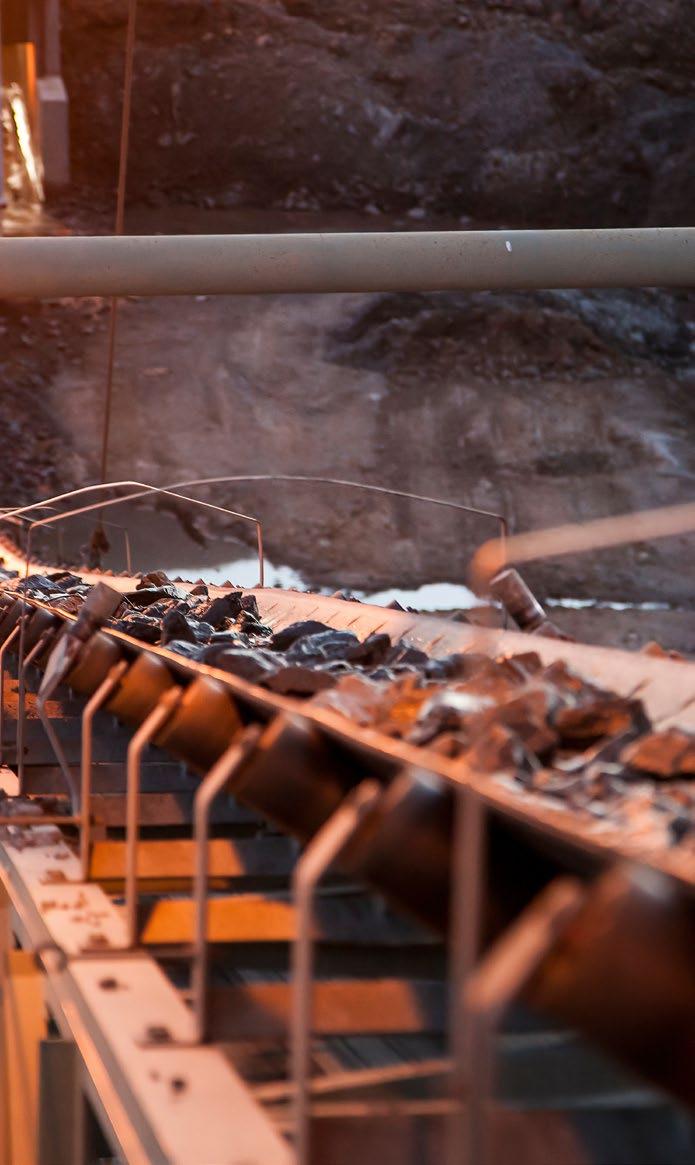

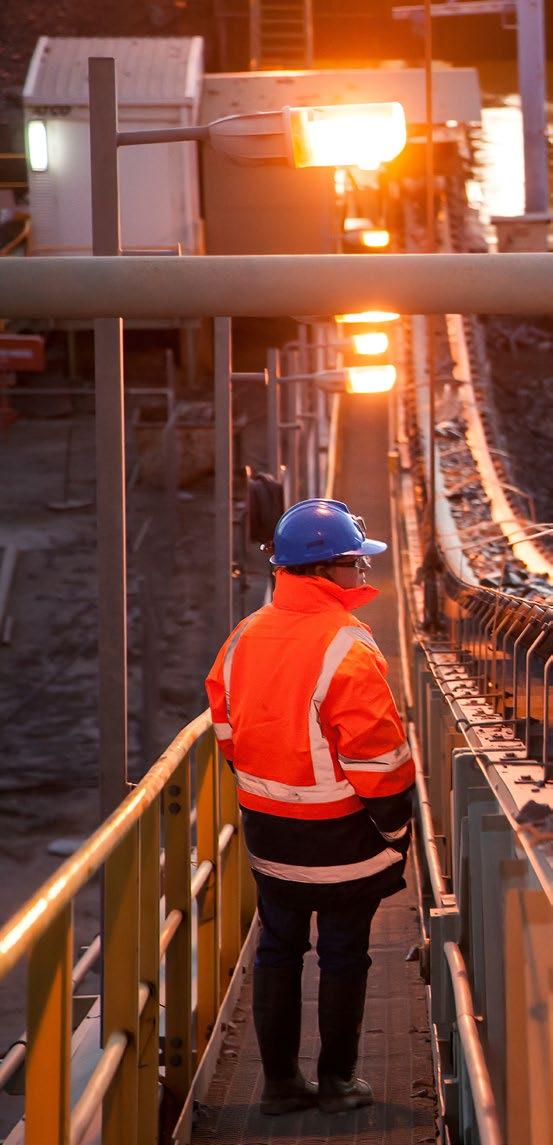

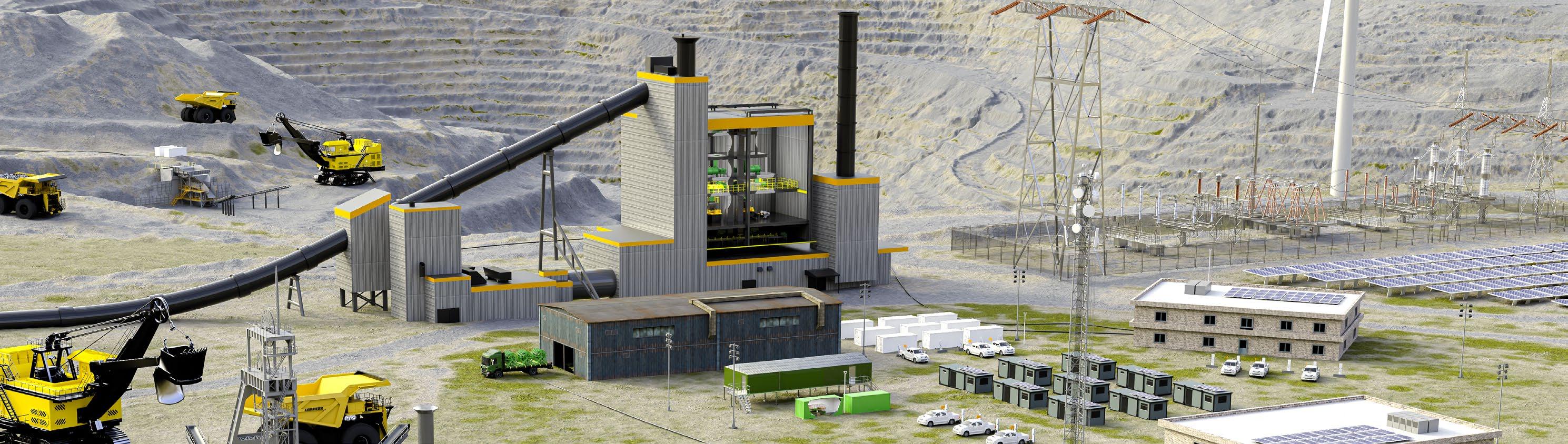

Open Pit Conveyer with Portable Power

Energy Generation

Electrical Building

Control and Administration Building

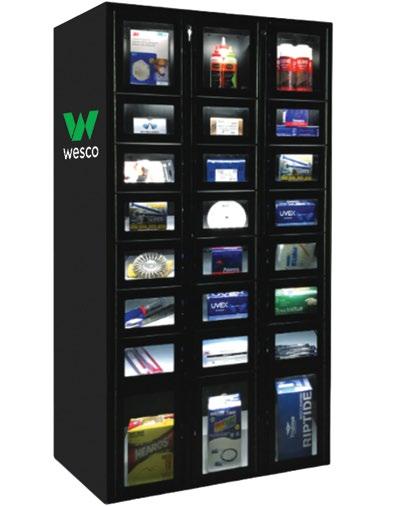

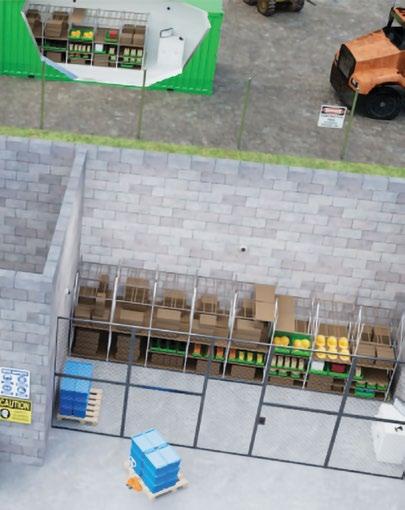

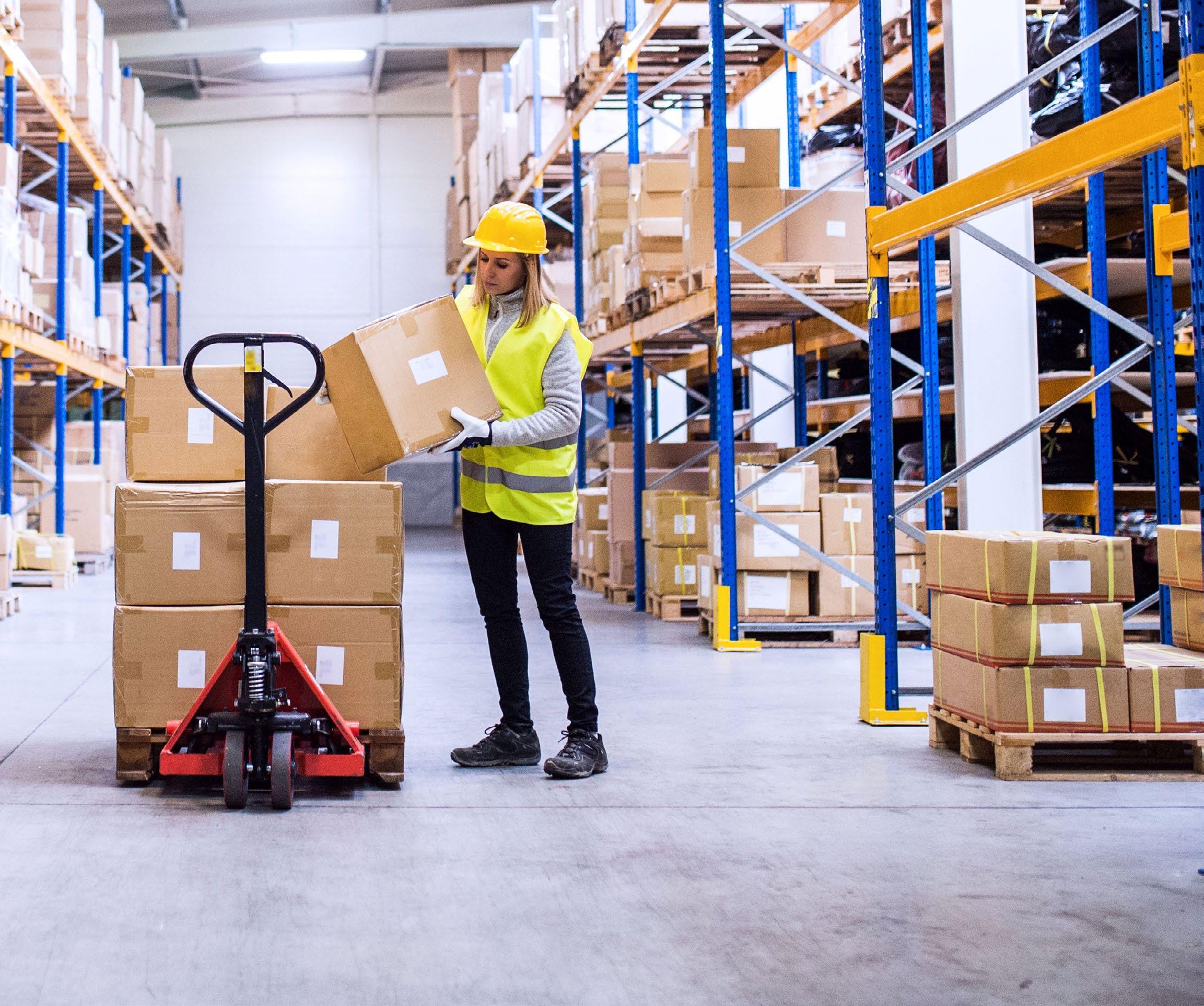

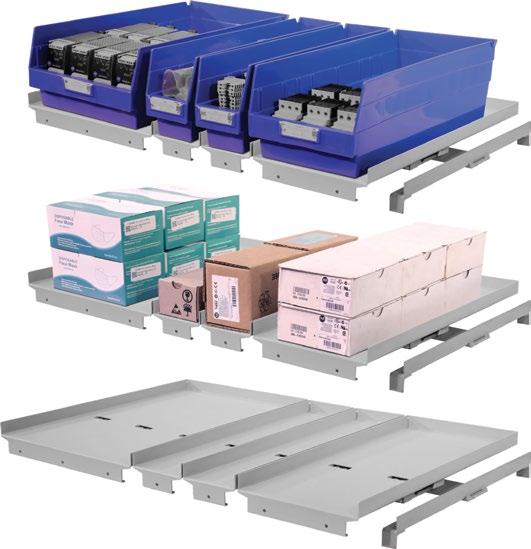

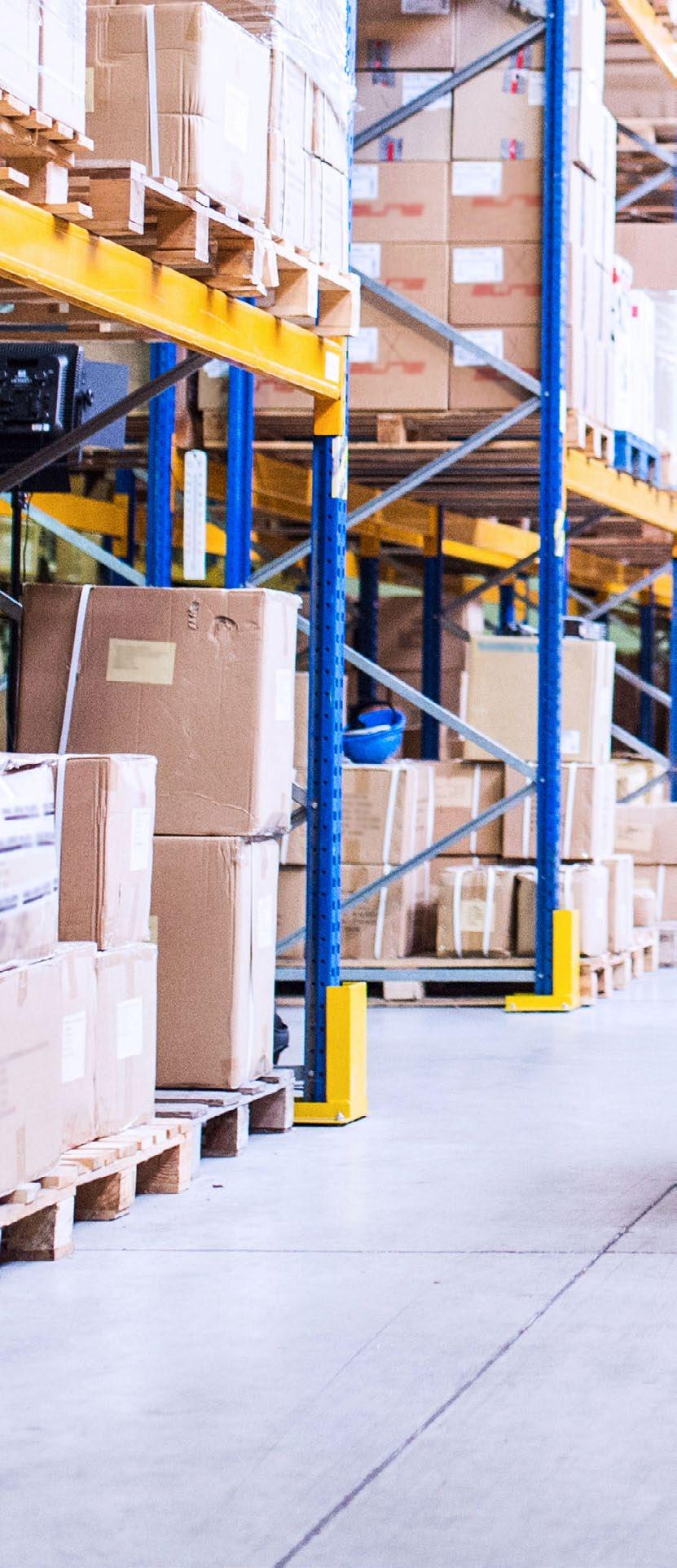

Warehouse and Material Management Solutions

Maintenance Building

Staff Quarters

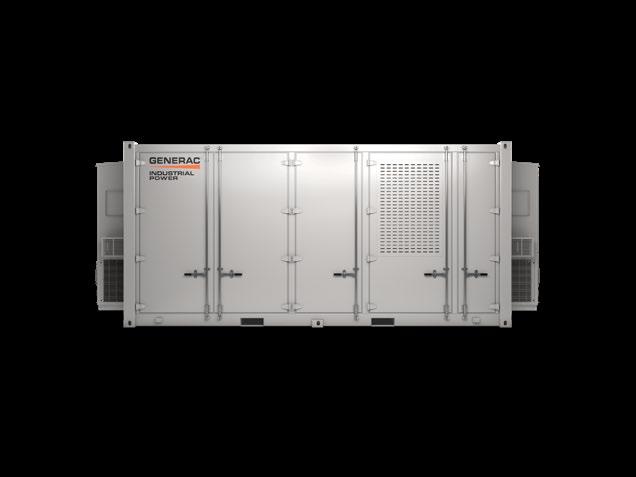

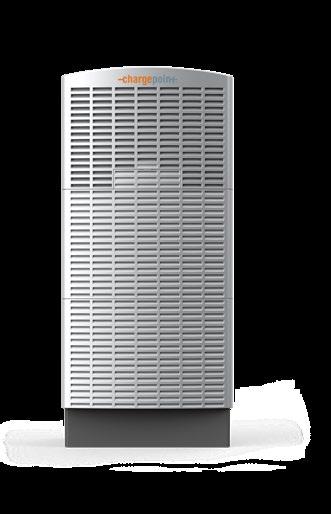

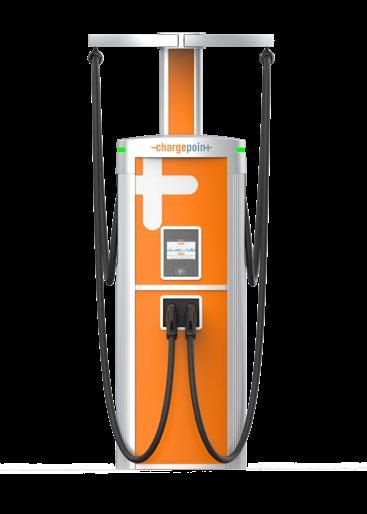

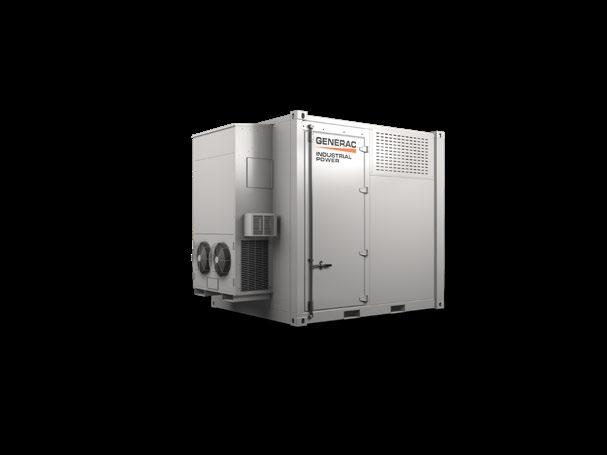

EV Chargers, Battery Energy Storage and Micro Data Centre

Shaft and Ventilation

Power Substation and Edge Data Centre

Headframe and Hoist Room

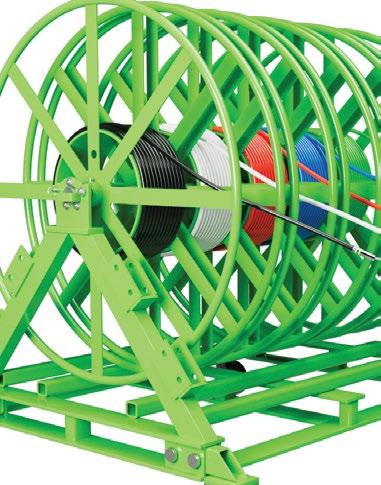

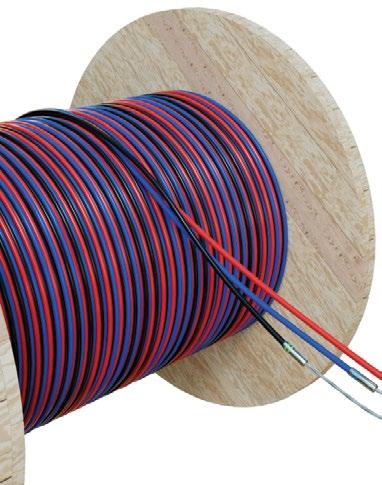

Wire and Cable Enhancement Services

Industrial Playbook

Belden Mining Solutions

Belden offers a variety of cables suitable for mining applications, including shielded and unshielded options with features like interlock armour and various voltage ratings. Some common types include Teck90, G-GC, and SHD-GC cables, which are designed for harsh mining environments.

• Interlock Armour: Provides mechanical protection and is a common feature in many Belden mining cables

• Shielding: May include foil or braid shields for protection against electromagnetic interference

• Voltage Ratings: Cables are available with voltage ratings from 300V up to 35kV, suitable for different power distribution needs within the mine

• Flexibility: Some cables, like SHD-GC, are designed for high flexibility, making them suitable for applications involving movement or flexing

• CSA and UL Approvals: Many Belden mining cables are dual-rated, meeting both CSA and UL standards, such as the Teck90/UL MC cable

• Power Distribution: High voltage power distribution in underground and surface mining operations

• Equipment Connections: Used on mining equipment like shuttle cars, roof bolters, drills, and loading machines

• Harsh Environments: Designed to withstand the extreme and severe conditions commonly found in the mining industry

Conductor 12AWG (7x20) Bare Copper, PVC-NYL Insulation E1 Colour Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry 75C Wet SUN RES DIR BUR

B6193

Teck90 600V, 6+G Conductor 14+14AWG (7x22H) Bare Copper, XLPE Insulation M4 Colour Code, PVC Inner Jacket, Aluminum Interlock Armour, Black PVC Outer Jacket, CSA HL

370-BNTOS2-TB-06 FX Indoor OS2 Distribution Tight Buffer 6 Fibres OFNP Non-Unitized Yellow

B668AMD 6C - Dual OSDP Access Control Cable, Plenum-CMP, #24-2 Pr., 8-18 AWG conductors, 4-22 AWG conductors, OSDP Reader Composite Cable With Foam FEP and Flamarrest insulation, Only Card Reader Data Pairs have overall Beldfoil® shield, Banana Peel® No overall jacket - CMP

B6386MD 8 Cond - Dual OSDP Access Control Cable, Plenum-CMP, #22-2 Pr Overall Shielded, Overall Jacket, 4-18 AWG conductors Overall jacket, Banana Peel Constrution - CMP

Performance Instrumentation, 1 Triad 18AWG (19x30)

Copper, PVC Insulation E1 Colour Code, Overall Beldfoil® Shield, PVC Outer Jacket, PLTC

Security and Sound Cable, Riser-CMR, 4-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

CM-00424CAT-6-AJ Industrial Ethernet Cat 6, 4 Bonded-Pair 23AWG (Solid) Bare Copper, PO Insulation, PVC Inner Jacket, Aluminum Interlock Armour, PVC Outer Jacket, CMG CM, -40C

B7923A Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, PVC Outer Jacket, MSHA CMR

BC5508 Teck90 600V, 10+G Conductor 14+14AWG (7x22H) Bare Copper, XLPE Insulation M4 Colour Code, PVC Inner Jacket, Aluminum Interlock Armour, Black PVC Outer Jacket, CSA HL SUN RES -40C

B7953A Industrial Ethernet Cat 6, 4 Bonded-Pair 23AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil® Shield, PVC Inner Jacket, PVC Outer Jacket, MSHA, CMX-Outdoor 600V AWM 21047

CM-00424CAX-6B-AJ Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, PVC Inner Jacket, Aluminum Interlock Armour, PVC Outer Jacket, CMG CM -40C

Mining

Safety is the top priority in mining today. Whether above ground or below, accurate identification helps keep employees out of harm’s way. It also keeps costly violation fines at bay and your operation running smoothly.

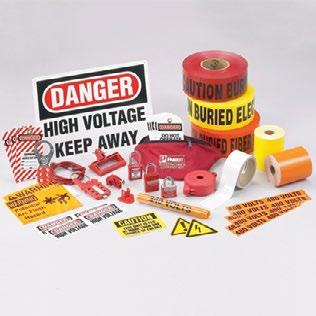

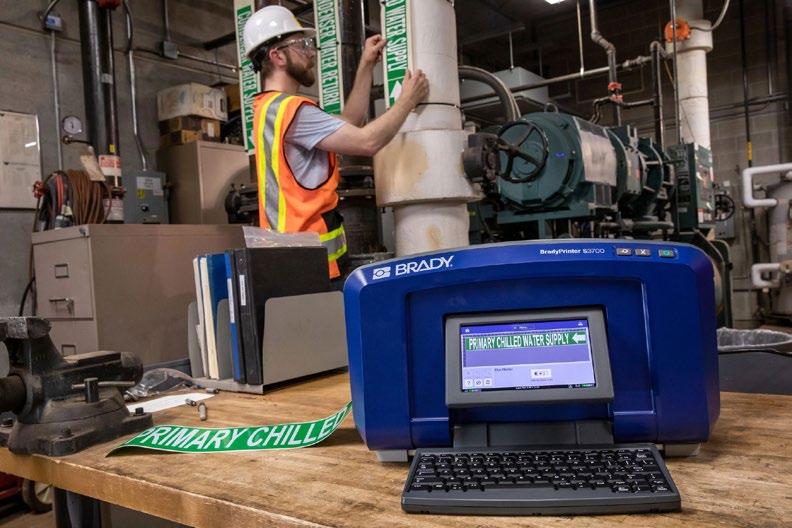

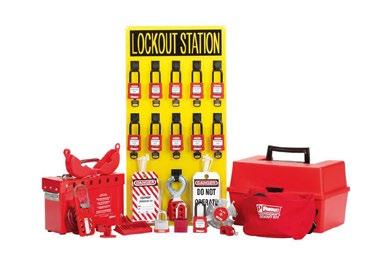

Brady’s complete solutions include visual information products like: signs, labels, tags and smart technology like printers and software that help you bridge the experience gap left by a retiring workforce.

Coupling Brady’s innovative products and professional workshops and services, you’ll be able to create the perfect conditions at your unique mining site.

Mfr.’s Model No. Description Industry-Specific Areas

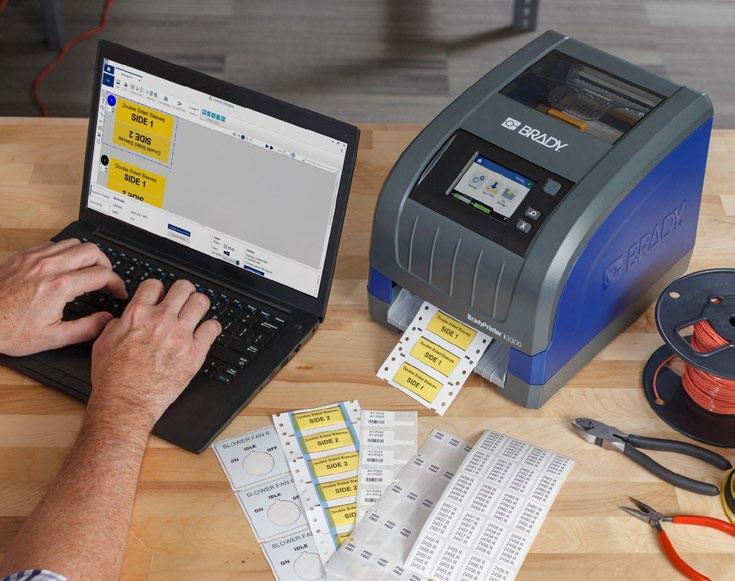

150640 BradyPrinter i3300 Industrial Label Printer Brady Workstation PWID Software Ste

B30C-2250-595-YL All Weather Permanent Adhesive Vinyl Label Tape for B30 Printers — 2.25" Yellow

B30-R10000 B30 Series R10000 Printer Ribbon, Roll of 200', Black, 4.33" W

B30C-2250-584-SL B30 Series Retro Reflective Labels 2.25" W x 50' L Silver

B33-7525-7643-YL B33 Series Zero-Halogen Polyurethane Cable Markers, 0.39" H x 2.95" W, Yellow

B30-R6000 B30 Series R6000 Printer Ribbon, Roll of 200', Black, 4.33" W

M710 M710 Label Printer

M7-169-593 Raised Panel Labels 1.8" H x 1.8" W WT RL/100 M710

M7-R6000 M710 R6000 Series Printer Ribbon 2" W x 150' L Black M710; BMP71

M7-169-593-RD Raised Panel Labels 1.8" H x 1.8" W Red RL/100 M710

M7-R4400-WT M710 R4400 Series Printer Ribbon 2" W x 150' L WT M710; BMP71

M7C-2000-595-YL All-Weather Vinyl Labels 2" W x 50' L Yellow M710; BMP71

M7C-2000-595-RD All-Weather Vinyl Labels 2" W x 50' L Red M710; BMP71

M7-1000-483-YL-KT Ultra Aggressive Adhesive Multipurpose Polyester Labels 1" x 50' Yellow M710; BMP71

M7-1000-483-WT-KT Ultra Aggressive Adhesive Multipurpose Polyester Labels 1" W x 50' WT M710; BMP71

M7-1000-483-GN-KT Ultra Aggressive Adhesive Multipurpose Polyester Labels 1" x 50' Green M710; BMP71

Industrial Playbook

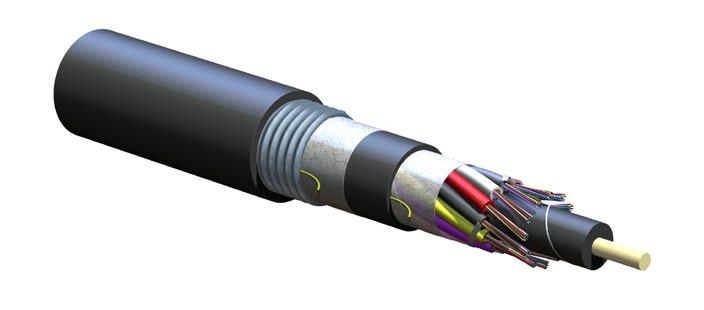

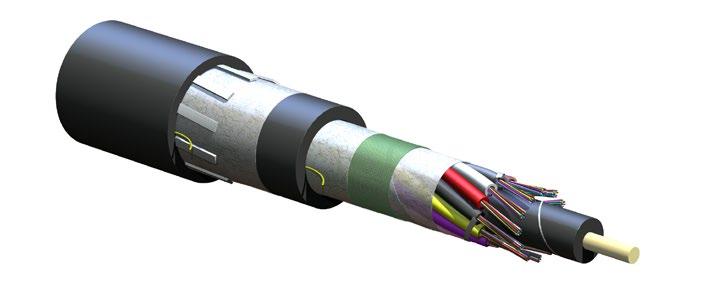

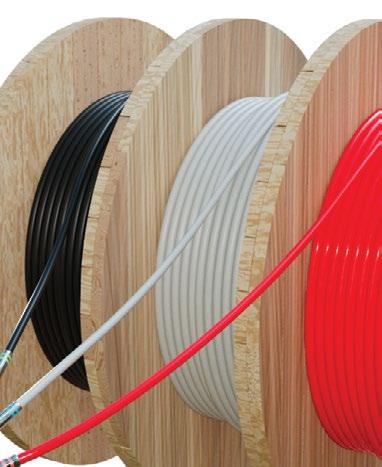

Fibre Optic Cable

MIC®: A commonly deployed indoor fibre optic cable; used in riser and plenum spaces for building backbones.

FREEDM®: Indoor/Outdoor fibre optic cable; no need for a transition splice when entering the building.

Industrial LSZH™ and Tray-Rated: Ideal for tunnels, mines, and industrial spaces. Higher impactand crush-resistance, withstands extreme temperature. Low-smoke, zero-halogen (LSZH) jacketing.

Mining and Petrochemical, Tray Rated: Durable LSZH cable for harsh environments. Ideal for mining, petrochemical, tunnel, and intrabuilding backbones. Supports aerial, duct, and direct-buried installs. Chemically resistant, mechanically tough, and rated for extreme temperatures. Mine and Safety Health Administration (MSHA) approved, MSHA 30 CRF Pt 7-K.

ALTOS®: Outdoor loose tube cables with gel-free water-blocking, available in armoured and dielectric versions. FastAccess® technology for quicker prep. Ideal for duct, aerial, and direct-buried installations.

Product Family

MIC Tight-Buffered and Loose Tube 2-144 Fibres, (0°C to +70°C), (FT4 or FT6)

FREEDM Tight-Buffered and Loose Tube 2-288 Fibres, (-40°C to +70°C), (FT4 or FT6)

Industrial LSZH Tray-Rated 12-288 Fibres, (-50°C to +75°C), (CSA 22.2 FT4-ST1)

Mining and Petrochemical, Tray Rated 2-288 Fibres, (-50°C to +75°C), (CSA 22.2 FT4-ST1, MSHA)

ALTOS Loose Tube 12-432 Fibres, (-40°C to +70°C), (Outdoor)

Fibre counts may vary depending on flame rating or cable construction within a product family. Metallic and non-metallic armoured options available depending on cable construction within a product family.

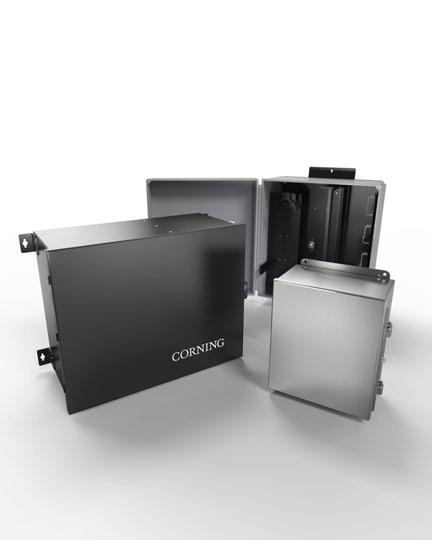

Fibre Optic Connectivity and Hardware

Closet Connector Housing (CCH): Modular rack-mount housing. Compatible with CCH adapter panels and pigtailed cassettes; includes slide-out trays, strain-relief, and labeling features.

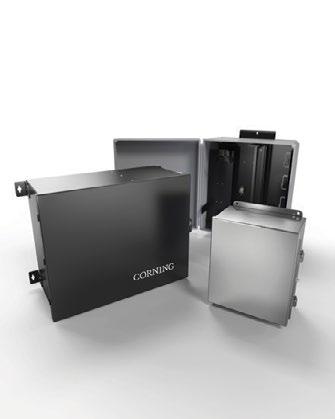

Environmental Distribution Centre (EDC): Composite or stainless-steel material. Accepts CCH adapter panels, splice trays or cassettes. Padlockable.

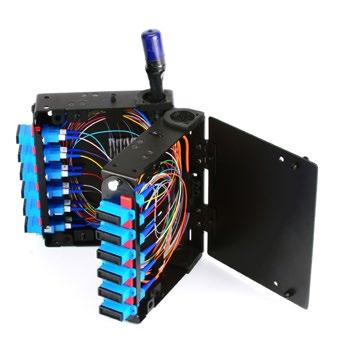

Industrial Connector Housing (ICH): Accepts CCH adapter panels, splice trays or cassettes. Padlockable.

Single Panel Housing (SPH): Compact wall-mount for low-fibre-count deployments. Supports one CCH panel; includes strain-relief and labeling. Available with preloaded pigtails. Stackable. Pigtailed Splice Cassette: Preloaded and pre-routed. No separate splice trays needed. LC, SC, or ST.

UniCam®: Mechanical field-installable connectors (LC, SC, ST®) with 0.2 dB typical insertion loss.

FuseLite®: Fusion splice-on connectors offering higher performance and splice verification. Compatible with all major splicers. LC, SC, and ST.

Product Family Description

Closet Connector Housing (CCH) Rack-Mount Enclosure 1U–4U (up to 288F)

Environmental Distribution Centre (EDC) Wall- or Pole-Mounted, NEMA 4X, IP66 (up to 288F)

Industrial Connector Housing (ICH) Wall-Mounted, NEMA 3S, IP64 (up to 288F)

Single Panel Housing (SPH) Wall-Mount or DIN-Railed, Empty or Pigtailed

Pigtailed Splice Cassette

Pre-Loaded and Pre-Routed Cassette (6-36F)

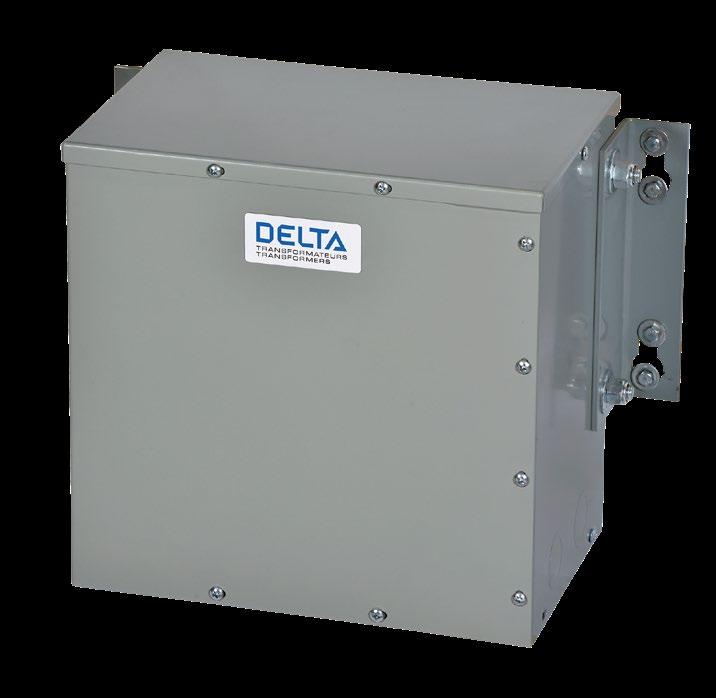

Enviro-Guard

Harsh Environment Transformers

Enviro-Guard is a versatile and high-performance epoxy vacuum-impregnated (EVI) transformer engineered for harsh environments. Ideal for both indoor and outdoor applications, including mining, petrochemical and pulp and paper industries. It is designed to withstand corrosive substances while protecting internal components from moisture and contaminants. Its design also contributes to reduced operational noise, making it a reliable and quiet solution for demanding industrial settings.

• Approved for installation in hazardous locations Class 1, Division 2, Groups A, B, C and D.

• Flexible design

• Cost-effective

• Sealed core and coil

• Noise reduction ability

• Superior dielectric withstand

• Lighter weight than potted transformers

• Efficiency: Meets NRCAN 2019

• Ratings: Three phases from 15 to 300 kVA

• Windings: Copper

• Frequency: 60 Hz

• Insulation system: 220°C (150°C rise)

• Typical impedance: 2.5% to 6.0%

• Wall-mounting brackets: Three-phase units up to 150 kVA

• Enclosure type: Ventilated type 3R enclosure

• Meets Canada - SOR/2018-201, (NRCan 2019) and ON Reg. 404/12, Quebec O.C./DECRET/1394-2018

• Certification: CSA certified

• 10-year warranty

Industrial Playbook

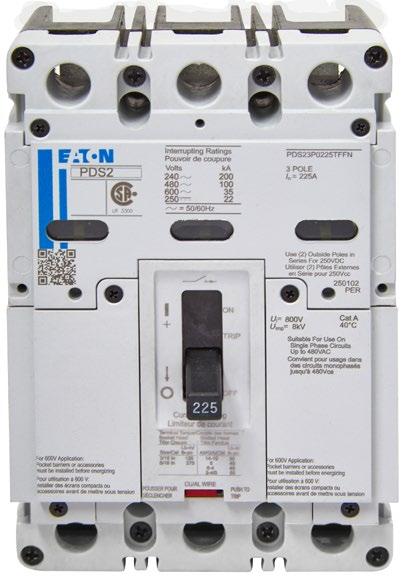

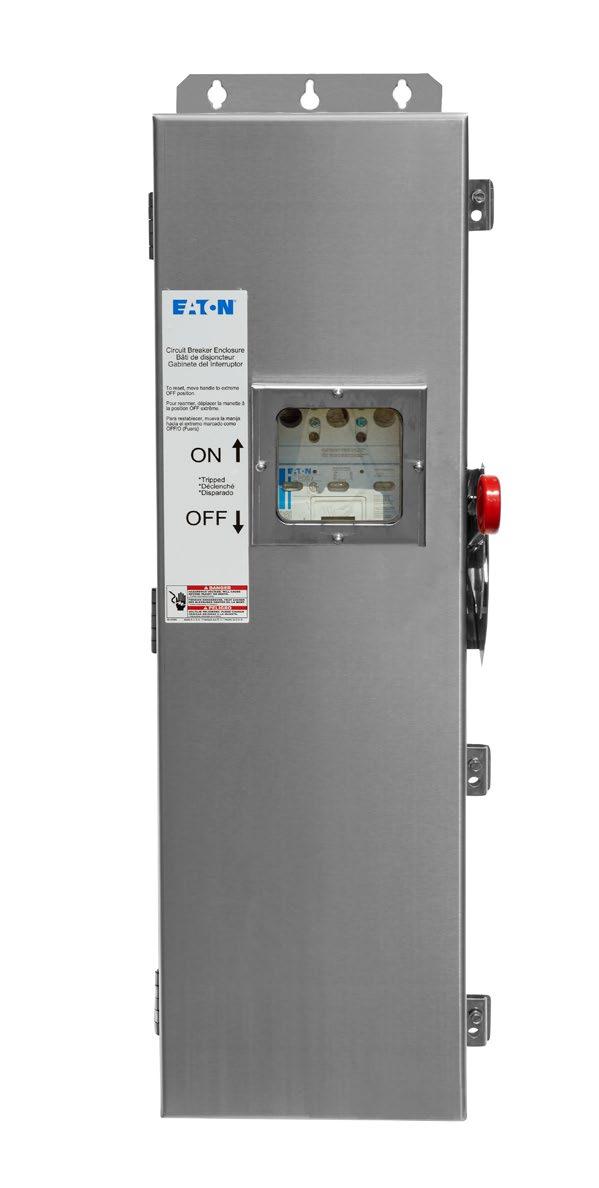

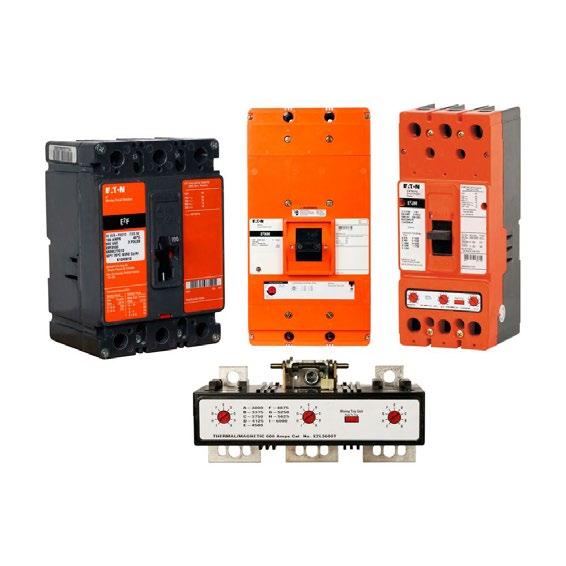

E2 Mining Moulded Case Circuit Breakers

The Eaton E2 mining moulded case circuit breaker offers users a high-quality experience and a safe work environment. Rugged design and tested dependability for harsh and hazardous environments are two of the reasons Eaton has been a leader in electric power distribution to the mining industry for 40 years. The mining circuit breaker protects all sizes of trailing cable defined by MSHA, and as a result, minimizes panel design and reduces inventory requirements. Available in 7 frame sizes up to 2000A.

• Applications: underground mining, especially for trailing cable protection per MSHA 30 CFR 75

• Incorporates rigid specifications and testing procedures for the harsh mine environment

• Thorough in-plant testing ensures quality, dependability and reliability

• Up to 1200 VAC

• Easy and uncomplicated field testing Product Family

E2 Mining Breakers

Rugged Design and Tested Dependability for Harsh and Hazardous Environments; Frame Size F, K, L, M, N; 100A–2000A; 3-Poles; Interruption Levels Up to 50kA @ 600 VAC; Voltage Rating 480V, 600V, 1000Y/577V and 1200 VAC; Trip Units TMTU/ETU

Metals and Mining Solutions

Above-ground and underground mines are some of the most unpredictable and dangerous places on earth. They’re also the most dependent on reliable sources of electricity. That’s where Legrand comes in. From temporary power that keeps the lights on, to portable GFCI devices that keep miners safe, the Legrand portfolio of rugged electrical solutions runs deep.

Mfr.’s

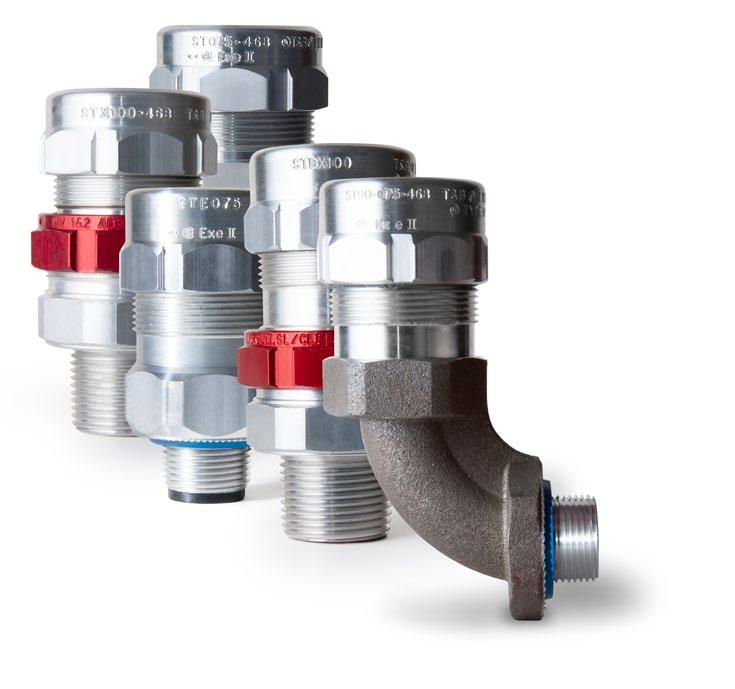

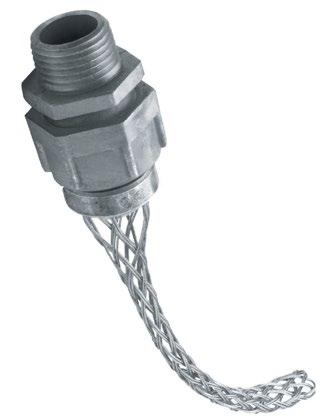

CG610 Strain Relief Deluxe Cord Grips, 3/4-in NPT, Straight Male

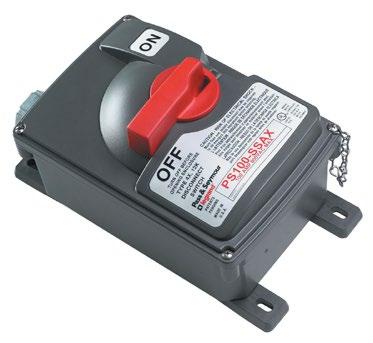

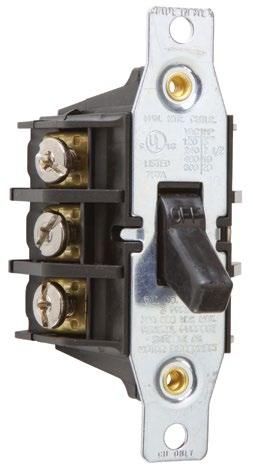

7863R Manual Controllers

PS430R7W Pin and Sleeve Watertight 30A 3ø 480V Receptacle

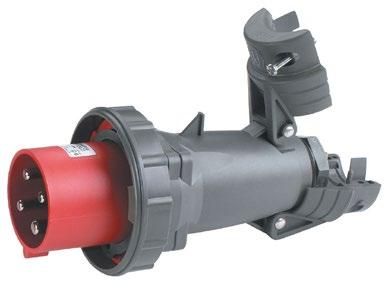

PS430P7W Pin and Sleeve Watertight 30A 3ø 480V Plug

2097PC2M

1597PC2A

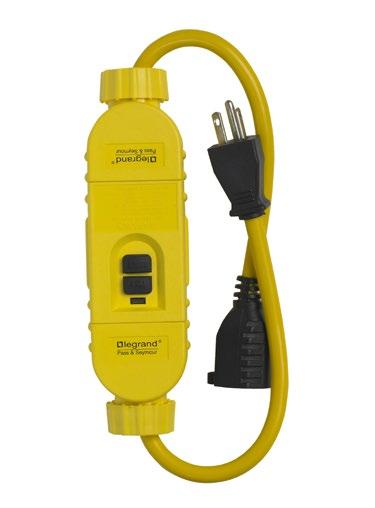

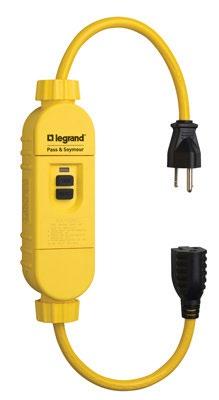

Portable 2-Foot In-Line GFCI with Straight Blade Plug and Connector, Manual Reset

Portable 2-Foot In-Line 15A Self-Test GFCI with Straight Blade Plug and Connector, Automatic Reset Cable Tray and Cord Reels Contact Your Local Wesco Representative

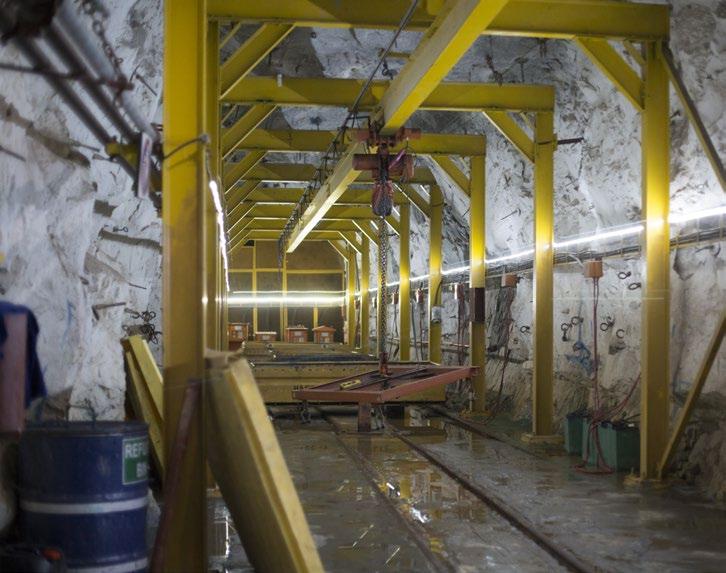

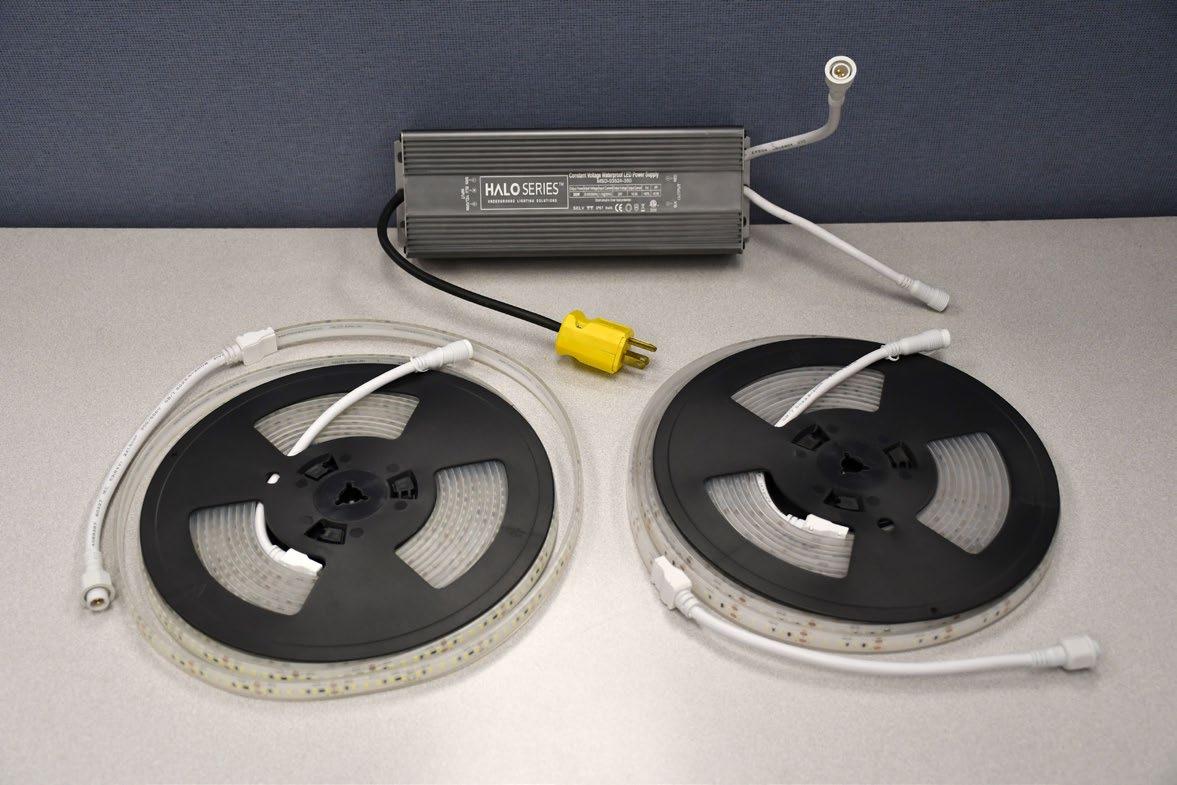

Halo Strip Lighting

Halo Lighting’s light strips are purpose-built to thrive in the harshest underground mining environments where conventional systems fail. Engineered with IP68 waterproofing, flame-retardant silicone casing and zero toxic emissions, they deliver durability and safety. Developed in collaboration with mining engineers and regulatory authorities, Halo strips exceed operational standards while offering plug-and-play simplicity, zero maintenance and significant cost savings, making them a trusted choice for reliable, efficient and compliant underground illumination.

• Voltage Options Are Available in Multiple Ranges:

– 220V (200–240 VAC)

– 110V (90–130 VAC)

• Connection Type: Single-end two-wire connection; plug-and-play simplicity

• E27 Globe Adapter: Allows integration into existing infrastructure by replacing standard light bulbs, no rewiring needed

Mfr.’s Model No. Description

HALO1-ALPHA-110V

HALO1-DELTA-110V

HALO1-ALPHA-110VR (RED)

HALO1-DELTA-110VR

HALO1-ALPHA-110VG (GREEN)

HALO1-DELTA-110VG

HALO-CLIPS

HALO2-ALPHA-24V

Halo Lighting Solutions #1-DELTA-110V Strip Light, LED; 10m Long; 110V; 8W"

Halo Lighting Solutions #1-ALPHA-110V Strip Light, LED; 10m Long; 110V; 17W Red

Halo Lighting Solutions #1-DELTA-110V Strip Light, LED; 10m Long; 110V; 8W Red

Industry-Specific Areas

Halo Lighting Solutions #1-ALPHA-110V Strip Light, LED; 10m Long; 110V; 17W 9

Halo Lighting Solutions #1-ALPHA-110V Strip Light, LED; 10m Long; 110V; 17W Green

Halo Lighting Solutions#1-DELTA-110V Strip Light, LED; 10m Long; 110V; 8W Green

Halo Clips for Installing LED Light Strip

Halo Lighting Solutions #2-ALPHA-24V Strip Light, LED; 40m Long; 24V; 1100-1200 Lumens

Industrial Playbook

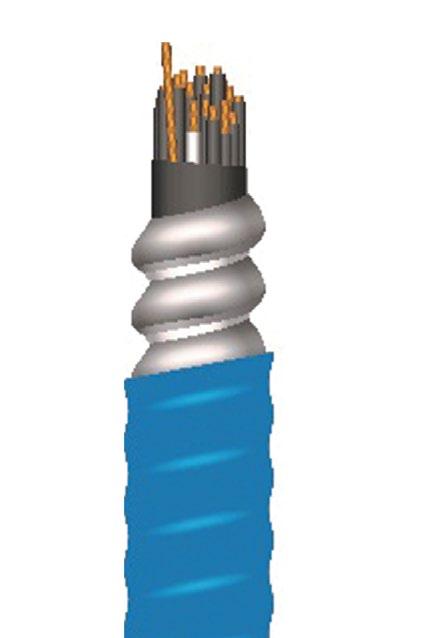

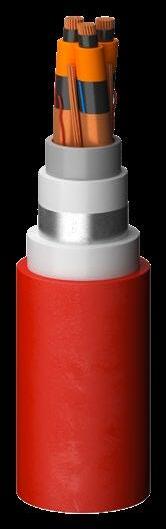

AIRGUARD®, TECK90, MV TECK, Anaconda®, ACWU90

An extensive range of low and medium voltage power cables for the industrial sector. Prysmian provides a comprehensive and innovative range of products that continuously adapts to the diverse and growing needs of today’s market. By anticipating trends and collaborating closely with customers, Prysmian is dedicated to delivering the latest processes that advance industries worldwide.

• Extended lifespan for lasting performance

• Exceptional resistance to chemicals and environmental conditions

• Reliability you can trust

• Customized and multifunctional engineering solutions

• Sleek and compact design for versatility

• Field application engineering services at your convenience

• Superior safety standards for peace of mind Wesco

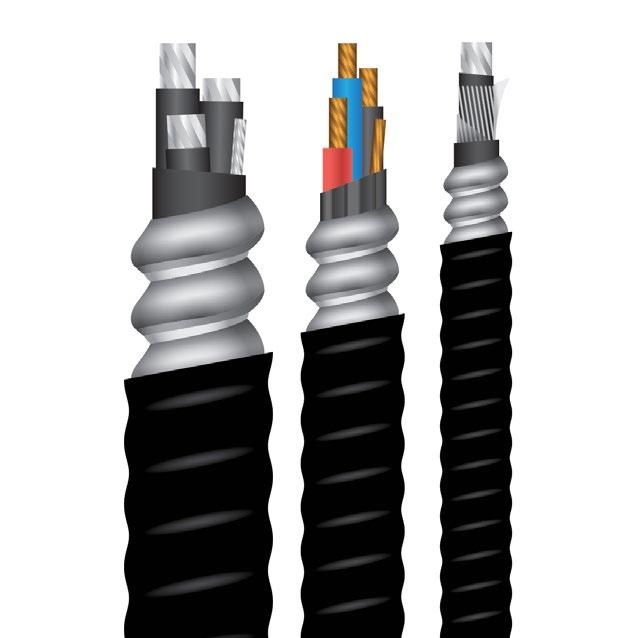

Anaconda®: 5F/5SLF

Low and medium voltage power cables are specifically designed to replace continuously corrugated welded aluminum armoured cables in Class 1, Division 2 locations. These cables offer five times better impact resistance compared to traditional options and have a sidewall bearing pressure limit that is 2 to 3 times greater, reaching up to 3000 pounds per radial foot. Available in a wide range of sizes, from 1 AWG to 1000 MCM copper, these cables support voltages between 5kV and 35kV. The AIRGUARD® system facilitates longer cable pulls with fewer splices, making it suitable for vertical mine shafts, various extreme environments and challenging applications.

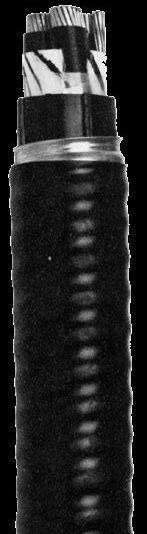

Armoured power and control cables are rated for voltages between 600V and 1000V, providing a secure and reliable wiring solution. These cables are suitable for both exposed and concealed wiring in various environments, including dry, damp and wet locations. They can be used in both ventilated and non-ventilated areas, as well as in ladder-type cable trays, regardless of environmental conditions. Furthermore, these cables can be directly buried in the ground, provided appropriate protection is used as required by the inspection authority, which enhances their safety features. Additionally, they are compatible with certified HL cable glands, ensuring safe use in all hazardous locations.

Shielded armoured power cables, ranging from 5kV to 35kV, are designed for installation in all hazardous locations when paired with certified hazardous location (HL) cable glands. These cables can be used for both exposed and concealed wiring in dry, damp, or wet environments. They are suitable for installation in ventilated, non-ventilated and ladder-type cable trays under the same conditions, as well as for direct burial in the ground, provided that any necessary protective measures required by the inspection authority are implemented.

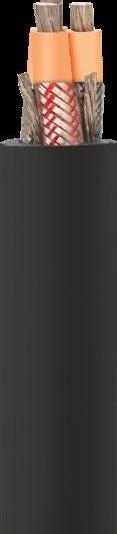

Shielded round portable power cables SHD-GC and SHD-BGC, rated for 2000 to 25000 volts, are designed for use as trailing cables on AC mining equipment.

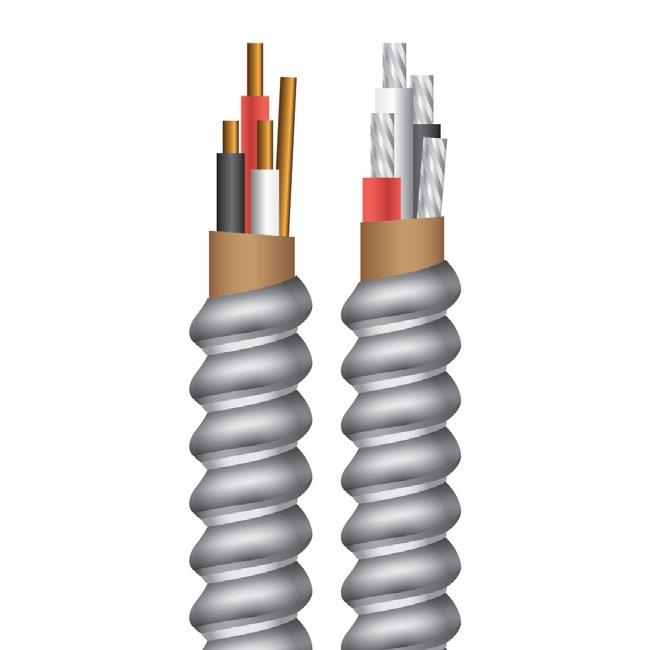

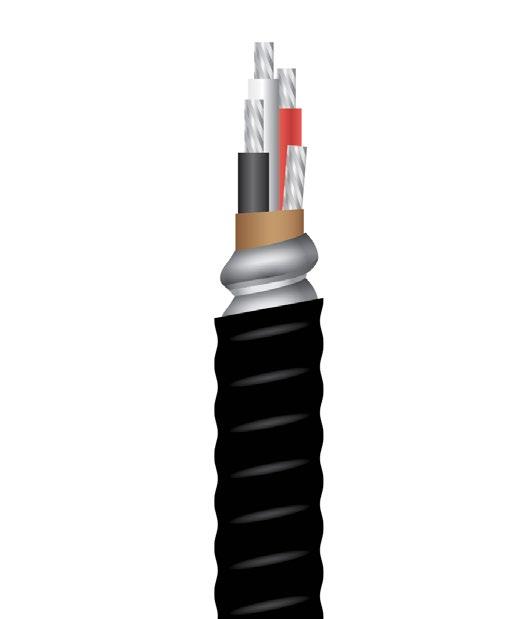

The 600 V aluminum armoured cable is designed for a variety of applications, suitable for outdoor use in exposed locations and wet environments (when using Type RW90 conductors). It can be installed in cable trays, encased in concrete, used for temporary power or deployed as aerial cable on a messenger. This cable is appropriate for Class 1, Zones 1 and 2, as well as Classes 2 and 3, Divisions 1 and 2 hazardous locations, according to CEC Section 18 for multiconductor cables.

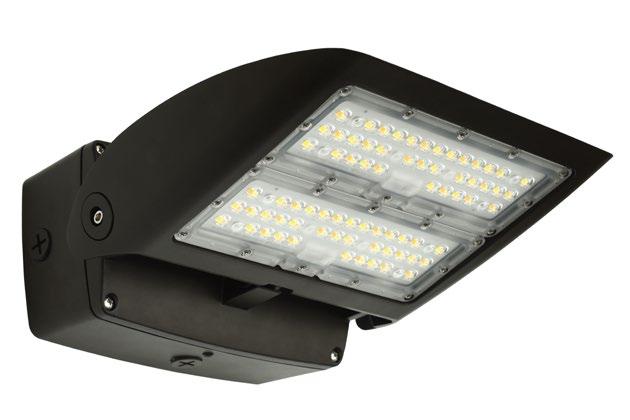

RAB DESIGN VEKX Select

The VEKX-LED wall light offers a sleek, adjustable head for beam control, field-selectable CCT and lumens and a wide voltage range. Its durable die-cast aluminum build and tamper-proof hardware make it ideal for control buildings, offices and industrial exteriors. With up to 170 lm/W, it offers energy-efficient lighting for entrances, walkways and secure areas, combining security, durability and modern design for mining and commercial sites.

• Lumen and CCT selectable with 120–347V input

• High efficiency fixture with 170 lm/W

• Dark-sky friendly, no up light at zero tilt

• Adjustable head with Type III optics for precise lighting

• Tamper-proof stainless steel hardware

• Standard DC Photocell for dusk-to-dawn operation

• Control options: PCLS and Microwave motion sensor (factory-installed)

Mfr.’s Model No.

VEK1X-LED30A15-H-VK-T3-BRZ-DIM-PC

VEK2X-LED60A30-H-VK-T3-BRZ-DIM-PC

VEK3X-LED90A60-H-VK-T3-BRZ-DIM-PC-SP10

Description

Industrial Playbook

The VEKX-LED Series Wall Light Offers a Sleek Adjustable Head for Precise Beam Control, a Wide Voltage Range and the Flexibility of Field Selectable CCT and Lumens

The VEKX-LED Series Wall Light Offers a Sleek Adjustable Head for Precise Beam Control, a Wide Voltage Range and the Flexibility of Field Selectable CCT and Lumens

The VEKX-LED Series Wall Light Offers a Sleek Adjustable Head for Precise Beam Control, a Wide Voltage Range and the Flexibility of Field Selectable CCT and Lumens

RAB DESIGN FW4

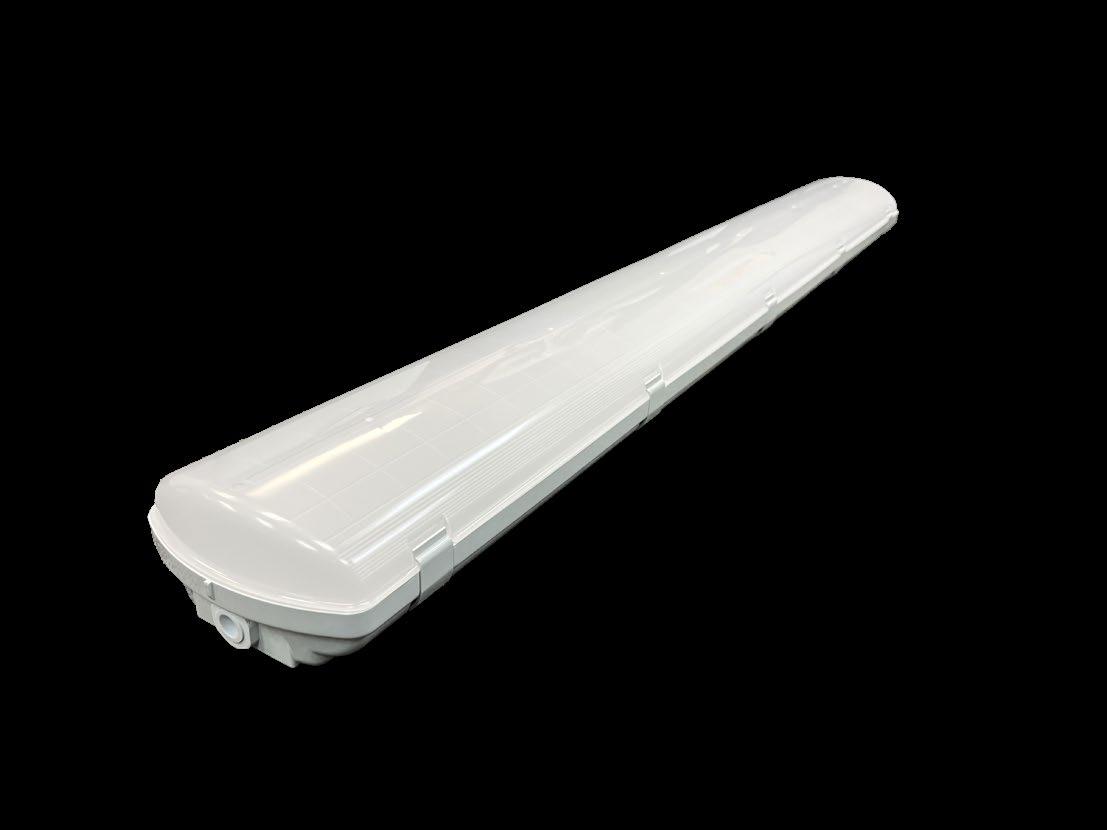

The FW4-LED is a 4' LED linear vapourproof fixture ideal for indoor and outdoor environments, including underground parking garages, industrial facilities, poultry barns and commercial freezers. Compatible with Lutron’s Athena Wireless Node (AWN), RAB DESIGN’s FW4 LED41/61 offers robust protection and durability with an IK10 impact rating. IP66 and NEXMA 4X ratings ensure excellent dust and water resistance, making it well-suited for maintenance buildings and other demanding applications.

• Polycarbonate housing and lens with full gasketing and heavy-duty clips guard against intrusion, ideal for the abrasive and damp conditions

• 41W (5,700 lm) and 61W (8,500 lm) models, with high efficiency (~130–141 lm/W) for uniform lighting in confined vertical spaces

• Wide 120–347V range to suit diverse mining electrical systems

• 2 versions: Selectable units (120–347V, CCT Select 3000K, 4000K, 5000K)

• Ruggedly designed with NEMA 4X, NSF, IK10 ratings

• Polycarbonate housing with frosted lens and 5 polycarbonate clips on either side

• Surface or suspension mount option

4

• IP66 rated with gasketing and wet-location connector for dust and dirt protection

• Toolless entry for easy wiring and access to CCT select switch

Mfr.’s Model No.

FW4-LED41-H-VK-DIM

FW4-LED61-H-VK-DIM

A 4', 41W Linear Vapourproof Fixture with NEMA 4X NSF, IK10 Ratings Ideal for Harsh Environments 6

A 4', 61W Linear Vapourproof Fixture with NEMA 4X NSF, IK10 Ratings Ideal for Harsh Environments

Industrial Playbook

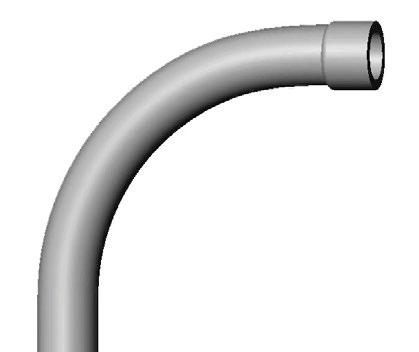

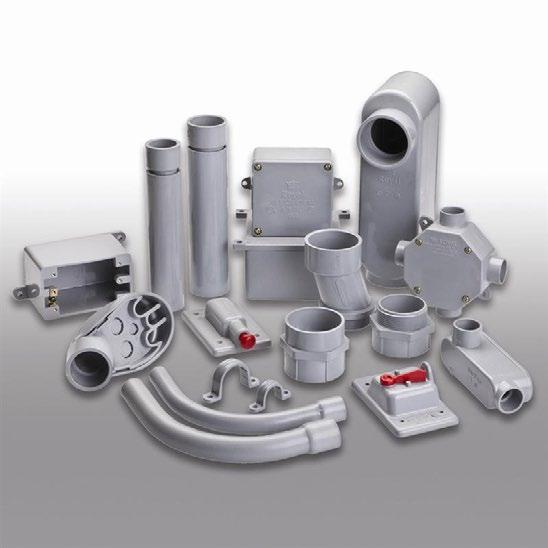

Rigid PVC Conduit Pipe

Rigid PVC Conduit provides a protected pathway for easily pulling wire conductors. PVC conduit offers significant labour reduction to install compared to metal because it’s easy to cut and join, weighs a fraction of metal and doesn’t require additional steps for direct burial. Westlake Pipe and Fittings’ Rigid Electrical Conduit offers superior performance, contributing to the overall success and efficiency of your electrical project.

• Westlake Pipe and Fittings manufactures a complete line of Rigid PVC Conduit pipe and fittings for electrical applications. Their products are designed to reduce labour and maintenance costs, while offering superior performance

• Products are certified by the Canadian Standards Association (CSA) and Underwriters Laboratories (UL) for use in above- and below-ground applications and meet NEMA TC-2

• Schedule 40 Rigid PVC conduit pipe is available in 1/2- to 6-inch diameters and 10- or 20-foot lengths Mfr.’s

ChargePoint® Express Plus

Your Building Block for Corridor Charging Success

Express Plus is scalable by power, capacity or both, giving you the flexibility to add charging stations or power as EV demand grows.

Power your business with a fully integrated charging solution. A comprehensive suite of services and integrated software ensure your charging solution is intuitive for drivers and effortless for you to manage.

Get long-term value from your Express Plus charging stations. Maximize your investment over time with reliable, highly scalable hardware, simple customer loyalty integration and flexible financing options.

Leverage the experience of an established charging provider. Unrivaled expertise, dedicated support and powerful integrations ensure peak performance and streamlined management of your charging solution.

Industry-Specific Areas

3

Technical Specifications

Feature Description

Output power and current CCS1 500A/CHD 200A up to 500kW to a single port depending on configuration; output voltage 100–1000V

Operating temperature -40°C to 50°C (-40°F to 122°F) with derating

Payment options Tap to pay and payment through other applications are standard. An optional chip reader is also available

Standard cable length

4.5 m (18 ft) and 7.5 m (24 ft)

Station footprint 965 mm (W) x 635 mm (D) (3 ft 2 in x 2 ft 1 in) with Cable Management Kit (CMK)

Vehicles and standards All vehicle types and industry-standard communication protocols are supported (OCPP 2.0/Plug and Charge)

Generac SBE1000 and SBE500

Battery Energy Storage System

Generac’s SBE battery energy storage systems empower customers to meet today’s dynamic energy management demands. By optimizing on-site solar and being demand response-ready, these systems significantly cut energy costs and mitigate peak energy charges.

• Optimized for commercial and industrial energy storage projects

• Built-in controls for integration with solar PV and generators

• Backup power ready, designed to support on-site load during grid outages

Industry-Specific Areas

2

Specifications

Energy Storage Racks

Bi-Directional Inverter

Fire Suppression

Heating, Ventilation and Air Conditioning

• Virtual Power Plant ready with integrated connectivity for asset monetization

• Comprehensive national partner network for service and maintenance

• Scalable up to multiple MWh

Specifications

Capacities from 250kWh to 5MWh+

BESS Unit Controller

Monitoring and Connectivity

Standardized 10' and 20' Enclosures

Wire and Cable Enhancement Services

Wesco has developed a suite of cabling services designed to support your projects during installation. These solutions can be mapped to your specific needs and deliver immediate benefits including:

• Minimize risk of injury

• Minimize scrap

Paraspin allows different diameters of cable to be pulled simultaneously by using independent spinning chambers.

• Optimize labour

• Speed installation

Paralleling is ideal for remote locations, pulls multiple conductors simultaneously and reduces the number of reels to manage on-site.

Ready Grip (Low Voltage and Medium Voltage) eliminates on-site termination by having mediumvoltage pulling eyes installed by Wesco.

• Mitigate risk

• Lower project costs

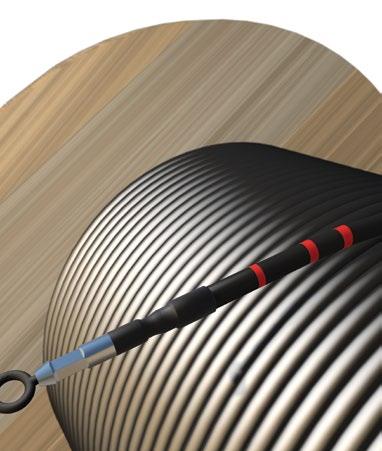

Insta-reel consists of a standard wooden reel that has oversized flanges attached to both sides and becomes a payout stand when chocked in place.

Parapull has multiple chambers to prevent cable legs from binding with each other. It eliminates waste and allows for smoother pulls and setup time. Makes it easier to locate all legs of the circuit on job site.

Wire and Cable for Every Application

Wesco stocks wire and cable for standard and specialty applications, from common building wire cables to specialized critical environment cables. We cut most cables to your specific lengths which reduces waste and labour cutting cables on site.

Products Available:

• Armoured cables

• Automation cables

• Battery cables

• Building wire (CU and AL)

• Communication cables

• Control cables

• Fibre optics cables

• Grounding wire

• Instrumentation cables

• Lead wires

• Medium voltage cables

• AC90 cables

• Mining cables

• Portable cord

• Power cables

• Shipboard cables

• Solar cable

• Thermocouple

• Variable frequency drive

• Welding cable

Application and Engineering Resources

Wesco not only stocks wire and cable, but we also support you with application and engineering assistance.

Wire and Cable Engineering Services:

• Assist in interpreting codes and standards

• Cable sizing to meet load conditions

• Design custom cables

• Develop, review and update cable specs

• Provide installation recommendations

• Pulling calculations

• Rigging recommendations

• Routing and layout planning

Wesco offers a wide array of wire and cable enhancement services to help you execute your projects on time and under budget.

Contact your Wesco sales representative today to learn more.

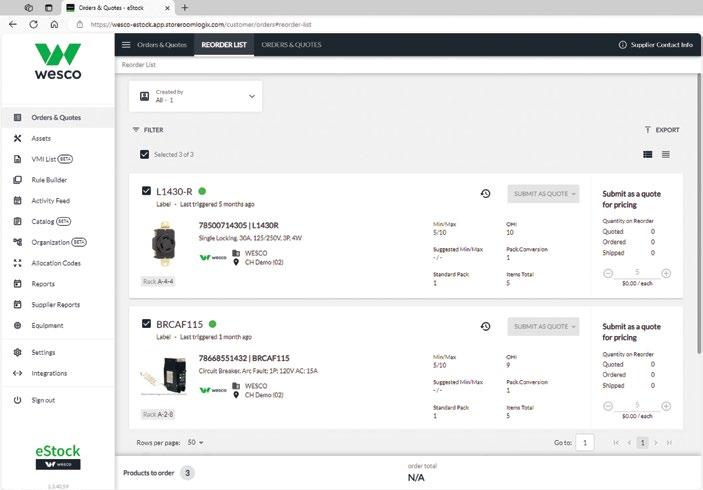

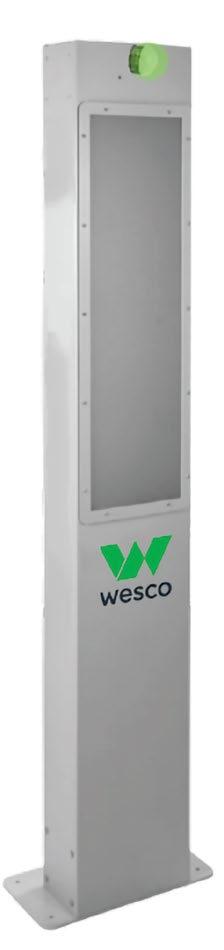

Fully Automated Asset and Material Tracking

Easily manage your critical inventory while reducing consumption, shrinkage and downtime

Automated RFID Technology

Track the Who, What, When and Where

The user simply walks into the storeroom, picks up the part(s) and leaves. Wesco’s automated RFID solution keeps track of who, what, when and where for parts and assets. Because it is connected to eStock software, it also keeps track of on-hand inventory levels, monitors min/max levels and automatically transmits replenishment requests to suppliers.

How It Works:

• Allocate product usage to personnel with the use of RFID FOBs or badges

• Optional cameras provide security and tracking

• RFID tags are applied to each part

• Tracks assets and consumables

• Track users with digital IDs or FOBs

• Wirelessly monitor product usage and historical data from anywhere in the world

Scan to learn how this technology can be used as part of a fully customized solution built for your operation.

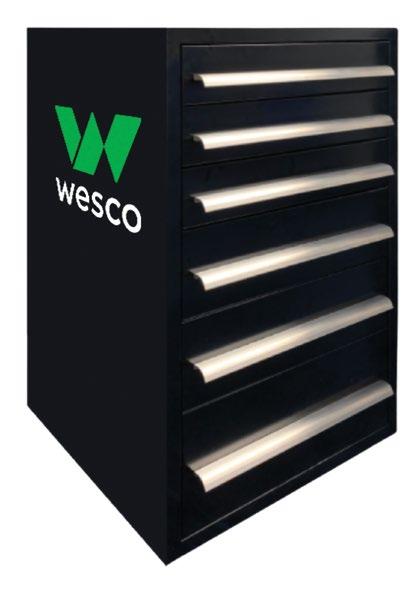

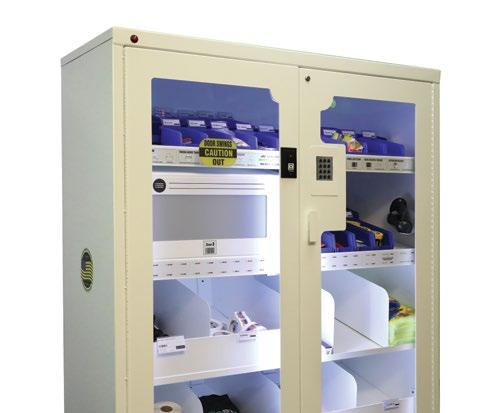

Connected Smart Drawers and Shelves

Calculating On-Hand Inventory with Weight Sensors

Smart shelves eliminate the need for manual counting, scanning and placing orders. Through linking to Wesco’s eStock software, the shelves keep track of on-hand inventory levels, monitor min/max levels and automatically transmit replenishment requests to suppliers.

How It Works:

• Automatically calculate on-hand inventory levels

• Automatically transmit replenishment requests

• Accurate to 8 grams

• 30 pounds of storage per 4″ tray

Lighting the Way With Efficiency

Engage and Use Wesco’s Rebate Team Project Expertise.

Rebate Navigation and Incentive Support

Wesco helps you unlock savings through government and utility rebate programs. We support initiatives across Canada, including:

• Lighting and Controls

• EV Charging Stations

• Renewable Energy

• Indigenous-Led Initiatives

• Government-Based Projects

• Custom Energy Solutions

• Programs Covering Up to 50% of Eligible Project Costs

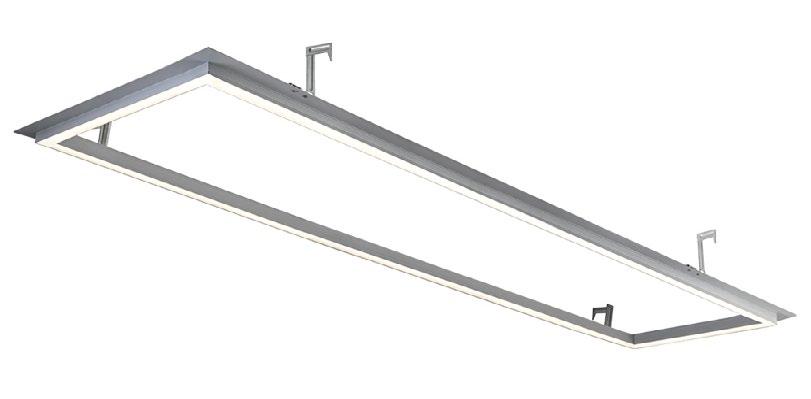

Energy-efficient, cost-effective lighting solutions

National Strength, Local Support

With coast-to-coast coverage, Wesco offers standardized services, centralized communication, and scalable support for multi-site operations. Our National Accounts Team simplifies logistics and provides real-time reporting, while our vetted electricians and in-house project managers ensure seamless execution.

Why Choose Wesco?

to top-tier suppliers and competitive pricing

Let Wesco light the way to a brighter, more efficient future. Contact Wesco’s lighting team at LightingCanada@Wescodist.com to enhance your next project.

Scan the QR code or visit Wesco.com/safety to explore our portfolio of safety solutions.

Administration

Industrial Playbook

Star Teck®

ST Series

• Power-Grip® grounding ring ensures instant contact, holds the cable in place and allows hands-free tightening

• Power-Grip® ring provides 360° reliable grounding and strain relief

• Compact design and ease of installation

STX

Series

• Integrated sealing chamber forms an XP barrier seal when used with XP compound (SC4-KIT-1 or SC65)

• Delivers safe, reliable performance in Class I Division 1 ABCD explosive environments

Mfr.’s

ST050-464 Star Teck Aluminum Jacketed Cable Fitting. Hub Size of 1/2".

Range over Jacket from 0.600–0.760".

ST050-464S Star Teck Steel Jacketed Cable Fitting. Hub Size of 1/2". Range over Jacket from 0.600–0.760".

ST050-464SS Star Teck Stainless Steel Jacketed Cable Fitting. Hub Size of 1/2". Range over Jacket from 0.600–0.760".

ST050-465 Star Teck Aluminum Jacketed Cable Fitting. Hub Size of 1/2". Range over Jacket from 0.725–0.885".

ST050-465SS Star Teck Stainless Steel Jacketed Cable Fitting. Hub Size of 1/2". Range over Jacket from 0.725–0.885".

ST050-466 Star Teck Aluminum Jacketed Cable Fitting. Hub Size of 1/2". Range over Jacket from 0.825–0.985".

ST075-467 Star Teck Aluminum Jacketed Cable Fitting. Hub Size of 3/4". Range over Jacket from 0.880–1.065"

ST075-468 Star Teck Aluminum Jacketed Cable Fitting. Hub Size of 3/4".

Range over Jacket from 1.025–1.205".

ST100-469 Star Teck Aluminum Jacketed Cable Fitting. Hub Size of 1". Range over Jacket from 1.187–1.375".

ST125-470 Star Teck Aluminum Jacketed Cable Fitting. Hub Size of 1-1/4". Range over Jacket from 1.350–1.625".

ST150-472 Star Teck Aluminum Jacketed Cable Fitting. Hub Size of 1-1/2". Range over Jacket from 1.700–1.965".

ST250-478 Star Teck Aluminum Jacketed Cable Fitting. Hub Size of 2-1/2". Range over Jacket from 2.580–2.840".

STX050-462 Star Teck Hazardous Location Aluminum Jacketed Cable Fitting. Hub Size of 1/2". Range over Jacket from 0.525–0.650".

STX050-464 Star Teck Hazardous Location Aluminum Jacketed Cable Fitting. Hub Size of 1/2". Range over Jacket from 0.600–0.760".

STX075-465 Star Teck Hazardous Location Aluminum Jacketed Cable Fitting. Hub Size of 3/4". Range over Jacket from 0.725–0.885".

STX075-466 Star Teck Hazardous Location Aluminum Jacketed Cable Fitting. Hub Size of 3/4" Range over Jacket from 0.825–0.985".

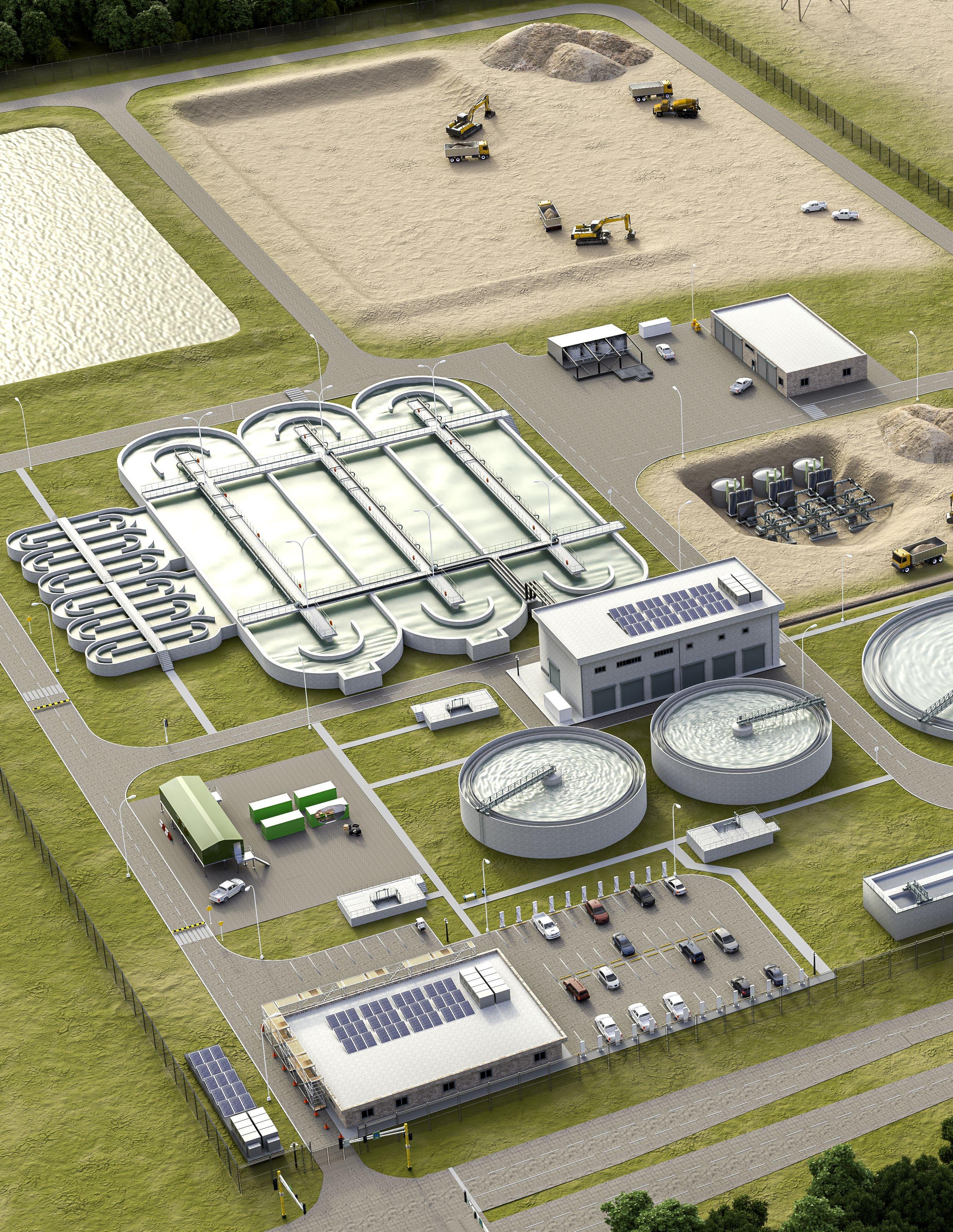

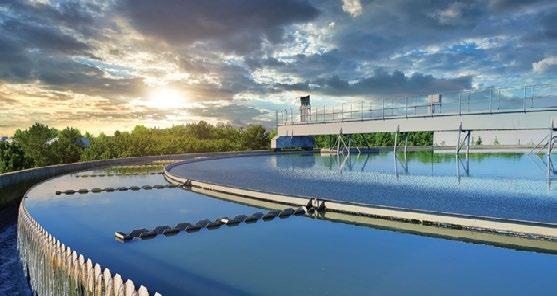

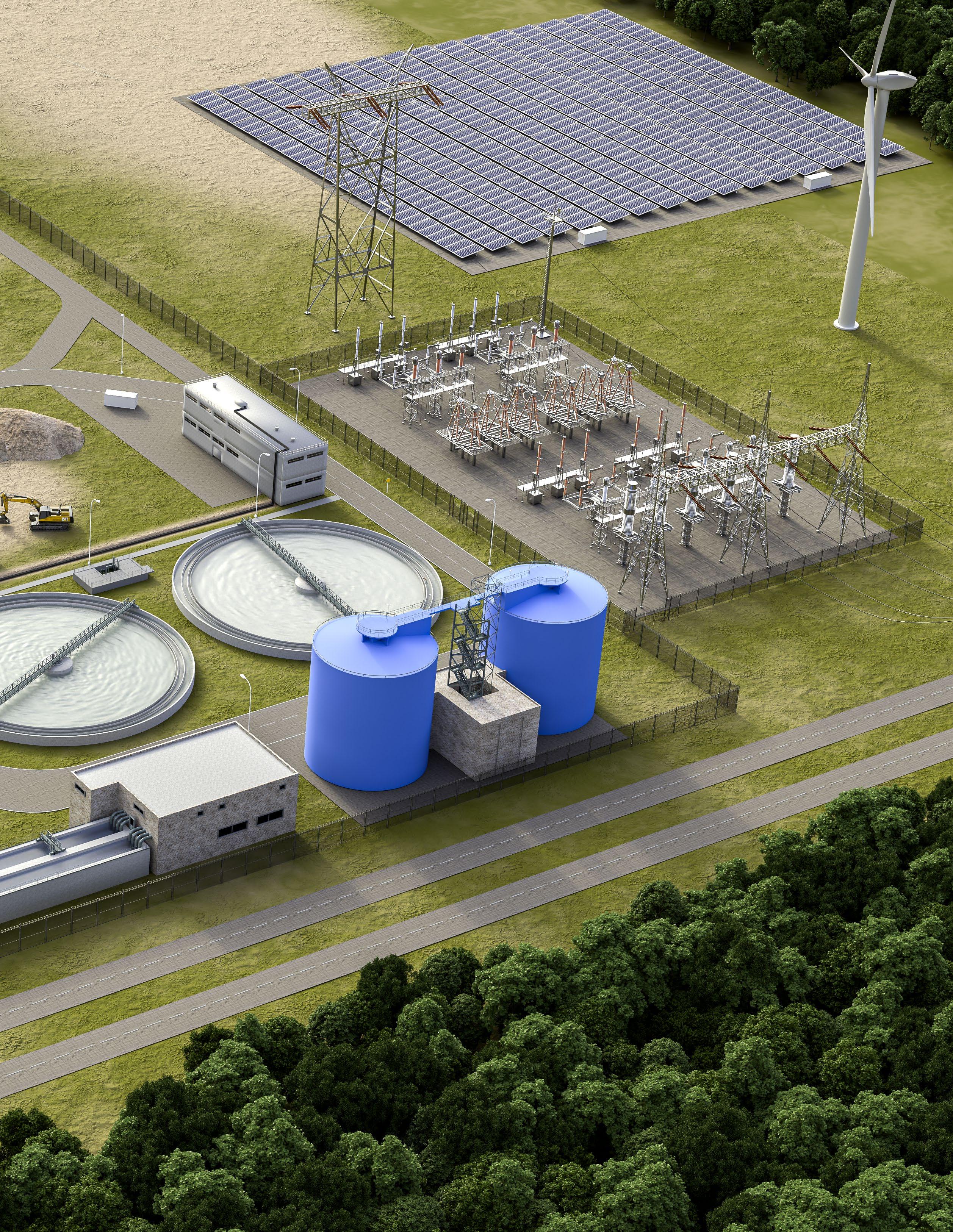

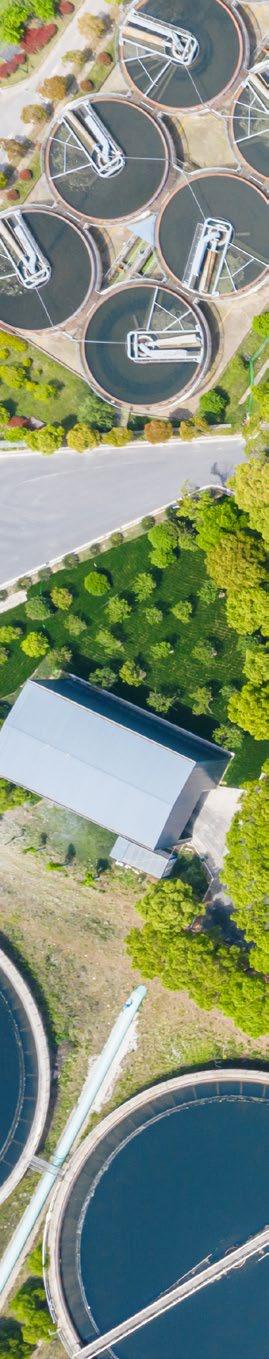

Belden Wastewater Treatment Solutions

In today’s water and wastewater treatment plants, uncompromising reliability and maximum performance under extreme conditions is mandatory. Humidity, grit, sludge and in some cases corrosion-causing gases, such as hydrogen sulfide or chlorine, place enormous demands on components and equipment. Belden’s product spectrum is engineered to meet these heavy-duty requirements over the long-term, ensuring top performance and reliability.

• Proven Performance: Robust cables are field tested and proven, including a 10-year warranty.

• Withstands Extremes: Designed with proprietary materials, the cables are engineered to last.

• Variety of Options: Offered in a variety of material options, including proprietary LSZH, PVC/nylon, etc.

B9319

B62P1808

3ACD-0803-B

Audio, Control and Instrument Cable, 22 AWG solid tinned copper conductors, PVC insulation, twisted pairs, overall Beldfoil® shield (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket

UL Instrumentation, 8 Pair 18AWG (7x26) Bare Copper, PVC-NYL Insulation E1 Colour Code, Individual and Overall Beldfoil® Shield, Black PVC Outer Jacket, TC-ER NPLF 90C Dry 75C Wet SUN RES DIR BUR

Belden Basics VFD, 3 Conductor 8AWG (7x16) Bare Copper XLPE Insulation M4 Colour Code + 10AWG Symmetrical Segmented Ground (3 of 14AWG) Bare Copper Stranded in Continuous Contact with Overall Dual Copper Tape Helically Applied Shield, Black PVC Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V CSA AWM I/II A/B SUN RES DIR BUR Oil Resistant

B7924A Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (7x32) Tinned Copper, PO Insulation, PVC Outer Jacket, CMX-Outdoor CMR

2ACD-1203

Belden 300% Ground Flexible VFD, 3 Conductor 12AWG (65x30) Tinned Copper, XLPE Insulation M4 Colour Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, 1 Pair 16AWG (26x30) Tinned Copper XLPE Beldfoil, Black PVC Outer Jacket, 600V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V CSA AWM I/II A/B 600V CIC TC SUN RES DIR BUR Oil Resistant -- Shielded Pair is Outside the Power Group Braid Shield for Isolation

B7953A Industrial Ethernet Cat 6, 4 Bonded-Pair 23AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil® Shield, PVC Inner Jacket, PVC Outer Jacket, MSHA, CMX-Outdoor 600V AWM 21047

B7958A Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMR 600V AWM 21047

B3048A UL Instrumentation, 8 Triad 16+22AWG (7x24+7x30) Bare Copper, PVC Insulation E1 Colour Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES

B5502 Security and Sound Cable, Riser-CMR, 4-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

B82841

B123082A

B9841

B7961A

323-311-1601-B

B8777

B8723

RS-485, 1 Pair 24AWG (7x32) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Outer Jacket, CMP

DeviceBus® for ODVA DeviceNet™, 2 Pair 15+18AWG (19x27+19x30) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil® and OA Tinned Copper Braid(65%) Shield, PVC Inner Jacket, Aluminum Interlock Armour, PVC Outer Jacket, CM PLTC

RS-485, 1 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Outer Jacket, CM

Industrial Ethernet Cat 5e, 1 Quad (2 Pair) 22AWG (7x30) Tinned copper, PO Insulation , Overall Belfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CMG CMX-Outdoor

UL Instrumentation, 1 Triad 16AWG (7x24) Bare Copper, PVC Insulation E1 Colour Code, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES

Audio, Control and Instrument Cable, 3-Pair, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, individually shielded pairs (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket

Audio, Control and Instrument Cable, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, twisted pairs, individually Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket

B3076F Fieldbus, 1 Pair 18AWG (7x26) Tinned Copper, PP Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, Flexible SUN RES OIL RES, PLTC-ER, ITC-ER, CMX-Outdoor, CM

B123079A Profibus, 1 Pair 22AWG (Solid) Bare Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Inner Jacket, Aluminum Interlock Armour, PVC Outer Jacket, PLTC CM SUN RES Profibus DP

18

20

21

Industrial Playbook

Commercial Potted Transformers

Encapsulated Transformers

Encapsulated transformers, also known as epoxy-potted transformers, operate in harsh and humid conditions where general-purpose ventilated dry-type transformers are not suitable. The core and coils are encapsulated in a mixture of silica granules and resin compounds to prevent moisture and airborne contaminants from coming into contact with the transformer, and to eliminate corrosion and deterioration. Typically used in harsh environments such as the marine, petrochemical, mining and industrial sectors.

• Core and coils encapsulated in silica and resin mixture for protection in harsh environments

• From 3kVA to 50kVA single phase, and 3 to 150kVA three phase

• Available for single-phase units up to 25kVA and three phase units up to 45kVA

• NEMA 3R enclosure

• Prevents moisture, contaminants and corrosion for enhanced durability

• CSA certified

• 10-year limited warranty Mfr.’s

Networking

Building Robust, Reliable and Secure Networks to Support Digital Transformation

4 Align the skill sets to the application Wesco Solutions Process:

1 Work with clients to understand their needs

2 Assess the current situation and the future state

3 Wesco internal review of the project needs and goals

5 Build the best team to deliver success

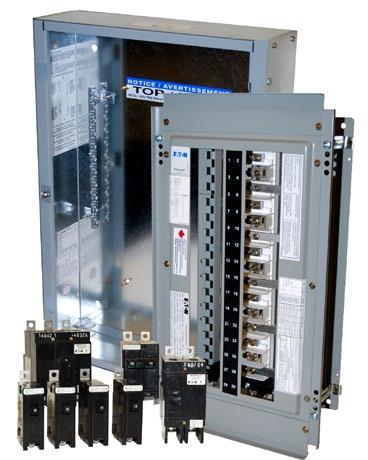

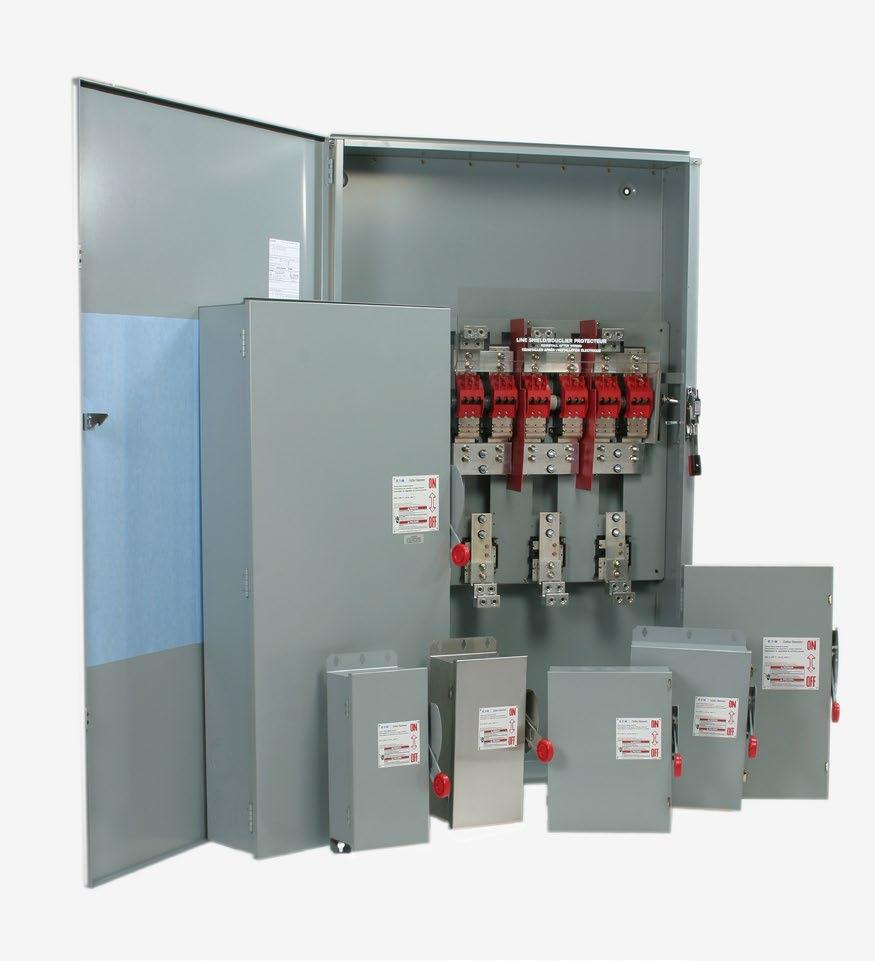

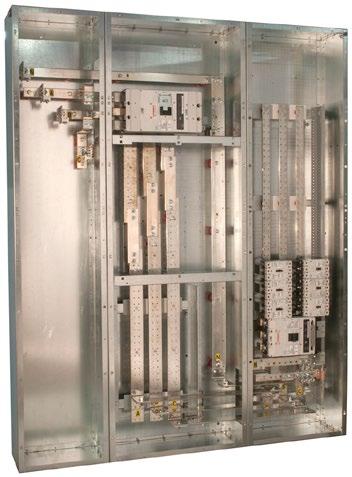

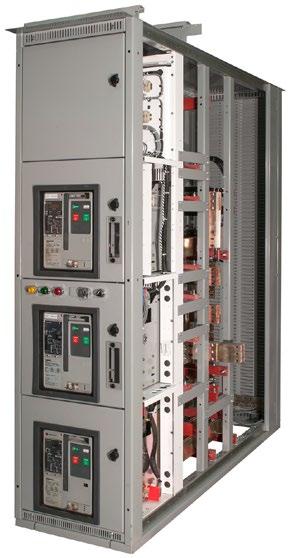

Eaton Crouse-Hinds and B-Line Series Distribution, Control and Lighting Equipment

Eaton Crouse-Hinds and B-Line series are names that stand for safety and reliability in the harshest of environments when power management is most critical. The Eaton Crouse-Hinds and B-Line series have grown into a leading name for a comprehensive portfolio of solutions for high consequence harsh and hazardous environments. Eaton Crouse-Hinds and B-Line series continues to be a leading manufacturer of reliable, efficient and safe distribution, control and lighting equipment.

Product Family Description

Synergex Distribution Panels

EBMX Clamped Enclosures

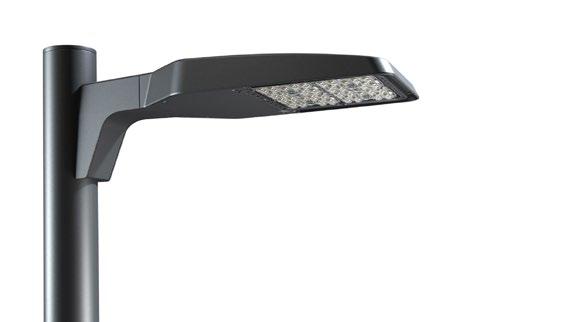

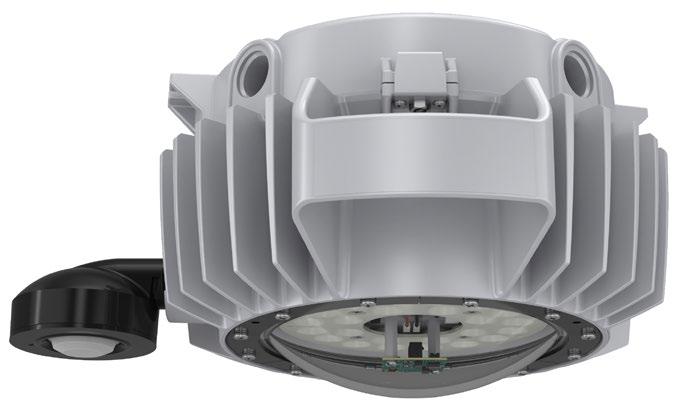

Champ LED Intelligent Lighting

EID Disconnects

Eaton Crouse-Hinds series SynergEX EZFlex panelboards provide overcurrent and short circuit protection for low voltage power, lighting and heat tracing applications in hazardous locations, such as refineries, chemical and petrochemical plants, mining, food processing facilities and corrosive and industrial processing facilities

Eaton Crouse-Hinds series clamped EBMX enclosures utilize patented clamping technology to reduce downtime, increase safety and lower maintenance costs

Combining advanced LED lighting design with communications and sensing technology and an intuitive app-based interface, you now have full lighting control at your fingertips, improving safety, maximizing energy savings and minimizing maintenance costs

Eaton Crouse-Hinds series EID explosionproof, compact disconnect switches provide an explosionproof disconnect switch assembly for hazardous area electrical systems. EIDs incorporate Eaton's high integrity manufacturing standards for reliability and safety in a compact, space-efficient enclosure AF Mine Signal Switches

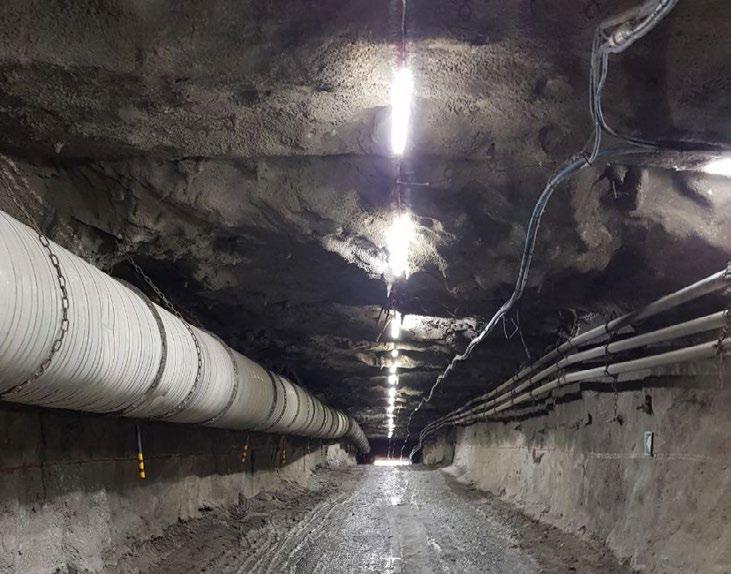

AFU, AFC, AFS, AFM and AFK mine signal switches from Eaton's Crouse-Hinds Division are used for signaling circuits or for manual remote control of magnetic motor starters in nonhazardous areas of mines or process industry facilities where a rugged enclosure is needed for protection from falling ore and other material or dripping water

Telescoping Safety Light Pole

Eaton Crouse-Hinds safety light pole increases safety and decreases labour costs associated with lighting installation and routine maintenance. Its innovative design allows for all work to safely take place on the platform or walkway, eliminating the need for portable ladders and fall protection equipment

Industrial and steel cable tray for all indoor and outdoor environments. Structural steel savings leverages the strength of the system, combined with long span capability and specialized splice plates to deliver a low total install cost. This global supply chain and global sales footprint provides you the support required to land more projects

Industrial Playbook

Aftermarket

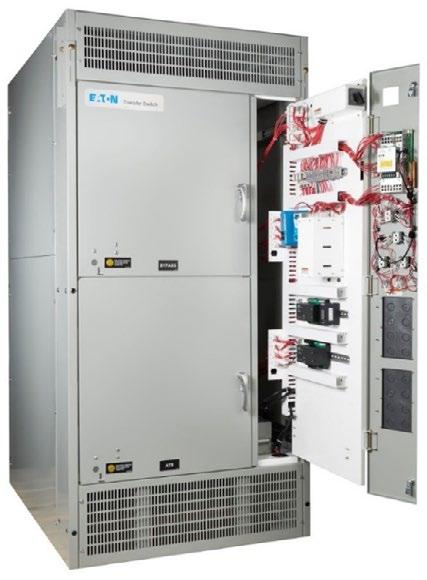

Switchgear Modernization

Eaton’s Switchgear Modernization offers cost-effective renovation to existing equipment with minimal power interruptions and without total replacement. These solutions extend the useful life of aging electrical power systems by providing safe and reliable reconditioning of existing equipment, as well as new replacement circuit breakers and other components that improve reliability and safety in existing power systems.

Reliable switchgear systems are vital for facility operations, but completely replacing these units can represent a significant capital investment. Upgrade to modern circuit protection to achieve dramatic operational improvement and extend the useful life of the equipment by up to 30 years.

• Offer services that exceed an electrical maintenance department’s bandwidth or expertise

• A suitable alternative to new switchgear in low space environments

• Easier to meet CapEx limitations (no need for funding for the removal of existing equipment or the purchase and installation of new equipment)

• Reduce downtime as total system replacement not required

• Eliminates long lead times for new switchgear

Services Description

LV-MV-Breaker/Switch Reconditioning — Class 1–3

Canadian Field Retrofit

Refurbish Existing Breakers; Maintain Original Equipment; Grandfather Existing Switchgear; Most Economical Over New Replacement; 3-Year Warranty; 8–16 Week Turnaround Compared to NEW

Bus in Canadian Field Retrofit -EESS Install; Grandfather Use of Existing Switchboard; 4–8 Hour EESS Install Time, Plus Prep; Economical Replacement with Modern MDS; 2-Year Warranty as They Are Installed by EESS; 32–36 Week ETA

Low Voltage Air Replacement (LVAR) Roll in Canadian Field Retrofit -EESS Install; Grandfather Use of Existing Switchboard; 2–4 Hour EESS Install Time, Plus Prep; Fastest Install Time, Replacement with Modern MDS; 2-Year Warranty as They Are Installed by EESS; 32–36 Week ETA

Medium Voltage Vacuum Retrofit (MVVR)

Bus in Canadian Field Retrofit -EESS Install; Grandfather Use of Existing Switchboard; 4–8 Hour EESS Install Time, Plus Prep; Replacement with Modern VCPW; 2-Year Warranty as They Are Installed by EESS; 32–36 Week ETA; Lighter Weight then Orginal Air Breaker

Power Systems Engineering

Eaton’s Power Systems Engineering offers advanced power studies (short circuit, cooordination, arc flash, harmonic), design engineering services for power distribution systems (including DERs and EVCI) and training (power systems and arc flash).

• Comprehensive portfolio of advanced power system studies for solving complex problems

• Offer complete solutions that meet the latest standards (NFPA 70E, CSA Z462, IEEE 1584, etc.)

• Utilization of leading electrical system analysis software (SKM, Cyme, E-TAP, EasyPower, PSSE etc.)

• Active on various standards committees for CSA and IEEE

• Can stamp in all provinces

Advanced Power Studies Studies Include Short Circuit, Cooordination, Arc Flash and Harmonic

Design Engineering Service

Engineering Services for Power Distribution Systems (including greenfield/brownfield design, DERs and EVCI)

Training Training Includes Power Systems and Arc Flash

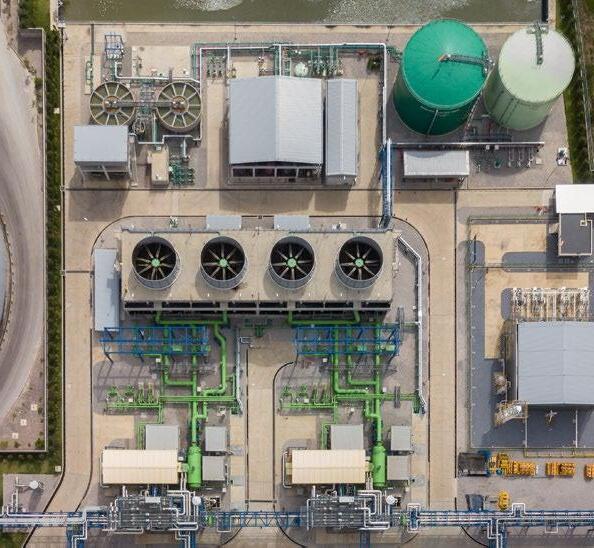

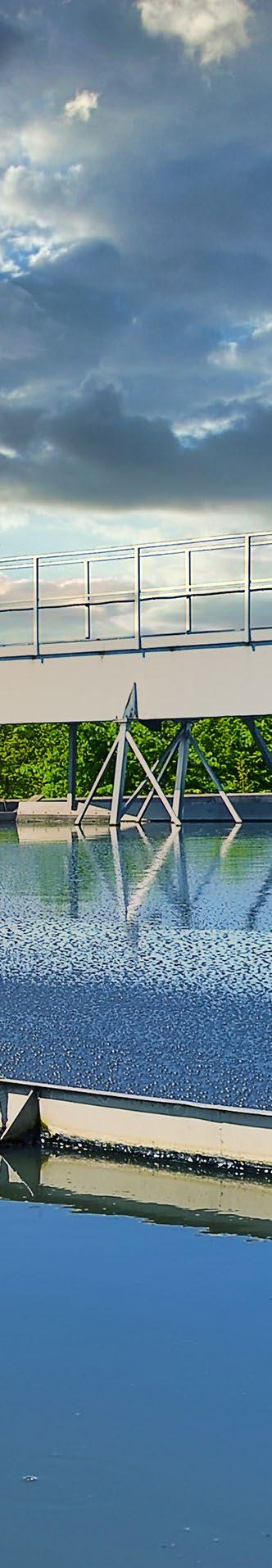

Water and Wastewater Solutions

Get reliability under the toughest conditions for any water and waste facility from Legrand. Absorb a low cost of ownership without sacrificing superior protection in plants most vulnerable to corrosion with Legrand water and waste solutions. They say electricity and water don’t mix, but in wastewater treatment facilities, it’s essential. In fact, a reliable source of power isn’t just important for workers, but for everyone in the community. Legrand is proud that many of its electrical solutions are used to ensure the reliable flow of electrical power and clean water.

Mfr.’s Model No. Description

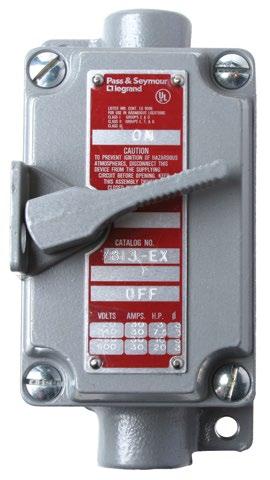

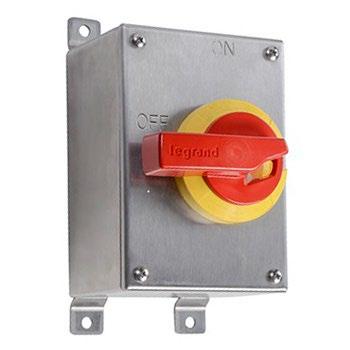

PSDS30 Stainless Steel Safety Switch, 30 Amps

PSDS60 Stainless Steel Safety Switch, 60 Amps

PS100SSAX Non-Fusible Safety Switch with Auxiliary Contact, 100A

PS460R7W Pin and Sleeve Watertight 60A 3ø 480V Receptacle

PS460P7W Pin and Sleeve Watertight 60A 3ø 480V Plug

PSBB601W Pin and Sleeve Watertight 60A Metal Back Box

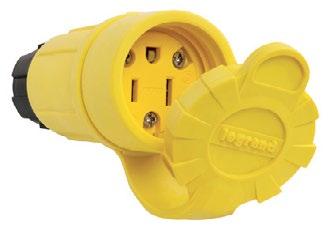

14W47 15A, 125V Watertight Straight Blade Plug, Yellow 15W47 15A, 125V Watertight Connector, Yellow

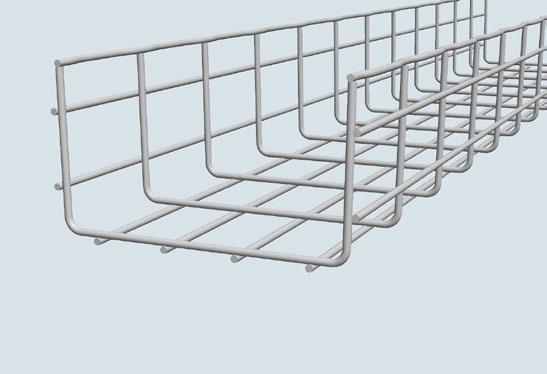

Cablofil Cable Tray Contact Your Local Wesco Representative

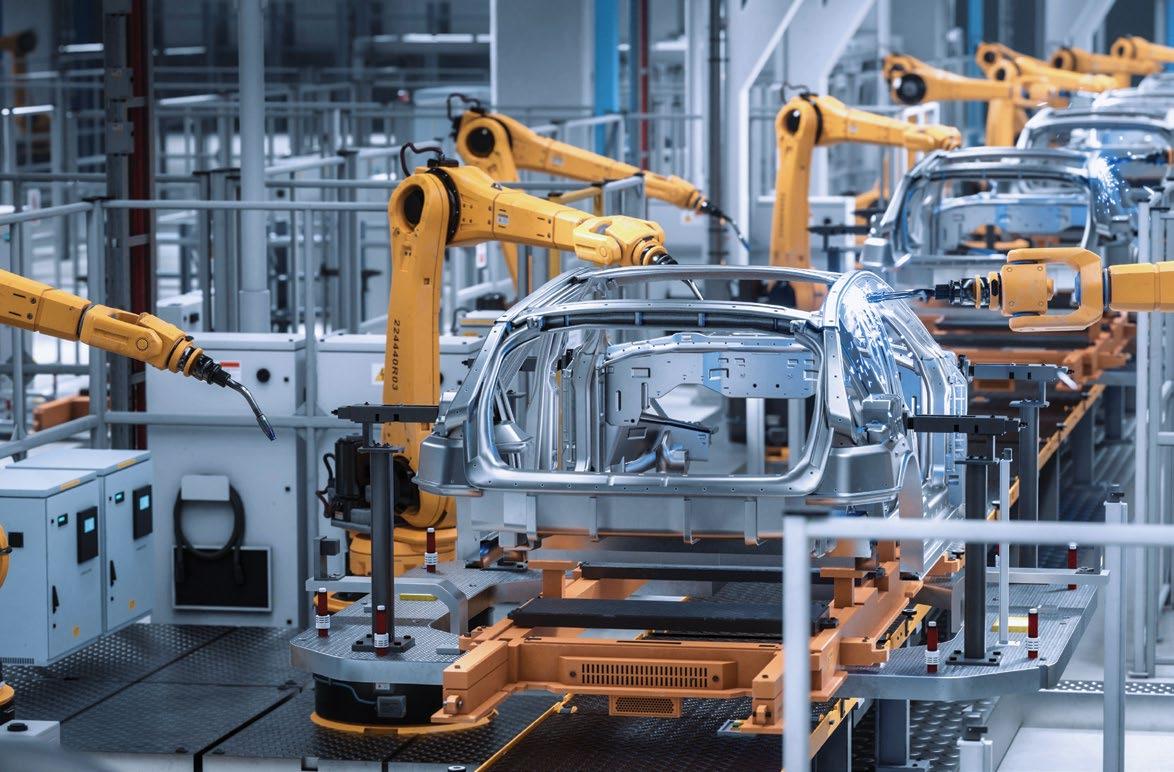

Complete and Comprehensive Solutions for OEMs

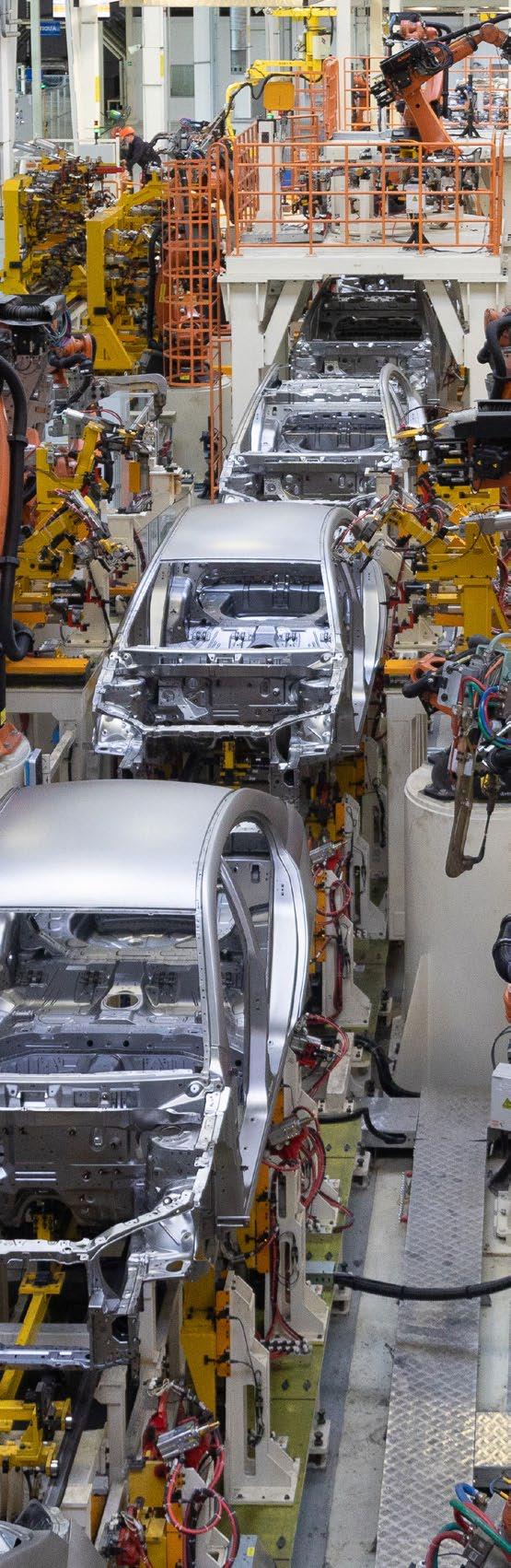

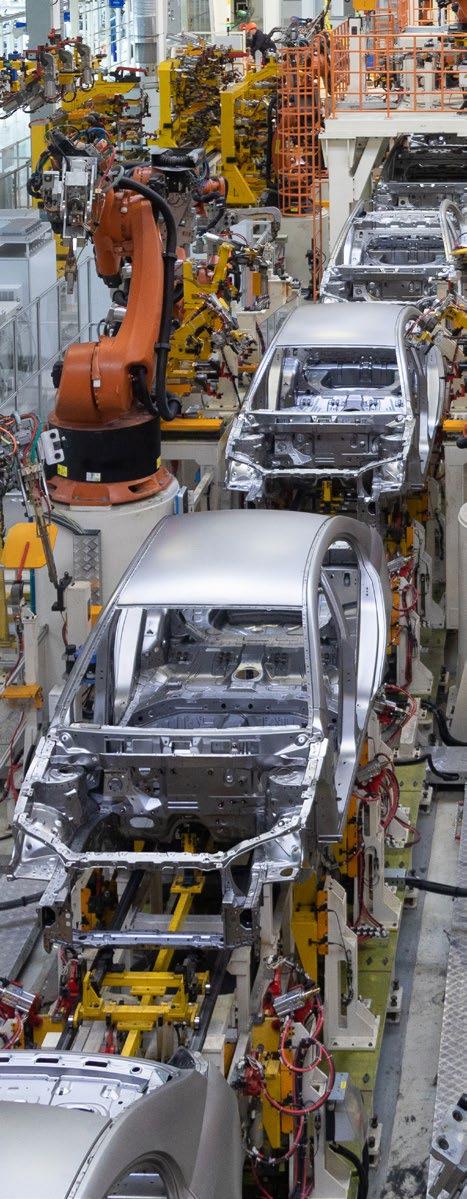

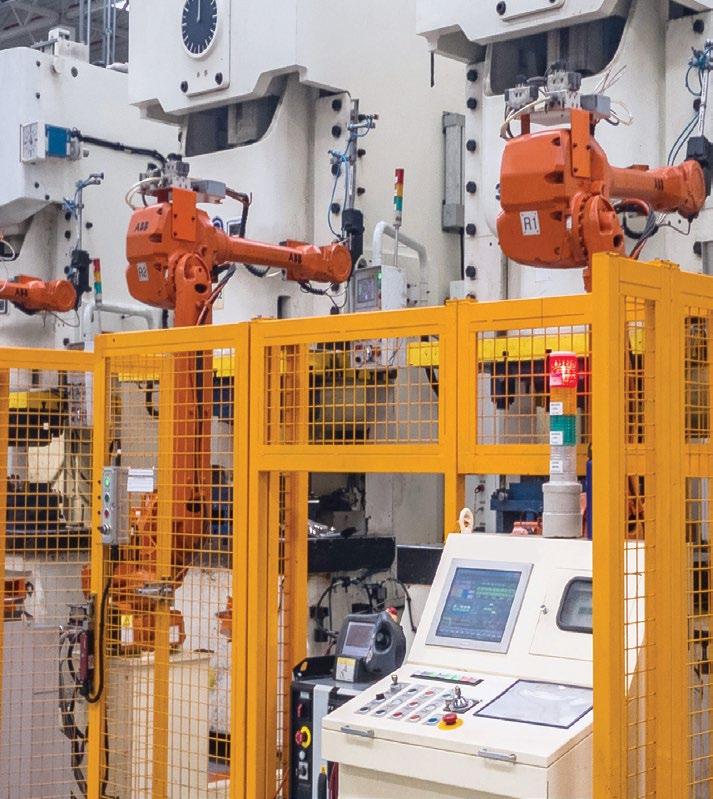

From the Production Line to Plant Floor and Facility

Every aspect of your manufacturing process is critical to the success of your organization. With decades of product specification and engineering experience, we’ve designed solutions for nearly every type of OEM customer.

Industrial Playbook

Electrical Connection and Protection Solutions by nVent

NVent believes safer systems ensure a more secure world. They connect and protect your customers with inventive electrical solutions. nVent designs, manufactures, markets, installs and services high-performance products and solutions for mission-critical equipment, buildings and essential processes. These solutions are helping build a more sustainable and electrified world. Their comprehensive portfolio of systems protection and electrical connections solutions dates back more than 100 years, and product brands include nVent CADDY, nVent ERICO, nVent ERIFLEX, and nVent ILSCO.

Product Description

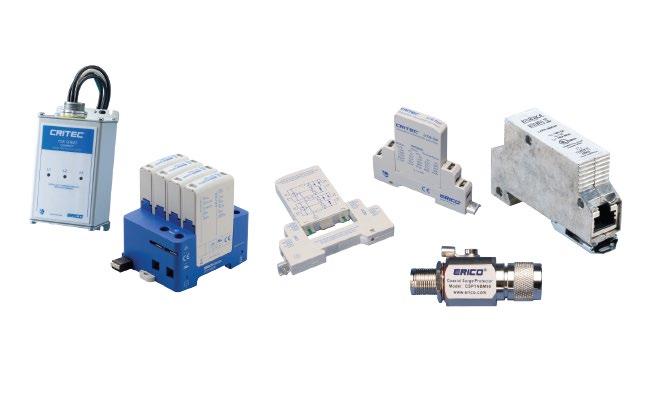

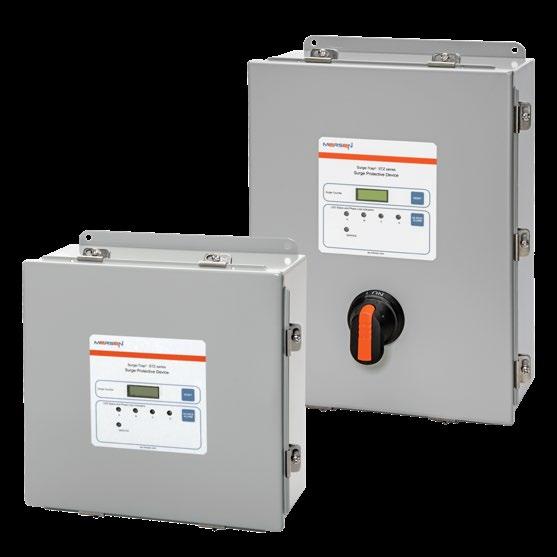

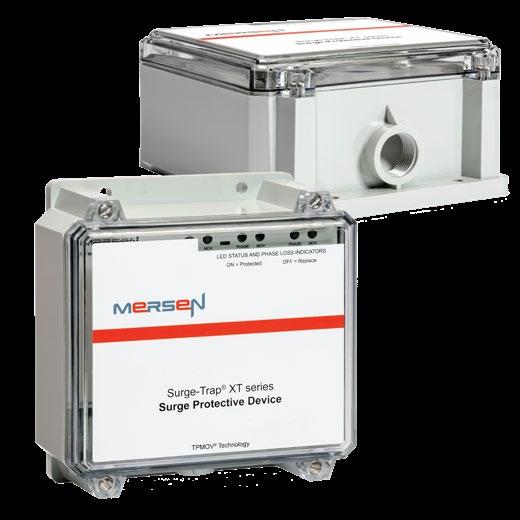

Surge Protection

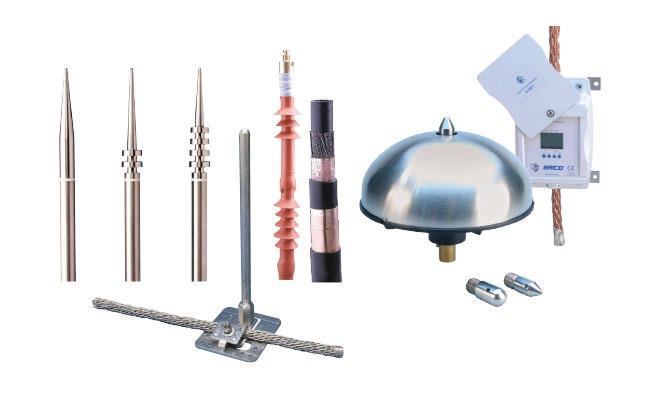

Lightning Protection

Lightning Protection System Design (LPSD) 4.0 Software

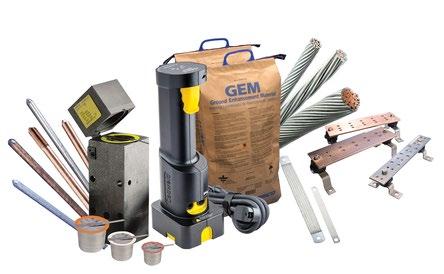

Grounding and Bonding Solutions

Full-Solution Takeoff Design Service

Cadweld Exothermic Welding Systems

Below Grade Grounding and Bonding Solutions

Grounding and Bonding Braids

SureCrimp Power Connection System

DIN Rail Surge Protector, TDX Series Panel Protector, LAN Series Surge Protector and Transient Surge Filter

Premium Proprietary System 3000, Conventional Protection System 2000 and Early Steamer Emitter (ESE) System 1000

nVent ERICO makes it easy for project owners in designing and selecting the right lightning protection system for their critical infrastructure project

nVent ERICO, a leading provider of grounding and bonding solutions, offers an extensive range of products and services for diverse electrical systems. Grounding and Bonding is crucial in ensuring the safety of personnel and equipment and in the reliability and performance of electrical systems

Create complete takeoffs for grounding and bonding, lightning protection or surge protection designs

Ignition Systems, Exothermic Connections, Welding Material and Tools and Accessories

Ground Rods, Ground Rod Connectors, Conductor to Conductor Conncectors and Ground Enhancement Material

MBJ Grounding and Bonding Braid, MBJYG Insulated Grounding and Bonding Braid, BJ Round Braid with Crimped Lugs and CPI Grounding and Bonding Stainless Steel Braid

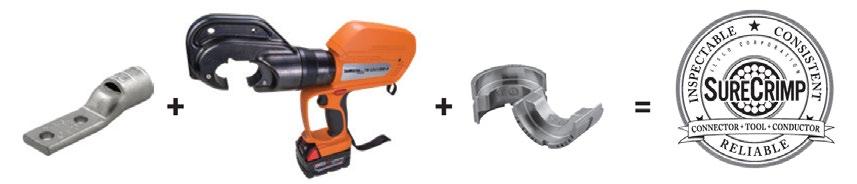

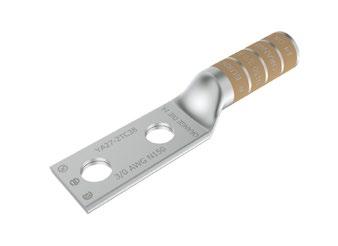

SureCrimp copper and aluminum compression lugs and sleeves, SureCrimp dies and TaskMaster Tools. Connections made with ILSCO Lug, ILSCO Die and TaskMaster Tool are guaranteed with a 5-year warranty

Seismic Bracing Solutions Clevis Hanger, Rigid Bracing, Cable Bracing and Rod Stiffeners

Turnkey Seismic Solution Customization Service

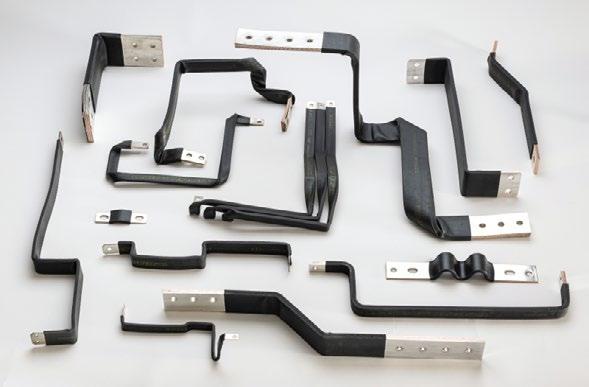

Flexibar Flexible Busbar Solutions

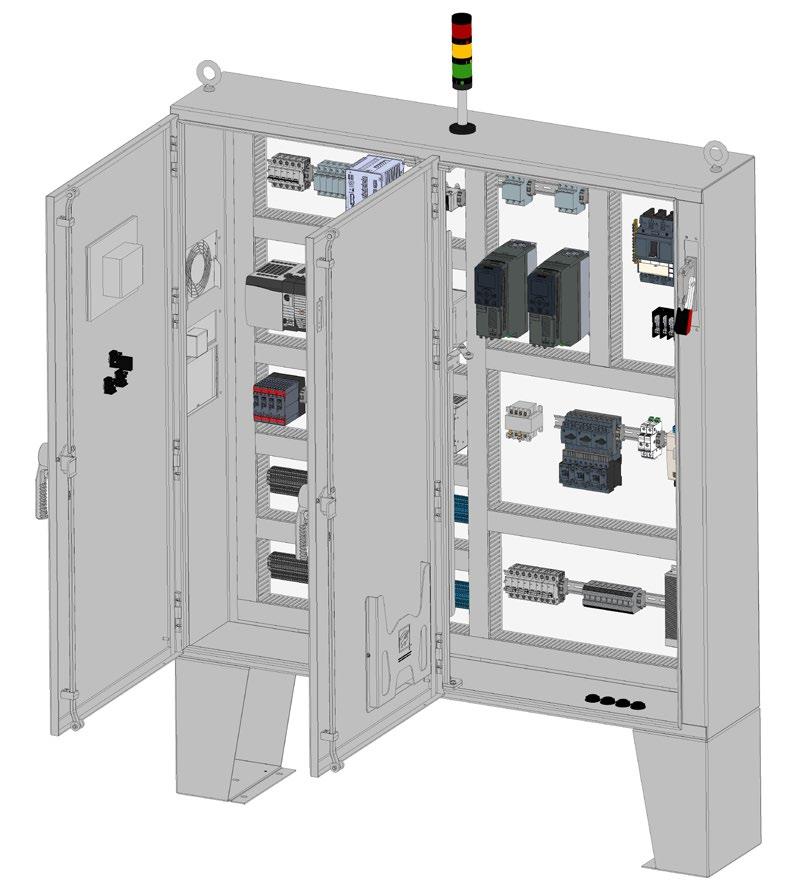

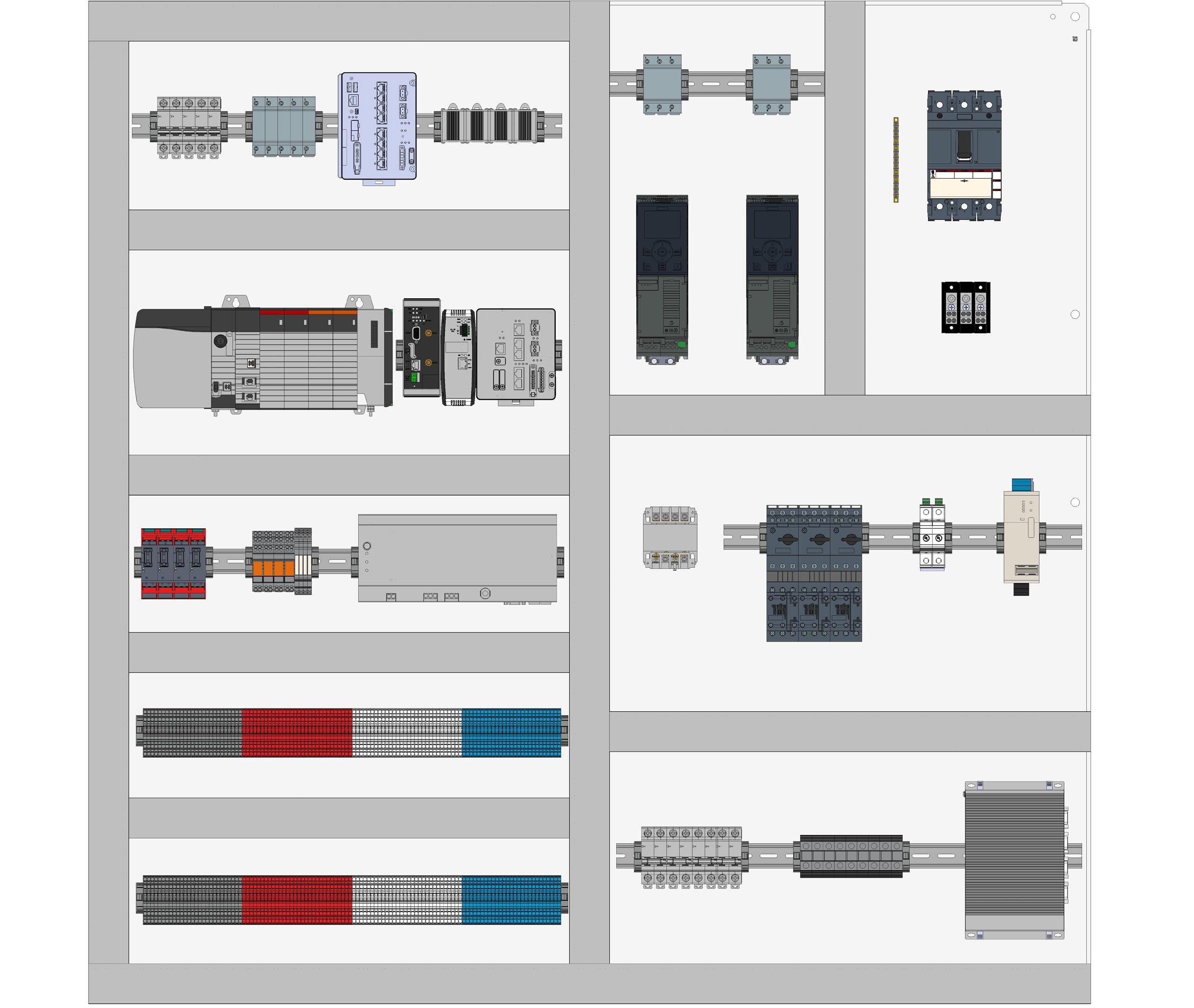

Online Configuration Software for Technical Panel Layout

Create a fully engineered, turnkey seismic solution customized to meet all code requirements

nVent ERIFLEX Advanced Technology Flexibar provides a unique, safe and flexible solution for electrical power conductors. Flexibar is low smoke, halogen-free and flame retardant (LSHFFR), suitable for high temperatures, improving safety for electrical equipment and people during installation and use

nVent ERIFLEX makes it easy to create a complete low-voltage busbar system, a distribution kit or a flexible connection. The interactive software guides users step-by-step through the creation and calculation of a project with easy-to-follow instructions available in 12 languages

Electrical In-Wall Solutions Heavy-Duty Rigid Box Support, Open Back Box, Perfect Trim Adjustable Mud Ring, All-in-One Stud Mount and First Means of Securement

Pyramid Equipment

Rooftop Supports

Pyramid Equipment Support Kit, Extension Frame and Crossbar

nVent CADDY, nVent ERICO, nVent ERIFLEX and nVent ILSCO

nVent provides a comprehensive portfolio of electrical and fastening solutions, grounded in innovation, reliability and safety. nVent CADDY offers installers efficient, safe and user-friendly fastening systems designed to optimize projects of every scale. With a legacy spanning a century, nVent ERICO provides grounding, bonding, lightning and surge protection, delivering dependable solutions for critical infrastructure. nVent ERIFLEX specializes in flexible, compact and highperformance low voltage electrical connections. Additionally, nVent ILSCO supplies trusted mechanical and compression connectors recognized for their durability and straightforward installation, setting industry benchmarks.

Product Description

Surge Protection

Lightning Protection

Lightning Protection System Design (LPSD) 4.0 Software

Grounding and Bonding Solutions

DIN Rail Surge Protector, TDX Series Panel Protector, LAN Series Surge Protector and Transient Surge Filter

Premium Proprietary System 3000, Conventional Protection System 2000 and Early Steamer Emitter (ESE) System 1000

nVent ERICO makes it easy for project owners in designing and selecting the right lightning protection system for their critical infrastructure project

nVent ERICO, a leading provider of grounding and bonding solutions, offers an extensive range of products and services for diverse electrical systems. Grounding and Bonding is crucial in ensuring the safety of personnel and equipment and in the reliability and performance of electrical systems

Electrical In-Wall Solutions Heavy Duty Rigid Box Support, Open Back Box, Perfect Trim Adjustable Mud Ring, All-in-One Stud Mount and First Means of Securement

Pyramid Equipment

Rooftop Supports

Pyramid Equipment Support Kit, Extension Frame and Crossbar

Seismic Bracing Solutions Clevis Hanger, Rigid Bracing, Cable Bracing and Rod Stiffeners

Below Grade Grounding and Bonding Solutions

Grounding and Bonding Braids

SureCrimp Power Connection System

WBT Performance

Cable Tray

Low Voltage Power and Distribution Blocks

CADDY Speed Link System

Ground Rods, Ground Rod Connectors, Conductor to Conductor Conncectors and Ground Enhancement Material

MBJ Grounding and Bonding Braid, MBJYG Insulated Grounding and Bonding Braid, BJ Round Braid with Crimped Lugs and CPI Grounding and Bonding Stainless Steel Braid

SureCrimp copper and aluminum compression lugs and sleeves, SureCrimp dies and TaskMaster Tools. Connections made with ILSCO Lug, ILSCO Die and TaskMaster Tool are guaranteed with a 5-year warranty

Continuous pathway solution to support cabling systems while providing an ideal foundation for datacom and electrical contractors

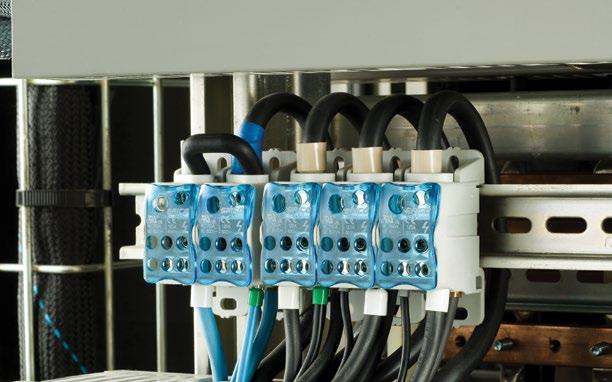

nVent ERIFLEX Power and Distribution Block is high-resistance low smoke, halogen-free and flame retardant. Blocks are compliant with the UL 94-V0 testing standard and Glow wire test 960°C

nVent CADDY Speed Link is a universal support system designed to reduce installation time. A cost-effective alternative to jack chain, threaded rod, strut and strut nuts, this innovative system has the versatility to meet virtually all your support needs

Industrial Playbook

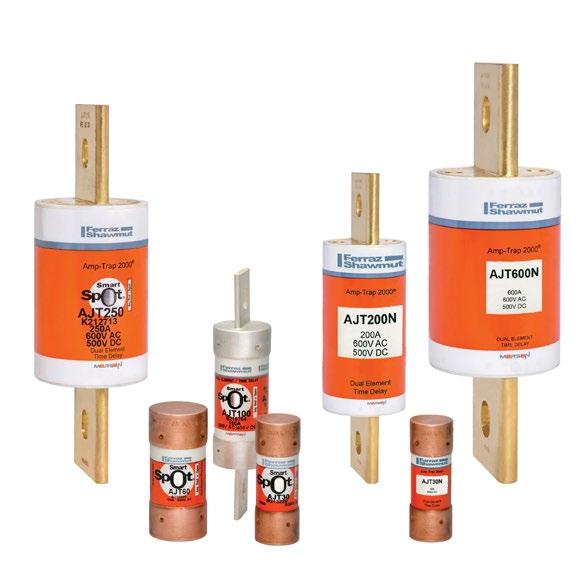

Mersen Class J Time Delay Amp-Trap 2000® Fuses

With advanced material technology, the AJT fuse provides IEC Type 2 No Damage protection to main, feeder and branch circuits, for all types of loads, yet they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability. AJT fuses provide overload and short circuit protection and are available 1-7A as non-indicating only and 8-600A with non-indicating and SmartSpot versions. For non-indicating, add suffix‚ “N” to catalog number. Ex.: AJT30 (indicating); AJT30N (non-indicating).

• Non-indicating or solid state SmartSpot visual blown fuse indicator

• Time-delay for motor starting and transformer inrush

• 300kA interrupting rating; self-certified, UL witnessed tests

• Extremely current-limiting for low peak let-thru current

• Recommended for Arc Flash energy reduction

• Small footprint requires less mounting space and allows smaller, more economical fuse blocks

• Easy 2-to-1 selectivity for prevention of nuisance shutdowns

• Unique Class J dimensions prevent replacement errors

Mfr.’s Model No. Description

AJT10 Fuse AJT; Class J; Time-delay 600 VAC 500 VDC 10A Ferrule SmartSpot®

AJT100 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 100A Blade SmartSpot®

AJT12 Fuse AJT; Class J; Time-delay 600 VAC 500 VDC 12A Ferrule SmartSpot®

AJT125 Fuse AJT; Class J; Time-delay 600 VAC 500 VDC 125A Blade SmartSpot®

AJT15 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 15A Ferrule SmartSpot®

AJT150 Fuse AJT; Class J; Time-delay 600 VAC 500 VDC 150A Blade SmartSpot®

AJT175 Fuse AJT; Class J; Time-delay 600 VAC 500 VDC 175A Blade SmartSpot®

AJT20 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 20A Ferrule SmartSpot®

AJT200 Fuse AJT; Class J; Time-delay 600 VAC 500 VDC 200A Blade SmartSpot®

AJT25 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 25A Ferrule SmartSpot®

AJT250 Fuse AJT; Class J; Time-delay 600 VAC 500 VDC 250A Blade SmartSpot®

AJT30 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 30A Ferrule SmartSpot®

AJT300 Fuse AJT; Class J; Time-delay 600 VAC 500 VDC 300A Blade SmartSpot®

AJT35 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 35A Ferrule SmartSpot®

AJT350 Fuse AJT; Class J; Time-delay 600 VAC 500 VDC 350A Blade SmartSpot®

AJT40 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 40A Ferrule SmartSpot®

AJT400 Fuse AJT; Class J; Time-delay 600 VAC 500 VDC 400A Blade SmartSpot®

AJT45 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 45A Ferrule SmartSpot®

AJT50 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 50A Ferrule SmartSpot®

AJT60 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 60A Ferrule SmartSpot®

AJT600 Fuse AJT; Class J; Time-delay 600 VAC 500 VDC 600A Blade SmartSpot®

AJT70 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 70A Blade SmartSpot®

AJT8 Fuse AJT; Class J; Time-delay 600 VAC 500 VDC 8A Ferrule SmartSpot®

AJT80 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 80A Blade SmartSpot®

AJT90 Fuse AJT; Class J; Time-delay 600 VAC 400 VDC 90A Blade SmartSpot®

8-600A: Non-indicating and SmartSpot® versions available. For non-indicating 8-600A fuses, add “N” to the catalog number. For information about 1-7A fuses, please contact

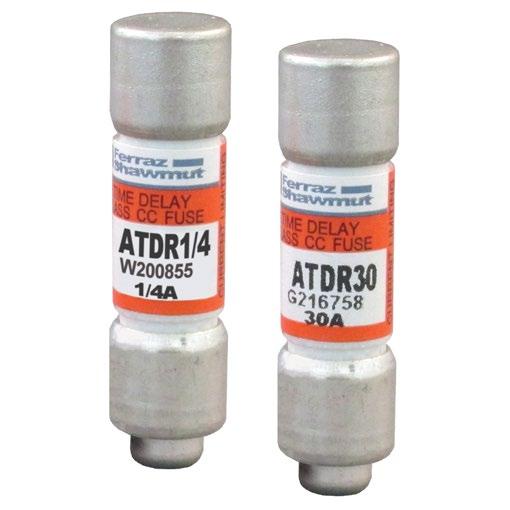

Mersen Class CC Fuses

Mersen’s Class CC High Interrupting Rating Time Delay and Fast Acting 13/32" x 1-1/2" compact fuses are ideal for protection of smaller motors, control circuits and control transformers up to 30A.

• Time-delay for motor starting inrush currents without nuisance opening

• Highly current-limiting for low peak let-thru current

• Improved cycling ability for frequent motor starts/stops without nuisance fuse opening

• Rejection-style design prevents replacement errors (when used with recommended fuse blocks)

• High-visibility orange label ensures instant brand recognition, simplifies replacement

• Metal-embossed date and catalog number for traceability and lasting identification

• Fibreglass body provides dimensional stability in harsh industrial settings

• High-grade silica filler ensures fast arc quenching and optimum current-limitation

• 13/32" x 1-1/2" dimensions

Mfr.’s

ATDR1 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 1A Ferrule

ATDR1/2 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 0.5A Ferrule

ATDR10 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 10A Ferrule

ATDR12 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 12A Ferrule

ATDR15 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 15A Ferrule

ATDR2 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 2A Ferrule

ATDR20 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 20A Ferrule

ATDR25 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 25A Ferrule

ATDR3 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 3A Ferrule

ATDR30 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 30A Ferrule

ATDR4 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 4A Ferrule

ATDR5 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 5A Ferrule

ATDR6 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 6A Ferrule

ATDR8 Fuse ATDR; Class CC; Time-Delay 600 VAC 300 VDC 8A Ferrule

ATQR1 Fuse ATQR; Class CC; Time-Delay 600 VAC 300 VDC 1A Ferrule

ATQR1/2 Fuse ATQR; Class CC; Time-Delay 600 VAC 300 VDC 0.5A Ferrule

ATQR1/4 Fuse ATQR; Class CC; Time-Delay 600 VAC 300 VDC 0.25A Ferrule

ATQR10 Fuse ATQR; Class CC; Time-Delay 600 VAC 300 VDC 10A Ferrule

ATQR15 Fuse ATQR; Class CC; Time-Delay 600 VAC 300 VDC 15A Ferrule

ATQR2 Fuse ATQR; Class CC; Time-Delay 600 VAC 300 VDC 2A Ferrule

ATQR20 Fuse ATQR; Class CC; Time-Delay 600 VAC 300 VDC 20A Ferrule

ATQR3 Fuse ATQR; Class CC; Time-Delay 600 VAC 300 VDC 3A Ferrule

ATQR5 Fuse ATQR; Class CC; Time-Delay 600 VAC 300 VDC 5A Ferrule

ATQR6/10 Fuse ATQR; Class CC; Time-Delay 600 VAC 300 VDC 0.6A Ferrule

Industrial Playbook

Mersen Class L Time Delay Fuses

Amp-Trap A4BY and A4BT Class L fuses have been a standard when it comes to protecting service entrance equipment, feeder circuits and circuit breakers. The A4BY is a 100% rated device and may be applied at continuous currents up to its ampere rating. The high interrupting rating of the AmpTrap A4BT current-limiting fuses makes it suitable for protecting mains, feeders and general circuits.

• Unique dimensions prevent replacement by other fuse classes

• Blade-stamped catalog numbers for permanent identification

• Glass melamine body and plated terminals provide superior reliability in harsh environments

A4BT1200 Fuse A4BT; Class L; Time-Delay 600 VAC 500 VDC 1200A Blade

A4BY1200 Fuse A4BY; Class L; Time-Delay 600 VAC 300 VDC 1200A Blade

A4BY1000 Fuse A4BY; Class L; Time-Delay 600 VAC 300 VDC 1000A Blade

A4BY900 Fuse A4BY; Class L; Time-Delay 600 VAC 300 VDC 900A Blade

A4BT800 Fuse A4BT; Class L; Time-Delay 600 VAC 500 VDC 800A Blade

A4BY800 Fuse A4BY; Class L; Time-Delay 600 VAC 300 VDC 800A Blade

A4BY700 Fuse A4BY; Class L; Time-Delay 600 VAC 300 VDC 700A Blade

Mersen Surge Protection Devices

Providing a wide range of circuit protection products in the industry means Mersen offers solutions for everyone from OEMs and panel builders to MROs and electrical contractors.

• Meet UL1449 5th Edition

• CSA C22.2, Type 1 SPD

• Up to 10 modes of protection

• Ideal for:

– Branch panel and/or individual equipment protection

– Commercial and industrial distribution panels

– Control panels

A4BY600 Fuse A4BY; Class L; Time-Delay 600 VAC 300 VDC 600A Blade Mfr.’s

STZ Series The Surge-Trap Type 1 STZ Series is Mersen’s premium-featured surge option to be installed at service entrance locations and for protection of the most critical loads

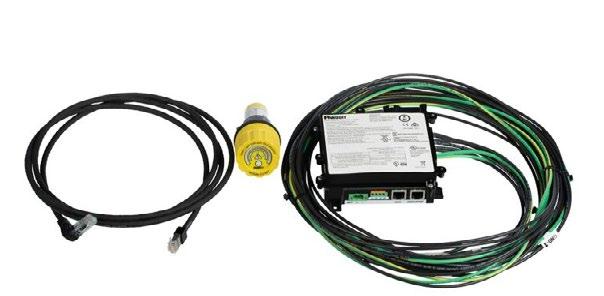

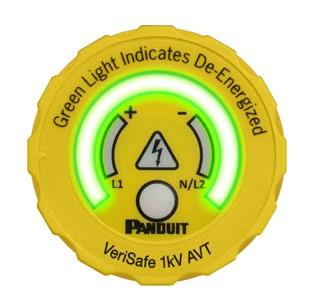

VeriSafe

Absence of Voltage Tester

The VeriSafe Absence of Voltage Tester simplifies the voltage testing process. With the push of a button, workers can quickly determine voltage status and see an active indication when the absence of voltage is confirmed. This provides a new and innovative way to safely, reliably and efficiently test for the absence of voltage without exposure to electrical hazards.

• Satisfies NFPA 70E-2024 120.6(7) Exception 1 and CSA Z462 4.2.5 (g) Exception 2

• No exposure to electrical hazards while testing, reducing human factors

• Minimizes risk and helps prevent electrical incidents

• Reduces voltage verification process time from 20 minutes to 10 seconds

• Automates and removes complexity of the Live-Dead-Live process

Mfr.’s Model No. Description

VS2-AVT-1PB-08

VS2-AVT-1PF-08

VS2-AVT-3PB-08

VS2-AVT-3PF-08

VS2-AVT-1IB

VS2-AVT-1IF

VS2-AVT-3IB

VS2-AVT-3IF

VS-AVT-C08-L10

VS-AVT-C02-L03

VeriSafe 1kV AVT, Single Phase/DC, 8' (2.4m) System Cable, 10' (3m) Sensor Leads, Battery Indicator

VeriSafe 1kV AVT, Single Phase/DC, 8' (2.4m) System Cable, 10’ (3m) Sensor Leads, Battery-Free Indicator

VeriSafe 1kV AVT, Three Phase AC, 8' (2.4m) System Cable, 10’ (3m) Sensor Leads, Battery Indicator

VeriSafe 1kV AVT, Three Phase AC, 8' (2.4m) System Cable, 10' (3m) Sensor Leads, Battery-Free Indicator

VeriSafe 1kV AVT, Single Phase, Battery Indicator Module

VeriSafe 1kV AVT, Three Phase, Battery Indicator Module

VeriSafe 1kV AVT, Single Phase, Battery-Free Indicator Module

VeriSafe 1kV AVT, Three Phase, Battery-Free Indicator Module

VeriSafe 600V AVT, Three Phase AC, 8' (2.4m) System Cable, 10' (3m), Battery Indicator

VeriSafe 600V AVT, Three Phase AC, 2' (0.6m) System Cable, 3' (0.9m), Battery Indicator

Data Access Ports

Circular Frame Design

Data access ports provide end users a safe and secure means to maintain and monitor performance of PLCs, VFDs and industrial networks. Integrated security features prevent the disruption of service or unwanted access by unauthorized personnel. Nonarc flash certified personnel can access networks within the panel, reducing cost, increasing efficiency and promoting overall safety. The new, innovative circular design allows for quick and easy installation.

• Circular frame design allows for the use of standard punch dies, providing cleaner installation and up to 50% in labour savings

• Modular design allows for interchangeable port layouts

• All 3" and 4" Data Access Ports are UL Listed to FTTA/FTTA7, allowing for installation without further evaluation

Industry-Specific Areas

Mfr.’s

DAP4BC-G0-5

4" Data Access Port, GFCI Outlet

DAP3BC-S3-5 3" Data Access Port, Simplex Outlet

DAP-3AMP-KIT 3 Amp Circuit Breaker Kit for Data Access Port

DAPI-SCHUKO Schuko Socket for Data Access Port

Industrial Playbook

Genlyte Solutions: Indoor Luminaires

Genlyte Solutions delivers smart, sustainable lighting for modern commercial environments. The advanced indoor and outdoor luminaires and connected systems enhance safety, visibility and operational efficiency, seamlessly integrating into intelligent building ecosystems.

• Durability and reliability in harsh conditions, including dust, vibration and temperature fluctuations

• Energy efficiency through advanced LED technology, reducing operational costs

• Smart control capabilities via Interact, enabling remote monitoring, scheduling and data-driven insights for maintenance and energy usage

• Visual comfort and uniformity, improving worker safety and productivity

Selectable Troffer LED (DSRT)

Product Name Description

Selectable Troffer LED (DSRT)

FluxPanel Selectable LED (SBP)

FluxGrid Gen2

Recessed LED

FluxCurv

Recessed LED

NatureConnect

Skylight Gen3

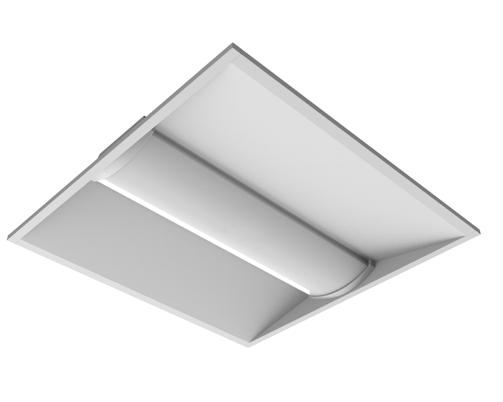

The DSRT Selectable Troffer delivers three lumen and CCT options in one. Ideal for offices, schools, healthcare and retail

The Day-Brite/CFI Selectable Backlit Panel offers 3 lumen/CCT settings per size, ideal for recessed or surface mounting in offices, schools, healthcare and retail

FluxGrid Gen 2 offers architectural appeal, two lens options, emergency backup and below-ceiling access, ideal for diverse recessed lighting applications

Soft, curved light with high visual comfort, ideal for offices, institutions and healthcare where style, control and efficiency matter

EvoKit Click Sleek, efficient LED retrofit with low waste and easy install

ModuLyte LED

SDS LED

Selectable Strip

NWL LED Wraparound

HCY LED High Bay

FCY LED High Bay

FHG LED High Bay

VTS LED Sealed Strip

NatureConnect Skylight Gen3

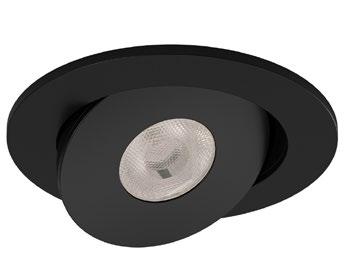

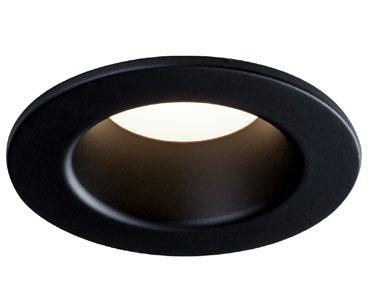

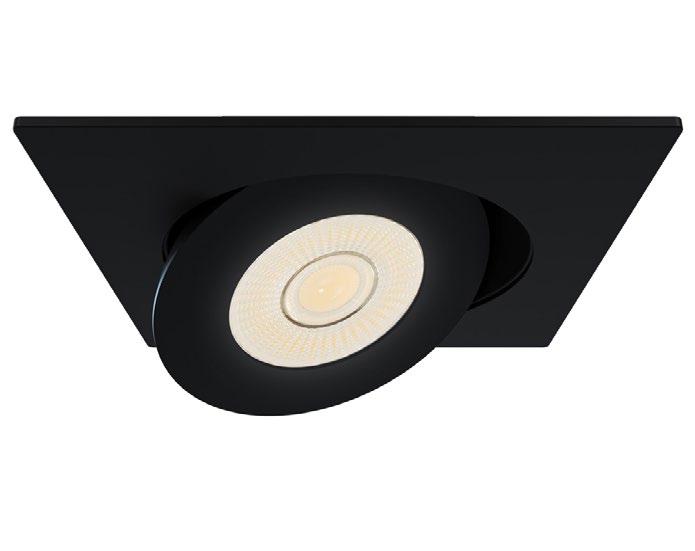

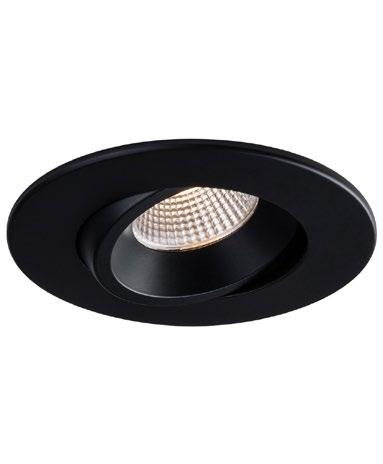

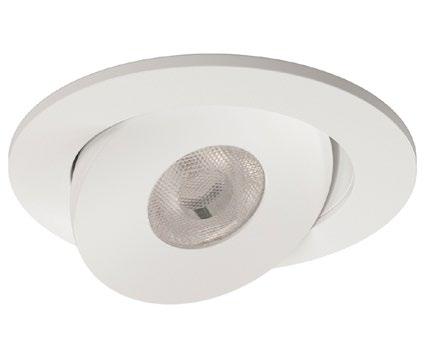

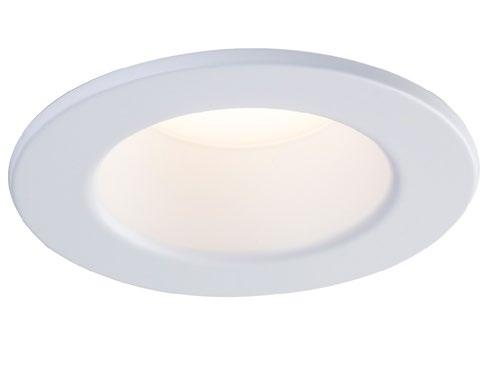

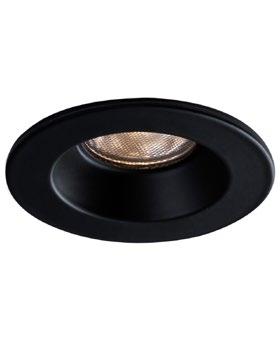

ModuLyte 4", 6" and 8" LED downlights offer field-flexible solutions for new, remodel or retrofit installations

Day-Brite/CFI SDS Strip LED Selectable is an economical, lumen and CCT field selectable luminaire option with occupancy sensor ideal for commercial or residential applications

Day-Brite/CFI NWL is a slim, surface-mount LED wrap with an occupancy sensor, selectable output and clean, modern design for versatile use

The Day-Brite/CFI HCY sealed high bay is an ideal choice where functional high bay lighting is needed with an aesthetic appeal. The round form factor lends itself to retail and institutional applications

Day-Brite/CFI FCY value high bay is an economical combination of solid performance and quality construction. This product is ideally suited for use in mid- to high-ceiling applications, including industrial, warehouses, gymnasiums and big box retail

Day-Brite/CFI FHG LED high bay provides versatility in form and function. With a wide range of lumen packages and accessories available, this luminaire can be used in many different applications, ranging from warehouses and manufacturing facilities to retail outlets

Day-Brite/CFI VTS Sealed strip is a durable wet location-rated product designed for use in both indoor and outdoor environments. This luminaire offers rugged reliability, selectability and the efficiency your successful business requires

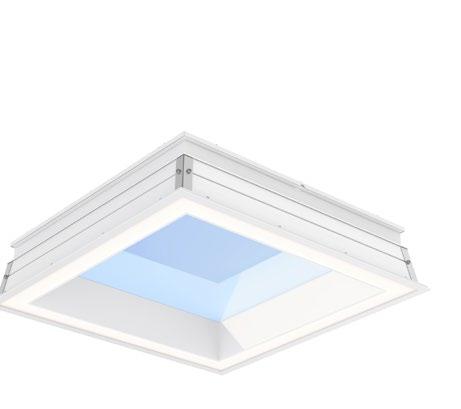

NatureConnect skylights mimic real daylight and sky views, enhancing comfort, focus and spatial perception with smart LED technology

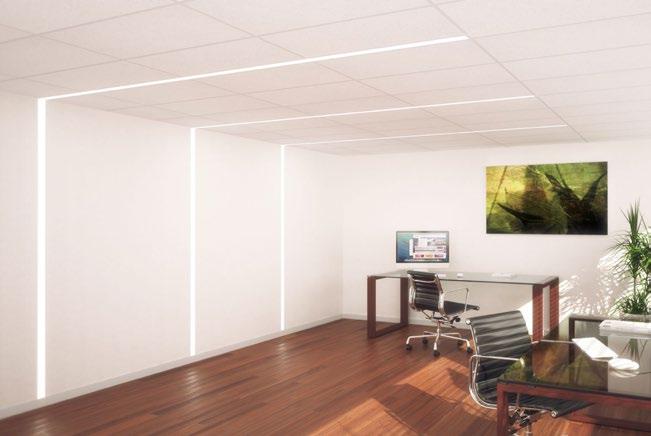

TruGroove Recessed TruGroove recessed delivers unrivaled performance and a truly innovative design, making a definitive statement in any architectural space. TruGroove recessed corners provide endless opportunities for creative freedom with geometric patterns in walls and ceilings

Genlyte Solutions: Outdoor Luminaires

Genlyte Solutions delivers smart, sustainable lighting for modern commercial environments. The advanced indoor and outdoor luminaires and connected systems enhance safety, visibility, and operational efficiency, seamlessly integrating into intelligent building ecosystems.

• Rugged construction suitable for extreme weather and industrial wear

• High lumen output for enhanced perimeter visibility and security

• Smart connectivity with Interact, allowing for adaptive lighting, fault detection and integration with other building systems

• Sustainable options like SolarForm, supporting off-grid applications and reducing carbon footprint

Product Name Description

Wall Pack DualSelect

Gardco Square Poles

OptiForm

OptiForm Solar

GeoForm Wedge

Medium LED Wall

Sconce GWM

SlimFlood LED

Dual Select

RoadFocus

LED Cobra

Head — Small (RFS)

RoadFocus Plus Solar

Stonco Keene LED Wall Pack dual select family features energy-saving LED technology ideal for wallmounted applications. The Wall pack dual select is available in two sizes to accommodate multiple mounting heights

The Gardco SSA Straight Square Aluminum consists of a single piece of extruded 6000 series aluminum, providing excellent strength and integrity. The poles are finished with an electrostatically applied, thermally cured polyester powdercoat. All poles include base cover, hand hole, ground lug and top cap. Anchor bolts and templates are ordered as a separate accessory

Gardco OptiForm site and area luminaires are available in three sizes: small, medium and large. Featuring the latest in LED technology, OptiForm achieves up to 192 lumens per watt. Eleven optical distributions are available, suitable for a range of outdoor lighting applications

Gardco OptiForm solar is an off-grid smart solar-powered system that includes a luminaire featuring the latest in LED technology, post-top PV panel, batteries and charge controller. The solution offers multiple lumen packages with industry-leading efficacy, a complete array of optical distributions, ensuring the right fit for any type of site and area applications

GeoForm LED wall sconces offer six distinct luminaire shapes to pair with buildings large and small, modern or traditional. Designed around the latest in LED technology, these sconces are small in scale, featuring a minimalistic daytime aesthetic. At night, GeoForm sconces combine best-in-class pathway lighting with specialized optics to highlight any façade

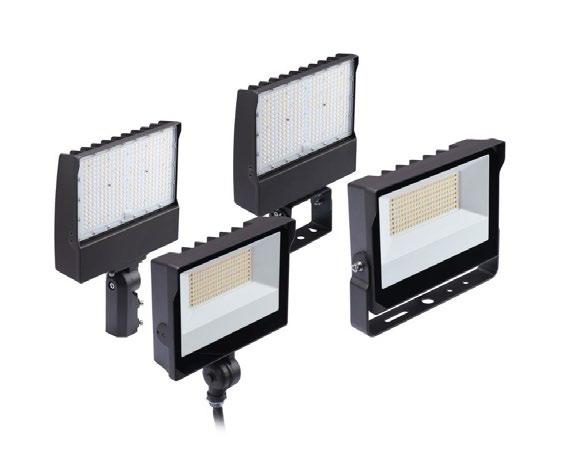

The SlimFlood dual select offers energy-saving LED technology along with field-selectable colour and wattage. Versatile and stylish with seven different sizes to choose from, providing application flexibility for ground, wall or pole mounting installations. Ideal for sign lighting, building facades, security lighting and general purpose floodlighting applications

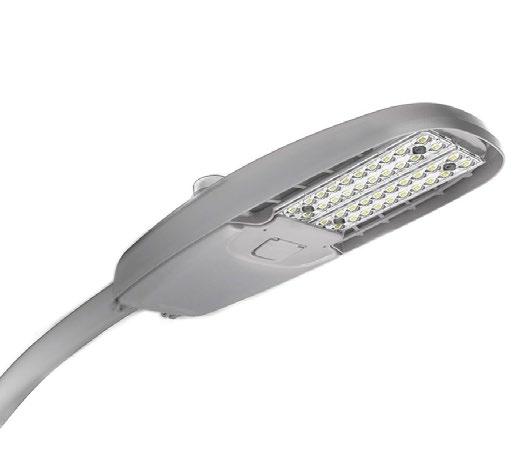

Lumec RoadFocus LED cobra head luminaires feature a sleek design that provides seamless replacement of existing HID luminaires. RoadFocus is available in three sizes, offers multiple lumen packages and a complete array of optical distributions, making it an outstanding solution for all types of roadway applications. Includes Service Tag, innovative way to provide assistance throughout the life of the product

Lumec RoadFocus Plus smart solar-powered system is an off-grid smart system featuring a unique and patented design luminaire, post-top PV panel, batteries and charge controller. The solution offers multiple lumen packages with industry-leading efficacy, a complete array of optical distributions, ensuring the right fit for any type of roadway application. The solar subsystem comes with a pre-tilted bracket for optimum energy collection based on the location, system configuration and wind speed

Industrial Playbook

Rigid Conduit PVC Fittings

Westlake Pipe & Fittings’ Rigid PVC Conduit Fittings are designed to meet the demands of utility and communication line, industrial and residential, transportation system, water and wastewater, marina and mine applications.

These PVC fittings can be used in exposed, concrete encased and underground environments, resisting acids, alkalis, salt solutions and most other chemicals. Rigid PVC Conduit has achieved sunlight resistance as per the requirements of the Electrical Code.

• Saves Labour — Rigid PVC Conduit pipe and fittings are easy to install, cut and joint

• Easy Wire Pulls — The conduit’s smooth interior surface reduces friction and prevents damage to wires when pulling wire and conductors for long runs and even through 90° bends

• Lightweight Materials — Rigid PVC Conduit is easier to move and handle because it is approximately one-fifth the weight of steel and half the weight of aluminum

• Simplifies Direct Burial — Rigid PVC Conduit does not require additional protection for direct burial installations according to the Canadian Electrical Code (CEC) and the National Electrical Code (NEC). Normal construction practices should be followed for trenching and backfill operations

• Non-Conductive — Rigid PVC Conduit is non-conductive

• Long Life — Rigid PVC Conduit and fittings resist acids, alkalis, salt solutions and most other chemicals (refer to the Chemical Resistance Guide for detailed information). There is no risk of corrosion when exposed to naturally corrosive soil conditions, electrochemical or galvanic environments. Rigid PVC Conduit has achieved sunlight resistance as per the requirements of the Electrical Code

• FT-4 Rating — Rigid PVC Conduit pipe has an FT-4 Rating and can be used in non-combustible construction as per Part 3 of the National Building Code of Canada (NBC)

Note: Multiple fitting configurations are available to accommodate various installation requirements and system designs.

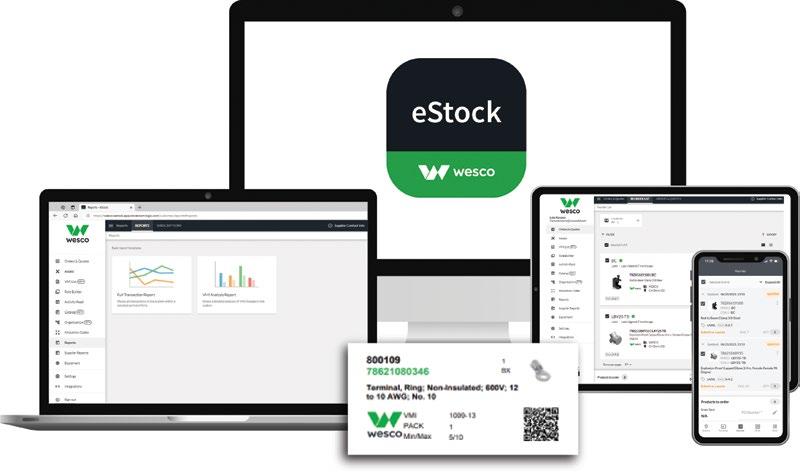

Effectively Manage Your Critical Inventory With eStock

A dynamic digital solution provides vision across the parts and inventory that keeps your business up and running smoothly.

Powerful Software to Manage What Matters

Labour, delivery and procurement challenges impact every business in different ways. Wesco’s eStock platform is a robust inventory management system designed with one goal in mind: keeping your business running smoothly and profitably.

eStock: Powering Progress for Tomorrow

• Access your storeroom multiple ways

• Flexible design can be implemented to support and enhance your current inventory management process or as part of a Wesco designed vendor-managed inventory (VMI) solution

• Off-line mode available

• Web- and app-based software designed to deliver full visibility into the flow and replenishment of your critical inventory — iOS and Android compatible

Innovative Features

• Automated and customizable reporting

• Asset management

• Checkout software

• Checkout items to job/allocation codes

• Cost-savings analysis

• Dynamic reporting capabilities

• Inventory/asset control

• Inventory analysis and optimization via machine learning

• Multi-location tracking and traceability

• Over 300 features

• Portals and dashboards

• Print scannable labels

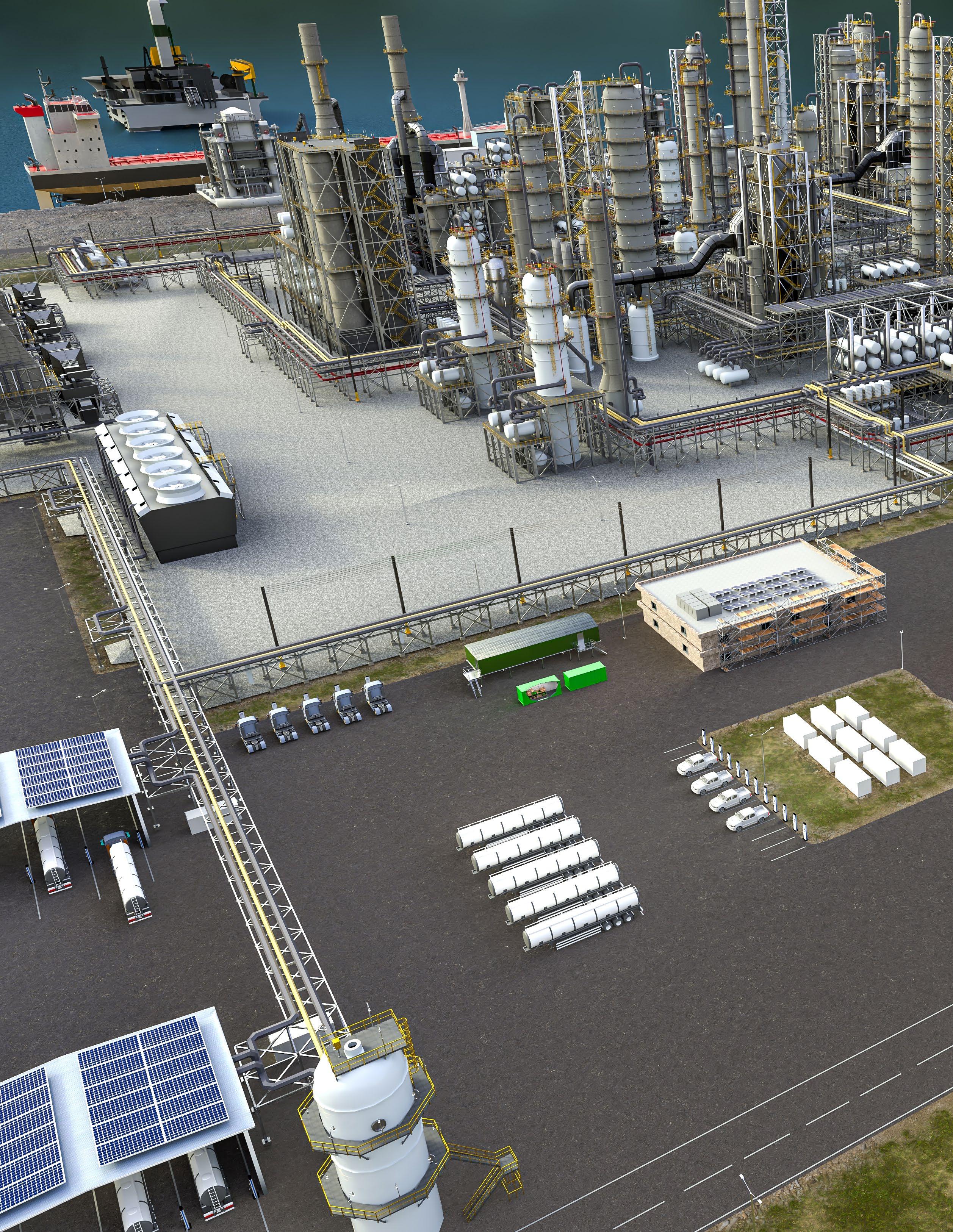

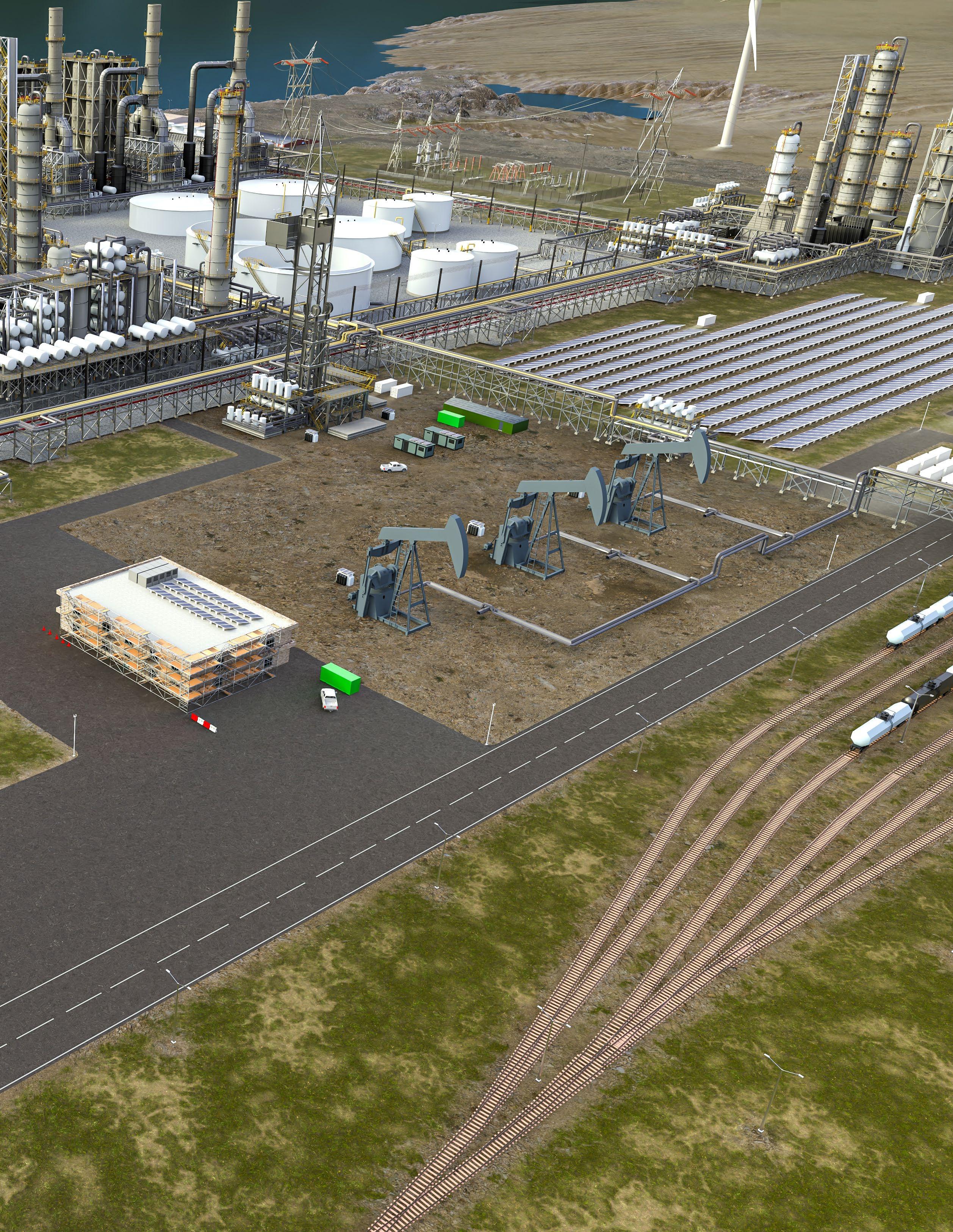

Energy Generation

Pump Jacks and Land Drilling Rig

Separator Station

Electrical Building and Micro Data Centre

Storage Tanks

Refining Facilities

Transportation and Storage

Control and Administration Building

Cooling Towers

Processing Plants

Pump Compressor Stations

Docking Station

Offshore Rig and Control Room

EV Chargers and Battery Energy Storage

Material Management Solutions

Wire and Cable Enhancement Services

Industrial Playbook

3M™ Three-Conductor Inline Splice Kit

• Quick and easy installation

• Designed for compact size and optimal distribution of electrical field

• Very good high- and low-temperature performance

• All splices are production tested

Mfr.’s Model No. Description

5 kV Splice

• No heat or special tools required

• Each kit contains: 3M™ Cold Shrink Splice System, 3M™ Water Stop System, 3M™ Armour Continuing System and instructions

5753 3M™ Cold Shrink Inline Splice Kit 5753 with Scotchcast™ Resin 2131

5751 3M™ Cold Shrink Inline Splice Kit 5751 with Scotchcast™ Resin 2131 5752 3M™ Cold Shrink Inline Splice Kit 5752 with Scotchcast™ Resin 2131

5551-3C-AC 3M™ Cold Shrink Splice Kit 5551-3C-AC

TS-5KV-3C-600-750 3M™ Cold Shrink QS-III Splice Kit, Shielded Cable, 5 kV, 600–750 kcmil

TS-5KV-3C-4/0-500 3M™ Three-Conductor Inline Splice Kit, Shielded Armoured and Non-Armoured Cable, 5/8 kV, 4/0 AWG–500 kcmil Stranded

TS-5KVU-3C-3-300 3M™ Three-Conductor Inline Splice Kit, 5/8 kV, Non-Shielded Armoured and Non-Armoured Solid Dielectric, 3 AWG–300 kcmil Stranded

TS-5KVU-3C-350-1000 3M™ Three-Conductor Inline Splice Kit, Non-Shielded Armoured and Non-Armoured Cable, 5/8 kV, 350–1000 kcmil Stranded

TS-5KVU-3C-8-4 3M™ Three-Conductor Inline Splice Kit, Non-Shielded Armoured and Non-Armoured Cable, 5/8 kV, 8–4 AWG Stranded

TS-5KV-3C-#2-3/0 3M™ Three-Conductor Inline Splice Kit, Shielded Armoured and Non-Armoured Cable, 5/8 kV, 2–3/0 AWG Stranded

15 kV Splice

5776A-MT 3M™ Cold Shrink QS-III Splice Kit, Shielded Armoured and Non-Armoured Cable, 15 kV, 0.84–1.38 in (21.3–35.1 mm) O.D., 4/0 AWG–500 kcmil (95–240 mm²)

5775A-MT 3M™ QS-III Cold Shrink Splice Kit

5777A-MT

3M™ Cold Shrink QS-III Splice Kit, Shielded Armoured and Non-Armoured Cable, 15 kV, 1.04–1.7 in (26.4–43.2 mm) O.D., 350–750 kcmil (185–325 mm²)

TS-15KV-3C-350-750 3M™ Cold Shrink QS-III Three-Conductor Splice Kit, Shielded Armoured and Non-Armoured Cable, 15 kV, 350-750 kcmil Stranded

TS-15KV-3C-4/0-500 3M™ Cold Shrink QS-III Three-Conductor Splice Kit, Shielded Armoured and Non-Armoured Cable, 15 kV, 4/0 AWG–500 kcmil Stranded

TS-15KV-3C-2-4/0 3M™ Cold Shrink QS-III Three-Conductor Splice Kit, Shielded Armoured and Non-Armoured Cable, 15 kV, 2–4/0 AWG Stranded 25 kV Splice

5786A-MT 3M™ Cold Shrink QS-III Splice Kit, Shielded Armoured and Non-Armoured Cable, 25/28 kV, 0.84 in–1.36 in (21.3–34.5 mm) O.D., 1 AWG–250 kcmil (50–120 mm²)

5787A-MT 3M™ Cold Shrink QS-III Splice Kit, Shielded Armoured and Non-Armoured Cable, 25/28 kV, 0.84 in–1.36 in (21.3–34.5 mm) O.D., 1 AWG–250 kcmil (50–120 mm²)

5788A-MT 3M™ Cold Shrink QS-III Splice Kit, Shielded Armoured and Non-Armoured Cable, 25/28 kV, 0.84 in–1.36 in (21.3–34.5 mm) O.D., 1 AWG–250 kcmil (50–120 mm²)

TS-25KV-3C-1-250 3M™ Cold Shrink QS-III Splice Kit, Shielded Armoured and Non-Armoured Cable, 25/28 kV, 0.84 in–1.36 in (21.3–34.5 mm) O.D., 1 AWG–250 kcmil (50–120 mm²)

TS-25KV-3C-250-750 3M™ Cold Shrink QS-III Splice Kit, Shielded Armoured and Non-Armoured Cable, 25/28 kV, 0.84 in–1.36 in (21.3–34.5 mm) O.D., 1 AWG–250 kcmil (50–120 mm²) 35 kv Splice

5797A-MT 3M™ Cold Shrink QS-III Splice Kit, Shielded Armoured and Non-Armoured Cable, 35 kV, 1.07–1.7 in (27.2–43.2 mm) O.D., 1/0 AWG–350 kcmil (60–185 mm²)

5798A-MT 3M™ Cold Shrink QS-III Silicone Rubber Inline Splice Kit

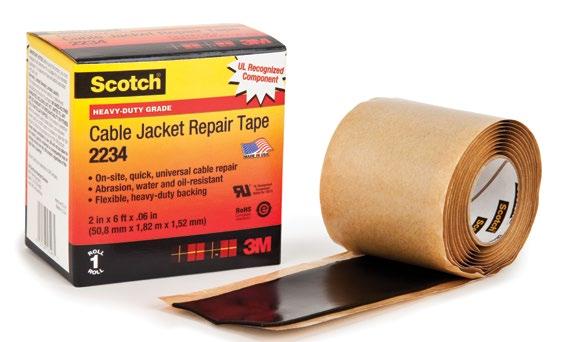

3M Jacket Repair Solutions

• Helps repair and protect damaged low-, medium- and high-voltage

• Quick and easy installation

• Excellent abrasion resistance

• Resistant to heat, oil, ozone, UV and other environmental effects

Mfr.’s Model No. Description

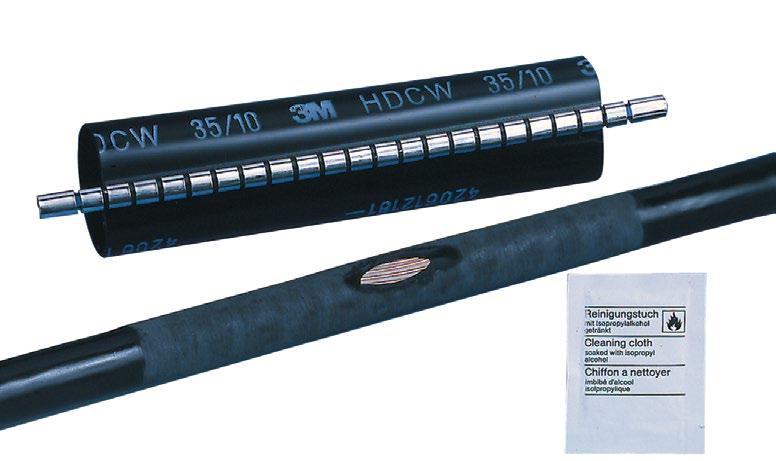

3M™ Wraparound Heat Shrink Cable Repair Sleeve, HDCW

HDCW 35/10-250 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 15–35 kV, 9.8 in (250 mm)

HDCW 35/10-500 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 35 mm/10 mm–500 mm

HDCW 35/10-750 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 29.5 in (750 mm)

HDCW 35/10-1000 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 1–35 kV, 39.4 in (1000 mm)

HDCW 35/10-1200 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 47.2 in (1200 mm)

HDCW 55/15-250 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 1–35 kV, 9.8 in (250 mm)

HDCW 55/15-500 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 19.7 in (500 mm)

HDCW 55/15-750 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 29.5 in (750 mm)

HDCW 55/15-1000 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 39.4 in (1000 mm)

HDCW 55/15-1200 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 47.2 in (1200 mm)

HDCW 80/25-500 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 19.7 in (500 mm)

HDCW 80/25-750 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 29.5 in (750 mm)

HDCW 80/25-1200 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 47.2 in (1200 mm)

HDCW 110/30-500 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 30 x 19.7 in (76.2 x 50.04 cm)

HDCW 110/30-750 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 29.5 in (750 mm)

HDCW 110/30-1000 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 39.4 in (1000 mm)

HDCW 140/40-1000 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 1–35 kV, 39.4 in (1000 mm)

HDCW 140/40-1200 3M™ Wraparound Heat Shrink Cable Repair Sleeve, 47.2 in (1200 mm)

Scotch® Cable Jacket Repair Tape, 2234 2234-2X6

Industry-Specific Areas

Industrial Playbook

Belden Oil and Gas Solutions

Belden products have been designed to meet the specific needs of the oil, gas and petrochemical industries. Their Signal Transmission Solutions increase the reliability factor at every critical stage of your process.

• Proven Performance: Robust cables are field tested and proven to perform in the industrial space

• Withstands Extremes: Designed with proprietary materials, the cables are engineered to last

• Variety of Options: Offered in a variety of material options, including proprietary LSZH, PVC/nylon, etc., to ensure you find the cable you need

B7958A Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMR 600V AWM 21047

Teck90 600V, 6+G Conductor 14+14AWG (7x22H) Bare Copper, XLPE Insulation M4 Colour

DeviceBus® for ODVA DeviceNet™, 2 Pair 15+18AWG (19x27+19x30) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil® and OA Tinned Copper Braid(65%) Shield, PVC Inner Jacket, Aluminum Interlock Armour, PVC Outer Jacket, CM PLTC

Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG

M4 Colour Code, PVC Inner Jacket, Aluminum Interlock Armour, Black PVC Outer Jacket, CSA HL SUN RES -40C

TS-5KV-3C-4/0-500 RS-485, 2 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Inner Jacket, Aluminum Interlock Armour, PVC Outer Jacket, CM

Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO

Oil and Gas

Maintaining high production numbers is difficult when operations are spread out over vast processing areas. But, if you have the right tools, identification and processes built into your day-to-day functions, you can keep your work efficient and safe, even in the event of a shutdown. Brady provides a complete and streamlined safety and identification solution, including pipe markers and safety tags.

Brady understands the unique challenges you face, and as a safety and identification partner, they can provide you with:

• Products designed to withstand harsh outdoor environments and chemicals

• Experts who understand the ins and outs of the industry and regulations

Mfr.’s Model No. Description

S3700-WB BradyPrinter S3700 Multicolour and Cut Sign and Label Printer WiFi and Bluetooth

B30C-4000-595-YL All Weather Permanent Adhesive Vinyl Label Tape for B30 Printers — 4" Yellow

B30-R10000 B30 Series R10000 Printer Ribbon, Roll of 200', Black, 4.33" W

B30-260-7569-CLP4B B30 Series GHS CLP L4B Chemical Labels 2.165in H x 3.346in W Red on WT 340/RL

B30-255-851-OSHADB Printable Polyester Lockout Tags 5.75x3.25 OSHA Danger UNAUTHORIZED REMOVAL 100/RL

B30-255-851-OST-BK Printable Polyester Lockout Tags 5.75" x 3.25" Danger RD/WT 100 Tgs

B30-25-595-OSHADA All Weather Permanent Adhesive Vinyl Labels OSHA DANGER Header for B30 Printers - 4" x 6"

B30-25-595-OSHACA All Weather Permanent Adhesive Vinyl Labels OSHA CAUTION Header for B30 Printers - 4" x 6"

B30-25-855-ANSIWA B30 Series ToughWash Labels with Header 4in H x 6.25in W BK, Orange on WT 100/RL

B30-255-851-ANSICA Printable Polyester Lockout Tags 5.75" x 3.25" CAUTION BK, YL on WT 100 Tags

B30C-4000-526 B30 Series BradyGlo High Intensity Photoluminescent Tape 4 in W x 50ft Glow GN

B30C-3000-483YL-KT B30 Series ToughStripe Printable Floor Marking Tape 3 in W x 100 ft L Yellow

B30-R6000 B30 Series R6000 Printer Ribbon, Roll of 200', Black, 4.33" W

B30C-3000-595-WT All Weather Permanent Adhesive Vinyl Label Tape for B30 Printers - 3" White

B30-255-851-WT Printable Polyester Safety Tags 5.75" x 3.25 White 100 Tags

Industry-Specific Areas

Industrial Playbook

Eclipse Junior Enclosure: Type 4X Stainless Steel Junction Box

Superior Protection for Wet or Corrosive Applications

Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments, the Eclipse Junior Enclosures are for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. They provide protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.

• Body and cover are formed from 16 gauge 304 stainless steel

• Smooth, continuously welded seams without knockouts, cutouts or holes

• Easy open 304 stainless steel, single quarter turn latch

• Continuously hinged cover has 304 stainless steel hinges and provides 180° opening

• Formed lip on enclosure to exclude flowing liquids and contaminants

• Type 3R, 12, 13 and 4X approvals (can be used in numerous environments)

• Full width mounting flange (allows centre point mounting if required)

• Seamless, poured-in place gasket

• Models listed include a removable 14 gauge galvanized inner panel

• A bonding stud is provided on the door and a grounding stud is provided on the enclosure. Grounding and panel mounting hardware provided

• Natural stainless steel with a smooth brushed finish

Empower Your Operations With Innovation and Expertise

Turn challenges into opportunities with Wesco

In today’s fast-paced industrial landscape, challenges like labour shortages, equipment inefficiencies, and unplanned downtime can slow you down. At Wesco, we turn these obstacles into opportunities: helping you boost productivity, enhance safety, and keep your operations running at peak performance.

PJU Series Enclosure: Type 4X Polyester Junction Box

Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures, the PJU Series provides outstanding insulation and protection where equipment may be hosed down or be very wet. Ideal in applications with high temperatures or highly corrosive environments.

• Moulded fibreglass polyester enclosure with matching cover is easily punched, cut or drilled

• Available with solid cover or clear polycarbonate cover

• Type 1, 2, 3, 4, 4X, 12 and 13 approvals (can be used in numerous environments)

• Various latching options, stainless steel twist latch or snap latch (including padlock provision), as well as screw cover with captive stainless steel screws

• Enhanced UV inhibitors protect against outdoor weathering

• Captive oil-resistant gasket provides a positive seal

• Available with Polycarbonate flange or foot mount brackets for multidirectional mounting

• Operating temperatures between 130°C and -40°C (266°F to -40°F)

• Impact index of 6.78J (5 ft/lb)

x 8"W x 4"D

Industrial Playbook

Eclipse Series: Type 4 Mild Steel Wallmount Enclosure

Protection Against Harsh Industrial Environments

Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications, impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation. A wide range of sizes and practical accessories make this product line a complete package.

• Formed 14 (24 x 24" and larger) or 16 (24 x 20" and smaller) gauge steel

• Type 3R, 12 and 4 approvals

• Door latching options: slotted quarter turns, handle with 3-point latching, and handle with 3-point latching plus additional quarter turns top and bottom

• Formed lip on enclosure to exclude flowing liquids and contaminants

• Smooth, continuously welded seams ground smooth

• Easy to remove doors with seamless poured-in place gasket and stainless steel hinges

• Collar studs provided for mounting inner panel

• Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth gray (GY) or RAL7035 textured light gray (LG)

x 12"W x 6"D

x 16"W x 6"D

x 24"W x 8"D

EN4SD242410LG 24"H x 24"W x 10"D

Smart Control Panel Solutions

Innovative Products for Reliable Control Panel Performance

Overcoming harsh environment deployments, network security liabilities, costly safety concerns, and electromagnetic interference (EMI) noise considerations in crowded control panel systems is no easy task. Panel builders, engineering firms, machine builders, and system integrators across the globe rely on Panduit for control panel solutions that help speed production and control costs while maintaining quality, system availability and reliability. Panduit provides control panel systems and services to help optimize valuable enclosure space while also solving the toughest noise, environmental, safety, security and connection challenges.

• Space Optimization

• Improved Productivity

• Safety and Security

• Connected Control Panel

Mfr.’s Model No. Description

PUP6AHD04BU-G TX6A™ Copper Cable, Cat 6A, 23 AWG, UTP, Blue

UTP28X3BU Cat 6A 28 AWG UTP Copper Patch Cord, 3', Blue

CJ6X88TGBU Mini-Com® UTP RJ45 Cat 6A TG Jack Module, Blue

CJS6X88TGY Mini-Com® TX6A™ 10Gig™ STP RJ45 TG Jack Module

FPS6X88MTG RJ45, Cat 6A Shielded Field Term Plug, 22-26 AWG

CDPP8RG Mini-Com® 8-Port DIN Rail Shielded Patch Panel

CADIN1IG Mini-Com® DIN Shielded Rail Mount Adapter, Single Port

IAEBH6X IndustrialNet™ TX6A™ 10Gig™ UTP RJ45 Bulkhead Connector

ISTPH6X10MTL Industrial Cat 6A Shielded 600 V Patch Cord

ISTP6X1MBL IndustrialNet™ TX6A™ SF/UTP Patch Cord with Bulkhead Connector on Both Ends

ISFCH6X04BTL-UG IndustrialNet™ Category 6A SF/UTP Copper Cable

FSJD912 DDJ Cable, OS2 9µm, 12 Fibres, Riser, LSZH

FDPPSIG Fibre DIN Rail Mount Patch Panel, Standard Depth

F92ERLNLNSNM001 Opti-Core® 2 Fibre Patch Cord, OS1/OS2, LC Duplex, Riser

PSL-DCPLE-C Standard, Lock-In Devices, Red

ZDF242430 Industrial Distribution Frame, 12 RU, NEMA 4/12 Enclosure

Industry-Specific Areas

Industrial Playbook

Reliable Industrial Environment Solutions

Everything you need to achieve and maintain workplace safety.

Facility Identification

High-quality signs for use indoors and outdoors.

• Vinyl Arc Flash — PVS Series

• Polyester — PPS Series

• Rigid — PRS Series

• Pipe and Voltage Markers — PCV Series

Lockout Energy Control Devices

Each lock keyed differently and supplied with two keys.

• PSL Series

• Contractor Lockout Kit — PSL-KT-CONA

• Maintenance Lockout Kit — PSL-KT-MROA

• Laminated Steel — PSL-6 Series

• Anodized Aluminum — PSL-7 Series

• Safety Lockout — PSL-8 Series

Abrasion Protection

An economical and easy way to insulate, protect, bundle and colour-code components and cable.

• Heat Shrink — HSTTK, HSTTT, HST Series

• Spiral Wrap—– T**T Series

• Braided Sleeving — SE*PS-R0 Series

Cable Management

Cable Ties

The Pan-Ty® Series is a one-piece construction for consistent performance and reliability. It comes in the following options:

• Nylon 12 (corrosive environments)

• Weather Resistant Acetal

• Polypropylene (high chemical resistance)

• TEFZEL▼ (resistant to radiation)

• PEEK (high-temperature applications)

Stainless Steel

Durable, long life, corrosion resistant for use in harsh indoor, outdoor or underground environments.

• Stainless Steel Ties — MLT Series

• Band and Buckle Strapping — MS Series

Comprehensive solutions for fastening, bundling, clamping and identifying.

• Tie Mounts — TM Series

• Metal Clip-On Mounts — MCMS Series

• Metal Screw-On Mounts — MBMS Series

• Heavy-Duty Fixed Diameter Clamps — PC Series

• Super-Grip™ Adhesive Backed Mounts — SGAB Series

• Stainless Steel Tool Options — GS4MT, BT2HT, PBTMT

Power and Grounding Connectors

Corrosion-resistant connectors secure quickly and easily with a broad selection of styles for flexibility.

• Compression Grounding Connectors — GCE and GCC Series

• Code Conductors — One-Hole Standard Barrel: LCA* Series Two-Hole Standard Barrel: LCD* Series

• Flex Conductors — One-Hole Standard Barrel: LCAX* Series Two-Hole Standard Barrel: LCDX* Series

Terminal and Ferrules

Complete line of high-quality insulated and noninsulated terminals, disconnects, splices, wire joints and ferrules.

• KYNAR* — High-temperature and chemical/ radiation resistant PK Series

• Non-Insulated — High temperature P*-*RHT Series

• Ferrules — Used in applications where flex cable is specified F/FSD/FTD Series

*KYNAR is a registered trademark of Atofina Chemicals, Inc.

▼TEFZEL is a registered trademark of E.I. du Pont de Nemours and Company.

Pan-Steel® Stainless Steel Cable Ties

• Long life and resistance to chemicals, vibration, radiation, weathering and extreme temps

• Metal Cable ties’ rounded edges prevent installer injury and damage to cable bundles or finished product

• Ergonomic tooling and an innovative design provide fast and reliable installation

• Meets and exceeds the most stringent industry standards

Stainless Steel Cable Cleats

• Applications: Oil and gas, petrochemical, shipbuilding, rail, utilities, renewable energy and data centres

• Tested to IEC 61914, the latest and most globally recognized cable cleat testing standard

• Simple and intuitive design leads to increased productivity

• Compatible with a variety of ladder racks and cables

Mfr.’s Model No. Description

Pan-Steel® Stainless Steel Cable Ties

MLT2S-CP

Stainless Steel Self-Locking Cable Tie, SS 304, Standard, 2" Dia

MLT4S-CP Stainless Steel Self-Locking Cable Tie, SS 304, Standard, 4" Dia

MLT2S-CP316

MLT4S-CP316

MLT6S-CP316

MLTFC2S-CP316

Stainless Steel Self-Locking Cable Tie, SS 316, Standard, 2" Dia

Stainless Steel Self-Locking Cable Tie, SS 316, Standard, 4" Dia

Stainless Steel Self-Locking Cable Tie, SS 316, Standard, 6" Dia

Stainless Steel Fully Coated Cable Tie, PET Coated SS 316, Standard, 2" Dia

MLTFC6S-CP316 Stainless Steel Fully Coated Cable Tie, PET Coated SS 316, Standard, 6" Dia

MLT4H-LP Stainless Steel Self-Locking Cable Tie, SS 304, Heavy, 4" Dia

MLT6H-LP Stainless Steel Self-Locking Cable Tie, SS 304, Heavy, 6" Dia

MLT12H-Q Stainless Steel Self-Locking Cable Tie, SS 304, Heavy, 12" Dia

MLT4H-LP316

MLTC4H-LP316

Stainless Steel Self-Locking Cable Tie, SS 316, Heavy, 4" Dia

Stainless Steel Selectively Coated Self-Locking Cable Tie, SS 316, Heavy, 4" Dia

MLTFC4H-LP316 Stainless Steel Fully Coated Cable Tie, PET Coated SS 316, Heavy, 4" Dia

MLTFC6H-LP316 Stainless Steel Fully Coated Cable Tie, PET Coated SS 316, Heavy, 6" Dia

MLT4WH-TL316 Stainless Steel Wave Cable Tie, SS 316, Heavy, 4" Dia

PBTMT/E Battery-Powered Cable Tie Installation Tool

MLT4DEH15-Q316 Stainless Steel Locking Strap Cleat, 316 SS, 29.5" Length, 0.50" Width

MLT4DSH-Q316 Stainless Steel Locking Strap Cleat, 316 SS, 29.5" Length, 0.63" Width

MLT4DSH-Q Stainless Steel Locking Strap Cleat, 304 SS, 29.5" Length, .63" Width

MLT6DSH-Q316 Stainless Steel Locking Strap Cleat, 316 SS, 41.5" Length, 0.62" Width

MS4W75T30-Q6 Discrete Length Stainless Steel Buckle Strap, 316 SS, 19.6" Length, 0.75" Width

MS6W75T30-Q6 Discrete Length Stainless Steel Buckle Strap, 316 SS, 26.5" Length, 0.75" Width

MS8W75T30-Q6 Discrete Length Stainless Steel Buckle Strap, 316 SS, 32.7" Length, 0.75" Width

MS10W75T30-Q6 Discrete Length Stainless Steel Buckle Strap, 316 SS, 39.0" Length, 0.75" Width

MS12W75T30-Q6 Discrete Length Stainless Steel Buckle Strap, 316 SS, 44.7" Length, 0.75" Width

CCPLTR2228-X Cable Cleat, TR Clamp Type, PL, Trefoil, 0.87–1.1" OD

UCIB1-V316

UCIB2-V316

UCSQ1-V316

UCSQ1-28-V316

Cable Cleat Bracket, UC Series, 316L SS, I-Beam Rung

Cable Cleat Bracket, UC Series, 316L SS, I-Beam Rung, Long Retainer Clip

Cable Cleat Bracket, UC Series, 316L SS, Strut Rung

Cable Cleat Bracket, UC Series, 316L SS, Low-Profile Strut Rung

PCSSH-B-CR Protective Cushion Sleeve, Reel, Neoprene, 100' L, 0.91" W, RL1

PCSLSH-B-CR Protective Cushion Sleeve, Reel, TPE Low Smoke-Halogen Free, 100' L

Industrial Playbook

LUNA

The industry’s first WET Location rated tilting recessed downlight. LUNA provides beautiful general illumination that get lights to the surfaces you want. Great for office spaces, corridors, lobbys and more. LUNA is available in a variety of sizes to provide space uniformity.

• Dim-to-warm available

• 90+ CRI

• 120V standard

• ELV dimming

• No housing required

RA4-12RG-90BK

RA35-12RG-90BK

• IC Rated

• Suitable for air handling space

• Wet location rated

• 360˚ adjustable rotation, 30˚ tilt

• 5-position colour-selectable switch on the back of the fixture

RA2-7F-90BK

RA4-12RG-90BK 4" LUNA LED Round Regressed Gimbal Recessed Fixture, Black

RA4-12RG-90WH 4" LUNA LED Round Regressed Gimbal Recessed Fixture, White

RA35-12RG-90BK 3.5" LUNA LED Round Regressed Gimbal Recessed Fixture, Black

RA35-12RG-90WH 3.5" LUNA LED Round Regressed Gimbal Recessed Fixture, White

RA2-7F-90BK 2" LUNA LED Round Fixed Colour-Selectable Recessed Fixture, Black

RA2-7F-90WH 2" LUNA LED Round Fixed Colour-Selectable Recessed Fixture, White

EDGE

Break traditional troffer design without interfering with above-ceiling mechanical. Since their inception, traditional troffer fixtures have been designed in standard sizes that fit exclusively within the confines of t-bar ceiling layouts. Breaking traditions while removing the restrictions of above-ceiling HVAC and t-bar layouts, EDGE was developed to challenge tradition, allowing for a diverse installation with high lumen output, without interfering with above-ceiling mechanical, all while fitting perfectly into a t-bar ceiling and with acoustic tile on top.

• 3-position colour-selectable switch

• 3-position wattage selectable switch

• IC Rated

• Fits t-bar ceilings with acoustic tile on top, no trimming needed

• Does not interfere with overhead mechanical equipment

Mfr.’s

EDGE-14-WH EDGE LED Recessed Light Panel, 1' x 4'

EDGE-22-WH EDGE LED Recessed Light Panel, 2' x 2'

EDGE-24-WH EDGE LED Recessed Light Panel, 2' x 4' Mfr.’s Model

SKYE

Take it to the SKYE.

The SKYE fixture by Liteline is a high-performance, easy-to-install downlight, with regressed optics to reduce glare and interchangeable magnetic baffles. Upgrade the look with SKYE Select Trims for a more elegant finish, in round or square, with different interior baffle colours, also making this fixture dead front.

• 5-position colour-selectable switch from below the ceiling

• Interchangeable magnetic baffles to upgrade the look with SKYE Select Trims

• IC Rated

Mfr.’s

SLMB4-12W-CCT-BK SKYE 4", Black

SLMB4-12W-CCT-WH SKYE 4", White

SLMB6-16W-CCT-WH SKYE 6", White

SLMB4-RGBTW-WH-4KT SKYE OnCloud 4", White 4-Pack

ORBIT

Reach new angles.

ORBIT is a 2" or 4" adjustable downlight that allows for easy directionality to precisely aim light in almost any direction. With 80° tilting and 360° rotation, this fixture is perfect for creating a seamless look throughout your space. Perfect for sloped ceilings with a steep roof pitch, this fixture can adjust to shine straight down.

• 5-position colour-selectable switch

• WET Location Rated

• Round or Square

• IC Rated

• Lifetime Warranty

• 360° rotation and 80° tilt

Mfr.’s Model No. Description

SCP2-5W-M-CCT-BK ORBIT 2", Black

SCP2-5W-M-CCT-WH ORBIT 2", White

SCP4-9W-CCT-BK ORBIT 4" Rotatable Gimbal, Black

SCP4-9W-CCT-WH ORBIT 4" Rotatable Gimbal, White

SCP4S-9W-CCT-BK ORBIT 4" Square Rotatable Gimbal, Black

SCP4S-9W-CCT-WH ORBIT 4" Square Rotatable Gimbal, White

SLMB4-RGBTW-WH-4KT

Industrial Playbook

ACWU, 7QB

Aluminum Conductor

Northern Cables ACWU cables are made for tough industrial sectors including metals and mining, wastewater treatment, discrete manufacturing and oil and gas. These aluminum conductor cables are approved for wet, dry, and damp locations, direct burial (with protection) and hazardous areas with HL cable glands. Their rugged build resists oil, chemicals, crushing and temperature extremes.

• Voltage rating: 600 volts

• Conductor material: Aluminum (8000 series ACM), compact class “B” strand

• Insulation: Cross-linked Polyethylene (XLPE) Type RW90

• Armour: Aluminum interlocked armour (AIA)

• Outer jacket: Low acid gas, flame-retardant, moisture- and sunlight-resistant Polyvinyl Chloride (PVC), black (custom colours available upon request)

• Temperature rating: -40°C cold bend and impact tested, rated to +90°C

• Conductor sizes: #8 AWG up to 750 kcmil

• Number of conductors: 1 to 4 conductors available

• Colour coding: Black, red, white for #8 AWG thru #2 AWG; black with printed colours for #1 AWG thru 750 kcmil

• CSA Standards: C22.2 No. 51, No. 174, RoHS

• Flame test: CSA FT4

• Acid gas resistance: CSA AG14

• Hazardous location rating: HL (when used with certified HL cable glands)

Industry-Specific Areas

AC90, 7Q

Copper and Aluminum Conductor

Northern Cables AC90 cables are designed for dry-location wiring in industries like metals and mining, wastewater treatment, discrete manufacturing and oil and gas. Suitable for open or concealed wiring in trays, AC90 offers a cost-effective alternative to conduit. Available in copper and aluminum, these cables are flexible, durable and easy to install.

• Voltage rating: 600 volts

• Conductor materials:

– Copper: Solid copper, sizes #14 AWG to #2 AWG (including isolated ground versions for healthcare)

– Aluminum: Compact class “B” stranded aluminum (8000 series ACM), sizes #8 AWG to 750 kcmil

• Insulation: Cross-linked Polyethylene (XLPE) Type RW90

• Armour: Aluminum interlocked armour (AIA)

• Outer jacket: Low acid gas, flame-retardant, moisture- and sunlight-resistant Polyvinyl Chloride (PVC), black

• Temperature rating: -40°C cold bend and impact tested, rated to +90°C

• Number of conductors: Two, three or four conductor configurations available

• Colour coding:

– Copper: Black, white, red, green (isolated ground)

– Aluminum: Black, white, red for #8 to #2 AWG; black with printed colour code for #1 AWG to 750 kcmil

• CSA Standards: C22.2 No. 51, No. 38, No. 2256, RoHS

• Flame test: CSA ST1 and FT4

• Special versions: Isolated ground GLO WRAP® for healthcare and critical applications

Industry-Specific Areas

TECK90, 7TPU/7TNS/7TRU

Copper and Aluminum Conductor

Northern Cables TECK90 cables are built for harsh industrial sectors like metals and mining, wastewater treatment, discrete manufacturing and oil and gas. Approved for wet or dry locations, they perform in corrosive, exposed and high-stress environments. TECK90 supports tray use, direct burial (with protection) and service entrance wiring. With CSA compliance and rugged construction, they deliver durable, flameretardant and moisture-resistant performance.

• Voltage ratings: 600V and 1000V options available

• Conductor materials: Copper (various sizes, including single conductor, circuit size, large sizes, vertical applications, VFD, composites) and Aluminum (8000 series ACM, multiple conductor configurations)

• Insulation: Cross-linked Polyethylene (XLPE) Type RW90

• Armour: Interlocked aluminum armour (also galvanized steel options available)

• Inner jacket: Black Polyvinyl Chloride (PVC)

• Outer jacket: Low acid gas, flame-retardant, moisture- and sunlight-resistant PVC

• Temperature rating: -40°C cold bend and impact tested

• Conductors: Available from #14 AWG up to 1000kcmil for copper, and up to 750kcmil for aluminum

• Number of conductors: Up to 50 for copper versions, up to 4 for aluminum single conductor, multiple conductor options available

• Colour coding: Black, red, blue, white, and numbered codes depending on conductor count and version

Areas

ACIC, 323: Armoured Control

Copper Conductor

Northern Cables ACIC Armoured Control cables are built for industrial environments like metals and mining, wastewater treatment, discrete manufacturing and oil and gas. Suitable for concealed or exposed wiring, they’re approved for trays and direct burial (with protection) and resist corrosion, weather and mechanical stress. A flame-retardant blue jacket adds moisture, sunlight and acid gas resistance, ideal for demanding control applications.

• Voltage rating: 600 volts

• Conductor material: Copper (16 AWG round concentric lay class “B” stranded)

• Insulation: Cross-linked Polyethylene (XLPE) Type RW90

• Armour: Aluminum interlocked armour

• Inner jacket: Sunlight-resistant black Polyvinyl Chloride (PVC)

• Outer jacket: Blue, low acid gas, flame-retardant, moisture- and sunlightresistant Polyvinyl Chloride (PVC)

• Temperature rating: -40°C cold bend and impact tested

• Colour coding: One white conductor, balance black with number code

• Bonding conductor (ground): One bare stranded class “B” copper conductor

Areas

Industrial Playbook

Burndy

Hubbell Canada ULC

Burndy products are exceptionally suited for the oil and gas industry, which demands high standards of safety and reliability due to the hazardous and extreme conditions typical in such environments. Burndy’s electrical connectors, grounding and bonding solutions are designed to perform reliably in the presence of volatile substances and in extreme weather conditions, from the freezing cold of offshore platforms to the scorching heat of desert oil fields. These products are crafted from materials that resist corrosion caused by saltwater and harsh chemicals, ensuring long-term durability and safety. Furthermore, Burndy’s innovative designs allow for quick and secure installations, crucial in minimizing downtime and enhancing operational efficiency in the fast-paced and often remote oil and gas settings. With a strong focus on compliance with stringent industry standards, Burndy ensures that its products contribute to the safe and efficient operation of oil and gas facilities worldwide.

• High Durability: Constructed with materials that withstand harsh environmental conditions such as extreme temperatures, moisture and corrosive chemicals

• Explosion-Proof: Designed to ensure safety in explosive atmospheres, meeting stringent industry standards for operation in hazardous areas

• Corrosion Resistance: Features materials and coatings that resist corrosion from saltwater and other aggressive substances, prolonging product life and reliability

• Rapid Installation: Engineered for ease of use and quick installation, crucial for reducing downtime and maintaining continuous operations in remote or challenging locations

• Reliability: Offers consistent performance under the rigorous demands of the oil and gas industry, ensuring operational continuity and safety

• Certified Quality: Products meet or exceed global industry standards, including certifications like CSA, ATEX and IECEX for equipment used in explosive atmospheres

Mfr.’s

PAT750T3U03A2 PATRIOT® T3 Technology 12-Ton Battery Crimper, C-Head, Uncovered, (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Hard Case

PAT444ST3U03A2 PATRIOT® T3 Technology 11-Ton Dieless Battery Crimper, C-Head, Uncovered, (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Hard Case

PAT46T3SU03A2 PATRIOT® T3 Technology 15-Ton Battery Crimper, C-Head, Uncovered, (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Hard Case

GSTUD38HY Structural Steel Grounding Connector

GSTUD34HY Structural Steel Grounding Connector

YGHP34C26 Copper Compression Ground Rod Connector, 250–500 kcmil, 5/8" to 3/4" Rod, 5/8" to 3/4" Rebar (Run) to 1/0 Str to 2/0 Str (Tap)

YGHR29C34 Copper Compression Connector, 4/0 AWG(Str)–250 kcmil, 3/4" Ground Rod

YGHR26C34 HYTAIL™ Ground Rod Figure 8 Compression Tap Connector

YGLR29C34 GRIDLOK™ Ground Rod to Grid Compression Connector

YGHC26C26 Copper Compression C Connector, 1–2/0 AWG(Str), 3/8" Rod (Run) and 1–2/0 AWG(Str) (Tap)

YGHC29C26 Copper Compression C Connector, 3/0 AWG(Str)–250 kcmil, 1/2" or 5/8" Rod (Run) and 6 AWG(Sol)–2/0 AWG (Str) (Tap)

YGHC29C29 Copper Compression C Connector, 3/0 AWG(Str)–250 kcmil, 1/2" or 5/8" Rod (Run) and 3/0 AWG(Str)–250 kcmil (Tap)

YA282N 4/0 AWG, CU, 2 Hole, 1/2 Stud, 1-3/4" Spacing, Long Barrel

YA292N 250 kcmil, CU, 2 Hole, 1/2 Stud, 1-3/4" Spacing, Long Barrel

YA34 500 kcmil, CU, 1 Hole, 5/8 Stud, Long Barrel

PENA138 Oxide Inhibiting Electrical Joint Compound, 8 oz, for Al-Al, Al-Cu and Al Conduit Threads/Insulated Cable

KA26U Aluminum Universal Terminal, 1 Hole, 6-2/0 AWG (Str), 1/4" Stud, 1 Screw, Al/Cu Rated, Tin Plated

KA29U Aluminum Universal Terminal, 1 Hole, 6 AWG (Str)-250 kcmil, 5/16" Stud, 1 Screw, Al/Cu Rated, Tin Plated

GC2626CT Mechanical Cable Tray Ground Clamp

GC2929CT Cast CU Alloy Cable Tray Ground Clamp, 2/0 Str.-250 kcmil, Tin Plated

GAR3902BU Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 1/2"-1" Pipe, 3/8" Stud, 3.25 in Width

GAR3903BU Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 1-1/4"-2" Pipe, 3/8" Stud

GAR3904BU Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 2-1/2"-3-1/2" Pipe, 3/8" Stud

Industry-Specific Areas

From Staging to Success: Wesco’s

End-to-End Job Trailer Support

Let your storage work for you, wherever you are.

Wesco’s job trailer solutions provide customers with an out-of-the-box mobile storeroom experience and easy access to materials. These customized, secure onsite inventory storerooms are designed based on the customer’s needs. By receiving regular automatic or scheduled inventory replenishment to the trailer storage shelves, the customer benefits by improving efficiency, reducing labour costs, accurately planning project stages and ensuring materials are available when and where they’re needed.

Wesco Job Trailers Provide a Turnkey, Flexible Solution for:

• New Construction

• Renovation Projects

• Planned Maintenance

• Emergency Response

Overall Cost Savings

• Reduced Labour and Delivery Costs

• Lower Inventory Levels

• Minimized Waste

• Accurate project stage planning/ budgeting updates

Standard Job Trailer Benefits

Customized Mobile Workspaces

• Tailored to project needs

• Secure, weather-resistant storage

Automated Inventory Management

• Min/Max Replenishment

• Job and User Tracking

• Real-Time Reporting

If you have a project trailer opportunity, please reach out

Advance Job Trailer Benefits

Technology-Driven Efficiency

• Intelligent replenishment options utilizing mobile, hardwire or WiFi or 4G/LTE Connectivity

• iOS and Android App

• Online and Offline Ordering Modes

Security and Accountability

• RFID or Keypad Access

• 24/7 Video Monitoring

• Cloud-Stored Transactions (60 Days)

Industrial Playbook

Belden Discrete Manufacturing Solutions

From new ways of building cars to changing industry regulations, discrete manufacturers have no choice but to respond to industry transformation by developing connected plants. Using data, automation and technology is now critical at every step of the manufacturing process, from design and engineering to inspections and quality testing. Belden helps plants establish secure network connections so they can develop innovative products, implement responsive operations and make crucial decisions with confidence.

• Proven Performance: Robust cables are field tested and proven to perform in the industrial space

• Withstands Extremes: Designed with proprietary materials, the cables are engineered to last

• Variety of Options: Offered in a variety of material options, including proprietary LSZH, PVC/nylon, etc., to ensure you find the cable you need Wesco

B7958A Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMR 600V AWM 21047

B123082A DeviceBus® for ODVA DeviceNet™, 2 Pair 15+18AWG (19x27+19x30) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil® and OA Tinned Copper Braid(65%) Shield, PVC Inner Jacket, Aluminum Interlock Armour, PVC Outer Jacket, CM PLTC

B5302F1

CM-00424CAX-6B-AJ

B7929A

Security and Sound Cable, Rated-CMG-FPL-PLTC, 4-18 AWG Stranded Tinned Copper Conductors with PVC Insulation, Waterblocking Tape, Beldfoil® Shield and PVC Jacket

Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, PVC Inner Jacket, Aluminum Interlock Armour, PVC Outer Jacket, CMG CM -40°C

Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMR CMG

Motor Control Solutions

Why Do Industry Leaders Choose Wesco? Because Wesco Provides End-to-End Automation and Motor Control Solutions.

From concept and completion, Wesco delivers everything you need to streamline operations — planning, design, and full turnkey implementation — all under one roof.

There’s More to Wesco.

At Wesco, we’re constantly evolving to serve you better. Our commitment to innovation is reflected in the launch of our new Motor Control Technology Centres, where we don’t just stock, we design and build. This state-of-the-art facility is equipped to support your projects with custom assemblies, readily available inventory and expert project coordination. Our qualified staff are always on hand to assist with specifications and ensure your solutions are tailored to meet your exact needs.

Burndy

Hubbell Canada ULC

Burndy products are ideally suited for the discrete manufacturing sector, where precision, reliability and efficiency are paramount. In environments that often involve the assembly of complex components and machinery, Burndy’s electrical solutions ensure robust and secure connections, critical for maintaining continuous production lines and minimizing downtime. Their products are designed to withstand the mechanical stresses and high operational demands typical in manufacturing settings. Additionally, Burndy’s innovative connectors and tools offer quick and easy installation, which is essential for fastpaced production environments where time and accuracy are crucial. With a strong focus on quality and durability, Burndy products help discrete manufacturing facilities optimize their operations and maintain high standards of production efficiency and safety.

• High Precision: Engineered for exacting tolerances required in discrete manufacturing processes, ensuring accurate and reliable connections

• Durability: Constructed to withstand the mechanical and environmental stresses common in manufacturing settings, enhancing product lifespan and reliability

• Efficiency: Designed for quick and easy installation, significantly reducing assembly time and increasing overall production efficiency

• Versatility: Offers a wide range of products that can be used across various applications within the manufacturing process, from automation to assembly lines

• Safety Compliance: Meets rigorous safety standards, crucial for protecting equipment and personnel in high-stakes manufacturing environments

• Innovative Design: Continuously updated product designs that incorporate the latest technology to meet the evolving needs of the manufacturing industry

Mfr.’s

PAT750T3U03A2 PATRIOT® T3 Technology 12-Ton Battery Crimper, C-Head, Uncovered, (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Hard Case

PAT444ST3U03A2 PATRIOT® T3 Technology 11-Ton Dieless Battery Crimper, C-Head, Uncovered, (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Hard Case

PAT46T3SU03A2 PATRIOT® T3 Technology 15-Ton Battery Crimper, C-Head, Uncovered, (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger, Hard Case

YS26 2/0 AWG, CU, 1-Hole, 3/8 Stud, Long Barrel

YS28 4/0 AWG, CU, 1-Hole, 1/2 Stud, Long Barrel

YA26 2/0 AWG, CU, 1-Hole, 3/8 Stud, Long Barrel

YA262N 2/0 AWG, CU, 2-Hole, 1/2 Stud, 1-3/4" Spacing, Long Barrel

YA28 4/0 AWG, CU, 1-Hole, 1/2 Stud, Long Barrel

YA282N 4/0 AWG, CU, 2-Hole, 1/2 Stud, 1-3/4" Spacing, Long Barrel

BBB14210A Copper Busbar 1/4" X 2" x 10" 16 Holes

BIT250 Copper Busbar 1/4" X 2" x 10" 16 Holes

BIT2/O BIT2/0, Single Sided Two Conductor Clear Insulated Multi-Tap Connector

BISR2 Aluminum In-Line Splice, 14-2 AWG

BIBS2/03 Aluminum Multiple Tap Connector, Clear Insulated, 3 Port, 1 Sided Entry, 14-2/0 AWG, Al/Cu Rated

BISR250 Aluminum In-Line Splice, 10 AWG-250 kcmil

BD12 12" Flexible Copper Braid

YS28A1 4/0 AWG, AL, SPLICE, AL9CU

YAL26T12 Copper HYLUG™, Single Hole with Inspection Window, 2/0 AWG, 1/2" Stud, 13 Index, Black, Short Barrel, Electro-Tin Plated

YAL26T38 Copper HYLUG™, Single Hole with Inspection Window, 2/0 AWG, 3/8" Stud, 13 Index, Black, Short Barrel, Electro-Tin Plated

YA262LN 2/0 AWG, CU, 2-Hole, 1/2 Stud, 1-3/4" Spacing, Standard Barrel, Inspection WIndow

YA282LN 4/0 AWG, CU, 2-Hole, 1/2 Stud, 1-3/4" Spacing, Standard Barrel, Inspection Window

Industrial Playbook

Safety Switches

Ensure the safety and reliability of your electrical systems with Eaton’s industryleading safety solutions. Eaton’s extensive portfolio of safety switches, including heavy-duty, general-duty, double-throw, hazardous location disconnect switches, receptacle/quick-connect and solar switches, is engineered to deliver unmatched performance and reliability. Designed to meet rigorous safety and efficiency standards, Eaton’s solutions provide superior protection for industrial, commercial and residential applications, ensuring your operations run seamlessly and securely. Customized safety switches are available through Eaton’s Canadian network of eight regional satellite facilities.

Solar Disconnect Switch

Used in Photo Voltaic installations. A DC disconnect switch is required ahead of the inverter to isolate the load from the PV source.; Single Throw Max. 600 VDC; Fusible and Non-Fusible; NEMA 3R, NEMA 12 or 12/3R, NEMA 4X; 30A–600A

General-Duty Safety Switch For Residential and Commercial Applications.; 240 VAC; Fusible with Neutral, Fusible Switched Neutral, Non-Fusible no Neutral, Fusible no Neutral; NEMA 1, NEMA 3R; 30A–600A

Heavy-Duty

Double-Throw

Hazardous Location

Disconnect Switch

Heavy-Duty Quick

Connect Switches

For Light to Heavy Commercial and Industrial Applications. Main Service Entrance, Branch and Motor Circuit Protection.; 240 VAC, 600 VAC; Non-Fusible no Neutral, Fusible with Neutral, Fusible no Neutral; NEMA 1, NEMA 3R, NEMA 4/4X, NEMA 12; 30A–1200A; Viewing Window

Used to Manually Transfer a Load from one Power Source to an Alternate Source, or to Connect a Single Source of Power to Either of Two Different Loads.; 240 Vac, 600 Vac, Non-Fusible no Neutral, Fusible with Neutral, Fusible no Neutral; NEMA 1, NEMA 3R, NEMA 4/4X, NEMA 12; 30A–1200A; Viewing Window

The Cast Aluminum Enclosure is Ideally Suited for Harsh Industrial Applications Including but not Limited to Petrochemical Facilities, Mining Operations and Refining Facilities.; 600 VAC/DC; Non-Fusible no Neutral, Fusible no Neutral; NEMA 7/9, 4X Nonmetallic; 30A–100A

Available for Single Throw and Double-Throw Quick Connect Applications.; 240 VAC, 600 VAC; Non-Fusible, Fusible, Fusible with Solid Neutral, Fusible with Switched Neutral; NEMA 1 Indoor, NEMA 3R Outdoor; 100A–800A; Cam-Lok, Cam-Lok Reverse Pin Configuration, Posi-Lok, Posi-Lok Reverse Pin Configuration

Power Defense Moulded Case Circuit Breakers

Rugged, intelligent circuit protection for demanding industrial environments.

Power Defense Moulded Case Circuit Breakers are purpose-built to meet the operational and environmental challenges like metals and mining, oil and gas, water and wastewater treatment and discrete manufacturing. These breakers are available in specialized configurations, including 100% rated, DC rated, motor protection, freeze-tested, fungus/moisture treated and high instantaneous trip models. With Power Xpert Release (PXR) trip units, they deliver advanced diagnostics, energy metering and ArcFlash Reduction Maintenance System (ARMS) to enhance safety, reduce downtime and support predictive maintenance strategies in mission-critical environments.

• Available in Frame Sizes 1–6 with current ratings from 15A to 2500A

• Power Xpert Release (PXR) electronic trip units for real-time diagnostics and energy metering

• ArcFlash Reduction Maintenance System (ARMS) for enhanced personnel safety

• Zone Selective Interlocking (ZSI) for faster fault clearing

• Globally rated for use across multiple geographies and standards CSA/UL/IEC

• Available with DC Rated and Motor Circuit Protection Configurations

• Application-specific variants: freeze-tested, fungus/moisture-treated, 100% rated, high instantaneous and Canadian unique VISI Safety View Windows

Product Family Description Industry-Specific

Power Defense MCCB — 80% and 100% Rated Breakers

Power Defense MCCB — Moulded Case Switches

Power Defense MCCB — DC Rated Breakers

Power Defense Motor Circuit Protectors

Power Defense Motor Protection Circuit Breakers

Power Defense MCCB — High Instantaneous Breakers

Power Defense MCCB — Freeze-Tested Breakers

Power Defense MCCB — Fungus/Moisture Treated Breakers

Power Defense MCCB — VISI Safety View Breakers

Standard MCCB Rated for 80% and 100% Continuous Load Applications; Frame 1-6; UL/CSA/ IEC; 15A–2500A; 1, 2, 3 and 4-Poles; Up to 85kA @ 600 VAC; Up to 600 VAC; TMTU and PXR

Power Defense Moulded Case Switch for Switching Applications Without Thermal Protection; Frame 1-6; UL/CSA; 15A–2000A; 2, 3 and 4-Poles; Up to 65kA @ 600 VAC; Up to 600 VAC

Breakers Designed for DC Circuit Protection in Renewable and Storage Systems; Frame 2-5; UL/CSA; 25A–3000A; 1, 2 and 3-Poles; Up to 65kA @ 600 VDC; Up to 600 VDC

Breakers Optimized for Motor Branch Circuit Protection; Frame 1-3; UL/CSA/IEC; 3-600A; 3-Poles; Up to 600 VAC; TMTU

Breakers with Integrated Overload and Short-Circuit Protection for Motors; Frame 2-3; UL/CSA/IEC; 15-600A; 3, 4-Poles; Up to 65kA; Up to 600 VAC; PXR

Breakers with High Instantaneous Trip Settings for Fast Fault Clearing; Frame 3, 5; UL/CSA; 3. 4-Poles; Up to 65kA; Up to 600 VAC; TMTU and PXR

Validated for Sub-Zero Environments with Freeze-Tested Certification; Frame 1-6; UL/CSA; 3 and 4-Poles; Up to 65kA; Up to 600 VAC; TMTU and PXR

Treated for High Humidity and Biological Exposure; Frame 1-6; UL/CSA; 1, 2, 3 and 4-Poles; Up to 65kA; Up to 600 VAC; TMTU and PXR

VISI Safety View Breakers are equipped with windows of transparent, heat-resistant thermoplastic over the breaker contacts. This permits instant, visual verification of whether the contacts are open or closed. This fulfills the needs of customers that value or require visual verification of contact orientation as an additional safety precaution for operators and maintenance personnel. Frames 2-6, 15A-2500A

Industrial Playbook

Power Defense Enclosed Breakers

Eaton’s enclosed Power Defense™ circuit breakers provide a versatile and robust disconnect means to meet the needs of various applications, including mining, oil and gas, discrete manufacturing, and water and wastewater treatment. These enclosed circuit breakers ship fully assembled to reduce field labour and the potential for misplaced parts. They are available with either thermalmagnetic or electronic trip units with LSI or LSIG protection. Circuit breaker accessories and assembly modifications are also available.

• NEMA 1, 3R, 12 and 4X enclosures

• 100% rated options

• Power Xpert versions with ARMS and energy metering

• Service Entry Rated assemblies

• Enclosures NEMA 3R/12 and 4X available with View Windows (for VISI Safety View Breakers)

Product Family Description

Standard Enclosed Breakers (NEMA 1/3R/12/4)

100% Rated Enclosed Breakers

Power Xpert Enclosed Breakers with ARMS

Power Defense Enclosures with Viewing Windows

Pre-Wired, Factory-Tested Enclosed MCCBs with Standard NEMA Enclosures; Frame 1-5; UL/CSA; 15A–1200A; 1, 2, 3, and 4-Poles; Interruption Levels Up to 65kA @ 600 VAC; Voltage Rating Up to 600 VAC; Trip Units TMTU/PXR

Enclosed Breakers Designed for Continuous Full-Load Current Without Derating; Frame 3, 5; UL/CSA; 15A–1200A; 3-Poles; Interruption Levels Up to 35kA @ 600 VAC; Voltage Rating Up to 600 VAC; Trip Units TMTU/PXR

Intelligent Enclosed Breakers with ArcFlash Reduction Maintenance System; Frame 3-5; UL/CSA; 125A–1200A; 3- Poles; Interruption Levels Up to 65kA @ 600 VAC; Voltage Rating Up to 600 VAC; Trip Units PXR

Eaton offers enclosures with durable viewing windows. These windows allow operators to inspect internal components without opening the enclosure, improving efficiency and safety. Eaton enclosures comply with industry standards and can be customized to your requirements, providing quick status checks and helping maintenance personnel monitor systems efficiently

Areas

Eaton Crouse-Hinds Series Standard Components and Accessories

Eaton Crouse-Hinds series is a name that stands for safety and reliability in the harshest of environments when power management is most critical. The Eaton Crouse-Hinds series has grown into a trusted source for a comprehensive portfolio of solutions for high consequence harsh and hazardous environments. Eaton Crouse-Hinds series continues to be a formidable manufacturer of reliable, efficient and safe standard components and accessories.

Product Family Description

Arktite Metallic Plugs, Receptacles and Connectors

Myers Hubs

EDSX, EDS and EFS

Hazardous Area Push Button, Pilot Light and Selector Switch Control Stations

For use with metal-clad cable, TECK corrugated cable, or interlocked steel or aluminum cable, Eaton Crouse-Hinds series cable glands provide a means for terminating at junction boxes, control centres, panelboards and enclosures for motor control and electrical distribution equipment

Eaton Crouse-Hinds series Arktite plugs, receptacles and connectors are used indoors and outdoors to supply power to portable electrical equipment such as motor generator sets, compressors, heating and cooling units, welders, conveyors, lighting systems and similar equipment. They are also used in applications that require the removal, adjustment, replacement or frequent maintenance of equipment

Used in the termination of electrical circuits through wall of an enclosure. They are designed for use indoors or outdoors with rigid conduit and IMC, and they are ideal for pharmaceutical, chemical and food processing, pulp/paper, nuclear, solar and commercial construction applications

EDSX, EDS and EFS hazardous area push button, pilot light and selector switch control stations are used in conjunction with magnetic starters or contactors for remote control of motors. Pilot lights are used to visually indicate that the desired function is being performed

Conduit outlet bodies, also known as Condulet™ are installed by threading to Rigid or Intermediate conduit in raceway systems. They act as pull-outlets for conductors being installed and provide openings for making splices and taps in conductors. They connect conduit sections, bends and provide taps for branch conduit runs. Condulet™ also provides for access to conductors for maintenance and future system updates

Eaton Freedom 2100 Series

Low Voltage Motor Control Centre

The Eaton Freedom Low Voltage Motor Control Centre (MCC) has been serving Canadian Industrial users for more than 45 years beginning with the inception of their Canadian manufacturing operations in Airdrie Alberta in 1980 under the Westinghouse banner. Through the years, features and technology have changed however, their fierce commitment to the support of Canadian Industrial needs has remained its foundation.

• Manufactured in Canada for Canadian Industrial customers

• Designed for the specific needs of national end-users

• All key support and engineering functions are located right here in Canada

• Dedicated to customer safety through the Arc Flash mitigating solutions

• Legacy MCC support through the Airdrie Alberta Aftermarket Centre of Excellence

• CSA C22.2 no. 254

Freedom Low Voltage Moter Control Centre; Canadian Manufactured at Eaton’s modernized, fully integrated plant in Airdrie Alberta for over 45 years; Full range of arc flash safety solutions, including FlashGard and Arc Resistant products; CSA, 600V primary focus to address the needs of Canadian customers; National Aftermarket Centre of Excellence, supporting replacement MCC units for all Eaton legacy brands, including: Cutler Hammer, Westinghouse, Klockner Moeller, Commander and others; In-house engineering and customer order support for key market segments, all core functions under one roof; Flexibility in design and component offering

Industrial Playbook

Pow-R-Line Xpert Panelboards

Eaton is an industry leader in new panelboard products, providing features, ratings, performance and safety that consistently meet the needs of specifiers, consultants and contractors. Designed to meet CSA C22.2 No. 29 up to 600 VAC, 250 VDC applications.

Why suitable: Robust design with flexibility to customize for each project. Copper bus options to prevent corrosion in harsh environments. Seismic design and rating for post-disaster mitigation.

• Includes Eaton’s Power Defense moulded case circuit breakers

• Offers aluminum or copper bus options

• Nema 1, 2, 3R, 4, 4X and 12 enclosures available

• Includes surge protection, service entrance and integrated metering capabilities

• Panelboards are seismically tested, qualified and exceed requirements of the IBC/CBC/OSHPD

PRL1X P1X; 240 VAC, 600A Bus; Copper or Aluminum Bus; Flush or Surface Mounted; MLO or Main Breaker

PRL2X P2X; 600 VAC, 600A Bus; Copper or Aluminum Bus; Flush or Surface Mounted; MLO or Main Breaker

PRL3X P3X; 600 VAC, 800A Bus; 225A Branch Circuits; 800A MLO or 600A Main breaker; Copper or Aluminum Bus

PRL4X P4X; 600 VAC, 1200A Bus; Main Breaker or Fusible Switch; Branch Circuits Up to 1200A; Copper or Aluminum Bus

Pow-R-Line Xpert Switchboards

Eaton’s Pow-R-Line switchboards combine a space-saving design with modular construction and increased systems rating to provide economical and dependable electrical system distribution and protection. A wide range of metering options for power measurement and power quality are available. Electronic trip units can provide enhanced accuracy and reliability for protection and optimum system coordination. Designed to meet CSA C22.2 No. 244 and 600 VAC, 250 VDC applications.

Why suitable: Robust design with flexibility to customize for each project. Copper bus options to prevent corrosion in harsh environments. Seismic design and rating for post-disaster mitigation.

• Provides front or rear accessibility with indoor or outdoor enclosures

• Includes circuit breakers or fusible switch main for branch devices

• Includes microprocessor-based metering, monitoring and communication devices

• Busway and transformer connections

Product Family Description

Pow-R-Line XCS PRL-XCS; 600 VAC, 1200A Systems; Compact Depth 12"D, 18"D; Integrated PUC and Customer Metering; Breakers and Fusible Switch Distribution Circuits

Pow-R-Line X

Pow-R-Line X IFS

Solar Recombiner Switchboard

PRL-X; 600 VAC, 6000A Systems; Redundant MTM Configurations; Integrate Relays and Real-Time Monitoring Systems; NEMA 1 and NEMA 3R Options

PRL-IFS; 600 VAC, 4000A Systems; Integrate Core and Coil Transformers; Integrate Panelboards and Multi-Voltage Distribution; NEMA 1 and NEMA 3R Options

800 VAC, 4000A Systems; Integrate Core and Coil Transformers; MLO or XFMR Coordination Incoming Type Only; Fusible switch distribution with Specific Fuses

Pow-R Xpert Gear

Industrial Playbook

Magnum PXR low-voltage switchgear offers reliable protection and centralized control of low-voltage power circuits up to 600 volts for a wide range of industries, including healthcare, data centres and petrochemical. Low-voltage switchgear is a metal-enclosed assembly with three-position, draw-out power circuit breakers engineered to monitor and protect low-voltage electrical systems. Designed to meet CSA C22.2 No. 31 up to 600 VAC, 250 VDC applications.

Why suitable: Robust design with flexibility to customize for each project. Copper bus options to prevent corrosion in harsh environments. Seismic design and rating for post-disaster mitigation. Front access designs for narrow electrical rooms.

• Draw-out low-voltage power circuit breakers with 100%-rated, fully selective protection and integral microprocessor-based breaker tripping systems

• Engineered-to-order configurations available to accommodate a wide range of applications

• Rear-access model equipped with standard rear-bolted covers that consist of two sections to enable easy handling during installation and removal; optional rear doors

• Silver-plated copper bus standard, tin plated optional

• NEMA 1 indoor and NEMA 3R outdoor enclosure designs available Product Family Description

PX Gear Switchgear PXGear; 600 VAC, 6000A Systems; Draw Out, Electrically Operated Breakers; Integrated Temperature Monitoring with Exertherm; Remote Breaker Racking Options

Automatic Transfer Switches

Automatic Transfer Switches (ATS) are critical components of any emergency or standby power systems for transferring essential loads from one power source to another. Eaton offers a broad selection of harmonized UL 1008 and CSA No.178 up to 600 VAC rated transfer switches in the market.

Why suitable: Robust design with flexibility to customize for each project, such as: copper bus for harsh environments; Seismic design and ratings; and various communication protocols allowing for remote visibility and operation. Eaton’s controllers have smart capabilities with ATS Health, real-time data availability and Maintenance Watch features.

• Includes Eaton’s Power Defense moulded case circuit breakers and contactor constructions

• Bypass-isolation functionality with Dual-ATS capabilities

• Serviceability and safety attributes that facilitate concurrent maintenance

• Optional design features can include surge protection, service entrance, integrated metering, IBC/CBC/OSHPD certifications

• Integration into switchboards and Motor Control Centres

Family Description

Moulded Case Breaker Type ATS ATH, 4BIH, 5BIH; 600 VAC, 1000A; Switched Neutral Available; Overcurrent Protection Available; High WCR at Lower Amperages

Contactor Type ATS

Magnum Type ATS

ATC, CTC, BIC, CBC; 600 VAC, 3000A; Switched Neutral Available; Open In-Phase and Open Delayed Transition Available; Closed Transition Available

ATV, CTV, BIV, CBV; 600 VAC, 6000A; Switched Neutral Available; LV Power Switches/Breakers Rear and Front Access; Dual Drawout

Industrial Playbook

Liquid-Filled Transformers

Eaton Cooper Power Series

Eaton’s Cooper Power series liquid-filled transformers are designed to provide reliable and high-performance power distribution solutions. These transformers are built with high-quality materials and advanced technology, ensuring long-lasting durabilty and efficiency. They are suitable for a wide range of applications, from commerical to industrial environments, and come in various sizes and configurations to meet specific needs.

Eaton’s Cooper Power series liquid-filled transformers deliver exceptional performance and reliabilty, ensuring your power system operates smoothly and efficently. Manufactured to meet exacting customer specifications and designed to meet or exceed all applicable CSA, ANSI and IEEE standards. Product Family Description

Three-Phase Pad-Mounted Transformers

Three-Phase Substation Transformers

Three-Phase Indoor Power Transformers

Single-Phase Transformers

Eaton’s Cooper Power series three-phase pad-mounted transformers are compact, tamper resistant and can be located near or inside of buildings with proper design selections.; Size: 45–10,000kVA; Primary Voltage: 2.4kV to 35kV; Secondary Voltage: 208Y/120V to 14.4kV; Liquid Insulating Fluid Type: Mineral Oil or Envirotemp; Multiple Specialty Designs such as K-Factor Rated and Seismic Rated; Multiple Optional Features such as Overcurrent Protection using Bay-O-Net Fusing or a Vacuum Fault Interrupter

Eaton’s Cooper Power series three-phase substation transformers convert distribution voltages to utilization voltages and can be designed to meet almost any application requirement.; Size: 300–12,000kVA; Primary Voltage: 2.4kV to 35kV; Secondary Voltage: 208Y/120V to 14.4kV; Liquid Insulating Fluid Type: Mineral Oil or Envirotemp; Multiple Specialty Designs such as K-Factor Rated and Seismic Rated; Multiple Optional Features such as Overcurrent Protection using Bay-O-Net Fusing or a Vacuum Fault Interrupter

Eaton’s Cooper Power series three-phase Envirotran transformer is specifically designed to be installed indoors with a containment pan and environmentally friendly FR3 fluid.; Size: 300–12,000kVA; Primary Voltage: 2.4kV to 35kV; Secondary Voltage: 208Y/120V to 14.4kV; Liquid Insulating Fluid Type: Envirotemp; Multiple Specialty Designs such as K-Factor Rated and Seismic Rated; Multiple Optional Features such as Overcurrent Protection using Bay-O-Net Fusing or a Vacuum Fault Interrupter

Eaton’s Cooper Power series single-phase overhead (pole mounted) and pad-mounted distribution transformers are available in a variety of ratings.; Size: 5–167kVA; Primary Voltage: 2.4kV to 19.92kV; Secondary Voltage: 120V to 600V; Liquid Insulating Fluid Type: Mineral oil or Envirotemp; Standard Features such as Heavy-duty Lifting Lugs, Hanger Brackets and Pressure Relief Device; Multiple Optional Features such as a Tap Changer, Birdguards and Stainless Steel Tanks

MicroEdge VPN and IIoT gateway

Modular and scalable technology to connect your industrial machinery and enable after-sales services. The cybersecurity-ready MicroEdge Series acts as a connector between the OT and IT domains, featuring compact and lightweight devices crafted as Edge Controller-IoT Gateways, and perfect for creating efficient and data-rich IoT solutions.

With compatibility across a wide range of communication protocols, these devices simplify the integration with existing installations and excel as a perfect technology for translating industrial protocols.

MicroEdge is ideal for the needs of industrial machinery, enabling remote connectivity, data collection and both Edge and Cloud Computing.

• Remote Access VPN for HMI updates, PLC programming and trouble shooting

• Web interface to easily launch VNC web pages and other applications

• Create and visualize dashboards in the cloud to view and modify data from any number of devices at different locations

• Unlimited Organizations and Users

• Third-party Compatible

• Acts as a NAT Router

• Wireless Connectivity enabled through add-on WiFi and Cellular modules

• Certified to IEC 62443-4-1, IEC 62443-4-2, IEC 27001

• JMobile Ready. Utilize the full feature set of JMobile Runtime

– Data Logging Capable

– Acts as a Protocol Converter (200+ protocols)

– Remote/Local Alarms, Email Reports, Local PDF Reporting

Industrial Playbook

Discrete Manufacturing Solutions

Devices that stand strong in adverse conditions

Manufacturing plant floors may not be pretty, but they’ve got to be productive. That’s where Legrand rugged workhorses come in. Their industrial-grade solutions deliver industrial-strength electrical safety and reliability, and that translates into maximum up time, all the time.

Tray High-Resistance Finish

Mfr.’s Model No. Description

7803MD Three Pole Three Phase AC Manual Controller

7813EX Manual Controller

1597PC2M Portable 2-Foot In-Line 15A Self-Test GFCI with Straight Blade Plug and Connector, Manual Reset

L630PGCM Heavy-Duty Ground Continuity Monitoring (GCM) Plug, Black and White

L630CGCM Heavy-Duty Ground Continuity Monitoring (GCM) Connector, Black and White

CRCD163N35F10

CR12L123N50F20

CRCD123N35T15

Cablofil® Wire Mesh

Cable Tray Products with High-Resistance Finish

1000 Series Cable Reel with Flying Lead, 10 Amp, 16 AWG, 35 ft

1200 Series Cable Reel with Flying Lead 20 Amp, 12 AWG, 50 ft for Lift/Drag Applications

1000 Series Cable Reel with Tri-Tap, 15 Amp, 12 AWG, 35 ft

Contact Your Local Wesco Representative 50 Cablofil Wire Mesh Trays Contact Your Local Wesco Representative

Vending Solutions

Strategically store and deliver critical assets and consumables by leveraging Wesco’s fully connected or standalone vending capabilities.

Vending Cabinets

• Add auxiliary lockers as needed

• Data management and reporting capabilities

• Flammable rated chemical management solution

• Flexible configuration options

• Intelligent replenishment (mobile, hardwire or WiFi)

• No special packaging

• Replaces 2–4 helical vending machines

• Secure access and video

• Simple installation

• User and job allocation and restrictions

Traditional Helical Systems

• Add auxiliary lockers as needed

• Data management and reporting capabilities

• Economical and 100% secure

• Fixed configuration

• Intelligent replenishment options (mobile, hardwire or WiFi)

• Multiple machine networking capability

• User and job allocation and restrictions

Customized Locker System

• Custom System Options

‒ Bins

‒ Shelves

‒ Drawers +/- weight scales

• Locking storage compartments

• Modular design for quick reconfiguration or expansion as needs change

• Standalone lockers and auxiliary units

Fully Automated Storeroom

• Add to any new or existing storeroom, cage or job trailer

• Data management and reporting capabilities

• Intelligent replenishment (mobile, hardwire or WiFi)

• RFID and job trailer capable

• Scanning and camera monitoring with secure access options

• User and job allocation and restrictions

Scan to learn how this technology can be used as part of a fully customized solution built for your operation.

Industrial Automation and Control Panel

Wesco partners with industry-leading automation and control suppliers to help our customers design and develop industrial control systems that meet and exceed our clients’ expectations. Wesco can help you determine what size system you need to build and what mix of products would be most effective.

A. Audible signals

B. LED stack lights

C. HMI

D. Push button

E. Pilot device

F. Selector switch

G. Air conditioner

H. Disconnect switch

I. Enclosure

J. Cord grips

K. Miniature circuit breaker

L. Single-pole fuse holder and fuse

M. Industrial ethernet

N. Enet surge protection

O. Programmable logic controller (PLC)

P. Controllers and I/O

Q. Industrial gateway

R. Fuse blocks and fuses

S. DIN rail

T. VFD

U. Ground bar

V. Moulded case circuit breaker

W. Distribution block

X. Control relays (ice cube and terminal block)

Y. Uninterruptable power supply (UPS)

Z. Transformer

AA. Combination motor starter

AB. Surge protection (120 VAC)

AC. Power supply

AD. Terminal blocks

AE. Panel duct

AF. Miniature CB

AG. Terminal blocks (high-current)

AH. Server

Industrial Playbook Quick Selection Guide

The Industrial Playbook Quick Selection Guide offers a more thorough list of products and services. Cross-reference industry icons and area numbers to find solutions tailored to your needs.

Oil and Gas pages 42–43

Energy Generation

Pump Jacks and Land Drilling Rig

Separator Station

Electrical Building and Micro Data Centre

Storage Tanks

Refining Facilities

Transportation and Storage

Control and Administration Building

Cooling Towers

Processing Plants

Pump Compressor Stations

Docking Station

Offshore Rig and Control Room

Discrete Manufacturing

pages 60–61

Energy Generation

Electrical Room and Edge Data Centre

Stamping Facility

Welding/Body Paint

Final Assembly

Quality Assurance

EV Chargers and Battery Energy Storage

Material Management Solutions

Wire and Cable Enhancement Services

Powertrain Facility

Office Space

Industrial Playbook Quick Selection Guide

Industrial Playbook Quick Selection Guide

Industrial Playbook

Industrial Playbook Quick Selection Guide

Industrial Playbook Quick Selection Guide

Industrial Playbook

Selection Guide

Industrial Playbook

Wesco Canada Line Card

We build, connect, power and protect the world.

Automation and Control

Linear Technologies

• Bosch Rexroth

Motors and Motor Control

• Apex

• Baldor

• Bauer GMC

• Bosch Rexroth

• Eaton

• Lovato

• WEG

Network and Conditioning

• Bosch Rexroth

• Cisco

• Eaton MTL

• EXOR

• Hirschmann

• Lumberg

• Molex

• Red Lion

• WAGO

• Weidmuller

Panel Hardware

• Eaton

• Omron

• Panduit

• Puls

• Red Lion

• WAGO

• Weidmuller

PLC/Controller/ Visualization

• Bosch Rexroth

• EXOR

• Lumberg

• Patlite

• Red Lion

• WAGO

• Weidmuller

Machine Safety

• Bosch Rexroth

• IDEC

• IDEM

• Pilz

• Schmersal

Motion Control/ Robotics

• Apex

• Bosch Rexroth

• Comau

• Dusan

• Murrplastik

• OnRobot

Sensors

• Eaton

• Omron

• Pepperl & Fuchs

• Red Lion

• Wenglor

Boxes and Enclosures

Aluminum Framing

• Bosch Rexroth

Electrical Boxes, Covers and Accessories

• ABB T&B

Fibreglass Enclosures

• Fibox

• Hammond Floor Boxes

• Hubbell

• Legrand

Hazardous

Location Enclosures

• Appleton

• Eaton Crouse-Hinds

• Hubbell Killark

Metallic and Non-Metallic Enclosures

• Fibox

• Hammond

• Rittal

Modular Freestanding

• Hammond

• Rittal

Weatherproof Boxes and Accessories

• ABB T&B

• Westlake

Wireway and Trough

• Hammond Conduit and Raceway

Cable Support Systems

• ABB T&B

• nVent Caddy

• Panduit

Cable Tray and Accessories

• ABB T&B

• Eaton B-Line

• Legrand Fittings and Connectors — Flexible

• ABB T&B

• Anamet

• Eaton Crouse-Hinds

• Murrplastik

Fittings and Connectors — Metallic

• ABB T&B

• Atkore

• CAP Products

• CMP

• Eaton Crouse-Hinds

Fittings and Connectors — Non-Metallic

• Westlake

Flexible Conduit

• ABB T&B

• Anamet

Harsh and Hazardous Fittings and Conduit

• ABB T&B

• Anamet

• Atkore

• Eaton Crouse-Hinds

Metallic Conduit

• Atkore Columbia MBF

Non-Metallic Conduit

• FRE Composites

• Westlake

Strut and Accessories

• ABB T&B

• Eaton B-Line

Wiring Duct and Raceways

• ABB T&B

• Legrand Wiremold

• Panduit

Electrical Distribution

Distribution, Breakers, Disconnects and Accessories

• Eaton Generators and Accessories

• CAT

• Generac

• MTU

Metering Products

• ABB T&B

• Eaton Transformers and Accessories

• Delta

• Hammond Power

• Rex Manufacturing

• Transfab

Electrical Supplies

Bundling and Wire Management

• ABB T&B

• CMP

• MaxCell

• Panduit

Batteries

• Actuvate

• Duracell

• Energizer

• Panasonic

• Rayovac

Extension Cords

• Molex

• Prysmian

• Southwire

Fasteners

• Eaton B-Line

• Fasteners and Fittings

• LH Dottie

• nVent Caddy

• nVent Erico Fuses

• Eaton Bussmann

• Mersen Grounding and Bonding

• ABB T&B

• Hubbell Burndy

• Panduit

Heat Shrink and Cold Shrink Tubing

• 3M

• ABB T&B

• DSG Canusa

• Panduit Sensors and Timers

• Legrand Pass & Seymour

• Leviton

• Lutron

• Intermatic Tapes and Labels

• 3M

• ABB T&B

• Brady

• IDEAL

• Panduit

Terminations and Splices (HV)

• 3M

• TE Wire Connectors

• 3M

• ABB T&B

• IDEAL

• Panduit

• WAGO

• Weidmuller

Wiring Devices

• Legrand Pass & Seymour

Wesco Canada Line Card

(continued)

Enterprise and Industrial Communications Security and AV

Cable Management and Pathways

• Chatsworth

• Commscope

• Eaton B-Line

• Hammond

• Legrand Cablofil

• nVent Caddy

• nVent Hoffman

• Panduit

Copper Cabling Infrastructure — Cable

• Belden

• Commscope

• General Cable

• Panduit

• Superior Essex

Copper Cabling Infrastructure — Solutions

• Belden

• Commscope

• Panduit

Fibre Optic Infrastructure — Cable

• Belden

• Commscope

• Corning

• Panduit

• Superior Essex

Industrial Communications and Control — Communications

• Belden

• Bosch Rexroth

• Cisco

• Hirschmann

• Panduit

• Red Lion

• WAGO

• Weidmuller

Industrial Communications and Control — Cabling

• ABB

• Alpha Wire

• Belden

• Eaton

• General Cable

• LAPP Group

• Prysmian Networking

• Allied Telesis

• Cisco

• GarrettCom

• Hirschmann

• Pro Labs

• Tofino Security

• TP Link

• Transition Networks

• Trendnet

Passive Optical LAN

• Corning Power and Thermal Management

• APC by Schneider Electric

• Chatsworth

• Eaton CPDI

• Enersys (Alpha Technologies)

• Legrand DPC (Raritan and Server Technologies)

• Minute Man

• Panduit

• Surge X

• Tripp Lite

• Vertiv

Professional AV Solutions

• Advanced Network Devices

• Aiphone

• Algo

• Atlona

• Axis

• Beale Street

• Belden

• Blaze Audio

• Bogen

• Bosch

• C2G

• Chief

• Code Blue

• CyberData

• Da-Lite

• Dynacord

• Electro-Voice

• Factor Electronics

• Gaitronics

• Genoptic

• Identitiv

• Juke Audio

• Guardian Telecom

• Kramer

• Legrand AV

• Liberty AV

• Luxul

• Maxnerna/Infocus

• Middle Atlantic

• Mimo monitors

• Muxlab

• Peerless-AV

• Philips/TPV

• Russound

• Sennheiser

• Sharp/NEC

• Talkaphone

• TOA Canada

• Vaddio

• Valcom

• Vanco

• Viking Electronics

• Winsted

• Zenitel

Racks and Enclosures

• APC by Schneider Electric

• Belden

• Chatsworth

• Commscope

• Eaton B-Line

• Hammond

• Legrand

• nVent Hoffman

• Panduit

• RF Mote

• Rittal

• Tripp Lite

Security — Access Control, Lock

Hardware, Pro-AV

• 2Gig (Nice)

• Adams Rite

• Ajax

• Alarm.com

• Allegion

• Altronix

• Alula

• American Dynamics

• Assa Abloy

• Axis

• Best

• Bosch

• Brivo

• Camden

• CDVI

• ComeLit

• Comnet

• Corbin

• Digital Watchdog

• Dormakaba

• DSC

• Entrematic

• Exacq

• GRI

• Halo

• Hanwha

• HES

• HID

• Honeywell

• Inaxsys

• Inner Range

• Invid Tech

• Ives

• Kantech

• Keyscan

• LCN

• Life Safety Power

• Master Lock

• Medeco

• Mircom

• Milestone

• Northern Video (Liberty)

• Norton

• Paxton

• Pelco

• Potter

• Qolsys

• RBH

• RCI

• RCS

• Rhombus

• Rockwood

• Sargent

• Schlage

• Securitron

• Speco Tech

• STI

• Tane

• Telguard

• Turing Video

• Von Duprin

• Vosker

• WatchNET

• Weiser

• Westlake Wireless

• Allied Telesis

• Advanced RF Technologies

• CellFi by Nextivity

• Ceragon

• Commscope

• Ericsson

• Galtronics

• KBC Networks

• Liberty

• Oberon

• Proxim

• Radio Frequency Technology

• Ruckus

• Siklu

• Times Microwave

• TP Link

• Wade Antenna

Heating and Ventilation

Exhaust Fans, Cooling Fans and Accessories

• Banvil

• Broan Venmar

• Canarm

Hand Dryers

• Canada

Hand Dryers

• Comac

• Ouellet

Industrial Playbook

Wesco Canada Line Card

(continued)

Heat Trace Cable and Heating Mats

• 3M

• nVent Raychem

• Ouellet

• Thermon

HVAC Equipment and Accessories

• Chromalox

• Broan/Nutone/ Venmar

• Honeywell

• Ouellet

• TPI Corp

Lighting

Emergency Lighting

• Aimlite

• BeLuce

• Emergilite

• Lumacell

• Stanpro Flashlights and Worklights

• Energizer

• Molex

• Streamlite

Harsh and Hazardous Lighting

• Appleton

• Eaton Crouse-Hinds

• Halo Underground

Indoor Lighting Fixtures

• Cooper Lighting

• Liteline

• RAB Design

• Signify

Lamps and Ballasts

• EiKO

• Signify

• Standard Products

Lighting Controls

• Cooper Lighting

• Legrand

• Lutron

• Signify

Outdoor Lighting Fixtures

• Cooper Lighting

• RAB Design

• Signify Renewable Energy

Battery Storage — Commercial and Industrial

• Eaton

• Generac

• TROES

Battery Storage — Residential

• Fortress

• Simpliphi

EV Charging

• Bosch

• Chargepoint

• Eaton

• Electric Avenue

• FLO

• Legrand

• Wallbox

Off Grid

Solar

• Alltech Battery Boxes

• Morning star Controllers

• UPG Actuvate Batteries

• Solarland Modules

Solar Inverters

• AP Systems

• Enphase

• SMA

• SolarEdge

Solar Modules

• Longi

Solar Racking

• Kinetic

• Roof Tech

• Terragen

• Unirac

Solar Roof-Mounted Combiner/Enclosure

• SolaDeck

Safety

Fire Safety

• 3M

• BRK

• Honeywell Fire (FireLite, System Sensor)

• Kidde

• Roxtec Safety, Signage and PPE

• 3M

• Actuvate

• Brady

• Panduit

Tools, Test Equipment and Supplies Abrasives

• 3M

• Norton Cable Fishing and Pulling

• Greenlee

• IDEAL Hand Tools

• Greenlee

• IDEAL

• Klein Ladders

• Louisville Ladder

Power Tools and Accessories

• Black & Decker/Dewalt

• Milwaukee Testing and Measurement

• Exfo

• Flir

• Fluke Electronics

• Fluke Networks

• netAlly

• Trend Networks

• Viavi

Wire and Cable

Armoured Cable

• Belden

• Deca Cables

• Electro Cables

• Nexans

• Northern Cables

• Prysmian

• Shawflex

Building Wire

• Deca Cables

• Electro-Cables

• Nexans

• Northern Cables

• Prysmian

• PTI

Fire Alarm Cable

• Deca Cables

• Domtech

• Electro-Cables

Flexible Cables

• Belden

• Helukabel

High Temp Wire and Cable

• Harbour Industries

• Southwire

Hook Up and Lead Wire

• Domtech

• Southwire

Instrumentation Cable

• Belden

• Deca Cables

• Electro-Cables

• Shawflex

Mining Cable

• AmerCable

• Prysmian

• Southwire

Multi Conductor/ Paired Low Voltage Cable

• Belden

• Deca Cables

Portable Cord

• Helukabel

• Prysmian

• Southwire

Shipboard Cable

• Helkama

• Shawflex

Thermocouple Wire and Cable

• Belden

• Deca Cables

• Shawflex

Tray Cable

• Belden

• Deca Cables

• Electro-Cables

• Shawflex

Unarmoured Power Cable

• Nexans

• Okonite

• Prysmian

• Southwire

Utility Cable

• Nexans

• Prysmian

• Southwire

Wesco Government Solutions

Simplifying Procurement for Public Sector Partners

Wesco is proud to support government agencies and municipalities with tailored solutions for water treatment, infrastructure upgrades, sustainability initiatives, and more. Our team understands the unique procurement challenges in the public sector, and we make it easier.

Streamlined Procurement Through Government Master Agreements

Wesco participates in several pre-approved purchasing programs that simplify and accelerate procurement:

Canoe Procurement Group

A cooperative purchasing program serving municipalities, non-profits, and other public sector entities across Canada. Canoe allows eligible organizations to purchase directly from vetted suppliers without going to tender.

OECM (Ontario Education Collaborative Marketplace)

A trusted non-profit sourcing partner for Ontario’s broader public sector, including municipalities, school boards, and healthcare institutions. OECM agreements offer competitive pricing and compliance-ready procurement.

Your Dedicated Government Team

Electrical Federal Supply Arrangement

Wesco is an approved supplier under the Government of Canada’s Electrical Federal Supply Arrangement, enabling federal departments and agencies to procure electrical products efficiently and compliantly.

Wesco’s Government Sales Team is here to support your project from start to finish. We offer:

• Expertise in public sector procurement

• Guidance on leveraging GPO’s and federal supply arrangements

• Local support through 140+ branches across Canada

• Collaboration with Canadian manufacturers for faster deployment

Want to learn more about how to leverage these programs? Reach out to Wesco Canada’s Government Team: govteam@wesco.com

Proudly Operating in Canada

Expertise Wherever You Operate

Visit buy.wesco.ca/content/about-us/branch-locator to get a full list of locations in

• Approximately $4B in annual sales

• 3,000+ employees in Canada

• Over 4 million sq. ft. of warehouse and office space

• More than 140 locations in Canada

• 9 Provinces and Yukon Territory with operations

• Vast network of sales and service locations One of the largest electrical, communications, utility and broadband supply chain providers in Canada.
