Liberty Security and Surveillance Products Catalog

Security and Surveillance Products

Full Line of NDAA Compliant IP and Analog Recorders and Cameras, Security Monitors, Power Supplies and Accessories.

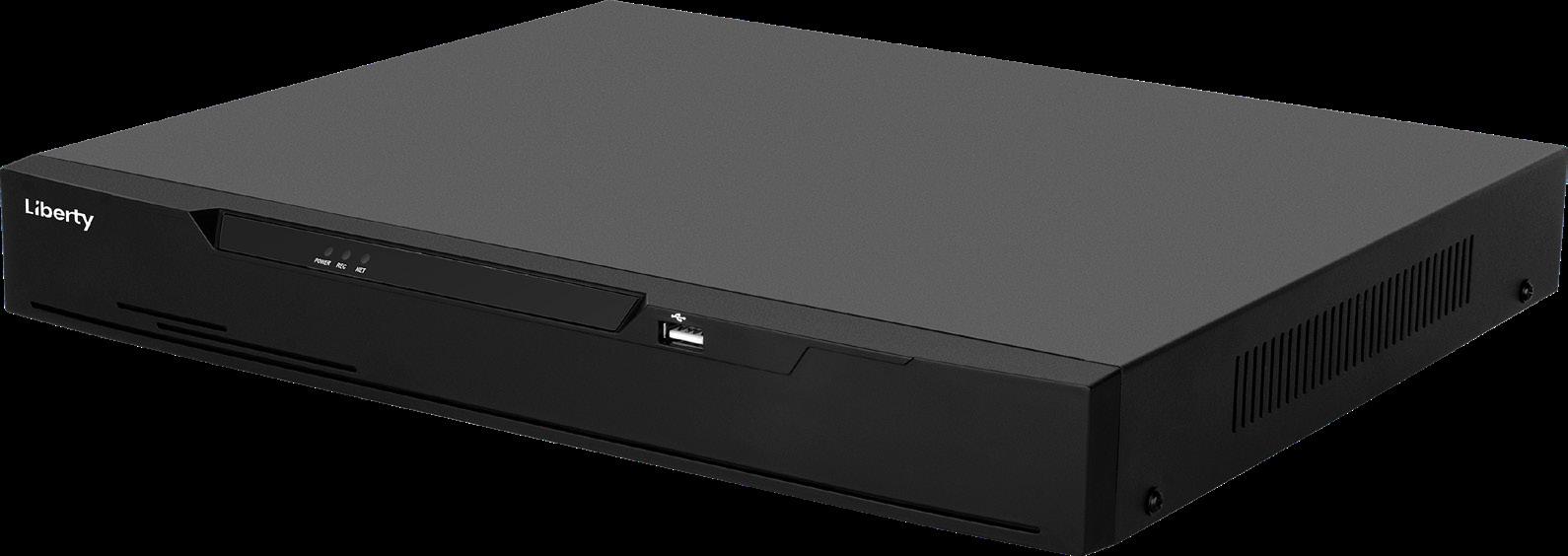

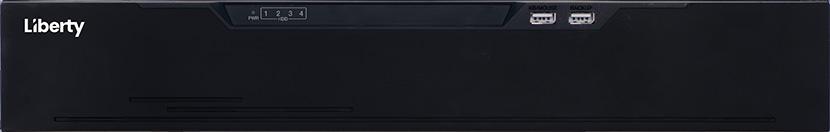

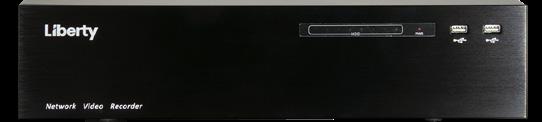

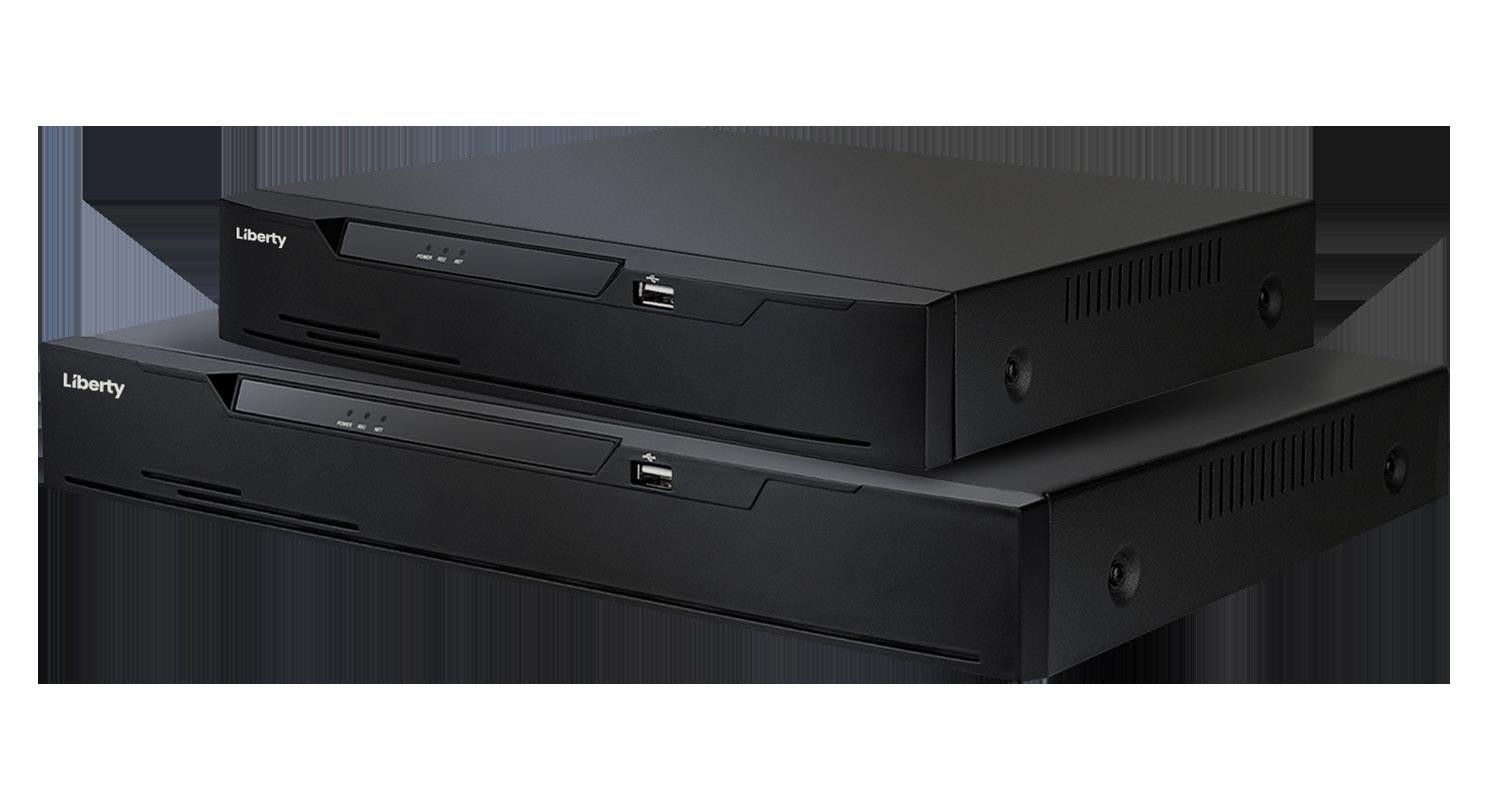

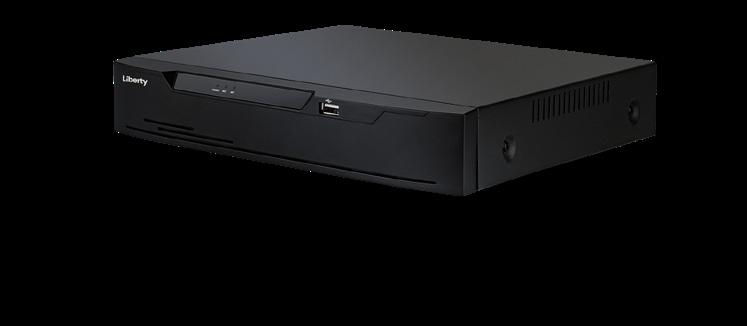

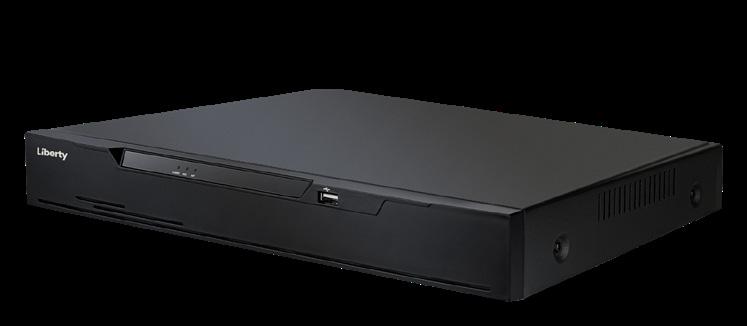

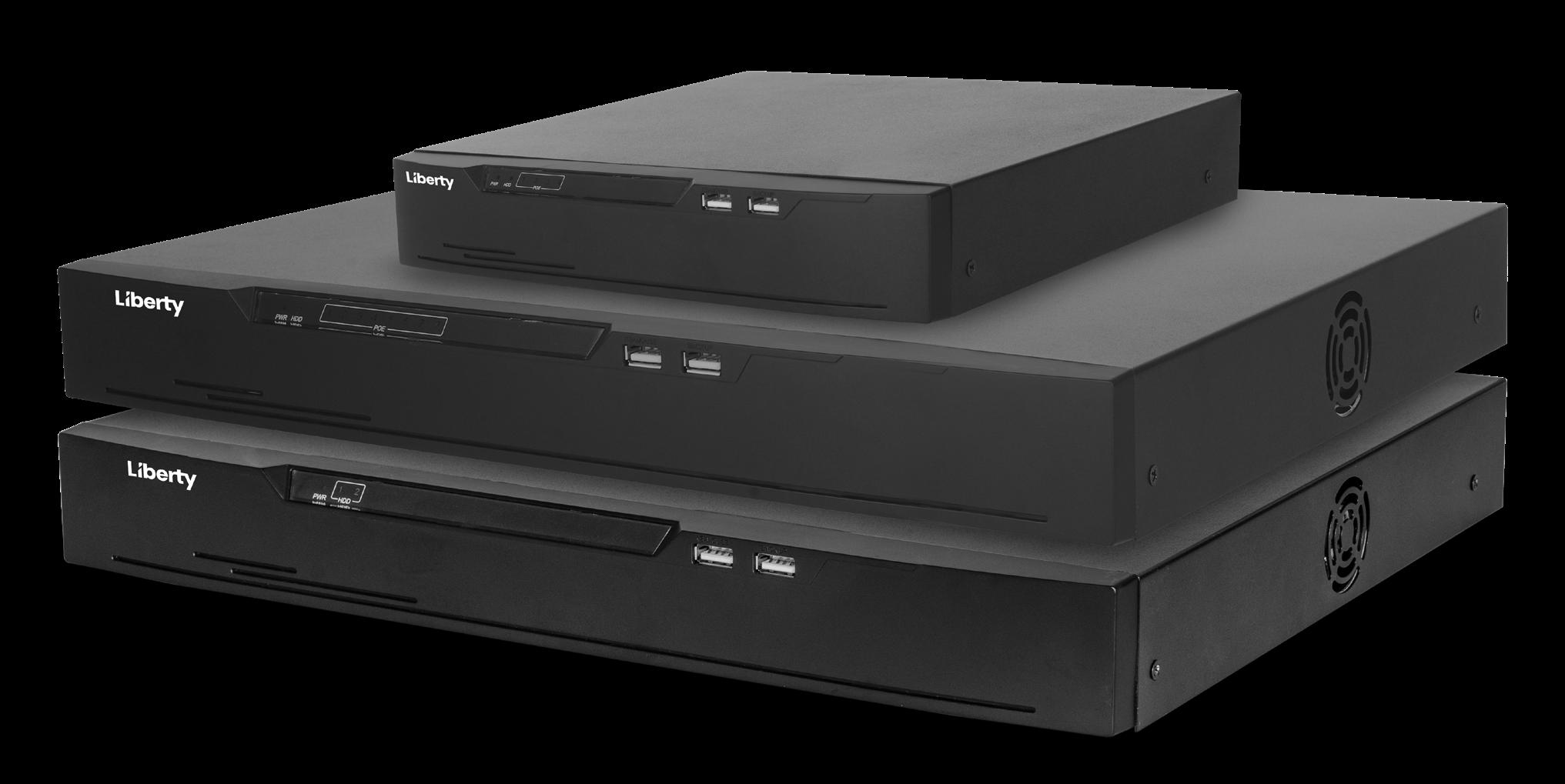

Network Video Recorders (NVR) and Kits

• Supports AI face, body and vehicle recognition

• 4, 8, 16, channel models with up to 24TB storage

• 32 and 64 channel models with up to 112TB Storage

• 4 and 8 channel NVR Kits with 4MP outdoor IP cameras

• Free Liberty-View mobile app and CMS for PC and Mac

• Intelligent analytics

• Up to 12MP recording

• NDAA compliant

Max Record Resolution 12MP (32Ch. Only), 8MP/6MP/5MP/4MP/3MP/1080p/720p/D-1

Playback

AI and Intelligent Analytics

Plug and Play Models

1Ch.-8MP/ 4Ch.-1080p@30FPS

1Ch.-8MP/ 4Ch.-1080p / 8Ch.-D1@30FPS

1Ch.-8MP/ 4Ch-1080p/9Ch.-D1/16Ch. D1@30FPS

Supports AI face, body and vehicle recognition*, perimeter, single virtual fence, double virtual fence, multi-loitering, wrong way, people counting, smart motion

All L3 Series IP cameras:

L3IP4BS, L3IP4DS, L3IP4DS4, L3IP4TS, L3IP4TS4, L3IP4VFDS, L3IP4VFBS, L3IP4PTZ30XS, L3IP4TFCS, L3IP8BS, L3IP8DS, L3IP8DS4, L3IP8TS, L3IP8TS4, L3IP8WS, L3IP8VFDS, L3IP8VFBS, L3IP8TFCS, L3IP8BDS180S, L3IP12FE360S

Record Modes Manual, schedule (regular, continuous), motion detection, alarm in

Power Supply

Multiple Outputs

Rack Mounting

DC48V/1.25A

Simultaneous HDMI and VGA outputs

No rack mounting

AC100~240

Independent HDMI and VGA outputs

1U rack mounting

Audio 3.5 mm audio jack

Free Mobile App Free Liberty-View mobile app

Free Software Free Liberty-View mobile CMS software

* For use with Liberty L3 Series AI IP Cameras

Maximum IP Cameras

Channels

Max Record Resolution

Playback

AI and Intelligent Analytics

Plug and Play Models

L3 SERIES AI NETWORK VIDEO RECORDERS WITH POE

12MP @ 20FPS / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / D-1 @ 30FPS

1Ch.-12MP@20FPS / 4Ch.-4MP / 9Ch.-D1 / 16Ch.-D1@30FPS

12MP @ 25FPS, 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / D-1 @ 30FPS

1Ch.-12MP / 4Ch.-8MP / 8Ch.-4MP / 16Ch.- 1080P / 32Ch.-D 1 / 64Ch.-D1

Supports AI face, body and vehicle recognition*, perimeter, single virtual fence, double virtual fence, multi-loitering, wrong way, people counting, smart motion

All L3 Series IP cameras: L3IP4BS, L3IP4DS, L3IP4DS4, L3IP4TS, L3IP4TS4, L3IP4VFDS, L3IP4VFBS, L3IP4PTZ30XS, L3IP4TFCS, L3IP8BS, L3IP8DS, L3IP8DS4, L3IP8TS, L3IP8TS4, L3IP8WS, L3IP8VFDS, L3IP8VFBS, L3IP8TFCS, L3IP8BDS180S, L3IP12FE360S Incoming

Poe Power

Record Modes

Power Supply

Multiple Outputs

Rack Mounting

Manual, schedule (regular, continuous), motion detection, alarm in Manual, schedule (regular, continuous), event

DC48V/1.25A

Simultaneous HDMI and VGA outputs

rack mounting

AC 100-240

rack mounting

Audio 3.5 mm audio jack 3.5 mm audio jack - for two-way audio only

Free Mobile App Free Liberty-View mobile app

Free Software Free Liberty-View mobile CMS software

* For use with Liberty L3 series AI IP cameras

L3 SERIES IP KIT MODELS

L3 SERIES 4 AND 8 CHANNEL AI NVR KITS

Cameras Included 4 6

NVR Max IP Channels 4-Channel 8-Channel

NVR Storage 2TB built-in storage

NVR Compression H.265 and H.264 compression formats

NVR Record Modes Manual, schedule (regular, continuous), motion detection, alarm in

NVR Power Supply

External 48 Volt DC

Internal 120-240 Volt AC

NVR Audio 3.5 mm in/out for two-way audio

Incoming Bandwidth 40 Mbps 80 Mbps

Camera Resolution 4MP (2560 x 1440)

Camera Lens 2.8 mm fixed focal IR lens

Camera Audio Built-in microphone

Camera IR LED Range 2 high power IR LEDs/100' IR range

Weatherproof Rating IP66

Free Mobile App Liberty-View mobile app for iPhone, iPad, Android and Android tablets

Free Software Liberty CMS, utility tool

OPTIONAL ACCESSORIES AND CAMERAS

24" Security Monitor

28” 4K Security Monitor

32" Security Monitor

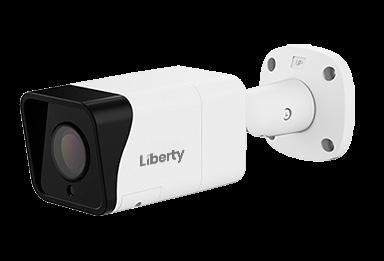

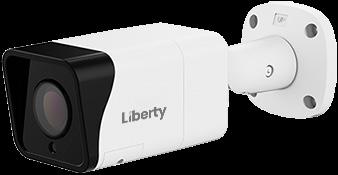

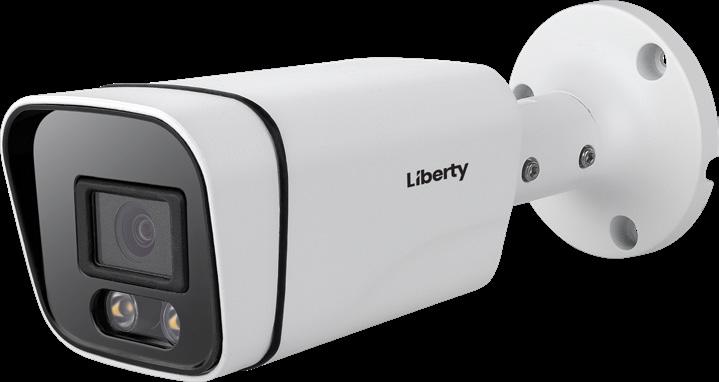

4MP or 8MP Autofocus IP Bullet

4MP or 8MP Autofocus IP Dome

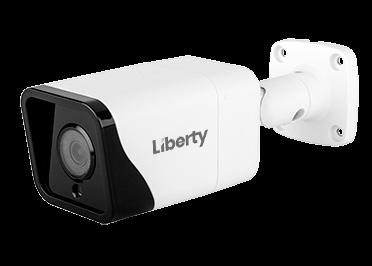

4MP or 8MP Fixed Lens Bullet

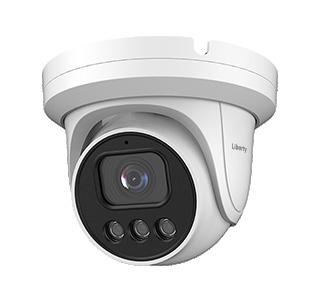

4MP or 8MP Fixed Lens Turret

LSM24R — 1080p, HDMI/VGA/BNC inputs, IR remote

LSM4K28 — 3840 x 2160 , 3x HDMI, VGA, display Port, IR remote

LSM32R — 1080p, HDMI/VGA/BNC inputs, IR remote

L3IP4VFBS/L3IP8VFBS — 2.7-13.5 mm, 120' IR

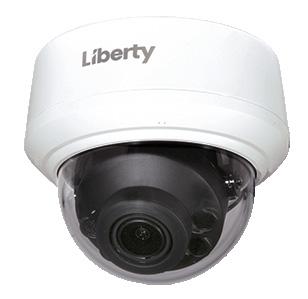

L3IP4VFDS/L3IP8VFDS — 2.7-13.5 mm, 120' IR

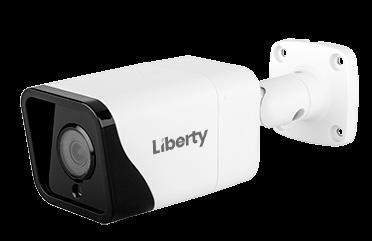

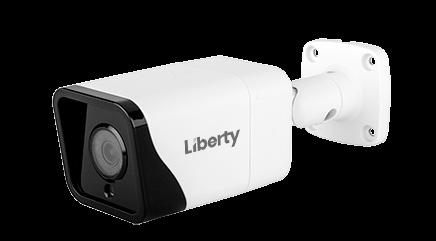

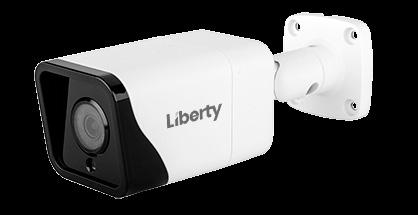

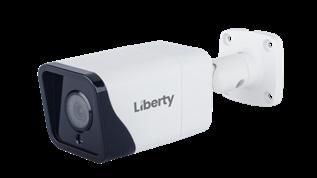

L3IP4BS/L3IP8BS — 2.8 mm Bullet, 100' IR

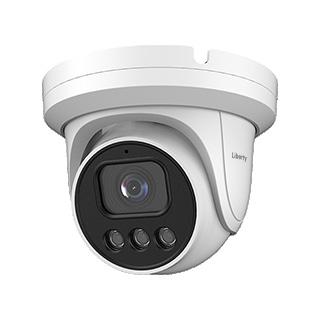

L3IP4TS/L3IP8TS — 2.8 mm turret, 100' IR | L3IP4TS4/L3IP8TS4 — 4 mm turret, 100' IR

8MP Fixed Lens Wedge L3IP8WS — 2.8 mm wedge, 45' IR

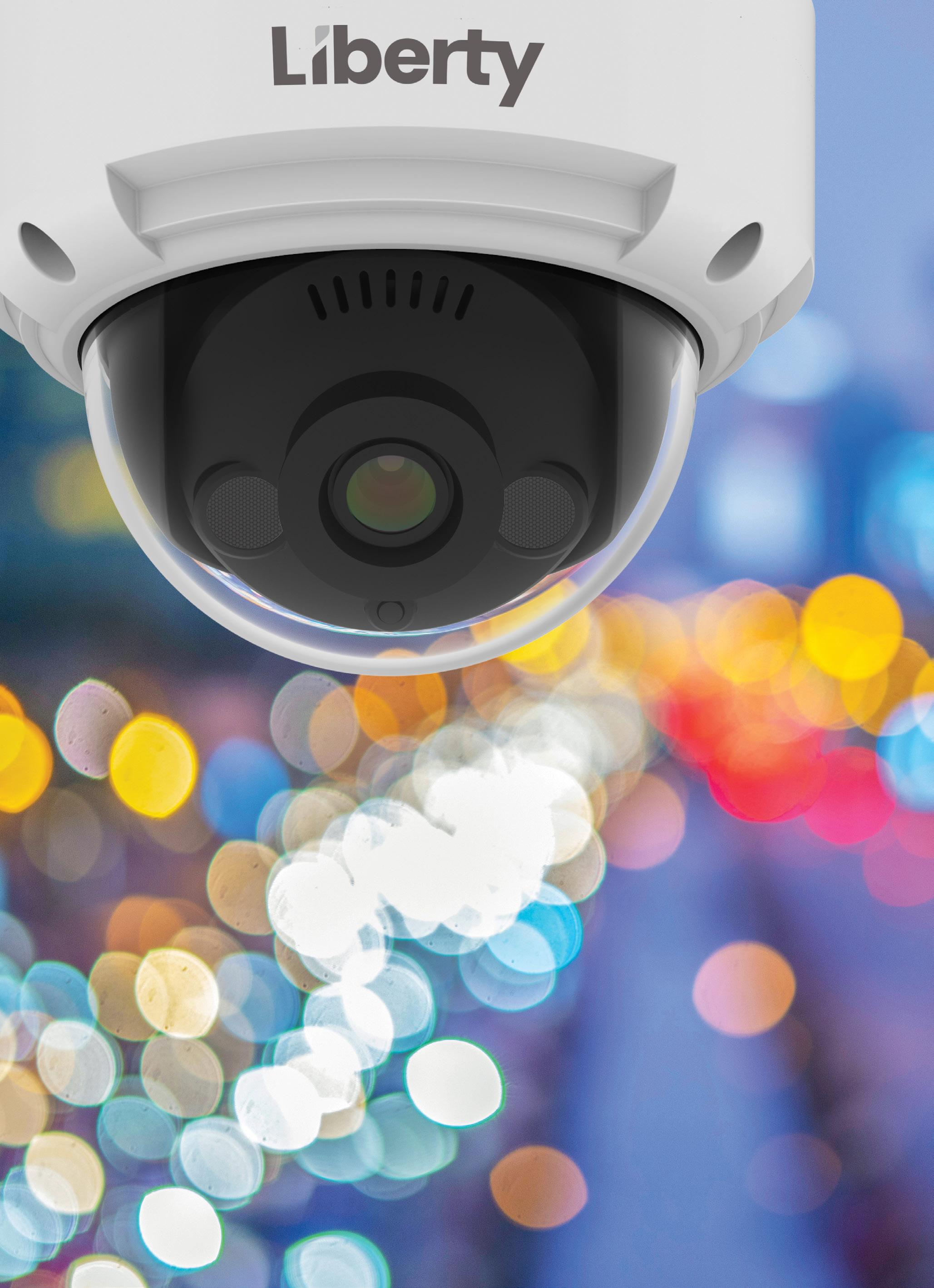

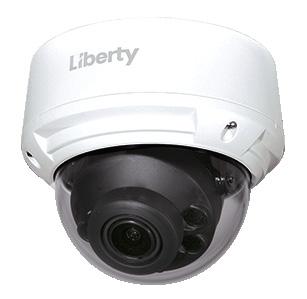

4MP or 8MP Fixed Lens Dome

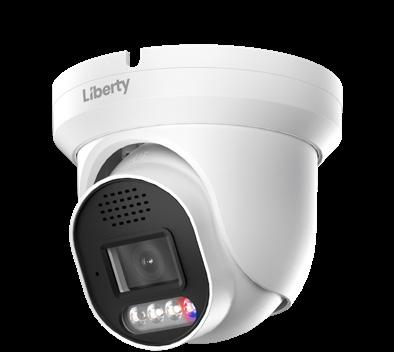

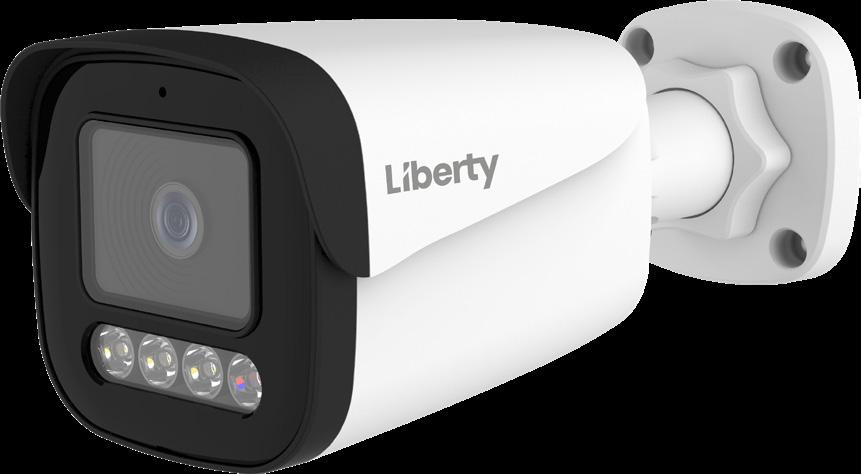

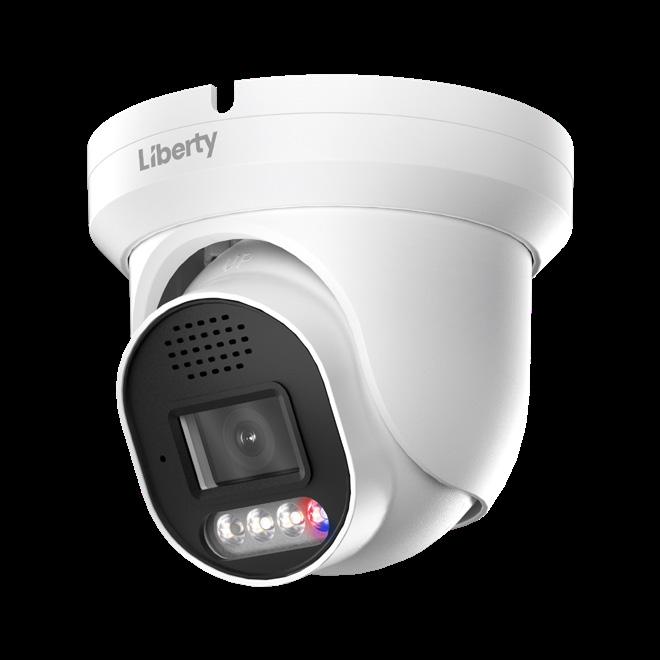

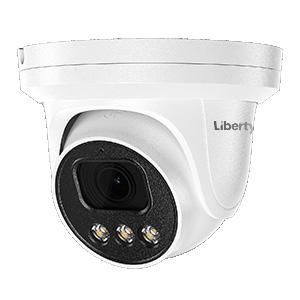

Full Color 4MP/8MP Fixed Lens Turret

L3IP4DS/L3IP8DS — 2.8 mm dome, 100' IR | L3IP4DS4/L3IP8DS4 — 4 mm dome, 100' IR

L3IP4TFCS/L3IP8TFCS — 2.8 mm turret, 100’ white LED

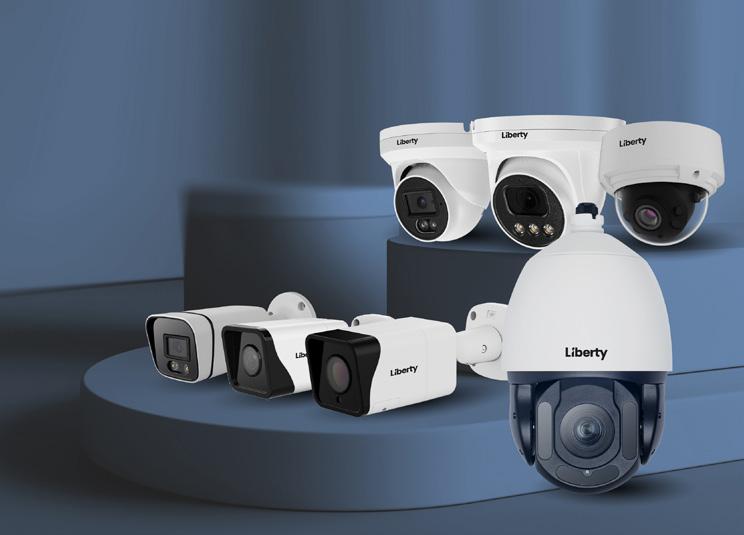

Advantage IP Cameras

• 5MP AI, PoE cameras

• Supports AI face, body and vehicle recognition

• Active deterrent models with two-way audio

• Infrared and white light LED options

• True 120dB wide dynamic range

• Intelligent analytics

• SD card capability

• NDAA compliant

L3 ADVANTAGE SERIES IP CAMERAS

Max Resolution 5MP (2880x1620)

PoE IEEE 802.3af

AI Features

Smart Analytics

Wide Dynamic Range

Supports AI face, body and vehicle recognition*

Perimeter, single virtual fence, double virtual fence, multi-loitering, wrong way, people counting, smart motion, illegal parking

True 120dB wide dynamic range

Frame Rate 2880 x 1620 @ 25/30FPS

Lens Size 2.8 mm

LED Distance

Free Mobile App Liberty-View mobile app for iPhone, iPad, Android and Android tablets

Free Software Liberty CMS, utility tool

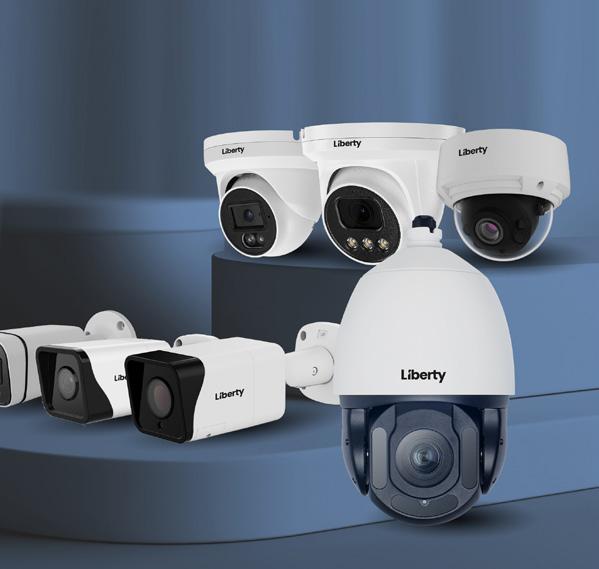

4MP IP Cameras

• 4MP AI, PoE cameras

• Supports AI face, body and vehicle recognition

• Infrared and white light LED options

• Intelligent analytics

• Audio line in/out and alarm

• SD card capability

• NDAA compliant

L3 SERIES AI 4MP IP CAMERAS

Resolution

AI Features Supports AI face, body and vehicle recognition*

Wide Dynamic Range True 120dB wide dynamic range

Frame Rate 2592 x 1520 @ 30FPS 2560 x 1440 @ 30FPS

Smart Analytics

Perimeter, single virtual fence, double virtual fence multi-loitering, wrong way, people counting, smart motion

SD Card Slot Supports 256GB max

True D/N - IR Lens Yes

Triple Streams Yes Compatibility ONVIF profile S/G/T compliant

Weatherproof Rating

Free Mobile App

Liberty-View mobile app for iPhone, iPad, Android and Android tablets

Free Software Liberty CMS, utility tool

* For use with Liberty L3 series AI NVRs

8MP IP Cameras

• 8MP AI, PoE cameras

• Supports AI face, body and vehicle recognition

• Infrared and white light LED options

• Intelligent analytics

• Audio line in/out and alarm

• SD card capability

• NDAA compliant

L3 SERIES AI 8MP IP CAMERAS

AI Features

Wide Dynamic Range

Smart Analytics

Perimeter, single virtual fence, double virtual fence multi-loitering, wrong way, people counting, smart motion

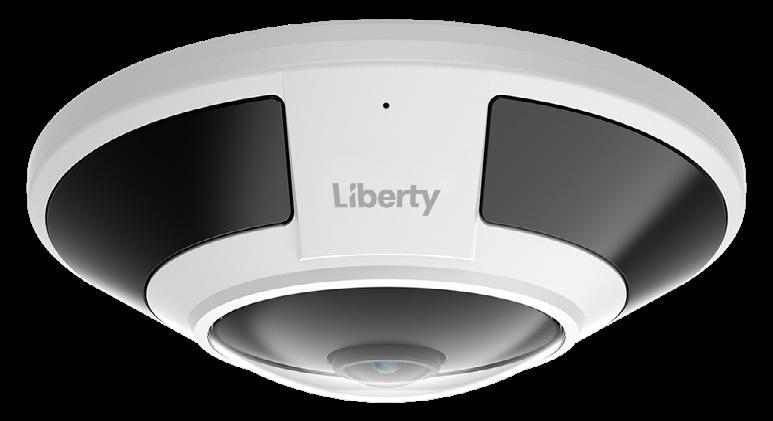

Surround View Specialty

IP Cameras

• Supports AI face, body and vehicle recognition

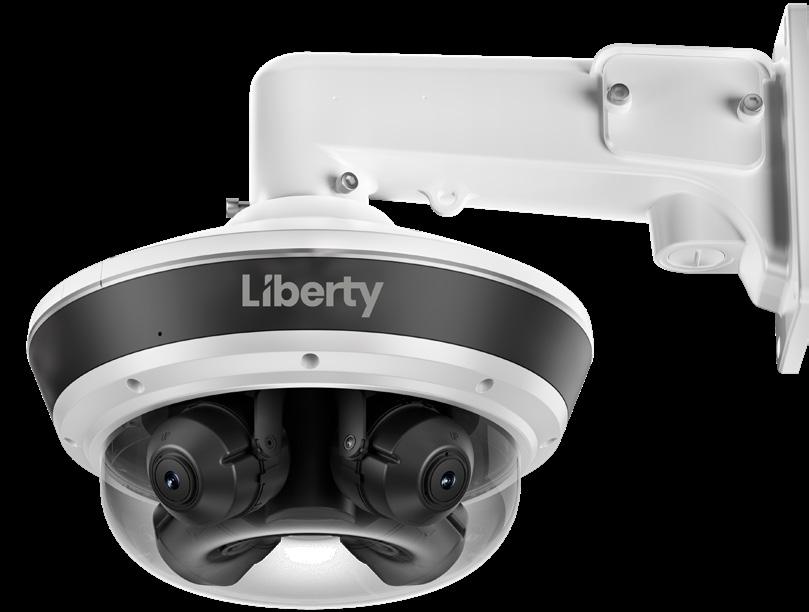

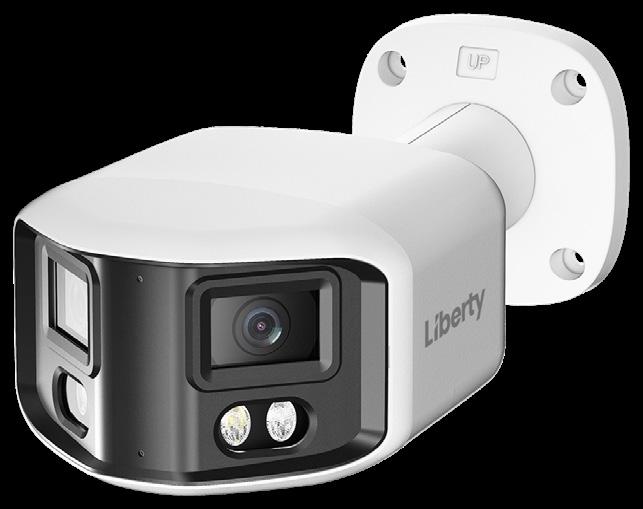

• 4MP PTZ, 8MP dual sensor, 12MP fisheye and 20MP (4x5) mlti sensor models

• 180° and 360° panoramic FOV capability

• Intelligent analytics

• SD card capability

• NDAA compliant

Surround View Specialty IP Cameras

L3 SERIES AI SURROUND VIEW SPECIALTY IP CAMERAS

AI Features Supports AI face, body and vehicle recognition*

Wide Dynamic Range True 120dB wide dynamic range

Smart Analytics

Perimeter, single virtual fence, double virtual fence, multi-loitering, wrong way, people counting, smart motion

SD Card Slot

Free Mobile App

Liberty-View mobile app for iPhone, iPad, Android and Android tablets

Free Software Liberty CMS, utility tool

Hybrid Video Recorders (HVR)

• 4, 8 and 16-channel 5MP hybrid DVRs

• Compatible with TVI, CVI and AHD formats

• Full hybrid - all channels analog or IP

• Up to 8TB (4Ch.) or 16TB (8 and 16Ch.) storage capacity

• Free Liberty-View mobile app and CMS software

• Simultaneous HDMI and VGA outputs

• NDAA compliant

L3 SERIES 5-IN-1 HYBRID HD ANALOG RECORDERS

Video Output

Record Frame Rate

Simultaneous VGA and HMDI main monitor outputs

Record Resolution 960 x 576(960H), 1280 x 720(720p), 1920 x 1080(1080p), 2560 x 1440(4MP), 2560 x 1920(5MP), 1280 x 1440(8MP-Lite)

7FPS@8MP Lite, 6FPS@5MP, 7FPS@4MP, 15FPS@1080p, 30FPS@720p and 960H

8FPS@8MP Lite, 7FPS@5MP, 8FPS@4MP, 15FPS@1080p, 30FPS@720p and 960H

Free Mobile App Liberty-View mobile app for iPhone, iPad, Android and Android tablets

Software Included Liberty CMS, utility tool Hybrid Video Recorder

Analog Cameras

• 5MP analog cameras

• Compatible with TVI, CVI and AHD formats

• True 120dB wide dynamic range

• Day/night with IR filter - auto switch

• IP66 or IP67 weatherproof ratings

• NDAA compliant

LA SERIES 5MP MULTI FORMAT CAMERAS

Multiple Formats

Video Output

L3 SERIES CAMERA MOUNTING GUIDE

L3IP4BS, L3IP4VFBS, L3IP8BS, L3IP8VFBS, LA5BIR80, LA5VFBIR120, LA5BFC60

L3IP8BDS180S

FEATURES:

Liberty’s L3 Mounting accessories include a hinged wall mount, pendent mount, junction boxes and pendent caps to make installation easier and cameras more aesthetically pleasing. The chart below shows accessories needed for different mounting applications.

L3IP12FE360S

Junction box

Pole

Junction box

Pole

Junction box

Pendent

Wall

Pole

Junction box

L3JB1 junction box

L3JB1 + L3POLEMT2 junction box + pole mount

L3JB1 junction box

L3JB1 + L3POLEMT2 junction box + pole mount

L3JB7 junction box

L3PC7 + L3CPM1 pendent cap + pendent mount

L3PC7 + L3HWM1 pendent cap + wall mount

L3PC7 + L3HWM1 + L3POLEMT2 pendent cap + wall mount + pole mount

L3JB2 junction box

L3IP4DS, L3IP4DS4, L3IP8DS, L3IP8DS4

L3IP4TS, L3IP4TS4, L3IP4TFCS, L3IP8TS, L3IP8TS4, LA5TIR80, LA5TIR100, LA5TFC100

Pendent

Wall

Pole

Junction box

Pendent

Wall

Pole

L3PC2 + L3CPM1 pendent cap + pendent mount

L3PC2 + L3HWM1 pendent cap + wall mount

L3PC2 + L3HWM1 + L3POLEMT2 pendent cap + wall mount + pole mount

L3JB3 junction box

L3PC3 + L3CPM1 pendent cap + pendent mount

L3PC3 + L3HWM1 pendent cap + wall mount

L3PC3 + L3HWM1 + L3POLEMT2 pendent cap + wall mount + pole mount

Camera Mounting Accessories

L3 SERIES CAMERA MOUNTING GUIDE

FEATURES:

Liberty’s IP and analog PTZ products offer an included wall mount. Optional PTZ mounting accessories include a hinged junction box, pendent mount, outside corner mount and pole mount to make installation easier. The chart below shows all accessories needed for different mounting applications.

L3IP4VFDS, L3IP8VFDS, LA5VFDIR100, LA5VFDIR100IN

L3IP8TFCS

L3IP8WS

Junction box

Pendent

Wall

Pole

Junction box

Pendent

Wall

Pole

Junction box

Pendent

Wall

Pole

L3JB5 junction box

L3PC5 + L3CPM1 junction box + pendent mount

L3PC5 + L3HWM1 junction box + wall mount

L3PC5 + L3HWM1 + L3POLEMT2 junction box + wall mount + pole mount

L3JB6 junction box

L3PC6 + L3CPM1 junction box + pendent mount

L3PC6 + L3HWM1 junction box + wall mount

L3PC6 + L3HWM1 + L3POLEMT2 junction box + wall mount + pole mount

L3JB4 junction box

L3PC4 + L3CPM1 junction box + pendent mount

L3PC4 + L3HWM1 junction box + wall mount

L3PC4 + L3HWM1 + L3POLEMT2 junction box + wall mount + pole mount

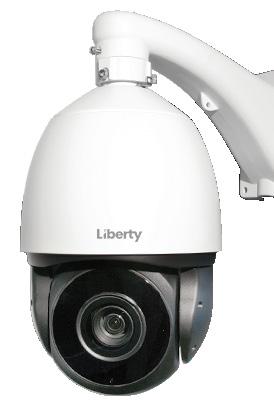

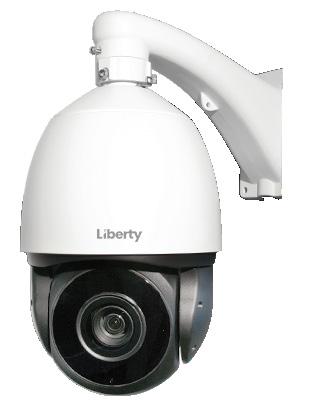

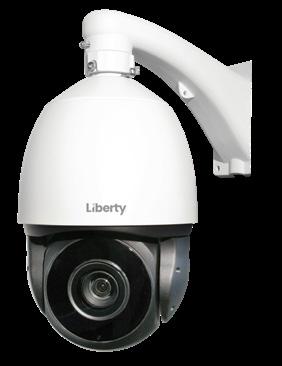

L3IP4PTZ30XS, LA5PTZ33X

Wall mount Included wall mount

Junction box

Corner mount

Pendent

Pole

L3PTZJB Included wall mount + junction Box

L3PTZJB + L3PTZCRNMT - Included wall mount + junction box + corner Mount

L3PTZPENDMT Included wall mount + pendent mount

L3PTZJB + L3PTZPOLEMT - Included wall mount + junction box + pole mount

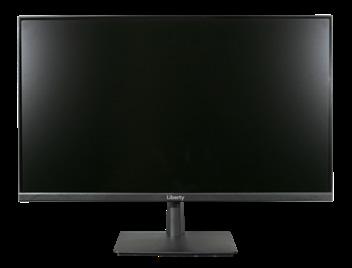

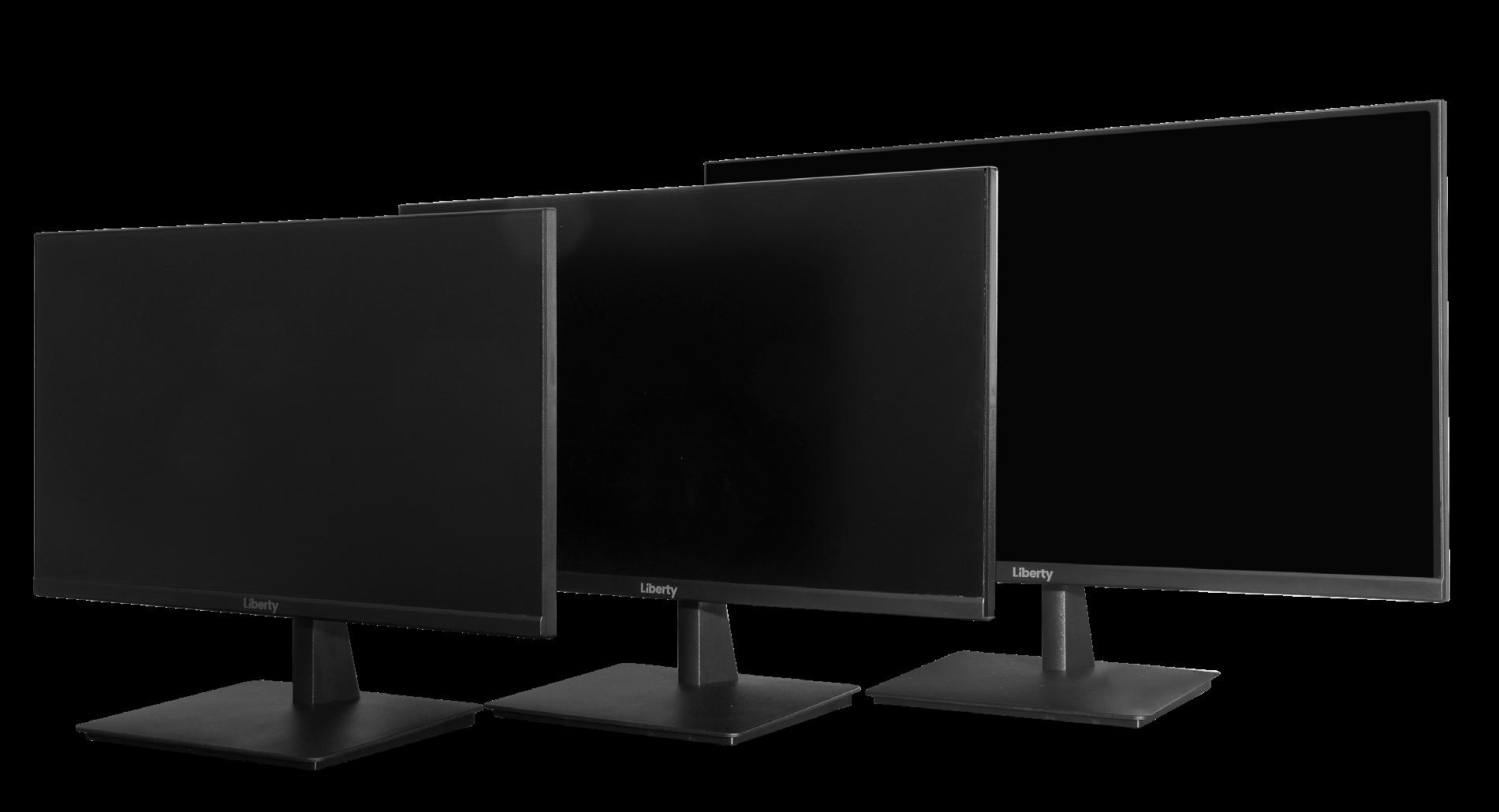

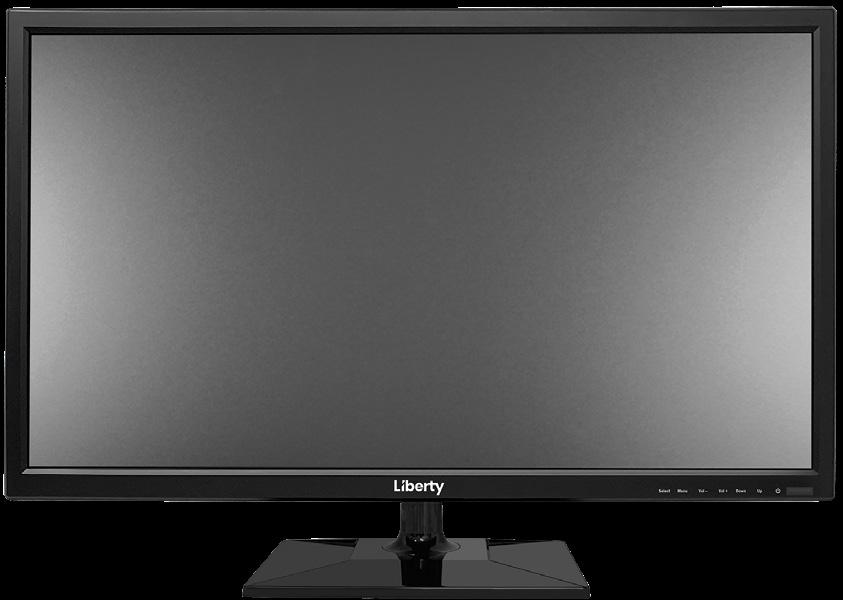

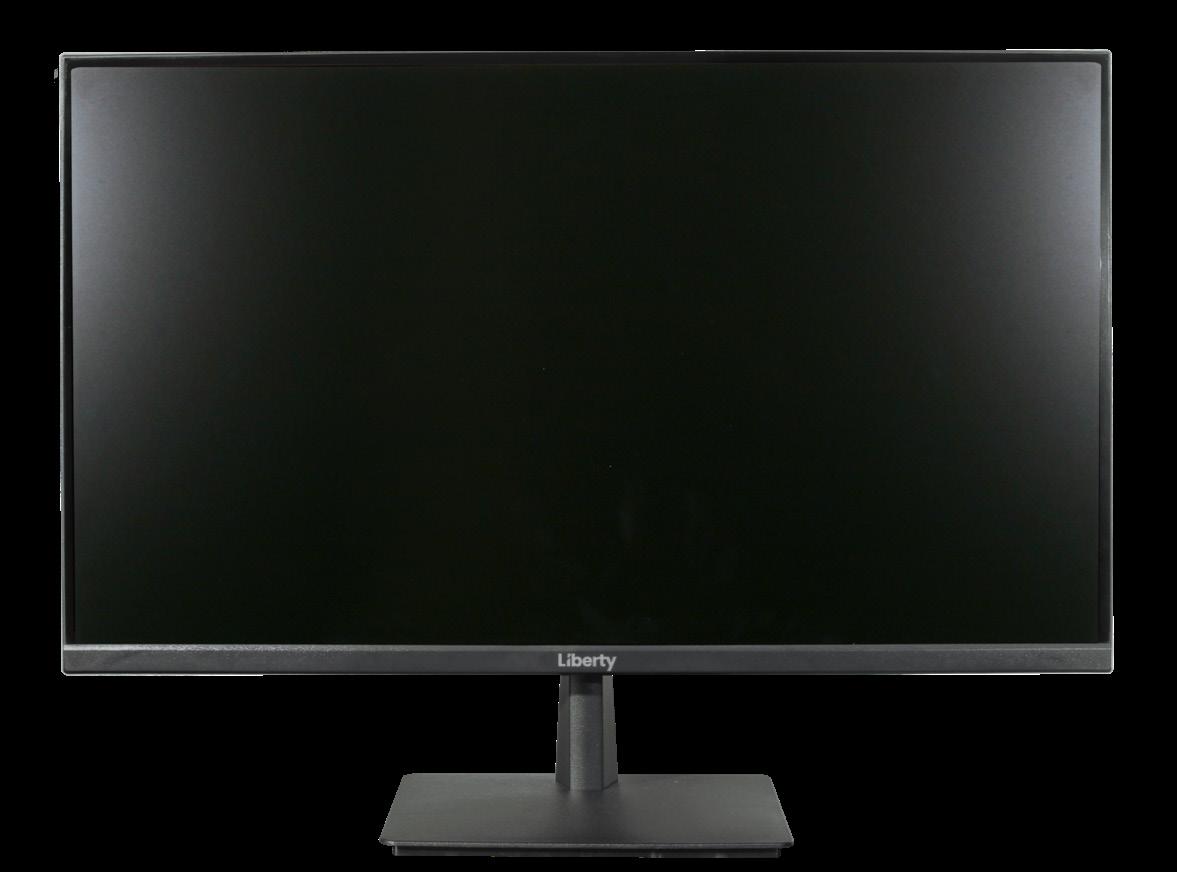

Advantage Security Monitors

• Security rated panels for 24/7 use

• 22", 24" and 27" options

• 1080p resolution

• NDAA compliant

• 3-Sided slim line bezel

• HDMI and VGA inputs

• Includes desk stand and HDMI cable

ADVANTAGE SERIES SECURITY MONITORS

Screen Size (Active) 21.5" diagonal 23.8" diagonal 27" diagonal

Aspect Ratio 16:9 widescreen

Max Resolution 1080p

Supported Resolution 720 x 400; 640 x 480; 800 x 600; 1024 x 768; 1280 x 1024; 1366 x 768; 1440 x 900; 1600 x 900; 1680 x 1050; 1920 x 1080

Pixels 1920 x 1080

Video Inputs HDMI and VGA

Audio Inputs PC audio (3.5 mm)

Viewing Angle

Horizontal: 178°, vertical: 178°

Bezel 3-sided slim line bezel

Brightness 250 cd/m2

Contrast 1,000,000 : 1 DCR (1000 : 1 static CR)

Response Time 8 ms

VESA Maounting

Power Supply 3 amp 12 Volt DC / external Weight (with Stand)

W x D x H (with Stand)

Certfifications CE andd FCC

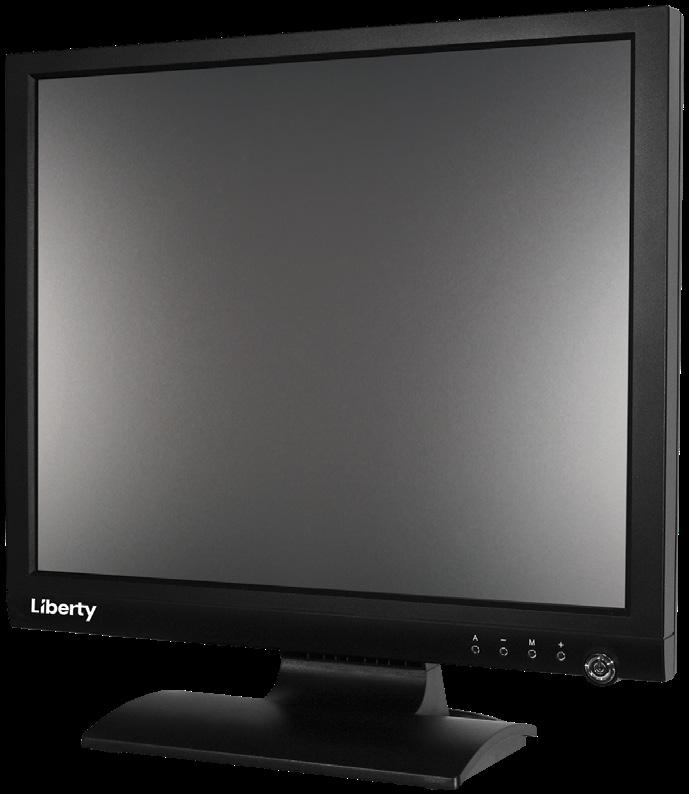

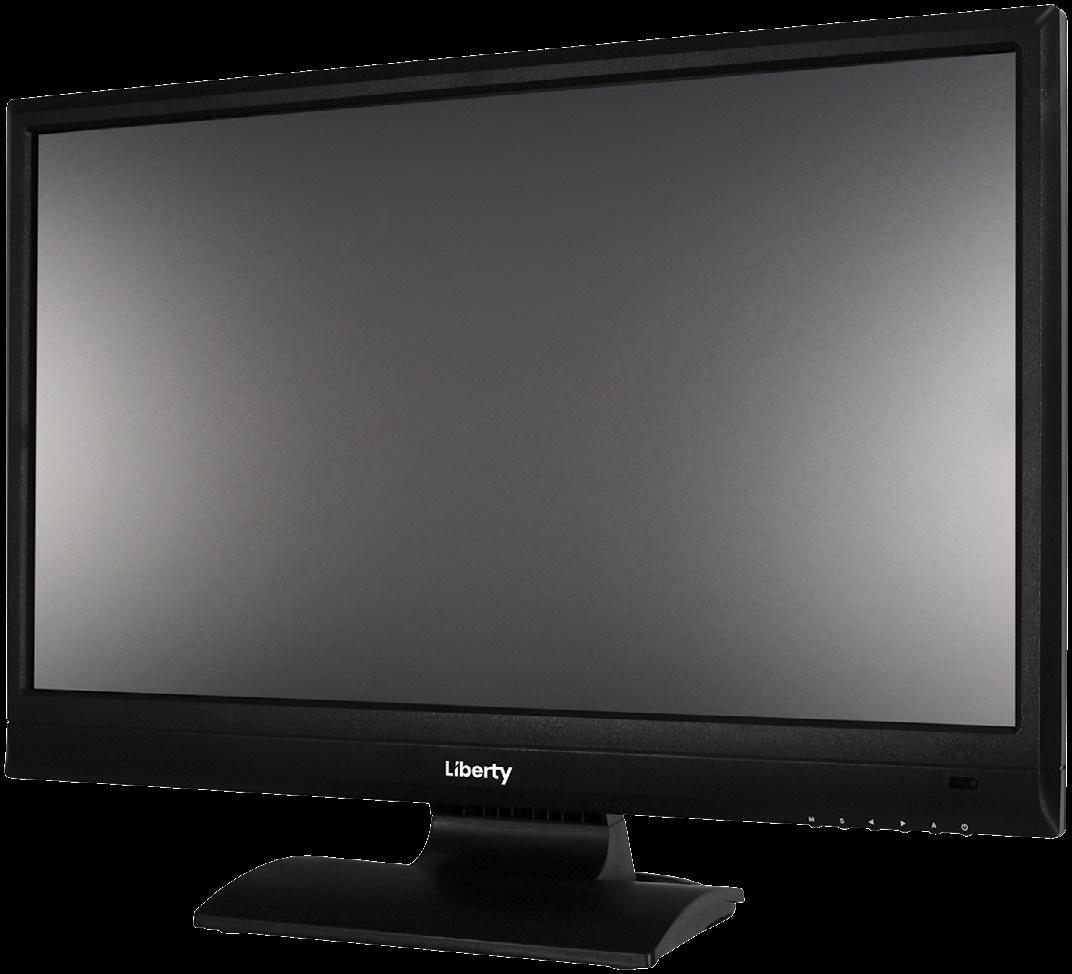

LSM Series Monitors

• Security rated panels for 24/7 use

• 17" to 32" screen size options

• 1080p and 4K resolutions

• Desktop stand, VGA and HDMI cables included

• IR remote included on most models

• NDAA and TAA compliant

LSM SERIES SECURITY RATED LED MONITORS

REAR PANEL CONNECTIONS:

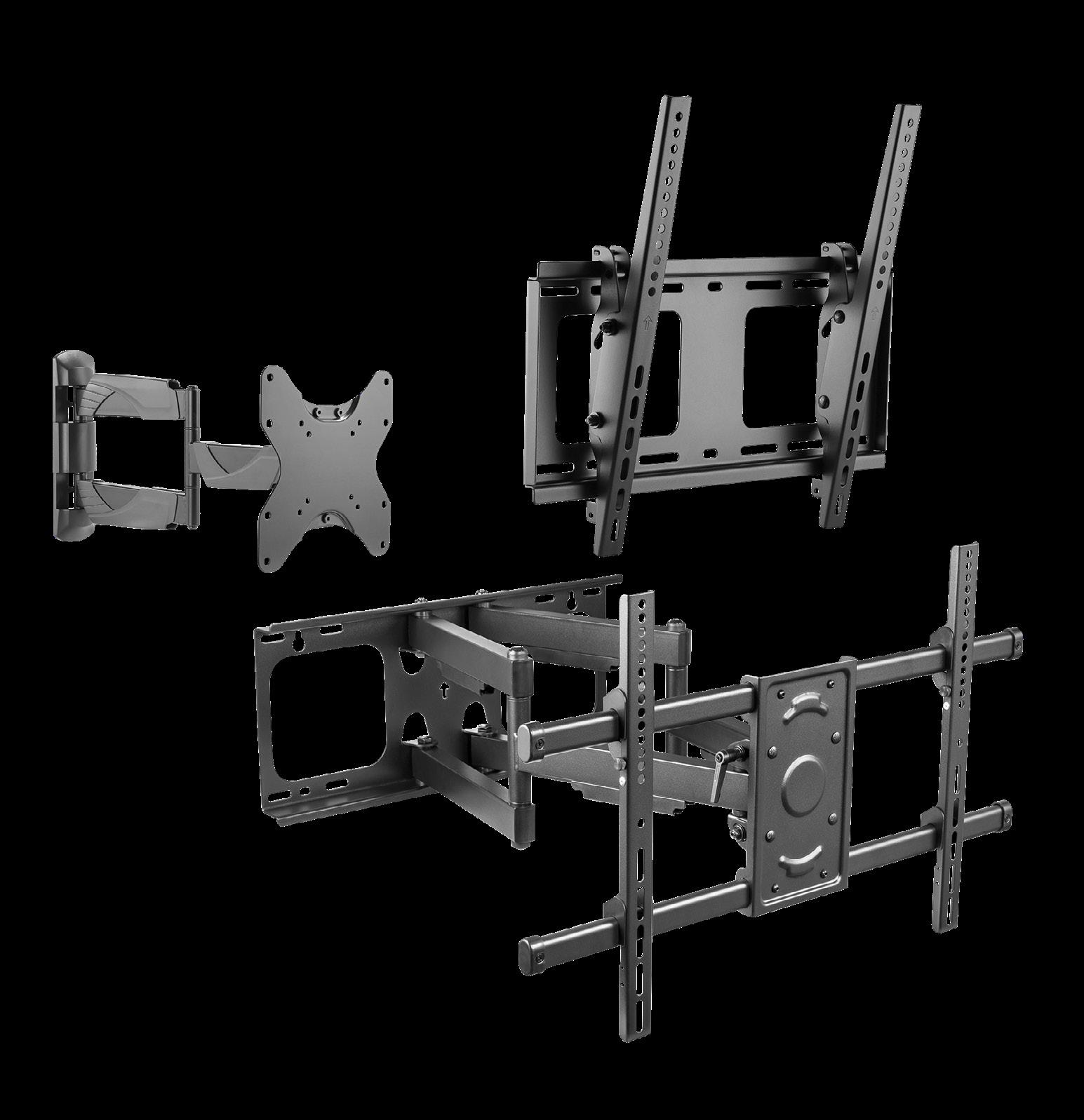

TV and Monitor Display Mounts

• Fully articulating options for 13"–90" displays

• Up to 143 lb weight capacity for articulating models

• Tilting only options for 32"–90" displays

• Up to 176 lb weight capacity for tilting models

• VESA 75 x 75 to 800 x 400 compatibility

• Supports flat and curved screens on most models

• UL/CUL certified

LIBERTY DISPLAY MOUNTS

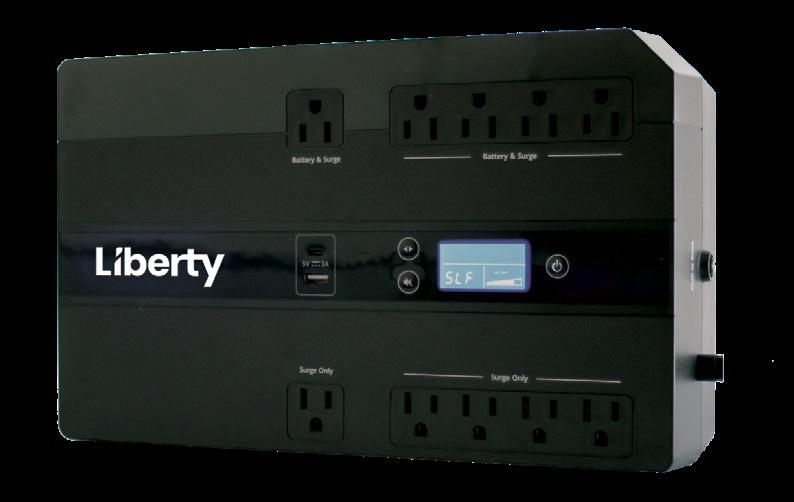

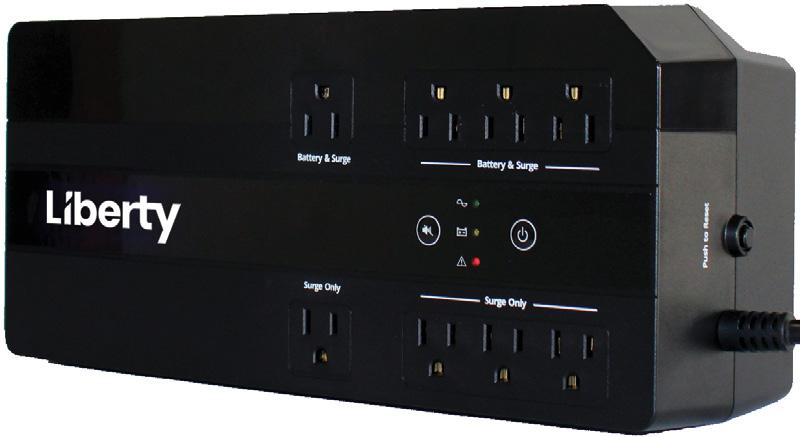

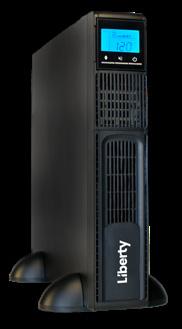

Uninterruptible Power Supplies (UPS)

• Tower, desktop wall-mount and rack-mount options

• Management and monitoring software included

• NEMA 5-15R outlets

• USB charging ports

• Coax surge protection port

• RJ45 ethernet surge protection port

UNINTERRUPTIBLE POWER SUPPLIES (UPS)

Max Output

Mounting / Installation Desktop, floor

Output Receptacles and Surge (4) 5-15R (surge only) / (4) 5-15R (battery and surge)

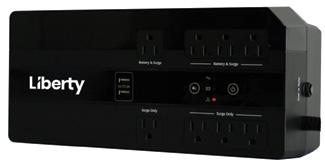

Tower/desktop

(5) 5-15R (surge only) / (5) 5-15R (battery and surge)

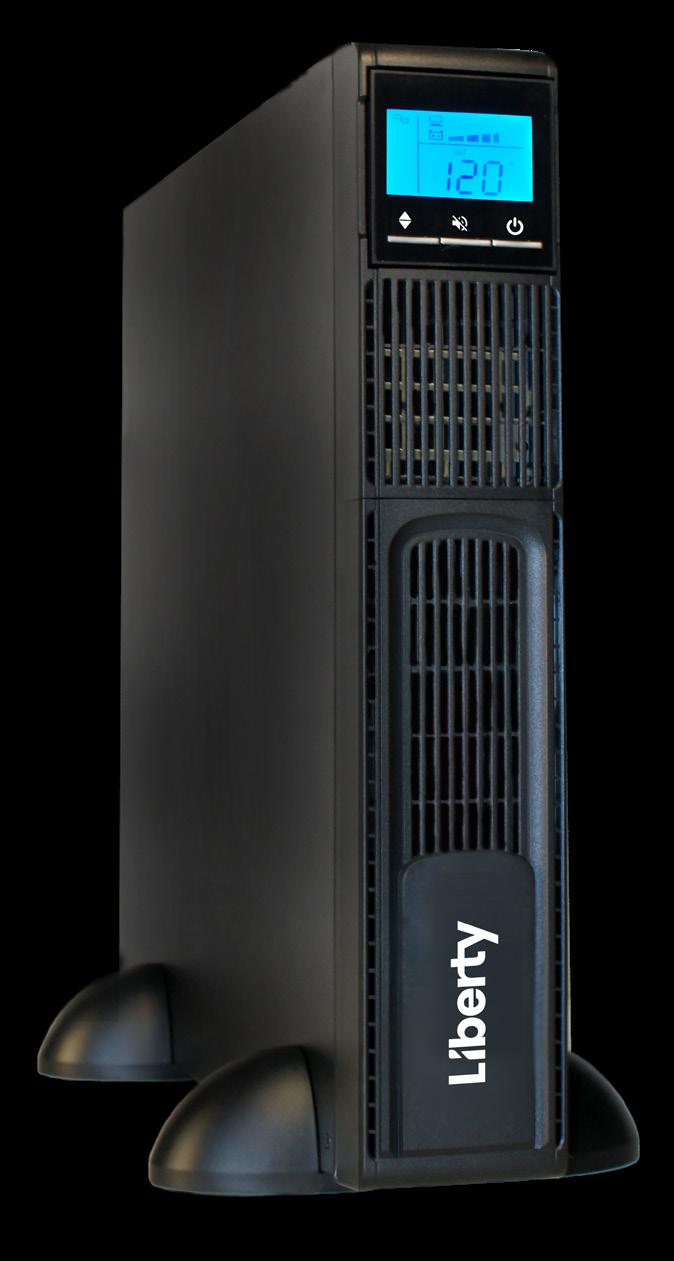

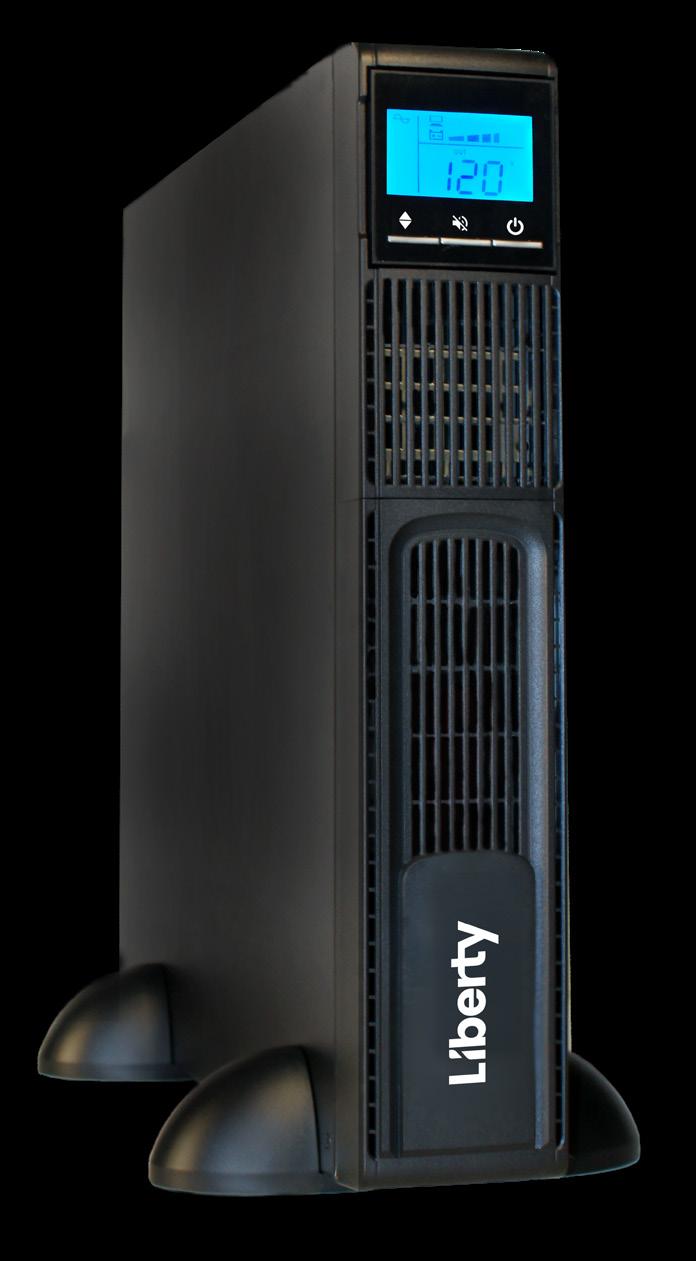

Rack-mount / tower / wall-mount (optional kit)

(5) 5-15R (surge only) / (5) 5-15R (battery and surge) (8) NEMA 5-15R

(Battery Operation)

Wave Form Simulated sine wave

Battery System Hot swappable battery, sealed, non-spillable, valve regulated, maintenance-free, lead acid

Typical Run Time on Battery

Compliance

Unit Size (L x W x H) Net (with Rack Ears Installated)

(324

cTUVus (UL1778 5th edition), CE, FCC Class B, RoHS2, Energy Star 2.0

Warranty 3 Years electronics / 2 years batteries

* Runtimes are estimated figures, and will vary based on conditions, age of batteries, and other factors

cTUVus (conforms to UL1778 5th edition and CSA 222 no. 107.3:2014 /R201710), FCC Class B, RoHS2, Energy Star 2.0, DoE 10 CFR Part 430 Subpart B compliant

cTUVus (tested to UL1778), CE, RoHS2, Energy Star, RoHS2, Energy Star 2.0

Three-year limited parts and labor warranty

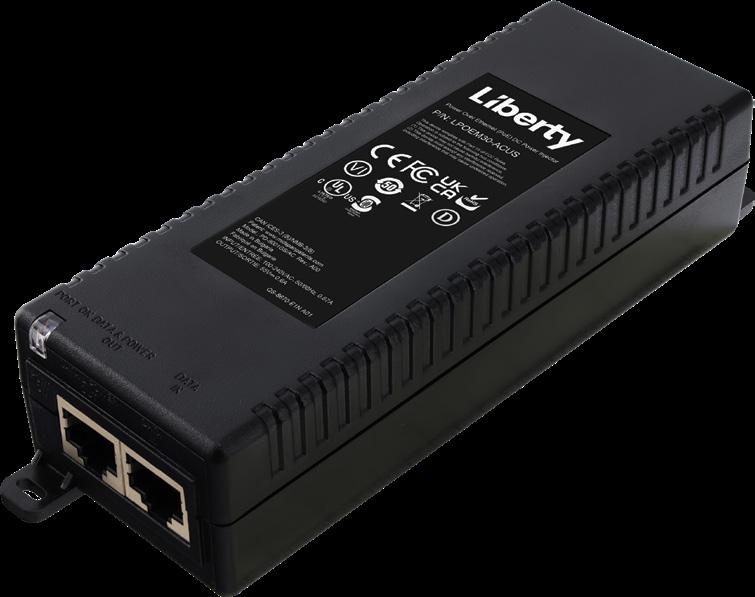

PoE Midspans

• IEEE 802.3af backward compatible

• Output power of 30W, 60W or 90W is guaranteed

• Supports 10/100/1000Base-T applications

• Safe: low-power devices receive only the power they need

• Automatic detection and protection of non–standard ethernet terminals

• DOE level VI efficiency compliant

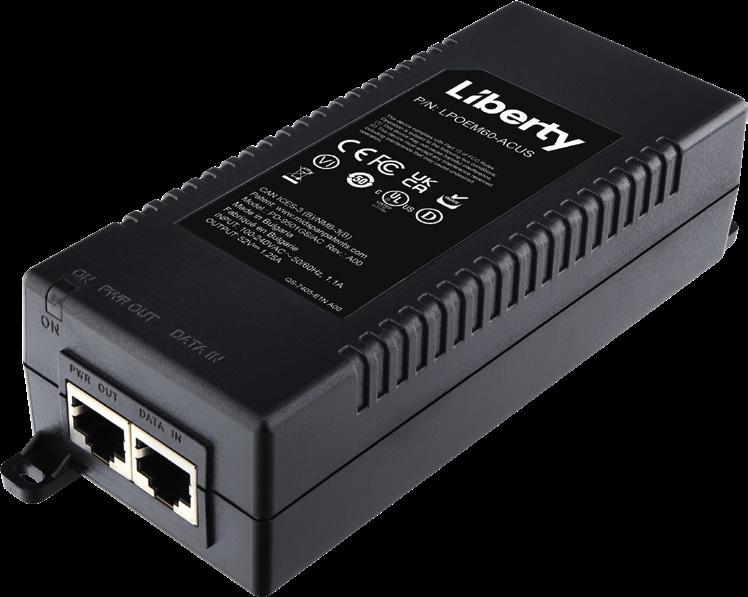

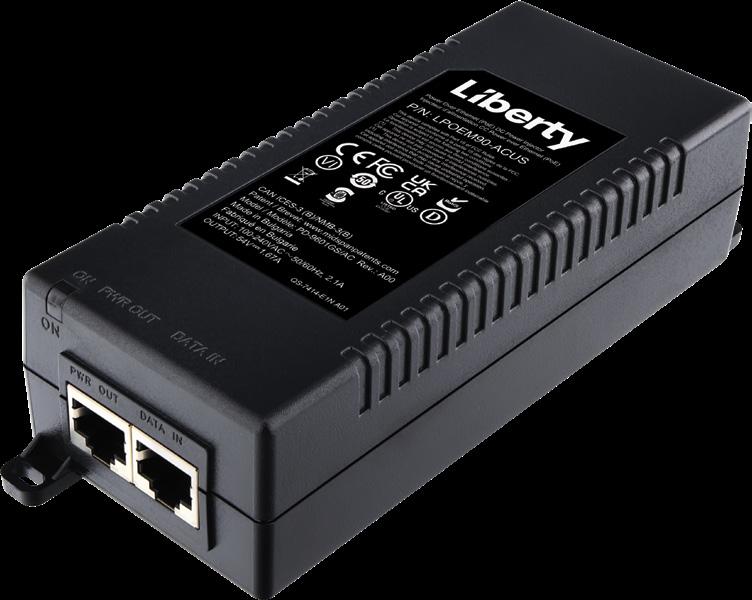

LIBERTY POE MIDSPANS

Number of Ports 1

Data Rate 10/100/1000 Mbps

AC Input Power Requirement

AC input voltage: 100 to 240 VAC

AC input current: 0.67A

AC frequency: 50/60 Hz

AC input voltage: 100 to 240 VAC

AC input current: 1.1A

AC frequency: 50/60 Hz

AC input voltage: 100 to 240 VAC

AC input current: 1.35A AC frequency: 50/60 Hz Output

Power over Ethernet Output Spare pairs 4/5 (+), 7/8 (–) nominal output voltage: 55 VDC

Dimensions

Net Weight

Connectors

Indicators

g (.45 lb)

Data pairs 1/2 (−), 3/6 (+) spare pairs 7/8 (−), 4/5 (+) output voltage: 52 VDC nominal

Data pairs 1/2 (−), 3/6 (+) spare pairs 7/8 (−), 4/5 (+) output voltage: 54 VDC nominal

g (.61 lb)

Shielded RJ-45, EIA 568A and 568B

AC power - blinking blue / channel power indication: green

Hazardous Substances CE, WEEE

Warranty 3-years

Reliability

Electromagnetic Emission and Immunity

g (.61 lb)

FCC Part 15, Class B / EN 55032 Class B (emissions) / EN55035 (immunity) / VCCI

Safety UL/IEC/EN 62368-1

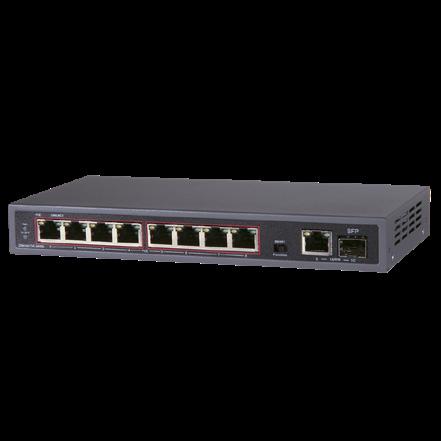

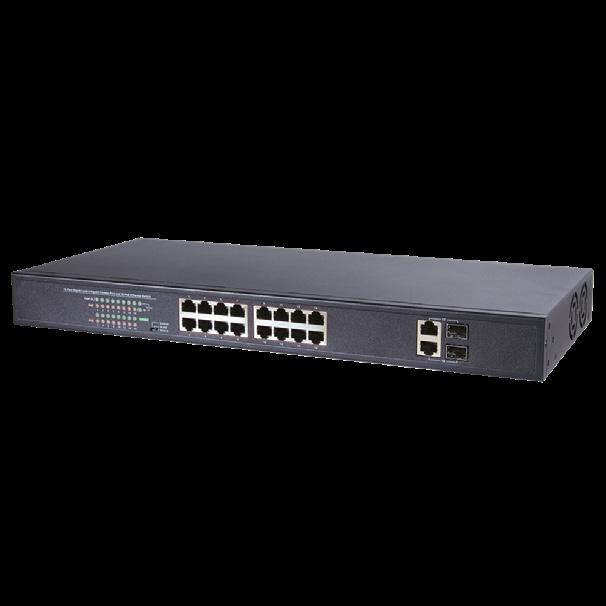

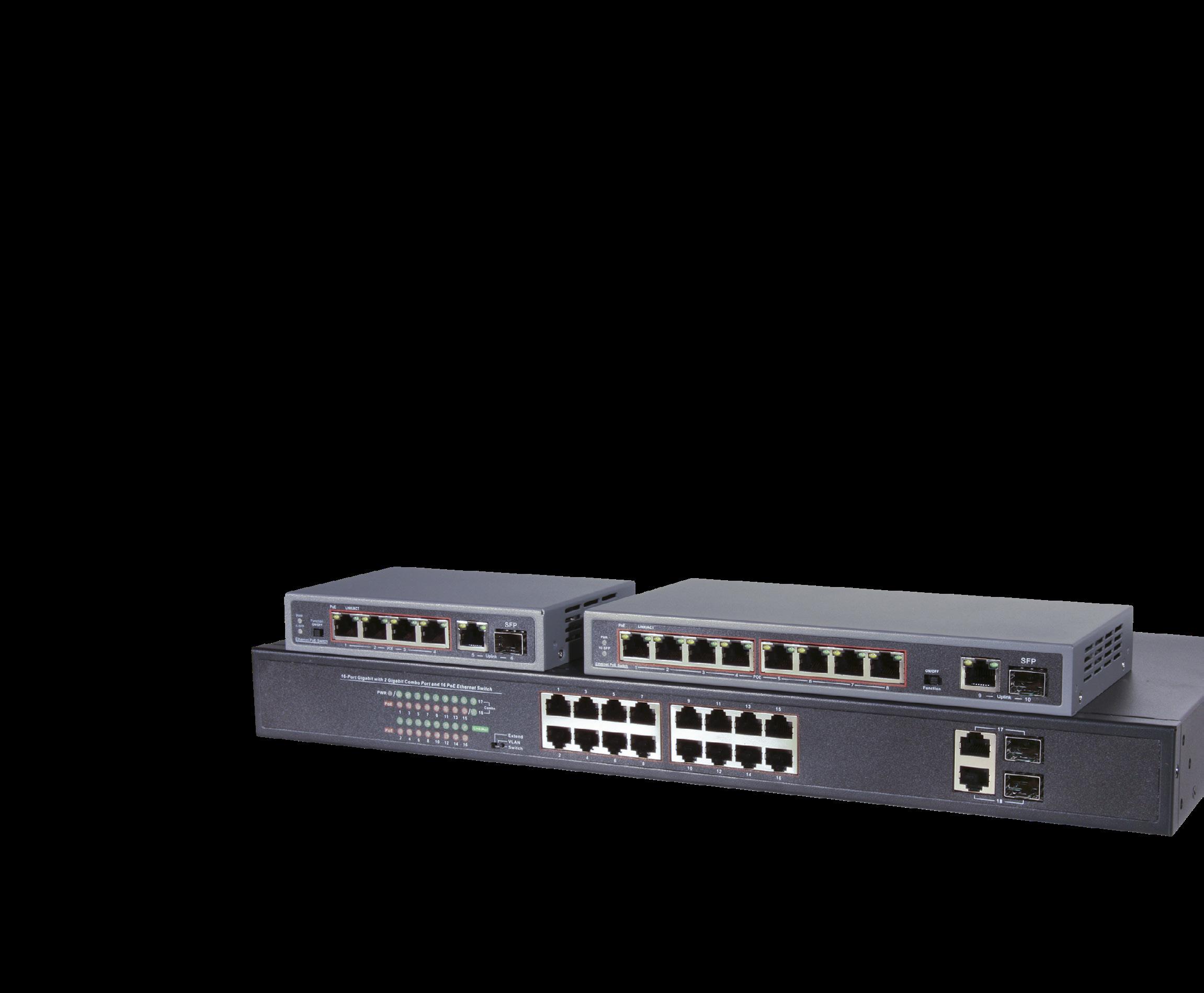

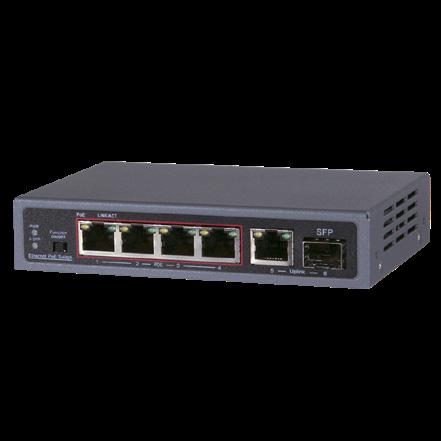

Gigabit PoE Switches

Liberty Unmanaged Gigabit PoE switches provide up to 30W PoE power per PoE port and include RJ45 and SFP uplink ports.

• Meets IEEE 802.3af/at standards

• 10/100/1000 Mbps PoE ports

LIBERTY POE+ SWITCHES

normal and V-LAN mode,

extend mode Extend Mode

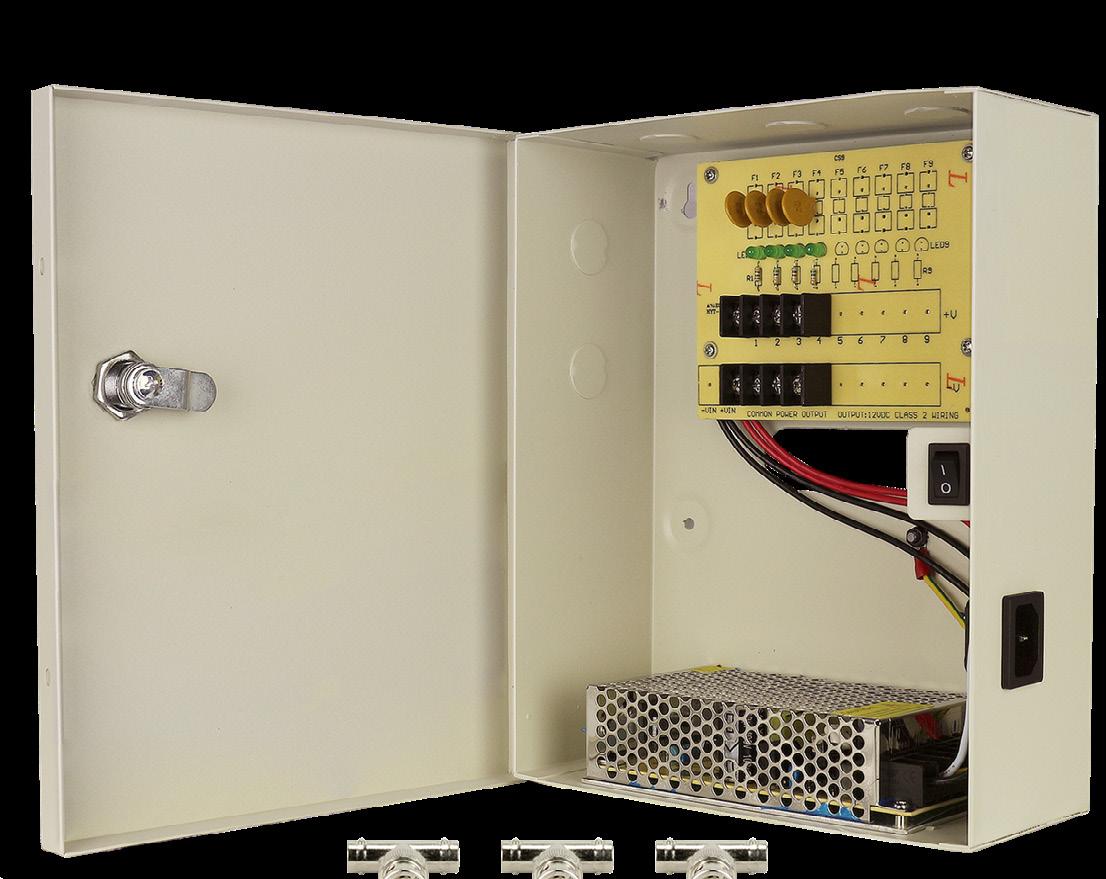

Power Supplies and Accessories

Liberty offers various power supplies and other accessories needed to complete your system.

• Single, multi-channel, metal cased 12 Volt DC power supplies and connectors

• Up to 10 Amp max power output

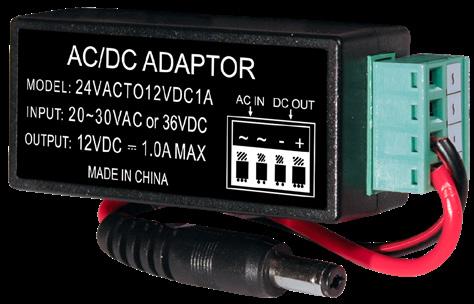

• AC to DC voltage converters

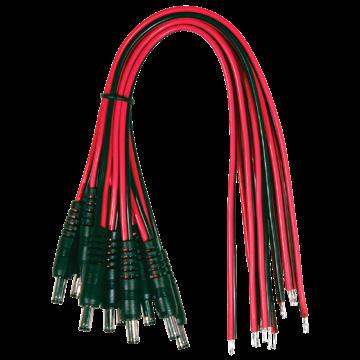

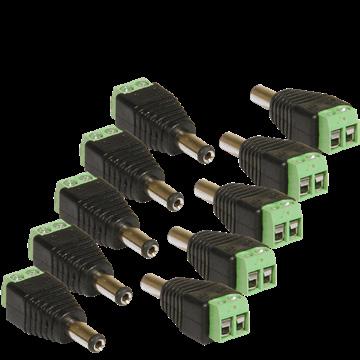

• 12 VDC male and female connectors

•

• 1 amp output

•

• Class II, UL

•

• 4Ch.

• 5 amp

• Metal case

• Indoor use

• 5 amp total, 1.25A/Ch. output

• 9Ch.

• 10 amp

• Metal case

• Indoor use

• 10 amp total, 1.1A/Ch. output

• 18Ch.

• 10 amp

• Metal case

• Indoor use

• 10 amp total, 560mA/Ch. output

Video Accessories

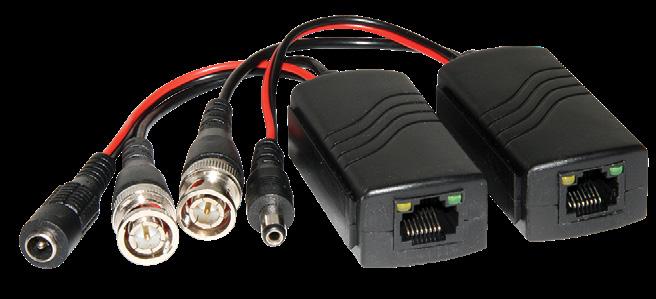

• Screw terminal and RJ-45 video baluns for analog video over UTP cable

• Pre-made RG59 BNC to BNC coax patch cables

• BNC connectors and adapters for RG59 coax cable

HD ANALOG VIDEO ACCESSORIES

BALUNS, GROUND LOOP CORRECTOR:

• For up to 5MP cameras

• Supports TVI, CVI, AHD, 960H formats

• Passive, no power required

• 350M (960H/720p)

• 250M (1080p)

• 200M (4MP-5MP)

BNC male to screw terminal

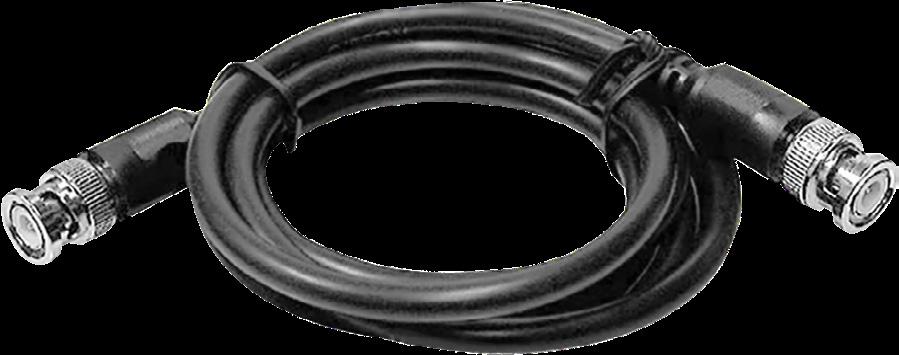

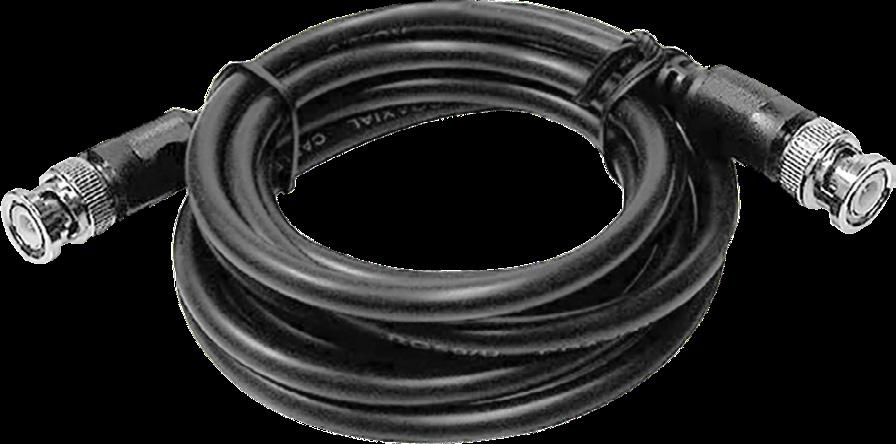

BNC CABLES:

• For video applications

BNC male to RJ-45 DC male and DC female power

• PVC jacket

• Converts coax to UTP cable

• Pass through power only (LVPBPAIR)

• Eliminates ground loops (LGLC)

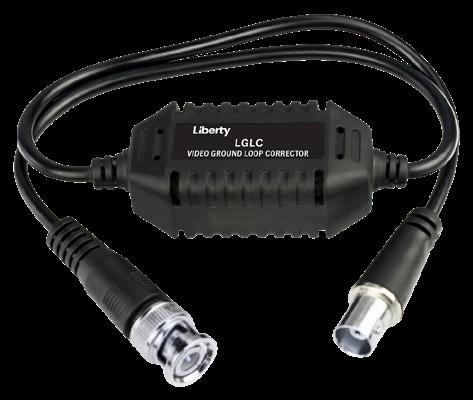

Video ground loop corrector

BNC male to BNC female connections 12V rms transient voltage supressor 600VDC isolation voltage

• BNC to BNC

RG59U patch cable RG59U patch cable

3-foot cable length

BNC male to male

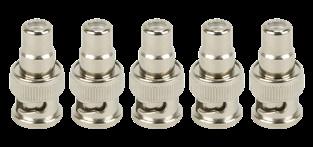

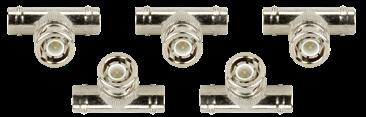

BNC CONNECTORS AND ADAPTERS:

• Ideal for CCTV applications

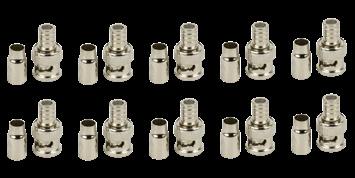

2-piece crimp connector for RG59 Twist-on connector for RG59

• Cable type: RG59U

6-foot cable length

BNC male to male

• Zinc body with copper contacts

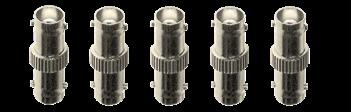

Female to female splice connector

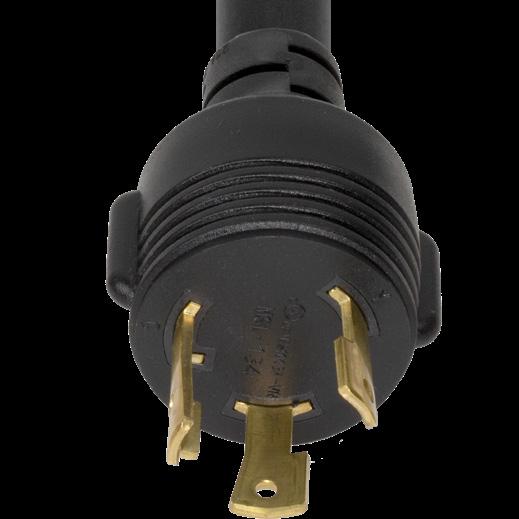

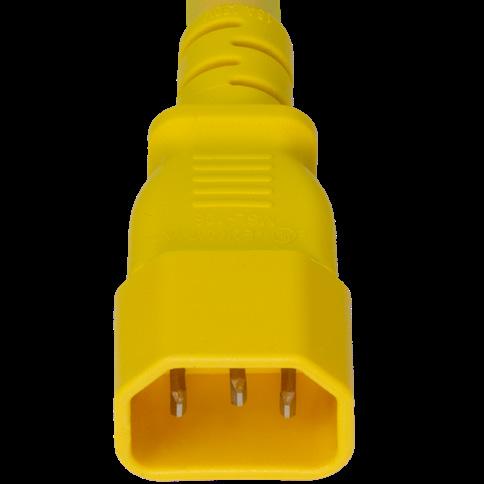

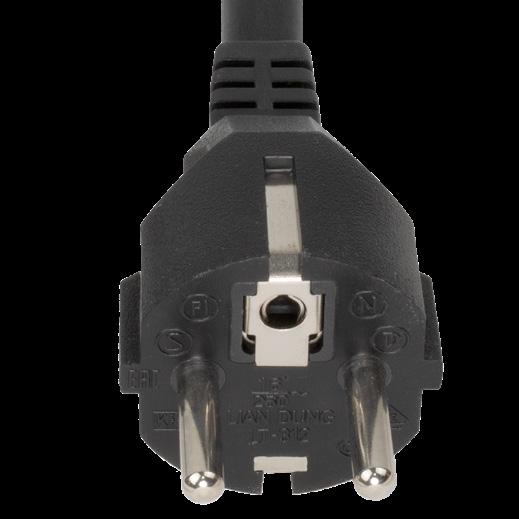

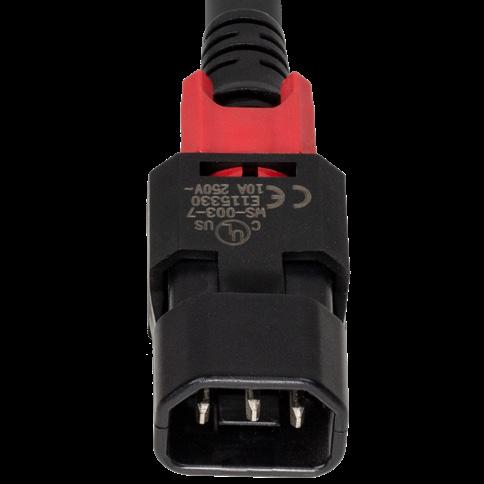

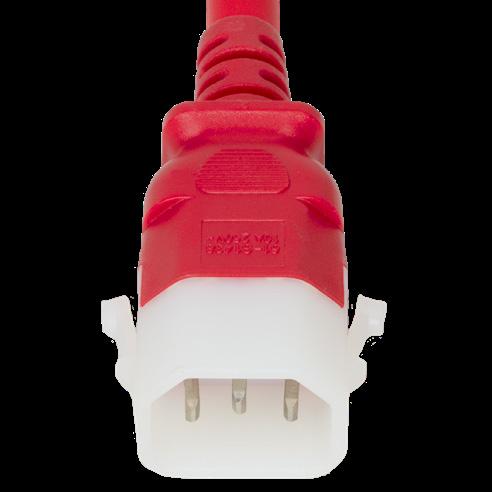

Power Cords

• Data center and commercial-grade power cords

• Twist-Lock, P-Lock, D-Lock, Z-Lock, NEMA, IEC 60320,

SAF-D-GRID and international power cords

• Multiple color options

• Standard and custom lengths available

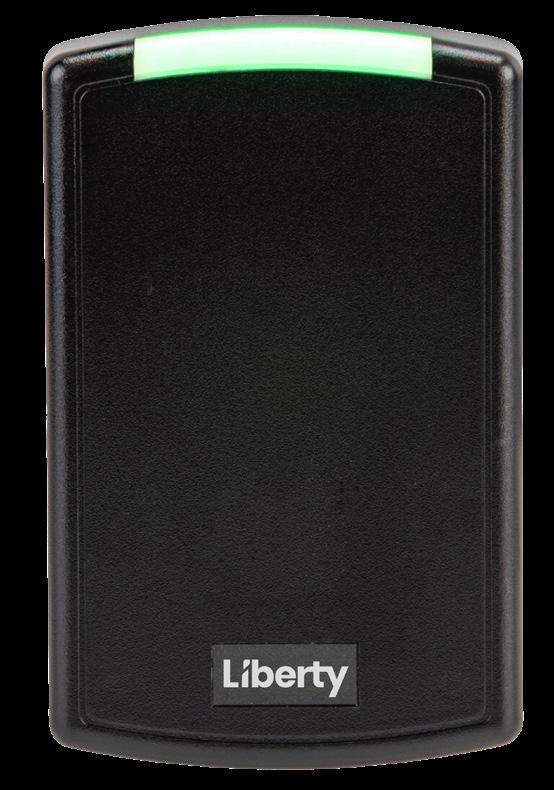

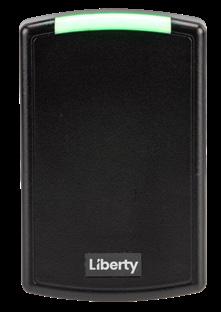

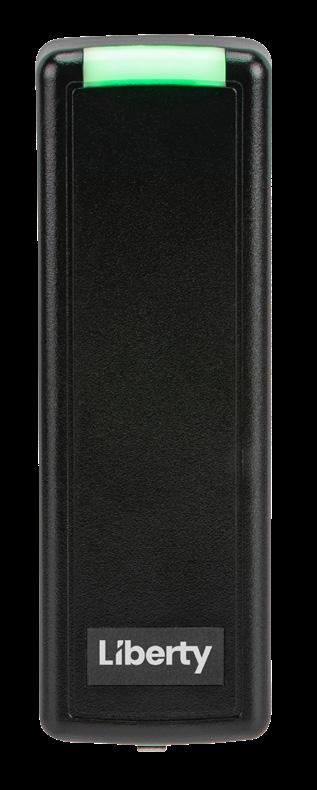

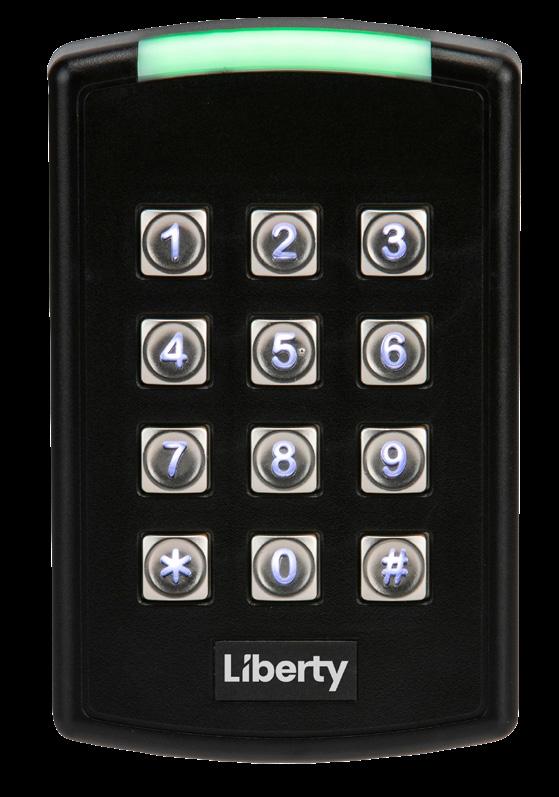

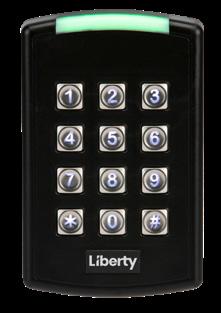

Access Control Readers

• OSDP Autodetect

• Multiple technologies in a single reader: Proximity, Smart, NFC and BLE

• OSDP secure channel and remote firmware upgradability

• LEAF credential support for secure, open, interoperability

• Wiegand/OSDP readers work with MyPass mobile credentials

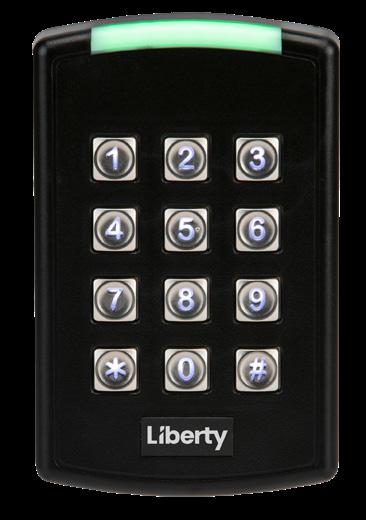

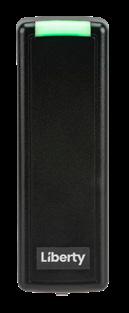

Access Control Reader

ACCESS CONTROL READERS

Current

Voltage 5-16 V DC

Temp Range

Read Range

Dimensions

Shipping Dimensions

UL tested -35° to 66°C and EN -40° to 70°C and 95% humidity environmental rating and state UL294 suitable for outdoor use

EV2/EV3: 2.2’’ 125kHz up to 4’’

129.5 x 43.2 x 18 mm (5.1’’ x 1.7’’ x 0.71’’)

EV2/EV3: 2.5’’ 125kHz up to 4’’

129.5 x 82.6 x 18 mm (5.1’’ x 3.25’’ x 0.71’’)

152.4 x 76.2 x 50.8 mm (6’’ x 3’’ x 2’’) 152.4 x 101.6 x 50.8 mm (6’’ x 4’’ x 2’’)

Shipping Weight 7 oz (.4 lb) 10 oz (.63 lb)

HS Code

8471.60.9030

Security Level Utilizes EAL6+ cryptographic module

Country of Origin Assembled in the USA with globally sourced components

Warranty Lifetime 3 years

kHz, 13.56 mHz & Mobile
