ELECTRONICS: Team Up+ Series

TU-DS42U3-H3

DUAL DISPLAY SWITCHER EXTENDER WITH HDBASET3.0, DISPLAYLINK AND DP-MST SUPPORT

• 4x2 BYOM conference presentation switch, integrating video, audio, USB, control and ethernet.

• Dual USB-C and dual HDMI + USB-B inputs, and all ports support cable lock connections

• Two Full-featured USB-C inputs, supports 4K video, USB 3 data, Gigabit ethernet, and 60W charging function on both USB-C inputs

• USB-C input supports DP alt mode, and dual screen outputs via MST + DisplayLink

TU-DS42U3-RX

TU-HUC42-KIT

technology for single cable dual screen experience

• Supports automatic switching, button switching, API switching and Web UI control

• Provide one balanced audio output port for connecting audio equipment

• Provides an independent Dante RJ45 port, supporting PCM Dante audio output

• Supports USB 3.2 Extension

TU-DS42-RX

DUAL OR SINGLE-SCREEN COLLABORATION SWITCHER/EXTENDER/HUB

• Switch AV & USB sources on both sides of HDBaseT 3.0 circuit including dual screen support for BYOM applications

• Dual AV plus USB host inputs on RX support room PCs located at display location

• 4x2 when combined with RX. TX can be purchased separately and used as a 2x1 standalone switcher for smaller singlescreen applications

• Supports uncompressed HDMI 2.0 4K video

• Switch between HDMI & USB-C on TX or RX

• USB3.0 hub and auto switches for BYOM environments

• Auto-switching, TCP/IP, or RS232 controllable

DL-SCU33-SW

4K60 WEB-CONFERENCING SWITCHER/HUB

• Enables multi-format switching between BYOM (bring your own meeting) devices (such as laptops) and dedicated room systems (such as Zoom, Teams, etc.)

• Provides AV switching and USB routing for BYOM and cloud-based conferencing applications

• Allows USB peripherals to switch between dedicated room systems & BYOM devices

• Dual-screen capability is available even in BYOM mode, providing a seamless experience for the user by mirroring content onto the second display

TU-MVB-AI

4K VIDEO SOUND BAR WITH PRESENTER & SPEAKER TRACKING & AUTO FRAMING

• 4K USB Video Sound Bar

• USB-C & 3.5mm audio output, & output for optional expansion mic

• Presenter tracking actively pans, tilts, and zooms the current presenter

• Built in AEC, Background Noise reduction, & auto gain control

• Software application available for camera modes and adjustments

• Includes adjustable table stand / monitor / wall mount, power supply, 5m USB C-A cable and Magnetic Lens Cap

DL-SC31U-BX

3X1 TABLE BOX FOR HUDDLE & CONFERENCE ROOMS

• 2 HDMI and 1 USB-C inputs

• USB 3.0 hub on top and bottom of box

• USB-C passes AV and power, plus acts as a host port

• Auto-switching

• CEC & RS232 simple display control powers on/off display

• Small footprint at roughly 4" x 4"

TU-MEMIC EXPANSION TABLE MIC FOR TU-MVB-AI VIDEO BAR

• Expansion Mic for greater room coverage with mute

• 4x Digital Mic array

• Designed specifically to expand the range of TU-MVB-AI for medium and larger conference rooms

• AEC, auto gain control, & background noise reduction built in

• LED Mic/Mute status indicator

• Includes 6m cable for connection to video bar

TU-MCAM4K

4K USB WEB CAM WITH PRESENTER TRACKING AND AUTO FRAMING

• Adjustable field of view (65 / 78 / 93 degrees)

• Built in Mic with integrated noise reduction

• AI Light compensation auto adjusts for bright backgrounds

• ePTZ with 5X Digital Zoom

• Software available for camera and AI adjustments

• Built in privacy shutter

• Includes flexible mount/stand and A-C 1.5m USB cable

ELECTRONICS: Team Up+ Series

DL-USB-360MIC

USB-AND ANALOG OMNIDIRECTIONAL MICROPHONE

• Captures sounds up to 4m radius with 360° coverage with noise-canceling microphone array

• 360° sensitivity pickup range — picks up sound equally from all around the mic so you can move around freely — 10x better than traditional computer microphones

• Built-in mute button — quickly mute/unmute mic with the simple press of a button

DL-USB-360SPKMIC

USB SPEAKERPHONE WITH HUB

• Male HDMI connectors for direct connection to noise-canceling microphone array capture sounds up to 5-8m radius with 360° sensitivity

• Move freely — picks up sound equally from all around the microphone so you can move around freely — 10x better than the traditional computer microphone

• Completely plug and play, NO additional driver or software required to be recognized by the computer

• Built-in LED indicator light shows the mute/ unmute status

DL-7USB-PHUB

7-PORT POWERED USB 3.0 COMMERCIAL HUB

• Expansion: Instantly grow from 1 USB port to 7, each equipped with USB 3.0 technology, capable of data at speeds up to 5Gbps — connect various USB peripherals to your laptop or personal computer, such as web cameras, microphones, cable cards and disk drives

• Commercial design: Eliminate cable clutter; metal chassis with vented slots for heat dissipation, provided brackets and screws allow you to mount behind a display or underneath a conference table

• Built-in mute, volume +, and volume - buttons allow one to quickly manage the audio within the space with a simple press of a button

• Plug and play — no drivers, sound card, or phantom power supply needed

• 3-meter long attached USB-A cable

TU-CAPDOC32-4K

3X2 HDMI, HDBASET, & SDI DOCKING STATION INPUTS WITH BUILT IN CAPTURE CARDS & USB-C HOST PORT

• Supports HDMI, HDBaseT, & SDI inputs

• Built in capture card converts all input types to USB with support of resolutions up to 4K60 making these sources available for collaboration & content sharing applications

• Dual HDMI out with mirrored HDBaseT 3.0 output supports DisplayLink allowing for different content on local and connected display/monitor

• Analog audio embedding & de-embedding

• 4 port USB3 client hub

• EDID Management

• USB-C supports ethernet pass-through & 100w charging for single cable connectivity to host computers

• IP & RS232 connection for control and remote management

DL-4USB-PHUB

4-PORT POWERED USB 3.0 COMMERCIAL HUB

• Expansion: Instantly grow from 1 USB port to 4, each equipped with USB 3.0 technology capable of data at speeds up to 5Gbps — connect various USB peripherals to your laptop or personal computer, such as web cameras, microphones, cable cards, and disk drives

• Commercial design: Eliminate cable clutter; metal chassis with vented slots for heat dissipation, provided brackets and screws allow you to mount behind a display or underneath a conference table

• Protection: Overcurrent, overvoltage, and other advanced safety features allow you to maintain and protect your connected devices

• Data transfer rate: Up to 5Gbps shared between all ports

• Power: Each USB port can receive up to 5v, 1A

• Backwards compatible: USB 3.0/USB 2.0/ USB 1.1

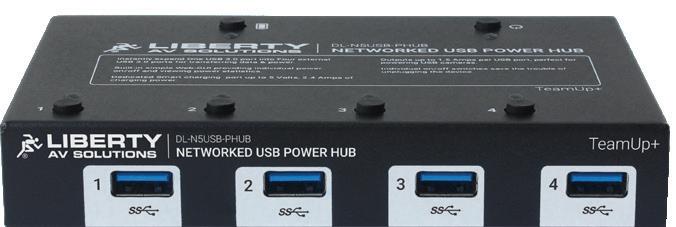

DL-N5USB-PHUB

4-PORT POWERED USB 3.0 HUB W/IP CONTROL

• host and 4 client USB3.0 hub to expand connectivity

• Power injected to each port to accomodate higher power draws from cameras and other connected devices

• Built in web GUI with scheduling for standalone scheduled power cycling

DL-4USB-HUBP

POWERED USB 4-PORT USB 3.0 HUB

• 4-in-1 Liberty powered USB hub expands the limited USB connectivity and power of your computer by offering a USB hub with power insertion using the provided external power supply and USB-Adapter for connecting to any device

• USB-A 3.1 Gen.1 male connection with 4x USB-A 3.0 female, 1x USB-micro female power port, LED indicator, and 1x USB-A female to USB-C male adapter

8N1USB-HUB

ADVANCED 8-IN-1 USB-C MULTI-PORT HUB

• 8-in-1 Liberty USB-C hub expands the limited USB connectivity of your computer with an HDMI output port, a gigabit Ethernet port (RJ-45 port), a USB-C charging port, three USB 3.0 ports, and SD and TF card slots

• USB-C 3.1 Gen.1 male connection with 1x RJ45 female, 1x HDMI female, 3x USB-A 3.0 female, 1x USB-C female PD charging port, 1x SD/TF slot

• Video resolutions: Supports a full range of resolutions up to 4K UHD 3840x2160 @ 30Hz, 2k, 1080p, 720p, 480p

• Protection: Overcurrent, overvoltage, and other advanced safety features allow you to maintain and protect your connected devices

• Data transfer rate: Up to 5Gbps shared between all ports

• Power: Each USB port can receive up to 5v, 1A Backwards compatible: USB 3.0/USB 2.0/ USB 1.1

• IP port and API for remote monitoring, thirdparty control, and power cycling

• Perfect for collaboration spaces with multiple USB peripherals requiring power

• Power cycle individual ports to reboot connected peripherals or to use as USB client device switcher

• Gen USB 3.1 while being fully backward compatible for USB 3.0/USB 2.0/USB 1.1

• USB 3.0 data transfer rate: Up to 5Gbps shared between ports

• USB-micro power port: Insert up to 2 amps of additional power delivery, intended for powering USB peripherals such as web cameras

• Ethernet data transfer rate: Pass up to 1 gigabit of Ethernet speed

• USB 3.0 compliance: Gen USB 3.1 while being fully backward compatible for USB 3.0/USB 2.0/USB 1.1

• USB 3.0 data transfer rate: Up to 5Gbps shared

• USB-C 3.0 PD charging port: Up to 100 watts of power delivery, intended ONLY for a laptop, mobile, and tablet charging

ELECTRONICS: Team Up+ Series

DL-SDI2USB-CAP

SDI TO USB CAPTURE DEVICE W/LOOP OUT

• 1 USB 3.0 output, 1 SDI input, 1 SDI output

• Record, convert, and stream HD video, up to 1080P/60Hz plus audio, from an SDI signal

• 1080p @ 60 input with a loop-through SDI output

• Completely plug and play, NO additional driver, no power supply required, and no software required to be recognized by the computer

• Ideal for PTZ cameras with SDI output being used in UC collaboration spaces

• Compatible with Windows 7, Windows8, Windows8.1, Windows10 or later, Linux OS, Mac OS operating systems

TU-HD2USB-CAP4K

4K HDMI TO USB CAPTURE DEVICE

• HDMI to USB capture card

• Supports video capture up to 4K

• Supports USB3

• HDMI loop out

ELECTRONICS:

Intelix Series

INT-USB3.1-ARJ

USB3.X C-C 10-METER EXTENSION SET

• Extend USB 3, 2, signals up to 10m with included 10m plenum-rated cable

• Specifically designed with enhanced hardware for video applications requiring perfect isochronous (ISO) data transactions up to 3.1 (5Gbps) including cameras up to 4K

• Bus powered: Provides up to 900mA power from host to client side without a power supply when using a USB-C host

• Mounting hardware included

TU-USB-CEILINGMIC2

USB 2.0 AUDIO PROCESSOR WITH TWO CEILING MICROPHONES

• Omnidirectional ceiling microphones

• Acoustic echo cancellation, adaptive noise suppression and intelligent mixing functions

• Actual microphone color is white

NOW SHIPPING

DL-USB-PTZ10-W/DL-USB-PTZ10-B

USB2.0 PTZ CAMERA

• PTZ camera with resolution support up to 1080P

• 10x optical zoom

• Includes wall mount

NOW SHIPPING

• Perfect for small to medium spaces

• Package includes: mounting bracket, processor, cabling, two microphones

• Perfect for education and collaboration spaces

• Product available in black and white

INT-USB3-C

USB3 EXTENDER CLIENT

• USB 3.2 extension up to 100m

• USB 3.2 Gen1 5Gbps data transfer

• Backwards compatible USB 2.0 and 1.1

• Hardware acceleration for isochronous and bulk transfer

• Plug-and-play operation

• FSYNC GPIO passthrough for industry camera use

INT-USB3-H

USB3 EXTENDER CLIENT

• USB 3.2 extension up to 100m

• USB 3.2 Gen1 5Gbps data transfer

• Backwards compatible USB 2.0 and 1.1

• RS-232 passthrough

• Plug-and-play operation

• FSYNC GPIO passthrough for industry camera use

• Small size makes it easy to mount and hide

• Tested and compatible with many popular USB 3 cameras from companies such as Liberty, Logitech, Aver, Lumens, and others

• Tested and compatible with popular USB video & video capture devices such as Logitech Tap, Magwell Capture, Yuan Capture, DisplayLink, VR devices, and others

NOW SHIPPING

INT-USB3-CWP

USB3.2 WALL PLATE CLIENT

• Extension of USB 3.2 Gen1 5Gbps data transfer

• Supports all transfer types including isochronous and bulk transfer

• Supports bidirectional 24V POC (power over cable)

INT-USB3-HWP

USB3 EXTENDER HOST

USB 3.2 extension up to 100m Hardware acceleration for isochronous and bulk transfer FSYNC GPIO passthrough for industry camera use

INT-USB3MS-C

DL-USB-PTZ20-W

USB3.0 PTZ CAMERA

• 3.0 PTZ camera with resolution up to 1080P

• Optical zoom up to 20x

• Ships with wall mount

• Perfect for classrooms, training centers, and collaboration spaces

USB3.2 GEN 1 5GBPS CLIENT / REMOTE SIDE EXTENDER WITH DISPLAYLINK

• Client / Remote 100m HDBaseT extender over Cat6A or above

• Built in DisplayLink technology offers screen extend support for PC’s & Mac’s with DisplayLink drivers

• USB-A client ports and dual HDMI outputs

• Pair with Host device INT-USB3-H or INT-USB3-HWP

• Dual HDMI outputs

ELECTRONICS: DigiIP

IPEX6001

10GB 4K60 4:4:4 AV OVER IP ENCODER

• Fully routable, zero latency HDMI 2.0 signals up to 4K60 4:4:4 over standard 10Gb Ethernet

• Low-cost option for basic AV routing and distribution

• Individually route HDMI, RS232, IR, and Gigabit Ethernet

• Supports PoE

• Simple configuration and management with Arranger Web-based Wizard

IPEX6002

10GB 4K60 4:4:4 AV OVER IP DECODER

• Fully routable, zero latency HDMI 2.0 signals up to 4K60 4:4:4 over standard 10Gb Ethernet

• Low-cost option for basic AV routing and distribution

• Individually route HDMI, RS232, IR, and Gigabit Ethernet

• Supports PoE

• Simple configuration and management with Arranger Web-based Wizard

IPEX6000TCUD-C

SDVOE DANTE & ICRON USB OVER IP TRANSCEIVER

• Fully routable zero latency HDMI 2.0 signals up to 4K60 4:4:4 over standard 10GbE

• Integrated Icron USB high speed 2.0 support. USB can be switched independently to other Icron-based USB products

• Transceiver can act as an encoder and a decoder at the same time

• Supports HDR10+ & Dolby Vision

IPEX6000TC-C

6000 SERIES SDVOE TRANSCEIVER COPPER

• Fully routable zero-latency HDMI signals up to 4K60 4:4:4 over standard 10G network

• Transceiver acts as an encoder or decoder

• Supports HDR10+ & Dolby Vision

• Simultaneous two-way extension. Transceiver can act as an encoder and a decoder at the same time, perfect for remote sources

• Dante audio in both encoder & decoder mode; 7.1 multi-channel audio

• Extends 1Gbps Ethernet, RS232, IR, & USB HID

• Video wall and multi-view support

• Fully interoperable with other SDVoE devices

• Easy to configure using Arranger Web-based Wizard

IPEX6000TC-F

6000 SERIES SDVOE TRANSCEIVER FIBER

• Fully routable zero-latency HDMI signals up to 4K60 4:4:4 over standard 10G fiber network

• Transceiver acts as an encoder or decoder

• Supports HDR10+ & Dolby Vision

• Simultaneous two-way extension. Transceiver can act as an encoder and a decoder at the same time, perfect for remote sources

• Extends 1Gbps Ethernet, RS232, and IR

• HDCP compliant

• Easy to configure using Liberty AV’s Arranger software

• Supports video walls up to 16x16

• Supports multi-view up to 9 sources on a single screen

IPEX6001U-WP-W

6000 SERIES SDVOE WALL PLATE ENCODER

• HDMI & USB-C auto switching inputs

• Fully routable USB2.0 High Speed with Isochronus data support

• USB can be routed independantly to stand alone USB end points from the USB-C or USB-B host connection

• Supports PoE+

IPEX6002U-WP-W

6000 SERIES SDVOE WALL PLATE ENCODER

• Includes optional power supply to inject power over USB-C for device charging

• Pass-through 1Gbps ethernet

• True Zero latency

• 4K60 4:4:4, HDR, and Dolby Vision Support

• Compatible with all other 6000 series SDVoE decoders and transceivers

• HDMI output, 1Gbps ethernet pass-through, and client USB ports

• USB ports support Isochronus data from 6000 wall plate encoder or stand alone USB end points

• 4K60 4:4:4, HDR, and Dolby Vision support

• Supports PoE+

• Compatible with all other 6000 series SDVoE encoders and transceivers

IPEXAR-2200, 5100, 6000

ARRANGER PROCESSOR FOR DIGIIP

• Extends 1Gbps Ethernet, RS232, and IR

• HDCP compliant

• Supports video walls up to 16x16

• Supports multi-view up to 9 sources on a single screen

• System controller for DigiIP Systems

• Comes preloaded with Arranger software which configures, manages, and controls DigiIP devices on a network

• Auto ON feature, server powers on automatically when power is present

• Requires license key which is provided upon purchase

• Optional managed services and analytics license allows you to gather data about how the system is used and to receive system error notifications by email

• Optional UI creator control system license allows you to build unlimited user interfaces to control the IP video system as well as other components via Ethernet, IR, and serial

ELECTRONICS: DigiIP

IPEX-USB2-C & -H

FULLY ROUTABLE/SWITCHABLE HIGH-SPEED USB2.0 OVER IP

• Route and switch multiple client/remote USB devices to a single host over an IP network

• Switch and route multiple host devices

• Extend USB2.0 high-speed up to 100m over standard 1Gbps LAN

• Share a LAN with DigiIP AV products for AV and USB routing

• Supports isochronous data for maximum compatibility with USB cameras

SHIPPING

IPEX5101

1GB ENCODER: 4K60 4:4:4 AV WITH DANTE AUDIO SUPPORT

• Fully routable AV over IP encoder over 1Gbps network

• Simple configuration using Arranger Web-based Wizard

• Supports 4K60 4:4:4, Dolby Vision, HDR10 and 7.1 Audio

• USB supports isochronous data up to 150Mbps. (For 480Mbps USB switching and routing use IPEX-USB2)

• Dante audio support

• TAA Compliant

IPEX5102

1GB DECODER: 4K60 4:4:4 AV OVER WITH DANTE AUDIO SUPPORT

• Fully routable AV over IP encoder over 1Gbps network

• Simple configuration using Arranger Web-based Wizard

• Supports 4K60 4:4:4, Dolby Vision, HDR10 and 7.1 Audio

• USB supports isochronous data up to 150Mbps (For 480Mbps USB switching and routing use IPEX-USB2)

• Dante audio support

• TAA Compliant

IPEX1001

ZERO CONFIG/PROCESSOR AV OVER IP ENCODER

• 1000 series encoder supports resolutions up to 1080P with no processor or network config required

• All setup done via Ipad/phone app

• Supports video walls

• Drag and drop source switching

• Fast switching

• Works with managed or unmanaged switches

• Perfect for simple video distribution projects

IPEX1002

ZERO CONFIG/PROCESSOR AV OVER IP DECODER

• 1000 series decoder supports resolutions up to 1080P with no processor or network config required

• All setup done via Ipad/phone app

• Supports video walls

• Drag and drop source switching

• Fast switching

• Perfect for simple video distribution projects

SHIPPING

IPEX5101UD-WP

1GB WALL PLATE ENCODER: 4K60 4:4:4 DUAL INPUT, AUTO-SWITCHING HDMI + USB/USB-C

• Simple configuration using Arranger Web-based Wizard

• Supports HDMI 4K60 4:4:4 and 7.1 audio

• Supports Dante audio

• USB-C port supports ALT-DP (simultaneous AV, USB, & device charging*) *Using optional PS-20V-6A

• Dual Power, PoE or DC power input

• USB supports isochronous data up to 150Mbps. (For 480Mbps USB switching and routing use IPEX-USB2)

• TAA Compliant

ELECTRONICS: Networking ELECTRONICS: DigitaLinx

NGS-IPV16

PRE-CONFIGURED AV OVER IP 24/16-PORT NETWORK SWITCHES

• 16-port managed with PoE

• Comes pre-configured out of the box for DigiIP and other AV/IP systems

• Up to 30w per port PoE

Netgear Networking

PRE-CONFIGURED NETWORKING FOR AV/IP

• Pre-Configured 1Gbps Network Switches

• Pre-Configured 10Gbps Network switches

• AV over IP Network design assistance NOW SHIPPING

ELECTRONICS: Control

IPEXAR-UIC

NOW SHIPPING

ARRANGER UI CREATOR ETHERNET SYSTEM CONTROLLER

• On-premise software-based Ethernet system controller

• Create and customize web-based user interfaces and QR codes for AV system control

• No programming languages required

• Controls up to 3 devices per license. Add more devices in increments of 3 using AGR-UI-1

• Controls any AV device via Ethernet, IR and serial

• Compatible with ALL Global Cache devices for serial, IR, contact closure, sensor, and relay control

• Auto ON server feature, server powers on automatically when power is present

NOW SHIPPING

DL-1H1V-WPKT-H2

HDMI & VGA 18G 4K AUTO-SWITCHING WALL PLATE EXTENDER SET

• Complete set includes wall-plate TX, RX, power supply, cover plate

• Extend HDMI up to 4K60 4:4:4 or VGA w/audio signals up to 70 meters

• HDCP2.2 compliant

• Extends RS232 and 1-way PoC power from RX to wall-plate TX

NOW SHIPPING

NOW SHIPPING

Global Cache Devices

• Native integration with Arranger. Configure without leaving Arranger for DigiIP and Arranger standalone UI creator systems

• Turn non-IP control into IP control. IR, RS232, contact closure, etc. controlled seamlessly via IP

DL-2H-WPKT-H2

TWO-INPUT 18G 4K AUTO-SWITCHING HDMI WALL PLATE EXTENSION KIT

• Complete set includes wall-plate TX, RX, power supply, cover plate

• Auto switch and extend HDMI up to 4K60 4:4:4 signals up to 70 meters

• HDCP2.2 compliant

• Extends RS232 and 1-way PoC power from RX to wall-plate TX

DL-1H1A1UCWP-H3

18GB AUTO-SWITCHING HDMI/USB-C EXTENDER OVER HDBASET 3

• Uncompressed HDMI over HDBaseT 3

• USB-C passes AV via ALT-DP, acts as a USB host, and charges connected devices with optional second power supply

• HDMI/USB-C auto switching based on video sense or 5V detection

• Supports HDR, HDR10+, Dolby Vision LLM, HLG

• Supports USB2.0 High Speed (1) Host (2) Clients on TX, (2) Clients on RX

• Supports Isochronous USB data for maximum camera compatibility

• Audio de-embed on RX

DL-1H1A1UWP-H3

18G 4K60 HDMI AND USB2 HIGH-SPEED EXTENDER

• Uncompressed HDMI 2.0 extension over HDBaseT 3.0

• 4K60 4:4:4 to 40m over Cat6a or above, 4K60 4:2:0 to 70m

• Supports HDR, HDR10+, Dolby Vision LLM, HLG

• Supports USB2.0 High Speed (1) Host (2) Clients on TX, (2) Clients on RX

• Supports Isochronous USB data for maximum camera compatibility

• Audio de-embed on RX

• Includes 24VDC 1A power supply and mounting ears

ELECTRONICS: DigitaLinx

DL-1H1A1UB-H3

4K HDMI & USB HDBASET 3.0 EXTENSION SET

• Box format transmitter and receiver set with accessories

• Uncompressed HDMI 2.0 extension featuring HDBaseT 3.0

• HDMI 2.0b, HDCP 2.2 18Gbps 4K60 4:4:4 to 40m, 10.2Gbps 4K60 4:2:0 to 70m

• Supports HDR, HDR10+, Dolby Vision LLM, HLG

• HDBaseT3.0 provides nearly double the USB speeds vs HDBaseT2.0

DL-1H1A1UCB-H3

• Supports USB2.0 high-speed (1) host (2) clients on TX, (2) clients on RX

• Supports isochronous USB data for maximum camera compatibility

• Supports 3.5mm analog audio pass-through TX-RX

• Includes 24VDC 1A power supply and 4 mounting ears

18G 100M UNCOMPRESSED HDMI 2.0 / USB-C AUTO SWITCHING 4K60 AND USB 2.0 HIGH SPEED

EXTENDER SET WITH LOOP OUT & CLIENT HUB ON BOTH ENDS

• HDBaseT3.0 Uncompressed 4K60 & USB Transmitter & Receiver set with accessories

• Uncompressed HDMI 2.0 extension featuring HDBaseT 3.0 offers resolution support up to 4K60 4:4:4, control, and USB2.0 with isochronous data support for cameras and other USB peripherals

• HDMI / USB-C auto switching based on video sense or 5V detection

• USB-C full featured passes AV via ALT-DP, acts as a USB host, and provides up to 100w

DL-HDE100ARC-H3

charging power to the host computer over USB-C

• HDMI 2.0b, HDCP 2.2 18Gbps 4K60 4:4:4 to 100m over Cat6a or above

• Supports HDR, HDR10+, Dolby Vision LLM, HLG

• Supports USB2.0 High Speed (1) Host (2) Clients on TX, (2) Clients on RX

• Supports Isochronous USB data for maximum camera compatibility

• Audio de-embed on both ends

18GB HDBASET 3 EXTENDER WITH EARC, 1GB ETHERNET, AUDIO DE-EMBEDDING AND CONTROL

• Transmit flawless zero-latency video up to 4K60 4:4:4

• HDR10, Dolby Vision, Dolby Atmos, DTS-X, 7.1 digital audio

• eARC/ARC, pass Gigabit Ethernet

• IR, RS232, CEC, and Ethernet control protocols

DL-HDM88AS-H2

8X8 HDMI MATRIX SWITCHER

• All HDMI I/O support 4K60 4:4:4 HDR

• Digital and analog de-embedded audio outputs

• Supports IR, RS232, and LAN control

• DIP switch for EDID management

• Open Telnet API, RS232 protocol for 3rd party control

• TAA Compliant

DL-HDM44AS-H2

4X4 HDMI MATRIX SWITCHER

• All HDMI I/O support 4K60 4:4:4 HDR

• Digital and analog de-embedded audio outputs

• Supports IR, RS232, and LAN control

• DIP switch for EDID management

• Open Telnet API, RS232 protocol for 3rd party control

• TAA Compliant

DL-44E-H3-KIT

• Supports Resolutions up to 4K60 4:4:4 Fully Uncompressed & all standard HDR formats including Dolby Vision & HDR10

• 4 x HDMI 2.0 Inputs

• 4 x HDBaseT 3.0 outputs support resolutions up to 4K60 up to 100 meter over Cat6A or above

• 4 x HDBaseT 3.0 Receivers included with HDMI, RS232, Gigabit Ethernet, IR, & eARC extension

• Supports ARC/eARC

• Built in audio matrix

• Auto 4K to 1080P downscaling for applications with mixed resolution displays

• Remote PoC Power from switcher to RX

• Full API for control via IR, RS232, TCP/IP

• Built in WebGui for settings and device control

• EDID & HDCP management

DL-PSMV62

MULTI-FORMAT PRESENTATION SWITCH W/HDBT & MULTIVIEW

• 6x1+1 (HDMI & mirrored HDBT outputs) 4K presentation switcher w/HDBT out

• Inputs include HDMI, DP, & USB-C

• Supports multi-view with 16 different preconfigured multi-view modes & custom mode for custom window sizing

• USB-C supports AV via ALT-DP and charging power for connected device

• Integrated scaling up to 4K

• Seamless switching & auto-switching

• Use as a 4x1+1 in auto-switching or multi-view mode (Inputs 3 and 4 offer selectable input types) or 6x1+1 when used as a standard switcher & controlled via API

• HDCP 2.2 compliant

• Pair with DL-HD70-RX HDBaseT receiver as needed

DL-HD70-RX

HDBASET 70M RECEIVER

• HDMI transmission up to 230 feet (70m)

• Extends 4K up to 40 meters and 1080P up to 70 meters

• CEC supported

• Built-in surge protection

• Diagnostic LEDs

• HDCP compliant

• Bidirectional wideband IR and RS232 pass-through

• Flexible power design (use power supply at TX or RX)

• Locking power connector

• Receiver for DL-PSMV62

ELECTRONICS: DigitaLinx

DL-HD70-H3

HDBASET 3.0 UNCOMPRESSED 18G HDMI 70M EXTENSION SET

• Uncompressed HDMI 2.0 4K60 4:4:4 extension over category cable

• HDR10+ & Dolby Vision support

• Extend HDMI, IR, RS232 up to 70m

• Flexible power allows device to be powered on either end

• Built in test pattern generator

• Low Bandwidth mode for maximum cable compatibility IN DEVELOPMENT

DL-HDE100-H3

HDBASET3.0 UNCOMPRESSED 18G HDMI 100M EXTENSION SET

• Uncompressed HDMI 2.0 4K60 4:4:4 extension over category cable

• HDR10+ & Dolby Vision support

• Extend HDMI, gigabit Ethernet, IR, & RS232 up to 100m

• Flexible power allows device to be powered on either en

• Built in test pattern generator

• Low Bandwidth mode for maximum cable compatibility IN DEVELOPMENT

DL-EARCEXT-H2

eARC AUDIO EXTENDER

• eARC audio only extender

• Supports HDMI 2.0 18G 4K60

• Perfect for TV apps and local sources delivering eARC back to the AVR

• Supports all eARC supported Dolby/DTS audio formats

• Toslink output for ARC COMING SOON

PRE-MADE

CABLES: HDMI

Intergalactic

48GBPS ULTRA-PREMIUM CERTIFIED 8K-10K HDMI CABLES

• Ultra-premium certification supports resolutions up to 10K

• Supports HDMI 48Gbps

• Silver-plated conductors for flawless signal transmission

• eARC support

• 4K, 8K, 10K support

• Orbit cable identification rings

• L-Grip high-retention connector

• Metal head for superior EMI shielding

• Braided cable jacket for ultimate feel, flexibility, and presentation

NEBULA

48/18GBPS ULTRA & PREMIUM CERTIFIED HDMI CABLES

• Ultra-premium & premium (length dependent) certified HDMI cables

• In-wall rated (certain lengths)

• 4K, 8K, 10K support

• Orbit cable identification rings

HALO PREMIUM 18GBPS 4K60 HDMI CABLES

• Flexible, install-friendly HDMI cables capable of 18Gbps bandwidth

• Over a dozen lengths available

• In-wall rated

• Orbit cable identification rings

• Lengths 4m and longer

Zero-G

DL-EDHDMGR

18G 4K60 EDID & HDCP MANAGER

• In line EDID manager with easy dip switch selection

• In line HDCP management for maximum device compatibility

• CEC block/pass-through

• L-Grip high-retention connectors

• Flexible design for easy installation

• Active technology at longer lengths to maintain perfect signal integrity

• L-Grip high-retention connectors

• Thin OD and flexible jackets for patching

• High-quality multipurpose, integrationfriendly HDMI cable

• Available in Liberty Cube bulk packs

18GBPS 4K60 ULTRA-FLEXIBLE USER-FRIENDLY HDMI CABLES

• 18Gbps capable cable

• Super flexible, zero memory, easy to handle, soft jacket compound for table-top user applications

• Low-retention high-quality connectors for easy removal from user devices

10.2GBPS 4K HDMI CABLES

• Simple/affordable HDMI cables

• Supports resolutions up to 4K

• Indent for optional Orbit identification rings

• Available in Liberty Cube bulk packages

• Orbit cable identification rings

• Perfect for collaboration spaces and cable dressing

• Available in Liberty Cube bulk packages

PRE-MADE CABLES: USB

NOW SHIPPING

USB 2.0

E-USB (E-USBXX-*) SERIES USB “A” MALE TO “B” MALE CONNECTIVITY

• USB 2.0 480Mbps

• 500mA 2.5W power

• AWM rated PVC jacketing

• A-A, A-AF, A-B, A-C formats

• 3, 6, 10, and 15 foot lengths

• Molded PVC connector housings

• USB 1.1, 2.0 and 3.0 Compliant

• AWM rated cable, not for in-wall use

ADAPTERS

NOW SHIPPING

USB 3.0

E-USB3 (E-USB3XX-**) SERIES USB “A” MALE TO “C” MALE CONNECTIVITY

• USB 3.x 5Gbps, C-C 10Gbps

• 3A 60W maximum power

• AWM rated PVC jacketing

• A-A, A-AF, A-B, A-C, and C-C formats

• A-A, A-AF, A-B in 3, 6, 10, and 15 foot lengths

• A-C and C-C in 1 and 2 meter lengths

• In-Line format, no panel mount option

• Molded PVC connector housings

• Backwards compatible to USB 3.0, 2.0, and 1.1

• Rated for 3A current and charging

• AWM rated cable, not for in-wall use

DL-AR

ALL-NEW ADAPTER LINE/RING FOR SIMPLE AND CLEAN CONFIGURATION

• All-new clamp allows for line or ring configuration

• New clamp offers much easier assembly

• Updated 4K adapters

• Online configurator offers both options

• Teleportivity SmartTag can be added for easy access to service

USBC2RJ45

USB-C TO GIGABIT ETHERNET ADAPTER

• Connection speeds: Supports 10/100/1000BaseT meaning up to 1Gbps

• Interface: 1 x USB-C 3.0 port

• Power requirements: Bus power for USB port

• LED Indicator: Built-in LED indicator — Yellow light: Ethernet connected; Green light: network data is being transferred

• Commercial design: Premium aluminum alloy casing

• Dimensions: 8.25" (17.5CM) housing 60x24x17.02mm

• Package includes: 1 x USB-C network adapter, x spec sheet

Zero-G

ZERO-GRAVITY (ZG-U**M) SERIES USB “A” MALE TO “C” MALE CONNECTIVITY

• USB 3.x 5Gbps, C-C 10Gbps

• 3A 60W maximum power

• Orbit ID rings and resealable bag packaging

• AWM rated ultra flexible silicone jacketing

• A-A, A-AF, A-B, A-C, and C-C formats

• 1, 2, and 3 meter lengths

HALO

HALO ACTIVE OPTICAL PLENUM (HALO-UPXX**M) SERIES USB “A” MALE TO “C” MALE CONNECTIVITY

• USB 3.x 10Gbps and ALT mode Video 4K60

• 900mA 4.5W PD power delivery all lengths

• Hybrid Fiber/Copper Plenum rated bulk cable

• Orbit ID rings and resealable bag/box packaging

• A-A, A-AF, A-C, and C-C formats

• 5, 8, 10, 15, 23, 30, 40, and 50 meter lengths

USBA2RJ45

COMPACT USB-A TO RJ45 ADAPTOR

• Supports 10/100/1000BaseT

• Backwards compatible with 100Mbps/10Mbps networks

• Supports downloads at maximum speeds without interruption

ALL-NEW HDMI CABLE PACKAGING

Bulk contractor packs including various quantities of cables

Resealable packaging with viewing window to easily identify and store unused cables

Liberty has a complete technology system of adaptable, advanced infrastructure systems across Audio/Visual Security and Surveillance, Cable and Connectivity Metals, Racks and Enclosures Wireless and Distributed Antenna Systems and Software and Services — all backed by the support of knowledgeable in-house, customer service teams. With an ever-growing portfolio of products, Liberty has maintained both quality and personal connection to the installer, delivering products that are dependable, affordable, cutting edge, yet easy to install and user-friendly that support the toughest of technical requirements. Find out more about Liberty at Libertyonline.com
