2026 Welldana Catalogue

WELLDANA A/S

Established in 1987, Welldana is a company with plenty of experience. We are currently one of Scandinavia’s largest wholesalers in the pool, spa and sauna industry, and we have over 350+ professional dealers in Nordic countireswith our major client base established in Denmark, Sweden and Norway.

Our mission is to support our partners throughout the entire value creation process, with a firm belief that our people are our most valuable asset. We take pride in what we do and have evolved from being a traditional wholesaler who supplied goods to the market, to a modern business partner now providing multilevel business support to our clients.

Our goal is to be the most effective partner in the industry and it is essential that we can offer the market’s strongest and most up-to-date range of products, all available online through our webshop.

www.welldana.dk

www.welldana.se

www.welldana.com

www.welldana.no

WELLDANA WEB

THE FASTEST PLACE TO ORDER INFORMATION AVAILABLE

24/7

Discover our full range of products and explore all the extra features available on Welldana's website.

PRODUCTS

Extensive catalogue of products available through our website for pool, spa and sauna.

FIND DEALERS

End-users are able to find their nearest dealers via our online map. Be part of our retailers list!

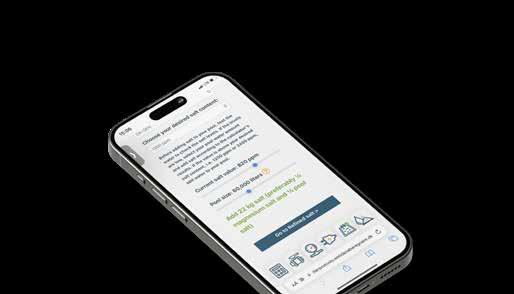

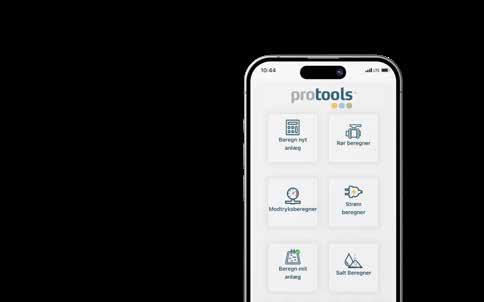

CALCULATORS

Don’t guess, calculate!

Supporting pool builders with Welldana ProTools. Calculators for salt level, power saving and pool system setup.

IMAGES

Large online database of high-quality images photographed in our on-site photo studio.

CONTACT

Information for contacting our sales department, customer service and employees.

PRICES

View both the net and gross prices, available on every product online.

STOCK

‘Traffic Light’ system indicating up-to-date stock levels and view expected stock delivery dates by hovering over your selected warehouse.

SPARE PARTS

to find! View stock levels in our DK or SE warehouse.

Numbered lists of spare parts with corresponding exploded-view drawings, for an easier way to understand and find the spare parts you need.

DOCUMENTS

Collection of documents, such as manuals and spec sheets, available on our product pages.

VIDEOS

Easy-to-access educational and promotional videos about our products.

FAVOURITES

Create a list of your favourite products for easier purchasing in the future.

TRAINING

Request and access online live training seminars, held in our 120m² training center.

NEWS

See the latest deals on our homepage, and access our various online articles.

WELLDANA TRAINING AREA

Revolutionizing the training experience for our pool builders, we conceptualized and implemented a state-of-the-art training area featuring live seminars. This dynamic space serves as a knowledge hub where industry professionals and staff can engage in immersive learning experiences.

Follow along via your PC or mobile!

LIVE SEMINARS

With our new 120m² training center you can follow along via live camera while we test pump sizing, chemistry control and general flow.

info@welldana.com +45 75 27 23 33

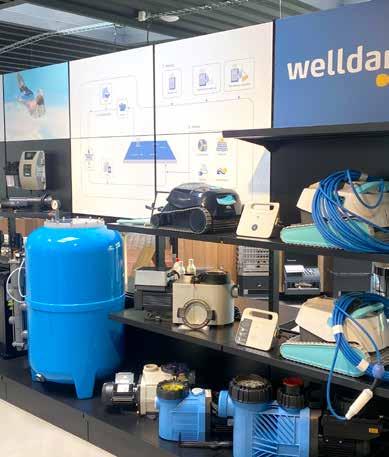

WELLDANA SHOP N SHOP

PRODUCT DISPLAY

Welldana provides shop in shop interior design solutions. Together with you, we design the layout to best fit your wishes. The ‘shop n shop’ elevates your in-store customer experience, fostering a harmonious and visually appealing shopping environment.

The result is a revitalized retail space that leverages technology and design to inform and captivate your customers. v

WELLDANA DEALERSHOP PROGRAM

Automatic enrichment of your webshop.

SCANDINAVIA’S LARGEST ASSORTMENT

Welldana can provide you with: the best images on the market, comprehensive product descriptions, manuals, brochures and safety data sheets, spare parts lists, videos on selected products, and a large assortment with 160 categories and 3700+ item numbers.

DROPSHIPPING

We can ship your packages directly to your customers.

YOUR LOGO

Place your own logo on Welldana-supplied images.

INCREASED WEB SALES

More products bring more customers and referrals from Google.

PRODUCT VIDEOS

High quality videos available on selected products.

AUTOMATIC DATA TRANSFER

Our synchronization software ensures you always receive the latest data across the entire product range.

The complete automatic data synchronization occurs every 30 days. Stock numbers are synchronized every 24 hours.

VARIANT DISPLAY

Choose between 2 ways to display your product variants: in a list or using a dropdown menu.

CATEGORY SELECTION

You have the ability to curate the assortment of products that suit your business. Add or deselect products and entire categories as you wish.

INTEGRATED WELLDANA POOL CALCULATORS

We can offer you access to our integrated pool calculators, Welldana ProTools These calculators can help your customers test their current pool installation and make it easier for you to document and sell an upgrade to the customer’s existing pool installation.

1-CLICK TRANSFER ORDER

Save time placing orders with us! With one click, you can forward an order directly to Welldana.

SPARE PARTS

Due to our extensive range of spare parts, we have developed a function that allows you to display all the associated spare parts on any given product. Our smart parts display is a unique plugin that makes it easier for the customer to find the exact part they are looking for.

LANGUAGES

We are able to support 3 different languages: Danish, Swedish and Norwegian.

ADAPTATION OF PRODUCTS

Using our data point exclusion software, you can make changes to the data we supply, such as: writing new text, using a different photo or moving products to another category. Simply ‘tick off’ any changes to ensure we do not overwrite them during the next data synchronization.

WELLDANA IN SWEDEN

At Welldana, we do more than deliver products - we deliver partnership.

As one of Scandinavia’s largest wholesalers in pool, spa, and sauna, we’ve evolved from a traditional supplier into a modern business partner. Today, we support our retail customers on multiple levels - from reliable logistics to in-store solutions, marketing support, and professional training.

We established a dedicated warehouse in Bjärnum in 2021, and with this local presence, we offer next-day delivery across Sweden, and same-day shipping for orders placed before 14:00. You can even see the available stock in our Bjärnum warehouse on welldana.se. Whether you need delivery to your warehouse or directly to your end customer, our logistics solutions are flexible and efficient. Our goal is 98% delivery reliability on our regularly stocked items. But we don’t stop at logistics.

We help customers optimize store layouts, run marketing campaigns, and stay ahead with product and technical training - either onsite at our fully equipped training centre or remotely via live-streamed webinars This way, your team gets hands-on knowledge and expert support from wherever they are.

With operations in Denmark, Sweden, and Norway, we understand the Nordic market - and what it takes to succeed in it.

Being close to our pool builder, offering the best products as an independent supply and being fully committed to service? These are the outlines within which Pollet Pool Group works. With a solid base of 9 distribution companies, we support the local markets with a range of high-quality products, technical support, training courses, an online ordering platform, etc. Our historical experience with distribution has been strengthened with the knowledge of 2 of our own manufacturers: Aquadeck and Niveko. Aquadeck is a manufacturer of automated pool covers. Niveko draws the card of ‘custom-made monopools’. The local identity of our PPG companies, our promise to consider the pool builder as our most important partner in every country & the strength of our manufacturers? This is how we make the difference. Pollet Pool Group: Supporting Pool Builders.

www.polletpoolgroup.com

DISTRIBUTION

9 Distribution companies

The most complete range of pool components

MANUFACTURING

2 Manufacturers

Custom Built Monopools & Pool Covers

OUR MISSION AND VISION ON SUSTAINABILITY

With a diverse portfolio of companies operating in the pool business, Pollet Pool Group recognizes the vital importance of Environmental, Social, and Governance factors in driving positive change.

“The Green Wave” is our ESG statement that reflects our commitment to promoting sustainable practices, enhancing social well-being, and upholding strong governance principles across all aspects of our operations.

We are dedicated to developing and implementing innovative solutions that prioritize water conservation, energy efficiency, and the reduction of our carbon footprint. We recognize the significance of social responsibility in building

strong, inclusive communities. We are committed to fostering a diverse and inclusive workforce, ensuring safe working conditions, and supporting the well-being of our employees, customers, and the communities we serve.

“The Green Wave” encapsulates our unwavering dedication to ESG principles and guides our actions as we navigate the challenges and opportunities ahead. Together, we can ride the green wave towards a sustainable and prosperous future.

PLANET

REDUCING GREENHOUSE GAS EMISSIONS

We are committed to actively reducing our CO2 footprint as part of our environmental sustainability efforts.

REDUCING WATER CONSUMPTION

Our primary focus will be the reduction of our overall water usage. We commit to this objective by monitoring water usage through water scans and implementing strategic water conservation.

PEOPLE

SAFETY CULTURE

Pollet Pool Group, together with all sister companies, places utmost importance on ensuring the safety and overall well-being of its XPRTS.

GROWING AS AN XPRT

Pollet Pool Groups XPRT family culture is also about being able to grow, learn and feel part of the family. We want to nurture our XPRTS and their personal development through external and on the job training.

PRODUCT

SUSTAINABLE PRODUCT DEVELOPMENT

We integrate ESG parameters into product development, considering market potential, fit, and cost competitiveness. Our focus is on selecting impactful technologies, especially in energy and water efficiency.

ESTABLISHING SUSTAINABLE VALUE CHAIN

Building long-term relationships across the entire supply chain are crucial. We commit to formulating a code of conduct for suppliers based on EU sustainability regulations.

Discover our complete ESG program on greenwave.polletgroup.com

NEW PRODUCTS

NEW PRODUCTS

NEW PRODUCTS

01 Filters

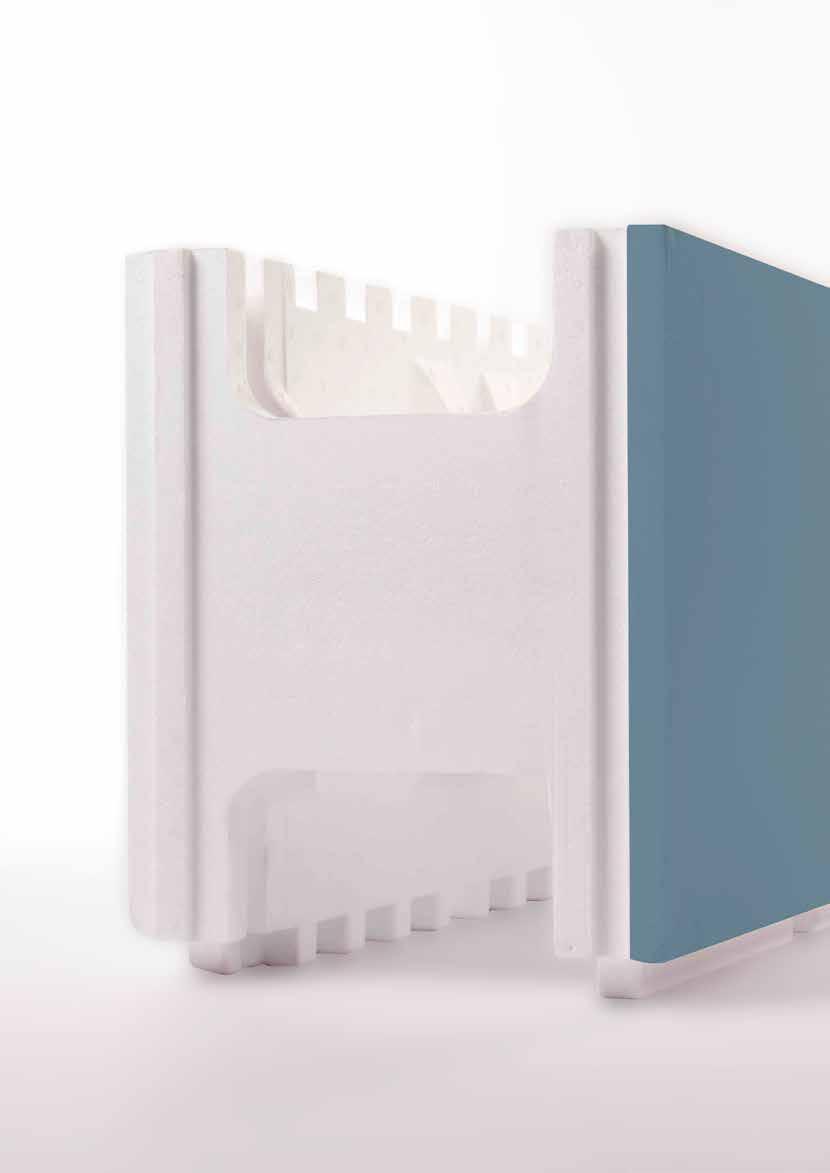

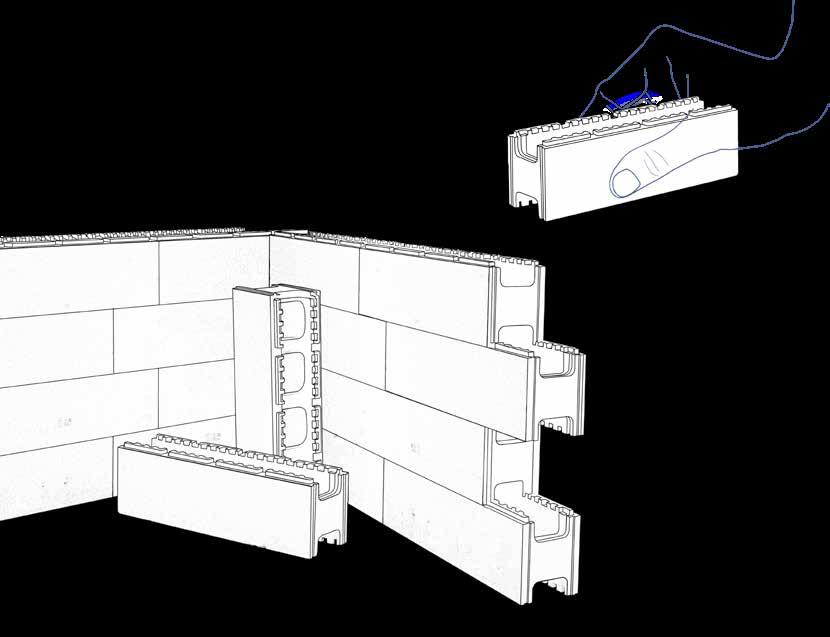

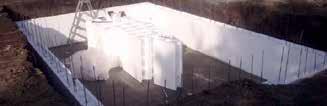

Formworks

Dehumidifers

Accessories

Maintenance

FILTERS FOR PRIVATE POOLS

FILTERS PRIVATE POOLS

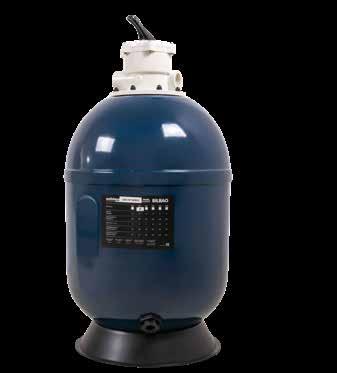

BILBAO FILTER TOP

Characteristics

• Filter for private pools, made with industrial standards, reinforced fibreglass tank and UV-resistant treatment.

• Includes pressure gauge and top valve 1½" and 2".

• Available in Ø400, Ø510, Ø620 and Ø680.

• Drain set designed to facilitate the emptying of water and filter media.

• Internal air purge to prevent the formation of air bubbles inside the filter.

• Working pressure max: 2,5 bar

• Test pressure: 3,75 bar

• Operating temperature max: 45°C

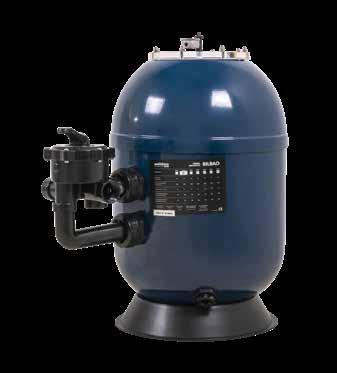

BILBAO FILTER SIDE

Characteristics

• Filter for private pools, made with industrial standards, reinforced fibreglass tank and UV-resistant treatment.

• Includes pressure gauge and 6-ways multiport valve.

• Black lid with 8 screws.

• Folding diffuser to facilitate the loading of filtrant media and access the interior parts.

• Drain set designed to facilitate the emptying of water and sand.

• Internal air purge to prevent the formation of air bubbles inside the filter.

• Working pressure max: 2,5 bar

• Test pressure: 3,75 bar

• Operating temperature max: 45°C

6-Way valve included

Includes transparent lid

FILTERS PRIVATE POOLS

PPG FILTER DELUXE WITH MPV

Improved - bigger lid - 10"

6-Way valve included

Characteristics

• A polyester reinforced filter developed by combining the strong properties of 2 well-known filter manufacturers. This combination provides a filter with the reliability and properties that normally apply to filters used in the public (demanding) sector.

• The filter tank is extra reinforced at all critical points.

• The smart 'herringbone' filter distribution system at the bottom of the filter is unique and prevents 'dead spots' due to optimal flow.

• The double drain plug at the bottom offers the possibility to drain only the water or the water and the filter medium at the same time.

• Provided with a transparent lid ø250mm, including deaeration valve and pressure gauge, with a solid quick-closing ring.

• Maximum working pressure 2.5 bar.

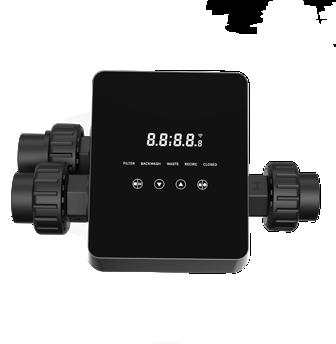

• Supplied with manual 6-way valve, optionally easy to implement with Besgo automatic backwash valve.

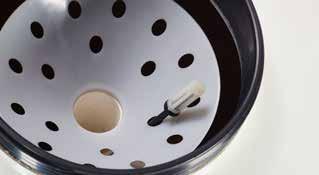

• The transparent lid is now equipped with a small light. This allows you to watch the backwash process and easily check if the filter is clean.

10 Years tank warranty

KEY BENEFITS

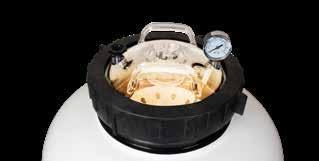

Large, clear 10-inch lid, including relief valve and pressure gauge, with heavy-duty, fibreglass-reinforced quick-lock ring for maximum durability. The transparent lid is now equipped with a small light. This allows you to watch the backwash process and easily check if the filter is clean.

Distribution arms in herringbone band

“Dead spots” can occur between the distribution arms and the water cannot flow optimally through the filter bed. Waterco's smart system with herringbone distribution arms prevents “dead spots” by ensuring an optimal flow in the filter bed.

FILTERS PRIVATE POOLS

WELLDANA® FILTER TOP

Characteristics

• Produced from strong fiberglass-reinforced ABS plastic.

• For private pools up to around 70m³

• Maximum working pressure 2.5 bar

• Supplied with complete 6-way top-mounted valve, manometer, bottom valve and 3 pcs. connection unions.

included

FILTERS PRIVATE POOLS

WELLDANA® FILTER SIDE

Characteristics

• Produced from strong fiberglass-reinforced ABS plastic.

• For private pools up to 70m³

• Maximum working pressure 2.5 bar

• Supplied with complete 6-way side-mounted valve, manometer, bottom valve and 3 pcs, connection unions.

6-Way valve included

CALPLAS® FILTER

CALPLAS® makes filters for industrial applications and for the swimming pool industry. Founded in 1970 in San Sebastian (Spain), this company has built up a solid experience and unique know-how under the CALPLAS® brand over time. CALPLAS® products have enjoyed great success worldwide as their durability and performance far exceed market standards.

WHY SHOULD YOU CHOOSE CALPLAS®?

Craftsmanship since 1970

• For over half a century, CALPLAS® has been selling the most reliable filters worldwide.

• Our engineers perform highly accurate calculations for every filter diameter and design.

• All our filters undergo quality checks and are pressure tested before delivery.

Built to last

• Glass fiber reinforced polyester (GRP) for total watertightness and corrosion resistance.

• Reinforced with steel at all points where the filter is subjected to extra stress.

• All parts are additionally coated with orthophthalic resin for optimum resistance to heat and chemicals.

Sense of detaill

• Cast-in threaded connections for 100% secure connections.

• Large transparent covers, extra sight glass and access hatch available for easier maintenance.

• Solid support feet molded onto main frame for unrivaled stability and durability.

• Beautifully finished with UV-resistant gel coating on the outside.

Optimal efficiency

• Best filtration and backwash performance thanks to special top diffusers, distribution arms and internal piping that ensure optimum water flow in the filter.

• Available with various filter bed heights: the higher the filter bed, the better the filtration efficiency.

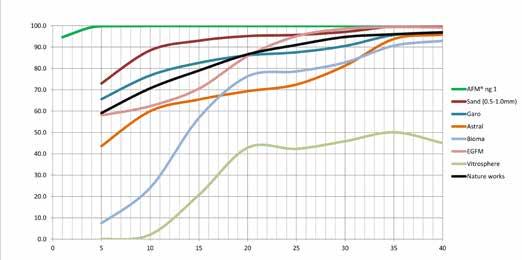

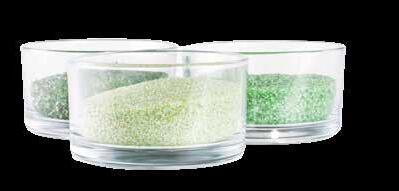

• Exclusive AFM® filter for unparalleled filtration performancees.

FILTERS PRIVATE POOLS

CALPLAS® FA FILTER

No valve included

Characteristics

• Industrial quality polyester filter, color blue RAL 5015.

• Equipped with a special AFM diff usor for ideal water distribution on the filter bed, which prevents the formation of craters.

• Maximum operating pressure 2.5 bar, test pressure 3.75 bar (available on request with operating pressure up to 7 bar). Temperature resistant up to 40°c.

• Including pressure gauge 1⁄4”, air vent and transparent cover.

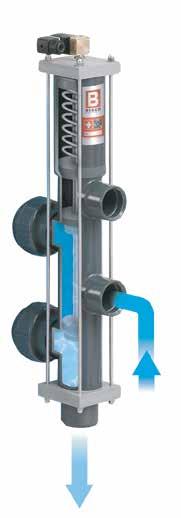

• Exclusive 6-way valve, optional automatic or manual selection. Besgo backwash valve fits standard on the filter, coupling set required separately stated. See the 6-way valve at the end of this chapter.

ੁ 5 year manufacturer's warranty

45-090840

FILTERS PRIVATE POOLS

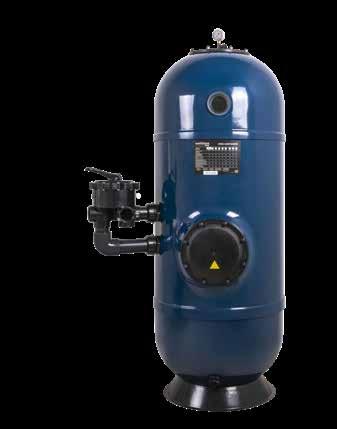

CALPLAS® HFS FILTER

Characteristics

• Industrial quality polyester filter, color blue RAL 5015.

• The HFS filter is considerably higher than the FA filter and more contact time due to a higher filter bed and therefore a better filter and flocculation process.

• The HFS 15 filter and the models above it are equipped with a larger transparent filter cover and contain approximately 20% more filter medium.

• Equipped with a special AFM diff usor for ideal water distribution on the filter bed, which prevents the formation of craters.

• Maximum operating pressure 2.5 bar, test pressure 3.75 bar (available on request with operating pressure up to 7 bar). Temperature resistant up to 40°c.

• Includes pressure gauge, air vent and transparent lid.

• Exclusive 6-way valve, optional automatic or manual selection. Besgo backwash valve fits standard on the filter, coupling set required separately stated. See the 6-way valve at the end of this chapter.

ੁ 5 Years tank warranty

FILTERS PRIVATE POOLS

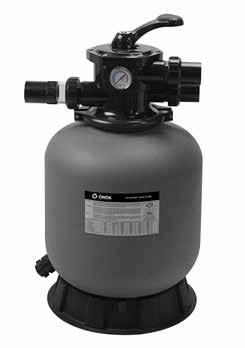

ONDA FILTER TOP

Characteristics

• Made out of high-density polyethylene (HDPE)

• Compact and light

• 6-way valve for top connection, complete with mounting clamp and pressure gauge

• Fixing clamp makes valve rotatable for optimum connection flexibility

• Filter base plate

• Filter with drain plug

• Maximum operating pressure: 2.5 bar

• Test pressure: 3.75 bar

• Maximum temperature: 40°C

• Maximum filtration rate: 50 m³/h/m²

2 Years tank warranty

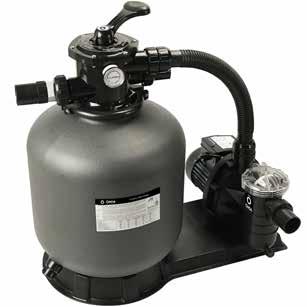

ONDA FILTRATION KIT

Characteristics

• Base plate for pump and filter

• Pump/filter connection supplied and mounted (diameter 50 mm)

• 4-way valve for top connection

• Pressure gauge (bar)

• Blow molded HDPE (high density polyethylene) filter

• Operating pressure: 2.5 bar

• Test pressure: 3.75 bar

FILTERS FOR PUBLIC POOLS

FILTERS

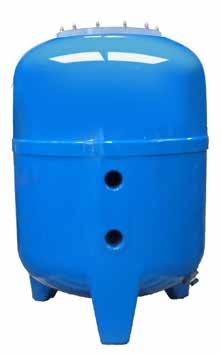

SANTANDER FILTER

Characteristics

• Filter for public pools, made with industrial standards, reinforced fibreglass tank. With side hole and sightglass. 2” connection.

• Includes pressure gauge and 6-ways multiport valve 2”.

• With laterals.

• Easy opening of the top lid.

• Folding diffuser to facilitate the loading of filtrant media.

• Side hole to facilitate the discharge of filtrant media and the access to the interior parts.

• Drain set designed to facilitate the emptying of water and sand.

• Internal air purge to prevent the formation of air bubbles inside the filter.

ੁ 5 Years tank warranty

6-Way valve included

FILTERS PUBLIC POOLS

SANTANDER FILTER

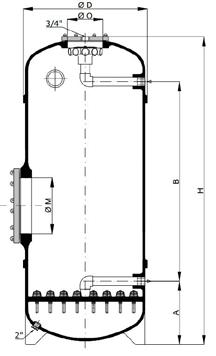

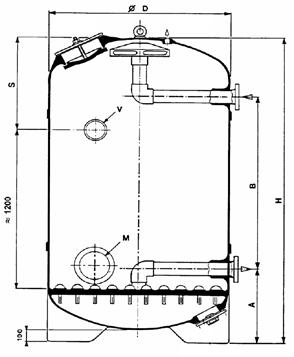

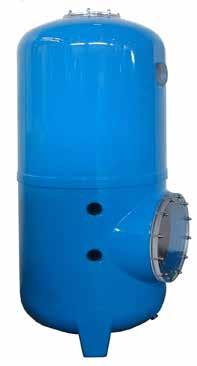

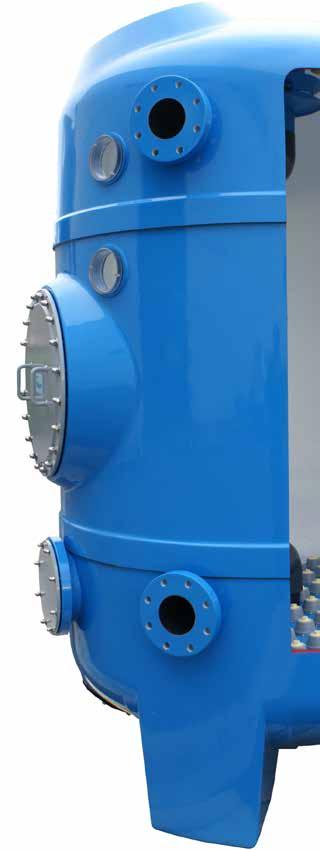

CALPLAS® DPS FILTER

Characteristics

• Industrial quality polyester filter, color blue RAL 5015.

• High bed AFM filter with cap bottom, filter bed height 1200mm.

• Service manhole ø 420mm (position 7) and sight glass (position 2), mounted in filter.

• Working pressure maximum 2.5 bar, test pressure 3.75 bar . (available on request with working pressure up to 6 bar)

• Temperature resistant up to 40°c, ozone resistance on request.

• Available on request with a lower connection port under the cap base. (according to DIN standard, type 2)

• Fitted with a steel coated lid, excluding pressure gauge and venting 1” F. (connection provided in filter)

• Exclusive backwash valve/front tube system, optional automatic or manual selection.

• Equipped with a lifting eye for responsible placement.

• Interested? Contact us for questions or guidance with the ordering process.

10

size collar socket 'bare'

REFERENCE DESCRIPTION

45-111010 Calplas Filter DPS series - Ø1010mm

45-111160 Calplas Filter DPS series - Ø1160mm

45-111260 Calplas Filter DPS series - Ø1260mm

45-111440 Calplas Filter DPS series - Ø1440mm

FILTERS PUBLIC POOLS

CALPLAS® DPS FILTER

Filter capacity in m³/h at -

connection size collar socket 'bare'

(bottom

(B)

REFERENCE DESCRIPTION

45-111640 Calplas Filter DPS series - Ø1640mm

45-111840 Calplas Filter DPS series - Ø1840mm

45-112040 Calplas Filter DPS series - Ø2040mm

45-112340 Calplas Filter DPS series - Ø2340mm

45-112550 Calplas Filter DPS series - Ø2550mm

Filling plan sand and AFM on request.

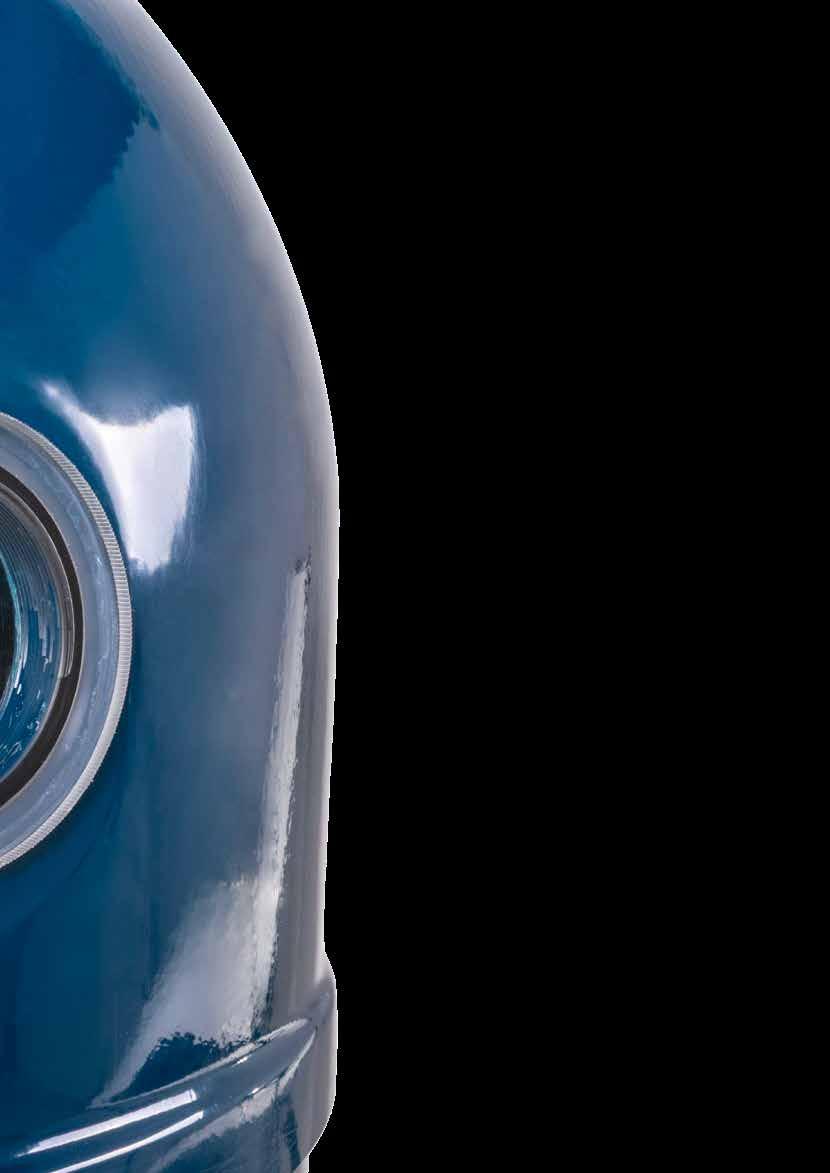

CALPLAS® DCH/P FILTER

Characteristics

• Industrial quality polyester filter, color blue RAL 5015.

• High bed AFM filter with cap bottom, filter bed height 1200mm (available on request with filter bed height 1500mm).

• Service manhole with metal cover, transparent cover optional.

• Equipped with sight glass.

• Temperature resistant up to 40°c, ozone resistance on request.

• Available on request with a lower connection port under the cap base (according to DIN standard, type 2).

• Maximum operating pressure 2.5 bar, test pressure 3.75 bar. Temperature resistant up to 40°c.

• Including transparent lid with 3/4F for vent.

• Excluding pressure gauge and vent.

• Exclusive backwash valve/front tube system, optional automatic or manual selection.

ੁ 10 Years tank warranty Nozzle plate

POOLS

CALPLAS® DCH/P FILTER

CALPLAS® AFM FILTER

Characteristics

• Semi-high bed AFM filter with filter cross, filter bed height 900mm.

• Service manhole with transparent acrylic cover.

• Equipped with sight glass.

• Equipped with a special AFM diffuser for ideal water distribution on the filter bed, which prevents the formation of craters.

• Maximum operating pressure 2.5 bar, test pressure 3.75 bar (available on request with operating pressure up to 7 bar). Temperature resistant up to 40°c.

• Includes transparent lid, pressure gauge, drain plug and vent.

• Exclusive backwash valve, optional automatic or manual selection. Besgo backwash valve (wall mounting advice) fits standard on the filter, required coupling set stated separately. See the 6-way valve at the end of this chapter.

ੁ 5 Years tank warranty

45-109840

MULTICYCLONE AND CARTRIDGES

MULTICYCLONE

How does MultiCyclone work?

Characteristics

• No filter media to clean or replace

• No moving parts

• No unnecessary backwash

• Reduces filter maintenance

• Suitable for both new and existing installations

• Supplied with drain valve, metric and imperial quick couplings

• 16 hydro cyclones distribute the dirt in the most efficient way

ੁ 2 Years warranty

Recommended in combination with filter

The MultiCyclone is a centrifugal filtration device that saves water and reduces filter maintenance. The MultiCyclone works on the basis of centrifugal water filtration.

There are no moving parts with the advantage of no wear and tear and no filter media to clean or replace.

• Water flows in 16 hydrocyclones which generate a powerful centrifugal effect.

• This causes dirt particles to be thrown against the hydrocyclone wall, after which they settle spirally in the dirt trap.

• The filtered water moves to the centre of the hydrocyclone where the flow is reversed and the water swirls upwards through the outlet.

• The accumulation of dirt (sediment) is easy to check via the transparent dirt trap of the MultiCyclone.

• The MultiCyclone is easy to clean by opening the drain valve. Only 15L of water is drained to rinse the MultiCyclone clean.

• There are no filter media to clean or replace.

Connections

45-020010

1½" / 50 mm

Permissible flow 2,4 - 18 m³/h

REFERENCE DESCRIPTION

45-020010 MultiCyclone 12

MULTICYCLONE AND CARTRIDGES

FLOW VORTEX

Characteristics

• Multicyclone pre-filter, filters up to 80% of the pool's debris before it reaches the main filter

• Compact & light

• Water-saving solution: less backwashing or less frequent cleaning of the cartridges and the main filter

Minimum particle size

Minimum flow rate

Maximum flow rate

• Filtration by 22 hydrocyclones

• Easy to clean and requires limited water usage

• No chemical or filter material required

• Suitable for new and exisiting installations

• Includes connection set for 50 mm and 63 mm pipes

45-020000

m3/h

Connections IN/OUT 50 - 63 quick fit unions

Multi cyclones

REFERENCE DESCRIPTION

45-020000 Flow Vortex

MULTICYCLONE AND CARTRIDGES

HAYWARD® SWIMCLEAR

Characteristics

• A major technological breakthrough, high efficiency with imporved dirt-holding capacity. Results: clearer water, energy savings and low maintenance

• Manufactured from injection-molded durable glass reinforced co-polymer.

REFERENCE DESCRIPTION

45-220400 Hayward® SwimClear Filter 400

45-220500 Hayward® SwimClear Filter 500

45-220600 Hayward® SwimClear Filter 600

45-220700 Hayward® SwimClear Filter 700

• Offers a very high retention capacity with minimum maintenance

• No backwashing: saves on water, heating and chemicals

• Can be installed outdoors thanks to its weather-resistant tank

• Maximum working pressure 3,5 bar

• Supplied with connection unions

BESGO VALVES AND SIX-WAY VALVES

BESGO AUTOMATIC BACKWASH SYSTEM

Automatic backwash valves, made in Switzerland

Manufactured in Switzerland since 1980, the Besgo 5-way valve is a pneumatic valve that efficiently, simply and safely backwashes your sand filter. The Besgo 5-way valve has a higher backwash speed than traditional 6-way valves and therefore delivers superior backwash results.

Thanks to regular and powerful backwash cycles, Besgo ensures top quality crystal clear water. Besgo is compatible with all types of pool water treatment, including salt electrolysis.

FEATURES OF BESGO VALVES

Backwash throughput and performance superior to traditional 6-way valves

Higher backwash rate and performance than traditional 6-way valves.

Flexible installation

Can be mounted directly on the filter or on the wall (90° rotating connections).

Safety

In the event of a power cut or fault, the valve automatically switches to filtration mode.

Mode change

Filtration mode can be switched without stopping the filter pump.

Swiss quality

High-quality product offering excellent operational reliability. Certified by TÜV Rheinland / GS mark (proven safety).

Compatibility and availability

Can be used on all filters up to 2 m in diameter. Valves available in diameters from DN40 (50 mm) to DN125 (140 mm).

BESGO VALVES AND SIX-WAY VALVES

BESGO AUTOMATIC BACKWASH SYSTEM

The Besgo 5-way valve works automatically and can be operated with both water and air pressure. A connection to the water mains or a small air compressor provides the necessary 3.5 bar.

Technical data:

An ordinary 230 V powered controller/timer is sufficient to program and activate the solenoid valve.

The solenoid valve is energized and opened. The inlet pressure compresses the spring in the Besgo valve to start the backwash cycle. The backwash cycle continues as long as electrical power is supplied to the solenoid valve. In the event of a power failure/failure, the Besgo valve automatically switches to filtration mode. This prevents the pool from emptying unintentionally.

BESGO VALVES AND SIX-WAY VALVES

Characteristics

• The Besgo valve is a reliable mechanical automatic backwash valve, manufactured by the company Besgo in Switzerland.

• Operated by water or air pressure via a 230 V solenoid valve, air is preferred.

• In the rest position, the valve is in the filtering position, so in the event of a power failure the bath is not emptied, optimal safety. When the solenoid valve is energized, backwashing is performed.

• Very low pressure loss, also switching without stopping the installation.

• The interior is made of stainless steel 316 (can also be used for salt electrolysis), seals are ozone resistant and made of Viton/PTFE.

• Applicable in both a private and public installation.

STEP 1: CHOOSE YOUR BESGO 5-WAY VALVE

43-130055

Behncke, Bilbao, PPG 43-130056

OTHER

OTHER DN50 PORT SIZES AVAILABLE ON REQUEST, IF THESE ARE BETWEEN 140 AND 300MM. 43-130065

STEP 2: CHOOSE YOUR CONNECTION PARTS

REFERENCE DESCRIPTION

Watch the installation video

Calplas, Fiberplast, Triton

Behncke, Bilbao, Kripsol, Santander

Calplas, Fiberplast, Triton

Fiberplast

BESGO VALVES AND SIX-WAY VALVES BESGO VALVES

STEP 3: CHOOSE YOUR COMPRESSOR

REFERENCE DESCRIPTION

Characteristics

• A whisper-quiet compressor, low-noise (57dB) and oil-free (low maintenance).

• With storage vessel, capacity 6 litres, weight only 14.5 kg.

43-130100-1 Compressor for Besgo valves - with tank

BESGO 3-WAY VALVES

REFERENCE DESCRIPTION

43-130163

43-130190

43-130110

Characteristics

• In combination with the Besgo backwash valve the 3-way valve allows backwashing and rinsing.

• A purge valve is mandatory in a vc application.

• The rinse valve can also be used as a switching valve between swimming pool/ whirlpool (2 pieces required), between 2 water attractions on 1 pump, between buffer tank and main drain and as a solar valve for solar collectors.

Besgo 3-Way Valve - DN50 / Ø63mm, Incl. Solenoid Valve 230V

Besgo 3-Way Valve - DN80 / Ø90mm, Incl. Solenoid Valve 230V

Besgo 3-Way Valve - DN100 / Ø110mm, Incl. Solenoid Valve 230V

BESGO VALVES AND SIX-WAY VALVES

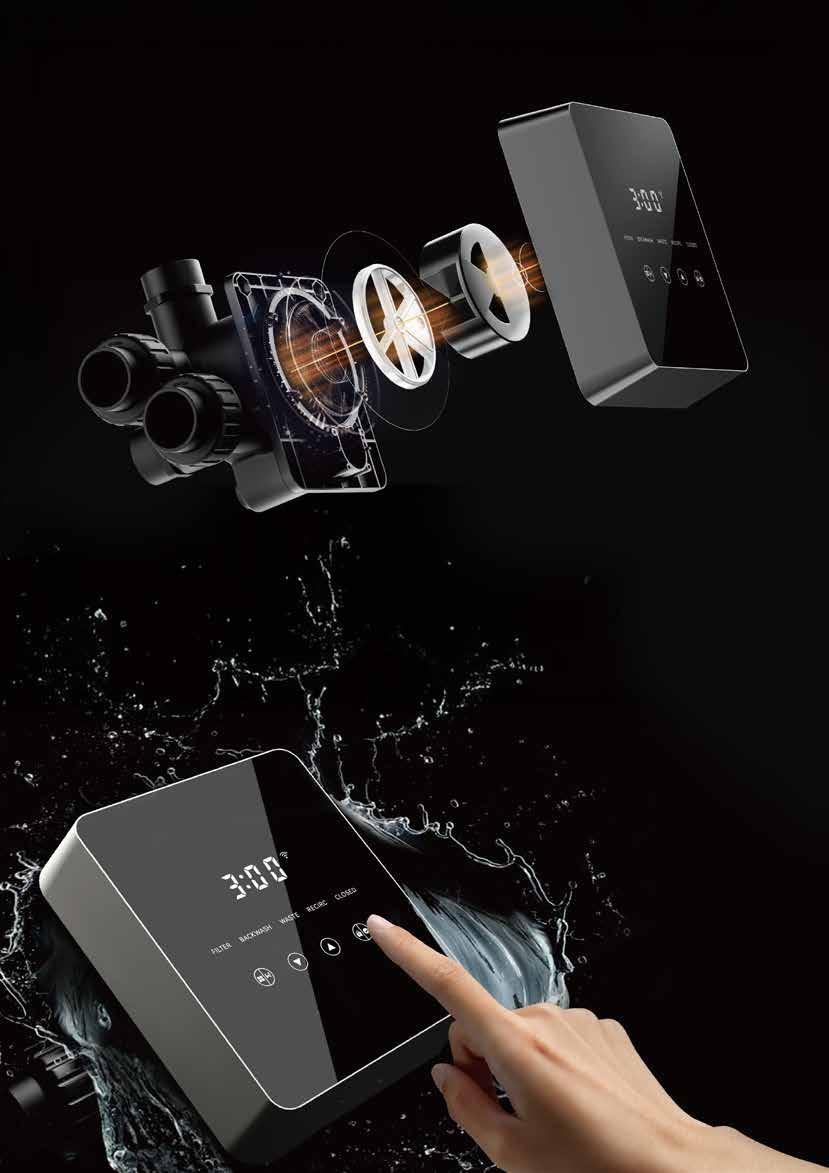

I-WASH

Photoelectric Switch

Active detection of valve rotation and automatic pump stop in the event of a malfunction.

Backwash Speed Control

Optimize water flow for best backwash performance.

Pressure detection

The IWash can automatically perform backwash cycles before the filter reaches the maximum pressure level.

REFERENCE DESCRIPTION

36-140005 I-Wash Automatic Valve 240V

Characteristics

• First automatic six-way valve with touchscreen display.

• Ability to start a backwash with a single press of a button.

• Easy connection with Aquagem pumps: InverMaster, InverPro, InverEco.

• Option to backwash the filter based on filter pressure and a preset timer.

• Possibility to control the Iwash via WiFi and monitor it through the Fairland app.

Ceramic Rotor & Spider Gasket

Guaranteed reliability with a highly durable design tested for 30.000 backwash cycles

App Control

Real-time status monitoring and remote control.

Backwash Timer

All you need is a timer to keep the filter clean with regular backwashing.

CERAMIC ROTOR & SPIDER GASKET

∞ Ceramic rotor and star seal.

∞ Guaranteed quality thanks to durable materials. Tested for over 30,000 backwash cycles.

1 CLICK BACKWASH

With a simple click, the iWash automatically backwashes the sand filter, keeping the filtration system clean, the pool clear and you in good health. Say goodbye to heavy, complex tasks!

BESGO VALVES AND SIX-WAY VALVES

SEPARATE 6-WAY-VALVES

PPG FILTER

REFERENCE DESCRIPTION

43-130048

Valve 1,5” PPG Side Mount Filter

43-130049 Valve 2” PPG Side Mount Filter

PPG TOP FILTER

REFERENCE DESCRIPTION

43-130052 Valve 1,5” PPG Top Mount Filter

43-130053 Valve 2” PPG Top Mount Filter

PPG FILTER DELUXE

REFERENCE DESCRIPTION

43-130046

43-130047

Valve 1,5” MPV rigid / PPG Filter Deluxe

Valve 2” MPV rigid / PPG Filter Deluxe

WELLDANA® FILTER

REFERENCE DESCRIPTION

43-130004 Valve 1,5" Welldana® Side Mount Filter

43-130025 Valve 2” Welldana® Side Mount Filter

43-130044 Valve 1,5" (Screw) Welldana® Top Mount Filter

43-130045 Valve 1,5" (Valve) Welldana® Top Mount Filter

43-130050 Valve 2" Welldana® Top Mount Filter

BILBAO FILTER

REFERENCE DESCRIPTION

43-130010 Valve 1,5" Bilbao Side Mount Filter

43-130011

Valve 2” Bilbao Side Mount Filter

43-130012 Valve 1,5" Bilbao Top Mount Filter

KRIPSOL MULTIPORT VALVE

REFERENCE DESCRIPTION

43-130000 Kripsol Side Valve 3"

43-130001 Kripsol Valve 1,5", with downwards exit

Filters

Filter Media

Pumps

02 Filter Media

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

Covers PVC

AFM® NG

The best filtration media

Result of 35 years of Reseach & Development, AFM® ng (Activated Filter Media) is a direct replacement for sand that can be installed in all types of sand filters without modifications.

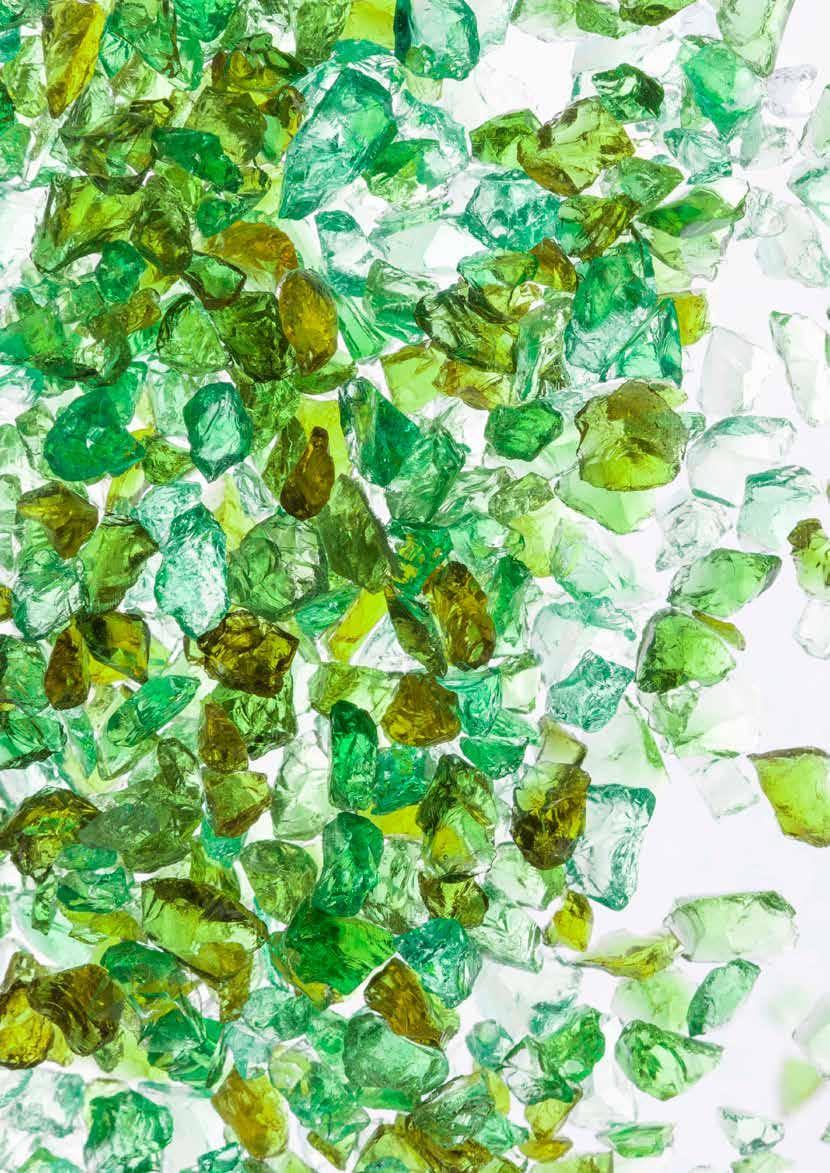

Manufactured from green and brown glass, AFM® ng is exposed to a unique activation process to become self-sterilizing and acquire superior mechanical & electro-static filtration performance.

Self-sterilizing surface resistant to bacterial growth

Increased surface area for superior filtration properties

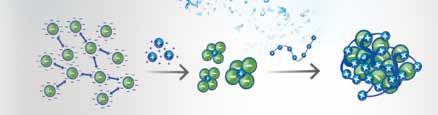

Activated surface charge for the adsorption of fine particles and organic matters

AFM® ng offers the finest filtration

AFM® ng filters much finer than quartz or glass sand. The independent and best-known European laboratory for filtration tests IFTS (www.ifts-sls. com) has tested AFM® ng, quartz sand and various glass sands. The tests were conducted with fresh filter media without any biofilm.

AFM® ng: A certified 1 micron filtration rate

Particle size removal performance at 20m/h

Size of particles [μ]

AFM® NG

Why choose AFM® ng?

Benefits

1. INCONSISTANT AND UNRELIABLE FILTRATION

Filtration performance with AFM® ng is predictable, reliable, and remains stable over the years. There is no possibility of unfiltered water reaching the pool.

2. PATHOGENS

AFM® ng prevents the growth and the transmission of these pathogens. Pool water is therefore much safer.

3. TRICHLORAMINE - CHLORINE SMELL

With AFM® ng, there is no biological conversion from urea to ammonia inside your filter : No biofilm No trichloramine No chlorine smell ! Stable Performance Want to know more about how AFM® ng works?

Up to 50% less backwash water

AFM® ng only needs 40 to 50 m/h backwash velocity.

Filter maintenance

AFM® ng outlasts all other filter media and offers a guaranteed return on investment.

AFM® ng is a crucial element of the Daisy system

Reduced chlorine consumption

Chemical savings are approximately 20% to 30%.

Crystal clear water and the best air quality

AFM® ng reduces by up to 50% the formation of chloroform and other THMs.

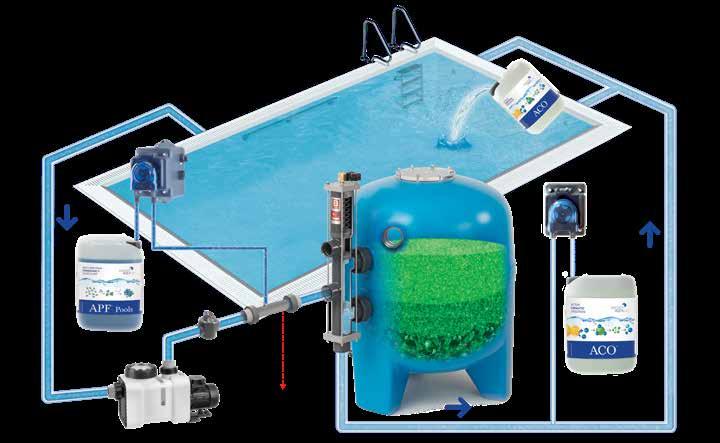

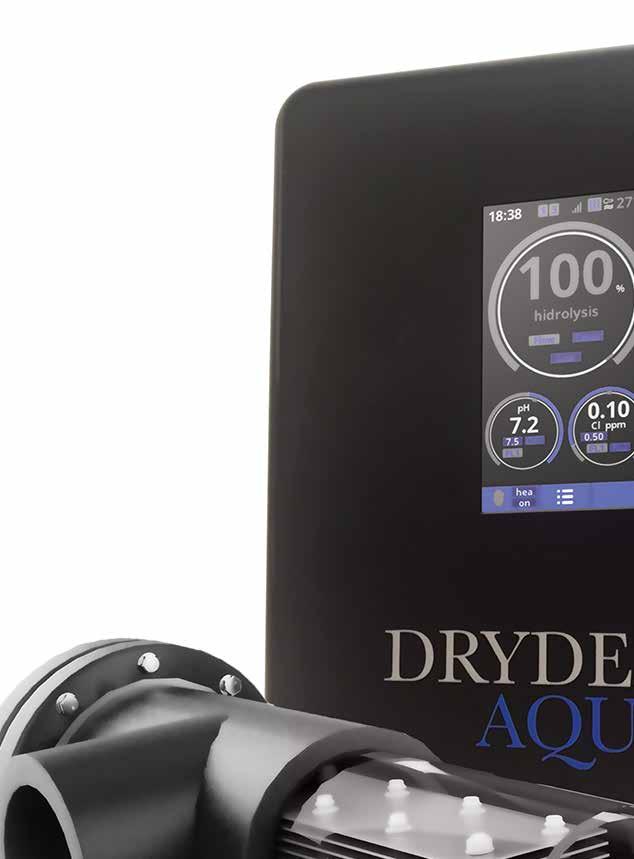

Daisy® stands for “Dryden Aqua Integrated System”, an ecological and sustainable solution to treat water in public and private swimming pools against bacterial growth. Daisy® can significantly reduce water treatment costs, improve water clarity and provide the healthiest pool experience. Read all about it in the Daisy section.

Quality sand for sand filters.

ARBOCEL

ACTIVATED CARBON

Activated carbon to improve absorption of chloramines.

Filter Media

Pumps

03 Pumps

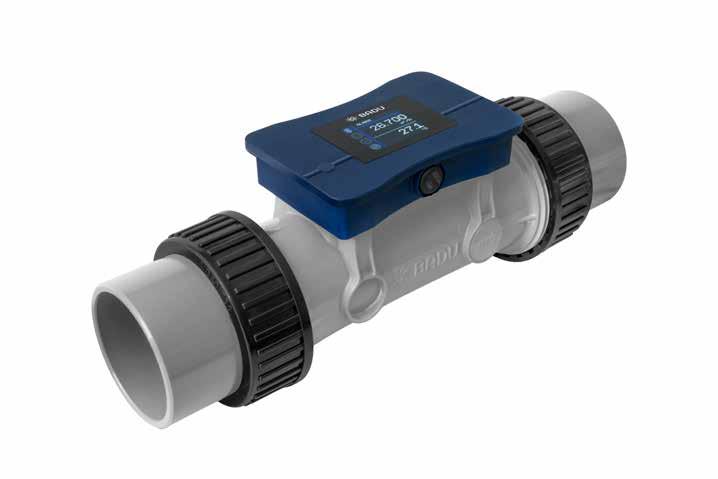

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

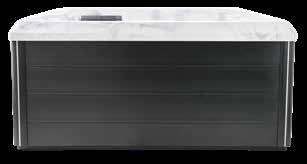

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

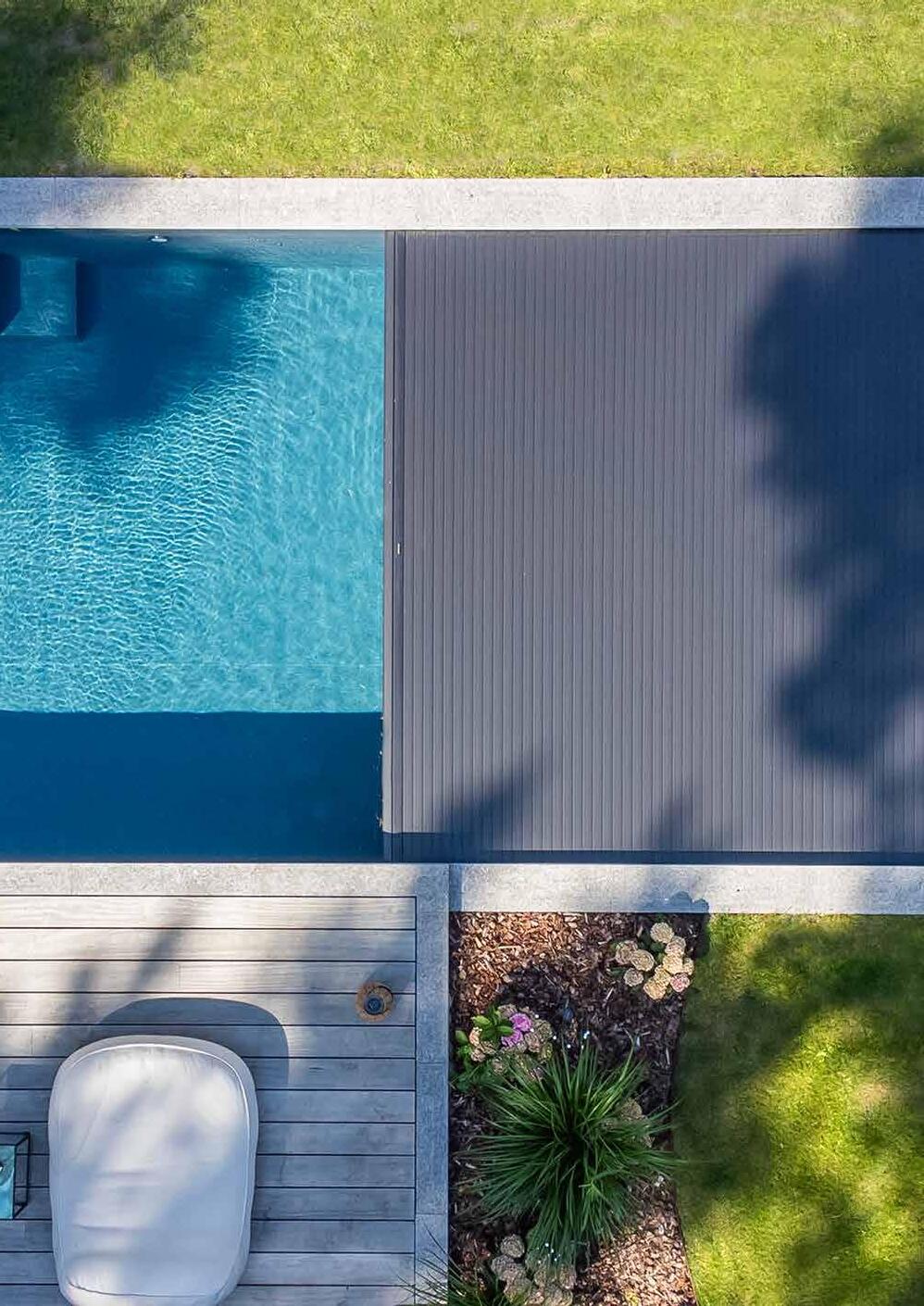

Covers

SPECK PUMPS

Speck is a trusted German brand, known for its reliable, high-quality pool pumps. Since 1909, Speck has been creating efficient, energy-saving pumps for both private and commercial pools. The company is famous for its durability and consistent performance, making it a top choice in the pool industry. With a strong focus on sustainability and technological expertise, Speck ensures that its pumps enhance your pool experience.

In a nutshell

• Trusted German brand known for reliable, high-quality pool pumps

• Providing efficient, energy-saving solutions since 1909

• Renowned for durability and consistent performance

• Ideal for both private and commercial pools

A unique insight in the Speck philosophy

Pressure sensor no

Wifi no

Skimmer mode no

digital input yes

Modbus RS485

Self priming mode self primimg

Timer no

Screen

Analog input yes

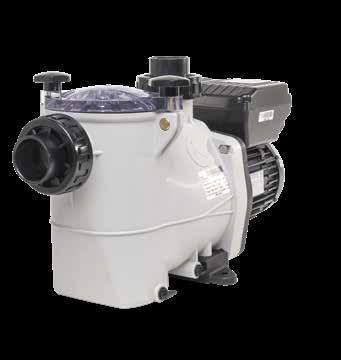

VARIABLE SPEED PUMPS (VS)

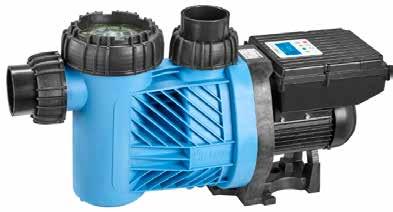

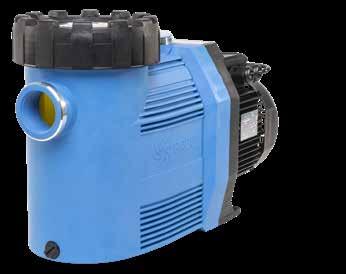

PPG PUMP DELUXE VS

3 Years warranty

Characteristics

• Improved efficiency! The new impeller and diffuser leads to a better efficiency and increased flow rate

• Very quiet self-priming pump with a frequency-regulated permanent magnet motor, pre-filter of 3 liters.

• Motor exceeds the current highest energy efficiency class IE3, ahead of class IE4.

• Suction time (OFF,1-10min) and suction speed (1000-3000rpm) adjustable.

• LED light in the lid as standard.

• Can be placed at a maximum of 3 meters above or 3 meters below water level.

• Equipped with 10-wire cable for external control of speed and stop function via potential-free contacts.

• To be used in swimming pools with salt electrolysis systems with a salt concentration of 0.5% (5 grams/litre).

• RS485 connection

REFERENCE DESCRIPTION

36-142000 PPG Pump Deluxe VS

VARIABLE SPEED PUMPS (VS)

PPG PUMP DELUXE VS

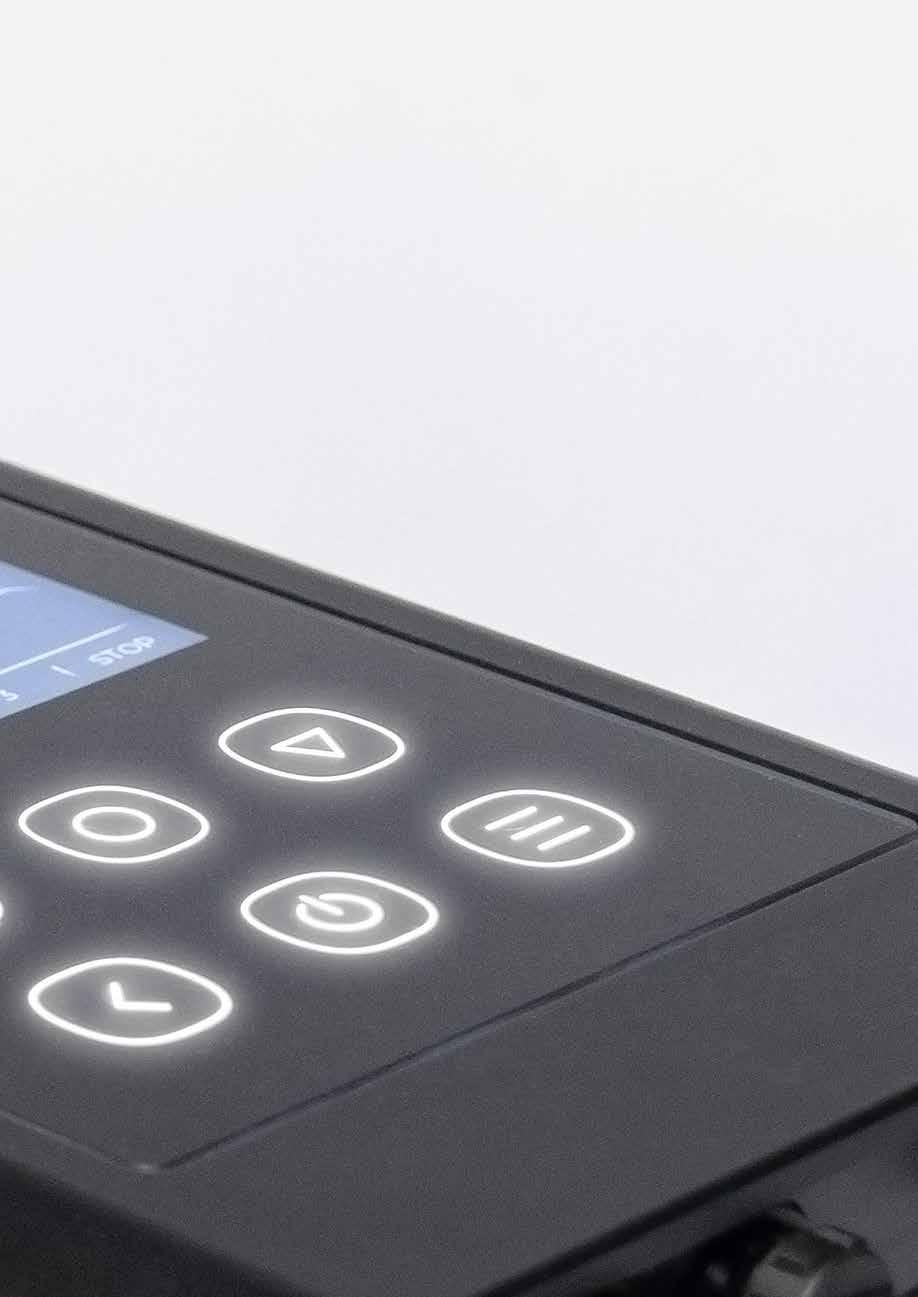

New touchscreen controller

Latest generation of motors for smart home systems – featuring a touch display, quiet fan, and high-quality aluminium housing – IE5

Equipped with a 6-wire cable for external control of speed and stop function via potential-free contacts. Analog signal 0-10 V and 4-20 mA

• TFT Full touchscreen display

• High-quality aluminium design

• Designed with control technology in mind

• Large display and control panel

• Silent motor fan

Improved exclusive wet-end

Speck has developed a wet-end that is exclusive for Pollet Pool Group. During the time of conception, the emphasis was put on the 2 major challenges in the current pool industry. On the one hand, the hydraulic efficiency to optimise the electric consumption. On the other hand, the most silent operation sound.

Both these features are normally enhanced by using an asynchronous inlet from the outlet. For the ease of installation of our pool builders however, we insisted on the inlet and outlet being in line. With this solution we are convinced that in this wet-end, Speck has conceived the best of both worlds.

The new impeller and diffuser leads to a 5% better efficiency and the flow rates increases by 17% compared with the previous PPG Deluxe VS.

LED light in pre-filter

The pre-filter of our PPG Deluxe Pump is now equipped with an LED light. This enhances user convenience, as it allows you to easily check whether the filter basket is dirty. We recommend cleaning the filter basket weekly.

ECO FLEX

ੁ 3 Years warranty

Characteristics

• Self-priming high-efficiency pump with a frequency controlled Synchronous Reluctance (SynRM) motor for the larger required capacity (private and public), pre-filter 6 litres.

• Motor exceeds the current highest energy efficiency class IE3, ahead of class IE4.

• Speeds freely adjustable, many options for setting filter times.

• Foil keyboard with display, easy menu navigation.

in m³/h (at 8 mwc/3400 rpm)

(at 3400 rpm)

in Ampere (at 3400 rpm)

REFERENCE DESCRIPTION

36-151018

• Suction time and suction speed adjustable.

• Can also be controlled externally via RS485, CAN, USB via PC.

• Can be placed at a maximum of 3 meters above or below water level.

• Applicable in combination with salt electrolysis systems with salt concentration of 0.5% (5 grams/litre).

AQUAGEM PUMPS

Aquagem is an ultra-modern brand known for its advanced pool pumps. The company focuses on innovation, offering energy-efficient and high-performance pumps for private pools. With a reputation for state-of-the-art technology, Aquagem is a go-to choice for pool professionals.

In a nutshell

• Innovative brand for pool pumps

• Aquagem is part of the Fairland group and connected in the same app

• Their designs are revolutionary for the pool market

• Specialised in energy-efficient and highperformance pumps

• Designed for private pools

• Professional quality control

Discover the Production of Inverter Pool Pumps

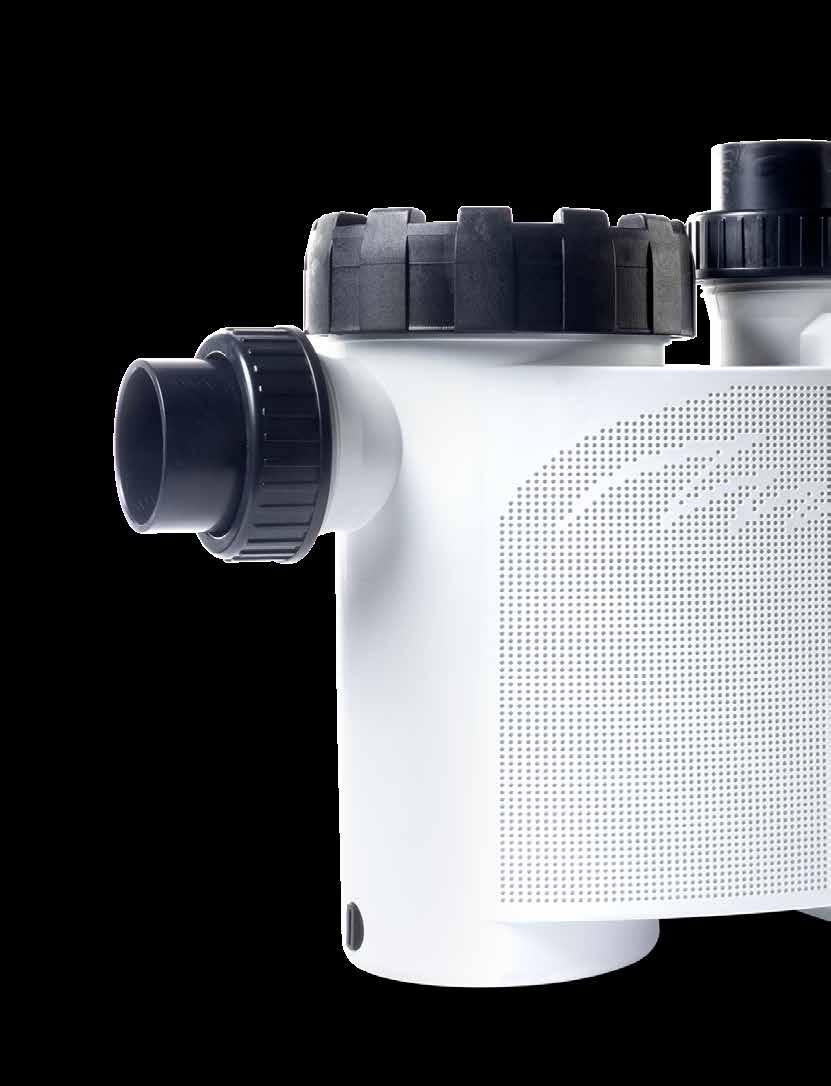

VARIABLE SPEED PUMPS (VS)

Water-cooled technology

The combination of InverSilence and water-cooled technology makes this pump the quietest pump. Its dual pressure sensors enable it to react to any change in pressure and adapt its speed accordingly.

Characteristics

• The water cooling system makes the pump free of fan, and the operation noise is down to 30dBA@1m, which is 40 times more silent compared to single speed pump.

• The Inverter “Brain” can not only monitor the change of pipeline pressure and do smart calculation, but also can send commands to the pump driver for automatically adjustment of flow range and running capacity. Therefore, InverMaster not only can provide users with pipeline detection and early warning service, but also can ensure appropriate flow rate.

• Full touch screen controller: reading running capacity, flow and power consumption, one-click backwash and Wi-Fi control

• External control : RS485, analog and digital output.

• Soft Start: Start from 0 amp to rated amps steadily. There is no rush to the house electricity system

• No-water Protection: To protect the pump from running dry

• Equipped with a skimmer mode to provide extra power to skim the water surface

• 4 timers in the pump and unlimited number in the app.

REFERENCE DESCRIPTION

36-140060 InverMaster IM25

36-140062 InverMaster IM30

VARIABLE SPEED PUMPS (VS)

3 Years warranty ੁ 6 Years warranty on motor

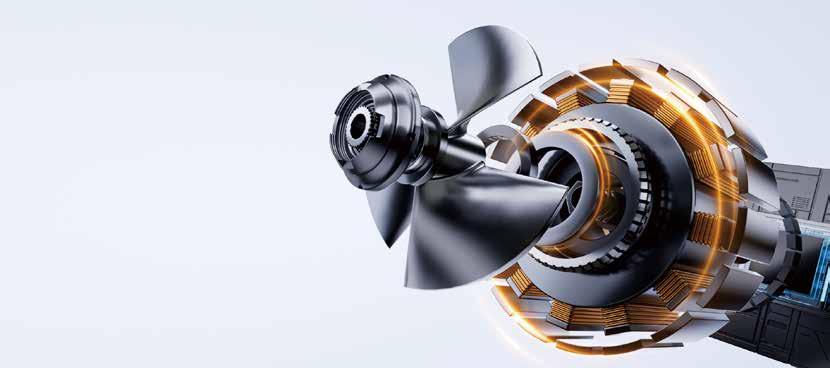

Inverter technology

InverSilence technology has been developed by Aquagem for the most silent and energy-saving pump solutions. It combines full inverter technology, hydraulic system and DC brushless motor which reduces the noise level more than 30 times and saves up to 90% energy. A total of 4 speeds can be set.

Characteristics

• Flow adjustable, one of the biggest advantages of this pump. Guaranteed flow, even with back pressure due to a dirty filter.

• Backwash at the touch of a button.

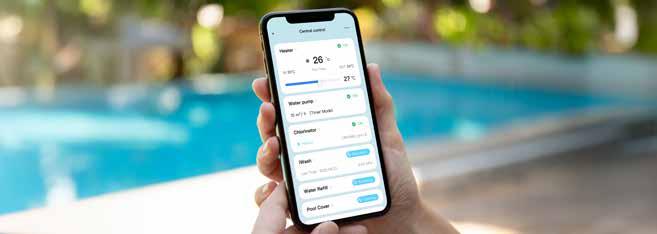

• Standard built-in Wifi in Fairland app.

• Current power consumption can be read on the display.

• Externally controllable (RS485 modbus).

• Soft start and dry-running protection with error message.

• Equipped with 7-wire cable to control speed and stop function externally by means of potential-free contacts.

• Permanent magnet synchronus motor.

• Connection fittings 2-piece included (2” - 63 mm).

• Pump features dry-run protection with error message.

• 4 timers in the pump and unlimited number in the app.

connection size (internal thread)

REFERENCE DESCRIPTION

36-140051 InverPro IP25

36-140052 InverPro IP30

36-140053 InverPro IP40

VARIABLE SPEED PUMPS

(VS)

Characteristics

• 4 Filtration timers for daily operation.

• Backwash at the touch of a button.

• Running capacity from 30 - 100%.

• Current power consumption can be read on the display.

• Digital input with 2,5m cable.

• Equipped with soft start protection.

• Powercable included (2m)

in kW (at 2830 rpm)

in Ampere (at 2830 rpm)

Suction/discharge connection size (internal thread) 63mm/63mm

36-140075 InverEco DE15

36-140080 InverEco DE19

36-140085 InverEco DE23

3 Years warranty

Characteristics

• High efficiency for each application, optimized consumption.

• 5 programs with 3 preselected speeds.

• Transparent lid with visibility of the internal prefilter, which makes for easier access.

• Impeller and diffuser made of Noryl®

• 3,5L pre-filter.

REFERENCE DESCRIPTION 36-201220 Koral VS 150

• Super-silent operation.

• Double drain with easy opening, means no tools are required.

• Permanent magnet motor.

• For residential pools up to 126m³

• Suitable for use in salt water pools

• Union fittings provided for easy installation.

Characteristics

• Energy saving: saves up to 85% on electricity consumption.

• 4 digital inputs allow the pump to be controlled via an AquaRite® + type home-control box.

• Simple, intuitive digital interface.

• Designed with a 180° rotary box allows for convenient access to the user interface.

• Improved control box, with the addition of five daily programs and a timer mode.

• Extremely quiet

• Quarter-turn opening cover for easy maintenance.

• Recommended for pools up to 65m³

• Union fittings provided for easy installation.

TRADITIONAL PUMPS

PRIME / 7-20

Characteristics

• Speck’s most popular model, known and similar to the orange Badu 90 series.

• Very quiet self-priming polypropylene pool pump.

• Supplied as standard with built-in thermal relay.

• Large 3 liter pre-filter with transparent lid (swivel wrench included).

• Can be placed at a maximum of 3 meters above or below water level.

• Applicable in combination with salt electrolysis systems with a salt concentration of 0.5% (5 grams/litre).

TRADITIONAL PUMPS

PRIME / 25-48

Characteristics

• Speck’s most popular model, known and similar to the orange Badu 90 series.

• Very quiet self-priming polypropylene pool pump.

• Supplied as standard with built-in thermal relay.

• Large 6 liter pre-filter with transparent lid (swivel wrench included).

• Can be placed at a maximum of 3 meters above or 3 meters below water level.

• Applicable in combination with salt electrolysis systems with a salt concentration of 0,5% (5 grams/litre).

• Connections: 75/75mm

TRADITIONAL PUMPS

MAGNA

3 Years warranty

Characteristics

• From Speck’s Badu® Top Pool pump series: a monoblock-type pump with integrated strainer tank.

• Delivered with a strong PP pre-filter, easily-removable transparent lid and a tightening tool for the flange at the screw lid.

• For pool sizes up to 130m³

• Has built-in overload protection.

• Approved for chlorine and 0,5% salt water.

• Can be installed at a maximum of 3m above the water level.

• Does not include 2” inlet / 1½” outlet connections

TRADITIONAL PUMPS

POWER FLOW II

Characteristics

• Made from reinforced thermoplastic, and boasts a 1.1L pre-filter basket and a clear, ¼ turning cover for quick opening and closing.

• Designed for small pools and/or above ground pools.

• Extra large basket extends time between cleaning.

• Contains a heavy duty motor with a stainless steel shaft, which offers proven performance and quiet operation.

• Integrated self-priming capability with TEFC motor.

• Recommended for pools up to 80m³

• Drainage caps allows for wintering to be easier.

• Connections are available in either a standard 50mm outlet or ø 32/33mm fluted adapters.

*Also available as ø 32/38mm fluted adapters.

TRADITIONAL PUMPS MAXFLO XL

3 Years warranty

Characteristics

• 1.5L filter made from reinforced thermoplastic, and comes with a clear cover.

• Raised motor base provides better ventilation for the fan, protection against flooding and build-up of dirt in the pre-filter.

• Optimised design and hydraulics, with a twist-lock opening cover for easy maintenance.

• Easy-to-service, and the design provides simple installation.

• Suitable for pools up to 80m³

• Drainage caps allows for wintering to be easier.

• All models have 1½” connections (pressure/suction).

• Also available in Variable Speed.

TRADITIONAL PUMPS

SUPER PUMP PRO

3 Years warranty

Characteristics

• Heavy duty, high performance motor, which is even more reliable and durable.

• Extended-life Viton® and pure graphite pump seal for improved resistance against chemicals and accidental dry running.

• Easy maintenance, with exclusive swing-away hand knobs, meaning no tools are required.

• Easy to install, and union kit is included.

• Recommended for pools up to 100m³

• Designed with see-through strainer cover.

• Threaded adapter: 2”/50mm (0,5-1HK) - 2”/63mm (1,5-2HK)

• Also available in Variable Speed.

TRADITIONAL PUMPS

3 Years warranty

Characteristics

• Produced in thermoplastic with glass fiber reinforcement.

• The solution for above-ground pools or small-size traditional pools.

• Easy-open transparent lid, so no tools are required.

• Prefilter size: 1,25L

• For residential pools up to 35m³

REFERENCE

• Maximum pressure 2,5 bar and approved for 3% salt water.

• Connection thread: 2” external / 1¼” internal

• Built-in overload protection, and to be placed below water level (not self-priming).

• 2 pcs. 1¼” x 40-50mm adapter not included.

TRADITIONAL PUMPS

ONDINA

3 Years warranty

Characteristics

• Produced in thermoplastic with glass fiber reinforcement.

• Optimised for medium and small pools.

• High efficiency and low noise.

• Prefilter size: 1,75L

• For residential pools up to 85m³

• Maximum pressure 2,5 bar and approved for 0,3% salt water.

• Easy-open transparent lid, and quick-seal with wing nuts.

• Built-in overload protection, and to be placed below water level (not self-priming).

• 2 pcs. 1½” x 50mm union not included.

3 Years warranty

Characteristics

• Produced in thermoplastic with glass fiber reinforcement.

• Optimised and super-silent hydraulic system.

• Transparent lid - internal pre-filter is visible for easy access.

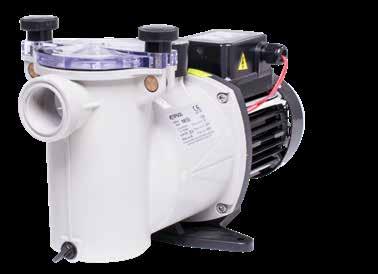

• Prefilter size: 3,5L

• For residential pools up to 150m³

• Maximum pressure 2,5 bar and approved for max. 3% salt water.

• Impeller in corrosion-resistant and hard-wearing Noryl®

• Built-in overload protection, and to be placed below water level (not self-priming).

• Union set included: 50mm (<1HP), 63mm (1-2HP), 75mm (>2HP)

MISCELLANEOUS

PUMPS FOR PUBLIC POOLS

BADU RESORT

Characteristics

• Silent polypropylene self-priming pool pump for demanding large-capacity filter installations. Extremely suitable for public swimming pools.

• Large 10-litre pre-filter with transparent lid (swivel wrench included).

• The electrical part is completely galvanically isolated.

• Can be placed a maximum of 3 meters above or 3 meters below water level.

• Applicable in combination with salt electrolysis systems with a salt concentration of 0.5% (5 grams/litre).

REFERENCE DESCRIPTION

36-184100 Badu Resort 30

36-184300 Badu Resort 55

36-184350 Badu Resort 60

36-184400 Badu Resort 70

36-184500 Badu Resort 80

36-184750 Badu Resort 110

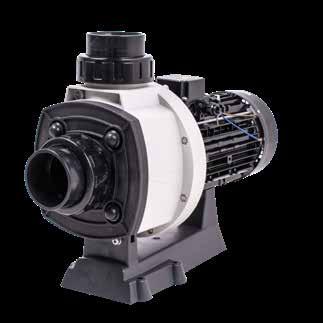

PUMPS FOR PUBLIC POOLS

3 Years warranty

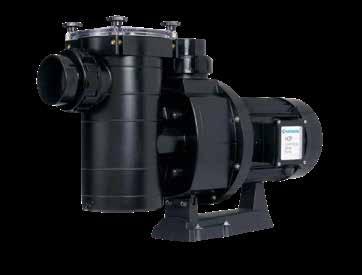

Characteristics

• Made of glass-fibre reinforced thermoplastics.

• Suitable to be used in both salt water and sea water.

• Light-weight and easy to install.

• Strainer with a transparent cover for easy maintanence, with an elevated base to ensure there is proper motor ventilation.

• Operates at 50Hz / 3000rpm.

• Turbine is manufactured from reinforced Noryl®

• Can be used in large pools, spas and other water features.

• Three-phase motor - 230 / 400V, which are compliant with the IE3 standard.

in Ampere (A)

REFERENCE DESCRIPTION

36-224220 Kapri Pump 300

36-224260 Kapri Pump 350

36-224330 Kapri Pump 450

36-224410 Kapri Pump 550

MASSAGE PUMPS

KARPA

Characteristics

• Centrifugal pump recommended for use in counter-currents, hydro massage and spas.

• Pump housing made from hardened thermoplastic.

• Can be used in seawater.

• Maximum working pressure 2,5 bar

• Turbine and body manufactured in Noryl® with a fiberglass load.

• Ø90mm glue connections included.

ੁ 3 Years warranty

REFERENCE DESCRIPTION

36-254185 Karpa Pump 250 - 400V

36-254220-1 Karpa Pump 300 - 230V

36-254220 Karpa Pump 300 - 400V

36-254260 Karpa Pump 350 - 400V

36-254270 Karpa Pump 450 - 400V

36-255280 Karpa Pump 550 - 400V

SPA PUMPS/BLOWERS

SPA PUMPS/BLOWERS

WELLDANA® SPA PUMP

REFERENCE DESCRIPTION

66-550250

66-550300

66-551250

Spa Pump 2,5HP 1,85kW - 230V (1-speed)

Spa Pump 3HP 2,2kW - 230V (1-speed)

Spa Pump 2,5HP 0,4/1,85kW - 230V (2-speed)

WELLDANA® SPA PUMP 1X230V

REFERENCE DESCRIPTION

66-530550 Spa Pump 550W - 1x230V

66-530750 Spa Pump 750W - 1x230V

66-531100 Spa Pump 1100W - 1x230V

NIGER SPA PUMP

REFERENCE DESCRIPTION

36-232050 Niger Pump 0,75HK / 0,55kW - 230V

36-232075 Niger Pump 1HK / 0,75kW - 230V

36-232113 Niger Pump 1,5kW / 1,13kW - 230V

36-232150 Niger Pump 2HK / 1,5kW - 230V

36-234050 Niger Pump 0,75HK / 0,55kW - 400V

36-234075 Niger Pump 1HK / 0,75kW - 400V

36-234113 Niger Pump 1,5HK / 1,13kW - 400V

36-234220 Niger Pump 2HK / 1,5kW - 400V

SPA PUMP 180W

REFERENCE DESCRIPTION

66-550200 Spa Pump 180W -230V

SPA PUMP 250W

REFERENCE DESCRIPTION

66-530250 Spa Pump 250W - 230V

SPA BLOWER 230V

REFERENCE DESCRIPTION

66-910700

Spa Blower 700W - 230V

66-910900 Spa Blower 900W -230V

SPA PUMPS/BLOWERS

WELLDANA® RING CHAMBER BLOWER

REFERENCE

66-112015

66-112040

66-112075

66-112130

66-114075

66-114130

66-114220

66-14340

DESCRIPTION

Welldana® Ring Chamber Blower 0,18kW - 230V 1”

Welldana® Ring Chamber Blower 0,40kW - 230V 1¼”

Welldana® Ring Chamber Blower 0,75kW - 230V 1½”

Welldana® Ring Chamber Blower 1,30kW - 230V 2”

Welldana® Ring Chamber Blower 0,75kW - 230/400V 1½”

Welldana® Ring Chamber Blower 1,30kW - 230/400V 2”

Welldana® Ring Chamber Blower 2,20kW - 230/400V 2”

Welldana® Ring Chamber Blower 3,40kW - 230/400V 2”

HOW TO CALCULATE BLOWER CAPACITY?

Count the number of holes and multiply this by, for example, the required flow (m³/h). Then see which height (water depth) must be overcome and add 0.3 meters to this, so that the air escapes with sufficient speed.

Calculation example

• Water level approximately 80 cm.

• Bruising bench and bubble plate to be connected to 1 blower.

• Fountain has 80 holes of ø 2.5mm

• Bubble plate has 26 ø 2.5mm holes and 56 ø 3.0mm holes.

Details

Maximum air displacement :

• 80 x 1.28 m³/h + 26 x 1.28 m³/h + 56 x 1.70 m³/h = 230.88 m³/h

• Height to bypass is 80 + 30cm (extra) = 110cm.

• 110cm water column equals a pressure of 110mbar. So the blower has to move 230.88 m³/h with a pressure of 110mbar.

ø

FLOWMETERS

FLOWVIS®

Characteristics

FlowVis® Digital Installation video

FlowVis® is the most advanced, affordable, and reliable flowmeter, designed specifically for pools, spas, fountains, and water features. Ingenious in concept and flawless in operation, FlowVis® is a revolution in reliable flow measurement! FlowVis® allows you to set your pump’s speeds correctly; to optimise filtration performance, backwash water consumption and guarantee maximal energy savings.

Clear, stable reading in m³/h

No “bouncing” floats, No paddle wheels, FlowVis® will not stick or provide inaccurate readings. Maintains accuracy even with air in the system.

Unique patented design

2 in 1 : flowmeter + non return valve

FlowVis® is more than just a flow meter, it is also a fully functioning non return valve (models DN40 / d50mm & DN50 / d63mm) !

You can’t install it incorrectly!

Installs quickly and easily with no calibration required. Installs without the need for straight pipe before or after. Can be installed right next to other fittings.

Can be installed horizontally, vertically or upside down!

* For the conversion of existing analog FlowVis Ø50/63/75 mm to digital, including display, and for

FLOWSONIC

Characteristics

• The ultrasonic flow meters are ideal for measuring flow volume. Through ultrasonic measurement, they offer a precise, loss-free, and calibration-free way to measure the flow volume.

• With a measurement range of 0–54 m³/h and the ability to handle up to 3% salt content in pool water, they are particularly suitable for monitoring and displaying the flow in pool systems..

• The FlowSonic+ can be used as a stand-alone solution, allowing for manual evaluation and individual adjustment of the flow rate.

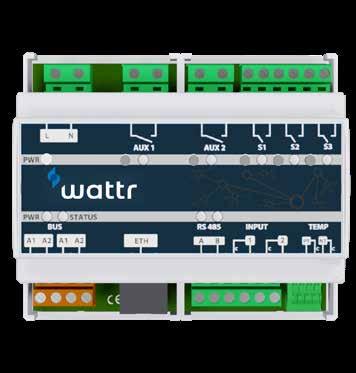

• The FlowSonic communicates with Dryden Aqua Space and Wattr but also with other pool control solutions that can process a digital signal (pulse signal) and an analog signal (4-20 mA).

REFERENCE DESCRIPTION

12-202000 BADU FlowSonic+ with Display Ø63mm

12-202005 BADU FlowSonic without Display Ø63mm

Filters

Filter Media

Pumps

04 Flow Fittings

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners Covers

WELTICO DESIGN

SKIMMER A400 DESIGN

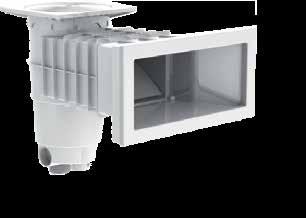

The A400 skimmer is simple and functional. It has a large opening of 200x400mm. Options are available for concrete pools, liner pools and liner/ panel pool constructions.

For the installation of the liner version, the opening can be equipped with brass inserts for a more secure fixing of the sealing flange.

Connections : G 2” M / G 1½” F / 50 mm socket

Skimmer Flows

Approx. 7 m3/h (at a speed of 1.5 m/s) if connected to the 1” 1/2 outlet with a Ø50 pipe

Approx. 10 m3/h (at a speed of 1.5 m/s) if connected to the 2” outlet with a Ø63 pipe

REFERENCE DESCRIPTION

37-210000 Skimmer A400 Concrete Liner - White

WELTICO DESIGN

MAIN DRAIN

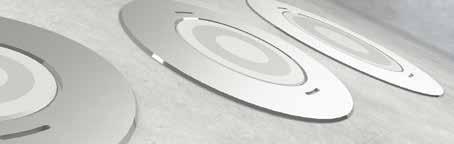

The Main Drain design couples functionality and a contemporary style. Anti-UV ABS.

They have several functions in the pool:

• Cleaning absorb the dirt that comes from the filter of the skimmer

• Filtration recover the lower water volume and create a water circulation

The grille in coloured ABS is compatible with all Main Drains from the Weltico range.

A choice of colours is available in this range:

Square shape

• Draining facilitate the draining of the pool water (partial or complete)

REFERENCE DESCRIPTION

37-353500 Main Drain for All Structures

37-353501 Face Plate Main Drain - Anthractite

37-353502 Face Plate Main Drain - Light Grey

37-353503 Face Plate Main Drain - Sand

37-353505 Face Plate Main Drain - Stainless Steel

WELTICO RVS

WELTICO STAINLESS STEEL DESIGN

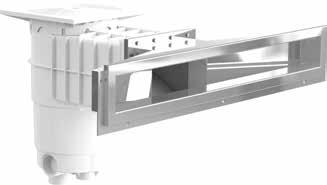

Skimmer A800

Skimmer A600

REFERENCE

DESCRIPTION

37-230800 Skimmer A800 SS

With their sleek design and excellent finish (in AISI 316 stainless steel), WELTICO DESIGN stainless steel skimmers are designed for any type of swimming pool (liner, concrete, acrylic and others). They give an extra touch of class to the pool. In this range, discover 3 models: The A600, the latest designer skimmers, and the even more sleek design of the A800 profile.

This particular skimmer allows to raise the water level, up to within 4cm below the level of the surrounding deck. It also allows the essential connection to a level regulator.

Mirror effect guaranteed!

37-230801 Beveled Finish for A800 skimmer SS

REFERENCE

DESCRIPTION

37-260005 Skimmer A600 Design SS - Concrete & Panel Liner

A400

REFERENCE

DESCRIPTION

37-210005 Inox Insert for A400

HAYWARD

X-PRO 600 SKIMMER

The skimmer offers a sleek infinity effect, with a discreet profile of just 5.5 cm from deck to the waterline for an elegant, uninterrupted look. It’s designed for seamless backyard integration, available in multiple colors, and equipped with a fillable lid featuring a secure safety lock.

Realisatic Mirror Effect - 55 mm waterline achievable

Dedicated space for level sensor, temperature, etc.

Removable sensor holder for an easy set up and adjustment

Fully integrated into the layout/ backyard: fillable lid, four colour range, minimalist design

STANDARD SKIMMER

As essential parts of your pool and constantly subjected to suction inlet pressure and/ or exposure to sunlight and pool water chemicals, Hayward® believes that skimmers deserve a great deal of attention in terms of their resistance.

LARGE SKIMMER HAYWARD

HAYWARD

MAIN DRAINS

Located in the deepest part of the pool, the main drain collects the coldest water at the bottom and mixes it with the surface water to ensure a uniform temperature and good diffusion of the pool’s chemical treatments. It is also used to empty the pool.

(In line with American safety standards, Hayward’s main drains meet the highest level of efficiency and safety measures on the market.)

Characteristics

• Connection : 2”

• Material : White ABS

• Max flow: 13m³

• Supplied with white grate, gaskets, and stainless steel screws

REFERENCE DESCRIPTION

37-353300 Main Drain D210 for Concrete Pools

37-353400 Main Drain D210 for Liner Pools

PUDDLE FLANGES FOR LINER

Characteristics

• Connection : 63 - 50 mm

• Material : ABS

• For use with : Concrete vacuum fittings and return fittings

REFERENCE DESCRIPTION

37-800052 Wall Inlet 63mm - 250mm Concrete

HAYWARD

INLET NOZZLES

REFERENCE DESCRIPTION

37-203315 Inlet Nozzle - Liner

37-203310 Inlet Nozzle - Concrete

BOTTOM INLETS

Kripsol® Bottom Inlet - Liner

REFERENCE DESCRIPTION

37-862091 Kripsol® Bottom Inlet - for liner pools

Kripsol® Bottom Inlet - Concrete

REFERENCE DESCRIPTION

37-862090 Kripsol® Bottom Inlet - for concrete pools

Characteristics

• For concrete and liner pools

• Material : ABS

• 20mm adjustable nozzle ball

• Complete with gaskets

• Max flow : 5m³/h

• Connection for 2” / 50mm

Characteristics

• Material : ABS

• Complete with stainless screws and gaskets

• Size : Ø 149mm

• Adapter for 2” / 50mm

• Max flow : 12m³

Characteristics

• Material : ABS

• Complete with stainless screws and gaskets

• Size : Ø 108,5mm

• Adapter for 2” / 50mm

• Max flow : 12m³

RETURN FITTINGS

Vacuum Fittings 2” - 1½”

37-203316 37-203331

Characteristics

• Material : ABS

• Flow rate range : 5 - 6m³/h.

REFERENCE DESCRIPTION

37-203316 Vacuum Fitting for Concrete - 2”x50mm

37-203317 Vacuum Fitting for Steel/Polyester Pools

37-203331 Vacuum Fitting for Liner - 2”x50mm

37-203335 Vacuum Fitting for Liner

ADJUSTABLE RETURN FITTINGS

REFERENCE DESCRIPTION

37-203420 Adjustable Return for Concrete Liner White

37-203417 Adjustable Return for Concrete Liner - Anthracite Grey

37-203418 Adjustable Return for Concrete Liner - Light Grey

37-203419 Adjustable Return for Concrete Liner - Sand

Characteristics

• Material : ABS

• Equipment : Adjustable eyeball 20mm / Self-adhesive joints / Screws

• Flow rate range : 5 - 6m³/h.

Options: stainless steel inserts - AISI 316L (Attention, injectors are no longer directional with this insert)

REFERENCE DESCRIPTION

37-203425 Outlet Fittings 1.5” for 37-203420 / 37-203417 / 3007140046

WELLDANA

STANDARD SKIMMER

The Welldana® Standard Skimmer with liner kit is made from solid ABS, and it comes supplied with gasket, skimmer flap, skimmer basket, panel for suction hose and a square lid. There are 1½” or 2” connections and a 50mm adapter in the floor drain, and 50mm overflow in the top.

WIDE MOUTH SKIMMER

The Welldana® Wide Mouth Skimmer with liner kit is made from solid ABS and it comes supplied with gasket, skimmer flap, skimmer basket, panel for suction hose and a square lid. There are 1½” or 2” connections and a 50mm adapter in the floor drain, and 40mm overflow in the top.

HP SKIMMER

The HP model Skimmer comes complete, with inlets included. It is made from strong and durable ABS plastic. It is for use in private pools, and comes supplied with gaskets (double). Maximum flow is 7 m³/h.

37-253150

Skimmer - with inlets

WELLDANA

BOTTOM OUTLETS

Bottom Drain

• Material : ABS

• Size : Ø210mm

• Connection : 2”

REFERENCE DESCRIPTION

37-363400

Welldana® Bottom Drain - with linerkit

BOTTOM INLETS

Bottom Inlet - Concrete

• Material : ABS

• Size : Ø108,5

• Connection : 50mm

• Max flow : 12m³

REFERENCE DESCRIPTION

37-864090

37-864091

Welldana® Bottom Inlet - Concrete

Welldana® Bottom Inlet - Liner

INLET GRATES

Inlet Grate 1½

• Material : ABS

• Size : 1½”

REFERENCE DESCRIPTION

37-461141

Welldana® Inlet Grate - 1½”

Bottom Inlet - Liner

• Material : ABS

• Size : Ø149mm

• Connection : 50mm

• Max flow : 12m³

WELLDANA

INLET NOZZLES

Inlet 2”/50mm - Concrete

Inlet 2”/50mm - Liner

Inlet 2”/50mm - Steel

Inlet - Above Ground Pools Inlet Connection

• For : Above-ground pools

• Material : ABS

• Connection : 2” / 50mm

• Max flow : 5m³/h

REFERENCE DESCRIPTION

37-203410

37-203412

37-203415

37-862000

37-180091

• For : Above-ground pools

• Material : ABS

• Connection : 32/38mm (1½”/1¼”)

• Max flow : 4m³/h

Welldana® Inlet 2”/50mm - Concrete

Welldana® Inlet 2”/50mm - Steel

Welldana® Inlet 2”/50mm - Liner

Welldana® Inlet - Above Ground Pool

Welldana® Inlet Connection - Above Ground Pool

VACUUM FITTINGS

Vacuum Suction 2”/50mm - Concrete Vacuum Suction 2”/50mm - Liner

REFERENCE DESCRIPTION

37-203431

37-203436

Welldana® Vacuum Suction 2”/50mm - Concrete

Welldanavv Vacuum Suction 2”/50mm - Liner

LEVEL CONTROL

WELLDANA® LEVEL CONTROL

Characteristics

• 1 or 2 magnetic float or capacitive sensors can be installed

• Diode signal for operation

• Output: 230V, max. 2,2 kW (Solenoid valve)

• Adjustable filling time: 10 - 240 minutes

• Signal lamp: LED red/green

• Dimensions (LxHxW): 156 x 78 x 115 mm

Filling time (reset) 10-240 min, trimmer adjustable, closes solenoid valve after 240min (safety mechanism)

Sensor* Magnetic float or capacitive types, 1 or 2 sensors can be installed

* Sensors and solenoid valves are not supplied with the control.

The Welldana® Level Control is a reliable control box for correct and adjustable water levels.

It is manufactured with a safety guard for switching off the output voltage, which is adjustable for up to 4 hours. There is an adjustable delay on the senor terminals to prevent water filling due to any splashing/waves.

Supplied with PG cable glands. Cable and level sensors are not included.

REFERENCE

34-150221

64-108208

DESCRIPTION

Welldana® Level Control, 230V Safety system, without sensor

Capacitive sensor 12V f. Welldana® Level Control, 2m

64-200010 Float sensor 12V f. Welldana® Level Control, 5m

Time lag

0-20s, trimmer adjustable (used when only one sensor is installed)

Threaded cable entries Two PG 7, two PG 9, IP 54

CONSTANCE WATERLEVEL CONTROLLER

innovation Simple installation No complex connections, wireless The LoRa (Long Range) network is a low-power, wide-area network (LPWAN) technology designed for long-range communication between IoT devices LEVEL CONTROL

Installing the sensor in the skimmer

Characteristics

• Patented wireless water level control module: Compatible with all brands and operates wirelessly

• Continuous water level regulation: Ensures optimized water consumption

• Installation components:

- Water sensor panel for installation in the skimmer

- Electronic control box for adjusting and managing a solenoid valve (optional)

• Kit contents:

- 1 electronic control box with function display

- 1 water sensor panel for skimmer installation

- 1 mounting kit to fit the height and width of most skimmer boxes on the market

• Optional solenoid valve: Can be integrated for automated water management

• The electronic control box monitors, informs, configures and regulates

REFERENCE DESCRIPTION

30-201015 Automatic Control and Level Regulation

Filters

Filter

Flow Fittings

Pool Control & Dosing

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

INTELLIGENT WATER MANAGEMENT SOLUTIONS

Within our broad range of professional swimming pool products, Aseko represents the benchmark for smart, automated water-care technology. This section highlights Aseko’s advanced dosing, measuring, and monitoring systems, designed to ensure consistently high water quality with minimal effort.

ASEKO RANGE

ASEKO RANGE

Options for Asin Aqua Pro, Home Pro and Salt Pro.

Aseko Live, Aseko Cloud and Aseko Remote deliver smart, reliable solutions for automated pool water treatment and technology control. Aseko Live offers clear, real-time monitoring and alerts via a mobile app, perfect for private pool owners, while Aseko Cloud provides professional, web-based analysis with detailed charts, trend insights and data export for advanced pool management. Completing these tools, Aseko Remote enables intuitive remote control of key pool components and operating modes, giving users complete oversight and convenience from anywhere.

ASEKO LIVE

Clear monitoring of water quality, temperature, and equipment status

• Chemical consumption tracking

• Automatic alerts for low chemical levels, exceeded measurement limits (chlorine, pH), and device errors or malfunctions

• Remote monitoring – access your pool data anytime, anywhere

• Aseko Live app available for iOS and Android

Available for

• Asin Aqua Pro

• Asin Aqua Home pro

• Asin Aqua Salt Pro

• Asin Aqua Eox Pro

ASEKO.CLOUD

• Asin Aqua Salt Net

• Watersens Net

• Watersens

Web application with a clear, intuitive interface for monitoring pool water quality

• Monitoring of water quality, temperature, and equipment status, chemical consumption tracking, automatic alerts for low chemical levels, exceeded measurement limits (chlorine, pH), and device errors or malfunctions

• Detailed, professional charts visualizing current conditions and 30day history. Ideal for technicians and public pool operators

• Enables trend analysis, correlation insights, and efficient remote diagnostics

• Data export for hygiene and regulatory documentation in professional pool operations

• Easy integration control systems and smart homes via an open API

Available for

• Asin Aqua Pro

• Asin Aqua Home pro

• Asin Aqua Salt Pro

• Asin Aqua Eox pro

• Asin Aqua Salt Net

• Watersens Net

• Watersens

ASEKO REMOTE

Aseko Remote app for advanced remote control of pool technology

• Switching between intuitive preset modes (Auto, Eco, Party, On and OFF)

• Adjust filtration timer settings directly from your smartphone

• Control water flow direction – choose between overflow or bottom drain

• Set pump speed and optimize performance according to pool use

• Enables remote control of up to five connected components (e.g., lights, cover, backwash, water features)

• Invite process with roles for easy and safe sharing of remote control

Available for

• Asin Aqua Pro

• Asin Aqua Home Pro

• Asin Aqua Salt Pro

• Asin Aqua EOX pro

ASIN AQUA PRO

Characteristics

• Free chlorine, pH and Redox measurement

• Optional total chlorine measurement

• Dosing control

• External dosing pumps control

• Electrolyzer control

• VS pump control

MODEL ASIN AQUA PRO

Pump control check

Heating control check

Lighting control check

Backwash control check

Additional relay check

Chlorine dosage check

LAN connection check

pH measurement check

Redox measurement check

Free chlorine measurement check

Total chlorine measurement Option

Temperature measurement check (temp sensor included)

Level control Option

Display Touch screen

Pool volume m3 (max) 500m3 (depending the chosen pumps)

• Smart and solar heating

• Water level control (sensor optional)

• Advanced automatic filter backwash

• Overflow control

• Filter disinfection

• Flowmeter (optional)

• Filter pressure control (sensor optional)

• Advanced safety functions

• Programmable free relay

Pool Technology Management:

• Variable speed circulation pump control

• Smart heating control

• Automatic filter backwash

• Automatic water flow switching (overflow/bottom)

• Winter mode for water maintenance during cold months

Pool water treatment:

• Can control dosing pump for liquid chlorine or salt electrolysis

• Automatic pH control

• Time-based algicide dosing

• Continuous slow dosing of FLOC+C

• Precise level measurement with pressure level meter and automatic level maintenance.

• Pool cover position detection

• Advanced built-in safety features

• Solar heating control

• Pressure meter

Equipment:

• CLF probe

• Redox probe

• pH probe

• Water thermometer

• Extra output for PP60 pump for automatic filter disinfection during backwash

• Receiving signal from PV system and automatic handling of surpluses

• One integrated relay for light control and the option to add 4 more

ASIN AQUA HOME PRO

Characteristics

• Optional free chlorine or redox probe

• Smart heating with solar function

• Automated filter backwash

• VS pump control

• Water level control

• Overflow control

• Winter mode

Pool Technology Management:

• Variable speed circulation pump control

• Smart heating control

• Automatic filter backwash

• Automatic water flow switching (overflow/bottom)

• Winter mode for water maintenance during cold months

Pool water treatment:

• Controlled dosage of disinfectant

• Automatic pH control

• Time-based algicide dosing

• Continuous slow dosing of FLOC+C

MODEL

Pump control

Heating control

Lighting control

Backwash control

Additional relay

Chlorine dosage

LAN connection

pH measurement

Redox measurement

Free chlorine measurement

Total chlorine measurement

Temperature measurement

control

• Advanced safety functions

• Aseko remote – remote control of your pool via a mobile app

• New larger display

• Flow measurement and filter pressure sensor

• Complete control of solar heating

AQUA HOME PRO

• Ems – utilization of excess photovoltaic energy

• Programmable relay – one integrated relay with the option to add 4 more

• Redesigned timer – more options for customization

• Filter disinfection

• Precise level measurement with pressure level meter and automatic level maintenance.

• Pool cover position detection

• Advanced built-in safety features

• Solar heating control

• Pressure meter

Equipment:

• CLF probe or Redox probe

• pH probe

• Water thermometer

• Extra output for PP60 pump for automatic filter disinfection during backwash

• Receiving signal from PV system and automatic handling of surpluses

• One integrated relay for light control and the option to add 4 more

ASIN AQUA SALT PRO

Characteristics

• Ensures optimal chlorine levels under all conditions

• Operates with 4g of salt per liter

• Smart heating with solar function

• Automated filter backwash

• Winter mode

• VS pump control

• Water level control

• Overflow control

Pool Technology Management:

• Variable speed circulation pump control

• Smart heating control

• Automatic filter backwash

• Automatic water flow switching (overflow/bottom)

• Pool cover position detection

Pool water treatment:

• Controlled electrolysis for chlorine production

• Automatic pH regulation

• Time-based algicide dosing

• Continuous slow dosing of FLOC+C

30-206925

MODEL

ASIN AQUA SALT PRO

Pump control check

Heating control check

Lighting control check

Backwash control check

Additional relay check

Chlorine dosage check

LAN connection check

pH measurement check

Redox measurement check

Free chlorine measurement check

Total chlorine measurement times

Temperature measurement check

Level control Option

Display Touch screen

Pool volume m3 (max) 100m3

• Advanced safety functions

• New power supply with 30 % higher efficiency

• Integration flocculant pump

• Aseko remote – convenient remote

• Control of your pool via a mobile app

• New larger display

• Flow measurement and filter pressure sensor

• A solar thermometer and direct

• Precise level measurement with a pressure level meter and automatic water refilling. Option of a float switch.

• Advanced built-in safety features

• Winter mode for water maintenance during cold months

• Pressure meter

Aqua Salt Pro Redox

30-206930 ASIN Aqua Salt Pro CLF

230 V output for a 4-way valve or solar collector pump

• Complete control of solar heating

• Ems – utilization of excess photovoltaic energy

• Redesigned timer – more options for customization

• Filter disinfection

• New expansion module for additional production capacity

• Solar mode for automatic regulation of solar collectors

• Extra outlet for PP60 pump for automatic filter disinfection during washing

• Receiving signals from PV systems and automatic processing of surpluses

Equipment:

• Redox probe for Salt or CLF probe

• pH probe Long Life

• Water thermometer

EXT SALT PRO

EXT Salt Pro expands your Asin Aqua Salt Pro with an additional chlorine production of 30 g/h. It uses a Ti30 electrode with an optimized surface. Easy performance expansion for larger pools. When the extender is connected to the master system via an RS485 serial line, all chlorine production information is transferred to the master system.

Equipment

• 1x Ti 30 electrode

Pool water treatment

• Asin Aqua Salt Pro system extension

REFERENCE

ASIN AQUA SALT NET

Pool water treatment:

• Controlled electrolysis for the production of free chlorine

• Automatic pH regulation

• Time-based dosing of algicide / Floc+c / ACO

DESCRIPTION

MODEL ASIN AQUA SALT NET

Type of display Touch screen

Content pool up to m3 60

pH measurement Check

Redox measurement Check

Free chlorine measurement Check (optional)

Electrolysis Check

Temperature measurement Check

Additional contacts times

Flow monitoring Check

Alarm notifications Check

Dosing pumps flow rate 60 ml/min

Tightness class IP50

Internet module LAN

Web platform Check

APP available Check

Full control times

Monitoring only Check

Pool Technology Management:

• Circulation pump control

• Water temperature measurement

• Advanced safety features

Equipment:

• Redox probe for Salt or CLF probe

• pH probe Long Life

• Water thermometer

WATERSENS NET

Characteristics

• The new dosing algorithm maintains a more constant chlorine and pH level.

• Built-in relay for controlling the filtration pump according to time interval.

• Option to control an external electrolysis device.

• Easy access to the base plate thanks to the new design.

• Fixed probe holder ensures improved stability

Disinfection technology:

• Dosing mode – built-in peristaltic pump PP60 for precise chlorine dosing

• Salt mode – switching external electrolysis device via built-in relay

• Hybrid mode – combination of switching the external electrolysis device and dosing pump with priority for electrolysis; when the chlorine content drops significantly, the dosing pump is activated

Pool water treatment:

• Advanced dosing algorithm for disinfection control

• Automatic pH regulation

REFERENCE

30-207009

30-207011

DESCRIPTION

Watersens NET pH/Redox (Probes Included)

Watersens NET Free Chlorine (Probes Included)

MODEL WATERSENS NET

Type of display Touch screen

Content pool up to m3 120

pH measurement Check

Redox measurement Check

Free chlorine measurement Check (optional)

Temperature measurement Check

Additional contacts times

Flow monitoring Check

Alarm notifications Check

Dosing pumps flow rate 60 ml/min

Tightness class IP50

Internet module LAN

Web platform Check

APP available Check

Full control times

Monitoring only Check

Pool Technology Management:

• Circulation pump control

• Water temperature measurement

• Advanced safety features

Equipment:

• CLF probe / Redox probe Long Life / Redox probe for Salt

• pH probe Long Life

• Water thermometer

• 2x integrated PP60 pump

WATERSENS

Characteristics

• Compact design

All-in-one design including integrated probe holders and dosing pumps

• Easy Installation

To new or existing pool by speedfit connectors everything for installation is included in the package

• Easy-to-use

Thanks to intuitive interface

• Multilingual menu

Offer English, Dutch, French German, Russian and more

REFERENCE DESCRIPTION

30-207003 Watersens pH/Rx (Probes Included)

30-207013 Watersens Free Chlorine (Probes Included)

MODEL WATERSENS

Type of display Touch screen

Content pool up to m3 250

pH measurement Check

Redox measurement Check

Free chlorine measurement Check

Temperature measurement times

Additional contacts times

Flow monitoring Check

Alarm notifications Check

Dosing pumps flow rate 60 ml/min

Tightness class IP50

Internet module times

Web platform times

APP available times

Full control times

Monitoring only times

• Durable peristaltic pumps

Stand out quality and minimal maintenance requirements

• Electronic flowmeter

Automatically stops dosing when there is no flow to the probes

• Advanced safety features

Are used to prevent overdosing of chemicals to pool water and watch over maximal hourly dose, too rapid pH change and maximal number of doses without response from the probe

• Watersens NET

The NET version of the Watersens enables remote monitoring of water values via a LAN connection.

IGARDEN CONTROLLER

The iGarden controller enables you to connect all Fairland products and operate them using one central app.

Characteristics

• Control of the pump, by percentage and flow (for InverPro and InverMaster).

• Operation of the pool cover secured by a protected PIN code.

• Control of the iWash to trigger a backwash based on filter pressure or time interval.

• Monitoring and control of the Mr. Pure system for water treatment, including insight into pH and Redox values.

MODEL

Pump control

Heating control

Lighting control

Backwash control

Cover control Check

Level control Check

Extra relays 4

CONTROLLER

Water treatment Connection to Mr. Pure

LAN connection Check

Wifi Check

• Four additional potential-free configurable output contacts.

• Level control for skimmer

• Control of the heat pump for setpoints and modes, with insight into temperature values.

• Control of the lighting via pulse or DMX512 for changing colors.

IGARDEN CONTROLLER

THE LATEST GENERATION POOL CONTROLLER

Characteristics

• Monitor/control heat pump

• Monitor/control circulation pump

• Monitor water treatment

• Automatic backwashing

• Level regulation

• Overflow control

• Multifunctional contacts (timers, on/off, pulses)

• Lighting control (on/off, pulses)

• External integrations

Efficient pool management tailored to your needs

New characteristics

• Color wheel for lighting

• Cover control

• Smart notifications

• Installer accounts

Wattr is the latest, self-learning, most user-friendly pool controller. Wattr seamlessly interacts with all essential devices within your pool installation. Consider for example the heat and circulation pump, your water treatment, the lighting and your cover. Wattr combines the entire control of your pool into a single convenient app. The software understands your pool’s daily energy consumption, knows the end user’s preferences and automatically initiates the ideal scenario thanks to thermic/energy models. This soon gives you 30% energy savings and the highest level of comfort. Would you rather intervene yourself? That is possible. With the app, you are in control all the time.

SIMPLE INSTALLATION

Personalise your application in just two simple steps

STEP 1

STEP 2 select your comfort and preferred temperature create your swimming schedule

REFERENCE DESCRIPTION

30-201000 Wattr

WATTR

POWERFUL POOL INTELLIGENCE

LET WATTR DO THE MAGIC!

Wattr optimises your pool installation

Wattr automatically adjusts to the habits of the pool owner

THE RESULT

On a warm afternoon, when the heat pump is bathed in sunlight, Wattr lets the heat pump operate at its maximum speed, achieving the highest COP.

The heat pump does not run unnecessarily. The pool water is well above the set comfort temperature and there are no imminent plans for swimming.

Wattr considers the weather forecast

Effortlessly connect Wattr to your EMS system and maximize your energy savings!

On a chilly morning, with the heat pump in the shade, Wattr waits for more favourable moments to maximise the COP.

The energy management system detects a peak moment in consumption during the early evening. Wattr pauses the heat pump for a while.

* Only if Wattr is connected to the energy management system (EMS)

WATTR

ONE SINGLE APP TO MANAGE AND CONTROL YOUR ENTIRE POOL INSTALLATION

The Wattr pool control system uses an advanced energy model to efficiently manage your pool installation.The device predicts and optimises energy consumption based on a self-learning algorithm, your preferences and weather forecasts. Apart from the algorithm, Wattr consists of a physical controller that connects all your pool devices to an easy-to-use mobile app that puts you in full control of your pool and energy consumption.

Want to learn more about energy conservation and Wattr? Go to www.sempl.energy

AQUARITE NG

Characteristics

• Maximum disinfection with minimal chlorine production, by combining hydrolysis and salt electrolysis in 1 intelligent automatic control.

• Hydrolysis provides oxidation without disinfection by-products (see characteristics for explanation). Hydrolysis intensity adjustable from 0-100%.

• Salt electrolysis provides a small amount of chlorine for disinfection (makes chlorine dosing with sodium hypochlorite (NaClO) superfluous).

• Includes Pool Management functions for filter/backwash times, pump speeds, lighting, heating, etc.

• Equipped with flow monitoring, gas sensor and alarm management.

• Modular control, functions can be put together as desired.

WHAT IS HYDROLYSIS?

MODEL AQUARITE NG

Pump control check

Heating control Option

Lighting control check

Backwash control check

Additional relay check

Hydrolysis - Salt electrolysis (mg/l) check

Chlorine dosing times

Wi-Fi Option

pH measurement Option

Redox measurement Option

Free chlorine measurement Option

Temperature measurement Option

Display touchscreen

Pool volume m3 (max) 25/60/120/200

Flow monitoring via flow switch check

ੁ 2 year warranty

• Optional WiFi module so that the water quality can be monitored and adjusted remotely 24/7 (by user and installer).

• Flow monitoring via flow switch (option).

• Alarm message for lack of flow, too low salt content and maximum pH dosing time.

• Cell equipped with 4 or 5 titanium plates monopolar, with as the advantage is that they deliver a high efficiency at a low voltage and a high amperage.

• Records number of operating hours.

• 3 current-controlled relays 110-230 V and 4 potential free ones programmable outputs.

Hydrolysis can be seen as the reverse of a condensation reaction. By conducting an electrical voltage through the water, the chemical compound (molecules) of water is split, divided into hydrogen and oxygen. This creates various oxygen compounds that lose electrons. The most important of these is the OH radical, the free radical; a highly effective oxidant that disinfects water in seconds, without disinfection by-products.

AQUARITE NG

You can easily put together your Aquarite NG via the steps below. The Aquarite NG comes standard without options. You receive the control box and Hydro/Electrolysis cell and can expand the control box to the needs of your customer.

PH MODULE

This option enables you to measure the pH value of the water and to control an (optional) dosing pump. The contents of the package consist of a pH chip that enables the measurement and a pH sensor.

TEMPERATURE MODULE

This option allows you to measure the pool water temperature and assign a control box relay to this measurement for control of a heating source.

FLOW SWITCH

Our advice is to always have a flow switch, the flow switch allows the Hydro/Electrolysis cell to switch off if there is no flow in the circuit to prevent unwanted dosing. And with Aquarite NG, the flow switch is already included.

FREE CHLORINE MODULE

This option allows you to measure the free available chlorine in the pool water and to have the Hydro/ Electrolysis cell respond to it.

REDOX MODULE

This option enables you to measure the Redox value of the water and to have the Hydro/Electrolysis cell respond to the measured Redox value.

WI-FI OR LAN MODULE

This module enables you to operate the control box and the selected options remotely and to read out values.

DA-GEN:

solution Perfect solution –– perfect regulation- perfect perfect Control Control Control Control

The DA DA--GEN GEN GEN GEN generates free radicals (Advanced Oxidation) through anodic oxidation as well as other oxygen compounds and a small amount of Chlorine. The oxidation should be carried out mainly through the free radicals. The Chlorine is merely used as a depot disinfectant. The lower the content of salt, the more free radicals and the less Chlorine are produced.

What is the difference to salt electrolysis?

1. Much lower salt content (TDS) => more free radicals due to special cells

2. TDS < 1200mg/l = Chlorides under 600mg/l => no or low risk of corrosion

3. MgCl2 as activator instead of Salt (NaCl) => better flocculation, no Phosphates

4. No compromises – perfect solution: Always with pHRegulation, always with Chlorine-Regulation, always with APF and always with WiFi

Differences to salt electrolysis electrolysis electrolysis: :: :

1. Much lower salt content (TDS) => more free radicals due to special cells

2. TDS < 1200mg/l = Chlorides under 600mg/l => no or low risk of corrosion

3. MgCl2 as activator instead of Salt (NaCl) => better flocculation, no Phosphates

4. No compromises – perfect solution: Always with pH-Regulation, always with Chlorine-Regulation, always with APF and always with WiFi

Should only be used in combination with with DA DADA DAI II I--SY SYSY Swimming in drinking water Swimming water!!! !!!!!! !!!

For prices, please refer to Welldana's website.

AQUARITE NG

FOLLOW THE NEXT FLOW AND CREATE YOUR AQUARITE NG

Step 1: Choose your Aquarite NG

Step 2: Choose your measurement

AQUARITE NG

Step 3: Choose your dosing pump(s)

REFERENCE DESCRIPTION

39-190011 Stenner Dosing Pump Eco VS 0.3 - 2.2 l/h for pH & ACO®

30-291035 Microdos Dosing Pump Capacity 1.50 l/h, 230 V

Step 4: Choose your communication module

REFERENCE DESCRIPTION

30-190019 DA-GEN WIFI Module

39-190007 DA-GEN LAN Module

Step 5: Choose your connection materials

REFERENCE DESCRIPTION

39-190003 Ground Earthing Kit for Pipe Ø50mm (without holder)

39-190006 By-pass Probe Holder for pH & Rx DA-GEN (Double Version with 1 Prefilter)

39-190036 Probe Holder for 2 Modules (1/2” Connection)

KLX

Characteristics

• KLX can function as a simple salt generator, where the unit produces chlorine from a low amount of salt in the water. The cell is monopolar which ensures minimal calcification.

• The electrolysis cell attains a production of sodium hypochlorite (liquid chlorine) from 3g salt per liter. The chlorine combats and eliminates bacteria, virus, pathogenic agents and oxidizes organic matter present in the water. The used sodium hypochlorite reconverts into salt after a few hours.

• Produces chlorine in a water temperature as low as 8°C.

• Can be expanded with automatic chlorine and pH control, which provides precise control of the water quality.

MODEL KLX

Pump control Check

Heating control times

Lighting control Check

Backwash control times

Additional relay times

Hydrolysis - Salt electrolysis (mg/l) Check

Chlorine dosing times times

Wi-Fi Option

pH measurement Option

Redox measurement Option

Free chlorine measurement times

Temperature measurement Option

Display Check

Pool volume m3 (max) 20/50/90/150/200

ੁ 3 year warranty

• Gas sensor in the cell tube and mechanical flow sensor are supplied as standard, and provides security against unwanted overdoses in case of lack of flow.

• Equipped with 3-speed pump control, lights and a programmable weekly timer.

• Can be expanded with both temperature controls and WIFI.

• Pipe connection 63mm inside on inlet and 63mm outside on outlet

• Built-in screen for easy control.

• Salt generator converts the salt into natural chlorine (sodium hypochlorite), which gives an advantage as natural chlorine does not irritate the skin and eyes, and cannot be smelled or tasted.

ACCESSORIES

SPARE PARTS

REFERENCE DESCRIPTION

30-190015 Sensor Holder Screw-In ½”

30-291030 Chip PH/RX

39-297000 Cell House KLX 8-33gr.

REFERENCE DESCRIPTION

30-291005 Redox Set with Sensor and Fittings

30-291008 Probe Holder Set for 1 Sensor - incl. Valves, Hose and Nipples

30-291009 Probe Holder Set for 2 Sensors - incl. Valves, Hose and Nipples

30-291010 pH Set with Sensor and Dosing Pump

30-291016 WIFI Set f. KLX

30-190017 Buffer Liquid Set - pH7/pH10/neutral

39-297018-1 2 Meter Grounding Cable with Holder

30-291020 Temperature Set f. KLX

30-291025 Flow Control f. KLX

30-291035 1,5 Liter Chemical Pump

30-291040 Automatic Controller of Redox Value

13-520020 Reducing Nipple ½” OD x ⅜” ID

39-297008 Display f. KLX

30-601101 Injection Valve ⅜ Thread + 4-6mm Hose Connector

30-291006 pH Sensor without Accessories

30-291007 Redox Sensor without Accessories

39-297005 Hose for Perstaltic Pump

39-297010 Plastic Screw M6 x 50 f. KLX Cell 16 + 22

39-297011 Plastic Disc 6mm f. KLX Cell 16 + 22 / 1,5mm thick

39-297012 Plastic Screw M6 x 40 f. KLX Cell 16 + 22

39-297013 Plastic Nut M6 f. KLX Cell 16 + 22

39-297014 Plastic Disc M6 f. KLX Cell 16 + 22 / 3mm thick

39-297015 Plastic Disc M6 f. KLX Cell 16 + 22 / 2mm thick

39-297016 Plastic Screw M6 x 70 f. KLX Cell 16 + 22

30-291026 Cover and Screen f. KLX (white connector)

39-297009 Connection Cable for Display

39-297001 Cell f. KLX 8

39-297002 Cell f. KLX 16

39-297003 Cell f. KLX 22

39-297003-1 Cell f. KLX 33

39-297004 Cell f. KLX 50

39-297025 PCB f. KLX 8

39-297026 PCB f. KLX 16

39-297027 PCB f. KLX 22

39-297028

39-297029

PCB f. KLX 33

PCB f. KLX 50

DA-GEN

SWIM IN DRINKING WATER!

The DA-GEN is an innovative disinfection solution for your swimming pool. It is a Hydrolyser that uses advanced oxidation technology to generate free radicals (OH• and O•) and small amounts of chlorine. It also serves as your complete swimming pool controller.

The free radicals serve as the primary oxidants. The chlorine is only used for the depot disinfection in the pool. The system runs with a very low amount of salt (3-5x less than salt water pools) because the lower the concentration of salt, the more free radicals and the less chlorine is produced.

DA-GEN works in combination with Dryden DAISY® and you will get pool water in drinking water quality - crystal clear and with no chlorine smell!

Product Features

High performance hydrolyser

Splits water molecules into free radicals (OH and O ) and other oxygen compounds for the best disinfection

Highly efficient electrodes

Works with only 1g/liter of salt (NaCl) or Magnesium chloride (MgCl2) for a more powerful disinfection

Complete pool system controller

With integrated wifi module - access DA-GEN app / www. DA-GEN.com for all features

Swim in drinking water

Combine DA-GEN with Dryden DAISY® to get pool water in drinking water quality

pH measurement and automatic dosing

Free chlorine (or Redox) measuring and control

Temperature sensor

Pump and backwash control (programmable)

Automatic dosing of APF® for best coagulation/flocculation

Salinity probe (optional)

Pool lights control

Automatic dosing of ACO® (optional)

DA-GEN

DA-GEN is available in three types: DA-GEN Complete, DA-GEN Complete (Unmounted) and DA-GEN Modular.

DA-GEN Complete

A fully automatic salt generator with all parts included and mounted onto a solid panel. As everything is mounted, it is ready to use instantly.

Check WIFI

Check Salt cell

Check Touch display

DA-GEN Complete (Unmounted)

A building kit, where all of the DA-GEN Complete parts come seperately and unmounted - giving you more flexibility on mounting locations.

Check WIFI

Check Salt cell

Check Touch display

DA-GEN Modular

A salt cell that is fully customisable. It comes without WIFI and supplied without accessories, allowing you to pick and choose exactly what you need.

times WIFI

Check Salt cell

Check Touch display

DA-GEN COMPLETE

Characteristics

• Fully automatic salt generator

• Mounted on 75x75cm panel

• 24/7 full control with integrated WIFI module

• Delivered complete with: free chlorine/Redox sensor, flow control, pH sensor, pH dosing pump, APF® dosing pump, temperature module, WIFI module, suction lance, digital salt meter

DA-GEN

DA-GEN COMPLETE (UNMOUNTED)

30-190038

Complete 45-FC - Unmounted

Complete 90-FC - Unmounted

Complete 150-FC - Unmounted

DA-GEN MODULAR

Characteristics

• Fully automatic salt generator

• Unmounted - supplied with complete set of parts

• 24/7 full control with integrated WIFI module

• Delivered unassembled with: free chlorine/Redox sensor, flow control, pH sensor, pH dosing pump, APF® dosing pump, temperature module, WIFI module, suction lance, digital salt meter

Characteristics

• Fully customisable model

• WIFI does not come as standard

• For public use

• Supplied without parts and accessories (they can be purchased seperately, allowing you to pick and choose the exact parts you need)

MR. PURE

Characteristics

• Very elegant design

• Equipped with built-in PH dosing pump with capacity of 260ml/min

• Equipped with built-in wifi module and Modbus RS485 connection and thus compatible with Wattr and Space

• The sensors are neatly concealed by the supplied cover

• Long service life of the hydrolysis/ electrolysis cell 10,000+ hours

• Works with a salt content of 1,8 to 5 grams per litre

• Equipped with touchscreen with intuitive operation

Type

Content

pH

Additional

Alarm

Dosing

• Simple way of visualising thewater quality, ideal for the end user

• Connected in the Fairland app with waterpumps and heatpumps

• Golden Rx probe of 5mm

Note:

MR. PURE PRO

Characteristics

• 2 Extra relays to control any device of your choice

• Controlling of your VSP pump

• Equipped with built-in wifi module and Modbus RS485 connection and thus compatible with IGarden controller. To control all fairland devices in one app.

• The sensors are neatly concealed by the supplied cover

• Long service life of the hydrolysis/ electrolysis cell 12,000+ hours

• Works with a salt content of 1 to 5 grams per litre – Low salt

• Equipped with touchscreen with intuitive operation

• Simple way of visualising thewater quality, ideal for the end user

• Golden Rx probe of 5mm

MR. PURE PRO

1ST AI-INVERTER POOL DISINFECTION

Enjoy the new standard in pool comfort—combining 0~130% disinfection with low-salt purity. The upgraded AI-Inverter system provides precise, adaptive micro-adjustment over power usage, salt and chlorine levels, ensuring exactly the level of disinfection and continuous pure water, despite sudden changes in salinity and water conditions.

SMART PURITY

Prevent over-chlorination, reducing chloramines.

ALWAYS BALANCED

Maintain ideal sanitation under extreme conditions

ENERGY EFFICIENCY & LONGER LIFESPAN

Avoids stressful full-speed operation, extending the durability of entire system

IGARDEN APP CONTROL

Know your pool is ready and perfect-managed, anytime, anywhere.

• ORP/pH/Temperature Reading

• One-click Turbo/Boost

• Salinity Reference

• Logs Review

VISIBLE PURITY. TOUCH PERFECTED.

Dynamic Colored Ring, Easy-Read Water Status. Full-Touch Screen with Fast Menus

LOW SALT. HIGH COMFORT

Always pure on skin and gentle to your pool - fresh, balanced, and full of vitality.

INTEGRATED SMART CONTROL

Controls up to 3 pool devices, simplifying your daily pool routine.

POOL RELAX

Characteristics

• Advanced safety features

Are used to prevent: overdosing of chemicals to pool water (watches over maximal hourly dose), too rapid pH change, and maximal number of doses without response from the probe

• Safe water treatment

The Pool Relax ensures reliable and precise control of the set values relevant for optimal water treatment. The alarm function of the Pool Relax is activated in the event of fluctuations relating to the set values, or empty product containers, with acoustic and visual signals on the device

REFERENCE DESCRIPTION

193102 Pool Relax pH & Redox

193300 Pool Relax pH & Oxygen

MODEL POOL RELAX

Type of display Touch screen

Content pool up to m3 100

pH measurement Check

Redox measurement Check

Free chlorine measurement times

Temperature measurement times

Additional contacts Check

Flow monitoring Check

Alarm notifications Check

Dosing pumps flow rate 1.5 l/h

Tightness class IP54

Internet module LAN (option)

Web platform Check (option)

APP available times

Full control

Check

• Simple operation Despite the various setting options, the Pool Relax is very easy to operate. All relevant functions are intuitive and can be set conveniently using the touchscreen. The large four line display is clear and easy to read

• Optimised reliability

The use of high quality components combined with a sophisticated technical design ensures the Pool Relax carries out tasks reliably without disruption.

POOLMANAGER 5®

MODEL

Type of display

POOL MANAGER 5

Touch screen

Content pool up to m3 250

pH measurement Check

Redox measurement

Free chlorine measurement

Check (Pool Manager)

Check (Pool Manager Pro)

Temperature measurement Check

Additional contacts Check

Flow monitoring Check

Alarm notifications Check

Dosing pumps flow rate 1,5 l/h

Tightness class

Internet module LAN

Web platform

APP available

Characteristics

• Secure water treatment

The PoolManager® takes over all tasks reliably and precisely. The alarm function of the PoolManager® is activated in the event of fluctuations exceeding the limit values. It draws attention to abnormalities on the display and by an acoustic signal. It can also send an e-mail in the event of an alarm

• Direct help

The help hotkey is at your disposal at all times. When you press this hotkey, related help text is immediately shown, regardless of the menu point you are using. In this way the PoolManager® can be fully be operated

• Precise measurement

While the PoolManager® measures the redox potential, PoolManager® PRO uses the potentiostatic measurement principle. The PoolManager® PRO precisely measures the actual chlorine content in the pool water and displays the chlorine value in mg/l

REFERENCE

• Simple maintenance

The method of free chlorine measurement used by PoolManager® PRO is also low maintenance, self-cleaning and thus very durable

• Remote access to the system

Connecting your Poolmanager® to the internet with LAN connection enables you to monitor and regulate all functions of your pool remotely at any time from anywhere using a phone, tablet or other internet enabled device.

WELLDANA® UV SANITIZER

Characteristics

• An effective disinfection system for pools - suitable for both chlorine and saltwater pools.

• Made from strong PVC with Ø75mm connections.

• Long-lasting and durable UV lamp - up to 13,000 hours (i.e. 3 years for a seasonal pool)

• Easy to install - directly onto the filter circuit.

• Automatic and chlorine-free system optimised with UV-C lamps.

• No unpleasant odours in the water or the air.

• No toxic by-products.

• Environmentally-friendly and healthy process used for disinfection of natural pools.

• 120-240V, 50/60Hz.

• Maximum operating pressure 3 bar.

• IP54

REFERENCE DESCRIPTION

30-320100

Welldana® UV NEO 55W

30-320110 Welldana® UV NEO 87W

30-320120

Welldana® UV NEO 105W

STENNER ECON LD

REFERENCE DESCRIPTION

Characteristics

• Especially for the dosing of Dryden Aqua’s liquid products APF® and ACO®, Stenner offers top quality flake pumps that can handle smaller dosing quantities

• Control range from 3.2 to 240 ml/hr (with standard tubing)

• Can be used with optional replacement hose with a dosing capacity of 1.3 to 70 ml/hour

• Maximum pressure 5.5 bar, 0.17 Ampere, connection cable 1.7 meters with Euro plug

• Including spare dosing hose, foot valve, 5 meter PE hose 4x6mm and injection valve

4196700 Floc-Dosing Pump 3.2-240 ml/h for APF®

4196702 Dosing Tube 3.2-160 ml/h Floc-Dosing Pump

4196702-1 Dosing Tube 1.3-70 ml/h Floc-Dosing Pump ੁ 2 year warranty

STENNER ECON VS

REFERENCE DESCRIPTION

Characteristics

• Ideal for dosing acid, but also for ACO®

• Control range from 0.30 to 2.20 litres/hour (with standard hose)

ੁ 2 year warranty

• Optional replacement hose with a dosing capacity of 0.15 to 1.20 litres/hour

• Maximum pressure 1.7 bar, 0.17 amps, connection cable 1.7 meters with Euro plug

• Including spare dosing hose, foot valve, 5 meter PE hose 4x6mm and injection valve

39-190011 Stenner Dosing Pump Eco VS 0.3 - 2.2 l/h for pH & ACO®

4196711 Replacement Tube for Econ VS 0.3 - 2.2 L/h

1,5L DOSING PUMP

REFERENCE DESCRIPTION

30-291035 Dosing Pump 1,5L - f. KLX + Station

39-297005 Dosing Tube f. 1,5L Dosing Pump

Characteristics

• Dosing pump for all KLX and Station chemical plants

• Pump body made from sturdy polypropylene (PP), with a polycarbonate (PC) pump cover

• Standard hose made from Santoprene®

• Flow rate - 1,5L/h

• Voltage - 230V, 50/60Hz

• Consumption - 8W

PERISTALTIC PUMP 1L/4L/100L

30-601044

Characteristics

• A flow adjustment peristaltic dosing pump from 10 to 100%

• Available in 3 sizes

• Standard hose made from Santoprene®

• Connections - 4x6mm

• Maximum flow rate - up to 100L/h (adjustable flow)

• Maximum working pressure - up to 3 bar

• Supplied with chemical dosing hose, injection nipple and suction lance

Filters

Filter Media

Pumps

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

Covers

PVC

BAYROL

Water treatment for private pools

The BAYROL product range for private pools has been specially designed for pools with a large water volume, equipped with a filtration system. The dosing of the products happens in the skimmer or in the pool itself.

Essential

Because the minimal treatment of pool water has a focus on 3 types of essential products, BAYROL groups the essential products in this category on a base of regular treatment. This being :

• The regulation of pH with pH-Minus/Plus

• The permanent disinfection with slow dissolving chlorine such as Chlorilong

• The simple analysis of water thanks to analysing strips

Comfort

Water that is just disinfected is not enough. Pool owners expect high quality water, clear and pleasant. They wish to use their products comfortably, they want the treatment to go easily and they appreciate the guarantee of having water that is easily kept this way. This is the reason why BAYROL combines in the Comfort category :

• The disinfection “Plus” like the multi-function chlorine

• The battle against algaes with Clarifyer

• The floculation through Superflock Plus

Problem Solving

To allow the user to quickly use the curative products, BAYROL has chosen to group in one category all the products that resolve efficiently the problems with water quality : turbid water, green water, instable pH ...

The category Problem Solving groups in particular the shock products.

BALANCERS

BAYROL

The adjustment of pH is the first stage that allows you to have healthy water and the best possible bathing comfort. The correct adjustment of pH between 7,0 and 7,4* is the essential maintenance base of pool water. When the pH is outside these recommended values, the bathing will be less comfortable and the treatment of the following steps will be less efficient. This means that the pH has to be checked at least once a week and, if necessary, adjusted.

*7,4 - 7,6 in case of bromine

PH-Plus

Raises the pH-value of the water and are dosed directly into the water when the pH-value is below 7,0. The granules dissolve quickly and without residue, and help stabilize the TA value whilst effectively regulating the pH-value in the swimming pool water.

It is compatible with all disinfection methods, all filter types and all pool surfaces.

REFERENCE DESCRIPTION

Dosing scoop included

PH-Minus

Lowers the pH-value of the water and is dosed directly into the pool water when the pH-value is too high (above 7,4). The granules dissolve quickly and without residue, and works effectively with too high pH-values to quickly reach the ideal pH value (between 7,0 - 7,4).

It is compatible with all disinfection methods, all filter types and all pool surfaces.

REFERENCE DESCRIPTION

Dosing scoop included

for automatic dosing

DISINFECTION

BAYROL

Complementary to the pH regulation of the water, the disinfection is an essential stage in the water treatment of a swimming pool. Without adding a disinfection product, the pool water will likely become cloudy and unhygienic very quickly.

There are 3 methods used to disinfect pool water : chlorine, and the methods without chlorine - active oxygen or bromine.

Chlorilong® Classic

A slow-dissolving 250g chlorine tablet containing 92% active substance, for a permanent disinfection. It is a reliable and high performance product for pool water care that ensures clean and disinfected water.

Advantages

• Included ‘silk effect’ formula enhances the antiscale effect and ensures silky-smooth pool water.

• Effective in any water hardness - limits the degradation of active chlorine by UV.

• Pressed using A.P.O.® technology: ensures the tablet dissolves evenly and delivers a constant amount of chlorine to the water.

• No residue, no cloudy water.

• Without copper sulfate - no damage to pool surface.

Chlorifix®

Fast-dissolving chlorine granules for shock treatment that work immediately against bacteria, fungi and viruses and break down organic turbidity and impurities in swimming pool water.

Advantages

• Dissolved without leaving residue.

• Releases active chlorine which oxidizes microorganisms, which are responsible for cloudy water and algae.

• Contains isocyanuric acid which protects the chlorine from UV.

• Ideal for outdoor pools (especially salt water pools and can be used with any water hardness.

• The special granular form means less dust is released.

DISINFECTION

BAYROL

Chlorilong® POWER5

Chlorilong® POWER 5 is a slow dissolving 5 function chlorine tablet for the continuous removal of impurities from the pool water.

Use

Function of the product: disinfection

Chlorilong® POWER 5 ensures disinfection to eliminate bacteria and remove turbidity in the pool water, algae destruction, flocculation, hardness and chlorine stabilisation. Chlorilong® POWER 5 pool chlorine tablets are made from high quality raw materials, and have been pressed by using an innovative method: the A.P.O.® technology. It ensures that the tablet dissolves evenly, and releases a consistent amount of chlorine into the water throughout its dissolution time. This avoids any gaps in the water disinfection and therefore offers additional security for clean, safe pool water.

Product description

250g tablet to dissolve slowly

Contains: symclosene (845mg/g). Aluminium sulfate 14 - hydrate

Advantages

• 5 function pool chlorine tablets made from high quality raw materials

• A.P.O.® technology guarantees a uniform amount of chlorine during the dissolution period

• No gaps in the water disinfection and additional security for clean and safe pool water

• Ensures crystal clear water

• Does not contain copper sulfate (will not cause damage to the pool surface)

Instructions

• Adjust the pH between 7.0 and 7.4.

• Place the appropriate amount of tablets in the skimmer.

4699272 Chlorilong Power 5 (multifunctional 250g chlorine tabs)

• Optimal chlorine value: between 0.5 and 1 mg/L (1.5 mg/l in case of high traffic or high temperatures).

DISINFECTION

BAYROL

Chlorilong® ULTIMATE7

Chlorilong® ULTIMATE 7 is a two-phase chlorine tablet with 7 different functions for an optimal and permanent disinfection of the pool water and filter.

Use

Function of the product: disinfection

Chlorilong® ULTIMATE 7 has seven different fuctions for the ultimate water treatment, and consists of two phases: the fast dissolving blue layer for shock action on both the pool and filter, and the slow and regular dissolving white layer for permanent disinfection, anti-algae, clarifying, anti-scaling and chlorine stabilization. Chlorilong® ULTIMATE 7 tablets have been pressed by using A.P.O.® technology, ensuring that the tablet dissolves evenly, and that there are no gaps in the water disinfection - offering additional security for clean, safe pool water.

Product description

300g tablet with 2-phases

The blue part decomposes in 10 minutes and deposits on the filter bed of the sand filter. The white part is slowly soluble and provides a permanent disinfection. Use 1 tablet for every 30m³.

Advantages

• 7 function pool chlorine tablets have 2-phases for more powerful disinfection

• A.P.O.® technology guarantees a uniform amount of chlorine during the dissolution period

• Silk effect formula enhances the antiscale effect and ensures silky-smooth pool water

• No residue, ensuring crystal clear water

• Includes chlorine stabilizer, and ‘Clorodor Control’ capsule to reduce the chlorine smell

• Does not contain copper sulfate (will not cause damage to the pool surface)

Instructions

• Perform a backwash first before using chlorine tablets.

• Adjust the pH between 7.0 and 7.4.

• Dose the appropriate amount of tablets through the skimmer*.

• Optimal chlorine value: between 0.5 and 1 mg/L

*Note - add the tablets into the skimmer only whilst the circulation pump is running.

FLOCCULATION

BAYROL

Flocculation guarantees clear water. It allows very fne particles to be trapped in the flter media, so that it doesn’t go back into the pool. These materials are eliminated during filter backwashes. For pools equipped with a cartridge filter, BAYROL proposes to use a clarifer.

Superflock Plus

A flexible cartridge of flocculation product especially for sand/glass filters to effectively and constantly battle against cloudy water. An exclusive formula for a long duration. It eliminates metals and phosphates.

Advantages

• Easy to use pre-dosed cartridges.

• Slow dissolving and prolongued action for permanent crystal clear water.

• When using regularly, it allows a saving in the usage of disinfectant products.

• Eliminates discolorations due to copper or iron and prevents the appearance of stains.

• Restricts the growth of algae.

Superklar

A liquid concentrate with a clarifying effect for the continuous removal of the smallest particles in the water. Can also be used with cartridge filters.

Advantages

• For all filter types - especially suitable for cartridge filters

• The ready-to-use concentrate removes the finest particles and makes the water crystal clear.

• Highly concentrated formula: when used weekly in a 40m³ pool, one bottle is enough for the entire season.

• Effective even at high temperatures, and ready-touse (easy dosing directly into the pool water).

• Dosage: 10ml per 10m³.

BAYROL

Clarifyer®

The BAYROL formulas for algae prevention have a large spectrum of actions and have an effect against all types of algae. They are very concentrated which makes them extremely effective, even in a small dosage. All the Clarifyer products are without chlorine and without heavy metals (notably without copper sulphate).

Concentrated anti-foaming anti-algae liquid to avoid the development and growth of algae. Integrated clarifying effect.

Advantages

• Highly concentrated : extended effect against algae

• Clarifying effect

• Does not contain any metals (copper...)

EFFECTIVE

• Long duration (concentrated formula)

• Integrated clarifying effect

ECONOMIC

• 3 euros a week for a pool without algae during the entire season.

• Without copper sulphate

• Non-foaming formula. Ideal for pools with water features and/or flumes

Clarifyer® Jet

Clarifyer® Jet is a liquid. foam-free and pH-neutral algaecide. It safely prevents the growth and spread of algae in pool waters. As it is nonfoaming, it is ideal for use in pools with counter-current systems or other water attractions. Unlike other regular anti-algae products, the Clarifyer® Jet formula contains a high concentration of active ingredients and has a long-term effect against algae.

Integrated clarifying effect makes the water sparkling and crystal clear.

Advantages

• Highly concentrated : extended effect against algae

• Clarifying effect

• Does not contain any metals (copper...)

• Non-foaming formula.

EFFECTIVE

• Long-term effect against algae (patented formula)

• Integrated clarifying effect for enhanced sparking water

ECONOMIC

• very high active ingredient content

• Without copper sulphate WITHOUT RISK FOR THE SURFACES

• Ideal for pools with counter-currents and other water features (also suitable for fountains)

BAYROL

Puripool® Super

Puripool® Super is a concentrated, chlorine-stable and non-foaming liquid for winterising outdoor pools.

Advantages

Use

Puripool® Super is a concentrated, chlorine-stable and non-foaming liquid for winterising outdoor pools. By applying Puripool® Super at the end of the season, the pool water is protected against algae growth and other deposits, allowing effortless spring cleaning.

Product description

Concentrated liquid

Compatible with all treatments (chlorine, bromine, Active oxygen...) and all filtration systems. Contains: N-methylmethanamine polymer with (chloromethyl)oxirane (170 mg/g)

• Facilitates the opening of your pool during spring

• Prolonged effect against algaes thanks to a patented formula

• Prevents scale build-up

• Non-foaming

• Contains no metals (copper, etc.)

• Does not influence the pH value

COMPLEMENTARY PRODUCTS

BAYROL

The maintenance of a pool also needs complementary products such as cleaning products or products to prevent limestone.

Decalcit Filter

A highly effective granule for quick decalcification of all types of filters. Improves filtration performance and increases the effectiveness of water care products.

Bordnet® Spray

A super effective spray cleaner for cleaning pools and spas at the waterline. Recommended for liners, tiles and acrylic.

P26

Filters

Filter Media

Pumps

Flow Fittings

Heating

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance

FAIRLAND PRODUCTS

Heat pump producer Fairland is known for combining sleek designs with outstanding energy efficiency. Their heat pumps are distinguished by their high Coefficient of Performance (COP), ensuring optimal energy savings while maintaining top-level heating performance. Fairland offers four innovative models: XP26, X20 and X17 - each bringing unique features tailored to meet diverse pool heating needs.

XP26

• Engineered for exceptional efficiency and whisper-quiet operation.

• TurboSilence® Inverter Technology that delivers advanced, consistent heating with ultra-low noise levels.

• Remarkable COP of up to 23 for maximum performance with minimal energy use.

• Powered by R290 refrigerant, an eco-friendly solution with very low Global Warming Potential (GWP).

• Operates efficiently across a wide temperature range.

Inverter Plus

• Super effective Full-Inverter pool heat pump.

• Super energy-saving and super qiet operation.

• COP is 65% higher than On/Off models, and designed for temperatures dwn to -7°C.

• Top-tier results without compromise.

• Automatic defrosting, and suitable for both indoor and outdoor pools.

JUMBO

• TurboSilence® Full-Inverter tech for powerful performance and whisper-quiet operation.

• Achieve up to 17x energy savings.

• Perfect for premium commercial pool environments.

• Runs 15x quieter that standard commercial units.

• With smart control & protection features.

Experience the next generation of performance with the XP26 heat pump, engineered for exceptional efficiency and whisper-quiet operation.

Thanks to continuous innovation in TurboSilence inverter technology, the R290 inverter pool heat pump achieves a remarkable COP of up to 23. The result: unmatched comfort combined with true environmental sustainability.

With a minimum operating temperature of -20°C.

The benefits of R290

R290, also known as propane, is an environmentally friendly refrigerant increasingly used in heat pumps. It has a very low Global Warming Potential (GWP), which means it contributes significantly less to global warming compared to traditional refrigerants. Additionally, R290 offers high energy efficiency due to its excellent thermodynamic properties, which can lead to lower energy costs. The gas can operate effectively across a wide temperature range, improving the performance of heat pumps in both heating and cooling.

FUTURE-READY HEATING TECHNOLOGY

The XP26 is, powered by R290 refrigerant with an ultra-low Global Warming Potential (GWP) of just 3, this is the model for everyone who wants to be ready for the future. Fully aligned with upcoming environmental regulations, the XP26 represents a next-generation solution that combines high performance with true sustainability.

REFERENCE

34-180690

34-180691

34-180692

34-180694

34-180695

DESCRIPTION

XP26 Horizontal 14,2 kW - 230V

XP26 Horizontal 17,0 kW - 230V

XP26 Horizontal 20,0 kW - 230V

XP26 Horizontal 32,5 kW - 3x380V

XP26 Horizontal 41 kW - 3x380V

FASTER HEATING, LOWER NOISE

The advanced TurboSilence technology also boosts heating performance by up to 130%, ensuring rapid pool heating even under the most demanding weather conditions — all while maintaining remarkably low noise levels.

The COP value is a theoretical efficiency weighted against the stated variables, just like the recommended maximum bath volume. Every swimming pool and every situation is different, the circumstances (eg cover/location/insulation/design/capacity) are never the same. The advice is therefore to always oversize and to discuss this with the customer for realistic expectations. If desired, we are happy to advise and discuss which heat pump is suitable in the relevant situation. No rights can be derived from the above values.

HEAT PUMPS

P26

Compressor Twin-rotary DC-inverter

Heat exchanger Lightning heat exchanger

Casing Aluminum-alloy Casing

Power supply 230V~/1Ph/50Hz

Water

* The advised pool volume indicated applies under following conditions: Swimming pool is well covered; system runs at least 15 hours per day; * The final specs will be in accordance with the specs on the product .

(1) L = outside air temperature in °C / W = water temperature in °C / RH= relative humidity in %.

- The values given apply under ideal conditions: pool insulation cover present, filtration at least 15 hours per day.

- The above parameters correspond to the data given on the heat pump nameplate.

- When choosing a heat pump, always check what is electrically possible on site; the manual lists the electrical connections recommended by the manufacturer.

The COP value is a theoretical efficiency weighted against the stated variables, just like the recommended maximum bath volume. Every swimming pool and every situation is different, the circumstances (eg cover/ location/insulation/design/capacity) are never the same. The advice is therefore to always oversize and to discuss this with the customer for realistic expectations. If desired, we are happy to advise and discuss which heat pump is suitable in the relevant situation. No rights can be derived from the above values.

Compressor

Heat exchanger

heat exchanger Casing

Power supply

* The advised pool volume indicated applies under following conditions: Swimming pool is well covered; system runs at least 15 hours per day; * The final specs will be in accordance with the specs on the product .

(1) L = outside air temperature in °C / W = water temperature in °C / RH= relative humidity in %.

- The values given apply under ideal conditions: pool insulation cover present, filtration at least 15 hours per day.

- The above parameters correspond to the data given on the heat pump nameplate.

- When choosing a heat pump, always check what is electrically possible on site; the manual lists the electrical connections recommended by the manufacturer.

The COP value is a theoretical efficiency weighted against the stated variables, just like the recommended maximum bath volume. Every swimming pool and every situation is different, the circumstances (eg cover/ location/insulation/design/capacity) are never the same. The advice is therefore to always oversize and to discuss this with the customer for realistic expectations. If desired, we are happy to advise and discuss which heat pump is suitable in the relevant situation. No rights can be derived from the above values.

INVERTER PLUS

Characteristics

• Inverter Plus is a highly effective and efficient pool heat pump, with 65% higher COP than standard On/Off models.

• Exceptional energy efficiency: Achieves up to 16x energy savings with a COP of up to 16, allowing for 50% more savings that On/Off heatpumps.

• Quiet operation: Runs 10 times quieter. The sound pressure is as low as 46 dB(A) at 1 meter, which is quieter than a fridge.

• Designed to run in temperatures down to -7°C.

• High quality aluminium alloy casing makes it rustproof, making it perfect more more costal areas.

• With built-in WiFi and Fairland Smart Pool compatible.

3 Years warranty

7 Years warranty on the compressor

16x Energy Saving

COP16: 1kW Input = 16kW Heat in Return Saving 50% more than On/Off Heat Pumps

HEAT PUMPS

INVERTER PLUS

(m³)

Operating air temperature (°C) -7~43

Performance Conditions: Air 26°C / Water 26°C / Humidity 80%

Performance Conditions: Air 15°C / Water 26°C / Humidity 70%

Compressor Twin-rotaty Mitsubishi DC-Inverter DC-Inverter

Heat exchanger Spiral titanium tube in PVC Power supply

34-180650 Inverter Plus 10,5kW

34-180652 Inverter Plus 13,0kW

34-180653 Inverter Plus 17,5kW

34-180651 Inverter Plus 20,5kW

34-180654 Inverter Plus 27,5kW

34-180657 Inverter Plus 35,8kW

34-180658 Inverter Plus 60,0kW *The

7 Years warranty

15 Years warranty on the compressor

15 Years warranty on the heat exchanger

Characteristics

• TurboSilence Full-Inverter Technology: Combines ultrapowerful performance with whisper-quiet operation perfect for premium commercial pool environments.

• Exceptional energy efficiency: Achieves up to 17x energy savings with a COP of up to 17. Delivering maximum output with minimal energy input.

• Quiet operation: Runs up to 15 times quieter than standard commercial units, with sound levels as low as 54 dB(A) at 1 meter.

• Smart multi-mode functionality:

• Turbo mode: Heats fast with 120% capacity

• Smart mode: Auto-adjusts (20-100%) for efficient, stable temperature control

• Silence mode: Runs at 20-60% capacity for ultra-quiet comfort

• Smart control & protection features: Includes optional smartphone app control, automatic defrost, soft-start protection, and a durable design backed by a reliable warranty.

• Designed to work in temperatures as low as -20°C. The COP value is a theoretical efficiency weighted against the stated variables, just like the recommended maximum bath volume. Every swimming pool and every situation is different, the circumstances (eg cover/ location/insulation/design/capacity) are never the same. The advice is therefore to always oversize and to discuss this with the customer for realistic expectations. If desired, we are happy to advise and discuss which heat pump is suitable in the relevant situation. No rights can be derived from the above values.

Turbo Mode

120% heating capacity, heat up the pool to the target temperature in less time.

REFERENCE DESCRIPTION

34-180708 InverX Jumbo 60kW

34-180709 InverX Jumbo 120kW

Smart Mode

20~100% heating capacity intelligent maintenance of pool temperature and implementation of matching optimum heating capacity.

Silence Mode

20~60% heating capacity with low-speed running, noise-free backyard vibe.

Recommendation Swimming pool max. m³ (season April - September)

Operating air temperature (°C) -20–43 Cooling gas R32

Outdoor pool - public pools

Pool temperature 26°C - equipped with roller cover and/or insulated roof.

Keep external supply and drainage pipes as short as possible and insulate them to prevent cooling.

Minimum start-up pool water temperature 10°C.

Overflow/infinity pools with 10 to 15% increase in capacity.

Continuous water flow recommended.

Indoor pool

Indoor pool 365 days.

Pool temperature 26°C - equipped with roller cover.

Room temperature 2°C above water temperature.

Keep external supply and discharge pipes as short as possible and insulate them to prevent cooling.

Overflow/infinity pools with 10 to 15% increase in capacity.

Continuous water flow recommended.

The JBR300T is subject to an annual inspection in accordance with the F-gas Regulation No. 2024/573. This heat pump is also subject to a logbook requirement.

*The advised pool volume indicated applies under following conditions: Swimming pool is well covered; system runs at least 15 hours per day;

*The final specs will be in accordance with the specs on the product.

POOL POWER PACKAGE

Pool Power Package is a high-quality range of heat pumps offering an excellent priceperformance ratio. Designed for residential pools, these heat pumps deliver high efficiency and quiet operation. With two models tailored to various pool sizes, they feature advanced technologies for optimal performance, remote control convenience, and adaptable noise levels for a customized experience.

PMH High Performance

• Efficiently expels cold air from the side.

• Ensures optimal airflow and quiet operation.

• Delivers high performance with low energy consumption.

Pulse

• Most cost-efficient unit in the range, this is our entry-level model.

• Reliable performance and consistent output.

• Very competitively priced.

• Suited for private pools.

HEAT PUMPS

PMH HIGH PERFORMANCE

3 Years warranty

PV Ready

The entire Pool Power Package series is equipped with a PV ready function. This function ensures that surplus solar energy generated can be used to heat the swimming pool. The software is able to start the heat pump via an input contact and, if desired, increase the setpoint of the desired water temperature.

Aqua Temp app for IOS and Android

REFERENCE DESCRIPTION

34-180620

34-180622

34-180624

34-180626

This energy-efficient heat pump has an A energy rating and is designed for swimming pools ranging from 35 to 75 m³. Built with a powder-coated metal housing, it features a unique patented air technology design and a Mitsubishi compressor for high performance. It operates at low noise levels without sacrificing efficiency, and includes a WiFi module and winter cover for added convenience.

The space-saving design enables versatile arrangement options, and its Full-Inverter® control adjusts power output between 25 and 100%, maximizing economic efficiency. This high-quality, PV-ready product offers user-friendly control through an advanced controller interface.

PMH High Performance 10.0kW - 230V

PMH High Performance 13.0kW - 230V

PMH High Performance 18.0kW - 230V

PMH High Performance 20.0kW - 230V

The COP value is a theoretical efficiency weighted against the stated variables, just like the recommended maximum bath volume. Every swimming pool and every situation is different, the circumstances (eg cover/ location/insulation/design/capacity) are never the same. The advice is therefore to always oversize and to discuss this with the customer for realistic expectations. If desired, we are happy to advise and discuss which heat pump is suitable in the relevant situation. No rights can be derived from the above values.

HEAT PUMPS

PMH HIGH PERFORMANCE

Space-saving in arrangement

The PMH can be installed close from a wall. Due to the unique air technology design, the air is blown out on the side of the heat pump. Depending on the capacity of the type of appliance, you must observe a distance varying from 50 cm for the PMH 10 kW model to 70 cm for the PMH 20 kW model.

Of course, you should take service accessibility of the heat pump into account at the front.

1) Pool equipped with slatted cover, swimming season end of April / end of September

2) Water 26°C / air 27°C / RH 80%

3) Water 26°C / air 15°C / RH 70%

4) Pool pump should be active 24 hours a day in spring and autumn

5) Air temperature min 15°C

PULSE

ੁ 3 Years warranty

Characteristics

• 4 models: 7 to 16 kW.

• Swimming pool volume up to 50 m³.

• Plastic design casing.

• Very high efficiency.

• Low noise level.

As the most cost-efficient model in our range, this heat pump delivers dependable performance and stable efficiency at a highly competitive price.

While positioned as the entry-level option, it incorporates the same core inverter technology found across our premium models, ensuring reliable heating performance and long-term durability for standard residential pools.

• User-friendly LCD Display.

• Controller with 3-button operation.

• 3-year warranty.

• 5-year warranty on the compressor.

• 5-year warranty on the heat exchanger.

REFERENCE DESCRIPTION

34-180615 PPP Pulse Full Inverter 7kW - 230V

34-180616 PPP Pulse Full Inverter 9kW - 230V

34-180617 PPP Pulse Full Inverter 12kW - 230V

34-180618 PPP Pulse Full Inverter 16kW - 230V

HEAT PUMPS

PULSE

The ideal situation

VERY HIGH EFFICIENCY

The PPP Pulse Full-Inverter® heat pump is equipped with a unique linear control. This linear, stepless control of the compressor between 25 and 95 Hz allows efficiencies (COP) of up to 12 to be achieved! This means that the heat pump has a power consumption of 1 kW of electricity and a maximum heat output to the pool water of 12 kW.

LOW NOISE LEVEL!

Because the PPP Pulse Full-Inverter® heat pump rarely runs at 100% of its capacity, the noise level of this continuously variable Full-Inverter® heat pump is very low. For nighttime use, the noise level can be reduced to as low as 28 dB(A) using the silence mode. This is the same noise level as whispering.

HEAT PUMPS

SPLIT FULL INVERTER

Characteristics

• Welldana® Split heat pump for indoor pools, for use all year round.

• Full-inverter technology, with variable fans and compressors.

• Intelligent control adapts the performance according to heating needs, fully automatic temperature control.

• Can also be used as a cooling machine: cools down to +8°C.

• Highly efficient titanium heat exchanger - for chlorine and salt water.

• Bluetooth and WIFI are included.

• Ø50mm connections.

• Dimension of copper pipe: 9,52 (⅜”) inlet, 12,7mm (½”) outlet (not included)

• Minimum operating temperature of -7°C

REFERENCE DESCRIPTION

34-180501 Split - Full Inverter 11,6kW

34-180502 Split - Full Inverter 16kW

HEAT EXCHANGERS

WELLDANA® PLATE HEAT EXCHANGER

Small compact heat exchanger

Characteristics

• A small compact exchanger, with high efficiency and great water flow primary and secondary.

• Powerful cooling on primary side makes it ideal to use at low inlet temperatures, such as with heat pumps (air for water/geothermal heat).

• Brackets and insulation cover not included.

• Powers up to 104kW.

• ¾” Connections.

• For chlorinated water up to 3 mg/L.

• 3 m³/h primary and secondary.

• AISI 316 Stainless Steel not suitable for salt water, choose Titanium for usage in salt water.

REFERENCE DESCRIPTION

31-160165 Plate Heat Exchanger 104kW 316L. ¾”

31-160166 Plate Heat Exchanger 104kW 316L. ¾” Titanium

HEAT EXCHANGERS

VULCAN

Compatible with chlorine, salt and seawater

Characteristics

• 4 Titanium models, which can be installed horizontally or vertically.

• Working pressure of 4 bar, with pressure tested up to 7 bar.

• Low pressure loss.

• Ø7mm x 80mm sensor pocket.

• Includes: Connections 1” primary / 50mm and 1½” Glue unions secondary.

• Includes mounting bracket for floor and wall.

• Suitable for salt water pools

WELLDANA® ELECTRIC POOL HEATER

With built-in overheat protection (HI)

Characteristics

• Strong, solid and reliable pool/spa heating source.

• Stainless heating element and heating pipe.

• Made with the best components, has built-in overheat protection and is offered in different variants - with or without a thermostat control.

• Supplied complete with adapter, fit for 50mm pipe connection. A connection cable is not included.

connection (mm)

34-110406 Welldana® Electric Pool Heater 6kW - 230/400V HI

34-110506 Welldana® Electric Pool Heater 6kW - 230/400V TE HI

34-110409 Welldana® Electric Pool Heater 9kW - 230/400V HI

34-110509

34-110412

34-110512

34-110418

34-110518

Electric Pool Heater 9kW - 230/400V TE HI

Electric Pool Heater 12kW - 230/400V HI

Electric Pool Heater 12kW - 230/400V TE HI

Electric Pool Heater 18kW - 230/400V HI

Electric Pool Heater 18kW - 230/400V TE HI

• Power supply: 230v / 400v.

• Overheat protection v/ 49°C.

• Waterflow 5 - 25 m³/h.

• Chlorine water (max 2 mg/L).

• Not suitable for use in salt water.

• Recommended (not included): Contactor box, pressure switch or a flow switch.

WELLDANA® CONTACTOR BOX

Characteristics

• Contactor box for Welldana® Electric Pool Heater 3-12kW.

• For connecting 230v / 400v electric heater.

• Complete with PG cable glands in white PVC housing case with rubber gasket.

• IPx5 protected. REFERENCE

Contactor Box f. 3-12kW Electric Heater

WELLDANA® SPA ELECTRIC HEATER

Characteristics

• For small installation spaces in spas and smaller pools.

• With HI-limit and Thermostat.

• 50mm unions

• Voltage: 230V / Current: 13A

• Heating element: uses UL-approved metal tube heating element, Incoloy 800 for high temperatures.

• Temperature settings: liquid expansion thermostat, adjust temperature between 0-45°C (automatic reset).

• Anti-dry protection: water flow switch.

• Inlet: 1” / 32mm, outlet: 1½” / 50mm

• Certificate: CE European Union mandatory safety certification, TUV German safety certification.

VisionPRO

Filters

Filter

Pumps

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter

Holiday

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance

DURAVISION

DURAVISION

DURAVISION is a full range of smartly designed Pool Light products. The innovative LED lighting solutions are assembled with high quality components and materials making them very powerful, efficient and economical in use. All DURAVISION products are attuned to each other for easy fittings and installations.

Quick Connect™

QuickConnect™ Extremely reliable and easy to mount proprietary connector with gold plated contacts. The power-line wires can be inserted without the need to be stripped and are fixed with selfpiercing contact screws.

PressFit™

PressFit™ House of DURATECH invented this adjustable light mounting system that allow pool lights to be fitted seamlessly to the wall, even if the wall conduits have been mounted nonperpendicularly.

Ultra Flat Shape

Due to the ultra flat shape the lamp can not be used as a step. Which means no damage can occur.

NoAir™

NoAir™ House of DURATECH is the pioneer in Resin filled swimming pool lights. This unique proprietary process guarantees many years of leakage- and condensation free light operation. At the same time internal reflection is eliminated, resulting in more light output.

ClickOn™

ClickOn™ House of DURATECH introduced this innovative concept of easily interchangeable face plates for pool lights. A wide selection of face plates is available allowing detailed personalization.

Part of the DuraLink™

Part of the DuraLink™ connected product range.

DURAVISION

Range overview

VISION PRO

VISION Pro is the magnificently designed pool light range with superior light outputs. All in one lamps with tunable whites and fixed colours including dynamic scenarios.Dedicated VISION Wall Conduits make ultraflat fitting possible.

ALLEGRO

The ALLEGRO series is designed based on the same platform as the VISION Pro. The lamp has a very good light output and is only available in RGB version.

ADAGIO PRO

VISION Adagio Pro lights offer you a range of fixed colours and dynamic scenarios. With just one click on the remote, you can give your swimming pool a totally different look.

SPECTRA DVS

VISION Spectra offers you the DVS range of lamps with strong levels of lumen output for fully lit pools. Available in whites and fixed colours, including dynamic scenarios. By turning the lamps OFF and quickly back ON, you can give your swimming pool a totally different look.

SPECTRA DVM

VISION Spectra offers you the DVM range of lamps with medium levels of lumen output for partially or ambiant lit pools. Available in whites and fixed colours, including dynamic scenarios.By turning the lamps OFF and quickly back ON, you can give your swimming pool a totally different look.

VISION PRO

Standard Characteristics

• 3 available diameters: 50, 100 and 170 mm

• Can be installed in most 1 1/2” wall conduits

• The 170 mm version is fully compatible with PAR56 niches

• Resin filled NoAir™ housing: impossible for water to infiltrate in the light

• The use of high quality polymers makes the

Specific for Vision PRO

• LED lifetime up to 50.000 hours

• All in one lamps RGB colour modes with smooth transitions

• Dimming possibility

• Domotica RS485 or DMX512 with LINK Controller or LINK Master

VISION Pro is the magnificently designed pool light range with superior light outputs. All in one lamps with tunable whites and fixed colours including dynamic scenarios. Dedicated VISION Wall Conduits make ultraflat fitting possible.

ੁ 3 Years warranty

light compatible with salt electrolysis

• 12 VAC / 2-wire

• A wide selection of VISION Face Plates available for personalization

• Easy to install due to features like QuickConnect™, PressFit™ and ClickOn™

• The VISION Pro RGBW lights are part of the DuraLink™ connected product range

• Very wide beam angle to avoid shaded zones in the pool

DURAVISION

VISION PRO

VISION PRO Ø 50MM

34-121044 DVP050-RGBW Vision Pro RGBW, Ø50mm

Vision Pro WH, Ø50mm

VISION PRO Ø 100MM

Vision Pro RGBW, Ø100mm

Vision Pro WH, Ø100mm

VISION PRO Ø 170MM

34-121046

Vision Pro RGBW, Ø170mm

Vision Pro WH, Ø170mm

PART OF THE DURALINK™ Part of the DuraLink™ connected product range.

DURAVISION

The ALLEGRO series is designed based on the same platform as the VISION Pro. The lamp has a very good light output and is only available in RGBW version.

ੁ 3 Years warranty

Values in graph refer to swimming pools with white or light-coloured walls that require

lm/m2. Increase the light (lumen) by 50% for medium colours. Dark walls are difficult to illuminate and need up to 250% extra light.

Standard Characteristics

To combine with Illumination per m2

WALL CONDUITS

• 3 diameters 50/100/170mm

VISION Wall Conduits 1,5” p. 20

• Available in RGBW

• RGBW: 14 fixed colour programs and white tones, control via ON/OFF or PLC communication

VISION Wall Conduits 2” (only light size 50mm) p. 22 VISION

VISION Wall Conduits Stainless steel p. 24

• 12 VAC / 2-Wire

• Polymer housing

/ POWER SUPPLY

p. 74

78

VISION Wall Conduits PP/PE p. 26

• Dimming function via PLC control

Specific

for Allegro

• Wide beam angle

• Waterproof NoAirTM housing

• PAR56 niche retrofit solution (170mm only)

• Compatible with salt electrolysis

• Quick and easy installation thanks to: QuickConnectTM, PressFitTM, ClickOnTM

• Included in packaging: Allegro lamp, 2-wire cable, 3 meters, QuickConnectTM kit with Magic Nut, Retrofit kit PAR56 niche (170mm only)

• Always to be used in combination with toroidal transformer

• Personalize with VISION Face Plates

• Free colour choice in combination with LINK Touch remote control

• Control from home automation possible via RS485 / DMX512, only in combination with LINK Controller or LINK Master

ALLEGRO

ALLEGRO Ø 50MM

ALLEGRO Ø 100MM

ALLEGRO

Ø 170MM PART OF THE DURALINK™ Part of the DuraLink™ connected product range.

DURAVISION

ADAGIO PRO

VISION Adagio Pro lights offer you a range of fixed colours and dynamic scenarios. With just one click on the remote, you can give your swimming pool a totally different look.

3 Years warranty

Standard Characteristics

• 3 available diameters: 50, 100 and 170 mm

• Can be installed in most 1 1/2” wall conduits

• The 170 mm version is fully compatible with PAR56 niches

• Resin filled NoAir™ housing: impossible for water to infiltrate in the light

• The use of high quality polymers makes the light compatible with salt electrolysis

Specific For Adagio PRO

• LED lifetime up to: 50.000 hours

• Detachable 4 m rubber cable included

• Domotica RS485 or DMX512 with LINK Controller or LINK Master

• 12 VAC / 2-wire

• A wide selection of VISION Face Plates available for personalization

• Easy to install due to features like QuickConnect™, PressFit™ and ClickOn™

DURAVISION

ADAGIO PRO

ADAGIO PRO Ø 50MM

Adagio Pro RGB Ø50mm

34-121019 PLP050-WH Adagio Pro WH, Ø50mm

34-121019-1

PART OF THE DURALINK™ Part of the DuraLink™ connected product range.

Adagio Pro WW, Ø50mm

ADAGIO PRO Ø 100MM

Adagio Pro WH, Ø100mm

Adagio Pro WW, Ø100mm

white 34-121017

Adagio Pro WH, Ø100mm

ADAGIO PRO Ø 170MM

REFERENCE

Adagio Pro RGB, Ø170mm

Adagio Pro WH, Ø170mm

Adagio Pro Tunable White, Ø170mm

DURAVISION

SPECTRA DVS

VISION Spectra offers you the DVS range of lamps with strong levels of lumen output for fully lit pools. Available in whites and fixed colours, including dynamic scenarios. By turning the lamps OFF and quickly back ON, you can give your swimming pool a totally different look. Remote control.

Standard Characteristics

• 3 available diameters: 50, 100 and 170 mm

• Can be installed in most 1 1/2” wall conduits

• The 170 mm version is fully compatible with PAR56 niches

• Resin filled NoAir™ housing: impossible for water to infiltrate in the light

• The use of high quality polymers makes the light compatible with salt electrolysis

Specific for Spectra DVS

• LED lifetime up to 30.000 hours

• Detachable 2 m rubber cable included

• 12 VAC / 2-wire

• Tunable white and RGB colour modes with smooth transitions

• 12 VAC / 2-wire

• A wide selection of VISION Face Plates available for personalization

• Easy to install due to features like QuickConnect™, PressFit™ and ClickOn™

• Not dimmable

DURAVISION

SPECTRA DVS

SPECTRA DVS Ø 50MM

34-121070 DVS050-RGB Spectra DVS RGB, Ø50mm

DVS050-WH Spectra DVS WH, Ø50mm

SPECTRA DVS Ø 100MM

34-121080 DVS100-RGB Spectra DVS RGB, Ø100mm

Spectra DVS WH, Ø100mm

Spectra DVS Tunable White, Ø100mm

SPECTRA DVS Ø 170MM

Spectra DVS RGB, Ø170mm

Spectra DVS WH, Ø170mm

DURAVISION

SPECTRA DVM

VISION Spectra offers you the DVM range of lamps with medium levels of lumen output for partially or ambiant lit pools. Available in whites and fixed colours, including dynamic scenarios. By turning the lamps OFF and quickly back ON, you can give your swimming pool a totally different look. Great to use with the optional LINK Drivers for easy remote control.

ੁ 2 Years warranty

Standard Characteristics

• 3 available diameters: 50, 100 and 170 mm

• Can be installed in most 1 1/2” wall conduits

• The 170 mm version is fully compatible with PAR56 niches

• Resin filled NoAir™ housing: impossible for water to infiltrate in the light

• The use of high quality polymers makes the light compatible with salt electrolysis

Specific For Spectra DVM

• LED lifetime up to: 10.000 hours

• Detachable 2m rubber cable included

• 12 VAC / 2-wire

• White and RGB colour modes with smooth transitions

• 12 VAC / 2-wire

• A wide selection of VISION Face Plates available for personalization

• Easy to install due to features like QuickConnect™, PressFit™ and ClickOn™

• Not dimmable

DURAVISION

SPECTRA DVM

SPECTRA DVM Ø 50MM

34-121110 DVM050-RGB Spectra DVM RGB, Ø50mm

34-121111 DVM050-WH Spectra DVM WH, Ø50mm

SPECTRA DVM Ø 100MM

Spectra DVM RGB, Ø100mm

Spectra DVM WH, Ø100mm

SPECTRA DVM Ø 170MM

Spectra DVM RGB, Ø170mm

Spectra DVM WH, Ø170mm

VISION WALL CONDUCTS

Because there are many types of pools and materials, the DURAVISION family offers a wide range of VISION Wall Conduits for any kind of application. In most conduits the internal cable gland keeps the cable tube dry and allows for cable replacement.

The inside of our rugged and indestructible conduit can hold a cable long enough to reach above the surface of the water, changing a light has never been easier.

CONCRETE OR STONE WALL POOLS, LINER, MOSAIC POOLS

REFERENCE CODE DESCRIPTION

34-121007 PZA-WC-NG Wall conduit to D50/63mm

FOR PREFAB POOLS

REFERENCE CODE DESCRIPTION

34-121008 PZA-WTM-NG Wall conduit to D50/63mm

FLEX TUBE

Standard pass-throughs are no longer supplied with flex pvc pipe. Optional order through the reference below.

34-121008-1

34-121008-2

REFERENCE CODE DESCRIPTION

34-121008-1 PZA-FLEX-S Vision Wall Through - Flex Tube & Angle

34-121008-2 PZA-FLEX-NG Vision Wall Through - Flex Tube & 90° bend

VISION FACE PLATES

A wide selection of VISION Face Plates is available for the VISION Spectra, VISION Adagio Pro and VISION Pro to offer you the opportunity to give a personal touch to your pool.

TYPE RA/RN - FOR ALL TYPE OF POOLS

REFERENCE CODE

Standard Face Plate - For all types of pools

34-121013

34-121014

34-121020-2

34-121005

34-121006

34-121006-1

34-121006-2

34-121027

PZA100-RA-WH

PZA100-RA-SW

PZA100-RA-DG

PZA170-RA-SS

PZA170-RA-WH

PZA170-RA-LG

PZA170-RA-DG

PZA170-RN-SW

TYPE RF - SOLID, WARM AND MODERN LOOK

REFERENCE CODE

Standard Face Plate - For all types of pools

34-121004-1

34-121020

PZA050-RF-WH

PZA050-RF-SS

34-121016 PZA100-RF-SS

34-121004-3

34-121004-4

PZA170-RF-WH

PZA170-RF-SS

DESCRIPTION

Standard Face Plate PZA 100mm - White

Standard Face Plate PZA 100mm - Sand

Standard Face Plate PZA 100mm - Dark Grey

Standard Face Plate PZA 170mm - Stainless Steel

Standard Face Plate PZA 170mm - White

Standard Face Plate PZA 170mm - Light Grey

Standard Face Plate PZA 170mm - Dark Grey

Standard Face Plate PZA 170mm - Sand

DESCRIPTION

Standard Face Plate PZA 50mm - White

Standard Face Plate PZA 50mm - Stainless Steel

Standard Face Plate PZA 100mm - Stainless Steel

Standard Face Plate PZA 170mm - White

Standard Face Plate PZA 170mm - Stainless Steel

ULTRA FLAT FOR ALL MODELS 50MM, 100MM & 170MM

LINK MINI

Characteristics

• Control unit for DURAVISION LED lights.

• Black polymer cabinet, with built-in transformer.

• Connected with our DURA Cloud App by Bluetooth and Wi-Fi.

• OneTouch LED, indicates the state of the controller.

• Push the OneTouch LED, to switch the LED lights ON or OFF.

• Basic ON/OFF communication technology, for all DURAVISION lights.

• Connect several controllers to operate as one, using the RS485 connection.

MODEL LINK-MINI-60

Type of control DURAVISION ON/OFF & DuraNet

DURA Cloud App Check

Bluetooth BLE

Wi-Fi 2,4GHz

Check

Check

Nominal input voltage 230 VAC

Built-in torodial transformer Check

Transformer VA rating 60 VA

Output voltage (SELV) 12 VAC

Warranty 2 year

REFERENCE DESCRIPTION

34-121160 LINK Mini, Control unit-LED Lights 60VA

• Advanced and unique DuraNet Communication Technology* in combination with compatible DURAVISION Lights:

- Free choice of colour

- Dimming

- DMX512/RS485 compatible

- Automatic synchronisation

• Compatible with: Spectra DVM, Spectra DVS, Adagio Pro, Vision Allegro, Vision Pro, Vision Moonlight

LINK ONE

Characteristics

• Control unit for DURAVISION LED lights.

• Quick installation, wall mounting bracket and pushin connectors reduce installation time and effort.

• Stable 12VAC output regardless of the voltage input.

• Connected with our DURA Cloud App by Bluetooth and Wi-Fi.

• OneTouch LED, indicates the state of the controller. Push the OneTouch LED, to switch the LED lights ON or OFF.

• Basic ON/OFF communication technology, for all DURAVISION lights.

34-121162 LINK One, Control unit-LED Lights 120VA DURAVISION

Option modules - Only 1 option module can be installed.

RS485/DMX512 MODULE

ACCS-LINK-004

Connect the LINK One to the home automation system via the RS485/DMX512 module. Use the RS485/DMX512 module to connect several controllers to operate as one.

REFERENCE DESCRIPTION

MODEL

LINK-ONE-120

Type of control DURAVISION ON/OFF & DuraNet

DURA Cloud App Check

Bluetooth BLE Check

Wi-Fi 2,4GHz Check

LINK Touch compatible Optional via LoRa module

Nominal input voltage 230 VAC

Ouput power 120 VA

Ouput voltage (SELV) 12 VAC

Relay contacts Optional via LoRa module

RS485/DMX512 Optional via RS485/DMX512 module

Warranty 2 year

• Advanced and unique DuraNet Communication Technology* in combination with compatible DURAVISION Lights:

- Free choice of colour

- Dimming

- Automatic synchronisation

• An extension board with six additional connectors for LED lighting is available as an optional add-on for the LINK One.

• Compatible with: Spectra DVM, Spectra DVS, Adagio Pro, Vision Allegro, Vision Pro, Vision Moonlight

LORA MODULE - ACCS-LINK-003

The LoRa module enables wireless communication between the LINK One controller and the remote controls LINK Touch and TX868. The module has 2 relay contacts to control external devices, such as garden lights or pool covers. The antenna can be extended using the 10-metre extension cable (ACCS-LINK-001).

LINK THREE

Characteristics

• Control unit for DURAVISION LED lights.

• Quick installation, wall mounting bracket and pushin connectors reduce installation time and effort.

• Stable 12VAC output regardless of the voltage input.

• Connected with our DURA Cloud App by Bluetooth and Wi-Fi.

• OneTouch LED, indicates the state of the controller.

• Push the OneTouch LED, to switch the LED lights ON or OFF.

• Basic ON/OFF communication technology, for all DURAVISION lights.

• Connection to home automation system via RS485 or DMX512.

• Control of external devices such as garden lighting or pool cover via 3 onboard relay contacts.

Option modules - Only 1 option module can be installed.

LORA MODULE - ACCS-LINK-003

The LoRa module enables wireless communication between the LINK One controller and the remote controls LINK Touch and TX868. The module has 2 relay contacts to control external devices, such as garden lights or pool covers. The antenna can be extended using the 10-metre extension cable (ACCS-LINK-001).

REFERENCE DESCRIPTION

34-121164 LINK Three, Control unit-LED Lights 340VA

MODEL LINK-THREE-340

Type of control DURAVISION ON/OFF & DuraNet

DURA Cloud App Check

Bluetooth BLE Check

Wi-Fi 2,4GHz Check

LINK Touch compatible Optional via LoRa module

Nominal input voltage 230 VAC

Output power 340 VA

Output voltage (SELV) 12 VAC

Relay contacts

RS485/DMX512

Warranty

3 + 2 Optional via LoRa module

2 Optional via RS485/DMX512 module

2 year

• Advanced and unique DuraNet Communication Technology* in combination with compatible DURAVISION lights:

- Free choice of colour

- Dimming

- LINK Touch compatible, if the option module is installed

- DMX512/RS485 compatible

- Automatic synchronisation

• Connect several controllers to operate as one, using the RS485 connection.

• Compatible with: Spectra DVM, Spectra DVS, Adagio Pro, Vision Allegro, Vision Pro, Vision Moonlight

OVERVIEW CONTROLLERS

DURAVISION

LINK TOUCH

PART OF THE DURALINK™ Part of the DuraLink™ connected product range.

LINK Touch is much more than a remote control. Operating your pool lights, heat pump and pool cover remotely becomes child’s play with this fantastic control tablet. You can read and adjust the water temperature at a glance.

Easily open or close your pool cover with one touch of a button. LINK Touch controls all colour programs & intensity of your pool lights by switching between the various colour programs or just by swiping across the screen. It can also be used in the dark, as the screen is fitted with LED lights that clearly display the various settings. It can be charged with the supplied adapter with an usb connection.

This high-tech remote control is easy to store as it can be clicked onto the included wall mount.

Characteristics

• Operates the heat pump, pool lighting and cover

• Stable long-range wireless technology

• Stand-alone or wall mounted

• Portable with long life battery

• Rechargeable via USB port

• Sleek and modern design

• Clear display

Compatible with

• VISION Adagio Pro

• VISION Pro

• VISION Allegro

• LINK Controller

• LINK Master

DURAVISION

LINK TOUCH

1. Colour temperature:

Slide to the right to adjust the pool light from “warm white” to “cool white”

2. ON/OFF Lights:

Press to switch all lights ON/OFF

PART OF THE DURALINK™ Part of the DuraLink™ connected product range.

7. ON/OFF heat pump:

Press to switch pool heat pump ON/OFF

8. Pool water temperature:

Press to decrease desired temperature

3. Colour wheel:

Slide to change colour of pool lights

4. Colour program:

Press for previous colour program

5. Colour program:

Press for next colour program

6. Dimming level:

Slide to the right to increase the brightness of the pool lights

DLT10-RGB

REFERENCE DESCRIPTION

34-120950 Link Touch RGB

9. Pool water temperature:

Press to increase desired temperature

10. Pool cover:

Press and hold to open the pool cover.

When finger is removed from the button the cover will stop immediately

11. Pool cover:

Press and hold to close the pool cover.

When finger is removed from the button, the cover will stop immediately

• Pool light model: RGB – Full colour

• Standby time: 30 days

• Wall mount & battery charger included

• IP rating: IP 20

• Unit dimensions (L*W*H): 186*88*17 mm

SEAMAID

LED FLAT LAMP

Characteristics

• An LED lamp ideal for pools with concrete walls.

• To be mounted in a 1½” nozzle/vacuum suction (not included).

• Comes supplied with a 2m cable and 2-part installation kit - a 3-part installation kit for above-ground pools are available but not included.

• Size : Ø290mm

• Dispersion angle : 120°

• RGB comes with a remote control, and has 11 colours and 5 automatic programs available.

• RGB includes memory of last program used, and a ‘reset’ fuction.

• Can illuminate a pool up to 5x10m.

• Front flanges can be ordered in various colours.

LED NOZZLE MINI LAMP

Characteristics

• A mini pool lamp to be mounted in a nozzle or vacuum suction (not included).

• Comes supplied with a 2m cable.

• 3-part installation kit (above-ground pools) and 2-part installation kit (concrete pools) are available but not included.

• Inner size : Ø44mm

• Outer size : Ø49mm

• Thread size : 1½”

• Dispersion angle : 120°

SEAMAID

PAR 56 POOL LAMP

Characteristics

• Pool lamps with Par 56 bulbs, for installation and use underwater.

• The lamp is supplied complete with lamp housing, gaskets, bulbs, cable and flex pipe.

• For use in concrete and liner pools.

• Compatible transformer and/or electrical junction box is availale, but not included.

• Size : Ø279

POOL BULBS

Replacement bulbs for Par 56 underwater pool lamps. Bulbs are LED and available in three colours: RGB, White Daylight (6500K), or White CTC (Colour Temperature Change).

SEAMAID

PAR 56 POOL LAMP

POOL INSERTS

Lamp inserts for exisiting Par 56 installations. Two different attachment types available: clips or screws.

REFERENCE

34-113430

ACCESSORIES

POWER SUPPLY

Power supply for Seamaid lighting. 220V (AC) - 20V (DC).

REFERENCE DESCRIPTION

34-131056

34-131057

Seamaid Power Supply - 40W

Seamaid Power Supply - 120W

ACCESSORIES

REMOTE CONTROL

Seamaid Remote Control set with 4 channels. 12V (AC) or 14V-24V (DC).

REFERENCE DESCRIPTION

34-131058 Seamaid Remote Control Set

PAR 56 RETROFIT SOLUTIONS

RETROFIT-TWIST

A retrofit solution designed for standard wall conduits, compatible with sizes ranging from 85 mm up to the maximum dimensions supported by our VISION Face Plates. The 1½” cross can be extended to seamlessly fit into existing wall conduits.

REFERENCE DESCRIPTION

39-121011 VISION Retrofit Solution Cross with 12 Extenders

TRANSFORMERS

TOROIDAL TRANSFORMERS

Transformer 230V / 12V for pool and spa lamps. Good quality for long and reliable durability. 12V cable not included. 2x100 / 120VA. IP55. 120VA version for LED lights.

REFERENCE DESCRIPTION

34-121055 Ringkerne Transformer 2x100 VA

34-121050 Ringkerne Transformer 120 VA

WELLDANA® TRANSFORMERS

Spa Transformer

• For pool and spa lamps

• 230V / 12V, 60 VAC

• Long and reliable durability

• Delivered with 230V connection cable

• IP25

• 12V cable not included

Pool Transformer

• For pool and spa lamps

• 230V / 12V, 300 VAC

• Long and reliable durability

• Delivered with 230V connection cable

• IP43

• 12V cable not included

REFERENCE DESCRIPTION

64-350148

34-353002

Welldana® Spa Trafo 60VA

Welldana® Pool Trafo 300VA

Filters

Filter Media

Pumps

09 Counter Current

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

Covers

EVASTREAM NEXT COMPLETE SET

EVAstream Next

The EVAstream Next range on the next pages.

EVA LED SubAqua underwater lighting

The EVA LED SubAqua underwater lights complete the EVAstream Next experience. The underwater lighting guides you through the training. The changing light colours give you orientation within the exercise and motivate you as well.

Lights available on request.

Technical

The motor control unit (MCU) of the EVAstream Next and the power supply units (PSU) of the underwater lighting are placed in the technical area near the pool. Ensure that the MCU and PSU are placed with the cable glands facing down.

EVA Experience web app

The EVAstream Next is standard supplied with an EVA Experience Controller (ECA), which gives users access to the EVA Experience Web App. In the web app you can select at which speed you’d like to swim and for how long. Or select one of the preset workouts to challenge yourself even more. If you have an EVAstream Next with EVA underwater lights, the lights can be synchronized during a selected swim workout, guiding you through the exercises.

Web app for controlling EVA lights

The EVA Stream Next comes with a remote control as standard.

On/Off

Harder/Softner

In increments of 5% and stepless from 0 to 100%

The EVA Experience web app can also be used to control your EVA lights. Set different zones for synchronizing the lights per area, dim the lights, pick a preset colour or opt for a colour changing scene, easy. If you have only EVA lights and no EVAstream Next, you will need the separately available EVA Experience Controller (EVA-ECA-PRO) to be able to use the web app.

EVA Experience Tablet Set for easy control

The EVA Experience web app can be accessed through a tablet (see technical requirement to check which tablets are suitable). We recommend using an iPad 9th gen for the best experience. Also usable on smartphone.

If you would like to make optimal use of all the features of the Eva Experience app, we can offer you a training session. This training will enable you to fully utilize the app’s potential and use all its functions efficiently. Would you be interested in scheduling a training session?

EVASTREAM NEXT

Counter-current swimming machine

EVAstream Next is the innovative swimming machine that turns any pool into a professional training facility, fitness hub, and unique water attraction. Experience the feeling of swimming in a 25-meter pool in your own swimming pool at home.

With the EVAstream Next, even compact pools (minimum size: 4.5m x 2.5m) become high-performance training spaces. This revolutionary device is super powerful, ultra-stable, and energy-efficient, making it ideal for swimmers of all levels, including competitive athletes.

Challenge yourself with intense swim training, refine your technique, boost your endurance, and build your physical fitness: all from the comfort of home.

Power over volume!

Because of its innovative approach, the flow of the EVAstream Next is powerful and reaches further into the pool. This makes the effective swim zone much larger, for a fantastic experience. Swimming at a greater distance from the machine, gives more space for swimming freely. There is enough room to accelerate without hitting the pool wall. This makes the experience of swimming in the EVAstream Next very natural. In short: unrestrained swimming as in a public pool, but now in the privacy of your own pool.

SWIMMINGZONE 3METER

EVASTREAM NEXT FACTS

• Outlet speed: max.2x 6.7 m/sec

• Swimming zone: 1:05 s per 100 m

• Flow rate: max.550 m3 4,5METERS 2,5METERS

Healthier with the EVAstream Next

Swimming is very healthy. Regular swimming trains all muscle groups and strengthens your entire body. A true full-body workout without injury.

But swimming is also good for your mind. The silence in the water, the repetitive swimming movements, combined with the synchronized multicolour EVA underwater lighting will bring you complete peace of mind. Swimming in the EVAstream is almost meditative; relaxation through exertion.

Swimming in the EVAstream is good for your heart and lungs, muscle strength and endurance. It reduces stress, improves sleep and provides energy. That is why an EVAstream is part of the standard equipment for every swimming pool. EVAstream takes fitness to a whole new level!

“The EVAstream Next offers the perfect combination of efficient flow rate and fast current speed. This results in a superior swimming experience.”

EVASTREAM NEXT

Characteristics

• Turn any swimming pool into a state-of-the-art training facility.

• The recessed mounted counter current is designed to be installed within a niche in the pool wall.

• Frontplate available in White ABS plastic

• Utilizes turbine-driven technology, which yields significant results in water speed.

• Comes with a range of pre-programmed training sessions - eg. intervals, sprints and endurance elements.

• Working water temperature: 5°C to 35°C

Recommended use

Recreational swimmer

Flow capacity (m³/h) 45 - 225 (adjustable flow)

Water flow speed (m/s) 1,1 - 5,5

Swim speed in swimzone 1:40 sec. per 100m

Minimum pool dimensons (LxW) 4,5 x 2,5m

Motor Control Unit

Dimensions (LxWxH) 290 x 105 x 91mm

IP Rating IP 20

Working temperature -20°C to 32°C, dry and condensation-free area

Safety measures Short circuit, overload, over volate, over temperature, EVA Torque control, Voltage/current control, Mosfet temperature control

Electrical Specifications Input

Turbine

Specifications Output

Number of turbines

IP rating

Motor

TAIFUN

REFERENCE DESCRIPTION

36-447620 Taifun Counter Current - 2,6kw 3x400V

36-447610 Taifun Wall Pack 24cm

36-447650 Handlebar for Taifun - Stainless Steel

36-447655 Flange set for Taifun

JUNIOR

REFERENCE DESCRIPTION

36-428063 Junior Counter Stream - 400V

36-428000 Junior Wall Pack 24cm

36-428080 Flange kit Junior

36-428090 Handrails Junior

39-420010 Front plate for Junior

Characteristics

• Made of bronze

• Visible parts in stainless steel AISI 316/nickel-tin-plated.

• Suction carried out according to DIN standard.

• Handlebar optional

Motor power P1 = 3,4 kW Pump capacity max 60 m³/h Motor voltage 3~230/400 V Pipe connection (cast-in part) 21⁄2”F suction and 21⁄2”press

Amps 230/400 8.7/5.0A Material Bronze (rotguss) and stainless steel 316 finish in bath

Characteristics

• Made from stainless steel (316L) and cast iron.

• Pump made from gun metal.

• Adjustable inlet pneumatic switch and air intake for visible water jet.

• Piezo start/stop includes analog timer function (auto stop)

• Handlebar optional

Motor input (P1) 2,8 kW Motor output (P2) 2,2 kW Motor voltage 3~230/400 V Flow rate 800 L/min (pressure 1 bar) Speed (Dist. >2m) 1,5 m/sec Material 316L SS & cast iron

CALYPSO

Characteristics

• Made from solid white PVC - ABS

• Adjustable Ø40mm nozzle, pneumatic control and air intake for visible water jet

• Includes ball valves and switch box.

• For use on liner or concrete pools.

• Excludes pipes, fittings and connection cables.

ੁ 3 year warranty

REFERENCE

DESCRIPTION

36-284185 Calypso Counter Stream 2,5HP - Liner

36-284260

Calypso Counter Stream 3,5HP - Liner

36-284330 Calypso Counter Stream 4,5HP - Liner

36-284410

36-294185

Calypso Counter Stream 5,5HP - Liner

Calypso Counter Stream 2,5HP - Concrete

36-294220 Calypso Counter Stream 3,0HP - Concrete

36-294260 Calypso Counter Stream 3,5HP - Concrete

36-294330 Calypso Counter Stream 4,5HP - Concrete

39-284096 Front plate for Calypso

39-284097 K-Power Swim Electrical Box

SWIMJET H SERIES

Turbo-Charged Performance

The SwimJet H is engineered for unmatched aquatic performance, delivering an intense and immersive swimming experience. Powered by InverTurbo Tech, it pushes water flow up to 240 m³/h, creating a dynamic, turbo-charged environment that simulates natural waves. Its advanced PMSM motor, offering up to 1250W output, ensures exceptional efficiency and smooth operation, while the patented flow channel accelerates water velocity to 4.2 m/s for superior propulsion and reduced drag.

Elegant Design with Complete Control

Perfect for both new pool builds and renovation projects, the SwimJet H features a sleek, built-in design that blends seamlessly into modern aquatic spaces. Users can personalize their experience with five waving modes and enjoy complete flexibility through multiple control options, including remote control, mobile app control, and a touchscreen panel.

SWIMJET H SERIES

InverTurbo Tech

Delivers class-leading water flow up to 240m³/h for an intense and exhilarating waving experience

PMSM Motor

Next-gen permanent magnet motor with up to 1250W output, offering higher efficiency and smoother performance than traditional motors.

Designed for Speed

Innovative internal flow design boosts water velocity to 4.2m/s, reducing drag and maximizing propulsion.

Characteristics

• Class-leading 240 m³/h water flow

• High-efficiency 1250W PMSM motor

• Patented high-speed flow channel

• Multidirectional, natural wave simulation

• Sleek built-in modern design

• Four versatile control options

REFERENCE

Filters

Filter Media

Pumps

Flow Fittings

Holiday House Hot Tub

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

Covers

Developed for Rental Houses

Smarter

Designed by guests, service technicians and rental agencies.

Meets the requirements for the Gold Pine Cone Award, which rental agencies focus on. Read more on Welldana’s website.

COMFORTANA PRO X3

The Comfortana Pro X3 is a semi-automatic 5-person outdoor spa for rental homes.

It is the latest generation of Comfortana Pro, and has been developed and designed in collaboration by Danish summerhouse owners, rental agenices, service technicians, Welldana dealers and Welldana. Safety, user-friendliness, economy, energy optimisation, and servicing between rental, among other things, where the focus during development.

The Comfortana Pro X3 is the perfect choice for any holiday house.

Characteristics

• Dimensions: 210 x 210 x 92cm

• 42 jets

• Volume: 1200 L, weight (empty): 375 kg

• User-operated spa startup

• Simple operation for users

• Minimal service for agenices/technicians

• Automatic water filling and refilling

REFERENCE

61-997113

61-997114

• 100% drainage

• Lockable cover

• Emptying time: 10 minutes

• Fast heating with 9kW electric heater: 38°C in approx. 4 hours

• Foam insulated

• Multicoloured therapy LED lights

• Supplied including Thermal Cover and black 2-step plastic stairs

DESCRIPTION

COLOUR

Comfortana Pro X3 - Odyssey Odyssey

Comfortana Pro X3 - Sterling Silver Sterling Silver

HYDROBRAIN

Control your Comfortana Pro X3 spa with HydroBrain.

The HydroBrain is a flexible controller designed for managing energy-intensive systems such as pools and hot tubs. It combines local control with cloud connectivity, making it suitable for both private installations and professional environments such as rental properties or service companies.

Characteristics

Customer Value

1. Optimized energy costs through automated price-based control.

2. Greater sustainability by aligning consumption with greener electricity hours.

3. Remote monitoring and fault detection, reducing service time and costs.

4. A single controller platform that can adapt to a variety of system types.

• Customizable Setup: can be configured for different purposes (pool, spa etc.).

• Onboard Energy Meter: measures real-time energy consumption and enables intelligent fault dignostics based on energy patterns.

• Smart Energy Optimization: shifts heating to the cheapest hours by continuously monitoring electricty prices.

• Connectivity: WiFi included (optional Ethernet for professional use).

• Cloud Solution: remote monitoring, data logging, alerts, and control from the 4Power platform.

• App Access: mobile app for end-users to manage heating, view electricity prices, and follow consumption. Available for iOS and Android.

• Warranty: 4 years.

REFERENCE DESCRIPTION

64-106000 HydroBrain - Comfortana Pro X3 controller

Filters

Filter Media

Pumps

Flow Fittings

Pool Control & dDosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

Covers

MILANO

Characteristics

• Can be installed fully in-ground, partially in-ground or above-ground.

• Liner comes as standard in Adriatic Blue (0,6mm / 0,8mm / 1mm).

• 12 different liner colours are available for a surcharge.

• Clamp strip with ‘liner lock’ system.

• Delivered unassembled.

• Steel wall - 1,2 : 0,6mm / 1,35m : 0,7mm / 1,5m : 0,7mm

• Milano pool cover (with zipper) also available for purchase in all sizes.

STEEL POOLS

MILANO

Milano is a round-shaped, high quality steel pool.

It is supplied with a strong galvanized and coated steel panel, PVC top and bottom strips, galvanized iron supports and a customised liner. The pool is offered in many size variants, is low in price and relatively easy to set up. Milano can be installed above-ground, partially in-ground or be placed fully in-ground.

TOSCANA

Characteristics

• For in-ground installation - must be mounted on a firm concrete base with a retaining wall on the 2 straight sides of the pool.

• Liners comes as standard in Adriatic Blue - 12 different colours available for a surcharge.

• Clamp strip with ‘liner lock’ system.

• Delivered unassembled.

• Steel wall - 1,2 : 0,6mm / 1,35m : 0,7mm / 1,5m : 0,7mm

• Toscana pool cover (with zipper) also available for purchase in all sizes.

STEEL POOLS

TOSCANA

Toscana is an oval-shaped, high quality steel pool - for in-ground installation. It is supplied with a strong galvanized and coated steel panel, PVC top and bottom strips, galvanized iron supports and a customised liner. The pool is offered in many size variants, is low in price and relatively easy to set up.

ELBA

Characteristics

• Must be installed on a solid base and can be mounted fully in-ground, partially in-ground or above-ground.

• Liner comes as standard in Adriatic Blue (0,6mm / 0,8mm / 1mm).

• 12 different liner colours are available for a surcharge.

• Clamp strip with ‘liner lock’ system.

• Delivered unassembled.

• Steel wall - 1,2 : 0,6mm / 1,35m : 0,7mm / 1,5m : 0,7mm

• Elba pool cover (with zipper) also available for purchase in all sizes.

STEEL POOLS

ELBA

Elba is a figure 8-shaped, high quality steel pool.

It is supplied with a strong galvanized and coated steel panel, PVC top and bottom strips, galvanized iron supports and a customised liner. The pool is offered in many size variants, is low in price and relatively easy to set up.

Elba can be installed above-ground, partially in-ground or be placed fully in-ground.

COVERS

REFERENCE DESCRIPTION

MILANO

38-710350 Milano Pool Cover Ø3,5m

38-710416

Milano Pool Cover Ø4,16m

38-710500 Milano Pool Cover Ø5m

38-710600 Milano Pool Cover Ø6m

38-710700 Milano Pool Cover Ø7m

38-710800 Milano Pool Cover Ø8m TOSCANA

38-733205 Toscana Pool Cover 3,2 x 5,25m

38-733206 Toscana Pool Cover 3,2 x 6m

38-733507 Toscana Pool Cover 3,5 x 7m

38-734108 Toscana Pool Cover 4,16 x 8m

38-734110 Toscana Pool Cover 4,16 x 10m

38-735009 Toscana Pool Cover 5 x 9m

38-735011 Toscana Pool Cover 5 x 11m ELBA

38-723252 Elba Pool Cover 3,2 x 5,25m

38-723662 Elba Pool Cover 3,6 x 6,25m

38-724672 Elba Pool Cover 4,6 x 7,25m

38-725085 Elba Pool Cover 5 x 8,55m

Characteristics

• Strong pool covers with zipper for all steel pools.

• Manufactured in strong quality special foil, with YKK zipper.

• Can withstand a load of up to 100kg.

• Suitable for use all year round.

• Storm and rain safe.

• UV-protected.

• For mounting under the top strip - can easily be retrofitted in the pool with the ‘liner lock’ top strip.

• Available in sizes for all steel pools.

LINERS

Liners for replacement in all pools are available - all sizes.

The liner comes as standard in Adriatic Blue, but 12 liner colours are available. Adriatic Blue is available in 0,6mm, 0,8mm and 1mm sizes, other colours are available in 0.8mm, and they can be purchased for either 1,2m or 1,5m depth pools.

Surcharge for solid colour liners: +20% (compared to 0,8mm Adriatic Blue liner)

Surcharge for patterned liners: +40% (compared to 0,8mm Adricatic Blue liner)

Ĉ 6 Years warranty for 0,6mm liners

Ĉ 8 Years warranty for 0,8mm liners

Ĉ 10 Years warranty for 1mm liners

Filters

Filter Media

Pumps

12 Liners

Haogenplast

Haogenplast

Haogenplast

Haogenplast

Accessories

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

Covers

Haogenplast Pools App

Discover your favorite Haogenplast pool lining designs with ease!

HAOGENPLAST CLASSIC

Haogenplast lining is designed to protect the pool structure from damage caused by water, chemicals, and everyday wear and tear. It is made from a combination of materials, such as reinforced PVC or polyethylene, that provide excellent resistance to UV rays, abrasion, and punctures. The lining contains a reinforcing layer, usually made of polyester or fiberglass, which strengthens the overall structure and improves its ability to withstand pressure and stress. Thanks to its lacquer finish, this liner can withstand temperatures of up to 32°C.

Haogenplast Classic - White

Haogenplast Classic - Light blue

Haogenplast Classic - Light grey

Haogenplast Classic - Dark grey

Haogenplast Classic - Adriatic Blue

Haogenplast Classic - Sand

Length: 25m Thickness: 1,5mm Rolls / pallet: 12

LIQUID PVC

37-510000

37-510001

37-510002

37-510003

37-510004

PVC Classic / 3D Uni - White 1L

PVC Classic / 3D Uni - Light Blue 1L

PVC Classic / 3D Uni - Light Grey 1L

PVC Classic / 3D Uni - Dark Grey 1L

PVC Classic / 3D Uni - Adriatic Blue 1L

37-510005 Liquid PVC Classic / 3D Uni - Sand 1L

m²/roll

m²/roll

m²/roll

m²/roll

m²/roll

HAOGENPLAST 3D UNI

Introducing our premium 3D-Uni pool membrane range, developed from the proven StoneFlex formulation. Available in white, cream, blue, light blue, light grey, and grey, the 3D-Uni range offers exceptional durability and a refined stone-like finish. With superior resistance to abrasion, stains, microbes, UV, chlorine, and color fading. With its enhanced slip resistance and acrylic protection, it delivers lasting performance and elegance.

REFERENCE

REFERENCE DESCRIPTION

37-510004 Liquid PVC Classic / 3D Uni - Blue 1L

37-510001 Liquid PVC Classic / 3D Uni - Light Blue 1L

37-510000 Liquid PVC Classic / 3D Uni - White 1L

We recommend that you includes your badge numbers in your records

HAOGENPLAST 3D UNI

HAOGENPLAST STONEFLEX

The exclusive StoneFlex designs make it possible to build or renovate a pool using a water-tight membrane with a 3D surface that looks like real stone. StoneFlex membranes are formulated with an enhanced surface coating which ensures superior stain resistance, easy cleaning, and exceptional UV resistance, as well as a dry-stone feel and non-slip grip. StoneFlex surfaces are covered with 6 layers of protective acrylic coating. This membrane withstands temperatures of up to 32°C and comes with a 5-year guarantee against stains and discolouration.

Liquid PVC

REFERENCE DESCRIPTION

37-590005 Liquid PVC StoneFlex - Concrete 1L

37-590010 Liquid PVC StoneFlex - Bazelet / Slate 1L

37-590015 Liquid PVC StoneFlex - Ivory 1L

We recommend that you includes your badge numbers in your records

HAOGENPLAST STONEFLEX

37-590020 Liquid PVC StoneFlex - Forest 1L 37-590025 Liquid PVC StoneFlex - Royal 1L

37-590030 Liquid PVC StoneFlex - Sand 1L

37-590035 Liquid PVC StoneFlex - Pearl 1L

We recommend that you includes your badge numbers in your records

HAOGENPLAST STONETILE

Haogenplast StoneTile designs offer an exceptional waterproofing solution for constructing or renovating private pools. Crafted with premium materials, the StoneTile range features an advanced surface coating for outstanding stain resistance, superior UV protection, and a textured, nonslip grip for extra safety. Tile dimensions generally measure around 40cm by 20cm. This membrane withstands temperatures of up to 32°C and comes with a 5-year guarantee against stains and discolouration.

37-591170

37-591171

37-591172

StoneTile - Emerald

StoneTile - Golden

StoneTile - Grey

REFERENCE DESCRIPTION

37-590020 Liquid PVC StoneTile - Emerald 1L

37-590050 Liquid PVC StoneTile - Grey 1L

37-590055 Liquid PVC StoneTile - Golden 1L

We recommend that you includes your badge numbers in your records

HAOGENPLAST STONETILE

StoneTile - Elegance

REFERENCE

37-590045

37-590052

We recommend that you includes your badge numbers in your records

ACCESSORIES

LINER UNDERLAY

For: protection of foil/liner

REFERENCE DESCRIPTION

37-464010 Liner Underlay 2,2x60m - 3mm thick

GLUE - LINER/CONCRETE

REFERENCE DESCRIPTION

37-531050 Glue f. Liner / Concrete 5L

WELDER

REFERENCE DESCRIPTION

37-421600 Welder 1600W 230V - incl. metal box

THF WELDING FLUID

REFERENCE DESCRIPTION

37-531000 THF Welding Fluid 1L

METAL LINER

REFERENCE DESCRIPTION

37-100500 Metal Liner 5x200cm - Straight

37-102500 Metal Liner (5x5)x200cm - Angular

WIDE SLOT NOZZLE

For: use with welder

REFERENCE DESCRIPTION

37-422020 Wide Slot Nozzle 22,5° - 20mm

37-422040 Wide Slot Nozzle 22,5° - 40mm

37-422021 Wide Slot Nozzle 90° - 20mm

ACCESSORIES

FOIL SCISSORS

REFERENCE

37-424030 Foil Scissors 260mm

REPAIR KIT

For: repairing smaller holes in foil/liner

BRASS BRUSH

PRESSURE ROLLER

TEST NEEDLE

For: checking foil welding

Filters

Filter Media

Pumps

13 Formworks

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

Covers

THERMOSTONE

Building with Thermostone? Fast sustainable and child’s play!

Solid construction is essential for a quality pool. With Thermostones, you build a durable pool quickly and efficiently. Sounds like music to your ears? If we add to that the fact that these building blocks also make a considerable difference to your energy bill, you’re convinced.

Thermostones: fast and sustainable building becomes child's play!

• Quick and easy to install

• Excellent insulation

• Make shapes to customer specifications

• No additional treatment required of the inner wall thanks to the smooth finish

• Extra strength with the PS80 variant

THERMOSTONE

Easy to cut to size

Building blocks made of polystyrene Rapid construction method High insulation value

Resistant to deformation

Technical specifications

• Material strength PS40/80

• 3.33 per m² (10 blocks per 3 m2)

• Thermal transmittance (U-value) 0.32 W/m²K

• 0.14 m³ filler concrete per m² of building blocks

• Can be filled up to a depth of 1.75 m with sprayed concrete

Calculation example number of bricks required in combination with concrete filling in m³

DIMENSIONS (WxLxD) THERMOSTONE

2,5 x 5 x 1,5m 80 pieces / 3,5 m³

3 x 6 x 1,5m 95 pieces / 4,2 m³

3,5 x 7 x 1,5m 110 pieces / 5,0 m³

4, x 8 x 1,5m 125 pieces / 5,5 m³

REFERENCE DESCRIPTION

38-573010 Thermostone Plus 80/40

38-573015 End Piece Thermostone Plus

DIMENSIONS (WxLxD) THERMOSTONE 4 x 10 x 1,5m 145 pieces / 6,5 m³ 4,5 x 9 x 1,5m 140 pieces / 6,0 m³ 5 x 10 x 1,5m 160 pieces / 7,0 m³ 6 x 12 x 1,5m 185 pieces / 8,0 m³

THERMOSTONE

STEP BY STEP

• Excavate and prepare for concreting

• Fix relevant steel reinforcement

• Pour concrete for pool base

• Finish base to the desired level

• Install the reinforcing bars

• Complete the installation of the reinforcing bars

• Light niches and other wall fittings should be placed during construction

• Lay the first row of Formworks blocks on a mortar bed

• Glue the following courses of Formworks together

Dehumidifiers

Filters

Filter Media

Pumps

14 Dehumidifiers

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

Covers

CALOREX® STANDARD

Characteristics

• High performance dehumidifer at a low cost.

• Lowers air humidity through the use of a compressor and sends warm, dry air back out.

• Built-in humidistat, fully automatic control and centrifugal fan.

• Complete for mounting on the wall or the floor.

• Optional heat exchanger for water or electricity.

• Effect up to 30L/60L water per day (depending on model) at 25°C and 60% RH.

• Working range: 10-40° / 40-100% RH.

• Optional floor stand.

• Supplied without cable connection.

34-183315

34-183320

Dehumidifier 30L -

Dehumidifer 30L - LPHW Heat Exchanger

34-185541 Standard Dehumidifier 60L -

CALOREX® VPX-T

Characteristics

• An energy-efficient and quiet swimming pool dehumidifier.

• Lowers air humidity through the use of a compressor and sends warm, dry air back out.

• Built- in humidistat and thermostat.

• For mounting through the wall.

• Integrated control of heat and humidity (ON/ OFF), optional remote control.

• Choose between 30L (model: VPX-T 33) and 60L (model: VPX-T 55) sizes.

• Working range: 10-36° / 40-100% RH.

Filter Media Pumps

15 Accessories

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

Covers

LADDERS

Ø 43, AISI-316 stainless steel quality with a polished finish. Available with anatomic, non-slip, safety double tread. Provided with anchor sockets with grounding, escutcheons and rubber bumpers.

STANDARD AISI 316 NON-SLIP TREAD

REFERENCE

31-300200

Tread 2 Ladder 31-300300

NARROW AISI 316 NON-SLIP TREAD

Tread 3 Ladder

Tread 5 Ladder REFERENCE DESCRIPTION 31-310200 Narrow Ladder AISI 316 Non-Slip Tread 2 Ladder

Narrow Ladder AISI 316 Non-Slip Tread 3 Ladder

31-310400 Narrow Ladder AISI

Non-Slip Tread 4 Ladder 31-310500 Narrow Ladder AISI

CLASSIC AISI 316 NON-SLIP TREAD

Non-Slip Tread 5 Ladder

LADDERS

TWO PIECES AISI 316 NON-SLIP TREAD

Two pieces AISI 316 non-slip tread provided with anchor sockets with kits for liner + grounding plug, escutcheons and rubber bumpers.

REFERENCE DESCRIPTION

31-320300-A Two Pieces AISI 316 Non-Slip Tread 3 Ladder

31-320400-A Two Pieces AISI 316 Non-Slip Tread 4 Ladder

31-320300-B Handrail f. Two Pieces AISI 316 Non-Slip Ladder

According to European standard

SAFETY DOUBLE TREAD AISI 316

REFERENCE DESCRIPTION 39-200035 Supplement per piece: 1 Safety Double Tread AISI 316

ACCESSORIES

REFERENCE DESCRIPTION

39-200008 Pair of Anchors Sockets

39-200001 Pair of Anchors with Flanges

39-200000 Articulated Pair of Anchors with Flanges

39-200006 Pair of Rubber bumpers

39-200006-1 Pair of Adjustable Rubber Bumpers

39-200009 Pair of Escutcheon AISI 316

WATER FEATURES

WATER CURTAIN MINI BALI

Characteristics

• Anchor is required, not included

• Anchor with female connection: 1 1/2”

• Flow: 20 m³/h

REFERENCE DESCRIPTION

36-482000 Water Curtain Mini Bali AISI 316

• Choose a variable speed pump or a single speed pump with corresponding flow at 0.8 bar

36-482005 Water Curtain Mini Bali AISI 316 - with pump and fittings

36-482001 Anchor

WATER CURTAIN BALI

Characteristics

• Anchor is required, not included

• Anchor with female connection: 1 1/2”

• Flow: 30 m³/h

REFERENCE DESCRIPTION

36-482010 Water Curtain Bali Brush Polished

36-482015 Anchor

36-482020 Escutcheon Bali Brushed

WATER FEATURES

CANNON JET TAHITI

Characteristics

• No anchor needed

• Male connection: 1 1/2” Ø43 mm

• Flow: 6 m³/h

• Nozzle not included

REFERENCE DESCRIPTION

NOZZLE A

NOZZLE B

REFERENCE

NOZZLE C

REFERENCE

NOZZLE D

REFERENCE

Filters

Filter Media

Pumps

16 Maintenance Equipment

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

Covers

COMFORTANA SERIES

BOTTOM NET

Characteristics

• Standard bottom net with a large net bag.

• Made with an extra strong aluminium frame.

• Fits standard telescopic rod.

• Suitable for all pools.

REFERENCE DESCRIPTION

33-759025 Comfortana Bottom Net ALU Black/Grey

VACUUM HEAD

Characteristics

• Quality bottom suction head, made from strong plastic.

• Easy to work with on small and medium-sized areas.

• Built-in weight blocks keep the vacuum cleaner on the bottom so it is easier to use.

• Suction nozzle for 32/38 mm hose.

• Handle for standard telescopic rod.

REFERENCE DESCRIPTION

33-751085 Comfortana Bottom Vacuum Head Black/Grey

SURFACE NET

Characteristics

• Surface net available in black and grey.

• Made with an extra strong aluminium frame.

• Fits standard telescopic rod.

• Suitable for all pools.

REFERENCE DESCRIPTION

33-757055 Comfortana Surface Net Black/Grey

POOL BRUSH

Characteristics

• 46cm wall brush, made of strong plastic.

• Has 5 rows of rigid nylon brushes.

• Reinforced with strong aluminium in both the brush frame and the tube for the pole.

• Fits standard telescopic rod.

• Suitable for all pools.

REFERENCE DESCRIPTION

33-755040

Comfortana Brush 46cm ALU Black/Grey

COMFORTANA SERIES

CORNER BRUSH SCRUB BRUSH

Characteristics

• Smart nylon corner brush with handle and suction fuction, made from alumunium and plastic.

• For mounting 32/38 mm suction hose.

• Fits standard telescopic rod.

• Suitable for all pools.

REFERENCE

Characteristics

• Smart nylon scrubbing brush with handle, made from plastic.

• The design of the bursh makes it easier to get right into the corners of the pool.

• Fits standard telescopic rod.

• Suitable for all pools.

TELESCOPIC RODS

Characteristics

• A high-end telescopic pole made from sturdy aluminium.

• Fits most cleaning tools.

• Length : 2,4m - 4,8m

PLASTIC POOL HOSE

REFERENCE DESCRIPTION

33-750090 Plastic Pool Hose with Swivel Cuff 9m, Ø38mm - Black/White

33-750120 Plastic Pool Hose with Swivel Cuff 12m, Ø38mm - Black/White

33-750150 Plastic Pool Hose with Swivel Cuff 15m, Ø38mm - Black/White

33-750180 Plastic Pool Hose with Swivel Cuff 18m, Ø38mm - Black/White

33-750250 Plastic Pool Hose without Swivel Cuff 25m, Ø38mm - White

33-070128 Plastic Pool Hose without Swivel Cuff 100m, Ø38mm - Blue

33-750510 Swivel Cuff, Ø38mm

FAIRLOCK VAC HEAD

REFERENCE DESCRIPTION

33-700500 Fairlocks Vac Head Cleaner

The Fairlocks Vac head is the most efficient pool cleaning system in its class, for both professional and private use.

Ideal for pools with pumps from 0.75 HP or more whether concrete, fibreglass, painted, liner or tiled. The Fairlock vacuum head is a real investment and will give you years of pool cleaning pleasure.

Fits standard telescopic rods.

SCUBA III

The new Pool-App

With the new Pool-App, monitoring water quality is a child’s play. The users can create their own pool profile by selecting shape, size, volume and structure of the pool. For every pool profile users can plan pool maintenance actions and chemical dosing.

The Pool App also provides:

• Data transfer to smart devices via NFC

• Tools for pool management like maintenance & water quality

• FAQ & method description

• Connectivity with a cloud for data storage

• Classifi cation of results by colour coding (red, green)

• Graphical data display

• Access with 3 user accounts

• Data based on specifi c water profi les such as seawater or freshwater

REFERENCE DESCRIPTION

35-206006 Scuba III Electronic Pooltester

35-511005 Refill Pack Scuba II & Scuba III

POOL LAB 2.0

The PoolLab® 2.0 is the perfect solution for professional pool water analysis of pools and spas. The fixed but exchangeable triple measurement-cuvette allows quick sampling by simply dipping the IP68 waterproof PoolLab® into the water.

REFERENCE DESCRIPTION

35-206007 PoolLab 2.0 Photometer

PH

CHLORINE (FREE/COMBINED/TOTAL)

ALKALINITY (ACID CAPACITY)

CYANURIC ACID (STABILIZER)

ACTIVE OXYGEN (MPS)

BROMINE

CHLORINE DIOXIDE OZONE

HYDROGEN PEROXIDE (LR)

HYDROGEN PEROXIDE (HR)

CALCIUM HARDNESS

TOTAL HARDNESS

UREA

MD200 PHOTOMETER CHECK KIT

Features

• Scroll memory

• LCD display

• Automatic switch-off

• Real time clock and date

• Calibration mode indicator

REFERENCE DESCRIPTION

35-206010 Photometer Check Kit - Cl, pH, Cys.

OTO-PH TEST SET

REFERENCE DESCRIPTION

35-150011

35-150022

OTO-pH Test Set

OTO-pH Refill

The MD200 is a compact and portable photometer that combines high-quality interference filters with long-term stable LEDs as light sources in a high-precision optic, which produces a precise measurement result at all time - no matter when you use it.

You can use the MD200 photometer to test chlorine (Cl), pH and cyanuric acid (Cys) in almost all areas of water. The MD200 is ideal for use in private and public facilities, and it’s compact dimensions and ergonomic design make it very user-friendly.

The MD200 Check Kit includes: tablet reagents, 3 round vials with lids and a sturdy carrying case.

Characteristics

• Versatile and compact.

• Measures Cl, pH and Cys values

• Includes: tablet reagents, 3 round vials with lids, carry case.

• Low maintenance and user friendly

• For water analysis in private and public facilities.

Characteristics

• For quick and easily readable results of pH and chlorine values in pool water.

• Includes: transparent 2-part plastic container with lid, printed colour value chart on the front, 2 fluid bottles.

• Yellow fluid bottle measures chlorine.

• Red fluid bottle measures pH.

• Super easy test kit to use, for both private-use and professionals.

• Refills of both liquid types are available.

TEST STRIPS

BAYROL® QUICKTEST

Test for: free chlorine, pH, total alkalinity (TA) and algaecide

• Simple and fast test strips

• Each test strip has 4 measuring pads which react and change colour upon contact with water - measure 4 parameters with only 1 strip.

• Compare colour values with the provided printed colour scale

• Check pH and chlorine within 5 seconds, total alkalinity within 10 seconds and algaecide content within 45 seconds.

• One box contains 50 test strips

REFERENCE DESCRIPTION

288023 Quicktest Test Strips pH/Cl/TA

BAYROL® SOFTSWIM QUICKTEST

Test for: pH and liquid active oxygen (hydrogen peroxide)

• Simple and quick application, with fast results

• Each test strip has 2 measuring pads that react and change colour upon contact with water - measure 2 parameters with only 1 strip.

• Compare colour values with the provided printed colour scale.

• One box contains 50 test strips.

• Note: if the swimming pool is being maintained using solid active oxygen, then a pH/O2 tester must be used.

REFERENCE DESCRIPTION 288015 Softswim Quicktest Strips

SD SERIES

The SD series comprises a range of compact, easy-to-use, hand-held instruments for the accurate measurement of pH, ORP/Redox or Salt. With robust housing and fully waterproof (IP67) casing, these testers are the ideal solution for in-situ testing in environmental, industrial or pool & spa applications.

The intuitive scrollbar functionality and backlit display enable the easy measurement and simultaneous display of result, temperature, date/time and other measurement details. With 25 sets of data storage, each with date and time stamp, the units also enable the easy recalling of data for record keeping requirements.

DISPLAY

INTERNAL STORAGE

POWER SUPPLY

DIMENSIONS 44 x 33 x 205 mm WATER

22 x 22 mm LCD screen, yellow/green backlit

Characteristics

• Portable Hand-Held Meter

• Scroll-Through Functionality

• Compact & Robust

• Storage Function

25 sets of data storage, with date and time (nonvolatile)

4 AAA batteries

BATTERY LIFE TIME > 350 hours (continuous use, backlight off), low battery indicator on LCD screen

AUTO – OFF Yes

CLOCK Real Time Clock and Date

PORTABILITY Portable

TEMPERATURE COMPENSATION Automatic

RESOLUTION TEMPERATURE

0.1 °C; Accuracy: ± 1 °C,selectable °C / °F system

COMPLIANCE CE

PROTECTION Class IP 67

SD SERIES

SD 20 ORP/REDOX

Handheld meter for measuring ORP/Redox.

• Lovibond electronic handmeter for Redox - SD20

• Set in plastic storage case (232x65x47mm, LxWxH) consists of:

• Hand meter, neck cord and 4 AAA batteries

• Measuring range: -1000 to +1000 mV, 0 - 50°C

• Accuracy: mV: ± 0,2% FS

REFERENCE DESCRIPTION

35-206021 Check Kit Micro - SD20 ORP/Redox

SD 30 EC SALT

Handheld meter for measuring Salt.

• Lovibond electronic handmeter for salt - SD30 EC

• Set in plastic storage case (232x65x47mm, LxWxH) consists of:

• Handmeter, neck cord and 4 AAA batteries

• Measuring range: 0,01-20mS/cm conductivity, 0,01-10g/L salinity, 0,01-20ppt TDS, 0 - 50°C

• Accuracy: ± 1% FS

REFERENCE DESCRIPTION

35-206022 Check Kit Micro - SD30 EC Salt

SD 50 PH

Handheld meter for measuring pH.

• Lovibond electronic handmeter for pH - SD50

• Set in plastic storage case (232x65x47mm, LxWxH) consists of:

• Hand meter, neck strap and 2 AAA batteries

• Measuring range: 0 - 14 pH, 0 - 60°C

• Accuracy: ± 0,05 pH

REFERENCE DESCRIPTION

35-206025 Check Kit Micro - SD50 pH

Filters

Filter Media

Pumps

17 Cleaners

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Vacuum Cleaners

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment Cleaners

SERIES

ALWAYS A SPARKLING CLEAN POOL.

DUAL-PUMP SYSTEM

200%

Turbo On Maximum Suction

One touch unleashes triple suction, driving power into the extreme zone built for the toughest debris.

Dual-Pump Multiplied Force

The dual pump system generates massive wave of sustained suction, being the game changer for pool deep cleaning

POOL ROBOTS

IGARDEN M1 SERIES

IGARDEN AI-INVERTER 2.0 INTELLIGENT CORE

How it extends runtime to 12,5 hours

A proprietary iGarden AI-Inverter™ algorithm drives a set of brushless DC motors with millisecond precision.

Each motor, from propulsion to circulation intelligently modulates its speed within a 20-100% dynamic range, adapting to every pool condition to balance thrust and endurance with effortless precision.

DESIGN & EFFICIENCY, IN SYNC

Optimized synergy for lasting power

An enhanced structural design creates deep synergy between the motor and the flow path, sustaining high cleaning performance and energy efficiency.

HYDRODYNAMIC PROPULSION STRUCTURE

Smarter flow, longer endurance

Flow channels shaped by hydrodynamic principles reduce turbulence and vortex losses, while tail-jet propulsion converts residual energy into thrust for greater coverage and longer runtime.

POOL ROBOTS

IGARDEN M1 SERIES

Smart Recall Stick

Sonar-activated signal for instant response. Robot ends cleaning, returns to the nearest wall, climbs and waits at the waterline. No hooks, no hassle— just reach down and lift with ease. The Smart Recall Stick only goes with the M1PRO-125.

4.5L Extra-Large Bin

Simply lift, empty, and rinse for reuse.

Double-Layer Filter Box

Dual-mesh system with clog-resistant, professional-grade filters.

Shallow Water Cleaning

Effortlessly cleans children’s wading pools, tanning ledges, and other low-water areas.

POOL ROBOTS

IGARDEN M1 SERIES

The new iGarden M1 Series pool robot takes pool maintenance to the next level. Equipped with the iGarden AI-Inverter 2.0 Intelligent Core, Hydrodynamic Propulsion Structure, and a refined design for maximum efficiency, the M1 Series effortlessly cleans every part of your pool with outstanding performance up to 12,5 hours.

Multiple Cycle Option

1h/1.5h/2h/Max AI Timer 24h/48h/72h

Recall Stick

REFERENCE DESCRIPTION

33-001060 iGarden Wireless Pool Cleaner M1-50

33-001062 iGarden Wireless Pool Cleaner M1-100

33-001064

iGarden Wireless Pool Cleaner M1-PRO-125

POOL ROBOTS

DOLPHIN EON SERIES

Experience the freedom of cordless cleaning.

Experience next-level pool care with the Maytronics EON, designed to deliver exceptional cleaning performance with total freedom and efficiency. With a runtime of up to 2.5 hours, the EON expertly cleans every part of your pool — from the floor, walls, waterline, and steps to even challenging areas like the sun-ledge (20 cm), safety-ledge, and corners.

Maximum pool length Up to 15m Up to 15m

Cycle duration 2.5 hours UP to 4.5 hours

Cleaning coverage

Walls, floor, waterline, steps, sun ledge Walls, floor, waterline, steps, sun ledge

Number of brushes 4 – front & rear (Dynamic) 4 – front & rear (Dynamic)

Compatible filter types

Brush type (material)

Suction Rate (max)

Default cleaning time 2 hours (1.5 & 2.5 from the App) 2 hours (1.5 & 2.5 from the App)

Driving motors 2 drive, 1 suction, 1 servo 2 drive, 1 suction, 1 servo

Warranty included battery 2 years 3 years

Weight

Compatible brush Combined brush Combined brush

Surface types All surfaces All surfaces

Pool shape   All types All types

More features

floor only, waterline only, UltraRun, Ultra clean, Smart

floor only, waterline only, UltraRun, Ultra clean, Smart

Minimal water dept / max. water dept 20cm – 3m 20cm – 3m

Home coming yes yes

Robot Dimensions

APP Bluetooth & Wi-Fi

DOLPHIN EON SMART

Characteristics

• Cleans up to 2.5 hours on a single charge.

• Reaches every surface including floor, walls, waterline, steps, sun-ledge (20 cm), safety-ledge, and corners.

• Operates in efficient UltraRun (ECO) mode.

• Offers multiple cleaning modes: Regular, Floor-Only, Waterline-Only, UltraClean, Smart, and UltraRun.

• Navigates intelligently with Maze and Systematic scanning modes.

Entire Pool Coverage

Cleans tanning ledges, steps, and corners—no spot left untouched

SmartMap Navigation

Tailored cleaning paths for eachpool’s shape

IDEAL POOL SIZE Up to 15m

CLEANING COVERAGE Walls, floor, waterline, steps, sun ledge

BRUSHING 4 – front & rear (Dynamic)

CLEANING CYCLE TIME 2 hours (1.5 & 2.5 from the App)

FILTRATION Monoblock 70μm

ENDURANCE 2,5h

ROBOT WEIGHT 10 kg

WARRANTY 2 years

SUCTION RATE (MAX) 15m3/h

UltraRun Mode

Extended runtime for uninterrupted performance.

App-Controlled Simplicity

Schedule, monitor, and troubleshoot from your phone

ADVANCED FEATURES SmartMap Navigation | UltraRun Mode | App-Controlled Simplicity via Maytronics OneTM / Temperature Indicator | Personalized Scanning

REFERENCE DESCRIPTION

33-000840 Dolphin Eon Smart

DOLPHIN EON COMFORT

3 years warranty

Entire Pool Coverage

Cleans tanning ledges, steps, and corners—no spot left untouched

DebrisLockTM Filtration

Traps ultra-fine debris and reduces filter cleaning.

IDEAL POOL SIZE Up to 15m

CLEANING COVERAGE Walls, floor, waterline, steps, sun ledge

BRUSHING 4 – front & rear (Dynamic)

CLEANING CYCLE TIME 2 hours (1.5 & 2.5 from the App)

Characteristics

• Cleans up to 4.5 hours on a single charge.

• Features a cartridge filter with DebrisLock for superior debris capture.

• Reaches every surface including floor, walls, waterline, steps, sun-ledge (20 cm), safety-ledge, and corners.

• Operates in efficient UltraRun (ECO) mode with a built-in temperature indicator.

• Offers multiple cleaning modes: Regular, Floor-Only, Waterline-Only, UltraClean, Smart, and UltraRun.

• Navigates intelligently with Maze and Systematic scanning modes.

SmartMap Navigation + UltraRun Mode

Tailored cleaning paths and extended runtime for uninterrupted performance.

FILTRATION DebrisLock™ backwash filter with ultra-fine particle capture

ENDURANCE 4.5h

ROBOT WEIGHT 11 kg

WARRANTY 3 years

SUCTION RATE (MAX) 15m3/h

App-Controlled Simplicity

Schedule, monitor, and troubleshoot from your phone

ADVANCED FEATURES SmartMap Navigation | UltraRun Mode | App-Controlled Simplicity via Maytronics OneTM | Cycle Selector | Homing Feature | Clicker | Temperature Indicator | Personalized Scanning

REFERENCE DESCRIPTION

33-000842 Dolphin Eon Comfort

DOLPHIN M600

POOL ROBOTS

DOLPHIN M600

ੁ 4 year warranty

Characteristics

• Newly designed Dolphin M600 was engineered with groundbreaking technologies and customizable features

• With MyDolphin™ Plus app, you can control the M600 from anywhere, anytime

• Customizable weekly schedule cleaning times in order to fit your needs

• Cleans the bottom, wall and waterline and is suitable for swimming pools with a maximum size of 15m

• 3 cycle times 1,5/2/2,5 hours, with delay and enhanced cleaning cycles.

• Equipped with Combi brushes as standard, suitable for any surface

• Supply voltage 230 V, motor voltage 24 V DC, cable 18 metres

Components

Top Access, the filter system can be quickly removed from the top.

Filter cartridge Multi-layer, 4 filters and enclosed filter basket for coarse dirt.

Active Brushing, the front brush rotates twice as fast and loosens extra dirt.

Cable length 18 meterswith swivel.

Quick Water Release, the fast water release makes the robot fast and light.

Features

Cleans the bottom, walls and waterline.

Cycle time 1,5/2/2,5 hours.

Suction power 19m³/h.

Beach Entry, secured against shallow water when inclined, turns and continues program.

DIY Do It Yourself, service by swimming pool builder fast and easy to perform.

Accessories

Transformer, with delay and timer option.

Weight 11,5 kg Can be controlled via My Dolphin plus app.

Luxury mobile caddy.

REFERENCE

M600

POOL ROBOTS

DOLPHIN WAVE 90I

Bottom vacuum cleaners for public swimming pools

Dolphin Wave are industrial cleaners. User-friendly and designed for all types, sizes and shapes of swimming pools. Ideal for public swimming pools, hotels and resorts.

DOLPHIN WAVE 90I

2 year warranty

Components

Filtration system duo, filter cartridges 50 and 110 micron, replaceable from the top.

Combi brushes + active brushing and filter full signal.

Cable length 24 meters with swivel to prevent cable tangling.

Weight 11 kg.

Functions

Characteristics

• The ideal model for smaller professional pools, such as hotel and therapy pools.

• Cleans the floor, walls, and waterline and is suitable for pools with a floor area of up to 200 m².

• Comes with a caddy.

• 1 program, cycle time 2 / 3 / 4 hours.

• Standard equipped with Combi-brushes, making it suitable for virtually any surface.

• Power supply 230 V, motor voltage 24 V DC, cable 24 meters.

• 2 years or 2,500 operating hours warranty.

Suitable for pools with a floor area of up to 200 m² and a minimum water depth of 40 cm.

Cleans the floor, walls, and waterline.

Cycle time 2, 3, or 4 hours.

Accessories

Suction capacity 19 m³/h.

Robot equipped with beach entry; in shallow water, the robot turns around and continues the program or switches off.

Transformer on/off.

Luxury mobile caddy.

Remote control for:

- Manual or automatic operation

- Program selection and duration

- Delay time

POOL ROBOTS

DOLPHIN PRO X7

Bottom vacuum cleaner for public swimming pools Dolphin Pro X7 is an industrial cleaner. User-friendly and designed for all types, sizes and shapes of swimming pools. Ideal for public swimming pools, hotels and resorts.

DOLPHIN PRO X7

Characteristics

• A commercial pool cleaner that delivers long-lasting reliablity.

• For public pools up to 25m long, equipped with 2 powerful pump motors.

• Cleans the bottom of a pool, with a minimum water depth of 40cm.

• Programmable for cycle 4, 5 or 6 hours.

• Equipped with Gyroscope navigation system which provides a precise walking route and straight paths guaranteed.

• Supplied as standard with ergonomic caddy, without cable reel.

• Equipped with 1-layer cartridge filter system, 100 micron.

• Including remote control.

• Supply voltage 230 V, operating voltage 30 V, cable 35 meters.

The bottom cleaner may never be in operation at the same time as swimmers in the same pool.

Components Accessories Features

Top Access, the filter system can be quickly removed from the top.

Filtration system 1-layer (cartridge) in round holder, quick to change and clean.

Gyroscope navigation system guarantees a precise walking route and straight paths.

Cable length 35 meters.

Weight 24 kg

Suitable for pools with a length of up to 25m and a minimum water depth of 40cm.

Cleans the bottom using 1 standard program.

Cycle time 4 / 5 / 6 hours, adjustable.

Suction power 34m³/h.

Beach Entry, secured against shallow water when inclined, turns and continues program.

Remote control for manual operation.

Mobile caddy.

VOLT® FX-4 LI

REFERENCE DESCRIPTION

33-000125 Volt® FX-4 Li

VOLT® FX-8 LI

REFERENCE DESCRIPTION

33-000130 Volt® FX-8 Li

Characteristics

• Cordless, lightweight and rechargeable.

• Small enough to navigate the waters of spas and fountains, but powerful enough to clean medium sized above-ground and in-ground pools.

• Lithium powered - fully recharged in 4 hours.

• Up to 45 minutes run time.

• On/off switch - push button

• Vacuum head width - 18,8cm (remove vacuum head for a powerful spot cleaner that can easily maneuver into corners and crevices).

• Can vacuum all types of debris, including dirt, gravel, leaves, sand and algae.

• Two filters bags: Xtreme Multi Layer Filter Bag (fine debris) & All Purpose Filter Bag (large debris)

• Minimum operating depth - 12,25” at 45° angle

• Power rating - 275

Characteristics

• Cordless, rechargeable and designed with an enhanced motor to clean large in-ground and above-ground pools quicker and more efficiently.

• Lithium ion battery technology - fully rechargeable in 4 hours.

• Up to 60 minutes run time.

• On/off switch - push button

• Vacuum head width - 32,4cm

• Supplied with head and hose attachments for shallow water cleaning, and allows you to get into tight corners and crevices.

• Can vacuum all types of debris, including dirt, gravel, leaves, sand and algae.

• Two filters bags: Xtreme Multi Layer Filter Bag (fine debris) & All Purpose Filter Bag (large debris)

• Minimum operating depth - 14,25” at 45° angle

• Power rating - 500

POOL BLASTER® AQUA BROOM RECHARGE

REFERENCE DESCRIPTION

Characteristics

• Cordless pool & spa vacuum, ideal for use in tight and hard to get spaces in hot tubs and swimming pools.

• The most compact and convenient rechargeable vacuum in the Aqua Broom® family.

• Lithium powered, fully rechargeable in 4 hours.

• Up to 40 minutes run time.

• On/off switch - push button

• Vacuum head width - 20,32 cm

• Multi-head design: Versatile omni-directional brush head for general cleaning and standard Aqua Broom head for hard to get areas.

• Supplied with All Purpose Filter Bag and 4 pcs. sectional pole set (length: 152,4cm).

• Minimum operating depth - 7” at 45° angle

• Charge type - USB cable.

33-000120 Pool Blaster® Aqua Broom Recharge

POOL BLASTER® MAX LI

Characteristics

• The original cordless pool vacuum, designed to clean entire pools in minutes and spot clean in seconds.

• Features a high flow pump that provides extra power for deep cleaning.

• Rechargeable lithium battery - fully charged in 4 hours.

• Up to 60 minutes run time.

• On/off switch - push button

• Vacuum head width - 26,67cm (with brushes and wheels).

• Includes reusable Xtreme Multi Layer Filter Bag - can remove all types of debris including leaves, acorns, twigs and can remove sand and silt from any pool surface.

• High capacity filter holds more dirt and debris than entry-level cleaners.

• Minimum operating depth - 14,25” at 45° angle

• Power rating - 365

POOL BLASTER® CATFISH LI

REFERENCE DESCRIPTION

33-000105 Pool Blaster® Catfish Li

Characteristics

• Durable and lightweight cordless cleaner, with power strong enough for spas, small in-ground pools and spot cleaning.

• Convenient and quick with multiple filter bags to tackle different cleaning needs.

• Lithium powered - fully recharged in 4 hours.

• Up to 45 minutes run time.

• On/off switch - push button

• Vacuum head width - 19,05cm (with brushes and wheels).

• Includes a corner crevice nozzle and 3 filter bags: 1x reusable All Purpose filter bag, 2x disposable Micro-Fiber Filter Bags.

• Captures a variety of debris, including acorns, twigs, leaves, dirt and sand.

• Minimum operating depth - 9” at 45° angle

POOL BLASTER® LEAF VAC

REFERENCE DESCRIPTION

33-000115 Pool Blaster® Leaf Vac

Characteristics

• A leading cordless leaf vacuum, with hoseless skimming from top to bottom - for smaller-sized pools.

• Works independently from the pool filtration system, so no garden hoses or cords are required.

• 8x AA batteries are included - can run for up to 3 hours.

• On/off switch - push button

• Flip the Leaf Vac upside down to skim the pool surface.

• Includes 1x reusable All Purpose Filter Bag - incorporates a mesh, highcapacity filter bag for beginning and end-of-season efficiency.

• Picks up leaves, seeds and twigs right off the pool floor.

• Lightweight and easy to use by hand or attached to any standard telescopic pole.

• No reliance on garden hose pressure.

Filters

Filter Media

Pumps

18 Covers

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners Covers

SUMMER COVER

Characteristics

• Comfortana Solar Bubble has 110% energy reduction coefficiency

• Comfortana Solar Bubble maintains the temperature of the water without exposure to sunlight

• Comfortana Solar Bubble has a solar thermal gain index of 143 W/m²

• Comfortana Solar Bubble reduces evaporation by 98%

• Comfortana Solar Bubble is shaped for performance, with ‘X’ and ‘O’-shaped bubbles

• Comfortana Solar Bubble has a uniform design, with an ‘O’ bubble diameter of 16 mm and ‘X’ bubble diameter of 26 mm

• Comfortana Solar Bubble is unique and different

• Comfortana Solar Bubble directly transfers 39% of solar energy to the water, reflects 11% of the energy, and transfers 50% in the form of heat from cover to water

SUMMER COVER

THERMAL COVERS

Comfortana Solar Bubble 500

• 500 micron

• 5mm thick, 2 layer coloured polyethylene with air chambers

• UV-resistant

• Blue top and underside

• For private pool use

REFERENCE DESCRIPTION

32-750703

32-750704

32-750705

32-750706

Comfortana Solar Bubble 500 - 3x50m

Comfortana Solar Bubble 500 - 4x50m

Comfortana Solar Bubble 500 - 5x50m

Comfortana Solar Bubble 500 - 6x50m

Supercover Thermal Cover

• made to measure, reinforced edges

• 5mm thick, 3 layer coloured polyethylene foam foil

• UV-resistant

• max. water temperature: 28°C

• Blue top and underside

• For private and public pool use

REFERENCE DESCRIPTION

32-750500 Supercover 5mm, Swimex

Welldana® Premium Thermal Cover

• made to measure, reinforced edges

• 8mm thick foam, coated with durable polyethylene

• UV-resistant

• max. water temperature: 38°C

• Blue top and underside

• For private and public pool use 18

REFERENCE DESCRIPTION

32-750600 Premium Thermal Cover 8mm

SUMMER COVER

CUSTOMISATION SERVICES +

Specific Shapes

Is your pool oval, hexagon, octagon,...? If the shape of your pool is not rectangular (corners and stairs not included), then you need to add this for the complete surface.

REFERENCE DESCRIPTION

32-750420 Shaping surcharge (per m²)

Stairs

In order to make your cover fit perfectly onto the shape of your pool you will need to customize your pool cover in order to incorporate your stair shape.

• You need to add the ‘cut-out for stairs’ if there is a rectangular cutout needed.

• For the Roman End beware that when you calculate the total surface, you need to include the radius of the step to the length of the pool.

• For Super/Premium covers.

REFERENCE DESCRIPTION

32-750552 Cut-out for stairs (per piece)

32-750552 Roman End shaping surcharge (per piece)

Reinforced Edges

If you are looking to have your pool cover edges hemmed and reinforced, then you need to add the ‘hemming’ service. The price is set per rolled out meter.

REFERENCE DESCRIPTION

32-750410 Hemming surcharge (per meter)

SUMMER COVER

FIXINGS

• For attaching thermal covers to roll-up stands.

• Complete with 5 pcs. 120cm nylon straps, plastic plates and screws.

Note: the white plastic parts and steel sticks in the kit must not be used, and can be thrown away.

REFERENCE DESCRIPTION

32-001157 Attachment Kit for Covers

LEADING EDGE

• Guides the cover perfectly while rolling up or off.

• The front of the cover floats perfectly and doesn’t sink anymore.

• Thanks to the rope, closing the pool is child’s play.

REFERENCE DESCRIPTION

32-750501 Leading & Floating edge - with pull rope

WELLDANA® WINTER COVER DELUXE

The Welldana® winter cover is made from strong weaved polythylene and fastened around the pool with special stainless spring hooks. The cover acts as a blanket that keeps the pool free of leaves and dirt.

REFERENCE DESCRIPTION

32-750100 Welldana® Winter Cover - spring & spear hooks

32-750300 Welldana® Winter Cover - spring & anchor hooks

Features

• Cover manufactured from strong woven polyethylene and is UV-resistant.

• Made to measure, with a 300mm overlap calculated on all sides.

• Surcharge for cutting for ladders or curves.

• 2 types of stainless spring hooks.

• Cover reduces the risk of frost damages.

WELLDANA® SAFETY COVER

The Welldana® Safety Cover is a varnished cover with reinforced aluminium profiles. It is easy to roll in and out using the strap, and effectively protects your pool.

REFERENCE DESCRIPTION

32-902100 Welldana® Safety Cover - 3,4 x 5,4m

32-902102 Welldana® Safety Cover - 3,4 x 6,4m

32-902104 Welldana® Safety Cover - 3,4 x 7,4m

32-902106 Welldana® Safety Cover - 3,9 x 7,4m

32-902107 Welldana® Safety Cover - 4,1 x 8m

32-902108 Welldana® Safety Cover - 4,4 x 6,4m

32-902110 Welldana® Safety Cover - 4,4 x 7,4m

32-902112 Welldana® Safety Cover - 4,4 x 8,4m

32-902114 Welldana® Safety Cover - 4,4 x 9,4m

32-902115 Welldana® Safety Cover - 4,9 x 9,4m

32-902116 Welldana® Safety Cover - 5,4 x 8,4m

32-902118 Welldana® Safety Cover - 5,4 x 9,4m

32-902120 Welldana® Safety Cover - 5,4 x 10,4m

REEL SYSTEMS

MANUAL

Welldana® Roll-Up Handle

• 3:1

• Up to max 48m²

• For use with Welldana® Safety Cover

• Wheel: Ø125mm

REFERENCE DESCRIPTION

39-902140 Roll-up Handle 3:1

Features

• Solid cover with fine polyester membrane (650g/m²) with UV-protection.

• Varnished on each side for protection against the mechanical and chemical load.

• The cover is fully continuous, and thus has no joints at the aluminium profiles.

• Winding is done with the supplied manual handle, which can easily be changed to a motorized version for easier use.

REEL SYSTEMS

TELESCOPIC

Welldana® Reel System

• Produced in AISI 316 steel with plastic bushes and brackets for 3” telescopic tubes.

• Center height: 305mm

• Foot plate: 70x110mm

• Max. pool width: 6,8m

• Telescopic tube and attachment bolts not included.

REFERENCE DESCRIPTION

32-100100 Roll-up Stand, Stainless Steel 305mm (without pipe)

Welldana® Roller Base

• Produced in solid stainless steel with plastic bushes and brackets for 3” telescopic tube and wheels.

• Round PVC handle.

• Center height: 450mm

• Fixed rubber wheels: Ø200mm

• Wheel bracket width: 550mm

• Max. pool width: 6,8m

• Attachment kit included.

• Delivered unassembled without telescopic tube.

REFERENCE DESCRIPTION

32-001010 Roll-up Rack, Stainless Steel (with wheels)

Welldana® Telescopic Tubes

• 3” Aluminium tube with 3 slots for extra stength.

• Supplied in 3 pieces.

• Units of 2,7m (but can be adjusted)

• Max. width: 6,8m

• Supplied without attachment kit.

REFERENCE DESCRIPTION

32-001003

Telescopic Tube f. Reel System 32-001005

Telescopic Tube f. Roller Base

THE EDGE

A BRAND NEW TOP MOUNT COVER SYSTEM

Explore THE EDGE, our brand new top-mount cover system for automated slatted covers. With its sleek design, LED lighting and availability in black, silver or umbra gray, THE EDGE fits perfectly in any garden. THE EDGE is compatible with the Aquadeck® slats or the budget-friendly entrylevel models of the new 'Discover' range. THE EDGE is easy to install and widely applicable. Don't hesitate to contact us for more information. On the Edge. By your side

Construction with tubular motor (splash-proof)

Characteristics

• 120 Nm & 200 Nm tubular motors depending on the size of the pool

• Control box, including connection for Salt chlorinator

• Easy installation and configuration

• Remote control to open and close the cover

• Stainless steel 316L Tube of 135mm

• Metal end stand, with LED lights and remote control

• Made on request for your projects

• End stands in three different colours (black, silver and umbra grey)

This construction with tubular motor includes splashproof tubular motor 24V fitted with 10m cable, electronic control 220/24V, key switch surface-mount, winding tube, threaded socket 40x1’’, 2x design end stands optional with LED lights, set of straps 1500mm and casting kit for tubular motor.

THE EDGE in a nutshell

• A top-mount system with elegance and flexibility

• Perfect fit with slats from Aquadeck and Discover

• Durable, sleek design with optional LED lighting

• Supports pools up to 6m in width, 120 Nm or 200Nm depending on the length of the pool

• Control box, including connection for salt chlorinator

• Easy installation and configuration

• Metal end stand in three different colors: black, silver and Umbra grey

• Remote control to open and close the cover and operate lighting

• Stainless steel 316L tube of 135 mm

• Custom solutions available

HEATCOVER®

The eco-friendly choice for saving water, energy and costs

HEATCOVER®

HeatCover® offers sustainable solutions for swimming pools. The products are easy to install and dose. Unlike most other liquid cover products, HeatCover® can be used immediately, without shaking first.

This makes it suitable and advisable to dose using an automatic dosing pump.

How does the dosing work?

The dosing is automatically controlled by the HeatCover® dosing pump (Basic or Pro), which you install on the water pipes of the pool or swimming pond. As a result, the dosage is precise and tailored to the specific situation.

Dosage by pool or pond type:

• Swimming pools/ponds with skimmers (without storage tanks): 1 - 1.2 ml per m² per 24 hours

• Overflow pools/ponds (with holding tank): 1 - 1.5 ml per m² per 24 hours

Characteristics

1. Sustainable swimming pool through reduced consumption of:

• (Drinking) water

• Gas

• Electricity (indoor pool)

2. Reducing costs

3. Additional benefits:

• Longer enjoyment of open pool (07.00 - 22.00)

• Fewer chemicals

• Less maintenance and lower costs

OUTDOOR POOLS

In warm seasons, HeatCover® reduces solar water evaporation by up to -50%. In cool seasons and nights, outdoor pool owners will also be able to reduce heat loss and thus save energy.

INDOOR POOLS

In addition to preventing water and energy losses, owners of indoor pools have an added benefit of HeatCover®: it significantly reduces the humidity in pool areas. As a result, the air ventilation systems consume a lot less energy

WHAT’S IT?

The HeatCover® liquid cover is available in different packages. You choose depending on type of pool/swimming pond, dosage, size of pool or pond and length of swimming season. The packaging contains clear explanations.

HeatCover® liquid cover is composed of intelligent molecules that:

• are lighter than water and therefore float to the surface

• spread over the entire surface

• have a higher boiling point than water, slowing down water evaporation

The HeatCover® molecules are very small (2 million times smaller than 1 ml) and transparent. They are injected via a dosing pump through the pool’s water supply system into the water. Arriving in the pool, the HeatCover® molecules float up to the surface and will disperse and bond to form a uniform monolayer. By covering the total water surface and its higher boiling point than water, HeatCover® will reduce water evaporation by around 50%.

HeatCover® is 100% biodegradable. It works continuously, but evaporates naturally after 50 hours in the form of H2O and CO2 No residue is left behind.

HEATCOVER®

The eco-friendly choice for saving water, energy and costs

THE PROBLEM OF SWIMMING POOLS: WATER AND ENERGY LOSSES

The HeatCover® solution

REFERENCE DESCRIPTION

4196635 HeatCover Liquid Pool Cover 5L

4196700 Floc-Dosing Pump 3.2-240 ml/h for APF®

Filters

Filter Media

Pumps

19 PVC

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

Covers

ELBOWS

PVC ELBOW 90°

REFERENCE DESCRIPTION

13-100020 Elbow 90° Ø20

13-100025 Elbow 90° Ø25

13-100032 Elbow 90° Ø32

13-100040 Elbow 90° Ø40

13-100050 Elbow 90° Ø50

13-100063 Elbow 90° Ø63

13-100075 Elbow 90° Ø75

13-100090 Elbow 90° Ø90

13-100110 Elbow 90° Ø110

13-100125 Elbow 90° Ø125

13-100140 Elbow 90° Ø140

13-100160 Elbow 90° Ø160

13-100200 Elbow 90° Ø200

13-100225 Elbow 90° Ø225

PVC ELBOW 45°

REFERENCE DESCRIPTION

13-110020 Elbow 45° Ø20

13-110025 Elbow 45° Ø25

13-110032 Elbow 45° Ø32

13-110040 Elbow 45° Ø40

13-110050 Elbow 45° Ø50

13-110063 Elbow 45° Ø63

13-110075 Elbow 45° Ø75

13-110090 Elbow 45° Ø90

13-110110 Elbow 45° Ø110

13-110125 Elbow 45° Ø125

13-110140 Elbow 45° Ø140

13-110160 Elbow 45° Ø160

13-110225 Elbow 45° Ø225

PVC REDUCTION ELBOW 90°

REFERENCE DESCRIPTION

13-103050 Reduction Elbow 90° Ø50 x Ø63

13-103063 Reduction Elbow 90° Ø40 x Ø50

ELBOWS

PVC REDUCTION ELBOW 45°

REFERENCE DESCRIPTION

13-113050

13-113063

13-115030

13-115063

Reduction Elbow 45° Ø40 x Ø50

Reduction Elbow 45° Ø50 x Ø63

Reduction Elbow 45° Ø50 x 1½”

Reduction Elbow 45° Ø63 x 2”

PVC INNER THREAD ELBOW 90°

REFERENCE DESCRIPTION

13-102032 Threaded Elbow 90° Ø32 x 1”

13-102040 Threaded Elbow 90° Ø40 x 1¼” 13-102050 Threaded Elbow 90° Ø50 x 1½”

13-102063 Threaded Elbow 90° Ø63 x 2”

PVC OUTER THREAD ELBOW 90°

REFERENCE DESCRIPTION

13-105032 Threaded Elbow 90° Ø32 x 1¼” 13-105063 Threaded Elbow 90° Ø63 x 2”

PVC LONG ELBOW 90°

REFERENCE DESCRIPTION

13-120050 Long Elbow 90° Ø50 13-120063 Long Elbow 90° Ø63

SOCKETS

PVC END SOCKET

REFERENCE DESCRIPTION

13-700020 End Socket Ø20

13-700025 End Socket Ø25

13-700032 End Socket Ø32

13-700040 End Socket Ø40

13-700050 End Socket Ø50

13-700063 End Socket Ø63

13-700075 End Socket Ø75

13-700160 End Socket Ø160

PVC SOCKET

REFERENCE DESCRIPTION

13-300020 Socket Ø20

13-300025 Socket Ø25

13-300032 Socket Ø32

13-300040 Socket Ø40

13-300050 Socket Ø50

13-300063 Socket Ø63

13-300075 Socket Ø75

13-300090 Socket Ø90

13-300110 Socket Ø110

13-300125 Socket Ø125

13-300140 Socket Ø140

13-300160 Socket Ø160

13-300200 Socket Ø200

13-302018 Socket Ø20 x ¼”

13-302020 Socket Ø20 x ½”

13-302025 Socket Ø25 x ¾”

13-302032 Socket Ø32 x 1”

13-302040 Socket Ø40 x 1¼”

13-302050 Socket Ø50 x 1½”

13-302063 Socket Ø63 x 2”

13-302075 Socket Ø75 x 2½”

PVC THREADED END SOCKET

REFERENCE DESCRIPTION

13-702025 Threaded End Socket ¾”

13-702032 Threaded End Socket 1”

13-702050 Threaded End Socket 1½”

TEE / Y / INTERSECTION

PVC TEE

REFERENCE DESCRIPTION

13-200016 Tee Ø16

13-200020 Tee Ø20

13-200025 Tee Ø25

13-200032 Tee Ø32

13-200040 Tee Ø40

13-200050 Tee Ø50

13-200063 Tee Ø63

13-200075 Tee Ø75

13-200090 Tee Ø90

13-200110 Tee Ø110

13-200125 Tee Ø125

13-200140 Tee Ø140

13-200160 Tee Ø160

13-202032 Tee, 32 x 1” x 32mm

13-203032 Tee, 32 x 20 x 32mm

13-203048 Tee, 50 x 20 x 50mm

13-203049 Tee, 50 x 25 x 50mm

13-203050 Tee, 50 x 32 x 50mm

13-203064 Tee, 63 x 25 x 63mm

13-203065 Tee, 63 x 32 x 63mm

13-203078 Tee, 75 x 63 x 75mm

13-203161 Tee, 160 x 110 x 160mm

PVC Y-FITTING

REFERENCE DESCRIPTION

13-210050 Y-Fitting Ø50 13-210063 Y-Fitting Ø63

PVC CROSS

REFERENCE DESCRIPTION

13-250050 Cross Ø50 13-250063 Cross Ø63

UNIONS

PVC UNION

REFERENCE DESCRIPTION

13-600020 Union Ø20

13-600025 Union Ø25

13-600032 Union Ø32

13-600040 Union Ø40

13-600050 Union Ø50

13-600063 Union Ø63

13-600075 Union Ø75

13-600090 Union Ø90

13-600110 Union Ø110

13-605050 Union 1½” x 50mm

13-605052 Union 2” x 50mm

13-605063 Union 2” x 63mm

PVC UNION - WITH O-RING

REFERENCE DESCRIPTION

13-615050 Union Ø50 x 1½”

13-615055 Union Ø50 x 1½” - long model

13-615063 Union Ø63 x 2”

PVC INNER THREAD UNION

REFERENCE DESCRIPTION

13-606050 Threaded Union 1½” x 50mm

13-606063 Threaded Union 2” x 63mm

PVC WALL UNION

REFERENCE DESCRIPTION

13-530025 Wall Union Ø20/25 x ¾”

13-530032 Wall Union Ø25/32 x 1”

13-530050 Wall Union Ø50/63 x 2”

13-530063 Wall Union Ø63 x 2½”

13-530075 Wall Union Ø75/90 x 3”

13-530090 Wall Union Ø90/110 x M113

VALVES

PVC BALL VALVE

REFERENCE DESCRIPTION

12-101016 Ball Valve Ø16

12-101020 Ball Valve Ø20

12-101025 Ball Valve Ø25

12-101032 Ball Valve Ø32

12-101040 Ball Valve Ø40

12-101050 Ball Valve Ø50

12-101050-CE Ball Valve Ø50, Cepex

12-101063 Ball Valve Ø63

12-101075 Ball Valve Ø75

12-101090 Ball Valve Ø90

12-101110 Ball Valve Ø110

PVC BALL VALVE ¼”

REFERENCE DESCRIPTION

39-111223 Ball Valve ¼” Complete - with fittings

PVC 3-WAY VALVE

REFERENCE DESCRIPTION

12-251020 3-Way Valve Ø20

12-251025 3-Way Valve Ø25

12-251032 3-Way Valve Ø32

12-251040 3-Way Valve Ø40

12-251050 3-Way Valve Ø50

PVC BUTTERFLY VALVE

REFERENCE DESCRIPTION

12-230075 Butterfly Valve Ø75

12-230090 Butterfly Valve Ø90

12-230110 Butterfly Valve Ø110

12-230125 Butterfly Valve Ø125

12-230140 Butterfly Valve Ø140

12-230160 Butterfly Valve Ø160

12-230225 Butterfly Valve Ø225

VALVES

PVC 3-WAY MOTOR VALVE

REFERENCE DESCRIPTION

14-120554 3-Way Motor Valve Ø50, 24V

14-120556 3-Way Motor Valve Ø50, 230V

74-120463 3-Way Motor Valve 3 x 50mm, 24V

PVC 2-WAY MOTOR VALVE

REFERENCE DESCRIPTION

14-120214 2-Way Motor Valve Ø50, 12/24V

14-120216 2-Way Motor Valve Ø50, 230V

PVC SLIDE VALVE

REFERENCE DESCRIPTION

12-070968 Slide Valve Ø50

12-070632 Slide Valve Ø63

PVC FLAP CHECK VALVE

REFERENCE DESCRIPTION

12-271063 Flap Check Valve Ø63, DN 32

12-271075 Flap Check Valve Ø75, DN 40

12-271090 Flap Check Valve Ø90, DN 54

12-271110 Flap Check Valve Ø110, DN 70

PVC BALL CHECK VALVE

REFERENCE DESCRIPTION

12-131016 Ball Check Valve Ø16

12-131020 Ball Check Valve Ø20

12-131025 Ball Check Valve Ø25

12-131032 Ball Check Valve Ø32

12-131040 Ball Check Valve Ø40

12-131050 Ball Check Valve Ø50

12-131063 Ball Check Valve Ø63

12-131075 Ball Check Valve Ø75

12-131090 Ball Check Valve Ø90

REDUCTION SOCKETS

PVC REDUCTION SOCKET

REFERENCE DESCRIPTION

13-400020

13-400025

Reduction Socket Ø20-16

Reduction Socket Ø25-20

13-400032 Reduction Socket Ø32-20

13-400033 Reduction Socket Ø32-25

13-400040 Reduction Socket Ø40-20

13-400041 Reduction Socket Ø40-25

13-400042 Reduction Socket Ø40-32

13-400050

Reduction Socket Ø50-20

13-400051 Reduction Socket Ø50-25

13-400052

Reduction Socket Ø50-32

13-400053 Reduction Socket Ø50-40

13-400063 Reduction Socket Ø63-32

13-400064 Reduction Socket Ø63-40

13-400065 Reduction Socket Ø63-50

13-400074 Reduction Socket Ø75-50

13-400075 Reduction Socket Ø75-63

13-400088

Reduction Socket Ø90-50

13-400089 Reduction Socket Ø90-63

13-400090 Reduction Socket Ø90-75

13-400108 Reduction Socket Ø110-63

13-400109

Reduction Socket Ø110-75

13-400110 Reduction Socket Ø110-90

13-400124 Reduction Socket Ø125-90

13-400125 Reduction Socket Ø125-110

13-400138 Reduction Socket Ø140-90

13-400139 Reduction Socket Ø140-110

13-400140 Reduction Socket Ø140-125

13-400158 Reduction Socket Ø160-110

13-400159 Reduction Socket Ø160-125

13-400160 Reduction Socket Ø160-140

13-400200 Reduction Socket Ø200-160

13-400249 Reduction Socket Ø250-200

PVC LONG REDUCTION SOCKET

REFERENCE DESCRIPTION

13-410075 Long Reduction Socket Ø75-50

13-410110 Long Reduction Socket Ø110-75

13-410125 Long Reduction Socket Ø125-90

13-410140 Long Reduction Socket Ø140-110

13-410160 Long Reduction Socket Ø160-125/140

31-410200 Long Reduction Socket Ø200-140

VARIOUS FITTINGS

PVC TRANSITION

REFERENCE DESCRIPTION

15-720000 Transition SPMX 20 x 1/4”

15-720002 Transition SPMX 25 x 3/8”

15-720004 Transition SPMX 32 x 1/2”

15-720006 Transition SPMX 32 x 3/4”

PVC ADAPTER

REFERENCE DESCRIPTION

13-500316 Adapter ½” x 16-20mm

13-500318 Adapter ½” x 20-25mm

13-500320 Adapter ¾” x 20-25mm

13-500321 Adapter ¾” x 25-32mm

13-500325 Adapter 1” x 25-32mm

13-500326 Adapter 1” x 32-40mm

13-500332 Adapter 1¼” x 32-40mm

13-500332-1 Adapter 1¼” x 32-40mm

13-500333 Adapter 1¼” x 40-50mm

13-500340 Adapter 1½” x 40-50mm

13-500341 Adapter 1½” x 50-63mm

13-500350 Adapter 2” x 50-63mm

13-500351 Adapter 2” x 63-75mm

13-500375 Adapter 2½” x 75-90mm

13-500390 Adapter 3” x 90-110mm

13-500395 Adapter 4” x 110-125mm

13-510050 Adapter 1½” x 50mm

PVC REDUCTION NIPPLE

REFERENCE DESCRIPTION

13-520020 Reduction Nipple ½”OD x 3/8”ID

13-520034 Reduction Nipple 1”OD x ¾”ID

13-520041 Reduction Nipple 1¼”OD x ¾”ID

13-520051 Reduction Nipple 1½”OD x 1”ID

13-520063 Reduction Nipple 2”OD x 1”ID

13-521026 Reduction Nipple ¾” DC x ½” ID

13-521052 Reduction Nipple 1½”OD x 1¼”ID

13-521065 Reduction Nipple 2”OD x 1½”OD

VARIOUS FITTINGS

PVC THREADED END PLUG

REFERENCE DESCRIPTION

13-715016 End Plug 3/8” OD

13-715020 End Plug 1/2” OD

13-715025 End Plug 3/4” OD

13-715032 End Plug 1” OD

13-715050 End Plug 1½” OD

13-715063 End Plug 2” OD

PVC HOSE CONNECTION

REFERENCE DESCRIPTION

13-551618

Hose Connection 16 x 18 x 16mm

13-552022 Hose Connection 20 x 22 x 20mm

13-552527 Hose Connection 25 x 27 x 25mm

13-553232

13-554042

Hose Connection 32 x 32 x 30mm

Hose Connection 40 x 42 x 40mm

13-555052 Hose Connection 50 x 52 x 50mm

PVC FLANGE

REFERENCE DESCRIPTION

13-800063 Flange Ø63, C.H.D. 125mm

13-800075 Flange Ø75, C.H.D. 145mm

13-800090 Flange Ø90, C.H.D. 160mm

13-800110 Flange Ø110, C.H.D. 180mm

13-800125 Flange Ø125, C.H.D. 190mm

13-800140 Flange Ø140, C.H.D. 210mm

13-800160 Flange Ø160, C.H.D 240mm

13-800200 Flange Ø200, C.H.D. 295mm

13-800225 Flange Ø225, C.H.D. 295mm

13-800250 Flange Ø250, C.H.D. 350mm

13-800315 Flange Ø315. C.H.D. 400mm

VARIOUS FITTINGS

PVC FLANGE ADAPTER

REFERENCE DESCRIPTION

13-810063 Flange Adapter Ø63

13-810075 Flange Adapter Ø75

13-810090 Flange Adapter Ø90

13-810110 Flange Adapter Ø110

13-810125 Flange Adapter Ø125

13-810140 Flange Adapter Ø140

13-810160 Flange Adapter Ø160

13-810200 Flange Adapter Ø200

13-810250 Flange Adapter Ø250

13-810315 Flange Adapter Ø315

PVC GASKET - FOR FLANGE ADAPTER

REFERENCE DESCRIPTION

13-820075 Gasket Ø75

13-820090 Gasket Ø90

13-820110 Gasket Ø110

13-820125 Gasket Ø125

13-820140 Gasket Ø140

13-820160 Gasket Ø160

13-820200 Gasket Ø200

PVC DRILLING BAR

REFERENCE DESCRIPTION

15-710050 Drilling Bar 50mm x 1¼”

15-710062 Drilling Bar 50mm x ¾”

15-710063 Drilling Bar 63mm x 1¼”

15-710075 Drilling Bar 75mm x 1¼”

15-710090 Drilling Bar 90mm x 1¼”

15-710110 Drilling Bar 110mm x 1¼”

15-710160 Drilling Bar 160mm x 1¼”

15-710200 Drilling Bar 200mm x 2”

VARIOUS FITTINGS

PVC HOSE CONNECTION - ABS

REFERENCE DESCRIPTION 10-100601 Hose Connection 1½” ABS, 33-40mm ID

PVC PIPE HOLDER

REFERENCE DESCRIPTION

10-170178 Pipe Holder 16-19mm

10-170177 Pipe Holder 20-23mm

10-170176 Pipe Holder 25-28mm

10-170078 Pipe Holder 31-35mm

10-170079 Pipe Holder 39-43mm

10-170080 Pipe Holder 47-51mm

10-170081 Pipe Holder 60-65mm

10-170180 Pipe Holder 72-80mm

10-170179 Pipe Holder 87-95mm

FLEX HOSE

PVC SUPERFLEX HOSE

REFERENCE DESCRIPTION

15-330020 Superflex Hose Ø20

15-330025 Superflex Hose Ø25

15-330032 Superflex Hose Ø32

15-330040 Superflex Hose Ø40

15-330050 Superflex Hose Ø50

15-330063 Superflex Hose Ø63

15-330075 Superflex Hose Ø75

PIPES

PVC PIPE

REFERENCE DESCRIPTION QUALITY

15-440020 Pipe 5m, Ø20mm PN10

15-440025 Pipe 5m, Ø25mm PN10

15-440032 Pipe 5m, Ø32mm PN10

15-440040 Pipe 5m, Ø40mm PN10

15-440050 Pipe 5m, Ø50mm PN10

15-440063 Pipe 5m, Ø63mm PN10

15-440075 Pipe 5m, Ø75mm PN10

15-440090 Pipe 5m, Ø90mm PN10

15-440110 Pipe 5m, Ø110mm PN10

15-440125 Pipe 5m, Ø125mm PN10

15-440160 Pipe 5m, Ø160mm PN10

15-446125 Pipe 6m, Ø125mm PN6

15-446140 Pipe 6m, Ø140mm PN6

15-446160 Pipe 6m, Ø160mm PN6

15-446225 Pipe 6m, Ø225mm PN6

PVC TRANSPARENT PIPE

REFERENCE DESCRIPTION

15-450040 Transparent Pipe 5m, Ø40mm

15-450050 Transparent Pipe 5m, Ø50mm

15-450063 Transparent Pipe 5m, Ø63mm 4

15-450075 Transparent Pipe 5m, Ø75mm

15-450090 Transparent Pipe 5m, Ø90mm

15-450110 Transparent Pipe 5m, Ø110mm

15-450160 Transparent Pipe 5m, Ø160mm

FROM US MM TO EU MM

PVC SOCKET

REFERENCE DESCRIPTION

13-303033 Socket 33mm US

13-303233 Socket 32 x 33mm US

13-305048 Socket 50 x 48mm US

13-303060 Socket 60mm US - white

13-306360 Socket 63 x 60mm US

GRIFFON

Griffon offers a range of high quality solution-based products especially for professional use. With this, Griffon guarantees a complete selection for the sanitary and installation sector, for example, irrigation, horticulture, swimming pool construction, building and infrastructure technology.

UNI-100®

Fast thixotropic rigid PVC glue for joining pipes, sockets and fittings with interference fit and loose fit (gap filling) in pressure and drainage systems. Suitable for diameters . 315 mm. Max. 16 bar (PN 16). Maximum tolerance: 0.8 mm diametrical clearance / 0.2 mm press fit.

REFERENCE DESCRIPTION

11-110200

Griffon UNI-100, 125ml

WDF-05®

Characteristics

• Thixotropic

• Gap filling

• Ideal for gluing hard PVS/ABS pipes

• 125ml tube

• Approved for use in chlorine and salt water

• NOT for use on flex hose

Very fast, blue, thixotropic rigid PVC cement for joining flexible hoses and rigid PVC pipes, sockets and fittings with interference fit and loose fit (gap filling) in pressure and drainage systems. Excellent for e.g. swimming pools, whirlpools and applications under humid conditions. Suitable for diameters ≤ 160 mm. Max. 16 bar (PN 16). Maximum tolerance: diametrical clearance 0.8 mm (flexible hoses 0.3 mm) / 0.2 mm press fit.

REFERENCE DESCRIPTION

11-110100

11-110110

11-110115

Griffon WDF-05, 500 ml

Griffon WDF-05, 250 ml

Griffon WDF-05, 125 ml

CLEANER

Product for cleaning and degreasing (rigid) PVC, PVC-c and ABS pipes, sockets and fittings to be joined. Also suitable for removing fresh cement residue and cleaning brushes and tools.

REFERENCE DESCRIPTION

11-120110

11-120120

Tin with Cap, 125 ml

Tin with Cap, 1 L

TOOLS

WELLDANA® QUICK SEAL

A universal one-component glue and sealant with very good adhesion on many surfaces - e.g. plastic, glass, stone and metal. The glue hardens from the humidity at room temperature to a firm but very flexible rubber, which has incredible durability and strength.

Characteristics

• 290ml tube

• Surface dry in 5-10 minutes

• Colour: white

• High resistance to chemicals, UV light, chlorine and salt water.

REFERENCE

DESCRIPTION

11-130050 Super Glue 290ml - White

SFT-101 REPAIR

• Environmentally friendly . free from silicone, solvents and isocyantes.

• Can be sanded and painted over

• Can be applied in water and to vertical surfaces

• Shock and vibration dampening.

SFT-101 REPAIR is a universal, self-fusing, sealing and insulating, silicon-based repair tape. For quick and easy sealing and repairing of leaks in conduits, pipes, fittings, traps and hoses. Also applicable for the (watertight) sealing of electrical connections and for insulating and protecting electrical plugs and cables.

REFERENCE

DESCRIPTION

39-379150 Self fusing Tape SFT-101

Filter

Pumps

Flow Fittings

Pool Control & Dosing

Chemicals

Heating

Lighting

Counter Current

Holiday House Hot Tub

Pools

Liners

Formworks

Dehumidifers

Accessories

Maintenance Equipment

Cleaners

Covers

DAISY®

SWIMMING IN DRINKING WATER

What is Daisy® ?

Daisy® (Dryden Aqua Integrated System) is an ecological and sustainable water treatment solution which prevents bacterial growth in all private and public swimming pools. Daisy® can significantly lower the cost of water treatment, enhances water clarity, and provides the healthiest swimming experience.

Daisy® can be used with all types of pool water treatments.

AFM® The best filtration media for your swimming pool

How is AFM® manufactured?

Daisy® unique benefits

• Filtration > 0.1 micron. Reduces oxidation demand by up to 80%

• Prevents the formation of toxic disinfection by-products (DBP’s)

• Offers the best air quality - without chlorine smells

• Provides clearer and safer water - without pathogenic bacteria

• Lowers operating costs - water, chemicals and energy savings

• Makes a positive environmental impact

DAISY®, reduce your swimming pool’s operating costs in 3 simple steps

DAISY®, Enjoy the healthiest pool experience!

OUR CONCEPT IS BASED ON 4 CRUCIAL STEPS

1 2 3 4

Optimise your filtration

At the heart of every healthy pool you can find a perfectly designed filtration system. Even the most sophisticated and expensive water treatment system can not keep your water healthy if the basics are not respected.

High Quality AFM filter media

The unique qualities of AFM make it the most efficient filter media on the market.

Improve with ACO and with APF using zpm

To help nature’s processes we add two unique products; APF and ACO. The ZPM amplifies the coagulation and flocculation reactions for the conversion and precipitation of dissolved components into small particles.

DA-GEN control system

The first 3 steps ensure that hydrolysis disinfection is the perfect solution to swim in drinking water quality. The next step is to ensure perfect control of the whole system: A Da-Gen is the dedicated control unit for this.

OPTIMISE YOUR FILTRATION

At the heart of every healthy pool you can find a perfect dimensioned filtration system. Even the most sophisticated and expensive water treatment system can not keep your water healthy if the basics are not respected.

Our priority is to prevent bacteria instead of killing them!

Filter performance / Filtration speed

The performance of filters with sand or AFM® is a function of the filtration velocity. The slower the water passes through the filter, the better is the performance. However the relationship is not linear:

I.e. if the filtration speed is reduced from 30 m/h to 15 m/h the flocculation-filtration performance improves by a factor of 4. For this reason we recommend a filtration velocity of 15 - 25 m/h.

Filter performance %

By reducing the filtration speed from 30 m/h to 15 m/h the performance is increasing by a factor 4.

OPTIMISE YOUR FILTRATION

The following parameters are crucial for a perfect filtration

Filtration Velocity

Filtration velocity (s) is the amount of water (V) that passes your filter bed per hour (h) per square metre (A)

s = V/h/A = m³/h/m² = m/h

• For filtration: max. 30 m/h (the slower, the better without jeopardising the circulation)

• For backwash: min. 45 m/h with AFM media

Flow rate

Flow rate is the speed (v) a certain flow (Q) passes through the pipework (A)

v = Q/A = m/s

• For suction side of the pump: 1 to 1.5 m/s

• For pressure side of the pump: 1.5 to 2 m/s

*Use our calculators available through the welldana website to find your recommended fitting size for your flow rate.

FILTERMEDIA AFM® NG

AFM® NG

The best filtration media

Result of 35 years of Reseach & Development, AFM® ng (Activated Filter Media) is a direct replacement for sand that can be installed in all types of sand filters without modifications.

Manufactured from green and brown glass, AFM® ng is exposed to a unique activation process to become self-sterilizing and acquire superior mechanical & electro-static filtration performance.

Self-sterilizing surface resistant to bacterial growth

Increased surface area for superior filtration properties

Activated surface charge for the adsorption of fine particles and organic matters

AFM® ng offers the finest filtration

AFM® ng filters much finer than quartz or glass sand. The independent and best-known European laboratory for filtration tests IFTS (www.ifts-sls. com) has tested AFM® ng, quartz sand and various glass sands. The tests were conducted with fresh filter media without any biofilm.

AFM® ng: A certified 1 micron filtration rate

Particle size removal performance

Removal performance [%]

Size of particles [μ]

FILTERMEDIA AFM® NG

AFM NG

Why choose AFM® ng?

Want to know more about how AFM® ng works? Scan the QR code

Benefits

Up to 50% less backwash water

AFM® ng only needs 40 to 50 m/h backwash velocity.

Filter maintenance

AFM® ng outlasts all other filter media and offers a guaranteed return on investment.

AFM® ng is a crucial element of the Daisy® system

Safe Water No Chlorine Smells

1. INCONSISTANT AND UNRELIABLE FILTRATION

Filtration performance with AFM® ng is predictable, reliable, and remains stable over the years. There is no possibility of unfiltered water reaching the pool.

2. PATHOGENS

AFM® ng prevents the growth and the transmission of these pathogens. Pool water is therefore much safer.

3. TRICHLORAMINE - CHLORINE SMELL

With AFM® ng, there is no biological conversion from urea to ammonia inside your filter : No biofilm No trichloramine No chlorine smell ! Stable Performance

Reduced chlorine consumption

Chemical savings are approximately 20% to 30%.

Crystal clear water and the best air quality

AFM® ng reduces by up to 50% the formation of chloroform and other THMs.

Daisy® stands for “Dryden Aqua Integrated System”, an ecological and sustainable solution to treat water in public and private swimming pools against bacterial growth. Daisy® can significantly reduce water treatment costs, improve water clarity and provide the healthiest pool experience.

IMPROVE WITH ACO AND WITH APF USING ZPM

Improves filtration

APF® is a highly concentrated liquid product containing a precise combinaison of coagulants and flocculants for a wide spectrum of actions. APF® - when used with AFM® - is able to remove all particles down to 0.1 micron. Chemical consumption is reduced to the lowest possible level.

Ensures optima bathers’ safety

APF® makes your pool safer and healthier by removing more polluants and organic substances from the water. The formation of harmful disinfection by-products - such as THMs - is significantly reduced. With APF®, more pathogens can be filtered out including chlorine resistant parasites such as Cryptosporidium and Giardia.

Prevents algae growth

APF® contains NoPhos, an ecofriendly coagulant which removes phosphates from the water to prevent algae growth in a natural and sustainable way. Dosage : Use a constant flow peristaltic pump and inject into a ZPM static mixer 0.3 to 1 ml of APF® / m3 of water circulated through the filter.

REFERENCE DESCRIPTION

IMPROVE WITH ACO AND WITH APF USING ZPM

The best chlorine stabiliser Natural eco-friendly product Easy dosage

ACO® filters UV light to protect chlorine against the photoreduction from the sun - without reducing its effectiveness! Unlike cyanuric acid, ACO® does not lead to chlorine lock, does not build up over time in your pool and therefore avoids chlorine, water and energy waste! In salt water pools, ACO® increases the life of the electrolysis cells.

ACO® is compatible with all types of treatments (chlorine, bromine, active oxygen, salt water chlorinators etc.) and all types of filters. ACO® does not form any harmful disinfection by-products.

Pour directly into the pool 1 to 2 liters / 100m3 / week.

Or 5 to 10 liters / 100m3 / month.

Shake well before use. Apply a double dose at the beginning of the pool season

REFERENCE DESCRIPTION

4196629 ACO 5L

4196630 ACO 20L

IMPROVE WITH ACO AND WITH APF USING ZPM

What is a ZPM?

ZPM‘s are static mixers for the injection of products such as APF, ACO or NoPhos.

How does it work?

The ZPM is flanged into the pipework, the water is made to cavitate and spin at high speed which helps to kill parasites. The ZPM also helps to drop the zeta potential of the water, this causes flocculation of solids and increases the redox oxidation potential at the same time; the water is becoming self sterilizing.

ZPM is manufactured in sizes from DN40 – DN300 . The water molecules are pulled apart by the cavitation reactions which creates nano-bubbles. These help disinfecting the water. The greater the pressure differential across a ZPM, the stronger the cavitation reactions.

Nano-bubble implosion process

Characteristics

• Best water quality the ZPM before the filter amplifies coagulation and flocculation reactions of APF and NoPhos to improve the filtration performance of AFM® and reduce chlorine consumption.

• Safety barrier against pathogens the ZPM after the filter mechanically smashes cryptosporidium oocysts, bacteria floc and even single bacteria. The water is mechanically disinfected and the performance of chlorine is amplified.

• Small investment – big performance – for a lifetime the ZPM has an unlimited life. It needs no power and has no operating and maintenance costs.

REFERENCE DESCRIPTION

4196640 ZPM Mixer DN40/Ø50 mm

4196650 ZPM Mixer DN50/Ø63 mm

4196690 ZPM Mixer DN80/Ø90 mm

4196710 ZPM Mizer DN100/Ø110 mm

4196770 ZPM Mixer DN200/Ø225 mm

4196790 ZPM Mizer DN300/Ø315 mm

4196810 ZPM Mixer DN400

DA-GEN

PERFECT SOLUTION AND REGULATION

Best disinfection with free radicals

DA-GEN is a Hydrolyser that uses advanced oxidation technology to generate free radicals and small amounts of chlorine. We run the system with a very low amount of salt (NaCl or MgCl2) because the lower the concentration of salt, the more free radicals and the less chlorine is produced. These highly reactive free radicals (OH• and O•) completely oxidise organic substances and, in contrast to chlorine, don’t form any harmful disinfection by-products (DBP’s).

Swim in drinking water!

DA-GEN is an innovative disinfection solution for your swimming pool. It is a Hydrolyser that uses advanced oxidation technology to generate free radicals (OH• and O•). Free radicals are highly efficient oxidants with the great advantage they do not form any harmful disinfection byproducts. In combination with our Dryden Daisy®, you get pool water in drinking water quality - crystal clear and with no chlorine smell!

Highly efficient electrodes

Only our specially coated - high amperage - mono-polar electrodes can produce free radicals while operating at such low levels of conductivity (1.0 – 1.5 mS). Only 1 g/l of salt is needed ! DA-GEN can work with a TDS* concentration below 1200 mg/l in order to keep chlorides concentration under 600 mg/l - the corrosion limit for V4A (316) stainless steel.

TDS* = Total Desolved Solids

Drinking water quality

DA-GEN completes Dryden Daisy® with a desinfection stage. With a properly sized Daisy® only 0.1 mg/l of free chlorine is necessary to ensure proper disinfection in private pools. Pool water disinfected in this way is of drinking water quality – crystal clear and with no chlorine smell!

Complete pool control

• Free chlorine, Redox, pH, conductivity.

• Filtration speeds & backwash control.

• Automatic dosing for APF® and ACO®.

• Pool cover, heating, lights and more.

DA-GEN

KEY PRODUCT FEATURES & BENEFITS

pH measurement and automatic dosing

Free chlorine (or Redox) measuring and control

Temperature sensor

Pump and backwash control (programmable)

DA-GEN:

Perfect solution Perfect solution – perfect regulation perfect regulation- perfect Control Control

The DA DA--GEN GEN GEN generates free radicals (Advanced Oxidation) through anodic oxidation as well as other oxygen compounds and a small amount of Chlorine. The oxidation should be carried out mainly through the free radicals. The Chlorine is merely used as a depot disinfectant.

The lower the content of salt, the more free radicals and the less Chlorine are produced.

WHAT IS THE DIFFERENCE TO SALT ELECTROLYSIS?

Differences to salt electrolysis electrolysis: :: :

1. Much lower salt content (TDS) => more free radicals due to special cells

2. TDS < 1200mg/l = Chlorides under 600mg/l => no or low risk of corrosion

3. MgCl2 as activator instead of Salt (NaCl) => better flocculation, no Phosphates

4. No compromises – perfect solution: Always with pH-Regulation, always with Chlorine-Regulation, always with APF and always with WiFi

Should only be used in combination with Should combination DA

Swimming in drinking water in drinking water!!! !!!!!! !!!

Automatic dosing of APF® for the best result

Coagulation and flocculation

Salinity probe (optional)

Pool lights controlAutomatic dosing of ACO® (optional)

1. Much lower salt content (TDS) => more free radicals due to special cells

2. TDS < 1200mg/l = Chlorides under 600mg/l => no or low risk of corrosion

3. MgCl2 as activator instead of Salt (NaCl) => better flocculation, no Phosphates

4. No compromises – perfect solution: Always with pH-Regulation, always with Chlorine-Regulation, always with APF and always with WiFi

DA-GEN

DA-GEN COMPLETE FREE CHLORINE

DA-GEN MOUNTED SET

• 24/7 full control with integrated Wi-Fi module DA-GEN

3 reasons for the DA-GEN:

• Highly efficient electrodes: require very low conductivity: Only 1.0kg NaCl or 1.5kg MgCl2 is needed => low corrosion risk and high production of free radicals

• Automatic measuring and controlling of free chlorine, pH and APF®: Guarantees crystal clear water and safe disinfection without chlorine smell

• Wi-Fi

• Free chlorine control

• Flow detector

• Temperature module

• Suction lance

• TDS analyser

• pH control

• pH dosing pump

• Focculation pump for APF®.

• Test kit for pH/free chlorine/alcalinity

30-190045 DA-GEN Complete 45m³ Free Chlorine, 15A

30-190090 DA-GEN Complete 90m³ Free Chlorine, 30A

30-190150

Everything is mounted and ready-to-use on a panel (75x75cm)

DA-GEN UNMOUNTED SET

The DA-GEN unmounted sets includes the same parts as the complete kit, but not mounted and without the tubes and the panel:

• Wi-Fi

• Free chlorine control set

• Flow detector

• Temperature module

• Suction lance

• TDS analyser

• pH control

• pH dosing pump

• Flocculation pump for APF®.

30-190038 DA-GEN Set 45, Free Chlorine, Not Mounted

30-190039 DA-GEN Set 90, Free Chlorine, Not Mounted

30-190040 DA-GEN Set 150, Free Chlorine, Not Mounted

DA-GEN

DA-GEN REPLACEMENT CELLS

The lifetime of a cell is 5,000 to 8,000 hours. Usually they have to be replaced every 3 to 5 years. Delivered without housing, only the cell.

REFERENCE

39-190045

39-190090

39-190092

39-190095

39-190098

39-190099

DESCRIPTION

DA-GEN Replacement Cell 15 Amp OX1

DA-GEN Replacement Cell 30 Amp OX2

DA-GEN Replacement Cell 50 Amp OX3

DA-GEN Replacement Cell 80 Amp

DA-GEN Replacement Cell 120 Amp

MODEL DA-GEN

DA-GEN 45

DA-GEN 90

DA-GEN 150

DA-GEN 240

DA-GEN 360

DA-GEN Replacement Cell 175 Amp DA-GEN 500

DRYDEN AQUA FLOC-DOS-PUMP

REFERENCE

DESCRIPTION

4196700 Floc-Dosing Pump 3.2-240 ml/h for APF®

39-190011 Stenner Dosing Pump Eco VS 0.19 - 2.2 l/h for pH & ACO®

THE SMART BRAIN OF YOUR POOL

New Space Range what’s new?

New Hardware Built For The Future. More Advanced, Practical, Durable, Expandable.

Complete pool fleet management

Manage every pool from distance like you’re standing beside it.

• Custom-built enclosure with new PCB and cable entry plate

• Fast Next-Gen Industrial Microprocessor

• Up to 32 control relays with Extension module (Pilot)

• Adapted to dual Filtration Systems Monitoring & Control

• Acrylic cell integrating all sensors and new rotameter

• 2x integrated plug-in daughter boards for future needs

Higher productivity & Profit

Act proactively. Manage more pools with fewer resources.

Predictive pool Protection

Spot and prevent issues before they occur.

Reduced operating costs

Save on chemicals, water and energy

SPACE 2.0

Next-Gen Industrial Microprocessor

Our new future-proof microprocessor delivers 16x faster processing and 64x more memory. It ensures smarter performance, seamless multitasking, and maximum efficiency in advanced pool management.

Improved SPACE PRO App

Updated, the SPACE PRO App delivers a modern interface, faster performance, responsive design, advanced fleet and team management, simplified pool configuration, and instant data access.

Dual filtration systems Monitoring & Control

SPACE now supports and delivers the most advanced monitoring and control for dual filtration systems, with 2x pressure sensors, 2x flowmeter connections, control of 2x variable-speed pumps, 2x backwash valves, and much more.

New SPACE Acrylic Cell

The new “all-in-one” SPACE acrylic cell is far more practical and easy to install. It holds pH, ORP, FC, 2x water pressure sensors, plus a rotameter for flow detection, salinity, and water temperature measurement!

Faster pool setup with direct Wifi APP

No more tiny displays! SPACE is equipped with WiFi Direct App connectivity, allowing smartphones to connect instantly without the need for a separate network. This enables fast, hassle-free setup and direct control of the device.

2.0

Smart, adaptive chemical dosing

Total Alkalnity Monitoring

Drum Level monitoring

Overdosing security

LSI-driven pH automatic adjustment

Electrolysis Cell’s Polarity Inversion and Production Control (via Modbus)

Anti-freeze protection

Dual pump / filter monitoring (water pressure & flowrate)

water refills

Early Leak detection

Automatic water reductions

Pool cover control

Pool Light control (based on epheremis)

Dual filtration pump control and variable speed adjustment

Filtration Programming

By-pass Pump control (overflow pools)

dual filter backwash

coagulation & flocculation

Suction valve Control for

Mode & backwash optimisation

Rinsing valve control

/ Heating Control

A pool reflects luxury, family time, exercise and relaxation. Every pool component has to contribute to this expectation. At Aquadeck® we see the cover as the most defining part of your pool. The cover opens and closes your day at the pool. An Aquadeck® does not only open and close your pool safely but also offers numerous benefits that make it a valuable investment.

Our slats

This automated cover helps you save energy, reduce water evaporation, and even provides a natural heating source. With a wide range of slat options, there’s a perfect fit for every garden. We combine functionality, quality, and design in every detail. By choosing Aquadeck®, you opt for a state-of-the-art product crafted with a commitment to perfection.

Also discover our wide selection of built-in and surface mount options

What makes Aquadeck so unique?

Anti-Algae Concept

Our unique Anti-Algae concept prevents algae growth in the cover’s hinge chambers, keeping it clean and low-maintenance.

5 Year Warranty

Aquadeck offers a 5 year warranty on all slats and, by extension, all Aquadeck products.

State-of-the-Art Production

Our slatted covers are produced fully automatically with cutting-edge machinery, ensuring consistent quality and enabling rapid production.

Sleek, Flat, and Modern Design

With over 25 years of design expertise, our slats offer a sleek, precise fit, bringing us close to ultimate perfection.

High Insulation Value

Aquadeck slats feature large air chambers, providing excellent insulation to keep pool temperatures stable.

Double Waterproofing

Our slats are double-sealed, ultrasonically welded and further sealed with silicone for superior waterproofing.

Tri-Extrusion Technology

Using tri-extrusion, we add a UVprotection layer on top of the slat, providing added durability against sun exposure.

CONFIGURE YOUR PERFECT POOL COVER

Our brand-new Aquadeck configurator

Discover our brand-new “Aquadeck Configurator”: MY AQUADECK! As a pool builder, you can quickly and easily configure a tailor-made pool cover, including options, price calculations, and 3D visualisations. You immediately gain insight into quotations, orders, and technical information, such as solar efficiency and built-in dimensions. In short: it is your digital compass for informing your pool customer in the best possible way.

Customize

MY AQUADECK helps you, as a pool builder, create the perfect cover tailored entirely to your customer’s wishes. With a 3D visualisation, you can configure the ideal cover on the spot. Adjust your configuration, add options, and choose your preferred colour and installation method. This way, you can quickly and easily present a complete and convincing picture.

Facilitate

MY AQUADECK is synonymous with ease of use. In just a few clear steps, you can create the perfect cover. You gain immediate insight into the price thanks to the automatic calculation. This way, MY AQUADECK works for you, and you don’t have to wait for a response or a quote. In your account, you will find an overview of all ongoing orders and your order history. For Aquadeck, the new configurator is also 'next level'. Your orders are processed more quickly and it allows to operate our state-of-the-art machinery from there. Facilitating at its best and a step forward towards efficiency and perfection.

Inform

MY AQUADECK is a comprehensive resource filled with information. You'll find datasheets and manuals, along with detailed insights on solar intensity, installation dimensions, and roll diameters. Always up to date, MY AQUADECK serves as your central hub for Aquadeck, keeping everything easily accessible. It acts as your digital compass, guiding and informing your clients perfectly.

MY AQUADECK in a nutshell

~ Configure your Aquadeck cover easily in 3D Add options without any effort

~ Work efficiently thanks to automatic price calculation

Set the ‘without prices’ mode to inform end customers and configure their ideal cover on the spot

~ View all your orders and order history at a glance

Get access to a wealth of technical information: from manuals, roll diameters, installation dimensions to detailed info on the solar energy of your slats

Scan and configure your cover via MY AQUADECK!

Share your well-being #Welldana

Where is your favourite spot when it comes to relaxation and wellbeing? Share it with us. We love to be inspired! Show us your favourite spot around the pool, the children’s new water slide or the family’s new spa project. You can share with us by taking a picture and posting it on your social media with #welldana.

Find more inspiration on our instagram:

2 WAREHOUSE LOCATIONS WAREHOUSES

Welldana Denmark Randersvej 6 6700 Esbjerg

Denmark

Welldana Sweden Tonvägen 4 282 61 Bjärnum

Sweden
