MAXIMIZE EVERY TRAY

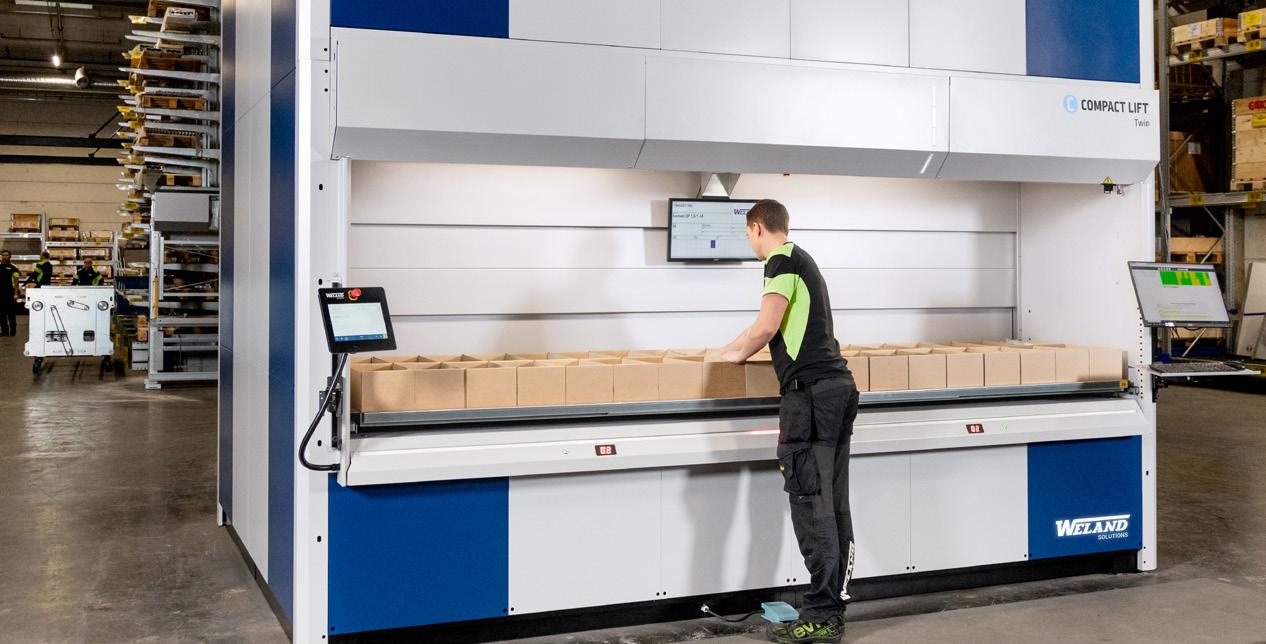

Flexible fittings that create structure, streamline picking, and utilize the full capacity of your Compact Lift.
Customize every tray according to your items, workflows and needs, from small components to heavy industrial storage.
Unlock the capacity of every tray
Without the right fittings, many trays are only utilized to a fraction of their capacity.
With the right solution, you create a clear structure, improve overview, and streamline your entire warehouse flow, from put-away to picking.

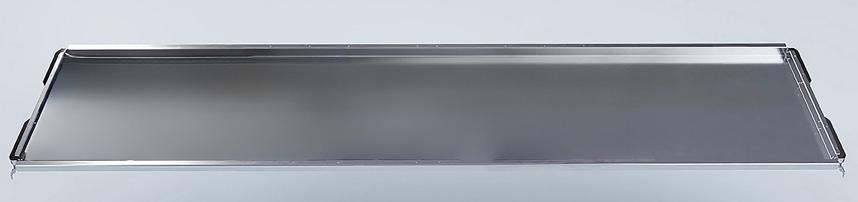

Customize the trays in your vertical lift module according to your operations and products with our fittings. Our trays are available in depths of 610 / 820 / 1230 / 1600 mm, and in widths ranging from 1830 to 6450 mm.
How to choose the right fittings
The right fittings depend on what you store, how often the content changes, and the level of flexibility you need.
FOR SIMPLE AND COSTEFFECTIVE STORAGE
Corrugated boxes
For temporary flows, seasonal items, or simple storage where flexibility and low cost are prioritized.
FOR STANDARDIZED WAREHOUSE MANAGEMENT
Plastic bins / Picking bins / Euro containers
For stable and efficient handling of small to medium-sized items in a structured warehouse flow.
FOR MAXIMUM FLEXIBILITY AND CUSTOMIZATION
Frame system / Flex dividers
When the content varies or when you want to build exact compartment divisions for your items.
FOR HIGHEST PRECISION IN SMALL PARTS HANDLING
Vacuum formed inserts
For fast and ergonomic picking where clear sorting is crucial.
More efficient picking. Clear structure and correct compartment division reduce searching and enable faster picking.
Better overview. Instantly see where every item is located and reduce the risk of picking errors.
Maximize storage space. Utilize the entire surface and volume of the tray in a smart way.
Full flexibility.
Easily adapt to new items and changing flows.
FOR HARSH ENVIRONMENTS AND HEAVY LOADS
Steel dividers
For industrial applications where durability and stability are most important.
Tip
Several solutions can be combined on the same tray to create an optimal mix of flexibility, stability, and capacity.
Rubber mat
Provides a stable and nonslip surface on the tray. It keeps goods in place and reduces the risk of sliding. Acts as a shock absorber and protects against wear. The thin and flexible design makes it easy to remove.
Sold in full rolls of 25 meters. Thickness 0.75 mm. Ideally used together with Frame system and Steel dividers.

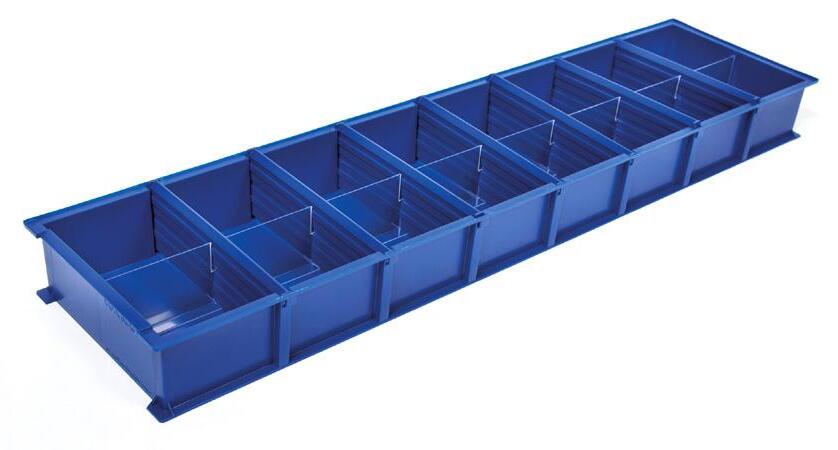

Plastic bin
A flexible Plastic bin specifically developed for Compact Lift.
Designed to achieve the highest possible fill rate on the tray. The bin is robust, easy to handle, and especially suited for small parts and spare parts.
Dividers for Plastic bins
Create customized compartments depending on item size and picking needs.
The short blue 200 mm divider is placed crosswise (use 0-7 pcs in existing slots). The long transparent 800 mm divider divides the bin lengthwise. It is placed quickly and easily to contribute to increased order.

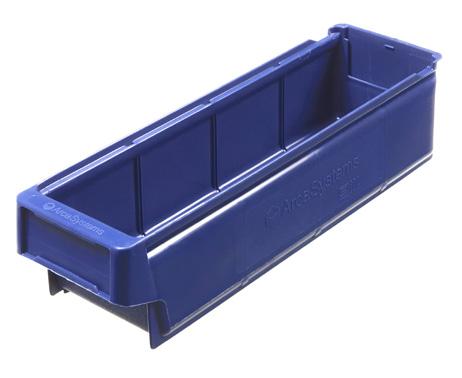

Picking bin
Durable and stable storage solution.
Fits both vertical lift modules and traditional racking systems. Provides clear structure and efficient picking of small and medium-sized items.
Dividers for picking bin
Creates flexible and clear compartment division. Helps keep small parts separated.
The bin has a label field for self-adhesive labels. Transparent dividers with label holders are available as accessories.

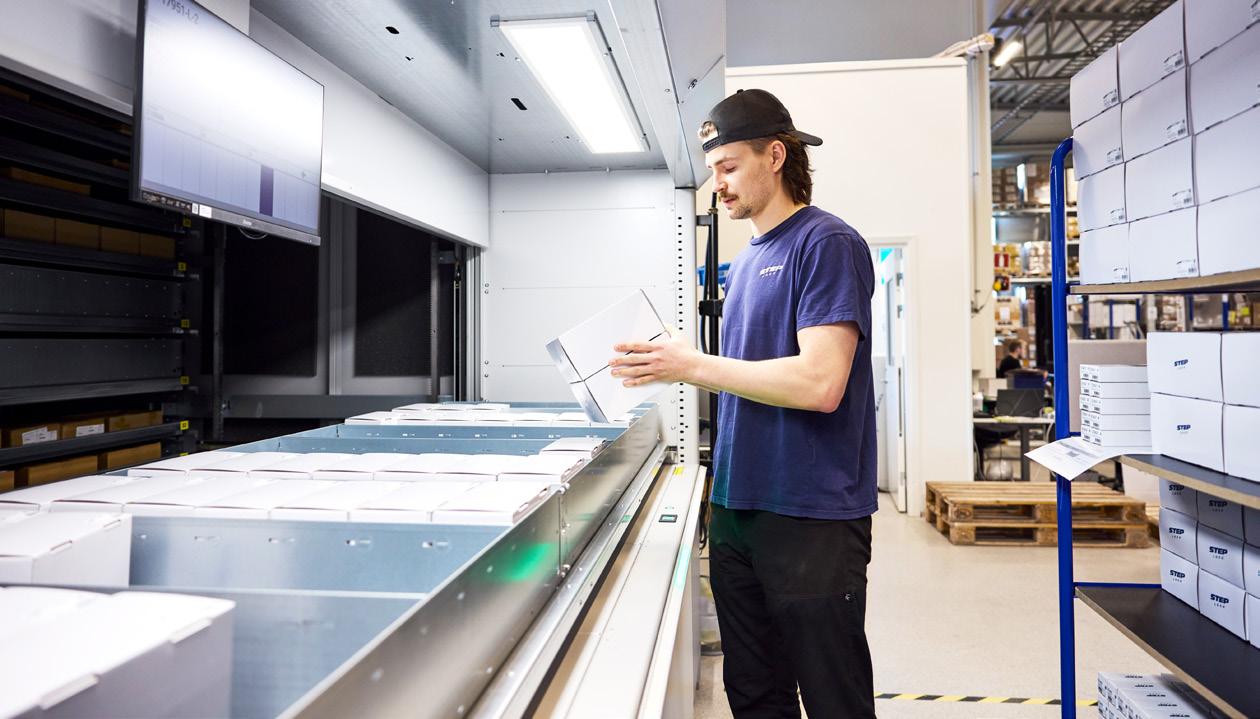

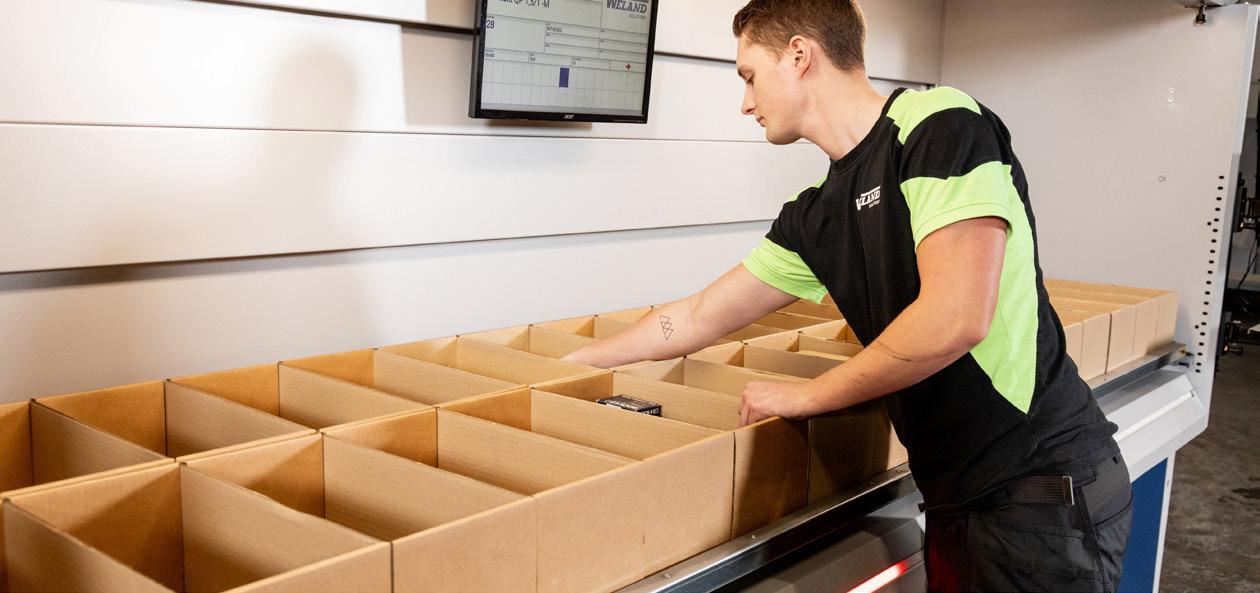

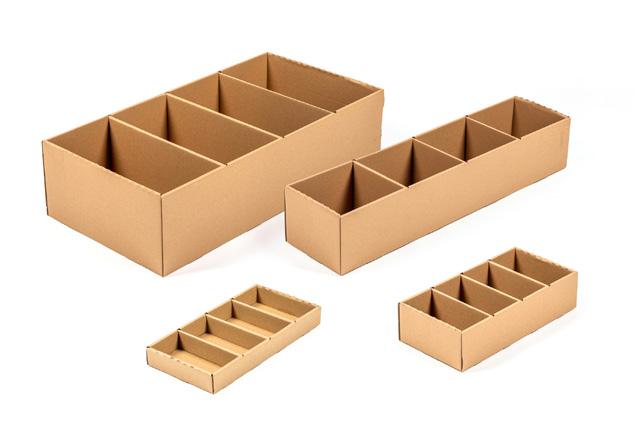

Corrugated box
Simple, flexible, and cost-effective.
A solution for temporary or less demanding needs. Perfect for seasonal items or lightweight articles. Available in several sizes and suitable for most storage needs.
Delivered in 25-packs including dividers. The box is delivered with four compartments and can be supplemented with dividers.
Dividers for corrugated box
Provides further subdivision for small parts. Tool-free assembly makes it easy to adapt to the current assortment.
FKA400200050 Corrugated box 4 comp.
FKA400200075 Corrugated box 4 comp. L
FKA400200100 Corrugated box 4 comp. L
FKA800200150 Corrugated box 4 comp.
FKA800400200 Corrugated box for 4 comp.* L
Corrugated board 25-pack
board 25-pack
FKAA400*200 Divider for corrugated box L 400 x H 200 Corrugated board 3-pack
*Delivered without dividers, add item ”Divider for corrugated box”

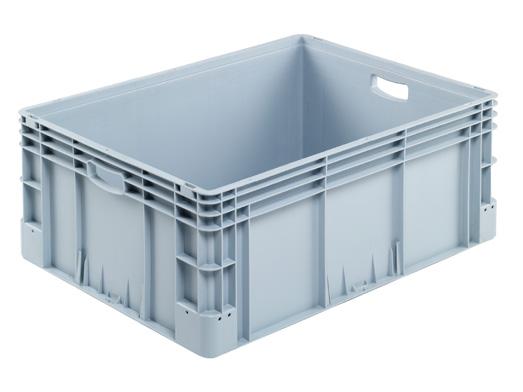

Euro container
A robust standard container for efficient and stable storage. The design provides stability during transport, while straight sides and modular sizes simplify stacking. Solid containers have a smooth, solid bottom as standard.
Fits perfectly lengthwise in 610 mm tray depth and crosswise in 820 mm tray depth.
Temperature resistant from -30º to +70ºC.
Scan the QR code to see movie of folding the corrugated box

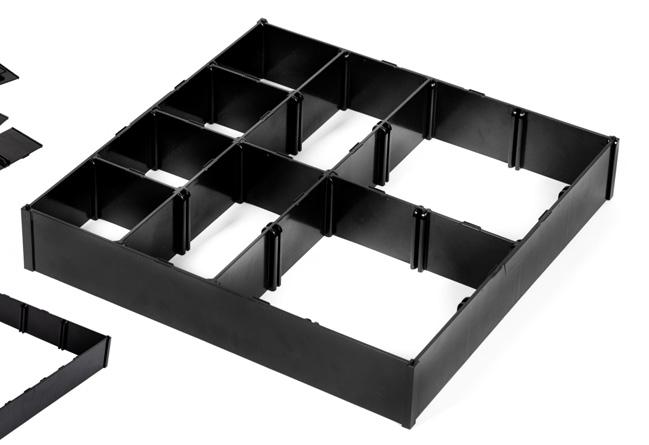

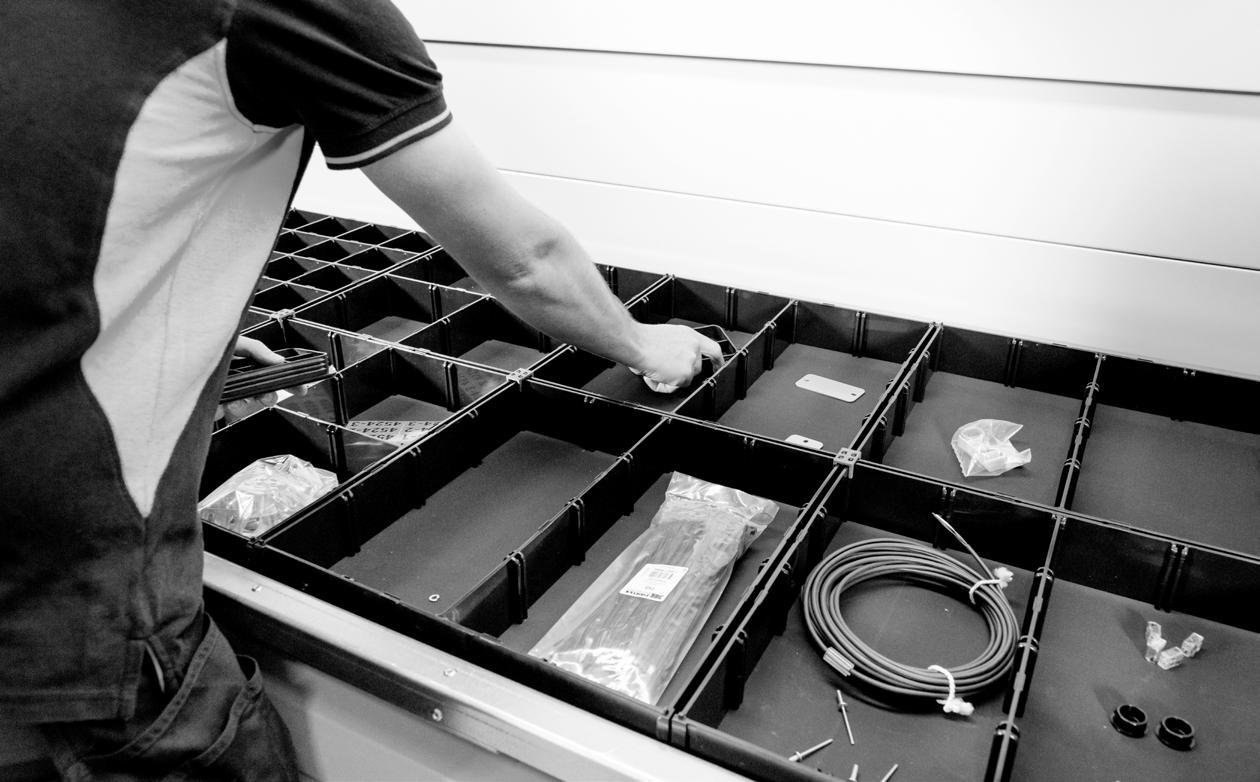

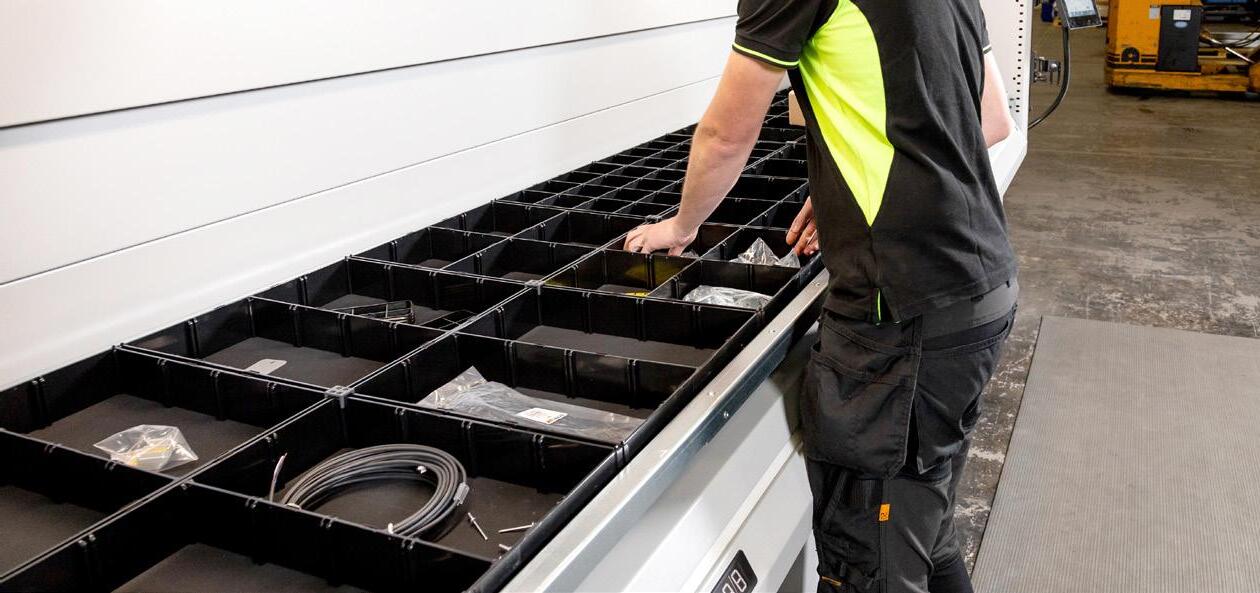

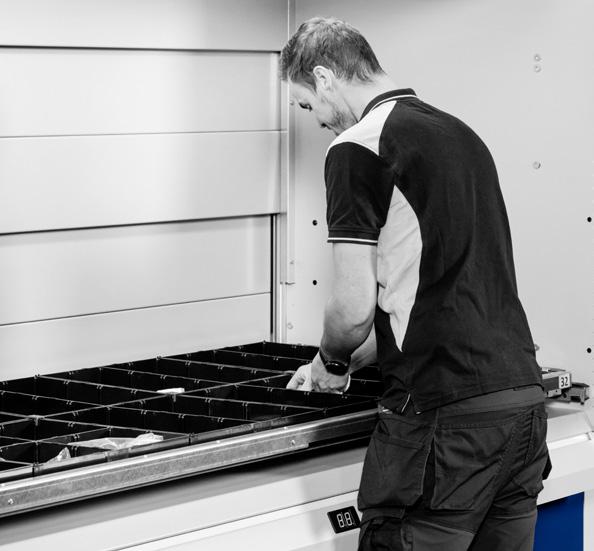

Frame system
Build your own structure, exactly according to your needs. Create the exact compartment division you need and change it as needs evolve. Combine Frames and dividers to build a structure for both small and large components.
How it works
The Frame system is based on a modular foundation where each Frame has an outer dimension of $400 \times 400$ mm. By combining Frames with dividers of different lengths, you easily create the compartment division that fits your operations. Combine for larger areas, divide in multiple directions, and adapt to article type.
Adjust in height
Stack multiple Frames to create higher compartments:
1 level: 70 mm, 2 levels: 140 mm, 3 levels: 210 mm.
Combine for best results

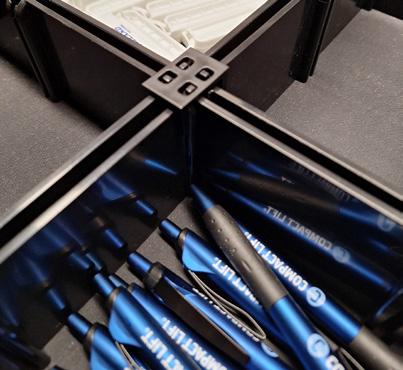

Ideally used with a rubber mat underneath for a stable and non-slip base. Use cross locks to connect multiple Frames for extra stability.
Use cross locks to connect multiple Frames for extra stability.
Dividers are available in three lengths.
Short product info
Frame: 400 × 400 mm
Dividers: 100 / 200 / 400 mm
Accessories: cross locks and locking pins
Thickness: 3,5 mm
A solution built to grow and adapt alongside your warehouse.
Scan the QR code to see movie

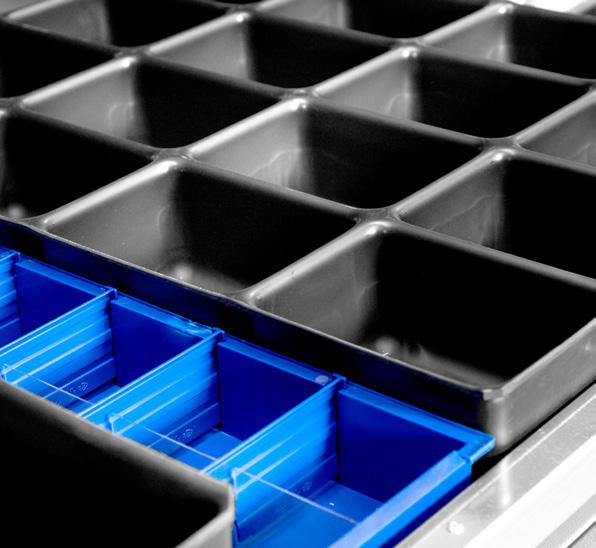

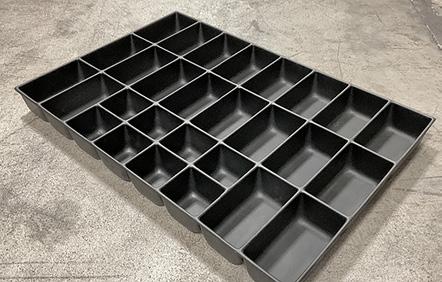

Vacuum formed insert
For efficient and ergonomic handling of small parts where precision is key.
Manufactured in durable vacuum formed plastic with rounded corners for ergonomic access.
Excellent choice for items like screws, nuts, clips, and springs where clear sorting and fast picking are crucial.

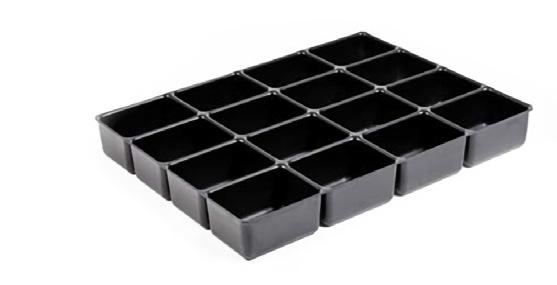

Vacuum formed insert (600 x 800 mm) are available in several versions: on the left with 4 compartments and a height of 200 mm, and on the right with 16 compartments and a height of 100 mm.
*consisting of 20 larger compartments and 8 smaller compartments

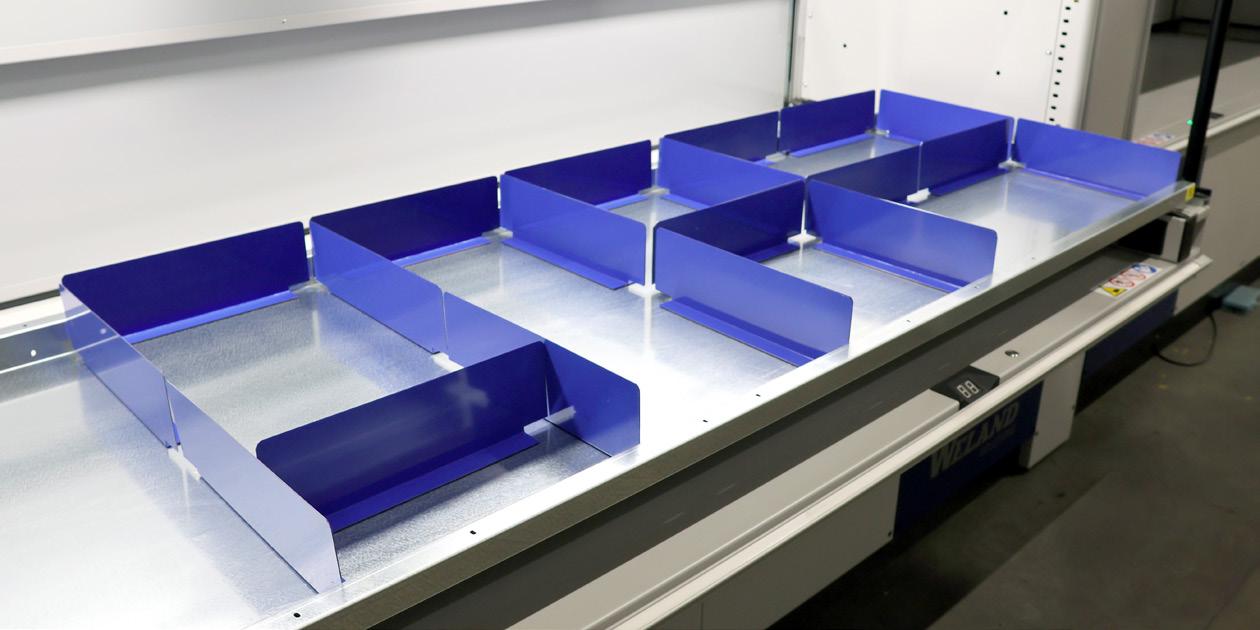

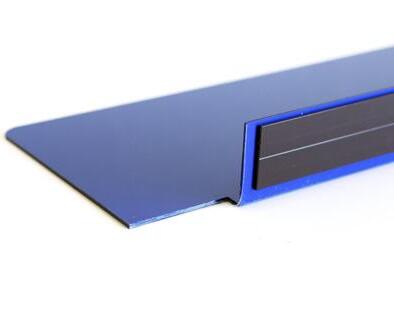

Flex divider
The Flex divider with magnetic foot makes it easy to create temporary or flexible compartments on the tray. It attaches firmly to the tray’s metal bottom and can be quickly moved, adjusted, or removed without tools.
The 400 mm long divider is optimal for 820 mm deep trays where two dividers fit perfectly. Place overlapping on other tray depths, such as 610 mm. Result is better order, more efficient picking, and maximal use of every tray.

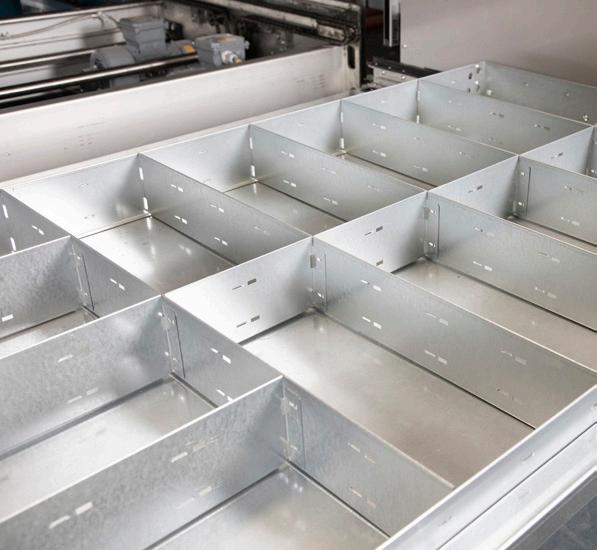

Steel divider
For environments where maximal durability and stability are required.
Manufactured in galvanized steel that withstands tough industrial environments and impact from oils and other liquids. Available in several heights and lengths for robust compartment division.
Frame heights: 100 / 150 / 200 / 250 mm.
Frame sold complete with screws, drill screws, and lock nuts. Buy internal dividers separately.
Internal divider for steel divider
Available in lengths from 100–800 mm.
Selected sizes below are in stock, other sizes available upon request.
INTERNAL DIVIDERS
FRA24400820100 Steel divider frame W 2440 x H 100
FRA24400820150 Steel divider frame W 2440 x H 150
FRA24400820200 Steel divider frame W 2440 x H 200
FRA24400820250 Steel divider frame W 2440 x H 250
FRA30500820100 Steel divider frame W 3050 x H 100
FRA30500820150 Steel divider frame W 3050 x H 150
FRA30500820200 Steel divider frame W 3050 x H 200
FRA30500820250 Steel divider frame W 3050 x H 250
FRA36600820100 Steel divider frame W 3660 x H 100
FRA36600820150 Steel divider frame W 3660 x H 150
FRA36600820200 Steel divider frame W 3660 x H 200
FRA36600820250 Steel divider frame W 3660 x H 250
Frames for tray widths 1830 mm is available upon request.
FAV0100100 Steel internal divider
FAV0200100 Steel internal divider L
FAV0200150 Steel internal divider
FAV0200200 Steel internal divider
FAV0200250 Steel internal divider
FAV0300100 Steel internal divider L
FAV0300150 Steel internal divider L
FAV0300200 Steel internal divider L
FAV0300250 Steel internal divider L
FAV0400100 Steel internal divider L
FAV0400150 Steel internal divider L
FAV0400200 Steel internal divider
FAV0800100 Steel internal divider
FAV0800150 Steel internal divider
FAV0800200 Steel internal divider L
FAV0800250 Steel internal divider L 800 x H 250
Internal dividers in lenghts 500 / 600 / 700 / 1200 mm are available upon request.

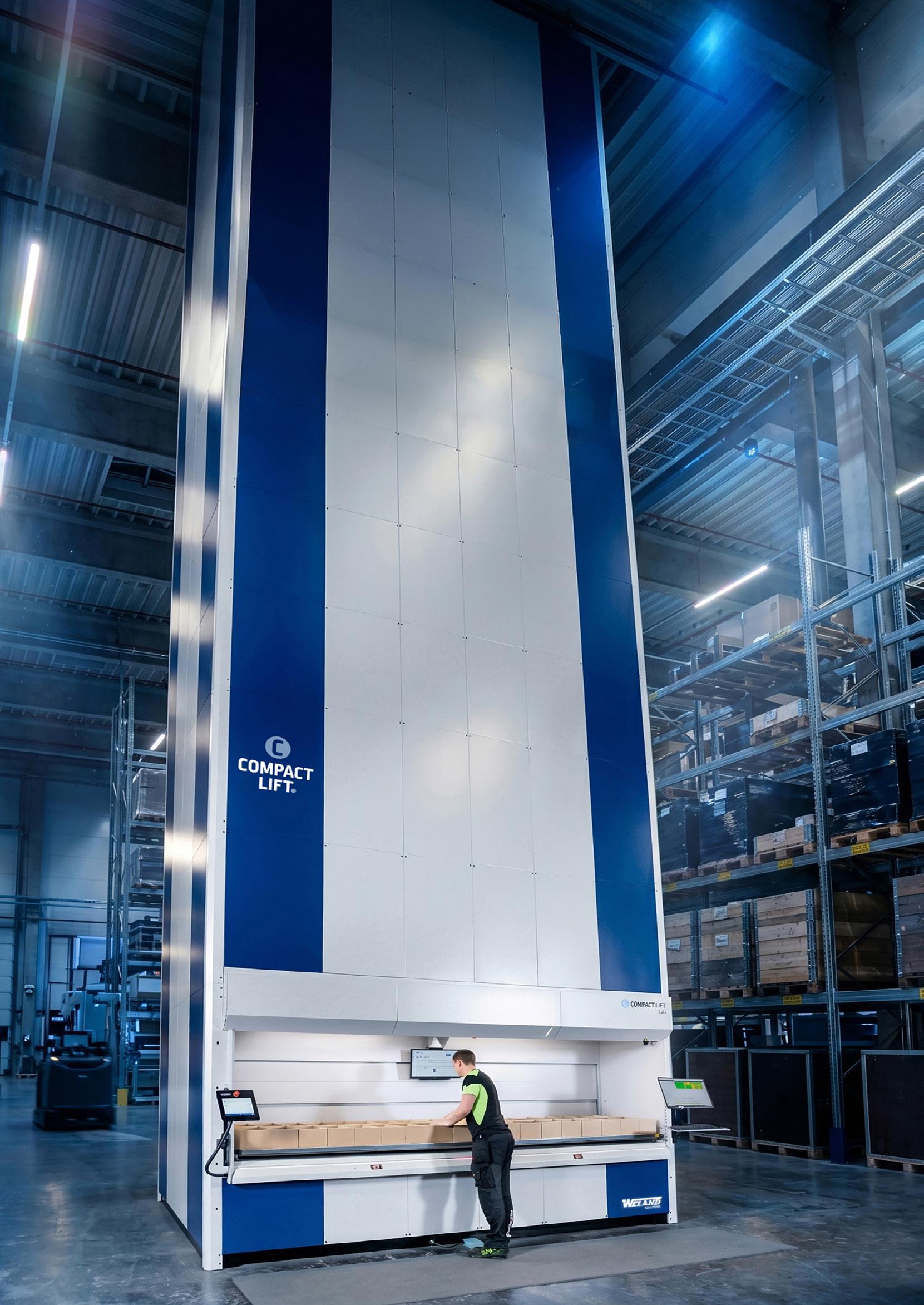

Maximize your Compact Lift today
We help you find the right fitting solution based on your items, your flow, and your warehouse structure.
Regardless of whether you want to improve an existing solution or build new from scratch, we can develop a plan that maximizes the capacity of your Compact Lift.
Contact us for a complimentary layout drawing
Layout proposals tailored to your operations
Recommendations for the right fittings
Optimization of existing trays
Scan the QR code for more information or contact us directly.
