WHAT IS A VLM, VERTICAL LIFT MODULE?
Maximise storage capacity by using the available building height. Goods are stored on robust trays and automatically retrieved by the central extractor device and delivered to the access opening, safely, quickly and efficiently.
Is Compact Lift right for your operation?
Limited floor space but available ceiling height?
Need higher picking speed and better ergonomics?
Many items taking up too much space today?
SPACE
Save 70-90% of floor space SPEED
Up to 4x faster picking
CONTROL
Fewer errors. Better flow.
ERGONOMICS
Optimised working conditions.
EXPANDABLE
Multiple units can be combined.

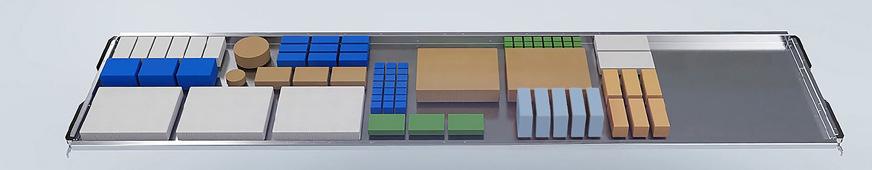

The goods are stored inside the VLM on trays, available in various depths and widths.
How Compact Lift works
Trays are stored in a front and a rear storage section, located above and below the access opening and behind the central extractor.
The central extractor device is the heart of the system, retrieving and returning trays.
The requested tray is delivered to the access opening for picking and replenishment. Can be connected to a host system (ERP/WMS).
Compact Lift – a complete system

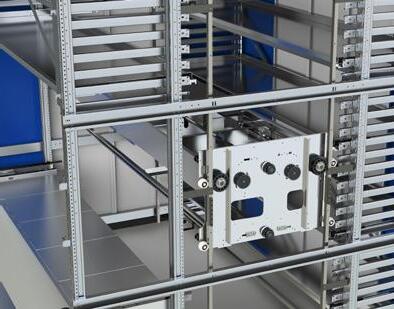

The extractor device
Software and control system
Safety functions
Performance and load capacity

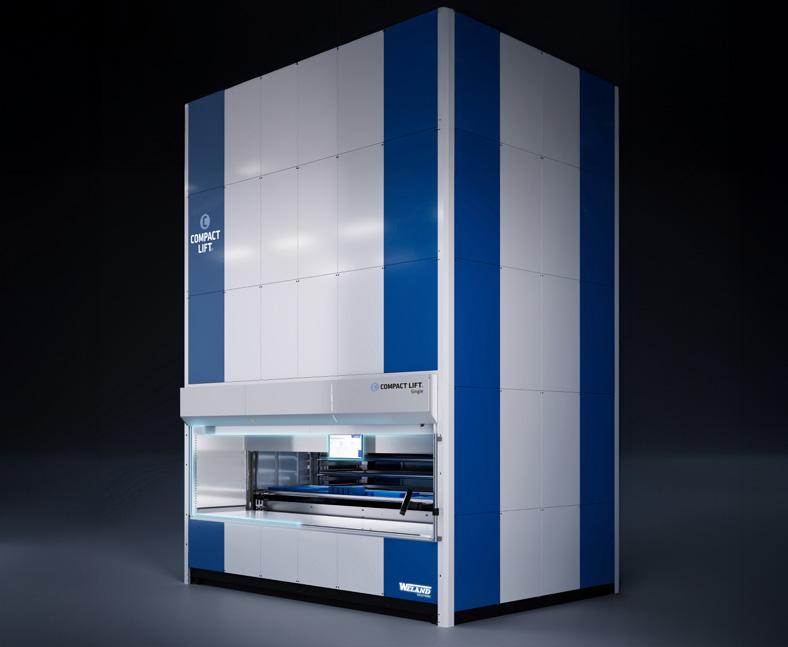

COMPACT LIFT Single
Our versatile base model. Flexible and space-efficient for all types of operations. Handles one tray at a time – simple, compact and easy to adapt to different requirements and building conditions. Choose from several available tray widths and depths and customise the unit height

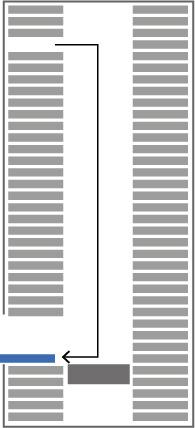

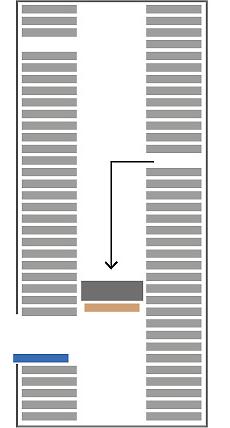

The VLM seen from the side, with the extractor device in the middle. There are two rows of trays, one in the front and one in the back.
Technical main dimensions
Height
TRAY
Tray width
Tray depth
Tray capacity
2576 - 15926 mm
1830 / 2440 / 3050 / 3660 / 4000 mm
610 / 820 / 1230 / 1600 mm
300 / 500 kg
COMPACT LIFT

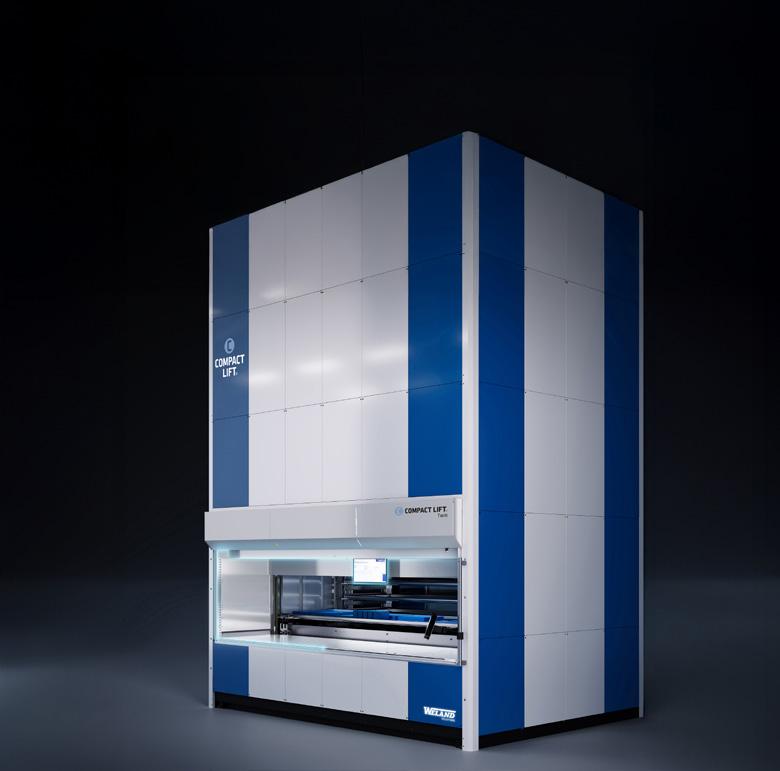

Twin
For high picking rates without waiting time.
Two trays are handled simultaneously for a continuous picking flow.
The next tray is prepared in the background while the operator is picking.
The extractor device in the Twin model is handling two trays at the same time.
Technical main dimensions
Height
TRAY
Tray width
Tray depth
Tray capacity
3176 - 15926 mm
2440 / 3050 / 3660 mm
610 / 820 mm
300 / 500 kg

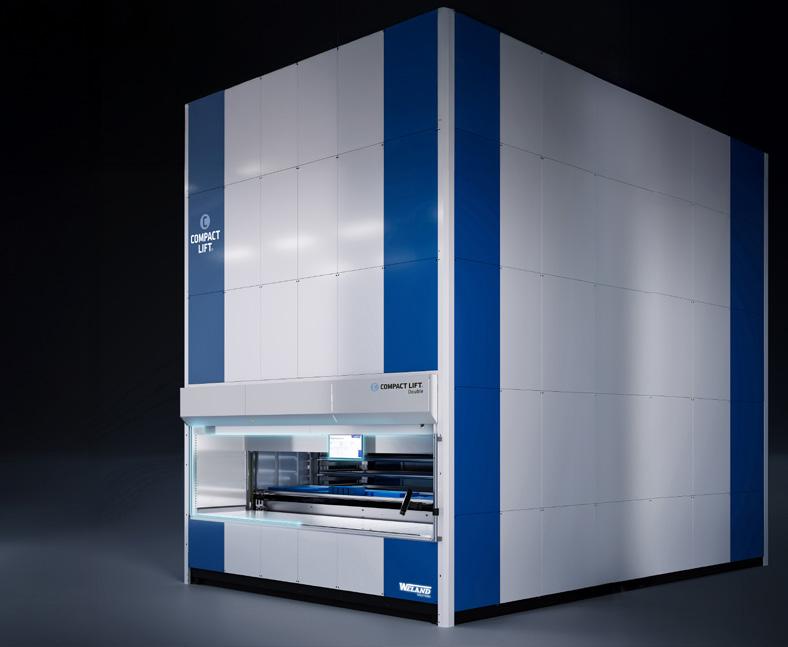

COMPACT LIFT Double
Maximum storage density on the smallest possible footprint.
Our most space-efficient storage solution. Double rows of trays provide the highest possible storage density.

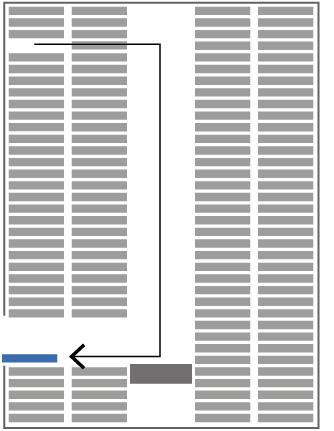

Side view of the unit showing the extractor device in the centre and two tray rows – one front row and one rear row. Opening
Technical main dimensions
Height
TRAY
Tray width
Tray depth
Tray capacity
3176 - 15926 mm
2440 / 3050 / 3660 mm
820 mm
300 / 500 kg
COMPACT LIFT

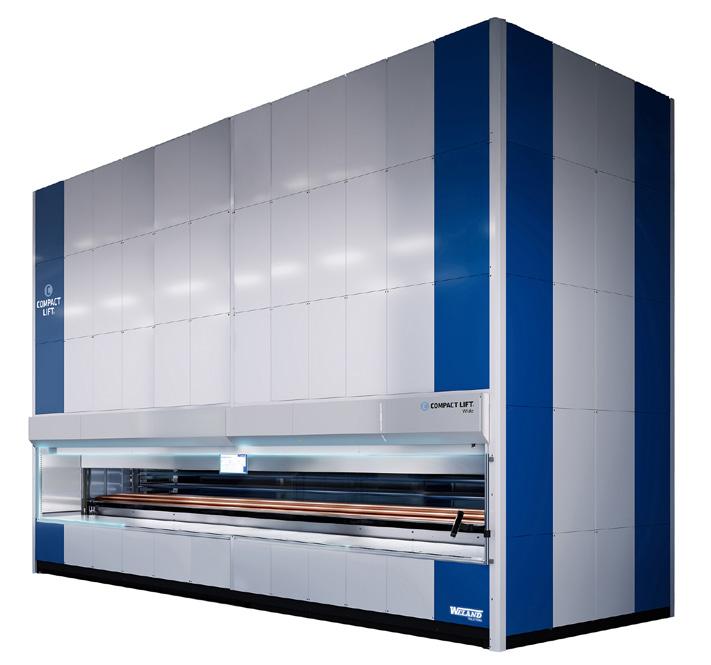

Wide
For long items and bulky goods.
Our widest model, ideal for profiles, pipes and long components.
Technical main dimensions Height
3176 - 15776 mm TRAY
Tray
Tray
6450 mm
mm Tray
COMPACT LIFT

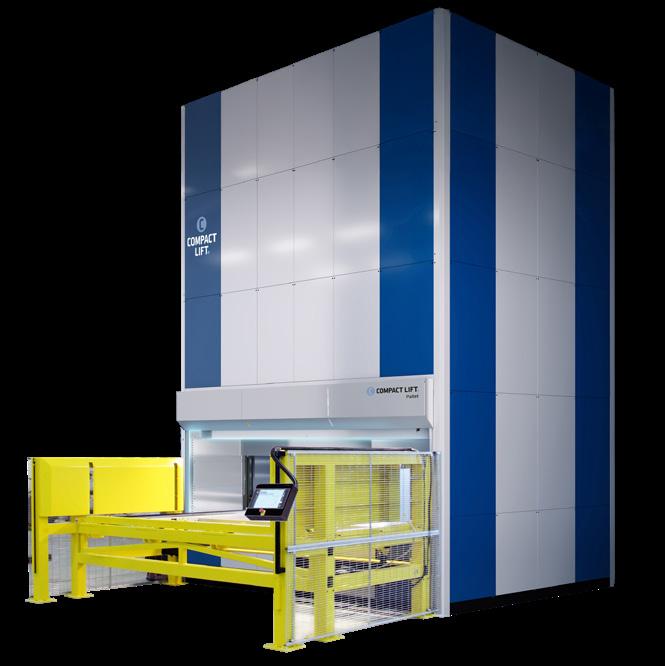

Pallet
For full pallets. Pallet handling with 100% fixed extract.
A robust solution for efficient inbound and outbound handling of palletised goods, manually or by forklift.
Technical main dimensions
Height
TRAY
Tray width
Tray
Tray
3176 - 15776 mm
3050 mm
820 / 1230 mm
COMPACT LIFT

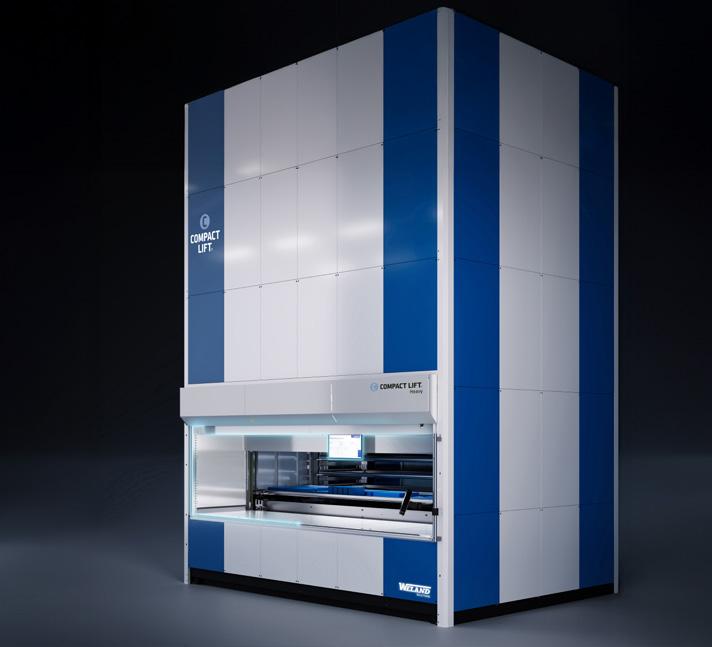

Heavy
For heavy tools and machine parts.
Designed for high loads per tray, up to 1,500 kg. Built for demanding industrial environments.
Technical main dimensions
Height 3176 - 15776 mm
TRAY
Tray width
2440 / 3050 / 3660 / 4000 mm
Tray depth 820 / 1230 mm
Tray capacity 750 / 1500 kg
Sustainable storage – in practice
Vertical storage reduces the need for new facilities and lowers energy consumption per stored item compared to traditional warehouse solutions.
Tailored to your needs
Example of features:
Picking facilities, such as laser pointers

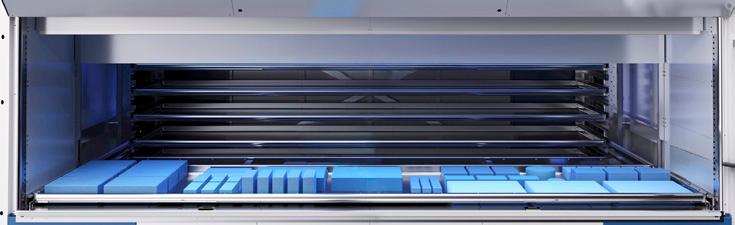

Tray fittings: Adjustable dividers and compartments for everything from small components to long items.
Custom access openings: Access openings on multiple sides or on different floor levels. Up to three access openings.
Put‑to‑light / Put‑to‑screen Service, maintenance and software
Reliable operation and long term performance
Through planned maintenance and specialist support, we ensure that your Compact Lift delivers high performance year after year. Our service agreements are designed to give you worry-free operation.
System integration – intelligent warehouse control
Full control of inventory, items and material flows in real time, seamlessly integrated with your ERP and WMS.
Made in Sweden
Development, engineering and manufacturing in Gislaved Sweden, by Weland Solutions – Home of the Compact Lift. Contact us for advice, layout proposals, and quotations.
