ProductPortfolio
Smart Industrial Connectivity
Industry-focusedservicesandsolutions
Our Solutions for Smart Industrial Connectivity
PowerSupplies
CircuitBreakers
AccessPort ServiceInterface
4GRemoteAccess: DataAggregation, Maintenance& CloudService
IndustrialEthernet &4GSecurityRouters
OPENu-controland u-remoteI/O
Relays&Optocouplers
Markers&Tags
PowerDistribution
Weidmuller Configurator
Yourefficiencyboosterinpanelbuilding: experiencethefutureofdigitalengineering withtheWeidmüllerConfigurator—available asacloudordownloadversion.
TheWeidmüllerConfiguratorisyourcomplete digitalsolutionforend-to-endengineering— fromengineeringtoproduction. NowOnline!Configure.Share.Accessanywhere.
Downloadtoday:www.weidmuller.com/wmc
One click to perfection with Klippon® RailSnapper
Pro Tip
• Directandtool-freeDINrailinstallationwithsmart, patentedclickmechanism
• Lowinstallationheightallowsformountingoffully populatedrailassemblies
• UsetheentirelengthofaDIN rail,withoutanyrestrictions
• Servesasaguidewhen attachingaDINrail
Weidmuller Services
Engineering & Visualization Tools
u-OS + Data Hub
• u-OS=Open.EngineeredforIndustrialIoTand automationwithanopenarchitectureabletoincorporate proprietaryapplicationsandcloud connectivityforsimplifiededgecomputing
• u-OS=Flexible.IntuitiveAPPmanagement, offeringagrowingAPPecosystem,including CODESYS,Ignition,Node-RED,Portainerand manymore—forendlessinnovationand scalability
• u-OS=Independent.Builtonopenstandards, likeLinuxandContainers,toensureeasysystem migration
• EasyintegrationwithWeidmullerandthird-party hardwareandsoftwareforfuture-proofresilience
• Newinu-OS2.2.0,DataHubuniteseveryapp,controller orsensorofferingtheonlyservicethatsupportsthree openApplicationProgrammingInterfaces(APIs):REST, NATS,andREALTIME—afeaturethatisunprecedented fortheindustry
u-link
• Remoteaccessforefficientmaintenanceofyoursystems
• Securebydesign,proventhroughISO27001-certified developmentandoperation
• Easyremoteaccesswithoutin-depthITknowledge
• Powerfulfunctions(management,alerts,logging, diagnostics,reports,etc.)
• VPNorweb-basedaccessforvarioususecases
PROCON-WEB (Embedded & SCADA versions)
• Minimalhardwarerequirementsforeasydeploymenttothird partyapplicationsbasedonLinuxorcontainertechnology
• PROCON-WEBEmbeddedSystemscanbe implementedindependentlyofhardwareand operatingsystem
• Web-basedvisualization,supportformobiledevices, andopencommunicationstandardsincrease flexibility
• PROCON-WEBSCADAsimplifiestheprojectplanningofmodern multi-touch-capableuserinterfacesforautomation—integrated webserverenablesusingHTML5-capablebrowserswithout specialplug-insandcommunicationdriversfacilitateconnection withallcommoncontrolsystems
u-view
• Touchpanelswithexcellentimagequalityandhighperformanceprocessorsthatareidealforindustrial applications—compatiblewithvariouscontrollersvia communicationdrivers
• Withouru-viewtouchpanels,webHMIsolutionand widelyscalablePROCON-WEBsoftware,youhavethe entireprocesschainundercontrol
Engineering & Assembly Solutions

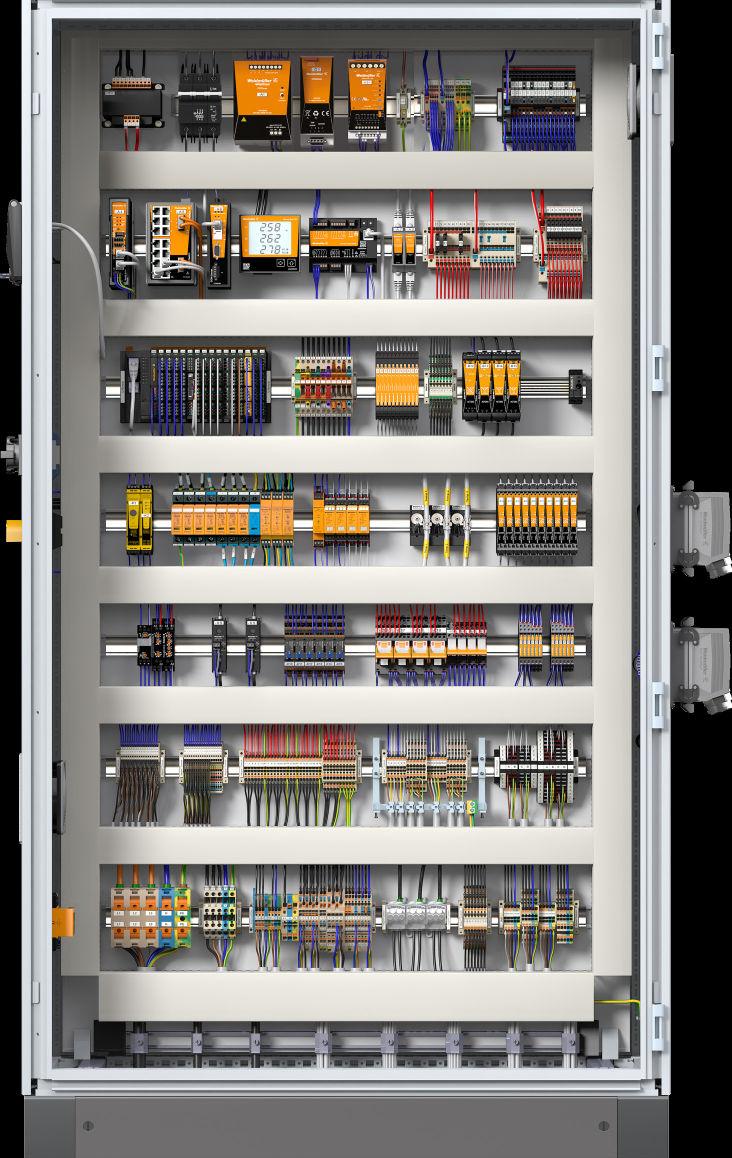

Rail assemblies
• DIN-railassemblies
• Customizedmarkingoptions
• Wiredandtestedassemblies
• Productkittingandbundling
Engineered enclosures
• ATEX;IECEx;CULus;Class1Div2,Zone1,Zone2
• Wirelessassemblies
• Customjunctionboxes
• Design,assemblyandwiredsolutions
• ApplicationSpecificSolutions EX:DCS,I/OMarshallingCabinets CombinerboxesforPVsystems
Custom cable assemblies
• Consistingofeitherstandardizedorspecific connectinglines-weprovideyouwiththe optimalsolutionforeverycablingtask
• Variousindividualizationlevelstomeetyour needsineveryplanningsituation
• Demand-orientedcablelengths,plugs, markings,orcolorsfromabatchsizeofone
• Compatibleforuseinrobotsandwith recyclable,halogen-freecables
Custom PLC interface modules
• Application-specificmoduleswithadded featuresandfunctionality
• UtilizationofWeidmullerPCBcompontents
• Varioushousingsizestoaccommodate spaceconstraints
• Reduceinstallationtimeandimprove maintenanceandtroubleshooting
Moreinformation:www.weidmuller.com/assemblyservices
Device & Field Connectivity
OMNIMATE® Services
• Developyourdeviceswithuniqueefficiency
• OurOMNIMATE® Servicesconsiderablyreduce yourprojectcostsandtime-to-market
• Supportallprojectstages:specifications preparation,developmentanddesign,approval, andseriesproduction.Whetheryouneedto obtainknow-howortofindtherightcomponents foryourdevice,youcanrelyonourexpertise
ConnectorGuide
• UseourConnectorGuidefordevicedevelopers toselectproductsaccordingtoyourindividual applicationortechnicalrequirements
• Weprovideyouwiththespecific productsandengineeringtoolsyou needtoincreaseyourefficiencyin developmentandholdyourownagainst yourcompetitorsinthemarket
Moreinformation:www.weidmuller.com/u-os
ServiceandSupport
Moreinformation:www.weidmuller.com/service
72-hour sample service
• Orderyourdesign-insamples, quicklyandeasilyinoure-Shop
• Usethefree72-hoursampleservicefor OMNIMATE®.Wedeliveryoursamplestothe desiredlocationwithin72hours
Moreinformation:www.weidmuller.com/omnimate-services
Industrial Connectivity Portfolio
Klippon® Connect
Power Feed-In & Distribution
• UL508ASCCRapproved
• IECfingersafe
• Singleand3-phase configurationoptions
• Aluminumandcopper conductoracceptance
• TS35DIN-rail ordirectmountable
Klippon® Connect Signal Wiring & DCS
Marshalling Terminal Blocks
• Multiplesignalconfigurations
• Extremelycompact
• Fastwiringthanksto PUSHINtechnology
• Color-codedpushersensure safewiring
• Othertermination technologiesavailable
Connectors, Cordsets, Patch Cables & Ethernet Cables
• Cat6aconnectorsandcablesforall industrialethernetapplications
• PROFINET,SERCOSIII,EthernetIP
• RJ45,M12DandXCoded
• LC,SC,SCRJandSTfiber opticconnectors
• Shieldedandunshielded assembledcables
• Wideassortmentofcut-tolengthbulkcable
RockStar® HDC
• Reliablepower,signal,data, andpneumatictransmission
• NEMA4/4XanduptoIP68protection
• Completerangeof connectorinserts andhousings
• SNAPIN,PUSHIN, screw,tension clampandcrimp terminations
Energy Logger & Energy Meters
• Forvoltagedistributionorloadmonitoring
• Singleor3-phasevoltages
• DirectACcurrent upto5Amp
• Isolatedanalogorrelay outputs
• cULusapproval
Terminal Blocks - Connection Technologies
• SNAPIN,PUSHIN,Screw andTensionclamptechnology
• Fuse,feedthrough,ground, disconnect,electric components,pluggable terminals&more
Fuse Terminal Blocks
• 5x20/25mm,1¼”x¼”, automotive,midgetfuse&more
• Blownfuseindication
• Lowleakagecurrent(<0.5mA)
Industrial Ethernet Managed & Unmanaged Switches
• Managedandunmanagedswitches
• GigabitEthernetandPOE
• Supportcopper(RJ45) andSFPmodules
• Fiberoptic(SC,ST,LC)
• Withrelaystatuscontacts
• Metalandplastichousings
• NewSPEswitch nowavailable
Klippon® Protect Enclosures
• ATEX;IECEx,cULus,Class1 Div2,Zone1,Zone2,21,22
• IP66ingressprotection (NEMA4/4X)
• High-tempgaskets-50°Cto +135°C
• 1to4glandplate configurations
• 316&304stainlesssteel; fiberglassreinforced polyester;diecastaluminum andpolyesterfamilies
Forhazardouslocations,weoffersolutionsthatincludethefollowingagencyapprovals:
Klippon® Connect Control Voltage Distribution
• Groupedoralternating setupformaximumwiring density
• Potentialdistributionwith fuseprotection
• Coloredpushersprevent incorrectwiring
• Twocross-connection channels
PLC/DCS System
Cabling & Migration Solutions
• FieldWiringterminationandcontrolsystem marshallingforDCSorPLC’s
• Universalconversion/ migrationplatformfor updatinglegacyDCS/PLC tonewsystems
• Standardandcustomizedpre-assembled cablesandFieldTerminationAssemblies
• Integratedcomponents(fuses,disconnect)
• Compact,spaceandtime-saving
u-link: Secure Remote Access
• IndustrialIoTapplications
• Enhancedsecurityforeasy plantormachineaccess
• Customizedsystemmanagement
• Statusmonitoringandreporting
• Secureandeasymaintenance withWeidmuller’su-link remoteaccessservice
• Supportcellular&WiFi
• SupportNAT,VPNandFirewall
FieldPower® Distribution Boxes
• ModularIP67enclosuresystemtointegrate IP20componentsinthefield
• Powerdistributionfor conveyorsandrobots
• Potentialdistribution withmaxGUARD
• Decentralizepower supplywithPROtop
• RemoteI/Os withu-remote
Power Supplies
• FeaturingPROtopandPROecoII switch-modepowersupplies
• Highefficiency, compact&minimal heatgeneration
• AC&DCinput voltages
• Single&3-phaseversions
• Redundancyoptions
• UPScontrolunits/battery backupunits,DC-to-DCconverters
• PROCOMpluggablecommunicationmodules
Mechanical
&
Solid-State Relays
• From6.1mmwidth
• 1,2,4PoleCO
• Finger-safeconnections
• Longlife
• Inductiveloads
• Highfrequencies
• Hazardousapproval (C1Div2)
• Individualorassembledkitsavailable
• Optionalaccessoriesavailable
u-remote: Remote I/O IP67 (SAI)
• Active&passiveinterfaces
• Analog/DigitalI/O
• Finger-safeconnections
• Longlife
• Inductiveloads
• Highfrequencies
• Hazardousapproval (C1DIV2)
• Individualorassembledkitsavailable
• Optionalaccessoriesavailable
Cabtite® Through-Wall Wire Cable Entry System
• Modularframesformultiplewire routingconfigurations
• MaintainsIP66 (NEMA4x&12)
• Acceptsround cabledia.from 0.12”-1.34”and ASIcable
• Integratedstrain reliefacc.DINEN62444
• Accommodates40wiresin4.33”ofspace
Circuit Breakers
• Branch&Supplementarycircuitprotection
• Numeroustripcurves
• Overcurrentprotection
• Electronicprotectors
• ACorDCprotection
• Hydraulicsolutions
• UL489orUL1077with completeaccessories
Analog Converter & Monitoring Relays
• 2,3and4wiremodels
• 2-channelmodelsandsplitters
• Exisolatingbarriers(IS)
• HARTtransparentoptions
• Configurableinput/output
• From6mmwideperunit
• Intrinsicallysafe signalconditioners
Wireless I/O & Modemnnectivity
• 400MHzand900MHz (licensedoptions)
• 2.4GHz(WiFi)
• 900MHzFHSS
• AccessPoint/Client; Bridge/Router
• 2+milerange (2.4GHz)
• 20+milerange(900FHSS)
• OnboardI/O
• Meshingandself-healingnetworks
Sensor Actuator Connectors & Cordsets
• M8,M12,M16,M23,and7/8” connectorsandcordsets
• Widerangeofcabletypes andconfigurations
• Weldslagresistantandhighflex (>20millioncycles)versions
• Shieldedand unshielded
• Plug,panelfeedthroughandboard mountedconnectors
VARITECTOR PU AC US-Line
• FullysupportsNorthAmerican standardsUL1449
• Allpowernetworkgridtypes&voltages —single,twoandthree-phasesystems
• Heavyduty,reliable& pluggablearrestorwith lockingmechanism
• Optionalremote signalingcontact
• Specialmountingclipforfast DIN-railmounting
• Centralizedandwidecontrolwindow
maxGUARD / topGUARD
• LoadmonitoringandDCvoltage distributioncombined
• Class2approved
• Modular system
• Remotereset ofloads
• Disconnect andeasy cross-connectoptions
• Intelligentelectronicloadmonitoring
Wireless Mesh Networking
I/O & Gateway
• Scalable,simple-tocomplexandpoint-tomulti-pointnetwork design
• SupportsEthernet andserial protocols
• SecureAES encryption
• Multi-level authentication
• Changeeventlogging
u-mation Automation Solutions
Control systems | u-control
• New!FasterM3000&M4000PAC controllers—expandingPLCcapabilities withadvancedcontrol&edgecomputing
• Modulardesign
• Poweredbyu-OStobeopenandflexible
I/O systems | u-remote
• Modular&space-saving
• 14+fieldbuscouplers
• Over80I/Omodules
• Integratedwebserver &diagnosticfunctions
Visualization systems | u-view
• Touchpanels&industrialPCs
• PROCON-WEB
• HTML5-basedvisualization
• HMIuptoSCADAapplications
VARITECTOR PV Series
• Forphotovoltaicsystems
• Arrestersinstalledinaccordance withULstandards
• Plug-inarresters fortool-free, quickand cost-efficient replacement
VARITECTOR I&C Components
• Foranalog,statusandnetworksignals
• Dischargesupto20kA(8/20μs)
• Pluggable,replaceableSPDversions
• Localandremote statusindication
• SPDelement testingoption
• Single,multistageandfloating signal protection
• Integratedground contactinbase element
VARITECTOR Data Interfaces
• Pluggable overvoltage protectionVSPC seriesforhigh frequencysignals anddatalines
• Protectsyour standardsignalssuchasRS485 andRS232
• EthernetCAT.6Protectionwith PoE+function

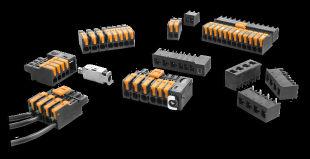

OMNIMATE® Power
• PCBconnectionsformmaximum performanceandsafetyrequirements
• Applicationspecific scalabilityof connectionsand unrestricteduse upto600Vin accordancewithULstandards
OMNIMATE® Signal
• User-friendlyconnectiontechnologies fromclampingyokescrewconnectionto PUSHINspringconnection
• Innovative,award-winning SNAPINconnection
OMNIMATE
® Data
• Dataconnectorsandsocketswith future-prooftransmissionproperties
• Innovative connectionsystem forindustrycompatibledesign
• Highquality individual componentsfor increasingdata rates
SNAP IN Connection Technology
• AvailableinDINRailTerminalBlocks, HeavyDutyConnectorsaswellas PCBTerminalBlocks&Connectors
• Fastestterminationtechnology onthemarket
• Savesupto85%ofwiring timecomparedtoscrew-type terminations
• Tool-freewiring,withorwithoutferrule
• Simpleconnectionenabledbypre-loaded, openspringcontact
• Visualandaudiblefeedbackviaraisedpusher
• Safe,gas-tightconnection
• Vibration-resistant
• Maintenance-free
• Ready-to-robot
Cutters
Cutcopperandaluminumcables andwireupto1260kcmil
KT Mini
• Cutswireto10AWG
Tools
KT 8S
• Cutswireupto4AWG
• Bladeshapeprevents wiredistortion
KT 40
• One-handoperation
• Suitablefornon-pinchcuttingof copperandaluminumconductors
Screwdrivers
Swifty® CS set
Tools
• Screwdriverwithacombined cuttingandstripping attachmentforcleancuttingof coppercablesuptoAWG16 (solid)andAWG14
Screwdrivers
• Hardenedhigh-alloysteeltips
• Soft-finishgriphandlesfor comfortablehandling
Strippers
Quickandaccuratestrippingwith nodamagetosingleconductors
stripax® Ultimate
Tools
• Striphard,halogen-free wireinsulationwith easefromAWG26...10
AM 25 and AM 35
• StripsPVCinsulatedcables, 0.25”...1.5”diameter
• Lengthwiseorspiralcuts
Crimpers
• Insulatedfor1,000Vsafetyrating
• Manualtorquescrewdriver
Automatic Machines
Machines
Ourautomaticmachines forwirepreparation optimizeinstallation timeandstreamlinethe manufacturingprocess
• CUTFIX PRO FEEDER
—cuttingmachine
• POWERSTRIPPER 6.0
—strippingmachine
• CRIMPFIX R Vario
—stripandcrimpmachine
• Wire Processing Center
—semi-automaticwirepreparation
Printing Systems
THM MultiMark
• Thesmartall-in-onesolutionformarkingthe entirecabinet,includingterminals,wires, devices&more
• Forsmallandmediumvolumemarking
• Flexibilityprovidebymodularperforation andcuttingunit
PrintJet Connect
• Weidmuller’s industry-leading markingsystemfor mediumandhigh volumes
• ForMultiCard(plastic)andMetalliCard (aluminumandstainlesssteel)
• Fullcolorprintingupto1200dpi
• Inputandoutputmagazinefor50cards
Tools
Precisecrimpwithminimalforce stripax® Plus 2.5 - 3-in-1 Tool
• Cuts,stripsandcrimpslinked wireferrulesfromAWG20…14
• ForPVCinsulations
PZ 6 Roto L
• Crimpswire-endferrules fromAWG26…10
• Wireinsertionfromsideorfront
Ferrules
• Insulated&non-insulatedandcablelugs
• 3colorcodesavailable
• Loose,strips,reelsand assortmentsfrom AWG24–300MCM
• ULListed.Crimpconnection becomesULapprovedaccording toUL486Fwhencrimpedwith Weidmullertoolsormachines
Marker Format Types
Terminal Markers
• TerminalmarkersforWeidmuller terminalsandothermanufacturer’s
Wire and Cable Markers
• Heatshrink
• Self-adhesivewraparound
• Stainlesssteel Device Markers
• Placardandelectrical
• Actuatorandcontactor
• E-stopandpushbutton
• Relaysandcircuitbreakers
Weidmuller — Your Partner in Smart Industrial Connectivity
Asexperiencedexpertswesupportourcustomersandpartnersaroundtheworld withproducts,solutionsandservicesintheindustrialenvironmentofpower, signalanddata.Weareathomeintheirindustriesandmarketsandknowthe technologicalchallengesoftomorrow.Wearethereforecontinuouslydeveloping innovative,sustainableandusefulsolutionsfortheirindividualneeds. TogetherwesetstandardsinSmartIndustrialConnectivity.
Weidmuller,Inc
821SouthlakeBlvd.
Richmond,Virginia23236
Telephone:(800)849-9343
Website:www.weidmuller.com
Email:customerservice@weidmuller.com
Supportcanbefoundonourwebsite: www.weidmuller.com/contact
