Aluminum Technology: The "Matching Rule" for Sandblasted Profiles and Precise Cost Control
Source: ALwindoor.com | Translated & Edited by
Jinjianlian
Introduction: From "Matte Aesthetics" to "Process Trap" – An IndustryWide Shift
Driven by consumption upgrades and diversified aesthetics, the highend window and door sector, architectural curtain walls, and even industrial profiles are undergoing an aesthetic revolution – moving away from glossy, dazzling finishes toward muted, matte textures. As the final valueadding step for aluminum extrusions, surface finishing is being redefined by market preferences. Sandblasting pretreatment, with its ability to create a fine, uniform substrate surface that offers a distinctive tactile feel (smooth, velvety), has become a "musthave" for premium matte effects. However, within this technology upgrade driven by appearance aesthetics, an invisible process trap is quietly eroding corporate profits and reputation. When we focus
exclusively on the final coating effect, we often overlook the profound impact that sandblasting has on coating coverage, material consumption, and quality stability. Embedded abrasive particles, inadequate coating coverage due to excessive surface roughness, and the surge in powder coating penetration required to compensate for poor coverage – these are no longer isolated production issues. They have become "quality and cost pain points" that run through the entire chain, from procurement and process engineering to quality inspection and cost accounting. This article aims to step beyond superficial overviews, delve into the frontiers of CNC technology and intelligent manufacturing from a fullindustrychain perspective, and provide a set of practical, battletested strategies for window manufacturers, contractors, and profile processors who pursue quality – strategies that
"boost efficiency, cut costs, and avoid detours."
The "Golden Match" Between Abrasive Grit Size and Film Thickness –Moving from Experience to Data
In traditional thinking, sandblasting is merely about "roughening" the substrate to increase adhesion. But in today’s pursuit of ultimate matte effects, such a coarse understanding falls far short. Abrasive grit size directly determines surface roughness (Ra value), and roughness forms a mathematical equation that must be precisely calculated alongside coating thickness.
Quantitative Specifications and Operational Techniques:
Through extensive production data and destructive testing, we have found that when using coarser 60mesh brown fused alumina for
blasting, the microscopic peaktovalley depth (Ra value) on the profile surface typically exceeds 3μm. At this point, if conventional spraying parameters are applied – with a coating thickness of only 60–70μm –two major problems readily emerge:
1. Exposed grit and poor hiding: At the microscopic level, the coating cannot completely cover the sharp peaks, resulting after curing in visible tiny bright spots or color differences; under high magnification, bare substrate is visible.
2. Uncontrolled color variation: Inconsistent roughness across different areas leads to different light reflectance, causing batchtobatch color differences visible to the naked eye.
The Solution:
Establish a threedimensional "grit mesh – roughness – film thickness" correlation model. We introduce industrial IoT and SCADA systems to digitally control both blasting and spraying operations. Specific steps:
Data acquisition: Install online roughness meters at the blasting station to monitor the surface Ra value in real time and upload data to the SCADA platform.
Model establishment: Based on historical data, build a mapping relationship of "grit mesh → standard Ra value → recommended primer film thickness." For example:
Grit ≥ 120 mesh (fine): Ra ≤ 2μm → recommended total film thickness ≥ 60μm
Grit = 80 mesh (medium): Ra ≈ 2.5–3μm → recommended total film thickness ≥ 70μm
Grit = 60 mesh (coarse): Ra ≥ 3μm → recommended total film thickness ≥ 80μm
Closedloop control: The SCADA system, based on realtime roughness data, automatically issues commands to the CNC spray guns at the coating station, dynamically adjusting powder output. When roughness exceeds the threshold, the system automatically increases the preset film thickness to ensure that peaks and valleys are fully leveled, fundamentally eliminating the risk of exposed grit.
Strengthening the Dedusting Process – Eliminating the "Invisible Killer" Before Curing
The surface of a sandblasted profile is by no means as "clean" as it appears to the naked eye. In the crevices, screw holes, and
grooves of complex crosssections, numerous "invisible killers" lurk – residual abrasive particles and microdust. Once these particles enter the coating line, they expand under the high heat of the curing oven, suddenly "pop off," leaving pits, craters, or even pinholes in the coating surface, scrapping the entire profile.
Troubleshooting Steps
and Practical Solutions:
Many companies rely on a simple blowoff step –far from sufficient. We have designed a "threestage intensified dedusting system" integrated with a digital production monitoring platform:
1. Highpressure ion air gun preblowing (physical + electrostatic):
Operating standard: Set up an independent station before the profile enters the spray booth, equipped with multiple adjustableangle highpressure ion air guns. Air pressure should be set at 0.6–0.8MPa. The ionized air effectively neutralizes static electricity on the profile surface, breaking the adhesion between abrasive particles and the substrate.
Key point: The guns must be angled at 45° for oblique blowing, synchronized with profile rotation or movement,
to achieve "directional blast" cleaning of gaps and grooves.
2. Multistage rotary brush roller mechanism (mechanical forced cleaning):
Description: After preblowing, integrate a rotary brushing assembly consisting of four sets of nylon brush rollers – upper, lower, left, and right. Brush roller speed and feed rate are linked to the line speed via PLC control, achieving allaround physical friction on the profile surface.
Specific steps: coarse brushing (removing large particles) → fine brushing (removing microdust) → powerful vacuum suction (negative pressure recovery), forming a closed loop. This mechanism can reduce residual abrasive particle rates by over 90%.
3.Datadriven monitoring (forwardlooking application):
Install a machine vision system after the brush roller section. Using AI image recognition, it monitors the profile surface for obvious residual sand in real time. Once detected, the system automatically triggers an alarm, pauses the spray guns, or marks the defective profile and diverts it to the rework line – preventing defects from reaching the next process.
Cost Accounting for "Hidden Losses" – Moving from "Per Area" to "Per Specific Surface Area"
This is the most easily overlooked link, yet it has the greatest impact on profit. A rough sandblasted surface has a far larger actual specific surface area (true surface area per unit projected area) than a smooth surface. This means that spraying the same projected area of profile requires more powder to achieve the same film thickness.
Data speaks:
Our measured data show that compared to smooth profiles, profiles blasted with 60mesh grit have a specific surface area increase of approximately 15%–20%. This directly translates into 10%–15% higher actual powder consumption per unit area. If companies still use the powder consumption rate of smooth profiles for cost estimation when quoting, profits will be silently eroded.
Precise Cost Control and Digital Optimization:
Establish a dedicated BOM for sandblasted profiles: In the ERP system, create an independent BOM for sandblasted profiles, raising the powder consumption coefficient from 1.0 (for
smooth) to 1.12 (i.e., +12%) as the baseline for cost accounting.
Dynamic compensation by CNC spray guns:
Equipment interconnection: Connect the spray gun control parameters at the booth station with the SCADA system.
Precise control: Based on the "whether sandblasted" and "grit mesh" information uploaded from upstream stations, the SCADA system automatically calls the corresponding spray gun parameter recipe. For example, for 60mesh sandblasted profiles, the system instructs the guns to:
Increase powder output: while ensuring atomization quality, raise electrostatic voltage and powder feed rate.
Adjust line speed: moderately reduce the conveyor speed to extend the powder’s adsorption and curing time on the rough surface, ensuring thorough penetration and uniform film thickness.
Effect verification: With realtime feedback from online film thickness gauges, the system dynamically finetunes to ensure film thickness targets are met while keeping powder utilization within the optimal range, avoiding waste from overspraying.
Wefactory is China's premier exhibition and promotion platform for the fenestration industry,with 28 years of industry expertise,representing 470 leading suppliers of doors, windows and curtain wall systems.Each edition features carefully curated product showcases.

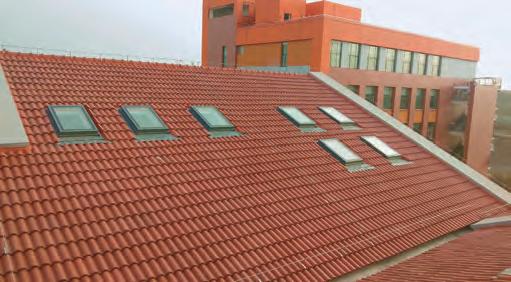

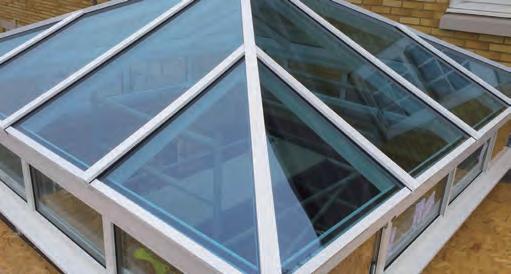

Including: aluminum doors & windows, aluminum-clad timber windows, uPVC windows, sunrooms, skylights, shading systems, fasteners, hardware, sealing strips, foam sealants, prefabricated housing, and aluminum profiles.Contact us to discover more innovative solutions from China's fenestration and curtain wall sector.
