STEEL & FIBERGLASS ENTRY DOORS
Scan for full Steel Product Guide.
Scan for full Fiberglass Product Guide.
75+ YEARS OF DOORS
Taylor Entrance Systems™ is an industry-leading, American-made manufacturer of premium steel entry doors serving residential and commercial markets. For 75+ years, Taylor has been providing innovative solutions and value-added products to the building materials industry, making them known as America’s doormaker.
19802000
ESTABLISHED
20122020
RELOCATED
INNOVATION
TRANSITION
Originally located in the Detroit area, the company relocated permanently to West Branch, Michigan, in 1968.
Through the decades, Taylor has developed a history of innovation, bringing numerous products to market that have helped further shape the fenestration industry. The products introduced were Adjustable Hinge steel doors, Stainable Steel doors, commercial products, 8-foot steel doors, smooth and woodgrain fiberglass doors, and a 90-minute fire-rated steel frame.
In December 2012, Taylor was acquired by Wausau Supply Co., an industry-leading building materials distributor and manufacturer based in central Wisconsin.
75 th ANNIVERSARY
When Taylor was established in 1946, Mr. R.L. Taylor could not have envisioned how his small metal-forming business could significantly and continuously impact the evolution of many products currently used in building homes. 1946 2021
In 2021, Taylor celebrated their 75 th anniversary of being America’s doormaker. 1968
The 2012 transition led to a new focus on the multi-family and light commercial markets. Taylor has grown dramatically throughout the past several years and now has a diverse customer base that focuses on residential and commercial projects throughout the United States. To support the needs of this diverse customer base, Taylor added state-of-the-art, automated equipment to its production facility.
ABOUT TAYLOR
Taylor Entrance Systems™ specializes in delivering high-quality commercial door solutions for student housing, senior living, multi-family, and mixed-use properties, offering a wide range of customizable options, superior performance, and trending door styles. Taylor’s steel entry doors are customized to fit your project spec, including sizes to fit hollow metal frames and preps to accept virtually any locking hardware. Choose Taylor’s commercial door solutions for your next project.
STEEL ENTRY DOORS
• Extensive range of door styles, from timeless classics to contemporary designs
• Smooth steel-edge doors in 18-, 20-, 22-, and 24-gauge steel
• Textured Oak steel-edge doors in 22-gauge steel
• Painted doors provide a crisp, professional look
• Smooth wood-edge doors in 25-gauge steel
• Steel and wood frames
• Slabs or pre-hung units
DOOR SOLUTIONS
• Trending door styles with ADA-compliant options
• Customized door sizes

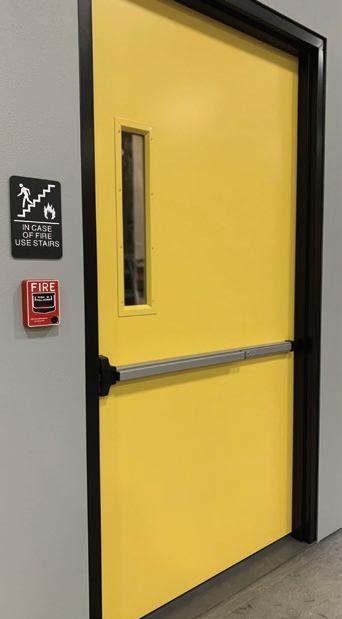

• Doors and frames are firerated for up to 90 minutes

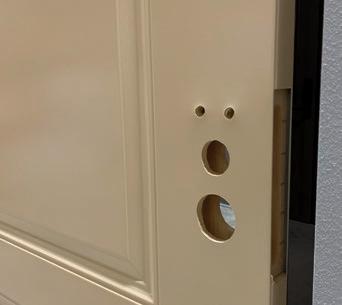

• Custom face and edge preps
• Can match any manufacturer’s hinge or lock location
• Steel plate reinforcements for closer and panic preps
• Multi-point hardware preps on steel-edge doors
• No maximum or minimum ordering requirements

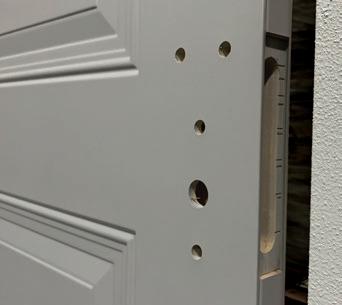

CLOSER & PANIC REINFORCEMENT PREPS

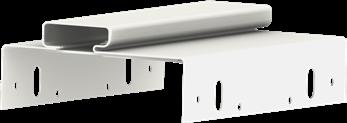

Closer Block
Prep & Closer Plates, with Wood Lock Block
WESTGUARD-18 SERIES
The WestGuard 18-gauge door series offers dependable performance and versatility with a wide range of embossment options, making this door a popular choice for any application. It’s the perfect solution for commercial applications, including main entrances, condominiums, and senior and assisted living spaces. The WestGuard series is a durable and customizable solution built to perform in high-traffic environments while maintaining a clean, finished look.
STANDARD SPECIFICATIONS
FACE MATERIAL G40 hot-dipped galvanized steel skin
SKIN GAUGE 18-gauge
SKIN SURFACE Smooth
FINISH Baked-on polyester primer

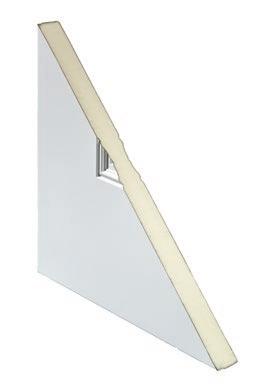

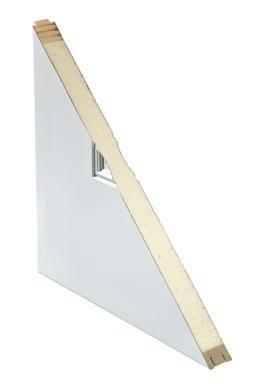

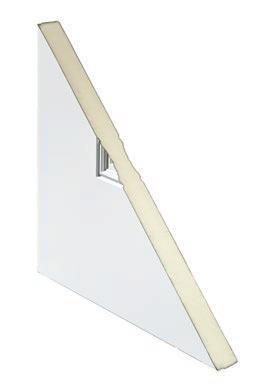

CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full steel-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Composite lock block
HINGE REINFORCEMENTS 18-gauge mortise hinge reinforcement
HINGE PREP 4-1/2” mortise commercial hinge
CLOSER PREP Steel closer reinforcement plates (standard on 18-gauge)
HINGE PREP (18-GAUGE ) 4” surface mount, template fixed hinge 12TF 4-1/2” surface mount, commercial template fixed hinge 4-1/2” mortise commercial hinge
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
BOTTOM CHANNEL Inverted bottom channel (18-gauge only)
FINISH Choose
paint finish from black, white, or any Sherwin-Williams color
DOOR STYLES
FLUSH FL

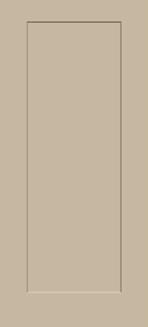

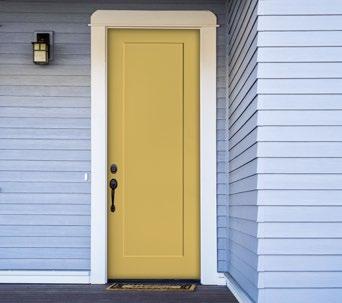

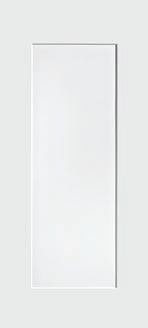

1-PANEL FLAT SHAKER 1FPS

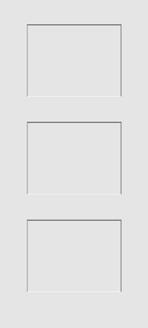

3-PANEL FLAT SHAKER 3FPS

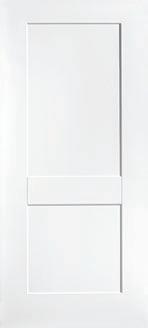

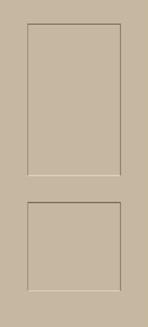

2-PANEL FLAT SHAKER 2FPS

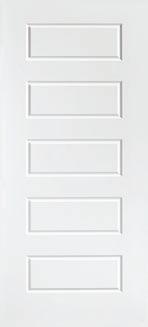

5-PANEL HORIZONTAL SHAKER 5PE

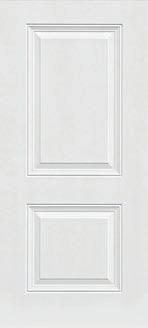

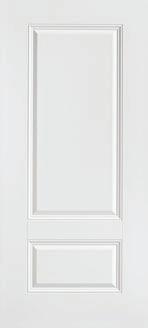

2-PANEL RAISED 2PHD
3-PANEL HORIZONTAL FLAT SHAKER 3PEFS

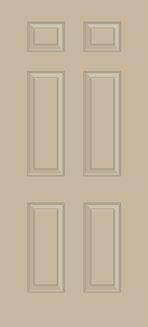

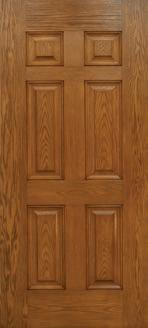

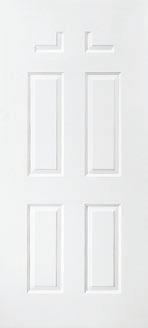

6-PANEL RAISED 6PHD
SIDELITES
matching styles available; refer to Product Guide GLASS CUTOUTS available upon request
Scan for Product Guide and size availability.
WESTGUARD-20 SERIES
The WestGuard Series delivers superior performance and withstands regular wear and tear with its 20-gauge, hot-dipped galvanized steel doors. This construction, combined with an innovative injected polyurethane foam core, makes it the perfect door for commercial and high-traffic applications, ensuring unmatched durability, reliability, and thermal insulation in demanding environments.
STANDARD SPECIFICATIONS
FACE MATERIAL G40 hot-dipped galvanized steel skin
SKIN GAUGE 20-gauge
SKIN SURFACE Smooth
FINISH Baked-on polyester primer
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full steel-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Composite lock block
HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement
HINGE PREP 4” surface mount, fixed hinge prep
CLOSER PREP Steel closer reinforcement plates available
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color
*Door testing values are for 20-gauge only. Values for 18-gauge coming soon!
DOOR STYLES

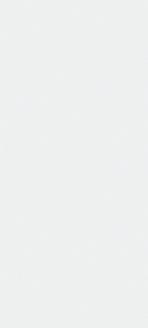

FLUSH FL
1-PANEL FLAT SHAKER 1FPS
3-PANEL HORIZONTAL FLAT SHAKER 3PEFS
6-PANEL RAISED 6PHD
2-PANEL FLAT SHAKER 2FPS
3-PANEL FLAT SHAKER 3FPS
4-PANEL BLANK TOP RAISED WestGuard-20 Only 4PBTHD
2-PANEL RAISED 2PHD
2-PANEL ARCH TOP RAISED WestGuard-20 Only 2PATHD
4P
5-PANEL HORIZONTAL SHAKER 5PE
SIDELITES
matching styles available; refer to Product Guide
GLASS CUTOUTS
available upon request
Scan for Product Guide and size availability.
CAMBRIDGE SERIES
The Cambridge Series is your gateway to unparalleled strength, security, and style. This premium, 22-gauge smooth steel door defends against damage and corrosion. With an extensive range of door styles, from timeless classics to contemporary designs, you can find the perfect match for any project. These doors offer Grade 40 security, ensuring peace of mind and enhanced protection against forced entries.
STANDARD SPECIFICATIONS
FACE MATERIAL G40 hot-dipped galvanized steel skin
SKIN GAUGE 22-gauge
SKIN SURFACE Smooth
FINISH Baked-on polyester primer
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full steel-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Composite lock block
HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement
HINGE PREP 4"
AVAILABLE OPTIONS
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color
DOOR STYLES
1-PANEL FLAT SHAKER 1FPS

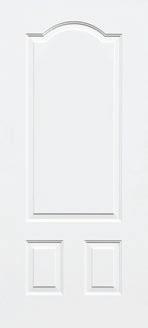

3/4-2PSTHD
3/4 2-PANEL RAISED

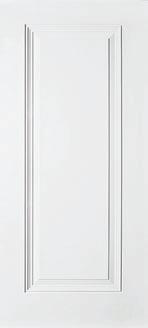

1-PANEL RAISED 1PHD
3-PANEL RAISED 3PHD
5-PANEL HORIZONTAL SHAKER
2FPS
2-PANEL FLAT SHAKER
3PEFS
3-PANEL HORIZONTAL FLAT SHAKER
2-PANEL RAISED 2PHD
3FPS
3-PANEL FLAT SHAKER

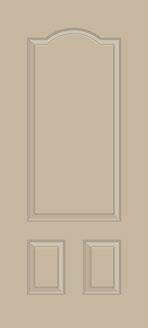

2-PANEL ARCH TOP RAISED 2PATHD

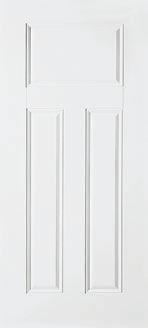

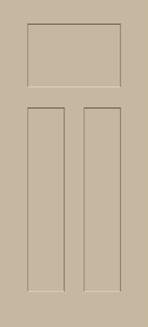

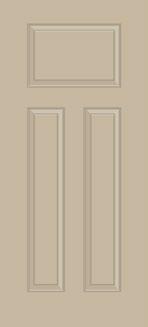

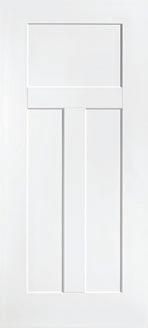

3-PANEL CRAFTSMAN RAISED 3PCRHD
2PATPHD

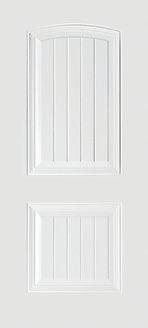

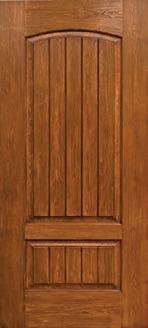

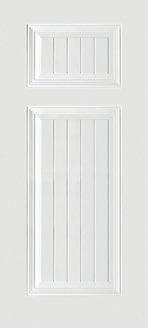

2-PANEL ARCH TOP PLANK RAISED
2-PANEL COTTAGE RAISED 2PCOTHD
4-PANEL BLANK TOP RAISED 4PBTHD
SIDELITES
matching styles available; refer to Product Guide
GLASS CUTOUTS
available upon request
Scan for Product Guide and size availability.
MIDLAND SERIES
The Midland Series offers a reliable choice in commodity doors, featuring a durable 24-gauge smooth steel construction. These doors are designed for practicality and functionality while providing stylish panel designs. The Midland series ensures robust performance without compromising quality, making it an ideal solution for residential and light commercial applications.
STANDARD SPECIFICATIONS
FACE MATERIAL G40 hot-dipped galvanized steel skin
SKIN GAUGE 24-gauge
SKIN SURFACE Smooth
FINISH Baked-on polyester primer
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full steel-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Composite lock block
HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement
HINGE PREP 4" surface mount, fixed hinge prep
AVAILABLE OPTIONS
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color
DOOR STYLES
1-PANEL RAISED 1PHD
3/4-2PSTHD 3-PANEL CRAFTSMAN RAISED 3PCRHD
3/4 2-PANEL RAISED

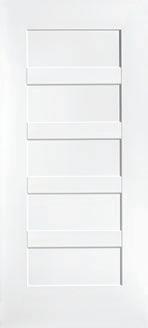

5-PANEL HORIZONTAL SHAKER 5PE
2-PANEL RAISED 2PHD

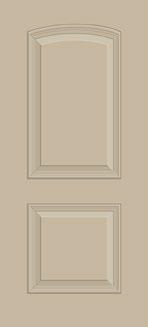

2-PANEL ARCH TOP RAISED 2PATHD
4-PANEL BLANK TOP RAISED 4PBTHD
6-PANEL RAISED 6PHD
RAISED
2PATPHD
2-PANEL ARCH TOP PLANK RAISED

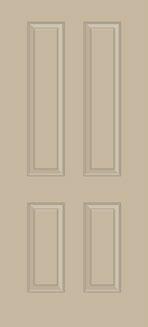

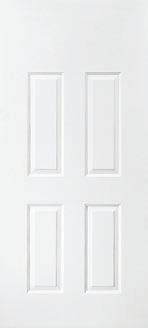

4-PANEL RAISED
SIDELITES
matching styles available; refer to Product Guide
GLASS CUTOUTS
available upon request
Scan for Product Guide and size availability.

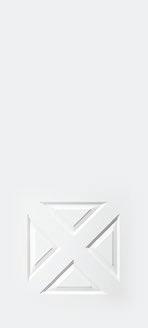

CROSSBUCK
NORWOOD SERIES
The Norwood Series perfectly combines classic elegance and modern durability. These 22-gauge, stainable steel doors capture the beauty of wood while harnessing the strength of steel. The deeply embossed Oak grain surface is primed in beige, allowing stain or paint application to enhance the texture and create an authentic woodgrain appearance. Make your opening stand out with our Norwood series.
STANDARD SPECIFICATIONS
FACE MATERIAL G40 hot-dipped galvanized steel skin
SKIN GAUGE 22-gauge

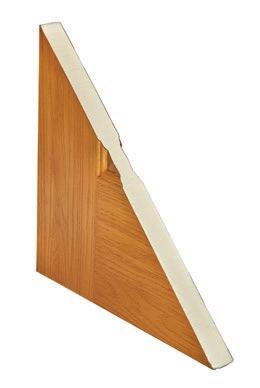

SKIN SURFACE Oak woodgrain texture
FINISH Special beige primer allows for stain/paint application
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full steel-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Composite lock block
HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement
HINGE PREP 4" surface mount, fixed hinge prep
AVAILABLE OPTIONS
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color
DOOR TESTING
DOOR STYLES

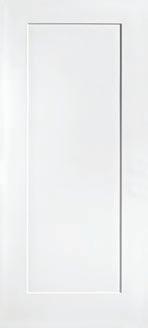

1-PANEL FLAT SHAKER 1FPS

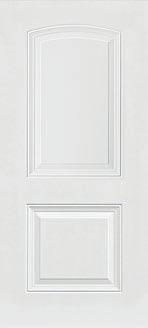

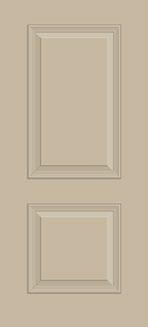

2-PANEL ARCH TOP RAISED 2PATHD

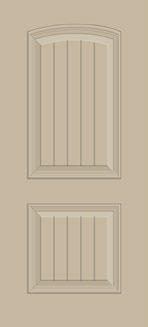

2-PANEL ARCH TOP PLANK RAISED 2PATPHD
4PBTHD

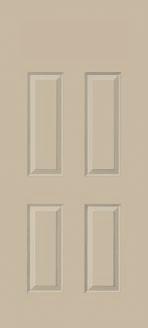

4-PANEL BLANK TOP RAISED

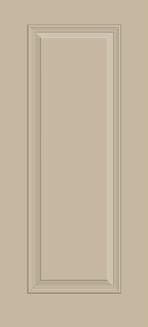

1-PANEL RAISED 1PHD
2-PANEL FLAT SHAKER 2FPS
3-PANEL RAISED 3PHD
2-PANEL RAISED 2PHD
3-PANEL FLAT SHAKER 3FPS
3-PANEL CRAFTSMAN RAISED 3PCRHD
SIDELITES
matching styles available; refer to Product Guide
GLASS CUTOUTS
available upon request
Scan for Product Guide and size availability.
TRUKOTE SERIES

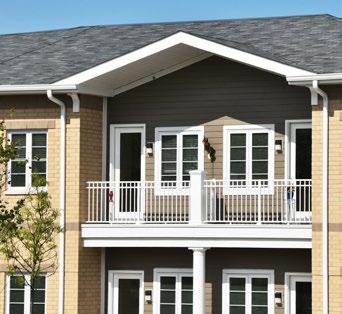

The Trukote Series offers an effortless style for your multi-family projects. These ready-to-install, 24-gauge steel doors are prefinished and require no additional finishing. The factory-finish white polyester paint guarantees a stylish look and the best value among prefinished doors. Choose Trukote for a seamless and cost-effective solution, transforming your project effortlessly.
STANDARD SPECIFICATIONS
FACE MATERIAL G40 hot-dipped galvanized steel skin
SKIN GAUGE 24-gauge
SKIN SURFACE Prefinished smooth
FINISH White polyester paint, no additional finishing required
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full steel-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Composite lock block
HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement
HINGE PREP 4" surface mount, fixed hinge prep
AVAILABLE OPTIONS
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color
DOOR TESTING
RATING Grade 40
SIDELITES
matching styles available; refer to Product Guide
GLASS CUTOUTS
available upon request
Scan for Product Guide and size availability.
EDGEWOOD ® SERIES
Discover durability with the Edgewood Series. These 25-gauge smooth steel doors feature a unique 10° face sheet bend and a wood stile and rail system. The composite bottom rail safeguards against rot and insects, ensuring low maintenance. With a 20-minute fire rating and white primer finish, these doors combine safety and style seamlessly. Elevate your space with the Edgewood Series.
STANDARD SPECIFICATIONS
FACE MATERIAL
SKIN GAUGE 25-gauge (24-gauge on specific styles)
SKIN SURFACE Smooth
FINISH Baked-on polyester primer
CORE MATERIAL Injected polyurethane foam core

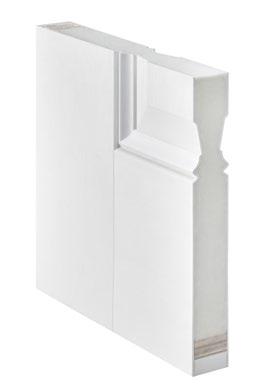

EDGE CONSTRUCTION Wood-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Wood lock block
STILES & RAILS
AVAILABLE OPTIONS
PANIC
ADA COMPLIANCE 10" ADA bottom rail on specific styles
DOOR STYLES
2-PANEL RAISED 2PHD
6-PANEL RAISED 6PHD
4-PANEL BLANK TOP RAISED 4PBTHD
SIDELITES
matching styles available; refer to Product Guide
GLASS CUTOUTS
available upon request
Scan for Product Guide and size availability.
TRUE 4-PANEL RAISED
T4P
HURON SERIES

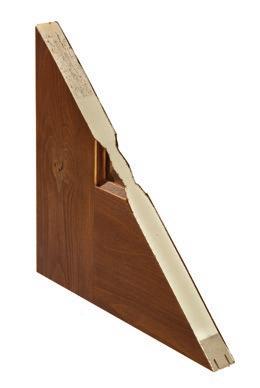

The Huron Fiberglass Door Series delivers reliable performance with modern styling and unmatched flexibility. Designed for residential, multi-family, and light commercial projects, the Huron Series offers the customization and quality to meet today’s market demands. With a durable polyurethane foam core, full composite edge, and modern brush stroke finish, this door series meets the needs of both large-volume jobs and smaller, single-door orders.
STANDARD SPECIFICATIONS
FACE MATERIAL Fiberglass re-enforced sheet molding compound (SMC)
SKIN THICKNESS 0.080”
SKIN SURFACE Brushed Finish
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full composite edge
THICKNESS 1.750” (nominal 1-3/4”)
LOCK BLOCK 3.5” Continuous lock stile
HINGE PREP Blank
WARRANTY
COMMERCIAL
Limited 7-Year Warranty *
RESIDENTIAL Limited Lifetime Waranty *
*Refer to full warranty for details.
AVAILABLE OPTIONS
4” surface mount - dimpled
HINGE PREP
4” surface mount, adjustable hinge 4” or 4-1/2” mortise hinge
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color
DOOR TESTING
Refer to Rating section for details.
FIRE RATING 20-minute
STC RATING Estimated 2026
OITC RATING Estimated 2026
U-VALUE Estimated 2026
DOOR STYLES
3-PANEL FLAT SHAKER 3FPS
3/4-2PSTHD 1-PANEL FLAT SHAKER 1FPS
3/4 2-PANEL RAISED
4-PANEL BLANK TOP RAISED 4P
2-PANEL FLAT SHAKER 2FPS
5-PANEL FLAT SHAKER 5FPS
SIDELITES
2-panel reversible SL available; refer to Product Guide
GLASS CUTOUTS
available upon request
Scan for Product Guide and size availability.

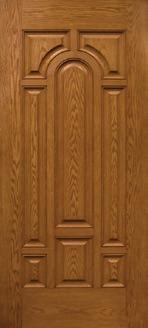

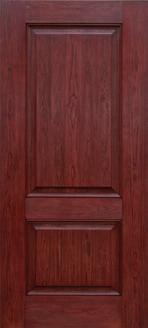

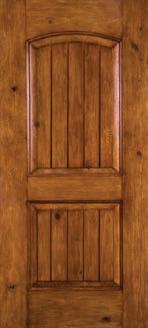

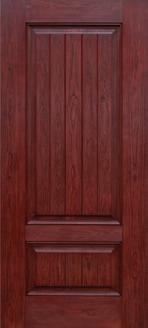

TIMBERGRAIN SERIES

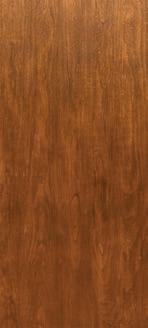

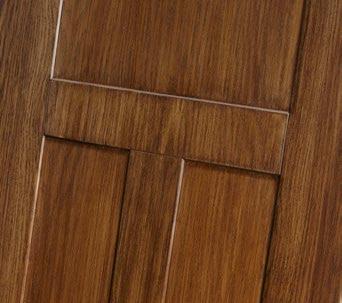

Timbergrain fiberglass entrance doors are constructed of high resolution, grained, fiberglass skins. They offer the warmth of wood and its natural variation of grain characteristics in Cherry, Mahogany, Fir, Oak, and Knotty Alder.
STANDARD SPECIFICATIONS
FACE MATERIAL Fiberglass re-enforced sheet molding compound (SMC)
SKIN THICKNESS 0.090”
SKIN SURFACE Texture (Oak, Fir, Cherry, Mahogany, Knotty Alder
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full composite edge
THICKNESS 1.750” (nominal 1-3/4”)
LOCK BLOCK 4” continuous LSL lock stile
HINGE PREP Blank
COMMERCIAL
RESIDENTIAL
*Refer to full warranty for details.
WARRANTY
Limited Lifetime Warranty *
Limited Lifetime Waranty *
AVAILABLE OPTIONS
HINGE PREP (20-GAUGE )
CLOSER PREP Steel closer reinforcement plates
ADA COMPLIANCE 10" ADA bottom rail on specific styles
DOOR STYLES
3/4 2-PANEL SQUARE
3/4 2-PANEL ARCH TOP
3/4 2-PANEL SQUARE PLANK
2-PANEL ARCH TOP PLANK RAISED 2PATPHD

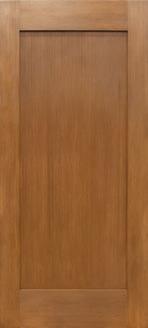

1-PANEL FLAT SHAKER
3/4 2-PANEL ARCH TOP PLANK
2PATHD

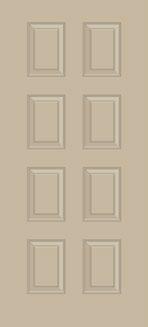

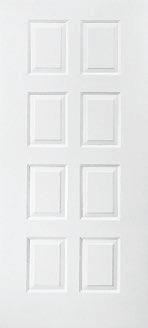

8-PANEL CENTER ARCH 3-PANEL FLAT SHAKER
3-PANEL RAISED 3PHD

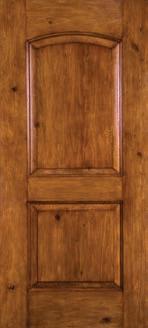

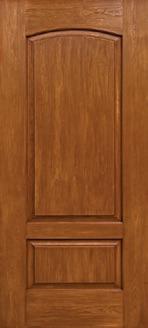

2-PANEL ARCH TOP RAISED
SIDELITES
matching styles available; refer to Product Guide
GLASS CUTOUTS
available upon request
Scan for Product Guide and size availability.

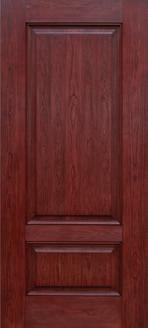

2-PANEL SQUARE

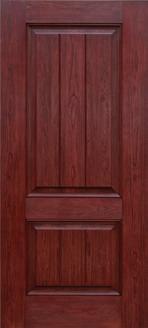

2-PANEL SQUARE NARROW PLANK

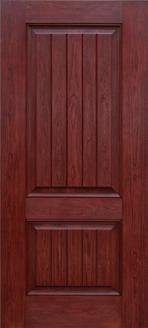

2-PANEL SQUARE WIDE PLANK

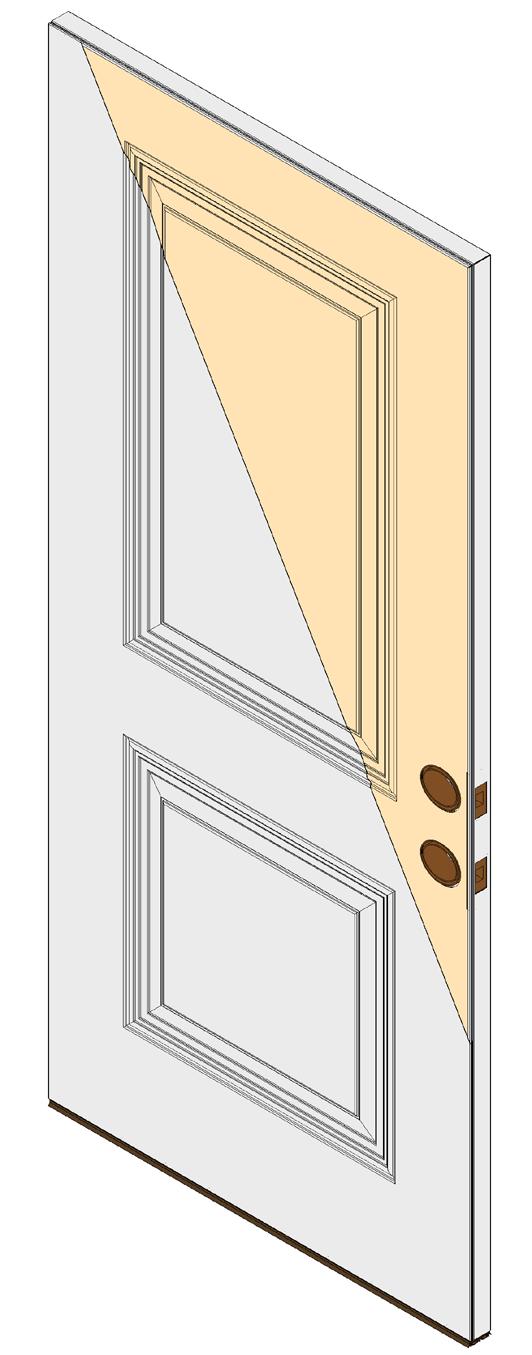

DOOR CONSTRUCTION
Discover Taylor’s precision-crafted steel doors, featuring robust American-made, hot-dipped galvanized steel and innovative design. From the injected polyurethane foam inner core to advanced features like full steel-edge perimeters and reinforced hinges, our doors set new standards for durability and customization in entryway solutions.
The heavy gauge hinge reinforcement ensures long-term performance and enhanced security.
Doors are constructed with two steel sheets, available in different gauge thicknesses, and feature hot-dip galvanized steel for added durability and corrosion resistance.
Door sweep weatherstrip enhances weather resistance, improves energy efficiency, and deters the entry of insects and debris.
The injected inner core of polyurethane foam enhances insulation, acting as a bonding agent to lock all internal components in place for enhanced durability.
The composite lock block provides secure mounting of door hardware and enhanced structural integrity.
HINGE REINFORCEMENTS
Our doors boast a heavy gauge hinge reinforcement plate, ensuring long-term performance and enhanced security. This strategically designed plate prevents wear and tear over time, adding durability to the hinge area.
Our offering includes: 20-gauge (surface mounted fixed hinge prep), 11-gauge (adjustable hinge prep) and 7-gauge (commercial mortise prep) hinge reinforcement plates.
FIXED HINGE PREP
The fixed hinge prep is standard on Taylor doors, featuring a 4" surface mount hinge prep with a sturdy fixed hinge reinforcement plate. This straightforward design ensures ease of installation and long-term performance.
DOOR CONSTRUCTION
MORTISE HINGE PREP
The 4.5" mortise commercial hinge prep is designed for projects requiring a recessed hinge pocket. Exclusive to the WestGuard door series, this prep is tailored for hollow metal frames and resolves the need for under-sizing doors. Its unhanded design provides flexibility, accommodating both left-handed and right-handed installations. Additionally, filler plates come standard with each door.
ADJUSTABLE HINGE PREP
Taylor’s Adjustable Hinge Plate System is a versatile solution for your door needs, featuring a 4" surface mount hinge prep with an accompanying adjustable hinge backer plate. This unique hinge system allows for easy adjustments up/down and in/out without removing the door from the frame, all achieved effortlessly with a simple screwdriver.
INVERTED BOTTOM CHANNEL*
Designed for versatility, our inverted bottom channels accommodate a broad range of door hardware. Whether you’re installing automatic door bottoms or opting for traditional U-shaped door sweeps, our channel design ensures seamless compatibility. This flexibility makes it easy to achieve reliable threshold sealing while streamlining installation.
*Available with WestGuard-18 only
RATINGS
Taylor’s steel doors meet diverse needs and requirements. From TDI-approved durability against harsh weather to high-security options, exceptional acoustic performance, and hurricane-resistant attributes. Our entry doors are designed to exceed expectations, providing peace of mind and outstanding performance across various scenarios and environments.
TEXAS DEPT. OF INSURANCE ( TDI ) APPROVALS
Taylor offers steel doors that have been rigorously evaluated for compliance with wind load standards set by the International Residential Code (IRC) and the International Building Code (IBC). These evaluations are conducted by the Texas Department of Insurance (TDI), and you can access detailed reports on their website at tdi.texas.gov.
SECURITY RATING
Taylor’s steel-edge doors conform to the highest security classification, Grade 40, through ASTM F476 - Security of Swinging Door Assemblies. The test measures a door assembly’s ability to restrain, delay, and frustrate the commission of break-in crimes. It specifies a grade for the door assembly, with Grade 40 representing the highest grade. For best protection from forced entry, specify an entry door with a Grade 40 rating.
STC & OITC RATINGS
The Sound Transmission Class (STC) and Outdoor-Indoor Transmission Class (OITC) are tested and classified by Intertek’s Architectural Testing, Inc. (ATI), based on the ASTM E90 test standard for Sound Transmission Loss.
The results are based on operable test units; inoperable results are available upon request. Detailed reports are available upon request.
FLORIDA BUILDING CODE ( FBC ) APPROVALS
Taylor offers steel doors tested for code compliance in Florida’s High-Velocity Hurricane Zones (HVHZ) and nonHVHZ regions. Detailed approval information can be found on Taylor’s website and the Florida Building Code (FBC) website under Product Approval.
ENERGY PERFORMANCE
Energy-efficient steel doors in commercial settings offer a multitude of benefits. They lead to cost savings by reducing heating and cooling expenses, contribute to environmental conservation by lowering carbon footprints, and ensure compliance with regulations. These doors also create comfortable indoor spaces, enhance building durability, increase property value, and support green building initiatives.
U-VALUES
INSULATION
Taylor’s steel-edge doors have a polyurethane foam core that provides nearly twice the insulating properties of an insulated hollow metal door.
This foam is injected into the steel shell and fills the entire cavity. The foam is blown (expanded) with an eco-friendly blowing agent that is CFC and HCFC-free.
R-VALUES
FIRE GLASS
Other styles are available by request. The maximum visible glass size for fire-rated doors is 100 sq inches.
FIRE RATED DOORS
Steel doors with a steel edge are tested to withstand a minimum of 90 minutes of fire exposure at temperatures reaching more than 1,400 degrees Fahrenheit. Fire rated doors are tested and classified by Intertek’s Warnock Hersey.
3'0" x 7'0" Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, door bottoms, thresholds.
x 7'0"
3'0" x 7'0"
Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds.
Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds.
3'6" x 7'0" Unit, Mortise, or Cylindrical Latches/Deadbolts max 5" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds.
3'0" x 8'0"
3'0" x 8'0"
4'0" x 8'0"
Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds.
Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds.
20 Gauge Only, Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds.
3'0"
FRAMES
QUIKFIT ADJUSTABLE FRAME SYSTEM
The QuikFit Door Frame System is an entrance system that features a steel-edge door panel prehung into an adjustable steel frame. This system is easy to install and offers the industry’s highest fire and security ratings, making it ideal for a variety of project types.
SPECIFICATIONS
MATERIAL Two-piece adjustable galvannealed steel frame
GAUGE
WALL
Main frames are 18-gauge steel. Closer trim is 22-gauge for walls up to 7-1/2" and 18-gauge for walls over 7-1/2".
CONSTRUCTION 4-1/2" to 12-1/2" (1" adjustments) for 1-3/4" door
INSTALLATION Anchoring holes and nail clearance slots for wood casing
WARRANTY 1-Year Warranty
AVAILABLE OPTIONS
SIZES 6'8", 7'0", and 8'0" heights
FINISH / COLOR White powder coat finish (standard) Brown and Satin Black (special request)
SILLS Thermally broken sills (Inswing, Outswing, or ADA-compliant)
CASING 1-1/2" Flat Casing, 1-3/4" Colonial Casing
HINGES Variety of hinge preps, types, and finishes
SWEEP Retainer and slide-on sweep for door panel
FRAME SYSTEM TESTING
FIRE RATING 20-minute or 90-minute
DESIGN PRESSURE (DP) RATINGS +/- 60 up to 3670
FBC / TDI RATINGS Florida Building Code (FBC) and Texas Department of Insurance (TDI) approved
COLORS
REMODELER FRAME SYSTEM
Enhance your door’s performance and security with the Remodeler Frame System. This system fits over existing wood frames for effortless installation of replacement units. Combine this corrosionresistant, 18-gauge steel frame with a steel-edge door for top-notch durability, energy efficiency, and security.
SPECIFICATIONS
MATERIAL Galvanized steel frame with weatherstrip and an adjustable threshold
GAUGE 18-gauge
HINGE REINFORCEMENTS 11-gauge hinge reinforcements, spot-welded for maximum strength
INSTALLATION Designed to fit over existing wood frames. Anchoring holes and slots for wood casing.
FINISH / COLOR White powder coat finish, requiring no sanding or recoating
SILL Adjustable sill
FRAME ASSEMBLY Up to 6'11" height
AVAILABLE OPTIONS
SIZES 2'5", 2'7", 2'9", and 2'11" widths, 6'5", 6'7", 6'9", and 6'11" heights
FRAME SYSTEM TESTING
SECURITY TESTING Surpasses the most stringent forced entrance security test
Discover Taylor’s exceptional steel entry doors with unparalleled ease through our partnership with ARCAT. Accessing crucial resources for your projects has never been simpler. Directly download high-quality design files and product specs from ARCAT, which include:
• CAD drawings
• Revit & SketchUp BIM files
• LEED data
• Product specs
