Taylor Entrance Systems™ is an industry-leading, American-made manufacturer of premium steel entry doors serving residential and commercial markets. For 75+ years, Taylor has been providing innovative solutions and value-added products to the building materials industry, making them known as America’s doormaker.
ESTABLISHED
When Taylor was established in 1946, Mr. R.L. Taylor could not have envisioned how his small metal-forming business could significantly and continuously impact the evolution of many products currently used in building homes. 1946
RELOCATED
19802000
20122020
Originally located in the Detroit area, the company relocated permanently to West Branch, Michigan, in 1968.
INNOVATION
Through the decades, Taylor has developed a history of innovation, bringing numerous products to market that have helped further shape the fenestration industry. The products introduced were Adjustable Hinge steel doors, Stainable Steel doors, commercial products, 8-foot steel doors, smooth and woodgrain fiberglass doors, and a 90-minute fire-rated steel frame.
TRANSITION
In December 2012, Taylor was acquired by Wausau Supply Co., an industry-leading building materials distributor and manufacturer based in central Wisconsin.
The 2012 transition led to a new focus on the multi-family and light commercial markets. Taylor has grown dramatically throughout the past several years and now has a diverse customer base that focuses on residential and commercial projects throughout the United States. To support the needs of this diverse customer base, Taylor added state-of-the-art, automated equipment to its production facility.
75 th ANNIVERSARY
In 2021, Taylor celebrated their 75 th anniversary of being America’s doormaker. 1968
2021
ABOUT TAYLOR
Taylor Entrance Systems™ specializes in delivering high-quality commercial door solutions for student housing, senior living, multi-family, and mixed-use properties, offering a wide range of customizable options, superior performance, and trending door styles. Taylor’s steel entry doors are customized to fit your project spec, including sizes to fit hollow metal frames and preps to accept virtually any locking hardware. Choose Taylor’s commercial door solutions for your next project.

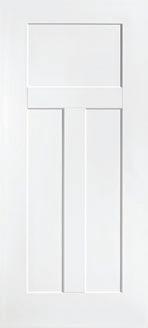

STEEL ENTRY DOORS
• Extensive range of door styles, from timeless classics to contemporary designs
• Smooth steel-edge doors in 18-, 20-, 22-, and 24-gauge steel
• Textured Oak steel-edge doors in 22-gauge steel
• Painted doors provide a crisp, professional look
• Smooth wood-edge doors in 25-gauge steel
• Steel and wood frames
• Slabs or pre-hung units
DOOR SOLUTIONS
• Trending door styles with ADA-compliant options
• Customized door sizes
• Doors and frames are firerated for up to 90 minutes
• Custom face and edge preps
• Can match any manufacturer’s hinge or lock location
• Steel plate reinforcements for closer and panic preps
• Multi-point hardware preps on steel-edge doors
• No maximum or minimum ordering requirements
PROJECT TYPES
• Residential Living
• Office Buildings
• Hotel and Hospitality
• Multi-family
• Student Housing
• Assisted Living
• Hospitals and Clinics
• Places of Worship
• Financial Institutions
• Warehouses
• Manufacturing Facilities
• and more...
DOOR CONSTRUCTION
Discover Taylor’s precision-crafted steel doors, featuring robust American-made, hot-dipped galvanized steel and innovative design. From the injected polyurethane foam inner core to advanced features like full steel-edge perimeters and reinforced hinges, our doors set new standards for durability and customization in entryway solutions.
HOT-DIPPED GALVANIZED STEEL
Taylor exclusively utilizes American-made, hot-dipped galvanized steel with a G40 coating in manufacturing steel entry doors. Galvanized steel doors with a G40 coating are highly effective at handling the challenges of harsh environments, especially coastal conditions. This specific coating involves applying 0.40 oz/sq ft. of zinc, creating a protective layer that prevents corrosion in demanding environments and enhances rust resistance.
PRIMED SURFACE
Our smooth steel doors feature a durable baked-on white polyester primer on the exterior and an epoxy coating on the interior. In contrast, the Norwood textured steel door comes with a distinctive beige primer tailored for stain. Whether smooth or textured, they present customization and aesthetic flexibility to meet diverse design preferences.
FULL STEEL-EDGE PERIMETER
Taylor’s steel-edge doors boast a full steel-edge perimeter, enhancing strength and security. Achieving the highest Grade 40 rating in rigorous forced entry tests—withstanding more than seven hits from a 100-pound test weight—these doors offer industry-leading security. Conforming to ASTM F476 standards, they excel in restraining, delaying, and frustrating break-in attempts, providing peace of mind and top-tier protection.
The heavy gauge hinge reinforcement ensures long-term performance and enhanced security.
Doors are constructed with two steel sheets, available in different gauge thicknesses, and feature hot-dip galvanized steel for added durability and corrosion resistance.
Door sweep weatherstrip enhances weather resistance, improves energy efficiency, and deters the entry of insects and debris.

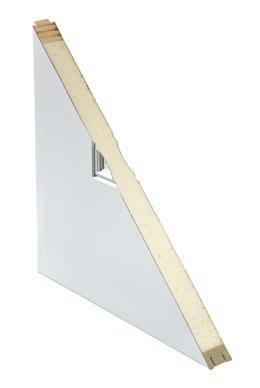

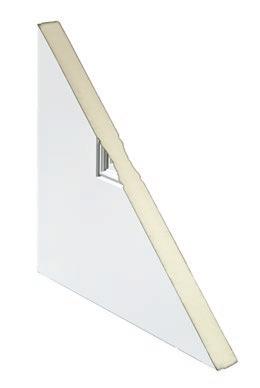

The injected inner core of polyurethane foam enhances insulation, acting as a bonding agent to lock all internal components in place for enhanced durability.
The composite lock block provides secure mounting of door hardware and enhanced structural integrity.
DOOR CONSTRUCTION
POLYURETHANE FOAM CORE
The polyurethane foam core plays a versatile role that goes beyond insulation in the creation of our doors. With improved soundproofing and insulation capabilities, it forms a reliable barrier against external noise and temperature fluctuations. Additionally, this foam serves as a robust bonding agent, firmly securing internal components. This careful integration ensures superior durability, enhancing the overall structural integrity of our doors.
Refer to page 112 for insulation and R-value details.

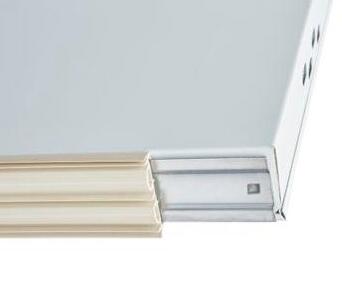

THERMAL BREAK
Our steel entry doors incorporate a vital thermal break to enhance energy efficiency and performance. This integral feature effectively prevents cold conduction from the outside to the inside of your home, minimizing heat transfer between the inner and outer sections and maintaining consistent indoor temperatures. The inclusion of the thermal break not only enhances overall insulation performance but also emphasizes our dedication to providing products that exceed contemporary benchmarks for sustainability and thermal efficiency.
INVERTED BOTTOM CHANNEL*
Designed for versatility, our inverted bottom channels accommodate a broad range of door hardware. Whether you’re installing automatic door bottoms or opting for traditional U-shaped door sweeps, our channel design ensures seamless compatibility. This flexibility makes it easy to achieve reliable threshold sealing while streamlining installation.
*Available with WestGuard-18 only
Clearance held for polyurethane foam fill of top and bottom.
A bead of hot melt glue is applied to the full length of the lock and hinge side of the steel sheets.
HINGE REINFORCEMENTS
Our doors boast a heavy gauge hinge reinforcement plate, ensuring long-term performance and enhanced security. This strategically designed plate prevents wear and tear over time, adding durability to the hinge area.
Our offering includes: 20-gauge (surface mounted fixed hinge prep), 11-gauge (adjustable hinge prep) and 7-gauge (commercial mortise prep) hinge reinforcement plates.
FIXED HINGE PREP
The fixed hinge prep is standard on Taylor doors, featuring a 4" surface mount hinge prep with a sturdy fixed hinge reinforcement plate. This straightforward design ensures ease of installation and long-term performance.
MORTISE HINGE PREP
The 4.5" mortise commercial hinge prep is designed for projects requiring a recessed hinge pocket. Exclusive to the WestGuard door series, this prep is tailored for hollow metal frames and resolves the need for under-sizing doors. Its unhanded design provides flexibility, accommodating both left-handed and right-handed installations. Additionally, filler plates come standard with each door.

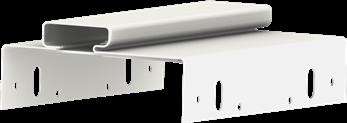

ADJUSTABLE HINGE PREP
Taylor’s Adjustable Hinge Plate System is a versatile solution for your door needs, featuring a 4" surface mount hinge prep with an accompanying adjustable hinge backer plate. This unique hinge system allows for easy adjustments up/down and in/out without removing the door from the frame, all achieved effortlessly with a simple screwdriver.
Refer to pages 118 – 119 for additional hinge prep details.
DOOR CONSTRUCTION

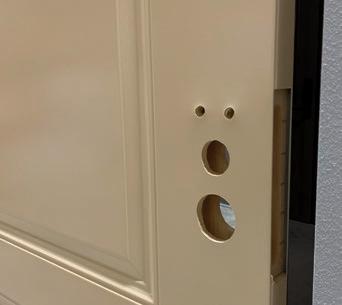

REINFORCED LOCK BLOCK AREA
Our steel doors are constructed with a composite lock block to provide secure mounting of door hardware and superior structural integrity. This precision-engineered component offers more screw-holding power than traditional wood lock blocks. Whether you opt for a single prep, deadbolt prep, triple prep, or another configuration, our lock blocks provide tailored solutions. Additionally, our range includes wood lock blocks for those seeking alternative options.
COMPOSITE LOCK BLOCK SINGLE COMPOSITE LOCK BLOCK
Refer to pages 120 – 122 for additional lock prep options.
SIDELITES
Sidelites feature a sturdy design with dual steel sheets, an MDF frame, and a polyurethane foam core for enhanced insulation. This construction ensures durability, security, and improved energy efficiency. The injected polyurethane foam is a superior insulator, creating a comfortable and thermally efficient environment. Our sidelite construction combines functionality and aesthetics, embodying quality, and innovation for your architectural needs.
Refer to pages 92 and 73 for sidelite options.
DOOR SIZES
Refer to door style pages for availability.
DOOR HANDING

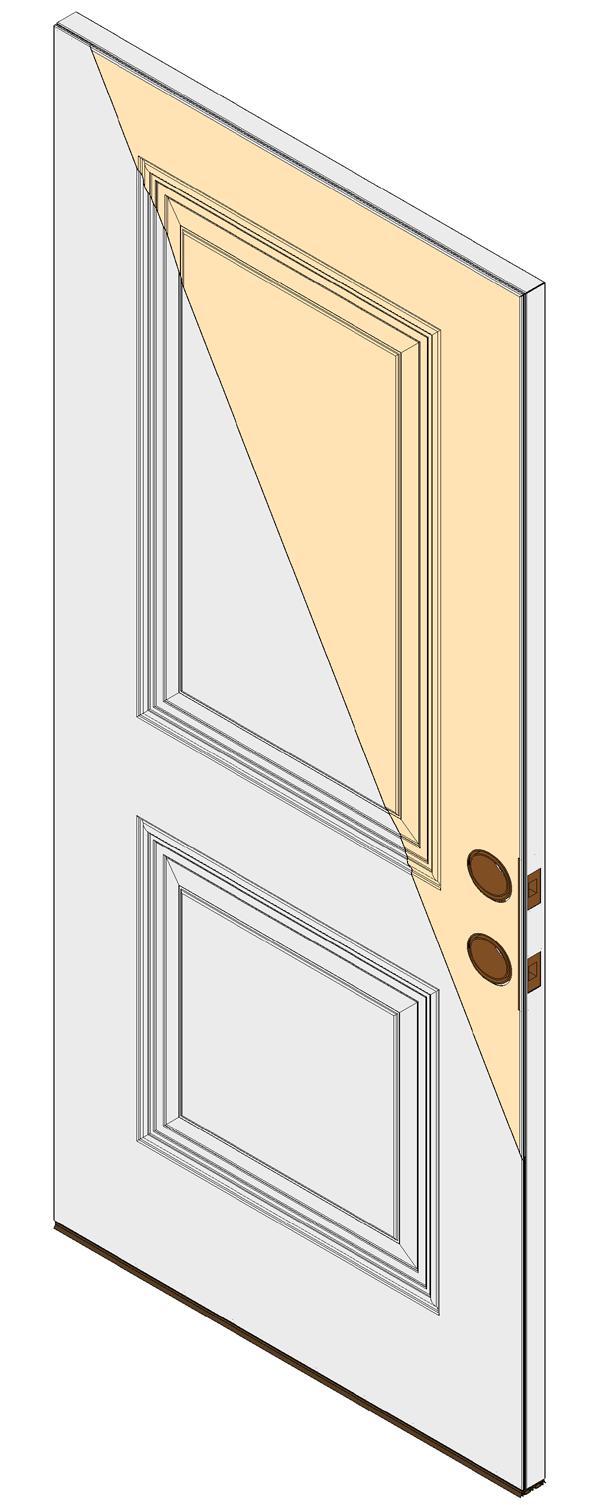

To hand a door, face it from the outside or key side.
Le Hand Inswing
Le Hand Inswing
Hinges on le
Hinges on le
Opens inward
Opens inward
Right Hand Outswing
Hinges
Right Hand Inswing
Right Hand Inswing
Hinges on right
Hinges on right
Opens inward
Opens inward
Right Hand Outswing
Right Hand Outswing
Hinges on le
Hinges on le
Opens outward
Opens outward
Hinges on right
Opens outward Right Hand Outswing
Opens outward Le Hand Outswing
Hinges on right
Opens outward

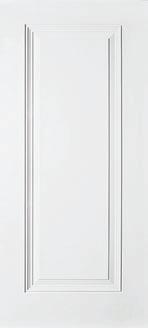

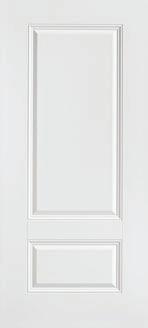

WESTGUARD SERIES // 20- gauge smooth steel
WESTGUARD-18 SERIES
The WestGuard 18-gauge door series offers dependable performance and versatility with a wide range of embossment options, making this door a popular choice for any application. It’s the perfect solution for commercial applications, including main entrances, condominiums, and senior and assisted living spaces. The WestGuard series is a durable and customizable solution built to perform in high-traffic environments while maintaining a clean, finished look.
STANDARD SPECIFICATIONS
FACE MATERIAL
G40 hot-dipped galvanized steel skin
SKIN GAUGE 18-gauge
SKIN SURFACE Smooth
FINISH Baked-on polyester primer
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full steel-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Composite lock block
HINGE REINFORCEMENTS 18-gauge mortise hinge reinforcement
HINGE PREP 4-1/2” mortise commercial hinge
CLOSER PREP
Steel closer reinforcement plates (standard on 18-gauge)
WARRANTY
7-Year
HINGE PREP (18-GAUGE ) 4” surface mount, template fixed hinge 12TF 4-1/2” surface mount, commercial template fixed hinge 4-1/2” mortise commercial hinge
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
BOTTOM CHANNEL Inverted bottom channel (18-gauge only)
FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color
Refer to Rating section for details.
FIRE RATING 20-minute or 90-minute
SECURITY RATING Grade 40
STC RATING 21
OITC RATING 25
U-VALUE 0.17 *Door testing values are for 20-gauge only. Values for 18-gauge coming soon!
WESTGUARD-20 SERIES
The WestGuard Series delivers superior performance and withstands regular wear and tear with its 20-gauge, hot-dipped galvanized steel doors. This construction, combined with an innovative injected polyurethane foam core, makes it the perfect door for commercial and high-traffic applications, ensuring unmatched durability, reliability, and thermal insulation in demanding environments.
STANDARD SPECIFICATIONS
FACE MATERIAL G40 hot-dipped galvanized steel skin
SKIN GAUGE 20-gauge
SKIN SURFACE Smooth
FINISH Baked-on polyester primer
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full steel-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Composite lock block
HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement
HINGE PREP 4” surface mount, fixed hinge prep
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
WESTGUARD-18 & 20 SERIES
PROFILE STYLE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge
in 24-gauge only; refer to Midland series (page 73)
Custom or Remodeler Unit (RU) sizes available upon request.
STANDARD CUTOUTS
WESTGUARD-18 & 20 SERIES
PROFILE STYLE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge
SIDELITES available in 24-gauge only; refer to Midland series (page 73)
Custom or Remodeler Unit (RU) sizes available upon request.
upon request
WESTGUARD-18 & 20 SERIES
PROFILE STYLE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge
available in 24-gauge only; refer to Midland series (page 73)
Custom or Remodeler Unit (RU) sizes available upon request.
available upon request
WESTGUARD-18 & 20 SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge
WESTGUARD-18 & 20 SERIES
PROFILE STYLE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge
Custom or Remodeler Unit (RU) sizes available upon request.
available in 24-gauge only; refer to Midland series (page 73) CUSTOM CUTOUTS
available upon request
WESTGUARD-18 & 20 SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge
available in 24-gauge only; refer to Midland series (page 73)
Custom or Remodeler Unit (RU) sizes available upon request.
available upon request

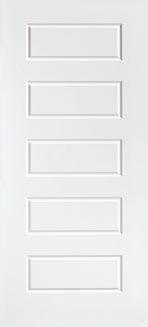

WESTGUARD-18 & 20 SERIES
PROFILE STYLE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge
available in 24-gauge only; refer to Midland series (page 73)
Custom or Remodeler Unit (RU) sizes available upon request.
CUTOUTS available upon request

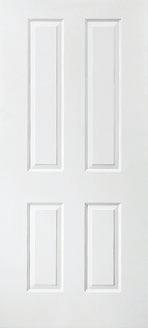

WESTGUARD-18 & 20 SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge
available in 24-gauge only; refer to Midland series (page 73)
Custom or Remodeler Unit (RU) sizes available upon request.
available upon request
WESTGUARD-20 SERIES ONLY
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge

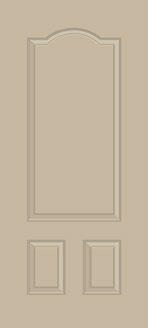

WESTGUARD-18 & 20 SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge
in 24-gauge only; refer to Midland series (page 73)
upon request

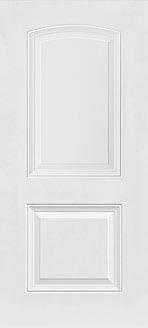

WESTGUARD-18 & 20 SERIES
PROFILE STYLE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge
available in 24-gauge only; refer to Midland series (page 73)
request
WESTGUARD-20 SERIES ONLY
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge 4-1/2" mortise commercial hinge
WESTGUARD-20 SERIES ONLY
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge
or Remodeler Unit (RU) sizes available upon request.
upon request
WESTGUARD-18 & 20 SERIES
PROFILE STYLE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
4-1/2" mortise commercial hinge
Custom or Remodeler Unit (RU) sizes available upon request.
available in 24-gauge only; refer to Midland series (page 73) CUSTOM CUTOUTS
available upon request
WESTGUARD-18 & 20 SERIES
PROFILE STYLE
4" surface mount, fixed hinge 4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge 4-1/2" mortise commercial hinge
CAMBRIDGE SERIES // 22-gauge smooth steel

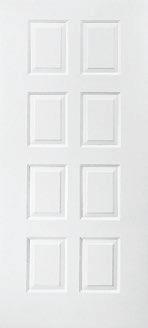

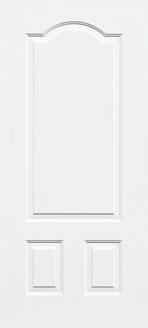

CAMBRIDGE SERIES
The Cambridge Series is your gateway to unparalleled strength, security, and style. This premium, 22-gauge smooth steel door defends against damage and corrosion. With an extensive range of door styles, from timeless classics to contemporary designs, you can find the perfect match for any project. These doors offer Grade 40 security, ensuring peace of mind and enhanced protection against forced entries.
STANDARD SPECIFICATIONS
FACE MATERIAL G40 hot-dipped galvanized steel skin
SKIN GAUGE 22-gauge
SKIN SURFACE Smooth
FINISH Baked-on polyester primer
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full steel-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Composite lock block
HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement
HINGE PREP 4"
AVAILABLE OPTIONS
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color
DOOR TESTING
RATING Grade 40
CAMBRIDGE SERIES
4" surface mount, fixed hinge
4" surface mount, adjustable hinge 4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
Custom or Remodeler Unit (RU) sizes available upon request.
CAMBRIDGE SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
SIDELITES
in 24-gauge only; refer to Midland series (page 73)
or Remodeler Unit (RU) sizes available upon request.
CAMBRIDGE SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
SIDELITES
available in 24-gauge only; refer to Midland series (page 73)
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
Custom or Remodeler Unit (RU) sizes available upon request.
available upon request
CAMBRIDGE SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
in 24-gauge only; refer to Midland series (page 73)
or Remodeler Unit (RU) sizes available upon request.
upon request
CAMBRIDGE SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge ADA COMPLIANCE
SIDELITES
available in 24-gauge only; refer to Midland series (page 73)
2'6" W x 6'8" H
2'8" W x 6'8" H
H
3'0" W x 6'8" H
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
Custom or Remodeler Unit (RU) sizes available upon request.
upon request
CAMBRIDGE SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
CAMBRIDGE SERIES
HEIGHT
drawing
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
SIDELITES
available in 24-gauge only; refer to Midland series (page 73)
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
Custom or Remodeler Unit (RU) sizes available upon request.
available upon request
CAMBRIDGE SERIES
PROFILE
4" surface mount, fixed hinge
4" surface mount, adjustable hinge 4" surface mount, template fixed hinge
CAMBRIDGE SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
SIDELITES
available in 24-gauge only; refer to Midland series (page 73)
W x
Custom or Remodeler Unit (RU) sizes available upon request.
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
available upon request
CAMBRIDGE SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
available in 24-gauge only; refer to Midland series (page 73)
x 6'8" H
Custom or Remodeler Unit (RU) sizes available upon request.
available upon request
CAMBRIDGE SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge ADA COMPLIANCE
SIDELITES
available in 24-gauge only; refer to Midland series (page 73)
2'6" W x 6'8" H
W x 6'8" H
x 6'8" H
Custom or Remodeler Unit (RU) sizes available upon request.
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
available upon request
CAMBRIDGE SERIES
PROFILE
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
CAMBRIDGE SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge 4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
COMPLIANCE
available in 24-gauge only; refer to Midland series (page 73)
STANDARD CUTOUTS
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
Custom or Remodeler Unit (RU) sizes available upon request.
CAMBRIDGE SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
available in 24-gauge only; refer to Midland series (page 73)
Custom or Remodeler Unit (RU) sizes available upon request.
CUTOUTS available upon request
CAMBRIDGE SERIES
4" surface mount, fixed hinge
4" surface mount, adjustable hinge 4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
available in 24-gauge only; refer to Midland series (page 73)
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
Custom or Remodeler Unit (RU) sizes available upon request.
available upon request
CAMBRIDGE SERIES
PROFILE
CAMBRIDGE SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
in 24-gauge only; refer to Midland series (page 73)
CUTOUTS
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
Custom or Remodeler Unit (RU) sizes available upon request.
CAMBRIDGE SERIES
4" surface mount, fixed hinge
4" surface mount, adjustable hinge 4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
CAMBRIDGE SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
available in 24-gauge only; refer to Midland series (page 73)
x
Custom or Remodeler Unit (RU) sizes available upon request.
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
available upon request
CAMBRIDGE SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
CAMBRIDGE SERIES
HEIGHT
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
ADA COMPLIANCE
SIDELITES
available in 24-gauge only; refer to Midland series (page 73)
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
Custom or Remodeler Unit (RU) sizes available upon request.
available upon request
CAMBRIDGE SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 & 2/8 widths.
CAMBRIDGE SERIES
drawing
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
COMPLIANCE
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width. ADA
SIDELITES
available in 24-gauge only; refer to Midland series (page 73)
available upon request
CAMBRIDGE SERIES
PROFILE
CAMBRIDGE SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge 4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge
in 24-gauge only; refer to Midland series (page 73)
STANDARD CUTOUTS
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
Custom or Remodeler Unit (RU) sizes available upon request.
MIDLAND SERIES // 24-gauge smooth steel
MIDLAND SERIES
The Midland Series offers a reliable choice in commodity doors, featuring a durable 24-gauge smooth steel construction. These doors are designed for practicality and functionality while providing stylish panel designs. The Midland series ensures robust performance without compromising quality, making it an ideal solution for residential and light commercial applications.
STANDARD
SPECIFICATIONS
FACE MATERIAL G40 hot-dipped galvanized steel skin
SKIN GAUGE 24-gauge
SKIN SURFACE Smooth
FINISH Baked-on polyester primer
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full steel-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Composite lock block
HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement
HINGE PREP 4" surface mount, fixed hinge prep
AVAILABLE OPTIONS
HINGE
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color
RATING Grade 40
RATING 22
RATING 23
MIDLAND SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge 4" surface mount, adjustable hinge 4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge
or Remodeler Unit (RU) sizes available upon request.
MIDLAND SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
or Remodeler Unit (RU) sizes available upon request.
MIDLAND SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
refer to page 73 for sidelite options
Minimum 2'8" W x 6'8" H
3'0" W x 7'0" H
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
available upon request
MIDLAND SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
MIDLAND SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
MIDLAND SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
refer to page 73 for sidelite options
or Remodeler Unit (RU) sizes available upon request.
MIDLAND SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
refer to page 73 for sidelite options
Minimum 2'8" W x 6'8" H
Maximum 3'0" W x 7'0" H
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
available upon request
MIDLAND SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
STANDARD CUTOUTS
MIDLAND SERIES
PROFILE
CROSSBUCK XB
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
refer to page 73 for sidelite options
STANDARD CUTOUTS
Custom or Remodeler Unit (RU) sizes available upon request.
& 7'0" CUSTOM CUTOUTS available upon request
MIDLAND SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
MIDLAND SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
refer to page 73 for sidelite options
Minimum 2'6" W x 6'8" H
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
available upon request
MIDLAND SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge FIRE RATING
10.44" bottom rail option SIDELITES
refer to page 73 for sidelite options
Minimum 2'8" W x 6'8" H Maximum 3'0" W x 7'0" H
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
available upon request
MIDLAND SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge 4" surface mount, adjustable hinge 4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
MIDLAND SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
COMPLIANCE not applicable
refer to page 73 for sidelite
3'0" W x 8'0" H
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM
CUTOUTS available upon request
MIDLAND SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge 4" surface mount, adjustable hinge 4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge
STANDARD CUTOUTS
MIDLAND SERIES // SIDELITES
HEIGHT 6'8" & 8'0" PROFILE STYLE SIDELITES
1P-836RTC-SL FL-764C-SLWAS
1PHD-13E-SL 1PHD-13E-848C-SL 1P-842OVC-SLSL
6'8" HEIGHT SIDELITES
PROFILE
n/a n/a
FL-764C-SL 7" x 64" 8" x 65"
FL-764C-SLWAS 7" x 64" 8" x 65"
FL-864C-SL 8" x 64" 9" x 65"
FL-864RTC-SL 8" x 64" RT 9" x 65" RT
FL-842OVC-SL 8-1/8" x 42" Oval
1P-21E-SL n/a n/a
1PHD-21E-SL n/a n/a
1PHD-21E-836C-SL 8" x 36" 9" x 37"
1P-836RTC-SL 8" x 36" RT 9" x 37" RT
1P-13E-SL n/a n/a
1PHD-13E-SL n/a n/a
1P-13E-848C-SL 8" x 48" 9" x 49"
1PHD-13E-848C-SL 8" x 48" 9" x 49"
1P-842OVC-SL 8-1/8" x 42" Oval
2PHD-SL n/a n/a
2P-86C-SL 8" x 6" 9" x 7"
2PHD-86C-SL 8" x 6" 9" x 7"
3PHD-SL n/a n/a
8'0" HEIGHT SIDELITES
8" x 80" 9" x 81"
n/a n/a
1P-764C-SL 7" x 64" 8" x 65"

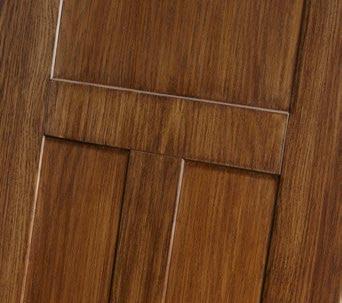

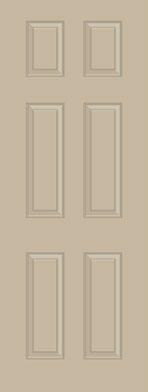

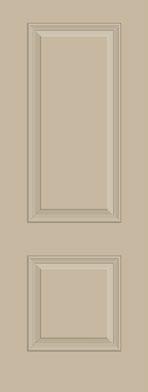

NORWOOD SERIES
The Norwood Series perfectly combines classic elegance and modern durability. These 22-gauge, stainable steel doors capture the beauty of wood while harnessing the strength of steel. The deeply embossed Oak grain surface is primed in beige, allowing stain or paint application to enhance the texture and create an authentic woodgrain appearance. Make your opening stand out with our Norwood series.
STANDARD SPECIFICATIONS
FACE MATERIAL G40 hot-dipped galvanized steel skin
SKIN GAUGE 22-gauge
SKIN SURFACE Oak woodgrain texture
FINISH Special beige primer allows for stain/paint application
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full steel-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Composite lock block
HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement
HINGE
4"
AVAILABLE OPTIONS
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
DOOR
NORWOOD SERIES
FLUSH
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
flush panel
SIDELITES
refer to page 92 for sidelite options
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
available upon request
NORWOOD SERIES
Additional drawing details available on
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
refer to page 92 for sidelite options ADA COMPLIANCE
flush panel
SIDELITES
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
available upon request
FLUSH
NORWOOD SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
ADA COMPLIANCE
10.44" bottom rail option
FIRE RATING
SIDELITES
refer to page 92 for sidelite options
Minimum 2'8" W x 6'8" H
Maximum 3'0" W x 7'0" H
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
available upon request

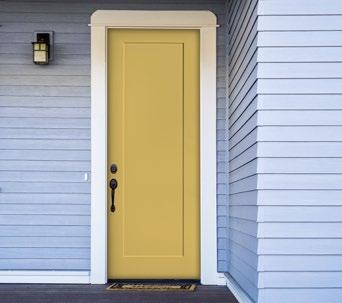

1-PANEL FLAT SHAKER
NORWOOD SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
refer to page 92 for sidelite options ADA COMPLIANCE
not available
FIRE RATING
20-minute 90-minute
SIDELITES
Minimum 2'8" W x 6'8" H
Maximum 3'0" W x 6'8" H
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
available upon request
NORWOOD SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
ADA COMPLIANCE
10.44" bottom rail option
FIRE RATING
SIDELITES
refer to page 92 for sidelite options
Minimum 2'8" W x 6'8" H
Maximum 3'0" W x 7'0" H
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
available upon request
2-PANEL FLAT SHAKER
NORWOOD SERIES
PROFILE STYLE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
COMPLIANCE 10.44" bottom rail option
or Remodeler Unit (RU) sizes available upon request.
NORWOOD SERIES
PROFILE STYLE
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
to page 92 for sidelite options
CUSTOM CUTOUTS
NORWOOD SERIES
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
refer to page 92 for sidelite options ADA COMPLIANCE
not available
SIDELITES
CUTOUTS
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
available upon request FIRE RATING
NORWOOD SERIES
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
COMPLIANCE not available
4-1/2" surface mount, commercial template fixed hinge SIDELITES
refer to page 92 for sidelite options
STANDARD CUTOUTS
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
available upon request FIRE RATING 20-minute 90-minute HINGE PREP OPTIONS
NORWOOD SERIES
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
refer to page 92 for sidelite options
STANDARD CUTOUTS
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS available upon request
NORWOOD SERIES

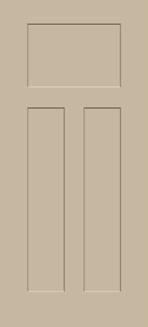

3-PANEL FLAT SHAKER 3FPS
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
ADA COMPLIANCE
10.44" bottom rail option
refer to page 92 for sidelite options
CUSTOM CUTOUTS available upon request
NORWOOD SERIES
PROFILE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
COMPLIANCE
10.44" bottom rail option
refer to page 92 for sidelite options
STANDARD CUTOUTS
W x
H Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS available upon request
NORWOOD SERIES
4-PANEL BLANK TOP RAISED ARCHITECTURALLY CORRECT
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
ADA COMPLIANCE
10.44" bottom rail option FIRE RATING
refer to page 92 for sidelite options
2'6" W x 6'8" H
3'0" W x 7'0" H
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
CUSTOM CUTOUTS
available upon request
NORWOOD SERIES
PROFILE STYLE
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge SIDELITES
ADA COMPLIANCE
10.44" bottom rail option FIRE RATING
refer to page 92 for sidelite options
Minimum 2'6" W x 6'8" H
3'0" W x 7'0" H
Custom or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
available upon request

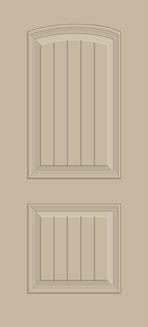

NORWOOD SERIES
PROFILE STYLE
to footnote on graining
HINGE PREP OPTIONS
4" surface mount, fixed hinge 4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
or Remodeler Unit (RU) sizes
NORWOOD SERIES
PROFILE
*refer to footnote on graining
drawing details available on
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
ADA COMPLIANCE not applicable
SIDELITES
refer to page 92 for sidelite options
STANDARD CUTOUTS
2'6" W x 6'8" H
3'0" W x 8'0" H
Custom or Remodeler Unit (RU) sizes available upon request. Narrow format available in 2/6 width.
CUSTOM CUTOUTS
available upon request
NORWOOD SERIES
PROFILE
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge
STANDARD CUTOUTS
NORWOOD SERIES // SIDELITES
HEIGHT 6'8" PROFILE STYLE SIDELITES REFER TO CHART
1P-836RTC-SL FL-764C-SLWAS
1PHD-13E-SL 1PHD-13E-848C-SL
6'8" HEIGHT SIDELITES
TRUKOTE SERIES // 24-gauge prefinished smooth steel
TRUKOTE SERIES

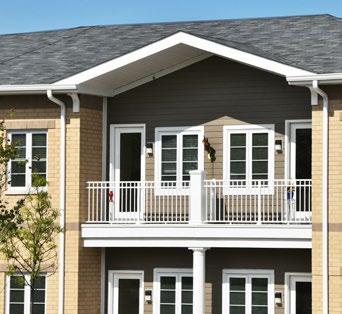

The Trukote Series offers an effortless style for your multi-family projects. These ready-to-install, 24-gauge steel doors are prefinished and require no additional finishing. The factory-finish white polyester paint guarantees a stylish look and the best value among prefinished doors. Choose Trukote for a seamless and cost-effective solution, transforming your project effortlessly.
STANDARD SPECIFICATIONS
FACE MATERIAL G40 hot-dipped galvanized steel skin
SKIN GAUGE 24-gauge
SKIN SURFACE Prefinished smooth
FINISH White polyester paint, no additional finishing required
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Full steel-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Composite lock block
HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement
HINGE
4"
AVAILABLE OPTIONS
CLOSER PREP Steel closer reinforcement plates
PANIC PREP Exit hardware reinforcement
ADA COMPLIANCE 10" ADA bottom rail on specific styles
DOOR TESTING
Refer to Rating section for details.
RATING Grade 40
RATING 22
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
or Remodeler Unit (RU) sizes available upon request.
CUSTOM CUTOUTS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
or Remodeler Unit (RU) sizes available upon request.
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
HINGE PREP OPTIONS
4" surface mount, fixed hinge
4" surface mount, adjustable hinge
4" surface mount, template fixed hinge
4-1/2" surface mount, commercial template fixed hinge
EDGEWOOD SERIES // wood-edge smooth steel
EDGEWOOD ® SERIES
Discover durability with the Edgewood Series. These 25-gauge smooth steel doors feature a unique 10° face sheet bend and a wood stile and rail system. The composite bottom rail safeguards against rot and insects, ensuring low maintenance. With a 20-minute fire rating and white primer finish, these doors combine safety and style seamlessly. Elevate your space with the Edgewood Series.
STANDARD SPECIFICATIONS
FACE MATERIAL
SKIN GAUGE 25-gauge (24-gauge on specific styles)
SKIN SURFACE Smooth
FINISH Baked-on polyester primer
CORE MATERIAL Injected polyurethane foam core
EDGE CONSTRUCTION Wood-edge perimeter
THICKNESS 1.720" (nominal 1-3/4")
LOCK BLOCK Wood lock block
STILES & RAILS 1-1/4" solid wood stile and rail system, with
PANIC PREP Exit hardware reinforcement
COMPLIANCE 10" ADA bottom rail on specific styles
25-gauge used for 6'8" height
24-gauge used for 8'0" height
HINGE PREP OPTIONS
4" mortise hinge
4" surface mount, fixed hinge blank hinge
ADA COMPLIANCE flush panel
FIRE RATING
20-minute (6'8" height only)
SIDELITES
available in 24-gauge only; refer to page 73
STANDARD CUTOUTS
CUSTOM CUTOUTS
available upon request
25-gauge used for 6'8" height
24-gauge used for 8'0" height
HINGE PREP OPTIONS
4" mortise hinge
4" surface mount, fixed hinge blank hinge
available in 24-gauge only; refer to page 73 FIRE RATING not applicable ADA COMPLIANCE
10" bottom rail flush panel
SIDELITES
2'0" W x 6'8" H
3'0" W x 8'0" H
CUSTOM CUTOUTS
available upon request
EDGEWOOD
CUSTOM CUTOUTS
available upon request
4" mortise hinge
4" surface mount, fixed hinge blank hinge
ADA COMPLIANCE
10.44" bottom rail option
RATING 20-minute (6'8" height only)
SIDELITES
available in 24-gauge only; refer to page 73
Narrow format available in 2/6 width.
CUSTOM CUTOUTS
available upon request
STANDARD CUTOUTS
EDGEWOOD
COMPLIANCE 10.44" bottom rail option
4" mortise hinge 4" surface mount, fixed hinge blank hinge FIRE RATING
20-minute (6'8" height only)
SIDELITES
available in 24-gauge only; refer to page 73
2'8" W x 6'8" H
3'0" W x 6'8" H
CUSTOM CUTOUTS
available upon request
HINGE PREP OPTIONS
4" mortise hinge 4" surface mount, fixed hinge blank hinge FIRE RATING
ADA COMPLIANCE
10.44" bottom rail option
20-minute (6'8" height only)
SIDELITES
available in 24-gauge only; refer to page 73
CUTOUTS available upon request

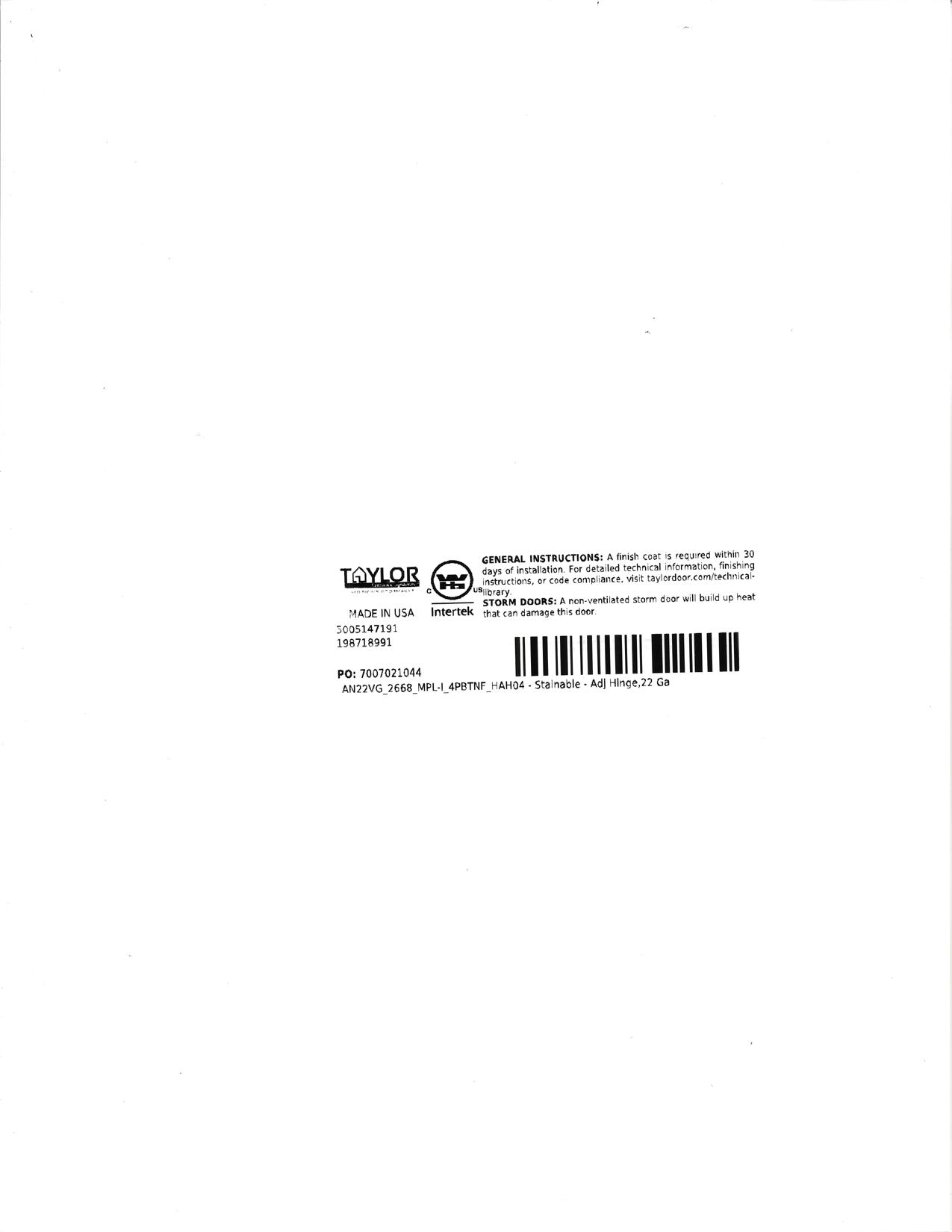

DOOR LABELS
Taylor doors are described and marked with a product identification nomenclature. Below is a door label example and a part number breakdown—a guide to understanding the door nomenclature and interpreting specifications. For additional preps and details not covered on these pages, refer to our Technical Library.
MADE IN USA
manufacturing order #
customer part number #
PO: purchase order#
GENERAL INSTRUCTIONS: A finish coat is required within 30 days of installation. For detailed technical information, finishing instructions, or code compliance, visit taylordoor.com/technicallibrary.
STORM DOORS: A non-ventilated storm door will build up heat that can damage this door.
AN22VG_2668_R50_4PBTNF_CB_LT7_P3_9TN - Stainable - Adj Hinge, 22 Ga
DOOR NOMENCLATURE
B - WIDTH
D - EMBOSSMENT
FL Flush

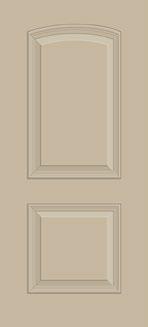

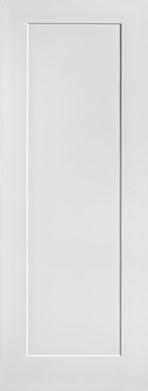

1FPS 1-Panel Flat Shaker
1PHD 1-Panel HD
2FPS 2-Panel Flat Shaker

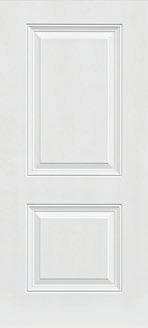

2PHD 2-Panel HD
2PHD96 2-Panel HD (8'0" Height)
2PATHD 2-Panel Arch Top HD
2PATPHD 2-Panel Arch Top Plank HD
3/4-2PSTHD 3/4 2-Panel Square Top HD
3PHD 3-Panel HD
3PEFS 3-Panel Equal Flat Square
3FPS 3-Panel Flat Shaker
3PCRHD 3-Panel Craftsman HD
2PCOTHD 2-Panel Cottage Style HD XB Crossbuck

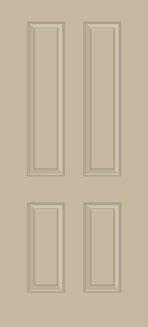

4PBT 4-Panel Blank Top
4PBTNF 4-Panel Blank Top (Narrow Format)
4PBTHD 4-Panel Blank Top HD
B -
C - LOCK PREPARATION
C05
C09
C39
(2) 1-1/8 x 2-1/4 LFB 2-1/8 DB 2-1/8 BS 2-3/4 CTC 5-1/2
(1) 1-1/8 x 2-1/4 LFB 2-1/8 BS 2-3/4 C-SNG
(3) 1 x 2-1/4
LFB 2-1/8
BS 2-3/4
CTC 5-1/2
C42 (3) 1 x 2-1/4 CTC 5-1/2
R00 (1) 1 x 2-1/4
R50 (2) 1 x 2-1/4
CTC 5-1/2
(2) 1 x 2-1/4
LFB 2 1/8
R54
R55
- LITE CUTOUT
R56
BS 2 3/4
CTC 5-1/2
(2) 1 x 2-1/4
LFB 2-1/8
DB 2-1/8
BS 2-3/8
CTC 5-1/2
(2) 1 x 2-1/4
LFB 2-1/8
DB 2-1/8
BS 2-3/4
CTC 5-1/2
4PBTHDNF 4-Panel Blank Top HD (Narrow Format) T4P True 4-Panel 5PE 5-Panel Equal 6PE 6-Panel Equal

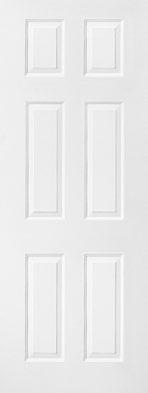

6-Panel
6PNF 6-Panel (Narrow Format)
6-Panel HD 6PHDNF 6-Panel HD (Narrow Format)
8-Panel
9-Panel
E - BLOCKING
CB Closer Reinforcement
CB(2) Double Closer Reinforcement
CB(2)PB
Double Closer Reinforcement and Panic Reinforcement
CB(4) Quadruple Closer Reinforcement
CB2HFB
Double Closer with Double Head and Foot Bolt
CBHFB Closer with Head and Foot Bolt
CBPB Closer and Panic Reinforcement
HFB Head and Foot Bolt
MP Full (MP Door)
NO No Closer or Panic Reinforcement
PB Panic Reinforcement
PBHFB Panic with Head and Foot Bolt
G - PEEP SITE CALL
OUT
No bore for peep site
or Pxx Code for peep site prep
See print
H - FIRE LABELS
RATINGS
Taylor’s steel doors meet diverse needs and requirements. From TDI-approved durability against harsh weather to high-security options, exceptional acoustic performance, and hurricane-resistant attributes. Our entry doors are designed to exceed expectations, providing peace of mind and outstanding performance across various scenarios and environments.
TEXAS DEPT. OF INSURANCE ( TDI ) APPROVALS
Taylor offers steel doors that have been rigorously evaluated for compliance with wind load standards set by the International Residential Code (IRC) and the International Building Code (IBC). These evaluations are conducted by the Texas Department of Insurance (TDI), and you can access detailed reports on their website at tdi.texas.gov.
Impact Resistant Wood Edge Opaque Steel Side Hinged Doors, Inswing and Outswing, Singles
Impact Resistant 3’-6” x 7’-0” Steel Opaque Side Hinged Doors, Inswing and Outswing, Singles, Impact Resistant
Impact Resistant
Impact Resistant
Impact Resistant
Opaque Steel Edge Steel Door - Utilizing a F Series Steel Frame System - Up to a Nominal 36 x 70 Inswing or Outswing (X) Configuration
Opaque Steel Edge Steel Door - Utilizing a K2A Series
Two Piece Steel Frame System - Up to a Nominal 36 x 70 Inswing or Outswing (X) Configuration
Opaque Steel Edge Steel Door - Utilizing a Rediflex Series
Two Piece Steel Frame System - Up to a Nominal 36 x 70 Inswing or Outswing (X) Configuration
Impact Resistant Steel Edge Door - Impact Glazed - 6'8 and 8'0 - Inswing or Outswing(X) (OX or XO) (OXO) (XX) (OXXO) Configurations
Impact Resistant Steel Edge Door - Impact Opaque - 6'8 and 8'0 - Inswing or Outswing(X) (OX or XO) (OXO) (XX) (OXXO) Configurations
Non-Impact Resistant Steel Edge Door - Non-Impact Glazed - 6'8 and 8'0 - Inswing or Outswing - (X) (OX or XO) (OXO) (XX) (OXXO) Configurations
Impact Resistant Wood Edge Glazed Steel Door - Impact - 6'8 - Inswing or Outswing - (X) (OX or XO) (OXO) (XX) (OXXO) Configurations
Non-Impact Resistant Wood Edge Glazed Steel Door - Non-Impact - 6'8 - Inswing or Outswing - (X) (OX or XO) (OXO) (XX) (OXXO) Configurations
DR-993, TX-4862
DR-964, TX-4784REV
14513.2
14513.1
14513.3
8845.1 THROUGH
8845.11 THROUGH FL 8845.20
9542.1 THROUGH FL 9542.6
15135.4 THROUGH
15135.6
15135.1 THROUGH FL 15135.3
Impact Resistant Wood Edge Opaque Steel Door - Impact - 6'8 - Inswing or Outswing(X) (OX or XO) (OXO) (XX) (OXXO) Configurations FL 15135.7, 15135.10 AND 15135.11
Impact Resistant Wood Edge Opaque Steel Door - Impact - 8'0 - Inswing or Outswing(X) (OX or XO) (OXO) (XX) (OXXO) Configurations
15135.12, 15135.15 AND 15135.16
• The product evaluation reports are available on the Texas Department of Insurance (TDI) website at tdi.texas.gov.
• A product evaluation provided by the Texas Dept. of Insurance (TDI) is intended for use by those individuals who are following the design wind load criteria in Chapter 3 of the IRC (International Residential Code) and Section 1609 of the IBC (International Building Code).
• Doors that are evaluated by TDI are tested and compliant for Impact Resistant: ASTM E330-14/E1886-13a/E1996-14a Missile Level D
TDI website
SECURITY RATING
Taylor’s steel-edge doors conform to the highest security classification, Grade 40, through ASTM F476 - Security of Swinging Door Assemblies. The test measures a door assembly’s ability to restrain, delay, and frustrate the commission of break-in crimes. It specifies a grade for the door assembly, with Grade 40 representing the highest grade. For best protection from forced entry, specify an entry door with a Grade 40 rating.
STC & OITC RATINGS
The Sound Transmission Class (STC) and Outdoor-Indoor Transmission Class (OITC) are tested and classified by Intertek’s Architectural Testing, Inc. (ATI), based on the ASTM E90 test standard for Sound Transmission Loss.
The results are based on operable test units; inoperable results are available upon request. Detailed reports are available upon request.
FLORIDA BUILDING CODE ( FBC ) APPROVALS
Taylor offers steel doors tested for code compliance in Florida’s High-Velocity Hurricane Zones (HVHZ) and non-HVHZ regions. Detailed approval information can be found on Taylor’s website and the Florida Building Code (FBC) website under Product Approval.
ENERGY PERFORMANCE
Energy-efficient steel doors in commercial settings offer a multitude of benefits. They lead to cost savings by reducing heating and cooling expenses, contribute to environmental conservation by lowering carbon footprints, and ensure compliance with regulations. These doors also create comfortable indoor spaces, enhance building durability, increase property value, and support green building initiatives.
U-VALUES
INSULATION
Taylor’s steel-edge doors have a polyurethane foam core that provides nearly twice the insulating properties of an insulated hollow metal door.
This foam is injected into the steel shell and fills the entire cavity. The foam is blown (expanded) with an eco-friendly blowing agent that is CFC and HCFC-free.
R-VALUES
CALCULATED R-VALUE
K-Factor (k) of the foam = 0.165 1/k = R
1 ÷ 0.165 = 6.06/in
Thickness × R = R-Value
1.670" (inside door thickness) × 6.06 = 10.12
The calculated R-Value for the core of Taylor’s steel-edge door = 10.12.
2026 ENERGY STAR 7.0
• Doors with no glass (opaque) WILL qualify (U-Factor =0.17)
• ENERGY STAR 7.0 effective 10/23/23
FIRE RATINGS
When a steel door is rated for fire resistance, it means that it has been tested and certified to withstand fire and smoke for a specific duration, typically measured in minutes. The door’s ability to maintain its integrity (structural stability) and limit the transfer of heat and smoke from one side to the other is evaluated during these tests.
Neutral pressure and positive pressure are terms used to describe the pressure conditions on either side of a fire-rated steel door during fire testing. Both conditions help assess the door’s performance and its ability to contain fire and smoke effectively in different fire scenarios.

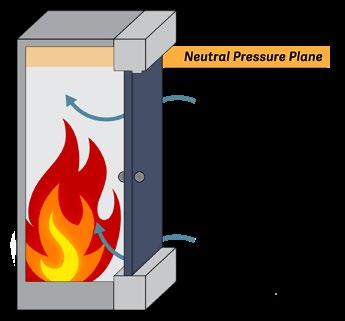

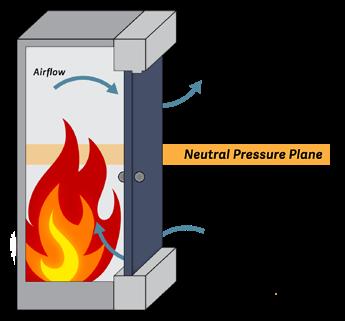

NEUTRAL PRESSURE
Refers to a scenario where the pressure on one side of a door is lower than the pressure on the other side. This condition can occur in real-life fire situations, where factors such as building ventilation systems or open windows create a pressure imbalance that draws air and smoke into the area affected by the fire.
POSITIVE PRESSURE
Simulates a fire scenario where the pressure on the fire-exposed side of a door is greater than the pressure on the surrounding areas. This condition is representative of real-life fires, where heat and gases produced by combustion create higher pressure on the fire side, potentially leading to the door being pushed open by the pressure difference.
FIRE RATED DOORS

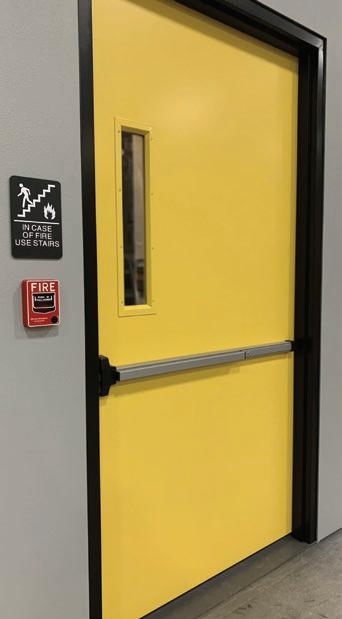

Steel doors with a steel edge are tested to withstand a minimum of 90 minutes of fire exposure at temperatures reaching more than 1,400 degrees Fahrenheit. Fire rated doors are tested and classified by Intertek’s Warnock Hersey.
3'0" x 7'0" Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, door bottoms, thresholds.
3'0" x 7'0"
3'0" x 7'0"
3'6" x 7'0"
3'0" x 8'0"
3'0" x 8'0"
4'0" x 8'0"
Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds.
Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds.
Unit, Mortise, or Cylindrical Latches/Deadbolts max 5" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds.
Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds.
Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds.
20 Gauge Only, Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds.
FIRE LABELS

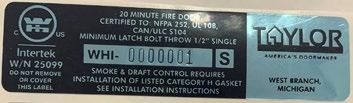

A label on a fire-rated door is a vital visual confirmation of its compliance with rigorous fire safety standards, indicating its capacity to effectively contain fire, heat, and smoke. Our Intertek metal and mylar fire labels utilize a paint mask to protect the label during the painting/staining process.
TAYLOR STANDARD PREPS & SIZES
To make informed decisions for your project, explore Taylor’s standard dimensions and specifications, encompassing door sizes, preps, door tolerances, and more. This overview ensures compatibility and simplifies decision-making for your project requirements. Refer to the Hinge Preps & Door Preps sections for details on customizable options, allowing you to tailor preps to your unique specifications.
STANDARD LOCK PREP
A lock prep is a set of holes drilled or bored into the door for a latch or lock mechanism.
diameter through.
The lock bore is 2-1/8"
The edge prep is 1" x 2-1/4" (TYP).
The edge bore is 1" diameter (TYP).
The backset is 2-3/8" or 2-3/4".
Square corner prep
A double lock bore is 5-1/2" from center to center.
6'8" HEIGHT
A -
B - HEIGHT
8'0" HEIGHT
HINGE PREPS
8'0" 9-5/8" 25-3/16" 25-3/16" 25-3/16"
Measured from centerline of the hinge prep.
G - LOCK BORE
55.94"
Measured to center of bore.
HINGE PREPS
At Taylor, we understand the importance of precision and customization in every project. That’s why we offer a range of hinge preps designed to fit your unique specifications. Whether you require custom hinge locations or compatibility with specific manufacturer locations, Taylor has the solution for you.
STANDARD HINGE LOCATIONS
The dimensions for hinge preps are measured from the centerline of the hinge prep. The height placement locations are consistent across all styles of hinge preps, specifically on Taylor standard doors.
CUSTOM HINGE LOCATIONS
Whether you require custom hinge locations or need to match specific manufacturer requirements, Taylor has you covered. Reach out to us today to discuss your project specifications. Allow us to demonstrate how our tailored hinge prep solutions can elevate the quality and functionality of your doors, ensuring a perfect fit for your unique needs.
Measured from center of hinge prep.
HINGE PREPS FOR STEEL DOORS
Taylor offers versatile hinge prep options for diverse project requirements, including surface mount or mortise hinge preps. For added durability and security, we provide a hinge reinforcement plate strategically designed to reinforce the hinge area, preventing wear and tear over time.
4" SURFACE MOUNT, FIXED HINGE PREP with 20-gauge steel, fixed backer plate 6-1/8" x 1-5/8"
4" SURFACE MOUNT, ADJUSTABLE HINGE PREP with 11-gauge steel, adjustable hinge backer plate 5-11/16" x 1-3/16"
4" SURFACE MOUNT, TEMPLATE FIXED HINGE PREP with 20-gauge steel, template hinge backer plate 6-1/8" x 1-5/8"
4-1/2" SURFACE MOUNT, COMMERCIAL TEMPLATE HINGE PREP with 20-gauge steel, template fixed hinge backer plate 6-1/8" x 1-5/8"
4-1/2" MORTISE COMMERCIAL HINGE PREP — for WestGuard Series only — with 7-gauge steel, commercial template fixed hinge reinforcement
HINGE PREP
DIMPLE HINGE PREP for
4" MORTISE HINGE PREP for
BLANK
for Edgewood ® Series only
Edgewood ® Series only
Edgewood ® Series only
DOOR PREPS
At Taylor, our door prep solutions are crafted using advanced technology. We cater to a broad range of lock, face bore, and edge prep needs for both commercial and residential projects. Whether you’re looking for standard preps showcased in our Product Guide or seeking a tailored solution beyond the catalog, Taylor stands ready to transform your vision into reality.
TAILORED TO PERFECTION:
• Custom face and edge preps
• Special lock preps
• Custom bore locations aligned to your specifications
• Closer and panic bar prep
• Custom prep based on your template
CLOSER & PANIC REINFORCEMENT PREPS
Closer Block Panic Prep & Closer Plates, with Wood Lock Block
Head & Foot Door Prep
Multi-Purpose Door Prep
LIGHT COMMERCIAL EDGE PREPS FOR STEEL DOORS
Composite Lock Block, 2-3/4" Backset
TRIPLE EDGE PREPS FOR STEEL DOORS
Composite Lock Block, 2-3/4" Backset
C42
Wood Lock Block C39
Wood Lock Block, 2-3/4" Backset
DOOR PREPS
RESIDENTIAL EDGE PREPS FOR STEEL DOORS
R54
Composite Lock Block, 2-3/4" Backset
R00 Composite Lock Block
R50 Composite Lock Block
RESIDENTIAL EDGE PREPS FOR STEEL DOORS
Composite
Composite
R56
Lock Block, 2-3/4" Backset
R55
Lock Block, 2-3/8" Backset
FRAMES
QUIKFIT ADJUSTABLE FRAME SYSTEM
The QuikFit Door Frame System is an entrance system that features a steel-edge door panel prehung into an adjustable steel frame. This system is easy to install and offers the industry’s highest fire and security ratings, making it ideal for a variety of project types.
SPECIFICATIONS
MATERIAL Two-piece adjustable galvannealed steel frame
GAUGE
WALL
Main frames are 18-gauge steel. Closer trim is 22-gauge for walls up to 7-1/2" and 18-gauge for walls over 7-1/2".
CONSTRUCTION 4-1/2" to 12-1/2" (1" adjustments) for 1-3/4" door
INSTALLATION Anchoring holes and nail clearance slots for wood casing
WARRANTY 1-Year Warranty
AVAILABLE OPTIONS
SIZES 6'8", 7'0", and 8'0" heights
FINISH / COLOR White powder coat finish (standard) Brown and Satin Black (special request)
SILLS Thermally broken sills (Inswing, Outswing, or ADA-compliant)
CASING 1-1/2" Flat Casing, 1-3/4" Colonial Casing
HINGES Variety of hinge preps, types, and finishes, including 4.5” hinge prep
SWEEP Retainer and slide-on sweep for door panel
STRIKES ASA Strike available
FRAME SYSTEM TESTING
FIRE RATING 20-minute or 90-minute
DESIGN PRESSURE (DP) RATINGS +/- 60 up to 3670
FBC / TDI RATINGS Florida Building Code (FBC) and Texas Department of Insurance (TDI) approved
COLORS
Detail
Hinge Prep Detail
Closer Trim
Base
REMODELER FRAME SYSTEM
Enhance your door’s performance and security with the Remodeler Frame System. This system fits over existing wood frames for effortless installation of replacement units. Combine this corrosionresistant, 18-gauge steel frame with a steel-edge door for top-notch durability, energy efficiency, and security.
SPECIFICATIONS
MATERIAL Galvanized steel frame with weatherstrip and an adjustable threshold
GAUGE 18-gauge
HINGE REINFORCEMENTS 11-gauge hinge reinforcements, spot-welded for maximum strength
INSTALLATION Designed to fit over existing wood frames. Anchoring holes and slots for wood casing.
FINISH / COLOR White powder coat finish, requiring no sanding or recoating
SILL Adjustable sill
FRAME ASSEMBLY Up to 6'11" height
AVAILABLE OPTIONS
SIZES
2'5", 2'7", 2'9", and 2'11" widths, 6'5", 6'7", 6'9", and 6'11" heights
FRAME SYSTEM TESTING
SECURITY TESTING Surpasses the most stringent forced entrance security test
Hinge
FRAMES ADD-ONS
FRAMES
Enhance the seamless integration of style and security with our meticulously engineered door jambs. The jambs complement your door, ensuring a perfect fit and contributing to the overall aesthetics of your entrance. Explore additional options with our trim kits for further customization.
Refer to pages 124 and 136 for additional product details and images.
Each frame requires:
• Hinge Jamb
• Strike Jamb
• Jamb Header
• Trim Kit (includes installation bag)
• Sill
TRIM KIT (ADA AND ASA SILL PREP)
TRIM KIT (FIXED SILL PREP)
SILLS

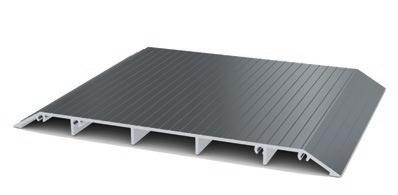

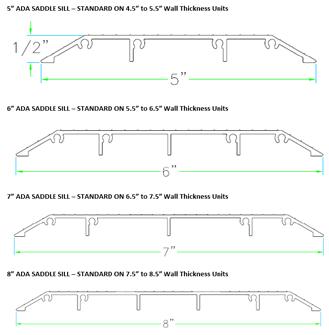

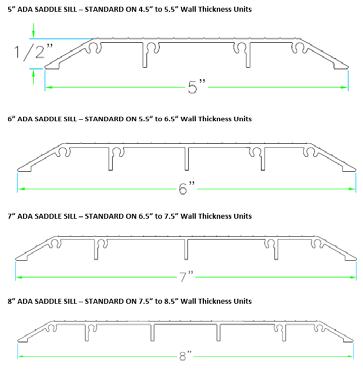

ADA-COMPLIANT SILLS
• 1/2" sill height
• ADA-compliant fixed saddle sill
• All-aluminum construction
• Optional protective film

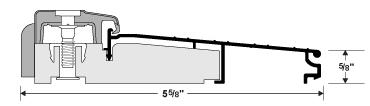

INSWING & OUTSWING SILLS
• 1-1/4" sill height with 5° slope
• Durable extruded finish
• Full composite substrate
• Modify widths with extenders
ADD-ONS
Explore our comprehensive components selection, where customization meets quality. Elevate every aspect of your entryway with our premium additions, offering versatile solutions from meticulously engineered door jambs and weatherstripping to durable sills. Tailor your door to perfection with these components—all in stock and ready to transform your entryway.
PAINT FINISH
Customize your door to suite your style with a professionally painted finish. Choose from our standard black or white, or truly personalize your entry with any Sherwin-Williams color.
FRAME WEATHERSTRIP
Experience optimal insulation and protection against the elements with our weatherstripping options.
WEATHERSTRIP RETAINER FOR SWEEP
The metal retainer, securely riveted to the bottom of our steel doors, offers versatile compatibility with our slide-on sweeps. This strategic integration ensures a seamless and durable connection, reinforcing the door’s defenses against drafts and enhancing efficiency.
DOOR SWEEP WEATHERSTRIP
Upgrade the bottom of your door with our efficient door sweeps, expertly designed to prevent drafts, improve energy efficiency, and enhance weather resistance. Our door sweep weatherstrip helps to maintain indoor comfort and effectively deters the entry of insects and debris.
SLIDE-ON BULB SWEEP
SLIDE-ON FINNED SWEEP
SCREW-ON FINNED SWEEP
For doors without bottom weatherstrip retainer. Used on Edgewood series.
CAD & BIM FILES
Discover Taylor’s exceptional steel entry doors with unparalleled ease through our partnership with ARCAT. Accessing crucial resources for your projects has never been simpler. Directly download high-quality design files and product specs from ARCAT, which include:
• CAD drawings
• Revit & SketchUp BIM files
• LEED data
• Product specs
CSI 3-PART SPEC – SPECWIZARD
Explore the unmatched convenience of ARCAT’s SpecWizard. This user-friendly program swiftly configures complete CSI 3-Part formatted specifications in just minutes.
Taylor proudly utilizes SpecWizard to streamline the specification process for our customers. Customize and download your detailed specifications with just a few clicks, enhancing project efficiency.
Access your free CSI 3-Part Specification by scanning the SpecWizard code below. Experience the efficiency and simplicity of SpecWizard, a valuable tool for your project management needs.
AIA PRESENTATION
SPECIFYING HIGH-QUALITY STEEL DOORS FOR MULTI-FAMILY APPLICATIONS
Steel doors are not only as aesthetically pleasing as doors made of other materials but excel in many other categories, such as durability, energy efficiency, sustainability, fire ratings, cost-effectiveness, ease of installation, and ease of maintenance. This course lists the questions architects, and others should ask to specify the best high-quality steel door for the application.
LEARNING OBJECTIVES
• Describe codes and standards that apply to high-performing steel doors
• Identify factors that impact energy efficiency in steel doors
• Explain ADA requirements for exterior doors and how to achieve them
• Define superior fire ratings for exterior doors
• Describe how to specify high-performing metal doors systems
LU & HSW APPROVED
Credit(s) earned on completion of this course will be reported to AIA CES for AIA members. Certificates of Completion for both AIA members and non-AIA members are available upon request.
This course is registered with AIA CES for continuing professional education. As such, it does not include content that may be deemed or construed to be an approval or endorsement by the AIA of any material of construction or any method or manner of handling, using, distributing, or dealing in any material or product.
