About Visa Lighting

Proudly Made in America

Visa Lighting products have been meticulously constructed by dedicated American workers in Milwaukee, WI for over 60 years. Our employees strive to consistently provide exceptional product with exceptional service every day. Our luminaires are created with a blend of old-world craftsmanship and new-world technologies. Highly skilled design, engineering, manufacturing, and assembly teams ensure fixture quality and artistry, while innovative production methods ensure consistency and efficiency.

As an American manufacturer, you can have the peace of mind that comes from knowing your lighting product has contributed to American jobs and has been built according to American manufacturing standards. Plus, with engineering and manufacturing located together in the heartland of the U.S., we have the capability to customize products to your specific needs.

Our Capabilities

At Visa Lighting, we pride ourselves on our advanced lighting technology and custom capabilities that set us apart in the industry. From energy-efficient LED systems to advanced controls and smart lighting features, we harness technology to create lighting products that are efficient, sustainable, and transformative.

In addition to our cutting-edge technology, we provide unparalleled custom capabilities that allow us to collaborate closely with clients to bring their unique lighting visions to life. Our dedicated team of designers and engineers work hand-in-hand with customers to develop bespoke lighting solutions tailored to their specific needs and preferences.

Healthcare Lighting

We understand the critical role that lighting plays in healthcare environments, from enhancing patient well-being to supporting medical staff in their roles.

Our healthcare lighting solutions, meticulously designed and engineered, cater to various healthcare settings such as nurses’ stations, waiting rooms, patient rooms, and more. By blending functionality with aesthetics, we aim to create lighting solutions that improve the overall experience for both patients and healthcare professionals.

Harmony Page 12 Lenga Page 13

Slots Page 21

Serenity Table Lamp Page 35

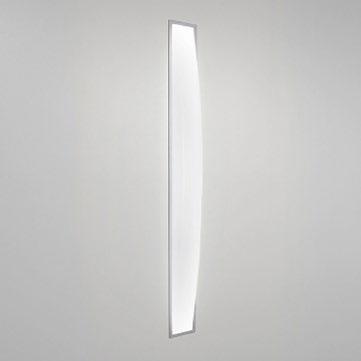

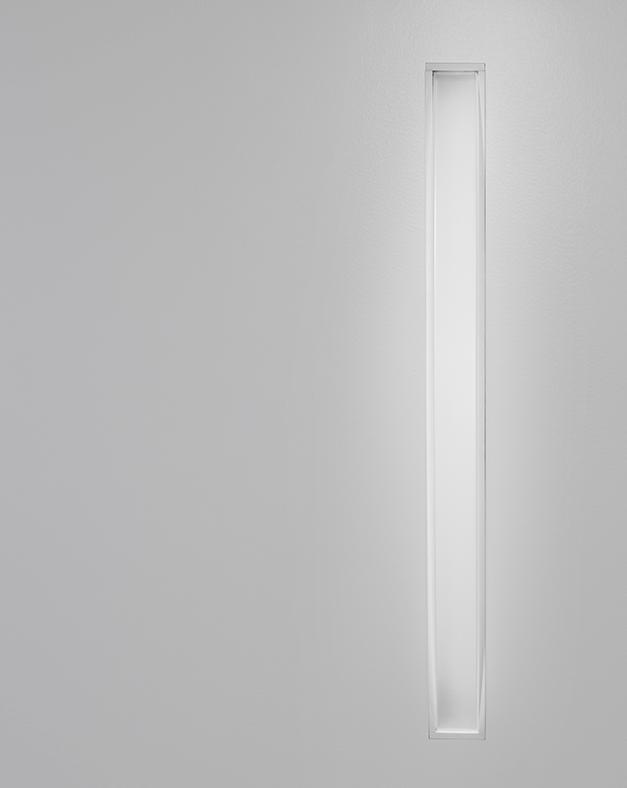

Wall Slot Page 46

Serenity Page 26

Serenity Sconce Page 38

Visage Page 47

Serenity Overbed Page 16 Symmetry Page 17

Headwall Page 27

Symmetry Page 39

Bliss Round Page 31

Sconce Page 42

Unity Overbed Page 20

Page 34

Table Lamp Page 43

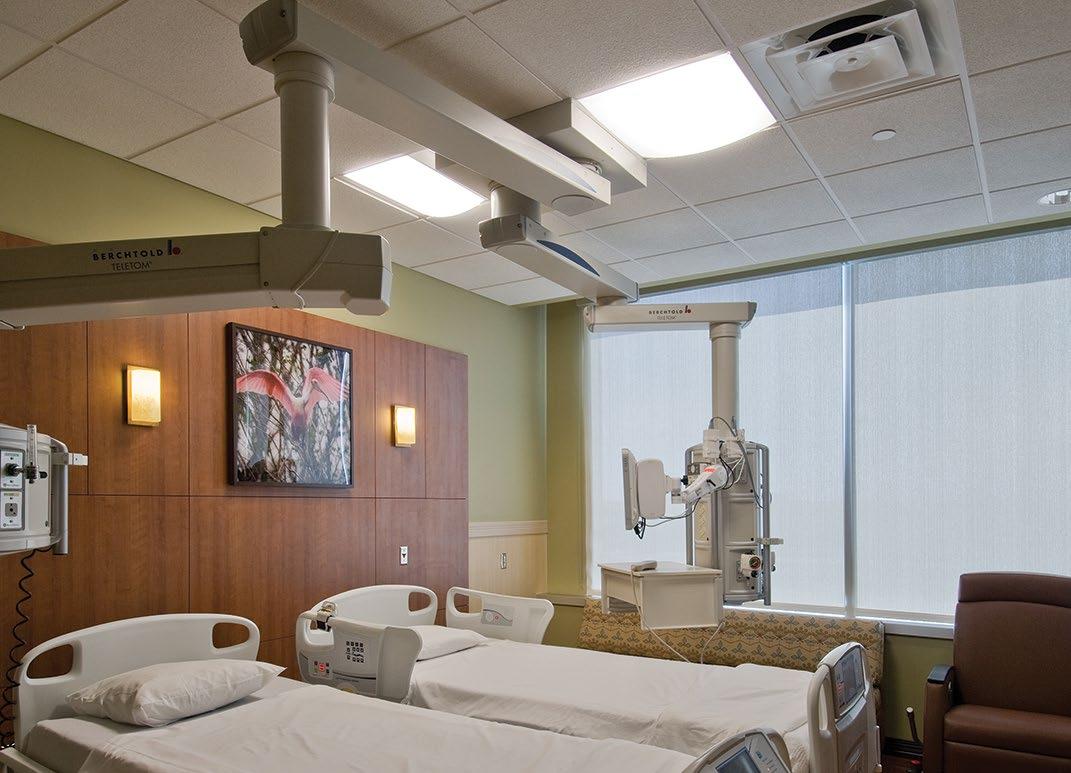

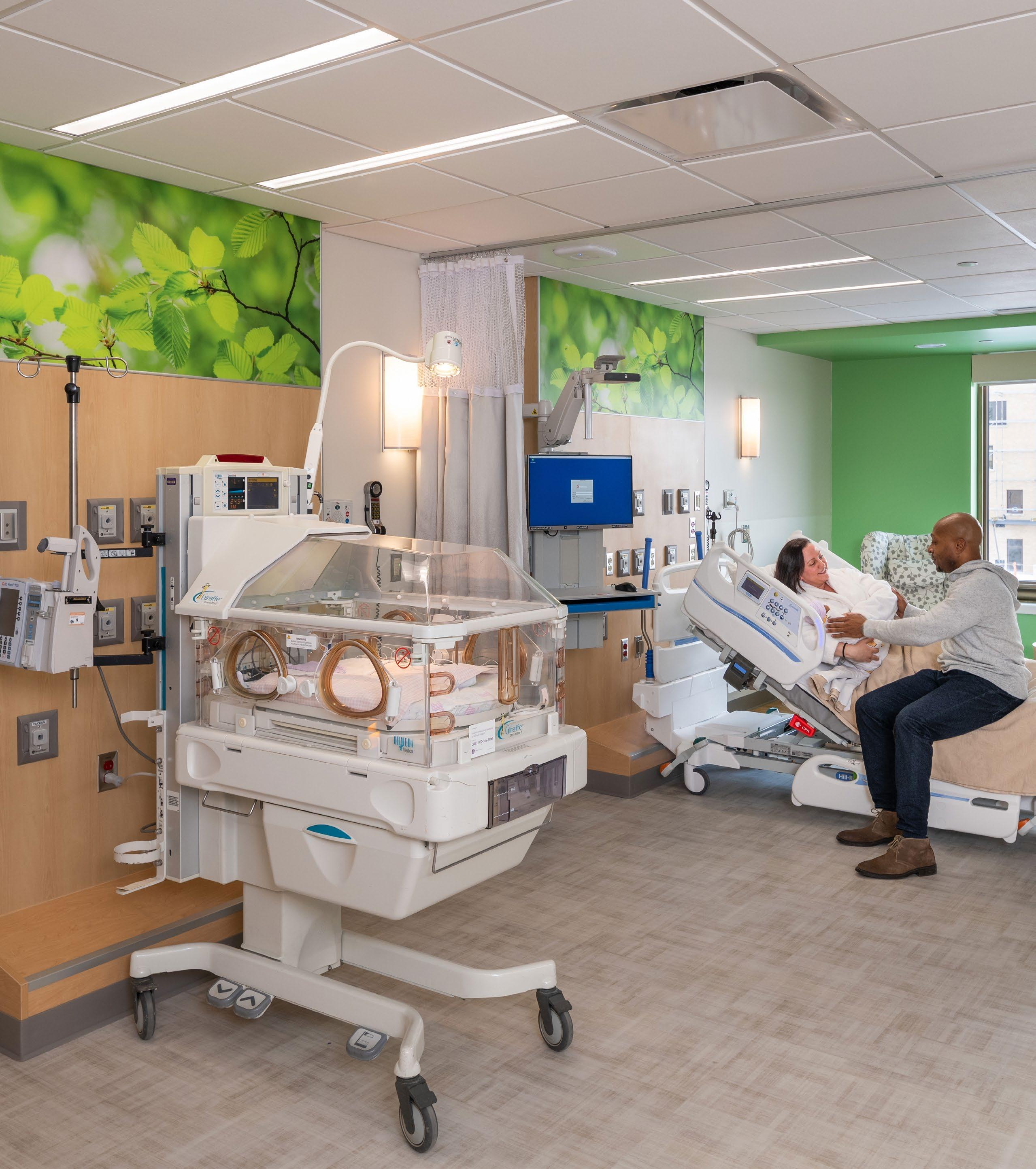

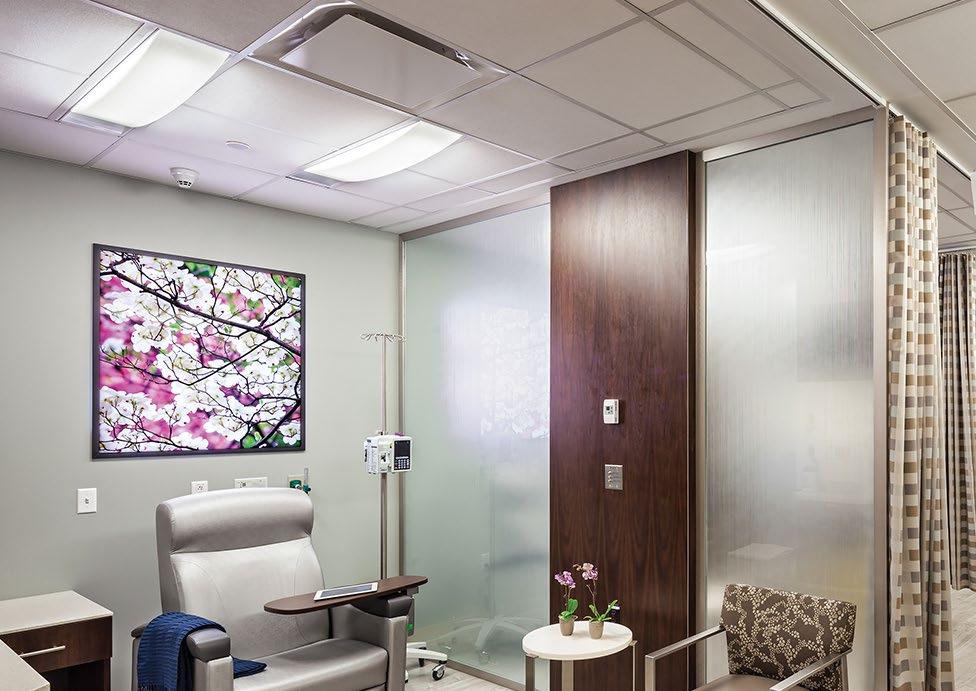

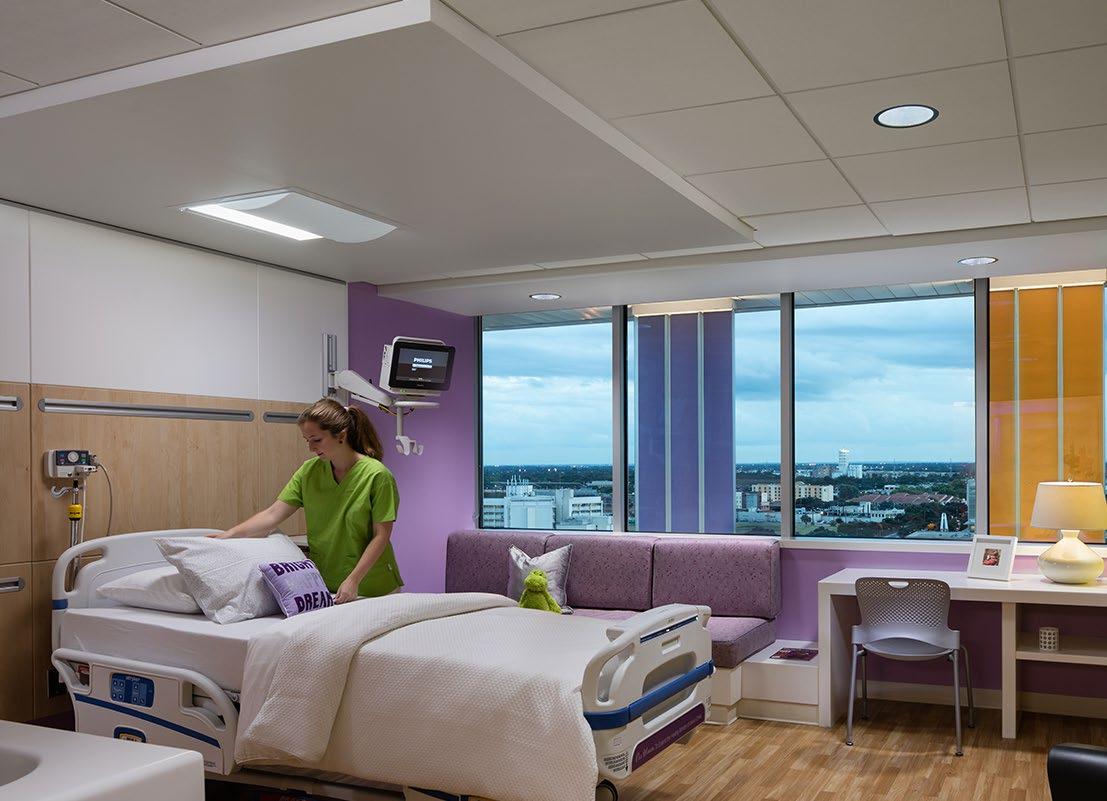

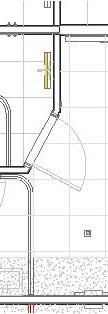

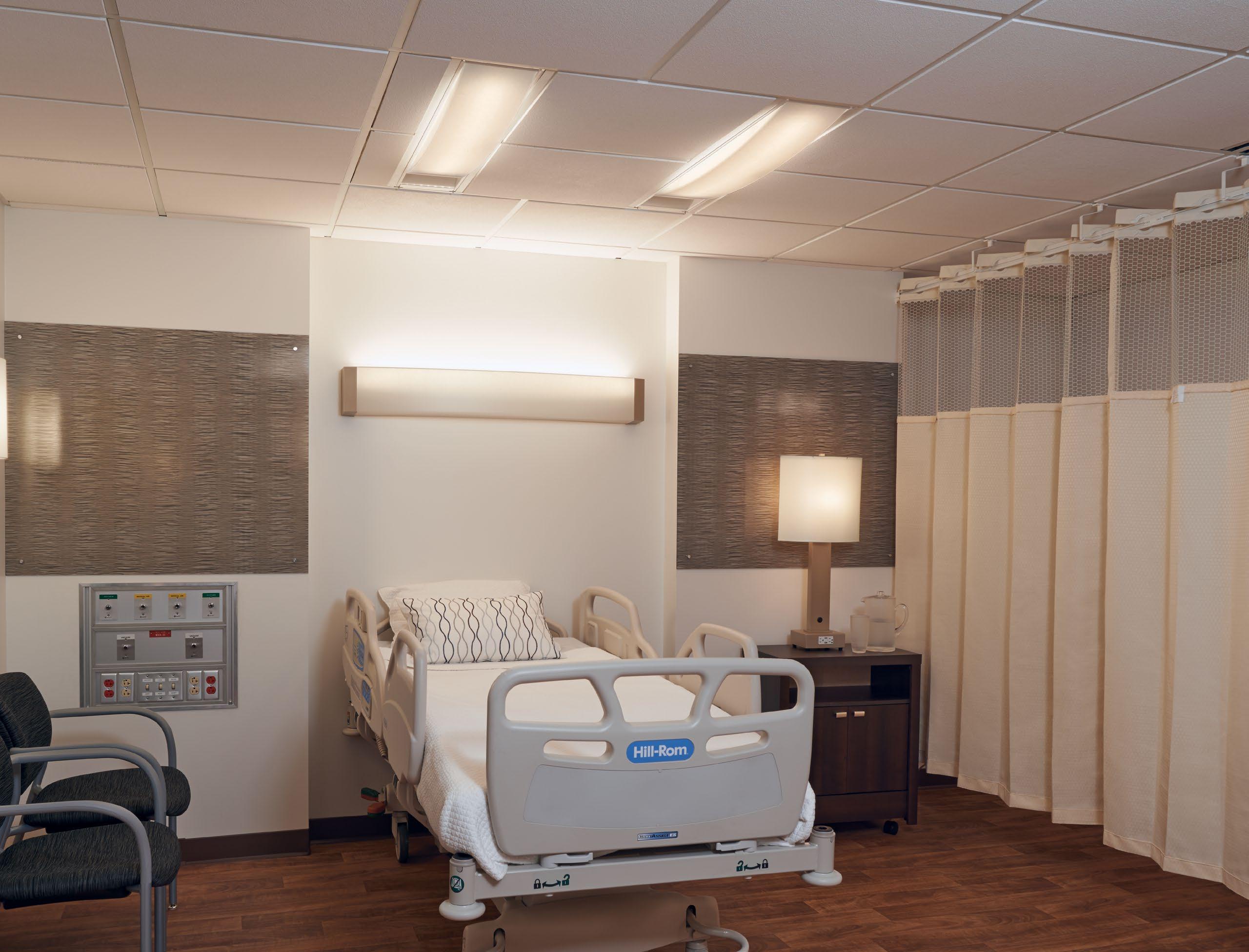

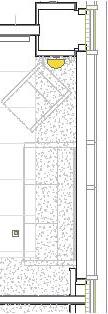

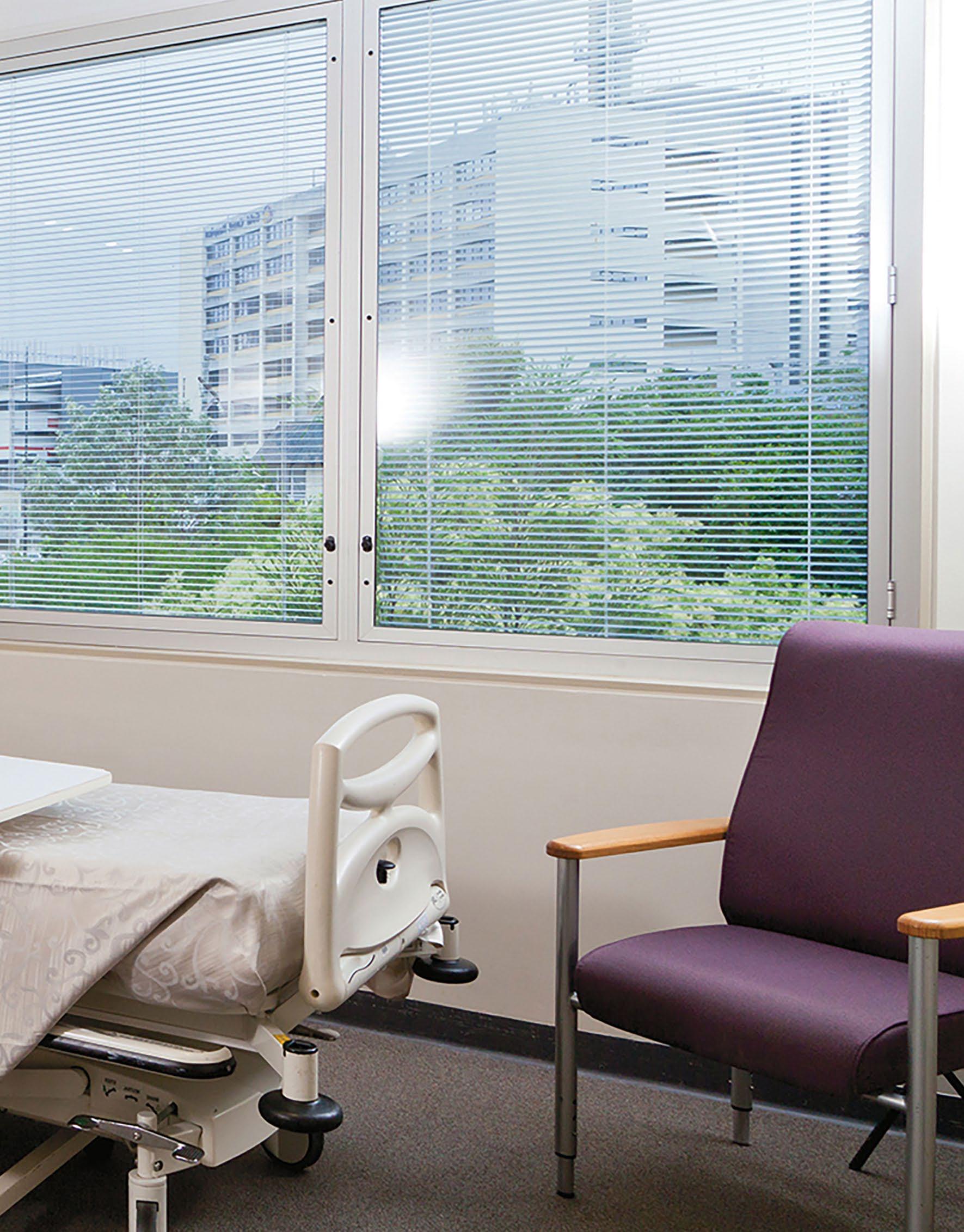

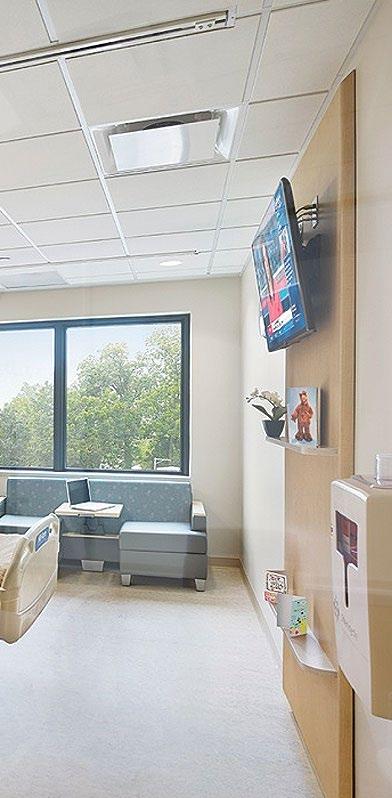

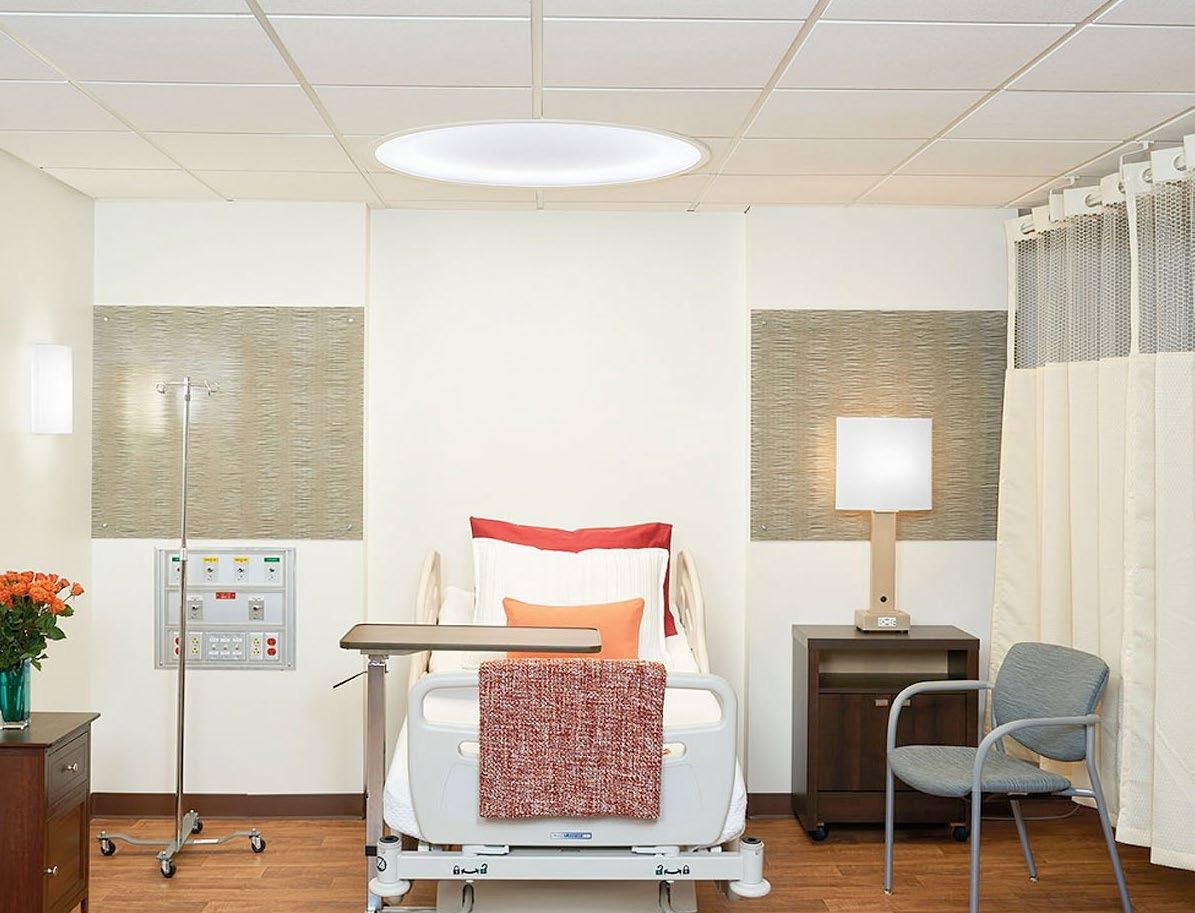

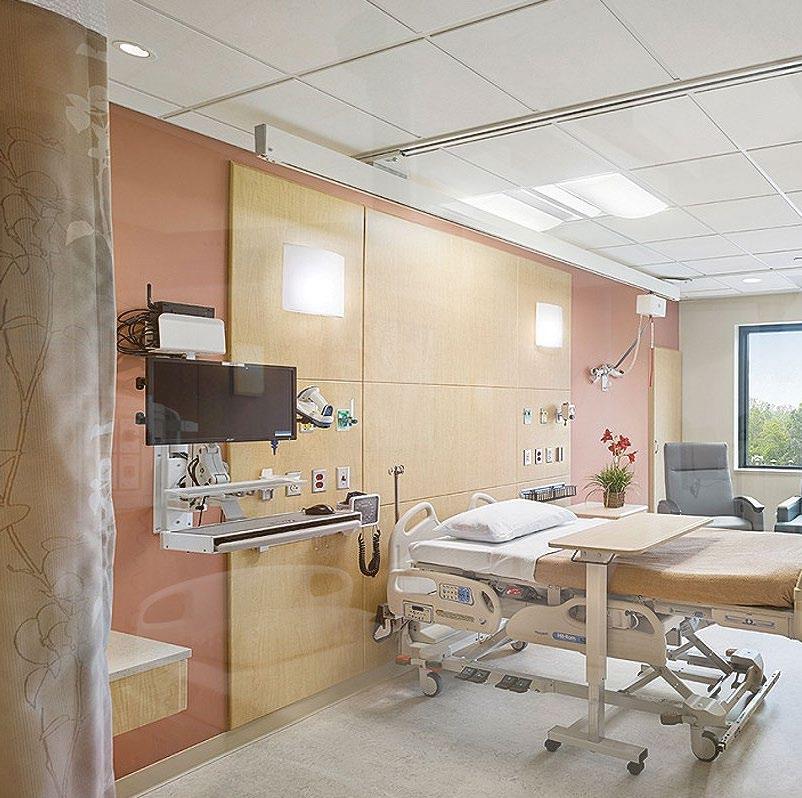

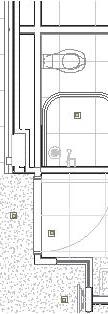

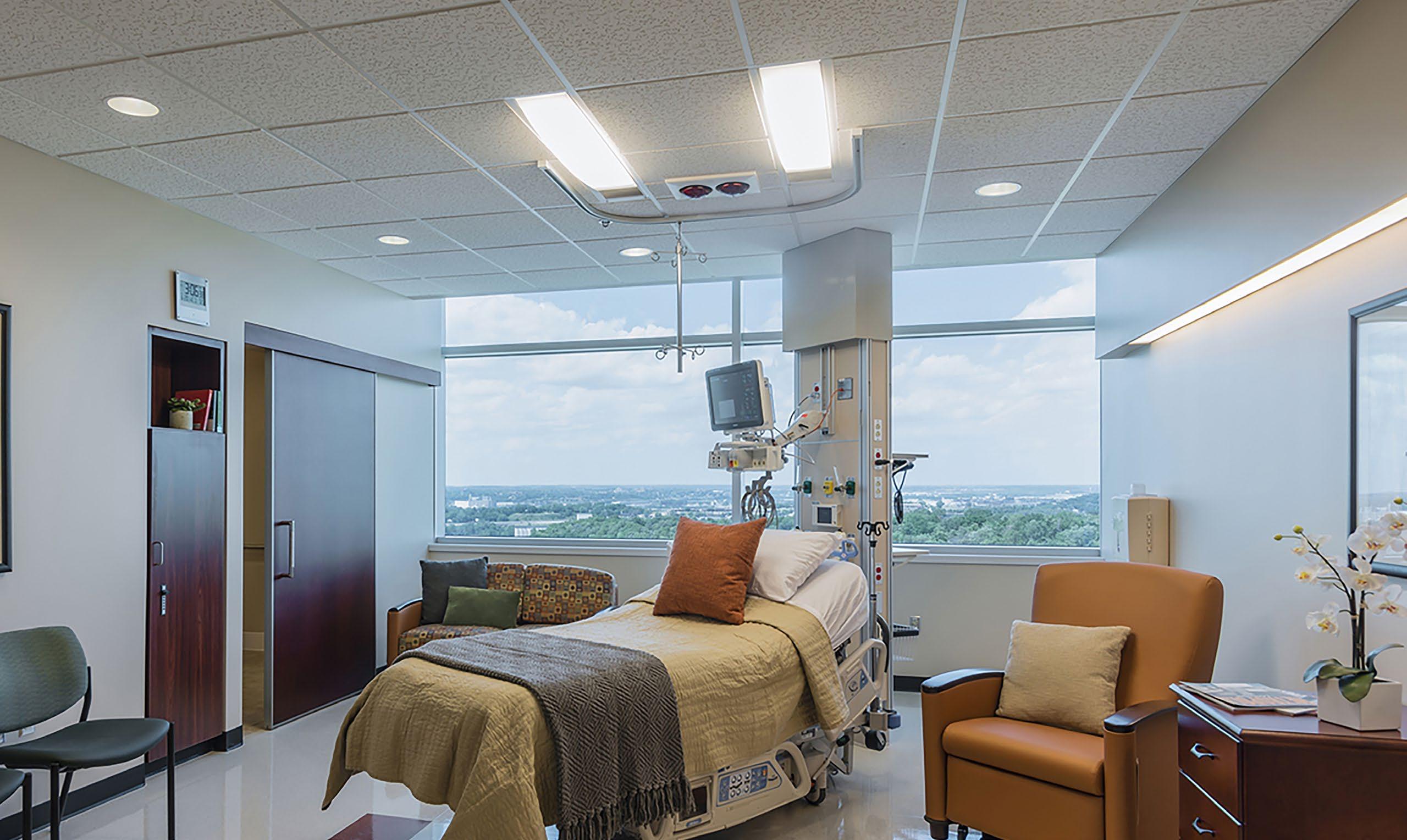

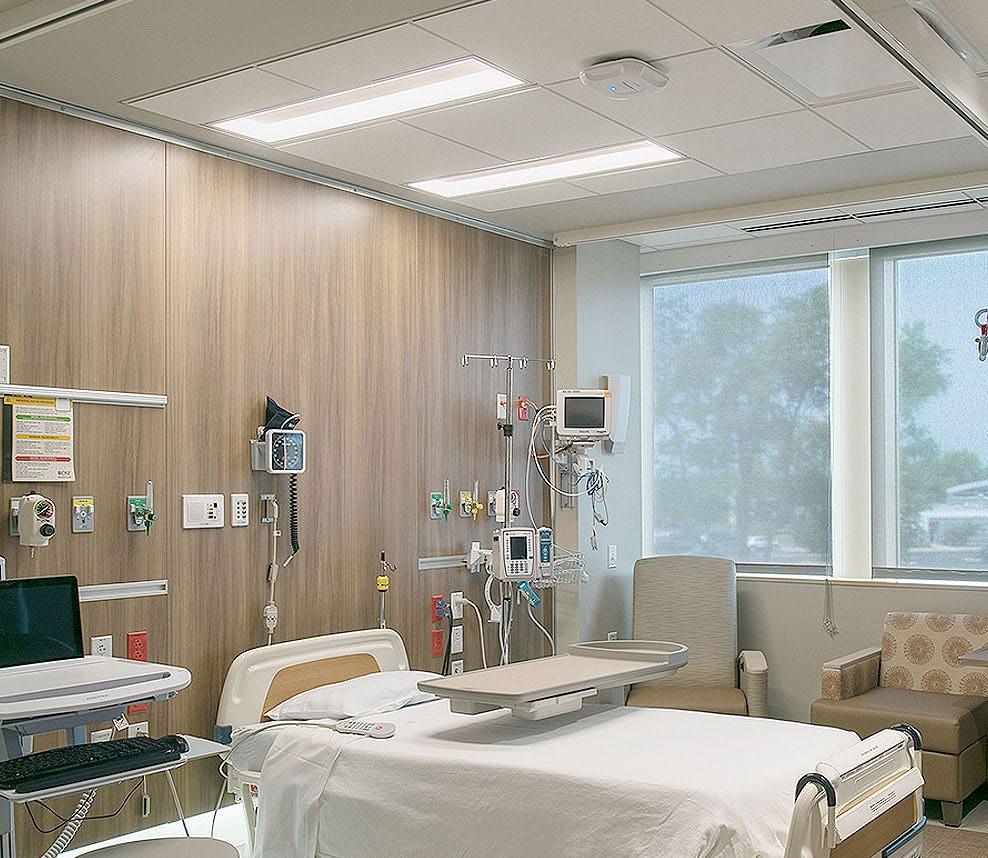

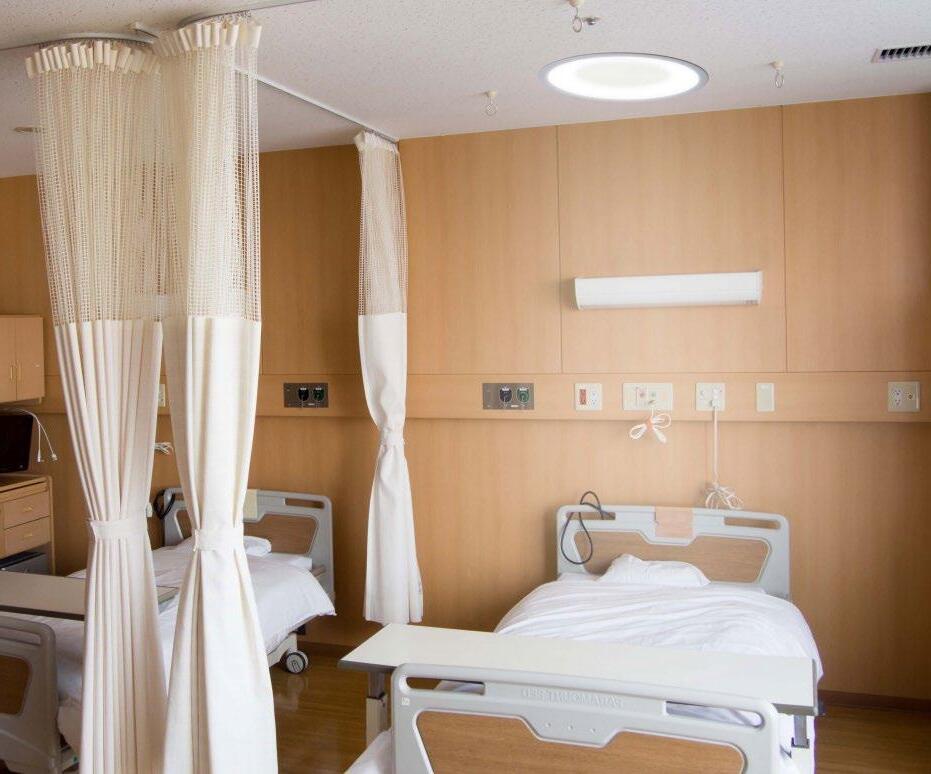

Lighting a Patient Room

Let us help you help others.

At Visa Lighting we strive to create beautiful, functional fixtures for all your project needs. Need further assistance? Please call us at 1-800-788-VISA or email info@visalighting.com with questions.

General

Healthcare Lighting Guidelines

• Use diffuse indirect sources to avoid glare

• Select lighting with 82 CRI and above

• Choose fixtures with cleanable surfaces

• Light pathway from bed to bathroom

• Use acrylic or cleanable fabric instead of glass for lenses and shades

• Include dimming controls, have multiple zones of light

• Use amber light at night to keep sleep disturbances to a minimum

Recommended IES FC Levels at Horizontal Targets

Controls

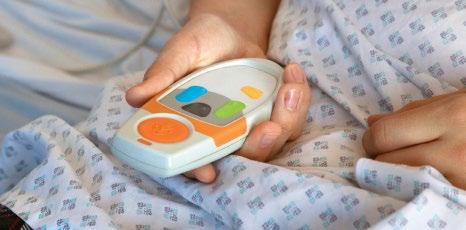

Reading: Controlled by the patient via pillow speaker or bed control

Ambient: Light should be dimmable, controlled at room entry and bed side

Exam: Control at headwall and optional switching at room entry

Nightlight: Locate between bed and bath for pathway lighting, use photocell

Switches: Use labels and a consistent location in each same sided room

Shades/HVAC/Media: Integrate with controls as needed

Tunable Lighting

Healthcare facilities have recognized the need for tunable lighting. This is the balance of artificial lighting mimicking the outdoors with the time of day. Using higher light levels with bluer/cooler temperatures in the morning to help stimulate patients, and warmer/dimmer lighting at night to keep sleep disturbances to a minimum, can help promote healing.

Bespoke Lighting

Tailored Luminaire Design and Product Modifications

At Visa Lighting, our custom lighting solutions offer you the opportunity to bring your unique vision to life. With the expertise of our applications engineers and product designers, we collaborate closely with you to create bespoke luminaires that perfectly match your design requirements. Whether you are looking to modify existing fixtures to better suit your space or need entirely new and personalized designs, our custom lighting solutions cater to a wide range of possibilities. We are committed to providing you with lighting that not only aligns with your aesthetic and functional goals, but also seamlessly integrates into your architectural spaces. With Visa Lighting’s custom lighting services, you can be assured of receiving tailored solutions that elevate your project’s lighting design to a whole new level.

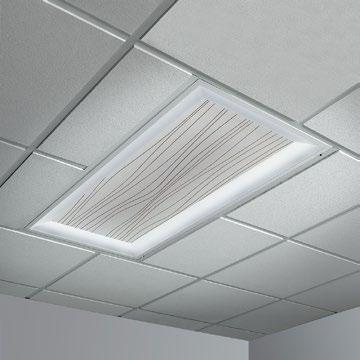

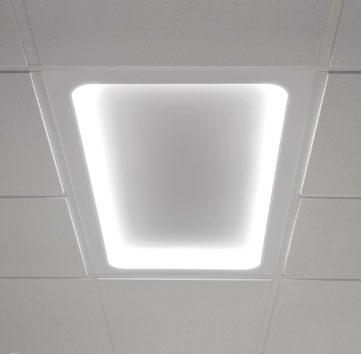

Overbed Lighting

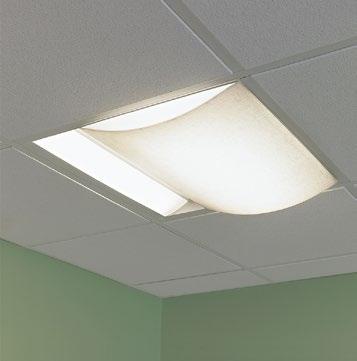

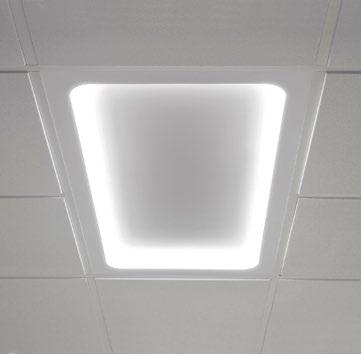

Harmony™

Overbed Lights

Harmony overbed lighting has a uniquely shaped lens which provides comfortable, controllable illumination designed to improve the patient experience with soothing, easy-on-the-eyes illumination. Harmony’s simple design has a smooth cleanable surface that efficiently and effectively delivers recommended illumination for the patient and staff.

Harmony’s uniquely recessed lens features a quiet inner area which provides patients with visual comfort for a better healing environment.

• Ambient, Reading and Exam modes standard

• Option for a 3rd circuit for additional high output exam mode.

• 90+CRI Standard

• Optional nightlight

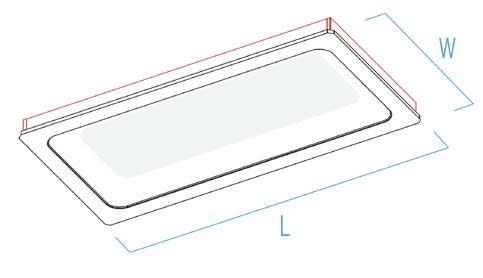

Harmony Overbed Light Model Options

CM1881-W

2’ x 2’, Overbed, White LED

CM1885-W

2’ x 4’, Overbed, White LED

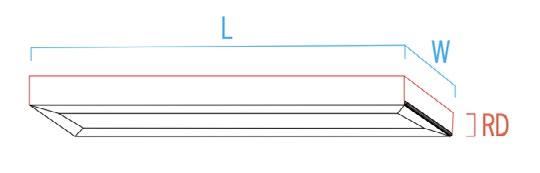

L 23-3/4” (603mm)

W 23-3/4” (603mm)

RD 4-5/8” (117mm) 3000K 3500K 4000K

L 47-3/4” (1213mm)

W 23-3/4” (603mm)

RD 4-5/8” (117mm)

Amb: 3050-3150

Reading: 4050-4200

2C Exam: 7100-7350

Amb: 3250

Reading: 4950

2C Exam: 8250

3C Exam: 15700

Amb: 39 Reading: 64 2C Exam: 104 Top

Amb: 37 Reading: 62 2C Exam: 99 3C Exam: 178

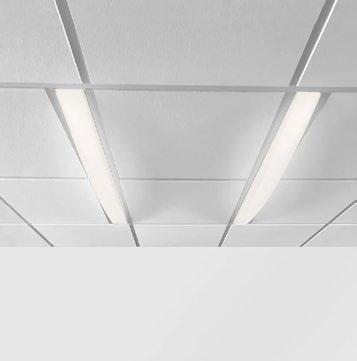

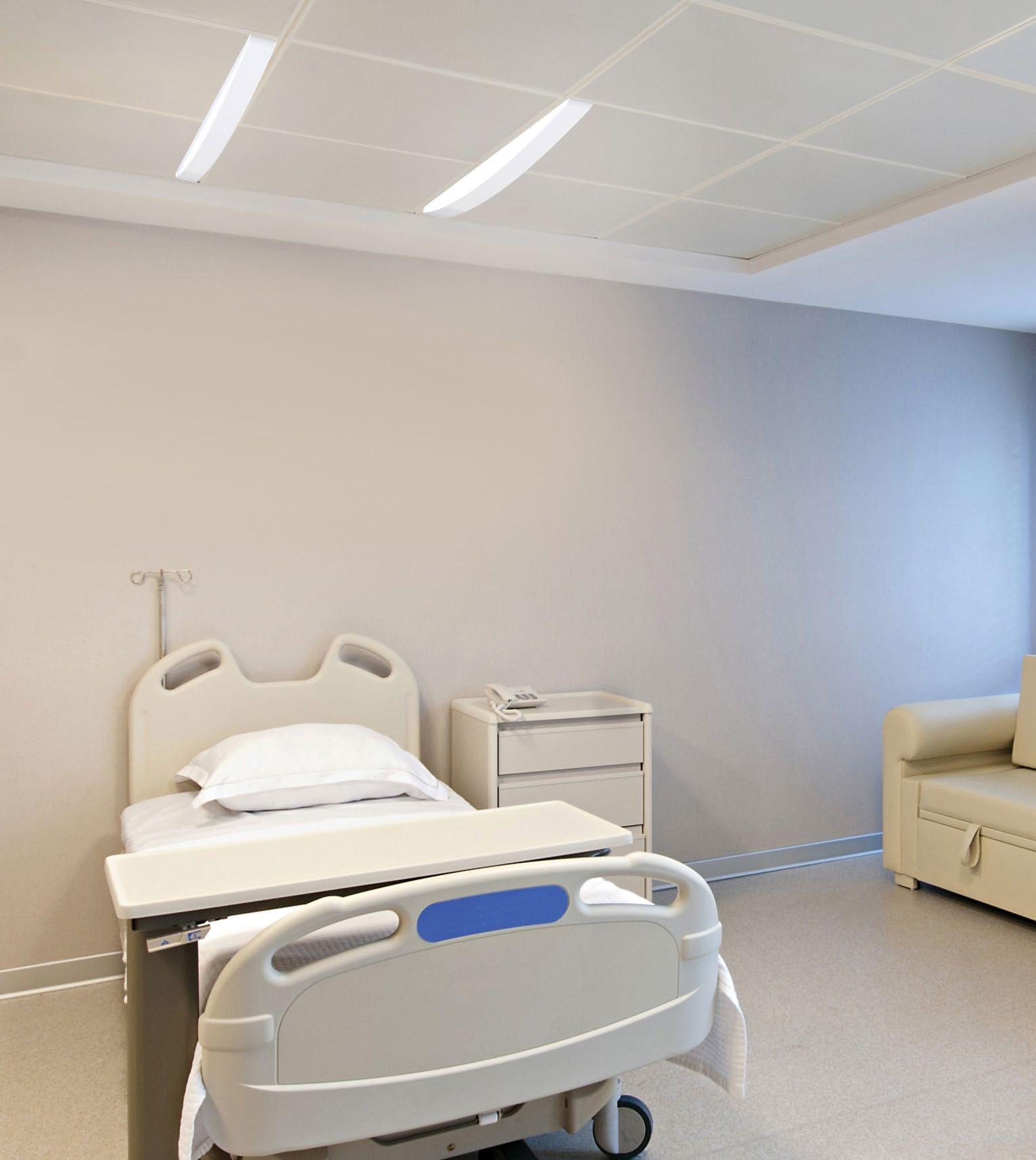

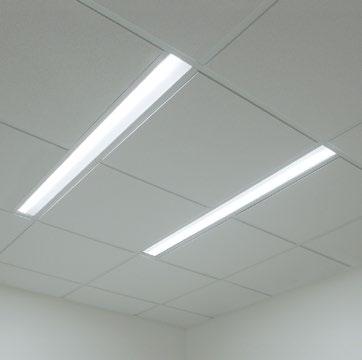

Lenga™

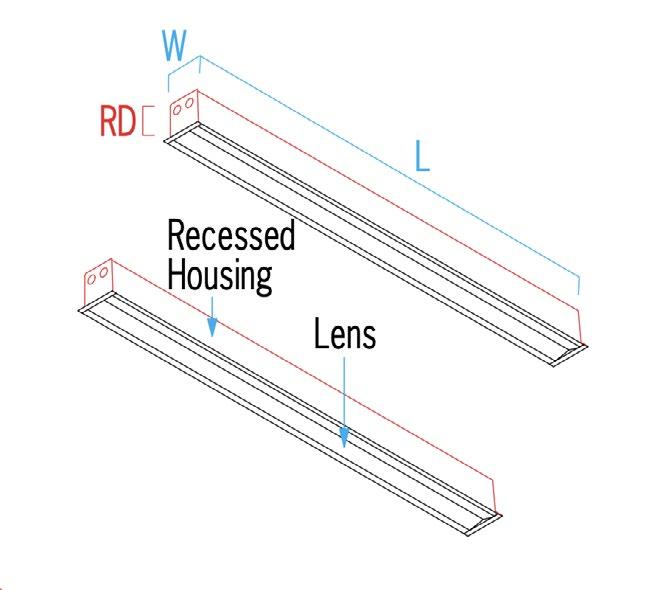

Overbed Slot Lights

Recognized as the industry’s slimmest overbed luminaire, Lenga tandem slot lights are constructed with a co-extruded lens to emit exam level light asymmetrically to center above the patient bed without producing glare or shadows.

• 90+ CRI Standard

• Two chamber optical system

• Directional reflectors

• Co-extruded, snap-in acrylic lenses for toolless access

• 0-10V control of CCT and dimming (-T model)

Lenga Overbed Slot Light Model Options

CM2060-T

3” Dual Overbed, Tunable L 47-3/4” (1213mm) W 3-1/4” (83mm) RD 4” (102mm) 2700-6500K

CM2060-W

3” Dual Overbed

3500K 4000K

2600 Exam: 7000 Cmb: 9400

2700-2800 Exam: 8200-8600 Cmb: 10900-11500

29

89 Cmb: 118 0-10V to 1% DALI LVPC-DIM

Serenity™

Overbed Lights

The Serenity overbed lights feature illuminated diffusers with soft, calming patterns. These functional, yet beautiful, luminaires create a soothing, positive distraction to help patients feel more relaxed, whether the light is in amber nightlight mode or bright exam mode. The Serenity family also features behavioral health, headwall, table lamp, and wall sconce models.

• LED Driver located within the housing and accessible from below the ceiling

• Amber night light option to minimize patient disturbance

• 90+ CRI Standard

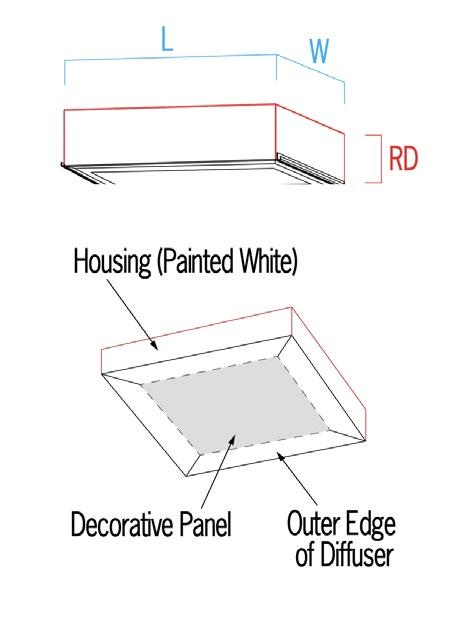

Serenity Overbed Light Model Options

CM1930

1’ x 4’, Tandem, Overbed

CM1938

2’ x 2’, Overbed

CM1946

2’ x 4’, Overbed

L 47–5/8” (1210mm)

W 11-5/8” (295mm)

RD 3–1/2” (89mm)

L 23–3/4” (1210mm)

W 23-3/4” (295mm)

RD 3–1/2” (89mm)

L 47–5/8” (1210mm)

W 23-5/8” (600mm)

RD 3–1/2” (89mm)

3000K

3500K

4000K

Amb: 2700-2800

Reading: 2800-2900

Exam: 7100-7400

Cmb: 12600-13100

Amb: 2500-2600

Reading: 3000-3200

Exam: 6000-6300

Cmb: 5500-12100

Amb: 2600-2700

Reading: 2900-3000

Exam: 6400-6700

Cmb: 5500-12400

Amb: 30

Reading: 44 Exam: 94 Cmb:74-168

Amb: 28

Reading: 43

Exam: 89 Cmb:71-160

Amb: 28

Reading: 44

Exam: 91 Cmb:71-160

Integral 0-10V to 1% LVPC-DIM Damp

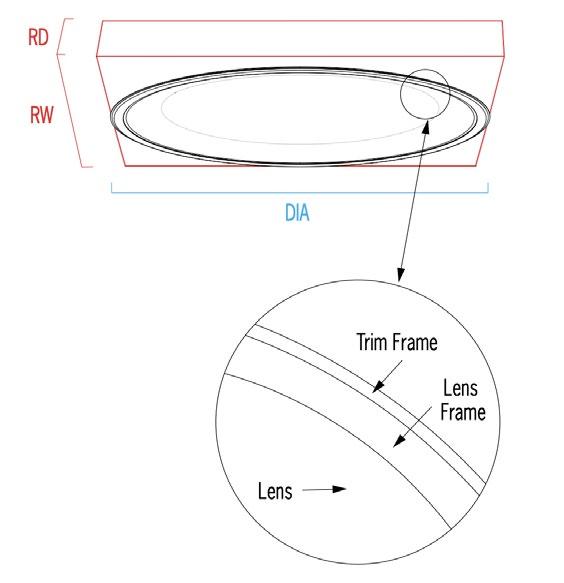

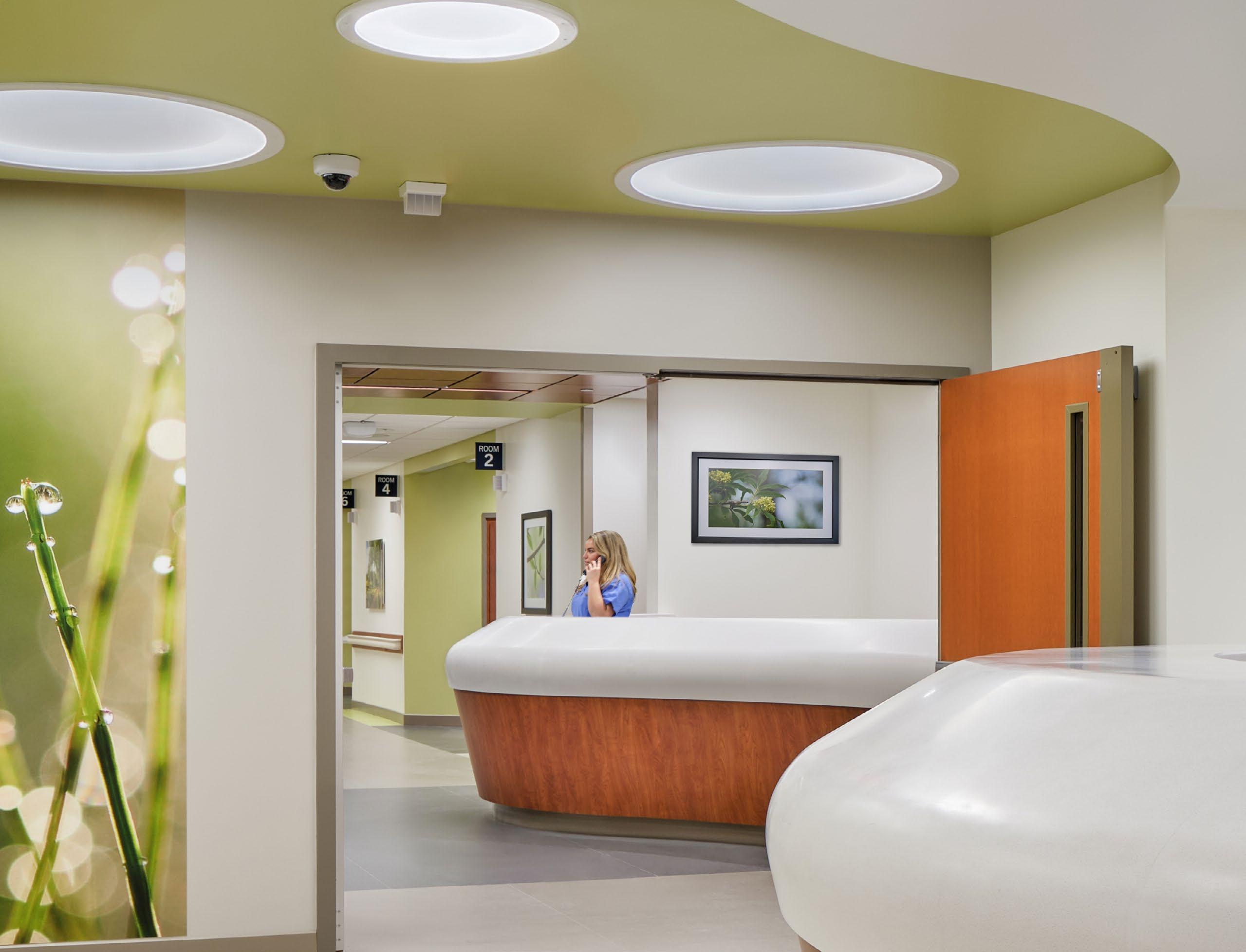

Symmetry™

Overbed Lights

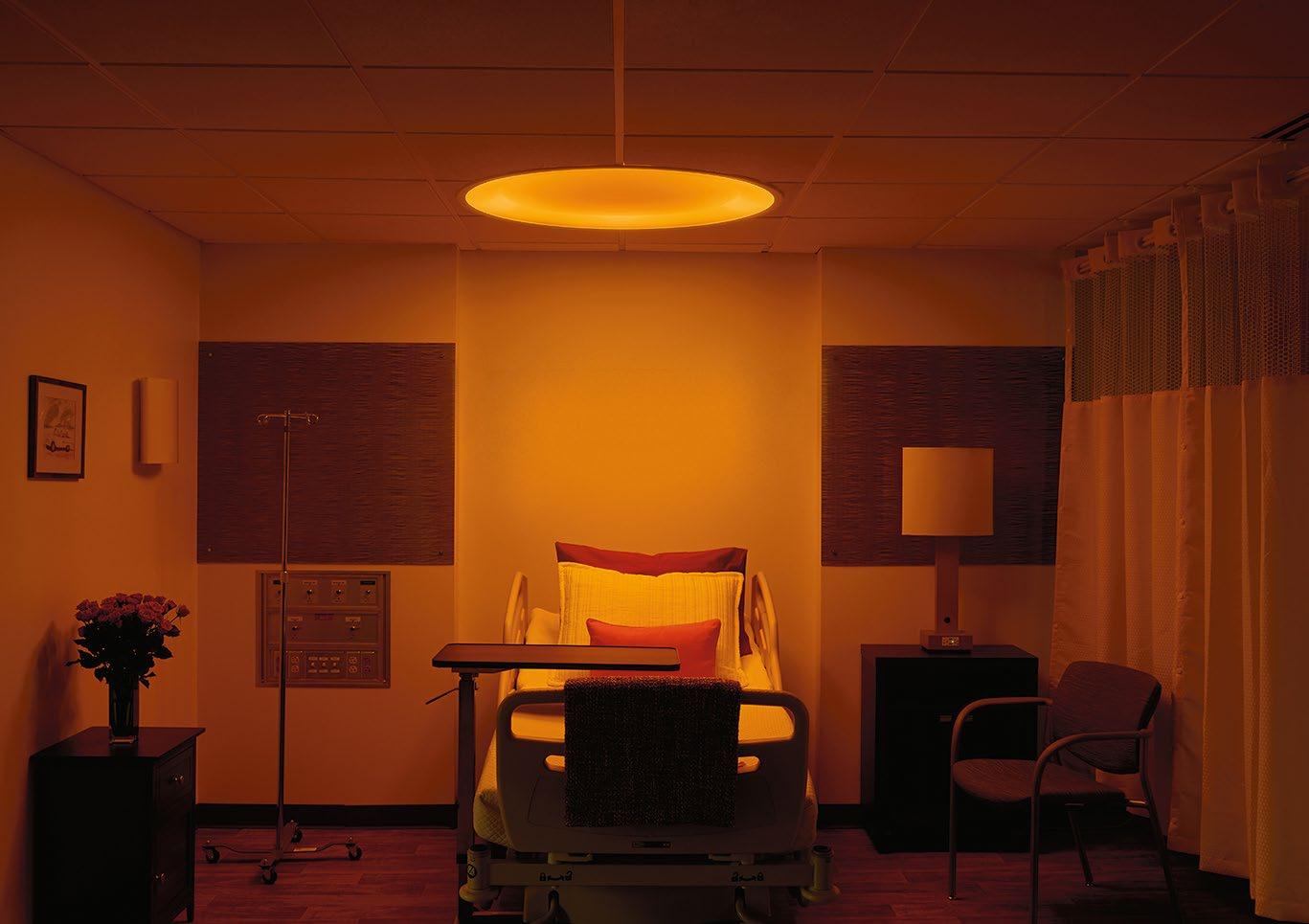

Symmetry round patient room overbed lights enhance healthcare environments with pleasant, soothing, ambient lighting.

Symmetry is available in 23” or 45” diameters. This multifunction overbed has output options for ambient, exam, and combined with optional amber night light.

• Integral driver located within the housing and accessible from below the ceiling

• 90+CRI Standard

Symmetry Overbed Light Model Options

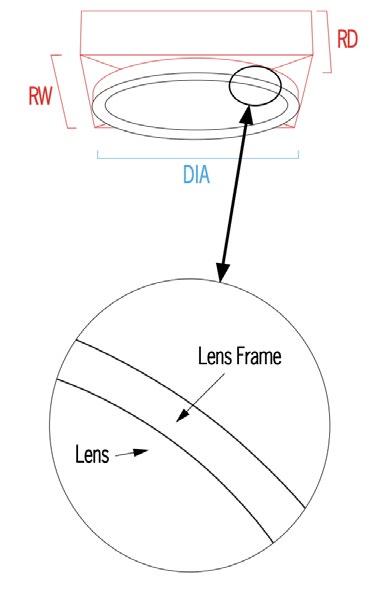

CM1970-W 45”, Overbed

CM1980-W 23” Overbed

RW 44” (1118mm)

RD 6” (152mm) DIA 44-1/2” (1130mm) 3000K 3500K 4000K

RW 23-1/2” (597mm)

RD 6-1/2” (165mm) DIA 22-7/8” (581mm)

Amb: 5300-5500

Exam: 8300-8600 Cmb: 13500-14100

Amb: 4300-4500

Exam: 6800-7100 Cmb: 10900-11400

Amb: 46 Exam: 76 Cmb: 122

Amb: 50 Exam: 71 Cmb: 121 Integral

Unity™

Overbed Lights

Our award-winning Unity patient room over bed lights are designed for warmth, visual comfort, and multi-functionality. Easily switch between ambient, exam, and reading light modes for different activities.

Like the other luminaires in the Unity collection, these overbed lights are meant to recall the gentle curves of fabric billowing in a breeze. They present a soft, comforting light in healthcare spaces, promoting patient health and well-being.

• Driver replacement is plenum non-invasive

• 90+ CRI Standard

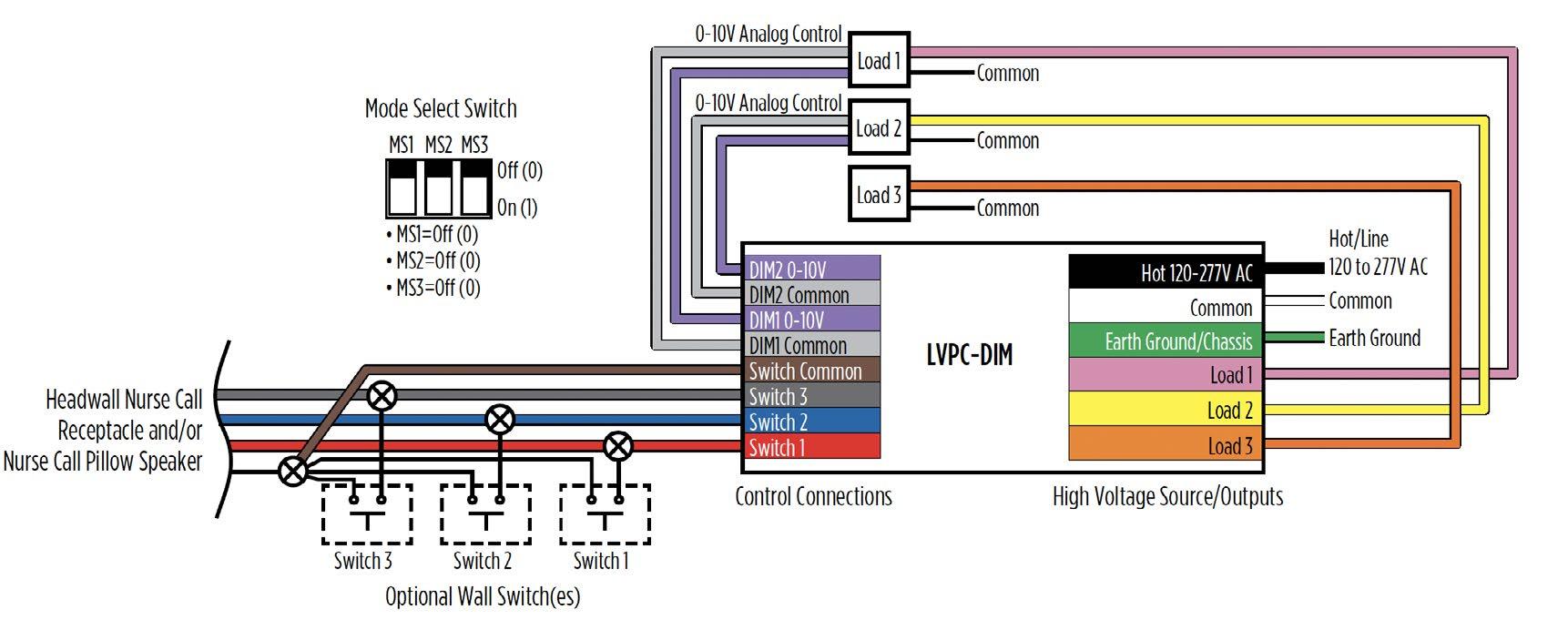

• Compatible with LVPC-DIM accessory

Unity Overbed Lights Model Options

CM1900

2’ x 2’, Overbed

CM1901

2’ x 2’, Overbed, Sans Reading

CM1906

2’ x 4’, Overbed, Center Reading Light

CM1907

2’ x 4’, Overbed, End Reading Light

CM1912

9” x 48’, Tandem Overbed

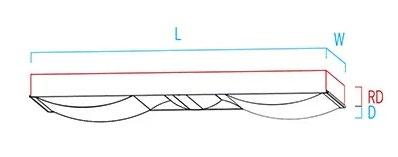

L 23-5/8” (600mm)

W 23-5/8” (600mm)

D 1-7/8” (48mm)

RD 3-1/2” (89mm)

L 47-5/8” (1210mm)

W 23-5/8” (600mm)

D 1-7/8” (48mm)

RD 4” 3-1/2” (89mm)

L 47-3/4” (1231mm)

W 8-3/4” (222mm)

D 1-3/4” (44mm)

RD 3-1/2” (89mm)

L: 6500-6800 H: 13200-13700

79

L: 2300-2400 H: 9400-9800 L: 22 H: 91

L: 4500-4700

H: 11400-11900

Amb: 2800

Reading: 4200

Exam: 7100

Exam-H: 14200 Night: 475

Amb: 2400-2500

Reading: 3900-4000

Exam: 6600-6900

Exam-H: 6300-13400

L: 56 H: 125

Amb: 21

Reading: 52

Exam: 73

Exam-H: 129 Night: 8

L: 19 H:42

Unity™

Overbed Slots

Designed as an evolution of the Unity tandem overbed, the Unity Overbed Slots feature narrow 3” slot luminaires with the same gently curved diffuser profile. Easily switch between light output levels for ambient, exam, or both. Available as a multifunction tandem pair or a single unit.

Like the other luminaires in the Unity collection, these overbed slot lights are reminiscent of gentle curves of fabric billowing in a breeze. They present a soft, comforting light in healthcare spaces, promoting patient health and well-being.

• 90+ CRI Standard

• Separate 0-10V control of dimming and CCT for each function (-T models

• Antimicrobial finishes (no VOC) on all interior and exterior painted surfaces

• Compatible with LVPC-DIM accessory Models

Unity Overbed Slot Model Options

CM1910-T

3” Dual Overbed Slots, Tunable White

CM1910-W

3” Dual Overbed Slots

CM1911-T

3” Single Ceiling Unit, Tunable White

CM1911-W

3” Single Ceiling Unit

L 47-3/4” (1213mm) W 3” (76mm) D 4” (102mm)

(102mm)

5100

L 47-3/4” (1213mm) W 3” (76mm) D 4” (102mm) RD 4” (102mm) 3000K 3500K 4000K Amb: 5300-5600 Exam: 7600-8000 Cmb: 12700-13400 Amb: 57 Exam: 89 Cmb: 144

L 47-3/4” (1213mm) W 3” (76mm) D 4” (102mm) RD 4” (102mm) 2700K-6500K L: 1950 H: 3900

L 47-3/4” (1213mm) W 3” (76mm) D 4” (102mm) RD 4” (102mm) 3000K 3500K 4000K L: 1950-2000 H:3900-4100 L: 19 H:42

0-10V to 5%

0-10V to 1% LVPC-DIM DALI

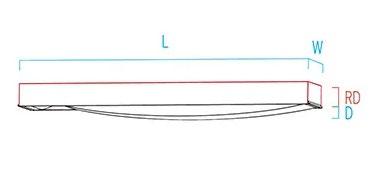

W: 3” (76 mm)

L: 47-3/4” (1213 mm)

D: 4” (102 mm)

RD: 4” (102 mm)

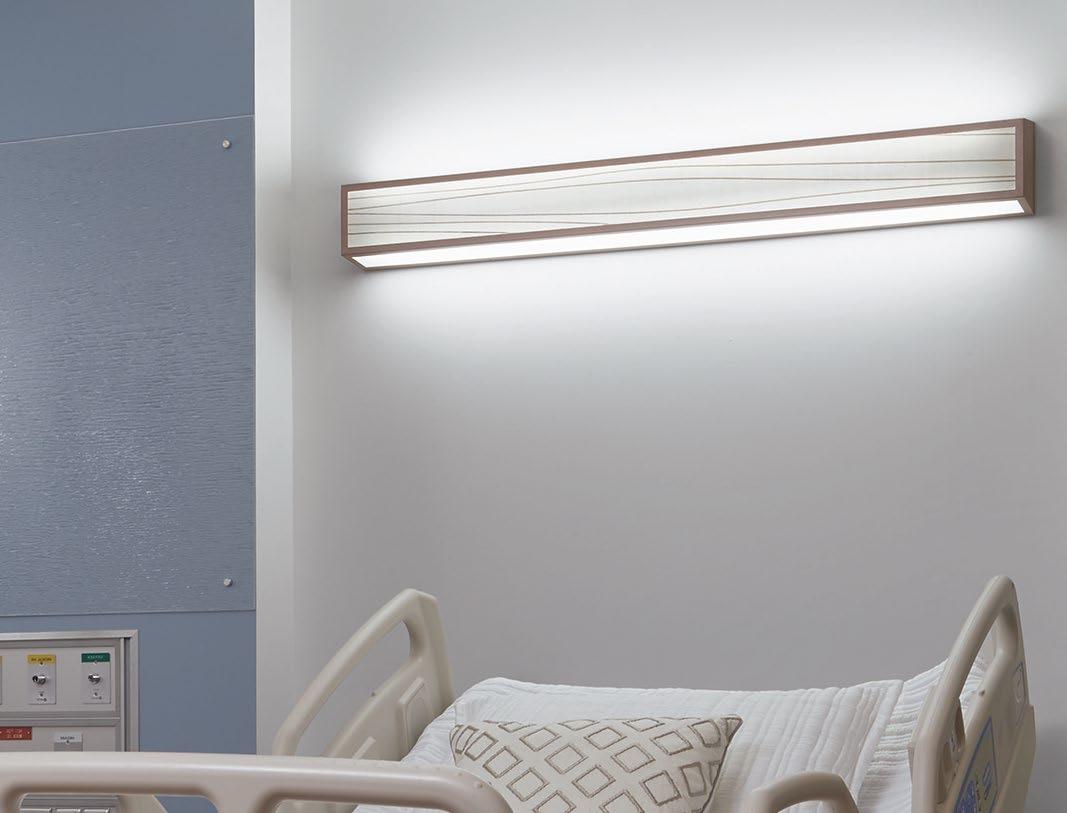

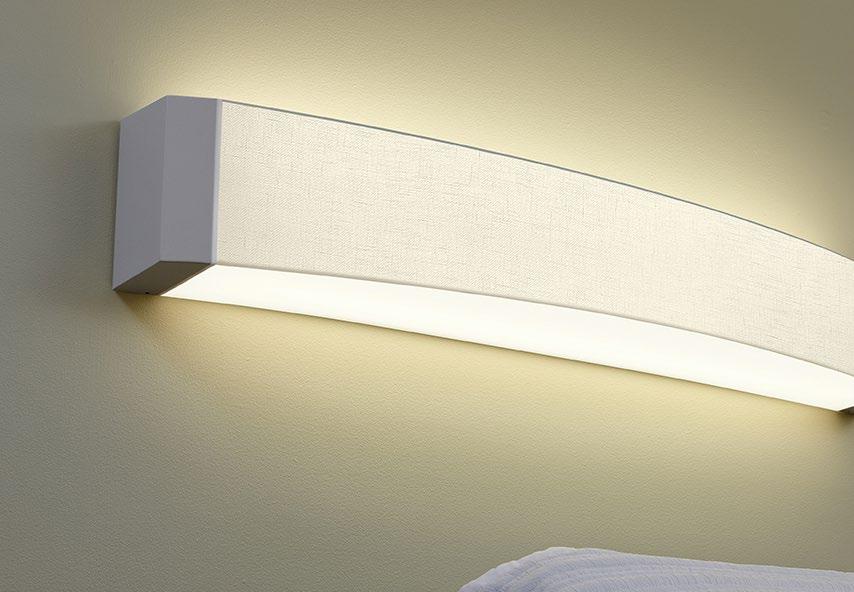

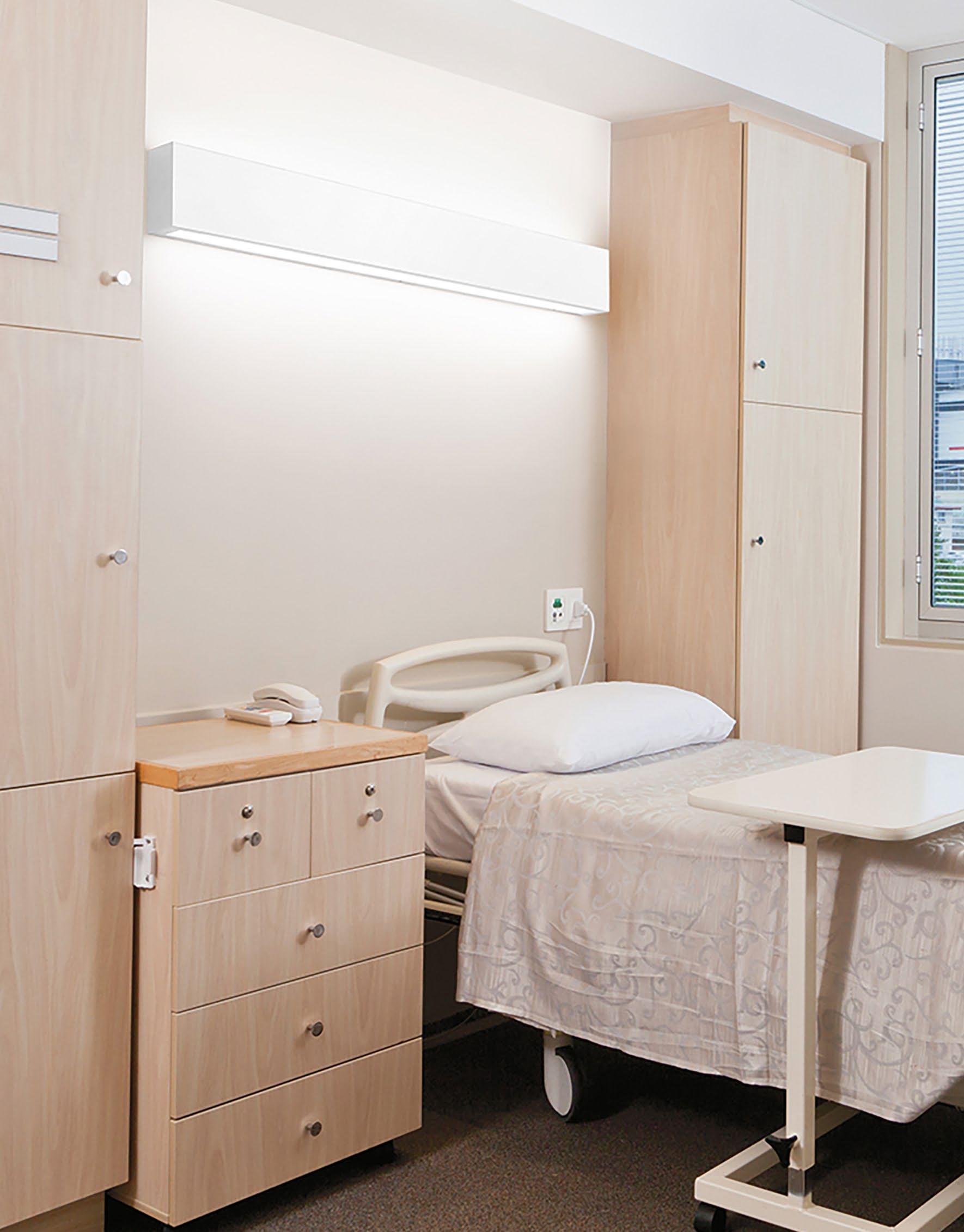

Serenity™

Headwall

Serenity patient room headwall light provides patients and staff with visual interest and multi-functionality. Easily switch between ambient and reading light levels. The Serenity healthcare collection features illuminated diffusers with soft, calming patterns designed to create a serene positive distraction, allowing occupants and patients to feel more relaxed.

• Optional amber night light option to minimize patient disturbance

• 90+ CRI Standard

• Optional pull chain switch

Serenity Headwall Model

Unity™

Headwall

Our Unity patient room headwall lighting provides patients and staff with visual comfort and multi-functionality. Easily switch between ambient, and reading light levels. Like the other luminaires in the Unity collection, these headwall lights bring to mind the gentle curves of fabric billowing in a breeze. They present a soft, comforting light in healthcare spaces, promoting patient health and well-being.

• Optional Amber night light option to minimize patient disturbance

• 90+ CRI Standard

• LVPC–DIM switching interface accessory available for pillow speaker/nurse call systems

• Optional pull chain switch

Unity Headwall Luminaire Model

7–1/8” (181mm)

General Use Lighting

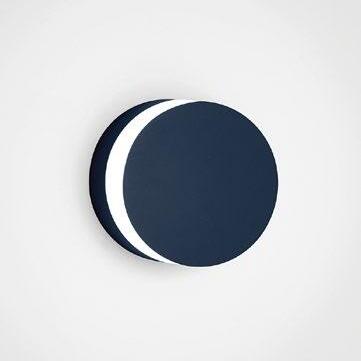

Bliss™

Interior Compact Wall Sconce

Bliss provides beautiful radiance from its shallow round form. The halo of light emits from a frosted acrylic lens and provides comfortable, easy-on-the-eyes illumination from all angles. The painted aluminum front face offers a unique opportunity for a pop of color. Use Bliss for wayfinding or in hallways for eyecatching illuminated room markers. This compact ADA wall sconce features a seamless acrylic lens that is easy to clean.

• Seamless, extruded acrylic luminous diffuser

• Static white and dim-to-warm source options

• Smooth outer surfaces for improved cleanability

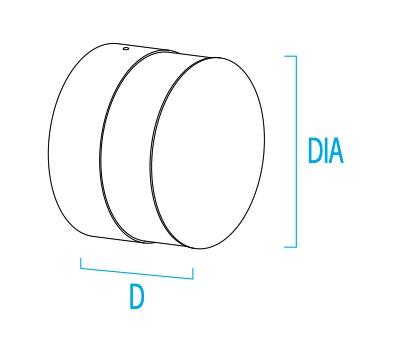

Bliss Interior Compact Wall Sconce Model Options

Models Size CCT Lumens Watts Driver Control Compliance

CB7000 Round DIA 6-1/2” (156mm) D 3-7/8” (98mm) 3000K 3500K 4000K 1800K-3000K 2700K-4000K (30K) L: 1050 H: 1450 (35K) L: 1050 H: 1500 (40K) L: 1100 H: 1550 (1830DW) L: 750 H: 1100 (2740DW) L: 850 H: 1200 (30K) L: 13 H: 19 (35K) L: 13 H: 19 (40K) L: 13 H: 19 (1830DW) L: 14 H: 20 (2740DW) L: 14 H: 20 Integral 0-10V to 1% Damp ADA

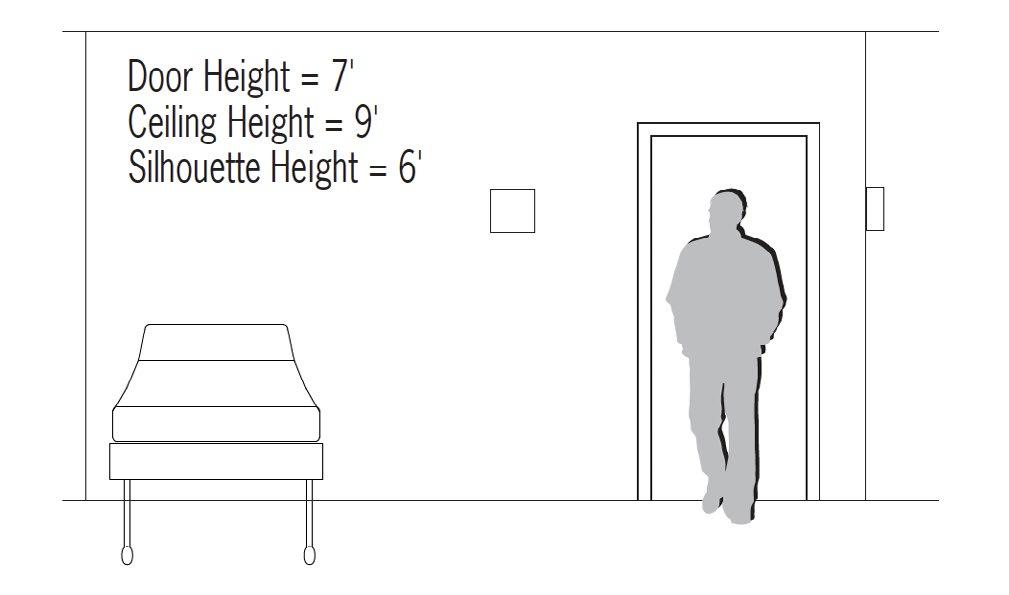

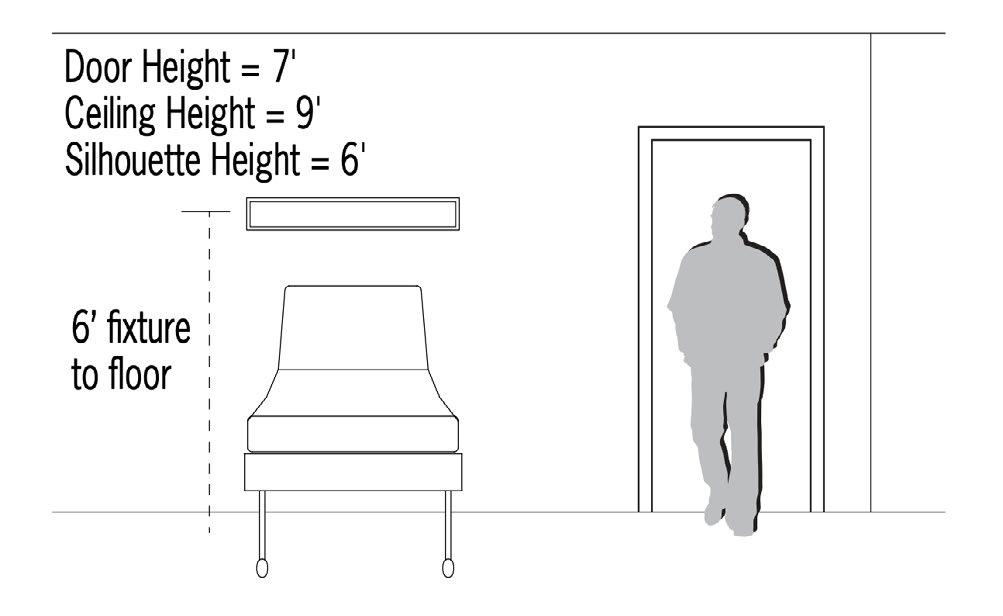

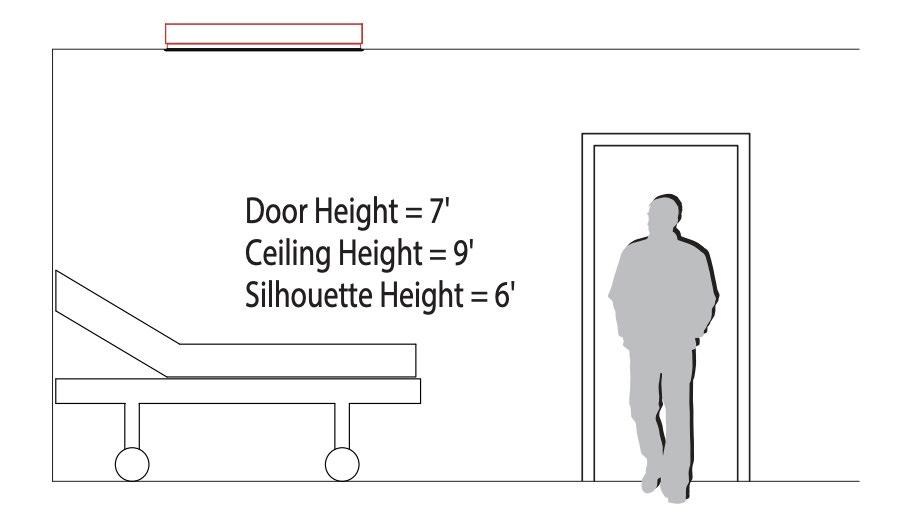

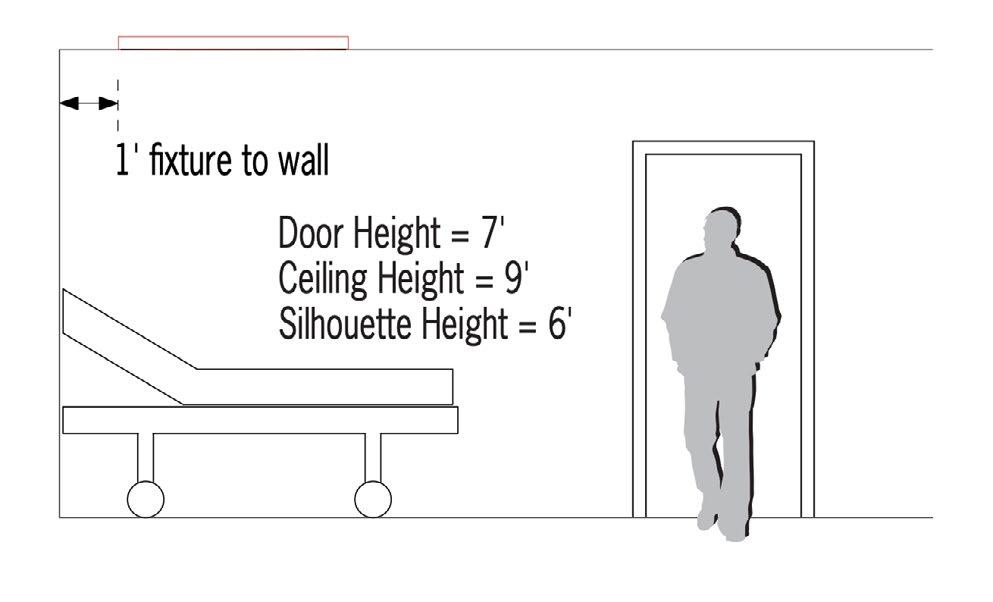

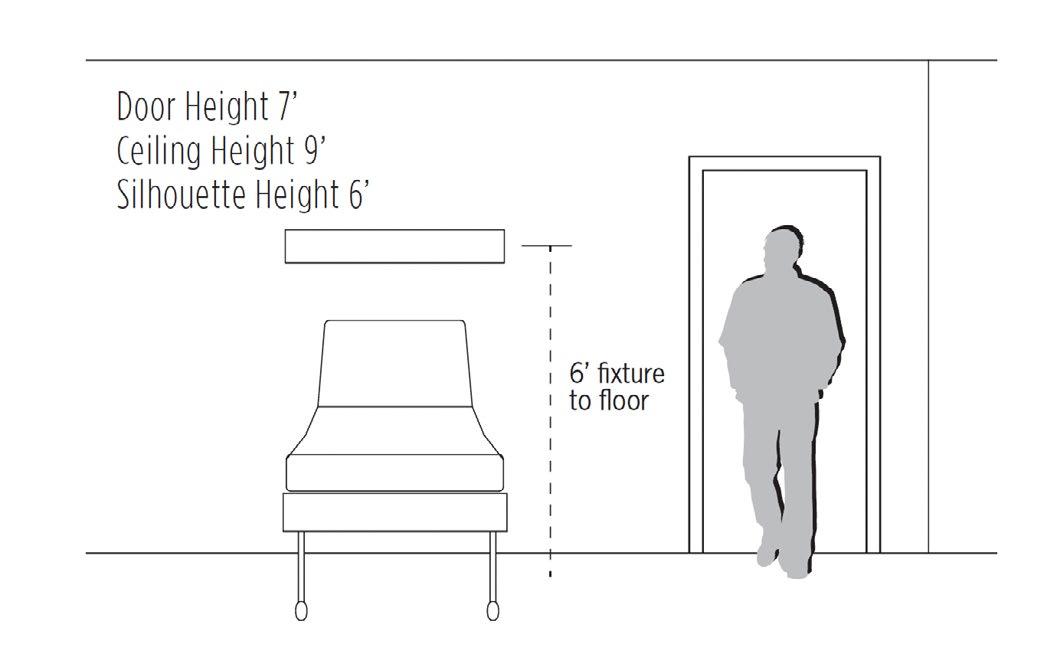

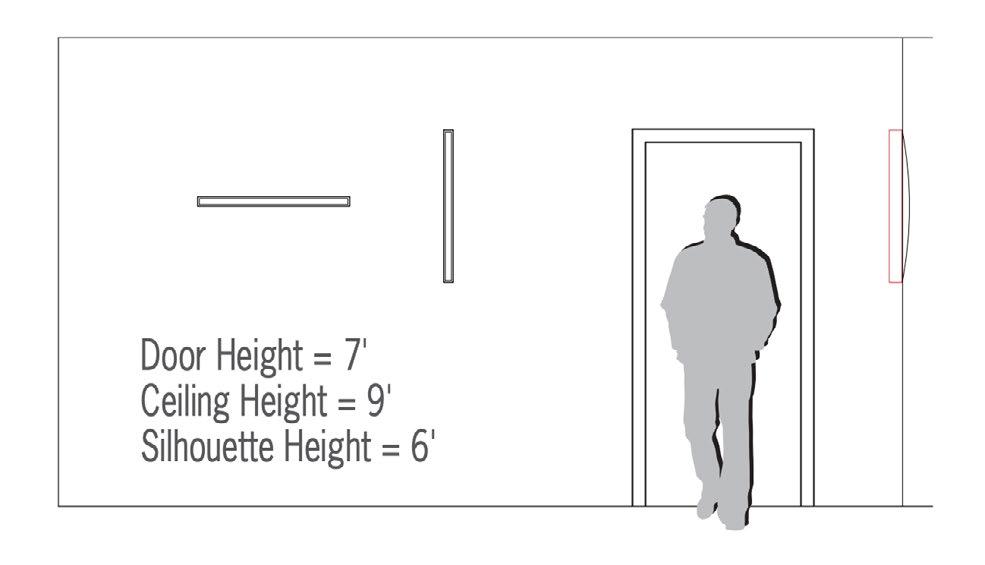

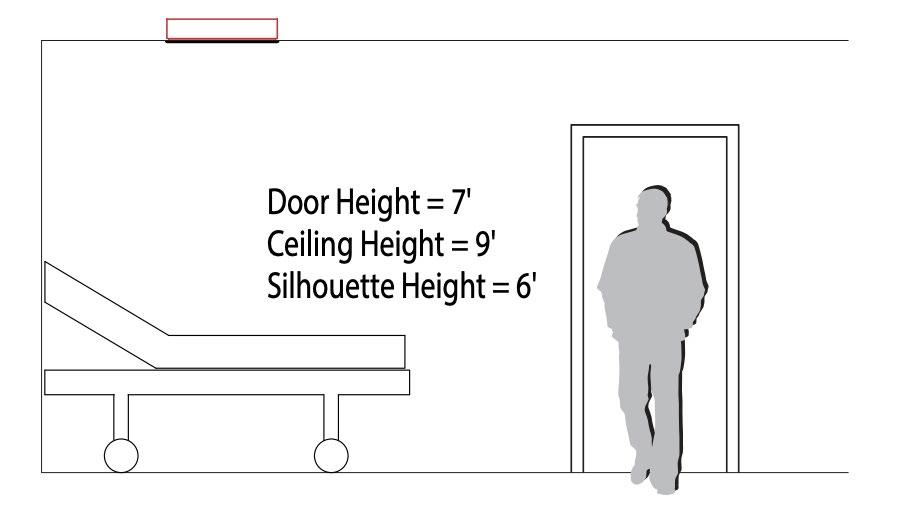

Door Height = 7'

Ceiling Height = 9'

Silhouette Height = 6'

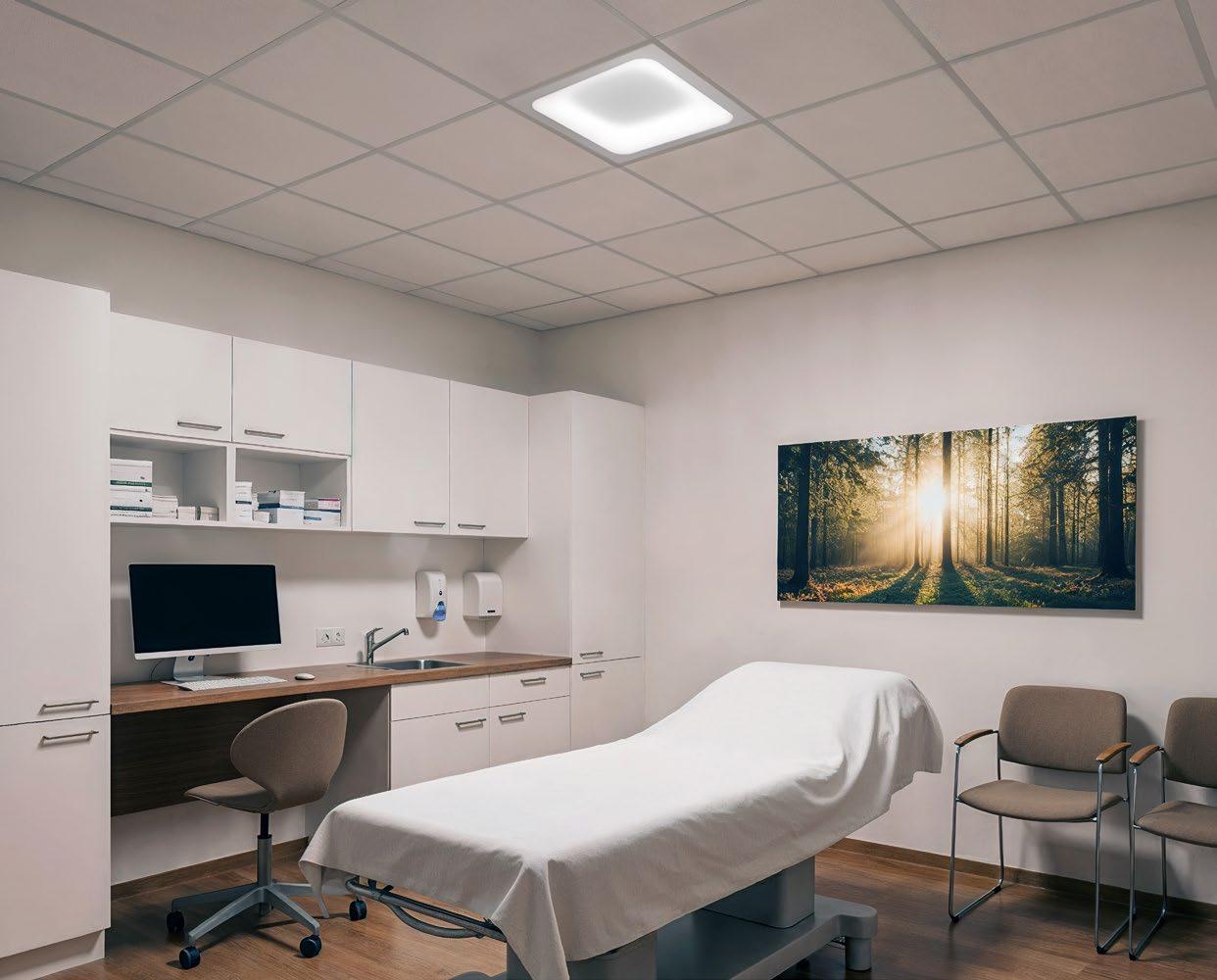

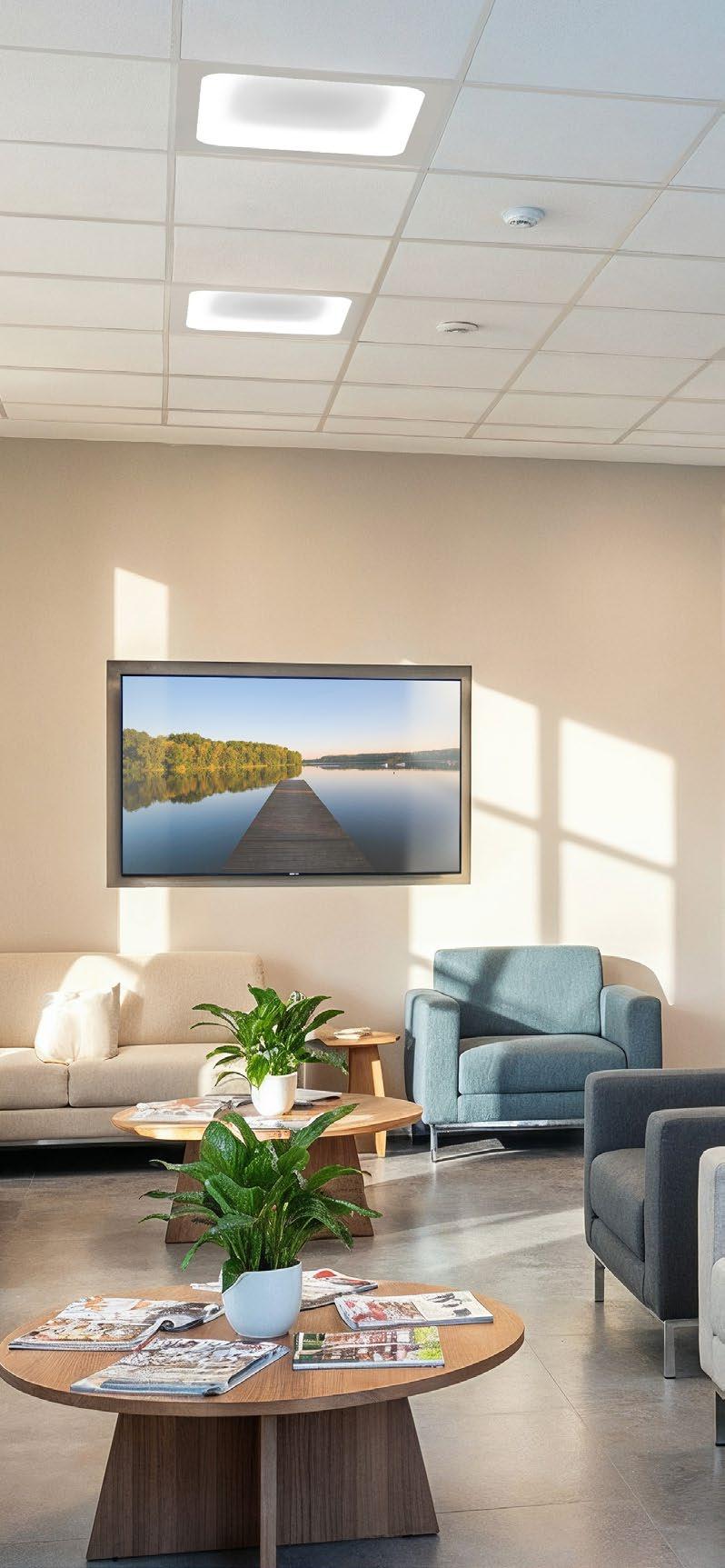

Harmony™

General Lights

Harmony general lighting has a uniquely shaped lens which provides comfortable, controllable illumination designed to improve the patient experience with soothing, easy-on-the-eyes illumination. Harmony’s simple design has a smooth cleanable surface that efficiently and effectively delivers recommended illumination for the patient and staff.

Harmony’s uniquely recessed lens features a quiet inner area which provides patients with visual comfort for a better healing environment.

• Ambient, Reading and Exam modes standard

• Option for a 3rd circuit for additional high output exam mode.

• 90+CRI Standard

• Optional nightlight

Harmony General Lights Model Options

CM1882-T

2’ x 2’, General Use - Tunable

CM1882-W

2’ x 2’, General Use - White LED

CM1886-T

2’ x 4’, General Use - Tunable

CM1886-W

2’ x 4’, General Use - White LED

L 23-3/4” (603mm) W 23-3/4” (603mm) RD 4-5/8” (117mm)

L 23-3/4” (603mm) W 23-3/4” (603mm) RD 4-5/8” (117mm) 3000K 3500K 4000K

L 47-3/4” (1213mm) W 23-3/4” (603mm) RD 4-5/8” (117mm) 2700K-6500K L: 3000 M:4500 H: 6000 L: 33 M:50 H:

L 47-3/4” (1213mm) W 23-3/4” (603mm) RD 4-5/8” (117mm)

3000K 3500K 4000K

L: 2900-3000 M: 4400-4600 H: 5900-6100 L: 33 M:49 H: 66 0-10V to 1%

Serenity™

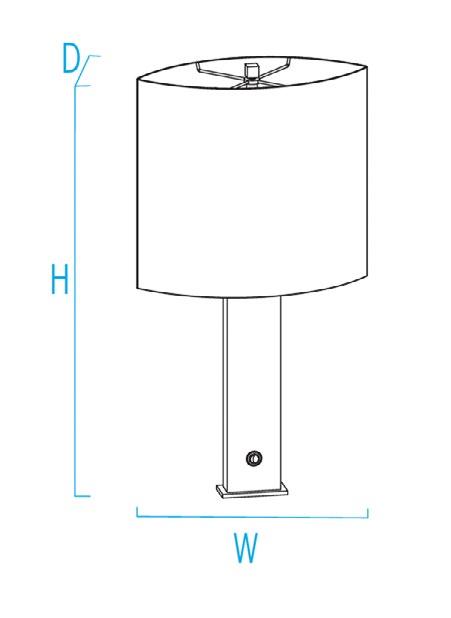

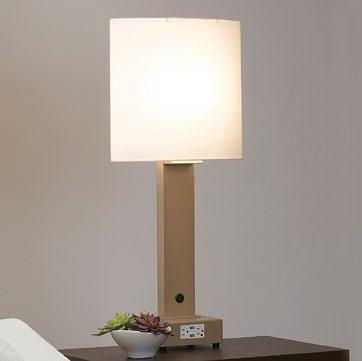

Table Lamps

Serenity table lamps feature a slim square shade with four calming pattern options, and are designed to fit into tight corners to maximize space. These table lamps can be fixed or freestanding and can include a dimmable option as well as charging ports in the base. They are perfect for patient rooms, but also work well in waiting rooms, break rooms, and more.

• Easy to clean acrylic shade options – choose from four calming patterns

• Freestanding base allows portability

• Amber LED night light option to minimize patient disturbance

• Supplied with gray 7’ long, hospital grade cord and 3-prong grounded plug. Lamps are equipped (when specified) with hospital grade receptacles in lamp base

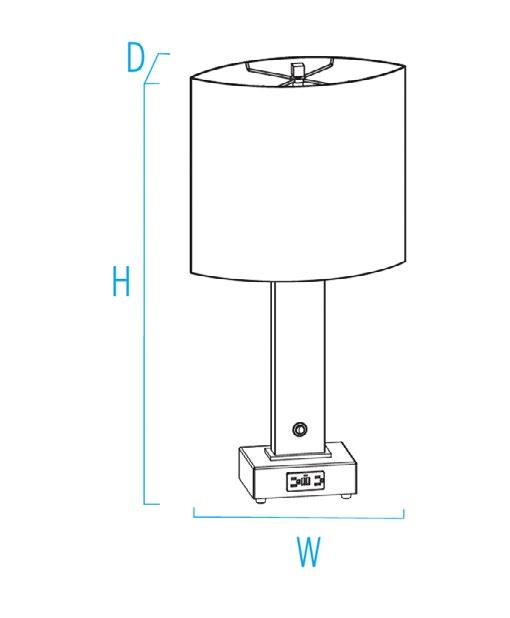

Serenity Table Lamp Model Options

Models

TF1930

TF1934

Charging Base

H 29-1/2 ” (749mm) W 12-1/8” (308mm) D 6” (152mm)

(343mm)

H 29-7/8 ” (759mm) W 12-1/8” (308mm) D 6” (152mm) SH 13-1/2” (343mm)

H 32-1/4 ” (819mm) W 12-1/8” (308mm)

D 6” (152mm) SH 13-1/2” (343mm)

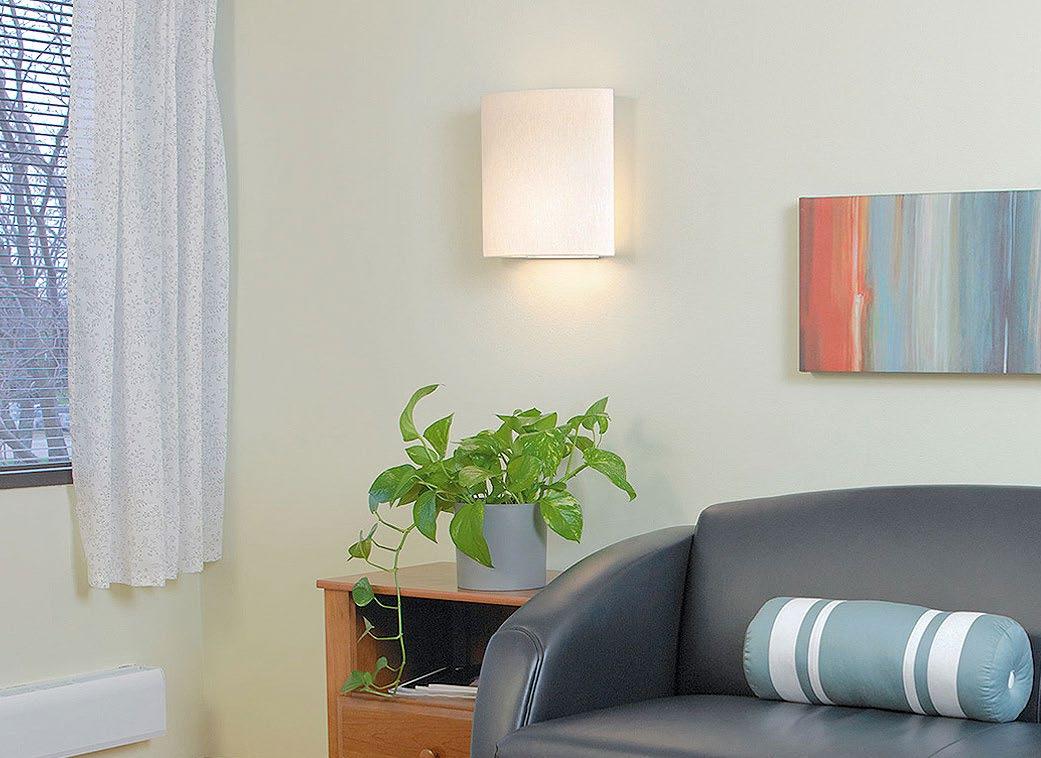

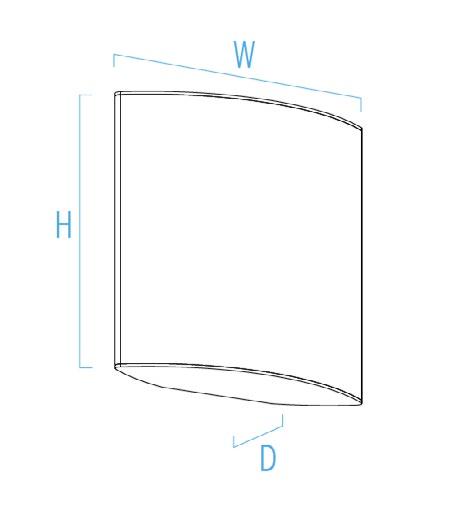

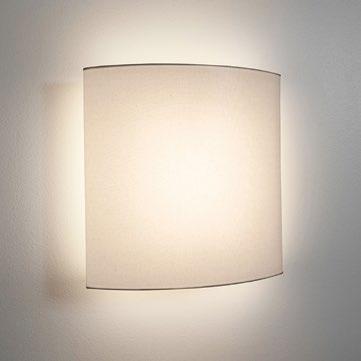

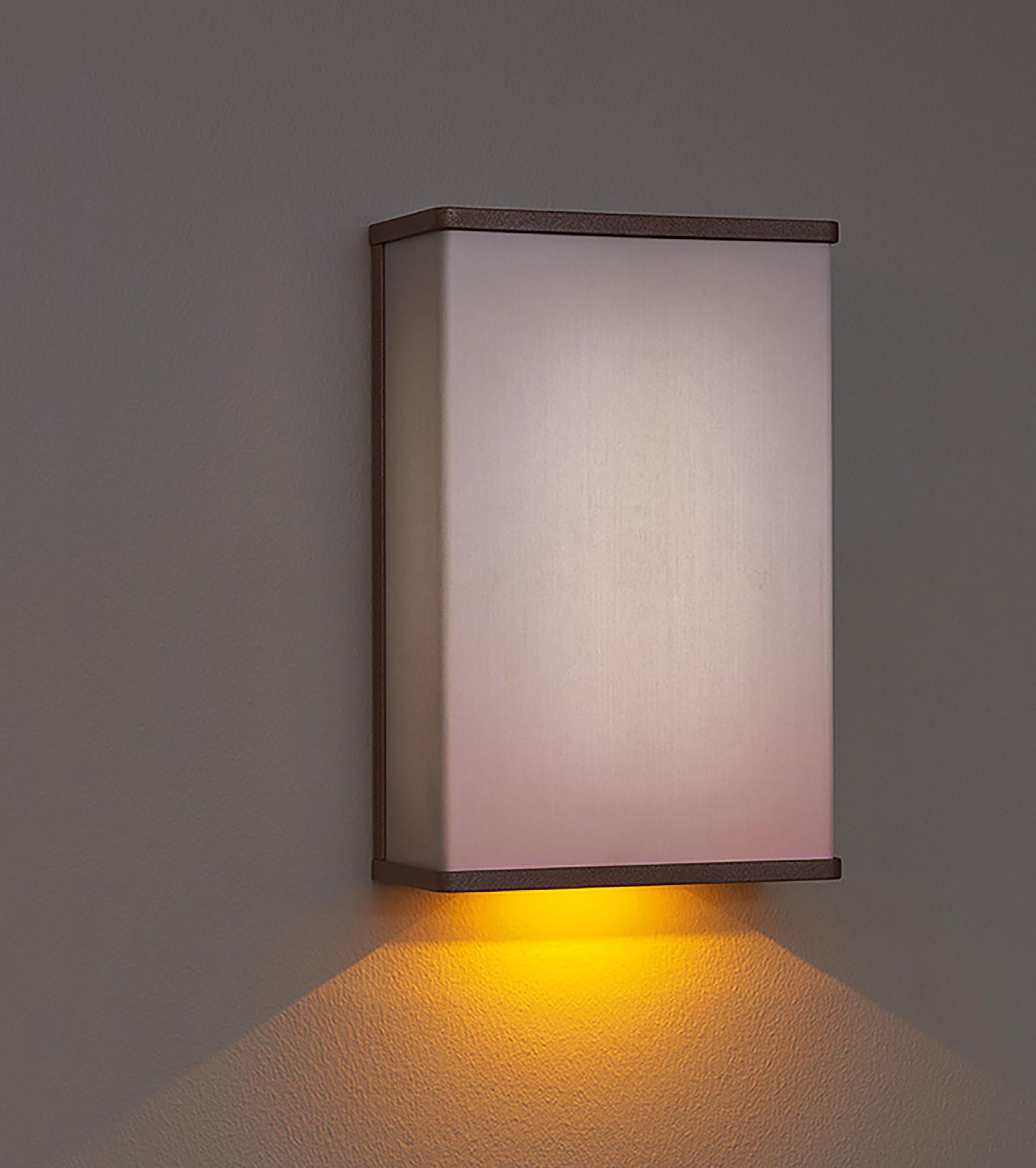

Serenity™

ADA Healthcare Sconce

The Serenity wall sconce features illuminated diffusers with soft, calming patterns. This creates a serene, positive distraction, allowing patients to feel more relaxed. The Serenity wall sconce is part of a lighting family and is available with coordinating behavioral health, patient room overbed, headwall, and table lamp models.

• Amber night light option to minimize patient disturbance

• Easy to clean acrylic shade with fabric look

• Optional antimicrobial paint finish clear coat

Serenity ADA Healthcare Sconce Model

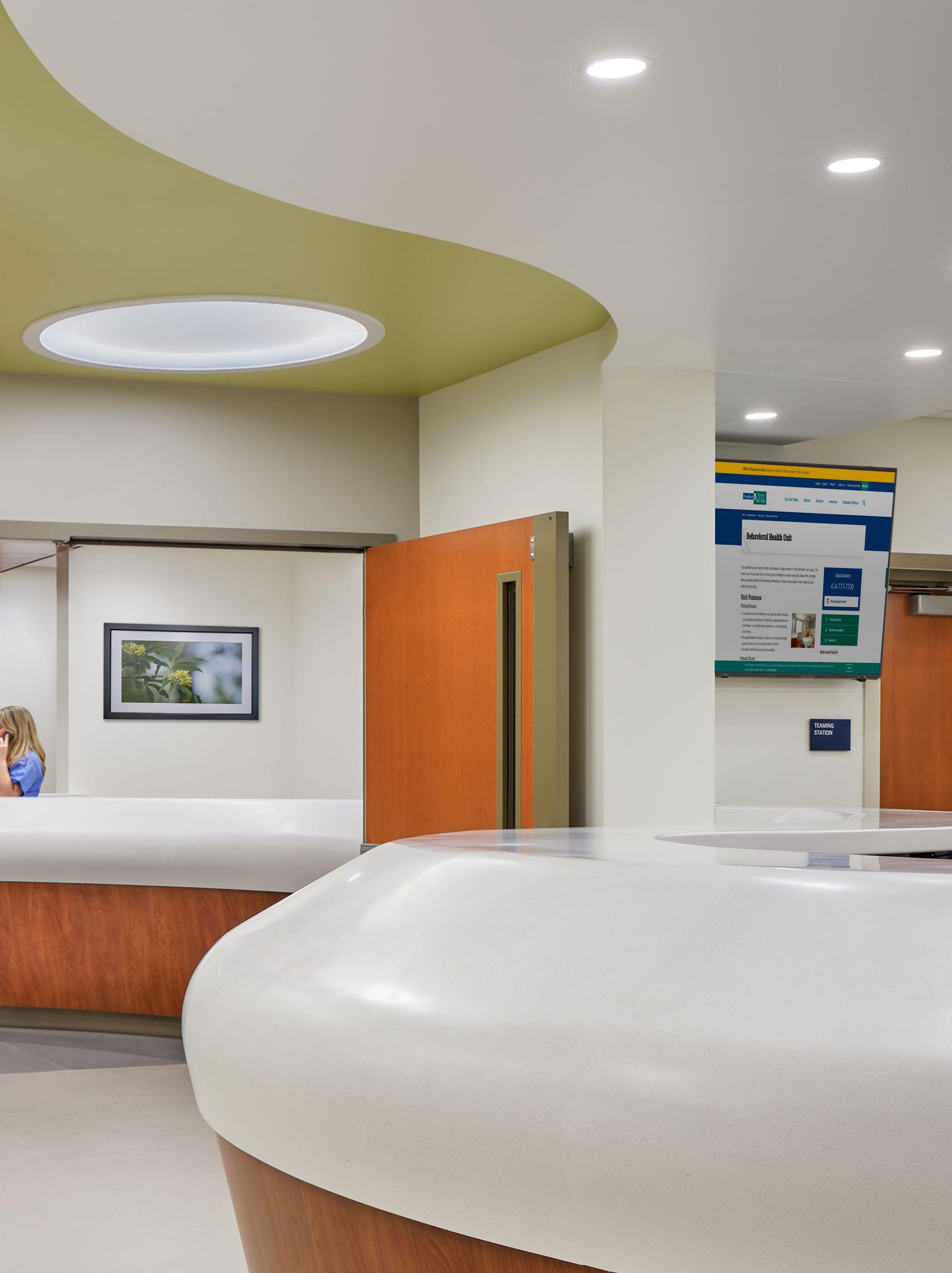

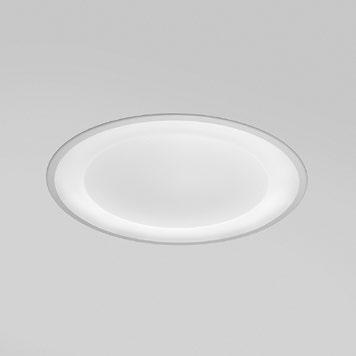

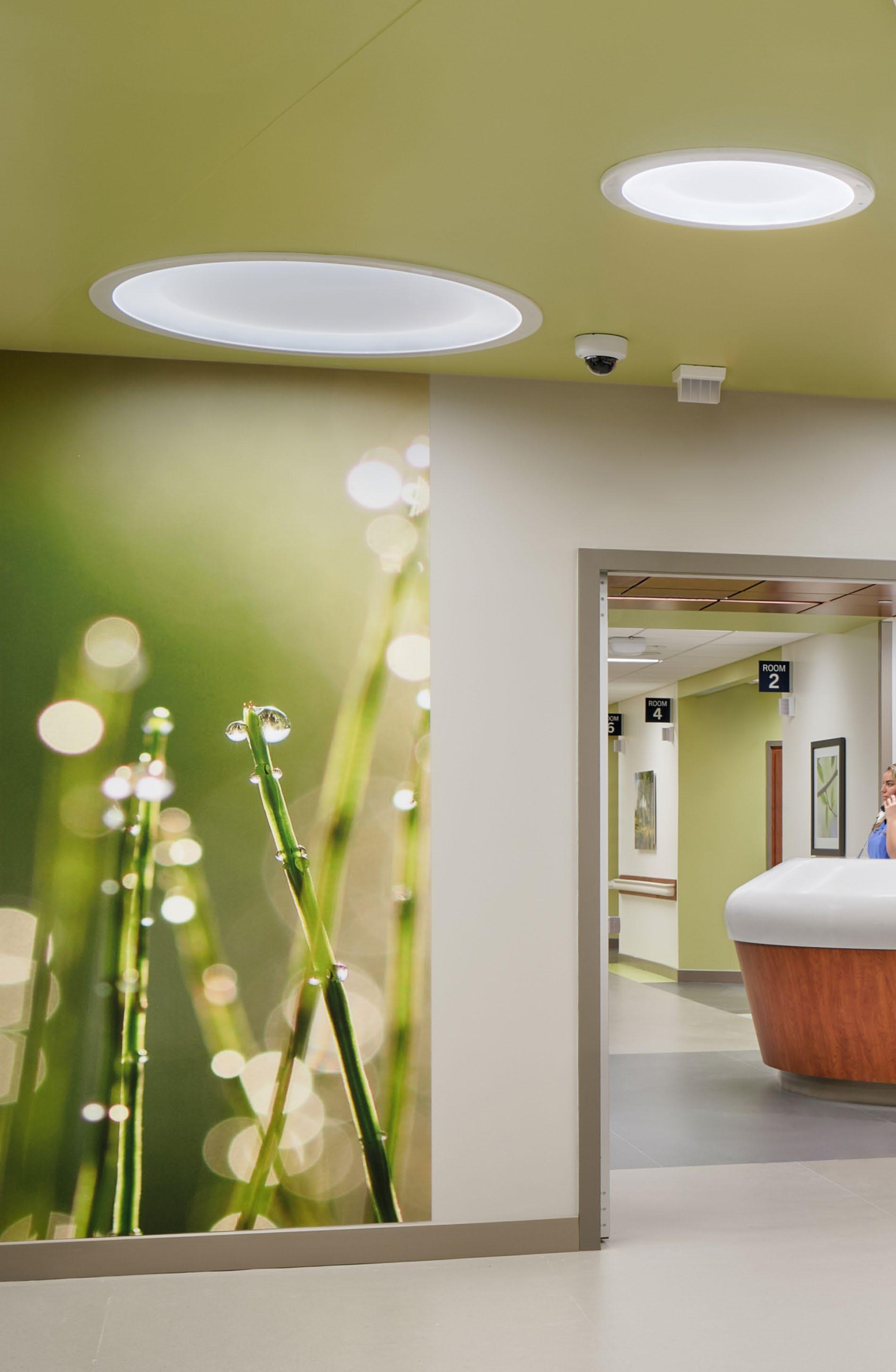

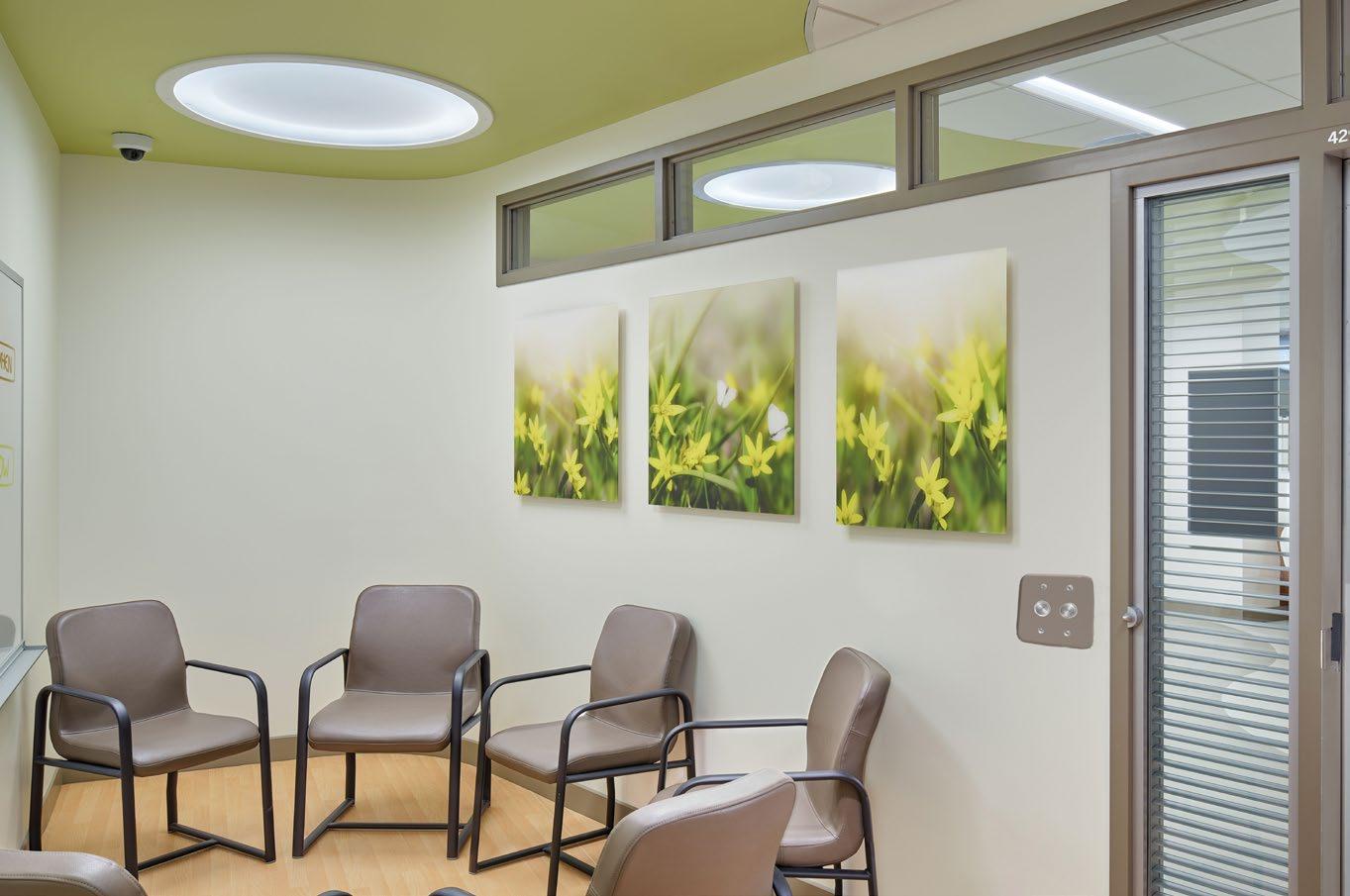

Symmetry™

General Use Lights

Symmetry is a beautiful, concave recessed ceiling mount fixture with a graceful, shallow dome in the center that offers an soft, calming aesthetic aesthetic. Highquality sources provide low glare illumination in multiple output options, including tunable color temperature source options for circadian rhythm support.

• Integral driver location is accessible from below the ceiling

• Shallow recessed depth minimizes interference within ceiling plenum

• RGBw option available as a variation

Symmetry General Use Light Model Options

CM1972-T

45”, Tunable RW 44” (1118mm)

CM1972-W

45”, General Use

CM1982-T

23” Tunable

RD 5-7/8” (149mm) DIA 44-1/2” (1130mm)

RW 44” (1118mm)

RD 6” (152 mm) DIA 44-1/2” (1130mm)

RW 23-1/2” (597mm)

RD 6-1/2” (165mm) DIA 22-7/8” (581mm)

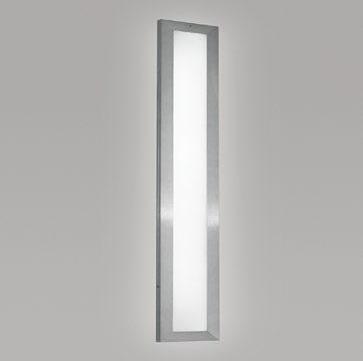

Unity™

Sconce

Like the other luminaires in the Unity collection, these sconces are meant to recall the gentle curves of fabric billowing in a breeze. They present a soft, comforting light in healthcare spaces, promoting patient health and well-being.

• Available top and bottom lenses for cleanability

• 90+ CRI Standard

Unity Sconce Model Options

CB1902 Sconce, Top-Bottom Lens

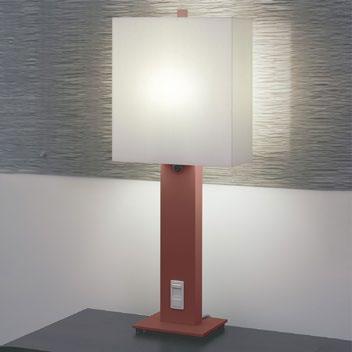

Unity™

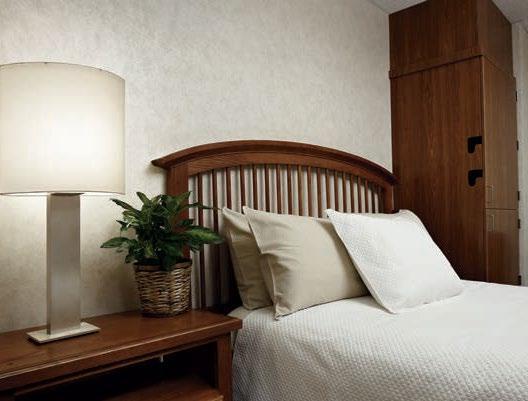

Table Lamps

Unity table lamps are designed specifically for healthcare spaces and feature patient room-specific options allowing you to configure the best applicationspecific table lamp option.

Like the other luminaires in the Unity collection, these table lamps are reminiscent of the gentle curves seen in fabric that is billowing in a breeze. They present a soft, comforting light in healthcare spaces, promoting patient health and well-being.

• Amber night light option to minimize patient disturbance

• Easy to clean Tri–lam vinyl coated shade or Oyster Linen Lumicor® acrylic shade with fabric look

• Flat backed shade option allows placement at edge of table against wall

• Fixed mount base option maximizes available table space and prevents accidental tipping

• Supplied with gray 7’ long, hospital grade cord and 3-prong grounded plug. Lamps are equipped (when specified) with hospital grade receptacles in lamp base

Unity Table Lamp Model Options

TF1904

Fixed Base

TF1906

Freestanding

TF1908

Charging Base

H 29–1/2” (749mm) W 15” (318mm) D 7–1/8” (181mm) SH 14” (35 mm)

H 30–1/8” (765mm) W 15” (318mm) D 7–1/8” (181mm) SH 14” (356mm)

H 32–1/2” (826mm) W 15” (318mm) D 7–1/8” (181mm) SH 14” (356mm)

25W E26 Plug

Fixed Mount Base, Freestanding Base, Charging Base

Unity™

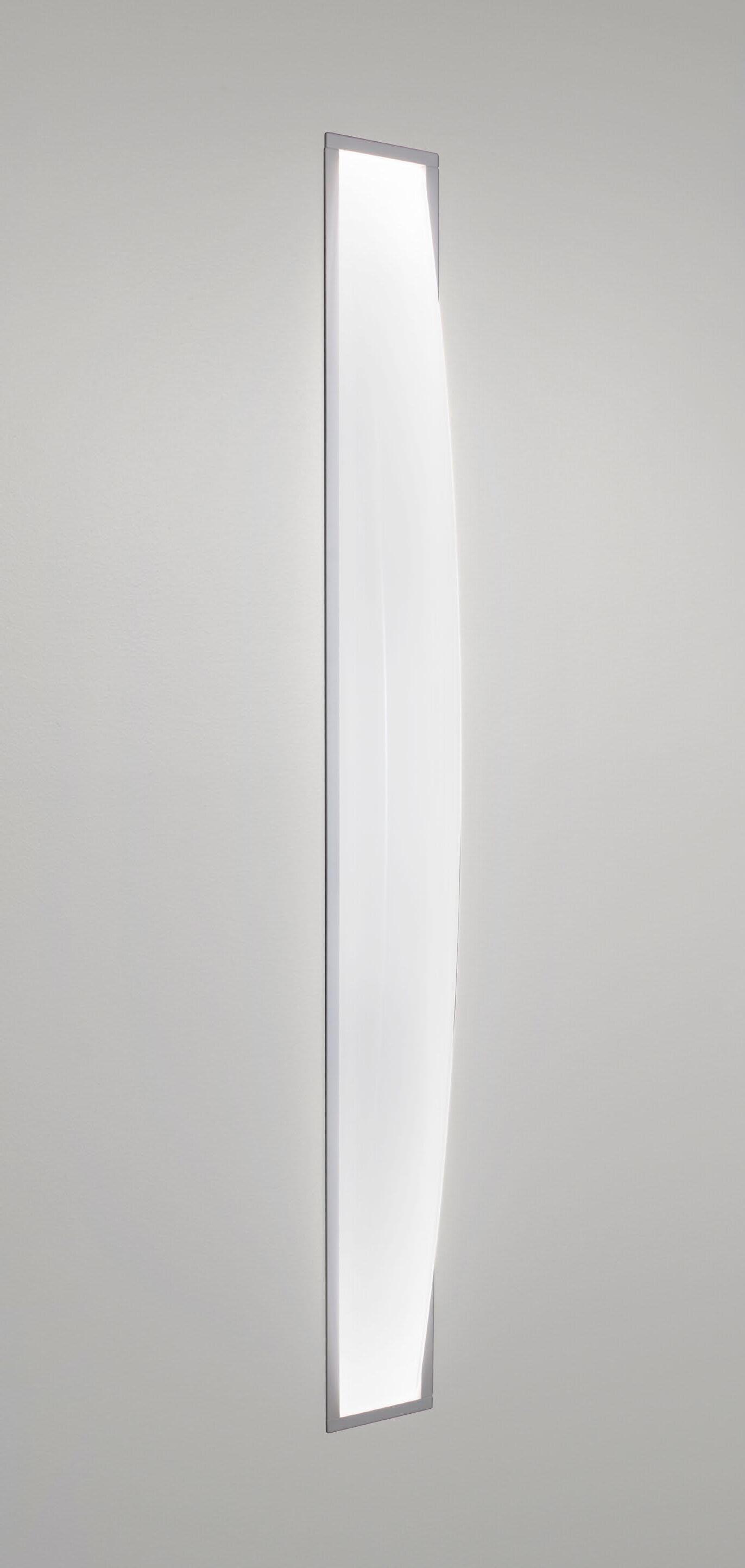

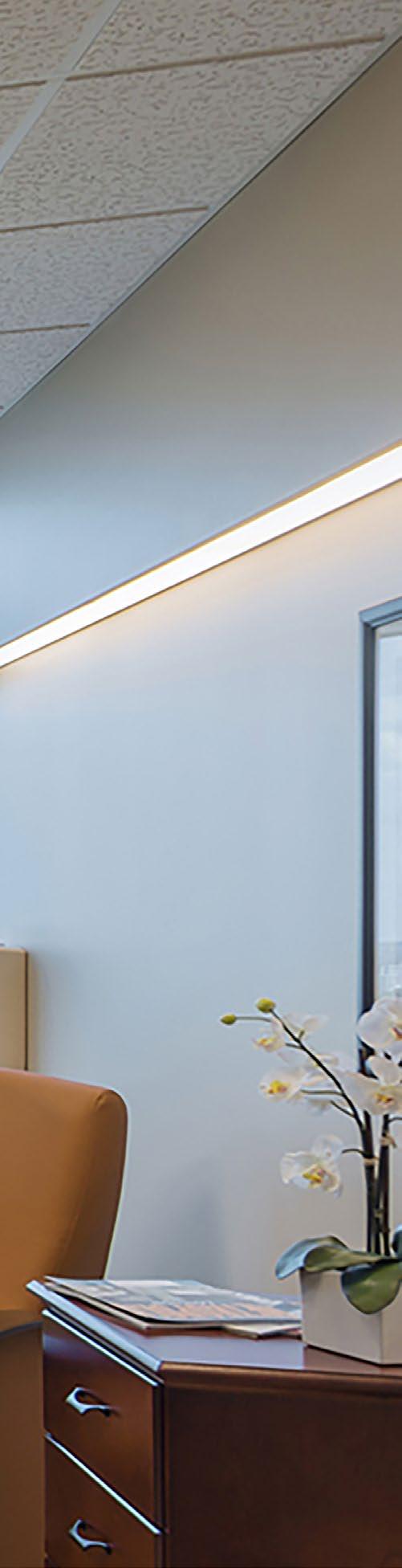

Wall Slot Lights

As part of the Unity family for healthcare environments, the Unity Slot also features narrow 3” slot luminaires with the same gently curved diffuser profile.

Like the other luminaires in the Unity collection, these slot lights are reminiscent of gentle curves of fabric billowing in a breeze. They present a soft, comforting light in healthcare spaces, promoting patient health and well-being.

• 90+ CRI Standard

• Formed acrylic lenses

• Separate 0-10V control of CCT and dimming (-T model)

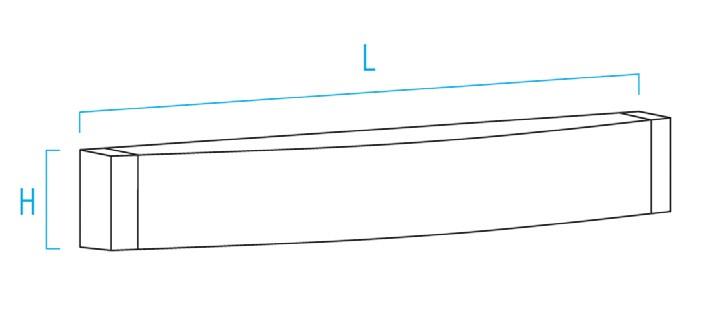

Unity Wall Slot Light Model Options

(1194mm)

(76mm)

(102mm)

(102mm)

Visage™

Indoor Linear Slot Lights

The beauty of Visage lies in its simplicity. Visage features a clean, luminous diffuser, multiple length options, and a shallow recessed depth, complementing building architecture.

• Shallow 3-3/8” recessed housing

• Vertical or horizontal mounting

• RGBw option available as a variation

Visage Indoor Slot Light Model Options

Models

CV1601

26” Surface Frame

CV1603

37” Surface Frame

CV1605

48” Surface Frame

CV1607

59” Surface Frame

CV1609

26”, Flush (Mud-In)

CV1611

37”, Flush (Mud-In)

CV1613

48”, Flush (Mud-In)

CV1615

60”, Flush (Mud-In)

L 26-1/8” (664mm) W 4-1/2” (114mm)

RL 25”(635mm)

RD 3-4/5” (97mm) WT 3 lbs (1361g)

L 37-1/8” (943mm) W 4-1/2” (114mm)

RL 36” (914mm)

RD 3-4/5” (97mm) WT 4 lbs (1814g)

L 48-1/8” (1222mm) W 4-1/2” (114mm)

RL 47” (1194mm)

RD 3-4/5” (97mm) WT 5 lbs (2268g)

L 59-1/8” (1502mm) W 4-1/2” (114mm)

RL 58”(1473mm)

RD 3-4/5” (97mm) WT 6 lbs (2722g)

L 26-1/8” (664mm) W 4-1/2” (114mm)

RL 26-3/8”(670mm)

RD 4-1/8” (105mm) WT 3 lbs (1361g)

L 37-1/8” (943mm) W 4-1/2” (114mm)

RL 37-3/8” (949mm)

RD 4-1/8” (105mm) WT 4 lbs (1814g)

L 48-1/8” (1222mm) W 4-1/2” (114mm)

RL 48-3/8” (1228mm)

RD 4-1/8” (105mm) WT 5 lbs (2268g)

L 59-1/8” (1502mm) W 4-1/2” (114mm)

RL 58-3/8”(1508mm)

RD 4-1/8” (105mm) WT 6 lbs (2722g)

L: 1050-1100 H: 1600-1700 L: 12 H: 19

L: 1600-1650 H: 2400-2500 L: 17 H: 27

L: 2100-2200 H: 3200-3300 L: 23 H: 36

L: 2600-2700 H: 3900-4100 L: 27 H: 43

L: 1050-1100 H: 1600-1700 L: 12 H: 19

L: 1600-1650 H: 2400-2500 L: 17 H: 27

L: 2100-2200 H: 3200-3300 L: 23 H: 36

L: 2600-2700 H: 3900-4100 L: 27 H: 43

Accessories

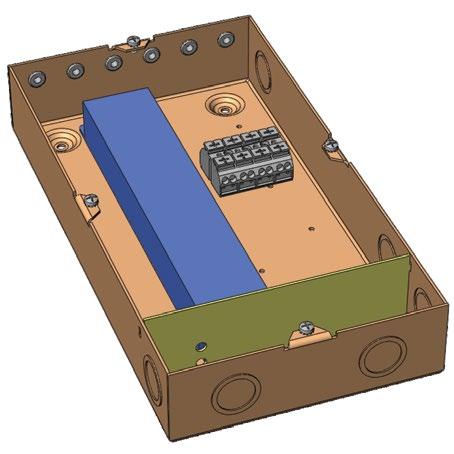

Remote Power Supplies for PSX Models

• Single power supply provides power to single or multiple fixtures

• 120V or 277V input, 24VDC output

• Class II output eliminates the need for conduit

• Uses plenum rated class II cable (available as an accessory)

• Integral terminal block for output connections

• Available with analog (0-10V) or DMX-512 interface for 3-channel color mixing

• UL 1598 Listed Fixture Fitting

• Suitable for recessed installation (non-IC)

(277V)

* Maximum 20’ remote wiring distance to each connected luminaire

Emergency Lighting

• UL listed stand-alone simulated sine wave output inverter designed to provide power to designated emergency lighting fixtures

• In a power loss situation, the EMV will supply 20375 watts of power from the on-board battery supply, depending on model below

• Input: 120/277V

• Output: 120/277V, 20W, 125W or 375W for 90 minutes in emergency mode.

• PS-EMVM and PS-EMVH have dimming circuit bypass relay to force full output during a power failure

• Surface or cabinet mount

Cables

LVPC-DIM Low Voltage Controller (3 Load with Dimming)

The LVPC-DIM interface enables users to turn lights on or off or dim safely when used with low voltage, momentary contact switches, such as those found on patient pillow speakers, bed communication side rail devices, and nurse call auxiliary outputs.

Only a single switch is required for full control of each load, allowing use of existing patient controls and simple momentary wall switches. It can be used with fluorescent, LED and other lamp types. It controls up to 3 general-use and electronic ballast type loads, with dimming control of two loads (via 0-10V interface). Additional switches/contacts may be wired in parallel to permit control from multiple locations.

LVPC-DIM Wiring Diagram

The LVPC-DIM may be mounted in a light fixture or other suitable enclosure and should be installed by a qualified electrician only. The installer must follow all applicable National Electrical Code requirements.

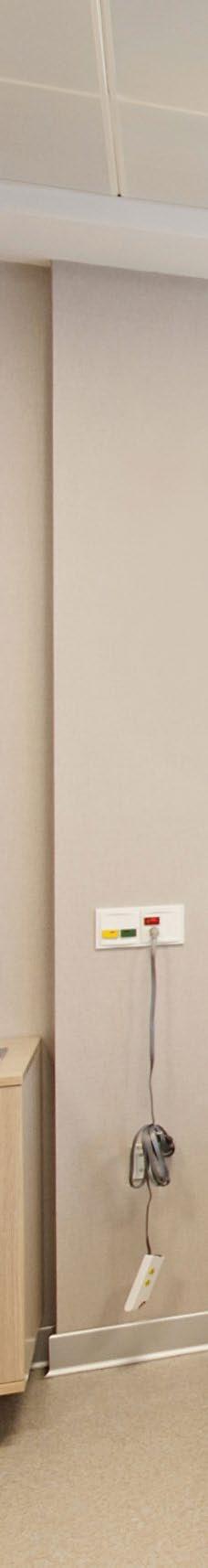

*Patient hand control switch in photo made by others

Visit visalighting.com/accessories for more information.

Paint Finishes

Eco Friendly Standard Powder Coat Finishes

With no solvents or hazardous materials, our powder coat painting process is more consistent, durable, and more environmentally friendly than conventional liquid paint. Choose from standard color options without worrying about safety and sustainability. Powder coating eliminates runs, drips and sags during the painting process, and protects against chips, abrasions, UV light, chemicals, and heat (up to 400° F).

We offer additional RAL colors and custom color matching for a slight premium charge.

Alternative Finishes

Alternative & Premium Metal Finishes

We offer alternative metal finishes on certain fixtures to attain a metal look without the cost and environmental damage of standard plated metals. Premium metal and acrylics are also available.

Specify color code when ordering. For accurate color matching, individual paint and finish samples are available upon request For more information about our finishes visit visalighting.com/finishes

Premium Metal Finishes

Visa Lighting premium metal finishes are spun, polished, and finished in our Milwaukee facility. All finishes are grade level 1. Each product specification sheet shows which finishes are available.
