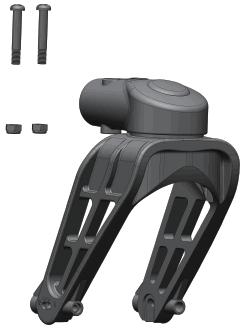

FRONT FRAME ASSEMBLY V1.0 * ##-TO SPECIFY COLOR SL-SILVER
2
BOOSTER P1S-17BL-FFPPXX M6X51 BOLT B1S-01BL-FFM651
3
BAG SADDLE LOWER P1S-06BL-FFPAFG
4
M6 NYLOCK NUT 06-M44-M6X6NL
5
M4X10 CSK BOLT B20-26X-MHM410 M5 WASHER MR8-08X-FS05XX M5 NYLOCK NUT 06-M43-M5NL M5 SPRING WASHER MR8-03X-FS05XX M5X138 SHOULDER BOLT B1S-02BL-FFM5XX
1
6 7 8 9
CH-BLACK
WHEEL LOCK BUTTON 10 FRONT P1S-02XX-FFPOMX
11
M6X35 BOLT 06-M27-M6X35PM
12
FRONT LOCK SPRING M1S-06BL-FF10XX
AW-WHITE
11 WHEEL TUBE * 17 FRONT T1S-01##-FF25XX
4
19
4
4
20
11 WHEEL MOUNT ASSEM 18 FRONT P1S-12BL-FFASSM
PLASTIC CLIP
19 P1S-07BL-HCPA66
SHAFT 13 LOCK M1C-15H-FW0610
14
M4X8 BOLT 06-M32-M4X8PM
15
TUBE HOLDER RIGHT 16 P1S-14BL-FFPAFG
TUBE HOLDER LEFT P1S-13BL-FFPAFG
ST4X10PT SCREW 20 B1C-29X-HCSTO4
