Rovic RV1S 2.0 V1 - Front Frame Assembly

BOOSTER

P1S - 17BL - FFPPXX

M6X51 BOLT

B1S - 01BL - FFM651

BAG SADDLE LOWER

P1S - 06BL - FFPAFG

M6 NYLOCK NUT

06 - M44 - M6X6NL

M4X10 CSK BOLT

B20 - 26X - MHM410

M5 WASHER

MR8 - 08X - FS05XX

M5 NYLOCK NUT

06 - M43 - M5NL

M5 SPRING WASHER

MR8 - 03X - FS05XX

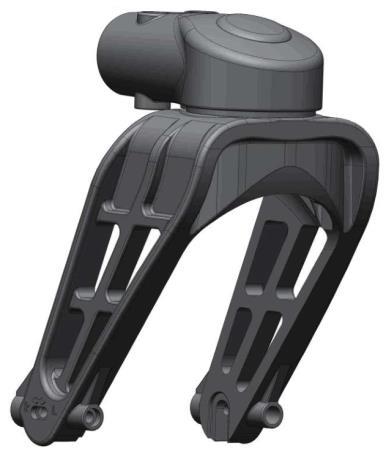

FRONT FRAME ASSEMBLY V1.0

M5X138 SHOULDER BOLT

B1S - 02BL - FFM5XX

FRONT WHEEL LOCK BUTTON

P1S - 02XX - FFPOMX

M6X35 BOLT

06 - M27 - M6X35PM

FRONT LOCK SPRING

M1S - 06BL - FF10XX

LOCK SHAFT

M1C - 15H - FW0610

LOCK BUTTON COVER

P1S - 18BL - FFPPXX

M4X11BOLT

B2L - 23X - XXXXXX
