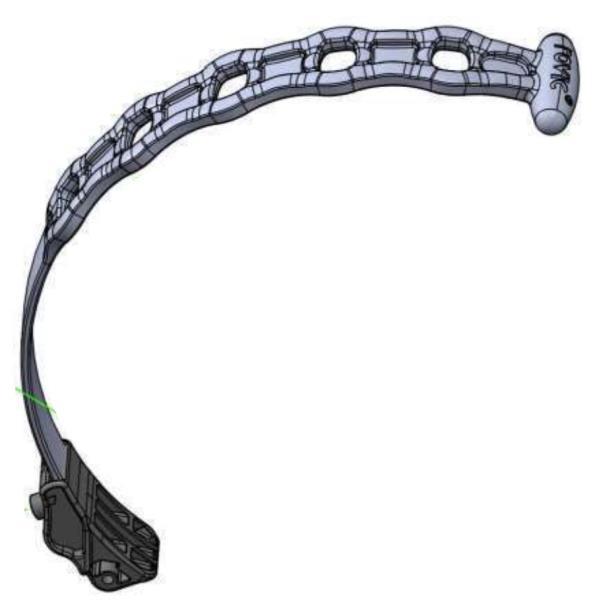

HANDLE COMPLETE
UPPER BAG SADDLE COMPLETE
MAIN FRAME ASSEMBLY
P1C - 31H - UBPAFG
M6X38 CSK BOLT
B1C - 15X - UBM638
M6 NYLOCK NUT
06 - M44 - M6X6NL
M8X133 BOLT
B1C - 01X - UBM8XX
M8 NYLOCK NUT
06 - M46 - M8NL
M6X42 SCREW
B1C - 05X - MFM642 M4X8 BOLT 06 - M32 - M4X8PM

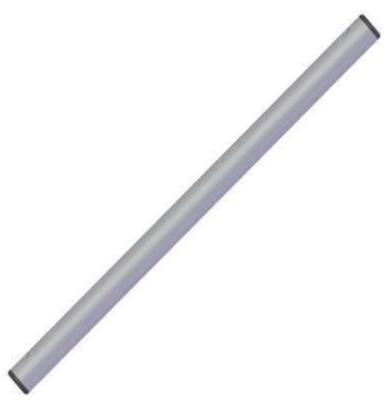

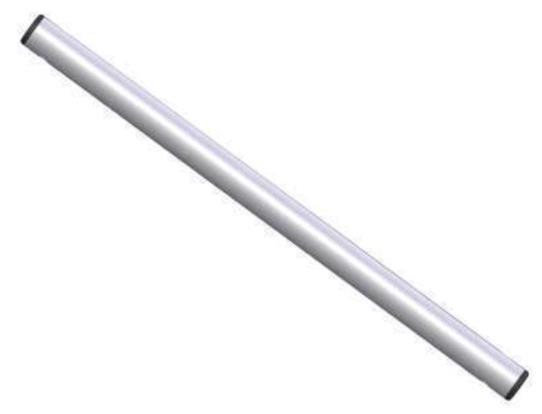

SHAFT
M1C - 21H - XX10XX
P1C - 32R - MFPAFG HOOK SPRING

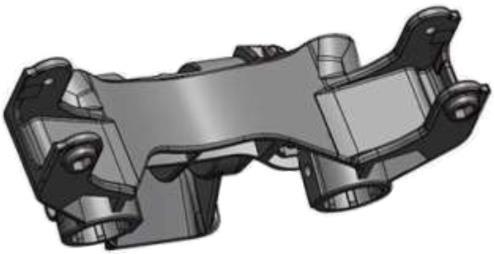

M1C - 14H - XX14XX MAIN FRAME
P1C - 38H - MFPAFG
M6X43 BOLT
B1C - 43X - MHM643
- 30H - UBPAFG
BOLT B1S - 05BL - FFM651 M4 NYLOCK NUT B1C - 37X - XXM4XX DRIVING ROD HOLDER
P1C - 13H - XXPAFG SLIDER DRIVING ROD
M1C - 20H - MF08XX
- 06X - XXM633
BAG STRAPS COMPLETE
UPPER STRAP ASSEM
Z1S - 01 - BSASSM
LOWER STRAP ASSEM
Z1S - 02 - BSASSM
M5X48 BOLT
B1C - 08X - FWM548
UPPER SADDLE ARM ASSM
P1S - 63BL - BSASSM
M5 NYLOCK NUT 06 - M43 - M5NL LOWER STRAP Z1C - 02 - UBXXXX LOWER SADDLE ARM ASSM P1S - 64BL - BSASSM
STRAP Z1C - 01 - UBXXXX
SADDLE ARM LEFT P1S - 21BL - BSPPXX
ST4X14PT SCREW B1C - 33X - FWST04
UMBRELLA TAB
- C07 - BGPTB-002

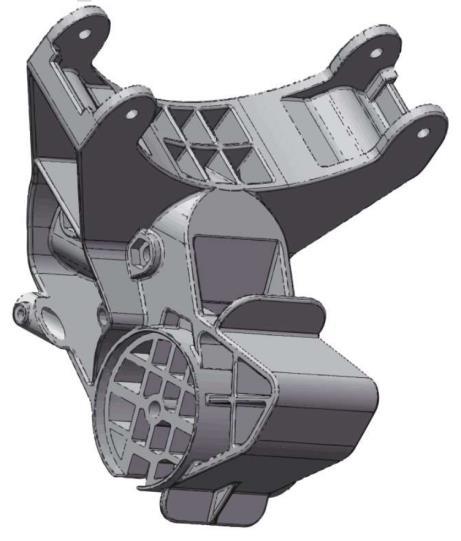

FOOT BRAKE HOUSING
P1S - 10BL - BAPAFG
BRAKE ASSEMBLY V1.0
ST4X18PT SCREW
06 - M41 - ST4X18PT
PLASTIC PAD
P1S - 08BL - BAPAFG

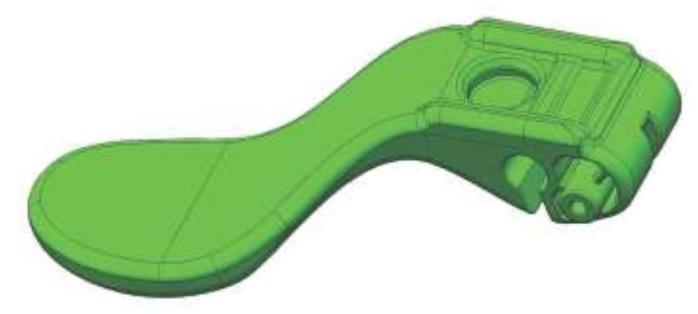

FOOT BRAKE
P1S - 09XX - BAPAFG

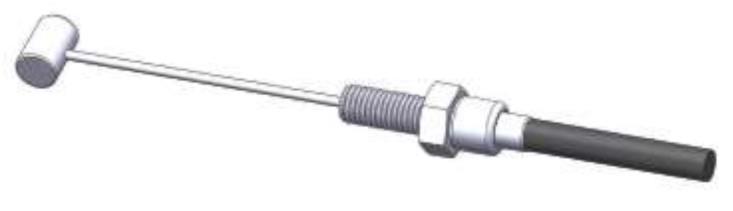

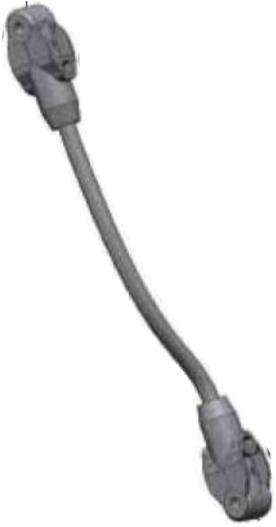

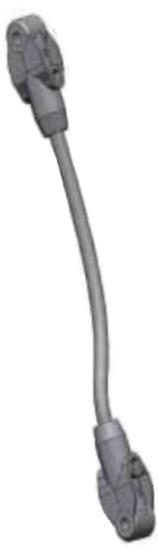

BRAKE CABLE
M1S - 10XX - BAASSM

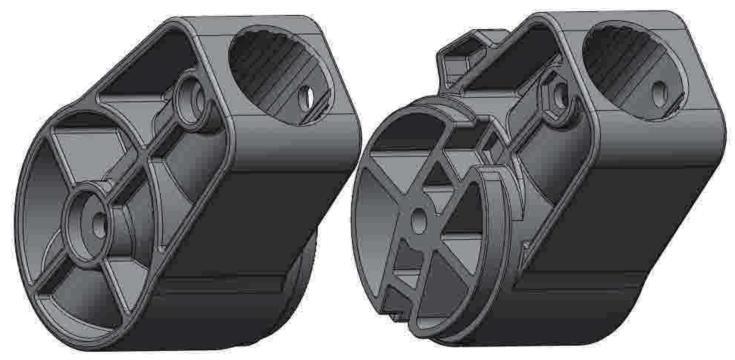

WHEEL BRAKE HOUSING
P1C - 42H - BAPAFG
ST3X20PA SCREW
B1C - 34X - BAST03
BOOSTER
P1S - 17BL - FFPPXX
M6X51 BOLT
B1S - 01BL - FFM651
BAG SADDLE LOWER
P1S - 06BL - FFPAFG
M6 NYLOCK NUT
06 - M44 - M6X6NL
M4X10 CSK BOLT
B20 - 26X - MHM410
M5 WASHER
MR8 - 08X - FS05XX
M5 NYLOCK NUT
06 - M43 - M5NL
M5 SPRING WASHER
MR8 - 03X - FS05XX

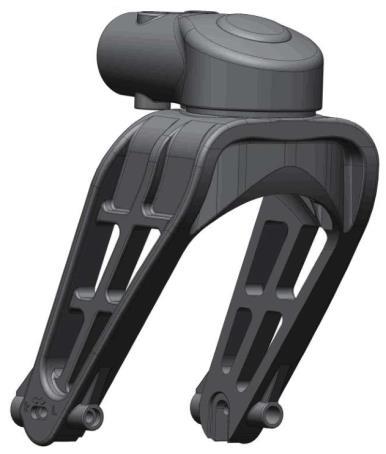

FRONT FRAME ASSEMBLY V1.0
M5X138 SHOULDER BOLT
B1S - 02BL - FFM5XX
FRONT WHEEL LOCK BUTTON
P1S - 02XX - FFPOMX
M6X35 BOLT
06 - M27 - M6X35PM
FRONT LOCK SPRING
M1S - 06BL - FF10XX

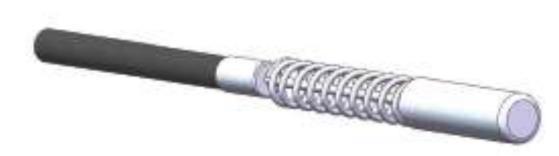

LOCK SHAFT
M1C - 15H - FW0610
LOCK BUTTON COVER
P1S - 18BL - FFPPXX
M4X11BOLT
B2L - 23X - XXXXXX
SWIVEL LOCK COMPLETE
SWIVEL LOCK HOUSING P1C - 62H - BAPAFG ST4.0X20KA SCREW B1C - 34X - RWST04
LOCK LEVER
P1C - 40R - BAPAFG
FRONT WHEEL COMPLETE
B1S - 03BL - XXM446
M4 WASHER
M1S - 04BL - FW0410
M4 SPRING WASHER
06 - M54 - M4LWS
M4 NUT
B1C - 20X - XXM4XX
M4 NYLOCK NUT
B1C - 37X - XXM4XX
FRONT WHEEL ASSEM P1S - 61## - FWASSM
M4X22 BOLT
B1C - 11X - XXM422

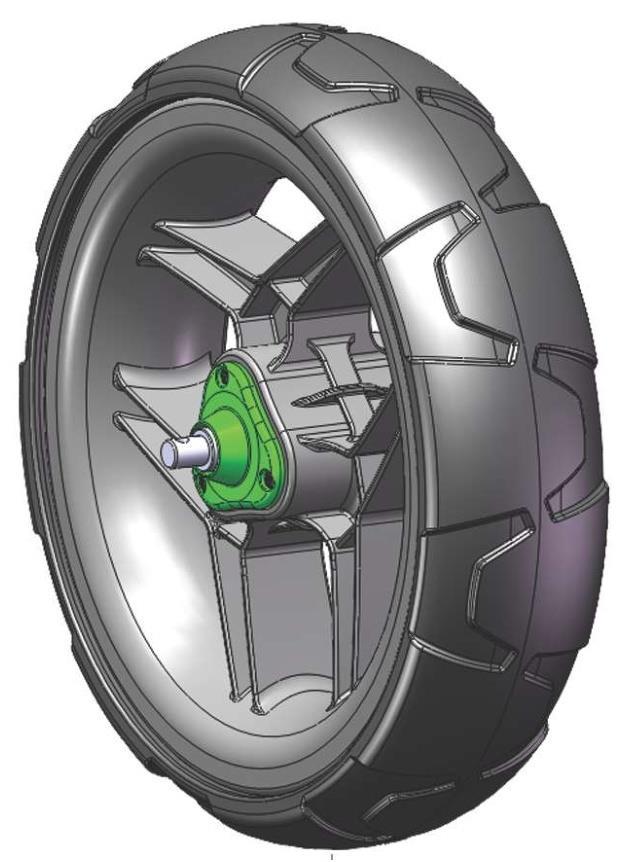

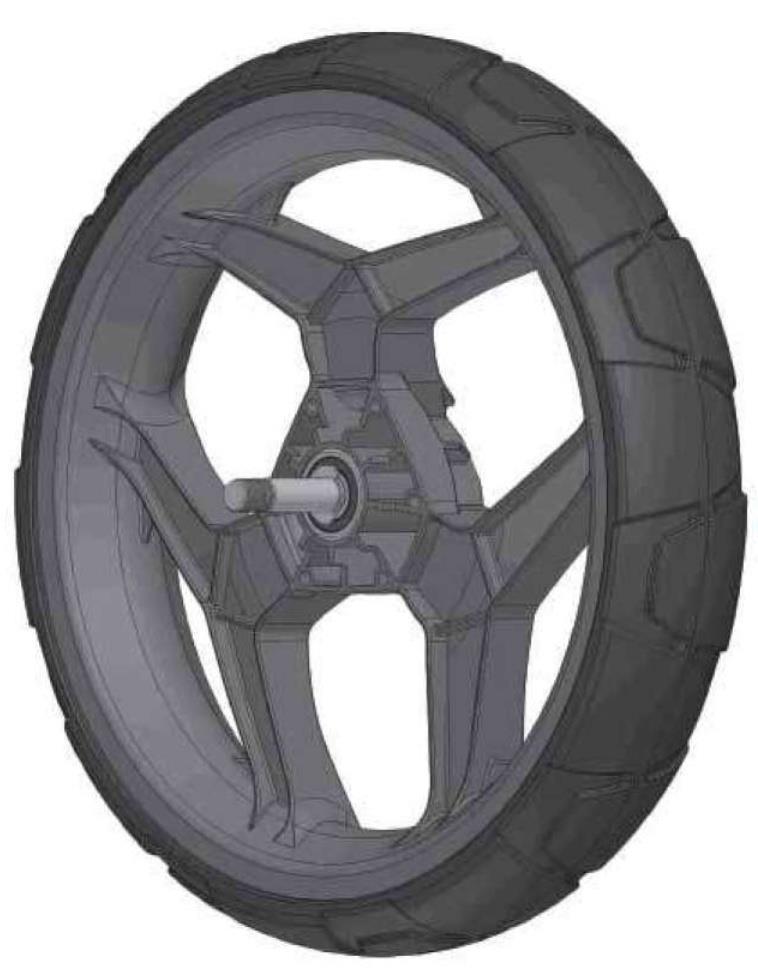

WHEEL COMPLETE V1.0
2 3 4 BRAKE GEAR
P3J - 07H - RCPAFG PLASTIC WASHER
P1C - 49H - RWPAFG M12 NYLOCK NUT
- M47 - M12NL
- 60## - WCASSM

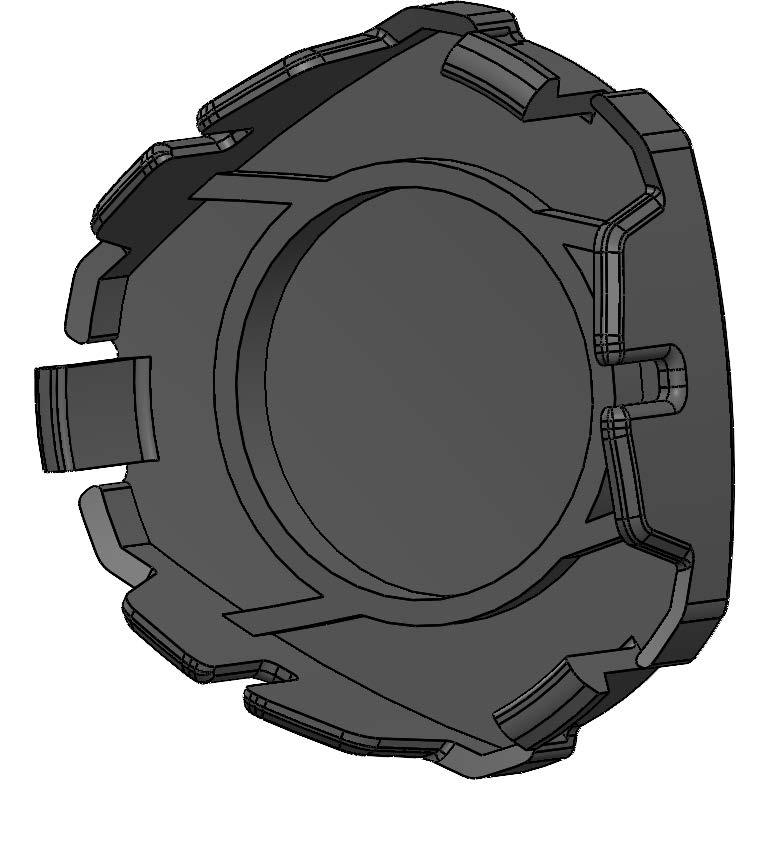

BEARING CAP P3F - 07H - RCABSX
