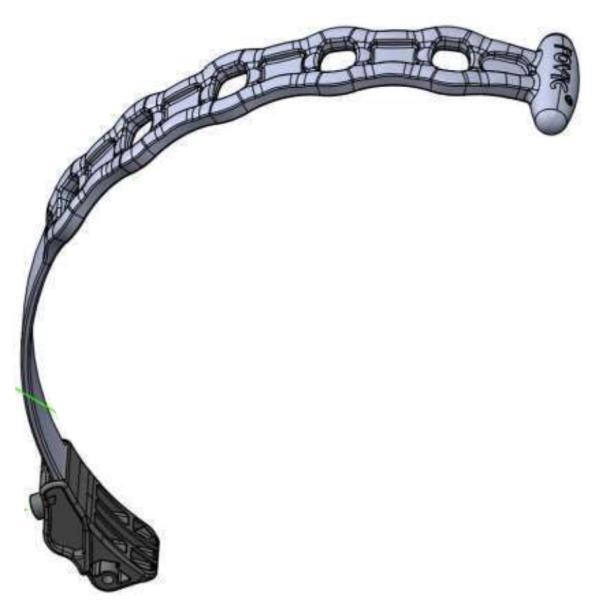

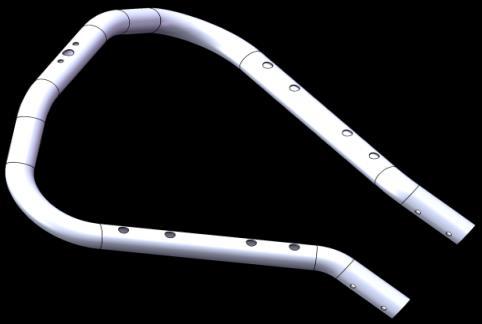

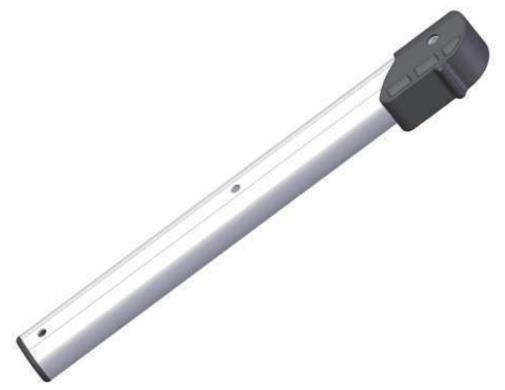

HANDLE COMPLETE
MAIN FRAME ASSEMBLY
P1C - 31H - UBPAFG
M6X38 CSK BOLT
B1C - 15X - UBM638
M6 NYLOCK NUT
06 - M44 - M6X6NL
M8X133 BOLT
B1C - 01X - UBM8XX
M8 NYLOCK NUT
06 - M46 - M8NL
M6X42 SCREW
B1C - 05X - MFM642
M4X8 BOLT 06 - M32 - M4X8PM

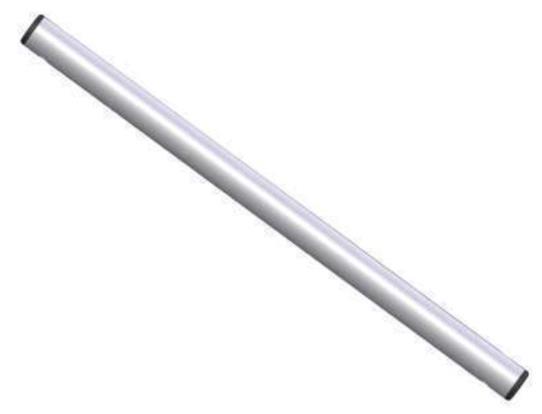

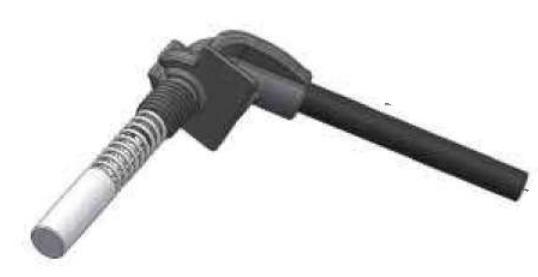

HOOK SHAFT
M1C - 21H - XX10XX HOOK
P1C - 32R - MFPAFG

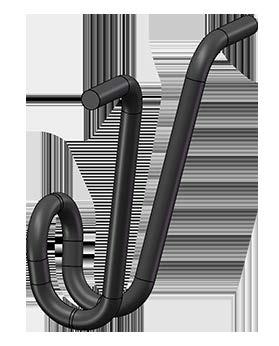

HOOK SPRING
M1C - 14H - XX14XX

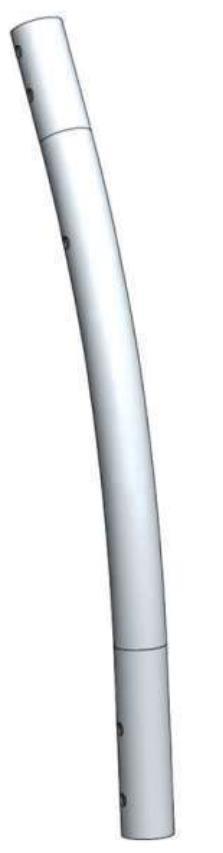

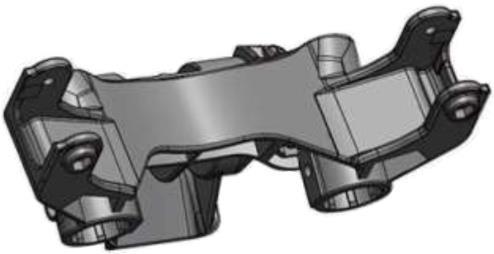

MAIN FRAME
P1C - 38H - MFPAFG
M6X43 BOLT
B1C - 43X - MHM643
P1C - 36H - MFPAFG
M6X57 BOLT
B1C - 14X - MFM657
1C - 30H - UBPAFG
M6X51 BOLT
B1S - 05BL - FFM651
M4 NYLOCK NUT
B1C - 37X - XXM4XX

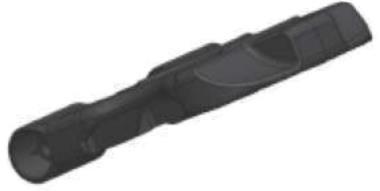

DRIVING ROD HOLDER
P1C - 13H - XXPAFG

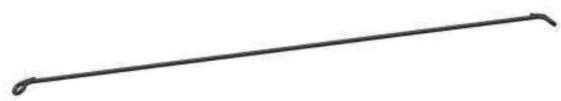

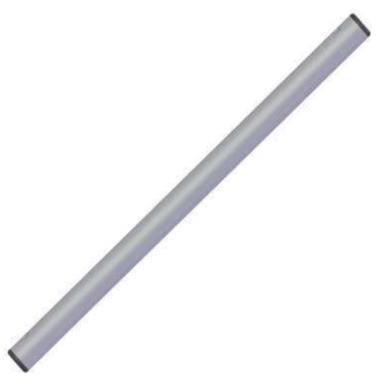

SLIDER DRIVING ROD
M1C - 20H - MF08XX
M6X33 BOLT
B1C - 06X - XXM633
M4X22 BOLT B1C - 11X - XXM422
- 05## - MF4540
WHEEL SUPPORT ASSEMBLY
BAG STRAPS COMPLETE

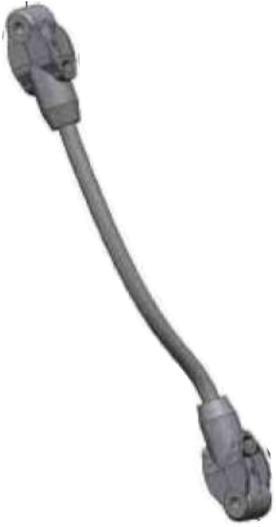

UPPER STRAP ASSEM
Z1S - 01 - BSASSM

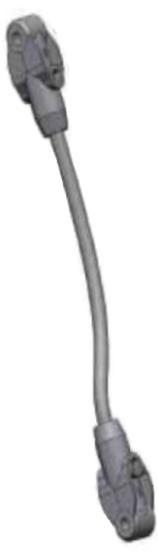

LOWER STRAP ASSEM
Z1S - 02 - BSASSM
M5X48 BOLT
B1C - 08X - FWM548

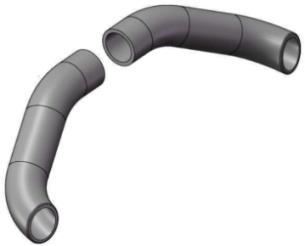

UPPER SADDLE ARM ASSM
P1S - 63BL - BSASSM
M5 NYLOCK NUT
- M43 - M5NL LOWER STRAP
Z1C - 02 - UBXXXX LOWER SADDLE ARM ASSM P1S - 64BL - BSASSM
STRAP Z1C - 01 - UBXXXX

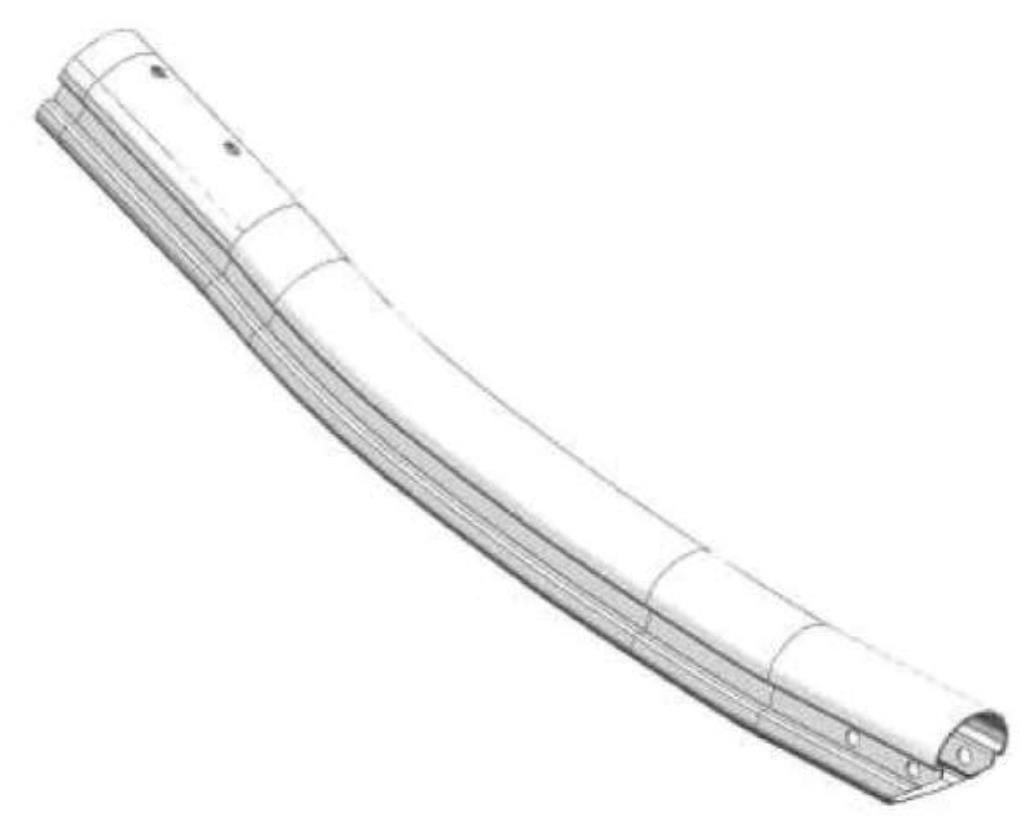

SADDLE ARM LEFT P1S - 21BL - BSPPXX ST4X14PT SCREW B1C - 33X - FWST04 UMBRELLA TAB
- C07 - BGPTB - 002

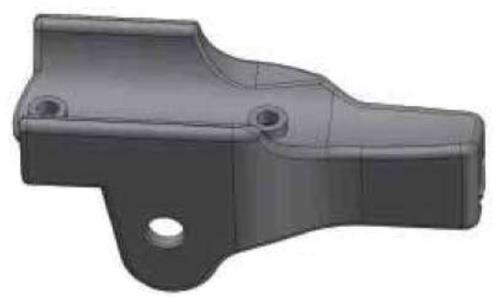

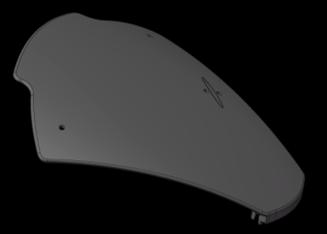

HAND BRAKE HOUSING P1C - 62H - BAPAFG
BRAKE ASSEMBLY V1.0
ST4X20KA SCREW B1C - 34X - RWST04
ST3X20PA SCREW
B1C - 34X - BAST03

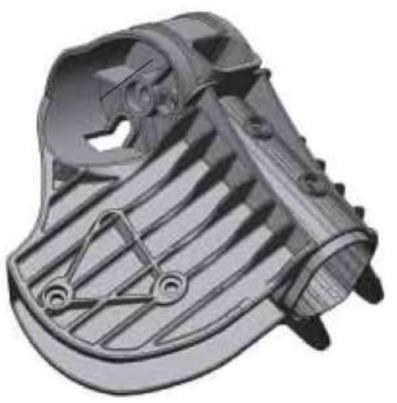

WHEEL BRAKE HOUSING P1C - 42H - BAPAFG
ST3X10PWA SCREW
06 - M39 - ST3X10PWA
BRAKE LEVER
P1C - 40R - BAPAFG

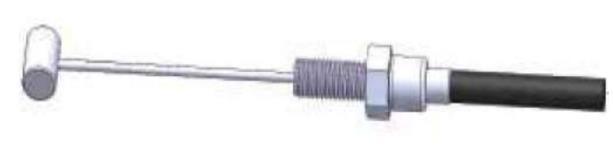

BRAKE CABLE M1C - 16H - BAASSM

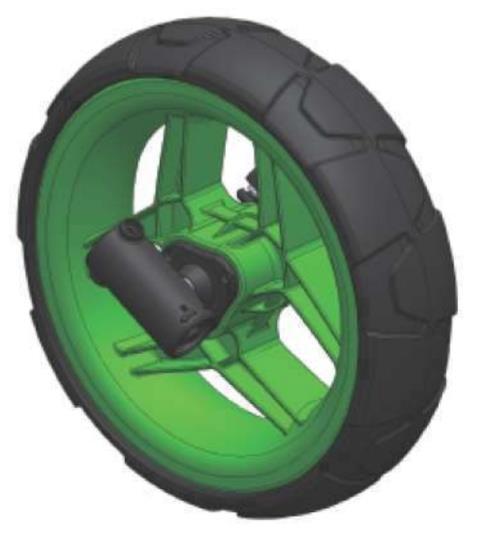

FRONT WHEEL COMPLETE

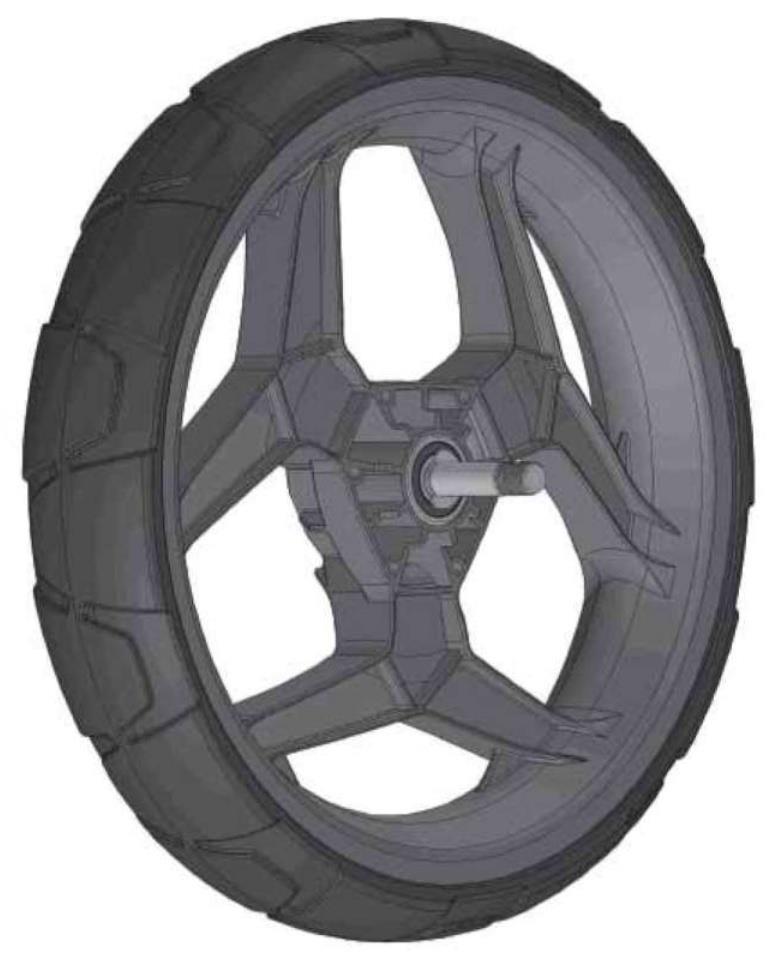

LEFT WHEEL COMPLETE

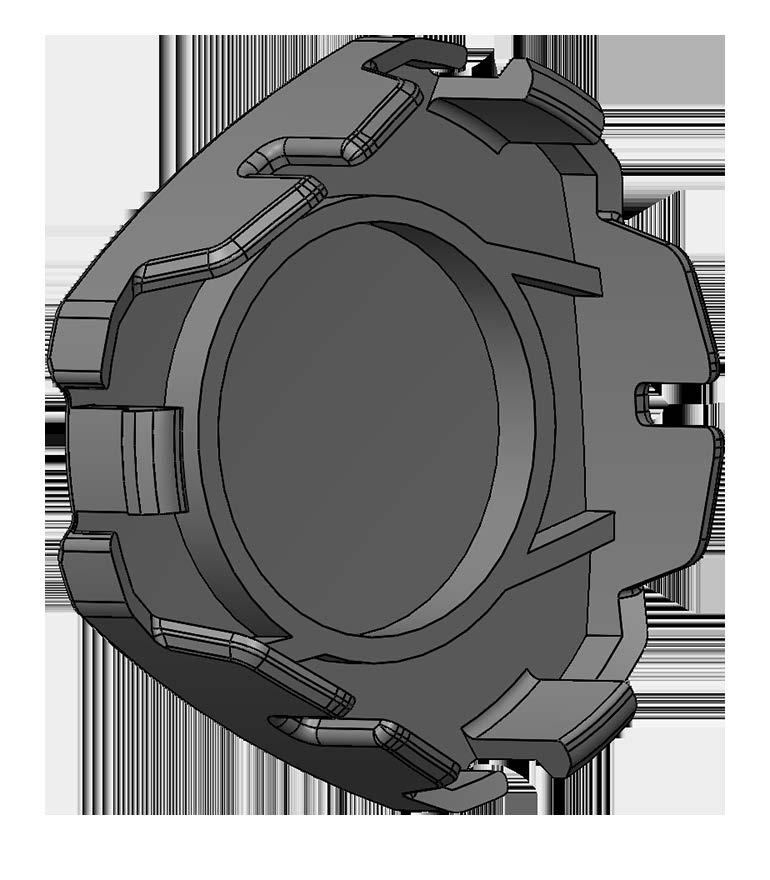

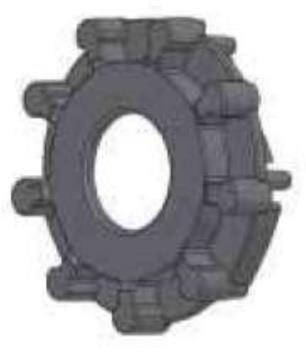

BEARING CAP
RIGHT WHEEL COMPLETE
