Overview
• Cables, Mics, Connections & Speakers
• Microphones
• Mixers & Interfaces
• Speakers
• Best Practices
• Resources
Cables, Mics, Connections, & Speakers
Cables/Connections

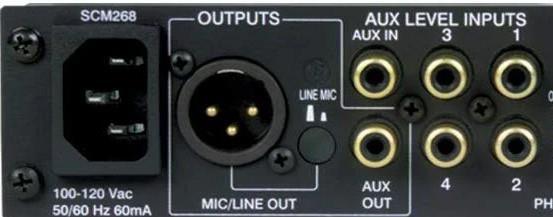

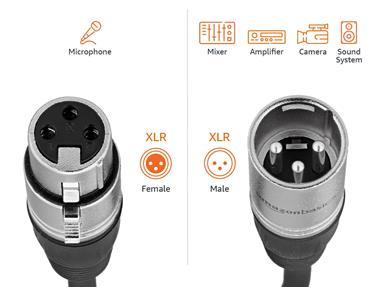

XLR:usedformicrophonesandbalancedsignals(3pins)
Balanced signal – reducesnoiseandinterference.
Durable and secure – lockingconnectorspreventunplugging.
High-quality sound – maintainsaudioclarityoverdistance.
Supports phantom power – requiredforcondensermicrophones.
Versatile – workswithmics,mixers,speakers,andmore.
Long-distance capable – cleansignalevenover100+feet.
Cables/Connections

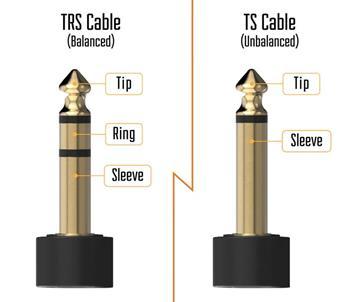

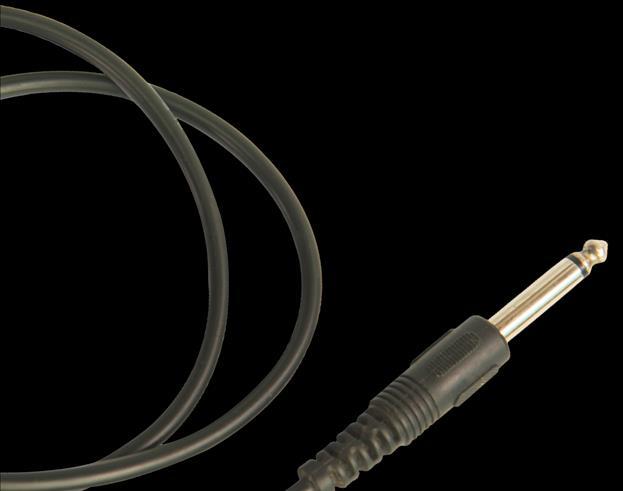

¼" TRS (Tip–Ring–Sleeve):
Balanced connection: resistsnoise,good forlongerruns(usedforline-level signals,headphones,someinstruments).
¼" TS (Tip–Sleeve): Unbalanced connection: morepronetonoise,bestfor shortruns(commonforguitarsandsome keyboards).
Quarter Inch
Cables/Connections

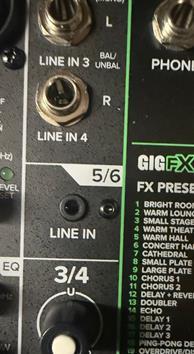

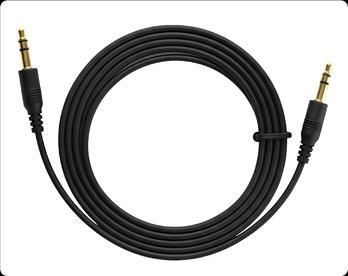

1/8" Aux
Small3.5mmstereocable(tip-ring-sleeve),commononphones/laptops. Deliversstereoaudio(L/Rchannels)inonecable. Easy,universal,andportable—quickwaytoconnectdevicestoasoundsystem.Not balanced:weakersignal,morenoise,andfragileforprouse.
Eighth Inch
Cables/Connections

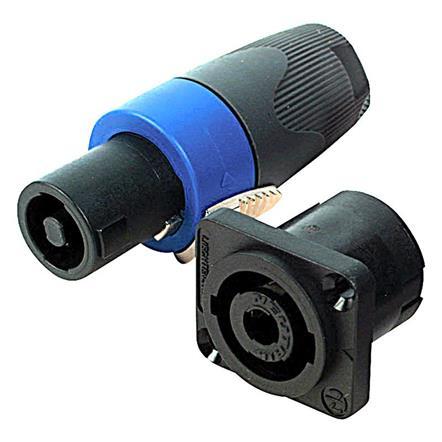

Speakon
Professional cable foramplifiertospeakerconnections
Locking design: secure,won’tunplugaccidentally High power capacity: handlesmorewattagesafely Durable: builtforstage/touringuse
Standard: widelyusedinproaudiogear
Cables/Connections

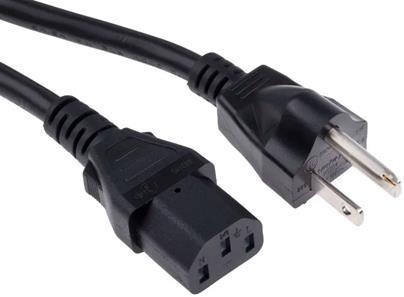

Power (IEC)
Standard 3-prong power cord for pro audio gear. Works with mixers, amps, speakers, etc. Grounded for safety; use surge protection. Durable but don’t pull by the cord.
Microphones
Dynamic
Condenser
Durable&ruggedHandle loudsoundswell Nophantompowerneeded Bestforlivesoundvocals/amps/drums

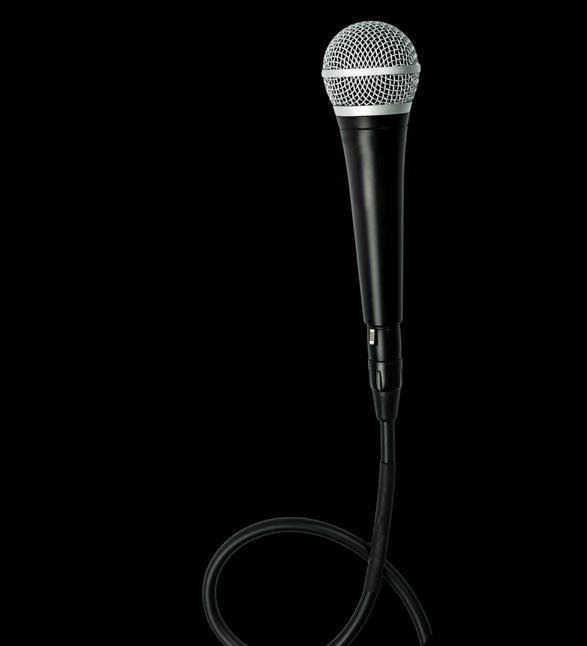

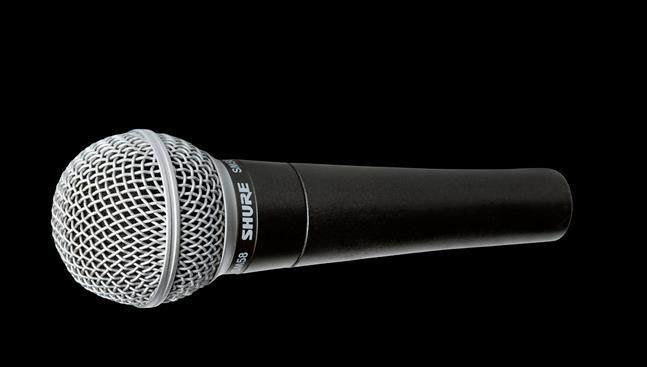

ShureSM58

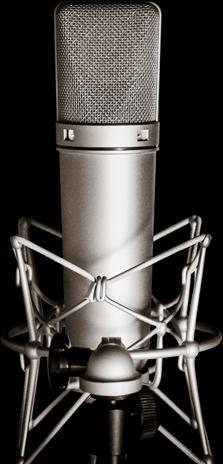

Sensitive&detailedWide frequencyresponseNeed phantompowerBestfor studiovocal&acoustic instruments

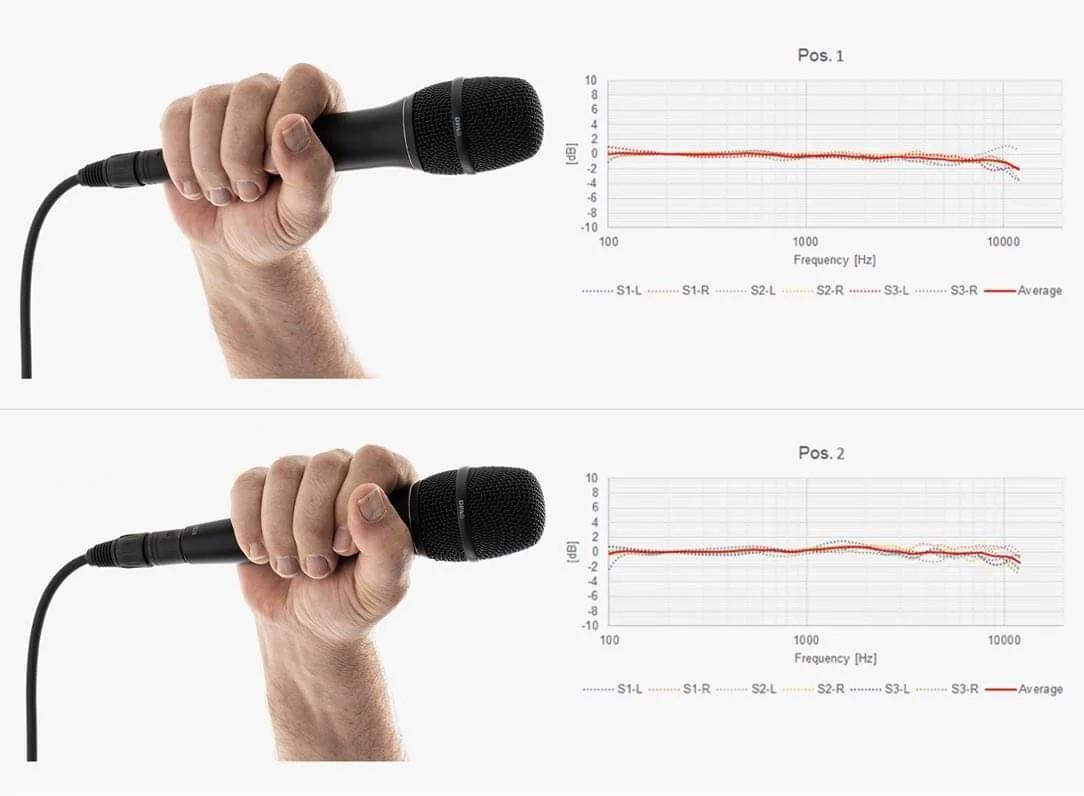

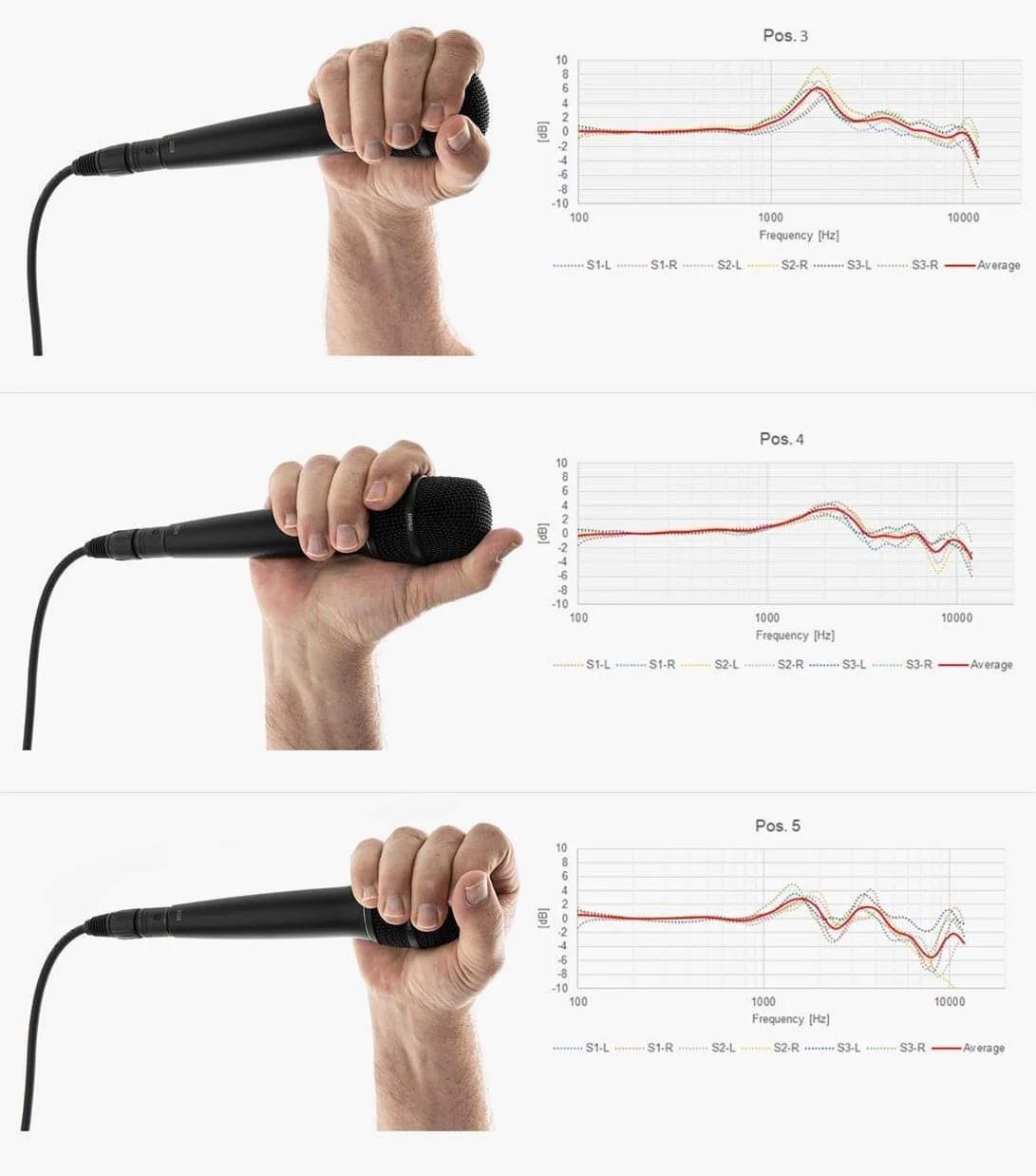

Microphone Grips

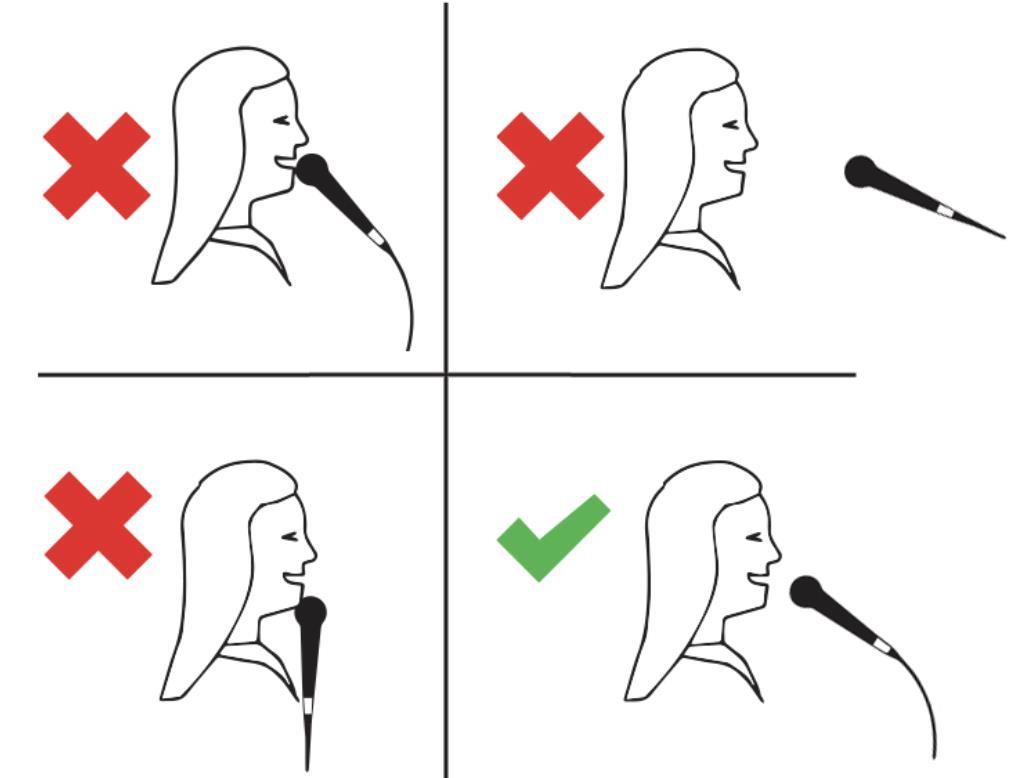

Good Bad / Punk & Metal Style
Mic Placements

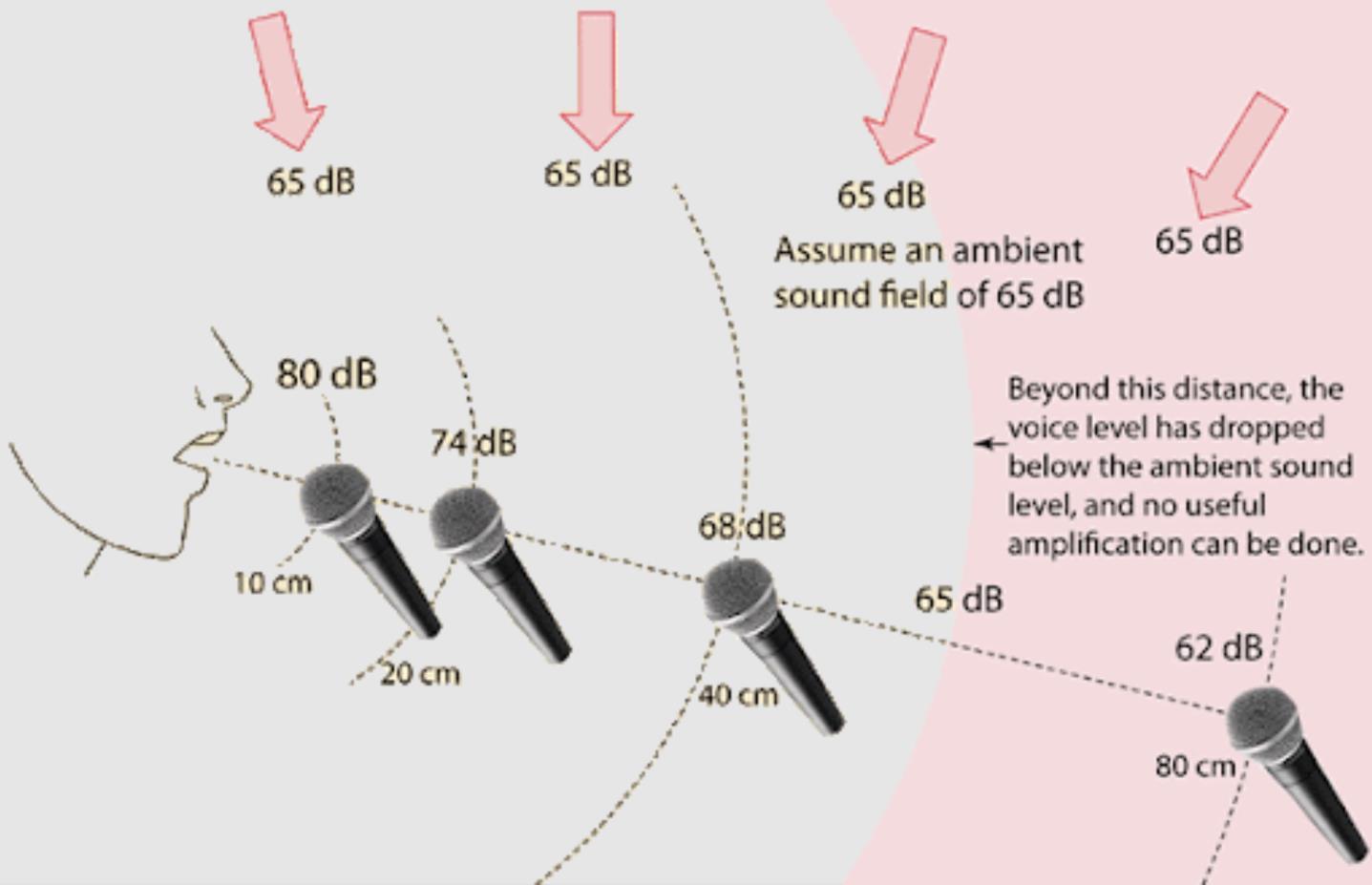

Position placements for any direct sound source. Distance placements for any sound source.
Vocal Placements

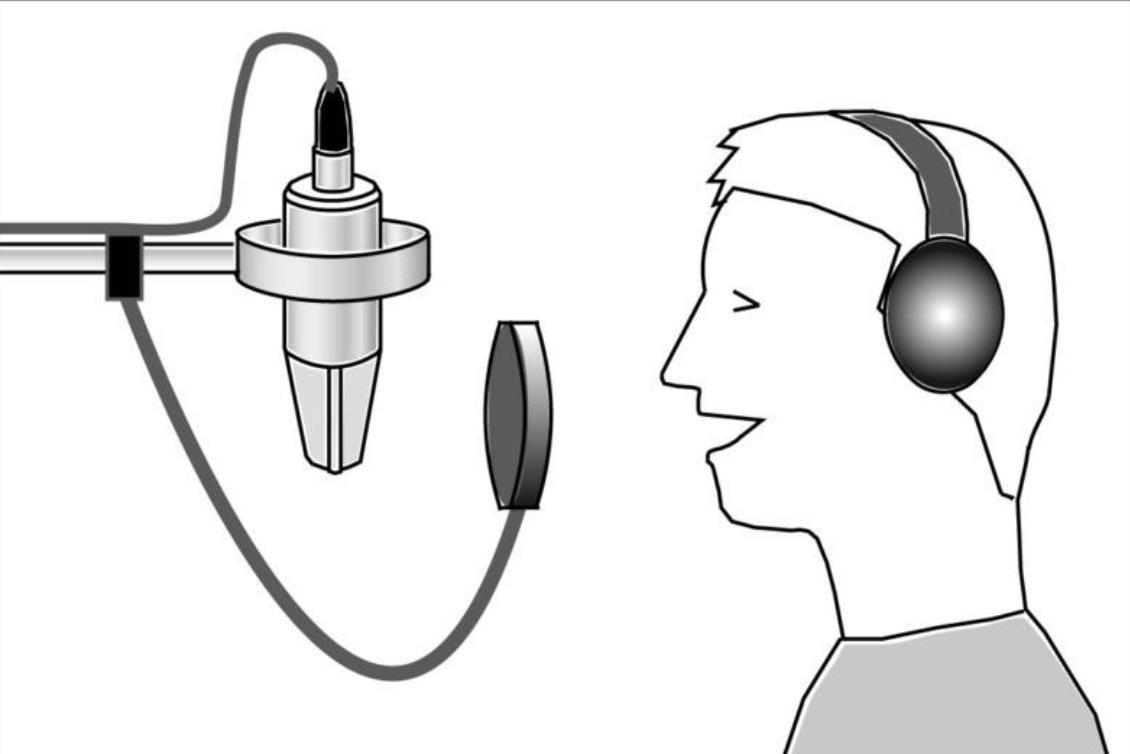

Condenser Recording: with headphones & pop filter
Dynamic mic placements for live performance

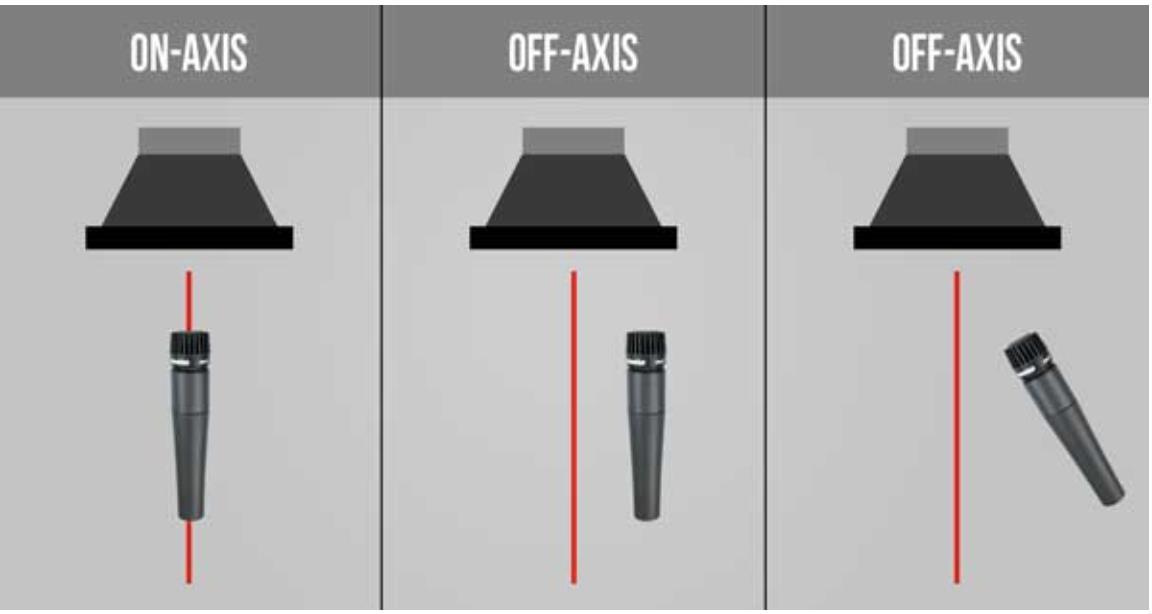

Speaker/Amp Positions

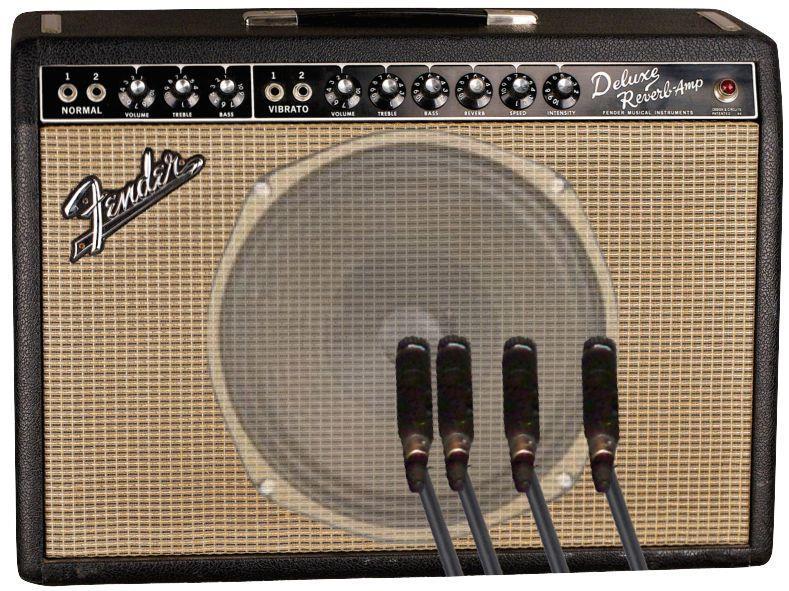

Center Cone, Off Center, Half Cone, Edge of Cone

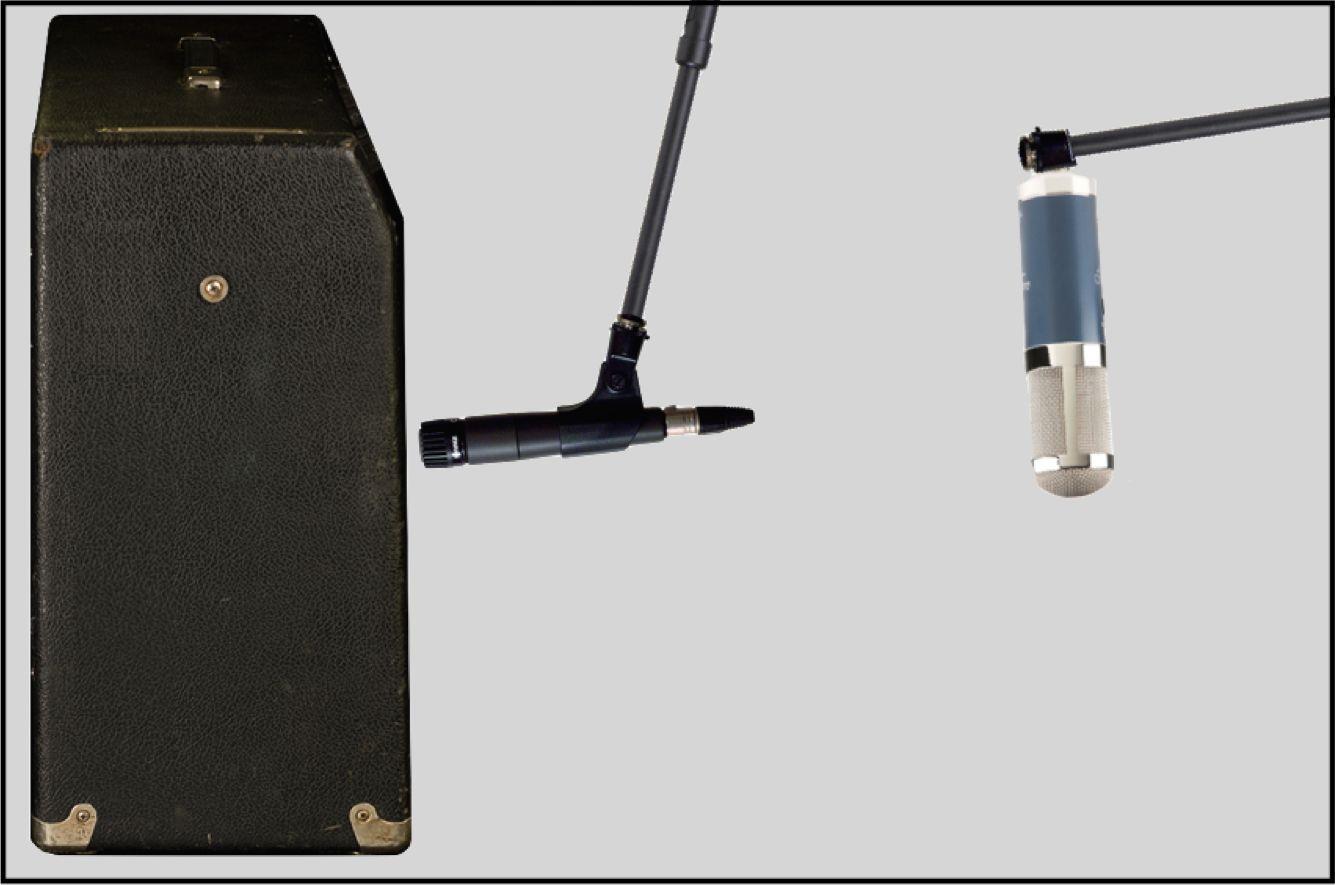

Dual Mic Technique: Dynamic + Condenser

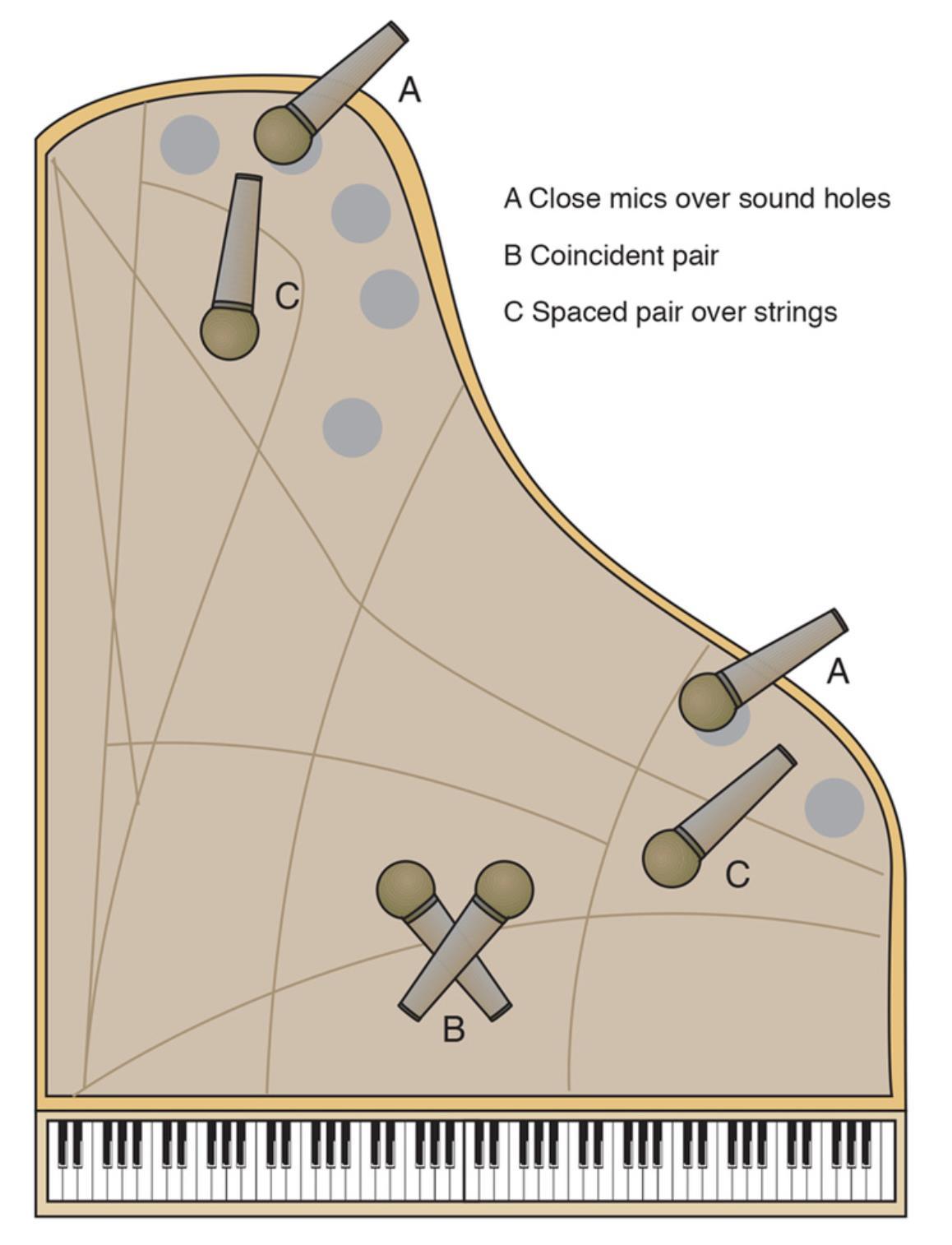

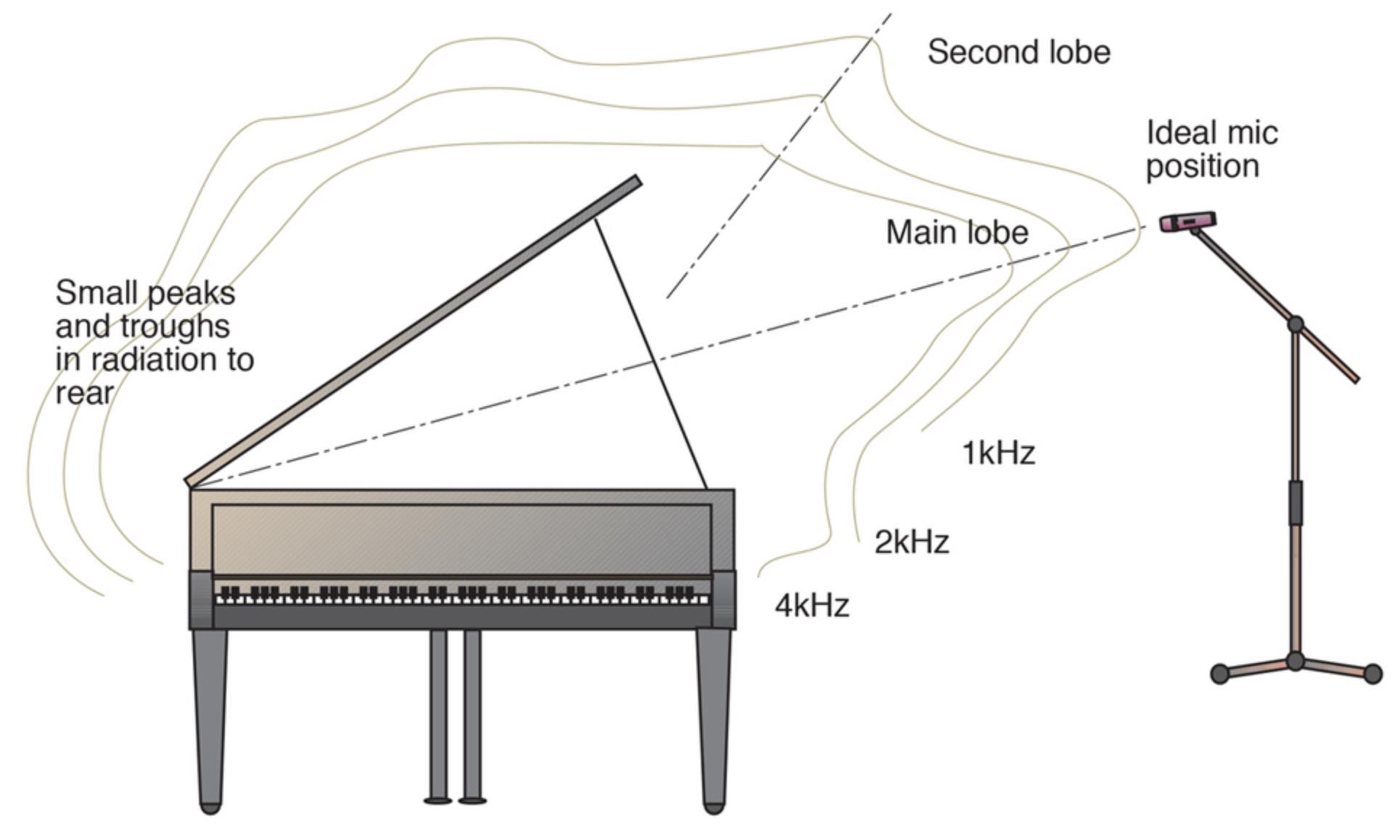

Piano Placements
Single Mic Dual Mic Pairs
Mixers & Interfaces
Mixers & Interfaces

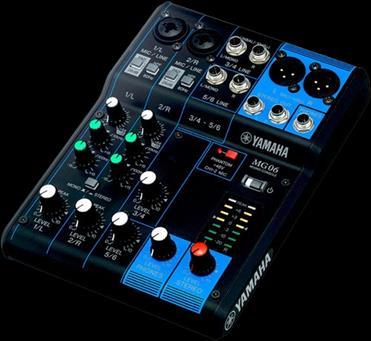

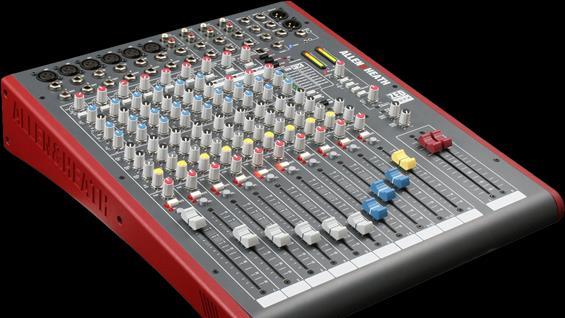

Analog Mixers:
Basic function: control center to route audio signals
Inputs:pluginmics/instruments(XLR,¼”)
Outputs:sendtospeakers,amps,headphones,recorders,otherdevices
Mixers & Interfaces

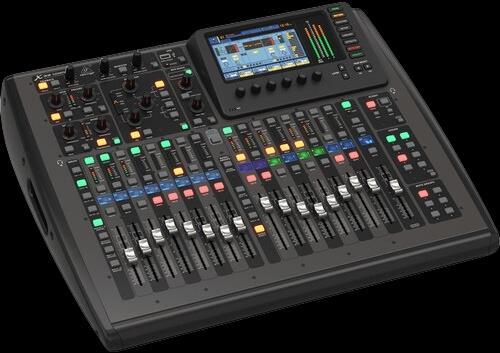

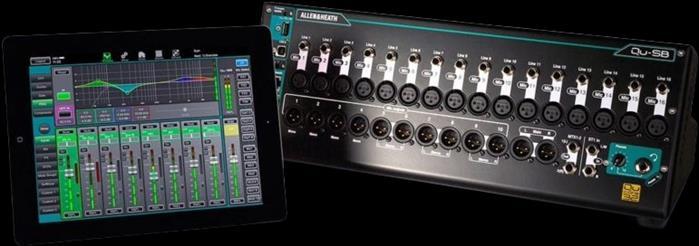

Hybrid Analog/Digital Mixers:
Same basic function but uses analog controls and/or digital only mixing via mobile devices (iPads/mobile devices)

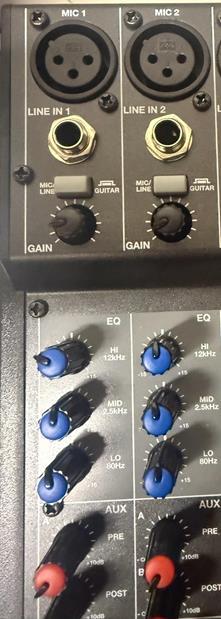

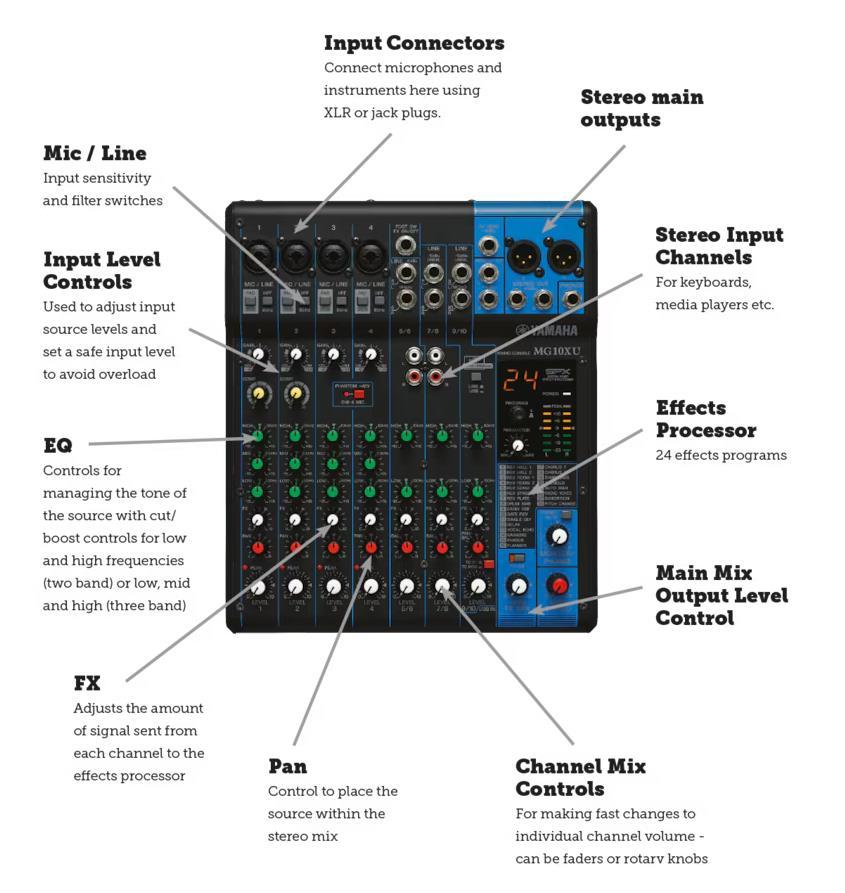

Get to know a mixer
Input Gain vs. Volume
Gain changes input intensity from mic
Volume changes output intensity from speaker

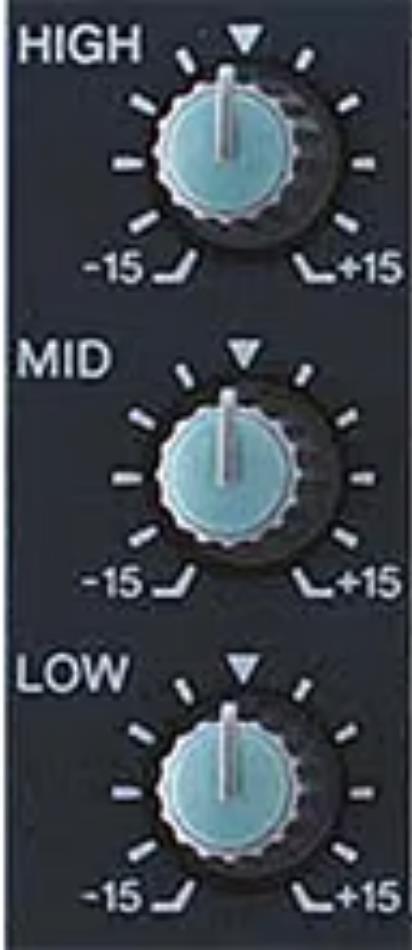

EQ (Equalization)
EQ is how we can shape frequencies in a mix.
Usually there are 3 knobs on a mixer.
High, Med, Low
20-20,000 Hz Range
Mixers & Interfaces

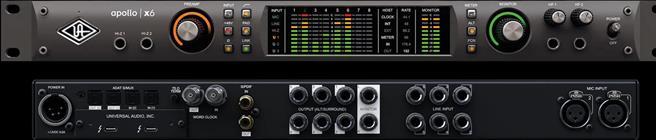

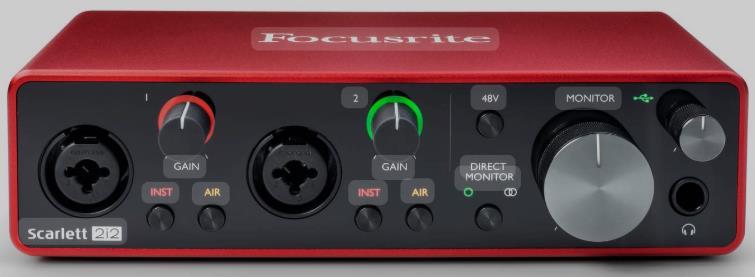

Audio Interfaces
Converts analog audio signals into digital signals for processing via a Digital Audio Workstation (DAW).
*Some mixers are also audio interfaces

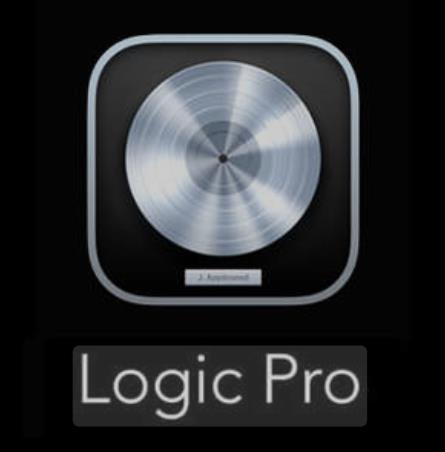

DAW (digital audio workstation)
FREE
Free with Apple products, Iphone, Ipad, Mac
Speakers
Speakers
Speakers transform digital signals from mixers or various sources and amplify them.
All speakers require an amplifier to transform signals - Speakers are basically categorized into Powered and Unpowered
Speakers

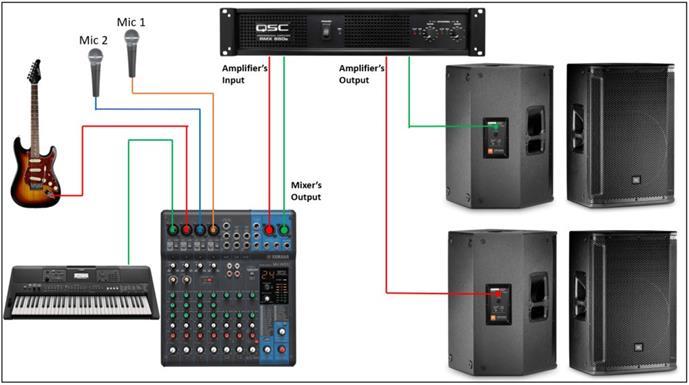

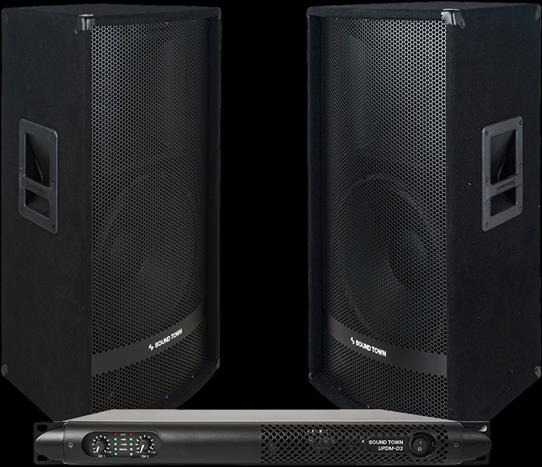

Passive Speakers: amplified by external amplifier
Pros of Unpowered Speakers
Flexible:youcanchoosetheamplifier youwantLightertocarrysinceno built-inamp
Easiertorepairifsomethingbreaks
Canconnectmultiplespeakerstooneamp
Cons of Unpowered Speakers
Alwaysneedanexternal amplifierMoregearand cablestomovearound
Speakers

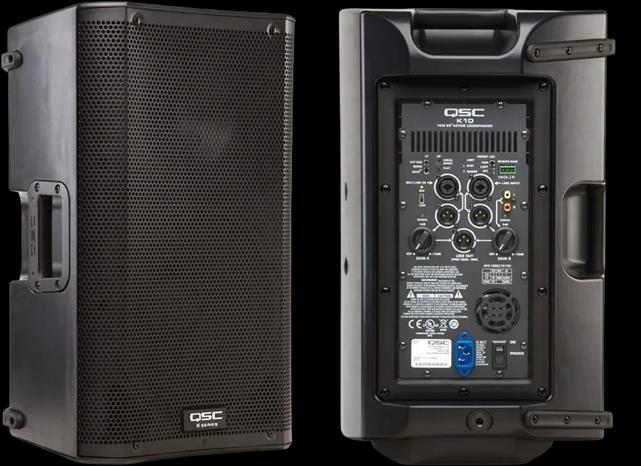

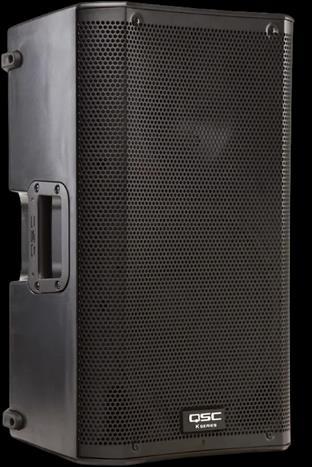

Active Speakers: amplified by internal amplifier
Pros of Powered Speakers
Built-inamplifier,noextraampneeded
Simpletosetup,justpluginandplay
FewercablesandlessgeartocarryGood forsmallgigsorquicksetups
Cons of Powered Speakers
Heaviersincetheampisinsidethespeaker
Iftheampbreaks,thewholespeakermaybeunusable
Moreexpensivethanunpoweredspeakers
Hardertoconnectmultiplespeakersfromonesource
Active Set Up Speakers
Best Practices
Setlevelsslowlytoavoidsuddenloudpops.
• Poweronequipmentinorderofsignalflow;
◦ Instrument/source--Mixer--Amplifier/Speakers
• Poweroffequipmentinorderofsignalflow
◦ Speakers/Amplifiers--Mixer--Instrument/Source
• Wrapcablesproperly(over-under)toavoidtangles.
• Keepdrinksandfoodawayfromequipment.
Cupmicrophoneswhenusing.
• Yankcablesfromgearorpullbythecord.
• Don’tstackheavyitemsonspeakersormixers.
• Don’tpointmicsatspeakers(causesfeedback).

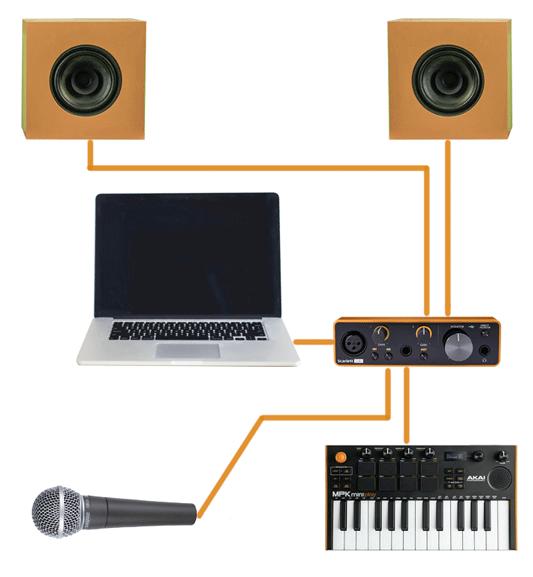

Home Recording Hardware Needed:
-Speakers/Monitors
-Laptop/CPU -Interface -Microphone -Midi Keyboard
+ Software: DAW
