Furniture Intent
MATERIAL LIBRARY
PAINT FINISHES
POWDERCOATS
WHITE CODE: L152 CREAM PIE
BRAND: ASIAN PAINTS
WOODEN PC
LAMINATES
MISCELLANEOUS
LIGHT GREEN
CODE: 2387 ENGLISH ELMS
BRAND: ASIAN PAINTS
NUT BROWN PC
CODE: RAL 8011
LIGHT WOOD
BRAND: MERINO
CODE: 14588
FLOORING FINISHES
DUCO FINISHES

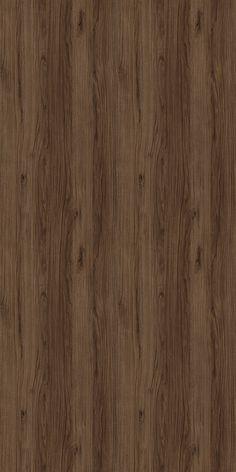

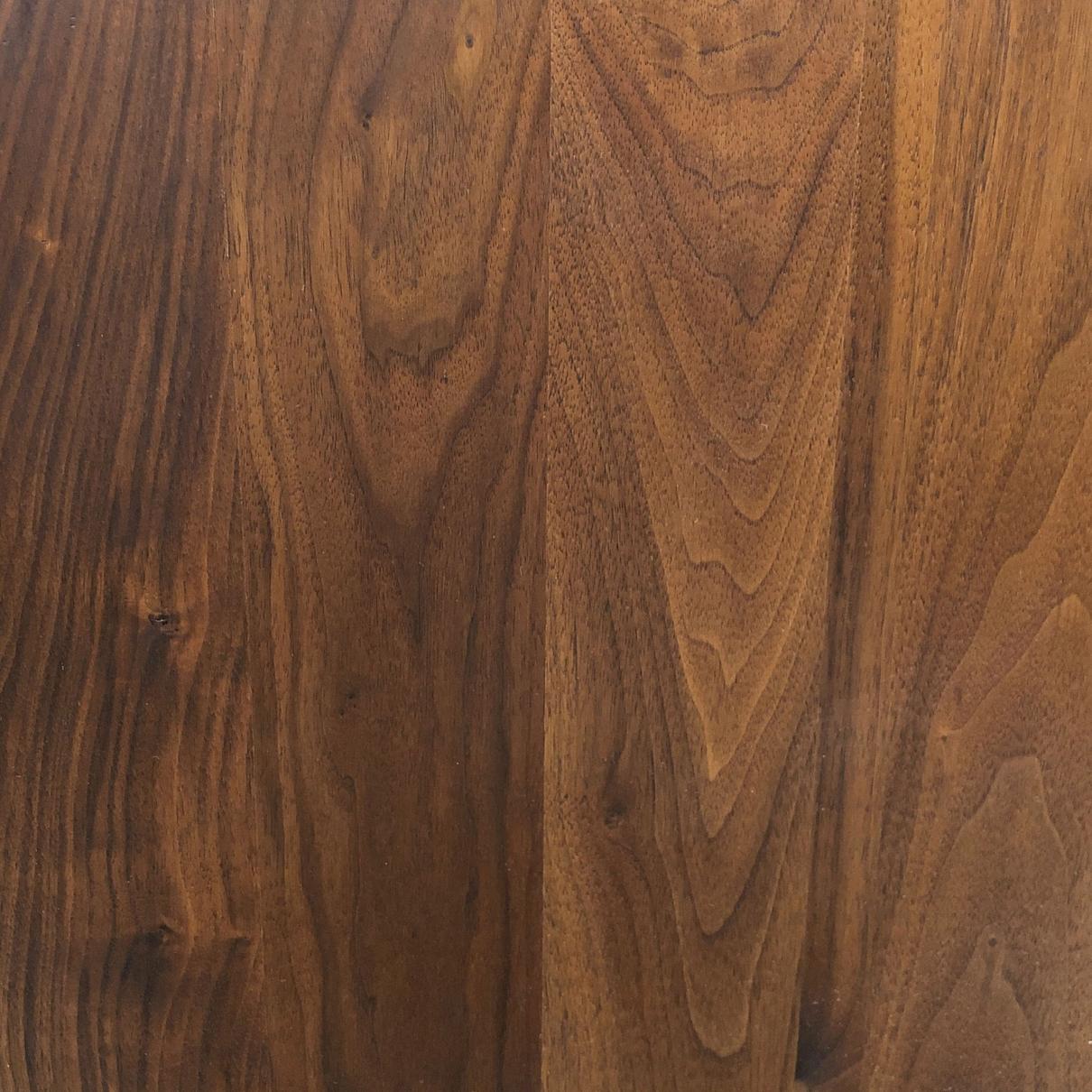

LAVITO WALNUT
BRAND: MERINO
CODE: 14190
CANDY WHITE
BRAND: MERINO
CODE: 21941
WHITE VITRIFIED TILE
CODE: BLANCO
NIEVE 60 X 60
BRAND: KAJARIA
LIGHT BEIGE
CODE: 9516 FRESH FUEL
BRAND: ASIAN PAINTS
PERSPECTIVE
PLANTERS ADDED TO CONTRIBUTE THE OBERALL AESTHETICS OF THE STORE AND PROMOTE BRAND’S CONSCIOUSNESS TOWARDS THE ENVIRONMENT
12 X 315MM THICK MEDIUM INTENSITY PROFILE LIGHT EMBEDDED UNDER THE SHELF
4 MM THICK WHITE ACRYLIC TEXT
MDF PANEL FINISHED IN WOODEN LAMINATE
APEX LEAVED ELM 14588 (MERINO)
FOLLOWING THE GREEN PATCH PATERN TO KEEP THE CONSISTENCY
THE OAK PANELING ACTS AS A BACKDROP, CONTRASTING THE NATURAL GREENERY
THICK MDF SHELF FINISHED IN NUPTSE LAVITO WALNUT MERINO DESIGN 14190

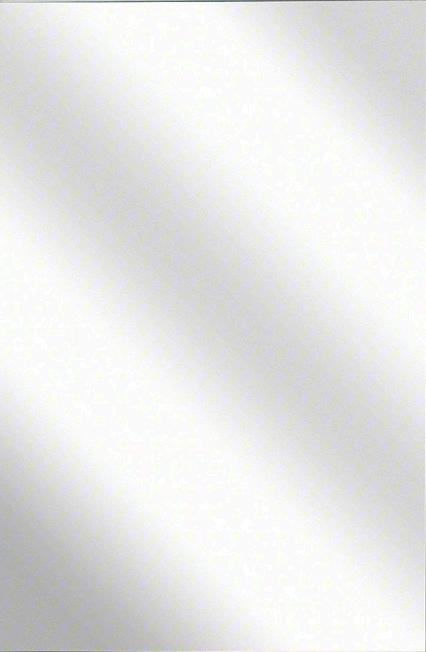

BRUSHED ALUMINIUM
SEAMLESS DRAWER
SEALED UNDERNEATH THE SHELVES

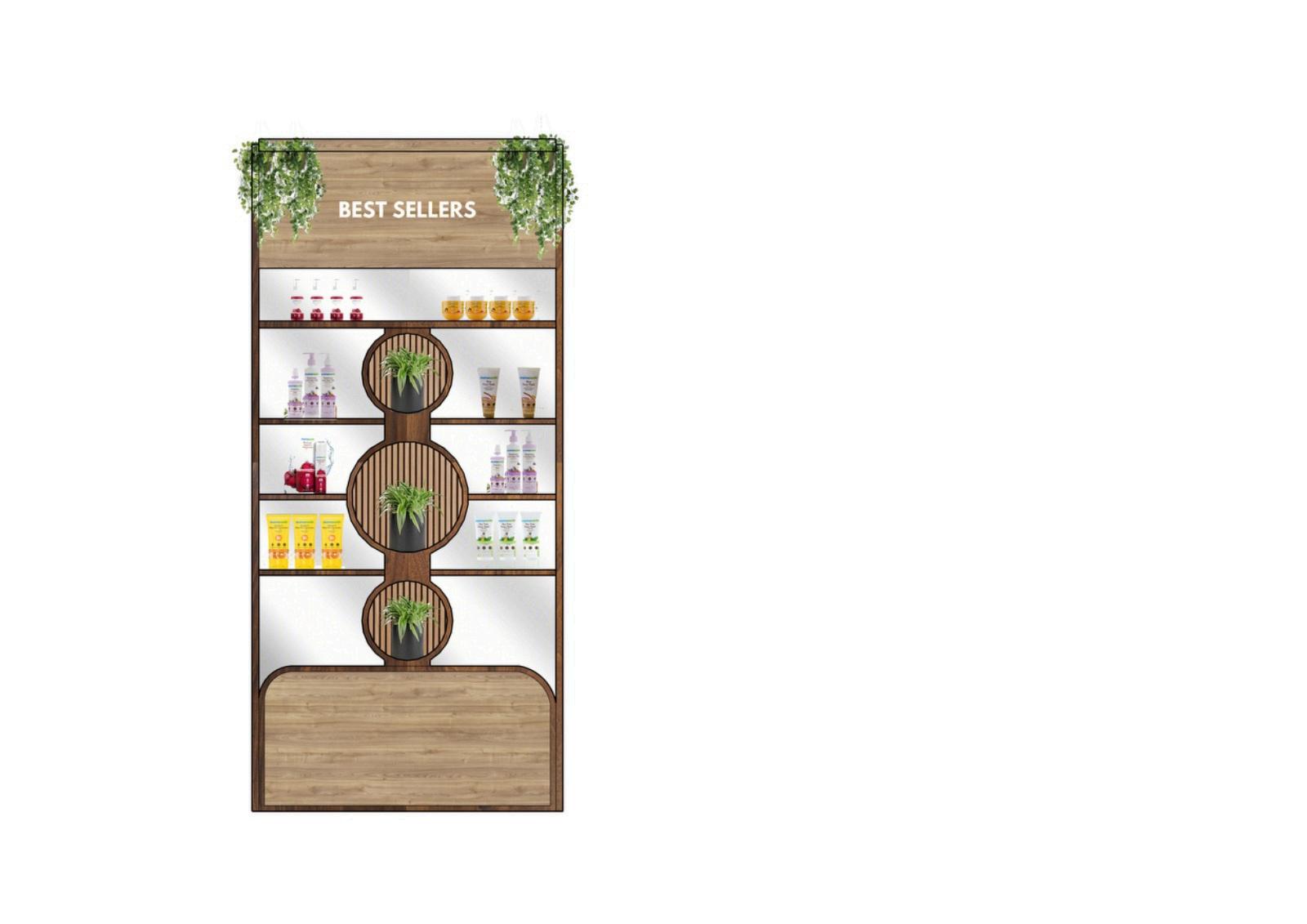

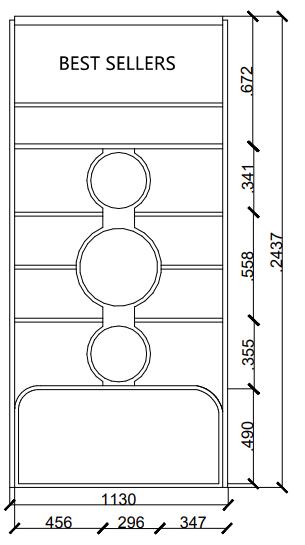

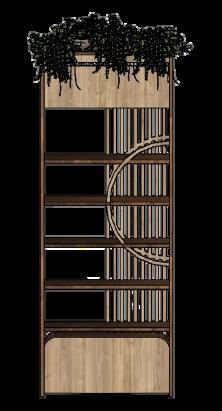

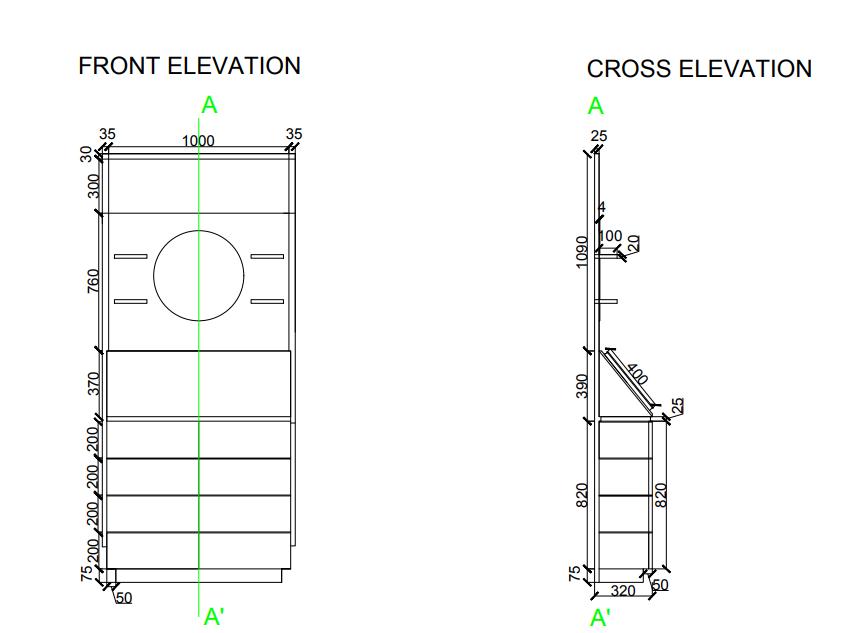

FRONT VIEW

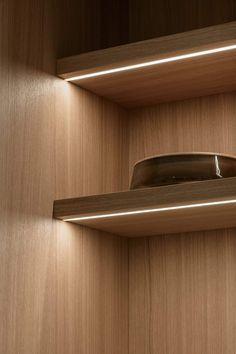

Profile lighting enhances the visual appeal and focus of the showcased items
promoting to the aesthetics of the store, making the shopping experience more immersive and aligned with the brand's ethos.
Sheet of aluminum brushed metal used enhances the sense of exclusivity and value of the items
The warmth sand texture of wood create a welcoming and earthy atmosphere that enhances the connection between the products and the natural world
The green tones create a fresh and calming atmosphere in the store, encouraging customers to connect with the natural ingredients and environmentally conscious e behind each product.

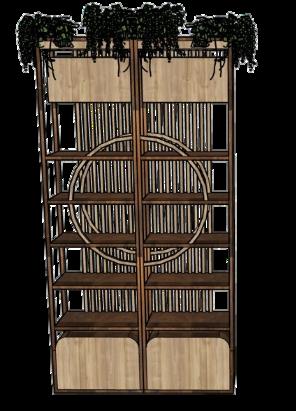

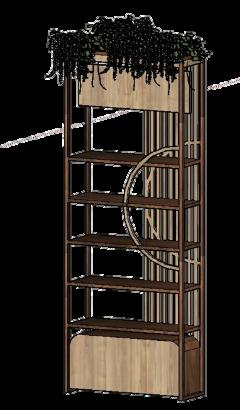

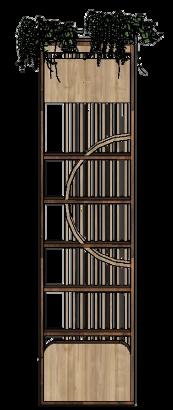

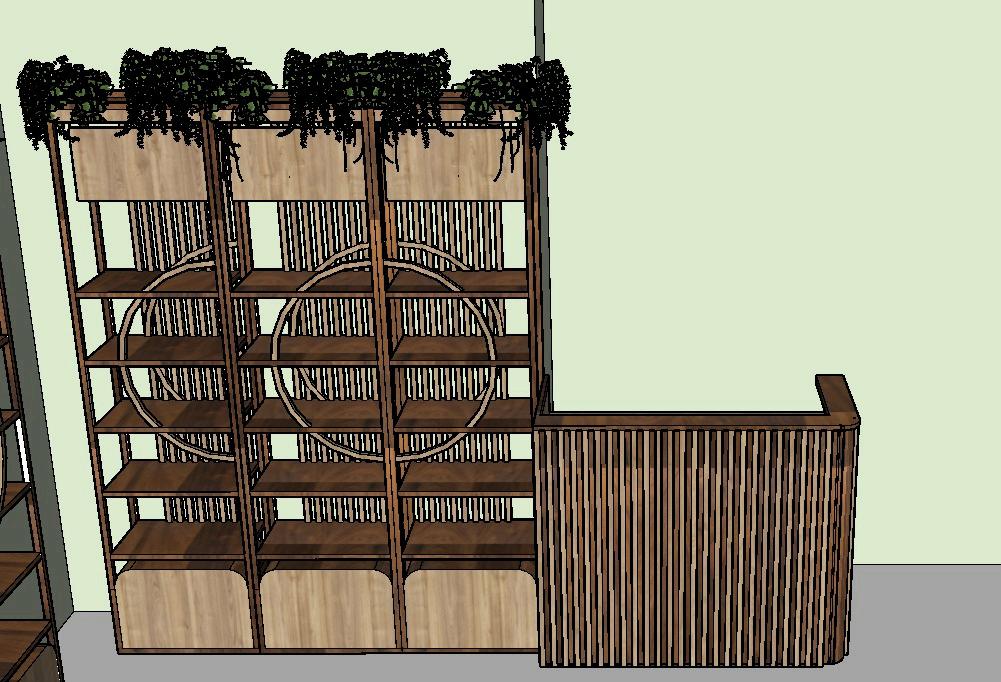

PERSPECTIVE
(SAME AS THE EXISTING DESIGN)
25 MM MDF LEDGE FINISHED IN WOODEN LAMINATE
APEX LEAVED ELM 14588 MERINO
50 MM THICK LIT VISUAL WITH RUBBERWOOD FRAMEWORK
THICK MDF SHELF FINISHED IN NUPTSE LAVITO WALNUT MERINO
DESIGN 14190
20x20 MM UPRIGHT FINISHED WITH NUT BROWN POWDERCOAT ( RAL 8011 )
SEMI CIRCULAR RIMS MADE OF MDF
FINISHED WITH WOODEN LAMINATE
APEX LEAVED ELM 14588 MERINO)
12 X 315MM THICK MEDIUM
INTENSITY PROFILE LIGHT EMBEDDED UNDER THE SHELF
25 MM THICK DRAWER MADE OF MDF
FINISHED WITH WOODEN LAMINATE
APEX LEAVED ELM 14588 (MERINO)
25 MM MDF LEDGE FINISHED IN WOODEN LAMINATE
APEX LEAVED ELM 14588
MERINO
50 MM THICK LIT VISUAL WITH RUBBERBOARD FRAME

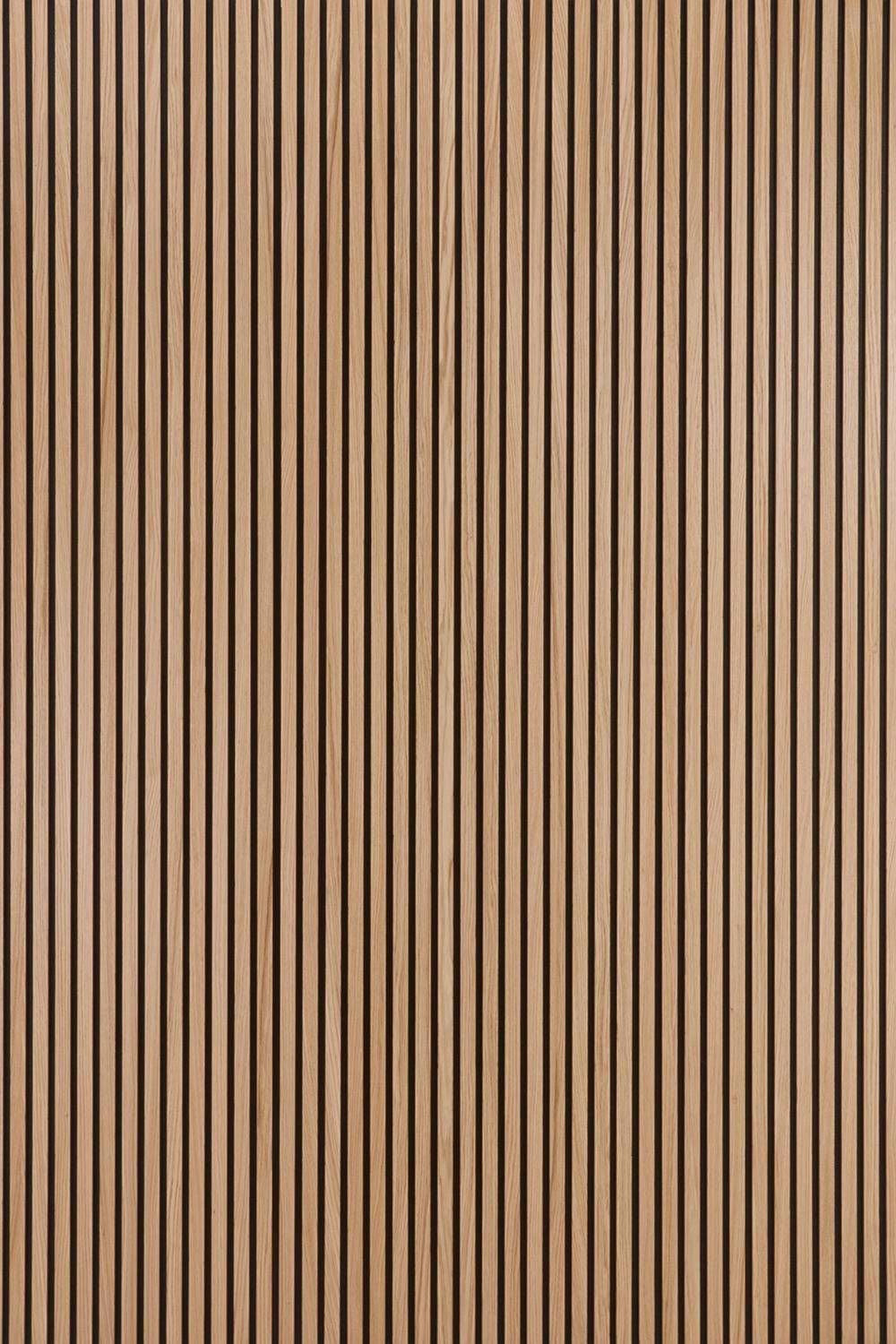

OAK PANELING
12 X 315MM THICK MEDIUM INTENSITY PROFILE LIGHT EMBEDDED UNDER THE SHELF
SEMI CIRCULAR RIMS MADE OF MDF FINISHED WITH WOODEN LAMINATE
APEX LEAVED ELM 14588 (MERINO)
20x20 MM UPRIGHT FINISHED WITH NUT BROWN POWDERCOAT ( RAL 8011 )
25 MM THICK DRAWER MADE OF MDF FINISHED WITH WOODEN LAMINATE
APEX LEAVED ELM 14588 (MERINO)

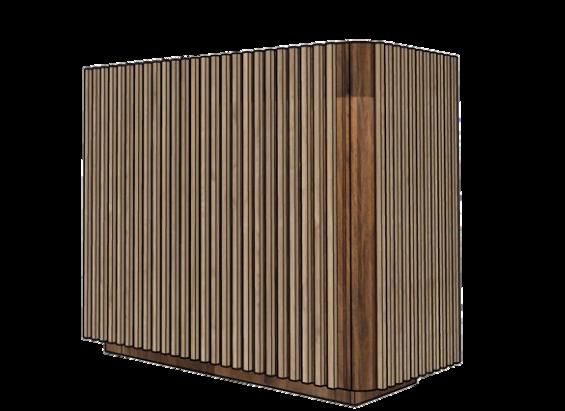

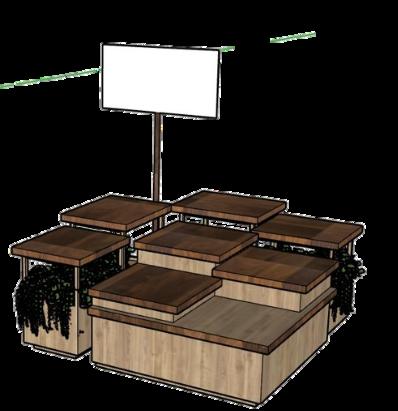

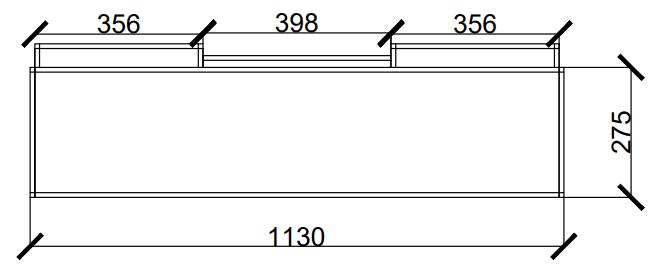

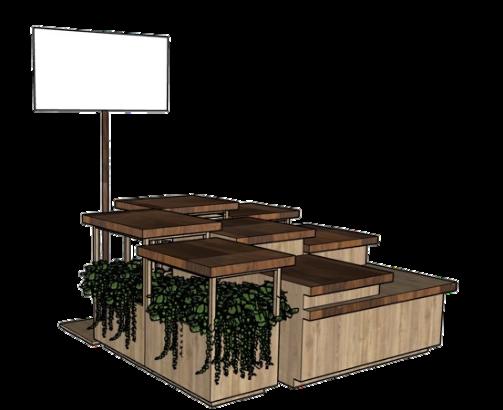

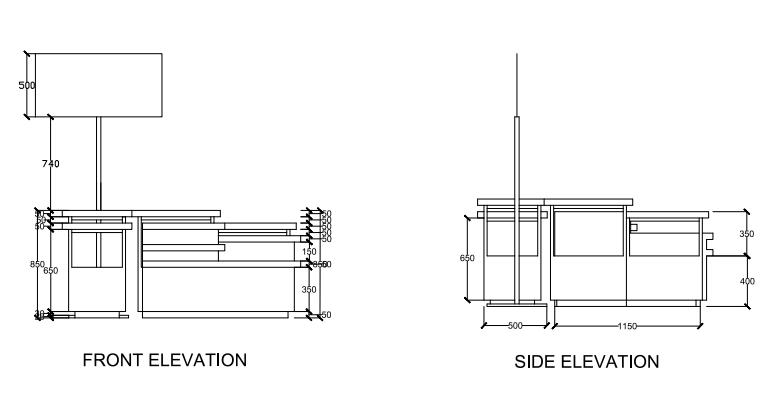

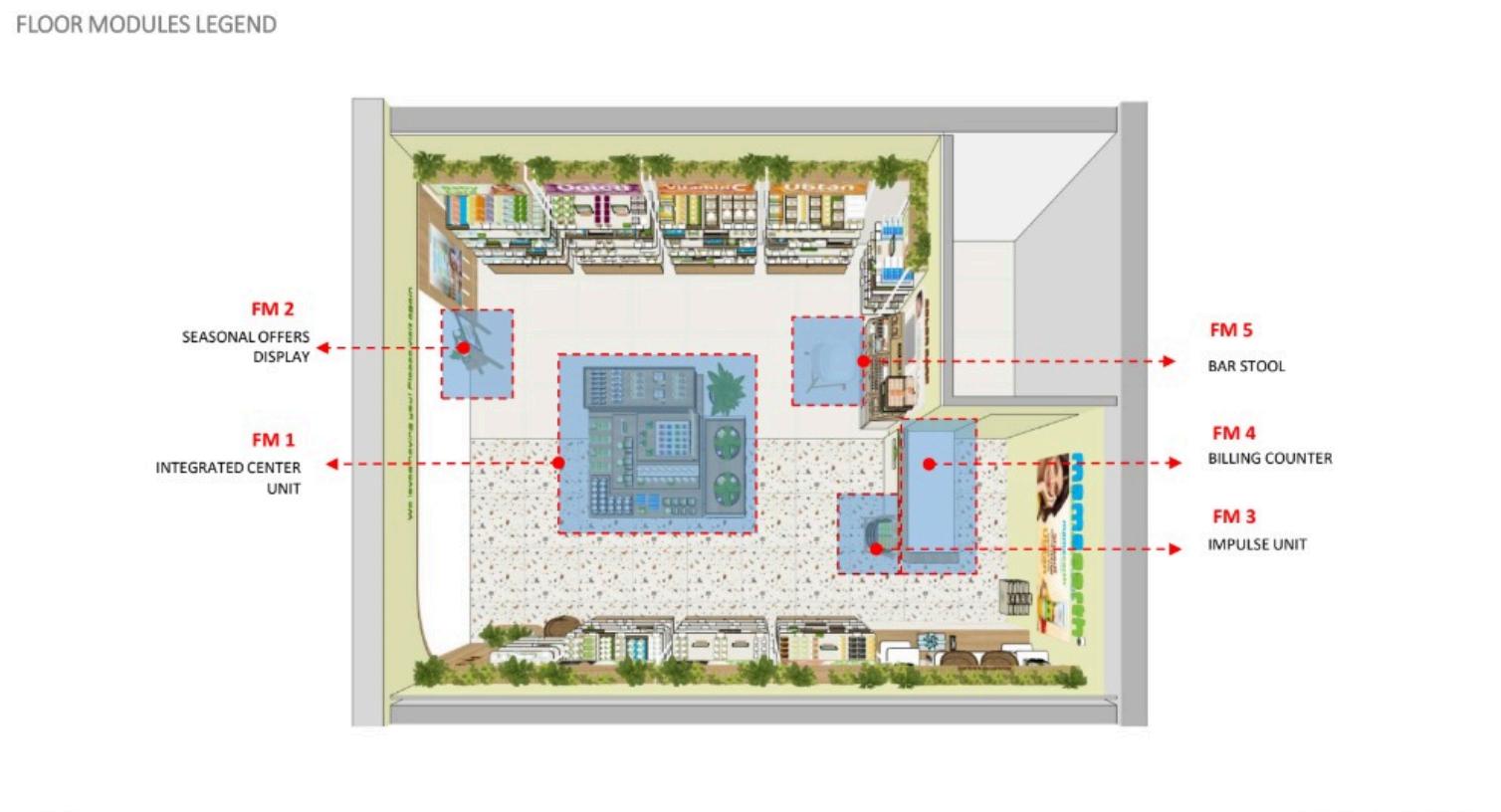

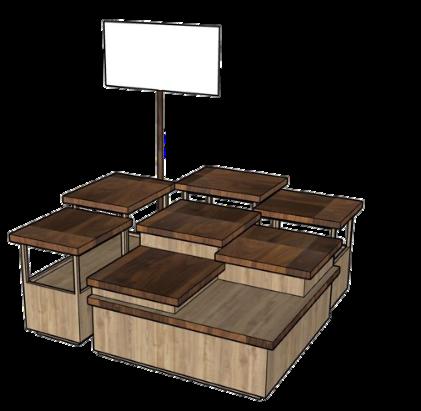

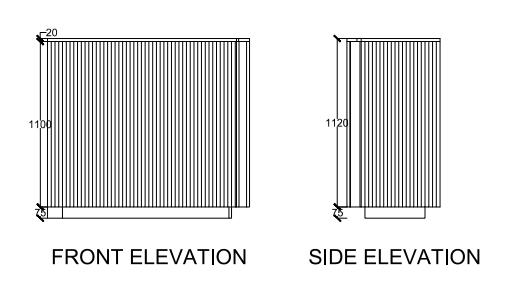

FLOOR MODULES
25MM THICK LIT VISUAL WITH RUBBERWOOD FRAMEWORK

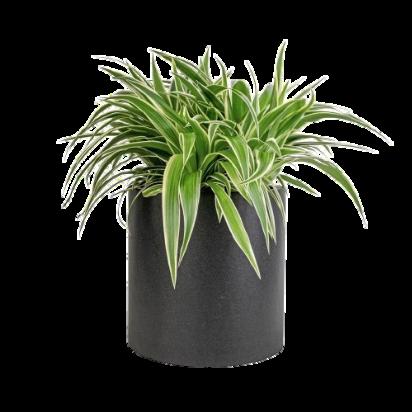

ARTIFICIAL PLANTERS TO BE SOURCED LOCALLY
THICK MDF SHELF FINISHED IN Nuptse Lavito Walnut merino Design 14190
18 MM THICK MDF FINISHED WITH NYL GRAPHICS ON TWO SIDE AND OTHER SIDES FINISHED WITH WOODEN LAMINATE
APEX LEAVED ELM _ 14588 MERINO

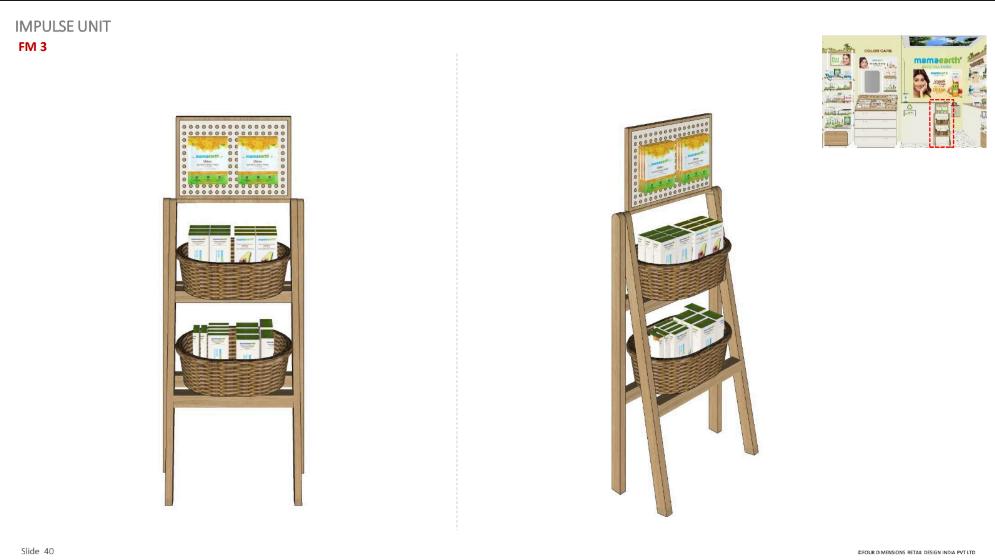

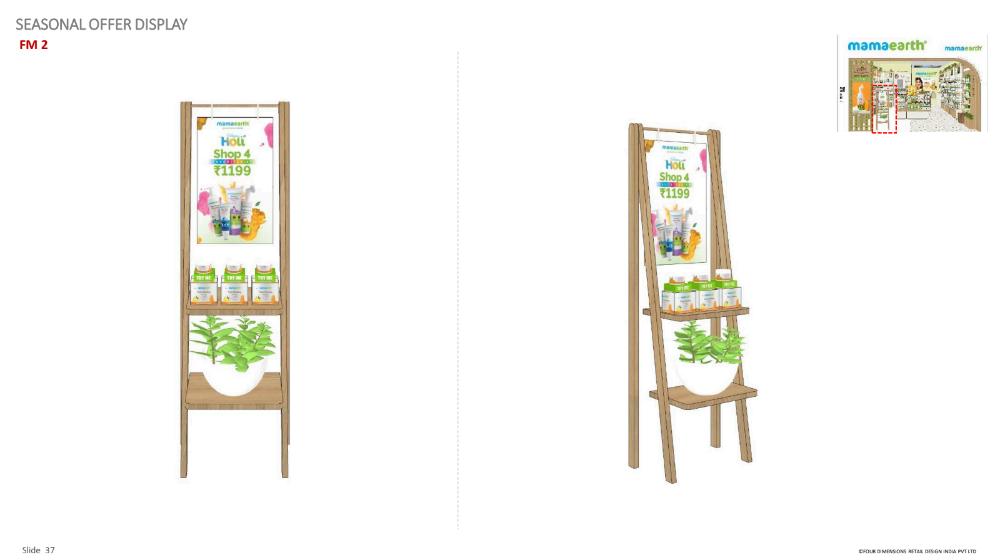

FM 2 AND FM 3 SAME AS EXISTING
FINGER PULL OPENING SYSTEM FOR DRAWERS AND SHUTTERS
18 MM THK MDF FINISHED WITH WOODEN LAMINATE
APEX LEAVED ELM _ 14588 MERINO)(
DRAWER MADE OF 18 MM THK MDF FINISHED WITH LIGHT WOOD LAMINATE 14588 (MERINO)
SHUTTER MADE OF 18 MM THK MDF FINISHED WITH LIGHT WOOD LAMINATE 14588 (MERINO)
SPACE ALLOCATED FOR BIN TO COLLECT PLASTICS

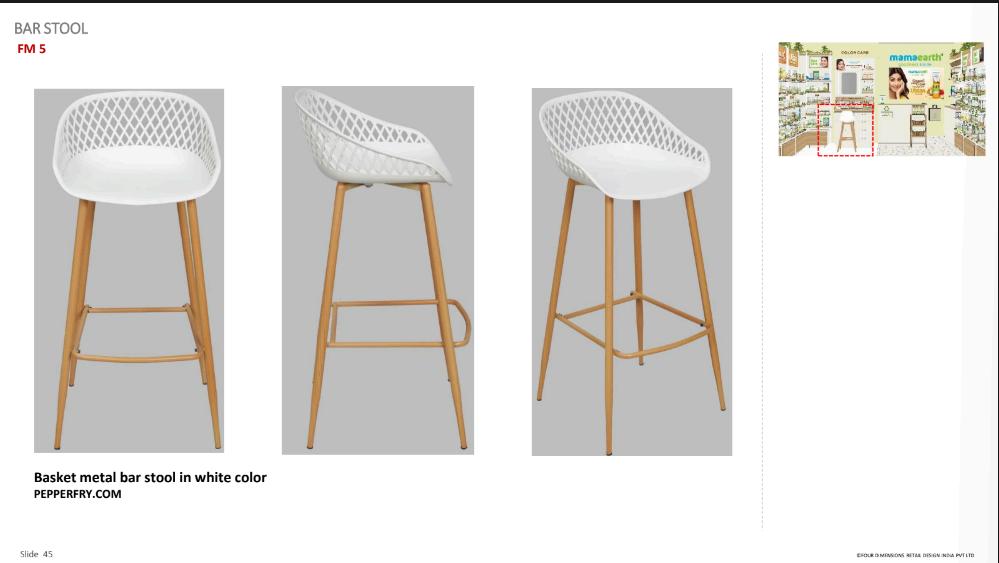

FM 5 SAME AS EXISTING

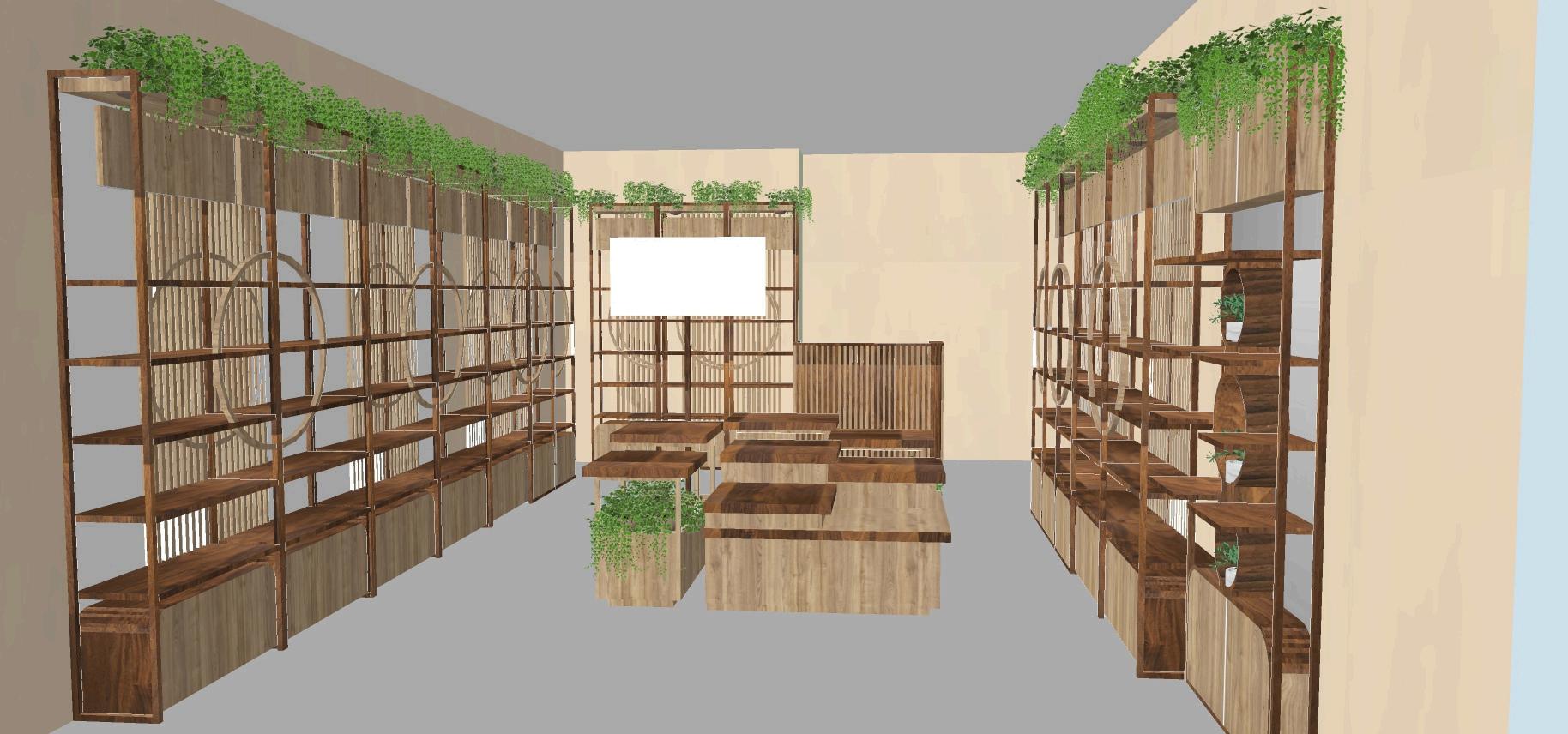

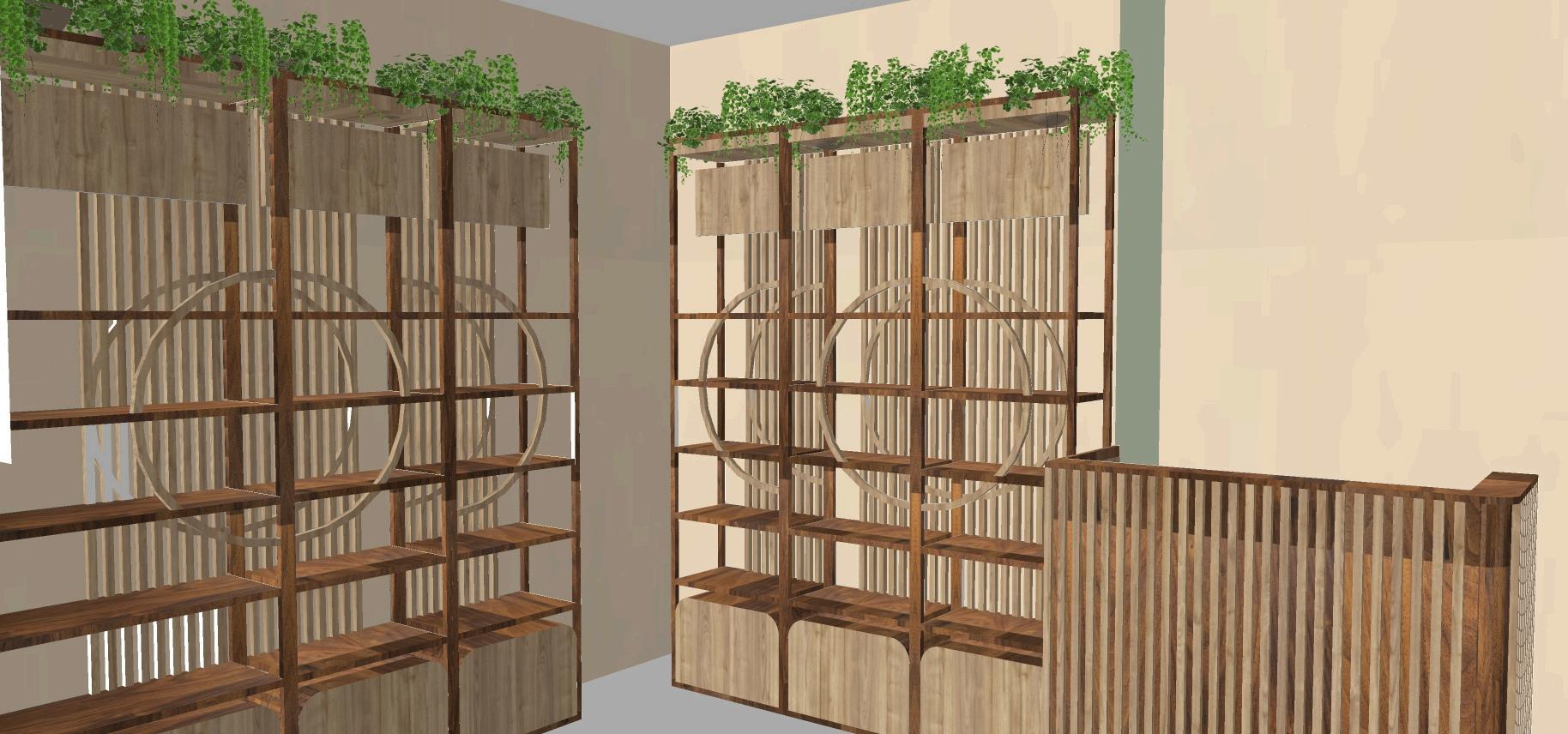

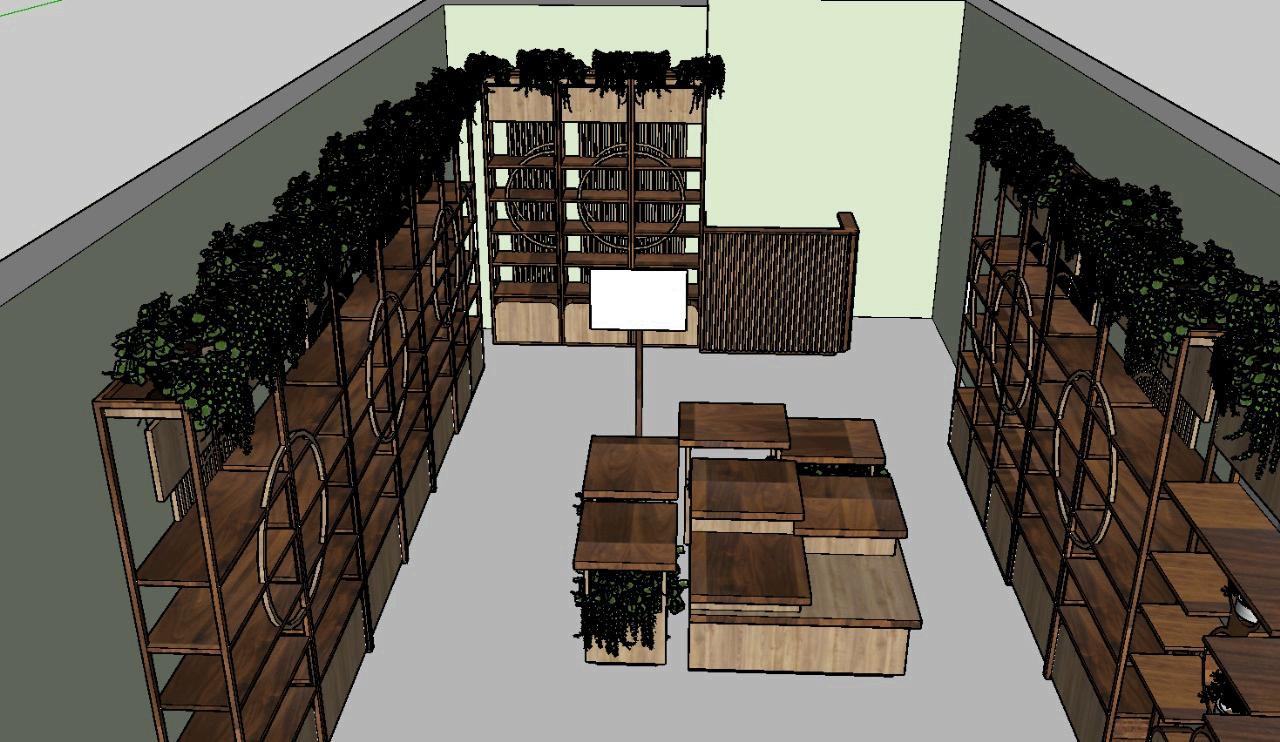

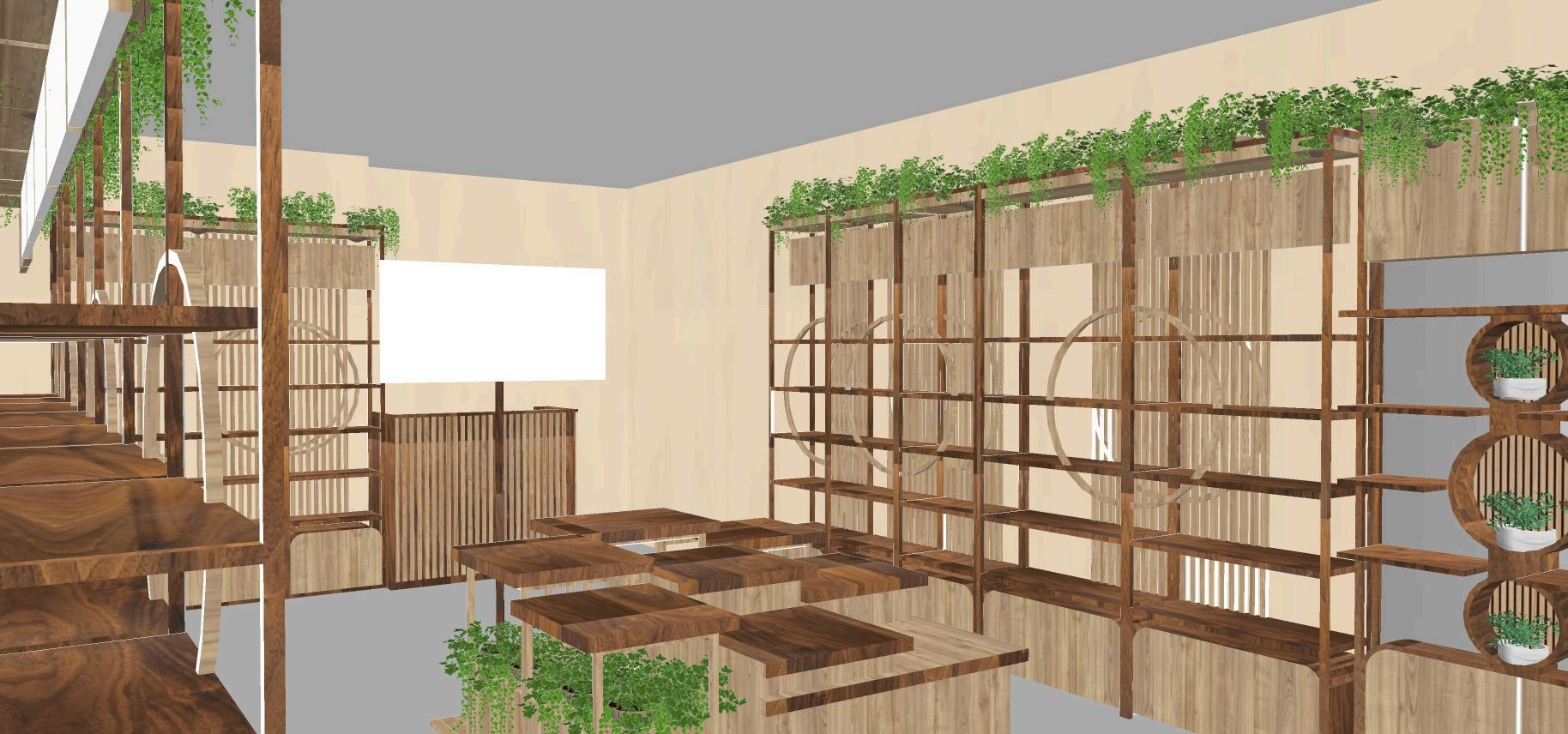

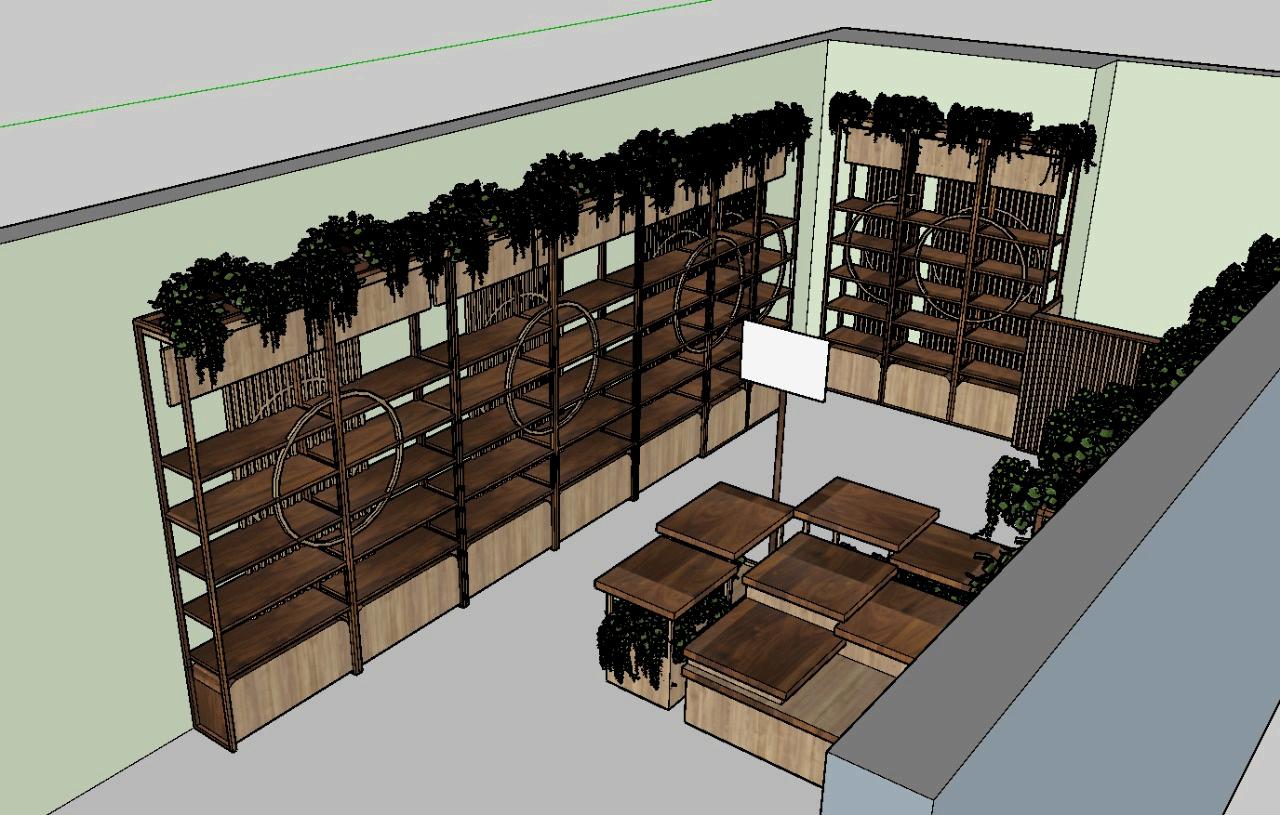

3D VIEWS OF THE SPACE
