NEW

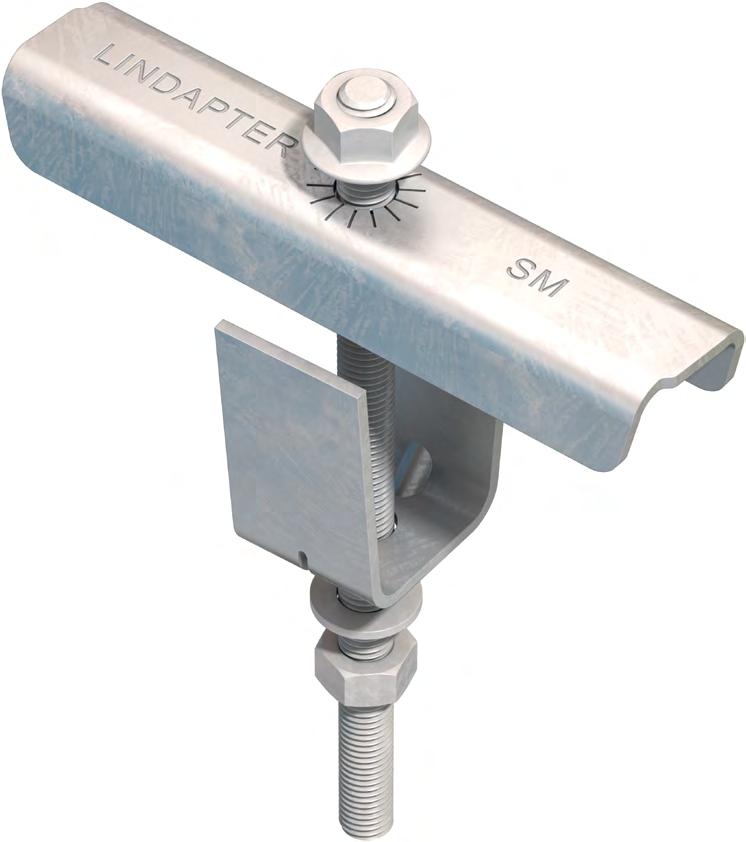

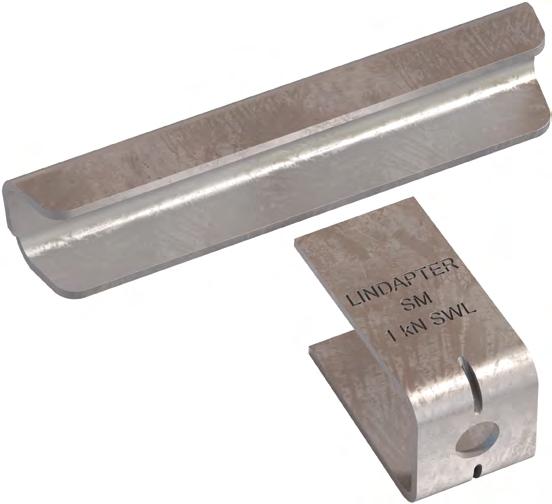

Type SM Decking Fixing Suitable for use with SigDeck 100 decking profiles manufactured by Sigmat.

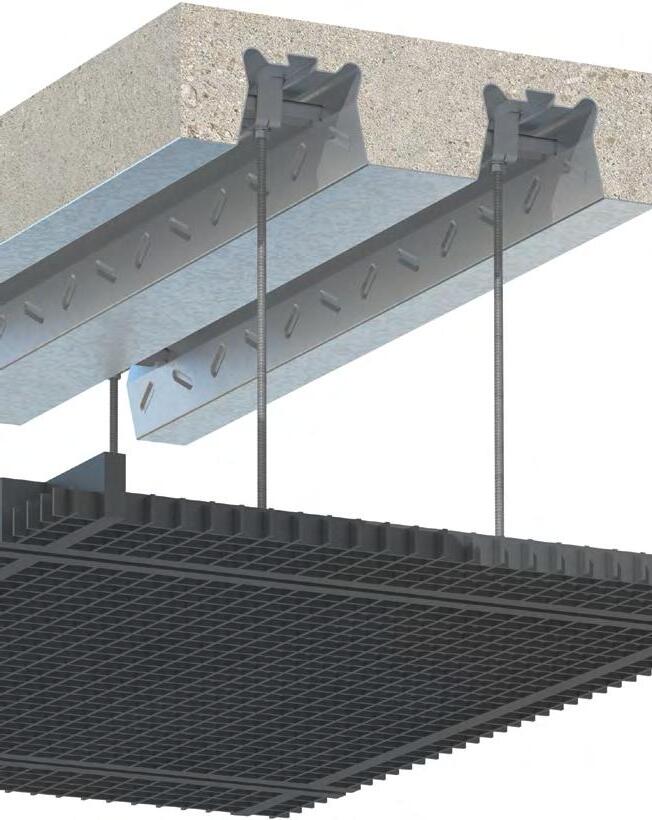

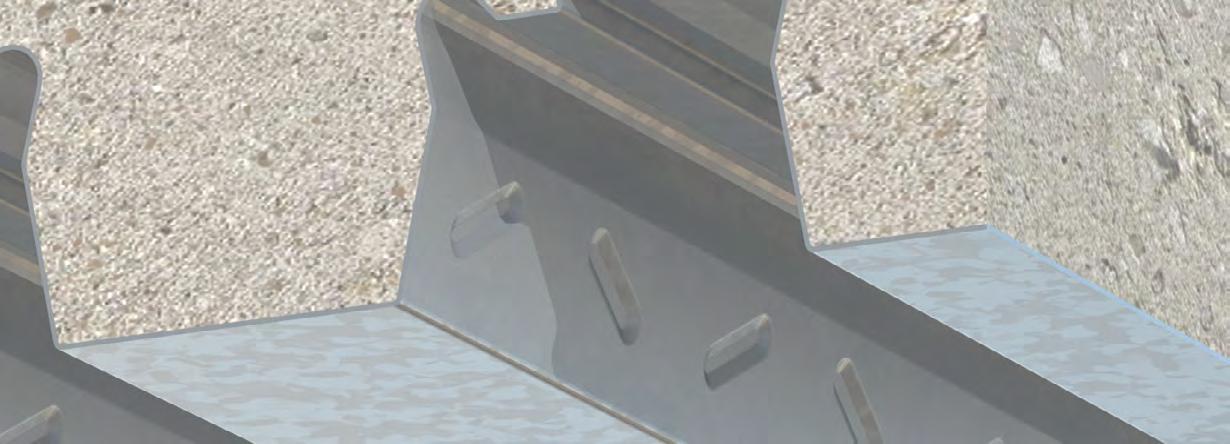

SigDeck 100 Profile Pattern

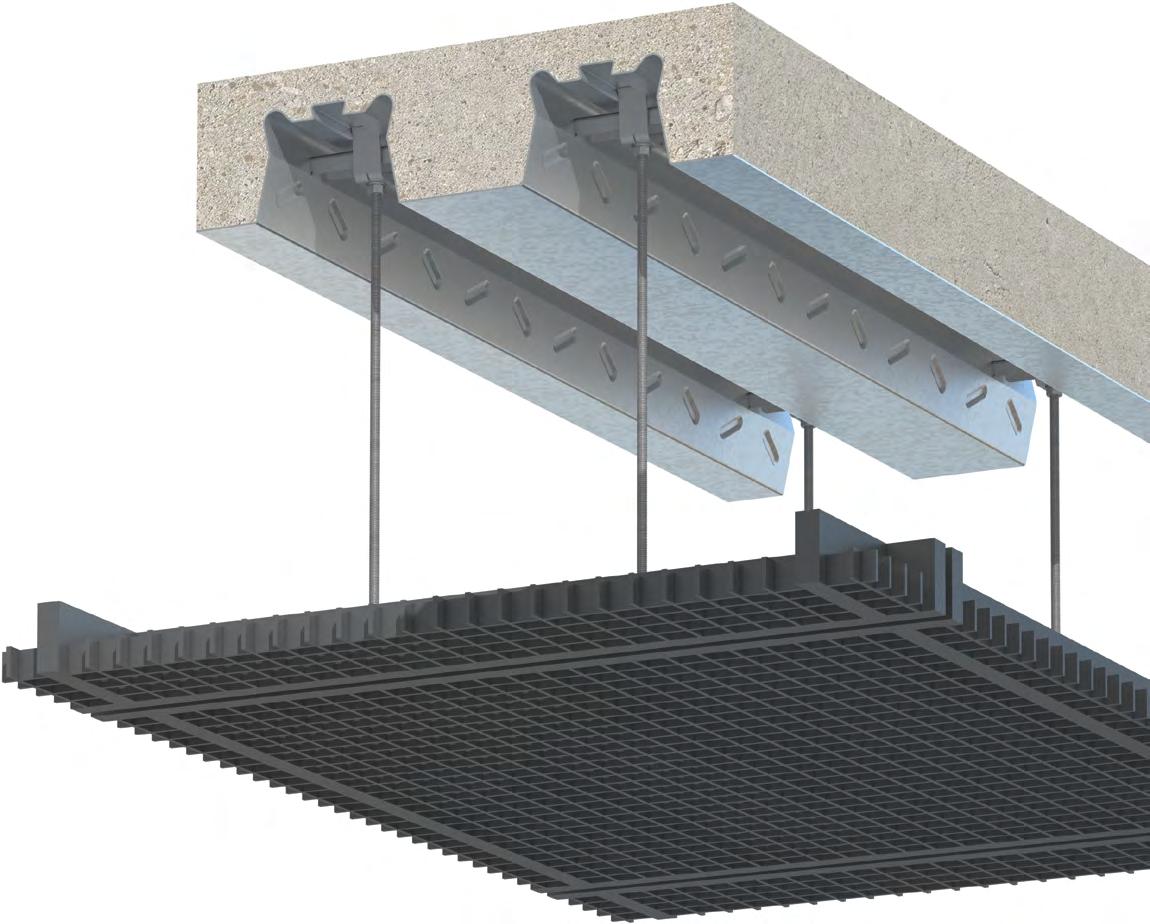

Designed to fit inside the dovetail re-entrant channels of popular composite decking profiles, Lindapter’s high quality, cost effective fixings for securing building services fixings provide a zero-impact method that avoids delamination and damage to the decking. PRODUCT DATA Material: Mild Steel and Bright Zinc Plated (BZP)
Flange Nut (supplied)
Safe Working Load (FoS 3:1) Product Code
Rod min 4.6
Tensile / 1 Rod
Tightening Torque
SM10
M10
1.0kN
8Nm*
Wedge
* As a guide, finger tighten the nut plus one full turn of the spanner.
Key Benefits • Quick and easy to install • Adjustable for precise alignment • Zero-impact installation • No damage to the decking • No drilling so no exposure to silica dust • No specialist labour or tools required For Characteristic Resistances when designing a connection to Eurocode 3, please refer to DoP No.24, which can be downloaded from www.Lindapter.com/lindapter-ce-marked-products
Locking Plate
Washer
(optional, not supplied)
Nut
(not supplied)
For more information please contact Lindapter’s Technical Support Team: Call: +44 (0)1274 521444 | Email: support@Lindapter.com | Visit: www.Lindapter.com
