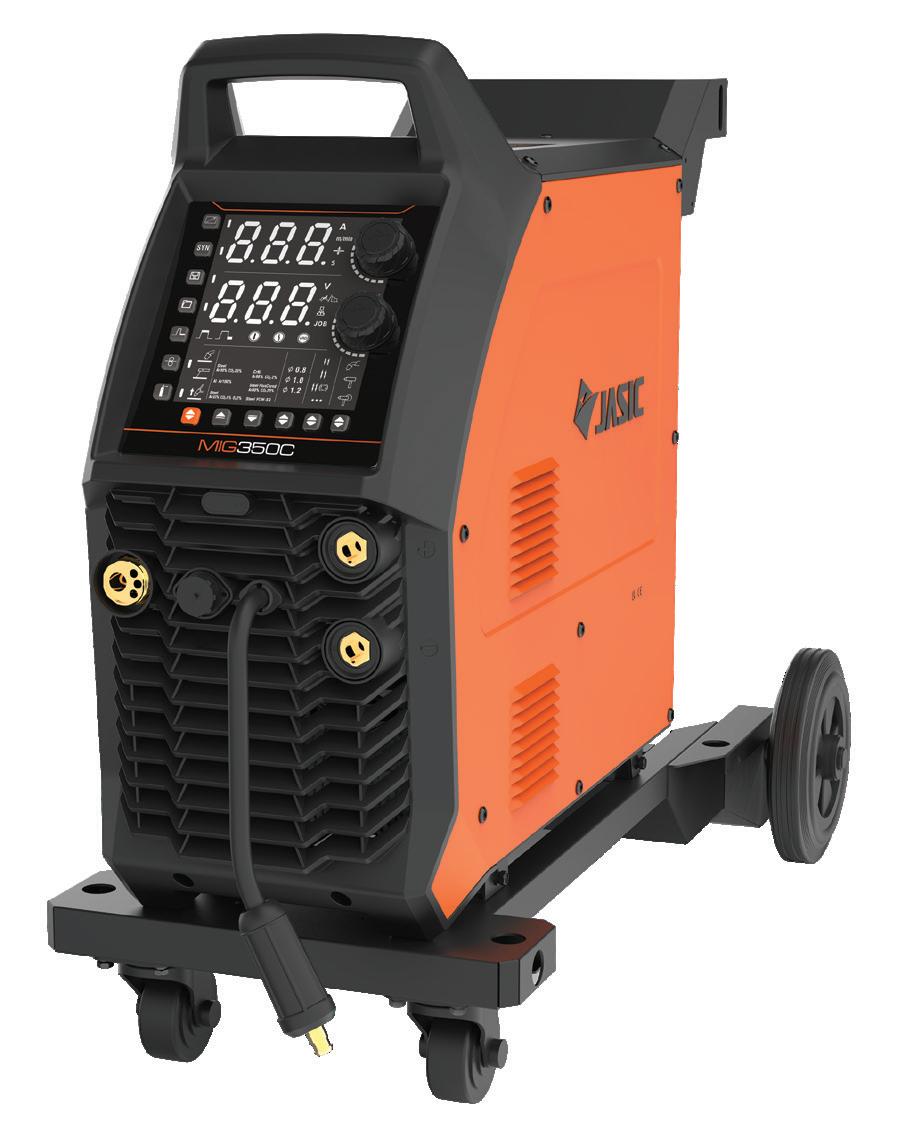

EVO MIG 350 Synergic Compact ORDER CODE EM-350CT
NEW
The EVO MIG 350CT combines cutting-edge inverter technology with advanced ARM and DSP microprocessor control to deliver exceptional welding performance and an enhanced user experience. Built for durability and versatility, it supports synergic MIG/MAG, MMA, and smart DC Lift TIG processes, making it ideal for a wide range of applications in demanding environments. Its unique compartmentalized electrical design further boosts reliability, Featuring full synergic control, the ClearVision display with hollow rotary shaft encoder enables precise, effortless parameter adjustments with clear readouts in any lighting conditions. The compact unit comes with a custom low-profile trolley, designed to hold a size Y gas cylinder, offering excellent mobility and convenience in the workshop. A newly upgraded 4-roll wire feed motor with 37.45 mm rollers ensures smooth, trouble-free wire feeding, while program memory storage allows up to 10 jobs to be saved for each process. Auto-sleep mode ensures market leading energy efficiency while helping to extend the equipment lifespan.
KEY FEATURES • Rugged, ergonomic design • Advanced inverter technology with ARM and DSP digital microprocessor control • ClearVision HD digital display with hollow rotary shaft encoders
for easy and precise parameter adjustment
• 2T/4T/Cycle and Spot trigger control • Synergic/manual MIG/MAG, MMA & DC Lift-TIG capable • Excellent welding characteristics with enhanced droplet transfer • Crater fill setting • On demand cooling and auto sleep mode ensures market leading energy efficiency
with idle power consumption of less than 10W
• Key power electronic component protection • Standard MIG, Push Pull or Spool Gun torch selection • Enhanced dual drive wire feeder with 37.45mm rollers • Program memory storage • Welding Engineers Mode for default parameter selection • IP23S protection class rating • Flexible remote control solutions including wired, wireless and mobile app control • USB Type-C port for software updates and device charging • Generator friendly*
STANDARD ACCESSORIES MIG Welding Torch (HC400-4E), Earth Clamp, Gas Hose and Argon Regulator (SSARG2G), Trolley * Generator must have AVR
TECHNICAL DATA Input voltage No load voltage Ieff Rated input power Current range MIG Rated duty cycle @ 40ºC Wire feed speed Wire spool size Ieff Rated input power MMA Current range Rated duty cycle @ 40ºC Ieff Rated input power TIG Current range Rated duty cycle @ 40ºC Efficiency Power factor Idle state power Protection class Insulation class Dimensions LxWxH Weight Recommended generator size*
AC 400V, 50/60 Hz 76V 13A 15.2kVA 30-350A 40% 2-24m/min D300 13.7A 15kVA 20-350A 40% 10.2A 11.2kVA 20-350A 40% 80% 0.94 10W IP23S H 1000 x 530 x 933mm 45.1Kg 22.5kVA
OPTIONAL ACCESSORIES Wireless Remote Control (HRC-02), Wired Remote Control (HRC-01), Mobile Bluetooth App Module (51009435), Spool On Gun, Push Button Torch
