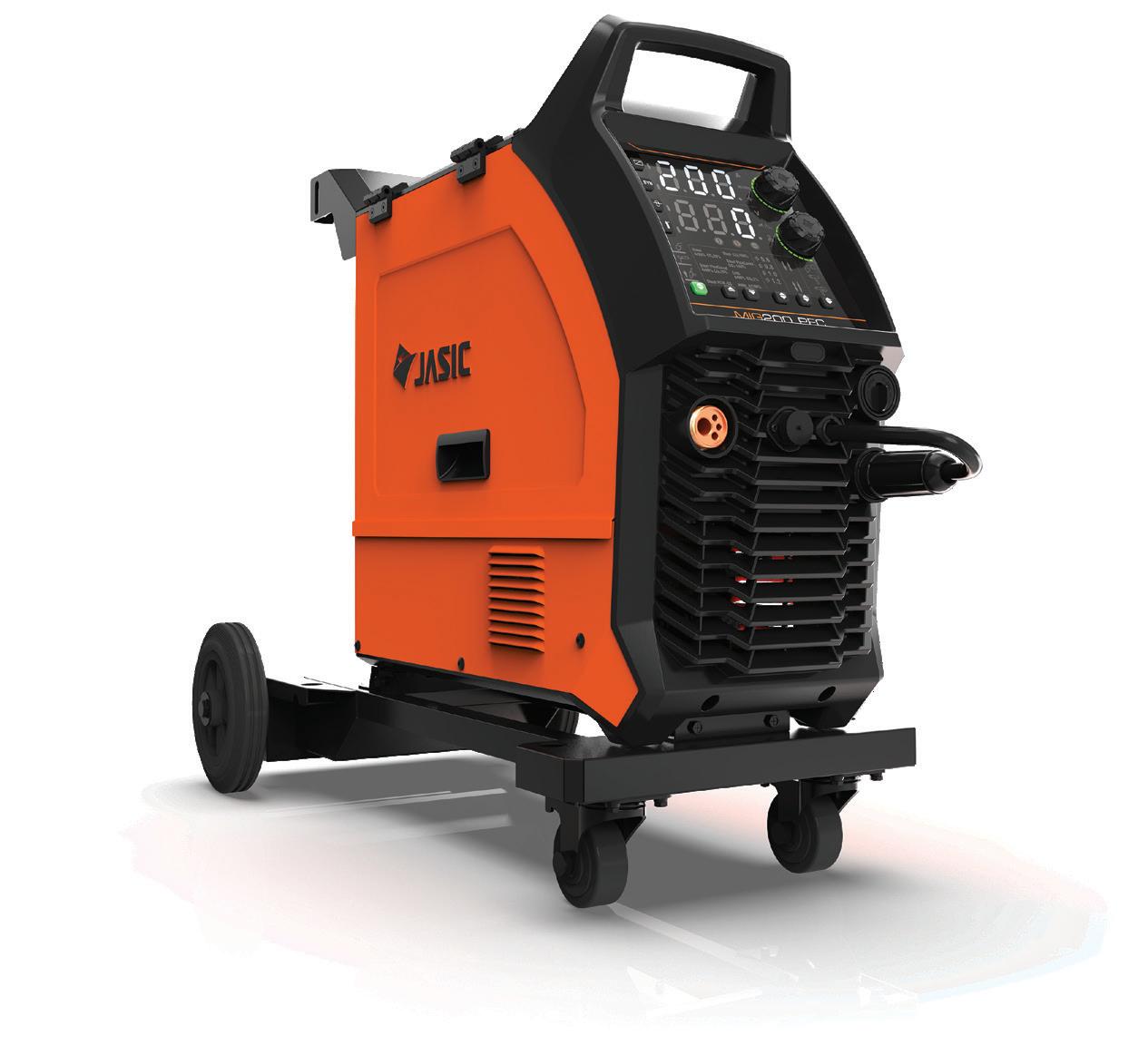

EVO MIG 200 PFC Synergic Compact
ORDER CODE EM-200CT
The EVO MIG 200CT features advanced PFC inverter technology, delivering exceptional welding performance and a superior user experience. Engineered for both durability and versatility, it supports synergic MIG/MAG, MMA, and smart DC Lift TIG, making it suitable for a wide range of welding applications in challenging environments and it’s unique compartmented electrical design further enhances reliability. With full synergic control, the ClearVision display provides accurate, effortless parameter adjustments and clear readouts in any lighting conditions. Supplied with a custom low-profile trolley designed to accommodate a size Y gas cylinder, this compact unit offers outstanding mobility and convenience within the workshop. Auto-sleep mode ensures market leading energy efficiency while helping to extend the equipment lifespan. Optional Thin Film Transistor display is also available.
TECHNICAL DATA KEY FEATURES • Rugged, ergonomic design • ClearVision technology • Intelligent synergic control • Adaptable wide voltage range • Welding engineer mode • Smart Lift TIG • Consistent and efficient MIG spot welding performance • Dual roll wire feed motor • Flexible remote control solutions (optional) • Power factor correction (PFC), generator friendly • Quick factory reset; auto sleep mode • Compatible with MIG digital torch and spool gun • LED inside wire feeder cabinet; handy accessory storage slot • Fan on demand • Trolley with cylinder holder • Voltage Reduction Device (VRD) • Key power electronic component protection • Overcurrent and overheat protection • TFT screen (optional)
STANDARD ACCESSORIES MIG Welding Torch (JE250-4), Earth Clamp, Gas Hose and Argon Regulator (SSARG2G), Trolley * Generator must have AVR
Input voltage No load voltage Ieff Rated input power Current range MIG Rated duty cycle @ 40ºC Wire feed speed Wire spool size Ieff Rated input power MMA Current range Rated duty cycle @ 40ºC Ieff Rated input power TIG Current range Rated duty cycle @ 40ºC Efficiency Power factor Idle state power Protection class Insulation class Dimensions LxWxH Weight Recommended generator size*
AC 95-265V, 50/60 Hz AC 115V AC 230V 68V 17.4A 13.5A 4.4kVA 7.5kVA 30-140A 30-200A 30% 2-12m/min 2-16m/min D300 15.5A 13.6A 3.2kVA 5.7kVA 20-110A 20-180A 30% 13.3A 10.6A 2.8kVA 4.4kVA 5-140A 5-200A 30% >80% 0.99 <50W IP23S H 920 x 480 x 755mm 41.9Kg 6.5kVA 11.5kVA
OPTIONAL ACCESSORIES Wireless Remote Control (HRC-02), Wired Remote Control (HRC-01), Wireless Foot Pedal (FRC-02), Wired Foot Pedal (FRC-01), TFT Screen (TFT- EM-200CT), Wireless Transceiver (TS4)
