Yokohama, Japan
The proposal descends from a Metabolist ambition: the city projected outward into the bay, artificial land as urban extension. First articulated in Kenzo Tange’s Tokyo Bay Plan of 1960, this vision was never realised, yet its underlying logic has only grown more urgent.
The Metropolitan Greater Bay Area today confronts a constellation of intersecting pressures a hyperaging population, declining birth rates, escalating costs of living, ageing infrastructure, and accelerating climate volatility that demand new urban paradigms beyond conventional densification.

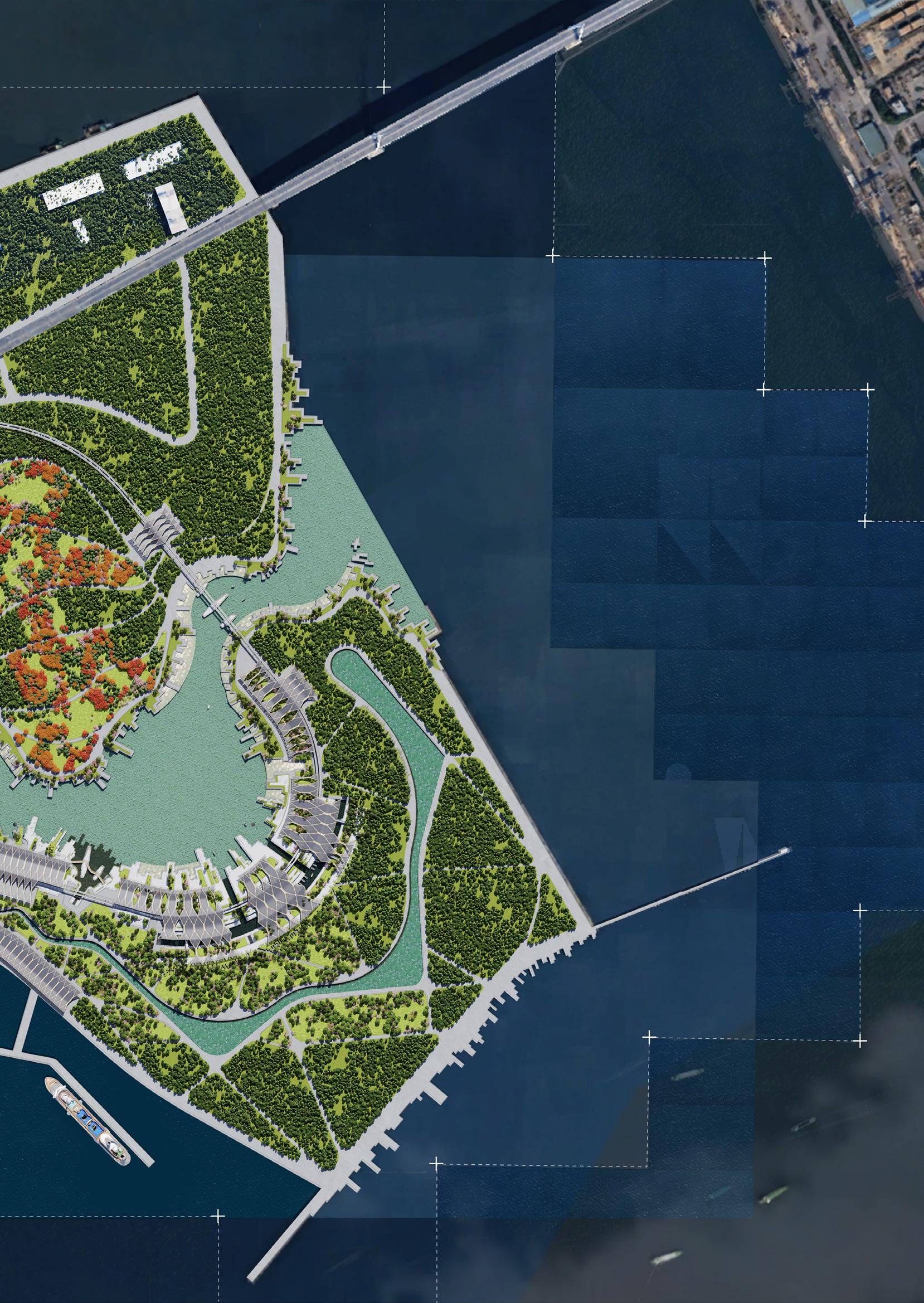

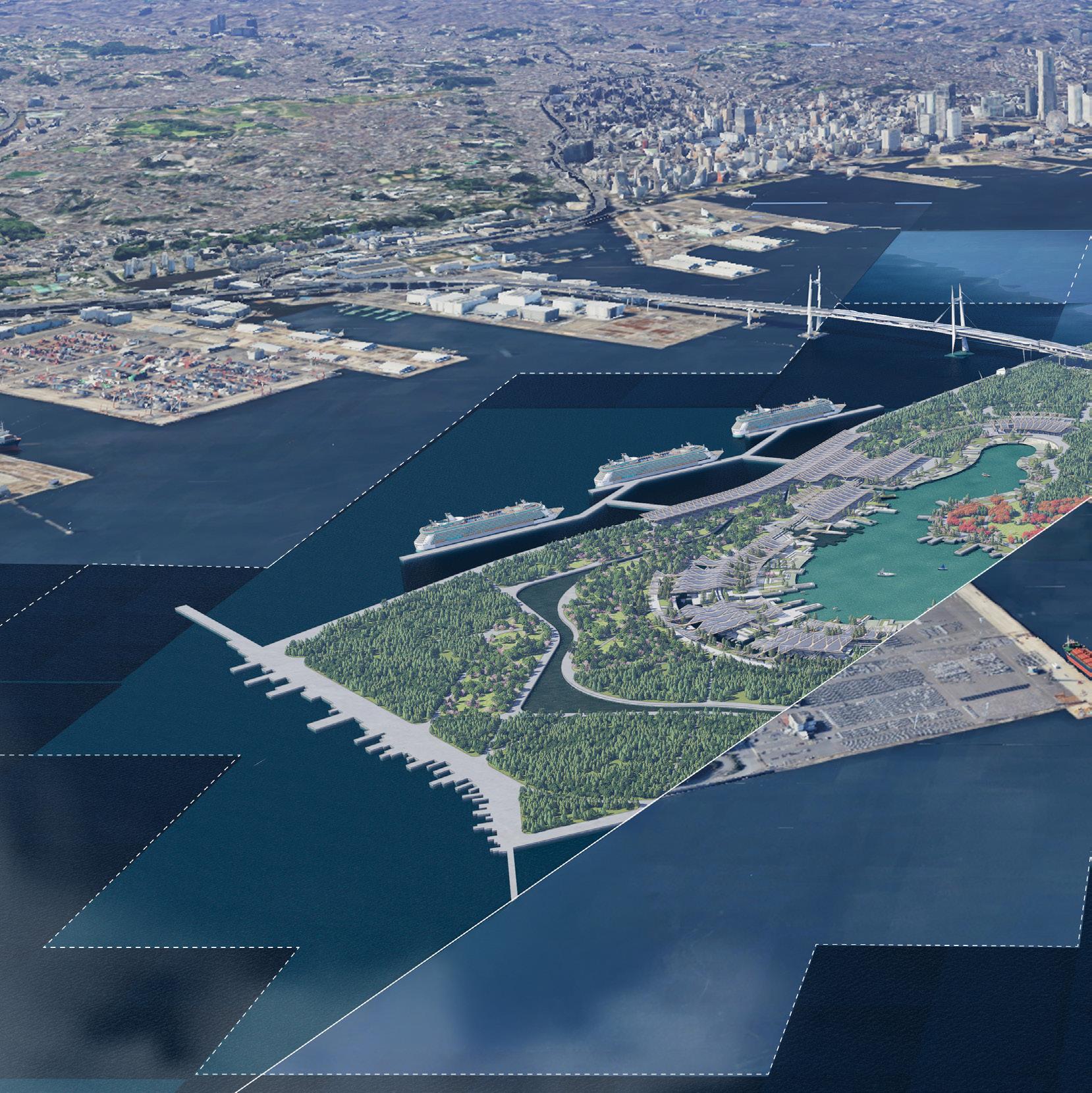

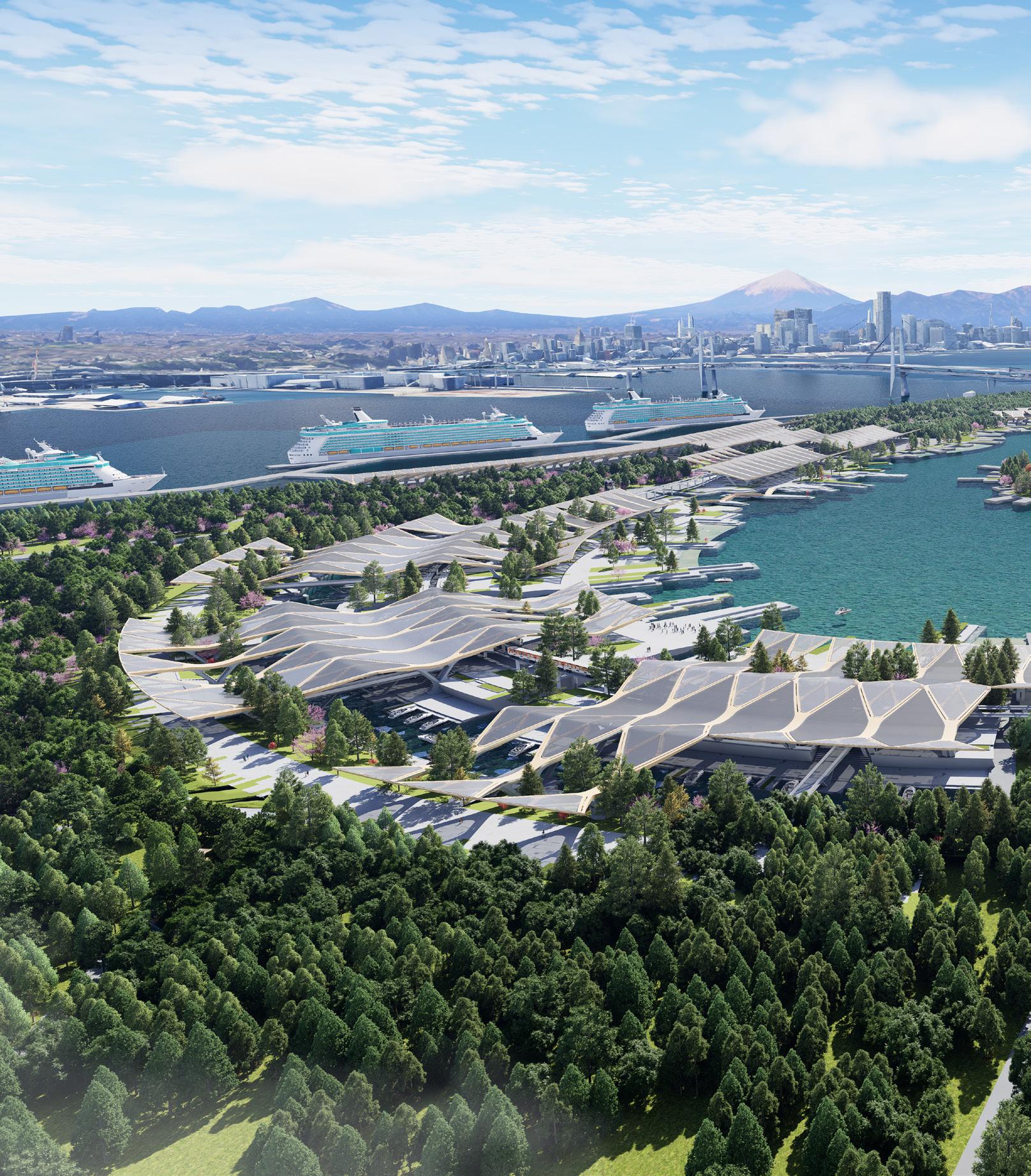

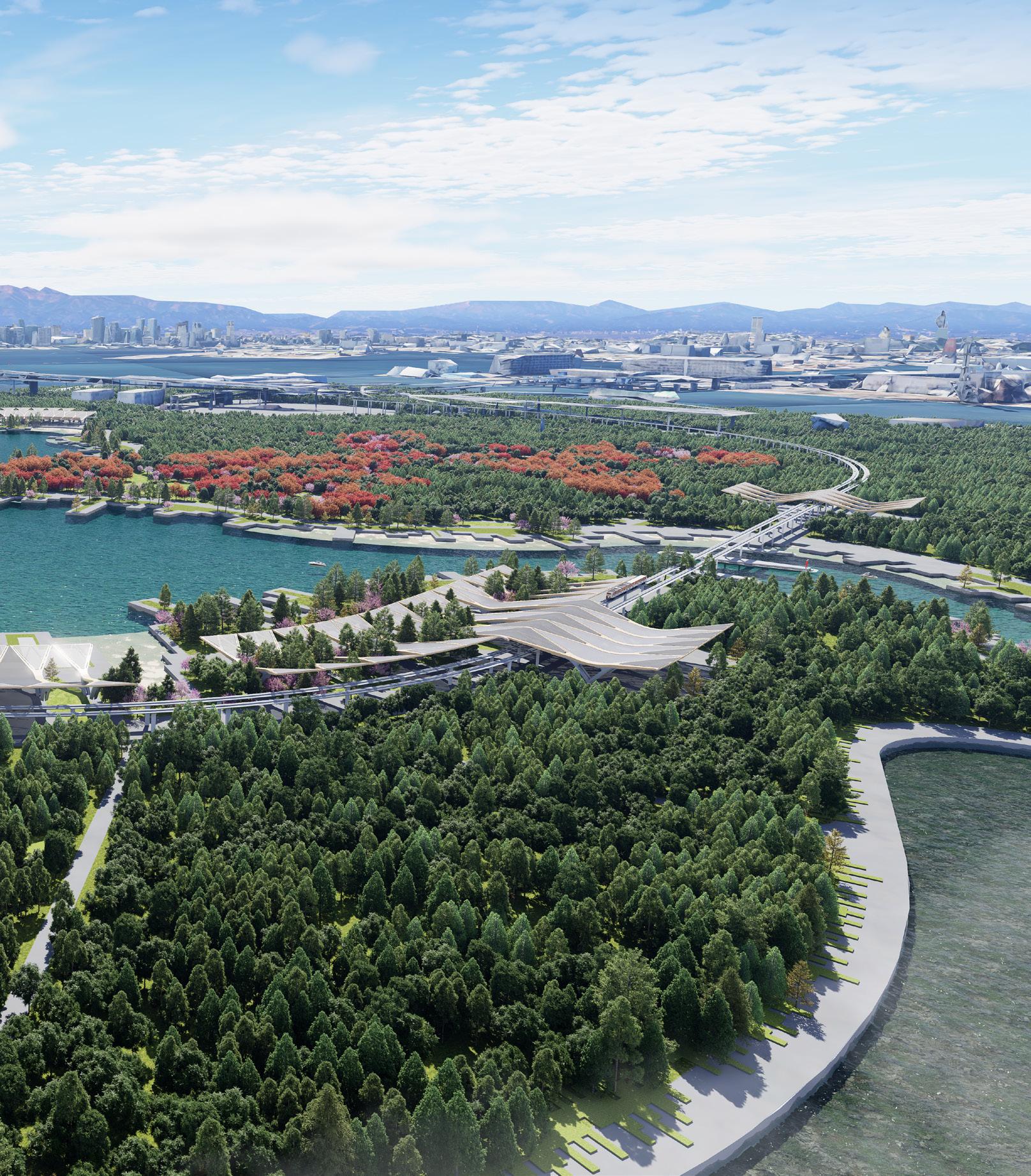

Rather than extend the city outward into the bay, the proposal inverts this impulse: the regeneration of existing reclaimed land into ecological and civic ground, deploying landscape as infrastructure at metropolitan scale. The Sevenfold Forest proposes the largescale transformation of Daikoku Pier from an industrial vehicle export port into an urban forest and waterfront promenade. A monorail connection to the mainland resolves the site’s
fundamental inaccessibility while establishing the central axis around which the promenade is ordered. Blending civic infrastructure and landscape into a single continous gesture.
The framework for this regeneration is anchored in Japan’s expanding tourism economy. Postpandemic visitor numbers have risen steadily, sustained by the country’s cultural depth and regional diversity. Cruise tourism has grown substantially, driven by the capacity of ocean liners to reach otherwise inaccessible coastal and island regions.

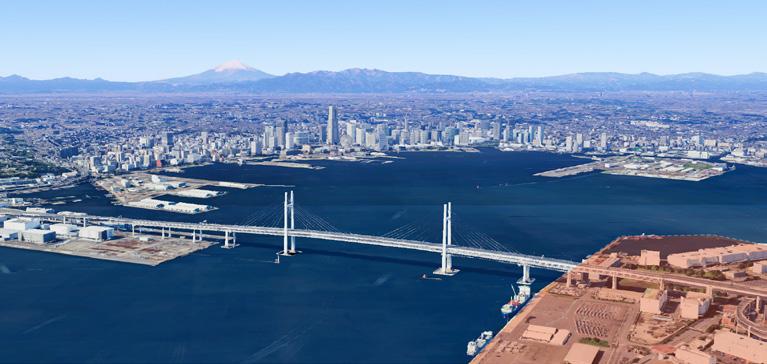

Yokohama functions as the primary Japanese port-of-call for cruise tourism, yet the new generation of mega cruise ships cannot pass beneath the existing Yokohama Bridge, which offers only 50 metres of clearance. Daikoku Pier is the only viable berth for vessels of this scale. The volume of passengers provides the economic rationale and the civic imperative for intervention at metropolitan scale.
PRELIMINARY RESEARCH | Splaying Tectonic

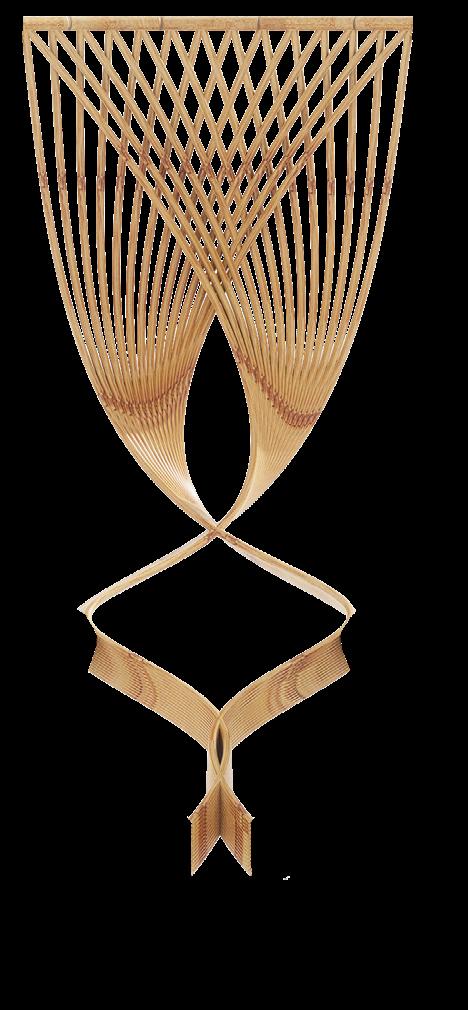

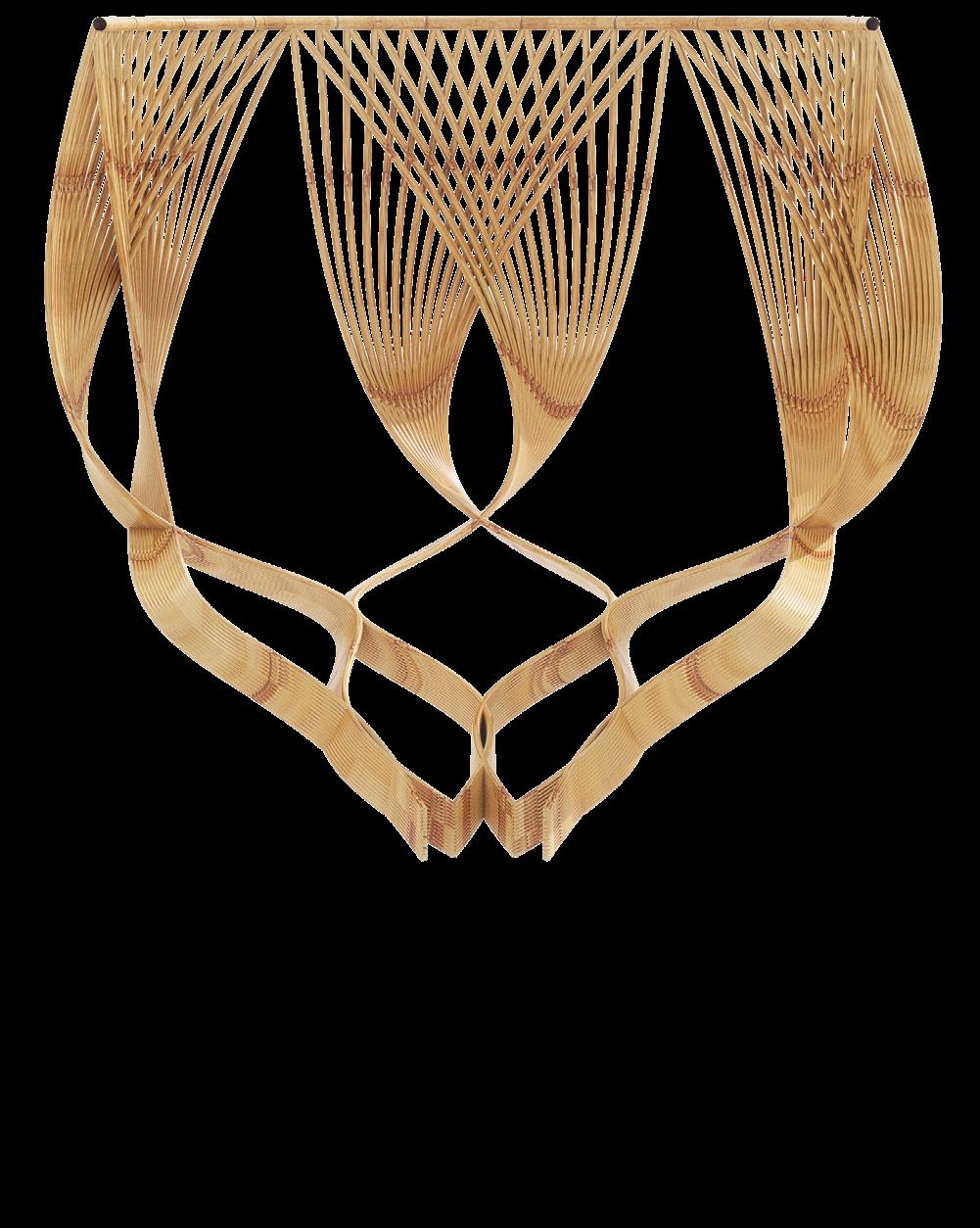

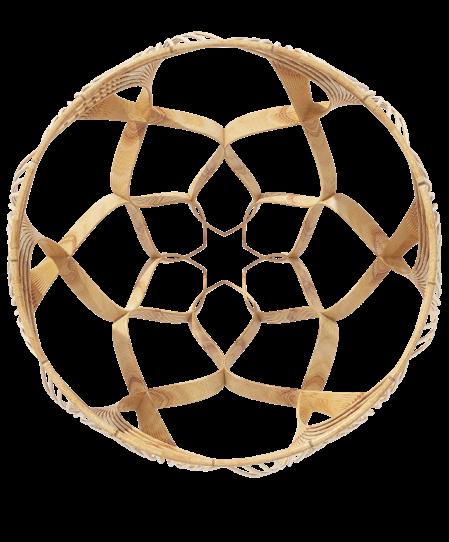

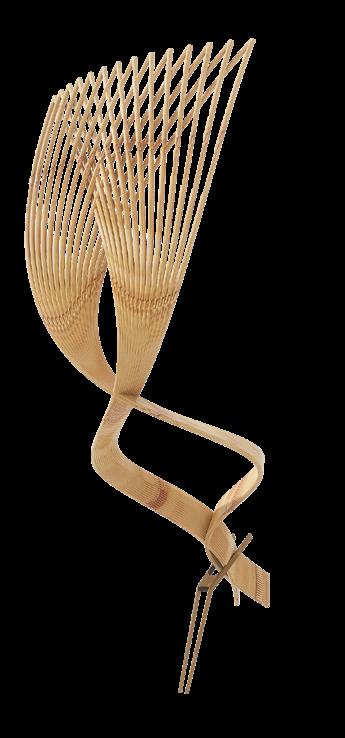

Hanakago (Flower Basket) are finely crafted baskets traditionally used in Japanese flower arrangement, particularly in the practice of ikebana.(Tthe art of arranging flowers. Beyond functionality)
Hanakago evolved from Chinese basketry during the late Heian (794–1185) and Kamakura (1185–1333) periods.

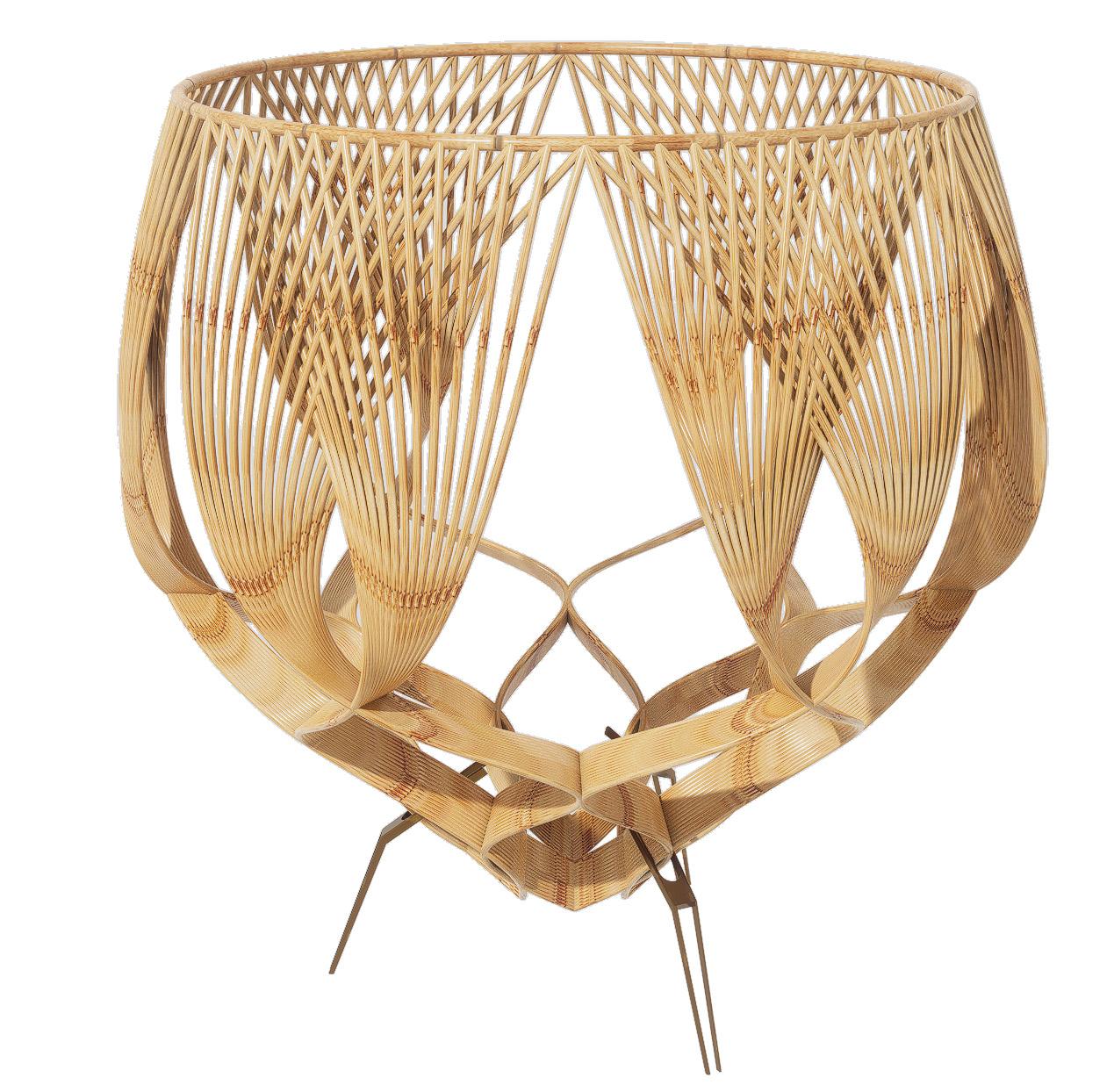

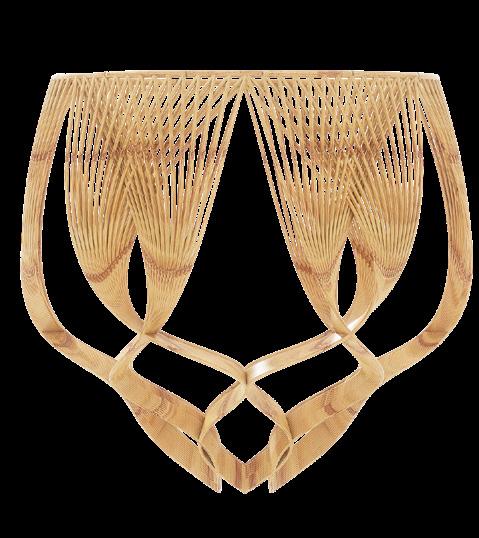

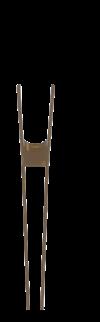

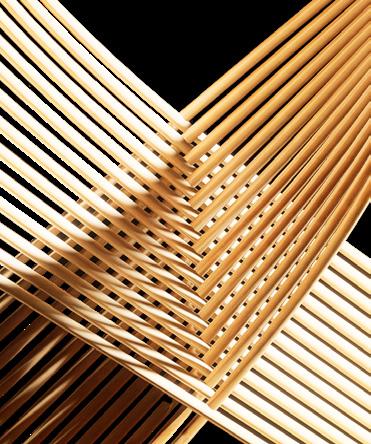

This Hanakago by Shono Shounsai uses metal pins to pin together bamboo fibers to create a basket. Structurally the basket demonstrates principles of radial bracing and reciprocal structural weaving. The basket can also be identified as an early example of a composite. Combining metal pins with bamboo fibers.
Bracket System Flower geometry
Reciprocal (discontinous) weaving Structure Tri-systemic structure
The basket’s woven structure employs a three part load-bearing system. First, radial bracing distributes the weight evenly across the frame. Next, a concentrated bundle of interwoven arches gathers and channels the forces into efficient compression paths, minimizing bending stresses. Finally, the load is transferred and anchored through the metal pin bracket.

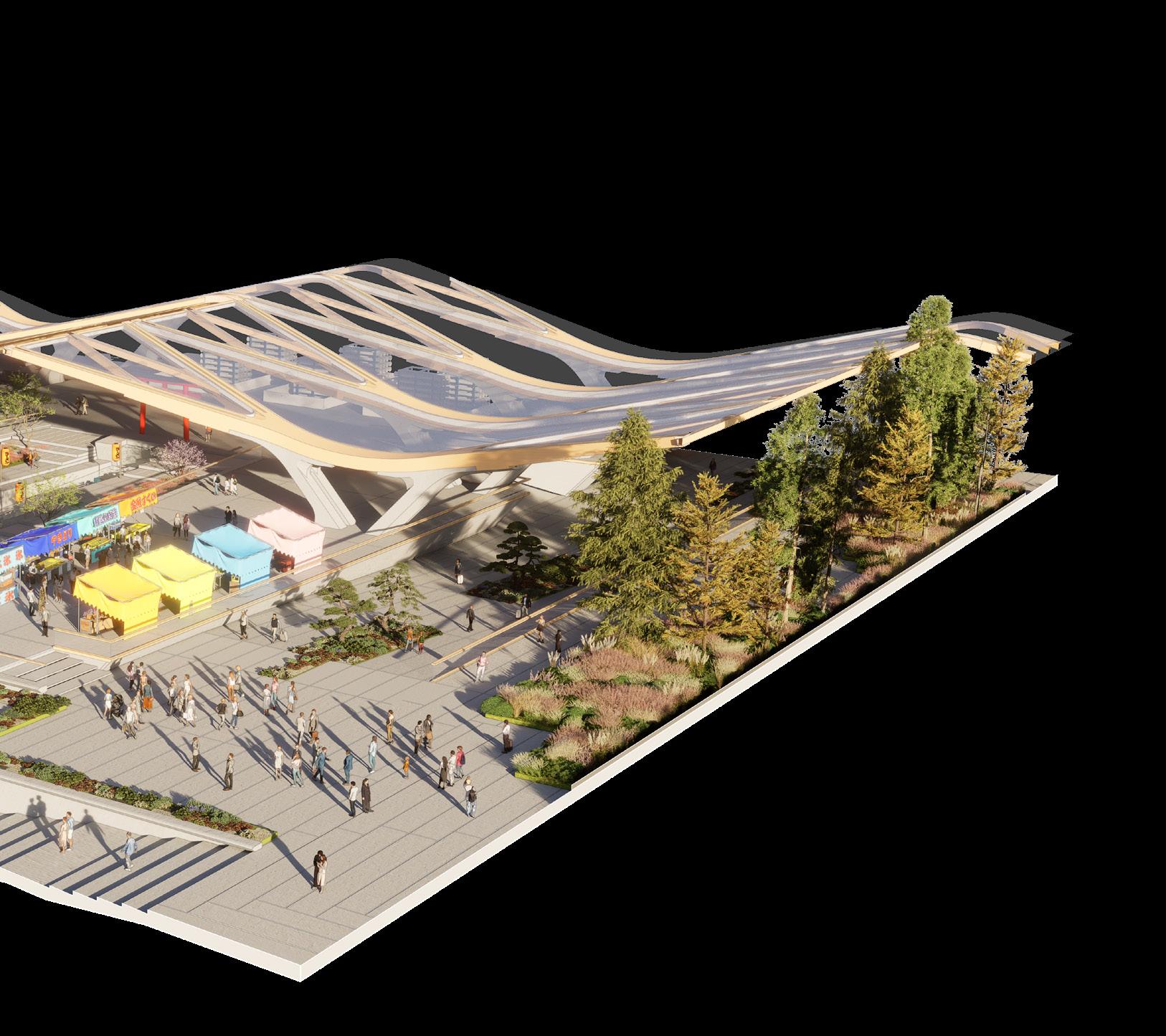

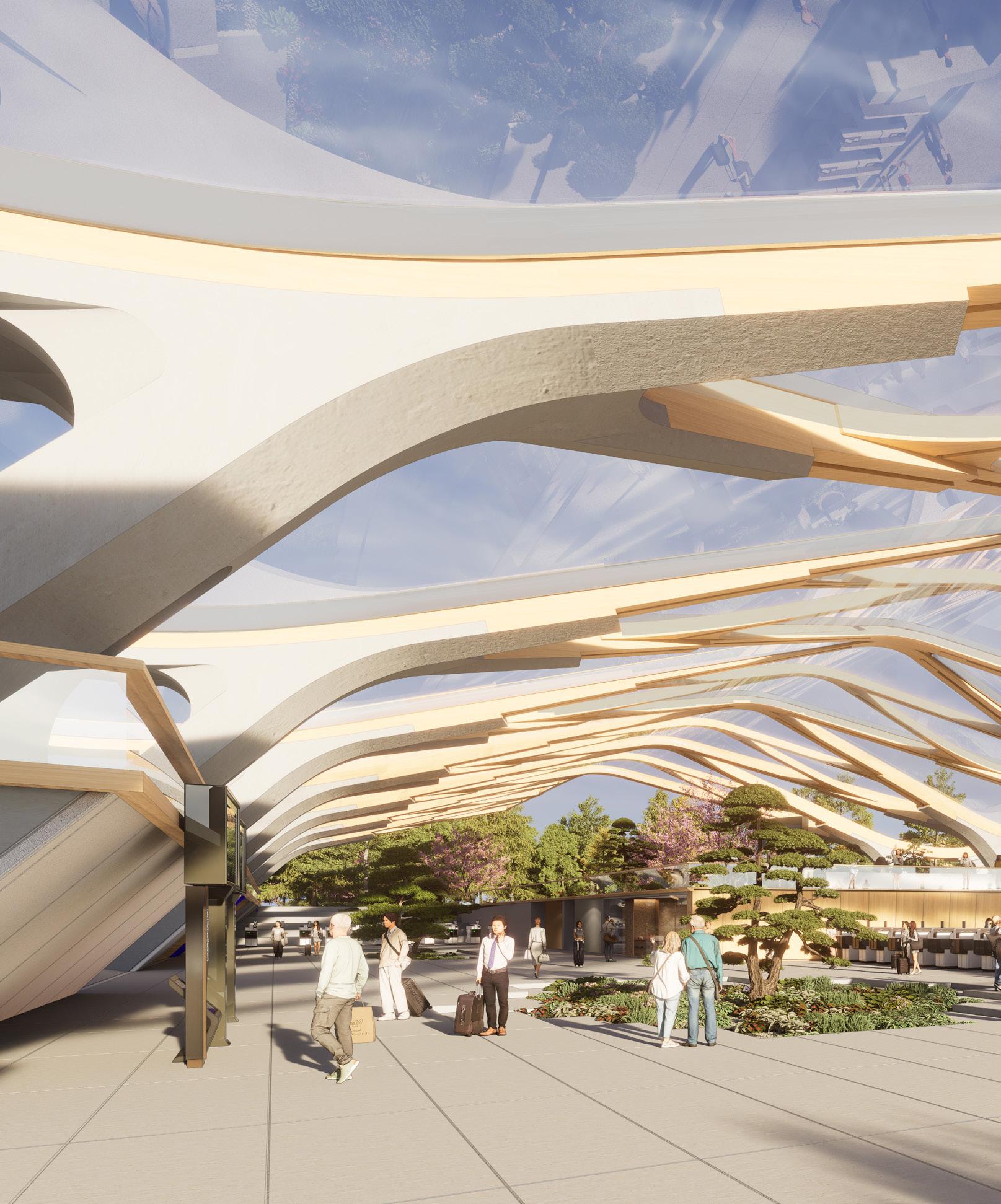

Entrance Condition

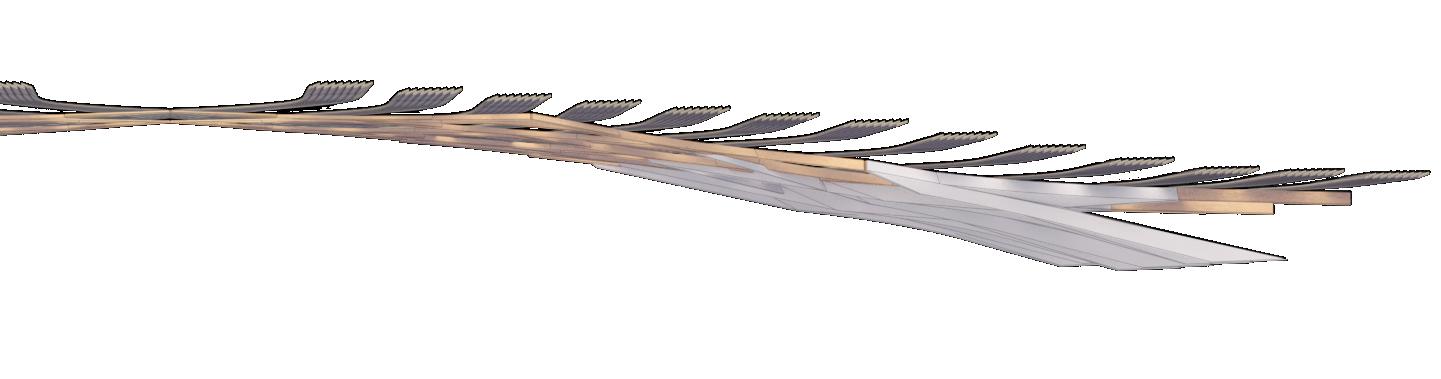

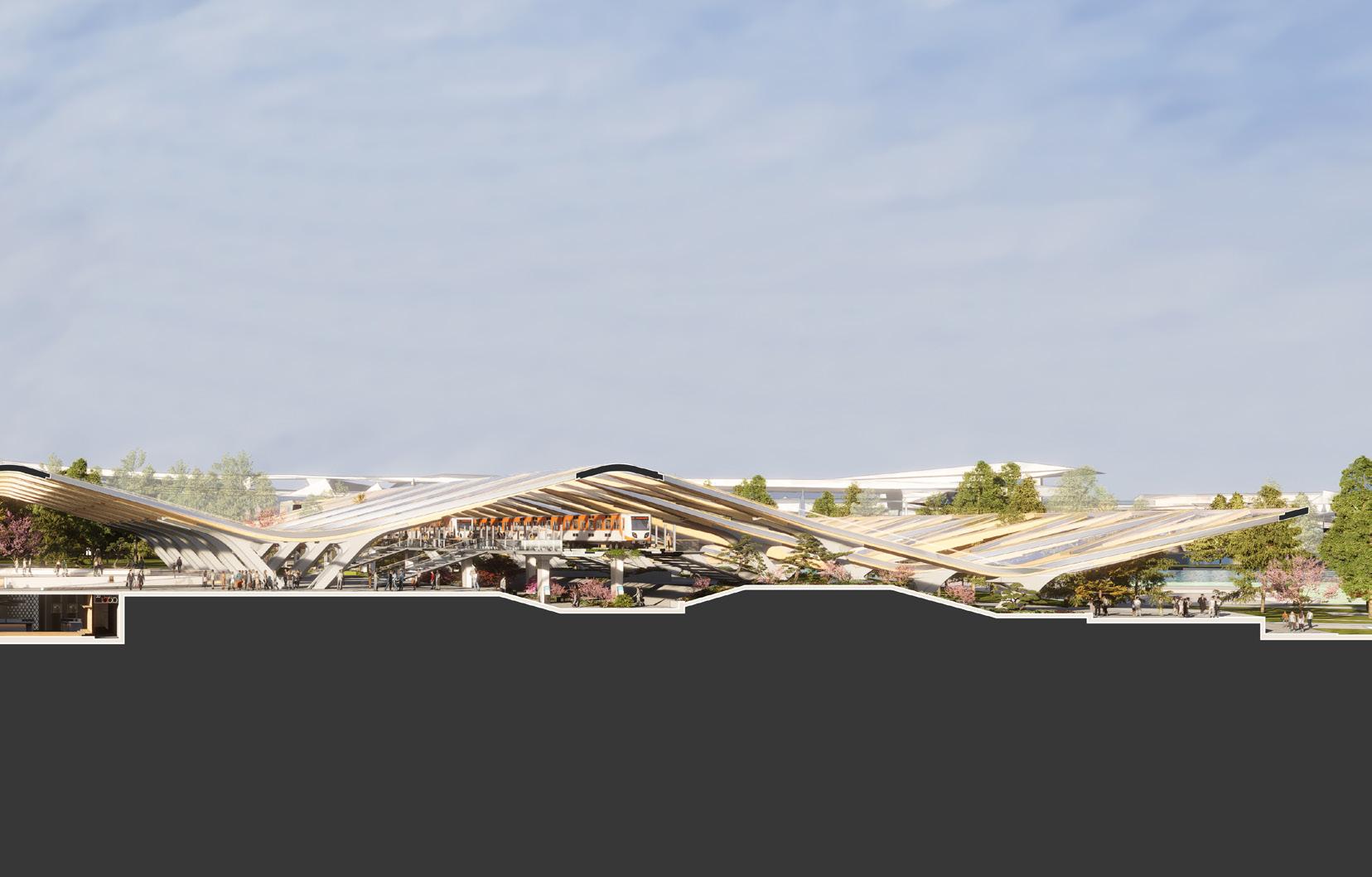

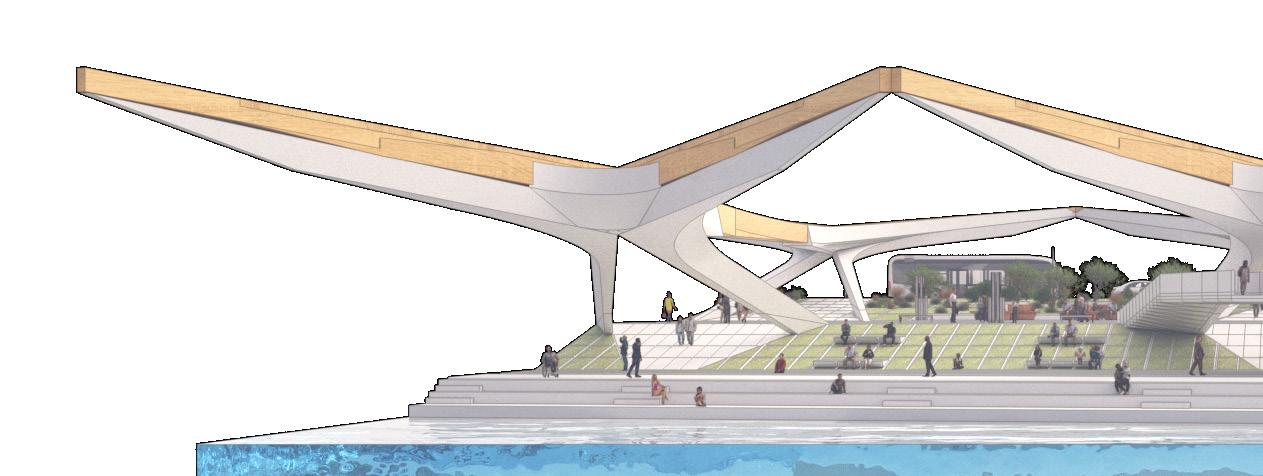

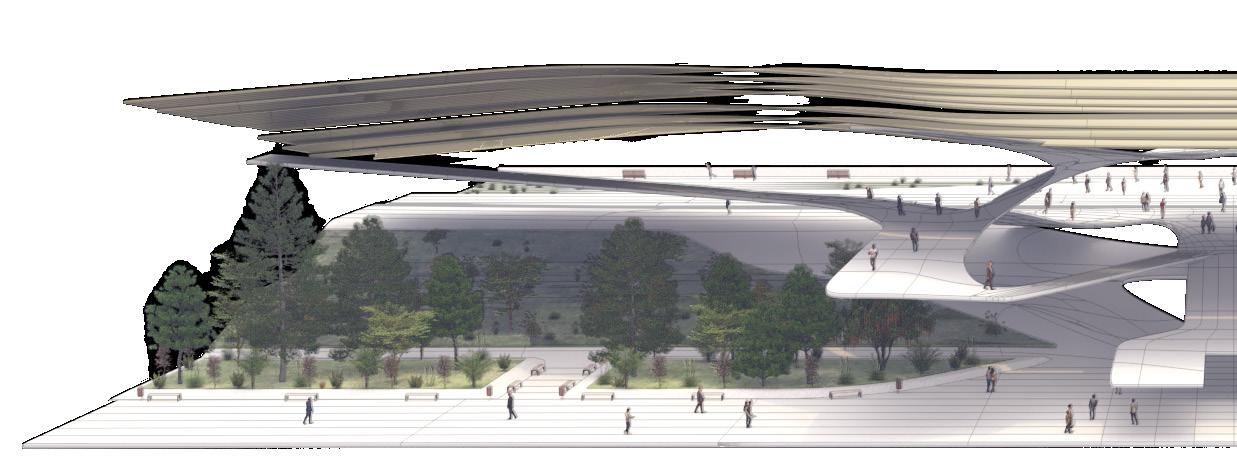

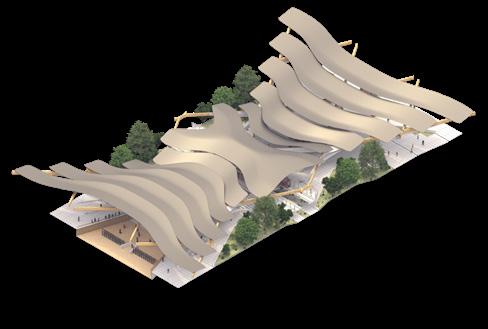

Continous wave roof form

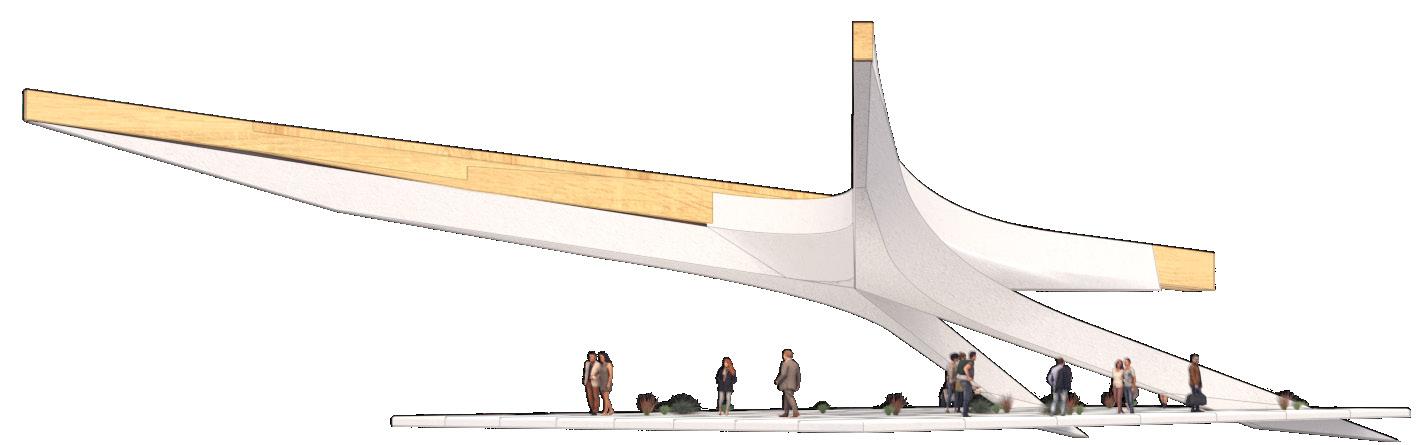

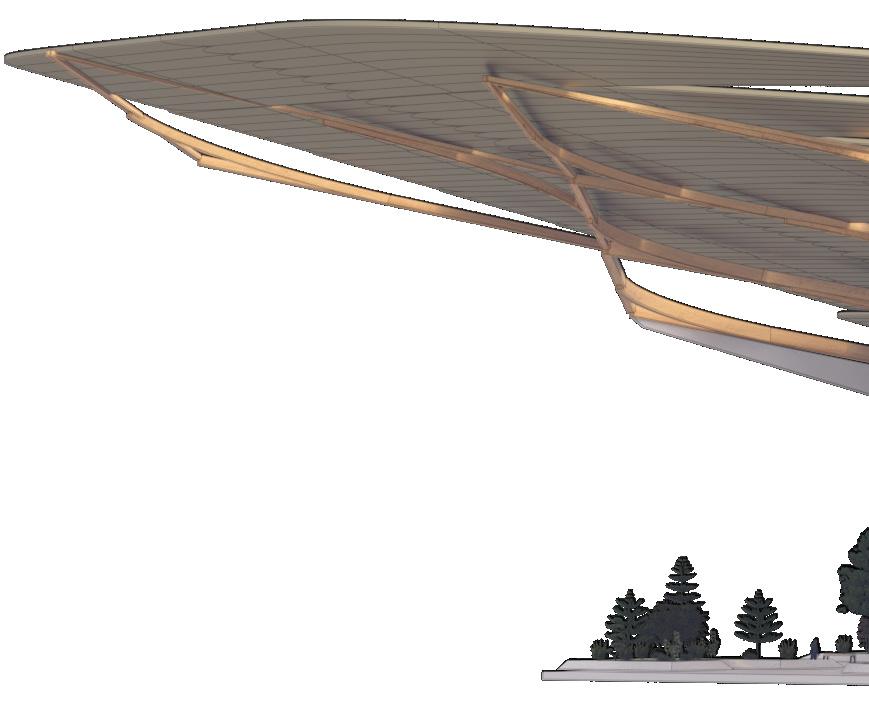

The splaying gesture enables wide-span structural coverage, efficiently enclosing large surface areas from a minimal number of supports.

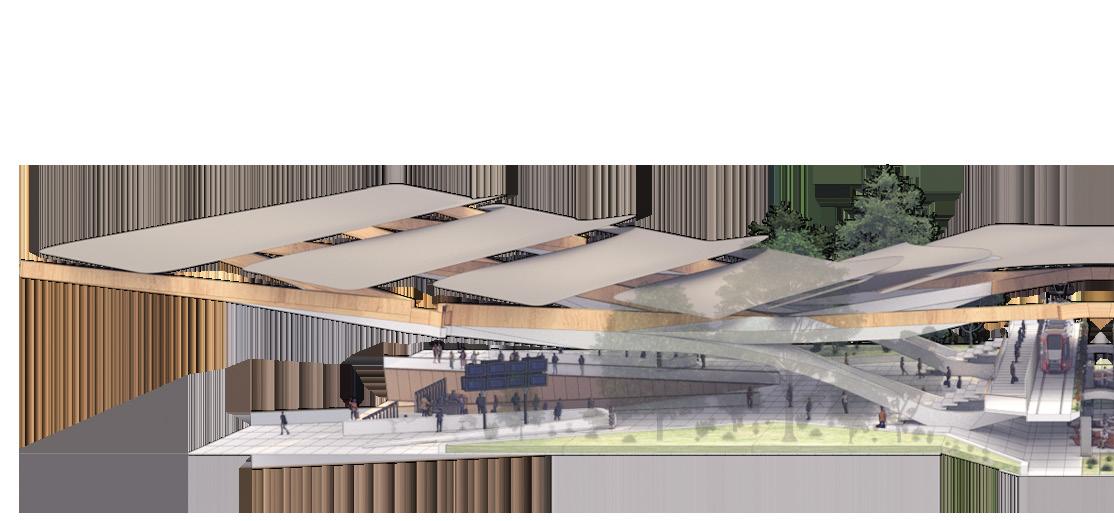

Concourse
Entrance 3. Continous wave roof
Promenade
Interior garden landscape

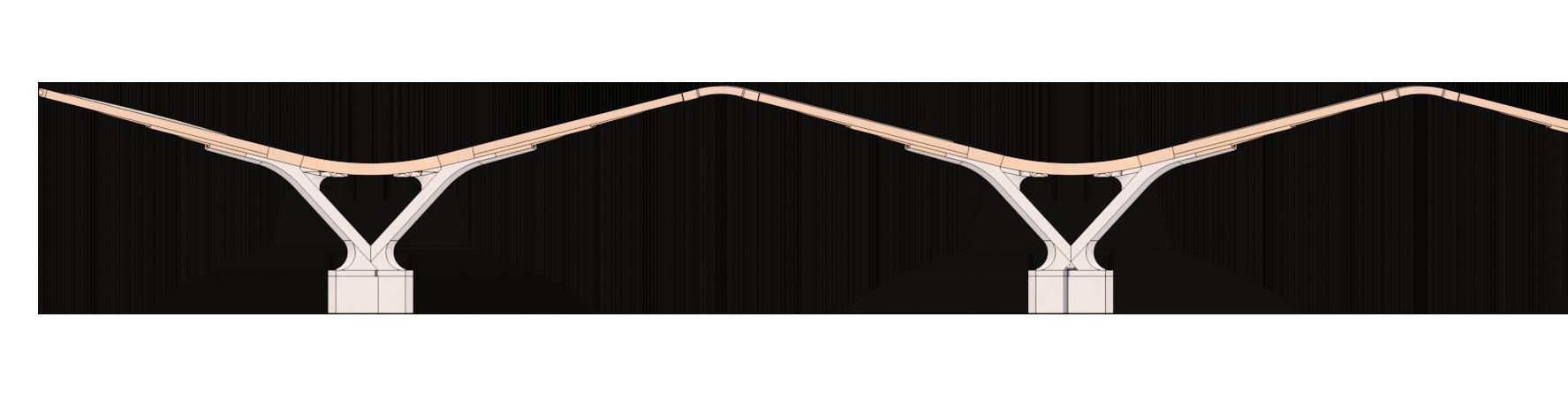

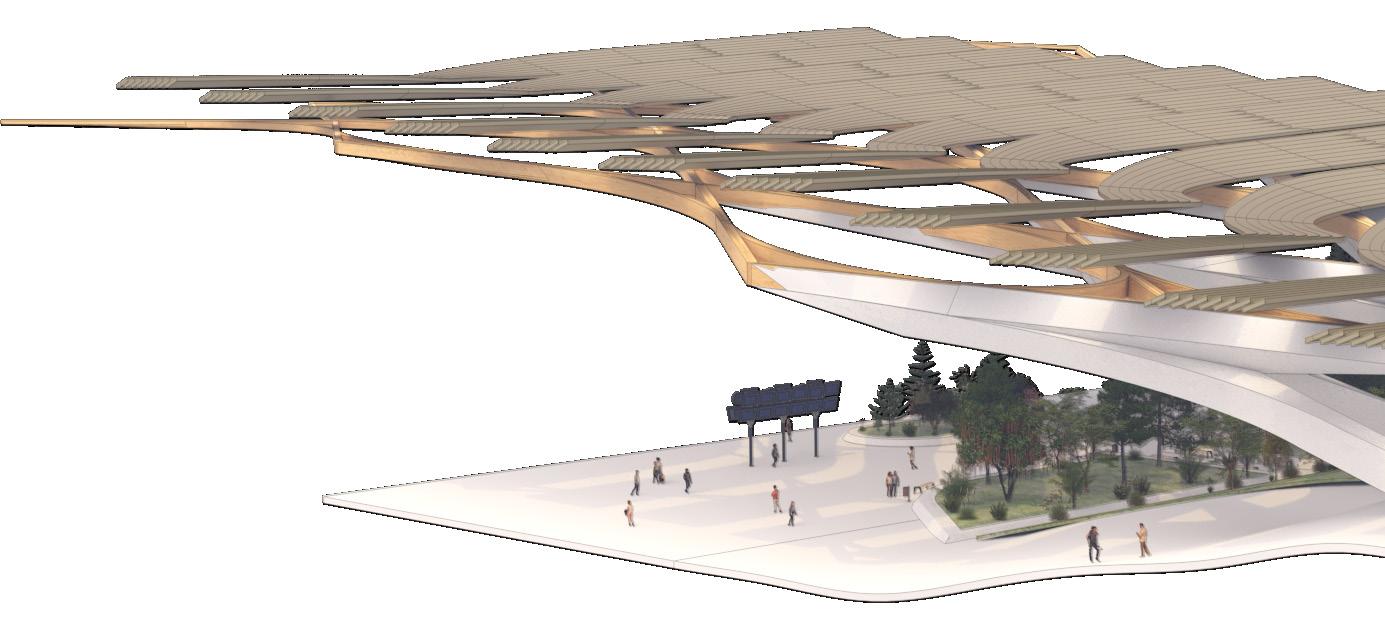

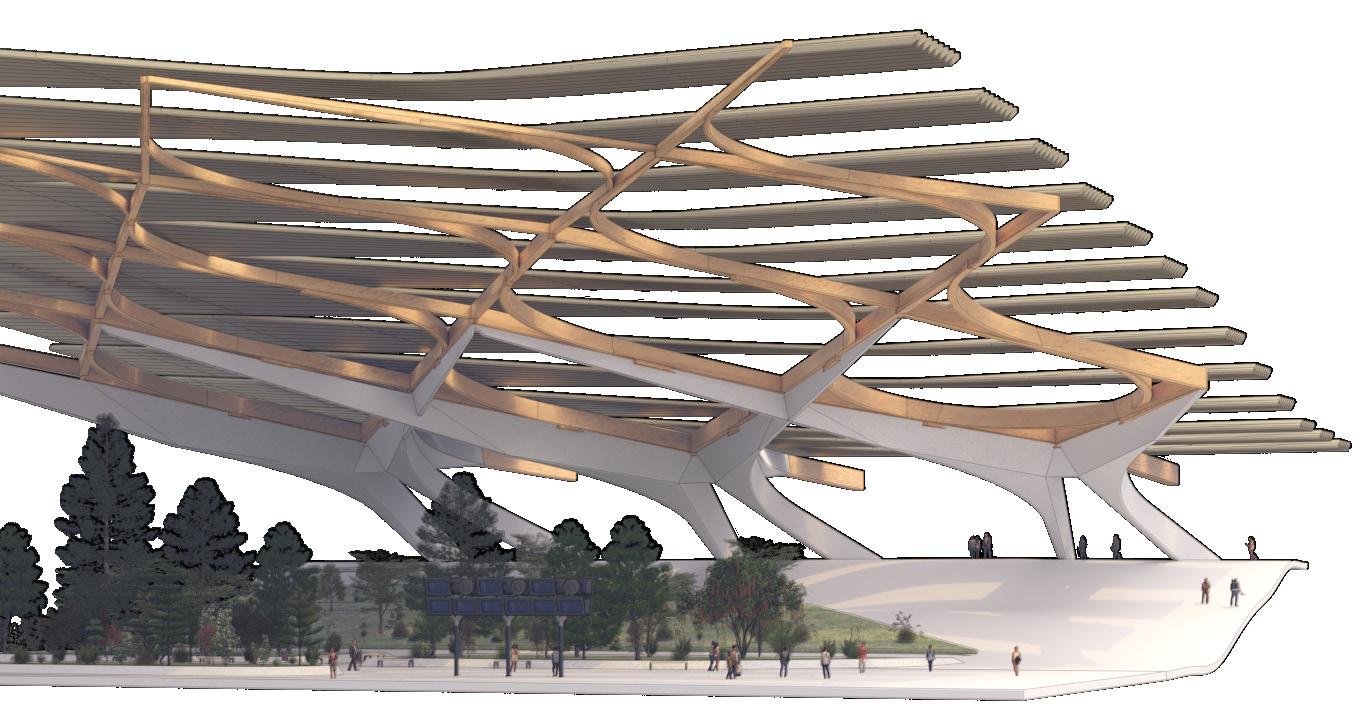

Widespanning Splaying Structure
The concrete plinth abstracts the pin bracket condition of the Hanakago, the woven basket structure is transposed into a diagrid timber weave held and anchored by the plinth below, transferring the basket’s gripping logic into a structural embrace between concrete and timber.

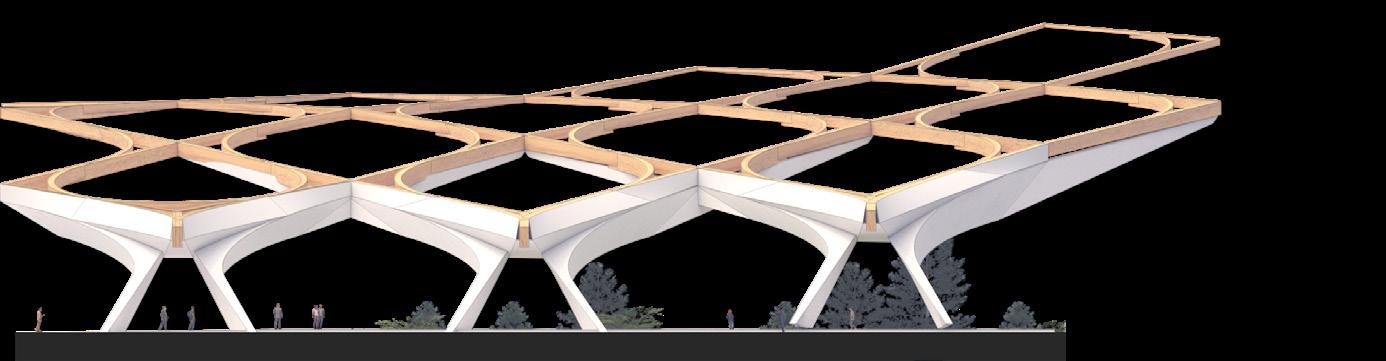

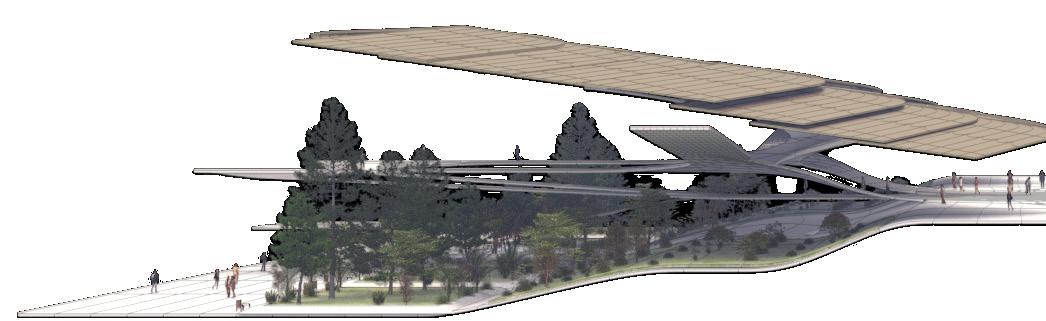

The weaving geometry of the Hanakago basket is translated into a structural diagrid, optimised for wide-span coverage, and combined with a cantilever configuration to achieve maximum longitudinal reach. The resulting canopy generates column-free space of sufficient scale to absorb a broad range of civic programmes.

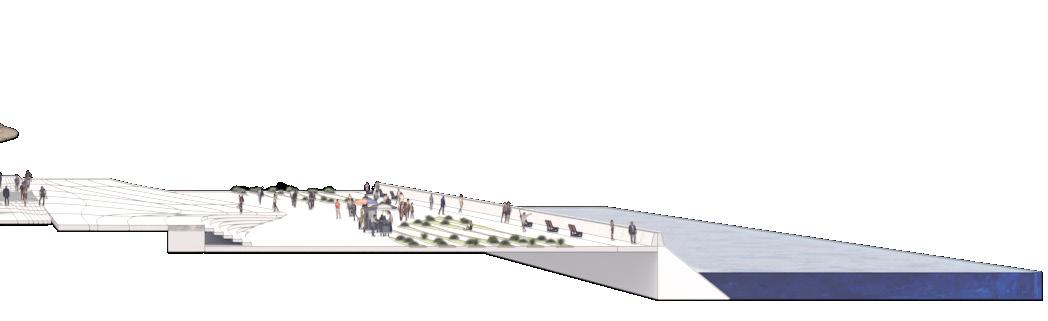

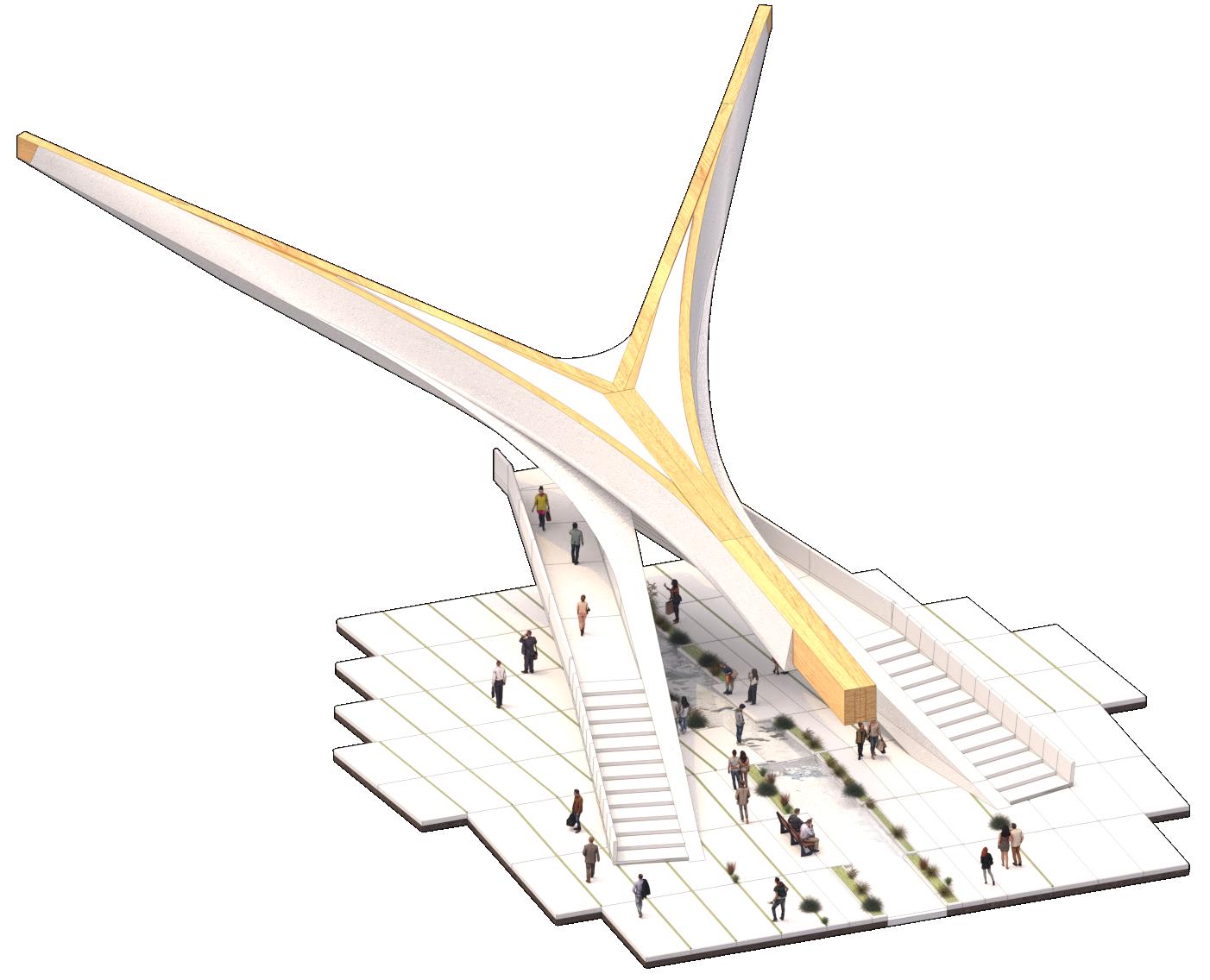

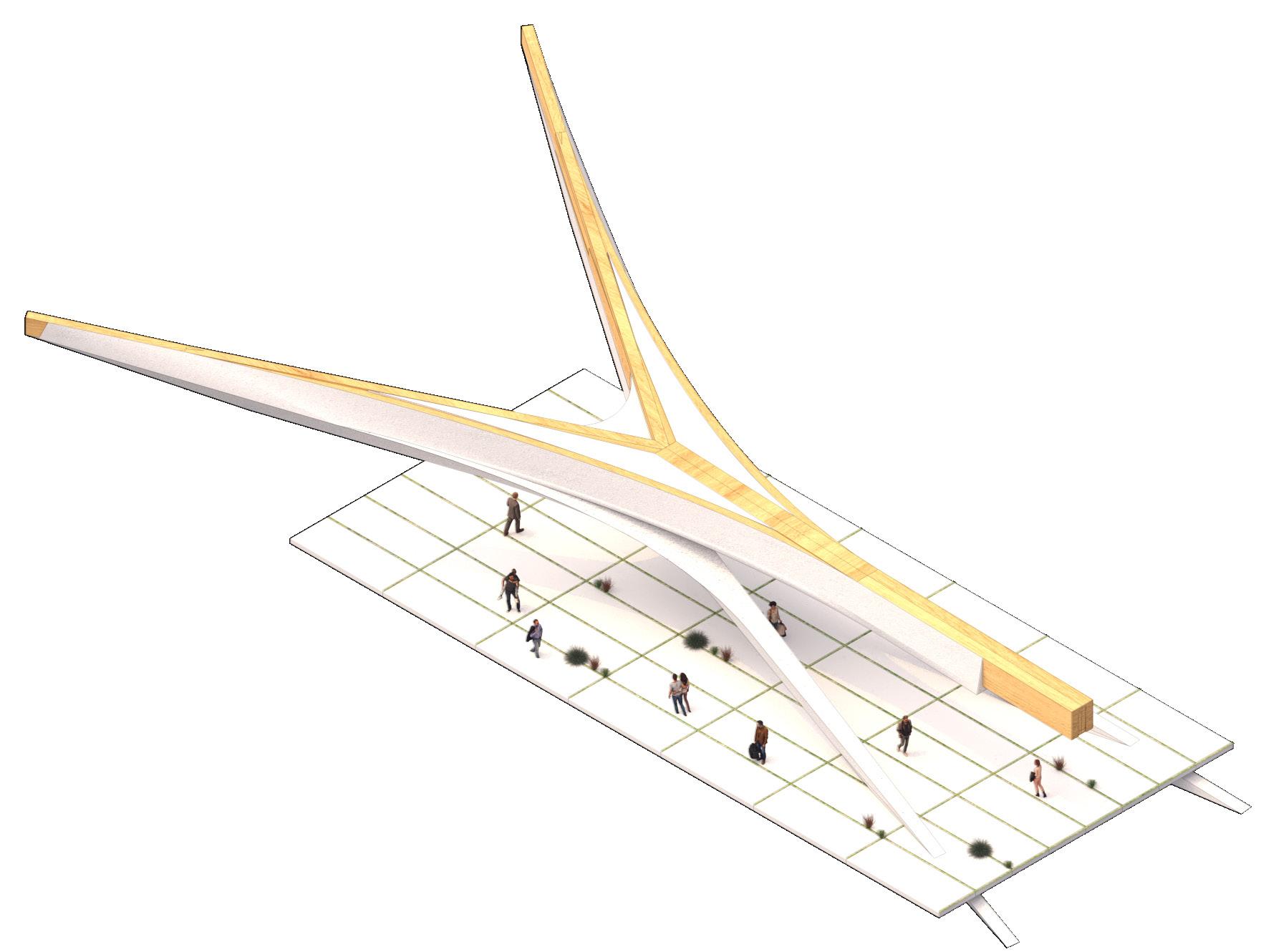

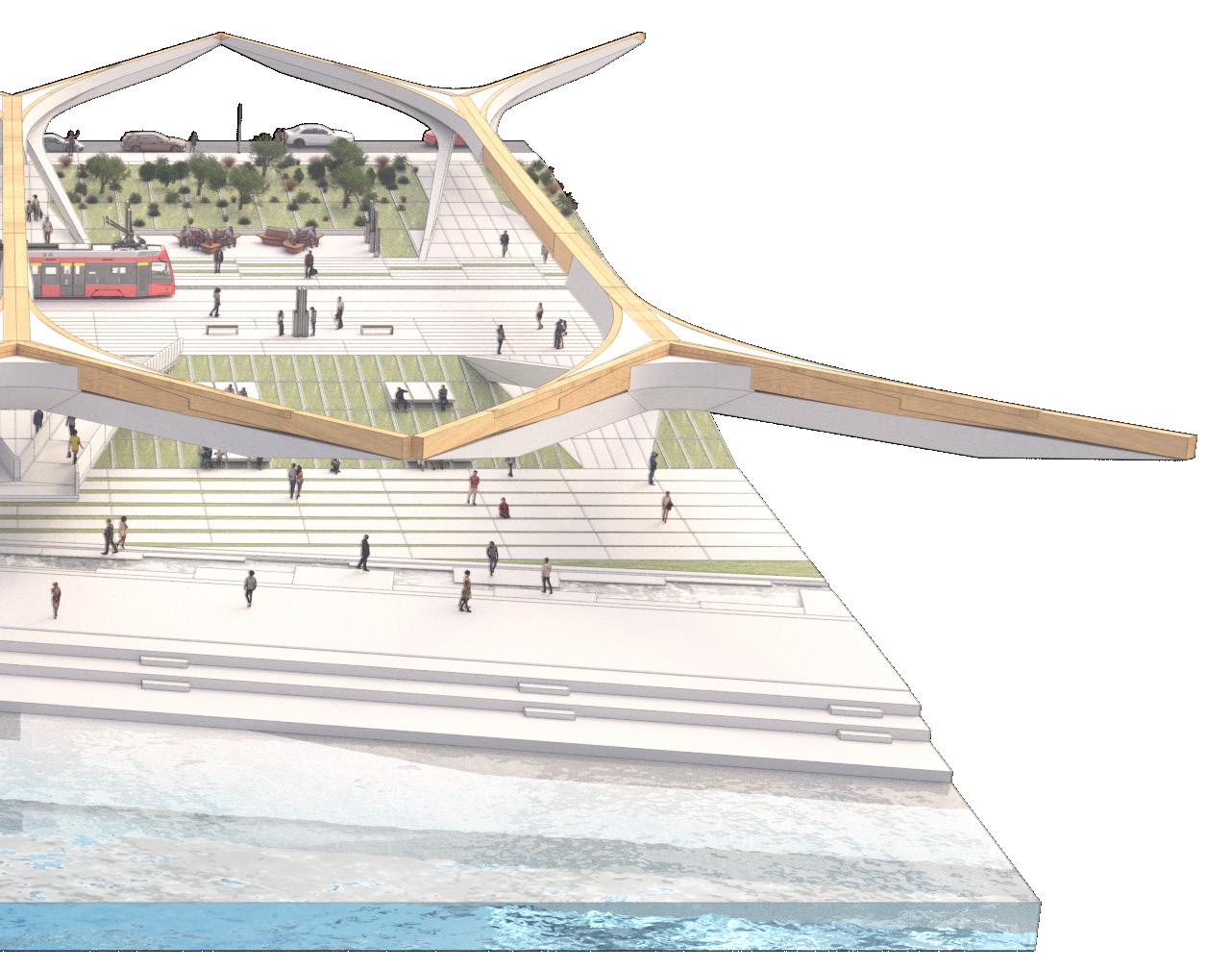

A study of ground-level inhabitation around the concrete plinth. The Y-form creates a threshold condition, dividing and directing movement while generating intimate spaces of occupation between its splaying arms.

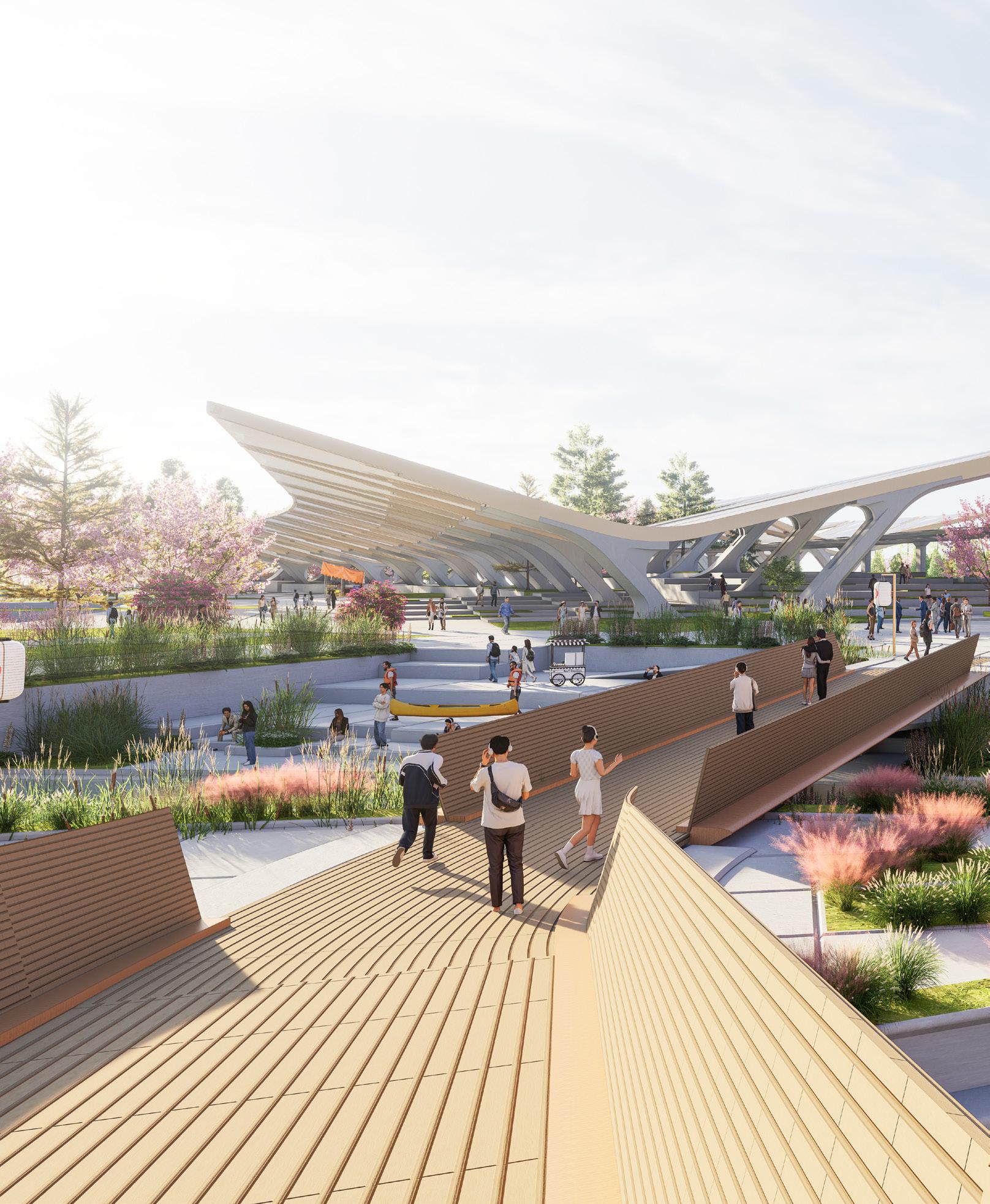

Vertical Circulation Opportunity.

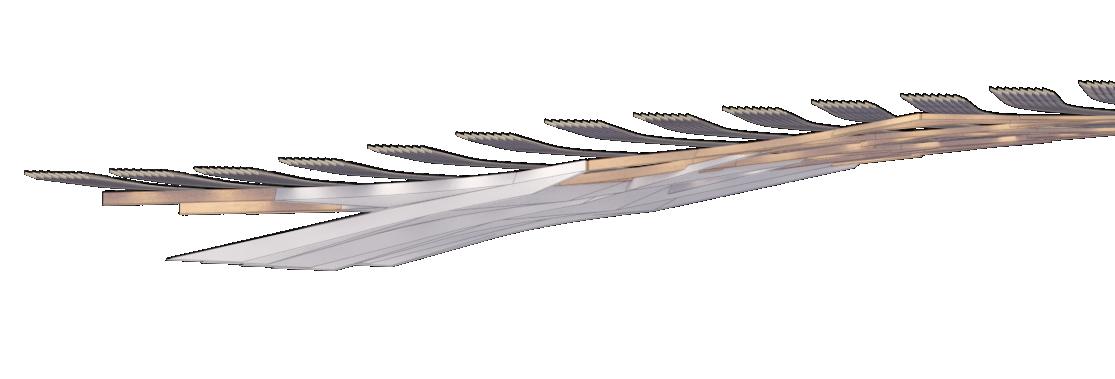

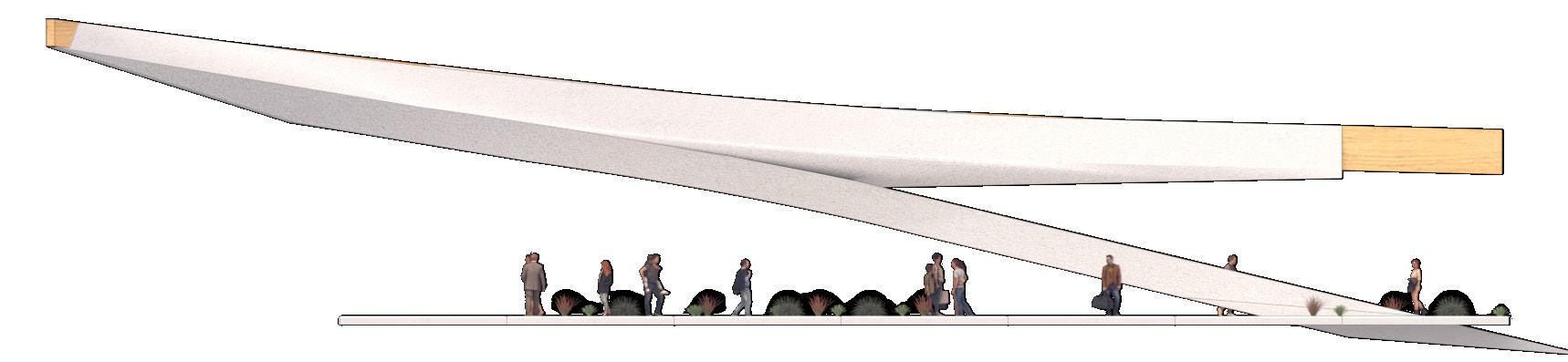

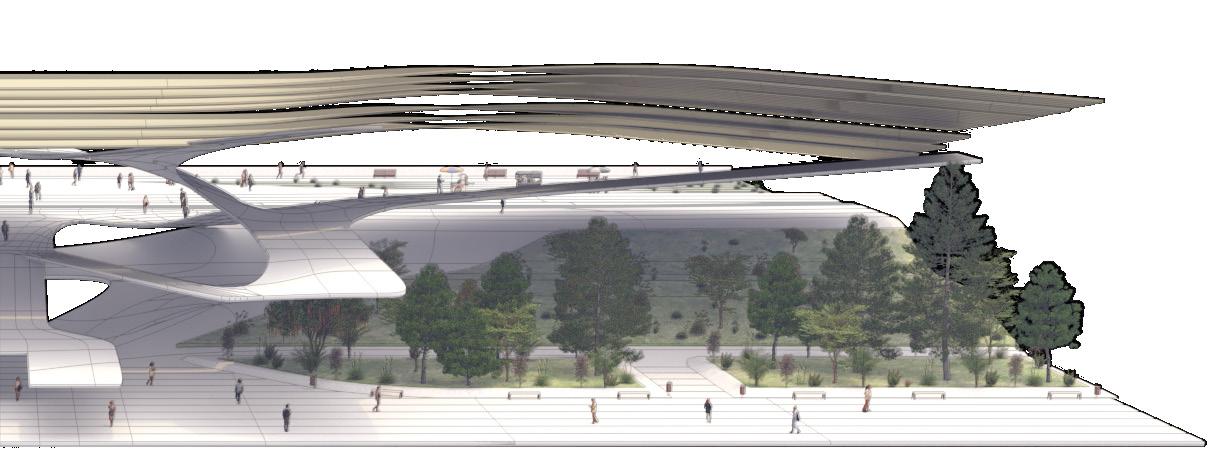

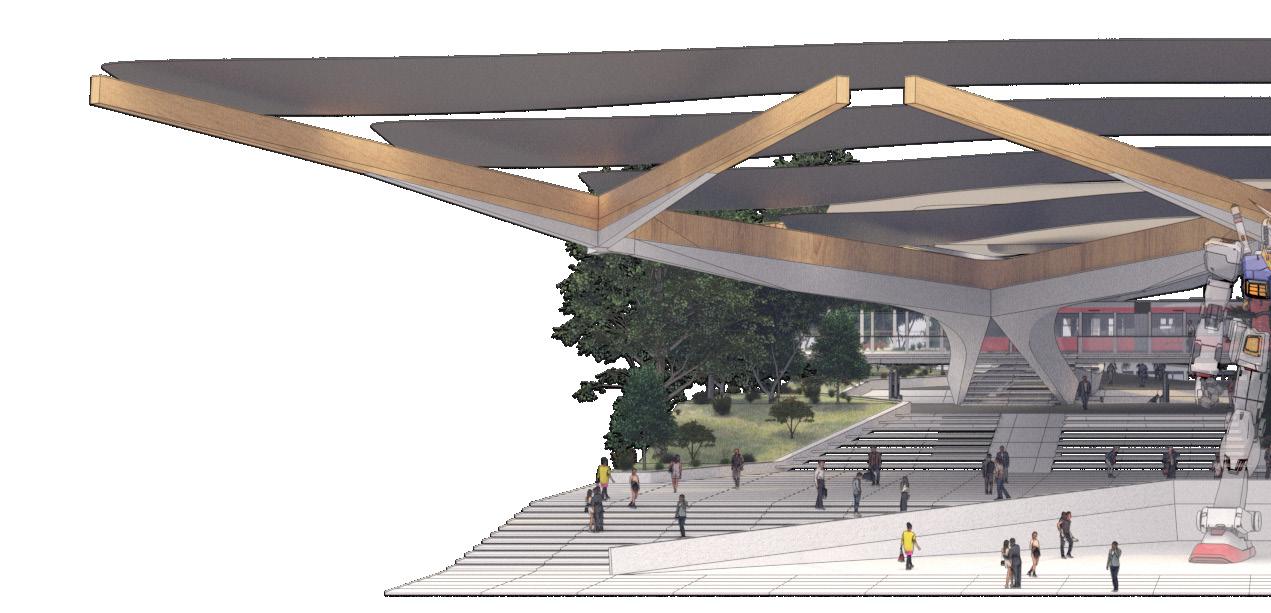

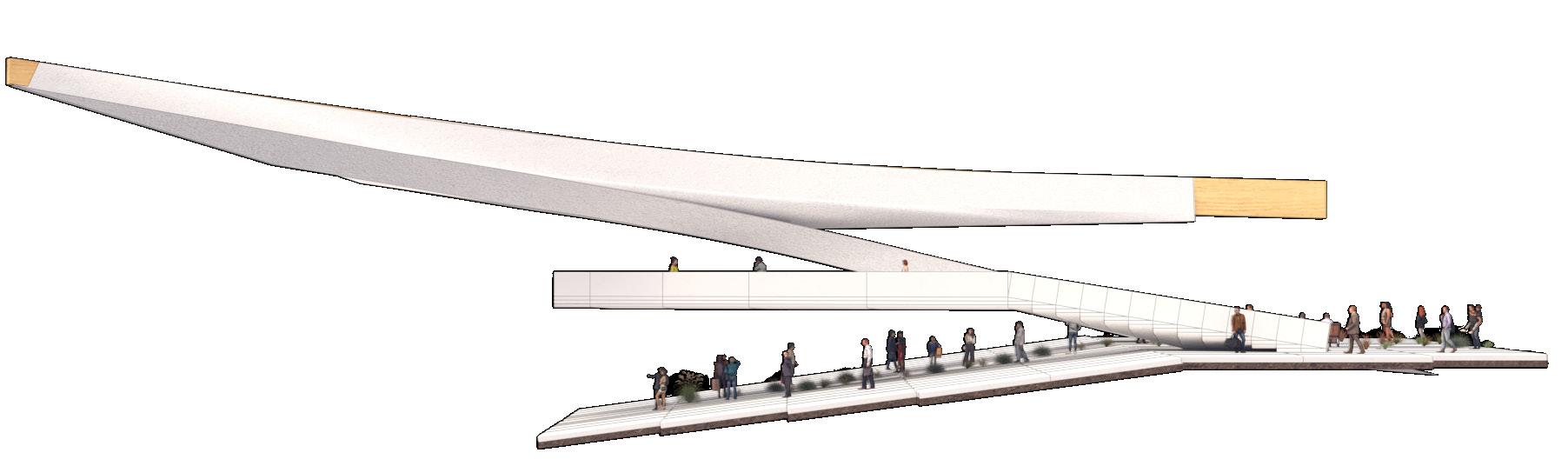

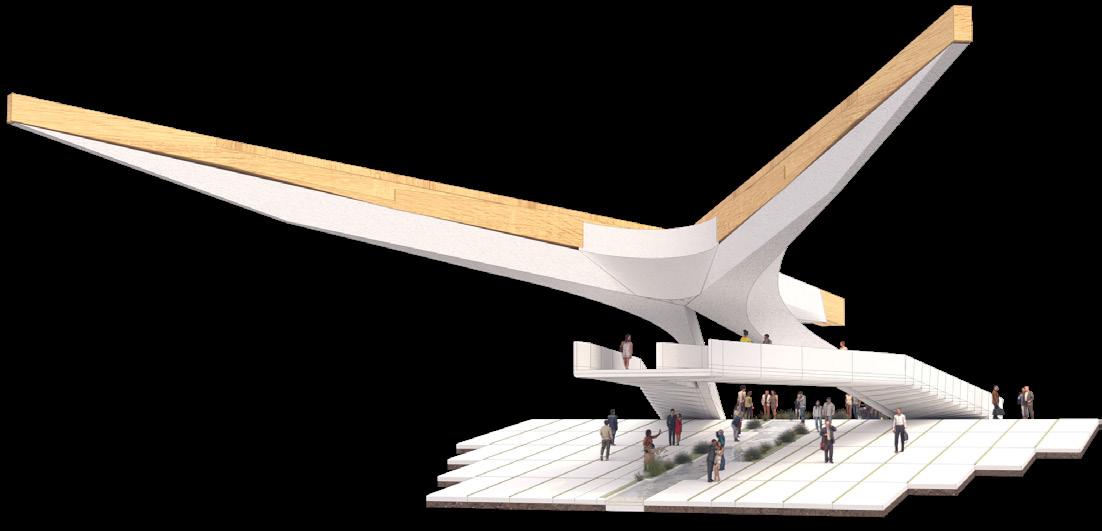

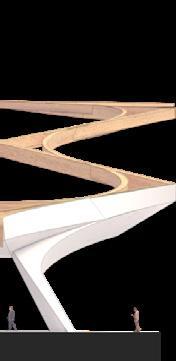

A study of circulation through shifting surface planes. The splaying structure generates two conditions: ground-level movement beneath the spread arms, and an ascending route that follows the rising trajectory of the initial splay.
5. Flat to Sloped Surface condition
6. Parallel circulation
7. (6) aspect circulation
8. Back span opportunities

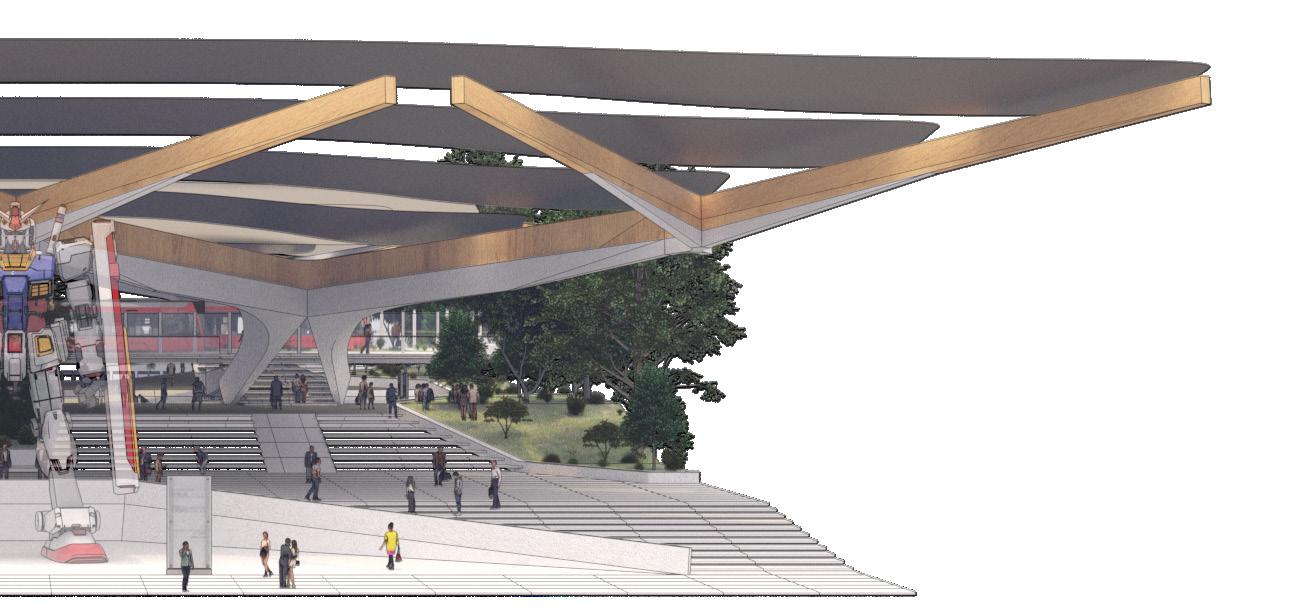

A study of backspan potential, tracing how the splaying structure mediates transitions between infrastructural conditions and shifting programmatic zones across a promenade.
Total population
123,400,000 people
Total Landmass
377,974 km²

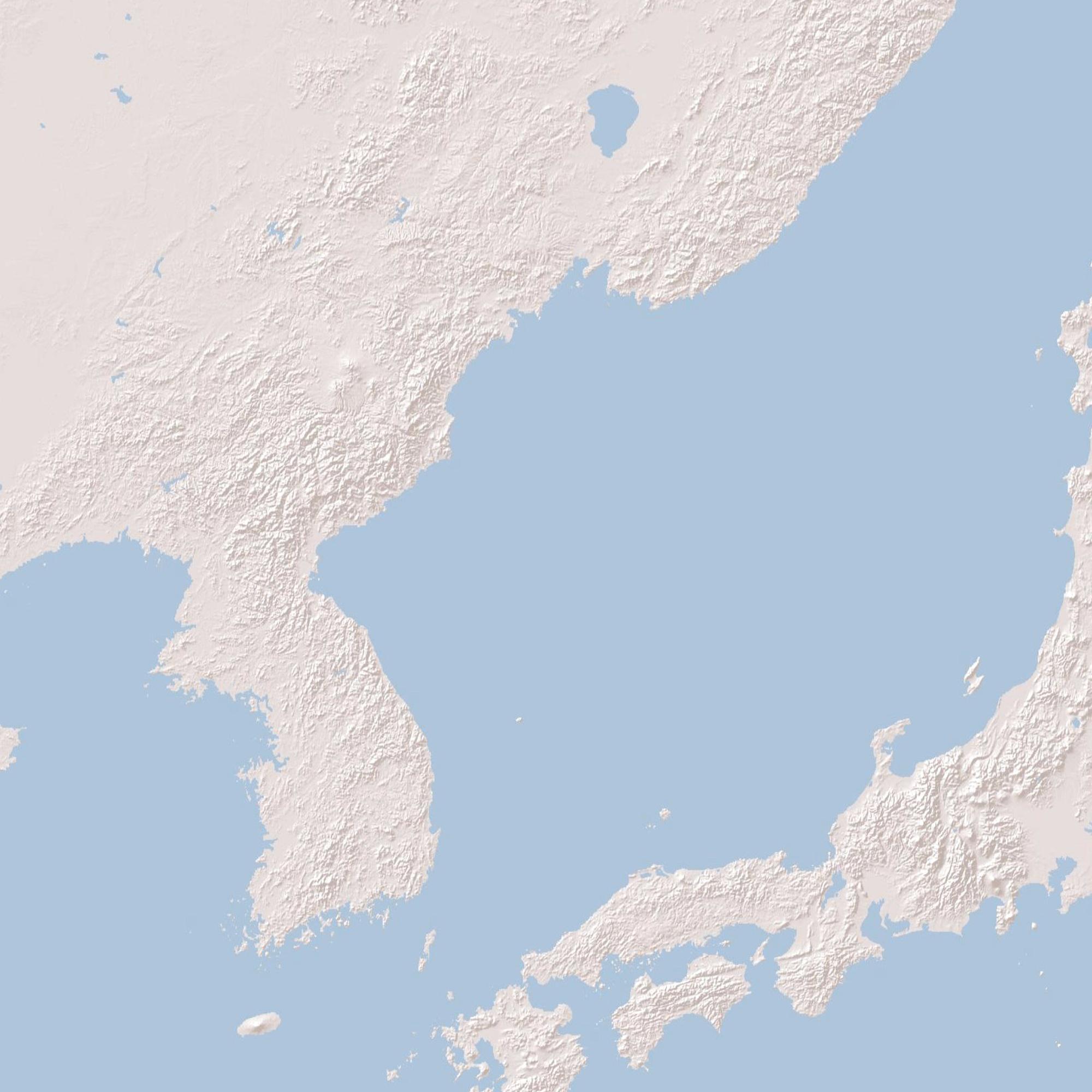

Japan is an archipelago of 6,852 islands stretching 3,000 kilometres along the eastern Asian continent. A mountainous interior concentrates settlement along coastal plains, producing a pattern of regionally distinct cities. Despite this dispersal, tourism spending remains heavily concentrated in gateway cities, Tokyo, Kyoto, and Osaka leaving the regional periphery structurally underserved.

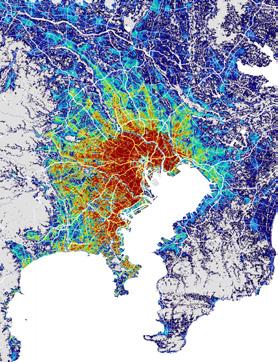

Tokyo Metropolitan Area
Population - 41,000,000
Total Area - 13,500 km2
Density - 2642 people/km2
Chūkyō Metropolitan Area (Nagoya)
Population - 6,871,632
Total Area - 2791.72 km2
Density - 2461.43 people/km2
Keihanshin Metropolitan Area (Osaka +Kyoto)
Population - 19,302,746
Total Area - 13,033 km2
Density - 1459 people/km2

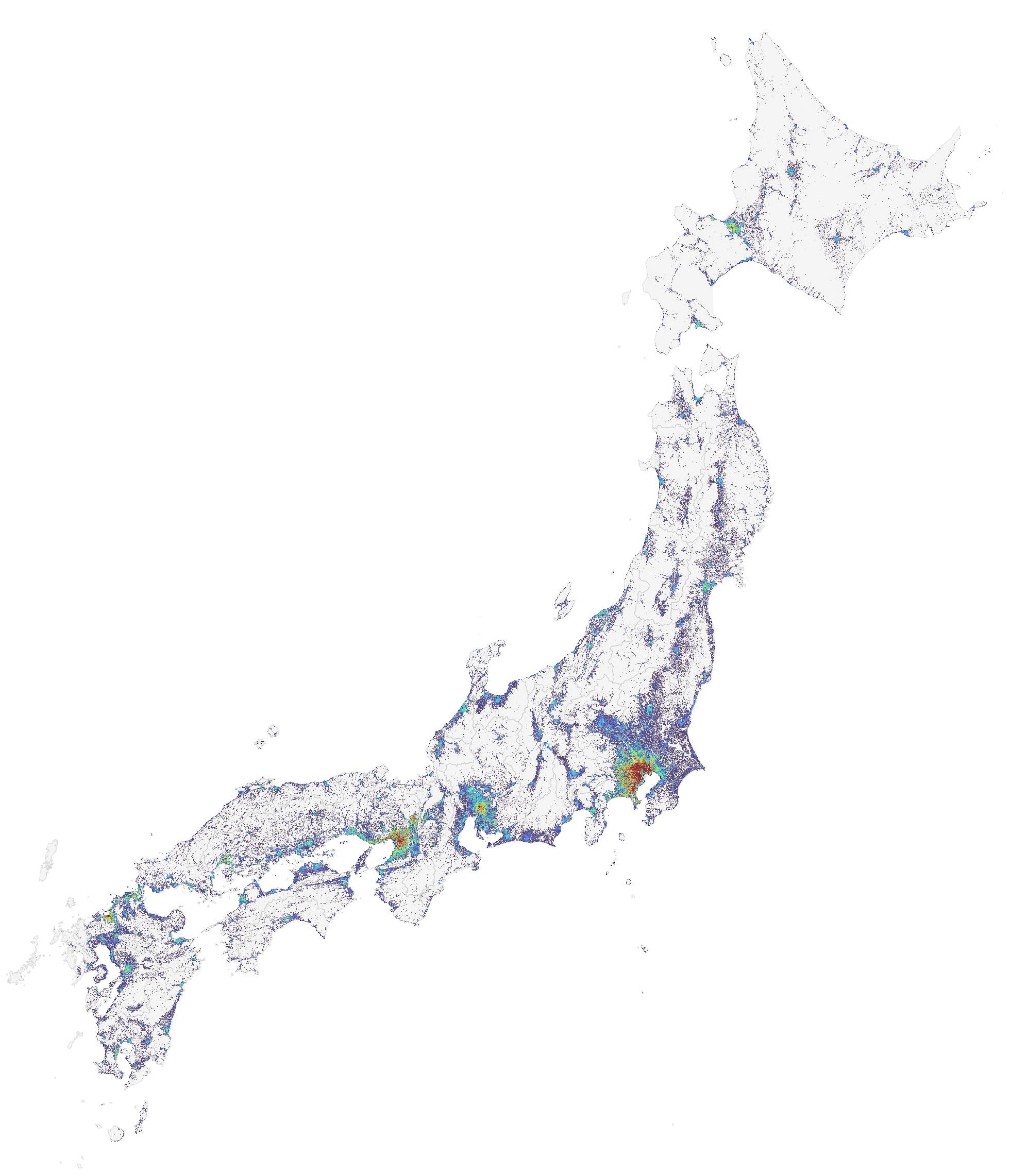

Japan’s 125 million inhabitants occupy just 30% of habitable land, producing extreme coastal urban concentrations. The Greater Tokyo Area alone houses over 37 million people. A rapidly ageing population and declining birth rate compound this pressure, accelerating depopulation across rural and regional areas while straining metropolitan infrastructure.

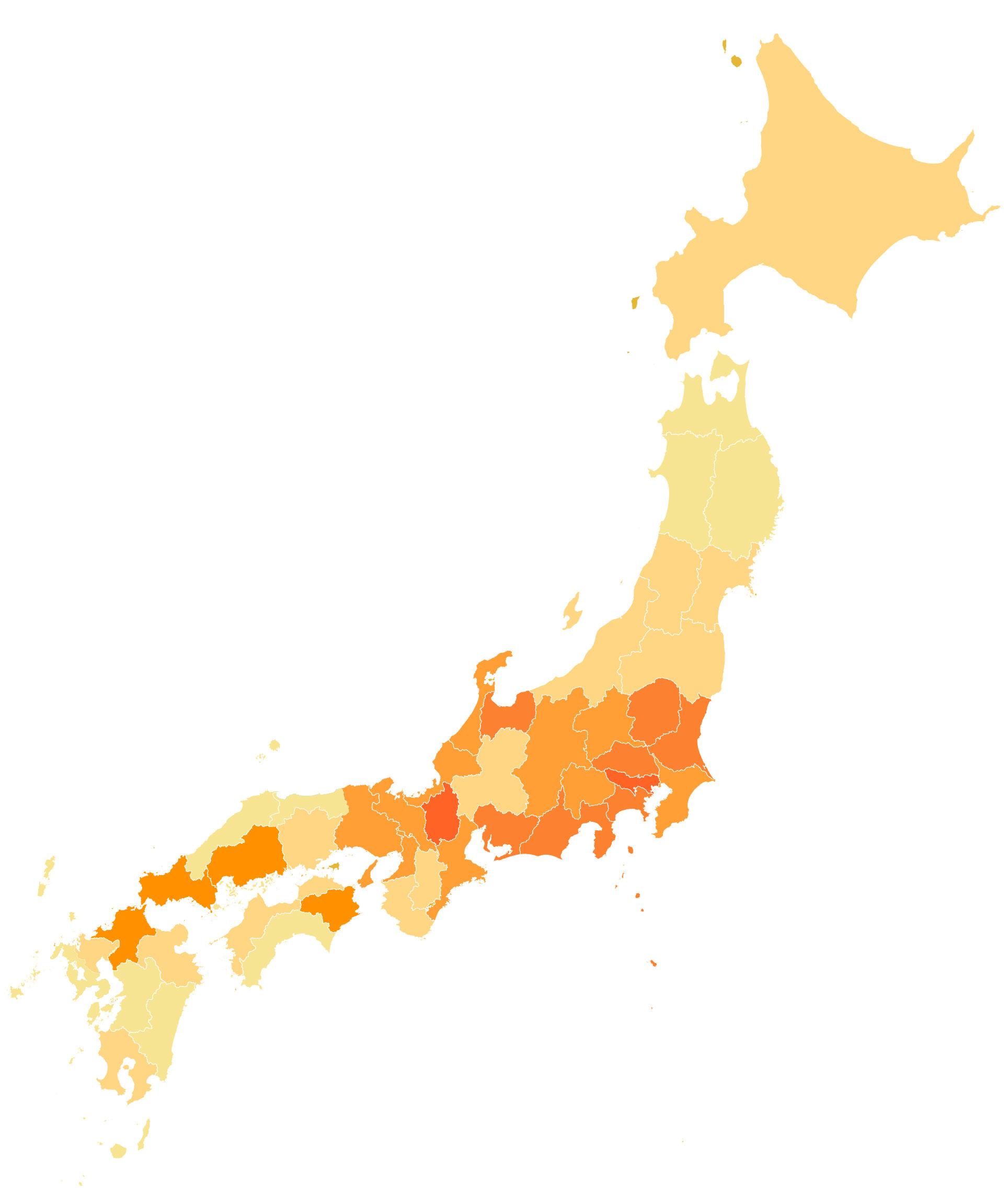

Population Density of Japan vs Countries
Density of golden route cities in Japan
Tourism in Japan remains concentrated along the Golden Route ; Tokyo, Kyoto, and Osaka, generating chronic overcrowding and strained infrastructure that has measurably reduced quality of life for residents. In response, Japan’s tourism board has actively redirected policy toward regional dispersal, identifying cruise tourism as a primary instrument of that strategy.
Kansai
24. Mie 27. Osaka 30. Wakayama
25. Shiga 28. Hyogo 26. Kyoto 29. Nara
Attractions : Fushimi Inari Shrine : Kiyomizu-dera Temple : Dotonbori : Nara Park + Todai-Ji Temple : Arashiyama bamboo grove : Himeji Castle : Osaka Castle
31. Tottori 34. Hiroshima
32. Shimane 35. Yamaguchi
33. Okayama
Attractions
: Hiroshima Peace memorial : Itsukuhima Shrine + Floating Torii : Korakuen Garden
: Tottori Sand Dunes : Kintaikyo Bridge
40. Fukukoa 43. Kumamoto 46. Kagoshima
41. Saga 44. Oita 47. Okinawa
42. Nagasaki 45. Miyazaki
Attractions
: Mount Aso : Okinawa Churaumi Aquarium : Nagasaki Peace + Atomic bomb museum : Beppu Onsen Hells : Shuri Castle : Sakurajima Volcano : Kabira Bay
36. Tokushima 38. Ehime
37. Kagawa 39.Kochi
Attractions
Shikoku 88 Temple Pilgrimage Dōgo Onsen Honkan Iya Valley & Vine Bridges Ritsurin Garden Kōchi Castle Naruto Whirlpools
1. Hokkaido
Attractions
Sapporo Snow Festival (feburary)
Sapporo Beer Garden + Museum Niseko Ski Shiretoko National park
2. Aomori 5. Akita
3. Iwate 6. Yamagata
4. Miyagi 7. Fukushima
Attractions
: Hirosaki Castle : Zao Onsen
: Lake Towada + Oirase Gorge
8. Ibaraki 11. Saitama 14. Kanagawa
9. Tochigi 12. Chiba
10. Gunma 13. Tokyo
Attractions
: Tokyo Skytree + Tokyo Tower
: Shibuya Crossing
: Imperial Palace
: Senso-ji Temple
: Giant Gundam
: Akihabara
: Team Lab Tokyo
: Kusatsu Onsen
15. Niigata 18. Fukui 21. Gifu
16. Toyama 19. Yamanashi 22. Shizuoka
17. Ishikawa 20. Nagano 23. Aichi
Attractions
: Mount Fuji : Shirakawa-go + Gokayama
: Tateyama Kurobe Alpine route
: Matsumoto Castle
: Jigokudani Monkey Park
: Nakasendo Way
Japan Cruise Tourism
Overall Tourism Consumption: Total tourism consumption in Japan was estimated at approximately JPY 28.1 trillion in 2023. * Total Economic Contribution: The total contribution of the Travel & Tourism sector to Japan’s economy is forecasted to reach almost JPY 44.6 trillion in 2024.
The economic impact of cruise tourism is recognized as a significant driver of regional consumption.
Rapid return of high-volume cruise traffic signals the sector’s increasing role in bolstering local economies through passenger spending on shore excursions, retail, and F&B.
Cruise Routes around Japan
Cruise Ports

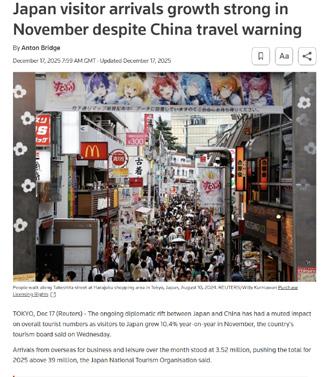

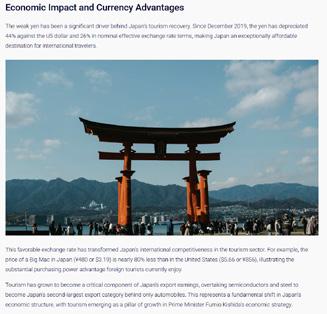

Japan's post-pandemic tourism recovery has been among the strongest globally, with visitor numbers surpassing pre-pandemic levels by 2024. A weak yen, sustained international interest in Japanese culture, cuisine, and landscape, and a diversifying domestic tourism offer have collectively maintained momentum establishing Japan as one of the world's most resilient tourism economies.

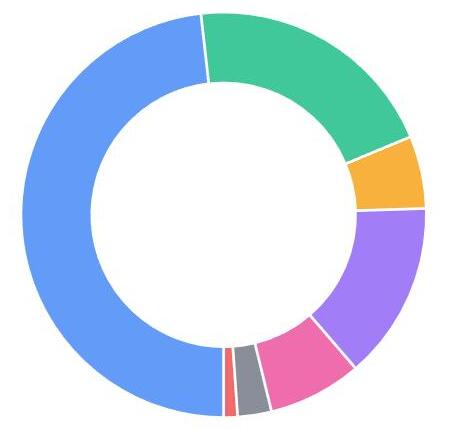

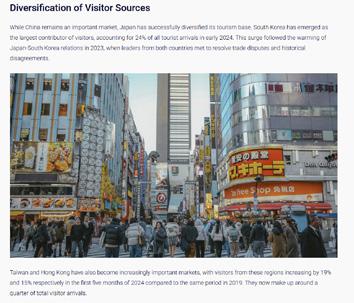

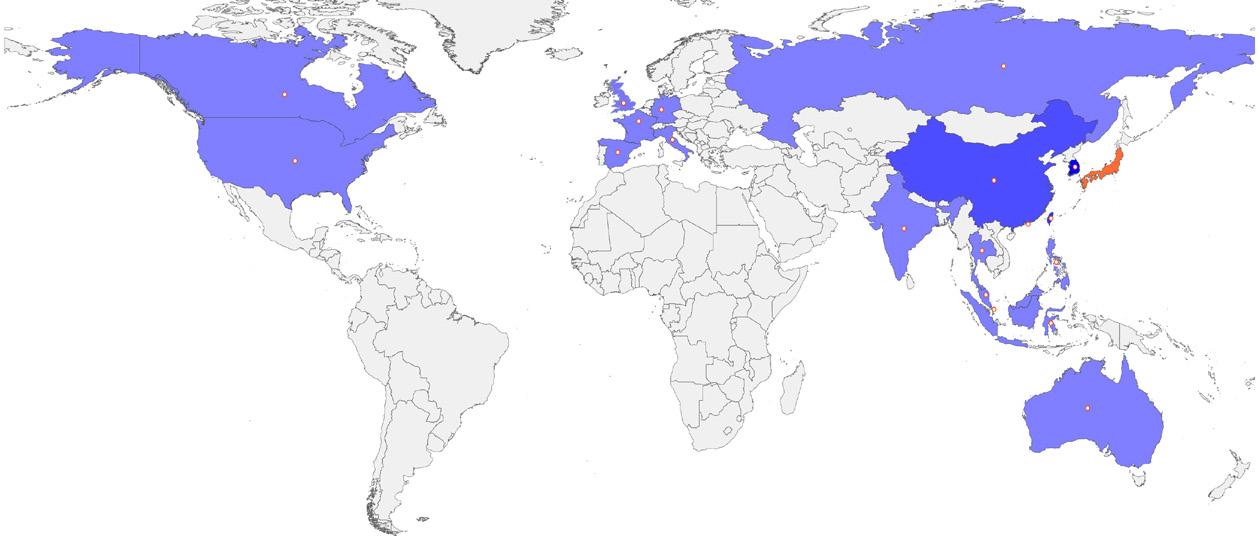

Visitor Profile

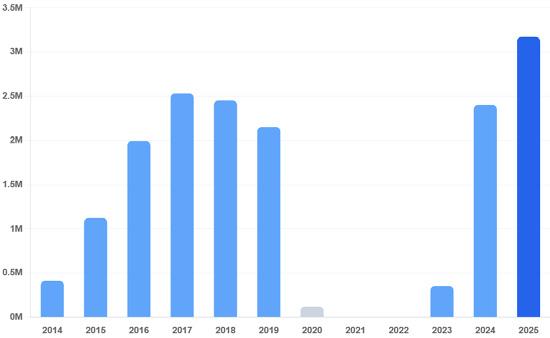

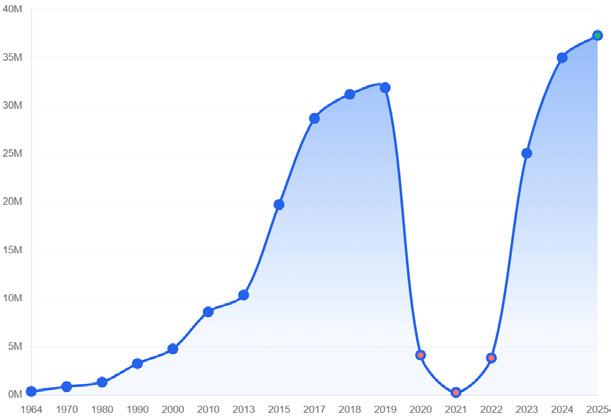

Visiting Tourists per year to Japan

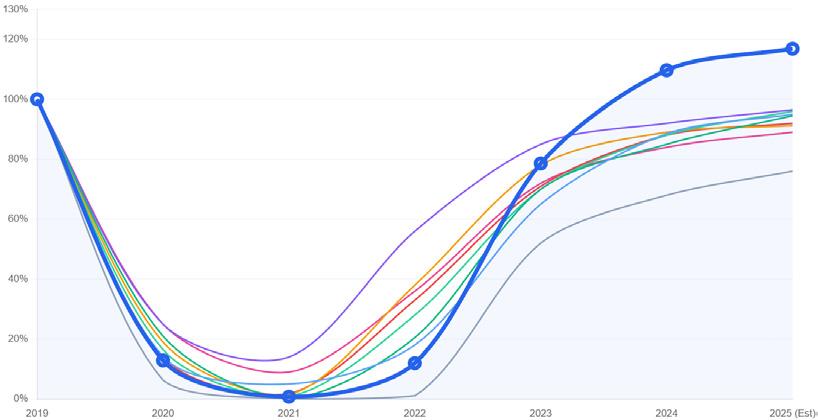

Tourism Recovery vs Neighbouring countries
Japan’s cruise tourism sector represents a direct instrument of regional economic redistribution. Unlike conventional air tourism, cruise itineraries route spending through secondary and tertiary coastal cities, bypassing the Golden Route entirely. As vessel capacity and frequency increase, the economic footprint of each arrival offers a measurable counterweight to depopulation and declining local economies.

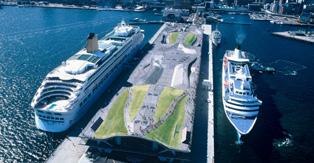

Yet cruise terminal infrastructure has historically operated in isolation, large-scale port facilities that process passengers efficiently but fail to engage meaningfully with the wider city beyond.
Cruise operators with frequent tours of Japan

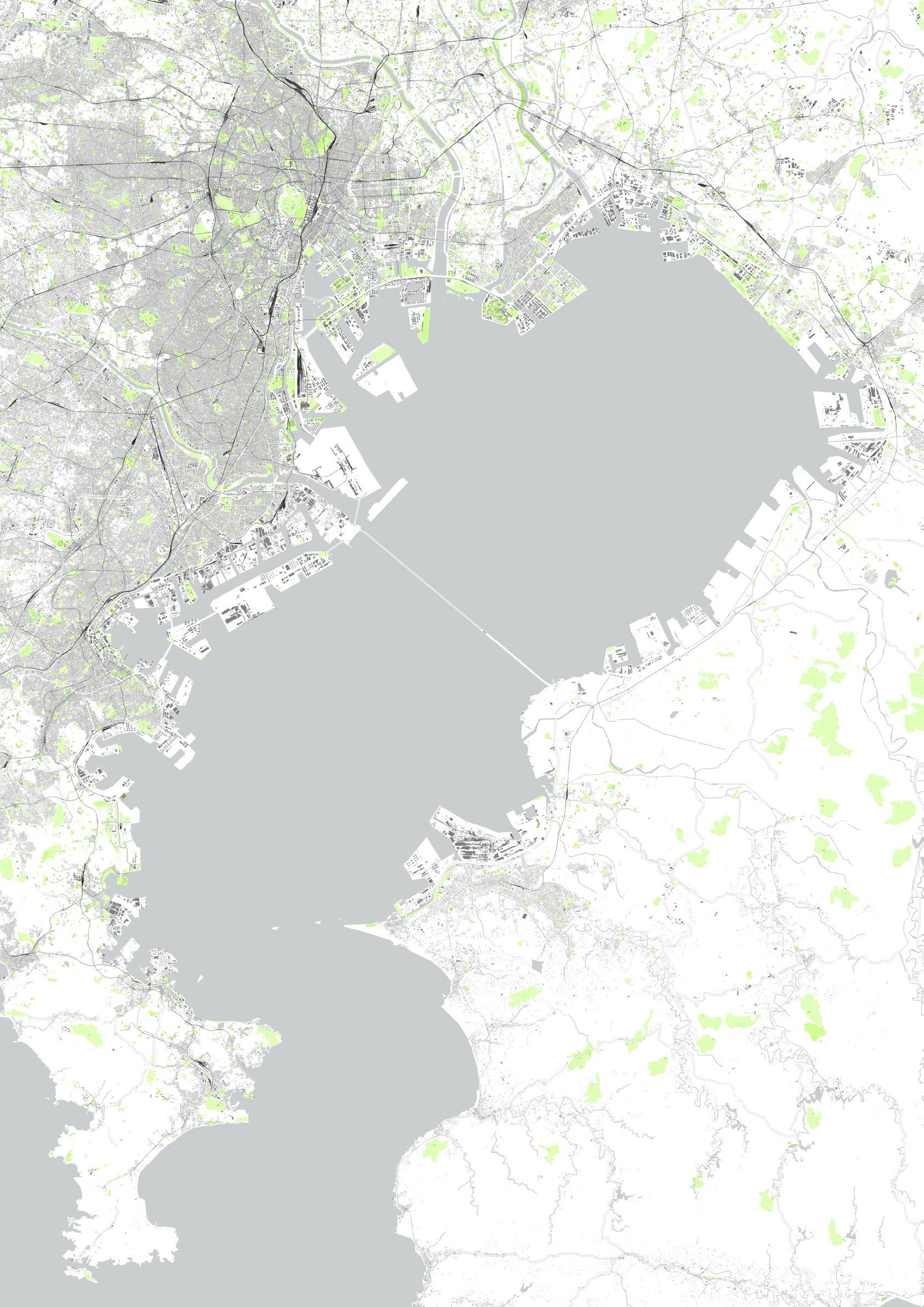

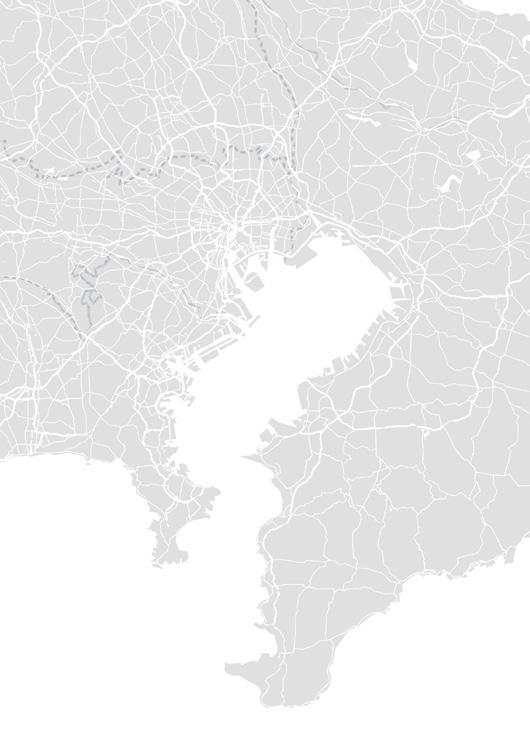

The Tokyo Metropolitan Bay Area represents the most ambitious realisation of land reclamation urbanism in the world. Successive waves of artificial island construction throughout the twentieth century extended the city progressively into the bay, each reclaimed territory shaped by the metropolitan needs of its time — ranging from commercial and social to industrial and infrastructural in application.
- 1955 1500 - 1899 Land Reclamation
1976 - 2015
- 1975

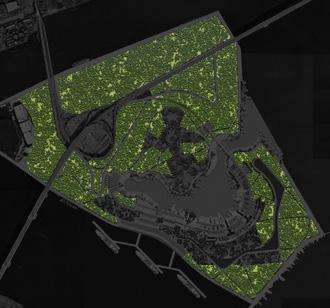

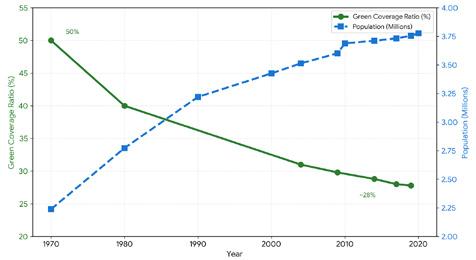

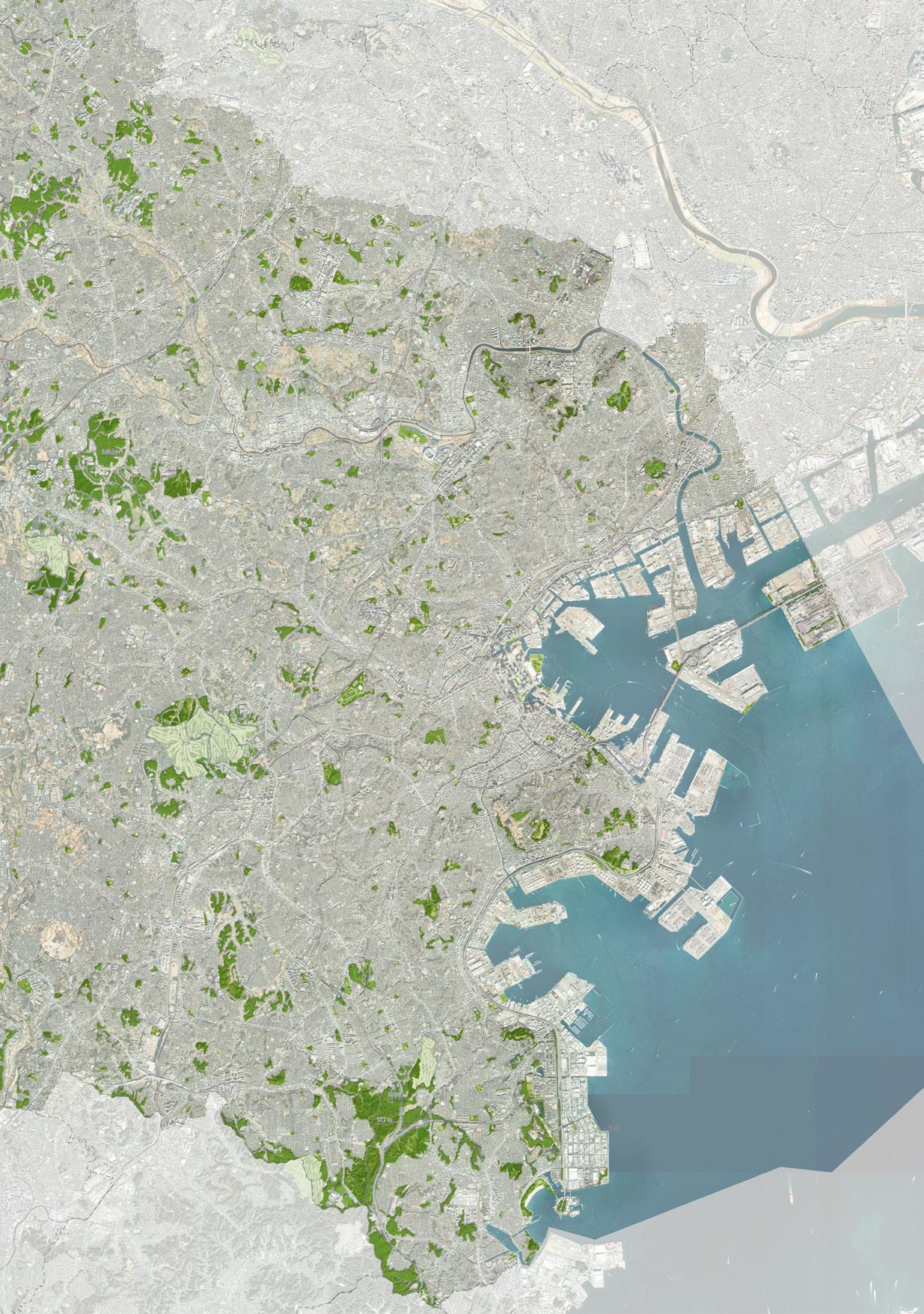

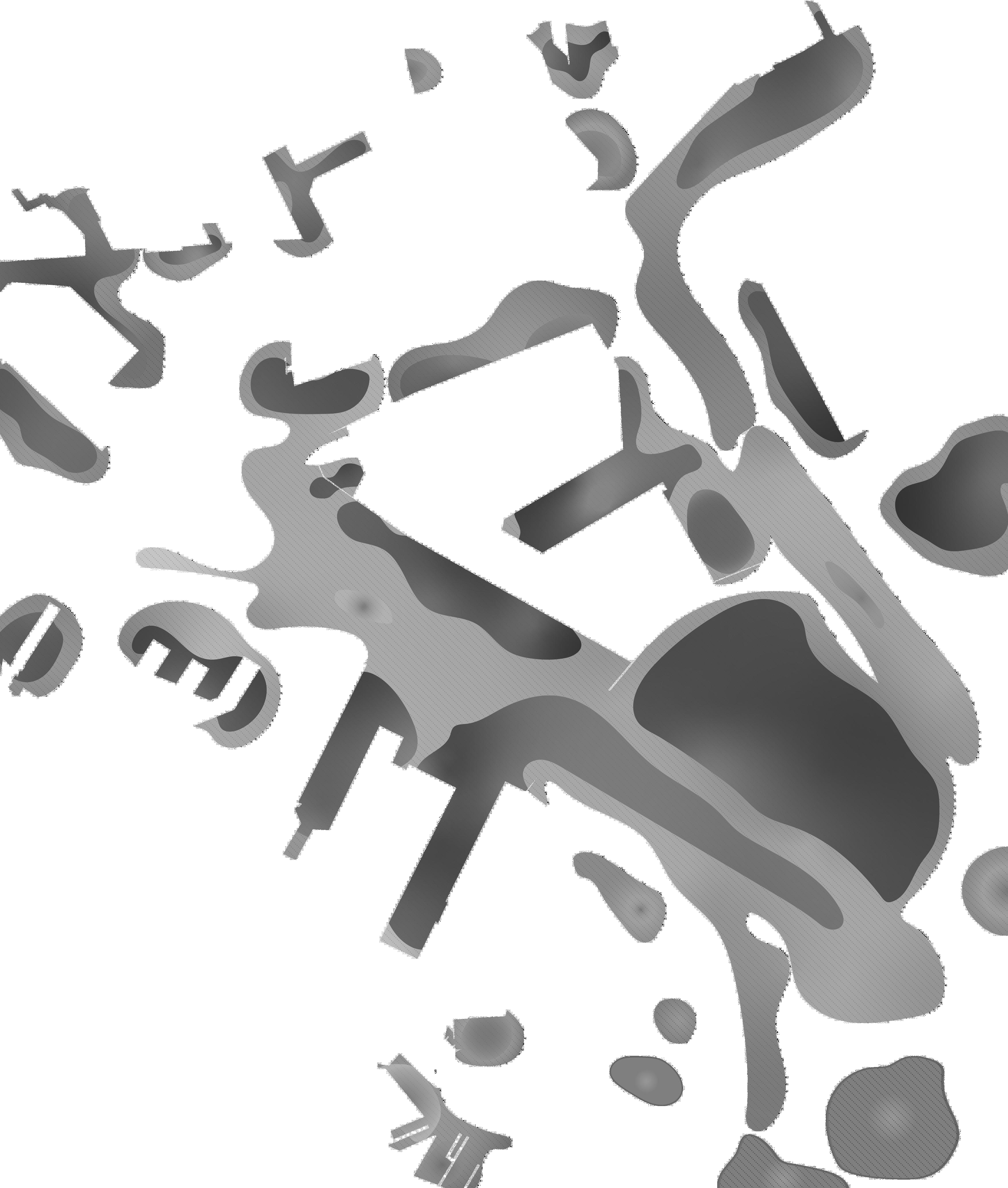

Intense development in Yokohama has steadily eroded its natural environment and green cover over the course of the twentieth century. Parks, forested land, and riverside corridors that once defined the city’s character were progressively lost to urban expansion and infrastructure demand. In response, Yokohama launched the Green-up Plan in 2009 — an ongoing municipal action plan to preserve and create diverse green spaces across the city.

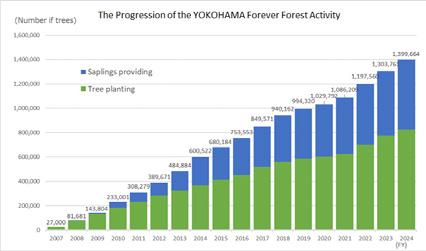

Replanting Initatives

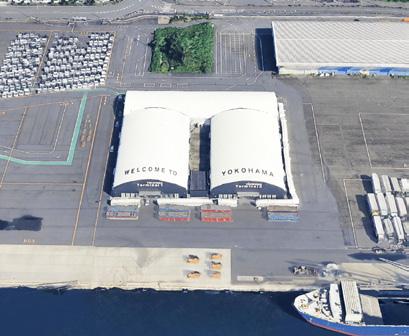

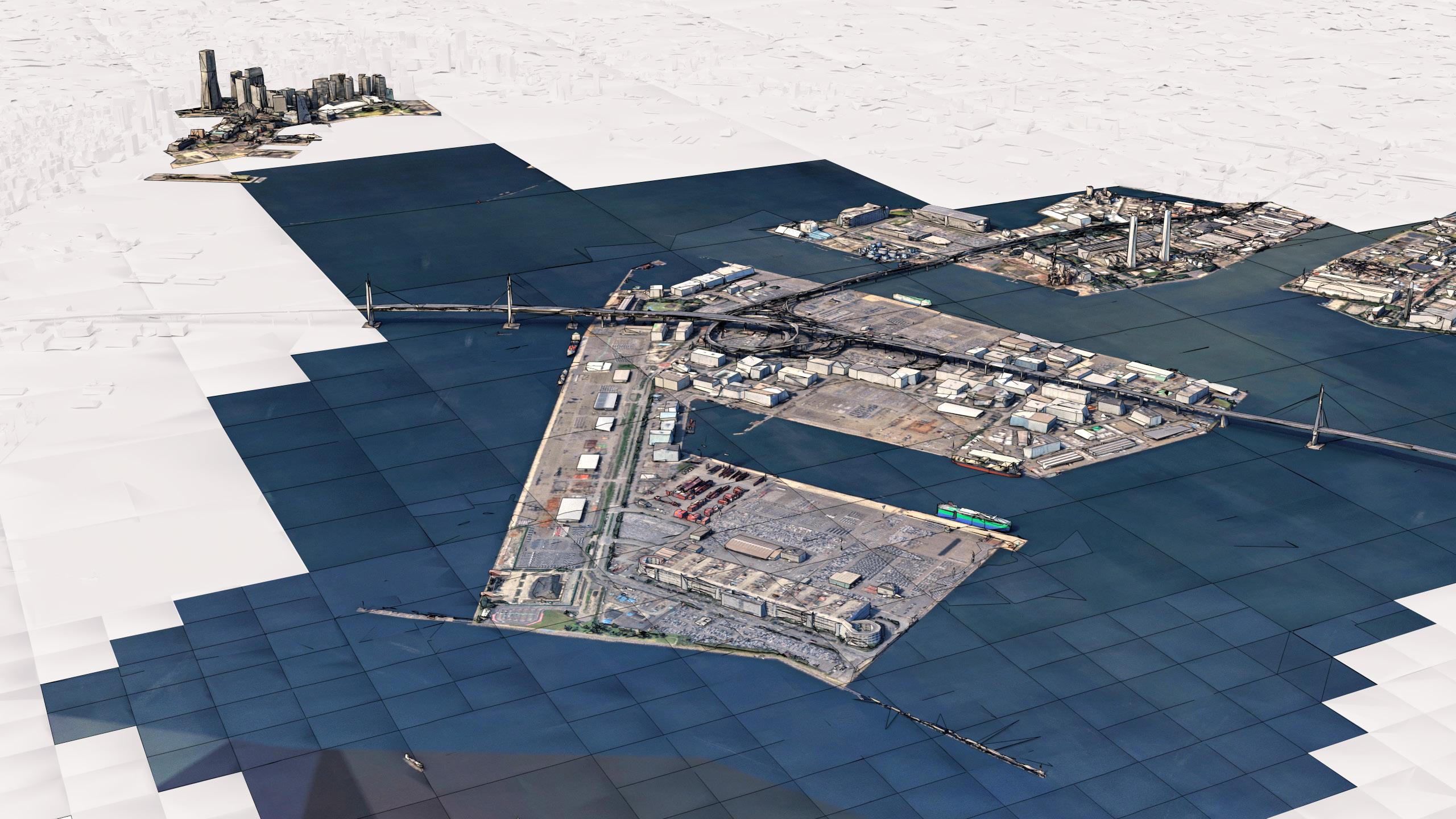

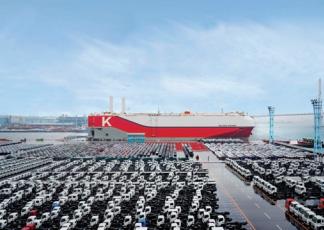

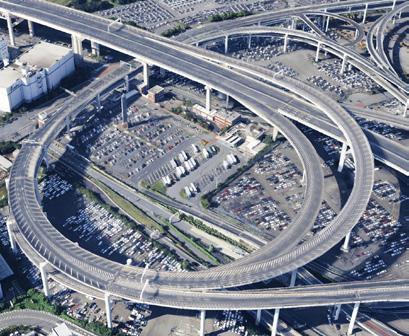

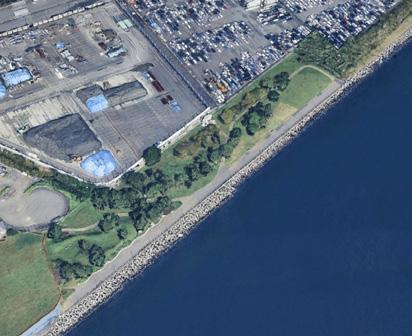

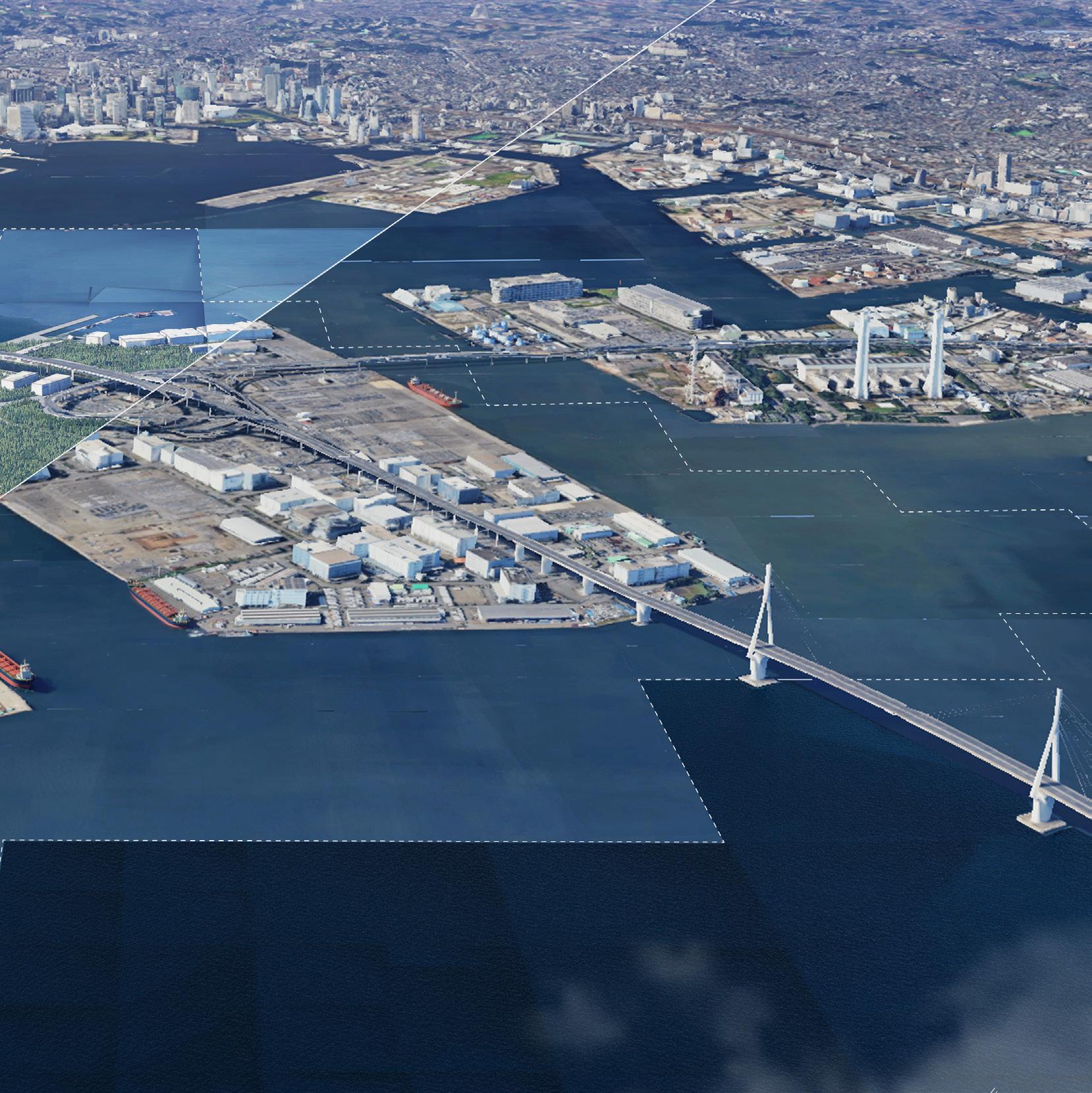

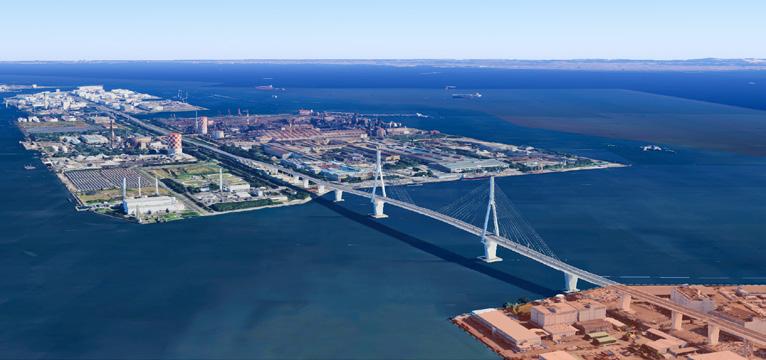

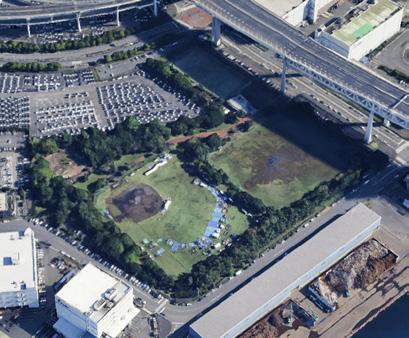

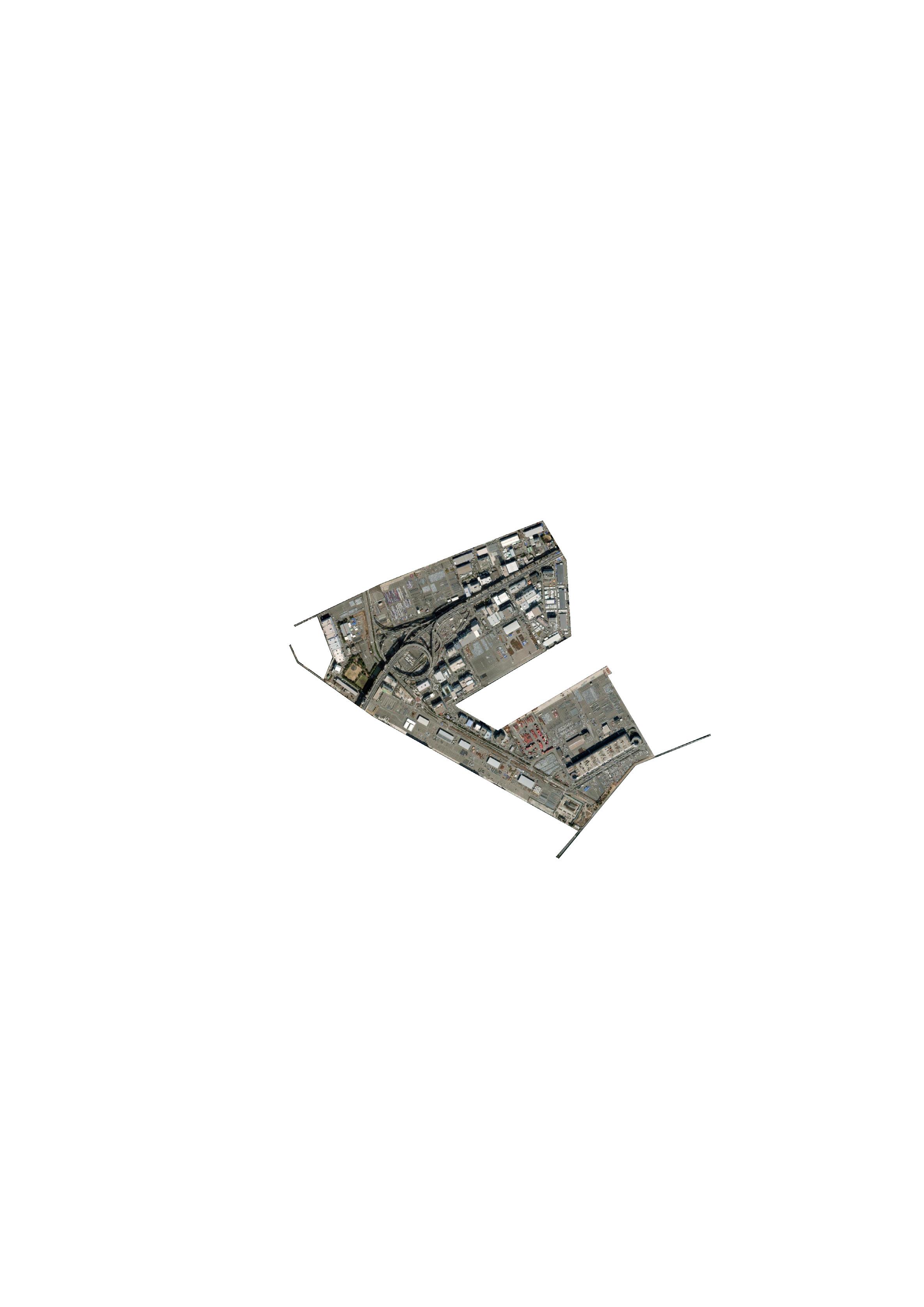

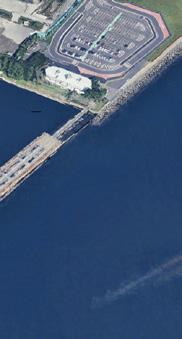

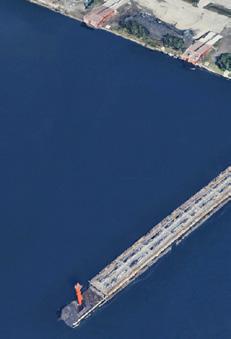

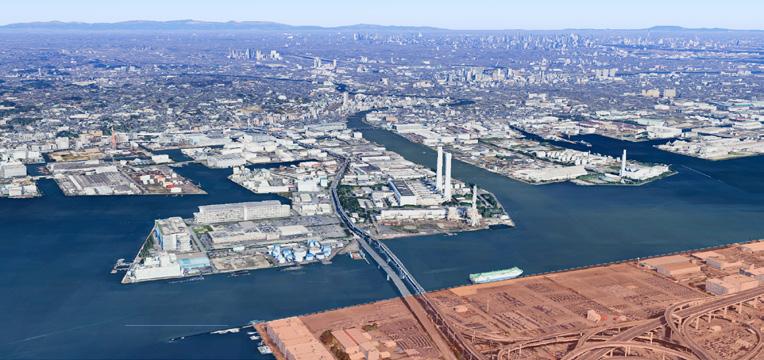

Daikoku Pier currently operates as one of Japan’s largest vehicle export terminals, Access to the pier is by enclosed by paid expressways and inaccessible on foot, the island remains effectively severed from the city it borders.

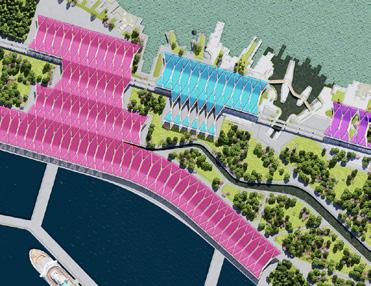

Berthing allocation
Multi-purpose Berth
Conventional berth
Automobile Terminal
Under Construction
Liner Terminal
As an active vehicle export terminal, Daikoku Pier generates significant pollutant loading into the surrounding bay. Stormwater runoff from vast paved surfaces carries organic compounds, heavy metals, and fine particulates directly into the water, while oily bilge water, ship paint leaching, and nitrogen runoff contribute to eutrophication and the ongoing degradation of marine water quality.
Surrounding Zoning
Daikoku Pier is a unique hub where multiple subcultures converge. The cruise terminal attracts international visitors, while the famous Daikoku Parking Area hosts car tuner gatherings and automotive enthusiasts. Chuo Park offers recreational space, and the fishing park and camping area support outdoor and angling communities, creating a diverse waterfront destination.
reach their full bloom. The “Garyobai” plum blossoms are an exceptional sight to see. On Sundays and holidays, there are Koto (Japanese harp) performances and other special events.
During the Festa, Lanterns illuminate the 500m long row of cherry blossom trees at nigt time. The modernistic town of Minatomirai will be filled with a nostalgic atmosphere. There will also be various events held at the surrounding facilities, mainly during the weekends such as street performances, live music performance, stamp rally, and more.
Dragon boats pursuing the landscape of Yokohama are a unique view of Yokohama. At the event, you can also enjoy great food and cold beer at food stands. There will be performances by brass bands and amateur bands on the stage, which add the festive mood.
Festival celebrating the opening of Yokohama port. The main site of the festival is at Rinko Park in the Minato Mirai 21 area. On the seaborne area, you can board the ships where there are test-ride events. On land, there will be music concerts and performances. You may also enjoy a collaborative spectacle of fireworks with sounds and laser.
There are numerous hydrangea-related events, including the Hydrangea Stamp Rally, tea ceremony, photo exhibitions, and restaurants offering specialty menus. There will also be a “Bayside Market ~Hydrangea Fair~,” with sweets which are associated with hydrangea and special dishes only offered during the festival.
Yokohama Sparkling Twilight is a summer tradition in the port city of Yokohama.The Sparkling Fireworks show is being held over two days; the combination of music and fireworks provides a superb climax to the Yokohama Sparkling Twilight event.
More than 1,200 bursts of fireworks will be launched from the river bank of Tsukuno Park and Tsurumi River. There are numerous food stands, exhibition, concerts and more!
It is the firework festival in the southern part of Yokohama, Kanazawa-ku. It takes place in the end of summer season at the Yokohama’s one and only swimming beach, Marine Park (Umi-no-Koen). 3,200 bursts of fireworks will be launched into the air.
More than 1,500 Pikachus of “Pocket Monster” fame will be popping up all over Yokohama for the various shows and parades during a whole week in August! Not to mention, the largest ever “Pikachu Carnival Parade” is scheduled at Nihon Odori Avenue.
A mikoshi (portable shrine) is carried around the town during the festival. As an offering, dramatic performances are played inside the shrine at night.
This event, known as “Beerfes,” is the country’s largest beer festival. With the admission fee, it allows you to taste more than 200 types of beers with the tasting glass, providing a perfect opportunity to compare craft beers from Japan and abroad
The Yokohama Marathon is the third-largest marathon event in Japan in which members of the general public can take part, after the Tokyo Marathon and the Osaka Marathon.The Yokohama Marathon will use a course that passes many tourist spots, with the latter half of the course also including part of an expressway.

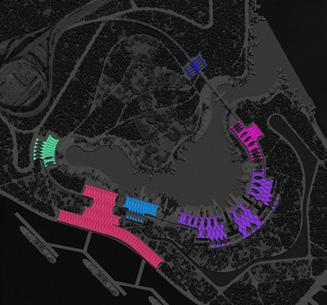

BRIEF + PROGRAMME | Revitalising Daikoku Pier

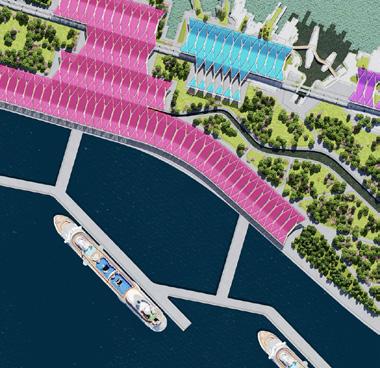

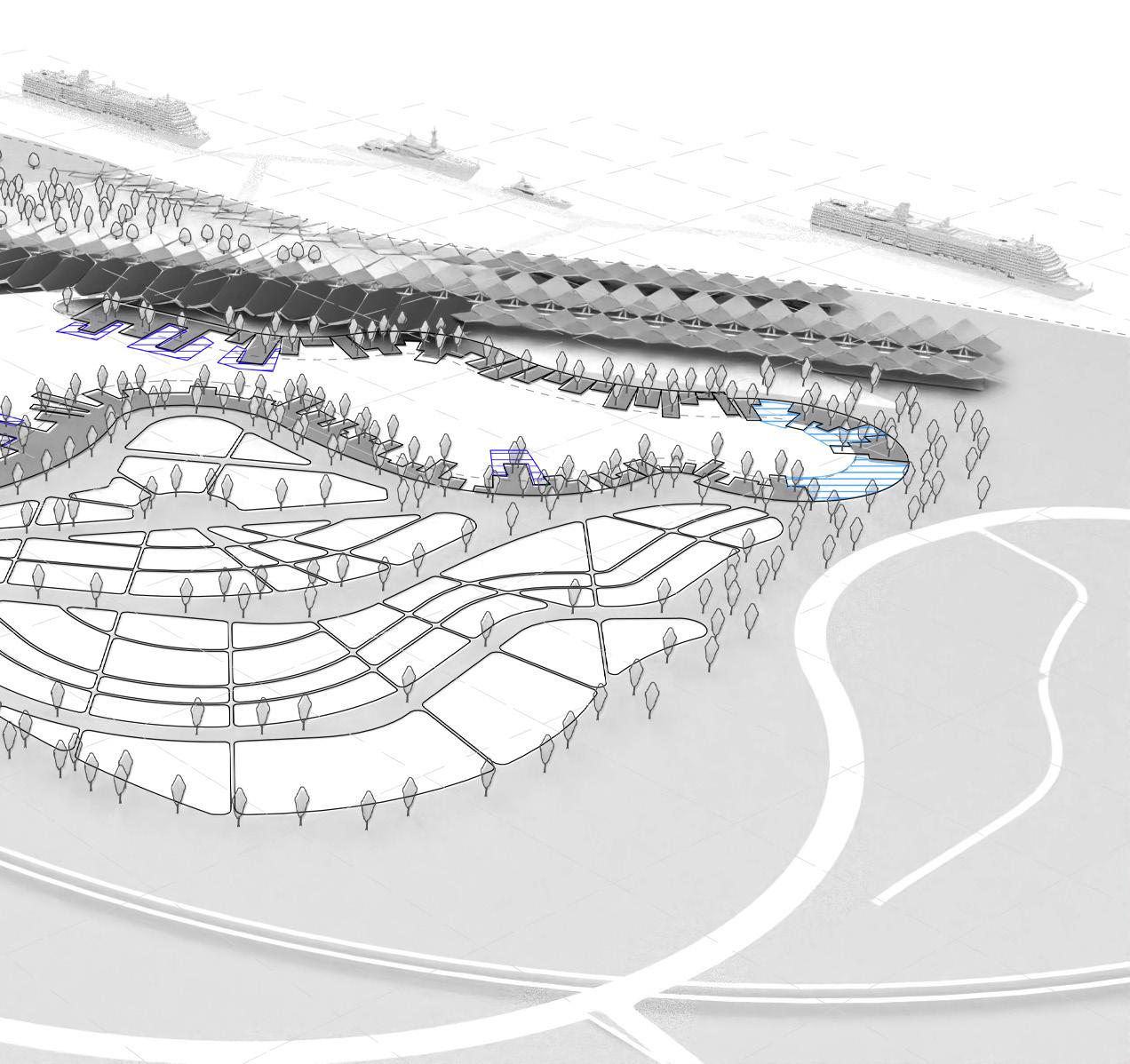

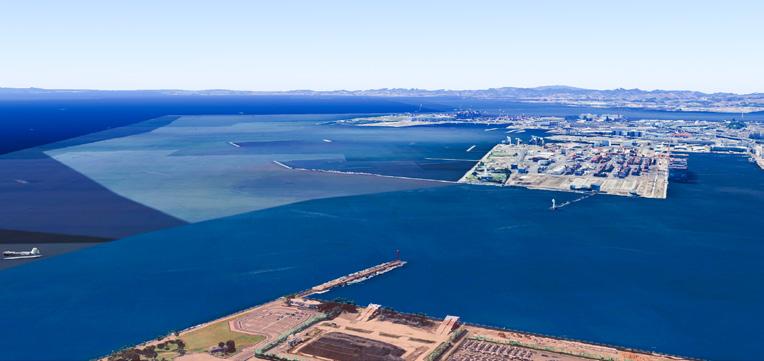

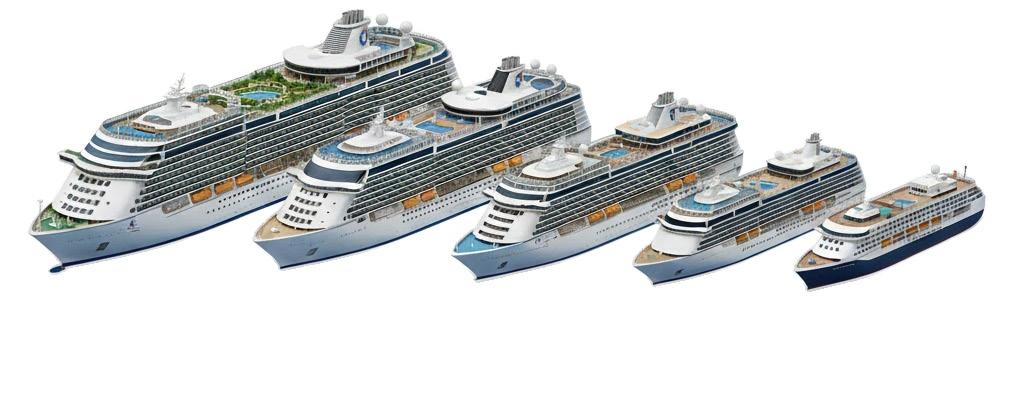

The berth design was shaped by several key considerations, particularly sight lines and vessel dimensions. Mega cruise ships, measuring up to 367 m in length and approximately 75 m above the waterline, have a significant visual and physical presence. To accommodate these vessels, a hybrid offshore and jetty terminal configuration was adopted. The berth layout was then refined based on sight-line studies from the cruise terminal, ensuring that the ships would not cast excessive shadows over terminal spaces.

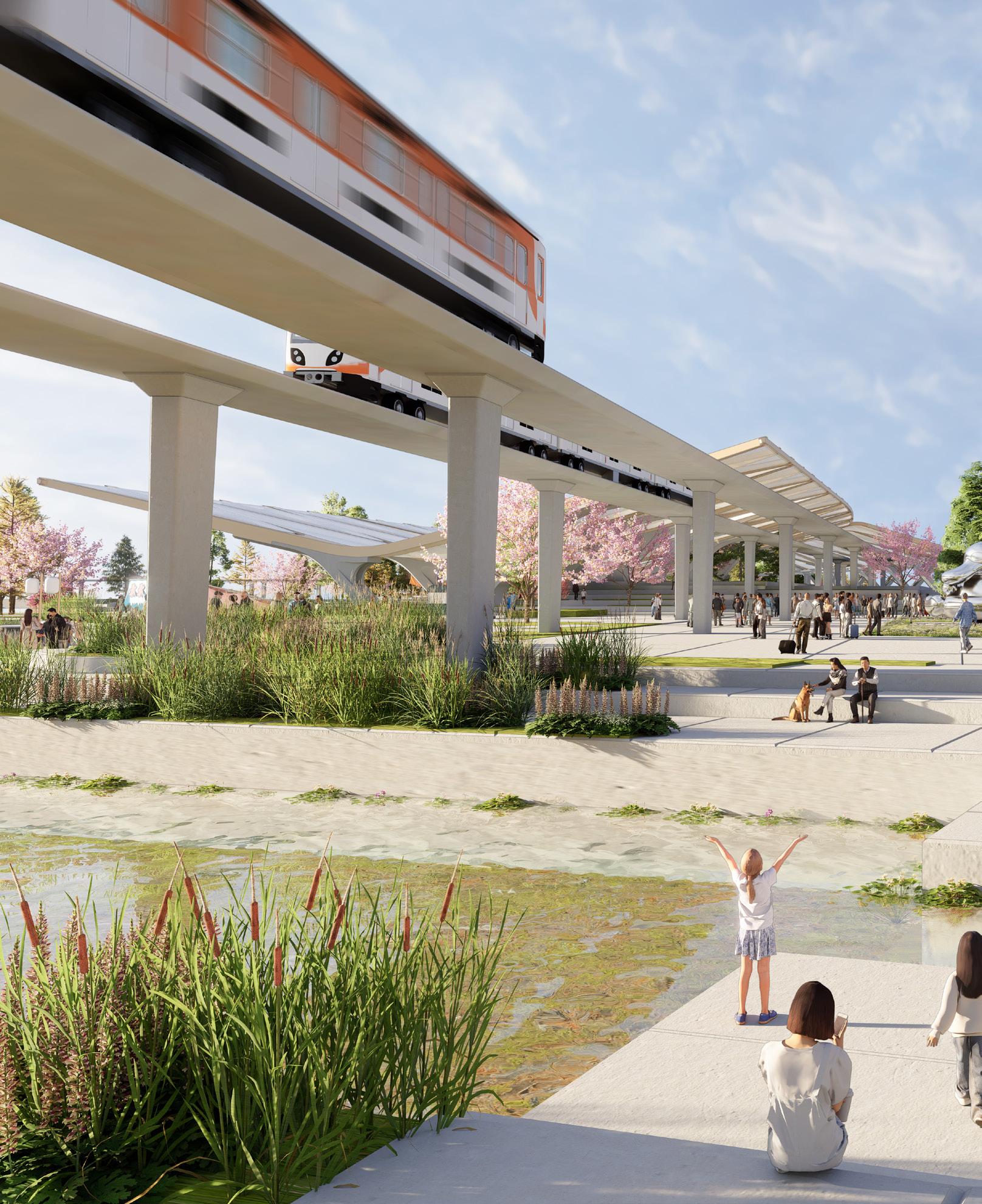

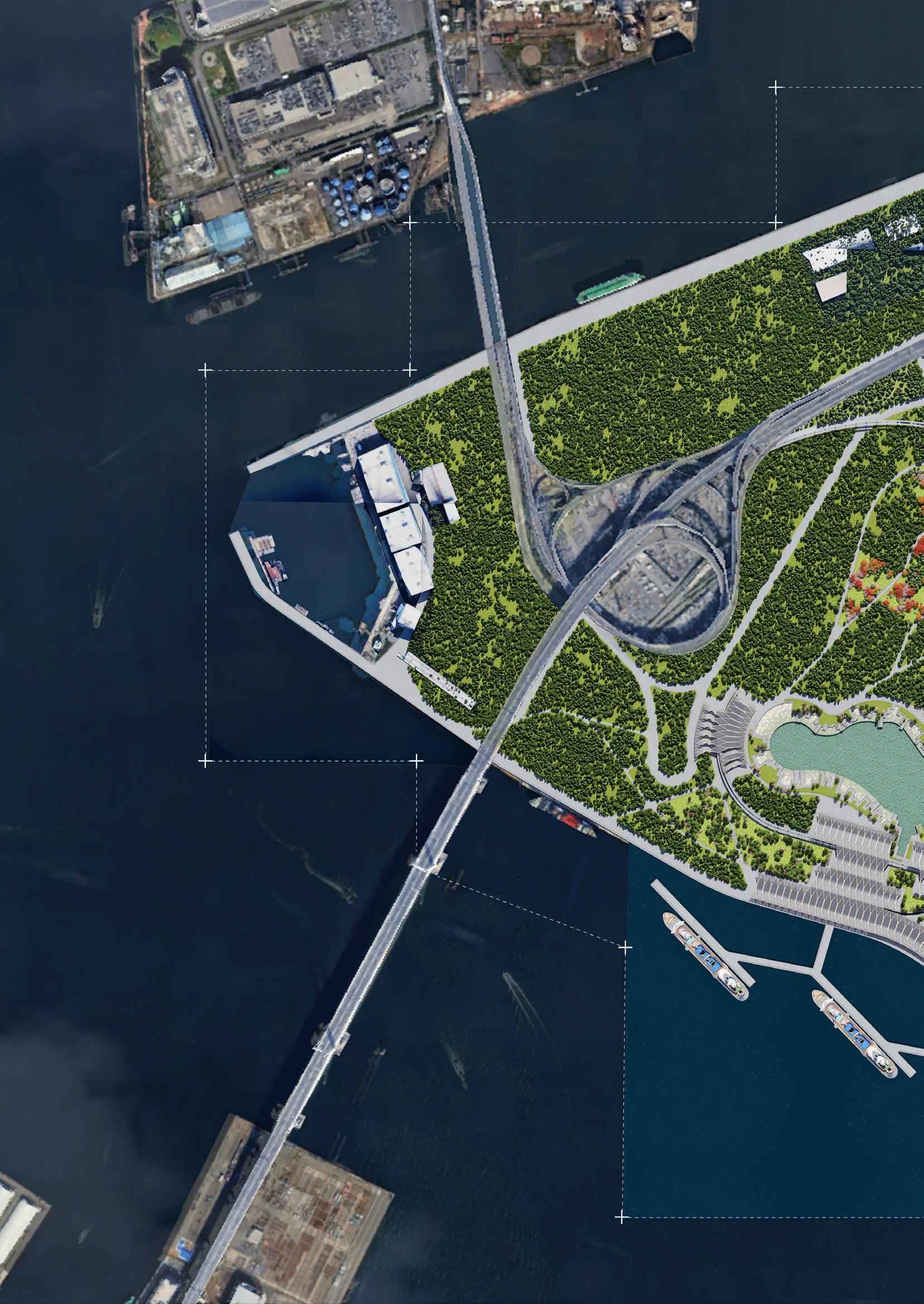

Daikoku Pier is connected to mainland Yokohama via a monorail system that utilizes the existing Yokohama Bay Bridge corridor. This central axis shapes the form of the promenade and establishes the framework for the arrangement of the surrounding programmes and public spaces.

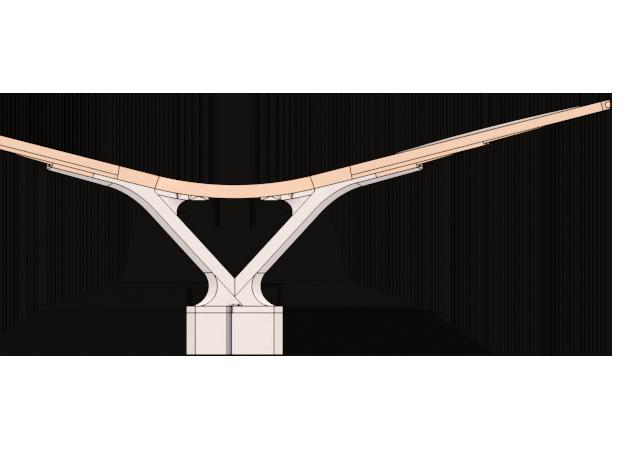

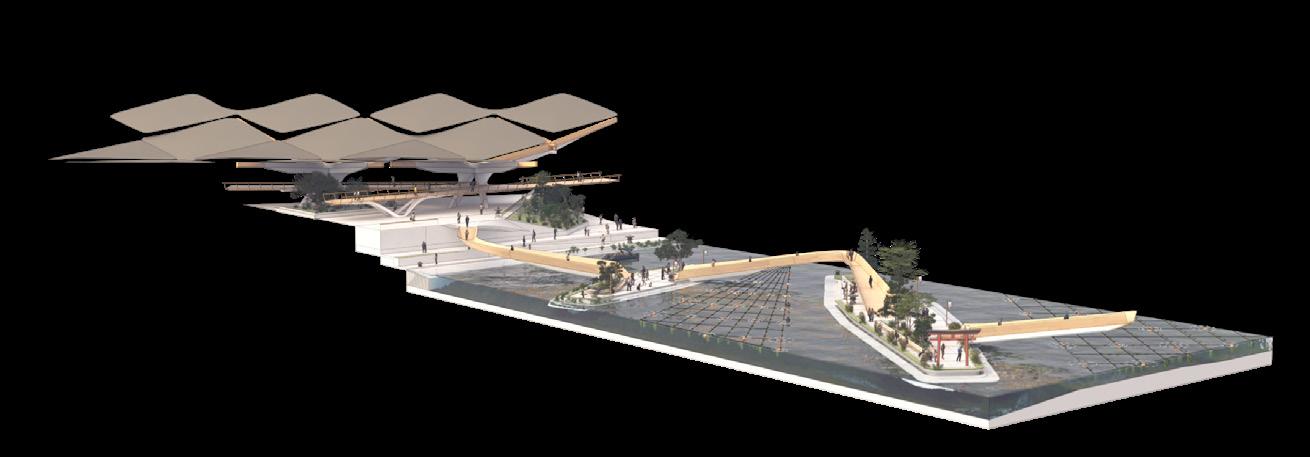

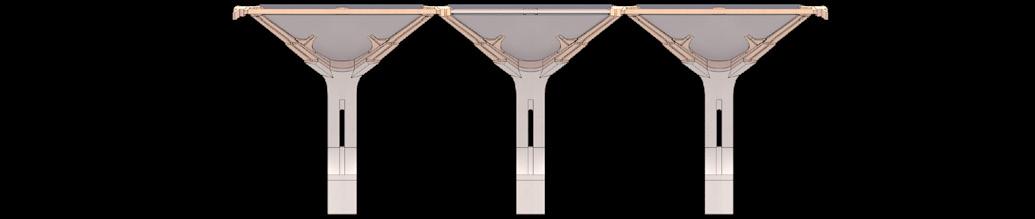

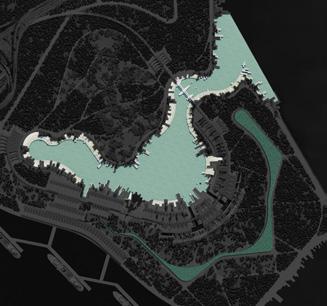

Canopy Profile Monorail Spine Inner Bay form
The final iterations adopt a gradual curve, aligned with the Daimyo garden principle of borrowed scenery orienting the central axis to maintain a continuous view of the water as the defining spatial gesture of the promenade.

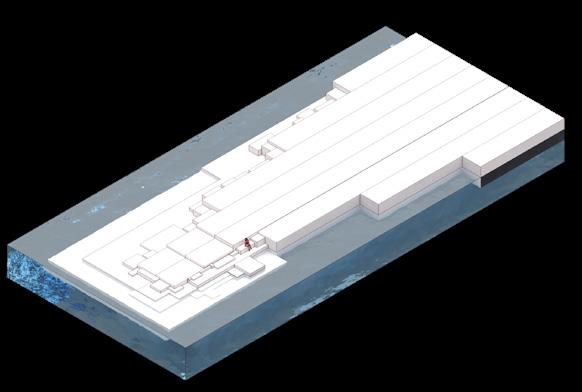

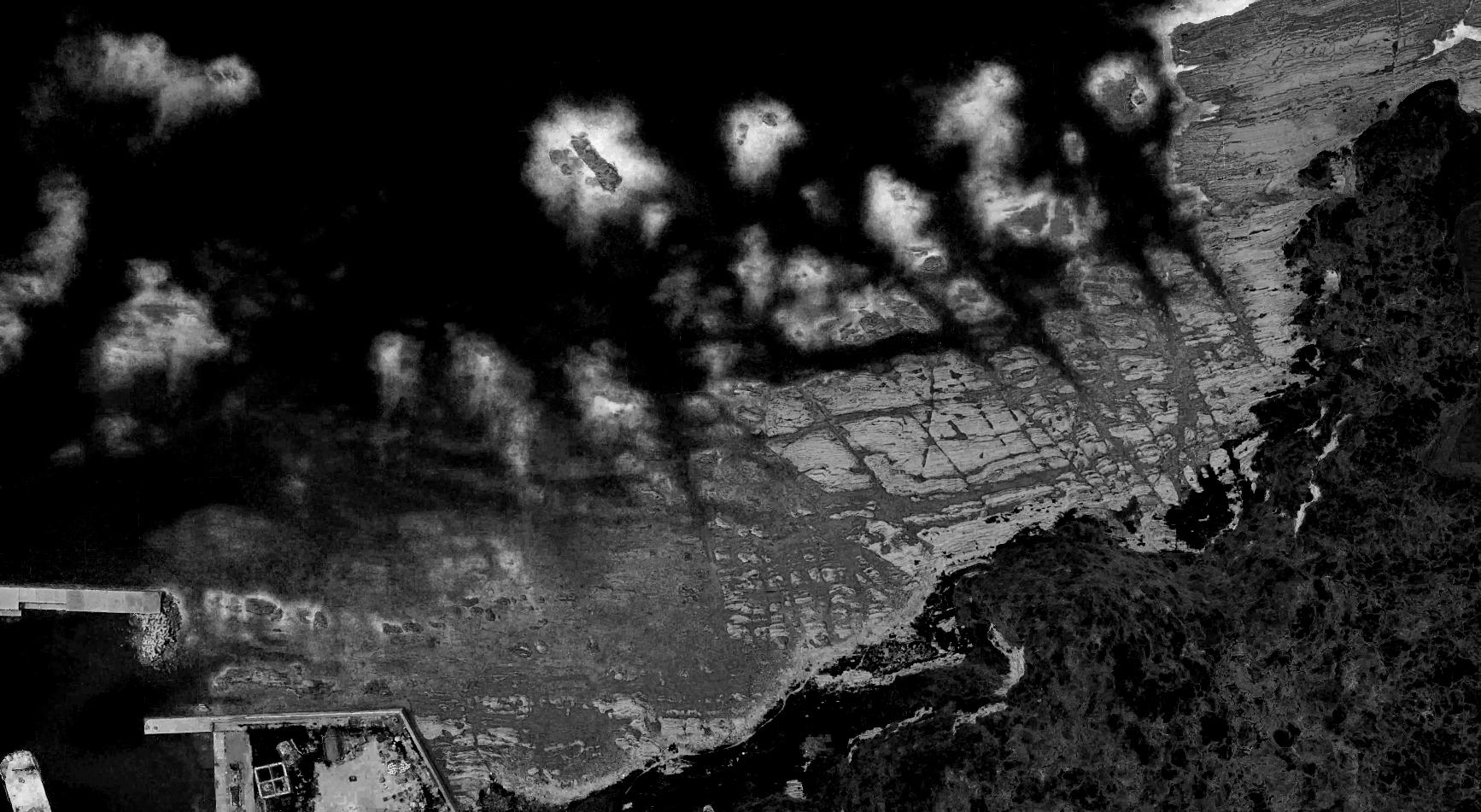

The southern shorelines of Japan, shaped by centuries of coastal erosion into intimate coves, rock pools, and varied tidal edges, provide the formal and experiential reference for the promenade’s waterfront edge translating natural erosion conditions into designed recreational terrain.
Recreational Activities
Monorail Stations
D. Expo
CONCEPT DESIGN | Design Conditions

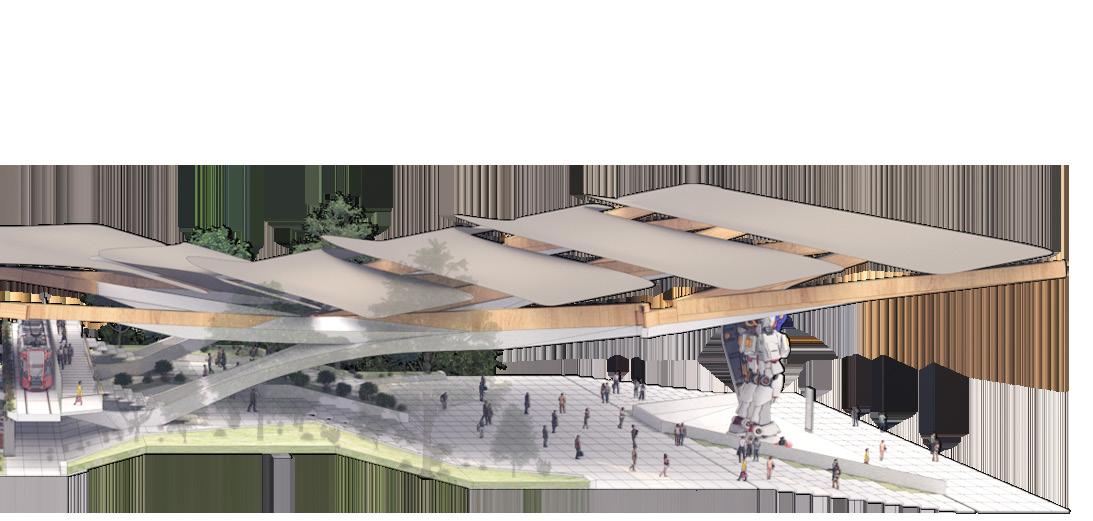

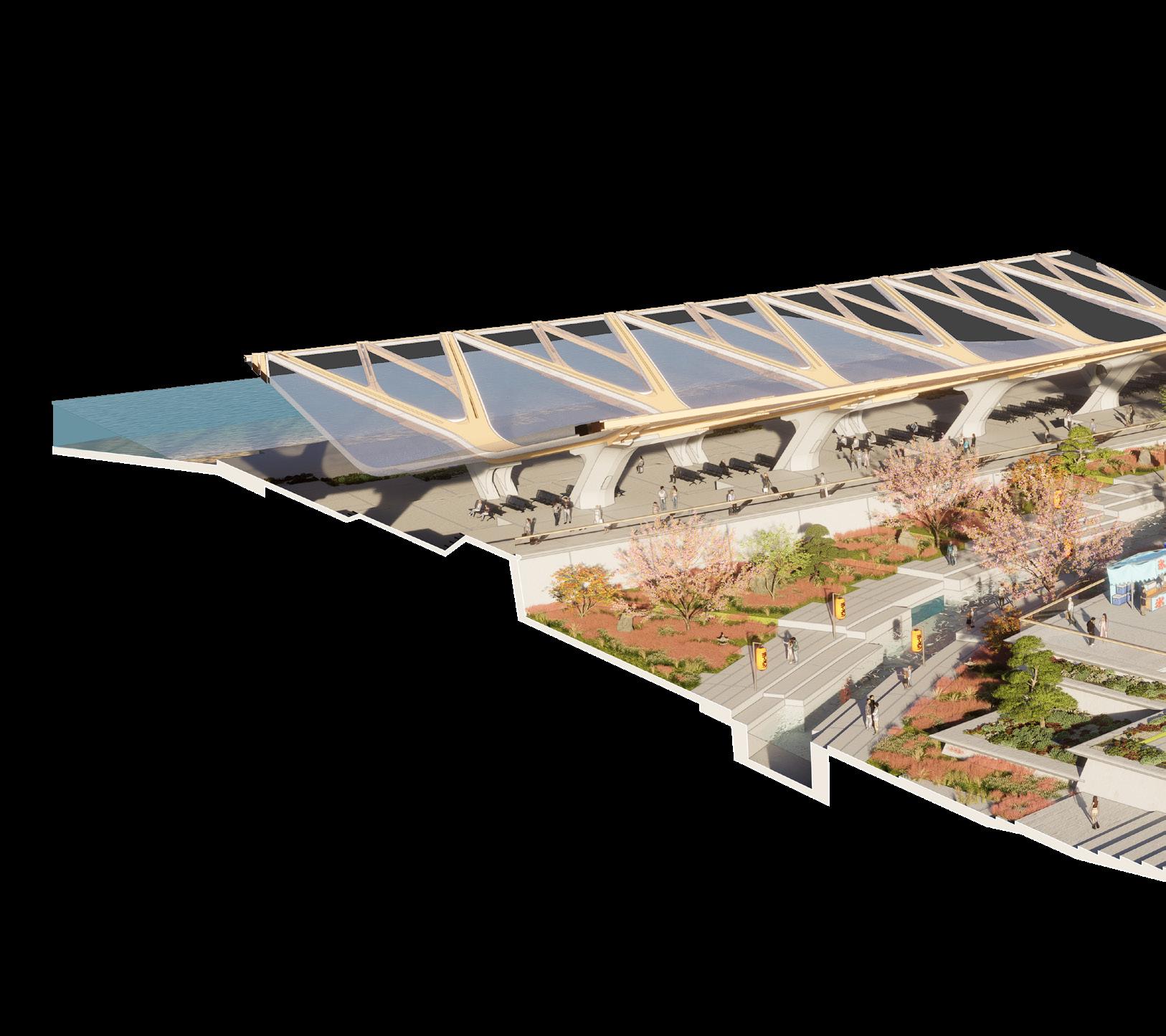

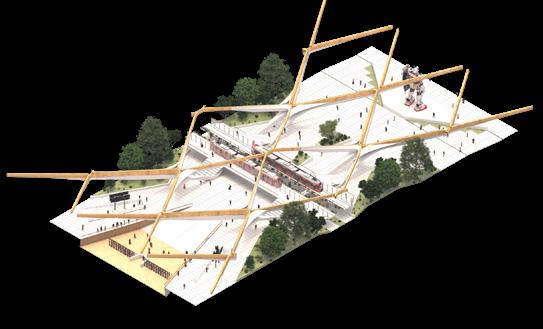

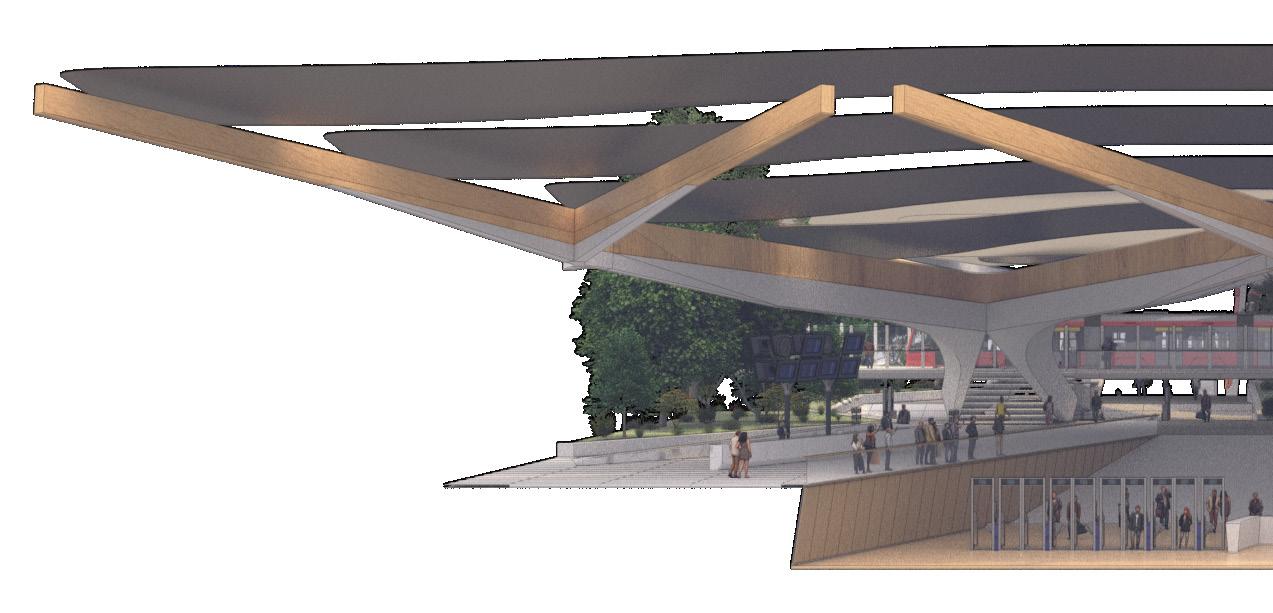

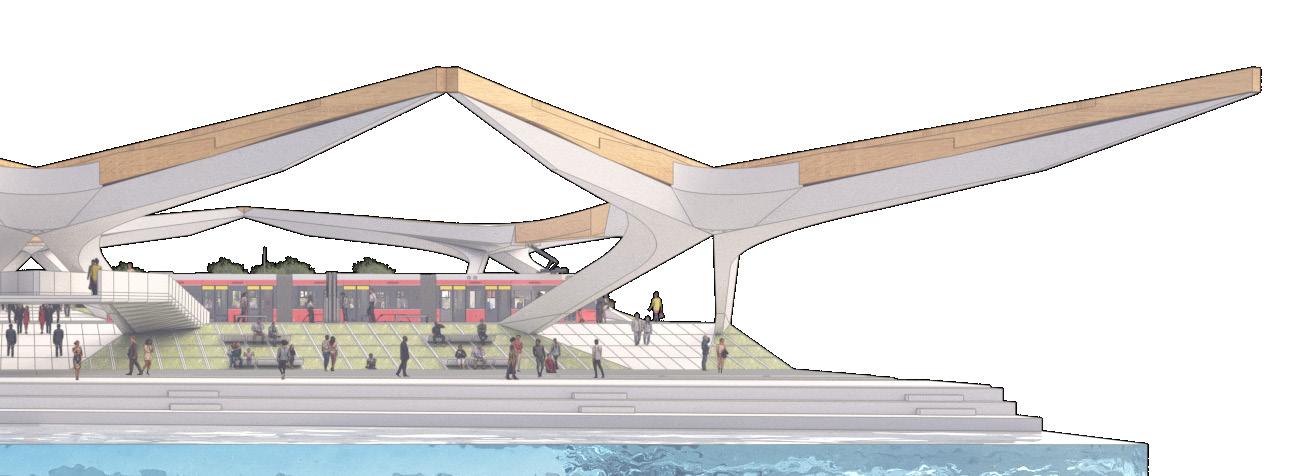

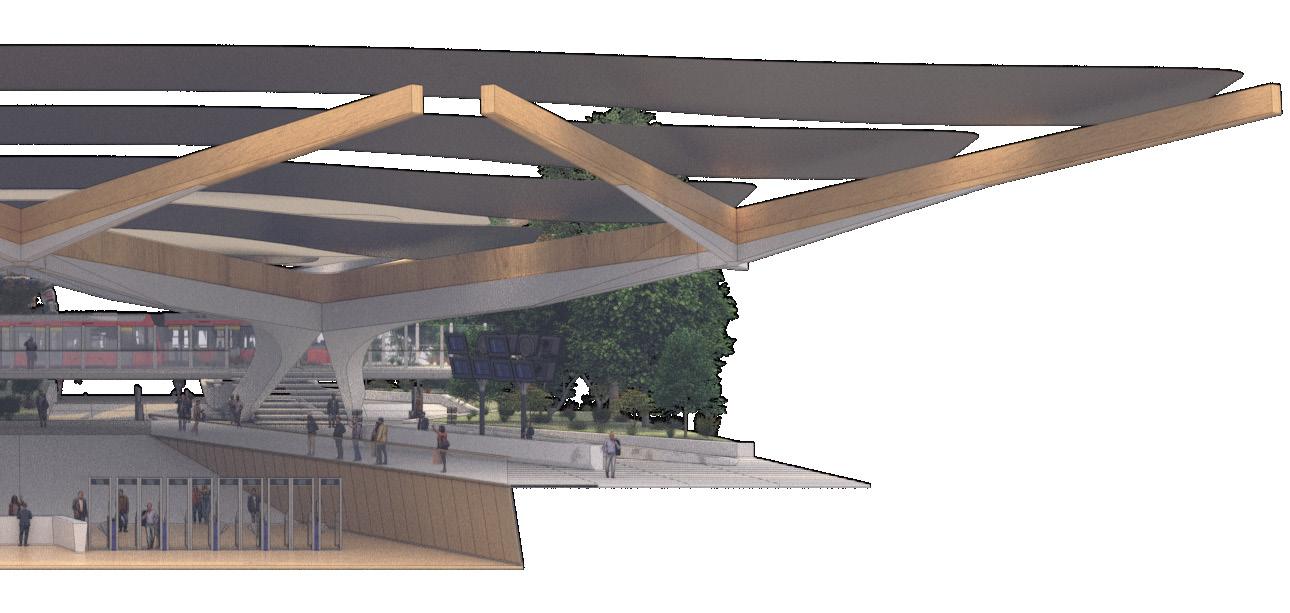

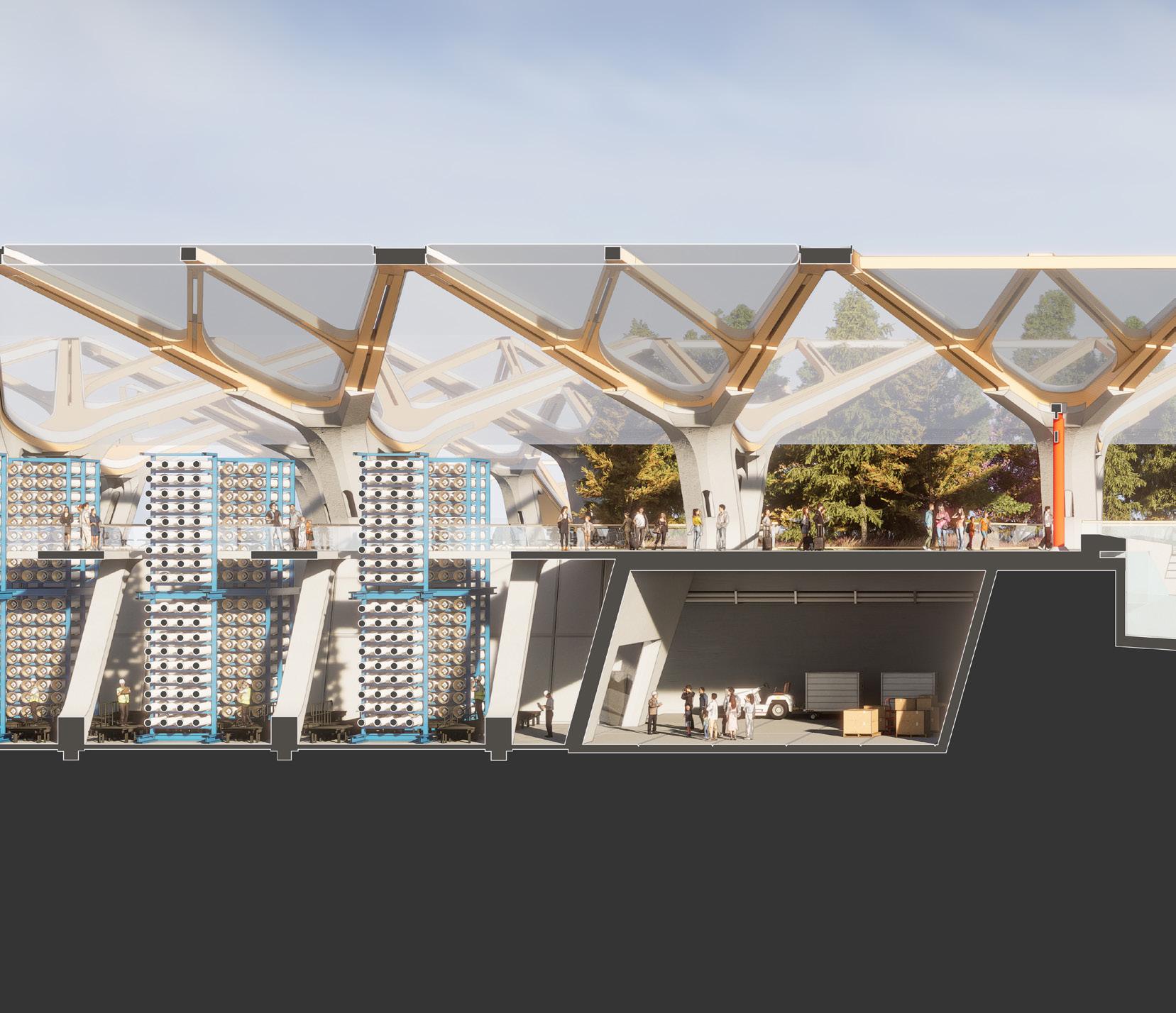

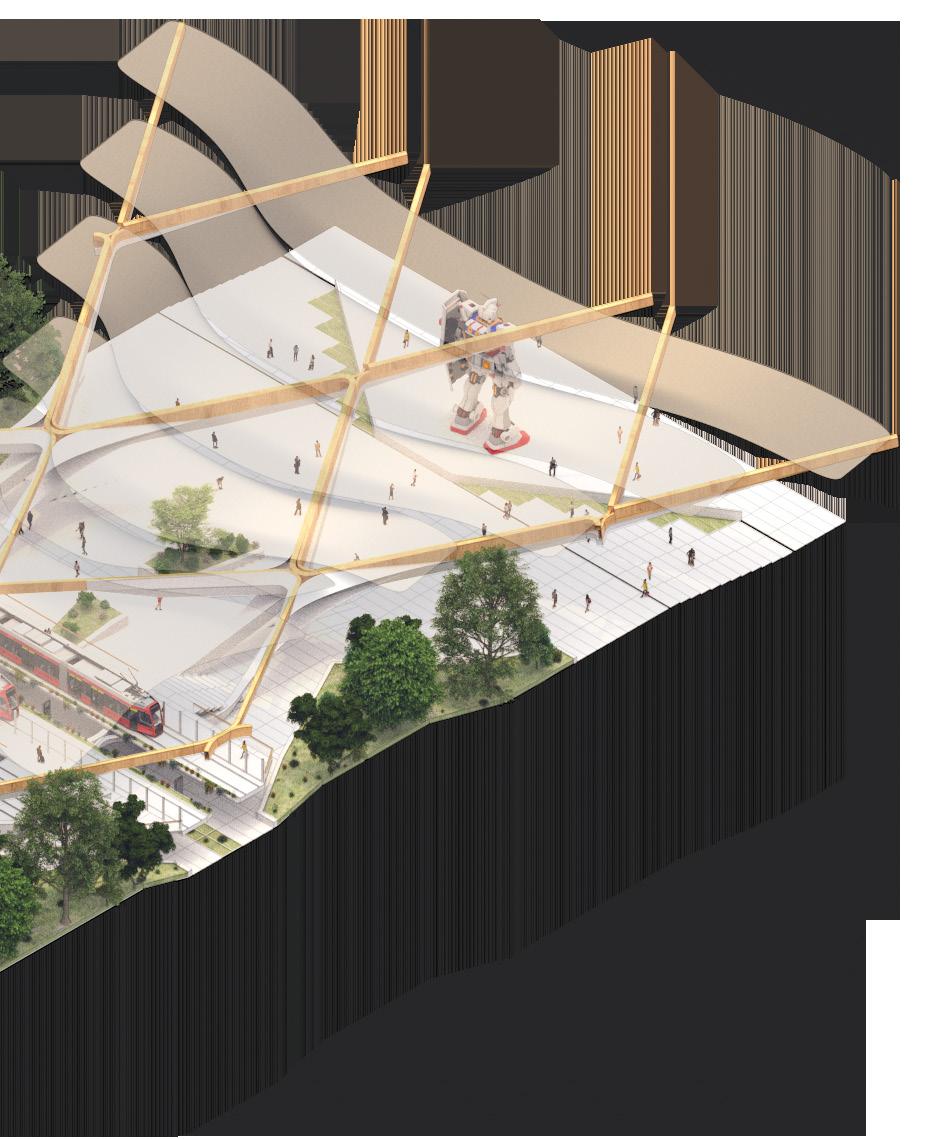

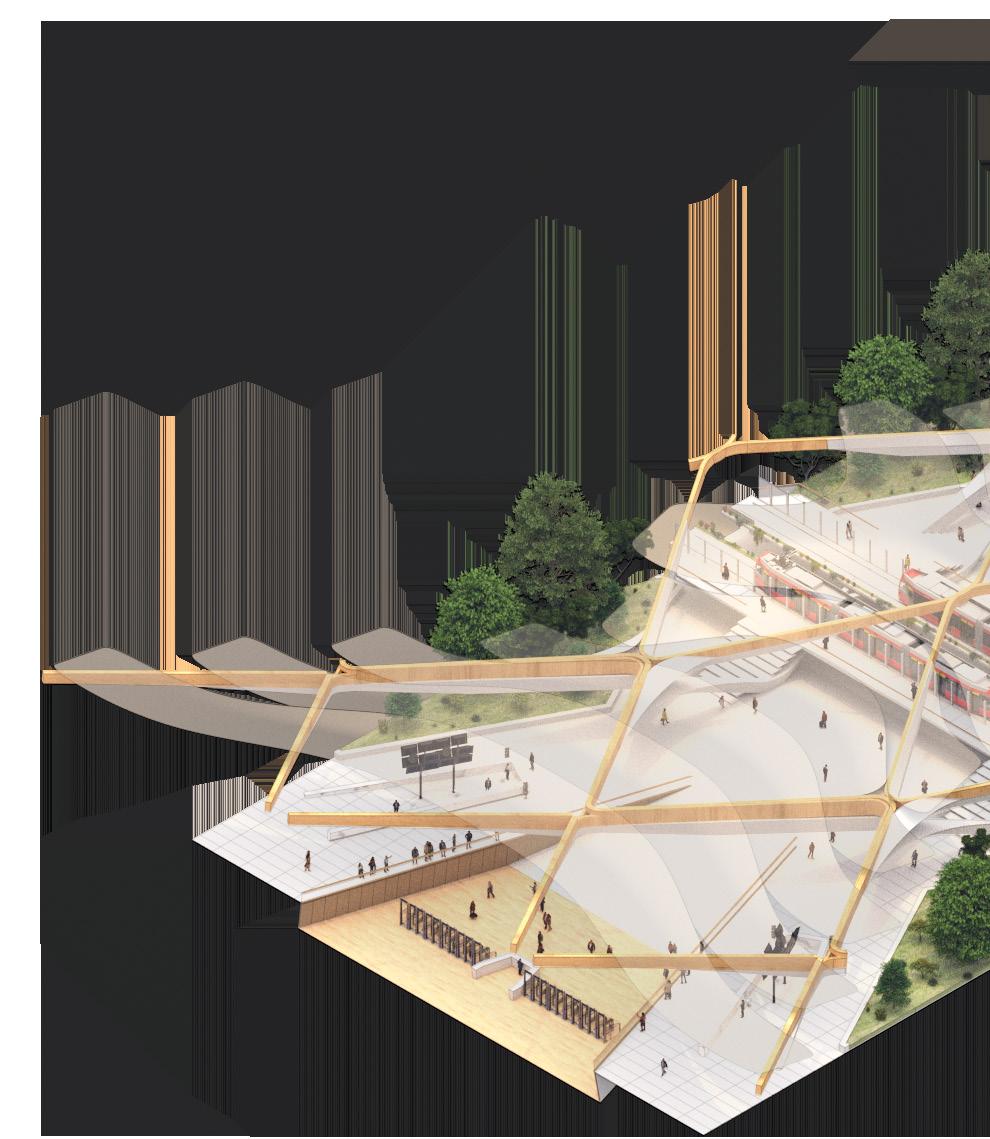

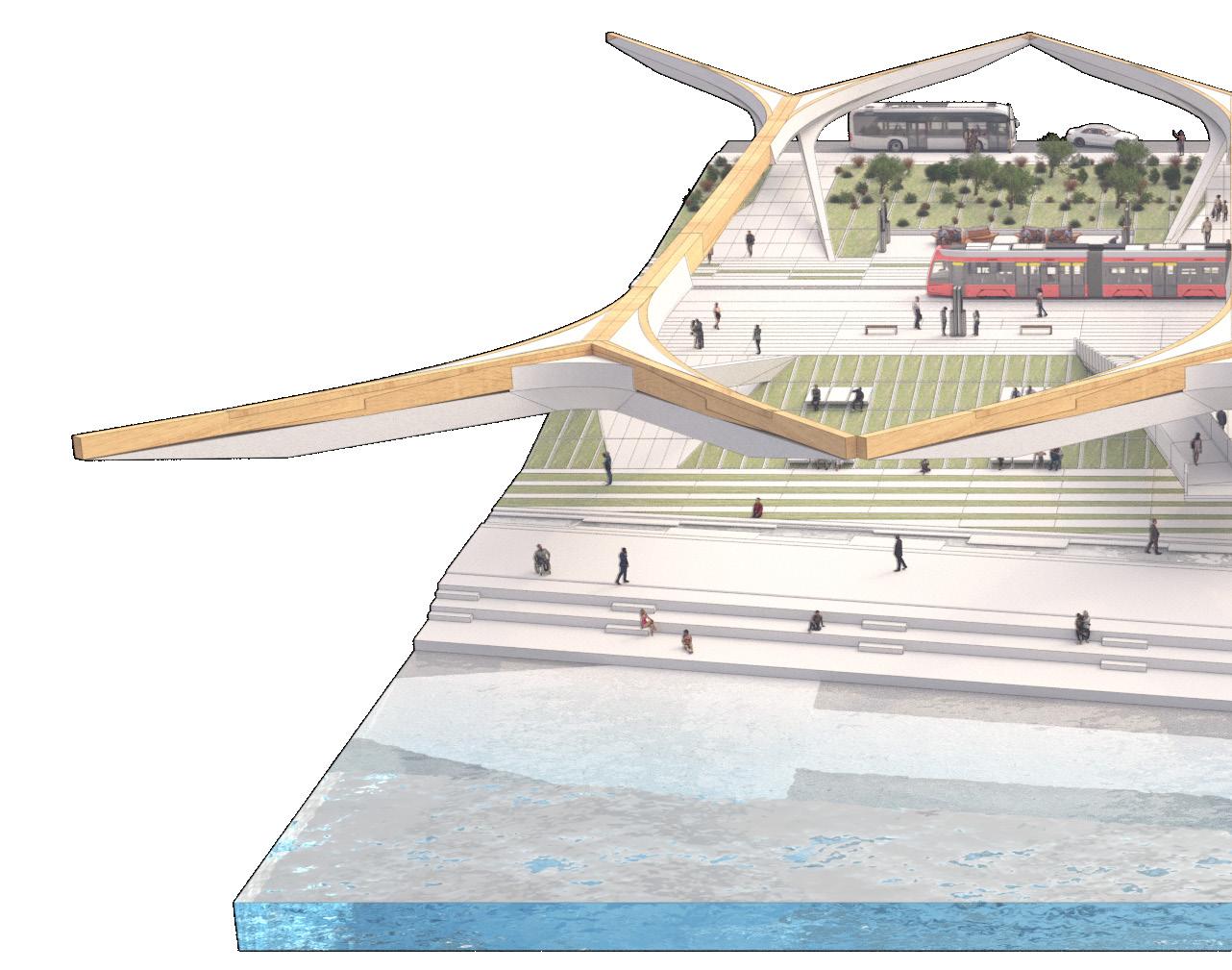

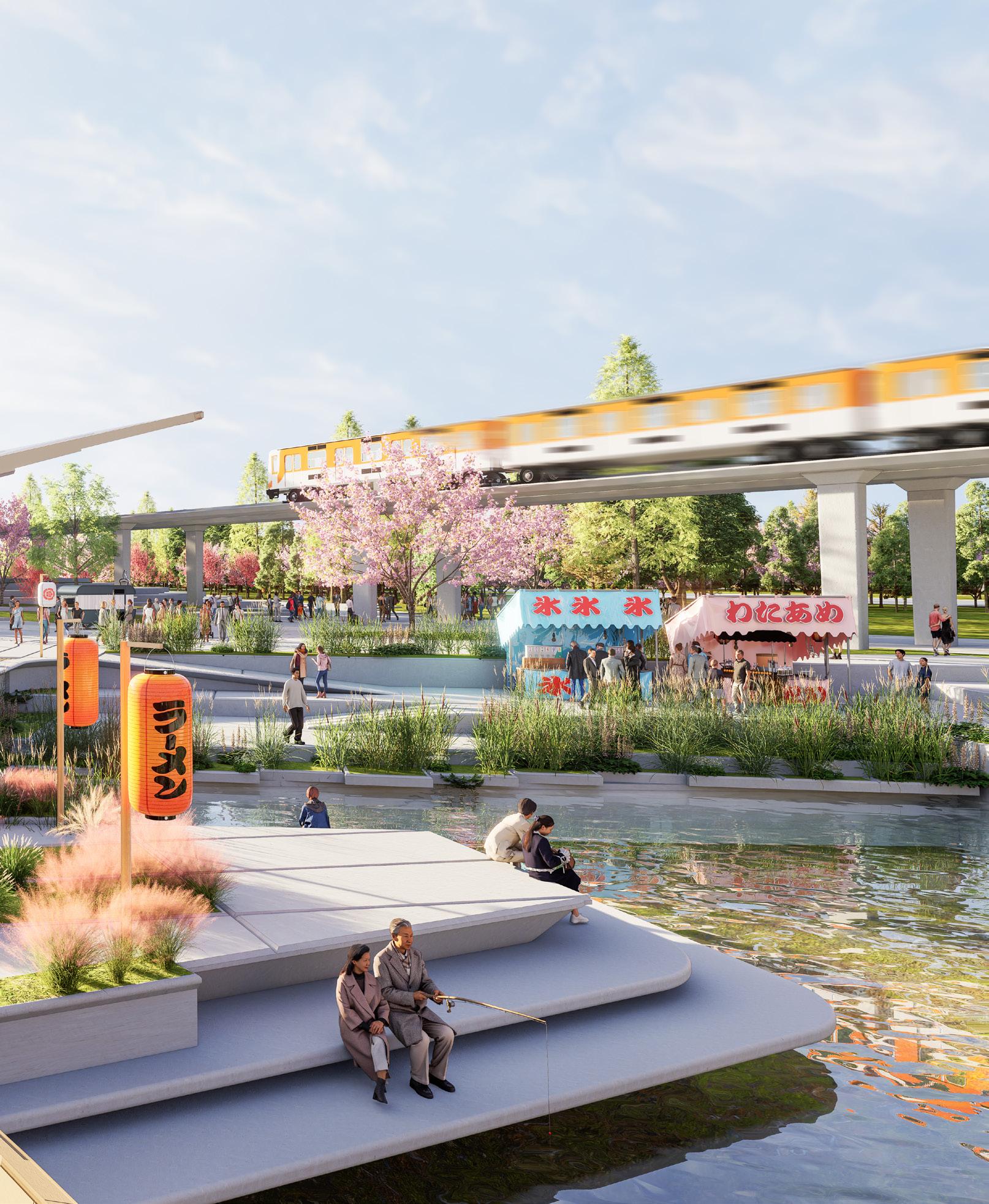

The monorail station operates as the primary instrument of access and civic activation at the promenade. Each station along the promenade axis functions not merely as a transport node but as a threshold that mediates between the circulation between the different layers. The station typology therefore carries both infrastructural and spatial significance: it is simultaneously the mechanism of access and the architectural moment that announces entry into the urban forest.

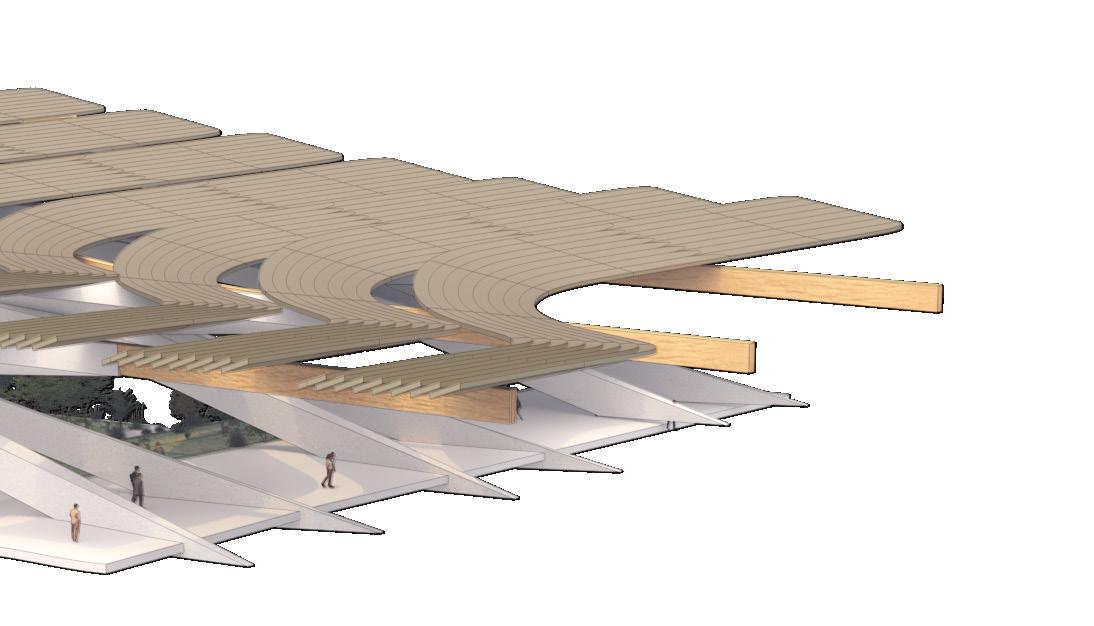

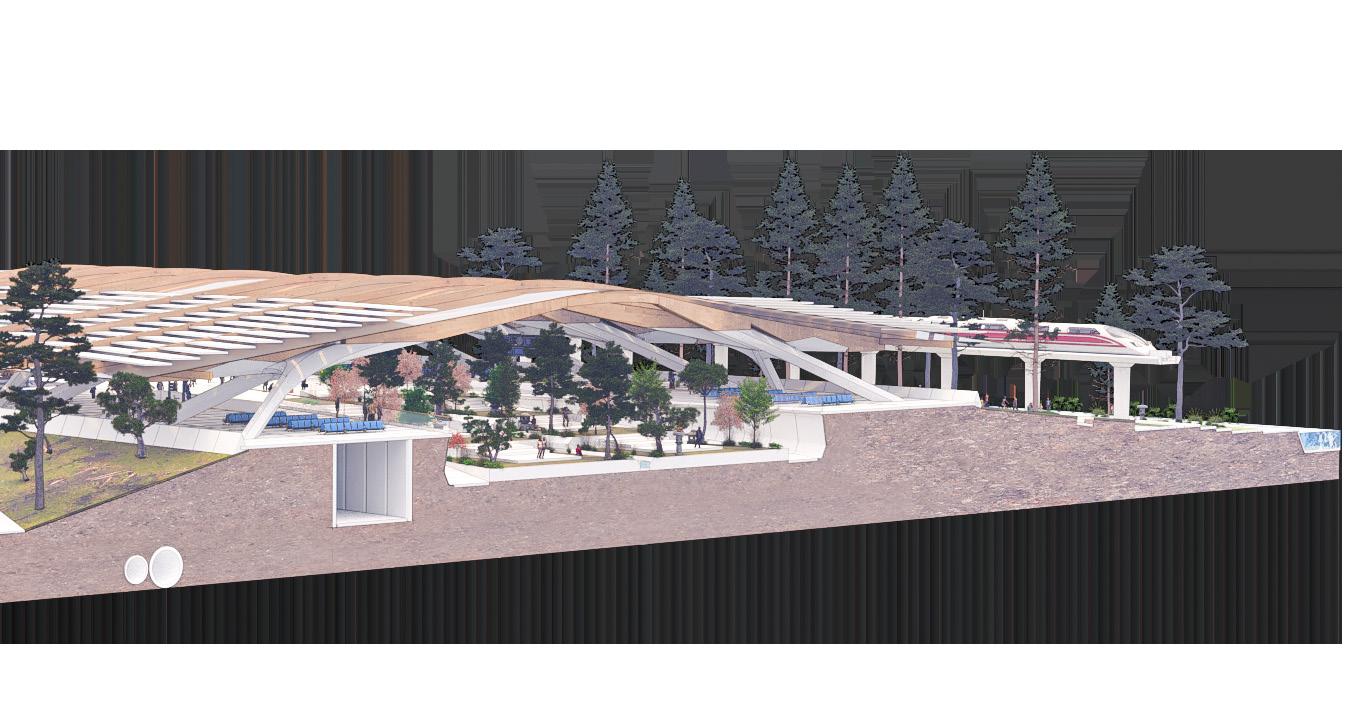

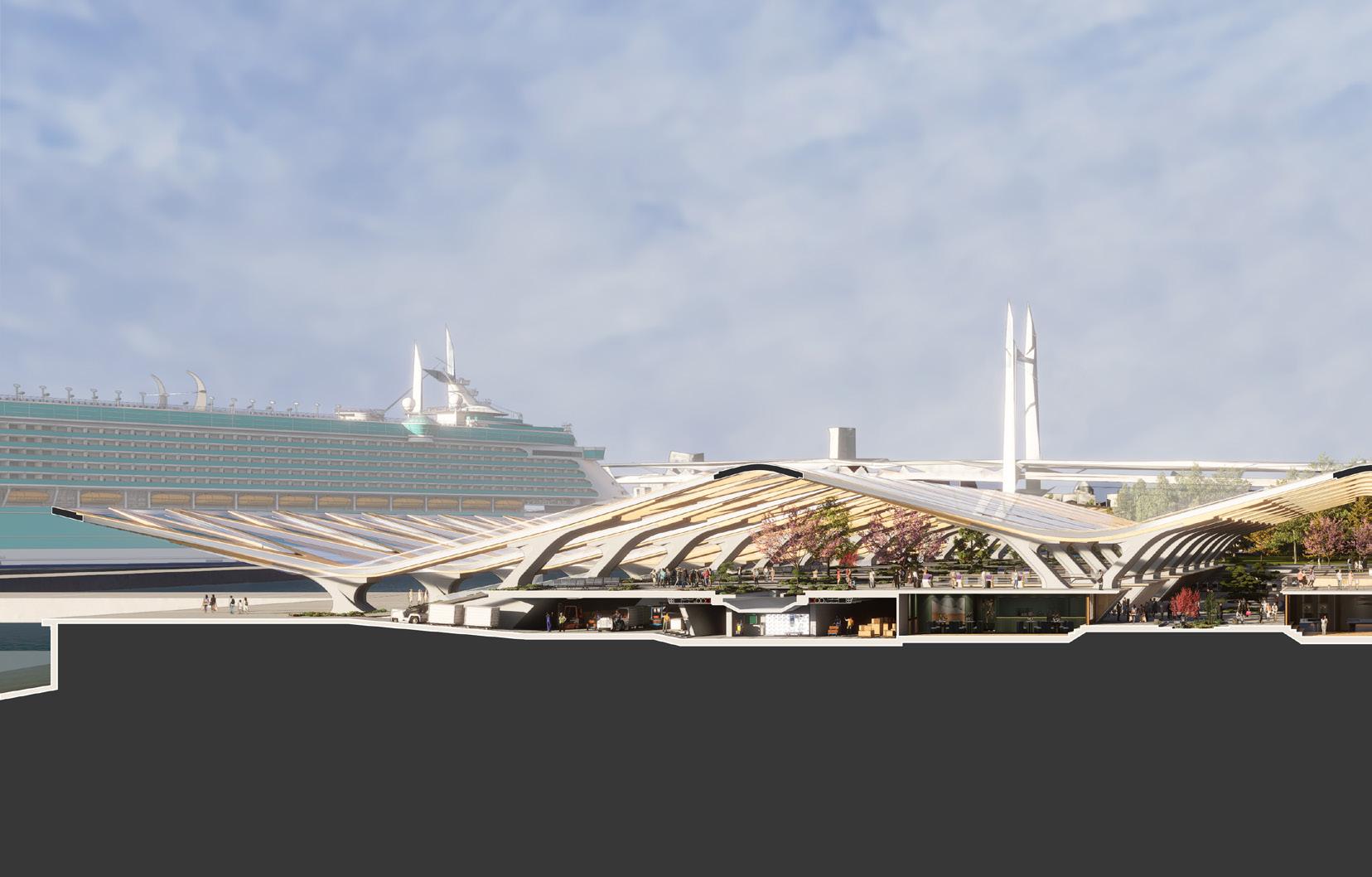

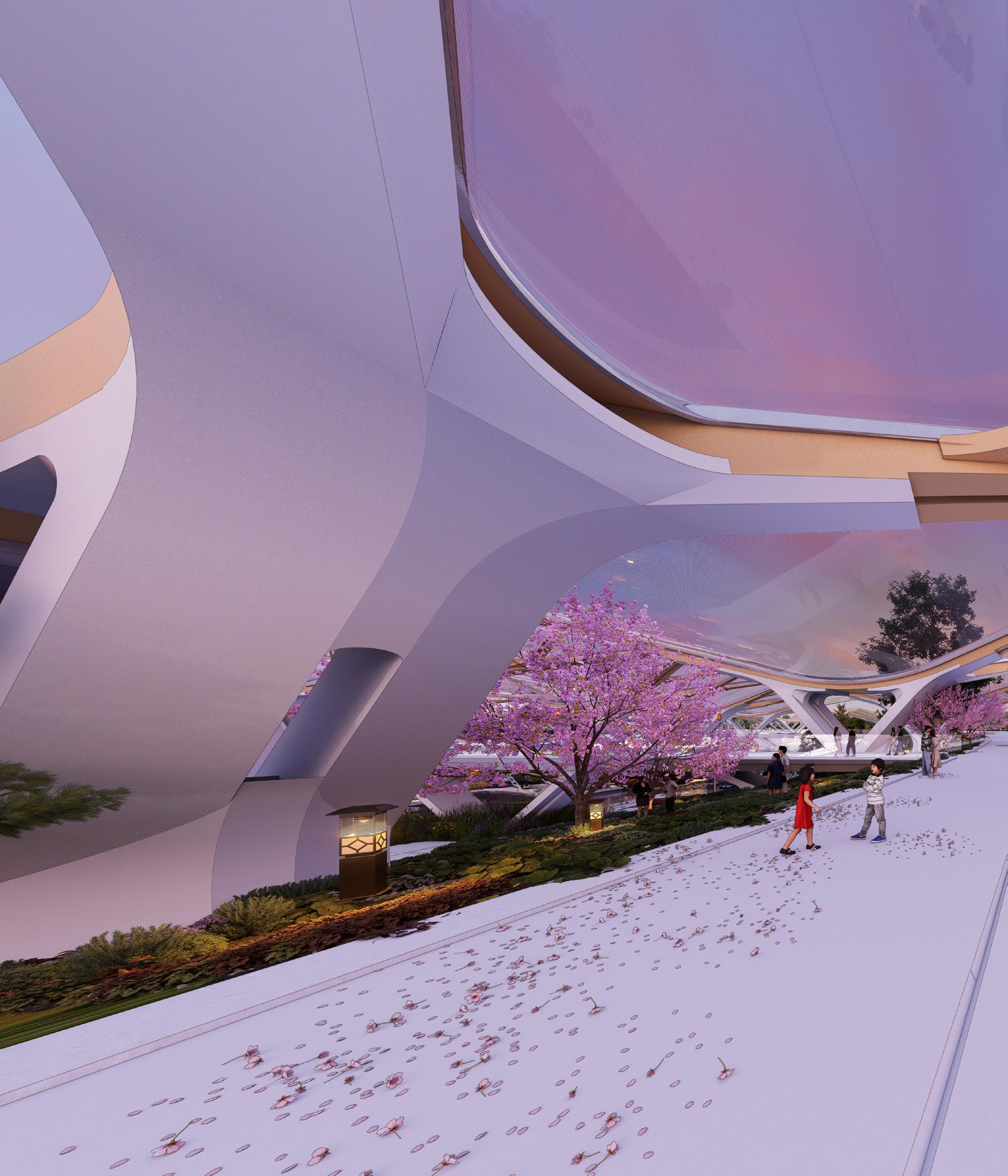

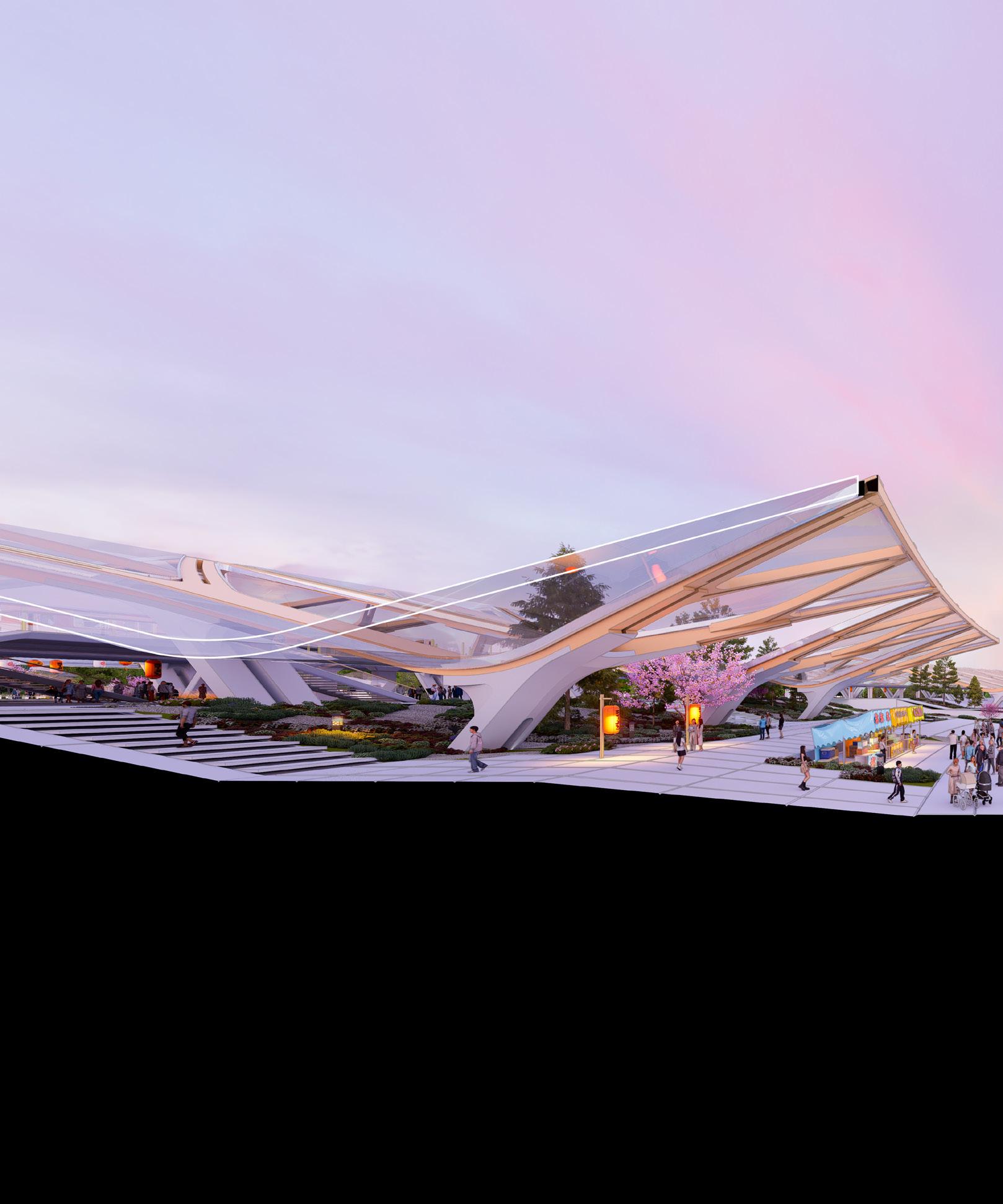

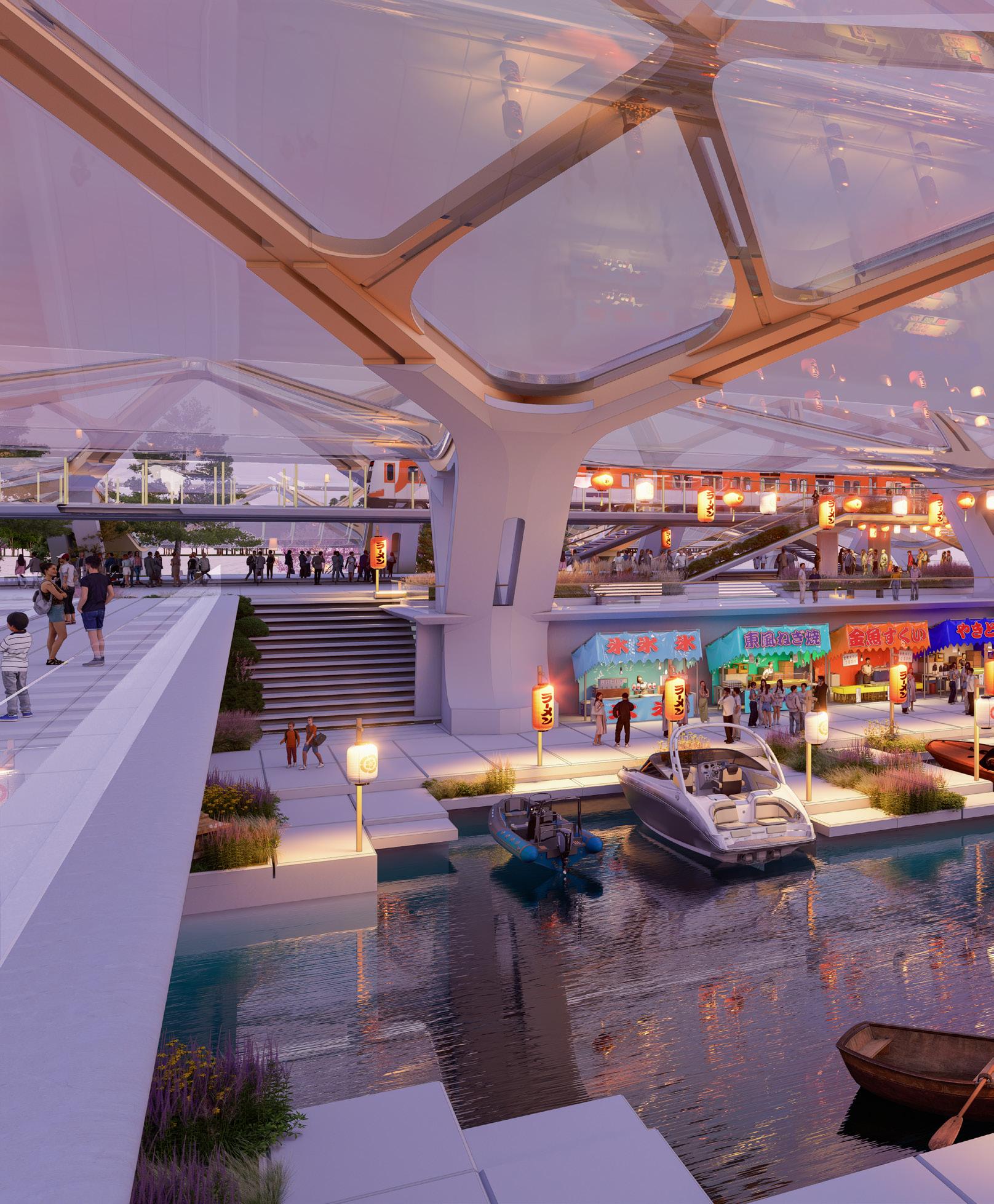

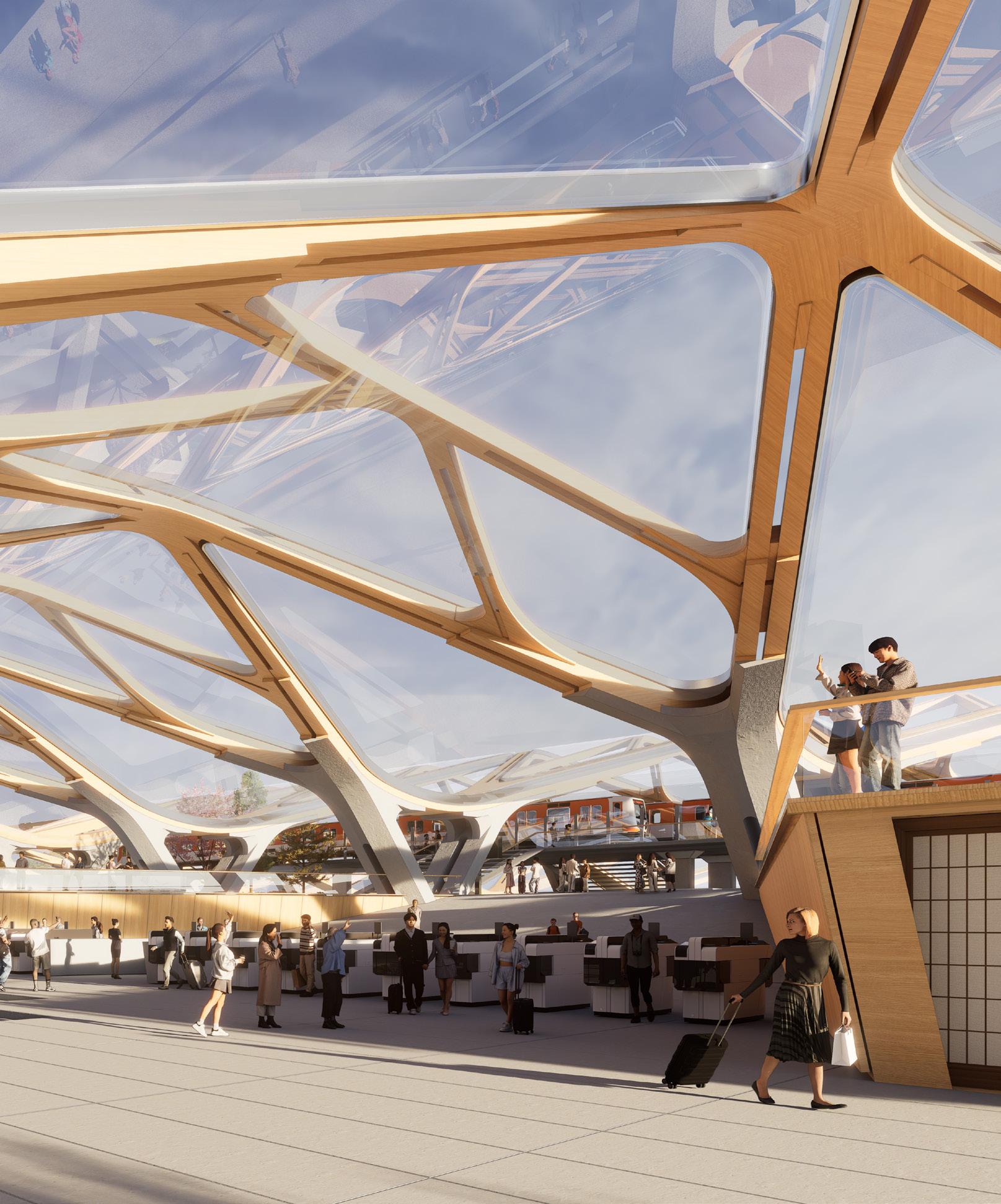

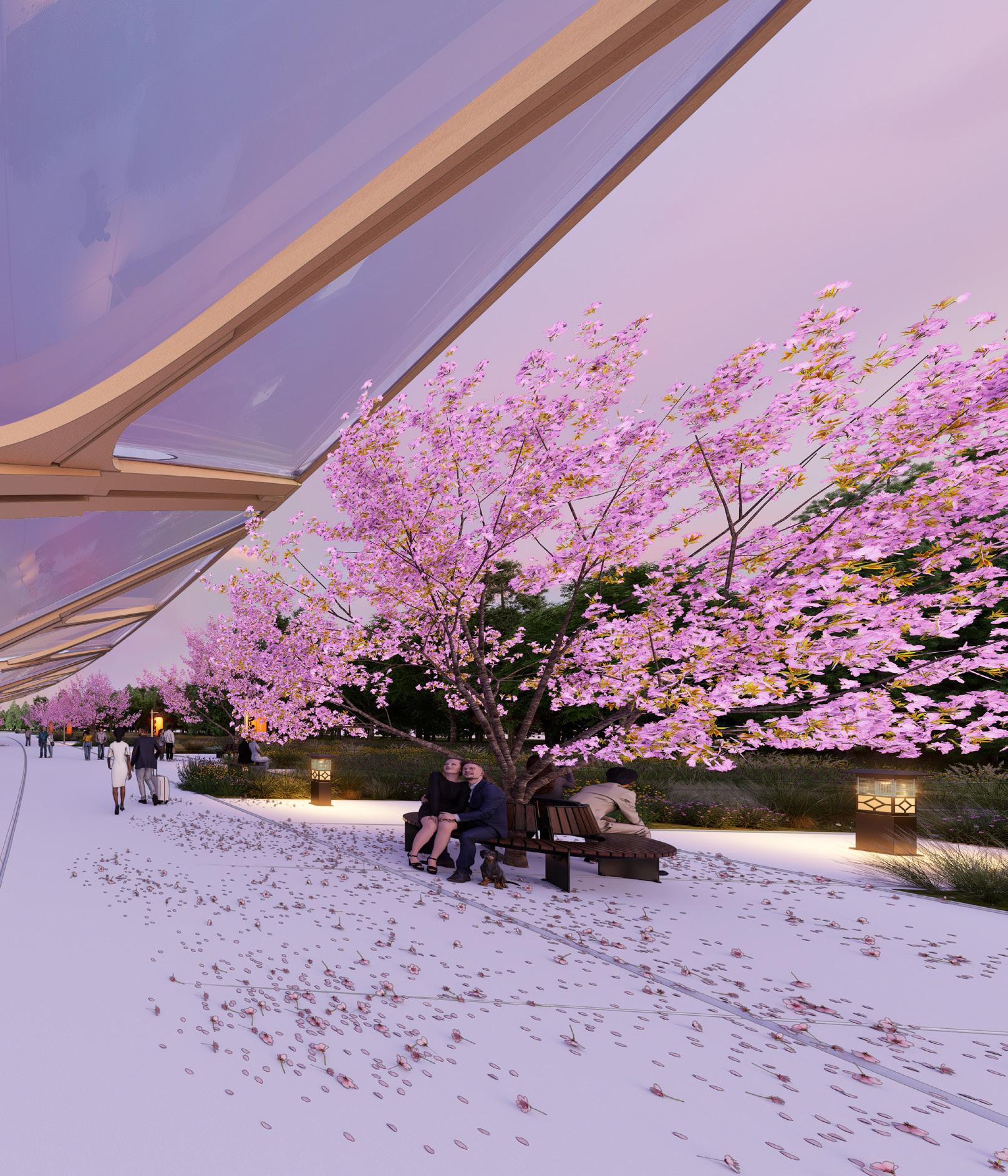

The canopy threshold produces a spatial duality, blurring the boundary between interior and exterior. Integrated forestry sustains the forest experience from within, ensuring enclosure never displaces the exterior condition that defines the promenade.

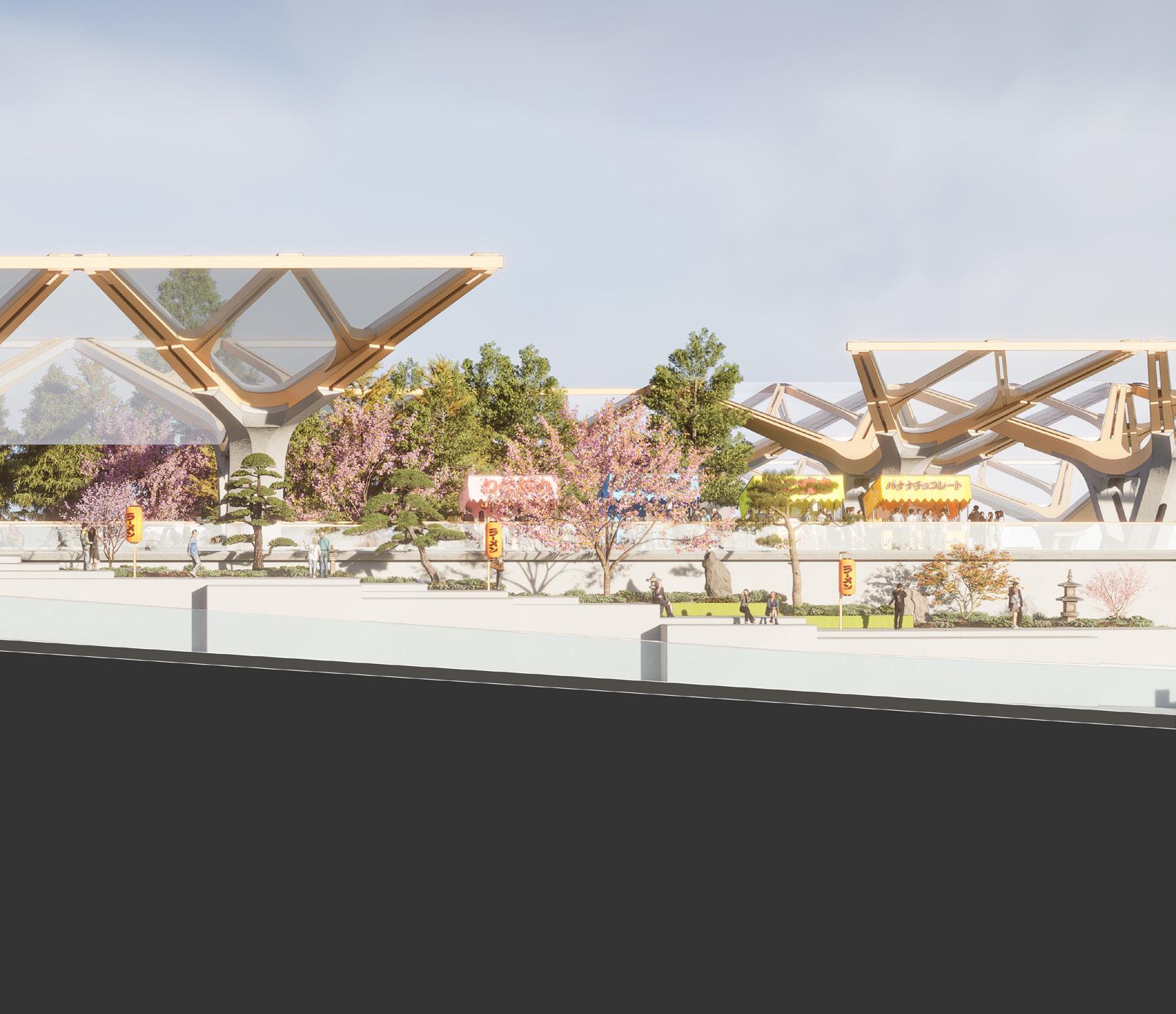

The diagrid structure allows for the integration of forestscape into the fabric of the canopy breaking up a linear building profile softening the building edge and allowing a more natural transition between forest and structure.

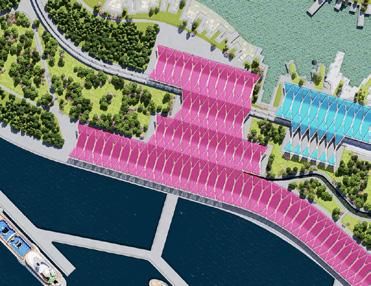

Areas

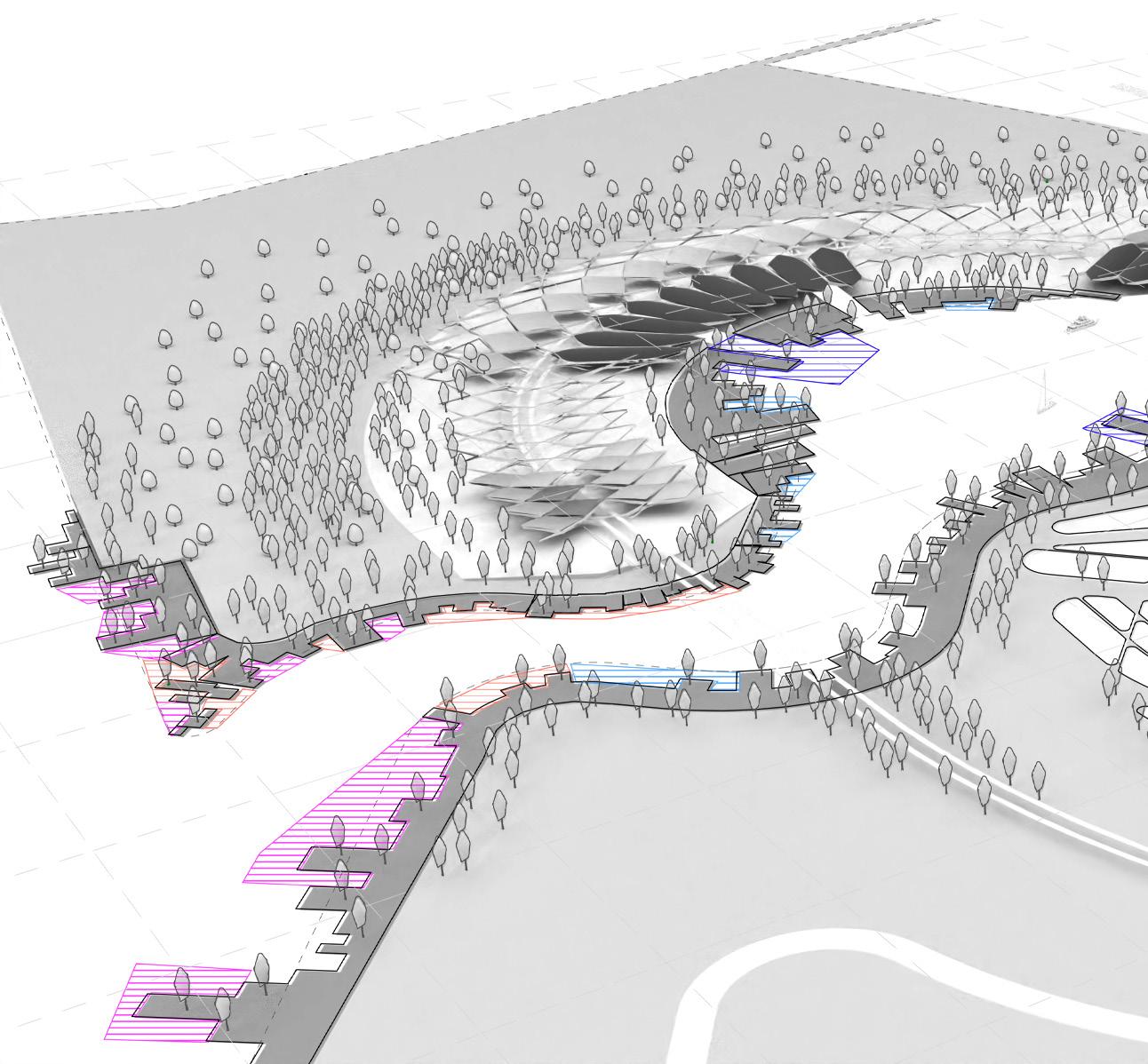

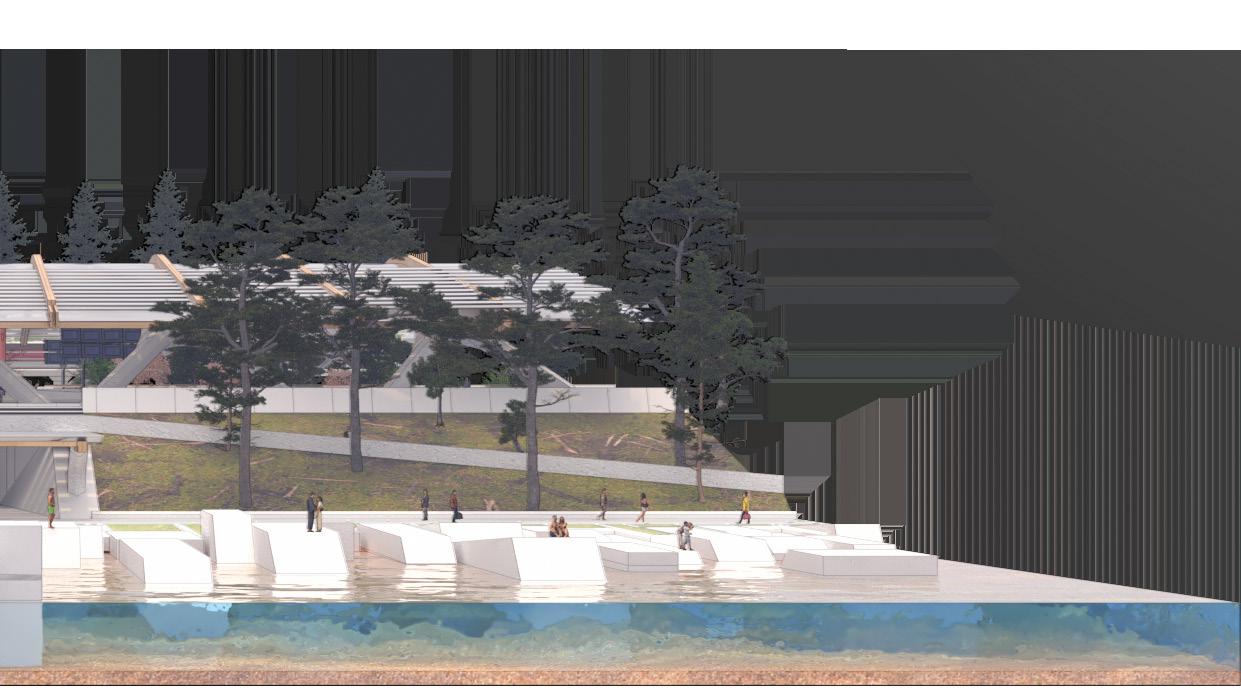

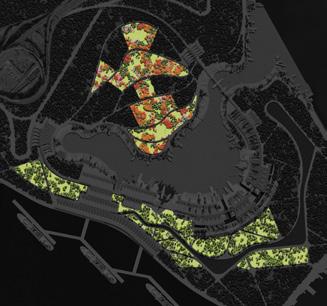

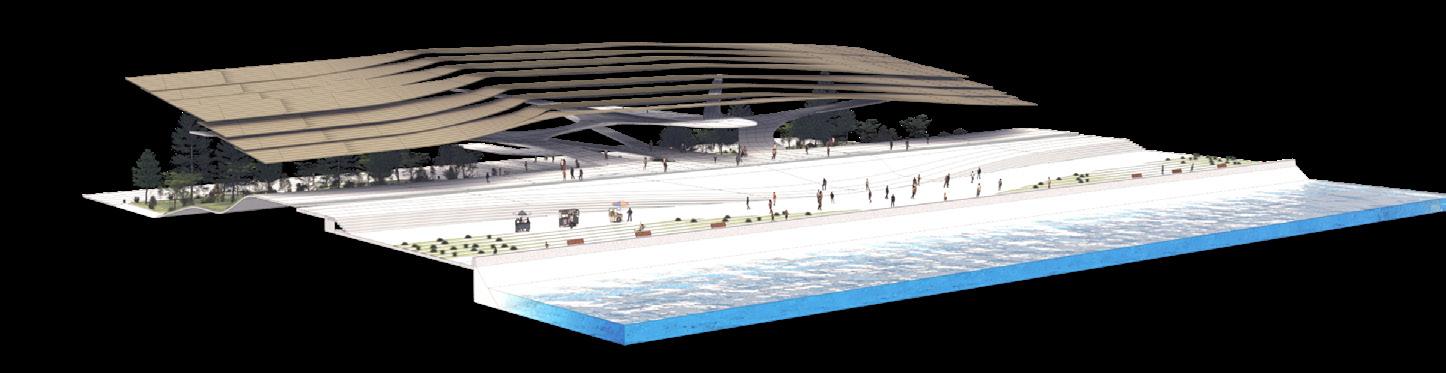

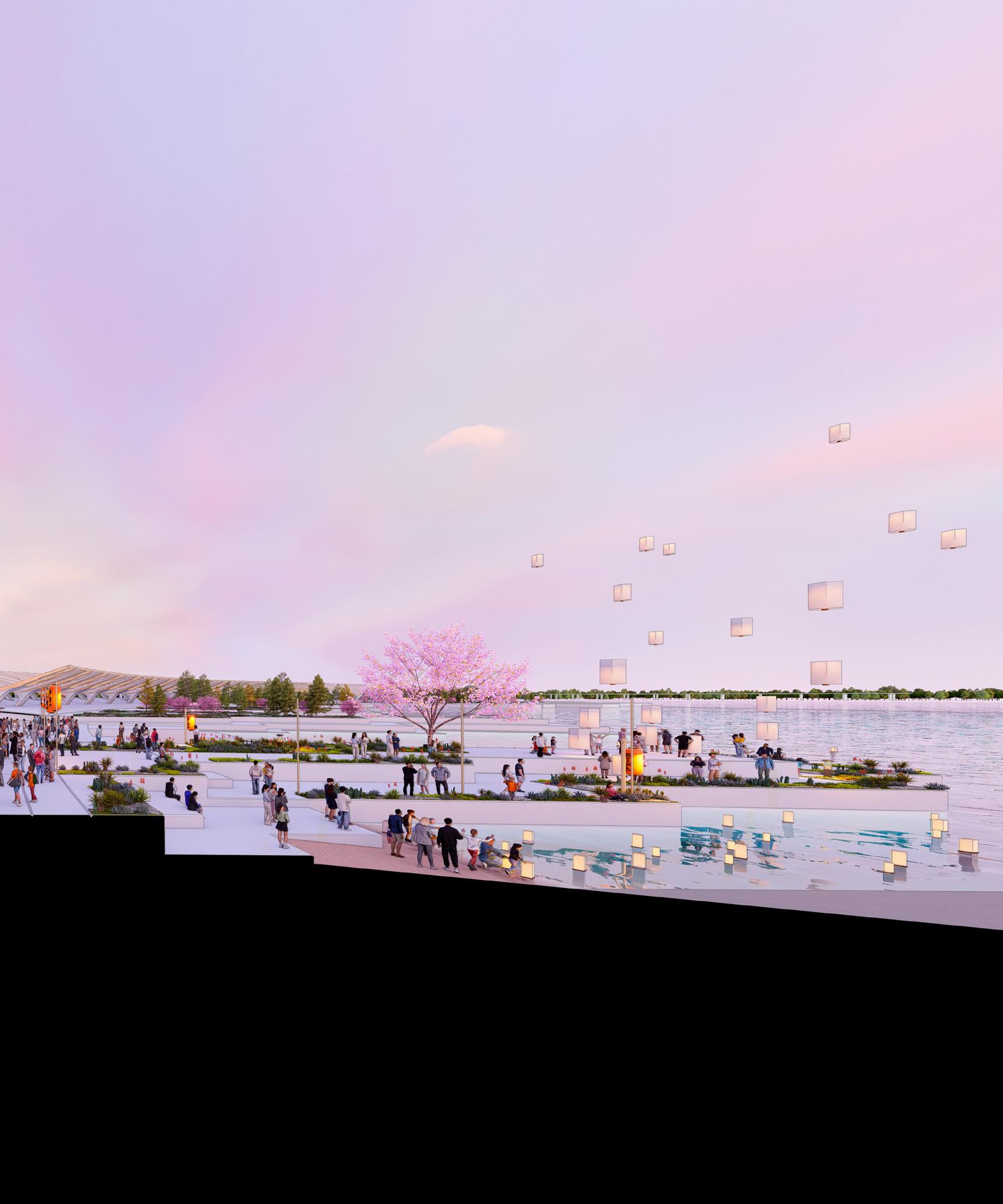

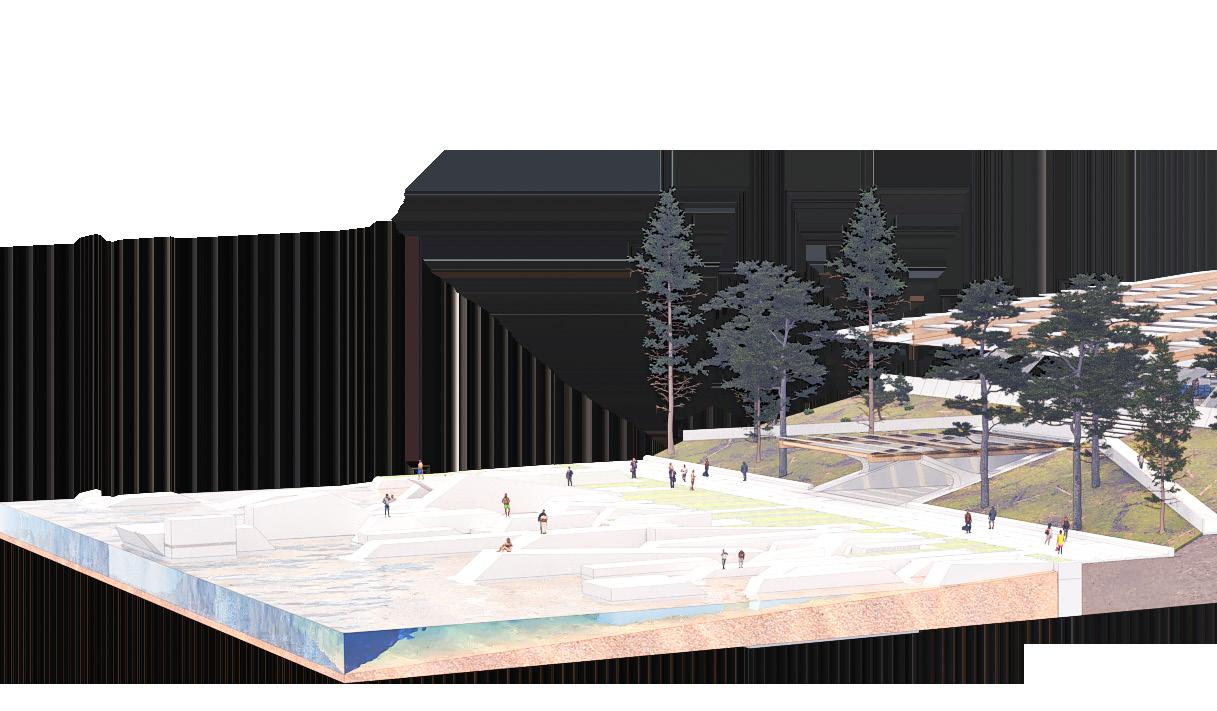

The erosion forms of Japan’s southern shoreline are abstracted into an infrastructural shoreline that operates across two registers simultaneously as a breakwater absorbing tidal and wave energy, and as a landscape of waterside recreation. Infrastructure is here activated beyond its singular designed function, becoming the generator of civic life at the water’s edge.
The forest is deployed at the pier’s exposed extremities as environmental infrastructure, a natural barrier against the strong winds and intense solar exposure of an open bay position. The strategy is drawn from the Miura Peninsula, where dense forest walls have historically sheltered coastal settlements from prevailing weather. At Daikoku, at the centre of Yokohama bay and without the shelter of the surrounding city, this forest edge becomes a critical environmental mediator for the structures and programmes within.

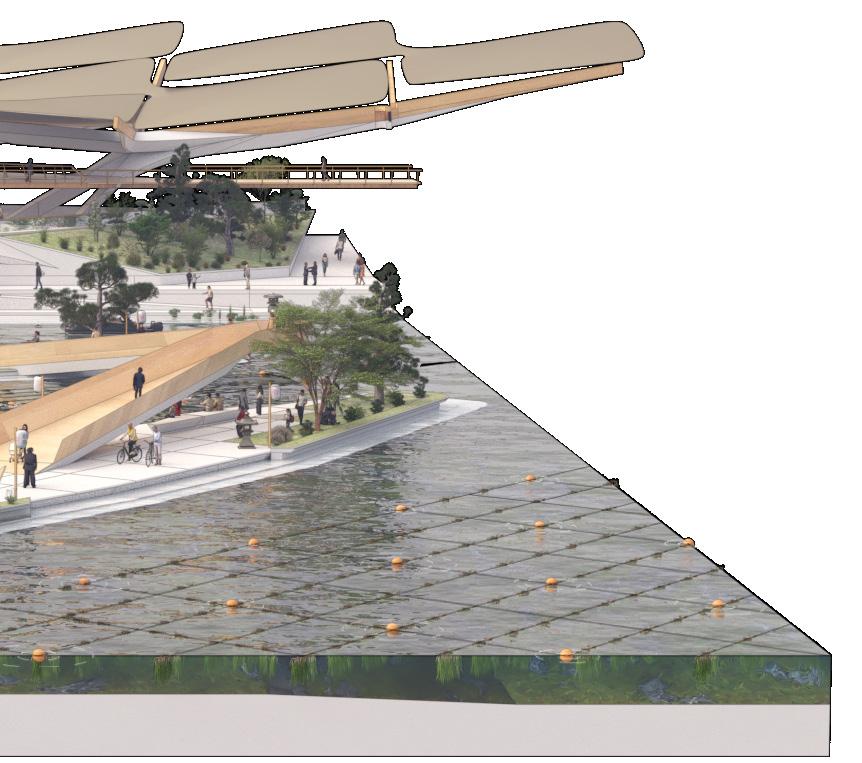

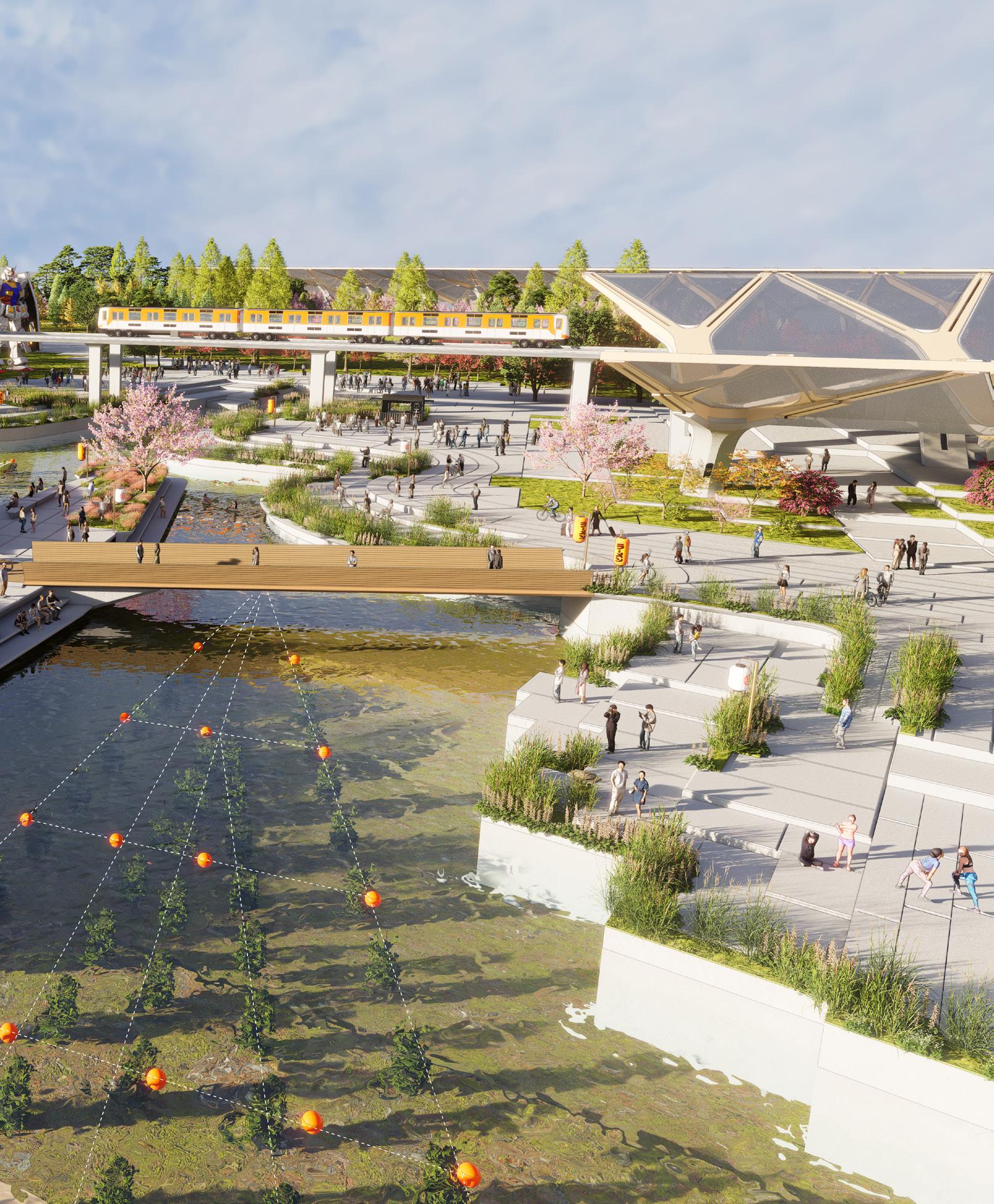

To offset eutrophication from pollution from the wider Bay due to being surrounded by industrial and container wharf. A Bay remediation strategy involving saltwater agriculture like seaweed can be done at water thresholds where the growth can be accessed and managed. This remediation will also potentially create new water habitats for sea creatures.
Areas

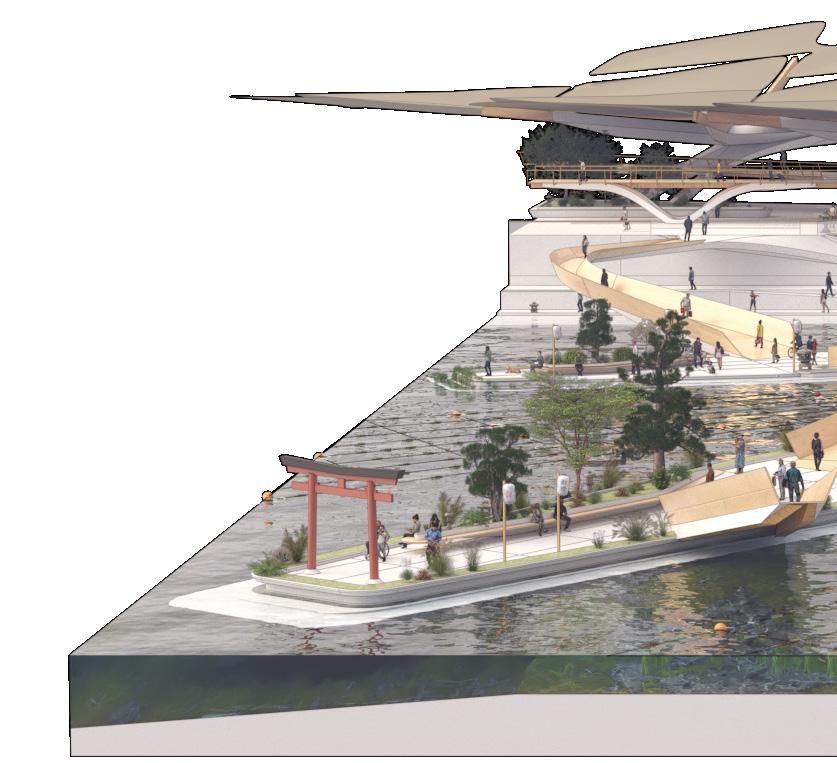

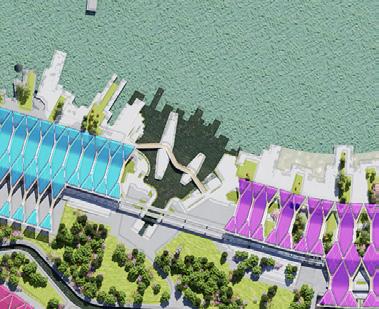

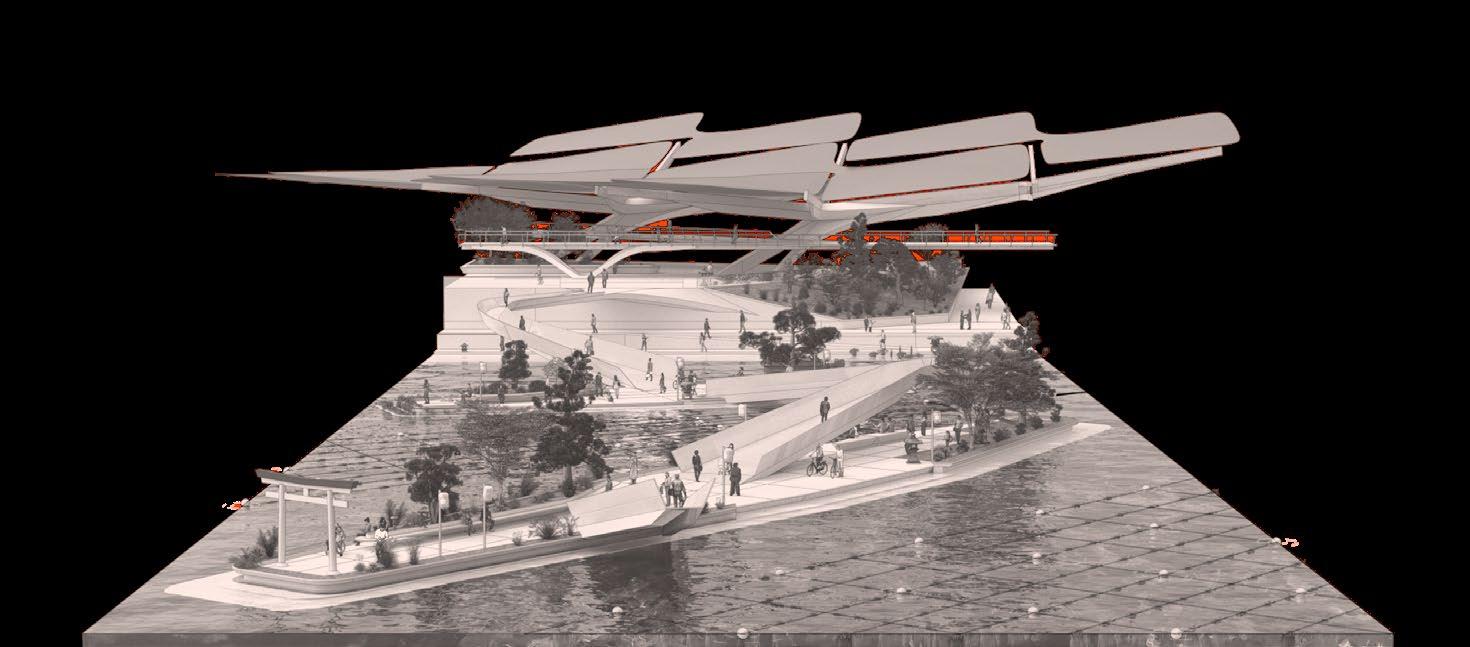

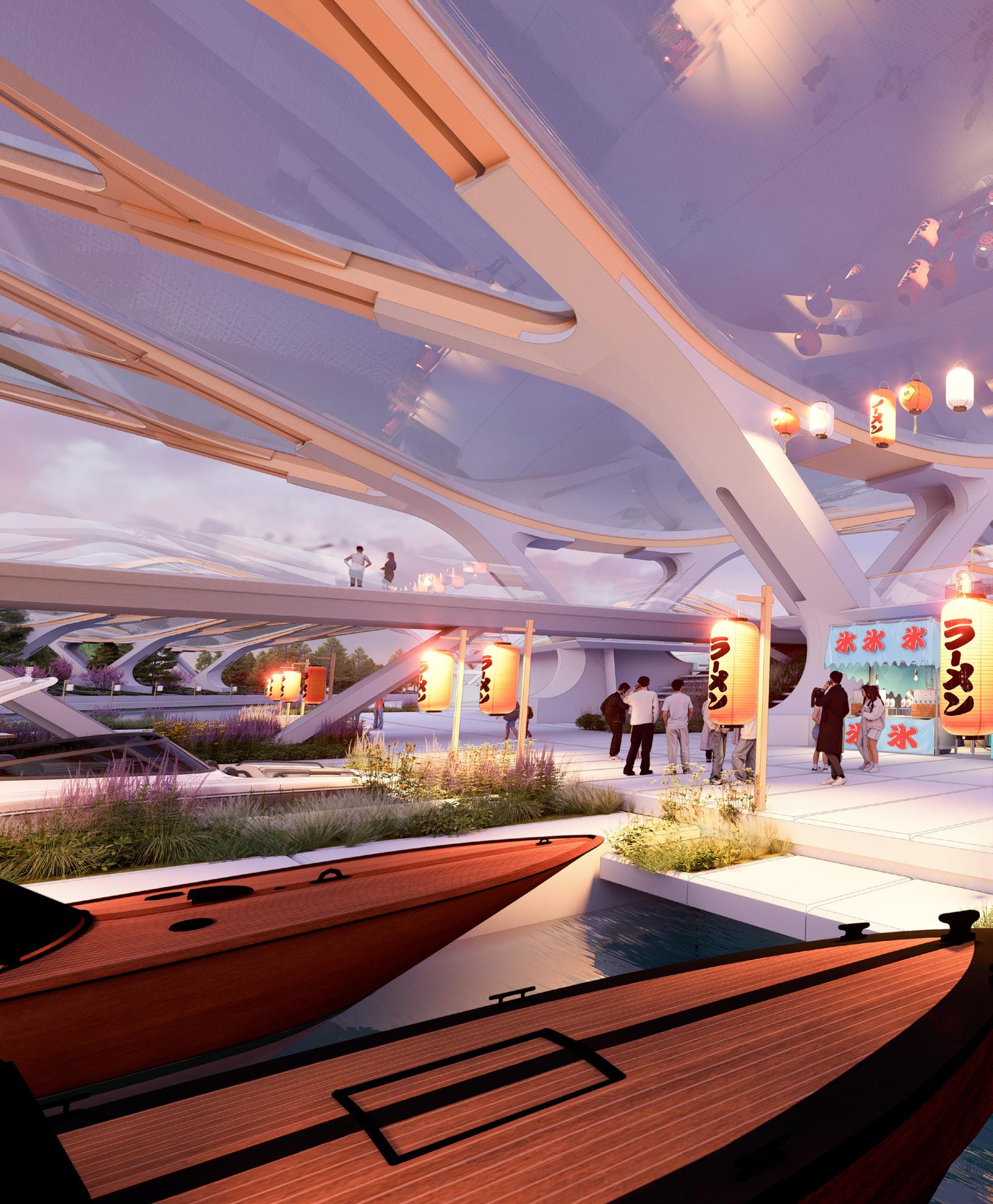

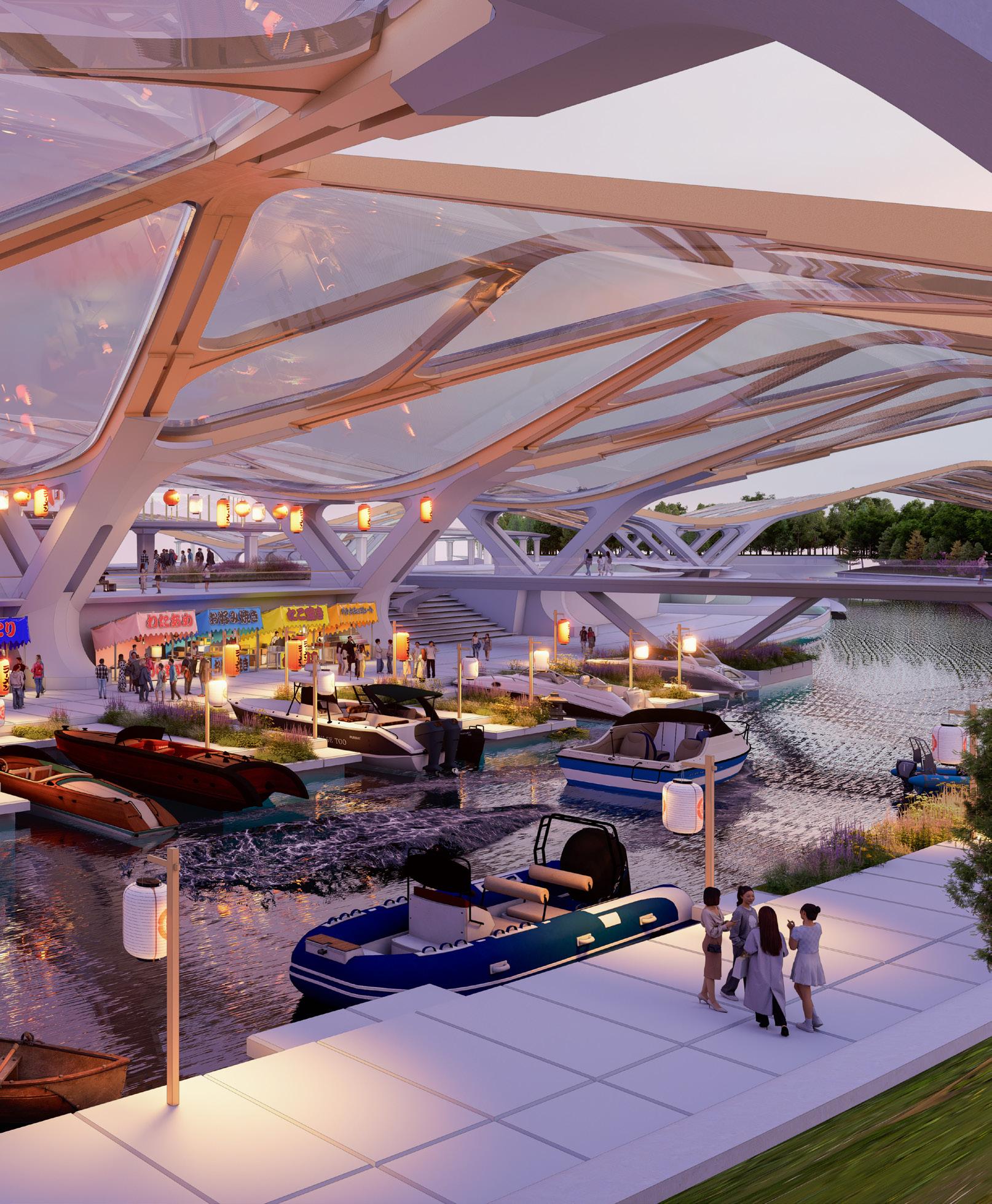

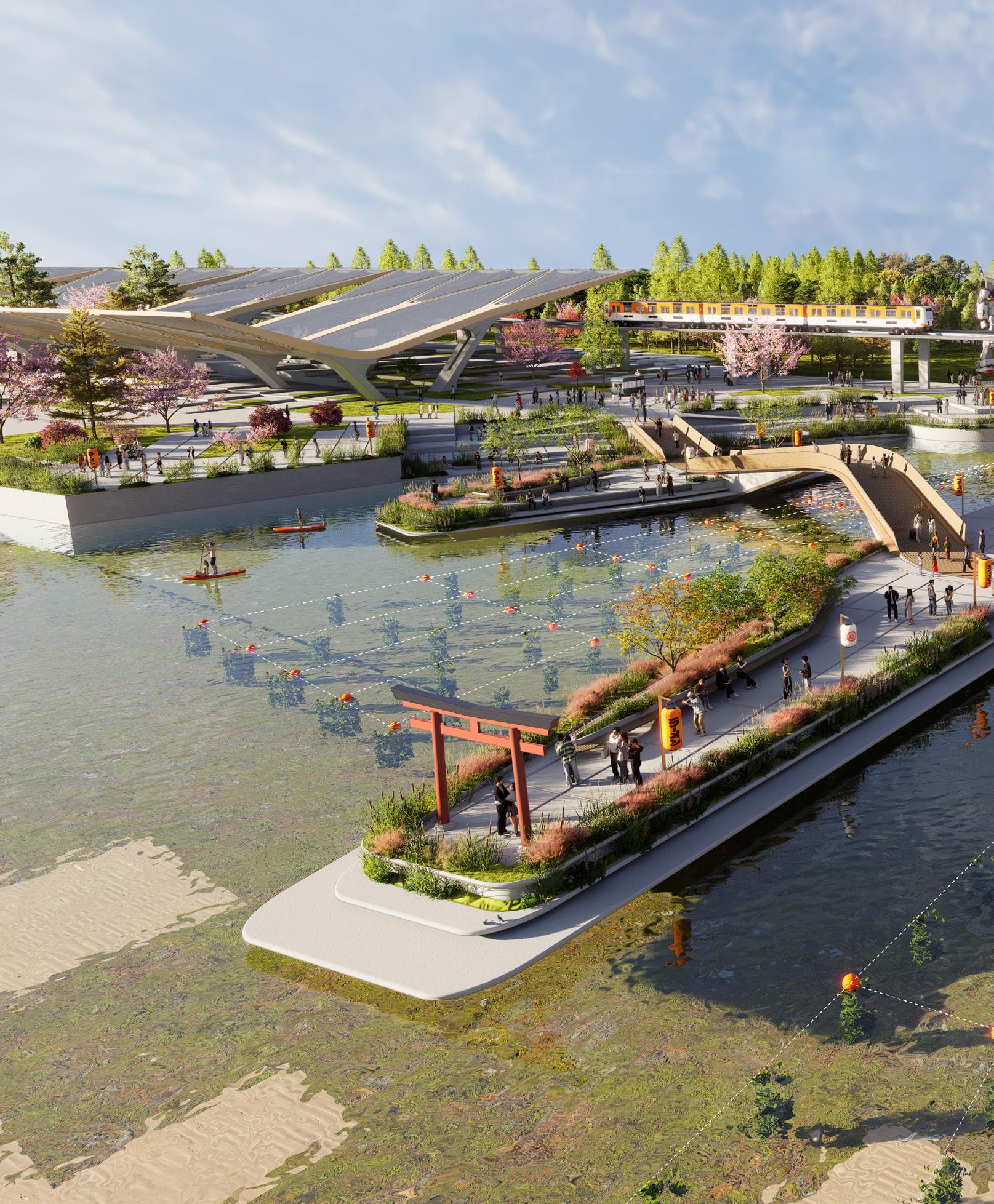

Historic boat bridges provide the formal and experiential reference for a series of water-edge platforms connected by curving bridge spans. The typology is reinterpreted as a public promenade condition — each platform extending the ground plane over the water, the bridges between them generating intimate spatial pockets that draw inhabitants into direct engagement with the bay below.

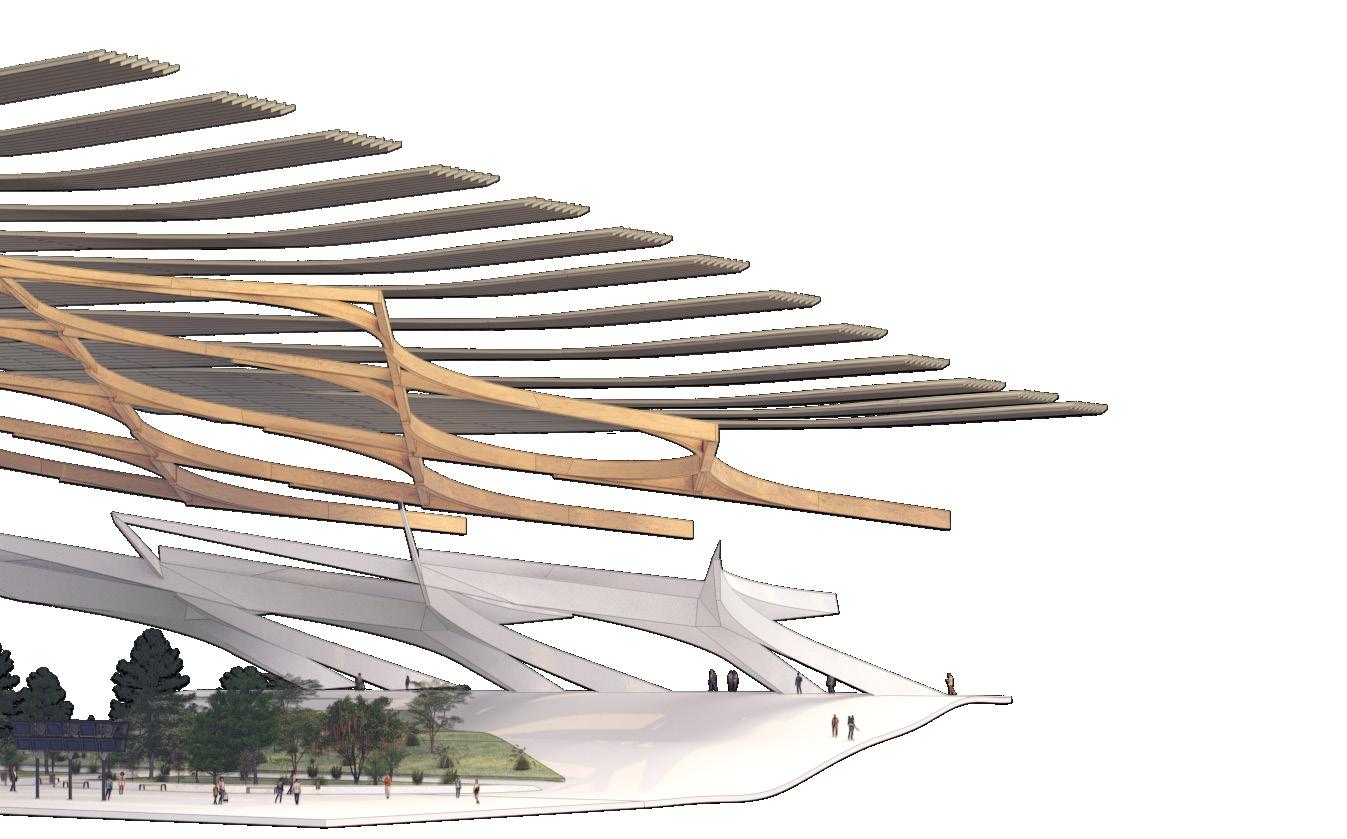

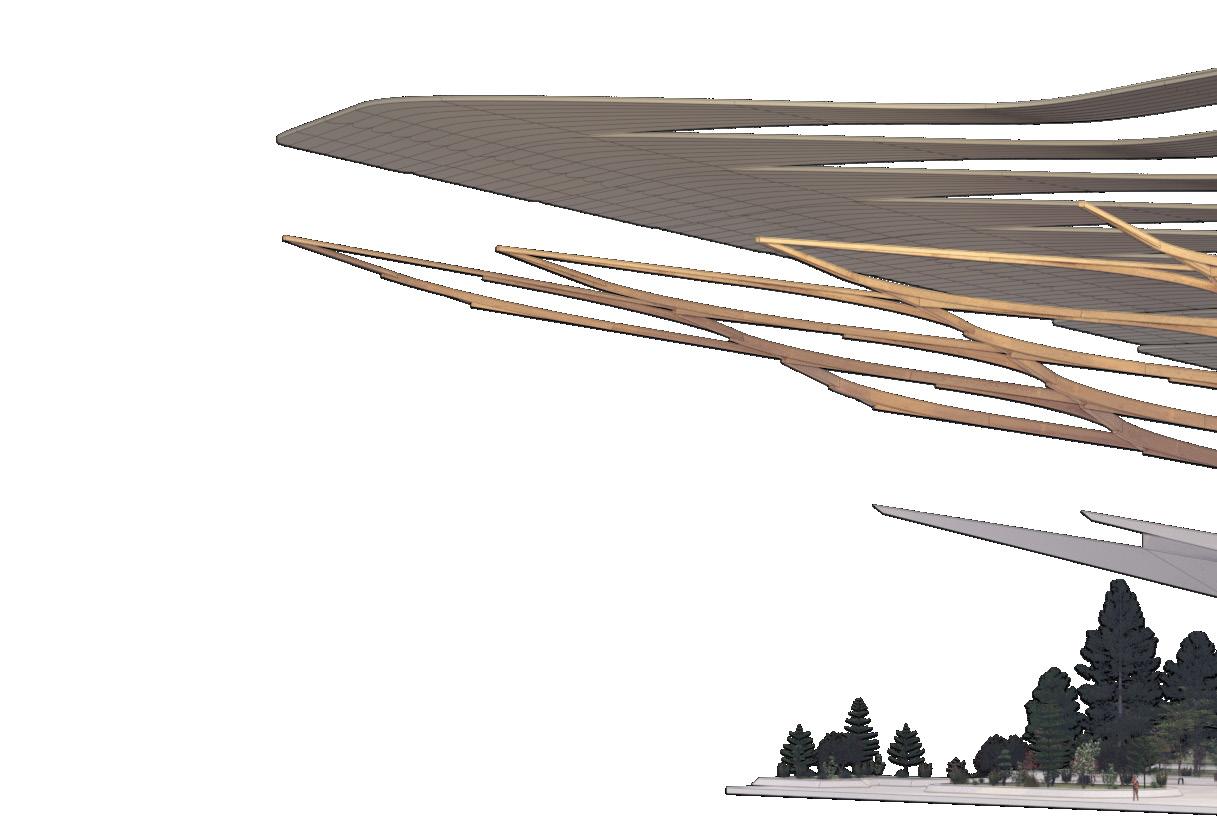

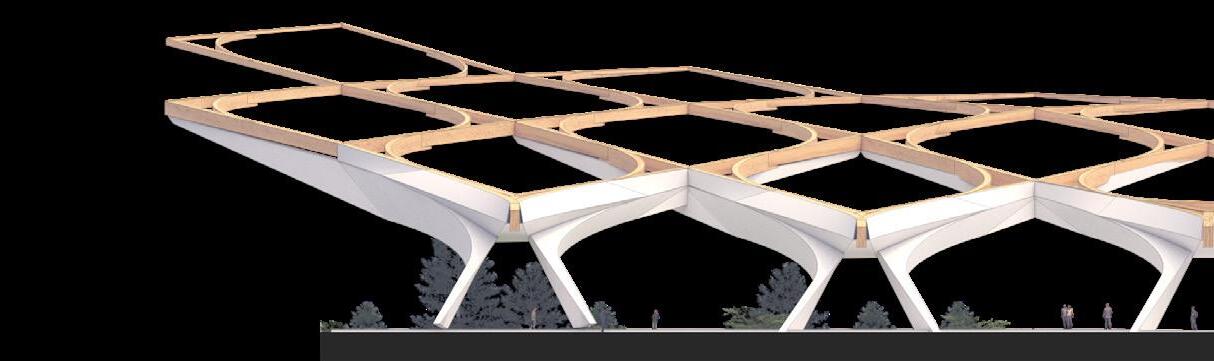

DESIGN DEVELOPMENT | Hanakago Diagrid Canopy

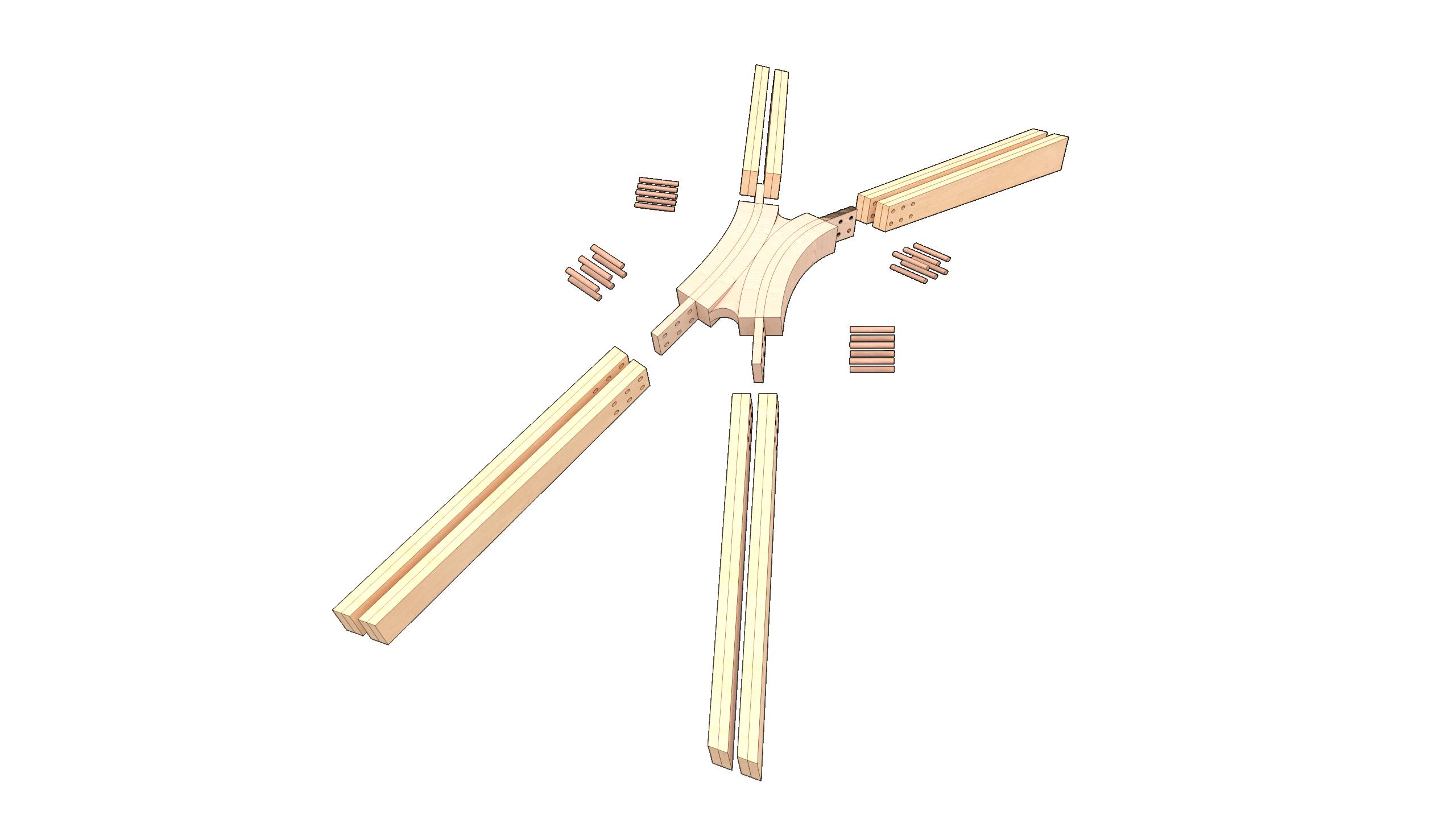

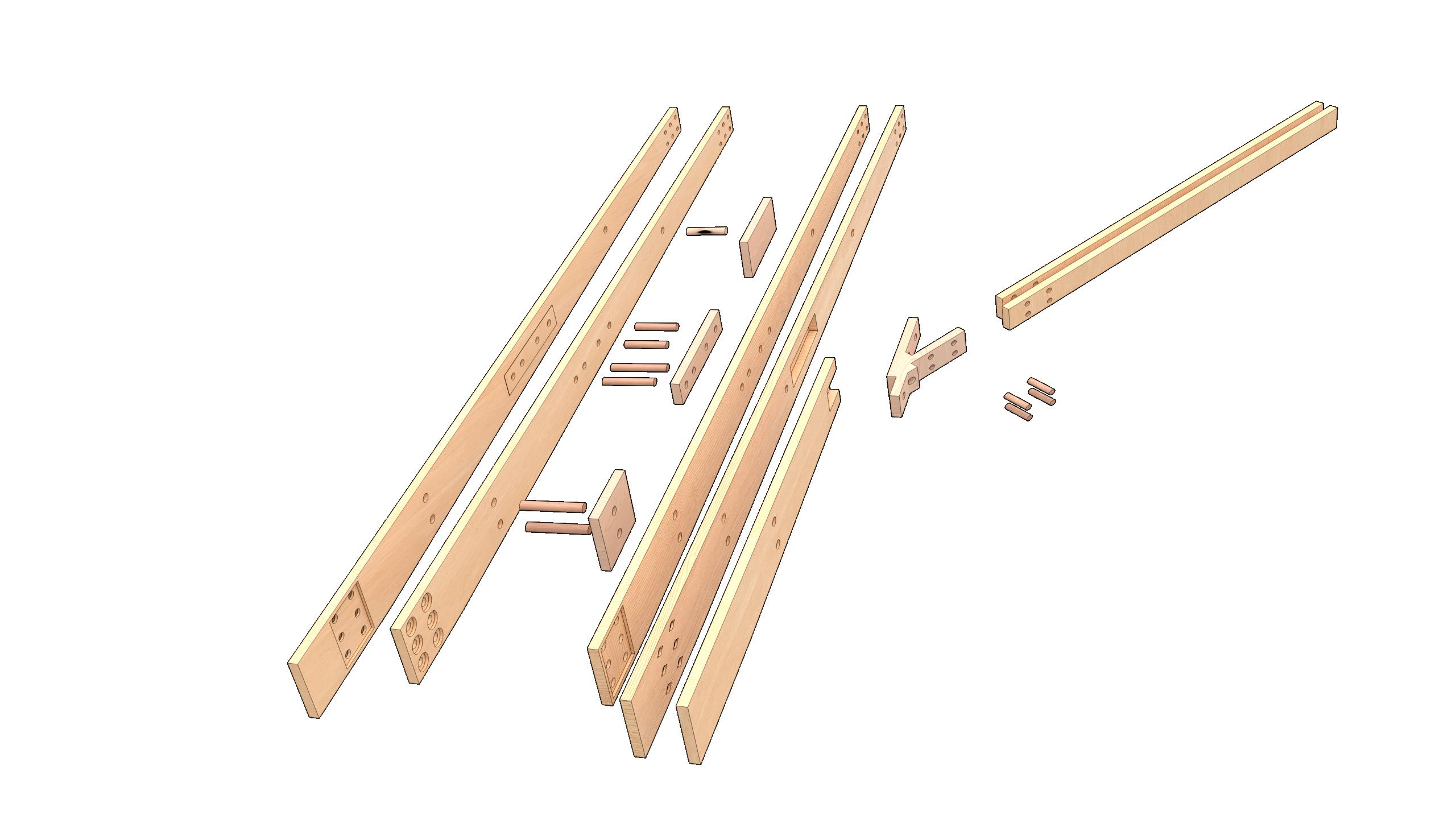

Beam Components

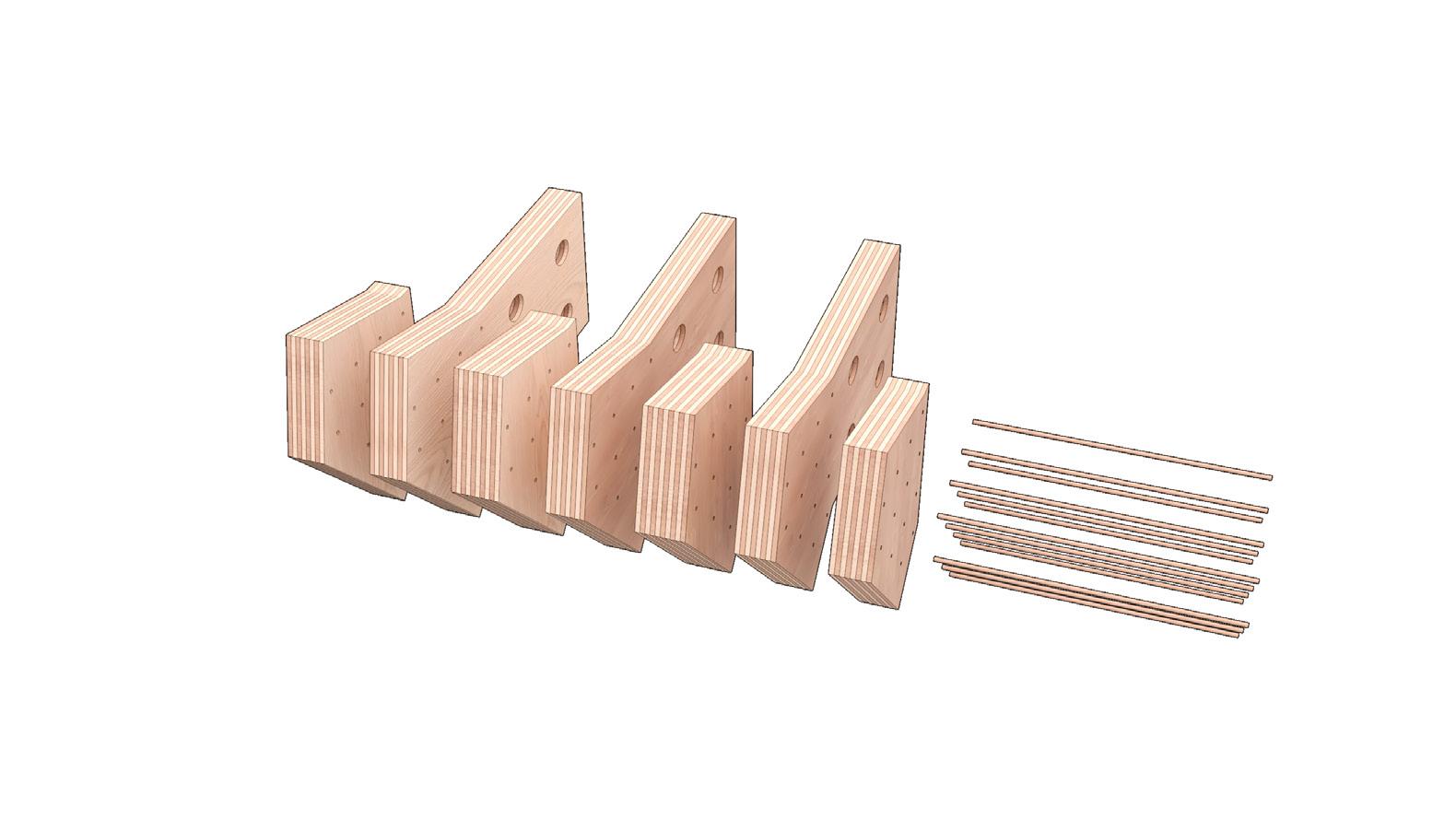

1A. Glulam Beam
1B. Glulam Beam (half)
1C. Cross Laminated densified elliptical plate
1D. Cross laminated densified section plate

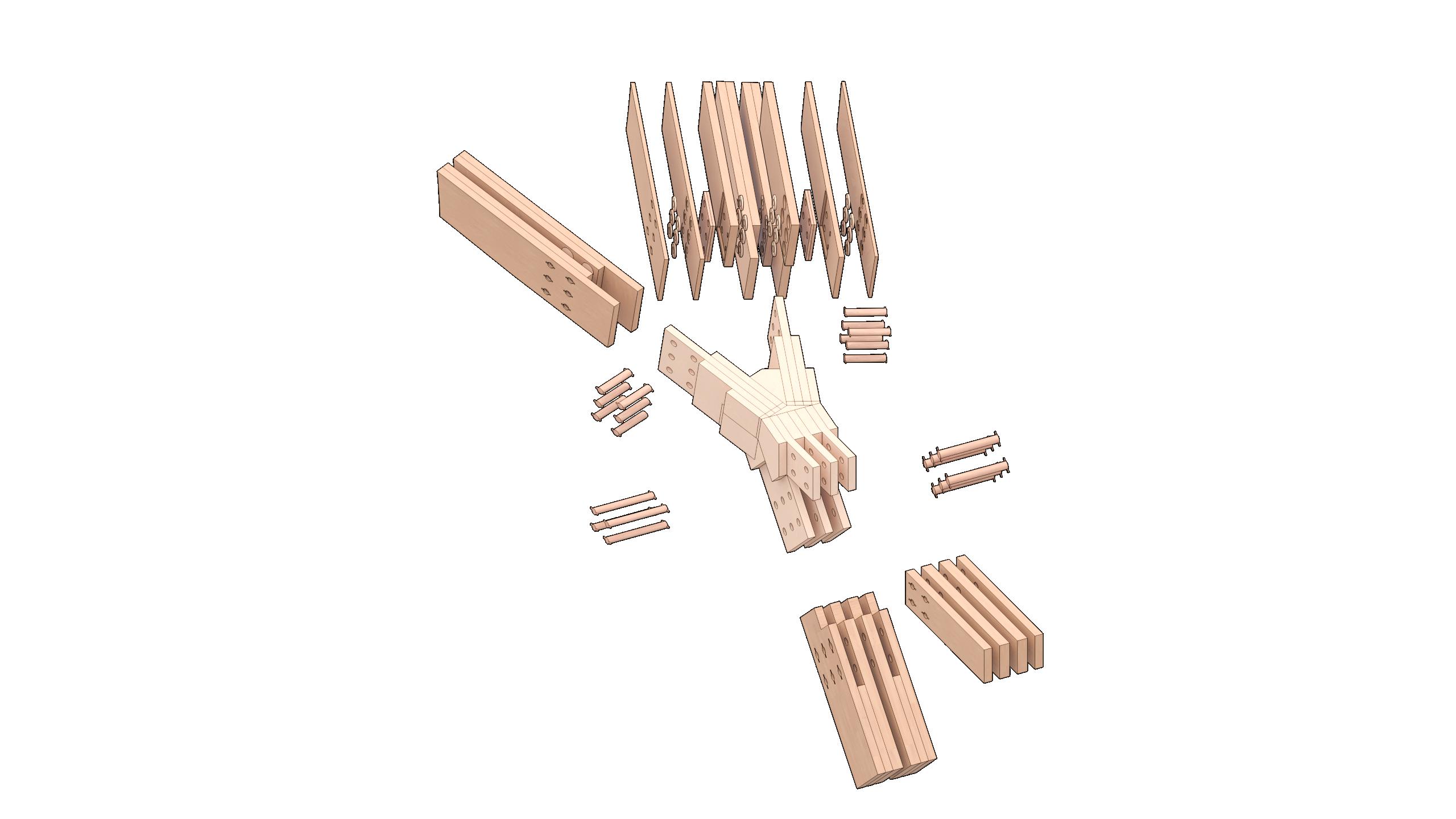

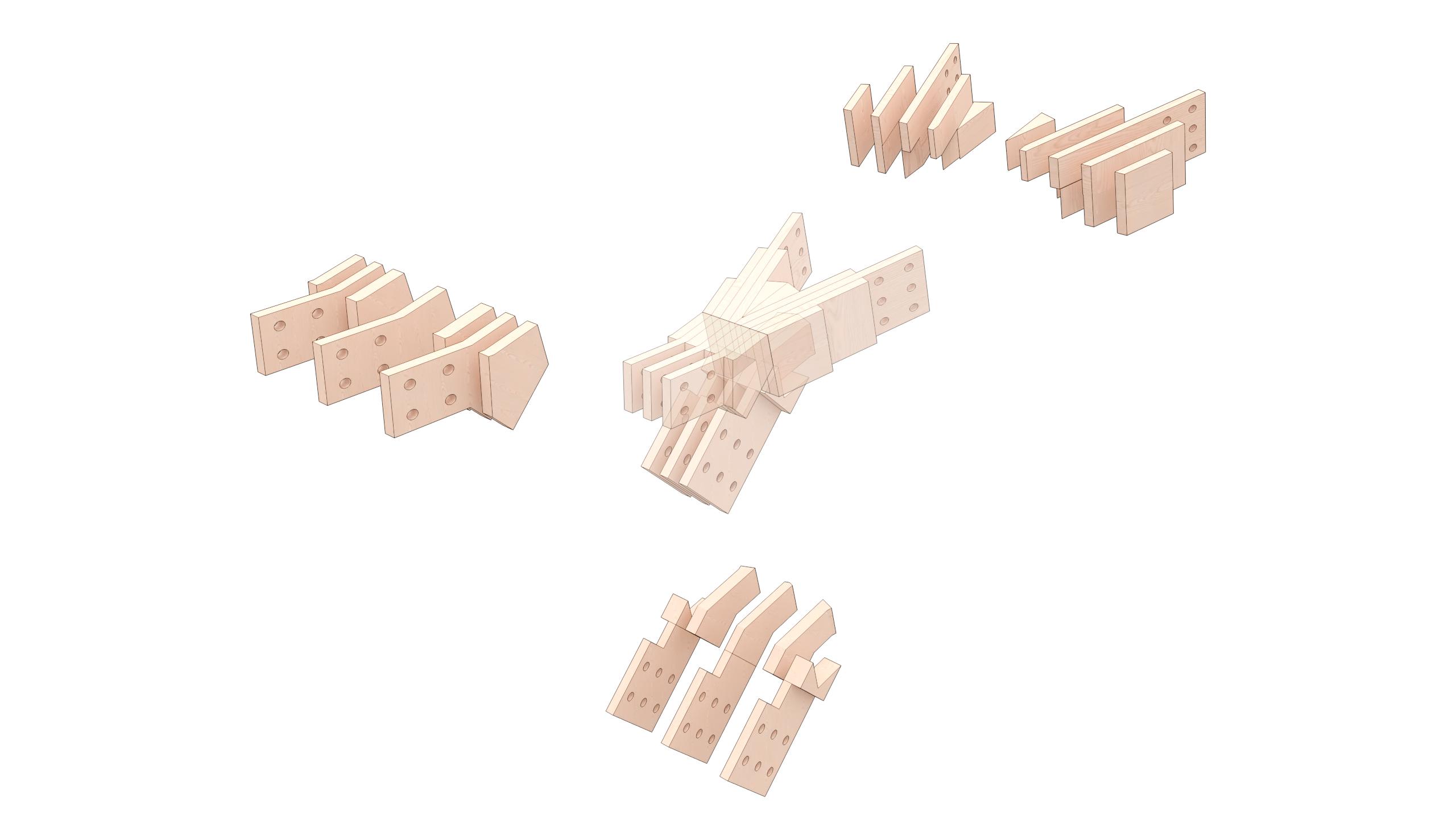

Node components
2A. Composite Laminate Dowel
2B. Elliptical Bore
2C. Composite cross laminated node plate
2D. Cross laminated node

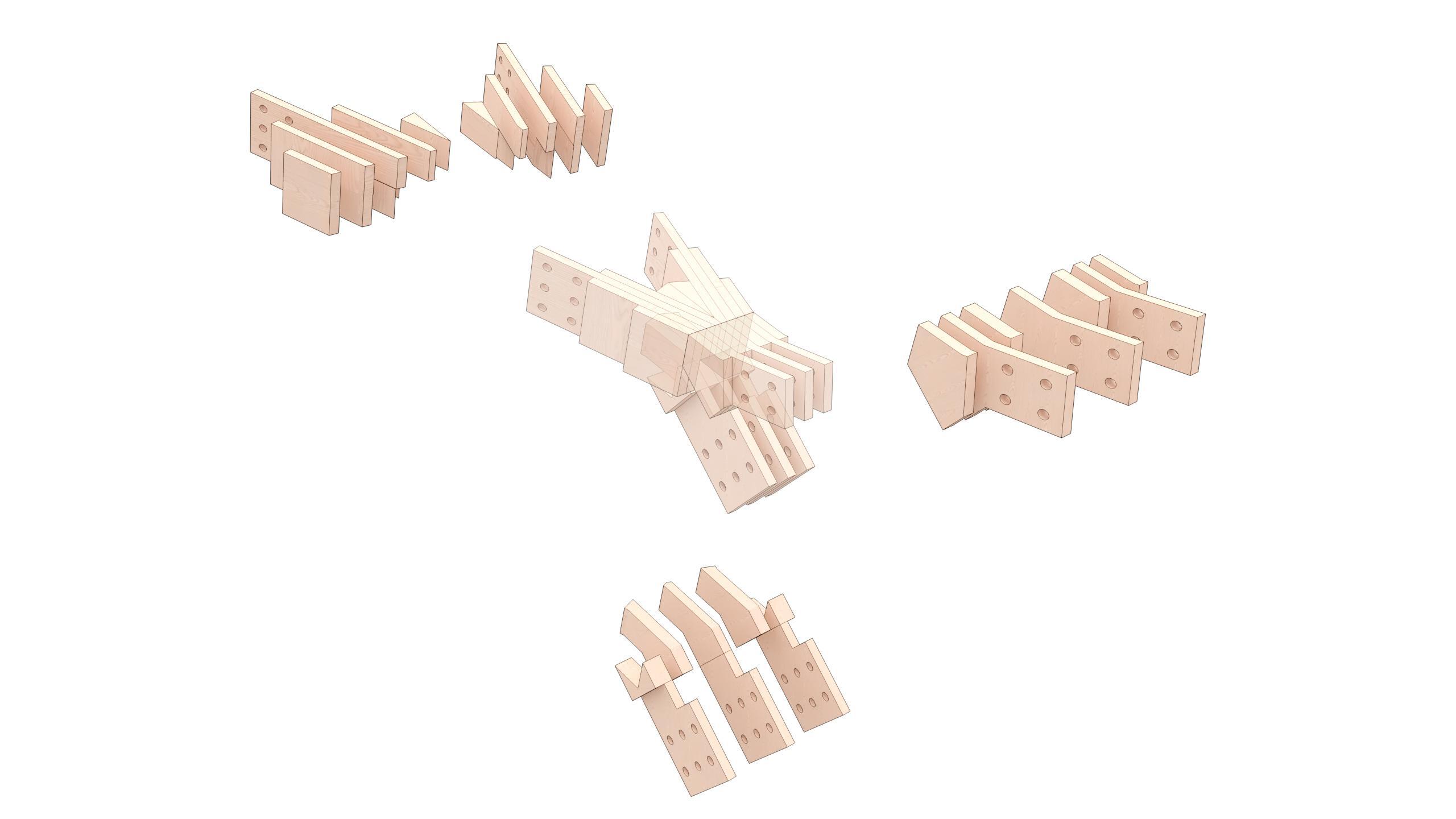

node Assembly

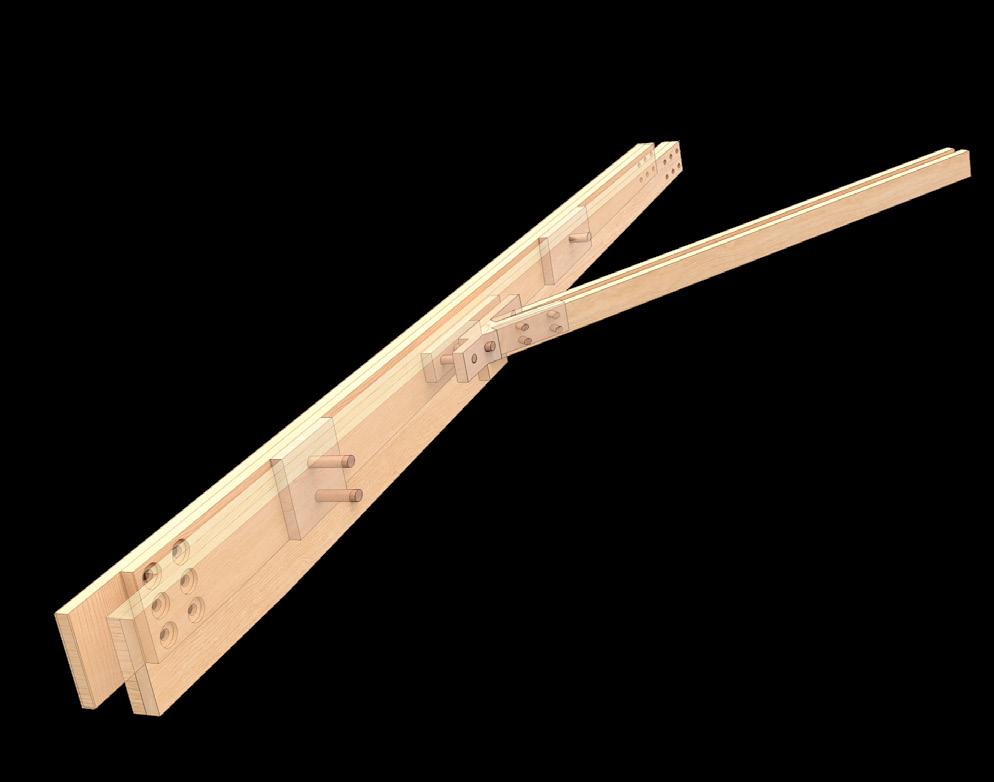

The diagrid condition introduces forces from two angles simultaneously ademand that exposes timber’s inherent weakness perpendicular to grain. The node is designed as a composite assembly, combining cross-laminated timber with densified beech to redistribute and absorb these multi-directional forces, producing a connection whose structural capacity exceeds what either material could achieve independently.
The plate is designed as a mixed cross-laminated panel, made from densified beech and unprocessed beech. The densified layers provide high resistance to compression, approaching the performance of mild steel enabling a fully timber-based node to be used at long span. Crosslamination spreads forces across layers with alternating grain directions, reducing the risk of splitting.
1. Composite node
2. Composite cross laminated node plate
3. Laminated densified timber planks
4. Cross laminated Beech panel
5. Tension component
6. V shaped Compression component
7. Diagonal compresison component
8. Densified Joining dowels

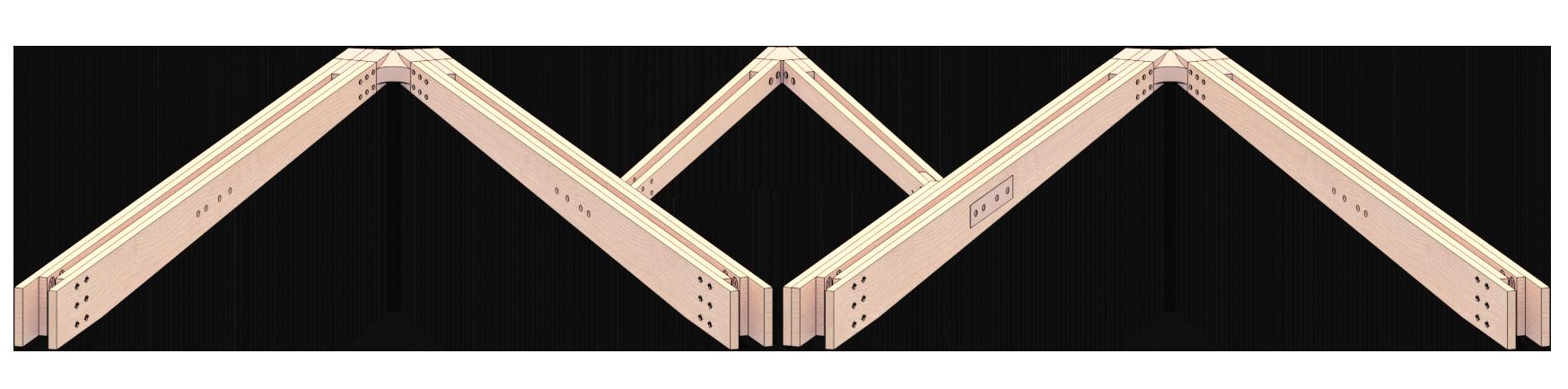

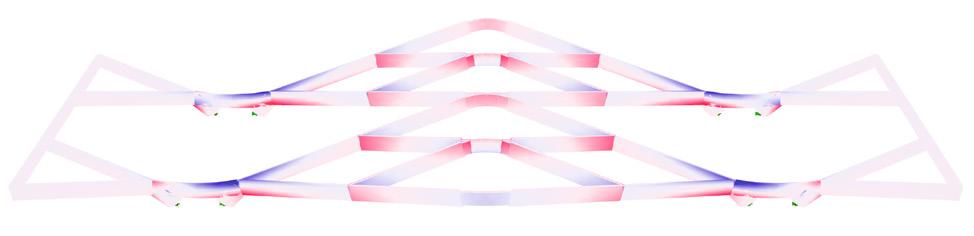

The cantilever-beam system addresses the long-span requirement, while the diagrid braces against lateral and bending forces. The structure utilises
The moment node addresses the bending at the upper sections of the Cantilever beam,
1. Moment node
2. Glulam beam
3. Composite Dowel
4. Secondary Moment node
The shear-coupling node locks the paired beams and prevents shearing. This node is also used to connects= the bracing members to the main beams
Structural components
1. Shear plate
2. Glulam beam
3. Composite Dowel
4. Coupling node
5. Bracing beam
SYNTHESIS | Daikoku Pier
