The Civic Garden Station explores how Kuwait’s proposed railway infrastructure can become more than a transportation facility. Situated within the historic district of Jibla, the proposal imagines the station as a shaded civic garden: a new national gateway that reconnects movement, climate, landscape, and the erased spatial memory of old Kuwait.
Research into the urban fabric of historic Kuwait revealed a city shaped by courtyard houses, narrow shaded routes, environmental adaptation, and a close relationship to trade and maritime culture. These qualities informed the development of a contemporary infrastructural landscape that translates historic spatial intelligence into a new public realm.
The proposal organises the station through a series of subterranean datums, locating transport infrastructure below ground and returning the surface to the city as a continuous civic landscape. Above, a timber canopy derived from the sweeping forms of traditional dhow construction creates a shaded microclimate while guiding circulation, filtering daylight, and connecting the public realm to the station below.
Developed through iterative parametric studies, the canopy evolves into a glulam structural system integrated with planting, environmental strategies, and public programme. The project operates simultaneously as a regional gateway within the future GCC railway network and as a civic intervention that reconnects fragmented urban conditions within Kuwait City.
By synthesising infrastructure, structure, landscape, and climate into a single architectural system, the proposal demonstrates how largescale transportation projects can contribute to public life while responding to local environmental and cultural conditions.
SECTION 01: RESEARCH

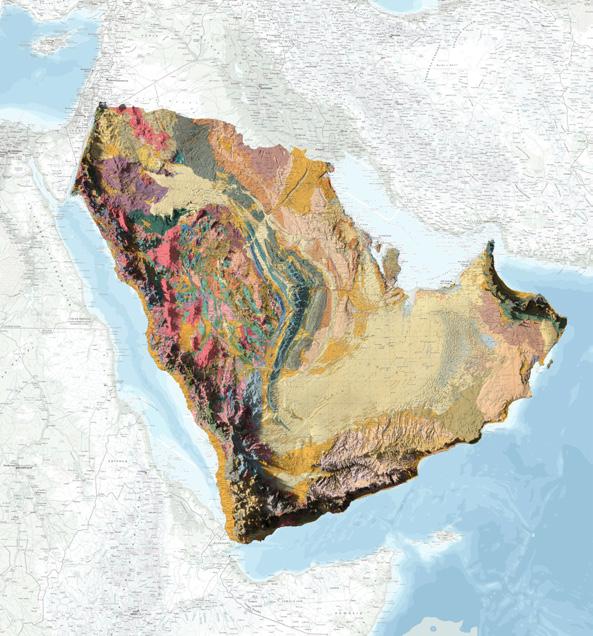

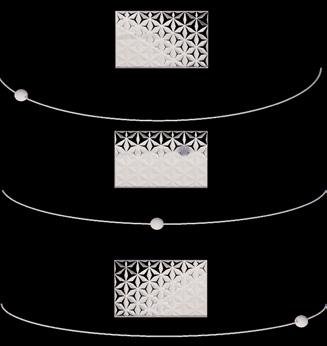

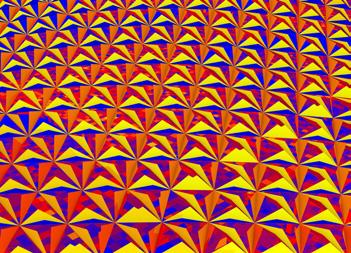

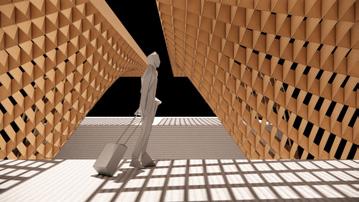

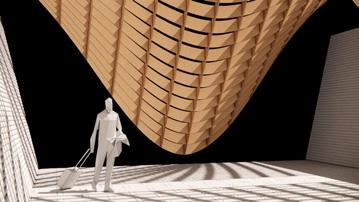

Computational studies exploring oscillation as a generative system. Through iterative manipulation of wave behaviour and proportional relationships, the geometry evolves to define structure, enclosure, and moments of spatial compression

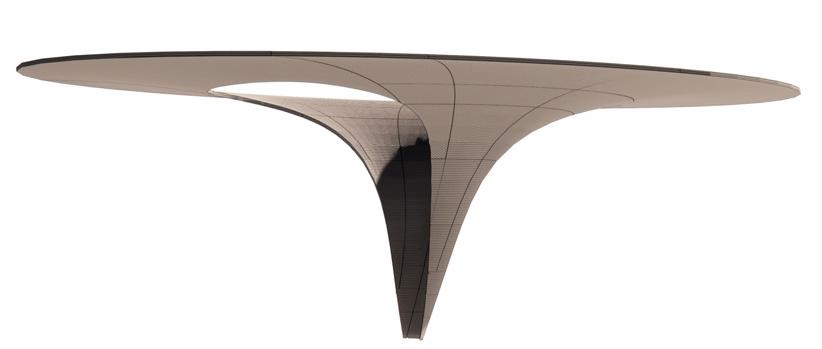

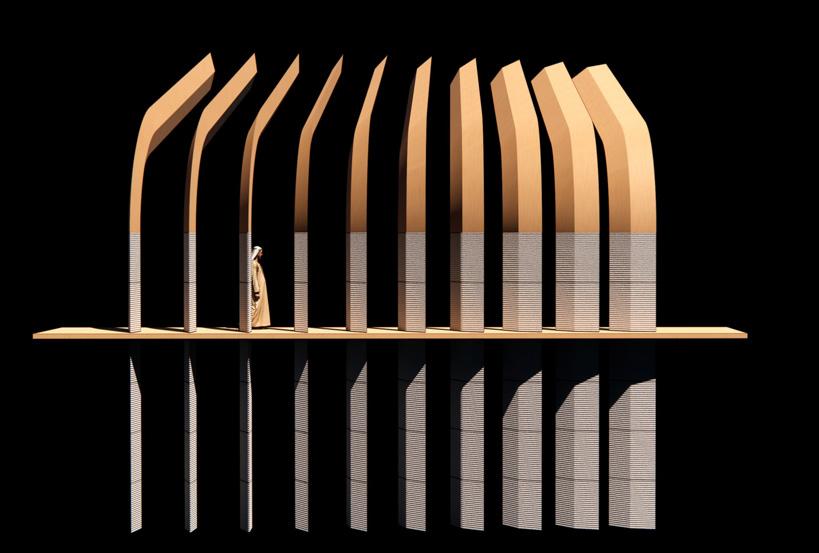

Parametric re-creation and adaptation of Ingenhoven’s column system, examining proportion, load path, and fabrication potential.

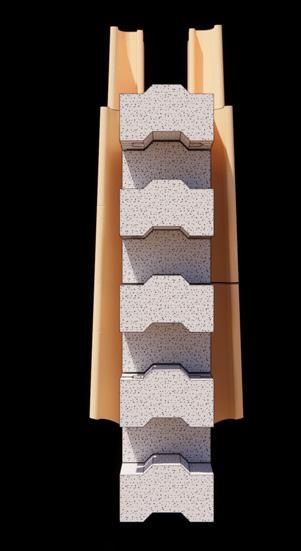

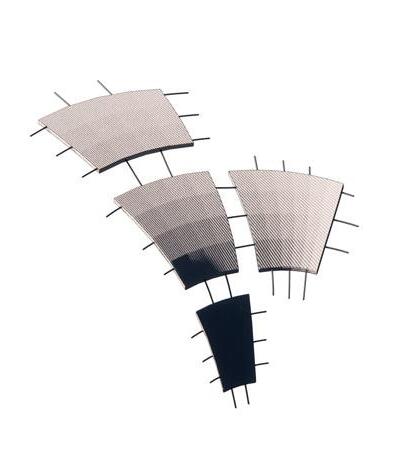

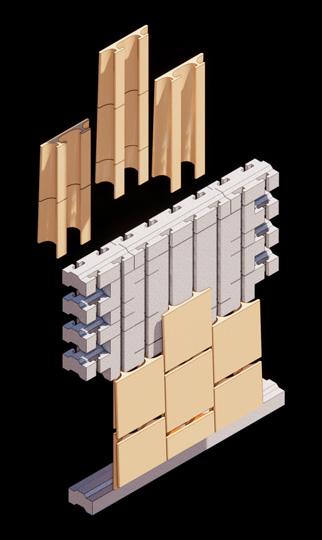

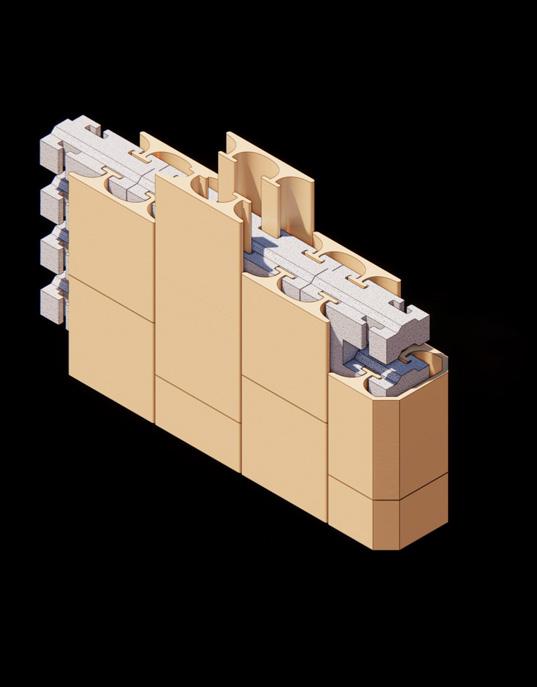

Bio-cement bricks recreate the structural porosity and interlocking behaviour of the coral stones historically used in Kuwaiti construction. The system translates vernacular CAPTION
BIO-CEMENT FORMED BRICKS Inspired from the Calified Corals used in vernacular Kuwaiti construction
SECTION 02: BRIEF & CONTEXT
The historic fabric of old Kuwait has been almost entirely erased through rapid urban expansion and modern development. This investigation studies the remnants of its spatial logic circulation routes, courtyard typologies, and urban density to inform the design of a contemporary civic railway infrastructure.

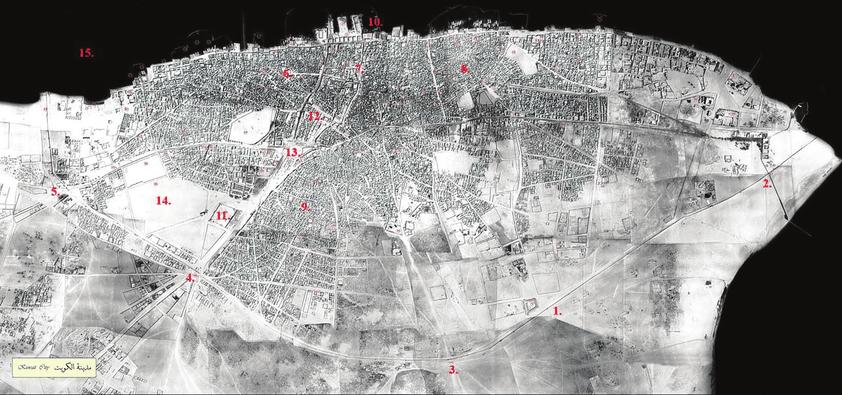

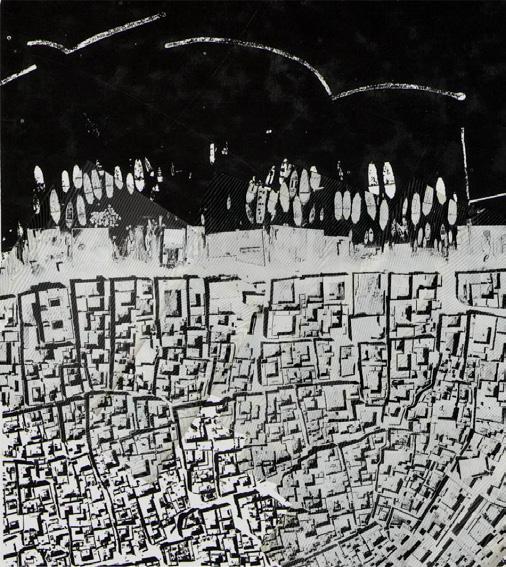

Sharq’s pre-1950s fabric reveals clustered courtyards and diagonal alignments shaped by shoreline trade routes and prevailing winds.

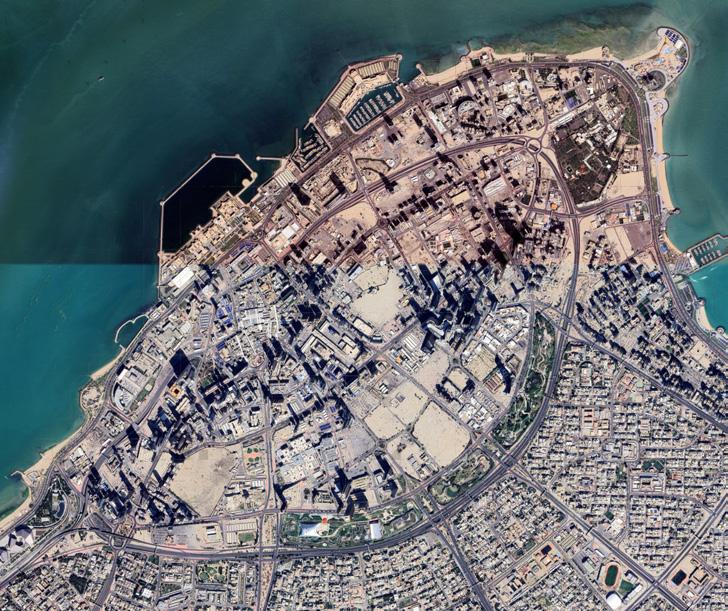

Kuwait City has undergone one of the most rapid urban transformations in the region, resulting in the near-complete erasure of its historic urban fabric. The dense courtyard settlements, narrow pedestrian routes, and climatic spatial intelligence of old Kuwait have largely disappeared beneath contemporary infrastructure and large-scale development. This research investigates fragments of the lost city through historic maps, aerial imagery, and reconstructed spatial studies, using them as generative references for a new railway station rooted in memory, movement, and civic identity.

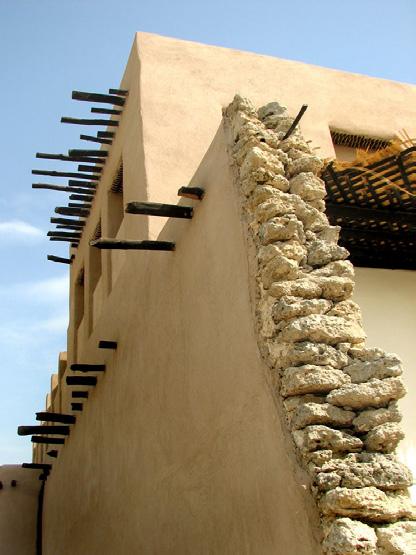

Fragments of a Vernacular Logic: Building Section, urban Alley, and Town Plan
The geometry of the old town is used as a base grid for positioning the rail line and organising early massing studies. A parametric canopy grows from these inherited alignments, its curvature influenced by roof strategies observed in Inkstone House. CAPTION
Extracted SHARQ geometry showing primary wall alignments and spatial grain.

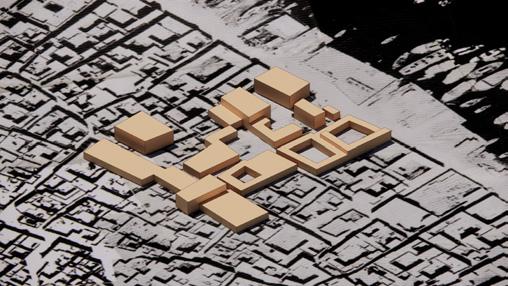

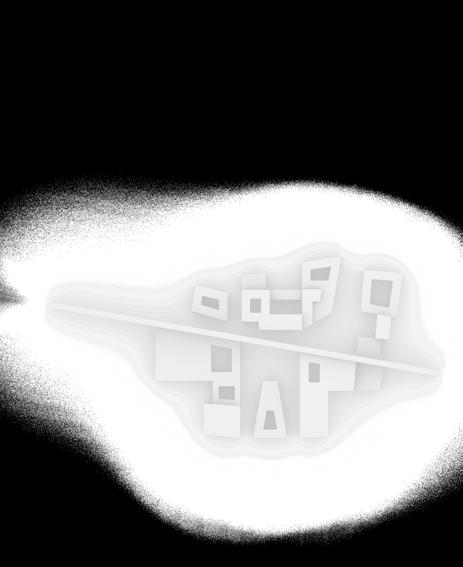

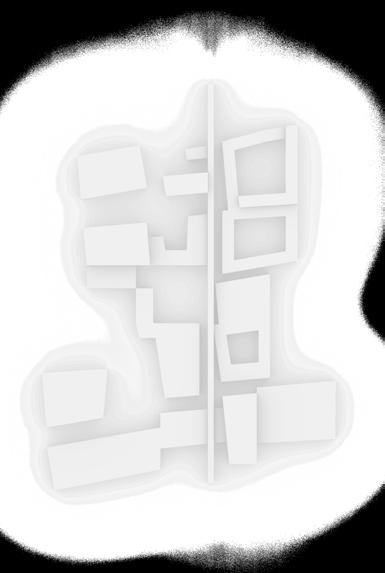

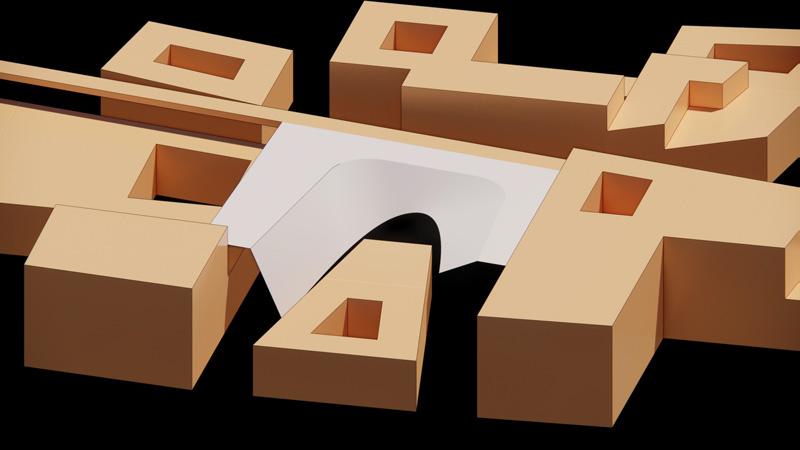

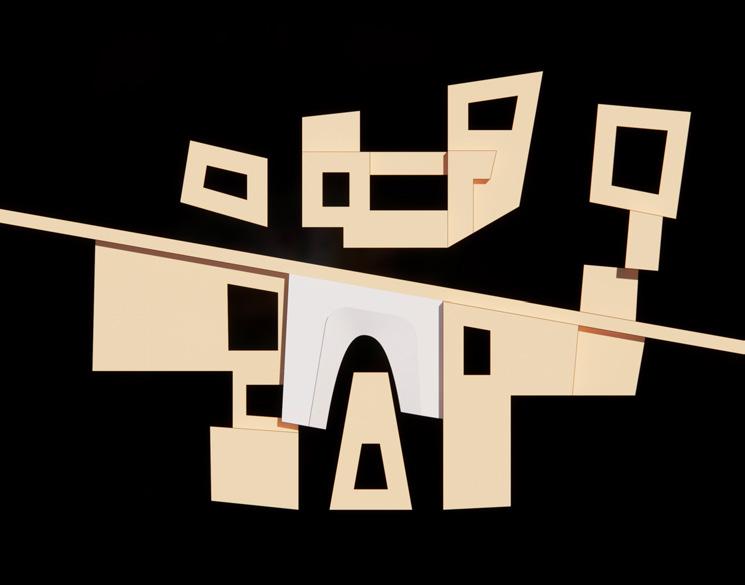

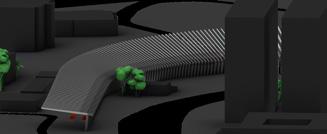

Massing grown from historic alignments, with the rail line acting as the new spine of the district.
spatial

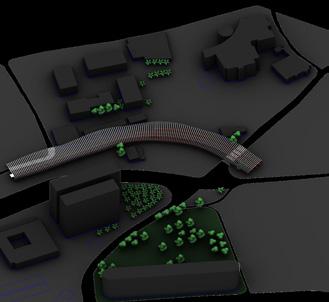

Initial timber-rib structure responding to the inherited geometry, echoing dhow rib logic
Kuwait positioned within the wider GCC railway network, establishing new regional corridors of trade, movement, and economic exchange.
High-speed rail infrastructure envisioned as a catalyst for regional mobility and long-term urban transformation within Kuwait City.
QRC HEADQUARTERS
FREE TRADE ZONE
KUWAIT CITY
QRC NATIONAL STATION
SHUWAIKH TRADE ZONE

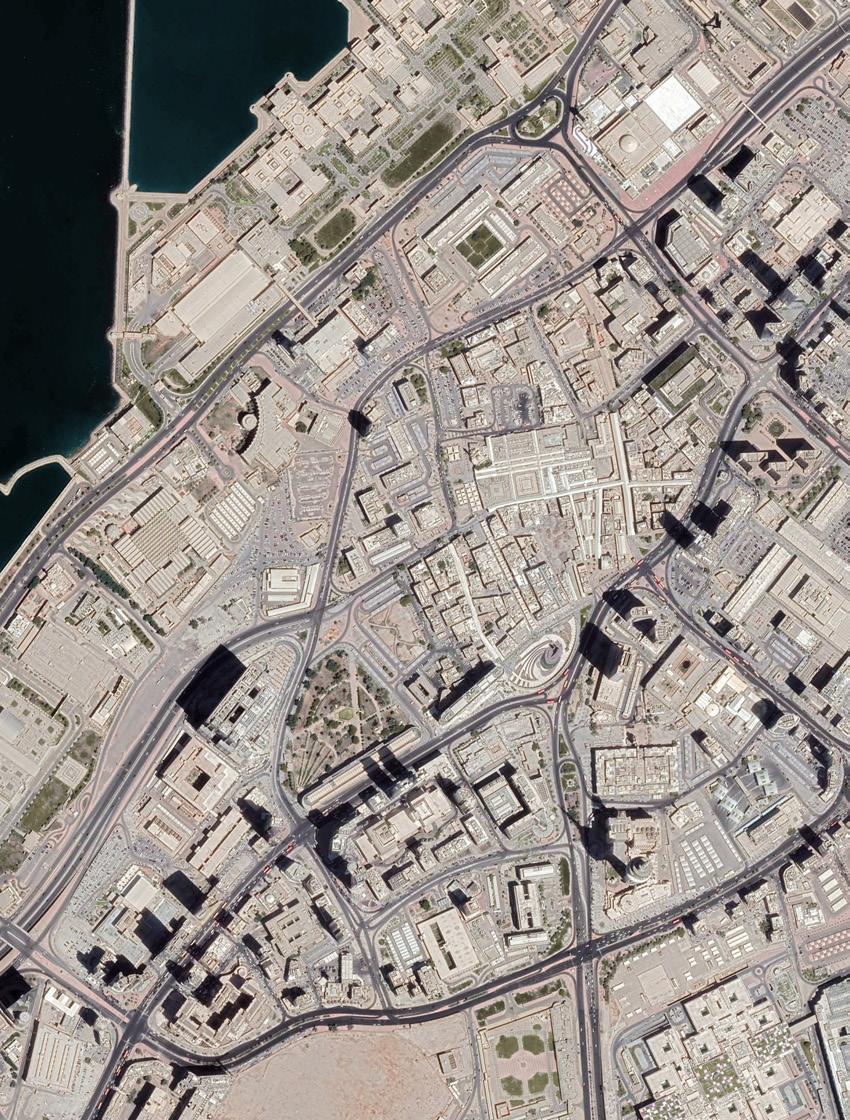

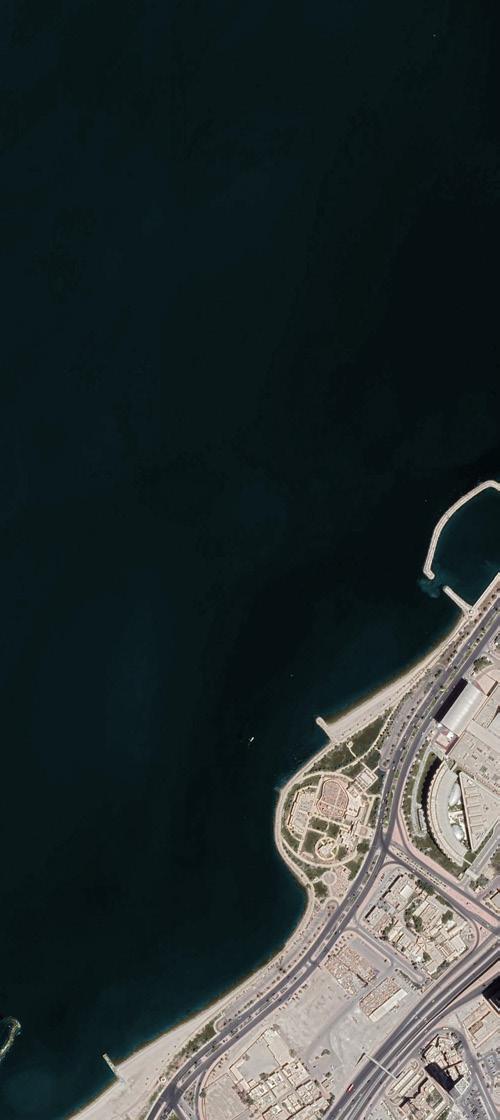

Jibla site analysis illustrating the station’s position between the waterfront, existing urban districts, and major infrastructural corridors entering Kuwait City.
1 : 2,500
Located within the historic district of Jibla, the site occupies a strategic position between Kuwait City’s coastline, commercial core, and expanding transport infrastructure.
Historically associated with trade, movement, and civic exchange, Jibla represents one of the earliest urban foundations of Kuwait before the rapid transformation of the modern city.
The proposal positions the national railway station as a new infrastructural gateway aligned with Kuwait Vision 2035, supporting the ambition to transform Kuwait into a regional financial, logistical, and transportation hub.
The site acts as a critical landing point between the GCC Railway network, the airport, port infrastructure, financial districts, and future economic corridors, re-establishing Kuwait City as a point of regional convergence and connectivity.

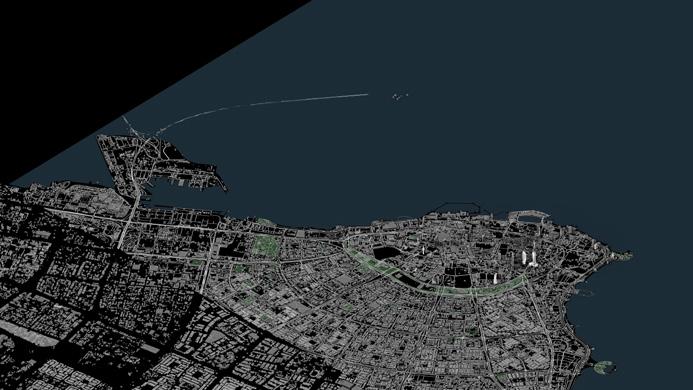

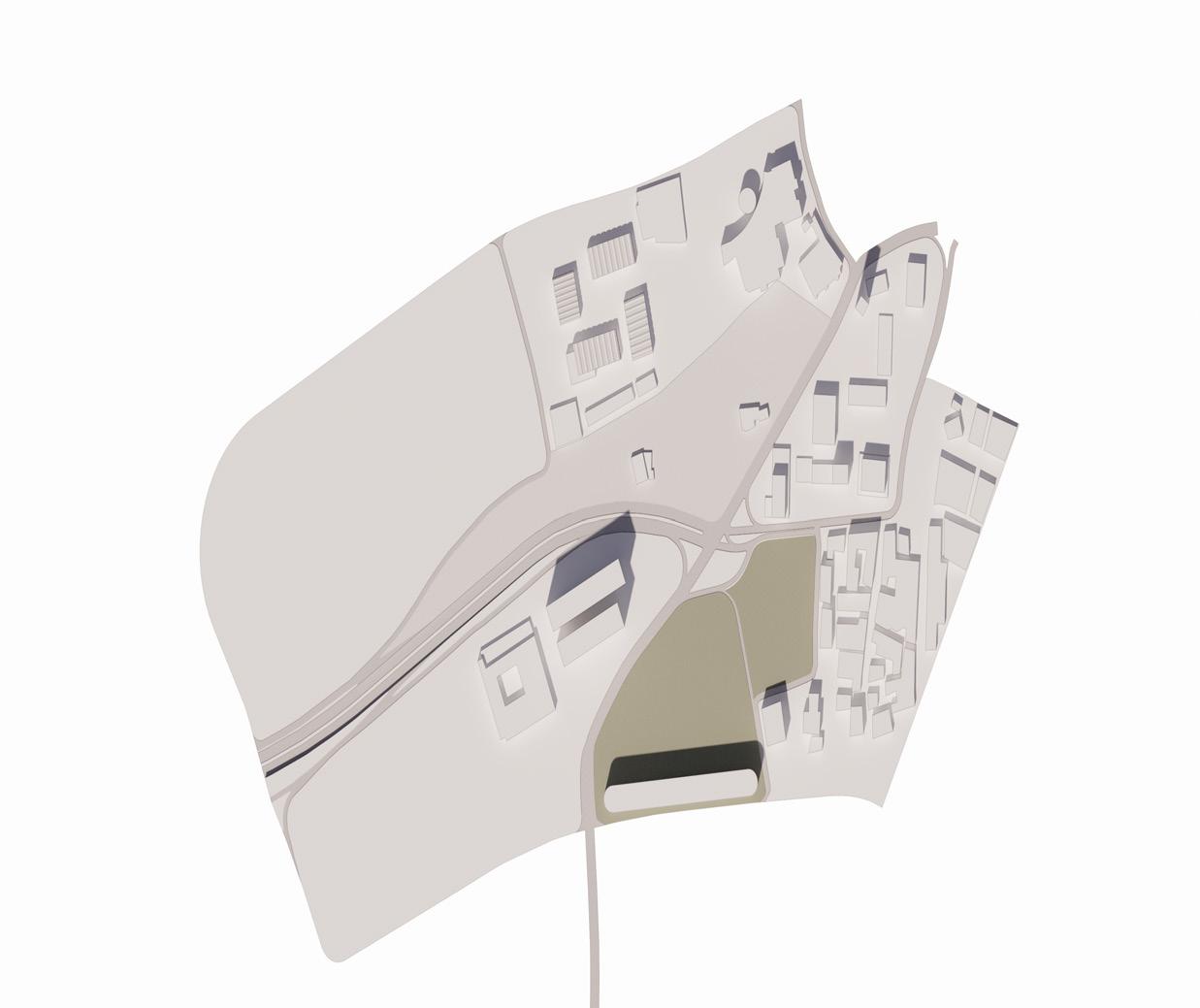

Wider urban context plan identifying the strategic role of the site within Kuwait City’s future redevelopment and connectivity framework.

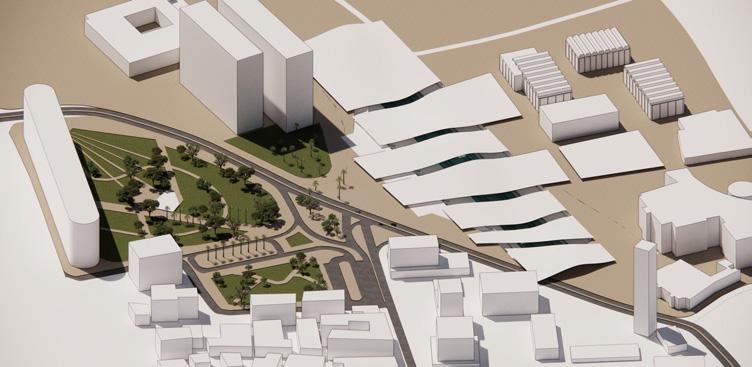

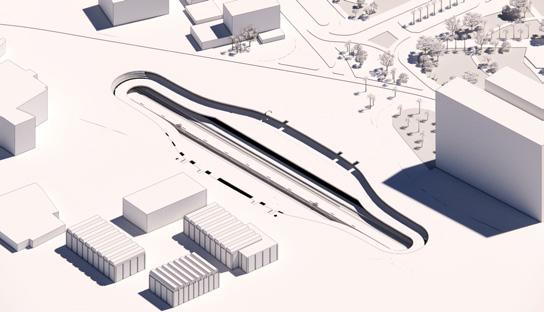

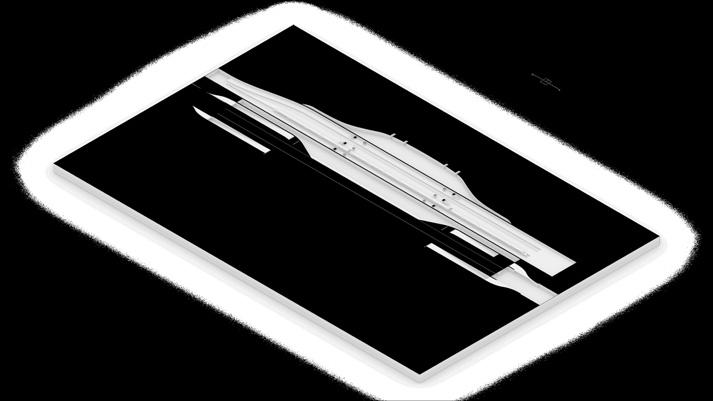

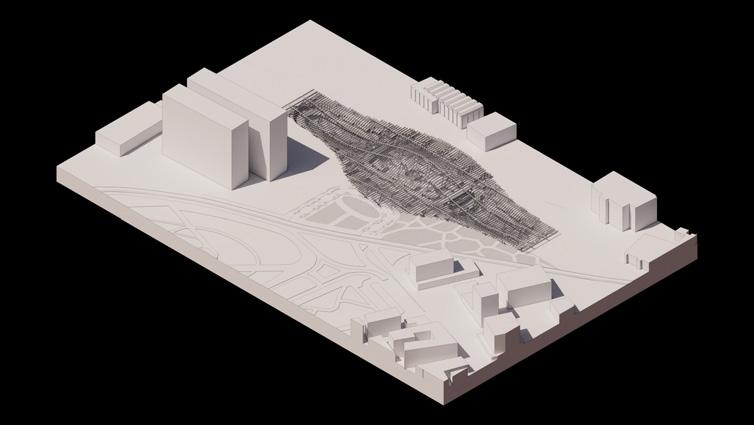

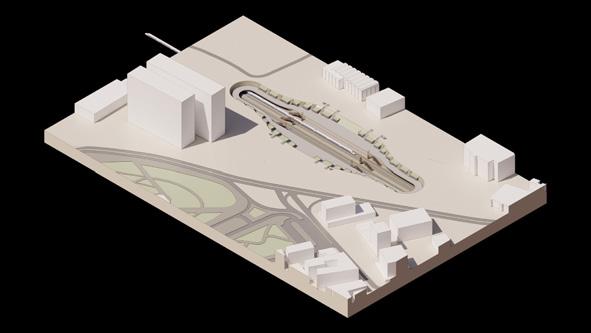

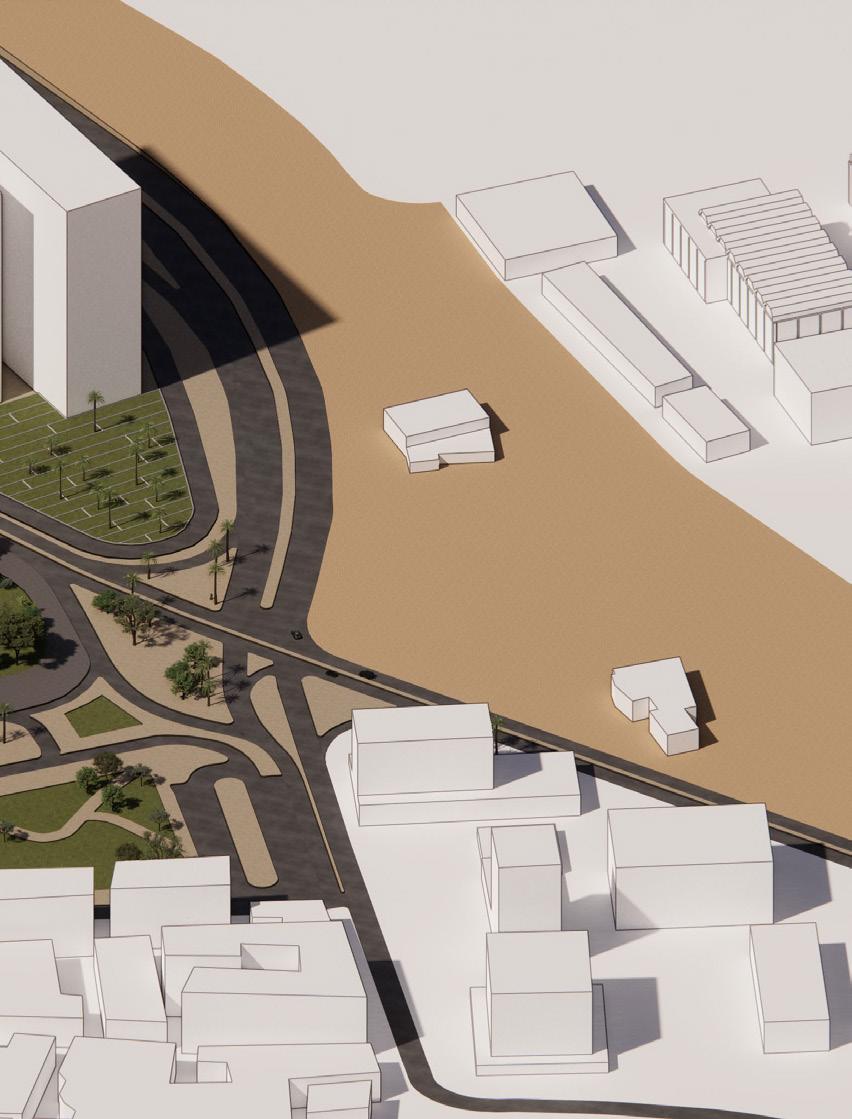

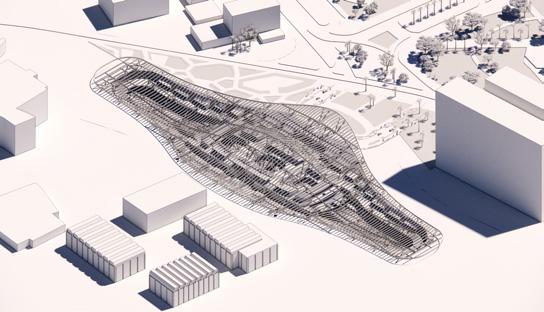

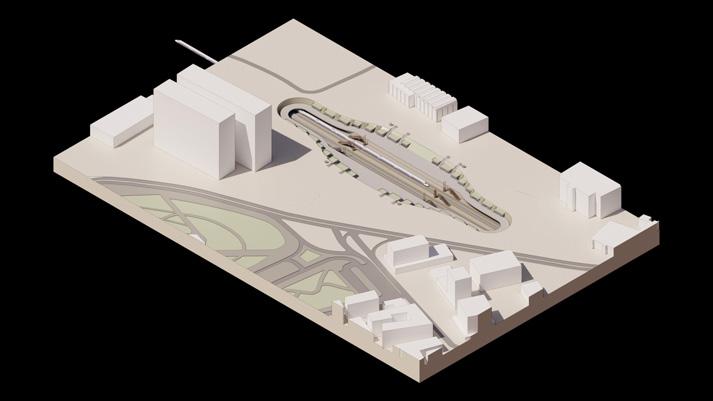

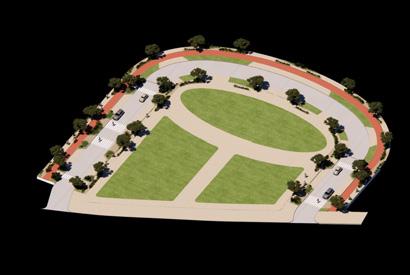

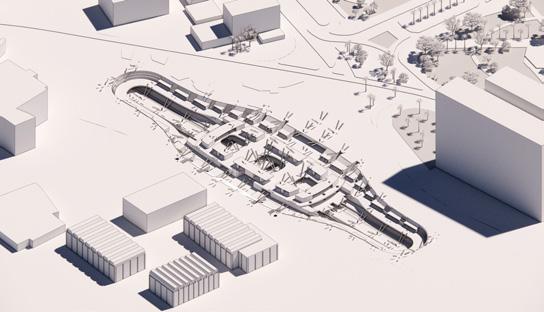

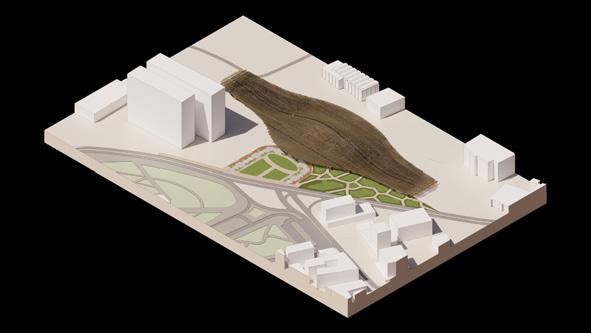

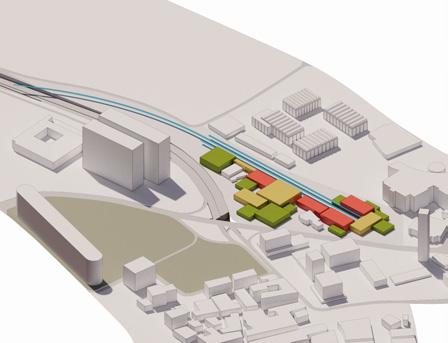

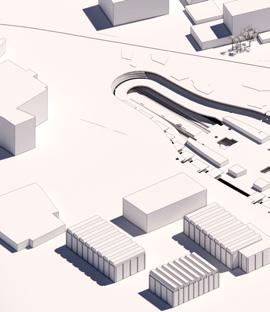

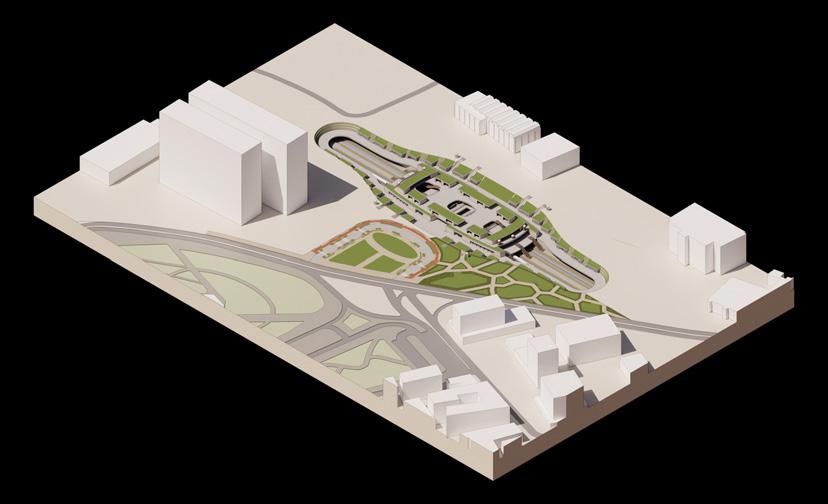

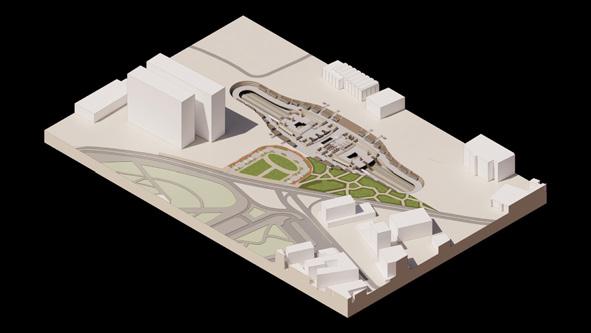

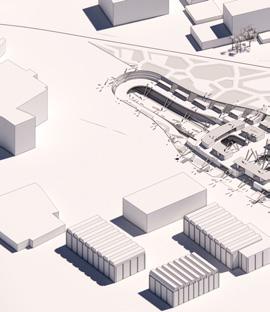

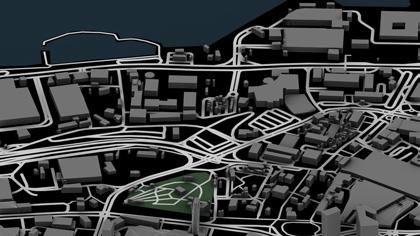

Digital site model illustrating the station’s integration within Jibla’s existing urban fabric, landscape systems, and transport infrastructure.
The canopy emerges from a continuous sine-wave geometry that deforms downward to form the station void, creating a spatial and structural connection between landscape, infrastructure, and public circulation. A layered timber rib system translates the wave profile into a buildable tectonic framework, filtering light while defining enclosure and movement through the arrival sequence.

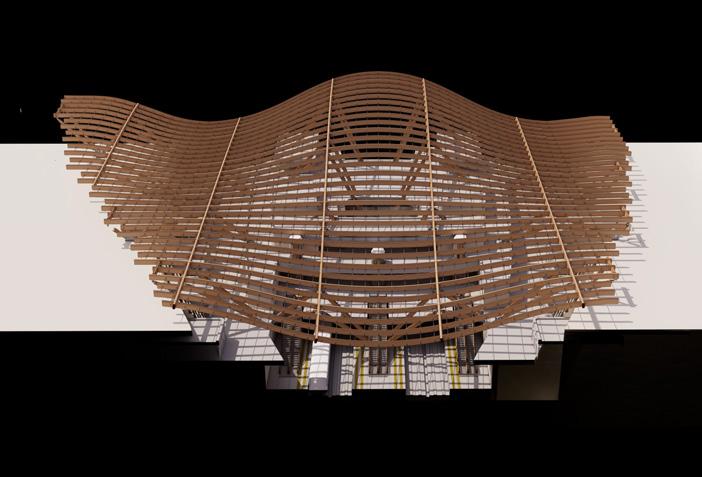

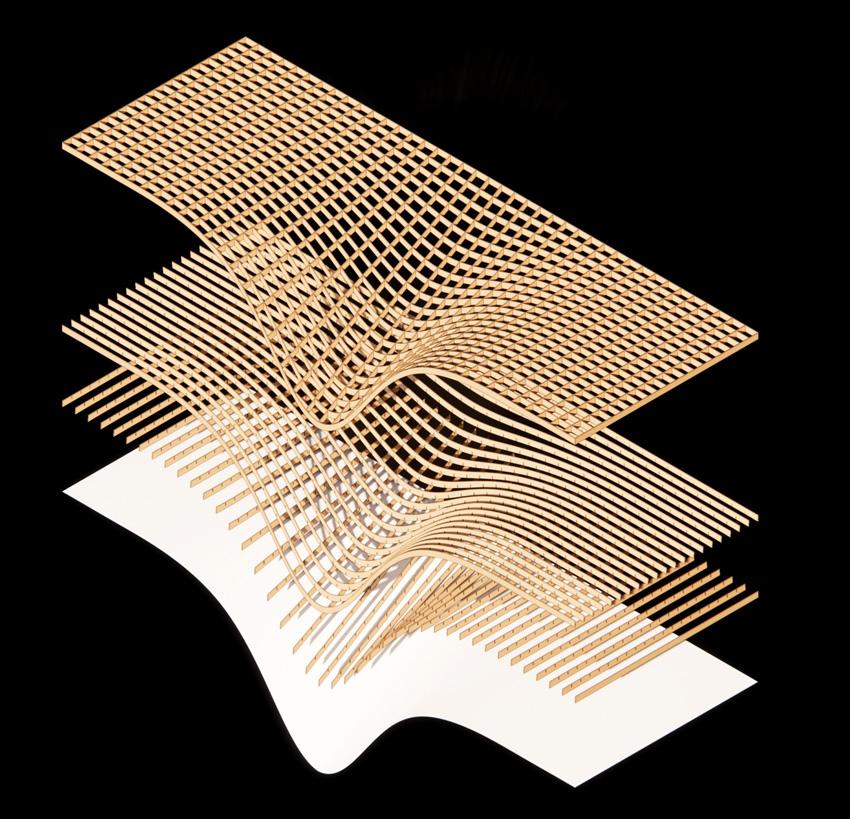

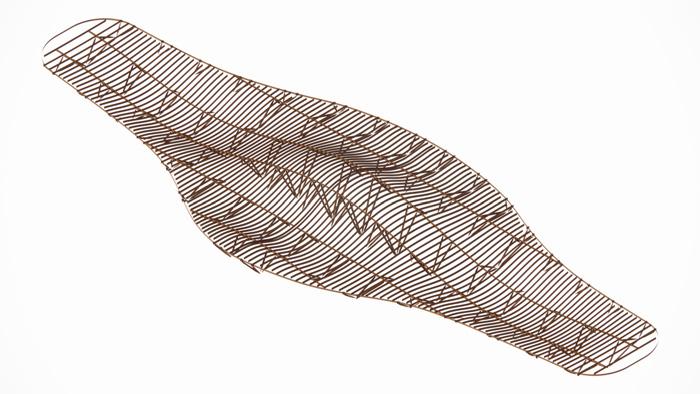

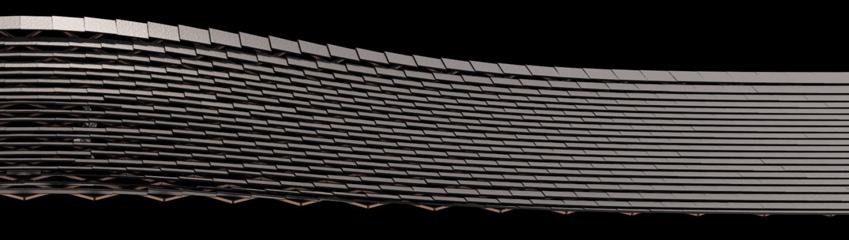

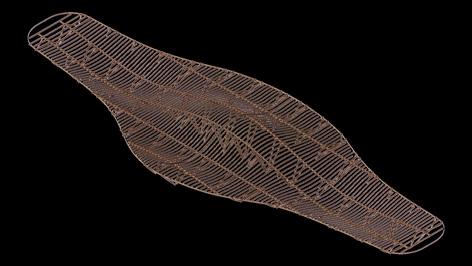

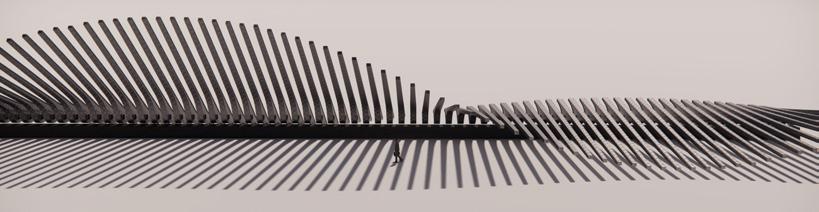

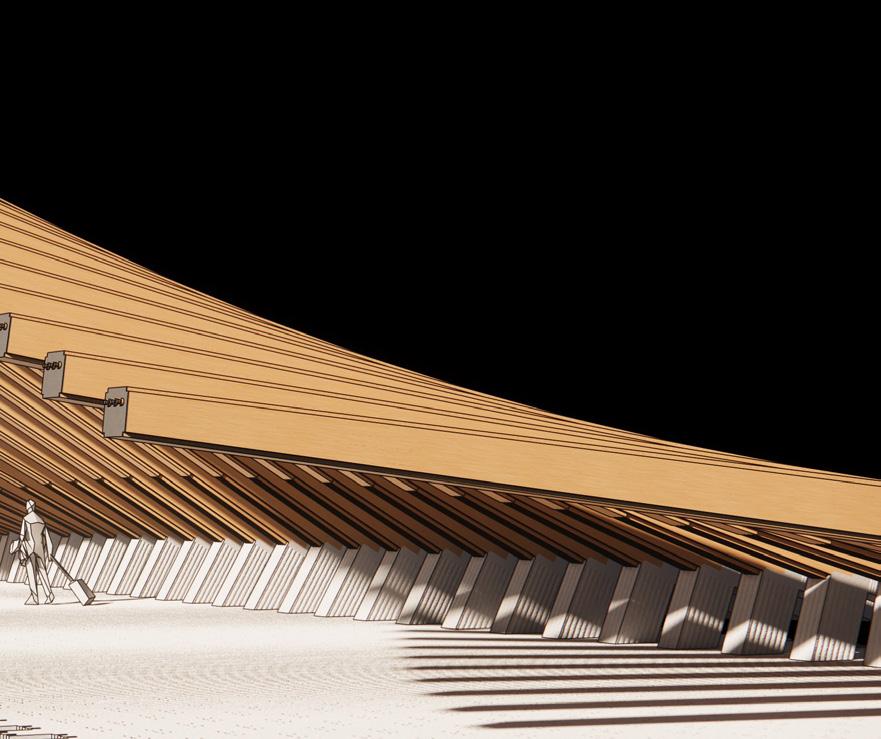

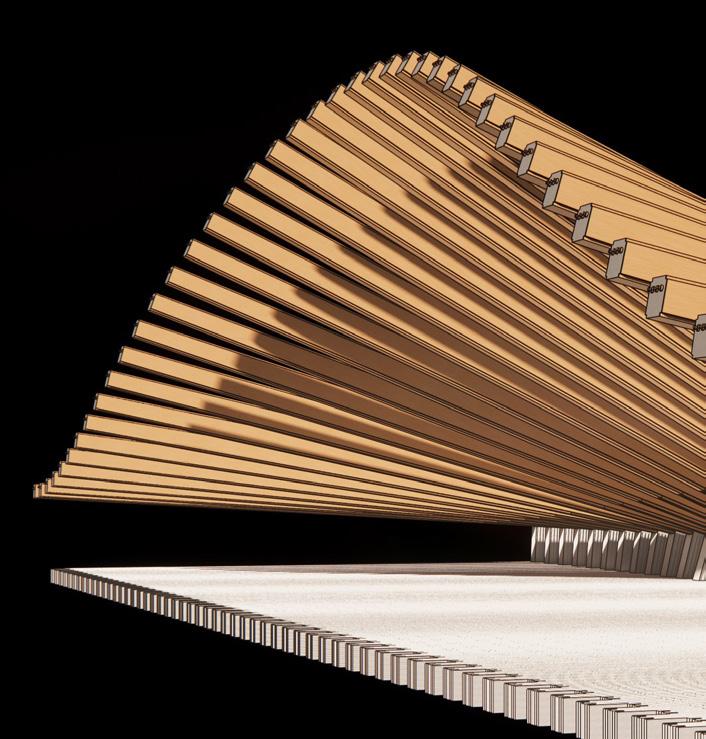

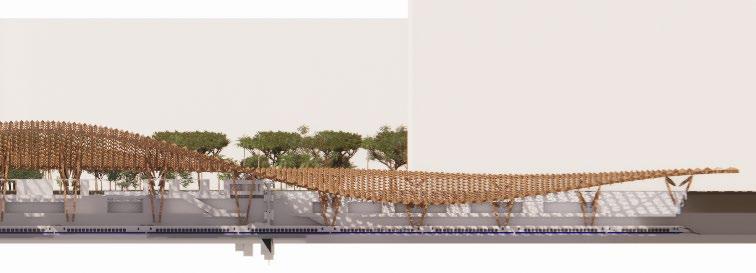

Layered timber rib system generated from sine-wave geometry, producing a continuous canopy that dips into the station atrium.

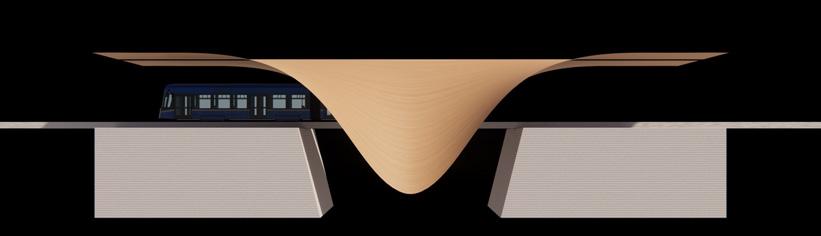

The proposal positions the station as a carved infrastructural void beneath a continuous canopy surface, allowing the public realm to extend across the roof while drawing daylight deep into the concourse below. The descending timber structure frames circulation, visual connections, and moments of compression within the arrival sequence, establishing the canopy as both spatial enclosure and civic landmark.

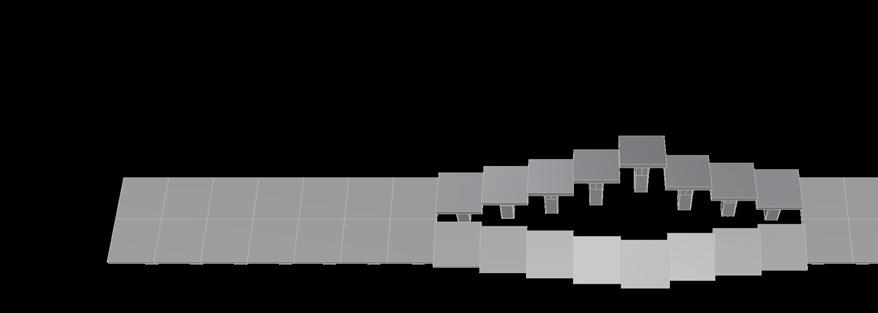

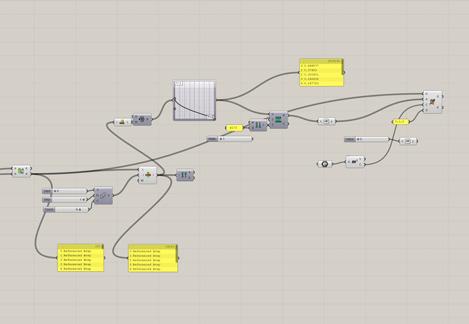

A series of computational surface studies exploring how curvature, sectional deformation, and directional flow can generate the spatial language of the station canopy. Grasshopper workflows were used to manipulate surface behaviour and coordinate the timber rib system, allowing the geometry to transition between structural continuity, enclosure, and light permeability.

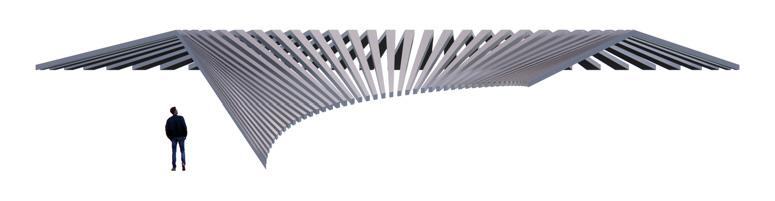

Sectional rib study examining curvature, structural rhythm, and spatial enclosure beneath the canopy system.
Iterative explorations of canopies covering the proposed railway station through the site. This exploration was an attempt at understanding the scale of the railway tracks and possible intervention relative to the site’s surroundings. The outcome is a realisation the total site will have to serve the infrastructure to accommodate the grand proportions of such an international railway station.

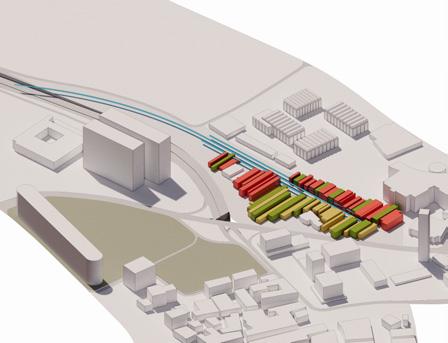

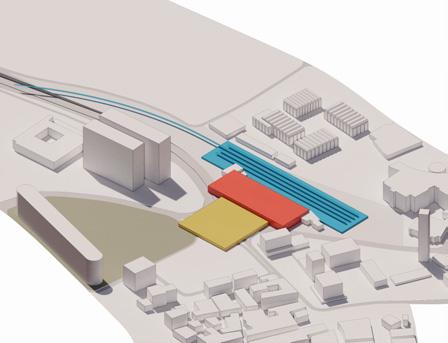

A series of feasibility studies investigating how the station programme can be distributed across the site while responding to circulation, infrastructure, public space, and future urban growth. The studies explore relationships between the rail corridor, civic functions, commercial zones, and pedestrian movement to establish a coherent urban framework for the national station.

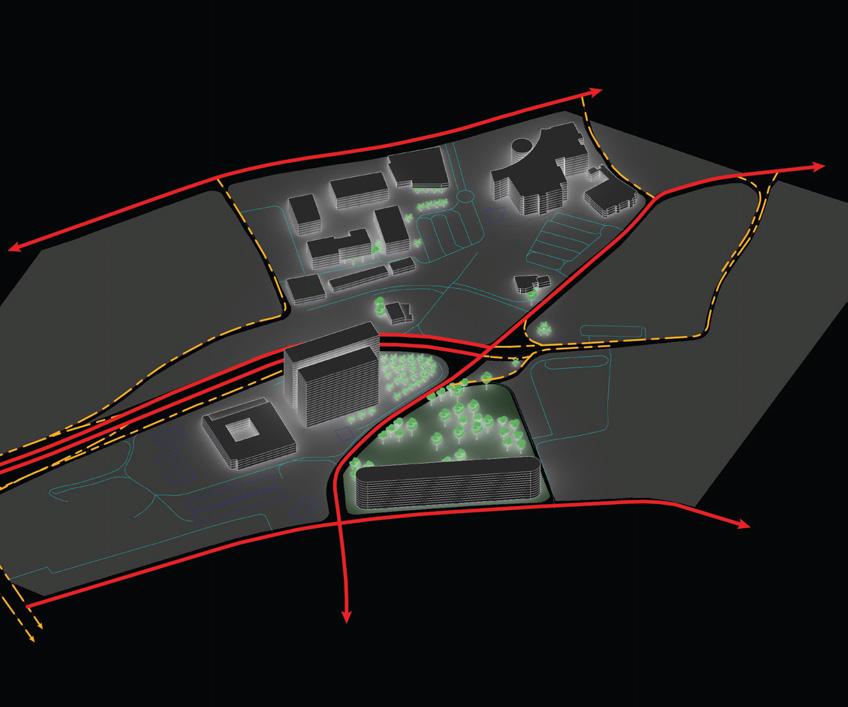

Strategic circulation and movement regional infrastructure, pedestrian
movement framework illustrating the station as a convergence point between pedestrian movement, and future urban development corridors.
This concept explores a canopy formed by merging the timber construction logic of Kuwaiti dhows with parametric sine-wave geometry. The resulting curvature echoes the sweeping forms of a dhow hull, translating maritime craft into a contemporary structural system.

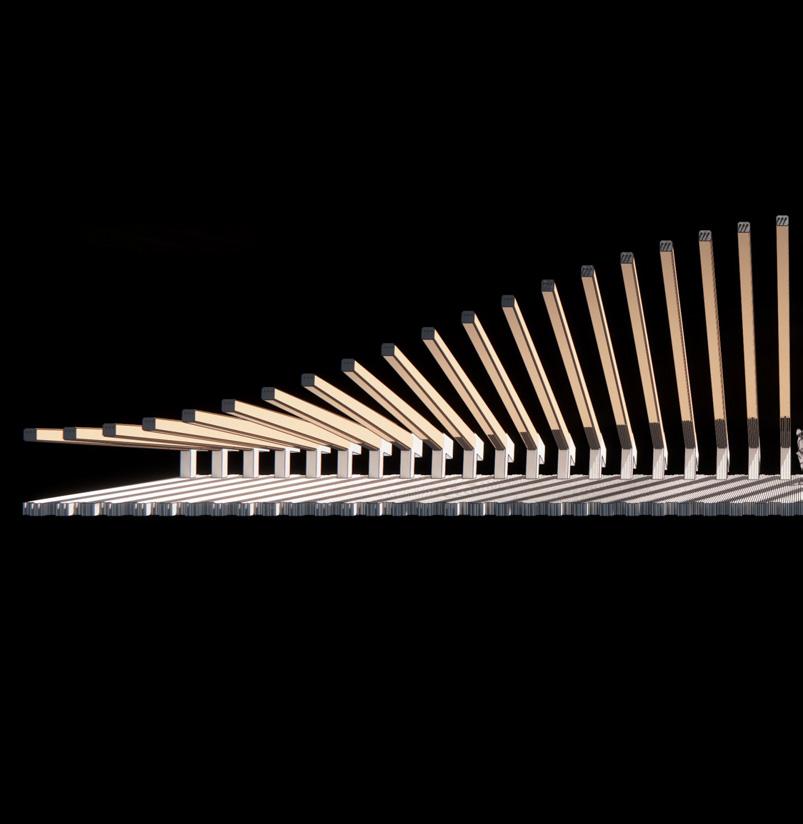

Rhythmic parametric spacing informed by sine-wave behaviour.
Oscilating ducing
Timber

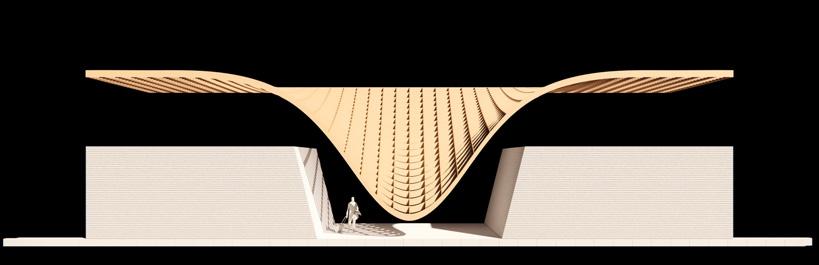

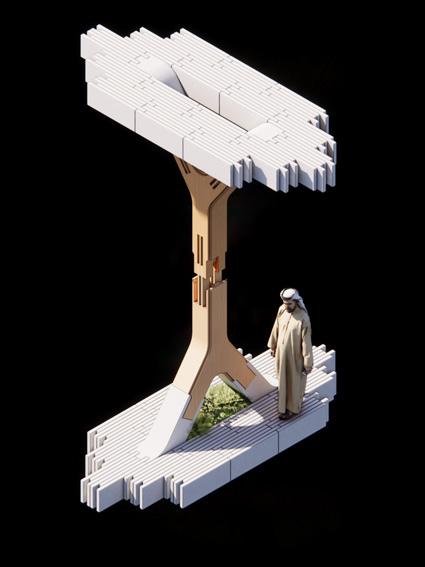

The Fragment is an exploration of applying the Timber structural make up of the Arabian dhow and canopy studies to the surface deformations explored with grasshopper
In an holistic approach to the circulation of the station for all forms of traffic, pedestrian, vehicular, and accessibility necessities, the foundations of the station are positioned on multiple datums.

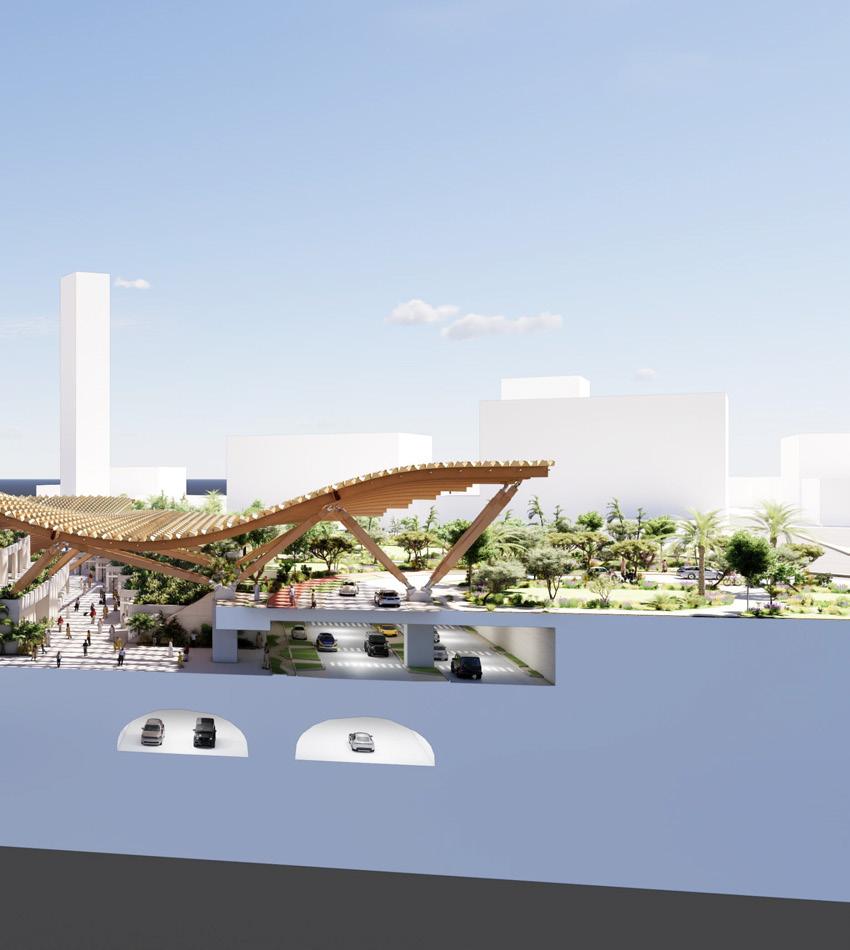

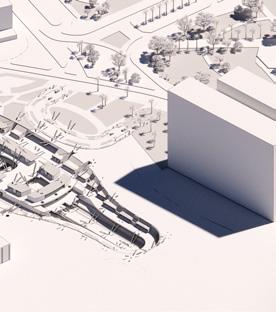

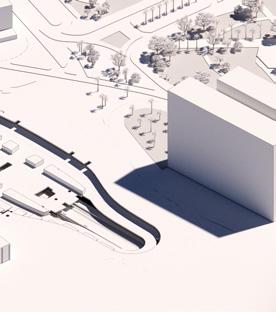

Begining with the cut and cover of the existing Highway to make room for a park in place of it all while bringing the drop of traffic to the same datum as the terminal services. A decision was made to also have a pedestrian entrance on Grade to allow for a regenration of that site space as a shaded area and plaza.
The proposal repositions both the highway infrastructure and railway station beneath the ground plane, allowing the site to transform from a fragmented transport corridor into a continuous civic landscape. By relocating vehicular infrastructure underground, passenger drop-off circulation aligns directly with the terminal concourse, improving accessibility and simplifying movement through the station.

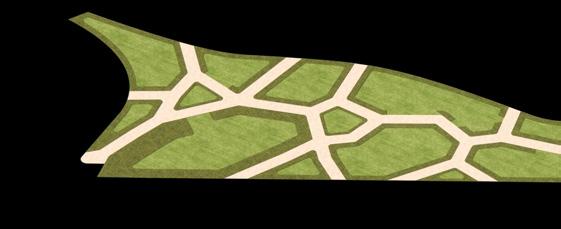

The buried infrastructure frees the surface level to operate as a shaded public garden and pedestrian landscape above the station. The canopy structure creates protected outdoor space responding to Kuwait’s climate while reconnecting previously divided urban edges through a continuous public realm.

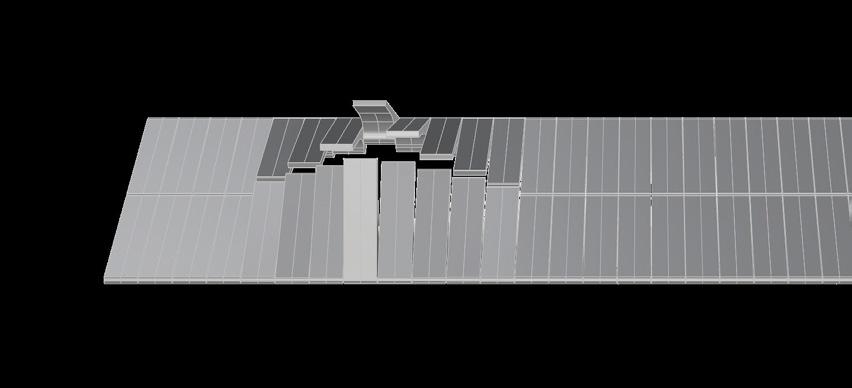

Early massing study exploring the relationship between the civic landscape, canopy placement, and surrounding urban fabric.

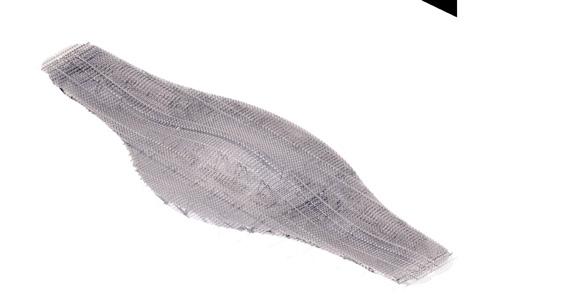

Initial surface deformation studies testing canopy curvature and its relationship to the underground rail

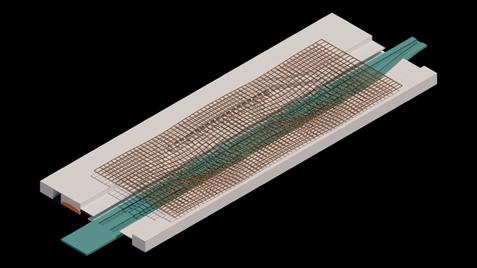

Timber lattice rationalisation study examining structural continuity and surface permeability.
These iterative studies explore and refine the evolving relationship between the canopy geometry and the subterranean station datums, gradually resolving the final architectural form of the proposal. Through a series of parametric adjustments, the curvature, amplitude, and proportion of the canopy were continuously tested against the spatial requirements of the station below, allowing the roof form to respond directly to circulation, structural spans, programme distribution, and civic scale. The process examines how the canopy dips, rises, and expands in relation to key moments within the terminal, including the concourse, platform halls, public entrances, and light wells. Rather than acting as a singular sculptural object, the canopy is developed as an integrated environmental and structural system shaped through iterative Grasshopper workflows and proportional studies tied to the organisation of the station beneath.

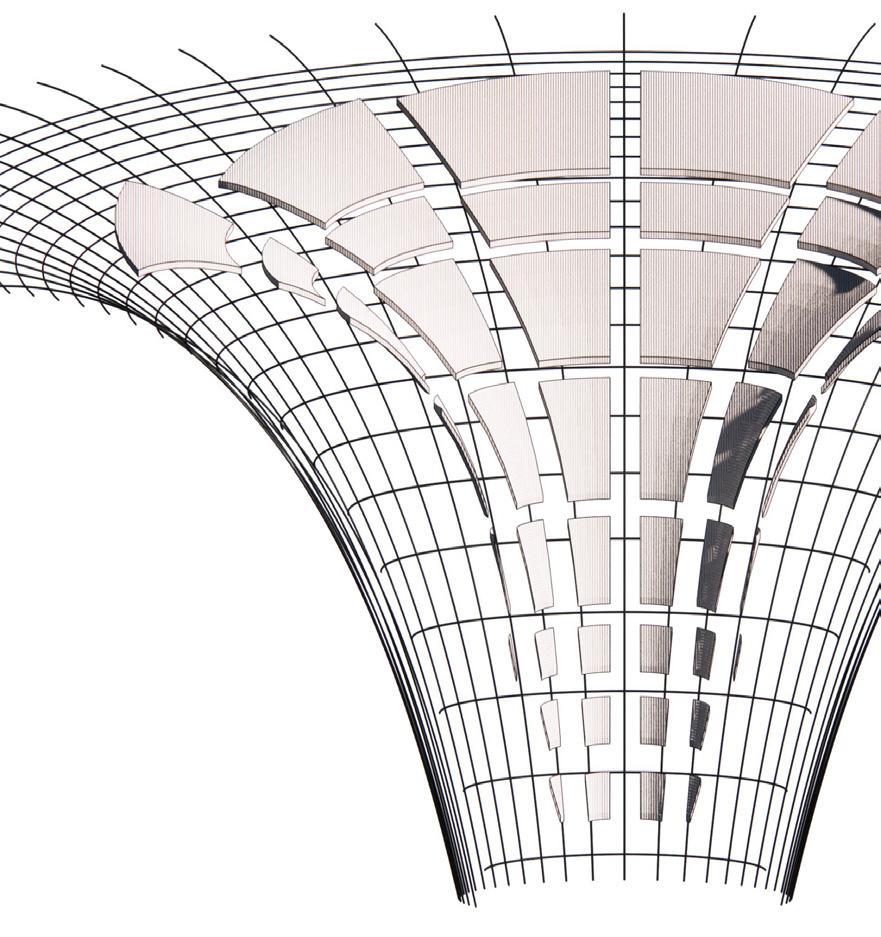

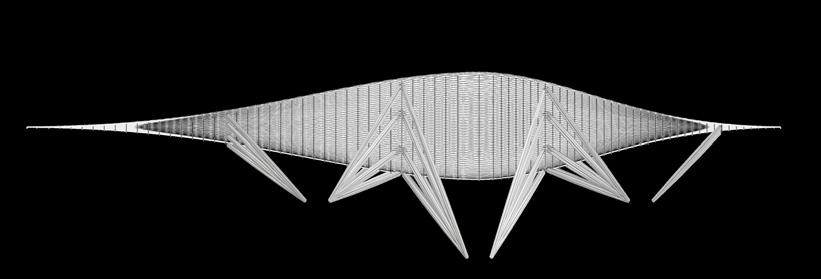

Preliminary structural investigation of the canopy support system and spanning behaviour across the station void.

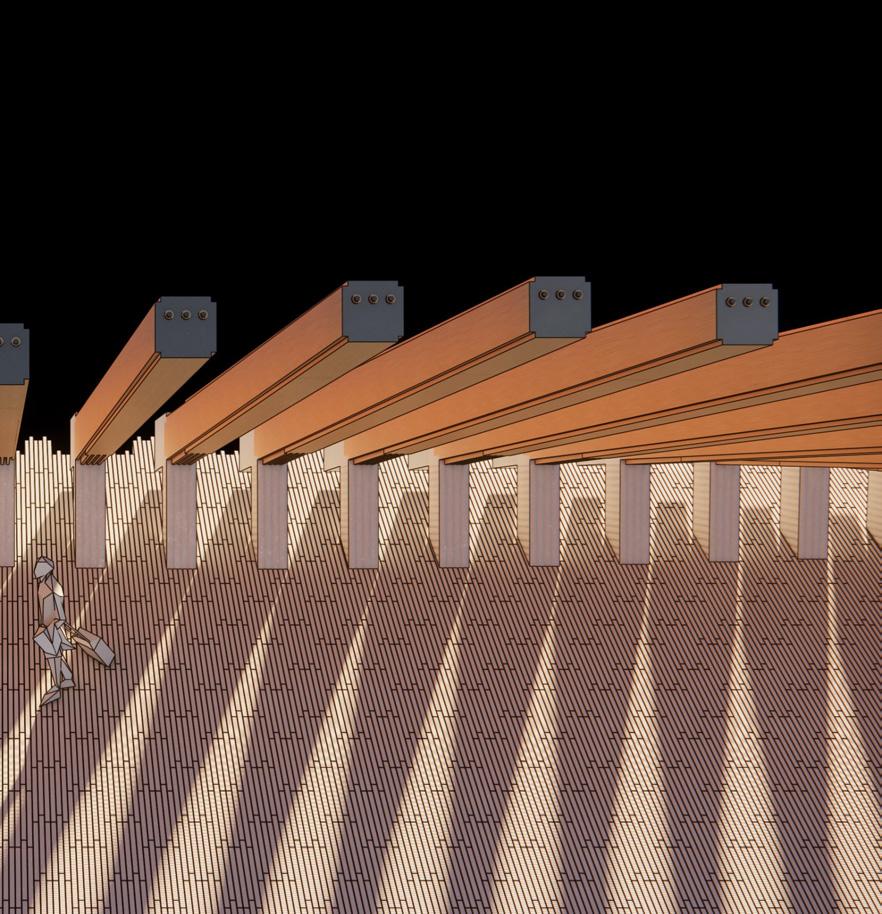

Developments of a more articulated structural canopy responding to circulation and daylight requirements.

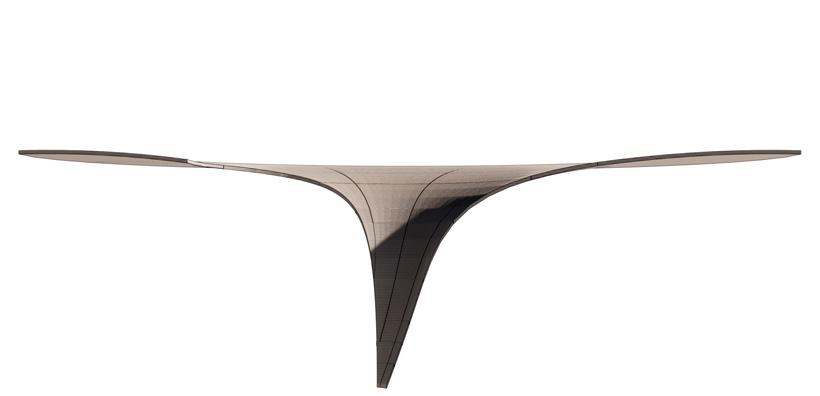

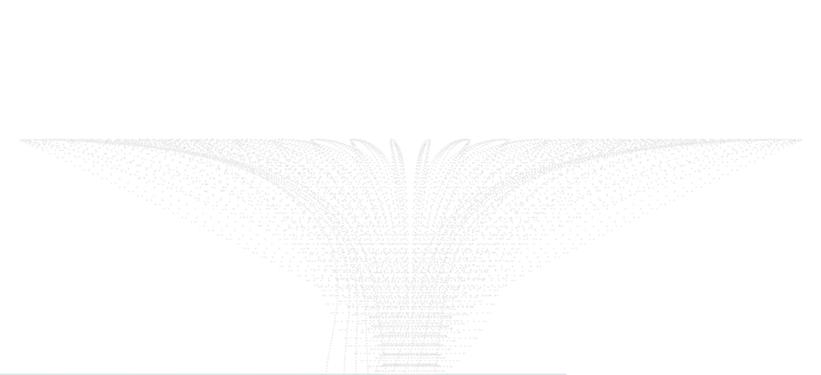

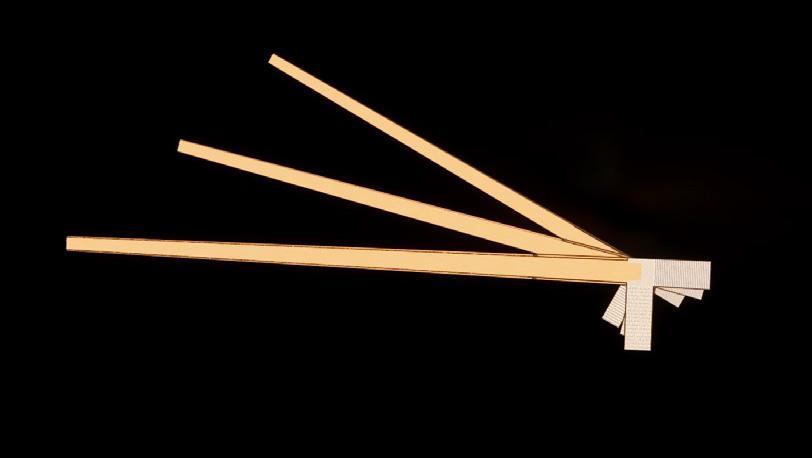

Initial branching support study testing structural transition between platform and ground connection.

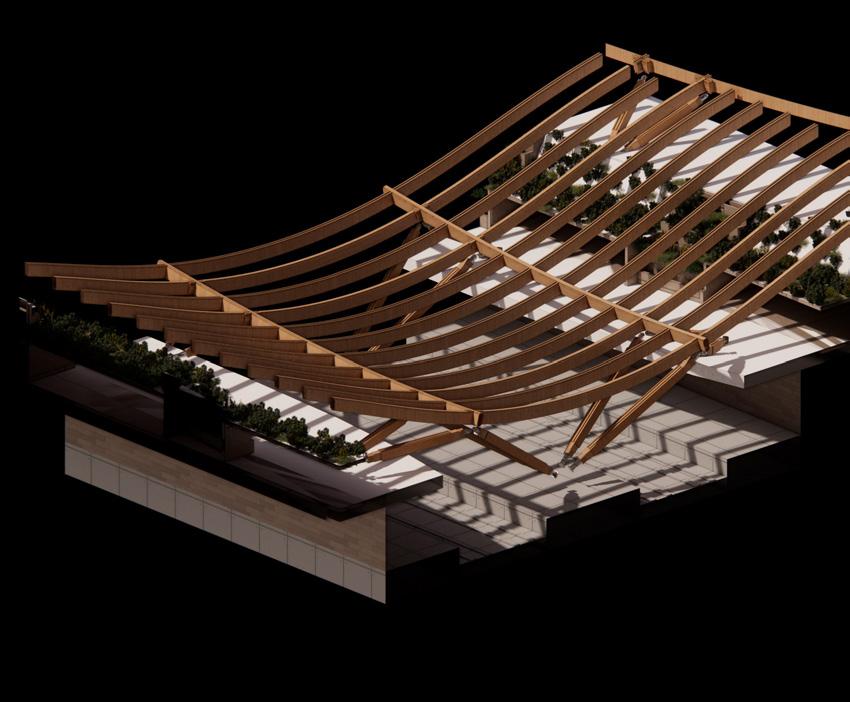

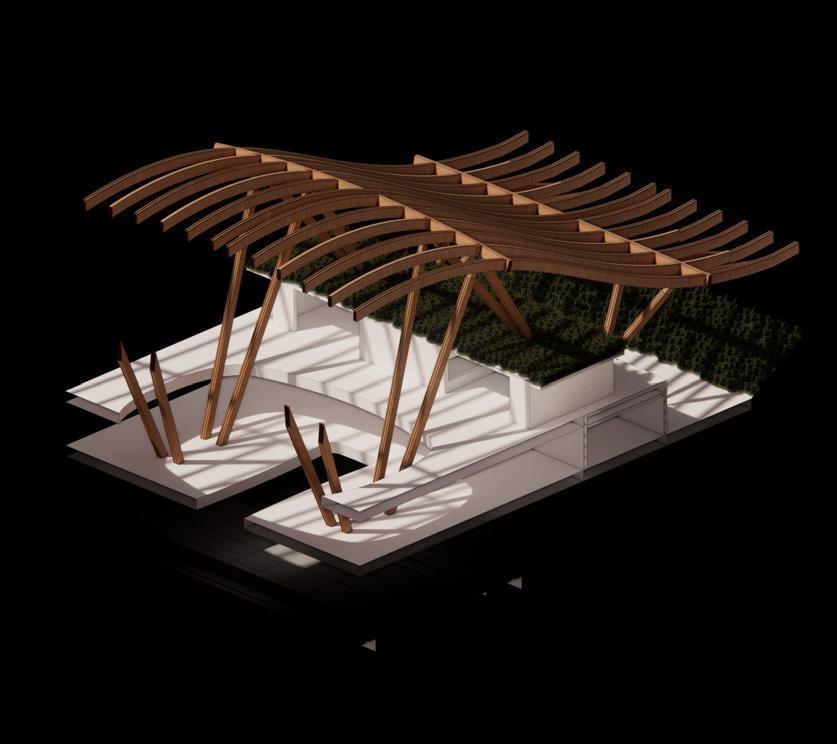

A series of structural fragment explorations investigating how the canopy system, support elements, and circulation interfaces could be resolved through timber construction. The studies test branching support geometries, spanning behaviour, rib continuity, and connection logic between the canopy structure and the subterranean station infrastructure.

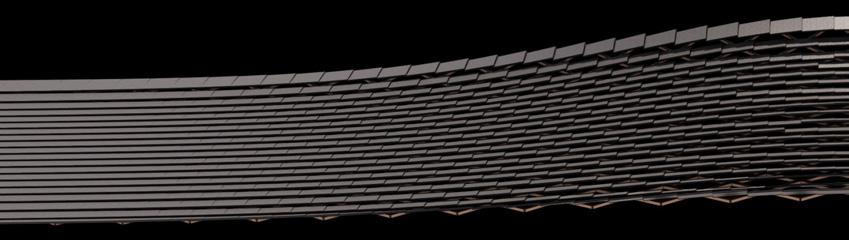

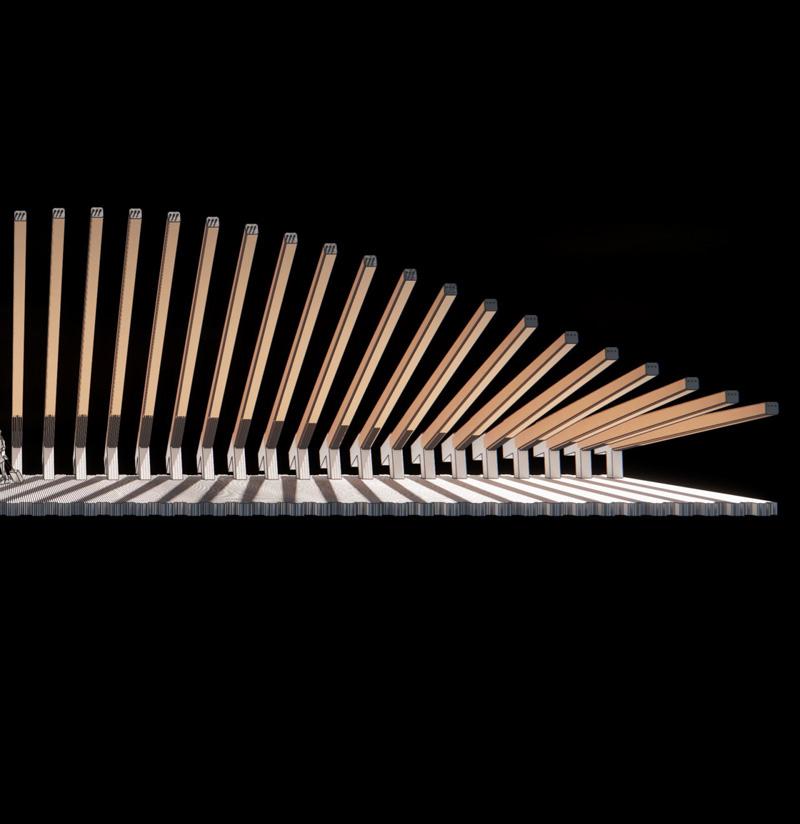

Sequential rib deformation study examining curvature transitions across the canopy profile.

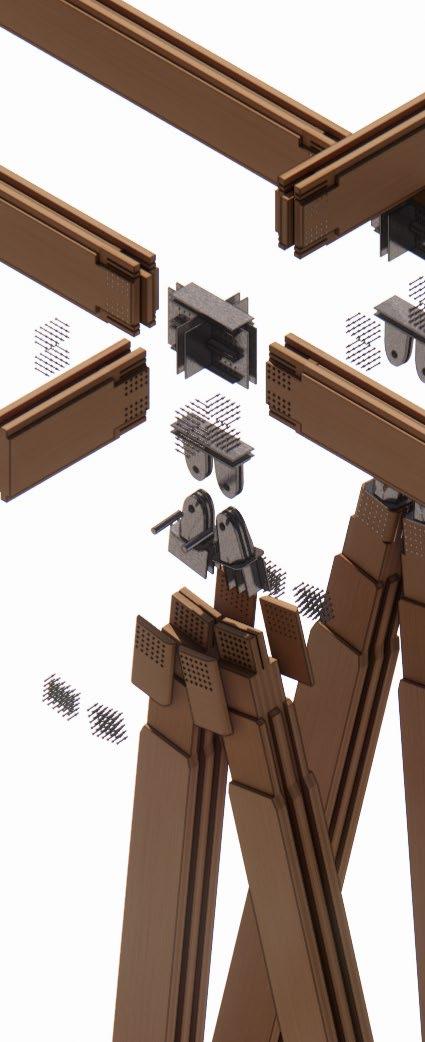

Timber member connection sequence illustrating fabrication and assembly logic of the rib system.

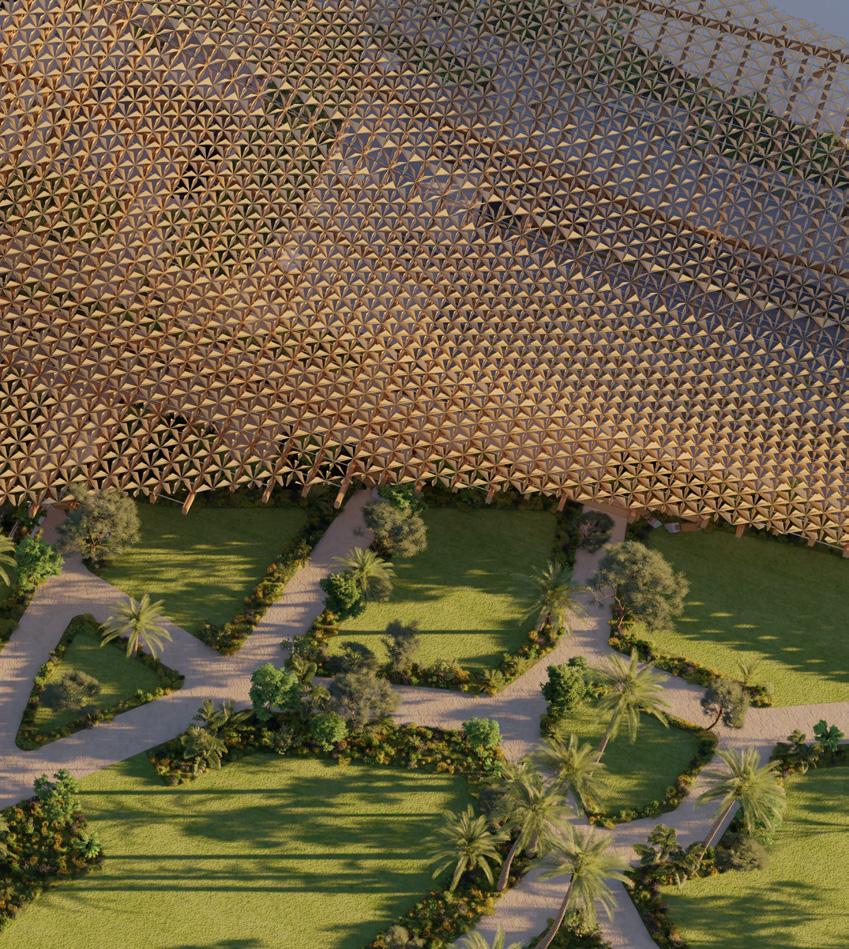

The station emerges within a shaded public landscape that transforms the infrastructural roofscape into a civic garden for Jibla. The proposal integrates planting, pedestrian movement, and environmental buffering to create a cooler and more walkable public realm responding to Kuwait’s extreme climatic conditions. Native and adaptive planting strategies are used to reduce heat gain, filter movement corridors, and establish a continuous relationship between landscape and station infrastructure.
The proposal positions the terminal as a climatic garden within the dense urban fabric of Jibla, Kuwait. Rather than treating landscape as decoration, planting is used as an environmental system that supports shade, cooling, biodiversity, and pedestrian comfort. Plant species are selected for Kuwait’s hot desert climate, prioritising drought tolerance, heat resistance, low irrigation demand, and long-term resilience. The planting palette is organised into trees, dry shrubs, wet shrubs, and ground cover, allowing each species type to respond to different levels of exposure, shade, and moisture across the site. Tree canopies are concentrated along key pedestrian routes and waiting areas to reduce surface heat and create shaded microclimates. Dry shrubs and ground cover stabilise exposed areas while limiting water consumption. Wet shrubs are placed in more controlled zones where collected runoff or irrigation can support denser planting. Together, the hydrology and landscape strategy greenifies the terminal by turning movement infrastructure into a planted climatic buffer. Vegetation reduces reflected heat, softens wind, improves
Parkside arrival sequence illustrating the relationship between the timber canopy structure, shaded landscape, and public drop-off zones.
1. SITE EXCAVATION + GROUND PREPARATION
Initial construction begins with large-scale excavation and ground stabilisation to form the below-ground transport corridor and terminal foundations. Retaining systems and temporary structural supports secure the excavated perimeter prior to infrastructure installation.
4. SECONDARY STRUCTURAL MEMBERS +
Secondary triangulated timber members and structural bracing systems are introduced to stabilise the canopy geometry and distribute environmental and structural loads. Terminal floor plates and circulation infrastructure are installed simultaneously beneath the primary roof structure.
2. FOUNDATION + SUBSTRUCTURE
Reinforced concrete foundations, pile caps, retaining installed to establish the primary infrastructural base form structures are integrated within the concrete substructure.
PUBLIC REALM + LANDSCAPING
landscape infrastructure, integrated planting systems, lation pathways, and environmental microclimates transform ecological infrastructure.
he station is conceived as a phased infrastructural assembly integrating subterranean transport systems, long-span timber structures, and public landscape construction. The sequence prioritises the stabilisation of the excavation and underground transport corridor before the progressive installation of the structural canopy, environmental envelope, and civic landscape above. The layered construction methodology allows the station to be assembled incrementally while coordinating complex infrastructural, structural, and environmental systems.
INSTALLATION
retaining walls, and underground structural slabs are base of the station. Service routes, tunnel walls, and platsubstructure.
systems, public realm surfaces. Vegetation zones, circutransform the station into an integrated civic and
The glulam superstructure begins assembly through the installation of inclined timber columns and primary long-span beams. Steel node connections and prefabricated structural joints allow the canopy structure to be erected incrementally across the concourse.
6. ENVELOPE + FINAL CANOPY COMPLETION
The triangulated facade skin, PTFE enclosure zones, glazing systems, and environmental shading elements are integrated into the canopy framework. Mechanical, lighting, drainage, and environmental systems are coordinated within the structural envelope.
DESIGN SYNTHESIS
A series of synthesis studies consolidating the station’s infrastructural, structural, landscape, and spatial systems into a unified architectural proposal. The investigations examine how the subterranean railway infrastructure, civic landscape, and timber canopy operate together as an integrated urban intervention within Jibla.
SECTION 04: DETAILED

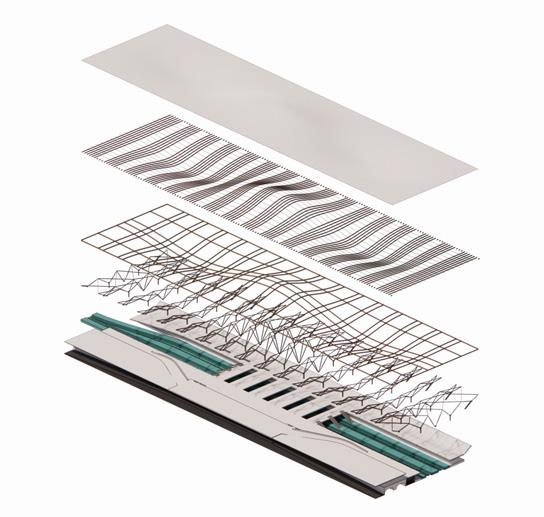

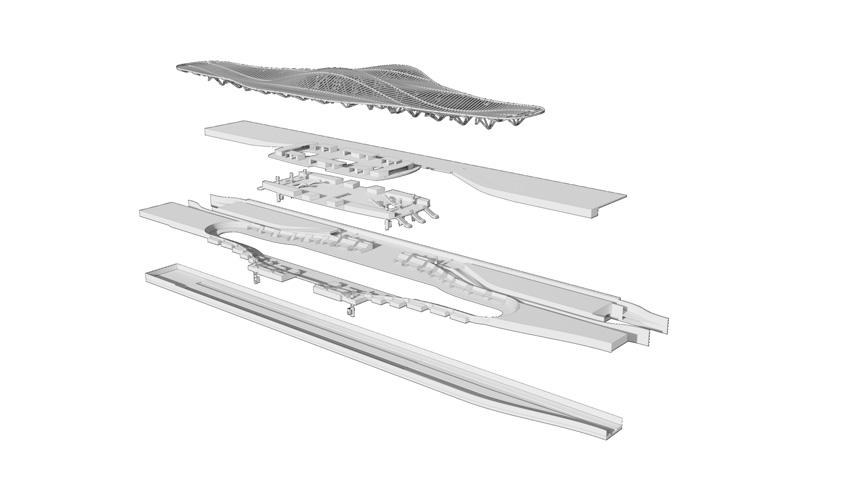

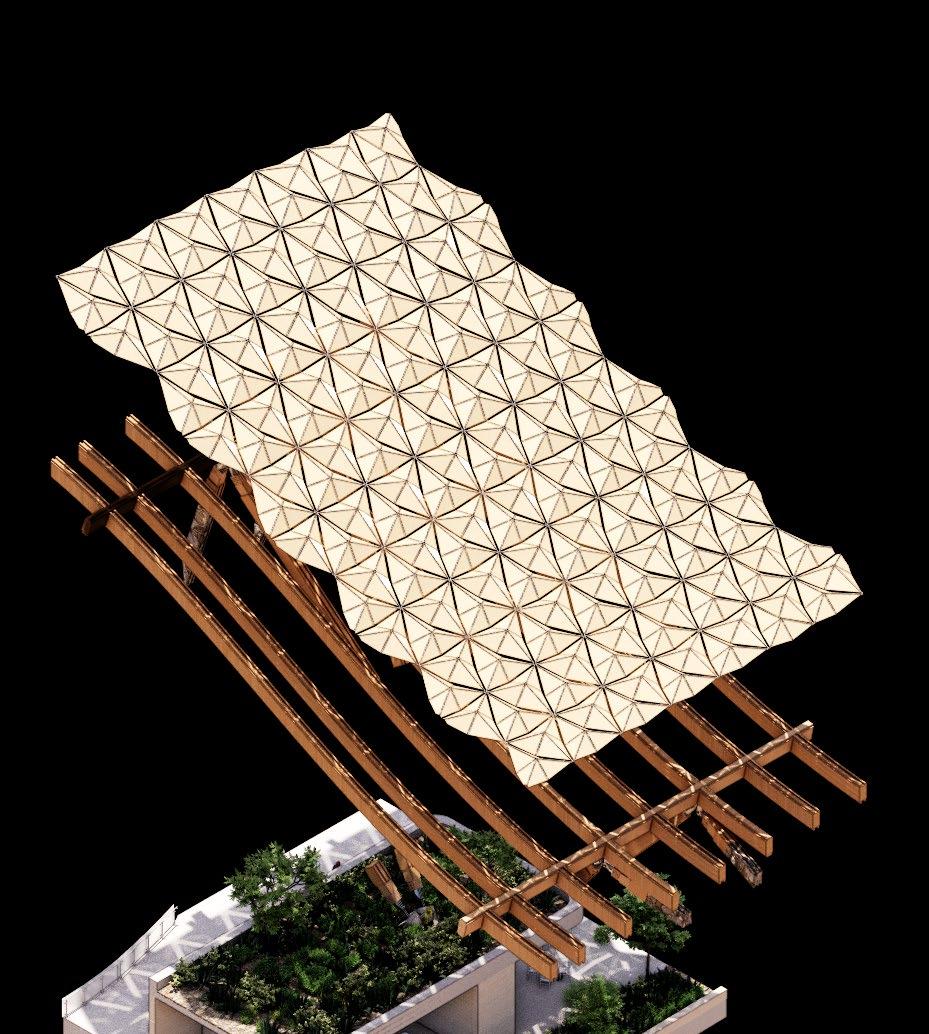

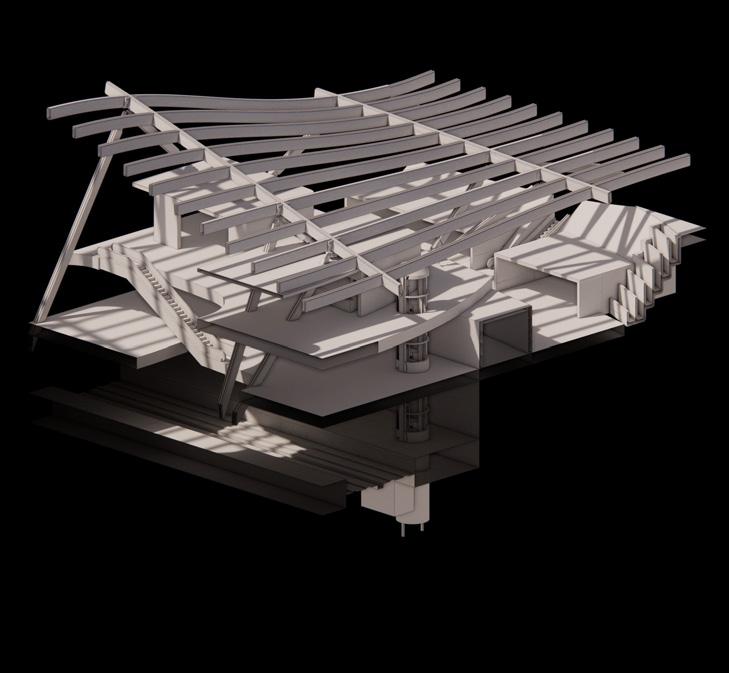

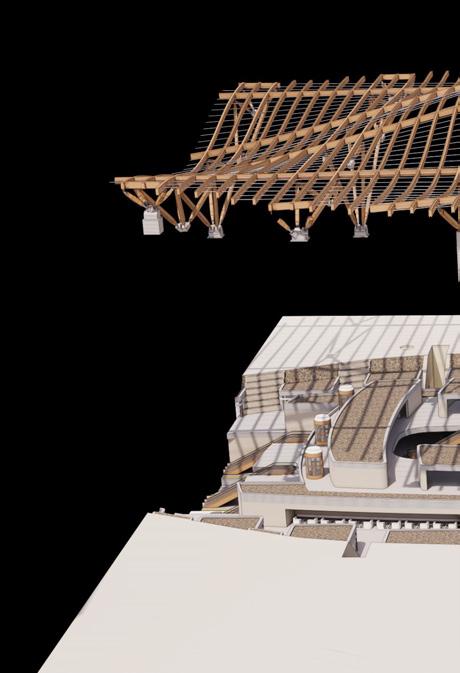

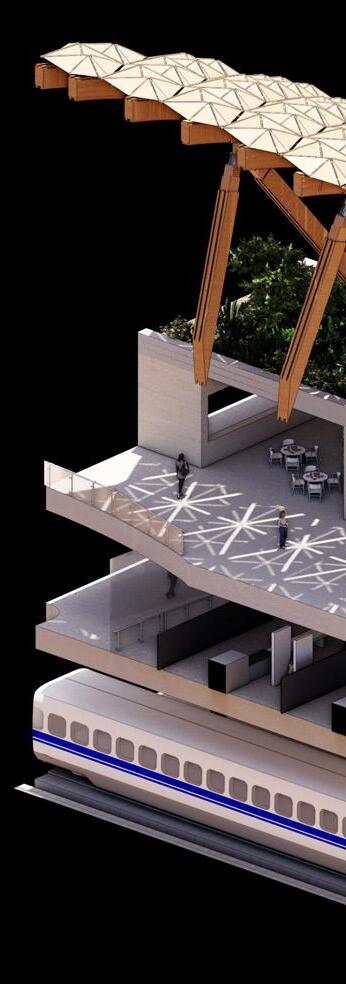

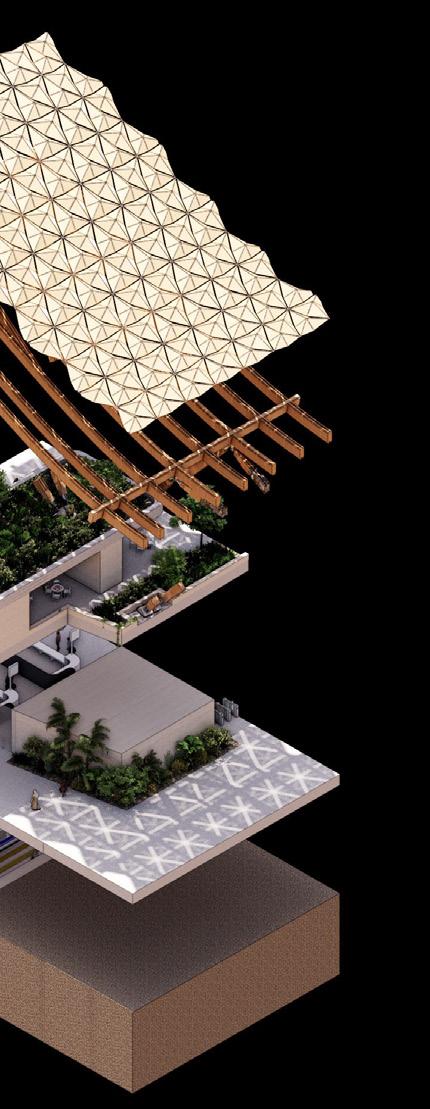

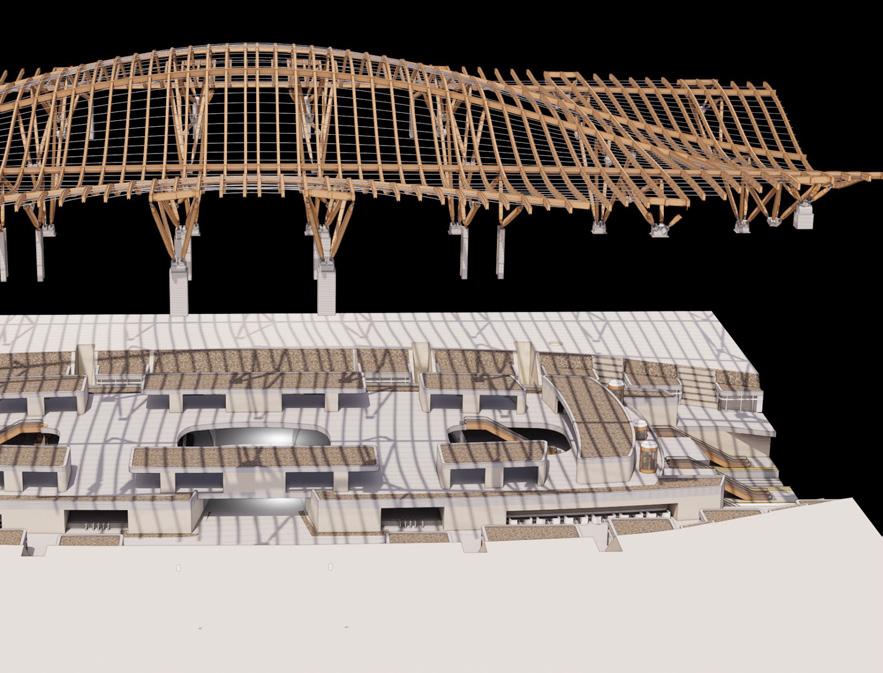

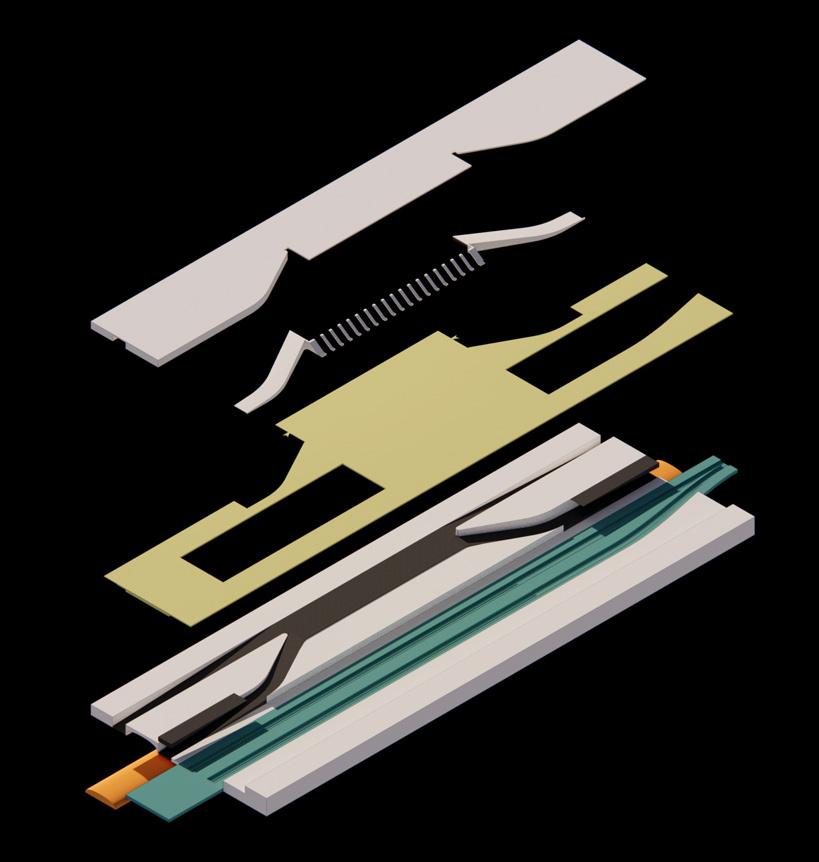

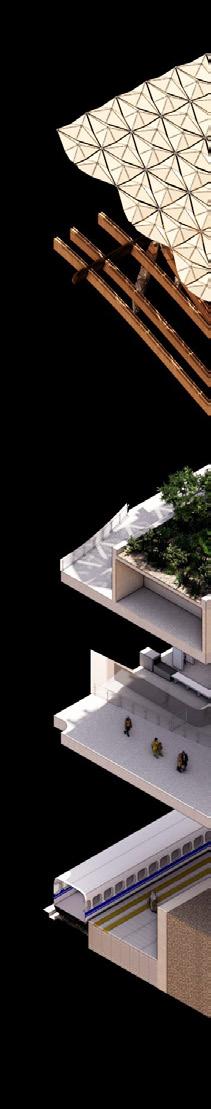

Exploded canopy assembly illustrating the layered relationship between the timber rib structure and outer environmental envelope.

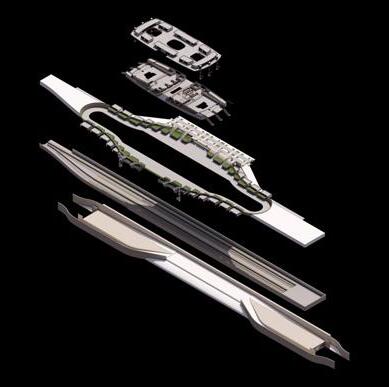

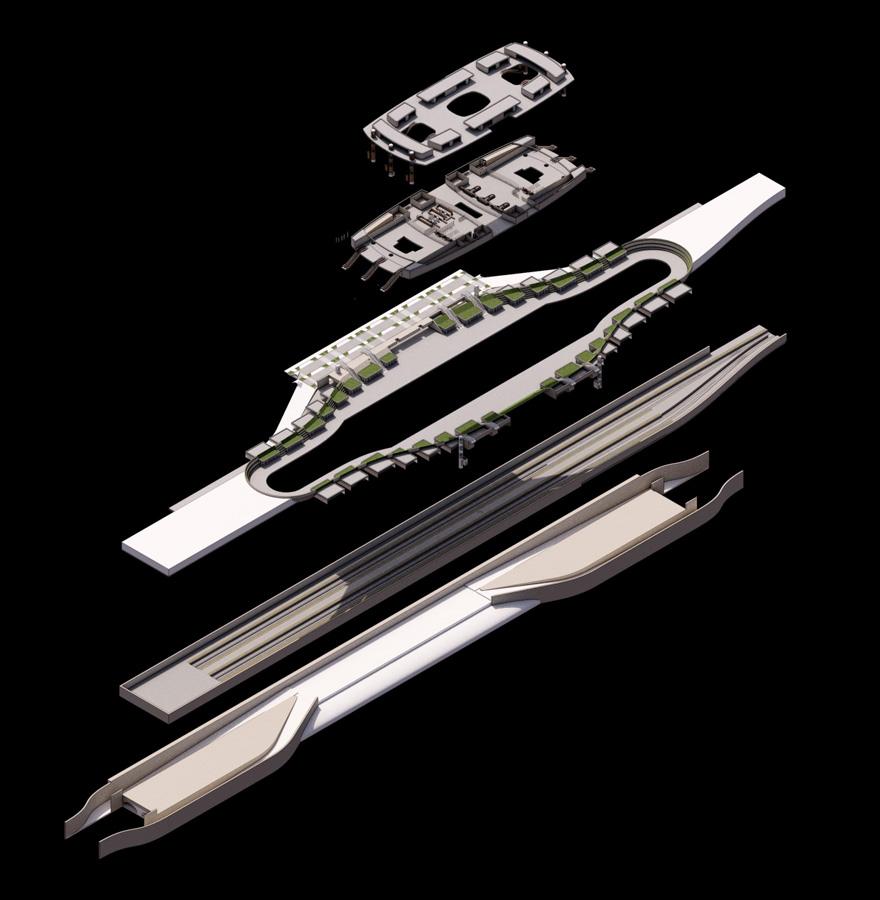

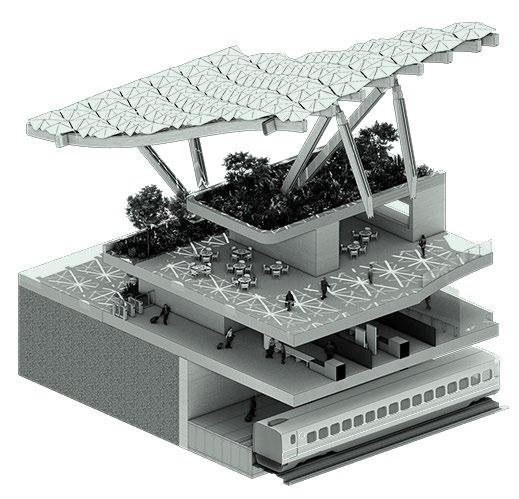

Station programme and circulation systems separated into structural and infrastructural layers.

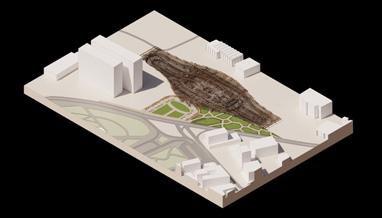

Integrated station proposal embedded within the urban and landscape framework of the site.
The proposal integrates landscape, structure, and transport infrastructure within a continuous ar chitectural system embedded into the urban fabric of Jibla. The station operates as a layered civic intervention where subterranean rail infrastructure, public landscape, and the timber canopy are synthesised into a unified spatial and structural framework. BUILDING OVERVIEW
Final canopy massing integrated within the public landscape and station roofscape.
Consolidated station organisation integrating circulation, infrastructure, and civic space.

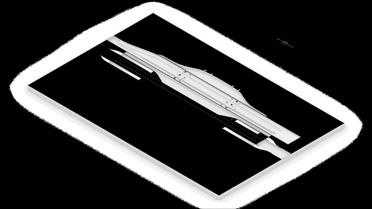

Simplified infrastructural and landscape strategy embedded within the wider urban context of Kuwait City.

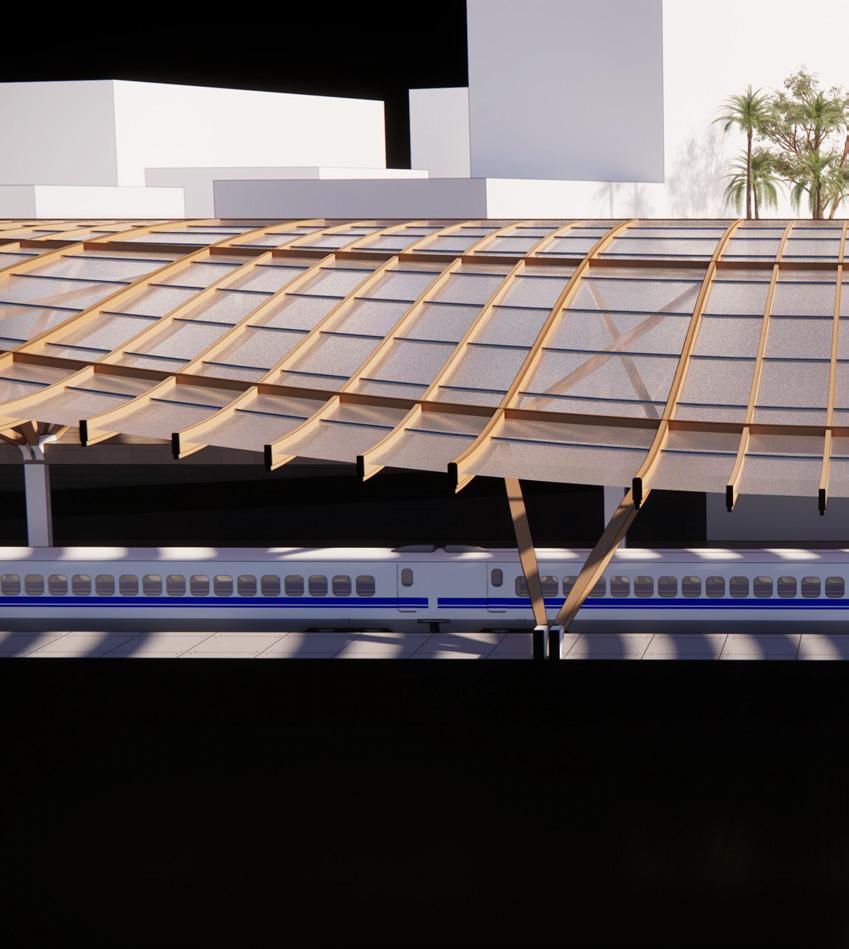

The station canopy is formed through a long-span glulam structural system supported by inclined timber columns and triangulated bracing members. The structural hierarchy distributes loads from the lightweight roof lattice into the reinforced concrete substructure below, allowing the canopy to span across the subterranean concourse while maintaining a continuous open civic space above.
The system combines prefabricated timber members with steel plate connections and bolted joints to create a coordinated assembly balancing structural efficiency, fabrication logic, and environmental performance.
Cross bracing topping for the frames

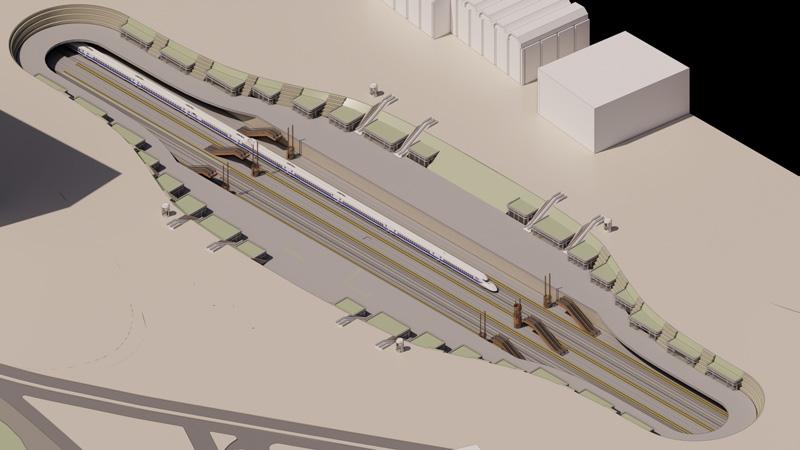

Subterranean reinforced concrete structure housing rail infrastructure, circulation cores, and foundational load transfer systems.

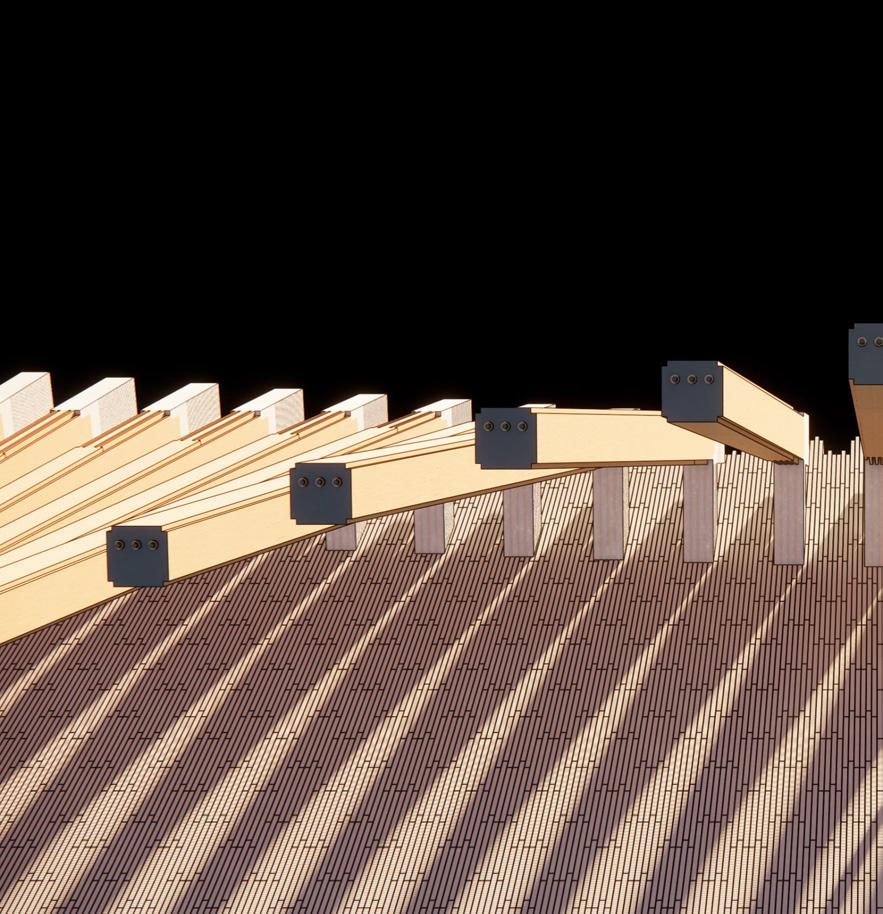

Steel plate connection system coordinating load transfer between glulam members and triangulated structural nodes.
CANOPY ENVELOPE
CANOPY SUPER STRUCTURE
TERMINAL CONCOURSE
PLATFORMS
Triangulated Solar Facade Reducing Direct Solar Gain
Secondary Steel Framing Supporting Facade Panels
Naturally Ventilated Canopy Surrounding Enclosed Terminal Zones
Lush Human Level Vegetation
F&B And Retail
Mechanically Ventilated Border Control And Waiting Halls
Tsa Equipment
Platform Reinforced Walls
Accessibility Strips
Maglev Supported Tracks
The primary structural system consists of long-span glulam beams and branching timber columns that distribute roof loads through triangulated structural members. The geometry allows the canopy to span large public areas while maintaining structural efficiency and reducing overall material weight.
Steel plate connections and bolted node assemblies transfer structural forces between timber members while allowing precision fabrication and modular assembly. The exposed junctions express the relationship between compression, tension, and load transfer throughout the canopy system.

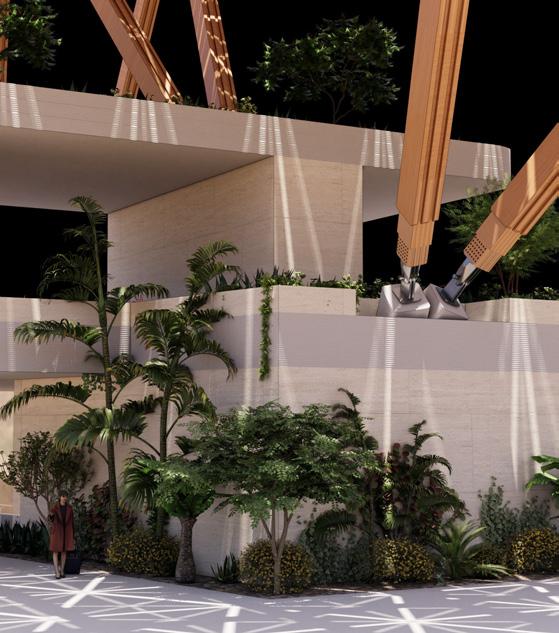

Integrated concrete planters form part of the structural landscape strategy, anchoring vegetation zones within the terminal while softening the interface between infrastructure and public space. Planting areas contribute to passive cooling, shading, and the formation of shaded pedestrian microclimates.
Triangulated solar facade reducing direct solar gain
Secondary steel framing supporting facade panels
Sealed insulated terminal envelope for conditioned spaces
Naturally ventilated canopy surrounding enclosed terminal zones
Mechanically ventilated border control and waiting halls
Reinforced concrete terminal base supporting enclosed program spaces
Plant species are selected according to Kuwait’s arid climate, prioritising low irrigation demand and heat resilience.
The proposal integrates landscape and environmental ture to create shaded public space and improve
environmental systems directly within the canopy struc-
The canopy is assembled from a network of pre fabricated glulam beams and triangulated struc tural members coordinated through a modular construction logic.
prefabricated assembly.
The canopy is conceived as a prefabricated glulam superstructure composed of layered timber ribs, triangulated bracing systems, and modular steel connections. The structural system distributes loads through a network of inclined supports and pinned nodes, allowing the canopy to span across the subterranean station while maintaining a lightweight and permeable architectural enclosure.
The assembly logic combines prefabricated timber members with steel knife plates, bolted joints, and pinned structural connections to coordinate fabrication, transportation, and on-site construction within a continuous modular framework.
steel joints accom-
rotational movement and reduce moment concentration at major structural intersections.
Exploded structural assem bly illustrating the rela tionship between timber members, steel connec tors, and reinforced base plates.
A series of architectural fragments investigating the relationship between the timber canopy structure, planted landscape, and subterranean station atrium. The studies explore how the canopy deforms to create shaded civic space, daylight penetration, and structural continuity while integrating circulation and environmental planting systems within the station interface.

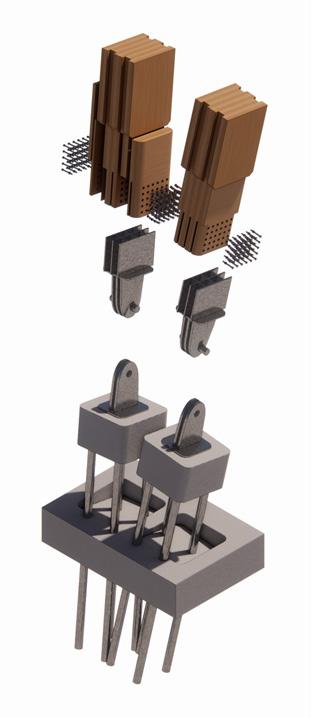

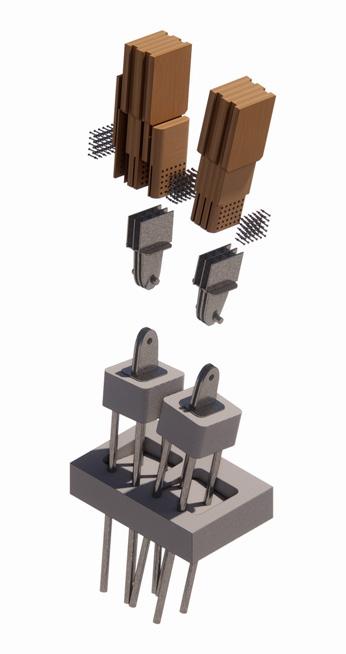

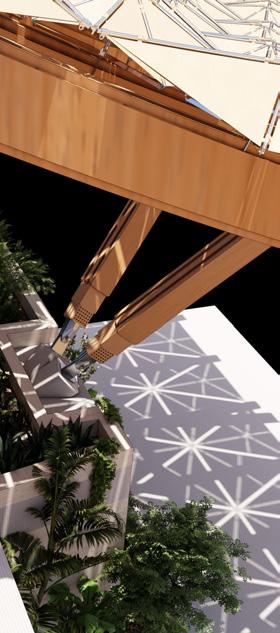

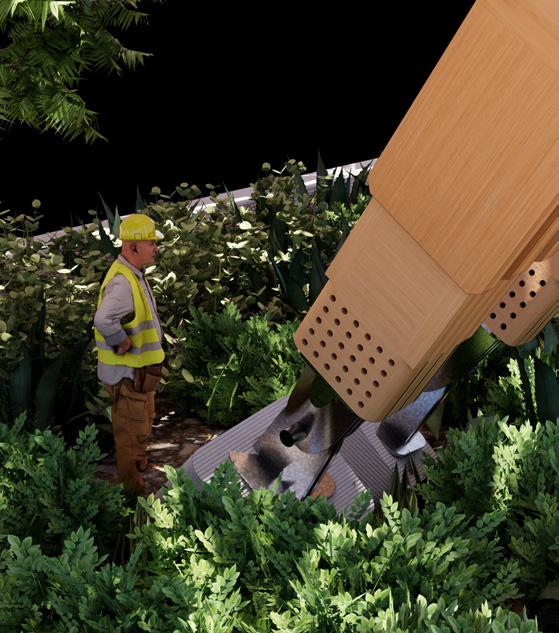

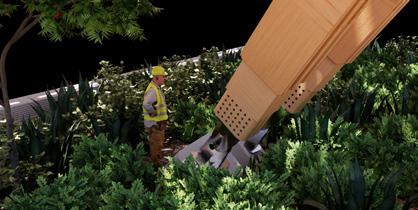

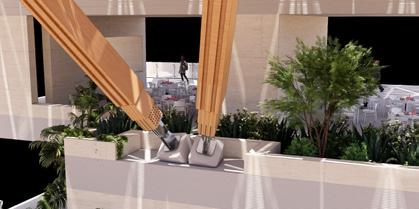

The structural node operates as the primary interface between the main glulam beams, secondary triangulated members, and inclined support columns. Primary beams distribute the major roof and environmental loads across the canopy span, while secondary members stabilise the structure through triangulated load redistribution and lateral bracing. The branching column system transfers these concentrated structural forces through the node assembly into the reinforced concrete foundation below.
Prefabricated tem
The node is repeatable modular to improve and construction
foundation system.
steel plates compression and forces between intertimber members.
Prefabricated Structural Sysdesigned as a modular assembly fabrication accuracy construction efficiency.
support elements structural forces canopy into the system.
1m × 0.45m Glulam Beam Main spanning structural member transferring canopy loads into the branching support system.
M16–M20 Mechanical Fasteners Bolted connections allow prefabricated assembly, structural tolerances, and future disassembly.
Pinned steel joints reduce moment concentration while accommodating geometric movement within the canopy structure.
Foundation Load Distribution
Concrete pile caps transfer concentrated structural forces into the underground foundation system.
The canopy structure operates through a triangulated timber system that transfers roof loads through inclined glulam members into the reinforced concrete substructure below. Structural analysis studies were used to examine load paths, spanning behaviour, sectional deformation, and force distribution across the long-span canopy geometry.
The structural hierarchy combines layered timber ribs, triangulated bracing members, and pinned steel connections to stabilise the canopy while maintaining an open and lightweight architectural enclosure above the station concourse.

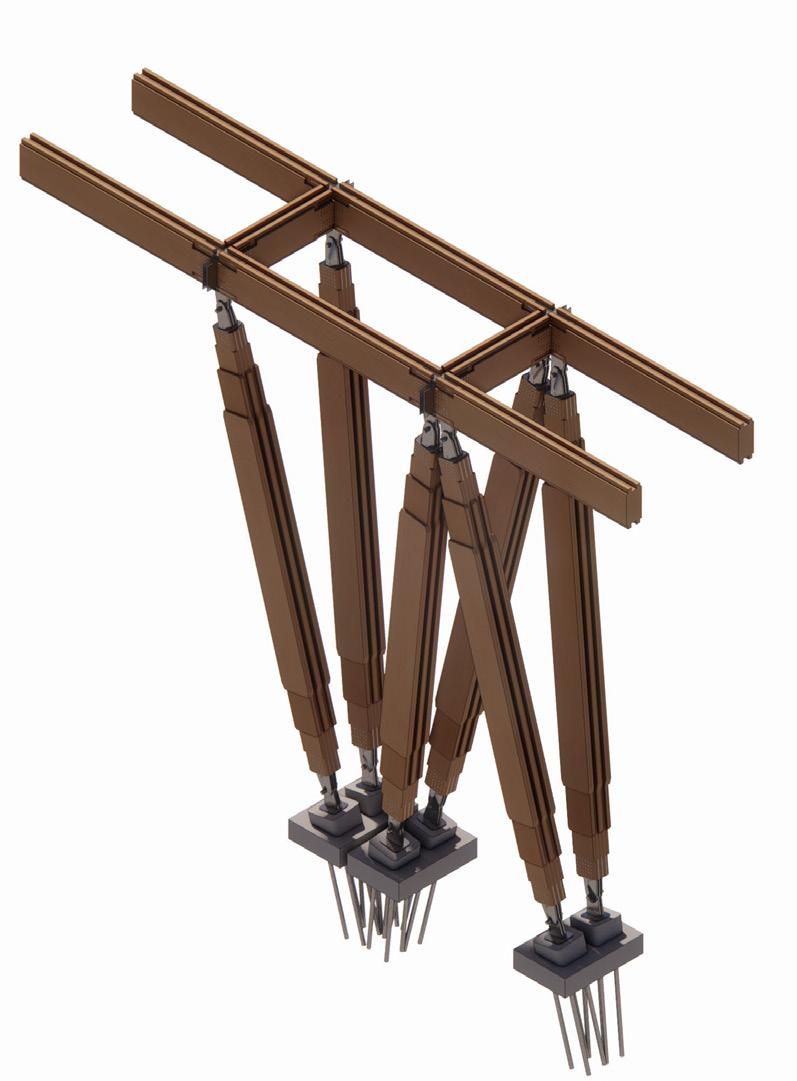

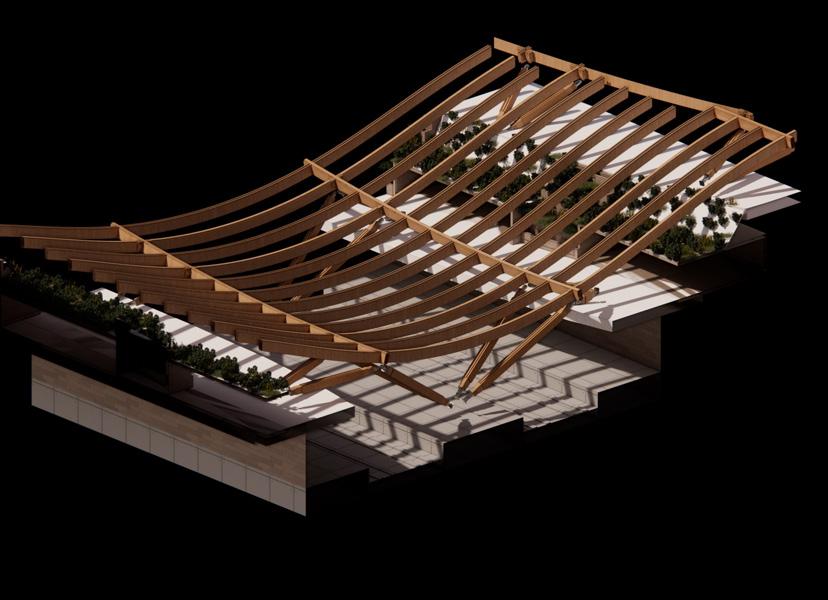

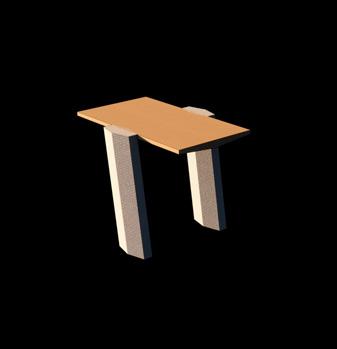

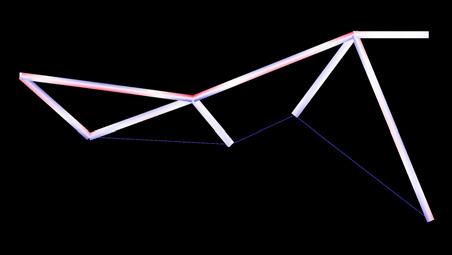

Initial structural frame study examining force distribution through angled support members.

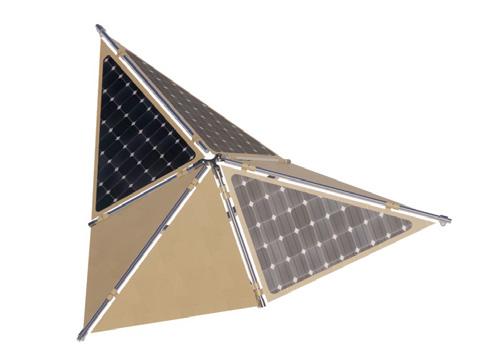

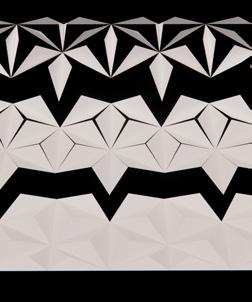

The canopy envelope is composed of modular triangular panels mounted onto a secondary structural frame integrated with the primary glulam canopy system. Inspired by environmental shading systems such as the Al Bahar Towers, the façade operates as a passive environmental filter responding to daylight, solar exposure, ventilation, and visual permeability across the station roofscape.
The facade is composed of modular triangular panels mounted onto a secondary steel support frame connected to the primary glulam canopy structure. Selected triangular modules integrate photovoltaic surfaces positioned according to incident radiation analysis, allowing areas with the highest solar exposure to contribute toward on-site renewable energy generation. The variation in panel orientation, opacity, and depth is informed parametrically through annual solar studies conducted in Grasshopper and environmental simulations.
A ventilated cavity positioned behind the outer facade layer allows accumulated solar heat to dissipate through convective airflow before reaching the enclosed terminal spaces. Cooler air enters through lower facade openings while warmer air rises through the cavity and exits at higher points within the canopy system, reducing overall heat transfer into occupied areas. This layered envelope strategy improves thermal performance while maintaining filtered daylight and outward visibility.

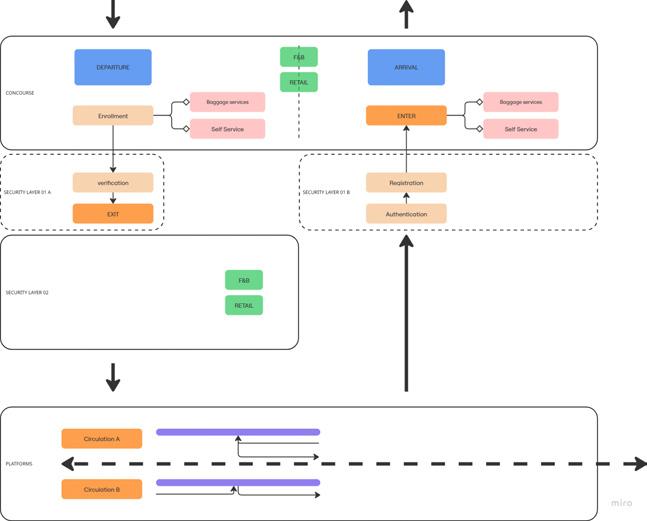

The station is organised as a layered circulation system separating arrival, departure, security, retail, and platform movement into distinct but interconnected routes. Passenger movement is guided through a continuous sequence of open concourses, vertical transitions, and subterranean platforms, allowing clear wayfinding and intuitive navigation throughout the terminal.
By positioning the primary transport infrastructure below ground, the proposal frees the surface level for shaded public space, landscaped pedestrian routes, and civic gathering areas. The circulation strategy prioritises direct movement between drop-off zones, ticketing halls, security processing, and train platforms while minimising conflict between passenger flows and service infrastructure.

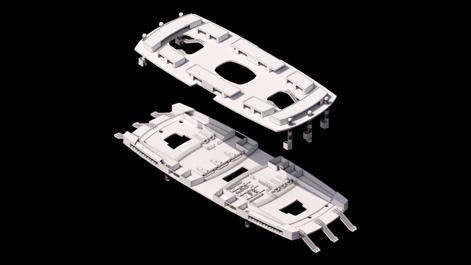

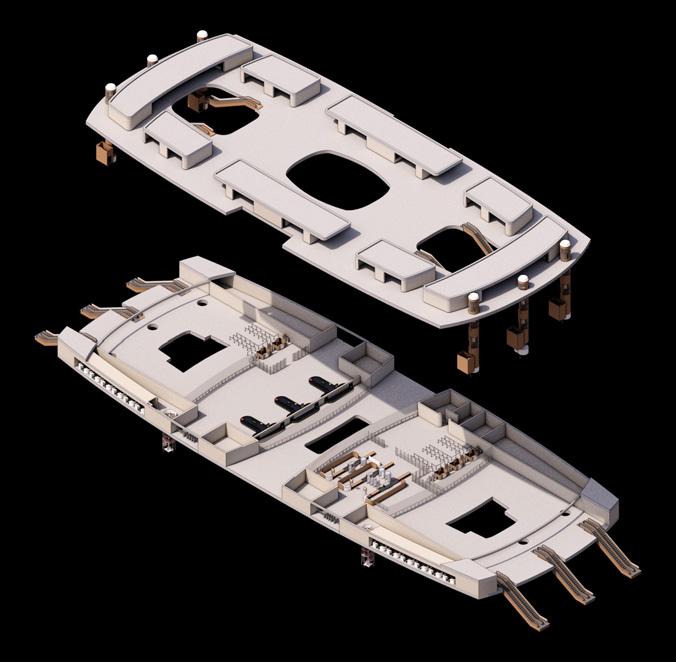

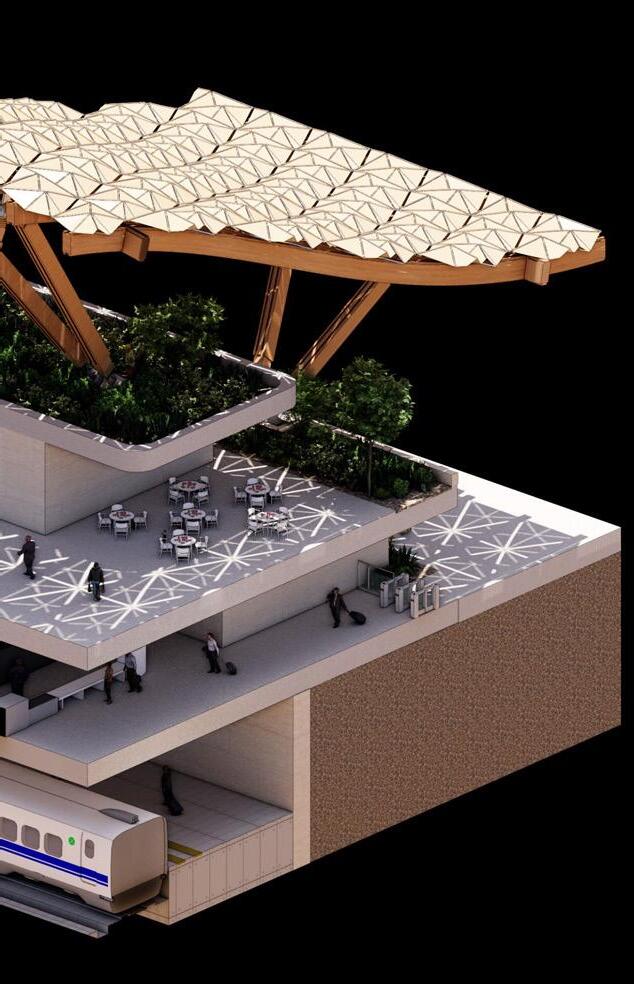

Layered terminal programme dis tribution organising concourse, retail, waiting, and circulation spaces across multiple subterra nean levels.

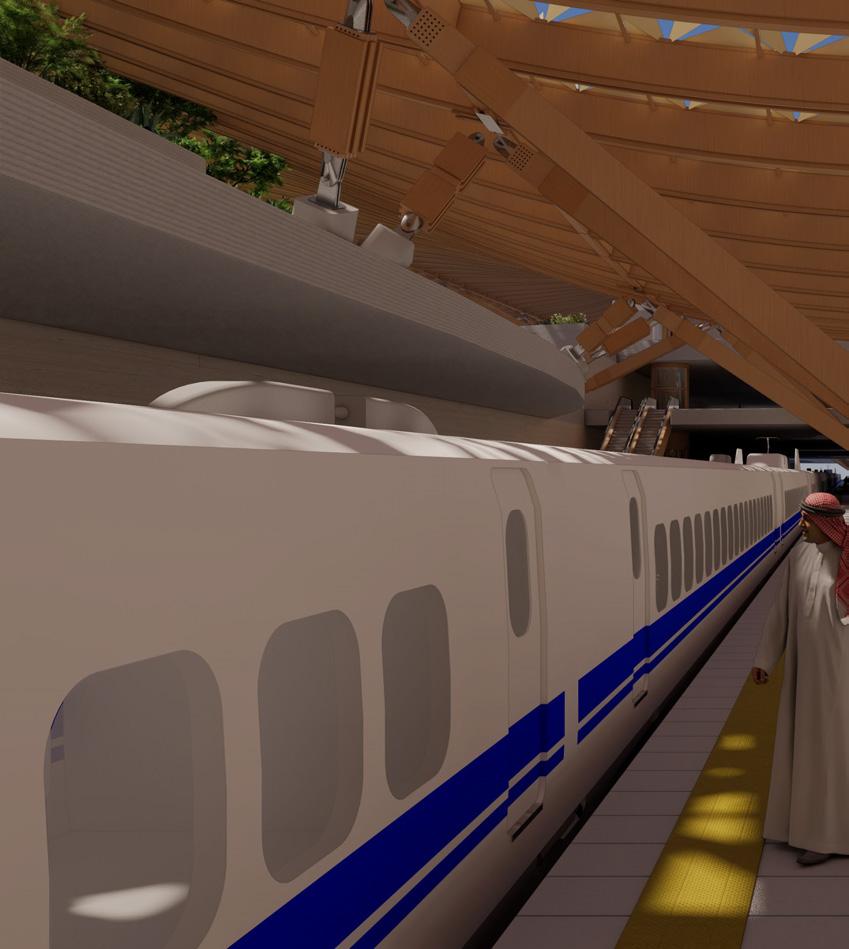

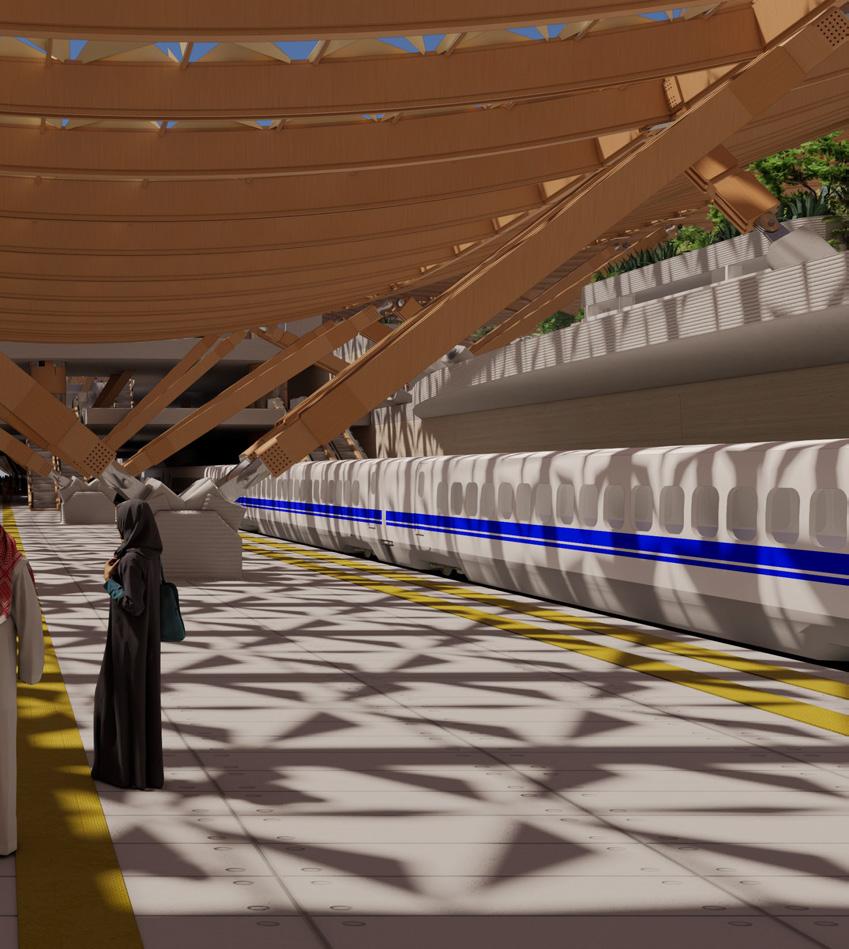

Platforms/Main Councourse
The terminal is conceived as a shaded civic landscape rather than a conventional enclosed station. The canopy extends across the site to create a continuous public realm integrating circulation, planting, waiting zones, and platform access into a single spatial experience. Open concourses, landscaped terraces, and naturally lit underground spaces establish a more porous relationship between infrastructure and the city.
By positioning the transport infrastructure below ground, the proposal frees the surface for pedestrian movement, public gardens, and shaded gathering spaces. Passengers descend gradually from the park level into the terminal through a sequence of planted atriums, filtered daylight openings, and open circulation terraces that maintain visual connections to the exterior environment.
SECTION 05: DRAWING PACKAGE

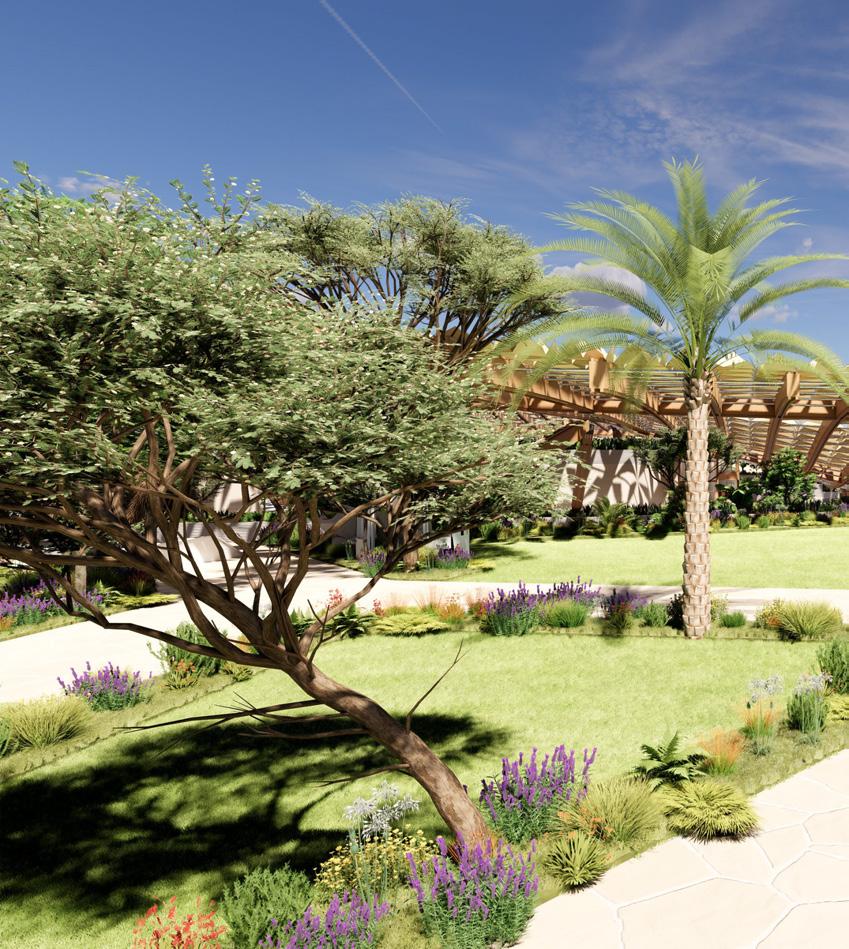

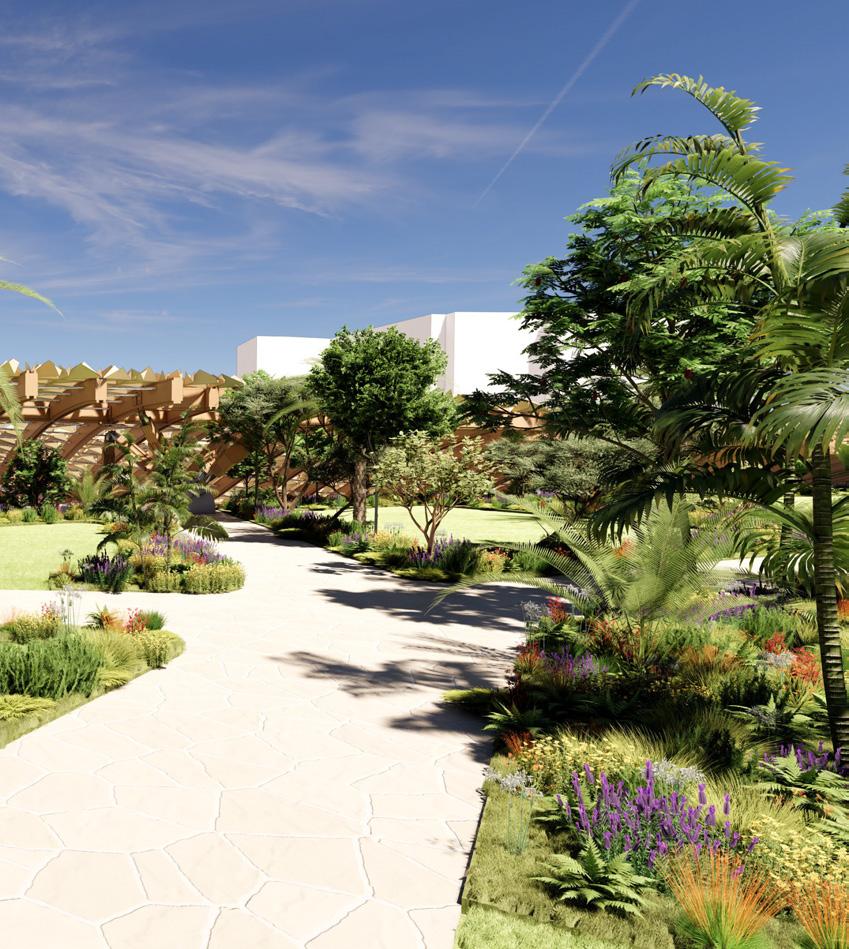

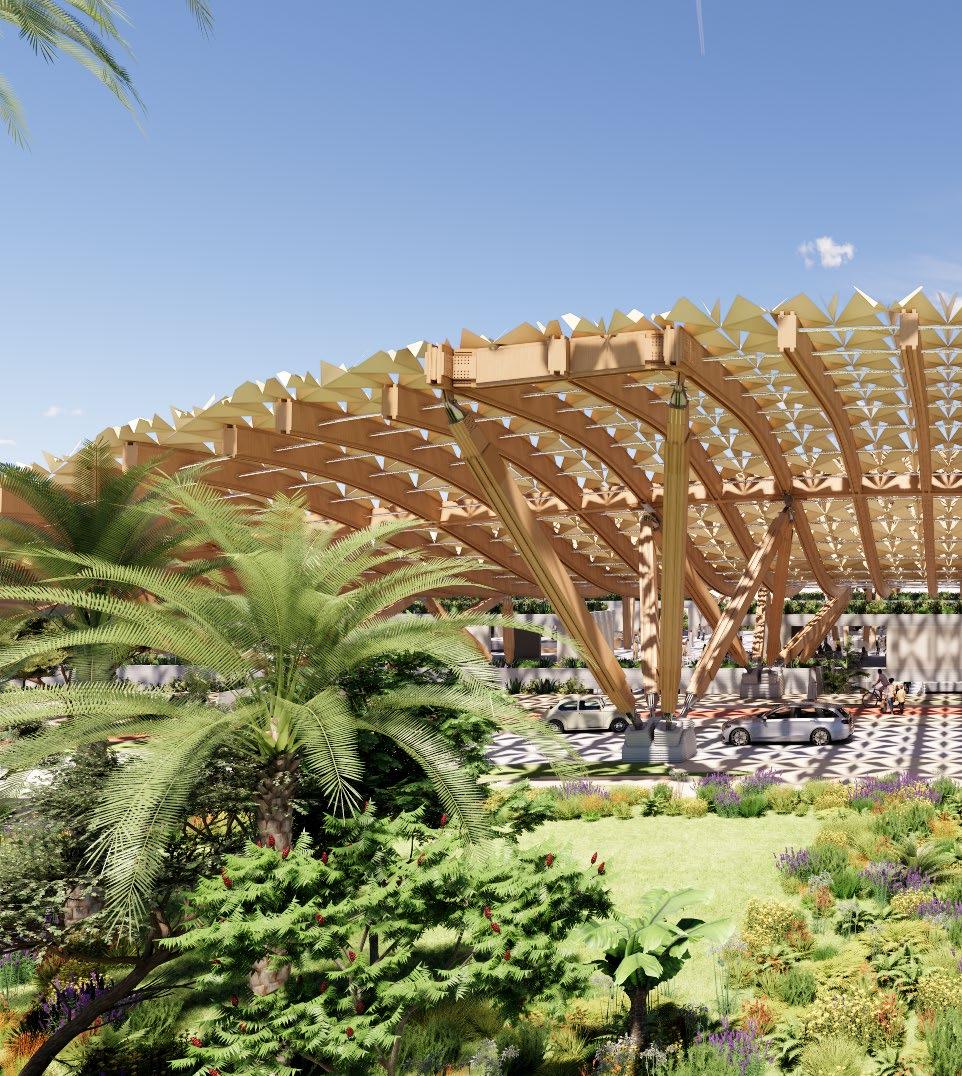

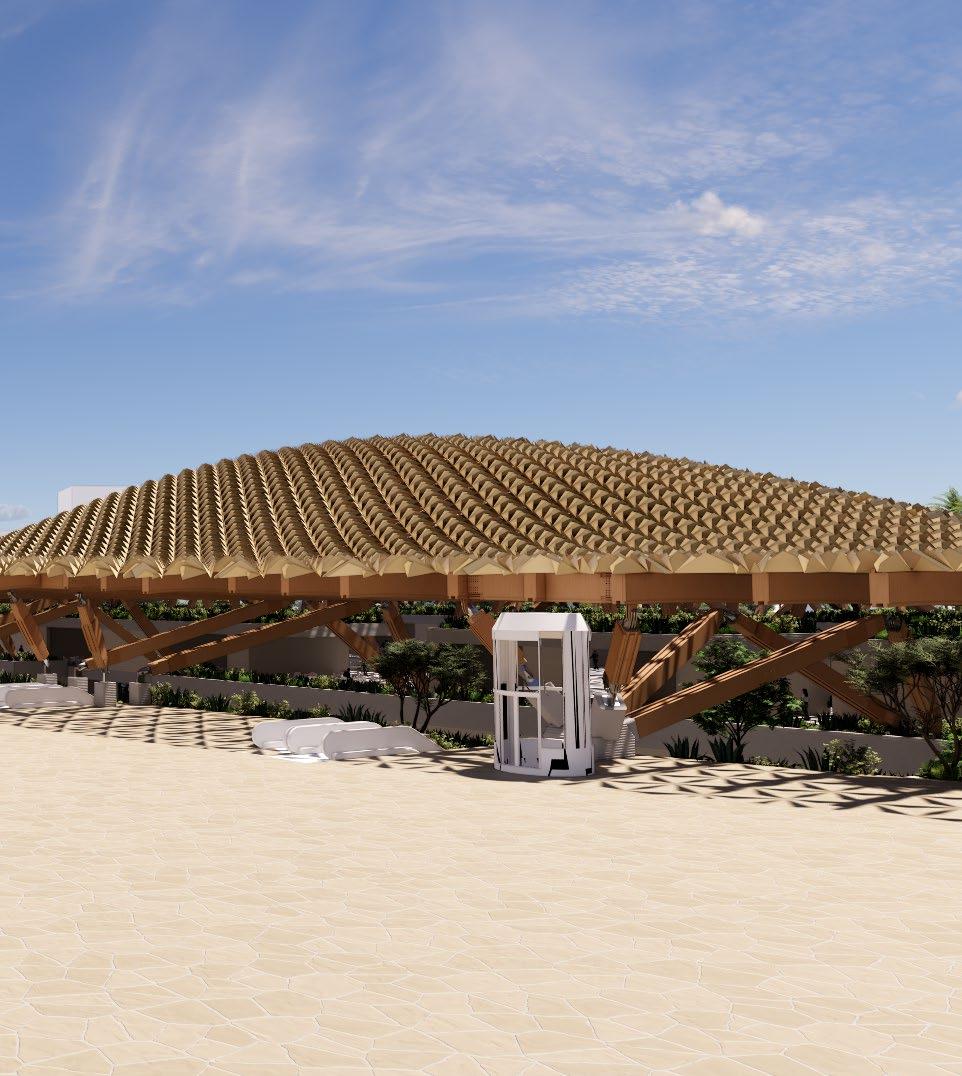

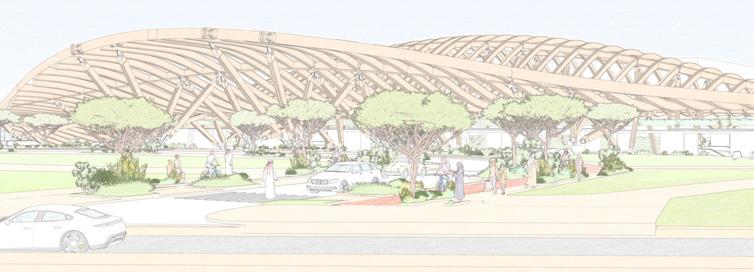

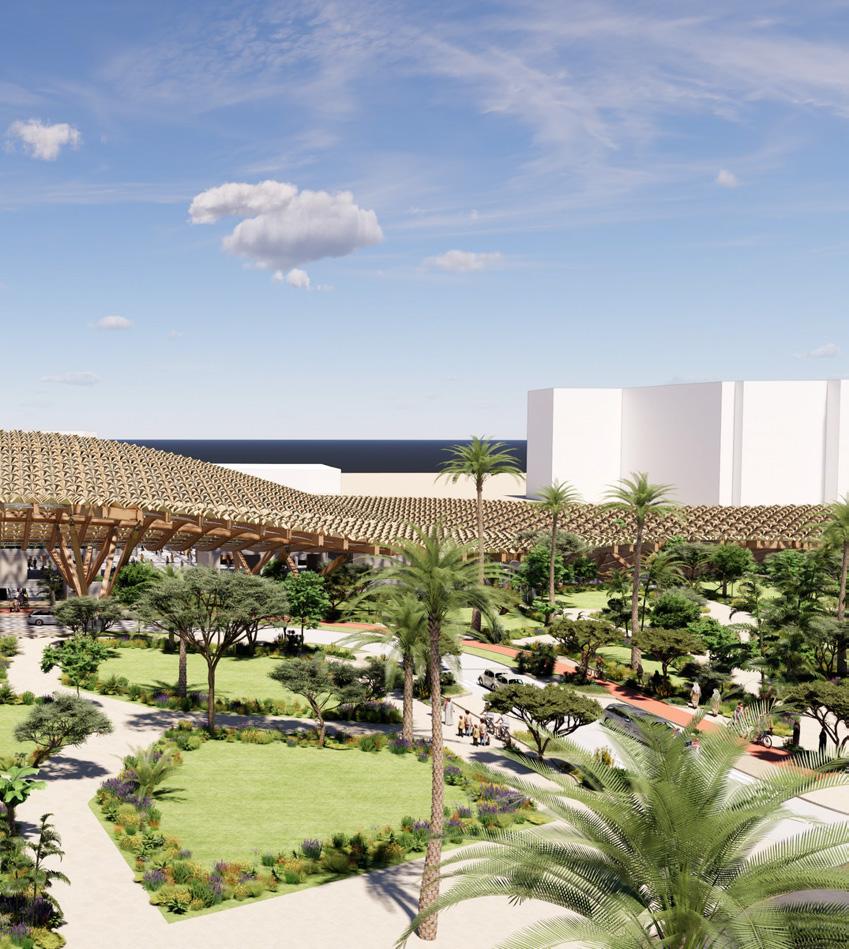

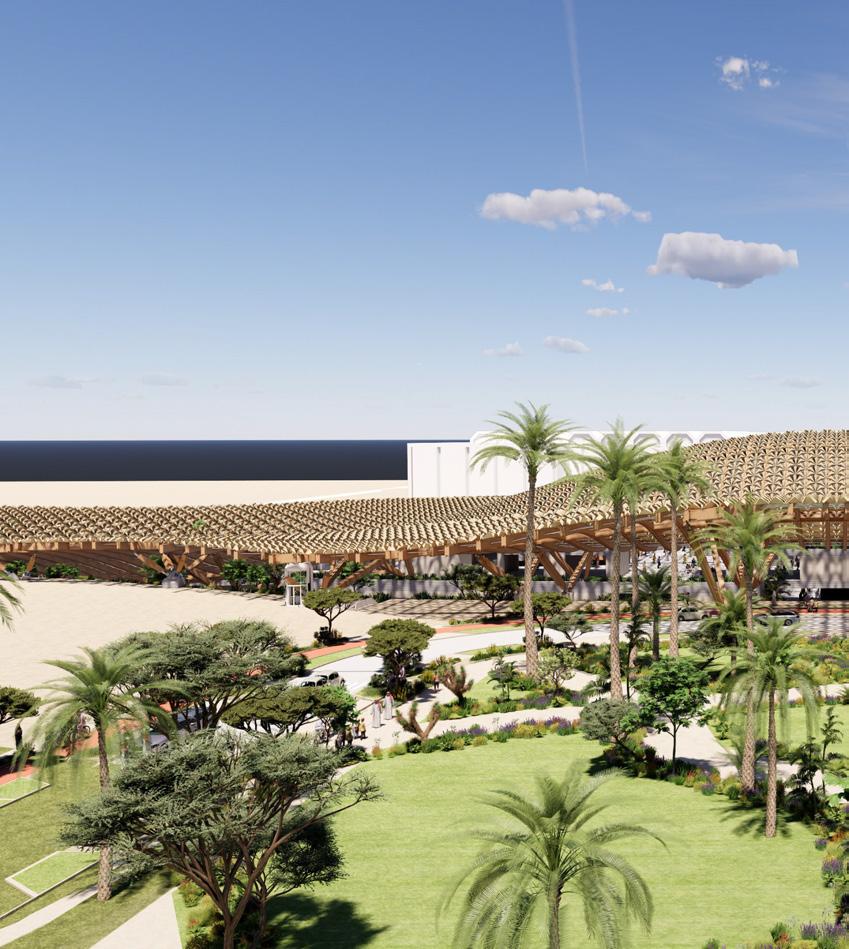

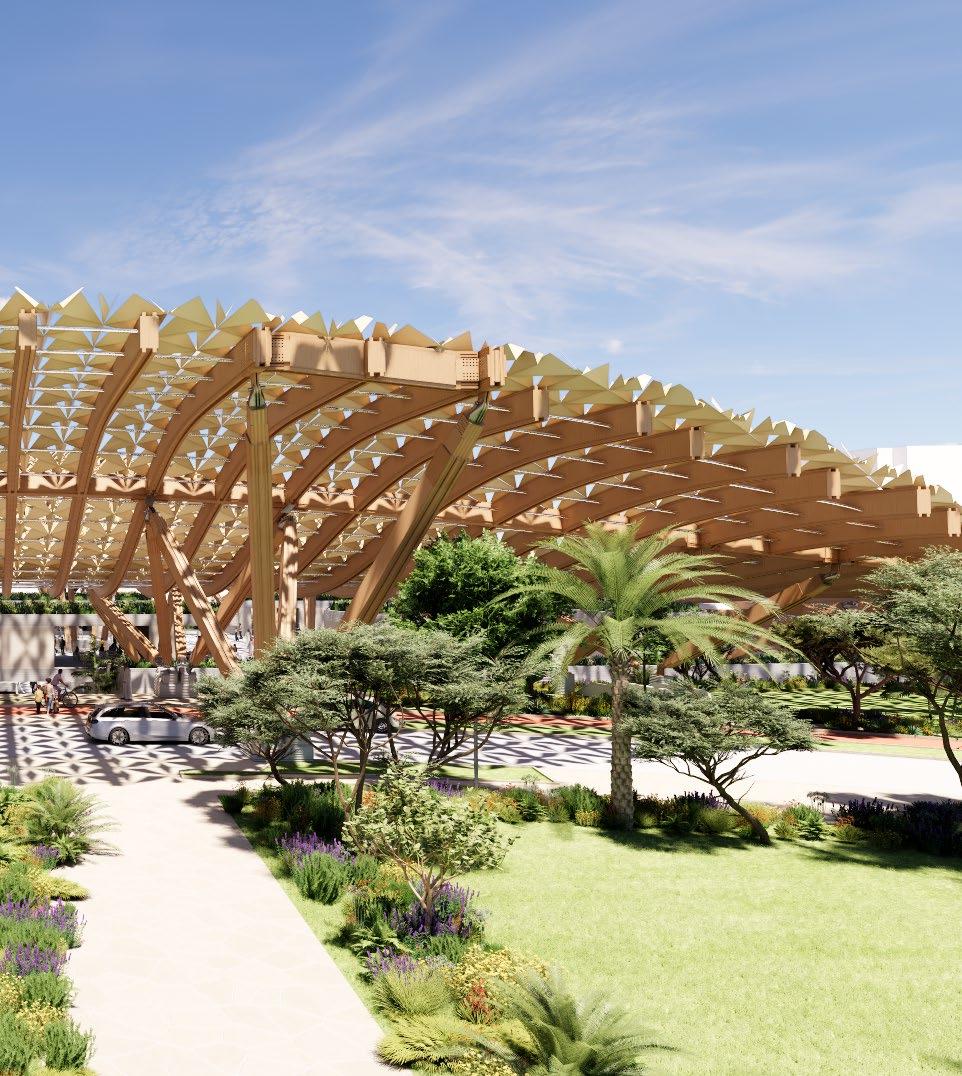

Exterior view looking from the parkside into the station Note the public realm & drop off interface highlighting its pedestrianisation

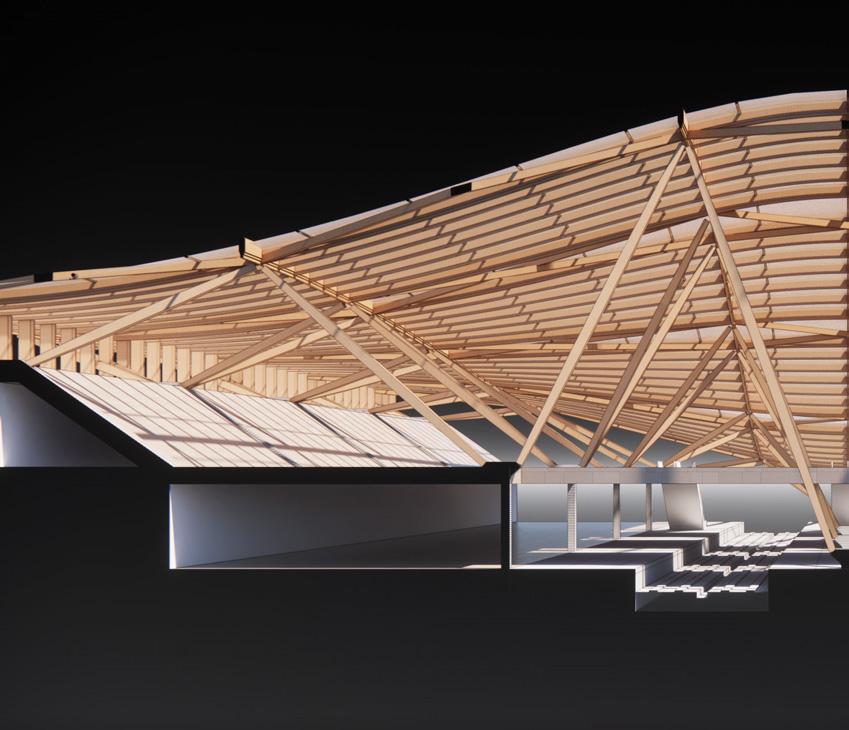

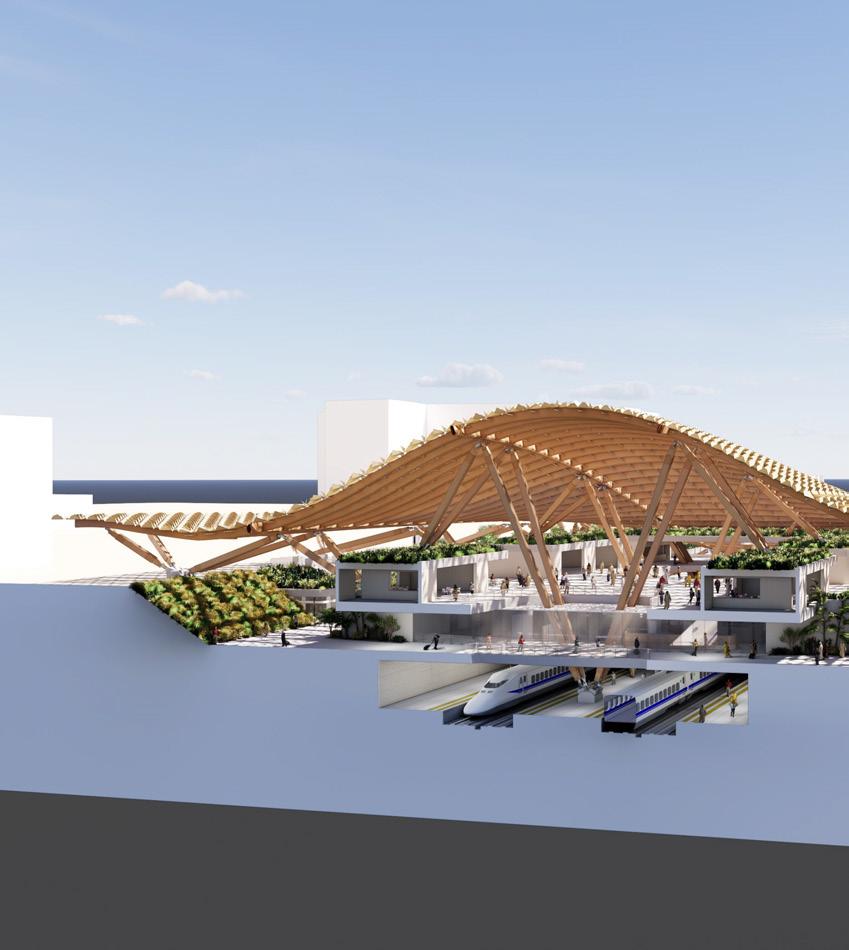

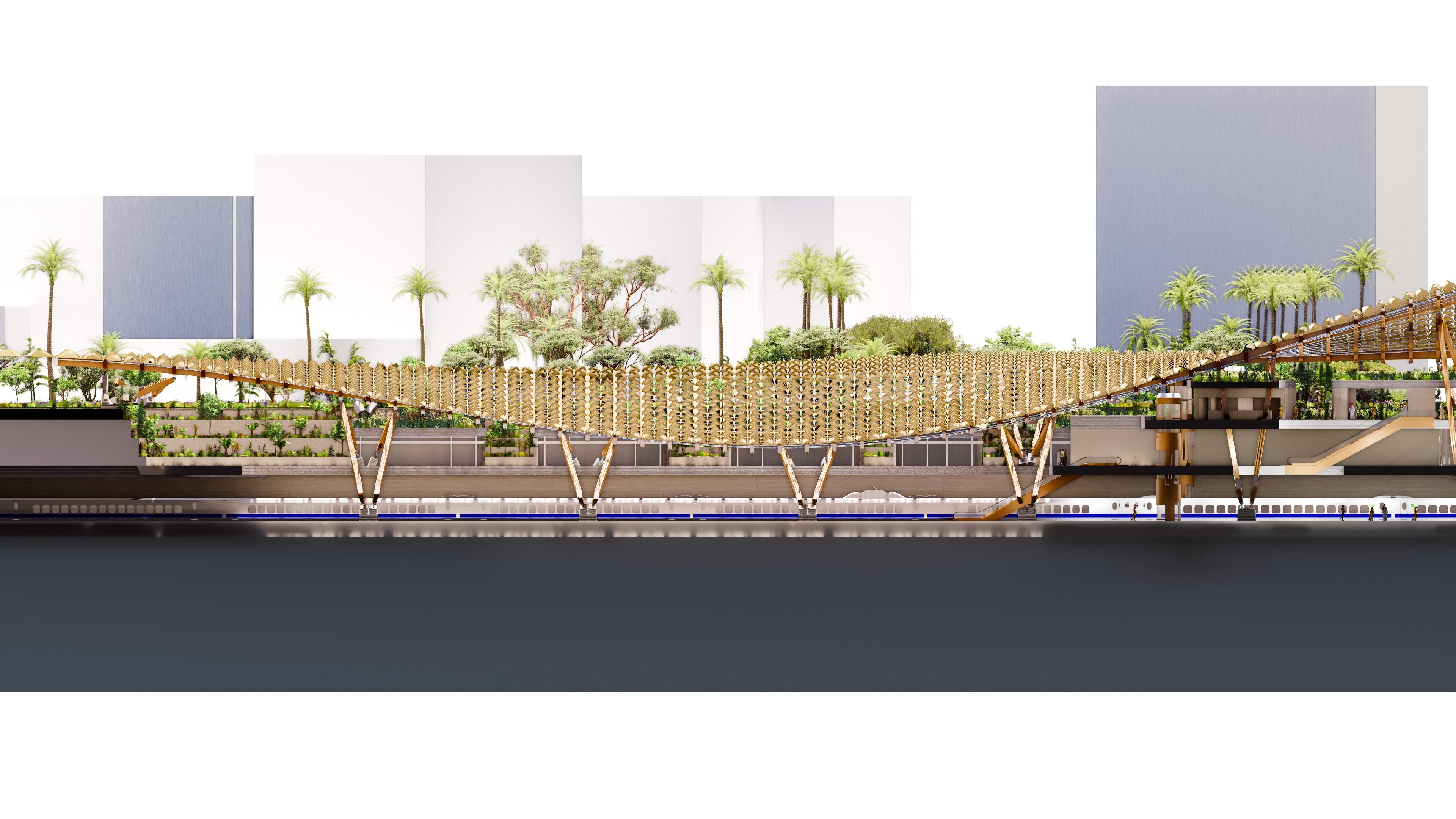

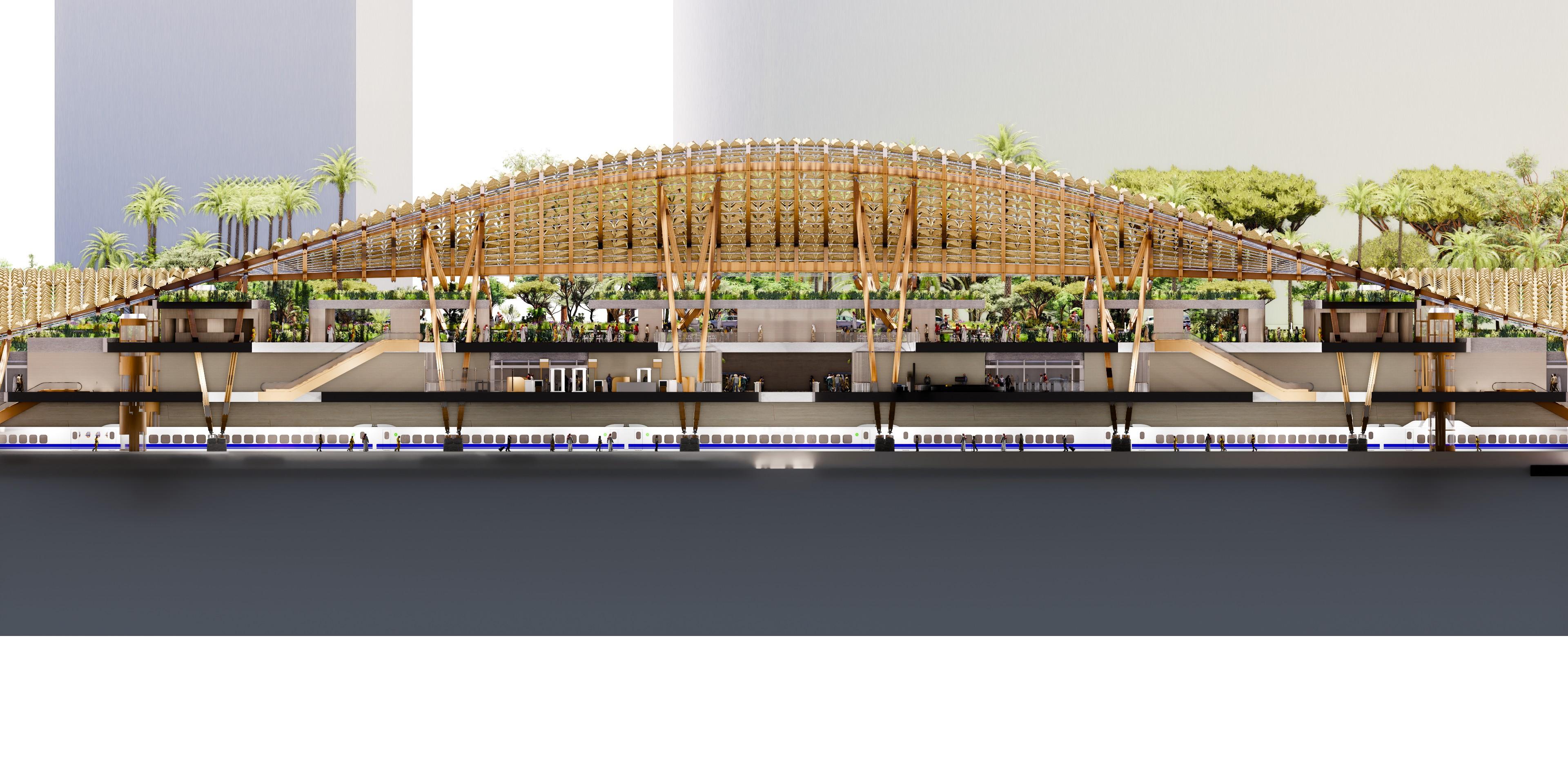

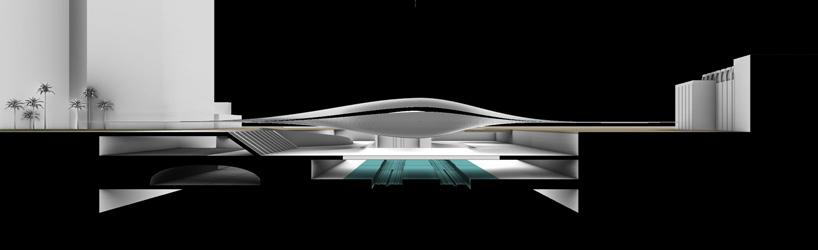

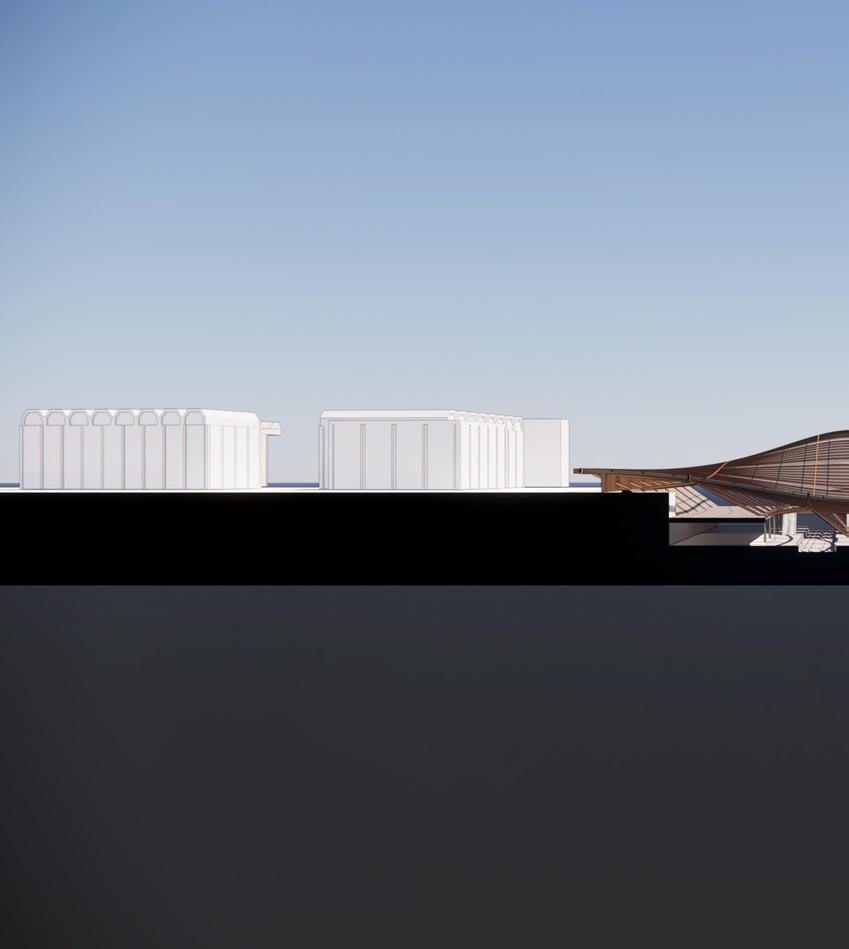

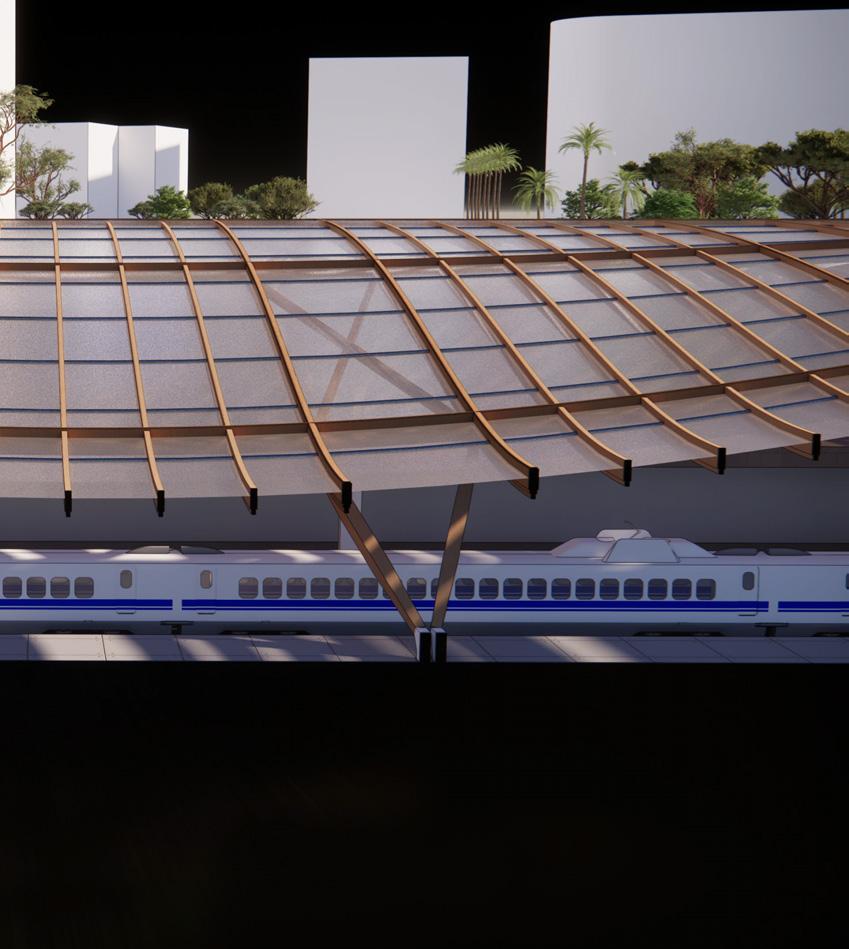

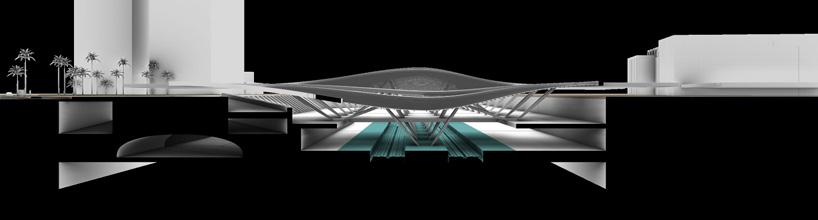

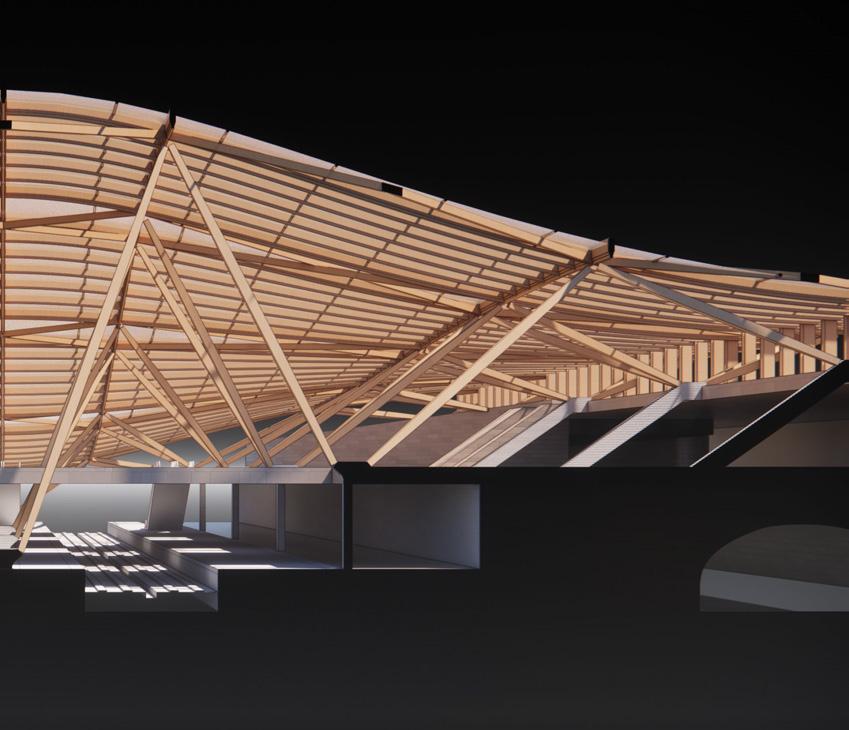

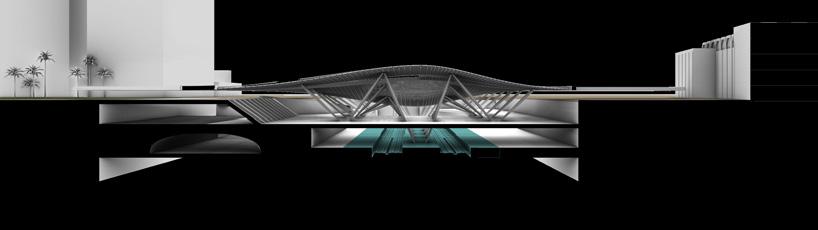

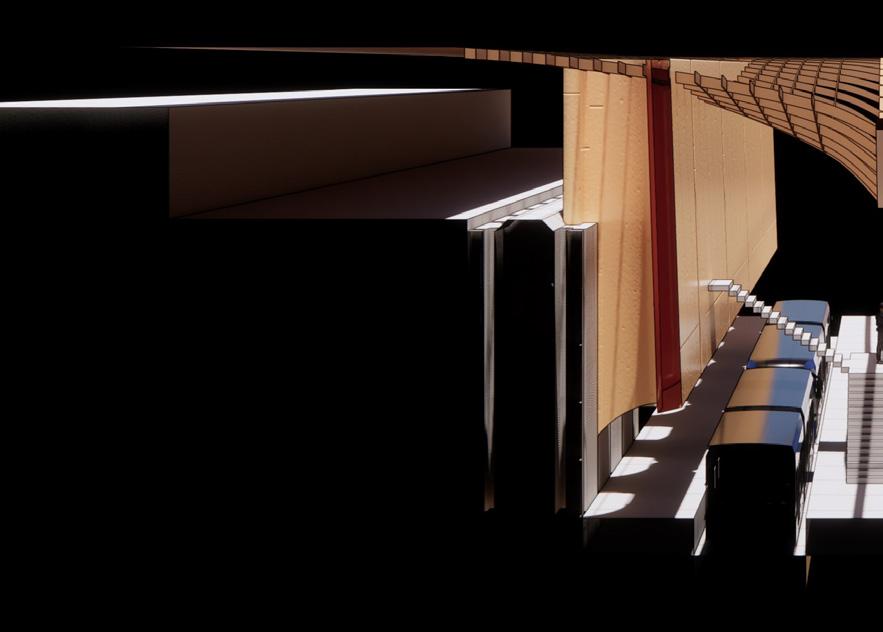

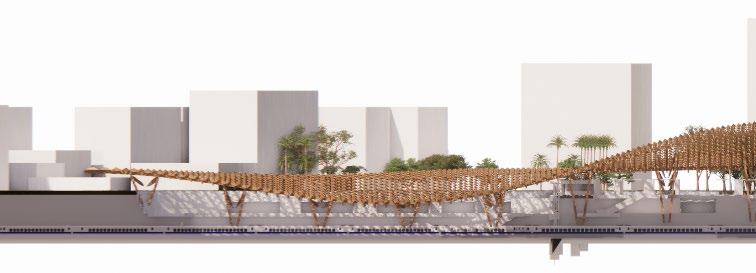

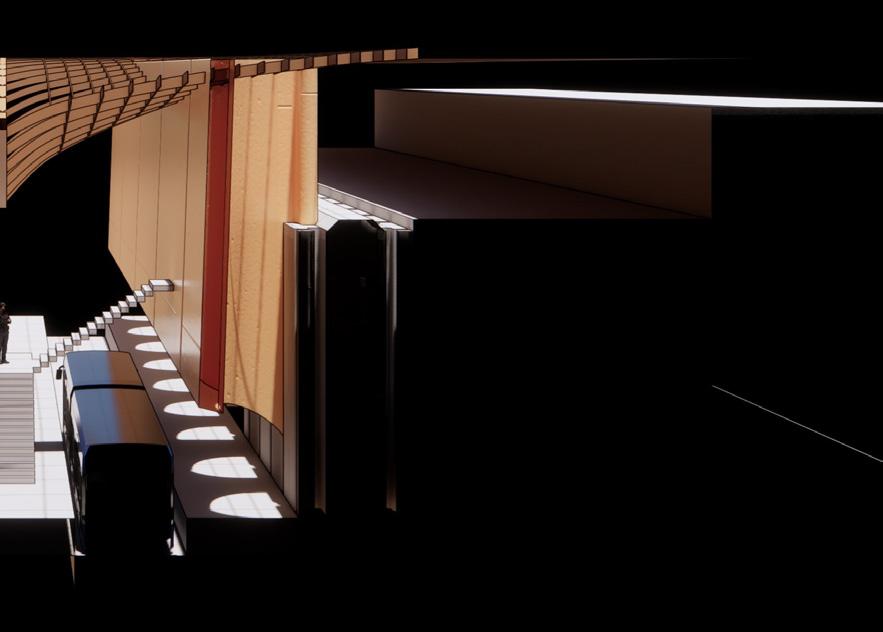

A South facing section through the station in perspective view Note the flow of the canopy in proportion to the terminal datums

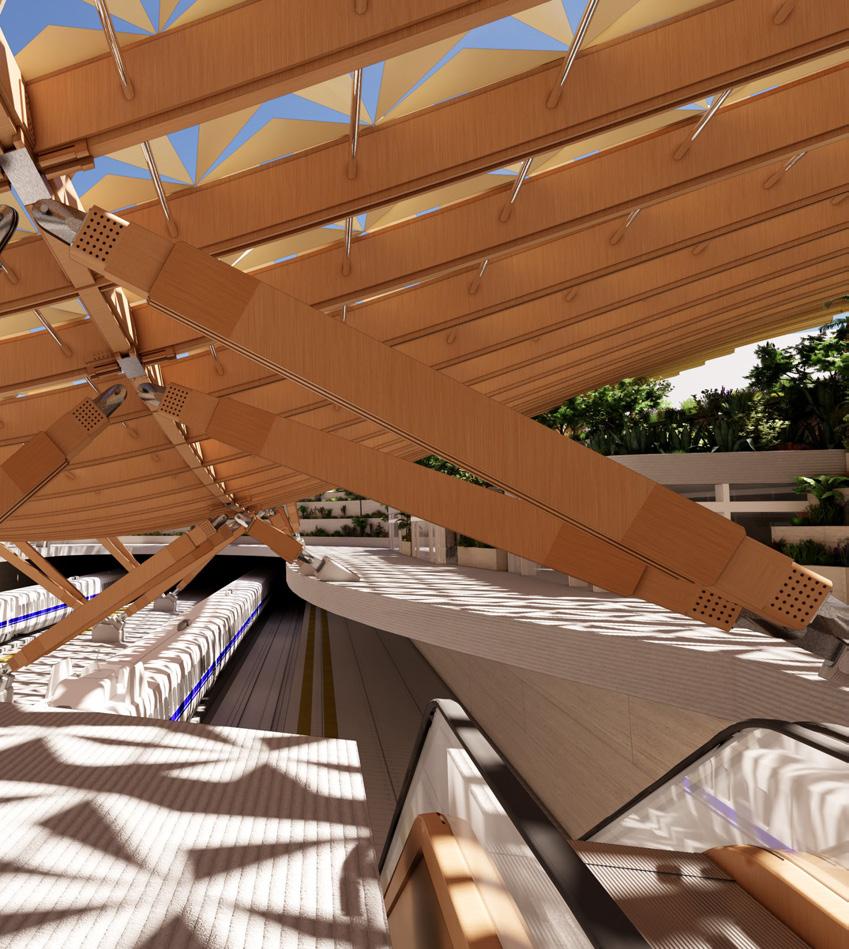

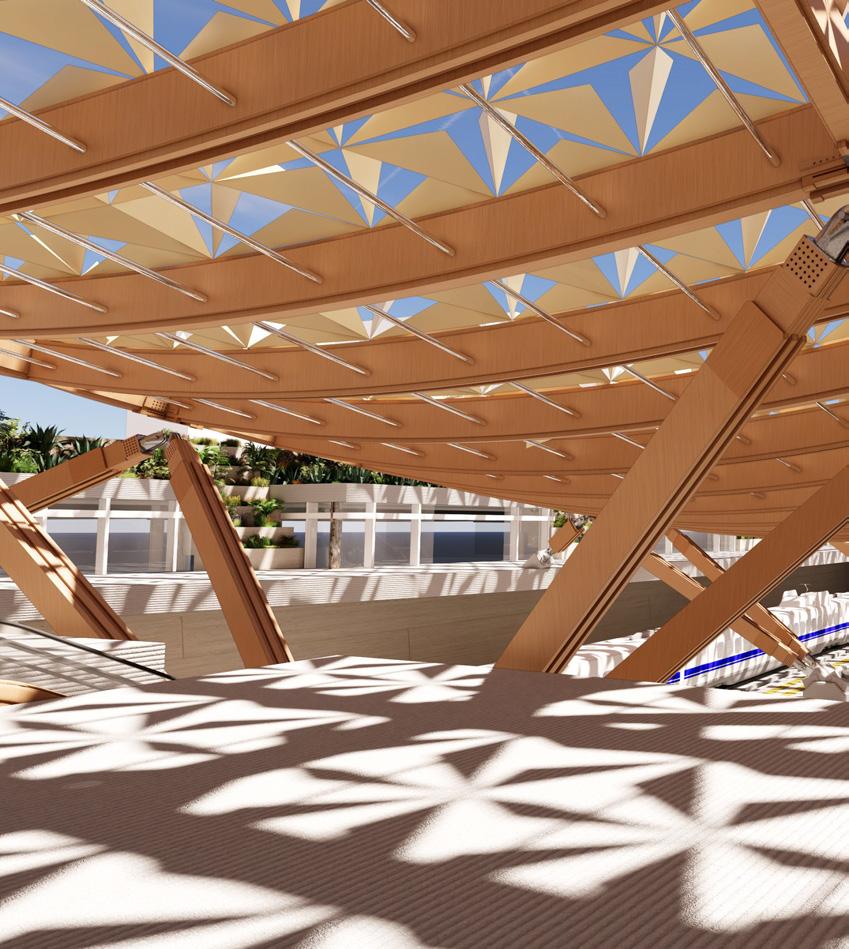

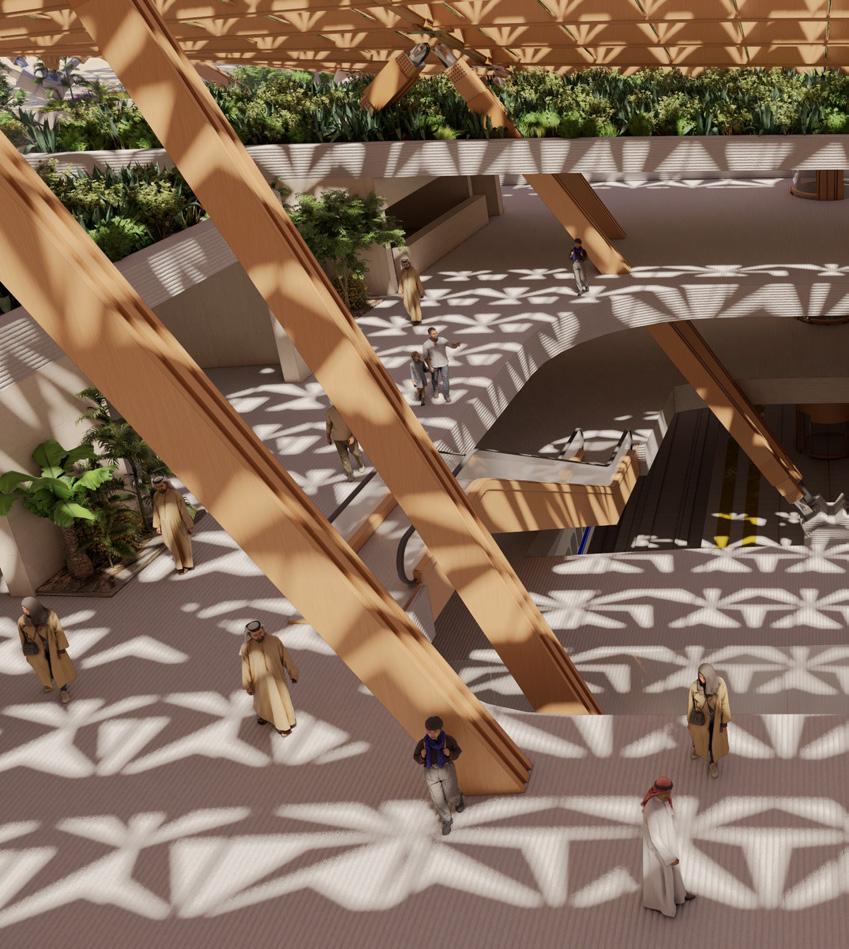

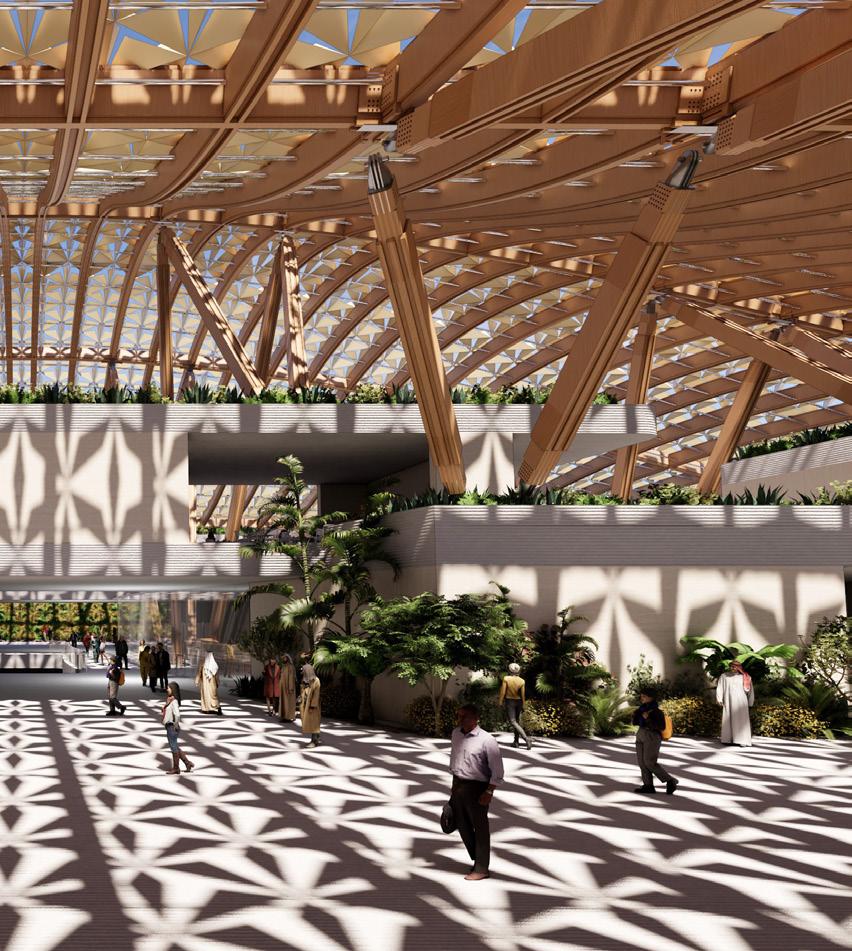

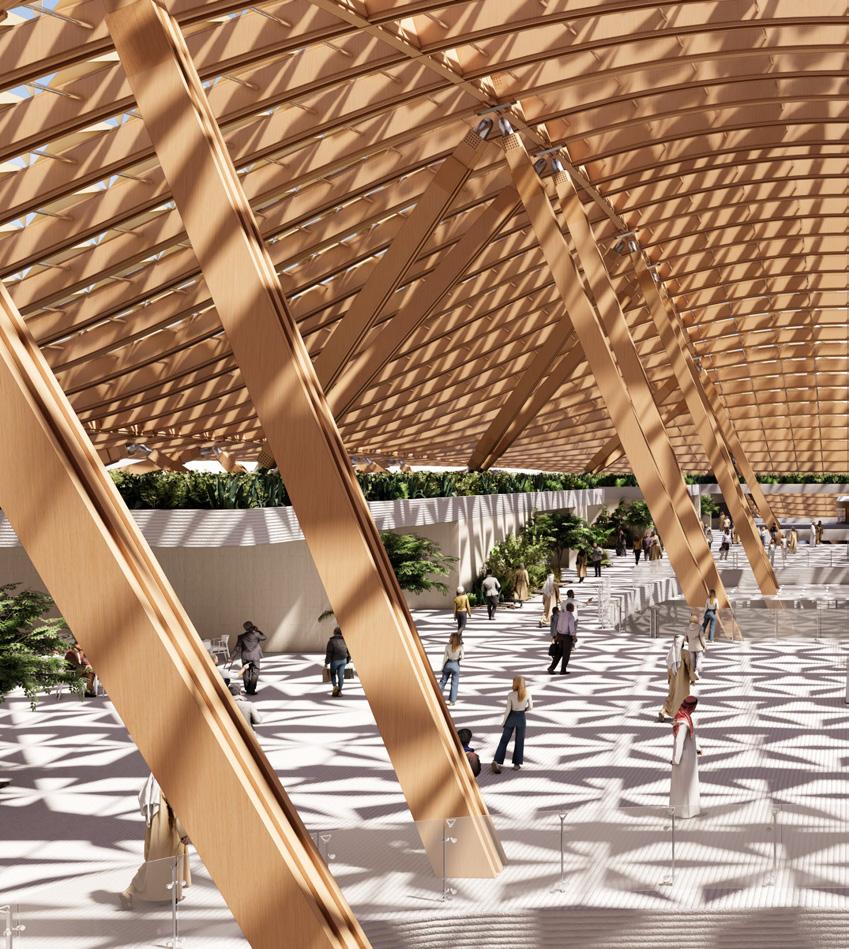

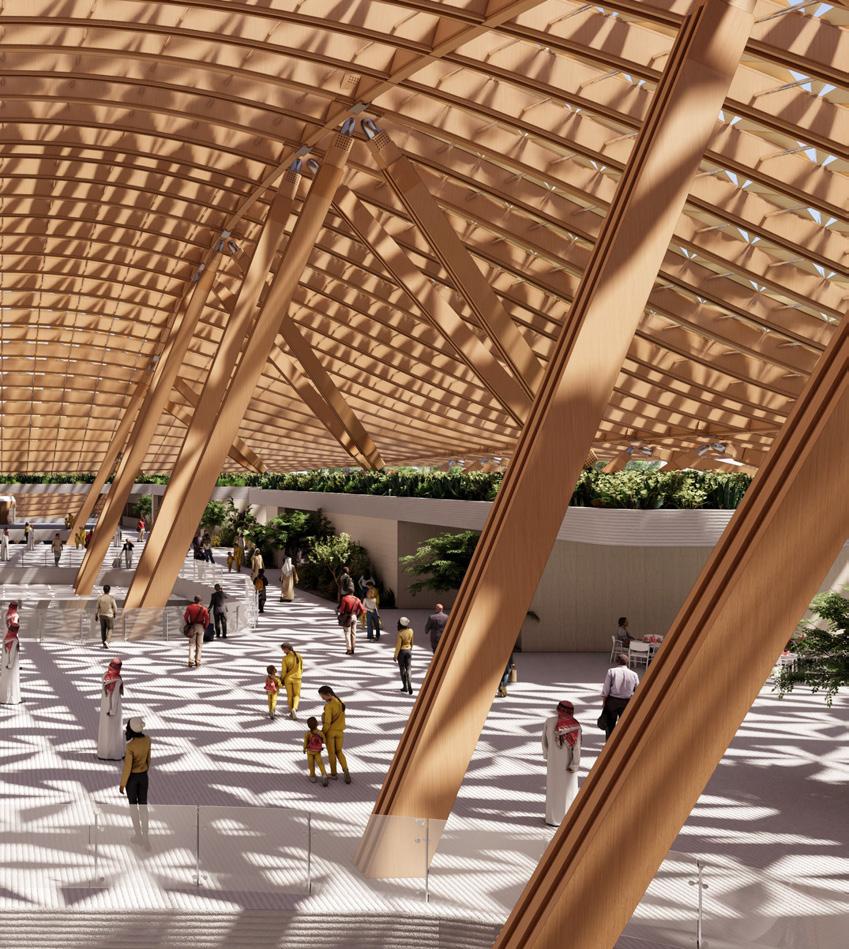

Interior view looking up from the terminal concourse Note the Canopys Beams fanning into proportion reminicient of the Dhow

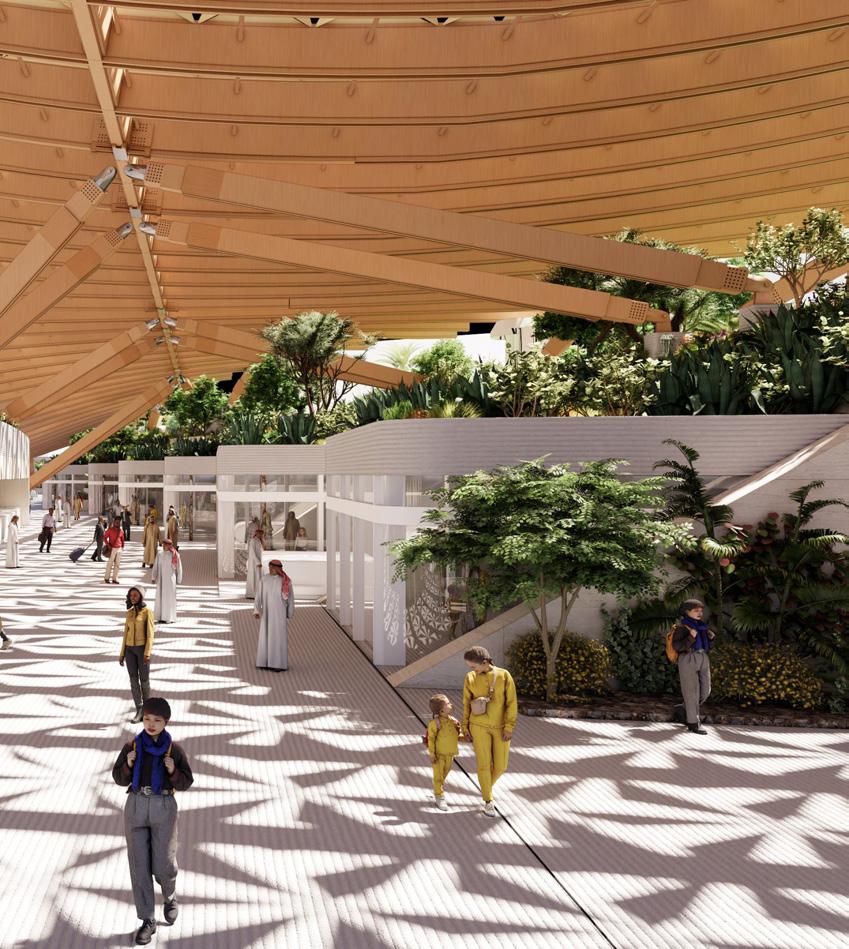

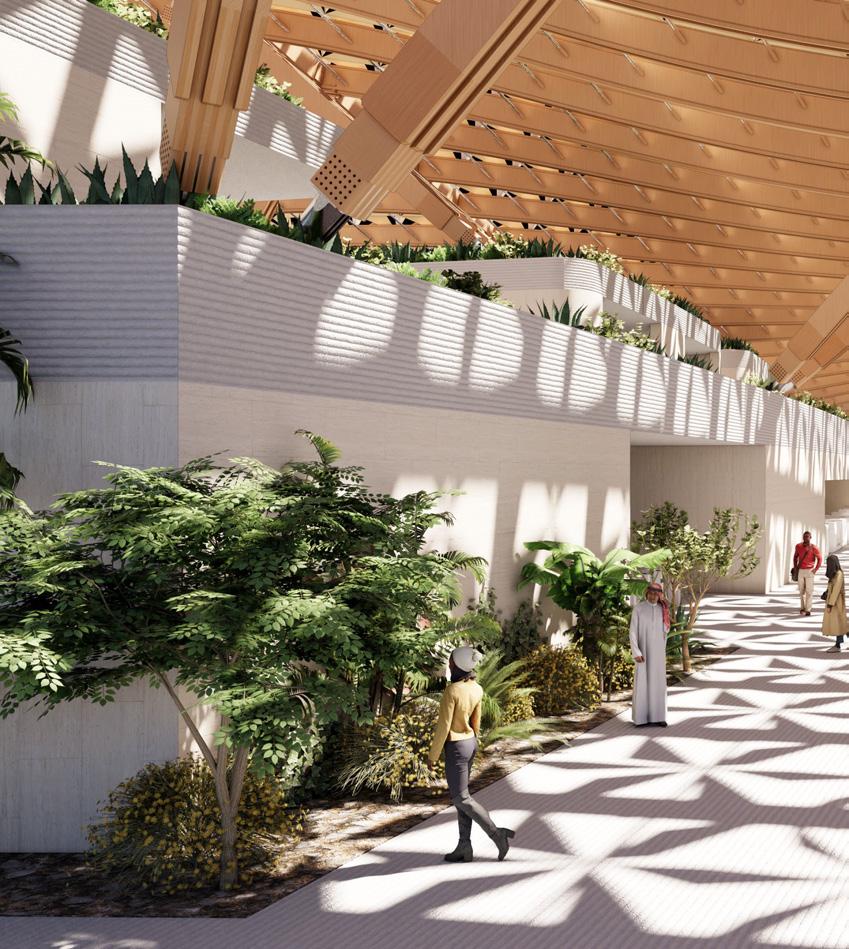

Interior view looking through the museum/park passage
Note the Lush nature of the shaded corridor

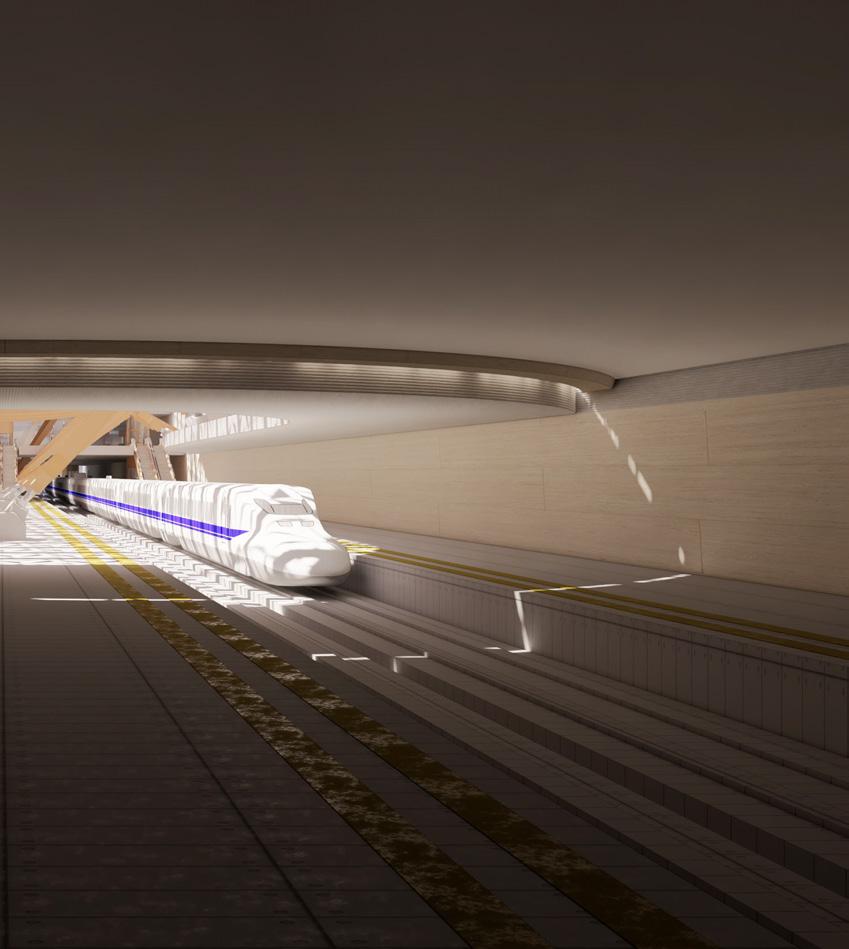

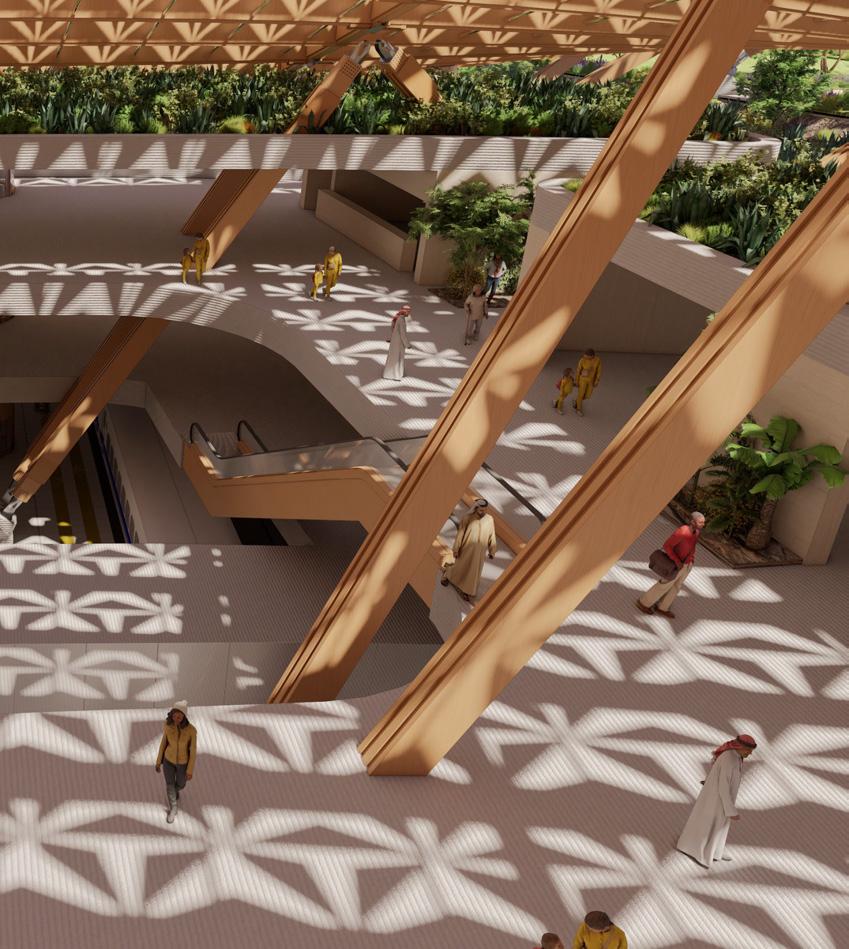

Interior view positioned beyond customs and security, this is the final threshold before departure Note the calm civic interior overlooking the movement of the trains below.

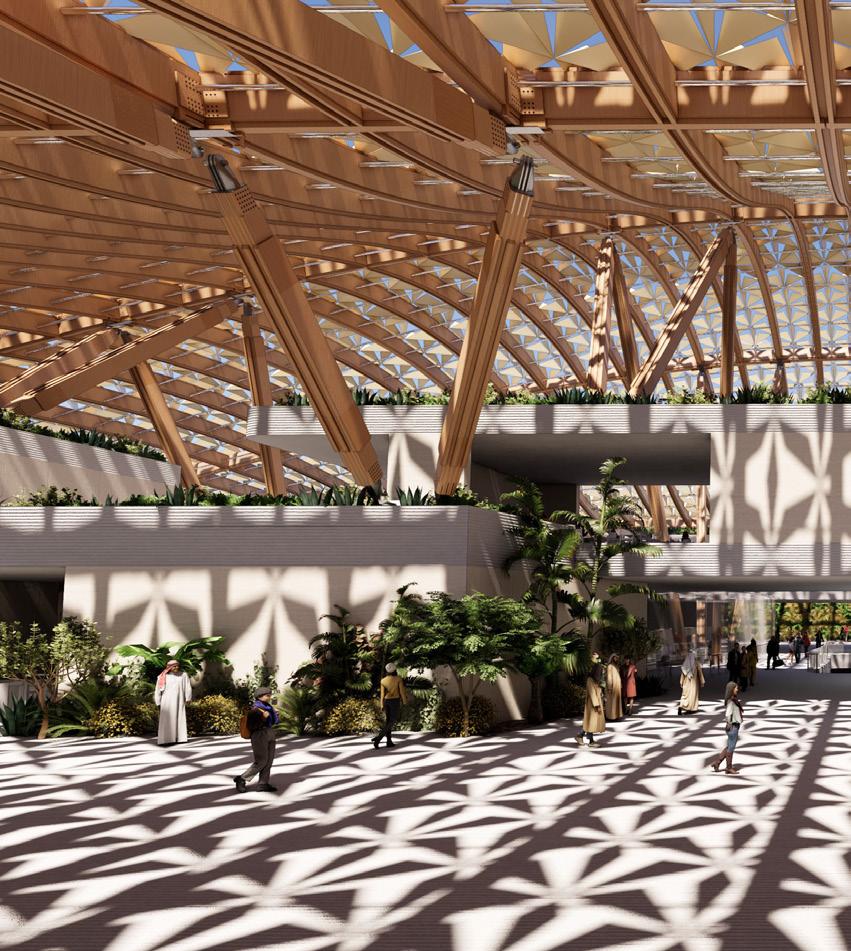

Interior view through the main concourse
Note the lush nature of the space forming an infinite walk around the terminal

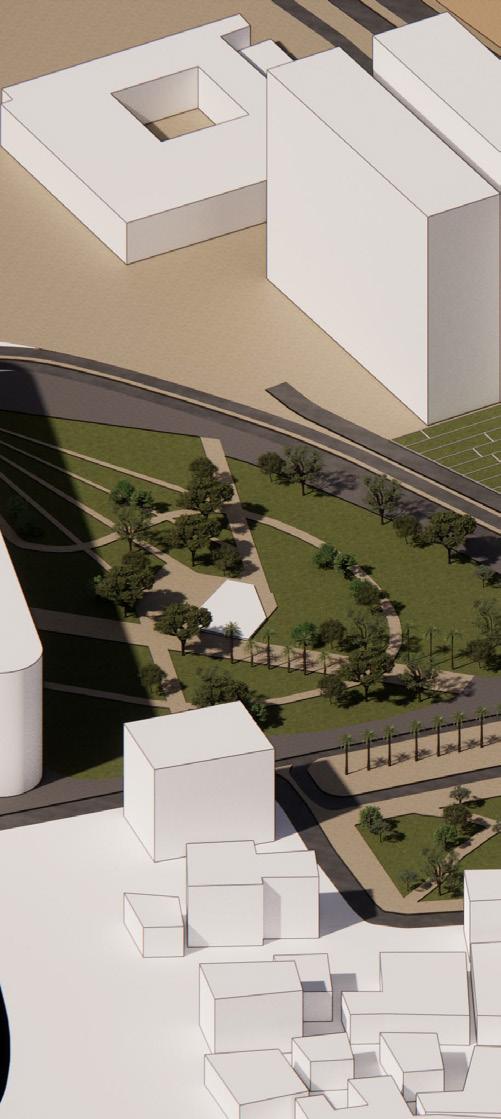

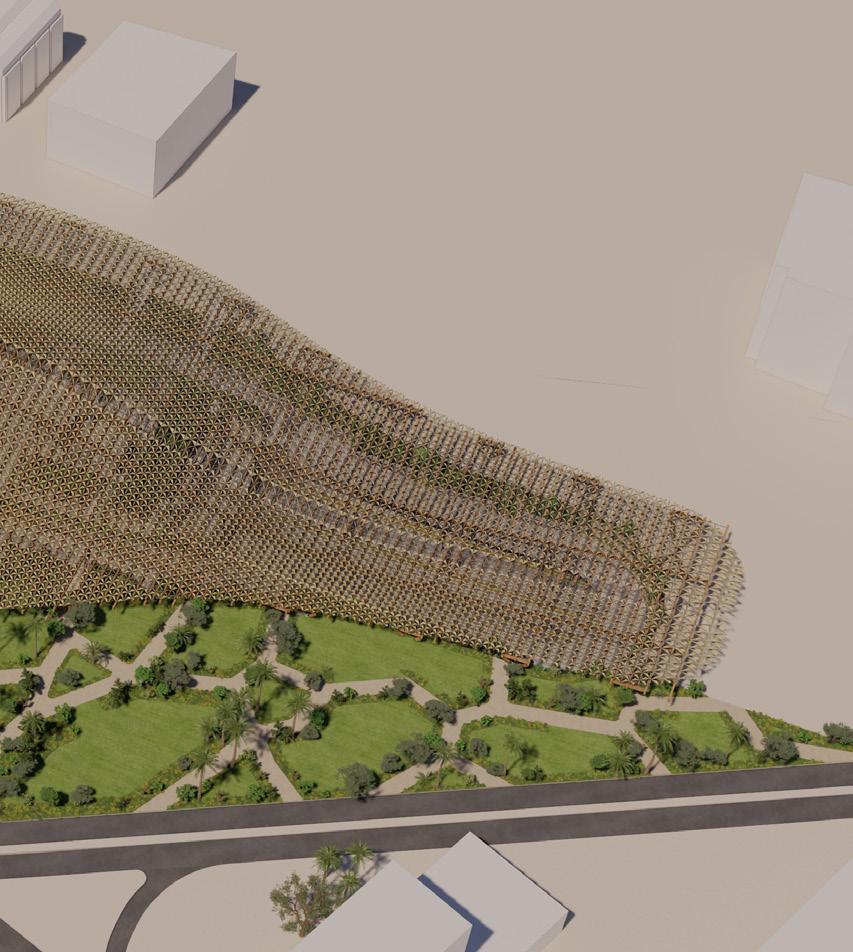

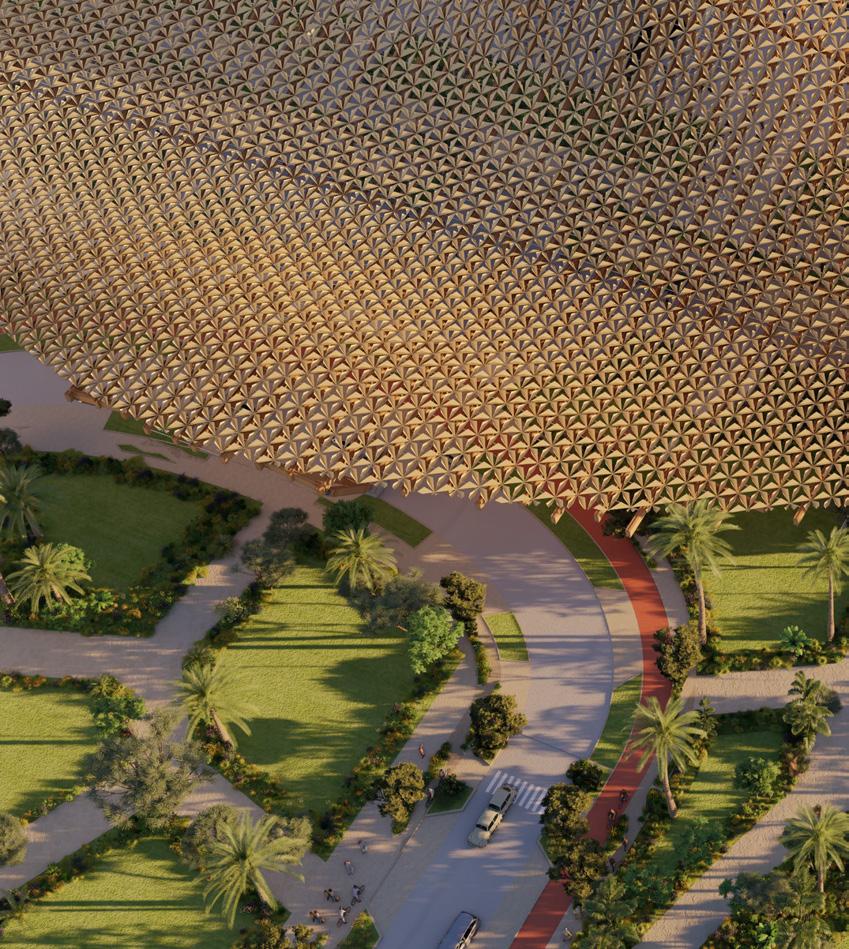

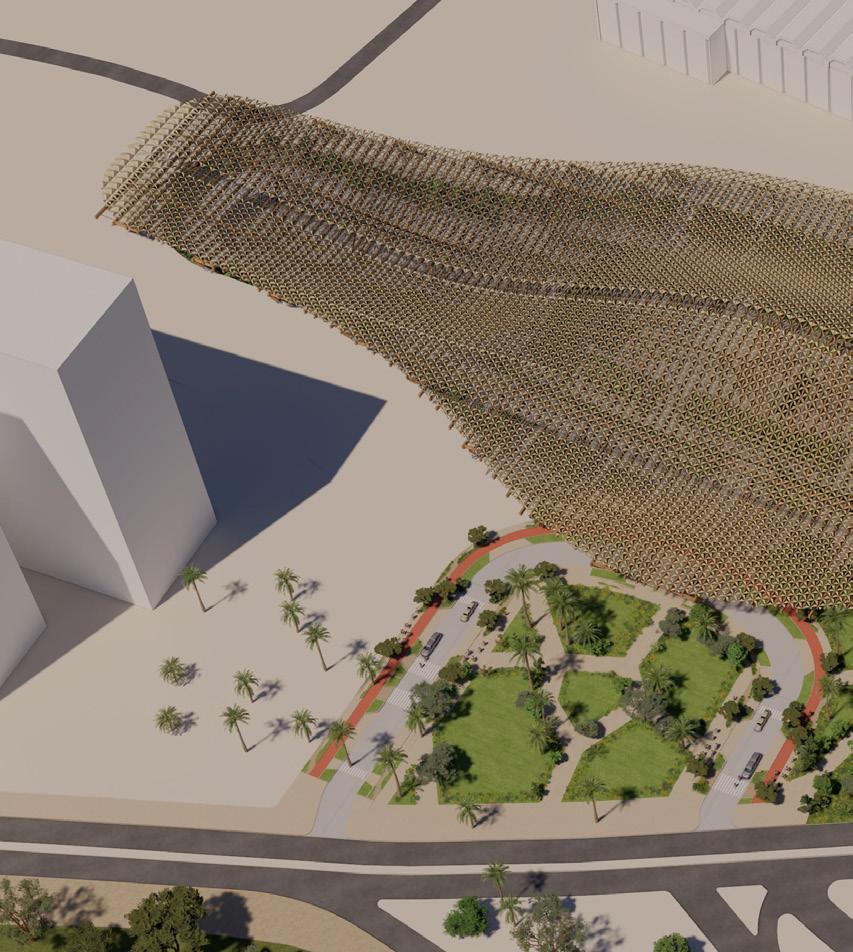

AERIAL VIEW
Note the formation of a park network connecting the varoius
Exterior view looking from the musuem side into the station Note the Canopys edge condition modest relative to the national musuem
MUSEUM SIDE ENTRANCE
