Standard 38° Lens installed, 25° and 60° lens included with each module - Optional: 18º & 90º lenses available.
Fits 3 ½ and 4 Octagon and Round Junction boxes
Sunset option dims from 3000K to 1800K
Tunable White option dims from 1800K to 4000K
Human Centric option dims from 4000K to 2200K
Title 24 JA8-2022 Compliant
Life span of 50,000 hours L70
Technical Details
Speci cations
Wattage 5W - 12.5W
Lumens 350 lm - 1350 lm
Voltage 120/277V or 120V
Color Temp. 2400K - Tunable WhiteK
Dimmable Triac/ELV, DALI 2 Controlled
Lamp Type LED
Beam Angle 38° CRI 95
Wet Location cUL Listed

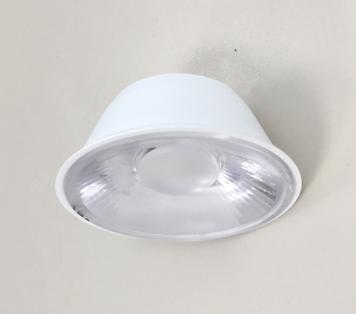

Optics: Polycarbonate module lens di uses light evenly throughout while reducing glare with LED technology.
Construction: Integrated driver and light engine with quick connect. Diecast aluminum body with heat ns allows for e cient cooling.
Installation: Twist-on design for tool-less trim installation, for use with Koto Sylo products only.
Electrical: Module connects to 120 power supply. High-e ciency driver with a power factor >0.9. Start time of less than 0.75 seconds.
LED Technology: Extremely accurate Color Rendering Index of 95+. Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integrated heat sink. Instant On to Full Brightness technology. No LED pixelation.
Sunset: Sunset color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. Our SUNSET items start at 3000K and go as low as 1800K when dimmed.
Human Centric: Human Centric color temperature is our dim-to-warm LED technology that allows the color temperature to become warmer as the product is dimmed. Our HUMAN CENTRIC items start at 4000K and go as low as 2200K when dimmed.
Dimmability: Works with 120V Triac and ELV type dimmers. Dims down to 10%. For full list of dimmers, refer to the Dimmer Compatibility List. Industry-leading dimming that dims smoothly with no hot spots or ickering.
Listings: cUL Listed for Wet Locations. RoHS Compliant. Meets Energy Star & California Title 24 JA8-2022 standards.
Options
All White All Black
Dimensions
EL CAPITAN LED
Click Here to view larger, full-color swatches of all available finishes on our website.
Satin Black (BLP) Satin Bronze (BZP) Satin White (WHP)
Black Wrinkle (BLW)
Bronze Wrinkle (BZW) White Wrinkle (WHW) Verde (VER) Satin Aluminum (SAP) Black
Weathered
Powder (CAP)
Hunter Green (HUG)
THE GEORGE TYPE FX3
Product Number Builder
Example: E25NYW-0324
1 Available as 120V, Triac/ELV only
2 Available in 2400K, 2700K & 3000K only
3 Available with CT5 color temperature only
4 DALI 2, 120/277V
5 Available with -09 and -11 lumen outputs only
6 Sunset, Dim to Warm technology, automatically transitions from 3000K to 1800K when dimmed
7 Available with 1150 lumen (-11) outputs only
8 Human Centric, Dim to Warm technology, automatically transitions from 4000K to 2200K when dimmed
9 Available with -08 and -10 lumen outputs only
10 Available with -AL option only, Dali 2 dimmable Tunable White
11 Only available for 950 lumens
12 Includes 25° and 60° lens in the box
13 Available with 350 and 750 lumen, 2700K and 3000K options only
14 90° Frosted Re ector
ENTRA™ 3" LED
ADJUSTABLE DOWNLIGHT & WALL WASH
The ENTRA 3 Adjustable Downlight presents a cost-effective alternative for delivering architectural-grade aesthetics and quality, meeting budget-sensitive residential and commercial specifications. Custom-engineered for high performance and reliability, ENTRA 3" offers a complete feature set providing flexibility without overwhelming options. The ENTRA 3" Adjustable Downlight offers LED options with Static White and Warm Dim.
Pearl LED R etrofit series is cULus classified for use in existing IC housings manufactured by Nora. The 4" retrofit luminaires deliver over 950 lumen s with 2" pinhole to focus the beam spread through small opening. Available in fixed downlight or adjustable
FEATURES
Comfort Dim (warm dimming) is available in 550lm only 2700K, 3000K, 3500K, 4000K @ 90+ CRI
Three field changeable optics included Integral dimmable driver 5-year limited warranty
cULus classified for damp locations
SPECIFICATION
Construction: Trims are constructed of heat-dissipating die-cast aluminum. A threaded aluminum LED heat sink integrates directly with the trim for optimal heat transfer, while a heat-resistant polycarbonate blend plate enhances overall temperature control and performance.
Mounting: Trim includes f riction blades to mount securely to housing.
OPTICS
Three field changeable optics (spot, narrow flood and flood - installed) are included with each LED module
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 550lm only
Dimming: Triac (leading edge) or ELV (trailing edge)
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE HOUSING
Pearl adjustable pinhole retrofit reflectors are compatible with 4" Max. Adjustability IC housing by Nora only
New Construction
NSIC-4LMRAT Max. Adjustability ICAT Dedicated LED
Retrofit: A medium base screw-socket adapter is included for retrofitting into existing housings. Medium base sockets may require removal, dependent on trim and housing height. A GU24 socket adapter is also available, ordered separately (NRA-212SM)
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus classified for Damp Locations
RoHS compliant 5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2025 Patent Pending

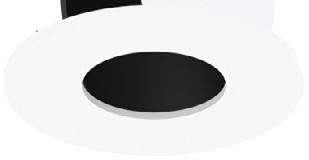

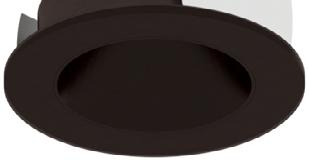

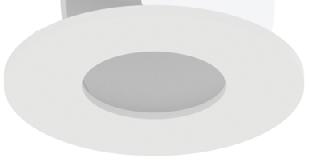

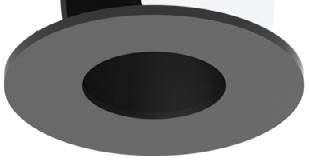

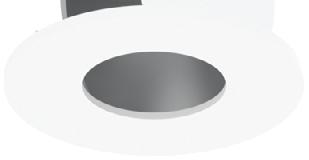

4" Pearl LED Round Adjustable Pinhole Retrofit
Color Temperature Finish
NPR-4RPHA27 X = 2700K
NPR-4RPHA30X = 3000K
NPR-4RPHA35 X = 3500K
NPR-4RPHA40X = 4000K
NPR-4RPHACDX = Comfort Dim BB = Black BMPW = Black Pinhole / Bright White Flange HZMPW = Haze Pinhole/ Bright White Flange
Example: NPR-4RPHA40XMPW = 4" Pearl LED Round Adjustable Pinhole Retrofit, 4000K, Bright White finish
Includes an LED driver with universal input 120V–277V, dimmable by reverse-phase, forward-phase, TRIAC, or 0–10V controls. 277V is only compatible with 0–10V dimming.
Housing ships with die-cast plaster plate for use on Flangeless installation. Do not use plate for flanged installs.
Trims are required and must be ordered separately.
1LO - Sauna/steam-room use available only with combination of low output housing (-LO) and shower trim (-H or -S).
2A - LED module ships with 40° optic installed. Includes 20° and 65° optics as well.
3A - Use with 40° optic and adjust to 30° tilt for wall wash.
4F - Certified to ASTM E119, UL 263, and CAN/ULC-S101. Fire Rating of 1 and 2 hours, respectively. Fire-Rated is available in LH high output only.
1H - Sandblasted shower lens not available with thicker ceiling trims (L15 and F15). Not available with black trim (B).
2W - Wall wash style trim can only be used with wall wash lensed aperture (-W). Wall wash not available with thicker ceiling trims (L15 and F15) as standard. Available through quotes as custom.
3H, S - Shower (Sandblasted or Solite) lens aperture requires bevel trim (B). Sauna/steam-room use available only with combination of low output housing (-LO) and shower trim (-H or -S). Shower lens includes a gasket.

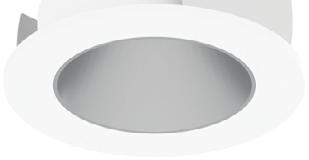

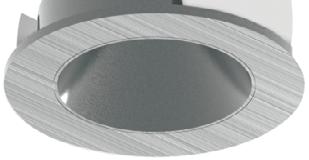

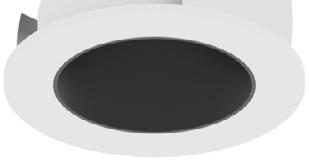

REFLECTOR TRIMS
PRODUCT
EN3TREFNS1 ROUND, BEVEL, FIXED
EN3TREFNS1 ROUND, FLAT, FIXED
EN3TREFNS2 SQUARE, BEVEL, FIXED
EN3TREFNS2 SQUARE, FLAT, FIXED
EN3TREFS1 ROUND, BEVEL, ADJUSTABLE
EN3TREFS2 ROUND, FLAT, ADJUSTABLE
EN3TREFS1 SQUARE, BEVEL, ADJUSTABLE
Square, flat, adjustable is not available. Not for use with sloped ceilings.
LENS KIT
LENSES/LOUVERS 1
PRODUCT
140MR16SF SOLITE SOFT FOCUS LENS
140MR16SB SANDBLASTED LENS
140MR16LL LINEAR SPREAD LENS
140MR16DF DIFFUSER SPREAD LENS
140MR16GL CLEAR GLASS LENS
700A02-BK EGGCRATE/HEXCELL LOUVER
1For additional lenses, louvers, optical controls and accessories, reference visualcomfort.com. Lens/ louvers mounted to lamp assembly only (max 2).
PRODUCT CEILING APPEARANCE STYLE APERTURE
240EN3R ENTRA 3 ROUND KIT
240EN3S ENTRA 3 SQUARE KIT

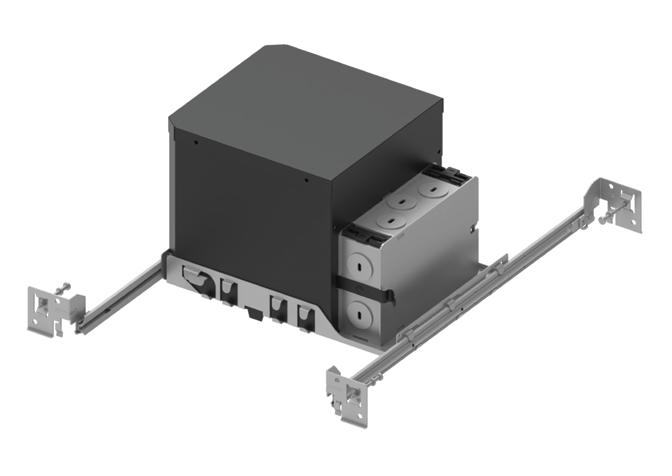

GEORGE
NSIC-4LMRAT
4" Max. Adjustability LED Dedicated IC Airtight New Construction Housing
Source: 12W max. (Compatible with Pearl Series)
PRODUCT DESCRIPTION
Dedicated new construction housing for use in insulated ceilings can be in direct contact with insulation.* Airtight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with Pearl LED Series to allow maximum adjustability for adjustable reflectors. Housing does not include a “can” inside, allow for adjustable reflectors to adjust up to 35°.
FEATURES
· Allows adjustable reflectors the maximum angle or rotation and tilt
IC Airtight energy saving by reducing the flow of air through the ceiling
Rated for direct contact with insulation
· cULus listed for damp locations (wet locations when used with compatible luminaires)
24-1/2" Bar hangers with captive nails and alignment foot
CONSTRUCTION
Housing: 0.040 steel frame with integral bar hanger brackets. Ceiling collar accommodates ceiling thickness from 1/2" to 7/8", optional 1.75" ceiling extension collar available (NSIC-4EXTC2). Collars are designed for use in sheetrock, acoustical ceiling tile, wood/millwork and many other ceiling materials.
Air Flow Restriction: Air tight in accordance to ASTM E283 (<2 cubic feet per minute).
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4 ” to 24- 1/2 ” adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.
Junction Box: Prewired 25 cubic inch 0.060" thick galvanized steel with seven 1/2" trade size knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL
Input Voltage: 120V
Socket: Quick connect for LED luminaires
Wattage: 12W max.
Dimming: Triac or ELV
COMPATIBLE LUMINAIRES
CATALOG NO.
DESCRIPTION
NPR-4RC 4" Pearl Round Adjustable Cone
NPR-4RG 4" Pearl Round Adjustable Gimbal
NPR-4RPH WET 4" Pearl Round Fixed Pinhole (Wet Listed)
NPR-4RPHA 4" Pearl Round Adjustable Pinhole
NPR-4RNB WET 4" Pearl Round Bullnose (Wet Listed)
NPR-4RNDC WET 4" Pearl Round Reflector (Wet Listed)
NPR-4RSL 4" Pearl Round Adjustable Slot Aperture
NPR-4RSL A 4" Pearl Round Adjustable Slot
NPR-4RTLA 4" Pearl Round Trimless Adjustable
NPR-4RTLNDC WET 4" Pearl Round Trimless Downlight (Wet)
NPR-4RTSLA 4" Pearl Round Trimless Adjustable Slot
NPR-4SC 4" Pearl Square Adjustable Cone
NPR-4SG 4" Pearl Square Adjustable Gimbal
NPR-4SNB WET 4" Pearl Square Bullnose (Wet Listed)
NPR-4SNDC WET 4" Pearl Sq. Reflector w/Round Aperture
NPR-4SNDSQ WET 4" Pearl Sq. Reflector w/Square Aperture
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible luminaires) Airtight in accordance to ASTM 283
IC RATED AIR TIGHT
Housing Type
NSIC-4LMRAT: 4" Max. Adjustability LED Dedicated IC Airtight Housing
Example: NSIC-4LMRAT = 4" Max. Adjustability LED Dedicated IC Airtight New Construction Housing 4" Max. Adjustability LED Dedicated IC Airtight New Construction Housing
The ENTRA 3 Adjustable Downlight presents a cost-effective alternative for delivering architectural-grade aesthetics and quality, meeting budget-sensitive residential and commercial specifications. Custom-engineered for high performance and reliability, ENTRA 3" offers a complete feature set providing flexibility without overwhelming options. The ENTRA 3" Adjustable Downlight offers LED options with Static White and Warm Dim.
Pearl LED R etrofit series is cULus classified for use in existing IC housings manufactured by Nora. The 4" retrofit luminaires deliver over 950 lumen s with 2" pinhole to focus the beam spread through small opening. Available in fixed downlight or adjustable
FEATURES
Comfort Dim (warm dimming) is available in 550lm only 2700K, 3000K, 3500K, 4000K @ 90+ CRI
Three field changeable optics included Integral dimmable driver 5-year limited warranty
cULus classified for damp locations
SPECIFICATION
Construction: Trims are constructed of heat-dissipating die-cast aluminum. A threaded aluminum LED heat sink integrates directly with the trim for optimal heat transfer, while a heat-resistant polycarbonate blend plate enhances overall temperature control and performance.
Mounting: Trim includes f riction blades to mount securely to housing.
OPTICS
Three field changeable optics (spot, narrow flood and flood - installed) are included with each LED module
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 550lm only
Dimming: Triac (leading edge) or ELV (trailing edge)
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE HOUSING
Pearl adjustable pinhole retrofit reflectors are compatible with 4" Max. Adjustability IC housing by Nora only
New Construction
NSIC-4LMRAT Max. Adjustability ICAT Dedicated LED
Retrofit: A medium base screw-socket adapter is included for retrofitting into existing housings. Medium base sockets may require removal, dependent on trim and housing height. A GU24 socket adapter is also available, ordered separately (NRA-212SM)
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus classified for Damp Locations
RoHS compliant 5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2025 Patent Pending
4" Pearl LED Round Adjustable Pinhole Retrofit
Color Temperature Finish
NPR-4RPHA27 X = 2700K
NPR-4RPHA30X = 3000K
NPR-4RPHA35 X = 3500K
NPR-4RPHA40X = 4000K
NPR-4RPHACDX = Comfort Dim BB = Black BMPW = Black Pinhole / Bright White Flange HZMPW = Haze Pinhole/ Bright White Flange
Example: NPR-4RPHA40XMPW = 4" Pearl LED Round Adjustable Pinhole Retrofit, 4000K, Bright White finish
Includes an LED driver with universal input 120V–277V, dimmable by reverse-phase, forward-phase, TRIAC, or 0–10V controls. 277V is only compatible with 0–10V dimming.
Housing ships with die-cast plaster plate for use on Flangeless installation. Do not use plate for flanged installs.
Trims are required and must be ordered separately.
1LO - Sauna/steam-room use available only with combination of low output housing (-LO) and shower trim (-H or -S).
2A - LED module ships with 40° optic installed. Includes 20° and 65° optics as well.
3A - Use with 40° optic and adjust to 30° tilt for wall wash.
4F - Certified to ASTM E119, UL 263, and CAN/ULC-S101. Fire Rating of 1 and 2 hours, respectively. Fire-Rated is available in LH high output only.
1H - Sandblasted shower lens not available with thicker ceiling trims (L15 and F15). Not available with black trim (B).
2W - Wall wash style trim can only be used with wall wash lensed aperture (-W). Wall wash not available with thicker ceiling trims (L15 and F15) as standard. Available through quotes as custom.
3H, S - Shower (Sandblasted or Solite) lens aperture requires bevel trim (B). Sauna/steam-room use available only with combination of low output housing (-LO) and shower trim (-H or -S). Shower lens includes a gasket.
REFLECTOR TRIMS
PRODUCT
EN3TREFNS1 ROUND, BEVEL, FIXED
EN3TREFNS1 ROUND, FLAT, FIXED
EN3TREFNS2 SQUARE, BEVEL, FIXED
EN3TREFNS2 SQUARE, FLAT, FIXED
EN3TREFS1 ROUND, BEVEL, ADJUSTABLE
EN3TREFS2 ROUND, FLAT, ADJUSTABLE
EN3TREFS1 SQUARE, BEVEL, ADJUSTABLE
Square, flat, adjustable is not available. Not for use with sloped ceilings.
LENS KIT
LENSES/LOUVERS 1
PRODUCT
140MR16SF SOLITE SOFT FOCUS LENS
140MR16SB SANDBLASTED LENS
140MR16LL LINEAR SPREAD LENS
140MR16DF DIFFUSER SPREAD LENS
140MR16GL CLEAR GLASS LENS
700A02-BK EGGCRATE/HEXCELL LOUVER
1For additional lenses, louvers, optical controls and accessories, reference visualcomfort.com. Lens/ louvers mounted to lamp assembly only (max 2).
PRODUCT CEILING APPEARANCE STYLE APERTURE
240EN3R ENTRA 3 ROUND KIT
240EN3S ENTRA 3 SQUARE KIT
GEORGE
NSIC-4LMRAT
4" Max. Adjustability LED Dedicated IC Airtight New Construction Housing
Source: 12W max. (Compatible with Pearl Series)
PRODUCT DESCRIPTION
Dedicated new construction housing for use in insulated ceilings can be in direct contact with insulation.* Airtight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with Pearl LED Series to allow maximum adjustability for adjustable reflectors. Housing does not include a “can” inside, allow for adjustable reflectors to adjust up to 35°.
FEATURES
· Allows adjustable reflectors the maximum angle or rotation and tilt
IC Airtight energy saving by reducing the flow of air through the ceiling
Rated for direct contact with insulation
· cULus listed for damp locations (wet locations when used with compatible luminaires)
24-1/2" Bar hangers with captive nails and alignment foot
CONSTRUCTION
Housing: 0.040 steel frame with integral bar hanger brackets. Ceiling collar accommodates ceiling thickness from 1/2" to 7/8", optional 1.75" ceiling extension collar available (NSIC-4EXTC2). Collars are designed for use in sheetrock, acoustical ceiling tile, wood/millwork and many other ceiling materials.
Air Flow Restriction: Air tight in accordance to ASTM E283 (<2 cubic feet per minute).
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4 ” to 24- 1/2 ” adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.
Junction Box: Prewired 25 cubic inch 0.060" thick galvanized steel with seven 1/2" trade size knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL
Input Voltage: 120V
Socket: Quick connect for LED luminaires
Wattage: 12W max.
Dimming: Triac or ELV
COMPATIBLE LUMINAIRES
CATALOG NO.
DESCRIPTION
NPR-4RC 4" Pearl Round Adjustable Cone
NPR-4RG 4" Pearl Round Adjustable Gimbal
NPR-4RPH WET 4" Pearl Round Fixed Pinhole (Wet Listed)
NPR-4RPHA 4" Pearl Round Adjustable Pinhole
NPR-4RNB WET 4" Pearl Round Bullnose (Wet Listed)
NPR-4RNDC WET 4" Pearl Round Reflector (Wet Listed)
NPR-4RSL 4" Pearl Round Adjustable Slot Aperture
NPR-4RSL A 4" Pearl Round Adjustable Slot
NPR-4RTLA 4" Pearl Round Trimless Adjustable
NPR-4RTLNDC WET 4" Pearl Round Trimless Downlight (Wet)
NPR-4RTSLA 4" Pearl Round Trimless Adjustable Slot
NPR-4SC 4" Pearl Square Adjustable Cone
NPR-4SG 4" Pearl Square Adjustable Gimbal
NPR-4SNB WET 4" Pearl Square Bullnose (Wet Listed)
NPR-4SNDC WET 4" Pearl Sq. Reflector w/Round Aperture
NPR-4SNDSQ WET 4" Pearl Sq. Reflector w/Square Aperture
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible luminaires) Airtight in accordance to ASTM 283
IC RATED AIR TIGHT
Housing Type
NSIC-4LMRAT: 4" Max. Adjustability LED Dedicated IC Airtight Housing
Example: NSIC-4LMRAT = 4" Max. Adjustability LED Dedicated IC Airtight New Construction Housing 4" Max. Adjustability LED Dedicated IC Airtight New Construction Housing
The ENTRA 3 Adjustable Downlight presents a cost-effective alternative for delivering architectural-grade aesthetics and quality, meeting budget-sensitive residential and commercial specifications. Custom-engineered for high performance and reliability, ENTRA 3" offers a complete feature set providing flexibility without overwhelming options. The ENTRA 3" Adjustable Downlight offers LED options with Static White and Warm Dim.

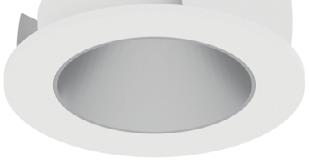

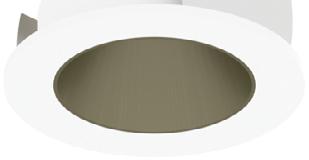

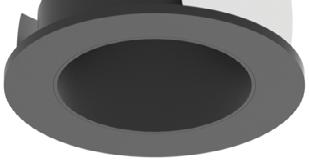

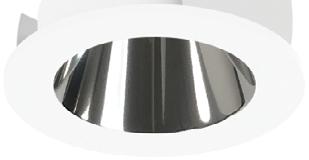

4" Pearl 120V LED Round Retrofit Reflector with Round Aperture
Source: 10W LED 1150lm
PRODUCT DESCRIPTION
Pearl LED Retrofit series is cULus classified for use in existing IC or Non-IC housings manufactured by Nora and others. The 4" retrofit luminaires deliver over 1150 lumens with deep regressed cone reflector for optimal visual cut-off.
FEATURES
Medium base socket adapter included
Retrofit existing 4" recessed housings
Comfort Dim (warm dimming) is available in 700lm only 2700K, 3000K, 3500K, 4000K @ 90+ CRI
Three field changeable optics included Integral dimmable driver 5-year limited warranty cULus classified for wet locations
SPECIFICATION
Construction: Trims are constructed of heat-dissipating die-cast aluminum. A threaded aluminum LED heat sink integrates directly with the trim for optimal heat transfer, while a heat-resistant polycarbonate blend plate enhances overall temperature control and performance.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
Three field changeable optics (spot, narrow flood and flood - installed) are included with each LED module. Premium 22° and 26° TIR optics are also available.
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 700lm only Dimming: Triac (leading edge) or ELV (trailing edge) Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE HOUSINGS
Pearl retrofits are compatible with most 4" IC and Non-IC housings by Nora and others. Fire Box
NFBIC-4LMRATA* ICAT Dedicated LED
NFBIC-4INCATA ICAT Line Voltage
New Construction
NSIC-4LMRAT * Max. Adjustability ICAT Dedicated LED
* Nora Dedicated LED housings are cULus listed for use only with Nora LED Retrofits.
Retrofit: A medium base screw-socket adapter is included for retrofitting into existing housings. Medium base sockets may require removal, dependent on trim and housing height. A GU24 socket adapter is also available, ordered separately (NRA-212SM).
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2.
LABELS AND LISTINGS
cULus classified for Wet Locations
· RoHS compliant 5-Year Limited Warranty
Certified to the high efficacy requirements of Ca lifornia Title 24 JA8-2025
Patent Pending
4" Pearl 120V LED Round Retrofit Reflector with Round Aperture
Color Temperature Finish
NPR-4RNDC27 X = 2700K
NPR-4RNDC30X = 3000K
NPR-4RNDC35 X = 3500K
NPR-4RNDC40X = 4000K
NPR-4RNDCCDX = Comfort Dim
Example:
BB = Black Reflector / Black Flange
B S = Specular Black Reflector / Specular Black Flange
BW = Black Reflector / Warm White Flange
BZ = Bronze Reflector / Bronze Flange
CHMPW = Champagne Haze Reflector / Bright White Flange
CMPW = Specular Clear Reflector / Bright White Flange
HW = Haze Reflector / Warm White Flange
HZMPW = Haze Reflector / Bright White Flange
MPW = Bright White Reflector / Bright White Flange
NN = Natural Metal Reflector / Natural Metal Flange
Includes an LED driver with universal input 120V–277V, dimmable by reverse-phase, forward-phase, TRIAC, or 0–10V controls. 277V is only compatible with 0–10V dimming.
Housing ships with die-cast plaster plate for use on Flangeless installation. Do not use plate for flanged installs.
Trims are required and must be ordered separately.
1LO - Sauna/steam-room use available only with combination of low output housing (-LO) and shower trim (-H or -S).
2A - LED module ships with 40° optic installed. Includes 20° and 65° optics as well.
3A - Use with 40° optic and adjust to 30° tilt for wall wash.
4F - Certified to ASTM E119, UL 263, and CAN/ULC-S101. Fire Rating of 1 and 2 hours, respectively. Fire-Rated is available in LH high output only.
1H - Sandblasted shower lens not available with thicker ceiling trims (L15 and F15). Not available with black trim (B).
2W - Wall wash style trim can only be used with wall wash lensed aperture (-W). Wall wash not available with thicker ceiling trims (L15 and F15) as standard. Available through quotes as custom.
3H, S - Shower (Sandblasted or Solite) lens aperture requires bevel trim (B). Sauna/steam-room use available only with combination of low output housing (-LO) and shower trim (-H or -S). Shower lens includes a gasket.
REFLECTOR TRIMS
PRODUCT
EN3TREFNS1 ROUND, BEVEL, FIXED
EN3TREFNS1 ROUND, FLAT, FIXED
EN3TREFNS2 SQUARE, BEVEL, FIXED
EN3TREFNS2 SQUARE, FLAT, FIXED
EN3TREFS1 ROUND, BEVEL, ADJUSTABLE
EN3TREFS2 ROUND, FLAT, ADJUSTABLE
EN3TREFS1 SQUARE, BEVEL, ADJUSTABLE
Square, flat, adjustable is not available. Not for use with sloped ceilings.
LENS KIT
LENSES/LOUVERS 1
PRODUCT
140MR16SF SOLITE SOFT FOCUS LENS
140MR16SB SANDBLASTED LENS
140MR16LL LINEAR SPREAD LENS
140MR16DF DIFFUSER SPREAD LENS
140MR16GL CLEAR GLASS LENS
700A02-BK EGGCRATE/HEXCELL LOUVER
1For additional lenses, louvers, optical controls and accessories, reference visualcomfort.com. Lens/ louvers mounted to lamp assembly only (max 2).
PRODUCT CEILING APPEARANCE STYLE APERTURE
240EN3R ENTRA 3 ROUND KIT

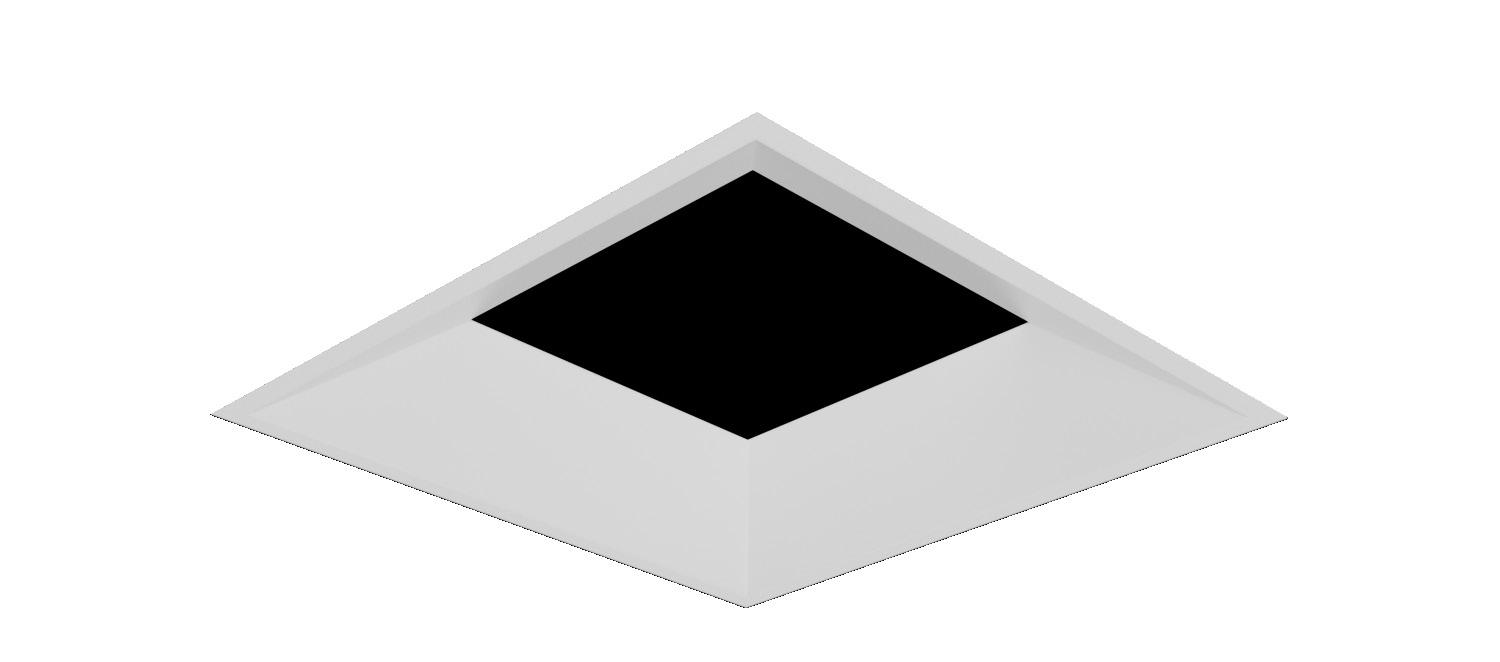

240EN3S ENTRA 3 SQUARE KIT
THE GEORGE TYPE FX6
ACCESSORIES
4" Pearl 120V LED Round Retrofit Reflector with Round Aperture
FIELD CHANGEABLE OPTICS
Type
Project Catalog No.
Notes
Pearl luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Note: Premium TIR optics are not compatible with Comfort Dim LED modules.
LED Module/Driver
Optic
Die-cast Trim
ACCESSORIES

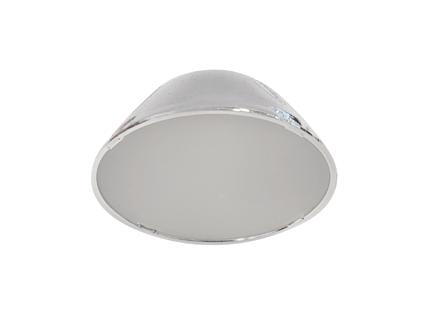

Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Replaces optics that are included with each LED module.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Premium TIR (total internal reflection) optics create optimal spot and narrow flood beam spread. Not compatible with Comfort Dim (CDX) LED module
Pearl accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
LED Module/Driver

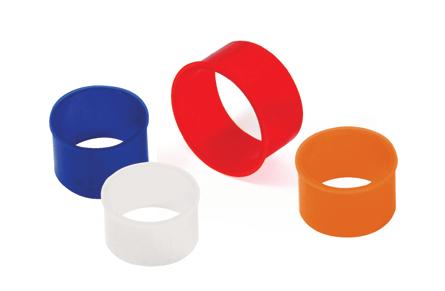

Translucent Decorative Collar
NIO-AS14(color) 5/8” length
NIO-AS19(color) 3/4” length
Accessory
Die-cast Trim
NIO-AS26(color) 1” length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14WH 5/8” length / warm white finish
NIO-AS19MPW 3/4” length / bright white finish
NIO-AS19WH 3/4” length / warm white finish
NIO-AS26WH 1” length / warm white finish
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.

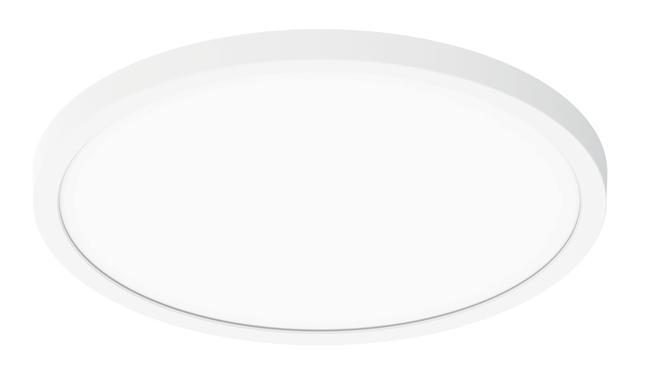

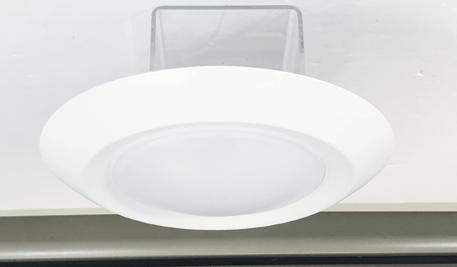

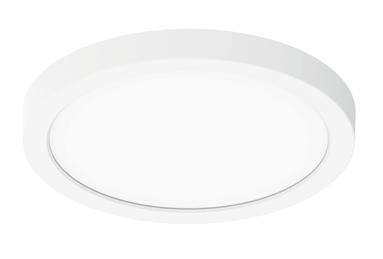

ELO LED Surface Mount Luminaire with Selectable CCT
Source: 12W to 24W LED 850lm to 1750lm
PRODUCT DESCRIPTION
ELO LED luminaires are a thin 3/4" surface mounted luminaire with selectable color temperature. Luminaires are available in 4", 6", 8" or 12" sizes and mounts easily over a standard or fire rated junction boxes.
FEATURES
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
120VAC input; Triac or ELV dimming
Available in four sizes (4", 6", 8" or 12")
Decorative rings easily attach to fixture
cETLus Listed for Wet Locations
5-Year Limited Warranty
SPECIFICATION
Construction: Dead front (non-metallic) polycarbonate luminaire with integral driver and color temperature switch. Gasket included for airtight and wet location listing without additional caulking.
Mounting: Steel bracket can be used to surface mount onto a junction box. EVA foam gasket provided for wet location applications.
Decorative Ring: Decorative accessory changes the finish of the luminaire. Available in black or brushed nickel finish.

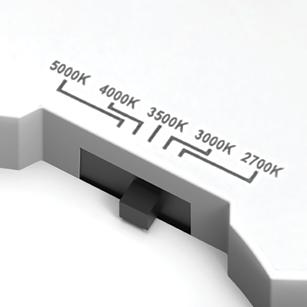

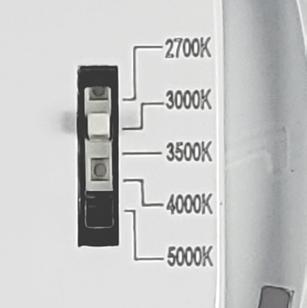

Five position sliding switch 27K / 30K / 35K / 40K / 50K
Diameter: Aperture:
NELO-4RTW 5-1/2" 4-1/2"
NELO-6RTW 7" 6"
NELO-8RTW 8-7/8" 7-3/4"
NELO-12RTW 12-1/4 11"
NSEM-6WDW
Surface Mount Enclosure with Emergency Driver for 6" only

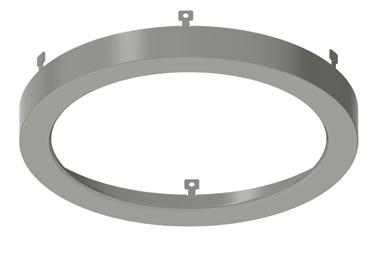

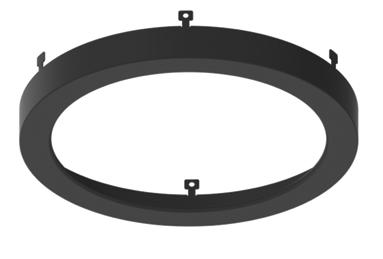

Decorative Ring
Optional Accessories
NELO-4R = Decorative Ring for 4" ELO
NELO-6R = Decorative Ring for 6" ELO
NELO-8R = Decorative Ring for 8" ELO
NELO-12R = Decorative Ring for 12" ELO

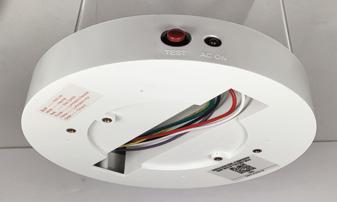

NSEM-6WDW = Surface mount enclosure with Emergency Driver for 6"
NSEM-6NDW = Decorative enclosure without Emergency for 6"
NO SPEC
THE GEORGE TYPE FX11 ALT
NLOPAC-R6REGT24TW

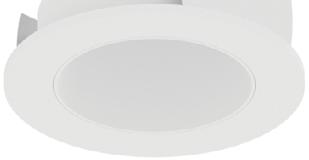

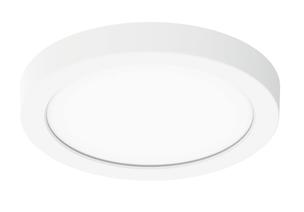

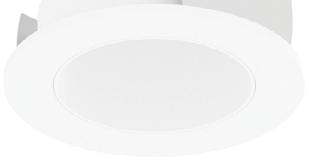

6" Regressed AC Opal LED Surface Mount with Selectable CCT
Source: 11W LED Up to 1100lm
PRODUCT DESCRIPTION
The Regressed AC Opal fixture is designed to surface mount over a standard junction box. Luminaires include a selectable color temperature switch located under the lens to change the color temperature without removing the fixture. The regressed light source gives the appearance of a recessed luminaire.
FEATURES
Recessed appearance
AC LED (No Driver)
Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
Can be used with recessed housings when used with optional retrofit kit cETLus Listed for Wet Locations
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets
SPECIFICATION
Construction: One piece die-cast aluminum formed luminaire. Aluminum body dissipates heat and extends life.
Mounting: Surface mount luminaire is compatible with 3" or 4" junction boxes and 1/2" deep pancake boxes. Luminaires can also be mounted on 5" or 6" recessed housings using optional torsion spring kit (NLOPAC-R6TWRECKIT).
Ratings: IC rated when used with 3" or 4" electrical junction box rated for direct contact with insulation. Fire rated when used with a fire rated junction box.
ELECTRICAL
Input Voltage: 120V
Input Frequency: 60Hz
Lumens / Wattage: 1100lm / 11W
Color Temperature: Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
Color Rendering Index: 90+ CRI
Beam Spread: 114° Wide Flood
Operating temperature: -20°C to 40°C
Dimming: Triac or ELV
OPTIONAL ACCESSORY
NLOPAC-R6TWRECKIT: Retrofit Kit for 5" or 6" Recessed Housings
NLOPAC-4BKT-2: Bracket for 4" Square Junction Boxes
NEPK-23LEDUNV: 23W Emergency with Remote Test Switch
NEPKA-20/23LEDRTS: Ribbon Test Switch for NEPK-23LEDUNV
Emergency: Luminaire is compatible with NEPK-2 3LEDUNV (ordered separately). Remote mounted battery operates luminaire for 90 minute emergency operation with a fully charged battery. Emergency includes remote test switch, ribbon test switch accessory (NEPKA-20/23LEDRTS) ordered separately.
LISTING
cETLus Listed for Wet Locations
· 5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2022
Suitable for use in closets when installed in accordance to NEC Section 410.16 (A)(1) and 410.16 (C)(1).
FCC Compliant
6" Regressed AC Opal LED Surface Mount with Selectable CCT
Description
NLOPAC-R6REGT24TWW = White Finish
Example: NLOPAC-R6REGT24TWW = 6" Regressed AC Opal LED Surface Mount, Selectable CCT, White Finish
Five position sliding switch 27K / 30K / 35K / 40K / 50K
Optional Accessory
Description
NLOPAC-R6TWRECKIT = Retrofit Kit for 5" or 6" Recessed Housings
NLOPAC-4BKT-2 = Bracket for 4" Square Junction Boxes
NEPK-23LEDUNV = 23W Emergency LED Driver w/ Remote Test Switch NEPKA-20/23LEDRTS = Ribbon Test Switch for NEPK-23LEDUNV
NO SPEC

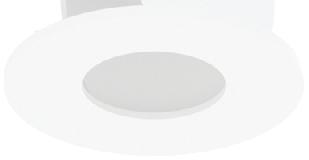

NPR-4RPHA
4" Pearl LED Round Adjustable Pinhole Retrofit
Source: 10W LED 950lm
PRODUCT DESCRIPTION
Pearl LED R etrofit series is cULus classified for use in existing IC housings manufactured by Nora. The 4" retrofit luminaires deliver over 950 lumen s with 2" pinhole to focus the beam spread through small opening. Available in fixed downlight or adjustable
FEATURES
Comfort Dim (warm dimming) is available in 550lm only 2700K, 3000K, 3500K, 4000K @ 90+ CRI
Three field changeable optics included Integral dimmable driver 5-year limited warranty
cULus classified for damp locations
SPECIFICATION
Construction: Trims are constructed of heat-dissipating die-cast aluminum. A threaded aluminum LED heat sink integrates directly with the trim for optimal heat transfer, while a heat-resistant polycarbonate blend plate enhances overall temperature control and performance.
Mounting: Trim includes f riction blades to mount securely to housing.
OPTICS
Three field changeable optics (spot, narrow flood and flood - installed) are included with each LED module
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 550lm only
Dimming: Triac (leading edge) or ELV (trailing edge)
Click Here or check complete dimmer list at www.NoraLighting.com in the “Compatibility” page under “Resources” tab
COMPATIBLE HOUSING
Pearl adjustable pinhole retrofit reflectors are compatible with 4" Max. Adjustability IC housing by Nora only
New Construction
NSIC-4LMRAT Max. Adjustability ICAT Dedicated LED
Retrofit: A medium base screw-socket adapter is included for retrofitting into existing housings. Medium base sockets may require removal, dependent on trim and housing height. A GU24 socket adapter is also available, ordered separately (NRA-212SM)
Accessories: Luminaires can accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus classified for Damp Locations
RoHS compliant 5-Year Limited Warranty
Certified to the high efficacy requirements of California Title 24 JA8-2025 Patent Pending
4" Pearl LED Round Adjustable Pinhole Retrofit
Color Temperature Finish
NPR-4RPHA27 X = 2700K
NPR-4RPHA30X = 3000K
NPR-4RPHA35 X = 3500K
NPR-4RPHA40X = 4000K
NPR-4RPHACDX = Comfort Dim BB = Black BMPW = Black Pinhole / Bright White Flange HZMPW = Haze Pinhole/ Bright White Flange
Example: NPR-4RPHA40XMPW = 4" Pearl LED Round Adjustable Pinhole Retrofit, 4000K, Bright White finish
NPR-4RPHA40XMPW 977lm 4000K Flood Delivered lumens will vary depending on CCT, optic and finish
PRODUCT IMAGES & DIMENSIONS
NPR-4RPHA Round Adjustable Pinhole
20° Adjustable (varies by housing)
* For maximum adjustment use NSIC-4LMRAT *
BLANK
THE GEORGE TYPE FX16
NSIC-4LMRAT
4" Max. Adjustability LED Dedicated IC Airtight New Construction Housing
Source: 12W max. (Compatible with Pearl Series)
PRODUCT DESCRIPTION
Dedicated new construction housing for use in insulated ceilings can be in direct contact with insulation.* Airtight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with Pearl LED Series to allow maximum adjustability for adjustable reflectors. Housing does not include a “can” inside, allow for adjustable reflectors to adjust up to 35°.
FEATURES
· Allows adjustable reflectors the maximum angle or rotation and tilt
IC Airtight energy saving by reducing the flow of air through the ceiling
Rated for direct contact with insulation
· cULus listed for damp locations (wet locations when used with compatible luminaires)
24-1/2" Bar hangers with captive nails and alignment foot
CONSTRUCTION
Housing: 0.040 steel frame with integral bar hanger brackets. Ceiling collar accommodates ceiling thickness from 1/2" to 7/8", optional 1.75" ceiling extension collar available (NSIC-4EXTC2). Collars are designed for use in sheetrock, acoustical ceiling tile, wood/millwork and many other ceiling materials.
Air Flow Restriction: Air tight in accordance to ASTM E283 (<2 cubic feet per minute).
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4 ” to 24- 1/2 ” adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.
Junction Box: Prewired 25 cubic inch 0.060" thick galvanized steel with seven 1/2" trade size knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
ELECTRICAL
Input Voltage: 120V
Socket: Quick connect for LED luminaires
Wattage: 12W max.
Dimming: Triac or ELV
COMPATIBLE LUMINAIRES
CATALOG NO.
DESCRIPTION
NPR-4RC 4" Pearl Round Adjustable Cone
NPR-4RG 4" Pearl Round Adjustable Gimbal
NPR-4RPH WET 4" Pearl Round Fixed Pinhole (Wet Listed)
NPR-4RPHA 4" Pearl Round Adjustable Pinhole
NPR-4RNB WET 4" Pearl Round Bullnose (Wet Listed)
NPR-4RNDC WET 4" Pearl Round Reflector (Wet Listed)
NPR-4RSL 4" Pearl Round Adjustable Slot Aperture
NPR-4RSL A 4" Pearl Round Adjustable Slot
NPR-4RTLA 4" Pearl Round Trimless Adjustable
NPR-4RTLNDC WET 4" Pearl Round Trimless Downlight (Wet)
NPR-4RTSLA 4" Pearl Round Trimless Adjustable Slot
NPR-4SC 4" Pearl Square Adjustable Cone
NPR-4SG 4" Pearl Square Adjustable Gimbal
NPR-4SNB WET 4" Pearl Square Bullnose (Wet Listed)
NPR-4SNDC WET 4" Pearl Sq. Reflector w/Round Aperture
NPR-4SNDSQ WET 4" Pearl Sq. Reflector w/Square Aperture
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible luminaires) Airtight in accordance to ASTM 283
IC RATED AIR TIGHT
Housing Type
NSIC-4LMRAT: 4" Max. Adjustability LED Dedicated IC Airtight Housing
Example: NSIC-4LMRAT = 4" Max. Adjustability LED Dedicated IC Airtight New Construction Housing 4" Max. Adjustability LED Dedicated IC Airtight New Construction Housing
