2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
PART NUMBER
LUMENPLASE
QTRAN BEGA
LOUIS POULSEN WAGNER BEGA BOCCI
JUNIPER
JPR-THES-_-SQR-2-30-F-R-CX AXIS AXIS
B2SQILEDPAT R-X 110 90 30 SL X UNV DP 1 X
ARSLED-100-90-30-S-4-W-UNV-DP-1-S

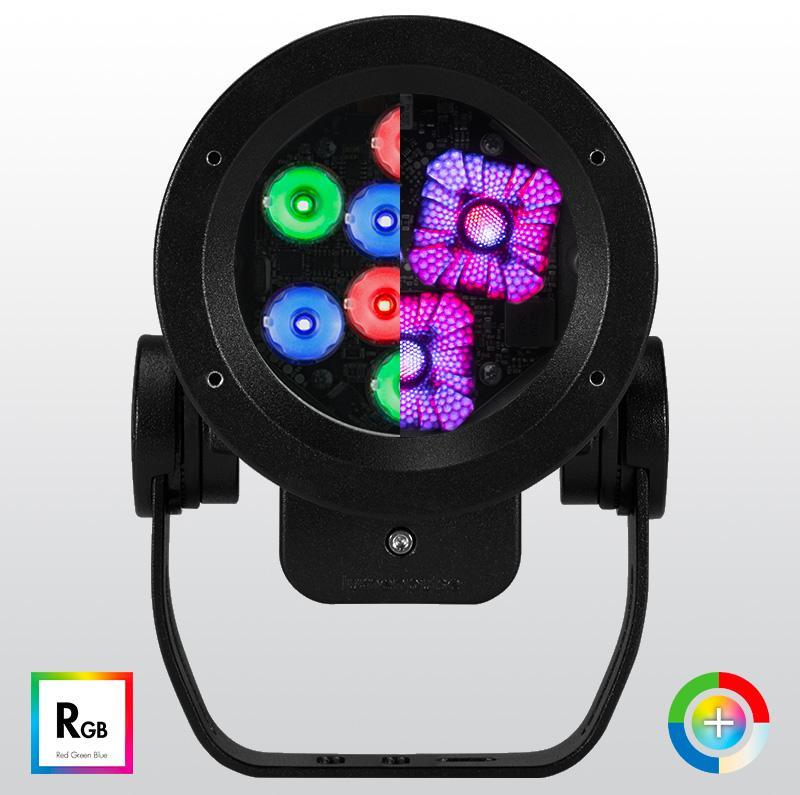

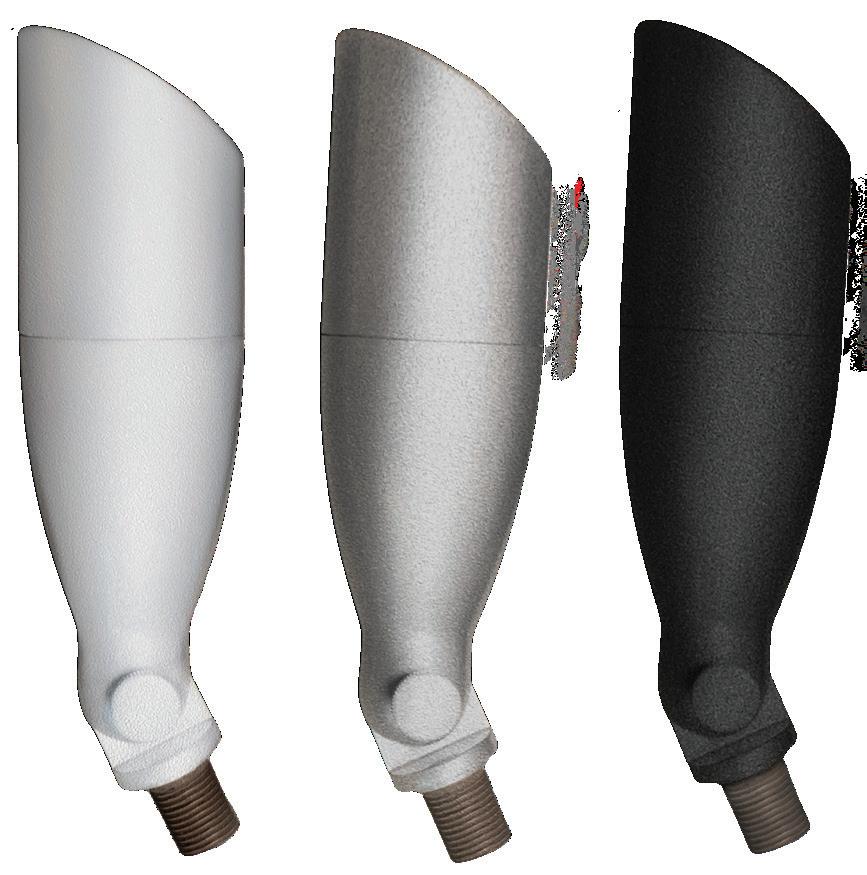

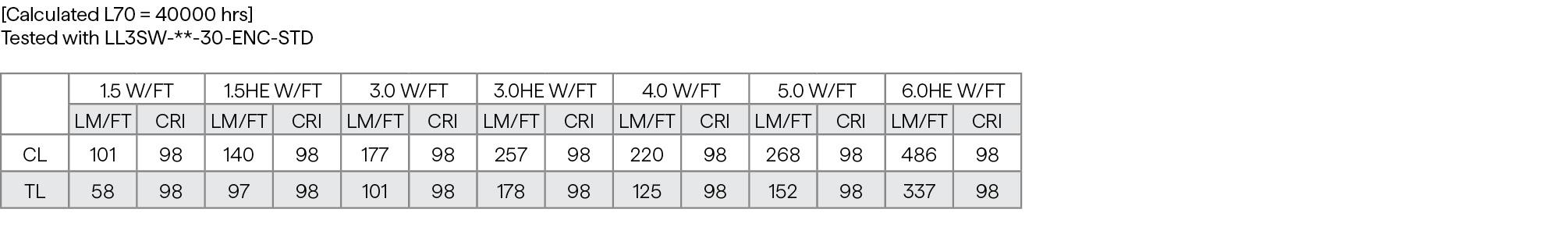

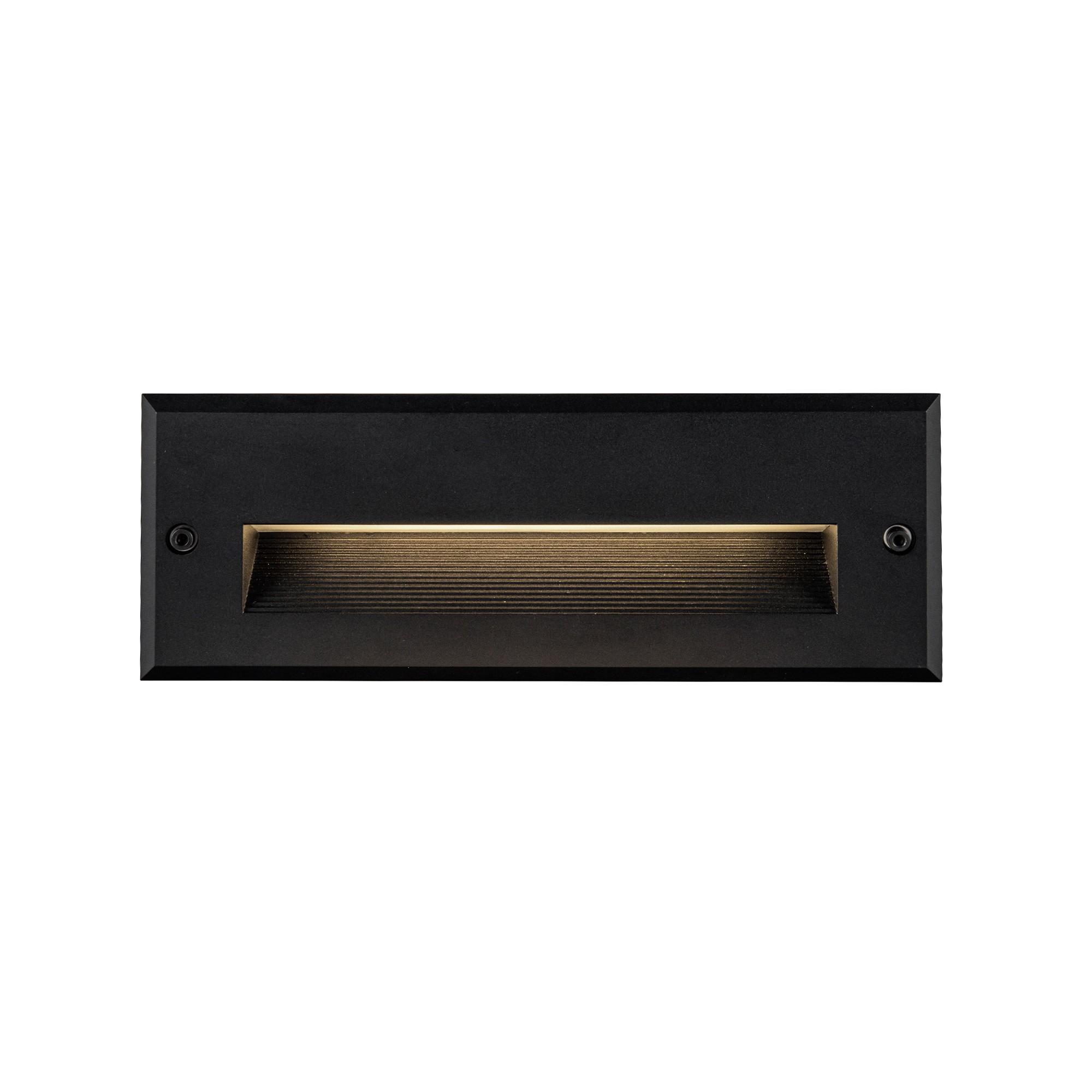

LL3SW 3.0HE 30 ENC STD TL_ST X
LL3SW 3.0HE 30 ENC STD TL_ST X
LL3SW 3.0HE 30 ENC STD TL_ST X AR
LED TR E65 MFL A9_12 11 C 6 WM
B3RDF-15X-30KH-55-S-_-FT-UNV-D6

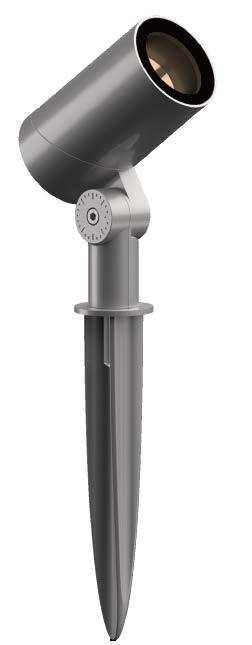

NANO-X 3W 3000K 120V 120 A F E LD
AR LED TR E65 MFL A9_12 11 C 6 WM
LBS-120-30K-FL_-DIM-CN-UL-_
ANBD-SW-ESC-WET-30-2.0-ENC/TL-_-
_-WH_ B24374-K3-BLK-MODIFY 90 CRI

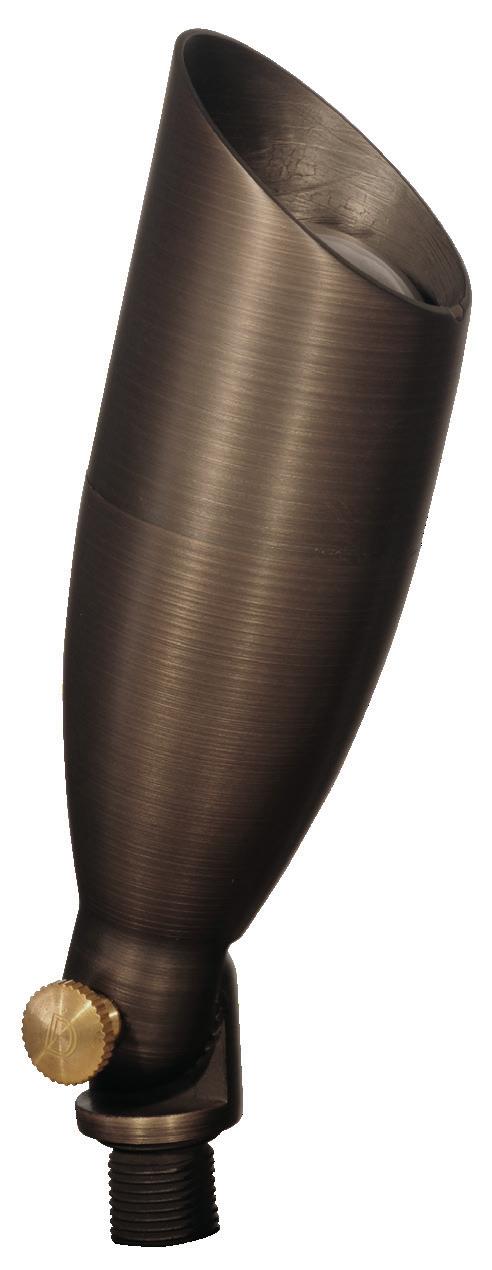

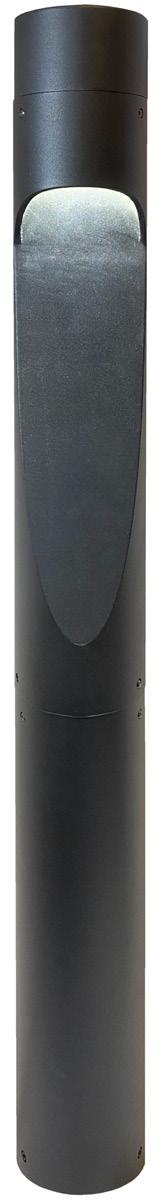

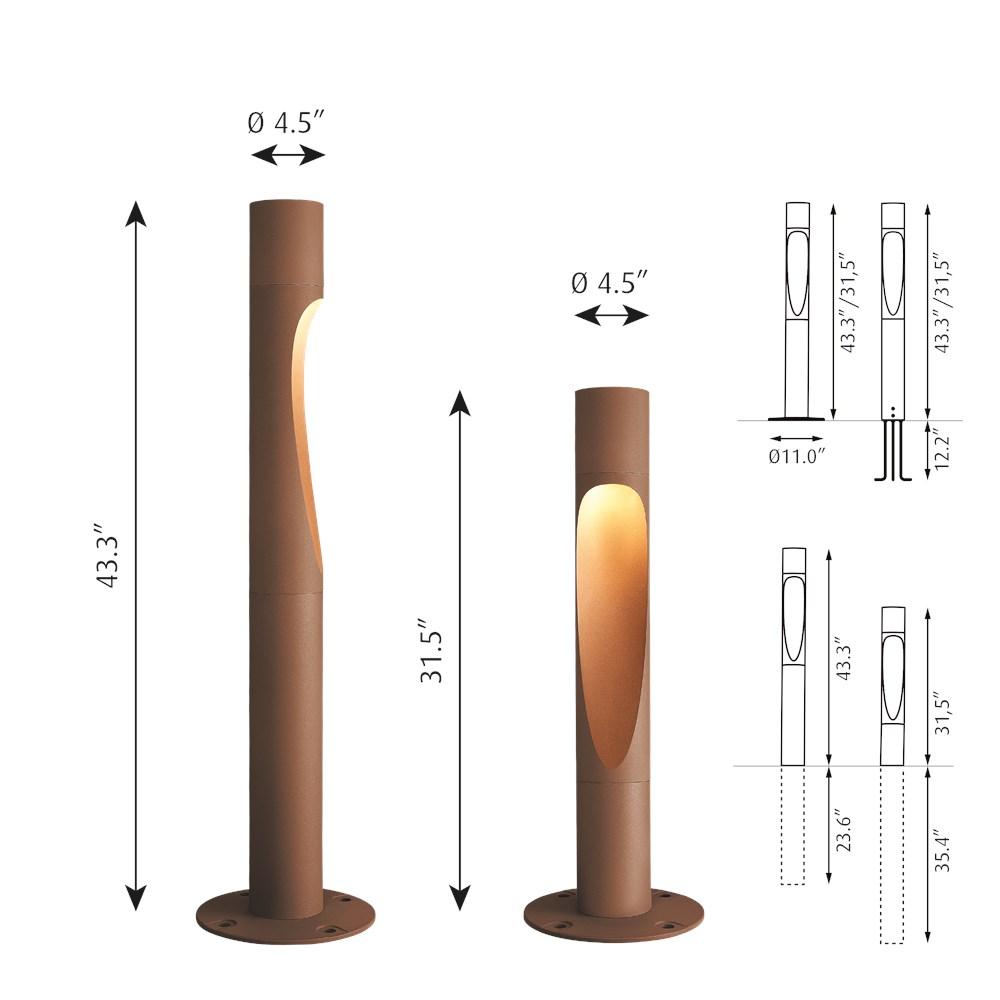

FLINOT BOLLARD-43" HEIGHT-3000K
LULS-30K-40-70-MA_90CRI
B33054-K3-BLK 14.20 63
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
PART NUMBER

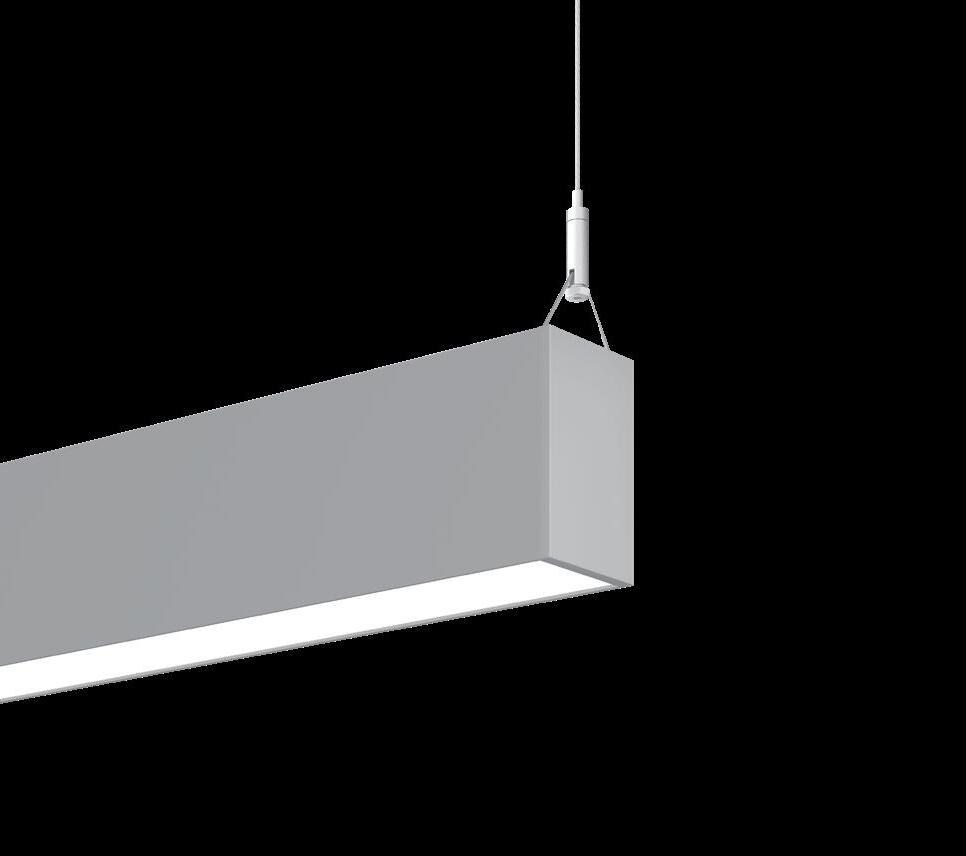

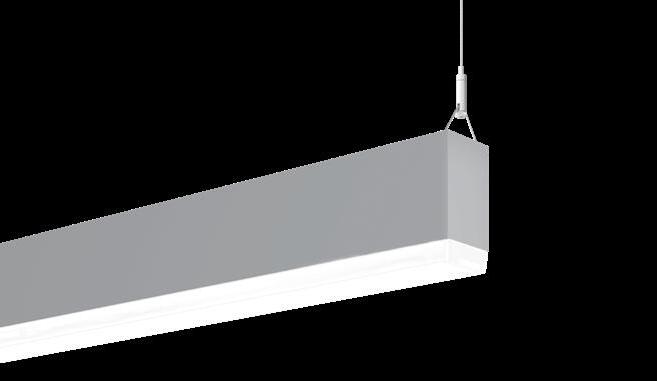

CAR2-I-BAT-ASW04-10-30-HW-120/277-9'x12'-PR-0-10V

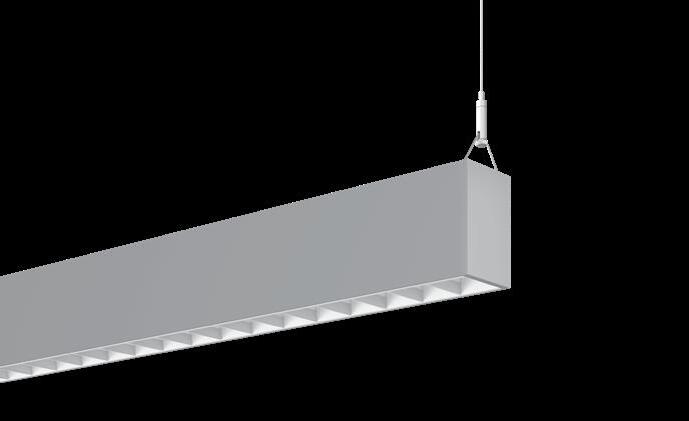

CAR2-D-PL-WM-6-30-HW-120/277-4'-IND-0-10V

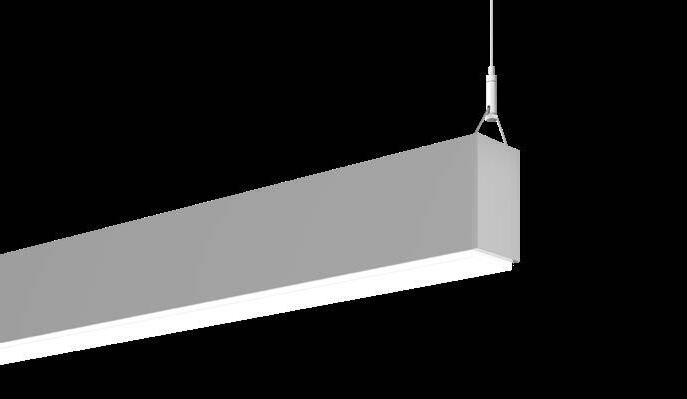

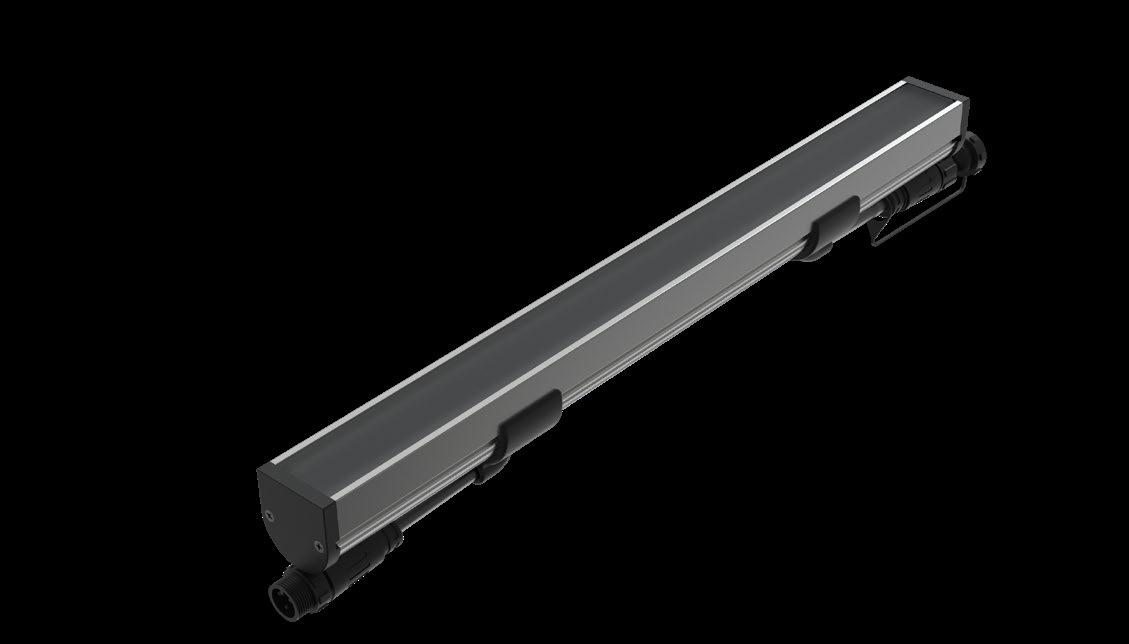

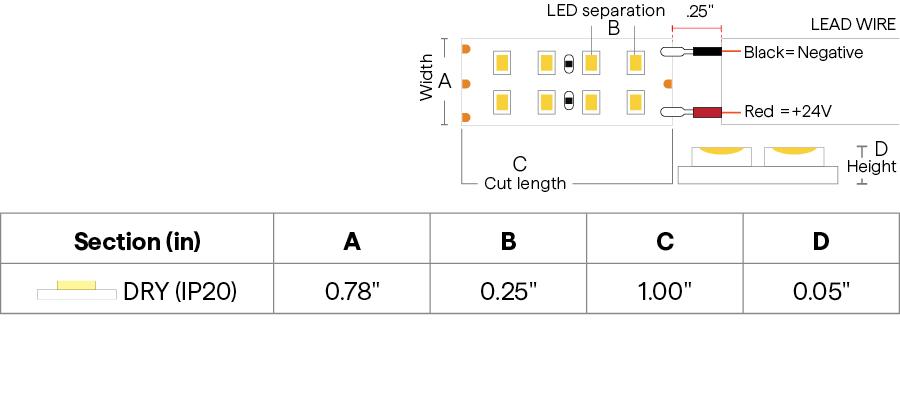

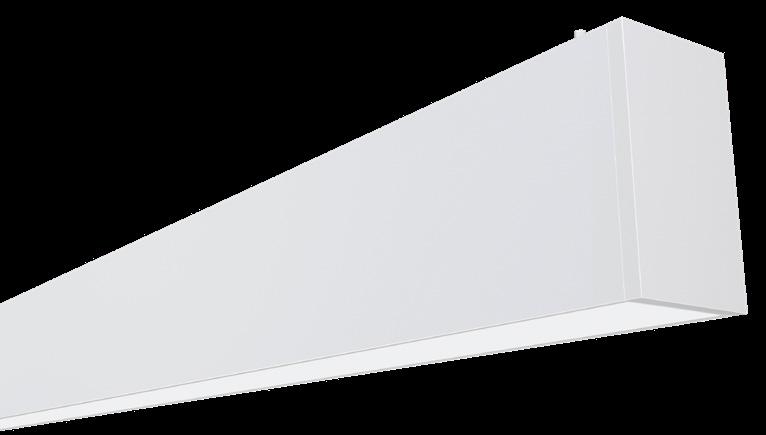

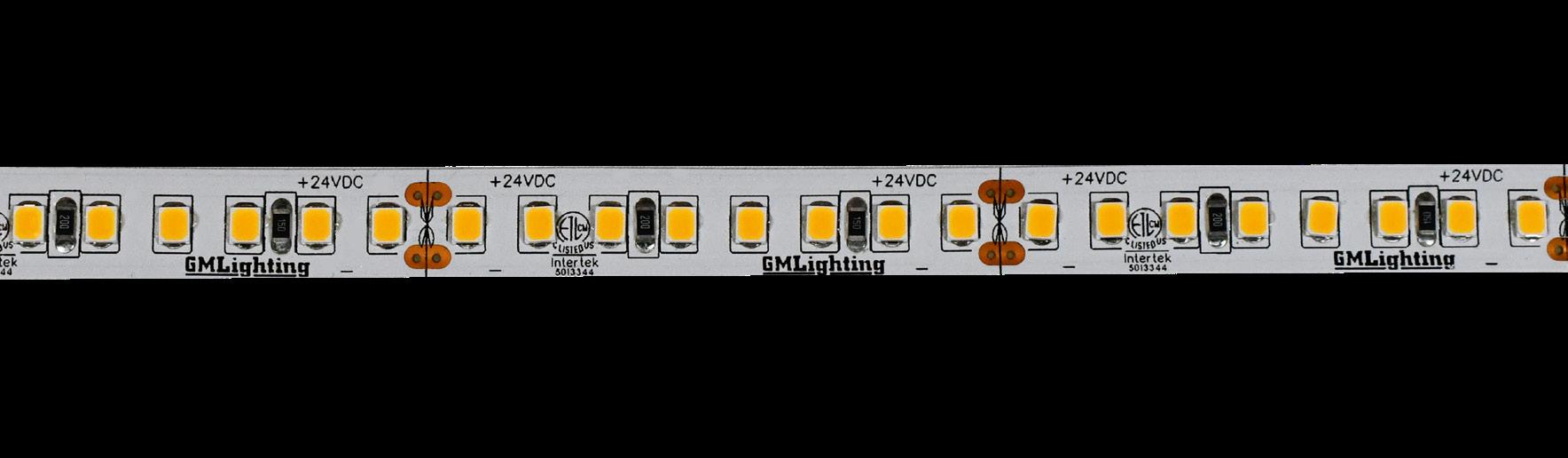

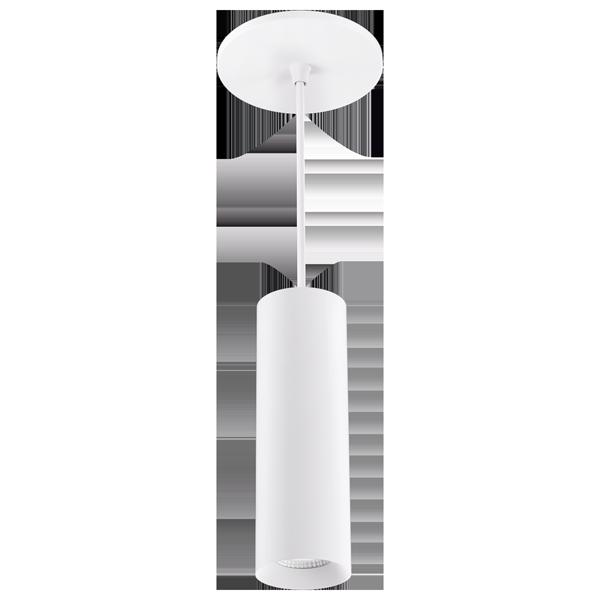

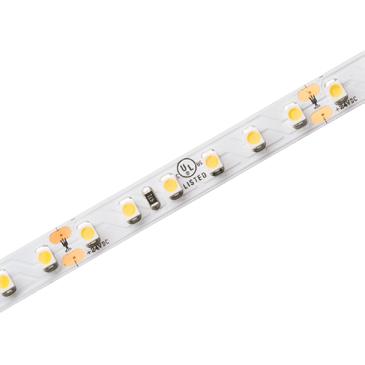

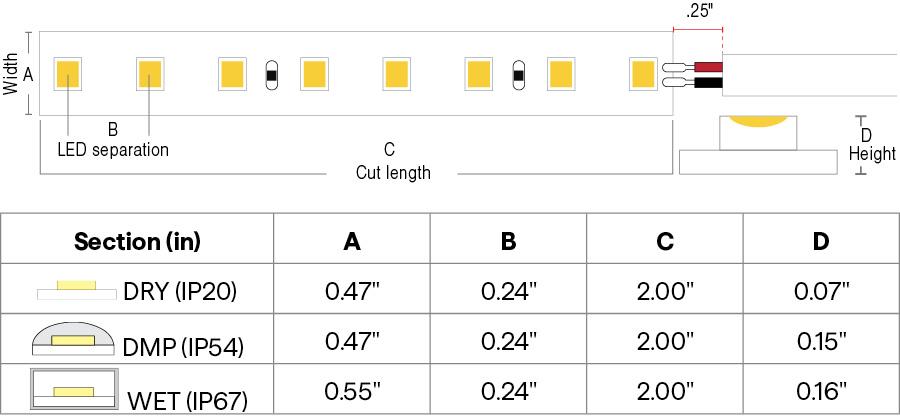

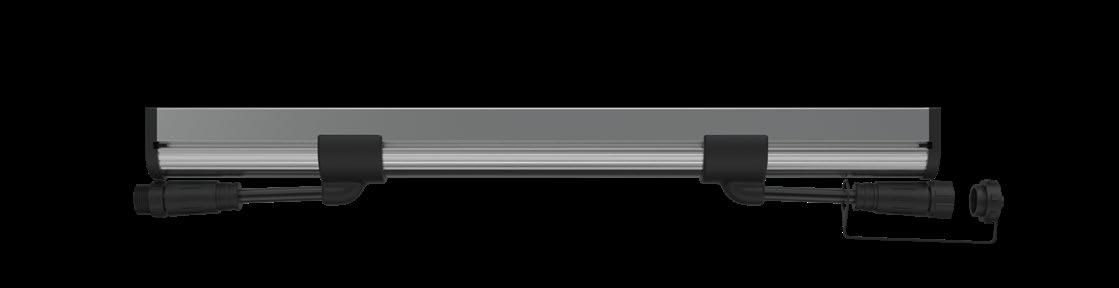

LTR-P-WP-24V-3W-30K-16
NV120S-4W-30K-4'/36'/86'
NV120S-4W-30K-46'
490007-7W-30-3000K
490541
NIOB-2RNB30X-BB/HL / NHIOICD-415-LE4
LP40-30K-X-X
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
PART NUMBER

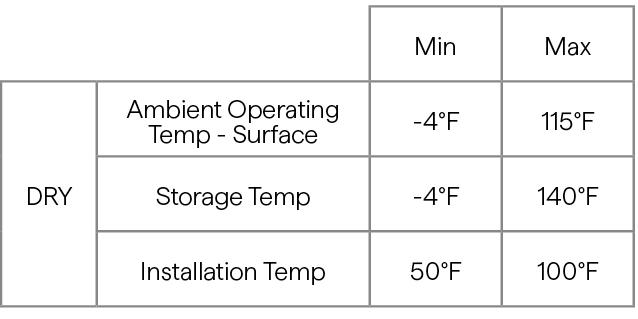

JPR-FLO-_-18-W-30-F 14.36 83.5

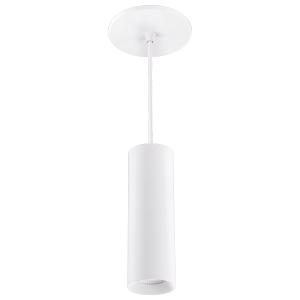

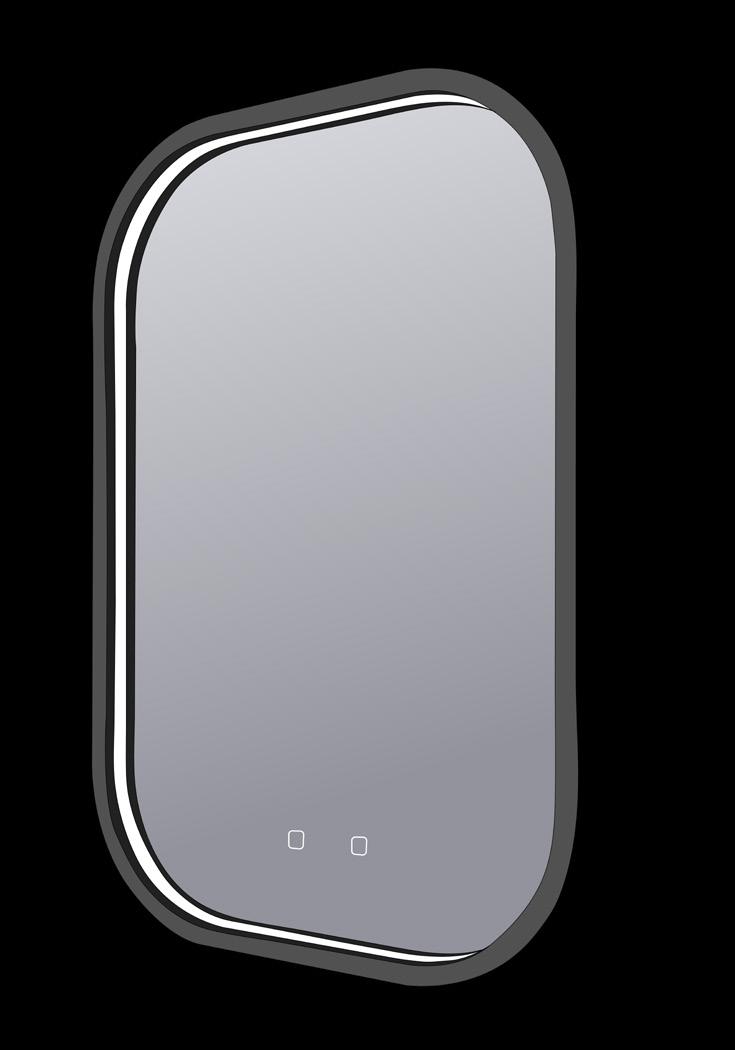

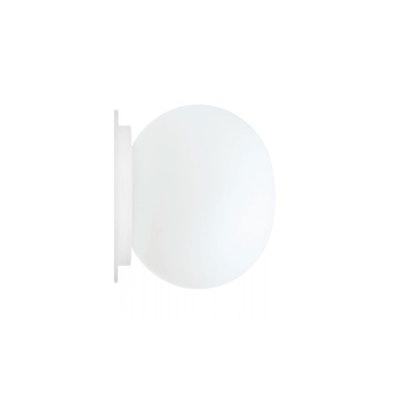

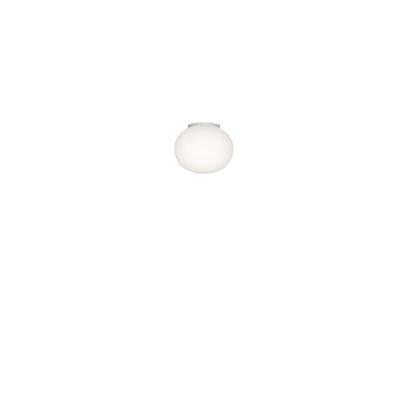

MINI GLO-BALL WALL PER A MIRROR

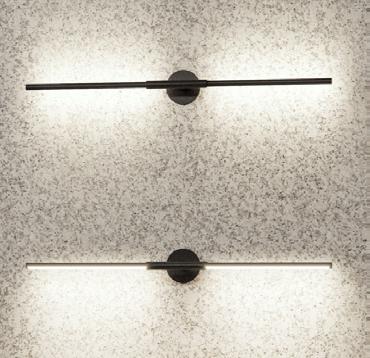

THIN SURFACE MOUNT [36"]
JPR-FLO-_18-W-30-F

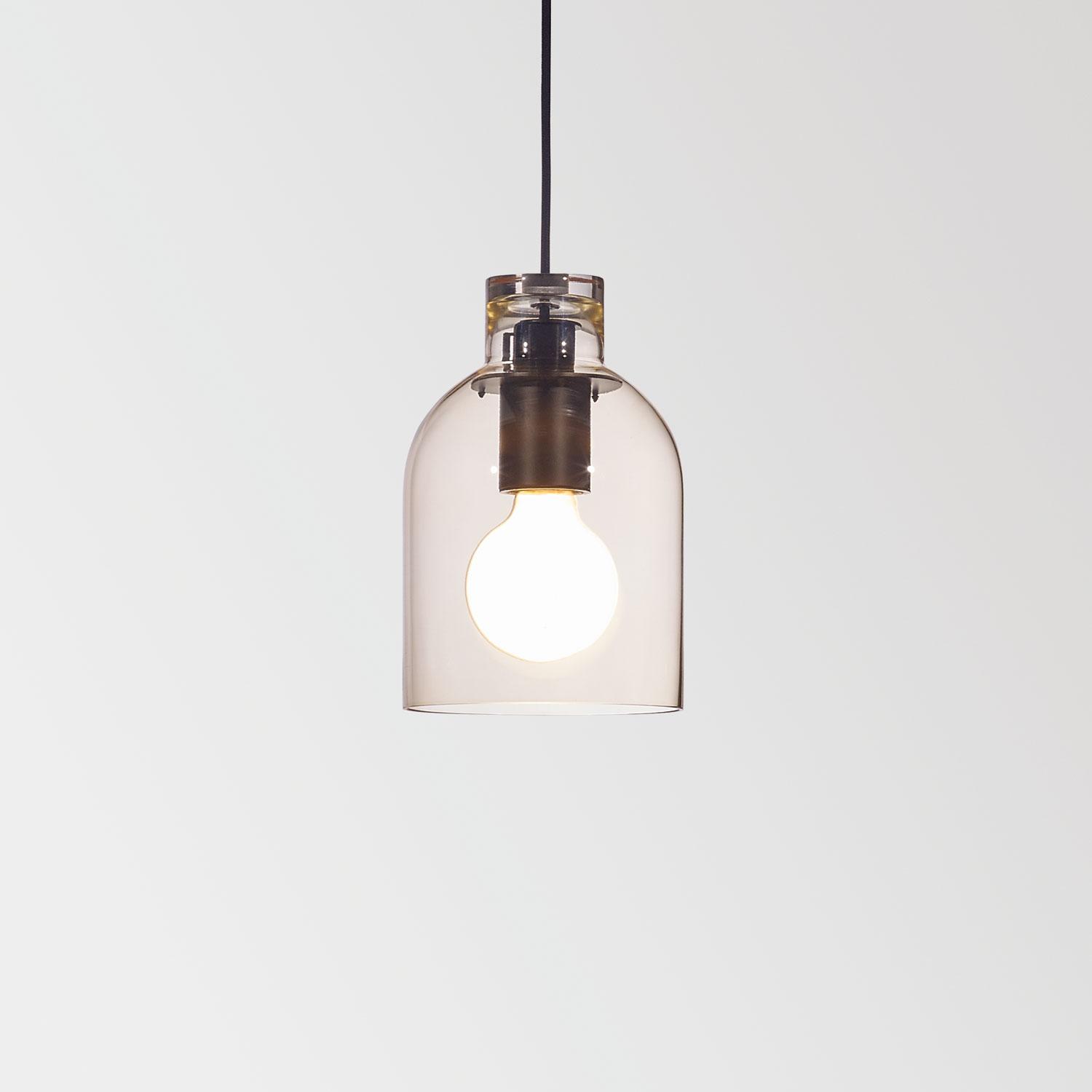

MANTELLO GLASS/AMBER

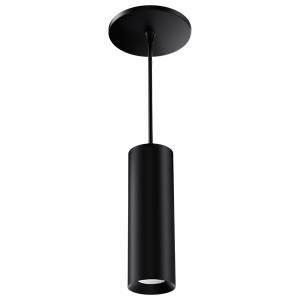

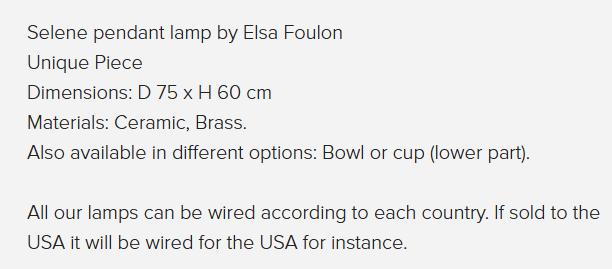

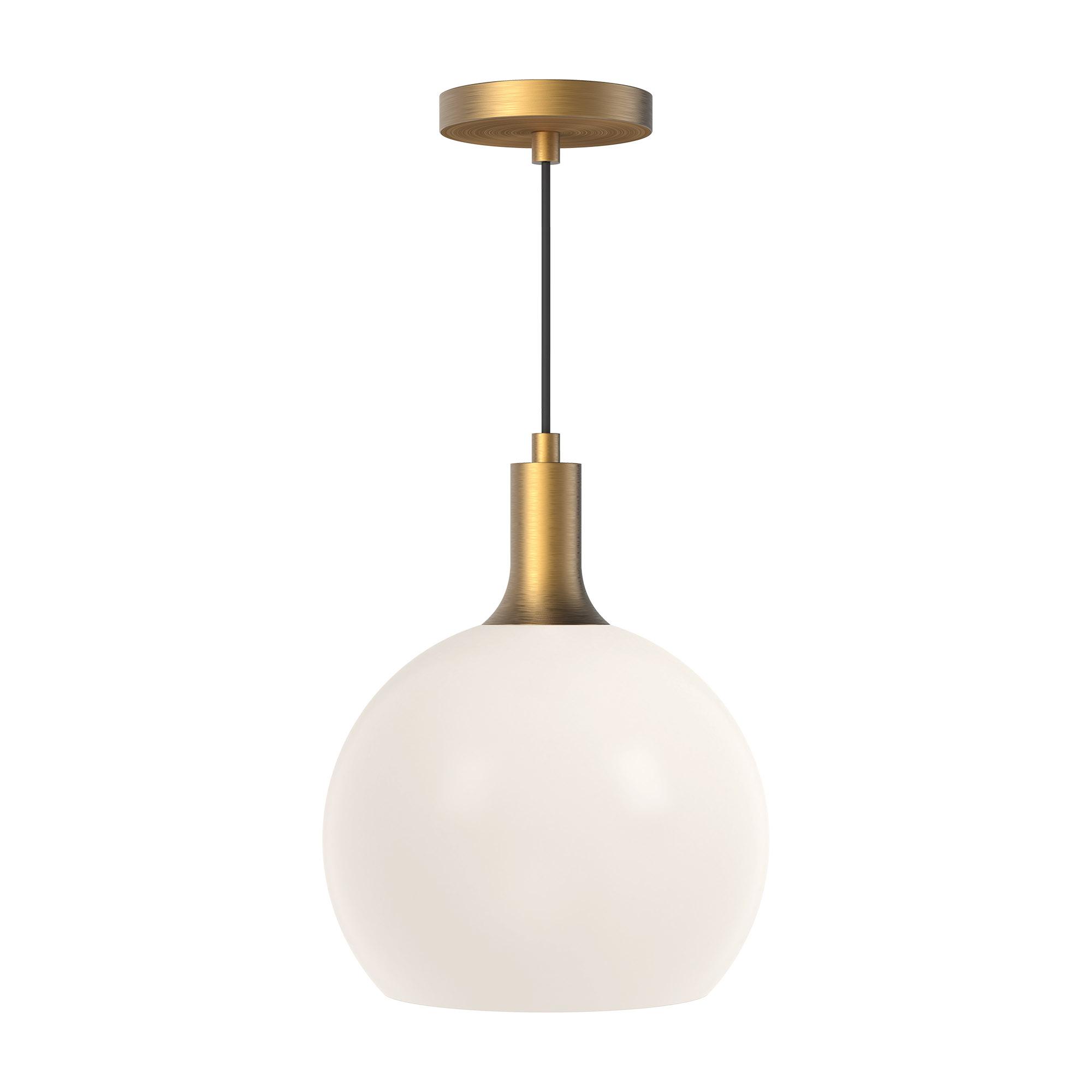

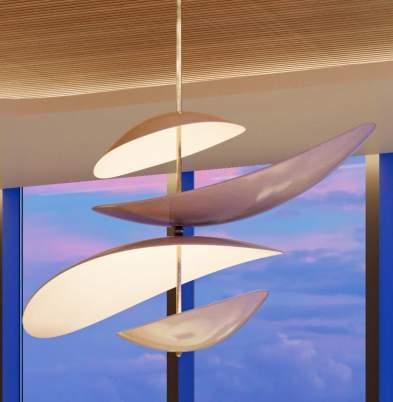

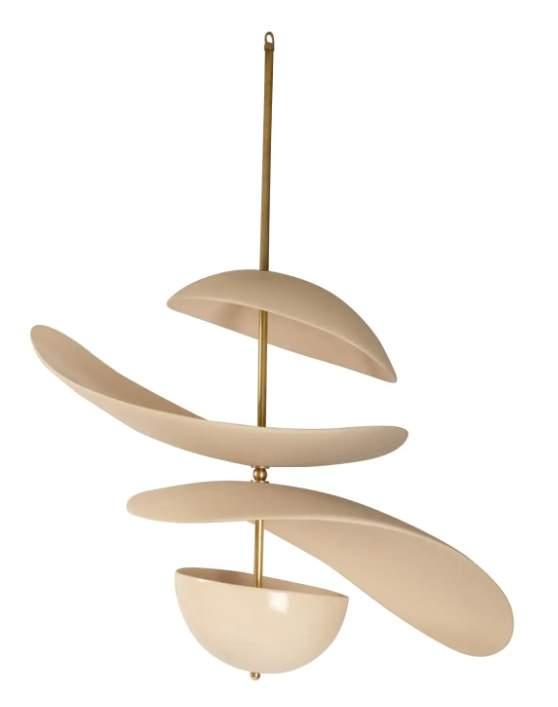

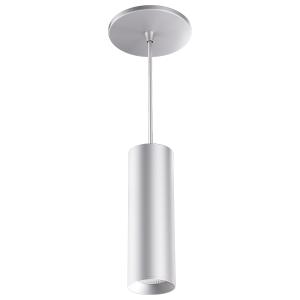

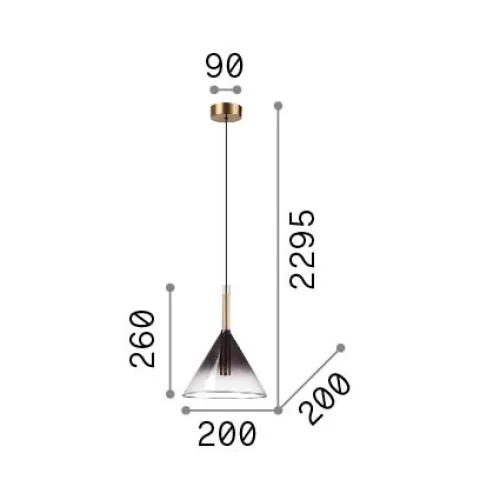

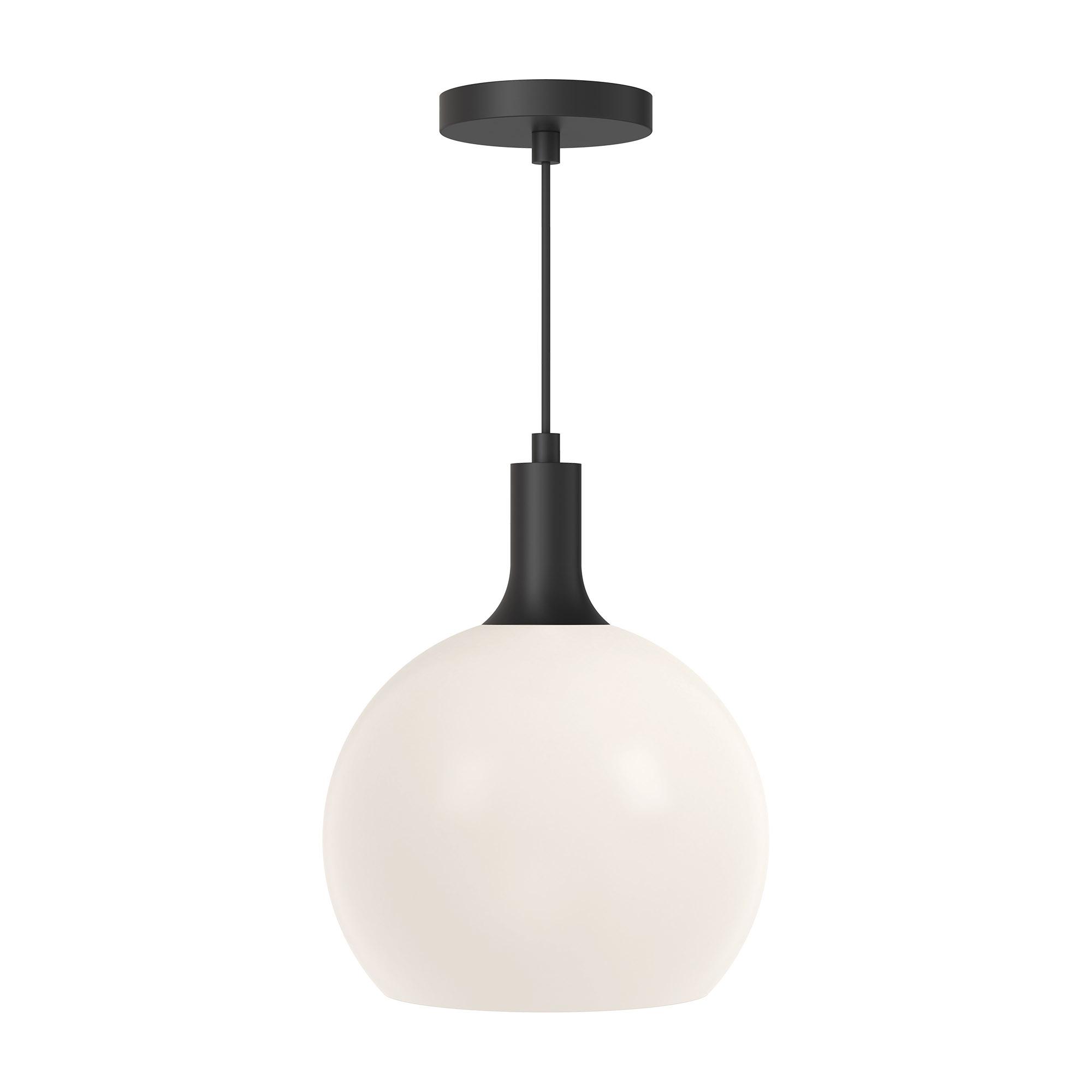

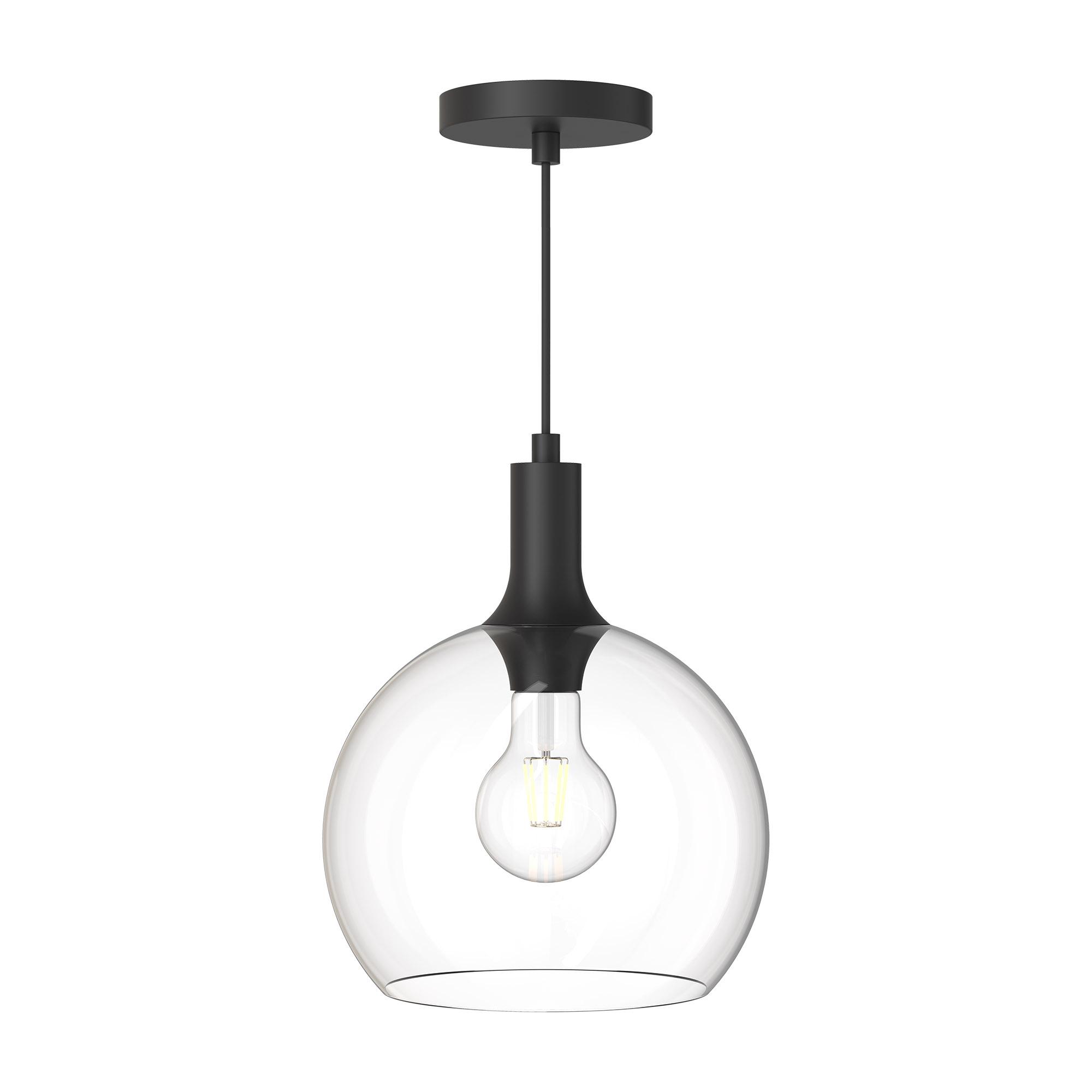

SELENE PENDANT
EMPIRE PENDANT
2301 NW 33rd Ct. Unit 112, Pompano Beach, FL 33069 (561)990-2590 | Toll Free : 1-877-514-2377
MFG
JUNIPER BOCCI FLOS JUNIPER JUNIPER KUZCO
ELSA FOULON KUZCO
PART NUMBER
JPR-THFO-RETR-JBP-30-30-02 14.36 83.5
FU419009
JPR-THEW-MONO-SMP-090-000003-30-02
JPR-THFO-RETR-JBP-30-30-02

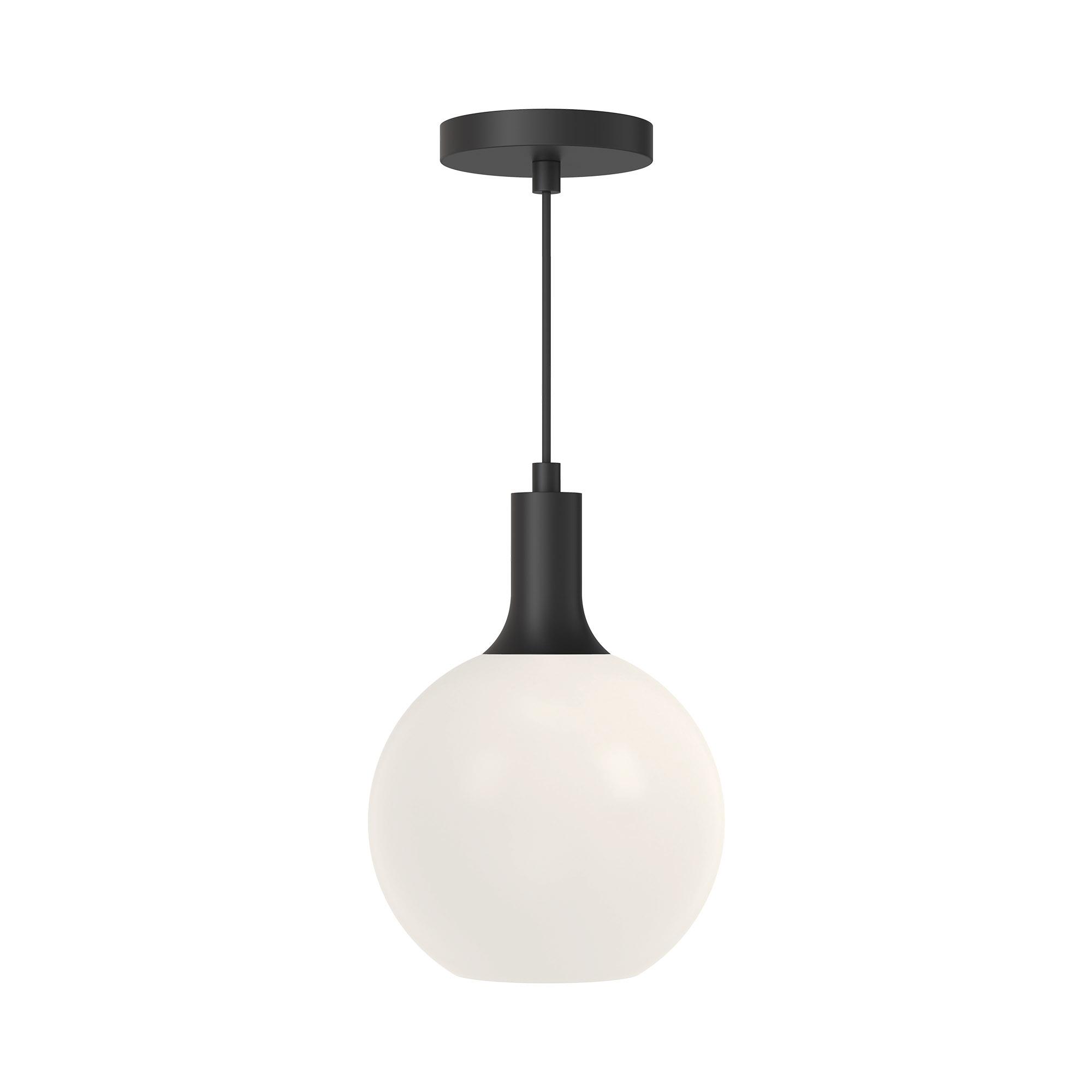

PD506210MBCL
SELENE PENDANT
PD506108AGCL
Prepared by Notes
Interactive Menu
• Order Information page 2
• Photometric Data page 3
• Control Solutions page 4
• Product Warranty

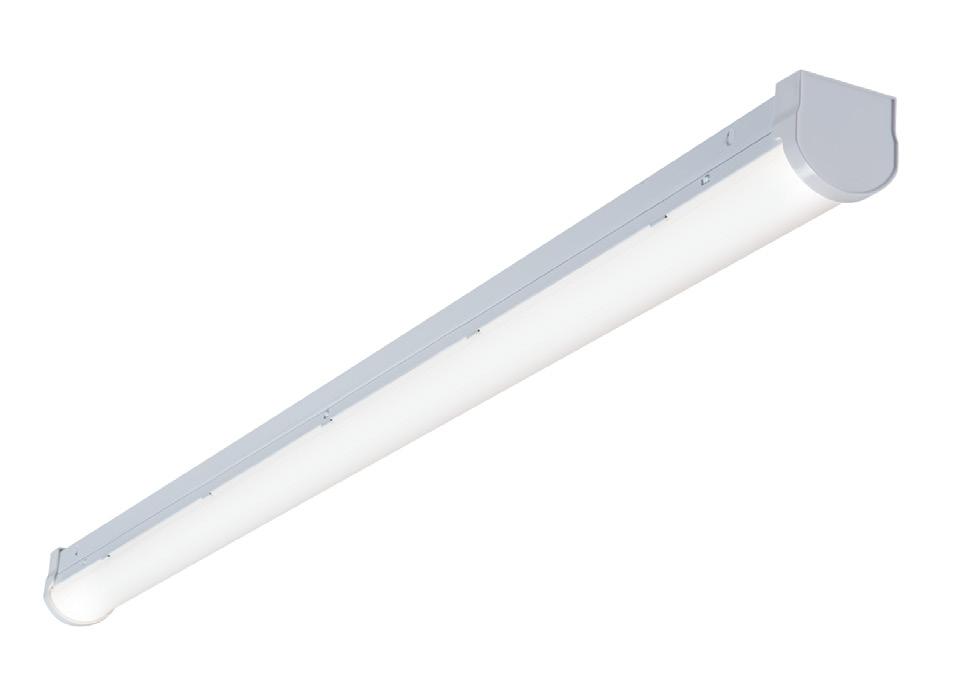

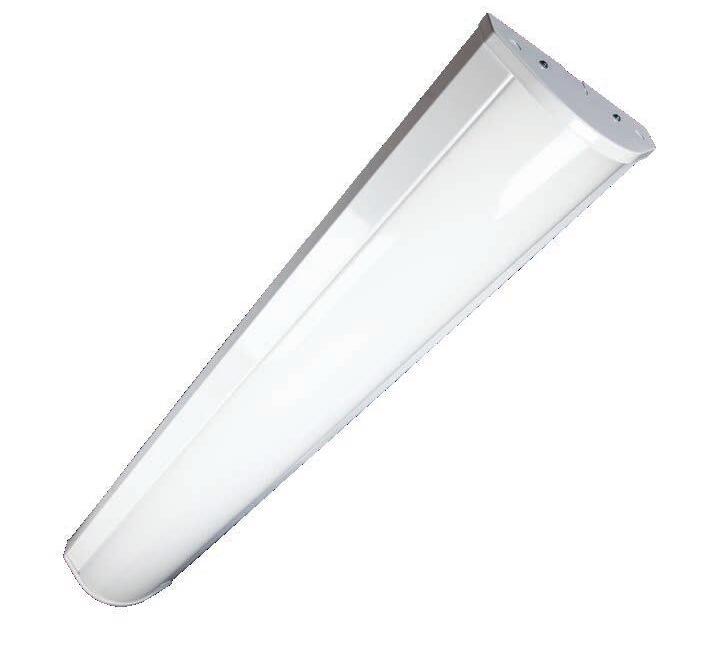

Top Product Features
• From 2800 to 6200 lumens for a 4 foot strip
Typical Applications
Product Certification
Product Features
• 8ft. 4ft. and 2ft. Lengths with single lens (no tandem) to address any application
• Up to 125 LPW and DLC compliant to enable rebates and energy savings
• Frost white polycarbonate lens, linear prisms for even illumination
• 4000K and 5000K CCT, 80 CRI Min
Dimensional and Mounting Details
2-5/8" [66mm]
2-9/16" [66mm] WITH ENDCAP INSTALLED

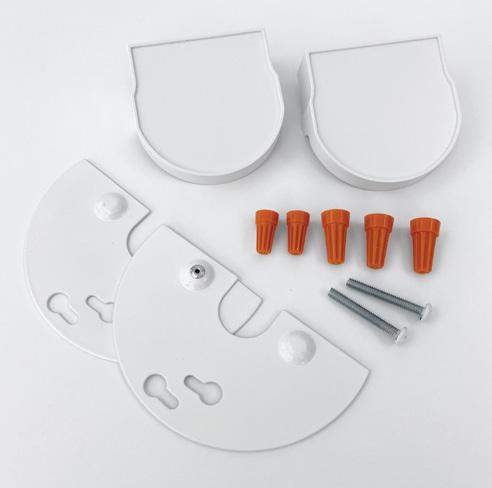

J-box Cover and Endcap included
Cover for junction box is shipped standard with fixture, along with hardware to secure cover to J-box.
2SLSTP1040DD-120V08008370577124000139012121Triac
2SLSTP2040DD-120V08008370578824000268022121Triac
4SLSTP2040DD-120V08008370579544000283023125Triac Dimming to 10%0.19
4SLSTP4040DD-120V08008370580144000498040125Triac Dimming to 10%0.33
4SLSTP4040DD-UNV08008370582544000521038.91350-10V Dimming to 10%0.320.14
4SLSTP5550DD-UNV080083158959450006207491260-10V Dimming to 10%0.410.18
8SLSTP8040DD-UNV080083814787840009304761230-10V Dimming to 10%0.630.27
8SLSTP8050DD-UNV080083158966850009922761310-10V Dimming to 10%0.630.27
8SLSTP11040DD-UNV 0800838076808400011467941220-10V Dimming to 10%0.780.34
Accessories (Order Separately)
SLSTPROW88
Unit UPC# 080083815647
Master Carton UPC# 080083815654 (50 per Master)
UPC# 080083815661
Carton UPC# 080083815678 (100 per Master)

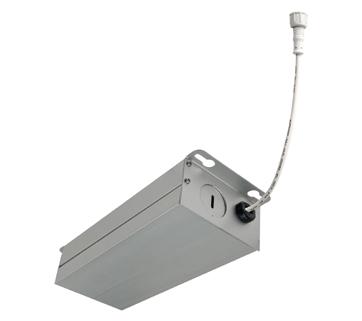

Battery Pack
SLSTP MS00 Kit=Field installable sensor kit, PIR Sensor 100% 50% OFF (5)
SLSTP MS25 Kit=Field installable sensor kit, PIR Sensor 100% 50% Low (~30%) (5) Wireguard, Row-mount and Lens
WG-SLSTP-4=Wireguard 46.3", nominal 4FT
WG-SLSTP-2=Wireguard 23", nominal 2FT
SLSTPROW88=8ft to 8ft continuous row bracket
SLSTPROW842=8ft to 4ft or 2ft continuous row bracket
2SLSTPLNS=2 ft. Replacement Lens
8SLSTPLNS=8 ft. Replacement Lens
Notes: (1) For stem, order two per fixture. (2) For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 7=700 lumens).
(3) Continuous row mount only between fixtures.
(4) EBP not available at 347V.
(5) Sensor info and coverage on page 5.
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135
4000K - 136
5000K - 137
Prepared by Notes
Interactive Menu
• Order Information page 2
• Photometric Data page 3
• Control Solutions page 4
• Product Warranty
Top Product Features
• From 2800 to 6200 lumens for a 4 foot strip
Typical Applications
Product Certification
Product Features
• 8ft. 4ft. and 2ft. Lengths with single lens (no tandem) to address any application
• Up to 125 LPW and DLC compliant to enable rebates and energy savings
• Frost white polycarbonate lens, linear prisms for even illumination
• 4000K and 5000K CCT, 80 CRI Min
Dimensional and Mounting Details
2-5/8" [66mm]
2-9/16" [66mm] WITH ENDCAP INSTALLED
J-box Cover and Endcap included
Cover for junction box is shipped standard with fixture, along with hardware to secure cover to J-box.
2SLSTP1040DD-120V08008370577124000139012121Triac
2SLSTP2040DD-120V08008370578824000268022121Triac
4SLSTP2040DD-120V08008370579544000283023125Triac Dimming to 10%0.19
4SLSTP4040DD-120V08008370580144000498040125Triac Dimming to 10%0.33
4SLSTP4040DD-UNV08008370582544000521038.91350-10V Dimming to 10%0.320.14
4SLSTP5550DD-UNV080083158959450006207491260-10V Dimming to 10%0.410.18
8SLSTP8040DD-UNV080083814787840009304761230-10V Dimming to 10%0.630.27
8SLSTP8050DD-UNV080083158966850009922761310-10V Dimming to 10%0.630.27
8SLSTP11040DD-UNV 0800838076808400011467941220-10V Dimming to 10%0.780.34
Accessories (Order Separately)
SLSTPROW88
Unit UPC# 080083815647
Master Carton UPC# 080083815654 (50 per Master)
UPC# 080083815661
Carton UPC# 080083815678 (100 per Master)
Battery Pack
SLSTP MS00 Kit=Field installable sensor kit, PIR Sensor 100% 50% OFF (5)
SLSTP MS25 Kit=Field installable sensor kit, PIR Sensor 100% 50% Low (~30%) (5) Wireguard, Row-mount and Lens
WG-SLSTP-4=Wireguard 46.3", nominal 4FT
WG-SLSTP-2=Wireguard 23", nominal 2FT
SLSTPROW88=8ft to 8ft continuous row bracket
SLSTPROW842=8ft to 4ft or 2ft continuous row bracket
2SLSTPLNS=2 ft. Replacement Lens
8SLSTPLNS=8 ft. Replacement Lens
Notes: (1) For stem, order two per fixture. (2) For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 7=700 lumens).
(3) Continuous row mount only between fixtures.
(4) EBP not available at 347V.
(5) Sensor info and coverage on page 5.
LED48/WLINEAR/3CCT/3WO/UNV/D/HO
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM
LED48/WLINEAR/3CCT/3WO/UNV/D/HO+EM+MS
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K -140
3500K - 135
4000K - 136
5000K - 137
3500K - 141
4000K - 142
5000K - 143
3500K - 138
4000K - 139
5000K - 140
3500K - 135
4000K - 136
5000K - 137
TYPE A1 SPEC KAUFMAN LYNN
Prepared by Notes

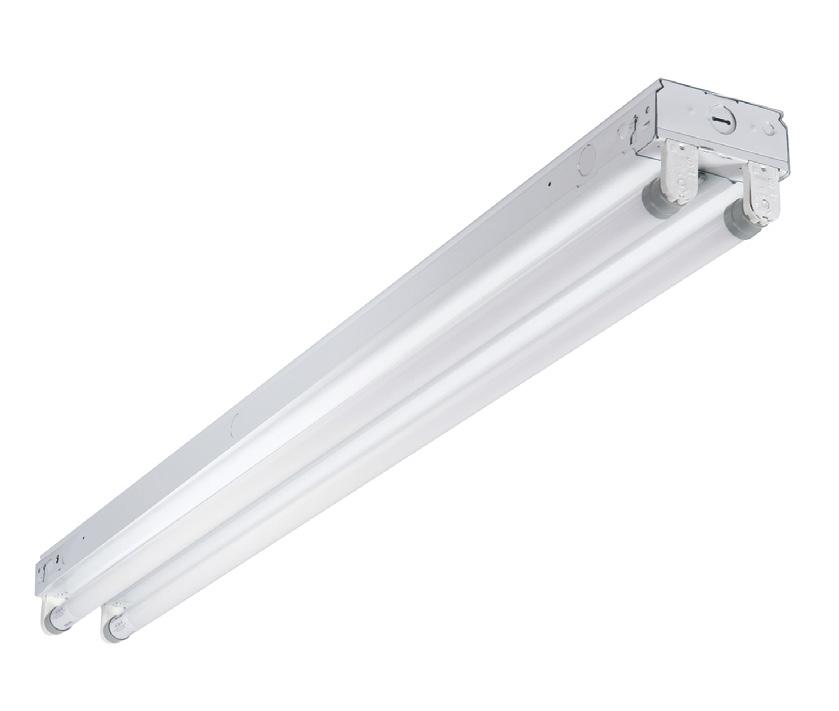

Socket-Fit Light Engine Striplight
Typical Applications
Product Certification
Interactive Menu
• Order Information page 2
• Energy and Performance Data page 3
• Product Warranty
Top Product Features
Product Features
• Flip-up sockets, snap-on aligner and tool-less cover reduce fixture installation time
• Replaceable TLED lamps lower maintenance cost without removing fixture
• DLC compliant lamps maximize energy savings and rebates
• TLEDs are 4ft long and come in 3500, 4000 or 5000K CCT
• Fixtures come in 4ft or 8ft lengths; T8 TLED lamps included (lamps shipped separately)
Dimensional Details
Note: Shape of lamp may not be exactly as depicted in line art.
TYPE A1 SPEC KAUFMAN
Fixture and
Accessories (order separately)
(1) Factory installed with integral test switch/indicator/laser test. For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency inverter (152 lm/W x 10 = 1520 lumens). (2) 12.5W inverter works for TLEDs up to 15W. (3) Used
A-1-B/SPACER-B=Spacer 1-1/2" to 2-1/2" from ceiling (Use 2 Per Fixture)
GRP-SSF-U=Gripper Hanger (Use 2 Per Fixture)
AYC-CHAIN/SET-U=36" Chain Hanger (Use 1 Set Per Fixture)
SCF=Fixed Stem Set (Specify Length)
SCS=Swivel Stem Set (Specify Length)
SCA=Adjustable 48" Stem Set
CCA-xx-NPF/PFS/PFC=Adjustable cable set - 48" or 120" (9)
CLC-SSF-B=Long Channel Connector SSF
SSF-ASY-4-B=Asymmetric Reflector (4' long)
SSF-SYM12-4-B =12" Symmetric Reflector
WG/SSF-4FT-B=4' Wire Guard
TOGGLE-10=Single Toggle No. 2 10FT long
Y-TOGGLE- -2PK=(2) Y-Toggle Cable Kits (Specify 10 or 30 for length in feet)
Notes
(9) Specify Length, call out non-power feed (NPF), straight (PFS) or curly power feed (PFC)
• Flip-up sockets, snap-on aligner and tool-less cover reduce fixture installation time
• Replaceable TLED lamps lower maintenance cost without removing fixture
• DLC compliant lamps maximize energy savings and rebates
• TLEDs are 4ft long and come in 3500, 4000 or 5000K CCT
• Fixtures come in 4ft or 8ft lengths; T8 TLED lamps included (lamps shipped separately)
Dimensional Details
Note: Shape of lamp may not be exactly as depicted in line art.
Fixture and
Accessories (order separately)
(1) Factory installed with integral test switch/indicator/laser test. For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency inverter (152 lm/W x 10 = 1520 lumens). (2) 12.5W inverter works for TLEDs up to 15W. (3) Used
A-1-B/SPACER-B=Spacer 1-1/2" to 2-1/2" from ceiling (Use 2 Per Fixture)
GRP-SSF-U=Gripper Hanger (Use 2 Per Fixture)
AYC-CHAIN/SET-U=36" Chain Hanger (Use 1 Set Per Fixture)
SCF=Fixed Stem Set (Specify Length)
SCS=Swivel Stem Set (Specify Length)
SCA=Adjustable 48" Stem Set
CCA-xx-NPF/PFS/PFC=Adjustable cable set - 48" or 120" (9)
CLC-SSF-B=Long Channel Connector SSF
SSF-ASY-4-B=Asymmetric Reflector (4' long)
SSF-SYM12-4-B =12" Symmetric Reflector
WG/SSF-4FT-B=4' Wire Guard
TOGGLE-10=Single Toggle No. 2 10FT long
Y-TOGGLE- -2PK=(2) Y-Toggle Cable Kits (Specify 10 or 30 for length in feet)
Notes
(9) Specify Length, call out non-power feed (NPF), straight (PFS) or curly power feed (PFC)
• Lumen packages up to 2000 lumens per foot for high mounting locations
• Excellent performance with lm/W, ranging up to 150 lm/W with LC lens
• 4ft. and 2ft. product configurations for mounting versatility
• Multiple sensor options for connected or control at multiple heights
• Standard 10% 0-10V driver with optional DALI, 1% and step dimming options
• Options to meet Build America, Buy America, Buy American and other domestic preference requirements
Dimensional and Mounting Details
4-1/32" [102mm] WITH WAVELINX SENSORS
4-11/16" [120mm]

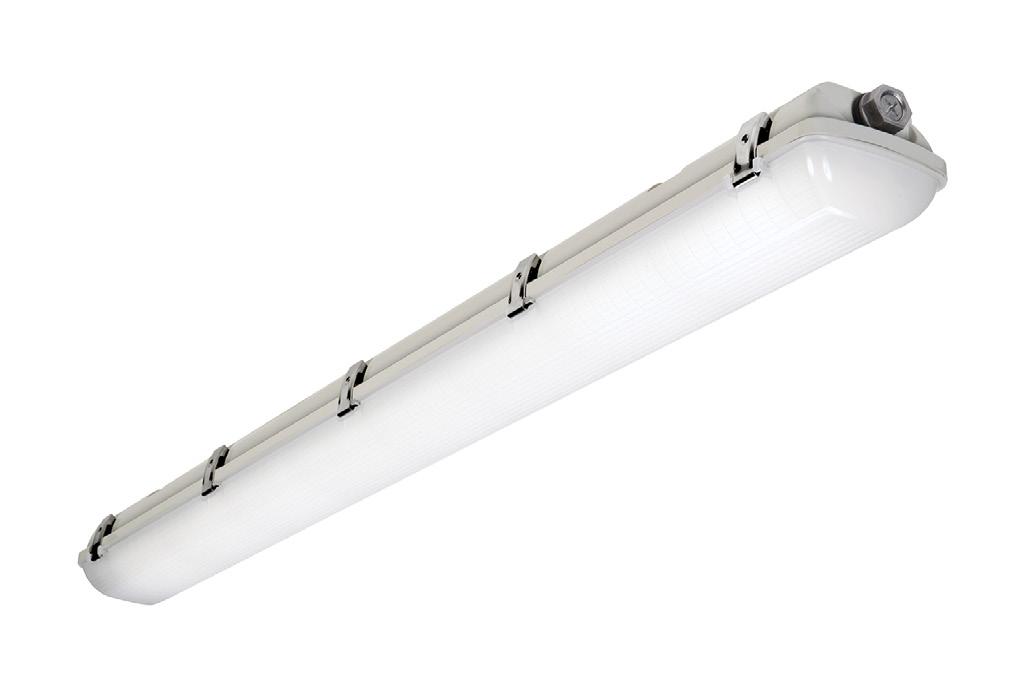

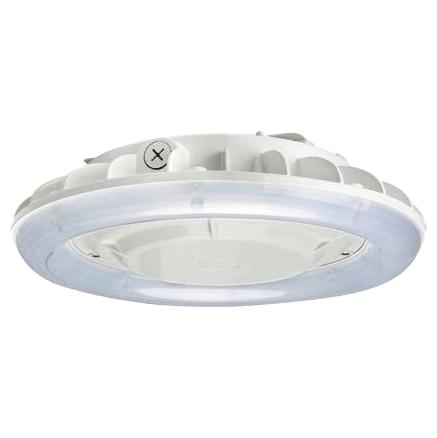

Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color Selectable 35/40/50K
• Optional battery backup
Ideal Applications
• Commercial settings

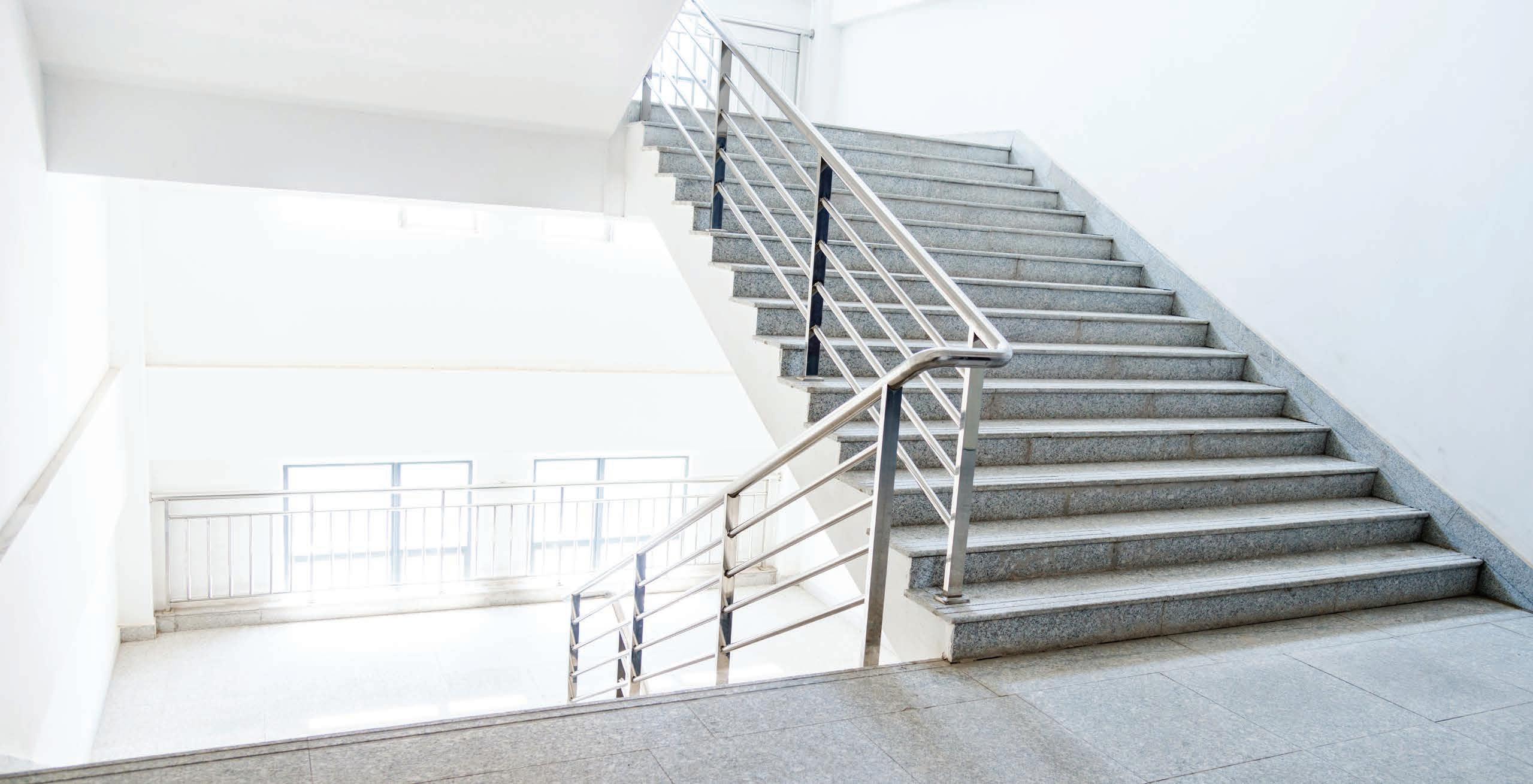

• Stairways
• Bi-level dimming microwave motion sensor
• Surface or pendant mounting
• Industrial settings
• Warehouses
Information
=Standard BAA=Buy American Act
=Trade Agreements Act
=FHWA and
through October 1, 2026
(1) Only product configurations with these prefixes are built to be compliant with the Buy American Act of 1933 (BAA), Trade Agreements Act of 1979 (TAA), or the Build America Buy America Act (BABA). BABA is the minimum Government compliance requirement for the Build America Buy America standards which is part of the Infrastructure and Investment Jobs Act (IIJA). Individual Government Agencies may have more stringent compliance standards. BABAF designates the product will meet the standards set for FHWA and FTA. As noted, these must be funded by October 1, 2026. Please refer to DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
Notes
(8) Integral options only available in 4ft model. (9) With integral test switch/indicator. For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 7=700 lumens). IES-format photometry for luminaire under emergency operation available. (10)
Integral EL battery pack is rated for 35°C. (11) Used to bypass local control during outage. Must be used in conjunction with UL 1008 device (provided by others). ETRD option requires one relay when used on a dimming fixture.
cULus Listed RoHS Compliant Five year limited warranty against defects in manufacturing. Item
Listings
Installation
Pendant mount or surface installation: Before installation, please consult your local ordinances and building codes.
1 Approximate lumen output. Actual performance may vary based on CCT, options selected and end use application.
2 Actual wattage may differ by +/- 10%
3 55W Model is selectable: 35/45/55W
Field Installed Accessories:
Interactive Menu
• Order Information page 2
• Photometric Data page 3
• Control Solutions page 5
• Product Warranty
Top Product Features
Product Certification
Product Features
• Lumen packages up to 2000 lumens per foot for high mounting locations
• Excellent performance with lm/W, ranging up to 150 lm/W with LC lens
• 4ft. and 2ft. product configurations for mounting versatility
• Multiple sensor options for connected or control at multiple heights
• Standard 10% 0-10V driver with optional DALI, 1% and step dimming options
• Options to meet Build America, Buy America, Buy American and other domestic preference requirements
Dimensional and Mounting Details
4-1/32" [102mm] WITH WAVELINX SENSORS
4-11/16" [120mm]
Select Series Stair Lighter
Product Specifications
TCP’s Select Series Stair Lighter features a lightweight aluminum body while maintaining a durable construction, a classic 4FT length, and up to 7,425 lumen light output. With an efficiency of up to 135 lumens per watt, the Stair Lighter is designed to deliver a robust performance while maximizing energy savings.
TCP’s Select Series Stair Lighter is wattage selectable, color selectable and includes a bi-level dimming microwave motion sensor standard. Other available add-ons, such as the factoryinstalled battery backup, ensure your stairwells are always bright.
Reasons to choose the Select Series Stair Lighter from TCP
• Wattage selectable 35/45/55W
• Color Selectable 35/40/50K
• Optional battery backup
Ideal Applications
• Commercial settings
• Stairways
• Bi-level dimming microwave motion sensor
• Surface or pendant mounting
• Industrial settings
• Warehouses
Information
=Standard
=Buy American Act
=Trade Agreements Act
=FHWA and
through October 1, 2026
(1) Only product configurations with these prefixes are built to be compliant with the Buy American Act of 1933 (BAA), Trade Agreements Act of 1979 (TAA), or the Build America Buy America Act (BABA). BABA is the minimum Government compliance requirement for the Build America Buy America standards which is part of the Infrastructure and Investment Jobs Act (IIJA). Individual Government Agencies may have more stringent compliance standards. BABAF designates the product will meet the standards set for FHWA and FTA. As noted, these must be funded by October 1, 2026. Please refer to DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
Notes
(8) Integral options only available in 4ft model. (9) With integral test switch/indicator. For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 7=700 lumens). IES-format photometry for luminaire under emergency operation available. (10)
Integral EL battery pack is rated for 35°C. (11) Used to bypass local control during outage. Must be used in conjunction with UL 1008 device (provided by others). ETRD option requires one relay when used on a dimming fixture.
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW

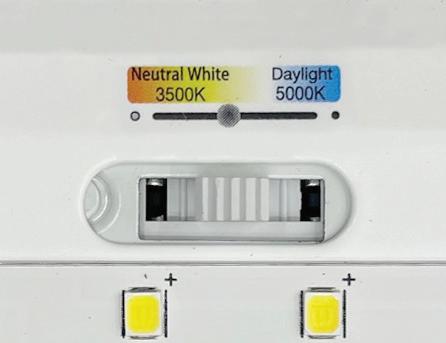

Selectable color temperature: 3500/4000/5000K
— CRI>80

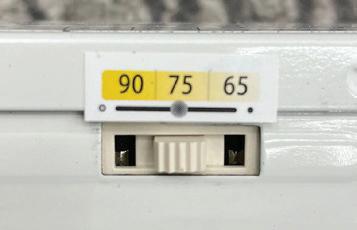

Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
• High-impact gray polycarbonate housing with interated metal gear tray
• Standard housings available with one 7/8" conduit entry point
• Durable cam latches clamp diffuser tightly for a positive seal between housing and diffuser
• Electrical components and fixtures are UL/cUL listed for wet location, IP65 rated
Photometric Data
2APVTLD-20L840
2358
Electrical
• Long-Life LED system coupled with a fixed output driver to deliver optimal performance
• LED’s available in 3500, 4000 and 5000K with a CRI ≥ 80
• Projected life is L70 at 54,000 hours
• cULus listed
• Electronic drivers are available for 120-277V applications
Lens
• Thermoformed low profile, highimpact frosted lens with general distribution
Warranty
• Vaportite LED features a five year limited warranty
Compliance
• UL/cUL listed for Wet location
• RoHS compliant, and LED modules comply with IESNA LM-79 and LM-80 standards
• DesignLights Consortium® Qualified and classified for DLC Standard, refer to www.designlights.org for detailsfeature bullet
• feature bullet
4APVTLD-40L840
Electronic Driver
Linear LED 4000K
Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.3 x mounting height
Lumens: 5184
Input Watts: 39.5W
Efficacy: 131 lm/W
Test Report: 4APVTLD-40L840.IES
Energy and Performance Data
Maintenance
Shipping Data
Catalog No.Wt.
2APVTLED5 lbs.
4APVTLED10 lbs.
Input Watts
2APVTLD-20=19W
4APVTLD-40=39W
4APVTLD-54=50W
Control Systems
• WaveLinx • DLVP
• LumaWatt Pro
• iLumin Plus • Vi vidTune
KAUFMAN LYNN TYPE C1E
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
DESCRIPTION
The Lumark LVL20UG vaportight area light provides an indoor / outdoor solution in applications where lighting fixture protection is required. The fixture provides equivalent light output up to 100-watt incandescent and 23-watt CFL fixtures with high-quality and long lasting illumination. The fixture is vaportight to protect against dust and moisture. Ideal for garages, storage, and industrial areas.
SPECIFICATION FEATURES
Construction
• Durable die-cast aluminum housing and cage provides protection against vandalism
• Vaportight IP65 rating protects against dust and moisture
• Versatile mounting optionswall, ceiling and post
• Frosted glass lens
• (5) 1/2" NPT conduit openings
Electrical
• Frosted glass lens
• Maintenance-free LEDs with L70 50,000 hours of life
• Universal 120-277V power supply
• Fixture operating temperature range from -20°C to 40°C
• cULus listed for wet locations
Optics
• 3500K color temperature
• Fixture produces up to 1450 Lumens
Warranty
• Five-year warranty
LED SURFACE MOUNT LINEAR VAPOR TIGHT - HIGH OUTPUT
BLANK
KAUFMAN LYNN
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
LED96/VT/3CCT/3WO/UNV/HO
LED96/VT/3CCT/3WO/UNV/HO+EM
DESCRIPTION
LED48/VT/3CCT/3WO/UNV/HO
LED48/VT/3CCT/3WO/UNV/HO+EM
LED48/VT/3CCT/3WO/UNV/HO+EM+MS
LED48/VT/3CCT/3WO/UNV/HO+MS
Prepared by Notes Date
APVT

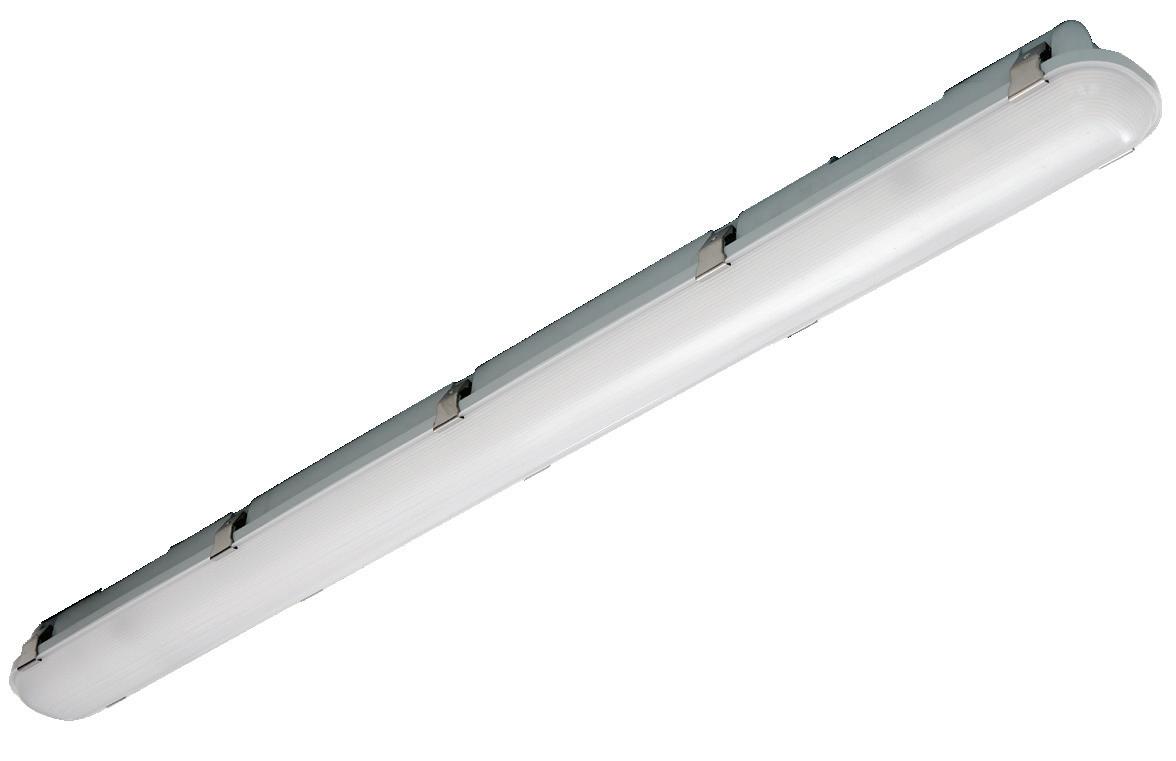

2' and 4' Vaportite Industrial LED
Product Certification
Interactive Menu
• Order Information page 2
• Photometric Data page 2
• Energy Data page 2
• Control Systems page 2
• Product Warranty
Top Product Features
• Durable gray polycarbonate housing with integrated metal gear tray
• High Impact Polycarbonate optical lens
• Available in 2ft and 4ft, with lumen packages up to 6,000 lumens
Ideal in new construction and retrofit applications, the Performance Class Dual Selectable Vapor Tight ILT features dual selectability and is offered in three sizes — 2', 4', and 8'. Useful in tunnels, manufacturing, and a variety of other wet or dusty applications, this product boasts an IP66 rating to ensure a robust and durable product as well as DLC 5.1 listing to maximize rebate opportunities.
BENEFITS & FEATURES
Up to 140 LPW
Selectable color temperature: 3500/4000/5000K
— CRI>80
Selectable wattage and lumens:
– 15/20/25W | 2130/2820/3500 lm
– 20/30/40/50W | 2860/4260/5640/7000 lm
– 70/80/90/100W | 10,010/11,360/12,690/14,000 lm
— DLC 5.1 Listing assures high energy efficiency and qualifies this product for utility rebates
Optional field installable motion/daylight sensor or integrated emergency battery back-up offer further potential energy savings
— Integrated tray and lens for easy and quick installation
Stainless steel clips and UV stabilized polycarbonate lens
• High-impact gray polycarbonate housing with interated metal gear tray
• Standard housings available with one 7/8" conduit entry point
• Durable cam latches clamp diffuser tightly for a positive seal between housing and diffuser
• Electrical components and fixtures are UL/cUL listed for wet location, IP65 rated
Photometric Data
2APVTLD-20L840
2358
Electrical
• Long-Life LED system coupled with a fixed output driver to deliver optimal performance
• LED’s available in 3500, 4000 and 5000K with a CRI ≥ 80
• Projected life is L70 at 54,000 hours
• cULus listed
• Electronic drivers are available for 120-277V applications
Lens
• Thermoformed low profile, highimpact frosted lens with general distribution
Warranty
• Vaportite LED features a five year limited warranty
Compliance
• UL/cUL listed for Wet location
• RoHS compliant, and LED modules comply with IESNA LM-79 and LM-80 standards
• DesignLights Consortium® Qualified and classified for DLC Standard, refer to www.designlights.org for detailsfeature bullet
• feature bullet
4APVTLD-40L840
Electronic Driver
Linear LED 4000K
Spacing criterion: (II) 1.2 x mounting height, (⊥) 1.3 x mounting height
Lumens: 5184
Input Watts: 39.5W
Efficacy: 131 lm/W
Test Report: 4APVTLD-40L840.IES
Energy and Performance Data
Maintenance
Shipping Data
Catalog No.Wt.
2APVTLED5 lbs.
4APVTLED10 lbs.
Input Watts
2APVTLD-20=19W
4APVTLD-40=39W
4APVTLD-54=50W
Control Systems
• WaveLinx
• DLVP
• LumaWatt Pro
• iLumin Plus
• VividTune
KAUFMAN LYNN TYPE
ELECTRICAL
120-347Vac
Power Factor >90%
THD <20%
— 6kV surge suppression
— 0-10V dimmable
UL Wet rated
Auxiliary 12V output
WARRANTY
— 5 year
NLB Trusted Warranty Program
CERTIFICATIONS & LISTINGS UL1598 (cULus)
to +122°F (0°C
INSTALLATION
— Fixture can be surface mounted or suspended
Stainless steel mounting brackets and V-hooks are included
Optional corner mount accessory brackets available ORDERING INFORMATION
SEL25/SEL50/SEL60
Interactive Menu
• Order Information page 2
• Photometric Data page 4
• Self Diagnostics page 6
• Product Warranty
Sure-Lites
SEL Emergency Light - High Power Optics
LED Emergency Light Up to 32, 58 or 78 Feet Egress Coverage Adjustable Optic
Self-Diagnostics Options Remote Capacity Options
Typical Applications Office
Product Certification
Product Features
Top Product Features
• High powered LED heads for higher egress coverage
• Emergency egress coverage of 32 to 78 feet
• Total system coverage of 193 feet with remote capable versions
• Long life LED source with adjustable optics
• Sealed Nickel Cadmium battery
• Patented EZ hang and EZ Key features facilitate installation
• Multi-voltage input 120/240/277 VAC
Dimensional Details
SEL25/SEL25SD/SEL50/SEL50SD
SEL25R10SD/SEL50R7SD/SEL60R4
NE-612LED
Compact Dual Head LED Emergency Light with Optional Remote Capability
Source: (2) 0.9W or 1W LED (2)90lm to 150lm
PRODUCT DESCRIPTION
Luminaire provides 90 minutes of light from two adjustable heads for illuminating paths of egress upon failure of normal power. Emergency unit is available in higher lumen output and remote capability.
FEATURES
Compact housing with (2) adjustable LEDs Lightweight snap together design
Self-diagnostic and self-testing option available Ceiling or wall mounted
Universal 120/277VAC input
Remote capability
SPECIFICATION
Construction: Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Quick connector design for easy installation. Two fully adjustable glare-free round heads for emergency lighting.
Mounting: Plastic enclosure includes a top and side knockout for conduit application. Suitable for wall mounting or ceiling mounting. Waterproof vandal resistant enclosure available, must specify NEG-602.
Operation: Luminaire will operate for a minimum of 90 minutes during a loss of power with a 24-hour maximum recharge time per battery.
ELECTRICAL
Input Voltage: 120/277VAC 60Hz
Lumens / Wattage:
NE-612LED: (2) 110lm / 0.9W
NE-612LEDRC: (2) 90lm / 0.9W
NE-612LEDHORC: (2) 150lm / 1W
Color Temperature: 5700K
Operating Temperature: 10˚C to 40˚C ambient temperature (-25°C to 50°C when used with NEG-602)
Batteries: NiMH 3.6V 2W maintenance-free
Remote Option: Luminaire is capable of including an additional 3.6V / 4W battery. Additional battery is used to power an additional remote emergency light. Upon power failure, each additional battery requires an additional 24 hours to recharge.
LABELS AND LISTINGS
· cULus Listed for Damp Locations (Wet Location Listed when used with NEG-602)
Meets or exceeds all requirements in NFPA 70, NFPA 101 life safety code 5-Year Limited Warranty
Notes
PRODUCT IMAGES & DIMENSIONS
NFPA 101 requires 1.0 foot-candle average and 0.1 foot-candle minimum with a 40:1 maximum/minimum ratio. Below is a recommended mounting height and spacing on surface with reflectance at 80% ceiling, 50% walls, and 20% floor.
Compact Dual Head LED Emergency Light
= (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, White Finish
NE-612LEDRCB = (2) 0.9W / 90lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDRCW = (2) 0.9W
/
Battery for Remote Capability and Self-Diagnostics / Self-Testing, Black Finish
NE-612LEDHORCW = (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White Finish
Accessory
Example: NE-612LEDHORCW = Compact Dual Head LED Emergency Light with (2) 1W / 150lm LED Heads with 3.6V / 2W Battery for Remote Capability and Self-Diagnostics / Self-Testing, White finish Description NE-612LEDB = (2) 0.9W / 110lm LED Heads without Battery for Remote Capability, Black Finish

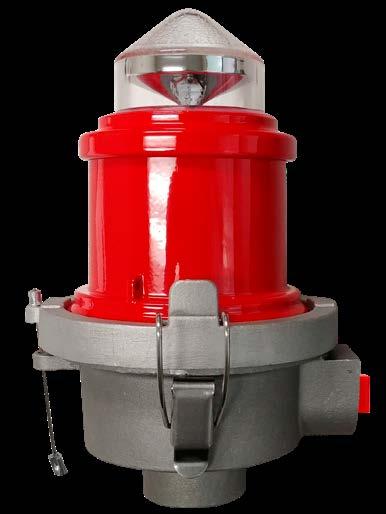

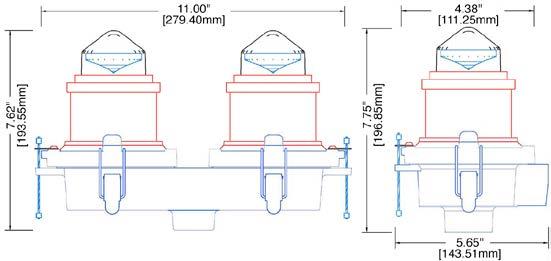

L-810 LED Night Vision Compatible Steady-Burning Red Obstruction Light
Compliance and Applications
• ETL Certified L-810: FAA AC 150/5345-43J; EB-67D
• IP67 Certified
• Certified FCC 47 CFR, Part 15:2020, §15.107 and §15.109, Class A
Compliant to:
• ICAO Annex 14, Low Intensity Obstacle Light, Type B
• DGAC of Mexico
• MIL-C-7989
Our Night Vision Compatible, omni-directional, red, steady-burning, LED obstruction light is designed for marking tall structures such as buildings, towers, masts, cranes, meteorological towers, chimneys and other hazards to aircraft. This energy-saving LED light is a direct replacement for incandescent fixtures, providing years of reliable and maintenance-free operation. Available in single, double, and retrofit configurations; optional solar drive package
What Does NVG Friendly Mean?
Both the FAA and Transport Canada have issued safety alerts warning that common LED obstruction lights pose a hazard to pilots using Night Vision Goggles (NVGs). This is due to the fact that NVGs typically use filters to block cockpit lighting from saturating the imaging system. This has the unintended effect of making LED obstruction lights invisible to pilots.
In response, we have incorporated NVG Friendly technology into our fixture (IR 860 nm peak intensity), giving pilots using night vision goggles unmatched visibility of airfield perimeters, buildings, and towers. The L810LEDNV light is the first LED L-810 available to ensure that your structure is visible to all pilots, making it the first true LED replacement for incandescent obstruction lights.
Why Our L810LEDNV is Better
• Direct replacement for existing incandescent light
• Lasts up to 10 times longer than an incandescent light
• Uses 96% less power than an incandescent light
• Night Vision Goggle & NVIS Compatible
• No regular maintenance
• Available in single and dual configurations with bottom or side conduit outlets
• Can be operated in steady-burning or flashing mode (controller not supplied)
Marine Treated Option:
• Recommended for harsh, high-salt coastal and marine environments.
• Protects fixture finish from salt damage and prevents corrosion.
• 3-Step Powder Coat: 1) Primer, 2) Epoxy powder base coat and glossy polyester gray (RAL 7030) powder finish coat, 3) Oven curing.
• Photocell option for automatic activation at night
• Wind Loading: Effective Projected Area of the L-810 with single mounting base is 23.125 square-inches
Night Vision Compatible Obstruction Light
Optional Low Surface Mount
Single L-810 LED Night Vision Compatible Obstruction Light
Optional 2" Pole Mount
Shown with Frangible Coupling and Floor Flange
BLANK
KAUFMAN LYNN
Spare Parts
FL-810LEDNV-AC 100-277 VAC LED NV
Replacement Light Head
FL-810LEDNV-DC 12-48 VDC LED NV
Replacement Light Head
Alarm Line Option:
For AC and DC model fixtures, the blue wire (18AWG) is defined as the Alarm Line. When the red LED fails, the fixture’s input voltage for the fixture will be present at this wire. For AC and DC model fixtures, during normal operation (LED ON), it will have 0 VAC and 0 VDC respectively at the blue wire; in case of LED failure (turning off), it will energize the blue wire to the fixture’s input voltage, 100-277 VAC for AC models and 12-48 VDC for DC model fixtures.
L-810 LED Ordering Codes
VAC
Black
White
Green
VDC
Red
Black
Green
Shipping Information:
Single: 3.2 lb. (1.45 kg); 10" x 10" x 10" Carton
Double: 7 lb. (3.17 kg); 15" x 15" x 10" Carton
2" Pole Mount3
1 1-1/2" Frangible Coupling (FL-FC1.5) UNF threads are not compatible with NPT threaded junction boxes. 2 For single option only. 3 2-3/8" O.D. tenon adjustable for 2.25"-2.75" poles. 4 CAUTION! For AC model fixtures, the Alarm Line (blue wire) will be energized to a high AC voltage (fixture’s input voltage 120-277VAC) during a failure of the LED.
Obstruction Lighting Controls
Lighting controls are designed for use when multiple obstruction light fixtures are to be controlled with common electronics. The electronic control module comes in a cast iron device box with threaded hubs on both top and bottom. Replacement modules (controls without device box) are also available upon request.
Photocells
• Model 81020: 105-305VAC, 1000W photocell. FAA style photocells activate at 35 ft-cd and turn off at 52 ft-cd. Instant ON photocell has 3-5 second time delay that prevents activation and de-activation from momentary light conditions. Does not come with device box, includes 1/2" threaded male fitting.
• Model 81021 [CALL FOR AVAILABILITY]: 120/240VAC, 4800W photocell. Meets FAA/FCC requirements for obstruction lighting. Energized at 35 ft-cd and de-energized at 60 ft-cd. Time delay eliminates contact chatter. Contains dual 20A load contacts. Front plastic housing mounts to cast aluminum junction box (included).
• Model 81022: Hazardous Location Photocontrol Unit. Outdoor lighting control for exterior lighting in hazardous locations: explosion proof, dust-ignition proof, and weatherproof. Nominal Voltage 50/60 Hz: 120/208/240/277VAC. Voltage Range: 105-305. Housing: sand cast copper-free aluminum - epoxy powder coated.
Photocell Ordering Codes
FL-81020
Part Number
FL-81021 [CALL FOR AVAILABILITY]
FL-81021-2 [CALL FOR AVAILABILITY]
FL-81022
Description
Photocell only (105-305VAC, 1000W max)
Photocell with aluminum box (120VAC, 4800W max)
Photocell with aluminum box (240VAC, 4800W max)
Hazardous Location Photocontrol Unit (120/208/240/277VAC)
Model 81020
Model 81021
Model 81022
Alarm Line: Blue
Alarm Line: Blue
Color Guide
Prepared by Notes
Interactive Menu
• Ordering Information page 2
• Product Specifications page 2
• Optical Configurations page 3
• Mounting Details page 3
• Energy and Performance Data page 4
• Control Options page 6
Quick Facts
• Lumen packages range from 2,757 - 22,831
• Efficacies up to 146 LPW
• Patented waveguide technology for maximum visual comfort
• Mount options: surface, pendant, trunnion, wall, and direct conduit
Dimensional Details
SURFACE MOUNT
CQ, MQ, WQ and RW: D1-D6
DL: D1-D4
Base luminaire weight: 18.2 lbs (8.3 kg)

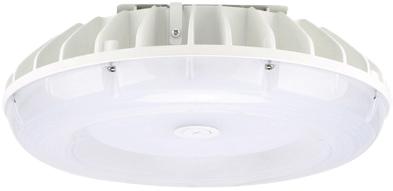

Visual Comfort Luminaire
Product Features
Product Certifications
Connected Systems
• WaveLinx PRO Wireless
• WaveLinx LITE Wireless
• AirMesh
SURFACE MOUNT
CQ, MQ, WQ and RW: D7+ DL: D5+
Base luminaire weight: 20.1 lbs (9.1 kg)
TopTier (D1-D6)
TopTier (D7-D10)
KAUFMAN LYNN
SPECIFICATIONS
HOUSING
- Heavy duty sealed die cast aluminum housing - Corrosion reistant powder coat
- White finish standard, black and dark bronze also available
SPB1=Dimming Motion and Daylight Sensor, Bluetooth Programmable, < 8’ Mounting 11, 19
SPB2=Dimming Motion and Daylight Sensor, Bluetooth Programmable, 8’ - 20’ Mounting 11, 19 Z4 =Zhaga 4-pin receptacle 20
1. DesignLights Consortium ® Qualified. Refer to www.designlights.org Qualified Products List under Family Models for details.
2. Only for use with 480V Wye systems. Per NEC, not for use with ungrounded systems, impedance grounded systems or corner grounded systems (commonly known as Three Phase Three Wire Delta, Three Phase High Leg Delta and Three Phase Corner Grounded Delta systems).
3. Not available with D7 - D10 configurations.
4. Order Pendant Mount Stem accessory.
5. IBP ambient operating temperature -20°C to 35°C (D1-D3), -20°C to 25°C (D4-D6). Not available with D7-D10 configurations or DALI options.
6. Additional 8.0W. Provides 920 lumens. Not available with D10 configuration.
7. Choose lead length for Surface Mount and Stem Mount only. TMB, DPM and WM lengths predetermined.
8. Not available with CQ.
9. Standard with CQ, option available with WQ only.
10. U voltage only. Ambient operating temperature -20°C to 50°C (D1-D4) or -20°C to 40°C (D5-D6). UL924 listed component.
11. Includes integral photocell.
12. Specify color in place of XX.
13. Designed for use with Stem Mount and Decorative Pendant Mount only.
14. Designed for use with Decorative Pendant Mount only.
15. Not available with H voltage or IBP. Not compatible with MS/DIM sensors.
16. Specify Lead Length for wire harness length.
17. The FSIR-100 configuration tool is required to adjust parameters including high and low modes, sensitivity, time delay and more.
18. 924 option provides luminaire UL924 listing, used in conjunction with ITS or IBP-CEC.
FSIR-100 =Wireless Configuration Tool for Occupancy Sensor 17
19. Sensor configuration mobile application required for configuration. See controls page for details.
20. Cannot be used with other control options.
21. For WaveLinx applications, WAC Gateway required to enable field-configurability: Order WAC-PoE and WPOE-120 (10V to PoE injector) power supply if needed. Not required for WaveLinx Lite Commercial (LC) applications.
22. Specify 120V or 277V.
23. TT/WG and TT/HSS cannot be installed together. TT/HSS & TT/WG not available on D7-D10 configurations.
24. D4-D10 only. Not compatible with battery.
25. Only product configurations with these designated prefixes are built to be compliant with the Buy American Act of 1933 (BAA) or Trade Agreements Act of 1979 (TAA), respectively. Please refer to DOMESTIC PREFERENCES website for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
26. Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information.
27. Narrow-band 590nm +/- 5nm for wildlife and observatory use. Choose lumen package D1.
28. Not available in D10 configuration.
29. For installations in locations such as gymnasiums, arenas, sports complexes, multi-purpose rooms, and any other locations where the fixture potentially will be subject to impacts from external sources, DPM mounting is required, utilizing the stem kit with tether (DPMST*). Surface Mount, Trunnion Mount (TMB), Wall Mount (WM) and Stem Mount (STM) are prohibited in these applications.
30. Only product configurations with these prefixes are built to be compliant with the Buy American Act of 1933 (BAA) or the Build America Buy America Act (BABA). BABA is the minimum Government compliance requirement for the Build America Buy America standards which is part of the Infrastructure and Investment Jobs Act (IIJA). Individual Government Agencies may have more stringent compliance standards. BABAE designates the product will meet the standards set for FHWA. As noted these projects must receive Government Funding by October 1, 2025. BABAF designates the product will meet the standards set for FHWA and FTA. As noted these projects must receive Government Funding by October 1, 2026. Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
31. DarkSky approved when ordered with 3000K or warmer CCT.
Mounting
• Surface mount directly to square or octagonal 4” surface or recessed junction box using quick mount bracket
• Optional stem mount bracket with set screw for direct 1/2” or 3/4” NPS conduit mounting
• Trunnion, decorative pendant, and wall mount options also available
• For installations in locations such as gymnasiums, arenas, sports complexes, multipurpose rooms, and any other locations where the fixture potentially will be subject to impacts from external sources, the stem kit with tether (DPMST*) is required
Typical Applications
• Parking garages, canopy, stairwells, and covered walkways
Finish
• 2.5 mil nominal TGIC powder coat thickness
• Finishes include white, black, bronze, gray, dark platinum and graphite metallic
• RAL and custom colors also available. Additional charges and lead time apply
Compliance
• Visit www.designlights.org to confirm qualification. Not all product variations are DLC qualified
• IDA Certified for Dark sky for 3000K and warmer only
• IP66 rated
• Products that meet BABA through Exemption (BABAE): This exception allows any product to satisfy BABA requirements regardless of domestic content manufacturing for projects funded by FHWA through Oct 1st 2025.
• Products that meet BABA through BAA Exemption (BABAF): FHWA and FTA agencies are utilizing their BAA rules for BABA compliance. Cooper’s products with a BAA designation are manufactured in the US and utilize a BAA COTS exemption rule for compliance. To verify a configured product with specific accessories and options meet BABA Domestic Preference Requirements; submit this catalog number to Cooper Lighting Quotation team for validation by our Engineering and Manufacturing teams.
• Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements
Warranty
• Five year limited warranty, consult website for details www.cooperlighting.com/legal
BLANK
Prepared by Notes
Interactive Menu
• Ordering Information page 2
• Product Specifications page 2
• Optical Configurations page 3
• Mounting Details page 3
• Energy and Performance Data page 4
• Control Options page 6
Quick Facts
• Lumen packages range from 2,757 - 22,831
• Efficacies up to 146 LPW
• Patented waveguide technology for maximum visual comfort
• Mount options: surface, pendant, trunnion, wall, and direct conduit
Dimensional Details
SURFACE MOUNT
CQ, MQ, WQ and RW: D1-D6
DL: D1-D4
Base luminaire weight: 18.2 lbs (8.3 kg)
Visual Comfort Luminaire
Product Features
Product Certifications
Connected Systems
• WaveLinx PRO Wireless
• WaveLinx LITE Wireless
• AirMesh
SURFACE MOUNT
CQ, MQ, WQ and RW: D7+ DL: D5+
Base luminaire weight: 20.1 lbs (9.1 kg)
TopTier (D1-D6)
TopTier (D7-D10)
SPECIFICATIONS
HOUSING
- Heavy duty sealed die cast aluminum housing - Corrosion reistant powder coat
- White finish standard, black and dark bronze also available
SPB1=Dimming Motion and Daylight Sensor, Bluetooth Programmable, < 8’ Mounting 11, 19
SPB2=Dimming Motion and Daylight Sensor, Bluetooth Programmable, 8’ - 20’ Mounting 11, 19 Z4 =Zhaga 4-pin receptacle 20
1. DesignLights Consortium ® Qualified. Refer to www.designlights.org Qualified Products List under Family Models for details.
2. Only for use with 480V Wye systems. Per NEC, not for use with ungrounded systems, impedance grounded systems or corner grounded systems (commonly known as Three Phase Three Wire Delta, Three Phase High Leg Delta and Three Phase Corner Grounded Delta systems).
3. Not available with D7 - D10 configurations.
4. Order Pendant Mount Stem accessory.
5. IBP ambient operating temperature -20°C to 35°C (D1-D3), -20°C to 25°C (D4-D6). Not available with D7-D10 configurations or DALI options.
6. Additional 8.0W. Provides 920 lumens. Not available with D10 configuration.
7. Choose lead length for Surface Mount and Stem Mount only. TMB, DPM and WM lengths predetermined.
8. Not available with CQ.
9. Standard with CQ, option available with WQ only.
10. U voltage only. Ambient operating temperature -20°C to 50°C (D1-D4) or -20°C to 40°C (D5-D6). UL924 listed component.
11. Includes integral photocell.
12. Specify color in place of XX.
13. Designed for use with Stem Mount and Decorative Pendant Mount only.
14. Designed for use with Decorative Pendant Mount only.
15. Not available with H voltage or IBP. Not compatible with MS/DIM sensors.
16. Specify Lead Length for wire harness length.
17. The FSIR-100 configuration tool is required to adjust parameters including high and low modes, sensitivity, time delay and more.
18. 924 option provides luminaire UL924 listing, used in conjunction with ITS or IBP-CEC.
FSIR-100 =Wireless Configuration Tool for Occupancy Sensor 17
19. Sensor configuration mobile application required for configuration. See controls page for details.
20. Cannot be used with other control options.
21. For WaveLinx applications, WAC Gateway required to enable field-configurability: Order WAC-PoE and WPOE-120 (10V to PoE injector) power supply if needed. Not required for WaveLinx Lite Commercial (LC) applications.
22. Specify 120V or 277V.
23. TT/WG and TT/HSS cannot be installed together. TT/HSS & TT/WG not available on D7-D10 configurations.
24. D4-D10 only. Not compatible with battery.
25. Only product configurations with these designated prefixes are built to be compliant with the Buy American Act of 1933 (BAA) or Trade Agreements Act of 1979 (TAA), respectively. Please refer to DOMESTIC PREFERENCES website for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
26. Accessories sold separately will be separately analyzed under domestic preference requirements. Consult factory for further information.
27. Narrow-band 590nm +/- 5nm for wildlife and observatory use. Choose lumen package D1.
28. Not available in D10 configuration.
29. For installations in locations such as gymnasiums, arenas, sports complexes, multi-purpose rooms, and any other locations where the fixture potentially will be subject to impacts from external sources, DPM mounting is required, utilizing the stem kit with tether (DPMST*). Surface Mount, Trunnion Mount (TMB), Wall Mount (WM) and Stem Mount (STM) are prohibited in these applications.
30. Only product configurations with these prefixes are built to be compliant with the Buy American Act of 1933 (BAA) or the Build America Buy America Act (BABA). BABA is the minimum Government compliance requirement for the Build America Buy America standards which is part of the Infrastructure and Investment Jobs Act (IIJA). Individual Government Agencies may have more stringent compliance standards. BABAE designates the product will meet the standards set for FHWA. As noted these projects must receive Government Funding by October 1, 2025. BABAF designates the product will meet the standards set for FHWA and FTA. As noted these projects must receive Government Funding by October 1, 2026. Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements.
31. DarkSky approved when ordered with 3000K or warmer CCT.
Mounting
• Surface mount directly to square or octagonal 4” surface or recessed junction box using quick mount bracket
• Optional stem mount bracket with set screw for direct 1/2” or 3/4” NPS conduit mounting
• Trunnion, decorative pendant, and wall mount options also available
• For installations in locations such as gymnasiums, arenas, sports complexes, multipurpose rooms, and any other locations where the fixture potentially will be subject to impacts from external sources, the stem kit with tether (DPMST*) is required
Typical Applications
• Parking garages, canopy, stairwells, and covered walkways
Finish
• 2.5 mil nominal TGIC powder coat thickness
• Finishes include white, black, bronze, gray, dark platinum and graphite metallic
• RAL and custom colors also available. Additional charges and lead time apply
Compliance
• Visit www.designlights.org to confirm qualification. Not all product variations are DLC qualified
• IDA Certified for Dark sky for 3000K and warmer only
• IP66 rated
• Products that meet BABA through Exemption (BABAE): This exception allows any product to satisfy BABA requirements regardless of domestic content manufacturing for projects funded by FHWA through Oct 1st 2025.
• Products that meet BABA through BAA Exemption (BABAF): FHWA and FTA agencies are utilizing their BAA rules for BABA compliance. Cooper’s products with a BAA designation are manufactured in the US and utilize a BAA COTS exemption rule for compliance. To verify a configured product with specific accessories and options meet BABA Domestic Preference Requirements; submit this catalog number to Cooper Lighting Quotation team for validation by our Engineering and Manufacturing teams.
• Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements
Warranty
• Five year limited warranty, consult website for details www.cooperlighting.com/legal

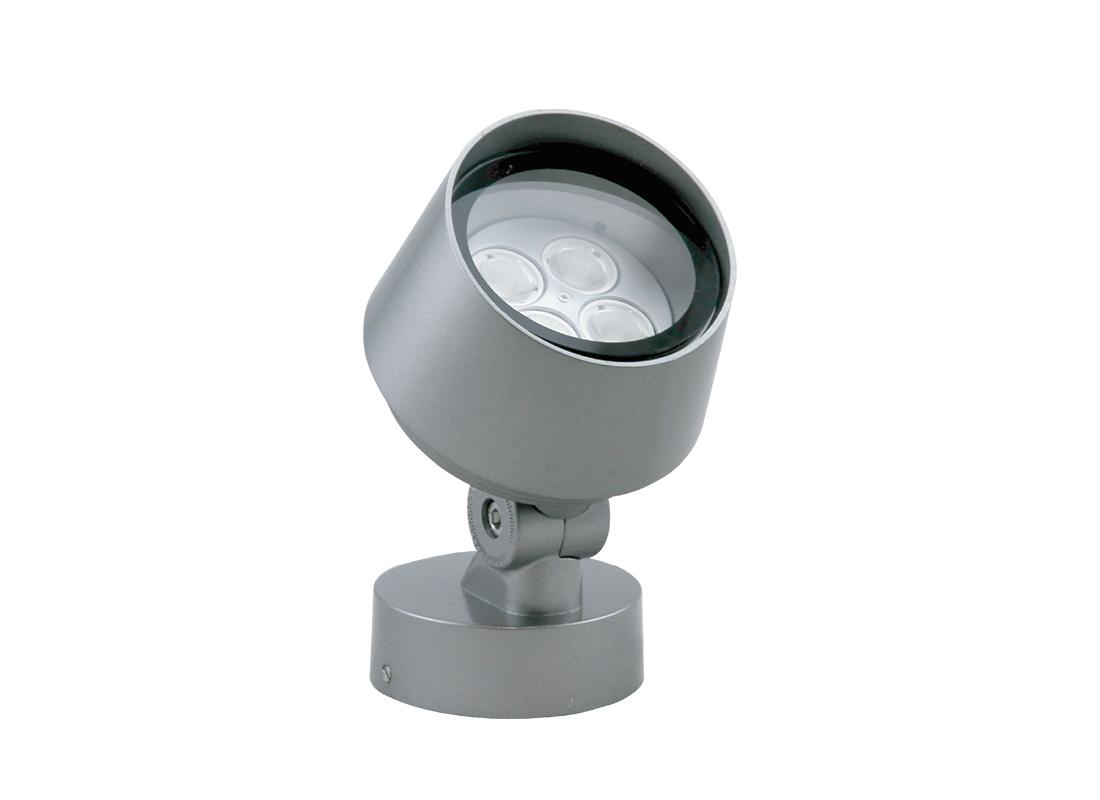

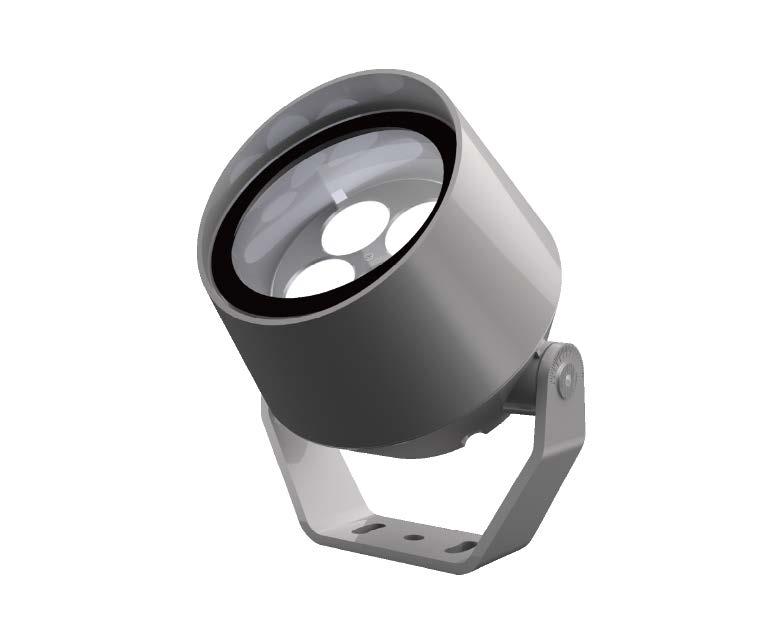

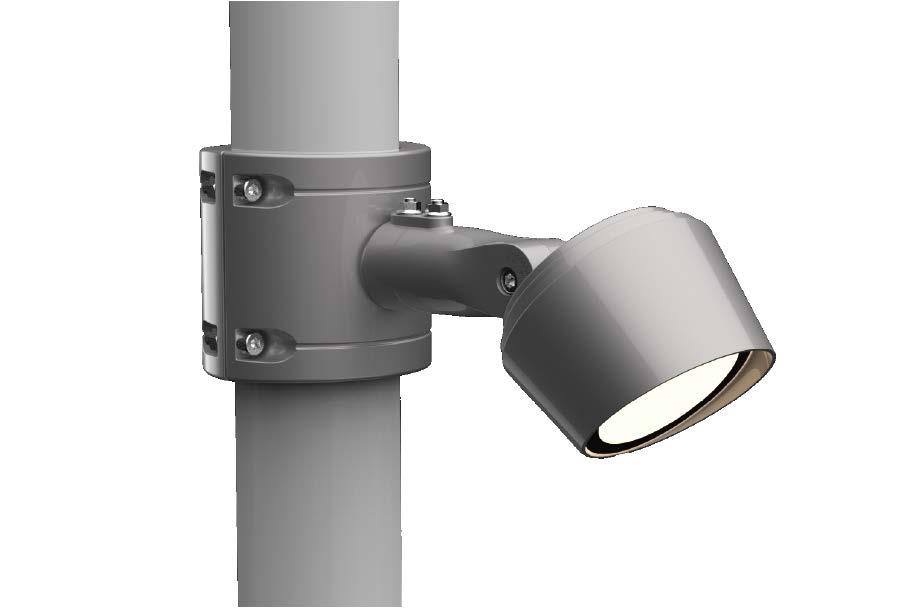

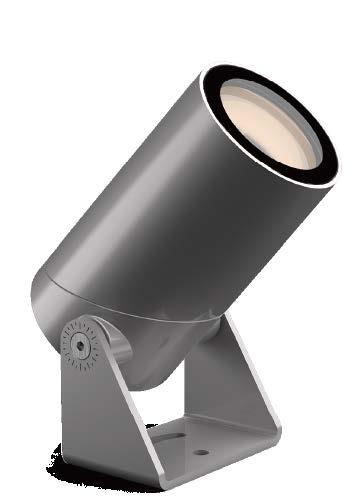

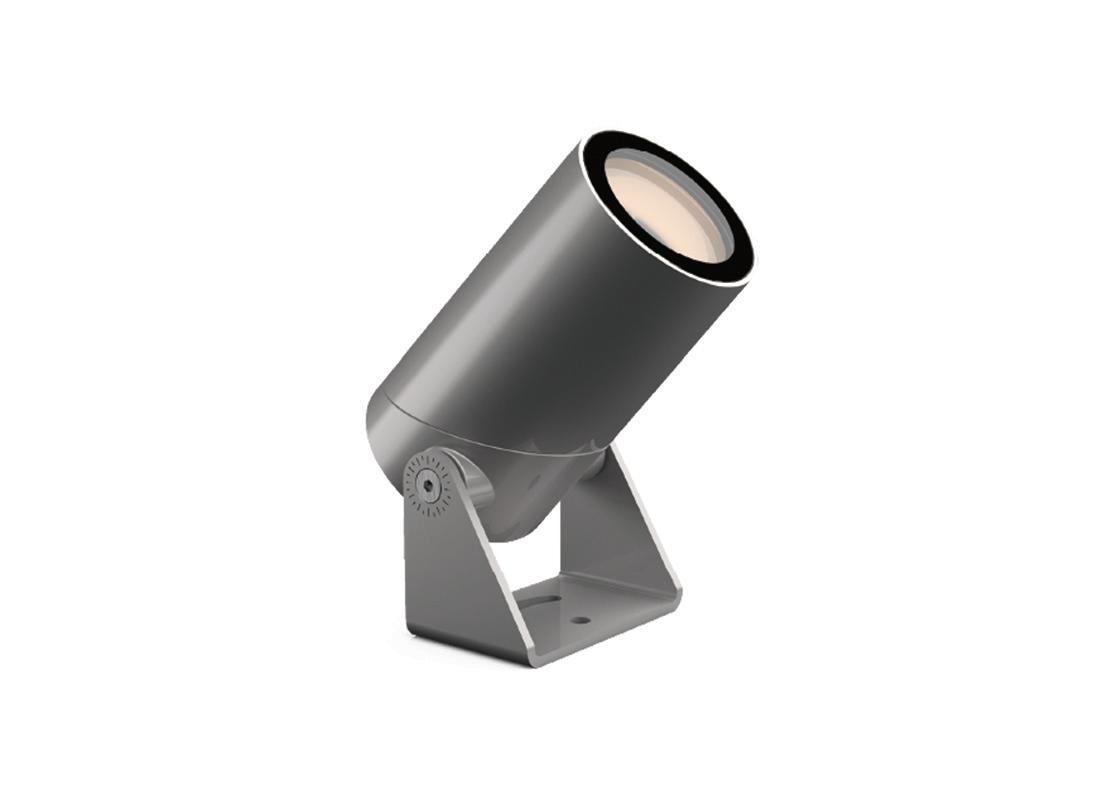

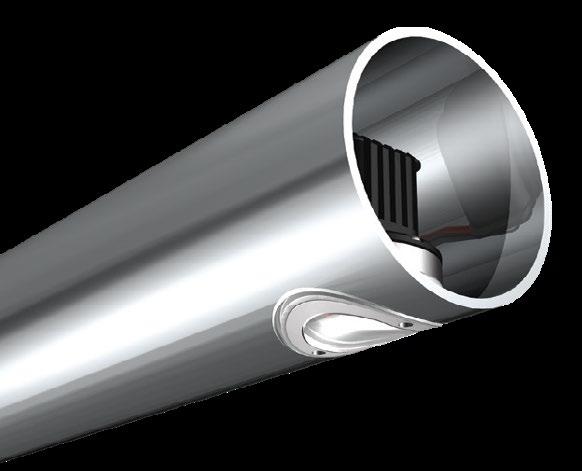

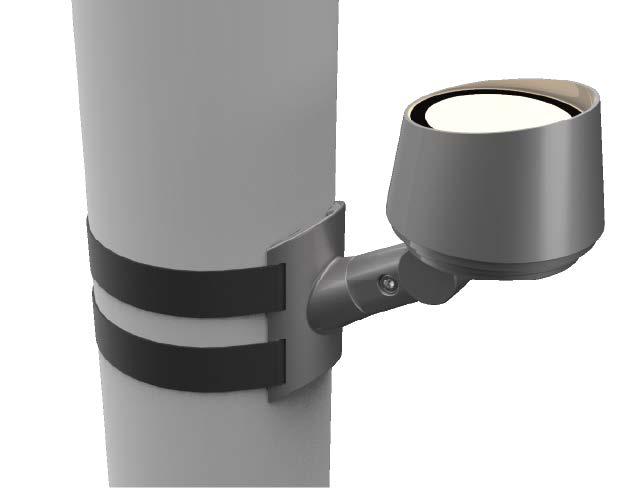

• Adjustable direct or indirect luminaire - 180° Adjustable at knuckle

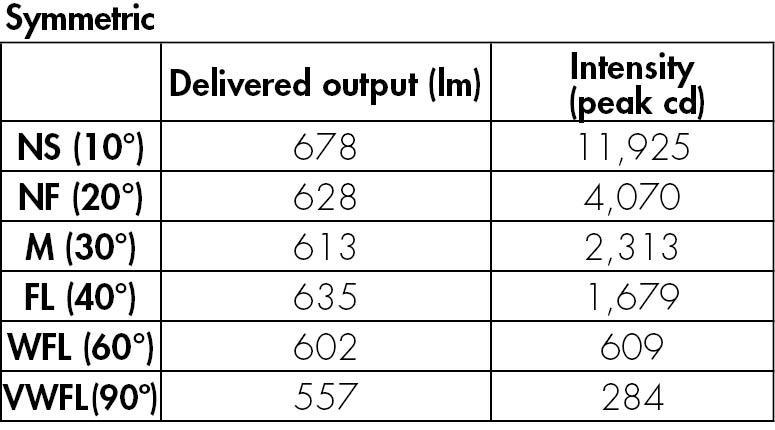

• Patented AccuLED Optics(TM) System behind a sealed clear glass lens
• 120-277V input with ELV or 0-10V dimming options

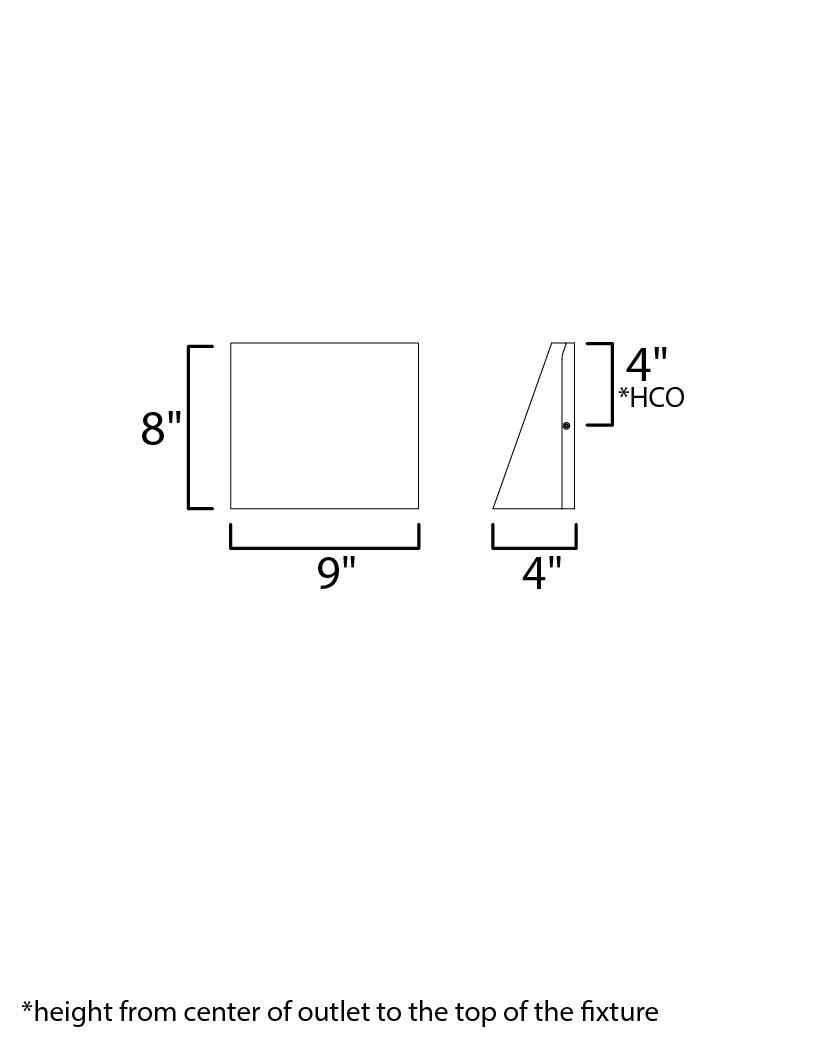

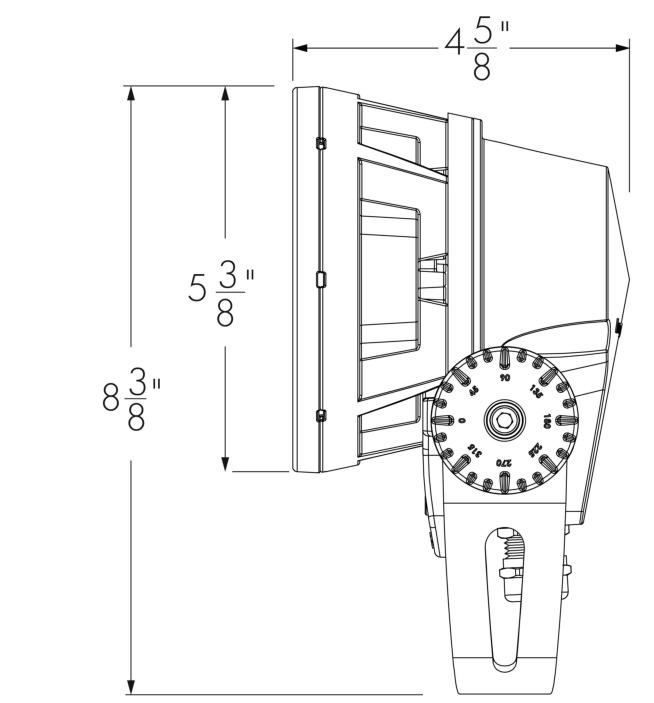

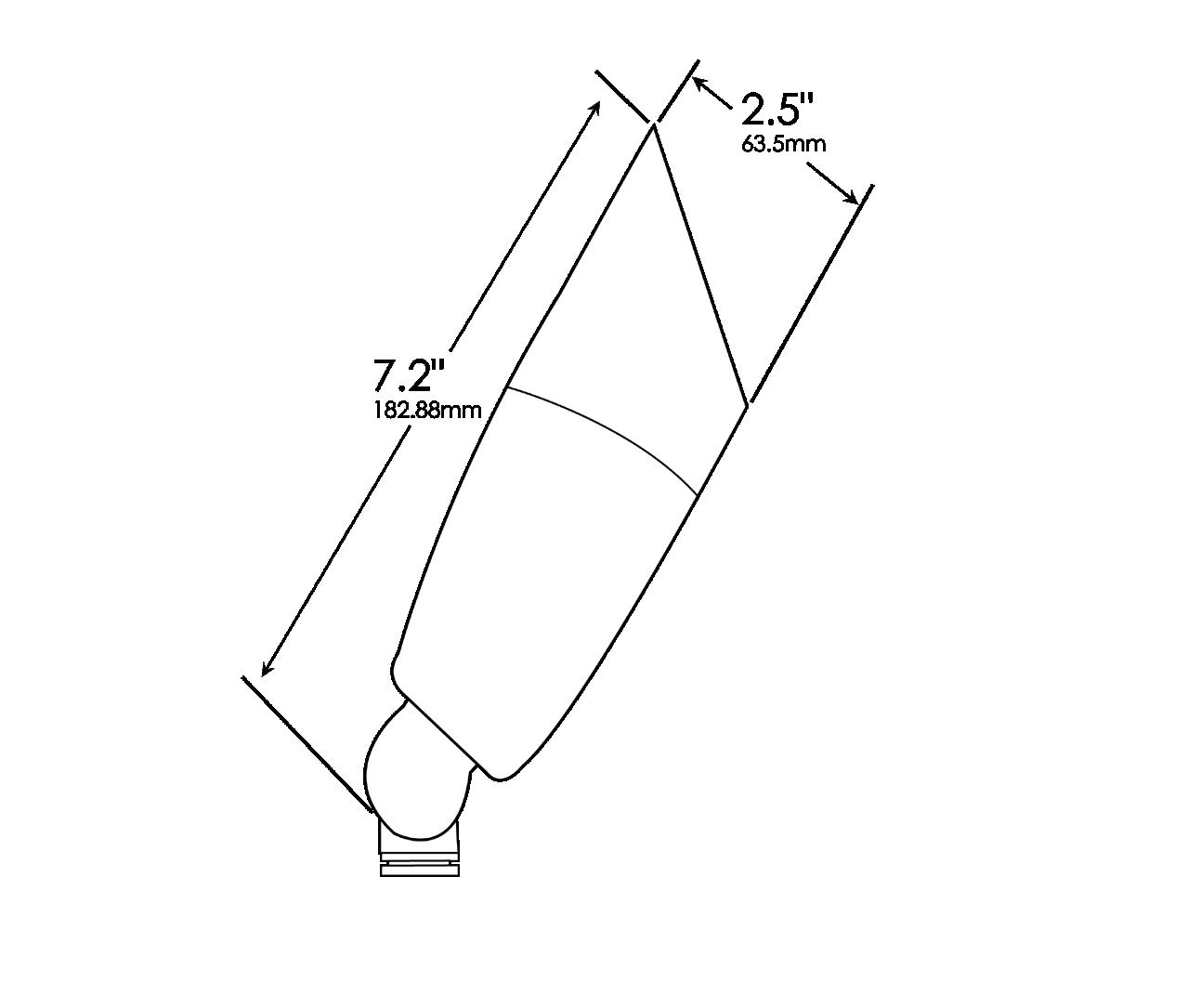

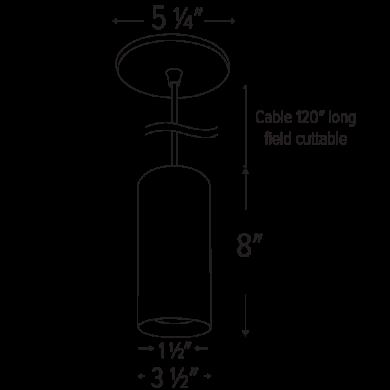

Dimensions
Order Information
SAMPLE
303-W1-LEDB1= Head contains ONE (1) Mini LightBARTM
303-W1-LEDB2= Head contains two (2) Mini LightBARTM
303-W2-LEDB2= Head contains two (2) Mini LightBARTM - one on top and bottom. 2700K=2700K
Product Specifications
Construction
• Head and back plate are precision machined from corrosion-resistant 6061-T6 aluminum
• A universal mounting plate and one piece silicone key hole gasket is provided for adaption to junction box or surface
• Stainless steel hardware is included
Mounting
• The luminaire mounts directly to a standard 4” square junction box
For further mounting information see technical notes section on page 3
Optical
• LightBAR LightBARTM TM and optical assembly are sealed by a diffused, impact resistant tempered glass lens
• The optical assembly is available in three distributions: T2 (lateral throw), T4 (forward throw) and T5X (Extra Wide Flood)
Available in several color temperatures: 2700K, 3000K, 3500K, 4000K and TSAM (Amber)
• Both color temperature and distribution must be specified when ordering – see catalog logic for details
An edge-lit option is available
Electrical
• The 8.5W 303-W1-LEDB1 is standard with an ELV trailing edge phase dimmable driver that accepts a universal input (120-277, 50/60Hz)
It will operate in -40°C to 50°C [-40°F to 122°F]
• The driver incorporates surge protection
• An optional 0-10V dimming driver is also available.
Finish
• The luminaires are double protected by a RoHS compliant chemical film undercoating and polyester powder coat paint finish, surpassing the rigorous demands of the outdoor environment
• A variety of standard colors are available
• RAL and custom color matches available upon request
• Luminaries can also be brushed with a clear coat finish
• The LightBARTM cover plates are standard white and may be specified to match finish of luminaire housing (LCF)
Compliance
• cULus Wet Location listed for up to 50°C ambient environments
• Tested according to IESNA LM-79 and LM-80 procedures
• RoHS Compliant
• Domestic preference option available to meet BAA requirements
• Domestic preference option available to meet BABA requirements. BABA is the minimum Government compliance requirement for the Buy America Build America standards which is part of the Infrastructure and Investment Jobs Act (IIJA). Individual Government Agencies may have more stringent compliance standards
• Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyze under domestic preference requirements
• IP66 rated
• Dark Sky Approved (3000K CCT and warmer only)
Warranty
Five-year limited warranty. Consult website for details: www.cooperlighting.com/legal

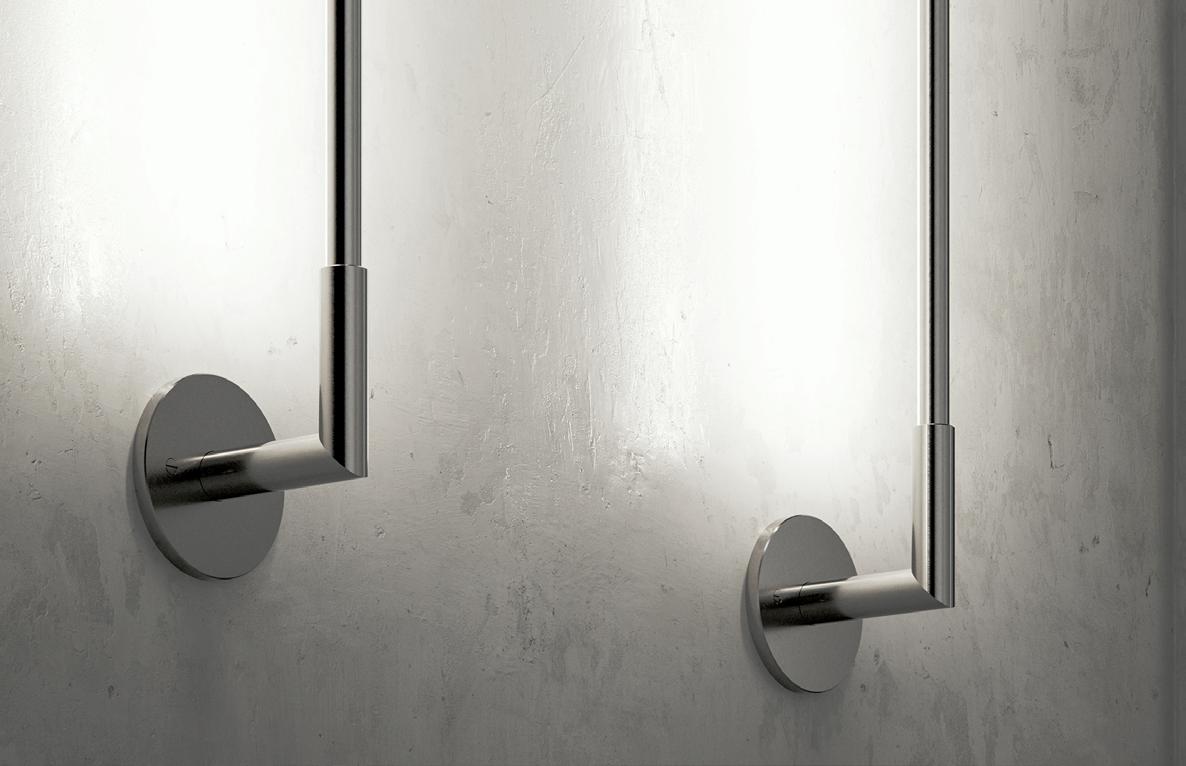

KAUFMAN LYNN TYPE K/KWH1
Order Information
SAMPLE

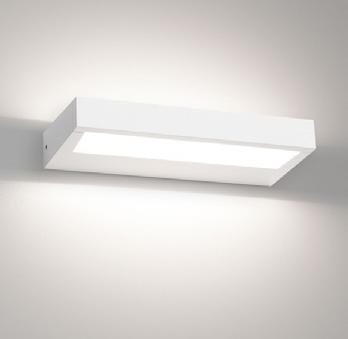

303-W1-LEDB1= Head contains ONE (1) Mini LightBARTM
303-W1-LEDB2= Head contains two (2) Mini LightBARTM
303-W2-LEDB2= Head contains two (2) Mini LightBARTM - one on top and bottom. 2700K=2700K
Product Specifications
Construction
• Head and back plate are precision machined from corrosion-resistant 6061-T6 aluminum
• A universal mounting plate and one piece silicone key hole gasket is provided for adaption to junction box or surface
• Stainless steel hardware is included
Mounting
• The luminaire mounts directly to a standard 4” square junction box
For further mounting information see technical notes section on page 3
Optical
• LightBAR LightBARTM TM and optical assembly are sealed by a diffused, impact resistant tempered glass lens
• The optical assembly is available in three distributions: T2 (lateral throw), T4 (forward throw) and T5X (Extra Wide Flood)
Available in several color temperatures: 2700K, 3000K, 3500K, 4000K and TSAM (Amber)
• Both color temperature and distribution must be specified when ordering – see catalog logic for details
An edge-lit option is available
Electrical
• The 8.5W 303-W1-LEDB1 is standard with an ELV trailing edge phase dimmable driver that accepts a universal input (120-277, 50/60Hz)
It will operate in -40°C to 50°C [-40°F to 122°F]
• The driver incorporates surge protection
• An optional 0-10V dimming driver is also available.
Finish
• The luminaires are double protected by a RoHS compliant chemical film undercoating and polyester powder coat paint finish, surpassing the rigorous demands of the outdoor environment
• A variety of standard colors are available
• RAL and custom color matches available upon request
• Luminaries can also be brushed with a clear coat finish
• The LightBARTM cover plates are standard white and may be specified to match finish of luminaire housing (LCF)
Compliance
• cULus Wet Location listed for up to 50°C ambient environments
• Tested according to IESNA LM-79 and LM-80 procedures
• RoHS Compliant
• Domestic preference option available to meet BAA requirements
• Domestic preference option available to meet BABA requirements. BABA is the minimum Government compliance requirement for the Buy America Build America standards which is part of the Infrastructure and Investment Jobs Act (IIJA). Individual Government Agencies may have more stringent compliance standards
• Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyze under domestic preference requirements
• IP66 rated
• Dark Sky Approved (3000K CCT and warmer only)
Warranty
Five-year limited warranty. Consult website for details: www.cooperlighting.com/legal
NO SPEC
KAUFMAN LYNN
PRODUCT DESCRIPTION

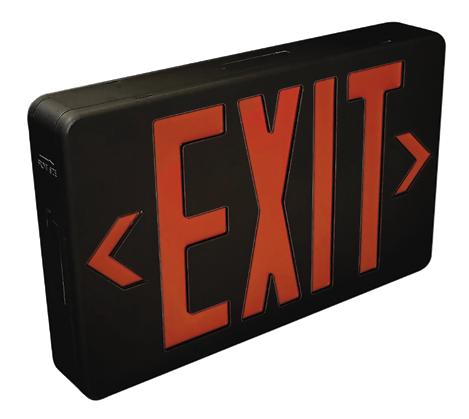

A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
11-13/16" Width x 7-1/4" Height x 1-13/16" Depth
· Injection-molded thermoplastic housing Black or White housing finish
FACE
6" high text with color diffusion
Both double and a blank face are included Snap-in direction indicators
MOUNTING
Type Project Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS

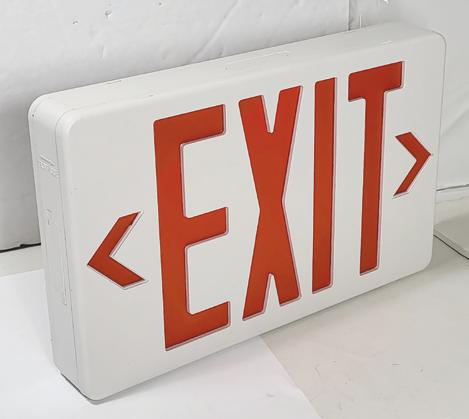

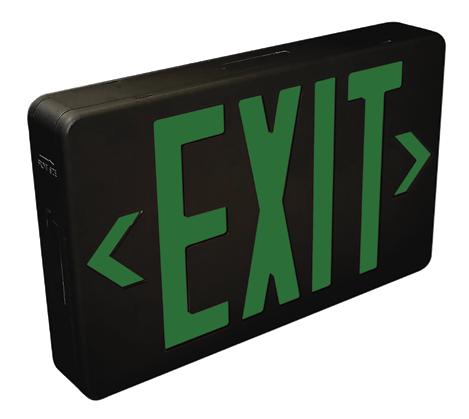

Thermoplastic Dual Color (Red/Green) LED Exit Sign with Battery Backup NX-603D-LED
Wall, side, or ceiling
Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES

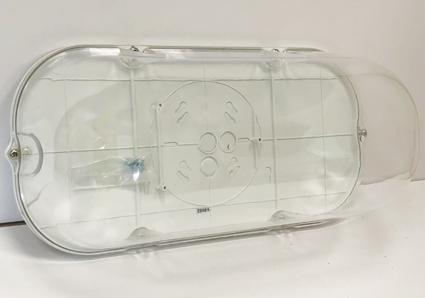

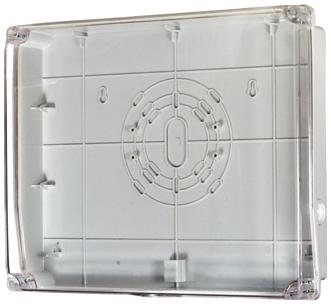

NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
5-Year Limited Warranty UL 924
Rated for Damp Locations (Wet Location when used with NEG-60) NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
• LED Polycarbonate Exit available in white or black housings
• UL 924 damp location certified
Sure-Lites LPX Series
LED polycarbonate Exit with 90 minutes of run time
Product Features Product Certification
• Field selectable for Red or Green illumination and single or double faces
• 90 minutes of emergency run time with self-powered (battery backup) models
• Maintenance free nickel cadmium battery
• Self-diagnostic and remote capacity options
• DLVP option
Dimensional Details
KAUFMAN LYNN
PRODUCT DESCRIPTION
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
11-13/16" Width x 7-1/4" Height x 1-13/16" Depth
· Injection-molded thermoplastic housing Black or White housing finish
FACE
6" high text with color diffusion
Both double and a blank face are included Snap-in direction indicators
MOUNTING
Type Project Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
Thermoplastic Dual Color (Red/Green) LED Exit Sign with Battery Backup NX-603D-LED
Wall, side, or ceiling
Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
5-Year Limited Warranty UL 924
Rated for Damp Locations (Wet Location when used with NEG-60) NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
A compact exit sign with dual color LEDs, allows end user to change the color from Red to Green in the field. The exit sign includes a maintenance-free NiCad battery to power the fixture during power loss for 90 minutes on a full charge. LED light sources require no maintenance for 25 years–saving greatly on maintenance and upkeep costs. LED exits are ideal for commercial and industrial standard non-emergency applications where low maintenance and operating costs are a must.
BODY
11-13/16" Width x 7-1/4" Height x 1-13/16" Depth
· Injection-molded thermoplastic housing Black or White housing finish
FACE
6" high text with color diffusion
Both double and a blank face are included Snap-in direction indicators
MOUNTING
Type Project Catalog No.
Notes
PRODUCT IMAGES AND DIMENSIONS
Thermoplastic Dual Color (Red/Green) LED Exit Sign with Battery Backup NX-603D-LED
Wall, side, or ceiling
Mounting hardware and canopy included
ELECTRICAL
Voltage: 120/277VAC Input
Wattage: 3W
Light Source: LED
Operating Temperature: 10°C - 40°C
Remote Capability: None
BATTERY
During loss of power, 3.6V 300mAh NiCad battery will operate LED exit sign for 90 minutes. Battery requires 24 hours to recharge when power is restored.
ACCESSORIES
NEG-60 : Wet Location Enclosure for wall mounting only
LABELS AND LISTINGS
5-Year Limited Warranty UL 924
Rated for Damp Locations (Wet Location when used with NEG-60) NFPA
Certified to the energy efficiency standards of California Title 20
6505 Gayhart Street, Commerce, CA 90040 Tel 800.686.6672 | www.noralighting.com
The ENTRA CL 3 Adjustable, Fixed, and Wall Wash Downlights offer a costeffective alternative for residential, multi-family, and hospitality applications. Engineered for high performance and reliability, ENTRA CL 3" is easily configurable with a feature set that offers flexibility without an overwhelming list of options. The ENTRA CL 3" Adjustable, Fixed, and Wall Wash Downlights offer LED options with Static White and Warm Dim.
• SDCM: 2-step static white and warm dim
• Hot aiming (0–35° tilt + 360° rotation)
• Interchangeable optics: 20°, 30°, 40°, 60°
• Flanged/flangeless die-cast trims
• Available in IC Airtight, Chicago Plenum, and Fire-Rated
SPECIFICATIONS
2700K, 3000K, or 3500K 3000K–1800K 2700K,
COLOR CONSISTENCY 2-step VOLTAGE 120V or 277V
DIMMING1
POWER SUPPLY
OPTICS
LUMEN/CBCP MULTIPLIERS
CCT 90 CRI MULTIPLIER
2700K 0.95
3000K 1.00
3500K 1.05
Lumen output will vary by CCT and CRI. See photometric charts for output information.
Reverse-phase, forward-phase, TRIAC, and 0–10V dimming down to 1%
Constant current driver with +.9 power factor and +80% efficiency
Field changeable: Includes 40° optic. 20°, 30°, and 60° optics can be ordered separately.
Registered CEC Appliance Database. Can be used to comply with CEC 2019 Title 24 Part 6 (JA8-2016, JA8-2019).
L70 50,000 hours min
WARRANTY2 5 years
Data in chart reflects 3000K/90CRI values unless noted.
Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
KAUFMAN LYNN TYPE LT01
NIOB-2RNB

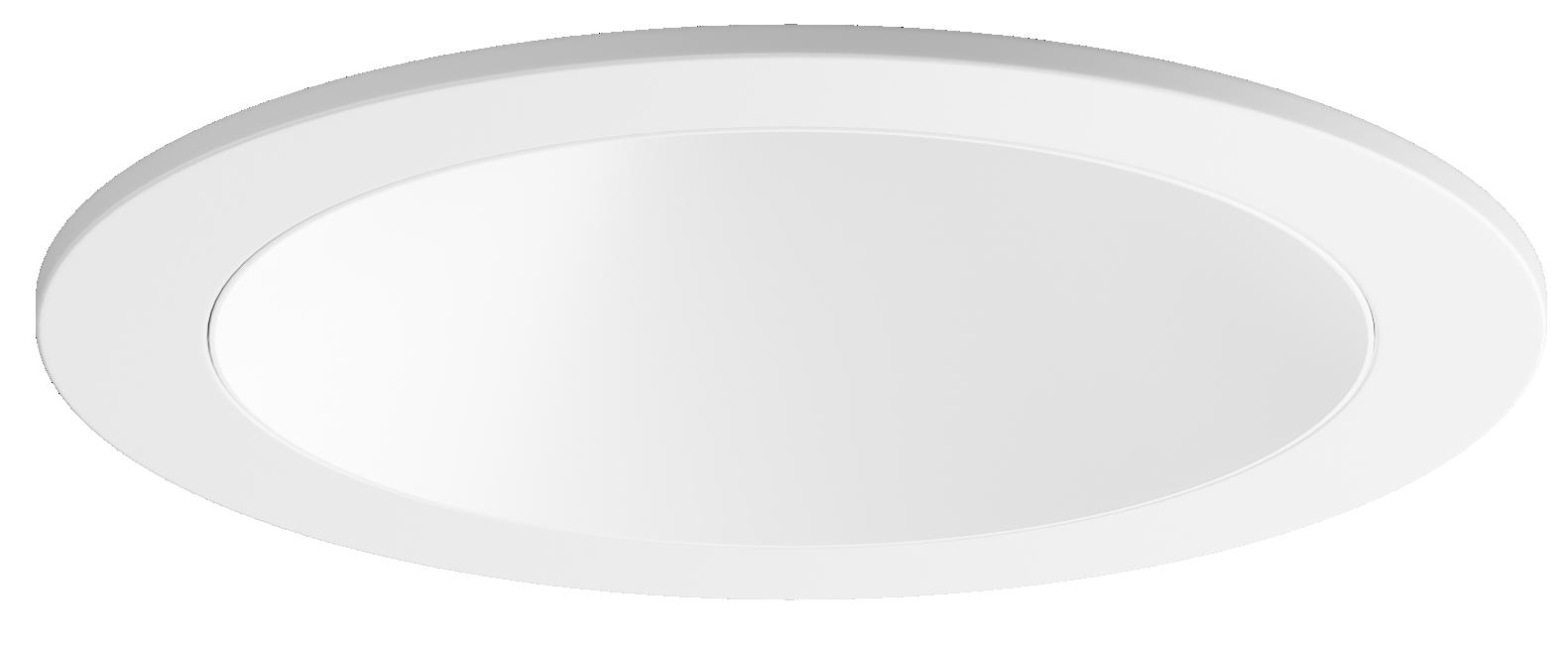

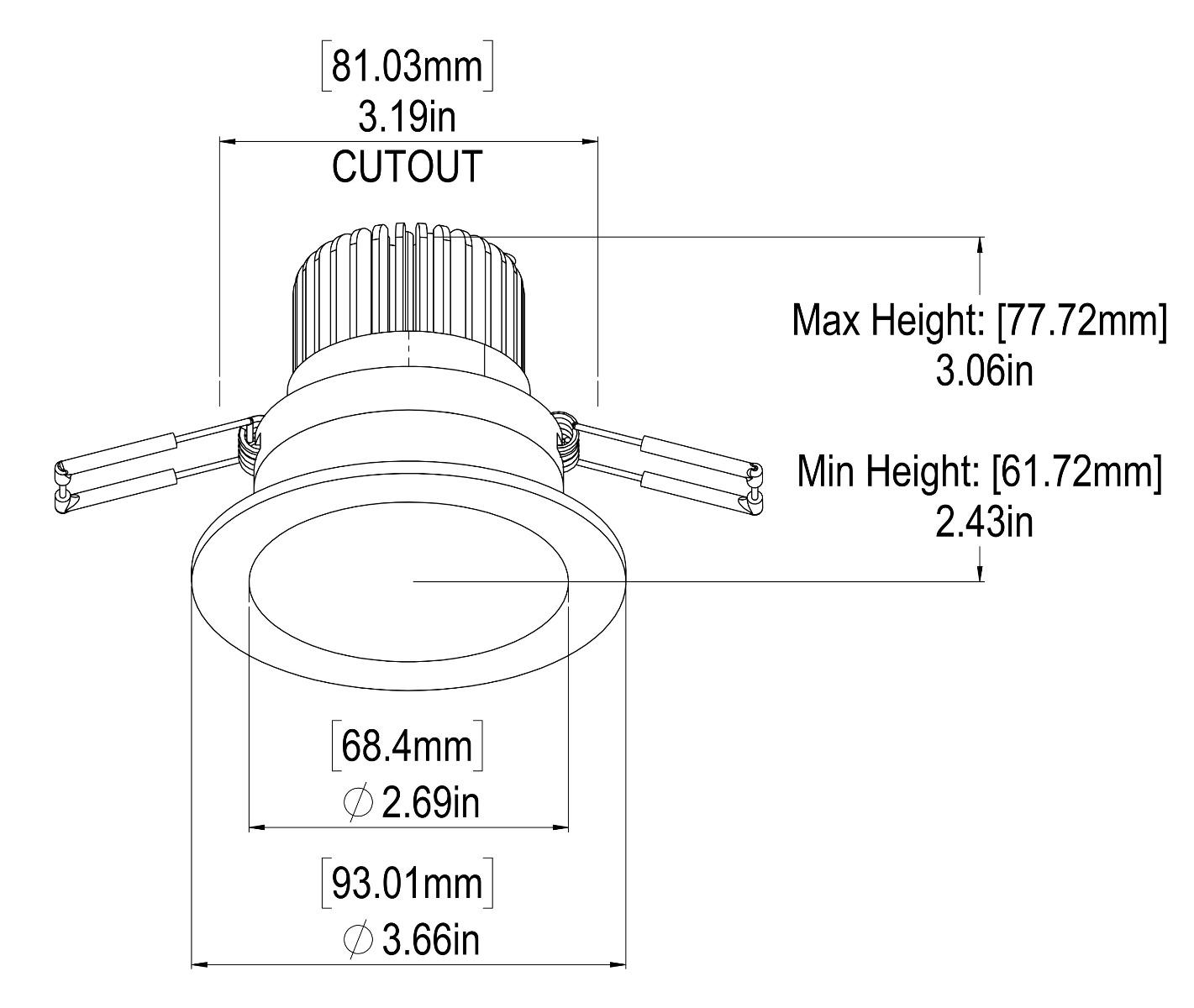

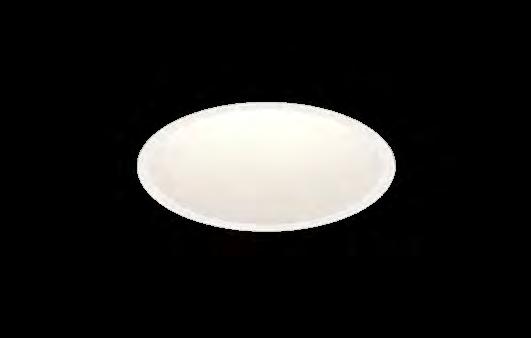

2" Iolite Round Bullnose
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION

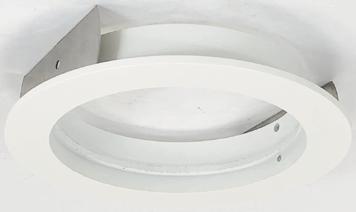

2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS

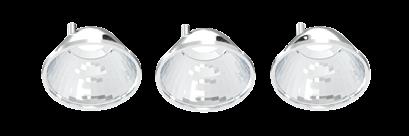

800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing

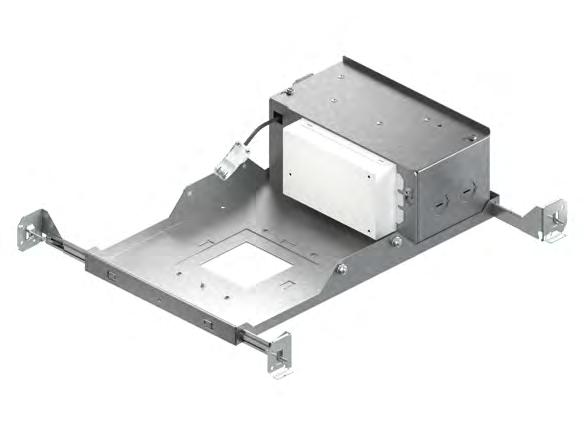

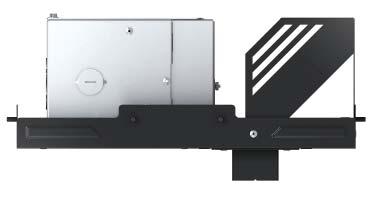

COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W

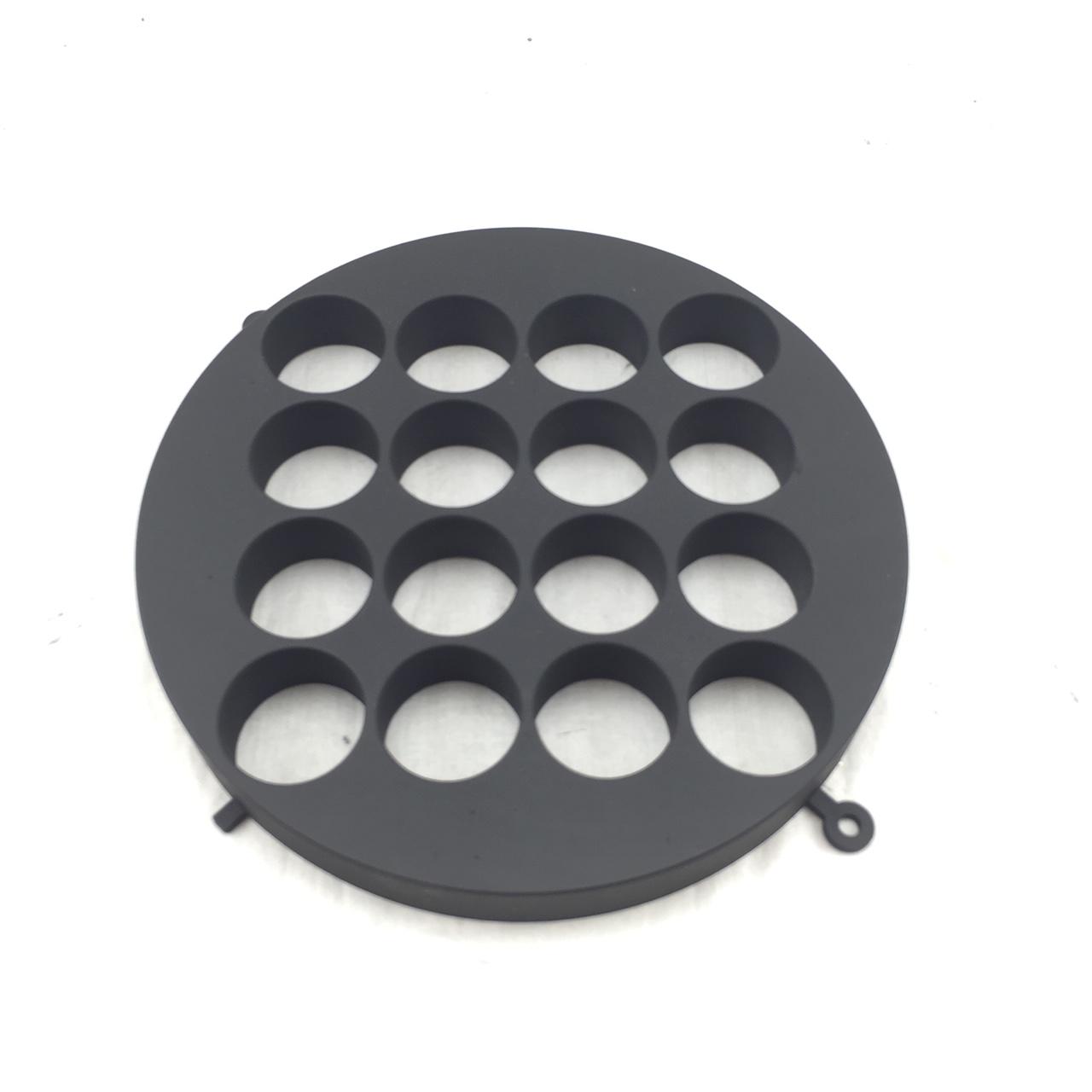

Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite Round Bullnose - Dedicated Housing Required Color Temperature
NIOB-2RNBCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-28 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
TYPE LT01 SPEC KAUFMAN

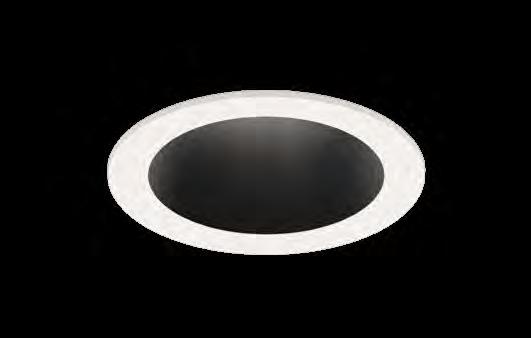

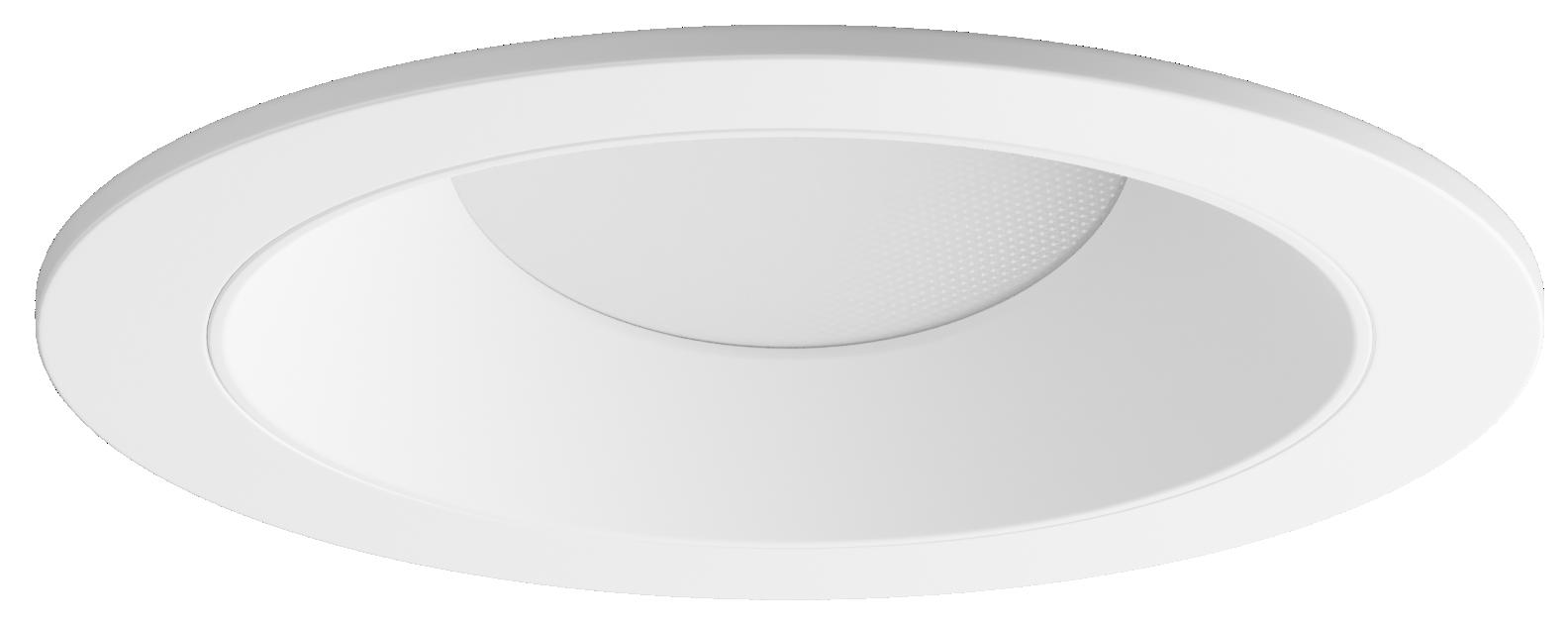

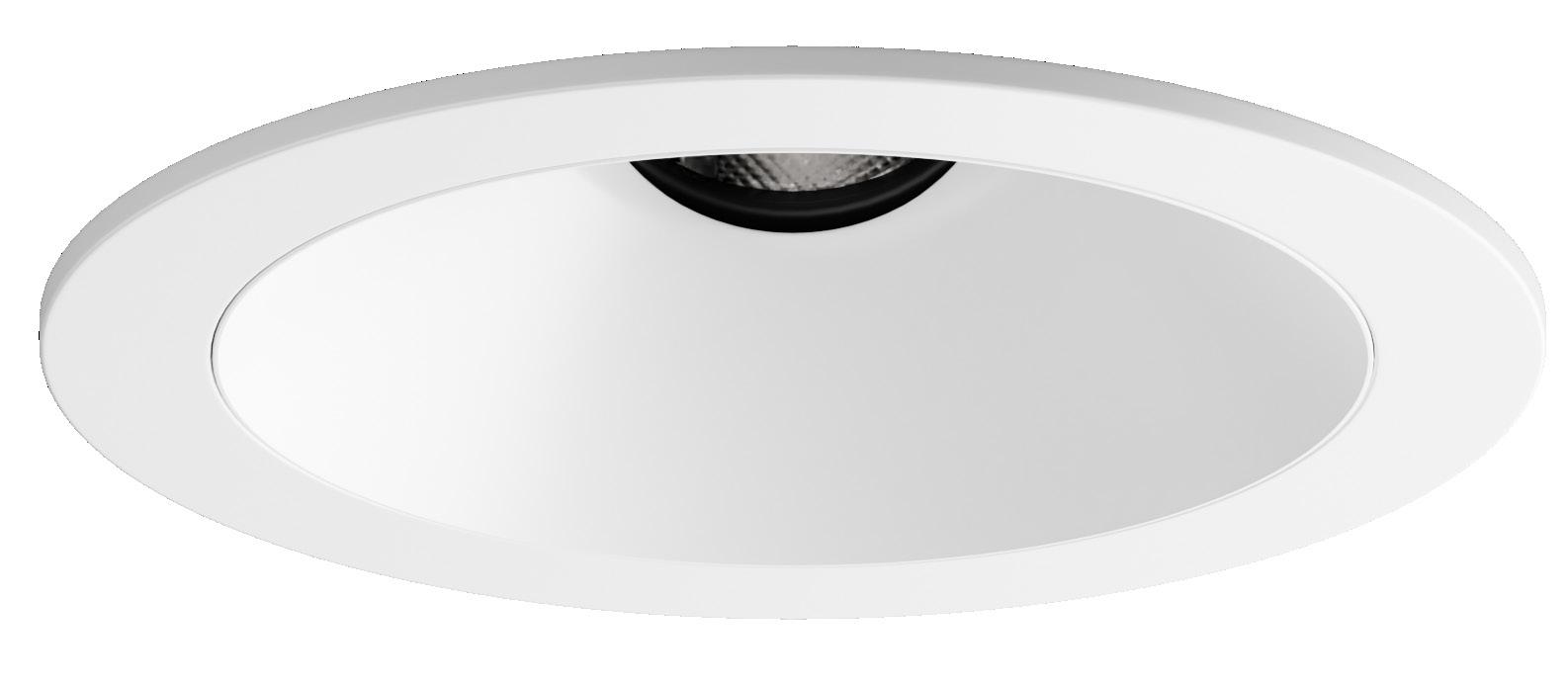

ENTRA™ CL 3" LED
ADJUSTABLE, FIXED, AND WALL WASH DOWNLIGHTS
ORDERING GRIDS

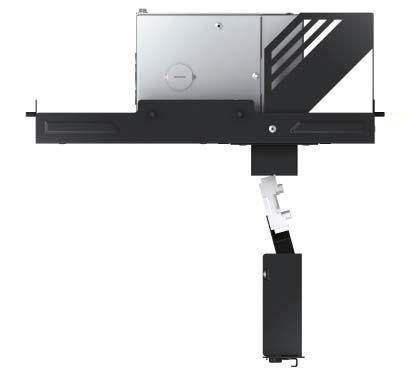

HOUSING
PRODUCT CEILING APPEARANCE OUTPUT HOUSING RATING
ENCL3R ENTRA CL 3" ROUND
ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED -L12 12W (1100 LMS) -L15 15W (1300 LMS)1 I IC AIRTIGHT C CHICAGO PLENUM F
Includes an LED driver with universal input 120V-277V, dimmable by reverse-phase, forward-phase, TRIAC, and 0–10V controls. 277V is only compatible with 0–10V dimming. See dimmer compatibility chart. Trims are required and must be ordered separately.
1L15 - Output not available with WD31 warm dim.
2F- Certified to ASTM E119, UL 263, and CAN/ULC-S101. Fire Rating of 1 and 2 hours, respectively.
3F- Fire-Rated is not available in Adjustable or Wall Wash.

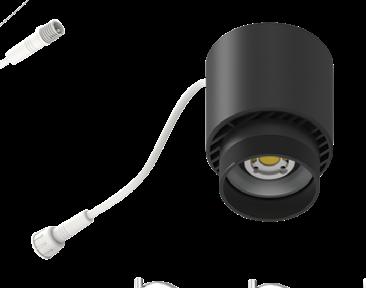

TRIM/LIGHT MODULE
Warm Dim is not available with 15W output.
PRODUCT CEILING APPEARANCE FUNCTION CRI/CCT REFLECTOR FINISH FLANGE FINISH
ENCL3R ENTRA CL 3 ROUND
ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED A ADJUSTABLE1 D DOWNLIGHT W WALL WASH1 -927 90 CRI, 2700K, 2-STEP -930 90 CRI, 3000K, 2-STEP -935 90 CRI, 3500K, 2-STEP -WD31 90 CRI, 3000K-1800K, WARM DIM, 2-STEP2,3 W WHITE B BLACK S SATIN SILVER C CHAMPAGNE
Includes 40° optic. 20°, 30° and 60° optics can be ordered separately.
1A, W - Adjustable and Wall Wash are not available with Fire-Rated housing (F).
2WD31 - Warm dim not available with L15 output.
3WD31 - Warm dim includes a sandblasted lens; no additional lenses/louvers can be added.

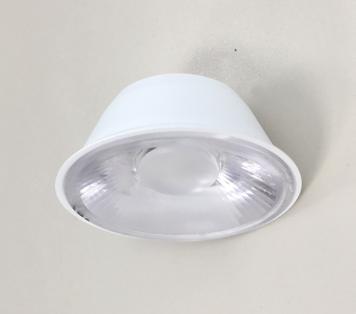

REPLACEMENT OPTICS
PRODUCT BEAM SPREAD
353LEDGATOPT 20 20° 30 30° 40 40° 60 60°
353LEDGATOPT
LENSES/LOUVERS
PRODUCT1 TYPE MOC GG PLAIN GLASS SF SOFT FOCUS SB SANDBLASTED LL LINEAR SPREAD EC EGGCRATE LOUVER MOC 1Lenses/louvers mounted to lamp assembly only (max 1).
Plaster plates are used to convert flanged housings into flangeless housings. Ships standard with flangeless housings.
2" Iolite Accessories
2" Iolite Round Bullnose
FIELD CHANGEABLE OPTICS
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.

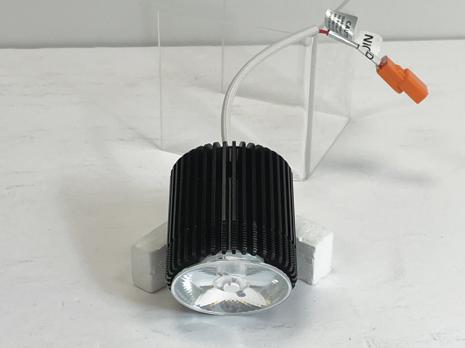

LED Module
Frosted Optics
NIO-REFL38FR 60° Optic
ACCESSORIES
Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Die-cast Trim
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite downlights can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with trim flange visible. Mud ring attaches to drywall. Requires and only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trim. Dimensions: 7-7/8" diameter 1/2" thick
The ENTRA CL 3 Adjustable, Fixed, and Wall Wash Downlights offer a costeffective alternative for residential, multi-family, and hospitality applications. Engineered for high performance and reliability, ENTRA CL 3" is easily configurable with a feature set that offers flexibility without an overwhelming list of options. The ENTRA CL 3" Adjustable, Fixed, and Wall Wash Downlights offer LED options with Static White and Warm Dim.
• SDCM: 2-step static white and warm dim
• Hot aiming (0–35° tilt + 360° rotation)
• Interchangeable optics: 20°, 30°, 40°, 60°
• Flanged/flangeless die-cast trims
• Available in IC Airtight, Chicago Plenum, and Fire-Rated
SPECIFICATIONS
2700K, 3000K, or 3500K 3000K–1800K 2700K,
COLOR CONSISTENCY 2-step VOLTAGE 120V or 277V
DIMMING1
POWER SUPPLY
OPTICS
LUMEN/CBCP MULTIPLIERS
CCT 90 CRI MULTIPLIER
2700K 0.95
3000K 1.00
3500K 1.05
Lumen output will vary by CCT and CRI. See photometric charts for output information.
Reverse-phase, forward-phase, TRIAC, and 0–10V dimming down to 1%
Constant current driver with +.9 power factor and +80% efficiency
Field changeable: Includes 40° optic. 20°, 30°, and 60° optics can be ordered separately.
Registered CEC Appliance Database. Can be used to comply with CEC 2019 Title 24 Part 6 (JA8-2016, JA8-2019).
L70 50,000 hours min
WARRANTY2 5 years
Data in chart reflects 3000K/90CRI values unless noted.
Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
KAUFMAN LYNN TYPE LT01A
NIOB-2RNB
2" Iolite Round Bullnose
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE

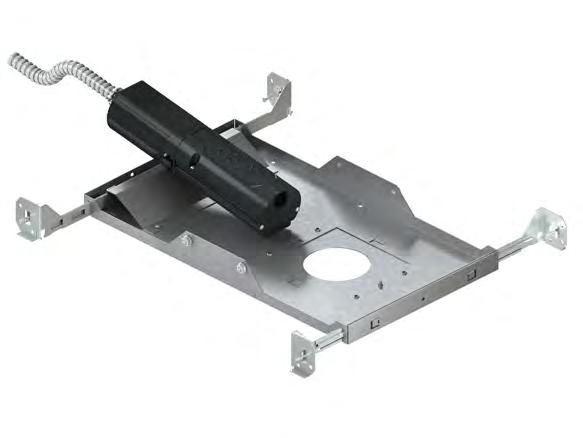

NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite Round Bullnose - Dedicated Housing Required Color Temperature
NIOB-2RNBCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-28 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
ENTRA™ CL 3" LED
ADJUSTABLE, FIXED, AND WALL WASH DOWNLIGHTS
ORDERING GRIDS
HOUSING
PRODUCT CEILING APPEARANCE OUTPUT HOUSING RATING
ENCL3R ENTRA CL 3" ROUND
ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED -L12 12W (1100 LMS) -L15 15W (1300 LMS)1 I IC AIRTIGHT C CHICAGO PLENUM F
Includes an LED driver with universal input 120V-277V, dimmable by reverse-phase, forward-phase, TRIAC, and 0–10V controls. 277V is only compatible with 0–10V dimming. See dimmer compatibility chart. Trims are required and must be ordered separately.
1L15 - Output not available with WD31 warm dim.
2F- Certified to ASTM E119, UL 263, and CAN/ULC-S101. Fire Rating of 1 and 2 hours, respectively.
3F- Fire-Rated is not available in Adjustable or Wall Wash.
TRIM/LIGHT MODULE
Warm Dim is not available with 15W output.
PRODUCT CEILING APPEARANCE FUNCTION CRI/CCT REFLECTOR FINISH FLANGE FINISH
ENCL3R ENTRA CL 3 ROUND
ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED A ADJUSTABLE1 D DOWNLIGHT W WALL WASH1 -927 90 CRI, 2700K, 2-STEP -930 90 CRI, 3000K, 2-STEP -935 90 CRI, 3500K, 2-STEP -WD31 90 CRI, 3000K-1800K, WARM DIM, 2-STEP2,3 W WHITE B BLACK S SATIN SILVER C CHAMPAGNE
Includes 40° optic. 20°, 30° and 60° optics can be ordered separately.
1A, W - Adjustable and Wall Wash are not available with Fire-Rated housing (F).
2WD31 - Warm dim not available with L15 output.
3WD31 - Warm dim includes a sandblasted lens; no additional lenses/louvers can be added.
REPLACEMENT OPTICS
PRODUCT BEAM SPREAD
353LEDGATOPT 20 20° 30 30° 40 40° 60 60°
353LEDGATOPT
LENSES/LOUVERS
PRODUCT1 TYPE MOC GG PLAIN GLASS SF SOFT FOCUS SB SANDBLASTED LL LINEAR SPREAD EC EGGCRATE LOUVER MOC 1Lenses/louvers mounted to lamp assembly only (max 1).
Plaster plates are used to convert flanged housings into flangeless housings. Ships standard with flangeless housings.
2" Iolite Accessories
2" Iolite Round Bullnose
FIELD CHANGEABLE OPTICS
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
LED Module
Frosted Optics
NIO-REFL38FR 60° Optic
ACCESSORIES
Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Die-cast Trim
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite downlights can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with trim flange visible. Mud ring attaches to drywall. Requires and only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trim. Dimensions: 7-7/8" diameter 1/2" thick

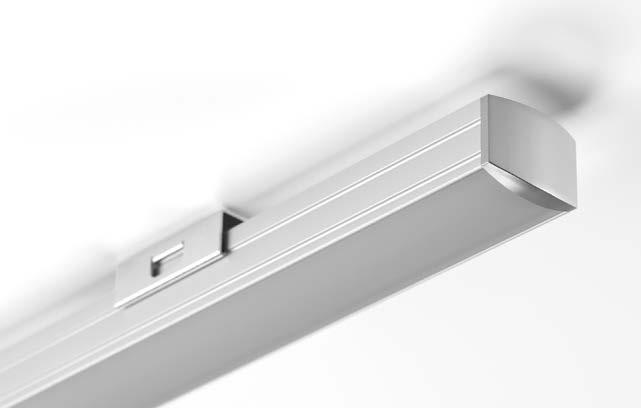

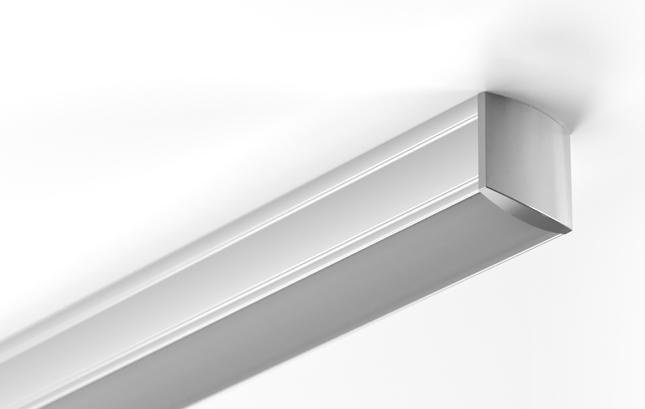

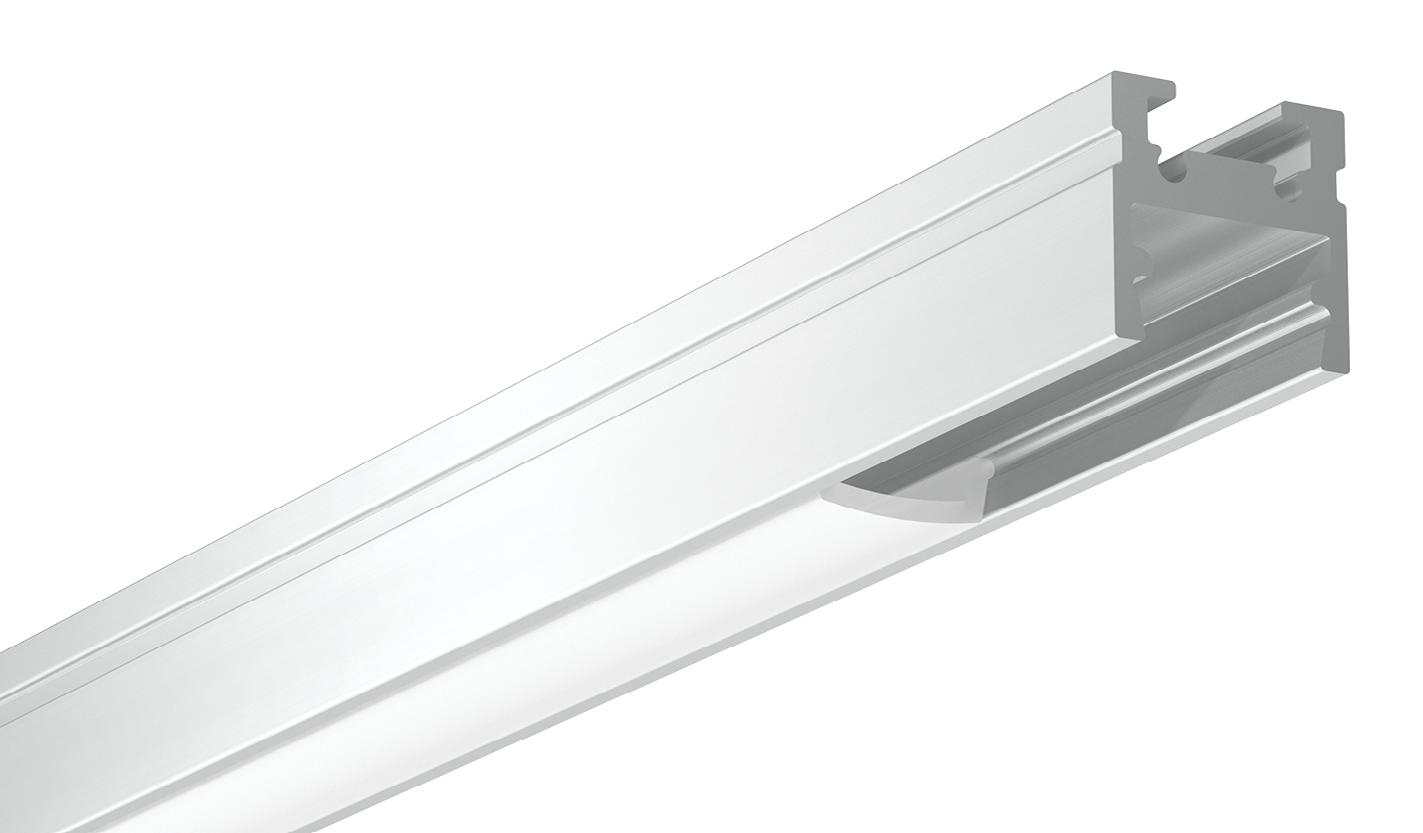

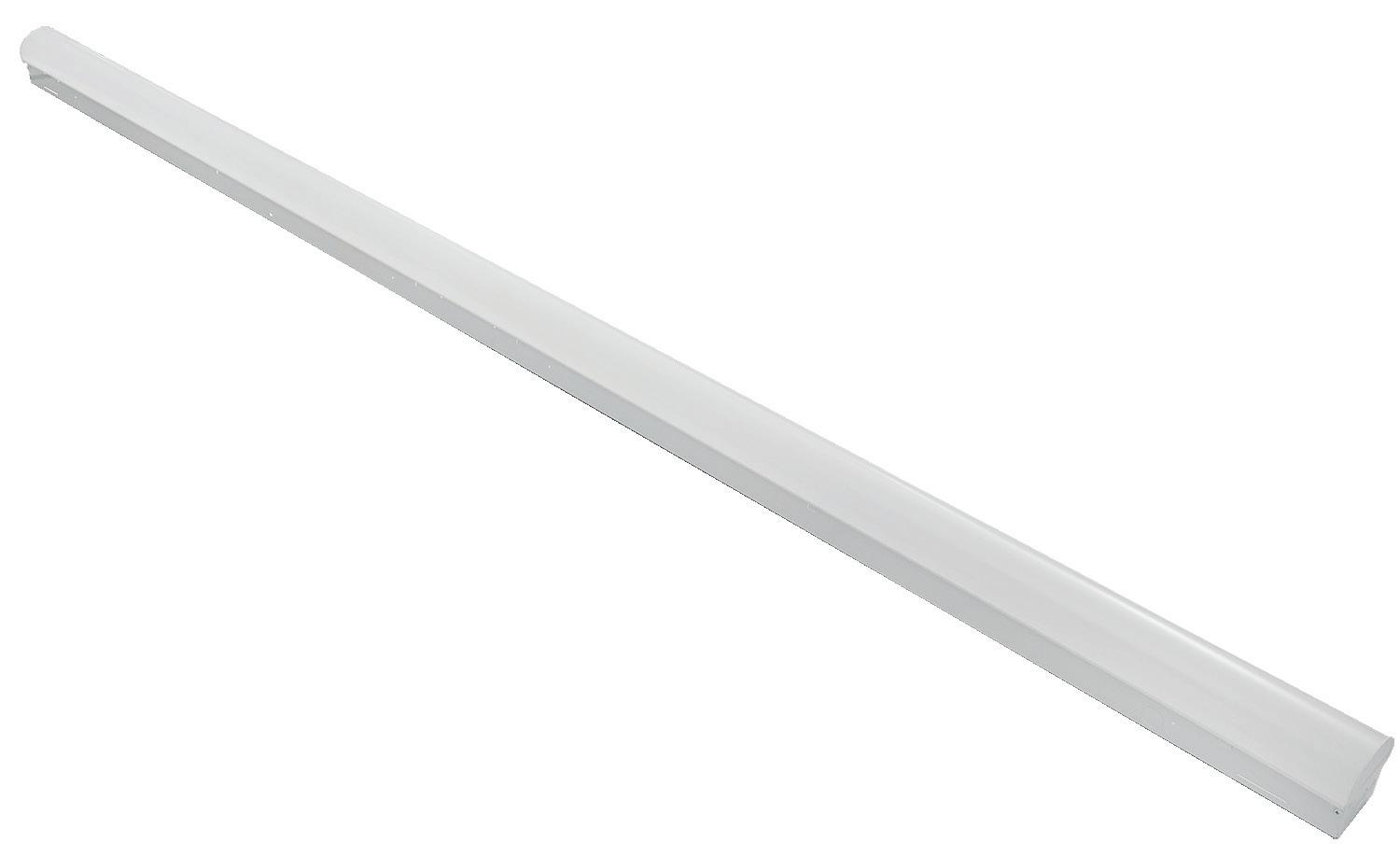

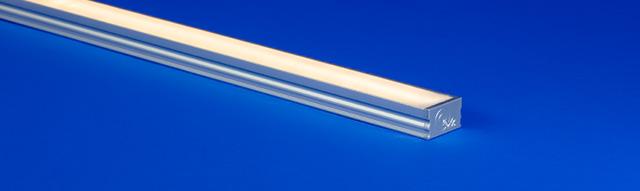

Guaranteed to be discreet! The 4400 profile is reduced to a minimum with its size of less than half an inch, while accepting a good range of LED engines1
(1) Accepts LED engines up to 8mm wide.
FEATURES
–Ultra-compact aluminum profile — 12.2mm wide by 12.2mm high (0.5 x 0.5in).
–Custom length by sections of 2 to 240 inches (6m).
–Made of ALCOA 6063-T5 aluminum alloy increasing heat dissipation.
–It s use increases the lifetime of your LED engine.
–Designed to meet North American woodworking standards.

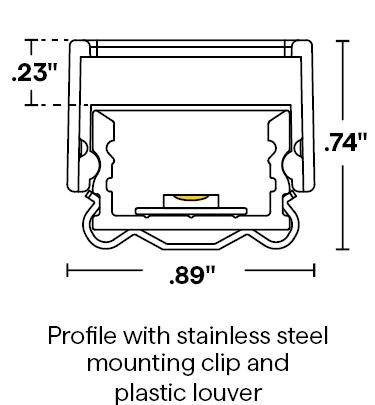

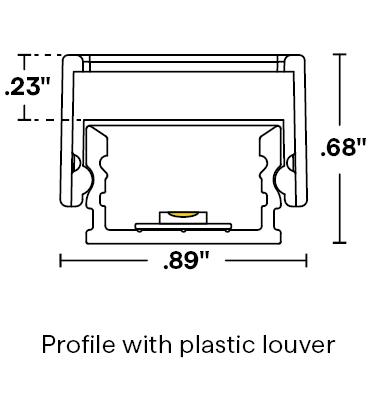

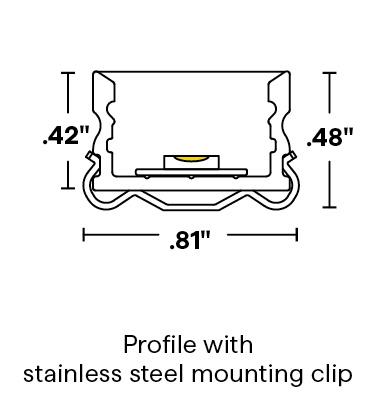

Cross-section dimensions:
LED STRIP COMPATIBILITY
Compatible with LED strips up to 8mm wide.
LINEAR WEIGHT
0.108 lbs/ft, 0.160 kg/m (without lens)
ONE OF THE SMALLEST ON THE MARKET
Guaranteed to be discreet! The 4400 profile is reduced to a minimum with its size of less than half an inch, while accepting a good range of LED engines1
(1) Accepts LED engines up to 8mm wide.
FEATURES
–Ultra-compact aluminum profile — 12.2mm wide by 12.2mm high (0.5 x 0.5in).
–Custom length by sections of 2 to 240 inches (6m).
–Made of ALCOA 6063-T5 aluminum alloy increasing heat dissipation.
–It s use increases the lifetime of your LED engine.
–Designed to meet North American woodworking standards.
Cross-section dimensions:
LED STRIP COMPATIBILITY
Compatible with LED strips up to 8mm wide.
LINEAR WEIGHT
0.108 lbs/ft, 0.160 kg/m (without lens)
1 PROFILE & FINISH
CA4401 - Anodized
CA440W- White (special order)
CA440X
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WPE - Pass-through, end feed
WPB - Pass-through, back feed
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
4
10 LENGTH*
Length of the luminaire in inches.
*Includes end caps, excludes flanges (when applicable). length
11 DRIVER TYPE
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
1 PROFILE & FINISH
CA4401
CA440W
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WPE - Pass-through, end feed
WPB - Pass-through, back feed
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
10 LENGTH*
Length of the luminaire in inches.
*Includes end caps, excludes flanges (when applicable). length
11 DRIVER TYPE
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
Specification Sheet
PHYSICAL
Product Type Flexible LED Strip
SMD Type 3528
Strip Width 5/16 in 8 mm (IP22) 10 mm (IP68)
Strip Total Length (Roll) 16.4 ft 5 m LED Linear Density
Other CCT available upon request. Please contact your authorized representative. CCT * - Correlated Color Temperature CRI** - Colour Rendering Index duv *** - Black-body Curve Deviation LP2

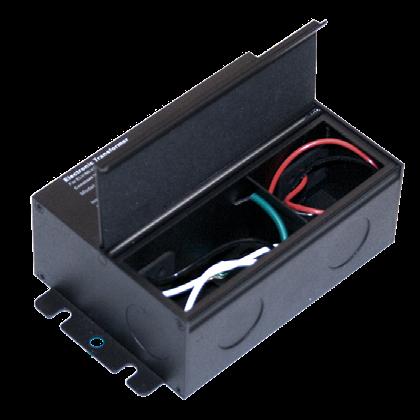

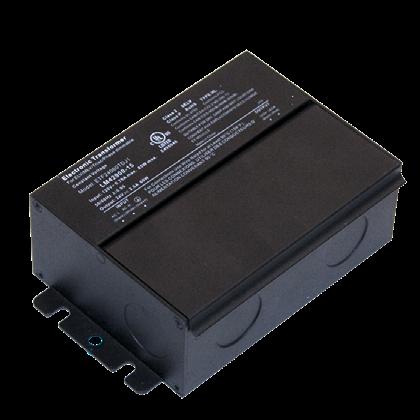

The MINI Series offers constant voltage power solutions in a compact format without compromising performance. Designed for residential and commercial lighting applications, these drivers deliver seamless phase (Triac / ELV / MLV) dimming and robust protection features. Compact size and integrated junction box makes them perfect for millwork applications. Backed by a 5-year warranty, the MINI Series is the perfect fit for projects that demand performance, value, and a seamless dimming experience.
FEATURES:
• Constant voltage output
• 120VAC
• Rated power 60W / 96W
• Full protection housing for dry, damp and wet locations
Vibration 10~500Hz, 5G 10min. / 1 cycle, period for 60min. each along X,Y,Z axes10~500Hz, 5G 10min. / 1 cycle, period for 60min. each along X,Y,Z axes
Safety standards UL8750, Class 2 UL8750, Class 2
Withstand voltage I/P-O/P:1.88KVAC
Weight & Dimensions Net
DERATING CURVE (OUTPUT LOAD VS. TEMP.)
Ambient Temperature (°C)
I/P-O/P:1.88KVAC

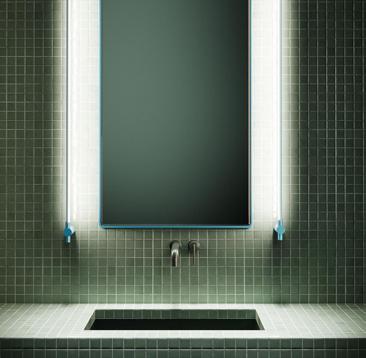

Eminence™ Lighted Mirror
Product Specifications: Residential
PRODUCT DESCRIPTION
The Eminence™ front-lit mirror has risen to prominence among designers, adding prestige and distinction to every room it graces. Its unique shadow-box frame, inward-facing task lighting, and ambient wall-glow combine to create the perfect balance of form and function.
SPECIFICATION STATEMENT
Solution shall consist of a lighted mirror with integrated one-touch dimming. LEDs will be mounted in a 90-degree channel in the frame of the mirror, with inward-facing directional lighting on the front face of the mirror, and ambient glow behind the mirror. LEDs shall have an L 70 life of >54,000 hours, with a greater than or equal to 90 CRI (color rendering index) and will be covered by an integrated diffuser. Product shall incorporate a driver enclosure that is to be mounted to the back of the mirror. Product will have a 7-year limited warranty.
THE ELECTRIC MIRROR ADVANTAGE
; Global mirror technology leader for over 25 years ; More installations than all competitors combined ; Realistic warranty you can believe in and trust ; Lowest total cost of ownership ; U.S.-based customer service and support ; 125,000-square-foot American manufacturing facility
● One-touch dimmable inward-facing task lighting for brilliant facial illumination
● One-touch dimmable wall-glow ambient lighting with diffuser for a finished side view
● Greater illuminance with half the power consumption of traditional LED mirrors
● Sleek and modern profile
● Suitable for damp bathroom environments
● Environmentally sustainable
● Energy efficient
● Easy installation
● JA8-2022 compliant
● 7-year limited warranty
● Patent: www.electricmirror.com/patents
● Designed in the USA
FINISHES
LIGHTING SPECIFICATIONS
● Natural-looking LED light color
● CRI: 90+
● CCT: 3,000K
● 351 initial lumens/foot (front lighting)
● 713 initial lumens/foot (wall-glow)
● Maximum 98 lumens/watt efficacy
● Reported L70 >54,000-hour LED lifespan
● Built-in EMX diffusers
KAUFMAN LYNN
MILA
P:(305)827-2661|E: info@majesticmirror.com
Metal frame with radius corner and frosted LED light around.
Download Product Spec Sheet
SKU: Mila
Categories: LED Mirrors
Tags: LED Mirror
Eminence™ Lighted Mirror
Product Specifications: Residential
SAFETY & INSTALLATION SPECIFICATIONS
● Entire assembly meets UL/cUL standards
● Safety-backed mirror
● 120VAC hardwire electrical connection; whip provided with mirror; junction box controlled by a wall switch (by others) is required
● Fixture should be mounted to wall studs; wall cleat provided
● Controlled by non-dimming wall switch for on/off, and capacitive touch button on fixture for dimming
● Fixture can only be hung in the WxH orientation as shown; fixture is not field-interchangeable
MODELS
EMN-2436-BK05
EMN-2436-BR02
EMN-3042-BK05
EMN-3042-BR02
Matte Black (BK-05) Brushed Brass (BR-02)
Matte Black (BK-05) Brushed Brass (BR-02)
DIMENSIONAL DRAWING (Not to scale.)
BLANK

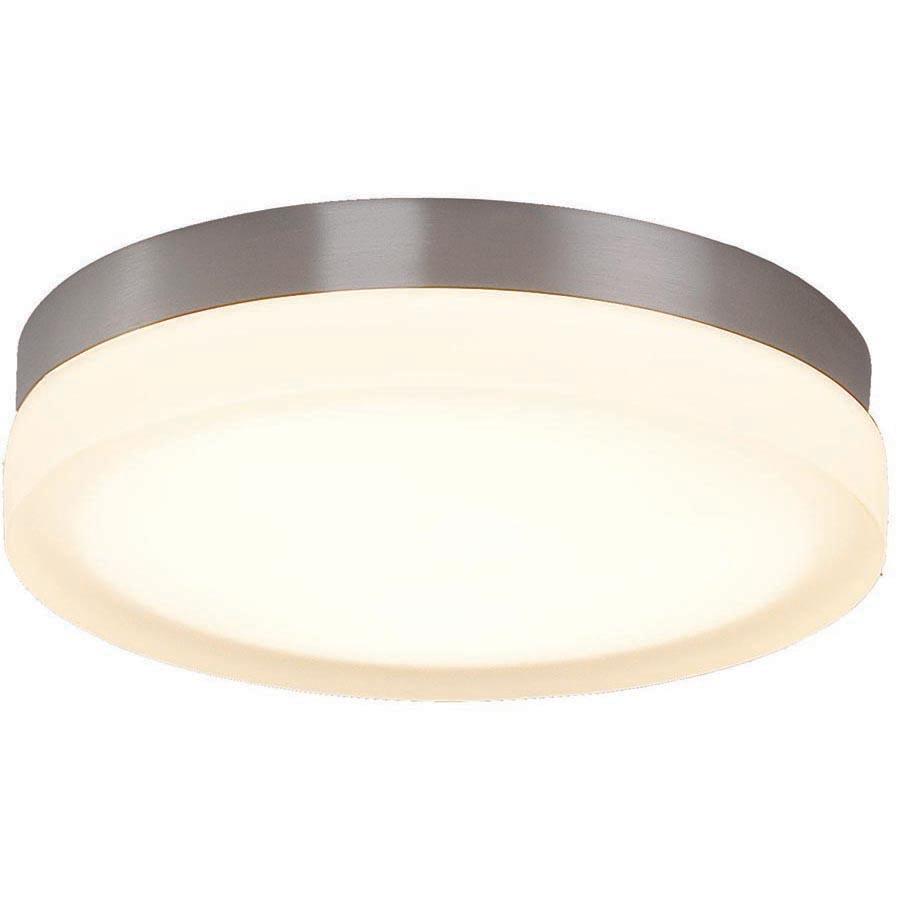

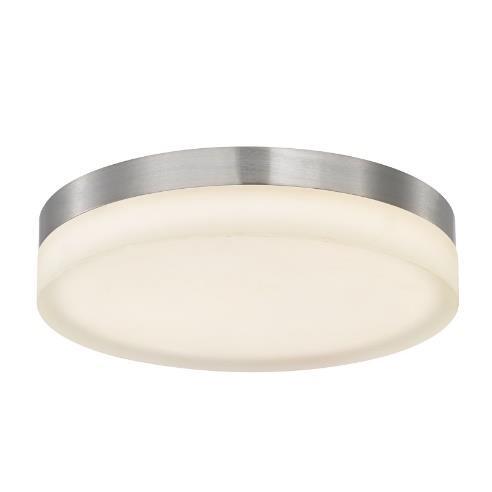

Slice Ceiling Mount
Fixture Type:
Catalog Number:
Project:
Location:
Example: FM-4111-27-BN
• For 277V special order, add an "F" before the finish: FM-4115F-27-BN
• For alternate color temperature, special order adding -27 or -30: FM-4115F-27-BN
DESCRIPTION
Simple and sweet, Slice packs an illuminating punch of robust illumination. The round centerpiece imparts a rich glow and an understated contemporary style. A clean and simple luminaire that will blend with any interior.
Shade: High Transmission Glass Create Excellent Light Distribution and Uniformity
LED: High Efficiency, High CRI, Binned and Mixed to Reach Uniform Light
Electrical
High Power Factor, Low THD
Lamp
Built-in LED Module (Color Temperature Option – 3000K, 4000K)
MCT: Adjustable Multiple Color Temperature 3000K/35000K/4000K
Certifications
ETL/cETL Listed
Warranty
5 Years Warranty on Driver and LED Module
LED Type
6950 PROFILE (Bulk Edge )
The 6950 “Bulk Edge” profile is named for its blunt blocklike side and is designed for cove lighting. The aluminum channel directly fits standard gypsum panels for a seamless finish to simplify the construction of the cove detail. The channel takes up to two strips of LED to contour the light upward, outward, or inward. Customize the color and light output with a number of 24-volt LED lighting options. The 6950 creates a beautiful accent or wall wash for your space with this innovative mud-in lighting solution.
FEATURES
– Made of ALCOA 6063-T5 aluminum alloy for increased heat dissipation.
–Ordered in length of 96 inches (2.43m), cuttable on site for easy and precise installation.
–A direct fit for standard 5/8" gypsum panels, will also accommodate 1/2" panels with the installation of 1/8” shims onsite.
–T he grooved area allows leveling of the profile to the plasterboard using drywall mud.
–E asily connect multiple sections with a variety of type B joiners.
–E ach 96-inch section includes a Prime lens for optimal optics and protection from dust.
–Angled insert holds two strips of LED with a width up to 10mm at a 0 and 35-degree angle.
–Order the desired lengths of LED pre-wired for easier installation.
–A variety of color temperatures and lumen packages (light outputs), as well as warm dim, tunable white, RGB, or RGBW available.
– Aluminum channel is field paintable.
– Indoor use
Cross-section dimensions:
LED TAPE COMPATIBILITY
Angled Insert: compatible with two LED tapes up to 10mm wide.
LINEAR WEIGHT
0.762 lbs/ft, 1.134 kg/m, without lenses.
KAUFMAN LYNN
6950 PROFILE (Bulk Edge )
The 6950 “Bulk Edge” profile is named for its blunt blocklike side and is designed for cove lighting. The aluminum channel directly fits standard gypsum panels for a seamless finish to simplify the construction of the cove detail. The channel takes up to two strips of LED to contour the light upward, outward, or inward. Customize the color and light output with a number of 24-volt LED lighting options. The 6950 creates a beautiful accent or wall wash for your space with this innovative mud-in lighting solution.
FEATURES
– Made of ALCOA 6063-T5 aluminum alloy for increased heat dissipation.
– Ordered in length of 96 inches (2.43m), cuttable on site for easy and precise installation.
– A direct fit for standard 5/8" gypsum panels, will also accommodate 1/2" panels with the installation of 1/8” shims onsite.
– The grooved area allows leveling of the profile to the plasterboard using drywall mud.
– Easily connect multiple sections with a variety of type B joiners.
– Each 96-inch section includes a Prime lens for optimal optics and protection from dust.
– Angled insert holds two strips of LED with a width up to 10mm at a 0 and 35-degree angle.
– Order the desired lengths of LED pre-wired for easier installation.
– A variety of color temperatures and lumen packages (light outputs), as well as warm dim, tunable white, RGB, or RGBW available.
– Aluminum channel is field paintable.
– Indoor use.
Cross-section dimensions:
LED TAPE COMPATIBILITY
Angled Insert: compatible with two LED tapes up to 10mm wide.
LINEAR WEIGHT
0.762 lbs/ft, 1.134 kg/m, without lenses.
6950 Profile (bulk edge) ordering sheet 6000 Series
Available in straight section of 8 feet (96 inches/2.4 m).
LM / 7.0W FT / 95+CRI F - DMX
- 5300K (LHP
62 - 6200K (LP only)
WD1 - 2200-2700K 14W/m
COBWD - 2200-3200K 14W/m
TW1 - Tunable White 11W/m
TW2 - Tunable White 19W/m
RGB1 - RGB 14W/m
RGB2 - RGB 19W/m
Lumen Package selection is not available for WD TW and RGB color options.
For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K 14W/m I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
J - Casambi CBU-PWM4-4CHBluetooth 100/277 VAC
K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
KAUFMAN LYNN
6950 Profile (bulk edge) ordering sheet 6000 Series
Available in straight section of 8 feet (96 inches/2.4 m).
F - DMX
LM / 7.0W FT / 95+CRI
- 5300K (LHP only)
62 - 6200K (LP only)
WD1 - 2200-2700K 14W/m
COBWD - 2200-3200K 14W/m
TW1 - Tunable White 11W/m
TW2 - Tunable White 19W/m
RGB1 - RGB 14W/m
RGB2 - RGB 19W/m
Lumen Package selection is not available for WD TW and RGB color options.
For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K 14W/m I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
J - Casambi CBU-PWM4-4CHBluetooth 100/277 VAC
K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
TYPE LT11 SPEC KAUFMAN LYNN
ENTRA™ CL 3" LED
ADJUSTABLE, FIXED, AND WALL WASH DOWNLIGHTS
The ENTRA CL 3 Adjustable, Fixed, and Wall Wash Downlights offer a costeffective alternative for residential, multi-family, and hospitality applications. Engineered for high performance and reliability, ENTRA CL 3" is easily configurable with a feature set that offers flexibility without an overwhelming list of options. The ENTRA CL 3" Adjustable, Fixed, and Wall Wash Downlights offer LED options with Static White and Warm Dim.
• SDCM: 2-step static white and warm dim
• Hot aiming (0–35° tilt + 360° rotation)
• Interchangeable optics: 20°, 30°, 40°, 60°
• Flanged/flangeless die-cast trims
• Available in IC Airtight, Chicago Plenum, and Fire-Rated
SPECIFICATIONS
2700K, 3000K, or 3500K 3000K–1800K 2700K,
COLOR CONSISTENCY 2-step VOLTAGE 120V or 277V
DIMMING1
POWER SUPPLY
OPTICS
LUMEN/CBCP MULTIPLIERS
CCT 90 CRI MULTIPLIER
2700K 0.95
3000K 1.00
3500K 1.05
Lumen output will vary by CCT and CRI. See photometric charts for output information.
Reverse-phase, forward-phase, TRIAC, and 0–10V dimming down to 1%
Constant current driver with +.9 power factor and +80% efficiency

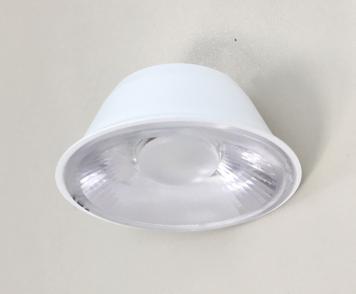

Field changeable: Includes 40° optic. 20°, 30°, and 60° optics can be ordered separately.
Registered CEC Appliance Database. Can be used to comply with CEC 2019 Title 24 Part 6 (JA8-2016, JA8-2019).
L70 50,000 hours min
WARRANTY2 5 years
Data in chart reflects 3000K/90CRI values unless noted.
Ordering grids available on page 2.
1See visualcomfort.com for dimmer compatibility.
2Visit visualcomfort.com for specific warranty limitations and details.
KAUFMAN LYNN TYPE LT11
NIOB-2RNB
2" Iolite Round Bullnose
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
2" Iolite Round Bullnose - Dedicated Housing Required Color Temperature
NIOB-2RNBCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
NHIOICD-28 = ICAT New Construction / 800-1000lm / 14W
NHIOICDCP-28 = Chicago Plenum / 800-1000lm / 14W
NHRIOIC-28 = ICAT Remodel / 800-1000lm / 14W
NHIOICD-215 = ICAT New Construction / 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum / 1500lm / 20W
NHIOICD-220 = ICAT New Construction / 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum / 2000lm / 24W
NHIOICD-225 = ICAT New Construction / 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum / 2500lm / 28W
TYPE LT11 SPEC KAUFMAN
ENTRA™ CL 3" LED
ADJUSTABLE, FIXED, AND WALL WASH DOWNLIGHTS
ORDERING GRIDS
HOUSING
PRODUCT CEILING APPEARANCE OUTPUT HOUSING RATING
ENCL3R ENTRA CL 3" ROUND
ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED -L12 12W (1100 LMS) -L15 15W (1300 LMS)1 I IC AIRTIGHT C CHICAGO PLENUM F
Includes an LED driver with universal input 120V-277V, dimmable by reverse-phase, forward-phase, TRIAC, and 0–10V controls. 277V is only compatible with 0–10V dimming. See dimmer compatibility chart. Trims are required and must be ordered separately.
1L15 - Output not available with WD31 warm dim.
2F- Certified to ASTM E119, UL 263, and CAN/ULC-S101. Fire Rating of 1 and 2 hours, respectively.
3F- Fire-Rated is not available in Adjustable or Wall Wash.
TRIM/LIGHT MODULE
Warm Dim is not available with 15W output.
PRODUCT CEILING APPEARANCE FUNCTION CRI/CCT REFLECTOR FINISH FLANGE FINISH
ENCL3R ENTRA CL 3 ROUND
ENCL3S ENTRA CL 3 SQUARE L FLANGELESS F FLANGED A ADJUSTABLE1 D DOWNLIGHT W WALL WASH1 -927 90 CRI, 2700K, 2-STEP -930 90 CRI, 3000K, 2-STEP -935 90 CRI, 3500K, 2-STEP -WD31 90 CRI, 3000K-1800K, WARM DIM, 2-STEP2,3 W WHITE B BLACK S SATIN SILVER C CHAMPAGNE
Includes 40° optic. 20°, 30° and 60° optics can be ordered separately.
1A, W - Adjustable and Wall Wash are not available with Fire-Rated housing (F).
2WD31 - Warm dim not available with L15 output.
3WD31 - Warm dim includes a sandblasted lens; no additional lenses/louvers can be added.
REPLACEMENT OPTICS
PRODUCT BEAM SPREAD
353LEDGATOPT 20 20° 30 30° 40 40° 60 60°
353LEDGATOPT
LENSES/LOUVERS
PRODUCT1 TYPE MOC GG PLAIN GLASS SF SOFT FOCUS SB SANDBLASTED LL LINEAR SPREAD EC EGGCRATE LOUVER MOC 1Lenses/louvers mounted to lamp assembly only (max 1).
Plaster plates are used to convert flanged housings into flangeless housings. Ships standard with flangeless housings.
2" Iolite Accessories
2" Iolite Round Bullnose
FIELD CHANGEABLE OPTICS
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
LED Module

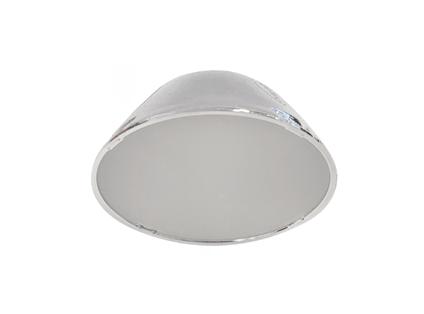

Frosted Optics
NIO-REFL38FR 60° Optic
ACCESSORIES
Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Die-cast Trim
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite downlights can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with trim flange visible. Mud ring attaches to drywall. Requires and only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trim. Dimensions: 7-7/8" diameter 1/2" thick

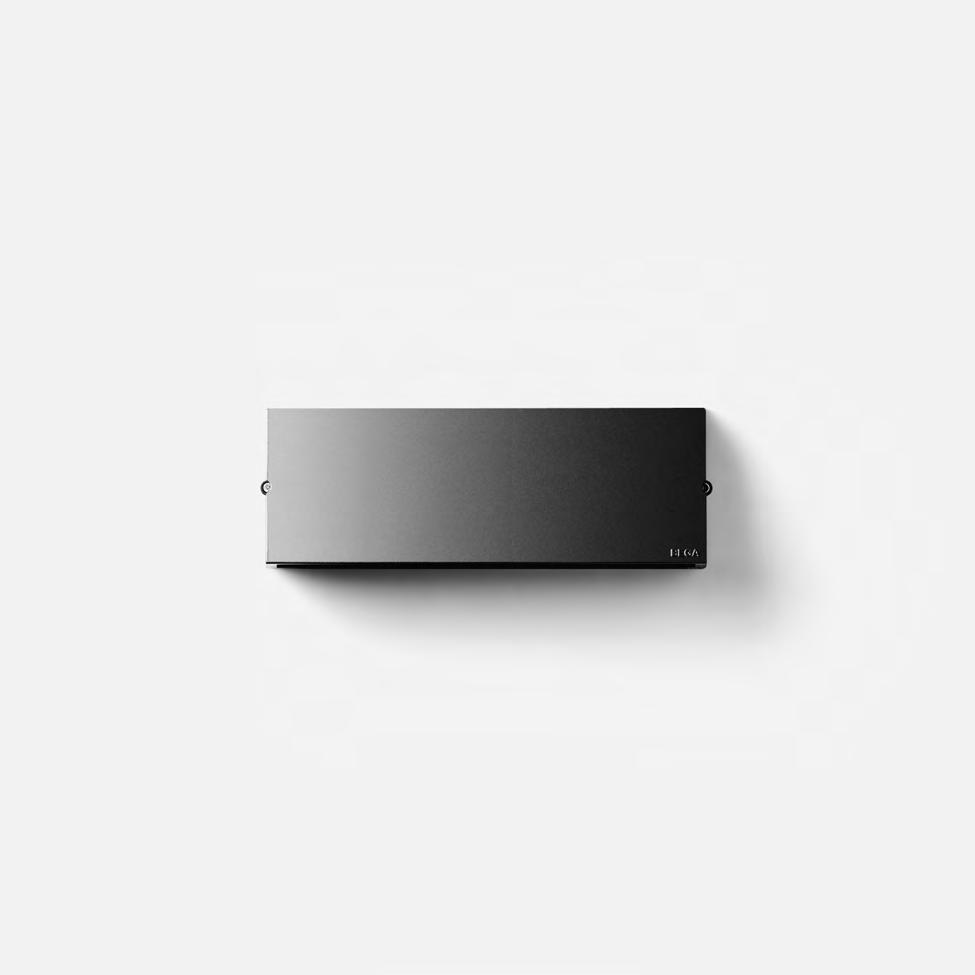

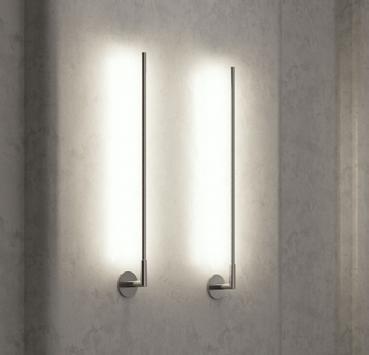

In many ways, Backspace II is a joy for the eye, be it by its slender design, by its pleasant light effect or by its playful colour combinations. Backspace II is designed to create a 2-way light effect on the wall, the choice to install it in a horizontal or vertical way is up to you. By mounting the light source in the front part of the luminaire, it is perfectly shielded from looking directly into the source.
Specification
Installation Method: 4" junction box
Adjustability: Fixed
Rating: Damp (IP20)
Performance
CRI / TM-30 (3000K): 90 / Rf: 89 / Rg: 97
McAdam Step: 3
LED Maintenance: L70>60,000h
*Standard Power: 11W
II:
LYNN
AT6510-BK Black
SPECIFICATION
AT6510-BN Brushed Nickel
DETAILS
AT6510-WH White
Fixture Dimensions W9-7/8" x H5-1/2" x E1-5/8"
Light Source AC LED Module
Wattage 26W
Total Lumens 1600lm
Delivered Lumens BK-1103lm; BN-770lm*; WH-888lm*; Voltage 120V
Color Temperature 3000K
CRI (Ra) 90CRI
Optional Color Temps
2700K - 5000K Available, Minimum Order Quantities Apply
LED Rated Life 50,000 hours
Dimming 100% - 10%, ELV Dimmer (Not Included)
Glass Details Frosted Glass
ADA Compliant Yes
Location Wet, IP65
Illumination Direction Up and Down
Mounting Style All Orientation; Wall; Paint Finish BK02; BN02; WH02;

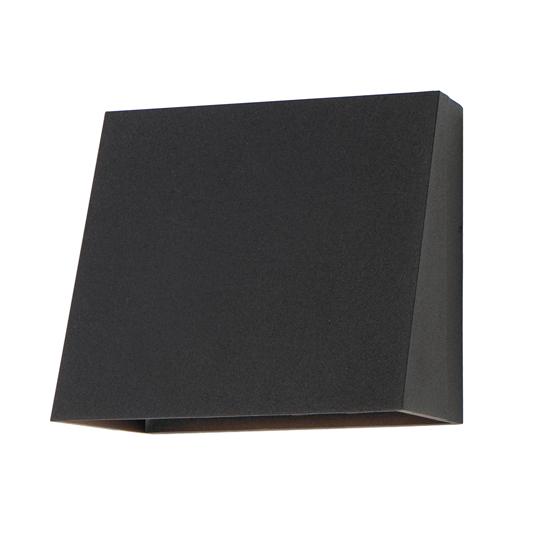

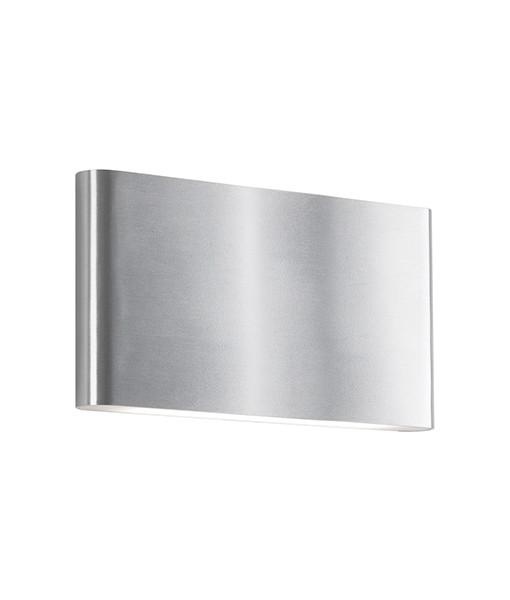

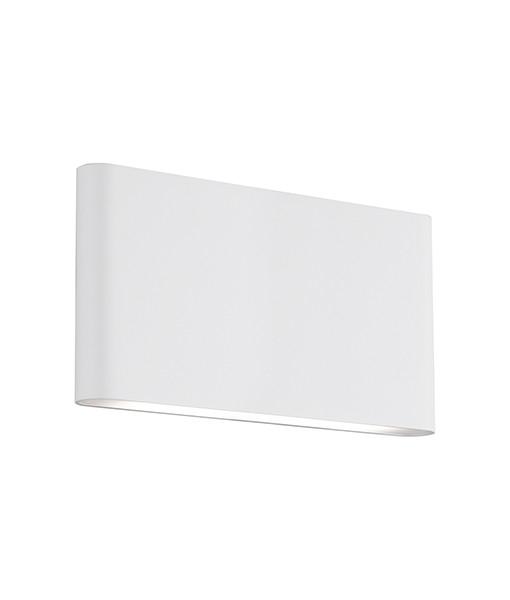

This minimalist sleek cast-aluminum wall sconce is a beautiful addition to any indoor or outdoor application. Finished with a high-end brushed nickel or powder-coated white or black cast aluminum, rectangular in size with smooth, sleek, rounded corners. Premium frosted optical lenses, which emits the light from the fixture evenly against the wall. 5-1/2”
9-7/8” Metal Finish BK - Black BN - Brushed Nickel WH - White Frosted Glass
COMMENT
6950 PROFILE (Bulk Edge )
The 6950 “Bulk Edge” profile is named for its blunt blocklike side and is designed for cove lighting. The aluminum channel directly fits standard gypsum panels for a seamless finish to simplify the construction of the cove detail. The channel takes up to two strips of LED to contour the light upward, outward, or inward. Customize the color and light output with a number of 24-volt LED lighting options. The 6950 creates a beautiful accent or wall wash for your space with this innovative mud-in lighting solution.
FEATURES
– Made of ALCOA 6063-T5 aluminum alloy for increased heat dissipation.
–Ordered in length of 96 inches (2.43m), cuttable on site for easy and precise installation.
–A direct fit for standard 5/8" gypsum panels, will also accommodate 1/2" panels with the installation of 1/8” shims onsite.
–T he grooved area allows leveling of the profile to the plasterboard using drywall mud.
–E asily connect multiple sections with a variety of type B joiners.
–E ach 96-inch section includes a Prime lens for optimal optics and protection from dust.
–Angled insert holds two strips of LED with a width up to 10mm at a 0 and 35-degree angle.
–Order the desired lengths of LED pre-wired for easier installation.
–A variety of color temperatures and lumen packages (light outputs), as well as warm dim, tunable white, RGB, or RGBW available.
– Aluminum channel is field paintable.
– Indoor use
Cross-section dimensions:
LED TAPE COMPATIBILITY
Angled Insert: compatible with two LED tapes up to 10mm wide.
LINEAR WEIGHT
0.762 lbs/ft, 1.134 kg/m, without lenses.
KAUFMAN LYNN
6950 PROFILE (Bulk Edge )
The 6950 “Bulk Edge” profile is named for its blunt blocklike side and is designed for cove lighting. The aluminum channel directly fits standard gypsum panels for a seamless finish to simplify the construction of the cove detail. The channel takes up to two strips of LED to contour the light upward, outward, or inward. Customize the color and light output with a number of 24-volt LED lighting options. The 6950 creates a beautiful accent or wall wash for your space with this innovative mud-in lighting solution.
FEATURES
– Made of ALCOA 6063-T5 aluminum alloy for increased heat dissipation.
–Ordered in length of 96 inches (2.43m), cuttable on site for easy and precise installation.
–A direct fit for standard 5/8" gypsum panels, will also accommodate 1/2" panels with the installation of 1/8” shims onsite.
–T he grooved area allows leveling of the profile to the plasterboard using drywall mud.
–E asily connect multiple sections with a variety of type B joiners.
–E ach 96-inch section includes a Prime lens for optimal optics and protection from dust.
–Angled insert holds two strips of LED with a width up to 10mm at a 0 and 35-degree angle.
–Order the desired lengths of LED pre-wired for easier installation.
–A variety of color temperatures and lumen packages (light outputs), as well as warm dim, tunable white, RGB, or RGBW available.
– Aluminum channel is field paintable.
– Indoor use
Cross-section dimensions:
LED TAPE COMPATIBILITY
Angled Insert: compatible with two LED tapes up to 10mm wide.
LINEAR WEIGHT
0.762 lbs/ft, 1.134 kg/m, without lenses.
6950 Profile (bulk edge) ordering sheet 6000 Series
Available in straight section of 8 feet (96 inches/2.4 m).
LM / 7.0W FT / 95+CRI F - DMX
- 5300K (LHP
62 - 6200K (LP only)
WD1 - 2200-2700K 14W/m
COBWD - 2200-3200K 14W/m
TW1 - Tunable White 11W/m
TW2 - Tunable White 19W/m
RGB1 - RGB 14W/m
RGB2 - RGB 19W/m
Lumen Package selection is not available for WD TW and RGB color options.
For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K 14W/m I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
J - Casambi CBU-PWM4-4CHBluetooth 100/277 VAC
K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
KAUFMAN LYNN
6950 Profile (bulk edge) ordering sheet 6000 Series
Available in straight section of 8 feet (96 inches/2.4 m).
F - DMX
LM / 7.0W FT / 95+CRI
- 5300K (LHP only)
62 - 6200K (LP only)
WD1 - 2200-2700K 14W/m
COBWD - 2200-3200K 14W/m
TW1 - Tunable White 11W/m
TW2 - Tunable White 19W/m
RGB1 - RGB 14W/m
RGB2 - RGB 19W/m
Lumen Package selection is not available for WD TW and RGB color options.
For TW or RGB strip options, select either A [Non-dimming] or E [Non-dimming DC plug] in power supply plus the J [Casambi CBU-PWM44CH-Bluetooth 100/277 VAC] controller.
G - Lutron - HI-LUME PREMIER 0,1% Eco System 24V/96W
WD3 - 2700-3500K 14W/m I - Casambi CBU-A2D-0/10VDALI-Bluetooth 100/277 VAC
J - Casambi CBU-PWM4-4CHBluetooth 100/277 VAC
K - Casambi CBU-TED-CV-Trail edge dim-Bluetooth 120 VAC
SW-HE24/6.0
LED Strips - Static White High Efficacy
High-efficacy, one bin, one step static white LED tape provides
color project to project with exceptional photometric qualities 8 diodes per 2 cut point Dry and wet-rated Field-cuttable up to 192 Ambient operating temp: -4-115°F Installation temp: 50-100°F | Storage temp: -4-140°F Calculated L70 = 66000 hrs 1 V/WATTS 2
KAUFMAN LYNN LTR-S Specification Series
PRODUCT OVERVIEW
Our Specification Series provides the ultimate architectural-grade option. Incorporating features that defines the Spec Series as truly state of the art linear LED tape for applications that not only require, but demand the best optics in the industry.
FEATURES
• Available in multiple color temps
• 280 LED’s/meter
• 10mm PCB width
• Cuttable every 1”
• Remote control with GM’s LUXcontrol™ App and controllers
• Custom lengths available - consult factory
• Premium diodes
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 32’-8”
• Includes Sure-Tite connectors
SPECIFICATIONS
ELECTRICAL
•24V
OPTICS
•95+ CRI
Note: For proper thermal management, use mounting channel to mount the 5.8W product.
CERTIFICATION
•UL
• 2.5W or 5.8 watts per foot WARRANTY
• Title 24 compliant when used with used with specific drivers. Consult factory.
•Class 2
• Closet Rated. Compliant with NFPA
•5-year warranty when paired with GM power supply
LTR-S Specification Series ®
2.5W / 5.8W, 24VDC
LED Tape Specification Sheet
EST SERIES CONNECTORS
COMPATIBLE CONTROLLERS
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
Extruded channel. Includes snap-on frosted lens with mounting clips and screws.
LED-CHL-AMC (2) Adjustable mounting brackets for LED-CHL
LED-CHL-EC (2) End caps for LED-CHL - one solid, one with hole.
LED-CHL-MC (2) Additional mounting clips for LED-CHL
45º MINI ANGLE MOUNT
LED-CHL-45-MINI
LED-CHL-45-MINI-B
Extruded angled (45°) silver channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
Extruded angled (45°) black channel. Includes snap-on white lens with (2) mounting clips and (2) screws. 4'
LED-CHL-45-MINI-EC (2) End caps for LED-CHL-45-MINI: light gray, one solid, one with hole N/A
LED-CHL-45-MINI-EC-B (2) End caps for LED-CHL-MINI-B: black, one solid, one with hole N/A
LED-CHL-45-MINI-MC (2) Mounting clips and (2) screws for LED-CHL-45-MINI N/A
LED-CHL-45-M-LENS-BK Lens in black for LED-CHL-45-MINI 4'

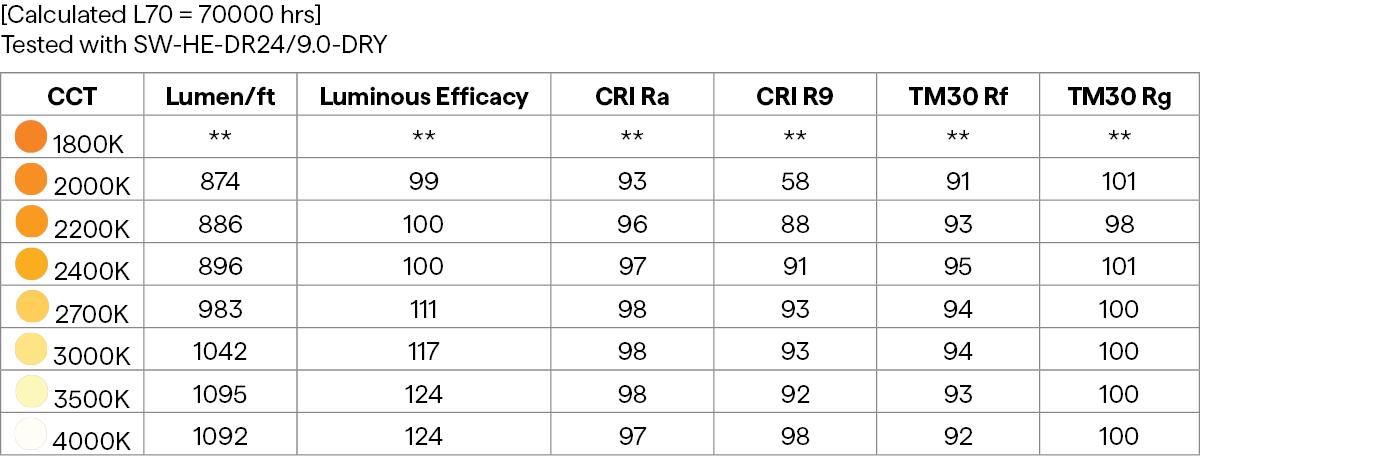

SW-HE-DR24/9.0
LED Strips - Static White High Efficacy Double Row
KAUFMAN LYNN
LTR-S Specification Series
8W, 24VDC High Output
LED Tape Specification Sheet
PRODUCT OVERVIEW
Our Specification Series provides the ultimate architectural-grade option. Incorporating features that defines the Spec Series as truly state of the art linear LED tape for applications that not only require, but demand the best optics in the industry.
FEATURES
• Available in multiple CCT temperatures
• 10mm PCB width
• Over 1000 lumens/ft.
• Cuttable every 2” (8 LEDs)
• Compatible with LUxcontrol WiFi system
• Custom lengths available - consult factory
• 120° viewing angle
• Dimmable
• 3M adhesive back
• Maximum run on a given lead is 12’
SPECIFICATIONS
ELECTRICAL
•24V
•8.0 watts per foot
•90+ CRI
•-4F to 122 F
Project Name Type
Catalog # Date
Cuttable every 2in
•Title 24 compliant when used with used with specific drivers. Consult factory
•Class 2 •IP20
WARRANTY
•5-year warranty when paired with GM power supply
Note: For proper thermal management, this tape must be installed in an aluminum mounting channel. See next page for compatible channel list. OPTICS
•Must
LED Strips - Static White High Efficacy Double Row

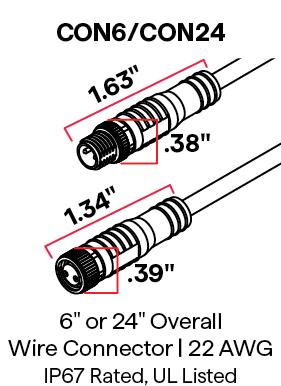

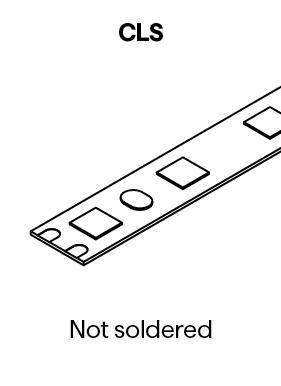

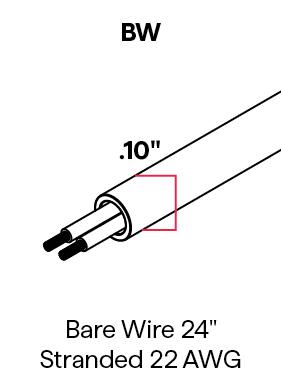

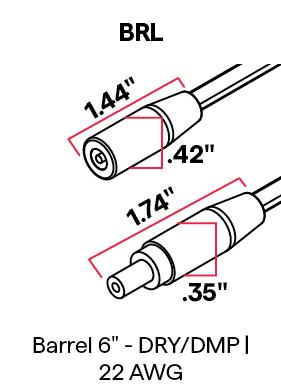

CONNECTOR/WIRE IN/OUT
KAUFMAN LYNN
LTR-S Specification Series ®
8W, 24VDC High Output
LED Tape Specification Sheet
LTR-S-HO-24V-8W-35K-FT/100
LTR-S-HO-24V-8W-27K-FT/100 98’-6” reels or Custom Cuts - Consult Factory
LTR-S-HO-24V-8W-40K-FT/100
Kelvin temperature (color) ±100K. Each factory cut comes with 48” soldered lead
SWD-60W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 60W, 24VDC
SWD-100W-24VDC-DIM SwitchLD All-in-One Dimmer and Driver, 100W, 24VDC
HC-RF-UNV-5CH Universal 1-5 Channel RF Remote Control
CM-RF-UNV-5CH Universal 1-5 Channel Control Module
RECOMMENDED DRIVERS
LineDrive Magnetic Dimmable Power Supply, 12VDC or 24VDC
LineDrive Electronic Dimmable MINI Power Supply, 12VDC or 24VDC
Cord and Plug Power Supply, 12VDC or 24VDC
PSD Electronic Dimmable Power Supply, 12VDC or 24VDC
Please see our website for updated power supply specifications and information.
SW-HE-DR24/9.0
LED Strips - Static White High Efficacy Double Row
COMPATIBLE POWER SUPPLIES
See power supplies cut sheets for more information. Data subject to change, all data has +/- 5% tolerance.
INDOOR
SW24/5.0, SW-HE, SW-HE+
Q6M-DC+CAP
QTM-DC+CAP iQ-PH+QD1
QT-CAB-QZ-PH/0-10V
QT-CAB-eLED+0-10V
QT-CAB-eLED+0-10V-AWN
QT-CAB-eLED+DALI-DT6
QT-CAB-eLED+DALI-DT6-AWN
QTM-eLED+0-10V
QTM-eLED+0-10V-AWN
QTM-eLED+DALI-DT6
QTM-eLED+DALI-DT6-AWN
QZ-BOWTIE+DIMMER QZ-DMX
QZ-PH/0-10V
QZ-STICK-PH/0-10V QZLP
QTM-eLED(E) QZ-DALI-DT6
Non-Dim Power Supply with SW App Dongle
LTR-S Specification Series ®
8W, 24VDC High Output
LED Tape Specification Sheet
COMPATIBLE CHANNELS- FIT CONNECTORS ON PG. 1
LED-CHL-45 Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-EC (2) End caps for LED-CHL-45 - one solid, one with hole N/A
LED-CHL-45-MC (2) Mounting clips and screws for LED-CHL-45
LED-CHL-45-1200 Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-1200-EC (2) End caps for LED-CHL-45 - one solid, one with hole N/A
LED-CHL-45-1200-MC (2) Additional mounting clips for LED-CHL-45-1200
LED-CHL-W Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-W-6 Wide format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-W-AMC (2) Adjustable mounting brackets for LED-CHL-W N/A
LED-CHL-W-EC (2) End caps for LED-CHL-W - one solid, one with hole. N/A
LED-CHL-W-MC (2)
MUD IN - STANDARD
LED-CHL-MI-ST6
Standard extruded aluminum mud-in channel. Includes snap-on frosted lens. 6’
LED-CHL-MI-ST-EC (2) End caps for LED-CHL-MI-ST6 one solid, one with hole.
SW-HE24/6.0
LED Strips - Static White High Efficacy
High-efficacy, one bin, one step static white LED tape provides
color project to project with exceptional photometric qualities 8 diodes per 2 cut point Dry and wet-rated Field-cuttable up to 192 Ambient operating temp: -4-115°F Installation temp: 50-100°F | Storage temp: -4-140°F Calculated L70 = 66000 hrs 1 V/WATTS 2
KAUFMAN LYNN
LTR-P Professional Series
Wet Location, 24VDC 1.5W / 3.0W / 5.8W LED Tape
Specification Sheet
PRODUCT OVERVIEW
GM’s Professional Outdoor Series Flexible LED Tape combines style and technology with reliability for wet location. Designed for professional installations that demand a high level of quality, the LTR-P Series boasts a wide array of key features and is available in 16’-4” (5M), 98’-6” (30M) reels or custom cuts. Do not submerge in water.
FEATURES
• 24VDC
• 2400K, 2700K, 3000K, 3500K, 4000K and 5000K as well as Amber, Red, Green, Blue color temps
• Remote control with GM’s LUXcontrol™ App and controllers (requires NEMA box - by others)
• LM80 / IP65
• 120 LEDs per meter
• Cuttable every 2”
• Wet location
• Optical clear UV protected silicone sheath
• Premium diodes
• 120° viewing angle
• Dimmable
• Maximum run on a given lead is 60’ (1.5W), 32’-8” (3.0W), 16’-4” (5.8W)
SPECIFICATIONS
ELECTRICAL
•24V
•1.5W, 3W and 5.8 watts per foot
OPTICS
•90+ CRI
•-4°F to 122°F
• For proper thermal management, we recommend to mount this product in a channel
ORDERING INFORMATION
CERTIFICATION
•UL
•May comply with Title 24 with select power supplies
•Class 2
•Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5), excluding colors -AM, -BL, -RD, -GR and LTR-P-WP-24V-1.5W
WARRANTY
•5-year warranty when paired with GM power supply
Note: Do not install in an application that is not easily accessed for service. Our warranty covers product only and does not cover any labor or incidental charges related to service or warranty.
NOTE: Please see our website for updated power supply specifications and information.
DIMENSION
BLANK
LYNN
LTR-P Professional Series ®
Wet Location, 24VDC 1.5W / 3.0W / 5.8W
LED Tape Specification Sheet
COMPATIBLE CHANNELS - FIT CONNECTORS ON PG. 1
EXTRA DEEP
LED-CHL-XD
LED-CHL-XD-6
Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-XD-AMC (2) Adjustable mounting brackets for LED-CHL-XD N/A
LED-CHL-XD-EC (2) End caps for LED-CHL-XD. One solid, one with hole. N/A
LED-CHL-XD-MC (2) Mounting clips and screws for LED-CHL-XD N/A
EXTRA DEEP FLANGED
LED-CHL-XD-F
LED-CHL-XD-F-6
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 4’
Extra deep format extruded channel with flange. Includes snap-on frosted lens with mounting clips and screws. 6’
LED-CHL-XD-F-DC (2) Drywall mounting brackets for LED-CHL-XD-F N/A
LED-CHL-XD-F-EC (2) End caps for LED-CHL-XD-F. One solid, one with hole.
45º LARGE ANGLE MOUNT
LED-CHL-45-1200
Extruded angled (45°) channel. Includes snap-on frosted lens with mounting clips and screws. 4’
LED-CHL-45-1200-EC (2) End caps for LED-CHL-45 - one solid, one with hole N/A
LED-CHL-45-1200-MC (2) Additional mounting clips for LED-CHL-45-1200 N/A

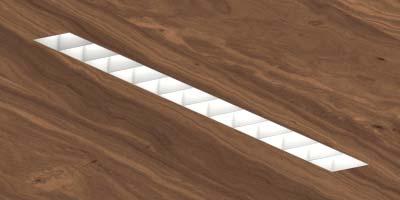

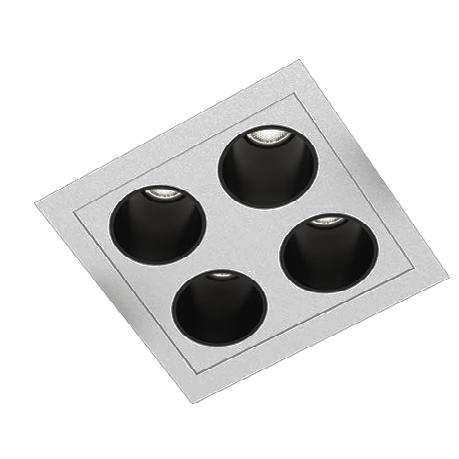

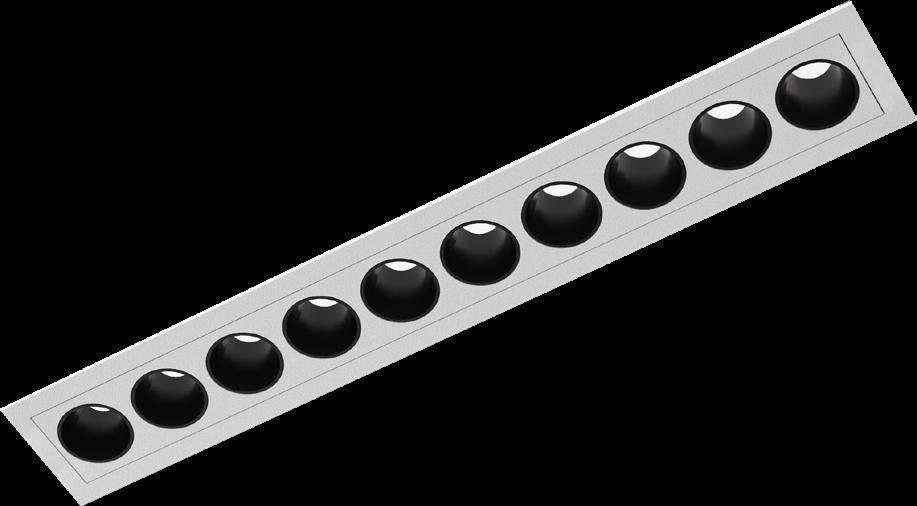

Micro™ Multi-Cell - MDF, MDL, MDM
1.25” Rectilinear Downlight with Integral Driver
Meet Micro™ our smallest LED downlight which artistically blends technology and sleek design. Micro provides a unique aesthetic for downlights, with a new linear form factor and jewel-like presence in the ceiling plane. Ceilings are powerful yet whisper quiet with Micro’s minimal aperture size of just 1.25”. Available as a downlight in 2, 4, 6 and 8 cell configurations, Micro brings elegance and clean style to lobbies, corporate headquarters, hotels and residential applications.
FEATURES
• Micro downlights offer a new form factor for a modern and innovative downlight aesthetic
•Overlap flange trims are compatible with sheetrock, ACT, wood/millwork, and many other ceiling materials
• Plaster frame trims are compatible with sheetrock mud-in ceiling applications

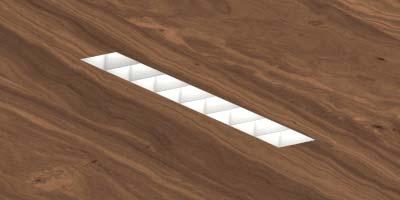

• Millwork trims feature a knife edge finish and are compatible with woodwork and other solid ceiling surface applications
• Industry leading illumination and craftsmanship
• New construction and remote driver housing options for easy installation in any site condition
• See Page 3
Color Rendering Index
Source Lumens: Performance data based on 3000K.
845-234-4090 showroom@usailighting.com
MDF04
MDF06
MDM12
KAUFMAN LYNN
FUSION
Fixed Downlight
provides a low glare option for highlighting hallways, desks and other horizontal surfaces within commercial, hospitality and retail environments. It is easy to install and blends into existing ceiling architecture seamlessly.
FEATURES
• Flangeless fixture installation provides a modern minimalist design concept
Mix and match with other FUSION light fixtures for even more design options
• Wet location listing are avilable in 3 light, 5 light and 10 light fixture sizes
GOOD TO KNOW
• Flangeless installation available in 5 light and 10 light sizes
Produces a round beam pattern from a linear form factor fixture
• Small light apertures deliver “quiet ceiling” lighting with minimal glare.
SPECIFICATIONS
OPTICAL
Beam Angle
MECHANICAL
Finish Specular Matte Black Custom Finish
ELECTRICAL 24° Narrow Flood
Die cast fixture body
• End mounted mouse trap style springs
Available in self-flanged or flangeless trim versions
Install in ceilings between ½” and 1”
Available in matte black, matte white or custom finish
THERMAL
Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
HOUSING
• New construction steel frame supplied with universal bar hangers and butterfly brackets
Bar hangers are adjustable from 13-1/4” to 24-1/2
Fixture and driver are serviceable from below the ceiling
COMPLIANCE
• ETL listed for Damp locations Optional Wet location rated trim
Universal 120-277V, 50/60Hz, 0-10V or 120V, 60Hz Triac/ELV dimming driver available Drivers connect to LED modules using plenum rated, quick connect cable
WARRRANTY
• 5 Year limited parts warranty
Reflector
Micro™ Multi-Cell - MDF, MDL, MDM
1.25” Rectilinear Downlight with Integral Driver
KAUFMAN LYNN TYPE LT31 ALT
FUSION
Micro™ Multi-Cell - MDF, MDL, MDM
1.25” Rectilinear Downlight with Integral Driver
Meet Micro™ our smallest LED downlight which artistically blends technology and sleek design. Micro provides a unique aesthetic for downlights, with a new linear form factor and jewel-like presence in the ceiling plane. Ceilings are powerful yet whisper quiet with Micro’s minimal aperture size of just 1.25”. Available as a downlight in 2, 4, 6 and 8 cell configurations, Micro brings elegance and clean style to lobbies, corporate headquarters, hotels and residential applications.
FEATURES
• Micro downlights offer a new form factor for a modern and innovative downlight aesthetic
•Overlap flange trims are compatible with sheetrock, ACT, wood/millwork, and many other ceiling materials
• Plaster frame trims are compatible with sheetrock mud-in ceiling applications
• Millwork trims feature a knife edge finish and are compatible with woodwork and other solid ceiling surface applications
• Industry leading illumination and craftsmanship
• New construction and remote driver housing options for easy installation in any site condition
• See Page 3
Color Rendering Index
Source Lumens: Performance data based on 3000K.
845-234-4090 showroom@usailighting.com
MDF04 MDF06
MDM12
KAUFMAN LYNN
FUSION
Fixed Downlight
provides a low glare option for highlighting hallways, desks and other horizontal surfaces within commercial, hospitality and retail environments. It is easy to install and blends into existing ceiling architecture seamlessly.
FEATURES
• Flangeless fixture installation provides a modern minimalist design concept
Mix and match with other FUSION light fixtures for even more design options
• Wet location listing are avilable in 3 light, 5 light and 10 light fixture sizes
GOOD TO KNOW
• Flangeless installation available in 5 light and 10 light sizes
Produces a round beam pattern from a linear form factor fixture
• Small light apertures deliver “quiet ceiling” lighting with minimal glare.
SPECIFICATIONS
OPTICAL
Beam Angle
MECHANICAL
Reflector Finish Specular Matte Black Custom Finish
ELECTRICAL 24° Narrow Flood
Die cast fixture body
• End mounted mouse trap style springs
Available in self-flanged or flangeless trim versions
Install in ceilings between ½” and 1”
Available in matte black, matte white or custom finish
THERMAL
Die cast aluminum heat sink
• Ambient fixture operating range: -20°C to 40°C (-4°F to 104°F)
HOUSING
• New construction steel frame supplied with universal bar hangers and butterfly brackets
Bar hangers are adjustable from 13-1/4” to 24-1/2
Fixture and driver are serviceable from below the ceiling
COMPLIANCE
• ETL listed for Damp locations Optional Wet location rated trim
Universal 120-277V, 50/60Hz, 0-10V or 120V, 60Hz Triac/ELV dimming driver available Drivers connect to LED modules using plenum rated, quick connect cable
WARRRANTY
• 5 Year limited parts warranty
Micro™ Multi-Cell - MDF, MDL, MDM
1.25” Rectilinear Downlight with Integral Driver
KAUFMAN LYNN TYPE LT31A ALT
FUSION
TYPE LT32 SPEC KAUFMAN LYNN

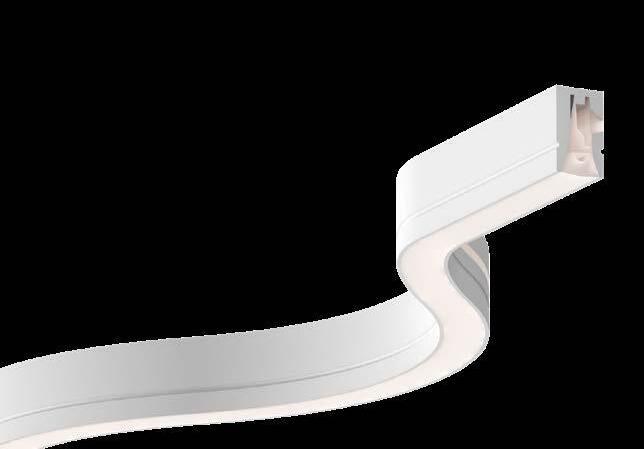

1400 PROFILE
The 1400 series is a rectangular and flangeless profile with a sleek and minimalist design. Integrate into different types of walls or ceilings, or recess within a flangeless drywall system for clean lines of light. The 1400 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• A channel for wire management, secure connections between channels, and pattern assembly
• Recessed flangeless installation with the Gypsum Groove drywall insert
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Mounting hardware for peace of mind integration
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Inter nal groove guide for easy application of LED strip when field installation is needed
• A selec tion of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
USEFUL LINKS
KAUFMAN LYNN TYPE LT32 ALT
1400 PROFILE
The 1400 series is a rectangular and flangeless profile with a sleek and minimalist design. Integrate into different types of walls or ceilings, or recess within a flangeless drywall system for clean lines of light. The 1400 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• A channel for wire management, secure connections between channels, and pattern assembly
• Recessed flangeless installation with the Gypsum Groove drywall insert
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Mounting hardware for peace of mind integration
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
10 LENGTH*
Length of the luminaire in inches.
*Includes end caps, excludes flanges (when applicable). length
11 DRIVER TYPE
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
ACCESSORIES (OPTIONAL)
GYPSUM GROOVES Quantity
CG14012 - Gypsum groove, 1/2", 4'
CG14058 - Gypsum groove, 5/8", 4'
ACCESSORIES (OPTIONAL)
MOTION SENSORS*Quantity Note
SE05 - 30 sec., external
SI4 - 4 min., embedded
SE4 - 4 min., external
SI05 - 30 sec., embedded *All sensors are for dry location applications and are only compatible with non-dimmable drivers (PND)
SIP - proximity motion sensor
AID - Indoor dry locations
AIW - Indoor wet locations
For wet location applications, LED strip will be put inside a waterproof silicone sheath. † AIW option is not available for this selection
SW-XT24/3.0
KAUFMAN LYNN

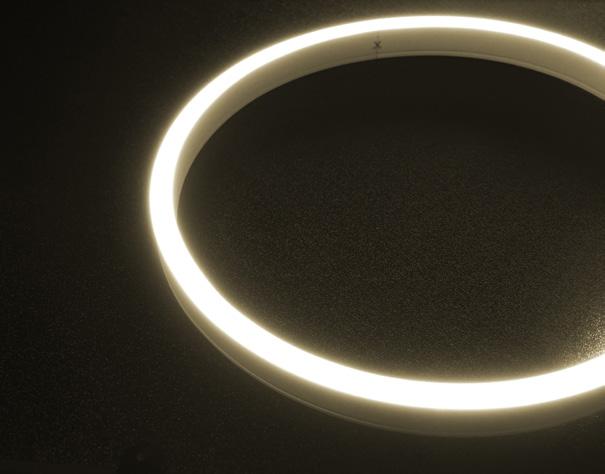

NeoVision24 SideFlex

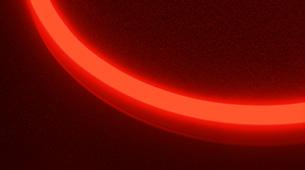

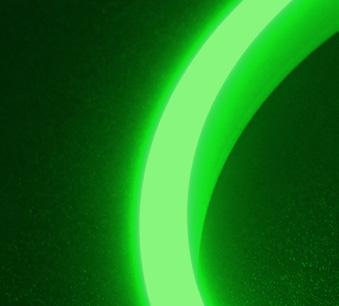

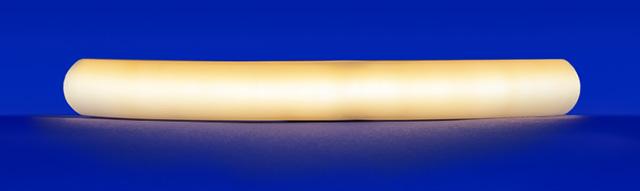

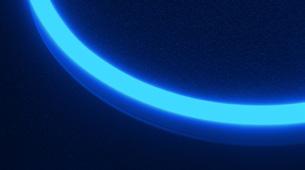

Flexible Neon LED Tape Specification Sheet
PRODUCT OVERVIEW
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.
FEATURES
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Wireless control with LUXcontrol App and controller
•2700K, 3000K, 4000K / Amber, Blue, Green or Red
•120° viewing angle
•Maximum run: 32'-8"
•Cuttable and joinable in two inch increments
•Each run requires an end cap (sold separately)
•No tools required for capping and joining
•Mounting clips included (recommend use one per foot)
SPECIFICATIONS
ELECTRICAL CERTIFICATION
•24VDC •UL
•3W per foot
•IP65
PHOTOMETRIC WARRANTY
•90+ CRI
•5 years when paired
AMBIENT OPERATING TEMP with GM power supply
•-13°F - 131°F
ORDERING INFORMATION
White
NV24S-3W-27K-16 16'-4" 215lm 2700K
NV24S-3W-27K-32 32'-8" 215lm 2700K
NV24S-3W-30K-16 16'-4" 230lm 3000K
NV24S-3W-30K-32 32'-8" 230lm 3000K
NV24S-3W-40K-16 16'-4" 215lm 4000K
NV24S-3W-40K-32 32'-8" 215lm 4000K
Colors
NV24S-3W-AM-16 16'-4" N/A Amber
NV24S-3W-AM-32 32'-8" N/A Amber
NV24S-3W-BL-16 16'-4" N/A Blue
NV24S-3W-BL-32 32'-8" N/A Blue
NV24S-3W-GR-16 16'-4" N/A Green
NV24S-3W-GR-32 32'-8" N/A Green
NV24S-3W-RD-16 16'-4" N/A Red
NV24S-3W-RD-32 32'-8" N/A Red
Max Run: 32'-8"
Kelvin temperature (color) ±100K.

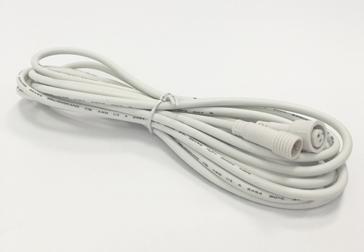

NOTE: Every reel includes (1) NV24S-PF-EF (tape-to-power feed with 48" of lead). 16' reel includes (16) NV24S-MC-A mounting clips and screws. 32' reel comes with (32) NV24S-MC-A mounting clips and screws.
Amber 3000K Blue Green Red .67" .47"
SideFlex Cutaway
SW-XT24/3.0
KAUFMAN LYNN
NeoVision24 SideFlex
Flexible Neon LED Tape Specification Sheet
PRODUCT OVERVIEW
A 24VDC high transmission, flexible linear ‘neon’ tape that is field cuttable and joinable. Designed for applications that require ultra-rich light and color saturation that is characteristic of neon. SideFlex enables horizontal bending that conforms tape around curvilinear surfaces.
FEATURES
•Multiple power feed options
•Tape encased in UV stable silicone (UV protected)
•Wireless control with LUXcontrol App and controller
•2700K, 3000K, 4000K / Amber, Blue, Green or R
•120° viewing angle
•Maximum run: 32'-8"
•Cuttable and joinable in two inch increments
•Each run requires an end cap (sold separately)
• No tools required for capping and joining
•Mounting clips included (recommend use one per foot)
SPECIFICATIONS
ELECTRICAL CERTIFICATION
•24VDC •UL
•3W per foot
•IP65
PHOTOMETRIC WARRANTY
•90+ CRI
•5 years when paired
AMBIENT OPERATING TEMP with GM power supply
•-13°F - 131°F
ORDERING INFORMATION
White
NV24S-3W-27K-16 16'-4" 215lm 2700K
NV24S-3W-27K-32 32'-8" 215lm 2700K
NV24S-3W-30K-16 16'-4" 230lm 3000K
NV24S-3W-30K-32 32'-8" 230lm 3000K
NV24S-3W-40K-16 16'-4" 215lm 4000K
NV24S-3W-40K-32 32'-8" 215lm 4000K
Colors
NV24S-3W-AM-16 16'-4" N/A Amber
NV24S-3W-AM-32 32'-8" N/A Amber
NV24S-3W-BL-16 16'-4" N/A Blue
NV24S-3W-BL-32 32'-8" N/A Blue
NV24S-3W-GR-16 16'-4" N/A Green
NV24S-3W-GR-32 32'-8" N/A Green
NV24S-3W-RD-16 16'-4" N/A Red
NV24S-3W-RD-32 32'-8" N/A Red
Max Run: 32'-8"
Kelvin temperature (color) ±100K.
NOTE: Every reel includes (1) NV24S-PF-EF (tape-to-power feed with 48" of lead). 16' reel includes (16) NV24S-MC-A mounting clips and screws. 32' reel comes with (32) NV24S-MC-A mounting clips and screws.
Amber 3000K Blue Green Red .67" .47"
SideFlex Cutaway
TYPE LT33 SPEC KAUFMAN LYNN
1400 PROFILE
The 1400 series is a rectangular and flangeless profile with a sleek and minimalist design. Integrate into different types of walls or ceilings, or recess within a flangeless drywall system for clean lines of light. The 1400 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• A channel for wire management, secure connections between channels, and pattern assembly
• Rece ssed flangeless installation with the Gypsum Groove drywall insert
• Motion sensor ready for static white and warm dim options
• Rece ss into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Mounting hardware for peace of mind integration
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suit able for storage and closet areas
USEFUL LINKS
KAUFMAN LYNN TYPE LT33 ALT
1400 PROFILE
The 1400 series is a rectangular and flangeless profile with a sleek and minimalist design. Integrate into different types of walls or ceilings, or recess within a flangeless drywall system for clean lines of light. The 1400 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• A channel for wire management, secure connections between channels, and pattern assembly
• Recessed flangeless installation with the Gypsum Groove drywall insert
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Mounting hardware for peace of mind integration
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
10 LENGTH*
Length of the luminaire in inches.
*Includes end caps, excludes flanges (when applicable). length
11 DRIVER TYPE
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
ACCESSORIES (OPTIONAL)
GYPSUM GROOVES Quantity
CG14012 - Gypsum groove, 1/2", 4'
CG14058 - Gypsum groove, 5/8", 4'
ACCESSORIES (OPTIONAL)
MOTION SENSORS*Quantity Note
SE05 - 30 sec., external
SI4 - 4 min., embedded
SE4 - 4 min., external
SI05 - 30 sec., embedded *All sensors are for dry location applications and are only compatible with non-dimmable drivers (PND)
SIP - proximity motion sensor
AID - Indoor dry locations
AIW - Indoor wet locations
For wet location applications, LED strip will be put inside a waterproof silicone sheath. † AIW option is not available for this selection
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainle ss steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Inter nal groove guide for easy application of LED strip when field installation is needed
• A selec tion of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• St ainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
PRODUCT FEATURES USEFUL
1
CA1201 - Anodized black finish
CA1202- White
CA120X - Custom color provide RAL #
2 MOUNTING
3
DCS - Clear lens
DXS - Optiflex lens
DOS - Opal lens
DRS - Prime lens
DBS -
4 LUMEN PACKAGE
LP100 - 1.5 W/ft - >130 lm/ft
LP200 - 2.9 W/ft - >200 lm/ft
LP300 - 4.4 W/ft - >300 lm/ft
LP450 - 5.8 W/ft - >450 lm/ft
LP750** - 7.0 W/ft - >550 lm/ft PRECISE
LE150* - 1.5 W/ft - >150 lm/ft
LE300 - 3.0 W/ft - >300 lm/ft
LE600 - 5.5 W/ft - >600 lm/ft NEAT
LT150†* - 2.0 W/ft - >150 lm/ft
LT300† - 3.0 W/ft - >300 lm/ft PEAK
LK900† - 7.5 W/ft - >900 lm/ft
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WPE - Pass-through, end feed
WPB - Pass-through, back feed
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
ACCESSORIES (OPTIONAL)
GYPSUM COVESQuantity
CGAP - Apsis, 8ft
CGLA - Latus, 8ft
CGNI - Nidus, 8ft
CGSU - Sulcus, 8ft
ACCESSORIES (OPTIONAL)
MOTION SENSORS*Quantity Note
SI05 - 30 sec., embedded
SE05 - 30 sec., external
SI4 - 4 min., embedded
SE4 - 4 min., external
SIP - proximity motion sensor
*All sensors are for dry location applications and are only compatible with non-dimmable drivers (PND)
5 CCT
K24 - 2400K
K27 - 2700K
K30 - 3000K
K35 - 3500K
K40 - 4000K
**K50 - 5000K (LP750 only)
*LE150 and LT150 are only available in K27 and K30
*Includes end caps, excludes flanges (when applicable). length
11 DRIVER TYPE
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
AID - Indoor dry locations
AIW - Indoor wet locations
For wet location applications, LED strip will be put inside a waterproof silicone sheath. † AIW option is not available for this selection
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
• Motion sensor ready for static white and warm dim options
• Rece ss into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainles s steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suit able for storage and closet areas
PRODUCT FEATURES USEFUL
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• St ainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
PRODUCT FEATURES USEFUL
1
CA1201 - Anodized black finish
CA1202- White
CA120X - Custom color provide RAL #
2 MOUNTING
3
DCS - Clear lens
DXS - Optiflex lens
DOS - Opal lens
DRS - Prime lens
DBS -
4 LUMEN PACKAGE
LP100 - 1.5 W/ft - >130 lm/ft
LP200 - 2.9 W/ft - >200 lm/ft
LP300 - 4.4 W/ft - >300 lm/ft
LP450 - 5.8 W/ft - >450 lm/ft
LP750** - 7.0 W/ft - >550 lm/ft PRECISE
LE150* - 1.5 W/ft - >150 lm/ft
LE300 - 3.0 W/ft - >300 lm/ft
LE600 - 5.5 W/ft - >600 lm/ft NEAT
LT150†* - 2.0 W/ft - >150 lm/ft
LT300† - 3.0 W/ft - >300 lm/ft PEAK
LK900† - 7.5 W/ft - >900 lm/ft
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WPE - Pass-through, end feed
WPB - Pass-through, back feed
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
ACCESSORIES (OPTIONAL)
GYPSUM COVESQuantity
CGAP - Apsis, 8ft
CGLA - Latus, 8ft
CGNI - Nidus, 8ft
CGSU - Sulcus, 8ft
ACCESSORIES (OPTIONAL)
MOTION SENSORS*Quantity Note
SI05 - 30 sec., embedded
SE05 - 30 sec., external
SI4 - 4 min., embedded
SE4 - 4 min., external
SIP - proximity motion sensor
*All sensors are for dry location applications and are only compatible with non-dimmable drivers (PND)
5 CCT
K24 - 2400K
K27 - 2700K
K30 - 3000K
K35 - 3500K
K40 - 4000K
**K50 - 5000K (LP750 only)
*LE150 and LT150 are only available in K27 and K30
*Includes end caps, excludes flanges (when applicable). length
11 DRIVER TYPE
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
AID - Indoor dry locations
AIW - Indoor wet locations
For wet location applications, LED strip will be put inside a waterproof silicone sheath. † AIW option is not available for this selection
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor re ady for static white and warm dim options
• Reces s into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lense s to meet task at hand
• Aluminum constr uction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
• Motion sensor ready for static white and warm dim options
• Rece ss into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainles s steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suit able for storage and closet areas
PRODUCT FEATURES USEFUL
1
CA1201 - Anodized black finish
CA1202- White
CA120X - Custom color provide RAL #
2 MOUNTING
3
DCS - Clear lens
DXS - Optiflex lens
DOS - Opal lens
DRS - Prime lens
DBS -
4 LUMEN PACKAGE
LP100 - 1.5 W/ft - >130 lm/ft
LP200 - 2.9 W/ft - >200 lm/ft
LP300 - 4.4 W/ft - >300 lm/ft
LP450 - 5.8 W/ft - >450 lm/ft
LP750** - 7.0 W/ft - >550 lm/ft PRECISE
LE150* - 1.5 W/ft - >150 lm/ft
LE300 - 3.0 W/ft - >300 lm/ft
LE600 - 5.5 W/ft - >600 lm/ft NEAT
LT150†* - 2.0 W/ft - >150 lm/ft
LT300† - 3.0 W/ft - >300 lm/ft PEAK
LK900† - 7.5 W/ft - >900 lm/ft
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WPE - Pass-through, end feed
WPB - Pass-through, back feed
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
ACCESSORIES (OPTIONAL)
GYPSUM COVESQuantity
CGAP - Apsis, 8ft
CGLA - Latus, 8ft
CGNI - Nidus, 8ft
CGSU - Sulcus, 8ft
ACCESSORIES (OPTIONAL)
MOTION SENSORS*Quantity Note
SI05 - 30 sec., embedded
SE05 - 30 sec., external
SI4 - 4 min., embedded
SE4 - 4 min., external
SIP - proximity motion sensor
*All sensors are for dry location applications and are only compatible with non-dimmable drivers (PND)
5 CCT
K24 - 2400K
K27 - 2700K
K30 - 3000K
K35 - 3500K
K40 - 4000K
**K50 - 5000K (LP750 only)
*LE150 and LT150 are only available in K27 and K30
*Includes end caps, excludes flanges (when applicable). length
11 DRIVER TYPE
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
AID - Indoor dry locations
AIW - Indoor wet locations
For wet location applications, LED strip will be put inside a waterproof silicone sheath. † AIW option is not available for this selection
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor read y for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construc tion for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor re ady for static white and warm dim options
• Reces s into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lense s to meet task at hand
• Aluminum constr uction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
1
CA1201 - Anodized black finish
CA1202- White
CA120X - Custom color provide RAL #
2 MOUNTING
3
DCS - Clear lens
DXS - Optiflex lens
DOS - Opal lens
DRS - Prime lens
DBS -
4 LUMEN PACKAGE
LP100 - 1.5 W/ft - >130 lm/ft
LP200 - 2.9 W/ft - >200 lm/ft
LP300 - 4.4 W/ft - >300 lm/ft
LP450 - 5.8 W/ft - >450 lm/ft
LP750** - 7.0 W/ft - >550 lm/ft PRECISE
LE150* - 1.5 W/ft - >150 lm/ft
LE300 - 3.0 W/ft - >300 lm/ft
LE600 - 5.5 W/ft - >600 lm/ft NEAT
LT150†* - 2.0 W/ft - >150 lm/ft
LT300† - 3.0 W/ft - >300 lm/ft PEAK
LK900† - 7.5 W/ft - >900 lm/ft
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WPE - Pass-through, end feed
WPB - Pass-through, back feed
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
ACCESSORIES (OPTIONAL)
GYPSUM COVESQuantity
CGAP - Apsis, 8ft
CGLA - Latus, 8ft
CGNI - Nidus, 8ft
CGSU - Sulcus, 8ft
ACCESSORIES (OPTIONAL)
MOTION SENSORS*Quantity Note
SI05 - 30 sec., embedded
SE05 - 30 sec., external
SI4 - 4 min., embedded
SE4 - 4 min., external
SIP - proximity motion sensor
*All sensors are for dry location applications and are only compatible with non-dimmable drivers (PND)
5 CCT
K24 - 2400K
K27 - 2700K
K30 - 3000K
K35 - 3500K
K40 - 4000K
**K50 - 5000K (LP750 only)
*LE150 and LT150 are only available in K27 and K30
*Based on 3000K, 80+ CRI. Performance varies for each specific beamspread and color temperature. See IES files for exact values at usailighting.com.
LIGHTING
845–234–4090
T: 845–565–8500 info@usailighting.com USAI LIGHTING COLLABORATORY 13 Crosby Street New York, NY 10013
1126 River Road New Windsor, NY 12553
Classic White
KAUFMAN LYNN TYPE LT37 ALT
NIOC-4RSP
4" Iolite Can-less Sloped Downlight
Source: 12W LED 1100lm
PRODUCT DESCRIPTION
4" Iolite can-less downlights can be installed in new construction or remodel applications. Slope downlights adjust up to 20° for ceilings with steep pitches.
FEATURES
Adjustable LED module (+/-10°) to accommodate ceiling pitches from 2/12 to 8/12
No housing required - IC Air-Tight rated
Easy installation for remodel or new construction applications
Variety of trim accessories to configure desired appearance
Quick disconnect allows for extended lengths
Dedicated CCT or Comfort Dim (warm dim)
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
cULus Listed for Wet Locations
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. Aluminum die-cast LED module is threaded to fit the trim and transfer heat.
Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.
Driver Box: Prewired junction box includes 7" quick connect wire to LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.
OPTICS
Each module includes field changeable optics (spot, narrow flood and flood - preinstalled)
ELECTRICAL
Input Voltage: 120VAC
Lumens / Wattage: 1100lm / 12W
Color Temperature: 2700K, 3000K, 3500K or 4000K
Color Rendering Index: 90+CRI
Operating Temperature: 0°-30°C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 750lm only Dimming: Triac or ELV
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2025
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted and TIR optics are also available.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Optic assembly includes optional frosted lens.
TRIM ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver accessory, no accessory holder required.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
TIR optics are not compatible with Comfort Dim LED modules or hex cell louver accessory.
MOUNTING ACCESSORIES
Iolite canless luminaires are ready to be installed out of the box. Additional mounting accessories can be used to assist during installation or extend length between driver box and luminaire.
Quick Connect Extension Cables
NCA-EW-4 4' Cable
NCA-EW-10 10' Cable
Use to extend the length between luminaire and driver box. Can be connected together to create custom lengths. Maximum length between luminaire and driver is 40'. For longer remote driver remote run length, consult factory.
New Construction Frame-In with Collar NFC-R430
New construction frame-in can be used to assist installing can-less recessed downlighting.
6505 Gayhart Street, Commerce, CA 90040 TEL 323.767.2600 www.noralighting.com e-mail: nora@noralighting.com
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
PRODUCT FEATURES USEFUL
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
PRODUCT FEATURES
• Motion sensor read y for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construc tion for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
1
CA1201 - Anodized black finish
CA1202- White
CA120X - Custom color provide RAL #
2 MOUNTING
3
DCS - Clear lens
DXS - Optiflex lens
DOS - Opal lens
DRS - Prime lens
DBS -
4 LUMEN PACKAGE
LP100 - 1.5 W/ft - >130 lm/ft
LP200 - 2.9 W/ft - >200 lm/ft
LP300 - 4.4 W/ft - >300 lm/ft
LP450 - 5.8 W/ft - >450 lm/ft
LP750** - 7.0 W/ft - >550 lm/ft PRECISE
LE150* - 1.5 W/ft - >150 lm/ft
LE300 - 3.0 W/ft - >300 lm/ft
LE600 - 5.5 W/ft - >600 lm/ft NEAT
LT150†* - 2.0 W/ft - >150 lm/ft
LT300† - 3.0 W/ft - >300 lm/ft PEAK
LK900† - 7.5 W/ft - >900 lm/ft
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WPE - Pass-through, end feed
WPB - Pass-through, back feed
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
ACCESSORIES (OPTIONAL)
GYPSUM COVESQuantity
CGAP - Apsis, 8ft
CGLA - Latus, 8ft
CGNI - Nidus, 8ft
CGSU - Sulcus, 8ft
ACCESSORIES (OPTIONAL)
MOTION SENSORS*Quantity Note
SI05 - 30 sec., embedded
SE05 - 30 sec., external
SI4 - 4 min., embedded
SE4 - 4 min., external
SIP - proximity motion sensor
*All sensors are for dry location applications and are only compatible with non-dimmable drivers (PND)
5 CCT
K24 - 2400K
K27 - 2700K
K30 - 3000K
K35 - 3500K
K40 - 4000K
**K50 - 5000K (LP750 only)
*LE150 and LT150 are only available in K27 and K30
*Includes end caps, excludes flanges (when applicable). length
11 DRIVER TYPE
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
AID - Indoor dry locations
AIW - Indoor wet locations
For wet location applications, LED strip will be put inside a waterproof silicone sheath. † AIW option is not available for this selection
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for e asy application of LED strip when field installation is needed
• A selection of lenses to meet t ask at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for stor age and closet areas
PRODUCT FEATURES USEFUL LINKS
The 1200 series is a rectangular and flangeless profile designed to meet the daily needs of linear accent lighting. The 1200 series offers a wide selection of lenses, mounting options, and LED platforms to choose from for a beautifully finished luminaire with end caps.
• Motion sensor ready for static white and warm dim options
• Recess into millwork using standard woodworking tools for a 0.75 in. (19 mm) groove
• Stainless steel mounting hardware for integration into most surfaces
• Custom lengths with precision to ¹/₁₆ (0.0625) inches
• Internal groove guide for easy application of LED strip when field installation is needed
• A selection of lenses to meet task at hand
• Aluminum construction for superior heat dissipation
• UL 2108 listed - Suitable for storage and closet areas
PRODUCT FEATURES USEFUL
1
CA1201 - Anodized black finish
CA1202- White
CA120X - Custom color provide RAL #
2 MOUNTING
3
DCS - Clear lens
DXS - Optiflex lens
DOS - Opal lens
DRS - Prime lens
DBS -
4 LUMEN PACKAGE
LP100 - 1.5 W/ft - >130 lm/ft
LP200 - 2.9 W/ft - >200 lm/ft
LP300 - 4.4 W/ft - >300 lm/ft
LP450 - 5.8 W/ft - >450 lm/ft
LP750** - 7.0 W/ft - >550 lm/ft PRECISE
LE150* - 1.5 W/ft - >150 lm/ft
LE300 - 3.0 W/ft - >300 lm/ft
LE600 - 5.5 W/ft - >600 lm/ft NEAT
LT150†* - 2.0 W/ft - >150 lm/ft
LT300† - 3.0 W/ft - >300 lm/ft PEAK
LK900† - 7.5 W/ft - >900 lm/ft
7 POWER FEED
FH3 - Hardwire, 3ft wire
FH6 - Hardwire, 6ft wire
FH9 - Hardwire, 9ft wire
FHX - Hardwire, custom length wire
FC3 - DC plug, 3ft wire
FC6 - DC plug, 6ft wire
FC9 - DC plug, 9ft wire
FCX - DC plug, custom length wire
8 INPUT / OUTPUT
WSE - Simple lead-in, end feed
WSB - Simple lead-in, back feed
WPE - Pass-through, end feed
WPB - Pass-through, back feed
9 EXACT/OPTIMAL
QE - Exact
QO - Optimal
Exact - length specified in section 10 with end caps without flanges
Optimal - length specified in section 10, rounded down to the closest LED cut section to minimize dark spots.
ACCESSORIES (OPTIONAL)
GYPSUM COVESQuantity
CGAP - Apsis, 8ft
CGLA - Latus, 8ft
CGNI - Nidus, 8ft
CGSU - Sulcus, 8ft
ACCESSORIES (OPTIONAL)
MOTION SENSORS*Quantity Note
SI05 - 30 sec., embedded
SE05 - 30 sec., external
SI4 - 4 min., embedded
SE4 - 4 min., external
SIP - proximity motion sensor
*All sensors are for dry location applications and are only compatible with non-dimmable drivers (PND)
5 CCT
K24 - 2400K
K27 - 2700K
K30 - 3000K
K35 - 3500K
K40 - 4000K
**K50 - 5000K (LP750 only)
*LE150 and LT150 are only available in K27 and K30
*Includes end caps, excludes flanges (when applicable). length
11 DRIVER TYPE
PND - Non-dimmable
P010 - 0-10V dimming
PPH - Phase (ELV / MLV) dimming
P5i1 - 5-in-1 (Phase / 0-10V) dimming
PDAL - DALI compatible driver
PDMX - DMX driver
PNO - No driver
AID - Indoor dry locations
AIW - Indoor wet locations
For wet location applications, LED strip will be put inside a waterproof silicone sheath. † AIW option is not available for this selection
BeveLED Mini® Complete - B3RA
3” Round Adjustable
Universal and Field Convertible - Trim | Trimless | Millwork Trimmed - B3RAF-25
Cone Trimmed: B3RAF-40 Trimless - B3RAL-25
usailighting.com/beveledmini
Cone Trimless: B3RAL-40 Millwork - B3RAM-25
Cone Millwork: B3RAM-40
Introducing new and improved BeveLED Mini, the smallest member of our iconic BeveLED family. BeveLED Mini has been infused with upgraded performance for superior light in every application. Now available with the following features, by popular demand: FEATURES
• Upgraded performance and more LED color options than ever before!
• New 2” Pinhole trim option
• Collar extenders offered standard to accept up to 2” thick ceilings
• Field Flexibility - it’s now easy to change trim in the field between trimmed, trimless and millwork
• Dry/damp/wet location rated for bathrooms and showers, including trimless and millwork
• More dimming options and all color technologies with Custom Color Select Tunable White ranges available
• High color rendering index with superior color quality for all LED color options
• Full family platform with iconic beveled look
• Doubler kit for repeatable two head fixture configuration installations
• Clear overspray protector for installation convenience
• Title 24 JA8 Qualified SKUs
ADJUSTABLE PERFORMANCE DATA*
See page 5-7 for our extensive range of performance values
Source Lumens: 1200 - 3000
Delivered Lumens: 450 - 2325
*Nominal values are based on 3000K. Performance varies for each See IES files for exact values at usailighting.com.
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Die-cast adjustable cone reflectors optimize visual cut-off and adjustable to aim the light source in desired direction.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages · 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: Refer to housing
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing s only.
LABELS AND LISTINGS
cULus Listed for Damp Locations
5-Year Limited Warranty RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
1126 River Road New Windsor, NY 12553 T: 845–565–8500 F: 845–561–1130 info@usailighting.com
1 Not available with M3D LED
2 Not available with X3 LED
3 Not available with Warm Glow (WG3) LED
4 Not available with Color Select (CS4) LED
5 Not available with NC1IC housing
6 Not available with AC or AB bevel finish
7 Not available with natatorium
above ceiling access for
10 Available with D30 dimming driver and NC1 housing only. Serviceable from below ceiling
11 Not available with 24W
12 Not available with FTA2 or NC1 integral driver housings. SA2 only.
13 Not available with SA2 or SA2IC housings
14 Not available with SA2 or SA2IC housings with -15- or -20- collar extenders
15 SA2 housing only. Not available with IC or CP housings. Serviceable from below ceiling
16 Not available with P08H pinhole trim Natatorium Corrosion Protection (optional) NT Natatorium triple-coat Corrosion resistant (available with “F” flanged trims and painted finishes only) * Leave blank for non Natatorium trims
ERP Trimode (0-10V and Phase 2-wire), 1% (1, 4, 11)
D19 Hatch Phase 2-wire, 1% (1, 3, 4)
D33 Moons' phase 2-wire, 1% (3, 4)
For use with Color Select only
D36T Moons 0-10V, 2-Channel for Color Select Tunable White only, 1% (1, 2, 3)
D37T Moons DALI2 DT8, 2-Channel for Color Select Tunable White only, 1% (1, 2, 3)
D38T Moons DMX, 2-Channel for Color
(1, 2, 3)
D32T Lutron Athena wireless node, 2-Channel for Color Select Tunable
only, 1% (1, 2, 3)
Warm Glow Dimming
KAUFMAN LYNN TYPE
NHIOICD-215 / NHIOICD-220 / NHIOICD-225
NHIOICDCP-215 / NHIOICDCP-220 / NHIOICDCP-225
2" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO-2 EXTC2) is available for ceiling thickness up to 2 " (Maximum ceiling thickness of 2" for all installations, including trimless)
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Air tight in accordance to ASTM E283 (<2 cubic feet per minute)
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90 ° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Access above ceiling required. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
· cULus Listed for Damp Locations (Wet Locations when used with compatible trim)
· 5-Year Limited Warranty RoHS compliant
· FCC compliant Airtight in accordance to ASTM E283 Patented (noralighting.com/patents)
2" Iolite ICAT High Lumen New Construction Housing - Compatible with NIOB-2 & NIO-2 trims
Housing Type / Lumens / Wattage
NHIOICD-215 = IC Air-Tight, 1500lm / 20W
NHIOICDCP-215 = Chicago Plenum, 1500lm / 20W
NHIOICD-220 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-220 = Chicago Plenum, 2000lm / 24W
NHIOICD-225 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-225 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
Optional Accessories
Description NEPK-07LEDUNV = Remote Emergency Battery w/Test Switch NIO-2EXTC2 = Ceiling Extension Collar up to 2"
BeveLED Mini® Complete - B3RA
3” Round Adjustable
Introducing new and improved BeveLED Mini, the smallest member of our iconic BeveLED family. BeveLED Mini has been infused with upgraded performance for superior light in every application. Now available with the following features, by popular demand: FEATURES
• Upgraded performance and more LED color options than ever before!
• New 2” Pinhole trim option
• Collar extenders offered standard to accept up to 2” thick ceilings
• Field Flexibility - it’s now easy to change trim in the field between trimmed, trimless and millwork
• Dry/damp/wet location rated for bathrooms and showers, including trimless and millwork
• More dimming options and all color technologies with Custom Color Select Tunable White ranges available
• High color rendering index with superior color quality for all LED color options
• Full family platform with iconic beveled look
• Doubler kit for repeatable two head fixture configuration installations
• Clear overspray protector for installation convenience
• Title 24 JA8 Qualified SKUs
See page 5-7 for our extensive range of performance values
Source Lumens: 1200 - 3000 1625 -
Delivered Lumens: 450 - 2325
*Nominal values are based on 3000K. Performance varies for each specific beamspread and color temperature See IES files for exact values at usailighting.com.
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes stainless steel friction clips to mount securely to trimless mud ring. Mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2. A mud ring (NIO-TLMR-4R) or flange accessory (NIO-4RTFA) is required per trimless.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
10 Available with D30 dimming driver and NC1 housing only. Serviceable from below ceiling
11 Not available with 24W
12 Not available with FTA2 or NC1 integral driver housings. SA2 only.
13 Not available with SA2 or SA2IC housings
14 Not available with SA2 or SA2IC housings with -15- or -20- collar extenders
15 SA2 housing only. Not available with IC or CP housings. Serviceable from below ceiling
16 Not available with P08H pinhole trim Natatorium Corrosion Protection (optional) NT Natatorium triple-coat Corrosion resistant (available with “F” flanged trims and painted finishes only) * Leave blank for non Natatorium trims
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Replacement optics include an optional frosted lens. Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Die-cast Trim
Optic assembly includes optional frosted lens. 23°, 38° and 55° optics are included with 800lm and 1000lm luminaires.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.

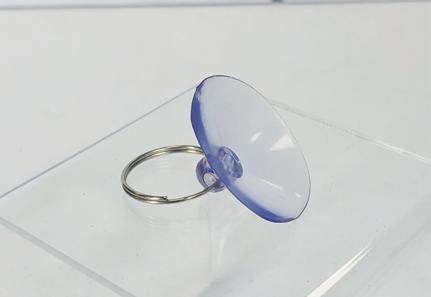

Suction Cup
NIO-TLSUCTION
Assist removing trimless downlight from finished ceiling after installation.
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
Accessory
Die-cast Trim
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
TRIMLESS MUD RING
4" Iolite trimless has no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
FLANGE ACCESSORY
4" Iolite trimless can be converted into flanged trim. Flange accessory allows trim to be used with remodel and new construction housings. Accessory does not require mud ring or professional drywall installation.
Mud Ring
NIO-TLMR-4RA Round Mud Ring
Mounts trimless reflector with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-48, NHIOICDCP-48 new construction housings and NIO-4RTLNDC.
4" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direc t contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2 " (Maximum ceiling thickness of 2" for all installations, including trimless)
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Air tight in accordance to ASTM E283 (<2 cubic feet per minute)
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90 ° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notc h allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) 5-Year Limited Warranty RoHS compliant FCC compliant Airtight in accordance to ASTM E283 Patented (noralighting.com/patents)
Ceiling Cut-Out
4" Iolite ICAT High Lumen New Construction Housing - Compatible with NIO-4 trims (except PLUS square trims)
= IC
1500lm / 20W
= Chicago Plenum, 1500lm / 20W
NHIOICD-420 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum, 2000lm / 24W
NHIOICD-425 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
DAL = 120-277V input; DALI 1% dimming
Example: NHIOICD-420LE4 = 4" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
Introducing new and improved BeveLED Mini, the smallest member of our iconic BeveLED family. BeveLED Mini has been infused with upgraded performance for superior light in every application. Now available with the following features, by popular demand: FEATURES
• Upgraded performance and more LED color options than ever before!
• New 2” Pinhole trim option
• Collar extenders offered standard to accept up to 2” thick ceilings
• Field Flexibility - it’s now easy to change trim in the field between trimmed, trimless and millwork
• Dry/damp/wet location rated for bathrooms and showers, including trimless and millwork
• More dimming options and all color technologies with Custom Color Select Tunable White ranges available
• High color rendering index with superior color quality for all LED color options
• Full family platform with iconic beveled look
• Doubler kit for repeatable two head fixture configuration installations
• Clear overspray protector for installation convenience
• Title 24 JA8 Qualified SKUs
See page 5-7 for our extensive range of performance values
Source Lumens: 1200 - 3000
Delivered Lumens: 450 - 2325
*Nominal values are based on 3000K. Performance varies for each specific beamspread and color temperature. See IES files for exact values at usailighting.com.
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes stainless steel friction clips to mount securely to trimless mud ring. Mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2. A mud ring (NIO-TLMR-4R) or flange accessory (NIO-4RTFA) is required per trimless.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
10 Available with D30 dimming driver and NC1 housing only. Serviceable from below ceiling
11 Not available with 24W
12 Not available with FTA2 or NC1 integral driver housings. SA2 only.
13 Not available with SA2 or SA2IC housings
14 Not available with SA2 or SA2IC housings with -15- or -20- collar extenders
15 SA2 housing only. Not available with IC or CP housings. Serviceable from below ceiling
16 Not available with P08H pinhole trim Natatorium Corrosion Protection (optional) NT Natatorium triple-coat Corrosion resistant (available with “F” flanged trims and painted finishes only) * Leave blank for non Natatorium trims
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Replacement optics include an optional frosted lens. Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Die-cast Trim
Optic assembly includes optional frosted lens. 23°, 38° and 55° optics are included with 800lm and 1000lm luminaires.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Suction Cup
NIO-TLSUCTION
Assist removing trimless downlight from finished ceiling after installation.
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
Accessory
Die-cast Trim
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
TRIMLESS MUD RING
4" Iolite trimless has no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
FLANGE ACCESSORY
4" Iolite trimless can be converted into flanged trim. Flange accessory allows trim to be used with remodel and new construction housings. Accessory does not require mud ring or professional drywall installation.
Mud Ring
NIO-TLMR-4RA Round Mud Ring
Mounts trimless reflector with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-48, NHIOICDCP-48 new construction housings and NIO-4RTLNDC.
4" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direc t contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2 " (Maximum ceiling thickness of 2" for all installations, including trimless)
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Air tight in accordance to ASTM E283 (<2 cubic feet per minute)
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90 ° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notc h allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) 5-Year Limited Warranty RoHS compliant FCC compliant Airtight in accordance to ASTM E283 Patented (noralighting.com/patents)
Ceiling Cut-Out
4" Iolite ICAT High Lumen New Construction Housing - Compatible with NIO-4 trims (except PLUS square trims)
= IC
1500lm / 20W
= Chicago Plenum, 1500lm / 20W
NHIOICD-420 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum, 2000lm / 24W
NHIOICD-425 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
DAL = 120-277V input; DALI 1% dimming
Example: NHIOICD-420LE4 = 4" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
/EM2 = Integrated Emergency w/Remote Test Switch
/PEM = Pre-Wired for Remote (not compatible with NHIOICDCP)
NIO-4EXTC2 = Ceiling Extension Collar up to 2" NIO-4WCC2 = Wood Ceiling Collar up to 2"
BeveLED Mini® Complete - B3RA
3” Round Adjustable
Introducing new and improved BeveLED Mini, the smallest member of our iconic BeveLED family. BeveLED Mini has been infused with upgraded performance for superior light in every application. Now available with the following features, by popular demand: FEATURES
• Upgraded performance and more LED color options than ever before!
• New 2” Pinhole trim option
• Collar extenders offered standard to accept up to 2” thick ceilings
• Field Flexibility - it’s now easy to change trim in the field between trimmed, trimless and millwork
• Dry/damp/wet location rated for bathrooms and showers, including trimless and millwork
• More dimming options and all color technologies with Custom Color Select Tunable White ranges available
• High color rendering index with superior color quality for all LED color options
• Full family platform with iconic beveled look
• Doubler kit for repeatable two head fixture configuration installations
• Clear overspray protector for installation convenience
• Title 24 JA8 Qualified SKUs
See page 5-7 for our extensive range of performance values
Source Lumens: 1200 - 3000
Delivered Lumens: 450 - 2325
*Nominal values are based on 3000K. Performance varies for each specific beamspread and color temperature. See IES files for exact values at usailighting.com.
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes stainless steel friction clips to mount securely to trimless mud ring. Mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2. A mud ring (NIO-TLMR-4R) or flange accessory (NIO-4RTFA) is required per trimless.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
12 Not available with FTA2 or NC1 integral driver housings. SA2 only.
13 Not available with SA2 or SA2IC housings
14 Not available with SA2 or SA2IC housings with -15- or -20- collar extenders
15 SA2 housing only. Not available with IC or CP housings. Serviceable from below ceiling
16 Not available with P08H pinhole trim Natatorium Corrosion Protection (optional) NT Natatorium triple-coat Corrosion resistant (available with “F” flanged trims and painted finishes only) * Leave blank for non Natatorium trims
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Replacement optics include an optional frosted lens. Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Die-cast Trim
Optic assembly includes optional frosted lens. 23°, 38° and 55° optics are included with 800lm and 1000lm luminaires.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Suction Cup
NIO-TLSUCTION
Assist removing trimless downlight from finished ceiling after installation.
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
Accessory
Die-cast Trim
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
TRIMLESS MUD RING
4" Iolite trimless has no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
FLANGE ACCESSORY
4" Iolite trimless can be converted into flanged trim. Flange accessory allows trim to be used with remodel and new construction housings. Accessory does not require mud ring or professional drywall installation.
Mud Ring
NIO-TLMR-4RA Round Mud Ring
Mounts trimless reflector with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-48, NHIOICDCP-48 new construction housings and NIO-4RTLNDC.
4" Iolite IC Air-Tight High Lumen New Construction Housing Source: 20W to 28W LED 1500lm to 2500lm PRODUCT
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direc t contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2 " (Maximum ceiling thickness of 2" for all installations, including trimless)
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Air tight in accordance to ASTM E283 (<2 cubic feet per minute)
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90 ° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notc h allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations (Wet Locations when used with compatible trim) 5-Year Limited Warranty RoHS compliant FCC compliant Airtight in accordance to ASTM E283 Patented (noralighting.com/patents)
Ceiling Cut-Out
4" Iolite ICAT High Lumen New Construction Housing - Compatible with NIO-4 trims (except PLUS square trims)
NHIOICD-415 = IC Air-Tight, 1500lm / 20W NHIOICDCP-415 = Chicago Plenum, 1500lm / 20W
NHIOICD-420 = IC Air-Tight, 2000lm / 24W
NHIOICDCP-420 = Chicago Plenum, 2000lm / 24W
NHIOICD-425 = IC Air-Tight, 2500lm / 28W
NHIOICDCP-425 = Chicago Plenum, 2500lm / 28W
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
LUPEQ = 120/277V input; Lutron Hi-lume Premier 0.1% EcoSystem with Soft-On, Fade-to-Black (consult factory)
DAL = 120-277V input; DALI 1% dimming
LE4 = 120/277V input; Triac / ELV / 0-10V dimming
DAL = 120-277V input; DALI 1% dimming
Example: NHIOICD-420LE4 = 4" Iolite ICAT High Lumen New Construction Housing, 2000lm / 24W, 120-277V
NIO-4EXTC2 = Ceiling Extension Collar up to 2" NIO-4WCC2 = Wood Ceiling Collar up to 2"
BeveLED Mini® Complete - B3RD
3” Round Downlight
Universal and Field Convertible - Trim | Trimless | Millwork
Trimmed - B3RDF
usailighting.com/beveledmini
Trimless - B3RDL
Millwork - B3RDM
Introducing new and improved BeveLED Mini, the smallest member of our iconic BeveLED family. BeveLED Mini has been infused with upgraded performance for superior light in every application. Now available with the following features, by popular demand: FEATURES
• Upgraded performance and more LED color options than ever before!
• New 2” Pinhole trim option
• Collar extenders offered standard to accept up to 2” thick ceilings
• Field Flexibility - it’s now easy to change trim in the field between trimmed, trimless and millwork
• Dry/damp/wet location rated for bathrooms and showers, including trimless and millwork
• More dimming options and all color technologies with Custom Color Select Tunable White ranges available
• High color rendering index with superior color quality for all LED color options
• Full family platform with iconic beveled look
• Doubler kit for repeatable two head fixture configuration installations
• Clear overspray protector for installation convenience
• Title 24 JA8 Qualified SKUs
See page 5-7 for our extensive range of performance values
*Nominal values are based on 3000K. Performance varies for each specific beamspread and color
See IES files for exact
at
Warm Glow Dimming
Color Select
Pinhole Trimmed: B3RDF-P08H
KAUFMAN LYNN TYPE LT41C
NIOB-2RNB
2" Iolite Round Bullnose
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
2" Iolite downlights can be specified for use with Iolite new construction or remodel housings. Bullnose with a filleted aperture which allows for minimal aperture brightness while still producing the nadir footcandles.
FEATURES
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages
· 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) is also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Luminaire includes friction blades to mount securely to housing.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available. 1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-28 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-28 Chicago Plenum 800-1000lm / 14W
NHRIOIC-28 ICAT Remodel 800-1000lm / 14W
NHIOICD-215 ICAT New Construction 1500lm / 20W
NHIOICDCP-215 Chicago Plenum 1500lm / 20W
NHIOICD-220 ICAT New Construction 2000lm / 24W
NHIOICDCP-220 Chicago Plenum 2000lm / 24W
NHIOICD-225 ICAT New Construction 2500lm / 28W
NHIOICDCP-225 Chicago Plenum 2500lm / 28W
Accessories: Luminaires will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see accessories page. Flush mount mud ring is available to give the appearance of a trimless, compatible with new construction housing only.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
NIOB-2RNBCDX = Comfort Dim † /10 = 1000lm / 14W /HL = 1500-2500lm (varies by housing) * 5000K LED modules in 800lm are while supplies last † Comfort Dim available in 800lm & /HL only, 1" Iolite uses a different dimming curve than 2" & 4" Iolite
New Construction All-in-One, Insulation Contact Rated (15)
NC1CP
New Construction All-in-One, Chicago Plenum
Extended Collar for Thick Ceilings (leave blank for standard collar, accepts 1” thick ceiling maximum) 15 Extended collar accepts up to 1.5” thick ceilings maximum
Dimming Driver Options
For use with Universal Voltage 120V - 277V No Additional Charge D6E EldoLED 0-10V, 1% (4) D6F EldoLED 0-10V, 1% (4)
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Optional frosted optics are available. Note: Frosted optics and Premium TIR optics are not compatible with /HL LED modules.
LED Module
Frosted Optics
NIO-REFL38FR 60° Optic
ACCESSORIES
Optic
NIO-REFL60FR 73° Optic
Not compatible with /HL LED module.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Die-cast Trim
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
FLUSH MOUNT
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
2" Iolite downlights can be installed flush with the drywall for a flush mount appearance. A flush mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
Flush Mount Mud Ring
NIO-FMMR-2R Round Mud Ring
Mounts trim flush to ceiling with trim flange visible. Mud ring attaches to drywall. Requires and only for use with NHIOICD-28 or NHIOICDCP-28 new construction housings and NIOB-2R trim. Dimensions: 7-7/8" diameter 1/2" thick
Universal and Field Convertible - Trim | Trimless | Millwork
Trimmed - B3RDF
usailighting.com/beveledmini
Trimless - B3RDL
Millwork - B3RDM
Introducing new and improved BeveLED Mini, the smallest member of our iconic BeveLED family. BeveLED Mini has been infused with upgraded performance for superior light in every application. Now available with the following features, by popular demand: FEATURES
• Upgraded performance and more LED color options than ever before!
• New 2” Pinhole trim option
• Collar extenders offered standard to accept up to 2” thick ceilings
• Field Flexibility - it’s now easy to change trim in the field between trimmed, trimless and millwork
• Dry/damp/wet location rated for bathrooms and showers, including trimless and millwork
• More dimming options and all color technologies with Custom Color Select Tunable White ranges available
• High color rendering index with superior color quality for all LED color options
• Full family platform with iconic beveled look
• Doubler kit for repeatable two head fixture configuration installations
• Clear overspray protector for installation convenience
• Title 24 JA8 Qualified SKUs
See page 5-7 for our extensive range of performance values
*Nominal values are based on 3000K. Performance varies for each specific beamspread and color
See IES files for exact
at
Warm Glow Dimming
Color Select
Pinhole Trimmed: B3RDF-P08H
KAUFMAN LYNN TYPE LT42
NIO-4RTLNDC
4" Iolite Round Trimless Downlight
Source: 14W to 28W LED 800lm to 2500lm
PRODUCT DESCRIPTION
4" Trimless Iolite downlights have no exposed trim flange and do not extend beyond the ceiling plane. Iolite Trimless requires a Trimless Mud Ring and New Construction housing. Deep regressed cone reflectors optimize visual cut-off.
FEATURES
Trimless knife edge appearance
800lm, 1000lm, 1500lm, 2000lm or 2500lm LED packages 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
Comfort Dim (warm dimming) also available
Flood optic, narrow flood and spot optics (included)
5-Year limited warranty
SPECIFICATION
Construction: Trims are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting: Luminaire includes stainless steel friction clips to mount securely to trimless mud ring. Mud ring is required per trimless downlight.
OPTICS
800-1000lm: Three field changeable optics (spot, narrow flood and flood) are included with each LED module. Premium 10° TIR narrow spot optic assembly also available (Click Here for more information). Optional frosted and TIR optics are also available.
1500-2500lm: Three field changeable TIR optics (spot, narrow flood and flood) are included with each LED module.
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90+CRI
Operating Temperature: 0˚C to 40˚C
Lifetime: 50,000 hours @ L70
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K (800lm) or 3000K (HL), to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm or HL (1500lm-2500lm).
Dimming: Specified by housing
COMPATIBLE HOUSINGS
Luminaires are compatible with respective Iolite housings manufactured by Nora Lighting.
CATALOG NO. DESCRIPTION LUMENS / WATTAGE
NHIOICD-48 ICAT New Construction 800-1000lm / 14W
NHIOICDCP-48 Chicago Plenum 800-1000lm / 14W
NHIOICD-415 ICAT New Construction 1500lm / 20W
NHIOICDCP-415 Chicago Plenum 1500lm / 20W
NHIOICD-420 ICAT New Construction 2000lm / 24W
NHIOICDCP-420 Chicago Plenum 2000lm / 24W
NHIOICD-425 ICAT New Construction 2500lm / 28W
NHIOICDCP-425 Chicago Plenum 2500lm / 28W
Accessories: Luminaire will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2. A mud ring (NIO-TLMR-4R) or flange accessory (NIO-4RTFA) is required per trimless.
LABELS AND LISTINGS
cULus Listed for Wet Locations
5-Year Limited Warranty
RoHS Compliant
Certified to the high efficacy requirements of California Title 24 JA8-2022
New Construction All-in-One, Insulation Contact Rated (15)
NC1CP
New Construction All-in-One, Chicago Plenum
Extended Collar for Thick Ceilings (leave blank for standard collar, accepts 1” thick ceiling maximum) 15 Extended collar accepts up to 1.5” thick ceilings maximum
Dimming Driver Options
For use with Universal Voltage 120V - 277V No Additional Charge D6E EldoLED 0-10V, 1% (4) D6F EldoLED 0-10V, 1% (4)
Iolite luminaires include spot, narrow flood and flood optics. Optics can be changed in the field by removing LED module from die-cast trim. Replacement optics include an optional frosted lens. Note: Frosted and Premium TIR optics are not compatible with /HL LED modules.
Frosted Optics
NIO-REFL38FR 60° Optic
NIO-REFL60FR 73° Optic
Die-cast Trim
Optic assembly includes optional frosted lens. 23°, 38° and 55° optics are included with 800lm and 1000lm luminaires.
Premium TIR Optics
NIO-REFLTIR15 22° Optic
NIO-REFLTIR25 26° Optic
Not compatible with /HL, Comfort Dim (CDX) LED modules or Hex Cell Louver.
10° TIR Optic Assembly
Specialized narrow spot LED module assembly is also available. Requires LE4 housing, Click Here for more information.
Suction Cup
NIO-TLSUCTION
Assist removing trimless downlight from finished ceiling after installation.
ACCESSORIES
Iolite accessories can be added at any point in the design process. Accessories easily install between LED module and die-cast trim. Luminaire will accommodate (1) hex louver and (1) collar accessory, no accessory holder required.
Translucent Decorative Collar
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
Accessory
Die-cast Trim
NIO-AS26(color) 1" length
Color:
AM (amber), BLU (blue), FR (frosted), R (red)
Translucent collars color the aperture with the specified color while producing white general light. Collars are available in different lengths. Use to add interest, create a theme, match a theme or define a space.
Opaque Collar Snoot
NIO-AS14(color) 5/8" length
NIO-AS19(color) 3/4" length
NIO-AS26(color) 1" length
Color:
MPW (matte powder white), WH (white)
Opaque snoot greatly reduces aperture brightness while preserving light output.
Hex Cell Louver
NIO-HC Black
Hex cell louver subtly reduces aperture brightness by reducing light output by about 20%.
Hex cell louver is not compatible with TIR optics.
TRIMLESS MUD RING
4" Iolite trimless has no exposed trim flange and the result is a minimalist knife edge appearance. A trimless mount mud ring is installed after the drywall and a professional drywall finisher floats the ceiling to blend in the mud ring.
FLANGE ACCESSORY
4" Iolite trimless can be converted into flanged trim. Flange accessory allows trim to be used with remodel and new construction housings. Accessory does not require mud ring or professional drywall installation.
Mud Ring
NIO-TLMR-4RA Round Mud Ring
Mounts trimless reflector with no exposed flange and no extension beyond ceiling plane. Mud ring attaches to drywall. Only for use with NHIOICD-48, NHIOICDCP-48 new construction housings and NIO-4RTLNDC.
4" Iolite IC Air-Tight High Lumen New Construction Housing
Source: 20W to 28W LED 1500lm to 2500lm PRODUCT
PRODUCT DESCRIPTION
New construction housing for use in insulated ceilings can be in direc t contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.
SPECIFICATION
Housing: 0.040 " Aluminum housing can be installed in 1/2" ceiling thickness, an extension collar (NIO- 4 EXTC2) is available for ceiling thickness up to 2 " (Maximum ceiling thickness of 2" for all installations, including trimless)
Patented Driver Assembly: Allows driver to slide out of housing without tools from the room side Housing includes a removable top cover for driver maintenance above the ceiling.
Air Flow Restriction: Air tight in accordance to ASTM E283 (<2 cubic feet per minute)
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13- 3/4" to 24- 1/2 " adjustable bar hangers with captive nails are included on housing. Bar hanger brackets are parallel to junction box, but can be repositioned 90 ° perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notc h allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel box with seven 1/2 " knockouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box Junction box is accessible from the room side through housing opening.
Romex Strain Relief: Junction box includes two Romex tabs with two slots at each tab for NM-cables of 12/2 to 14/2. The strain relief allows for easy installation and less materials.
Pre-Wired: Housing can be specified with connections for emergency battery installation. Requires access above ceiling. Must specify battery with remote test switch separately (NEPK- 07LEDUNV ).
Note: Pre-Wired is not compatible with Chicago Plenum housings Integrated: Compact emergency driver is mounted directly to the junction box. Access above ceiling required 90 minute illumination time with 6W output in emergency mode. Battery requires 24 hours to recharge and consumes 3W when charging. Remote test switch and 3' cable included.
LABELS AND LISTINGS
cULus Listed for Damp Locations
(Wet Locations when used with compatible trim) 5-Year Limited Warranty RoHS compliant FCC compliant Airtight in accordance to ASTM E283 Patented (noralighting.com/patents)
Ceiling Cut-Out
